Eastman Kodak Company
343 State Street
Rochester, New York 14650
© Eastman Kodak Company, 2004
All screen images are simulated.
Kodak and EasyShare are trademarks of Eastman Kodak Company.
P/N 4J1082
Product features
i
Top, Front View
1 Wrist strap post 8 Flash unit
2 Zoom (Wide angle/Telephoto);
Magnify (when Reviewing pictures)
9Viewfinder
3 Shutter button 10 Lens
4 Flash Setting button 11 Microphone
5 Close-up/Landscape button 12 Light sensor
6 Exposure Bracketing/Burst button 13 Self Timer/Video light
7 Speaker
4
3
1
6
2
5
10
7
8
9
111213
Product features
ii
Side, Back View
Bottom View
1 A/V Out, for television viewing 9 Review button
2 USB Port 10 Jog dial
3 DC-In (5V) 11 Share button
4 Display/Info button 12 Mode dial lock
5 Ready light 13 Joystick - move
OK - press in
6 Viewfinder
7 Delete button 14 Mode dial
8 Menu button 15 Power ring
16 Camera screen (LCD)
1 Dock connector
2 Tripod socket/locator for EasyShare camera dock or printer dock
3 Battery door, MMC/SD card slot
3 2
4
7 8 9
14
16
1
13
6
5
10
11
12
15
2
1
3
iii
Table of contents 1
1 Getting started ...........................................................................1
Package contents.............................................................................. 1
Installing the software first................................................................ 1
Charging the battery ......................................................................... 2
Inserting the battery.......................................................................... 2
Important battery information ........................................................... 3
Turning the camera on and off .......................................................... 4
Setting the date and time.................................................................. 5
Checking camera and picture status .................................................. 6
Storing pictures on an SD/MMC card ................................................. 7
2 Taking pictures and videos ......................................................... 8
Taking a picture ................................................................................ 8
Taking a video .................................................................................. 9
Reviewing the picture or video just taken......................................... 10
Using optical zoom ......................................................................... 10
Using digital zoom .......................................................................... 11
Camera modes................................................................................ 11
Using the flash................................................................................ 16
Shooting close-up and landscape pictures........................................ 18
Using exposure bracketing .............................................................. 19
Using burst ..................................................................................... 20
Changing picture-taking settings ..................................................... 21
Using setup to customize your camera............................................. 25
Pre-tagging for album names .......................................................... 27
3 Reviewing pictures and videos ................................................. 28
Viewing single pictures and videos .................................................. 28
Viewing multiple pictures and videos............................................... 28
Playing a video................................................................................ 29
Deleting pictures and videos............................................................ 29
Magnifying pictures......................................................................... 30
Changing optional review settings................................................... 30
Protecting pictures and videos from deletion.................................... 31
Tagging pictures/videos for albums.................................................. 31
Running a slide show ...................................................................... 32
Displaying pictures and videos on a television.................................. 33
Copying pictures and videos............................................................ 34
Viewing picture/video information ................................................... 34
iv
4 Installing the software ............................................................. 35
Minimum system requirements........................................................ 35
Install the software ......................................................................... 36
5 Sharing pictures and videos ..................................................... 37
When can I tag my pictures and videos?.......................................... 37
Tagging pictures for printing............................................................ 38
Tagging pictures and videos for emailing ......................................... 39
Tagging pictures as favorites ........................................................... 40
6 Transferring and printing pictures ............................................ 42
Transferring pictures/videos with the USB cable ............................... 42
Printing pictures from your computer............................................... 43
Ordering prints online ..................................................................... 43
Printing from an optional SD/MMC card .......................................... 43
Printing without a computer............................................................ 43
7 Troubleshooting ....................................................................... 44
Camera problems............................................................................ 44
Computer/connectivity problems...................................................... 45
Picture quality problems.................................................................. 45
Camera ready light status................................................................ 46
8 Getting help ............................................................................. 48
Helpful links.................................................................................... 48
Software help.................................................................................. 48
Telephone customer support ........................................................... 48
9 Appendix .................................................................................. 50
Camera specifications ..................................................................... 50
Tips, safety, maintenance................................................................ 53
Storage capacities ........................................................................... 53
Power-saving features..................................................................... 54
Upgrading your software and firmware............................................ 55
Regulatory compliance .................................................................... 55
1
1 Getting started
Package contents
Not shown: User’s guide (may be provided on a CD), Start Here! guide,
Kodak EasyShare software CD. Contents may change without notice.
Installing the software first
IMPORTANT:
Install the software from the Kodak EasyShare software CD before
connecting the camera (or dock) to the computer. Otherwise, the
software may install incorrectly. See the Start Here! guide or
Installing the software, page 35.
1 Camera with wrist strap 4 Lens cap
2 Custom dock insert (for EasyShare
camera dock or printer dock)
5 Audio/Video cable (for viewing
pictures and videos on television)
3 Li-Ion rechargeable battery and charger 6 USB cable
1
52
3
4
6
Getting started
2

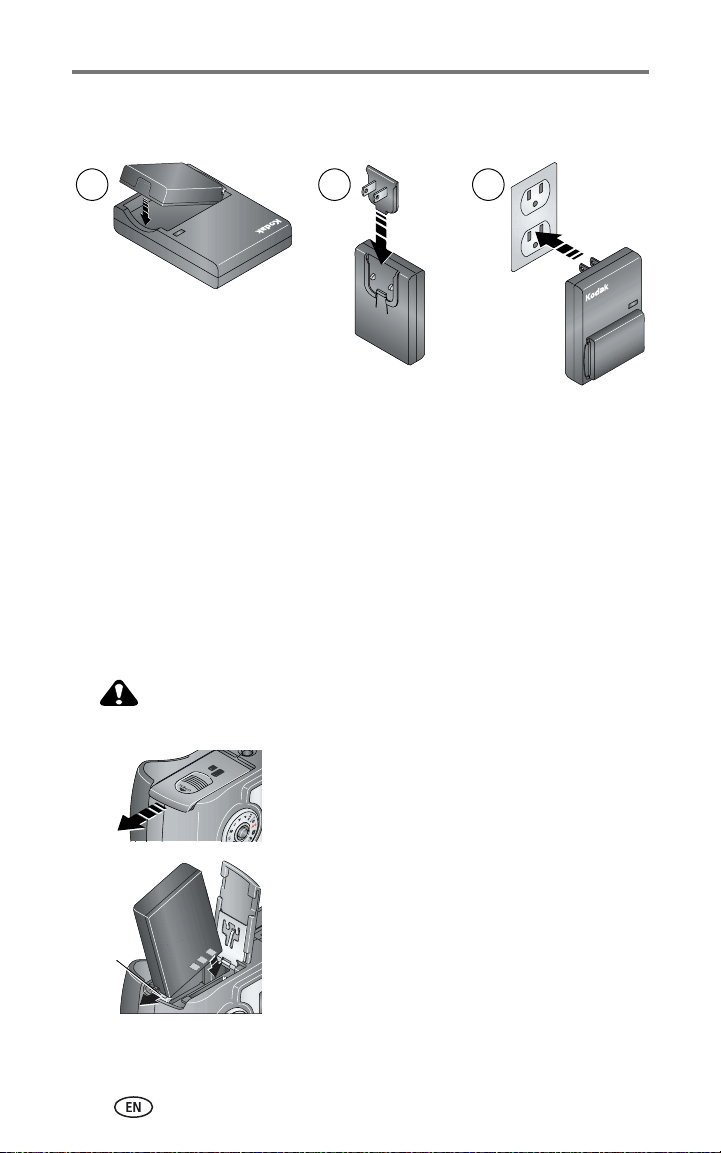

Charging the battery
The Li-Ion rechargeable battery requires charging before first use.
1 Insert the battery into the charger.
2 Insert the plug that matches your electrical outlet.
3 Plug the charger into the outlet.
The indicator light turns red. When the indicator light turns green, remove the
battery and unplug the charger. Charging takes approximately 3 hours.
You can also charge the battery using an optional Kodak EasyShare printer
dock or camera dock. Purchase these and other accessories at a dealer of
Kodak products or visit www.kodak.com/go/accessories.
Inserting the battery
CAUTION:
Use only a Kodak EasyShare Li-Ion rechargeable battery.
1 Turn the Mode dial to Off.
2 On the bottom of the camera, slide the battery
door and lift to open.
3 Insert the battery as shown. Tilt the battery so
the battery lock is pushed to the side. Push
the battery into the battery compartment.
The battery lock holds the battery in place.
4 Close the battery door.
1 2 3
Battery
lock
Getting started
3
Important battery information
Kodak battery replacement types/battery life
Actual battery life may vary based on usage.
We recommend using only a Kodak EasyShare Li-Ion rechargeable battery.
Not all manufacturers’ 3.7V Li-Ion rechargeable batteries are compatible with
the camera. Damage caused by unauthorized accessories is not covered under
warranty.
Extending battery life
■ Limit the following activities that deplete battery power:
– Reviewing your pictures on the camera screen
– Using the camera screen as a viewfinder
– Excessive use of the flash
■ Dirt on the battery contacts can affect battery life. Wipe the contacts with a
clean, dry cloth before inserting a battery in the camera.
■ Battery performance is reduced at temperatures below 41° F (5° C). When
using your camera in cold weather, carry spare batteries and keep them
warm. Do not discard cold batteries that do not work; when they return to
room temperature, they may be usable.
Visit www.kodak.com/go/dx7630accessories for:
Kodak EasyShare camera dock—powers your camera, transfers pictures
to your computer, and charges your battery.
Kodak EasyShare printer dock—powers your camera, makes
4 x 6 in. (10 x 15 cm) prints with or without a computer, transfers pictures,
and charges your battery.
Kodak 5-volt AC adapter—powers your camera.
0 400
275-325
160-210
Li-Ion rechargeable battery,
Battery Lif
e (Approx. number of pictures)
1700 mAh (included with camera)
Li-Ion rechargeable battery,
1050 mAh
Getting started
4
Battery safety and handling
■ Do not allow batteries to touch metal objects, including coins. Otherwise, a
battery may short circuit, discharge energy, become hot, or leak.
■ For rechargeable battery disposal information, see the Rechargeable
Battery Recycling Corporation Web site at www.rbrc.com.
For more information on batteries, see
www.kodak.com/global/en/service/batteries/batteryUsage.jhtml
Turning the camera on and off
■ While pressing the Mode dial lock, turn the
Mode dial from Off to Auto .
The Power ring glows green. The camera screen
turns on. The Ready light blinks green while the
camera performs a self-check, then turns off
when the camera is ready.
■ To turn off the camera, turn the Mode dial to
Off.
Changing the camera screen in Auto mode
Mode dial
lock
If you want Then
To turn the camera screen on
or off
Press the Display/Info button:
■ Once to hide the icons.
■ Again to turn off the camera screen.
■ Again to turn on the camera screen and icons.
The camera screen always on
(or always off) in Auto mode
See Liveview (Auto), page 24.
Getting started
5
Setting the date and time
Setting the date & time, first time
The
Date and Time have been reset
message appears the first time you turn on
the camera or if the battery is removed for an extended time.
1 SET DATE & TIME is highlighted. Press the OK button.
2 Go to step 4 in Setting the date & time, anytime.
Setting the date & time, anytime
1 Turn on the camera. Press the Menu button.
2 Press to highlight Setup Menu , then press the OK button.
3 Press to highlight Date & Time , then press the OK button.
4 Press to adjust the date and time. Press to advance to the next
setting.
5 When finished, press the OK button.
6 Press the Menu button to exit the menu.
NOTE: Depending on your computer operating system, Kodak EasyShare software may update
the camera clock when you connect the camera. See the EasyShare software Help for
details.
Getting started
6
Checking camera and picture status
The icons that appear on the camera screen indicate the active camera and
picture settings.
Capture mode screen
Only active camera settings are displayed:
Review screen
Exposure compensation
Camera mode
Battery
Date stamp
Landscape/Close-up
Flash
Picture size
Pictures/time remaining
Storage location
ISO
White balance
Zoom:
digital
telephoto
wide
Album name
Exposure
metering
Burst
Compression
Aperture
Shutter speed
Flash compensation
AF mode
Focus zone
Favorite tag
Email tag
Print tag/number of prints Protect
Picture/video number
Image storage
Review mode
Scroll arrows
location
Album
name
Getting started
7
Storing pictures on an SD/MMC card
Your camera has 32 MB of internal memory. You can purchase optional
SD/MMC cards for removable, reusable storage for your pictures and videos.
CAUTION:
The card can only be inserted one way; forcing it may
damage the camera or card. Do not insert or remove a card
when the green ready light is blinking; doing so may
damage your pictures, card, or camera.
1 Turn off the camera, then open the card door.
2 Orient the card as shown on the camera body.
3 Push the card all the way into the slot.
4 Close the door.
To remove the card, turn off the camera. Push
the card in, then release it. When the card is
partially ejected, pull it out.
See page 53 for storage capacities. Purchase SD/MMC cards at a dealer of
Kodak products or www.kodak.com/go/dx7630accessories.
NOTE: When using a card for the first time, we suggest you format it before taking pictures. (See
page 26.) We cannot guarantee compatibility with “high-speed” SD cards such as xSD or
Ultra-2 because these cards are designed primarily for video or audio.
Notched
corner
8
2 Taking pictures and videos
Taking a picture
1 Turn the Mode dial to Auto . (See page 11 for other mode
descriptions.)
The camera screen displays the mode name and description. To interrupt the
description, press any button. To redisplay the description, press the OK button.
2 Press the Display/Info button to turn on the
camera screen, or use the viewfinder to frame
your subject.
3 Press the Shutter button halfway to set the
exposure and focus.
4 When the ready light turns green, continue
pressing the Shutter button completely
down to take the picture.
If the ready light is steady or blinking red, release
your finger, recompose the scene, and return to
Step 3.
When the ready light blinks green, the picture is
being saved; you can still take pictures.
NOTE: The camera screen turns on automatically in all modes except Auto. To make the camera
screen turn on automatically in Auto, see Liveview (Auto), page 24.
Display/
button
Info
Taking pictures and videos
9
Using the auto-focus framing marks
When using the camera screen as a viewfinder, framing marks indicate where
the camera is focusing. For the best pictures, the camera attempts to focus on
foreground subjects, even if the subjects are not centered in the scene.
1 With the camera screen on, press the Shutter button halfway and hold.
When the framing marks turn red, focus is accomplished.
2 Press the Shutter button the rest of the way down to take the picture.
3 If the camera is not focusing on the desired subject (or if the framing marks
disappear and the Ready light blinks red), release your finger, recompose
the scene, and return to Step 2.
NOTE: Framing marks do not appear in Landscape or Video mode.
Taking a video
1 Turn the Mode dial to Video .
2 Use the viewfinder or camera screen to frame your subject.
3 Press the Shutter button completely down and release. To stop recording,
press and release the Shutter button again.
NOTE: If you prefer, press the Shutter button completely down and hold it for more than 2
seconds to begin recording. To stop recording, release the Shutter button.
You can change optical zoom before (but not during) video recording.
While the shutter button is pressed halfway:
Center focus
Center wide focus
Side focus
Center and side focus
Left and right focus
Framing
marks
Taking pictures and videos
10
Reviewing the picture or video just taken
After you take a picture or video, the camera screen displays a Quickview for
approximately 5 seconds. While the picture or video is displayed, you can:
■ Review: If you take no action, the
picture/video is saved.
■ Play (video): Press the OK button to play the
video. Press to adjust the volume.
■ Share: Press the Share button to tag a
picture/video for email or as a favorite, or to
tag a picture for print. (See page 38.)
■ Delete: Press the Delete button while the
picture/video and are displayed.
NOTE: Only the final picture of a burst series (see page 20) is
displayed during Quickview. If you select Delete, all
pictures in the burst series are deleted. To delete
selectively, do so in Review. (See page 29.)
Using optical zoom
Use optical zoom to get up to 3X closer to your subject. Optical zoom is
effective when the lens is no closer than 23.6 in. (60 cm) from the subject.
You can change optical zoom before (but not during) video recording.
1 Use the viewfinder or camera screen to frame
your subject.
2 Pull or push the Zoom button to zoom in (T)
and out (W).
If the camera screen is turned on, the zoom
indicator shows when you are in optical zoom
range, or beyond in the digital zoom range.
3 Press the Shutter button halfway and hold
to set the exposure and focus, then press the
rest of the way down to take the picture.
(When taking videos, press and release the
Shutter button.)
OK
Delete
Share
Zoom indicator
Digital zoom
Optical zoom
range
range
Taking pictures and videos
11
Using digital zoom
Use digital zoom in any still mode to get an additional 4X magnification
beyond optical zoom. Combined zoom settings are from 3.6X to 12X. You
must turn on the camera screen before activating digital zoom.
1 Press the Display/Info button to turn on the camera screen.
2 Pull the Zoom button to the optical zoom limit (3X). Release the button,
then pull it again.
The camera screen displays the zoomed image and the zoom indicator.
3 Press the Shutter button halfway and hold to set the exposure and
focus, then press the rest of the way down to take the picture.
NOTE: You cannot use digital zoom for video recording.
IMPORTANT:
You may notice a decrease in printed image quality when using
digital zoom. The blue slider on the zoom indicator pauses, then
turns red when the picture quality is approximately 1 MP. For an
acceptable 4 x 6 in. (10 x 15 cm) print, ensure that the slider
remains blue.
Camera modes
Use this mode For
Auto General picture-taking. Automatically sets exposure, focus, and
flash.
Scene Point-and-shoot simplicity when taking pictures under 16
special conditions. (See Scene modes, page 13.)
Program Controlling exposure compensation (how much light enters the
camera) and flash compensation. The camera automatically
sets the shutter speed and aperture (f-stop) based on the scene
lighting. Program mode offers the ease of auto shooting with
full access to all menu options. Use the jog dial to select
settings. (See P, A, S, M, and C mode, page 14.) Press the Menu
button to change other settings.
Taking pictures and videos
12
Aperture
Priority
Controlling aperture, exposure compensation, flash
compensation, and ISO speed. Aperture priority mode is
primarily used to control depth of field (the range of sharpness).
NOTE: The aperture setting may be affected when using optical
zoom. Use the jog dial to select settings. (See P, A, S, M, and C
mode, page 14.) Press the Menu button to change other
settings.
Shutter
Priority
Controlling the shutter speed, ISO speed, and exposure
compensation. The camera automatically sets the aperture for
proper exposure. Shutter priority mode is primarily used to
prevent blur when your subject is moving. To prevent camera
shake, use a tripod for slow shutter speeds. Use the jog dial to
select settings. (See P, A, S, M, and C mode, page 14.) Press the
Menu button to change other settings.
Manual Enjoying the highest level of creative control. You set the
aperture, shutter speed and ISO speed. Exposure compensation
acts as an exposure meter, recommending the proper
combination of aperture and shutter speed to produce an
acceptable exposure. To prevent camera shake, use a tripod for
slow shutter speeds. Use the jog dial to select settings. (See P,
A, S, M, and C mode, page 14.) Press the Menu button to
change other settings.
Custom The “user-created” mode. For applying P, A, S, & M plus any
Custom settings (exposure compensation, flash compensation,
ISO speed) which are saved independent of other camera
settings. Use the jog dial to select settings. (See P, A, S, M, and
C mode, page 14.) Press the Menu button to choose a capture
mode. (See Custom Exposure Mode, page 21.) Press the Menu
button to change other settings.
Favorites Viewing your favorites. (See page 40.)
Video Capturing video with sound. (See page 9.)
Use this mode For
Taking pictures and videos
13
Scene modes
1 Turn the Mode dial to Scene .
2 Press to display Scene mode descriptions.
3 Press the OK button to choose a Scene mode.
Use this SCN mode For
Portrait Full-frame pictures of people and other subjects.
Sports Subjects that are in motion. Shutter speed is fast.
Landscape Distant scenery. Flash does not fire unless you turn it on.
Auto-focus framing marks (page 9) are not available in
Landscape.
Close-up Subjects closer than 28 in. (70 cm).
Night
Portrait
Capturing subject and background at night. Place the camera
on a flat, steady surface or use a tripod. Due to slow shutter
speeds, advise people to stay still for a few seconds after flash
fires.
Night
Landscape
Distant scenery at night. Place the camera on a flat, steady
surface or use a tripod.
Snow Bright snow scenes.
Beach Bright beach scenes.
Text Documents.
Fireworks Fireworks. Place the camera on a flat, steady surface or use a
tripod.
Flower Close-ups of flowers in bright light.
Manner Quiet occasions, like a wedding or lecture. Flash and sound
are disabled.
Self
Portrait
Close-ups of yourself.
Taking pictures and videos
14
P, A, S, M, and C mode
Aperture—also known as f-stop, controls
the size of the lens opening, which determines
the depth of field.
Larger aperture settings (larger f-number)
keep both foreground and background sharp;
good for landscapes and well-lit conditions.
Smaller aperture settings make the
foreground sharp and background blurry;
good for portraits and low-light conditions.
The highest and lowest aperture settings may
be affected by optical zoom.
Shutter speed—controls how long the shutter stays open. A shaking
hand icon warns of slow shutter speeds. (Use a tripod for slow shutter
speeds.)
Exposure Compensation—controls how much light enters the camera;
good for controlling backlit scenes. If the picture is too light, decrease the
setting; if it’s too dark, increase the setting.
Flash Compensation—controls the flash brightness (+0.5, +1.0, -0.5,
-1.0). You must be within flash range. Unavailable if flash setting is Off.
ISO—controls sensitivity of the camera sensor (100, 200, 400, 800).
Higher settings are more sensitive to light, but may produce unwanted
“noise” in a picture. You can only use ISO 800 if you are in the 1.7 MP
Picture Size setting. (See Picture Size, page 21.)
Party People indoors.
Children Action pictures of children in bright light.
Backlight Subjects that are in shadow or “backlit” (when light is behind
the subject).
Use this SCN mode For
Aperture
Shutter
Exposure
Mode
ISO
compensation
Flash
setting
compensation
speed
Taking pictures and videos
15
Settings apply only in P, A, S, M, and C modes
Settings you change in P, A, S or M modes apply only to pictures taken in
those modes. Settings you change in C mode apply only to pictures taken in
that mode.
For example, if you change the Color Mode to Sepia while in P, A, S, or M
mode, then Auto & Scene modes retain the default setting of Color.
NOTE: The settings, including Flash, are maintained for P, A, S, M, and C modes—even when
you change modes or turn off the camera. Use Reset to Default (see page 24) to reset
P,
A, S, M, or C
mode to its default setting.
Using the jog dial to change P, A, S, M, or C mode settings
1 Turn the Mode dial to P, A, S, M, or C.
The mode options are displayed.
2 Use the jog dial:
■ Rotate the jog dial to move the cursor.
■ Press the jog dial to open a setting.
■ Rotate the jog dial to change the setting.
■ Press the jog dial to save the setting.
NOTE: Available options are white. Unavailable options are grey. Red options are out of range
and may cause unacceptable image/print quality. Adjust the value higher or lower until it
turns yellow.
3 Press the Menu button to change other settings. (See page 21.)
4 Take a picture.
the cursor or
Rotate to move
change settings.
Press to open or
save settings.
Jog dial
Taking pictures and videos
16
Using the flash
Use the flash when you take pictures at night, indoors, or outdoors in heavy
shadows. You can change the flash setting in any Still mode; the default flash
setting is restored when you exit the mode or turn off the camera.
Turning on the flash
NOTE: The flash is not available in all modes. See Flash settings in each mode, page 17.
Flash Range
Wide Angle 2-13.8 ft (0.6-4.2 m)
Telephoto 2-8.2 ft (0.6-2.5 m)
Flash Setting Flash Fires
Auto
Flash
When the lighting conditions require it.
Off Never
Fill Every time you take a picture, regardless of the lighting
conditions. Use when the subject is in shadow or is “backlit”
(when the sun is behind the subject). In low light, hold the
camera steady or use a tripod.
Red-eye Once, so the subject’s eyes become accustomed to the flash,
then fires again when the picture is taken. (If the lighting
conditions require flash but do not require Red-eye reduction,
the flash may fire only once.)
Press the
Flash/Status
through the flash options.
The active flash icon is displayed
in the camera screen status area.
button to scroll
Taking pictures and videos
17
Flash settings in each mode
Capture mode Default setting Available settings
Auto Auto* Auto, Off, Fill Flash, Red-eye
P, A, S, M, or C Auto Auto, Off, Fill Flash, Red-eye
Scene Modes
Portrait Auto* Auto, Off, Fill Flash, Red-eye
Sports Auto Auto, Off, Fill Flash, Red-eye
Landscape Off Off
Close-up Off Auto, Off, Fill Flash, Red-eye
Night Portrait Red-eye* Auto, Off, Fill Flash, Red-eye
Night Landscape Off Off
Snow Auto* Auto, Off, Fill Flash, Red-eye
Beach Auto* Auto, Off, Fill Flash, Red-eye
Text Off Auto, Off
Fireworks Off Off
Flower Off Auto, Off, Fill Flash
Manner Off Off
Self Portrait Red-eye* Auto, Off, Fill Flash, Red-eye
Party Red-eye* Auto, Off, Fill Flash, Red-eye
Children Auto* Auto, Off, Fill Flash, Red-eye
P, A , S ,
M, C
Taking pictures and videos
18
* When you change to Auto or Red-eye in these modes, it becomes the
default until you change it.
Shooting close-up and landscape pictures
Use the Close-up/Landscape button to take pictures of scenes that are
very close or very far away. (Not available in Scene modes.)
1 Set the Mode dial to any Capture mode.
2 Press the Close-up/Landscape button
repeatedly until the or icon appears
in the status bar.
3 Take a picture.
Close-up pictures
Use the Close-up setting to gain sharpness and detail in pictures at close
range. Use available light instead of flash if possible. The camera
automatically sets the focus distance depending on the zoom position:
Landscape pictures
Use the Landscape setting to gain maximum sharpness of far away
scenes. With this setting, the camera uses infinity auto-focus. Auto-focus
framing marks (see page 9) are not available in Landscape.
Backlight Fill Fill
Video Off Off
First burst Off Off
Last burst Off Off
Exposure
bracketing
Off Off
Capture mode Default setting Available settings
Close-up/
Landscape
Zoom position Close-up focus distance
Wide angle 2.75 to 27.6 in. (7 to 70 cm)
Telephoto 11 to 27.6 in. (28 to 70 cm)
Taking pictures and videos
19
Using exposure bracketing
1 Set the exposure bracketing interval. (See Exposure Bracketing Interval,
page 22
.)
2 In any Still mode, press the Burst button repeatedly to choose .
3 Press the Shutter button halfway and hold to set the auto-focus and
exposure.
4 Press the Shutter button the rest of the way down to take the pictures.
The camera takes 3 pictures. To evaluate them, press the Review button.
Exposure bracketing turns off after the pictures are taken.
Using exposure compensation with exposure bracketing
In P, A, and S modes, you can use exposure compensation in conjunction with
exposure bracketing.
Option Description Purpose
Exposure
Bracketing
The camera takes 3
pictures—one at +, one at 0,
and one at - exposure.
Determine the best exposure level for
your conditions based on your
evaluation of 3 pictures.
If exposure
compensation
is set to
And if the exposure
bracketing interval
is set to
Then the exposures
taken are
0.0
the default +/-0.3
-0.7, 0.0, +0.3
+1.0 +0.7, +1.0, +1.3
-1.0 -1.3, -1.0, -0.7
Taking pictures and videos
20
Using burst
1 In any Still mode, press the Burst button repeatedly to choose an option.
2 Press the Shutter button halfway and hold to set the auto-focus and
exposure.
3 Press the Shutter button the rest of the way down and hold it to take
the pictures.
The camera stops taking pictures when you release the Shutter button, when
the pictures are taken, or when there is no more storage space.
Option Description Purpose
First
Burst
Camera takes up to 4 pictures while the Shutter button
is pressed.
Capture an
expected event.
Example:
A person
swinging a golf
club.
Last
Burst
Camera takes up to 30 pictures (2 per second for up to 15
seconds) while the Shutter button is pressed. When the
Shutter button is released, only the last 4 pictures are
saved.
Capture an event
when the precise
timing is
uncertain.
Example:
A child blowing
out birthday
candles.
First 4 pictures
are saved.
Last 4 pictures
are saved.
Taking pictures and videos
21
Changing picture-taking settings
You can change settings to get the best results from your camera:
1 Press the Menu button. (Some settings are unavailable in some modes.)
2 Press to highlight a setting, then press the OK button.
3 Choose an option, then press the OK button.
4 Press the Menu button to exit the menu.
Setting Icon Options
Custom Exposure Mode
Choose a preferred capture
mode. (See Custom, page 12.)
This setting remains until you
change it.
Program (default)
Aperture Priority
Shutter Priority
Manual
Available only in Custom (C) mode.
Self Timer
Turn the Self Timer on or off.
This setting remains until you
take the picture, turn the Mode
dial, or turn off the camera.
On
Off (default)
Picture Size
Choose a picture resolution.
This setting remains until you
change it.
6.1 MP—for printing up to 30 x 40 in. (76
x 102 cm).
5.4 MP (3:2)—ideal for printing 4 x 6 in.
(10 x 15 cm) prints without cropping. Also
for printing up to 20 x 30 in. (50 x 76 cm);
some cropping may result.
4.0 MP—for printing up to 8 x 10 in. (20 x
25 cm).
3.1 MP—for printing up to 8 x 10 in. (20 x
25 cm).
1.7 MP—for printing 4 x 6 in. (10 x 16 cm)
prints, emailing, Internet, screen display, or
for conserving space.
Compression
Choose a compression.
This setting remains until you
change it. The setting is
displayed in the status area as “S”
or “F.”
Standard (default)
Fine
NOTE: The Fine setting renders a larger file size.
P
ASM
JPG
Taking pictures and videos
22
White Balance
Choose your lighting
condition.
This setting remains until you
change it. The setting is
displayed on the right side of
Liveview if set to Daylight,
Tungsten, or Fluorescent.
Auto (default)—automatically corrects
white balance. Ideal for general picture
taking.
Daylight—for pictures in natural lighting.
Tungsten—corrects the orange cast of
household light bulbs. Ideal for indoor
pictures under tungsten or halogen lighting
without flash.
Fluorescent—corrects the green cast of
fluorescent lighting. Ideal for indoor pictures
under fluorescent lighting without flash.
Unavailable in Auto, Scene, or Video modes.
Exposure Bracketing
Interval
Choose an exposure
bracketing interval.
P, A, S, M, C: This setting remains
until you change it or take
pictures.
Auto, Scene: This setting remains
until you turn the Mode dial or
turn off the camera.
+/- 0.3 EV (default)
+/- 0.7 EV
+/- 1.0 EV
See Using exposure bracketing, page 19.
Exposure Metering
Evaluate light levels at specific
areas of a scene.
This setting remains until you
change it. The setting is
displayed on the right side of
Liveview if set to Center-weight
or Center-spot.
Multi-pattern (default)—evaluates
lighting conditions throughout the image to
give an optimum picture exposure. Ideal for
general picture taking.
Center-weight—evaluates the lighting
conditions of the subject centered in the
viewfinder. Ideal for backlit subjects.
Center-spot—similar to Center-weight,
except the metering is concentrated on a
smaller area of the subject centered in the
viewfinder. (A circle indicates the metering
spot.) Ideal when you need an exact
exposure of a specific area in the picture.
Unavailable in Auto, Scene, or Video modes.
Setting Icon Options
Taking pictures and videos
23
Focus Zone
Choose a large or concentrated
area of focus.
This setting remains until you
change it. The setting is
displayed on the right side of
Liveview if set to Center-zone or
Selectable-zone.
Multi-zone (default)—evaluates 3 zones
to give an even picture focus. Ideal for
general picture taking.
Center-zone—evaluates the small area
centered in the viewfinder. Ideal when
precise focus of a specific area in the picture
is needed.
Selectable-zone—move the focus
brackets to center, left, or right.
NOTE: For the best pictures, the camera is set to
Multi-zone when in Landscape mode.
Unavailable in Auto, Scene, or Video modes.
AF Control
Choose an auto-focus setting.
This setting remains until you
change it.
Continuous AF (default)—Uses external
AF sensor and TTL (Through The Lens) AF.
Because the camera is always focusing,
there is no need to press the Shutter button
halfway down to focus.
Single AF—Uses external AF sensor and
TTL AF when the Shutter button is pressed
halfway down.
Accessory Lens AF—Uses TTL-AF.
Unavailable in Video mode.
Color Mode
Choose color tones.
In Auto and Scene modes, this
setting remains until you turn the
Mode dial or turn off the camera.
High Color
Natural Color (default)
Low Color
Black & White
Sepia (for pictures with a reddish-brown,
antique look.)
NOTE: EasyShare software also lets you change a
color picture to black-and-white or sepia,
but cannot change a black-and-white or
sepia picture to color.
Unavailable in Video mode.
Setting Icon Options
Taking pictures and videos
24
Sharpness
Control picture sharpness.
This setting remains until you
change it.
High
Normal (default)
Low
Unavailable in Auto, Scene, or Video modes.
Reset to Default
Reset all picture-taking
settings to the defaults.
Reset
P, A, S, M, or C
mode to its default
setting.
Set Album (Still)
Choose Album names.
This setting remains until you
change it.
On or Off
Pre-select album names before you take
pictures or videos. Then, all the pictures or
videos you take are tagged with those album
names. See page 27.
Image Storage
Choose a storage location for
pictures and videos.
This setting remains until you
change it.
Auto (default)—the camera uses the card
if one is in the camera. If not, the camera
uses internal memory.
Internal Memory—the camera always
uses internal memory, even if a card is
inserted.
Liveview (Auto)
Set the camera screen On/Off
default for Auto mode. (Press
the Display/Info button to
manually turn the camera
screen on or off.)
On (default)—camera screen is on
whenever the camera is on.
Off—camera screen is off.
Available only in Auto mode.
Video Length (Video)
Choose a default video length
(useful in self-timer videos).
Unlimited, 5, 15, or 30 seconds
Setup Menu
Choose additional settings.
See Using setup to customize your camera.
Setting Icon Options
Taking pictures and videos
25
Using setup to customize your camera
1 In any mode, press the Menu button.
2 Press to highlight Setup , then press the OK button.
3 Press to highlight a setting, then press the OK button.
4 Choose an option, then press the OK button.
5 Press the Menu button to exit.
Setting Icon Options
Return to previous menu.
Quickview
Display a picture or video (for 5
seconds) after it is taken.
On (default)
Off
Advanced Digital Zoom
Choose how digital zoom is
employed.
Continuous —No pause between
optical and digital zoom.
Pause (default)—After reaching 3X
optical zoom, the zoom button must be
released, then activated again to begin
digital zoom.
None—digital zoom is disabled.
Print Warning Pause (default)—When the blue slider
on the zoom indicator pauses, the zoom
button must be released and reactivated.
The slider turns red when the picture may
no longer render an acceptable 4 x 6 in.
(10 x 15 cm) print.
None—No pause.
Sound Themes Shutter Only
Default
Music
Sci-fi
Fun
Taking pictures and videos
26
Sound Volume Off
Low (default)
Medium
High
Date & Time See page 5.
Video Out
Choose the regional setting that
lets you connect the camera to a
television or other external device.
NTSC (default)—used in North America
and Japan; most common format.
PAL—used in Europe and China.
Orientation Sensor
Orient pictures so that they are
displayed with the correct side up.
On (default)
Off
Date Stamp
Imprint the date on pictures.
Choose a date option, or turn off the
feature. (Default is off.)
Video Date Display
Display Date/Time at the start of
video playback.
Choose a date/time option, or turn off the
feature. (Default is YYYY/MM/DD.)
Language Choose a language.
Format
CAUTION:
Formatting deletes all
pictures and videos,
including those that are
protected. Removing a
card during formatting
may damage the card.
Memory Card—deletes everything on
the card; formats the card.
Cancel—exits without making a change.
Internal Memory—deletes everything
in internal memory including email
addresses, album names, and favorites;
formats the internal memory.
About
View camera information.
Setting Icon Options
Taking pictures and videos
27
Pre-tagging for album names
Use the Set Album (Still or Video) feature to pre-select album names before
you take pictures or videos. Then, all the pictures or videos you take are
tagged with those album names.
First—on your computer
Use Kodak EasyShare software (V 3.0 or higher, see page 35) to create album
names on your computer. Then copy up to 32 album names to the camera’s
album name list the next time you connect the camera to the computer. See
Kodak EasyShare software Help for details.
Second—on your camera
1 In any mode, press the Menu button.
2 Press to highlight Set Album , then press the OK button.
3 Press to highlight an album name, then press the OK button. Repeat
to select more than one album name.
Selected albums are noted with a check mark.
4 To remove a selection, highlight an album name and press the OK button.
To remove all album selections, select Clear All.
5 Highlight Exit, then press the OK button.
Your selections are saved. If you turn on the camera screen, your album
selection is displayed on the screen. A plus (+) after the album name means
more than one album is selected.
6 Press the Menu button to exit the menu.
Third—transfer to your computer
When you transfer the tagged pictures or videos to your computer, Kodak
EasyShare software opens and categorizes your pictures in the appropriate
album. See the Kodak EasyShare software Help for details.
28
3 Reviewing pictures and
videos
Press the Review button to view and work with your pictures and videos. To
save battery power, use the optional Kodak EasyShare camera or printer dock,
or Kodak 5-volt AC adapter. (See www.kodak.com/go/dx7630accessories.)
Viewing single pictures and videos
1 Press the Review button.
2 Move the joystick to scroll backward or forward through pictures and
videos. (For fast scrolling, hold the joystick .)
3 Press the Review button to exit Review.
NOTE: Pictures taken at the 5.4 MP (3:2) quality setting are displayed at a 3:2 aspect ratio with a
black bar at the top of the screen.
Changing the camera screen
In Review, pictures/videos are displayed with associated icons. Press the
Display/Info button:
■ Once to turn off the icons.
■ Again to display picture/video information.
■ Again to display picture/video with icons.
Viewing multiple pictures and videos
1 Press the Review button.
2 Move the joystick .
NOTE: You can also press the Menu button, highlight , then press the OK button.
Thumbnails of pictures and videos are displayed.
To display the previous or next row of thumbnails, move the joystick .
To scroll through the thumbnails one at a time, move the joystick .
To display a single view of the selected picture, press the OK button.
Reviewing pictures and videos
29
Playing a video
1 Press the Review button.
2 Move the joystick to locate a video. (In Multi-up view, highlight a
video, then press the OK button. When a video is highlighted in Multi-up
view, the video duration is displayed at the top of the camera screen.)
3 To play or pause a video, press the OK button.
NOTE: You can also press the Menu button, highlight , then press the OK button.
To adjust the volume, move the joystick .
To return to the beginning of the video, move the joystick during playback.
To replay the video, press the OK button.
To go to the previous or next picture or video, move the joystick .
Deleting pictures and videos
1 Press the Review button.
2 Move the joystick to locate a picture or video (or highlight one in
multiple view), then press the Delete button.
3 Move the joystick to highlight an option, then press the OK button:
PICTURE or VIDEO—deletes the displayed picture or video.
EXIT—exits the Delete screen.
ALL—deletes all pictures and videos from your current storage location.
To delete more pictures and videos, return to Step 2.
NOTE: You cannot delete protected pictures and videos this way. Remove protection before
deleting (see page 31).
Reviewing pictures and videos
30
Magnifying pictures
1 Press the Review button, then locate a picture.
2 Pull or push the Zoom button to magnify the picture between 1X and 8X.
To see different parts of the picture, move the joystick .
To redisplay the picture at the 1X (original) size, press the OK button.
To exit Magnify, press the OK button.
To exit Review, press the Review button.
Changing optional review settings
In Review, press the Menu button to access optional review settings.
Album (page 31)Copy (page 34)
Protect (page 31)Multi-up (page 28)
Image Storage (page 24) Setup Menu (page 25)
Slide Show (page 32)
Reviewing pictures and videos
31
Protecting pictures and videos from deletion
1 Press the Review button, then locate the picture or video.
2 Press the Menu button.
3 Move the joystick to highlight Protect , then press the OK button.
The picture or video is protected and cannot be deleted. The Protect icon
appears with the protected picture or video.
4 To remove protection, press the OK button again.
5 Press the Menu button to exit the menu.
CAUTION:
Formatting internal memory or an SD/MMC card deletes all
(including protected) pictures, videos. (Formatting internal
memory also deletes email addresses, album names, and
favorites. To restore them, see EasyShare software Help.)
Tagging pictures/videos for albums
Use the Album feature in Review to tag the pictures and videos in your camera
with album names.
First—on your computer
Use Kodak EasyShare software (V 3.0 or higher) to create album names on
your computer. Then copy up to 32 album names to the camera’s internal
memory. See Kodak EasyShare software Help for details.
Reviewing pictures and videos
32
Second—on your camera
1 Press the Review button, then locate the picture or video.
2 Press the Menu button.
3 Move the joystick to highlight Album , then press the OK button.
4 Move the joystick to highlight an album folder, then press the OK
button.
To add other pictures to the same album, move the joystick to scroll
through pictures. When you see the picture you want, press the OK button.
To add the pictures to more than one album, repeat step 4 for each album.
The album name appears with the picture. A plus (+) after the album name
means the picture was added to more than one album.
To remove a selection, highlight an album name and press the OK button. To
remove all album selections, select Clear All.
Third—transfer to your Computer
When you transfer the tagged pictures and videos to your computer, the
Kodak EasyShare software opens and categorizes your pictures and videos in
the appropriate album folder. See Kodak EasyShare software Help for details.
Running a slide show
Use the Slide Show to display your pictures and videos on the camera screen.
To run a slide show on a television or on any external device, see page 33. To
save battery power, use an optional Kodak 5V AC adapter. (Visit
www.kodak.com/go/dx7630accessories.)
Starting the slide show
1 Press the Review button, then press the Menu button.
2 Move the joystick to highlight Slide Show , then press the OK
button.
3 Move the joystick to highlight Begin Show, then press the OK
button.
Each picture and video is displayed once, in the order in which you took them.
To interrupt the Slide Show, press the OK button.
Reviewing pictures and videos
33
Changing the slide show display interval
The default interval setting displays each picture for 5 seconds. You can
increase the display interval up to 60 seconds.
1 On the Slide Show menu, move the joystick to highlight Interval,
then press the OK button.
2 Select a display interval.
To scroll through the seconds quickly, hold the joystick .
3 Press the OK button.
The interval setting remains until you change it.
Running a continuous slide show loop
When you turn on Loop, the slide show is continuously repeated.
1 On the Slide Show menu, move the joystick to highlight Loop, then
press the OK button.
2 Move the joystick to highlight On, then press the OK button.
The slide show repeats until you press the OK button or until battery power is
exhausted.
Displaying pictures and videos on a television
You can display pictures and videos on a television, computer monitor, or any
device equipped with a video input. (Image quality on a television screen may
not be as good as on a computer monitor or when printed.)
NOTE: Ensure that the Video Out setting (NTSC or PAL) is correct (see page 26). The slide show
stops if you connect or disconnect the cable while the slide show is running.
1 Connect the audio/video cable (included) from the camera video-out port
to the television video-in port (yellow) and audio-in port (white). See your
television user’s guide for details.
2 Review pictures and videos on the television.
Reviewing pictures and videos
34
Copying pictures and videos
You can copy pictures and videos from a card to internal memory or from
internal memory to a card.
Before you copy, make sure that:
■ A card is inserted in the camera.
■ The camera’s picture storage location is set to the location from which
you are copying. See Image Storage, page 24.
Copy pictures or videos:
1 Press the Review button, then press the Menu button.
2 Move the joystick to highlight Copy , then press the OK button.
3 Move the joystick to highlight an option:
PICTURE or VIDEO—copies the current picture or video.
EXIT—returns to the Review menu.
ALL—copies all pictures and videos from your selected storage location to
the other location.
4 Press the OK button.
NOTE: Pictures and videos are copied, not moved. To remove pictures and videos from the
original location after they are copied, delete them (see page 29).
Tags that you applied for print, email, and favorites are not copied. Protection settings are
not copied. To apply protection to a picture or video, see page 31.
Viewing picture/video information
1 Press the Review button.
2 Press the Display/Info button once to hide icons, again to display
picture/video information, and once more to show icons.
3 To view information on the next or previous picture or video, move the
joystick . Press the Menu button to exit the menu.
35
4 Installing the software
Minimum system requirements
NOTE: Mac OS 8.6 and 9.x do not support the Share button functions, including Favorites. Mac
OS X version 10.2.x or 10.3 is recommended for full functionality. To download EasyShare
software for Mac OS 8.6 and 9.x, visit
www.kodak.com/go/dx7630downloads.
Windows OS-based computers Macintosh computers
■ Windows 98, 98SE, ME, 2000 SP1, or
XP OS
■ Internet Explorer 5.01 or higher
■ 233 MHz processor or greater
■ 64 MB RAM (128 MB RAM for
Windows XP OS)
■ 200 MB hard disk space available
■ CD-ROM drive
■ Available USB port
■ Color monitor, 800 x 600 pixels (16-bit
or 24-bit recommended)
■ Power Mac G3, G4, G5, G4 Cube,
iMac; PowerBook G3, G4; or iBook
computers
■ Mac OS X version10.2.3, 10.3
■ Safari 1.0 or higher
■ 128 MB RAM
■ 200 MB hard disk space available
■ CD-ROM drive
■ Available USB port
■ Color monitor, 1024 x 768 pixels
(thousands or millions of colors
recommended)
Installing the software
36
Install the software
CAUTION:
Install Kodak EasyShare software
before
connecting the camera or
optional dock to the computer.
Failure to do so may cause the
software to install incorrectly.
1 Close all software applications that are open on your computer (including
anti-virus software).
2 Place the Kodak EasyShare software CD into the CD-ROM drive.
3 Install the software:
Windows OS-based computer—if the install window does not appear,
choose Run from the Start menu and type d:\setup.exe where d is the
drive letter that contains the CD.
Mac OS X—double-click the CD icon on the desktop, then click the Install
icon.
4 Follow the on-screen instructions to install the software.
Windows OS-based computer—select Complete to automatically install
the most commonly used applications. Select Custom to choose the
applications you wish to install.
Mac OS X—follow the on-screen instructions.
NOTE: When prompted, take a few minutes to electronically register your camera and software.
This lets you receive information regarding software updates and registers some of the
products included with the camera. You must be connected to your Internet service
provider to register electronically. To register later, see
www.kodak.com/go/register.
5 Restart the computer. If you turned off anti-virus software, turn it back on.
See the anti-virus software manual for details.
For information on the software applications included on the Kodak EasyShare
software CD, click the Help button in the Kodak EasyShare software.
37
5 Sharing pictures and
videos
NOTE: Share tags remain until removed. If a tagged picture/video is copied on the camera, the
Share tag is
not
copied. (If a tagged picture/video is copied in EasyShare software, the
Share tag is copied.)
In a burst series, only the last picture is tagged during Quickview.
When can I tag my pictures and videos?
Press the Share button to tag pictures/videos:
■ Any time (The most recent picture/video taken is displayed.)
■ Just after you take a picture/video, during Quickview (see page 10).
■ After pressing the Review button (see page 28).
Pictures Videos
Print (page 38) ✔
Email (page 39) ✔✔
Favorites (page 40)
for easy organization on your computer and for sharing
on your camera
✔✔
Press the Share button to
When they are transferred
share them by:
“tag” your pictures and videos.
to your computer, you can
Sharing pictures and videos
38
Tagging pictures for printing
1 Press the Share button. Press to locate a picture.
2 Press to highlight Print , then press the OK button.*
3 Press to select the number of copies (0-99). Zero removes the tag
for that picture.
The Print icon appears in the status area. The default quantity is one.
4Optional: You can apply a print quantity to other pictures. Press to
locate a picture. Keep the print quantity as is, or press to change it.
Repeat this step until the desired print quantity is applied to the pictures.
5 Press the OK button. Then press the Share button to exit the menu.
* To tag all pictures in the storage location, highlight Print All, press the OK
button, then indicate the number of copies as described above. Print All is not
available in Quickview.
To remove the print tagging for all pictures in the storage location, highlight
Cancel Prints, then press the OK button. Cancel Prints is not available in
Quickview.
Printing tagged pictures
When you transfer the tagged pictures to your computer, the Kodak EasyShare
software print screen opens. For details on printing, click the Help button in
the Kodak EasyShare software.
For more information on printing from your computer, printer dock, or card,
see page 43.
NOTE: For the best 4 x 6 in. (10 x 15 cm) prints, set the camera to the 5.4 MP (3:2) print quality
setting. See page 21.
Sharing pictures and videos
39
Tagging pictures and videos for emailing
First—on your computer
Use Kodak EasyShare software (V 3.0 or higher) to create an email address
book on your computer. Then copy up to 32 email addresses to the camera’s
internal memory. See the Kodak EasyShare software Help for details.
Second—tag pictures/videos on your camera
1 Press the Share button. Press to locate a picture/video.
2 Press to highlight Email , then press the OK button.
The email icon appears in the status area.
3 Press to highlight an email address, then press the OK button.
To tag other pictures/videos with the same address, press to scroll
through them. When the picture you want is displayed, press OK.
To send the pictures/videos to more than one address, repeat step 3 for
each address.
Selected addresses are checked.
4 To remove a selection, highlight a checked address and press the OK
button. To remove all email selections, highlight Clear All.
5 Press to highlight Exit, then press the OK button.
The email icon appears in the status area.
6 Press the Share button to exit the menu.
Third—transfer and email
When you transfer the tagged pictures/videos to your computer, the email
screen opens and lets you send them to the addresses you specified. See the
Kodak EasyShare software Help for details.
Sharing pictures and videos
40
Tagging pictures as favorites
You can store your favorite pictures in the Favorites section of your
camera’s internal memory, then share them with friends and family. Favorites
are loaded into your camera after you transfer pictures to your computer. So
you can keep and share more, favorites are smaller than your other pictures.
Share your favorite pictures in 4 easy steps:
NOTE: The camera holds a limited number of favorites. Use Camera Favorites in the EasyShare
software to customize the size of your camera Favorites section. For more information,
click the Help button in the Kodak EasyShare software.
1. Take pictures
2. Tag pictures as
favorites
1 Press the Share button. Press to locate a picture.
2 Press to highlight Favorite , then press the
OK button.
The Favorite icon appears in the status area. To
remove the tag, press the OK button again.
Press the Share button to exit the menu.
3. Transfer
pictures to your
computer
1 To enjoy full functionality, load and use the EasyShare
software that was packaged with this camera. (See
page 35.)
2 Connect the camera to the computer using the USB
cable (see page 42) or an EasyShare dock.
The first time you transfer pictures, a software wizard
helps you make choices about your favorite pictures.
Then, your pictures are transferred to the computer.
Favorite pictures are loaded to the Favorites section of
your camera’s internal memory.
4. View favorites
on your camera
1 Turn the Mode dial to Favorites .
2 Press to scroll through favorites.
To exit Favorites mode, turn the Mode dial to any other position.
To view pictures/videos on a card or in non-favorite internal
memory, press the Review button. (See page 28.)
Sharing pictures and videos
41
Optional settings
In Favorites mode, press the Menu button to access optional settings.
NOTE: Pictures taken at the 5.4 MP (3:2) quality setting are displayed at a 3:2 aspect ratio with a
black bar at the top of the screen. (See Picture Size, page 21.)
Removing all favorites from your camera
1 Turn the Mode dial to Favorites .
2 Press the Menu button.
3 Highlight , then press the OK button.
All pictures stored in the Favorites section of internal memory are removed.
Favorites are restored to your camera the next time you transfer pictures to the
computer. To remove single favorites, do so in EasyShare software.
4 Press the Menu button to exit the menu.
Preventing favorites from transferring to the camera
1 Open the Kodak EasyShare software. Click the My Collection tab.
2 Go to the Albums view.
3 Click the Camera Favorites Album for your camera.
4 Click Remove Album.
The next time you transfer pictures from your camera to the computer, use the
Camera Favorites Wizard/Assistant in EasyShare software to recreate your
Camera Favorites Album or to turn off the Camera Favorites feature.
Printing and emailing favorites
1 Turn the Mode dial to Favorites . Press to locate a picture.
2 Press the Share button.
3 Highlight Print or Email , then press the OK button.
NOTE: Favorites that were taken on this camera (not imported from another source) are good for
a 4 x 6-in. (10 x 15 cm) print.
Slide Show (page 32) Remove all favorites (page 41)
Multi-up (page 28) Setup Menu (page 25)
42
6 Transferring and printing
pictures
CAUTION:
Install Kodak EasyShare software
before
connecting the
camera or optional dock to the computer. Failure to do so
may cause the software to install incorrectly.
Transferring pictures/videos with the USB
cable
1 Turn off the camera.
2 Plug the labeled end of the USB cable into
the labeled USB port on your computer. See
your computer user’s guide for details.
3 Plug the other end of the USB cable into the
labeled USB port on the camera.
4 Turn on the camera.
Kodak EasyShare software opens on your
computer. The software prompts you through
the transfer process.
NOTE: Visit
www.kodak.com/go/howto
for an online tutorial on connecting.
Also available for transferring
You can also use these Kodak products to transfer your pictures and videos:
■ Kodak EasyShare camera dock, Kodak EasyShare printer dock
■ Kodak multi-card reader, Kodak SD multimedia card reader-writer
Purchase these and other accessories at a dealer of Kodak products or
www.kodak.com/go/dx7630accessories.
Transferring and printing pictures
43
Printing pictures from your computer
For details on printing pictures from your computer, click the Help button in
the Kodak EasyShare software.
Ordering prints online
Kodak EasyShare print service (provided by Ofoto, www.ofoto.com) is one of
the many online print services offered in the Kodak EasyShare software. You
can easily:
■ Upload your pictures.
■ Edit, enhance, and add borders to your pictures.
■ Store pictures, and share them with family and friends.
■ Order high-quality prints, photo greeting cards, frames, and albums—and
have them delivered to your door.
Printing from an optional SD/MMC card
■ Automatically print tagged pictures when you insert your card into a printer
with an SD/MMC slot. See your printer user’s guide for details.
■ Make prints at an SD/MMC-capable Kodak picture maker. (Contact a
location prior to visiting. See www.kodak.com/go/picturemaker.)
■ Take the card to your local photo retailer for professional printing.
Printing without a computer
Dock your camera to the Kodak EasyShare printer dock and print
directly—with or without a computer. Purchase this and other accessories at a
dealer of Kodak products or www.kodak.com/go/dx7630accessories.
44
7 Troubleshooting
When you have questions about your camera, start here. Additional technical
information is available in the ReadMe file located on the Kodak EasyShare
software CD. For updates to Troubleshooting information, see
www.kodak.com/go/dx7630support.
Camera problems
If... Try one or more of the following
The camera does not
turn on
■ Remove, then reinsert the battery.
■ Insert a charged battery.
■ Place the camera on a Kodak EasyShare camera or printer
dock (sold separately), then try again.
■ Connect the camera to a Kodak 5-volt AC adapter (sold
separately), then try again.
See page 2 for more battery information.
The camera does not
turn off and the lens
does not retract
Camera buttons and
controls do not
function
The camera screen
does not turn on
■ In any capture mode, press the Display/Info button.
■ Turn the camera off, then on again.
To change the camera screen setting so that it is on whenever
the camera is on, see Liveview (Auto), page 24.
In Review, a blue or
black screen is
displayed instead of a
■ Transfer the picture to the computer.
■ Transfer all pictures to the computer.
See page 42.
The pictures
remaining number
does not decrease
after taking a picture
■ Continue taking pictures. The camera is operating
normally.
(The camera estimates the number of pictures remaining after
each picture is taken, based on picture size and content.)
Picture orientation is
not accurate
■ Set the Orientation Sensor (page 26).
Flash does not fire
■ Check flash setting, and change as needed (page 16).
Battery life is short
■ Wipe the contacts with a clean, dry cloth (page 3) before
inserting a battery in the camera.
■ Insert a charged battery (page 2).
Troubleshooting
45
Computer/connectivity problems
Picture quality problems
You cannot take a
■ Turn the camera off, then on again.
■ Depress shutter button all the way (page 8).
■ Insert a charged battery (page 2).
■ Wait until the ready light is green before attempting to
take another picture.
■ Transfer pictures to the computer (page 42), delete
pictures from the camera (page 29), switch image storage
locations (page 24), or insert a card with available
memory (page 7).
If... Try one or more of the following
The computer does
not communicate with
the camera
■ Turn on the camera.
■ Insert a charged battery (page 2).
■ Make sure USB cable is securely connected on camera and
computer port (page 42).
■ Make sure the EasyShare software is installed (page 35).
Slide Show does not
run on an external
video device
■ Adjust the camera Video Out setting (NTSC or PAL,
page 26).
■ Make sure the external device settings are correct (see the
device’s user’s guide).
If... Try one or more of the following
The picture is too dark
or underexposed
■ Use Fill flash (page 16) or change your position so light is
not behind the subject.
■ Move so that the distance between you and the subject is
within the effective flash range (page 16).
■ To automatically set exposure and focus, press the Shutter
button halfway and hold. When the ready light glows
green, press the Shutter button the rest of the way
down to take the picture.
■ Decrease the shutter speed or increase the ISO speed
(page 14).
If... Try one or more of the following
Troubleshooting
46
Camera ready light status
The picture is too light ■ Turn flash off (page 16).
■ Move so that the distance between you and the subject is
within the effective flash range (see page 16).
■ To automatically set exposure and focus, press the Shutter
button halfway and hold. When the ready light glows
green, press the Shutter button the rest of the way
down to take the picture.
■ Increase the shutter speed or decrease the ISO speed
(page 14).
The picture is not clear
■ To automatically set exposure and focus, press the Shutter
button halfway and hold. When the ready light glows
green, press the Shutter button the rest of the way
down to take the picture.
■ Clean the lens (page 53).
■ Make sure camera is not in Close-up mode if you are more
than 27.6 in. (70 cm) from your subject.
■ Place the camera on a flat, steady surface or use a tripod.
Status Cause
Ready light glows
steady green.
Shutter button is pressed halfway down. Focus and exposure
are set.
Ready light blinks
green.
Picture is being processed and saved to the camera.
Pictures are being transferred to computer; camera is
connected.
Camera firmware upgrade is in process.
Ready light glows
steady orange.
Camera is in Favorites mode.
Ready light blinks
orange.
Flash is not charged. Wait. Resume picture taking when the
light stops blinking and turns off.
Auto-exposure or auto-focus are not locked. Release the
Shutter button and recompose the picture.
Ready light blinks red
and camera turns off.
Battery is low or exhausted. Recharge the battery (page 2).
If... Try one or more of the following
Troubleshooting
47
Still having problems?
Visit www.kodak.com/go/dx7630support, or see Chapter 8, Getting help.
Ready light glows
steady red.
Camera’s internal memory or card is full.
Transfer pictures to the computer (page 42), delete pictures
from the camera (page 29), switch storage locations
(page 24), or insert a card with available memory (page 7).
Camera processing memory is full. Wait. Resume picture
taking when the light turns green.
Card is read-only. Change image storage location to internal
memory (page 24), or use a different card.
Memory card speed is slow. Card cannot be used to take
videos.
Change storage location to internal memory (page 24). Use
this card to take pictures only.
Status Cause
48
8 Getting help
Helpful links
Software help
Click the Help button in the Kodak EasyShare software.
Telephone customer support
If you have questions concerning the operation of the software or camera, you
may speak with a customer support representative.
Before you call
Have the camera, camera dock, or printer dock connected to your computer.
Be at your computer, and have the following information available:
Help with your camera www.kodak.com/go/dx7630support
Help with Windows operating system
and working with digital pictures
www.kodak.com/go/pcbasics
Download the latest camera software
and firmware
www.kodak.com/go/dx7630downloads
Optimize your printer for truer, more
vibrant colors
www.kodak.com/go/onetouch
Get support for cameras, software,
accessories, more
www.kodak.com/go/support
Purchase camera accessories www.kodak.com/go/dx7630accessories
Register your camera www.kodak.com/go/register
View online tutorials www.kodak.com/go/howto
■ Computer model
■ Operating system
■ Processor type and speed (MHz)
■ Amount of memory (MB)
■ Amount of free hard disk space
■ Camera serial number
■ Version of Kodak EasyShare software
■ Exact error message you received
Getting help
49
For the most up-to-date listings, visit:
http://www.kodak.com/US/en/digital/contacts/DAIInternationalContacts.shtml
Australia 1800 147 701 Netherlands 020 346 9372
Austria 0179 567 357 New Zealand 0800 440 786
Belgium 02 713 14 45 Norway 23 16 21 33
Brazil 0800 150000 Philippines 1 800 1 888 9600
Canada 1 800 465 6325 Portugal 021 415 4125
China 800 820 6027 Singapore 800 6363 036
Denmark 3 848 71 30 Spain 91 749 76 53
Ireland 01 407 3054 Sweden 08 587 704 21
Finland 0800 1 17056 Switzerland 01 838 53 51
France 01 55 1740 77 Taiwan 0800 096 868
Germany 069 5007 0035 Thailand 001 800 631 0017
Greece 00800 441 25605 UK 0870 243 0270
Hong Kong 800 901 514 United States 1 800 235 6325
India 91 22 617 5823 Outside the United
States
585 726 7260
Italy 02 696 33452 International Toll
Line
+44 131 458 6714
Japan 03 5644 5050 International Toll
Fax
+44 131 458 6962
Korea 00798 631 0024
50
9 Appendix
Camera specifications
For more specifications, visit www.kodak.com/go/dx7630support.
Kodak EasyShare DX7630 zoom digital camera
CCD (charge-coupled device)
CCD 1/1.8 in. CCD, 4:3 aspect ratio
Output image size
(image quality
mode)
2856 x 2142 (6.1 M) pixels
2856 x 1904 (5.4 M) pixels
2304 x 1728 (4 M) pixels
2048 x 1536 (3.1 M) pixels
1496 x 1122 (1.7 M) pixels
Display
Color display 2.2 in. (5.6 cm) color hybrid LCD, 640 x 240 (153 K) pixels
Viewfinder Real-image, optical viewfinder field-of-view: 85% (@ wide &
tele)
Preview Frame rate: 24 fps (12 fps @ low light level); Field-of-view:
100%.
Lens
Taking lens 3X optical zoom lens, f/2.8-4.8, 39-117mm (35mm equivalent)
Focus system Hybrid auto-focus system with continuous control. Multi-,
Center-, or Selectable-zones. Working range:
24 in. (60 cm) - infinity @ wide and telephoto normal
2.75 - 27.5 in. (7 - 70 cm) @ wide macro
11 - 27.5 in. (28 - 70 cm) @ telephoto macro
Digital zoom 1 - 4X with 0.2X step
Not supported for movie capture
Accessory lens
thread
Yes
Lens barrier Lens cap
Appendix
51
Exposure
Exposure metering TTL-AE
Multi-pattern AE, Center-weighted AE, Center-spot AE.
Exposure range AE range: EV 6.0 to 16.5
Full range: EV - 3.0 to 16.5
Exposure mode Programmed AE mode: Auto, PASM, Custom, Scene modes.
Aperture Priority AE: f/2.8, 3.3, 4, 4.8, 5.6, 6.7, 8 @ wide
Shutter Priority AE: 64 - 1/1000 sec. @ wide
Full Manual Exposure (Noise Reduction: subtraction of black
image @ >0.7 sec.)
Exposure Compensation: +2.0 EV with 1/3 EV step
Shutter speed Mechanical shutter with CCD shutter electrical 64 - 1/1400 sec.
ISO speed Auto
Selectable: 100, 200, 400, 800 (800 available only in 1.7 MP
picture size)
Flash
Electronic flash Guide no. 10 @ ISO 100; auto flash with photo sensor
Working range @ ISO 140:
2 - 13.8 ft (0.6 - 4.2 m) @ Wide
2 - 8 ft (0.6 - 2.5 m) @ Tele
Flash modes Auto, Fill, Red-eye, Off
Capture
Capture modes Auto, Program, Aperture Priority, Shutter Priority, Manual,
Custom, Close-up, Landscape, Scenes (16), Burst, Video
Jog dial Used to adjust Exposure Compensation, Aperture Priority AE,
Shutter Priority AE, ISO, Flash Compensation, Full Manual
Exposure.
Burst mode Maximum 4 pictures, 2.0 fps for First Burst, Last Burst. (AE, AF,
AWB executed for first shot only.)
Still image buffer 32 MB internal memory
Video capture Image size: QVGA (320 x 240)
Frame rate: 24 fps
Kodak EasyShare DX7630 zoom digital camera
Appendix
52
Image file format Still: EXIF 2.2 (JPEG compression), file organization DCF
Video: QuickTime (CODEC MPEG4)
Image storage Optional MMC or SD Card (The SD logo is a trademark of
the SD Card Association.)
Internal storage
capacity
32 MB internal memory
Review
Quickview Yes
Video output NTSC or PAL
Power
Kodak EasyShare Li-ion rechargeable battery (KLIC-5000); 5V AC adapter, optional
Communication with computer
USB 2.0 (PIMA 15740 protocol), via USB cable, EasyShare camera dock, or printer dock
Languages
English/French/German/Spanish/Italian/Portuguese/Chinese/Korean/Japanese
Other features
Self timer 10 seconds
Sound feedback Power up, shutter, self timer, error
White balance Auto, Daylight, Tungsten, Fluorescent
Auto sleep mode Yes. 8 minutes
Color modes High Color, Neutral Color, Low Color, Black & White, Sepia
Sharpness High, Normal, Low
Date stamp None, YYYMMDD, MMDDYYY, DDMMYYY
Tripod mount 1/4 inch
Size 3.9 in. (100 mm) x 2.7 in. (69 mm) x 2 in. (52 mm) @ power off
Weight 7.7 oz (219 g) without battery or card
Kodak EasyShare DX7630 zoom digital camera
Appendix
53
Tips, safety, maintenance
■ If the camera has been subjected to inclement weather or you suspect
water has gotten inside the camera, turn off the camera and remove the
battery and card. Allow all components to air-dry for at least 24 hours
before using the camera again.
■ Blow gently on the lens or camera screen to remove dust and dirt. Wipe
gently with a soft, lint-free cloth or an untreated lens-cleaning tissue. Do
not use cleaning solutions unless designed specifically for camera lenses.
Do not allow chemicals, such as suntan lotion, to contact painted surfaces.
■ Service agreements are available in some countries. Contact a dealer of
Kodak products for more information.
■ For rechargeable battery disposal information, visit the Rechargeable
Battery Recycling Corporation Web site at www.rbrc.com.
■ For digital camera disposal or recycling information, contact your local
authorities. In the US, visit the Electronics Industry Alliance Web site at
www.eiae.org or the Kodak Web site at
www.kodak.com/go/dx7630support.
Storage capacities
File sizes can vary. You may be able to store more or fewer pictures and
videos. Favorites take up additional space in internal memory and reduce
storage capacity.
Picture storage capacity - fine compression
Number of pictures
6.1 MP 5.4 MP (3:2) 4.0 MP 3.1 MP 1.7 MP
16 MB SD/MMC 557916
32 MB internal memory 910141731
32 MB SD/MMC 10 11 15 19 33
64 MB SD/MMC 20 22 30 38 67
128 MB SD/MMC 40 45 60 76 134
256 MB SD/MMC 80 90 121 152 269
512 MB SD/MMC 161 180 243 304 538
Appendix
54
Picture storage capacity - standard compression
Video storage capacity
Power-saving features
Number of pictures
6.1 MP 5.4 MP (3:2) 4.0 MP 3.1 MP 1.7 MP
16 MB SD/MMC 8 9 12 15 26
32 MB internal memory 15 17 22 28 48
32 MB SD/MMC 16 18 24 30 52
64 MB SD/MMC 32 36 49 60 104
128 MB SD/MMC 65 73 98 121 208
256 MB SD/MMC 131 146 196 242 416
512 MB SD/MMC 262 293 392 485 832
Minutes/seconds of video
16 MB SD/MMC 1 min. 50 sec.
32 MB internal memory 3 min. 30 sec.
32 MB SD/MMC 3 min. 50 sec.
64 MB SD/MMC 7 min. 30 sec.
128 MB SD/MMC 15 min. 10 sec.
256 MB SD/MMC 30 min. 20 sec.
512 MB SD/MMC 60 min. 40 sec.
If no action for The camera To turn it back on
1 minute Screen turns off. Press the Display/Info button.
8 minutes Enters auto power off. Press a button or insert/remove card.
3 hours Turns off. Turn Mode dial Off, then back on.
Appendix
55
Upgrading your software and firmware
Download the latest versions of the software included on the EasyShare
software CD and the camera firmware (the software that runs on the camera).
See www.kodak.com/go/dx7630downloads.
Regulatory compliance
FCC compliance and advisory
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed or used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures: 1) reorient or relocate the receiving antenna; 2) increase
the separation between the equipment and the receiver; 3) connect the
equipment to an outlet on a circuit different from that to which the receiver is
connected; 4) consult the dealer or an experienced radio/TV technician for
additional suggestions.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
Where shielded interface cables have been provided with the product or
specified additional components or accessories elsewhere defined to be used
with the installation of the product, they must be used in order to ensure
compliance with FCC regulation.
Kodak EasyShare DX7630 zoom digital camera
Tested to comply with FCC Standards.
FOR HOME OR OFFICE USE
Appendix
56
Canadian DOC statement
DOC Class B Compliance—This Class B digital apparatus complies with
Canadian ICES-003.
Observation des normes-Class B—Cet appareil numérique de la classe B
est conforme à la norme NMB-003 du Canada.
VCCI Class B ITE
English translation:
This is a Class B product based on the standard of the Voluntary Control
Council for Interference from Information Technology Equipment (VCCI). If this
is used near a radio or television receiver in a domestic environment, it may
cause radio interference. Install and use the equipment according to the
instruction manual.
MPEG-4
Use of this product in any manner that complies with the MPEG-4 visual
standard is prohibited, except for use by a consumer engaging in personal and
non-commercial activities.
57
Index 1
A
A/V out
, ii, 33
about picture, video, 34
about this camera, 26
accessories
battery
, 3
buying, 48
printer dock
, 43
SD/MMC card
, 7
AF control, 23
album
, 24
albums, tagging pictures for, 27, 31
aperture priority, 12
aperture, PASM mode
, 14
auto, 11
flash, 16
focus framing marks
, 9
power-down, 54
B
backlight
, 14
battery
charge via charger
, 2
expected life, 3
extending life, 3
inserting
, 2
safety and handling, 4
beach, 13
bracketing interval
, 22
button
close-up/landscape, 18
delete
, 10
flash/status, 16
OK, 4, 28
on/off
, ii
review, 28
share, ii, 37
zoom
, 10
C
cable
audio/video
, 1, 33
USB, 1, 42
camera dock connector on camera
, ii
camera screen
reviewing pictures, 28
reviewing videos
, 28
Canadian compliance
, 56
caring for your camera, 53
charging
battery via charger
, 2
lights, battery charger, 2
children
, 14
clock, setting, 5
close-up, 13
scenes
, 18
close-up pictures, 18
color mode, 23
compression
, 21
computer
connecting camera, 42
transfer to
, 42
connector for camera dock, ii
contents, camera box, 1
copy pictures
card to memory
, 34
memory to card
, 34
to computer via USB cable
, 42
custom, 12
custom exposure mode, 21
customer support
, 48
D
date setting
, 5
date stamp, 26
deleting
during quickview
, 10
from internal memory
, 29
from MMC/SD Card, 29
Index
58
digital zoom, 25
digital zoom, using
, 11
displaying slide show, 32
disposal, recycling, 53
distant scenes
, 18
dock, printer, 43
downloading pictures, 42
E
EasyShare software
, 35
emailing pictures, videos
, 39
exposure
compensation, PASM mode, 14
exposure metering
, 22
external video device
viewing pictures, videos, 33
F
favorites
, 12
removing
, 41
settings, 41
tagging, 40
FCC compliance
, 55
fireworks, 13
firmware, upgrading, 55
flash
settings
, 16
unit, i
flower
, 13
focus framing marks, 9
focus zone, 23
format
, 26
H
help
software
, 48
troubleshooting, 44
web links
, 48
I
icons, mode dial
, 11
image storage
, 24
information
about pictures, videos
, 34
inserting
battery, 2
SD/MMC card
, 7
installing software, 36
internal memory
storage capacity
, 53
J
joystick
, ii
K
Kodak EasyShare software
getting help
, 48
installing, 36
upgrading
, 55
Kodak web sites, 48
L
landscape
, 13, 18
language, 26
lens
, i
light
ready, ii
sensor
, i
liveview, 24
locating holes for dock, ii
M
Macintosh
installing software on
, 36
magnify picture
, 30
manner
, 13
manual
, 12
memory
inserting card, 7
microphone
, i
mode dial, ii, 11
modes
aperture priority
, 12
auto
, 11
Index
59
backlight, 14
beach
, 13
children, 14
close-up, 13
custom
, 12
custom exposure, 21
favorites, 12
fireworks
, 13
flower, 13
landscape, 13
manner
, 13
manual, 12
night landscape, 13
night portrait
, 13
party, 14
portrait, 13
program
, 11
SCN, 11
self portrait, 13
shutter priority
, 12
snow, 13
sports, 13
text
, 13
N
night landscape
, 13
night portrait, 13
O
OK button
, 4, 28
online prints, ordering, 43
optical zoom
, 10
orientation sensor, 26
P
package contents, camera
, 1
party, 14
PASM mode
screen options
, 14
picture size, 21
pictures
checking settings
, 6
copying
, 34
deleting
, 29
emailing tagged, 39
magnifying, 30
printing
, 43
printing tagged, 38
reviewing, 28
storage capacity
, 53
tagging, 31
taking, modes, 11
transfer via USB cable
, 42
portrait, 13
power
auto off
, 54
camera, 4
switch, ii
print warning
, 25
printer dock, 43
printing
from a card
, 43
optimizing printer, 48
order online, 43
pictures
, 43
tagged pictures, 43
without computer, 43
program
, 11
protecting pictures, videos, 31
Q
quickview
, 25
using
, 10
R
ReadMe file
, 44
ready light
, ii
recycling, disposal, 53
red-eye, flash, 16
regulatory information
, 55
removing favorites, 41
reset to default, 24
review button
, 28
reviewing pictures
Index
60
as you take them, 10
camera screen
, 28
deleting, 29
magnifying, 30
slide show
, 32
reviewing videos
camera screen, 28
deleting
, 29
slide show, 32
running slide show, 32
S
safety
, 53
SCN
, 11
SD/MMC card
inserting, 7
printing from
, 43
storage capacities, 53
self portrait, 13
self timer
, 21
light, i
sensor, light, i
service and support
telephone numbers
, 48
setting
AF control
, 23
album, 24
bracketing interval, 22
color mode
, 23
compression, 21
date and time
, 5
date stamp
, 26
digital zoom, 25
exposure metering, 22
flash
, 16
focus zone, 23
image storage, 24
language
, 26
liveview
, 24
orientation sensor, 26
picture size
, 21
picture taking mode
, 11
quickview
, 25
self timer, 21
sharpness, 24
sound themes
, 25
sound volume, 26
video date display, 26
video length
, 24
video out, 26
white balance, 22
share button
, ii, 37
sharpness, 24
shutoff, auto, 54
shutter priority
, 12
shutter speed, PASM mode, 14
shutter, problems, 45
sleep mode
, 54
slide show
problems, 45
running
, 32
snow, 13
software
getting help
, 48
installing, 36
upgrading, 55
sound themes
, 25
sound volume, 26
specifications, 50
sports
, 13
storage capacity, 53
support, technical
, 48
T
tagging
, 27
favorites
, 40
for email, 39
for print, 38
when to tag
, 37
tagging pictures
for albums
, 27, 31
telephone support
, 48
Index
61
television, slide show, 33
text
, 13
time, setting, 5
tips
battery guidelines
, 3
maintenance, 53
ReadMe file, 44
safety
, 53
transfer, via USB cable, 42
trash can, deleting, 10
tripod socket
, ii
troubleshooting, 44
turning camera on and off, 4
U
upgrading software, firmware
, 55
URLs, Kodak web sites
, 48
USB (universal serial bus)
connection location, ii
transferring pictures
, 42
V
VCCI compliance
, 56
video date display, 26
video length, 24
video out
, 26
videos
checking settings, 6
copying
, 34
deleting, 29
emailing tagged, 39
reviewing
, 28
storage capacities, 53
transfer to computer, 42
viewing
, 28
viewfinder, i, ii
viewing picture
after taking
, 10, 28
magnified, 30
viewing picture, video
information
, 34
W
white balance
, 22
Windows computers
installing software, 36
wrist strap post
, i
Z
zoom
digital
, 11
optical, 10
