Thank you for buying a Samsung Camera.
This manual will guide you through using the camera, including capturing images, downloading images and
using the application software. Please read this manual carefully before using your new camera.
ENGLISH
User's Manual
❾➓2❾➔
Instructions
❾✃ Use this camera in the following order
Insert the
USB cable
Set up the
camera driver
Before connecting the camera to a PC, via the
USB cable, you will need to set up the camera
driver. Install the camera driver that is contained in
the Application S/W CD-ROM.(p.96)
Take a picture (p.20)
Insert the supplied USB cable into the PC’s USB
port and the camera’s USB connection
terminal.(p.102)
Check the camera’s power. If the power is turned
off, press the camera button to turn on.
Take a picture
Check the
camera’s power
Check
[Removable Disk]
Open Window’s EXPLORER and search for
[Removable Disk].(p.103)
❾➴ If you use a card reader to copy the images on the memory card to your PC, the images
could be damaged. When transferring the images taken with the camera to your PC, be sure
to use the supplied USB cable to connect the camera to your PC. Please note that the
manufacturer holds no responsibility for loss or damage of images on the memory card due
to the use of a card reader.
❾➓3❾➔
Contents
❾➴Getting to know your camera 5
❾➴About the icons 5
❾➴Danger 6
❾➴Warning 6
❾➴Caution 7
❾➴An FCC warning 7
❾➴System chart 8
❾➴Identification of features 10
❾✃Front & Top 10
❾✃Back & Bottom 10
❾✃Side/ 5-function button 11
❾✃Mode dial 11
❾➴Connecting to a Power Source 14
❾✃Using the AC power adapter(3.3V 2.0A) 14
❾✃Using the batteries 15
❾➴
Instructions on how to use the memory card
16
❾✃Maintenance of the memory card 16
❾✃Preserving the memory card data 16
❾➴Inserting the memory card 18
❾➴Removing the memory card 18
❾➴LCD monitor indicator 19
❾➴Starting the recording mode 20
❾✃How to use the AUTO mode 20
❾✃How to use the PROGRAM mode 21
❾✃How to use the AS mode 21
❾✃How to use the M mode 22
❾✃
How to use the VOICE RECORDING mode
22
❾✃How to use the MOVIE CLIP mode 23
❾✃Pausing while recording a movie clip
(Successive Recording) 23
❾✃NIGHT SCENE mode 24
❾✃How to use the SCENE mode 24
❾➴Things to Watch Out for When Taking
Pictures 25
❾➴Using the camera buttons to adjust the
camera 26
❾✃POWER button
26
❾✃SHUTTER button 26
❾➴ZOOM W/T button 26
❾➴Voice memo/ UP button 28
❾➴Macro/ Down button (Focusing) 29
❾➴Focus lock 30
❾➴FLASH/ LEFT button 31
❾➴Self-timer/ Right button 33
❾➴MENU/ OK button 34
❾➴+/- button 35
❾➴ASM button
(Manual & Scene mode button) 38
❾➴LCD button 40
❾➴Using the LCD monitor to adjust the
camera settings 41
❾➴How to use the menu 43
❾✃Size 43
❾✃Quality 44
❾✃Metering 45
❾✃Continuous shot 45
❾✃Effect 46
❾✃Sharpness 47
❾✃Save/ Load the camera configuration
(MYSET) 48
❾✃Scene 49
❾➴Starting play mode 50
❾✃Playing back a still image 50
❾✃Playing back a movie clip 51
❾✃Playing back a recorded voice 51
❾➴LCD monitor indicator 52
❾➴Using the camera buttons to adjust the
camera 53
❾✃Thumbnail/ Enlargement button 53
❾✃Voice memo/ Up button 54
❾✃Play & Pause/ Down button 55
❾✃LEFT/ RIGHT/ MENU/ OK button 56
❾✃LCD button 56
❾✃Delete button 57
READY
RECORDING
PLAY
❾➓4❾➔
Contents
❾➴Setting up the play back function using the
LCD monitor 58
❾➴Starting the slide show 61
❾➴Rotating an image 62
❾➴Resize 63
❾➴Protecting images 64
❾➴Deleting all images 65
❾➴DPOF 65
❾➴DPOF : STANDARD 66
❾➴DPOF : INDEX 66
❾➴DPOF : PRINT SIZE 67
❾➴DPOF : CANCEL 67
❾➴COPY TO CARD 68
❾➴PictBridge 69
❾➴PictBridge: Picture Selection 70
❾➴PictBridge: Printing 71
❾➴PictBridge: Print Setting 72
❾➴PictBridge : RESET 73
❾➴Setup menu 74
❾➴File name 75
❾➴Auto power off 76
❾➴Language 77
❾➴Formatting a memory card 78
❾➴Setting up the Date/ Time 79
❾➴Date type 79
❾➴Imprinting the recording date 80
❾➴Function lamp 80
❾➴Sound 81
❾➴Selecting an External Device(USB) 82
❾➴LCD brightness 82
❾➴Quick view 83
❾➴Initialization(RESET ALL) 83
❾➴Setting up the MYCAM menu 84
❾➴Start up image 84
❾➴Shutter sound 85
❾➴Start up sound 85
❾➴Important notes 86
❾➴Warning indicator 88
❾➴Before contacting a service center 89
❾➴Specifications 92
❾➴Software Notes 94
❾➴System Requirements 94
❾➴About the software 95
❾➴Setting up the application software 96
❾➴Starting PC Mode 102
❾➴Removing the USB Driver for
Windows 98SE 105
❾➴Removable Disk 106
❾➴Removing the removable disk 107
❾➴Setting up the USB Driver for MAC 108
❾➴Using the USB Driver for MAC 108
❾➴Digimax Viewer 2.1 109
❾➴Using PhotoImpression 110
❾➴FAQ 111
SOFTWARE
SETUP
❾➓5❾➔
Getting to know your camera
Thank you for buying a Samsung Digital Camera.
❾➴ Prior to using this camera, please read the user manual thoroughly.
❾➴ When you require After Sales service, please bring the camera and the cause of the camera
malfunction (such as Batteries, Memory card etc.) to the A/S center.
❾➴ Please check that the camera is operating properly prior to when you intend to use it
(e.g. for a trip or an important event) to avoid disappointment. Samsung camera takes no
responsibility for any loss or damages that may result from camera malfunction.
❾➴ Keep the manual in a safe place.
➃❁Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation
incorporated in the United States and/or other countries.
➃❁All brand and product names appearing in this manual are registered trademarks of their
respective companies.
This manual contains instructions on using this camera that will help you to use this camera
safely and correctly. This will help prevent danger and injury to others.

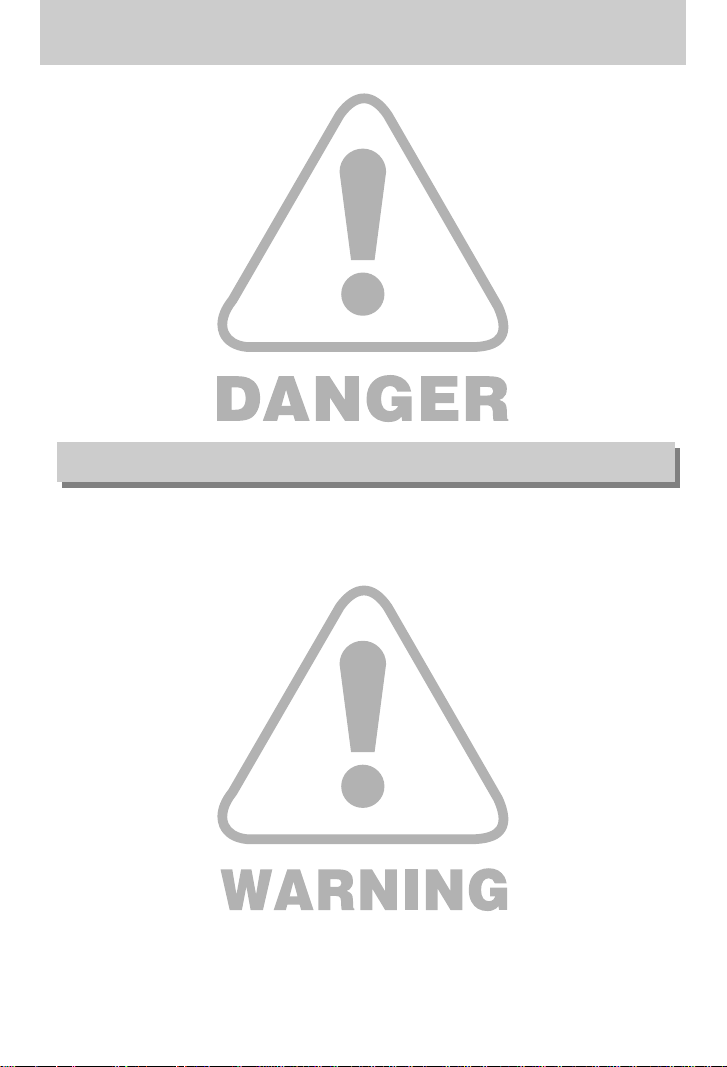

About the icons
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if not avoided, may
result in a minor or moderate injury.
❾➓6❾➔
Danger
❾✃ Do not attempt to modify this camera in any way. This may result in fire, injury, electric shock
or severe damage to you or your camera. Internal inspection, maintenance and repairs
should be carried out by your dealer or Samsung Camera Service Center.
❾✃ Please do not use this product in close proximity to flammable or explosive gases, as this
could increase the risk of explosion.
❾✃ Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the
camera, and then disconnect the power source (batteries or AC Power Adapter).
You must contact your dealer or Samsung Camera Service Center.
Do not continue to use the camera as this may cause a fire or electric shock.
❾✃ Do not insert or drop metallic or inflammable foreign objects into the camera through access
points e.g. the memory card slot and battery chamber.
This may cause a fire or electric shock.
❾✃ Do not operate this camera with wet hands. This could pose a risk of electric shock.
❾✃ Do not use the flash in close proximity to people or animals.
Positioning the flash too close to your subject’s eyes, may cause eyesight damage.
❾✃ When taking photographs, never point the lens of the camera directly into very strong light.
This may result in permanent damage to your eyesight.
❾✃ For safety reasons keep this product and accessories out of reach of children or animals to
prevent accidents e.g.:
➃❃Swallowing batteries or small camera accessories. If an accident should occur, please
consult a doctor immediately.
➃❃There is the possibility of injury from the camera’s moving parts.
❾✃ Batteries and camera may become hot during prolonged use and it may result in camera
malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it
time to cool.
❾✃ Do not recharge non rechargeable batteries. This may cause an explosion.
❾✃ Do not leave this camera in places subject to extremely high temperatures, such as a sealed
vehicle, direct sunlight or other places of extreme variances in temperature.
Exposure to extreme temperatures may adversely affect the camera❾緘s internal components
and could cause a fire.
❾✃ When in use, do not cover the camera or AC Power Adapter.
This may cause heat to build up and distort the camera body or cause a fire.
Always use the camera and its accessories in a well-ventilated area.
Warning
❾➓7❾➔
Caution
❾✃ Leaking, overheating, or burst batteries could result in fire or injury.
➃❃Use batteries with the correct specification for the camera.
➃❃Do not short circuit, heat or dispose of batteries in fire.
➃❃Do not insert the batteries with the reverse polarities.
❾✃ Remove the batteries when not planning to use the camera for a long period of time.
Batteries may leak corrosive electrolyte and irreparably damage the camera's components.
❾✃ Do not fire the flash while it is in contact with hands or objects.
Do not touch the flash after using it continuously. It may cause burns.
❾✃ Do not move the camera while it is switched on, if you are using the AC Power Adapter.
After use, always switch off the camera before unplugging the adapter from the wall socket.
Then make sure that any connector cords or cables to other devices are disconnected before
moving the camera. Failure to do so may damage the cords or cables and cause a fire or
electric shock.
An FCC warning
➃❃This device has been tested in accordance with the limits of a class B digital device
under item 15 of the FCC rules. These limits are designed to provide protection
against harmful interference in commercial installation. This equipment generates,
absorbs and can emit radio frequency energy. If it is not installed and used in
accordance with the instructions, it may cause harmful interference to radio
communication.
There is however, no guarantee that interference will not occur in some situations.
Should any interference occur when this device is in operation, please try one or
more of the following measures.
❾✃ Change the location and direction of any aerial.
❾✃ Increase distance between the camera and the affected device.
❾✃ Use a different socket away from the affected device.
❾✃ Please contact a Samsung agent or a radio/ TV engineer.
➃❃This device complies with part 15 of the FCC Rules.
➃❃Changes or modifications not expressly approved by the party responsible for
compliance could void user's authority to operate the equipment.
❾➓8❾➔
System chart
Please check that you have the correct contents before using this product. To buy the optional
equipment, contact your nearest Samsung dealer or Samsung service centre.
Pouch
User manual
Product warranty
Camera strap
Software CD
(see p.95)
SD memory card
(see p.17)
DPOF compatible
printer(see p.65)
CR-V3
battery
AA Alkaline
Batteries
Rechargeable battery
(SNB-2312)
Rechargeable battery
(SBP-1303)
Battery charger
(SBC-L1)
Battery charger
(SBC-N1)
AC cord
AC adapter
(SAC-32, 3.3V)
< Included items >
❾➓9❾➔
System chart
USB cable
PictBridge compatible
printer(see p.69)
Computer
(see p.94)
For Windows
➃❃PC with processor better than MMX
Pentium 233MHz (XP : Pentium II 300MHz)
➃❃Windows 98/ 98SE/ 2000/ ME/ XP
➃❃Minimum 32MB RAM (XP : 128MB)
➃❃140MB of available hard-disk space
➃❃USB port
➃❃CD-ROM drive
➃❃800x600 pixels, 16-bit colour display
compatible monitor (24-bit colour display
recommended)
For Macintosh
➃❃Power Mac G3 or later
➃❃Mac OS 9.0 ~ 10.2
➃❃Minimum 64MB RAM
➃❃110MB of available hard-disk space
➃❃USB port
➃❃CD-ROM drive
➃❃QuickTime 6.4 or later for Movie Clip
System Requirements
When you connect the camera to a
computer or printer, you have to use the
USB cable supplied with the camera,
or the external devices may not recognise
the camera.
CAUTION
❾➓10❾➔
Identification of features
Front & Top
Back & Bottom
* When using the digital zoom to take a picture, the composition of the picture may be different
depending on whether you are using the LCD monitor or the viewfinder. The picture will be
taken in the composition of the picture as it appears on the LCD monitor.
Viewfinder
Flash indicator lamp(Red)
Mode dial
Autofocus indicator lamp(Green)
Zoom W button
(Thumbnail)
LCD button
Zoom T button
(Digital zoom)
5-function
button
Tripod socket ASM(Manual & Scene mode) button
Play mode
button
DC input connection port
USB
connection port
LCD monitor
+/-, DELETE
button
Shutter button
Power button
Microphone
Speaker
Lens
Mode dial
Viewfinder
Flash
Function lamp
❾➓11❾➔
Identification of features
❾➴ PROGRAM mode
Please select this mode for quick and easy picture taking
with minimal user interaction.
Selecting the automatic mode will configure the camera with
optimal settings. You can still manually configure all
functions except the iris and shutter speed.
❾➴ AUTO mode
❾✃ You can select the desired working mode by using the mode dial located on the top of the
camera. This digital camera has 8 recording modes. These are listed below.
Side/ 5-function button
Mode dial
Battery chamber
Memory card slot
Battery chamber cover
FLASH/
LEFT button
MENU/
OK button
MACRO/ DOWN button
SELF-TIMER/
RIGHT button
Voice memo/ UP button
❾➓12❾➔
Identification of features
Aperture priority/ Shutter priority mode
The Aperture and Shutter can be set manually in the AS
mode.
❾➴ AS mode
Manual mode
The Aperture value, Shutter speed and various functions can
be set manually in this mode.
❾➴ M mode
A voice recording can be recorded for as long as the available
recording time of the memory capacity allows.(Max : 1 hour)
- Voice recording file type : *.wav
❾➴ VOICE RECORDING mode
A movie clip can be recorded for as long as the available
recording time of the memory capacity allows.
- Image size : 640X480, 320X240, 160X120(user selectable)
- Movie clip file type : *.avi
❾➴ MOVIE CLIP mode
Use the menu to easily configure optimal settings for a variety
of shooting situations including portrait, children, landscape,
text, close-up, sunset, dawn, backlight, fireworks, beach
scenes, and snowscape.
❾➴ SCENE mode
This mode is used at night or against a dark background.
❾➴ NIGHT SCENE mode
❾➓13❾➔
Identification of features
❾✃ Function lamp& Self-timer lamp
Function Description
For the first 7 seconds, the lamp blinks at 1 second intervals.
For the final 3 seconds, the lamp blinks quickly at 0.25-second intervals.
*The lamp will function while using the self-timer even if the configuration
is set to off the lamp.(Based on 10-second Self-timer; see p. 33)
Function lamp blinks and then turns off when the camera is ready to take
a picture
Function lamp blinks once
Function lamp blinks at a 1-second interval
MODE
Icon
Icon
MODE
SCENE
AUTO
PROGRAM AS
M
VOICE RECORDING
MOVIE CLIP
NIGHT SCENE
PLAY
CHILDREN
❾✃ Mode icons
LANDSCAPE
CLOSE UP
TEXT
PORTRAIT
SUNSET
DAWN
BACKLIGHT
FIREWORKS
BEACH&
SNOW
Color Status Camera Status
Blinking
Recording Mode (lightly press the shutter button): Not focused
PC Mode: Transmitting Data
Recording Mode (lightly press the shutter button): Focused.
On
Green
Color Status Camera Status
Blinking
Flash in the process of charging
Flash ready
On
Red
❾✃ Auto focus indicator lamp
❾✃ Flash indicator lamp
Color Status Camera Status
On
Turned off the LCD with the LCD button.
PC Mode: When the USB cable is inserted.
Green
❾✃ Mode dial lamp
While the self timer is
functioning
Power on
After taking a picture
While movie recording
While voice recording.
❾➓14❾➔
Connecting to a Power Source
Important information about battery usage
❾➴ It is easy to buy alkaline batteries. However, the duration for using batteries varies in
accordance with the battery manufacturer or the photographic conditions.
❾➴ When the camera is not used, turn off the camera power.
❾➴ Do not recharge the non rechargeable batteries. It may cause an explosion.
❾➴ Please remove the batteries if the camera will not be used for long periods. Batteries can
lose power over time and are prone to leaking if kept inside the camera.
❾➴ We recommend high capacity ALKALINE batteries as manganese batteries cannot
deliver sufficient power.
❾➴ Low temperatures (below 0❾➨) can affect the performance of the batteries and you may
experience reduced battery life.
❾➴ Batteries will usually recover at normal temperatures.
❾➴ Do not use old and new batteries at the same time.
❾➴ During extended use of the camera, the camera body may become warm.
This is perfectly normal.
INFORMATION
If you have access to a mains supply, using an AC
Adapter (3.3V 2.0A) allows the camera to be used for
long periods of time.
Plug the adapter into the connection point
(DC IN 3.3V) on the camera.
Remove the batteries from the camera when using an
AC adapter.
Using the AC power adapter (3.3V 2.0A)
❾✃ There are two ways in which to provide the camera with power. You can use batteries or
alternatively, you can use an AC(100 ~ 250V) Adapter (DC 3.3V 2.0A).
❾✃ We recommend using batteries for a digital camera (Within a year from the date of
manufacture). The batteries are listed below.
Non rechargeable batteries : AA type - Alkaline, Ni-Mn, Ni-Zn, Lithium
CR-V3 type - Lithium
Rechargeable batteries : AA type - Ni-MH(Samsung SNB-2312 recommended)
Ni-Cd(over 1000mAh)
CR-V3 type - Samsung SBP-1303(Lithium Ion battery)
❾➓15❾➔
Connecting to a Power Source
Battery status
Battery indicator
The batteries are fully
charged.
Prepare new batteries.
There is no battery capacity.
Replace with new batteries.
❾✃ There are 3 indicators for battery condition that are displayed on the LCD monitor.
3. To close the battery chamber cover, push it until it clicks.
2. Insert the batteries taking note of the
polarity (+ / -).
1. Open the battery chamber cover by pushing in the direction of the
arrow.
: If the camera does not turn on after you have inserted batteries,
please check whether the batteries are inserted with the correct
polarity(+/-).
Using the batteries
[
Inserting the AA type battery
][
Inserting the CR-V3 type battery
]
❾➴ Always turn off the power before taking the AC adapter out of the mains supply.
❾➴ As with all mains powered devices, safety is important. Ensure that neither the camera
nor adapter comes into contact with water or metallic materials.
❾➴ Please ensure that you use an AC adapter (3.3V 2.0A) with the correct specification for
the camera. Failure to do so may affect your warranty.
DANGER
❾➓16❾➔
Instructions on how to use the memory card
❾➴ Be sure to format the memory card (see p. 78) if you are using a newly purchased memory
for the first time, if it contains data that the camera cannot recognize, or if it contains images
captured with a different camera.
❾➴ Turn off the camera power whenever the memory card is being inserted or removed.
❾➴ Repeated use of the memory card will eventually reduce the memory card’s performance.
Should this be the case, you will need to purchase a new memory card.
Wear and tear on the memory card is not covered by the Samsung warranty.
❾➴ The memory card is an electronic precision device.
Do not bend, drop or subject the memory card to any heavy impact.
❾➴ Do not store the memory card in an environment with strong electronic or magnetic fields,
e.g. near loud speakers or TV receivers.
❾➴ Please do not use or store in an environment where there are extremes in temperature.
❾➴ Do not allow the memory card to become dirty or to come into contact with any liquid.
Should this happen, clean the memory card with a soft cloth.
❾➴ Please keep the memory card in its case when not in use.
❾➴ During and after periods of extended use, you may notice that the memory card is warm.
This is perfectly normal.
❾➴ Do not use a memory card that is used in another digital camera or memory card reader.
❾➴ Do not use a memory card formatted by another digital camera or memory card reader.
Maintenance of the memory card
❾➴ If the memory card is subjected to any of the following, the recorded data may become
corrupted :
- When the memory card is used incorrectly.
- If the power is switched off or the memory card is removed while recording, deleting
(formatting) or reading.
❾➴ Samsung cannot be held responsible for lost data.
❾➴ It is advisable to copy important data onto other media as back-up e.g. floppy disks, hard
disks, CD etc.
❾➴ If there is insufficient memory available : If you press the shutter button for the shot, a [CARD
FULL !] message will appear and the camera will not operate. To optimize the amount of
memory in the camera, replace the memory card or delete unnecessary images stored on
the memory.
Preserving the memory card data
❾➓17❾➔
Instructions on how to use the memory card
❾➴ If you open the battery chamber cover when the camera power is turned on, the power
will turn off automatically.
❾➴ Don’t remove the memory card when the Auto focus lamp(Green) is blinking as this may
cause damage to data in the memory card.
INFORMATION
[ SD(Secure Digital) memory card ]
Write
protect
switch
Label
Card
pins
❾✃ The camera can use SD Memory Cards and MMC (Multi Media Card).
The SD memory card has a write protect switch
that prevents image files from being deleted or
formatted.
By sliding the switch to the bottom of the SD
memory card, the data will be protected.
By sliding the switch to the top of the SD memory
card, the data protection will be canceled.
Slide the switch to the top of the SD memory
card before taking a picture.
❾✃ When using a 32MB internal memory, the specified shooting capacity will be as follows.
These figures are approximate as image capacities can be affected by variables such as
subject matter.
Mode
Quality/ Size 3072 2816 2592 2272 2048 1600 1024 640 640 320 160
SUPER FINE 7 8 10 13 16 26 64 162 - - -
FINE 14 16 19 26 32 52 95 205 - - -
NORMAL 21 25 30 39 47 65 127 244 - - -
30FPS
--- -----
44SEC
1MIN 36SEC 5MIN 1SEC
15FPS
--- -----
1MIN 13SEC 3MIN 1SEC 8MIN 50SEC
STILL IMAGE mode MOVIE CLIP mode
❾➓18❾➔
Inserting the memory card
1. Turn the power off using the power button.
Open the battery chamber cover and press the memory
card as shown in the image and release.
2. Remove the memory card and close the battery chamber
cover.
3. To close, push the battery chamber cover until you hear a
click.
If the memory card does not slide in smoothly, do not
attempt to insert it by force. Check the direction of insertion,
and then insert it correctly. Do not insert the memory card
the wrong way round. Doing so may damage the memory
card slot.
2. Have the front of the memory card facing toward the back of
the camera (LCD monitor) and the card pins toward the front
of the camera (lens), and then push the memory card into
the card slot until you hear a click.
1. Turn off the camera’s power and pull the battery chamber
cover in the direction of the arrow to open.
Removing the memory card
19
LCD monitor indicator
[ Image & Full Status ]
No. Description Icons Page
1 Battery p.15
3 Continuous shot p.45
4 Flash p.31
5 Self-timer p.33
6 Macro p.29
7 Metering p.45
8 Card inserted indicator
9 Auto focus frame
10 Camera shake warning p.25
11 Date/ Time
2005.01.01 01:00 PM
12 Exposure compensation p.37
13 White Balance p.36
The LCD monitor displays information about the shooting functions and selections.
Recording mode
2
p.11~12
p.49
AEB
20
LCD monitor indicator
14
ISO
p.35
15
Sharpness
p.47
16
Image quality
p.44
17
Image size
3072, 2816, 2592, 2272, 2048, 1600, 1024, 640
p.43
Number of available shots remaining
12
Remaining time (Movie clip/ Voice recording)
00:00:44/ 00:59:00
19
Voice memo
p.28
20
Optical zoom/ Digital Zoom rate
Starting the recording mode
1. Insert the batteries.(p.15) Insert the batteries taking note
of the polarity (+ / -).
2. Insert the memory card (p.18).
3. Close the battery chamber cover.
4. Press the power button to turn on the camera.
(If the date/time that is displayed on the LCD monitor is
incorrect, reset the date/time before taking a picture.)
5. Select the AUTO mode by rotating the mode dial.
6. Point the camera towards the subject and compose the
image by using either the viewfinder or LCD monitor.
7. Press the shutter button to capture an image.
How to use the AUTO mode ( )
[ AUTO mode ]
18
If the auto focus frame turns to red when you press the shutter button down half way,
it means that the camera cannot focus on the subject. Should this be the case,
the camera is unable to capture an image clearly.
INFORMATION
21
How to use the PROGRAM mode ( )
Selecting the automatic mode will configure the camera
with optimal settings. You can still manually configure all
functions except the iris and shutter speed.
Steps from 1-4 are the same as those for AUTO mode.
5. Select the PROGRAM mode by rotating the mode dial.
6. Press the menu button to configure advanced functions
such as image size (p.43), quality (p.44), metering (p.45),
continuous shooting (p.45), picture effects (p.46),
sharpness(p.47) and MYSET(p.48) settings.
7. Point the camera towards the subject and compose the
image by using either the viewfinder or LCD monitor.
8. Press the shutter button to capture an image.
Starting the recording mode
[ PROGRAM mode ]
How to use the AS mode ( )
The Aperture and Shutter can be set manually in this mode.
Steps from 1-4 are the same as those for AUTO mode.
5. Select the AS mode by rotating the mode dial.
6. Use the ASM, Up/Down/Left/Right buttons to select
Aperture Value and Shutter speed.
* Please see page 38 for details on Aperture and Shutter
speed setting.
7. Point the camera towards the subject and compose the
image by using either the viewfinder or LCD monitor.
8. Press the shutter button to capture an image.
[ AS mode ]
22
Starting the recording mode
How to use the M mode ( )
The Aperture and Shutter can be set manually in this mode.
Steps from 1-4 are the same as those for AUTO mode.
5. Select the M mode by rotating the mode dial.
6. Use the ASM, Up/Down/Left/Right buttons to select Aperture
Value and Shutter speed.
* Please see page 39 for details on Aperture and Shutter
speed setting.
7. Point the camera towards the subject and compose the
image by using either the viewfinder or LCD monitor.
8. Press the shutter button to capture an image.
* If the M mode is selected, a bar to indicate the exposure
value will display on the bottom of the LCD monitor.
( )
[ M mode ]
How to use the VOICE RECORDING mode ( )
Steps from 1-4 are the same as those for AUTO mode.
5. Select the VOICE RECORDING mode by rotating the
mode dial.
6. Press the shutter button to record a voice.
- Press the shutter button once and voice is recorded for
as long as the available recording time(Max : 1 hour)
allows. The recording time will be displayed on the LCD
monitor. Voice will still be recorded if the shutter button is
released.
- If you wish to stop recording, press the shutter button
again.
- File type : *.wav
* A distance of 40cm between you and the camera
(microphone) is the best distance to record sound.
* The auto focus indicator lamp(Green) blinks during voice
recording.
[ VOICE RECORDING mode ]
START:SHUTTER
STANDBY
23
Starting the recording mode
[ MOVIE CLIP mode ]
How to use the MOVIE CLIP mode( )
Steps from 1-4 are the same as those for AUTO mode.
5. Select the MOVIE CLIP mode by rotating the mode dial.
6. The MOVIE CLIP mode icon and available recording
time will display on the LCD monitor.
7. Point the camera towards the subject and compose the
image by using either the viewfinder or LCD monitor.
Press the shutter button and movie clips are recorded
for as long as the available recording time.
Movie clips will still be recorded if the shutter button is released.
Recording time will display on the LCD monitor.
If you wish to stop recording, press the shutter button again.
Image size and type are listed below.
- Image size : 640x480, 320 x 240, 160x120(Selectable)
- File type : *.avi
Pausing while recording a movie clip (Successive Recording)
This camera allows you to temporarily stop during unwanted scenes, while recording a movie
clip. Using this function, you can record your favorite scenes into a movie clip without having
to create multiple movie clips.
Using Successive Recording
Steps from 1-6 are the same as those for MOVIE CLIP mode.
7. Point the camera towards the subject and compose the image by using either the
viewfinder or LCD monitor. Press the shutter button and
movie clips are recorded for as long as the available
recording time. Movie clips will still be recorded if the
shutter button is released.
8. Press the Pause button( ) to pause recording.
9. Press the Pause button( ) again to resume the
recording.
10. If you wish to stop recording, press the shutter button
again.
[
Successive recording of a movie clip
]
24
Starting the recording mode
How to use the SCENE mode ( )
Use the menu to easily configure optimal settings for a variety of shooting situations including
portrait, children, landscape, text, close-up, sunset, dawn, backlight, fireworks, beach scenes,
and snowscape.
Steps from 1-4 are the same as those for AUTO mode.
5. Select the SCENE mode by rotating the mode dial.
6. Press the ASM(Manual & Scene mode) button and use the
Left/Right buttons to select the sub menu.
7. After selecting a desired sub menu, press the ASM(Manual &
Scene mode) button or OK button.
8. The current scene icon is displayed at the top left of the LCD.
9. Point the camera towards the subject and compose the
image by using either the viewfinder or LCD monitor.
10. Press the shutter button to capture an image.
[ SCENE mode ]
NIGHT SCENE mode( )
This mode is used at night or against a dark background.
It is possible that camera shake will occur. If this is the
case, use a tripod to eliminate this.
Use the ASM, Up/Down/Left/Right buttons to select
Aperture Value and Shutter speed. Please see page 38 for
details on Aperture and Shutter speed setting.
[NIGHT SCENE mode]
25
Things to Watch Out for When Taking Pictures
Pressing the shutter button down half way
Lightly press the shutter button to confirm focus and flash battery charge.
Press the shutter button all way down to take the picture.
The available recording time may vary depending on shooting conditions and camera
settings.
When the Flash Off or Slow synchro mode is selected in a low lighting condition, the camera
shake warning indicator ( ) may appear on the LCD monitor. In this case, use a tripod,
support the camera on a solid surface or change the flash mode to flash shot mode.
Backlight compensated shots: When taking an outdoor shot, avoid facing the sun, as the
image may be dark because of the strong backlight. To take a picture against the sun, please
use the [BACKLIGHT] in the scene shooting mode (see page 49), Fill-in flash (see page 31),
Spot metering (see page 45), or Exposure compensation (see page 37).
Avoid obstructing the lens or the flash when you capture an image.
As there can be some differences between what is seen through the Viewfinder and the
resulting image when taken at a range closer than 1.5m, it is recommended that you use the
LCD monitor to compose these shots.
Using the LCD monitor extensively will drain the batteries.
We recommend turning off the LCD monitor and using the optical viewfinder as often as
possible in order to extend battery life.
Under certain conditions the auto focus system may not perform as expected.
- When photographing a subject that has little contrast.
- If the subject is highly reflective or shiny.
- If the subject is moving at high speed.
- When there is strong reflected light, or when the background is very bright.
- When the subject matter has only horizontal lines or the subject is very narrow (such as a
stick or flagpole).
- When the surroundings are dark
[ Lightly press the shutter button ] [ Press the shutter button ]
26
Using the camera buttons to adjust the camera
The RECORDING mode function can be set up by using the camera buttons.
Used for turning the camera’s power on/ off.
To turn on the camera power, press the power button.
If there is no operation during the specified time,
the camera’s power will be turned off automatically to save
battery life.
Pressing the power button for over 3 seconds will deactivate
the start-up sound and sound function.
POWER button
Used for taking an image or recording voice in the
RECORDING mode.
In MOVIE CLIP mode :
Pressing the shutter button down fully starts the process for
recording a movie clip. Press the shutter button once and the
movie clip is recorded for as long as the available recording
time in the memory allows. If you wish to stop recording,
press the shutter button again.
In STILL IMAGE mode
Pressing the shutter button down halfway activates the auto focus and checks the condition
of the flash. Pressing the shutter button down fully takes the image and stores the relevant
data regarding the shot. If you select voice memo recording, the recording will start after the
camera has finished storing the image data.
SHUTTER button
ZOOM W/T button
If the menu is not displayed, this button works as the
OPTICAL ZOOM or DIGITAL ZOOM button.
27
ZOOM W/T button
This camera has a 3X optical zoom and a 5X digital zoom function. Using both will offer a
total zoom ratio of 15X.
TELE Zoom
Optical zoom TELE : Pressing the ZOOM T button. This will zoom into the subject i.e.
the subject will appear nearer.
Digital zoom TELE : When the maximum (3X) optical zoom is selected, pressing the
ZOOM T button activates the digital zoom software. Releasing
ZOOM T button stops the digital zooming at the required setting.
Once the maximum digital zoom (5X) is achieved, pressing the
ZOOM T button will have no effect. You can check the digital
zoom rate with the [X1.1 ~ X 5.0] numerical mark next to the
zoom bar.
[WIDE zoom] [TELE zoom] [Digital zoom 2.0X]
Pressing the
ZOOM T button
Pressing the
ZOOM T button
WIDE Zoom
Optical zoom WIDE : Pressing the ZOOM W button. This will zoom out from the
subject i.e. the subject will appear further away. Pressing the
ZOOM W button continuously will set the camera to its minimum
zoom setting i.e. the subject appears at its furthest from the
camera.
Digital zoom WIDE : When the digital zoom is in operation, pressing the ZOOM W
button will reduce the digital zooming in steps.
Releasing ZOOM W button stops digital zooming. Pressing the
ZOOM W button will reduce the digital zoom and then it will
continue to reduce the optical zoom until the minimum setting is
reached.
[TELE zoom] [Optical zoom 2X] [WIDE zoom]
Pressing the
ZOOM W button
Pressing the
ZOOM W button
[Digital zoom 5.0X] [Digital zoom 2.0X] [TELE zoom]
Pressing the
ZOOM W button
Pressing the
ZOOM W button
Optical zoom
Digital zoom
28
ZOOM W/T button
To use the digital zoom the LCD monitor has to be turned on.
Images taken using the digital zoom may take a little longer for the camera to process.
Allow time for this to take place.
Digital Zoom will not work in Night Scene mode.
You may notice a decrease in image quality when using the digital zoom.
The zoom function can’t be activated during the movie clip recording.
Take care not to touch the lens to avoid taking an unclear image and possibly causing
camera malfunction. If the image is dim, turn the camera power off and on again to modify
the lens position.
Take care not to press the lens as this may cause a camera malfunction.
When the camera is turned on, take care not to touch the camera’s moving lens parts as
this may cause the resulting image to be dim and unclear.
Take care not to touch the lens during zoom operation as this may cause damage.
INFORMATION
Voice memo( )/ UP button
While the menu is showing, press the UP button to move up the submenu cursor.
When the menu is not displayed on the LCD monitor, the UP button operates as the voice
memo button. You can add your voice-over to a stored still image.
Recording a voice memo
1. Rotate the MODE DIAL to select a RECORDING mode with the exception of MOVIE CLIP
and VOICE RECORDING modes.
2. Press the VOICE MEMO( ) button. If the voice memo indicator is displayed on the LCD
monitor, the setting is completed.
[ Recording Voice Memo ][ Preparing for Voice Memo ]
STOP:SHUTTER
REC
29
Voice memo( ) / UP button
3. Press the shutter button and take a picture. The picture is stored on the memory card.
4. Voice memo will be recorded for ten seconds from the moment the picture is stored. In the
middle of the sound recording, pressing the shutter button will stop the voice memo.
A distance of 40cm between you and the camera (microphone) is the best distance to
record sound.
INFORMATION
When the macro mode is selected, it is possible that camera shake will occur.
If this is the case, use a tripod to eliminate this.
When you take a picture within 25cm(MACRO focus), select the FLASH OFF mode.
INFORMATION
While the menu is showing, press the DOWN button to move from the main menu to a
submenu, or to move down the submenu cursor.
When the menu is not showing, you can use the MACRO/ DOWN button to take macro
pictures (within the distance range of 4-80cm).
Types of focus modes and focus ranges (W: Wide, T: Tele)
Macro( )/ Down button(Focusing)
Focus type Auto Macro ( )
Focus range 80cm ~ Infinity W : 4 ~ 80cm T : 25 ~ 80cm
[ Auto focus ] [ Macro ]
30
Macro( )/ Down button(Focusing)
Available focusing method, by recording mode
( O : Selectable , X : Not selectable, : Infinity focus range)
Focus lock
To focus on the subject positioned outside of the center, use the focus lock function.
Using the Focus Lock
1. Ensure the subject in the center of the autofocus frame.
2. Press the SHUTTER button halfway. When the green auto lights up, it means the camera
is focused on the subject. Be careful not to press the SHUTTER button all the way down to
avoid taking an unwanted pictured.
3. With the SHUTTER button still pressed down only halfway, move the camera to
recompose your picture as desired, and then press the SHUTTER button completely to
take the picture. If you release your finger from the SHUTTER button, the focus lock
function will be canceled.
[ The image to be captured ] [ Press the SHUTTER button ]
halfway and focus on the subject
[ Recompose the picture ]
and fully depress the
SHUTTER button
Mode
Auto
Macro
Mode
Auto
Macro
OOOOOOO
OOOOOOX
OO XX O O
XXXOOXXXXX
31
FLASH( )/ LEFT button
WIDE TELE WIDE TELE
0.8~3.0 0.8~2.0 0.25~0.8 0.25~0.8
Unit : m
[ Selecting the Auto flash ]
Flash range
When the menu is displayed on the LCD monitor,
pressing the LEFT button makes the cursor shift to the left
tab.
When the menu is not displayed on the LCD monitor, the
LEFT button operates as the FLASH ( ) button.
Selecting the flash mode
1. Rotate the MODE DIAL to select a RECORDING mode
with the exception of MOVIE CLIP and VOICE
RECORDING modes.
2. Press the Flash button until the desired flash mode indicator displays on the LCD monitor.
3. A flash mode indicator will be displayed on the LCD monitor. Use the correct flash to suit
the environment.
ISO
AUTO
MACROAUTOFOCUS
Using the flash frequently will reduce the life of the batteries.
Under normal operating conditions the charging time for the flash is normally within 6
seconds. If the batteries are weak, the charging time will be longer.
During the continuous shot, movie clip mode, the flash function will not operate.
Take photographs within the flash range.
The image quality is not guaranteed if the subject is too close or highly reflective.
The LCD monitor is turned off for a while after using the flash to recharge it.
INFORMATION
32
FLASH ( )/ LEFT button
Icon Flash mode Description
Flash mode indicator
Available flash mode, by recording mode
If the subject or background is dark, the camera flash will operate
automatically.
Auto flash
Auto &
Red eye
reduction
Fill in flash
Slow synchro
Flash off
If a subject or background is dark, the camera flash will work
automatically and will reduce the red-eye effect by using the red-
eye reduction function.
The flash will operate in conjunction with a slow shutter speed in
order to obtain the correct exposure. We recommend using a
tripod for this function. When you take an image in a condition with
poor light, the camera shake warning indicator
( ) will display on the LCD monitor.
The flash fires regardless of available light.
The intensity of the flash will be controlled, according to the
prevailing conditions. The brighter the background or subject is,
the less intense the flash will be.
The flash does not fire. Select this mode when capturing images in
a place or situation where flash photography is prohibited. When
you capture an image in a poorly lit condition, the camera shake
warning indicator ( ) will display on the LCD monitor.
OOXXOXXXXXXXXXXO
OOXXOXOOXXXXXXXX
XOOOOXXXXXXXXOXX
XOOOOOXXXXXXXXXX
OOOOOOOOOOOOOXOX
33
Self-timer( )/ Right button
Selecting the self-timer
1. Rotate the MODE DIAL to select a RECORDING mode
with the exception of VOICE RECORDING mode.
2. Press the SELF-TIMER button until the desired mode
indicator displays on the LCD monitor.
A 2 second, 10 second or double self-timer icon appears
on the LCD monitor. In Movie Clip mode, only the 10-
second self-timer will work.
2SEC self-timer ( )
: Pressing the shutter button will allow an interval of 2
seconds before the image is taken.
10SEC self-timer ( )
: Pressing the shutter button will allow an interval of 10
seconds before the image is taken.
Double self-timer ( )
: A picture will be taken after about 10 seconds and 2
seconds later a second picture will be taken. When
using the flash, the 2-second self-timer may be
delayed for longer than 2 seconds depending on the flash charge time.
3. When you press the SHUTTER button, the picture will be taken after the specified time
has elapsed.
When the menu is displayed on the LCD monitor, pressing the Right button makes the cursor
shift to the right tab.
When the menu is not displayed on the LCD monitor, the RIGHT button operates as the Self-
timer( ) button. This function is used when the photographer would also like to be in the
image.
[Selecting the 10 SEC self-timer]
The default is OFF.
When taking a picture using the self-timer, the function lamp works as follows:
2 second self-timer setting : The function lamp blinks at 0.25 second interval for
2 seconds.
10 second self-timer setting : The function lamp blinks at 1 second interval for the first
7 seconds. It blinks at 0.25 second interval for the remaining
3 seconds.
If you operate the Power button, Mode dial, Play mode button, Self-timer button and
shutter button during the self-timer operation, the self-timer function is cancelled.
INFORMATION
34
MENU/ OK button
MENU button
- When you press the MENU button, a menu related to each camera mode will be displayed
on the LCD monitor. Pressing it again will return the LCD to the initial display.
- A menu option can be displayed when the following are selected. AUTO, PROGRAM, AS,
M, MOVIE CLIP, NIGHT SCENE and SCENE. There is no menu available when the
VOICE RECORDING mode is selected.
OK button
- When the menu is displayed on the LCD monitor, this button is used for shifting the cursor
to the sub menu or for confirming data.
[ Menu off ] [ Menu on ]
Pressing the
MENU button
The menu will not be displayed on the LCD monitor in the following circumstances:
- When another button is being operated.
- While image data is being processed.
( when the green LED next to the viewfinder blinks)
- When there is no battery capacity.
When the menu is showing on the LCD monitor, it is not possible to operate the shutter
button i.e. capture an image. To capture an image, simply cancel the menu display by
pressing the MENU button.
INFORMATION
SIZE
3072X2304
2816X2112
2592X1944
2272X1704
3072
35
+/- button
You can use the +/- button to adjust the values for the ISO, white balance and exposure
compensation.
Main menu Sub menu Available camera mode
-2.0 ~ 0.0 ~ +2.0(0.5EV steps)Exposure compensation
ISO
WHITE BALANCE
AUTO, DAYLIGHT, CLOUDY,
FLUORESCENT H, FLUORESCENT L,
TUNGSTEN, CUSTOM.
AUTO, 100, 200, 400
Selecting an ISO Sensitivity
1. Press the +/- button, and then use the UP and DOWN
buttons to select the ISO icon( ). The ISO menu bar
will appear as shown.
2. Use the LEFT and RIGHT buttons to select the desired
ISO sensitivity value.
- AUTO : The camera's sensitivity is
automatically changed by variables
such as lighting value or subject brightness.
- 100, 200, 400 : You can increase the shutter speed while the same amount of light is
present, by increasing the ISO sensitivity. However, the image may be
saturated in high luminance. The higher the ISO value, the higher the
camera’s sensitivity to light is and therefore the greater its capacity to
take pictures in dark conditions. However, the noise level in the image
will increase as the ISO value increases, making the image appear
coarse.
3. When you press the +/- button again, the value you set will be saved and ISO setup mode
will end.
ISO: You can select the ISO sensitivity when taking pictures.
The speed or specific light-sensitivity of a camera is rated by ISO numbers.
36
+/- button
White balance : The white balance control allows you to adjust the colours to appear more
natural looking.
Selecting a White Balance
1. Press the +/- button, and then use the UP and DOWN
buttons to select the white balance icon ( ).
The white balance menu bar will appear as shown.
2. Use the LEFT and RIGHT buttons to set the white
balance to the desired value. The value you set will be
displayed on the LCD monitor.
AUTO : The camera automatically
selects the appropriate white balance settings, depending on the
prevailing lighting conditions.
DAYLIGHT : For taking images outside.
CLOUDY : For taking images under a cloudy and overcast sky.
Fluorescent H : For shooting under daylight fluorescent types of three-way
fluorescent lighting.
Fluorescent L : Shooting under white fluorescent lighting.
TUNGSTEN : For shooting under tungsten (standard light bulb) lighting.
CUSTOM : Allows the user to set the white balance according to the shooting
condition.
Different lighting conditions may cause a colour cast on your images.
3. Press the +/- button again. The value you set will be saved and White Balance setup mode
will end.
37
+/- button
Using the Custom White Balance
White balance settings may vary slightly depending on the shooting environment.
You can select the most appropriate white balance setting for a given shooting environment
by setting up the custom white balance.
1. Select the CUSTOM ( ) menu of the White
Balance and press the OK button.
2. Place a sheet of white paper in front of the camera so
that the LCD monitor shows only white, and then press
the SHUTTER button.
3. Press the OK button and your custom white balance
value is stored.
- The custom white balance value will be applied,
starting with the next picture you take.
- The user configured white balance will be remain
effective until it is overwritten.
[ White paper ]
Exposure compensation : This camera automatically adjusts the exposure according to the
ambient lighting conditions.
You can also select the exposure value by using the +/- button.
Compensating Exposure
1. Press the +/- button, and then use the UP and DOWN
buttons to select the exposure compensation icon ( ).
The exposure compensation menu bar will appear as
shown.
2. Use the LEFT and RIGHT buttons to set the desired
exposure compensation factor.
3. Press the +/- button again. The value you set will be
saved and the Exposure Compensation setup mode will close. If you change the exposure
value, the exposure indicator ( ) will be displayed on the bottom of the LCD monitor.
* A negative exposure compensation value reduces the exposure.
Note that a positive exposure compensation value increases the exposure and the LCD
monitor will appear white or you may not get good pictures.
38
ASM button(Manual & Scene mode button)
You can use the ASM button to select the Aperture Value and Shutter speed in the Night
scene mode.
Using the ASM button in the Night scene mode
1. Rotate the MODE DIAL to select the NIGHT SCENE
mode
2. Press the ASM button and the aperture value or shutter
speed is turned green.
3. Press the UP/DOWN button to select the shutter speed.
The aperture value will be changed automatically.
Press the RIGHT/LEFT button to select the aperture
value. The shutter speed will be changed automatically.
4. Press the ASM button again. The value you set will be saved and the mode will switch to
NIGHT SCENE mode. Press the SHUTTER button to take the picture.
You can use the ASM button to select the Aperture Value and Shutter speed in the AS and M
mode.
Using the ASM button in the AS mode
1. Rotate the MODE DIAL to select the AS mode
2. Press the ASM button and the aperture value or shutter
speed is turned green.
3. Press the UP/DOWN button to select the shutter
speed(Shutter priority mode) and press the RIGHT/LEFT
button to select the aperture value(Aperture priority
mode).
4. Press the ASM button again. The value you set will be
saved and the mode will switch to AS mode. Press the
SHUTTER button to take the picture.
39
ASM button(Manual & Scene mode button)
Using the ASM button in the M mode
1. Rotate the MODE DIAL to select the M mode
2. Press the ASM button and the aperture value and
shutter speed is turned green.
3. Press the UP/ DOWN/ LEFT/ RIGHT button to select
the aperture value and shutter speed.
- UP/ DOWN button : selecting the shutter speed
- LEFT/ RIGHT button: selecting the aperture value
4. Press the ASM button again. The value you set will be saved and the mode will switch to
M mode. Press the SHUTTER button to take the picture.
(Press left button)
Aperture Value SmallLarge
(Press right button)
Shutter Speed
Slow
(Press up button)
Fast
(Press down button)
Aperture values and shutter speeds changed by zoom scale are listed below.
F 2.7
1 S
Supported Aperture Values : AUTO, F2.7 ~ F11
Supported Shutter Speeds : AUTO, 1/2000 ~ 15S
40
ASM button(Manual & Scene mode button)
[ Image & full information ]
[ Image & basic information ]
[ LCD off ]
You can check the recording status in the LCD monitor.
Toggle the LCD button in shooting mode (except in voice
recording mode) to display the next LCD information
displayed.
If the LCD monitor is turned off, the mode dial lamp will light up.
Pressing the
LCD button
Pressing the
LCD button
Pressing the LCD button
LCD button
You can use the ASM button to select the desired scene in the Scene mode.
Using the ASM button in the Scene mode
1. Rotate the MODE DIAL to select the Scene mode
2. Press the ASM button and then a menu will be
displayed as shown alongside. Press the left/right button
to select a desired scene.
- Selectable scene menu :
Portrait, Children, Landscape, Text, Close-up, Sunset,
Dawn, Backlight, Fireworks and Beach & Snow.
Please see page 49 for details on each scene menus
3. Press the ASM or OK button to confirm the selection.
PORTRAIT
41
Using the LCD monitor to adjust the camera settings
You can use the menu on the LCD monitor to set up recording functions. In any mode with
the exception of VOICE RECORDING mode, pressing the MENU button displays the menu
on the LCD monitor.
The following functions are available, depending on the mode you have selected.
The menu will not be displayed on the LCD monitor in the following circumstances:
- When another button is being operated.
- While image data is being processed.
(when the green LED next to the viewfinder blinks)
- When there is no battery capacity.
When the menu is showing on the LCD monitor, it is not possible to operate the shutter
button i.e. capture an image. To capture an image, simply cancel the menu display by
pressing the MENU button.
INFORMATION
The items indicated by are default settings.
Menu tab Main menu Sub menu
Camera working mode
Page
3072X2304
2816X2112
2592X1944
2272X1704
2048X1536
1600X1200
1024X768
640X480
640X480
320X240
160X120
S. FINE
FINE
NORMAL
30FPS
15FPS
SIZE
QUALITY
p.43
p.44
42
Using the LCD monitor to adjust the camera settings
* Menus are subject to change without prior notice.
EFFECT
SHARPNESS
p.45
p.46
p.47
p.48
MYSET
LOAD
MYSET1
MYSET2
MYSET3
SAVE
SHOOTING
METERING
p.45
Menu tab Main menu Sub menu
Camera working mode
Page
MULTI
SPOT
SINGLE
2 SHOTS
4 SHOTS
8 SHOTS
AEB
NORMAL
B & W
SEPIA
RGB
SOFT
NORMAL
VIVID
43
How to use the menu
3. Use the UP and DOWN buttons to select a sub menu.
4. Select a sub menu, and then press the OK button.
The value you set will be saved and the menu will disappear.
1. Turn on the camera and press the MENU button. A menu for each camera mode appears.
However, there is no menu for Voice Recording mode ( ).
2. Use the LEFT and RIGHT buttons to navigate through the menus.
Press the LEFT
or RIGHT button.
QUALITY
S.FINE
FINE
NORMAL
SIZE
3072X2304 3072
2816X2112
2592X1944
2272X1704
METERING
MULTI
SPOT
Press the LEFT
or RIGHT button.
Press the UP or
DOWN button.
SIZE
3072X2304 3072
2816X2112
2592X1944
2272X1704
SIZE
3072X2304
2816X2112 2816
2592X1944
2272X1704
Press the UP or
DOWN button.
SIZE
3072X2304
2816X2112
2592X1944 2592
2272X1704
3072 3072 NOR
Size
You can select the image size appropriate for your application.
[ PROGRAM mode ]
[ MOVIE CLIP mode ]
SIZE
3072X2304 3072
2816X2112
2592X1944
2272X1704
SIZE
640X480 640
320X240
160X120
NOR
Mode
Icon
3072 2816 2592 2272 2048 1600 1024 640 640 320 160
Size
3072X2304 2816X2112 2592X1944 2272X1704 2048X1536 1600X1200
1024X768 640X480
640X480 320X240 160X120
STILL IMAGE mode MOVIE CLIP mode
44
Size
You can select the compression ratio appropriate for your application of the captured images.
The higher the compression ratio, the lower the picture quality.
Mode
Icon 30F 15F
Sub menu S.FINE FINE NORMAL 30FPS 15FPS
File Format jpeg jpeg jpeg avi avi
STILL IMAGE mode MOVIE CLIP mode
S.FINE is the highest quality and NORMAL is the lowest setting.
Choose the setting appropriate for your needs.
This file format complies with the DCF(Design rule for Camera File system).
JPEG (Joint Photographic Experts Group): JPEG is the image compression standard
developed by the Joint Photographic Experts Group. This type of compression is most
commonly used for compressing photos and graphics because it can compress the files
efficiently without damaging the data.
The movie clip frame rate can be varied by subject matter and memory card type. If you
select 640X480 size and 30FPS frame rate, we recommend using an SD memory card.
INFORMATION
[ PROGRAM mode ] [ MOVIE CLIP mode ]
2048
QUALITY
S.FINE
FINE
NORMAL
3072
2048
FRAME RATE
15FPS
30FPS
640 NOR
Quality
The higher the resolution, the lower the number of available shots will be because high
resolution images require more memory than lower resolution images.
The selectable image sizes in the AUTO mode are listed below.
- P(3072X2304) : For printing the image
- M(1600X1200) : For saving the image to a PC
- E(640X480) : For sending the image by e-mail
INFORMATION
45
Metering
If you cannot obtain suitable exposure conditions, you can change the metering method to
take brighter pictures.
MULTI( ) : Exposure will be calculated based on an
average of the available light in the image
area. However, the calculation will be
biased towards the centre of the image
area. This is suitable for general use.
SPOT( ) : Only the rectangular area in the center of
the LCD monitor will be metered for light.
This is suitable when the subject in the
center is exposed correctly, regardless of the back lighting.
The default metering mode is Multi pattern metering.
If the subject is not the centre of the focus area, do not use the spot metering as this may
result in an exposure error. In this circumstance, rather use exposure compensation.
INFORMATION
Continuous shot
Select the number of pictures in continuous shooting.
- [SINGLE] : Take one picture only
- [2, 4, 8 SHOTS] : Take the set number of pictures with
one push of the shutter. Continuous
shooting mode is cleared after one
shooting.
- [AEB] : Take three pictures in a series in
different exposures: short exposure
(-0.5EV), standard exposure (0.0EV)
and over exposure (+0.5EV). Use the
mode if it is hard to decide exposure of
the object.
2048
SHOOTING
SINGLE
2 SHOTS
4 SHOTS
8 SHOTS
NOR
[ PROGRAM mode ]
2048
METERING
MULTI
SPOT
3072 NOR
46
Continuous shot
By using the camera’s digital processor, it is possible to add special effects to your images.
[ PROGRAM mode ] [ MOVIE CLIP mode ]
NORMAL : No effect is added to the image.
B & W : Converts the image to black and white.
SEPIA : Captured images will be stored in a sepia tone(a gradient of yellowish brown
colours).
RGB : Allows the user to adjust the R(Red), G(Green), and B(Blue) values of the
images to be captured.
2048
EFFECT
NORMAL NOR
B & W
SEPIA
RGB
2048
EFFECT
NORMAL NOR
B & W
SEPIA
RGB
640
Effect
Available maximum number of continuous shots, by image size/ quality type
* High resolution and picture quality increases file saving time, which increases stand-by time.
* If the [2, 4, 8 SHOTS] or [AEB] sub menu is selected, the flash will be off automatically.
* If you change the image size and quality after selecting the number of continuous shots, the
[SHOOTING] sub menu will be changed to the [SINGLE] automatically.
(Unit : shot)
S.FINE FINE NORMAL
3072X2304 2 2 2
2816X2112 2 2 2
2592X1944 2 2 2
2272X1704 2 2 2
2048X1536 2 2 2
1600X1200 4 8 8
1024X768 8 8 8
640X480 8 8 8
quality
size
47
Effect
You can adjust the sharpness of the picture you want to
take. You cannot check the sharpness effect on the LCD
monitor before you take a picture, because this function is
applied only when the captured image is stored on the
memory.
[ PROGRAM mode ]
Sub menu Icon Description
The edges of the image are softened.
This effect is suitable for editing images on your PC.
The edges of the image are sharp.
This is suitable for printing.
The edges of the image are emphasized. The edges will
appear sharp, but noise may occur in the recorded image.
VIVID
NORMAL
SOFT
2048
SHARPNESS
SOFT
NORMAL
VIVID
NOR
Sharpness
Setting RGB Values
1. Select the [RGB] sub menu and then press the OK
button. The RGB menu bar will appear as shown.
2. Use the UP/ DOWN/ LEFT and RIGHT buttons to select
the desired RGB value.
- Up/Down Button: Navigates between R, G, and B
icons.
- Left/Right Button: Changes value of each icon.
3. When you press the OK button, the value you set will be
saved and RGB setup mode will end.
EXIT:SH1 SET:OK
48
Save/ Load the camera configuration(MYSET)
[PROGRAM mode]
2048
MYSET
LOAD
SAVE
CANCEL
MYSET1
NOR
Use the MYSET mode to save frequently used camera settings (SAVE) and use it later (LOAD)
Saving the camera configuration: Available in the PROGRAM mode.
1. Rotate the MODE DIAL to select the PROGRAM mode
and press the menu button.
2. Press the Left/Right buttons to select the [MYSET]
menu tap.
3. Press the Up/Down buttons to select the [SAVE] menu
and press the right button.
4. Press the Up/Down buttons to select desired MYSET
slot number to save.
5. Press the OK button to save the current configuration in
the selected MYSET slot.
MOVE: CHANGE:
Loading the saved camera configuration: available in the PROGRAM mode.
1. Rotate the MODE DIAL to select the PROGRAM mode
and press the menu button.
2. Press the Left/Right buttons to select the [MYSET]
menu tap.
3. Press the Up/Down buttons to select the [LOAD] menu
and press the right button.
4. Press the Up/Down buttons to select desired MYSET
slot number to load.
5. Press the OK button to set the camera configuration as
saved in the MYSET slot.
* The current MYSET slot number is displayed in the top left of the LCD.
* If you select [CANCEL] in the [LOAD] menu, the MYSET mode will be canceled.
[PROGRAM mode]
2048
MYSET
LOAD
SAVE
CANCEL
MYSET1
NOR
MOVE: CHANGE:
49
Scene
Sub menu Icon Description
CHILDREN
PORTRAIT
LANDSCAPE
CLOSE UP
SUNSET
DAWN
BACKLIGHT
FIREWORKS
BEACH &
SNOW
Select the [SCENE] submenu to automatically configure
optimal settings, depending on the selected scene.
Only available in the Scene Mode.
Take a still picture of capturing moving children.
To take picture of a person.
Close-up shooting for small objects such as plants and insects.
Splendor of the setting sun.
Scenery with green woods or blue sky.
Portrait with scenery background.
Daybreak scenes.
Portrait without shadows caused by back light.
Firework scenes.
TEXT
Use this mode to shoot a document.
For ocean, lake, and beach scenes and snowscapes.
When close-up, sunset, dawn, fireworks scene mode are selected, it is possible that
camera shake will occur. If you think this will happen, use a tripod.
INFORMATION
PORTRAIT
50
Starting play mode
If the memory card is inserted in the camera, all the camera functions apply only to the
memory card.
If the memory card is not inserted in the camera, all the camera functions apply only to the
internal memory.
If you have turned on the camera by pressing the POWER button, you can press the PLAY
MODE button once to switch to Play mode and press it again to switch to Recording mode.
You can turn the power on with the play mode button. The camera is turned on in play mode.
Press the play mode button again to switch to shooting mode.
You can set up the PLAY mode function by using the camera buttons and LCD monitor.
3. Select an image that you want to play back by
pressing the LEFT/ RIGHT button.
Press and hold the Left or Right button to fast
forward the images played.
2. The last image stored on the memory is
displayed on the LCD monitor.
Playing back a still image
1. Select the PLAY mode by pressing the play
mode button ( ).
Even if the camera' s power is off, you can start the play mode by pressing the play mode
button.
Lightly press the shutter button in Play mode to switch to the currently set shooting mode
with the mode dial.
INFORMATION
51
Starting play mode
Playing back a movie clip
Steps from 1-2 are the same as those to play back a still
image.
3. Select the recorded movie clip that you want to play back
by using the LEFT/RIGHT button. If you select a movie
clip, the movie clip indicator ( ) will be displayed on
the LCD monitor.
4. Press the play & pause button ( ) to play back a
movie clip file.
- To pause a movie clip file while playing it back, press the
play & pause button again.
- Pressing the play & pause button again will cause the
movie clip file will restart.
- To rewind the movie clip while it is playing, press the
LEFT button. To fast forward the movie clip, press the
RIGHT button.
- To stop playback of the movie clip, press the play & pause button, and then press the
LEFT or RIGHT button.
PLAY
Playing back a recorded voice
Steps from 1-2 are the same as those to play back a still
image.
3. Select the recorded voice that you want to play back by
using the LEFT/ RIGHT button. If you select a recorded
voice file, the voice indicator ( ) will be displayed on
the LCD monitor.
4. Press the play & pause button ( ) to play back a
recorded voice file.
- To pause a recorded voice file, while playing it back,
press the play & pause button again.
- To resume playback of the voice file, press the play & pause button.
- To rewind the voice file while it is playing, press the LEFT button.
To fast forward the voice file, press the RIGHT button.
- To stop playback of the voice file, press the play & pause button, and then press the
LEFT or RIGHT button.
PLAY
52
LCD monitor indicator
The LCD monitor displays information about the shooting conditions.
No. Description Icon Page
1 Battery p.15
2 Play mode
3 File Type
4 Voice memo p.54
5 Protect indicator p.64
6 DPOF indicator p.65
7 Stored image number 9
SIZE : 3072X2304 Size
AV : F2.7 Aperture value
TV : 1/30 Shutter speed
ISO : 100 ISO sensitivity
FLASH : OFF Whether or not the
flash is used.
DATE : 2005/01/01 Recording date
SIZE: 3072X2304
AV: F2.7
TV: 1/30
ISO: 100
FLASH: OFF
DATE: 2005/01/01
If you press the LCD button, you can check the following recording information:
53
Thumbnail( )/ Enlargement( ) button
Using the camera buttons to adjust the camera
In Play mode, you can use the buttons on the camera to conveniently set up the Play mode
functions.
Image enlargement
1. Select an image that you want to enlarge and press the enlargement button.
2. Different parts of the image can be viewed by pressing
the 5 function button.
3. Pressing the thumbnail button will zoom back to the
original full sized image.
- You can tell whether the image displayed is an
enlarged view by checking the image enlargement
indicator shown at the bottom left of the LCD monitor.
(If the image is not an enlarged view, the indicator will
not be displayed.) You can also check the area of
enlargement.
- Movie clips and WAV files can’t be enlarged.
- If an image is enlarged, a loss of quality may occur.
[ Normal display mode ] [ Thumbnail display mode ]
Pressing the thumbnail
button( )
Pressing the enlargement
button( )
Highlighted image
You can view multiple pictures, enlarge a selected picture, and crop and save a selected area
of an image.
Thumbnail display
1. While an image is displayed full screen, press the
thumbnail button.
2. The thumbnail display will highlight the image that had
been showing at the time the thumbnail mode was
selected.
3. Press the 5 function button to move to a desired image.
4. To view an image separately, press the enlargement button.
54
Thumbnail( ) /Enlargement( ) button
The maximum enlargement rate in proportion to the image size.
Trimming : You can extract part of the image that you want
and save it separately.
1. Select an image that you want to enlarge and press the
enlargement button.
2. Different parts of the image can be viewed by pressing
the 5 function button.
3. Press the MENU button and a message will be
displayed as shown alongside.
4. Select the submenu values by pressing the UP/DOWN
button and then press the OK button.
TRIM : trimmed images are saved in their last file names.
CANCEL : cancels trimming.
- If there is little memory space to save the trimmed image, the image cant be trimmed.
Voice( ) memo/ Up button
When the menu is displayed on the LCD monitor, pressing the UP button makes the menu
cursor move up.
When the menu is not displayed on the LCD monitor, the UP button operates as the voice
memo button. You can add your audio to a stored still image.
Adding a Voice Memo to a Still Image
1. Press the LEFT/ RIGHT button to select an image that
you wish to add sound to.
2. Press the voice memo button ( ) and the voice memo
indicator will display. The camera is now ready to record
a voice memo.
START:SHUTTER
TRIMMING?
TRIM
CANCEL
CONFIRM:OK
Image size
Maximum enlargement rate
3072
X10.0
2816
X8.8
2592
X7.3
2272/2048
X6.4
1600
X5.0
1024
X3.2
640
X2.0
55
Voice ( ) memo/ Up button
3. Press the shutter button to start recording and voice will
be recorded to the still image for 10 seconds.
While the voice is recording, the recording status
window will be displayed as shown alongside.
4. The recording can be stopped by pressing the shutter
button again.
5. The ( ) icon will be displayed on the LCD monitor
after voice memo recording has finished.
- Voice memos can’t be recorded onto movie clip and
voice recording files.
- A distance of 40cm between you and the camera
(microphone) is the best distance to record sound.
- The voice memo will be saved in *.wav format, but has
the same file name as the still image to which it
corresponds.
- If you add a new voice memo to the still image that already has a voice memo, the
existing voice memo will be erased.
Play & Pause ( )/ Down button
STOP:SHUTTER
In Play mode, the play & pause/ down button works as follows:
- If the menu is displayed
Press the DOWN button to move from the main menu to a sub menu, or to move down the
sub menu cursor.
- If a still image with a voice memo, a voice file, or a movie clip is playing
In Stop mode : Plays a still image with a voice memo, a voice file, or a movie clip.
During playback : Temporarily stops playback.
In Pause mode : Resumes playback
[ Voice recording is stopped ] [ Voice recording is paused ][ Voice recording is playing ]
PLAY
PAUSE
PLAY
56
LEFT/ RIGHT/ MENU/ OK button
LEFT/ RIGHT/ MENU/ OK buttons activate the following.
- LEFT button : While the menu is showing, press the LEFT button to select the menu tab
to the left of the cursor.
- RIGHT button : While the menu is showing, press the RIGHT button to select the menu tab
to the right of the cursor, or to move an secondary menu.
- MENU button : When you press the MENU button, the play mode menu will be displayed
on the LCD monitor. Pressing it again will return the LCD to the initial
display.
- OK button : When the menu is displayed on the LCD monitor, the OK button is used for
confirming data that is changed by using the 5 function button.
The shooting information will be displayed on the LCD monitor.
The last image stored in the memory is displayed on the
LCD monitor by pressing the play mode button.
Pressing the LCD( ) button in the PLAY mode will
change the display as shown below. [Image & Icons]
[Image & Information] [Image only]
[ Image & Icons ] [ Image & Information ] [ Image only ]
Pressing the LCD button
Pressing the
LCD button
Pressing the
LCD button
LCD( ) button
SIZE : 3072X2304
AV : F2.7
TV : 1/30
ISO : 100
FLASH : OFF
DATE : 2005/01/01
* The LCD button is not available for voice recording in play mode.
57
Delete( ) button
This deletes images stored on the memory card.
Before deleting images from the camera, you should protect or download images to your
computer that you wish to keep.
INFORMATION
Deleting Images in Play Mode
1. Select an image that you want to delete by pressing the
LEFT / RIGHT button and press the DELETE( ) button.
2. A message will display as shown alongside on the LCD
monitor.
3. Select the submenu values by pressing the UP/DOWN
button and then press the OK button.
If [DELETE] is selected : deletes the selected images.
If [CANCEL] is selected : cancels “Delete Image”
Deleting Images in Thumbnail Display Mode
1. Use the UP, DOWN, LEFT, and RIGHT buttons to select the image you want to delete,
and then press the DELETE button.
2. The following message will be displayed on the LCD monitor.
Press the
DELETE button.
3. Select the submenu values by pressing the UP/ DOWN button and then press the OK
button.
If [DELETE] is selected : deletes the selected images.
If [CANCEL] is selected : cancels “Delete Image”
DELETE?
DELETE
CANCEL
CONFIRM:OK
DELETE?
DELETE
CANCEL
CONFIRM:OK
58
Setting up the play back function using the LCD monitor
PLAY mode functions can be changed by using the LCD monitor. In the PLAY mode, pressing
the MENU button displays the menu on the LCD monitor. The menus you can set up in Play
mode are as follows. To capture an image after setting up the play menu, press the PLAY button.
Menu tab Main menu Sub menu Secondary menu Page
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
ROTATE
SLIDE
p. 62
p. 61
1, 3, 5, 10SEC
OFF/ ON
RIGHT90
LEFT90
180
HORIZONTAL
VERTICAL
INTERVAL
REPEAT
START
DELETE ALL
p. 65
NO
YES
DPOF
STANDARD
INDEX
SIZE
CANCEL
ONE PIC/ ALL PICS
NO/ YES
DEFAULT/ 3X5/ 4X6/ 5X7/ 8X10
STANDARD/ INDEX/ SIZE
p. 65
~ p. 67
PROTECT
p. 64
ONE PIC
ALL PICS
UNLOCK/ LOCK
UNLOCK/ LOCK
RESIZE
p. 63
2816X2112
2592X1944
2272X1704
2048X1536
1600X1200
1024X768
640X480
LOGO
COPY TO CARD
p.68
NO
YES
59
Setting up the play back function using the LCD monitor
This menu is available while the camera is connected to a PictBridge supporting printer
(direct connection to the camera, sold separately) with a USB cable.
Menu tab Main menu Sub menu Secondary menu Page
-
-
STANDARD -
INDEX -
NO -
YES -
-
-
AUTO
POSTCARD
4X6
8.5X11
A6
A4
B5
AUTO
INDEX
1
FULL
2
4
6
8
AUTO SET
CUSTOM SET
IMAGES
p. 72
p. 72
p. 70
NO
YES
SIZE
LAYOUT
SELECT
ALL
PRINT
p. 71
p. 71
DPOF PRINT
60
Setting up the play back function using the LCD monitor
Menus are subject to change without prior notice.
Menu tab Main menu Sub menu Secondary menu Page
AUTO
PLAIN
FAST PHO.
AUTO
DRAFT
NORMAL
FINE
AUTO
OFF
ON
AUTO
OFF
ON
NO -
YES -
CUSTOM SET
p. 73
p. 72
FILE NAME
DATE
RESET
TYPE
QUALITY
61
Starting the slide show
Images can be displayed continuously at pre-set intervals.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [SLIDE]
menu tab.
Setting play interval: Set the slide show play interval.
1. Use the Up/Down buttons to select the [INTERVAL] menu
and press the Right button.
2. Use the Up/Down buttons to select the desired interval.
3. Press the OK button to save the configuration.
Repeat setting : Repeat or not the slide show after finishing the first cycle.
1. Use the Up/Down buttons to select the [REPEAT] menu and press the Right button.
2. Use the Up/Down buttons to select the desired sub menu.
[OFF] Selected : The slide show is closed after one cycle.
[ON] selected : The slide show is repeated until canceled.
3. Press the OK button to save the configuration.
Start the slide show: The slide show can start only in the [START] menu.
1. Use the Up/Down buttons to select the [START] menu.
2. Press the OK button to start the slide show.
- Press the Pause button to pause the slide show.
- Press the Pause button ( ) again to resume the slide show.
- Press the Menu button to stop the slide show.
The loading time depends on the image size and quality.
The slide show will start from an image that was displayed on the LCD monitor.
The [PWR SAVE] function can’t be activated.
While the slide show is playing, only the first frame of an MOVIE file is displayed.
INFORMATION
2048
SLIDE
INTERVAL
REPEAT
START
3 SEC
ON
EXIT:MENU MOVE:
62
Rotating an image
ROTATE
RIGHT90
LEFT90
180
You can rotate the stored images by various degrees.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the
[ROTATE] menu tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button.
[RIGHT 90] :
Rotate picture in a clock-wise
direction
[LEFT 90] :
Rotate picture in a counter-
clock-wise direction
[180] :
Rotate picture 180 degrees
4. Press the OK button. The rotated image will be saved with a new file name and the menu
will disappear. If you display the rotated image on the LCD monitor, empty spaces may
appear to the left and right of the image.
[HORIZONTAL] :
Rotate picture horizontally
[VERTICAL] :
Rotate picture vertically
EXIT:MENU MOVE:
63
Resize
Change the resolution (size) of pictures taken. Select [LOGO] to save an image to be the
start-up image. The resized image will have a new file name.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [RESIZE]
menu tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
A large sized image can be resized to a smaller sized image, but not vice versa.
Only JPG images can be resized. MOVIE and WAV files can’t be resized.
You can change the resolution of only those files compressed in the JPEG 4:2:2 format.
The resized image will have a new file name. The [LOGO] image is stored not on the
memory card but on the internal memory.
Only one [LOGO] image can be saved. If you save a new [LOGO] image, the existing
startup image will be deleted.
If the memory capacity is insufficient to store the resized image, a [CARD FULL!]
message will display on the LCD monitor and the resized image will not be stored.
INFORMATION
Image Resize Types
2048
RESIZE
2816X2112
2592X1944
2272X1704
EXIT:MENU MOVE:
Resize
2816X2112 2592X1944 2272X1704 2048X1536
1600X1200 1024X768
640X480 LOGO
3072 O O O O O O O O
2816 X O O O O O O O
2592 X X O O O O O O
2272 X X X O O O O O
2048 X X X X O O O O
1600 X X X X X O O O
1024 X X X X X X O O
640 X X X X X X X O
64
Protecting images
This is used to protect specific shots from being accidentally erased (LOCK).
It also unprotects images that have been previously protected (UNLOCK).
Protecting Images
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the
[PROTECT] menu tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[ONE PIC] : Only an image that is displayed on the LCD
monitor is protected or unprotected.
[ALL PICS] : All of the stored images are protected or unprotected.
4. Select the desired secondary menu by pressing the
UP/DOWN button and press the OK button.
[UNLOCK] : Cancels the protect function.
[LOCK] : Sets up the protect function.
- If you select the[ONE PIC] sub menu at step 3, you can
protect or unprotect another image by pressing the
LEFT/ RIGHT button. If you press the SHUTTER button,
the Image Protection menu will disappear.
- If you selected [ALL] in Step 3, the Image Protection
menu will disappear.
- If you protect an image, the protect icon( ) will be
displayed on the LCD monitor.
(An unprotected image has no indicator)
- An image in LOCK mode will be protected from
[DELETE] or [DELETE ALL] functions, but will NOT be
protected from the [FORMAT] function.
MOVE PIC:
SET:OK
EXIT:SH1
UNLOCK
MOVE PIC:
SET:OK
EXIT:SH1
LOCK
2048
PROTECT
ONE PIC
ALL PICS
65
DPOF
Deleting all images
Of all the files stored in the memory card, the unprotected files in the DCIM subfolder will be
deleted. Remember that this will permanently delete unprotected images. Important shots
should be stored on a computer before deletion takes place. The startup image is stored in
the camera's internal memory (i.e., not on the memory card) and it will not be deleted even if
you delete all files on the memory card.
Deleting all images
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [DELETE
ALL] menu tab.
3. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
Selecting [NO] : cancels “Delete All”
Selecting [YES] : Displays the dialogue box to confirm the
delete.
- If [DELETE] is selected : press the OK button and all unprotected pictures are deleted.
- If [CANCEL] is selected : press the OK button and images are not deleted.
DELETE ALL
NO
YES
DPOF(Digital Print Order Format) allows you to embed printing information on your memory
card’s MISC folder. Select the pictures to be printed and how many prints to make.
The DPOF indicator will display on the LCD monitor when an image that has DPOF
information plays back. Images can then be printed on DPOF printers, or at an increasing
number of photo labs.
This function is not available for Movie clips and Voice recording files.
66
DPOF : STANDARD
DPOF : INDEX
This function allows you to embed print quantity information on a stored image.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [DPOF]
menu tab.
3. Select the [STANDARD] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Use the UP and DOWN buttons to select [ONE PIC] or
[ALL PICS], and then press the OK button. A window
for selecting number of copies.
[ONE PIC] : Set the number of copies to print for the
current picture only.
[ALL PICS] : Set the number of copies to print for each
picture, excluding movie clips and voice
recordings.
5. Use the UP and DOWN buttons to select the number of
copies and then press the OK button.
- The DPOF icon ( ) will appear by the pictures for
which the number of copies to print is set.
DPOF
BACK:
SET:OK
STANDARD ONE PIC
INDEX ALL PICS
SIZE
Images (except for movie clips and voice file) are printed as index type.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [DPOF]
menu tab.
3. Select the [INDEX] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button.
If [NO] is selected : The image will not be printed in
index format.
If [YES] is selected : The image will be printed in index format.
5. Press the OK button to confirm the setting.
6. Press the menu button twice and the menu will disappear.
MOVE PIC:
SET:OK
EXIT:SH1
0 PRINTS
DPOF
BACK:
SET:OK
STANDARD NO
INDEX YES
SIZE
67
DPOF : PRINT SIZE
You can specify the print size when printing images stored on the memory card.
The [SIZE] menu is available only for DPOF 1.1 compatible printers.
Setting the Print Size
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [DPOF]
menu tab.
3. Select the [SIZE] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
DPOF
STANDARD
INDEX
SIZE
BACK:
SET:OK
DEFAULT
3X5
4X6
DPOF : CANCEL
You can cancel the [STANDARD], [INDEX], or [SIZE] settings. Cancel the setting to reset the
value to its default.
1. Press the play mode button and press the menu button.
2. Press the LEFT/ RIGHT button and select the [DPOF]
menu tab.
3. Select the [CANCEL] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button.
If [STANDARD] is selected : Cancels the standard print setting.
If [INDEX] is selected : Cancels the index print setting.
If [SIZE] is selected : Cancels the print size setting.
5. Press the OK button to confirm the setting.
* PRINT SIZE : DEFAULT, 3X5, 4X6, 5X7, 8X10
* The [DEFAULT] print size varies depending on the printer manufacturer.
For your printer's default value, please refer to the user's guide that came with your printer.
DPOF
INDEX
SIZE
CANCEL
BACK:
SET:OK
STANDARD
INDEX
SIZE
68
COPY TO CARD
This enables you to copy image files to the memory card.
Copying to the Memory Card
1. Press the play mode button and press the menu button.
2. Select the [COPY TO CARD] menu tab by pressing the
LEFT/ RIGHT button.
3. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
- [NO] : The Play mode screen is displayed
- [YES] : All images saved in the internal memory are
copied to the memory card after the [PLEASE WAIT!] message is displayed.
After copying has been completed, the screen will return to play mode.
When this menu is selected without inserting a memory card, you can't select the [COPY
TO CARD] sub menus.
If there is not enough space available in the memory card to copy saved images in the
internal memory (32MB), the [COPY TO CARD] command will copy only some of the
images and display [CARD FULL!] message. Then the system will return to the playback
mode. Please be sure to delete any unnecessary images to free up space before
inserting the memory card into the camera.
INFORMATION
COPY TO CARD
NO
YES
69
PictBridge
If you selected [COMPUTER] in Step 5, when you connect the camera to your printer, the
Mode dial lamp(Green) will illuminate and the connection will not be established. In this case,
disconnect the USB cable, and then follow the procedure from Step 2 and onward.
Connecting the Camera to a Printer
1. Press the power button to turn the camera power on.
2. In a mode other than Voice Recording mode, press the
MENU button.
3. Press the LEFT/ RIGHT button and select [SETUP]
menu tab.
4. Select [USB] menu by pressing the UP/ DOWN button
and press the RIGHT button.
5. Select [PRINTER] menu by pressing the UP/ DOWN button and press the OK button.
6. Press the menu button twice and the menu will disappear.
7. Use the supplied USB cable to connect the camera to the printer as shown below.
8. Turn on the printer to connect the camera to the printer.
You can use the USB cable to connect this camera to a printer that supports PictBridge (sold
separately) and print the stored images directly. Movie clips and voice files cannot be printed.
You can set up the following settings from the PictBridge menu.
IMAGES : Select the pictures to be printed.
PRINTER SETUP : Setting up printing(AUTO SET/ CUSTOM SET)
PRINT : Printing pictures
DPOF AUTO PRINT : Printing the DPOF files
RESET : Initializing the PictBridge functions
SET UP
LAMP
SOUND
USB
BACK:
SET:OK
COMPUTER
PRINTER
3072
70
PictBridge: Picture Selection
Select pictures to print
1. Connect the camera to your printer. The USB menu must
be set to [PRINTER] before you connect the camera to
the printer. (See p.69)
2. The [IMAGES] menu will appear.
3. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
When [SELECT] is selected : The PictBridge function will
be applied only to the picture currently displayed.
When [ALL] is selected : The PictBridge function will be applied to all pictures,
excluding movie clips and voice files.
- Press the Up/ Down button to select the number of prints. Maximum 30 prints.
- Use the Left/Right button to select another picture and select the number of prints for
another picture.
- After setting the number of prints, press the OK button to save.
- Press the Shutter button to return to the menu without setting the number of prints.
Setting the Number of Copies to Print
- Select [SELECT] or [ALL]. A screen where you can set the number of copies to print will
appear as shown below.
IMAGES
SELECT
ALL
MOVE: SET:OK
[ When [SELECT] is selected ] [ When [ALL] is selected ]
0 PRINTS
MOVE PIC: SET:OK
EXIT:SH1
0 PRINTS
EXIT:SH1 SET:OK
71
Printing Pictures
1. Connect the camera to your printer. The USB menu
must be set to [PRINTER] before you connect the
camera to the printer.(See p.69)
2. Use the LEFT and RIGHT buttons to select the [PRINT]
menu tab.
3. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
[STANDARD] : Print the pictures stored in the memory card in set numbers. One picture
is printed on one piece of paper.
[INDEX] : Print multiple images on one sheet of paper.
1. Connect the camera to your printer. The [USB] menu
must be set to [PRINTER] before you connect the
camera to the printer.(See p.69)
2. Use the LEFT and RIGHT buttons to select the [DPOF
PRINT] menu tab.
3. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
[NO] : Cancel the printing
[YES]: Directly print the file with the DPOF information
Depending on the manufacturer and printer model, some menus may not be available.
With a printer without supporting the DPOF, the menu is still displayed but not available.
NOW PRINTING
EXIT:SH1
001/001
4. The screen shown on the right will appear and the
picture will be printed. If no picture is selected, the
[NO IMAGE!] message will be displayed. Press the
shutter button while printing to cancel the printing and
the [IMAGES] menu is displayed.
Number of pictures in a index print varies depends on
the printer used.
DPOF PRINT : This allows you to directly print the files with DPOF information.
PictBridge: Printing
PRINT
STANDARD
INDEX
MOVE: SET:OK
DPOF PRINT
NO
YES
MOVE:
72
PictBridge: Print Setting
AUTO SET
1. Connect the camera to your printer. The USB menu
must be set to [PRINTER] before you connect the
camera to the printer. (See p.69)
2. Use the LEFT and RIGHT buttons to select the
[AUTO SET] menu tab.
3. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
[NO] : [CUSTOM SET] values are kept.
[YES]: All values in the [CUSTOM SET] are automatically changed.
1. Connect the camera to your printer. The [USB] menu
must be set to [PRINTER] before you connect the
camera to the printer.(See p.69)
2. Use the LEFT and RIGHT buttons to select the
[CUSTOM SET] menu tab.
3. Use the UP and DOWN buttons to select the desired
submenu value, and then press the RIGHT button.
4. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
CUSTOM SET : You can select the Paper Size, Print Format, Paper Type, Print Quality,
Date Print, and File Name Print menus for printed pictures.
Menu
SIZE Setting the size of the printing paper
AUTO, POSTCARD, 4x6, 8.5X11, A6, A4, B5
LAYOUT
Setting the number of pictures to be printed on a sheet of paper
AUTO, INDEX, 1, FULL 2, 4, 6, 8
TYPE Setting the quality of the printing paper AUTO, PLAIN, PHOTO, FASTPHO.
QUALITY
Setting the quality of the picture to be printed
AUTO, DRAFT, NORMAL, FINE
DATE Setting whether to print the date AUTO, OFF, ON
FILE NAME Setting whether to print the file name AUTO, OFF, ON
Some menu options are not supported in all manufacturer and printer models.
If the setting values are not changed in the automatic/manual setting, the setting values are
automatically kept.
Function Sub menu
The menus you can set up are as follows:
AUTO SET
NO
YES
MOVE: SET:OK
CUSTOM SET
AUTO
BACK:
SET:OK
SIZE
LAYOUT
TYPE
73
PictBridge : RESET
Initializes user-changed configurations.
1. Connect the camera to your printer. The [USB] menu
must be set to [PRINTER] before you connect the
camera to the printer.(See p.69)
2. Use the LEFT and RIGHT buttons to select the [RESET]
menu tab.
3. Use the UP and DOWN buttons to select the desired
submenu value, and then press the OK button.
- If [NO] is selected : Settings will not be reset.
- If [YES] is selected : All print and image settings will be reset.
Default print setting varies depending on the printer manufacturer.
For your printer’s default setting, refer to the user’s guide that came with your printer.
RESET
NO
YES
MOVE: SET:OK
74
Setup menu
In this mode, you can set up basic settings. You can use the setup menu in all camera
modes, except Voice Recording mode.
The items indicated by are default settings.
Menu tab Main menu Sub menu Secondary menu Page
RESET -
SERIES -
OFF, 1, 3, 5, 10MIN - p.76
NO -
YES -
DATE&TIME 05/01/01 13:00 -
YY/MM/DD -
MM/DD/YY -
DD/MM/YY -
DATE -
D & TIME -
OFF -
ON -
OFF -
OFF -
LOW -
MEDIUM -
HIGH -
FILE
PWR SAVE
LANGUAGE
FORMAT
DATE TYPE
IMPRINT
LAMP
SOUND
p.75
p.77
p.78
p.79
p.79
p.80
p.81
p.80
A
T
Y
P
E
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
P”CCK»…
PORTU.
DUTCH
ENGLISH
DANSK
SVENSKA
BAHASA
B
T
Y
P
E
75
Setup menu
Menu tab Main menu Sub menu Secondary menu Page
COMPUTER -
PRINTER -
DARK -
NORMAL -
BRIGHT -
OFF, 0.5, 1, 3SEC -
YES -
NO -
USB
LCD
Q.VIEW
RESET
This function allows the user to select the file naming format.
Assigning File Names
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [FILE] menu by pressing the UP/ DOWN button
and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[RESET] : After using the reset function, the next file name will be set from 0001 even
after formatting, deleting all or inserting a new memory card.
[SERIES] : New files are named using numbers that follow the previous sequence,
even when a new memory card is used, or after formatting, or after deleting
all pictures
5. Press the menu button twice and the menu will disappear.
File name
p.82
p.82
p.83
p.83
* Menus are subject to change without prior notice.
SETUP
FILE
PWR SAVE
LANGUAGE
BACK:
SET:OK
RESET
SERIES
3072
76
File name
The first stored folder name is 100SSCAM, and the first file name is STA70001.
File names are assigned sequentially from STA70001 STA70002 ~ STA79999.
The folder number is assigned sequentially from 100 to 999 as follows: 100SSCAM
101SSCAM ~ 999SSCAM.
The files used with the memory card conform to the DCF(Design rule for Camera File
systems) format.
INFORMATION
Even if the batteries or AC adapter are removed and inserted again, the power off setting
will be preserved.
Note that the automatic power off function will not operate if the camera is in PC mode,
slide show, playing back a voice recording or movie clip.
INFORMATION
Auto power off
Setting Power Off
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [PWR SAVE] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
Selecting [OFF] : The power off function will not operate.
[1, 3, 5, 10 MIN] : The power will turn off automatically if not used for the period of time
specified.
5. Press the menu button twice and the menu will disappear.
This function switches the camera off after a set amount of time in order to prevent
unnecessary battery drainage.
SETUP
FILE
PWR SAVE
LANGUAGE
BACK:
SET:OK
3 MIN
3072
77
Language
Setting Language
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [LANGUAGE] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
LANGUAGE sub menu
Type A : English, Korean, German, French, Spanish, Italian, Russian, Portuguese and
Dutch.
Type B : English, S. Chinese, T. Chinese, Danish, Swedish, Thai,
BAHASA(MALAY/ INDONESIAN) and Arabic.
5. Press the menu button twice and the menu will disappear.
There is a choice of languages that can be displayed on the LCD monitor. Even if the
batteries or AC adapter are removed and inserted again, the language setting will be
preserved.
SETUP
FILE
PWR SAVE
LANGUAGE
BACK:
SET:OK
ENGLISH
DEUTSCH
3072
78
Formatting a memory card
Formatting a Memory Card
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [FORMAT] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [NO] is selected : The memory card will not be formatted.
Press the menu button twice and the menu display will disappear.
If [YES] is selected : Select the [FORMAT] menu by pressing the UP/ DOWN button and
press the OK button. A [PLEASE WAIT!] message appears and the
memory card will be formatted. If you ran FORMAT in Play mode,
a [NO IMAGE!] message will appear.
This is used for formatting the memory card. If you run [FORMAT] on the memory card,
all images, including the protected images, will be deleted. Be sure to download important
images to your PC before formatting the memory card.
If the memory card is not inserted, the internal memory will be formatted.
Be sure to run [FORMAT] on the following types of memory card.
- A new memory card, or an unformatted memory card.
- A memory card that has a file this camera cant recognize or one that has been taken
from another camera.
Always format the memory card using this camera. If you insert a memory card that has
been formatted using other cameras, memory card readers, or PCs, you will get a
[CARD ERROR!] message.
INFORMATION
SETUP
PWR SAVE
LANGUAGE
FORMAT
BACK:
SET:OK
NO
YES
3072
79
Setting up the Date/ Time
You can change the date and time that will be displayed on the captured images.
Setting Date/ Time
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [DATE&TIME] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Use the UP, DOWN, LEFT, and RIGHT buttons to select
the desired submenu value, and then press the OK
button.
RIGHT button : Selects the year/ month/ day/ hour/ minute.
LEFT button : Moves the cursor to the [DATE & TIME] main menu if the cursor is at
the first item of the date and time setup. In all other cases, the cursor will
be shifted to the left of its current position.
UP and DOWN buttons : Changes the setting value.
5. Press the menu button twice and the menu will disappear.
Setting up the Date type
Steps from 1-2 are the same as those for Setting up the
Date/ Time .
3. Select the [DATE TYPE] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Use the UP/DOWN buttons to select the desired submenu
value, and then press the OK button.
- Date type : [YY/MM/DD]/ [MM/DD/YY]/ [DD/MM/YY]
5. Press the menu button twice and the menu will disappear.
SETUP
LANGUAGE
FORMAT
DATE&TIME
BACK:
SET:OK
:
3072
Date type
SETUP
FORMAT
DATE&TIME
DATE TYPE
BACK:
SET:OK
YY/MM/DD
MM/DD/YY
DD/MM/YY
3072
You can change the date type that will be displayed on the captured images.
80
Imprinting the recording date
There is an option to include DATE/ TIME on still images.
Date Imprinting
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [IMPRINT] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Use the UP and DOWN buttons to select the desired date
imprint type, and then press the OK button.
[DATE] : Only the DATE will be imprinted on the image file.
[D&TIME] : The DATE & TIME will be imprinted on the image file.
[OFF] : The DATE & TIME will not be imprinted on the image file.
5. Press the menu button twice and the menu will disappear.
The Date & Time are imprinted at the bottom right side of the still image.
The date will be imprinted as a DATE TYPE setting.
TIME is imprinted in the following way : [Hour : Minute] and hours are shown using the
24 hour clock.
The imprint function is applied only to still images.
INFORMATION
Function lamp
Setting the function lamp
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [LAMP] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [ON] is selected : The function lamp will light up.
If [OFF] is selected: The function lamp will not light up.
5. Press the menu button twice and the menu will disappear.
SETUP
DATE&TIME
DATE TYPE
IMPRINT
BACK:
SET:OK
DATE
D&TIME
OFF
3072
SETUP
DATE TYPE
IMPRINT
LAMP
BACK:
SET:OK
ON
OFF
3072
You can turn on and off the function lamp located on the front of the camera.
81
If you set the operation sound to ON, various sounds will be activated for camera startup,
when button are pressed, and if there is a card error, so that you can be aware of the camera
operation status.
Setting Operation Sounds
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [SOUND] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[SOUND] sub menu : OFF/ LOW/ MEDIUM/ HIGH
5. Press the menu button twice and the menu will disappear.
Sound
Description of the Function lamp
Function Description
During power-on
After an image is captured
During voice recording
While recording a movie clip
Function lamp
When the self-timer is
activated
Even if the function lamp is set to OFF, the self-timer lamp will work.
(See page 33.)
Function lamp blinks and then turns off when the camera is ready to
take a picture
Function lamp will blink once.
Function lamp will blink at a 1-second interval.
Function lamp will blink at a 1-second interval.
SETUP
IMPRINT
LAMP
SOUND
BACK:
SET:OK
OFF
LOW
MEDIUM
3072
82
Selecting an External Device (USB)
You can adjust the LCD brightness.
Adjusting LCD Brightness
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [LCD] menu by pressing the UP/ DOWN button
and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[LCD] sub menu : DARK, NORMAL, BRIGHT
5. Press the menu button twice and the menu will disappear.
LCD brightness
You can select an external device to which you want to connect the camera using the USB
cable.
Selecting an External Device
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [USB] menu by pressing the UP/ DOWN button
and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[COMPUTER] : Select this if you want to connect the camera to your PC.
Refer to page 105 for instructions on how to connect the camera to your
PC.
[PRINTER] : Select this if you want to connect the camera to your printer.
Refer to page 70 for instructions on how to connect the camera to your
printer.
5. Press the menu button twice and the menu will disappear.
SETUP
LAMP
SOUND
USB
BACK:
SET:OK
COMPUTER
PRINTER
3072
SETUP
SOUND
USB
LCD
BACK:
SET:OK
DARK
NORMAL
BRIGHT
3072
83
Quick view
If you enable Quick View before capturing an image, you can view the image you just
captured on the LCD monitor for the duration set in the [Q.VIEW] setup. Quick view is
possible only with still images.
Setting Quick View
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [Q.VIEW] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[OFF] : The quick view function can’t be activated.
[0.5, 1, 3SEC] : The captured image is briefly displayed during the selected time.
5. Press the menu button twice and the menu will disappear.
Initialization(RESET ALL)
All camera menu and function settings will be restored to their default values.
However, values for DATE/ TIME and LANGUAGE will not be changed.
Initializing the Camera
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [RESET] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [YES] is selected : All settings will be restored to their defaults.
If [NO] is selected : Settings will not be restored to their defaults.
5. Press the menu button twice and the menu will disappear.
SETUP
USB
LCD
Q.VIEW
BACK:
SET:OK
0.5 SEC
3072
SETUP
LCD
Q.VIEW
RESET
BACK:
SET:OK
YES
NO
3072
84
Setting up the MYCAM menu
You can set up a start up image, start up sound and shutter sound. Every camera working
mode (with the exception of Voice recording mode) has the MyCAM menu.
The items indicated by are default settings.
Menu tab Main menu Sub menu Page
OFF IMAGE 1
IMAGE 2 USER IMAGE
OFF SH.SOUND 1
SH.SOUND 2 SH.SOUND 3
OFF SOUND 1
SOUND 2 SOUND 3
S.IMAGE
SH.SOUND
S.SOUND
p.84
p.85
p.85
You can select the image that is first displayed on the LCD monitor whenever the camera is
turned on.
Setting a Startup Image
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [MYCAM]
menu tab.
3. Select the [S.IMAGE] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
5. Press the menu button twice and the menu will disappear.
Start up image
Use a saved image for the start-up image with the [LOGO] in the [RESIZE] menu in the
play mode.
The start-up image will not be deleted by deleting all images or [FORMAT] menu.
INFORMATION
* Menus are subject to change without prior notice.
MYCAM
S.IMAGE
SH.SOUND
S.SOUND
BACK:
SET:OK
3072
85
Shutter sound
You can select the shutter sound.
Selecting the Shutter Sound
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [MYCAM]
menu tab.
3. Select the [SH.SOUND] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
5. Press the menu button twice and the menu will disappear.
Start up sound
You can select the sound that is activated whenever the
camera is turned on.
Setting the Startup Sound
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [MYCAM]
menu tab.
3. Select the [S.SOUND] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
5. Press the menu button twice and the menu will disappear.
MYCAM
S.IMAGE
SH.SOUND
S.SOUND
BACK:
SET:OK
OFF
SH.SOUND1
SH.SOUND2
3072
MYCAM
S.IMAGE
SH.SOUND
S.SOUND
BACK:
SET:OK
OFF
SOUND1
SOUND2
3072
86
Important notes
Be sure to observe the following precautions!
This unit contains precision electronic components. Do not use or store this unit in the
following locations.
- Areas exposed to severe changes in temperature and humidity.
- Areas exposed to dust and dirt.
- Areas exposed to direct sunlight or the inside of a vehicle in hot weather.
- Environments where there is high magnetism or excessive vibration.
- Areas with high explosives or highly flammable materials.
Do not let the unit come into contact with dust, vinyl goods, or chemicals, such as
insecticides, for an extended period of time.
Sand can be particularly troublesome to cameras.
- Do not let sand get inside the unit when using it on beaches, coastal dunes, or other areas
where there is lots of sand.
- Doing so may result in failure or may permanently render the unit unusable.
Extremes in temperature may cause problems.
- If the camera is transferred from a cold to a warm and humid environment, condensation
can form on the delicate electronic circuitry. If this occurs, turn the camera off and wait for at
least 1 hour until all moisture is dispersed. Moisture build up can also occur in the memory
card. If this happens, turn off the camera and remove the memory card. Wait until the
moisture has dispersed.
Caution on Using the Lens
- If the lens is subjected to direct sunlight, it could result in discoloration and deterioration of
the image sensor.
- Pay attention not to get fingerprints or foreign substances on the surface of the lens.
If the digital camera is not used for a long period, an electric discharge can occur.
It is a good idea to remove the batteries and the memory card if you do not intend using the
camera for an extended period of time.
87
Important notes
If the camera is exposed to an electronic interference, it will turn itself off to protect the
memory card.
Camera Maintenance
- Use a soft brush (available from photo stores) to gently clean the lens and LCD assemblies.
If this does not work, lens-cleaning paper with lens cleaning fluid can be used.
Clean the camera body with a soft cloth. Do not allow this camera to come into contact with
solvent materials such as benzol, insecticide, thinners etc. This may damage the body shell
of the camera and also affect its performance. Rough handling can damage the LCD
monitor. Take care to avoid damage and keep the camera in its protective carry case at all
times when not in use.
Do not attempt to disassemble or modify the camera.
Under certain conditions, static electricity can cause the flash unit to fire. This is not harmful to
the camera and is not a malfunction.
When images are uploaded or downloaded, the data transfer may be affected by static
electricity. In this case, disconnect and re-connect the USB cable before trying the transfer
again.
88
Warning indicator
There are several warnings that may appear on the LCD display
Warning indicator Causes Remedy
- Turn off the camera power and turn it on
again
- Insert the memory card again
- Format the memory card (p.78)
- Memory card error
- There is insufficient memory
capacity to take an image
- There are no images stored
on the memory card
- File error
- Memory card error
- There is low battery capacity
- The memory card is locked
CARD ERROR !
CARD FULL !
NO IMAGE !
FILE ERROR !
LOW BATTERY !
CARD LOCKED !
- Insert a new memory card
- Delete unnecessary image files to free up
some memory
- Take images
- Insert a memory card that is holding some
images
- Format the memory card
- Contact a camera service center
- Insert fresh batteries
- Slide the write protect switch to the top of
the memory card
- When taking pictures in dark
places
LOW LIGHT !
- Use a tripod and take pictures in Flash
Photography mode
- [USB] sub menu and
connected device are not
matched.
SET USB
- Reconfigure [USB] in the [SETUP] menu.
89
Before contacting a service center
Please check the following
Symptom Causes Remedy
- Insert fresh batteries
- Connect an AC Power Adapter
- Insert the batteries according to the polarity
marks (+, -)
- There is low battery capacity
- An AC Power Adapter is not
connected
- Batteries are inserted
incorrectly with the reverse
polarities
- The batteries are exhausted
- The Camera is turned off
automatically
- The Adapter plug is not
connected securely
- The Camera is being used in
low temperatures
- There is insufficient memory
capacity
- The memory card has not
been formatted
- The memory card is
exhausted
- The camera’s power is off
- The batteries are exhausted
- The memory card is locked
- Batteries are inserted
incorrectly with the reverse
polarities
The camera
doesnt switch on
The camera power
ceases whilst in
use
Batteries drain
quickly
Camera does not
take images when
pressing the
Shutter button
- Insert fresh batteries
- Press the power button to reactivate
camera
- Remove and re-insert the plug
- Keep the camera in warm conditions
(i.e. inside a coat or jacket) and only
remove it in order to take images
- Delete unnecessary image files
- Format the memory card (p.78)
- Insert a new memory card
- Turn the camera power on
- Insert fresh batteries
- Refer to [CARD LOCKED!] error message
(p.88)
- Insert the batteries according to the polarity
marks (+, -)
- The camera was stopped
due to a malfunction
The camera
suddenly stops
working while in
use
- Remove/ re-insert batteries and switch the
camera on
90
Before contacting a service center
Symptom Causes Remedy
- A picture was taken within
0.8 m from the subject
without setting an
appropriate macro mode
- Taking a picture beyond the
flash range
- The lens is smudged or dirty
- Flash off mode has been
selected
The images are
unclear
The flash does not
fire
- If the subject is closer than 0.8m, select
macro shot mode
- Take a picture within the flash range
- Clean the lens
- Dis-engage flash off mode
- Reset the date and time correctly- The date and time have
been set incorrectly or the
camera has adopted the
default settings
- Camera malfunction
- Incorrect memory card
format
Incorrect date and
time is displayed
The camera
buttons do not
operate
A card error has
occurred while the
memory card is in
the camera.
- Remove/ re-insert batteries and switch the
camera on
- Re-format the memory card (p.78)
- Incorrect file name
(Violation of DCF format)
The images don't
play back
- Do not change the image file name
91
Before contacting a service center
Symptom Causes Remedy
- White balance setting is
incorrect
- Exposure is excessive
- Cable connection is incorrect
- The camera is off
- There are no batteries, the
batteries are exhausted or
the AC adapter is not
connected.
- The operating system is not
Windows 98, 98SE, 2000,
ME, XP/ Mac OS 9.0~10.2.
Alternatively the PC does
not support USB
- The camera driver is not
installed
Colour of image is
different to the
original scene
Images are too
bright
When using the
PC’s explorer, the
[Removable Disk]
file does not show
- Select appropriate White balance
- Reset exposure compensation
- Check the connection
- Turn the camera on
- Insert new batteries or check the adapter
connection
- Install Windows 98, 98SE, 2000, ME,
XP/ Mac OS 9.0~10.2 to PC that supports
USB
- Install a [USB Storage Driver]
92
Specifications
Type 1/1.8" CCD
Effective Pixel Approx. 7.0 Mega-pixel
Total Pixel Approx. 7.2 Mega-pixel
SHD Lens f = 7.7 ~ 23.1mm
(35mm film equivalent : 38~114mm)
F No. F2.7 ~ F4.9
Still Image mode : 1.0X~ 5.0X
Play mode : 1.0X~10.0X (depends on image size)
Optical Viewfinder
Real image optical viewfinder
LCD Monitor 2.0" color TFT LCD
Type TTL auto focus
Normal : 80cm ~ infinity
Macro : 4~80 cm(Wide), 25~80cm(Tele)
Type Mechanical and Electronic shutter
Speed 15 ~ 1/2,000 sec
Program AE, Aperture priority AE, Shutter Speed priority AE, Manual AE,
Metering: Multi, Spot
Compensation 2.0EV(0.5EV steps)
ISO Equivalent Auto, 100, 200, 400
Shutter Speed : 15 ~ 1/2000 sec. selectable
F No. : F2.7 ~ F4.9 selectable
Modes
Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off
Range 0.25~3.0m(Wide), 0.25~2.0m(Tele)
Recharging Time
About 6.0sec
Sharpness Soft, Normal, Vivid
Effect Normal, B&W, Sepia, RGB
White Balance
Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L Tungsten, Custom
Voice Recording (Max. 1hour)
Voice Memo in Still Image (max. 10 sec.)
Date Imprinting Date&Time, Date, Off (user selectable)
Modes : Program, Auto, Scene, AS priority, Manual, Voice
Recording, Night
Continuous : Single, Continuous, AEB
Self-timer : 2 sec., 10 sec., Double self timer (10sec. & 2sec)
With audio (recording time : memory capacity dependent)
Size : 640x480, 320x240, 160x120
Frame rate : 30 fps, 15 fps
Pause Function in Movie Clip
Internal : 32MB flash memory
External Memory Slot : SD Card/ MMC
(Up to 512MB guaranteed)
Sensor
Lens
Focal Length
Range
Control
Manual
Digital Zoom
Viewfinder
Focusing
Shutter
Exposure
Flash
Voice Recording
Shooting
Storage
Movie Clip
Still Image
Media
93
Specifications
Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0
Movie Clip : AVI (MJPEG) Audio : WAV
3072 : 3072x2304, 2816 : 2816x2112
2592 : 2592x1944, 2272 : 2272x1704
2048 : 2048x1536, 1600 : 1600x1200
1024 : 1024x768, 640 : 640x480
3072 : Superfine 7, Fine 14, Normal 21
2816 : Superfine 8, Fine 16, Normal 25
2592 : Superfine 10, Fine 19, Normal 30
2272 : Superfine 13, Fine 26, Normal 39
2048 : Superfine 16, Fine 32, Normal 47
1600 : Superfine 26, Fine 52, Normal 65
1024 : Superfine 64, Fine 95, Normal 127
640 : Superfine 162, Fine 205, Normal 244
* These figures are measured under Samsung’s standard
conditions and may vary depending on shooting conditions
and camera settings.
Single image, Thumbnails, Slide show, Movie Clip
Trimming, Rotating, Resizing
Digital output connector : USB 1.1
Audio : Mono
DC power input connector : 3.3V
Primary Batteries: 2 x AA alkaline, or CR-V3(Lithium) battery
Secondary Batteries: 2 x Ni-MH(Samsung SNB-2312 recommended),
Samsung SBP-1303(Lithium Ion)
AC Adapter(optional): SAC-32 (DC 3.3V, 2A)
* Included battery may vary depending on sales region.
Dimensions (WxHxD) 109.8 x 56.8x 34.1 mm
Weight 166g (without batteries and card)
Operating Temperature 0~40˚C
Operating Humidity 5~85%
Storage Driver (Windows98/ 98SE)
Arcsoft PhotoImpression, Digimax Viewer
Power Movie Clip(Pause Function in Movie Clip & VGA 30fps),
One touch Manual Function(A/S/M Button), 4cm Macro,
Bright Pilot Lamp(Communication with user), Various Scene
Modes, RGB Color Effect, Voice Recording, Samsung High
Definition(SHD) Lens, Pictbridge Printing, 32MB Internal
Memory
* Specifications are subject to change without prior notice.
* All trademarks are the property of their respective owners.
Capacity
(32MB)
Image Size
Storage
Interface
Image Play
Type
Editing
Power Source
Special Features
Software
Camera Driver
Application
File Format
74
Setup menu
In this mode, you can set up basic settings. You can use the setup menu in all camera
modes, except Voice Recording mode.
The items indicated by are default settings.
Menu tab Main menu Sub menu Secondary menu Page
RESET -
SERIES -
OFF, 1, 3, 5, 10MIN - p.76
NO -
YES -
DATE&TIME 05/01/01 13:00 -
YY/MM/DD -
MM/DD/YY -
DD/MM/YY -
DATE -
D & TIME -
OFF -
ON -
OFF -
OFF -
LOW -
MEDIUM -
HIGH -
FILE
PWR SAVE
LANGUAGE
FORMAT
DATE TYPE
IMPRINT
LAMP
SOUND
p.75
p.77
p.78
p.79
p.79
p.80
p.81
p.80
A
T
Y
P
E
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
P”CCK»…
PORTU.
DUTCH
ENGLISH
DANSK
SVENSKA
BAHASA
B
T
Y
P
E
75
Setup menu
Menu tab Main menu Sub menu Secondary menu Page
COMPUTER -
PRINTER -
DARK -
NORMAL -
BRIGHT -
OFF, 0.5, 1, 3SEC -
YES -
NO -
USB
LCD
Q.VIEW
RESET
This function allows the user to select the file naming format.
Assigning File Names
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [FILE] menu by pressing the UP/ DOWN button
and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[RESET] : After using the reset function, the next file name will be set from 0001 even
after formatting, deleting all or inserting a new memory card.
[SERIES] : New files are named using numbers that follow the previous sequence,
even when a new memory card is used, or after formatting, or after deleting
all pictures
5. Press the menu button twice and the menu will disappear.
File name
p.82
p.82
p.83
p.83
* Menus are subject to change without prior notice.
SETUP
FILE
PWR SAVE
LANGUAGE
BACK:
SET:OK
RESET
SERIES
3072
76
File name
The first stored folder name is 100SSCAM, and the first file name is STA70001.
File names are assigned sequentially from STA70001 STA70002 ~ STA79999.
The folder number is assigned sequentially from 100 to 999 as follows: 100SSCAM
101SSCAM ~ 999SSCAM.
The files used with the memory card conform to the DCF(Design rule for Camera File
systems) format.
INFORMATION
Even if the batteries or AC adapter are removed and inserted again, the power off setting
will be preserved.
Note that the automatic power off function will not operate if the camera is in PC mode,
slide show, playing back a voice recording or movie clip.
INFORMATION
Auto power off
Setting Power Off
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [PWR SAVE] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
Selecting [OFF] : The power off function will not operate.
[1, 3, 5, 10 MIN] : The power will turn off automatically if not used for the period of time
specified.
5. Press the menu button twice and the menu will disappear.
This function switches the camera off after a set amount of time in order to prevent
unnecessary battery drainage.
SETUP
FILE
PWR SAVE
LANGUAGE
BACK:
SET:OK
3 MIN
3072
77
Language
Setting Language
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [LANGUAGE] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
LANGUAGE sub menu
Type A : English, Korean, German, French, Spanish, Italian, Russian, Portuguese and
Dutch.
Type B : English, S. Chinese, T. Chinese, Danish, Swedish, Thai,
BAHASA(MALAY/ INDONESIAN) and Arabic.
5. Press the menu button twice and the menu will disappear.
There is a choice of languages that can be displayed on the LCD monitor. Even if the
batteries or AC adapter are removed and inserted again, the language setting will be
preserved.
SETUP
FILE
PWR SAVE
LANGUAGE
BACK:
SET:OK
ENGLISH
DEUTSCH
3072
78
Formatting a memory card
Formatting a Memory Card
1. In any mode other than Voice Recording mode, press the
MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [FORMAT] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [NO] is selected : The memory card will not be formatted.
Press the menu button twice and the menu display will disappear.
If [YES] is selected : Select the [FORMAT] menu by pressing the UP/ DOWN button and
press the OK button. A [PLEASE WAIT!] message appears and the
memory card will be formatted. If you ran FORMAT in Play mode,
a [NO IMAGE!] message will appear.
This is used for formatting the memory card. If you run [FORMAT] on the memory card,
all images, including the protected images, will be deleted. Be sure to download important
images to your PC before formatting the memory card.
If the memory card is not inserted, the internal memory will be formatted.
Be sure to run [FORMAT] on the following types of memory card.
- A new memory card, or an unformatted memory card.
- A memory card that has a file this camera cant recognize or one that has been taken
from another camera.
Always format the memory card using this camera. If you insert a memory card that has
been formatted using other cameras, memory card readers, or PCs, you will get a
[CARD ERROR!] message.
INFORMATION
SETUP
PWR SAVE
LANGUAGE
FORMAT
BACK:
SET:OK
NO
YES
3072
79
Setting up the Date/ Time
You can change the date and time that will be displayed on the captured images.
Setting Date/ Time
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [DATE&TIME] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Use the UP, DOWN, LEFT, and RIGHT buttons to select
the desired submenu value, and then press the OK
button.
RIGHT button : Selects the year/ month/ day/ hour/ minute.
LEFT button : Moves the cursor to the [DATE & TIME] main menu if the cursor is at
the first item of the date and time setup. In all other cases, the cursor will
be shifted to the left of its current position.
UP and DOWN buttons : Changes the setting value.
5. Press the menu button twice and the menu will disappear.
Setting up the Date type
Steps from 1-2 are the same as those for Setting up the
Date/ Time .
3. Select the [DATE TYPE] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Use the UP/DOWN buttons to select the desired submenu
value, and then press the OK button.
- Date type : [YY/MM/DD]/ [MM/DD/YY]/ [DD/MM/YY]
5. Press the menu button twice and the menu will disappear.
SETUP
LANGUAGE
FORMAT
DATE&TIME
BACK:
SET:OK
:
3072
Date type
SETUP
FORMAT
DATE&TIME
DATE TYPE
BACK:
SET:OK
YY/MM/DD
MM/DD/YY
DD/MM/YY
3072
You can change the date type that will be displayed on the captured images.
80
Imprinting the recording date
There is an option to include DATE/ TIME on still images.
Date Imprinting
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [IMPRINT] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Use the UP and DOWN buttons to select the desired date
imprint type, and then press the OK button.
[DATE] : Only the DATE will be imprinted on the image file.
[D&TIME] : The DATE & TIME will be imprinted on the image file.
[OFF] : The DATE & TIME will not be imprinted on the image file.
5. Press the menu button twice and the menu will disappear.
The Date & Time are imprinted at the bottom right side of the still image.
The date will be imprinted as a DATE TYPE setting.
TIME is imprinted in the following way : [Hour : Minute] and hours are shown using the
24 hour clock.
The imprint function is applied only to still images.
INFORMATION
Function lamp
Setting the function lamp
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [LAMP] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [ON] is selected : The function lamp will light up.
If [OFF] is selected: The function lamp will not light up.
5. Press the menu button twice and the menu will disappear.
SETUP
DATE&TIME
DATE TYPE
IMPRINT
BACK:
SET:OK
DATE
D&TIME
OFF
3072
SETUP
DATE TYPE
IMPRINT
LAMP
BACK:
SET:OK
ON
OFF
3072
You can turn on and off the function lamp located on the front of the camera.
81
If you set the operation sound to ON, various sounds will be activated for camera startup,
when button are pressed, and if there is a card error, so that you can be aware of the camera
operation status.
Setting Operation Sounds
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [SOUND] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[SOUND] sub menu : OFF/ LOW/ MEDIUM/ HIGH
5. Press the menu button twice and the menu will disappear.
Sound
Description of the Function lamp
Function Description
During power-on
After an image is captured
During voice recording
While recording a movie clip
Function lamp
When the self-timer is
activated
Even if the function lamp is set to OFF, the self-timer lamp will work.
(See page 33.)
Function lamp blinks and then turns off when the camera is ready to
take a picture
Function lamp will blink once.
Function lamp will blink at a 1-second interval.
Function lamp will blink at a 1-second interval.
SETUP
IMPRINT
LAMP
SOUND
BACK:
SET:OK
OFF
LOW
MEDIUM
3072
82
Selecting an External Device (USB)
You can adjust the LCD brightness.
Adjusting LCD Brightness
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [LCD] menu by pressing the UP/ DOWN button
and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[LCD] sub menu : DARK, NORMAL, BRIGHT
5. Press the menu button twice and the menu will disappear.
LCD brightness
You can select an external device to which you want to connect the camera using the USB
cable.
Selecting an External Device
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [USB] menu by pressing the UP/ DOWN button
and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[COMPUTER] : Select this if you want to connect the camera to your PC.
Refer to page 105 for instructions on how to connect the camera to your
PC.
[PRINTER] : Select this if you want to connect the camera to your printer.
Refer to page 70 for instructions on how to connect the camera to your
printer.
5. Press the menu button twice and the menu will disappear.
SETUP
LAMP
SOUND
USB
BACK:
SET:OK
COMPUTER
PRINTER
3072
SETUP
SOUND
USB
LCD
BACK:
SET:OK
DARK
NORMAL
BRIGHT
3072
83
Quick view
If you enable Quick View before capturing an image, you can view the image you just
captured on the LCD monitor for the duration set in the [Q.VIEW] setup. Quick view is
possible only with still images.
Setting Quick View
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [Q.VIEW] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
[OFF] : The quick view function can’t be activated.
[0.5, 1, 3SEC] : The captured image is briefly displayed during the selected time.
5. Press the menu button twice and the menu will disappear.
Initialization(RESET ALL)
All camera menu and function settings will be restored to their default values.
However, values for DATE/ TIME and LANGUAGE will not be changed.
Initializing the Camera
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
3. Select the [RESET] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
If [YES] is selected : All settings will be restored to their defaults.
If [NO] is selected : Settings will not be restored to their defaults.
5. Press the menu button twice and the menu will disappear.
SETUP
USB
LCD
Q.VIEW
BACK:
SET:OK
0.5 SEC
3072
SETUP
LCD
Q.VIEW
RESET
BACK:
SET:OK
YES
NO
3072
84
Setting up the MYCAM menu
You can set up a start up image, start up sound and shutter sound. Every camera working
mode (with the exception of Voice recording mode) has the MyCAM menu.
The items indicated by are default settings.
Menu tab Main menu Sub menu Page
OFF IMAGE 1
IMAGE 2 USER IMAGE
OFF SH.SOUND 1
SH.SOUND 2 SH.SOUND 3
OFF SOUND 1
SOUND 2 SOUND 3
S.IMAGE
SH.SOUND
S.SOUND
p.84
p.85
p.85
You can select the image that is first displayed on the LCD monitor whenever the camera is
turned on.
Setting a Startup Image
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [MYCAM]
menu tab.
3. Select the [S.IMAGE] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
5. Press the menu button twice and the menu will disappear.
Start up image
Use a saved image for the start-up image with the [LOGO] in the [RESIZE] menu in the
play mode.
The start-up image will not be deleted by deleting all images or [FORMAT] menu.
INFORMATION
* Menus are subject to change without prior notice.
MYCAM
S.IMAGE
SH.SOUND
S.SOUND
BACK:
SET:OK
3072
85
Shutter sound
You can select the shutter sound.
Selecting the Shutter Sound
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [MYCAM]
menu tab.
3. Select the [SH.SOUND] menu by pressing the UP/
DOWN button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
5. Press the menu button twice and the menu will disappear.
Start up sound
You can select the sound that is activated whenever the
camera is turned on.
Setting the Startup Sound
1. In any mode with the exception of Voice Recording mode,
press the MENU button.
2. Press the LEFT/ RIGHT button and select the [MYCAM]
menu tab.
3. Select the [S.SOUND] menu by pressing the UP/ DOWN
button and press the RIGHT button.
4. Select a desired sub menu by pressing the UP/ DOWN
button and press the OK button.
5. Press the menu button twice and the menu will disappear.
MYCAM
S.IMAGE
SH.SOUND
S.SOUND
BACK:
SET:OK
OFF
SH.SOUND1
SH.SOUND2
3072
MYCAM
S.IMAGE
SH.SOUND
S.SOUND
BACK:
SET:OK
OFF
SOUND1
SOUND2
3072
86
Important notes
Be sure to observe the following precautions!
This unit contains precision electronic components. Do not use or store this unit in the
following locations.
- Areas exposed to severe changes in temperature and humidity.
- Areas exposed to dust and dirt.
- Areas exposed to direct sunlight or the inside of a vehicle in hot weather.
- Environments where there is high magnetism or excessive vibration.
- Areas with high explosives or highly flammable materials.
Do not let the unit come into contact with dust, vinyl goods, or chemicals, such as
insecticides, for an extended period of time.
Sand can be particularly troublesome to cameras.
- Do not let sand get inside the unit when using it on beaches, coastal dunes, or other areas
where there is lots of sand.
- Doing so may result in failure or may permanently render the unit unusable.
Extremes in temperature may cause problems.
- If the camera is transferred from a cold to a warm and humid environment, condensation
can form on the delicate electronic circuitry. If this occurs, turn the camera off and wait for at
least 1 hour until all moisture is dispersed. Moisture build up can also occur in the memory
card. If this happens, turn off the camera and remove the memory card. Wait until the
moisture has dispersed.
Caution on Using the Lens
- If the lens is subjected to direct sunlight, it could result in discoloration and deterioration of
the image sensor.
- Pay attention not to get fingerprints or foreign substances on the surface of the lens.
If the digital camera is not used for a long period, an electric discharge can occur.
It is a good idea to remove the batteries and the memory card if you do not intend using the
camera for an extended period of time.
87
Important notes
If the camera is exposed to an electronic interference, it will turn itself off to protect the
memory card.
Camera Maintenance
- Use a soft brush (available from photo stores) to gently clean the lens and LCD assemblies.
If this does not work, lens-cleaning paper with lens cleaning fluid can be used.
Clean the camera body with a soft cloth. Do not allow this camera to come into contact with
solvent materials such as benzol, insecticide, thinners etc. This may damage the body shell
of the camera and also affect its performance. Rough handling can damage the LCD
monitor. Take care to avoid damage and keep the camera in its protective carry case at all
times when not in use.
Do not attempt to disassemble or modify the camera.
Under certain conditions, static electricity can cause the flash unit to fire. This is not harmful to
the camera and is not a malfunction.
When images are uploaded or downloaded, the data transfer may be affected by static
electricity. In this case, disconnect and re-connect the USB cable before trying the transfer
again.
88
Warning indicator
There are several warnings that may appear on the LCD display
Warning indicator Causes Remedy
- Turn off the camera power and turn it on
again
- Insert the memory card again
- Format the memory card (p.78)
- Memory card error
- There is insufficient memory
capacity to take an image
- There are no images stored
on the memory card
- File error
- Memory card error
- There is low battery capacity
- The memory card is locked
CARD ERROR !
CARD FULL !
NO IMAGE !
FILE ERROR !
LOW BATTERY !
CARD LOCKED !
- Insert a new memory card
- Delete unnecessary image files to free up
some memory
- Take images
- Insert a memory card that is holding some
images
- Format the memory card
- Contact a camera service center
- Insert fresh batteries
- Slide the write protect switch to the top of
the memory card
- When taking pictures in dark
places
LOW LIGHT !
- Use a tripod and take pictures in Flash
Photography mode
- [USB] sub menu and
connected device are not
matched.
SET USB
- Reconfigure [USB] in the [SETUP] menu.
89
Before contacting a service center
Please check the following
Symptom Causes Remedy
- Insert fresh batteries
- Connect an AC Power Adapter
- Insert the batteries according to the polarity
marks (+, -)
- There is low battery capacity
- An AC Power Adapter is not
connected
- Batteries are inserted
incorrectly with the reverse
polarities
- The batteries are exhausted
- The Camera is turned off
automatically
- The Adapter plug is not
connected securely
- The Camera is being used in
low temperatures
- There is insufficient memory
capacity
- The memory card has not
been formatted
- The memory card is
exhausted
- The camera’s power is off
- The batteries are exhausted
- The memory card is locked
- Batteries are inserted
incorrectly with the reverse
polarities
The camera
doesnt switch on
The camera power
ceases whilst in
use
Batteries drain
quickly
Camera does not
take images when
pressing the
Shutter button
- Insert fresh batteries
- Press the power button to reactivate
camera
- Remove and re-insert the plug
- Keep the camera in warm conditions
(i.e. inside a coat or jacket) and only
remove it in order to take images
- Delete unnecessary image files
- Format the memory card (p.78)
- Insert a new memory card
- Turn the camera power on
- Insert fresh batteries
- Refer to [CARD LOCKED!] error message
(p.88)
- Insert the batteries according to the polarity
marks (+, -)
- The camera was stopped
due to a malfunction
The camera
suddenly stops
working while in
use
- Remove/ re-insert batteries and switch the
camera on
90
Before contacting a service center
Symptom Causes Remedy
- A picture was taken within
0.8 m from the subject
without setting an
appropriate macro mode
- Taking a picture beyond the
flash range
- The lens is smudged or dirty
- Flash off mode has been
selected
The images are
unclear
The flash does not
fire
- If the subject is closer than 0.8m, select
macro shot mode
- Take a picture within the flash range
- Clean the lens
- Dis-engage flash off mode
- Reset the date and time correctly- The date and time have
been set incorrectly or the
camera has adopted the
default settings
- Camera malfunction
- Incorrect memory card
format
Incorrect date and
time is displayed
The camera
buttons do not
operate
A card error has
occurred while the
memory card is in
the camera.
- Remove/ re-insert batteries and switch the
camera on
- Re-format the memory card (p.78)
- Incorrect file name
(Violation of DCF format)
The images don't
play back
- Do not change the image file name
91
Before contacting a service center
Symptom Causes Remedy
- White balance setting is
incorrect
- Exposure is excessive
- Cable connection is incorrect
- The camera is off
- There are no batteries, the
batteries are exhausted or
the AC adapter is not
connected.
- The operating system is not
Windows 98, 98SE, 2000,
ME, XP/ Mac OS 9.0~10.2.
Alternatively the PC does
not support USB
- The camera driver is not
installed
Colour of image is
different to the
original scene
Images are too
bright
When using the
PC’s explorer, the
[Removable Disk]
file does not show
- Select appropriate White balance
- Reset exposure compensation
- Check the connection
- Turn the camera on
- Insert new batteries or check the adapter
connection
- Install Windows 98, 98SE, 2000, ME,
XP/ Mac OS 9.0~10.2 to PC that supports
USB
- Install a [USB Storage Driver]
92
Specifications
Type 1/1.8" CCD
Effective Pixel Approx. 7.0 Mega-pixel
Total Pixel Approx. 7.2 Mega-pixel
SHD Lens f = 7.7 ~ 23.1mm
(35mm film equivalent : 38~114mm)
F No. F2.7 ~ F4.9
Still Image mode : 1.0X~ 5.0X
Play mode : 1.0X~10.0X (depends on image size)
Optical Viewfinder
Real image optical viewfinder
LCD Monitor 2.0" color TFT LCD
Type TTL auto focus
Normal : 80cm ~ infinity
Macro : 4~80 cm(Wide), 25~80cm(Tele)
Type Mechanical and Electronic shutter
Speed 15 ~ 1/2,000 sec
Program AE, Aperture priority AE, Shutter Speed priority AE, Manual AE,
Metering: Multi, Spot
Compensation 2.0EV(0.5EV steps)
ISO Equivalent Auto, 100, 200, 400
Shutter Speed : 15 ~ 1/2000 sec. selectable
F No. : F2.7 ~ F4.9 selectable
Modes
Auto, Auto & Red-eye reduction, Fill-in flash, Slow sync, Flash off
Range 0.25~3.0m(Wide), 0.25~2.0m(Tele)
Recharging Time
About 6.0sec
Sharpness Soft, Normal, Vivid
Effect Normal, B&W, Sepia, RGB
White Balance
Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L Tungsten, Custom
Voice Recording (Max. 1hour)
Voice Memo in Still Image (max. 10 sec.)
Date Imprinting Date&Time, Date, Off (user selectable)
Modes : Program, Auto, Scene, AS priority, Manual, Voice
Recording, Night
Continuous : Single, Continuous, AEB
Self-timer : 2 sec., 10 sec., Double self timer (10sec. & 2sec)
With audio (recording time : memory capacity dependent)
Size : 640x480, 320x240, 160x120
Frame rate : 30 fps, 15 fps
Pause Function in Movie Clip
Internal : 32MB flash memory
External Memory Slot : SD Card/ MMC
(Up to 512MB guaranteed)
Sensor
Lens
Focal Length
Range
Control
Manual
Digital Zoom
Viewfinder
Focusing
Shutter
Exposure
Flash
Voice Recording
Shooting
Storage
Movie Clip
Still Image
Media
93
Specifications
Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1, PictBridge 1.0
Movie Clip : AVI (MJPEG) Audio : WAV
3072 : 3072x2304, 2816 : 2816x2112
2592 : 2592x1944, 2272 : 2272x1704
2048 : 2048x1536, 1600 : 1600x1200
1024 : 1024x768, 640 : 640x480
3072 : Superfine 7, Fine 14, Normal 21
2816 : Superfine 8, Fine 16, Normal 25
2592 : Superfine 10, Fine 19, Normal 30
2272 : Superfine 13, Fine 26, Normal 39
2048 : Superfine 16, Fine 32, Normal 47
1600 : Superfine 26, Fine 52, Normal 65
1024 : Superfine 64, Fine 95, Normal 127
640 : Superfine 162, Fine 205, Normal 244
* These figures are measured under Samsung’s standard
conditions and may vary depending on shooting conditions
and camera settings.
Single image, Thumbnails, Slide show, Movie Clip
Trimming, Rotating, Resizing
Digital output connector : USB 1.1
Audio : Mono
DC power input connector : 3.3V
Primary Batteries: 2 x AA alkaline, or CR-V3(Lithium) battery
Secondary Batteries: 2 x Ni-MH(Samsung SNB-2312 recommended),
Samsung SBP-1303(Lithium Ion)
AC Adapter(optional): SAC-32 (DC 3.3V, 2A)
* Included battery may vary depending on sales region.
Dimensions (WxHxD) 109.8 x 56.8x 34.1 mm
Weight 166g (without batteries and card)
Operating Temperature 0~40˚C
Operating Humidity 5~85%
Storage Driver (Windows98/ 98SE)
Arcsoft PhotoImpression, Digimax Viewer
Power Movie Clip(Pause Function in Movie Clip & VGA 30fps),
One touch Manual Function(A/S/M Button), 4cm Macro,
Bright Pilot Lamp(Communication with user), Various Scene
Modes, RGB Color Effect, Voice Recording, Samsung High
Definition(SHD) Lens, Pictbridge Printing, 32MB Internal
Memory
* Specifications are subject to change without prior notice.
* All trademarks are the property of their respective owners.
Capacity
(32MB)
Image Size
Storage
Interface
Image Play
Type
Editing
Power Source
Special Features
Software
Camera Driver
Application
File Format
94
Software Notes
Please ensure that you read the instruction manual carefully before use.
The attached software is a camera driver and image editing software tool for Windows.
Under no circumstances should all or part of either the software or the user manual be
reproduced.
Copyrights for software are licensed only for use with a camera.
In the unlikely event of a manufacturing fault, we will repair or exchange your camera.
We cannot, however, be held responsible in any way for damage caused by inappropriate
use.
Using a Hand-made PC or a PC and OS that has not been guaranteed by the manufacturer is
not covered by the Samsung warranty.
Before reading this manual, you should have a basic knowledge of computers and O/S
(Operating Systems).
System Requirements
For Windows For Macintosh
Power Mac G3 or later
Windows 98/ 98SE/ 2000/ ME/ XP Mac OS 9.0 ~ 10.2
Minimum 32MB RAM (XP : 128MB) Minimum 64MB RAM
140MB of available hard-disk space 110MB of available hard-disk space
USB port USB port
CD-ROM drive CD-ROM drive
QuickTime 6.4 or later for Movie Clip
PC with processor better than MMX
Pentium 233MHz (XP : Pentium II 300MHz)
800x600 pixels, 16-bit colour display
compatible monitor (24-bit colour display
recommended)
95
About the software
After inserting the CD-ROM provided with this camera into the CD-ROM drive, the following
window should automatically run.
Before connecting the camera to the PC,
you should first install the camera driver.
Camera driver : This enables images to transfer between the camera and PC.
This camera uses the USB Storage Driver as the camera driver. You can use the camera as
a USB card reader. After installing the driver and connecting this camera to the PC, you can
find [Removable Disk] in [Windows Explorer] or [My computer]. A USB Storage Driver is
provided only for Windows. A USB Driver for MAC is not included with the Application CD.
But you can use the camera with Mac OS 9.0~10.2.
Digimax Viewer : This is a program for viewing stored images.
You can see the stored images in the memory directly on a PC monitor. You can also copy,
move or delete the images and enlarge/downscale the image sizes with Digimax Viewer.
This software is only compatible with Windows.
PhotoImpression : Image editing program.
You can edit or store still images that you download from the camera. This software is only
compatible with Windows.
❾➴ Be sure to check the system requirements (p.94) before installing the driver.
You should allow 5~10 seconds for running the automatic setup program according to the
capability of the computer. If the frame does not show, run the [Windows Explorer] and
select [Samsung.exe] in the CD-ROM Drive root directory.
INFORMATION
96
Setting up the application software
To use this camera with a PC, install the application software first. After this has been done,
the stored images in the camera can be moved to the PC and can be edited by an image editing
program.
You can visit the Samsung web-site through the internet.
http://www.samsungcamera.com : English
http://www.samsungcamera.co.kr : Korean
1. Click the [Install] menu in the Autorun frame.
The camera driver is installed automatically.
[Click!]
2. Camera driver installation is complete.
Click the [Finish] button.
[Click!]
Close other programs before installing the application software.
Before installing the application software, disconnect the USB connection.
INFORMATION
97
Setting up the application software
3. A window for which you can select application
software will be displayed. Select the
application program and click the [Install]
button. Refer to page 95 for more information
about the application program.
4. Install Digimax Viewer.
Click [Next >] button.
5. The Software License Agreement window will
be displayed. If you agree to this, click [Yes],
the window will then move to the next step.
If you disagree, click [No] and the installation
program will be cancelled.
6. A destination selection window will open.
Click [Next >]. To copy to the files to another
folder, click [Browse...] and choose a folder
you want.
[Click!]
[Click!]
[Click!]
[Click!]
If you select [Exit] at the step 3, the application program installation will be cancelled.
INFORMATION
If you select [Cancel] at step 4, a window for installing PhotoImpression will be displayed.
INFORMATION
98
Setting up the application software
8. Digimax Viewer installation is successfully
completed. Click the [Finish] button to install
PhotoImpression. The system will not reboot
even if the [Yes, I want to restart the computer
now] option is selected.
* The frame 8 may not appear according to the
system requirements.
9. The PhotoImpression installation window will be
displayed as shown alongside.
Click the [OK] button.
10. A Welcome window will be displayed.
Click the [Next >] button.
[Click!]
7. A window will open, asking you to choose a
folder to which program icons will be added.
Click [Next >] button. If you want to add the
program icons to a different folder, choose
another folder, and then click [Next >] button.
[Click!]
[Click!]
[Click!]
99
Setting up the application software
12. A destination selection window will open.
Click [Next >]. To copy to the files to another
folder, click [Browse...] and choose a folder
you want.
13. The [Select Components] window will appear.
Click [Next >] button.
14. A window will open, asking you to choose a
folder to which program icons will be added.
Click [Next >] button. If you want to add the
program icons to a different folder, choose
another folder, and then click [Next >] button.
[Click!]
11. The Software License Agreement window will
be displayed. If you agree to this, click [Yes],
the window will then move to the next step.
If you disagree, click [No] and the installation
program will be cancelled.
[Click!]
[Click!]
[Click!]
100
16. After restarting the computer, connect the PC to the camera with the USB cable.
17. Turn the camera power on. [Found New
Hardware Wizard] will open and the computer
will recognise the camera.
* If you have ever installed an image viewer
program or your OS is Windows XP, an image
viewer program will open. If the image viewer
program opens, the camera driver was setup
successfully.
18. If you can see [Removable Disk] under
[My computer], the camera driver installation
was successful. Now you can transfer image
files from the camera to PC via the USB cable.
Setting up the application software
15. Installation is complete. To apply changes,
you must restart the computer.
Select [Yes, I want to restart my computer
now], and then click [OK].
* The frame 15 may be displayed according to the
system requirements.
Click the [Finish] button to restart the computer.
[Click!]
[Click!]
101
Setting up the application software
If you have installed the camera driver, [Found New Hardware Wizard] may not open.
On a Windows 98 or 98 SE system, the Found New Hardware Wizard dialog box opens
and a window asking you to select a driver file may appear. In this case, specify
"USB Driver" in the CD supplied.
When connecting the camera to your PC, it is recommended that you use an AC power
adapter.
Before connecting the camera to the PC, You should first install the camera driver.
After installing the camera driver, you have to restart your PC.
If you connect the camera to the PC before installing the camera driver, the [Found New
Hardware Wizard] will open.
In this case, cancel the [Found New Hardware Wizard] and disconnect the camera.
Install the camera driver (p.96) and connect the camera to the PC again.
Should the computer not find the camera driver after installation, please try one or more of
the following measures.
1. Delete the camera driver (p.107), and re-install the driver.
2. Refer to FAQ (p.111) to check for a possible solution to the problem.
3. If your PC’s central processing unit is VIA chip (This is shown in the USB Host
Controller), download the patch file from the Samsung Camera web page.
(http://www.samsungcamera.com)
INFORMATION
102
Starting PC mode
If you connect the USB cable to a USB port on your PC and then turn on the power,
the camera will automatically switch to "computer connection mode".
In this mode, you can download stored images to your PC through the USB cable.
The LCD monitor is always turned off in PC mode.
The camera status lamp will blink when the files are transferring via the USB connection.
Connecting the camera to a PC
1. Turn the PC power on.
2. Turn the camera power on.
3. In any mode other than Voice Recording mode, press
the MENU button.
4. Press the LEFT/ RIGHT button and select the [SETUP]
menu tab.
5. Select the [USB] menu by pressing the UP/ DOWN
button and press the RIGHT button.
6. Use the UP and DOWN buttons to select [COMPUTER], and then press the OK button.
7. Press the menu button twice and the menu will disappear.
8. Connect the PC and the camera via the USB cable.
- Insert the small plug of the USB cable into the camera USB connection terminal.
- Insert the large connector of the USB cable into the USB port of the PC.
- The plugs must be firmly inserted.
Disconnecting the camera and PC : Refer to page 107(Removing the removable disk).
If you selected [PRINTER] in Step 6,
when you connect the camera to your
printer, the [CONNECTING…]
message will be displayed on the LCD
monitor and the connection will not be
established. In this case, disconnect
the USB cable, and then follow the
procedure from Step 3 and onward.
The camera driver must be installed before using PC mode.
To save battery power, it is recommended that you use an AC adapter (Optional) when
connecting the camera to a computer.
INFORMATION
SETUP
LAMP
SOUND
USB
BACK:
SET:OK
COMPUTER
PRINTER
3072
103
Starting PC Mode
Downloading stored images
You can download the still images stored on the camera to your PC's hard disk and print
them or use a photo editing software to edit them.
1. Connect the camera to your PC with the USB cable.
2. On your computer's desktop display, select
[My computer] and double click [Removable Disk
→ DCIM → 100SSCAM].
The image files will then be displayed.
3. Select an image and press the right mouse
button.
4. A pop-up menu will open.
Click [Cut] or [Copy] menu.
- [Cut] : cuts a selected file.
- [Copy] : copies files.
5. Click a folder where you want to paste the file.
104
Starting PC Mode
7. An image file is transferred from the camera to
your PC.
6. Press the right mouse button and a pop-up menu
will open. Click [Paste].
- By using [Digimax Viewer], you can see the stored images in the memory directly on the PC
monitor and you can copy or move the image files.
105
Removing the USB Driver for Windows 98SE
To remove the USB driver, refer to the process shown below.
1. Trace [Start → Settings] and click [Control Panel].
[Click!]
4. Uninstallation is complete.
Click the [Finish] button and the window will
disappear.
[Click!]
2. Double-click [Add/ Remove programs].
3. The [Add/Remove Programs Properties] window
will open. Click [Digimax A7] and click the
[Add/Remove] button.
106
Removable Disk
To use this camera as a Removable Disk, install (p.96) the USB Driver.
1. Before turning the camera power on, connect the camera to the PC with the USB cable.
2. Click [Removable Disk] under [My computer] or [Windows Explorer].
3. Image files stored in the Removable Disk (DCIM → 100SSCAM) can be transferred to the
PC.
Important information whilst using the Removable Disk
The [Removable Disk] indicator will not show when the camera power is off or the USB
cable is removed.
We recommend that you should copy the images to the PC to view them. Opening
images directly from the removable disk may be subject to unexpected disconnection.
When uploading images from the PC to the camera, ensure that the uploaded file names
are not the same as those already stored on the memory.
When you upload a file that is not taken by this camera to Removable Disk, the
[FILE ERROR!] message will be displayed on the LCD monitor in the PLAY mode,
and nothing is displayed in THUMBNAIL mode.
The camera status lamp will blink, when a file is
transferred (copy or deletion) between the PC and
the camera. Do not remove the USB cable until the
lamp stops blinking.
To remove the USB cable in Windows
2000/ME/XP, use the [Unplug or Eject Hardware]
icon on the task bar.
INFORMATION
107
Removing the removable disk
Windows 98SE
1. Check whether the camera and PC are transferring a file. If the auto focus lamp blinks, you
have to wait until the lamp is turned off.
2. Unplug the USB cable.
Windows 2000/ ME/ XP
(The illustrations may be different from the real display in accordance with the Windows O/S.)
1. Check whether the camera and PC are transferring a file. If the auto focus lamp blinks, you
have to wait until the lamp is turned off.
2. Double-click the [Unplug or Eject Hardware]
icon on the task bar.
3. The [Unplug or Eject Hardware] window will
open. Select the [USB Mass Storage Device]
and click the [Stop] button.
4. The [Stop a Hardware device] window will
open. Select the [USB Mass Storage Device]
and click the [OK] button.
5. A [Safe to Remove Hardware] window will
open. Click the [OK] button.
[Click!]
[Double-click!]
[Click!]
[Click!]
108
Removing the removable disk
6. A [Unplug or Eject Hardware] window will open.
Click the [Close] button and the removable disk
will be removed safely.
7. Unplug the USB cable.
[Click!]
1. A USB Driver for MAC is not included with the software CD as MAC OS supports the
camera driver.
2. Check the MAC OS. You can check the MAC OS version during MAC OS start-up.
This camera is compatible with MAC OS 9.0 ~ 10.2.
3. Connect the camera to the Macintosh and turn the camera power on.
4. A new icon will be displayed on the desktop after connecting the camera to the MAC.
Using the USB Driver for MAC
Setting up the USB Driver for MAC
1. Double click a new icon on the desktop and the folder in the memory will be displayed.
2. Select an image file and copy or move it to MAC.
For Mac OS 10.0 or later : First complete uploading from computer to camera and then
remove the removable disk with the Extract command
INFORMATION
109
Digimax Viewer 2.1
This software is only compatible with Windows.
1. To open Digimax Viewer, click the [Start →
Programs → Samsung → Digimax Viewer 2.1 →
Digimax Viewer 2.1 ] and Digimax Viewer 2.1 will
then open.
3. You can easily use the Digimax viewer 2.1 program
as it offers a FILE menu and TOOL bar.And, you can
use the pop up menu. Click an image and press the
right mouse button.
Digimax Viewer functions are listed below.
- Basic functions : Copy, Move, Delete, Rotate, Rename, changing file type, Resize,
Property.
- Advanced functions : Print, Slide show, Export, Sending e-mail, On-line print,
Web album etc.
2. If the [Auto Launch] option is selected, this program will be executed automatically by
recognising the camera.
Before deleting images from the camera, you should protect or download images to your
computer that you wish to keep.
Refer to the [Help] menu in Digimax viewer 2.1 for further information.
INFORMATION
110
Using PhotoImpression
With PhotoImpression, you can edit or store still images that you downloaded from the camera.
This software is only available in Windows version.
To start the program, click [Start → Programs → ArcSoft PhotoImpression → PhotoImpression].
The following screen will appear.
[ Command
Button ]
[ Tool Bar ]
[ Help Button ]
You can use PhotoImpression to perform the following tasks.
Command Button
Button Description
Imports a picture from an album, a source folder, or the camera/ scanner,
or captures screen shots of what is being viewed on the current monitor.
Selects Cut, Resize, Edit Image, Insert Text, Enhance Picture,
Insert Effects, or Layer.
Performs Insert Frame, Insert Borders, Insert Calendar, Insert Greeting
Cards, Insert Template, or Connect with Other Software.
Saves the edited picture, and sends an e-mail or uses it as the background
image.
Outputs the edited picture according to your preferences.
111
Using PhotoImpression
Tool Bar
Button Description Button Description
Resize Layer
Flip Layer Horizontally
Undo
Copy
Delete Layer
Rotate Layer
Rotate All Layers
Redo
Paste
Close Picture
For detailed instructions on how to use PhotoImpression, please refer to the program's Help.
INFORMATION
FAQ
Please check the following if the USB connection malfunctions.
[Case 1] The camera power is off.
→ Turn the camera power on. We recommend using an AC power adapter in PC
mode.
[Case 2] USB Driver is not installed correctly.
→ Install the USB Driver correctly. Refer to page 96.
[Case 3] The USB cable is not connected or you are using a cable with an incorrect
specification.
→ Use a USB cable with the correct specification.
112
FAQ
[Case 4] The camera is not recognised by your PC.
Sometimes, the camera may appear under [Unknown Devices] in Device
Manager.
→ Install the camera driver correctly.
Turn off the camera, remove the USB cable, plug in the USB cable again,
and then turn on the camera.
[Case 5] There is an unexpected error during file transfer
→ Turn the camera power off and on again. Transfer the file again.
[Case 6] How do I know my computer supports a USB Interface?
→ Check the USB port in your computer or keyboard.
→ Check the OS version. A USB Interface is available in Windows 98, 98SE, 2000,
ME .XP.
→ Check [Universal Serial Bus controllers] in Device Manager. Do the following to
check [Universal Serial Bus controllers].
Win 98/ME : Trace [Start → Settings → Control Panel → System →
Device Manager → Universal Serial Bus controllers].
Win 2000 : Trace [Start → Settings → Control Panel → System → Hardware
→ Device Manager → Universal Serial Bus controllers].
Win XP : Trace [Start → Control Panel → System → Hardware →
Device Manager → Universal Serial Bus controllers].
There must be USB Host Controller and USB root hub under [Universal Serial
Bus controllers].
In addition, double-click on the USB Universal Host Controller and the USB Root
Hub to check if the Device Status states "This device is working properly". If the
Device Status says the device is "not working properly", click the "Driver" tab and
then click [Update Driver] or [Reinstall Driver].
→ When all the conditions mentioned above are met, the computer can support the
USB interface.
[Case 7] When using the USB hub.
→ There may be a problem in connecting the camera to the PC through the USB
hub if the PC and the hub are not compatible.
Wherever possible, connect the camera to the PC directly.
[Case 8] Are other USB cables connected to the PC?
→ The camera may malfunction when it is connected to the PC at the same time as
another USB cable. In this case, disconnect the other USB cable, and connect
only one USB cable to the camera.
113
FAQ
[Case 9] When I open the Device Manager (by clicking Start → (Settings) → Control
Panel → (Performance and Maintenance) → System → (Hardware) → Device
Manager), there are Unknown Devices or Other Devices entries with a
yellow question mark(?) beside them or devices with an exclamation mark(!)
beside them.
→ Right-click on the entry with the question(?) or exclamation (!) mark and select
"Remove". Restart the PC and connect the camera the again.
For Windows 98 PC, remove the camera driver also, restart the PC, and then
reinstall the camera driver.
→ Double-click on the entry with the question (?) or exclamation (!) mark, click the
"Driver" tab, and click [Update Driver] or [Reinstall Driver]. If a message appears
asking you to specify the location of the appropriate device driver, specify "USB
Driver" in the CD supplied.
Please check the following if the movie clip doesn't play back.
If you installed an incorrect codec onto your PC, the movie clip may not play back on the
PC.
1. Check whether the JPEG Decoder provided with the camera is installed.
→ If you didn't install the camera driver, please install the JPEGCODE included in the
application S/W CD-ROM. If not, the movie clip may not play back on the PC.
[ Installing the JPEG Decoder ]
1) Insert the CD provided with the camera.
2) Run the windows explorer and select the CD-ROM drive.
3) Select the JPEG_Decoder folder and double click the Setup.exe file.
The codec will be installed.
114
FAQ
2. Compatible problems with the codecs installed onto the PC.
→ If the movie clip doesn't play back after installing the JPEG Decoder, refer to the
following.
1) When the movie clip plays back, only the sound plays back without the image.
It isn't compatible with the Mogen MJPEG Decoder. Uninstall the Mogen MJPEG
Decoder as following order. Click [Start → Run] and a window will open.
Type "regsvr32 /u m3jpgdec.ax" and press the Enter key.
Most problems will be solved with those remedies. If the movie clip doesn't play back
continuously, install the JPEGCODE provided with the camera again.
For more information, visit the samsung website(www.samsungcamera.com) and see the
FAQ page.
2) When the movie clip plays back, the blue and red colours are reversed or the movie clip
doesn't open. It isn't compatible with the ffdshow Codec or K-lite Codec Pack.
Disable the ffdshow program.
Trace [Start → Programs → ffdshow →
Disable ffdshow].
Uninstall the K-Lite Codec Pack or set the
default program of the AVI file as the Windows
Media Player.
Trace [Start → Control Panel → Add/ Remove
Programs → Select the K-Lite Codec Pack →
Click the Change/ Remove button].
Run the windows explorer → Select AVI file →
Click the right mouse button → Select the "Open
with" menu → Click the Windows Media Player
→ Check the "Always use this program to open
these files" option → Click the [OK] button.
115
MEMO
6806-2530
SAMSUNG TECHWIN CO., LTD.
OPTICS & DIGITAL IMAGING DIVISION
145-3, SANGDAEWON 1-DONG, JUNGWONGU,
SUNGNAM-CITY, KYUNGKI-DO, KOREA
462-121
TEL : (82) 31-740-8086,8088, 8090, 8092, 8099
FAX : (82) 31-740-8398, 8111
www.samsungcamera.com
SAMSUNG OPTO-ELECTRONICS AMERICA, INC.
HEADQUARTERS
40 SEAVIEW DRIVE, SECAUCUS, NJ07094, U.S.A.
TEL : (1) 201-902-0347
FAX : (1) 201-902-9342
WESTERN REGIONAL OFFICE
18600 BROADWICK ST.,
RANCHO DOMINGUEZ, CA 90220, U.S.A.
TEL : (1) 310-900-5263/5264
FAX : (1) 310-537-1566
www.samsungcamerausa.com
SAMSUNG OPTO-ELECTRONICS UK LIMITED
SAMSUNG HOUSE
1000 HILLSWOOD DRIVE
HILLSWOOD BUSINESS PARK
CHERTSEY KT16 OPS U.K.
TEL : 00800 12263727
(free for calls from UK only)
SERVICE HOTLINE : 01932455320
www.samsungcamera.co.uk
SAMSUNG OPTO-ELECTRONICS GMBH
AM KRONBERGER HANG 6
D-65824 SCHWALBACH/TS., GERMANY
TEL : (49) 6196 66 53 03
FAX : (49) 6196 66 53 66
www.samsungcameras.de
SAMSUNG FRANCE S.A.S.
BP 51 TOUR MAINE MONTPARNASSE
33, AV .DU MAINE
75755, PARIS CEDEX 15, FRANCE
HOTLINE PHOTO NUMÉRIQUE :
00 800 22 26 37 27(Numéro Vert-Appel Gratuit)
TEL : (33) 1-4279-2200
FAX : (33) 1-4538-6858
www.samsungphoto.fr
SAMSUNG TECHWIN MOSCOW OFFICE
RUSSIA, 125167, MOSCOW LENNINGRADSKY,
PR-KT, 37-A, KORP14
TEL : (7) 095-258-9299/96/98
FAX : (7) 095-258-9297
http://www.samsungcamera.ru
TIANJIN SAMSUNG OPTO-ELECTRONICS CO.,LTD.
7 PINGCHANG ROAD NANKAI DIST., TIANJIN
P.R CHINA
POST CODE:300190
TEL : (86) 22-2761-8867
FAX : (86) 22-2761-8864
www.samsungcamera.com.cn
Internet address - http : //www.samsungcamera.com/
The CE Mark is a Directive conformity
mark of the European Community (EC)
