Model Name
GM-F208ST
P/No. MFL61987632
ENGLISH
www.lg.com
OWNER’S MANUAL
BOTTOM FREEZER
REFRIGERATOR
Please read this manual carefully before operating
your set and retain it for future reference.
2
Important Safety Instructions 3-10
Requirements for Ground Connection 4
When Connecting the Power 5-6
When Using Refrigerator 7-10

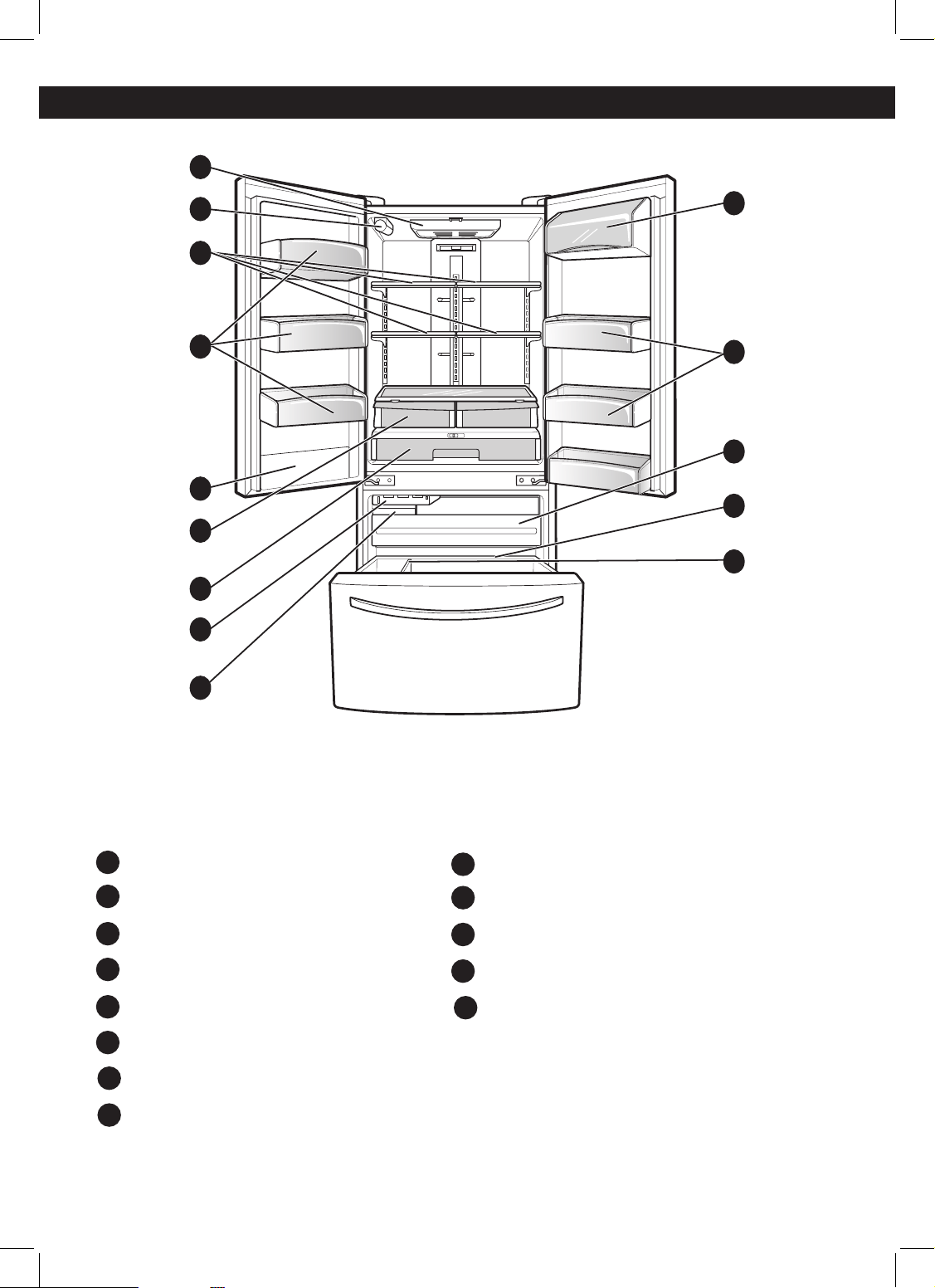

Parts and Features 11
Refrigerator Installation 12-18
Unpacking 12
Installation 12
Installation of Base Grille 12
How to remove and Install the
Refrigerator Doors 13-16
How to remove and Install Pull-Out Drawer 16-17
Closing and Aligning the doors 18
Using your Refrigerator 19-26

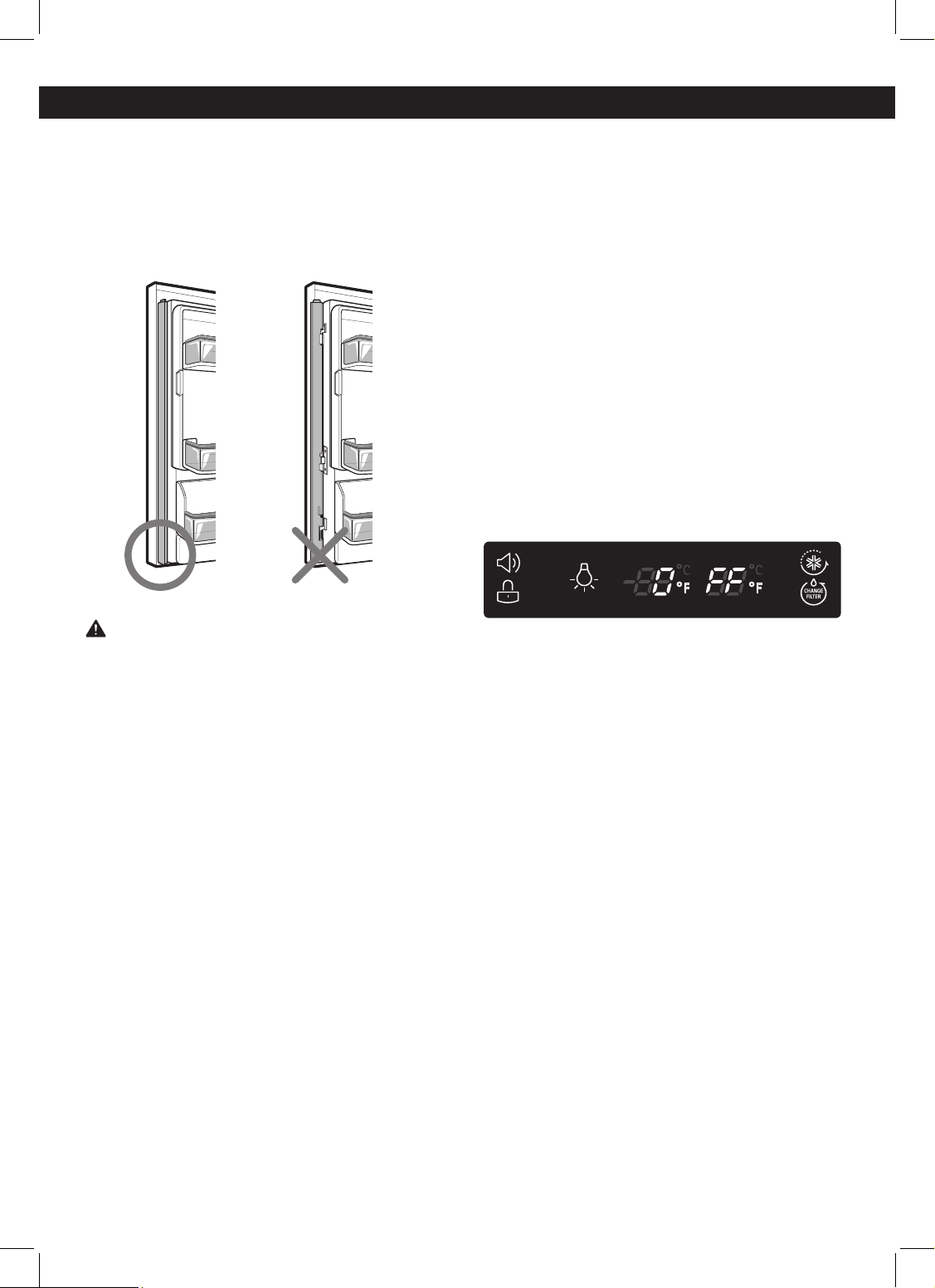

Adjusting Control Settings 19-20
Air Flow 19
Express Frz 19
Door Alarm 20
Automatic Icemaker 21
Food Storage Guide 22
Storing Frozen Food 22
Water Dispenser 23
Refrigerator Section 23
Refrigerator Shelves 23
Humidity Controlled Crisper 24
Glide ‘N’ Serve 24
Door Bins 25
Dairy Bin 25
DuraBase 25
Durabase Divider 25
Pull Out Drawer 25
Ice Bin 25
Water filter 26-27
Refrigerator Care and Cleaning 28-29
Refrigerator Cleaning 28
Outside 28
Inside Walls 28
Door Lining & Gaskets 28
Plastic Parts (Covers and Panel) 28
Back Cover 28
Lights Replacement 29
Power Interruptions 29
When Going on Vacation 29
When Moving 29

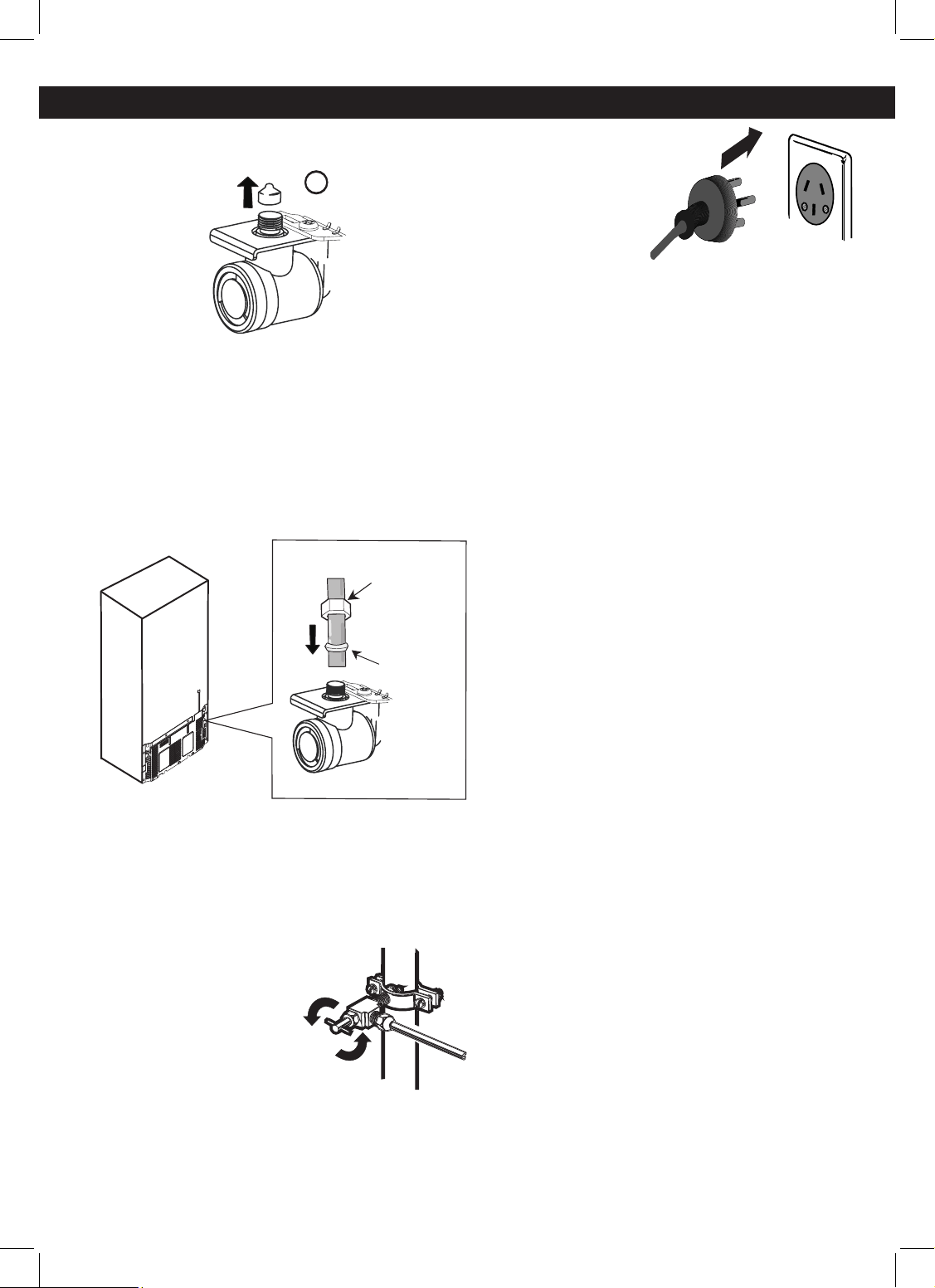

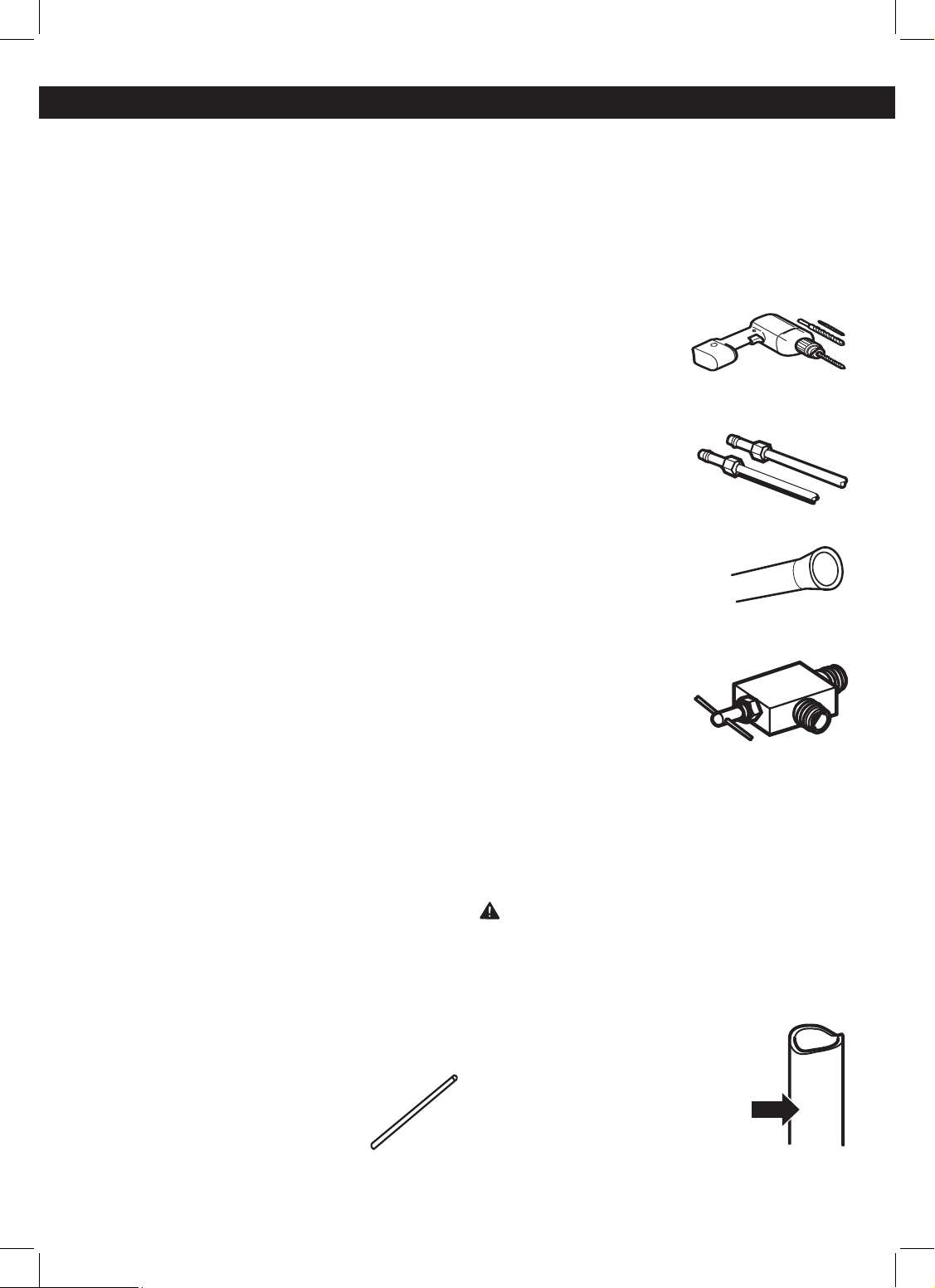

Connecting the Water Line 30-32
Troubleshooting Guide 33-41
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
3
BASIC SAFETY PRECAUTIONS
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you
of hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard signal word
DANGER, WARNING, CAUTION. These words mean:
You will be killed or seriously injured if you don’t follow instructions.
You can be killed or seriously injured if you don’t follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may result in minor or moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous…even if they will sit for just a few days. If you
are getting rid of your old refrigerator, please follow the
instructions at right to help prevent accidents.
BEFORE YOU THROW AWAY YOUR
OLD REFRIGERATOR OR FREEZER
• Take off the doors.
• Leave the shelves in place so that
children may not easily climb inside.
Your old refrigerator may have a cooling system that
used CFCs (chlorofluorocarbons). CFCs are believed to
harm stratospheric ozone.
If you are throwing away your old refrigerator,
make sure the CFC refrigerant is removed for
proper disposal by a qualified servicer. If you
intentionally release this CFC refrigerant, you can
be subject to fines and imprisonment under
provisions of environmental legislation.
IMPORTANT SAFETY INSTRUCTIONS
SAFETY MESSAGES
DANGER: RISK OF CHILD ENTRAPMENT
DANGER
WARNING
CAUTION
CFC DISPOSAL
4
• Repair or replace immediately all electric service
cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or
abrasion damage along its length or at either the
plug or connector end.
• Keep fingers out of pinch point areas; clearances
between the doors and cabinet are necessarily
small. Be careful closing doors when children are
in the area.
• When moving your refrigerator away from the wall,
be careful not to roll over or damage the power
cord.
• This refrigerator must be properly installed in
accordance with the Attention Installer
Instructions that were taped to the front of the
refrigerator.
• Don’t touch the lamp, in case of light on the long
time, Because it can be very hot.
SAVE THESE INSTRUCTIONS
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
WARNING
ELECTRICAL SHOCK HAZARD
FOR YOUR PERSONAL SAFETY, this appliance
must be properly grounded. Have the wall
outlet and the circuit checked by a qualified
electrician to make sure the outlet is properly
grounded.
RECOMMENDED GROUNDING
METHOD
The refrigerator should always be plugged into its
own individual properly grounded electrical outlet
rated for 230-240 Volts, 50 Hz, AC only, and fused
at 9 or 10 amperes.
This provides the best performance and also
prevents overloading house wiring circuits which
could cause a fire hazard from overheated wires.
It is recommended that a separate circuit serving
only this appliance be provided.
Use a receptacle which cannot be turned off with a
switch or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is
encountered, it is your personal responsibility
and obligation to have it replaced with a properly
grounded three-prong wall outlet.
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator Control or Freezer
Control, depending on the model) to OFF and
then disconnect the refrigerator from the electrical
source. When you are finished, reconnect the
refrigerator to the electrical source and reset the
control (Thermostat, Refrigerator Control or Freezer
Control, depending on the model) to the desired
setting.
WARNING
REQUIREMENTS FOR GROUND CONNECTION
5
WARNING
Don’t use an extension cord
If possible, connect the refrigerator to its own
individual electrical outlet to prevent it and other
appliances or household lights from causing an
overload that could cause a power outage.
Accessibility of Supply Plug
The refrigerator-freezer should be so positioned
that the supply plug is accessible for quick
disconnection when accident happens.
Supply Cord Replacement
If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similarly qualified person in order to
avoid a hazard.
To reduce the risk of fire, electric shock, or injury to persons when using your product,
basic safety precautions should be followed, including the following.
Read all instructions before using this appliance.
1. When connecting the power
The dedicated outlet should be used.
• Using several devices at one outlet may cause
fire.
• The electric leakage breaker may
damage food and the dispenser
may be leaked.
Prevent the power cord from being squeezed or
imprinted if the refrigerator is pushed in after the
power plug is extracted during the installation.
When moving your appliance away from the wall,
be careful not to roll over the power cord or to
damage it in any way.
It becomes the cause of fire or electric shock.
Do not allow the power plug to face upward or to
be squeezed at the back of
the refrigerator.
Water may be flown into or
the plug may be damaged,
which causes fire
or electric shock.
Do not allow the power cord bent or pressed by the
heavy object to be
damaged.
It may damage the power
cord to cause fire or
electric shock.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
6

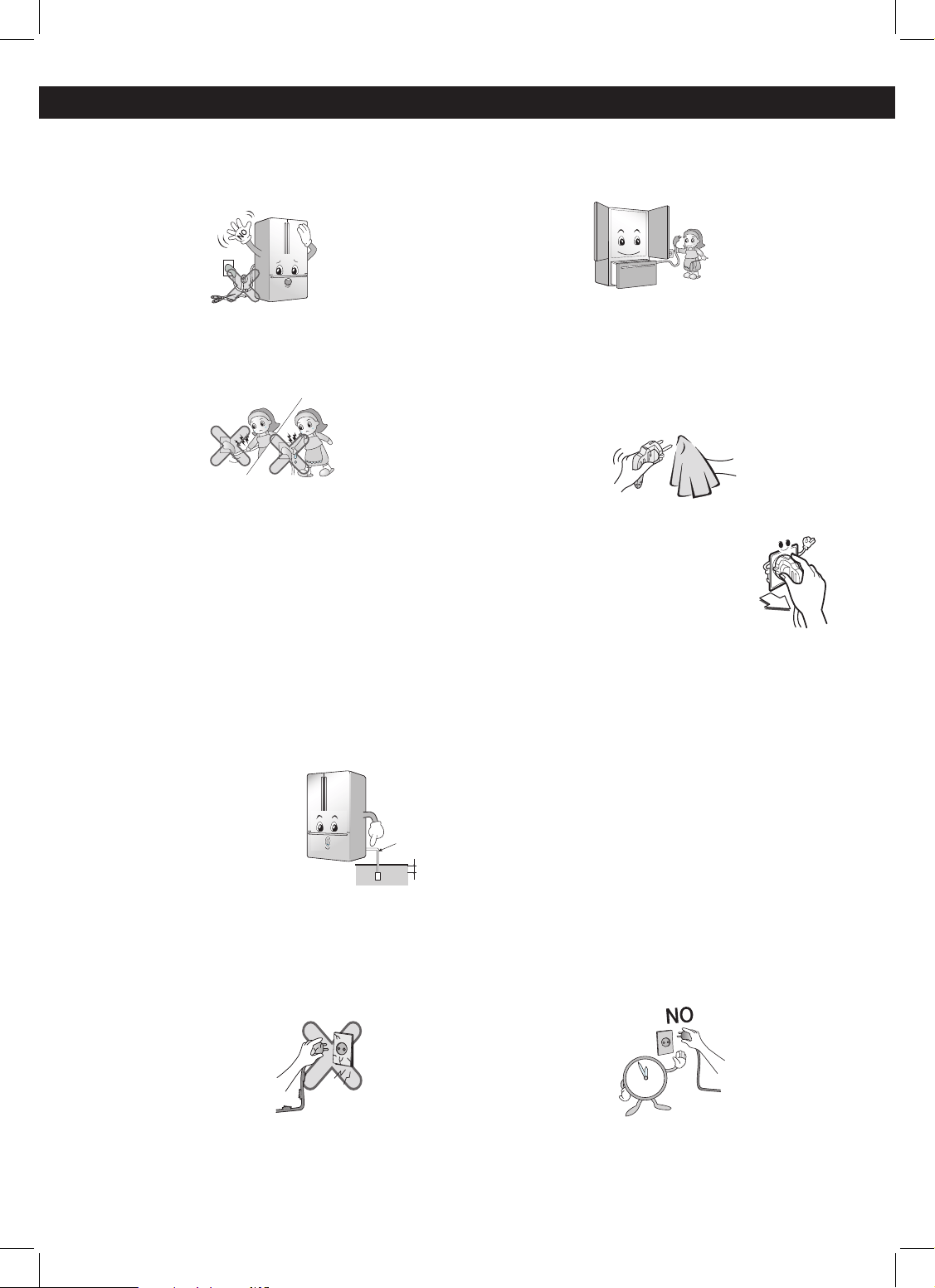

Do not extend or modify the length of the
power plug.
It causes electric shock or fire by the electric
damage of the power cord or others.
Do not pull out the cord or touch the power
plug with wet hands.
It may cause electric shock or injury.
Unplug the power cord from the power
outlet for cleaning or other requirements.
It may cause electric shock or injury.
Make sure of grounding.
Consult a qualified electrician or service
person if the grounding instructions are not
completely understood, or if you have doubts
on whether the appliance is properly grounded.
The incorrect grounding
may cause breakdown and
electric shock.
When the power cord or the power plug is
damaged or the holes of the outlet are loosed,
do not use them.
It may cause electric shock or short circuit to
make fire.
Unplug the power plug when cleaning,
handling the refrigerator.
• It may cause electric shock or injury.
Remove water or dust from the power plug
and insert it with the ends of the pins
securely connected.
Dust, water or unstable connection may fire or
electric shock.
Pull out the power plug not by grasping the
cord but the plug of its end.
It may cause electric shock or
short circuit to fire.
Be sure to use grounded exclusive proper
voltage consent for the power plug.
Be sure to use grounded extension consents
when extension consents are used.
It becomes the cause of fire.
Wait for 5 minutes or longer when reconnecting
the plug.
It may cause the operation of the freezer to
fail.
IMPORTANT SAFETY INSTRUCTIONS
Grounding
Conductor
Copper
at
More than
75cm
After
5minutes
IMPORTANT SAFETY INSTRUCTIONS
7
IMPORTANT SAFETY INSTRUCTIONS

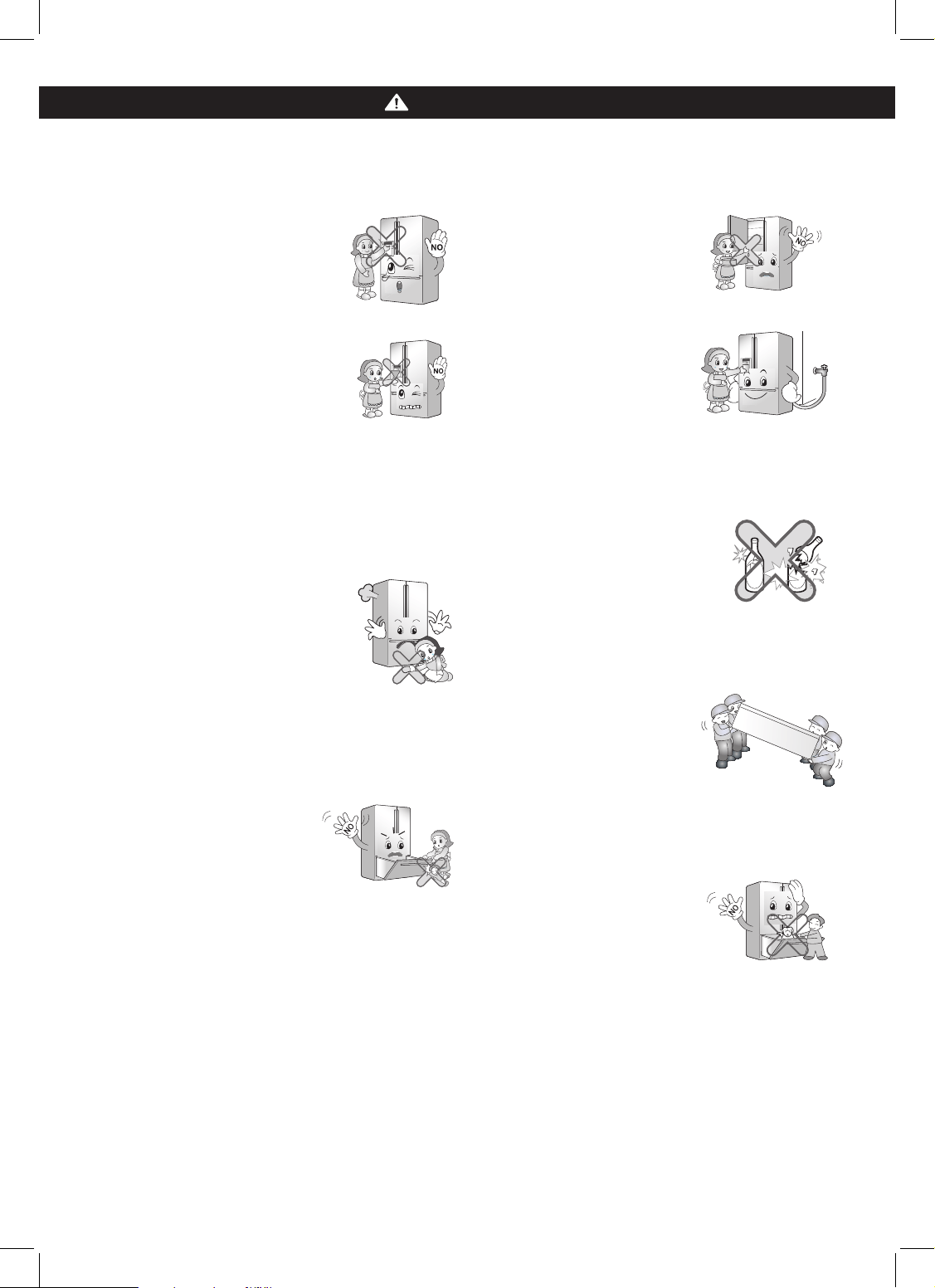

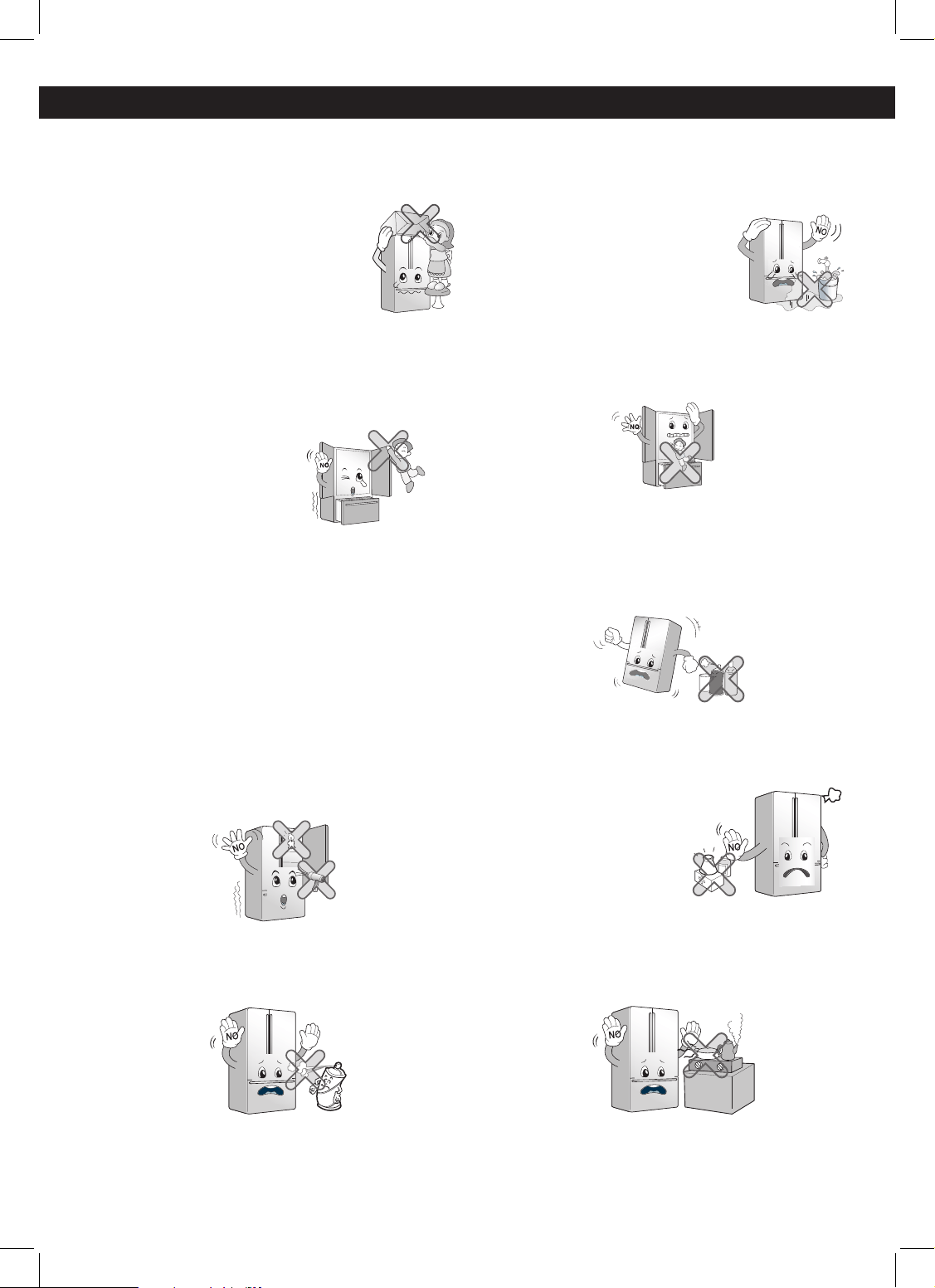

2. When using the refrigerator
Do not place the heavy object or the
dangerous object (container with liquid) on
the refrigerator.
It may be dropped to cause injury,
fire or electric shock when opening
or closing the door.
Do not cling to the door or the shelves of the
door or the home bar of the freezer or the
cool chamber.
It may make the refrigerator fallen down or
damage the hands. Especially, do not allow the
children to do the above.
Opening and closing the door of the
refrigerator vigorously may cause the stored
food in the refrigerator basket to fall by
shock and hurt the foot, so take precautions.
Do not use drier to dry the inside, nor light a
candle to remove odor.
It may cause explosion or fire.
Do not use the combustible spray near the
refrigerator.
It may cause fire.
Do not install the refrigerator in the wet place
or the place which water or rain splashes.
Deterioration of insulation of electric parts
may cause electric leakage.
Prevent children from entering the product.
It may endanger the life of a child if the child
enters the refrigerator.
Do not use or store inflammable materials
ether, benzene, alcohol, medicine, LP gas,
spray or cosmetics near or in the refrigerator.
It may cause explosion or fire.
Do not store the medicine or the academic
materials at the refrigerator.
When the material with
the strict temperature
control is stored, it may
be deteriorated or it may
make an unexpected
reaction to cause any risk.
Install in places away from the fire such as
the place where flammable gas is leaked.
It may cause fire.
IMPORTANT SAFETY INSTRUCTIONS
Benzene
Ether
Thinner
The Academic
Medicine
The Medicine
8
IMPORTANT SAFETY INSTRUCTIONS
Do not place flower vase, cup, cosmetics,
medicine or any container with water
on the refrigerator.
It may cause fire, electric shock or
injury by dropping down.
Use the submerged refrigerator after
checking it.
It may cause electric shock or
fire.
Do not spray water at the outside or the inside
of the refrigerator or do not clean it with
benzene or thinner.
Deterioration of insulation of
electric parts may cause electric
shock or fire.
Do not allow any person except the qualified

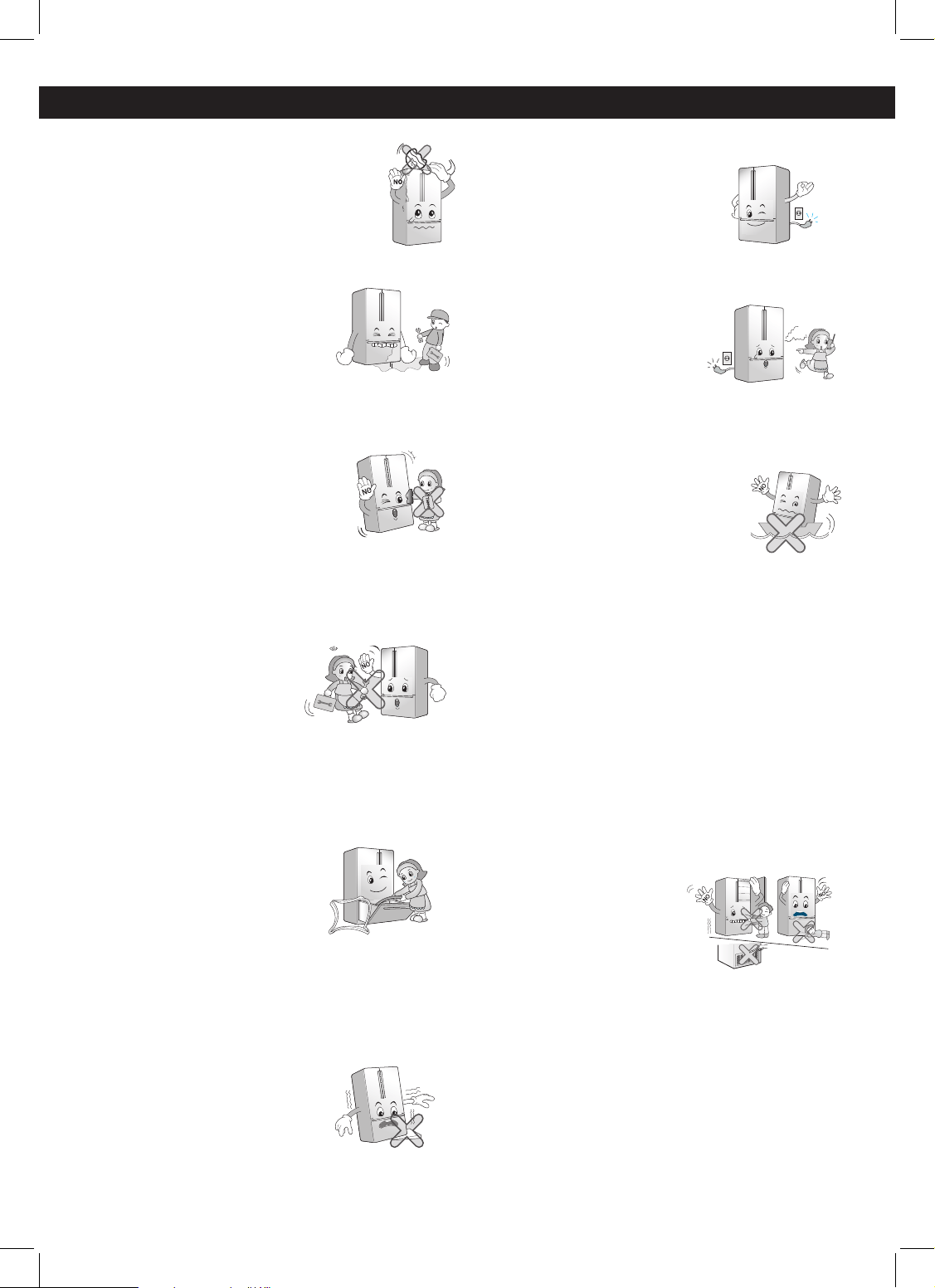

engineer to disassemble, repair or alter the
refrigerator.
It may cause injury, electric
shock or fire.
When disposing the refrigerator, remove the
packing materials from the door or take off
the doors but leave the shelves in place so
that children may not easily climb inside.
It may cause to lock out the child.
Install the refrigerator on the solid and level
floor.
Installing it on the unstable place may cause
death by falling down the refrigerator when
opening or closing the door.
In case of thunder and lightning, or not in use
for a long period of time, detach the power
plug.
There is a danger of electric
shock or fire.
When any strange smell or smoke is detected
from the refrigerator, power plug get rid of
electric outlet
immediately and contact
to the service center.
It may cause fire.
Do not use the refrigerator for non-domestic
purpose (storing medicine or testing material,
using at the ship, etc.).
It may cause an unexpected
risk such as fire, electric shock,
deterioration of stored material or
chemical reaction.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that
they do not play with the appliance.
Do not insert the hands or the metal stick into
the exit of cool air, the cover, the bottom of
the refrigerator,
the heatproof grill
(exhaust hole) at the
backside.
It may cause electric
shock or injury.
T
h
i
n
n
e
r
Service
center
CAUTION
9
Violating this direction may cause injury or damage house or furniture. Always be careful,
please.
Do not insert the hands into the ice bucket
or the ice dispenser.
Operating the ice maker may
cause injury.
Do not put ice in thin crystal cup or ceramic
ware.
It may break cup or ceramic
ware to cause injury.
Do not place the food in disorder inside the
refrigerator.
The food may fall during opening and closing
the door of the refrigerator and hurt people.
Do not insert the hands into the bottom of the
refrigerator.
The iron plate of the
bottom may cause injury.
Because opening or closing the door of the
refrigerator may cause injury to the person
around it, be careful, please.
Opening or closing the
door may cause feet or
hands to be caught in
the chink in door or the
child to be get hurt by
the corner.
Do not touch food or containers at the freezer
with wet hands.
It may cause frostbite.
Supply the automatic ice maker with drinkable
water only (only
for the model
with the dispenser).
Otherwise, it may cause
any risk.
Do not put bottle in the freezer.
It may freeze the contents to break the bottle
to cause injury.
Carry the refrigerator with the handle bar at
the bottom of the front and the top of the
rear.
Otherwise, your hands
may be slipped to cause
injury.
Because the product is
heavy, carrying it alone
may hurt people or
accidents may occur.
Do not put any living
animal in the
refrigerator.
CAUTION
Drinkable
water
10
PARTS AND FEATURES
WARNING
Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
The refrigerant and insulation blowing gas used in the appliance require special
disposal procedures. When disposal, please consult with service agent or a
similarly qualified person.
IMPORTANT SAFETY INSTRUCTIONS
11
PARTS AND FEATURES
Read this section to familiarize yourself with the parts and features of your new refrigerator.
NOTE: This guide covers different models. Your refrigerator could have some or all of the features and parts listed
below. The location of some of the parts may not correspond to that of your model.
Refrigerator Light
Water Filter
Refrigerator Shelves
Modular Door Bins
Humidity Controlled Crisper
Glide ‘N’ Serve
Automatic Icemaker
Ice Bin
Pullout Drawer
Durabase
Durabase Divider
Dairy Bin
Water Tank Cover
* On some models
A
B
C
H
F
G
E
D
I
J
K
L
A
B
D
M
C
E
F
G
H
L
D
I
J
K
M
12
REFRIGERATOR INSTALLATION
REFRIGERATOR INSTALLATION
WARNING
EXCESSIVE WEIGHT HAZARD
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from
your refrigerator before using. Do not remove any
warning-type labels, the model and serial number
label, or the TechSheet that is attached to back
wall of the refrigerator.
To remove any remaining tape or glue, rub the
area briskly with your thumb. Tape or glue residue
can also be easily removed by rubbing a small
amount of liquid dish soap over the adhesive with
your fingers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your refrigerator. For more information,
see the Important Safety Instructions section.
Refrigerator shelves are installed in the shipping
position
WARNING
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving
the refrigerator for cleaning or service, be
sure to protect the floor. Always pull the
refrigerator straight out when moving it.
Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could
occur.
WARNING
EXPLOSION HAZARD
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion or
fire.
Please reinstall shelves according to your
individual storage needs.
• To reduce the risk of electric shock, do not install
the refrigerator in a wet or damp area.
CAUTION: Avoid placing the unit near heat
sources, direct sunlight or moisture.
INSTALLATION
• To minimize noise and vibration, the refrigerator
MUST be installed on a solidly constructed floor.
• Carpeting and soft tile surfaces are not
recommended.
• Never install the refrigerator on a platform or
weakly supported structure.
1. To avoid vibration, the unit must be level. If
required, adjust the leveling screws to
compensate for unevenness of the floor. The
front should be slightly higher than the rear to
aid in door closing. Leveling screws can be
turned easily by tipping the cabinet slightly. Turn
the leveling screws clockwise ( ) to raise the
unit, counterclockwise ( ) to lower it.
2. Install this appliance in an area where the
temperature is between 13°C and 43°C. If the
temperature around the appliance is too low or
high, cooling ability may be adversely affected.
3. Too small a distance
from adjacent items
may result in lowered
freezing capability and
increased electricity
consumption charges.
Allow at least 24 in.
(61 cm) in front of the
refrigerator to open the
doors
NEXT
1. Clean your refrigerator thoroughly and wipe off
all dust accumulated during shipping.
2. Install accessories such as ice cube bin,
drawers, shelves, etc., in their proper places.
They are packed together to prevent possible
damage during shipment.
3. Let your refrigerator run for at least 2 or 3
hours before putting food in it. Check the flow
of cold air in the freezer compartment to ensure
proper cooling. Your refrigerator is now ready for
use.
WARNING:
• Take care when working with the hinges, base
cover and stops, etc. You may injure yourself.
• DO not place your hands or any tools in the
air vents, the base cover or in the bottom of the
refrigerator. This may cause injury or electrical
shock.
BASE COVER (BASE GRILLE).
To remove the base cover
1. Open the Freezer Drawer. (Drawer not shown
for clarity.)
2. Once drawer is open there is sufficient
clearance to remove screws on top of cover.
To replace base cover:
• Place cover into position
and insert and tighten screws.
13
HOW TO REMOVE AND INSTALL THE REFRIGERATOR DOORS
For moving the refrigerator through a house door, it might be necessary to remove refrigerator and freezer door
handles.
IMPORTANT: Before starting, turn off and unplug the refrigerator. Remove all food and the racks from the doors.
TOOLS YOU MIGHT NEED OR USE
10 mm (3/8 in) 6 mm (1/4 in)
6 mm (1/4 in) 2,5 mm (3/32 in)
Hex Socket Wrench Phillips Screwdriver Flat Head Screwdriver Allen Wrench
1. Removing Refrigerator Door
NOTE: The appearance of the handle, hinge and cover hinge might be different. Also the screws quantity used in
cover hinge might vary according to your model specification. THE APPEARANCE VARIATION DOES NOT AFFECT
REMOVING OR INSTALLING DOORS.
Left Door
• With the Phillips screw driver, loose the screw from the
upper lid (1) remove it after that.
• Unplug the cable harness pulling up the hook located
in the upper part of it (5) and separate both parts of
the harness (6).
Upper view of
the harness
Front view of
the harness
Right Door
• Loose both screws from the upper lid (4) and remove
it.
• With the 10 mm socket wrench, loose the two pins from
the hinge (2) and remove it (3).
• Place the door with the inner face over the surface so
it won’t scratch.
4
5
6
1
REFRIGERATOR INSTALLATION
REFRIGERATOR INSTALLATION
3
2
14
• Loose the grounding screw (7) and the pins (8) located
over the hinge, after, lift the hinge and remove it (9).
• Remove the door and place it over its inner face to
avoid scratching.
2. To install the refrigerator doors
Left Door
• Take the left door and place it over the hinge (8).
• Place the hinge in its original position (9) and place
the two screws (10).
• Plug the cable harness (5).
• Place the hinge lid (6) and install both screws (7). Be
sure the door is correctly assembled.
Right Door
• Take the door and place it gently over the pin of the
hinge (1).
• Place the hinge in its original position (2) assembly the
two pins (3) and the ground screw (4).
REFRIGERATOR INSTALLATION
9
8
7
Pin
1
5
6
7
Pin
8
10
9
3
2
4
15

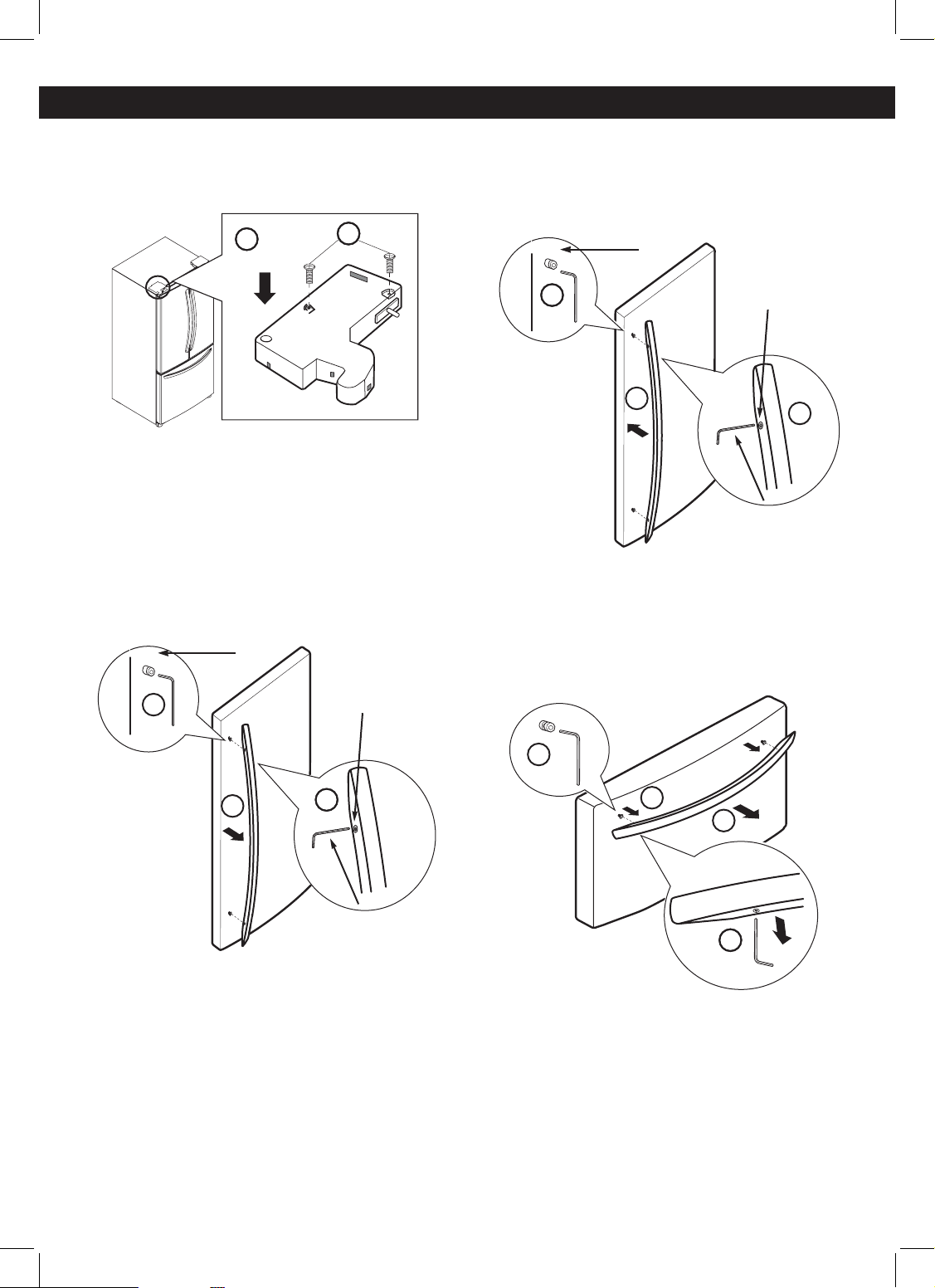

• Place the hinge’s lid (11) and screw the two screws (12).
Check that the door is well installed.
3. To remove the refrigerator handle
• Loose the screws (1) with the Allen tool 2,5 mm and
remove the handle (2).
• Remove the mounting screws with the 6 mm Allen
tool (3).
Mounting
Screws
Fixation Screws
Allen Wrench
4. To install the handle of the refrigerator
• Install the mounting screws over the door (1) place the
handle over them (2) and tight the screws up (3).
Mounting
Screws
Fixation Screws
Allen Wrench
5. To remove the freezer handle
• With an 2,5 mm Allen tool, loose the screws (1) located
the bottom of the handle, remove it (2) remove the
screws on from the door (3) with an 6 mm Allen tool.
11
12
2
1
3
1
2
3
2
1
3
3
REFRIGERATOR INSTALLATION
REFRIGERATOR INSTALLATION
16
1
6. To install the freezer handle
• Install the mounting screws over the door (1) place the
handle over them (2) and tight the screws up (3).
HOW TO REMOVE AND INSTALL THE PULL OUT
DRAWER
IMPORTANT: To avoid possible injury or damage to
the product or your property, please use two people to
perform the following instructions:
1. Removing the Pull Out Drawer
• Pull the drawer out to maximum extension. Remove
the bottom rack (1) by tilting it back a little and then
lifting it off the railing tracks.
• Remove the screws (2) from both sides of the rail track.
• With both hands, hold both sides of the door and pull
up to separate it.
REFRIGERATOR INSTALLATION
2
1
3
1
2
17
• With both hands, hold the center of the bar and push
it in so that it is fit to both rails simultaneously.
CAUTION: When removing the drawer, do not hold
the handle. If it comes off, it could cause personal
injury.
CAUTION: To place the drawer on the floor, take
care not to damage the floor or hurt your feet with
the sharp edges on the side with the hinges.
2. Installing the Pull Out Drawer
• With both hands, hold the center of the bar and pull it
outward so that the two rails extend out at the same
time.
• Mount door supports (1) into the tabs on the railing
track (2), starting in the back first and then connecting
the part in the front last, as shown in the figure.
• Push the drawer down into position and tighten the
screws (3).
• With the drawer fully extended, insert the lower basket
over the front part of the rail assembly and then the
back part (4).
WARNING: To prevent entrapment risk and
accidental child or animal suffocation, DO NOT
permit them to play inside of the drawer.
WARNING: DO NOT step or sit on the Freezer
Door.
1
2
3
4
REFRIGERATOR INSTALLATION
REFRIGERATOR INSTALLATION
18
REFRIGERATOR INSTALLATION

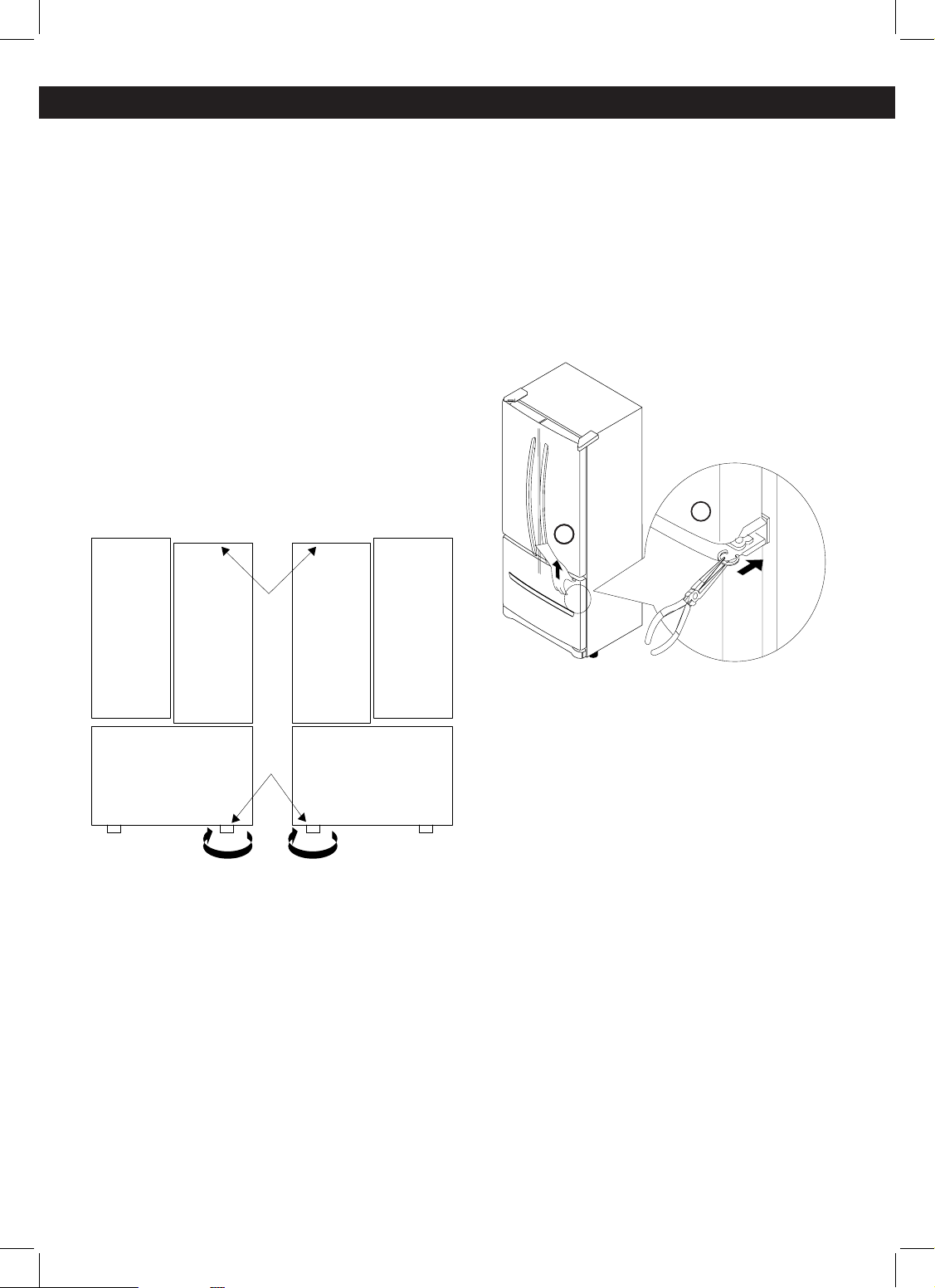

CLOSING AND ALIGNING THE DOORS
Closing the Doors
Your refrigerator has two front leveling screws, one on
the right and one on the left. If your refrigerator seems
unstable or if you would like the doors to close more
easily, simply adjust the inclination of the refrigerator by
following the instructions below:
1. Plug the refrigerator into a 3 prong grounded outlet.
Move the refrigerator into its final position.
2. Remove the base grille (Refer to the section on
“Installation of Base Grille”).
3. Use a flat head screwdriver to adjust the leveling screws,
turning clockwise to raise the side of the refrigerator
and counter-clockwise to lower it. It may take several
turns to adjust it to the inclination you would like.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws.
This will make it easier to adjust the screws.
4. Open both doors again and check to make sure that
they close easily. If not, slightly tilt the refrigerator
further back by turning both leveling screws clockwise.
It may take several more turns. Make sure that you turn
both leveling screws the same amount.
5. Ensure that the refrigerator is even by using a level.
6. Replace the base grille.
NOTE: Your new refrigerator is uniquely designed with
two fresh food doors. Either door can be opened or
closed independently of one another. You may have
to exert slight pressure on doors to get them to close
completely.
Aligning the Doors
If the spacing between the doors is uneven, follow the
instructions below to align them:
1. With one hand, lift up the door you want to raise at
middle hinge.
2. With other hand, use pliers to insert snap ring as
shown.
3. Insert additional snap rings until the doors are aligned
(Three snap rings are provided per unit).
2
1
19
REFRIGERATOR INSTALLATION
USING YOUR REFRIGERATOR
ADJUSTING CONTROL SETTING

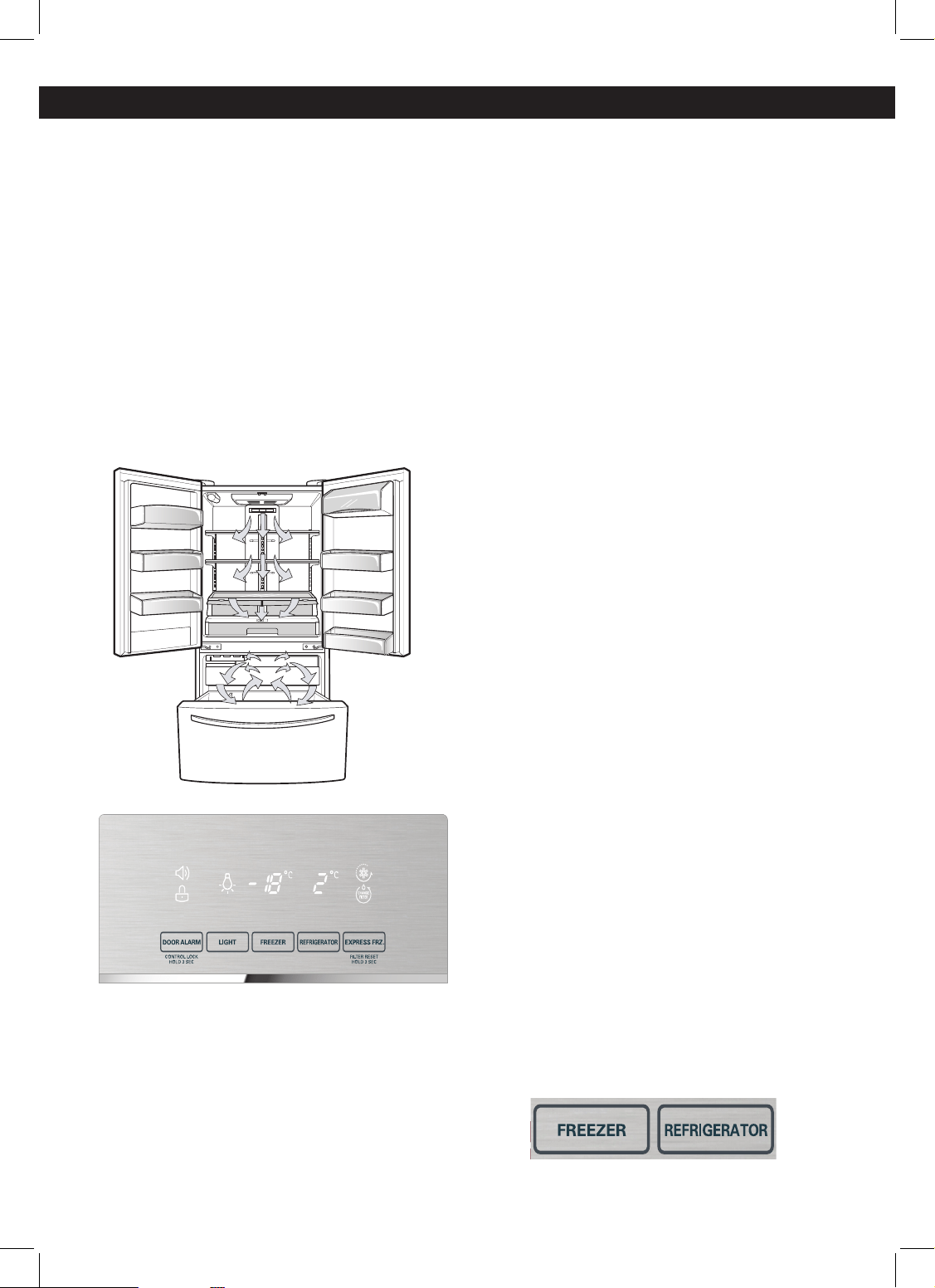

AIRFLOW
The refrigerator control functions as the thermostat for
the entire appliance (refrigerator and freezer sections).
The colder the setting, the longer the compressor will
run to keep the temperature colder. The freezer control
adjusts the cold air flow from the freezer to the refrigerator.
Setting the freezer control to a lower temperature keeps
more cold air in the freezer compartment to make it
colder.
Cold air circulates from the freezer to the fresh food
section and back again through air vents in the wall
dividing the two sections. Be sure not to block vents while
packing your refrigerator. Doing so will restrict airflow and
may cause the refrigerator temperature to become too
warm or cause interior moisture buildup. (See air flow
diagram below.)
Temperature
•The Refrigerator Temp Control ranges from 33°F to
46°F (0°C to 8°C). Press the Refrigerator button to
cycle through the available temperature settings one
increment at a time.
•The Freezer Temp Control range is from -6°F to 8°F
(-21°C to -13°C). Press the Freezer button to cycle through
the available temperature settings one increment at a
time.
NOTE: When changing control settings, wait 24 hours
before making additional adjustments. The controls are
set correctly when milk or juice is as cold as you would
like and when ice cream is firm. If the temperature in
either compartment is too cold or too warm, change the
setting one increment at a time. Wait 24 hours for the
change to stabilize before adjusting again.

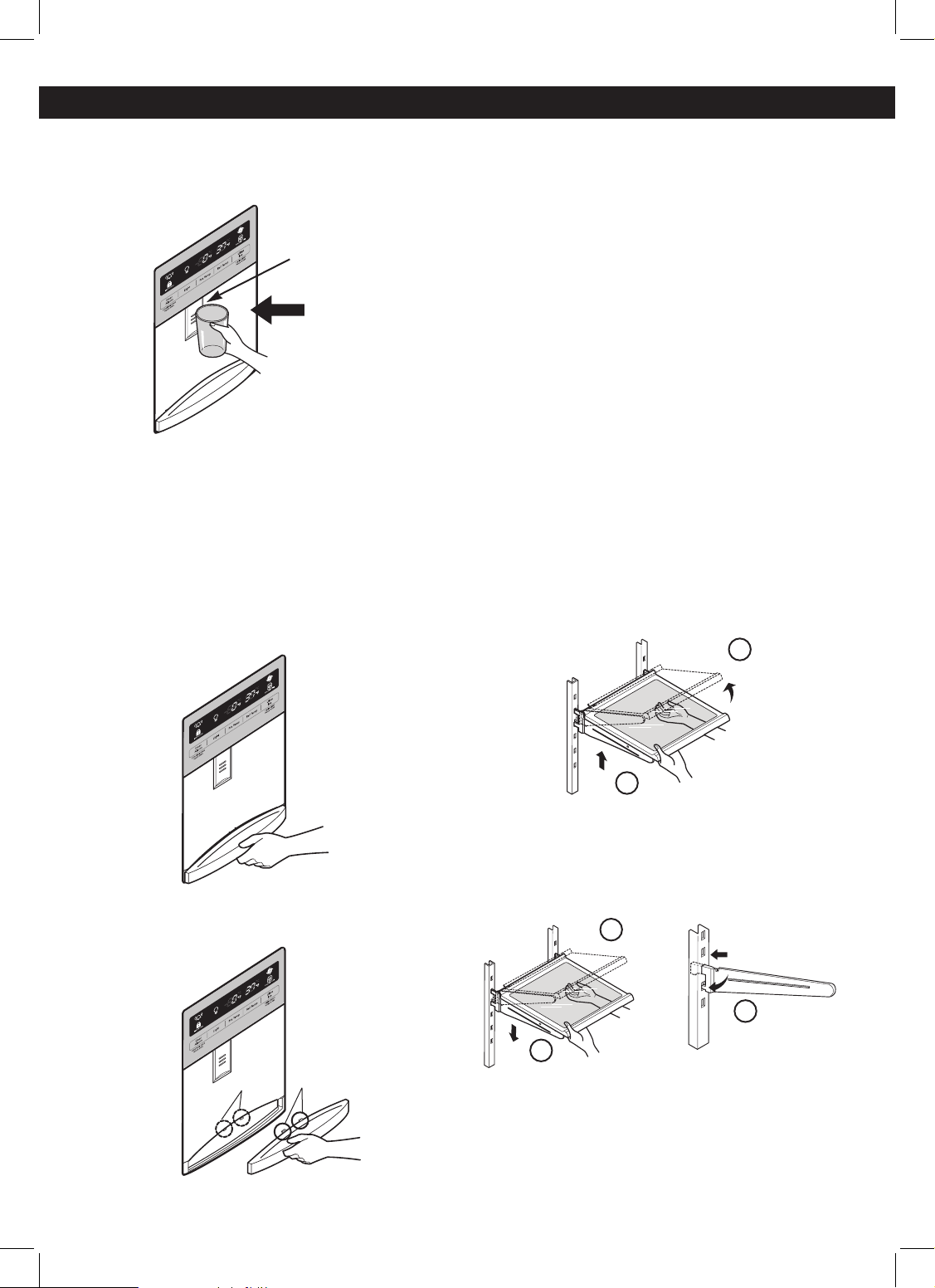

Dispenser
Some dripping may occur after dispensing water. Hold
your cup beneath the dispenser for a few seconds after
dispensing to catch all of the drops.
NOTE: The dispenser will not work if any door is left open
or if the control lock is engaged.
Express Frz
•When you press the Express Frz button, the Express Frz
graphic will illuminate in the display and will continue for
24 hours. The function will automatically shut off after
24 hours.
•You can stop this function manually by touching the
button one more time.
•This function increases both ice making and freezing
capabilities.
Water Filter Reset
When the water filter indicator turns on, you have to
change the water filter. After changing the water filter,
press and hold the Express Frz (Filter Reset) button for
three seconds to turn the indicator light off. You need to
change the water filter approximately every six months.
Light
Press the Light button to turn the light on and off. When
dispensing water, a light underneath the water switch will
illuminate.
Temperature Display
To change the temperature display from Fahrenheit
to Celsius:
• Simultaneously press and hold the FREEZER and
REFRIGERATOR buttons for more than 5 seconds.
• Do the same to convert back to Fahrenheit.
20
Articulating Mullion
This feature is a metal strip attached to the left door that
articulates (rotates) 90 degrees as the door is closed,
forming a mullion (base) for the left and right door
gaskets to seal against.
Caution When Closing the Door
CAUTION
To reduce the risk of scratching the door or breaking the
door mullion, please make sure that the refrigerator door
mullion is always folded in.
Door Alarm
•When power is connected to the refrigerator, the door
alarm is initially set to ON. When you press the Door
Alarm button, the display will change to OFF and the
Door Alarm function will deactivate.
•When either the refrigerator or the freezer door is left
open for more than 60 seconds, the alarm tone will
sound to let you know that the door is open.
•When you close the door, the door alarm will stop.
Control Lock
•When power is initially connected to the refrigerator, the
Lock function is off.
•If you want to activate the Lock function to lock other
buttons, press and hold the Door Alarm button for three
seconds or more. The Lock icon will display and the Lock
function is now enabled.
•When the Lock function is activated, no other buttons
will work. The dispenser pad is also deactivated.
•To disable the Lock function, press and hold the Door
Alarm button for approximately three seconds.
Demo Mode (For Store Use Only)
The Demo Mode disables all cooling in the refrigerator
and freezer sections to conserve energy while on display
in a retail store. When activated, OFF will display on the
control panel.
To deactivate:
With either refrigerator door opened, press and hold the
Refrigerator and Express Frz buttons at the same time
for five seconds. The control panel will beep and the
temperature settings will display to confirm that Demo
Mode is deactivated. Use the same procedure to activate
the Demo Mode.
USING YOUR REFRIGERATOR
21
AUTOMATIC ICEMAKER
The icemaker will produce approximately 80-100 cubes
in a 24-hour period, depending on freezer compartment
temperature, room temperature, number of door
openings and other operating conditions.
•It takes about 12 to 24 hours for a newly installed
refrigerator to begin making ice. Wait 72 hours for full
ice production to occur.
•Ice making stops when the bin lls to the lever of the
feeler arm.
•To turn off the automatic icemaker, set the icemaker
switch to OFF (O). To turn on the automatic icemaker, set
the switch to ON (I).
•The water pressure must be between 138 kPa and
828 kPa on models without a water filter and between
276 kPa and 828 kPa on models with a water filter to
produce the normal amount and size of ice cubes.
CAUTION
•Throw away the rst few batches of ice (about 24
cubes). This is also necessary if the refrigerator has not
been used for a long time.
•Never store beverage cans or other items in the ice bin
for the purpose of rapid cooling. Doing so may damage
the icemaker or the containers may burst.
•Never use thin crystal glass or crockery to collect ice.
Such containers may chip or break resulting in glass
fragments in the ice.
WHEN YOU SHOULD SET THE ICEMAKER
POWER SWITCH TO OFF (O)
•When the water supply will be shut off for several hours.
•When the ice bin is removed for more than one or two
minutes.
•When the refrigerator will not be used for several days.
NOTE: The ice bin should be emptied when the icemaker
ON/OFF switch is turned to the OFF position.
WARNING
Personal Injury Hazard
DO NOT place fingers or hands on the automatic ice
making mechanism while the refrigerator is plugged
in.
NORMAL SOUNDS YOU MAY HEAR
•The icemaker water valve will buzz as the icemaker lls
with water. If the power switch is in the ON (I) position, it
will buzz even if it has not yet been hooked up to water.
To stop the buzzing, move the power switch to OFF (O).
NOTE: Keeping the power switch in the ON (I) position
before the water line is connected can damage the
icemaker.
•You will hear the sound of cubes dropping into the bin
and water running in the pipes as the icemaker refills.
PREPARING FOR VACATION
Set the icemaker power switch to OFF (O) and shut off
the water supply to the refrigerator.
NOTE: The ice bin should be emptied anytime the
icemaker ON/OFF switch is turned to the OFF (O)
position.
If the ambient temperature will drop below freezing, have
a qualified technician drain the water supply system to
prevent serious property damage due to flooding caused
by ruptured water lines or connections.
Feeler Arm
Power Switch
Icemaker
(sensor)
USING YOUR REFRIGERATOR
USING YOUR REFRIGERATOR
22
USING YOUR REFRIGERATOR
FOOD STORAGE GUIDE
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
Items
Butter or
margarine
Cheese
Milk
Eggs
Fruit
Leafy
vegetables
Vegetables with skins
(carrots, peppers)
Fish
How to
Keep opened butter in
a covered dish or closed
compartment. When
storing an extra supply,
wrap in freezer packaging
and freeze.
Store in the original
wrapping until you are
ready to use it. Once
opened, rewrap tightly in
plastic wrap or aluminum
foil.
Wipe milk cartons. For
best storage, place milk
on interior shelf.
Store in original carton on
interior shelf, not on door
shelf.
Do not wash or hull the
fruit until it is ready to be
used. Sort and keep fruit
in its original container,
in a crisper, or store in a
completely closed paper
bag on a refrigerator
shelf.
Remove store wrapping
and trim or tear off
bruised and discolored
areas. Wash in cold water
and drain. Place in plastic
bag or plastic container
and store in crisper.
Place in plastic bags or
plastic container and
store in crisper.
Store fresh fish and
shellfish in the freezer
section if they are not
being consumed the
same day of purchase.
It is recommended to
consume fresh fish and
shellfish the same day
Leftovers
purchased.
Cover leftovers with
plastic wrap, aluminum
foil, or plastic containers
with tight lids.
STORING FROZEN FOOD
NOTE: Check a freezer guide or a reliable cookbook for
further information about preparing food for freezing or
food storage times.
Freezing
Your freezer will not quick-freeze a large quantity of food.
Do not put more unfrozen food into the freezer than will
freeze within 24 hours (no more than 320 to 420 g. of
food per each 10 litters of freezer space). Leave enough
space in the freezer for air to circulate around packages.
Be careful to leave enough room at the front so the door
can close tightly.
Storage times will vary according to the quality and type
of food, the type of packaging or wrap used (how airtight
and moisture-proof) and the storage temperature. Ice
crystals inside a sealed package are normal. This simply
means that moisture in the food and air inside the
package have condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling hot foods
before freezing saves energy.
Packaging
Successful freezing depends on correct packaging.
When you close and seal the package, it must not allow
air or moisture in or out. If it does, you could have food
odor and taste transfer throughout the refrigerator and
could also dry out frozen food.
Packaging recommendations:
•Rigid plastic containers with tight-tting lids
•Straight-sided canning/freezing jars
•Heavy-duty aluminum foil
•Plastic-coated paper
•Non-permeable plastic wraps
•Specied freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use
•Bread wrappers
•Non-polyethylene plastic containers
•Containers without tight lids
•Wax paper or wax-coated freezer wrap
•Thin, semi-permeable wrap
CAUTION: Do not keep beverage cans or plastic food
containers in the freezer compartment. They may break
or burst if they freeze.
23
USING YOUR REFRIGERATOR
WATER DISPENSER
To dispense cold water, push on the dispenser switch
with a glass.
Some dripping may occur after dispensing. Hold your
cup beneath the dispenser for a few seconds after
dispensing to catch all of the drops.
WATER TRAY
To remove the tray, press down on either of the front
corners and pull out.
NOTE: There is no drain beneath the tray. You may need
to empty the tray of any liquid that collects in it.
To replace the tray, slightly tilt up the front of the tray and
snap the tabs into the holes.
REFRIGERATOR SECTION
REFRIGERATOR SHELVES
The shelving of your refrigerator can be adjusted to
comply with your storage necessities; Depending on
the model you have in can include glass shelving or
wired shelving. The storing of your foods together and
adjusting the shelving to different heights will ease to
help you locate what you need. This also helps your
refrigerator to stay shut longer which will save you energy.
IMPORTANT: While your refrigerator glass shelving are
cold do not clean with hot or warm water. The glass
shelving may break if exposed to rapid temperature
changes or hard impacts. For your safety the glass
shelving are made out of tempered glass so when at
breaking they will fracture into tiny fragments.
NOTE: Be careful while moving or relocating the shelves
they are heavy. If moving the shelves is required keep in
mind to locate them in a safe environment to prevent
them from breaking.
Adjusting Shelves
Remove the shelves and adjust them to your convenience.
• Removing Shelves
Incline the front of the shelf in the direction indicated by
figure 1 and lift in the direction indicated by figure 2. Pull
the shelf towards you.
• Replacing Shelves
Incline the frontal part of the shelf (1) and guide the
shelf hooks towards the openings at the height desired.
Then lower the front of the shelf (2) so the hooks can be
inserted (3) in the shelf supports.
NOTE: Make sure that the shelf is installed in the
horizontal manner. If not secured it can cause the shelves
to fall, which will cause your stored food to spill.
3
1
2
1
2
USING YOUR REFRIGERATOR
Dispenser Switch
Push
Tabs
Holes
24

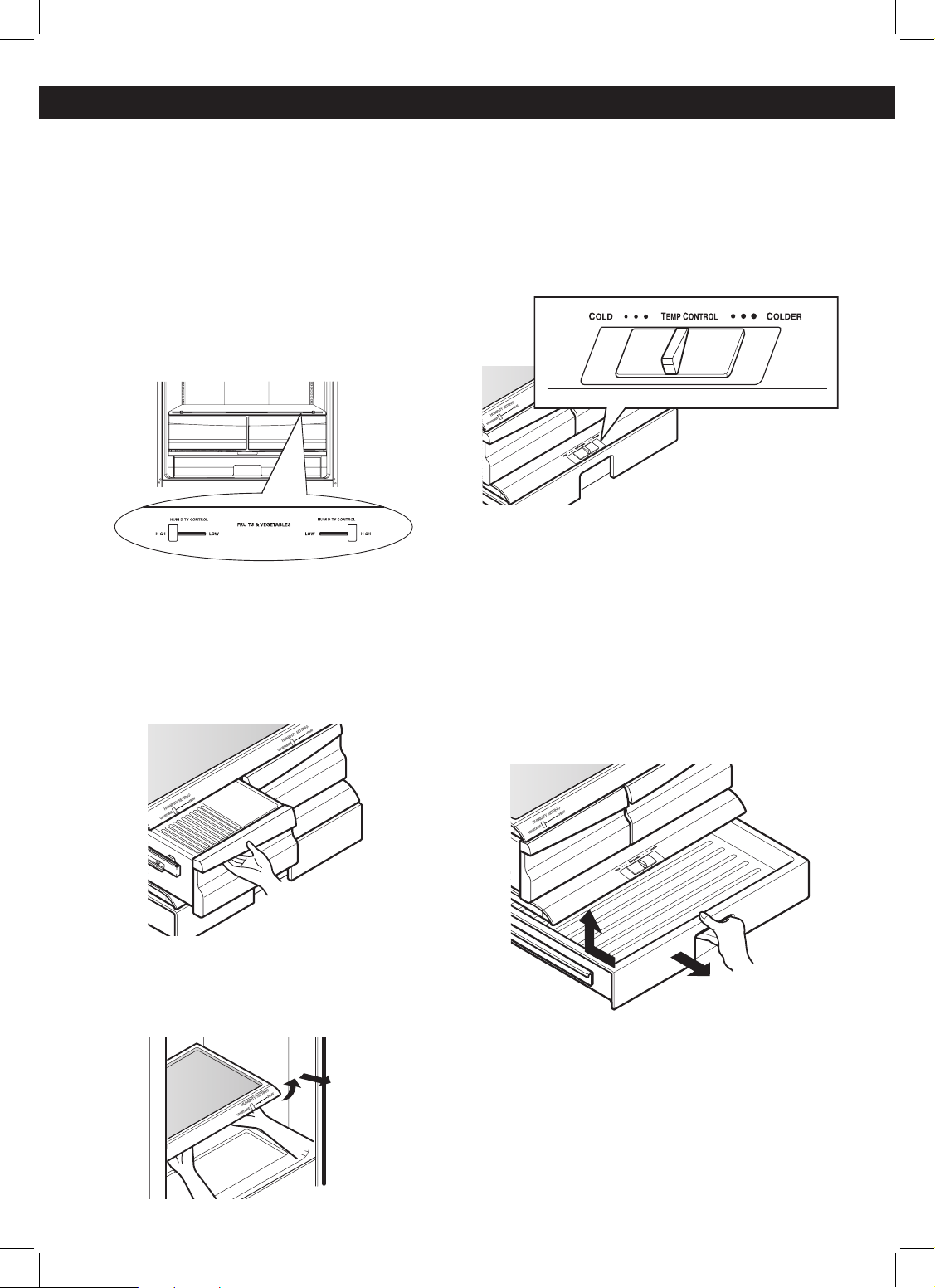

HUMIDITY CONTROLLED CRISPER
The crispers provide fresher tasting fruit and
vegetables by letting you easily control humidity
inside the drawer.
You can control the amount of humidity in the
moisture-sealed crispers by adjusting the control
to any setting between HIGH and LOW.
•HIGH keeps moist air in the crisper for best
storage of fresh, leafy vegetables.
•LOW lets moist air out of the crisper for best
storage of fruit.
Removing and installing the humidity controlled crisper
1. To remove, pull the drawer out to full extension.
2. Lift the front of the crisper up, then pull it straight out.
3. To install, slightly tilt up the front, insert the drawer into
the frame and push it back into place.
Removing the glass
1. Lift up the glass under the crisper cover.
2. Pull the glass up and out.
NOTE: Pantry drawer not shown for clarity.
GLIDE ‘N’ SERVE
The Glide ‘N’ Serve provides storage space with a
variable temperature control that keeps the compartment
colder than the refrigerator temperature. This drawer can
be used for large party trays, deli items, or beverages.
NOTE: It is not recommended that this drawer be used
for fruits and vegetables.
Glide ‘N’ Serve Control
The control regulates the air temperature in the drawer.
Set the control level to COLD to provide normal
refrigerator temperature. Use the COLDER setting for
meats or other deli items.
NOTE: Cold air directed to the Glide ‘N’ Serve can
decrease the refrigerator temperature. It may be
necessary to adjust the refrigerator temperature.
To remove and replace Glide ‘N’ Serve
1. To remove, pull the drawer out to full extension.
2. Lift the front of the crisper up, then pull it straight out.
3. To install, slightly tilt up the front, insert the drawer into
the frame and push it back into place.
I I
I
I
I I
I
USING YOUR REFRIGERATOR
25

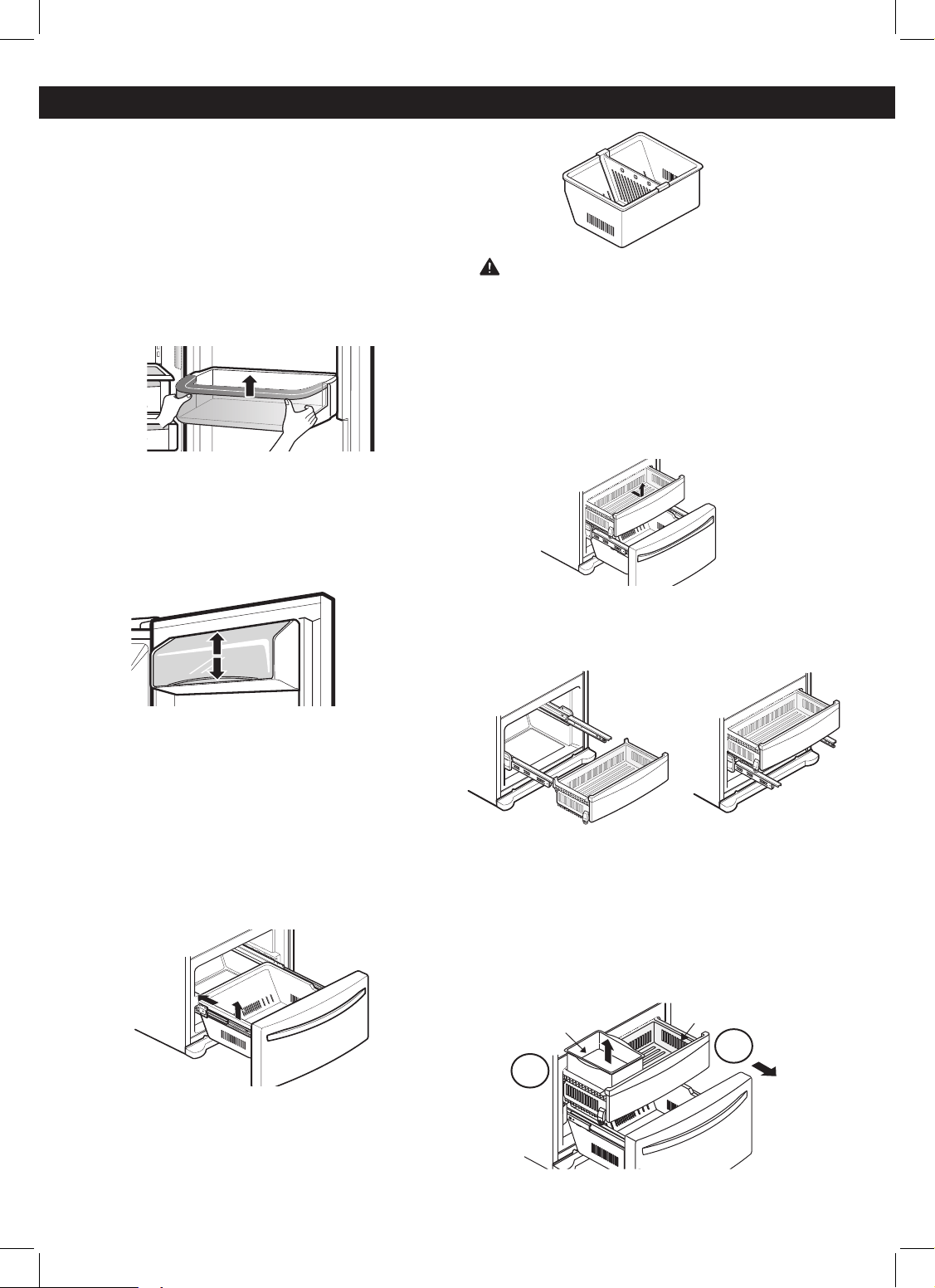

DOOR BIN
The door bins are removable for easy cleaning and
adjustment.
1. To remove the bin, simply lift the bin up and pull
straight out.
2. To replace the bin, slide it in above the desired
support and push down until it snaps into place.
NOTE: Some bins may vary in appearance and will
only fit in one location.
DAIRY BIN
1. To remove the dairy bin, simply lift it and pull
straight out.
2. To replace the dairy bin, slide it into place and
push down until it stops.
NOTE: The dairy bin will only fit in the top space on
the right-hand door.
DURABASE
1. To remove the Durabase, push it to the back as
much as possible. Tilt up the front of the Durabase
and pull straight out.
2. To replace, insert the Durabase in the rail
assembly.
DURABASE DIVIDER
The Durabase divider allows you to organize the
Durabase area into sections. It can be adjusted
from side to side to accommodate items of
different sizes.
WARNING: If the Durabase divider is removed,
there is enough open space for children or pets
to crawl inside. To prevent accidental child and
pet entrapment or suffocation risk, DO NOT allow
children or pets to touch or go near the drawer
PULLOUT DRAWER
1. To remove, pull the drawer out to full extension.
Lift the front of the drawer up and then pull it
straight out.
2. To replace, slightly tilt up the front of the drawer,
insert the drawer into the frame, and push the
drawer back into place.
ICE BIN (In some models)
To remove Ice Bin:
• Pull the drawer as much as possible (1).
• Raise the ice box and take it out carefully (2).
To reinstall Ice Bin:
• Take the drawer off as much as possible and put
the ice bin in the right position.
USING YOUR REFRIGERATOR
USING YOUR REFRIGERATOR
Drawer
Ice Bin
1
2
26
WATER FILTER
It is recommended that you replace the water filter:
•Approximately every 6 months.
•When the water lter indicator
turns on.
•When the water dispenser
output decreases.
•When the ice cubes are smaller
than normal.
1. Remove the old water filter.
•Lower or remove the top left
shelf to allow the water filter to
rotate all the way down.
•Press the push button to open
the water filter cover.
NOTE: Replacing the water filter
causes a small amount of water
around 25 ml (1 oz.) to drain.
Before pushing the button to open
the water filter cover, place a cup
under the front end of the cover
to collect any leaking water.
Hold the water filter upright,
once itis removed, to prevent any
remaining water from spilling out
of the water filter.
•Pull the water lter downward and
pull out. Make sure to rotate the
filter down completely before
pulling it out of the manifold hole.
2. Replace with a new water filter.
•Take the new water lter out of its packaging and
remove the protective cover from the o-rings. With water
filter tabs in the horizontal position, push the new water
filter into the manifold hole until it stops.
•Rotate the water lter up into
position and close the cover.
The cover will click when closed
correctly.
3. After the water filter is replaced, dispense 9.5 liters (l)
of water (flush for approximately 5 minutes) to remove
trapped air and contaminates from the system. Do not
dispense the entire 9.5 liters (l) amount continuously.
Depress and release the dispenser pad for cycles of 30
seconds ON and 60 seconds OFF.
4. Water Filter Bypass Plug
Keep the water filter
bypass plug. You MUST
use the water filter bypass
plug when a replacement
water filter cartridge is not
available.
CAUTION: DO NOT operate refrigerator without water
filter or water filter plug installed.
NOTE: To purchase replacement water filter cartridges,
visit your local appliance dealer or parts distributor.
You can also call using the phone number registered in
warranty card.
The replacement water filter cartridge’s part
number is ADQ36006101.
Water Filter
Bypass Plug
WATER FILTER
27
WATER FILTER
WATER FILTER
Application Guidelines/Water Supply Parameters
Service Flow 0.5 gpm (1.9 lpm)
Water Supply Potable Water
Water Pressure 40-120 psi (138 - 827 kPa)
Water Temperature 33°F - 100°F (0.6°C - 38°C)
It is essential that the manufacturer’s recommended
installation, maintenance and water filter replacement
requirements be carried out for the product to perform
as advertised.
NOTE: While the testing was performed under standard
laboratory conditions, actual performance may vary.
Replacement Cartridge: ADQ36006101
For estimated costs of replacement elements
you can call using the phone number registered in
warranty card or visit our website at www.lg.com
3M is a trademark of 3M Company.
NSF is a trademark of NSF International.
© 2009 3M Company. All rights reserved.
WARNING
To reduce the risk associated with ingestion
of contaminants: Do not use with water that is
microbiologically unsafe or of unknown quality without
adequate disinfection before and after of the system.
Systems certified for cyst reduction may be used on
disinfected water that may contain filterable cysts.
CAUTION
To reduce the risk associated with property damage
due to water leakage:
• Read and follow the Water Filter instructions before
installation and use of this system.
• Installation and use MUST comply with all state and
local plumbing codes.
• Do not install if water pressure exceeds 827 kPa.
(120 psi) Contact a plumbing professional if you are
uncertain of how to check your water pressure.
• Do not install where water hammer conditions may
occur. If water hammer conditions exist, you must
install a water hammer arrester. Contact a plumbing
professional if you are uncertain of how to check for
this condition.
• Do not install on hot water supply lines.
The maximum operating water temperature of this
water filter system is 38°C (100°F).
• Protect water lter from freezing. Do not operate
refrigerator in ambient conditions below
12.7°C (55°F). Drain water filter when storing unit in
temperatures below 4,4°C (40°F).
• The disposable water lter must be replaced every
six months, at the rated capacity, or if a noticeable
reduction in flow rate occurs.
WATER FILTER
28
WARNING
Explosion Hazard
Use non-flammable cleaner. Failure to do so can result
in fire, explosion, or death.
Both the refrigerator and freezer sections defrost
automatically; however, clean both sections about once a
month to prevent odors. Wipe up spills immediately.
GENERAL CLEANING TIPS
• Unplug refrigerator or disconnect power.
• Remove all removable parts, such as shelves, crispers,
etc. Refer to sections in Using Your Refrigerator for
removal instructions.
• Use a clean sponge or soft cloth and a mild detergent
in warm water. Do not use abrasive or harsh cleaners.
• Hand wash, rinse and dry all surfaces thoroughly.
• Plug in refrigerator or reconnect power.
OUTSIDE
Waxing external painted metal surfaces helps provide
rust protection. Do not wax plastic parts. Wax painted
metal surfaces at least twice a year using appliance wax
(or auto paste wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior, use a clean
sponge or soft cloth and a mild detergent in warm water.
Do not use abrasive or harsh cleaners. Dry thoroughly
with a soft cloth.
INSIDE WALLS (allow freezer to warm up so the cloth
will not stick)
To help remove odors, you can wash the inside of the
refrigerator with a mixture of baking soda and warm
water. Mix 2 tablespoons of baking soda to 1 quart of
water (26 g soda to 1 liter water.) Be sure the baking soda
is completely dissolved so it does not scratch the
surfaces of the refrigerator.
CAUTION: While cleaning the inside, do not spray
water.
DOOR LINERS AND GASKETS
Use a clean sponge or soft cloth and a mild detergent
in warm water. Do not use cleaning waxes, concentrated
detergents, bleaches, or cleaners containing petroleum
on plastic refrigerator parts.
PLASTIC PARTS (Covers and Panels)
Use a clean sponge or soft cloth and a mild detergent
in warm water. Do not use window sprays, abrasive
cleansers, or flammable fluids. These can scratch or
damage the material.
BACK COVER
Use a vacuum cleaner
with an attachment
to clean the condenser
cover and vents. Do not
remove the panel covering
the condenser coil area.
CARE AND CLEANNING
CARE AND CLEANNING
29
LIGHT REPLACEMENT
WARNING
Electrical Shock Hazard
Before replacing a Compartment Light, either unplug
the refrigerator or turn off power at the circuit breaker
or fuse box.
NOTE: The refrigerator and freezer compartment
lights are LED interior lighting, and service should be
performed by a qualified technician.
POWER INTERRUPTIONS
1. If the power will be out for 24 hours or less, keep all
refrigerator doors closed to help foods stay cold and
frozen.
2. If the power will be out for more than 24 hours, remove
all frozen food and store it in a frozen food locker.
WHEN YOU GO ON VACATION
If you choose to leave the refrigerator on while you are
away, follow these steps to prepare your refrigerator
before you leave.
1. Use up any perishables and freeze other items.
2. Turn off the icemaker and empty the ice bin.
If you choose to turn the refrigerator off before you leave,
follow these steps.
1. Remove all food from the refrigerator.
2. Depending on your model, set the thermostat control
(refrigerator control) to OFF. See the Setting the Controls
section.
3. Clean the refrigerator, wipe it and dry well.
4. Tape rubber or wood blocks to the tops of both doors
to prop them open far enough for air to get in. This stops
odor and mold from building up.
WHEN YOU MOVE
When you are moving your refrigerator to a new home,
follow these steps to prepare it for the move.
1. Remove all food from the refrigerator and pack all
frozen food in dry ice.
2. Unplug the refrigerator.
3. Clean, wipe and dry thoroughly.
4. Take out all removable parts, wrap them well and tape
them together so they do not shift and rattle during the
move. Refer to the Using your Refrigerator section for
removable instructions.
5. Depending on the model, raise the front of the
refrigerator so it rolls easier OR screw in the leveling legs
all the way so they do not scrape the floor. See the Door
Closing section.
6. Tape the doors shut and tape the power cord to the
refrigerator cabinet.
When you get to your new home, put everything back
and refer to the Refrigerator Installation section for
preparation instructions.
CARE AND CLEANNING
CARE AND CLEANNING
30
BEFORE START
The water source is not guaranteed by the refrigerator
manufacturer. Follow instructions carefully in order to
reduce damage.
Air located inside the water pipes can cause hammering
or tapping causing damage to the inner pipes or water
spillage in the inside of the refrigerator. Call a qualified
plumber to fix such hammering on the connections
before installing the water pipe.
To avoid burn damage or such, never connect refrigerator
to hot water pipes.
If you are to use the refrigerator before connecting it
to the water source, make sure the ice maker is the off
position.
Never attempt to install the ice maker pipes in areas
where room temperature is below freezing point.
When using any electrical device (like a drill) during
the installation, make sure device is doubly isolated or
making ground to prevent risk of electrical surge or
discharge.
All installations should be done considering local water
and drainage requirements.
• If an inverted osmosis water filtration system is
connected to the cold water source, the water hose
installation is not assured or guaranteed by the
refrigerator or automated ice maker manufacturer.
Follow the next instructions carefully to minimize costly
water related damages.
• When having an inverted osmosis water filtration
system connected to the cold-water flow, the water
pressure for such system must be at least between
0,27 MPa - 0,41 MPa or 40-60 PSI, less than 2 ~ 3
seconds to fill a 0,2 liters of capacity cup (7 oz.).
• If the inverted osmosis water filtration system pressure
is less than 0,14 MPa or 21 PSI, more than four (4)
seconds to fill a 0,2 liters of capacity cup (7 oz.):
a) Identify if the sediments filter in the inverted osmosis
system is being blocked. Replace filter if necessary.
b) Allow inverted osmosis system storage tank to refill
after extensive usage.
c) Call a qualified plumber if the inverted osmosis water
pressure problem continues.
REQUIREMENTS
• 6 mm (1/4”) in diameter copper pipe to connect
refrigerator to the water pipe. Make sure both
terminals are cut in
squared manner.
To determine how much pipe material is needed,
measures the distances between the valves located
behind the refrigerator and the source of water and add
to that 2,4 m (8 feet). Make sure there is sufficient pipe
material to allow the free movement of the refrigerator
from the wall
• A cold water source. Water pressure should be between
0,138 and 0,82 MPa or 20 and 120 PSI for models not
containing water filter and between 0,276 and 0,82
MPa or 40 and 120 PSI for models containing water
filter.
• A drill.
• Adjustable 13 mm (1/2”) key.
• Flat and Phillips style (star) screwdriver.
• Two 6 mm (1/4”) diameter
compression nuts with two
sides to connect the copper
pipe to the refrigerator valve.
If your current copper pipe has some reduction on the
ends, it will be necessary to get and
adaptor (found in hardware stores)
to connect the water line to the
refrigerator. It is also possible to cut
such reductions with a pipe cutter and
use the compression connections mentioned above.
• Bypass valve to connect to
the cold water line. The valve
must have a water opening
with an interior 3,46 mm
(5/32”) diameter in the cold-
water connection point. These
valves can be located in any cold-water connection
package. Before buying make sure such valve meets
local standards and requirements.
INSTALLATION INSTRUCTIONS
Install the valve to the pipe that you use to drink water.
(Connect only to a potable water source).
CAUTION: Connect to potable water supply only.
1. CLOSE THE MAIN WATER SOURCE
Open the nearest water faucet to let water flow and
empty pipes.
2. SELECT THE LOCATION OF THE
VALVE
Select the location of the valve that will
provide a better access. It is best to
connect to a vertical pipeline. When
connecting to a horizontal pipeline is
necessary, make the connection in the
lateral or upper area instead of the
lower area to prevent accumulation of
sediment.
CONNECTING THE WATER LINE
31
3. DRILL A HOLE FOR THE VALVE
Drill a 6 mm (1/4”) diameter hole
in the water pipeline. Remove
jagged edges produces after
perforation. Make sure water
does not reach the drill. Not
performing the 6 mm (1/4”)
perforation can lead to a low or
smaller ice production.
4. TIGHTEN THE VALVE
Tight the valve into the cold water pipeline with a tube
trap.
Pipe Clamp
Saddle Type Vertical Cold
Shutoff Valve Water Pipe
5. TIGHTEN THE TRAP
Tighten the trap until the sealing ring begins to grow.
NOTE: Make sure it is not too tight, this can break the
pipe.
Washer
Pipe Clamp Inlet End
Clamp Screw
6. PLACE THE PIPELINE
Place the pipeline between the cold water pipe and the
refrigerator. Place it through a hole in the wall or floor
(behind the refrigerator or next to the cabinet) as close
to the wall as possible.
NOTE: Make sure there is a sufficient amount of extra
pipeline 24.4 cm [8 feet] coiled up three times with a
25 cm [10”] in diameter) to allow free movement of the
refrigerator from the wall after installation was made.
7. CONNECT PIPELINE TO VALVE
Place the compression nut and the copper pipe ferule at
the end of the pipe and connect to the valve. Make sure
the pipe is completely inserted into the valve. Tighten
nut carefully.
Saddle Type
Shutoff Valve Compression Nut
Packing Nut
Outlet Valve Ferule (sleeve)
8. DRAIN THE PIPE
Open the main water source (1) and drain the pipe until
water comes out clear.
Allow water flow from the bypass valve (2) and close after
draining 1 liter (1/4 of a gallon) of water.
9. CONNECT PIPE TO REFRIGERATOR
NOTES:
• Before making connection to refrigerator, make sure
it is not connected to any energy source. If your
refrigerator does not have a water filter, it is advised
to install one.
• If your water source contains sand or related particles
that can travel to the valve, install a water filter near the
refrigerator.
IMPORTANT: Never use old or used hoses. Always use
new ones to have a better use and experience. Connect
always to a potable water source to avoid security and
health issues.
1
2
CONNECTING THE WATER LINE
CONNECTING THE WATER LINE
32
• Remove the ring plug (1) from the valve located at the
top of such device.
• Place compression nut and the ferule at the end of the
pipeline. Insert pipeline into the connection valve as far
as possible. Hold tightly while holding pipeline.
IMPORTANT: Don’t use old, worn or used waterlines,
only use new components included in refrigerator for a
better use and service.
Connect only to the supply of drinking water for your
safety and health.
Compression
Nut 6 mm
(1/4”)
Ferule
Hold on to the pipe from the handles or grabbers located
behind the refrigerator, loosing first the bolt holding the
handle. Afterwards, insert pipe into the hole and tighten
bolt to finalize.
10. OPEN THE BYPASS
VALVE
Tighten all connections
containing leaks. Place access
Back Cover on compressor.
11. CONNECT TO
REFRIGERATOR
Fix pipeline in a way that
it does not vibrate on the
refrigerator or wall. Push
refrigerator against wall.
12. TURN ICE MAKER ON
Turn ice maker switch into the ON position. Ice maker
will start only after reaching its operating temperature of
-9 °C ( 15 °F) or less. It will automatically begin the ice
production if switch is located in the ON position.
1
TROUBLESHOOTING GUIDE
CONNECTING THE WATER LINE
33
Before conducting troubleshooting, make sure that the following basic requirements are met:
Service Flow 0.5 gpm (1.9 lpm)
Water Supply Potable Water
Water Pressure 138 - 827 kPa (40-120 psi)
Operating Ambient
Temperature Limits
13°C - 43°C
Electrical Ratings
230-240 Volts, 50 Hz, AC
only, and fused at 9 or 10
amperes.
COOLING
Problem Possible Causes Solutions
Refrigerator and
Freezer section
are not cooling.
The refrigerator control is set to OFF (some
models).
Turn the control ON. Refer to the Setting the
Controls section for proper temperature
settings.
Refrigerator is set to Demo Mode. Demo Mode allows the lights and control
display to work normally while disabling
cooling to save energy while on the
showroom floor. Refer to the Setting the
Controls section for instructions on how to
disable Demo Mode.
Refrigerator is in the defrost cycle. During the defrost cycle, the temperature
of each compartment may raise slightly.
Wait 30 minutes and confirm the proper
temperature has been restored once the
defrost cycle has completed.
Refrigerator was recently installed. It may take up to 24 hours for each
compartment to reach the desired
temperature.
Refrigerator was recently relocated. If the refrigerator was stored for a long period
of time or moved on its side, it is necessary
for the refrigerator to stand upright for 24
hours before connecting it to power.
Cooling System
runs too much.
Refrigerator is replacing an older model. Modern refrigerators require more operating
time but use less energy due to more efficient
technology.
Refrigerator was recently plugged in or
power restored.
The refrigerator will take up to 24 hours to
cool completely.
Door opened often or a large amount of
food / hot food was added.
Adding food and opening the door warms
the refrigerator, requiring the compressor to
run longer in order to cool the refrigerator
back down. In order to conserve energy,
try to get everything you need out of the
refrigerator at once, keep food organized so
it is easy to find, and close the door as soon
as the food is removed. (Refer to the Food
Storage Guide.)
Doors are not closed completely. Firmly push the doors shut. If they will not
shut all the way, see the Doors will not close
completely or pop open section in Parts &
Features Troubleshooting.
TROUBLESHOOTING GUIDE
34
COOLING
Problem Possible Causes Solutions
Refrigerator is installed in a hot location. The compressor will run longer under warm
conditions. At normal room temperatures
21°C (70°F) expect your compressor to run
about 40% to 80% of the time. Under warmer
conditions, expect it to run even more often.
The refrigerator should not be operated above
43°C (110°F).
Condenser / back cover is clogged. Use a vacuum cleaner with an attachment to
clean the condenser cover and vents. Do not
remove the panel covering the condenser coil
area.
Refrigerator or
Freezer section is
too warm.
Refrigerator was recently installed. It may take up to 24 hours for each
compartment to reach the desired
temperature.
Air vents are blocked. Rearrange items to allow air to flow throughout
the compartment. Refer to the Airflow
diagram in the Using Your Refrigerator
section.
Doors are opened often or for long
periods of time.
When the doors are opened often or for long
periods of time, warm, humid air enters the
compartment. This raises the temperature
and moisture level within the compartment.
To lessen the effect, reduce the frequency
and duration of door openings.
Unit is installed in a hot location. The refrigerator should not be operated in
temperatures above 43°C (110F).
A large amount of food or hot food was
added to either compartment.
Adding food warms the compartment requiring
the cooling system to run. Allowing hot food to
cool to room temperature before putting it in
the refrigerator will reduce this effect.
Doors not closed correctly. See the Doors will not close correctly or pop
open section in Parts & Features Troubleshooting.
Temperature control is not set correctly. If the temperature is too warm, adjust the control
one increment at a time and wait for the
temperature to stabilize. Refer to the Setting
the Controls section for more information.
Defrost cycle has recently completed. During the defrost cycle, the temperature of
each compartment may raise slightly and
condensation may form on the back wall.
Wait 30 minutes and confirm the proper
temperature has been restored once the
defrost cycle has completed.
TROUBLESHOOTING GUIDE
35
TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
COOLING/ ICE & WATER
Problem Possible Causes Solutions
Interior moisture
buildup.
Doors are opened often or for long
periods of time.
When the doors are opened often or for long
periods of time, warm, humid air enters the
compartment. This raises the temperature and
moisture level within the compartment. To
lessen the effect, reduce the frequency and
duration of door openings.
Doors not closed correctly. See the Doors will not close correctly section in
the Troubleshooting section.
Weather is humid. Humid weather allows additional moisture to
enter the compartments when the doors are
opened leading to condensation or frost.
Maintaining a reasonable level of humidity in
the home will help to control the amount of
moisture that can enter the compartments.
Defrost cycle recently completed. During the defrost cycle, the temperature of
each compartment may raise slightly and
condensation may form on the back wall.
Wait 30 minutes and confirm that the proper
temperature has been restored once the defrost
cycle has completed.
Food is not packaged correctly. Food stored uncovered or unwrapped, and damp
containers can lead to moisture accumulation
within each compartment. Wipe all containers
dry and store food in sealed packaging to
prevent condensation and frost.
Food is freezing
in the refrigerator
compartment.
Food with high water content was placed
near an air vent.
Rearrange items with high water content away
from air vents.
Refrigerator temperature control is set
incorrectly.
If the temperature is too cold, adjust the control
one increment at a time and wait for the
temperature to stabilize. Refer to the Setting the
Controls section for more information.
Refrigerator is installed in a cold location. When the refrigerator is operated in temperature
below 41°F (5°C), food can freeze in the
refrigerator compartment. The refrigerator
should not be operated in temperature below
55°F (13°C).
Frost or ice
crystals form
on frozen food
(outside of
package).
Door is opened frequently or for long
periods of time.
When the doors are opened often or for long
periods of time, warm, humid air enters the
compartment. This raises the temperature
and moisture level within the compartment.
Increased moisture will lead to frost and
condensation. To lessen the effect, reduce the
frequency and duration of door openings.
Door is not closing properly Refer to the Doors will not close correctly or pop
open section in the Troubleshooting section.
36
Problem Possible Causes Solutions
Refrigerator or
Freezer section is
too cold.
Incorrect temperature control settings. If the temperature is too cold, adjust the control
one increment at a time and wait for the
temperature to stabilize. Refer to the Setting the
Controls section for more information.
Frost or ice
crystals on
frozen food
(inside of sealed
package).
Condensation from food with a high
water content has frozen inside of the
food package.
This is normal for food items with a high water
content.
Food has been left in the freezer for a
long period of time.
Do not store food items with high water content
in the freezer for a long period of time.
Icemaker is not
making enough
ice.
Demand exceeds ice storage capacity. The icemaker will produce approximately 100
cubes in a 24 hour period.
House water supply is not connected,
valve is not turned on fully, or valve is
clogged.
Connect the refrigerator to a cold water supply
with adequate pressure and turn the water
shutoff valve fully open.
If the problem persists, it may be necessary to
contact a plumber.
Water filter has been exhausted. It is recommended that you replace the water
filter:
•Approximately every six months.
•When the water lter indicator turns on.
•When the water dispenser output decreases.
•When the ice cubes are smaller than normal.
Low house water supply pressure. The water pressure must be between 138 and
828 kPa on models without a water filter and
between 276 and 828 kPa on models with a
water filter.
If the problem persists, it may be necessary to
contact a plumber.
Reverse Osmosis filtration system is
used.
Reverse osmosis filtration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues. (Refer to Water
Pressure section.)
Tubing connecting refrigerator to house
supply valve is kinked.
The tubing can kink when the refrigerator is
moved during installation or cleaning resulting
in reduced water flow. Straighten or repair the
water supply line and arrange it to prevent future
kinks.
TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
37
TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
ICE & WATER
Problem Possible Causes Solutions
Icemaker is not
making enough ice
(continued).
Doors are opened often or for long
periods of time.
If the doors of the unit are opened often, ambient
air will warm the refrigerator which will prevent
the unit from maintaining the set temperature.
Lowering the refrigerator temperature can help,
as well as not opening the doors as frequently.
Doors are not closed completely. If the doors are not properly closed, ice
production will be affected. See the Doors will
not close completely or pop open section in
Parts & Features Troubleshooting for more
information.
The temperature setting for the freezer
is too warm.
The recommended temperature for the freezer
compartment for normal ice production is
-18°C (0°F). If the freezer temperature is warmer,
ice production will be affected.
Dispensing water
slowly.
Water filter has been exhausted. It is recommended that you replace the water
filter:
•Approximately every six months.
•When the water lter indicator turns on.
•When the water dispenser output decreases.
•When the ice cubes are smaller than normal.
Reverse osmosis filtration system is used. Reverse osmosis filtration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues.
If the problem persists, it may be necessary to
contact a plumber.
Low house water supply pressure. The water pressure must be between 138 and
828 kPa on models without a water filter and
between 276 and 828 kPa on models with a
water filter.
If the problem persists, it may be necessary to
contact a plumber.
Icemaker is not
making ice.
Refrigerator was recently installed or
icemaker recently connected.
It may take up to 24 hours for each compartment
to reach the desired temperature and for the
icemaker to begin making ice.
Icemaker not turned on. Locate the icemaker ON/OFF switch and confirm
that it is in the ON (I) position.
The ice detecting sensor is obstructed. Foreign substances or frost on the ice-detecting
sensor can interrupt ice production. Make sure
that the sensor area is clean at all times for
proper operation.
The refrigerator is not connected to a
water supply or the supply shutoff valve
is not turned on.
Connect refrigerator to the water supply and turn
the water shutoff valve fully open.
Icemaker shutoff (arm or sensor)
obstructed.
If your icemaker is equipped with an ice shutoff
arm, make sure that the arm moves freely. If your
icemaker is equipped with the electronic ice
shutoff sensor, make sure that there is a clear
path between the two sensors.
Reverse osmosis water filtration system
is connected to your cold water supply.
Reverse osmosis filtration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues. (Refer to the Water
Pressure section.)
TROUBLESHOOTING GUIDE
38
Problem Possible Causes Solutions
Icemaker is not
making ice.
Refrigerator was recently installed or
icemaker recently connected.
It may take up to 24 hours for each compartment
to reach the desired temperature and for the
icemaker to begin making ice.
Icemaker not turned on. Locate the icemaker ON/OFF switch and confirm
that it is in the ON (I) position.
The ice detecting sensor is obstructed. Foreign substances or frost on the ice-detecting
sensor can interrupt ice production. Make sure
that the sensor area is clean at all times for
proper operation.
The refrigerator is not connected to a
water supply or the supply shutoff valve is
not turned on.
Connect refrigerator to the water supply and turn
the water shutoff valve fully open.
Icemaker shutoff (arm or sensor)
obstructed.
If your icemaker is equipped with an ice shutoff
arm, make sure that the arm moves freely. If your
icemaker is equipped with the electronic ice
shutoff sensor, make sure that there is a clear
path between the two sensors.
Reverse osmosis water filtration system
is connected to your cold water supply.
Reverse osmosis filtration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues. (Refer to the Water
Pressure section.)
Not dispensing
water.
New installation or water line recently
connected.
Dispense 9.5 liters of water (flush for
approximately 5 minutes) to remove trapped
air and contaminates from the system.
Do not dispense the entire 9.5 liters amount
continuously. Depress and release the dispenser
pad for cycles of 30 seconds ON and 60
seconds OFF.
The dispenser panel is locked. Press and hold the Control Lock button for
three seconds to unlock the control panel and
dispenser.
The dispenser is not set for water
dispensing.
The dispenser can be set for ice or water. Make
certain that the control panel is set for the proper
operation. Press the Ice/Water Select button on
the control panel.
Refrigerator or freezer doors are not
closed properly.
Water will not dispense if any of the refrigerator
doors are left open.
Water filter has been recently removed or
replaced.
After the water filter is replaced, dispense 9.5
liters of water (flush for approximately
5 minutes) to remove trapped air and
contaminates from the system. Do not dispense
the entire 9.5 liters amount continuously.
Depress and release the dispenser pad for cycles
of 30 seconds ON and 60 seconds OFF.
Tubing connecting refrigerator to house
supply valve is kinked.
The tubing can kink when the refrigerator is
moved during installation or cleaning resulting
in reduced water flow. Straighten or repair the
water supply line and arrange it to prevent future
kinks.
The house water supply is not connected,
the valve is not turned on fully, or the
valve is clogged.
Connect refrigerator to the water supply and turn
the water shutoff valve fully open.
If the problem persists, it may be necessary to
contact a plumber.
TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
39
Problem Possible Causes Solutions
Ice has bad taste
or odor.
Water supply contains minerals such as
sulfur.
A water filter may need to be installed to
eliminate taste and odor problems.
NOTE: In some cases, a filter may not help. It
may not be possible to remove all minerals /
odor / taste in all water supplies.
Icemaker was recently installed. Discard the first few batches of ice to avoid
discolored or bad tasting ice.
Ice has been stored for too long. Ice that has been stored for too long will shrink,
become cloudy, and may develop a stale taste.
Throw away old ice and make a new supply.
The food has not been stored properly in
either compartment.
Rewrap the food. Odors may migrate to the ice if
food is not wrapped properly.
The interior of the refrigerator needs to
be cleaned.
See the Care and Cleaning section for more
information.
The ice storage bin needs to be cleaned. Empty and wash the bin (discard old cubes).
Make sure that the bin is completely dry before
reinstalling it.
Dispensing warm
water.
Refrigerator was recently installed. Allow 24 hours after installation for the water
storage tank to cool completely.
The water dispenser has been used
recently and the storage tank was
exhausted.
Depending on your specific model, the water
storage capacity will range from approximately
295 to 887 ml. (10 to 30 oz.).
Dispenser has not been used for several
hours.
If the dispenser has not been used for several
hours, the first glass dispensed may be warm.
Discard the first 295 ml (10 oz.).
Refrigerator is connected to the hot
water supply.
Make sure that the refrigerator is connected to a
cold water pipe.
WARNING: Connecting the refrigerator to a
hot water line may damage the icemaker.
Water has bad
taste or odor.
Water supply contains minerals such as
sulfur.
A water filter may need to be installed to
eliminate taste and odor problems.
Water filter has been exhausted. It is recommended that you replace the water
filter:
•Approximately every 6 months.
•When the water lter indicator turns on.
•When the water dispenser output decreases.
•When the ice cubes are smaller than normal.
Refrigerator was recently installed. Dispense 9.5 liters of water (flush for
approximately 5 minutes) to remove trapped
air and contaminates from the system.
Do not dispense the entire 9.5 liters amount
continuously. Depress and release the dispenser
pad for cycles of 30 seconds ON and 60
seconds OFF.
Icemaker is
making too much
ice.
Icemaker shutoff (arm/sensor) is
obstructed.
Empty the ice bin. If your icemaker is equipped
with an ice shutoff arm, make sure that the arm
moves freely. If your icemaker is equipped with
the electronic ice shutoff sensor, make sure that
there is a clear path between the two sensors.
Reinstall the ice bin and wait 24 hours to confirm
proper operation.
TROUBLESHOOTING GUIDE
40
NOISE
Problem Possible Causes Solutions
Clicking
The defrost control will click when the
automatic defrost cycle begins and ends.
The thermostat control (or refrigerator
control on some models) will also click
when cycling on and off.
Normal Operation
Rattling
Rattling noises may come from the flow
of refrigerant, the water line on the back
of the unit, or items stored on top of or
around the refrigerator.
Normal Operation
Refrigerator is not resting solidly on the
floor.
Floor is weak or uneven or leveling legs need to
be adjusted. See the Door Alignment section.
Refrigerator with linear compressor was
jarred while running.
Normal Operation
Whooshing
Evaporator fan motor is circulating air
through the refrigerator and freezer
compartments.
Normal Operation
Air is being forced over the condenser by
the condenser fan.
Normal Operation
Gurgling
Refrigerant flowing through the cooling
system.
Normal Operation
Popping
Contraction and expansion of the inside
walls due to changes in temperature.
Normal Operation
Sizzling
Water dripping on the defrost heater
during a defrost cycle.
Normal Operation
Vibrating
If the side or back of the refrigerator is
touching a cabinet or wall, some of the
normal vibrations may make an audible
sound.
To eliminate the noise, make sure that the sides
and back cannot vibrate against any wall or
cabinet.
Dripping
Water running into the drain pan during
the defrost cycle.
Normal Operation
Pulsating or High-
Pitched Sound
Your refrigerator is designed to run
more efficiently to keep your food items
at the desired temperature. The high
efficiency compressor may cause your
new refrigerator to run longer than
your old one, but it is still more energy
efficient than previous models. While
the refrigerator is running, it is normal to
hear a pulsating or high-pitched sound.
Normal Operation
TROUBLESHOOTING GUIDE
TROUBLESHOOTING GUIDE
41
PARTS & FEATURES
Problem Possible Causes Solutions
Doors will not
close correctly or
pop open.
Food packages are blocking the door
open.
Rearrange food containers to clear the door and
door shelves.
Ice bin, crisper cover, pans, shelves, door
bins, or baskets are out of position.
Push bins all the way in and put crisper cover,
pans, shelves and baskets into their correct
positions. See the Using Your Refrigerator
section for more information.
The doors were removed during product
installation and not properly replaced.
Remove and replace the doors according to the
Removing and Replacing Refrigerator Handles
and Doors section.
Refrigerator is not leveled properly. See Door Alignment in the Refrigeration
Installation section to level refrigerator.
Doors are difficult
to open.
The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they
touch. Rub a thin coat of appliance polish or
kitchen wax on the gaskets after cleaning.
Door was recently closed. When you open the door, warmer air enters the
refrigerator. As the warm air cools, it can create
a vacuum. If the door is hard to open, wait one
minute to allow the air pressure to equalize, then
see if it opens more easily.
Refrigerator
wobbles or seems
unstable.
Leveling legs are not adjusted properly. Refer to the Leveling and Door Alignment
section.
Floor is not level. It may be necessary to add shims under the
leveling legs or rollers to complete installation.
Lights do not
work.
LED interior lighting failure. The refrigerator compartment lamp is LED
interior lighting, and service should be
performed by a qualified technician. Refer to
the Light Bulb Replacement section.
TROUBLESHOOTING GUIDE
