DVD Home
Theatre System
Operating Instructions
Owner’s Record
The model and serial numbers are located on the rear of the unit. Record the
serial number in the space provided below. Refer to them whenever you call
upon your Sony dealer regarding this product.
Model No.
Serial No.
HT-7100DH
2
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US02REG_HT-7100DH-
U.fm3-093-550-11 (1)
masterpage: Left
HT-7100DH
3-093-550-11 (1)
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To prevent fire, do not cover the ventilation of the
apparatus with newspapers, table-cloths, curtains,
etc. And don’t place lighted candles on the
apparatus.
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
Install this system so that the power cord can be
unplugged from the wall socket immediately in the
event of trouble.
Don’t throw away batteries with
general house waste; dispose of
them correctly as chemical waste.
For customers in the United
States
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
WARNING
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment
and receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modification
not expressly approved in this manual could void
your authority to operate this equipment.
Note to CATV system installer:
This reminder is provided to call CATV system
installer’s attention to Article 820-40 of the NEC
that provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building,
as close to the point of cable entry as practical.
WARNING
Do not install the appliance in a confined space,
such as a bookcase or built-in cabinet.
3
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US02REG_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
About This Manual
• The instructions in this manual are for model
HT-7100DH.
The HT-7100DH consists of:
• Receiver STR-K7100
• DVD player DVP-NC85H
• Speaker system
– Front speaker SS-MSP7000
– Center speaker SS-CNP900
– Surround speaker SS-SRP7000
– Sub woofer SA-WP780
• The instructions in this manual describe the
controls on the supplied remote. You can also use
the controls on the receiver if they have the same
or similar names as those on the remote.
This receiver incorporates Dolby* Digital and Pro
Logic Surround and the DTS** Digital Surround
System.
* Manufactured under license from Dolby
Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol
are trademarks of Dolby Laboratories.
** “DTS” and “DTS Digital Surround” are
trademarks of DTS, Inc.
This receiver incorporates High-Definition
Multimedia Interface (HDMI
TM
) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
The XM name and related logos are registered
trademarks of XM Satellite Radio Inc.
Note for the supplied remote
(RM-AAP016)
The AUX button on the remote is not available
for receiver operation.
About area codes
The area code of the receiver you purchased is
shown on the lower right portion of the rear panel
(see the illustration below).
Any differences in operation, according to the area
code, are clearly indicated in the text, for example,
“Models of area code AA only”.
CENTERSURROUND
L
R
Area code
4
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US01COV_HT-7100DH-
UTOC.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Table of Contents
Getting Started
Description and location of parts...................5
1: Installing speakers ...................................14
2: Connecting speakers................................16

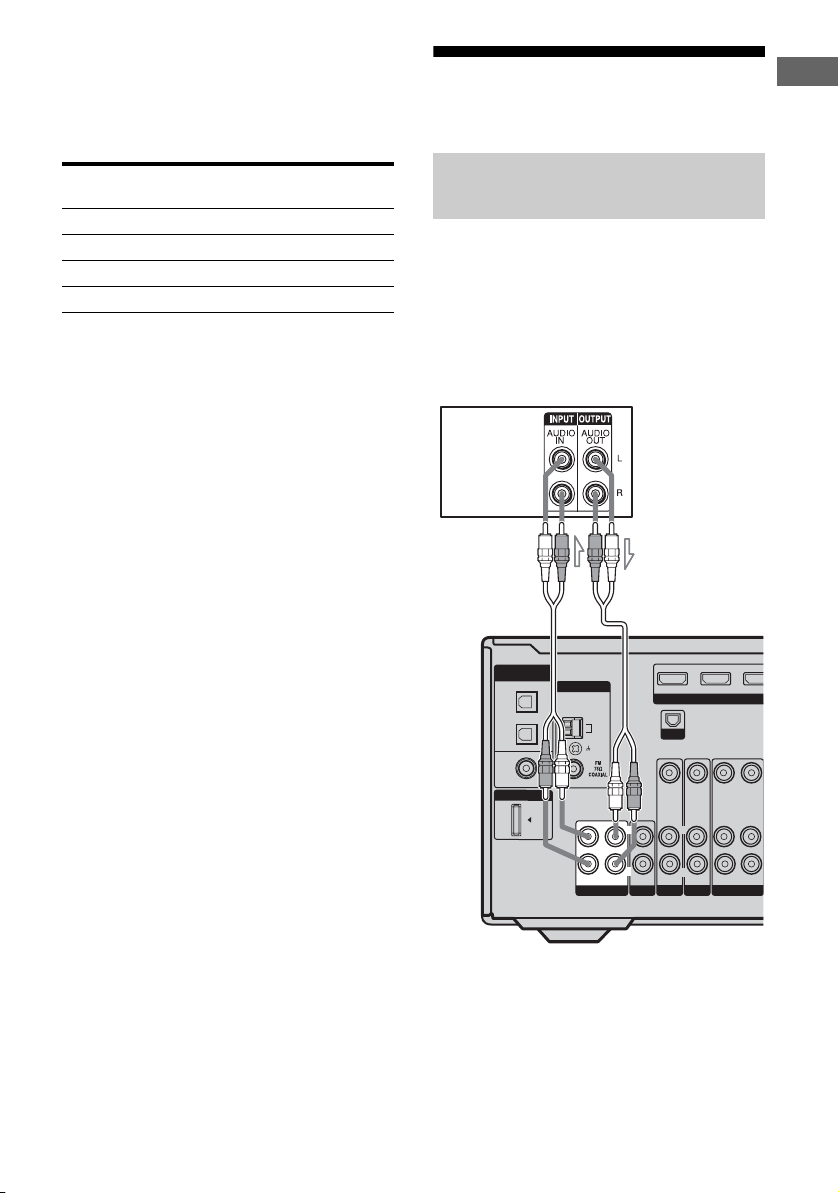

3a: Connecting the audio components ........17

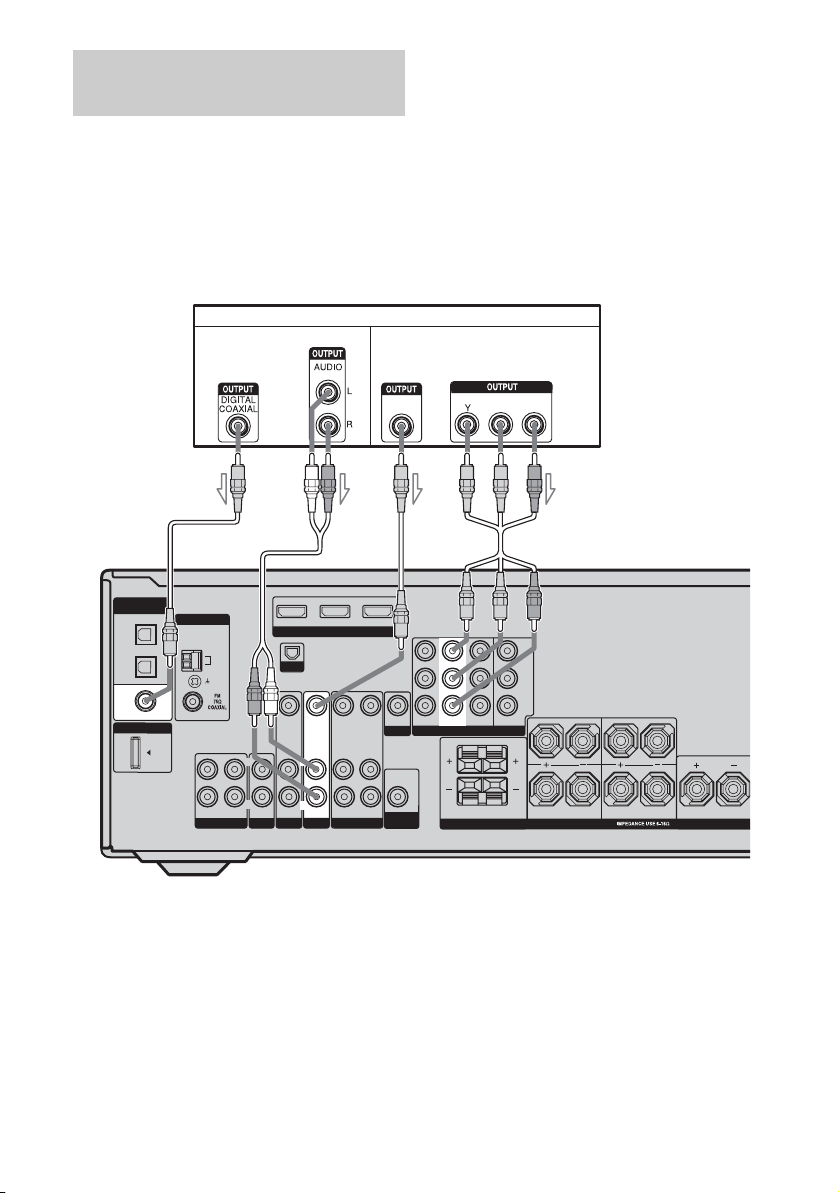

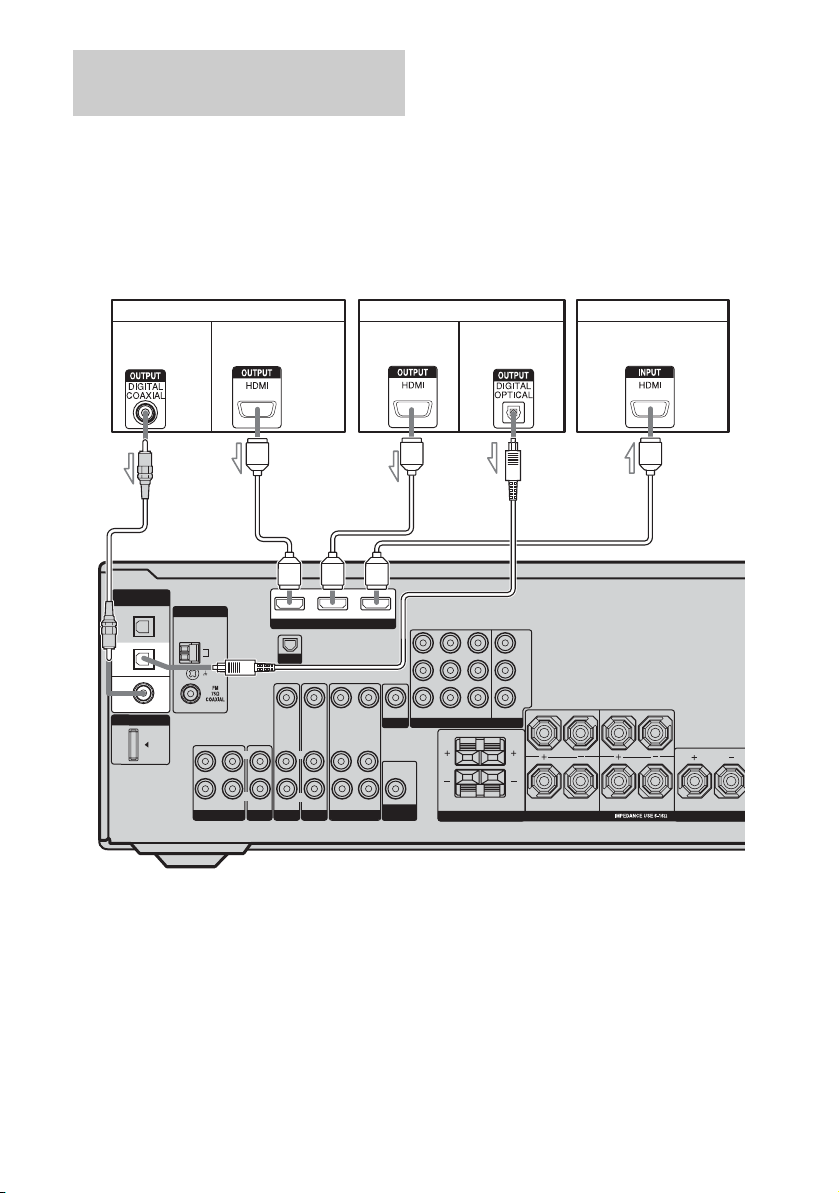

3b: Connecting the video components ........18
4: Connecting the antennas..........................26

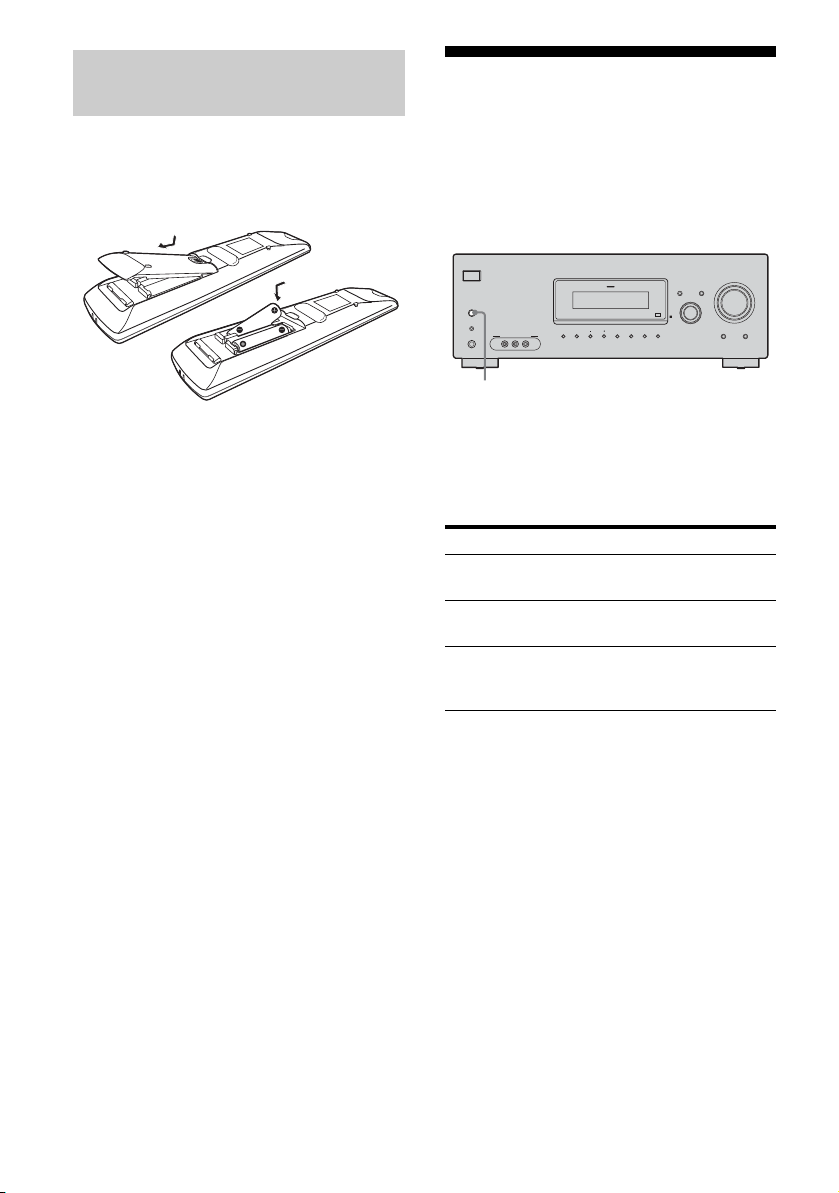

5: Preparing the receiver and the remote.....27
6: Selecting the speaker system ...................28
7: Calibrating the appropriate settings
automatically
(AUTO CALIBRATION) ......................29
8: Adjusting the speaker levels and balance
(TEST TONE) ........................................33
Playback
Selecting a component.................................34
Listening/Watching a component................36
Amplifier Operations
Navigating through menus ..........................38
Adjusting the level
(LEVEL menu).......................................41
Adjusting the tone
(TONE menu).........................................42
Settings for the surround sound
(SUR menu)............................................42
Settings for the tuner (TUNER menu).........43
Settings for the audio (AUDIO menu) ........43
Settings for the video (VIDEO menu).........44
Settings for the system (SYSTEM menu) ...45
Calibrating the appropriate settings
automatically
(A. CAL menu).......................................47
Enjoying Surround Sound
Enjoying Dolby Digital and DTS Surround
sound (AUTO FORMAT DIRECT)...... 47
Selecting a pre-programmed sound field.... 49
Using only the front speakers and sub woofer
(2CH STEREO) ..................................... 51
Resetting sound fields to the initial settings 52
Tuner Operations
Listening to FM/AM radio.......................... 52
Presetting radio stations .............................. 54
Listening to the XM Radio ......................... 56
Presetting XM Radio stations ..................... 60
Other Operations
Switching the audio input mode
(INPUT MODE) .................................... 63
Enjoying the DIGITAL MEDIA PORT
(DMPORT) ............................................ 63
Listening to digital sound from other inputs
(DIGITAL ASSIGN) ............................. 66
Naming inputs............................................. 67
Changing the display .................................. 68
Using the Sleep Timer ................................ 68
Recording using the receiver ...................... 69
Using the Remote

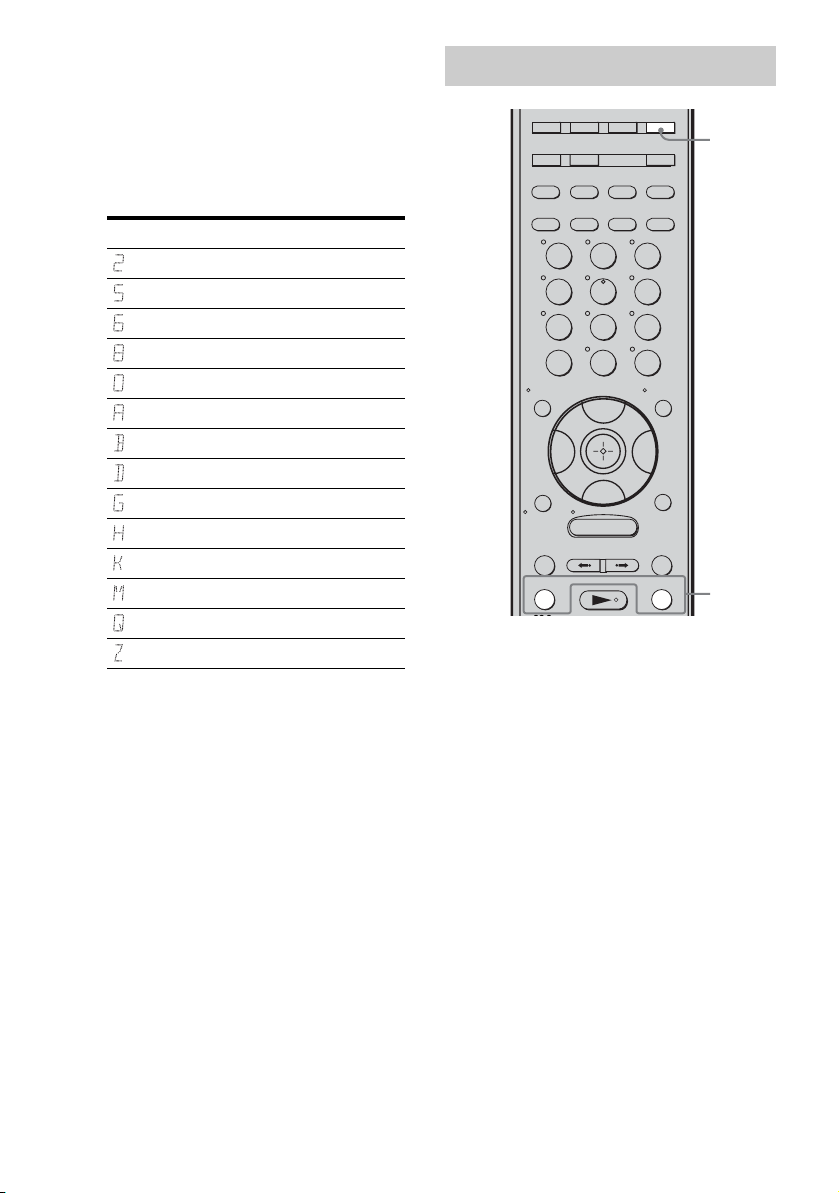

Programming the remote ............................ 70
Additional Information
Glossary ...................................................... 75
Precautions.................................................. 76
Troubleshooting .......................................... 77
Specifications.............................................. 81
Index ........................................................... 83
5
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started
Description and location of parts
Front panel
Getting Started
Receiver
?
/ 1

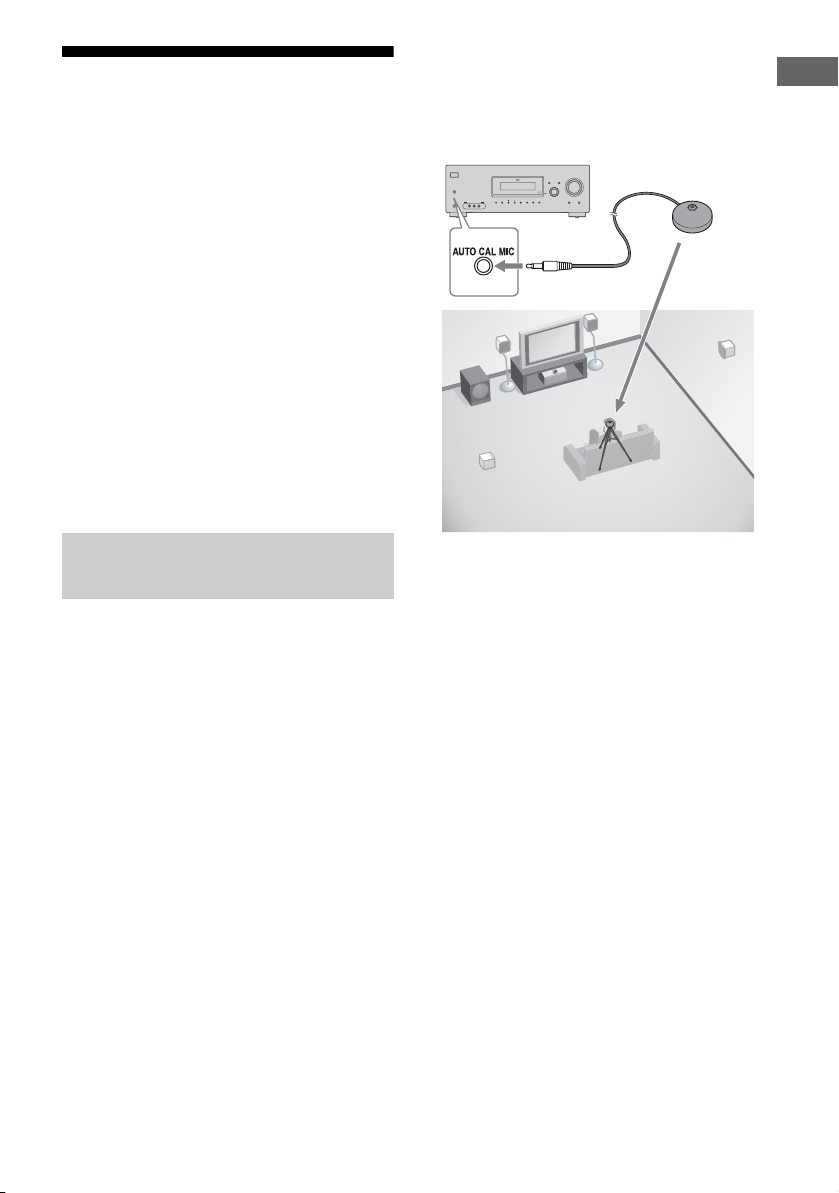

AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC
AUTO CAL
MUTING
DISPLAY
INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
3 75
q
;
9q
a
q
s
q
d
w
;
q
f
q
g
q
h
q
j
q
k
q
l
12 864
Name Function
A ?/1
(on/standby)
Press to turn the receiver on
or off (page 27, 36, 37, 52,
81).
B SPEAKERS
(OFF/A/B/A+B)
Press to select the speaker
system (page 28).
C Display The current status of the
selected component or a list
of selectable items appears
here (page 7).
D MULTI
CHANNEL
DECODING
lamp
Lights up when multi
channel audio is decoded
(page 37).
E Remote sensor Receives signals from
remote commander.
Name Function
F DISPLAY Press to select information
displayed on the display
(page 68).
G INPUT MODE Press to select the input
mode when the same
components are connected
to both digital and analog
jacks (page 63).
H MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 33, 34,
36, 37).
I MUTING Press to mute the sound
(page 34).
J AUTO CAL Press to activate the Auto
Calibration function
(page 29).
continued
6
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Name Function
K INPUT
SELECTOR
Turn to select the input
source to playback (page
34, 36, 37, 53, 55, 63, 65,
69).
L MOVIE,
MUSIC
Press to select sound fields
(MOVIE, MUSIC) (page
49).
M A.F.D. Press to select A.F.D.
mode (page 47).
N 2CH Press to select 2CH
STEREO mode (page 51,
52).
O TUNING +/– Press to scan a station
(page 53, 54).
P TUNING MODE Press to select the tuning
mode (page 55, 81).
Q MEMORY/ENTER Press to store a station or
enter the selection when
selecting the settings
(page 27).
R VIDEO 3 IN/
PORTABLE AV IN
jacks
Connect to camcorder or
video game (page 25, 34).
S AUTO CAL MIC
jack
Connects to the supplied
optimizer microphone for
the Auto Calibration
function (page 29).
T PHONES jack Connects to a headphone
(page 78).
7
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started
About the indicators on the display
MEMORY
LCR
SL
S SR
SW
LFE
SP A
SP B
D.RANGE
MONO
ST
COAX
D
;
DTSOPT
PL II
CAT
;
PL
;
21435
6 7
8
q
d
q
s
9q
;
q
a
Name Function
A SW Lights up when the audio signal
is output from the SUB
WOOFER jack.
B LFE Lights up when the disc being
played back contains an LFE
(Low Frequency Effect)
channel and the LFE channel
signal is actually being
reproduced.
C SP A/SP B Lights up according to the
speaker system used. However,
these indicators do not light up
if the speaker output is turned
off or if a headphone is
connected.
D ;D Lights up when the receiver is
decoding Dolby Digital signals.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is not
set to “ANALOG” (page 63).
E ;PL/
;PL II
“; PL” lights up when the
receiver applies Pro Logic
processing to 2 channel signals
in order to output the center and
surround channel signals.
“; PL II” lights up when the
Pro Logic II Movie or Music
decoder is activated.
Name Function
F OPT Lights up when VIDEO 2 input
is selected. However,
“UNLOCK” appears on the
display if no digital signal is
input through the OPTICAL
jack.
“OPT” also lights up when SAT
input is selected if
– INPUT MODE is set to
“AUTO IN” and the source
signal is a digital signal being
input through the OPTICAL
jack.
– INPUT MODE is set to “OPT
IN” (page 63).
G DTS Lights up when the receiver is
decoding DTS signals.
Note
When playing a DTS format
disc, be sure that you have made
digital connections and that
INPUT MODE is not set to
“ANALOG” (page 63).
H Tu ner
indicators
Lights up when using the
receiver to tune in radio stations
(page 52), etc.
I Preset
station
indicators
Lights up when using the
receiver to tune in radio stations
you have preset. For details on
presetting radio stations, see
page 54.
J D.RANGE Lights up when dynamic range
compression is activated (page
41).
continued
8
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Name Function
K MEMORY Lights up when a memory
function, such as Preset
Memory (page 54), etc., is
activated.
L COAX Lights up when INPUT MODE
is set to “AUTO IN” and the
source signal is a digital signal
being input through the
COAXIAL jack, or when
INPUT MODE is set to “COAX
IN” (page 63).
M Playback
channel
indicators
L
R
C
SL
SR
S
The letters (L, C, R, etc.)
indicate the channels being
played back. The boxes around
the letters vary to show how the
receiver downmixes the source
sound.
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround components obtained
by Pro Logic processing)
Example:
Recording format (Front/
Surround): 3/2.1
Sound Field: A.F.D. AUTO
LCR
SL SR
SW
9
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started

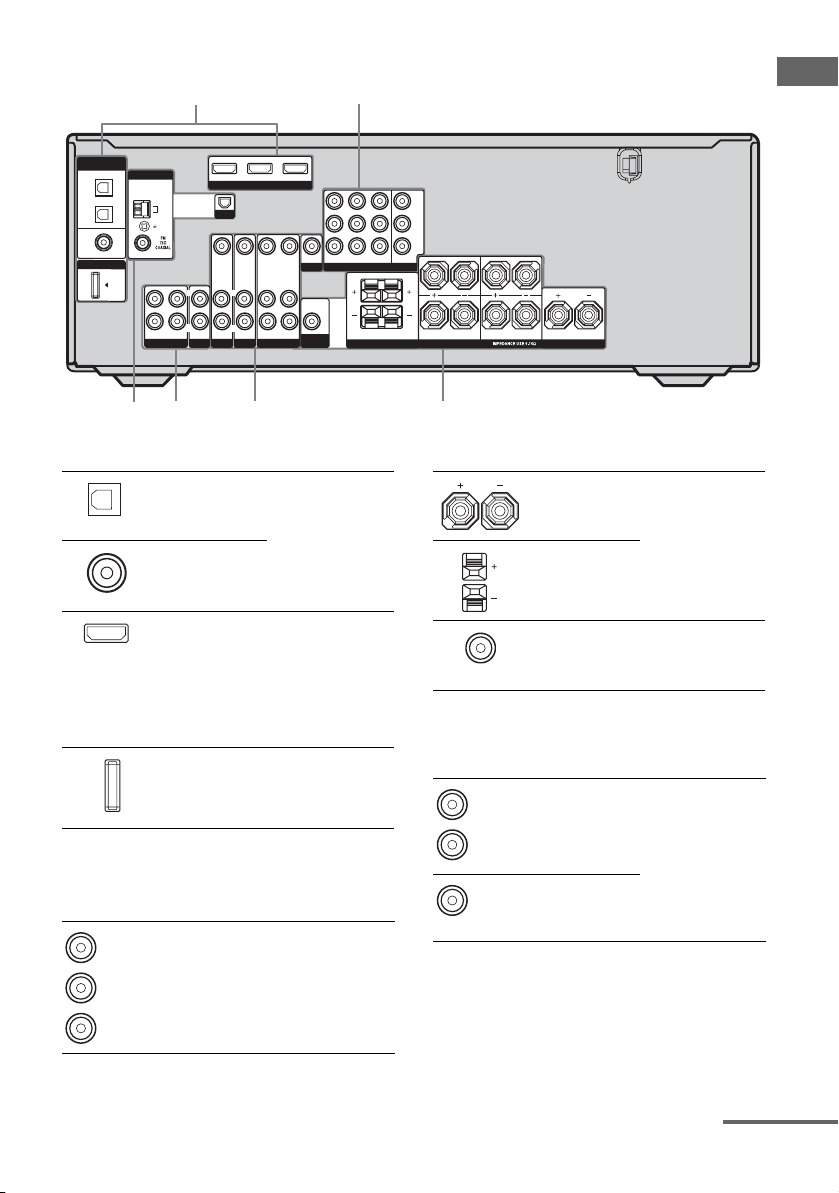

Rear panel
OPTICAL
SAT
IN
VIDEO 2/
BD IN
DVD
IN
COAXIAL
DVD IN
VIDEO 2/BD IN
OUT
AM
L
R
OUT IN
IN
VIDEO IN VIDEO IN
VIDEO IN
VIDEO OUT
AUDIO OUT
AUDIO IN
AUDIO IN
AUDIO IN
CENTERSURROUNDFRONT A
FRONT B
LL
L
RR
R
SAT IN DVD IN VIDEO 1 IN
MONITOR OUT
P
B
/C
B
P
R
/C
R
COMPONENT VIDEO
SPEAKERS
DIGITAL
(ASSIGNABLE)
ANTENNA
DMPORT
SA–CD/CD/CD–R
TV
HDMI
MONITOR
DVD
VIDEO 1
SUB
WOOFER
SAT
XM
Y
L
L
R
L
R
R
AUDIO OUT
VIDEO OUT
1 2
5
34
6
A DIGITAL INPUT/OUTPUT section
OPTICAL
IN jack
Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
quality of loud
sound (page 20,
24).
COAXIAL IN
jack
HDMI IN/
OUT jack
a)
Connects to a DVD
player, or a Blu-ray
disc player. The
image and the
sound are output to
a TV or a projector
(page 22).
Connect to a
DIGITAL MEDIA
PORT adapter
(page 64).
B COMPONENT VIDEO INPUT/
OUTPUT section
COMPONENT
VIDEO
INPUT/
OUTPUT
jack
a)
Connects to a DVD
player, TV,
satellite tuner, etc.
You can enjoy high
quality image
(page 19, 21, 24).
Green
Blue
Red
C SPEAKER section
Connects to
speakers (page 16).
Connects to sub
woofer (page 16).
D VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jack
Connects the video
and audio jacks of
a VCR or a DVD
player (page 19,
20, 21, 24, 25).
VIDEO IN/
OUT jack
a)
White (L)
Red (R)
Yellow
continued
10
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
a)
You can watch the selected input image when you
connect the HDMI OUT or MONITOR OUT jack
to a TV (page 19).
You can use the supplied remote to operate the
receiver and to control the Sony audio/video
components that the remote is assigned to
operate.
You can also program the remote to control
non-Sony audio/video components. For
details, see “Programming the remote” (page
70).
RM-AAP016
E AUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jack
Connects to Super
Audio CD player
or CD player, etc.
(page 17).
F ANTENNA section
FM
ANTENNA
jack
Connects to the
FM wire antenna
supplied with this
receiver (page 26).
AM
ANTENNA
terminals
Connects to the
AM loop antenna
supplied with this
receiver (page 26).
XM terminal Connects to the
XM connect-and-
Play antenna (not
supplied with this
receiver) (page
57).
White (L)
Red (R)

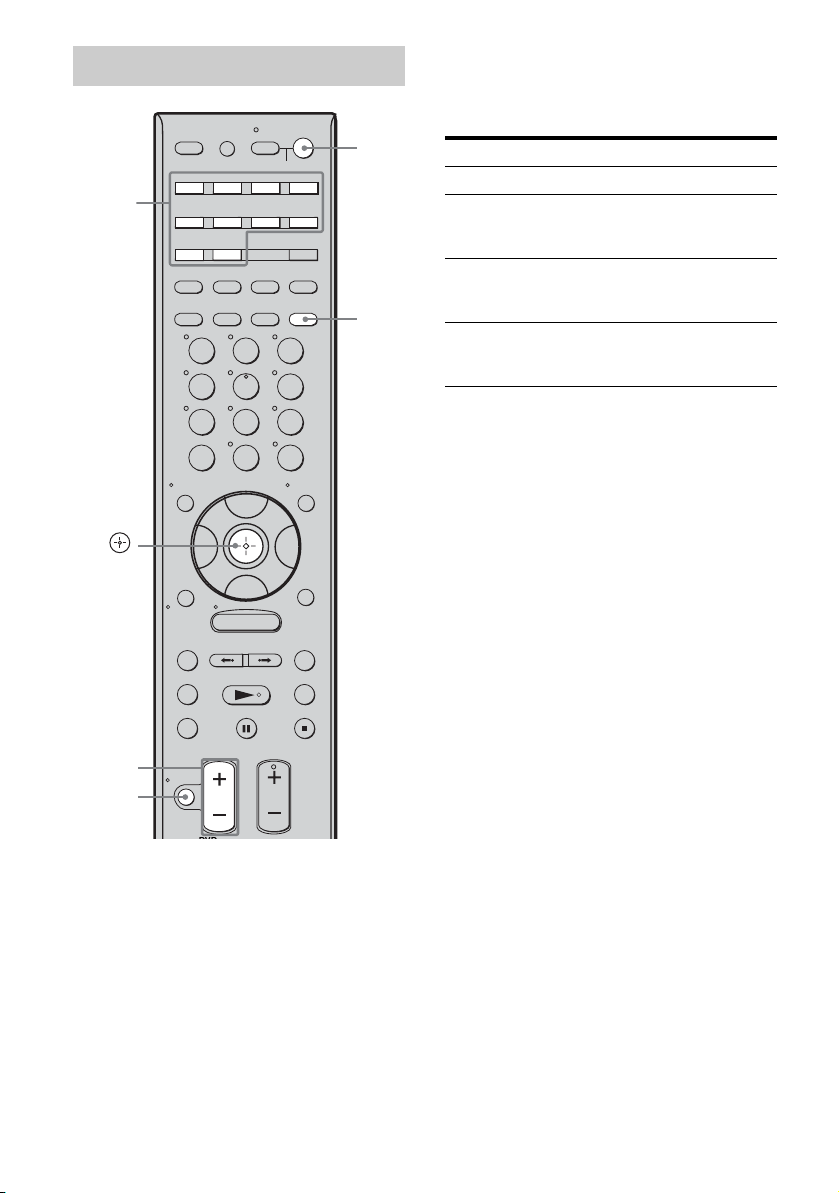

Remote commander
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
DVD
m
M
.
>
TV
VIDEO 1
VIDEO 2 VIDEO 3
SYSTEM STANDBY
DVD
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
?
/
1
1
O
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
RM SET UP
AV ?/
/
1
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
TOP MENU
MUTING
MENU
F 1 F 2
TV
INPUT
WIDE
TV VOL
MASTER VOL
TV CH
PRESET
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
DISC SKIP
RETURN/
/
EXIT
MENU
OPTIONS
TOOLS
w;
ws
wd
wg
wh
6
8
7
9
q;
qs
qf
5
4
1
2
3
qh
wf
qk
ql
qj
qd
qg
wj
qa
wa
D.TUNING
11
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started
Name Function
A AV ?/1
(on/standby)
Press to turn on or off the audio/
video components that the
remote is programmed to
operate.
To turn the TV on or off, press
TV (Z) and then press AV ?/1.
If you press ?/1 (B) at the
same time, it will turn off the
receiver and other components
(SYSTEM STANDBY).
Note
The function of the AV ?/1
switch changes automatically
each time you press the input
buttons (3).
B ?/1
(on/standby)
Press to turn the receiver on or
off.
To turn off all components,
press ?/1 and AV ?/1 (A) at
the same time (SYSTEM
STANDBY).
C Input
buttons
Press one of the buttons to
select the component you want
to use. When you press any of
the input buttons, the receiver
turns on. The buttons are
factory assigned to control Sony
components as follows. You
can program the remote to
control non-Sony components
following the steps in
“Programming the remote” on
page 70.
D RECEIVER Press to activate the receiver
operation (page 33).
Button Assigned Sony
component
VIDEO 1 VCR (VTR mode 3)
VIDEO 2 VCR (VTR mode 2)
VIDEO 3 VCR (VTR mode 1)
DVD DVD player
SAT Satellite tuner
TV TV
SA-CD/CD Super Audio CD/CD
player
TUNER Built-in tuner
AUX Not assigned
DMPORT DIGITAL MEDIA
PORT adapter
Name Function
E MUSIC Press to select sound fields
(MUSIC).
2CH Press to select 2CH STEREO
mode.
A.F.D. Press to select A.F.D. mode.
MOVIE Press to select sound fields
(MOVIE).
F D. TUNING Press to enter direct tuning
mode.
G AUTO CAL Press to activate the Auto
Calibration function.
H Numeric
buttons
(number 5
a)
)
Press the numeric buttons to
– preset/tune to preset stations.
– select track numbers of the
CD player, VCD player, LD
player, DVD player, MD
deck, DAT deck, or tape deck.
Press 0/10 to select track
number 10.
– select channel numbers of the
TV, VCR, satellite tuner, Blu-
ray disc recorder, hard disc
recorder, PSX, DVD/VHS
COMBO or DVD/HDD
COMBO.
Press TV (Z) and then press
the numeric buttons to select
the TV channels.
I MEMORY Press MEMORY to store a
station.
ENTER Press to enter the value after
selecting a channel, disc or track
using the numeric buttons of the
VCR, CD player, VCD player,
LD player, MD deck, DAT deck,
tape deck, satellite tuner, Blu-ray
disc recorder or PSX.
To enter the value of Sony TV,
press TV (Z) and then press
ENTER.
J DISPLAY Press to select information
displayed on the TV screen of
the TV, VCR, VCD player, LD
player, DVD player, CD player,
MD deck, Blu-ray disc
recorder, PSX, satellite tuner,
DVD/VHS COMBO or DVD/
HDD COMBO.
To select information of Sony
TV, press TV (Z) and then
press DISPLAY.
continued
12
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Name Function
K OPTIONS
TOOLS
Press to display and select items
from the option menus for DVD
player or DVD/VHS COMBO.
To display the options of Sony
TV, press TV (Z) and then
press OPTIONS TOOLS.
L MENU Press to display the menus of
the receiver, VCR, DVD
player, satellite tuner, Blu-ray
disc recorder, PSX, DVD/VHS
COMBO or DVD/HDD
COMBO on the TV screen.
Then, use the V/v/B/b and
to perform menu operations. To
display the menus of Sony TV,
press TV (Z) and then press
MENU.
M H
a) b)
Press to start playback of the
VCR, CD player, VCD player,
LD player, DVD player, MD
deck, DAT deck, tape deck,
Blu-ray disc recorder, PSX,
DVD/VHS COMBO or DVD/
HDD COMBO.
X
b)
Press to pause playback or
recording of the VCR, CD
player, VCD player, LD player,
DVD player, MD deck, DAT
deck, tape deck, Blu-ray disc
recorder, PSX, DVD/VHS
COMBO, or DVD/HDD
COMBO. (Also starts
recording with components in
recording standby.)
x
b)
Press to stop playback of the
VCR, CD player, VCD player,
LD player, DVD player, MD
deck, DAT deck, tape deck,
Blu-ray disc recorder, PSX,
DVD/VHS COMBO or DVD/
HDD COMBO.
m/M
b)
Press to
– search tracks in the forward/
backward direction of the CD
player, VCD player, DVD
player, LD player, MD deck,
Blu-ray disc recorder, PSX,
DVD/VHS COMBO, or
DVD/HDD COMBO.
– fast forward/rewind of the
VCR, DAT deck, or tape
deck.
Name Function
./>
b)
Press to skip tracks of the VCR,
CD player, VCD player, LD
player, DVD player, MD deck,
DAT deck, tape deck, Blu-ray
disc recorder, PSX, DVD/VHS
COMBO, or DVD/HDD
COMBO.
TUNING +/– Press to scan a station.
N TV CH +
a)
/– Press TV (Z) and then press
TV/CH +/– to select preset TV
channels.
PRESET
+
a)
/–
Press to
– select preset stations.
– select preset channels of the
TV, VCR, satellite tuner, Blu-
ray disc recorder, DVD player,
DVD/VHS COMBO or DVD/
HDD COMBO.
O F1, F2 Press F1 or F2 to select a
component to operate.
– DVD/HDD COMBO
F1: HDD mode
F2: DVD mode
– DVD/VHS COMBO
F1: DVD mode
F2: VHS mode
TV/INPUT Press TV (Z) and then press
TV/INPUT to select the input
signal (TV input or video input).
WIDE Press TV (Z) and then press
WIDE to select the wide picture
mode.
P DVD TOP
MENU
Press to display the menu or on-
screen guide of the DVD player
on the TV screen.
Then, use the V/v/B/b and
to perform menu operations.
DVD MENU Press to display the menu of the
DVD player on the TV screen.
Then, use the V/v/B/b and
to perform menu operations.
Q TV VOL +/– Press TV (Z) and then press
TV VOL to adjust the TV
volume level.
MASTER
VOL +/–
Press to adjust the volume level
of all speakers at the same time.
MUTING Press to mute the sound.
To mute the sound of the TV,
press TV (Z) and then press
MUTING.
13
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started
a)
The number 5, PRESET +, TV CH + and H
buttons have tactile dots. Use the tactile dots as
references when operating the receiver.
b)
The button is also available for DIGITAL MEDIA
PORT adapter operation. For details on the
function of the buttons, see the operating
instructions supplied with the DIGITAL MEDIA
PORT adapter.
Notes
• Some functions explained in this section may not
work depending on the model.
• The above explanation is intended to serve as an
example only. Therefore, depending on the
component, the above operation may not be
possible or may operate differently than described.
• The AUX on the remote is not available for
receiver operation.
Name Function
R DISC SKIP Press to skip disc of the CD
player, VCD player, DVD
player or MD deck (multi-disc
changer only).
S CATEGORY
+/–
Press to select the category for
XM Radio.
REPLAY /
ADVANCE
Press to replay the previous
scene or fast forward the
current scene of the DVD
player, Blu-ray disc recorder,
DVD/VHS COMBO or DVD/
HDD COMBO.
T RETURN/
EXIT O
Press to
– return to the previous menu.
– exit the menu while the menu
or on-screen guide of the
VCD player, LD player,
DVD player, Blu-ray disc
recorder, PSX, DVD/VHS
COMBO, or satellite tuner is
displayed on the TV screen.
To return to the previous
menu of Sony TV, press TV
(Z) and then press
RETURN/EXIT O.
U ,
V/v/B/b
After pressing RECEIVER
(D), then press MENU (L)
for receiver operation, press
V/v/B/b to select the settings.
After pressing DVD TOP
MENU (P) or DVD MENU
(P), press V/v/B/b to select
the settings, and then press
to enter the selection.
Press also, to enter the
selection of the receiver, VCR,
satellite tuner, CD player,
DVD player or Blu-ray disc
recorder, PSX, DVD/VHS
COMBO or DVD/HDD
COMBO.
V GUIDE Press to display the EPG
(Electronic Program Guide)
of the TV, DVD player,
Satellite tuner, Blu-ray disc
recorder, PSX or DVD/HDD
COMBO.
W -/-- Press to select the channel
entry mode, either one or two
digit of the VCR or satellite
tuner.
To select the channel entry
mode of the TV, press TV
(Z) and then press -/--.
Name Function
CLEAR Press to clear a mistake when
you press the incorrect
numeric button of the DVD
player, Blu-ray disc recorder,
PSX, satellite tuner, DVD/
VHS COMBO or DVD/HDD
COMBO.
>10 Press to select track numbers
over 10 of the CD player,
VCD player, LD player, MD
deck, tape deck, TV, VCR or
satellite tuner.
X CATEGORY
MODE
Press to select the category
mode for XM Radio.
Y SLEEP Press to activate the Sleep
Timer function and the
duration which the receiver
turns off automatically.
Z TV Press to light up the button. It
changes the remote key
function to activate the
buttons with orange printing.
It also activate the DISPLAY
(J), OPTIONS TOOLS
(K), MENU (L),
RETURN/EXIT O (T),
(U) and V/v/B/b (U)
buttons to perform menu
operations for Sony TVs only.
wj RM SET UP Press to set up the remote.
14
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
1: Installing speakers
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker, and two
surround speakers) and a sub woofer (5.1
channel).
Example of a 5.1 channel
speaker system configuration
AFront speaker (Left)
BFront speaker (Right)
CCenter speaker
DSurround speaker (Left)
ESurround speaker (Right)
FSub woofer
Tip
Since the sub woofer does not emit highly
directional signals, you can place it wherever you
want.
Before you install the speakers and sub
woofer, be sure to attach the supplied foot pads
to prevent vibration or movement as shown in
the illustration below.
For greater flexibility in positioning the
speakers, use the optional WS-FV11 speaker
stand (available only in certain countries). For
details, refer to the operating instructions
supplied with the speaker stand
Installing the speakers on a flat
surface
Installing the speakers on the
speaker stand
15
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started
You can install your surround speakers on the
wall.
1 Prepare screws (not supplied)
that are suitable for the hook on
the back of each speaker as
shown in the illustrations
below.
2 Fasten the screws to the wall.
The screws should protrude 5
to 7 mm.
3 Hang the speakers on the
screws.
Notes
• Use screws that are suitable for the wall material
and strength. As a plaster board wall is especially
fragile, attach the screws securely to a beam and
fasten them to the wall. Install the speakers on a
vertical and flat wall where reinforcement is
applied.
• Contact a screw shop or installer regarding the wall
material or screws to be used.
• Sony is not responsible for accident or damage
caused by improper installation, insufficient wall
strength or improper screw installation, natural
calamity, etc.
Installing the speakers on the
wall
more than 4 mm
(5/32 inch)
more than 25 mm (1 inch)
Hook on the back of the speaker
4.6 mm
(3/16 inch)
10 mm
(13/32 inch)
5 to 7 mm
(7/32 to 9/32 inch)
4.6 mm
(3/16 inch)
10 mm
(13/32 inch)
Hook on the back of the speaker
16
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
2: Connecting speakers
AFront speaker A (Left)
BFront speaker A (Right)
CCenter speaker
DSurround speaker (Left)
ESurround speaker (Right)
FSub woofer
a)
If you have an additional front speaker system,
connect them to the SPEAKERS FRONT B
terminal. You can select the front speakers you
want to use with the SPEAKERS (OFF/A/B/A+B)
button. For details, see “6: Selecting the speaker
system” (page 28).
b)
Use the long speaker cords to connect the surround
speakers and the short speaker cords to connect the
front and center speakers.
DVD IN
VIDEO 2/BD IN
OUT
L
R
VIDEO IN VIDEO IN
VIDEO IN
VIDEO OUT
AUDIO OUT
AUDIO IN
AUDIO IN
AUDIO IN
CENTERFRONT A
FRONT B
LL
L
RR
R
SAT IN DVD IN VIDEO 1 IN
MONITOR OUT
P
B
/C
B
P
R
/C
R
COMPONENT VIDEO
HDMI
DVD
VIDEO 1
SUB
WOOFER
SAT
XM
Y
L
R
MONITOR
AUDIO OUT
VIDEO OUT
SURROUND
SPEAKERS
F
E
D
B
A
A
SPEAKERS FRONT B
a)
A Monaural audio cord (supplied)
B Speaker cords (supplied)
b)
C
B
B
17
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started
To connect the speakers
correctly
Check the speaker type by referring to the
speaker label* on the rear panel of the
speakers.
* The center speaker and sub woofer do not have any
character on the speaker label. For details on the
speaker type, see page 3.
Tip
Use the supplied speakers to optimize the system’s
performance.
3a: Connecting the audio
components
The following illustration shows how to
connect a Super Audio CD player, CD player
or CD recorder.
After connecting your audio component,
proceed to “3b: Connecting the video
components” (page 18) or “4: Connecting the
antennas” (page 26).
Character on
speaker label
Speaker type
L Front left
R Front right
SL Surround left
SR Surround right
Connecting a Super Audio CD/CD
player/CD recorder
OPTICAL
SAT
IN
VIDEO 2/
BD IN
DVD
IN
COAXIAL
DVD IN
VIDEO 2/BD IN
OUT
AM
L
R
OUT IN
IN
VIDEO IN VIDEO IN
VIDEO IN
VIDEO OUT
AUDIO OUT
AUDIO IN
AUDIO IN
AUDIO IN
DIGITAL
(ASSIGNABLE)
ANTENNA
DMPORT
SA–CD/CD/CD–R
TV
HDMI
DVD
VIDEO 1
SAT
XM
L
L
R
L
R
R
Super Audio
CD player/
CD player/
CD recorder
A Audio cord (not supplied)
A
18
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
3b: Connecting the video components
This section describes how to hook up your
components to this receiver. Before you begin,
refer to “Component to be connected” below
for the pages which describe how to connect
each component.
After hooking up all your components,
proceed to “4: Connecting the antennas” (page
26).
Component to be connected
The image quality depends on the connecting
jack. Refer to the illustration that follows.
Select the connection according to the jacks on
your components.
Notes
• Connect image display components such as a TV
or a projector to the HDMI OUT or MONITOR
OUT jack on the receiver.
• Turn on the receiver when the video and audio of a
playback component are being output to a TV
through the receiver. If the power supply of the
receiver is not on, neither video nor audio is
transmitted.
How to hook up your
components
Component Page
TV 19
DVD player/DVD recorder 20
With HDMI jack 22
Satellite tuner/Set-top box 24
VCR 25
Camcorder, video game, etc. 25
Video input/output jack to be
connected
?
/ 1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC
AUTO CAL
MUTING
DISPLAY
INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
TV, etc. INPUT
jack
Receiver
MONITOR OUT,
HDMI OUT jack
Receiver INPUT
jack
High quality image
COMPONENT
VIDEO
VIDEO
HDMI
COMPONENT
VIDEO
VIDEO
HDMI
COMPONENT
VIDEO
VIDEO
HDMI
COMPONENT
VIDEO
VIDEO
HDMI
V
ideo component
OUTPUT jack
19
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started
The image from a visual component connected
to this receiver and the menu of this receiver
can be displayed on a TV screen.
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
Notes
• Connect image display components such as a TV
or a projector to the MONITOR OUT jack on the
receiver.
• Turn on the receiver when the video and audio of a
playback component are being output to a TV via
the receiver. If the power supply of the receiver is
not turned on, neither video nor audio is transmitted.
Tips
• You can watch the selected input image when you
connect the MONITOR OUT jack to a TV.
• To output the sound of the TV from the speakers
connected to the receiver, be sure to
– connect the audio output jacks of the TV to the
TV IN jack of the receiver.
– turn off or mute the TV’s volume.
Connecting a TV
OPTICAL
SAT
IN
VIDEO 2/
BD IN
DVD
IN
COAXIAL
DVD IN
VIDEO 2/BD IN
OUT
AM
L
R
OUT IN
IN
VIDEO IN VIDEO IN
VIDEO IN
VIDEO OUT
AUDIO OUT
AUDIO IN
AUDIO IN
AUDIO IN
CENTERSURROUNDFRONT A
FRONT B
LL
L
RR
R
SAT IN DVD IN VIDEO 1 IN
MONITOR OUT
P
B
/C
B
P
R
/C
R
COMPONENT VIDEO
SPEAKERS
DIGITAL
(ASSIGNABLE)
ANTENNA
DMPORT
SA–CD/CD/CD–R
TV
HDMI
MONITOR
DVD
VIDEO 1
SUB
WOOFER
SAT
XM
Y
L
L
R
L
R
R
AUDIO OUT
VIDEO OUT
TV
BA
A Audio cord (not supplied)
B Video cord (not supplied)
C Component video cord (not supplied)
Audio signals Video signals
C
20
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
The following illustration shows how to
connect a DVD player/DVD recorder.
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
Connecting a DVD player
Notes
• To input multi channel digital audio from the DVD
player, set the digital audio output setting on the
DVD player. Refer to the operating instructions
supplied with the DVD player.
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie the optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Connecting a DVD player/DVD
recorder
OPTICAL
SAT
IN
VIDEO 2/
BD IN
DVD
IN
COAXIAL
DVD IN
VIDEO 2/BD IN
OUT
AM
L
R
OUT IN
IN
VIDEO IN VIDEO IN
VIDEO IN
VIDEO OUT
AUDIO OUT
AUDIO IN
AUDIO IN
AUDIO IN
CENTERSURROUNDFRONT A
FRONT B
LL
L
RR
R
SAT IN VIDEO 1 IN
MONITOR OUT
P
B
/C
B
P
R
/C
R
COMPONENT VIDEO
SPEAKERS
DIGITAL
(ASSIGNABLE)
ANTENNA
DMPORT
SA–CD/CD/CD–R
TV
HDMI
MONITOR
DVD
VIDEO 1
SUB
WOOFER
SAT
XM
L
R
L
R
R
AUDIO OUT
VIDEO OUT
DVD IN
VIDEO COMPONENT VIDEO
P
B / CB PR/CR
L
Y
DVD player
A
B
A Coaxial digital cord (supplied)
B Audio cord (not supplied)
C Video cord (not supplied)
D Component video cord (not supplied)
C
D
Audio signals Video signals
21
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started
Connecting a DVD recorder
• Be sure to change the factory setting of the
VIDEO 1 input button on the remote so that
you can use the button to control your DVD
recorder. For details, see “Programming the
remote” (page 70).
• You can also rename the VIDEO 1 input so
that it can be displayed on the receiver’s
display. For details, see “Naming inputs”
(page 67).
OPTICAL
SAT
IN
VIDEO 2/
BD IN
DVD
IN
COAXIAL
DVD IN
OUT
AM
L
R
OUT IN
IN
VIDEO IN VIDEO IN
VIDEO IN
VIDEO OUT
AUDIO IN
CENTERSURROUNDFRONT A
FRONT B
LL
L
RR
R
SAT IN DVD IN VIDEO 1 IN
MONITOR OUT
P
B
/C
B
P
R
/C
R
COMPONENT VIDEO
SPEAKERS
DIGITAL
(ASSIGNABLE)
ANTENNA
DMPORT
SA–CD/CD/CD–R
TV
HDMI
MONITOR
DVD
SUB
WOOFER
SAT
XM
Y
L
L
R
L
R
R
AUDIO OUT
VIDEO OUT
VIDEO 1 IN
COMPONENT VIDEO
P
B / CB PR/CR
AUDIO AUDIO
L
R
AUDIO OUT
AUDIO IN
VIDEO 1
AUDIO IN
VIDEO 2/BD IN
DVD recorder
C
A
A Audio cord (not supplied)
B Video cord (not supplied)
C Component video cord (not supplied)
Audio signals Video signals
A
BB
22
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
HDMI is the abbreviated name for High-
Definition Multimedia Interface. It is an
interface which transmits video and audio
signals in digital format.
The sound is output from the TV speaker only
when a playback component and this receiver,
as well as this receiver and the TV are
connected via a HDMI jack. To output the
sound from the supplied speakers and to take
advantage of the multi channel surround
sound, be sure to
– connect the digital audio jacks on the
playback component to the receiver.
– turn off or mute the TV’s volume.
Connecting components with
HDMI jacks
OPTICAL
SAT
IN
VIDEO 2/
BD IN
COAXIAL
DVD IN
VIDEO 2/BD IN
OUT
AM
L
R
OUT IN
IN
VIDEO IN VIDEO IN
VIDEO IN
VIDEO OUT
AUDIO OUT
AUDIO IN
AUDIO IN
AUDIO IN
CENTERSURROUNDFRONT A
FRONT B
LL
L
RR
R
SAT IN DVD IN VIDEO 1 IN
MONITOR OUT
P
B
/C
B
P
R
/C
R
COMPONENT VIDEO
SPEAKERS
DIGITAL
(ASSIGNABLE)
ANTENNA
DMPORT
SA–CD/CD/CD–R
TV
HDMI
MONITOR
DVD
VIDEO 1
SUB
WOOFER
SAT
XM
Y
L
L
R
L
R
R
AUDIO OUT
VIDEO OUT
DVD
IN
DVD player
Blu-ray disc player TV, projector, etc.
AA A
A HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
B Coaxial digital cord (supplied)
C Optical digital cord (not supplied)
Audio signals Audio/video signals Audio/video
signals
Audio/video signalsAudio signals
BC
23
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started
If you connect a Blu-ray disc
player
• Be sure to change the factory setting of the
VIDEO 2 input button on the remote so that
you can use the button to control your blu-
ray disc player. For details, see
“Programming the remote” (page 70).
• You can also rename the VIDEO 2 input so
that it can be displayed on the receiver’s
display. For details, see “Naming inputs”
(page 67).
Notes on HDMI connections
• This receiver may not be able to transfer
video or audio signals with certain types of
components.
• The multi/stereo area audio signals of a
Super Audio CD are not output.
• Be sure to turn on the receiver when the
video and audio of a playback component
are being output to a TV via the receiver. If
the power supply of the receiver is not
turned on, neither video nor audio is
transmitted.
• Audio signals (sampling frequency, bit
length, etc.) transmitted from a HDMI jack
may be restricted by the connected
component. Check the setup of the
connected component if the image is poor or
the sound does not come out of a component
connected via the HDMI cable.
• Video signals input to the HDMI IN jack can
only be output from the HDMI OUT jack.
The input video signals cannot be output
from the VIDEO OUT or MONITOR OUT
jacks.
• Refer to the operating instructions of each
component connected for details.
Notes on digital audio signals
connection
• When connecting optical digital cords, insert
the plugs straight in until they click into
place.
• Do not bend or tie optical digital cords.
• All the digital audio jacks are compatible
with 32 kHz, 44.1 kHz, 48 kHz, and 96 kHz
sampling frequencies.
24
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
The following illustration shows how to
connect a satellite tuner or set-top box.
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
Notes
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Connecting a satellite tuner/
Set-top box
OPTICAL
SAT
IN
VIDEO 2/
BD IN
DVD
IN
COAXIAL
DVD IN
VIDEO 2/BD IN
OUT
AM
L
R
OUT IN
IN
VIDEO IN VIDEO IN
VIDEO IN
VIDEO OUT
AUDIO OUT
AUDIO IN
AUDIO IN
CENTERSURROUNDFRONT A
FRONT B
LL
L
RR
R
SAT IN DVD IN VIDEO 1 IN
MONITOR OUT
P
B
/C
B
P
R
/C
R
COMPONENT VIDEO
SPEAKERS
DIGITAL
(ASSIGNABLE)
ANTENNA
DMPORT
SA–CD/CD/CD–R
TV
HDMI
MONITOR
DVD
VIDEO 1
SUB
WOOFER
XM
Y
L
L
R
L
R
R
AUDIO OUT
VIDEO OUT
PB/CB
COMPONENT VIDEO
P
R/CR
AUDIO IN
SAT
Satellite tuner/Set-top box
A
B
C
D
A Audio cord (not supplied)
B Optical digital cord (not supplied)
C Video cord (not supplied)
D Component video cord (not supplied)
Audio signals Video signals
25
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started
The following illustration shows how to
connect a component which has analog jacks
such as a VCR, etc.
Connecting components with
analog video and audio jack
OPTICAL
SAT
IN
VIDEO 2/
BD IN
DVD
IN
COAXIAL
DVD IN
VIDEO 2/BD IN
OUT
AM
L
R
OUT IN
IN
VIDEO IN VIDEO IN
VIDEO IN
VIDEO OUT
AUDIO IN
AUDIO IN
CENTERSURROUNDFRONT A
FRONT B
LL
L
RR
R
SAT IN DVD IN VIDEO 1 IN
MONITOR OUT
P
B
/C
B
P
R
/C
R
COMPONENT VIDEO
SPEAKERS
DIGITAL
(ASSIGNABLE)
ANTENNA
DMPORT
SA–CD/CD/CD–R
TV
HDMI
MONITOR
DVD
SUB
WOOFER
SAT
XM
Y
L
L
R
L
R
R
AUDIO OUT
VIDEO OUT
AUDIO AUDIO
L
R
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
AUDIO OUT
AUDIO IN
VIDEO 1
VCR
A
B
A
B
A Audio cord (not supplied)
B Video cord (not supplied)
C Audio/video cord (not supplied)
Audio signals Video signals
C
To the VIDEO 3 IN/PORTABLE AV IN jacks
(Front panel)
Camcorder/
video game
26
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
4: Connecting the antennas
Connect the supplied AM loop antenna and
FM wire antenna.
* The shape of the connector varies depending on
the area code of this receiver.
Notes
• To prevent noise pickup, keep the AM loop
antenna away from the receiver and other
components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as
horizontal as possible.
OPTICAL
SAT
IN
VIDEO 2/
BD IN
DVD
IN
COAXIAL
DVD IN
VIDEO 2/BD IN
OUT
AM
L
R
OUT IN
IN
VIDEO IN VIDEO IN
VIDEO IN
VIDEO OUT
AUDIO OUT
AUDIO IN
AUDIO IN
AUDIO IN
CENTERSURROUNDFRONT A
FRONT B
LL
L
RR
R
SAT IN DVD IN VIDEO 1 IN
MONITOR OUT
P
B
/C
B
P
R
/C
R
COMPONENT VIDEO
SPEAKERS
DIGITAL
(ASSIGNABLE)
ANTENNA
DMPORT
SA–CD/CD/CD–R
TV
HDMI
MONITOR
DVD
VIDEO 1
SUB
WOOFER
SAT
XM
Y
L
L
R
L
R
R
AUDIO OUT
VIDEO OUT
FM wire antenna (supplied)
AM loop antenna (supplied)
27
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started
5: Preparing the receiver
and the remote
Connect the AC power cord to a wall outlet.
Before using the receiver for the first time,
initialize the receiver by performing the
following procedure. This procedure can also
be used to return settings you have made to
their factory defaults.
Be sure to use the buttons on the receiver for
this operation.
1 Press ?/1 to turn off the
receiver.
2 Hold down ?/1 for 5 seconds.
“PUSH” and “ENTER” appears on the
display alternately.
3 Press MEMORY/ENTER.
After “CLEARING” appears on the
display for a while, “CLEARED”
appears.
The following items are reset to their
factory settings.
• All settings in the LEVEL, TONE,
SUR, TUNER, AUDIO, VIDEO and
SYSTEM menus.
• The sound field memorized for each
input and preset station.
• All sound field parameters.
• All preset stations.
• All index names for inputs and preset
stations.
• MASTER VOLUME is set to “VOL
MIN”.
• Input is set to “DVD”.
Connecting the AC power cord
CENTER
AC power cord
To the wall outlet
Performing initial setup
operations
?
/ 1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC
AUTO CAL
MUTING
DISPLAY
INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
1,2
3
28
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Insert two R6 (size-AA) batteries in the
RM-AAP016 remote commander.
Observe the correct polarity when installing
batteries.
Notes
• Do not leave the remote in an extremely hot or
humid place.
• Do not use a new battery with old ones.
• Do not mix alkaline batteries and other kinds of
batteries.
• Do not expose the remote sensor to direct sunlight
or lighting apparatuses. Doing so may cause a
malfunction.
• If you do not intend to use the remote for an
extended period of time, remove the batteries to
avoid possible damage from battery leakage and
corrosion.
• When you replace the batteries, the remote buttons
may be reset to their factory settings. If this
happens, reassign the buttons again (page 70).
Tip
Under normal conditions, the batteries should last
for about 3 months. When the remote no longer
operates the receiver, replace all the batteries with
new ones.
6: Selecting the speaker
system
You can select the front speakers you want to
drive.
Be sure to use the buttons on the receiver for
this operation.
Press SPEAKERS (OFF/A/B/A+B)
repeatedly to select the front
speaker system you want to drive.
To turn off the speaker output
Press SPEAKERS (OFF/A/B/A+B)
repeatedly until the “SP A” and “SP B”
indicators on the display do not light up.
Note
You cannot switch the front speakers by pressing
SPEAKERS (OFF/A/B/A+B) when the headphones
are connected.
Inserting batteries into the
remote
To select Light up
The speakers connected to the
SPEAKERS FRONT A terminals
SP A
The speakers connected to the
SPEAKERS FRONT B terminals
SP B
The speakers connected to both the
SPEAKERS FRONT A and B
terminals (parallel connection)
SP A and
SP B
MULTI CHANNEL DECODING
?
/ 1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC
AUTO CAL
MUTING
DISPLAY
INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
SPEAKERS
(OFF/A/B/A+B)
29
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started
7: Calibrating the
appropriate settings
automatically
(AUTO CALIBRATION)
This receiver is equipped with D.C.A.C.
(Digital Cinema Auto Calibration)
Technology which allows you to perform
automatic calibration as follows:
• Check the connection between each speaker
and the receiver.
• Adjust the speaker level.
• Measure the distance of each speaker to your
listening position.
You can also adjust the speaker levels and
balance manually. For details, see
“8: Adjusting the speaker levels and balance
(TEST TONE)” (page 33).
Before you perform the auto calibration, set up
and connect the speakers (page 16, 17).
• The AUTO CAL MIC jack is used for the
supplied optimizer microphone only. Do not
connect other microphones to this jack.
Doing so may damage the receiver and the
microphone.
• During the calibration, the sound that comes
out of the speakers is very loud. Pay
attention to the presence of children or to the
effect on your neighborhood.
• Perform the auto calibration in a quiet
environment to avoid the effect of noise and
get a more accurate measurement.
• If there are any obstacles in the path between
the optimizer microphone and the speakers,
the calibration cannot be performed
correctly. Remove any obstacles from the
measurement area to avoid measurement
error.
Notes
• The Auto Calibration function does not work when
headphones are connected.
• If the Muting function is on when we perform Auto
Calibration, it will turn off automatically.
1 Connect the supplied optimizer
microphone to the AUTO CAL
MIC jack on the front panel.
2
Set up the optimizer microphone.
Place the optimizer microphone at your
listening position. Use a stool or tripod so
that the optimizer microphone remains at
the same height as your ears.
Tip
When you face the speaker towards the optimizer
microphone, you will get a more accurate
measurement.
Before you perform Auto
Calibration
?
/ 1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING
2CH A.F.D. MOVIE MUSIC
AUTO CAL
MUTING
DISPLAY
INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
Optimizer microphone
30
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Press AUTO CAL.
The following appears on the display.
A.CAL [5] t A.CAL [4] t A.CAL [3] t
A.CAL [2] t A.CAL [1]
The measurement process will take a few
minutes to complete.
The table below shows the display when
measurement starts.
* The corresponding speaker indicator lights up in
the display during measurement.
When measurement ends, “COMPLETE”
appears on the display and the settings are
registered.
When you have finished
Disconnect the optimizer microphone from the
receiver.
Notes
• Auto Calibration cannot detect the sub woofer.
Therefore, all sub woofer settings will be
maintained.
• You cannot select Auto Calibration when
headphone is connected.
Tips
• When Auto Calibration starts:
– Stand some distance from the speakers and the
listening position to avoid measurement failure.
This is because test signals are output from the
speakers during measurement.
– Avoid making noise to get a more accurate
measurement.
• The Auto Calibration function will be canceled
when you do the following during the
measurement process:
–Press ?/1, input buttons or MUTING.
– Change the volume level.
– Press AUTO CAL again.
Performing Auto Calibration
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
DVD
m
M
.
>
TV
VIDEO 1
VIDEO 2 VIDEO 3
SYSTEM STANDBY
DVD
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
?
/
1
1
O
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
RM SET UP
AV ?/
/
1
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
MUTING
TV VOL
MASTER VOL
TV CH
PRESET
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
DISC SKIP
RETURN/
/
EXIT
MENU
OPTIONS
TOOLS
D.TUNING
AUTO
CAL
Input
buttons
?/1
switch
MUTING
MASTER
VOL +/–
Measurement for Display
Environment noise level NOISE.CHK
Speaker connection MEASURE and SP
DET. appears
alternately*
Speaker level MEASURE and
GAIN appears
alternately*
Speaker distance MEASURE and
DISTANCE appears
alternately*
31
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started
Error codes
When an error is detected during Auto
Calibration, an error code will appear on the
display cyclically after each measurement
process as follows:
Error code t blank display t (error code t
blank display)
a)
t PUSH t blank display
t ENTER
a)
Appears when there are more than one error code.
To rectify the error
1 Record down the error code.
2 Press RECEIVER.
The RECEIVER indicator lights up and
receiver operation is activated.
3 Press .
4 Press ?/1 to turn off the receiver.
5 Rectify the error.
For details, see “Error codes and remedies”
below.
6 Turn on the receiver and perform Auto
Calibration again (page 30).
Error codes and remedies
Warning codes
During Auto Calibration, the warning code
provides information on the measurement
result. The warning code will appear on the
display cyclically as follows:
Warning code t blank display t (warning
code t blank display)
b)
t PUSH t blank
display t ENTER
b)
Appears when there are more than one warning
code.
You can choose to ignore the warning code as
the Auto Calibration function will
automatically adjust the settings. You can also
change the settings manually.
Error and warning codes
Error
code
Explanation Remedy
ERROR 10 The environment
is too noisy.
Make sure the
environment is
quiet during Auto
Calibration.
ERROR 11 The speakers are
placed too near
the optimizer
microphone.
Place your speakers
further away from
the optimizer
microphone.
ERROR 12 None of the
speakers are
detected.
Make sure that the
optimizer
microphone is
connected properly
and perform Auto
Calibration.
ERROR 20 Front speakers
are not detected
or only one front
speaker is
detected.
Check the front
speaker
connection.
ERROR 21 Only one
surround speaker
is detected.
Check the surround
speaker
connection.
continued
32
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
To change the settings
manually
1 Record down the warning code.
2 Press RECEIVER.
The RECEIVER indicator lights up and
receiver operation is activated.
3 Press .
4 Press ?/1 to turn off the receiver.
5 Follow the solution provided in the
“Warning codes and solutions” below.
6 Turn on the receiver and perform Auto
Calibration again (page 30).
Warning codes and solutions
c)
For details, refer “Front speaker distance”
(page 45).
d)
For details, refer “Center speaker distance”
(page 45).
e)
For details, refer “Surround left speaker distance”
(page 45).
f)
For details, refer “Surround right speaker
distance” (page 45).
Warning
code
Explanation Solution
WARN. 40 The environment
is noisy.
Make sure the
environment is
quiet during Auto
Calibration.
WARN. 50 The center speaker
is not connected.
Be sure to connect
the center speaker.
WARN. 51 The surround
speakers are not
connected.
Be sure to connect
the surround
speakers.
WARN. 60 The front speaker
balance is out of
range.
Reposition your
front speakers.
c)
WARN. 62 The center speaker
level is out of
range.
Reposition your
center speaker.
d)
WARN. 63 The surround left
speaker level is out
of range.
Reposition your
surround left
speaker.
e)
WARN. 64 The surround right
speaker level is out
of range.
Reposition your
surround right
speaker.
f)
WARN. 70 The front speaker
distance is out of
range.
Reposition your
front speakers.
c)
WARN. 72 The center speaker
distance is out of
range.
Reposition your
center speaker.
d)
WARN. 73 The surround left
speaker distance is
out of range.
Reposition your
surround left
speaker.
e)
WARN. 74 The surround right
speaker distance is
out of range.
Reposition your
surround right
speaker.
f)
33
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US03CON_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Getting Started

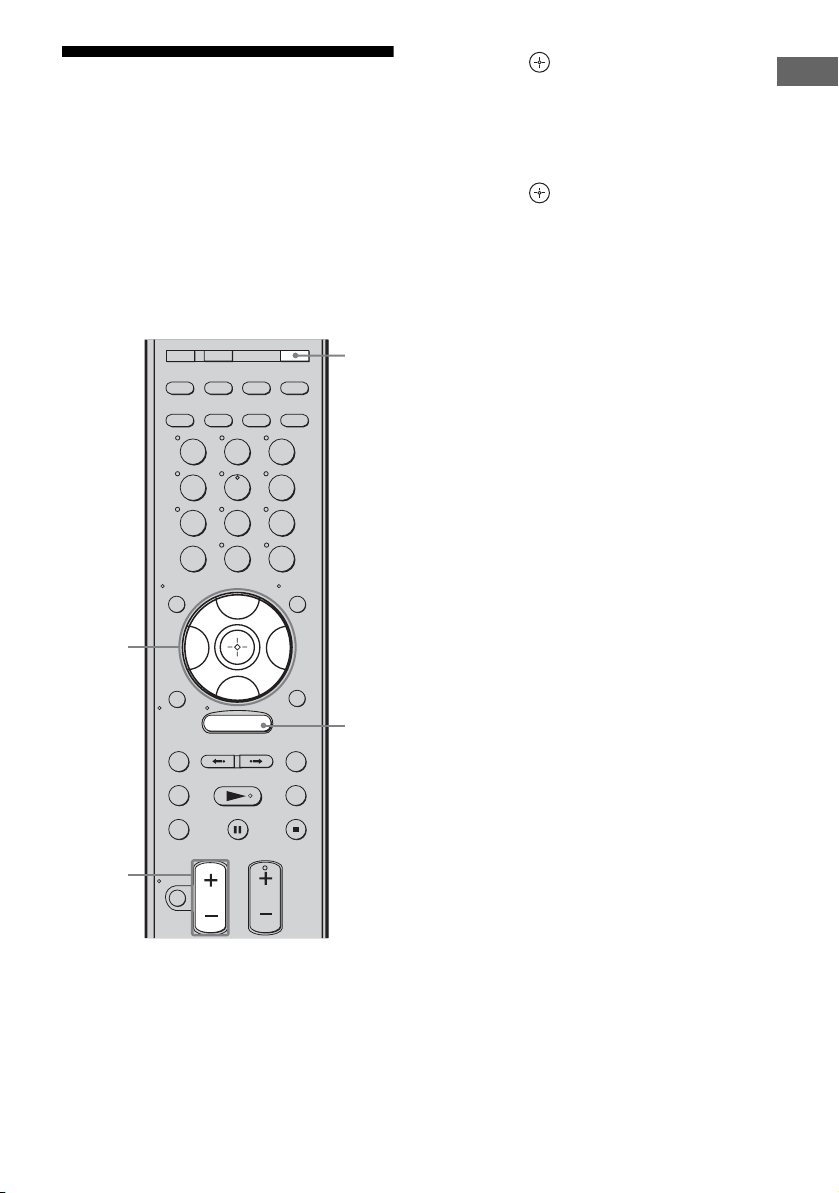

8: Adjusting the speaker
levels and balance
(TEST TONE)
You can adjust the speaker levels and balance
while listening to the test tone from your
listening position.
Tip
The receiver employs a test tone with a frequency
centered at 800 Hz.
1 Press RECEIVER.
The RECEIVER indicator lights up and
receiver operation is activated.
2 Press MENU.
“1-LEVEL” appears on the display.
3 Press or b to enter the
menu.
4 Press V/v repeatedly to select
“T. TONE”.
5 Press or b to enter the
parameter.
6 Press V/v repeatedly to select
“T. TONE Y”.
The test tone is output from each speaker
in sequence as follows:
Front left t Center t Front right t
Surround right t Surround left t
Sub woofer
7 Adjust the speaker levels and
balance using the LEVEL menu
so that the level of the test tone
sounds the same from each
speaker.
For details, see “Adjusting the level
(LEVEL menu)” (page 41).
Tips
• To adjust the level of all speakers at the same
time, press MASTER VOL +/–. You can also
use MASTER VOLUME on the receiver.
• The adjusted value are shown on the display
during adjustment.
8 Repeat steps 1 to 6 to select
“T. TONE N”.
You can also press any input buttons.
The test tone turns off.
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
m
M
.
>
AUX
DMPORT
RECEIVER
O
CLEAR
ENTER
0//10
8
7
4
1 2 3
6
9
5
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
MUTING
TV VOL
MASTER VOL
TV CH
PRESET
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
DISC SKIP
RETURN//
EXIT
MENU
OPTIONS
TOOLS
D.TUNING
2
MASTER
VOL +/–
3-6
1
34
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US04PLA_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Selecting a component
1
Press the input button to select
a component.
You can also use INPUT SELECTOR on
the receiver.
The selected input appears on the display.
* “VIDEO 2/BD”, “VIDEO 3/PORTABLE
AV” and “SA-CD/CD/CD-R” scroll across
the display, then “VIDEO 2”, “VIDEO 3”
and “SA-CD/CD” appear respectively.
2 Turn on the component and
start playback.
3 Press MASTER VOL +/– to
adjust the volume.
You can also use MASTER VOLUME on
the receiver.
To mute the sound
Press MUTING.
The muting function will be canceled when
you do the following.
• Press MUTING again.
• Increase the volume.
• Turn off the receiver.
Playback
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
DVD
m
M
.
>
VIDEO 1
VIDEO 2 VIDEO 3
SYSTEM STANDBY
DVD
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
O
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
MUTING
TV VOL
MASTER VOL
TV CH
PRESET
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
DISC SKIP
RETURN/
/
EXIT
MENU
OPTIONS
TOOLS
D.TUNING
1
3
MUTING
Selected input
[Display]
Components that can
be played back
VIDEO 1
[VIDEO 1]
VCR, etc., connected to the
VIDEO 1 jack
VIDEO 2
[VIDEO 2/BD]*
Blu-ray disc player, etc.,
connected to the VIDEO 2/
BD jack
VIDEO 3
[VIDEO 3/
PORTABLE
AV]*
Camcorder, video game,
etc., connected to the
VIDEO 3 IN/PORTABLE
AV IN jack
DVD
[DVD]
DVD player, etc.,
connected to DVD jack
SAT
[SAT]
Satellite tuner, set-top box,
etc., connected to SAT jack
TV
[TV]
TV, etc., connected to TV
jack
SA-CD/CD
[SA-CD/CD/
CD-R]*
Super Audio CD player,
CD player, etc., connected
to the SA-CD/CD/CD-R
jack
TUNER
[FM or AM band]
Built-in radio tuner
TUNER
[XM RADIO]
For details, see page 56.
DMPORT
[DMPORT]
DIGITAL MEDIA PORT
adapter connected to
DMPORT jack
35
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US04PLA_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Playback
To avoid damaging your
speakers
Before you turn off the receiver, be sure to turn
down the volume level.
To listen to the sub woofer
Be sure to use the buttons on the rear panel of
the sub woofer for this operation.
1 Press POWER.
The POWER indicator lights up.
2 Turn LEVEL to adjust the volume.
Set the volume level to suit your preference
according to the selected input as slight
adjustments may enhance the sound.
Note
Do not set the volume of the sub woofer to
maximum as extraneous noise may be heard.
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US04PLA_HT-7100DH-
U.fm
masterpage: L
HT-7100DH
3-093-550-11 (1)
36
US
Listening/Watching a component
Listening to a Super Audio CD/CD
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
DVD
m
M
.
>
TV
VIDEO 1
VIDEO 2 VIDEO 3
SYSTEM STANDBY
DVD
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
?
/
1
1
O
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
RM SET UP
AV ?/
/
1
SLEEP
CATEGORY
MODE
AUTO C AL
2CH
A.F.D. MOVIE MUSIC
MUTING
TV VOL
MASTER VOL
TV CH
PRESET
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
DISC SKIP
RETURN/
/
EXIT
MENU
OPTIONS
TOOLS
D.TUNI NG
?
/ 1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC
AUTO CA L
MUTING
DISPLAY
INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
5
5
3
2
3
Notes
• The operation is described for a
Sony Super Audio CD player.
• Refer to the operating
instructions supplied with the
Super Audio CD player or CD
player.
Tips
• You can select the sound field to
suit the music. Refer to page 49
for details.
Recommended sound fields:
Classical: HALL
Jazz: JAZZ
Live concert: CONCERT
• You can listen to the sound that
was recorded in the 2 channel
format from all speakers (multi
channel). Refer to page 47 for
details.
1 Turn on the Super Audio CD player/CD
player, then place the disc on the tray.
2 Turn on the receiver.
3 Press SA-CD/CD.
You can also use INPUT SELECTOR on the receiver to
select “SA-CD/CD/CD-R”.
4 Playback the disc.
5 Adjust to a suitable volume.
6 After you have finished listening to the
Super Audio CD/CD, eject the disc and turn
off the receiver and Super Audio CD player/
CD player.
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US04PLA_HT-7100DH-
U.fm
masterpage: R-2
HT-7100DH
3-093-550-11 (1)
37
US
Playback

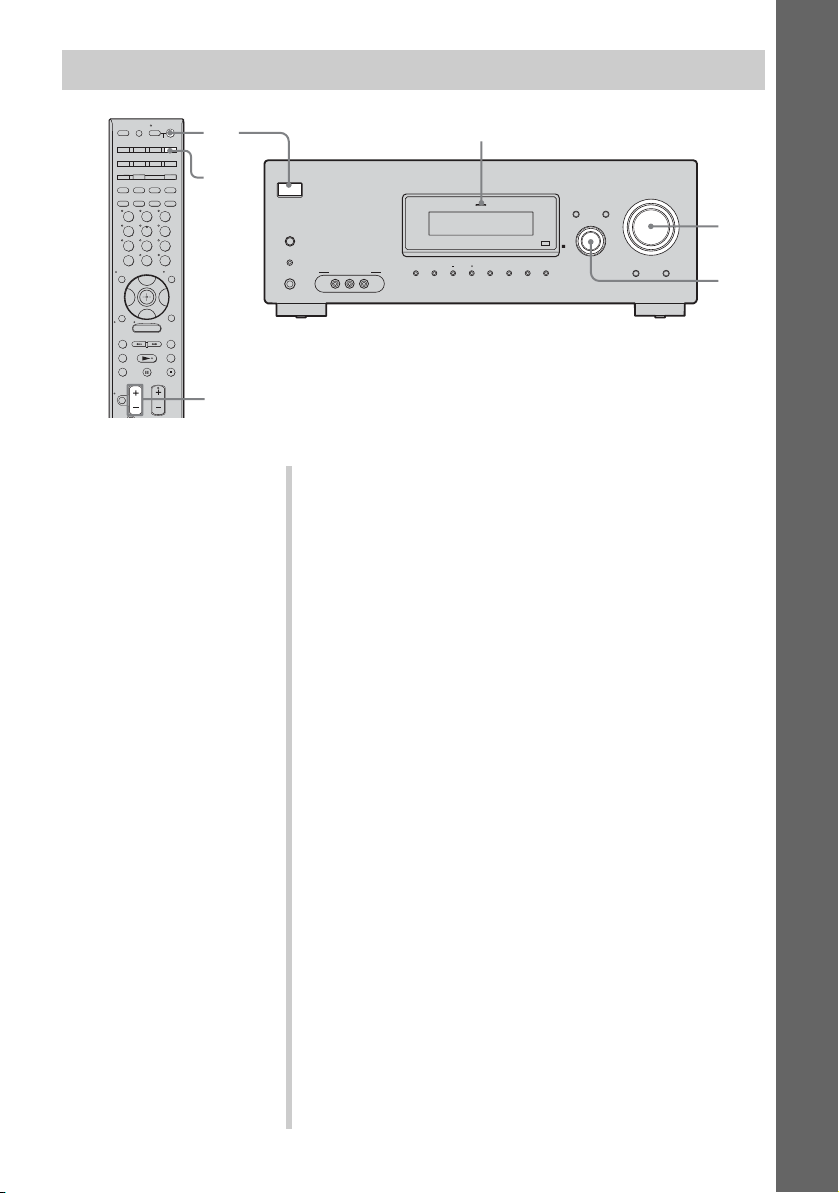

Watching a DVD
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
DVD
m
M
.
>
TV
VIDEO 1
VIDEO 2 VIDEO 3
SYSTEM STANDBY
DVD
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
?
/
1
1
O
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
RM SET UP
AV ?/
/
1
SLEEP
CATEGORY
MODE
AUTO C AL
2CH
A.F.D. MOVIE MUSIC
MUTING
TV VOL
MASTER VOL
TV CH
PRESET
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
DISC SKIP
RETURN/
/
EXIT
MENU
OPTIONS
TOOLS
D.TUNI NG
?
/ 1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC
AUTO CA L
MUTING
DISPLAY
INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
2
3
7
7
3
MULTI CHANNEL DECODING lamp
Notes
• Refer to the operating
instructions supplied with the
TV and DVD player.
• Check the following if you
cannot listen to multi channel
sound.
– Be sure the sound source
corresponds to the multi
channel format (the MULTI
CHANNEL DECODING
lamp on the front panel lights
up during playback).
– Be sure this receiver is
connected to the DVD player
via a digital connection.
– Be sure the digital audio
output of the DVD player is
set up properly.
Tips
• Select the sound format of the
disc to be played, if necessary.
• You can select the sound field to
suit the movie/music. Refer to
page 49 for details.
Recommended sound fields:
Movie: C.ST.EX
Music: CONCERT
1 Turn on the TV and DVD player.
2 Turn on the receiver.
3 Press DVD.
You can also use INPUT SELECTOR on this receiver to
select “DVD”.
4 Switch the input of the TV so that an image
of the DVD is displayed.
5 Set up the DVD player.
Refer to the “Quick Setup Guide” supplied with the
receiver.
6 Playback the disc.
7 Adjust to a suitable volume.
8 After you have finished watching the DVD,
eject the disc and turn off the receiver, TV
and DVD player.
38
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)

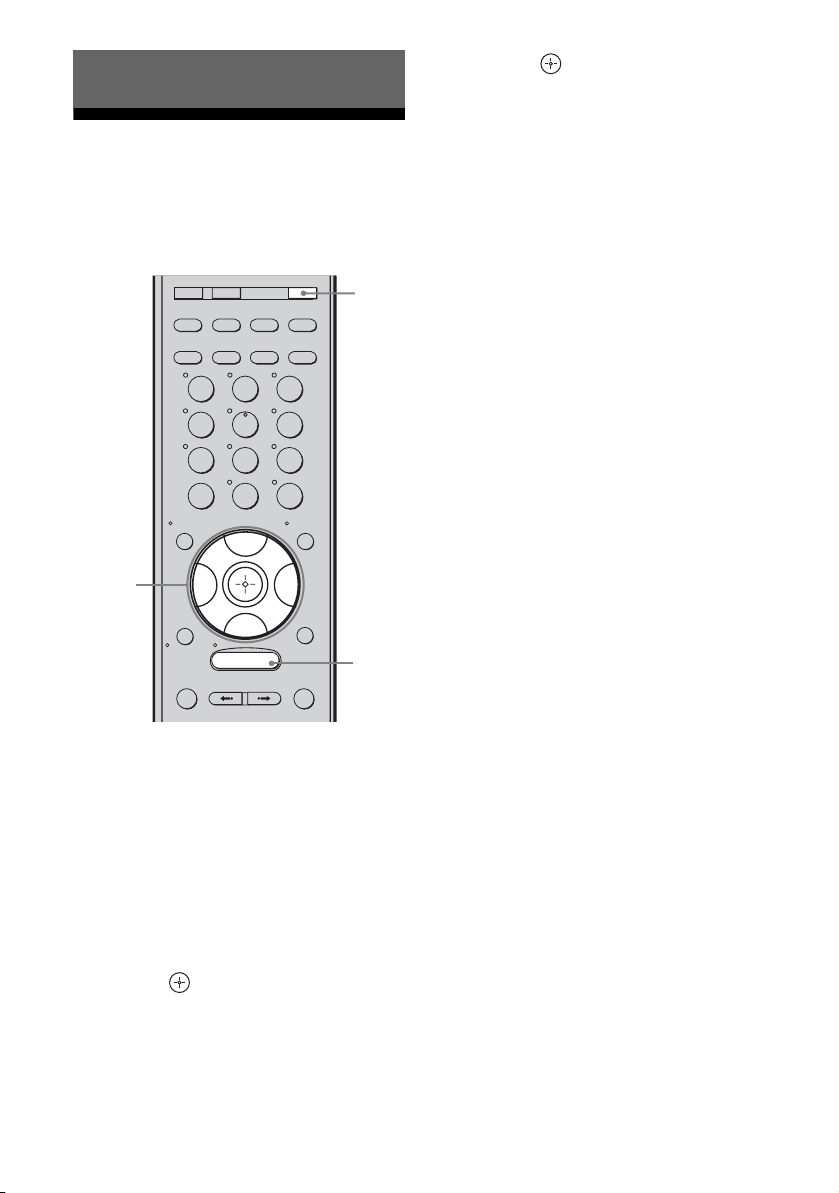

Navigating through
menus
By using the amplifier menus, you can make
various adjustments to customize the receiver.
1 Press RECEIVER.
The RECEIVER indicator lights up and
receiver operation is activated.
2 Press MENU.
“1-LEVEL” appears on the display.
3 Press V/v repeatedly to select
the menu you want.
4 Press or b to enter the
menu.
5 Press V/v repeatedly to select
the parameter you want to
adjust.
6 Press or b to enter the
parameter.
7 Press V/v repeatedly to select
the setting you want.
The setting is entered automatically.
8 Repeat steps 3 to 7 when you
want to make other settings.
To return to the previous
display
Press B.
To exit the menu
Press MENU.
However, if the RECEIVER button is light-
off, press RECEIVER and then press MENU.
Note
Some parameters and settings may appear dimmed
on the display. This means that they are either
unavailable or fixed and unchangeable.
Amplifier Operations
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
.
>
AUX
DMPORT
RECEIVER
O
CLEAR
ENTER
0//10
8
7
4
1 2 3
6
9
5
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
RETURN//
EXIT
MENU
OPTIONS
TOOLS
D.TUNING
3-7
1
2
39
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Amplifier Operations
The following options are available in each
menu. For details on navigating through
menus, see page 38.
Overview of the menus
Menu
[Display]
Parameters
[Display]
Settings Initial
setting
LEVEL (41)
[1-LEVEL]
Test tone
a)
[T. TONE] T. TONE Y, T. TONE N T. TONE N
Front speaker balance
a)
[FRT BAL]
BAL. L +1 to BAL. L +8,
BALANCE, BAL. R +1 to BAL. R +8
BALANCE
Center speaker level
[CNT LVL]
CNT –10 dB to CNT +10 dB
(1 dB step)
CNT 0 dB
Surround left speaker level
[SL LVL]
SUR L –10 dB to SUR L +10 dB
(1 dB step)
SUR L 0 dB
Surround right speaker level
[SR LVL]
SUR R –10 dB to SUR R +10 dB
(1 dB step)
SUR R 0 dB
Sub woofer level
[SW LVL]
SW –10 dB to SW +10 dB
(1 dB step)
SW 0 dB
Dynamic range compressor
a)
[D. RANGE]
COMP. OFF, COMP. STD,
COMP. MAX
COMP. OFF
TONE (42)
[2-TONE]
Front speaker bass level
[BASS LVL]
BASS –6 dB to BASS +6 dB
(1 dB step)
BASS 0 dB
Front speaker treble level
[TRE LVL]
TRE –6 dB to TRE +6 dB
(1 dB step)
TRE 0 dB
SUR (42)
[3-SUR]
Sound field selection
a)
[S.F. SELCT]
2CH ST., A.F.D. AUTO, DOLBY
PL, PLII MV, PLII MS, MULTI ST.,
C.ST.EX A, C.ST.EX B, C.ST.EX C,
PORTABLE, HALL, JAZZ,
CONCERT
A.F.D. AUTO
Effect level
a)b)
[EFFECT] EFCT. MIN, EFCT. STD,
EFCT. MAX
EFCT. STD
TUNER (43)
[4-TUNER]
FM station receiving mode
a)
[FM MODE]
FM AUTO, FM MONO FM AUTO
Naming preset stations
a)
[NAME IN]
continued
40
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
a)
For details, refer to the page in the parentheses.
b)
The surround effect is not available for “PORTABLE” sound field.
Menu
[Display]
Parameters
[Display]
Settings Initial
setting
AUDIO (43)
[5-AUDIO]
Digital audio input decoding
priority
a)
[DEC. PRI.]
DEC. AUTO, DEC. PCM DEC. AUTO
for:
VIDEO 1, 2, 3,
TV, SAT,
DVD;
DEC. PCM for:
SA-CD/CD/
CD-R
Digital broadcast language
selection
a)
[DUAL]
DUAL M/S, DUAL M, DUAL S,
DUAL M+S
DUAL M
Synchronizes audio with video
output
a)
[A.V. SYNC.]
A.V.SYNC. Y, A.V.SYNC. N A.V.SYNC. N
Digital Assign
[D.ASSIGN]
VD2–VD1, VD2–VD2,
VD2–VD3, VD2–DVD,
VD2–TV, VD2–CD,
DVD–VD1, DVD–VD2,
DVD–VD3, DVD–DVD,
DVD–TV, DVD–CD,
SAT–VD1, SAT–VD3,
SAT–DVD, SAT–SAT,
SAT–TV, SAT–CD
VD2–VD2 for:
VIDEO 2;
DVD–DVD
for: DVD;
SAT–SAT for:
SAT
Naming inputs
a)
[NAME IN]
VIDEO (44)
[6-VIDEO]
DIGITAL MEDIA PORT video
assign
a)
[DMPORT V.]
–NONE, –VIDEO 1, –VIDEO 3,
–DVD, –SAT
–NONE
Naming inputs
a)
[NAME IN]
SYSTEM (45)
[7-SYSTEM]
Front speaker distance
a)
[FRT DIST.]
DIST. 3 ft. to DIST. 23 ft.
(1 ft. step)
DIST. 10 ft
Center speaker distance
a)
[CNT DIST.]
DIST. xx ft.
between front speaker distance and
5 ft. (1 ft. step)
DIST. 10 ft
Surround left speaker distance
a)
[SL DIST.]
DIST. xx ft.
between front speaker distance and
15 ft. (1 ft. step)
DIST. 10 ft
Surround right speaker
distance
a)
[SR DIST.]
DIST. xx ft.
between front speaker distance and
15 ft. (1 ft. step)
DIST. 10 ft
Surround speaker position
a)
[SUR POS.]
SIDE/LO, SIDE/HI, BEHD/LO,
BEHD/HI
SIDE/LO
Brightness of the display
a)
[DIMMER]
0% dim, 40% dim, 70% dim 0% dim
A. CAL (47)
[8-A. CAL]
Auto Calibration
a)
[AUTO CAL]
A.CAL YES, A.CAL NO A.CAL NO
41
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Amplifier Operations
Adjusting the level
(LEVEL menu)
You can use the LEVEL menu to adjust the
balance and level of each speaker. These
settings are applied to all sound fields.
Select “1-LEVEL” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 38) and
“Overview of the menus” (page 39).
LEVEL menu parameters
x T. TONE (Test tone)
Lets you adjust the speaker levels and balance
while listening to the test tone from your
listening position. For details, see “8:
Adjusting the speaker levels and balance
(TEST TONE)” (page 33).
x FRT BAL (Front speaker
balance)
Lets you adjust the balance between front left
and right speakers.
x CNT LVL (Center speaker level)
x SL LVL (Surround left speaker
level)
x SR LVL (Surround right speaker
level)
x SW LVL (Sub woofer level)
x D. RANGE (Dynamic range
compressor)
Lets you compress the dynamic range of the
sound track. This may be useful when you
want to watch movies at low volumes late at
night. Dynamic range compression is possible
with Dolby Digital sources only.
• COMP. OFF
The dynamic range is not compressed.
•COMP. STD
The dynamic range is compressed as
intended by the recording engineer.
•COMP. MAX
The dynamic range is compressed
dramatically.
Tip
Dynamic range compressor lets you compress the
dynamic range of the soundtrack based on the
dynamic range information included in the Dolby
Digital signal.
“COMP. STD” is the standard setting, but it only
enacts light compression. Therefore, we recommend
using the “COMP. MAX” setting. This greatly
compresses the dynamic range and lets you view
movies late at night at low volumes. Unlike analog
limiters, the levels are predetermined and provide a
very natural compression.
42
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Adjusting the tone
(TONE menu)
You can use the TONE menu to adjust the
tonal quality (bass/treble level) of the front
speakers.
Select “2-TONE” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 38) and
“Overview of the menus” (page 39).
TONE menu parameters
x BASS LVL (Front speaker bass
level)
x TRE LVL (Front speaker treble
level)
Settings for the surround
sound
(SUR menu)
You can use the SUR menu to select the sound
field you want for your listening pleasure.
Select “3-SUR” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 38) and
“Overview of the menus” (page 39).
SUR menu parameters
x S.F. SELCT (Sound field
selection)
Lets you select the sound field you want. For
details, see “Enjoying Surround Sound” (page
47).
Note
The receiver lets you apply the last selected sound
field to an input whenever it is selected (Sound Field
Link). For example, if you select “HALL” for the
SA-CD/CD input, then change to a different input
and then return to SA-CD/CD, “HALL” will
automatically be applied again.
x EFFECT (Effect level)
Lets you adjust the “presence” of the surround
effect for sound fields selected with the
MOVIE or MUSIC buttons and for “HP
THEA” sound field. However, the surround
effect is not available for “PORTABLE”
sound field.
•EFCT. MIN
The surround effect is minimum.
• EFCT. STD
The surround effect is standard.
•EFCT. MAX
The surround effect is maximum.
43
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Amplifier Operations
Settings for the tuner
(TUNER menu)
You can use the TUNER menu to set the FM
station receiving mode and to name preset
stations.
Select “4-TUNER” in the amplifier menus.
For details on adjusting the parameters, see
“Navigating through menus” (page 38) and
“Overview of the menus” (page 39).
TUNER menu parameters
x FM MODE (FM station receiving
mode)
•FM AUTO
This receiver will decode the signal as stereo
signal when the radio station is broadcast in
stereo.
• FM MONO
This reciever will decode the signal as mono
signal regardless of the broadcast signal.
x NAME IN (Naming preset
stations)
Lets you set the name of preset stations. For
details, see “Naming preset stations” (page
55).
Settings for the audio
(AUDIO menu)
You can use the AUDIO menu to make
settings for the audio to suit your preference.
Select “5-AUDIO” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 38) and
“Overview of the menus” (page 39).
AUDIO menu parameters
x DEC. PRI. (Digital audio input
decoding priority)
Lets you specify the input mode for the digital
signal input to the DIGITAL IN jacks.
• DEC. AUTO
Automatically switches the input mode
between DTS, Dolby Digital, or PCM.
•DEC. PCM
PCM signals are given priority (to prevent
interruption when playback starts).
However, when other signals are input, there
may be no sound depending on the format.
In this case, set to “DEC. AUTO”.
Note
When set to “DEC. AUTO” and the sound from the
digital audio jacks (for CD, etc.) is interrupted when
playback starts, set to “DEC. PCM”.
continued
44
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
x DUAL (Digital broadcast
language selection)
Lets you select the language you want to listen
to during digital broadcast. This feature only
functions for Dolby Digital sources.
• DUAL M/S (Main/Sub)
Sound of the main language will be output
through the front left speaker and sound of
the sub language will be output through the
front right speaker simultaneously.
• DUAL M (Main)
Sound of the main language will be output.
• DUAL S (Sub)
Sound of the sub language will be output.
• DUAL M+S (Main + Sub)
Mixed sound of both the main and sub
languages will be output.
x A.V. SYNC. (Synchronizes audio
with video output)
• A.V.SYNC. Y (Yes) (Delay time: 68 ms)
The audio output is delayed so that the time
gap between the audio output and visual
display is minimized.
• A.V.SYNC. N (No) (Delay time: 0 ms)
The audio output is not delayed.
Notes
• This parameter is useful when you use a large LCD
or plasma monitor or a projector.
• This parameter is valid only when you use a sound
field selected with the 2CH or A.F.D. buttons.
x D.ASSIGN (Digital audio input
assignment)
Lets you assign the digital audio input to other
input source. For details, see “Listening to
digital sound from other inputs (DIGITAL
ASSIGN)” (page 66).
x NAME IN (Naming inputs)
Lets you set the name of inputs. For details,
see “Naming inputs” (page 67).
Settings for the video
(VIDEO menu)
You can use the VIDEO menu to assign the
composite video input to DMPORT input and
to name inputs.
Select “6-VIDEO” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 38) and
“Overview of the menus” (page 39).
VIDEO menu parameters
x DMPORT V. (DIGITAL MEDIA
PORT video assign)
Lets you assign the composite video input to
DMPORT input so that you can view the
images on the TV screen. For details, see
“Watching a connected component through
DMPORT connection” (page 65).
x NAME IN (Naming inputs)
Lets you set the name of inputs. For details,
see “Naming inputs” (page 67).
45
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Amplifier Operations
Settings for the system
(SYSTEM menu)
You can use the SYSTEM menu to set the size
and distance of the speakers connected to this
system.
Select “7-SYSTEM” in the amplifier menus.
For details on adjusting the parameters, see
“Navigating through menus” (page 38) and
“Overview of the menus” (page 39).
SYSTEM menu parameters
x FRT DIST. (Front speaker
distance)
Lets you set the distance from your listening
position to the front speaker (A). If both front
speakers are not placed an equal distance from
your listening position, set the distance as the
average distance between the front speakers.
x CNT DIST. (Center speaker
distance)
Lets you set the distance from your listening
position to the center speaker. Center speaker
distance should be set from a distance equal to
the front speaker distance (A) to a distance 5
feet closer to your listening position (B).
x SL DIST. (Surround left speaker
distance)
Lets you set the distance from your listening
position to the surround left speaker. Surround
left speaker distance should be set from a
distance equal to the front speaker distance
(A) to a distance15 feet closer to your
listening position (C).
x SR DIST. (Surround right
speaker distance)
Lets you set the distance from your listening
position to the surround right speaker.
Surround right speaker distance should be set
from a distance equal to the front speaker
distance (A) to a distance 15 feet closer to
your listening position (D).
Tip
The receiver lets you to input the speaker position in
terms of distance. However, it is not possible to set
the center speaker further than the front speakers.
Also, the center speaker cannot be set more than 5
feet closer from the front speakers.
Likewise, the surround speakers can not be set
further away from the listening position than the
front speakers. And they can be no more than 15 feet
closer. This is because incorrect speaker placement
is not conducive to the enjoyment of surround
sound.
Please note that, setting the speaker distance closer
than the actual location of the speakers will cause a
delay in the output of the sound from that speaker. In
other words, the speaker will sound like it is further
away.
For example, setting the center speaker distance 3-6
feet closer than the actual speaker position will
create a fairly realistic sensation of being “inside”
the screen. If you cannot obtain a satisfactory
surround effect because the surround speakers are
too close, setting the surround speaker distance
closer (shorter) than the actual distance will create a
larger sound stage.
Adjusting these parameter while listening to the
sound often results in much better surround sound.
Give it a try!
30˚30˚
100˚-120˚100˚-120˚
A
CD
A
B
continued
46
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
x SUR POS.
(Surround speaker position)
Lets you specify the location of your surround
speakers for proper implementation of the
surround effects in the Cinema Studio EX
modes (page 50).
•SIDE/LO
Select if the location of your surround
speakers corresponds to sections A and C.
•SIDE/HI
Select if the location of your surround
speakers corresponds to sections A and D.
• BEHD/LO
Select if the location of your surround
speakers corresponds to sections B and C.
• BEHD/HI
Select if the location of your surround
speakers corresponds to sections B and D.
Tip
Surround speaker position is designed specifically
for implementation of the Cinema Studio EX modes.
For other sound fields, speaker position is not so
critical.
Those sound fields were designed under the premise
that the surround speakers would be located behind
the listening position, but presentation remains
fairly consistent even with the surround speakers
positioned at a rather wide angle. However, if the
speakers are pointing toward the listener from the
immediate left and right of the listening position, the
surround effects become unclear unless set to
“SIDE/LO” or “SIDE/HI”.
Nevertheless, each listening environment has many
variables, such as wall reflections, and you may
obtain better results using “BEHD/HI” if your
speakers are located high above the listening
position, even if they are located to the immediate
left and right.
Therefore, although it may result in a setting
contrary to the above explanation, we recommend
that you playback multi channel surround encoded
software and select the setting that provides a good
sense of spaciousness and that best succeeds in
forming a cohesive space between the surround
sound from the surround speakers and the sound of
the front speakers. If you are not sure which sounds
best, select “BEHD/LO” or “BEHD/HI” and then
use the speaker distance parameter and speaker level
adjustments to obtain proper balance.
x DIMMER (Brightness of the
display)
Lets you adjust the brightness in 3 steps.
47
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Enjoying Surround Sound
Calibrating the
appropriate settings
automatically
(A. CAL menu)
For details, see “7: Calibrating the appropriate
settings automatically (AUTO
CALIBRATION)” (page 29).
Enjoying Dolby Digital
and DTS Surround sound
(AUTO FORMAT DIRECT)
The Auto Format Direct (A.F.D.) mode allows
you to listen to higher fidelity sound and select
the decoding mode for listening to a 2 channel
stereo sound as multi channel sound.
Press A.F.D. repeatedly to select
the sound field you want.
For details, see “Types of A.F.D. mode” (page
48).
Enjoying Surround Sound
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
D.TUNING
A.F.D.
continued
48
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Types of A.F.D. mode
Decoding
mode
A.F.D. mode
[Display]
Multi channel
audio after
decoding
Effect
(Detecting
automatically)
A.F.D. AUTO
[A.F.D. AUTO]
(Detecting
automatically)
Presents the sound as it was recorded/
encoded without adding any surround
effects. However, this receiver will
generate a low frequency signal for output
to the sub woofer when there is no LFE
signals.
Dolby Pro Logic PRO LOGIC
[DOLBY PL]
4 channel Performs Dolby Pro Logic decoding. The
source recorded in 2 channel format is
decoded into 4.1 channels.
Dolby Pro Logic
II
PRO LOGIC II MOVIE
[PLII MV]
5 channel Performs Dolby Pro Logic II Movie mode
decoding. This setting is ideal for movies
encoded in Dolby Surround. In addition,
this mode can reproduce sound in 5.1
channel for watching videos of overdubbed
or old movies.
PRO LOGIC II MUSIC
[PLII MS]
5 channel Performs Dolby Pro Logic II Music mode
decoding. This setting is ideal for normal
stereo sources such as CDs.
(Multi Stereo) MULTI STEREO
[MULTI ST.]
(Multi Stereo) Outputs 2 channel left/right signals from
all speakers.
49
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Enjoying Surround Sound
Selecting a pre-
programmed sound field
You can take advantage of surround sound
simply by selecting one of the receiver’s pre-
programmed sound fields. They bring the
exciting and powerful sound of movie theaters
and concert halls into your home.
Press MOVIE repeatedly to select a
sound field for movies or press
MUSIC repeatedly to select a sound
field for music.
For details, see “Types of sound field
available” (page 50).
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
D.TUNING
MUSIC
MOVIE
2CH
A.F.D.
continued
50
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Types of sound field available
About DCS (Digital Cinema
Sound)
Sound fields with DCS mark use DCS
technology.
DCS is a unique sound reproduction
technology for home theater developed by
Sony, in cooperation with Sony Pictures
Entertainment, for enjoying the exciting and
powerful sound of movie theaters at home.
With this “Digital Cinema Sound” developed
by integrating a DSP (Digital signal processor)
and measured data, the ideal sound field
intended by film makers can be experienced at
home.
Sound field
for
Sound field
[Display]
Effect
Movie CINEMA STUDIO EX A
DCS [C.ST.EX A]
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Cary Grant Theater” cinema production
studio. This is a standard mode, great for watching almost any
type of movie.
CINEMA STUDIO EX B
DCS [C.ST.EX B]
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Kim Novak Theater” cinema production
studio. This mode is ideal for watching science-fiction or
action movies with lots of sound effects.
CINEMA STUDIO EX C
DCS [C.ST.EX C]
Reproduces the sound characteristics of the Sony Pictures
Entertainment scoring stage. This mode is ideal for watching
musicals or films where orchestra music is featured in the
soundtrack.
Music PORTABLE AUDIO
[PORTABLE]
Reproduces a clear enhanced sound image from your portable
audio device. This mode is ideal for MP3 and other
compressed music.
HALL [HALL] Reproduces the acoustics of a classical concert hall.
JAZZ CLUB [JAZZ] Reproduces the acoustics of a jazz club.
LIVE CONCERT
[CONCERT]
Reproduces the acoustics of a 300-seat live house.
Headphone HEADPHONE 2CH
[HP 2CH]
This mode is selected automatically if you use headphone
when 2 channel mode (page 51)/A.F.D. mode (page 48) is
selected. Standard 2 channel stereo sources completely bypass
the sound field processing and multi channel surround formats
are downmixed to 2 channels.
HEADPHONE THEATER
DCS [HP THEA]
This mode is selected automatically if you use headphone
when sound field for movie/music is selected. It allows you to
experience a theater-like environment while listening through
a pair of headphones.
51
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Enjoying Surround Sound
About CINEMA STUDIO EX
modes
CINEMA STUDIO EX modes are suitable for
watching motion picture DVDs (etc.), with
multi channel surround effects. You can
reproduce the sound characteristics of Sony
Pictures Entertainment’s dubbing studio in
your home.
The CINEMA STUDIO EX modes consist of
the following three elements.
• Virtual Multi Dimension
Creates 5 sets of virtual speakers from a
single pair of actual surround speakers.
• Screen Depth Matching
Creates the sensation that the sound is
coming from inside the screen like in
theaters.
• Cinema Studio Reverberation
Reproduces the type of reverberation found
in theaters.
The CINEMA STUDIO EX modes integrate
these three elements simultaneously.
Notes
• The effects provided by the virtual speakers may
cause increased noise in the playback signal.
• When listening with sound fields that employ the
virtual speakers, you will not be able to hear any
sound coming directly from the surround speakers.
• This function does not work for signals with a
sampling frequency of more than 48 kHz.
Tip
You can identify the encoding format of DVD
software, etc., by looking at the logo on the package.
• : Dolby Digital discs
• : Dolby Surround
encoded programs
• : DTS Digital Surround encoded
programs
To turn off the surround effect
for movie/music
Press 2CH to select “2CH ST.” or press A.F.D.
repeatedly to select “A.F.D. AUTO”.
Using only the front
speakers and sub woofer
(2CH STEREO)
In this mode, the receiver outputs the sound
from the front left/right speakers and the sub
woofer.
When multi channel surround formats are
input, the signals are downmixed to 2 channel
with bass frequencies being output from the
sub woofer.
When standard 2 channel stereo sources are
input, the receiver’s bass redirection circuitry
will be activated. The front channel bass
frequencies will be output from the sub
woofer.
Press 2CH.
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
D.TUNING
2CH
52
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)

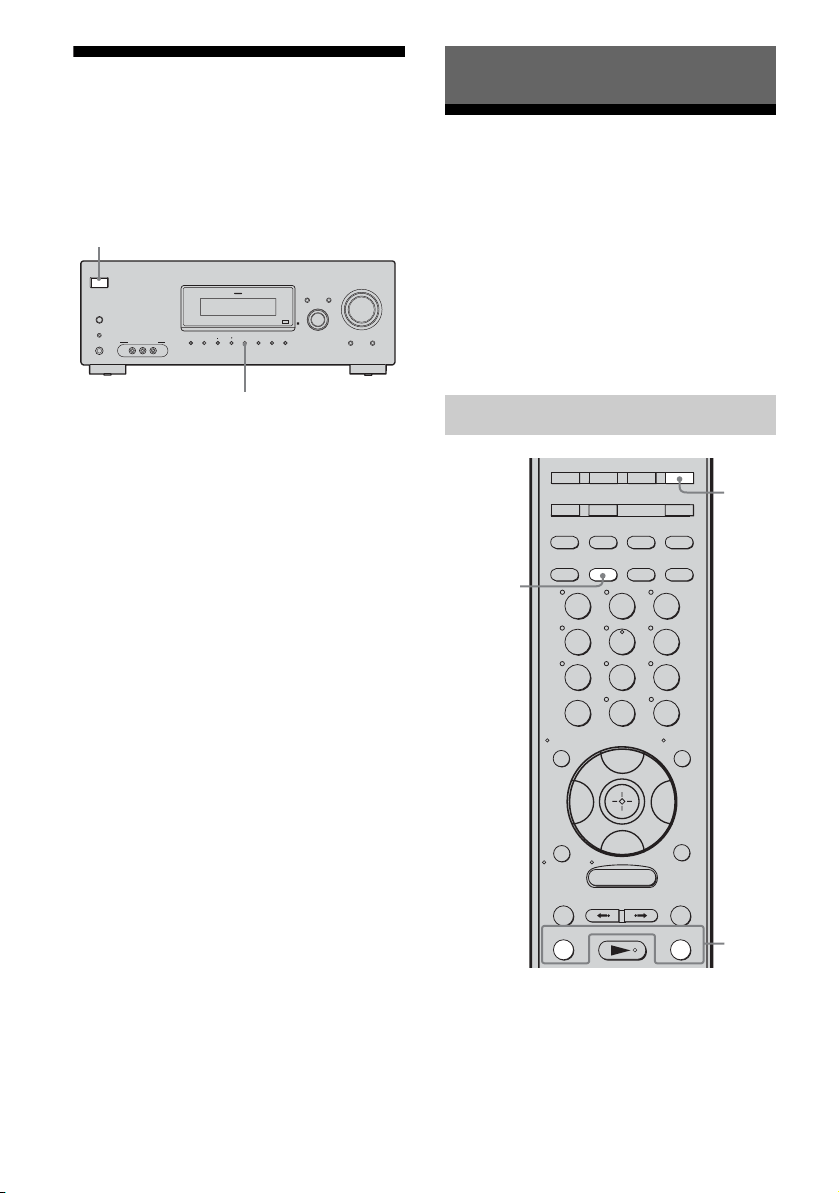

Resetting sound fields to
the initial settings
Be sure to use the buttons on the receiver for
this operation.
1 Press ?/1 to turn off the
receiver.
2 While holding down 2CH, press
?/1.
“S.F. CLR.” appears on the display and
all sound fields are reset to their initial
setting.
Listening to FM/AM radio
You can listen to FM and AM broadcasts
through the built-in tuner. Before operation,
make sure you have connected the FM and
AM antennas to the receiver (page 26).
Tip
The tuning scale is:
FM : 100 kHz
AM : 10 kHz*
* The AM tuning scale can be changed (page 81).
?
/ 1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC
AUTO CAL
MUTING
DISPLAY
INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
1,2
2
Tuner Operations
Automatic tuning
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
m
M
.
>
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
O
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
DISC SKIP
RETURN/
/
EXIT
MENU
OPTIONS
TOOLS
D.TUNING
2
1
CATEGORY
MODE
53
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Tuner Operations
1 Press TUNER repeatedly to
select the FM or AM band.
2 Press TUNING + or TUNING –.
Press TUNING + to scan from low to
high; press TUNING – to scan from high
to low.
The receiver stops scanning whenever a
station is received.
Using the controls on the
receiver
1 Turn INPUT SELECTOR to select the FM
or AM band.
2 Press TUNING MODE repeatedly to select
“AUTO T.”.
3 Press TUNING + or TUNING –.
In case of poor FM stereo
reception
If the FM stereo reception is poor and “ST”
flashes on the display, select monaural audio
so that the sound will be less distorted.
• To select monaural audio, you can
– press FM MODE repeatedly until the
“MONO” indicator lights up on the
display.
– set “FM MODE” in TUNER menu to “FM
MONO” (page 39).
• To return to stereo mode, you can
– press FM MODE repeatedly until the
“MONO” indicator on the display do not
light up.
– set “FM MODE” in TUNER menu to “FM
AUTO” (page 39).
Enter the frequency of a station directly by
using the numeric buttons.
1 Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2 Press D.TUNING.
3 Press the numeric buttons to
enter the frequency.
Example 1: FM 102.50 MHz
Select 1 b 0 b 2 b 5 b 0
Example 2: AM 1,350 kHz
Select 1 b 3 b 5 b 0
4 Press ENTER.
You can also use MEMORY/ENTER on
the receiver.
Tip
If you have tuned in an AM station, adjust the
direction of the AM loop antenna for optimum
reception.
If you cannot tune in a station
Make sure you have entered the right
frequency. If not, repeat steps 2 to 4. If you
still cannot tune in a station, the frequency is
not used in your area.
Direct tuning
MEMORY
-/--
>
10
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
D.TUNING
1
4
3
2
54
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)

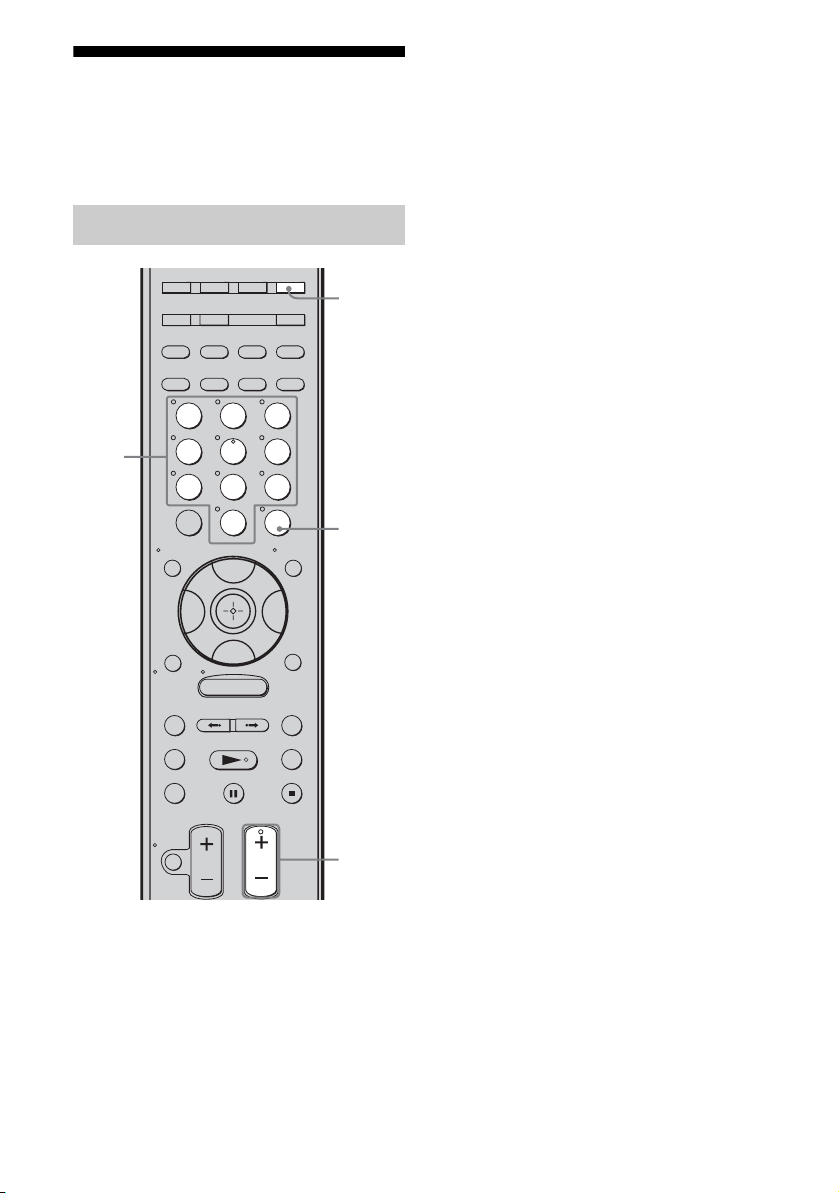

Presetting radio stations
You can preset up to 30 FM stations and 30
AM stations. Then you can easily tune in the
stations you often listen to.
1 Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2 Tune in the station that you
want to preset using Automatic
Tuning (page 52) or Direct
Tuning (page 53).
Switch the FM reception mode, if
necessary (page 53).
3 Press MEMORY.
You can also use MEMORY/ENTER on
the receiver.
“MEMORY” lights up for a few seconds.
Perform steps 4 and 5 before
“MEMORY” goes out.
4 Press the numeric buttons to
select a preset number.
You can also press PRESET + or
PRESET – to select a preset number.
If “MEMORY” goes out before you
select the preset number, start again from
step 3.
5 Press ENTER.
You can also use MEMORY/ENTER on
the receiver.
The station is stored as the selected preset
number.
If “MEMORY” goes out before you press
ENTER, start again from step 3.
6 Repeat steps 1 to 5 to preset
another station.
Presetting radio stations
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
m
M
.
>
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
O
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
MUTING
TV VOL
MASTER VOL
TV CH
PRESET
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
DISC SKIP
RETURN/
/
EXIT
MENU
OPTIONS
TOOLS
D.TUNING
1
PRESET
+/–
4
3,5
55
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)

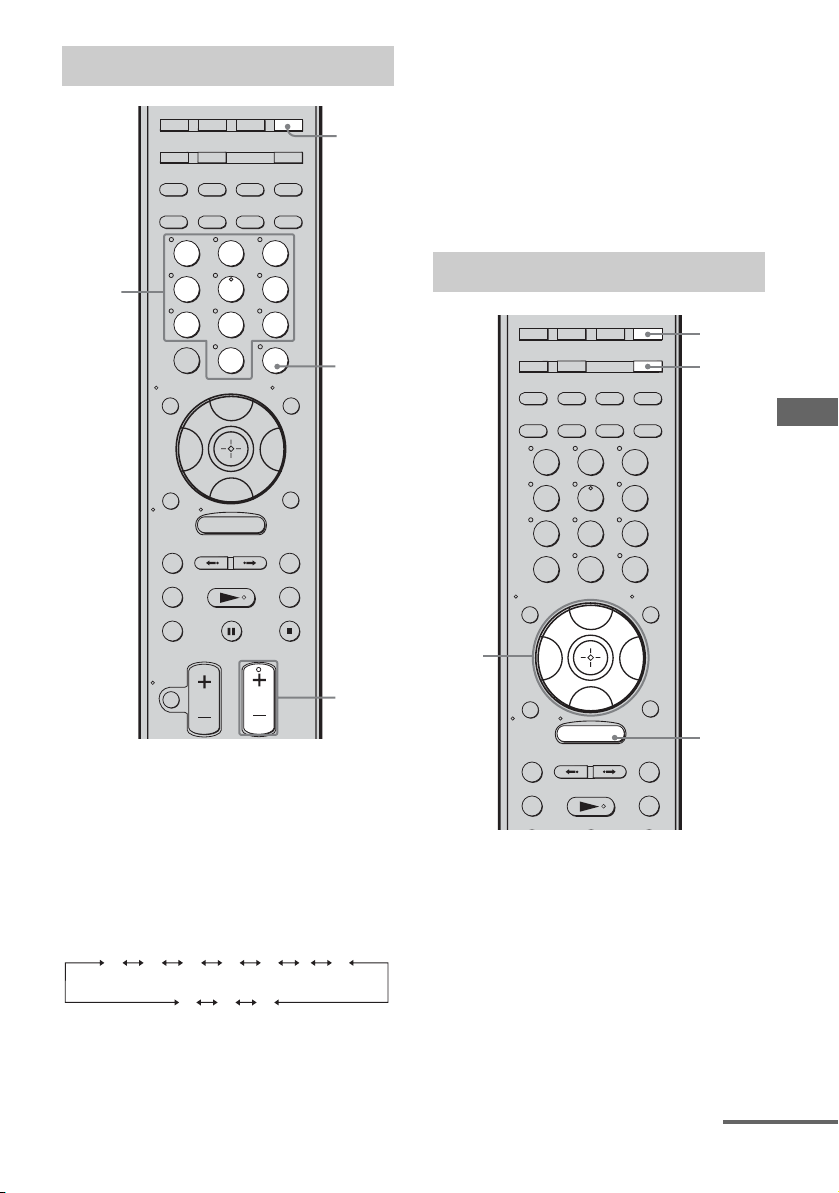

Tuner Operations
1 Press TUNER repeatedly to
select the FM or AM band.
2 Press PRESET + or PRESET –
repeatedly to select the preset
station you want.
Each time you press the button, you can
select a preset station as follows:
You can also press the numeric buttons to
select the preset station you want. Then,
press ENTER to enter the selection.
Using the controls on the
receiver
1 Turn INPUT SELECTOR to select the FM
or AM band.
2 Press TUNING MODE repeatedly to select
“PRESET T.”.
3 Press TUNING + or TUNING – repeatedly
to select the preset station you want.
1 Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2 Tune in the preset station you
want to create an index name
for (page 55).
Tuning to preset stations
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
m
M
.
>
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
O
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
MUTING
TV VOL
MASTER VOL
TV CH
PRESET
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
DISC SKIP
RETURN/
/
EXIT
MENU
OPTIONS
TOOLS
D.TUNING
1
ENTER
Numeric
buttons
2
01 02 03 04 05 27...
30 29 28
Naming preset stations
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
m
M
.
>
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
O
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
DISC SKIP
RETURN/
/
EXIT
MENU
OPTIONS
TOOLS
D.TUNING
4
1
5-8
3
continued
56
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
3 Press RECEIVER.
The RECEIVER indicator is lights up and
receiver operation is activated.
4 Press MENU.
“1-LEVEL” appears on the display.
5 Press V/v repeatedly to select
“4-TUNER”.
6 Press or b to enter the
menu.
7 Press V/v repeatedly to select
“NAME IN”.
8 Press or b to enter the
parameter.
The cursor flashes and you can select a
character. Follow the procedure given in
“To create an index name” below.
To create an index name
1 Use V/v/B/b to create an index name.
Press V/v to select a character, then press
B/b to move the cursor to the next position.
If you made a mistake
Press B/b until the character you want to
change flashes, then press V/v to select the
correct character.
Tip
You can select the character type as follows by
pressing V/v.
Alphabet (upper case) t Numbers t Symbols
2 Press .
The entered name is registered.
Listening to the XM Radio
About XM Satellite Radio
XM Satellite Radio offers an extraordinary variety of
commercial-free music, plus the best in sports, news,
talk and entertainment. XM is broadcast in superior
digital audio from coast to coast. From rock to reggae,
from classical to hip hop, XM has something for every
music fan. XM’s dedication to playing the richest
selection of music is matched by its passion for live
sporting events, talk radio, up-to-the-minute news,
stand-up comedy, children’s programming, and much
more. For U.S. customers, information about XM
Satellite Radio is available online at
www.xmradio.com. For Canadian customers,
information about XM Canada is online at
www.xmradio.ca.
XM Satellite Radio Terms and
Conditions
Hardware and required monthly subscription sold
separately. Other fees and taxes, including a one-time
activation fee may apply. Subscription fee is consumer
only. All fees and programming subject to change.
Channels with frequent explicit language are indicated
with an XL. Channel blocking is available for XM radio
receivers by calling 1-800-XMRADIO (US residents)
and 1-877-GET-XMSR (Canadian residents).
For a full listing of the XM commercial-free channels
and advertising-supported channels, visit
lineup.xmradio.com (US residents) or xmradio.ca
(Canadian residents).
Subscriptions subject to Customer Agreement available
at xmradio.com (US residents) and xmradio.ca
(Canadian residents). Only available in the 48
contiguous United States and Canada.
©2006 XM Satellite Radio Inc. All rights reserved. All
other trademarks are the property of their respective
owners.
To Activate XM Satellite Radio
Once you have installed the XM Mini-Tuner Dock,
inserted the XM Mini-Tuner, connected the XM Dock
to your XM Ready
®
home audio system, and installed
the antenna, you are ready to subscribe and begin
receiving XM programming. There are three places to
find your eight character XM Radio ID: on the XM
Mini-Tuner, on the XM Mini-Tuner package, and on
XM Channel 0. Record the Radio ID in the following
eight squares for reference.
ssssssss
57
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Tuner Operations
Note
The XM radio ID does not use the letters “I”, “O”,
“S” or “F”. Activate your XM Satellite Radio
service in the U.S. online at http://
activate.xmradio.com or call 1-800-XM-RADIO (1-
800-967-2346). You will need a major credit card.
XM will send a signal from the satellites to activate
the full channel lineup. Activation normally takes 10
to 15 minutes, but during peak busy periods you may
need to keep your XM Ready home audio system on
for up to an hour. When you can access the full
channel lineup on your XM Ready home audio
system you are done. For more information or to
subscribe in Canada, visit XM on the Web at
www.xmradio.ca or call XM’s Listener Care at 1-
877-GET-XMSR (1-877-438-9677).
Before operating the system, connect the XM
Connect-and-Play antenna to the XM jack.
Note
To ensure optional reception of XM’s satellite
signal, move your antenna to various window
locations around your home to see where the best
reception will be received. Most XM customers
place the antenna in a south-facing window with a
clear view to the sky.
1 Press TUNER repeatedly to
select “XM RADIO”.
You can also use INPUT SELECTOR on
the receiver.
2 Press TUNING + or TUNING – to
select channel 0.
You can also press TUNING MODE on
the receiver to select “AUTO T.”, and
then press TUNING + or TUNING – to
select channel 0.
Connecting the XM Radio
OPTICAL
SAT
IN
VIDEO 2/
BD IN
DVD
IN
COAXIAL
DVD IN
VIDEO 2/BD IN
OUT
AM
L
R
OUT IN
IN
VIDEO IN VIDEO IN
VIDEO IN
VIDEO OUT
AUDIO OUT
AUDIO IN
AUDIO IN
AUDIO IN
DIGITAL
(ASSIGNABLE)
ANTENNA
DMPORT
SA–CD/CD/CD–R
TV
HDMI
MONITOR
DVD
VIDEO 1
SUB
WOOFE
SAT
XM
L
L
R
L
R
R
AUDIO OU
T
VIDEO OUT
XM jack
Checking the XM Radio ID
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
m
M
.
>
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
O
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
DISC SKIP
RETURN/
/
EXIT
MENU
OPTIONS
TOOLS
D.TUNING
1
2
continued
58
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
3 Check the XM Radio ID on the
display and write it in the space
provided here.
ID:_____________________________
If you cannot read the characters or
numbers on the display, refer to the
following table.
1 Press TUNER repeatedly to
select the “XM RADIO”.
You can also use INPUT SELECTOR on
the receiver.
2 Press TUNING + or TUNING – to
select a channel.
You can also press TUNING MODE on
the receiver to select “AUTO T.”, and
then press TUNING + or TUNING – to
select a channel.
Display Description
2 (two)
5 (five)
6 (six)
8 (eight)
0 (zero)
A
B
D
G
H
K
M
Q
Z
Receiving XM Radio broadcasts
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
m
M
.
>
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
O
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
SC S
RETURN/
/
EXIT
MENU
OPTIONS
TOOLS
D.TUNING
1
2
59
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)

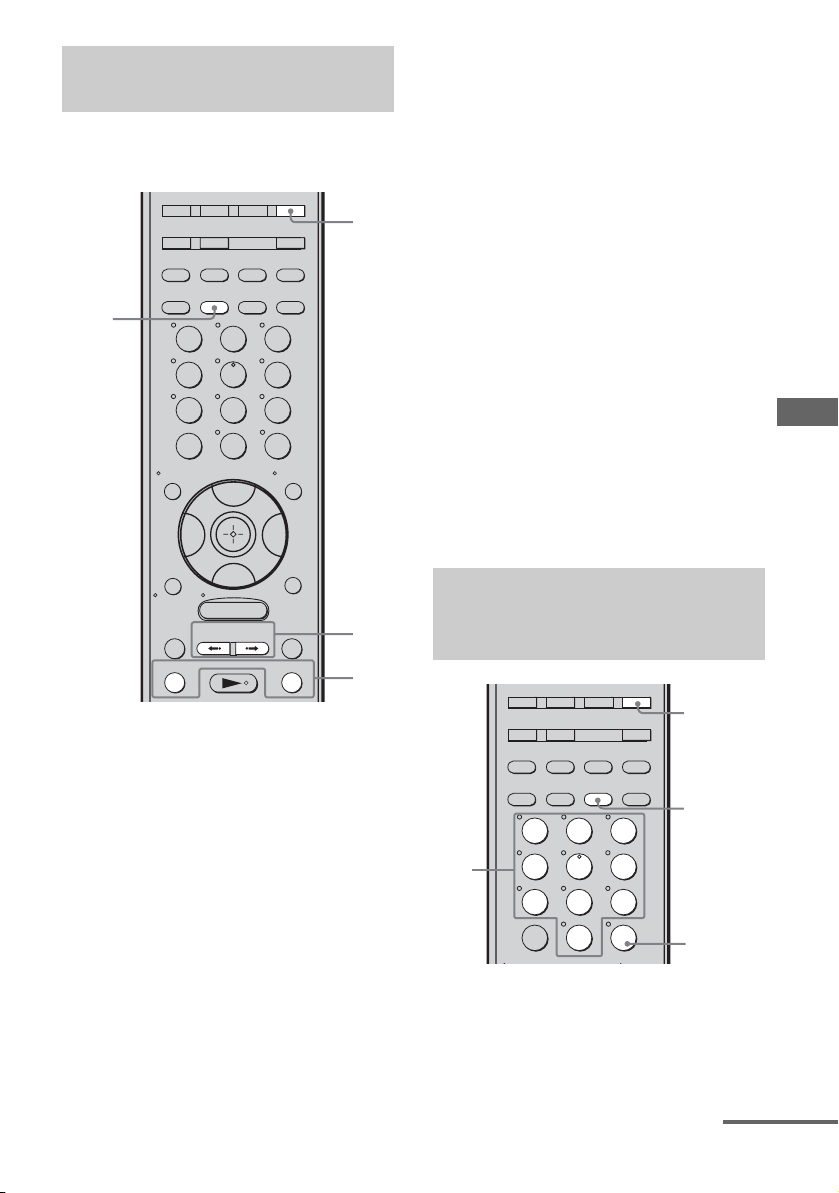

Tuner Operations
You can select a channel from one category or
all the categories by changing the category
mode.
1 Press TUNER repeatedly to
select the “XM RADIO”.
2 Press CATEGORY MODE
repeatedly to select “ONE
CAT”.
• ALL CAT: You can select a channel from all
the categories. The initial setting is “ALL
CAT”.
• ONE CAT: You can select a channel from
one category. “CAT” is displayed on the
display when “ONE CAT” is selected.
3 Press CATEGORY + or
CATEGORY – to select the
category you want.
The category is selected and the channel
with the lowest number in the specified
category is selected.
4 Press TUNING + or TUNING – to
select the channel.
You can also press TUNING MODE on
the receiver to select “AUTO T.”, and
then press TUNING + or TUNING – to
select the channel.
Notes
• When you select a channel in the “ONE CAT”
mode, the channel you selected may not be the one
in the category you want. This is because one
channel may belong to more than one category.
• If you press CATEGORY + or CATEGORY – in
the “ALL CAT” mode, the first channel of the next
or previous category is selected (CATEGORY
SKIP).
1 Press TUNER repeatedly to
select the “XM RADIO”.
You can also use INPUT SELECTOR on
the receiver.
Selecting channels from a
category (CATEGORY TUNING)
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
m
M
.
>
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
O
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
DISC SKIP
RETURN/
/
EXIT
MENU
OPTIONS
TOOLS
D.TUNING
1
3
4
2
Selecting channels by inputting
the channel number directly
(DIRECT TUNING)
MEMORY
-/--
>
10
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
D.TUNING
1
4
3
2
continued
60
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
2 Press D.TUNING.
3 Press the numeric buttons to
enter the channel number.
4 Press ENTER.
You can also use MEMORY/ENTER on
the receiver.
The selected channel is tune in.
Press DISPLAY on the receiver
repeatedly.
Each time you press DISPLAY while tuning in
the channel, the display changes cyclically as
follows:
Channel name t Channel number t
Category t Artist name/Feature t
Song/Program title t Sound field type
Tip
The preset number is always displayed at the right
end of the display.
Presetting XM Radio
stations
You can select the channels you want directly
by presetting them using the preset numbers.
You can preset up to 30 XM Radio channels.
1 Press TUNER repeatedly to
select the “XM RADIO”.
You can also use INPUT SELECTOR on
the receiver.
Displaying the XM-RADIO
information on the front panel
display
?
/ 1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC
AUTO CAL
MUTING
DISPLAY
INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
DISPLAY
Presetting channels using the
preset numbers
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
m
M
.
>
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
O
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
MUTING
TV VOL
MASTER VOL
TV CH
PRESET
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
DISC SKIP
RETURN/
/
EXIT
MENU
OPTIONS
TOOLS
D.TUNING
1
4
3,5
PRESET
+/–
61
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Tuner Operations
2 Tune in the channel you want to
preset.
For details on selecting channels, see
“Listening to the XM Radio” (page 56).
3 Press MEMORY.
You can also use MEMORY/ENTER on
the receiver.
4 Press the numeric buttons to
enter the preset number.
You can also select the number by
pressing PRESET + or PRESET –.
You can also press TUNING + or
TUNING – on the receiver.
Preset number is available from 1 to 30,
and channel 1 is preset for all the preset
numbers when you purchase the receiver.
5 Press ENTER.
You can also use MEMORY/ENTER on
the receiver.
6 Repeat steps 2 to 5 to preset
another channel.
1 Press TUNER repeatedly to
select the “XM RADIO”.
2 Press PRESET + or PRESET –
repeatedly to select the preset
channel you want.
You can also press the numeric buttons to
select the preset channel you want. Then
press ENTER to enter the selection.
You can also press TUNING MODE on
the receiver to select “PRESET T.”, and
then press TUNING + or TUNING –.
You can select preset channels from 1 to
30.
Selecting the channel by using
the preset numbers
G
f
F
g
GUIDE
DISPLAY
MEMORY
-/--
>
10
m
M
.
>
TUNERSA-CD/
/
CD
TVSAT
AUX
DMPORT
RECEIVER
O
CLEAR
ENTER
0/
/
10
8
7
4
1 2 3
6
9
5
SLEEP
CATEGORY
MODE
AUTO CAL
2CH
A.F.D. MOVIE MUSIC
MUTING
TV VOL
MASTER VOL
TV CH
PRESET
REPLAY
–
CATEGORY
+
ADVANCE
TUNING
+
TUNING
–
DISC SKIP
RETURN/
/
EXIT
MENU
OPTIONS
TOOLS
D.TUNING
2
1
ENTER
Numeric
buttons
continued
62
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US05AMP_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Note
The preset channel information will be updated
depending on the service provided by the XM
Satellite Radio Inc. that you have subscribed to.
XM Radio messages list
Message
appears
Explanation Remedies
ANTENNA The XM antenna is not
connected or transmission is
not being received properly.
Make sure that the antenna is securely connected.
Try to disconnect the antenna then reconnect, or turn off the
power then turn back on.
UPDATING The encryption code is being
updated.
Wait until the encryption code has been updated.
NO SIGNL The signal is too weak. Adjust the antenna so that the signal is as strong as possible.
LOADING The audio channel or
information is being acquired.
Wait until the audio channel or information has been
acquired.
OFF AIR The selected channel is off the
air.
Make sure that you selected the channel properly.
Try to select another channel.
(space)–––– There is no characteristic
information such as an artist
name, song title or program
title available.
—
–– The preset number entered is
an invalid number.
Enter a number from 1 to 30.
–––CH The selected channel is not
available.
—
63
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US06OTH_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Other Operations
Switching the audio input
mode
(INPUT MODE)
You can select the audio input mode by setting
the audio input mode when you connect
components to both digital and analog audio
input jacks on the receiver.
1 Turn INPUT SELECTOR on the
receiver to select the input.
You can also use the input buttons on the
remote.
2 Press INPUT MODE repeatedly
on the receiver to select the
audio input mode.
The selected audio input mode appears on
the display.
Audio input modes
x AUTO IN
Gives priority to digital audio signals when
there are both digital and analog
connections. If there are no digital audio
signals, analog audio signals are selected.
x COAX IN
Specifies the digital audio signals input to
the DIGITAL COAXIAL jack.
x OPT IN
Specifies the digital audio signals input to
the DIGITAL OPTICAL jack.
x ANALOG
Specifies the analog audio signals input to
the AUDIO IN (L/R) jacks.
Note
Some audio input modes may not be set up
depending on the input.
Enjoying the DIGITAL
MEDIA PORT
(DMPORT)
The DIGITAL MEDIA PORT (DMPORT)
allows you to enjoy sound from a network
system such as a portable audio source or
computer.
By connecting a DIGITAL MEDIA PORT
adapter (not supplied), you can enjoy sound
from the connected component on the
receiver.
For details, see the operating instructions
supplied with the DIGITAL MEDIA PORT
adapter.
Notes
• Do not connect an adapter other than the DIGITAL
MEDIA PORT adapter.
• Do not connect or disconnect the DIGITAL
MEDIA PORT adapter while the receiver is turned
on.
• Depending on the DIGITAL MEDIA PORT
adapter, video output may not be possible.
• The DIGITAL MEDIA PORT adapters are
available for purchase depending on the area.
Other Operations
64
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US06OTH_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)

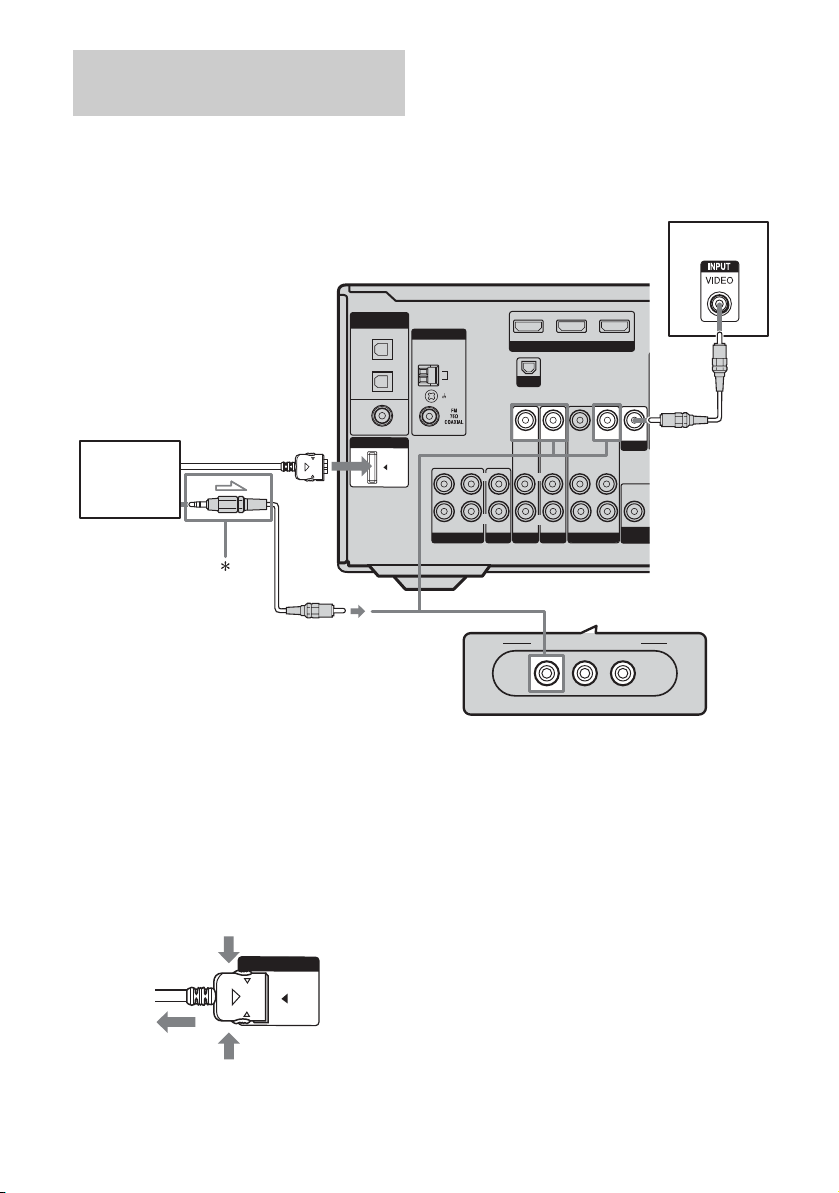

You can listen to the sound from the
component connected through the DIGITAL
MEDIA PORT adapter to the DMPORT jack
on the receiver.
You can also view the images on the TV
screen by connecting the video output of the
DIGITAL MEDIA PORT adapter to the
receiver.
To view the images, proceed to “Watching a
connected component through DMPORT
connection” on page 65.
To detach the DIGITAL MEDIA
PORT adapter from DMPORT
jack
Press and hold both sides of the connector and
then pull out the connector.
Notes
• When connecting the DIGITAL MEDIA PORT
adapter, be sure the connector is inserted with the
arrow mark facing toward the arrow mark on the
DMPORT jack.
• Be sure to make DMPORT connections firmly,
insert the connector straight in.
• As the connector of the DIGITAL MEDIA PORT
adapter is fragile, be sure to handle with care when
placing or moving the receiver.
Connecting the DIGITAL MEDIA
PORT adapter
OPTICAL
SAT
IN
VIDEO 2/
BD IN
DVD
IN
COAXIAL
DVD IN
VIDEO 2/BD IN
OUT
AM
L
R
OUT IN
IN
VIDEO IN VIDEO IN
VIDEO OUT
AUDIO OUT
AUDIO IN
AUDIO IN
AUDIO IN
DIGITAL
(ASSIGNABLE)
ANTENNA
DMPORT
SA–CD/CD/CD–R
TV
HDMI
MONITOR
DVD
VIDEO 1
SUB
WOOFE
R
SAT
XM
L
L
R
L
R
R
AUDIO OU
T
VIDEO OUT
VIDEO IN
VIDEO L AUDIO R
VIDEO 3 IN/PORTABLE AV IN
A
DIGITAL
MEDIA PORT
adapter
TV
B
To one of the
VIDEO IN jacks
* The type of connector varies depending on the DIGITAL MEDIA PORT adapter. For details, see the operating
instructions supplied with the DIGITAL MEDIA PORT adapter.
A Video cord (not supplied)
Front panel
DMPORT
2
1
65
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US06OTH_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Other Operations
1 Press DMPORT.
You can also use the INPUT SELECTOR
on the receiver to select “DMPORT”.
2 Start playback of the connected
component.
The sound is played back on the receiver.
For details, see the operating instructions
supplied with the DIGITAL MEDIA
PORT adapter.
You need to assign composite video input to
DMPORT input so that you can view the
images on the TV screen.
1 Press RECEIVER.
The RECEIVER indicator lights up and
receiver operation is activated.
2 Press MENU.
“1-LEVEL” appears on the display.
3 Press V/v repeatedly to select
“6-VIDEO”.
4 Press or b to enter the
menu.
5 Press V/v repeatedly to select
“DMPORT V.”.
6 Press or b to enter the
parameter.
7 Press V/v repeatedly to select
the composite video input you
want to assign to DMPORT
input.
Initial setting: –NONE
The assignable composite video input are
VIDEO 1, VIDEO 3, DVD and SAT
inputs.
For example, select “
–VIDEO 1”.
When you press DMPORT, the images
from the component connected to the
VIDEO 1 VIDEO IN jack through
DIGITAL MEDIA PORT adapter will be
appear on the TV screen.
To return to the previous
display
Press B.
Notes
• Depending on the type of DIGITAL MEDIA
PORT adapter, you can operate the connected
component by using the remote. For details on
remote button operation, see page 10.
• Be sure you have made the video connection from
DIGITAL MEDIA PORT adapter to the receiver
(page 64).
• Be sure you have connected the MONITOR
VIDEO OUT of the receiver to the TV (page 19).
• Depending on the DIGITAL MEDIA PORT
adapter, video output may not be possible.
Tip
When listening to MP3 or other compressed music
using a portable audio source, you can enhance the
sound. Press MUSIC repeatedly to select
“PORTABLE” (page 49).
Listening to a connected
component through DMPORT
connection
Watching a connected
component through DMPORT
connection
66
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US06OTH_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Listening to digital sound
from other inputs
(DIGITAL ASSIGN)
You can reassign digital audio input that has
OPTICAL or COAXIAL (SAT IN, VIDEO 2/
BD IN, DVD IN) signals to another input
when they are not currently being used.
For example, to output the sound source for
the DVD player using the OPTICAL IN jack
on the receiver:
• Connect the optical output jack of the DVD
player to the OPTICAL VIDEO 2/BD IN
jack of the receiver.
• Assign “VD2” to “DVD” in the
“D.ASSIGN” setting.
1 Press RECEIVER.
The RECEIVER indicator lights up and
receiver operation is activated.
2 Press MENU.
“1-LEVEL” appears on the display.
3 Press V/v repeatedly to select
“5-AUDIO”.
4 Press or b to enter the
menu.
5 Press V/v repeatedly to select
“D.ASSIGN”.
6 Press or b to enter the
parameter.
7 Press V/v repeatedly to select a
vacant digital audio input (for
example, VIDEO 2).
8 Press or b to enter your
selection.
9 Press V/v repeatedly to select
the input (for example, DVD)
you want to assign to the digital
audio input jack selected in
step 7.
When the input is switched to “DVD”, the
sound of the DVD player will also
become a digital sound through the
OPTICAL VIDEO 2/BD IN jack.
The input you can assign varies for each
audio input. For details, see the following
“Assignable inputs for digital audio
input”.
67
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US06OTH_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Other Operations
Assignable inputs for digital
audio input
The initial setting is marked with underscore.
Notes
• You cannot reassign more than one digital audio
inputs to the same input.
• You cannot use the digital audio input for the original
input when it has been assigned to another input.
• When you reassign the digital audio input, the INPUT
MODE setting may change automatically (page 63).
• You cannot reassign the digital audio input to
TUNER, XM Radio and DMPORT.
Naming inputs
You can enter a name of up to 8 characters for
inputs and display it on the receiver’s display.
This is convenient for labeling the jacks with
the names of the connected components.
1 Press the input button to select
the input you want to create an
index name for.
You can also use INPUT SELECTOR on
the receiver.
2 Press RECEIVER.
The RECEIVER indicator lights up and
receiver operation is activated.
3 Press MENU.
“1-LEVEL” appears on the display.
4 Press V/v repeatedly to select
either “5-AUDIO” or “6-VIDEO”.
5 Press or b to enter the
menu.
6 Press V/v to select “NAME IN”.
7 Press or b to enter the
parameter.
The cursor flashes and you can select a
character. Follow the procedure given in
“To create an index name” (page 56).
Digital
audio
input
Assignable
inputs
Display
VIDEO 2
OPT
VIDEO 1 VD2–VD1
VIDEO 2 VD2–VD2
VIDEO 3 VD2–VD3
DVD VD2–DVD
TV VD2–TV
SA-CD/CD VD2–CD
DVD
COAX
VIDEO 1 DVD–VD1
VIDEO 2 DVD–VD2
VIDEO 3 DVD–VD3
DVD DVD–DVD
SAT DVD–SAT
TV DVD–TV
SA-CD/CD DVD–CD
SAT OPT VIDEO 1 SAT–VD1
VIDEO 3 SAT –VD3
DVD SAT –DVD
SAT SAT–SAT
TV SAT–TV
SA-CD/CD SAT–CD
68
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US06OTH_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Changing the display
You can check the sound field, etc., by
changing the information on the display.
Be sure to use the buttons on the receiver for
this operation.
Press DISPLAY repeatedly.
Each time you press the button, the display
changes cyclically as follows.
All inputs except the FM and AM
band and XM Radio
Index name of the input
a)
t Selected input
t Sound field currently applied
FM and AM band
Preset station name
a)
t Frequency t Sound
field currently applied
XM Radio
Channel name
t Channel number
t
Category name
t Artist name/Feature
t
Song/program title
t Sound field currently
applied
a)
Index name appears only when you have assigned
one to the input or preset station (page 56, 67).
Index name does not appear when only blank
spaces have been entered, or it is the same as the
input name.
Note
Character or marks may not be displayed for some
languages.
Using the Sleep Timer
You can set the receiver to turn off
automatically at a specified time.
Press SLEEP repeatedly while the
power is on.
Each time you press the button, the display
changes cyclically as follows:
2-00-00 t 1-30-00 t 1-00-00 t 0-30-00
t OFF
When Sleep Timer is activated, the display
dims.
Note
If you press any buttons on the remote or receiver
after the display dims, the display brightens up.
After a while, the display dims again if no button is
pressed.
Tip
To check the remaining time before the receiver
turns off, press SLEEP. The remaining time appears
on the display. If you press SLEEP again, the sleep
timer will be canceled.
69
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US06OTH_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Other Operations
Recording using the
receiver
You can record onto a CD-R using the
receiver. See the operating instructions
supplied with your CD.
1 Press one of the input buttons
to select the playback
component.
You can also use INPUT SELECTOR on
the receiver.
2 Prepare the playback
component for playing.
For example, tune the radio station you
want to record.
3 Prepare the recording
component.
Insert a CD-R into the CD recorder and
adjust the recording level.
4 Start recording on the
recording component, then
start playback on the playback
component.
Note
Sound adjustments do not affect the signal output
from the SA-CD/CD/CD-R OUT jacks.
You can record from an video component
using the receiver. See the operating
instructions supplied with your recording
component.
1 Press one of the input buttons
to select the playback
component.
You can also use INPUT SELECTOR on
the receiver.
2 Prepare the playback
component for playing.
For example, insert the video tape you
want to copy into the VCR.
3 Prepare the recording
component.
Insert a blank video tape, etc. into the
recording component (VIDEO 1) for
recording.
4 Start recording on the
recording component, then
start playback on the playback
component.
Notes
• Some sources contain copy guards to prevent
recording. In this case, you may not be able to
record from the source.
• When DMPORT input is selected and you have
assigned VIDEO 1 input to DMPORT input, no
video signals are output from the VIDEO 1 VIDEO
OUT jack.
Recording onto a CD-R
Recording onto a recording
media
70
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US07REM_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Programming the remote
You can program the remote to control non-
Sony components by changing the code. Once
the control signals have been memorized, you
can use those components as part of your
system.
Furthermore, you can also program the remote
for Sony components that the remote is unable
to control. Note that the remote can only
control components that accept infrared
wireless control signals.
1 Press RM SET UP.
The RM SET UP indicator slowly flashes.
2 Press the input button for the
component you want to control.
For example, if you are going to control a
CD player, press SA-CD/CD. The RM
SET UP indicator lights up.
3 Press the numeric buttons to
enter the numeric code (or one
of the codes if more than one
code exists) corresponding to
the component and the maker
of the component you want to
control (except TV) .
See the tables on pages 71-74 for
information on the numeric code(s)
corresponding to the component and the
maker of the component (the first digit
and the last two digits of the numeric code
correspond to the category and the
maker’s code respectively).
4 Press ENTER.
Once the numeric code has been verified,
the RM SET UP indicator slowly flashes
twice and the remote automatically exits
the programming mode.
5 Repeat steps 1 to 4 to control
other components.
Notes
• The indicator turns off while a valid button is
pressed.
• In step 2, if several input buttons are pressed, only
the last pressed button is valid.
• In step 2, if you press TUNER, you can only
program the button to control a tuner (page 74).
• In step 3, if an input button is pressed, the new
input is selected and the programming procedure
returns to the beginning of step 3.
• For the numeric codes, only the last three numbers
entered are valid.
To program the remote to
control a TV
1 Press RM SET UP.
The RM SET UP indicator slowly flashes.
2 Press TV.
3 Press the numeric buttons to enter the
numeric code (or one of the codes if more
than one code exists) for TV. For details, see
page 73.
4 Press ENTER.
Once the numeric code has been verified,
the RM SET UP indicator slowly flashes
twice and the remote automatically exits the
programming mode.
To cancel programming
Press RM SET UP during any step. The RM
SET UP indicator flashes 5 times in quick
succession. The remote automatically exits the
programming mode.
To activate the input after
programming
Press the programmed button to activate the
input you want.
Using the Remote
71
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US07REM_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Using the Remote
If programming is
unsuccessful, check the
following:
• If the indicator does not light up in step 1, the
batteries are weak. Replace both batteries.
• If the indicator flashes 5 times in quick
succession while entering the numeric code,
an error has occurred. Start again from step
1.
To clear the memory of the
remote
To clear all programmed, do the following to
reset the remote to factory settings.
While holding down MASTER VOL
–, press and hold ?/1 and then
press AV ?/1.
The indicator flashes 3 times, then goes off.
The numeric codes
corresponding to the
component and the maker of
the component
Use the numeric codes in the tables below to
control non-Sony components and also Sony
components that the remote is normally unable
to control. Since the remote signal that a
component accepts differs depending on the
model and year of the component, more than
one numeric code may be assigned to a
component. If you fail to program your remote
using one of the codes, try using other codes.
Notes
• The numeric codes are based on the latest
information available for each brand. There is a
chance, however, that your component will not
respond to some or all of the codes.
• All of the input buttons on this remote may not be
available when used with your particular
component.
To control a CD player
To control a DAT deck
To control an MD deck
To control a tape deck
Maker Code(s)
SONY 101, 102, 103
DENON 104, 123
JVC 105, 106, 107
KENWOOD 108, 109, 110
MAGNAVOX 111, 116
MARANTZ 116
ONKYO 112, 113, 114
PANASONIC 115
PHILIPS 116
PIONEER 117
TECHNICS 115, 118, 119
YAMAHA 120, 121, 122
Maker Code(s)
SONY 203
PIONEER 219
Maker Code(s)
SONY 301
DENON 302
JVC 303
KENWOOD 304
Maker Code(s)
SONY 201, 202
DENON 204, 205
KENWOOD 206, 207, 208, 209
NAKAMICHI 210
PANASONIC 216
PHILIPS 211, 212
PIONEER 213, 214
TECHNICS 215, 216
YAMAHA 217, 218
continued
72
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US07REM_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
To control an LD player
To control a video CD player
To control a DVD/VHS COMBO
To control a DVD/HDD COMBO
To control a VCR
* If an AIWA VCR does not work even though you
enter the code for AIWA, enter the code for Sony
instead.
To control a DVD player
To control a DVD recorder
Maker Code(s)
SONY 601, 602, 603
PIONEER 606
Maker Code(s)
SONY 605
Maker Code(s)
SONY 411
Maker Code(s)
SONY 403
Maker Code(s)
SONY 701, 702, 703, 704,
705, 706
AIWA* 710, 750, 757, 758
AKAI 707, 708, 709, 759
BLAUPUNKT 740
EMERSON 711, 712, 713, 714,
715, 716, 750
FISHER 717, 718, 719, 720
GENERAL ELECTRIC 721, 722, 730
GOLDSTAR/LG 723, 753
GRUNDIG 724
HITACHI 722, 725, 729, 741
ITT/NOKIA 717
JVC 726, 727, 728, 736
MAGNAVOX 730, 731, 738
MITSUBISHI/MGA 732, 733, 734, 735
NEC 736
PANASONIC 729, 730, 737, 738,
739, 740
PHILIPS 729, 730, 731
PIONEER 729
RCA/PROSCAN 722, 729, 730, 731,
741, 747
SAMSUNG 742, 743, 744, 745
SANYO 717, 720, 746
SHARP 748, 749
TELEFUNKEN 751, 752
TOSHIBA 747, 756
ZENITH 754
Maker Code(s)
SONY 401, 402, 403
RCA 414
SAMSUNG 416, 422
ZENITH 418, 420
PANASONIC 406, 408, 425
PHILIPS 407
PIONEER 409, 410
TOSHIBA 404, 421
DENON 405
BROKSONIC 424
HITACHI 416
JVC 415, 423
MITSUBISHI 419
ORITRON 417
Maker Code(s)
SONY 403
Maker Code(s)
73
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US07REM_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Using the Remote
To control a TV
Maker Code(s)
SONY 501
AIWA 501, 536, 539
AKAI 503
AOC 503
CENTURION 566
CORONADO 517
CURTIS-MATHES 503, 551, 566, 567
DAYTRON 517, 566
DAEWOO 504, 505, 506, 507,
515, 544
FISHER 508, 545
FUNAI 548
FUJITSU 528
GOLDSTAR/LG 503, 512, 515, 517,
534, 544, 556, 568
GRUNDIG 511, 533, 534
HITACHI 503, 513, 514, 515,
517, 519, 544, 557,
571
ITT/NOKIA 521, 522
J.C. PENNY 503, 510, 566
JVC 516, 552
KMC 517
MAGNAVOX 503, 515, 517, 518,
544, 566
MARANTZ 527
MITSUBISHI/MGA 503, 519, 527, 544,
566, 568
NEC 503, 517, 520, 540,
544, 554, 566
NOROMENDE 530, 558
NOKIA 521, 522, 573, 575
PANASONIC 509, 524, 553, 559,
572
PHILIPS 515, 518, 557, 570,
571
PHILCO 503, 504, 514, 517,
518
PIONEER 509, 525, 526, 540,
551, 555
PORTLAND 503
QUASAR 509, 535
RADIO SHACK 503, 510, 527, 565,
567
RCA/PROSCAN 503, 510, 523, 529,
544
SAMSUNG 503, 515, 517, 531,
532, 534, 544, 556,
557, 562, 563, 566,
569
SAMPO 566
SABA 530, 537, 547, 549,
558
SANYO 508, 545, 546, 560,
567
SCOTT 503, 566
SEARS 503, 508, 510, 517,
518, 551
SHARP 517, 535, 550, 561,
565
SYLVANIA 503, 518, 566
TELEFUNKEN 530, 537, 538, 547,
549, 558
THOMSON 530, 537, 547, 549
TOSHIBA 535, 539, 540, 541,
551
ZENITH 542, 543, 567
TEKNIKA 517, 518, 567
WARDS 503, 517, 566
YORK 566
GE 503, 509, 510, 544
LOEWE 515, 534, 556
Maker Code(s)
continued
74
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US07REM_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
To control a satellite tuner
To control a cable box
To control a tuner
To control a Blu-ray disc
recorder
To control a PSX
Maker Code(s)
SONY 801, 802, 803, 804,
824, 825, 865
AMSTRAD 845, 846
BskyB 862
GENERAL ELECTRIC
(GE)
866
GRUNDIG 859, 860
HUMAX 846, 847
THOMSON 857, 861, 864
PACE 848, 849, 850, 852,
862, 863, 864
PANASONIC 818, 855
PHILIPS 856, 857, 858, 859,
860, 864, 874
NOKIA 851, 853, 854, 864
RCA/PROSCAN 866, 871
BITA/HITACHI 868
HUGHES 867
JVC/Echostar/Disk
Network
873
MITSUBISHI 872
SAMSUNG 875
TOSHIBA 869, 870
Maker Code(s)
SONY 821, 822, 823
HAMLIN/REGAL 836, 837, 838, 839,
840
JERROLD/G.I./
MOTOROLA
806, 807, 808, 809,
810, 811, 812, 813,
814, 819
JERROLD 830, 831
OAK 841, 842, 843
PANASONIC 816, 826, 832, 833,
834, 835
PHILIPS 830, 831
PIONEER 828, 829
RCA 805
SCIENTIFIC
ATLANTA
815, 816, 817
TOCOM/PHILIPS 830, 831
ZENITH 826, 827
Maker Code(s)
SONY 002, 005
Maker Code(s)
SONY 310, 311, 312
Maker Code(s)
SONY 313, 314, 315
75
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US07REM_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Additional Information
Glossary
x Component video
A format for transmitting video signal
information consisting of three separate
signals: luminance Y, chrominance Pb, and
chrominance Pr. High quality pictures, such as
DVD video or HDTV pictures, are transmitted
more faithfully. The three jacks are color
coded green, blue and red.
x Composite video
A standard format for transmitting video
signal information. The luminance signal Y
and chrominance signal C are combined and
transmitted together.
x Dolby Digital
Digital audio encoding/decoding technology
developed by Dolby Laboratories, Inc. It
consists of front (left/right), center, surround
(left/right) and sub woofer channels. It is a
designated audio standard for DVD-video and
also known as 5.1 channel surround. Since
surround information is recorded and
reproduced in stereo, more realistic sound with
fuller presence is delivered than with Dolby
surround.
x Dolby Pro Logic II
This technology converts 2 channel stereo
recorded audio into 5.1 channel for playback.
There is a MOVIE mode for movies and
MUSIC mode for stereo sources such as
music. Old movies encoded in the traditional
stereo format can be enhanced with 5.1
channel surround sound.
x Dolby Surround (Dolby Pro
Logic)
Audio processing technology developed by
Dolby Laboratories, Inc. Center and mono
surround information is matrixed into two
stereo channels. When reproduced, audio is
decoded and output in 4ch surround sound.
This is the most common audio processing
method for DVD-video.
x DTS Digital Surround
Digital audio encoding/decoding technology
for theaters developed by DTS, Inc. It
compresses audio less than Dolby Digital,
delivering a higher quality sound
reproduction.
x HDMI (High-Definition
Multimedia Interface)
HDMI is an interface that support both video
and audio on a single digital connection. The
HDMI connection carries standard to high
definition video signals and multi-channel
audio signals to audio video components, such
as HDMI equipped TVs, in digital form
without degradation. The HDMI specification
supports HDCP (High-bandwidth Digital
Contents Protection), a copy protection
technology that incorporates coding
technology for digital video signals.
x Sampling frequency
To convert analog audio to digital, analog data
should be quantified. This process is called
sampling, and the number of times per second
the analog data is quantified is called the
sampling frequency. A standard music CD
stores data quantified at 44,100 times per
second, which is expressed as a sampling
frequency of 44.1 kHz. Generally speaking, a
higher sampling frequency means better sound
quality.
Additional Information
76
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US07REM_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Precautions
On safety
Should any solid object or liquid fall into the
cabinet, unplug the receiver and have it
checked by qualified personnel before
operating it any further.
On power sources
• Before operating the receiver, check that the
operating voltage is identical with your local
power supply.
The operating voltage is indicated on the
nameplate on the back of the receiver.
• The unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the unit
itself has been turned off.
• If you are not going to use the receiver for a
long time, be sure to disconnect the receiver
from the wall outlet. To disconnect the AC
power cord, grasp the plug itself; never pull
the cord.
• One blade of the plug is wider than the other
for the purpose of safety and will fit into the
wall outlet only one way. If you are unable
to insert the plug fully into the outlet, contact
your dealer.
• The AC power cord must be changed only at
a qualified service shop.
On heat buildup
Although the receiver heats up during
operation, this is not a malfunction. If you
continuously use this receiver at a large
volume, the cabinet temperature of the top,
side and bottom rises considerably. To avoid
burning yourself, do not touch the cabinet.
On placement
• Place the receiver in a location with
adequate ventilation to prevent heat buildup
and prolong the life of the receiver.
• Do not place the receiver near heat sources,
or in a place subject to direct sunlight,
excessive dust, or mechanical shock.
• Do not place anything on top of the cabinet
that might block the ventilation holes and
cause malfunctions.
• Do not place the receiver near equipment
such as a television, VCR, or tape deck. (If
the receiver is being used in combination
with a television, VCR, or tape deck, and is
placed too close to that equipment, noise
may result, and picture quality may suffer.
This is especially likely when using an
indoor antenna. Therefore, we recommend
using an outdoor antenna.)
• Use caution when placing the receiver or
speakers on surfaces that have been
specially treated (with wax, oil, polish, etc.)
as staining or discoloration of the surface
may result.
On operation
Before connecting other components, be sure
to turn off and unplug the receiver.
If you encounter color
irregularity on a nearby TV
screen
The front and center speakers and the sub
woofer are magnetically shielded to allow it to
be installed near a TV set. However, color
irregularities may still be observed on certain
types of TV sets.
As the surround speakers are not magnetically
shielded, we recommend that you place the
surround speakers slightly further away from
the TV set (page 14).
If color irregularity is
observed...
Turn off the TV set, then turn it on again after
15 to 30 minutes.
77
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US07REM_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Additional Information
If color irregularity is observed
again...
Place the speaker further away from the TV
set.
If howling occurs
Reposition the speakers or turn down the
volume on the receiver.
On cleaning
Clean the cabinet, panel, and controls with a
soft cloth slightly moistened with a mild
detergent solution. Do not use any type of
abrasive pad, scouring powder, or solvent,
such as alcohol or benzine.
If you have any questions or problems
concerning your receiver, please consult your
nearest Sony dealer.
Troubleshooting
If you experience any of the following
difficulties while using the receiver, use this
troubleshooting guide to help you remedy the
problem.
Audio
There is no sound, no matter which
component is selected, or only a very
low-level sound is heard.
• Check that the speakers and components
are connected securely.
• Check that both the receiver and all
components are turned on.
• Check that MASTER VOLUME is not set
to “VOL MIN”.
• Check that the SPEAKERS (OFF/A/B/
A+B) is not set to “OFF”.
• Check that headphone is not connected.
• Press MUTING to cancel the muting
function.
• Check that you have selected the correct
component with the input buttons (page
34).
• The protective device on the receiver has
been activated. Turn off the receiver,
eliminate the short-circuit problem, and
turn on the power again.
There is no sound from a specific
component.
• Check that the component is connected
correctly to the audio input jacks for that
component.
• Check that the cord(s) used for the
connection is (are) fully inserted into the
jacks on both the receiver and the
component.
continued
78
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US07REM_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
There is no sound from one of the front
speakers.
• Connect a pair of headphones to the
PHONES jack to verify that sound is
output from the headphones. If only one
channel is output from the headphones, the
component may not be connected to the
receiver correctly. Check that all the cords
are fully inserted into the jacks on both the
receiver and the component. If both
channels are output from the headphones,
the front speaker may not be connected to
the receiver correctly. Check the
connection of the front speaker which is
not outputting any sound.
• Make sure you have connected to both the
L and R jacks of an analog component, and
not only to either the L or R jack. Use an
audio cord (not supplied).
There is no sound from analog 2
channel sources.
• Check that the INPUT MODE is not set to
“COAX IN” or “OPT IN” for the selected
input (page 63).
There is no sound from digital sources
(from COAXIAL or OPTICAL input jack).
• Check that the INPUT MODE is not set to
“ANALOG” (page 63). Check that the
INPUT MODE is not set to “COAX IN”
for the sources from the OPTICAL input
jack, or to “OPT IN” for the sources from
the COAXIAL input jack.
The source sound input to the HDMI
jack on the receiver is not output from
the TV speaker.
• Check the HDMI connection.
• You cannot listen to the Super Audio CD
by connecting HDMI.
• Depending on the playback component,
you may need to set up the component.
Refer to the operating instructions
supplied with each component.
The left and right sounds are
unbalanced or reversed.
• Check that the speakers and components
are connected correctly and securely.
• Adjust the balance parameters using the
LEVEL menu.
There is severe hum or noise.
• Check that the speakers and components
are connected securely.
• Check that the connecting cords are away
from a transformer or motor, and at least
10 feet away from a TV set or fluorescent
light.
• Move your audio components away from
the TV.
• The plugs and jacks are dirty. Wipe them
with a cloth slightly moistened with
alcohol.
There is no sound, or only a very low-
level sound is heard from the center/
surround speakers.
• Select a CINEMA STUDIO EX mode
(page 50).
• Adjust the speaker level (page 33).
There is no sound from the sub woofer.
• Check that the sub woofer is connected
correctly and securely.
• Make sure you have turned on your sub
woofer.
The surround effect cannot be
obtained.
• Make sure the sound field function is on
(press MOVIE or MUSIC).
• Sound fields do not function for signals
with a sampling frequency of more than 48
kHz.
79
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US07REM_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Additional Information
Dolby Digital or DTS multi channel
sound is not reproduced.
• Check that the DVD, etc. you are playing
is recorded in Dolby Digital or DTS
format.
• When connecting the DVD player, etc., to
the digital input jacks of this receiver,
check the audio setting (the settings for the
audio output) of the connected component.
The MULTI CHANNNEL DECODING
lamp does not light up in blue.
• Check that the playback component is
connected to a digital jack and the input is
selected properly on this receiver.
• Check whether the input source of the
software being played back corresponds to
the multi channel format.
• Check whether the setup on the playback
component is set to multi channel sound.
Recording cannot be carried out.
• Check that the components are connected
correctly.
• Select the source component using the
input buttons.
Video
There is no picture or an unclear
picture appears on the TV screen or
monitor.
• Select the appropriate input using the input
buttons.
• Set your TV to the appropriate input mode.
• Move your audio components away from
the TV.
• Assign the component video input
correctly.
• Assign the composite video input to
DMPORT input correctly.
• Depending on the DIGITAL MEDIA
PORT adapter, video output may not be
possible.
The source image input to the HDMI
jack on the receiver is not output from
the TV.
• Check the HDMI connection.
• Depending on the playback component,
you may need to set up the component.
Refer to the operating instructions
supplied with the each component.
Recording cannot be carried out.
• Check that the components are connected
correctly.
• Select the source component using the
input buttons.
Tuner
The FM reception is poor.
• Use a 75-ohm coaxial cable (not supplied)
to connect the receiver to an outdoor FM
antenna as shown below. If you connect
the receiver to an outdoor antenna, ground
it against lightning. To prevent a gas
explosion, do not connect the ground wire
to a gas pipe.
Receiver
To ground
Ground wire
(not supplied)
Outdoor FM antenna
AM
ANTENNA
Receiver
continued
80
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US07REM_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Radio stations cannot be tuned in.
• Check that the antennas are connected
securely. Adjust the antennas and connect
an external antenna, if necessary.
• The signal strength of the stations is too
weak (when tuning in with automatic
tuning). Use direct tuning.
• Make sure you set the tuning interval
correctly (when tuning in AM stations
with direct tuning).
• No stations have been preset or the preset
stations have been cleared (when tuning
by scanning preset stations). Preset the
stations (page 54).
• Press DISPLAY repeatedly on the
receiver so that the frequency appears on
the display.
Remote control
The remote does not function.
• Point the remote at the remote sensor on
the receiver.
• Remove any obstacles in the path between
the remote and the receiver.
• Replace all the batteries in the remote with
new ones, if they are weak.
• Make sure you select the correct input on
the remote.
• The AUX button on the remote is not
available for receiver operation.
• When you operate a programmed of non-
Sony component, the remote may not
function properly depending on the model
and the maker of the component.
Error messages
If there is a malfunction, the display shows a
message. You can check the condition of the
system by the message. Refer to the following
table to solve the problem. If any problem
persists, consult your nearest Sony dealer.
If an error message appears while you perform
Auto Calibration, see “Error and warning
codes” (page 31) to solve the problem.
DEC. EROR
Appears when a signal the receiver cannot
decode (ex. DTS-CD) is input and “DEC.
PRI.” on the AUDIO menu is set to “DEC.
PCM”. Set it to “DEC. AUTO” (page 40).
PROTECT
Irregular current is output from the
speakers. The receiver will automatically
turn off after a few seconds. Check the
speaker connection and turn on the power
again.
If you are unable to remedy the
problem using the
troubleshooting guide
Clearing the receiver’s memory may remedy
the problem (page 27). However, note that all
memorized settings will be reset to their
factory settings and you will have to readjust
all settings on the receiver.
If the problem persist
Consult your nearest Sony dealer. Note that if
service personnel changes some parts during
repair, these parts may be retained.
Reference sections for clearing
the receiver’s memory
To clear See
All memorized settings page 27
Customized sound fields page 52
81
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US07REM_HT-7100DH-
U.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Additional Information
Specifications
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
With 6 ohm loads, both channels driven, from
120 – 20,000 Hz; rated 90 watts per channel
minimum RMS power, with no more than 1%
total harmonic distortion from 250 milliwatts
to rated output.
Amplifier section
Power Output
1)
Models of area code U
Stereo mode (rated)
(6 ohms 1
kHz, THD 1%)
90 W + 90 W
Surround mode (reference)
(6 ohms 1 kHz
, THD 10%)
RMS Output
2)
FRONT: 140 W/ch
CENTER: 140 W
SURROUND: 140 W/ch
1)
Measured under the following conditions:
2)
Reference power output for front, center and
surround speakers. Depending on the sound field
settings and the source, there may be no sound
output.
Inputs
Analog
Sensitivity: 800 mV/
50 kohms
Digital (Coaxial) Impedance: 75 ohms
Outputs (Analog)
AUDIO OUT Voltage: 800 mV/
10 kohms
SUBWOOFER Voltage: 2 V/1 kohms
Tone
Gain levels ±6 dB, 1 dB step
Reproduction frequency range:
28 – 20,000 Hz
FM tuner section
Tuning range 87.5 - 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
With 10-kHz tuning scale:
530 – 1,710 kHz
3)
With 9-kHz tuning scale:
531 – 1,710 kHz
3)
Antenna Loop antenna
Intermediate frequency
450 kHz
3)
You can change the AM tuning scale to 9 kHz or
10 kHz. After tuning in any AM station, turn off
the receiver. While holding down TUNING
MODE, press ?/1. All preset stations will be
erased when you change the tuning scale. To reset
the scale to 10 kHz (or 9 kHz), repeat the
procedure.
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
P
B/CB: 0.7 Vp-p,
75 ohms
P
R/CR: 0.7 Vp-p,
75 ohms
80 MHz HD Pass Through
General
Power requirements
Power output (DIGITAL MEDIA PORT)
DC OUT 5 V, 700 mA
Area code Power requirements
U 120 V AC, 60 Hz
Area code Power requirements
U 120 V AC, 60 Hz
continued
82
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US07REM_HT-7100DH-
U.fm
masterpage: Left
HT-7100DH
3-093-550-11 (1)
Power consumption
Power consumption (during standby mode)
0.3 W
Dimensions (w/h/d) (Approx.)
430 × 157.5 × 316 mm
(17 × 6 1/4 × 12 1/2 inches)
including projecting parts
and controls
Mass (Approx.) 8.0 kg (17 lb 11 oz)
Speaker section
• Front speakers (SS-MSP7000)
• Center speaker (SS-CNP900)
• Surround speakers (SS-SRP7000)
Front speakers 2 way, magnetically
shielded
Center speaker Full range, magnetically
shielded
Surround speakers Full range
Speaker units
Front speakers Tweeter: 40 mm cone type
Woofer: 80 mm cone type
Center/surround speakers
80 mm cone type
Enclosure type Bass reflex
Rated Impedance 6 ohms
Dimension (w/h/d) (Approx.)
Front speakers 130 × 211 × 136 mm
(5 1/8 × 8 1/4 × 5 3/8
inches)
Center speaker 245 × 109 × 136 mm
(9 5/8 × 4 3/8 × 5 3/8
inches)
Surround speakers 115 × 169 × 141 mm
(4 1/2 × 6 5/8 × 5 1/2
inches)
Mass (Approx.)
Front speakers 1.4 kg (3 lb 2 oz)
Center speaker 1.3 kg (2 lb 14 oz)
Surround speakers 1.0 kg (2 lb 4 oz)
•Sub woofer (SA-WP780)
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
With 6 ohm loads, from 28 – 200 Hz; rated 120
watts, minimum RMS power, with no more
than 1% total harmonic distortion from 250
milliwatts to rated output.
Speaker system Active subwoofer,
magnetically shielded
Speaker unit 200 mm cone type
Enclosure type Acoustically loaded bass
reflex
RMS output 200 W
Input LINE IN (input pin jacks)
Power requirements
120 V AC, 60 Hz
Power consumption 80 W
Dimensions (w/h/d) (Approx.)
270 × 331 × 380 mm
(10 5/8 × 13 × 15 inches)
Mass (Approx.) 8.3 kg (18 lb 5 oz)
Supplied speakers
• Front speakers (2)
• Center speaker (1)
• Surround speakers (2)
• Sub woofer (1)
Supplied accessories
FM wire antenna (1)
AM loop antenna (1)
Monaural audio cord (1)
Speaker cords
• Long (2)
• Short (3)
Coaxial digital cord (1)
Footpads
• Speakers (20)
• Sub woofer (4)
Remote commander RM-AAP016 (1)
R6 (size-AA) batteries (2)
Optimizer microphone (ECM-AC2 or
ECM-AC2a) (1)
Design and specifications are subject to
change without notice.
Area code Power consumption
U 170 W
For details on the area code of the
component you are using, see page 3.
83
US
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US01COV_HT-7100DH-
UIX.fm
masterpage: Right
HT-7100DH
3-093-550-11 (1)
Additional Information
Index
Numerics
2CH STEREO 51
5.1 channel 14
A
AUTO CALIBRATION 29
AUTO FORMAT DIRECT
(A.F.D.)
47
B
Blu-ray disc player 23
C
CD player
connecting 17
playback 36
CD recorder connecting
17
D
DIGITAL ASSIGN 66
Digital Cinema Sound
(DCS)
50
DIGITAL MEDIA PORT
connecting 64
input
63
video assign 44
Dolby Digital
75
DTS
75
DVD player
connecting
18
playback
37
DVD recorder
connecting
18
E
Error messages 80
H
HDMI
connecting
18
I
Initial setup 27
INPUT MODE 63
M
Menu
A. CAL
47
AUDIO
43
LEVEL 41
SUR
42
SYSTEM
45
TONE 42
TUNER
43
VIDEO 44
Muting 34
N
Naming 55, 67
P
Portable audio
connecting 25
sound field
50
R
Recording
onto a CD-R
69
onto a recording media
69
Remote commander
10
S
Satellite tuner
connecting 18
Selecting
component
34
sound field 49
speaker system 28
Sleep Timer
68
Sound fields
resetting
52
selecting
49
Speakers
connecting 16
installing
14
Super Audio CD player
playback 36
T
TEST TONE 33
Tuner
connecting 26
Tuning
automatically
52
directly 53
to preset stations
55
TV
connecting
18
V
VCR
connecting 18
Video game
connecting
18
X
XM Radio 56
D:\CANNES\SONY_HA\JOB 2007\IM\HT-7100DH\US_HT-7100DH_data\US01COV_HT-7100DH-
UIX.fm
masterpage: Right
Sony Corporation Printed in Malaysia
model name1[HT-7100DH]
[3-093-550-11 (1)]
