About This Manual
• The instructions in this manual are for model
HT-7000DH.
The HT-7000DH consists of:
• Receiver STR-K7000
• DVD player DVP-NC85H
• Speaker system
– Front speaker SS-MSP7000
– Center speaker SS-CNP900
– Surround speaker SS-SRP7000
– Sub woofer SA-WP780
• The instructions in this manual describe the
controls on the supplied remote. You can also use
the controls on the receiver if they have the same
or similar names as those on the remote.
This receiver incorporates Dolby* Digital and Pro
Logic Surround and the DTS** Digital Surround
System.
* Manufactured under license from Dolby
Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol
are trademarks of Dolby Laboratories.
** “DTS” and “DTS Digital Surround” are
trademarks of Digital Theater Systems, Inc.
This receiver incorporates High-Definition
Multimedia Interface (HDMI
TM
) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
The XM name and related logos are registered
trademarks of XM Satellite Radio Inc.
Note for the supplied remote
(RM-AAP012)
The 12 button on the remote is not available
for receiver operation.
About area codes
The area code of the receiver you purchased is
shown on the lower right portion of the rear panel
(see the illustration below).
Any differences in operation, according to the area
code, are clearly indicated in the text, for example,
“Models of area code AA only”.
SPEAKERS
FRONT B
LR
LR
CENTER
+
–
SPEAKERS
SURROUND FRONT A
R
R
L
L
+
–
+
–
SPEAKERS
Area code
US01COV_HT-7000DH-U.book Page 3 Monday, August 14, 2006 9:22 AM
4
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US01COV_HT-7000DH-UTOC.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
Table of Contents
Getting Started
Description and location of parts...................5
1: Installing speakers ...................................14
2: Connecting speakers................................16
3a: Connecting the audio components.........18
3b: Connecting the video components ........21
4: Connecting the antennas..........................28
5: Preparing the receiver and the remote .....29
6: Selecting the speaker system ...................30
7: Calibrating the appropriate settings
automatically
(AUTO CALIBRATION).......................31
8: Adjusting the speaker levels and
balance (TEST TONE) ...........................34
Playback
Selecting a component.................................35
Listening/Watching a component ................37
Amplifier Operations
Navigating through menus...........................39
Adjusting the level (LEVEL menu).............42
Adjusting the tone (TONE menu) ...............43
Settings for the surround sound
(SUR menu)............................................43
Settings for the tuner (TUNER menu).........44
Settings for the audio (AUDIO menu).........44
Settings for the video (VIDEO menu).........45
Settings for the system (SYSTEM menu) ...46
Calibrating the appropriate settings
automatically (A. CAL menu)................48
Enjoying Surround Sound
Enjoying Dolby Digital and DTS Surround
sound (AUTO FORMAT DIRECT)....... 48
Selecting a pre-programmed sound field .... 50
Using only the front speakers and
sub woofer (2CH STEREO) .................. 52
Resetting sound fields to the initial
settings ................................................... 53
Tuner Operations
Listening to FM/AM radio.......................... 53
Presetting radio stations .............................. 55
Listening to the XM Radio ......................... 57
Presetting XM Radio stations ..................... 61
Other Operations
Switching the audio input mode
(INPUT MODE) .................................... 64
Watching component images from
other inputs
(COMPONENT VIDEO ASSIGN) ....... 64
Watching HDMI images from other
inputs (HDMI ASSIGN)........................ 65
Naming inputs............................................. 66
Changing the display .................................. 67
Using the Sleep Timer ................................ 67
Recording using the receiver....................... 68
Using the Remote
Programming the remote ............................ 69
Additional Information
Glossary ...................................................... 72
Precautions.................................................. 73
Troubleshooting .......................................... 75
Specifications.............................................. 78
Index ........................................................... 82
US01COV_HT-7000DH-U.book Page 4 Monday, August 14, 2006 9:22 AM
5
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started
Description and location of parts

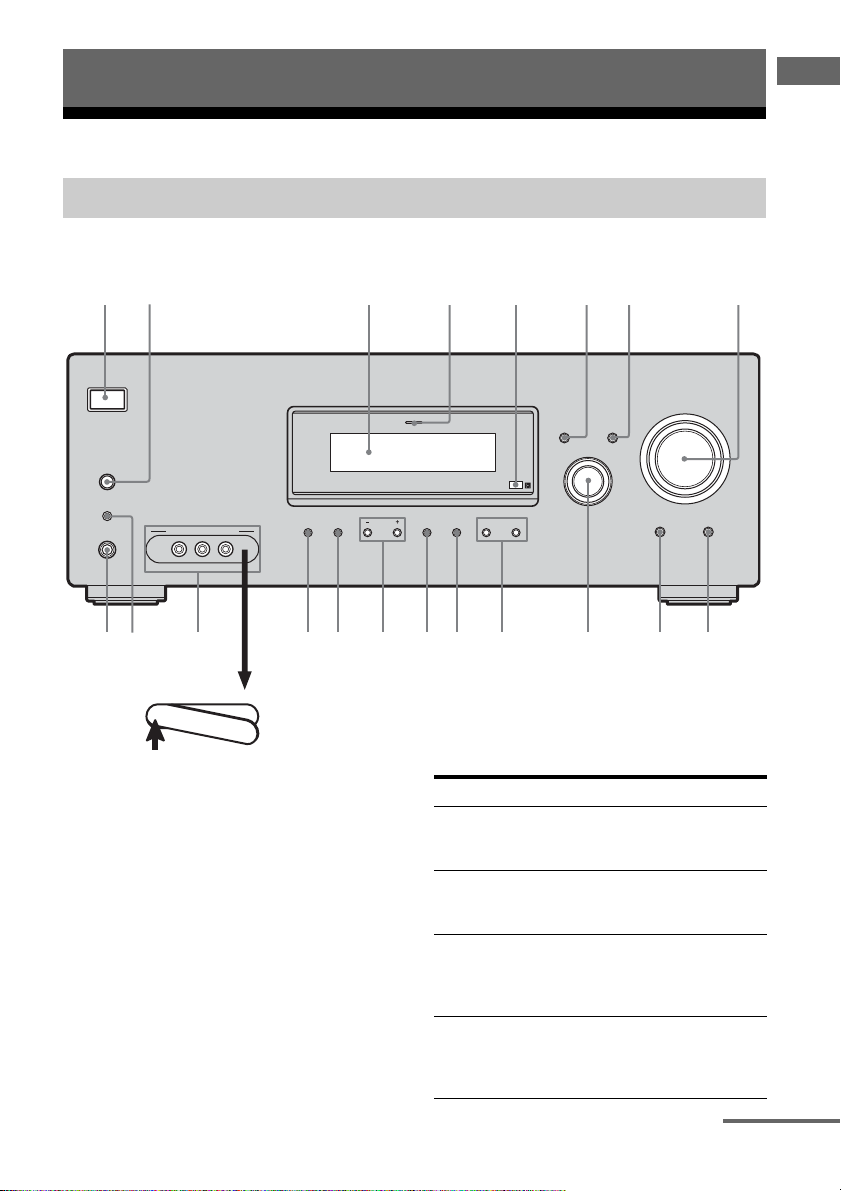

Front panel
To remove the cover
Press PUSH.
When you remove the cover, keep it out of
reach from children.
Getting Started
Receiver
?/1
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC MULTI CH IN MUTING
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
3 6 84 75
q; 9qaqsqdw; qfqgqhqjqk
PUSH
ql
12
Name Function
A ?/1 Press to turn the receiver on
or off (page 29, 37, 38, 53,
79).
B SPEAKERS
(OFF/A/B/A+B)
Press to select OFF, A, B,
A+B of the front speakers
(page 30).
C Display The current status of the
selected component or a list
of selectable items appears
here (page 7).
D MULTI
CHANNEL
DECODING
lamp
Lights up when multi
channel audio is decoded
(page 38).
continued
US01COV_HT-7000DH-U.book Page 5 Monday, August 14, 2006 9:22 AM
6
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
Name Function
E Remote sensor Receives signals from
remote commander.
F DISPLAY Press to select information
displayed on the display
(page 67).
G INPUT MODE Press to select the input
mode when the same
components are connected
to both digital and analog
jacks (page 64).
H MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 34, 35,
37, 38).
I MUTING Press to mute the sound
(page 35).
J MULTI CH IN Press to select the audio
directly from the
components connected to
the MULTI CH IN jacks
(page 35).
K INPUT
SELECTOR
Turn to select the input
source to playback (page
35, 37, 38, 54, 56, 64, 66,
68).
L MOVIE,
MUSIC
Press to select sound fields
(MOVIE, MUSIC) (page
50).
M A.F.D. Press to select A.F.D.
mode (page 48).
N 2CH Press to select 2CH
STEREO mode (page 52,
53).
O TUNING +/– Press to scan a station
(page 54, 55).
P TUNING MODE Press to select the tuning
mode (page 56, 79).
Q MEMORY/ENTER Press to store a station or
enter the selection when
selecting the settings
(page 29).
Name Function
R VIDEO 3 IN/
PORTABLE AV IN
jacks
To connect a camcorder or
video game (page 27, 35).
S AUTO CAL MIC
jack
Connects to the supplied
ECM-AC2 optimizer
microphone for the Auto
Calibration function (page
31).
T PHONES jack Connects to a headphone
(page 75).
US01COV_HT-7000DH-U.book Page 6 Monday, August 14, 2006 9:22 AM
7
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started
About the indicators on the display
MEMORY
L C R
SL S SR
SW
LFE
SP A
SP B
CAT
STEREO MONOD.RANGE
SLEEP OPT COAX HDMI
DIGITAL
;
DTS
;
PRO LOGIC II
9
qf
qg
qsqd
qa q;
21435
6
7
8
Name Function
A SW Lights up when the audio signal
is output from the SUB
WOOFER jack.
B LFE Lights up when the disc being
played back contains an LFE
(Low Frequency Effect)
channel and the LFE channel
signal is actually being
reproduced.
C SP A/SP B Lights up according to the
speaker system used. However,
these indicators do not light up
if the speaker output is turned
off or if a headphone is
connected.
D ;DIGITAL Lights up when Dolby Digital
signals are input.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is not
set to “ANALOG” (page 64).
E ;PRO
LOGIC (II)
Lights up when the receiver
applies Pro Logic processing to
2 channel signals in order to
output the center and surround
channel signals. “; PRO
LOGIC II” lights up when the
Pro Logic II Movie or Music
decoder is activated.
Note
Dolby Pro Logic and Dolby Pro
Logic II decoding do not
function for DTS format
signals.
Name Function
F DTS Lights up when DTS signals are
input.
Note
When playing a DTS format
disc, be sure that you have made
digital connections and that
INPUT MODE is not set to
“ANALOG” (page 64).
G MEMORY Lights up when a memory
function, such as Preset
Memory (page 55), etc., is
activated.
H Preset
station
indicators
Lights up when using the
receiver to tune in radio stations
you have preset. For details on
presetting radio stations, see
page 55.
I Tuner
indicators
Lights up when using the
receiver to tune in radio stations
(page 53), etc.
J D.RANGE Lights up when dynamic range
compression is activated (page
40).
K HDMI Flashes when you select
“HDMI A.” in the VIDEO
menu (page 65).
L COAX Lights up when INPUT MODE
is set to “AUTO” and the source
signal is a digital signal being
input through the COAXIAL
jack, or when INPUT MODE is
set to “COAX IN” (page 64).
continued
US01COV_HT-7000DH-U.book Page 7 Monday, August 14, 2006 9:22 AM
8
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
Name Function
M OPT Lights up when INPUT MODE
is set to “AUTO” and the source
signal is a digital signal being
input through the OPTICAL
jack, or when INPUT MODE is
set to “OPT IN” (page 64).
N SLEEP Lights up when the sleep timer
is activated (page 67).
O Playback
channel
indicators
L
R
C
SL
SR
S
The letters (L, C, R, etc.)
indicate the channels being
played back. The boxes around
the letters vary to show how the
receiver downmixes the source
sound.
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround components obtained
by Pro Logic processing)
Example:
Recording format (Front/
Surround): 3/2.1
Sound Field: A.F.D. AUTO
L C R
SL SR
SW
US01COV_HT-7000DH-U.book Page 8 Monday, August 14, 2006 9:22 AM
9
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started

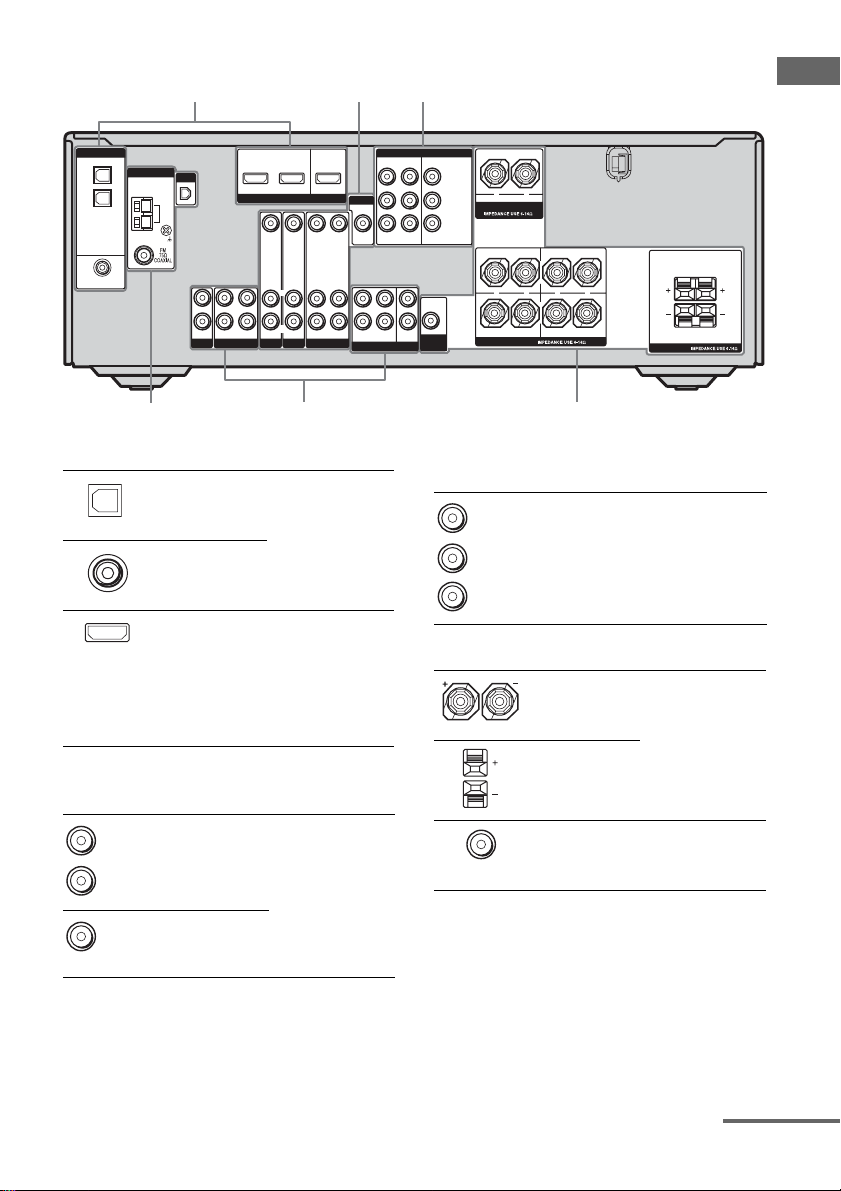

Rear panel
DIGITAL
OPTICAL
VIDEO 1
IN
VIDEO 2
IN
DVD
IN
COAXIAL
HDMI
DVD IN
ASSIGNABLE
VIDEO 2 IN
MONITOR OUT
ANTENNA
AM
XM
VIDEO 1
VIDEO IN
AUDIO IN
VIDEO IN
VIDEO 2
AUDIO IN
MD/TAPE
SA-CD
/
CD
L
R
L
R
L
L
R
R
OUT ININ
VIDEO IN
DVD
AUDIO IN
AUDIO OUT
VIDEO OUT
VIDEO OUT
MONITOR
FRONT
CENTER
SUB
WOOFER
SURROUND
AUDIO
OUT
L
R
SUB
WOOFER
FRONT B
LR
LR
SURROUND FRONT A
R
R
L
L
+
–
+
–
SPEAKERS
DVD
IN
VIDEO 2
IN
MONITOR
OUT
COMPONENT VIDEO
Y
ASSIGNABLE
P
B
/C
B
/B–Y
P
R
/C
R
/R–Y
CENTER
+
–
SPEAKERS
SPEAKERS
MULTI CH IN
1 23
5 46
A DIGITAL INPUT section
OPTICAL
IN jack
Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
quality of loud
sound (page 23,
26).
COAXIAL IN
jack
HDMI IN/
MONITOR
OUT jack
a)
Connects to a DVD
player, or a satellite
tuner. The image
and the sound are
output to a TV or a
projector (page
25).
B VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jack
Connects the video
and audio jacks of
a VCR or a DVD
player (page 22,
23, 24, 26, 27).
VIDEO IN/
OUT jack
a)
White (L)
Red (R)
Yellow
C COMPONENT VIDEO INPUT/
OUTPUT section
COMPONENT
VIDEO
INPUT/
OUTPUT
jack
a)
Connects to a DVD
player, TV, or a
satellite tuner. You
can enjoy high
quality image
(page 22, 24, 26).
D SPEAKER section
Connects to
speakers (page 16).
Connects to sub
woofer (page 16).
Green
Blue
Red
continued
US01COV_HT-7000DH-U.book Page 9 Monday, August 14, 2006 9:22 AM

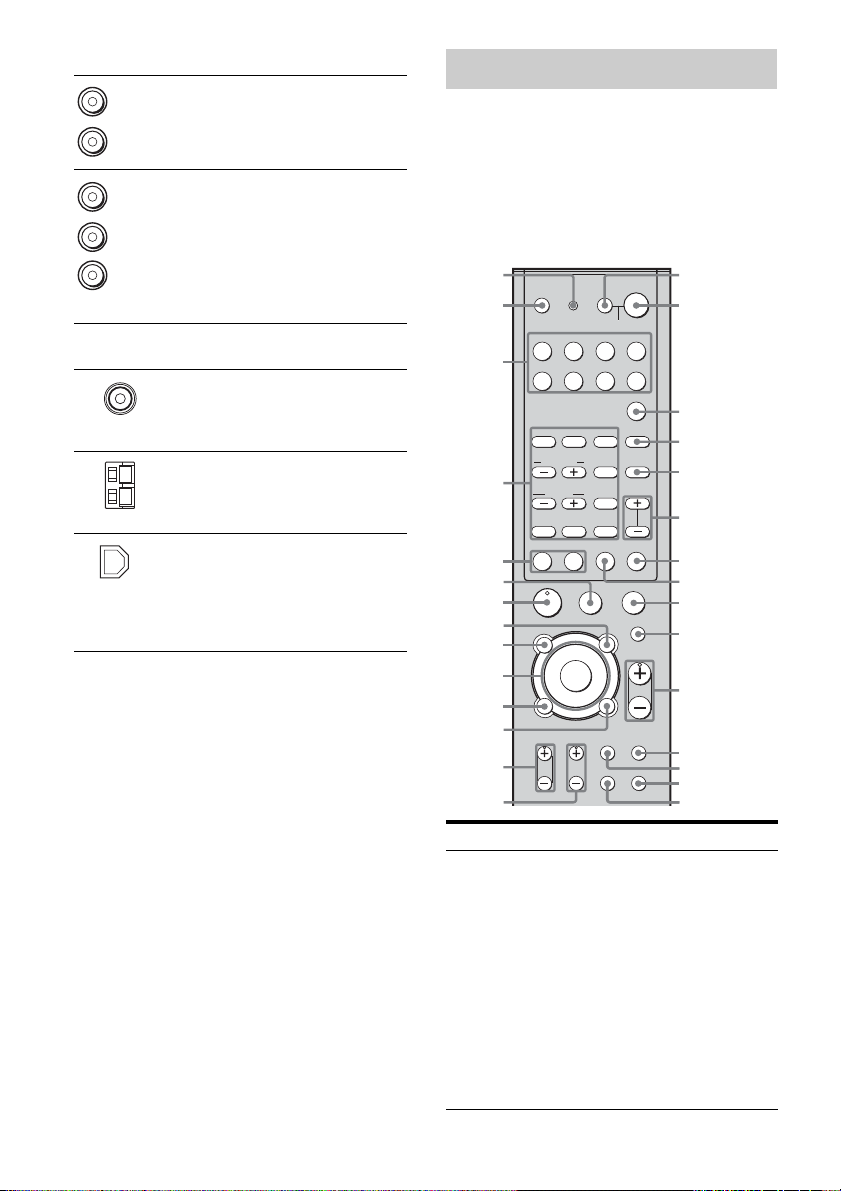

10
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
a)
You can watch the selected input image when you
connect the MONITOR OUT jack to a TV monitor
(page 22).
You can use the supplied remote RM-AAP012
to operate the receiver and to control the Sony
audio/video components that the remote is
assigned to operate. You can also program the
remote to control non-Sony audio/video
components. For details, see “Programming
the remote” (page 69).
E AUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jack
Connects to an MD
deck or CD player,
etc. (page 20).
MULTI
CHANNEL
INPUT jack
Connects to a
Super Audio CD
player or DVD
player which has
an analog audio
jack for 5.1
channel sound
(page 19).
F ANTENNA section
FM
ANTENNA
Connects to the
FM wire antenna
supplied with this
receiver (page 28).
AM
ANTENNA
Connects to the
AM loop antenna
supplied with this
receiver (page 28).
XM Connects to the
XM connect-and-
Play antenna (not
supplied with this
receiver) (page
58).
White (L)
Red (R)
White (L)
Red (R)
Black
Remote commander
Name Function
A AV ?/1 Press to turn on or off the
audio/video components that
the remote is programmed to
operate.
If you press ?/1 (B) at the
same time, it will turn off the
receiver and other
components (SYSTEM
STANDBY).
Note
The function of the AV ?/1
switch changes automatically
each time you press the input
buttons (wj).
H
X
m
M
.
>
-
VIDEO1 VIDEO2
RM SET UP
SYSTEM STANDBY
SLEEP
TV ?/1 AV ?/1
VIDEO3 DVD
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
TOP MENU/
GUIDE
AV MENU
MUTING
MASTER
VOL
DISPLAY
TV VOL TV CH
WIDE
AUTO
CAL
TV/
VIDEO
AMP
MENU
RETURN/EXIT
D.TUNING DISC ALT
ANT
CLEAR
SEARCH MODE
2CH
A.F.D.
123
456
789
0/10
>10/11 12
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
x
?/1
P
O
f
F
G
g
CATEGORY
TV ?/1
(on/standby)
switch
8
wl
ql
wa
wd
ws
w;
wg
wh
wj
wk
6
qa
5
7
q;
qs
qf
9
3
4
AV ?/1
(on/standby)
switch
?/1
(on/standby)
switch
1
2
q
h
wf
qk
qj
qd
qg
US01COV_HT-7000DH-U.book Page 10 Monday, August 14, 2006 9:22 AM
11
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started
Name Function
B ?/1 Press to turn the receiver on or
off.
To turn off all components,
press ?/1 and AV ?/1 (A) at
the same time (SYSTEM
STANDBY).
SLEEP Press ALT (G) and then press
SLEEP to activate the Sleep
Timer function and the duration
which the receiver turns off
automatically.
C MULTI CH Press to select the audio directly
from the components connected
to the MULTI CH IN jacks.
D MUSIC Press to select sound fields
(MUSIC).
E CATEGORY
MODE
Press to select the category
mode for XM Radio.
F PRESET/
CH/D.SKIP
+/–
Press to
– select preset stations.
– select preset channels of the
TV, VCR, satellite tuner, Blu-
ray disc recorder, or hard disc
recorder.
– skip disc of the CD player,
VCD player, DVD player,
MD deck, or LD player
(multi-disc changer only).
G ALT Press to light up the button. It
changes the remote key
function to activate the buttons
with orange printing.
H -/-- Press to select the channel entry
mode, either one or two digit of
the TV, Blu-ray disc recorder,
hard disc recorder, PSX, or
satellite tuner.
DISC Press to select a disc directly of
the CD player or VCD player
(multi-disc changer only).
SEARCH
MODE
Press to select the searching
mode or unit for search (tracks,
index, etc.) of the DVD player.
I x Press to stop playback of the
VCR, CD player, VCD player,
LD player, DVD player, MD
deck, DAT deck, tape deck, Blu-
ray disc recorder, hard disc
recorder, or PSX.
Name Function
J MUTING Press to mute the sound.
K MASTER
VOL +
a)
/–
Press to adjust the volume level
of all speakers at the same time.
L AMP MENU Press to display the menu of the
receiver. Then, use the control
buttons to perform menu
operations.
M TV/VIDEO Press to select the input signal
(TV input or video input).
N AUTO CAL Press to activate the Auto
Calibration function.
O WIDE Press ALT (G) and then press
WIDE to select the wide picture
mode.
P TV CH +
a)
/– Press to select preset TV
channels.
Q TV VOL
+
a)
/–
Press to adjust the TV volume
level.
R RETURN/
EXIT O
Press to
– return to the previous menu.
– exit the menu while the menu
or on-screen guide of the
VCD player, LD player, DVD
player, Blu-ray disc recorder,
hard disc recorder, PSX, or
satellite tuner is displayed on
the TV screen.
S DISPLAY Press to select information
displayed on the TV screen of
the TV, VCR, VCD player, LD
player, DVD player, CD player,
MD deck, Blu-ray disc
recorder, hard disc recorder,
PSX, or satellite tuner.
T Control
buttons
After pressing AMP MENU
(L), TOP MENU/GUIDE
(U), or AV MENU (V), press
the control button V, v, B or b
to select the settings. When you
press TOP MENU/GUIDE or
AV MENU, press the control
button to enter the selection.
U TOP MENU/
GUIDE
Press to display the
– DVD title.
– menu or on-screen guide of
the satellite tuner, Blu-ray
disc recorder, hard disc
recorder, or PSX on the TV
screen.
Then, use the control buttons to
perform menu operation.
continued
US01COV_HT-7000DH-U.book Page 11 Monday, August 14, 2006 9:22 AM
12
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
Name Function
V AV MENU Press to display the menus of the
VCR, DVD player, satellite
tuner, Blu-ray disc recorder,
hard disc recorder, or PSX on the
TV screen. Then, use the control
buttons to perform menu
operations.
W H
a)
Press to start playback of the
VCR, CD player, VCD player,
LD player, DVD player, MD
deck, DAT deck, tape deck, Blu-
ray disc recorder, hard disc
recorder, or PSX.
X X Press to pause playback or
recording of the VCR, CD
player, VCD player, LD player,
DVD player, MD deck, DAT
deck, tape deck, Blu-ray disc
recorder, hard disc recorder, or
PSX. (Also starts recording with
components in recording
standby.)
Y m/M Press to
– search tracks in the forward/
backward direction of the CD
player, VCD player, DVD
player, LD player, MD deck,
Blu-ray disc recorder, hard
disc recorder, or PSX.
– fast forward/rewind of the
VCR, DAT deck, or tape deck.
D. TUNING Press to enter direct tuning
mode.
ANT Press ALT (G) and then press
ANT to select the signal to be
output from the antenna terminal
of the VCR or satellite tuner (TV
signal or video signal).
CLEAR Press ALT (G) and then press
CLEAR to
– clear a mistake when you press
the incorrect numeric button.
– return to continuous playback,
etc. of the CD player, DVD
player, Blu-ray disc recorder,
PSX, or satellite tuner.
Name Function
Z TUNING +/– Press to scan a station.
./> Press to skip tracks of the
VCR, CD player, VCD player,
LD player, DVD player, MD
deck, DAT deck, tape deck,
Blu-ray disc recorder, hard
disc recorder, or PSX.
2CH Press to select 2CH STEREO
mode.
A.F.D. Press to select A.F.D. mode.
MOVIE Press to select sound fields
(MOVIE).
CATEGORY
+/–
Press to select the category for
XM Radio.
DUAL MONO Press to select the language
you want during digital
broadcast.
AUDIO Press to change the sound to
Multiplex, Bilingual or Multi
channel TV sound of the TV,
VCR, DVD player, satellite
tuner, Blu-ray disc recorder,
hard disc recorder, or PSX.
ANGLE Press to select the viewing
angle or change the angles of
the DVD player or Blu-ray
disc recorder.
JUMP/TIME Press to
– toggle between the previous
and the current channels of
the satellite tuner, TV, or
Blu-ray disc recorder.
– show the time or display the
playing time of a disc, etc. of
the CD player, MD deck,
VCD player, or DVD player.
MEMORY Press MEMORY to store a
station.
SUBTITLE Press ALT (G) and then press
SUBTITLE to change the
subtitles of the DVD player.
ENTER Press ALT (G) and then press
ENTER to enter the value
after selecting a channel, disc
or track using the numeric
buttons.
US01COV_HT-7000DH-U.book Page 12 Monday, August 14, 2006 9:22 AM
13
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started
a)
The MASTER VOL +, TV VOL +, TV CH + and
H buttons have tactile dots. Use the tactile dots as
references when operating the receiver.
Notes
• Some functions explained in this section may not
work depending on the model.
• The above explanation is intended to serve as an
example only. Therefore, depending on the
component, the above operation may not be
possible or may operate differently than described.
• The 12 button on the remote is not available for
receiver operation.
Name Function
wh Numeric
buttons
Press ALT (G) and then press
the numeric buttons to
– preset/tune to preset
stations.
– select track numbers of the
CD player, VCD player, LD
player, DVD player, MD
deck, DAT deck, or tape
deck. Press 0/10 to select
track number 10.
– select channel numbers of
the TV, VCR, satellite tuner,
Blu-ray disc recorder, hard
disc recorder, or PSX.
>10/11 Press ALT (G) and then press
>10/11 to select track
numbers over 10 of the CD
player, VCD player, LD
player, MD deck, tape deck,
TV, VCR, Blu-ray disc
recorder, hard disc recorder,
PSX, or satellite tuner.
wj Input buttons Press one of the buttons to
select the component you
want to use. When you press
any of the input buttons, the
receiver turns on. The buttons
are factory assigned to control
Sony components as follows.
You can program the remote
to control non-Sony
components following the
steps in “Programming the
remote” on page 69.
Button Assigned Sony
component
VIDEO1 VCR (VTR mode 3)
VIDEO2 VCR (VTR mode 1)
VIDEO3 VCR (VTR mode 2)
DVD DVD player
MD/TAPE MD deck
SA-CD/CD Super Audio CD/CD
player
TUNER Built-in tuner
AUX Not assigned
Name Function
wk TV ?/1 Press to turn the TV on or off.
wl RM SET UP Press to set up the remote.
US01COV_HT-7000DH-U.book Page 13 Monday, August 14, 2006 9:22 AM
14
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
1: Installing speakers
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker, and two
surround speakers) and a sub woofer (5.1
channel).

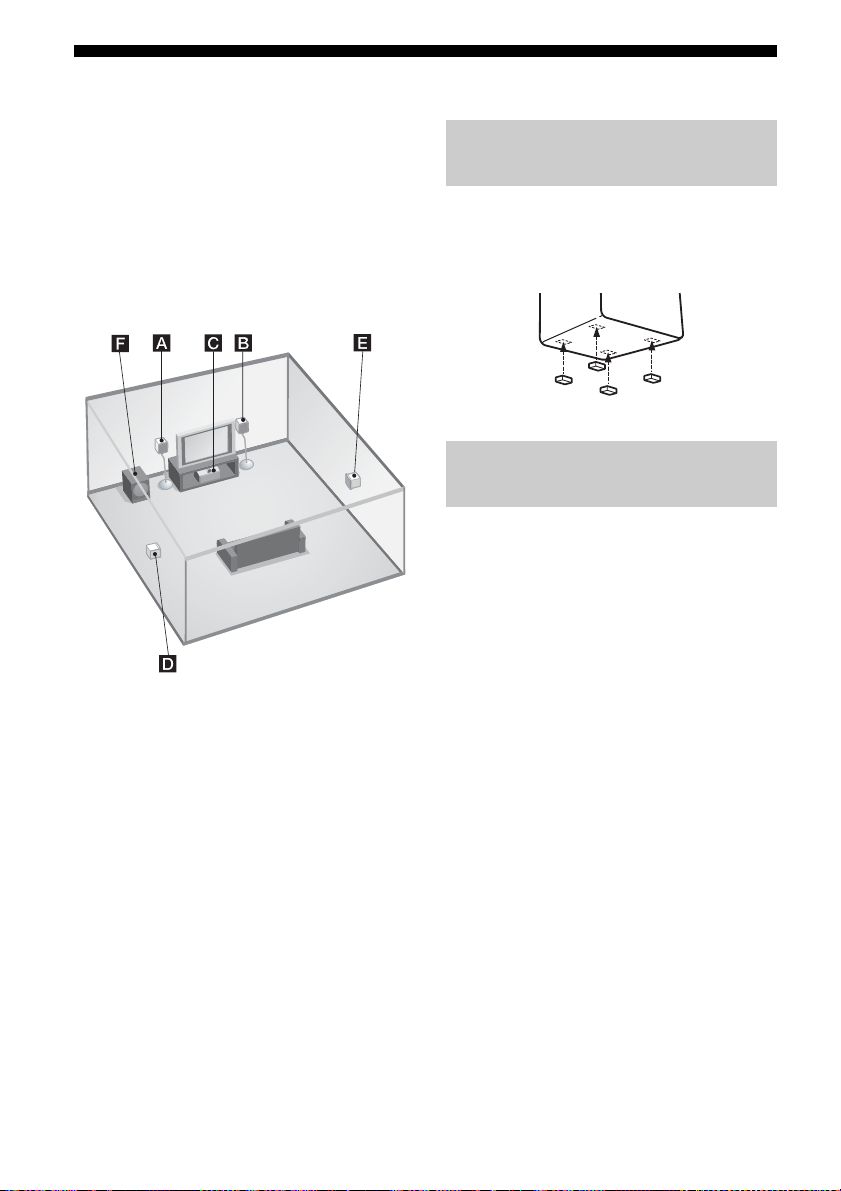

Example of a 5.1 channel
speaker system configuration
AFront speaker (L)
BFront speaker (R)
CCenter speaker
DSurround speaker (L)
ESurround speaker (R)
FSub woofer
Tip
Since the sub woofer does not emit highly
directional signals, you can place it wherever you
want.
Before you install the speakers and sub
woofer, be sure to attach the supplied foot pads
to prevent vibration or movement as shown in
the illustration below.
For greater flexibility in positioning the
speakers, use the optional WS-FV11 speaker
stand (available only in certain countries). For
details, refer to the operating instructions
supplied with the speaker stand
Installing the speakers on a flat
surface
Installing the speakers on the
speaker stand
US01COV_HT-7000DH-U.book Page 14 Monday, August 14, 2006 9:22 AM
15
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started
You can install your surround speakers on the
wall.
1 Prepare screws (not supplied)
that are suitable for the hook on
the back of each speaker as
shown in the illustrations
below.
2 Fasten the screws to the wall.
The screws should protrude 5
to 7 mm.
3 Hang the speakers on the
screws.
Notes
• Use screws that are suitable for the wall material
and strength. As a plaster board wall is especially
fragile, attach the screws securely to a beam and
fasten them to the wall. Install the speakers on a
vertical and flat wall where reinforcement is
applied.
• Contact a screw shop or installer regarding the wall
material or screws to be used.
• Sony is not responsible for accident or damage
caused by improper installation, insufficient wall
strength or improper screw installation, natural
calamity, etc.
Installing the speakers on the
wall
more than 4 mm
(5/32 inch)
more than 25 mm (1 inch)
Hook on the back of the speaker
4.6 mm
(3/16 inch)
10 mm
(13/32 inch)
5 to 7 mm
(7/32 to 9/32 inch)
4.6 mm
(3/16 inch)
10 mm
(13/32 inch)
Hook on the back of the speaker
US01COV_HT-7000DH-U.book Page 15 Monday, August 14, 2006 9:22 AM
16
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)

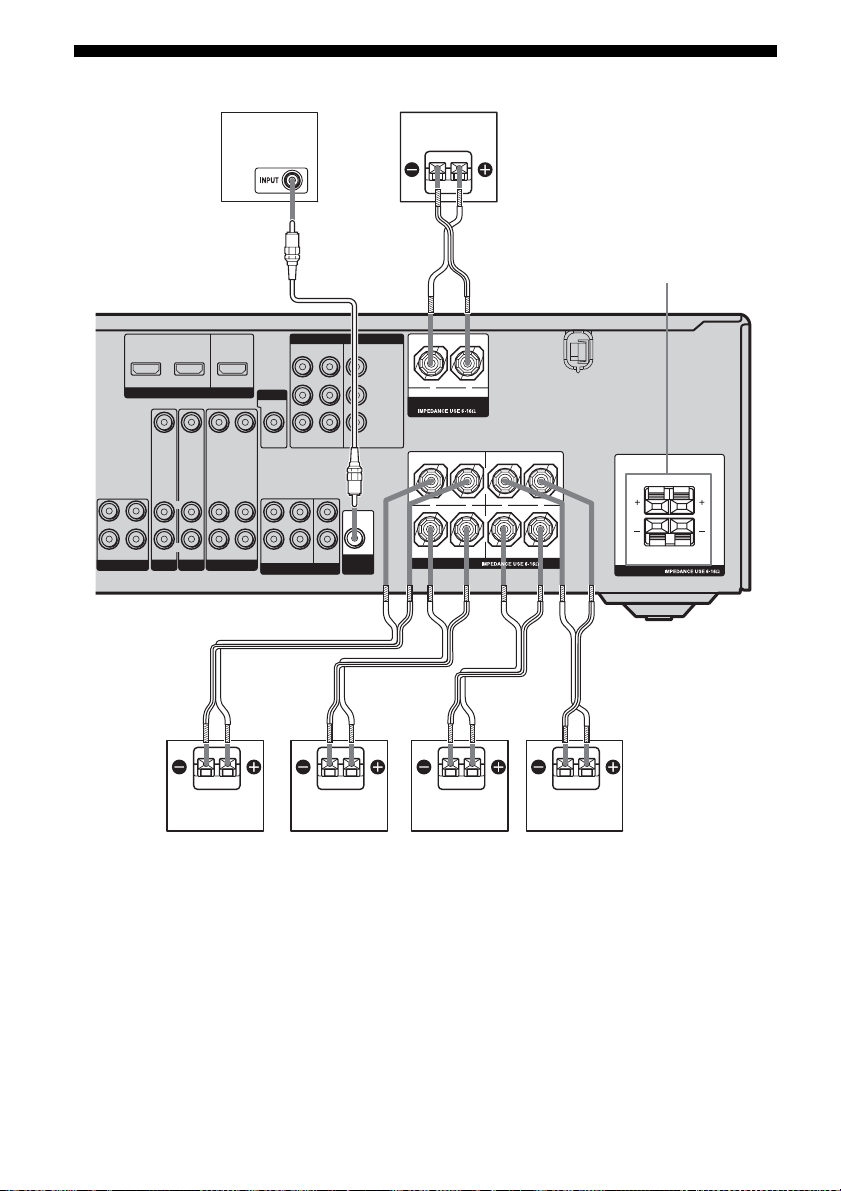

2: Connecting speakers
AFront speaker A (L)
BFront speaker A (R)
CCenter speaker
DSurround speaker (L)
ESurround speaker (R)
FSub woofer
a)
If you have an additional front speaker system,
connect them to the SPEAKERS FRONT B
terminal. You can select the front speakers you
want to use with the SPEAKERS (OFF/A/B/A+B)
button. For details, see “6: Selecting the speaker
system” (page 30).
b)
Use the long speaker cords to connect the surround
speakers and the short speaker cords to connect the
front and center speakers.
VIDEO 1
MULTI CH IN
FRONT
CENTER
SUB
WOOFER
SURROUND
VIDEO IN
AUDIO IN
VIDEO IN VIDEO OUT
VIDEO 2
AUDIO IN
MD/TAPE
L
R
L
R
L
R
L
R
OUT IN
VIDEO IN
DVD
AUDIO IN
AUDIO OUT
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
COMPONENT VIDEO
Y
ASSIGNABLE
P
B
/C
B
/B–Y
P
R
/C
R
/R–Y
MONITOR
HDMI
DVD IN
ASSIGNABLE
VIDEO 2 IN
MONITOR OUT
CENTER
+
–
SPEAKERS
FRONT A
R
R
L
L
+
–
+
–
SPEAKERS
FRONT B
LR
LR
SUB
WOOFER
SPEAKERS
AUDIO
OUT
SURROUND
F
BAED
A
SPEAKERS FRONT B
a)
A Monaural audio cord (supplied)
B Speaker cords (supplied)
b)
C
B
B
US01COV_HT-7000DH-U.book Page 16 Monday, August 14, 2006 9:22 AM
17
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started
To connect the speakers
correctly
Check the speaker type by referring to the
speaker label* on the rear panel of the
speakers.
* The center speaker and sub woofer do not have any
character on the speaker label. For details on the
speaker type, see page 3.
Tip
Use the supplied speakers to optimize the system’s
performance.
Character on
speaker label
Speaker type
L Front left
R Front right
SL Surround left
SR Surround right
US01COV_HT-7000DH-U.book Page 17 Monday, August 14, 2006 9:22 AM
18
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
3a: Connecting the audio components
This section describes how to hook up your
components to this receiver. Before you begin,
refer to “Component to be connected” below
for the pages which describe how to connect
each component.
After hooking up all your components,
proceed to “4: Connecting the antennas” (page
28).
Component to be connected
a)
Model with MULTI CH OUTPUT jacks, etc. This
connection is used to output audio decoded by the
component’s internal multi-channel decoder
through this receiver.
b)
Model equipped only with AUDIO OUT L/R
jacks, etc.
The sound quality depends on the connecting
jack. Refer to the illustration that follows.
Select the connection according to the jacks of
your components.
How to hook up your
components
Component With Page
Super Audio
CD player/CD
player
Multi-channel audio
output
a)
19
Analog audio output
only
b)
20
MD deck/Tape
deck
Analog audio output
only
b)
20
Audio input/output jack to be
connected
MULTI CH IN
FRONT
CENTER
SUB
WOOFER
SURROUND
L
R
Digital
Analog
High
quality
sound
US01COV_HT-7000DH-U.book Page 18 Monday, August 14, 2006 9:22 AM
19
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started
If your DVD or Super Audio CD player is
equipped with multi channel output jacks, you
can connect it to the MULTI CH IN jacks of
this receiver to enjoy multi channel sound.
Alternatively, the multi channel input jacks
can be used to connect an external multi
channel decoder.
Note
When you make connections to the MULTI CH IN
jacks, you will need to adjust the level of the
speakers and sub woofer using the controls on the
connected component.

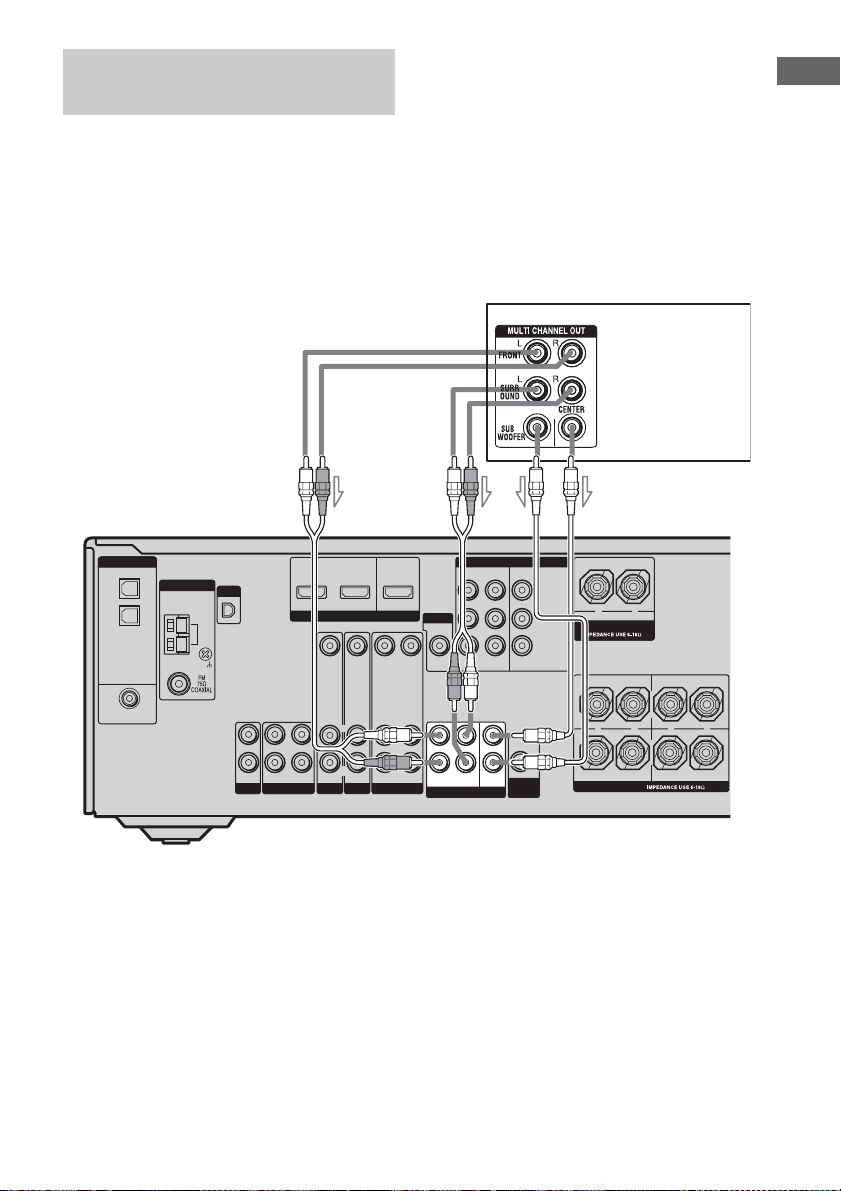

Connecting components with
multi channel output jacks
DIGITAL
OPTICAL
VIDEO 1
IN
VIDEO 2
IN
DVD
IN
COAXIAL
VIDEO 1
VIDEO IN
AUDIO IN
AUDIO
OUT
VIDEO IN VIDEO OUT
VIDEO 2
AUDIO IN
MD/TAPE
SA-CD
/
CD
L
R
L
R
SUB
WOOFER
L
L
R
R
OUT ININ
VIDEO IN
DVD
AUDIO IN
AUDIO OUT
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
COMPONENT VIDEO
Y
ASSIGNABLE
P
B
/C
B
/B–Y
P
R
/C
R
/R–Y
MONITOR
HDMI
DVD IN
ASSIGNABLE
VIDEO 2 IN
MONITOR OUT
XM
ANTENNA
AM
SURROUND FRONT A
R
R
L
L
+
–
+
–
SPEAKERS
MULTI CH IN
FRONT
CENTER
SUB
WOOFER
SURROUND
R
CENTER
+
–
SPEAKERS
L
DVD player, Super
Audio CD player, etc.
AB
A Audio cord (not supplied)
B Monaural audio cord (not supplied)
US01COV_HT-7000DH-U.book Page 19 Monday, August 14, 2006 9:22 AM
20
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
The following illustration shows how to
connect a component which has analog jacks
such as tape deck, etc.
Connecting components with
analog audio jacks
DIGITAL
OPTICAL
VIDEO 1
IN
VIDEO 2
IN
DVD
IN
COAXIAL
VIDEO 1
MULTI CH IN
FRONT
CENTER
SUB
WOOFER
SURROUND
VIDEO IN
AUDIO IN
AUDIO
OUT
VIDEO IN VIDEO OUT
VIDEO 2
AUDIO IN
L
R
L
R
SUB
WOOFER
L
R
VIDEO IN
DVD
AUDIO IN
AUDIO OUT
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
COMPONENT VIDEO
Y
ASSIGNABLE
P
B
/C
B
/B–Y
P
R
/C
R
/R–Y
MONITOR
HDMI
DVD IN
ASSIGNABLE
VIDEO 2 IN
MONITOR OUT
XM
ANTENNA
AM
SURROUND FRONT A
R
R
L
L
+
–
+
–
SPEAKERS
MD/TAPE
SA-CD
/
CD
R
R
OUT ININ
CENTER
+
–
SPEAKERS
L
L
Super Audio
CD player/
CD player

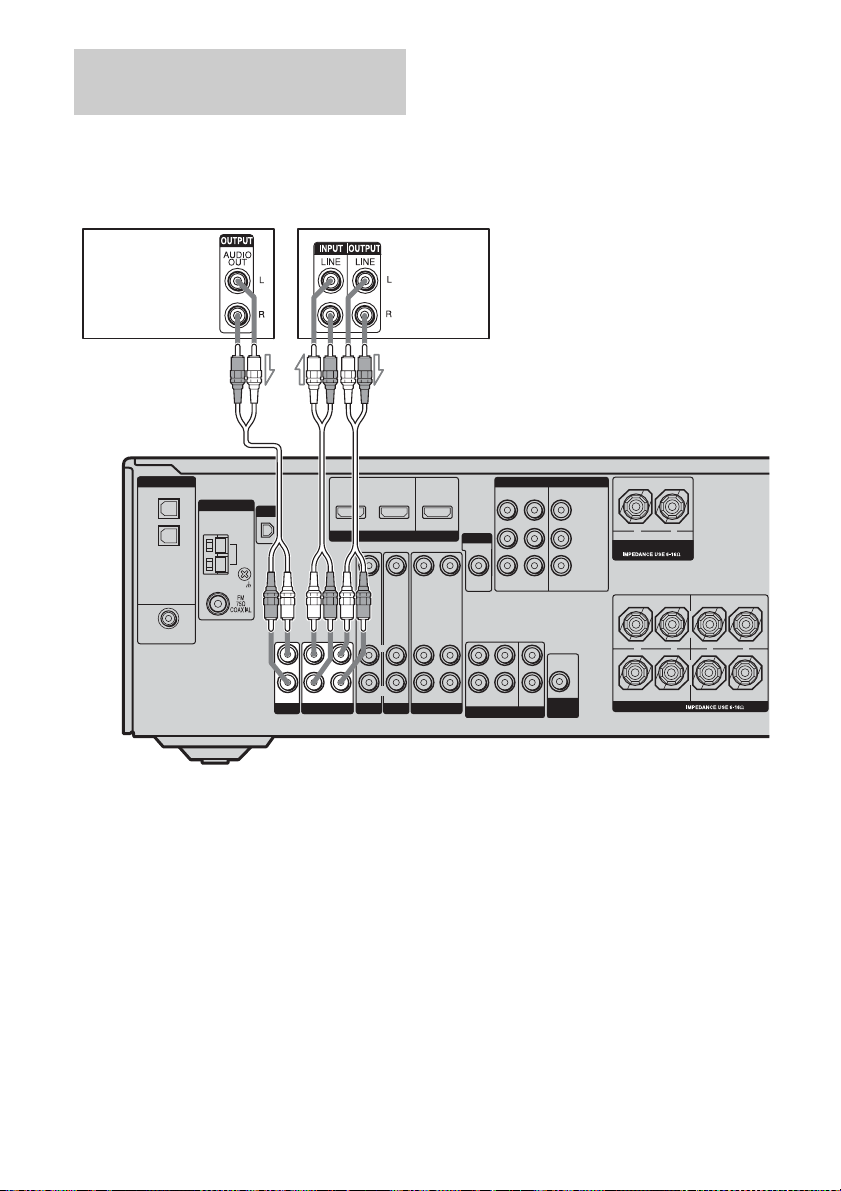

A Audio cord (not supplied)
A
MD deck/
Tape deck
A
US01COV_HT-7000DH-U.book Page 20 Monday, August 14, 2006 9:22 AM
21
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started
3b: Connecting the video components
This section describes how to hook up your
components to this receiver. Before you begin,
refer to “Component to be connected” below
for the pages which describe how to connect
each component.
After hooking up all your components,
proceed to “4: Connecting the antennas” (page
28).
Component to be connected
The image quality depends on the connecting
jack. Refer to the illustration that follows.
Select the connection according to the jacks on
your components.
Notes
• Connect image display components such as a TV
monitor or a projector to the MONITOR OUT jack
on the receiver.
• Turn on the receiver when the video and audio of a
playback component are being output to a TV
through the receiver. If the power supply of the
receiver is not on, neither video nor audio is
transmitted.
Reassigning video input signals
to another input
Component video input signals can be
reassigned to another input (page 64). You can
also reassign the HDMI input to another input
(page 65).
How to hook up your
components
Component Page
TV monitor 22
DVD player/DVD recorder 23
Satellite tuner 26
With HDMI jack 25
VCR 27
Camcorder, video game, etc. 27
Video input/output jack to be
connected
TV monitor, etc.
INPUT jack
Receiver
MONITOR OUT
jack
Receiver INPUT
jack
High quality image
COMPONENT
VIDEO
VIDEO
HDMI
COMPONENT
VIDEO
VIDEO
HDMI
COMPONENT
VIDEO
VIDEO
HDMI
COMPONENT
VIDEO
VIDEO
HDMI
V
ideo component
OUTPUT jack
US01COV_HT-7000DH-U.book Page 21 Monday, August 14, 2006 9:22 AM
22
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
The image from a visual component connected
to this receiver can be displayed on a TV
screen.
It is not necessary to connect all the cables.
Connect video cords according to the jacks of
your components.
Tip
You can watch the selected input image when you
connect the MONITOR OUT jack to a TV monitor.
Notes
• Connect image display components such as a TV
monitor or a projector to the MONITOR OUT jack
on the receiver.
• Turn on the receiver when the video and audio of a
playback component are being output to a TV via
the receiver. If the power supply of the receiver is
not turned on, neither video nor audio is
transmitted.

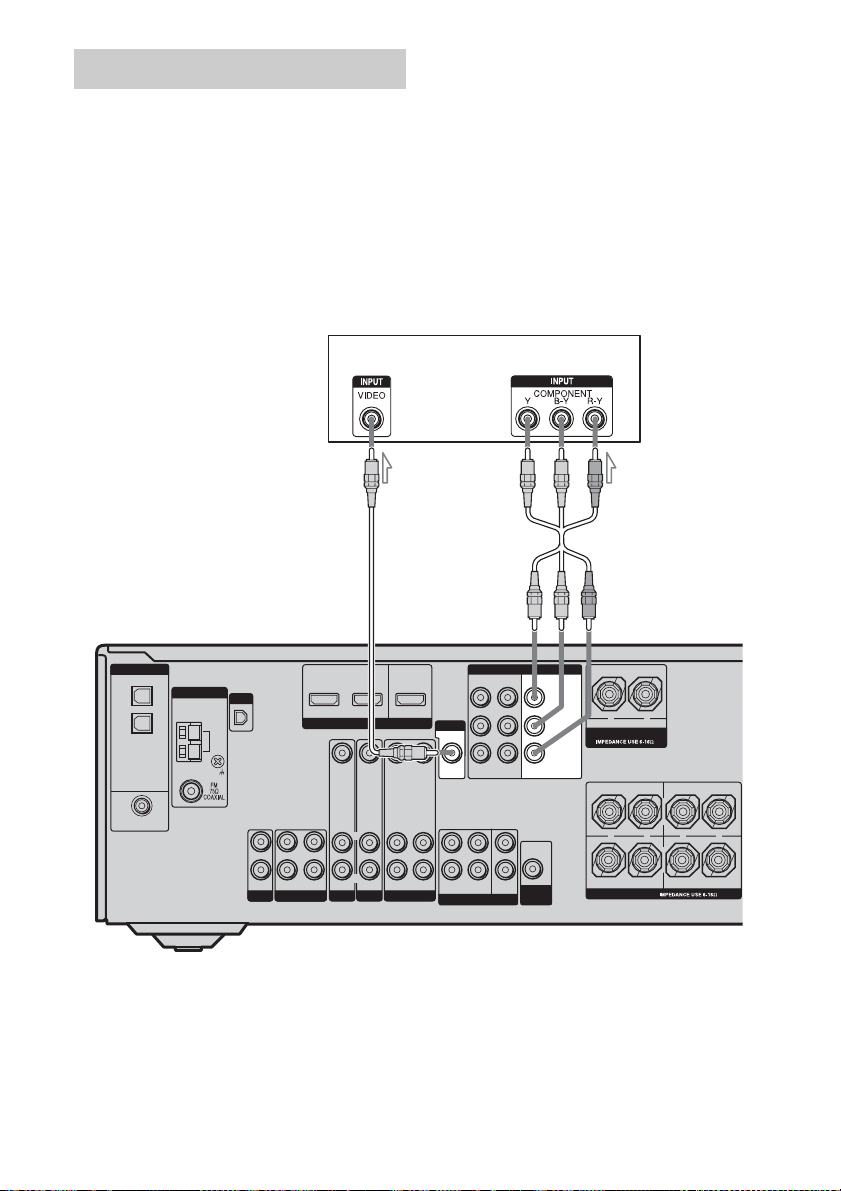

Hooking up a TV monitor
DIGITAL
OPTICAL
VIDEO 1
IN
VIDEO 2
IN
DVD
IN
COAXIAL
VIDEO 1
MULTI CH IN
FRONT
CENTER
SUB
WOOFER
SURROUND
VIDEO IN
AUDIO IN
AUDIO
OUT
VIDEO IN
VIDEO 2
AUDIO IN
MD/TAPE
SA-CD
/
CD
L
R
L
R
L
R
SUB
WOOFER
L
L
R
R
OUT ININ
VIDEO IN
DVD
AUDIO IN
AUDIO OUT
VIDEO OUT
DVD
IN
VIDEO 2
IN
ASSIGNABLE
HDMI
DVD IN
ASSIGNABLE
VIDEO 2 IN
MONITOR OUT
XM
ANTENNA
AM
SURROUND FRONT A
R
R
L
L
+
–
+
–
SPEAKERS
VIDEO OUT
MONITOR
MONITOR
OUT
Y
P
B
/C
B
/B–Y
P
R
/C
R
/R–Y
CENTER
+
–
SPEAKERS
COMPONENT VIDEO
TV monitor
BA
A Video cord (not supplied)
B Component video cord (not supplied)
US01COV_HT-7000DH-U.book Page 22 Monday, August 14, 2006 9:22 AM
23
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started
The following illustration shows how to
connect a DVD player/DVD recorder.
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
1 Connecting audio
Notes
• To input multi channel digital audio from the DVD
player, set the digital audio output setting on the
DVD player. Refer to the operating instructions
supplied with the DVD player.
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie the optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Hooking up a DVD player/DVD
recorder
MULTI CH IN
FRONT
CENTER
SUB
WOOFER
SURROUND
VIDEO IN
AUDIO
OUT
VIDEO IN VIDEO OUT
VIDEO 2
AUDIO IN
MD/TAPE
SA-CD
/
CD
L
R
L
L
R
SUB
WOOFER
L
L
R
R
OUT ININ
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
COMPONENT VIDEO
Y
ASSIGNABLE
P
B
/C
B
/B–Y
P
R
/C
R
/R–Y
MONITOR
HDMI
DVD IN
ASSIGNABLE
VIDEO 2 IN
MONITOR OUT
XM
ANTENNA
AM
SURROUND FRONT A
R
R
L
L
+
–
+
–
SPEAKERS
VIDEO IN
DVD
AUDIO IN
VIDEO 1
AUDIO IN
R
AUDIO OUT
OPTICAL
VIDEO 1
IN
VIDEO 2
IN
DIGITAL
DVD
IN
COAXIAL
CENTER
+
–
SPEAKERS
DVD player
AB

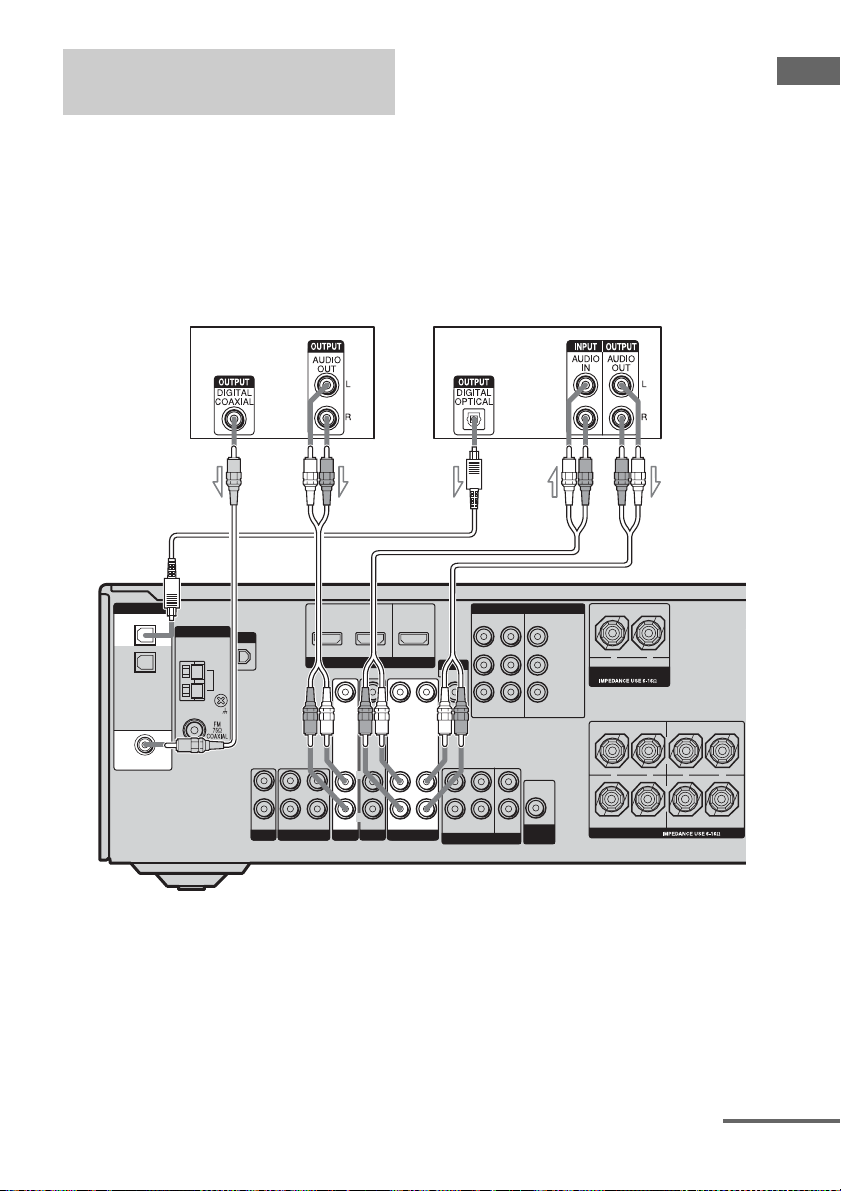

A Coaxial digital cord (supplied)
B Audio cord (not supplied)
C Optical digital cord (not supplied)
DVD recorder
C
B
continued
US01COV_HT-7000DH-U.book Page 23 Monday, August 14, 2006 9:22 AM
24
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)

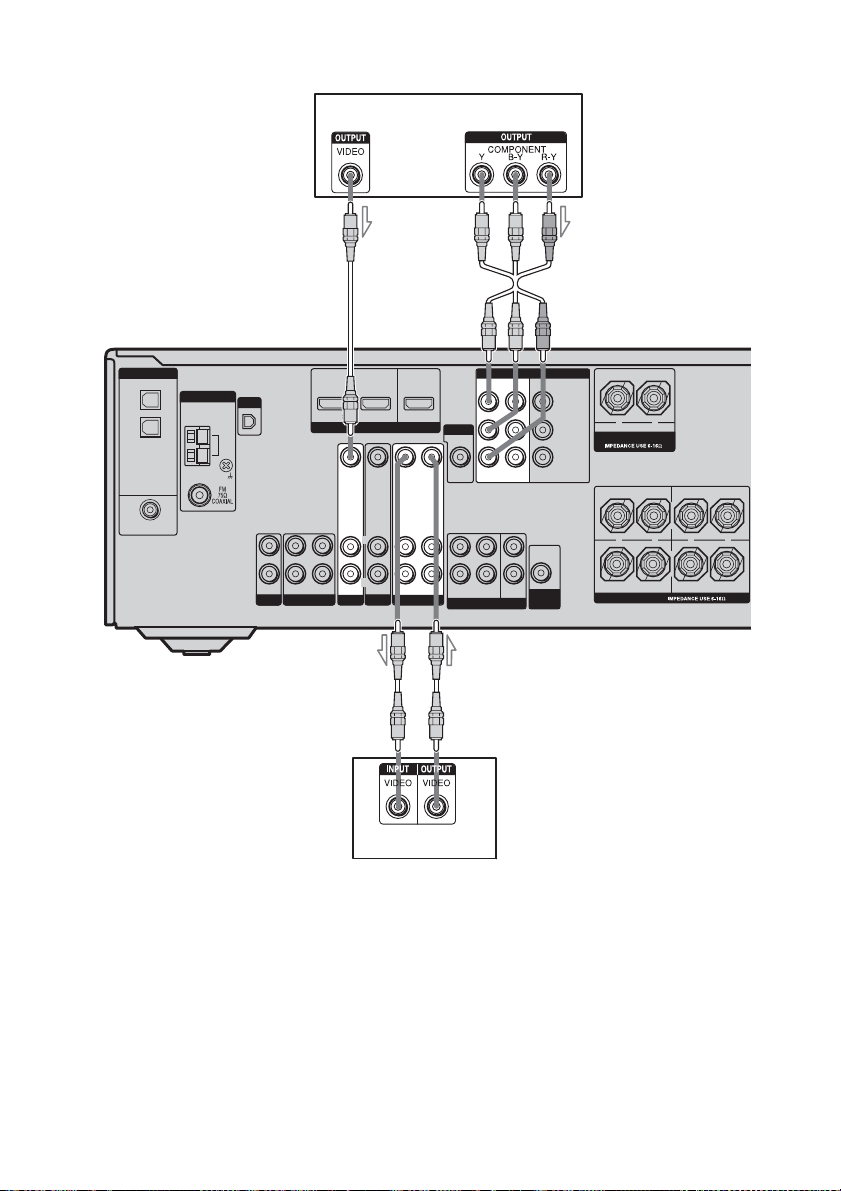

2 Connecting video
If you connect a DVD recorder
• Be sure to change the factory setting of the
VIDEO 1 input button on the remote so that
you can use the button to control your DVD
recorder. For details, see “Programming the
remote” (page 69).
• You can also rename the VIDEO 1 input so
that it can be displayed on the receiver’s
display. For details, see “Naming inputs”
(page 66).
DIGITAL
OPTICAL
VIDEO 1
IN
VIDEO 2
IN
DVD
IN
COAXIAL
MULTI CH IN
FRONT
CENTER
SUB
WOOFER
SURROUND
AUDIO
OUT
VIDEO IN VIDEO OUT
VIDEO 2
AUDIO IN
MD/TAPE
SA-CD
/
CD
L
R
L
R
L
R
SUB
WOOFER
L
L
R
R
OUT ININ
VIDEO IN
AUDIO IN
MONITOR
HDMI
DVD IN
ASSIGNABLE
VIDEO 2 IN
MONITOR OUT
XM
ANTENNA
AM
SURROUND FRONT A
R
R
L
L
+
–
+
–
SPEAKERS
DVD
DVD
IN
VIDEO 2
IN
MONITOR
OUT
Y
P
B
/C
B
/B–Y
P
R
/C
R
/R–Y
DVD
IN
VIDEO 2
IN
CENTER
+
–
SPEAKERS
VIDEO IN
VIDEO OUT
AUDIO IN
AUDIO OUT
VIDEO 1
ASSIGNABLE
COMPONENT VIDEO
DVD player
B
A
A Video cord (not supplied)
B Component video cord (not supplied)
DVD recorder
A
US01COV_HT-7000DH-U.book Page 24 Monday, August 14, 2006 9:22 AM
25
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started

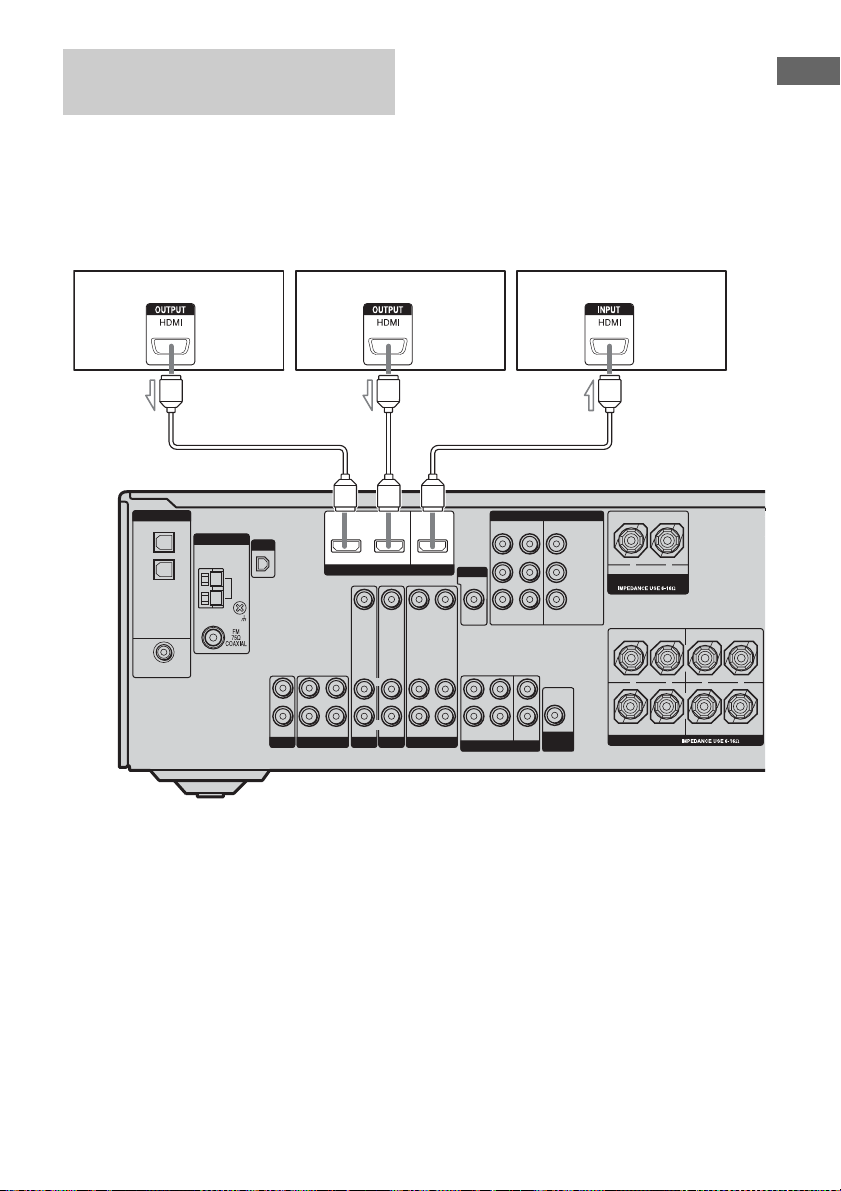

HDMI is the abbreviated name for High-
Definition Multimedia Interface. It is an
interface which transmits video and audio
signals in digital format.
The sound is output from the TV speaker only
when a playback component and this receiver,
as well as this receiver and the TV are
connected via a HDMI jack. To output the
sound from the supplied speakers and to take
advantage of the multi channel surround
sound, be sure to
– connect the digital audio jacks on the
playback component to the receiver.
– turn off or mute the TV’s volume.
Notes on HDMI connections
• The multi/stereo area audio signals of a
Super Audio CD are not output.
• Turn on the receiver when the video and
audio of a playback component are being
output to a TV via the receiver. If the power
supply of the receiver is not turned on,
neither video nor audio is transmitted.
• Audio signals (sampling frequency, bit
length, etc.) transmitted from a HDMI jack
may be restricted by the connected
component. Check the setup of the
connected component if the image is poor or
the sound does not come out of a component
connected via the HDMI cable.
• This receiver may not be able to transfer
video or audio signals with certain types of
components.
• Refer to the operating instructions of each
component connected for details.
Hooking up components with
HDMI jacks
DIGITAL
OPTICAL
VIDEO 1
IN
VIDEO 2
IN
DVD
IN
COAXIAL
VIDEO 1
MULTI CH IN
FRONT
CENTER
SUB
WOOFER
SURROUND
VIDEO IN
AUDIO IN
AUDIO
OUT
VIDEO IN VIDEO OUT
VIDEO 2
AUDIO IN
MD/TAPE
SA-CD
/
CD
L
R
L
R
L
R
SUB
WOOFER
L
L
R
R
OUT ININ
VIDEO IN
DVD
AUDIO IN
AUDIO OUT
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
COMPONENT VIDEO
Y
ASSIGNABLE
P
B
/C
B
/B–Y
P
R
/C
R
/R–Y
MONITOR
ASSIGNABLE
HDMI
XM
ANTENNA
AM
SURROUND FRONT A
R
R
L
L
+
–
+
–
SPEAKERS
CENTER
+
–
SPEAKERS
DVD IN VIDEO 2 IN
MONITOR OUT
DVD player Satellite tuner TV monitor, projector, etc.
AAA
A HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
US01COV_HT-7000DH-U.book Page 25 Monday, August 14, 2006 9:22 AM
26
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)

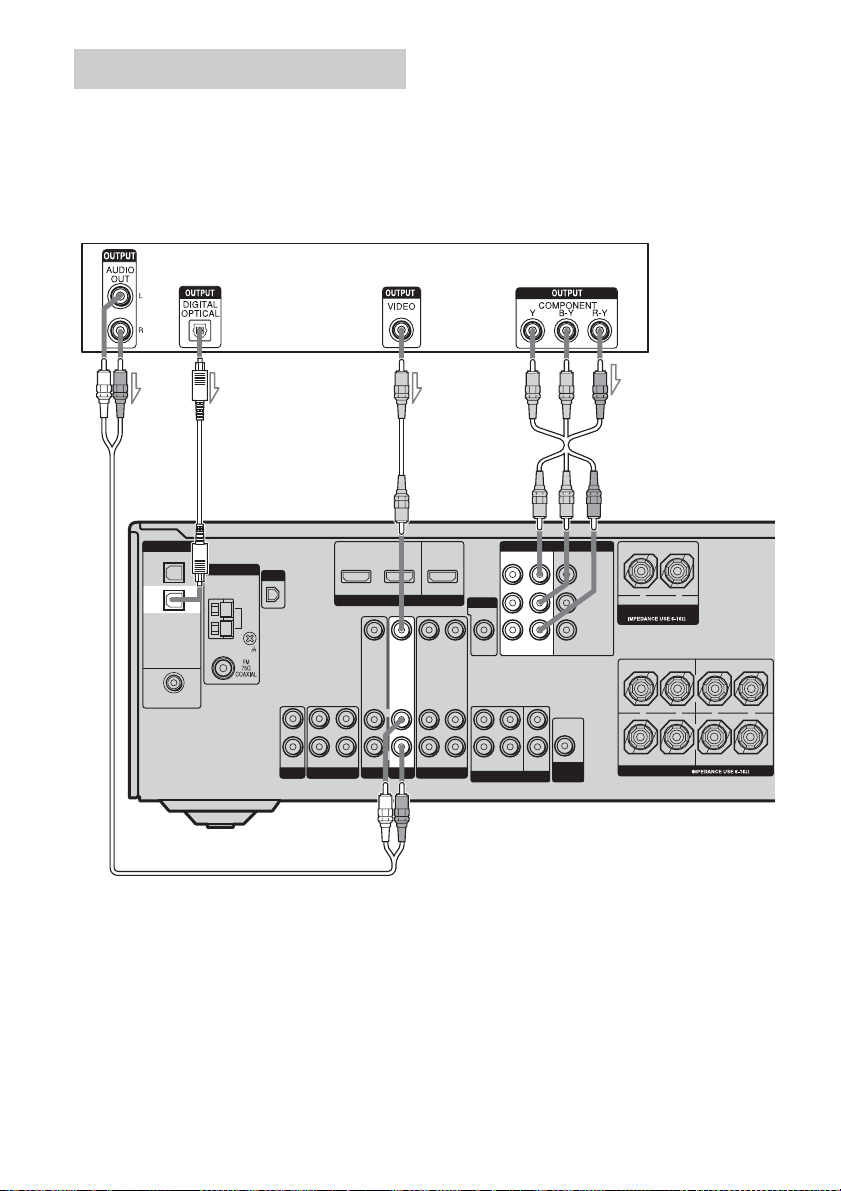

The following illustration shows how to
connect a satellite tuner.
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
Notes
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Hooking up a satellite tuner
VIDEO 1
MULTI CH IN
FRONT
CENTER
SUB
WOOFER
SURROUND
VIDEO IN
AUDIO IN
AUDIO
OUT
VIDEO IN VIDEO OUT
MD/TAPE
SA-CD
/
CD
L
R
L
R
L
R
SUB
WOOFER
L
L
R
OUT ININ
VIDEO IN
DVD
AUDIO IN
AUDIO OUT
VIDEO OUT
MONITOR
OUT
Y
P
B
/C
B
/B–Y
P
R
/C
R
/R–Y
MONITOR
DVD IN
ASSIGNABLE
MONITOR OUT
XM
ANTENNA
AM
SURROUND FRONT A
R
R
L
L
+
–
+
–
SPEAKERS
ASSIGNABLE
DIGITAL
OPTICAL
VIDEO 1
IN
VIDEO 2
IN
DVD
IN
COAXIAL
DVD
IN
VIDEO 2
IN
CENTER
+
–
SPEAKERS
VIDEO 2
AUDIO IN
R
COMPONENT VIDEO
HDMI
VIDEO 2 IN
Satellite tuner
A
BCD
A Audio cord (not supplied)
B Optical digital cord (not supplied)
C Video cord (not supplied)
D Component video cord (not supplied)
US01COV_HT-7000DH-U.book Page 26 Monday, August 14, 2006 9:22 AM
27
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started

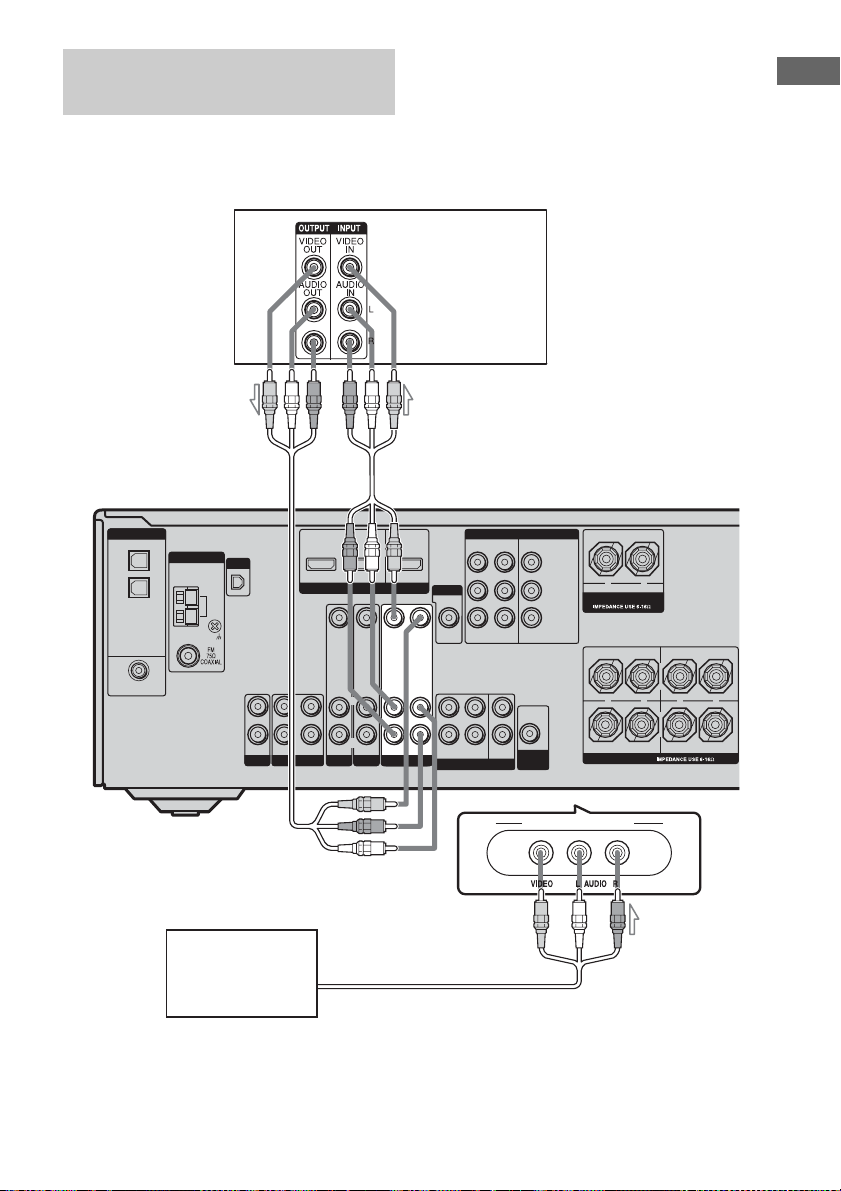

The following illustration shows how to
connect a component which has analog jacks
such as a VCR, etc.
Hooking up components with
analog video and audio jack
DIGITAL
OPTICAL
VIDEO 1
IN
VIDEO 2
IN
DVD
IN
COAXIAL
MULTI CH IN
FRONT
CENTER
SUB
WOOFER
SURROUND
VIDEO IN
AUDIO
OUT
VIDEO OUT
VIDEO 2
AUDIO IN
MD/TAPE
SA-CD
/
CD
L
R
L
R
SUB
WOOFER
L
L
R
R
OUT ININ
DVD
AUDIO IN
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
COMPONENT VIDEO
Y
ASSIGNABLE
P
B
/C
B
/B–Y
P
R
/C
R
/R–Y
MONITOR
HDMI
DVD IN
ASSIGNABLE
VIDEO 2 IN
MONITOR OUT
XM
ANTENNA
AM
SURROUND FRONT A
R
R
L
L
+
–
+
–
SPEAKERS
CENTER
+
–
SPEAKERS
AUDIO IN
L
R
AUDIO OUT
VIDEO 1
VIDEO INVIDEO IN
VIDEO 3 IN/PORTABLE AV IN
VCR
A
To the VIDEO 3 IN/PORTABLE AV IN jacks
(Front panel)
Camcorder/
video game
A
A Audio/video cord (not supplied)
US01COV_HT-7000DH-U.book Page 27 Monday, August 14, 2006 9:22 AM
28
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)

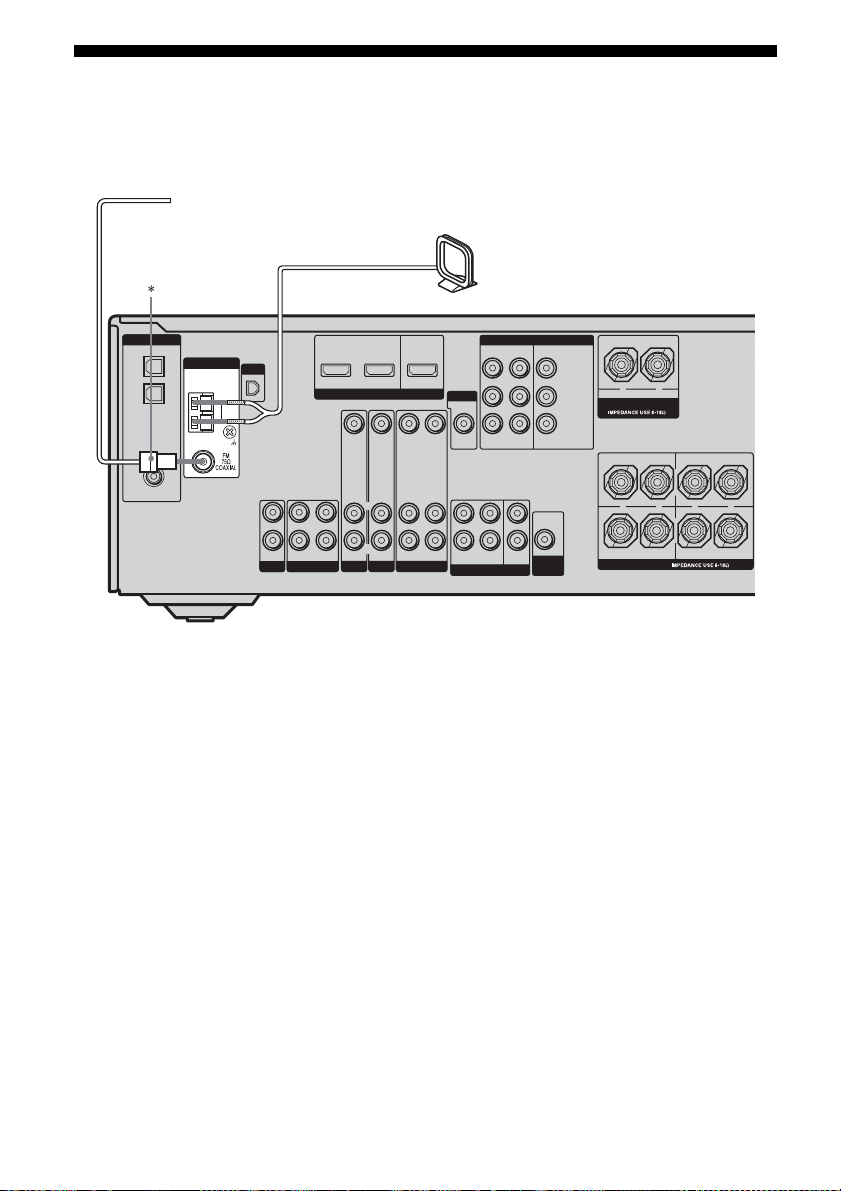

4: Connecting the antennas
Connect the supplied AM loop antenna and
FM wire antenna.
* The shape of the connector varies depending on
the area code of this receiver.
Notes
• To prevent noise pickup, keep the AM loop antenna
away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as
horizontal as possible.
DIGITAL
OPTICAL
VIDEO 1
IN
VIDEO 2
IN
DVD
IN
COAXIAL
VIDEO 1
MULTI CH IN
FRONT
CENTER
SUB
WOOFER
SURROUND
VIDEO IN
AUDIO IN
AUDIO
OUT
VIDEO IN VIDEO OUT
VIDEO 2
AUDIO IN
MD/TAPE
SA-CD
/
CD
L
R
L
R
L
R
SUB
WOOFER
L
L
R
R
OUT ININ
VIDEO IN
DVD
AUDIO IN
AUDIO OUT
VIDEO OUT
DVD
IN
VIDEO 2
IN
MONITOR
OUT
COMPONENT VIDEO
Y
ASSIGNABLE
P
B
/C
B
/B–Y
P
R
/C
R
/R–Y
MONITOR
HDMI
DVD IN
ASSIGNABLE
VIDEO 2 IN
MONITOR OUT
XM
AM
SURROUND FRONT A
R
R
L
L
+
–
+
–
SPEAKERS
ANTENNA
CENTER
+
–
SPEAKERS
FM wire antenna (supplied)
AM loop antenna (supplied)
US01COV_HT-7000DH-U.book Page 28 Monday, August 14, 2006 9:22 AM
29
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started

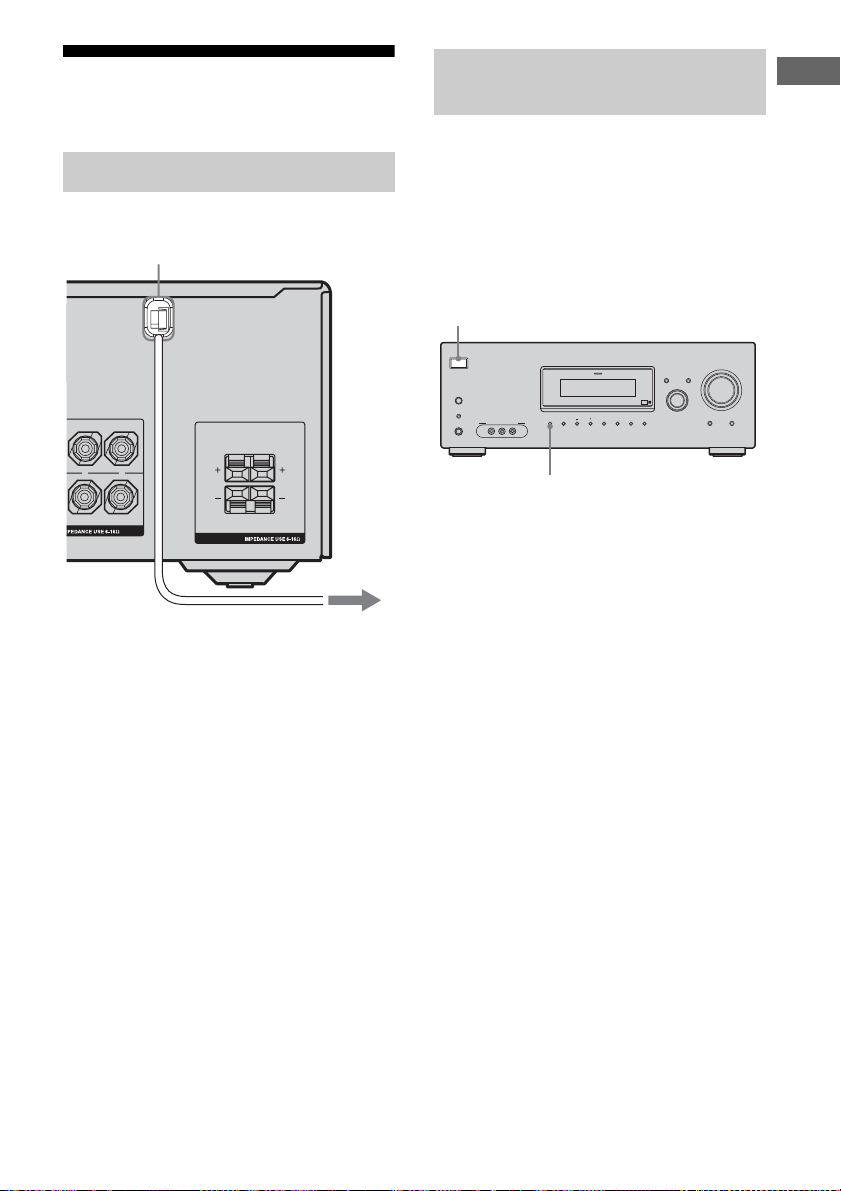

5: Preparing the receiver
and the remote
Connect the AC power cord to a wall outlet.
Note
Install this system so that the power cord can be
unplugged from the wall socket immediately in the
event of trouble.
Before using the receiver for the first time,
initialize the receiver by performing the
following procedure. This procedure can also
be used to return settings you have made to
their factory defaults.
Be sure to use the buttons on the receiver for
this operation.
1 Press ?/1 to turn off the
receiver.
2 Hold down ?/1 for 5 seconds.
“PUSH” and “ENTER” appears on the
display alternately.
3 Press MEMORY/ENTER.
After “CLEARING” appears on the
display for a while, “CLEARED”
appears.
The following items are reset to their
factory settings.
• All settings in the LEVEL, TONE,
SUR, TUNER, AUDIO, VIDEO and
SYSTEM menus.
• The sound field memorized for each
input and preset station.
• All sound field parameters.
• All preset stations.
• All index names for inputs and preset
stations.
• MASTER VOLUME is set to “VOL
MIN”.
• Input is set to “DVD”.
Connecting the AC power cord
SPEAKERS
FRONT B
LR
LR
FRONT A
R
L
+
–
AC power cord
To the wall outlet
Performing initial setup
operations
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC MULTI CH IN MUTING
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
?/1
1,2
3
US01COV_HT-7000DH-U.book Page 29 Monday, August 14, 2006 9:22 AM
30
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)

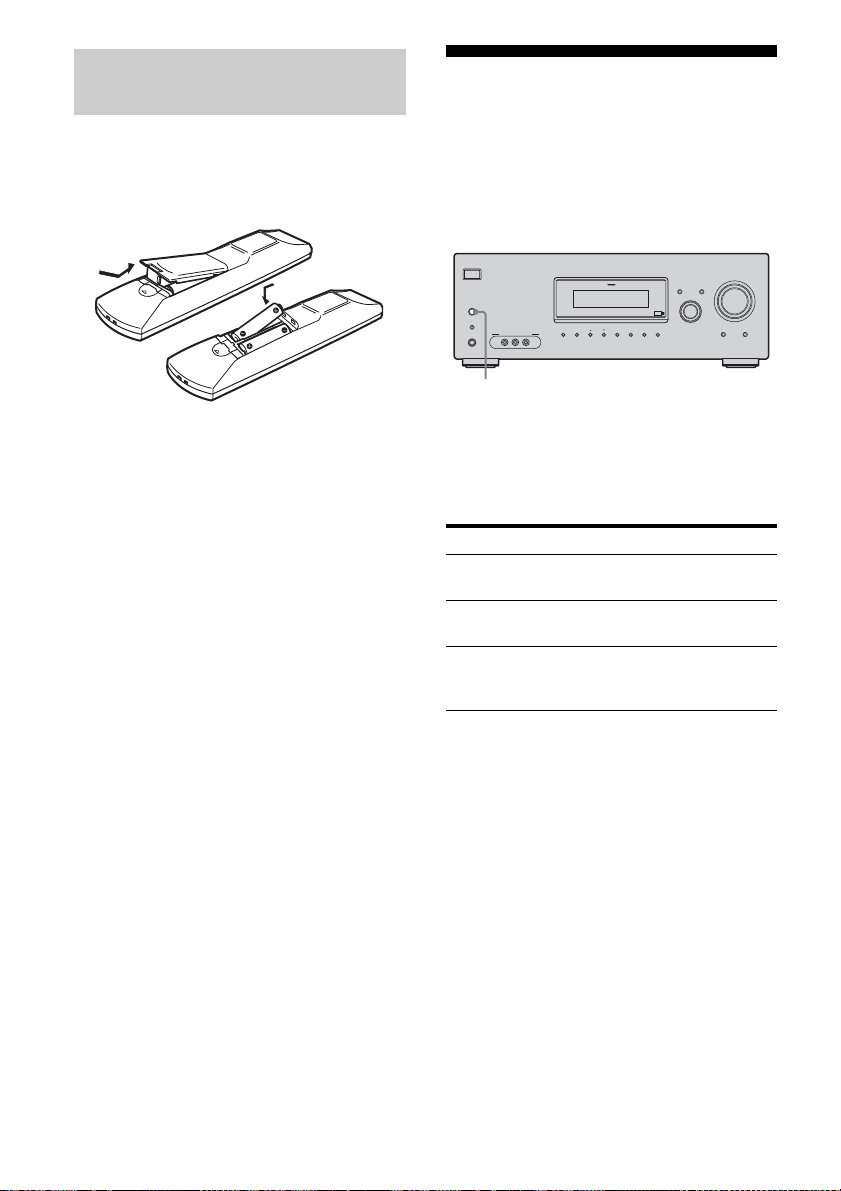

Insert two R6 (size-AA) batteries in the
RM-AAP012 remote commander.
Observe the correct polarity when installing
batteries.
Notes
• Do not leave the remote in an extremely hot or
humid place.
• Do not use a new battery with old ones.
• Do not mix alkaline batteries and other kinds of
batteries.
• Do not expose the remote sensor to direct sunlight
or lighting apparatuses. Doing so may cause a
malfunction.
• If you do not intend to use the remote for an
extended period of time, remove the batteries to
avoid possible damage from battery leakage and
corrosion.
Tip
Under normal conditions, the batteries should last
for about 3 months. When the remote no longer
operates the receiver, replace all the batteries with
new ones.
6: Selecting the speaker
system
You can select the front speakers you want to
drive.
Be sure to use the buttons on the receiver for
this operation.
Press SPEAKERS (OFF/A/B/A+B)
repeatedly to select the front
speaker system you want to drive.
To turn off the speaker output, press
SPEAKERS (OFF/A/B/A+B) repeatedly until
the “SP A” and “SP B” indicators on the
display do not light up.
Inserting batteries into the
remote
To select Light up
The speakers connected to the
SPEAKERS FRONT A terminals
SP A
The speakers connected to the
SPEAKERS FRONT B terminals
SP B
The speakers connected to both the
SPEAKERS FRONT A and B
terminals (parallel connection)
SP A and
SP B
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC MULTI CH IN MUTING
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
?/1
SPEAKERS
(OFF/A/B/A+B)
US01COV_HT-7000DH-U.book Page 30 Monday, August 14, 2006 9:22 AM
31
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started

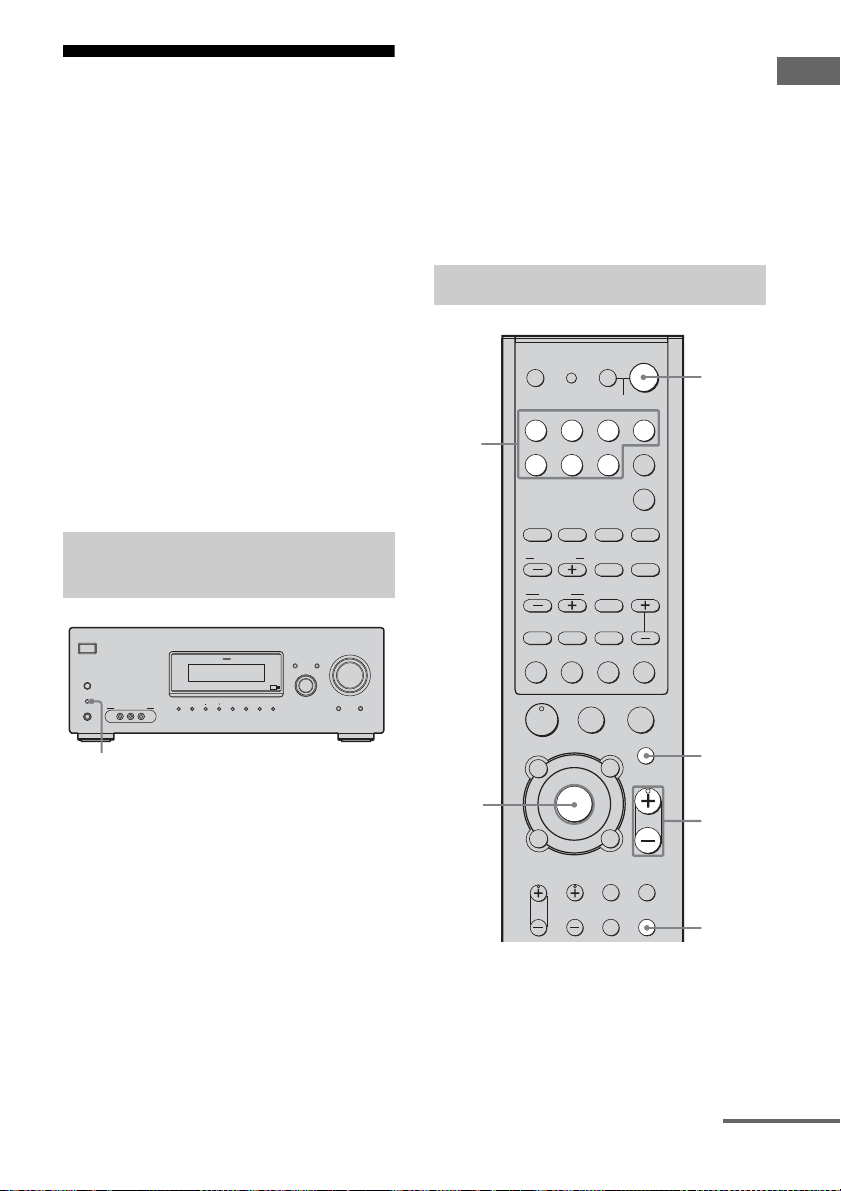

7: Calibrating the
appropriate settings
automatically
(AUTO CALIBRATION)
This receiver is equipped with D.C.A.C.
(Digital Cinema Auto Calibration)
Technology which allows you to perform
automatic calibration as follows:
• Check the connection between each speaker
and the receiver.
• Adjust the speaker level.
• Measure the distance of each speaker to your
listening position.
You can also adjust the speaker levels and
balance manually. For details, see
“8: Adjusting the speaker levels and balance
(TEST TONE)” (page 34).
1 Connect the supplied ECM-AC2
optimizer microphone to the
AUTO CAL MIC jack.
2 Place the optimizer
microphone at your listening
position.
3 Place the speakers so that the
speakers are facing the
optimizer microphone.
Tips
• You can also fix the optimizer microphone to a
tripod (not supplied) and place the tripod at your
listening position.
• Be sure to remove any obstacles in the path
between the optimizer microphone and the
speakers.
• When you face the speaker towards the optimizer
microphone, you will get a more accurate
measurement.
Press AUTO CAL.
The following appears on the display.
A.CAL [5] t A.CAL [4] t A.CAL [3] t
A.CAL [2] t A.CAL [1]
Before you perform Auto
Calibration
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC MULTI CH IN MUTING
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
?/1
1
Performing Auto Calibration
H
X
m
M
.
>
-
VIDEO1 VIDEO2
RM SET UP
SYSTEM STANDBY
SLEEP
TV ?/1 AV ?/1
VIDEO3 DVD
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
TOP MENU/
GUIDE
AV MENU
MUTING
MASTER
VOL
DISPLAY
TV VOL TV CH
WIDE
AUTO
CAL
TV/
VIDEO
AMP
MENU
RETURN/EXIT
D.TUNING DISC ALT
ANT
CLEAR
SEARCH MODE
2CH
A.F.D.
123
456
789
0/10
>10/11 12
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
x
?/1
P
O
f
F
G
g
CATEGORY
AUTO
CAL
Control
button
Input
buttons
?/1
switch
MUTING
MASTER
VOL +/–
continued
US01COV_HT-7000DH-U.book Page 31 Monday, August 14, 2006 9:22 AM
32
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
The table below shows the display when
measurement starts.
* The corresponding speaker indicator lights up in
the display during measurement.
When measurement ends, “COMPLETE”
appears on the display and the settings are
registered.
Notes
• Auto Calibration cannot detect the sub woofer.
Therefore, all sub woofer settings will be
maintained.
• You cannot select Auto Calibration when
headphone is connected.
• The measurement process will take a few minutes
to complete.
Tips
• When Auto Calibration starts:
– Stand some distance from the speakers and the
listening position to avoid measurement failure.
This is because test signals are output from the
speakers during measurement.
– Avoid making noise to get a more accurate
measurement.
• The Auto Calibration function will be canceled
when you do the following during the
measurement process:
– Press ?/1, input buttons or MUTING.
– Change the volume level.
– Press AUTO CAL again.
Error codes
When an error is detected during Auto
Calibration, an error code will appear on the
display cyclically after each measurement
process as follows:
Error code t blank display t (error code t
blank display)
a)
t PUSH t blank display
t ENTER
a)
Appears when there are more than one error code.
To rectify the error
1 Record down the error code.
2 Press the control button.
3 Press ?/1 to turn off the receiver.
4 Rectify the error.
For details, see “Error code and remedies”
below.
5 Turn on the receiver and perform Auto
Calibration again (page 31).
Error code and remedies
Measurement for Display
Environment noise level NOISE.CHK
Speaker connection MEASURE and SP
DET. appears
alternately*
Speaker level MEASURE and
GAIN appears
alternately*
Speaker distance MEASURE and
DISTANCE appears
alternately*
Error and warning codes
Error
code
Explanation Remedies
ERROR 10 The environment
is too noisy.
Make sure the
environment is
quiet during Auto
Calibration.
ERROR 11 The speakers are
placed too near
the optimizer
microphone.
Place your speakers
further away from
the optimizer
microphone.
ERROR 20 Front speakers
are not detected
or only one front
speaker is
detected.
Check the front
speaker
connection.
ERROR 21 Only one
surround speaker
is detected.
Check the surround
speaker
connection.
US01COV_HT-7000DH-U.book Page 32 Monday, August 14, 2006 9:22 AM
33
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Getting Started
Warning codes
During Auto Calibration, the warning code
provides information on the measurement
result. The warning code will appear on the
display cyclically as follows:
Warning code t blank display t (warning
code t blank display)
b)
t PUSH t blank
display t ENTER
b)
Appears when there are more than one warning
code.
You can choose to ignore the warning code as
the Auto Calibration function will
automatically adjust the settings. You can also
change the settings manually.
To change the settings
manually
1 Record down the warning code.
2 Press the control button.
3 Press ?/1 to turn off the receiver.
4 Follow the solution provided in the
“Warning code and solution” below.
5 Turn on the receiver and perform Auto
Calibration again (page 31).
Warning code and solution
c)
For details, refer “Front speaker distance”
(page 46).
d)
For details, refer “Center speaker distance”
(page 46).
e)
For details, refer “Surround left speaker distance”
(page 46).
f)
For details, refer “Surround right speaker
distance” (page 46).
Warning
code
Explanation Solution
WARN. 40 The environment
is noisy.
Make sure the
environment is
quiet during Auto
Calibration.
WARN. 50 The center speaker
is not connected.
Be sure to connect
the center speaker.
WARN. 51 The surround
speakers are not
connected.
Be sure to connect
the surround
speakers.
WARN. 60 The front speaker
balance is out of
range.
Reposition your
front speakers.
c)
WARN. 62 The center speaker
level is out of
range.
Reposition your
center speaker.
d)
WARN. 63 The surround left
speaker level is out
of range.
Reposition your
surround left
speaker.
e)
WARN. 64 The surround right
speaker level is out
of range.
Reposition your
surround right
speaker.
f)
WARN. 70 The front speaker
distance is out of
range.
Reposition your
front speakers.
c)
WARN. 72 The center speaker
distance is out of
range.
Reposition your
center speaker.
d)
WARN. 73 The surround left
speaker distance is
out of range.
Reposition your
surround left
speaker.
e)
WARN. 74 The surround right
speaker distance is
out of range.
Reposition your
surround right
speaker.
f)
Warning
code
Explanation Solution
US01COV_HT-7000DH-U.book Page 33 Monday, August 14, 2006 9:22 AM
34
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US03CON_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
8: Adjusting the speaker
levels and balance
(TEST TONE)
You can adjust the speaker levels and balance
while listening to the test tone from your
listening position.
Tip
The receiver employs a test tone with a frequency
centered at 800 Hz.
1 Press AMP MENU.
“1-LEVEL” appears on the display.
2 Press the control button or
control button b to enter the
menu.
3 Press control button V/v
repeatedly to select “T. TONE”.
4 Press the control button or
control button b to enter the
parameter.
5 Press control button V/v
repeatedly to select “T. TONE
Y”.
The test tone is output from each speaker
in sequence as follows:
Front left t Center t Front right t
Surround right t Surround left t
Sub woofer
6 Adjust the speaker levels and
balance using the LEVEL menu
so that the level of the test tone
sounds the same from each
speaker.
For details, see “Adjusting the level
(LEVEL menu)” (page 42).
Tips
• To adjust the level of all speakers at the same
time, press MASTER VOL +/–. You can also
use MASTER VOLUME on the receiver.
• The adjusted value are shown on the display
during adjustment.
7 Repeat steps 1 to 5 to select
“T. TONE N”.
The test tone turns off.
Note
The test tone does not work when MULTI CH IN is
selected.
H
X
TOP MENU/
GUIDE
AV MENU
MUTING
MASTER
VOL
DISPLAY
TV VOL TV CH
WIDE
AUTO
CAL
TV/
VIDEO
AMP
MENU
RETURN/EXIT
x
O
f
F
G
g
1
MASTER
VOL +/–
2-5
US01COV_HT-7000DH-U.book Page 34 Monday, August 14, 2006 9:22 AM
35
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US04PLA_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Playback

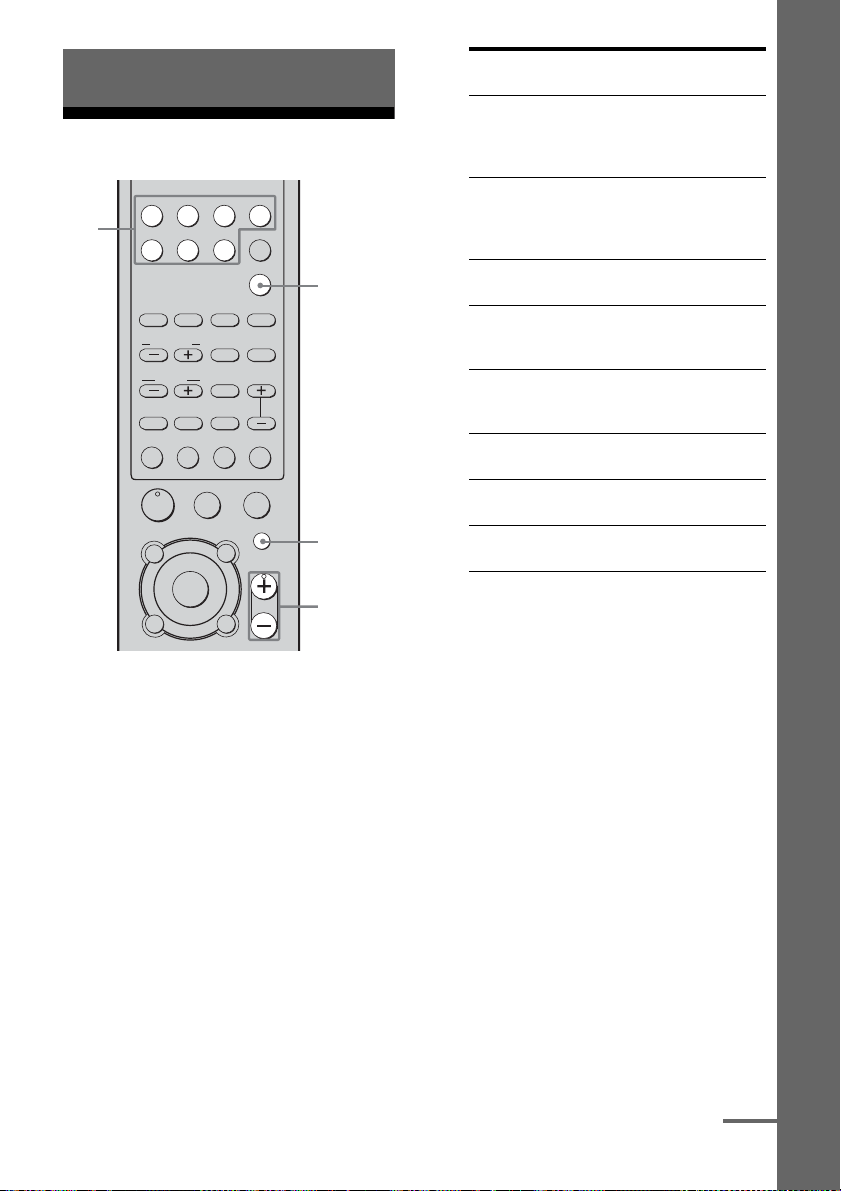

Selecting a component
1
Press the input button to select
a component.
You can also use INPUT SELECTOR on
the receiver. To select a component
connected to the MULTI CH IN jack,
press MULTI CH.
You can also use MULTI CH IN on the
receiver.
The selected input appears on the display.
*When headphone is connected, “HP MULTI”
appears on the display.
Note
The surround effect does not work when
MULTI CH IN is selected.
2 Turn on the component and
start playback.
3 Press MASTER VOL +/– to
adjust the volume.
You can also use MASTER VOLUME on
the receiver.
To mute the sound
Press MUTING.
The muting function will be canceled when
you do the following.
• Press MUTING again.
• Increase the volume.
• Turn off the receiver.
Playback
H
X
m
M
.
>
-
VIDEO1 VIDEO2
SYSTEM STANDBY
SLEEP
VIDEO3 DVD
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
TOP MENU/
GUIDE
AV MENU
MUTING
MASTER
VOL
DISPLAY RETURN/EXIT
D.TUNING DISC ALT
ANT
CLEAR
SEARCH MODE
2CH
A.F.D.
123
456
789
0/10
>10/11 12
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
x
O
f
F
G
g
CATEGORY
1
3
MUTING
MULTI CH
Selected input
[Display]
Components that can
be played back
VIDEO1 or
VIDEO2
[VIDEO 1 or
VIDEO 2]
VCR, etc., connected to the
VIDEO 1 or VIDEO 2 jack
VIDEO3
[VIDEO 3]
Camcorder, video game,
etc., connected to the
VIDEO 3 IN/PORTABLE
AV IN jack
DVD
[DVD]
DVD player, etc.,
connected to DVD jack
MD/TAPE
[MD/TAPE]
MD deck, tape deck, etc.,
connected to the MD/
TAPE jack
SA-CD/CD
[SA-CD/CD]
Super Audio CD/CD
player, etc., connected to
the SA-CD/CD jack
TUNER
[FM or AM band]
Built-in radio tuner
TUNER
[XM RADIO]
For details, see page 57.
MULTI CH
[MULTI IN*]
Component connected to
the MULTI CH IN jack
continued
US01COV_HT-7000DH-U.book Page 35 Monday, August 14, 2006 9:22 AM
36
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US04PLA_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
To avoid damaging your
speakers
Before you turn off the receiver, be sure to turn
down the volume level.
To listen to the sub woofer
Be sure to use the buttons on the rear panel of
the sub woofer for this operation.
1 Press POWER.
The POWER indicator lights up.
2 Turn LEVEL to adjust the volume.
Set the volume level to suit your preference
according to the selected input as slight
adjustments may enhance the sound.
Note
Do not set the volume of the sub woofer to
maximum as extraneous noise may be heard.
US01COV_HT-7000DH-U.book Page 36 Monday, August 14, 2006 9:22 AM
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US04PLA_HT-7000DH-U.fm
masterpage: R-2
HT-7000DH
2-662-265-12 (2)
37
US
Playback

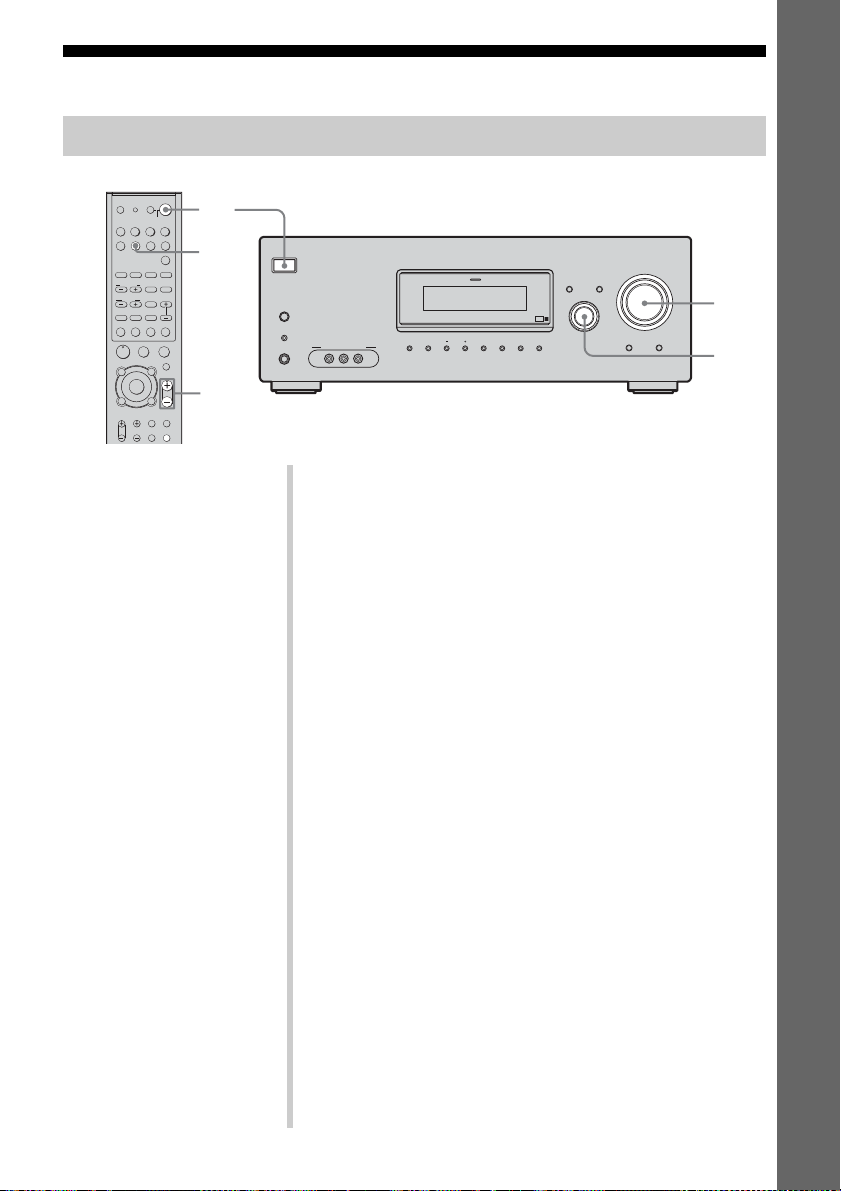

Listening/Watching a component
Listening to a Super Audio CD/CD
H
X
m
M
.
>
-
VIDEO1 VIDEO2
RM SET UP
SYSTEM STANDBY
SLEEP
TV ?/1 AV ?/1
VIDEO3 DVD
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
TOP MENU/
GUIDE
AV MENU
MUTING
MASTER
VOL
DISPLAY
TV VOL TV CH
WIDE
AUTO
CAL
TV/
VIDEO
AMP
MENU
RETURN/EXIT
D.TUNING DISC ALT
ANT
CLEAR
SEARCH MODE
2CH
A.F.D.
123
456
789
0/10
>10/11 12
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
x
?/1
P
O
f
F
G
g
CATEGORY
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC MULTI CH IN MUTING
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
?/1
5
5
3
2
3
Notes
• The operation is described for a
Sony Super Audio CD player.
• Refer to the operating
instructions supplied with the
Super Audio CD player or CD
player.
Tips
• You can select the sound field to
suit the music. Refer to page 50
for details.
Recommended sound fields:
Classical: HALL
Jazz: JAZZ
Live concert: CONCERT
• You can listen to the sound that
was recorded in the 2 channel
format from all speakers (multi
channel). Refer to page 48 for
details.
1 Turn on the Super Audio CD player/CD
player, then place the disc on the tray.
2 Turn on the receiver.
3 Press SA-CD/CD.
You can also use INPUT SELECTOR on the receiver to
select SA-CD/CD.
4 Playback the disc.
5 Adjust to a suitable volume.
6 After you have finished listening to the
Super Audio CD/CD, eject the disc and turn
off the receiver and Super Audio CD player/
CD player.
US01COV_HT-7000DH-U.book Page 37 Monday, August 14, 2006 9:22 AM
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US04PLA_HT-7000DH-U.fm
masterpage: L-2
HT-7000DH
2-662-265-12 (2)
38
US

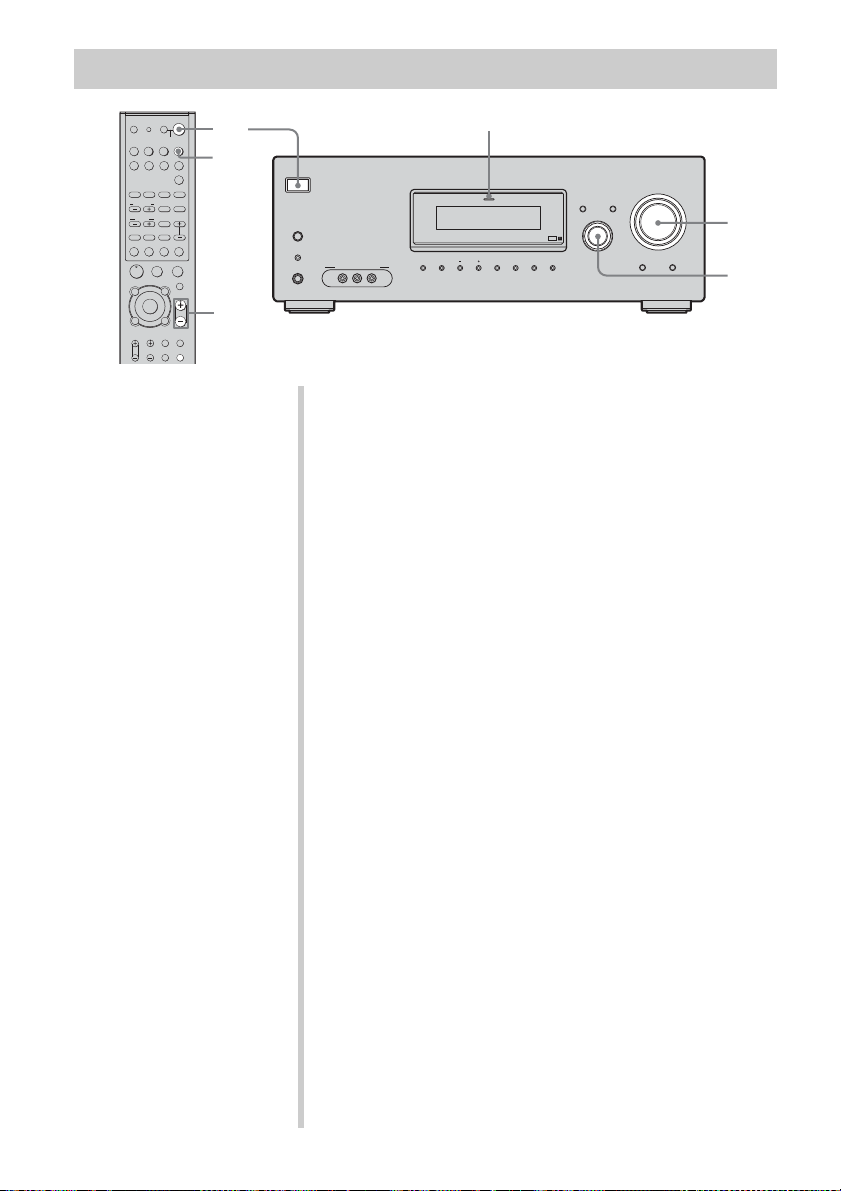

Watching a DVD
H
X
m
M
.
>
-
VIDEO1 VIDEO2
RM SET UP
SYSTEM STANDBY
SLEEP
TV ?/1 AV ?/1
VIDEO3 DVD
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
TOP MENU/
GUIDE
AV MENU
MUTING
MASTER
VOL
DISPLAY
TV VOL TV CH
WIDE
AUTO
CAL
TV/
VIDEO
AMP
MENU
RETURN/EXIT
D.TUNING DISC ALT
ANT
CLEAR
SEARCH MODE
2CH
A.F.D.
123
456
789
0/10
>10/11 12
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
x
?/1
P
O
f
F
G
g
CATEGORY
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC MULTI CH IN MUTING
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
?/1
MULTI CHANNEL DECODING
2
3
7
7
3
MULTI CHANNEL DECODING lamp
Notes
• Refer to the operating
instructions supplied with the
TV and DVD player.
• Check the following if you
cannot listen to multi channel
sound.
– Be sure the sound source
corresponds to the multi
channel format (the MULTI
CHANNEL DECODING
lamp on the front panel lights
up during playback).
– Be sure this receiver is
connected to the DVD player
via a digital connection.
– Be sure the digital audio
output of the DVD player is
set up properly.
Tips
• Select the sound format of the
disc to be played, if necessary.
• You can select the sound field to
suit the movie/music. Refer to
page 50 for details.
Recommended sound fields:
Movie: C.ST.EX
Music: CONCERT
1 Turn on the TV and DVD player.
2 Turn on the receiver.
3 Press DVD.
You can also use INPUT SELECTOR on this receiver to
select DVD.
4 Switch the input of the TV so that an image
of the DVD is displayed.
5 Set up the DVD player.
Refer to the operating instructions supplied with the DVD
player.
6 Playback the disc.
7 Adjust to a suitable volume.
8 After you have finished watching the DVD,
eject the disc and turn off the receiver, TV
and DVD player.
US01COV_HT-7000DH-U.book Page 38 Monday, August 14, 2006 9:22 AM
39
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Amplifier Operations
Navigating through
menus
By using the amplifier menus, you can make
various adjustments to customize the receiver.
1 Press AMP MENU.
“1-LEVEL” appears on the display.
2 Press control button V/v
repeatedly to select the menu
you want.
3 Press the control button or
control button b to enter the
menu.
4 Press control button V/v
repeatedly to select the
parameter you want to adjust.
5 Press the control button or
control button b to enter the
parameter.
6 Press control button V/v
repeatedly to select the setting
you want.
The setting is entered automatically.
To return to the previous
display
Press control button B.
To exit the menu
Press AMP MENU.
Note
Some parameters and settings may appear dimmed
on the display. This means that they are either
unavailable or fixed and unchangeable.
Amplifier Operations
H
X
TOP MENU/
GUIDE
AV MENU
MUTING
MASTER
VOL
DISPLAY
TV VOL TV CH
WIDE
AUTO
CAL
TV/
VIDEO
AMP
MENU
RETURN/EXIT
x
O
f
F
G
g
2-6
1
US01COV_HT-7000DH-U.book Page 39 Monday, August 14, 2006 9:22 AM
40
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
The following options are available in each
menu. For details on navigating through
menus, see page 39.
Overview of the menus
Menu
[Display]
Parameters
[Display]
Settings Initial
setting
LEVEL (42)
[1-LEVEL]
Test tone
a)
[T. TONE] T. TONE Y, T. TONE N T. TONE N
Front speaker balance
a)
[FRT BAL]
BAL. L +1 to BAL. L +8, BALANCE,
BAL. R +1 to BAL. R +8
BALANCE
Center speaker level
[CNT LVL]
CNT –10 dB to CNT +10 dB
(1 dB step)
CNT 0 dB
Surround left speaker level
[SL LVL]
SUR L –10 dB to SUR L +10 dB
(1 dB step)
SUR L 0 dB
Surround right speaker level
[SR LVL]
SUR R –10 dB to SUR R +10 dB
(1 dB step)
SUR R 0 dB
Sub woofer level
[SW LVL]
SW –10 dB to SW +10 dB
(1 dB step)
SW 0 dB
Dynamic range compressor
a)
[D. RANGE]
COMP. OFF, COMP. STD,
COMP. MAX
COMP. OFF
TONE (43)
[2-TONE]
Front speaker bass level
[BASS LVL]
BASS –6 dB to BASS +6 dB
(1 dB step)
BASS 0 dB
Front speaker treble level
[TRE LVL]
TRE –6 dB to TRE +6 dB
(1 dB step)
TRE 0 dB
SUR (43)
[3-SUR]
Sound field selection
a)
[S.F. SELCT]
2CH ST., A.F.D. AUTO, DOLBY PL,
PLII MV, PLII MS, MULTI ST.,
C.ST.EX A, C.ST.EX B, C.ST.EX C,
HALL, JAZZ, CONCERT
A.F.D. AUTO
for:
TUNER,
SA-CD/CD,
MD/TAPE,
DVD,
VIDEO 1, 2, 3
Effect level
a)
[EFFECT] EFCT. MIN, EFCT. STD,
EFCT. MAX
EFCT. STD
TUNER (44)
[4-TUNER]
FM station receiving mode
a)
[FM MODE]
FM AUTO, FM MONO FM AUTO
Naming preset stations
a)
[NAME IN]
US01COV_HT-7000DH-U.book Page 40 Monday, August 14, 2006 9:22 AM
41
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Amplifier Operations
a)
For details, refer to the page in the parentheses.
Menu
[Display]
Parameters
[Display]
Settings Initial
setting
AUDIO (44)
[5-AUDIO]
Digital audio input decoding
priority
a)
[DEC. PRI.]
DEC. AUTO, DEC. PCM DEC. AUTO
for:
VIDEO 1, 2;
DEC. PCM for:
DVD
Digital broadcast language
selection
a)
[DUAL]
DUAL M/S, DUAL M, DUAL S,
DUAL M+S
DUAL M
A/V Sync
a)
[A.V. SYNC.] A.V.SYNC. Y, A.V.SYNC. N A.V.SYNC. N
Naming inputs
a)
[NAME IN]
VIDEO (45)
[6-VIDEO]
Component video assign
a)
[COMP. V. A.]
DVD–VD1, DVD–VD3,
DVD–DVD, DVD–MD,
DVD–CD, VD2–VD1,
VD2–VD2, VD2–VD3,
VD2–MD, VD2–CD
DVD–DVD
for:
DVD;
VD2–VD2 for:
VIDEO 2
HDMI assign
a)
[HDMI A.]
DVD–VD1, DVD–VD3,
DVD–DVD, DVD–MD,
DVD–CD, VD2–VD1,
VD2–VD2, VD2–VD3,
VD2–MD, VD2–CD
DVD–DVD
for:
DVD;
VD2–VD2 for:
VIDEO 2
Naming inputs
a)
[NAME IN]
SYSTEM (46)
[7-SYSTEM]
Front speaker distance
a)
[FRT DIST.]
DIST. 3 ft. to DIST. 23 ft.
(1 ft. step)
DIST. 3.0 m
Center speaker distance
a)
[CNT DIST.]
DIST. xx ft.
between front speaker distance and
5 ft. (1 ft. step)
DIST. 3.0 m
Surround left speaker distance
a)
[SL DIST.]
DIST. xx ft.
between front speaker distance and
15 ft. (1 ft. step)
DIST. 3.0 m
Surround right speaker
distance
a)
[SR DIST.]
DIST. xx ft.
between front speaker distance and
15 ft. (1 ft. step)
DIST. 3.0 m
Surround speaker position
a)
[SUR POS.]
SIDE/LO, SIDE/HI, BEHD/LO,
BEHD/HI
SIDE/LO
Brightness of the display
a)
[DIMMER]
0% dim, 40% dim, 70% dim 0% dim
A. CAL (48)
[8-A. CAL]
Auto Calibration
a)
[AUTO CAL.]
A.CAL YES, A.CAL NO A.CAL NO
US01COV_HT-7000DH-U.book Page 41 Monday, August 14, 2006 9:22 AM
42
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
Adjusting the level
(LEVEL menu)
You can use the LEVEL menu to adjust the
balance and level of each speaker. These
settings are applied to all sound fields.
Select “1-LEVEL” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 39) and
“Overview of the menus” (page 40).
LEVEL menu parameters
x T. TONE (Test tone)
Lets you adjust the speaker levels and balance
while listening to the test tone from your
listening position. For details, see “8:
Adjusting the speaker levels and balance
(TEST TONE)” (page 34).
x FRT BAL (Front speaker
balance)
Lets you adjust the balance between front left
and right speakers.
x CNT LVL (Center speaker level)
x SL LVL (Surround left speaker
level)
x SR LVL (Surround right speaker
level)
x SW LVL (Sub woofer level)
x D. RANGE (Dynamic range
compressor)
Lets you compress the dynamic range of the
sound track. This may be useful when you
want to watch movies at low volumes late at
night. Dynamic range compression is possible
with Dolby Digital sources only.
•COMP. OFF
The dynamic range is not compressed.
•COMP. STD
The dynamic range is compressed as
intended by the recording engineer.
•COMP. MAX
The dynamic range is compressed
dramatically.
Tip
Dynamic range compressor lets you compress the
dynamic range of the soundtrack based on the
dynamic range information included in the Dolby
Digital signal.
“COMP. STD” is the standard setting, but it only
enacts light compression. Therefore, we recommend
using the “COMP. MAX” setting. This greatly
compresses the dynamic range and lets you view
movies late at night at low volumes. Unlike analog
limiters, the levels are predetermined and provide a
very natural compression.
US01COV_HT-7000DH-U.book Page 42 Monday, August 14, 2006 9:22 AM
43
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Amplifier Operations
Adjusting the tone
(TONE menu)
You can use the TONE menu to adjust the
tonal quality (bass/treble level) of the front
speakers. These settings are applied to all
sound fields.
Select “2-TONE” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 39) and
“Overview of the menus” (page 40).
TONE menu parameters
x BASS LVL (Front speaker bass
level)
x TRE LVL (Front speaker treble
level)
Settings for the surround
sound
(SUR menu)
You can use the SUR menu to select the sound
field you want for your listening pleasure.
Select “3-SUR” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 39) and
“Overview of the menus” (page 40).
SUR menu parameters
x S.F. SELCT (Sound field
selection)
Lets you select the sound field you want. For
details, see “Enjoying Surround Sound” (page
48).
Note
The receiver lets you apply the last selected sound
field to an input whenever it is selected (Sound Field
Link). For example, if you select HALL for the
SA-CD/CD input, then change to a different input
and then return to SA-CD/CD, HALL will
automatically be applied again.
x EFFECT (Effect level)
Lets you adjust the “presence” of the surround
effect for sound fields selected with the
MOVIE or MUSIC buttons and for “HP
THEA” sound field.
•EFCT. MIN
The surround effect is minimum.
•EFCT. STD
The surround effect is standard.
•EFCT. MAX
The surround effect is maximum.
US01COV_HT-7000DH-U.book Page 43 Monday, August 14, 2006 9:22 AM
44
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
Settings for the tuner
(TUNER menu)
You can use the TUNER menu to set the FM
station receiving mode and to name preset
stations.
Select “4-TUNER” in the amplifier menus.
For details on adjusting the parameters, see
“Navigating through menus” (page 39) and
“Overview of the menus” (page 40).
TUNER menu parameters
x FM MODE (FM station receiving
mode)
•FM AUTO
This receiver will decode the signal as stereo
signal when the radio station is broadcast in
stereo.
• FM MONO
This receiver will decode the signal as mono
signal regardless of the broadcast signal.
x NAME IN (Naming preset
stations)
Lets you set the name of preset stations. For
details, see “Naming preset stations” (page
56).
Settings for the audio
(AUDIO menu)
You can use the AUDIO menu to make settings
for the audio to suit your preference.
Select “5-AUDIO” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 39) and
“Overview of the menus” (page 40).
AUDIO menu parameters
x DEC. PRI. (Digital audio input
decoding priority)
Lets you specify the input mode for the digital
signal input to the DIGITAL IN jacks.
•DEC. AUTO
Automatically switches the input mode
between DTS, Dolby Digital, or PCM.
•DEC. PCM
PCM signals are given priority (to prevent
interruption when playback starts).
However, when other signals are input, there
may be no sound depending on the format.
In this case, set to “DEC. AUTO”.
Note
When set to “DEC. AUTO” and the sound from the
digital audio jacks (for CD, etc.) is interrupted when
playback starts, set to “DEC. PCM”.
US01COV_HT-7000DH-U.book Page 44 Monday, August 14, 2006 9:22 AM
45
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Amplifier Operations
x DUAL (Digital broadcast
language selection)
Lets you select the language you want to listen
to during digital broadcast. This feature only
functions for Dolby Digital sources.
• DUAL M/S (Main/Sub)
Sound of the main language will be output
through the front left speaker and sound of
the sub language will be output through the
front right speaker simultaneously.
•DUAL M (Main)
Sound of the main language will be output.
• DUAL S (Sub)
Sound of the sub language will be output.
• DUAL M+S (Main + Sub)
Mixed sound of both the main and sub
languages will be output.
x A.V. SYNC. (A/V Sync)
• A.V.SYNC. Y (Yes) (Delay time: 68 ms)
The audio output is delayed so that the time
gap between the audio output and visual
display is minimized.
• A.V.SYNC. N (No) (Delay time: 0 ms)
The audio output is not delayed.
Notes
• This parameter is useful when you use a large LCD
or plasma monitor or a projector.
• This parameter is valid only when you use a sound
field selected with the 2CH or A.F.D. buttons.
• This parameter is not valid when MULTI CH IN
function is selected.
x NAME IN (Naming inputs)
Lets you set the name of inputs. For details, see
“Naming inputs” (page 66).
Settings for the video
(VIDEO menu)
You can use the VIDEO menu to reassign the
component video input to another input and to
name inputs.
Select “6-VIDEO” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 39) and
“Overview of the menus” (page 40).
VIDEO menu parameters
x COMP. V. A. (Component video
assign)
Lets you reassign the component video input
to another input. For details, see “Watching
component images from other inputs” (page
64).
x HDMI A. (HDMI assign)
Lets you reassign the HDMI input to another
input. For details, see “Watching HDMI
images from other inputs” (page 65).
x NAME IN (Naming inputs)
Lets you set the name of inputs. For details, see
“Naming inputs” (page 66).
US01COV_HT-7000DH-U.book Page 45 Monday, August 14, 2006 9:22 AM
46
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
Settings for the system
(SYSTEM menu)
You can use the SYSTEM menu to set the size
and distance of the speakers connected to this
system.
Select “7-SYSTEM” in the amplifier menus.
For details on adjusting the parameters, see
“Navigating through menus” (page 39) and
“Overview of the menus” (page 40).
SYSTEM menu parameters
x FRT DIST. (Front speaker
distance)
Lets you set the distance from your listening
position to the front speaker (A). If both front
speakers are not placed an equal distance from
your listening position, set the distance as the
average distance between the front speakers.
x CNT DIST. (Center speaker
distance)
Lets you set the distance from your listening
position to the center speaker. Center speaker
distance should be set from a distance equal to
the front speaker distance (A) to a distance 5
feet closer to your listening position (B).
x SL DIST. (Surround left speaker
distance)
Lets you set the distance from your listening
position to the surround left speaker. Surround
left speaker distance should be set from a
distance equal to the front speaker distance
(A) to a distance15 feet closer to your
listening position (C).
x SR DIST. (Surround right
speaker distance)
Lets you set the distance from your listening
position to the surround right speaker.
Surround right speaker distance should be set
from a distance equal to the front speaker
distance (A) to a distance 15 feet closer to
your listening position (D).
Tip
The receiver lets you to input the speaker position in
terms of distance. However, it is not possible to set
the center speaker further than the front speakers.
Also, the center speaker cannot be set more than 5
feet closer from the front speakers.
Likewise, the surround speakers can not be set
further away from the listening position than the
front speakers. And they can be no more than 15 feet
closer. This is because incorrect speaker placement
is not conducive to the enjoyment of surround
sound.
Please note that, setting the speaker distance closer
than the actual location of the speakers will cause a
delay in the output of the sound from that speaker. In
other words, the speaker will sound like it is further
away.
For example, setting the center speaker distance 3-6
feet closer than the actual speaker position will
create a fairly realistic sensation of being “inside”
the screen. If you cannot obtain a satisfactory
surround effect because the surround speakers are
too close, setting the surround speaker distance
closer (shorter) than the actual distance will create a
larger sound stage.
Adjusting these parameter while listening to the
sound often results in much better surround sound.
Give it a try!
30˚30˚
100˚-120˚100˚-120˚
A
CD
A
B
US01COV_HT-7000DH-U.book Page 46 Monday, August 14, 2006 9:22 AM
47
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Amplifier Operations

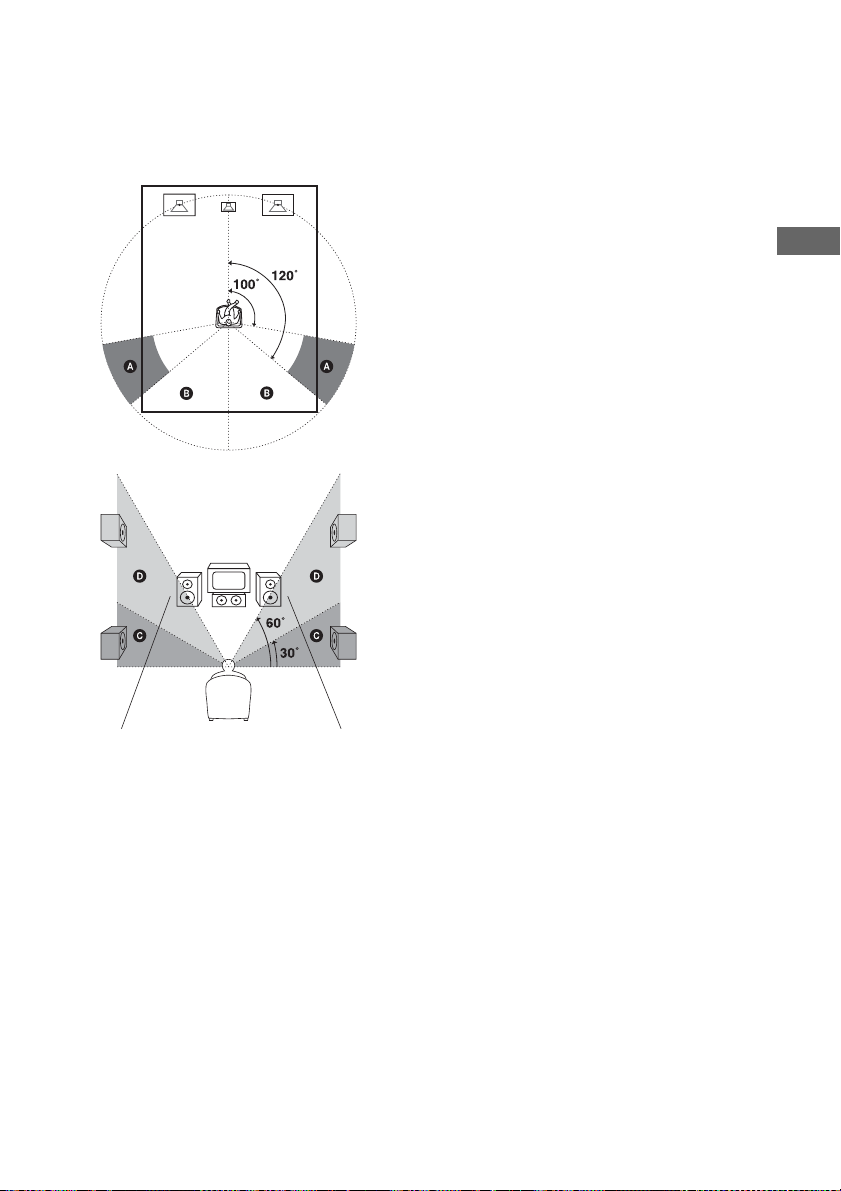

x SUR POS.
(Surround speaker position)
Lets you specify the location of your surround
speakers for proper implementation of the
surround effects in the Cinema Studio EX
modes (page 51).
•SIDE/LO
Select if the location of your surround
speakers corresponds to sections A and C.
•SIDE/HI
Select if the location of your surround
speakers corresponds to sections A and D.
• BEHD/LO
Select if the location of your surround
speakers corresponds to sections B and C.
• BEHD/HI
Select if the location of your surround
speakers corresponds to sections B and D.
Tip
Surround speaker position is designed specifically
for implementation of the Cinema Studio EX modes.
For other sound fields, speaker position is not so
critical.
Those sound fields were designed under the premise
that the surround speakers would be located behind
the listening position, but presentation remains fairly
consistent even with the surround speakers
positioned at a rather wide angle. However, if the
speakers are pointing toward the listener from the
immediate left and right of the listening position, the
surround effects become unclear unless set to
“SIDE/LO” or “SIDE/HI”.
Nevertheless, each listening environment has many
variables, such as wall reflections, and you may
obtain better results using “BEHD/HI” if your
speakers are located high above the listening
position, even if they are located to the immediate
left and right.
Therefore, although it may result in a setting
contrary to the above explanation, we recommend
that you playback multi channel surround encoded
software and select the setting that provides a good
sense of spaciousness and that best succeeds in
forming a cohesive space between the surround
sound from the surround speakers and the sound of
the front speakers. If you are not sure which sounds
best, select “BEHD/LO” or “BEHD/HI” and then
use the speaker distance parameter and speaker level
adjustments to obtain proper balance.
x DIMMER (Brightness of the
display)
Lets you adjust the brightness in 3 steps.
US01COV_HT-7000DH-U.book Page 47 Monday, August 14, 2006 9:22 AM
48
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
Calibrating the
appropriate settings
automatically
(A. CAL menu)
For details, see “7: Calibrating the appropriate
settings automatically (AUTO
CALIBRATION)” (page 31).
Enjoying Dolby Digital
and DTS Surround sound
(AUTO FORMAT DIRECT)
The Auto Format Direct (A.F.D.) mode allows
you to listen to higher fidelity sound and select
the decoding mode for listening to a 2 channel
stereo sound as multi channel sound.
Press A.F.D. repeatedly to select
the sound field you want.
For details, see “Types of A.F.D. mode” (page
49).
Enjoying Surround Sound
2CH
A.F.D.
123
456
MOVIE MUSIC
CATEGORY
MODE
DUAL
MONO
CATEGORY
A.F.D.
US01COV_HT-7000DH-U.book Page 48 Monday, August 14, 2006 9:22 AM
49
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Enjoying Surround Sound
Types of A.F.D. mode
Notes
• Dolby Pro Logic and Dolby Pro Logic II decoding do not function for DTS format signals.
• This function does not work when MULTI CH IN is selected.
Decoding
mode
A.F.D. mode
[Display]
Multi channel
audio after
decoding
Effect
(Detecting
automatically)
A.F.D. AUTO
[A.F.D. AUTO]
(Detecting
automatically)
Presents the sound as it was recorded/
encoded without adding any surround
effects. However, this receiver will
generate a low frequency signal for output
to the sub woofer when there is no LFE
signals.
Dolby Pro Logic PRO LOGIC
[DOLBY PL]
4 channel Performs Dolby Pro Logic decoding. The
source recorded in 2 channel format is
decoded into 4.1 channels.
Dolby Pro Logic
II
PRO LOGIC II MOVIE
[PLII MV]
5 channel Performs Dolby Pro Logic II Movie mode
decoding. This setting is ideal for movies
encoded in Dolby Surround. In addition,
this mode can reproduce sound in 5.1
channel for watching videos of overdubbed
or old movies.
PRO LOGIC II MUSIC
[PLII MS]
5 channel Performs Dolby Pro Logic II Music mode
decoding. This setting is ideal for normal
stereo sources such as CDs.
(Multi Stereo) MULTI STEREO
[MULTI ST.]
(Multi Stereo) Outputs 2 channel left/right signals from
all speakers.
US01COV_HT-7000DH-U.book Page 49 Monday, August 14, 2006 9:22 AM
50
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
Selecting a pre-
programmed sound field
You can take advantage of surround sound
simply by selecting one of the receiver’s pre-
programmed sound fields. They bring the
exciting and powerful sound of movie theaters
and concert halls into your home.
Press MOVIE repeatedly to select a
sound field for movies or press
MUSIC repeatedly to select a sound
field for music.
For details, see “Types of sound field
available” (page 51).
MULTI CH
2CH
A.F.D.
123
456
789
MOVIE MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
CATEGORY
MUSIC
MOVIE
2CH
A.F.D.
US01COV_HT-7000DH-U.book Page 50 Monday, August 14, 2006 9:22 AM
51
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Enjoying Surround Sound
Types of sound field available
About DCS (Digital Cinema
Sound)
Sound fields with DCS mark use DCS
technology.
DCS is a unique sound reproduction
technology for home theater developed by
Sony, in cooperation with Sony Pictures
Entertainment, for enjoying the exciting and
powerful sound of movie theaters at home.
With this “Digital Cinema Sound” developed
by integrating a DSP (Digital signal processor)
and measured data, the ideal sound field
intended by film makers can be experienced at
home.
Sound field
for
Sound field
[Display]
Effect
Movie CINEMA STUDIO EX A
DCS [C.ST.EX A]
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Cary Grant Theater” cinema production
studio. This is a standard mode, great for watching almost any
type of movie.
CINEMA STUDIO EX B
DCS [C.ST.EX B]
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Kim Novak Theater” cinema production
studio. This mode is ideal for watching science-fiction or
action movies with lots of sound effects.
CINEMA STUDIO EX C
DCS [C.ST.EX C]
Reproduces the sound characteristics of the Sony Pictures
Entertainment scoring stage. This mode is ideal for watching
musicals or films where orchestra music is featured in the
soundtrack.
Music HALL [HALL] Reproduces the acoustics of a classical concert hall.
JAZZ CLUB [JAZZ] Reproduces the acoustics of a jazz club.
LIVE CONCERT
[CONCERT]
Reproduces the acoustics of a 300-seat live house.
Headphone HEADPHONE 2CH
[HP 2CH]
This mode is selected automatically if you use headphone
when 2 channel mode (page 52)/A.F.D. mode (page 49) is
selected. Standard 2 channel stereo sources completely bypass
the sound field processing and multi channel surround formats
are downmixed to 2 channels.
HEADPHONE MULTI
[HP MULTI]
This mode is selected automatically if you use headphone
when MULTI CH IN is selected. Outputs the front analog
signals from the MULTI CH IN jacks.
HEADPHONE THEATER
DCS [HP THEA]
This mode is selected automatically if you use headphone
when sound field for movie/music is selected. It allows you to
experience a theater-like environment while listening through
a pair of headphones.
US01COV_HT-7000DH-U.book Page 51 Monday, August 14, 2006 9:22 AM
52
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
About CINEMA STUDIO EX
modes
CINEMA STUDIO EX modes are suitable for
watching motion picture DVDs (etc.), with
multi channel surround effects. You can
reproduce the sound characteristics of Sony
Pictures Entertainment’s dubbing studio in
your home.
The CINEMA STUDIO EX modes consist of
the following three elements.
• Virtual Multi Dimension
Creates 5 sets of virtual speakers from a
single pair of actual surround speakers.
• Screen Depth Matching
Creates the sensation that the sound is
coming from inside the screen like in
theaters.
• Cinema Studio Reverberation
Reproduces the type of reverberation found
in theaters.
The CINEMA STUDIO EX modes integrate
these three elements simultaneously.
Notes
• The effects provided by the virtual speakers may
cause increased noise in the playback signal.
• When listening with sound fields that employ the
virtual speakers, you will not be able to hear any
sound coming directly from the surround speakers.
• This function does not work in the following cases:
– MULTI CH IN is selected.
– For signals with a sampling frequency of more
than 48 kHz.
Tip
You can identify the encoding format of DVD
software, etc., by looking at the logo on the package.
• : Dolby Digital discs
• : Dolby Surround
encoded programs
• : DTS Digital Surround encoded programs
To turn off the surround effect
for movie/music
Press 2CH to select “2CH ST.” or press A.F.D.
repeatedly to select “A.F.D. AUTO”.
Using only the front
speakers and sub woofer
(2CH STEREO)
In this mode, the receiver outputs the sound
from the front left/right speakers and the sub
woofer.
When multi channel surround formats are
input, the signals are downmixed to 2 channel
with bass frequencies being output from the
sub woofer.
When standard 2 channel stereo sources are
input, the receiver’s bass redirection circuitry
will be activated. The front channel bass
frequencies will be output from the sub
woofer.
Press 2CH.
MULTI CH
2CH
A.F.D.
123
456
MOVIE MUSIC
CATEGORY
MODE
DUAL
MONO
CATEGORY
2CH
US01COV_HT-7000DH-U.book Page 52 Monday, August 14, 2006 9:22 AM
53
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Tuner Operations
Resetting sound fields to
the initial settings
Be sure to use the buttons on the receiver for
this operation.
1 Press ?/1 to turn off the power.
2 While holding down 2CH, press
?/1.
“S.F. CLR.” appears on the display and all
sound fields are reset to their initial
setting.
Listening to FM/AM radio
You can listen to FM and AM broadcasts
through the built-in tuner. Before operation,
make sure you have connected the FM and
AM antennas to the receiver (page 28).
Tip
The tuning scale is:
FM : 100 kHz
AM : 10 kHz*
* The AM tuning scale can be changed (page 79).
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC MULTI CH IN MUTING
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
?/1
1,2
2
Tuner Operations
US01COV_HT-7000DH-U.book Page 53 Monday, August 14, 2006 9:22 AM
54
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)

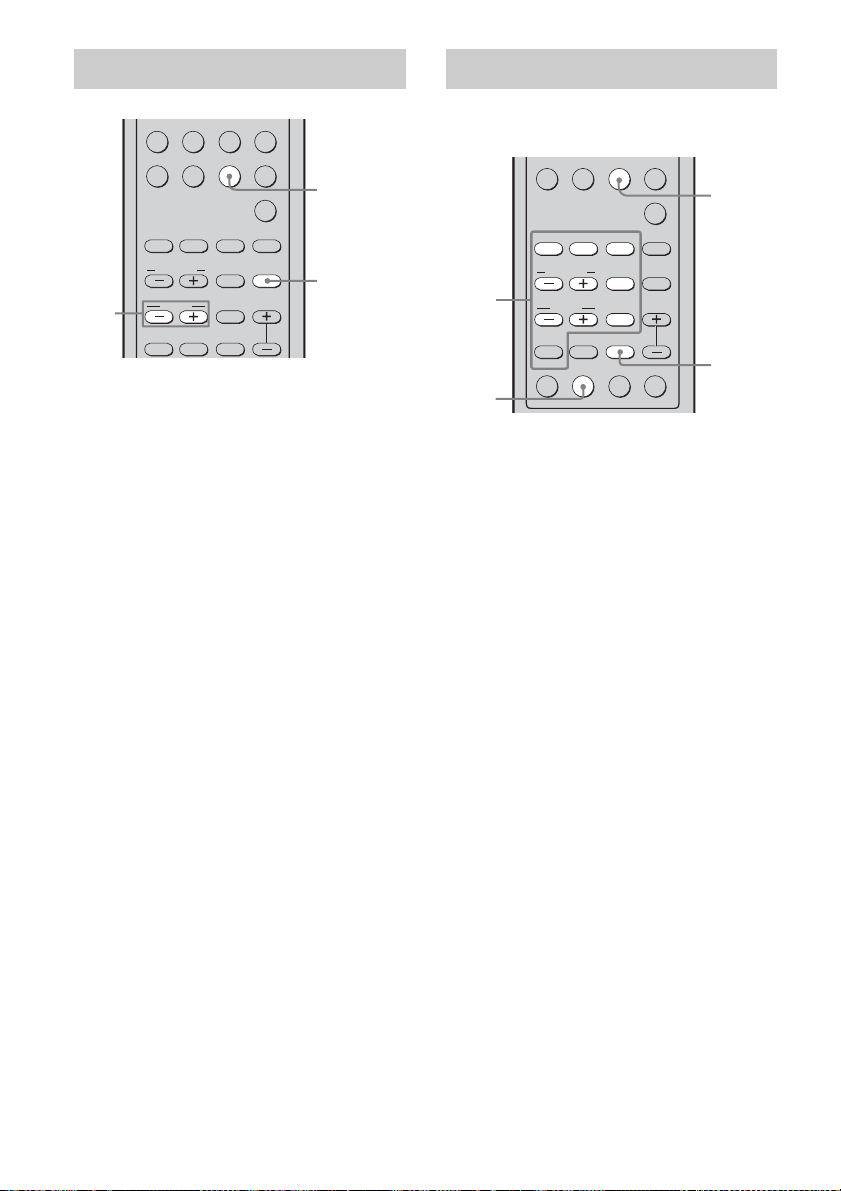

1 Press TUNER repeatedly to
select the FM or AM band.
2 Press TUNING + or TUNING –.
Press TUNING + to scan from low to
high; press TUNING – to scan from high
to low.
The receiver stops scanning whenever a
station is received.
Using the controls on the
receiver
1 Turn INPUT SELECTOR to select the FM
or AM band.
2 Press TUNING MODE repeatedly to select
“AUTO T.”.
3 Press TUNING + or TUNING –.
In case of poor FM stereo
reception
If the FM stereo reception is poor and
“STEREO” flashes on the display, select
monaural audio so that the sound will be less
distorted.
For details, see “Settings for the tuner”
(page 44).
Enter the frequency of a station directly by
using the numeric buttons.
1 Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2 Press D.TUNING.
3 Press the numeric buttons to
enter the frequency.
Example 1: FM 102.50 MHz
Select 1 b 0 b 2 b 5 b 0
Example 2: AM 1,350 kHz
Select 1 b 3 b 5 b 0
If you have tuned in an AM station, adjust
the direction of the AM loop antenna for
optimum reception.
4 Press ENTER.
You can also use MEMORY/ENTER on
the receiver.
If you cannot tune in a station
Make sure you have entered the right
frequency. If not, repeat steps 2 to 4. If you still
cannot tune in a station, the frequency is not
used in your area.
Automatic tuning
.
>
VIDEO1 VIDEO2 VIDEO3 DVD
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
2CH
A.F.D.
123
456
789
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
CATEGORY
2
1
CATEGORY
MODE
Direct tuning
m
M
.
>
-
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
D.TUNING DISC ALT
ANT
CLEAR
SEARCH MODE
2CH
A.F.D.
123
456
789
0/10
>10/11 12
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
CATEGORY
1
4
3
2
US01COV_HT-7000DH-U.book Page 54 Monday, August 14, 2006 9:22 AM
55
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Tuner Operations
Presetting radio stations
You can preset up to 30 FM stations and 30
AM stations. Then you can easily tune in the
stations you often listen to.
1 Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2 Tune in the station that you
want to preset using Automatic
Tuning (page 54) or Direct
Tuning (page 54).
Switch the FM reception mode, if
necessary (page 54).
3 Press MEMORY.
You can also use MEMORY/ENTER on
the receiver.
“MEMORY” lights up for a few seconds.
Perform steps 4 and 5 before
“MEMORY” goes out.
4 Press ALT and then press the
numeric buttons to select a
preset number.
You can also press TUNING + or
TUNING – to select a preset number.
If “MEMORY” goes out before you select
the preset number, start again from step 3.
5 Press ENTER.
You can also use MEMORY/ENTER on
the receiver.
The station is stored as the selected preset
number.
If “MEMORY” goes out before you press
MEMORY, start again from step 3.
6 Repeat steps 1 to 5 to preset
another station.
Presetting radio stations
H
X
m
M
.
>
-
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
D.TUNING DISC ALT
ANT
CLEAR
SEARCH MODE
2CH
A.F.D.
123
456
789
0/10
>10/11 12
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
x
CATEGORY
1
4
TUNING
+/–
3
4
5
US01COV_HT-7000DH-U.book Page 55 Monday, August 14, 2006 9:22 AM
56
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)

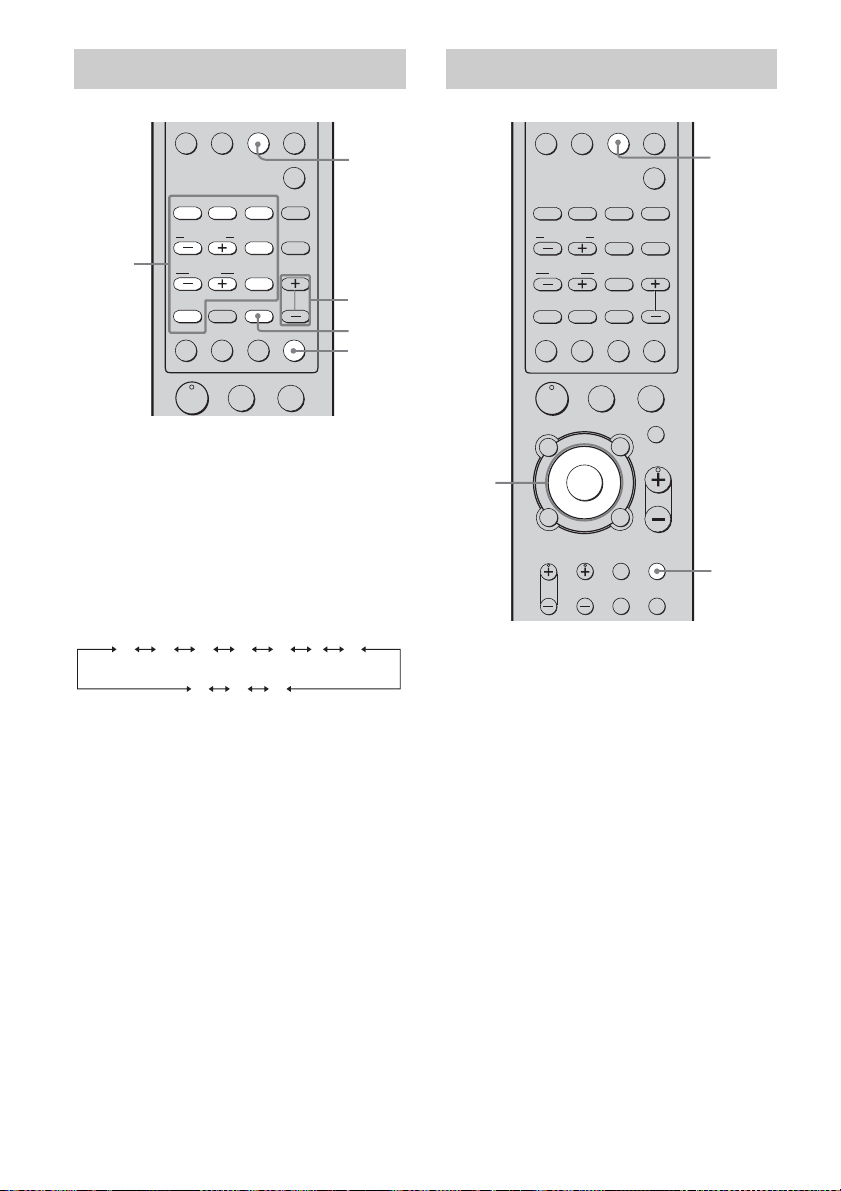

1 Press TUNER repeatedly to
select the FM or AM band.
2 Press PRESET + or PRESET –
repeatedly to select the preset
station you want.
Each time you press the button, you can
select a preset station as follows:
You can also press ALT and then press the
numeric buttons to select the preset
station you want. Then, press ENTER to
enter the selection.
Using the controls on the
receiver
1 Turn INPUT SELECTOR to select the FM
or AM band.
2 Press TUNING MODE repeatedly to select
“PRESET T.”.
3 Press TUNING + or TUNING – repeatedly
to select the preset station you want.
1 Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2 Tune in the preset station you
want to create an index name
for (page 56).
3 Press AMP MENU.
“1-LEVEL” appears on the display.
4 Press control button V/v
repeatedly to select “4-
TUNER”.
5 Press the control button or
control button b to enter the
menu.
Tuning to preset stations
H
X
m
M
.
>
-
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
D.TUNING DISC ALT
ANT
CLEAR
SEARCH MODE
2CH
A.F.D.
123
456
789
0/10
>10/11 12
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
x
CATEGORY
ALT
1
ENTER
Numeric
buttons
2
01 02 03 04 05 27...
30 29 28
Naming preset stations
H
X
m
M
.
>
-
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
TOP MENU/
GUIDE
AV MENU
MUTING
MASTER
VOL
DISPLAY
TV VOL TV CH
WIDE
AUTO
CAL
TV/
VIDEO
AMP
MENU
RETURN/EXIT
D.TUNING DISC ALT
ANT
CLEAR
SEARCH MODE
2CH
A.F.D.
123
456
789
0/10
>10/11 12
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
x
O
f
F
G
g
CATEGORY
3
1
4-7
US01COV_HT-7000DH-U.book Page 56 Monday, August 14, 2006 9:22 AM
57
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Tuner Operations
6 Press control button V/v
repeatedly to select “NAME IN”.
7 Press the control button or
control button b to enter the
parameter.
The cursor flashes and you can select a
character. Follow the procedure given in
“To create an index name” below.
To return to the previous display
Press control button B.
To create an index name
1 Use control button V/v/B/b to create an
index name.
Press control button V/v to select a
character, then press control button B/b to
move the cursor to the next position.
If you made a mistake
Press control button B/b until the character
you want to change flashes, then press
control button V/v to select the correct
character.
Tip
You can select the character type as follows by
pressing control button V/v.
Alphabet (upper case) t Numbers t Symbols
2 Press the control button.
The entered name is registered.
Listening to the XM Radio
XM Radio is the satellite radio service with
millions of listeners across the U.S.
Broadcasting live daily. XM Radio offers 160
digital radio channels offering music, news,
sports, comedy, talk, entertainment, traffic and
weather reports, with high quality digital
sound.
XM $12.95 monthly service subscription sold
separately. XM Connect and Play
TM
antenna
required to receive XM service (sold
separately). Installation costs and other fees
and taxes, including a one-time activation fee
may apply. Subscription fee is consumer only.
All fees and programming subject to change.
Channels with frequent explicit language are
indicated with an XL. Channel blocking is
available for XM radio receivers by calling
1-800-XMRADIO. Subscriptions subject to
Customer Agreement available at
xmradio.com. XM service only available in
the 48 contiguous United States. XM Ready
and XM Connect-and-Play are trademarks of
XM Satellite Radio Inc. © 2006 XM Satellite
Radio Inc. All rights reserved.
Activate XM Service:
Find the 8-character XM Radio ID of the
Connect-and-Play antenna. Record the Radio
ID here for reference: ssssssss.
(Note: The XM Radio ID does not use the
letters I, O, S, or F.).
To check the ID of your antenna, see
“Checking the XM Radio ID” on page 58.
Activate your XM Satellite Radio service
online at http://activate.xmradio.com or by
calling 1-800-XMRADIO (1-800-967-2346).
You will need a major credit card.
continued
US01COV_HT-7000DH-U.book Page 57 Monday, August 14, 2006 9:22 AM
58
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
XM will send a signal from the satellites to
activate the full channel lineup. Activation
normally takes 10 to 15 minutes, but during
peak busy periods, you may need to keep your
player on for up to an hour. When you can
access the full channel lineup on your player,
you’re done.
Note
Residents in Canada please see information about
XM Canada at the following webpage:
(http://www.xmradio.ca/).

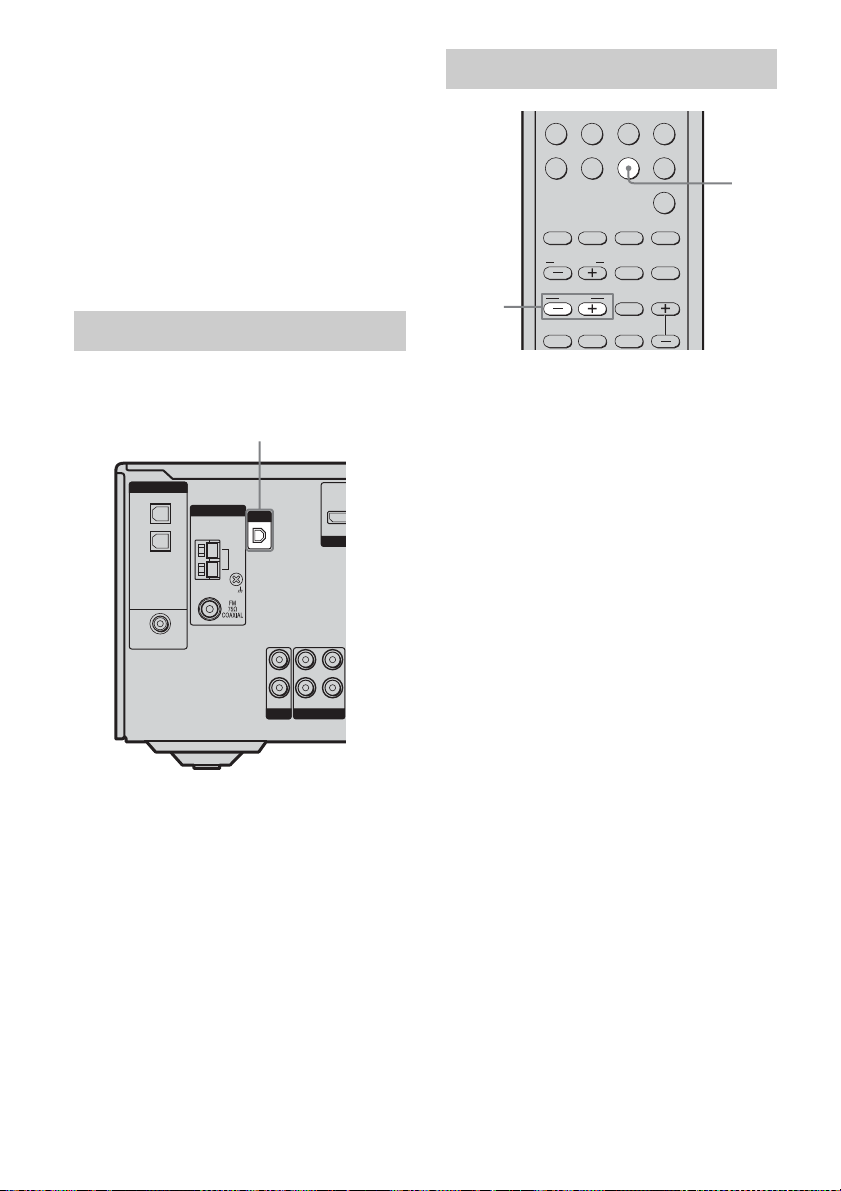

Before operating the system, connect the XM
Connect-and-Play antenna to the XM jack.
Note
To ensure optional reception of XM’s satellite
signal, move your antenna to various window
locations around your home to see where the best
reception will be received. Most XM customers
place the antenna in a south-facing window with a
clear view to the sky.
1 Press TUNER repeatedly to
select “XM RADIO”.
You can also use INPUT SELECTOR on
the receiver.
2 Press TUNING + or TUNING – to
select channel 0.
You can also press TUNING MODE on
the receiver to select “AUTO T.”, and then
turn TUNING +/– to select channel 0.
3 Check the XM Radio ID on the
display and write it in the space
provided here.
ID:_____________________________
If you cannot read the characters or
numbers on the display, refer to the
following table.
Connecting the XM Radio
DIGITAL
OPTICAL
VIDEO 1
IN
VIDEO 2
IN
DVD
IN
COAXIAL
MD/TAPE
SA-CD
/
CD
L
R
L
R
OUT ININ
DVD
A
ANTENNA
AM
XM
XM jack
Checking the XM Radio ID
.
>
VIDEO1 VIDEO2 VIDEO3 DVD
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
2CH
A.F.D.
123
456
789
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
CATEGORY
1
2
US01COV_HT-7000DH-U.book Page 58 Monday, August 14, 2006 9:22 AM
59
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Tuner Operations
1 Press TUNER repeatedly to
select the “XM RADIO”.
You can also use INPUT SELECTOR on
the receiver.
2 Press TUNING + or TUNING – to
select a channel.
You can also press TUNING MODE on
the receiver to select “AUTO T.”, and then
turn TUNING +/– to select a channel.
Display Description
2 (two)
5 (five)
6 (six)
8 (eight)
0 (zero)
A
B
D
G
H
K
M
Q
Z
Receiving XM Radio broadcasts
.
>
VIDEO1 VIDEO2 VIDEO3 DVD
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
2CH
A.F.D.
123
456
789
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
CATEGORY
1
2
US01COV_HT-7000DH-U.book Page 59 Monday, August 14, 2006 9:22 AM
60
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)

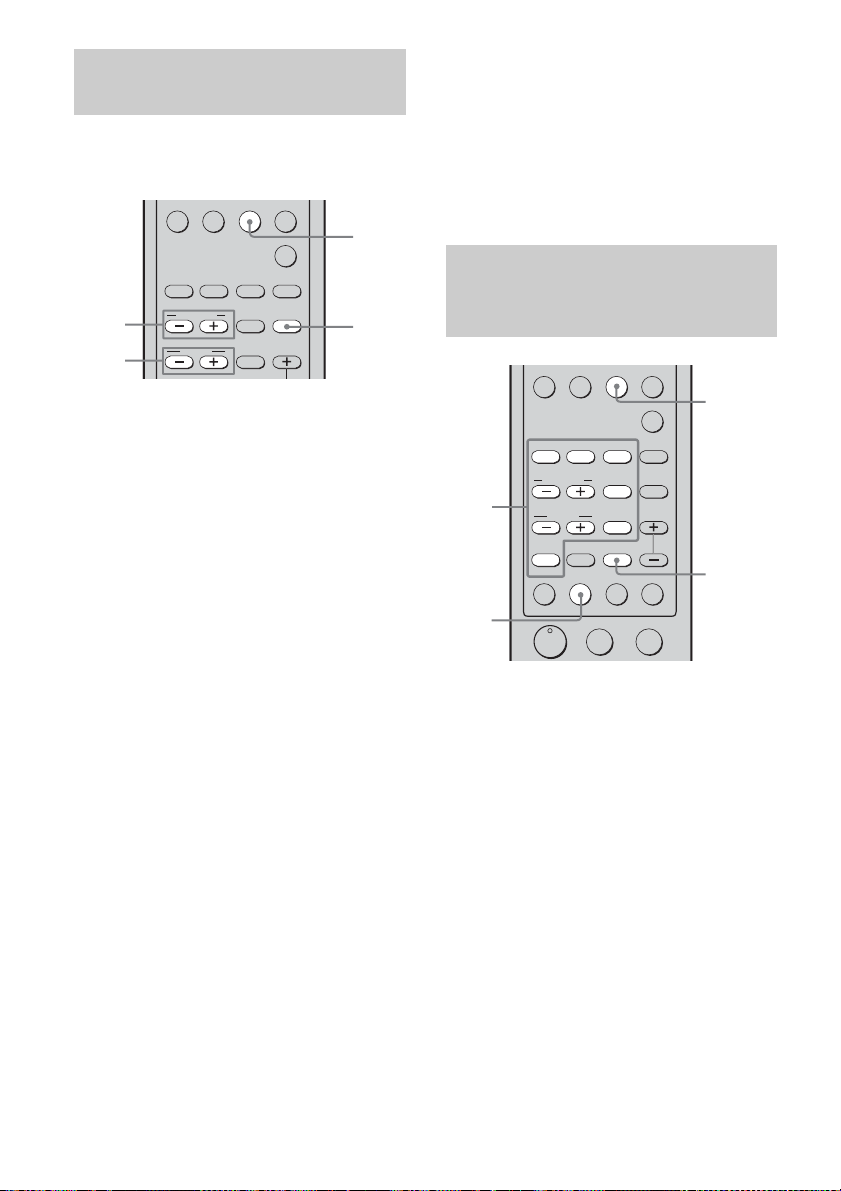

You can select a channel from one category or
all the categories by changing the category
mode.
1 Press TUNER repeatedly to
select the “XM RADIO”.
2 Press CATEGORY MODE
repeatedly to select the “ONE
CAT”.
• ALL CAT: You can select a channel from all
the categories. The initial setting is “ALL
CAT”.
• ONE CAT: You can select a channel from one
category. “CAT” is displayed on the display
when you set to “ONE CAT” mode.
3 Press CATEGORY + or
CATEGORY – to select the
category you want.
The category is selected and the channel
with the lowest number in the specified
category is selected.
4 Press TUNING + or TUNING – to
select the channel.
You can also press TUNING MODE on
the receiver to select “AUTO T.”, and then
turn TUNING +/– to select the channel.
Notes
• When you select a channel in the “ONE CAT”
mode, the channel you selected may not be the one
in the category you want. This is because one
channel may belong to more than one category.
• If you press CATEGORY + or CATEGORY – in
the “ALL CAT” mode, the first channel of the next
or previous category is selected (CATEGORY
SKIP).
1 Press TUNER repeatedly to
select the “XM RADIO”.
You can also use INPUT SELECTOR on
the receiver.
2 Press D.TUNING.
3 Press the numeric buttons to
enter the channel number.
4 Press ENTER.
You can also use MEMORY/ENTER on
the receiver.
The selected channel is tune in.
Selecting channels from a
category (CATEGORY TUNING)
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
2CH
A.F.D.
123
456
789
MOVIE MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
CATEGORY
1
3
4
2
Selecting channels by inputting
the channel number directly
(DIRECT TUNING)
H
X
m
M
.
>
-
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
D.TUNING DISC ALT
ANT
CLEAR
SEARCH MODE
2CH
A.F.D.
123
456
789
0/10
>10/11 12
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
x
CATEGORY
1
4
3
2
US01COV_HT-7000DH-U.book Page 60 Monday, August 14, 2006 9:22 AM
61
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Tuner Operations

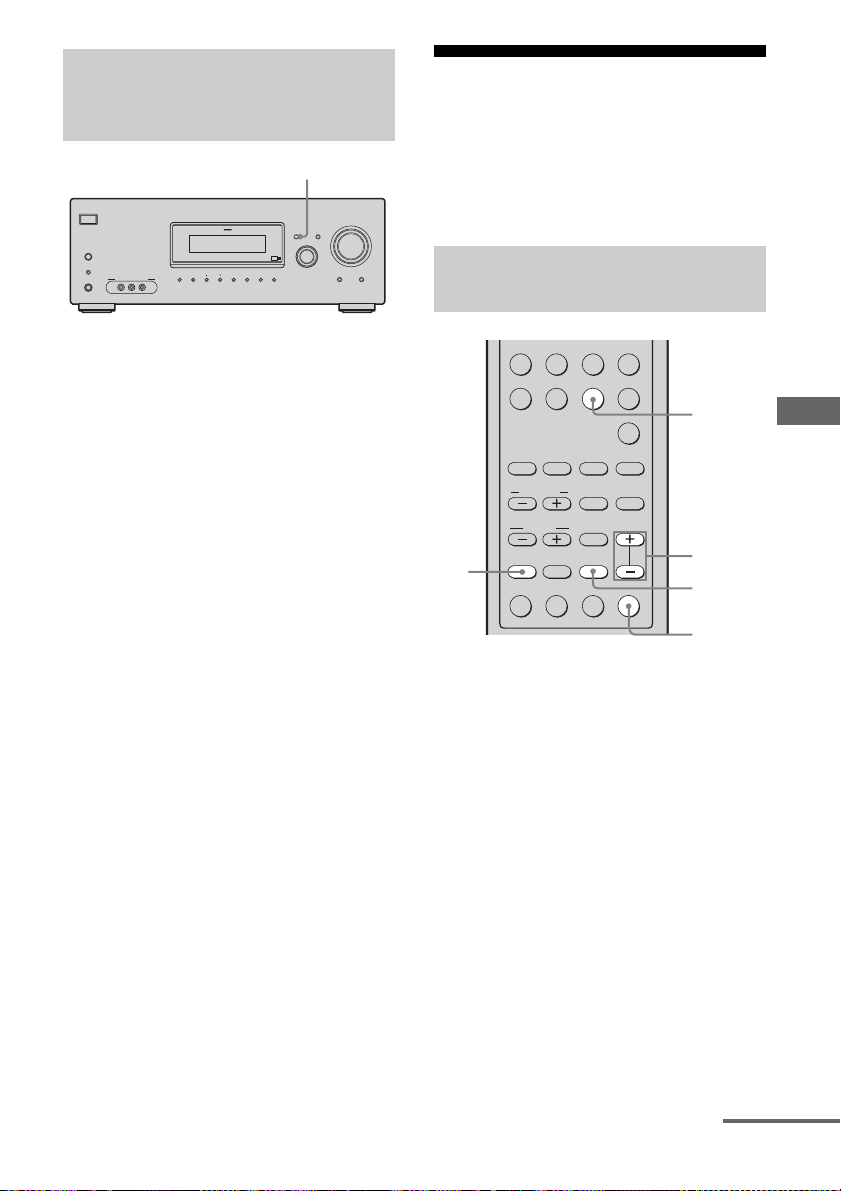

Press DISPLAY on the receiver
repeatedly.
Each time you press DISPLAY while tuning in
the channel, the display changes cyclically as
follows:
Channel name t Channel number t
Category t Artist name/Feature t
Song/Program title t Sound field type
Tip
The preset number is always displayed at the right
end of the display.
Presetting XM Radio
stations
You can select the channels you want directly
by presetting them using the preset numbers.
You can preset up to 30 XM Radio channels.
1 Press TUNER repeatedly to
select the “XM RADIO”.
You can also use INPUT SELECTOR on
the receiver.
2 Tune in the channel you want to
preset.
For details on selecting channels, see
“Listening to the XM Radio” (page 57).
3 Press MEMORY.
You can also use MEMORY/ENTER on
the receiver.
Displaying the XM-RADIO
information on the front panel
display
AUTO CAL MIC
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 3 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
TUNING
MODE
TUNING 2CH A.F.D. MOVIE MUSIC MULTI CH IN MUTING
DISPLAY INPUT MODE
INPUT SELECTOR
MASTER VOLUME
MULTI CHANNEL DECODING
?/1
DISPLAY
Presetting channels using the
preset numbers
m
M
.
>
-
VIDEO1 VIDEO2 VIDEO3 DVD
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
D.TUNING DISC ALT
ANT
CLEAR
SEARCH MODE
2CH
A.F.D.
123
456
789
0/10
>10/11 12
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
CATEGORY
1
4
3
5
PRESET
+/–
continued
US01COV_HT-7000DH-U.book Page 61 Monday, August 14, 2006 9:22 AM
62
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
4 Press ALT and then press the
numeric buttons to enter the
preset number.
You can also select the number by
pressing PRESET + or PRESET –.
You can also turn TUNING +/– on the
receiver.
Preset numbers from 1 to 30 are available,
and channel 1 is preset for all the preset
numbers when you purchase the receiver.
5 Press ENTER.
You can also use MEMORY/ENTER on
the receiver.
6 Repeat steps 2 to 5 to preset
another channel.
1 Press TUNER repeatedly to
select the “XM RADIO”.
2 Press PRESET + or PRESET –
repeatedly to select the preset
channel you want.
You can also press ALT and then press the
numeric buttons to select the preset
channel you want. Then press ENTER to
enter the selection.
You can also press TUNING MODE on
the receiver to select “PRESET T.”, and
then turn TUNING +/–.
You can select preset channels from 1 to
30.
Note
The preset channel information will be updated
depending on the service provided by the XM
Satellite Radio Inc. that you have subscribed to.
Selecting the channel by using
the preset numbers
m
M
.
>
-
MD/TAPE SA-CD/CD TUNER
AUX
MULTI CH
D.TUNING DISC ALT
ANT
CLEAR
SEARCH MODE
2CH
A.F.D.
123
456
789
0/10
>10/11 12
MOVIE
SUBTITLEMEMORY ENTER
MUSIC
AUDIO
ANGLE
TUNING
JUMP/
TIME
PRESET/
CH/D.SKIP
CATEGORY
MODE
DUAL
MONO
CATEGORY
2
1
ENTER
Numeric
buttons
ALT
US01COV_HT-7000DH-U.book Page 62 Monday, August 14, 2006 9:22 AM
63
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US05AMP_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-265-12 (2)
Tuner Operations
XM Radio messages list
Message
appears
Explanation Remedies
ANTENNA The XM antenna is not
connected or transmission is
not being received properly.
Make sure that the antenna is securely connected.
Try to disconnect the antenna then reconnect, or turn off the
power then turn back on.
UPDATING The encryption code is being
updated.
Wait until the encryption code has been updated.
NO SIGNL The signal is too weak. Adjust the antenna so that the signal is as strong as possible.
LOADING The audio channel or
information is being
acquired.
Wait until the audio channel or information has been acquired.
OFF AIR The selected channel is off
the air.
Make sure that you selected the channel properly.
Try to select another channel.
(space)–––– There is no characteristic
information such as an artist
name, song title or program
title available.
—
–– The preset number entered is
an invalid number.
Enter a number from 1 to 30.
–––CH The selected channel is not
available.
—
US01COV_HT-7000DH-U.book Page 63 Monday, August 14, 2006 9:22 AM
64
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US06OTH_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-625-12 (2)
Switching the audio input
mode
(INPUT MODE)
You can select the audio input mode by setting
the audio input mode when you connect
components to both digital and analog audio
input jacks on the receiver.
1 Turn INPUT SELECTOR on the
receiver to select the input.
You can also use the input buttons on the
remote.
2 Press INPUT MODE repeatedly
on the receiver to select the
audio input mode.
The selected audio input mode appears on
the display.
Audio input modes
• AUTO IN
Gives priority to digital audio signals when
there are both digital and analog
connections. If there are no digital audio
signals, analog audio signals are selected.
• COAX IN
Specifies the digital audio signals input to
the DIGITAL COAXIAL jack.
•OPT IN
Specifies the digital audio signals input to
the DIGITAL OPTICAL jack.
•ANALOG
Specifies the analog audio signals input to
the AUDIO IN (L/R) jacks.
Note
Some audio input modes may not be set up
depending on the input.
Watching component
images from other inputs
(COMPONENT VIDEO ASSIGN)
You can reassign a component video input to
another input.
1 Press AMP MENU.
“1-LEVEL” appears on the display.
2 Press control button V/v
repeatedly to select “6-VIDEO”.
3 Press the control button or
control button b to enter the
menu.
4 Press control button V/v
repeatedly to select
“C O M P. V. A .” .
5 Press the control button or
control button b to enter the
parameter.
6 Press control button V/v
repeatedly to select the
component video input you
want to reassign (for example,
DVD).
7 Press the control button or
control button b to enter your
selection.
Other Operations
US01COV_HT-7000DH-U.book Page 64 Monday, August 14, 2006 9:22 AM
65
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US06OTH_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-625-12 (2)
Other Operations
8 Press control button V/v
repeatedly to select the input
you want the component video
input selected in step 6 to be
reassigned to (for example,
VIDEO 1).
In this case, select “DVD–VD1”.
When you press VIDEO 1, the image
from the component connected to the
VIDEO 1 jacks will be a component
image. The input you can reassign to
varies for each component video input.
For details, see “Assignable inputs for
component video input” below.
To return to the previous display
Press control button B.
Assignable inputs for
component video input
Notes
• You cannot reassign more than one component
video input to the same input.
• You cannot use the component video input as the
original input when it has been reassigned to
another input.
Watching HDMI images
from other inputs
(HDMI ASSIGN)
You can reassign a HDMI input to another
input.
1 Press AMP MENU.
“1-LEVEL” appears on the display.
2 Press control button V/v
repeatedly to select “6-VIDEO”.
3 Press the control button or
control button b to enter the
menu.
4 Press control button V/v
repeatedly to select “HDMI A.”.
5 Press the control button or
control button b to enter the
parameter.
6 Press control button V/v
repeatedly to select the HDMI
input you want to reassign (for
example, DVD).
7 Press the control button or
control button b to enter your
selection.
“HDMI” flashes on the display.
Component
video input
Assignable
inputs
Display
DVD VIDEO 1 DVD–VD1
VIDEO 3 DVD–VD3
DVD DVD–DVD
MD/TAPE DVD–MD
SA-CD/CD DVD–CD
VIDEO 2 VIDEO 1 VD2–VD1
VIDEO 2 VD2–VD2
VIDEO 3 VD2–VD3
MD/TAPE VD2–MD
SA-CD/CD VD2–CD
continued
US01COV_HT-7000DH-U.book Page 65 Monday, August 14, 2006 9:22 AM
66
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US06OTH_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-625-12 (2)
8 Press control button V/v
repeatedly to select the input
you want the HDMI input
selected in step 6 to be
reassigned to (for example,
VIDEO 1).
In this case, select “DVD–VD1”.
When you press VIDEO 1, the image
from the component connected to the
VIDEO 1 jacks will be a HDMI image.
The sound will be output from the TV
speaker. For details, see “Hooking up
components with HDMI jacks” (page 25).
The input you can reassign to varies for
each HDMI input. For details, see
“Assignable inputs for HDMI input”
below.
To return to the previous display
Press control button B.
Assignable inputs for HDMI
input
Notes
• You cannot reassign more than one HDMI input to
the same input.
• You cannot use the HDMI input as the original
input when it has been reassigned to another input.
Naming inputs
You can enter a name of up to 8 characters for
inputs and display it on the receiver’s display.
This is convenient for labeling the jacks with
the names of the connected components.
1 Press the input button to select
the input you want to create an
index name for.
You can also use INPUT SELECTOR on
the receiver.
2 Press AMP MENU.
“1-LEVEL” appears on the display.
3 Press control button V/v
repeatedly to select either
“5-AUDIO” or “6-VIDEO”.
4 Press the control button or
control button b to enter the
menu.
5 Press control button V/v to
select “NAME IN”.
6 Press the control button or
control button b to enter the
parameter.
The cursor flashes and you can select a
character. Follow the procedure given in
“To create an index name” (page 57).
To return to the previous display
Press control button B.
HDMI input Assignable
inputs
Display
DVD VIDEO 1 DVD–VD1
VIDEO 3 DVD–VD3
DVD DVD–DVD
MD/TAPE DVD–MD
SA-CD/CD DVD–CD
VIDEO 2 VIDEO 1 VD2–VD1
VIDEO 2 VD2–VD2
VIDEO 3 VD2–VD3
MD/TAPE VD2–MD
SA-CD/CD VD2–CD
US01COV_HT-7000DH-U.book Page 66 Monday, August 14, 2006 9:22 AM
67
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US06OTH_HT-7000DH-U.fm
masterpage: Right
HT-7000DH
2-662-625-12 (2)
Other Operations
Changing the display
You can check the sound field, etc., by
changing the information on the display.
Be sure to use the buttons on the receiver for
this operation.
Press DISPLAY repeatedly.
Each time you press the button, the display
changes cyclically as follows.
All inputs except the FM and AM
band and XM Radio
Index name of the input
a)
t Selected input
t Sound field currently applied
FM and AM band
Preset station name
a)
t Frequency t Sound
field currently applied
XM Radio
Channel name
t Channel number
t
Category name
t Artist name/Feature
t
Song/program title
t Sound field currently
applied
a)
Index name appears only when you have assigned
one to the input or preset station (page 56, 66).
Index name does not appear when only blank
spaces have been entered, or it is the same as the
input name.
Using the Sleep Timer
You can set the receiver to turn off
automatically at a specified time.
Press ALT and then press SLEEP
repeatedly while the power is on.
Each time you press the button, the display
changes cyclically as follows:
2-00-00 t 1-30-00 t 1-00-00 t 0-30-00
t OFF
When Sleep Timer is being used, “SLEEP”
lights up on the display.
Tip
To check the remaining time before the receiver
turns off, press ALT and then press SLEEP. The
remaining time appears on the display. If you press
SLEEP again, the sleep timer will be canceled.
US01COV_HT-7000DH-U.book Page 67 Monday, August 14, 2006 9:22 AM
68
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US06OTH_HT-7000DH-U.fm
masterpage: Left
HT-7000DH
2-662-625-12 (2)
Recording using the
receiver
You can record onto a MiniDisc or audio tape
using the receiver. See the operating
instructions supplied with your MD deck or
tape deck.
1 Press one of the input buttons
to select the playback
component.
You can also use INPUT SELECTOR on
the receiver.
2 Prepare the playback
component for playing.
For example, insert a CD into the CD
player.
3 Prepare the recording
component.
Insert a blank MD or tape into the
recording deck and adjust the recording
level.
4 Start recording on the
recording component, then
start playback on the playback
component.
Notes
• Sound adjustments do not affect the signal output
from the MD/TAPE OUT jacks.
• The audio signals input to the MULTI CH IN jacks
are not output from the analog OUT jacks even
when MULTI CH IN is selected. The analog audio
signals of the current or previously used input are
output.
You can record from a video component using
the receiver. See the operating instructions
supplied with your recording component.
1 Press one of the input buttons
to select the playback
component.
You can also use INPUT SELECTOR on
the receiver.
2 Prepare the playback
component for playing.
For example, insert the video tape you
want to copy into the VCR.
3 Prepare the recording
component.
Insert a blank video tape, etc. into the
recording component (VIDEO 1) for
recording.
4 Start recording on the
recording component, then
start playback on the playback
component.
Notes
• Some sources contain copy guards to prevent
recording. In this case, you may not be able to
record from the source.
• The audio signals input to the MULTI CH IN jacks
are not output from the analog AUDIO OUT jacks
even when MULTI CH IN is selected. The analog
audio signals of the current or previously used
input are output.
Recording onto a MiniDisc or
audio tape
Recording onto a recording
media
US01COV_HT-7000DH-U.book Page 68 Monday, August 14, 2006 9:22 AM
69
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US07REM_HT-7000DH-U.fm
masterpage: Right
HT-8000MH
2-662-265-12 (2)
Using the Remote
Programming the remote
You can program the remote to control non-
Sony components by changing the code. Once
the control signals have been memorized, you
can use those components as part of your
system.
Furthermore, you can also program the remote
for Sony components that the remote is unable
to control. Note that the remote can only
control components that accept infrared
wireless control signals.
1 Press AV ?/1 while holding
down RM SET UP.
The indicator lights up.
2 Press the input button
(including TV ?/1) for the
component you want to control.
For example, if you are going to control a
CD player, press SA-CD/CD.
3 Press the numeric buttons to
enter the numeric code (or one
of the codes if more than one
code exists) corresponding to
the component and the maker
of the component you want to
control.
See the tables on page 70 for information
on the numeric code(s) corresponding to
the component and the maker of the
component (the first digit and the last two
digits of the numeric code correspond to
the category and the maker’s code
respectively).
4 Press ENTER.
Once the numeric code has been verified,
the indicator slowly flashes twice and the
remote automatically exits the
programming mode.
5 Repeat steps 1 to 4 to control
other components.
To cancel programming
Press RM SET UP during any step. The
remote automatically exits the programming
mode.
To activate the input after
programming
Press the programmed button to activate the
input you want.
If programming is
unsuccessful, check the
following:
• If the indicator does not light up in step 1, the
batteries are weak. Replace both batteries.
• If the indicator flashes 4 times in quick
succession while entering the numeric code,
an error has occurred. Start again from step
1.
Notes
• The indicator turns off while a valid button is
pressed.
• In step 2, if several input buttons are pressed, only
the last pressed button is valid.
• In step 2, if you press TV ?/1, only TV VOL +/– ,
TV CH +/–, TV/VIDEO and WIDE buttons are
reprogrammed.
• In step 3, if an input button is pressed, the new
input is selected and the programming procedure
returns to the beginning of step 3.
• For the numeric codes, only the first three numbers
entered are valid.
To clear the memory of the
remote
To clear all programmes, do the following to
reset the remote to factory settings.
Press ?/1, AV ?/1 and MASTER
VOL – at the same time.
The indicator flashes 3 times, then goes off.
Using the Remote
continued
US01COV_HT-7000DH-U.book Page 69 Monday, August 14, 2006 9:22 AM
70
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US07REM_HT-7000DH-U.fm
masterpage: Left
HT-8000MH
2-662-265-12 (2)
The numeric codes
corresponding to the
component and the maker of
the component
Use the numeric codes in the tables below to
control non-Sony components and also Sony
components that the remote is normally unable
to control. Since the remote signal that a
component accepts differs depending on the
model and year of the component, more than
one numeric code may be assigned to a
component. If you fail to program your remote
using one of the codes, try using other codes.
Notes
• The numeric codes are based on the latest
information available for each brand. There is a
chance, however, that your component will not
respond to some or all of the codes.
• All of the input buttons on this remote may not be
available when used with your particular
component.
To control a CD player
To control a DAT deck
To control an MD deck
To control a tape deck
To control an LD player
To control a video CD player
Maker Code(s)
SONY 101, 102, 103
DENON 104, 123
JVC 105, 106, 107
KENWOOD 108, 109, 110
MAGNAVOX 111, 116
MARANTZ 116
ONKYO 112, 113, 114
PANASON IC 115
PHILIPS 116
PIONEER 117
TECHNICS 115, 118, 119
YAMAHA 120, 121, 122
Maker Code(s)
SONY 203
PIONEER 219
Maker Code(s)
SONY 301
DENON 302
JVC 303
KENWOOD 304
Maker Code(s)
SONY 201, 202
DENON 204, 205
KENWOOD 206, 207, 208, 209
NAKAMICHI 210
PANASONIC 216
PHILIPS 211, 212
PIONEER 213, 214
TECHNICS 215, 216
YAMAHA 217, 218
Maker Code(s)
SONY 601, 602, 603
PIONEER 606
Maker Code(s)
SONY 605
US01COV_HT-7000DH-U.book Page 70 Monday, August 14, 2006 9:22 AM
71
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US07REM_HT-7000DH-U.fm
masterpage: Right
HT-8000MH
2-662-265-12 (2)
Using the Remote
To control a VCR
* If an AIWA VCR does not work even though you
enter the code for AIWA, enter the code for Sony
instead.
To control a DVD player
To control a DVD recorder
To control a TV
To control a satellite tuner or
cable box
Maker Code(s)
SONY 701, 702, 703, 704,
705, 706
AIWA* 710, 750, 757, 758
AKAI 707, 708, 709, 759
BLAUPUNKT 740
EMERSON 711, 712, 713, 714,
715, 716, 750
FISHER 717, 718, 719, 720
GENERAL ELECTRIC 721, 722, 730
GOLDSTAR/LG 723, 753
GRUNDIG 724
HITACHI 722, 725, 729, 741
ITT/NOKIA 717
JVC 726, 727, 728, 736
MAGNAVOX 730, 731, 738
MITSUBISHI/MGA 732, 733, 734, 735
NEC 736
PANASONIC 729, 730, 737, 738,
739, 740
PHILIPS 729, 730, 731
PIONEER 729
RCA/PROSCAN 722, 729, 730, 731,
741, 747
SAMSUNG 742, 743, 744, 745
SANYO 717, 720, 746
SHARP 748, 749
TELEFUNKEN 751, 752
TOSHIBA 747, 755, 756
ZENITH 754
Maker Code(s)
SONY 401, 402, 403
PANASONIC 406, 408
PHILIPS 407
PIONEER 409
TOSHIBA 404
DENON 405
Maker Code(s)
SONY 403
Maker Code(s)
SONY 501, 502
DAEWOO 504, 505, 506, 507,
515, 544
FISHER 508
GOLDSTAR/LG 503, 511, 512, 515,
534, 544
GRUNDIG 517, 534
HITACHI 513, 514, 515, 544
ITT/NOKIA 521, 522
JVC 516
MAGNAVOX 503, 518, 544
MITSUBISHI/MGA 503, 519, 544
NEC 503, 520, 544
PANASONIC 509, 524
PHILIPS 515, 518
PIONEER 509, 525, 526, 540
RCA/PROSCAN 510, 527, 528, 529,
544
SAMSUNG 503, 515, 531, 532,
533, 534, 544
SANYO 508, 545, 546, 547
SHARP 535
TELEFUNKEN 523, 536, 537, 538
THOMSON 530, 537, 539
TOSHIBA 535, 540, 541
ZENITH 542, 543
Maker Code(s)
SONY 801, 802, 803, 804
JERROLD/G.I. 806, 807, 808, 809,
810, 811, 812, 813,
814
PANASONIC 818
RCA 805, 819
S. ATLANTA 815, 816, 817
continued
US01COV_HT-7000DH-U.book Page 71 Monday, August 14, 2006 9:22 AM
72
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US07REM_HT-7000DH-U.fm
masterpage: Left
HT-8000MH
2-662-265-12 (2)
To control a tuner
To control a hard disc recorder
To control a blu-ray disc
recorder
To control a PSX
Glossary
x Component video
A format for transmitting video signal
information consisting of three separate
signals: luminance Y, chrominance Pb, and
chrominance Pr. High quality pictures, such as
DVD video or HDTV pictures, are transmitted
more faithfully. The three jacks are color -
coded green, blue and red.
x Composite video
A standard format for transmitting video
signal information. The luminance signal Y
and chrominance signal C are combined and
transmitted together.
x Dolby Digital
Digital audio encoding/decoding technology
developed by Dolby Laboratories, Inc. It
consists of front (left/right), center, surround
(left/right) and sub woofer channels. It is a
designated audio standard for DVD-video and
also known as 5.1ch surround. Since surround
information is recorded and reproduced in
stereo, more realistic sound with fuller
presence is delivered than with Dolby
surround.
x Dolby Pro Logic II
This technology converts 2ch stereo recorded
audio into 5.1ch for playback. There is a
MOVIE mode for movies and MUSIC mode
for stereo sources such as music. Old movies
encoded in the traditional stereo format can be
enhanced with 5.1ch surround sound.
Maker Code(s)
SONY 002, 003, 004, 005
Maker Code(s)
SONY 307, 308, 309
Maker Code(s)
SONY 310, 311, 312
Maker Code(s)
SONY 313, 314, 315
Additional Information
US01COV_HT-7000DH-U.book Page 72 Monday, August 14, 2006 9:22 AM
73
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US07REM_HT-7000DH-U.fm
masterpage: Right
HT-8000MH
2-662-265-12 (2)
Additional Information
x Dolby Surround (Dolby Pro
Logic)
Audio processing technology developed by
Dolby Laboratories, Inc. Center and mono
surround information is matrixed into two
stereo channels. When reproduced, audio is
decoded and output in 4ch surround sound.
This is the most common audio processing
method for DVD-video.
x DTS Digital Surround
Digital audio encoding/decoding technology
for theaters developed by Digital Theater
Systems, Inc. It compresses audio less than
Dolby Digital, delivering a higher quality
sound reproduction.
x HDMI (High-Definition
Multimedia Interface)
Technology developed by modifying the
display connecting technology, DVI (Digital
Visual Interface), for AV equipment. This
interface can transmit video, audio, and
control signals in digital format.
x Sampling frequency
To convert analog audio to digital, analog data
should be quantified. This process is called
sampling, and the number of times per second
the analog data is quantified is called the
sampling frequency. A standard music CD
stores data quantified at 44,100 times per
second, which is expressed as a sampling
frequency of 44.1 kHz. Generally speaking, a
higher sampling frequency means better sound
quality.
Precautions
On safety
Should any solid object or liquid fall into the
cabinet, unplug the receiver and have it
checked by qualified personnel before
operating it any further.
On power sources
• Before operating the receiver, check that the
operating voltage is identical with your local
power supply.
The operating voltage is indicated on the
nameplate on the back of the receiver.
• The unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the unit
itself has been turned off.
• If you are not going to use the receiver for a
long time, be sure to disconnect the receiver
from the wall outlet. To disconnect the AC
power cord, grasp the plug itself; never pull
the cord.
• One blade of the plug is wider than the other
for the purpose of safety and will fit into the
wall outlet only one way. If you are unable to
insert the plug fully into the outlet, contact
your dealer.
• The AC power cord must be changed only at
a qualified service shop.
On heat buildup
Although the receiver heats up during
operation, this is not a malfunction. If you
continuously use this receiver at a large
volume, the cabinet temperature of the top,
side and bottom rises considerably. To avoid
burning yourself, do not touch the cabinet.
continued
US01COV_HT-7000DH-U.book Page 73 Monday, August 14, 2006 9:22 AM
74
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US07REM_HT-7000DH-U.fm
masterpage: Left
HT-8000MH
2-662-265-12 (2)
On placement
• Place the receiver in a location with adequate
ventilation to prevent heat buildup and
prolong the life of the receiver.
• Do not place the receiver near heat sources,
or in a place subject to direct sunlight,
excessive dust, or mechanical shock.
• Do not place anything on top of the cabinet
that might block the ventilation holes and
cause malfunctions.
• Do not place the receiver near equipment
such as a television, VCR, or tape deck. (If
the receiver is being used in combination
with a television, VCR, or tape deck, and is
placed too close to that equipment, noise
may result, and picture quality may suffer.
This is especially likely when using an
indoor antenna. Therefore, we recommend
using an outdoor antenna.)
• Use caution when placing the receiver or
speakers on surfaces that have been specially
treated (with wax, oil, polish, etc.) as
staining or discoloration of the surface may
result.
On operation
Before connecting other components, be sure
to turn off and unplug the receiver.
If you encounter color
irregularity on a nearby TV
screen
The front and center speakers and the sub
woofer are magnetically shielded to allow it to
be installed near a TV set. However, color
irregularities may still be observed on certain
types of TV sets. As the surround speakers are
not magnetically shielded, we recommend that
you place the surround speakers slightly
further away from the TV set (page 14).
If color irregularity is
observed...
Turn off the TV set, then turn it on again after
15 to 30 minutes.
If color irregularity is observed
again...
Place the speaker further away from the TV
set.
If howling occurs
Reposition the speakers or turn down the
volume on the receiver.
On cleaning
Clean the cabinet, panel, and controls with a
soft cloth slightly moistened with a mild
detergent solution. Do not use any type of
abrasive pad, scouring powder, or solvent,
such as alcohol or benzine.
If you have any questions or problems
concerning your receiver, please consult your
nearest Sony dealer.
US01COV_HT-7000DH-U.book Page 74 Monday, August 14, 2006 9:22 AM
75
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US07REM_HT-7000DH-U.fm
masterpage: Right
HT-8000MH
2-662-265-12 (2)
Additional Information
Troubleshooting
If you experience any of the following
difficulties while using the receiver, use this
troubleshooting guide to help you remedy the
problem.
There is no sound, no matter which
component is selected, or only a very
low-level sound is heard.
• Check that the speakers and components
are connected securely.
• Check that both the receiver and all
components are turned on.
• Check that MASTER VOLUME is not set
to “VOL MIN”.
• Check that the SPEAKERS (OFF/A/B/
A+B) is not set to “OFF”.
• Check that headphone is not connected.
• Press MUTING to cancel the muting
function.
• Check that you have selected the correct
component with the input buttons.
• The protective device on the receiver has
been activated. Turn off the receiver,
eliminate the short-circuit problem, and
turn on the power again.
There is no sound from a specific
component.
• Check that the component is connected
correctly to the audio input jacks for that
component.
• Check that the cord(s) used for the
connection is (are) fully inserted into the
jacks on both the receiver and the
component.
There is no sound from one of the front
speakers.
• Connect a pair of headphones to the
PHONES jack to verify that sound is
output from the headphones. If only one
channel is output from the headphones, the
component may not be connected to the
receiver correctly. Check that all the cords
are fully inserted into the jacks on both the
receiver and the component. If both
channels are output from the headphones,
the front speaker may not be connected to
the receiver correctly. Check the
connection of the front speaker which is
not outputting any sound.
• Make sure you have connected to both the
L and R jacks of an analog component, and
not only to either the L or R jack. Use an
audio cord (not supplied).
There is no sound from analog 2
channel sources.
• Check that the INPUT MODE is not set to
“COAX IN” or “OPT IN” for the selected
input (page 64).
• Check that the MULTI CH IN function is
not selected.
There is no sound from digital sources
(from COAXIAL or OPTICAL input jack).
• Check that the INPUT MODE is not set to
“ANALOG” (page 64). Check that the
INPUT MODE is not set to “COAX IN”
for the sources from the OPTICAL input
jack, or to “OPT IN” for the sources from
the COAXIAL input jack.
• Check that the MULTI CH IN function is
not selected.
continued
US01COV_HT-7000DH-U.book Page 75 Monday, August 14, 2006 9:22 AM
76
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US07REM_HT-7000DH-U.fm
masterpage: Left
HT-8000MH
2-662-265-12 (2)
The source sound input to the HDMI
jack on the receiver is not output from
the TV speaker.
• Check the HDMI connection.
• You cannot listen to the Super Audio CD
by connecting HDMI.
• Depending on the playback component,
you may need to set up the component.
Refer to the operating instructions
supplied with each component.
The left and right sounds are
unbalanced or reversed.
• Check that the speakers and components
are connected correctly and securely.
• Adjust the balance parameters using the
LEVEL menu.
There is severe hum or noise.
• Check that the speakers and components
are connected securely.
• Check that the connecting cords are away
from a transformer or motor, and at least
3 m away from a TV set or fluorescent
light.
• Move your audio components away from
the TV.
• The plugs and jacks are dirty. Wipe them
with a cloth slightly moistened with
alcohol.
There is no sound, or only a very low-
level sound is heard from the center/
surround speakers.
• Select a CINEMA STUDIO EX mode
(page 51).
• Adjust the speaker level (page 34).
There is no sound from the sub woofer.
• Check that the sub woofer is connected
correctly and securely.
• Make sure you have turned on your sub
woofer.
The surround effect cannot be
obtained.
• Make sure the sound field function is on
(press MOVIE, or MUSIC).
• Sound fields do not function for signals
with a sampling frequency of more than 48
kHz.
Dolby Digital or DTS multi channel
sound is not reproduced.
• Check that the DVD, etc. you are playing
is recorded in Dolby Digital or DTS
format.
• When connecting the DVD player, etc., to
the digital input jacks of this receiver,
check the audio setting (the settings for the
audio output) of the connected component.
Recording cannot be carried out.
• Check that the components are connected
correctly.
• Select the source component using the
input buttons.
The FM reception is poor.
• Use a 75-ohm coaxial cable (not supplied)
to connect the receiver to an outdoor FM
antenna as shown below. If you connect
the receiver to an outdoor antenna, ground
it against lightning. To prevent a gas
explosion, do not connect the ground wire
to a gas pipe.
AM
ANTENNA
Receiver
To ground
Ground wire
(not supplied)
Outdoor FM antenna
US01COV_HT-7000DH-U.book Page 76 Monday, August 14, 2006 9:22 AM
77
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US07REM_HT-7000DH-U.fm
masterpage: Right
HT-8000MH
2-662-265-12 (2)
Additional Information
Radio stations cannot be tuned in.
• Check that the antennas are connected
securely. Adjust the antennas and connect
an external antenna, if necessary.
• The signal strength of the stations is too
weak (when tuning in with automatic
tuning). Use direct tuning.
• Make sure you set the tuning interval
correctly (when tuning in AM stations
with direct tuning).
• No stations have been preset or the preset
stations have been cleared (when tuning by
scanning preset stations). Preset the
stations (page 61).
• Press DISPLAY repeatedly on the receiver
so that the frequency appears on the
display.
There is no picture or an unclear
picture appears on the TV screen or
monitor.
• Select the appropriate input using the input
buttons.
• Set your TV to the appropriate input mode.
• Move your audio components away from
the TV.
• Assign the component video input
correctly.
The MULTI CHANNNEL DECODING
lamp does not light up in blue.
• Check that the playback component is
connected to a digital jack and the input is
selected properly on this receiver.
• Check whether the input source of the
software being played back corresponds to
the multi channel format.
• Check whether the setup on the playback
component is set to multi channel sound.
The source image input to the HDMI
jack on the receiver is not output from
the TV.
• Check the HDMI connection.
• Depending on the playback component,
you may need to set up the component.
Refer to the operating instructions
supplied with the each component.
• Assign the HDMI input correctly.
Remote control
The remote does not function.
• Point the remote at the remote sensor on
the receiver.
• Remove any obstacles in the path between
the remote and the receiver.
• Replace all the batteries in the remote with
new ones, if they are weak.
• Make sure you select the correct input on
the remote.
• The 12 button on the remote is not
available for receiver operation.
continued
US01COV_HT-7000DH-U.book Page 77 Monday, August 14, 2006 9:22 AM
78
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US07REM_HT-7000DH-U.fm
masterpage: Left
HT-8000MH
2-662-265-12 (2)
Error messages
If there is a malfunction, the display shows a
message. You can check the condition of the
system by the message. Refer to the following
table to solve the problem. If any problem
persists, consult your nearest Sony dealer.
If an error message appears while you perform
Auto Calibration, see “Error and warning
codes” (page 32) to solve the problem.
DEC. EROR
Appears when a signal the receiver cannot
decode (ex. DTS-CD) is input and “DEC.
PRI.” on the AUDIO menu is set to “DEC.
PCM”. Set it to “DEC. AUTO” (page 41).
PROTECT
Irregular current is output from the
speakers. The receiver will automatically
turn off after a few seconds. Check the
speaker connection and turn on the power
again.
If you are unable to remedy the
problem using the
troubleshooting guide
Clearing the receiver’s memory may remedy
the problem (page 29). However, note that all
memorized settings will be reset to their
factory settings and you will have to readjust
all settings on the receiver.
If the problem persist
Consult your nearest Sony dealer. Note that if
service personnel changes some parts during
repair, these parts may be retained.
Reference sections for clearing
the receiver’s memory
Specifications
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
(Models of area code U only)
With 6 ohm loads, both channels driven, from
120 – 20,000 Hz; rated 90 watts per channel
minimum RMS power, with no more than
0.7% total harmonic distortion from 250
milliwatts to rated output.
Amplifier section
Power Output
1)
Models of area code U
(6 ohms 1 kHz, THD 10%)
FRONT
2)
: 140 W/ch
CENTER
2)
: 140 W
SUR
2)
: 140 W/ch
Models of area code CA
(6 ohms 1 kHz, THD 0.7%)
FRONT
2)
: 90 W/ch
CENTER
2)
: 90 W
SUR
2)
: 90 W/ch
(6 ohms 1 kHz, THD 10%)
FRONT
2)
: 140 W/ch
CENTER
2)
: 140 W
SUR
2)
: 140 W/ch
1)
Measured under the following conditions:
2)
Depending on the sound field settings and the
source, there may be no sound output.
Inputs (Analog)
To clear See
All memorized settings page 29
Customized sound fields page 53
Area code Power requirements
U, CA 120 V AC, 60 Hz
MULTI CH IN,
SA-CD/CD,
MD/TAPE, DVD,
VIDEO 1, 2, 3
Sensitivity: 800 mV
Impedance: 50 kohms
US01COV_HT-7000DH-U.book Page 78 Monday, August 14, 2006 9:22 AM
79
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US07REM_HT-7000DH-U.fm
masterpage: Right
HT-8000MH
2-662-265-12 (2)
Additional Information
Inputs (Digital)
Outputs (Analog)
Reproduction frequency range:
28 – 20,000 Hz
Tone
FM tuner section
Tuning range 87.5 - 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
Models of area code U, CA
With 10-kHz tuning scale:
530 – 1,710 kHz
3)
With 9-kHz tuning scale:
531 – 1,710 kHz
3)
Antenna Loop antenna
Intermediate frequency
450 kHz
3)
You can change the AM tuning scale to 9 kHz or
10 kHz. After tuning in any AM station, turn off
the receiver. While holding down TUNING
MODE, press ?/1. All preset stations will be
erased when you change the tuning scale. To reset
the scale to 10 kHz (or 9 kHz), repeat the
procedure.
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
P
B/CB/B-Y: 0.7 Vp-p,
75 ohms
P
R/CR/R-Y: 0.7 Vp-p,
75 ohms
80 MHz HD Pass Through
General
Power requirements
Power consumption
Power consumption (during standby mode)
0.2 W
Dimensions (w/h/d) (Approx.)
430 × 157.5 × 316 mm
(16 7/8 × 6 2/8 × 12 4/8
inches) including
projecting parts and
controls
Mass (Approx.) 8.0 kg (17 lb 11 oz)
DVD (Coaxial) Sensitivity: –
Impedance: 75 ohms
VIDEO 1, 2
(Optical)
Sensitivity: –
Impedance: –
MD/TAPE (OUT),
VIDEO 1 (AUDIO
OUT)
Voltage: 800 mV
Impedance: 10 kohms
SUB WOOFER Voltage: 2 V
Impedance: 1 kohm
Gain levels ±6 dB, 1 dB step
Area code Power requirements
U, CA 120 V AC, 60 Hz
Area code Power consumption
U 170 W
CA 230 VA
continued
US01COV_HT-7000DH-U.book Page 79 Monday, August 14, 2006 9:22 AM
80
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US07REM_HT-7000DH-U.fm
masterpage: Left
HT-8000MH
2-662-265-12 (2)
Speaker section
• Front speakers (SS-MSP7000)
• Center speaker (SS-CNP900)
• Surround speakers (SS-SRP7000)
Front speakers 2 way, magnetically
shielded
Center speaker Full range, magnetically
shielded
Surround speakers Full range
Speaker units
Front speakers Tweeter: 40 mm cone type
Woofer: 80 mm cone type
Center/surround speakers
80 mm cone type
Enclosure type Bass reflex
Rated Impedance 6 ohms
Dimension (w/h/d) (Approx.)
Front speakers 130 × 211 × 136 mm
(5 1/8 × 8 1/4 × 5 3/8
inches)
Center speaker 245 × 109 × 136 mm
(9 5/8 × 4 3/8 × 5 3/8
inches)
Surround speakers 115 × 169 × 141 mm
(4 1/2 × 6 5/8 × 5 1/2
inches)
Mass (Approx.)
Front speakers 1.4 kg (3 lb 2 oz)
Center speaker 1.3 kg (2 lb 14 oz)
Surround speakers 1.0 kg (2 lb 4 oz)
• Sub woofer (SA-WP780)
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
With 6 ohm loads, from 28 – 200 Hz; rated 120
watts, minimum RMS power, with no more
than 0.7% total harmonic distortion from 250
milliwatts to rated output.
Speaker system Active subwoofer,
magnetically shielded
Speaker unit 200 mm cone type
Enclosure type Acoustically loaded bass
reflex
RMS output 150 W (6 ohms, 100 Hz,
THD 10%)
Music power 200 W
Input LINE IN (input pin jacks)
Power requirements
120 V AC, 60 Hz
Power consumption 80 W
Dimensions (w/h/d) (Approx.)
270 × 331 × 380 mm
(10 5/8 × 13 × 15 inches)
Mass (Approx.) 8.3 kg (18 lb 5 oz)
US01COV_HT-7000DH-U.book Page 80 Monday, August 14, 2006 9:22 AM
81
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US07REM_HT-7000DH-U.fm
masterpage: Right
HT-8000MH
2-662-265-12 (2)
Additional Information
Supplied accessories
FM wire antenna (1)
AM loop antenna (1)
Monaural audio cord (1)
Speaker cords
• Long (2)
• Short (3)
Coaxial digital cord (1)
Footpads
• Speakers (20)
• Sub woofer (4)
Remote commander RM-AAP012 (1)
R6 (size-AA) batteries (2)
Optimizer microphone ECM-AC2 (1)
Speakers
• Front speakers (2)
• Center speaker (1)
• Surround speakers (2)
• Sub woofer (1)
Design and specifications are subject to
change without notice.
For details on the area code of the
component you are using, see page 3.
US01COV_HT-7000DH-U.book Page 81 Monday, August 14, 2006 9:22 AM
82
US
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US01COV_HT-7000DH-UIX.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
Index
Numerics
2 channel 52
2CH STEREO 52
5.1 channel 14
A
AUTO CALIBRATION 31
AUTO FORMAT DIRECT
(A.F.D.) 48
C
CD player
connecting
18
playback
37
COMPONENT VIDEO
ASSIGN
64
D
Digital Cinema Sound
(DCS)
51
Dolby Digital
72
DTS
73
DVD player
hooking up
21
playback 38
DVD recorder
hooking up
21
E
Error messages 78
H
HDMI
ASSIGN
65
hooking up
21
I
Initial setup 29
INPUT MODE 64
M
MD deck
connecting 18
Menu
A. CAL
48
AUDIO 44
LEVEL 42
SUR
43
SYSTEM 46
TONE 43
TUNER
44
VIDEO
45
Muting
35
N
Naming 56, 66
R
Recording
onto a MiniDisc or audio
tape
68
onto a recording media
68
S
Satellite tuner
hooking up 21
Selecting
component
35
sound field 50
speaker system
30
Sleep Timer 67
Sound fields
resetting
53
selecting 50
Speakers
connecting
16
installing 14
Super Audio CD player
connecting
18
playback 37
T
Tape deck
connecting 18
TEST TONE 34
Tuner
connecting
28
Tuning
automatically
54
to preset stations 56
TV
hooking up
21
V
VCR
hooking up
21
Video game
hooking up
21
X
XM Radio 57
US01COV_HT-7000DH-U.book Page 82 Monday, August 14, 2006 9:22 AM
F:\Sony SEM HA\Revision3-
7000DH\JC06xxx_2662265122HT7000DH_US\2662265122\US01COV_HT-7000DH-UIX.fm
masterpage: Left
HT-7000DH
2-662-265-12 (2)
US01COV_HT-7000DH-U.book Page 83 Monday, August 14, 2006 9:22 AM
masterpage:Left
l
ename[F:\Sony SEM HA\Revision3-
0
00DH\JC06xxx_2662265122HT7000DH_US\2662265122\US08BKC_HT-7000DH-U.fm]
Sony Corporation Printed in Malaysia
model name1[HT-7000DH]
[2-662-265-12 (2)]
US01COV_HT-7000DH-U.book Page 84 Monday, August 14, 2006 9:22 AM
