Safety Precautions
Please read these safety precautions carefully before using the product.
Precautions in installing the Product
If you ignore the caution message, you may be slightly injured or the product may be damaged
If you ignore the warning message, you may be seriously injured or there is a possibility of
accident or death.
Keep away from heat sources like electrical heaters.
- Electrical shock, fire, malfunction or deformation may occur.
Keep the packing anti-moisture material or vinyl packing out of the reach of children.
- Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the
nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.
Do not put heavy objects on the product or sit upon it.
- If the product collapses or is dropped, you may be injured. Children must pay particular attention.
Do not leave the power or signal cable unattended on the pathway.
- The passerby can falter, which can cause electrical shock, fire, product breakdown or injury.
Install the product in a neat and dry place.
- Dust or moisture can cause electrical shock, fire or product damage.
If you can smell smoke or other odors or hear a strange sound unplug the power cord and contact the
service center.
- If you continue to use without taking proper measures, electrical shock or fire can occur.
If you dropped the product or the case is broken, turn off the product and unplug the power cord.
- If you continue to use without taking proper measures, electrical shock or fire can occur. Contact the service
center.
Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable
objects such as paper and matches. Children must pay particular attention.
- Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and
contact the service center.
Make sure the product ventilation hole is not blocked. Install the product in a suitably wide place (more
than 10cm from the wall)
- If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat.
Do not block the ventilation hole of the product by a tablecloth or curtain.
- The product can be deformed or fire can break out due to overheating inside the product.
Install the product on a flat and stable place that has no risk of dropping the product.
- If the product is dropped, you may be injured or the product may be broken.
Install the product where no EMI occurs.
Keep the product away from direct sunlight.
- The product can be damaged.
Warning
Warning
Caution
Caution
A2
A2
Electrical Power Related Precautions
Make sure to connect the power cable to the grounded current.
- You may be electrocuted or injured.
Use the rated voltage only.
- The product can be damaged, or you may be electrocuted.
During a thunder or lightning storm, unplug the power cable or signal cable.
- You may be electrocuted or a fire can break out.
Do not connect several extension cords, electrical appliances or electrical heaters to a single outlet. Use a
power bar with a grounding terminal designed for exclusive use with the computer.
- A fire can break out due to overheating.
Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry
the power plug completely or wipe dust off.
- You may be electrocuted due to excess moisture.
If you don’t intend to use the product for a long time, unplug the power cable from the product.
- Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
Fix the power cable completely.
- If the power cable is not fixed completely, a fire can break out.
Hold the plug when pulling out the power cable. Do not bend the power cord with excessive force or put
heavy objects on the power cord.
- The power line can be damaged, which may cause electric shock or fire.
Do not insert a conductor (like a metal chopstick) into one end of the power cable while the other end is
connected to the input terminal on the wall. Additionally, do not touch the power cable right after
plugging into the wall input terminal.
- You may be electrocuted.
The power supply cord is used as the main disconnection device. Ensure that the socket-outlet is easily
accessible after installation.
Do not unplug the power cord while the product is in use.
- Electrical shock can damage the product.
Warning
Caution
Precautions in Moving the Product
Warning
Make sure to turn off the product.
- You may be electrocuted or the product can be damaged.
Make sure to remove all cables before moving the product.
- You may be electrocuted or the product can be damaged.
Safety Precautions
A3
Safety Precautions
Caution
Precautions in Using the Product
Warning
Do not put or store inflammable substances near the product.
- There is a danger of explosion or fire due to careless handling of the inflammable substances.
When cleaning the brown tube surface, unplug the power cord and scrub with soft cloth to prevent
scratching. Do not clean with a wet cloth.
- The water can sink into the product, which can cause electric shock or serious malfunction.
Take a rest from time to time to protect your vision.
Keep the product clean at all times.
Take a comfortable and natural position when working with a product to relax the muscles.
Take a regular break when working with a product for a long time.
Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a
scratch on it.
Keep proper distance from the product.
- Your vision may be impaired if you look at the product too closely.
Set the appropriate resolution and clock by referring to the User’s Manual.
- Your vision can be impaired.
Use authorized detergent only when cleaning the product. (Do not use benzene, thinner or alcohol.)
- Product can be deformed.
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of your local authority.
Caution
Do not shock the product when moving it.
- You may be electrocuted or the product can be damaged
Do not dispose the product-packing box. Use it when you move.
Make the panel face forward and hold it with both hands to move.
- If you drop the product, the damaged product can cause electric shock or fire. Contact with the service center for
repair.
Do not disassemble, repair or modify the product at your own discretion.
- Fire or electric shock accident can occur.
- Contact the service center for check, calibration or repair.
Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or
electric shock accident can occur
Keep the product away from water.
- Fire or electric shock accident can occur.
On Disposal
A4

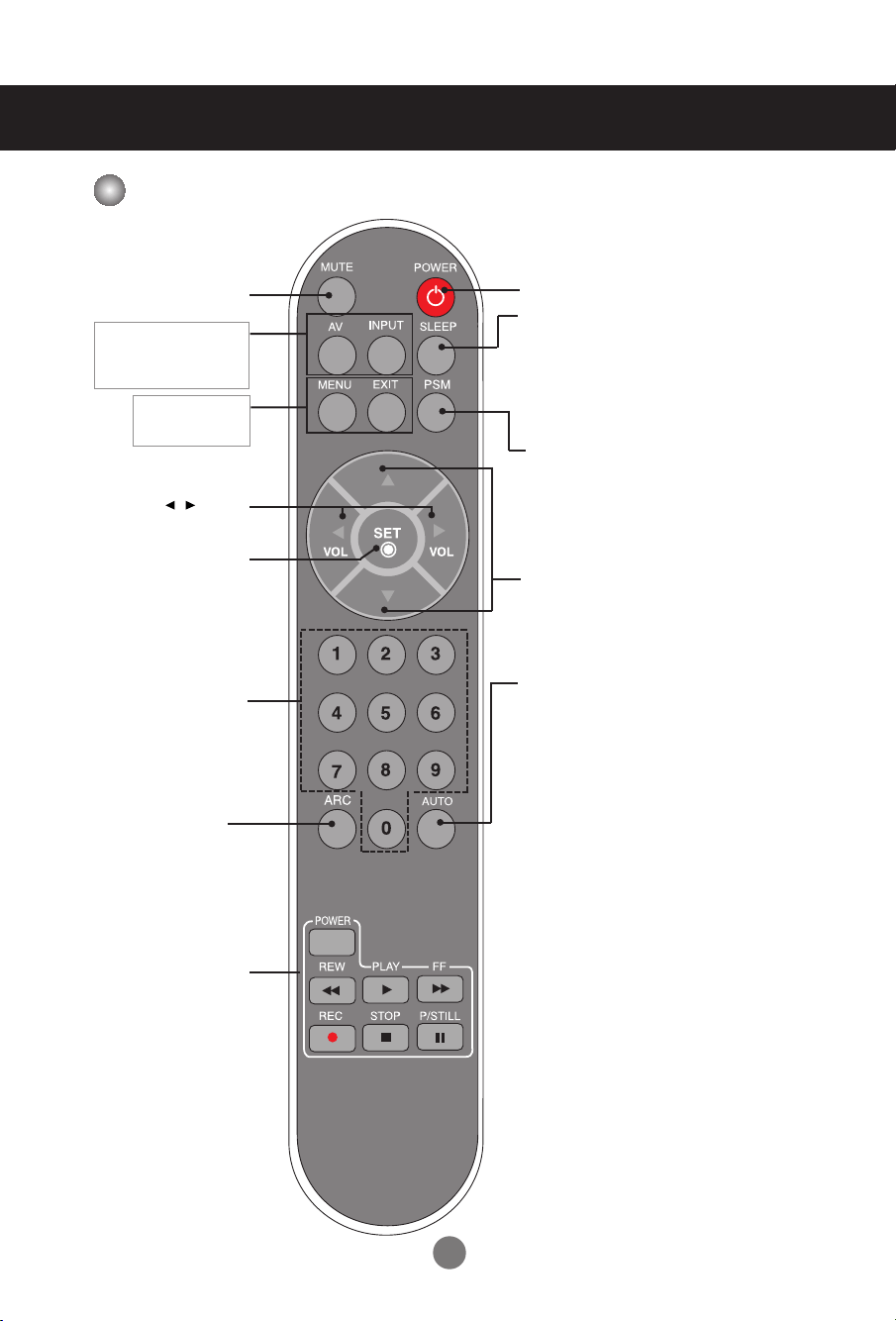

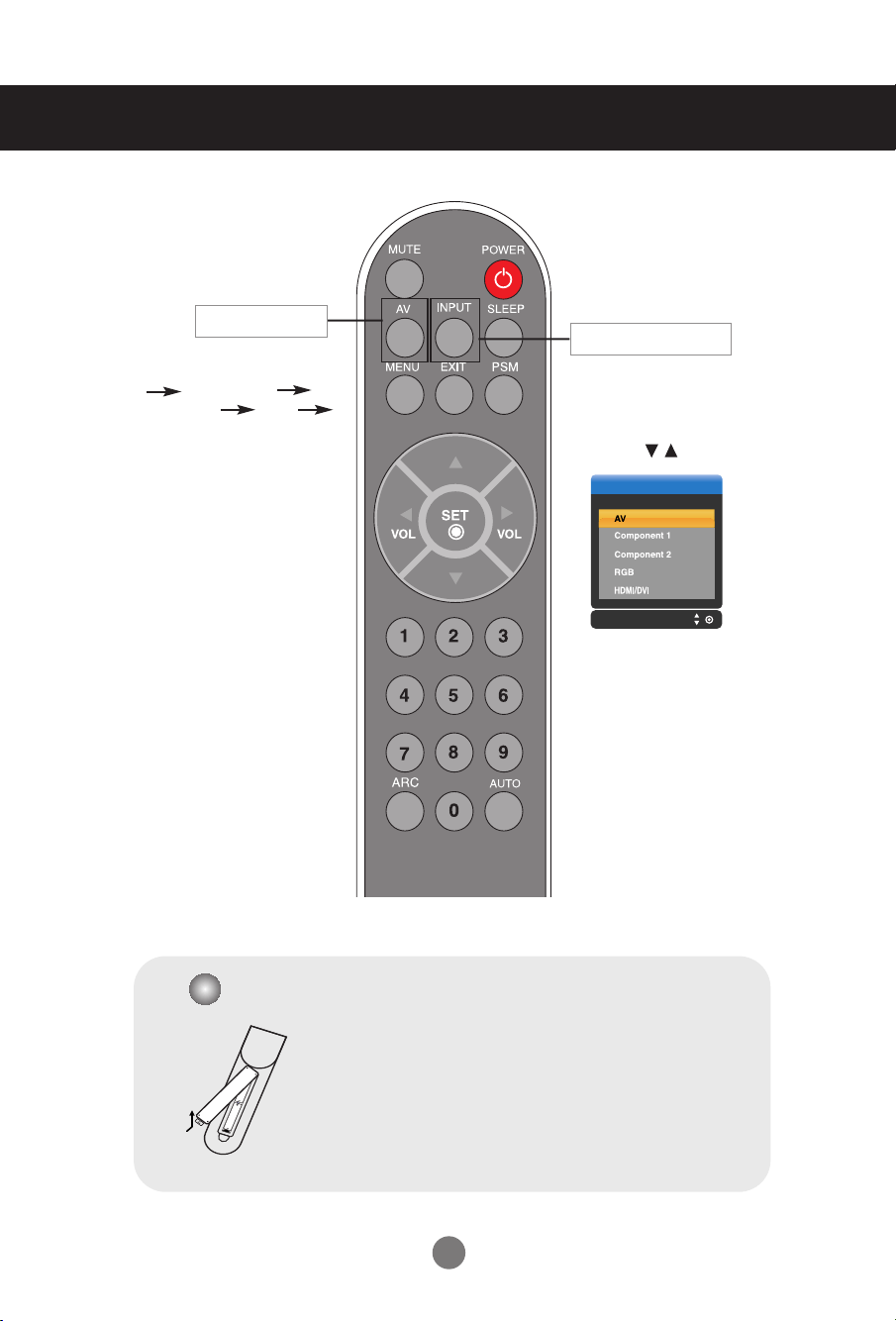

Using the Remote Control
•
Power On/Off Button
•
AV Button
•
Input Select Button
(See next page)
•
Sleep Button
When watching AV/S-Video/RGB/HDMI
•
Component1/ Component2
The product will be automatically turned off
after a certain period of time.
Press this button repetitively to select an
appropriate time duration
•
Menu Button
•
Exit Button
•
Auto Button
Automatic adjustment function
(Operational for the analog signal only)
•
Check Button
•
Video Operation Button
Applicable for LG products only
•
Volume Button
•
Mute button
Name of the Remote Control Buttons
There is not a function
which is supported
•
PSM Button
- Automatically adjusts the image.
Press this button repetitively to set
the intended screen. (See A21)
•
UP and Down buttons
Bring up and down direction adjustment.
•
ARC button
To select the image
size of the screen.
A5
If you press the button once,
the following Input Signal
Window will appear. Select
the signal type you want
using the button.
•
Input Select Button
Input
AV Component1
Component2 RGB
HDMI/DVI
•
AV Button
Using the Remote Control
Each time you press the Input
button it will change to
1. Take out the battery cap.
2. Insert the batteries with correct polarity (+/-).
3. Close the battery cap.
• You can use a remote control 7 meter distance and
30 degree (left/right) within the receiving unit scope.
• Dispose of used batteries in the recycle bin to prevent
environmental pollution.
Inserting batteries into remote control.
A6

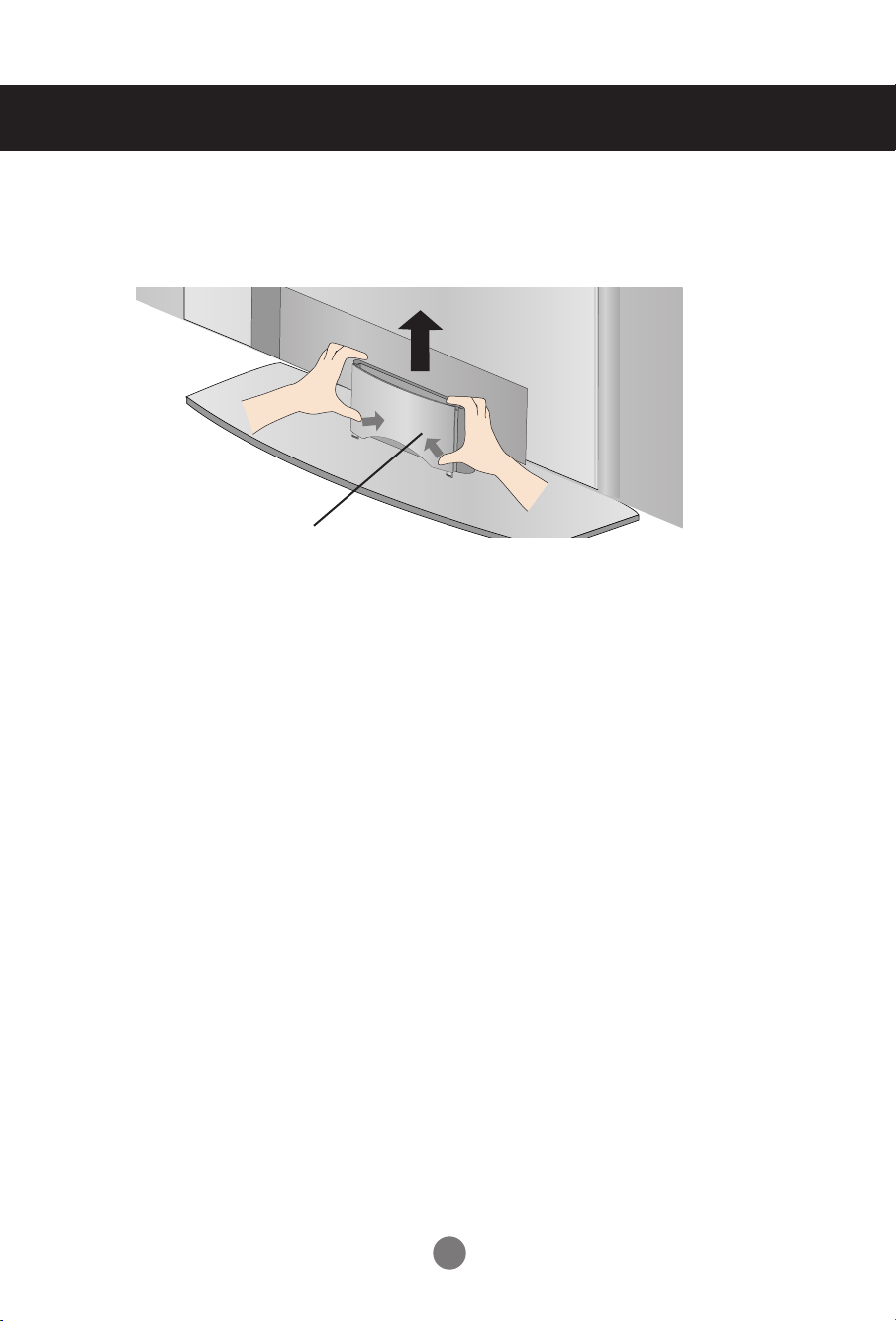

To arrange cables in order
1. Disassemble the stand cover. The cover may be easily disassembled by pressing
up on the base as shown in the figure.
2. After connecting the cables, correctly position the stand cover into the holes on the
stand. If securely connected, you will hear the latch click into place.
Stand cover
* Applicable only for models that support the stand
A7

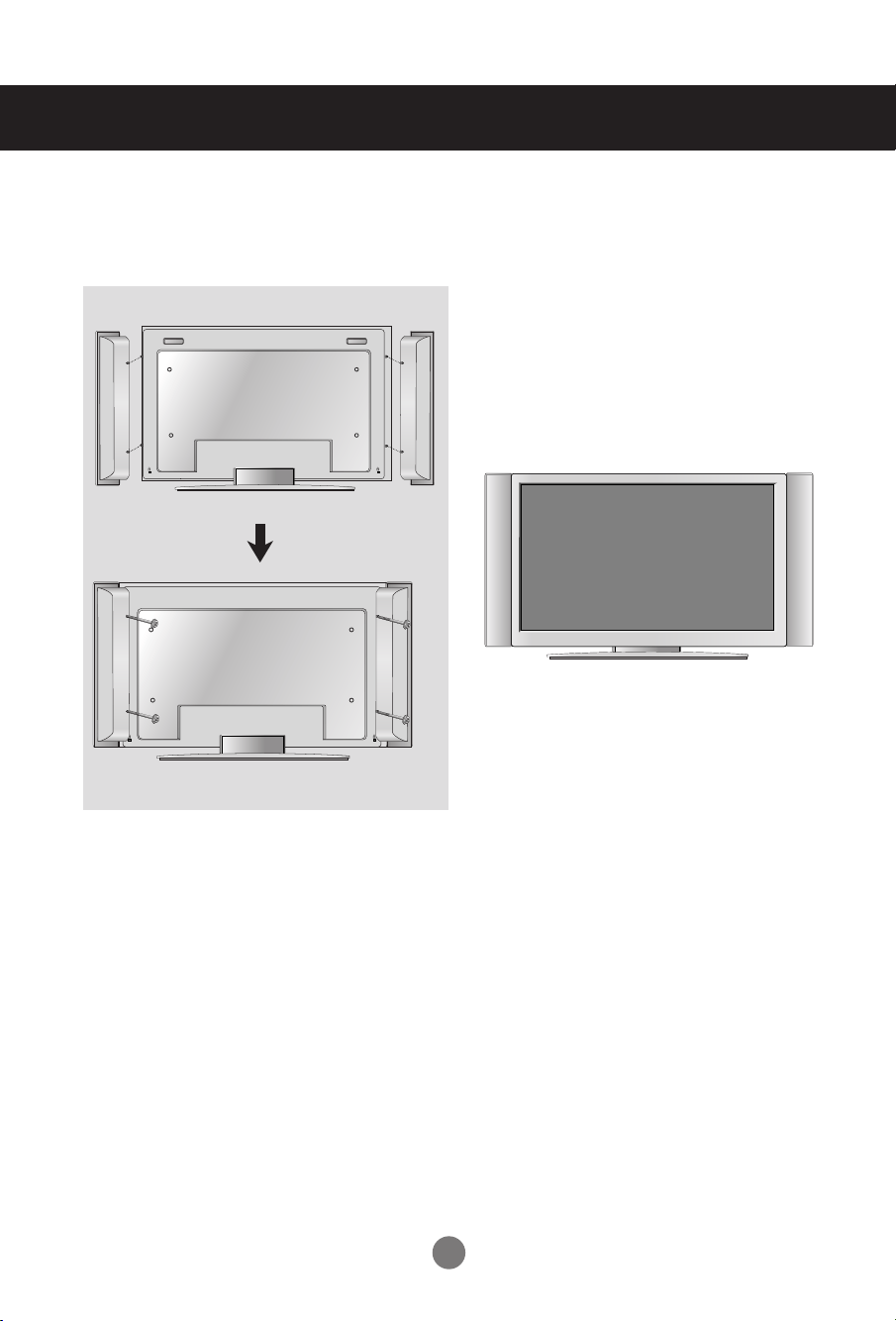

Connecting the Speakers
Use the screws to secure the speakers on the rear side of the product as shown
in the below figure.
* Applicable only for models that support the speakers
When the speaker is installed.
A8

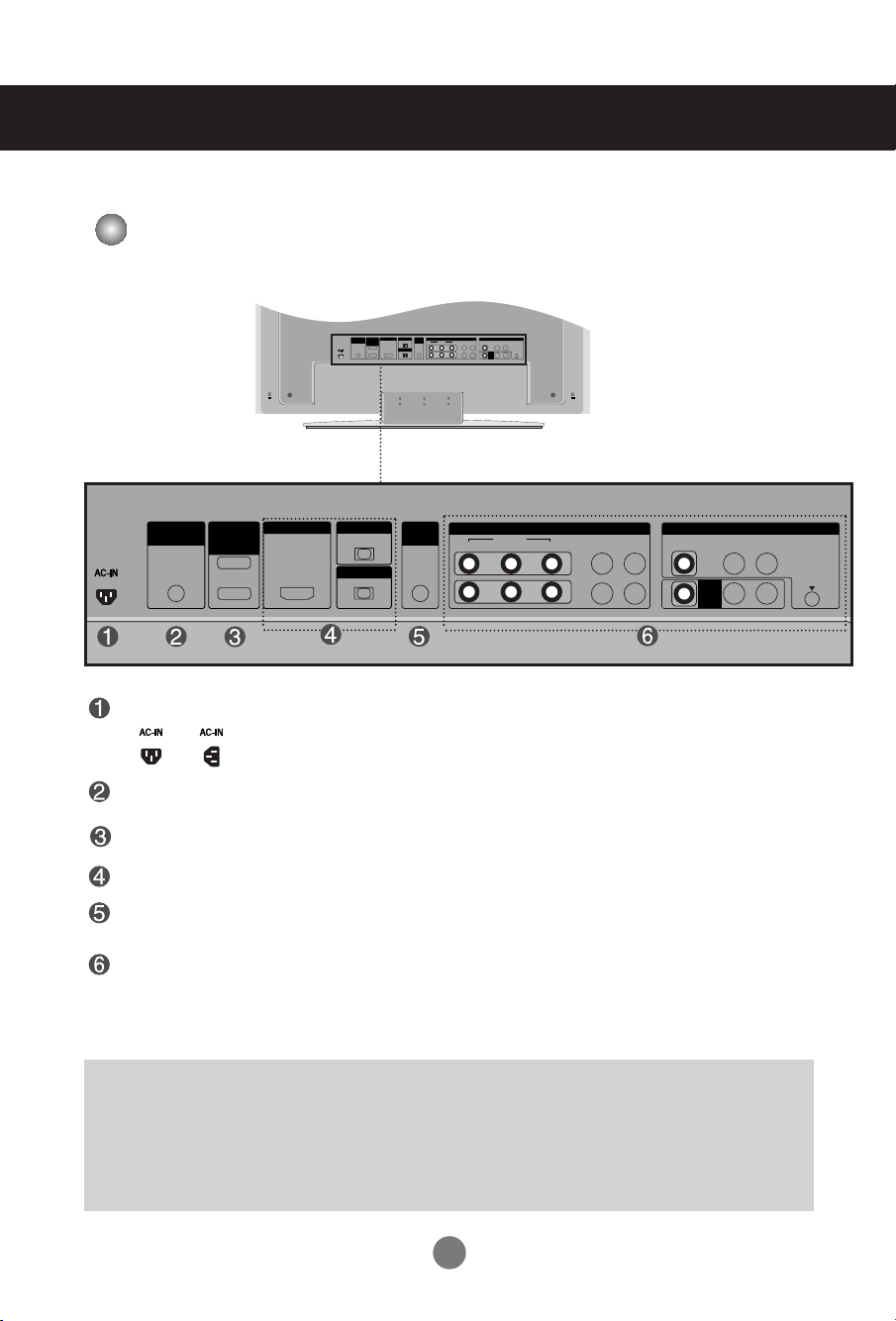

Name and Function of the Parts
Rear View
Power Connector : Connect the power cord
Wired Remote Control Port
RS-232C Serial Ports
RGB, HDMI/DVI Ports
PC Sound Jack
: Connect the audio cable to the *LINE OUT jack of the PC sound card.
AV Ports
OUT
IN
VIDEO
L-AUDIO-R
VIDEO
YP
B
P
R
RGB IN
RGB OUT
HDMI/DVI IN
L-AUDIO-R
COMPONENT IN
AV
OUT
AV IN
REMOTE
CONTROL IN
RS-232C
(CONTROL&
SERVICE)
1
2
AUDIO
(RGB/DVI)
S-VIDEO
*LINE OUT
A terminal used to connect to the speaker including a built-in amplifier (Amp). Make sure that
the connecting terminal of the PC sound card is checked before connecting. If the Audio Out of
PC sound card has only Speaker Out, reduce the PC volume.
If the Audio Out of the PC sound card supports both Speaker Out and Line Out, convert to Line Out using
the card jumper of the program (Refer to the Sound Card Manual).
OUT
IN
VIDEO
L-AUDIO-R
VIDEO
YP
B
P
R
RGB IN
RGB OUT
HDMI/DVI IN
L-AUDIO-R
COMPONENT IN
AV
OUT
AV IN
REMOTE
CONTROL IN
RS-232C
(CONTROL&
SERVICE)
1
2
AUDIO
(RGB/DVI)
S-VIDEO
* The product image in the user’s guide could be different from the actual image.
Power connector and image may differ according to model.
A9
RGB IN
HDMI/DVI IN

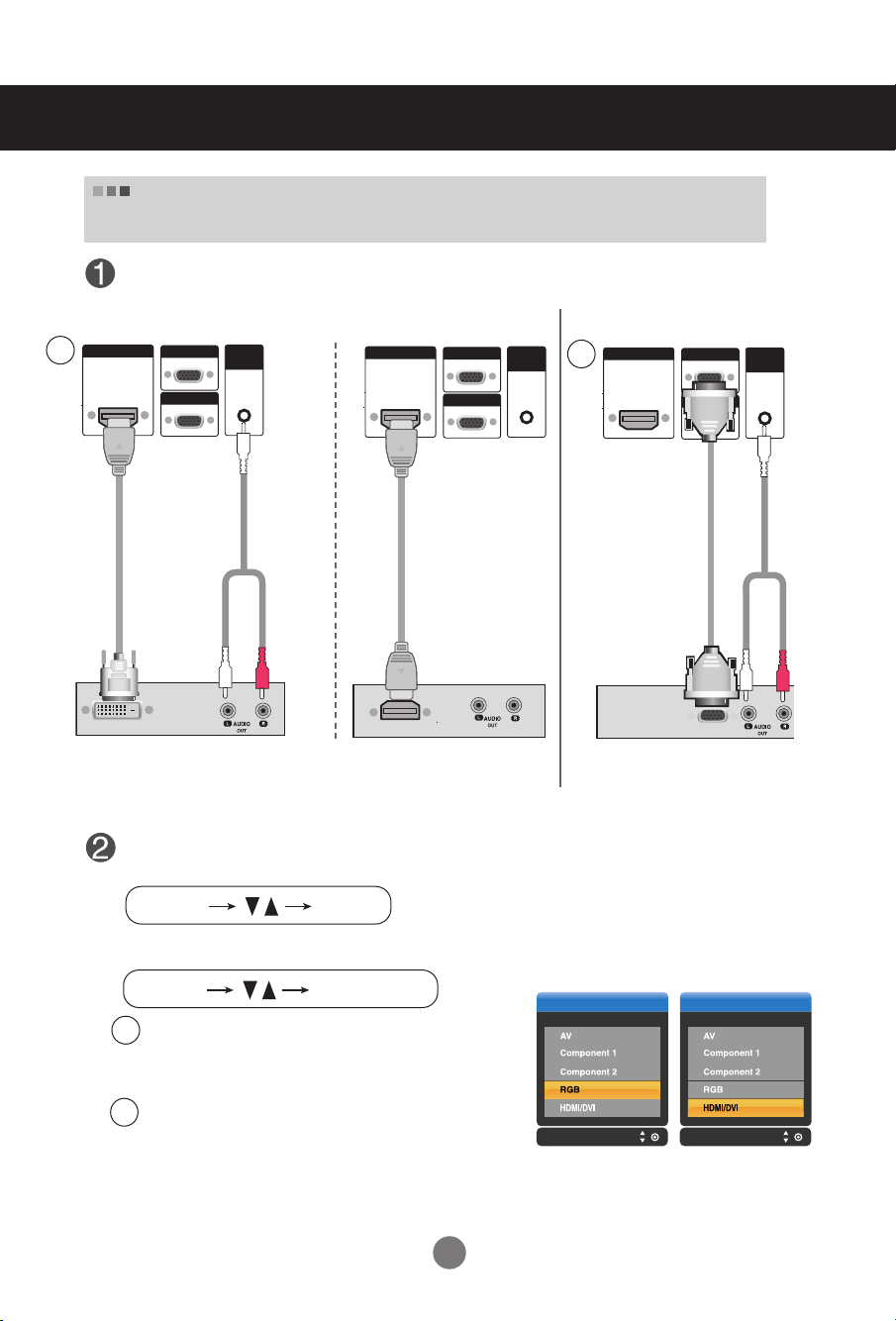

First of all, see if the computer, product and the peripherals are turned off.
Then, connect the signal input cable.
When connecting with the D-Sub signal input cable.
When connecting with the HDMI to DVI signal input cable (not included).
MAC
Macintosh Adapter (not included)
Use the standard Macintosh adapter since an incompatible
adapter is available in the market. (Different signaling system)
OUT
IN
VIDEO
L-AUDIO-R
VIDEO
YP
B
P
R
RGB IN
RGB OUT
HDMI/DVI IN
L-AUDIO-R
COMPONENT IN
AV
OUT
AV IN
REMOTE
CONTROL IN
RS-232C
(CONTROL&
SERVICE)
1
2
AUDIO
(RGB/DVI)
S-VIDEO
Rear side of the product.
Connecting to External Devices
Connect the power cord.
B
A
B
A
PC
When Connecting to your PC
PC/
MAC
PC
Rear side of the product.
Rear side of the product.
AUDIO
(RGB/DVI)
PC
Rear side of the product.
Connect the Audio cable.
(not included)
A10

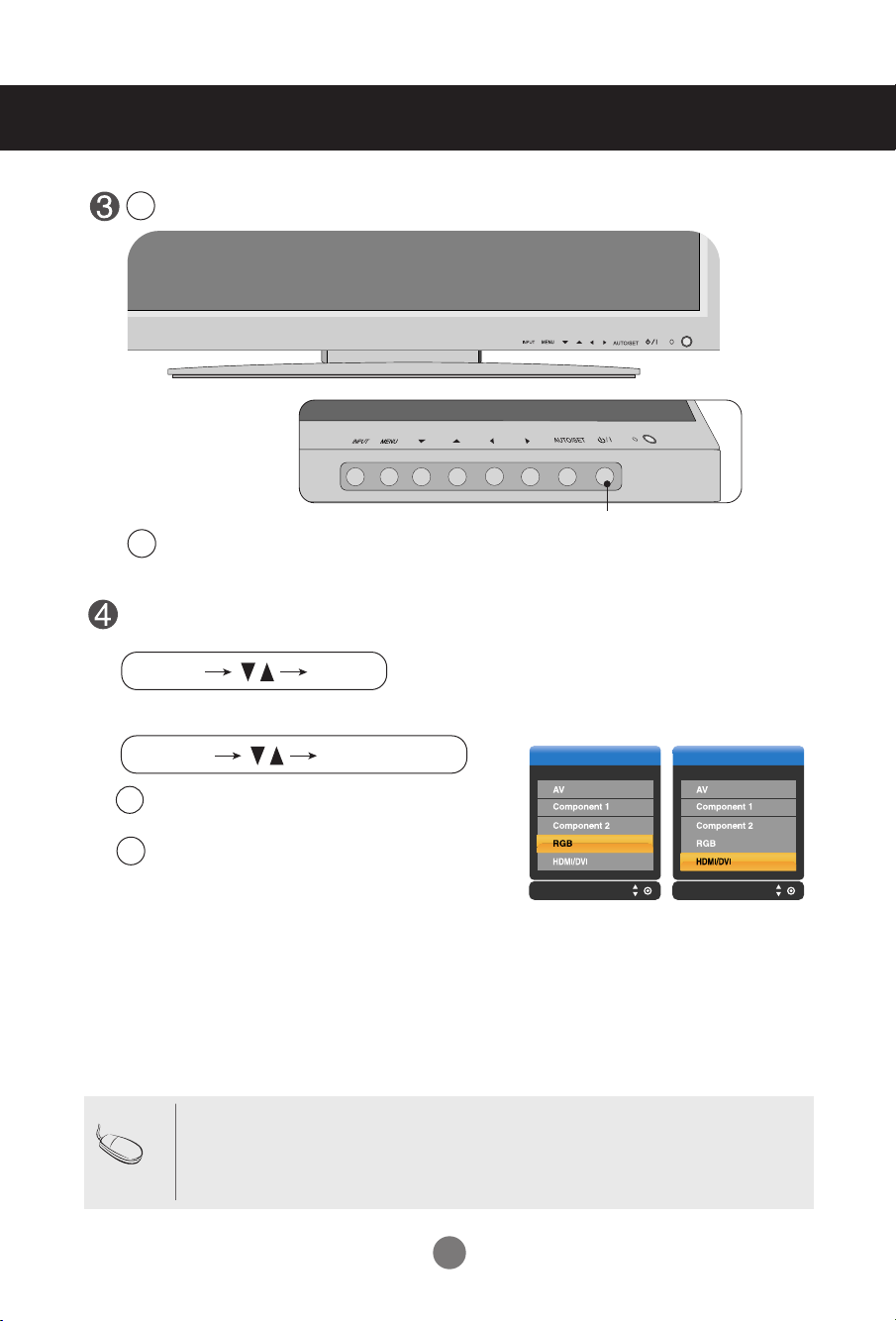

Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUT button at the front side of the product.
INPUT SET
•
How to connect to two computers.
Connect the signal cables (
HDMI to DVI and D-Sub) to each computer.
Press the INPUT button in a remote control to select the computer to use.
•
Directly connect to a grounded power outlet on the wall or a power bar with a ground
wire.
Note
Turn on power by pressing the power button on the product.
Turn on the PC.
Power button
Input Input
INPUT
AUTO/SET
When connecting with a D-Sub signal input cable.
• Select RGB : 15-pin
D-Sub
analog signal.
When connecting with a HDMI to DVI signal input cable.
• Select HDMI/DVI :
HDMI to DVI
Digital signal.
B
A
Connecting to External Devices
2
1
A11

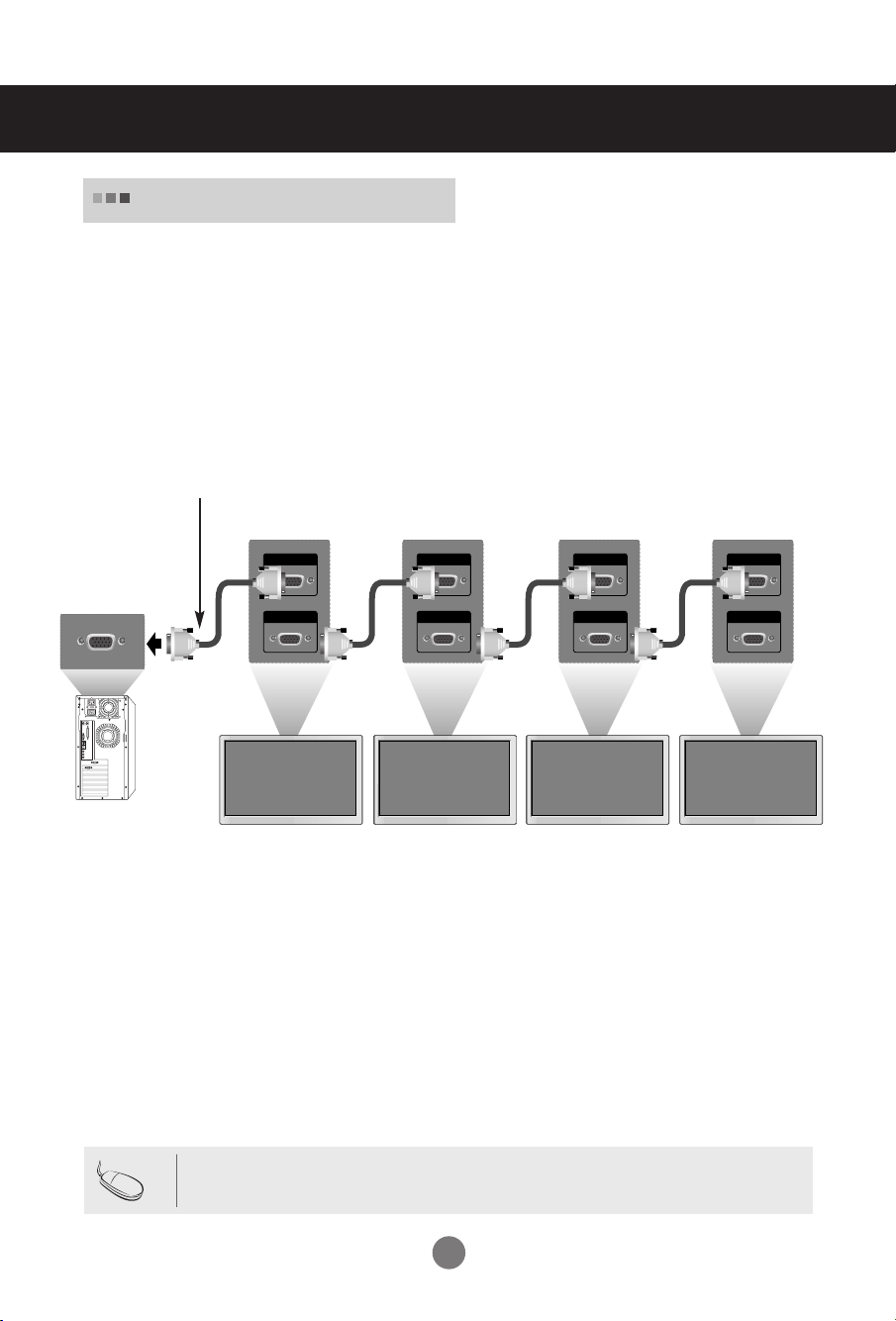

Use this function when displaying ANALOG RGB inputs of a PC to the other product.
RGB IN
RGB OUT
RGB IN
RGB OUT
RGB IN
RGB OUT
RGB IN
RGB OUT
Product 1
•
To use different products connected to each other
Connect one end of the signal input cable(15-pin D-Sub Signal Cable) to the RGB OUT
connector of product 1 and connect the other end to the RGB IN connector of other
products.
Watching RGB Outputs
PC
Product 2
Product 3
Product 4
15-pin D-Sub Signal Cable
Connecting to External Devices
• When multi-connecting in/out cascade format, cables to be less damaged are recommended.
We recommend that you should use cable distributor.
Note
PC
A12
Connecting to External Devices

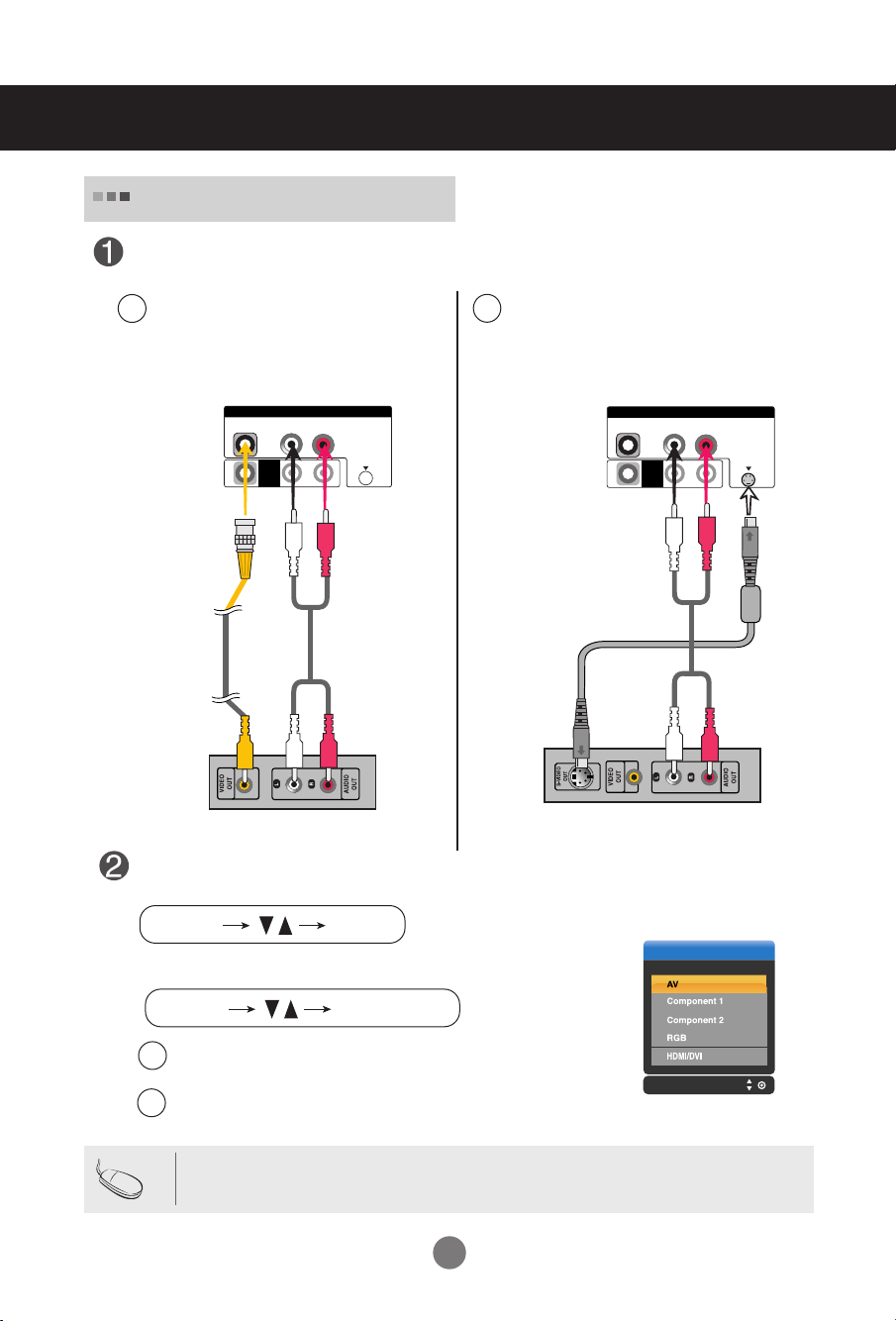

When connecting with an BNC cable.
•
Select AV.
When connecting with an S-Video cable.
•
Select AV.
B
A
L-AUDIO-R
VIDEO
AV
OUT
AV IN
S-VIDEO
When connecting with a S-Video cable.
•
Connect to the S-Video input terminal to
watch high image quality movies.
Connect the video cable as shown in the below figure and then connect the power
cord (See page A9).
B
When connecting with a BNC cable.
•
Connect the input terminal with a
proper color match.
A
BNC Cable
(not included)
Product
VCR/DVD Receiver
Input
When watching VCR / DVD
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUT button at the front side of the product.
INPUT SET
INPUT
AUTO/SET
• In case the BNC cable is connected simultaneously as S-Video cable is connected, S-Video cable is
first.
Note
Audio Cable
(not included)
L-AUDIO-R
VIDEO
AV
OUT
AV IN
S-VIDEO
S-Video Cable
(not included)
Audio Cable
(not included)
Product
VCR/DVD Receiver
R
W
A13
•
Select Component 1
•
Select Component 2
B
A
VIDEO
YP
B
P
R
L-AUDIO-R
COMPONENT IN
1
2

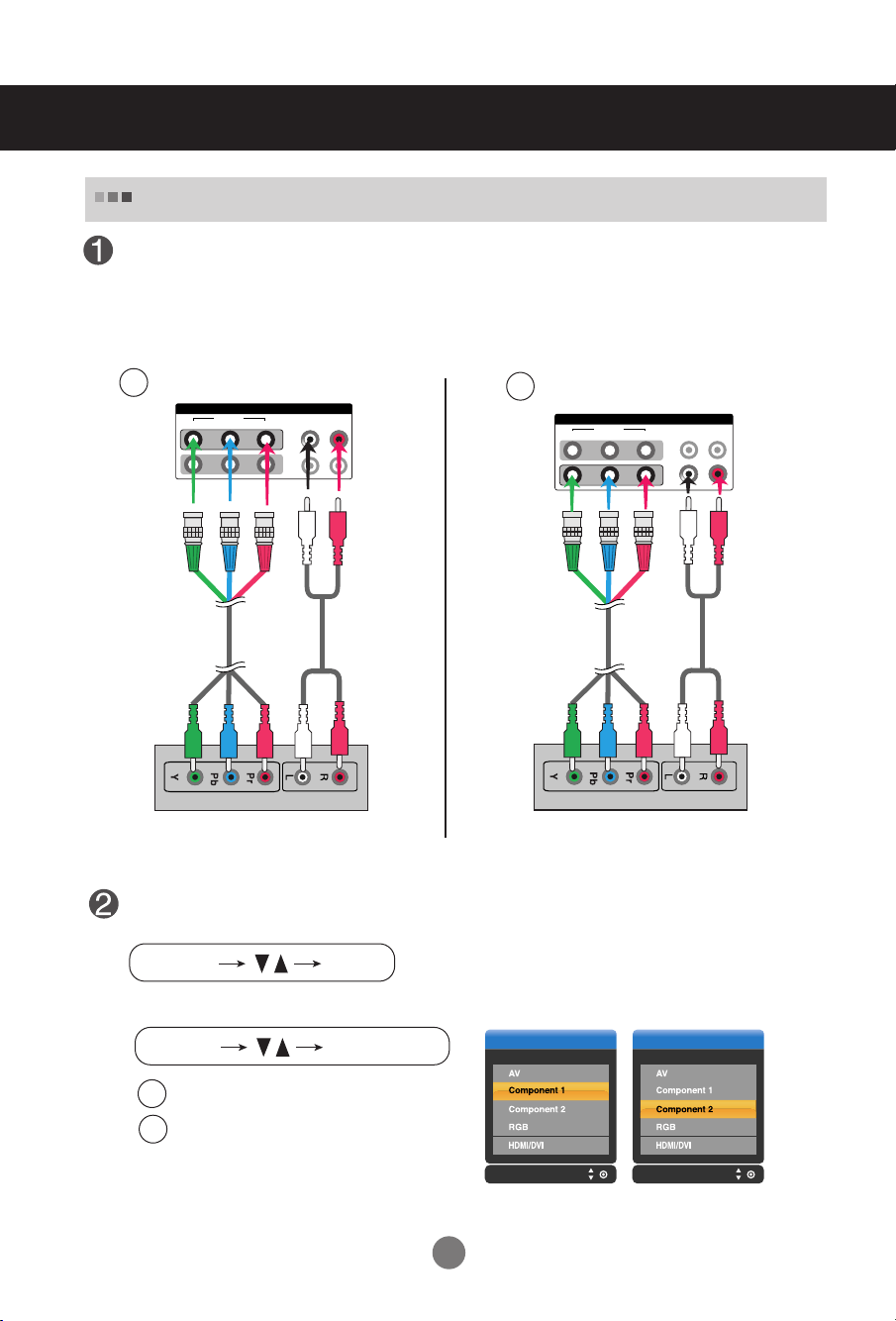

Connect the video/audio cable as shown in the below figure and then, connect the
power cord (See page A9).
•
Connect the input terminal with a proper color match.
BNC Cable
(not included)
Product
HDTV Receiver
Input Input
When watching HDTV/DVD(480p/576p/720p/1080i/480i/576i)
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUT button at the front side of the product.
INPUT SET
INPUT
AUTO/SET
Audio Cable
(not included)
VIDEO
YP
B
P
R
L-AUDIO-R
COMPONENT IN
1
2
Product
HDTV Receiver
B
A
BNC Cable
(not included)
Audio Cable
(not included)
Connecting to External Devices
A14
RGB IN
RGB OUT
HDMI/DVI IN
AUDIO
(RGB/DVI)
RGB IN
RGB OUT
HDMI/DVI IN
AUDIO
(RGB/DVI)
Connect the video/audio cable as shown in the below figure and then connect the
power cord (See page A9).
RCA-PC
Audio Cable
Product
VCR/DVD/Set-top Box
HDMI to DVI
Signal Cable
(not included)
Input Input
When watching
HDMI/DVI/RGB
from the VCR/DVD/Set-top Box
(480p/576p/720p/1080i)
VCR/DVD/Set-top Box
Product
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUT button at the front side of the product.
INPUT SET
INPUT
AUTO/SET
HDMI Signal Cable
(not included)
Connecting to External Devices
RGB IN
RGB OUT
HDMI/DVI IN
AUDIO
(RGB/DVI)
VCR/DVD/Set-top Box
Product
D-Sub Signal
Cable
RCA-PC
Audio Cable
When connecting with a
HDMI to DVI signal input cable.
When connecting with a
HDMI
signal input cable.
• Select HDMI/DVI
When connecting with a D-Sub signal input cable.
• Select RGB
B
A
A
B
A15
•

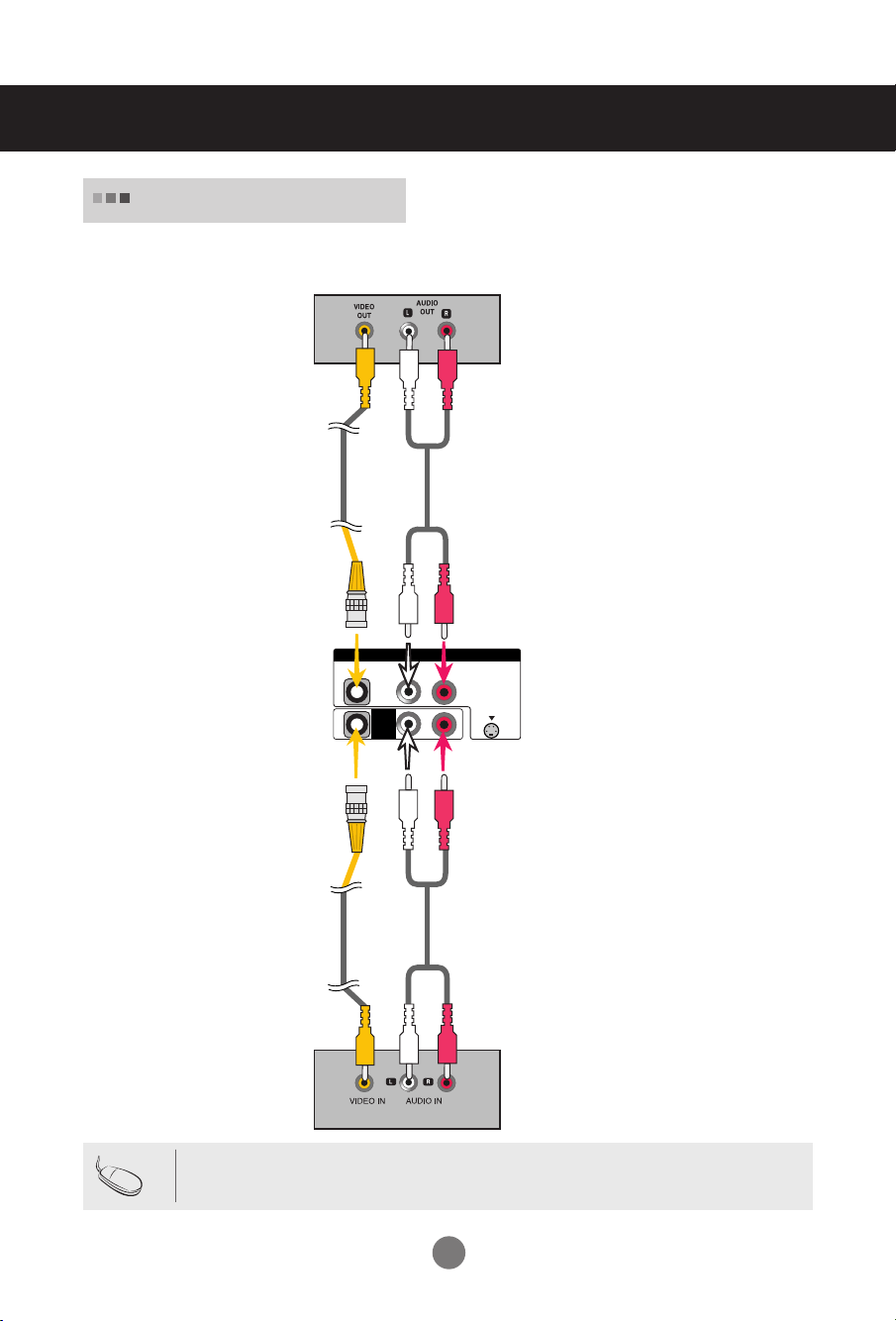

When you set the input signal of the main screen as 'AV (CVBS)', you can transmit the signal that
you're watching to the AV output terminal.
L-AUDIO-R
VIDEO
AV
OUT
AV IN
S-VIDEO
Video/TV
Watching
AV Outputs
BNC Cable
(not included)
Audio Cable
(not included)
BNC Cable
(not included)
Audio Cable
(not included)
Video/TV
Product
Connecting to External Devices
• When multi-connecting in/out cascade format, cables to be less damaged are recommended.
We recommend that you should use cable distributor.
Note
A16
•
Set it up close to the wall so the product doesn't fall over when it is pushed backwards.
The instructions shown below is a safer way to set up the product, which is to fix it on the wall so the product doesn't
fall over when it is pulled in the forward direction. It will prevent the product from falling forward and hurting people. It
will also prevent the product from damage caused by fall. Please make sure that children don't climb on or hang from
the product.
* Applicable only for models that support the stand
2
1
3

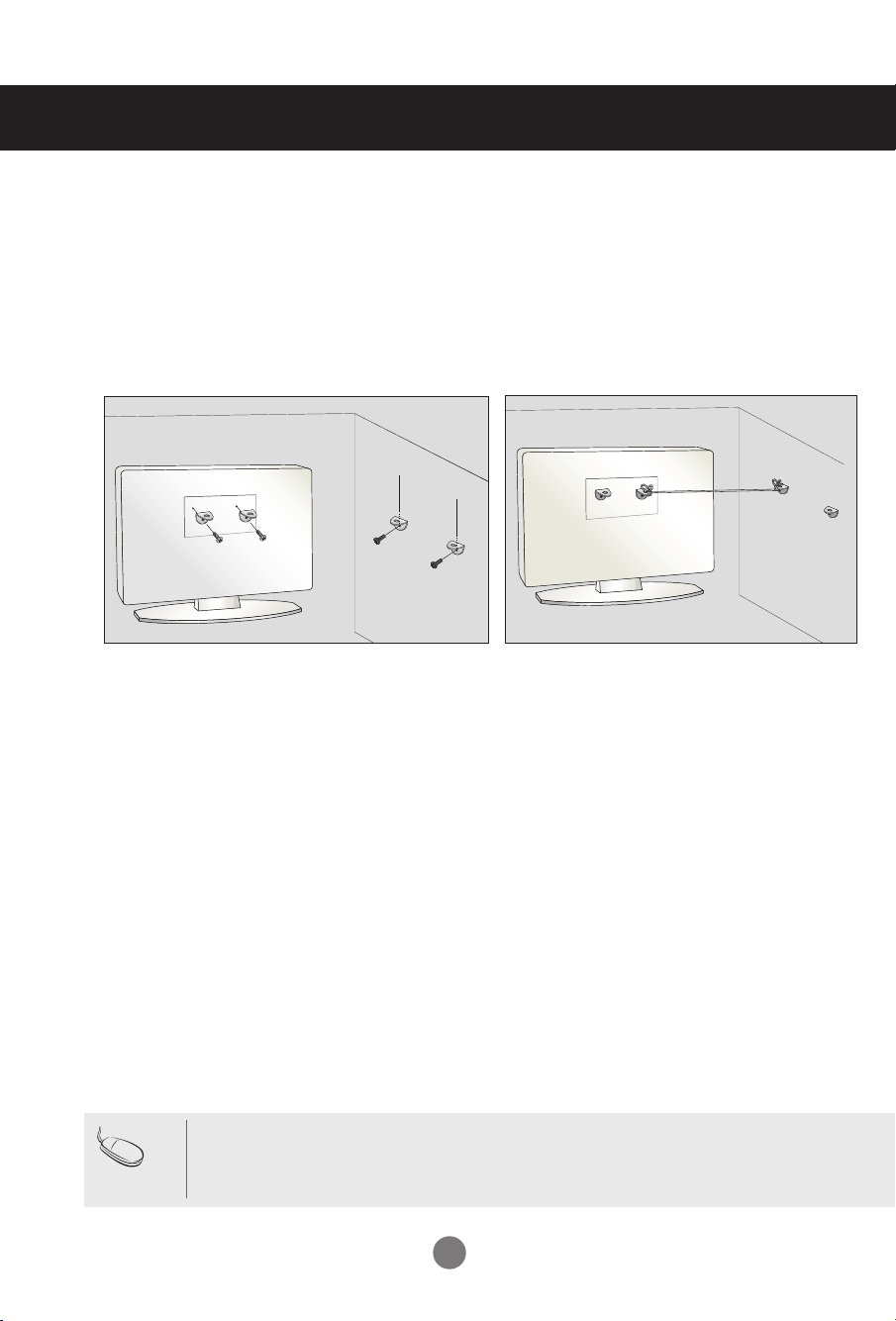

1. Use the braket and the bolt to fix the product to the wall as shown in the picture.
2. Secure the bracket with the bolt(not provided as parts of the product, must purchase separately) on the wall.
3. Use a sturdy rope (not provided as parts of the product, must purchase separately) to tie the product. It is
safer to tie the rope so it becomes horizontal between the wall and the product.
• When moving the product to anoher place undo the ropes first.
• Use a product holder or a cabinet that is big and strong enough for the size and weight of the product.
• To use the product safely make sure that the height of the braket that is mounted on the wall is same as that of the
product.
Note
Attaching the product to a wall
A17
Selecting and Adjusting the Screen

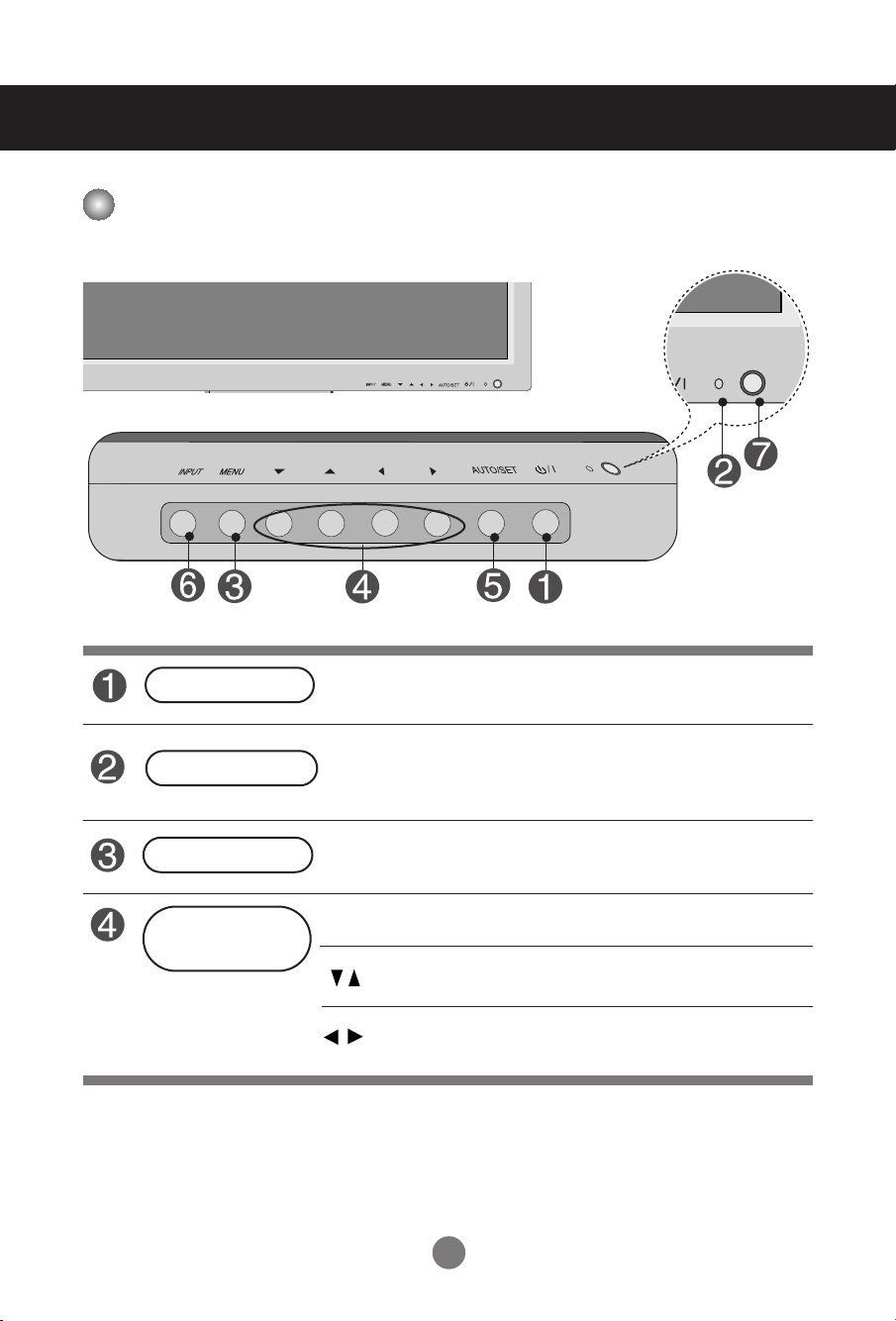

Name of the Buttons in the Screen Adjustment Unit
• Press this button to turn on the power. Press this button again to
turn it off.
• This Indicator lights up green when the display operates normally(on
mode). If the display is in sleep (Energy Saving) mode, this indicator
color changes to amber.
Power Button
• Adjust the volume.
• Adjust the up and down.
• Use this button to show/hide the OSD (On Screen Display) menu
screen.
MENU Button
• Use
this
button to select an icon or adjust the setting in the OSD screen.
OSD Select /
Adjust Button
Power Indicator
A18
• The unit that receives the signal from the remote control.
Name of the Buttons in the Screen Adjustment Unit
[For PC Analog signal]
AUTO/SET Button
AV Composite Video, Separate Video
Component 1 HDTV, DVD
Component 2 HDTV, DVD
RGB 15-pin D-Sub analog signal
HDMI/DVI Digital signal
• Select the input signal
INPUT Button
Input
INPUT
AUTO/SET
Auto in progress
For opimal display change
resolution to 1360 X 768
IR Receiver
Selecting and Adjusting the Screen
[When XGA Mode is active and
1360 X768 is selected]
A19
Selecting and Adjusting the Screen
OSD Menu
Icon Function Description
SOUND
Adjusts the screen video.
Adjusts the audio function.
Adjusts screen brightness, contrast and color that you prefer.
Note
OSD(On Screen Display)
The OSD function enables you to adjust the screen status conveniently since it provides
graphical presentation.
SPECIAL
Adjusts the screen status according to the circumstances.
SCREEN
TIMER
Adjusts the timer function.
A20

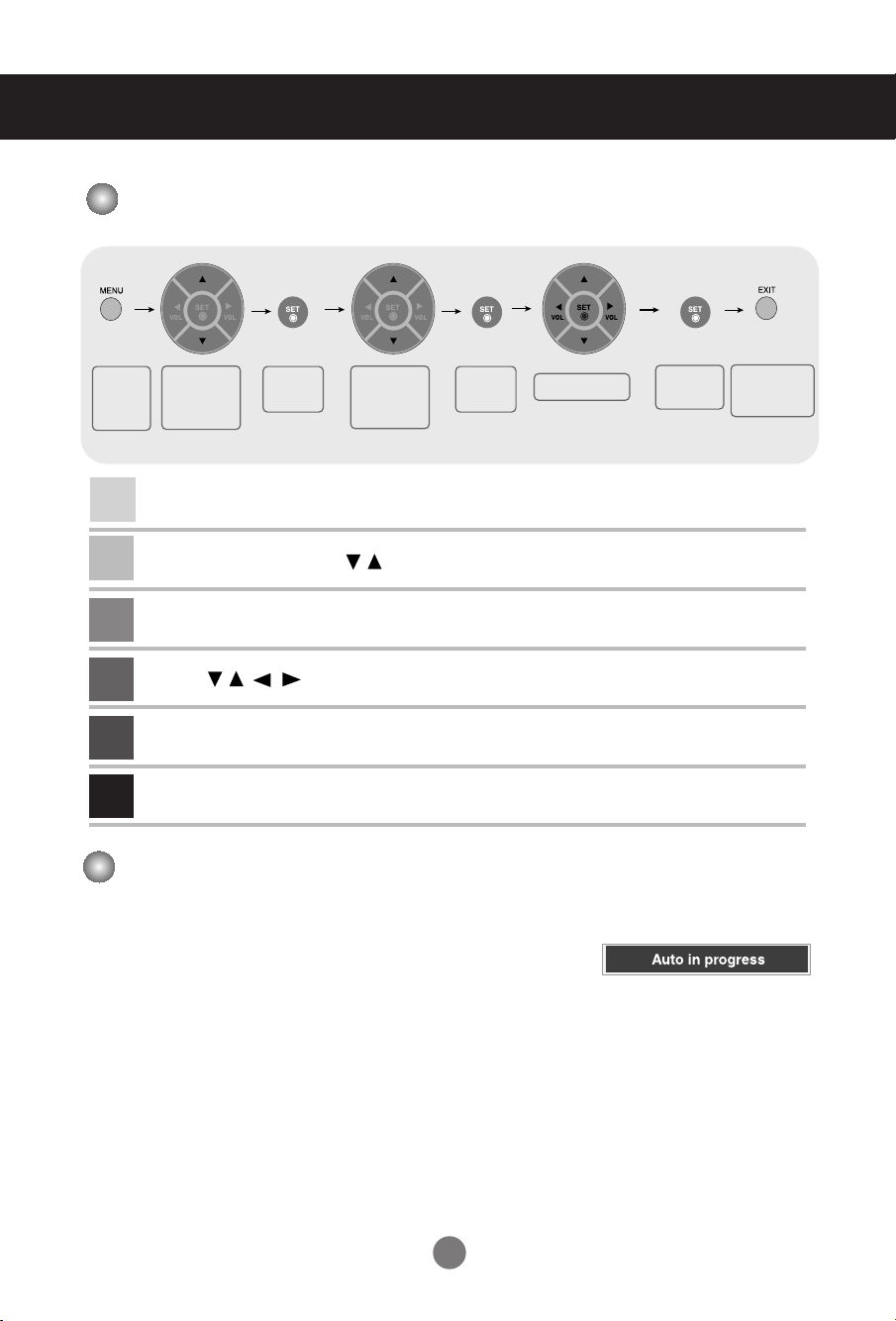

How to adjust the OSD (On Screen Display) screen
•
Use the remote control to adjust the OSD screen.
How to adjust the screen automatically
You need to adjust the screen display when connecting the product to
a new computer or changing the mode. Refer to the following section to
set an optimal product screen.
Press the AUTO/SET button (AUTO button in a remote Control) in the
PC analog signal. Then, an optimal screen status will be selected that
fits into the current mode.
If adjustment is not satisfactory, you need to adjust screen position,
clock and phase in the OSD menu.
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the Buttons.
When the icon you want becomes highlighted, press the SET Button.
Use the Buttons to adjust the item to the desired level.
Accept the changes by pressing the SET Button.
Exit the OSD by pressing the EXIT Button.
1
2
3
4
5
6
Pops up
the menu
screen
Move where
you want to
adjust
Move where
you want to
adjust
Select a
menu icon
Select a
menu icon
Adjust the status
Save
adjustment
Exit from the
menu screen.
Selecting and Adjusting the Screen
[When XGA Mode is active and
1360 X768 is selected]
A21

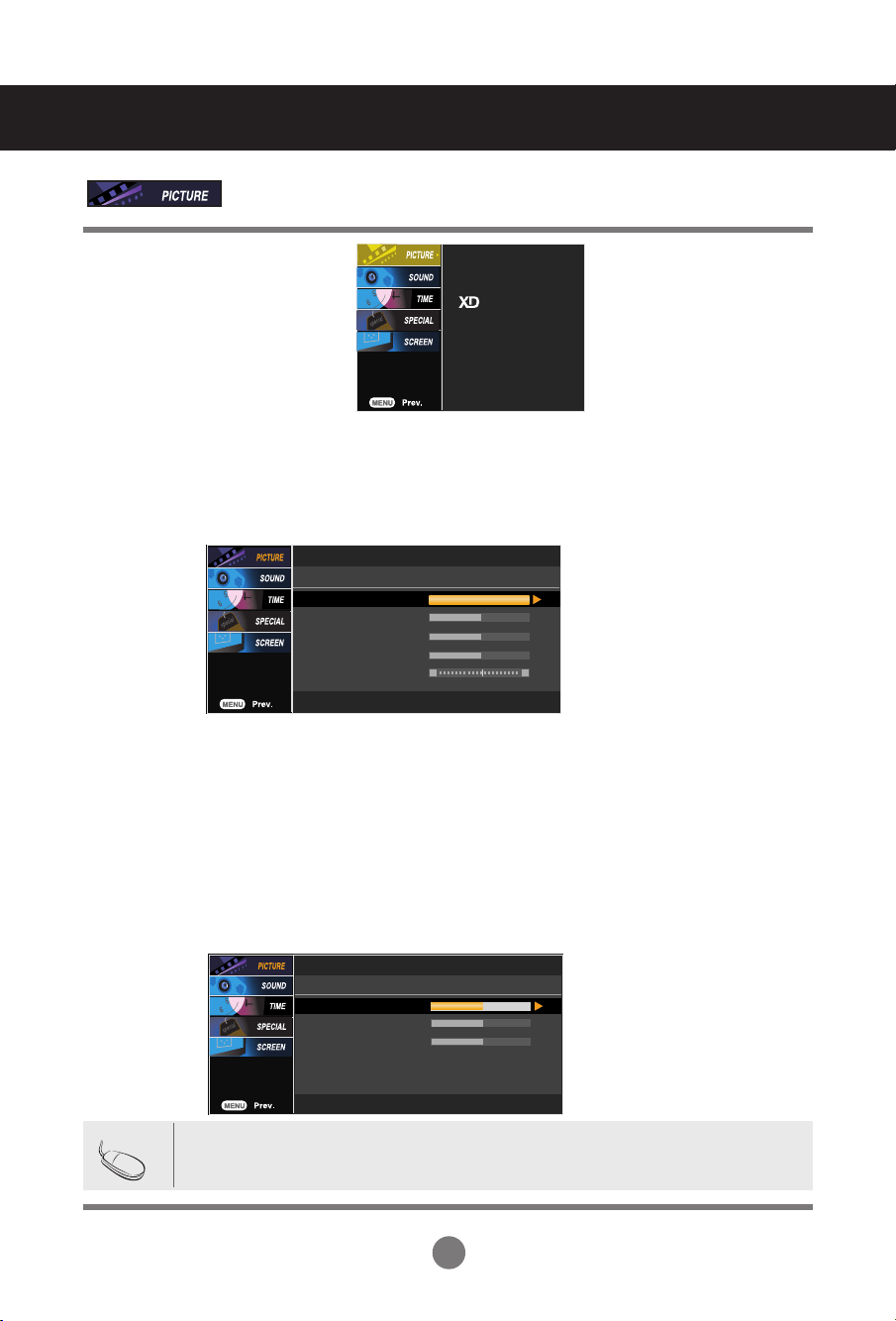

Selecting and Adjusting the Screen
Red / Green / Blue
Set your own color levels.
Adjusting Screen Color
PSM
CSM
Advanced
Reset
Contrast : Adjust the difference between the light and dark levels in the picture.
Brightness : To adjust the brightness of the screen.
Colour : To adjust the color to desired level.
Sharpness : To adjust the clearness of the screen.
Tint :To adjust the tint to desired level.
User
0
0
0
Red
Green
Blue
The PSM function automatically adjusts the screen image quality
depending on the AV usage environment.
• Dynamic : Select this option to display with a sharp image.
• Standard : The most general and natural screen display status.
• Mild : Select this option to display with a mild image.
• User1,2 : Select this option to use the user-defined settings.
User1
100
50
50
50
0
Contrast
Brightness
Colour
Sharpness
Tint
R G
Selecting a factory setting color set.
• Warm : Slightly reddish white.
• Normal : Slightly bluish white.
• Cool : Slightly purplish white.
• User : Select this option to use the user-defined settings.
PSM
CSM
Note
If the 'PSM' setting in the PICTURE menu is set to Dynamic, Standard, Mild the
subsequent menus will be automatically set.
A22

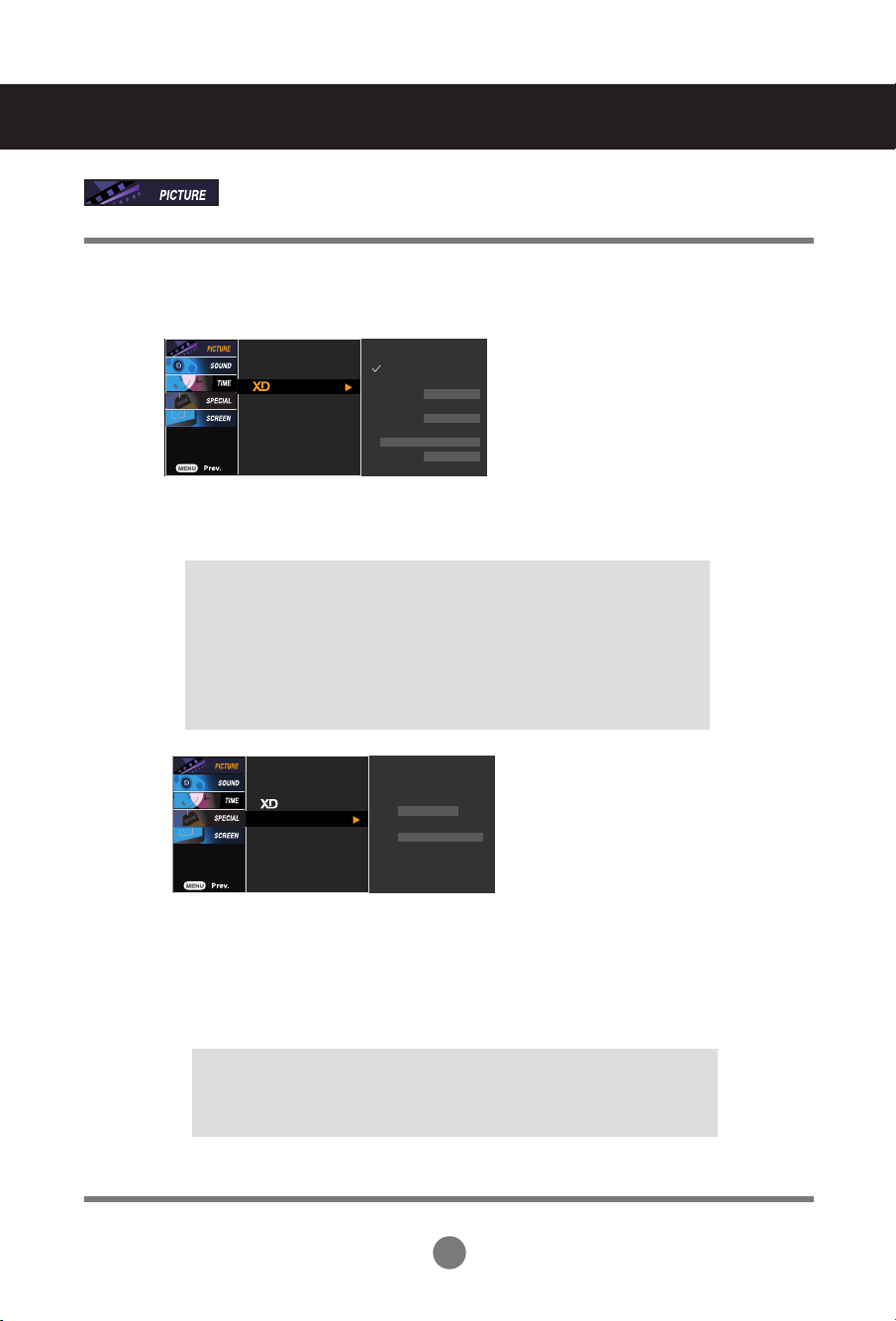

Adjusting Screen Color
PSM Auto
Manual
XD Contrast
XD Colour
XD NR
MPEG NR
CSM
Advanced
Reset
On
On
Off
0
• Auto : XD is automatically change to Auto.
• Manual : When selecting the Manual, you can adjust the XD Contrast, XD Colour, XD NR,
MPEG NR.
• XD Contrast : Optimizing the contrast automatically according to the
brightness of the reflection.
• XD Colour : Adjusting the colors of the reflection automatically to
reproduce as closely as possible to the natural colors.
• XD NR : Removing the noise up to the point where it does not damage the
original picture.
• MPEG NR : You can select MPEG NR to reduce the picture noise which
may appear on the screen during watching the AV.
PSM
Cinema
Black level
CSM
Advanced
Reset
Off
Low
• Cinema : (
Function works in the following mode - AV, Component 480i/576i)
When you watch the movie, this function adjusts the set to the best picture
appearance.
• Black Level : (
Function works in the following mode - AV(NTSC), HDMI/DVI
adjusts the contrast and the brightness of the screen using the
black level of the screen.
Advanced
Return to the default settings PSM, CSM, XD, Advanced at the factory.
Reset
XD is LG Electronics unique picture improving technology to display a real HD source through
an advanced digital signal processing algorithm.
It's not available to use this function in RGB-PC or HDMI/DVI PC modes.
This menu is activated after selecting the User1 or User2 of PSM.
XD
• Low : The reflection of the screen gets brighter.
• High : The reflection of the screen gets darker.
• Auto : Realizing the black level of the screen and set it to High or Low
automatically.
Selecting and Adjusting the Screen
A23

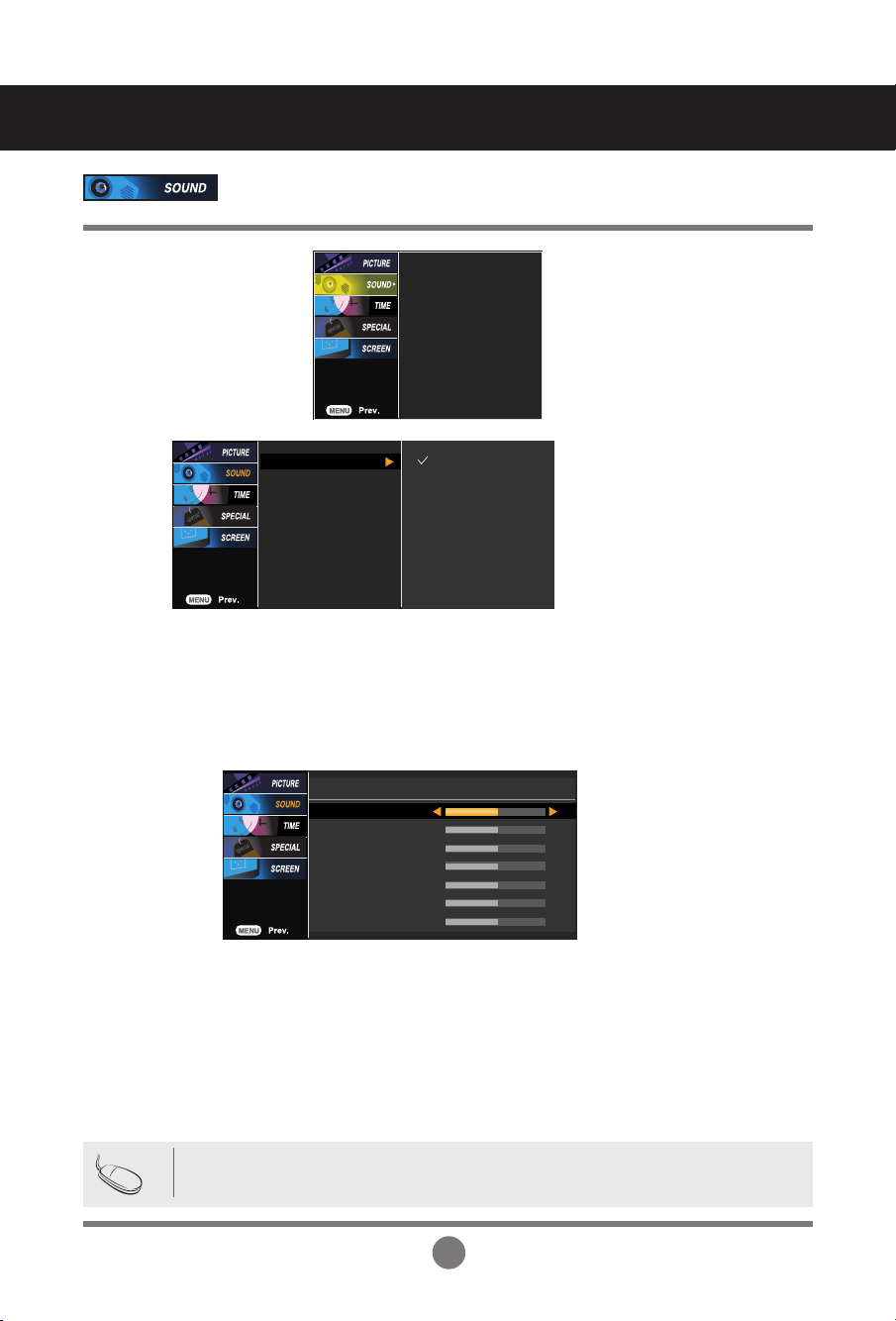

Selecting and Adjusting the Screen
The best sound tone quality will be
selected automatically depending on the
video type that you're currently watching.
SSM
Adjusting the audio function
Note
When connected to your computer and the 'SSM' setting in the audio menu is one of Flat, Music,
Movie or Sports, the available menus are Balance, AVL and
Surround MAX
.
To adjust uneven sound volumes across all channels or signals automatically to the most
appropriate level. To use this feature, select On.
Use this function to balance sound from the left and right speakers.
You can adjust internal speaker status.
If you want to use your external hi-fi stereo system, turn off the internal speakers of the set.
AVL
Balance
Speaker
SSM
AVL
Balance 0
Speaker
• Surround MAX : Set the Surround MAX on. This function plays back the mono or stereo sound input
with the dynamic surround effects. It will provide rich and profound sound tone. If you set the
Surround MAX on, user audio setting can not be adjusted.
• Flat : The most commanding and natural audio.
• Music : Select this option to enjoy the original sound when listening to the music.
• Movie : Select this option to enjoy sublime sound.
• Sports: Select this option to watch sports broadcasting.
• User : Select this option to use the user-defined audio settings.
SSM
AVL
Balance 0
Speaker
Surround MAX
Flat
Music
Movie
Sports
User
User
120Hz
200Hz
500Hz
1.2KHz
3KHz
7.5KHz
12KHz
A24
Clock
Adjusting the timer function
Clock
Off time
On time
Auto sleep
In the event of power interruption (disconnection or power failure), the clock must be reset.
Once the on or off time is set, these functions operate daily at the preset time.
Off time function overrides On time function if they are set to the same time.
The set must be in standby mode for the On time to work.
When On time is operated, input screen is turnd on as it was turned off.
Note
If the time is on the clock is incorrect, reset the clock manually.
1) Press the MENU button and then use
button to select the TIME menu.
2) Press the button and then use
button to select the Clock menu.
3) Press the button and then use
button to set the hour(00~23).
4) Press the button and then use
button to set the minutes(00~59).
Off / On time
The off time automatically switches the set to standby at the pre-set time.
1) Press the MENU button and then use
button to select the TIME menu.
2) Press the button and then use
button to select Off time or On time.
3) Press the button and then use
button to set the hour(01~23).
4) Press the button and then use
button to set the minutes(00~59).
5) Press the button and then use
button to select On or Off.
Auto sleep
If Auto sleep is active and there is no input signal, the set switches to Stanby mode
automatically after 10 minutes.
1) Press the MENU button and then use
button to select the
Auto
sleep menu.
2) Press the button and then use
button to select On or Off.
Selecting and Adjusting the Screen
A25

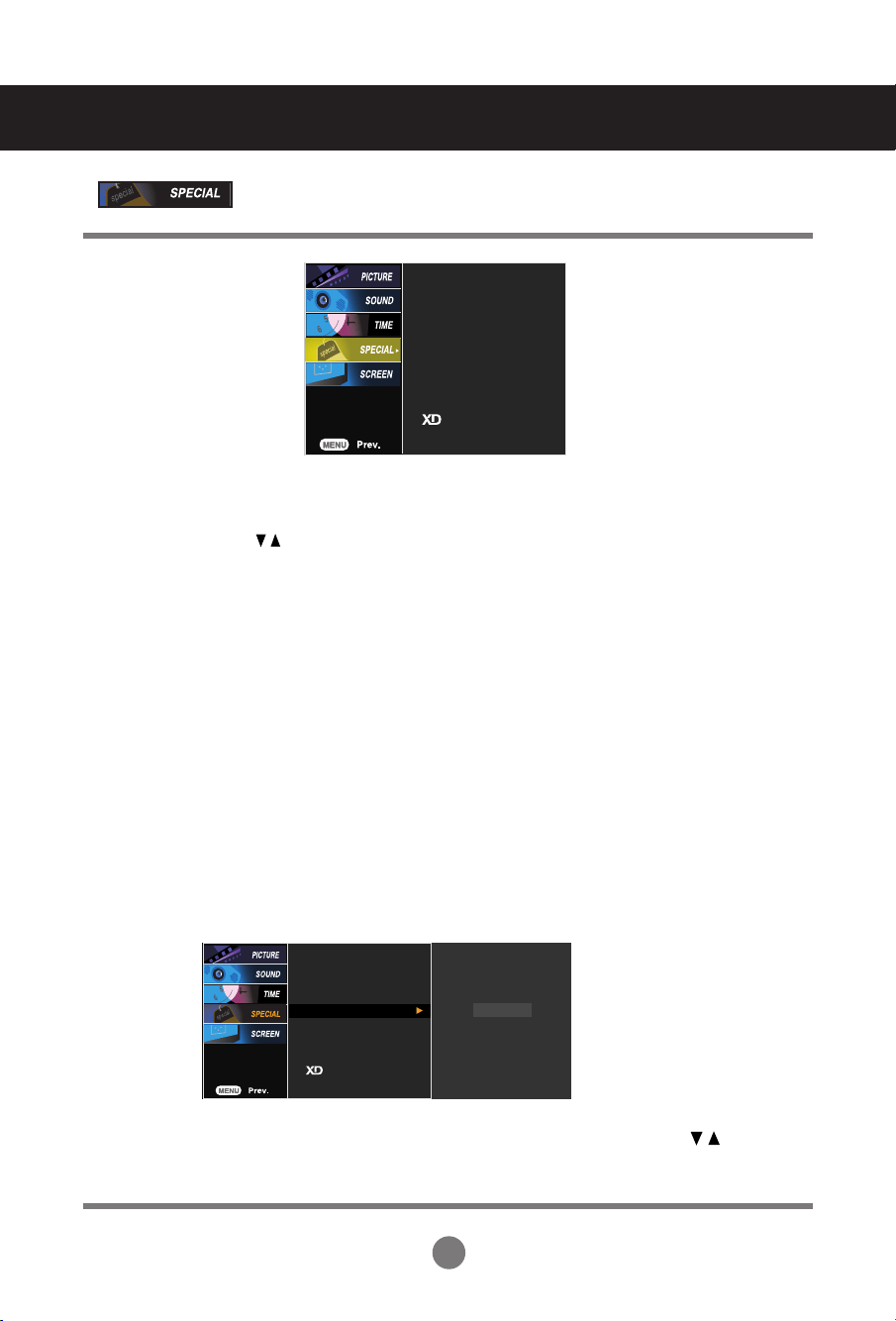

Selecting and Adjusting the Screen
Language
Child lock
ISM Method
Set ID
Tile Mode
Power Indicator
Logo light
Demo
Selecting the options
Language
To choose the language in which the control names are displayed.
Use the buttons to select On or Off. The Set can be set up so that it can only be used
with the remote control. This feature can prevent unauthorized viewing.
In order to lock the OSD screen adjustment, set the Child lock tab to the 'On' position.
In order to unlock it, do the following :
•
Push the MENU button on the remote control and set Child lock to the 'Off' position.
Child lock
You can assign a unique Set ID NO (name assignment) to each product when several
products are connected for display. Specify the number (1~99) using the button
and exit. Use the assigned Set ID to individually control each product using the Product
Control Program.
Set ID
Language
Child lock
ISM Method
Set ID
Tile Mode
Power Indicator
Logo light
1
Demo
ISM Method
Normal :
If image sticking is never a problem, ISM is not necessary -set to Normal.
White wash :
white wash removes permanent images from the screen.
(An excessive permanent image may be impossible to clear entirely with white wash.
Orbiter : may help prevent ghost images. However, it is best not to allow any fixed image to
remain on the screen. To avoid a permanent image on the screen, the screen will move every 2
minutes.
Inversion : This is function to invert the panel color of the screen. The panel color is
automatically inverted every 30 minutes.
A frozen of still picture from a PC/Video game displayed on the screen for prolonged periods will
result in a ghost image remaining even when you change the image. Avoid allowing a fixed
image to remain on the sets screen for a long period of time.
A26
Selecting the options

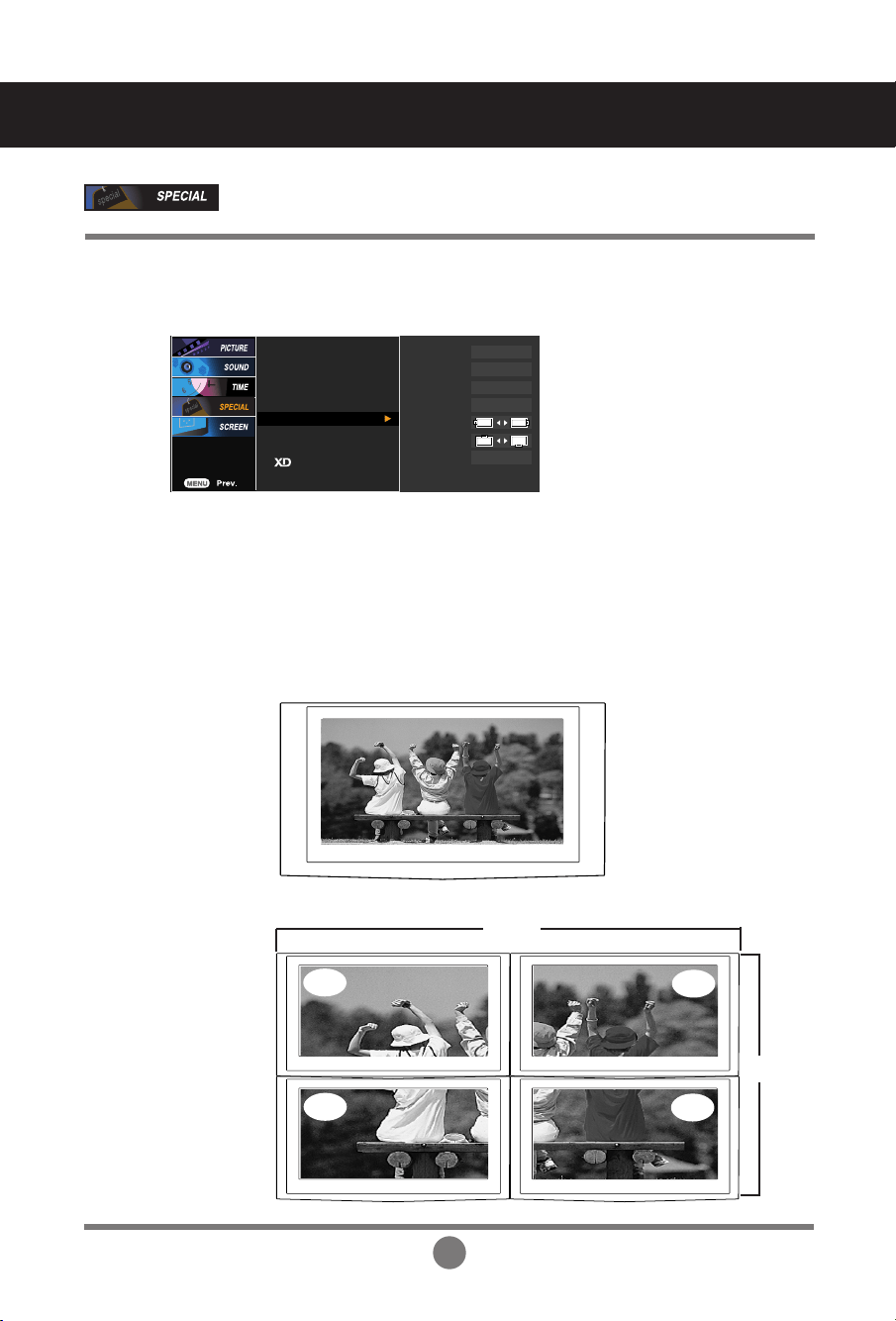

Tile mode
Tile mode and choose Tile alignment and set the ID of the current product to set
location.
* Only after pressing the SET button the
adjustments made to the settings will be saved.
Language
Child lock
ISM Method
Set ID
Tile Mode
Power Indicator
Logo light
Tile Mode
Tile ID
H-Size
V-Size
H-Position
V-Position
Reset
Off
0
0
0
To set
Demo
It is used to enlarge the screen and
also used with several products to
view screen.
• To use this function
- Must be displayed with various other products.
- Must be in a function that can be connected to RS-232C or RGB Out
• Tile Mode
-
Tile mode : row x column ( r = 1, 2, 3, 4 c = 1, 2, 3, 4)
- 4 x 4 available.
- Configuration of an integration screen is also available as well as
configuration of One by one Display.
ID 1
ID 2
ID 3
ID 4
-
Tile mode (product 1 ~ 4) : r(2) x c(2)
row
column
Selecting and Adjusting the Screen
A27
Selecting and Adjusting the Screen
ID 1
ID 2
row
column
-
Tile mode (product 1 ~ 2) : r(2) x c(1)
Selecting the options
column
row
-

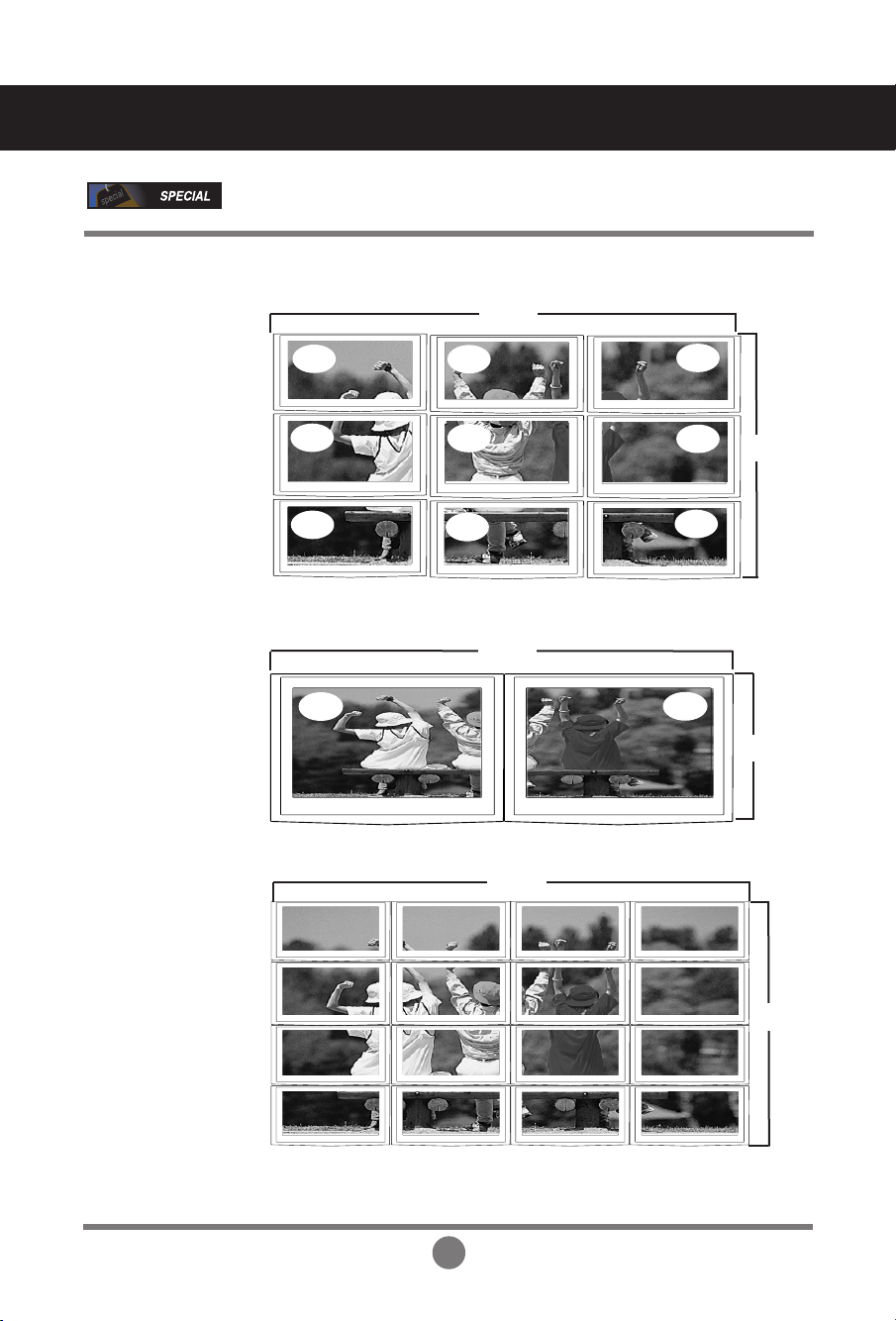

Tile mode (product 1 ~ 9) : r(3) x c(3)
ID 1
ID 2
ID 3
ID 4
ID 5
ID 6
ID 7
ID 8
ID 9
column
row
-
Tile mode (product 1 ~16) : r(4) x c(4)
ID 1
ID 5
ID 9
ID 13
ID 2
ID 6
ID10
ID 14
ID 3
ID 7
ID 11
ID 15
ID 4
ID 8
ID 12
ID 16
A28
Use this function to set the Logo Display Lamp on the front side of the product to On
or Off. If you set On, the lamp will automatically be turned on.
Logo Light
Selecting the options
Power
Indicator
Use this function to set the power indicator on the front side of the product to
On or Off.
If you set Off, it will go off. If you set On at any time, the power indicator will
automatically be turned on.
Demo
Use it to see the difference between XD demo on and XD Demo off.
(XD Demo function is not available in RGB PC/ HDMI/DVI PC mode.)
Adjust the horizontal size of the screen taking into account the size of the
bezel.
Adjust the vertical size of the screen taking into account the size of the bezel.
• H Size
• V Size
• Reset
Select the location of the Tile by setting an ID.
• Tile ID
Function to initialize and release Tile.
All Tile setting are released when selecting Tile recall and the screen returns
to Full screen.
•
H-Position
Moving the screen position vertically.
•
V-Position
Moving the screen position horizontally.
Language
Child lock
ISM Method
Set ID
Tile Mode
Power Indicator
Logo light
Tile Mode
Tile ID
H-Size
V-Size
H-Position
V-Position
Reset
Off
0
0
0
To set
Demo
Selecting and Adjusting the Screen
A29
Selecting and Adjusting the Screen
Adjusting Screen CLOCK/PHASE and Position
Auto config.
Manual config.
XGA Mode
ARC
Reset
This button is for the automatic adjustment of the screen position, clock and phase.
This function is suitable for analogue signal input only.
Auto-config.
(RGB PC
input only)
To minimize any vertical bars or stripes visible on the screen
background. The horizontal screen size will also change. This function
is suitable for analogue signal input only
Clock
To adjust the focus of the display. This item allows you to remove any
horizontal noise and clear or sharpen the image of characters. This
function is suitable for analogue signal input only.
Phase
H-Position
Moving the screen position vertically.
Manual-
config.
XGA Mode
(RGB-PC
only).
V-Position
Moving the screen position horizontally.
Auto config.
Manual config.
XGA Mode
ARC
Reset
1024x768
1280x768
1360x768
1366x768
If the picture isn't clear after auto adjustment and especially that characters are still
trembling, adjust the picture phase manually.
* It's not available to use Phase, Clock function in RGB DTV, Component, HDMI/DVI DTV.)
For more improved or better picture quality, select the same mode corresponding to
computer resolution.
A30
Use this function to reset the product to the factory default.(Manual config. manu only)
Reset
To select the image size of the screen.
ARC
Adjusting Screen CLOCK/PHASE and Position
When your AV receives the wide screen signal, it will lead you to
adjust the picture horizontally, in a nonlinear proportion, to fill the entire
screen.
Spectacle
When your AV receives the wide screen signal, it will lead you to adjust
the picture horizontally or vertically, in a linear proportion, to fill the entire
screen fully. (Europe version only)
Full
When your AV receives the wide screen signal, it will be automatically
changed to picture format to be sent.
Original
This pIcture format is 4 to 3 of general AV.
4:3
You can enjoy the cinema (the picture format of 16:9) or general TV
programme thorough the 16:9 mode.
The screen 16:9 is viewed just like that but the screen 4:3 is magnified to
the left and right so that the screen 16:9 is full.
16:9
You can enjoy the picture format of 14:9 or general AV programme
through the 14:9 mode.
The screen 14:9 is viewed just like that the screen 4:3 is magnified to the
upper/lower and left/right.
14:9
You can enjoy the cinema in a vast screen through the Zoom mode.
The screen 4:3 is magnified to the upper/lower and left/right sides so that
screen 16:9 is full. The bottom and top of the picture may be lost.
Zoom1, 2
Spectacle
PCPC
DTV DTV
RGBHDMI/DVI
AV Component
Full
Original
4:3
16:9
14:9
Zoom1
Zoom2
1:1
MODE
ARC
This pIcture format is 1 to 1 of general AV. (only RGB PC,
HDMI/DVI
PC)
1:1
Selecting and Adjusting the Screen
A31
• See if the power cord is properly connected to the
outlet.
• See if the power switch is turned on.
• Adjust brightness and contrast again.
• If the product is in power saving mode, move the
mouse or press any key.
• The signal from the PC (video card) is out of the
vertical or horizontal frequency range of the
product. Adjust the frequency range by referring
to the Specifications in this manual.
* Maximum resolution
- 32 / 37 / 42 inch model
RGB : 1600 x 1200 @60Hz
HDMI/DVI : 1280 x 1024 @60Hz
• The signal cable between PC and product is not
connected. Check the signal cable.
• Press the 'INPUT' menu in the remote Control to
check the input signal.
No image is displayed
Troubleshooting
• The control locking function prevents unintentional
OSD setting change due to careless usage. To unlock
the controls, simultaneously press the Menu button
and button for several seconds. (You cannot set this
function using the remote control buttons. You can set
this function in the product only.)
●
The 'Controls Locked' message
appears when pressing the Menu
button.
'Controls Locked' message appears.
• Install the product driver, which is provided with
the product, or download it from the web site.
(http://www.lge.com)
• See if the plug&play function is supported by
referring to the video card user manual.
●
Did you install the driver?
'Unknown Product' message appears when the product is connected.
Note
* Vertical frequency: To enable the user to watch the product display, screen image should be changed tens of times
every second like a fluorescent lamp. The vertical frequency or refresh rate is the times of image display per second.
The unit is Hz.
* Horizontal frequency: The horizontal interval is the time to display one vertical line. When 1 is divided by the
horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal
frequency. The unit is kHz.
▲
●
Is the product power cord connected?
●
Is the power indicator light on?
●
Power is on, power
indicator
is green
but the screen appears extremely dark.
●
the power indicator amber?
●
Does the 'Out of range' message
appear?
●
Does the 'Check signal cable' message
appear?
A32
●
Is the screen position wrong?
●
Do thin lines appear on the
background screen?
●
Horizontal noise appears or the
characters look blurred.
●
The screen is displayed abnormally.
The screen image looks abnormal.
• D-Sub analog signal – Press the “AUTO” button in
the remote control to automatically select the
optimal screen status that fits into the current
mode. If adjustment is not satisfactory, use the
Position OSD menu.
• See if the video card resolution and frequency are
supported by the product. If the frequency is out of
range, set to the recommended resolution in the
Control Panel – Display – Setting menu.
• D-Sub analog signal – Press the “AUTO” button
in the remote control to automatically select an
optimal screen status that fits into the current
mode. If adjustment is not satisfactory, use the
Clock OSD menu.
• D-Sub analog signal – Press the “AUTO” button
in the remote control to automatically select an
optimal screen status that fits into the current
mode. If adjustment is not satisfactory, use the
Phase OSD menu.
• The proper input signal is not connected to the
signal port. Connect the signal cable that matches
with the source input signal.
• If you use a fixed image for a long time, the pixels
may be damaged quickly. Use the screen-saver
function.
●
After-image appears when the
product is turned off.
After-image appears on the product.
Troubleshooting
A33
• Set the number of colors to more than 24 bits (true
color)
Select Control Panel – Display – Settings – Color
Table menu in Windows.
• Check the connection status of the signal cable.
Or, re-insert the PC video card.
• Several pixels (red, green, white or black color)
may appear on the screen, which can be
attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
●
Screen has poor color resolution
(16 colors).
●
Screen color is unstable or mono-
colored.
●
Do black spots appear on the screen?
Screen color is abnormal.
• See if the audio cable is connected properly.
• Adjust the volume.
• See if the sound is set properly.
• Select the appropriate equalize sound.
• Adjust the volume.
●
No sound?
●
Sound is too dull.
●
Sound is too low.
The audio function does not work.
Troubleshooting
A34
NOTE
Information in this document is subject to change without notice.
[32 inch] 32 inches (80.04 cm) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size: 80.04 cm
0.5025 mm (Pixel Pitch)
[37 inch] 37 inches (94.03 cm) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size: 94.03 cm
0.6000 mm (Pixel Pitch)
[42 inch] 42 inches (106.73 cm) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Anti-Glare coating
Visible diagonal size: 106.73 cm
0.681 mm (Pixel Pitch)
[32 inch]
Rated Voltage AC 100-240V~ 50/60Hz 1.5A
Power Consumption On Mode : 145W
Sleep Mode : ≤ 1W (RGB) / 4W (HDMI/DVI)
Off Mode : ≤ 1W
[37 inch]
Rated Voltage AC 100-240V~ 50/60Hz 2.0A
Power Consumption On Mode : 180W
Sleep Mode : ≤ 1W (RGB) / 4W(HDMI/DVI)
Off Mode : ≤ 1W
[42 inch]
Rated Voltage AC 100-240V~ 50/60Hz 2.5A
Power Consumption On Mode : 240W
Sleep Mode : ≤ 1W (RGB) / 4W(HDMI/DVI)
Off Mode : ≤ 1W
The product specifications can change without prior notice for product improvement.
LCD Panel
Power
Specifications
A35
Specifications
Width x Height x Depth
[32 inch]
[1] 80.30 cm (31.61 inches) x 54.00cm (21.26 inches) x 18.00 cm (7.09 inches)
[2] 80.30 cm (31.61 inches) x 49.30 cm (19.4 inches) x 9.99 cm (3.93 inches)
[3] 96.40 cm (37.95 inches) x 54.00cm (21.26 inches) x 18.00 cm (7.09 inches)
[4] 96.40 cm (37.95 inches) x 49.30 cm (19.4 inches) x 9.99 cm (3.93 inches)
[37 inch]
[1] 92.80 cm (36.54 inches) x 61.90 cm (24.37 inches) x 22.77 cm (8.96 inches)
[2] 92.80 cm (36.54 inches) x 57.12 cm (22.49 inches) x 11.50 cm (4.53 inches)
[3] 112.9 cm (44.45 inches) x 61.90 cm (24.37 inches) x 22.77 cm (8.96 inches)
[4] 112.9 cm (44.45 inches) x 57.12 cm (22.49 inches) x 11.50 cm (4.53 inches)
[42 inch]
[1] 105.7 cm (41.61 inches) x 70.20 cm (27.64 inches) x 29.45 cm (11.59 inches)
[2] 105.7 cm (41.61 inches) x 65.30 cm (25.71 inches) x 11.91 cm (4.69 inches)
[3] 125.9 cm (49.57 inches) x 70.20 cm (27.64 inches) x 29.45 cm (11.59 inches)
[4] 125.9 cm (49.57 inches) x 65.30 cm (25.71 inches) x 11.91 cm (4.69 inches)
Dimensions
&Weight
[1]
W
H
[2]
W
H
[3]
W
H
D
D
D
D
[4]
W
H
The product specifications can change without prior notice for product
improvement.
A36
Dimensions
&Weight
Net
[32 inch]
[1] 19.4 kg (42.77 lbs) [2] 16.0 kg (35.27 lbs)
[3] 21.1 kg (46.52 lbs) [4] 17.7 kg (39.02 lbs)
[37 inch]
[1] 26.1 kg (57.54 lbs) [2] 22.0kg (48.50 lbs)
[3] 30.5 kg (67.24 lbs) [4] 25.7 kg (56.66 lbs)
[42 inch]
[1] 35.2 kg (77.60 lbs) [2] 30.8 kg (67.90 lbs)
[3] 38.0 kg (83.77 lbs) [4] 33.6 kg (74.07 lbs)
The product specifications can change without prior notice for product
improvement.
Specifications
A37
Specifications
RMS Audio Output 10W+10W(R+L)
Input Sensitivity 0.7Vrms
Speaker Impedance 8Ω
Audio
* Applicable only for models that support the speakers
NOTE
Information in this document is subject to change without notice.
Max. Resolution RGB : 1600 X 1200 @60Hz
HDMI/DVI : 1280 X 1024 @60Hz – It may not be supported
depending on the OS or video card type.
Recommended Resolution
RGB : WSXGA 1360 X 768 @60Hz
HDMI/DVI : WSXGA 1360 X 768 @60Hz – It may not be
supported depending on the OS or video card type.
Horizontal Frequency RGB : 30 - 83 kHz
HDMI/DVI : 30 - 72 kHz
Vertical Frequency 56 - 85 Hz
Synchronization Type Separate/Composite/SOG (Sync On Green)/Digital
15-pin D-Sub type, HDMI (digital), S-Video,
Composite Video, Component, RS-232C
Operational Condition Temperature: 10˚C ~ 35˚C , Humidity: 10% ~ 80%
Storage Condition Temperature: -20˚C ~ 60˚C , Humidity: 5% ~ 95%
The product specifications can change without prior notice for product
improvement.
Video Signal
Input Connector
Environmental
Conditions
32/37/42 inch model
A38
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
PC Mode – Preset Mode
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
1
2
3
4
5
6
7
8
9
10
640 x 350
720 x 400
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
832 x 624
1024 x 768
31.469
31.468
31.469
37.500
43.269
37.879
46.875
53.674
49.725
48.363
70
70
60
75
85
60
75
85
75
60
VGA
VGA
VGA
VESA
VESA
VESA
VESA
VESA
MAC
VESA
11
12
13
14
15
16
17
18
19
1024 x 768
1024 x 768
1280 x 720
1280 x 768
1360 x 768
1366 x 768
1280 x 1024
1280 x 1024
1600 x 1200
60.123
68.68
44.772
47
47.72
47
63.981
79.98
75.00
VESA
VESA
VESA
VESA
VESA
VESA
VESA
VESA
VESA
75
85
60
60
60
60
60
75
60
Power
Indicator
Mode
Product
On Mode
Sleep Mode
Off Mode
Green
Amber
-
RGB : Mode 1 ~ Mode 19
HDMI/DVI : Mode 1 ~ Mode 17
Specifications
DTV Mode
Component
RGB(DTV)
480i o x x
576i o x x
480p o o o
576p o o o
720p o o o
1080i o o o
HDMI/DVI(DTV)
NOTE
DTV/PC selection on RGB and HDMI/DVI inputs is available for PC resolutions :
640 X 480/60Hz, 1280 X 720/60Hz and DTV resolutions : 480p, 720p.
A39
Specifications

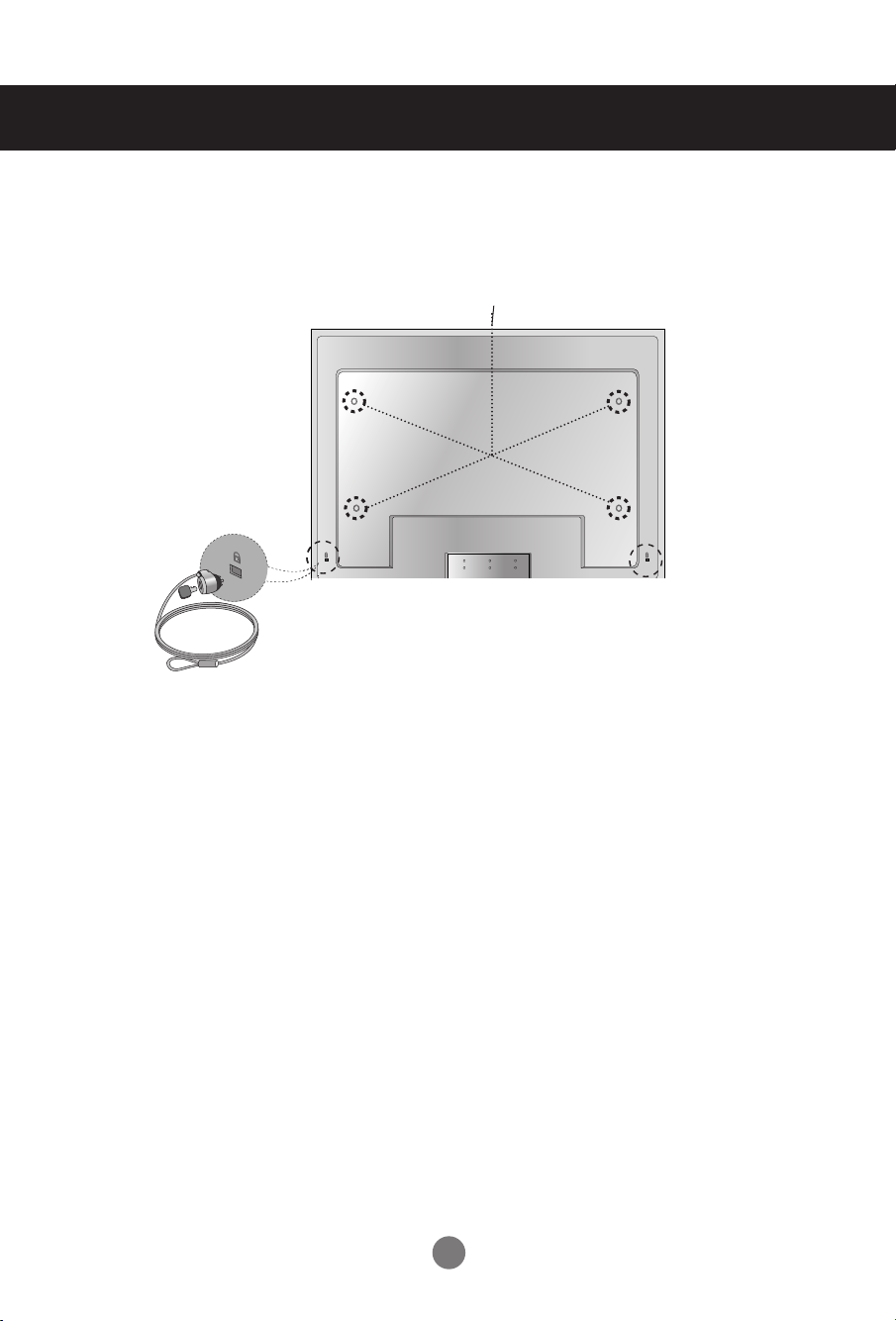

Kensington Security Slot-
(This has to be purchased
separately if required.)
Connected to a locking cable that can be purchased
separately at most computer stores
VESA wall mounting
Connected to another object (stand type and wall-mounted type.) This product accepts a VESA-
compliant mounting interface pad.- (This has to be purchased separately if required.)
For further information, refer to the VESA Wall Mounting Instruction Guide.
