www.lg.com
OWNER’S MANUAL
MONITOR SIGNAGE
MONITOR SIGNAGE MODELS
M4214C
Please read this manual carefully before operating
your set and retain it for future reference.
ENGLISH
2
Table of Contents
Accessories 3
Connecting the stand 4
Connecting the Speakers 5
To install Portrait 6
Using the Remote Control 7
Name and Function of the Parts 9
Connecting to External Devices 10
When Connecting to your PC ............................................................................................10
When using the LAN ...........................................................................................................12
Daisy Chain Monitors .........................................................................................................13

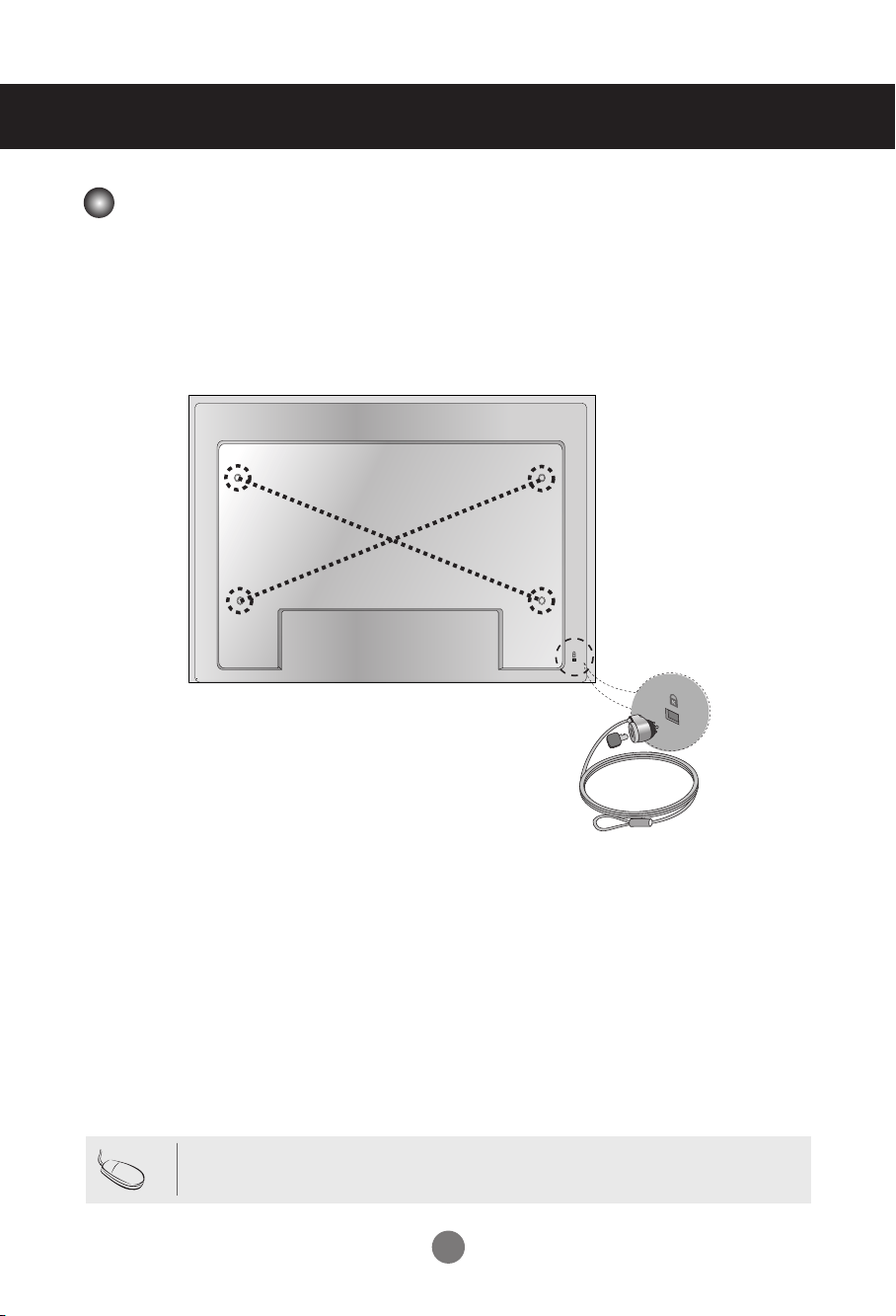

VESA FDMI wall Mounting .................................................................................................14

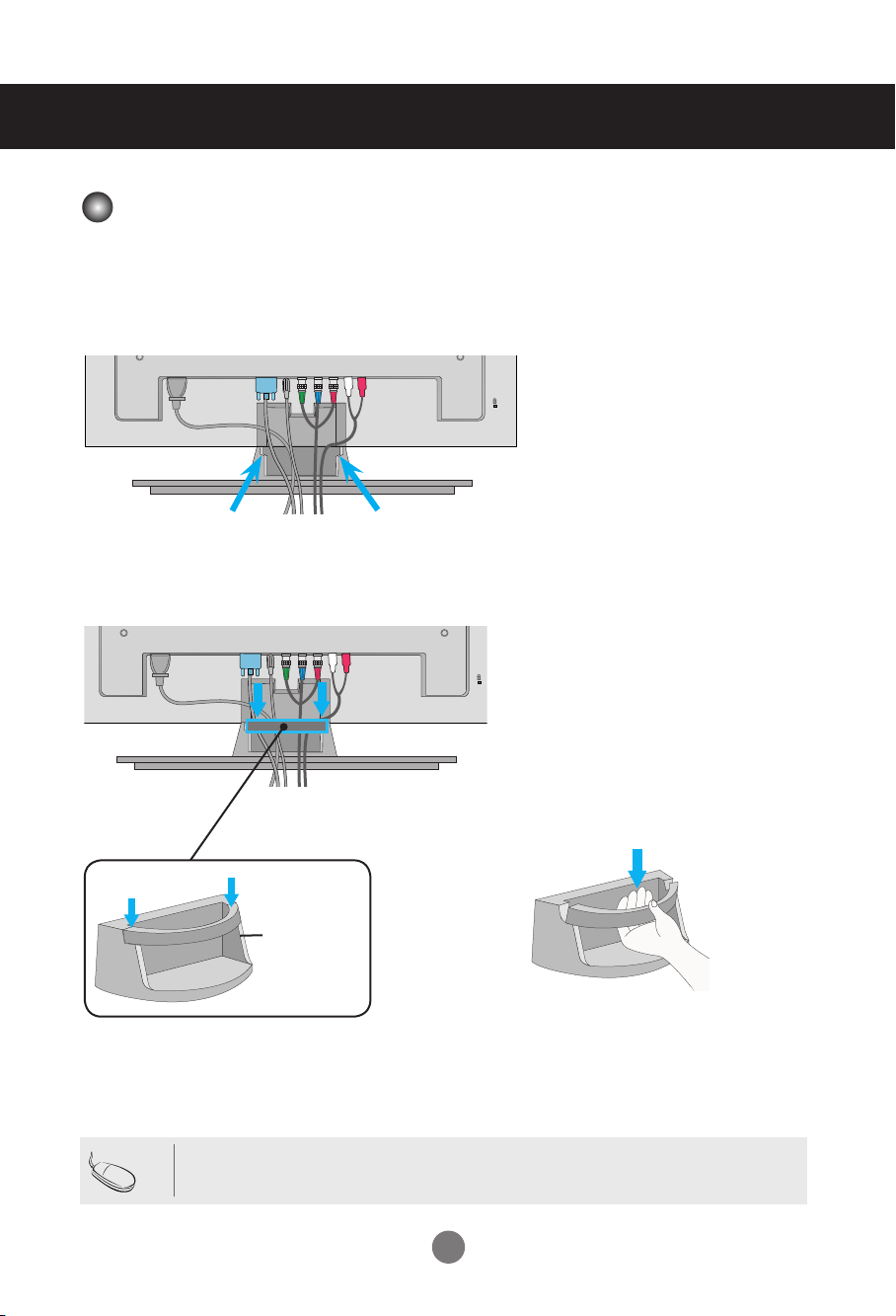

Cable Management .............................................................................................................15
Video Input ...........................................................................................................................16

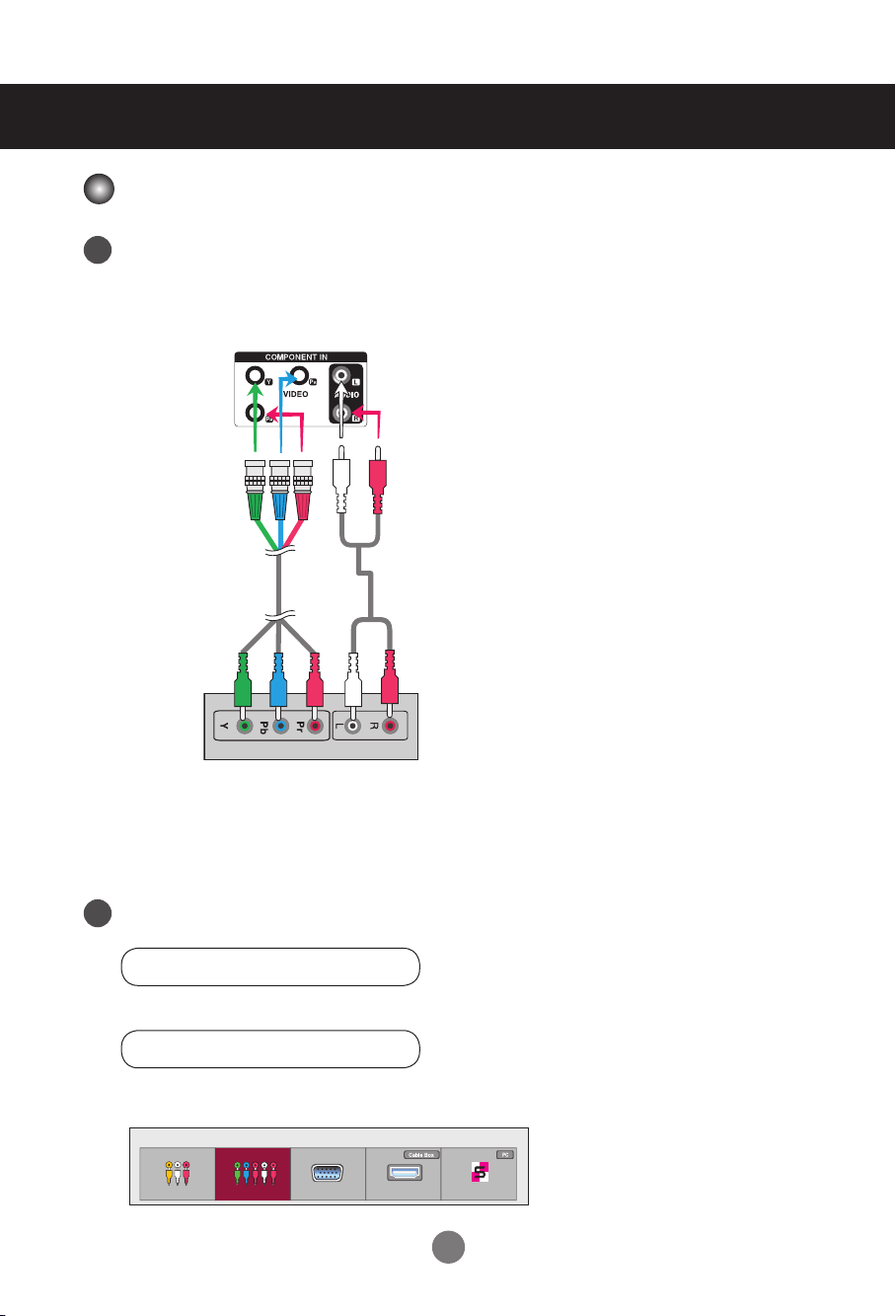

Component Input (480i/480p/576i/576p/720p/1080i/1080p) ..........................................17
HDMI Input (480p/576p/720p/1080i/1080p) ......................................................................18
User Menus 19
Screen Adjustment options ...............................................................................................19

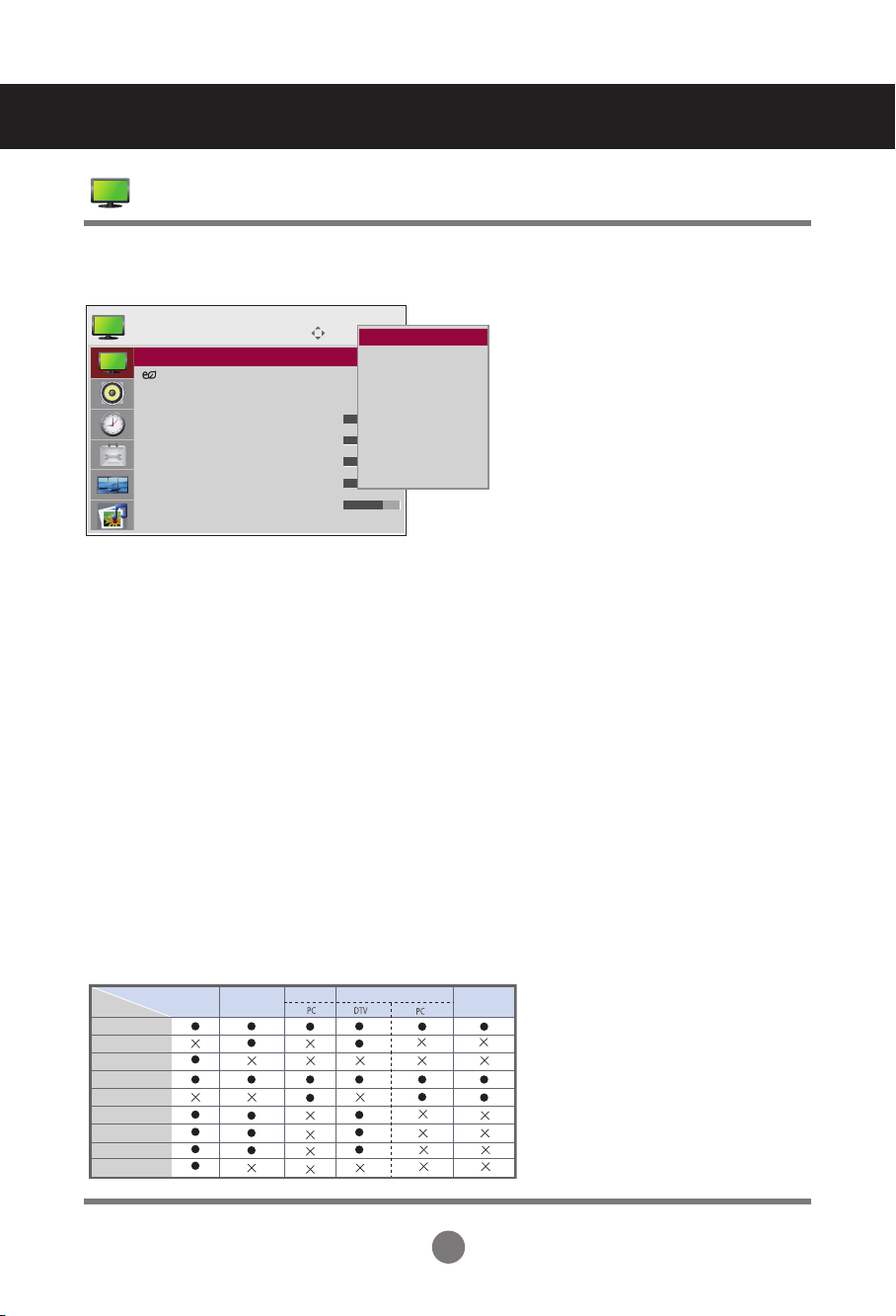

OSD Menu ............................................................................................................................21

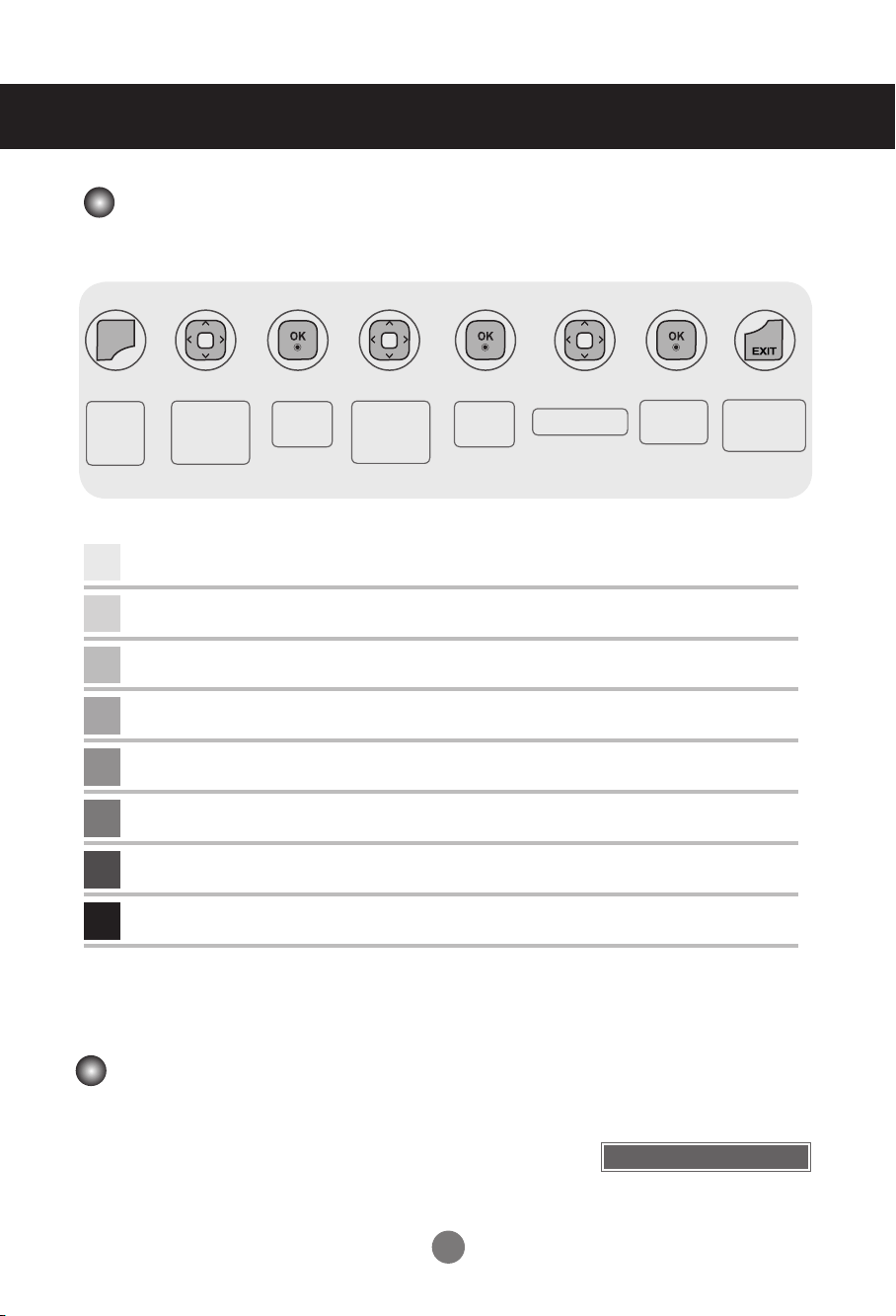

How to adjust the OSD (On Screen Display) screen .....................................................22
How to adjust the screen automatically ..........................................................................22
Adjusting Screen Color ......................................................................................................23
Adjusting the audio function .............................................................................................29
Adjusting the timer function ..............................................................................................30
Selecting the options .........................................................................................................31
Adjusts the tile options. .....................................................................................................33

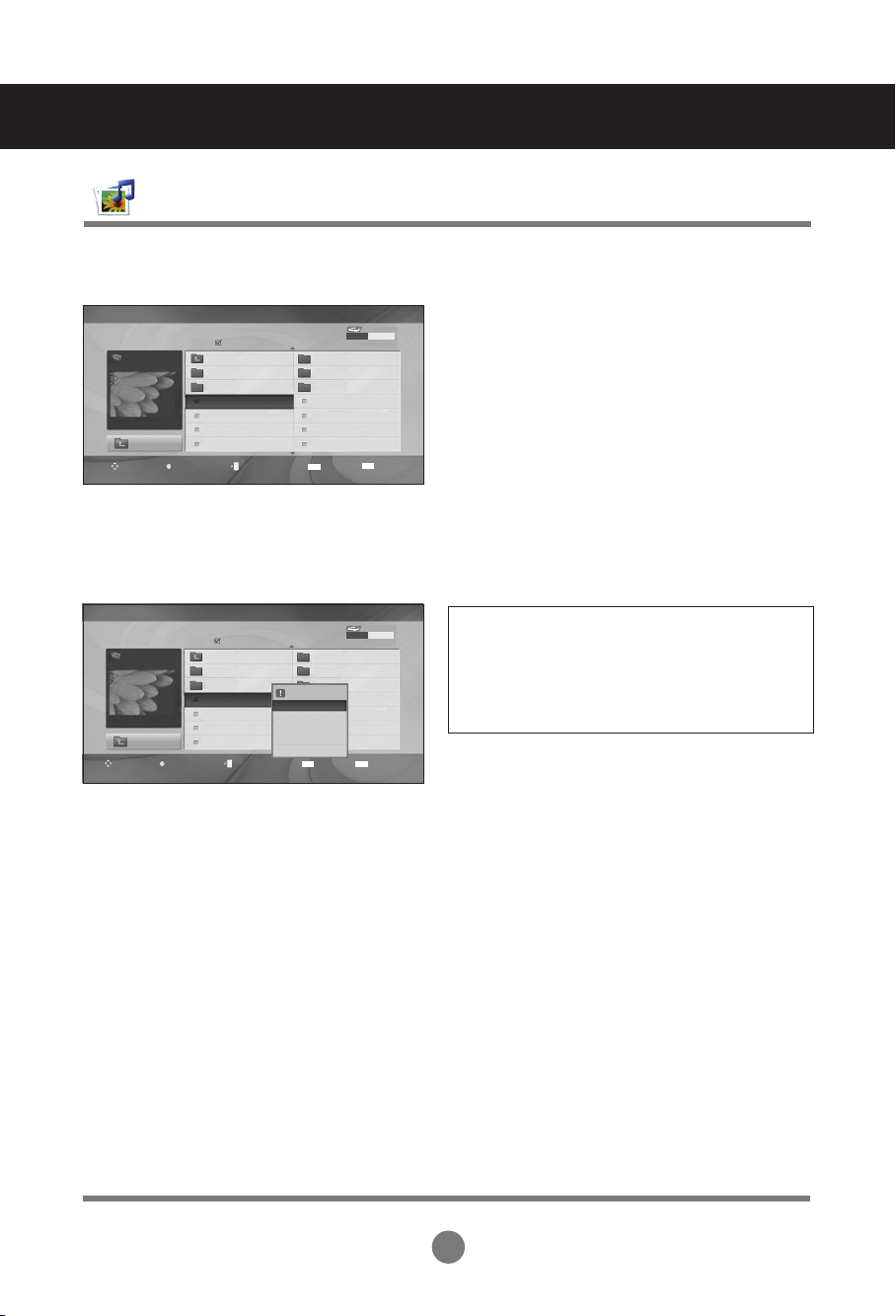

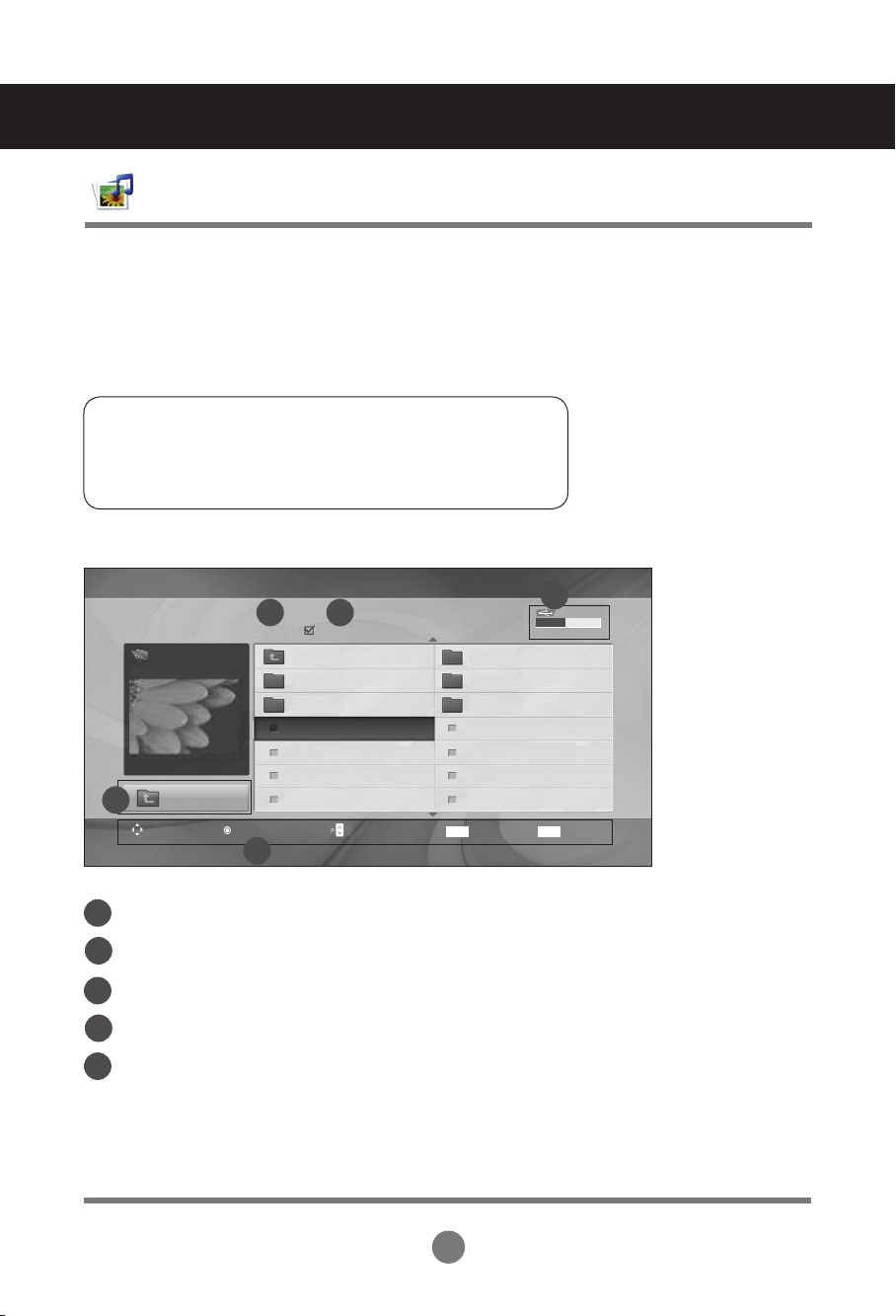

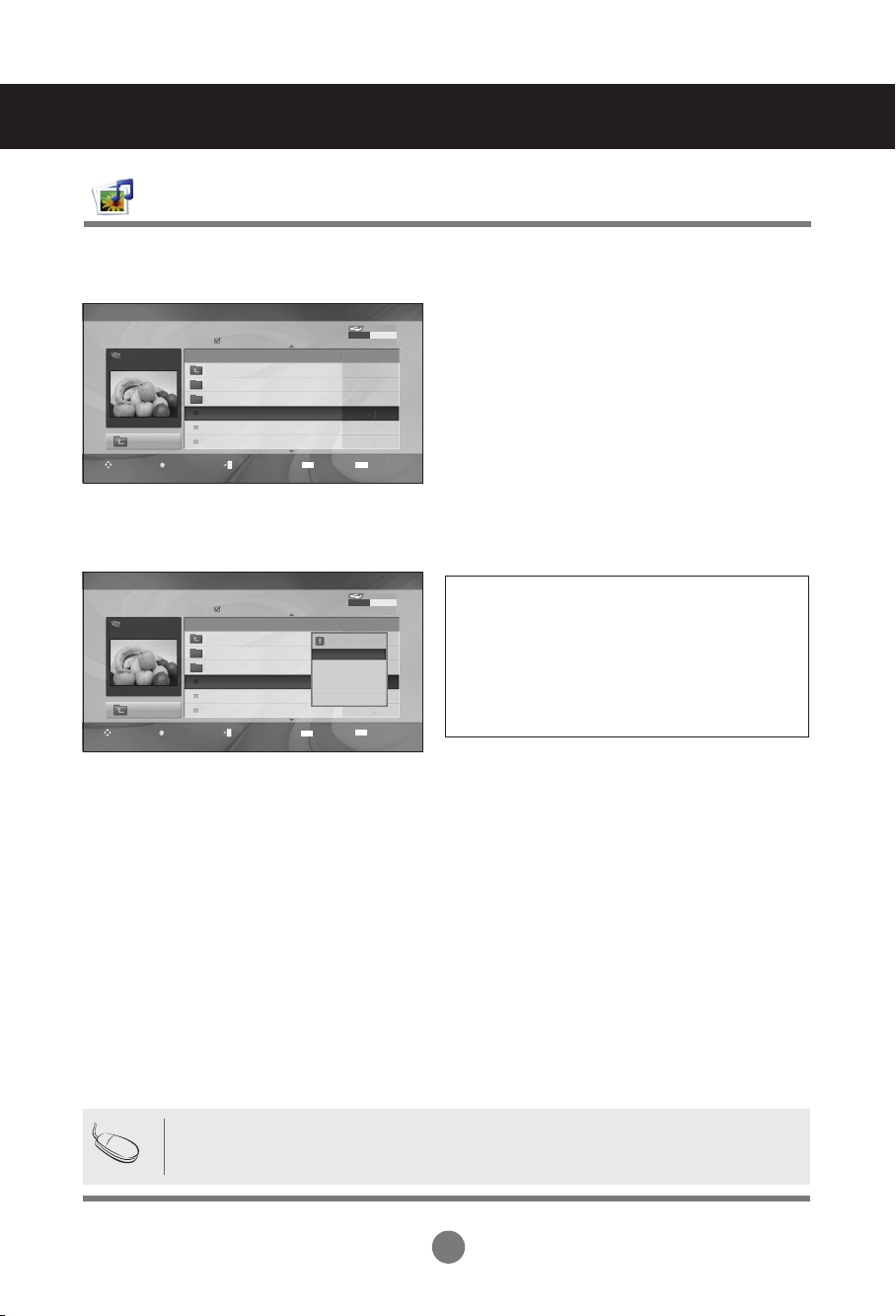

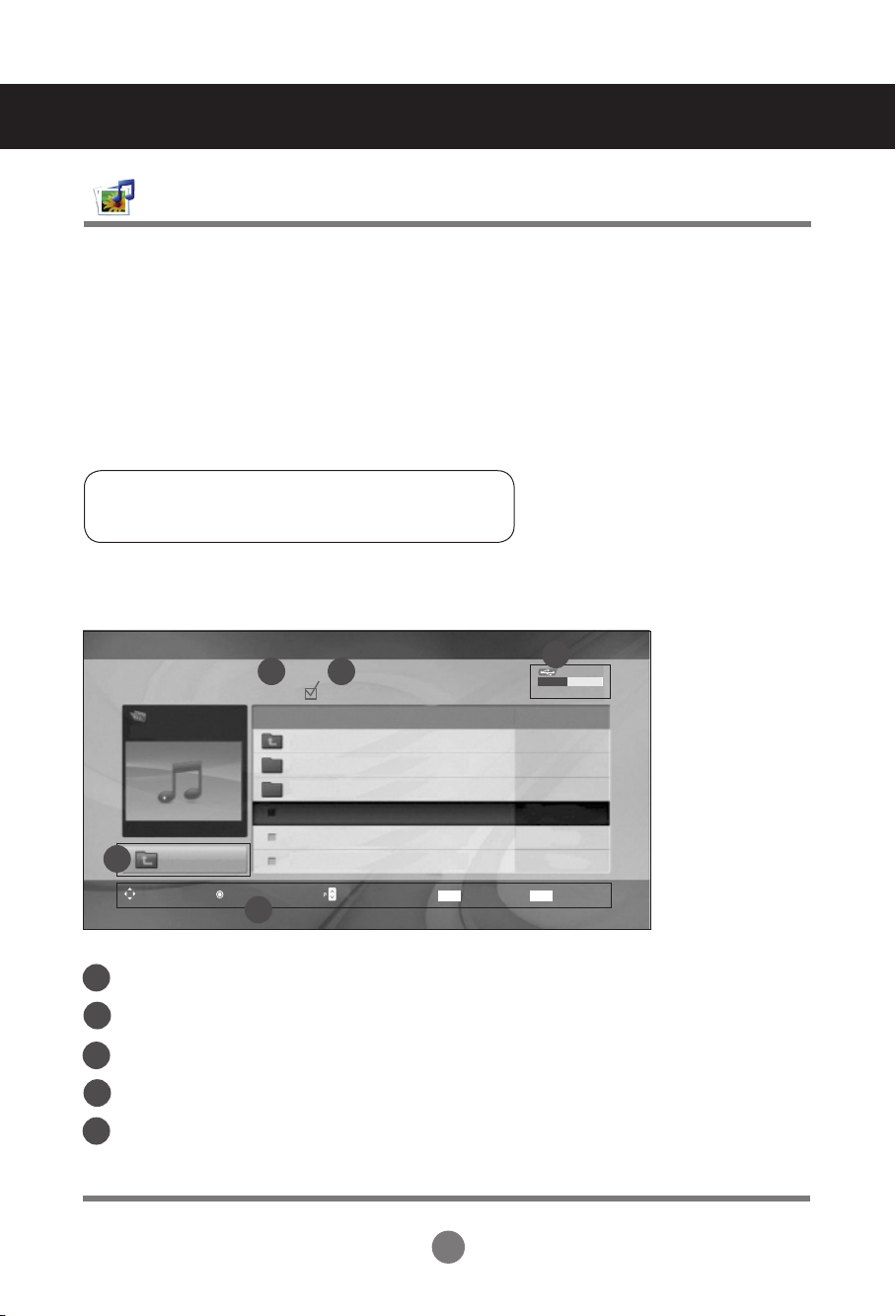

Adjusts the USB options. ...................................................................................................35
Troubleshooting 49
Specifications 52

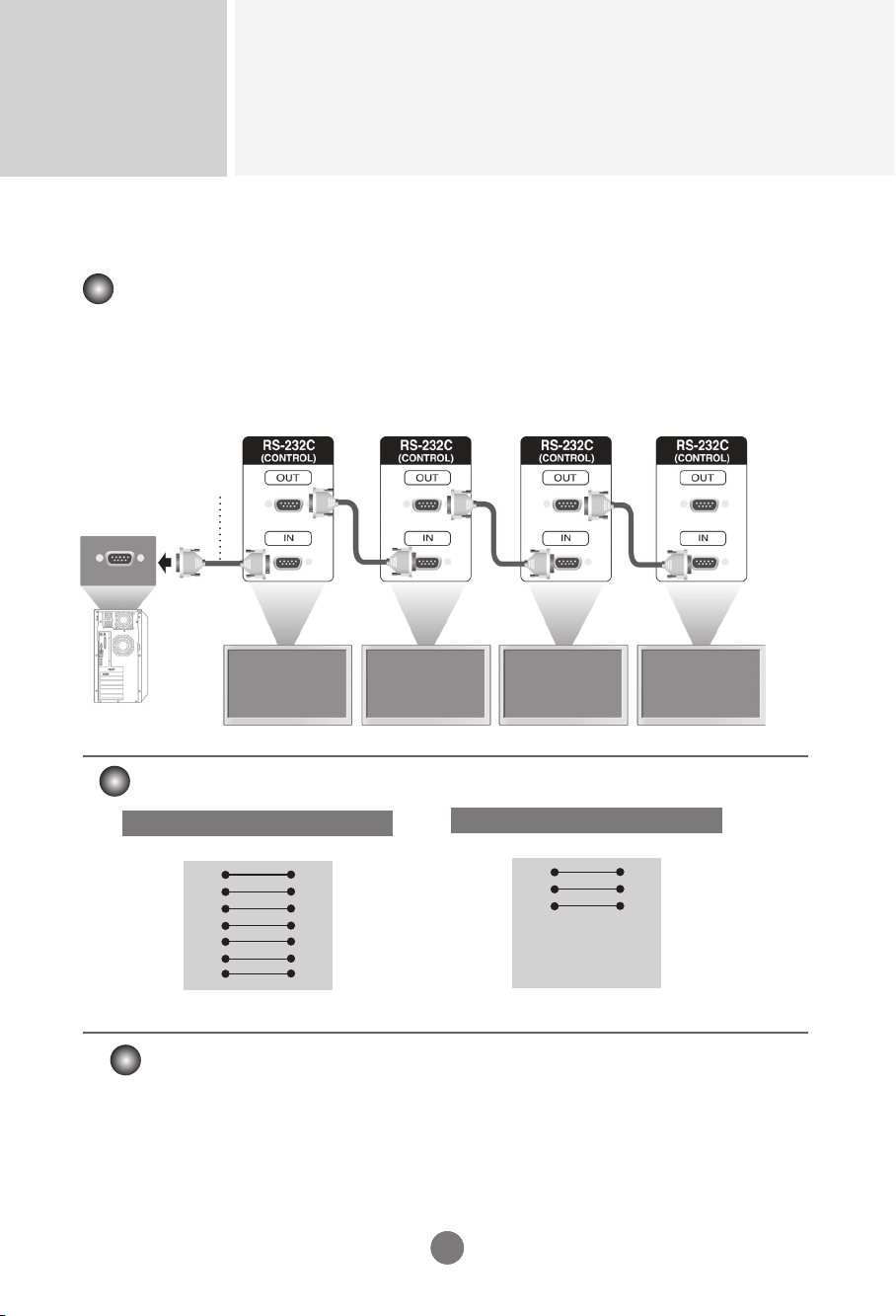

Controlling the Multiple Product A1
3
NC2000 kit
❖
Applicable only for models that support the NC2000.
Without prior notice, optional accessories are subject to change to improve the performance of the product, and
new accessories may be added.To purchase optional accessories,
❖
Optional accessories (purchased separately) may vary depending on the model.
❖
Note that optional accessories may look different from those shown here.
Thank you for your purchase. Please check the product as well as the accessories shown below
❖
Note that the accessories may look different from those shown here.
Speaker kit
❖
Applicable only for models that support the speakers.
Stand kit
❖
Applicable only for models that support the stand.
Remote Control
/ Batteries
CD-ROM / Cards
D-Sub Signal
Cable
Speaker(2)
NC2000 CD-ROM /
Cards
Screws (2)
Screws (4)
/ Cable (2)
Power Cable Audio Cable (PC)
Cable holder/Cable tie
They may not
be available
in some areas
or for some
models.

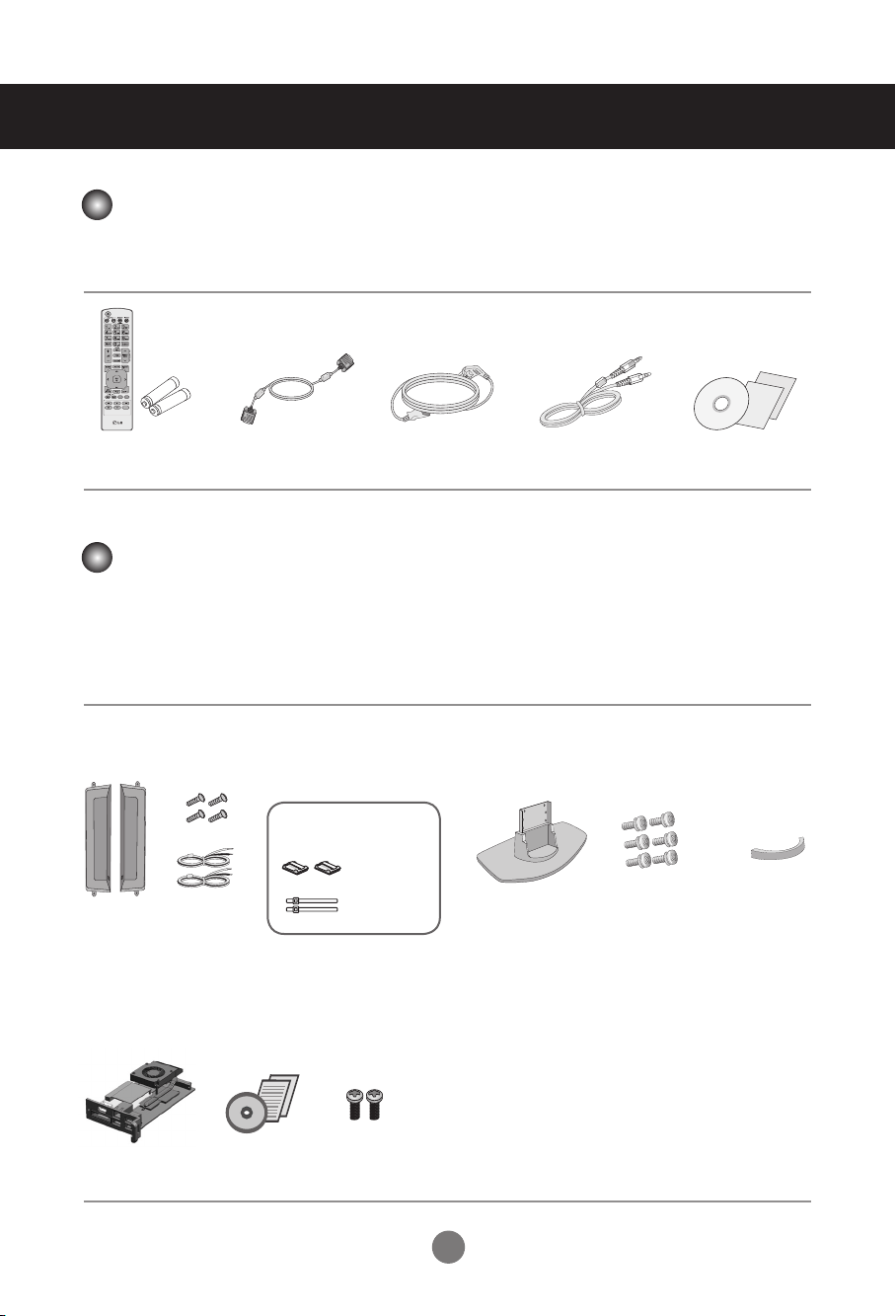

Accessories
Separate purchase
Stand (1)
Screws (6)
Accessories
Cable management (1)
4

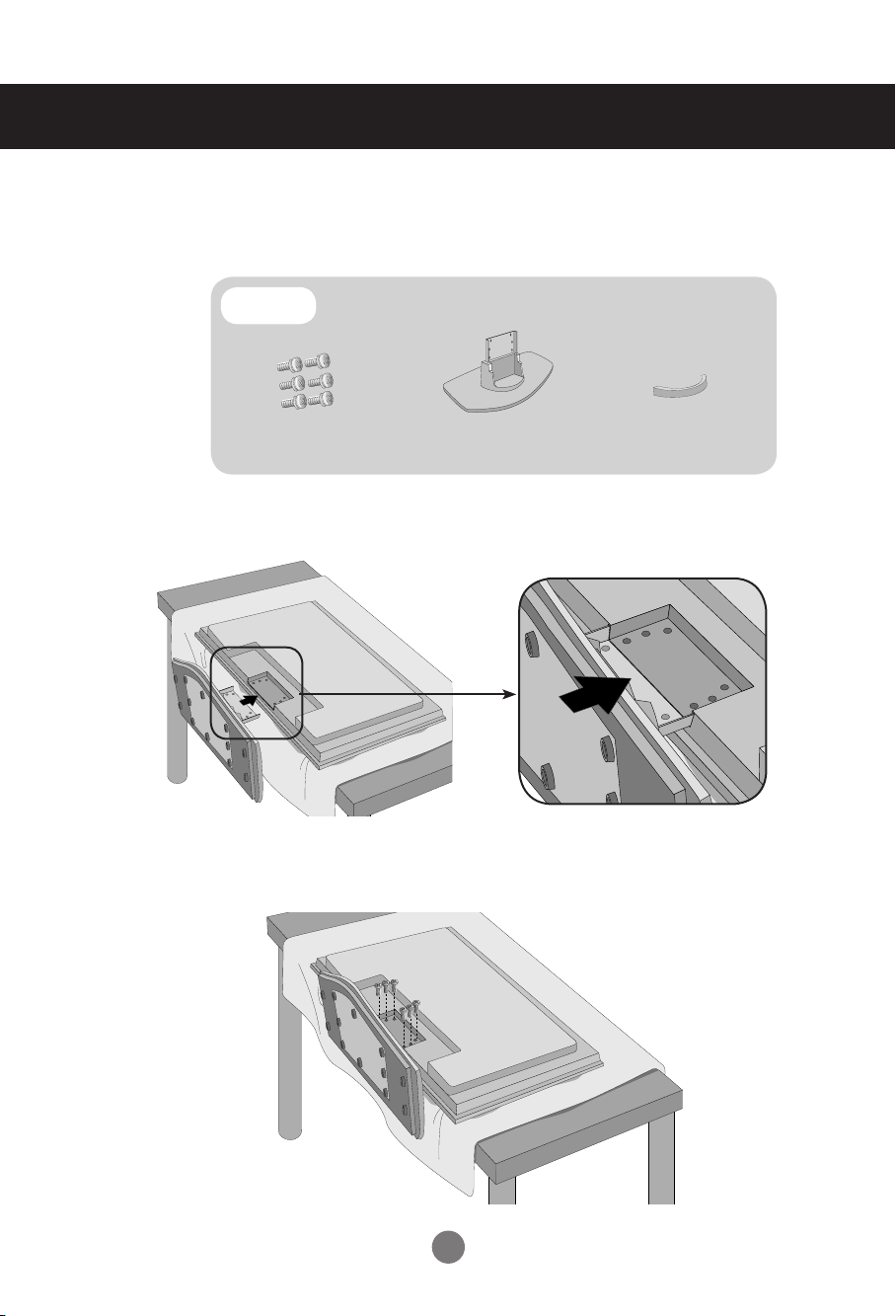

Connecting the stand
- Only on some models.
2.
3.
1.
Take the parts for the stand out of the box and assemble them as shown in the
picture.
Place a soft cloth on the table and put the product with the screen facing
downward. Connect the stand as shown in the following picture.
Use the screws to secure the stand on the rear side of the product as
shown in the diagram.
First, check if the following parts are all present.
Parts
Stand (1)
Screws (6)
Cable management (1)
5

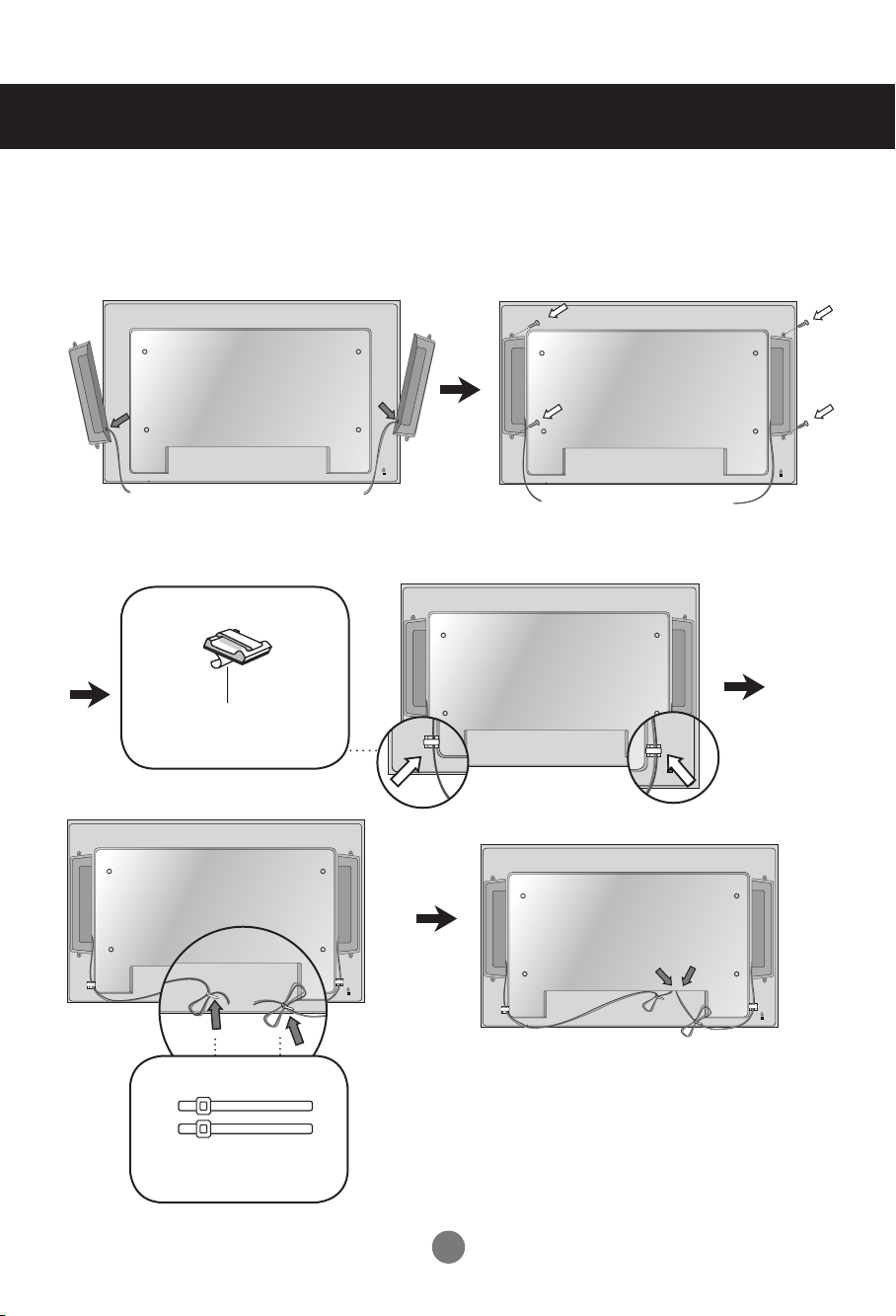

Connecting the Speakers
Mount the product onto the speaker by using a screw as shown in the following
connect the speaker cable.
When the speaker is installed.
*Connect the input terminal with a proper
color match.
Remove the paper.
Cable holder
After installing your speakers, use holders and cable ties to organize the speaker
cables.
* This feature is not available in all model.
Cable tie
* This feature is not available in all model.
- Only on some models.
6
To install Portrait
"When installing Portrait, rotate it clockwise based on its front."
- Only on some models.
7

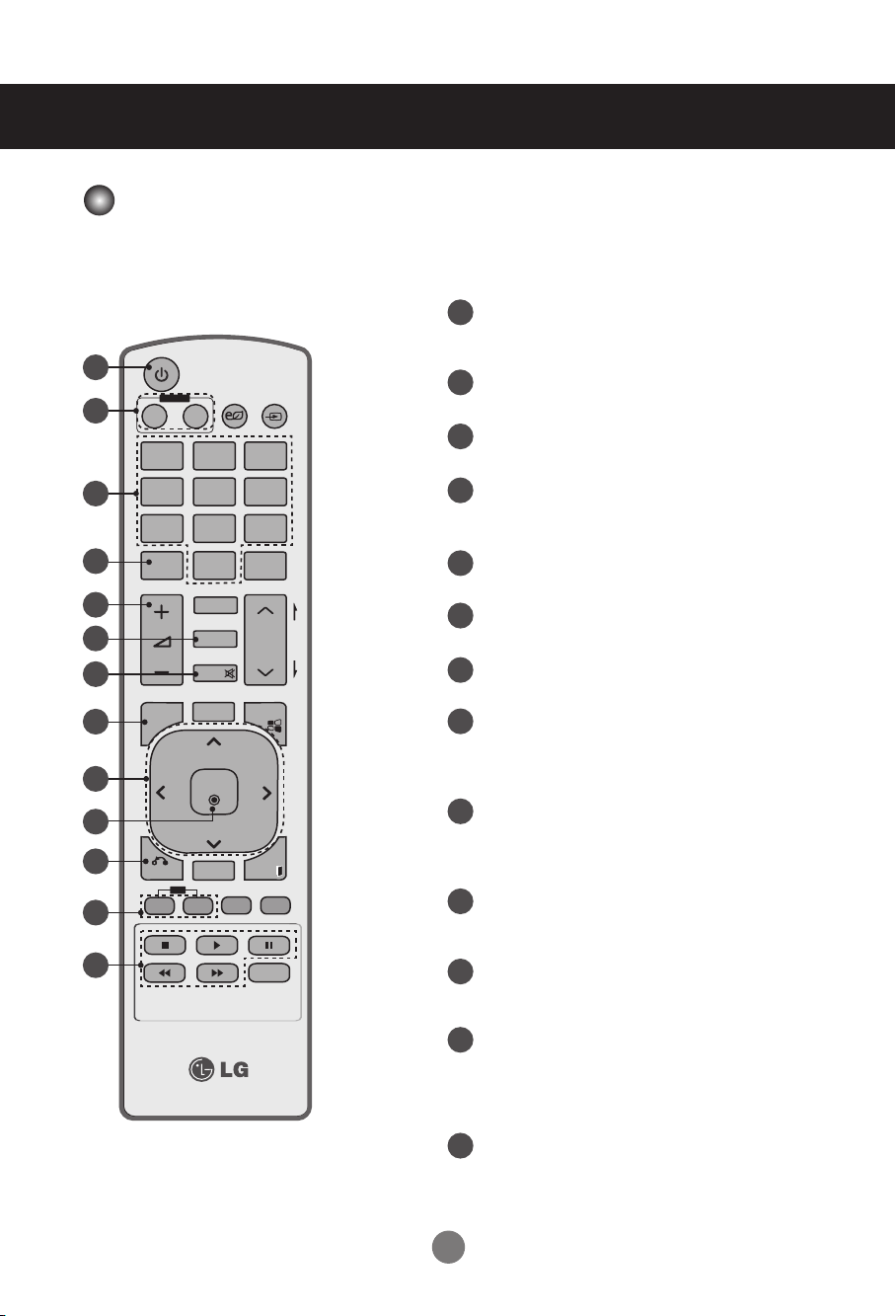

Using the Remote Control
Name of the Remote Control Buttons
1
2
5
3
4
7
6
9
8
13
12
11
10
Power On / Off Button
- Switches the set on from standby or off to
standby.
Monitor On / Off Button
- Turn off the monitor and then turn it back on.
Number and Alphabet Buttons
- Type numbers and alphabets.
1/a/A Button
- Se l e c t s th e nu m b e r an d al p h a b e t.
(SuperSign input only)
Volume Up/Down Button
- Adjusts the volume.
PSM Button
- Selects the Picture Status Mode.
MUTE Button
- Switches the sound on or off.
MENU Button
- Selects a menu.
- Clears all on-screen displays and returns to
TV viewing from any menu.
Up/Down/Left/Right Buttons
- Allows you to navigate the on-screen menus
and adjust the system settings to your
preferenc.
OK Button
- Accepts your selection or displays the
current mode.
BACK button
- Allows the user to move
return one step in an interactive application.
ID ON/OFF Button
- When the number of input ID is equal to the
number of ID Mode, you can control the
monitor which you want in the multi display
condition.
USB Menu control buttons
- Adjust the USB menu(Photo List, Music List
and Movie List ).
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
1
2
5
4
7
6
9
8
13
12
11
10
3
8

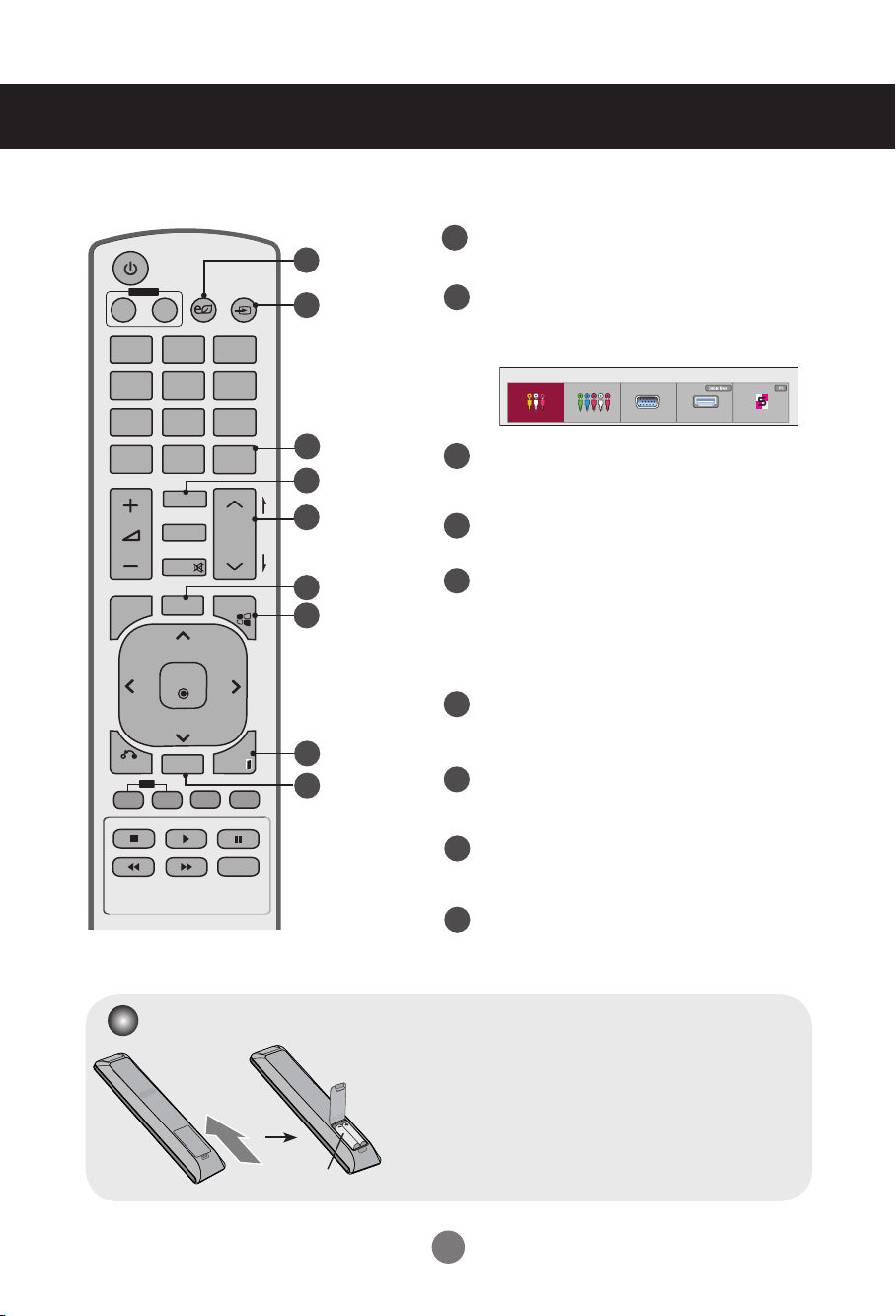

Energy Saving Button
- Adjust the Energy Saving mode of the SET.
INPUT Select Button
If you press the button once, the following
Input Signal Window will appear. Select the
signal type you want using the ◄ ► button.
Clear button
- Delete the numbers and alphabets you
typed.(SuperSign input only)
ARC Button
- Selects the Aspect Ratio Mode
Brightness Key
- Adjust the resolution and brightness by
pressing the Up and Down buttons on the
remote control.
- In USB mode, the OSD menu has the Page
function to move to the next file list.
AUTO Button
- Automatically adjusts picture position and
minimizes image instability.(RGB input only)
S.MENU Button (SuperSign Menu Key)
- Selects the Super Sign OSD Menu.
(SuperSign input only)
EXIT Button
- Clears all on-screen displays and returns to monitor
viewing from any menu.
•
TILE button
- Selects the TILE Mode
Using the Remote Control
1. Slide off the battery cover.
2. Insert the batteries with correct polarity ( + / - ).
3. Close the battery cover.
4. To remove the batteries, perform the installation actions
in reverse.
• Dispose of used batteries in the recycle bin to prevent
environmental pollution.
Inserting batteries into remote control.
14
15
16
18
19
17
20
21
22
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
14
15
18
16
19
17
20
21
22
AAA Type
Input List
AV Component RGB HDMI/DVI SuperSign
9

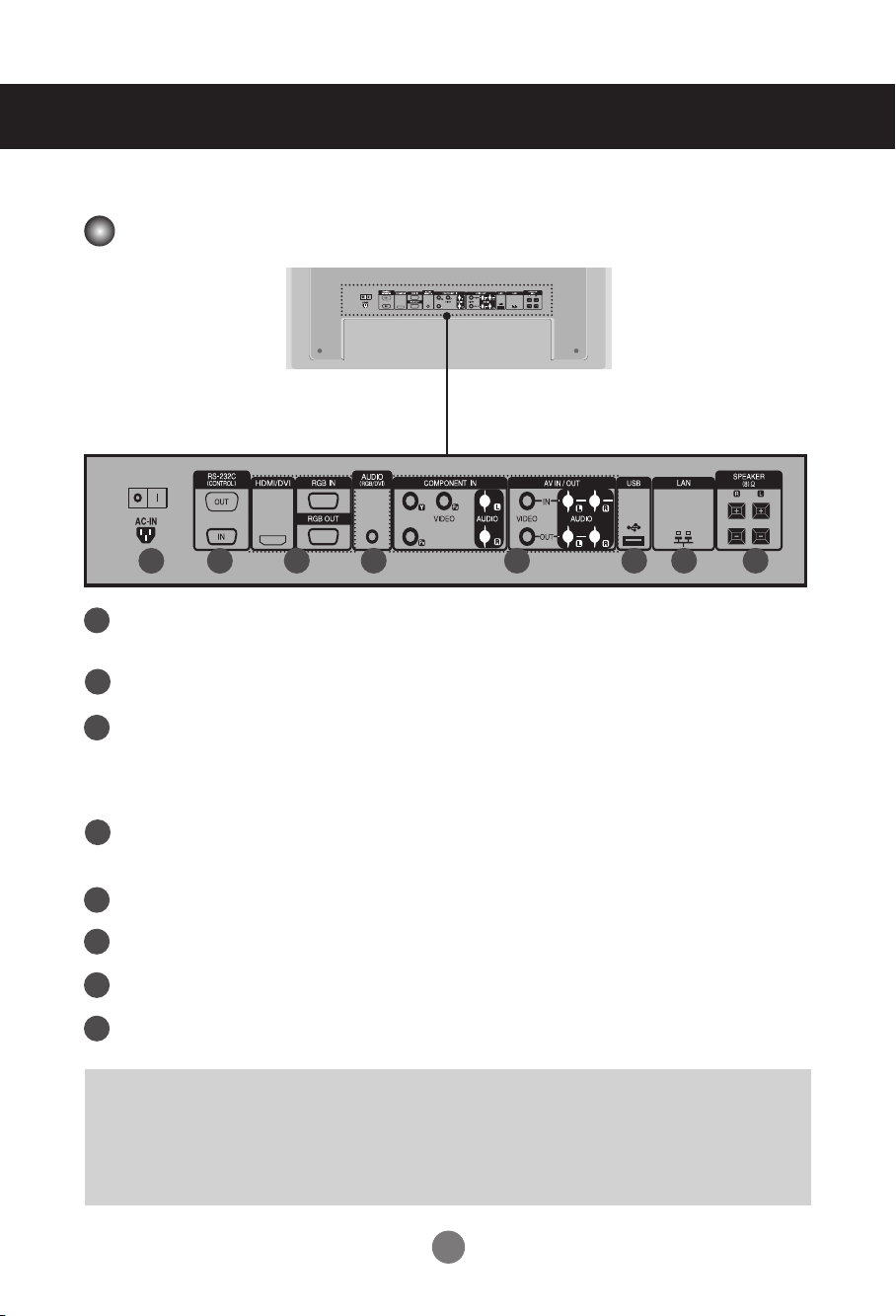

Name and Function of the Parts
Rear View
* LINE OUT
A terminal used to connect to the speaker including a built-in amplifier (Amp). Make sure that
the connecting terminal of the PC sound card is checked before connecting. If the Audio Out of PC
sound card has only Speaker Out, reduce the PC volume. If the Audio Out of the PC sound card
supports both Speaker Out and Line Out, convert to Line Out using the card jumper of the program
(Refer to the Sound Card Manual).
* The product image in the user's guide could be different from the actual image.
Power Connector
Connect the power cord
RS-232C Serial Ports
RGB, HDMI/DVI Ports
HDMI Supports High Definition input and HDCP (High-bandwidth Digital
Content Protection). Some devices require HDCP in order to display HD
signals.
PC Sound Jack
Connect the audio cable to the *LINE OUT jack of the PC sound card.
AV Ports
USB Port
LAN Port
Speaker Ports
1
2
4
3
6
5
8
7
1 2
43 65 87
10
First of all, see if the computer, product and the peripherals are turned off. Then, connect
the signal input cable.
When connecting with the D-Sub signal input cable.
When connecting with the HDMI-DVI signal input cable (not included).
* When HDMI PC is used, a compatiblity problem might occur.
MAC
Macintosh Adapter (not included)
Use the standard Macintosh adapter since an incompatible
adapter is available in the market. (Different signaling system)
Rear back of the set.
Connecting to External Devices
Connect the power cord.
PC
PC/MAC
PC
Rear back of the set.
Rear back of the set.
PC
Rear back of the set.
Connect the Audio cable.
(not included)
* User must use shielded signal interface cables (D-sub 15 pin cable, DVI cable) with ferrite
cores to maintain standard compliance for the product.

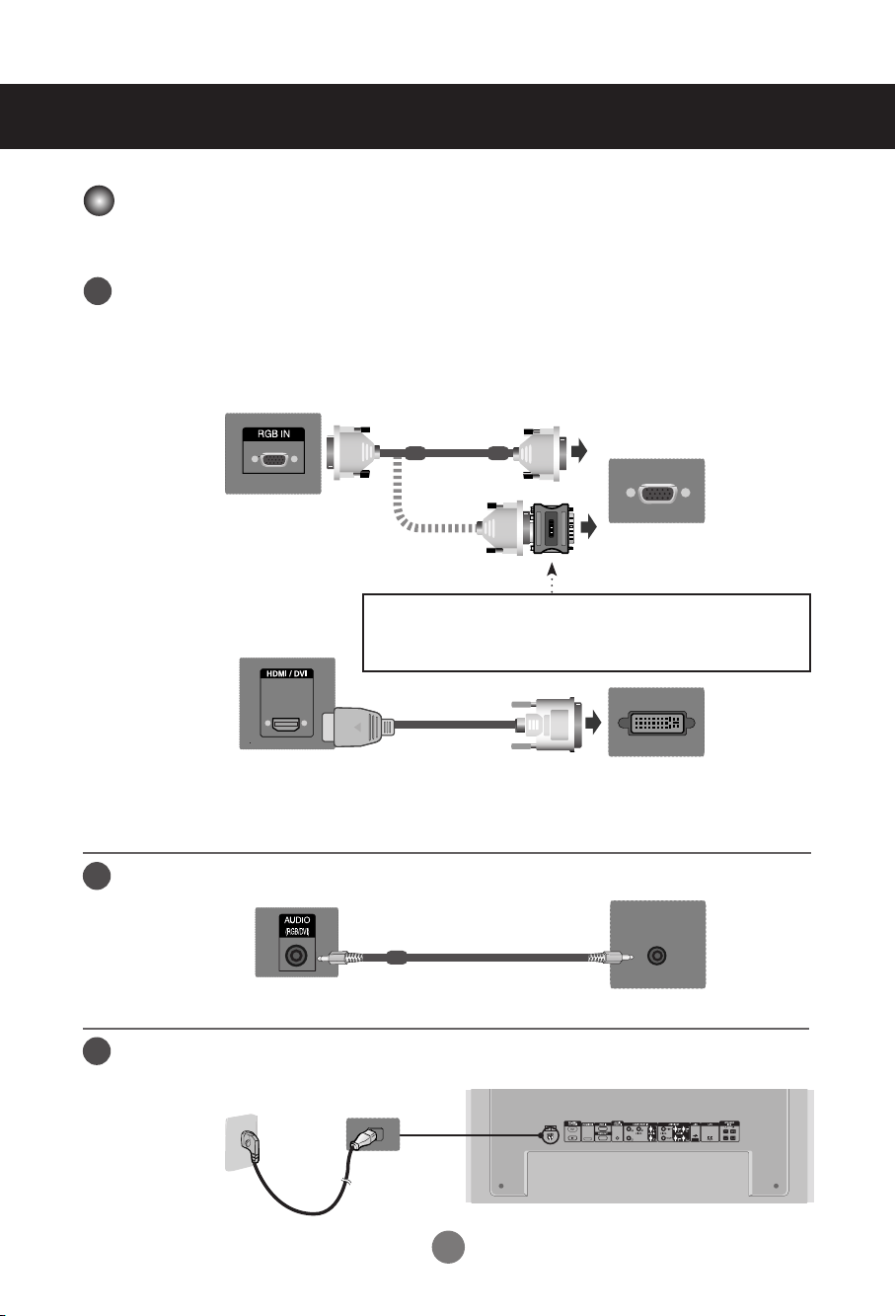

When Connecting to your PC
1
2
3
B.
B.
A.
A.
11
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press INPUT on the bottom of the set.
• How to connect to two computers.
Connect the signal cables (HDMI-DVI and D-Sub) to each computer.
Press the INPUT button on the remote control to select the computer to use.
• Directly connect to a grounded power outlet on the wall or a power bar with a ground wire.
Note
Turn on power by pressing the power button on the product.
Turn on the PC.
When connecting with a D-Sub signal input cable.
• Select RGB : 15-pin D-Sub analog signal.
When connecting with a HDMI-DVI signal input cable and HDMI Signal Cable.
• Select HDMI/DVI : DVI Digital signal or HDMI Digital signal.
Connecting to External Devices
INPUT → ◄ ► → OK
Power button
2.
1.
B.
A.
4
5
INPUT →◄ ► → AUTO/SET
Input List
AV Component RGB HDMI/DVI SuperSign
Input List
AV Component RGB HDMI/DVI SuperSign
12

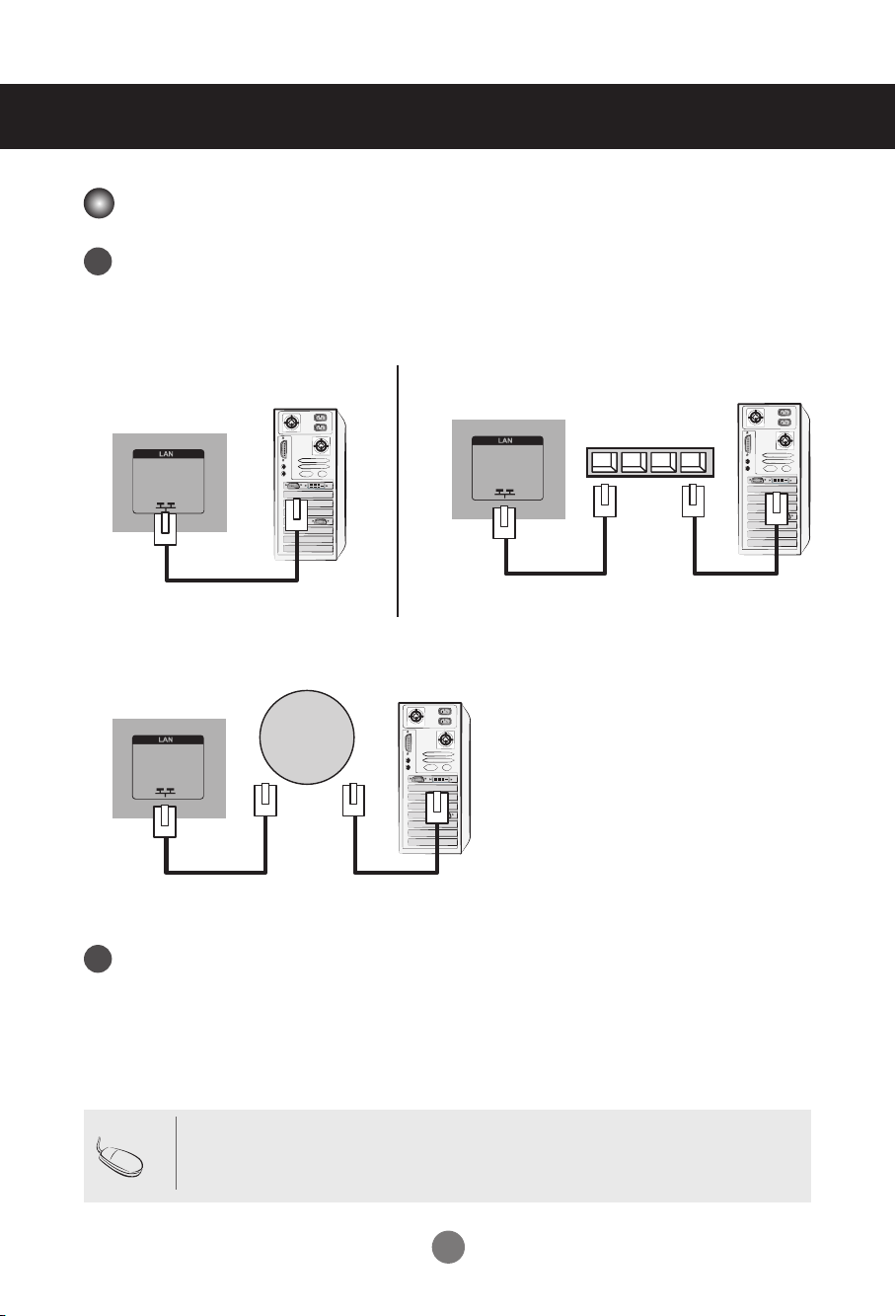

• Using LAN establishes communication between your PC and the monitor and
enables to use the OSD menus on the PC as well as on the monitor.
Note
Connecting to External Devices
Connect the LAN cable as shown in the below figure .
Connect the LAN cable and install the eZ-Net Manager program on the CD-ROM.
For more information about the program, please refer to eZ-Net Guide in the enclosed
CD-ROM.
Connect PC to Monitor directly.
Using a router(Switch)
PC
Product
Network
Network
Product
LAN
PC
LAN
Switch
Using the Internet.
PC
Product
Network
LAN
When using the LAN
1
2
B.A.
C.
13
Connecting to External Devices

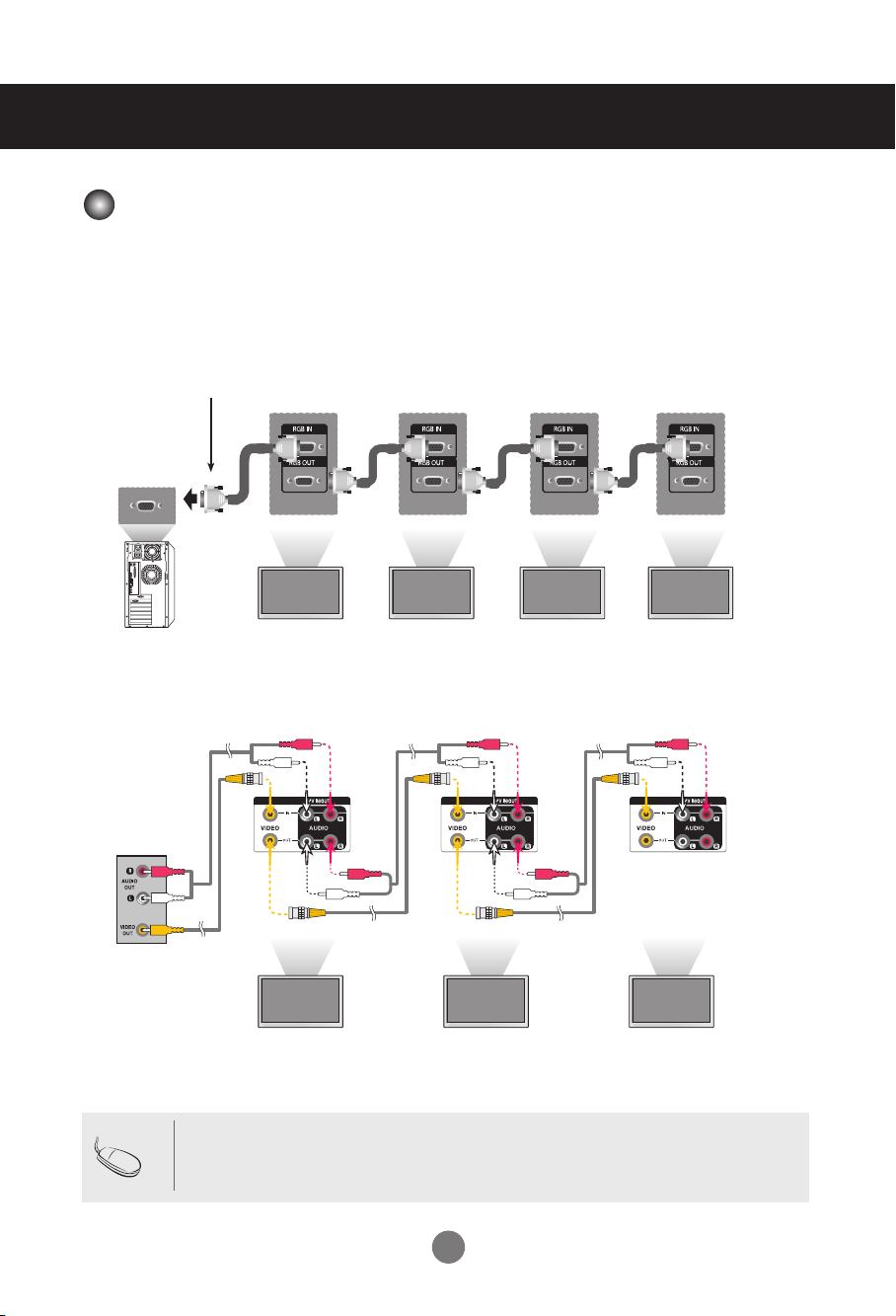

Daisy Chain Monitors
When using RGB input
When using AV input
To use different products connected to each other Connect one end of the signal input
cable (15-pin D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect
the other end to the RGB IN connector of other products.
Product 1
Product 2
Product 3
Product 4
15-pin D-Sub Signal Cable
PC
Video
PC
BNC Cable
(not included)
Audio Cable
(not included)
Product 1 Product 2 Product 3
• The number of monitors that can be connected to one output may vary depending on
signal status and cable loss. If the signal status is good, and there is no cable loss, it
is possible to connect up to 9 monitors. If you want to connect more than this number
of monitors, it is recommended to use a distributor.
Note
B.
A.
14
Kensington Security Slot
The Set is equipped with a kensington
Security System connector on the back
panel. The cable and lock are available
separate and are not sold by LG. For
more info, visit http://www.kensington.
com, the internet home page of the
Kensington company.
This product supports a VESA FDMI compliant mounting interface. These mounts
are purchased separately and not available from LG. Refer to the instructions
included with wall mount for more info.
Connecting to External Devices
VESA FDMI wall Mounting
Note
• There is a switch on the lower side of the back. You can set the switch to "On"
before connecting a power cord to make it more convenient for use.
15
Note
Connecting to External Devices
Cable Management
- Only on some models.
Cable
Management
Hold the Cable management with both hands
and pull it downward.
Removing the cable guide.
•
Do not use the cable management as a handle for the Monitor.
Arrange the cables in the center as shown in the following picture.
Fit the cable guide to the back to help manage the cables.
2.
1.
16

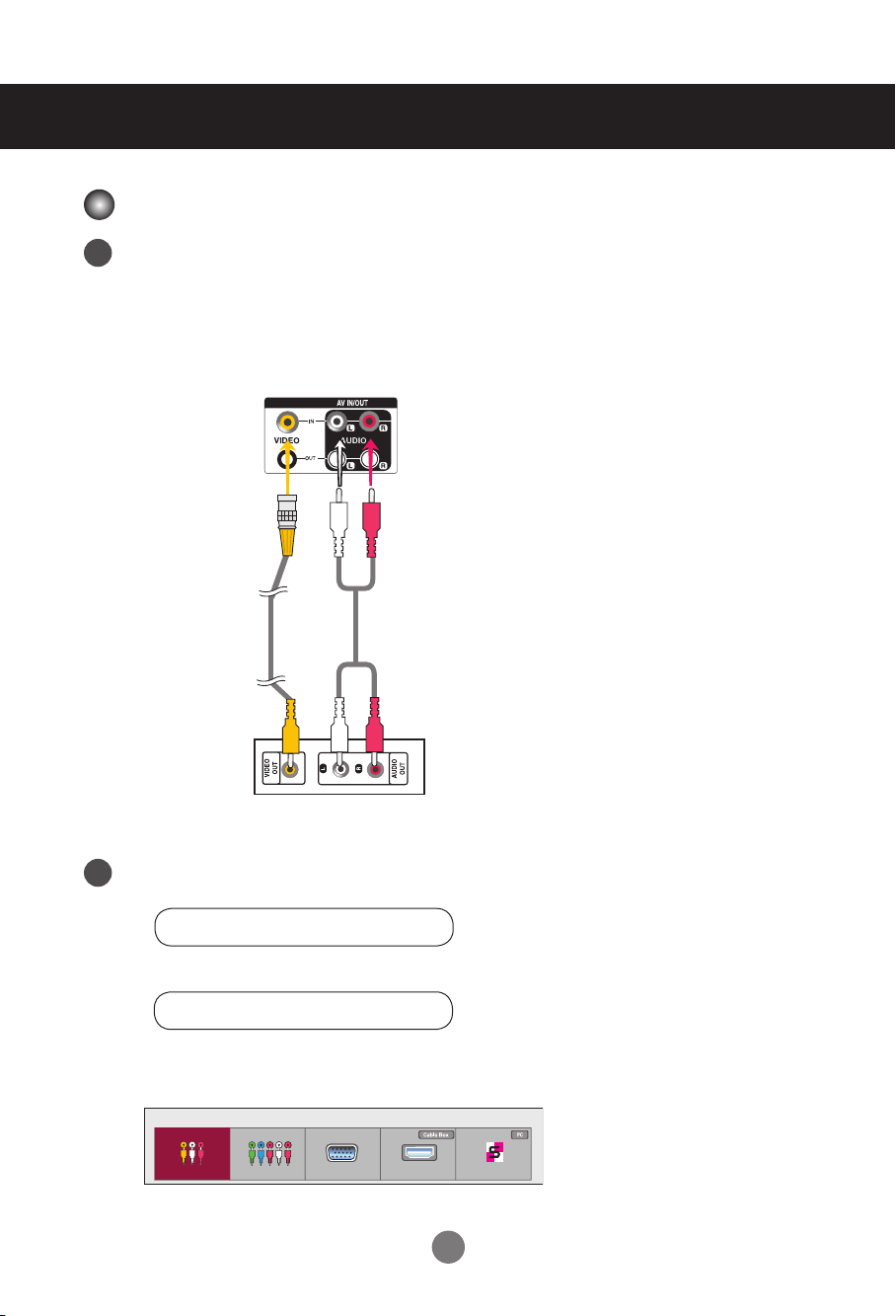

Connecting to External Devices
When connecting with an BNC cable.
• Select AV.
Connect the video cable as shown in the below figure and then connect the
power cord. (See page 10).
When connecting with a BNC cable.
• Connect the input terminal with a proper color match.
BNC Cable
(not included)
Product
VCR/DVD Receiver
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press INPUT on the bottom of the set.
Audio Cable
(not included)
Video Input
INPUT → ◄ ► → OK
1
2
INPUT →◄ ► → AUTO/SET
Input List
AV Component RGB HDMI/DVI SuperSign
17
• Select Component.
Connect the video/audio cable as shown in the below figure and then, connect the power
cord (See page 10).
• Connect the input terminal with a proper color match.
BNC Cable
(not included)
Product
HDTV Receiver
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press INPUT on the bottom of the set.
Audio Cable
(not included)
Connecting to External Devices
Note
- Some devices may require HDCP in order to display HD signals.
- Component doesn't support HDCP.
Component Input (480i/480p/576i/576p/720p/1080i/1080p)
INPUT → ◄ ► → OK
1
2
INPUT →◄ ► → AUTO/SET
Input List
AV Component RGB HDMI/DVI SuperSign
18
Connect the video/audio cable as shown in the below figure and then connect the power
cord (See page 10).
RCA-PC
Audio Cable
(not included)
Product
VCR/DVD/Set-top Box
HDMI-DVI
Signal Cable
(not included)
VCR/DVD/Set-top Box
Product
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press INPUT on the bottom of the set.
HDMI Signal Cable
(not included)

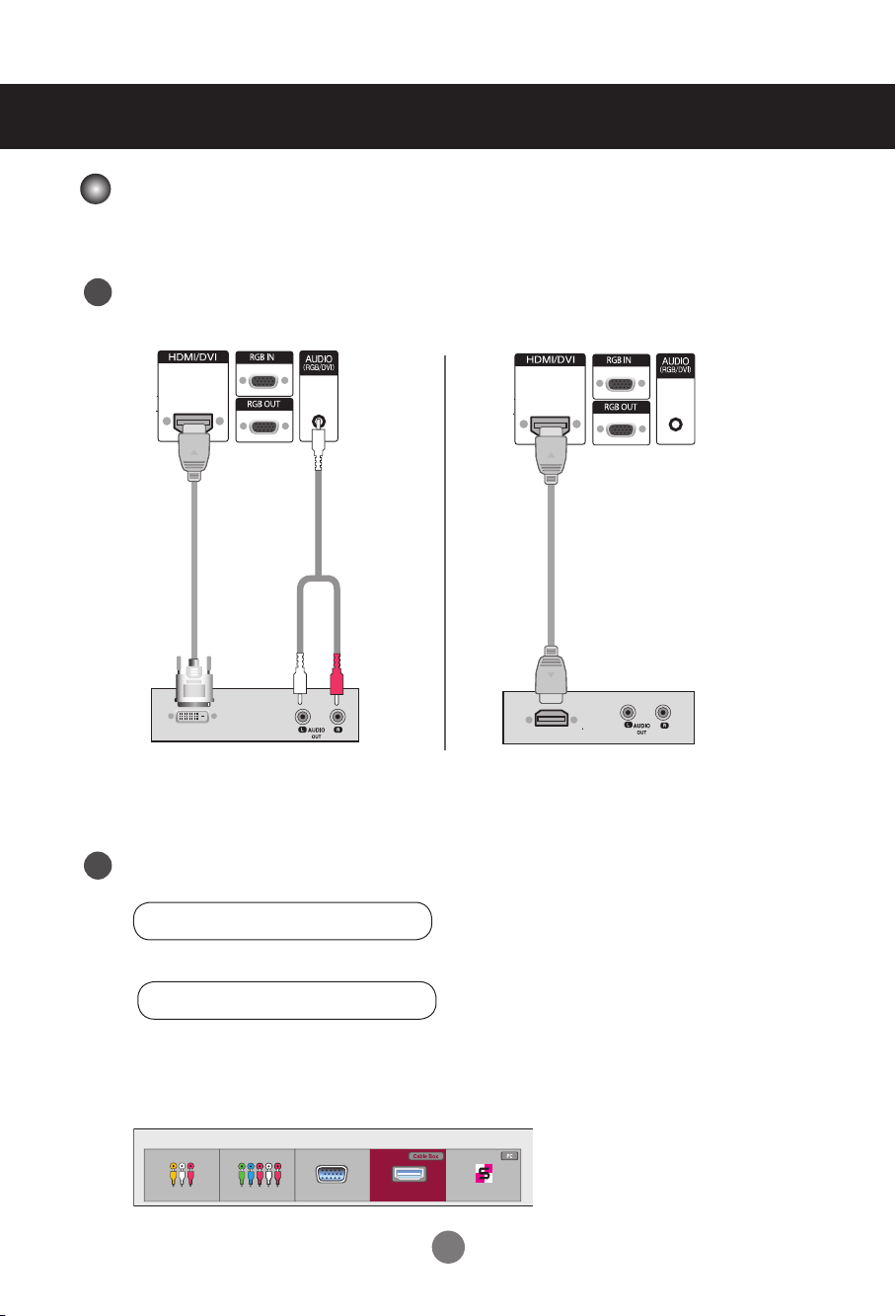

Connecting to External Devices
When connecting with a HDMI-DVI signal input cable.
When connecting with a HDMI signal input cable.
• Select HDMI/DVI
HDMI Supports High Definition input and HDCP (High-bandwidth Digital Content
Protection). Some devices require HDCP in order to display HD signals.
Note : Dolby Digital is not supported.
HDMI Input (480p/576p/720p/1080i/1080p)
INPUT → ◄ ► → OK
1
2
INPUT →◄ ► → AUTO/SET
Input List
AV Component RGB HDMI/DVI SuperSign
19

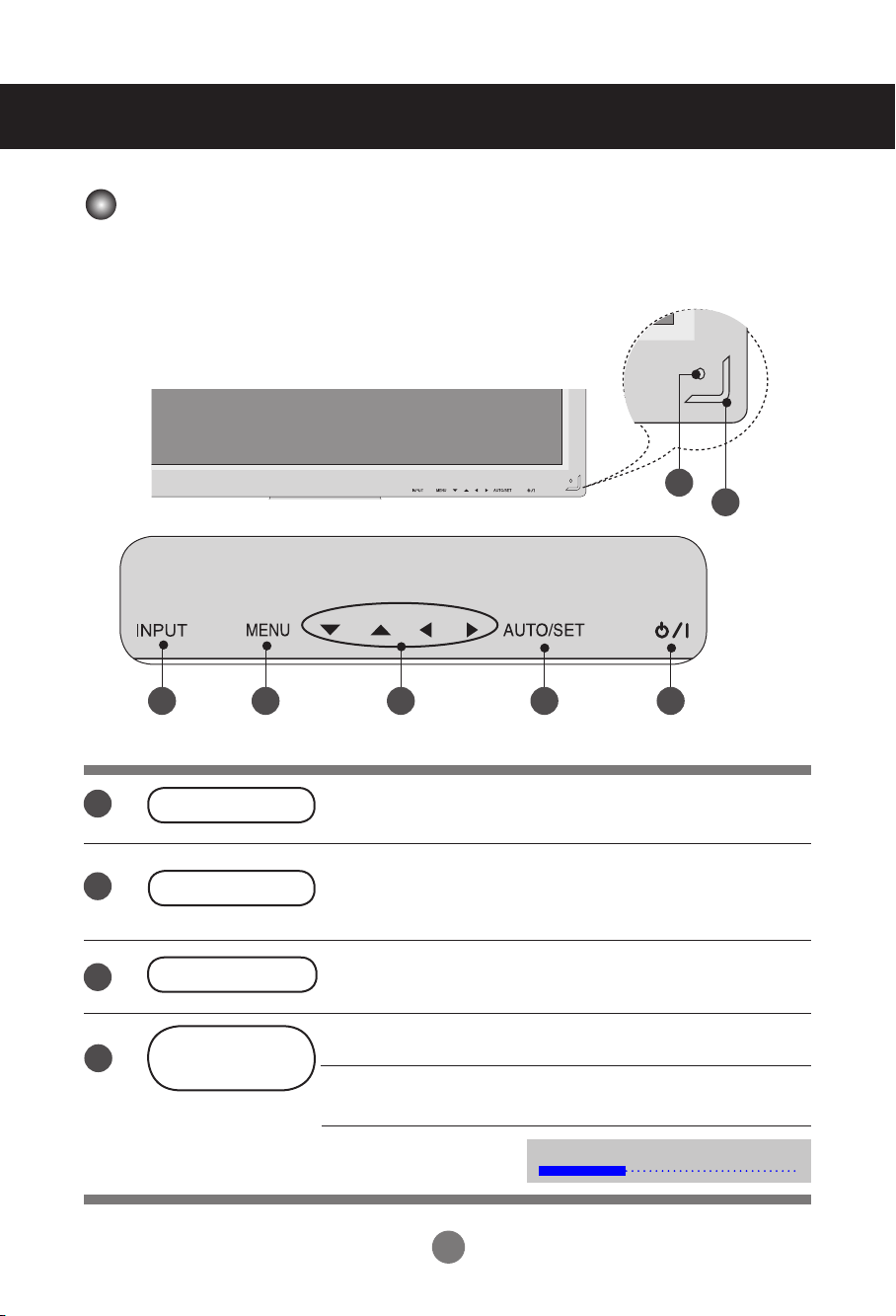

User Menus
Screen Adjustment options
Press this button to turn on the power. Press this button
again to turn it off.
This Indicator lights up green when the display operates
normally(on mode). If the display is in sleep (Energy Saving)
mode, this indicator color changes to amber.
Power Button
◄ ► Adjust the volume.
▲ ▼ Adjust the up and down.
Use this button to show/hide the OSD (On Screen Display)
menu screen.
MENU Button
Use
this
button to select an icon or adjust the setting in the OSD
screen.
OSD Select /
Adjust Button
Power Indicator
Volume
35
1
6 3 4 5 1
7
2
2
3
4
20
User Menus
This is where the unit receives signals from the remote control.
Screen Adjustment options
[For PC Analog signal]
AUTO/SET Button
AV Composite Video
Component HDTV, DVD
RGB 15-pin D-Sub analog signal
HDMI/DVI Digital signal
SuperSign SuperSign
- Toggles between inputs
INPUT Button
IR Receiver
[When XGA Mode is active and
1920 x 1080 is selected]
Auto in progress
For optimal display change
resolution to 1920 x 1080
Auto in progress
5
7
6
INPUT →◄ ► → AUTO/SET
Input List
AV Component RGB HDMI/DVI SuperSign
21
OSD Menu
Note
OSD(On Screen Disp lay)
• The OSD function enables you to adjust the screen status conveniently since it
provides graphical presentation.
User Menus
Icon Function Description
Adjusts the audio options.
Adjusts screen brightness, contrast and color that you prefer.
Adjusts the screen status according to the circumstances.
Adjusts the timer options.
Adjusts the tile options.

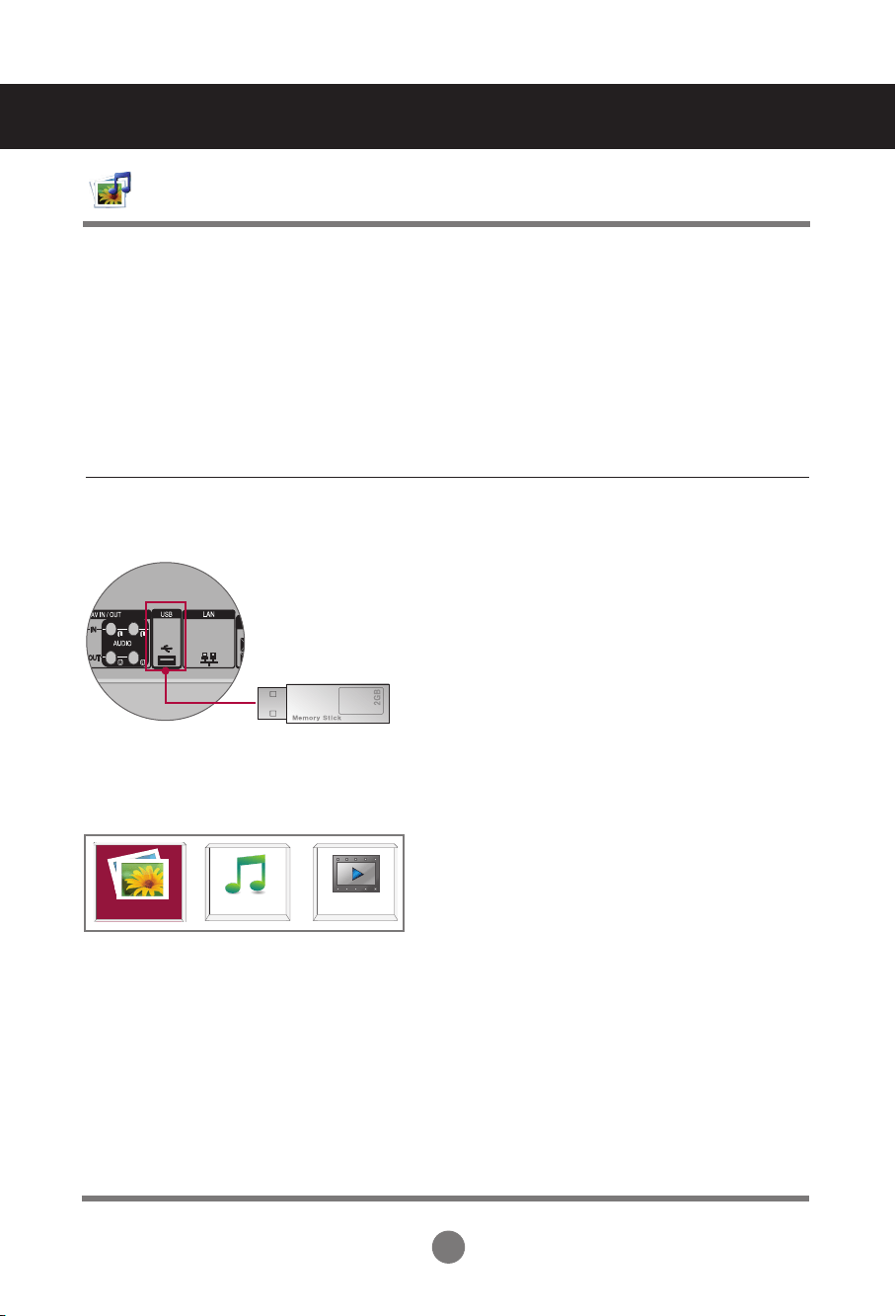

Adjusts the USB options.
Audio
Option
Time
Tile
USB
22
User Menus
How to adjust the OSD (On Screen Display) screen
•
Use the remote control to adjust the OSD screen.
How to adjust the screen automatically
Press the AUTO/SET button (AUTO button on a remote Control)
in the PC analog signal. Then optimal screen settings will be
selected that fit into the current mode. If adjustment is not
satisfactory, you can adjust the screen manually.
Pops up
the menu
screen
Move where
you want to
adjust
Move where
you want to
adjust
Select a
menu list
Select a
menu icon
Adjust the status
Save
adjustment
Exit from the
menu screen.
[When XGA Mode is active and
1920 x 1080 is selected]
Auto in progress
MENU
➩ ➩ ➩ ➩
➩ ➩ ➩
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the ▲▼ Buttons.
To access a control, use the ▲▼ Buttons.
When the icon you want becomes highlighted, press the OK Button.
When the list you want becomes highlighted, press the OK Button.
Use the ▲▼◄►Buttons to adjust the item to the desired level.
Accept the changes by pressing the OK Button.
Exit the OSD by pressing the EXIT Button.
1
2
3
4
5
6
7
8
23
User Menus
Adjusting Screen Color
Aspect Ratio
Move
OK
Aspect Ratio : 16:9
Energy Saving : Off
Picture Mode : Standard
• Backlight 70
• Contrast 90
• Brightness 50
• Sharpness 70
• Color 60
▼
Aspect Ratio : 16:9
ꔋ
16:9
Just scan
Original
4:3
14:9
Zoom
Cinena Zoom 1
Full Wide
16:9 ꔋ
To select the image size of the screen.
16:9 :
Widescreen mode.
Just Scan :
Allows you to enjoy the transmitted data fully without any images cut off.
(*This menu is activated only in 1080P,1080i,720P (HDMI/DVI-DTV, Component mode)
Original :
The aspect ratio is not adjusted from the original. It is set by the program being watched.
4:3 :
This picture format is 4:3 aspect ratio.
1:1 : The aspect ratio is not adjusted from the original. Used in PC mode.
(Only HDMI/ DVI PC, RGB PC)
14:9 :
14:9 programs are viewed normally in 14:9 with black bars added to the top and bottom.
4:3 programs are magnified on the top/bottom and left/right sides.
Zoom :
4:3 programs are magnified until they fill the 16:9 screen. The top and bottom will be cut off.
Cinena Zoom 1 :
Choose Cinema Zoom when you wish the picture to be altered, both horizontally
extended and vertically cropped. The picture adopting a compromise between
alteration and screen coverage.
Full Wide :
When TV receives the wide screen signal,it will lead you to adjust the picture
horizontally or vertically, in a linear proportion,to fill the entire screen fully.
H - 80
ENG
KOR
AV
ᬱᅙ⪵໕እ
ᯱ࠺⪵໕እ
ᵭ
օษᵭ
ᱥℕ⪵໕
HDMI / DVI
RGB
SuperSign
Component
JAP
GER
FRA
ITA
SPA
POR
RUS
AV
HDMI / DVI
RGB
SuperSign
Component
ARC
MODE
16 : 9
Just Scan
Original
4 : 3
1 : 1
14 : 9
Zoom
Cinema Zoom 1
Full Wide
AV
HDMI / DVI
RGB
SuperSign
Component
ARC
モード
⹖⺁⹗⹗⹋⺁⺑
⹈⺈⹖⺉
⹘ー
⹕⹘ー
⺍⹂
AV
HDMI / DVI
RGB
SuperSign
Komponente
ARC
Modus
16 : 9
Just Scan
Original
4 : 3
1 : 1
14 : 9
Zoom
Kino-Zoom1
Volle Breite
AV
HDMI / DVI
RGB
SuperSign
Composantes
ARC
MODE
16 : 9
Signal original
Format original
4 : 3
1 : 1
14 : 9
Zoom
Zoom cinéma1
Écran large
AV
HDMI / DVI
RGB
SuperSign
Component
ARC
MODO
16 : 9
Solo ricerca
Originale
4 : 3
1 : 1
14 : 9
Zoom
Zoom Cinema 1
Larghezza intera
AV
HDMI / DVI
RGB
SuperSign
Component
ARC
MODO
16 : 9
Escaneo
Original
4 : 3
1 : 1
14 : 9
Zoom
Zoom cine1
Ancho completo
AV
HDMI / DVI
RGB
SuperSign
Componente
ARC
MODO
16 : 9
Definir por programa
Original
4 : 3
1 : 1
14 : 9
Zoom
Cinema Zoom 1
Tela Cheia
AV
HDMI / DVI
RGB
SuperSign
Компонент
ARC
Режим
16 : 9
Исходный
Обычный
4 : 3
1 : 1
14 : 9
Увеличение
Масштаб фильма1
Во весь экран
24
Move
OK
Aspect Ratio : 16:9
ꕫ Energy Saving : Off
Picture Mode : Standard
• Backlight 70
• Contrast 90
• Brightness 50
• Sharpness 70
• Color 60
▼
Energy Saving : Off ꔋ
User Menus
Adjusting Screen Color
Energy Saving
Off
Level 1
Level 2
Level 3
Off ꔋ
This screen brightness adjusting menu helps you save energy.
Level : Total 4 screen brightness levels are provided.
- Off: 100% light
- Level 1: 80% light
- Level 2: 60% light
- Level 3: 40% light
25
Adjusting Screen Color
User Menus
Picture Mode
Move
OK
Aspect Ratio : 16:9
Energy Saving : Off
Picture Mode : Standard
• Backlight 70
• Contrast 90
• Brightness 50
• Sharpness 70
• Color 60
▼
Picture Mode : Standard
ꔋ
Vivid
Standard
Cinema
Sports
Game
Expert 1
Expert 2
Standard ꔋ
Toggles between screen presets.
Standard : The most general and natural screen display status.
Vivid : Select this option to display with a sharp image.
Cinema : Select this option to lower brightness by one level.
Sport : Select this option to display with a soft image.
Game : To enjoy dynamic image when playing a game.
Expert1,2 : Select this option to use the user-defined settings.
Note
• If the 'Picture Mode' setting in the Picture menu is set to Vivid, Standard, Cinema,
Sport or Game the subsequent menus will be automatically set.
26
User Menus
Move
OK
Aspect Ratio : 16:9
Energy Saving : Off
Picture Mode : Standard (User)
• Backlight 70
• Contrast 90
• Brightness 50
• Sharpness 70
• Color 60
▼
• Backlight 70
ꔋ
Backlight : To control the brightness of the screen,adjust the brightness of LCD panel.
Contrast : Adjust the difference between the light and dark levels in the picture.
Brightness : To adjust the brightness of the screen.
Sharpness : To adjust the clearness of the screen.
Color : To adjust the color to desired level.
Tint : To adjust the tint to desired level.
Picture Mode
Adjusting Screen Color
27
User Menus
Move
OK
▲
• Contrast 90
• Brightness 50
• Sharpness 70
• Color 60
• Tint 0
• Advanced Control
• Picture Reset
Screen
• Advanced Control
ꔋ
High
Medium
High
Medium
High
Off
Color Temperature
Dynamic Contrast
Dynamic Color
Noise Reduction
Gamma
Black Level
Film Mode
Close
◄ Medium ►
Adjusting Screen Color
Color Temperature : Color Settings
Cool : Slightly purplish white.
Medium : Slightly bluish white.
Warm : Slightly reddish white.
Dynamic Contrast : Optimizes the contrast automatically according to the brightness of the reflection.
Dynamic Color : Adjusts the Color of the reflection automatically to reproduce natural colurs as close as
possible.
Noise Reduction : Removing the noise up to the point where it does not damage the original
picture.
Gamma : Set your own gamma value.
On the monitor, high gamma values display whitish images and low gamma
values display high contrast images.
Black Level : (
Function works in the following mode - AV, Component, HDMI-DTV)
adjusts the
contrast and the brightness of the screen using the black level of the screen.
Low : The reflection of the screen gets darker.
High : The reflection of the screen gets brighter.
Film Mode : (
Function works in the following mode - AV, Component 480i/576i/1080i, HDMI/DTV
480i/576i/1080i) When you watch a movie, this function adjusts the set to the best
picture appearance.
White Balance :
This is the function to adjust the overall colour of the screen to the feeling you want.
( Function works in the following mode - Expert 1, Expert 2 Picture mode)
Color Management System : As the tool used by the experts to make adjustments by
using the test patterns, this does not affect other colours but
can be used to selectively adjust the 6 colour areas (Red/
Green/Blue/Cyan/Magenta/Yellow). Colour difference may not
be distinctive even when you make the adjustments for the
general video.
(Function works in the following mode - Expert 1,
Expert 2 Picture mode)
Advanced Control
28
User Menus
Move
OK
▲
• Contrast 90
• Brightness 50
• Sharpness 70
• Color 60
• Tint 0
• Advanced Control
• Picture Reset
Screen
• Picture Reset ꔋ
Move
OK
▲
• Contrast 90
• Brightness 50
• Sharpness 70
• Color 60
• Tint 0
• Advanced Control
• Picture Reset
Screen
Screen
ꔋ
Adjusting Screen Color
Return Picture Mode to the default factory
settings.
Picture Reset
Screen
Adjust the screen video.
Resolution :
To view a normal picture, match the resolution of RGB mode and selection of PC
mode. This function works in the following mode: RGB[PC] mode.
Auto Config.
(RGB PC input only) : This button is for the automatic adjustment of the screen
position, clock and phase. This function is available for analog signals only.
Position :
Moving the screen position.
Size : Adjust the size of the screen
.
Phase :
To adjust the focus of the display. This item allows you to remove any horizontal noise
and clear or sharpen the image of characters. This function is available for analog signals
only.
Reset : Return
Manual config.
to the default factory settings.
1024 x 768
1280 x 768
1360 x 768
1366 x 768
Resolution ►
Auto Config.
Position
Size
Phase
Reset
Prev.
BACK
Move
SCREEN
1024 x 768 ꔋ
29
Adjusting the audio function
User Menus
Move
AUDIO
Auto Volume : Off
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
• Reset
▼
OK
Auto Volume : Off ꔋ
Auto Volume
To adjust uneven sound volumes across all channels or signals automatically to the most
appropriate level. To use this feature, select On.
Clear Voice II
By differentiating the human sound range from others,it helps users listen to human voices better.
Balance
Use this function to balance sound from the left and right speakers.
Sound Mode
The best sound tone quality will be selected automatically depending on the video type that you're
currently watching.
Standard :
The most commanding and natural audio.
Music :
Select this option to enjoy the original sound when listening to the music.
Cinema :
Select this option to enjoy sublime sound.
Sport :
Select this option to watch sports broadcasting.
Game :
To enjoy dynamic sound when playing a game.
Speaker
You can adjust internal speaker status.
If you want to use your external hi-fi stereo system, turn off the internal speakers of the set.
Note
• When connected to your computer and the 'Sound Mode' setting in the audio menu is
Clear Voice, Standard, Music, Cinema or Sport, the available menus are Balance,
Auto Volume, Speaker.
Move
AUDIO
▲
Clear Voice II : Off
• Level 3
Balance 0
Sound Mode : Standard
• Treble 50
• Bass 50
• Reset
Speaker : On
OK
30
Adjusting the timer function
User Menus
Move
TIME
OK
Clock
Off Time : Off
On Time : Off
Sleep Timer : Off
Auto Off : On
Power On Delay : Off
Clock ꔋ
Clock
If the current time is incorrect, reset the clock manually.
1) Press the MENU button and then use
▼▲ button to select the Time menu.
2) Press the
button and then use
▼▲ button to select the Clock menu.
3) Press the button and then use
▼▲ button to set the hour(00h to 23h).
4) Press the button and then use
▼▲ button to set the minutes(00 min to 59 min).
On/Off time
The off time automatically switches the set to standby at the pre-set time.
1) Press the MENU button and then use
▼▲ button to select the Time menu.
2) Press the button and then use
▼▲ button to select
On/Off Timer
.
3) Press the button and then use
▼▲ button to set the hour(00h to 23h).
4) Press the button and then use
▼▲ button to set the minutes(00 min to 59 min).
5) Press the button and then use
▼▲ button to select On or Off.
6) Press the button and then use
▼▲ button to select Select input or On Timer
Sleep timer
The power is automatically turned off when the time set by a user is passed.
1) Press the MENU button and then use
▼▲ button to select the
Sleep Timer
menu.
2
) Press the button and then use
▼▲ button to set the hour(00h to 23h).
3) Press the button and then use
▼▲ button to set the minutes(00 min to 59 min).
Auto off
If Auto off is active and there is no input signal, the set switches to off mode automatically after
10 minutes.
1) Press the MENU button and then use ▼▲
button to select the
Auto
off menu.
2) Press the button and then use
▼▲ button to select On or Off.
Power on delay
When connecting multiple monitors and turning the power on, the monitors are turned
on individually to prevent overload.
• In the event of power interruption (disconnection or power failure), the clock must be reset.
• Once the on or off time is set, these functions operate daily at the preset time.
• Off time function overrides On time function if they are set to the same time.
• When On time is operated, input screen is turned on as it was turned off.
Note
31
User Menus
Move
OPTION
OK
Language : English
Input Label
Key Lock : Off
Set ID : Off
ISM Method : Normal
DPM Select : On
Power Indicator : ON
Logo Light : ON
▼
Language : English
ꔋ
Language
To choose the language in which the control names are displayed.
Input Label
Selects a label for each input source.
Key Lock
Use the ▼▲ buttons to select On or Off. The monitor can be set up so that it can only be
used with the remote control. This feature can prevent unauthorized viewing.
In order to lock the OSD screen adjustment, set the
Key Lock
tab to the 'On' position.
In order to unlock it, do the following :
Push the MENU button on the remote control and set
Key Lock
to the 'Off' position.
Set ID
You can assign a unique Set ID NO (name assignment) to each product when several products
are connected for display. Specify the number (0 to 99) using the ◄ ► button and exit. Use the
assigned Set ID to individually control each product using the Product Control Program.
ISM Method
Leaving a fixed image on the screen for a long time may cause damage to the screen and cause
image burn-in. To use the product for a long period of time, use a screen saver on the PC or utilize the
residual image prevention function on the product, and when the product is not used, turn off the
power. Burn-in and related problems are not covered by the warranty on this product.
Normal :
Leave on normal if you don't foresee image burn in being a problem.
Orbiter : May help prevent ghost images. However, it is best not to allow any fixed image to remain
on the screen. To avoid a permanent image on the screen, the screen will move every 2
minutes.
Inversion : This function inverts the panel color of the screen. The panel color is automatically
inverted every 30 minutes.
White wash :
White wash fills the screen with solid white. This helps removes permanent
images burned into the screen. A permanent image may be impossible to clear
entirely with white wash.
Selecting the options
32
User Menus
DPM Select
A user can choose to turn the power saving mode on / off.
Power Indicator
Use this function to set the power indicator on the front side of the product to On or Off. If you set Off, i
will go Off. If you set On at any time, the power indicator will automatically be turned on.
Logo Light
Use this function to reset the Logo Display Lamp On the front side of the product to On or Off. If you
set On, the lamp will automatically be turned on.
Ineterface Select
Sets up network connections.
- Network : LAN - Enables communication via Ethernet.
- RS-232C : Enables communication via Serial.
Network Setup
- DHCP : Allocates and sets up IP automatically.
- Manual : Sets up IP address, Gateway, Subnet Mask, Primary DNS and Secondary DNS.
The setup process is complete when you select Execute, and "IP Setup
Completed" is displayed at the bottom of the screen. While "Wait for IP Setup"
is displayed, you cannot use the local keys and remote control. "Wait for IP
Setup" is displayed for up to 40 seconds.
*If Network Select is set to Serial, DHCP and Manual are disabled.
Information
You can find informations about Serial No, F/W version, IP Address and MAC Address.
Factory Reset
Select this option to return to the default factory settings.
Move
OPTION
OK
▲
ISM Method : Normal
DPM Select : On
Power Indicator : ON
Logo Light : ON
Ineterface Select : RS232C
Network Setup
Information
Factory Reset
DPM Select : On
ꔋ
Selecting the options
33

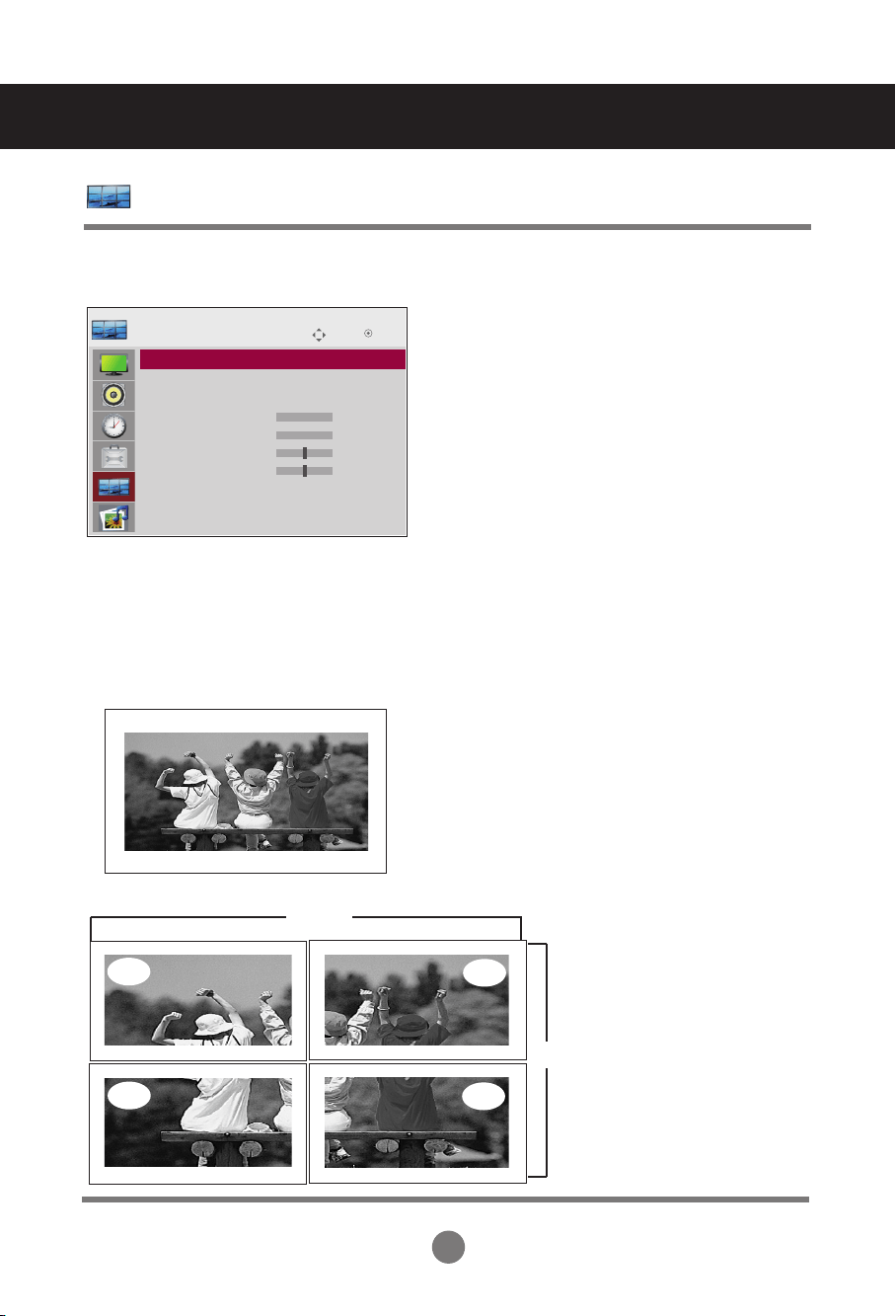

Tile mode and choose Tile alignment and set the ID of the current product to set location.
Only after pressing the SET button the adjustments made to the settings will be saved.
- Must be displayed with various other
products.
- Must be in a function that can be connected
to RS-232C or RGB Out.
-
It is used to enlarge the screen and also used
with several products to view screen.
Tile Mode
-
Tile mode : column x row ( c = 1, 2, 3, 4,5 r = 1, 2, 3, 4, 5)
- 5 x 5 available.
- Configuration of an integration screen is also available as well as configuration of One by one Display.
-
Tile mode (product 1 ~ 4) : c(2) x r(2)
Adjusts the tile options.
User Menus
ID1
ID
ID
ID4
column
row
3
2
Move
TILE
OK
Tile Mode : Off
Tile ID : 0
Natural Mode : Off
H Size : 0
V Size : 0
H Position : 0
V Position : 0
Reset
Tile Mode : 2x2
ꔋ
34
-

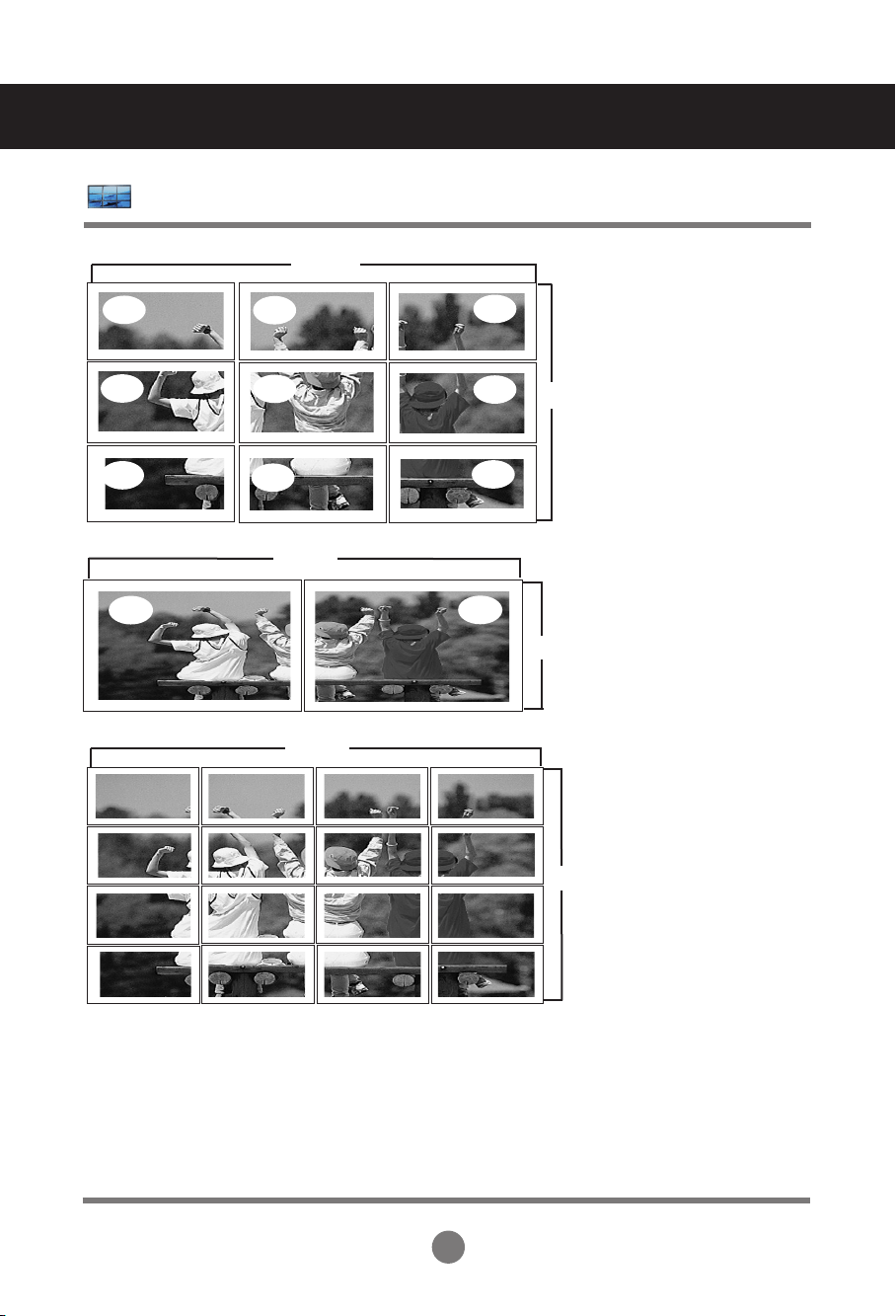

Tile mode (product 1 ~ 2) : c(2) x r(1)
-
Tile mode (product 1 ~ 9) : c(3) x r(3)
-
Tile mode (product 1 ~16) : c(4) x r(4)
row
column
ID 1
ID 5
ID 9
ID 13
ID 2
ID 6
ID10
ID 14
ID 3
ID 7
ID 11
ID 15
ID 4
ID 8
ID 12
ID 16
User Menus
row
column
ID1
ID2
ID4
ID5
ID6
ID7
ID8
ID9
ID
3
ID1
column
row
ID2
Tile ID : Select the location of the Tile by setting an ID.
Natural : The image is omitted by the distance between the screens to be naturally shown.
H-Size : Adjust the horizontal size of the screen taking into account the size of the bezel.
V-Size : Adjust the vertical size of the screen taking into account the size of the bezel.
H-Position :
Moving the screen position horizontally.
V-Position :
Moving the screen position vertically.
Reset : Function to initialize and release Tile.
All Tile setting are released when selecting Tile recall and the screen returns to Full screen.
Adjusts the tile options.
35
User Menus
Adjusts the USB options.
When connecting the USB device
When you connect a USB device, this pop up menu is displayed, automatically.
“POP UP MENU” will not be displayed while the OSD including Menu, EPG or Schedule list
is activated.
When the Pop Up menu appears, you can select Music List, Photo List or Movie List in the
MY MEDIA menu.
In USB device, you can not add a new folder or delete the existing folder.
Select PHOTO LIST, MUSIC LIST or MOVIE LIST.
Connect the USB device to the USB jack on the TV.
PHOTO LIST
MUSIC LIST
MOVIE LIST
2.
1.
USB 메메메 메메
36
User Menus
Adjusts the USB options.
Precautions when using the USB device
• Only a USB storage device is recognizable.
• If the USB storage device is connected through a USB hub, the device is not recognizable.
• A USB storage device using an automatic recognition programme may not be recognized.
• A USB storage device which uses its own driver may not be recognized.
• The recognition speed of a USB storage device may depend on each device.
• Please do not turn off the TV or unplug the USB device when the connected USB storage device
is working. When such device is suddenly separated or unplugged, the stored files or the USB
storage device may be damaged.
• Please do not connect the USB storage device which was artificially maneuvered on the PC. The
device may cause the product to malfunction or fail to be played. Never forget to use only a USB
storage device which has normal music files or image files.
• Please use only a USB storage device which was formatted as a FAT16, FAT32, NTFS file system
provided with the Windows operating system. In case of a storage device formatted as a different
utility programme which is not supported by Windows, it may not be recognized. Data in a USB
storage device cannot be deleted in the NTFS file system.
• Please connect power to a USB storage device which requires an external power supply. If not,
the device may not be recognized.
• Please connect a USB storage device with cable is offered by USB maker. If connected with cable
is not offered by USB maker or an excessively long cable, the device may not be recognized.
• Some USB storage devices may not be supported or operated smoothly.
• Maximum of 999 files and folders can be recognized.
• Data in a USB storage device cannot be aligned. Up to 128 English characters can be recognized
as a file name.
• Please back up the important file because a data of USB device may be damaged. Data manage-
ment is consumer's responsibility and in consequence the manufactures does not cover the prod-
uct bearing data damage.
• If the USB is connected in Standby Mode, specific hard disk will automatically be loaded when the
TV is turned on.
• The recommended capacity is 1TB or less for a USB external hard disk and 32GB or less for USB
memory.
• Any device with more than the recommended capacity may not work properly.
• If a USB external hard disk with a “Power Saving” function does not work, turn the hard disk off
and on again to make it work properly.
• Names and subtitles of some language files may not display properly.(Korean, Chinese, Japanese)
37
User Menus
Adjusts the USB options.
You can view photo files on USB storage device.
The On Screen Display may be different from your TV. Images are an example to assist with the TV
operation.
PHOTO(*.JPEG) supporting file
Baseline: 15360 x 8640
Progressive : 1024 x 768
• You can play JPEG files only.
• Non-supported files are displayed in the form of bitmap.
Photo List
Photo List
Page 2/3
Drive1
JMJ001
1366x768, 125KB
Up Folder
Up Folder
KY101 02/12/2010
KY102 02/12/2010
JMJ001 02/12/2010
JMJ002 02/12/2010
JMJ003 02/12/2010
JMJ004 02/12/2010
KY103 02/12/2010
KY104 02/12/2010
KY105 02/12/2010
JMJ005 02/12/2010
JMJ006 02/12/2010
JMJ007 02/12/2010
JMJ008 02/12/2010
No Marked
Option
Mark
Navigation
Page Change
Exit
MARK EXIT
USB Device
Free Space 150 MB
Screen Components
1
5
2 3
4
Moves to upper level folder
Current page / Total pages
Total number of marked photos
Usable USB memory
Corresponding buttons on the remote control
1
2
4
3
5
38
Photo List
Page 2/3
Drive1
JMJ001
1366x768, 125KB
Up Folder
Up Folder
KY101 02/12/2010
KY102 02/12/2010
JMJ001 02/12/2010
JMJ002 02/12/2010
JMJ003 02/12/2010
JMJ004 02/12/2010
KY103 02/12/2010
KY104 02/12/2010
KY105 02/12/2010
JMJ005 02/12/2010
JMJ006 02/12/2010
JMJ007 02/12/2010
JMJ008 02/12/2010
No Marked
USB Device
Free Space 150 MB
1366x768, 125KB
View
Mark All
Delete
Close
User Menus
Adjusts the USB options.
Photo Selection and PopUp Menu
➩
Photo List
Page 2/3
Drive1
JMJ001
1366x768, 125KB
Up Folder
Up Folder
KY101 02/12/2010
KY102 02/12/2010
JMJ001 02/12/2010
JMJ002 02/12/2010
JMJ003 02/12/2010
JMJ004 02/12/2010
KY103 02/12/2010
KY104 02/12/2010
KY105 02/12/2010
JMJ005 02/12/2010
JMJ006 02/12/2010
JMJ007 02/12/2010
JMJ008 02/12/2010
No Marked
USB Device
Free Space 150 MB
Option
Mark
Navigation
Page Change
Exit
MARK
EXIT
Option
Mark
Navigation
Page Change
Exit
MARK
EXIT
View : Display the selected item.
Mark All : Mark all photos on the screen.
Unmark All : Deselect all marked photos.
Delete : Delete the selected photo item.
Close : Close the pop-up menu.
39
User Menus
Adjusts the USB options.
◄ 1/17 ►
Slideshow ◘ BGM ◘ Delete Option Hide
꘤
► Slideshow
When no picture is selected, all photos in the current folder are displayed during slide show. If some
photos are selected, those photos are displayed in a slide show.
• Set the time interval of the slide show in Option.
► BGM (Background Music)
Listen to music while viewing photos in full size.
• Set the Music Folder for BGM in Options before using this function.
►
꘤
(Rotate)
• Rotate photos. Rotates the photo 90°, 180°, 270°, 360° clockwise.
► Delete
Delete photos.
► Option
Set values for Sl ide Speed and Music Folder for BGM.
• Use < > button and OK button to set values. Press OK to save the settings.
• You cannot change Music Folder while BGM is playing.
► Hide
Hide the menu on the full-sized screen. To see the menu again on the full-sized screen, press OK
button to display.

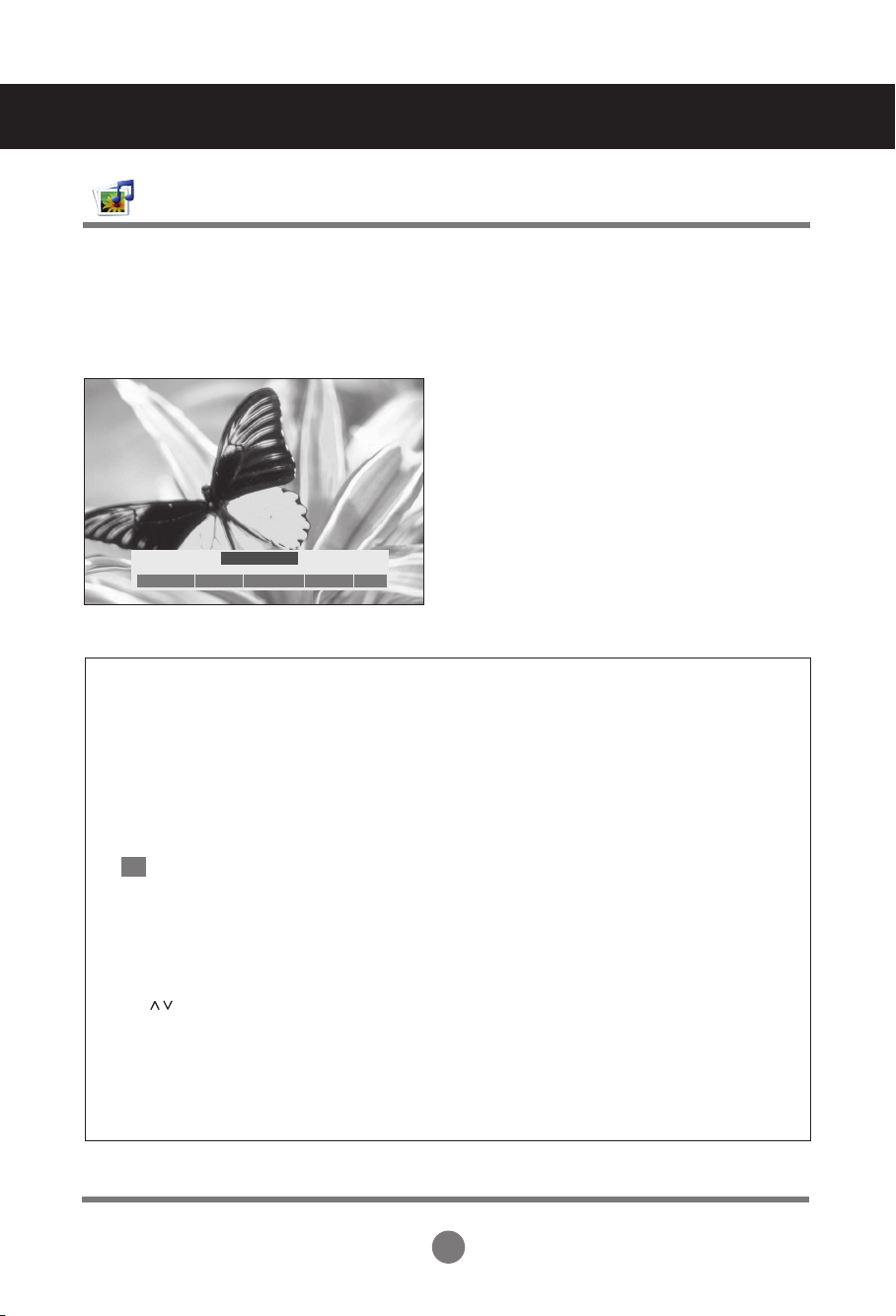

How to view photo
Detailed operations are available on full-sized photo view screen.
The aspect ratio of a photo may change the
size of the photo displayed on the screen in
full size. Press the EXIT button to move to
the previous menu screen.
40
User Menus
You can play music files on USB storage device.
Purchased music files(*.MP3) may contain copyright restrictions. Playback of these files may
not be supported by this model. Music file on your USB device can be played by this unit.
The On Screen Display may be different from your TV. Images are an example to assist with
the TV operation.
MUSIC (*.MP3) supporting file
Bit rate 32 to 320kbps
• Sampling rate MPEG1 layer 3: 32 kHz, 44.1 kHz, 48 kHz.
Adjusts the USB options.
Music List
Music List
Page 2/3
Music
S003
00:00/01:34
Up Folder
Title Duration
Up Folder
S001
S002
S003
S004
S005
Up Folder
03:33
04:45
01:30
02:37
01:58
No Marked
USB Device
Free Space 150 MB
Screen Components
1
5
2 3
4
Moves to upper level folder
Current page / Total pages
Total number of marked music title
Usable USB memory
Corresponding buttons on the remote control
1
2
4
3
5
Option
Mark
Navigation
Page Change
Exit
MARK EXIT
41

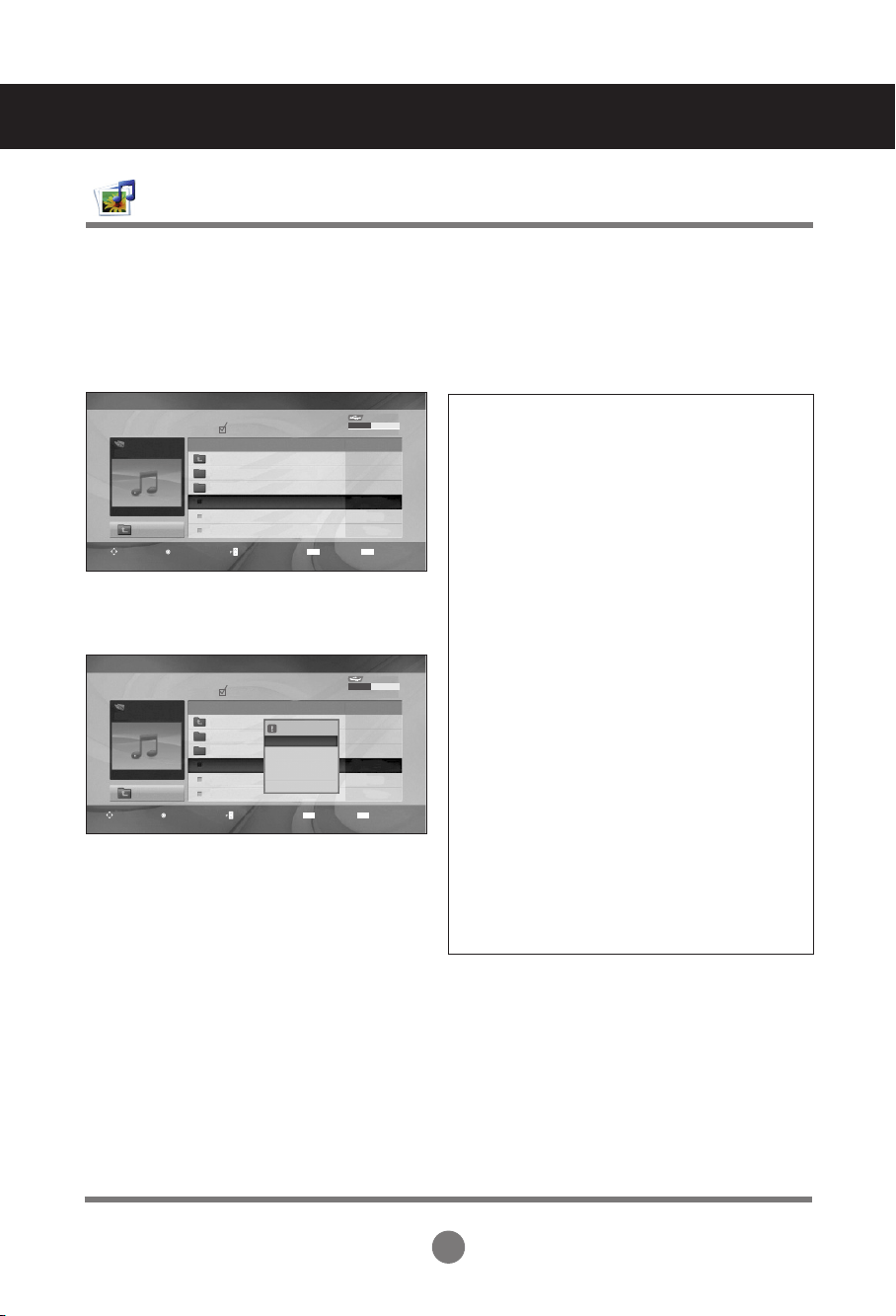

Music Selection and PopUp Menu
➩
As shown, up to 6 music titles are listed per page.
User Menus
Adjusts the USB options.
Music List
Page 2/3
Music
S003
00:00/01:34
Up Folder
Title Duration
Up Folder
S001
S002
S003
S004
S005
Up Folder
03:33
04:45
01:30
02:37
01:58
No Marked
Music List
Page 2/3
Music
S003
00:00/01:34
Up Folder
Title Duration
Up Folder
S001
S002
S003
S004
S005
Up Folder
03:33
04:45
01:30
02:37
01:58
No Marked
4395KB 1Kbps
Play
Play with Photo
Mark All
Delete
Close
USB Device
Free Space 150 MB
USB Device
Free Space 150 MB
Option
Mark
Navigation
Page Change
Exit
MARK
EXIT
Option
Mark
Navigation
Page Change
Exit
MARK
EXIT
Play (During stop) : Play the selected
music titles.
One playback of a piece of music finishes,
the next selected one will be played. When
there are no selected music titles to play,
the next one in the current folder will be
played. If you go to a different folder and
press the OK button, the current music in
playback will stop.
Play Marked: Play the selected music
titles. Once a music finishes playing, the
next selected one will be played
automatically.
Stop Play (During playback): Stop the
playing music titles.
Play with Photo: Start playing the
selected music titles and then move to the
Photo List.
Mark All : Mark all music titles in the folder.
Unmark All : Deselect all marked music
titles.
Delete : Delete the selected music titles.
Close : Close the pop-up menu.
42
Music
S003
0:27 / 3:67
■ If you don't press any button for a while during the playing, the play information box (as shown in the below)
will float as a screen saver.
■ The ‘Screen Saver’?
Screen saver is to prevent screen pixel damage due to an fixed image remaining on the screen
for a extended period of time.
• A damaged or corrupted music does not play but displays 00:00 in playtime.
• A music downloaded from a paid service with copyright protection does not start but
displays inappropriate information in playtime.
• If you press OK, ■ buttons, screen saver is stopped.
• The PLAY(►), Pause(II), ■ , ►►, ◄◄ buttons on the remote control are also avail-
able in this mode.
• You can use the ►► button to select the next music and the ◄◄ button to select
the previous music.
Note
User Menus
Adjusts the USB options.
43

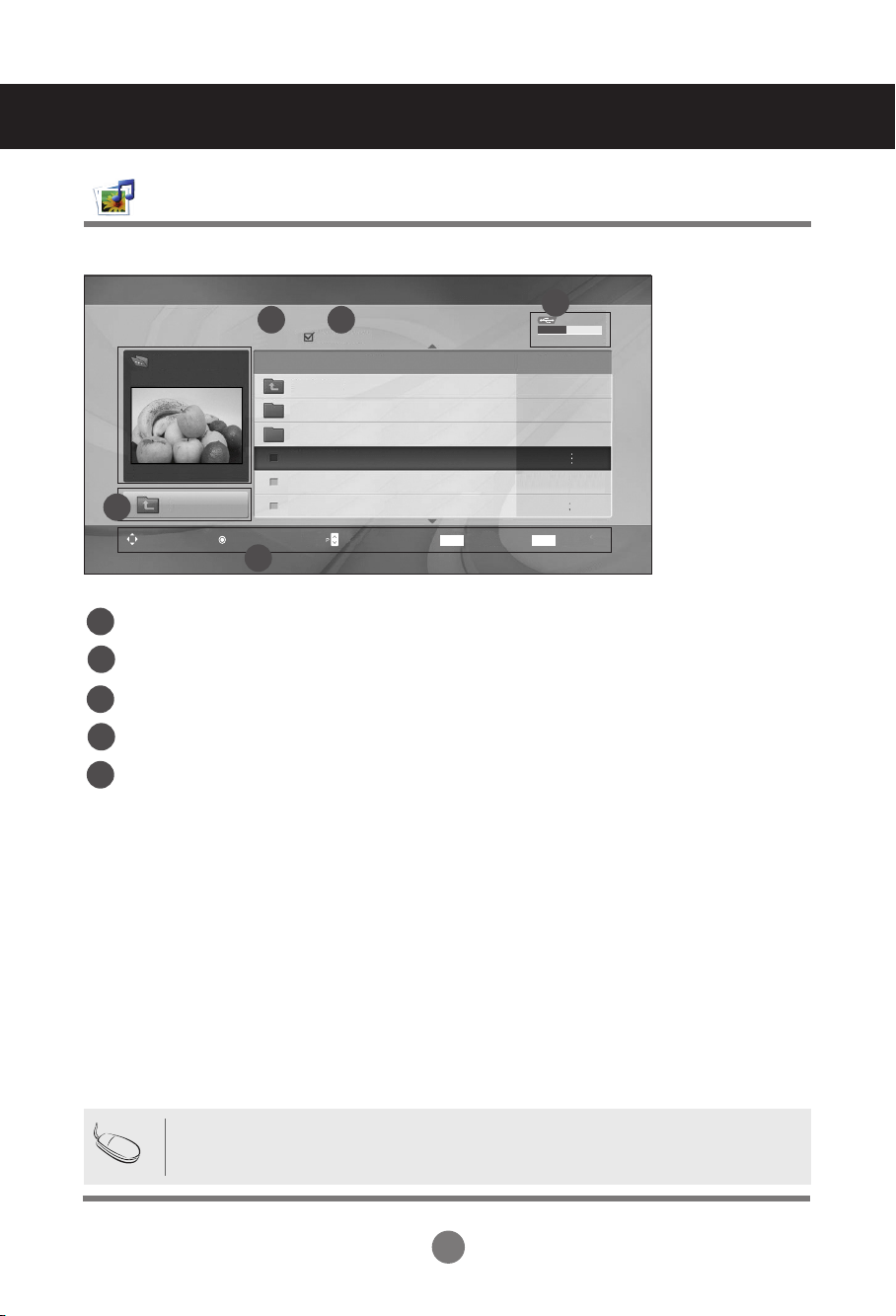

The movie list is activated once USB is detected. It is used when playing movie files on TV.
Displays the movies in the USB folder and supports Play.
Allows playback of all movies in the folder and user desired files.
Video editing is not supported but files can be deleted.
It is a movie list that displays folder information and DivX file.
Supports up to four drives.
Movie List
User Menus
Adjusts the USB options.
Movie List(*.avi/*.DivX) supporting file
Video format : MPEG1, MPEG2, MPEG4(Doesn’t support Microsoft MPEG 4-V2, V3), DivX 3.xx, DivX
4.xx, DivX 5.xx, DivX VOD(DRM), XviD, DivX 6.xx(Playback)
Audio format : Mpeg, Mp3, PCM, Dolby Digital
Sampling frequency : within 32k to 48 khz
Bit rate : 32k to 320 kbps
Subtitle format : *.smi/ *.srt/ *.sub(MicroDVD, SubViewer 2.0)/ *.ass/ *.ssa/*.txt(DVD Subtitle System)
• DivX may not be played depending on its types or recording methods.
• If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.
• Maximum FPS (Frame Per Second) can be reached only at SD level. FPS is 25 FPS (720*576) or 30
FPS (720*480) depending on Resolution.
• Max bitrate of playable DivX is 4Mbps.
• Files more than 25 FPS or 30 FPS or higher may not be played properly.
• A DivX movie file and its subtitle file must be located in the same folder.
• A video file name and its subtitle file name must be identical for it to be displayed.
• Playing a video via a USB connection that doesn’t support high speed may not work properly.
• USB storage devices below USB 2.0 are supported as well. But they may not work properly in the
movie list.
• Files encoded with GMC(Global Motion Compensation) may not be played.
Extension
name
Video Decoder Audio Codec Max Resolution
mpg, mpeg,
vob, dat
MPEG1, MPEG2 AC3,MPEG,MP3,PCM
720x576@25p
720x480@30p
Avi, DivX, m4v
MPEG4-SP, MPEG4-ASP, DivX 3.xx,
DivX 4.xx, DivX 5.xx
DivX 6.xx(Playback), Xvid
AC3,MPEG,MP3,PCM
44
User Menus
Adjusts the USB options.
Page 2/3
Movie
M002
640x480, 720KB
Up Folder
Title Duration
Up Folder
Favorite Music
M001
M002
M001
M001
01:34:15
01:35:30
01:30:20
No Marked
USB Device
Free Space 150 MB
Movie List
Screen Components
1
5
2 3
4
Moves to upper level folder
Current page / Total pages
Total number of marked movie title
Usable USB memory
Corresponding buttons on the remote control
1
2
4
3
5
• Use the left/right (< / >) keys to move to a specific frame forward or backward while
playing a movie. (The left/right (< / < ) keys may not work properly for some files while
playing a movie.)
Note
Option
Mark
Navigation
Page Change
Exit
MARK EXIT
45
Movie Selection and PopUp Menu
➩
User Menus
Adjusts the USB options.
Page 2/3
Movie
M002
640x480, 720KB
Up Folder
Title Duration
Up Folder
Favorite Music
M001
M002
M001
M001
01:34:15
01:35:30
01:30:20
No Marked
Page 2/3
Movie
M002
640x480, 720KB
Up Folder
Title Duration
Up Folder
Favorite Music
M001
M002
M001
M001
01:34:15
01:35:30
01:30:20
No Marked
1366x768, 125KB
Play
Mark All
Delete
Close
Movie List
Movie List
USB Device
Free Space 150 MB
USB Device
Free Space 150 MB
• In the case of files not supported, a message regarding non-supported file is displayed.
Note
Option
Mark
Navigation
Page Change
Exit
MARK
EXIT
Option
Mark
Navigation
Page Change
Exit
MARK
EXIT
Play : Play the selected movie. DivX Play is
executed while screen changes.
Mark All : Mark all Movie in the folder.
Unmark All : Deselect all marked movies.
Delete : Delete the selected Movie item.
Close : Close the pop-up menu.
46
Using the remote control
User Menus
Adjusts the USB options.
◄◄ / ►►
When playing, repeatedly, press REW (◄◄) to speed up ◄◄(x2) -> ◄◄◄ (x4) -> ◄◄◄◄(x8) ->
◄◄◄◄◄(x16) ->◄◄◄◄◄◄(x32). Repeatedly, press FF (►►) to speed up ►►(x2)-> ►►► (x4)
-> ►►►► (x8) -> ►►►►►(x16) -> ►►►►►►(x32). Pressing these buttons repeatedly increases
the fast forward/reverse speed.
I I During playback, press Pause (II) and the still screen is displayed.
< > When using < or > during playback, a cursor indicating the position can be viewed on the screen.
Play(►) Press Play(►) to return to normal playback.
47
User Menus
Move
USB
OK
Photo List
Music List
Movie List
DivX Reg. Code
Deactivation
DivX Reg. Code
ꔋ
Adjusts the USB options.
• Supported movie file
Resolution : under 25 frames/sec(720x576 WxH pixels).
Frame rate : under 30 frames/sec(720x480)
• Video Codec : MPEG1, MPEG2, MPEG4(Doesn’t support Microsoft MPEG4-V2, V3),
DivX3.xx, DivX4.xx, DivX5.xx, , DivX VOD(DRM), XviD, DivX6.xx(Playback).
• When loading, some buttons may not work.
Note
Confirm the DivX registration code number of the TV. Using the registration number, movies
can be rented or purchased at www.divx.com/vod.
With a DivX registration code from other TV, playback of rented or purchased DivX file is not
allowed. (Only DivX files matched with the registration code of the purchased TV are
playable.)
DivX Registration Code
DivX(R) Video On Demand
Your registration Code is: xxxxxxxxxx
To learn more visit www.divx.com/vod.
Close
Close
ABOUT DivX VIDEO: DivX
®
is a digital video format created by DivX,Inc. This is an
official DivX Certified device that plays DivX video. Visit www.divx.com for more
information and software tools to convert your files into DivX video.
ABOUT DivX VIDEO-ON-DEMAND: This DivX Certified
®
device must be registered in
order to play DivX Video-on-Demand (VOD) content. To generate the registration code,
locate the DivX VOD section in the device setup menu. Go to vod.DivX.com with this
code to complete the registration process and learn more about DivX VOD.
“DivX Certified to play DivX video, including premium content”
“Pat. 7,295,673 ; 7,460,668 ; 7,515,710 ; 7,519,274”
48
Move
USB
OK
Photo List
Music List
Movie List
DivX Reg. Code
Deactivation
Deactivation
ꔋ
Deactivation
The purpose of deactivation is to allow deactivation of devices for users who have activated
all the available devices through the web_server and are blocked from activating more
devices. DivX VOD allowed the consumer to activate up to 6 devices under one account,
but to replace or deactivate any of those devices, the consumer had to contact DivX
Support and request deletion. Now with this added feature, consumers will be able to
deactivate the device themselves and hence better manage their DivX VOD devices.
➩
DivX(R) Video On Demand
Do you want to deactivate your device?
Yes No
DivX(R) Video On Demand
This device is deactivated.
Your deactivation code is: xxxxxxxx
To learn more visit www.divx.com/vod.
Close
Adjusts the USB options.
Yes
Close
User Menus
49
Troubleshooting
• The control locking function prevents
unintentional OSD setting change due to
careless usage. To unlock the controls,
simultaneously press the Menu button and
►button for several seconds. (You cannot set
this function using the remote control buttons.
You can set this function in the product only.)
● The 'Key Lock On' message
appears when pressing the Menu
button.
• Install the product driver, which is provided
with the product, or download it from the web
site. (http://www.lg.com)
• See if the plug&play function is supported by
referring to the video card user manual.
●
Did you install the driver?
No image is displayed
'Unknown Product' message appears when the product is connected.
'Key Lock On' message appears.
• See if the power cord is properly connected to
the outlet.
• See if the power switch is turned on.
• May need service.
• Adjust brightness and contrast again.
• Backlight may need repair.
• If the set is in power saving mode, move the
mouse or press any key.
• Turn both devices off and then back on.
• The signal from the PC (video card) is out of
the vertical or horizontal frequency range of the
set. Adjust the frequency range by referring to
the specifications in this manual.
* Maximum Resolution
RGB : 1920 x 1080 @ 60 Hz
HDMI/DVI : 1920 x 1080 @ 60 Hz
• The signal cable between PC and set is not
connected. Check the signal cable.
• Press INPUT on the remote control to check
the input signal.
● Is the power cord connected?
●
Is the power indicator light on?
●
Power is on, power indicator is
Blue
but the screen appears extremely dark.
● Is the power indicator amber?
● Does the 'Out of range' message
appear?
● Does the 'Check signal cable'
message appear?
50
Troubleshooting
●
Is the screen position wrong?
●
Do thin lines appear on the
background screen?
●
Horizontal noise appears or the
characters look blurred.
●
The screen is displayed abnormally.
The screen image looks abnormal.
• D-Sub analog signal - Press the "AUTO" button
in the remote control to automatically select the
optimal screen status that fits into the current
mode. If adjustment is not satisfactory, use the
Position OSD menu.
• See if the video card resolution and frequency
are supported by the product. If the frequency
is out of range, set to the recommended
resolution in the Control Panel "Display"
Setting menu.
• D-Sub analog signal - Press the "AUTO"
button in the remote control to automatically
select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory,
use the Clock OSD menu.
• D-Sub analog signal - Press the "AUTO"
button in the remote control to automatically
select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory,
use the Phase OSD menu.
• The proper input signal is not connected to the
signal port. Connect the signal cable that
matches with the source input signal.
• If you use a fixed image for a long time, the
pixels may be damaged quickly. Use the
screen-saver function.
● After-image appears when the
product is turned off.
After-image appears on the product.
Note
• Vertical frequency: To enable the user to watch the product display, screen image
should be changed tens of times every second like a fluorescent lamp. The vertical
frequency or refresh rate is the times of image display per second. The unit is Hz.
• Horizontal frequency: The horizontal interval is the time to display one vertical line.
When 1 is divided by the horizontal interval, the number of horizontal lines displayed
every second can be tabulated as the horizontal frequency. The unit is kHz.
51
Troubleshooting
• Set the number of colors to more than 24 bits
(true color)
Select Control Panel - Display - Settings - Color
Table menu in Windows.
• Check the connection status of the signal cable.
Or, re-insert the PC video card.
• Several pixels (red, green, white or black color)
may appear on the screen, which can be
attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
● Screen has poor color resolution
(16 colors).
● Screen color is unstable or mono-
colored.
● Do black spots appear on the screen?
• See if the audio cable is connected properly.
• Adjust the volume.
• See if the sound is set properly.
• Select the appropriate equalize sound.
• Adjust the volume.
● No sound?
● Sound is too dull.
● Sound is too low.
• Is the sleep timer set?
• Check the power control settings.
Power interrupted.
•
"CAUTION! FAN STOP!"
If the power is turned off after this message
appears, it means that the fan is out of order.
In this case, contact your local service center.
●
The power suddenly turned off.
The audio function does not work.
Screen color is abnormal.
The operation does not work normally.
52
Specications
Note
• The specifications shown above may be changed without prior notice for quality
improvement.
LCD Panel
Power
Dimensions
& Weight
106.73 cm ( 42.02 inch)
TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel
Visible diagonal size :
106.73 cm
0.4845 mm x 0.4845 mm X RGB (Pixel Pitch)
Rated Voltage AC 100-240 V~ 50 / 60 Hz 2.7 A
Power Consumption On Mode : 200 W Typ.
Sleep Mode : ≤ 1 W (RGB) / 2 W (HDMI/DVI)
(If LAN OFF is selected)
Off Mode : ≤ 0.5 W
Width x Height x Depth
[1] 99.56 cm (39.2 inch) x 58.76 cm (23.1 inch) x 11.37 cm (4.5 inch)
[2] 99.56 cm (39.2 inch) x 67.41cm (26.5 inch) x 29.30 cm (11.5 inch)
[3] 99.56 cm (39.2 inch) x 58.76 cm (23.1 inch) x 11.37 cm (4.5 inch)
[4] 99.56 cm (39.2 inch) x 67.41cm (26.5 inch) x 29.30 cm (11.5 inch)
[1]
W
[2]
W
H
D
D
[3]
W
H
D
D
[4]
W
H
H
Net
[1] 19.70kg (43.43lb) [2] 22.96kg (50.62 lb)
[3] 20.48kg (45.15Ib) [4] 23.74kg (52.34 lb)
53
Specications
Note
• The specifications shown above may be changed without prior notice for quality
improvement.
Max. Resolution RGB : 1920 x 1080 @ 60 Hz
HDMI/DVI :
1920 x 1080
@ 60 Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution
RGB : 1920 x 1080 @ 60 Hz
HDMI/DVI : 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB : 30 kHz to 83 kHz
HDMI/DVI : 30 kHz to 83 kHz
Vertical Frequency RGB : 56 Hz to 75 Hz
HDMI/DVI : 56 Hz to 60 Hz
Synchronization Type Composite/Separate/Digital
15-pin D-Sub type, HDMI/DVI(digital)
Composite Video, Component, RS-232C, LAN, USB
Operational Condition Temperature : 0 °C to 40 °C , Humidity : 10 % to 80 %
Storage Condition Temperature : -20 °C to 60 °C , Humidity : 5 % to 95 %
Video Signal
Input Connector
Environmental
Conditions
RMS Audio Output 10 W + 10 W ( R + L )
Input Sensitivity 0.7 Vrms
Speaker Impedance 8 Ω
Audio
Applicable only for models that support the speakers
54
Specications
PC Mode - Preset Mode
Note
• DTV/PC selection on HDMI/DVI inputs is available for PC resolutions : 640 x 480/60 Hz,
1280 x 720/60 Hz, 1920 x 1080/60 Hz and DTV resolutions : 480p, 720p, 1080p.
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Preset mode
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
1
2
*3
4
*5
6
7
*8
9
*10
640 x 350
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1280 x 720
31.469
31.468
31.469
37.5
37.879
46.875
49.725
48.363
60.123
44.772
70.8
70.8
59.94
75
60.317
75
74.55
60
75.029
59.855
*11
*12
*13
*14
15
*16
*17
1280 x 768
1360 x 768
1366 x 768
1280 x 1024
1280 x 1024
1680 x 1050
1920 x 1080
47.7
47.72
47.7
63.981
79.98
65.290
67.5
60
59.799
60
60.02
75.02
59.954
60
Mode
Product
On Mode
Sleep Mode
Off Mode
Blue
Amber
-
1 to 17: RGB Mode
* : HDMI/DVI mode
Component
480i o x
576i o x
480p o o
576p o o
720p o o
1080i o o
1080p o o
HDMI/DVI(DTV)
DTV Mode
Power Indicator
Controlling the Multiple Product
RS-232C
A1
Controlling the Multiple Product
RS-232C
A1
A1
Connecting the cable
Connect the RS-232C cable as shown in the picture.
You need to purchase a cable to connect the RS-232C socket as it is not provided as the
accessory.
The RS-232C protocol is used for communication between the PC and product. You can
turn the product on/off, select an input source or adjust the OSD menu from your PC.
Use this method to connect several products to a single PC. You can control several products at a
time by connecting them to a single PC.
If the [Set ID] menu in [Option] is set to OFF, the monitor ID value should be set between 1 and 99.
RS-232C Cable
(not included)
monitor 1
PC
monitor 2
monitor 3 monitor 4
7-Wire Configurations (Standard RS-232C cable)
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXDRXD
GND
DSR
DTR
CTS
RTS
PC Monitor
2
3
5
4
6
7
8
3
2
5
6
4
8
7
D-Sub 9 D-Sub 9
(Female) (Female)
3-Wire Configurations (Not Standard)
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXDRXD
GND
DTR
DSR
RTS
CTS
PC Monitor
2
3
5
4
6
7
8
3
2
5
6
4
7
8
D-Sub 9 D-Sub 9
(Female) (Female)
► Baud Rate : 9600 buad Rate (UART)
► Data Length : 8 bit
► Parity Bit : None
► Stop Bit : 1bit
► Flow Control : None
► Communication Code : ASCII code
► Use a crossed (reverse) cable
Communication Parameter
RS-232C Configurations
Controlling the Multiple Product
RS-232C
A2
COMMAND 1 COMMAND 2 DATA1 DATA2 DATA3
Command Reference List
k a 00H to 01H
k b 02H to 09H
k c 01H to 1FH
k d 00H to 01H
k e 00H to 01H
k f 00H to 64H
k g 00H to 64H
k h 00H to 64H
k i 00H to 64H
k j 00H to 64H
k k 00H to 64H
k l 00H to 01H
k m 00H to 01H
k t 00H to 64H
k u 00H to 02H
k z FFH
j p 01H to 08H
j u 01H
m c Key Code
d d 00H to 55H
d e 00H to 14H
d f 00H to 14H
d g 00H to 64H
d h 00H to 64H
d i 00H to 19H
d j 00H to 01H
d x 00H to 06H
d y 01H to 05H
d w FFH
d l FFH
d n FFH
d p FFH
d u 00H to 01H
d v 00H to 01H
f a 00H to 06H
f d F1H to F4H
E0H to E4H
01H to 80H
f e F1H to F4H
E0H to E4H
01H to 80H
01.
Power
02.
Input Select
03.
Aspect Ratio
04. Screen Mute
05.
Volume Mute
06.
Volume Control
07.
Contrast
08.
Brightness
09.
Color
10.
Tint
11.
Sharpness
12.
OSD Select
13.
Remote Lock/ key Lock
14.
Balance
15.
Color Temperature
16. Abnomal state
17.
ISM mode
18. Auto configuration
19. Key
20.
Tile Mode
21.
Tile H Position
22.
Tile V Position
23.
Tile H Size
24.
Tile V Size
25. Tile ID Set
26. Natural Mode (In Tile mode
27.
Picture mode(PSM)
28.
Sound mode
29.
Fan Fault check
30.
Elapsed time return
31.
Temperature value
32.
Lamp fault check
33.
Auto Volume
34.
Speaker
35.
Time
36.
On Timer (On/Off Timer) Time
37.
Off Timer (On/zOff Timer) Time
00H to 17H 00H to 3BH
00H to 17H 00H to 3BH
00H to 17H 00H to 3BH
Controlling the Multiple Product
RS-232C
A3
COMMAND 1 COMMAND 2 DATA1 DATA2 DATA3
38.
Scheduling input select
39. Sleep Time
40.
Auto Sleep
41.
Power On Delay
42.
Language
43.
DPM Select
44.
Reset
45.
Power Saving
46.
Power Indicator
47. Logo
Indicator
48.
Serial no.
49. S / W Version
50.
Input Select
f u F1H to F4H
f f 00H to 08H
f g 00H to 01H
f h 00H to 64H
f i 00H to 09H
f j 00H to 01H
f k 00H to 02H
f l 00H to 03H
f o 00H to 01H
f p 00H to 01H
f y FFH
f z FFH
x b 20H to A0H
02H to 09H
Controlling the Multiple Product
RS-232C
A4
OK Acknowledgement
* The Product transmits ACK (acknowledgement) based on
this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data.
If the data is data write mode, it returns the data of the PC
computer.
Error Acknowledgement
* If there is error, it returns NG
Transmission
* [Command 1]: First command. (k, j, m, d, f, x)
* [Command 2]: Second command.(a to u)
* [Set ID]: Set up the Set ID number of product.
range : 01H to 63H. by setting '0', server can control all products.
* In case of operating with more than 2 sets using set ID as '0' at the same time, it should
not be checked the ack message. Because all sets will send the ack message, so it's
impossible the check the whole ack messages.
* [DATA]: To transmit command data.
Transmit 'FF' data to read status of command.
* [Cr]: Carriage Return
ASCII code '0 x 0 D'
* [ ]: ASCII code Space (0 x 20)
Transmission / Receiving Protocol
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command2][ ][Set ID][ ][OK][Data][x]
[Command2][ ][Set ID][ ][NG][Data][x]
Controlling the Multiple Product
RS-232C
A5
Transmission / Receiving Protocol
01. Power(Command : a)
► To control Power On / Off of the Set.
Transmission
Data 0 : Power Off 1 : Power On
Acknowledgement
► To show the status of Power On / Off.
Transmission
Acknowledgement
Data 0 : Power Off 1 : Power On
02. Input Select (Command : b) (Main Picture Input)
► To select input source for the Set.
You can also select an input source using the INPUT
button on the remote control.
Transmission
Data 2 : AV
4 : Component
7 : RGB (PC)
8 : HDMI (DTV)
9 : HDMI (PC)
Acknowledgement
Data 2 : AV
4 : Component
7 : RGB (PC)
8 : HDMI (DTV)
9 : HDMI (PC)
[k][a][ ][Set ID][ ][Data][Cr]
[a][ ][Set ID][ ][OK][Data][x]
[k][a][ ][Set ID][ ][FF][Cr]
[a][ ][Set ID][ ][OK][Data][x]
[k][b][ ][Set ID][ ][Data][Cr]
[b][ ][Set ID][ ][OK][Data][x]
Controlling the Multiple Product
RS-232C
A6
03. Aspect Ratio(Command : c) (Main picture format)
► To adjust the screen format.
You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in the
Screen menu.
Transmission
Data 1 : Normal Screen (4 : 3)
2 : Wide Scran (16 : 9)
4 : Zoom (AV)
6 : Original (AV)
7 : 14 : 9 (AV)
9 : Just Scan (HD DTV) * When the RGB, HDMI / DVI PC mode(1:1)
10 to 1F : Cinema Zoom 1 to 16
B : Full Wide
Acknowledgement
04. Screen Mute(Command : d)
► To select screen mute on / off.
Transmission
Data 0 : Screen mute off (Picture on)
1 : Screen mute on (Picture off)
Acknowledgement
Transmission / Receiving Protocol
[k][c][ ][Set ID][ ][Data][Cr]
[k][d][ ][Set ID][ ][Data][Cr]
[c][ ][Set ID][ ][OK][Data][x]
[d][ ][Set ID][ ][OK][Data][x]
Controlling the Multiple Product
RS-232C
A7
A7
05. Volume Mute(Command : e)
► To control On/Off of the Volume Mute.
Transmission
Data 0 : Volume Mute On (Volume Off)
1 : Volume Mute Off (Volume On)
Acknowledgement
Data 0 : Volume Mute On (Volume Off)
1 : Volume Mute Off (Volume On)
06. Volume Control(Command : f)
► To adjust Volume
Transmission
Data Min : 00H to Max : 64H
(Hexadecimal code)
Acknowledgement
Data Min : 00H to Max : 64H
* Real Data Mapping
0 : STEP 0
:
A : STEP 10
:
F : STEP 15
10 : STEP 16
:
64 : STEP 100
Transmission / Receiving Protocol
[k][e][ ][Set ID][ ][Data][Cr]
[e][ ][Set ID][ ][OK][Data][x]
[k][f][ ][Set ID][ ][Data][Cr]
[f][ ][Set ID][ ][OK][Data][x]
Controlling the Multiple Product
RS-232C
A8
A8
Transmission / Receiving Protocol
07. Contrast(Command : g)
► To adjust screen contrast.
You can also adjust the contrast in the Picture menu.
Transmission
Data Min : 00H to Max : 64H
Acknowledgement
*
Refer to 'Real data mapping' page A7.
08. Brightness(Command : h)
► To adjust screen brightness.
You can also adjust the brightness in the Picture menu.
Transmission
Data Min : 00H to Max : 64H
*
Refer to 'Real data mapping' as shown below.
Acknowledgement
*
Refer to 'Real data mapping' page A7.
[k][g][ ][Set ID][ ][Data][Cr]
[g][ ][Set ID][ ][OK][Data][x]
[k][h][ ][Set ID][ ][Data][Cr]
[h][ ][Set ID][ ][OK][Data][x]
Controlling the Multiple Product
RS-232C
A9
Transmission / Receiving Protocol
09. Color(Command : i) (Video Timing only)
► To adjust the screen color.
You can also adjust the color in the Picture menu.
Transmission
Data Min : 00H to Max : 64H
(Hexadecimal code)
*
Refer to 'Real data mapping' page A7.
Acknowledgement
Data Min : 00H to Max : 64H
10. Tint(Command : j) (Video Timing only)
► To adjust the screen tint.
You can also adjust the tint in the Picture menu.
Transmission
Data Red : 00H to Green: 64H
(Hexadecimal code)
*
Refer to 'Real data mapping' page A7.
Acknowledgement
Data Red : 00H to Green : 64H
* Tint Real data mapping
0 : Step 0 to Red
:
64 : Step 100 to Green
[k][i][ ][Set ID][ ][Data][Cr]
[i][ ][Set ID][ ][OK][Data][x]
[k][j][ ][Set ID][ ][Data][Cr]
[j][ ][Set ID][ ][OK][Data][x]
Controlling the Multiple Product
RS-232C
A10
11. Sharpness(Command : k) (Video Timing only)
► To adjust the screen Sharpness.
You can also adjust the sharpness in the Picture menu.
Transmission
Data Min : 00H to Max : 64H
(Hexadecimal code)
*
Refer to 'Real data mapping' page A7.
Acknowledgement
Data Min : 00H to Max : 64H
12. OSD Select(Command : l)
► To control OSD on/off to the set.
Transmission
Data 0 : OSD Off 1 : OSD On
Acknowledgement
Data 0 : OSD Off 1 : OSD On
13. Remote Lock /Key Lock (Command : m)
► To control Remote Lock on/off to the set.
This function, when controlling RS-232C, locks the remote control and the local keys.
Transmission
Data 0 : Off 1 : On
Acknowledgement
Data 0 : Off 1 : On
Transmission / Receiving Protocol
[k][k][ ][Set ID][ ][Data][Cr]
[k][ ][Set ID][ ][OK][Data][x]
[k][l][ ][Set ID][ ][Data][Cr]
[l][ ][Set ID][ ][OK][Data][x]
[k][m][ ][Set ID][ ][Data][Cr]
[m][ ][Set ID][ ][OK][Data][x]
Controlling the Multiple Product
RS-232C
A11
Transmission / Receiving Protocol
14 Balance(Command : t)
► To adjust the sound balance.
Transmission
Data Min : 00H to Max : 64H
(Hexadecimal code)
00H : Step L50
64H : Step R50
Acknowledgement
Data Min : 00H to Max : 64H
00H : Step 0 to L50
64H : Step 100 to R50
* Balance : L50 to R50
15. Color Temperature (Command : u)
► To adjust the screen color temperature.
Transmission
Data 0 : Medium
1 : Cool
2 : Warm
Acknowledgement
Data 0 : Medium
1 : Cool
2 : Warm
[k][t][ ][Set ID][ ][Data][Cr]
[t][ ][Set ID][ ][OK][Data][x]
[k][u][ ][Set ID][ ][Data][Cr]
[u][ ][Set ID][ ][OK][Data][x]
Controlling the Multiple Product
RS-232C
A12
Transmission / Receiving Protocol
16. Abnormal state (Command : z)
► Abnormal State : Used to Read the power off status when Stand-by mode.
Transmission
Data FF : Read
Acknowledgement
0 : Normal (Power on and signal exist)
1 : No signal (Power on)
2 : Turn the monitor off by remote control
3 : Turn the monitor off by sleep time function
4 : Turn the monitor off by RS-232C function
8 : Turn the monitor off by off time function
9 : Turn the monitor off by auto off function
17. ISM mode(Command: j p)
► Used to select the afterimage preventing function.
Transmission
Data 1H : Inversion
2H : Orbiter
4H : White Wash
8H : Normal
Acknowledgement
[k][z][ ][Set ID][ ][Data][Cr]
[z][ ][Set ID][ ][OK][Data][x]
[j][p][ ][Set ID][ ][Data][Cr]
[p][ ][Set ID][ ][OK][Data][x]
Controlling the Multiple Product
RS-232C
A13
18. Auto Configure(Command: j u)
► To adjust picture position and minimize image shaking
automatically. it works only in RGB(PC) mode.
Transmission
Data 1 : To set
Acknowledgement
Transmission / Receiving Protocol
19. Key(Command : m c)
► To send IR remote key code.
Transmission
Data Key code : Refer to page A 32.
Acknowledgement
[j][u][ ][Set ID][ ][Data][Cr]
[u][ ][Set ID][ ][OK][Data][x]
[m][c][ ][Set ID][ ][Data][Cr]
[c][ ][Set ID][ ][OK][Data][x]
Controlling the Multiple Product
RS-232C
A14
20. Tile Mode(Command : d d)
► Change a Tile Mode.
Transmission
* The data can not be set to 0X or X0 except 00.
Acknowledgement
Transmission / Receiving Protocol
Data Description
00 or 11 Tile mode is off.
12 1 x 2 mode(column x row)
13 1 x 3 mode
14 1 x 4 mode
... ...
55 5 x 5 mode
[d][d][ ][Set ID][ ][Data][x]
[d][ ][00][ ][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A15
21. Tile H Position(Command : d e)
► To set the Horizontal position.
Transmission
Data Min : 00H to Max : 14H
00H : Step -10(Left)
14H : Step 10(Right)
Acknowledgement
22. Tile V Position(Command : d f)
► To set the Vertical position.
Transmission
Data Min : 00H to Max : 14H
00H : Step -10(Left)
14H : Step 10(Right)
Acknowledgement
Transmission / Receiving Protocol
[d][e][ ][Set ID][ ][Data][x]
[e][ ][Set ID][ ][OK/NG][Data][x]
[d][f][ ][Set ID][ ][Data][x]
[f][ ][Set ID][ ][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A16
23. Tile H Size(Command : d g)
► To set the Horizontal size.
Transmission
Data Min : 00H to Max : 64H
*
Refer to 'Real data mapping' page A7.
Acknowledgement
24. Tile V Size(Command : d h)
► To set the Vertical size.
Transmission
Data Min : 00H to Max : 64H
*
Refer to 'Real data mapping' page A7
Acknowledgement
Transmission / Receiving Protocol
[d][g][ ][Set ID][ ][Data][x]
[g][ ][Set ID][ ][OK/NG][Data][x]
[d][h][ ][Set ID][ ][Data][x]
[h][ ][Set ID][ ][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A17
A17
25. Tile ID Set(Command : d i)
► To assign the Tile ID for Tiling function .
Transmission
Data Min : 00H to Max : 19H
(Hexadecimal code)
Acknowledgement
26
Natural Mode (In Tile mode) (
Command : d j)
► To assign the Tile Natural mode for Tiling function .
Transmission
Data 0 : Natural Off
1 : Natural On
ff : Read Status
Acknowledgement
Transmission / Receiving Protocol
27. Picture Mode (Command : d x)
► To adjust the picture mode.
Transmission
Data Structure
Acknowledgement
[d][i][ ][Set ID][ ][Data][x]
[i][ ][Set ID][ ][OK/NG][Data][x]
[d][j][ ][Set ID][ ][Data][x]
[j][ ][Set ID][ ][OK/NG][Data][x]
[d][x][][Set ID][][Data][x]
[x][][Set ID][][OK/NG][Data][x]
Data(Hex)
00
01
02
03
04
05
06
MODE
Vivid
Standard
Cinema
Sport
Game
Export 1
Export 2
Controlling the Multiple Product
RS-232C
A18
A18
Transmission / Receiving Protocol
28. Sound Mode (Command : d y )
► To adjust the Sound mode.
Transmission
Data Structure
Acknowledgement
Data(Hex)
01
02
03
04
05
Mode
Standard
Music
Cinema
sport
Game
29. Fan Fault check (Command : d w )
► To check the Fan fault of the TV.
Transmission
* The data is always FF(in Hex).
Data ff: Read Status
Acknowledgement
* Data is the status value of the Fan fault.
Data 0: Fan fault
1: Fan OK
2: N/A(Not Avaliable)
[d][y][][Set ID][][Data][X]
[y][][Set ID][][OK/NG][Data][x]
[d][w][][Set ID][][Data][x]
[w][][Set ID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A19
Controlling the Multiple Product
RS-232C
A19
31. Temperature value (Command : d n)
► To read the inside temperature value.
Transmission
* The data is always FF(in Hex).
Acknowledgement
* The data is 1 byte long in Hexadecimal.
32. Lamp fault Check(Command : d p)
► To check lamp fault.
Transmission
* The data is always FF(in Hex).
Acknowledgement
Data 0 : Lamp Fault
1 : Lamp OK
2 : N/A(DPM/Power Off)
Transmission / Receiving Protocol
30. Elapsed time return(Command : d l)
► To read the elapsed time.
Transmission
* The data is always FF(in Hex).
Acknowledgement
* The data means used hours.
(Hexadecimal code)
[d][l][ ][Set ID][ ][Data][x]
[l][ ][Set ID][ ][OK/NG][Data][x]
[d][n][ ][Set ID][ ][Data][x]
[n][ ][Set ID][ ][OK/NG][Data][x]
[d][p][ ][Set ID][ ][Data][x]
[p][ ][Set ID][ ][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A20
Controlling the Multiple Product
RS-232C
A20
33. Auto volume (Command : d u)
► Automatically adjust the volume level.
Transmission
Data 0 : Off
1 : On
Acknowledgement
34. Speaker (Command : d v)
► Turn the speaker on or off.
Transmission
Data 0 : Off
1 : On
Acknowledgement
Transmission / Receiving Protocol
[d][u][][Set ID][][Data][x]
[u][][Set ID][][OK/NG][Data][x]
[d][v][][Set ID][][Data][x]
[v][][Set ID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A21
35. Time (Command : f a)
► Set the current time.
Transmission
[Data1]
0 : Monday
1 : Tuesday
2 : Wednesday
3 : Thursday
4 : Friday
5 : Saturday
6 : Sunday
[Data2]
0H to 17H (Hours)
[Data3]
00H to 3BH (Minutes)
Acknowledgement
*When reading data, FFH is inputted for [Data1], [Data2] and [Data3].
In other cases, all are treated as NG.
Transmission / Receiving Protocol
[f][a][][Set ID][][Data1][][Data2][][Data3][Cr]
[a][][Set ID][][OK/NG][Data1][Data2][Data3][x]
Controlling the Multiple Product
RS-232C
A22
Transmission / Receiving Protocol
Transmission
[Data1]
1. f1h to f4h(read one index)
f1: read 1st index of On Time List,
f2: read 2nd index of On Time List
f3: read 3rd index of On Time List
f4: read 4th index of On Time List
2. e1h~e4h(delete one index), e0h(delete all indexes)
e0: delete all indexes of On Time List
e1: delete 1st index of On Time List
e2: delete 2nd index of On Time List
e3: delete 3rd index of On Time List
e4: delete 4th index of On Time List
3. 01h to 80h (write) (Day of Week)
bit0 (01h) : Monday
bit1 (02h) : Tuesday
bit2 (04h) : Wednesday
bit3 (08h) : Thursday
bit4 (10h) : Friday
bit5 (20h) : Saturday
bit6 (40h) : Sunday
bit7 (80h) : Everyday
(1fh) : Monday to Friday
(3fh) : Monday to Saturday
(60h) : Saturday to Sunday
[Data 2]
00h to 17h (Hours)
[Data 3]
00h to 3bh (Minutes)
*When you read/delete the current on time list, all of [Data2][Data3] are have to be FFH.
(ex1: fd 01 f1 ff ff - when you read 1st index of On Time List
ex2: fd 01 e1 ff ff - when you delete 1st index of On Time List
ex3: fd 01 3f 02 03 - when you write one On Time Data, "Monday to Saturday, 02:03"
Acknowledgement
36. On Timer (On/Off Timer) Time (Command : f d)
► Set On Timer.
[d][][Set ID][][OK][Data1][Data2][Data3][x]
[f][d][][Set ID][][Data1][][Data2][][Data3][Cr]
Controlling the Multiple Product
RS-232C
A23
Transmission
[Data 1]
1. f1h to f4h(read one index)
f1: read 1st index of Off Time List,
f2: read 2nd index of Off Time List
f3: read 3rd index of Off Time List
f4: read 4th index of Off Time List
2. e1h to e4h(delete one index), e0h(delete all indexes)
e0: delete all indexes of Off Time List
e1: delete 1st index of Off Time List
e2: delete 2nd index of Off Time List
e3: delete 3rd index of Off Time List
e4: delete 4th index of Off Time List
3. 01h to 80h (write) (Day of Week)
bit0 (01h) : Monday
bit1 (02h) : Tuesday
bit2 (04h) : Wednesday
bit3 (08h) : Thursday
bit4 (10h) : Friday
bit5 (20h) : Saturday
bit6 (40h) : Sunday
bit7 (80h) : Everyday
(1fh) : Monday to Friday
(3fh) : Monday to Saturday
(60h) : Saturday to Sunday
[Data 2]
00h to 17h (Hours)
[Data 3]
00h to 3bh (Minutes)
*When you read/delete the current on time list, all of [Data2][Data3] are have to be FFH.
(ex1: fd 01 f1 ff ff - when you read 1st index of Off Time List
ex2: fd 01 e1 ff ff - when you delete 1st index of Off Time List
ex3: fd 01 3f 02 03 - when you write one Off Time Data, "Monday to Saturday, 02:03")
Acknowledgement
37. Off Timer (On/Off Timer) Time (Command : f e)
► Set Off Timer.
Transmission / Receiving Protocol
[f][e][][Set ID][][Data1][][Data2][][Data3][Cr]
[e][][Set ID][][OK][Data1][Data2][Data3][x]
Controlling the Multiple Product
RS-232C
A24
Transmission / Receiving Protocol
38. Scheduling Input select (Command : f u) (Main Picture Input)
► To select input source for TV depending on day.
Transmission
[Data 1]
1. f1h to f4h(write/read one index)
f1: read 1st index of On Time Input
f2: read 2nd index of On Time Input
f3: read 3rd index of On Time Input
f4: read 4th index of On Time Input
[Data 2]
Input
*When you read/delete the current On Time Input, [Data2] needs to be FFH.
(ex1: fu 01 f1 ff - when you read 1st index of On Time Input
ex2: fu 01 f3 02 - when you write one On Time Input Data in to 3rd index, "AV")
Acknowledgement
Data(Hex)
02
04
07
08
09
INPUT
AV
Component
RGB - PC
HDMI/DVI - HD-DVD
HDMI/DVI - PC
[f][u][][Set ID][][Data1][][Data2][Cr]
[u][][Set ID][][OK][Data1][Data2][x]
Controlling the Multiple Product
RS-232C
A25
39. Sleep Time (Command : f f)
► Set Sleep Time.
Transmission
Data
0 : Off
1 : 10
2 : 20
3 : 30
4 : 60
5 : 90
6 : 120
7 : 180
8 : 240
Acknowledgement
Transmission / Receiving Protocol
40. Auto Sleep (Command : f g)
► Set Auto Sleep.
Transmission
Data 0 : Off
1: On
Acknowledgement
[f][f][][Set ID][][Data][Cr]
[g][][Set ID][][OK/NG][Data][x]
[f][g][][Set ID][][Data][Cr]
[f][][Set ID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A26
41. Power On Delay (Command : f h)
► Set the schedule delay when the power is turned on (Unit:
second).
Transmission
Data : 00H to 64H (Data value)
*
Refer to 'Real data mapping' page A7
Acknowledgement
Transmission / Receiving Protocol
42. Language (Command : f i)
► Set the OSD language.
Transmission
Data
0 : English
1 : French
2 : German
3 : Spanish
4 : Italian
5 : Portuguese
6 : Chinese
7 : Japanese
8 : Korean
9 : Russian
Acknowledgemen
[f][h][][Set ID][][Data][Cr]
[i][][Set ID][][OK/NG][Data][x]
[f][i][][Set ID][][Data][Cr]
[h][][Set ID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A27
43. DPM Select (Command : f j)
► Set the DPM (Display Power Management) function.
Transmission
Data 0 : Off
1: On
Acknowledgement
Transmission / Receiving Protocol
44. Reset (Command : f k)
► Execute the Picture, Screen and Factory Reset functions.
Transmission
Data
0 : Picture Reset
1 : Screen Reset
2 : Factory Reset
Acknowledgement
[f][j][][Set ID][][Data][Cr]
[k][][Set ID][][OK/NG][Data][x]
[f][k][][Set ID][][Data][Cr]
[j][][Set ID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A28
45. Power saving(Command : f I)
► To set the Power saving mode.
Transmission
Data 0 : Off
1: (static level 1)
2: (static level 2)
3: (static level 3)
Acknowledgement
Transmission / Receiving Protocol
46. Power Indicator (Command : f o)
► To set the LED for Power Indicator
Transmission
Data 0 : Off
1: On
Acknowledgement
[f][I][][Set ID][][Data][Cr]
[f][o][][Set ID][][Data][Cr]
[o][][Set ID][][OK/NG][Data][x]
[I][][Set ID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A29
Transmission / Receiving Protocol
47. logo Indicator (Command : f p)
► To set the LED for Power Indicator
Transmission
Data 0 : Off
1: On
Acknowledgement
48. Serial no.Check (Command : f y)
► To read the serial numbers
Transmission
Data FF (to read the serial numbers)
Acknowledgement
* The data format is ASCII Code.
[f][p][][Set ID][][Data][Cr]
[y][][Set ID][][OK/NG][Data1] ~ [Data13] [x]
[f][y][][Set ID][][Data][Cr]
[p][][Set ID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A30
49. S/W Version (Command : f z)
► Check the software version.
Transmission
Data FFH : Read
Acknowledgement
Transmission / Receiving Protocol
50. Input Select (Command : x b)
► To select input source for the Set.
Transmission
Data 20H : AV
40H : Component
60H : RGB (PC)
90H : HDMI/DVI (DTV)
A0H : HDMI/DVI (PC)
Acknowledgement
Data 20H : AV
40H : Component
60H : RGB (PC)
90H : HDMI/DVI (DTV)
A0H : HDMI/DVI (PC)
[f][z][][Set ID][][Data][Cr]
[x][b][][Set ID][][Data][Cr]
[b][ ][Set ID][ ][OK][Data][x]
[z][][Set ID][][OK/NG][Data][x]
Controlling the Multiple Product
RS-232C
A31
IR Codes
RS-232C
A31
Remote Control IR Code
Output waveform
single pulse, modulated with 37.917kHz signal at 455kHz
► Configuration of frame
T1
Tc
▪
Repeat frame
Tf
Repeat code
► Lead code
► Repeat code
► Bit description
2.25 ms
9 ms
0.55ms
► Frame interval : Tf
Tf
Tf
Tf = 108 ms @ 455 kHz
Lead
code
Low
custom code
High
custom code
Data code
Data code
C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
9 ms
4.5 ms
Carrier frequency
FCAR = 1 / Tc = fosc / 12
Duty ratio = T1 / Tc = 1 / 3
▪
1st frame
0.56 ms
1.12 ms
0.56 ms
2.24 ms
▪
Bit "0"
▪
Bit "1"
▪
The waveform is transmitted as long as a key is depressed.
Controlling the Multiple Product
RS-232C
A32
IR Codes
RS-232C
A32
Code(Hex) Function Note
UP(▲)
DOWN(▼)
RIGHT(▶)
LEFT(◀)
POWER ON/OFF
MONITOR ON
MONITOR OFF
MUTE
Energy Saving
INPUT
MENU
EXIT
PSM
OK
Number Key 0
Number Key 1
Number Key 2
Number Key 3
Number Key 4
Number Key 5
Number Key 6
Number Key 7
Number Key 8
Number Key 9
ARC(MARK)
Vol+
Vol-
40
41
06
07
08
C4
C5
09
95
0B
43
5B
4D
44
10
11
12
13
14
15
16
17
18
19
79
02
03
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
(Discrete IR Code)
R/C Button
(Discrete IR Code)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
(Discrete IR Code)
R/C Button
R/C Button
Controlling the Multiple Product
RS-232C
A33
IR Codes
RS-232C
A33
E0
E1
28
99
72
71
63
61
7B
B0
B1
BA
8F
8E
5A
BF
D5
C6
76
77
AF
R/C Button
R/C Button
R/C Button
R/C Button
(Discrete IR Code)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
Discrete IR Code
(Input AV Selection)
Discrete IR Code(Input
COMPONENT Selection)
Discrete IR Code
(Input RGB PC Selection)
Discrete IR Code
(Input HDMI/DVI Selection)
Discrete IR Code
(Only 4 : 3 mode)
Discrete IR Code
(Only 16 : 9 mode)
Discrete IR Code
(Only ZOOM,
Cinena
ZOOM mode)
Bright∧(Page UP)
Bright∨(Page Down)
BACK
AUTO CONFIC
ID ON(Red Color)
ID OFF(Green Color)
(Yellow Color)
(Blue Color )
TILE
►
■
II
◄◄
►►
AV
COMPONENT
RGB PC
HDMI/DVI
ARC (4:3)
ARC (16:9)
ARC (ZOOM)
Code(Hex) Function Note
Ma ke su re to re ad t he Im p or t an t
Precautions before using the product.
Keep the Owner's Manual(CD) in an
accessible place for future reference.
The model and serial number of the SET
is located on the back and one side of
the SET. Record it below should you ever
need service.
WARNING -This is a class A product. In a do-
mestic environment this product may cause
radio interference in which case the user may
be required to take adequate measures.
MODEL
SERIAL
Temporary noise is normal when powering
ON or OFF this device.
Warranty void if removed.
Important
WARRANTY VOID
IF REMOVED
3850TAZ209Y
As an ENERGY STAR Partner LGE U. S. A.,Inc. has
determined that this product meets the ENERGY
STAR guidelines for energy efficiency.
EN ERGY STAR i s a s et o f po we r-
saving guidelines issued by the U.S.
Environmental Protection Agency(EPA).
