AVR-E300
INTEGRATED NETWORK AV RECEIVER
Owner’s Manual
Basic instructions
Advanced instructions
Information
DVD
I
n
SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
To completely disconnect this product from the mains, disconnect the plug
from the wall socket outlet.
The mains plug is used to completely interrupt the power supply to the unit
and must be within easy access by the user.
IMPORTANT SAFETY
INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. Batteries shall not be exposed to excessive heat such as sunshine, fire or
the like.
FCC INFORMATION (For US customers)
1. COMPLIANCE INFORMATION
Product Name: Integrated Network AV Receiver
Model Number: AVR-E300
This product complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this product may not cause harmful
interference, and (2) this product must accept any interference received,
including interference that may cause undesired operation.
Denon Electronics (USA), LLC
(a D&M Holdings Company)
100 Corporate Drive
Mahwah, NJ 07430-2041
Tel. (201) 762-6665
2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT
This product, when installed as indicated in the instructions contained
in this manual, meets FCC requirements. Modification not expressly
approved by Denon may void your authority, granted by the FCC, to use
the product.
3. IMPORTANT
When connecting this product to network hub or router, use only a
shielded STP or ScTP LAN cable which is available at retailer.
Follow all installation instructions. Failure to follow instructions could void
your authority, granted by the FCC, to use the product.
4. NOTE
This product has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This product generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
product does cause harmful interference to radio or television reception,
which can be determined by turning the product OFF and ON, the user
is encouraged to try to correct the interference by one or more of the
following measures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connect the product into an outlet ona circuit different from that to
which the receiver is connected.
•Consultthelocalretailerauthorizedtodistributethistypeofproductor
an experienced radio/TV technician for help.
For Canadian customers:
This Class B digital apparatus complies with Canadian ICES-003.
CAUTION:
HOT SURFACE. DO NOT TOUCH.
The top surface over the internal heat sink may become hot
when operating this product continuously.
Do not touch hot areas, especially around the “Hot surface
mark” and the top panel.
Hot
surface
mark
Basic instructions
Advanced instructions
Information
DVD
II
n
NOTES ON USE
WARNINGS
•Avoid high temperatures.
Allow for sucient heat dispersion when installed in a rack.
•Handle the power cord carefully.
Hold the plug when unplugging the cord.
•Keep the unit free from moisture, water, and dust.
•Unplug the power cord when not using the unit for long periods of time.
•Do not obstruct the ventilation holes.
•Do not let foreign objects into the unit.
•Do not let insecticides, benzene, and thinner come in contact with the unit.
•Never disassemble or modify the unit in any way.
•Ventilation should not be impeded by covering the ventilation openings
with items, such as newspapers, tablecloths or curtains.
•Naked flame sources such as lighted candles should not be placed on
the unit.
•Observe and follow local regulations regarding battery disposal.
•Do not expose the unit to dripping or splashing fluids.
•Do not place objects filled with liquids, such as vases, on the unit.
•Do not handle the mains cord with wet hands.
•When the switch is in the OFF (STANDBY) position, the equipment is not
completely switched o from MAINS.
•The equipment shall be installed near the power supply so that the power
supply is easily accessible.
•Do not keep the battery in a place exposed to direct sunlight or in places
with extremely high temperatures, such as near a heater.
n CAUTIONS ON INSTALLATION
z z
z
Wall
z
z For proper heat dispersal, do not install this unit in a confined
space, such as a bookcase or similar enclosure.
•More than 12 in. (0.3 m) is recommended.
Basic instructions
Advanced instructions
Information
DVD
1
Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Getting started
Basic instructions ··································································4
Connections ··················································································· 5
Important information ··································································· 5
Connecting HDMI devices ····························································7
Connecting other devices ··························································· 12

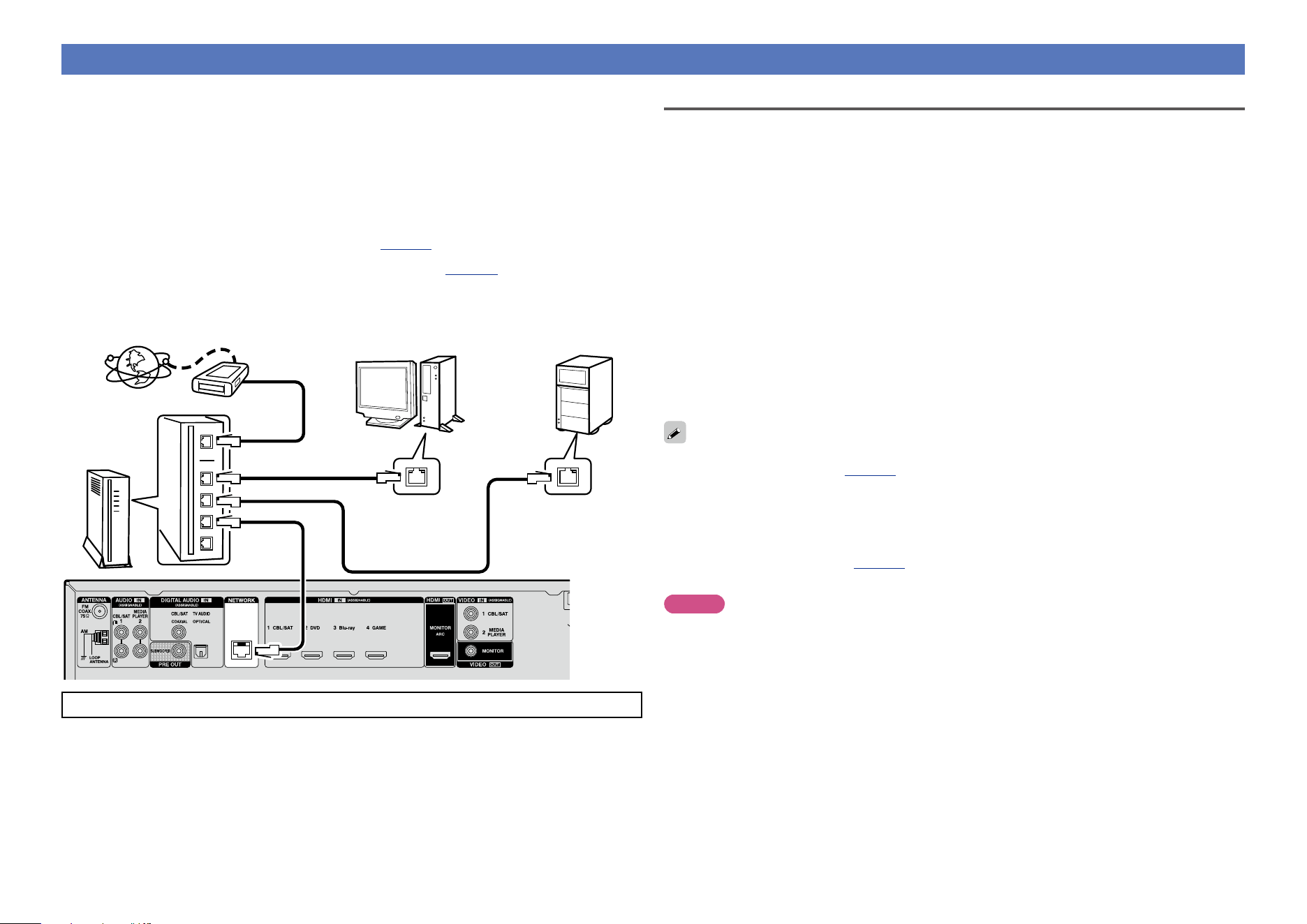

Connecting to a home network (LAN) ········································18
Connecting the power cord ························································19
Setup ····························································································20

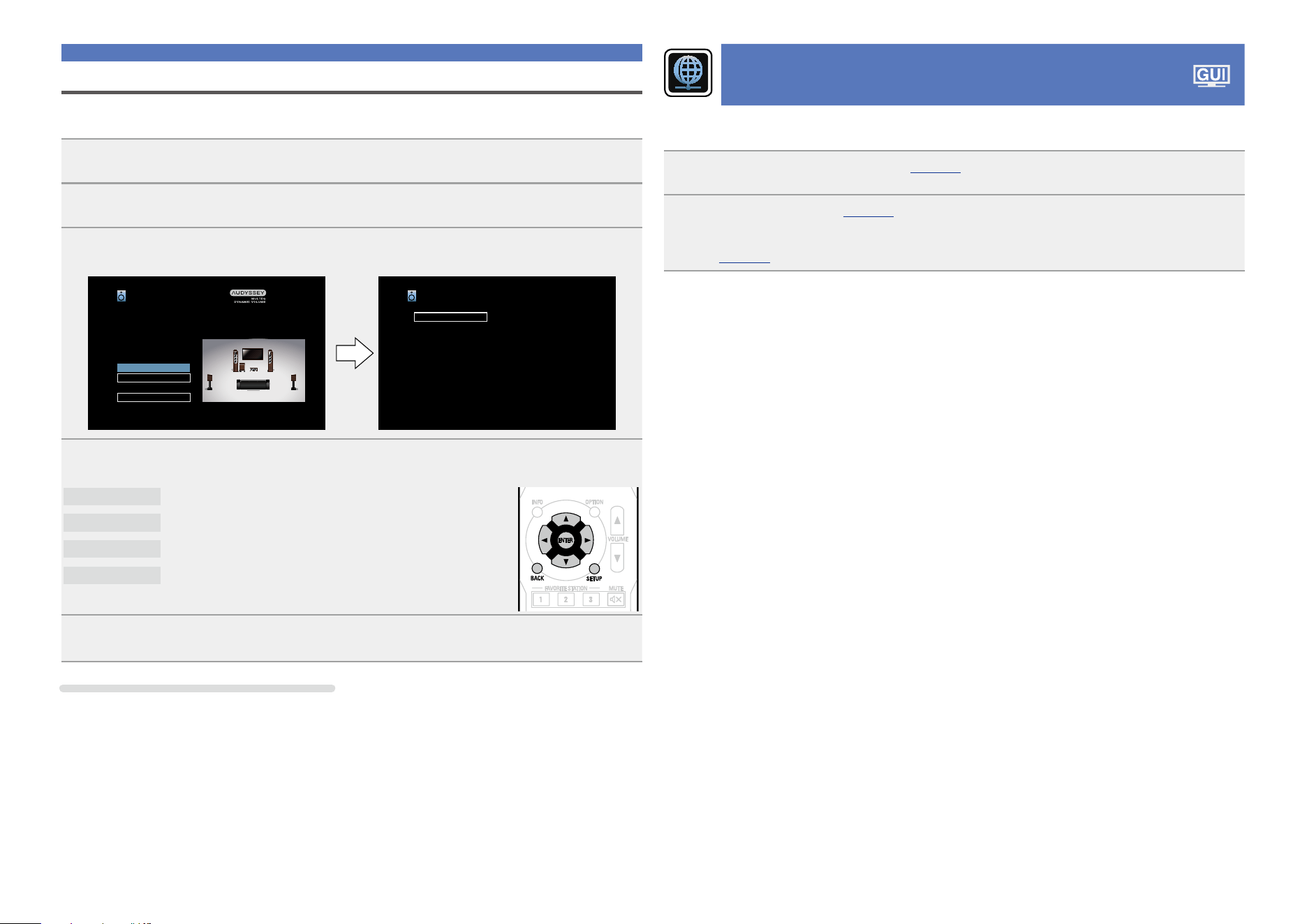

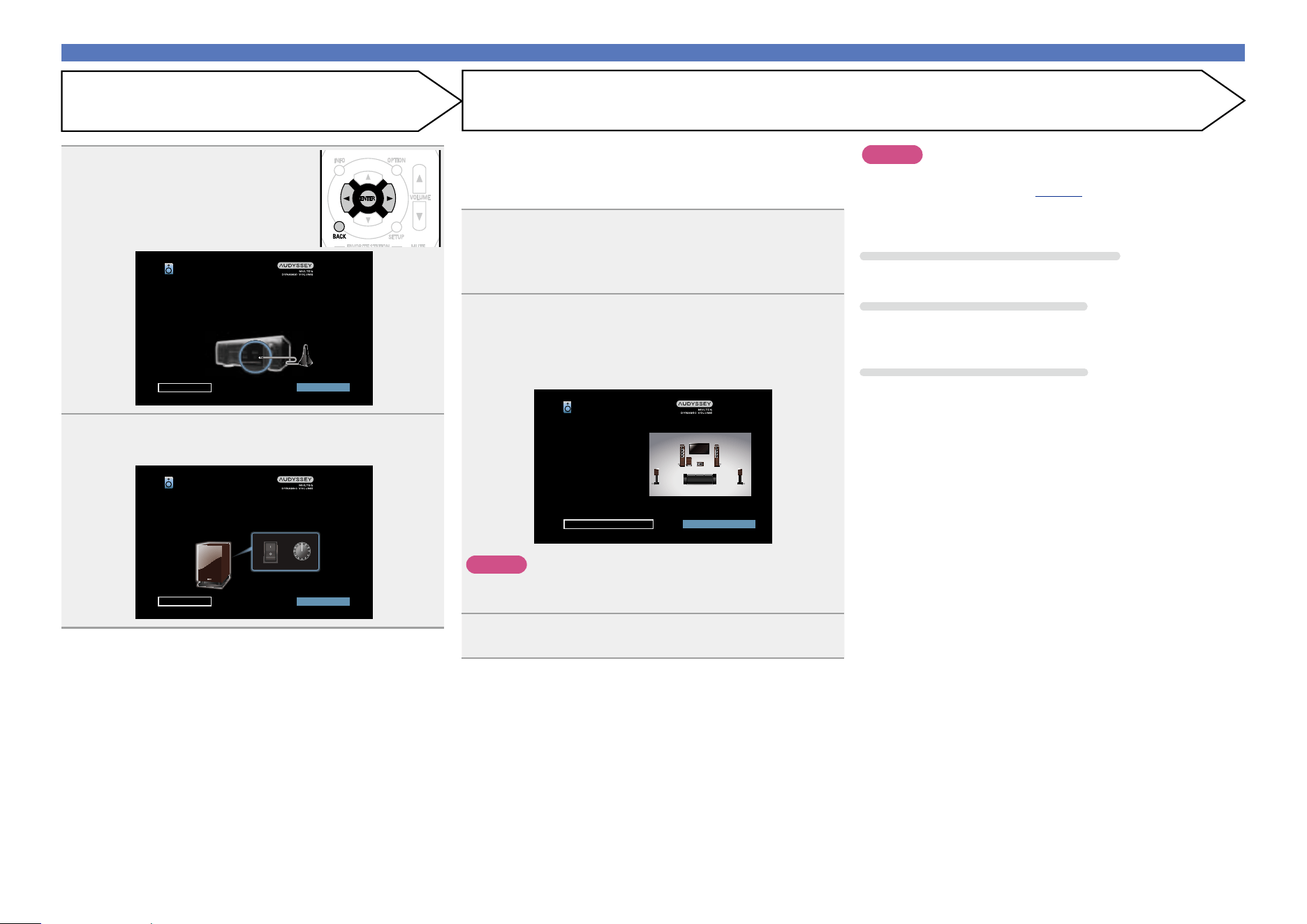

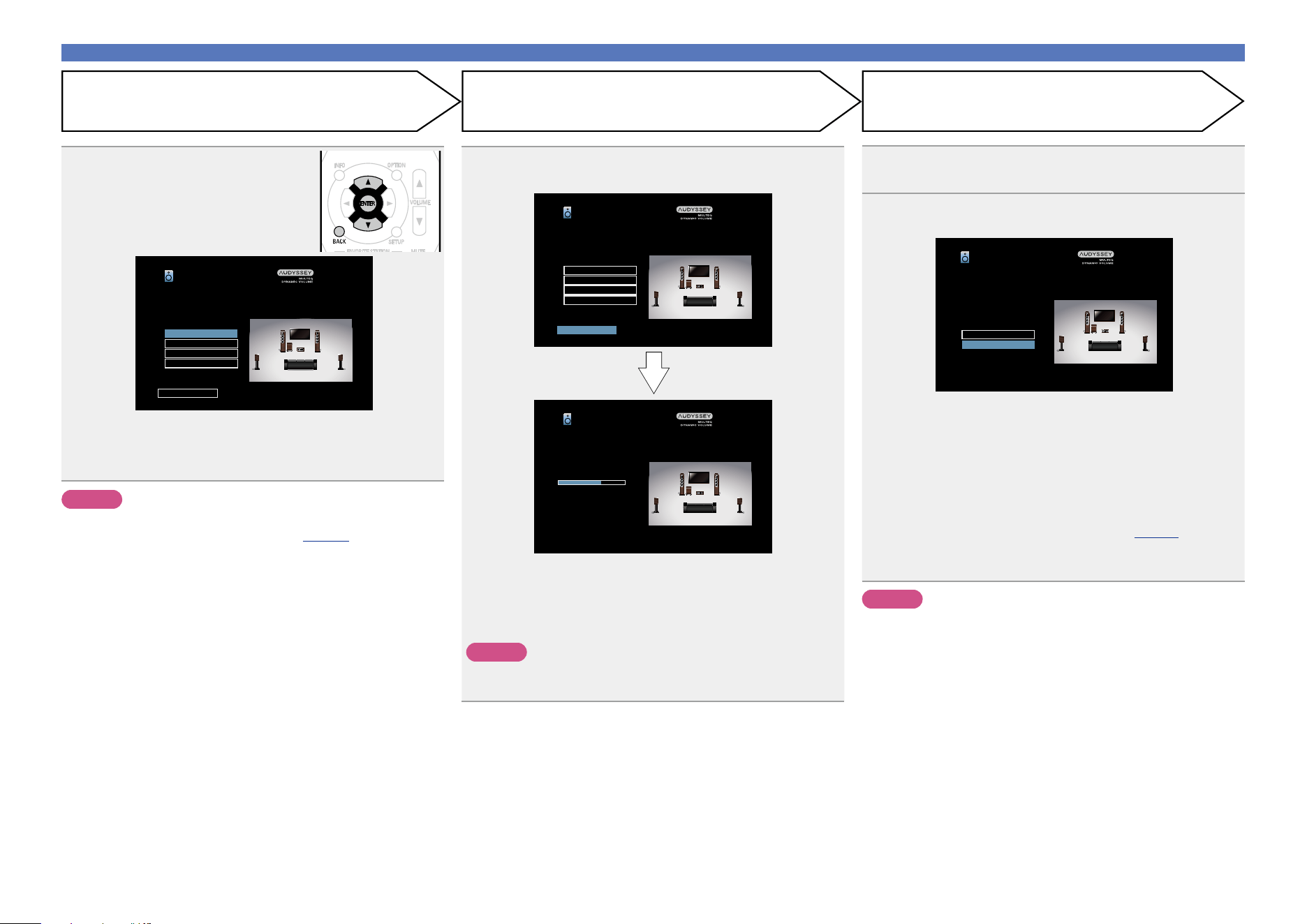

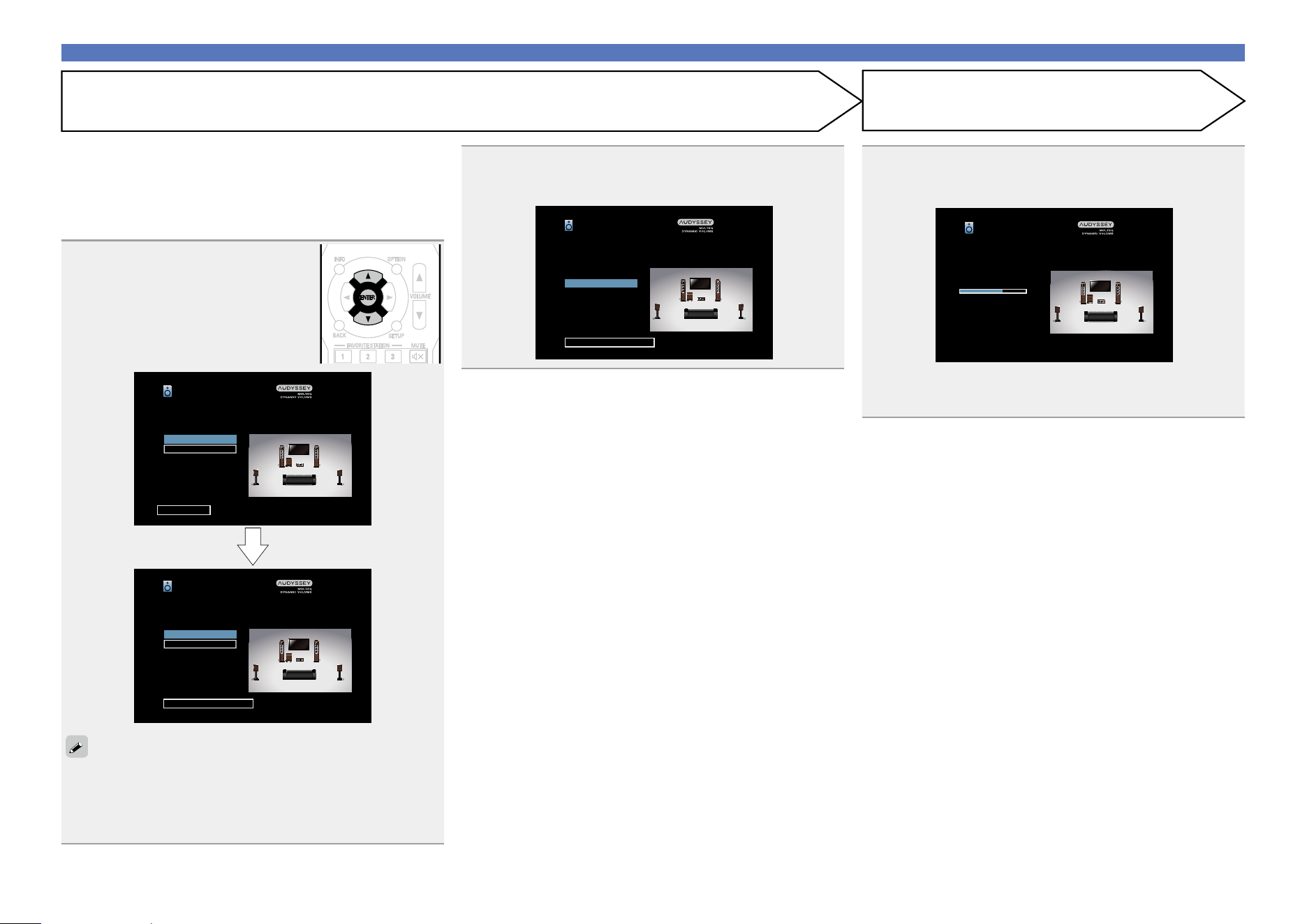

Set up speakers (Audyssey® Setup)············································20
Making the network settings (Network) ····································· 26
Playback (Basic operation) ·························································27
Important information ································································· 27
Playing a Blu-ray Disc player/DVD player ···································· 28
Playing an iPod············································································29
Playing a USB memory device ····················································32

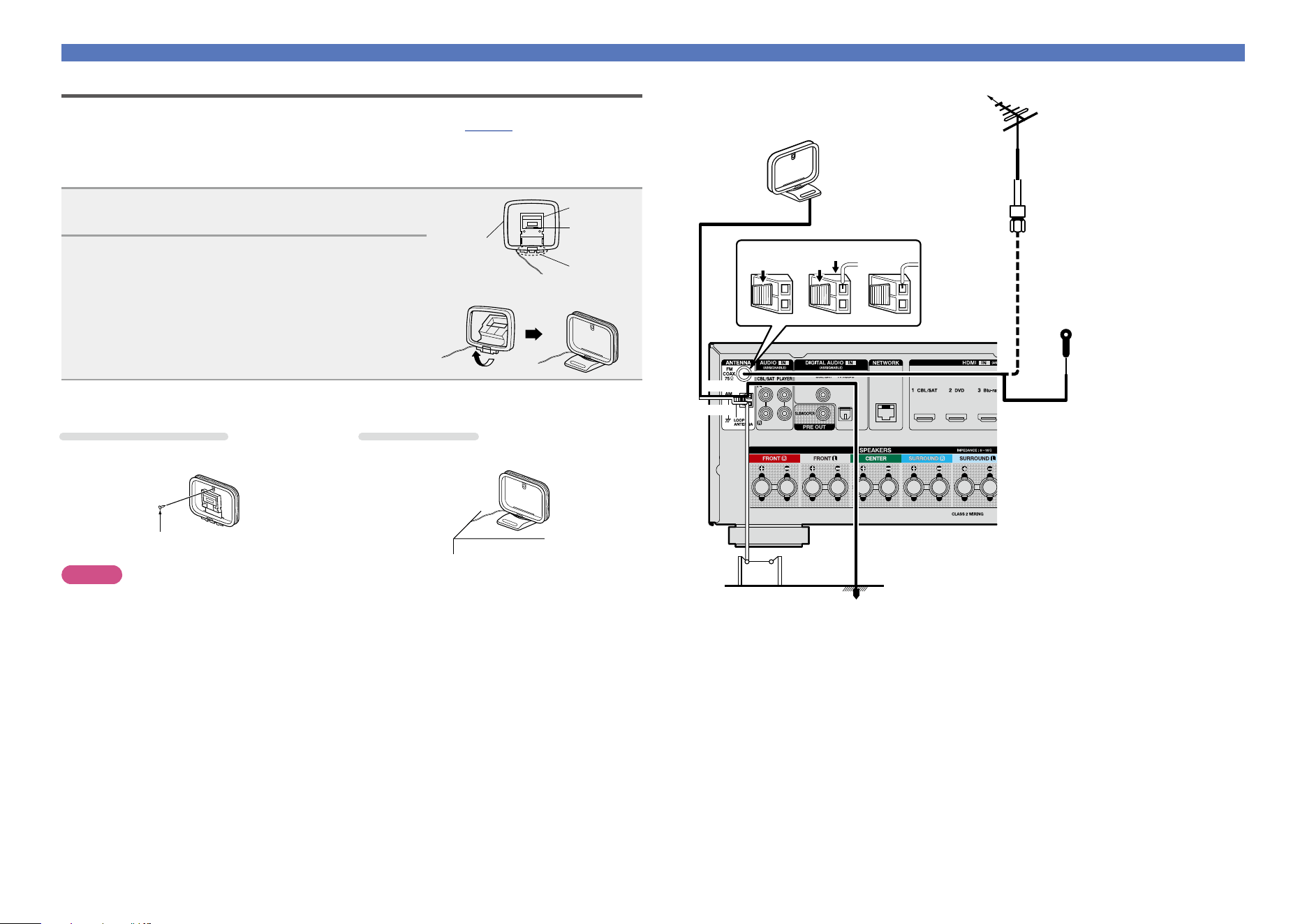

Listening to FM/AM broadcasts ·················································35
Network content ·········································································44
Listening to Internet Radio ·························································44
Playing back files stored on a PC and NAS ································· 47
Using online services ··································································51
Convenient functions ··································································62

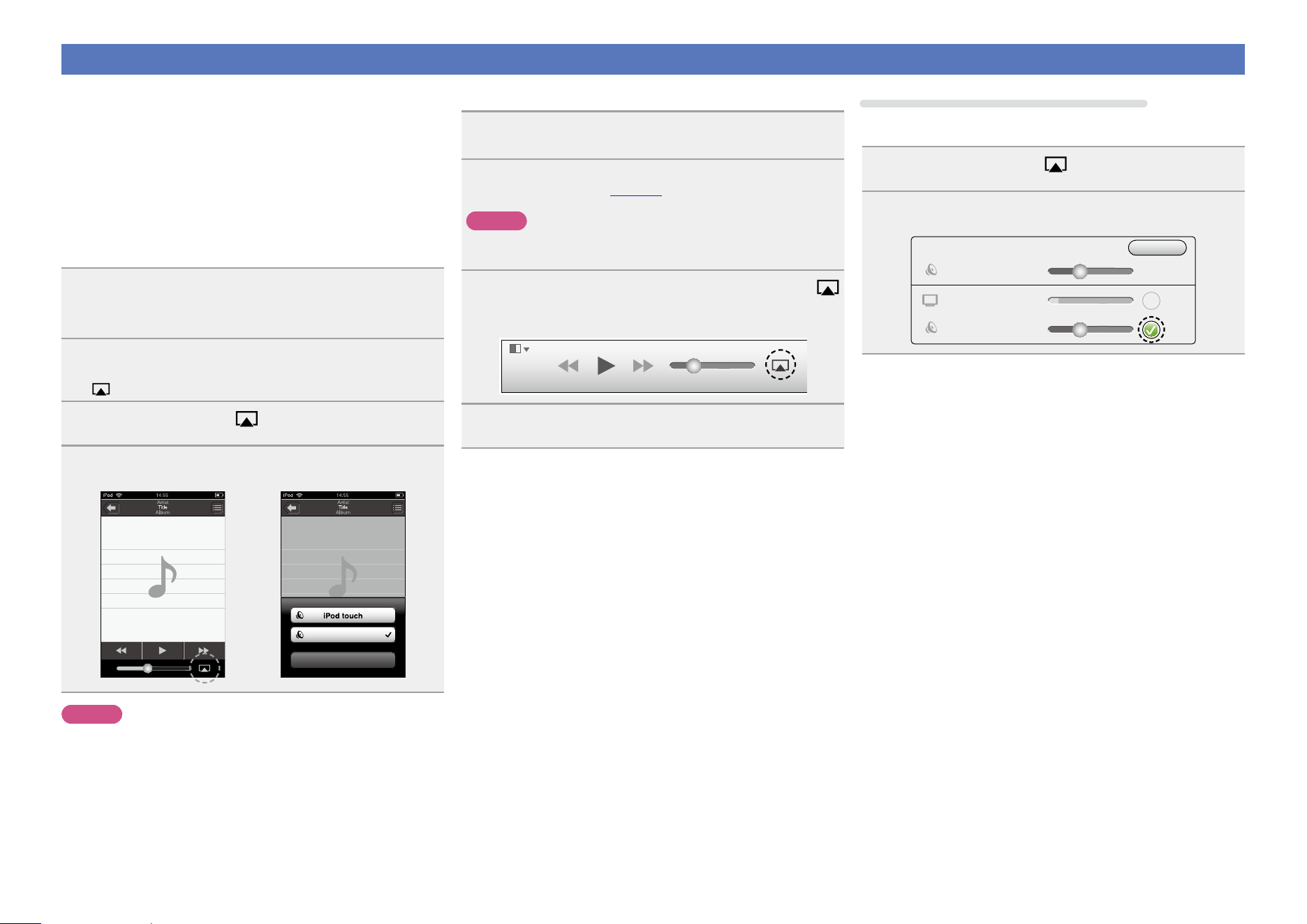

AirPlay function ···········································································67
Selecting a listening mode (Sound Mode) ·······························69
Selecting a listening mode··························································69
Advanced instructions ······················································73
Installation/connection/setup of speakers (Advanced) ··········74

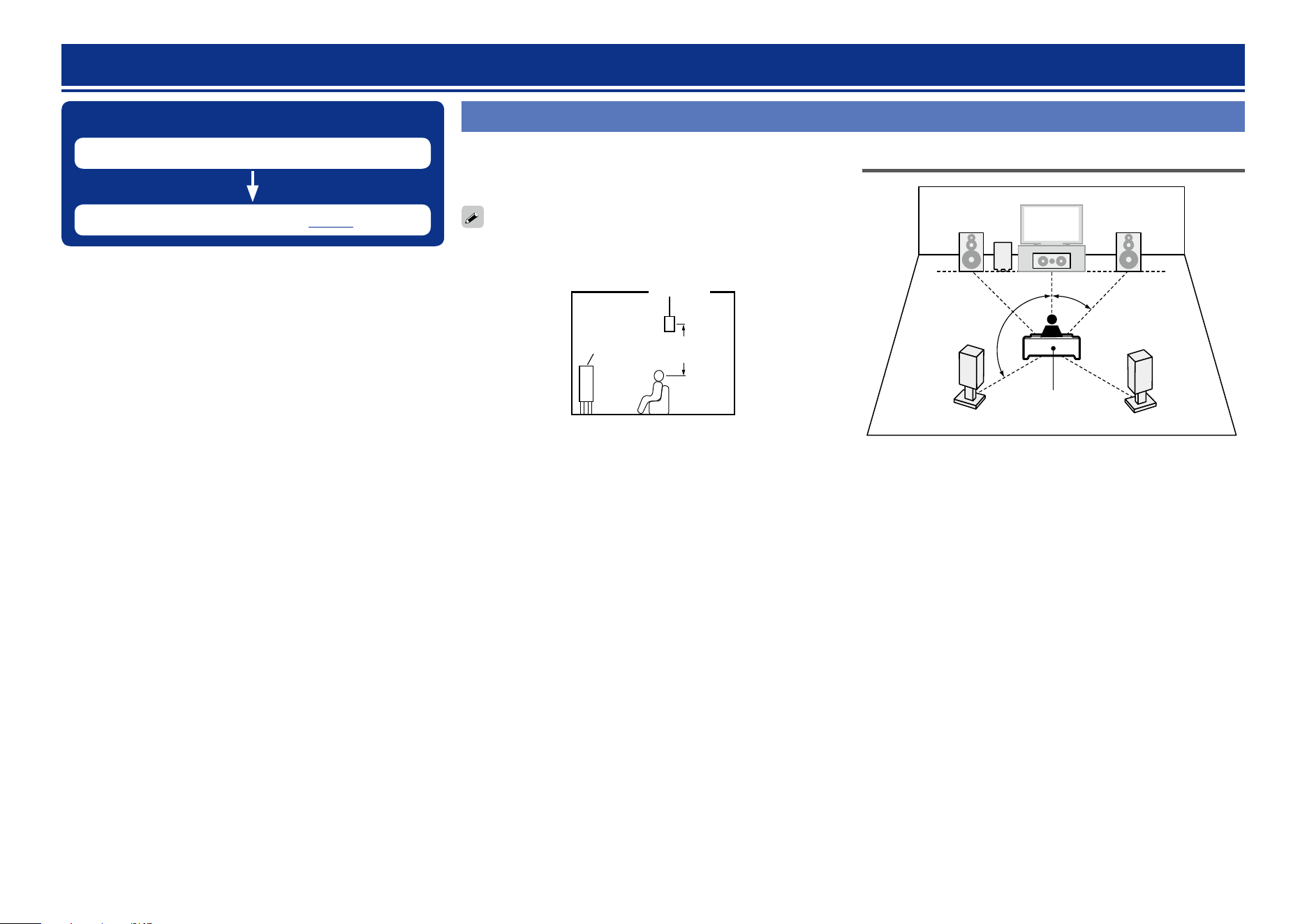

Speaker installation ·····································································74

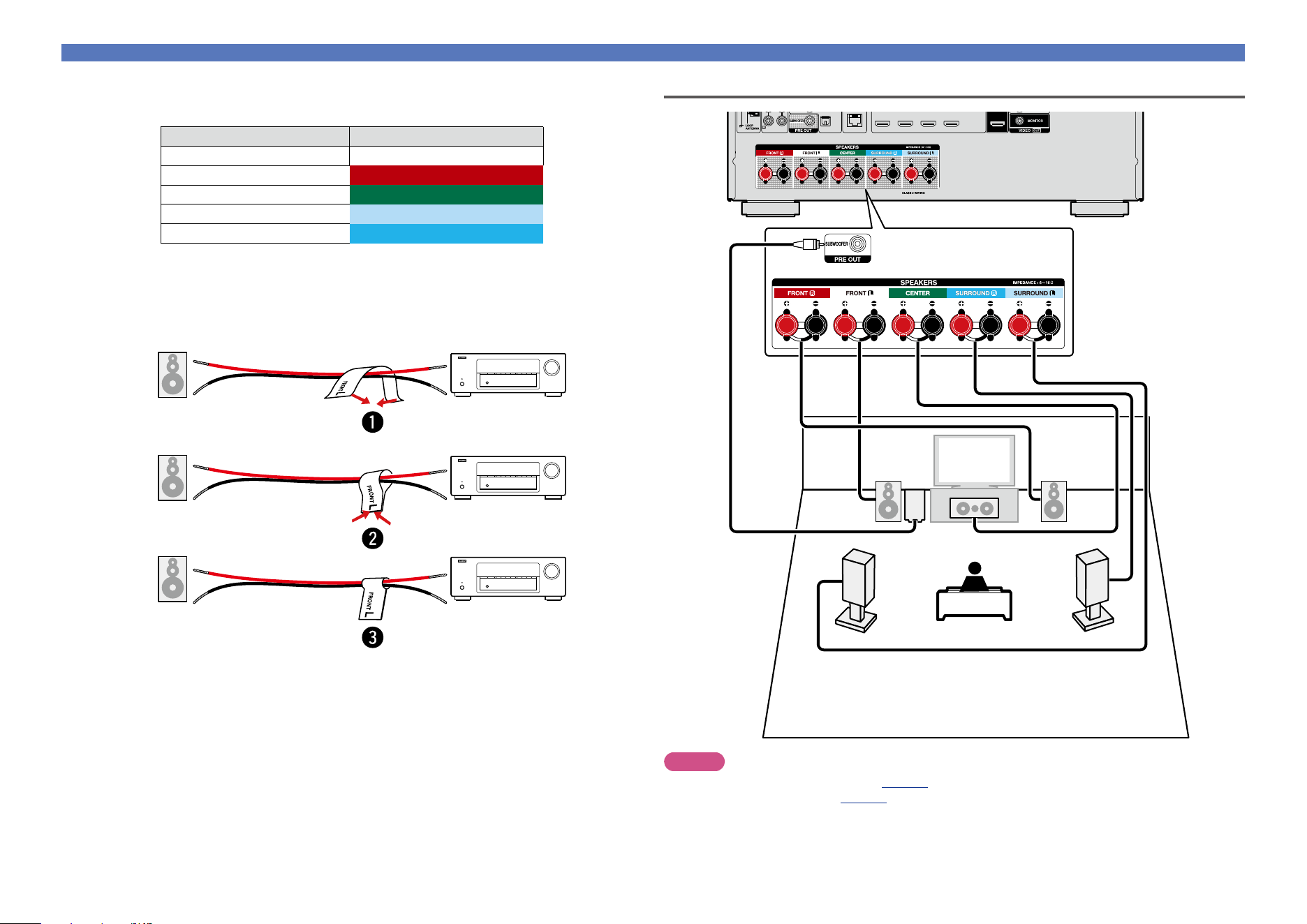

Speaker connection ····································································75
Playback (Advanced operation) ·················································78
HDMI control function ································································78
Sleep timer function ···································································79

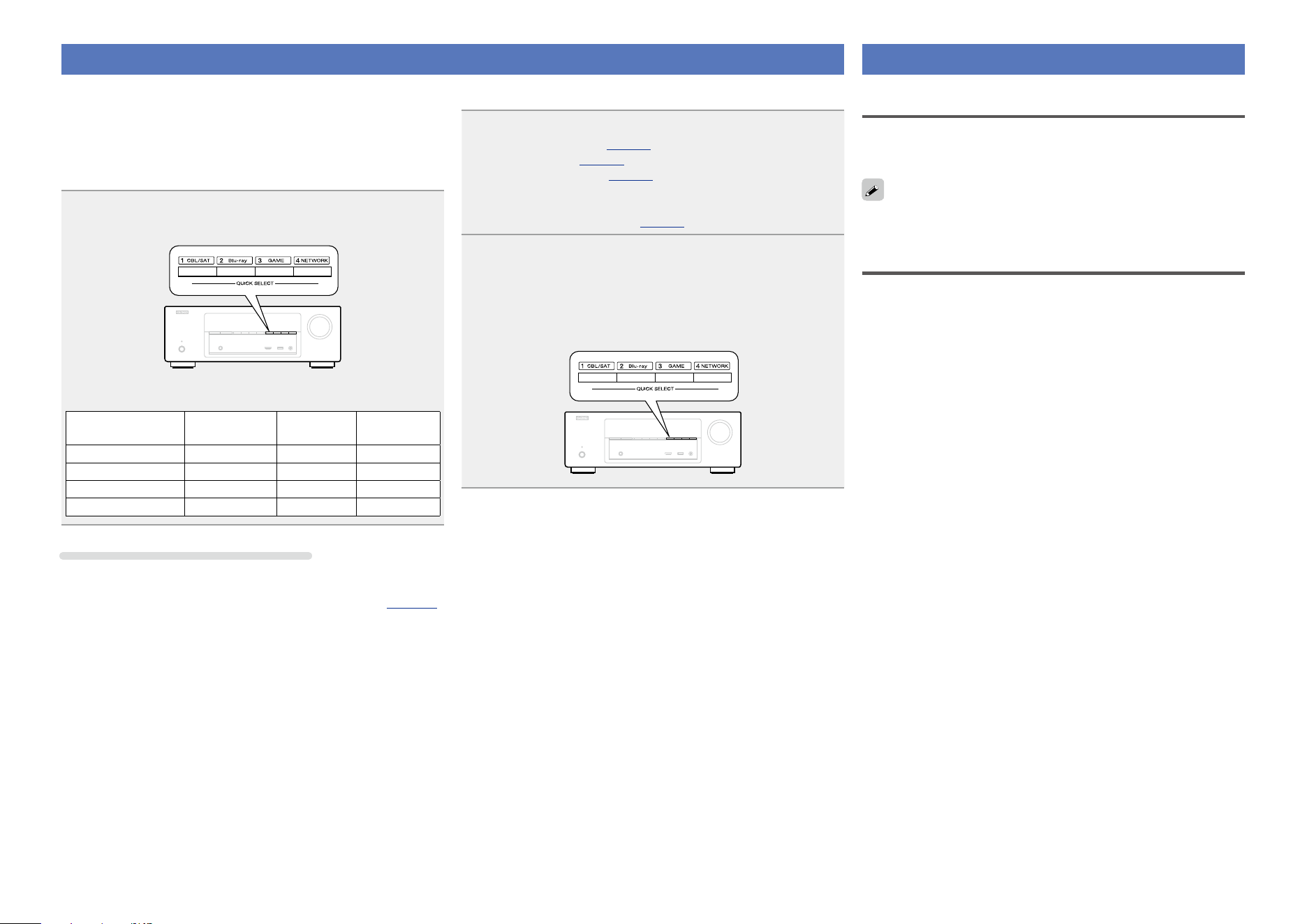

Quick select function ·································································· 80
Various memory functions ··························································80
How to make detailed settings ··················································81
Menu map ··················································································81
Examples of menu screen displays ············································82
Examples of menu and front display ··········································83
Inputting characters ···································································· 84
Audio···························································································85
Video ···························································································91
Inputs ··························································································94
Speakers ····················································································· 98
Network ···················································································· 102
General ·····················································································106
Information ···········································································111
Part names and functions·························································112

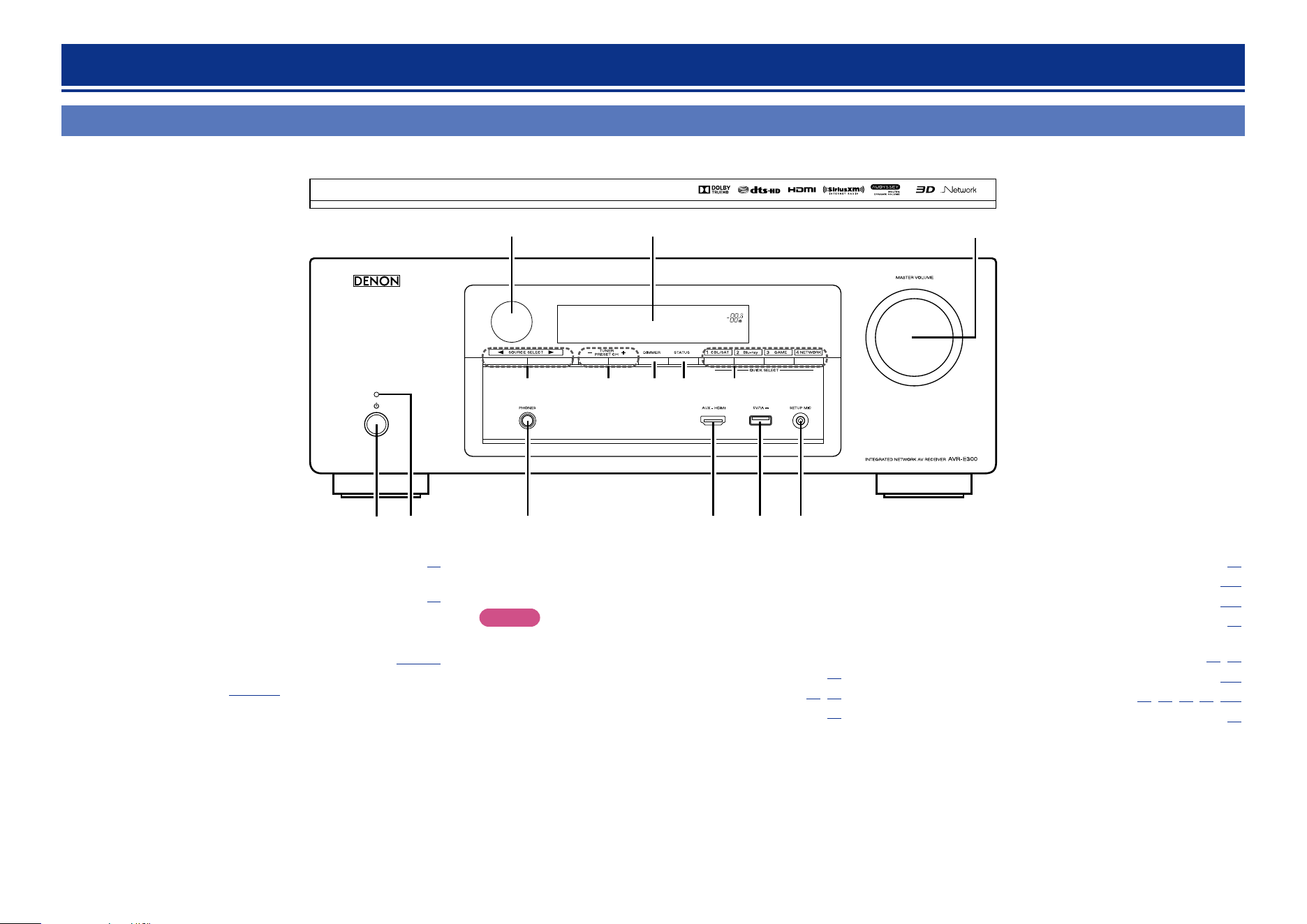

Front panel ················································································112
Display ······················································································113

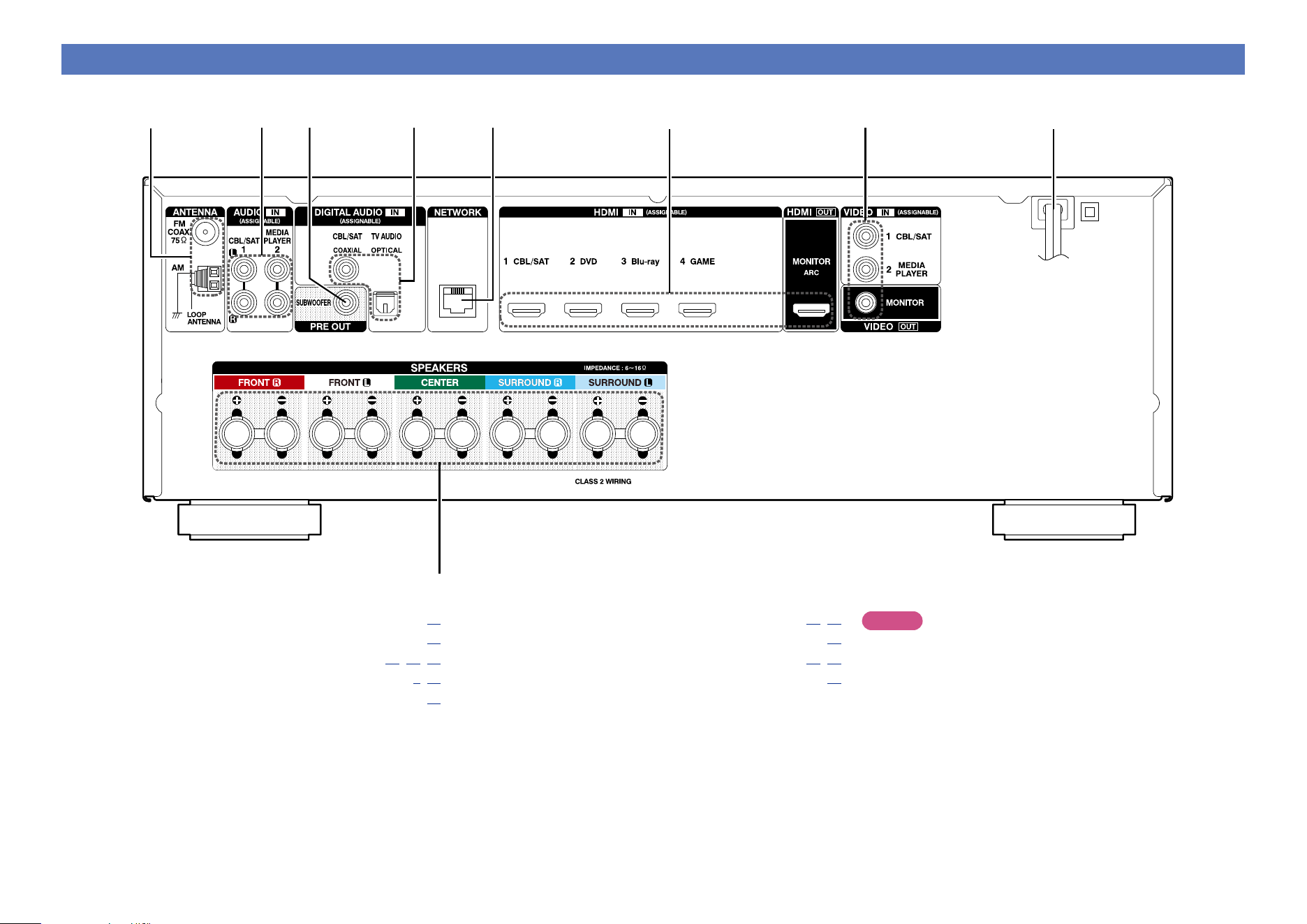

Rear panel ·················································································114

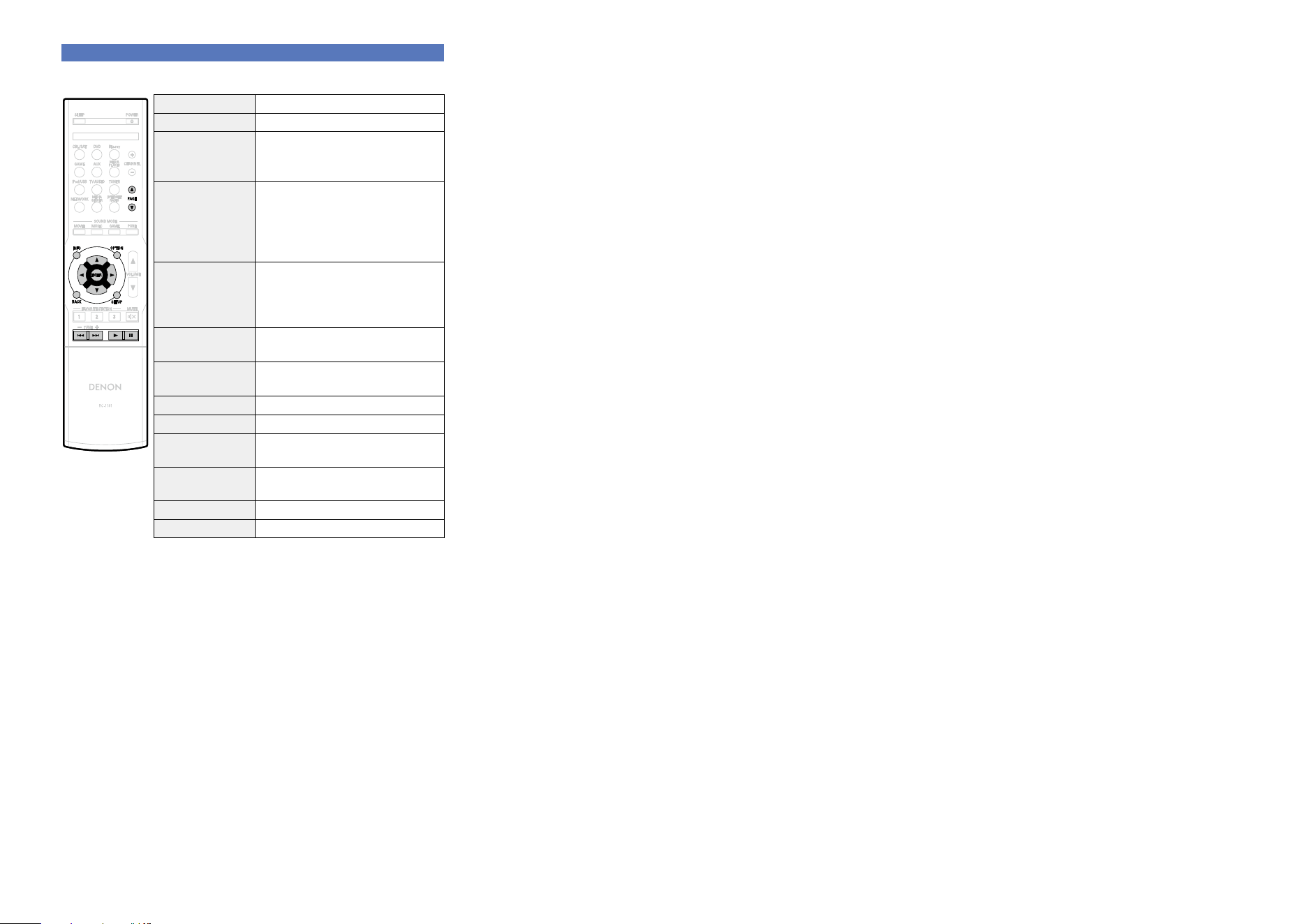

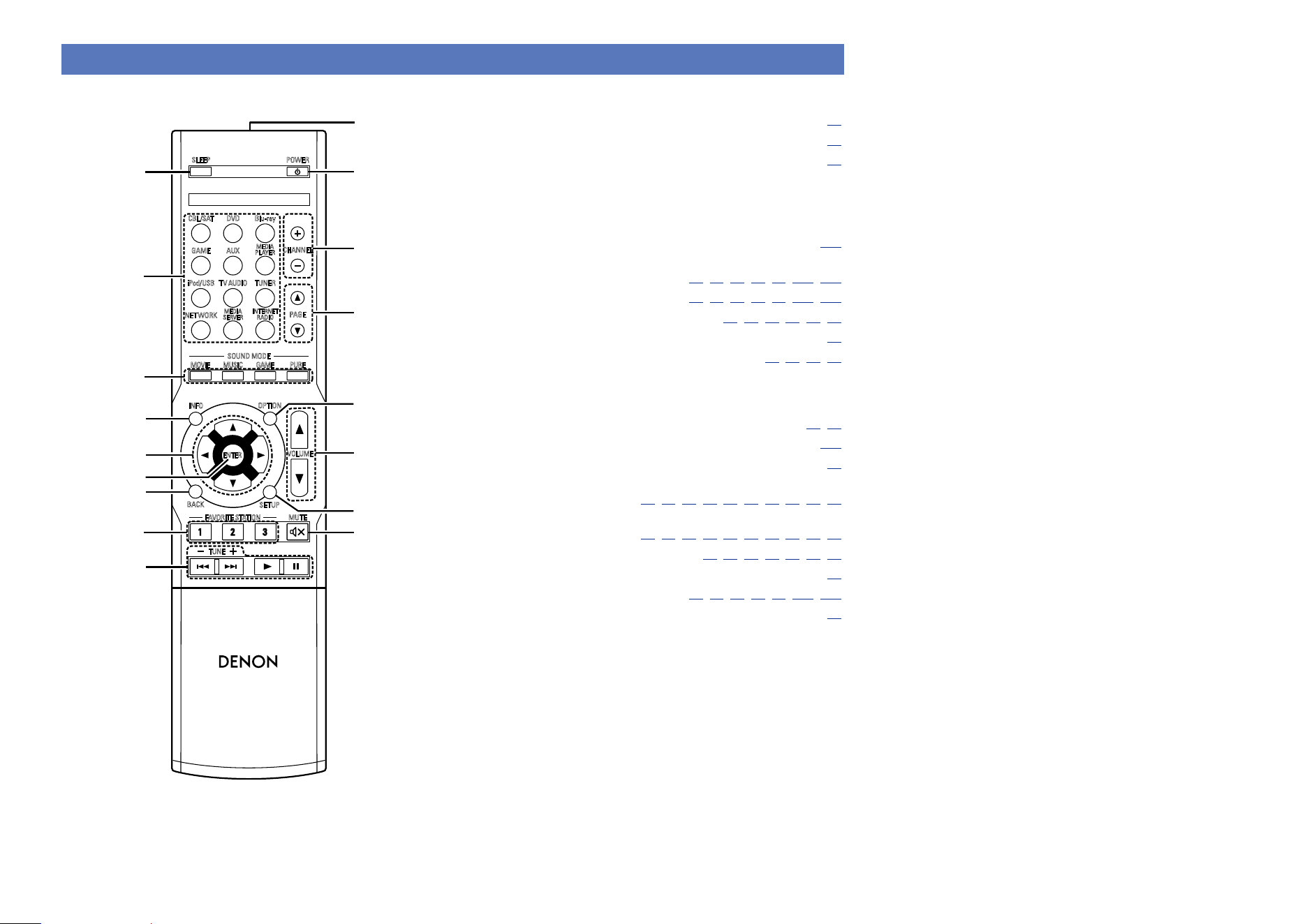

Remote control unit ·································································· 115
Other information ·····································································117
Trademark information ······························································117
Surround ···················································································118
Relationship between video signals and monitor output ··········121
Explanation of terms ·································································122
Troubleshooting ········································································ 124
Resetting the microprocessor ··················································128
Specifications ············································································128
Getting started ··············································································1
Accessories ··················································································2
Features ························································································2
Cautions on handling ····································································3
Contents
Basic instructions
Advanced instructions
Information
DVD
2
Features
With discrete circuit technology, the power
amplifier provides identical quality for all 5
channels (120 Watts x 5 channels)
For optimum realism and stunning dynamic range, the power
amplifier section features discrete power devices (not integrated
circuitry).
By using high current, high power discrete power devices, the
amplifier is able to easily drive high quality speakers.
Supports Internet Radio, music, and photograph
streaming
Supports AirPlay
®
(vpage67)
You can enjoy a wide variety of content, including listening to
Internet Radio, playing audio files stored on your PC, and displaying
photographs stored on your PC on our television.
This unit also supports Apple AirPlay which lets you stream your
music library from an iPhone
®
, iPad
®
, iPod touch
®
or iTunes
®
.
Compatible with “Denon Remote App” for
performing basic operations of the unit with an
iPad, iPhone
z
or Android smartphone
“Denon Remote App” is application software that allows you to
perform basic operations with an iPad, iPhone, Android smartphone
or Android tablet such as turning the unit ON/OFF, controlling the
volume, and switching the source.
z Download the appropriate “Denon Remote App” for iOS and
Android devices. This unit needs to be connected to your
LAN and the iPhone/iPod touch or other device needs to be
connected to the same network by Wi-Fi (wireless LAN).
“Setup Assistant” provides easy-to-follow setup
instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers,
network, etc.
New easy setup
New, easy to connect speaker connectors with horizontal layout
and new push-type speaker terminals.
Easy to use Graphical User Interface
This unit is equipped with an easy to see Graphical User Interface
that uses menu displays and features colorful icons and easy to
understand controls for maximum ease of use.
HDMI connections enable quick connection to
various digital AV devices (5 inputs, 1 output)
The unit is equipped with 5 HDMI input connectors for connecting
devices with HDMI connectors, such as a Blu-ray Disc player,
game console, HD video camcorder, HDTVs, etc.
Supports HDMI (3D, ARC, Deep Color, “x.v.Color”,
Auto Lip Sync) and HDMI control function
(vpage7)
Advanced HDMI features are supported, including 3D passthrough,
Audio Return Channel, Auto Lip Sync, Deep Color and “x.v.Color”,
and HDMI CEC control functions.

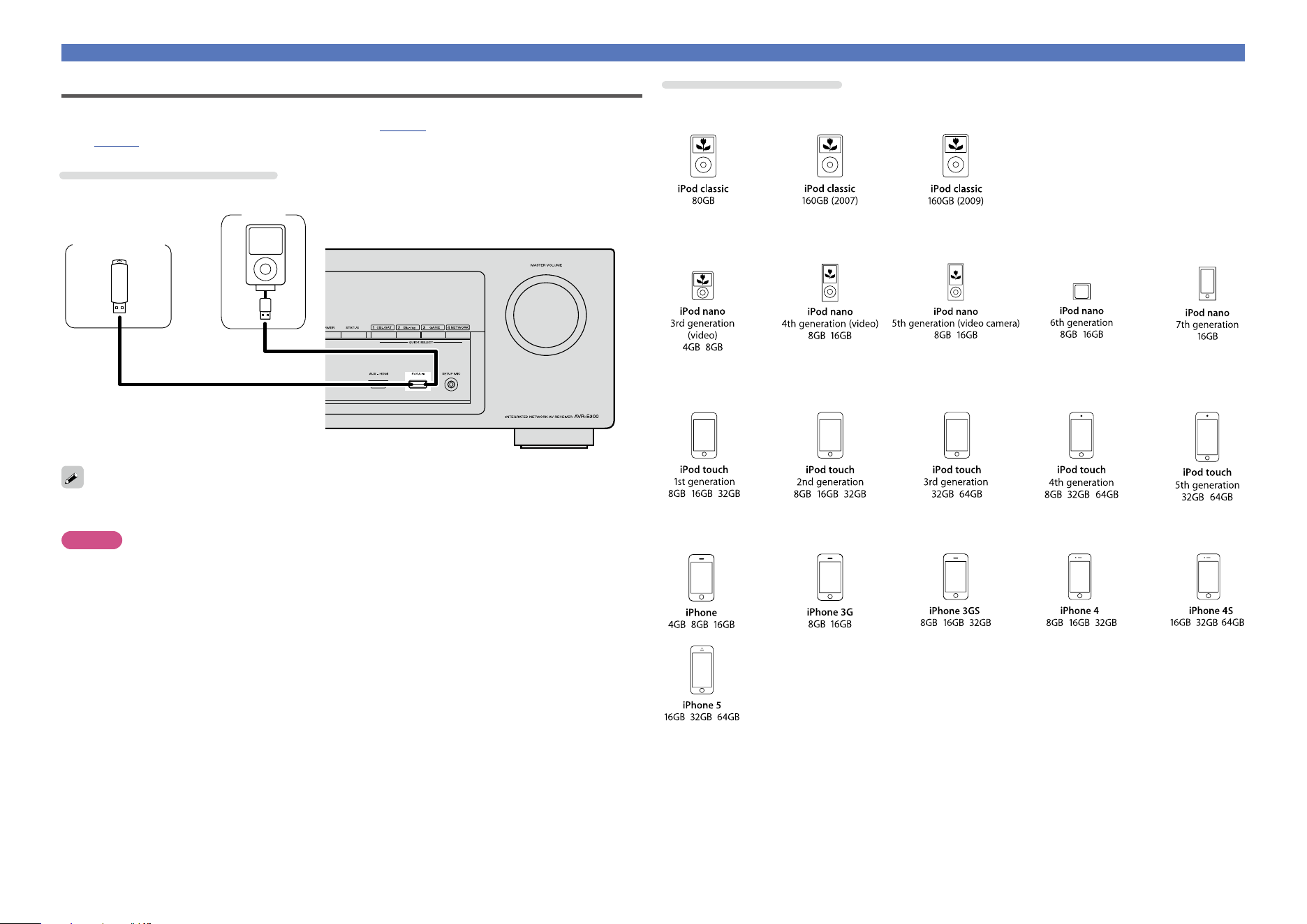

Direct play for iPod and iPhone via USB
(vpage16)
Music data from an iPod or iPhone can be played back if you
connect the USB cable supplied with the iPod via the USB port of
this unit, and also an iPod can be controlled with the remote control
that comes with this unit.

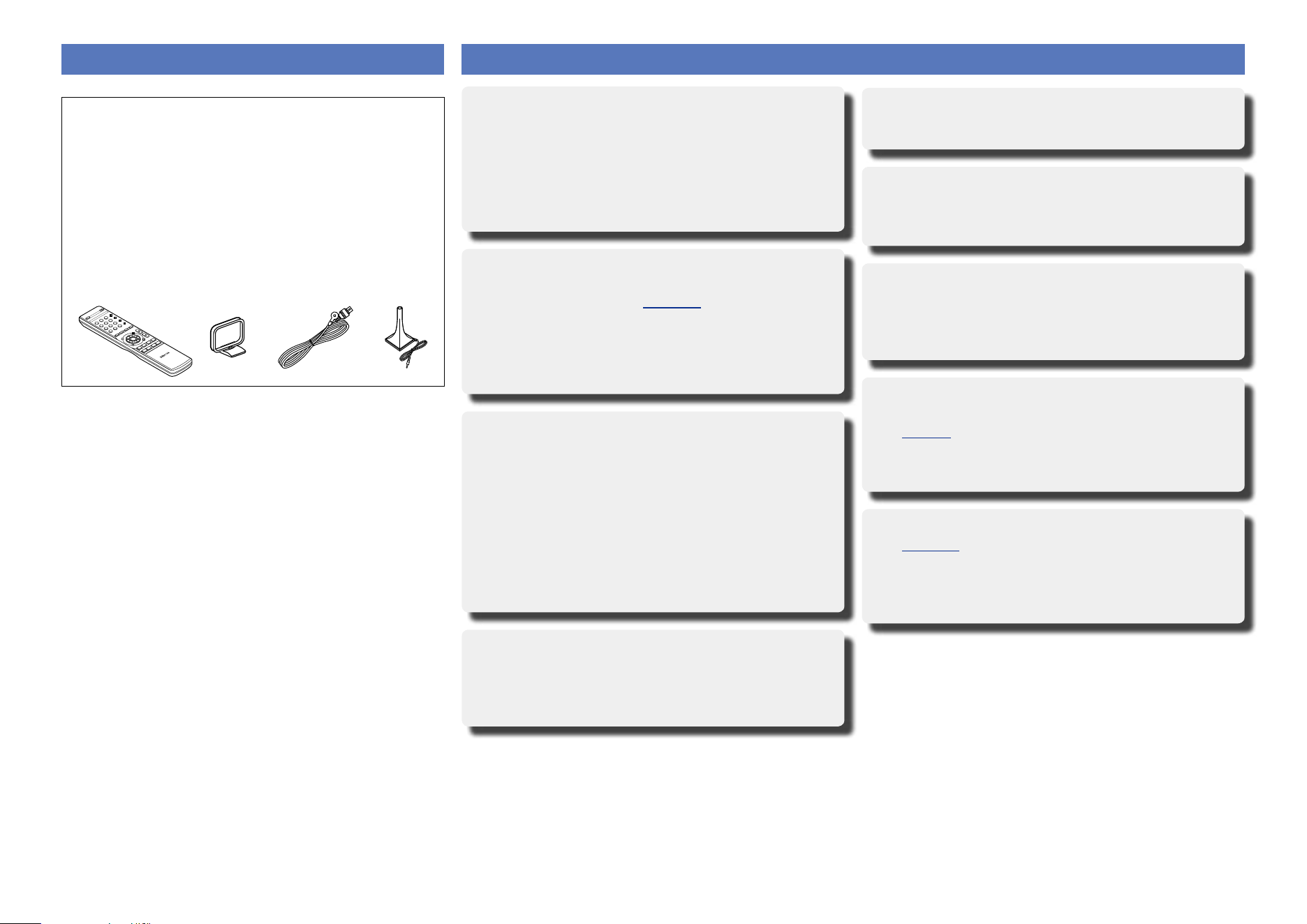

Accessories
Check that the following parts are supplied with the product.
q Getting Started ........................................................................ 1
w CD-ROM (Owner’s Manual) .................................................... 1
e Safety Instructions .................................................................. 1
r Warranty (for North America model only) ................................ 1
t Remote control unit (RC-1181) ................................................ 1
y R03/AAA batteries ................................................................... 2
u AM loop antenna ..................................................................... 1
i FM indoor antenna .................................................................. 1
o Setup and measurement microphone ..................................... 1
(ACM1HB)
Q0 Cable Label .............................................................................. 1
t ou i
Basic instructions
Advanced instructions
Information
DVD
3
Cautions on handling
•Before turning the power on
Check once again that all connections are correct and that there are
no problems with the connection cables.
•Power is supplied to some of the circuitry even when the unit is
set to the standby mode. When going on vacation or leaving home
for long periods of time, be sure to unplug the power cord from the
power outlet.
•About condensation
If there is a major dierence in temperature between the inside of
the unit and the surroundings, condensation (dew) may form on
the operating parts inside the unit, causing the unit not to operate
properly.
If this happens, let the unit sit for an hour or two with the power
turned o and wait until there is little dierence in temperature
before using the unit.
•Cautions on using mobile phones
Using a mobile phone near this unit may result in noise. If that
occurs, move the mobile phone away from this unit when it is in use.
•Moving the unit
Turn o the power and unplug the power cord from the power
outlet. Next, disconnect the connection cables to other system units
before moving the unit.
•About care
•Wipe the cabinet and control panel clean with a soft cloth.
•Follow the instructions when using a chemical cleaner.
•Benzene, paint thinner or other organic solvents as well as
insecticide may cause material changes and discoloration if brought
into contact with the unit, and should therefore not be used.
Basic instructions
Advanced instructions
Information
DVD
Basic instructions
4
F Connections vpage5
F Setup vpage20
F Playback (Basic operation) vpage27
F Network content vpage44
F Selecting a listening mode (Sound Mode) vpage69
For speaker connections, see page75.
Basic instructions
Here we explain the connections and basic operation methods for this unit.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
5
Important information
Make connections before using this unit.
To create a home theater that can play back higher quality video and audio by fully utilizing the
capabilities of this unit and your video devices, connect this unit to each of your video devices with
HDMI cables.
n HDMI devices
vpage9 vpage10 vpage10
vpage10 vpage10 vpage10
If your video device does not support HDMI connections, use the following connection.
n Other devices
vpage13 vpage14 vpage15
vpage16
vpage17 vpage18
vpage75 vpage19
This unit can change the source that is assigned to the DIGITAL AUDIO IN, ANALOG AUDIO IN and
VIDEO IN connectors.
For details on assigning a source to connectors, see “Changing the source assigned to connectors”
(vpage12). For the setting method, see “Input Assign” (vpage95).
Connections
NOTE
•The menu screen is only displayed on TV connected to this unit via HDMI. If your TV is connected
to this unit via other video output connectors, perform menu operations while seeing the display
on this unit.
•Do not plug in the power cord until all connections have been completed. However, when the
“Setup Assistant” is running, follow the instructions in the “Setup Assistant” (C page 7) screen
for making connections. (During “Setup Assistant” operation, the input/output connectors do not
conduct current.)
•When running the “Setup Assistant” (C page 7), turn o the power supply of connected devices.
•When making connections, also refer to the operating instructions of the other devices being connected.
•Be sure to connect the left and right channels properly (left with left, right with right).
•Do not bundle power cords together with connection cables. Doing so can result in noise.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
6
Important information

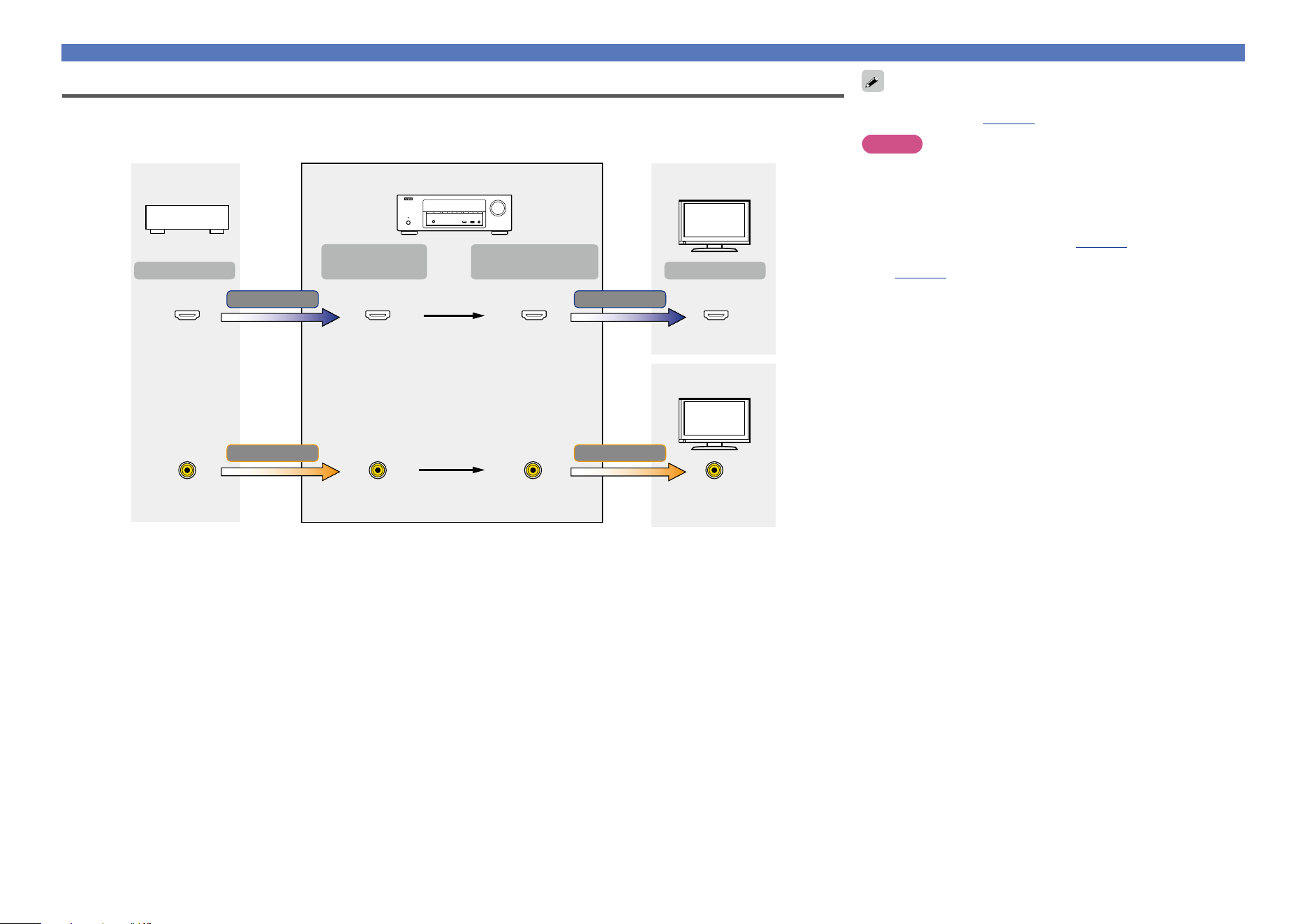

Relationship between video signals and monitor output
This unit is equipped with two types of video input connectors (HDMI and composite video) and two type of video output connector (HDMI and
composite video).
GFlow of video signalsH
HDMI connector
HDMI signal HDMI signal
Video signal Video signal
Video connector
HDMI-compatible TV
HDMI-incompatible TV
HDMI connector
Video connector Video connector
HDMI connectorHDMI connector
Video connector
Video device
This unit
Output
Input
(IN)
Output
(MONITOR OUT)
Input
Resolutions of HDMI-compatible TVs can be checked at “Video” –
“HDMI Monitor” (vpage108).
NOTE
•The menu screen is only displayed on TV connected to this unit
via HDMI. If your TV is connected to this unit via other video
output connectors, perform menu operations while seeing the
display on this unit.
•HDMI signals are digital audio and digital video. HDMI signals cannot
be converted into analog signals (vpage121).
•Analog signals cannot be converted into HDMI signals
(vpage121).
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
7
Connecting HDMI devices
You can connect up to six HDMI-compatible devices (5-inputs/1-output) to the unit.
If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI
connections. Connections with an HDMI cable oer the following benefits that can not be achieved with
other connection methods.
•High quality playback by transmitting audio and video via digital signals
HDMI connections can transmit high definition video and high quality audio formats adopted by Blu-
ray disc players (Dolby Digital Plus, Dolby TrueHD, dts-HD, dts-HD Master Audio).
HDMI connections also convey information required for playback between devices. The information
is used for copyright protection and TV resolution recognition, the ARC function, the HDMI control
function, etc.
•Transmission of audio and video signals with a single HDMI cable
Previous connections required multiple audio and video cables, but HDMI connections require only a
single HDMI cable to transmit audio and video signals. This allows wires in a home theater system,
which tend to be complicated, to be more easily organized.
•Mutual control through the HDMI control function (vpage78)
This unit and the HDMI device connected via HDMI can be linked to perform operations such as
power control, volume control, and input source switching.
•Other video and audio functions, such as 3D video playback, Content Type, the ARC function,
are supported (vpage11).
•There is more than one version of the HDMI standard. The supported functions and the performance
vary according to the version. This unit complies with the HDMI standard that supports the ARC and 3D
playback functions. To enjoy these functions, the HDMI device connected to this unit also needs to use
the same version of the standard. For the version of the HDMI standard on the device connected to this
unit, see the device’s manual.
•Some TVs do not support audio input via HDMI connections. For details, see your TV’s manual.
n Before connecting this unit to TV via HDMI connections (vpage8)
n Connecting this unit to a TV via HDMI connections (vpage9)
n Connecting this unit to video devices via HDMI connections (vpage10)
n HDMI function (vpage11)
n Settings related to HDMI connections (vpage11)
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
8
Connecting HDMI devices

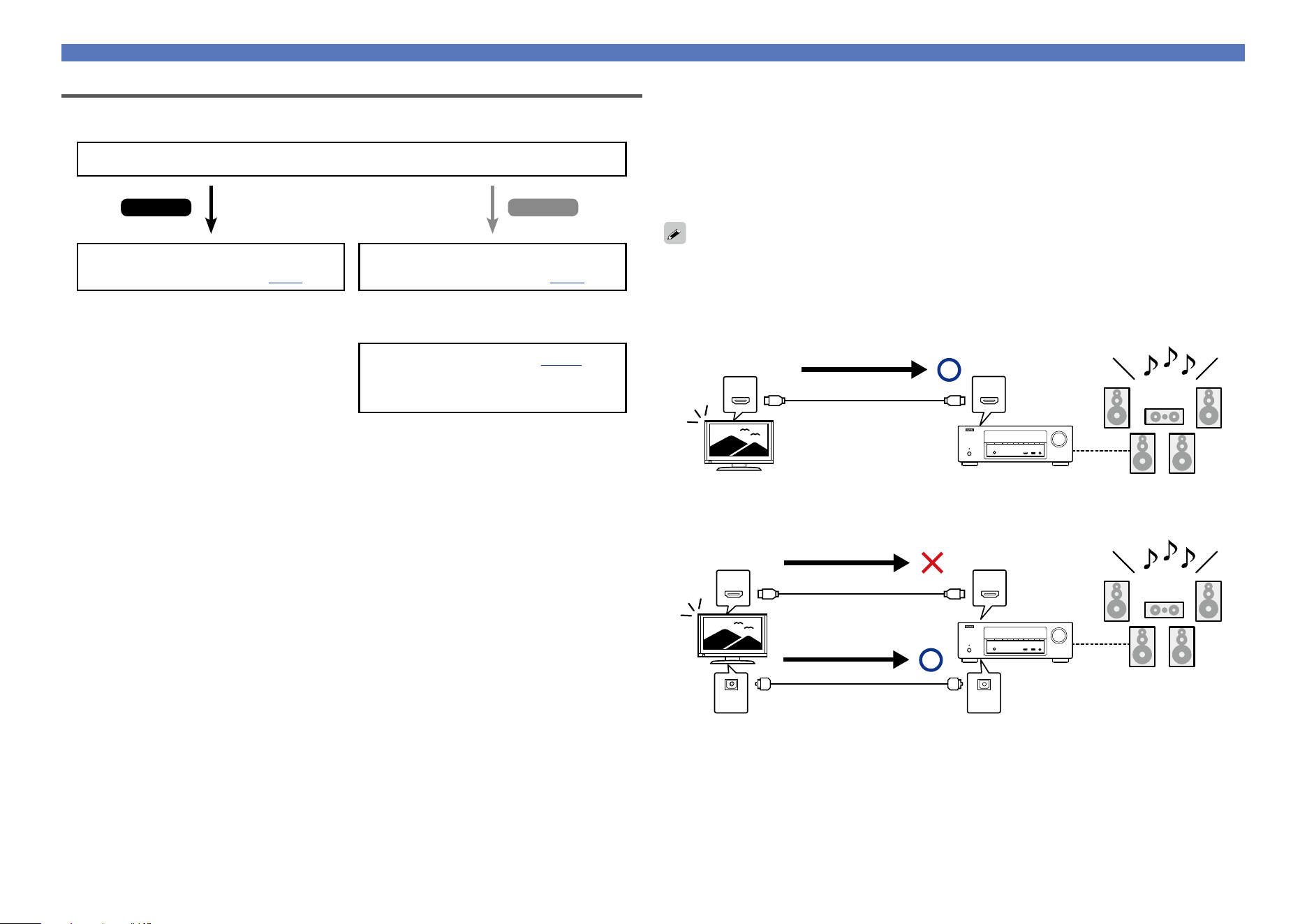

n About ARC (Audio Return Channel) function
This function plays TV audio on this unit by sending the TV audio signal to this unit via the HDMI cable.
If a TV without the ARC function is connected via HDMI connections, video signals of the playback
device connected to this unit are transmitted to the TV, but this unit can not play back the audio from
the TV. If you want to enjoy surround audio for TV program, a separate audio cable connection is
required.
In contrast, if a TV with the ARC function is connected via HDMI connections, no audio cable connection
is required. Audio signals from the TV can be input to this unit through the HDMI cable between this
unit and the TV. This function allows you to enjoy surround playback on this unit for the TV.
When the ARC function is used, connect a device with a “Standard HDMI cable with Ethernet” or “High
Speed HDMI cable with Ethernet” for HDMI.
Refer to the owner’s manual for your TV for details about TV connection and settings.

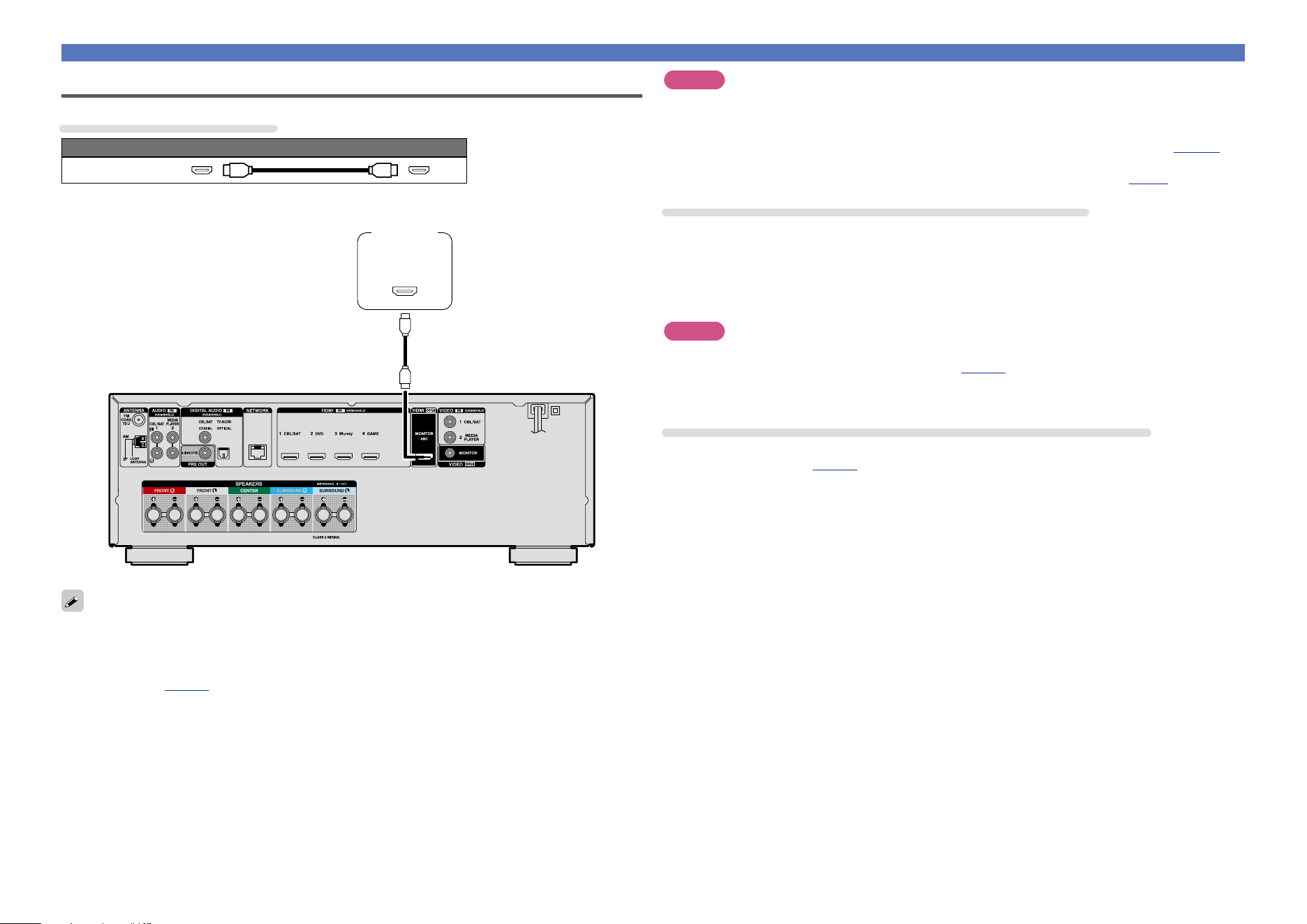

GConnection to a TV with the ARC functionH
IN OUT
Audio signals from the TV
Audio from the TV
This unit SpeakersTV
HDMI cable
GConnection to a TV without the ARC functionH
IN OUT
INOUT
Audio signals from the TV
Audio signals from the TV
Optical cable
Audio from the TV
HDMI cable
This unit Speakers
Before connecting this unit to TV via HDMI connections
There are 2 methods to connect an HDMI-compatible TV to this unit.
Use the connection method that suits your TV.
Does the TV to be connected to this unit support the ARC function?
Connecting this unit to a TV via
HDMI connections (vpage9)
Connecting this unit to a TV via
HDMI connections (vpage9)
Connecting a TV (vpage13)
For audio connections, use a method other
than HDMI connections.
Yes No
+
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
9
Connecting HDMI devices
Connecting this unit to a TV via HDMI connections
Cables used for connections
Audio and video cable (sold separately)
HDMI cable
•This interface allows transfer of digital video signals and digital audio signals over a single HDMI cable.
(ARC)
IN
HDMI
TV
•Video signals are not output if the input video signals do not match the display’s resolution. In this case,
switch the Blu-ray Disc/DVD player’s resolution to a resolution with which the display is compatible.
•When this unit and monitor are connected with an HDMI cable, if the display or monitor is not compatible
with HDMI audio signal playback, only the video signals are sent to the display or monitor. Make audio
connections (vpage13 “Connecting a TV”).
NOTE
•The audio signal from the HDMI output connector (sampling frequency, number of channels, etc.) may be
limited by the HDMI audio specifications of the connected device regarding permissible inputs.
•When connecting a TV that does not support the ARC function, an audio cable connection is
required in addition to the HDMI cable. In this case, refer to “Connecting a TV” (vpage13) for
the connection method.
For the ARC function, see “About ARC (Audio Return Channel) function” (vpage8).
Connecting to a device equipped with a DVI-D connector
The DVI-D (Digital Visual Interface) method is also used for video transmission via digital signals. This is
developed mainly for computers, and some displays such as projectors are equipped with this interface. To
output HDMI video signals to a DVI-D video input compatible device, use an HDMI/DVI conversion cable
or adapter.
The DVI-D connector can transmit high quality digital video signals, but copy guard and other issues may
hinder normal operations for some device combinations.
NOTE
•No sound is output when connected to a device equipped with a DVI-D connector. Make audio
connections as described in “Connecting a TV” (vpage13).
•Signals cannot be output to DVI-D devices that do not support HDCP.
•Depending on the combination of devices, the video signals may not be output.
Settings required when using a TV that supports the ARC function
When using a TV that supports the ARC function, make the following settings.
•Set “HDMI Control” (vpage92) to “On”.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
10
Connecting HDMI devices
OUT
HDMI
GFront panelH
Video
camcorder
•When connecting a device that supports Deep Color, please use a “High Speed HDMI cable” or “High
Speed HDMI cable with Ethernet”.
•Video signals are not output if the input video signals do not match the display’s resolution. In this case,
switch the Blu-ray Disc/DVD player’s resolution to a resolution with which the display is compatible.

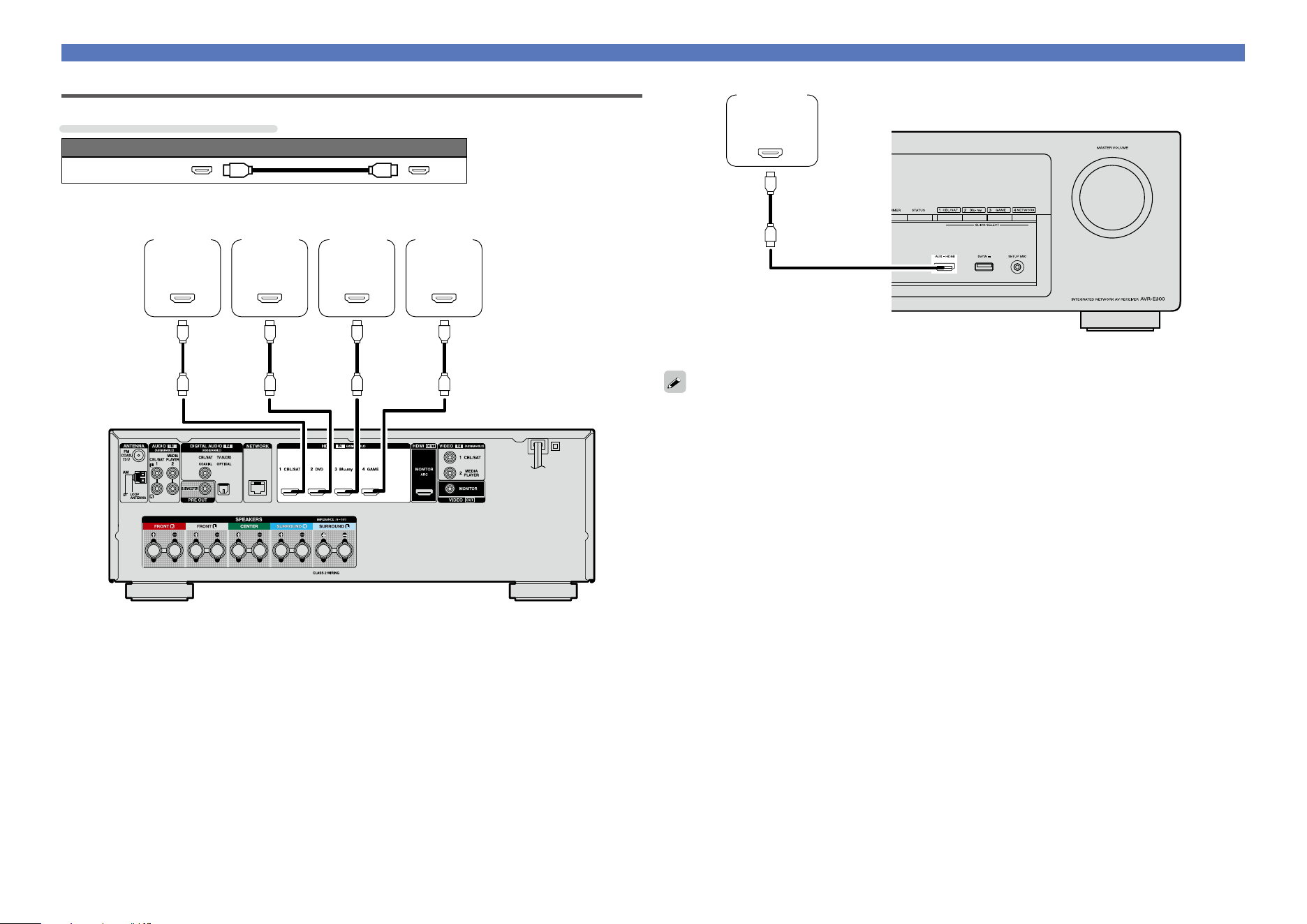

Connecting this unit to video devices via HDMI connections
Cables used for connections
Audio and video cable (sold separately)
HDMI cable
GRear panelH
OUT
HDMI
OUT
HDMI
OUT
HDMI
OUT
HDMI
Blu-ray
Disc
player
DVD
player
Set-top
box
Game
console
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
11
Connecting HDMI devices
n About Content Type
This function was added with the HDMI standard. It automatically makes settings suitable for the video-
output type (content information).
n Deep Color (vpage122)
When a device supporting Deep Color is connected (such as an HD camcorder), use a cable compatible
with “High Speed HDMI cable” or “High Speed HDMI cable with Ethernet”.
n Auto Lip Sync (vpage92, 122)
n “x.v.Color”, sYCC601 color, Adobe RGB color, Adobe YCC601 color
(vpage122, 123)
n High definition digital audio format
n ARC (Audio Return Channel) (vpage8)
Copyright protection system
In order to play back digital video and audio such as BD-Video or DVD-Video via HDMI connection, both
this unit and TV or the player need to support the copyright protection system known as HDCP (High-
bandwidth Digital Content Protection System). HDCP is copyright protection technology comprised of
data encryption and authentication of the connected AV devices. This unit supports HDCP.
•If a device that does not support HDCP is connected, video and audio are not output correctly. Read
the owner’s manual of your television or player for more information.
Settings related to HDMI connections
Set as necessary. For details, see the respective reference pages.
n HDMI Setup (vpage92)
Make settings for HDMI video/audio output.
•Auto Lip Sync •HDMI Pass Through •Pass Source
•HDMI Audio Out •HDMI Control •Pow.O Control
NOTE
To output audio signals that are input from the HDMI input connector to a TV connected via HDMI, set
“HDMI Audio Out” (vpage92) to “TV”.
Audio signals input via the Analog/Coaxial/Optical input connectors cannot be output from the HDMI
MONITOR output connector.
HDMI function
This unit supports the following HDMI functions:
n About 3D function
This unit supports input and output of 3D (3 dimensional) video signals of HDMI.
To play back 3D video, you need a TV and player that provide support for the HDMI 3D function and a
pair of 3D glasses.
NOTE
•When playing back 3D video, refer to the instructions provided in the manual of your playback device
together with this manual.
•If you operate the menu while playing back 3D video content, the playback video is replaced by the menu
screen. The playback video is not displayed behind the menu screen.
•This unit does not show the status display while playing back 3D video content.
•If 3D video with no 3D information is input, the menu screen and status display on this unit are displayed
over the playback video.
•If 2D video is converted to 3D video on the television, the menu screen and status display on this unit
are not displayed correctly. To view the menu screen and status display on this unit correctly, turn the
television setting that converts 2D video to 3D video o.
n HDMI pass through function (vpage92)
Signals input to the HDMI input connector are output to the television or other device connected to the
HDMI output connector, even if the power of this unit is in standby.
n HDMI control function (vpage78)
This function allows you to operate external devices from the unit and operate the unit from external
devices.
NOTE
•The HDMI control function may not work depending on the device it is connected to and its settings.
•You cannot operate a TV or Blu-ray Disc player/DVD player that is not compatible with the HDMI control
function.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
12
Connecting other devices
For highest quality video and surround playback, it is recommended to
use an HDMI cable to connect this unit to TV and other video devices
(vpage7 “Connecting HDMI devices”).
This section describes alternate connection methods when your
device does not support HDMI connections.

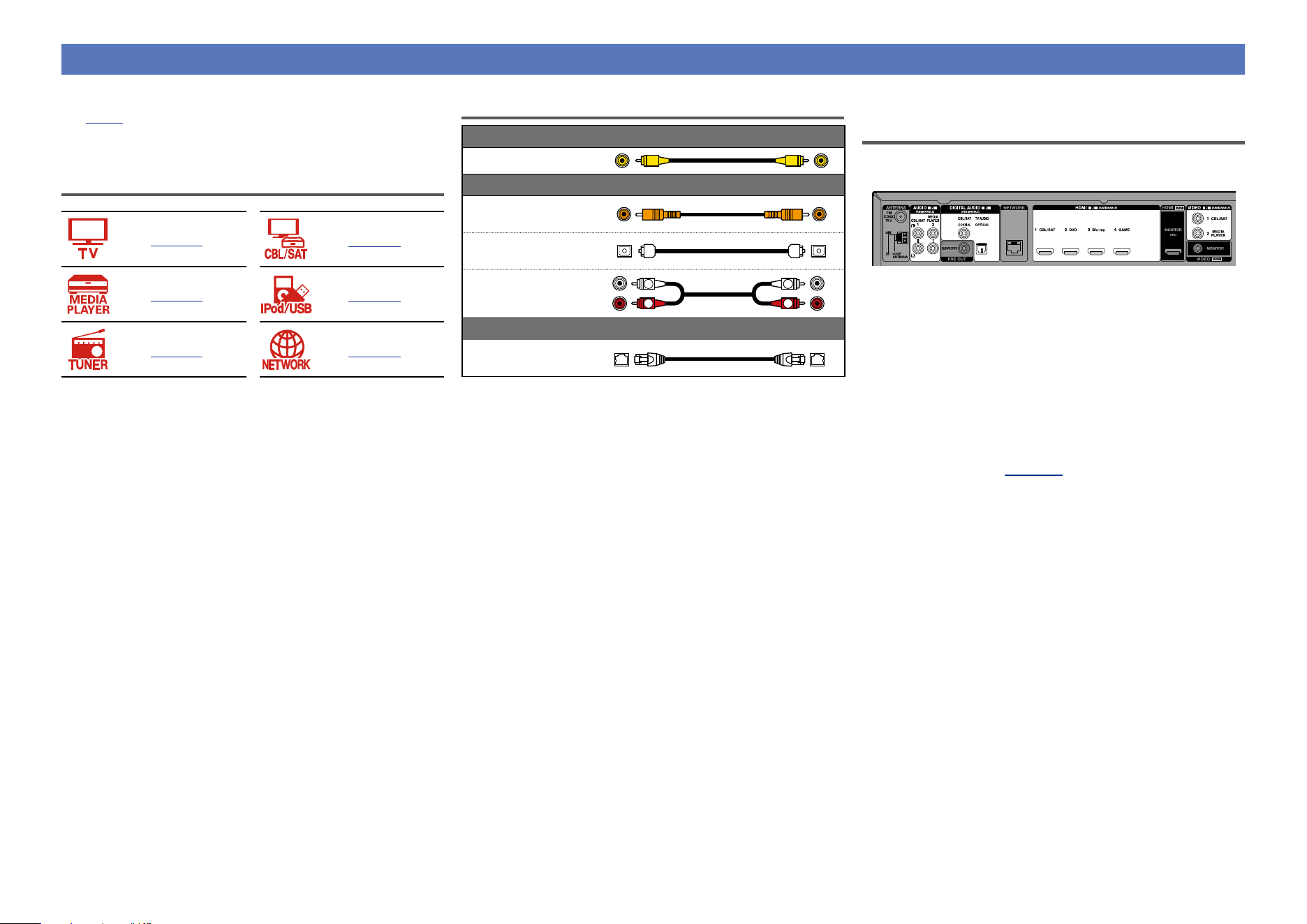

Connection methods for various devices
vpage13
vpage14
vpage15
vpage16
vpage17 vpage18
Cables used for connections
Video cable (sold separately)
Video cable
Audio cable (sold separately)
Coaxial digital cable
Optical cable
Audio cable
R
L
R
L
Cable (sold separately)
Ethernet cable
Changing the source assigned to
connectors
This unit can change the source that is assigned to the HDMI IN,
DIGITAL AUDIO IN, VIDEO IN and AUDIO IN connectors.
Let us take a digital audio connection for Blu-ray Disc players for an
example. The rear panel digital audio input connectors do not have the
input connector indication for Blu-ray disc players (Blu-ray). However,
DIGITAL AUDIO IN connectors have the “ASSIGNABLE” indication,
which means that you can change the source assigned to these
connectors. You can assign Blu-ray disc players to these connectors
to use them for Blu-ray disc players. Select “Blu-ray” when switching
functions on this unit to play back the source connected to these
connectors.
n How to change the source assigned to
connectors (vpage95)
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
13

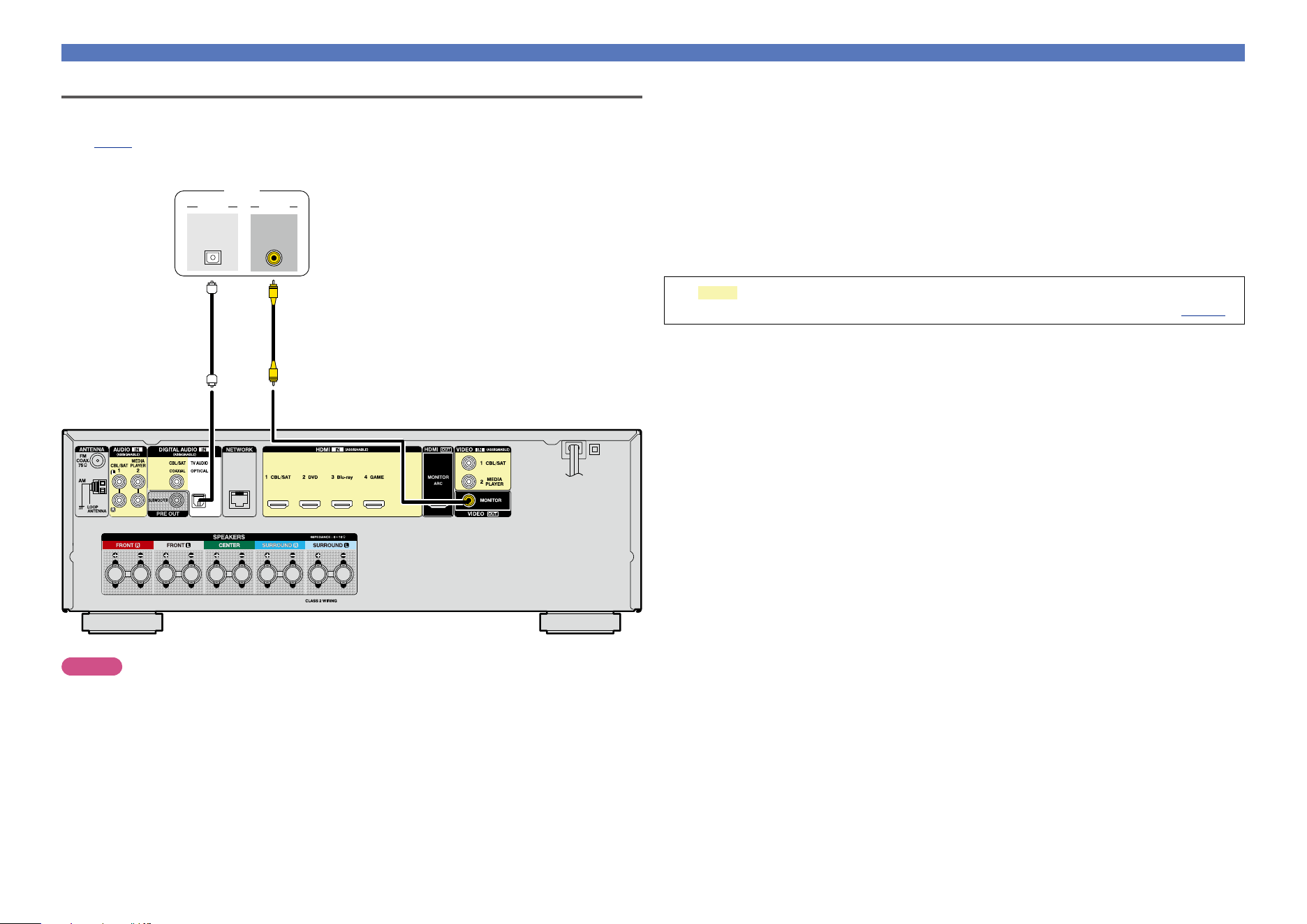

Connecting a TV
•This section describes how to connect when your TV does not support ARC (Audio Return Channel).
For instructions on HDMI connections, see “Connecting this unit to a TV via HDMI connections”
(vpage9).
•To listen to TV audio through this unit, use the optical digital connection.
VIDEOAUDIO
IN
VIDEO
OPTICAL
OUT
a a
TV
NOTE
The menu screen is only displayed on TV connected to this unit via HDMI. If your TV is connected
to this unit via other video output connectors, perform menu operations while seeing the display
on this unit.
Connecting other devices
n Audio connection
The following methods are available for connecting to this unit.
a DIGITAL AUDIO OPTICAL connector
When a multichannel audio (digital bit stream audio) is input, this unit decodes the audio to play
back surround sound.
n Video connection
The following methods are available for connecting to this unit.
a VIDEO OUT (MONITOR) connector
This makes an analog video connection.
The sections in the connection diagram are also available for connections. To connect devices
to these connectors, you must set up input connectors. For details, see “Input Assign” (vpage95).
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
14
n Audio connection
The following methods are available for connecting to this unit. Use either of the methods to make
a connection.
The numbers prefixed with connectors indicate the recommendation order. The smaller the number is,
the higher playback quality is achieved.
a DIGITAL AUDIO COAXIAL connector
When a multichannel audio (digital bit stream audio) is input, this unit decodes the audio to play
back surround sound.
s AUDIO IN (CBL/SAT) connector
This makes an analog audio connection.
n Video connection
The following methods are available for connecting to this unit.
a VIDEO IN (CBL/SAT) connector
This makes an analog video connection.
The sections in the connection diagram are also available for connections. To connect devices
to these connectors, you must set up input connectors. For details, see “Input Assign” (vpage95).

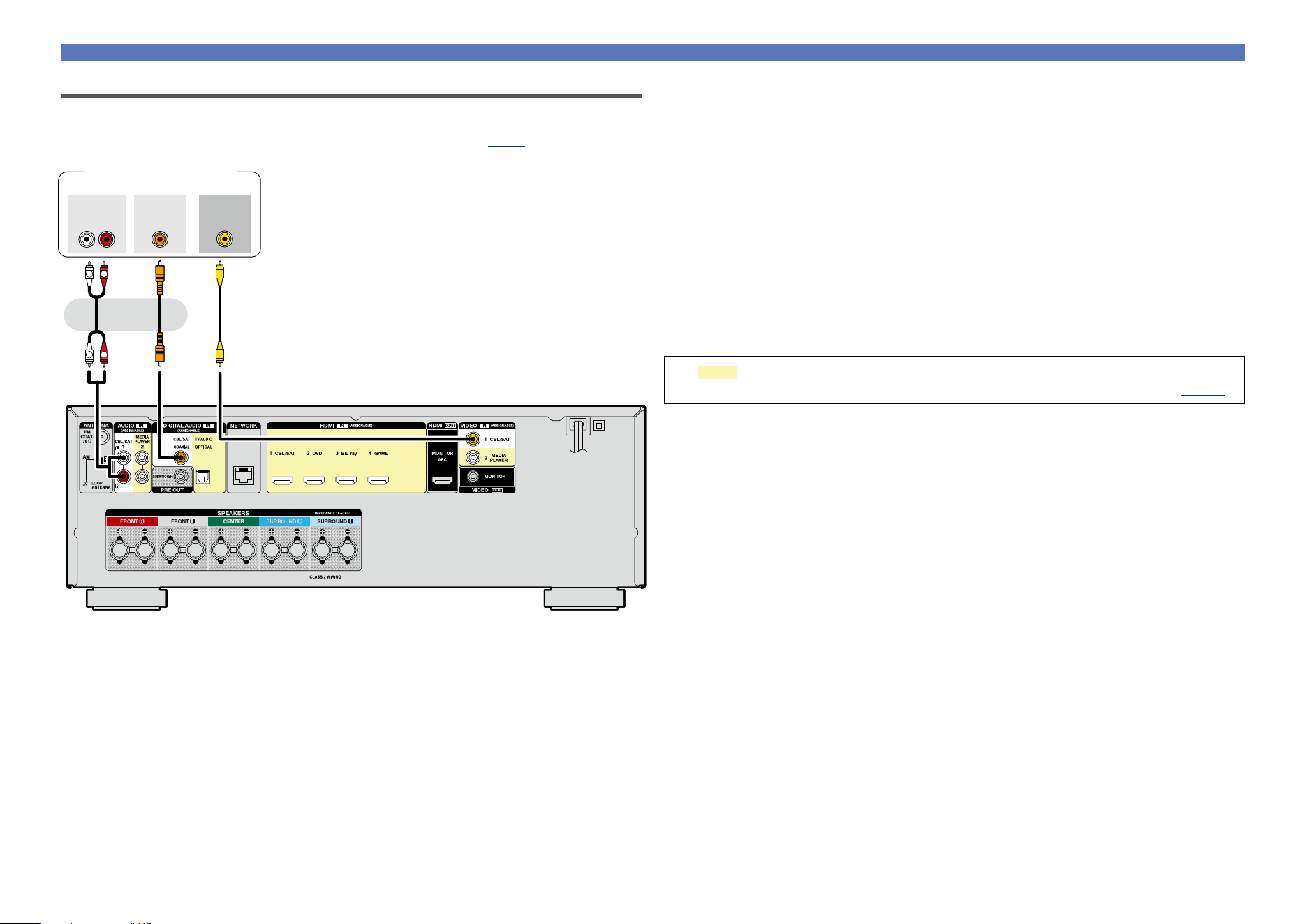

Connecting a set-top box (Satellite tuner/cable TV)
This section describes how to connect when your satellite tuner or cable TV does not support HDMI
connections.
For instructions on HDMI connections, see “Connecting HDMI devices” (vpage7).
R
L
R
L
OUT
COAXIAL
AUDIO
AUDIO
RL
OUT
OUT
VIDEO
VIDEO
as a
Satellite tuner/Cable TV
or
Connecting other devices
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
15
Connecting other devices

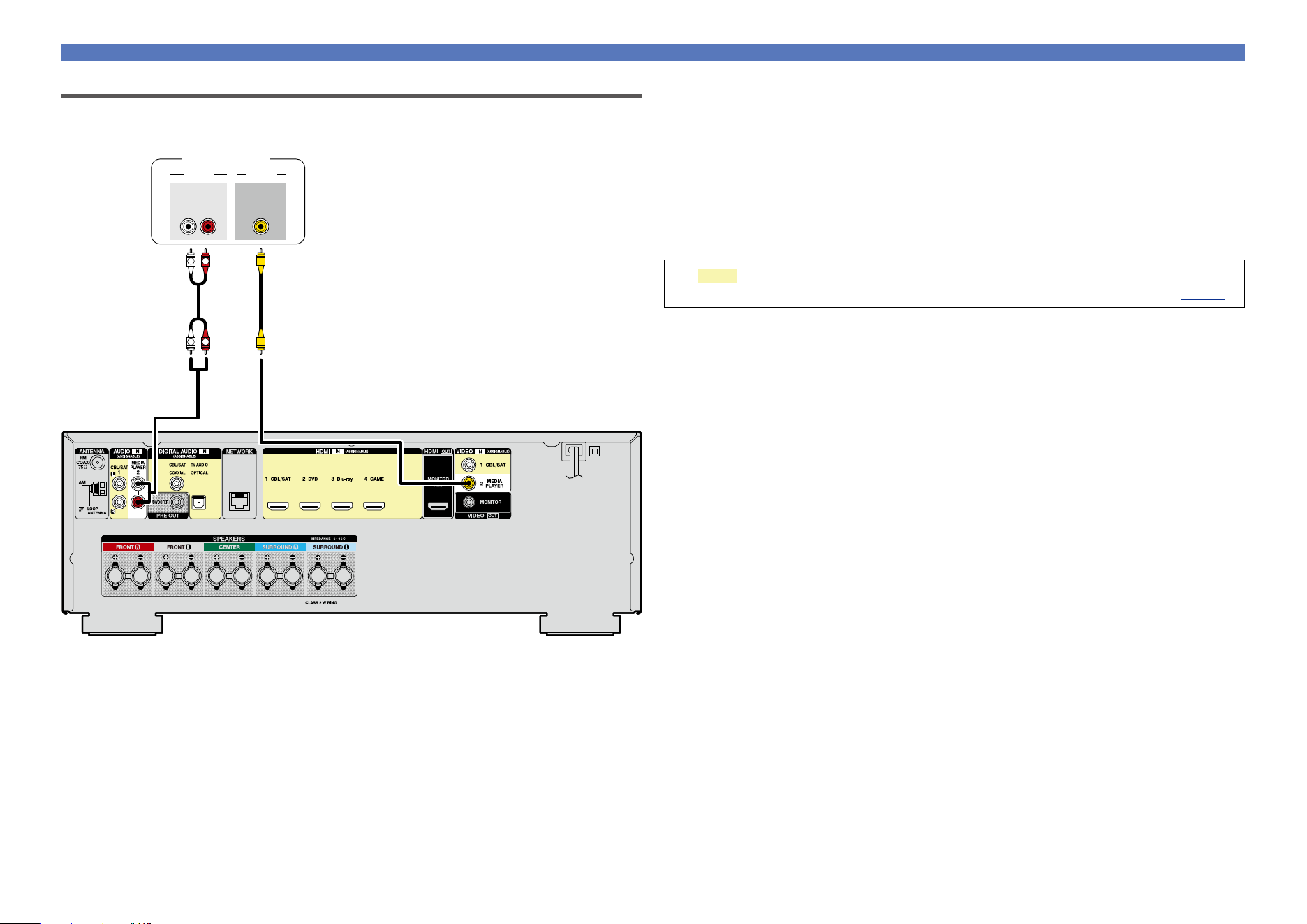

Connecting a media player
This section describes how to connect when your media player does not support HDMI connections.
For instructions on HDMI connections, see “Connecting HDMI devices” (vpage7).
R
L
R
L
VIDEOAUDIO
AUDIO
RL
OUT
OUT
VIDEO
a
a
Media player
n Audio connection
The following methods are available for connecting to this unit.
a AUDIO IN (DVD) connector
This makes an analog audio connection.
n Video connection
The following methods are available for connecting to this unit.
a VIDEO IN (DVD) connector
This makes an analog video connection.
The sections in the connection diagram are also available for connections. To connect devices
to these connectors, you must set up input connectors. For details, see “Input Assign” (vpage95).
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
16
Connecting an iPod or USB memory device to the USB port
•You can enjoy music stored on an iPod or USB memory device.
•For operating instructions see “Playing an iPod” (vpage 29) or “Playing a USB memory device”
(vpage32).
Cables used for connections
To connect an iPod to this unit, use the USB adapter cable that was supplied with the iPod.
USB memory
device
iPod
or
Denon does not guarantee that all USB memory devices will operate or receive power. When using a
portable USB hard disk drive (HDD) which came with an AC adapter, use that device’s supplied AC adapter.
NOTE
•USB memory devices will not work via a USB hub.
•It is not possible to use this unit by connecting the unit’s USB port to a PC via a USB cable.
•Do not use an extension cable when connecting a USB memory device. This may cause radio interference
with other devices.
•When connecting an iPhone to this unit, keep the iPhone at least 20 cm (8 inches) away from this unit.
If the iPhone is positioned close to this unit and a telephone call is received, noise may be output from
this unit.
•If the iPod is connected using an iPod cable (commercially available) that is longer than 2 meters (6 feet)
sound may not be played correctly. In this case, use a genuine iPod cable, or a cable that is shorter than
1 meter (3 feet).
Connecting other devices
Supported iPod models
•iPod classic
•iPod nano
•iPod touch
•iPhone
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
17
Connecting an FM/AM antenna
•Connect the FM antenna supplied with the unit to enjoy listening to radio broadcasts.
•After connecting the antenna and receiving a broadcast signal (vpage 35 “Listening to FM/AM
broadcasts”), fix the antenna with tape in a position where the noise level becomes minimal.
n AM loop antenna assembly
1
Put the stand section through the bottom of the
loop antenna from the rear and bend it forward.
Stand
Square
hole
Projecting
part
Loop
antenna
2
Insert the projecting part into the square hole in
the stand.
n Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.
Standing alone
Use the procedure shown above to assemble.
Nail, tack, etc.
NOTE
•Do not connect two FM antennas simultaneously.
•Even if an external AM antenna is used, do not disconnect the AM loop antenna.
•Make sure the AM loop antenna lead terminals do not touch metal parts of the panel.
•If the signal has noise interference, connect the ground terminal (GND) to reduce noise.
•If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For
details, inquire at the retail store where you purchased the unit.
Connecting other devices
w eq
FM outdoor
antenna
Direction of broadcasting station
75 Ω/ohms
coaxial cable
FM indoor antenna
(supplied)
Ground
AM outdoor
antenna
AM loop antenna
(supplied)
Black
White
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
18
Connecting to a home network (LAN)
You can connect this unit to your home network (LAN) to perform various types of playbacks and operations
as follows. Make network connections for this unit by carefully reading information on this page.
•Playback of network audio such as Internet Radio and from your media server(s)
•Playback of music content from online streaming services
•Using the Apple AirPlay function
•Operation on this unit via the network
In addition, if updated firmware becomes available for this unit, the updated information is delivered from
us to this unit over the internet via your home network. You can then download and install the latest
firmware.
For more information, on the menu, select “Update” (vpage109).
Network settings are necessary. See “Network” on the menu (vpage 102) for more information on
network setting.
Internet
To WAN sideRouter
To LAN port
To LAN port
LAN port/
Ethernet
connector
LAN port/
Ethernet
connector
PC
NAS
(Network Attached
Storage)
Modem
For connections to the Internet, contact an ISP (Internet Service Provider) or a computer shop.
Required system
n Broadband internet connection
n Modem
Device that connects to your broadband internet provider, and is very often supplied with the service .
A type that is integrated with a router is also often available.
n Router
When using this unit, we recommend you use a router equipped with the following functions:
•Built-in DHCP server
This function automatically assigns IP addresses on the LAN.
•Built-in 100BASE-TX switch
When connecting multiple devices, we recommend a switching hub with a speed of 100 Mbps or
greater.
n Ethernet cable
(CAT-5 or greater recommended)
•Use only a shielded STP or ScTP LAN cable which is easily available at electronics stores.
•The normal shielded-type Ethernet cable is recommended. If a flat-type cable or unshielded-type cable
is used, other devices could be aected by noise.
•If you have an Internet provider contract for a line on which network settings are made manually, make
the settings at “Network” (vpage102).
•With this unit, it is possible to use the DHCP and Auto IP functions to make the network settings
automatically.
•When using this unit with the broadband router’s DHCP function enabled, this unit automatically performs
the IP address setting and other settings.
When using this unit connected to a network with no DHCP function, make the settings for the IP
address, etc., at “Network” (vpage102).
•When setting manually, check the settings with the network administrator or internet service provider.
NOTE
•A contract with an internet service provider (ISP) is usually required to connect to the Internet.
No additional contract is needed if you already have a broadband connection to the Internet.
•The types of routers that can be used depend on the ISP. Contact your ISP or a computer shop for details.
•Denon assumes no responsibility whatsoever for any communication errors or troubles resulting from
the customer’s network environment or connected devices.
•This unit is not compatible with PPPoE. A PPPoE-compatible router is required if you have a contract for
a type of line set by PPPoE.
•Do not connect an NETWORK connector directly to the LAN port/ Ethernet connector on your computer.
•To listen to audio streaming, use a router that supports audio streaming.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
19
Connecting the power cord
After completing all the connections, insert the power plug into the power outlet.
To household power outlet
(AC 120 V, 60 Hz)
Power cord
NOTE
•Do not plug in the power cord until all connections have been completed. However, when the
“Setup Assistant” is running, follow the instructions in the “Setup Assistant” (C page 7) screen
for making connections. (During “Setup Assistant” operation, the input/output connectors do not
conduct current.)
•Do not bundle power cords together with connection cables. Doing so can result in humming or noise.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
20
The acoustic characteristics of the connected speakers and
listening room are measured and the optimum settings are made
automatically. This is called “Audyssey
®
Setup”.
To perform measurement, place the Setup and measurement
microphone in multiple locations all around the listening area.
For best results, we recommend you measure in six positions, as
shown in the illustration (up to six positions).
•When performing Audyssey
®
Setup, Audyssey MultEQ
®
/
Audyssey Dynamic EQ
®
/Audyssey Dynamic Volume
®
functions
become active (vpage89, 90).
•To set up the speakers manually, use “Speakers” (vpage 98)
on the menu.
NOTE
•Make the room as quiet as possible. Background noise can disrupt
the room measurements. Close windows and turn o the power on
electronic devices (TVs, radios, air conditioners, fluorescent lights,
etc.). The measurements could be aected by the sounds emitted
by such devices.
•During the measurement process, place cell phones outside the
listening room. Cell phone signals could disrupt the measurements.
•Do not unplug the Setup and measurement microphone from the
main unit until Audyssey
®
Setup is completed.
•Do not stand between the speakers and Setup and measurement
microphone or allow obstacles in the path while the measurements
are being made. This will cause inaccurate readings.
•During the measurement process, audible test tones will come from
the speakers and subwoofer(s), but this is part of normal operation.
If there is background noise in the room, these test signals will
increase in volume.
•Operating
VOLUME df on the remote
control unit or MASTER VOLUME on the
main unit during the measurements will
cancel the measurements.
•Measurement cannot be performed when
headphones are connected. Unplug the
headphones before performing Audyssey
®
Setup.
Setup

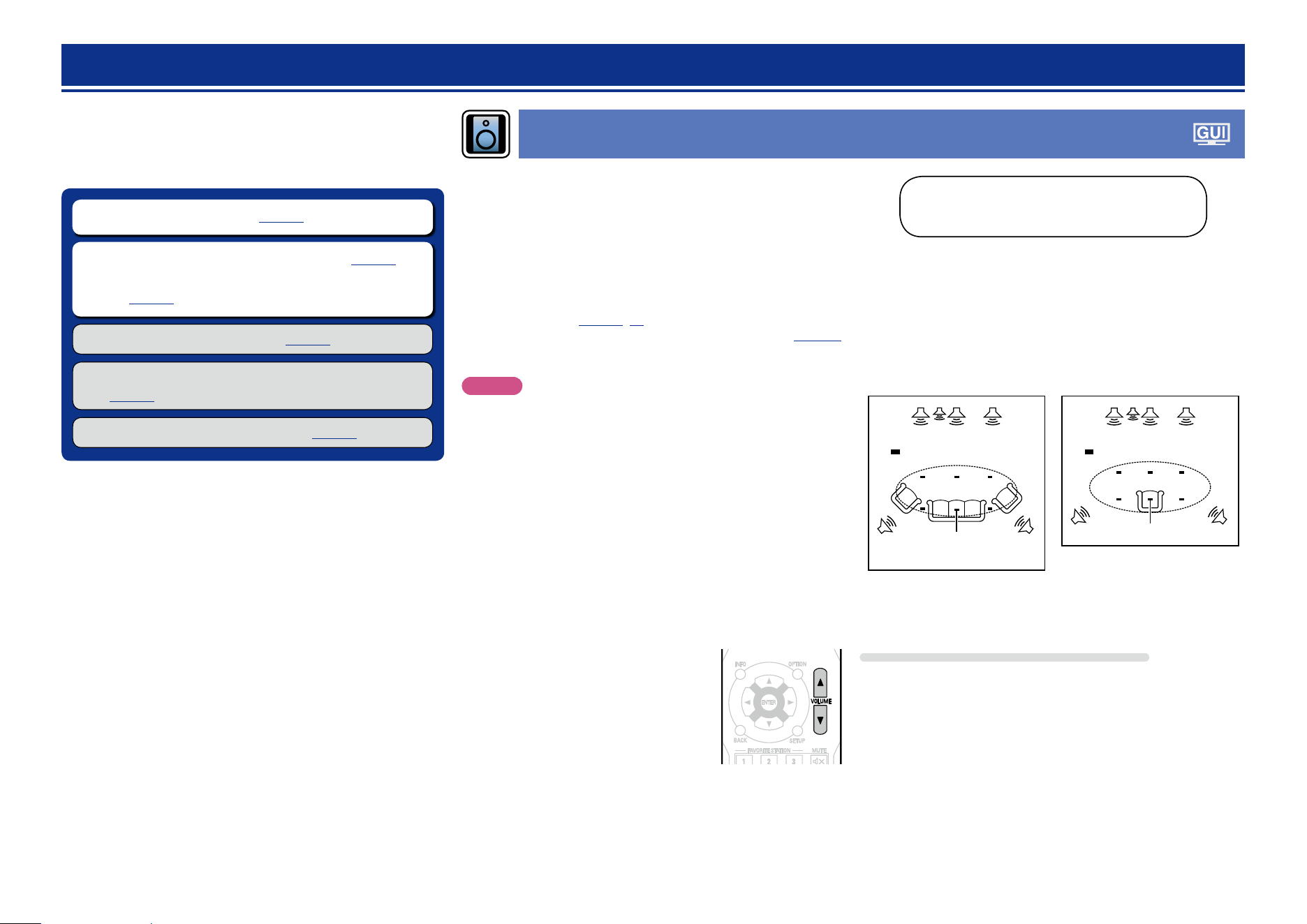

Here, we explain “Audyssey
®
Setup”, which allows you to automatically
make the optimal settings for your speakers, and “Network”, which
allows you to connect this unit to a home network (LAN).
This unit lets you play via your home network (LAN) music files stored
on a computer and music content such as that from Internet Radio.
n Speaker connection (vpage75)
n Set up speakers (Audyssey® Setup) (vpage20)
n Making the network settings (Network)
(vpage26)
Playback (Basic operation) (vpage27)
Selecting a listening mode (Sound Mode)
(vpage69)
Playback (Advanced operation) (vpage78)
Set up speakers (Audyssey® Setup)
About Setup and measurement
microphone placement
•Measurements are performed by placing the Setup and measurement
microphone successively at multiple positions throughout the entire
listening area, as shown in GExample qH. For best results, we
recommend you measure in six positions, as shown in the illustration
(up to six positions).
•Even if the listening environment is small as shown in GExample wH,
measuring at multiple points throughout the listening environment
results in more eective correction.
FL SW C FR
SRSL
*
M
FL SW C FR
SRSL
*
M
(
: Measuring positions)
GExample qH GExample wH
(
: Measuring positions)
FL Front speaker (L) SW Subwoofer
FR Front speaker (R) SL Surround speaker (L)
C Center speaker SR Surround speaker (R)
About the main listening position (*M)
The main listening position is the position where listeners would
normally sit or where one would normally sit alone within the listening
environment. Before starting Audyssey
®
Setup, place the Setup and
measurement microphone in the main listening position. Audyssey
MultEQ
®
uses the measurements from this position to calculate
speaker distance, level, polarity, and the optimum crossover value for
the subwoofer.
Basic instructions
Advanced instructions
Information
Basic instructions
v See overleaf
DVD
21
2
Set up the subwoofer
If using a subwoofer capable of the following
adjustments, set up the subwoofer as shown below.
For details, see your subwoofer’s manual.
n When using a subwoofer with a direct mode
Set the direct mode to “On” and disable the volume adjustment
and crossover frequency setting.
n When using a subwoofer without a direct mode
Make the following settings:
•Volume : “12 o’clock position”
•Crossover frequency : “Maximum/Highest Frequency”
•Low pass filter : “O”
•Standby mode : “O”

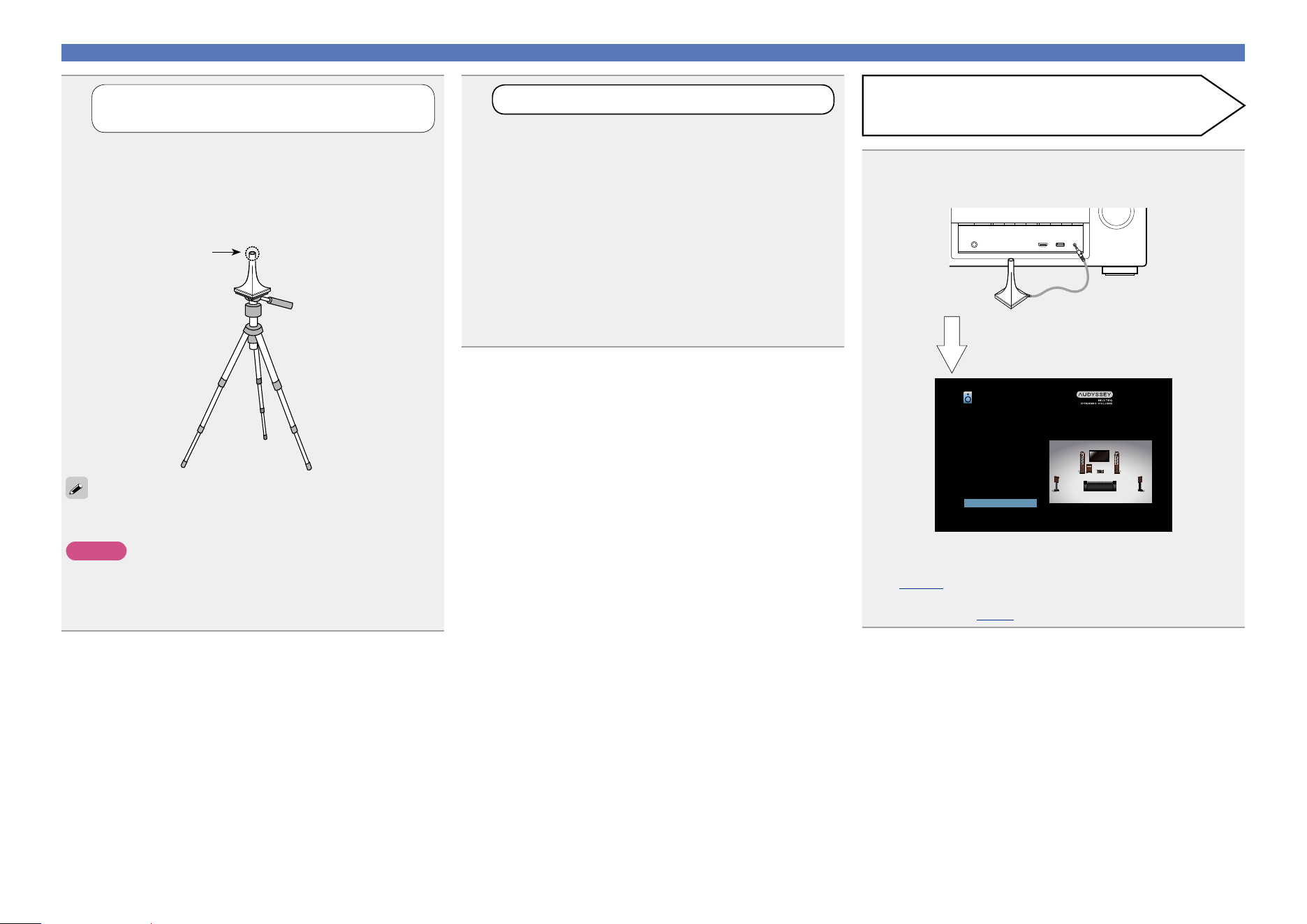

1
Prepare the included Setup and
measurement microphone
Mount the Setup and measurement microphone on
a tripod or stand and place it in the main listening
position.
When placing the Setup and measurement microphone, adjust
the height of the sound receptor to the level of the listener’s
ear.
Sound receptor
Setup and
measurement
microphone
If you do not have a tripod or stand, set up the microphone on, for
example, a seat without a back.
NOTE
•Do not hold the Setup and measurement microphone in your hand
during measurements.
•Avoid placing the Setup and measurement microphone close to a
seat back or wall as sound reflections may give inaccurate results.
Set up speakers (Audyssey® Setup)
3
Connect the Setup and measurement microphone to
the SETUP MIC jack of this unit.
When the Setup and
measurement microphone is
connected, the following screen is
displayed.
Audyssey Setup
Your AVR can automatically measure the
acoustics of your room and the optimize
your speakers.
Start
•For information about setting up and connecting the speakers,
see “Installation/connection/setup of speakers (Advanced)”
(vpage74).
•For connection to a TV, see “Connecting this unit to a TV via HDMI
connections” (vpage9).
Preparation
Basic instructions
Advanced instructions
Information
Basic instructions
v See overleaf
DVD
22
Preparation (Continued)
Detection & Measurement (Main)
Set up speakers (Audyssey® Setup)
4
Select “Start” and then press
ENTER.
Audyssey Setup
Connect the calibration microphone to the
SETUP MIC input on the front the
AV receiver.
Back Next
5
Select “Next” and then press ENTER.
The subwoofer volume setting screen is displayed.
Back Next
VOLUMEPOWER
ON
OFF
MIN
MAX
Audyssey Setup
Make sure your subwoofer is plugged in and
turned on. If your subwoofer has a volume
control, please set it at 50%...
NOTE
If “Caution!” is displayed on TV screen:
Go to “Error messages” (vpage 25). Check any related items,
and perform the necessary procedures.
If the problem is resolved, return and restart “Audyssey
®
Setup”.
Going back to the previous screen
Select “Back” and then press ENTER.
When measuring has stopped
q Press BACK to display the popup screen.
w Press o to select “Yes”, and then press ENTER.
Setting up the speakers again
Repeat the operation from step 4.
This step automatically checks the speaker configuration and speaker
size, and calculates the channel level, distance, and crossover
frequency.
It also corrects distortion in the listening area.
6
Select “Begin Test” and then press ENTER.
When measuring begins, a test tone is output from each
speaker.
•Measurement requires several minutes.
7
The detected speakers are displayed.
•The illustration below shows an example of when the front
speakers, center speaker, subwoofer and surround speakers have
been detected.
Audyssey Setup
Repeat Last Test Next
Front
Speaker Detection
Center
Subwoofer
Surround
Yes
Yes
Yes
Yes
NOTE
If a connected speaker is not displayed, the speaker may not be
connected correctly. Check the speaker connection.
8
Select “Next” and then press ENTER.
Basic instructions
Advanced instructions
Information
Basic instructions
v See overleaf
DVD
23
Calculation
Set up speakers (Audyssey® Setup)
10
Repeat step 9, measuring positions 3 to 6.
When measurement of position 6 is completed, a
“Measurements Complete.” message is displayed.
Audyssey Setup
Measurements Complete.
Calculation
Repeat Last Test
11
Select “Calculation” and then press ENTER.
Measuring results are analyzed, and the frequency response of
each speaker in the listening room is determined.
Audyssey Setup
Calibration complete! Now Calculating...
Please wait...
75%
•Analysis takes several minutes to complete. The more speakers
and measurement positions that there are, the more time it takes
to perform the analysis.
Measurement (2nd – 6th)
•In this step, you will perform measurements at multiple positions
(one to five additional positions) other than the main listening
position.
•Just one listening position can be measured if you so choose, but
measuring multiple positions increases the accuracy of the correction
of acoustic distortion within the listening area.
9
Move the Setup and
measurement microphone to
position 2, select “Continue”,
and then press ENTER.
The measurement of the second
position starts. Measurements can be
made in up to six positions.
Audyssey Setup
Place the microphone at ear level at the 3rd
Listening position.
Continue
Calculation
Repeat Last Test
Audyssey Setup
Place the microphone at ear level at the 2nd
Listening position.
Continue
Calculation
Back
•To skip measuring the second and subsequent listening position,
use i to select “Calculation” and press ENTER to proceed to step
12.
•To measure the second position again, use i to select “Repeat
Last Test” and press ENTER.
Basic instructions
Advanced instructions
Information
Basic instructions
v See overleaf
DVD
24
Set up speakers (Audyssey® Setup)
13
Select “Store” and then press ENTER.
Save the measurement results.
Audyssey Setup
Now Storing...
please wait...
75%
Audyssey Setup
Check processing result.
To proceed, select “Store”.
Speaker Config.
Distances
Levels
Crossovers
Store
•Saving the results requires about 20 seconds.
•During saving of measurements results, “Now storing...Please
wait...” is displayed. When saving is completed, “Storing complete.
Audyssey
®
Setup is now finished. Please unplug microphone.” is
displayed.
NOTE
During saving of measurement results, be sure not to turn o the
power.
14
Unplug the Setup and measurement microphone
from the unit’s SETUP MIC jack.
15
Set Audyssey Dynamic Volume
®
.
Audyssey Setup
You can set Dynamic Volume function,
which automatically adjusts volume level
for all content.
Do you want to enable?
Yes
No
•This feature adjusts the output volume to the optimal level while
constantly monitoring the level of the audio input to the unit.
Optimal volume control is performed automatically without any
loss in the dynamism and clarity of the sound when, for example,
the volume suddenly increases for commercials shown during
television programs.
n When turning Dynamic Volume on
•Press u to select “Yes”, and then press ENTER.
The unit automatically enters “Medium” (vpage90) mode.
n When turning Dynamic Volume o
•Press i to select “No”, and then press ENTER.
NOTE
After performing Audyssey
®
Setup, do not change the speaker
connections or subwoofer volume. In event of a change, perform
Audyssey
®
Setup again.
Store FinishCheck
12
Use ui to select the item you
want to check, and then press
ENTER.
Audyssey Setup
Check processing result.
To proceed, select “Store”.
Speaker Config.
Distances
Levels
Crossovers
Store
•Subwoofers may measure a greater reported distance than
the actual distance due to added electrical delay common in
subwoofers.
•If you want to check another item, press BACK.
NOTE
•If the result diers from the actual connection status, or if “Caution!”
is displayed, see “Error messages” (vpage 25). Then carry out
Audyssey
®
Setup again.
• If you change speaker positions or orientation, perform Audyssey
®
Setup again to find the optimal equalizer settings.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
25

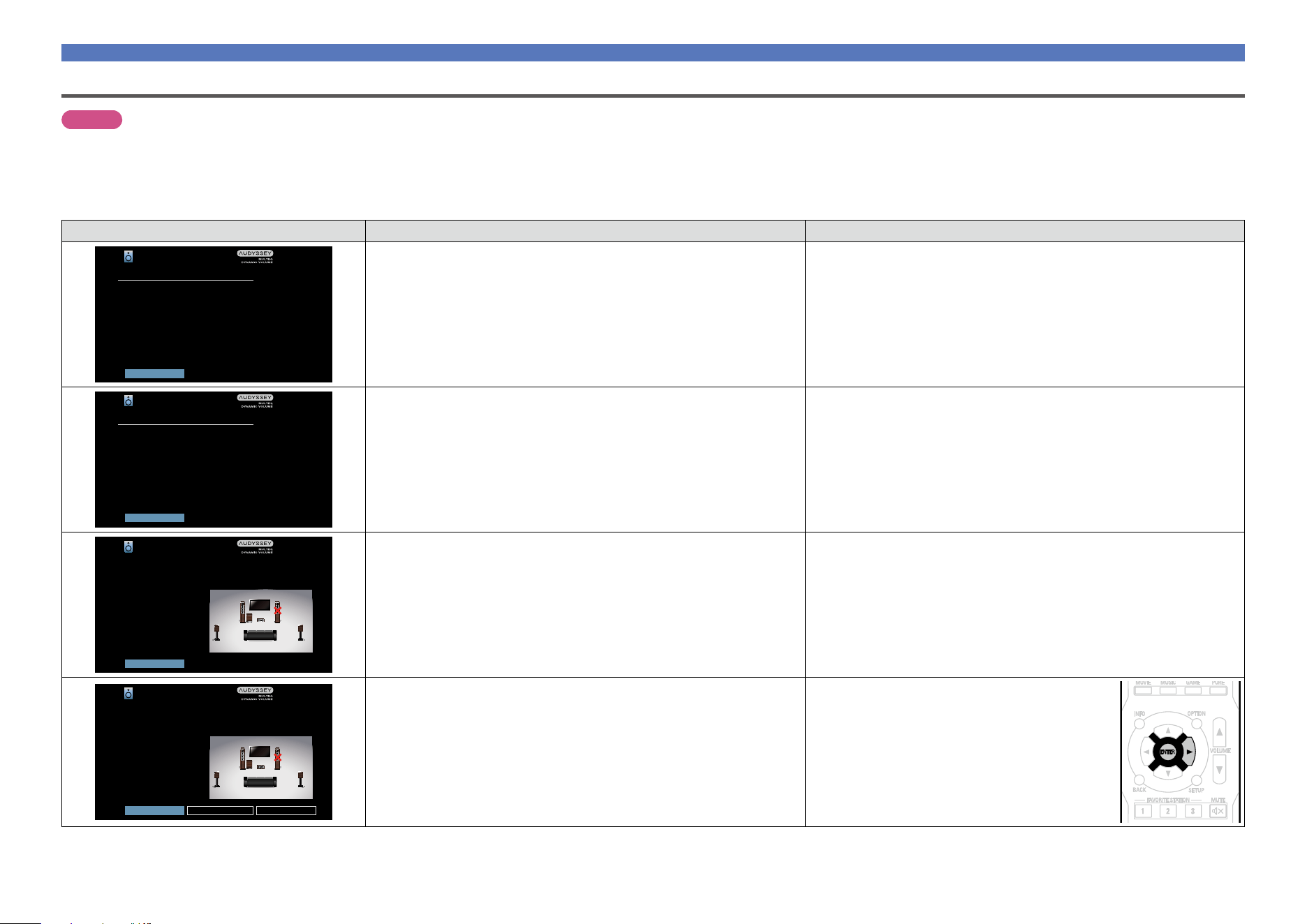

Error messages
NOTE
•An error message is displayed if Audyssey
®
Setup could not be completed due to speaker placement, the measurement environment, etc. If an error message is displayed, check the relevant items and perform the
necessary measures. Then perform Audyssey
®
Setup again.
•If the result still diers from the actual connection status after re-measurement or the error message still appears, it is possible that the speakers are not connected properly. Turn this unit o, check the speaker
connections and repeat the measurement process from the beginning.
•Be sure to turn o the power before checking speaker connections.
Examples Error details Measures
Audyssey Setup
Caution!
Microphone or Speaker is none
Please check the cable connection
and retry.
Retry
•The connected Setup and measurement microphone is broken, or a device
other than the supplied Setup and measurement microphone is connected.
•Not all speakers could be detected.
•Connect the included Setup and measurement microphone to the SETUP
MIC jack of this unit.
•Check the speaker connections.
Audyssey Setup
Caution!
Ambient noise is too high or level is
too low
Retry
•There is too much noise in the room for accurate measurements to be
made.
•Speaker or subwoofer sound is too low for accurate measurements to be
made.
•Either turn o any device generating noise or move it away.
•Perform again when the surroundings are quieter.
•Check the speaker installation and the direction in which the speakers are
facing.
•Adjust the subwoofer’s volume.
Audyssey Setup
Caution!:Please check the cable connection
and retry.
Front R None
Retry
•The displayed speaker could not be detected.
(The screen on the left indicates that the front right speaker cannot be
detected.)
•Check the connections of the displayed speaker.
Audyssey Setup
Caution!:Please check the cable connection
and retry.
Front R Phase
Retry Phase Info. Skip
•The displayed speaker is connected with the polarity reversed.
(The screen on the left indicates that the polarity phases of the front right
speakers are reversed.)
•Check the polarity of the displayed speaker.
•For some speakers, this error message may be
displayed even if the speaker is properly connected.
If you are sure the connection is correct, use p to
select “Skip”, then press ENTER.
Set up speakers (Audyssey® Setup)
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
26
Check Results
This function enables you to check the measurement results and equalizer characteristics after Audyssey
®
Setup.
1
Press SETUP to display the menu on the TV screen.
2
Use u to select “Speakers” – “Audyssey
®
Setup” and then press ENTER or p.
3
Use i to select “Check Results” and then press ENTER.
Audyssey Setup
Your AVR can automatically measure the
acoustics of your room and the optimize
your speakers.
Restorer...
Check Results
Start
Check Results
Speaker Config.
Distances
Levels
Crossovers
4
Use ui to select the item you want to check, then press ENTER.
Measurement results for each speaker are displayed.
Speaker Config.
Check the speaker configuration.
Distances
Check the speaker distance.
Levels
Check the speaker channel level.
Crossovers
Check the speaker crossover frequency.
5
Press o or BACK.
The confirmation screen reappears. Repeat step 2.
Retrieving Audyssey
®
Setup settings
If you set “Restore...” to “Restore”, you can return to Audyssey
®
Setup measurement result (value
calculated at the start by MultEQ
®
) even when you have changed each setting manually.
Set up speakers (Audyssey® Setup)
Making the network settings
(Network)
This unit can be connected to a home network (LAN) to listen to Internet Radio or play back music files and
still image (JPEG) files stored on a computer.
1
Connect the Ethernet cable (vpage18 “Connecting to a home network (LAN)”).
2
Turn on this unit (vpage27).
This unit performs automatic network setup due to the DHCP function.
When connecting to a network that has no DHCP function, perform the setting in “Settings”
(vpage104).
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
27
Playback (Basic operation)
Setup (vpage20)
n Turning the power on (vpage27)
n Selecting the input source (vpage27)
n Adjusting the master volume (vpage28)
n Turning o the sound temporarily (vpage28)
n Playing a Blu-ray Disc player/DVD player
(vpage28)
n Playing an iPod (vpage29)
n Playing a USB memory device (vpage32)
n Listening to FM/AM broadcasts (vpage35)
n Listening to Internet Radio (vpage44)
n Playing back files stored on a PC and NAS
(vpage47)
n Using online services (vpage51)
n Convenient functions (vpage62)
n AirPlay function (vpage67)
Selecting a listening mode (Sound Mode)
(vpage69)
Playback (Advanced operation) (vpage78)
Important information
Before starting playback, make the connections between the dierent
devices and the settings on the unit.
NOTE
Also refer to the operating instructions of the connected devices
when playing them.

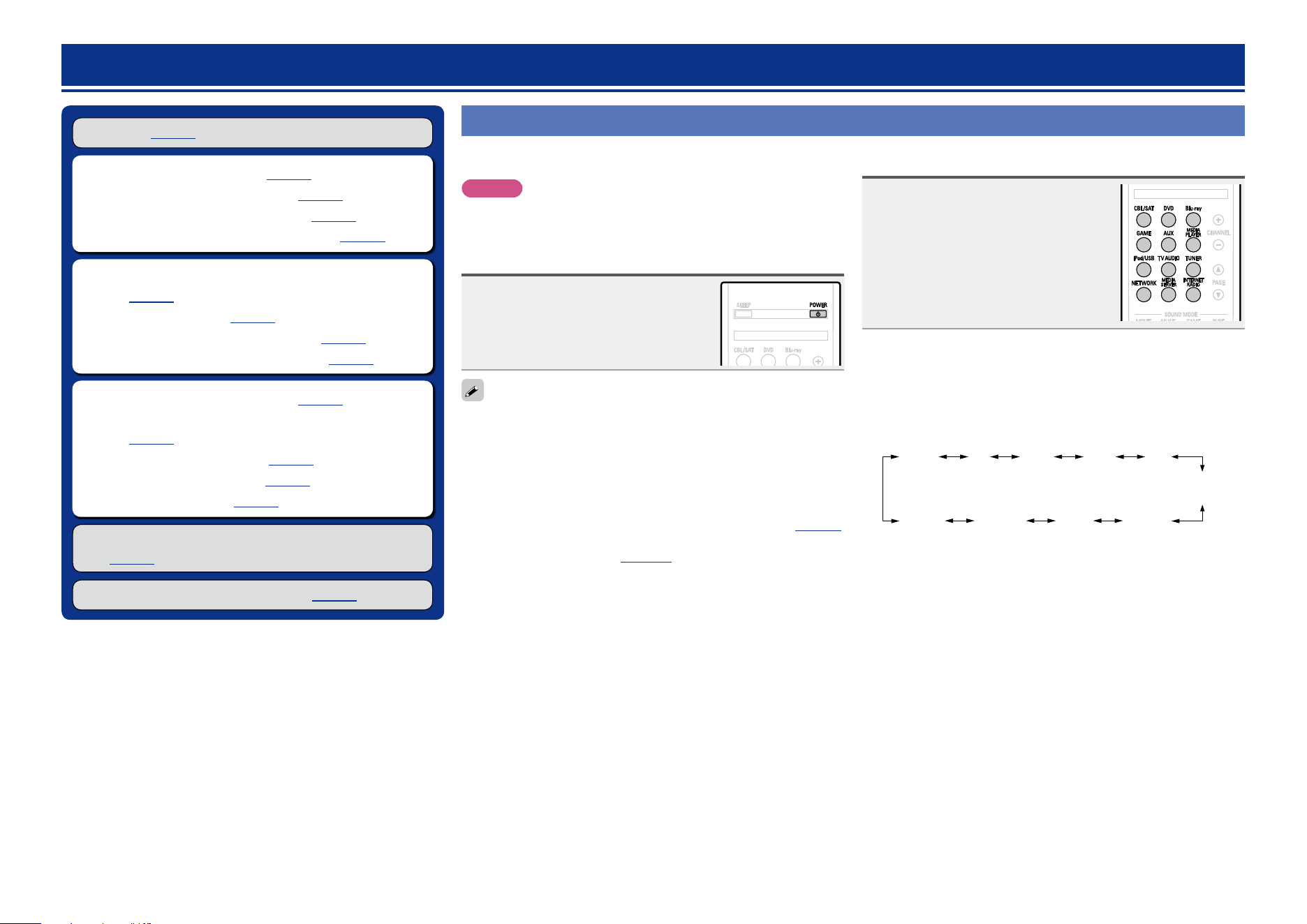

Turning the power on
Press POWER X to turn on power to
the unit.
The power indicator flashes green and the
power turns on.
You can also switch the power to standby by pressing X on the main
unit.
n When power is switched to standby
Press POWER X.
GPower indicator status in standby modeH
Normal standby : O
•When “HDMI Pass Through” or “HDMI Control” (vpage92)
is set to “On” : Red
•When “IP Control” (vpage103) is set to “Always On” : Red
Selecting the input source
Press the input source select button
(CBL/SAT, DVD, Blu-ray, GAME,
AUX, MEDIA PLAYER, iPod/USB, TV
AUDIO
, TUNER, NETWORK, MEDIA
SERVER
or INTERNET RADIO) to be
played back.
The desired input source can be selected
directly.
You can also use the following operation to select an input
source.
n Select the input source using the main unit
Press SOURCE SELECT 0 1.
•Pressing SOURCE SELECT 0 1 switches the input source, as
shown below.
GAME AUX
MEDIA
PLAYER
iPod/USBTUNERNETWORKTV AUDIO
Blu-rayDVDCBL/SAT
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
28

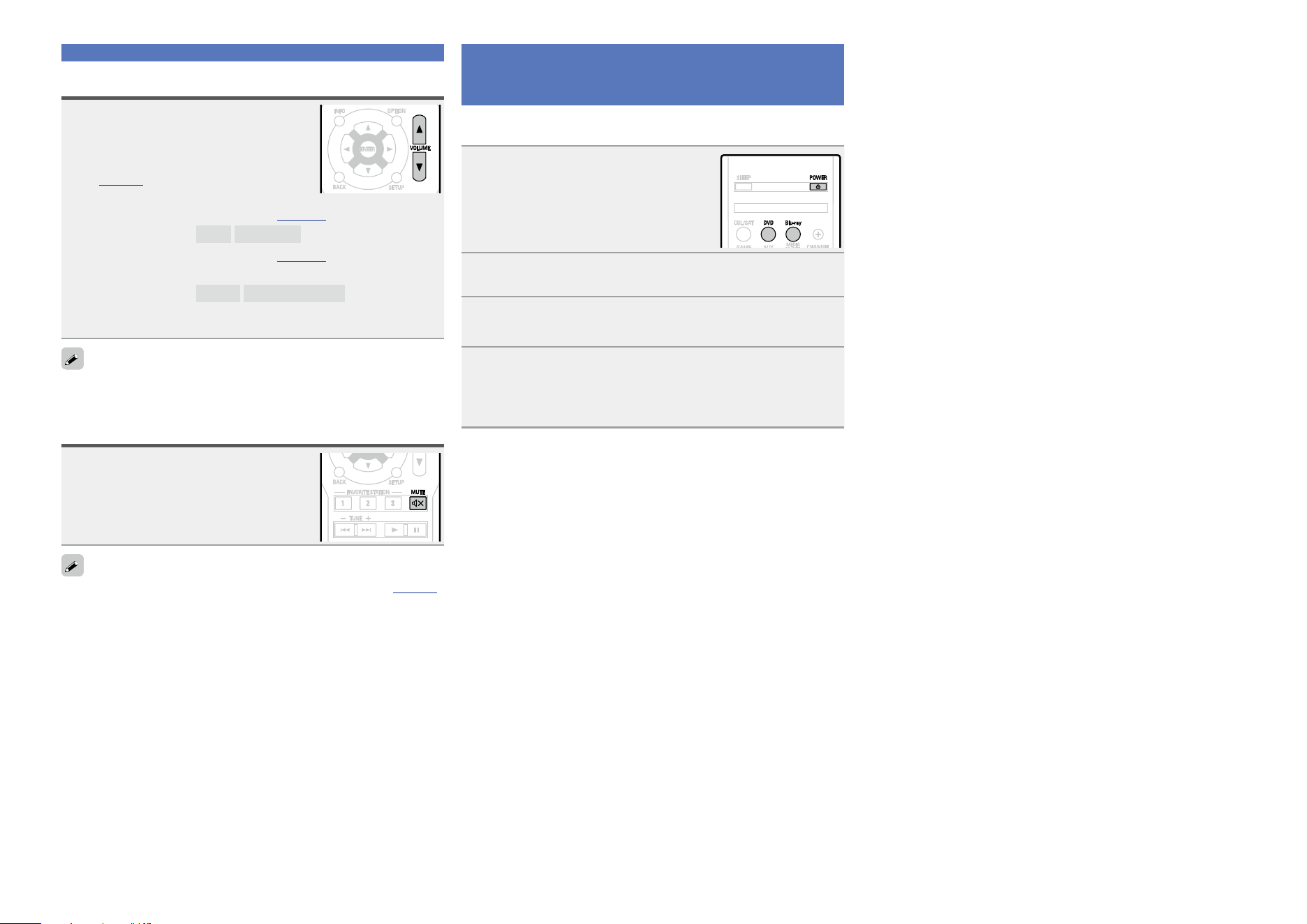

Adjusting the master volume
Use VOLUME df to adjust the
volume.
•The volume display method varies
depending on the “Scale” setting
(vpage89).
n When the “Scale” setting (vpage89) is “0 – 98”
GAdjustable rangeH
0.0
0.5 – 98.0
n When the “Scale” setting (vpage89) is “–79.5dB –
18.0dB”
GAdjustable rangeH
– – –.–
–79.5dB – 18.0dB
•The variable range diers according to the input signal and channel
level setting.
You can also adjust the master volume by turning MASTER VOLUME
on the main unit.
Turning o the sound temporarily
Press MUTE :.
•“MUTE” indicator on the display flashes.
•: appears on the TV screen.
•The sound is reduced to the level set at “Mute Level” (vpage89).
•To cancel, press MUTE : again. Muting can also be cancelled by
adjusting the master volume.
Important information
Playing a Blu-ray Disc player/DVD
player
The following describes the procedure for playing Blu-ray Disc player/
DVD player.
1
Prepare for playback.
q Turn on the power of the TV,
subwoofer and player.
w Change the TV input to the input of
this unit.
e Load the disc in the player.
2
Press POWER X to turn on power to the unit.
3
Press DVD or Blu-ray to switch an input source for a
player used for playback.
4
Play the Blu-ray Disc player or DVD player.
•Make the necessary settings on the player (language setting,
subtitles setting, etc.) beforehand.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
29
Playing an iPod
You can use the USB cable provided with the iPod to connect the iPod
with the unit’s USB port and enjoy music stored on the iPod.
For information on the iPod models that can be played back with this
unit, see “Connecting an iPod or USB memory device to the USB
port” (vpage16).
Listening to music on an iPod
The iPod display modes include “From iPod” and “On-Screen”.
By default, “From iPod”, where you directly operate the iPod itself
while looking at the iPod screen, is set.
To change to “On-Screen”, where you perform operations while
having the iPod information displayed on the TV screen, see “Setting
operation mode (iPod Browse Mode)” (vpage30).
1
Using the USB cable provided
with the iPod, connect the iPod
to the USB port (vpage16).
2
Press POWER X to turn on
power to the unit.
3
Press iPod/USB to switch the
input source to “iPod/USB”.
“Browse From iPod” is displayed on
the display of this unit.
•Nothing is displayed on the TV screen.
4
Operate iPod itself directly
while seeing the iPod screen to
play back music.
n Streaming music stored in iPhone, iPod touch,
or iPad directly to the unit (vpage67)
n Playing iTunes music with this unit
(vpage67)
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Performing repeat playback (Repeat)
(vpage31)
n Performing random playback (Random)
(vpage31)
n Setting operation mode (iPod Browse Mode)
(vpage30)
n Displaying your desired video on the monitor during
audio playback (Video Select) (vpage66)
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
30
Playing an iPod

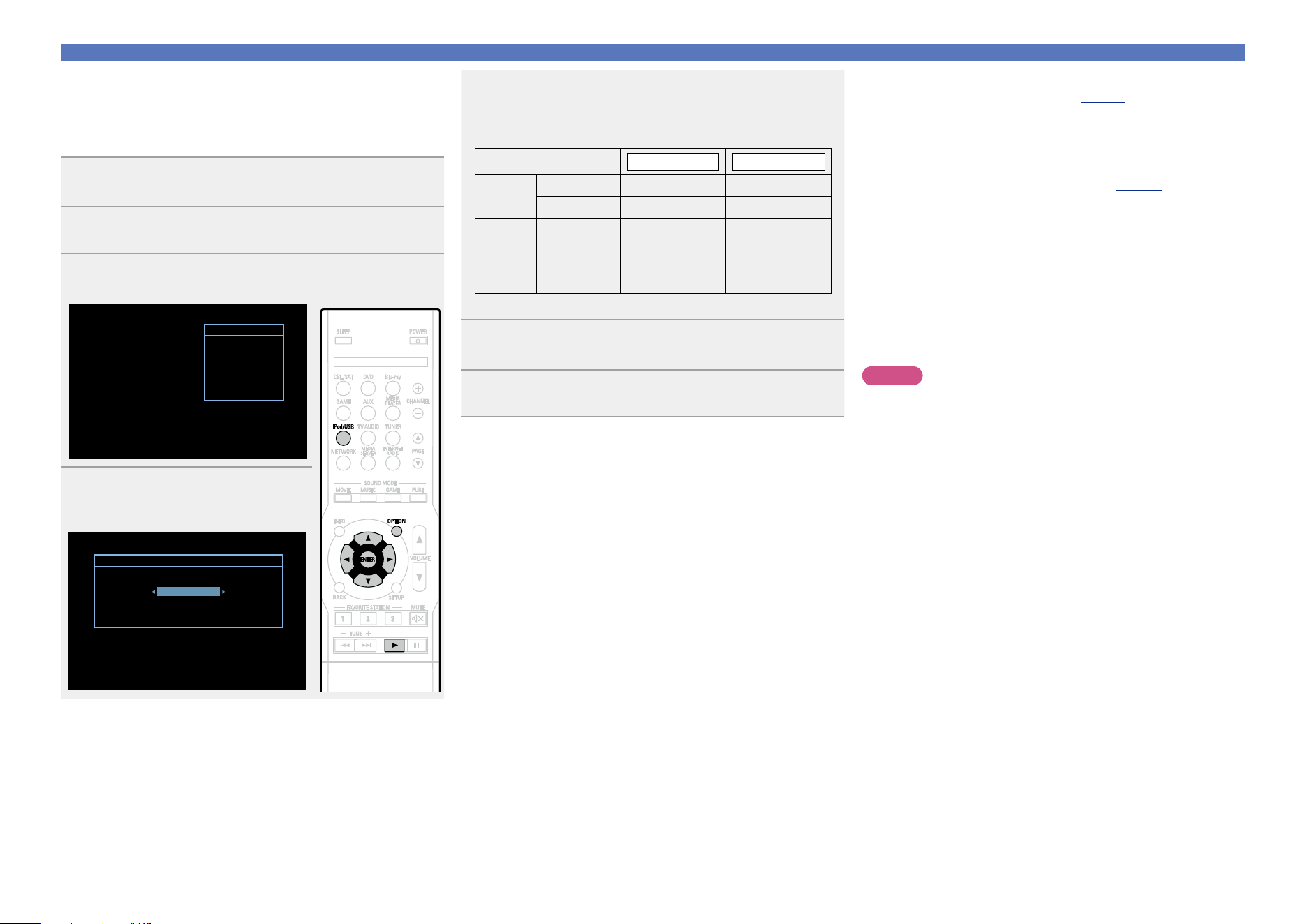

n Setting operation mode (iPod Browse Mode)
In this mode, various lists and screens during playback on the iPod
are displayed on the TV screen.
This section describes the steps up to playing back tracks on the
iPod in “On-Screen”.
1
Press iPod/USB to switch the input source to “iPod/
USB”.
2
Press OPTION.
The option menu screen is displayed.
3
Select “iPod Browse Mode”, then press ENTER.
The “iPod Browse Mode” screen is displayed.
iPod Browse Mode
Option
Video Select
4
Use o p to select “On-Screen”,
then press ENTER.
The iPod screen is displayed.
On-Screen
iPod Browse Mode
•English letters, numbers and certain symbols are displayed.
Incompatible characters are displayed as “.” (period).
•Operations available for “On-Screen” and “From iPod” are listed
below.
Display mode
From iPod On-Screen
Playable
files
Music file
P P
Video file
z
Active
buttons
Remote
control unit
(This unit)
P P
iPod
P
z Only the sound is played.
5
Use ui to select the item, then press ENTER or p to
select the file to be played.
6
Press ENTER, p or 1.
Playback starts.
n Adjusting the sound quality (Restorer)
Make this setting at “Restorer” (vpage88) in the menu.
You can use the Restorer function to improve the fidelity of
compressed audio sources such as MP3 files. The Restorer has
selectable levels of restoration. The default setting is “Low”.
n Changing the screen display duration
Make this setting at “Now Playing” (vpage 93) in the menu.
The default setting is “Always On”.
When “Auto O” is set, the on-screen display is turned o 30
seconds after an operation.
Press uio p while the display is o to return to the original
screen.
n Switching the screen display
Press STATUS on this unit during playback with “iPod Browse
Mode” set to “On-Screen”.
The display switches between track title, artist name, and album
title etc. each time the button is pressed.
NOTE
•Depending on the type of iPod and the software version, some
functions may not operate.
•Note that Denon will accept no responsibility whatsoever for any
problems arising with the data on an iPod when using this unit in
conjunction with the iPod.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
31
Playing an iPod

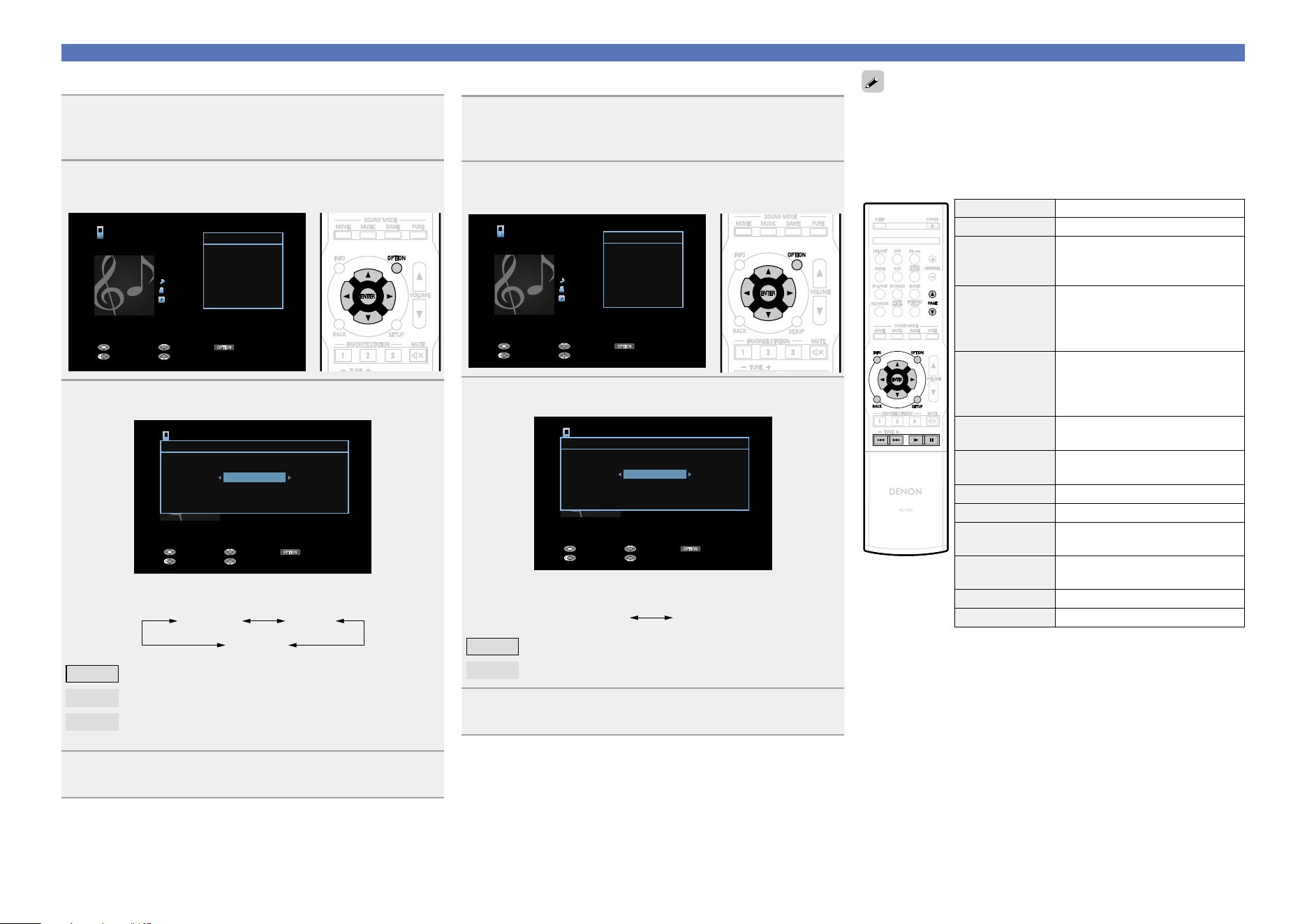

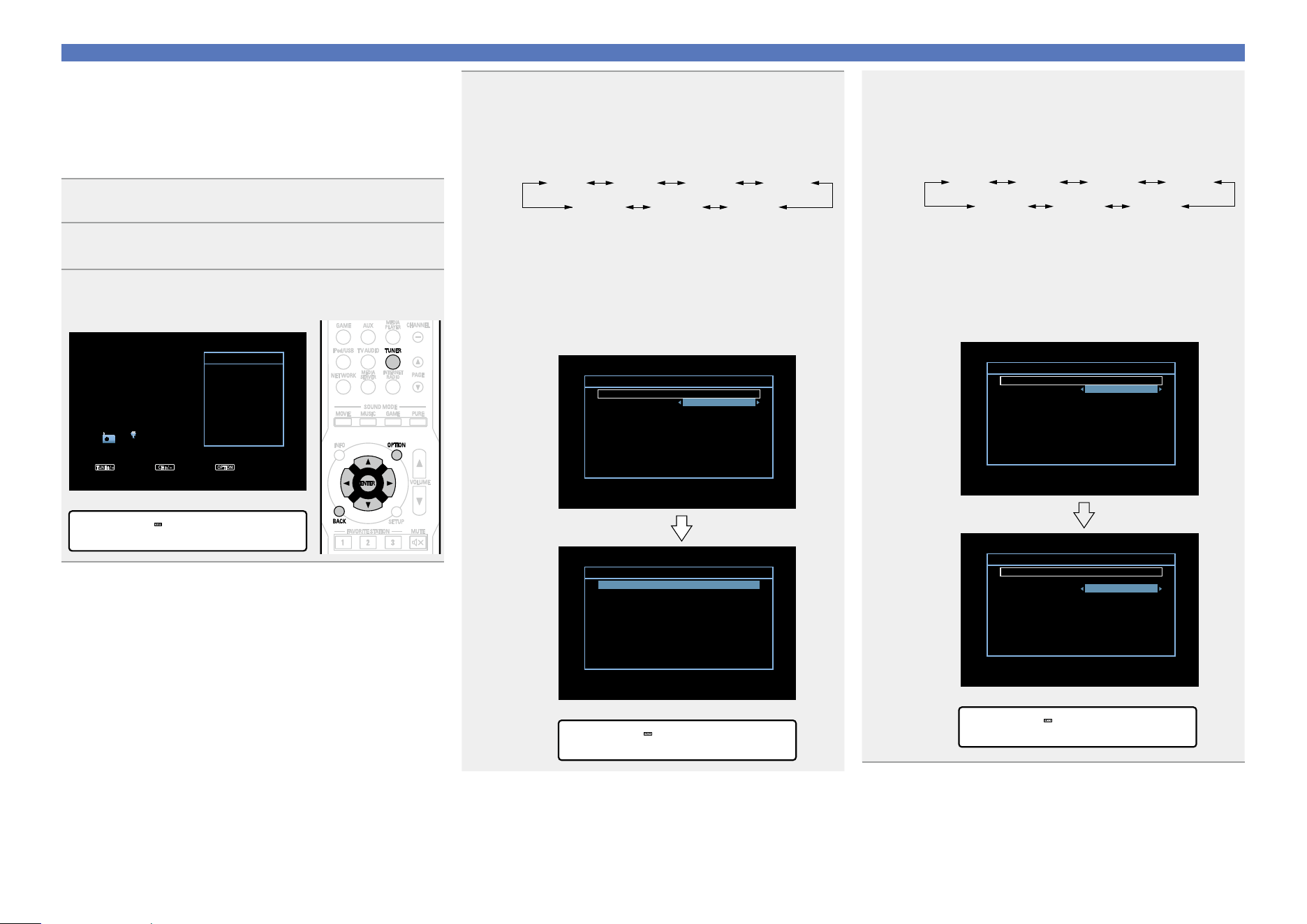

n Performing repeat playback (Repeat)
1
Press OPTION with “iPod Browse Mode” set to
“On-Screen”.
The option menu screen is displayed.
2
Use ui to select “Repeat”, then press ENTER.
OPTION
iPod
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
Option
Repeat
Random
iPod Browse Mode
Video Select
3
Use o p to select repeat playback mode.
OPTION
iPod
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
All
Repeat
•Each time o p is pressed, the setting is changed as shown below.
Off One
All
O
Repeat playback mode is canceled.
One
A file being played is played repeatedly.
All
All files in the folder currently being played are played
repeatedly.
4
Press ENTER.
The display returns to the playback screen.
n Performing random playback (Random)
1
Press OPTION with “iPod Browse Mode” set to
“On-Screen”.
The option menu screen is displayed.
2
Use ui to select “Random”, then press ENTER.
OPTION
iPod
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
Option
Repeat
Random
iPod Browse Mode
Video Select
3
Use o p to select random playback mode.
OPTION
iPod
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
Off
Random
•Each time o p is pressed, the setting is changed as shown below.
Off On
O
Disable random playback.
On
Enable random playback.
4
Press ENTER.
The display returns to the playback screen.
The random playback randomly selects a track to play back from all
the available tracks every time a track ends. Therefore, it’s possible
that you may hear a track played back more than once during random
playback.
n iPod operation buttons
Operation buttons Function
PAGE df Page search
INFO
Display of information such as the
source name, volume, and sound mode
name
OPTION
Repeat playback /
Random playback /
iPod Browse Mode switching /
Video Select
uio p
Cursor operation /
Next/Previous (ui) /
Fast-forward/Fast-reverse
(Press and hold, ui)
ENTER
(Press and release)
Enter / Playback / Pause
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
8 9
(Press and release)
Next/Previous
8 9
(Press and hold)
Fast-forward/Fast-reverse
1
Playback
3
Pause
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
32
Playing a USB memory device
Playing back music or viewing still picture (JPEG) files stored on a USB memory device.
Important information
•Only USB memory devices conforming to mass storage class and MTP (Media Transfer Protocol)
standards can be played on this unit.
•This unit is compatible with USB memory devices in “FAT16” or “FAT32” format.
•This unit is compatible with MP3 files conforming to “MPEG-1 Audio Layer-3” standards.
•File types that this unit can play back and specifications are shown below.
GSupported file typesH
Supported file types USB memory devices
z1
WMA (Windows Media Audio)
P
z2
MP3 (MPEG-1 Audio Layer-3)
P
WAV
P
MPEG-4 AAC
P
z3
FLAC (Free Lossless Audio Codec)
P
JPEG
P
ALAC (Apple Lossless Audio Codec)
P
z1 USB memory device
•This unit is compatible with MP3 ID3-Tag (Ver.2) standard.
•This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver.2.3 or 2.4.
•This unit is compatible with WMA META tags.
•If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/WAV/FLAC) or 349 ×
349 (MPEG-4 AAC), then music may not be played back properly.
•WAV format Quantization bit length: 16 or 24 bits.
•FLAC format Quantization bit length: 16 or 24 bits.
z2 Copyright-protected files can be played on certain portable players compatible with MTP.
z3 Only files that are not protected by copyright can be played on this unit.
Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in
WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on
the computer’s settings.
NOTE
File types that this unit does not support are not displayed.
GCompatible formatsH
Sampling frequency Bit rate Extension
WMA (Windows Media Audio) 32/44.1/48 kHz 48 – 192 kbps .wma
MP3 (MPEG-1 Audio Layer-3) 32/44.1/48 kHz 32 – 320 kbps .mp3
WAV
32/44.1/48/88.2/96/
176.4/192 kHz
– .wav
MPEG-4 AAC 32/44.1/48 kHz 16 – 320 kbps
.aac/
.m4a/
.mp4
FLAC (Free Lossless Audio Codec)
32/44.1/48/88.2/96/
176.4/192 kHz
– .flac
ALAC (Apple Lossless Audio Codec)
z
32/44.1/48/88.2/96 kHz – .m4a
z Copyright [2012] [D&M Holdings. Inc.]
Licensed under the Apache License, Version 2.0 (the “License”); you may not use this file except in
compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/
LICENSE-2.0
n Maximum Number of Playable Files and Folder
The limits on the number of folders and files that can be displayed by this unit are as follows.
Media
Item
USB memory devices
Memory capacity FAT16 : 2 GB, FAT32 : 2 TB
Number of folder directory levels
z1
8 levels
Number of folders 500
Number of files
z2
5000
z1 The limited number includes the root folder.
z2 The allowable number of files may dier according to the USB memory device capacity and the file
size.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
33

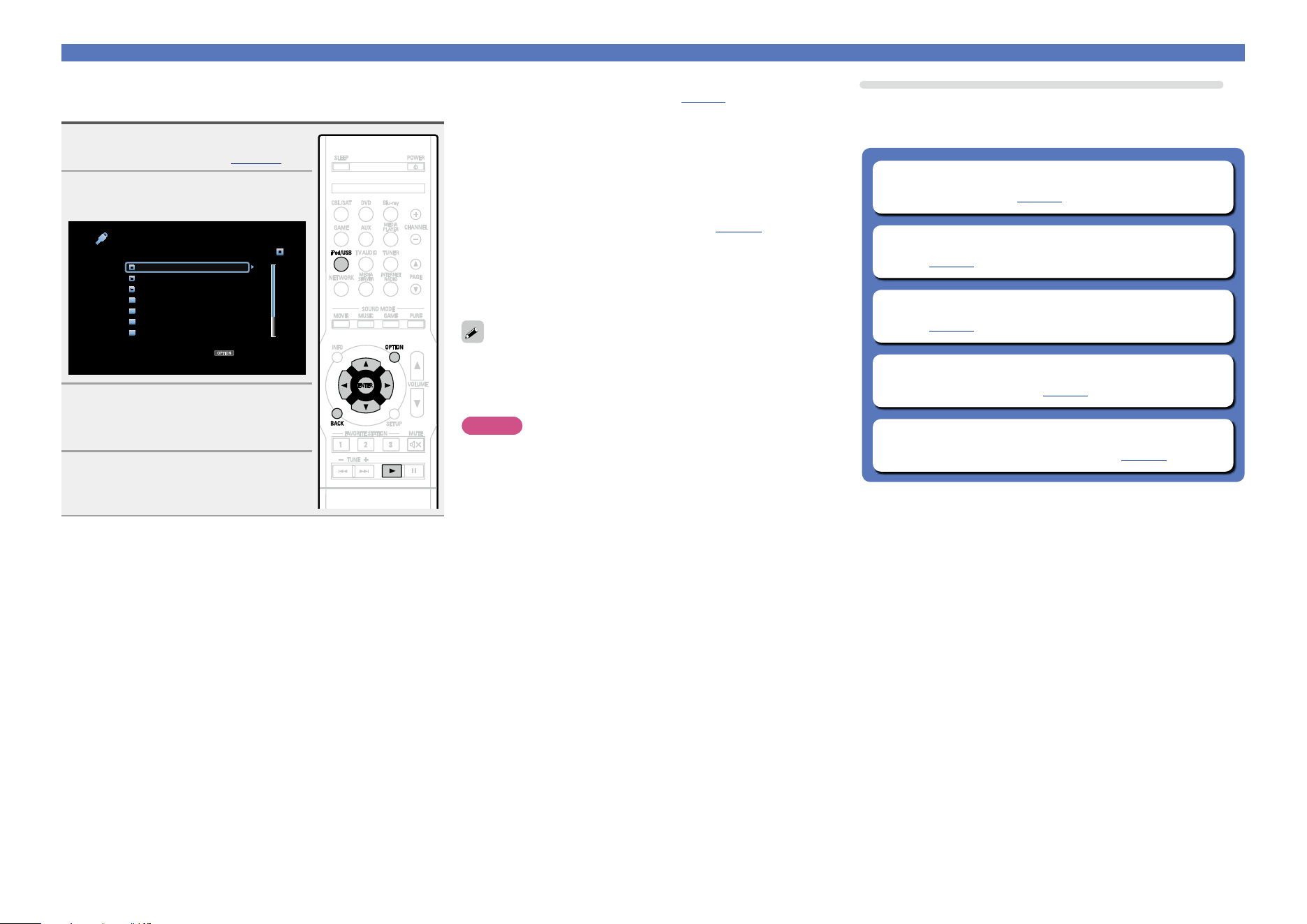

Playing files stored on USB memory
devices
1
Connect the USB memory device
to the USB port (vpage16).
2
Press iPod/USB to switch the
input source to “iPod/USB”.
D&M1
D&M2
D&M3
Music1
Music2
Music3
Music4
OPTION
USB [1/9]
Option
3
Use ui to select the search item
or folder, then press ENTER or
p.
4
Use ui to select the file, then
press ENTER, p or 1.
Playback starts.
Playing a USB memory device
n Adjusting the sound quality (Restorer)
Make this setting at “Restorer” (vpage88) in the menu.
You can use the Restorer function to improve the fidelity of
compressed audio sources such as MP3 files. The Restorer has
selectable levels of restoration. The default setting is “Low”.
n Going back to the previous screen
Press o or BACK.
n Changing the screen display duration
Make this setting at “Now Playing” (vpage 93) in the menu.
The default setting is “Always On”.
When “Auto O” is set, the on-screen display is turned o 30
seconds after an operation.
Press uio p while the display is o to return to the original
screen.
•When an MP3 music file includes album art data, the album art can
be displayed while playing the file.
•If the USB memory device is divided into multiple partitions, only the
first partition is played back.
NOTE
•Note that Denon will accept no responsibility whatsoever for any
problems arising with the data on a USB memory device when using
this unit in conjunction with the USB memory device.
•USB memory devices will not work via a USB hub.
•Denon does not guarantee that all USB memory devices will operate
or be supplied power. When using a USB portable hard disk that
can draw power from an AC adapter, we recommend using the AC
adapter.
•It is not possible to connect and use a computer via the USB port of
this unit using a USB cable.
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Searching content with keywords
(Text Search) (vpage62)
n Performing repeat playback (Repeat)
(vpage62)
n Performing random playback (Random)
(vpage63)
n Playing back still images in sequential order
(Slideshow Time) (vpage65)
n Displaying your desired video on the monitor during
audio playback (Video Select) (vpage66)
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
34
Playing a USB memory device

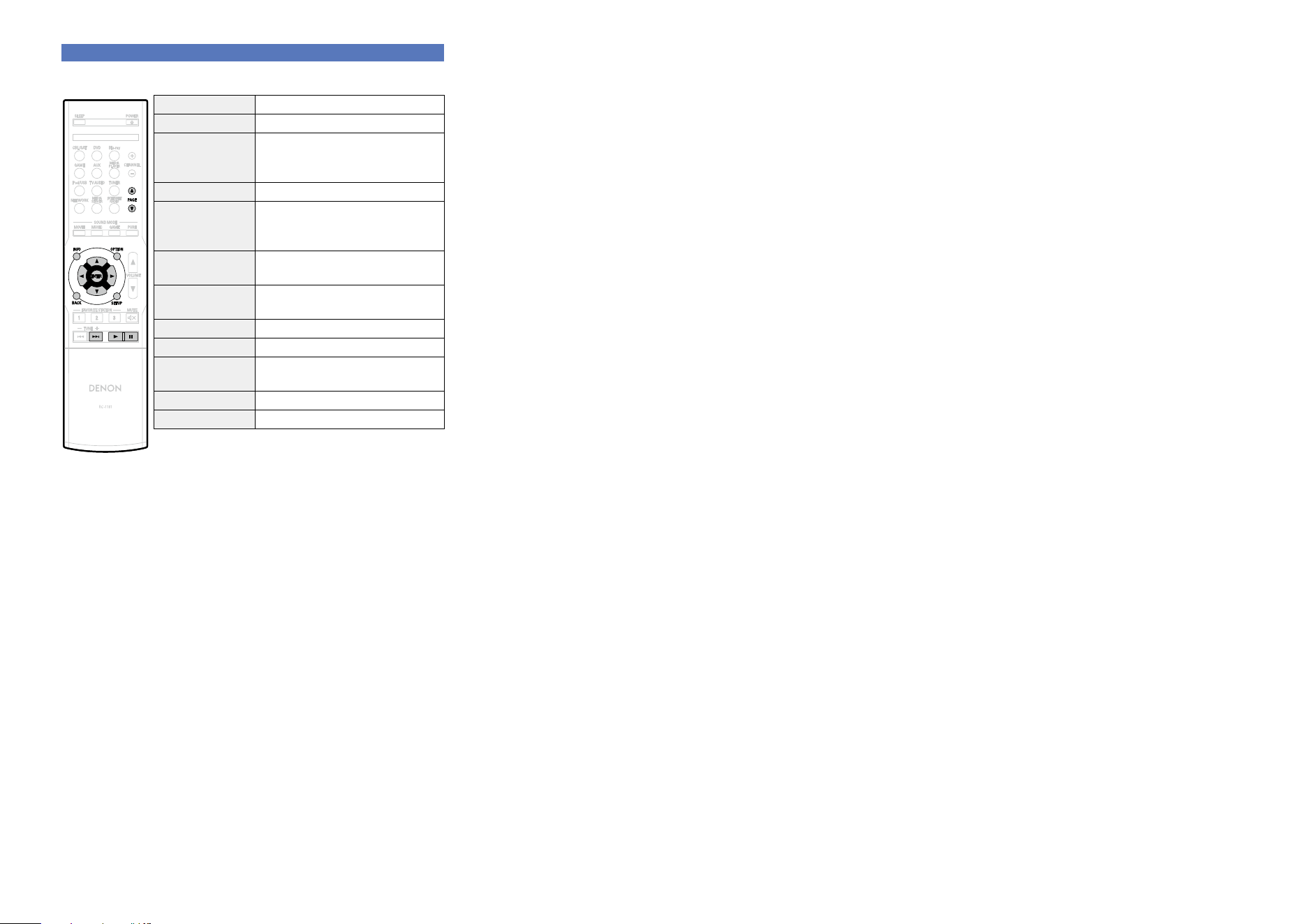

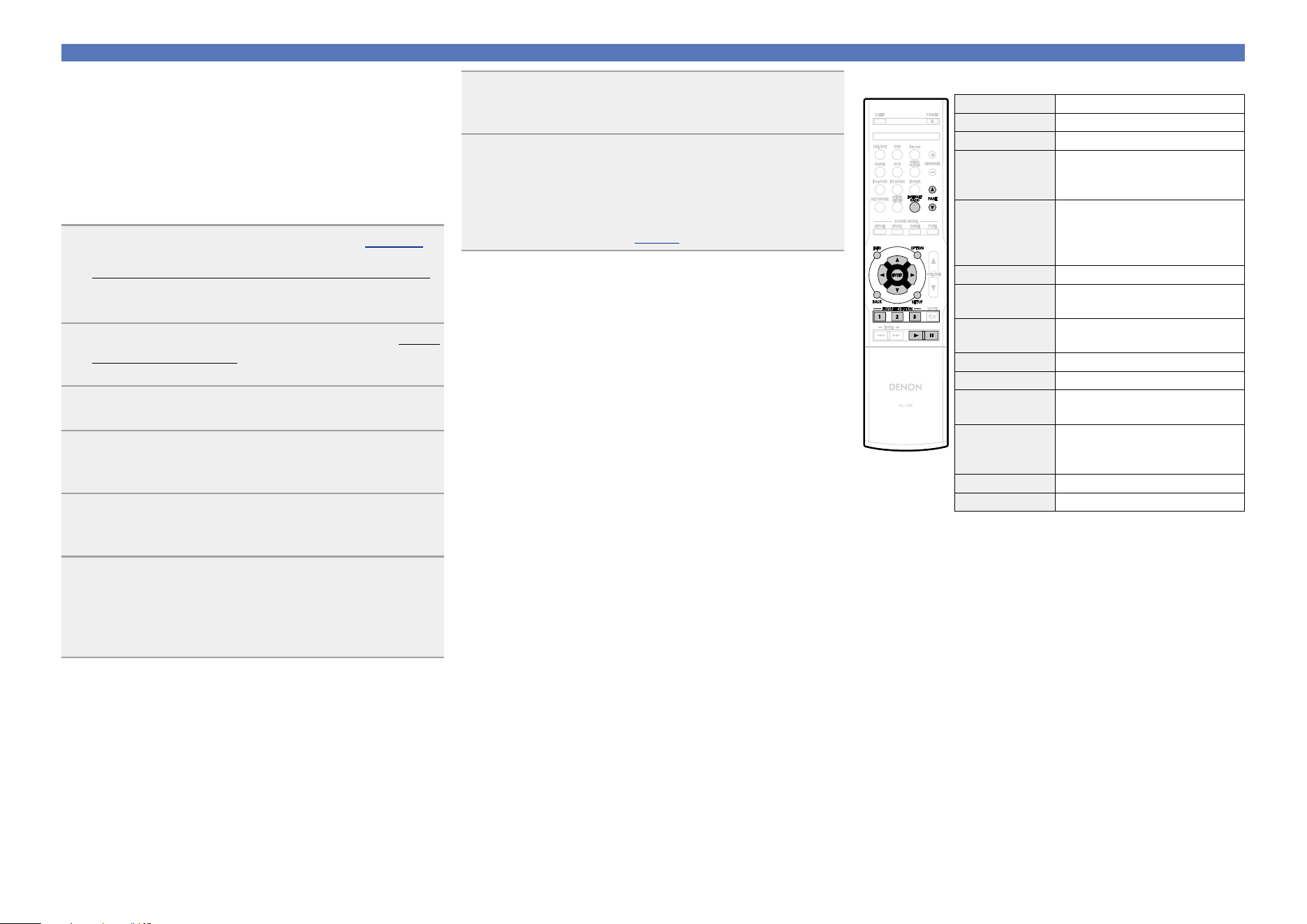

n USB memory device operation buttons
Operation buttons Function
PAGE df Page search
INFO
Display of information such as the
source name, volume, and sound mode
name etc.
OPTION
Text Search /
Repeat playback /
Random playback /
Slideshow Time /
Video Select
uio p
Cursor operation /
Next/Previous (ui) /
Fast-forward/Fast-reverse
(Press and hold, ui)
z
ENTER
(Press and release)
Enter
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
8 9
(Press and release)
Next/Previous
8 9
(Press and hold)
Fast-forward/Fast-reverse
z
1
Playback
3
Pause
z This function is available while an MP3 / WAV / AAC / FLAC file is
being played back.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
35

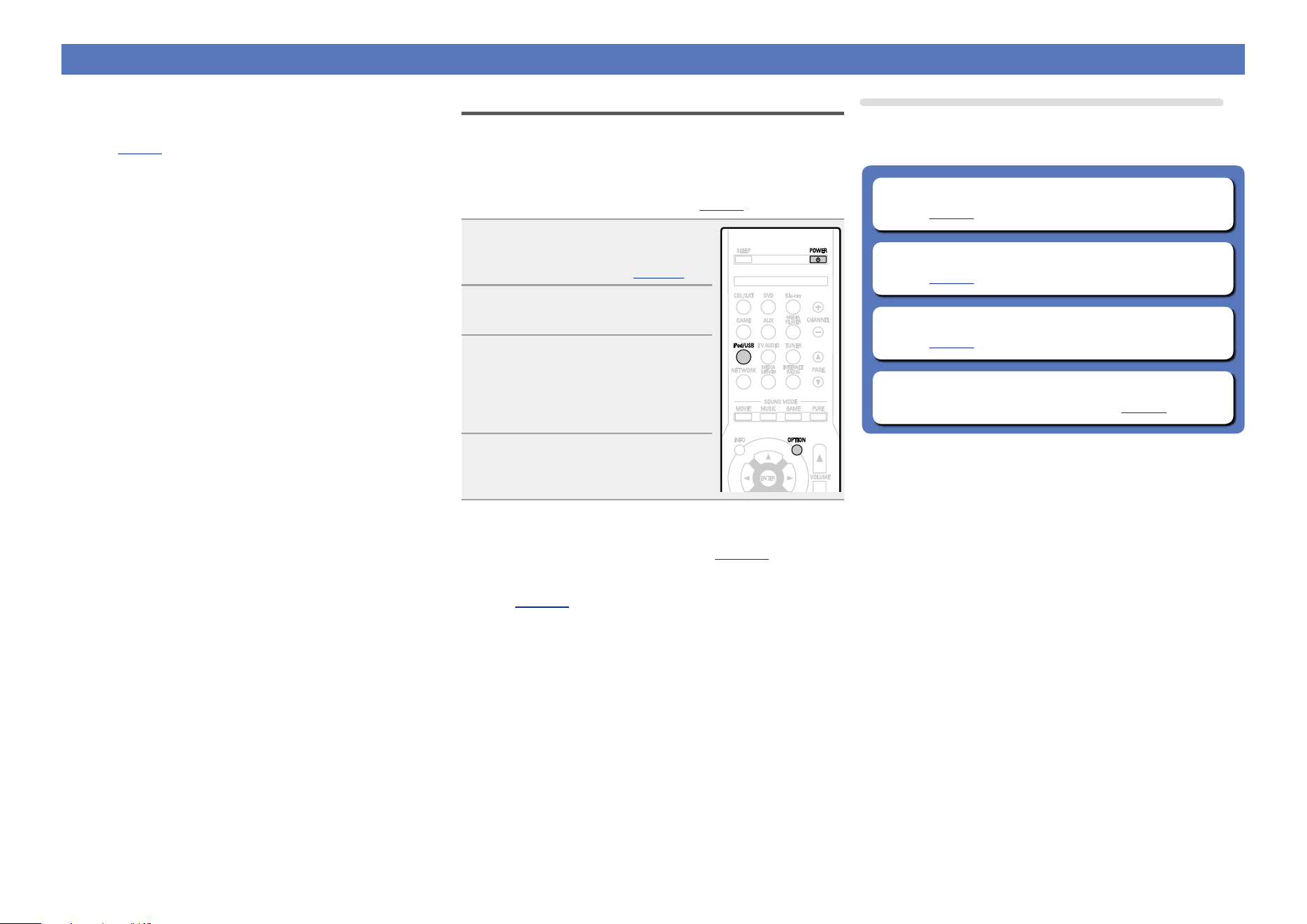

Listening to FM/AM broadcasts
For antenna connections, see “Connecting an FM/AM antenna”
(vpage17).
How to tune in
The modes for receiving FM broadcasts consists of “Auto” mode
that automatically searches available broadcast stations and “Manual”
mode that lets you tune in using buttons to change the frequency. The
default setting is “Auto”. You can also use “Direct Tune” to tune in by
entering the frequency directly.
In “Auto” mode, you cannot tune in to radio stations if the reception is
not good. If this is the case, then use the “Manual” mode or “Direct
Tune” to tune in.
Listening to FM/AM broadcasts
1
Press TUNER to switch the input
source to “TUNER”.
GTV ScreenH
TUNE+/- OPTION
AUTO
CH+/-
TUNER
CH 1
FM 92.10MHz
Tune Preset Option
GDisplay of this unitH
01 FM 92.10MHz
2
Press OPTION.
The option menu screen is displayed.
3
Use ui to select “FM/AM”, then press ENTER.
The Band screen is displayed.
GTV ScreenH
TUNE+/- OPTION
AUTO
CH+/-
CH 1
FM 92.10MHz
Tune Preset Option
TUNER
FM/AM
Option
Direct Tune
Preset Memory
Tune Mode
Auto Preset
Preset Name
Preset Skip
Video Select
GDisplay of this unitH
FM/AM
4
Use o p to select “FM” or “AM”, then press ENTER.
GTV ScreenH
FM
FM/AM
GDisplay of this unitH
FM/AM :• FM –
FM
When listening to an FM broadcast.
AM
When listening to an AM broadcast.
5
Press TUNE + or TUNE – to select the station you
want to hear.
Scanning is performed until it finds an available radio station.
When it finds a radio station, it stops the scan automatically
and tunes in.
•If the desired station cannot be tuned in with auto tuning, tune it in
manually.
•When tuning in stations manually, press and hold TUNE + or TUNE
–
to change frequencies continuously.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
36
Listening to FM/AM broadcasts

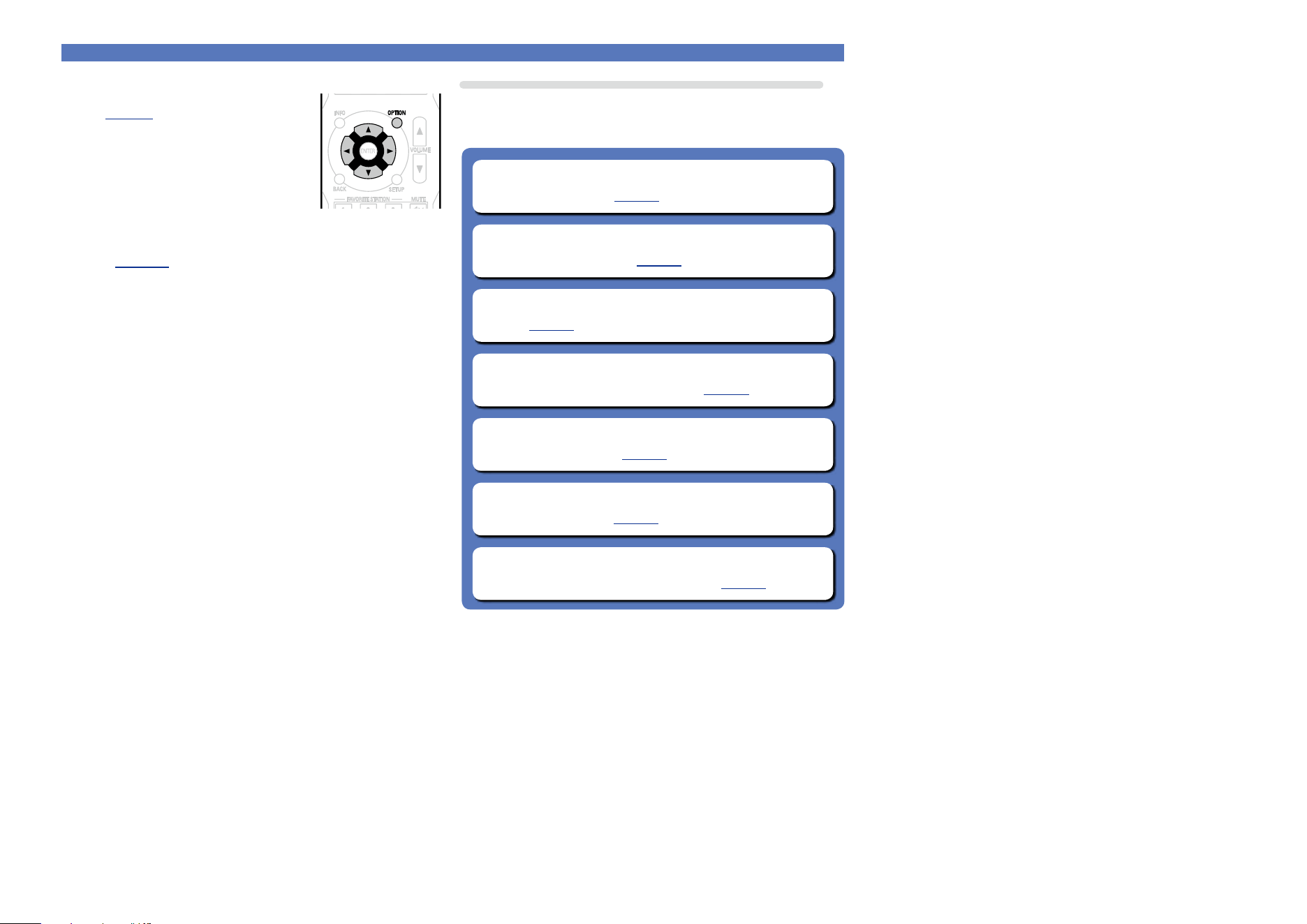

n Changing the screen display duration
Make this setting at “Now Playing”
(vpage 93) in the menu. The default
setting is “Always On”.
When “Auto O” is set, the on-screen
display is turned o 30 seconds after an
operation.
Press uio p while the display is o to
return to the original screen.
n Adding to the FAVORITE STATION button
(vpage64)
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Tuning in by entering the radio frequency
(Direct Tune) (vpage37)
n Presetting the current broadcast station
(Preset Memory) (vpage38)
n Changing the tuning mode (Tune Mode)
(vpage39)
n Tuning in to radio stations and presetting them
automatically (Auto Preset) (vpage40)
n Specify a name for the preset broadcast station
(Preset Name) (vpage41)
n Skipping preset broadcast stations
(Preset Skip) (vpage42)
n Displaying your desired video on the monitor during
audio playback (Video Select) (vpage66)
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
37
Listening to FM/AM broadcasts

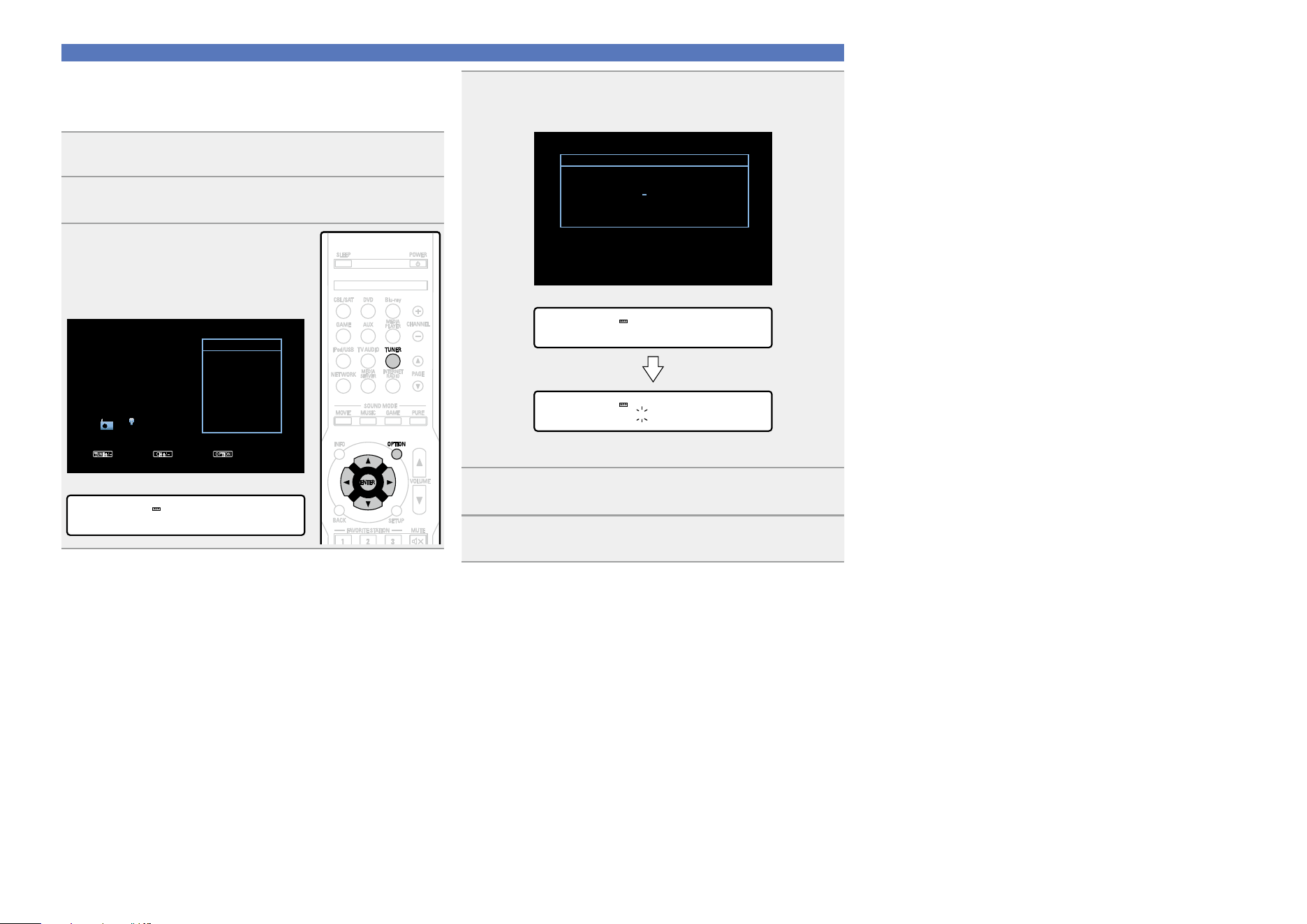

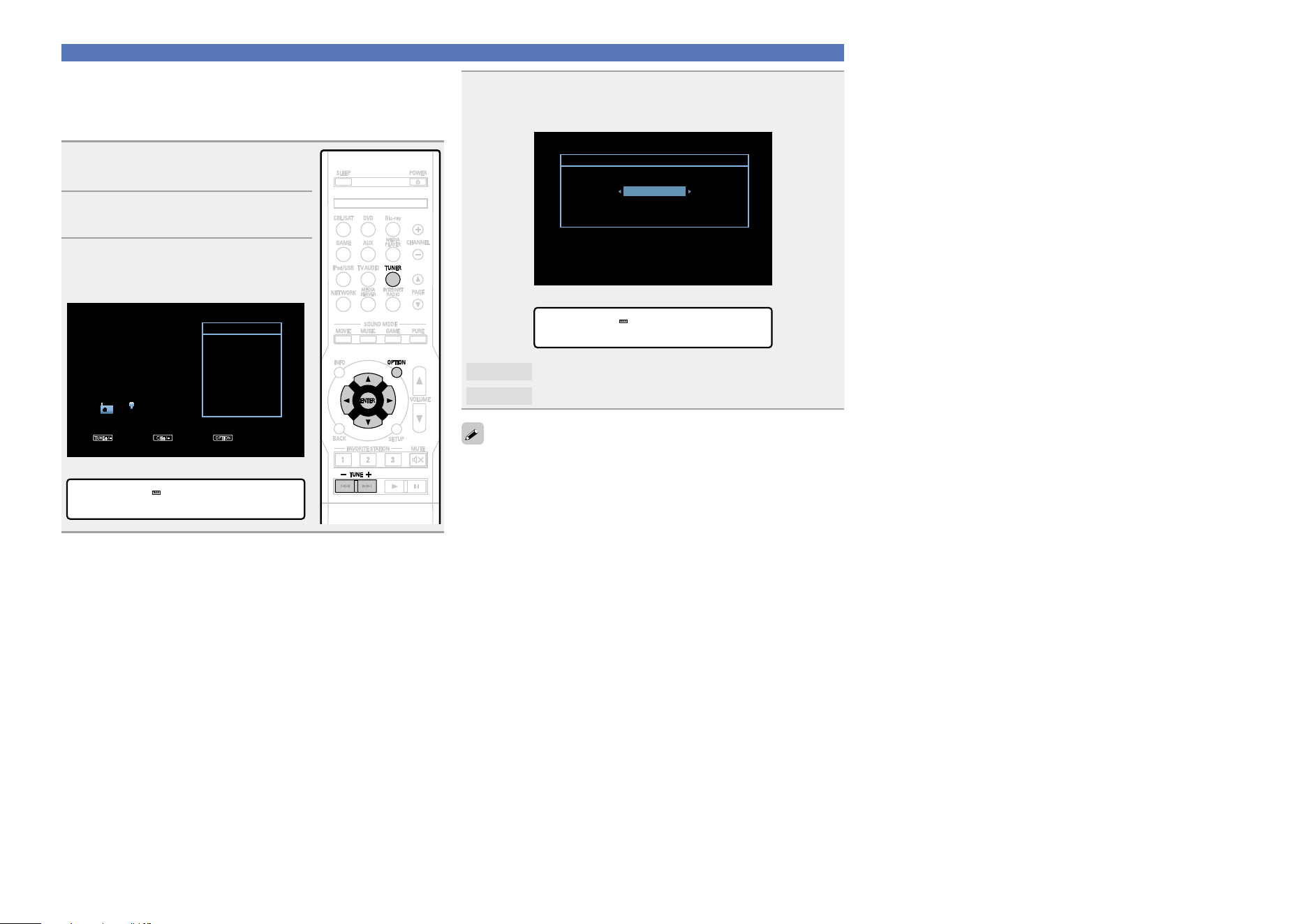

n Tuning in by entering the radio frequency
(Direct Tune)
You can enter the receiving frequency directly to tune in.
1
Press TUNER to switch the input source to “TUNER”.
2
Press OPTION.
The option menu screen is displayed.
3
Use ui to select “Direct Tune”,
then press ENTER.
The direct tuner screen is displayed and
“–” in the display flashes.
GTV ScreenH
TUNE+/-
AUTO
OPTIONCH+/-
CH 1
FM 92.10MHz
Tune Preset Option
TUNER
FM/AM
Option
Direct Tune
Preset Memory
Tune Mode
Auto Preset
Preset Name
Preset Skip
Video Select
GDisplay of this unitH
Direct Tune
4
Use ui to select a number and press p.
The screen that lets you enter the frequency is displayed.
GTV ScreenH
FM ---.--MHz
Direct Tune
GDisplay of this unitH
Direct Tune
FM ---.--MHz
•If o is pressed, the immediately preceding input is cancelled.
5
Repeat step 4 and enter the frequency of the radio
station you want to hear.
6
When setting is completed, press ENTER.
The preset frequency is tuned in.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
38

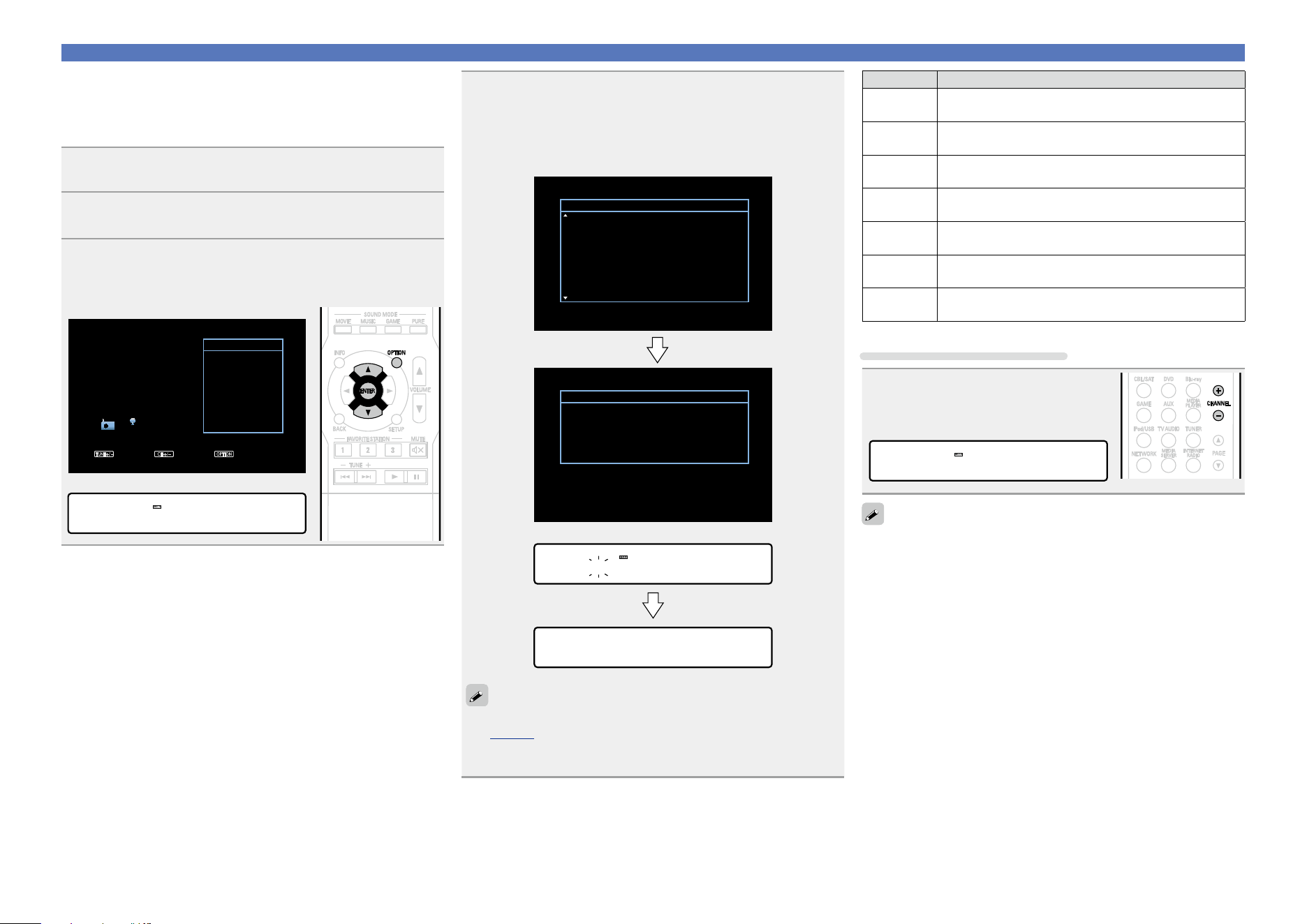

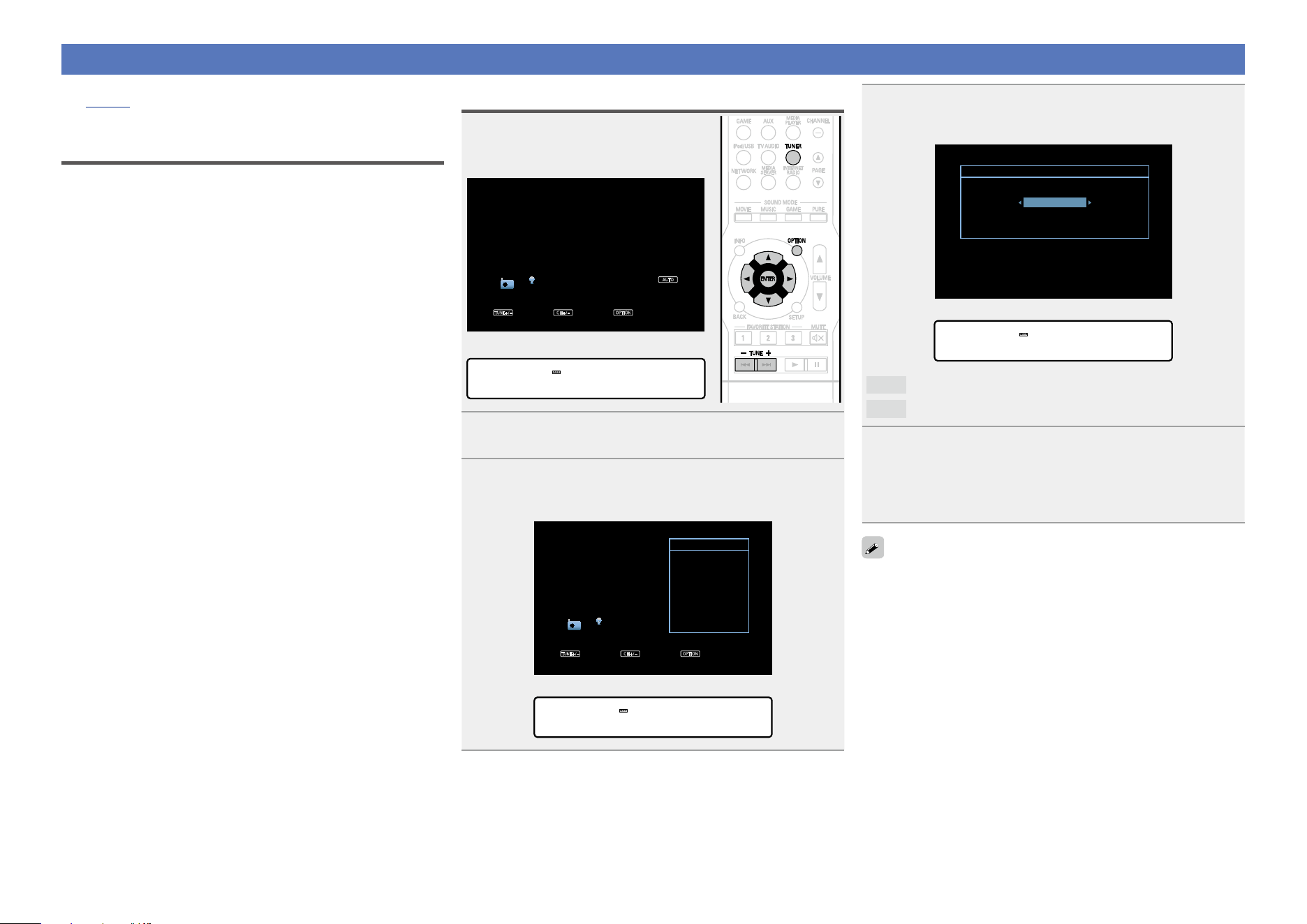

Listening to FM/AM broadcasts
n Presetting the current broadcast station
(Preset Memory)
Your favorite broadcast stations can be preset so that you can tune
them in easily. Up to 56 stations can be preset.
1
Tune in the broadcast station you want to preset.
2
Press OPTION.
The option menu screen is displayed.
3
Use ui to select “Preset Memory”, then press
ENTER.
The list of already preset channels is displayed.
GTV ScreenH
TUNE+/- OPTION
AUTO
CH+/-
CH 1
FM 92.10MHz
Tune Preset Option
TUNER
FM/AM
Option
Direct Tune
Preset Memory
Tune Mode
Auto Preset
Preset Name
Preset Skip
Video Select
GDisplay of this unitH
Preset Memory
4
Use uito select the channel you want to preset, then
press ENTER.
The current broadcast station that is preset.
•To preset other stations, repeat steps 1 to 4.
GTV ScreenH
Preset Stored at :
CH 1 FM 92.10MHz
Preset Memory
CH 3 FM 92.50MHz
CH 2 FM 92.30MHz
CH 1 FM 92.10MHz
CH 6 FM 93.50MHz
CH 5 FM 93.10MHz
CH 8 FM 94.10MHz
CH 7 FM 93.70MHz
CH 4 FM 92.70MHz
Preset Memory
GDisplay of this unitH
01 FM 92.10MHz
Stored
The channel numbers of broadcast stations set as “Preset Skip”
(vpage42) are grayed out, but these stations can be preset.
When grayed out channel numbers are preset, these are highlighted
and the “Preset Skip” setting changes to “On”.
Channel Default settings
1 – 8
92.10 / 92.30 / 92.50 / 92.70 / 93.10 / 93.50 / 93.70 /
94.10 MHz
9 – 16
94.30 / 94.50 / 94.70 / 94.90 / 95.10 / 95.30 / 95.50 /
95.70 MHz
17 – 24
98.10 / 98.30 / 98.50 / 98.70 / 98.90 / 99.10 / 100.10 /
100.30 MHz
25 – 32
100.50 / 100.70 / 100.90 / 101.10 / 101.30 / 101.50 /
101.70 / 101.90 MHz
33 – 40
103.10 / 103.30 / 103.50 / 103.70 / 103.90 / 104.10 /
104.30 / 104.50 MHz
41 – 48
104.70 / 104.90 / 105.10 / 105.30 / 105.50 / 105.70 /
105.9 / 106.10 MHz
49 – 56
106.30 / 106.50 / 106.70 / 106.90 / 107.10 / 107.30 /
107.50 / 107.90 MHz
Listening to preset stations
Use CHANNEL +, – to select the
desired preset channel.
GDisplay of this unitH
01 FM 92.10MHz
You can also select preset broadcast stations by pressing TUNER
PRESET CH +
or TUNER PRESET CH – on the main unit.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
39
Listening to FM/AM broadcasts
n Changing the tuning mode (Tune Mode)
You can change the mode for tuning into FM broadcasts. If you
cannot tune in automatically with “Auto” mode, then change the
mode to “Manual” and tune in manually.
1
Press TUNER to switch the input
source to “TUNER”.
2
Press OPTION.
The option menu screen is displayed.
3
Use ui to select “Tune Mode”,
then press ENTER.
GTV ScreenH
TUNE+/- OPTION
AUTO
CH+/-
CH 1
FM 92.10MHz
Tune Preset Option
TUNER
FM/AM
Option
Direct Tune
Preset Memory
Tune Mode
Auto Preset
Preset Name
Preset Skip
Video Select
GDisplay of this unitH
Tune Mode
4
Use o p to select tuning mode, then press ENTER.
GTV ScreenH
Auto
Tune Mode
GDisplay of this unitH
Mode :• Auto –
Auto
Automatically tune to the station.
Manual
Manually tune to the station.
When tuning in stations manually, press and hold TUNE + or TUNE– to
change frequencies continuously.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
40
Listening to FM/AM broadcasts
n Tuning in to radio stations and presetting them
automatically (Auto Preset)
Up to 56 stations can be preset.
If “Auto Preset” is performed after performing “Preset Memory”,
the “Preset Memory” settings will be overwritten.
1
Press TUNER to switch the input source to “TUNER”.
2
Press OPTION.
The option menu screen is displayed.
3
Use ui to select “Auto Preset”, then press ENTER.
GTV ScreenH
TUNE+/- OPTION
AUTO
CH+/-
CH 1
FM 92.10MHz
Tune Preset Option
TUNER
FM/AM
Option
Direct Tune
Preset Memory
Tune Mode
Auto Preset
Preset Name
Preset Skip
Video Select
GDisplay of this unitH
Auto Preset
4
Press ENTER.
The unit starts to tune in to radio stations automatically and
preset them.
GTV ScreenH
Start
Press ENTER to start Auto Preset
Auto Preset
GDisplay of this unitH
AutoPreset:Start
•When presetting is completed, “Completed” is displayed for about
5 seconds and the option menu screen turns o.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
41
Listening to FM/AM broadcasts

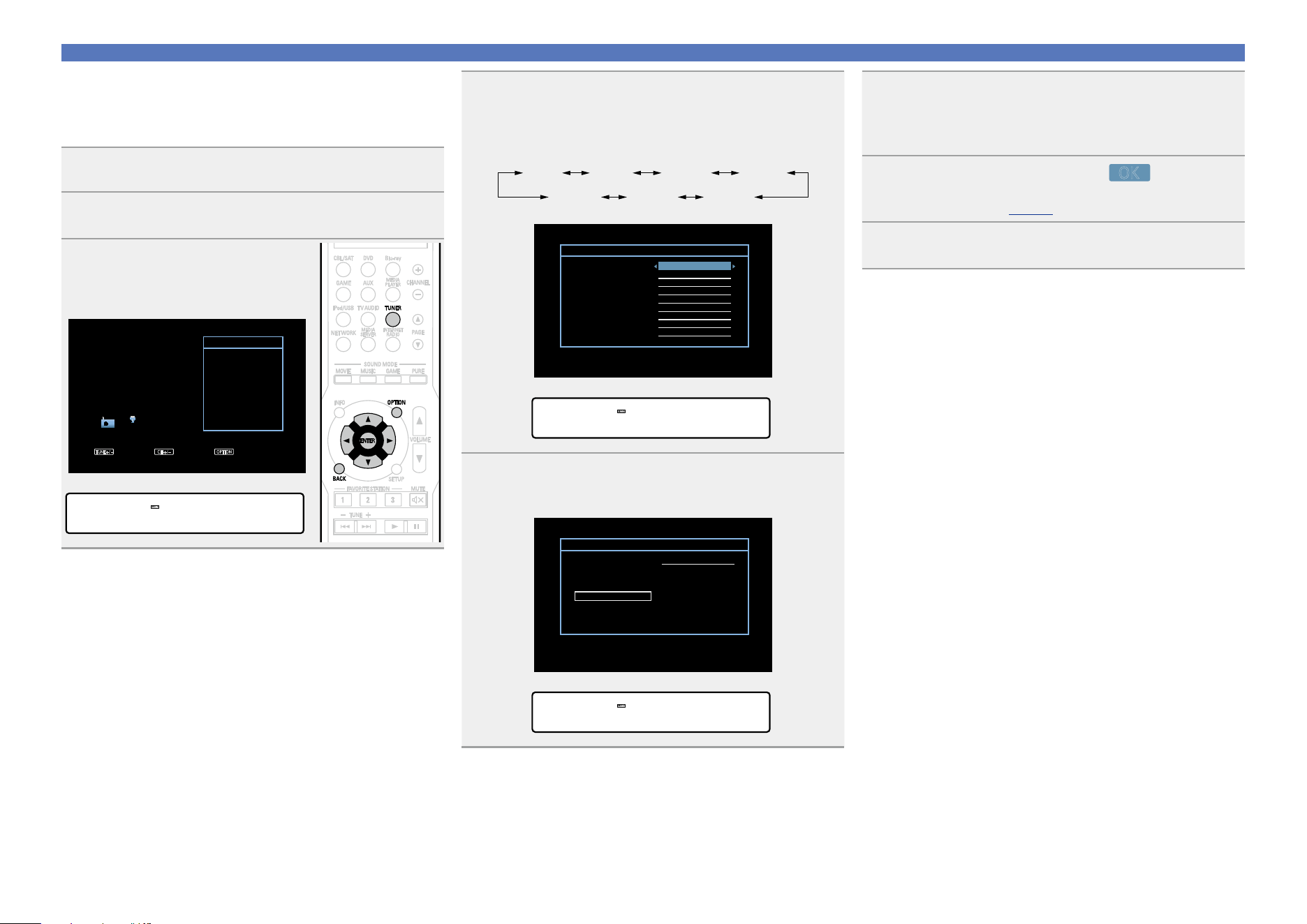

n Specify a name for the preset broadcast station
(Preset Name)
You can set the name to the preset broadcast station or change it.
Up to eight characters can be input.
1
Press TUNER to switch the input source to “TUNER”.
2
Press OPTION.
The option menu screen is displayed.
3
Use ui to select “Preset Name”,
then press ENTER.
The Preset Name screen is displayed.
GTV ScreenH
TUNE+/- OPTION
AUTO
CH+/-
CH 1
FM 92.10MHz
Tune Preset Option
TUNER
FM/AM
Option
Direct Tune
Preset Memory
Tune Mode
Auto Preset
Preset Name
Preset Skip
Video Select
GDisplay of this unitH
Preset Name
4
Use o p to select the group of the broadcast station
you want to name then press ENTER.
The screen that lets you edit the preset name is displayed.
•Each time
o p is pressed, the setting is changed as shown below.
1 – 8 9 – 16 25 – 3217 – 24
41 – 4849 – 56 33 – 40
GTV ScreenH
CH 3 FM 92.50MHz
CH 2 FM 92.30MHz
CH 1 FM 92.10MHz
Preset Group
CH 6 FM 93.50MHz
CH 5 FM 93.10MHz
CH 8 FM 94.10MHz
CH 7 FM 93.70MHz
CH 4 FM 92.70MHz
Preset Name
1-8
GDisplay of this unitH
Group :• 1- 8–
5
Use ui to select the broadcast station you want to
name, then press ENTER.
GTV ScreenH
Preset Name
CH 1 FM 92.10MHz
Set Defaults
GDisplay of this unitH
1 FM 92.10MHz
6
Use ui to select a name label, then press ENTER.
The screen that lets you edit the preset name is displayed.
•If you select “Set Defaults”, then the unit returns to displaying the
frequency.
7
Enter the characters, then press
OK
.
•For character input, see page84.
8
Press BACK twice.
The display returns to the playback screen.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
42
Listening to FM/AM broadcasts
n Skipping preset broadcast stations
(Preset Skip)
You can set in advance, the stations you do not want to be
displayed when tuning in, by groups or by stations.
The preset skip setting is useful when tuning in, because only your
favorite stations are displayed.
1
Press TUNER to switch the input source to “TUNER”.
2
Press OPTION.
The option menu screen is displayed.
3
Use ui to select “Preset Skip”, then press ENTER.
The Preset Skip screen is displayed.
GTV ScreenH
TUNE+/- OPTION
AUTO
CH+/-
CH 1
FM 92.10MHz
Tune Preset Option
TUNER
FM/AM
Option
Direct Tune
Preset Memory
Tune Mode
Auto Preset
Preset Name
Preset Skip
Video Select
GDisplay of this unitH
Preset Skip
4-1
GTo set the stations you want to skip by groupsH
q Use o p to select the group of broadcast
stations you want to skip.
•Each time o p is pressed, the setting is changed as
shown below.
1 – 8 9 – 16 25 – 3217 – 24
41 – 4849 – 56 33 – 40
w Press u to select “Set No.z – z to Skip”, then
press ENTER.
All broadcast stations in the group “z – z” you selected
are not displayed.
(z are the selected group numbers)
e Press BACK.
GTV ScreenH
CH 3 FM 92.50MHz
CH 2 FM 92.30MHz
CH 1 FM 92.10MHz
Preset Group
CH 6 FM 93.50MHz
CH 5 FM 93.10MHz
CH 8 FM 94.10MHz
CH 7 FM 93.70MHz
CH 4 FM 92.70MHz
On
On
On
On
On
On
On
On
Preset Skip
1-8
Set No. 1-8 to skip
CH 3 FM 92.50MHz
CH 2 FM 92.30MHz
CH 1 FM 92.10MHz
Preset Group
Set No. 1-8 to skip
CH 6 FM 93.50MHz
CH 5 FM 93.10MHz
CH 8 FM 94.10MHz
CH 7 FM 93.70MHz
CH 4 FM 92.70MHz
On
On
On
On
On
On
On
On
Preset Skip
1-8
GDisplay of this unitH
Set 1- 8to Skip
4-2
GTo set the stations you want to skip by stationsH
q Use o p to select the group of broadcast
stations you want to skip.
•Each time o p is pressed, the setting is changed as
shown below.
1 – 8 9 – 16 25 – 3217 – 24
41 – 4849 – 56 33 – 40
w Use ui to select the broadcast station you
want to skip.
e Use o p to select “Skip”.
The station you selected is not displayed.
r Press BACK.
GTV ScreenH
CH 3 FM 92.50MHz
CH 2 FM 92.30MHz
CH 1 FM 92.10MHz
Preset Group
Set No. 1-8 to skip
CH 6 FM 93.50MHz
CH 5 FM 93.10MHz
CH 8 FM 94.10MHz
CH 7 FM 93.70MHz
CH 4 FM 92.70MHz
On
On
On
On
On
On
On
Preset Skip
1-8
Skip
CH 3 FM 92.50MHz
CH 2 FM 92.30MHz
CH 1 FM 92.10MHz
Preset Group
Set No. 1-8 to skip
CH 6 FM 93.50MHz
CH 5 FM 93.10MHz
CH 8 FM 94.10MHz
CH 7 FM 93.70MHz
CH 4 FM 92.70MHz
On
On
On
On
On
On
On
On
Preset Skip
1-8
GDisplay of this unitH
1 92.10M:•Skp–
Basic instructions
Advanced instructions
Information
Basic instructions
v See overleaf
DVD
43
Listening to FM/AM broadcasts
Cancelling preset skip
1
While the Preset Skip screen is displayed, use o p
to select a group containing a broadcast station to
cancel the skip for.
2
Use ui to select a broadcast station to cancel the
skip for.
GTV ScreenH
CH 3 FM 92.50MHz
CH 2 FM 92.30MHz
CH 1 FM 92.10MHz
Preset Group
Set No. 1-8 to skip
CH 6 FM 93.50MHz
CH 5 FM 93.10MHz
CH 8 FM 94.10MHz
CH 7 FM 93.70MHz
CH 4 FM 92.70MHz
On
On
On
On
On
On
On
Preset Skip
1-8
On
GDisplay of this unitH
1 92.10M:•On –
3
Use o p to select “On”.
The skip is cancelled.
NOTE
You cannot cancel the skip for each group.

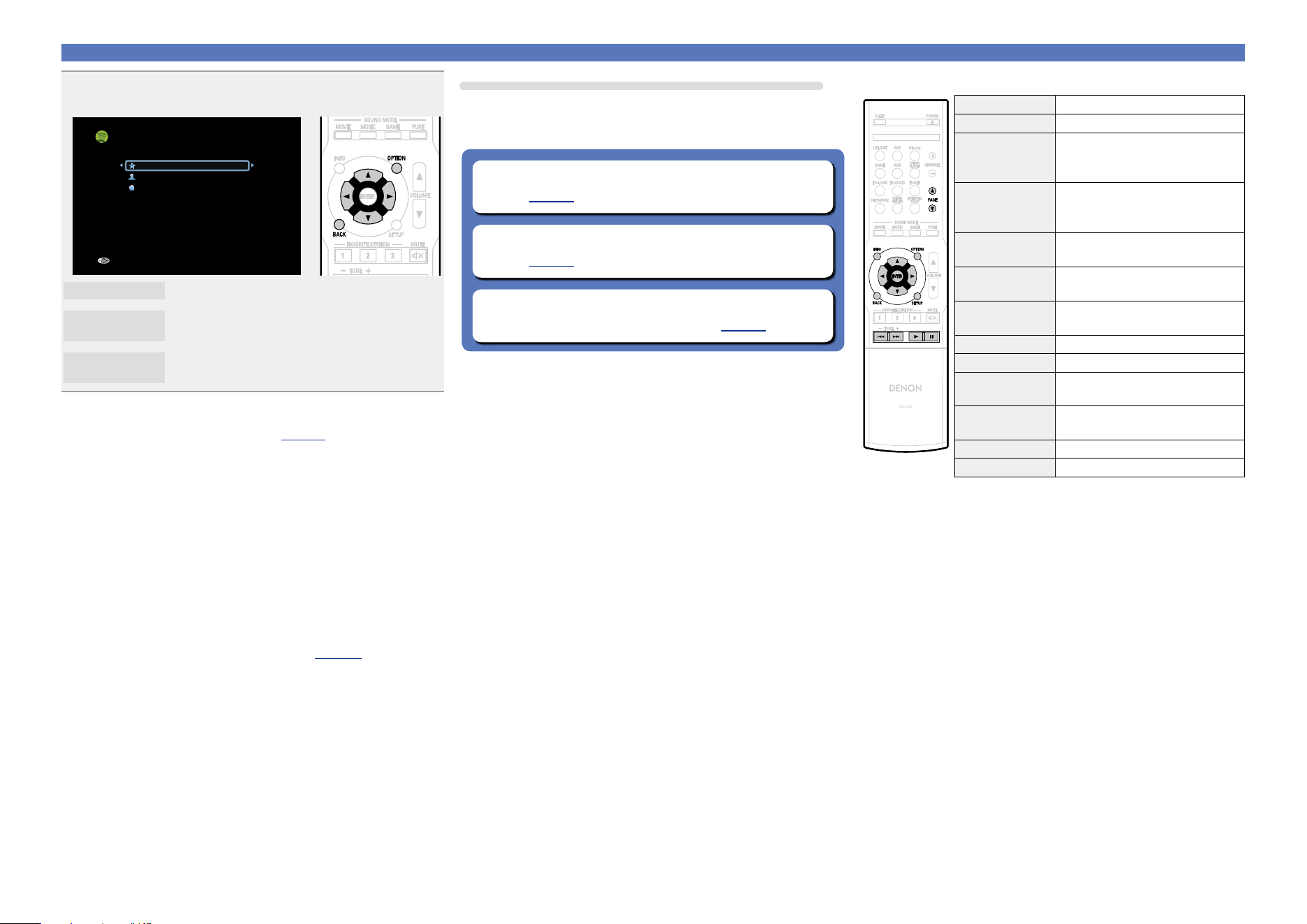

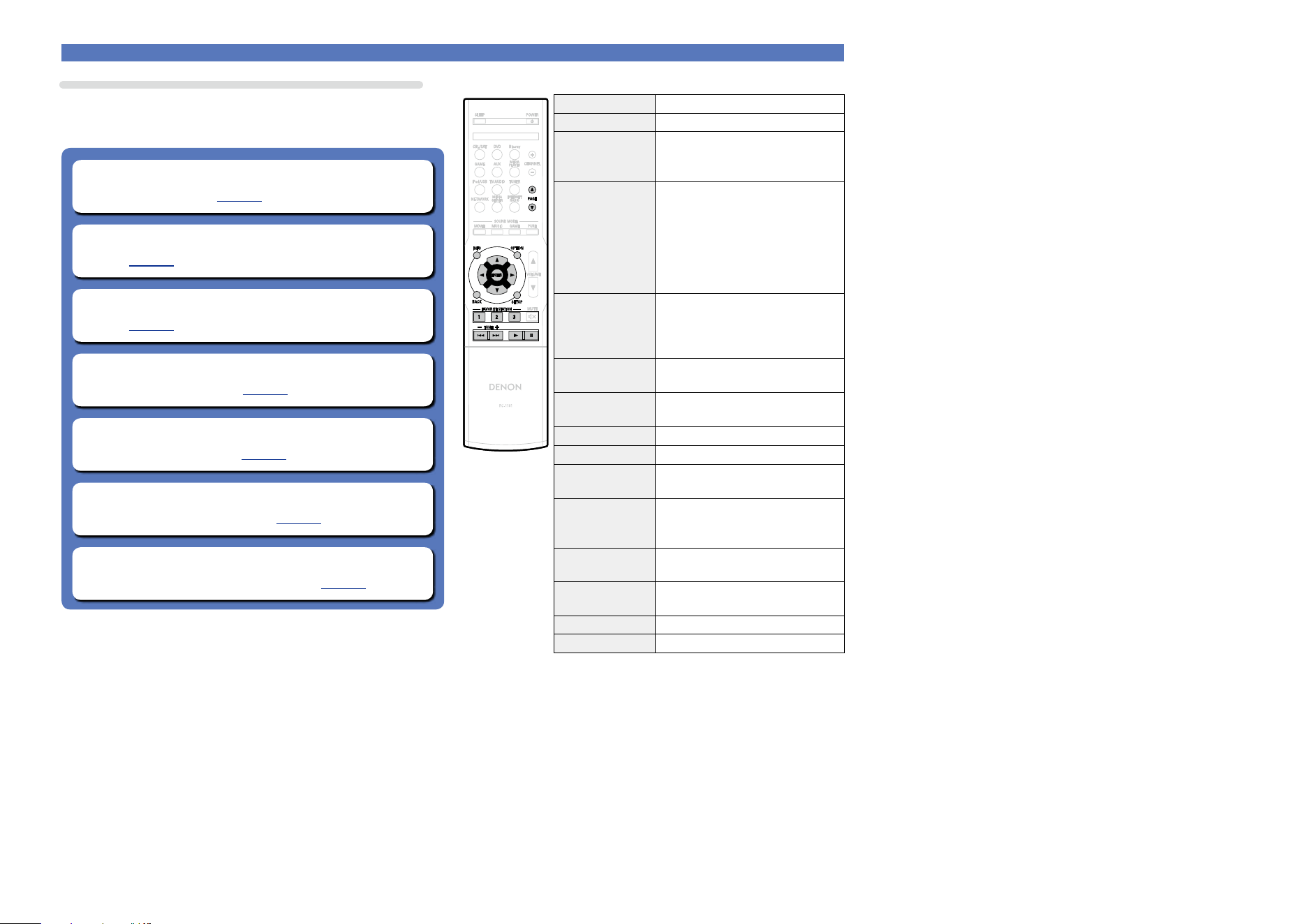

n Tuner operation buttons
Operation buttons Function
CHANNEL +, – Preset channel selection
INFO
Display of information such as the
source name, volume, and sound mode
name
OPTION
FM/AM switching
Direct frequency tuning /
Preset Memory /
Switch tuning modes /
Auto Preset /
Preset Name /
Preset Skip /
Video Select
uio p Cursor operation
ENTER Enter
BACK Return
SETUP Setup menu
FAVORITE
STATION 1 – 3
Call up favorite stations
FAVORITE
STATION 1 – 3
(Press and hold)
Add to the favorite stations
TUNE +, – Tuning (up/down)
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
44

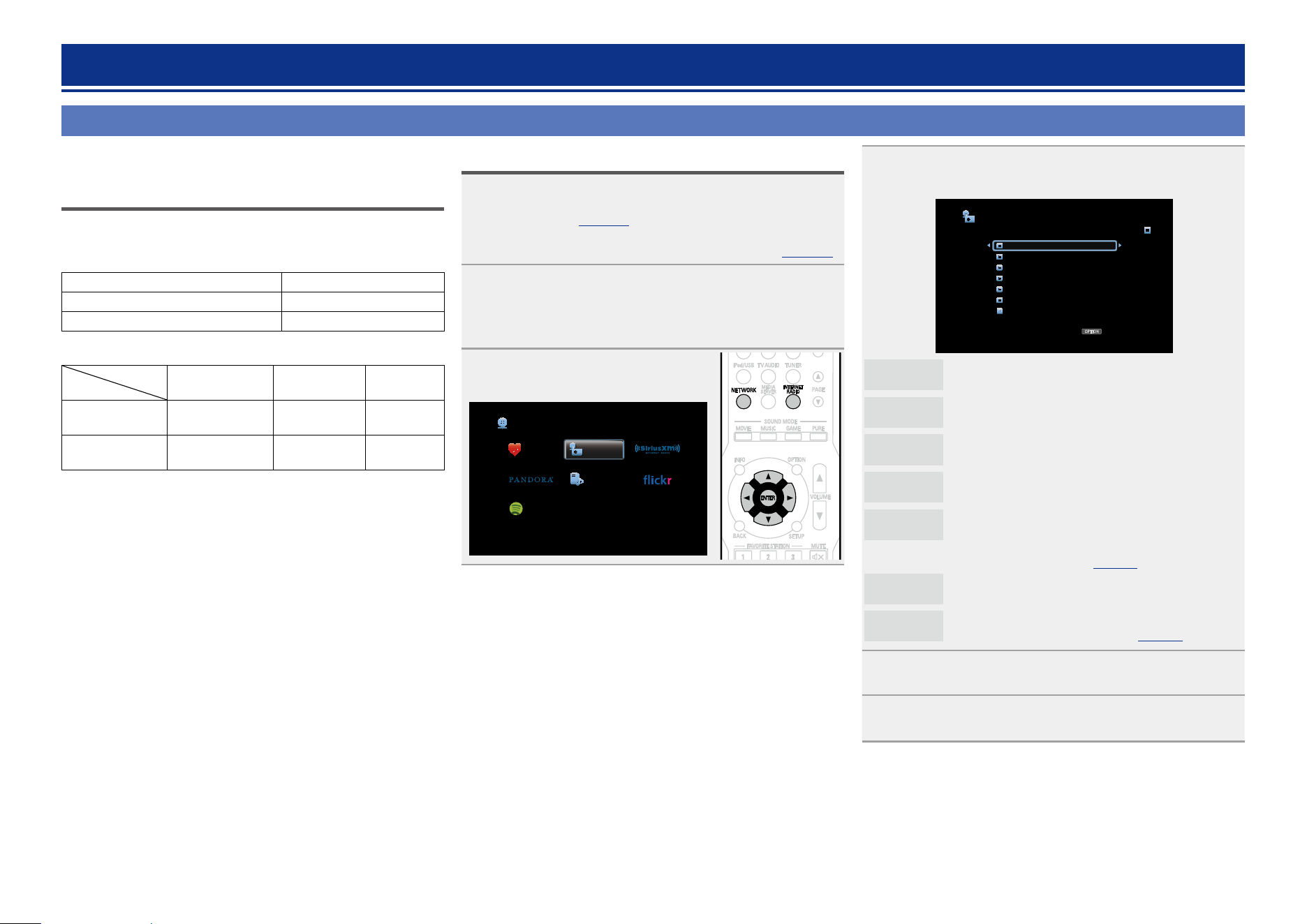

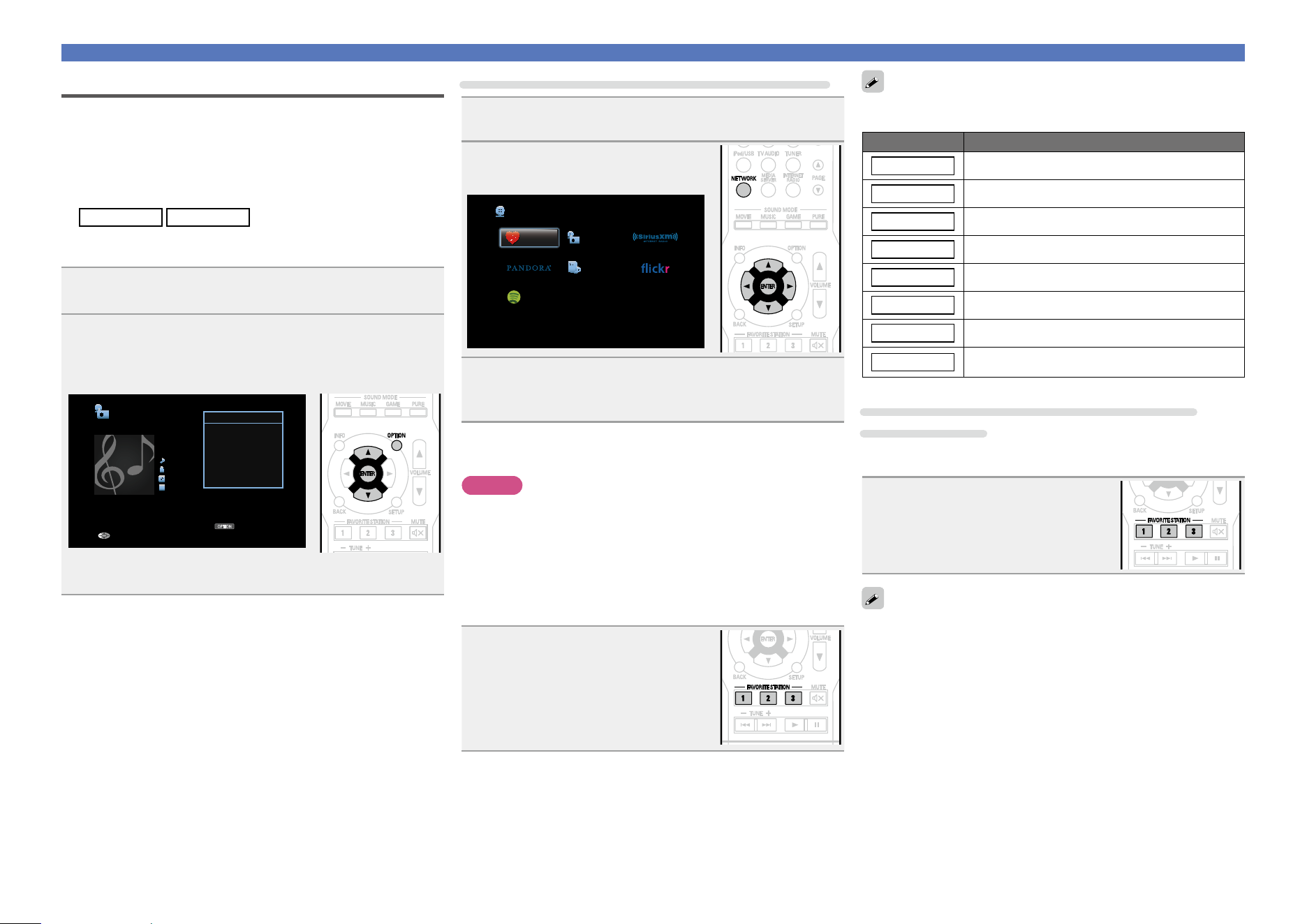

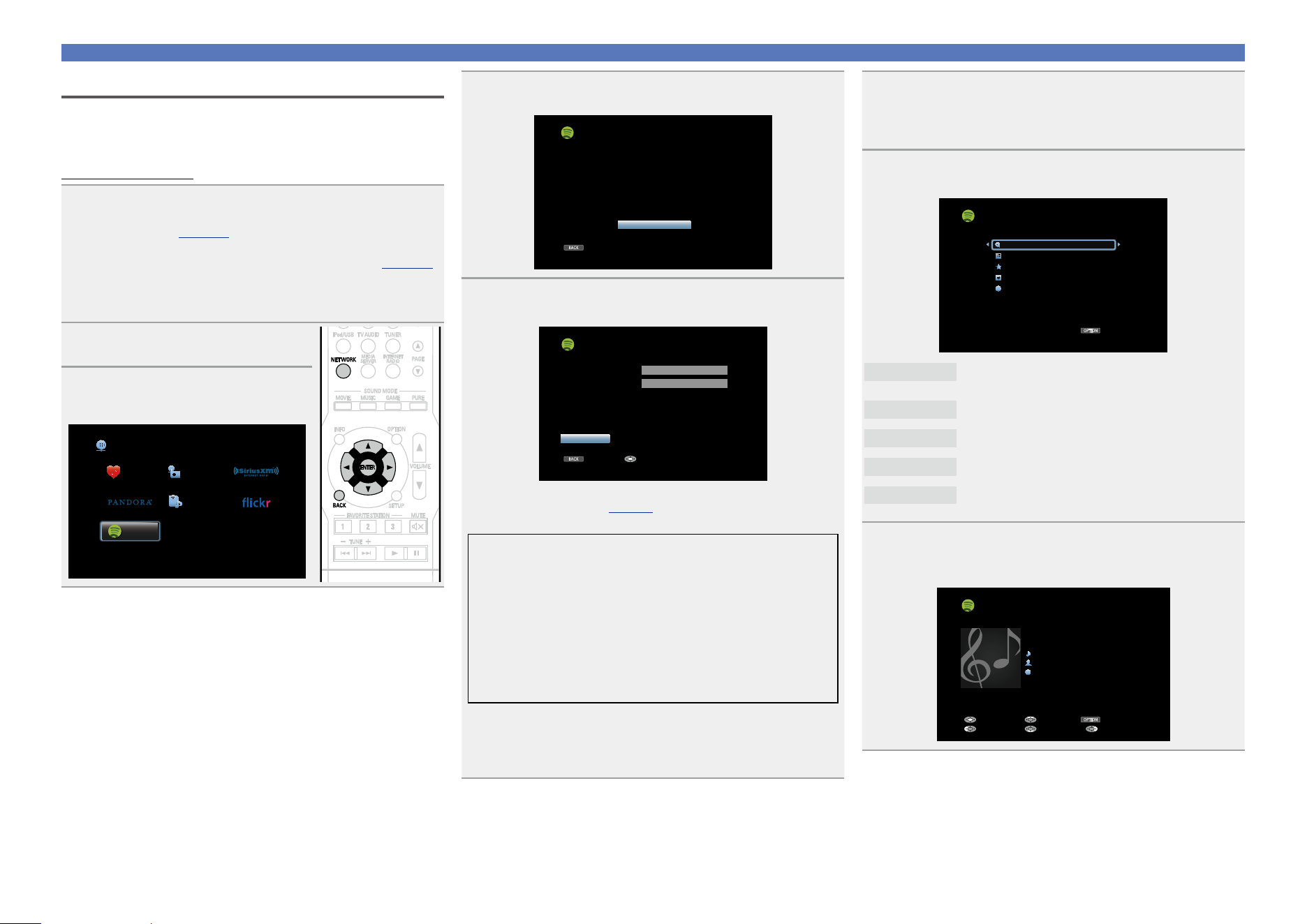

Listening to Internet Radio
Internet Radio refers to radio broadcasts distributed over the Internet.
Internet Radio stations from around the world can be received.
Important information
The broad cast station types and specifications supported by this unit
for playback are as follows.
GPlayable broadcast station typesH
Supported file types Internet Radio
WMA (Windows Media Audio)
P
MP3 (MPEG-1 Audio Layer-3)
P
GPlayable broadcast station specificationsH
Sampling
frequency
Bit rate Extension
WMA (Windows
Media Audio)
32/44.1/48 kHz 48 – 192 kbps .wma
MP3 (MPEG-1
Audio Layer-3)
32/44.1/48 kHz 32 – 320 kbps .mp3
Listening to Internet Radio
1
Prepare for playback.
q Check the network environment, then turn on this unit’s
power (vpage 18 “Connecting to a home network
(LAN)”).
w If settings are required, make the “Settings” (vpage104).
2
Press NETWORK.
•You can also press INTERNET RADIO to select the input source
“Internet Radio” directly.
3

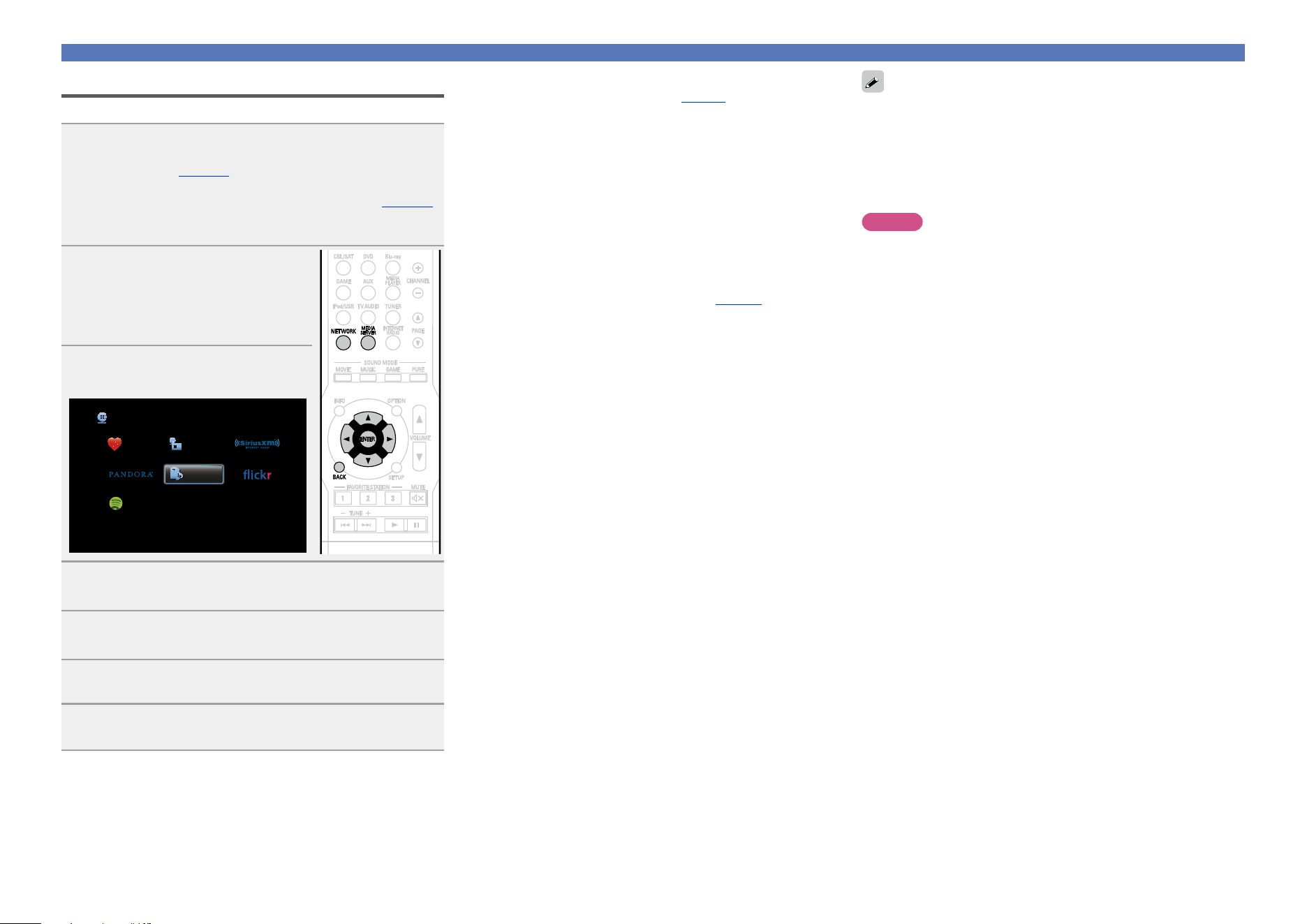

Use uio p to select “Internet
Radio”, then press ENTER.
Favorites Internet Radio
Media Server
Spotify
Network
4
Use ui to select the item you want to play, then
press ENTER or p.
OPTION
Internet Radio [1/7]
zzzzz
Search Stations
Search Podcasts
Recommended Stations
radiodenon.com
Recently Played
Search by Keyword
Option
zzzzz
(Country name)
Displays typical Internet Radio stations your country.
Search
Stations
Displays all Internet Radio stations that this unit can
tune in to.
Search
Podcasts
Displays Internet Radio stations in the podcasts that
this unit can tune in to.
Recommended
Stations
Displays recommended Internet Radio stations.
radiodenon.
com
Displays Internet Radio stations added to favorites in
vTuner. For instructions on how to add to favorites
in vTuner, see “Using vTuner to add Internet Radio
stations to favorites” (vpage46).
Recently
Played
Displays recently played Internet Radio stations. Up
to 20 stations stored in “Recently Played”.
Search by
Keyword
Displays Internet Radio stations searched by
keyword. For character input, see page84.
5
Repeat step 4 until the station list is displayed.
The station list is displayed.
6
Use ui to select the station, then press ENTER or p.
Playback starts once buering reaches “100%”.
Network content
Basic instructions
Advanced instructions
Information
Basic instructions
v See overleaf
DVD
45

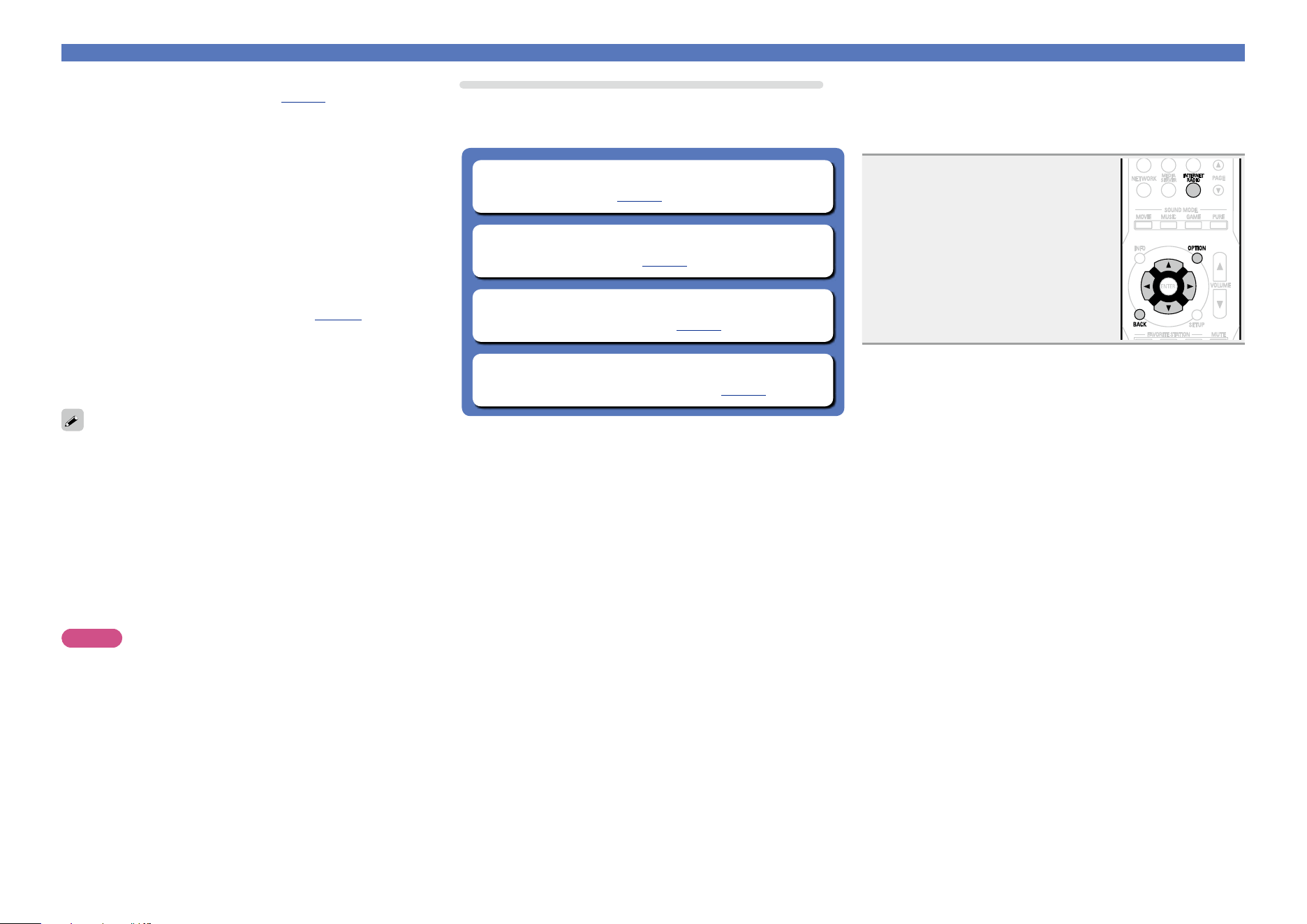

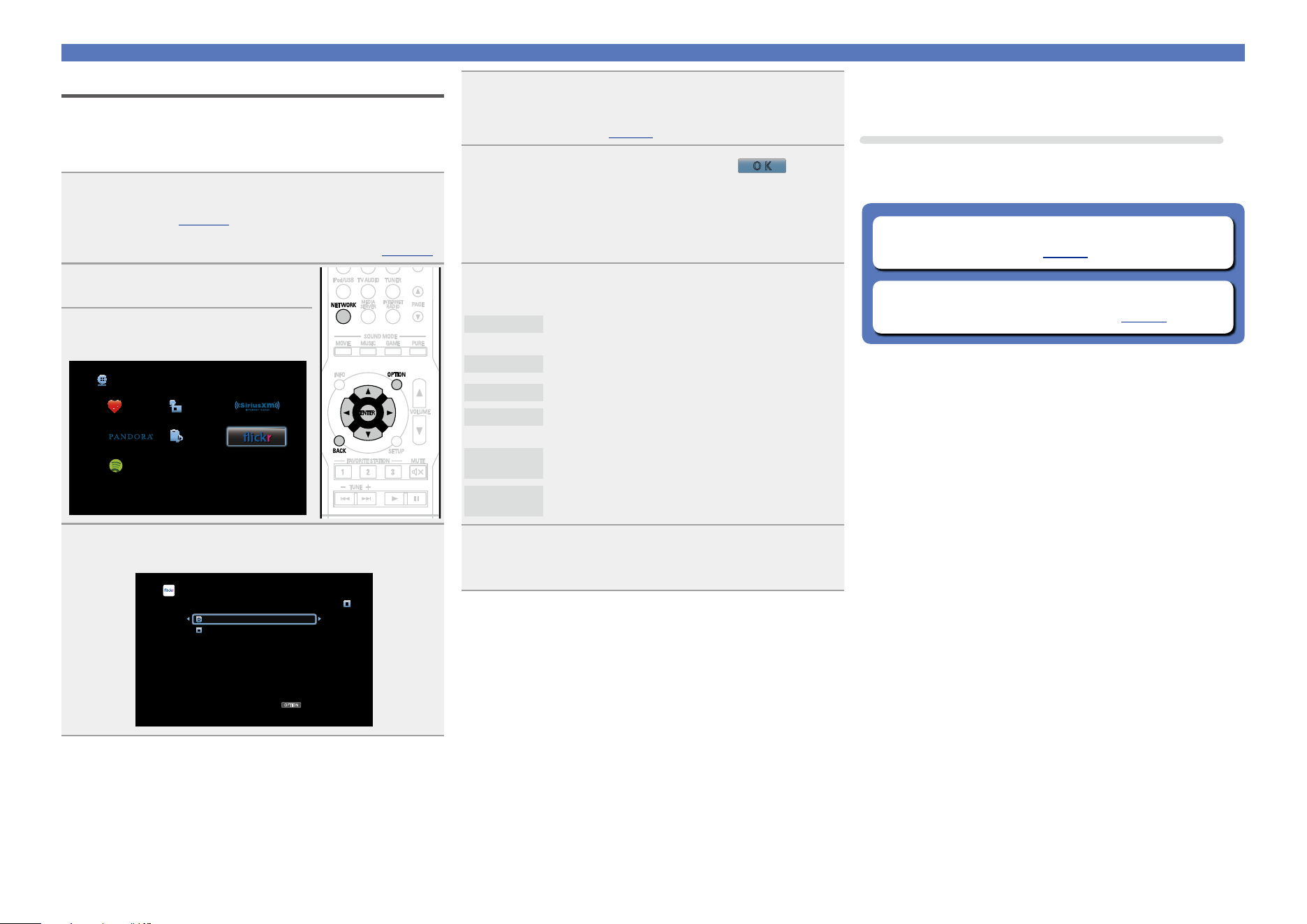

Listening to Internet Radio
n Adjusting the sound quality (Restorer)
Make this setting at “Restorer” (vpage88) in the menu.
You can use the Restorer function to improve the fidelity of
compressed audio sources such as content from Internet Radio
stations. The Restorer has selectable levels of restoration. The
default setting is “Low”.
n Switching the screen display
Press STATUS on the main unit.
The display switches between track title and radio station name
etc. each time the button is pressed.
n Going back to the previous screen
Press o or BACK.
n Changing the screen display duration
Make this setting at “Now Playing” (vpage 93) in the menu.
The default setting is “Always On”.
When “Auto O” is set, the on-screen display is turned o 30
seconds after an operation.
Press uio p while the display is o to return to the original
screen.
•There are many Internet Radio stations on the Internet, and the
quality of the programs they broadcast as well as the bit rate of the
tracks varies widely.
Generally, the higher the bit rate, the higher the sound quality, but
depending on the communication lines and server trac, the music
or audio signals being streamed may be interrupted. Inversely, lower
bit rates mean a lower sound quality but less tendency for the sound
to be interrupted.
•“Radio station server full” or “Connection down” is displayed if the
station is busy or not broadcasting.
•On this unit, folder and file names can be displayed as titles. Any
characters that cannot be displayed are replaced with “.” (period).
NOTE
The radio station database service may be suspended or be otherwise
unavailable without notice.
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Searching content with keywords
(Text Search) (vpage62)
n Add to favorites from the Option menu
(Save to Favorite) (vpage64)
n Playing back music and a favorite picture at the
same time (Slideshow) (vpage65)
n Displaying your desired video on the monitor during
audio playback (Video Select) (vpage66)
n Playing the last played Internet Radio station
This unit memorizes the last played Internet Radio station. If you
press INTERNET RADIO to switch to the Internet Radio function
from another input source, the last Internet Radio station you
listened to is played.
Press INTERNET RADIO.
The source switches to “Internet Radio” and
the last played radio station plays.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
46
Listening to Internet Radio
n Using vTuner to add Internet Radio stations to
favorites
There are many Internet Radio stations in the world, and this unit
can tune into these stations. But finding the radio station you want
to hear may be dicult, because there are too many stations. If
this is the case, then please use vTuner, an Internet Radio station
search website specifically designed for this unit. You can use
your PC to search Internet Radio stations and add them as your
favorites. This unit can play radio stations added to vTuner.
1
Check the MAC address of this unit (vpage103).
The screen that lets you edit the preset name is displayed.
MAC address:
•The MAC address is necessary when you create an account for
vTuner.
2
Use your PC to access the vTuner website (http://
www.radiodenon.com).
The vTuner login screen is displayed.
3
Enter the MAC address of this unit, then click “Go”.
The account creation screen is displayed.
4
Enter your E-mail address and a password of your
choice.
The account is registered and you can now log in.
5
Enter your account information (E-mail address and
password) and log in.
The top menu of vTuner is displayed.
6
Select the search criteria (genre, region, language,
etc.) of your choice.
The list of radio stations matching the criteria is displayed.
•You can also enter a keyword to search for a station you want to
hear.
7
Select the radio station of your choice from the list,
and then click the Add to Favorites icon.
The screen that lets you create a favorite group is displayed.
8
Enter the name of the favorite group, then click
“Go”.
A new favorite group that includes the selected radio station is
created.
•Internet Radio stations added to favorites in vTuner can be played
from “radiodenon.com” (vpage44) with this unit.
n Internet Radio operation buttons
Operation buttons Function
INTERNET RADIO Last played Internet Radio station
PAGE df Page search
INFO
Display of information such as the
source name, volume, and sound mode
name
OPTION
Text Search /
Save to Favorite /
Slideshow /
Video Select
uio p Cursor operation
ENTER
(Press and release)
Enter
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
FAVORITE
STATION 1 – 3
Call up favorite stations
FAVORITE
STATION 1 – 3
(Press and hold)
Add to the favorite stations
1
Playback
3
Pause
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
47
Playing back files stored on a PC and NAS
This unit can play back music files and playlists (m3u, wpl) stored on a PC and on Network Attached
Storage (NAS) that supports DLNA.
Important information
•The network audio playback function of this unit connects to the server using technologies shown below.
•Windows Media Player Network Sharing Service
•Windows Media DRM10
•File types that this unit can play back and specifications are shown below.
GSupported file typesH
Supported file types Media Server
z1
WMA (Windows Media Audio)
P
MP3 (MPEG-1 Audio Layer-3)
P
WAV
P
MPEG-4 AAC
P
z2
FLAC (Free Lossless Audio Codec)
P
JPEG
P
ALAC (Apple Lossless Audio Codec)
P
A server or server software compatible with distribution in the corresponding formats is required to play
music files via a network.
z1 Media Server
•This unit is compatible with MP3 ID3-Tag (Ver.2) standard.
•This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver.2.3 or 2.4.
•This unit is compatible with WMA META tags.
•If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/WAV/FLAC) or 349 ×
349 (MPEG-4 AAC), then music may not be played back properly.
•WAV format Quantization bit length: 16 or 24 bits.
•FLAC format Quantization bit length: 16 or 24 bits.
z2 Only files that are not protected by copyright can be played on this unit.
Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in
WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on
the computer’s settings.
NOTE
File types that this unit does not support are not displayed.
GSpecifications of supported filesH
Sampling frequency Bit rate Extension
WMA (Windows Media Audio) 32/44.1/48 kHz 48 – 192 kbps .wma
MP3 (MPEG-1 Audio Layer-3) 32/44.1/48 kHz 32 – 320 kbps .mp3
WAV
32/44.1/48/88.2/96/
176.4/192 kHz
– .wav
MPEG-4 AAC 32/44.1/48 kHz 16 – 320 kbps
.aac/
.m4a/
.mp4
FLAC (Free Lossless Audio Codec)
32/44.1/48/88.2/96/
176.4/192 kHz
– .flac
ALAC (Apple Lossless Audio Codec)
z
32/44.1/48/88.2/96 kHz – .m4a
z Copyright [2012] [D&M Holdings. Inc.]
Licensed under the Apache License, Version 2.0 (the “License”); you may not use this file except in
compliance with the License. You may obtain a copy of the License at http://www.apache.org/licenses/
LICENSE-2.0
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
48
Playing back files stored on a PC and NAS
Applying media sharing settings
Here, we apply the settings to share music files stored on a PC and
NAS on the network.
n Sharing media stored in PC
If you are using a Media Server, be sure to apply this setting first.
When using Windows Media Player 12
(Windows 7 / Windows 8)
NOTE
Perform this procedure after changing the control panel display to
“Category”.
1
In the PC’s “Control Panel”, select “Network
and Internet” - “Choose homegroup and sharing
options”.
2
Select the “Stream my pictures, music, and videos
to all devices on my home network” check box and
select “Choose media streaming options”.
3
Select “Allowed” in the drop-down list for “AVR-
E300”.
4
Select “Allowed” in the drop-down list for “Media
programs on this PC and remote connections...”.
5
Click “OK” to finish.
When using Windows Media Player 11
1
Start up Windows Media Player 11 on the PC.
2
Select “Media Sharing” in the “Library”.
3
Click the “Share my media” check box, select “AVR-
E300”, and then click “Allow”.
4
As you did in step 3, select the icon of the device
(other PCs and mobile devices) you want to use as a
media controller, and then click “Allow”.
5
Click “OK” to finish.
Sharing media stored in NAS
Change settings on the NAS to allow this unit and other devices (PCs
and mobile devices) used as media controllers to access the NAS. For
details, see the owner’s manual that came with the NAS.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
49
Playing back files stored on a PC and NAS
Playing back files stored on a PC and NAS
Use this procedure to play music files, image files or playlists.
1
Prepare for playback.
q Check the network environment, then turn on this unit’s
power (vpage 18 “Connecting to a home network
(LAN)”).
w If settings are required, make the “Settings” (vpage104).
e Prepare the computer (vComputer’s operating
instructions).
2
Press NETWORK.
•You can also press MEDIA SERVER to
select the input source “Media Server”
directly.
3
Use uio p to select “Media
Server”, then press ENTER.
Favorites Internet Radio
Media Server
Spotify
Network
4
Use ui to select the server including the file to be
played, then press ENTER or p.
5
Use ui to select the search item or folder, then
press ENTER or p.
6
Repeat step 4 until the file is displayed.
7
Use ui to select the file, then press ENTER or p.
Playback starts once buering reaches “100%”.
n Adjusting the sound quality (Restorer)
Make this setting at “Restorer” (vpage88) in the menu.
You can use the Restorer function to improve the fidelity of
compressed audio sources such as MP3 files. The Restorer has
selectable levels of restoration. The default setting is “Low”.
n Switching the screen display
Press STATUS on the main unit.
The display switches between track title, artist name, and album
title each time the button is pressed.
n Going back to the previous screen
Press o or BACK.
n Changing the screen display duration
Make this setting at “Now Playing” (vpage 93) in the menu.
The default setting is “Always On”.
When “Auto O” is set, the on-screen display is turned o 30
seconds after an operation.
Press uio p while the display is o to return to the original
screen.
•When a WMA (Windows Media Audio), MP3 or MPEG-4 AAC file
includes album art data, the album art can be displayed while the
music files are playing.
•If you use Ver.11 or later of Windows Media Player, the album art for
WMA files can be displayed.
•WMA Lossless files can be played when using a server supporting
transcoding, such as Windows Media Player Ver.11 or later.
NOTE
•When playing back music files with your PC or NAS connected
through wireless LAN, audio may be interrupted depending on your
wireless LAN environment. In this case, play back music files with
your PC or NAS connected through wired LAN.
•Depending on the size of the still picture (JPEG) file, some time may
be required for the file to be displayed.
•The order in which the tracks/files are displayed depends on
the server specifications. If the tracks/files are not displayed in
alphabetical order due to the server specifications, searching by the
first letter may not work properly.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
50
Playing back files stored on a PC and NAS
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Searching content with keywords
(Text Search) (vpage62)
n Performing repeat playback (Repeat)
(vpage62)
n Performing random playback (Random)
(vpage63)
n Playing back still images in sequential order
(Slideshow Time) (vpage65)
n Add to favorites from the Option menu
(Save to Favorite) (vpage64)
n Playing back music and a favorite picture at the
same time (Slideshow) (vpage65)
n Displaying your desired video on the monitor during
audio playback (Video Select) (vpage66)
n Media Server operation buttons
Operation buttons Function
PAGE df Page search
INFO
Display of information such as the
source name, volume, and sound mode
name
OPTION
Text Search /
Repeat playback /
Random playback /
Slideshow Time /
Save to Favorite /
Slideshow /
Video Select
uio p
Cursor operation /
Next/Previous (ui) /
Fast-forward/Fast-reverse
(Press and hold, ui)
z
ENTER
(Press and release)
Enter
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
FAVORITE
STATION 1 – 3
Add/call up favorite stations
FAVORITE
STATION 1 – 3
(Press and hold)
Add to the favorite stations
8 9
(Press and release)
Next/Previous
8 9
(Press and hold)
Fast-forward/Fast-reverse
z
1
Playback
3
Pause
z This function is available while an MP3 / WAV / AAC / FLAC file is
being played back.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
51
Using online services
This unit supports playback of the online services shown below.
n About Flickr (vpage52)
Flickr is an online photograph sharing service that started in 2004. You can use the this unit to view
photographs that have been made public by Flickr users. You do not need an account to use Flickr.
To view photographs that you recorded yourself, you need an account in order to upload these
photographs to the Flickr server. For details, see the Flickr homepage.
http://www.flickr.com/
n About Pandora
®
(vpage54)
Pandora is an automated music recommendation and Internet Radio service created by the Music
Genome Project.
To listen to Pandora you will need a free Pandora account. If you do not have a Pandora account, you
can create one at www.pandora.com or from the Pandora smartphone application.
It is necessary to associate this machine with a Pandora account by visiting
http://www.pandora.com/denon from your PC.
n About SiriusXM (vpage58)
Enjoy anywhere access to the unparalleled content of SiriusXM.
Whether on your computer, smartphone, tablet, Lynx Portable Enjoy anywhere access to the
unparalleled content of SiriusXM.
Whether on your computer, smartphone, tablet, Lynx Portable Radio, or compatible Internet-connected
device, you don’t need to be in your vehicle to enjoy SiriusXM.
For details, see the SiriusXM homepage.
http://www.siriusxm.com
n About Spotify (vpage60)
Introduce your Denon to a whole new world of music. With Spotify, you can enjoy instant access to
millions of songs.
A Spotify Premium subscription is required.
For details, see the Spotify homepage.
http://www.spotify.com
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
52
Using online services

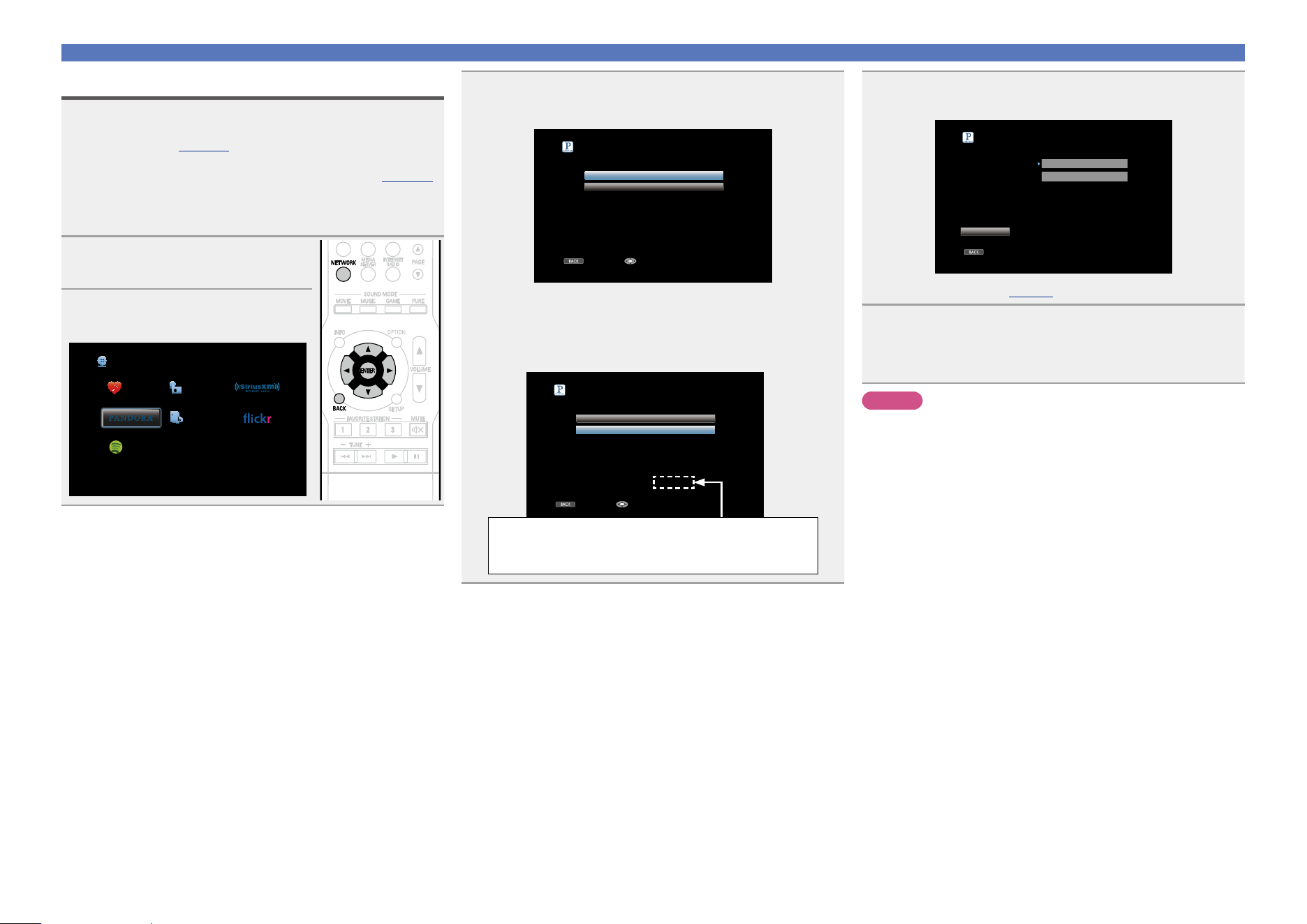

Viewing photographs on the Flickr site
You can view photographs shared by particular users, or all of the
photographs shared on Flickr.
n Viewing photographs shared by particular users
1
Prepare for playback.
q Check the network environment, then turn on this unit’s
power (vpage 18 “Connecting to a home network
(LAN)”).
w If settings are required, make the “Settings” (vpage104).
2
Press NETWORK.
3
Use uio p to select “Flickr”,
then press ENTER.
Favorites Internet Radio
Media Server
Spotify
Network
4
Use ui to select “Add Flickr Contact”, then press
ENTER or p.
OPTION
Flickr [1/2]
Add Flickr Contact
All Content
Option
5
In “Contact”, add the screen name (user name you
want to view) you want to add.
•For character input, see page84.
6
After inputting the “Contact”, press
O K
.
The screen name is added to “Contact”, and the screen name
you entered in Step 5 is displayed on the top screen of Flickr.
•If you enter a screen name that does not exist, “The Flickr Contact
you entered could not be found” is displayed. Check and enter the
correct screen name.
7
Use ui to select the folder, and then press ENTER
or p.
Favorites
Displays the favorite photographs of the specified
user.
Photostream
Displays a list of shared photographs.
PhotoSets
Displays the folder (photograph album) list.
Contacts
Displays the screen name used by the specified user
in Contacts.
Remove this
Contact
Deletes a user from Flickr Contact.
Add this
Contact
Adds a user from Flickr Contact.
8
Use ui to select the file, and then press ENTER or
p.
The selected file is displayed.
n Going back to the previous screen
Press o or BACK.
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Playing back still images in sequential order
(Slideshow Time) (vpage65)
n Displaying your desired video on the monitor during
audio playback (Video Select) (vpage66)
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
53
Using online services

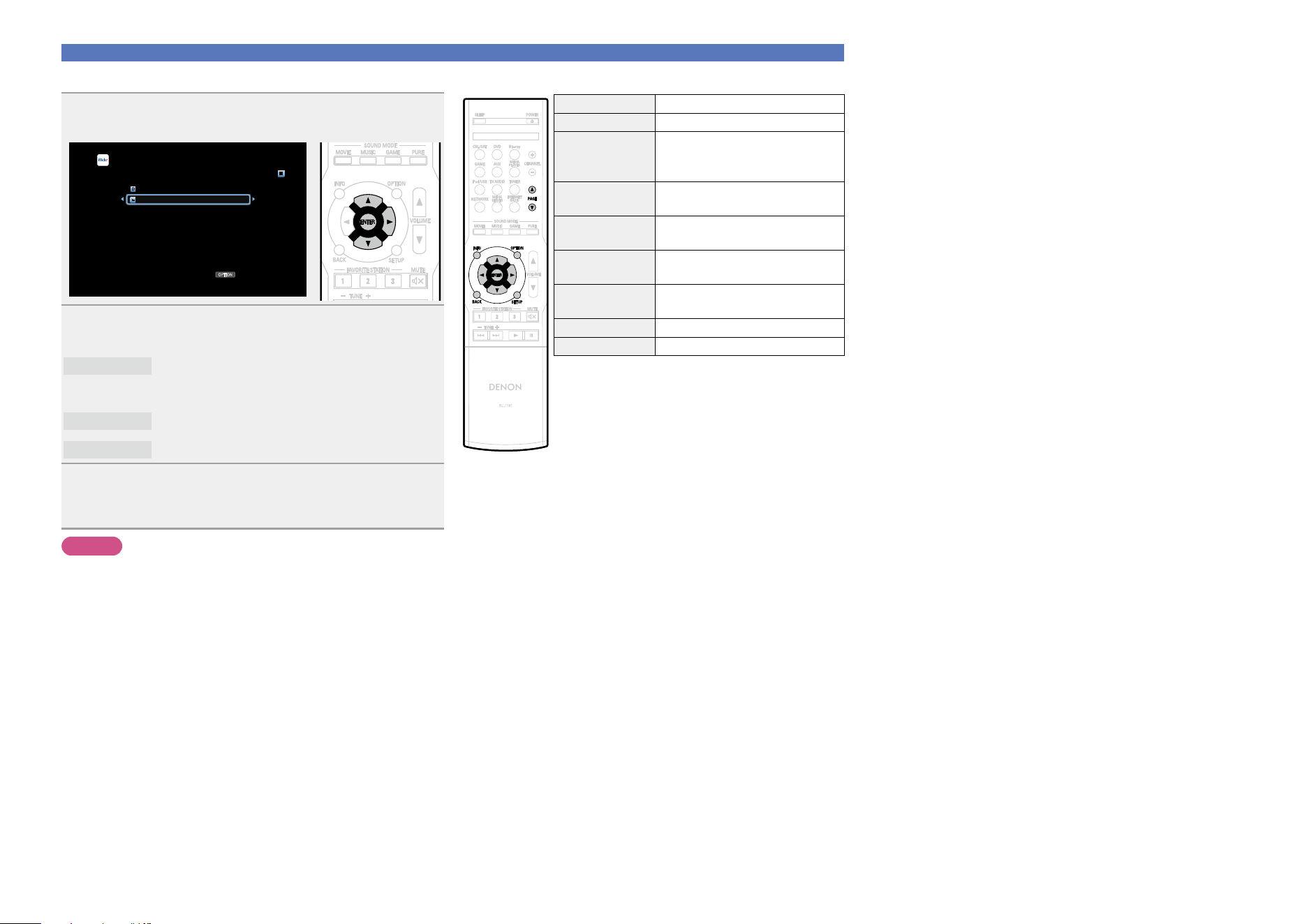

n Viewing all photographs on Flickr
1
Use ui to select “All Content”, then press ENTER
or p.
OPTION
Flickr [1/2]
Add Flickr Contact
All Content
Option
2
Use ui to select the folder, and then press ENTER
or p.
Interestingness
Displays photographs that are popular from the
number of user comments or number of times they
are added as favorites.
Recent
Displays the most recently added photographs.
Search by text
Search for photographs by keyword.
3
Use ui to select the file, and then press ENTER or
p.
The selected file is displayed.
NOTE
Depending on the file format, some photographs may not be viewable.
n Flickr operation buttons
Operation buttons Function
PAGE df Page search
INFO
Display of information such as the
source name, volume, and sound mode
name
OPTION
Slideshow Time /
Video Select
uio p
Cursor operation /
Next/Previous (ui)
ENTER
(Press and release)
Enter
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
54
Using online services

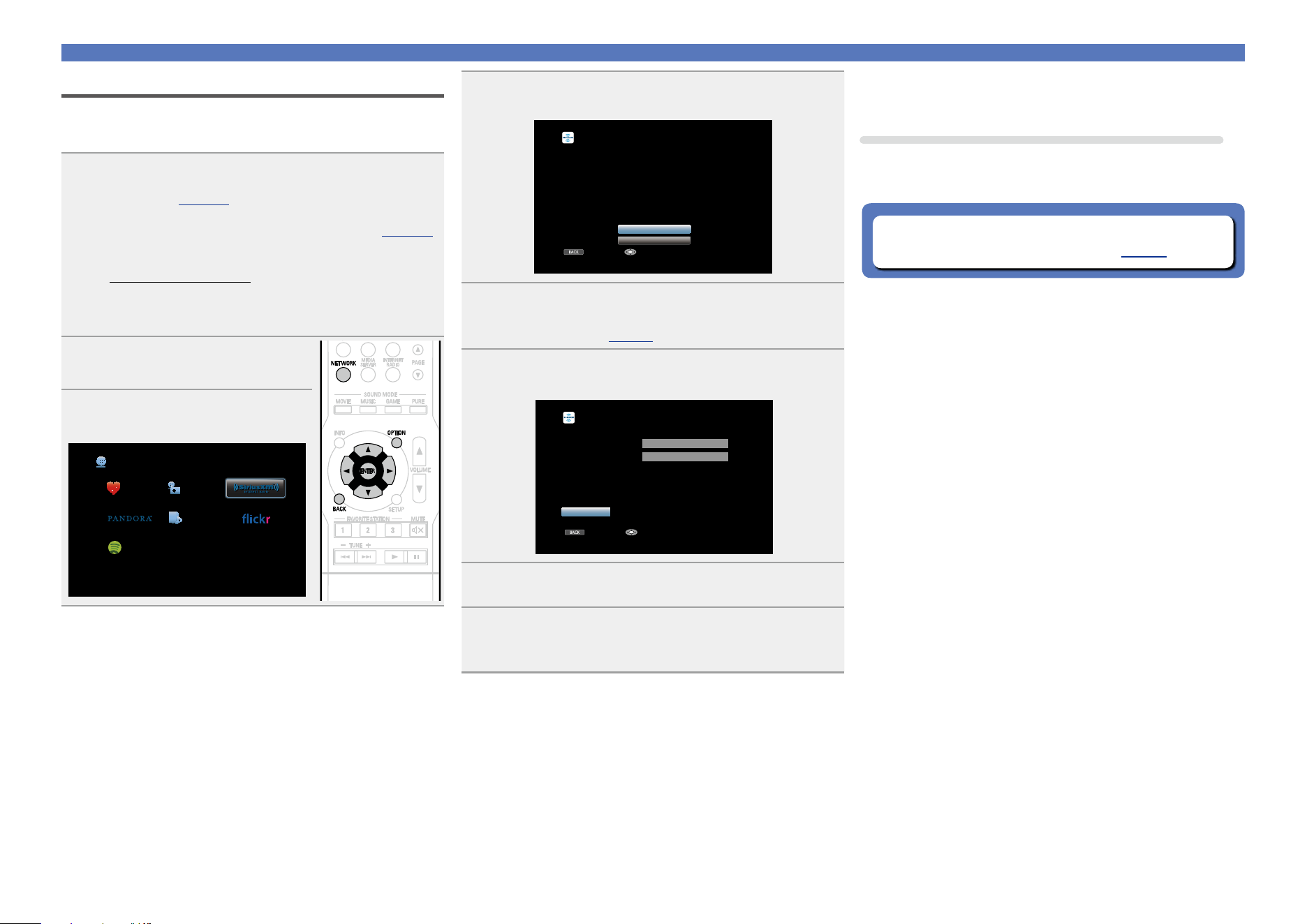

Listening to Pandora®
1
Prepare for playback.
q Check the network environment, then turn on this unit’s
power (vpage 18 “Connecting to a home network
(LAN)”).
w If settings are required, make the “Settings” (vpage104).
e Complete step 4 and obtain a Pandora account.
•If you already have a Pandora account, you do not need to
obtain a new account. Use your existing Pandora account.
2
Press NETWORK.
3
Use uio p to select “Pandora”,
then press ENTER.
Favorites Internet Radio
Media Server
Spotify
Network
4
If you have a Pandora account, use ui to select “I
have a Pandora account”, then press ENTER or p.
BACK
Pandora Account
I have a Pandora account
I am new to Pandora
Cancel Enter
•If you do not have a Pandora account, press i to select “I am
new to Pandora”. The URL of Pandora and activation code are
displayed. Access the Pandora web page from your PC and register
the displayed activation code and account information. Then press
ENTER.
BACK
Pandora
I have a Pandora account
Please go to
http://www.pandora.com/denon and follow
the instructions there to create a new account.
Your activation code is : zzzzzz
I am new to Pandora
Cancel Continue
This is an identification code required to register your
purchased product to the Pandora service.
This code is used to obtain your account.
5
Input “Email address” and “Password”.
BACK
Pandora Account
Email address
Password
OK
Enter Email address
Exit
•For character input, see page84.
6
After inputting the “Email address” and “Password”,
select “OK”, then press ENTER.
If the “Email address” and “Password” match, the top menu
for Pandora is displayed.
NOTE
Press BACK to cancel the input. When “Cancel Input?” is displayed,
select “Yes”, then press ENTER.
Basic instructions
Advanced instructions
Information
Basic instructions
v See overleaf
DVD
55
Using online services
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Displaying your desired video on the monitor during
audio playback (Video Select) (vpage66)

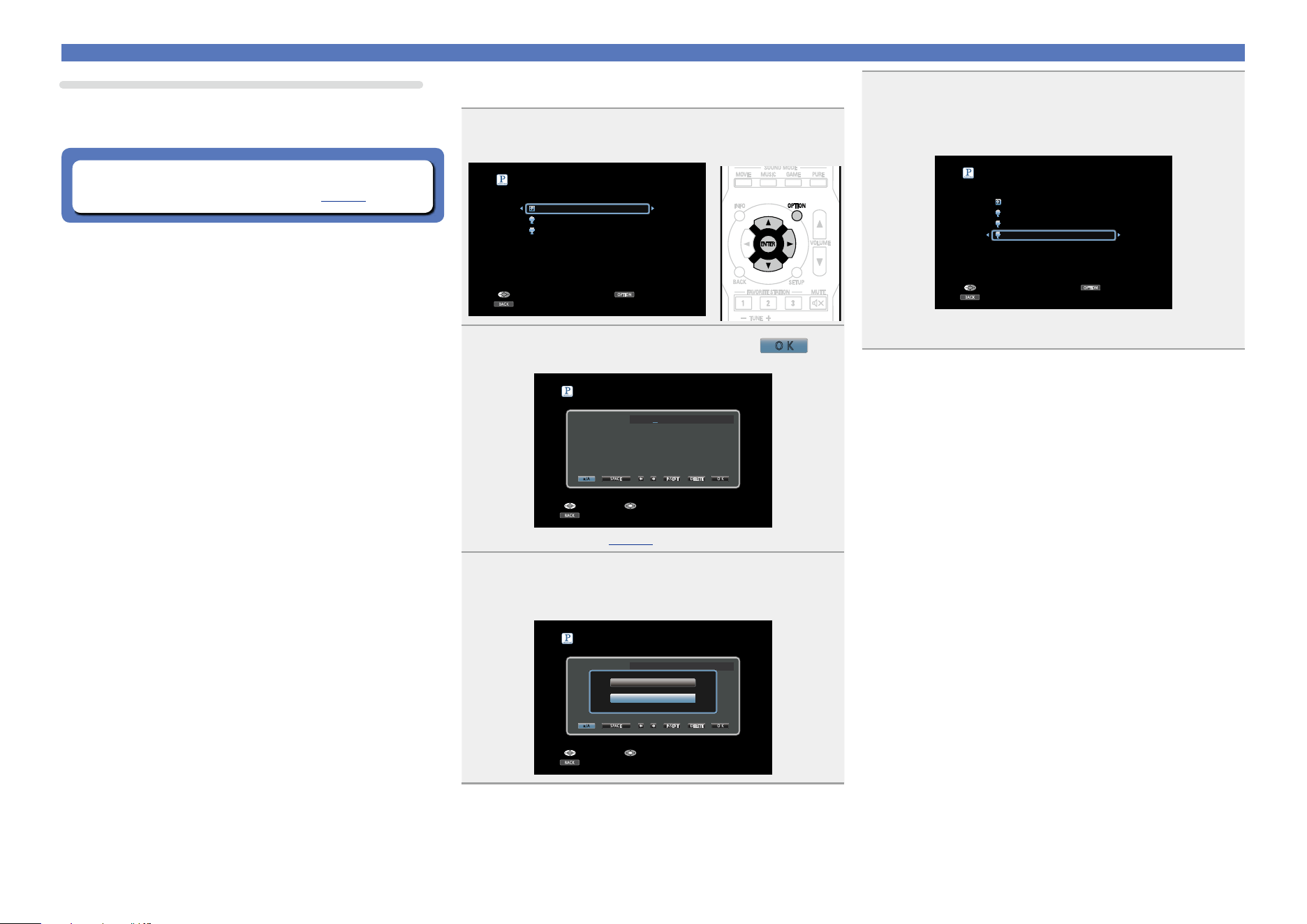

n Creating a new station
You can create up to 100 radio stations.
1
Use ui to select “New Station”, then press ENTER
or p.
OPTION
BACK
My Station [1/3]
OptionExit
New Station
Quick Mix
D&M1 Radio
Sign Out
2
Input a track or artist name, then press
O K
.
BACK
New Station
InputSelect
Cancel
Track or Artist
A
N
0
$
B
O
1
%
C
P
2
&
D
Q
3
‘
E
R
4
(
F
S
5
)
G
T
6
*
H
U
7
+
I
V
8
,
J
W
9
;
K
X
!
<
L
Y
“
=
M
Z
#
>
D&M2
a/A SPACE INSERT DELETE O K
•For character input, see page84.
3
Use ui to select “Search by Artist” or “Search by
Track”, then press ENTER.
You can search and display a list by track or artist.
BACK
New Station
InputSelect
Cancel
Track or Artist
A
N
0
$
B
O
1
%
C
P
2
&
D
Q
3
‘
E
R
4
(
F
S
5
)
G
T
6
*
H
U
7
+
I
V
8
,
J
W
9
;
K
X
!
<
L
Y
“
=
M
Z
#
>
D&M2
a/A SPACE INSERT DELETE O K
Search by Artist
Search by Track
4
Press ui, select a file (e.g. D&M2) from the list, and
press ENTER or p.
“Radio” is added to the end of a filename, and your new station
is created (e.g. D&M2 Radio).
OPTION
BACK
My Station [4/4]
New Station
Quick Mix
D&M1 Radio
D&M2 Radio
OptionExit
Sign Out
•Your new station will play music with similar qualities to the artist
or track you entered.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
56

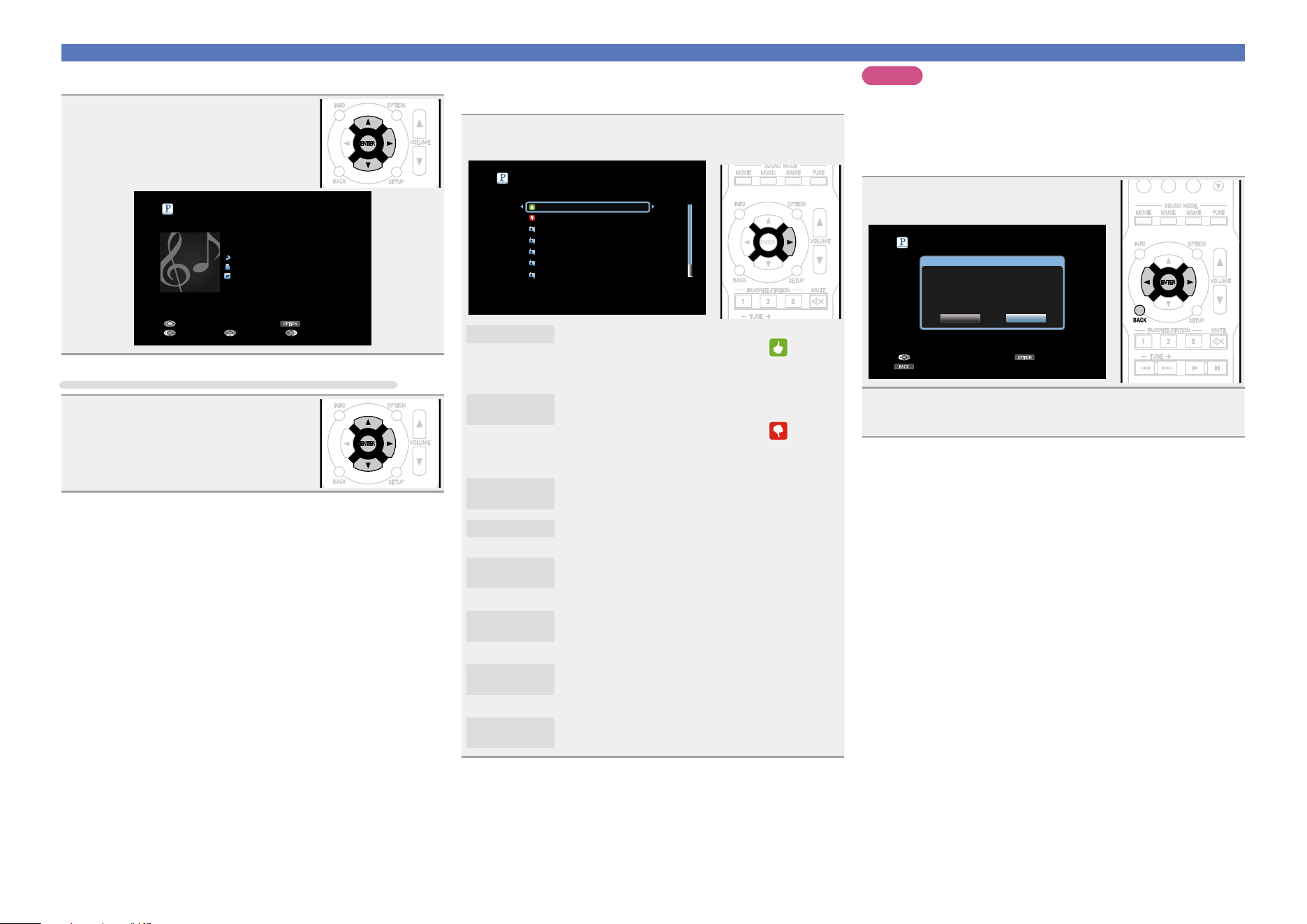

Using online services
n Listening to an existing station
Use ui and select the radio station
(“D&M2 Radio”) that you want to
listen to, and press ENTER or p.
OPTION
D&M2 Radio
Title
Now Playing
Artist
Album
00:06 100%
Pause
Next MenuBack
Option
Listening to created radio stations at random
Use ui to select “Quick Mix”, then
press ENTER or p.
Created radio stations are selected at
random, and tracks are streamed.
n Giving Feedback and Managing Stations
You can personalize your stations by providing feedback.
Press p while a track is playing.
The Pandora menu screen is displayed.
Menu [1/8]
I like this track
I don’t like this track
Why is this track playing?
Create station
Bookmark this artist
Bookmark this track
I’m tired of this track
I like this track
•Press when you like the track that is being played.
•It will return to the Play Screen. And
(Thumbs
up) icon is displayed. (The icon is not displayed on
the next track.)
I don’t like
this track
•Press when you don’t like the track that is being
played.
•It will return to the Play Screen. And
(Thumbs
down) icon is displayed. (The icon is not displayed
on the next track.)
Why is this
track playing?
•Displays the reason why Pandora selected this
track.
Create station
•Creates a Station for the Track or Artist being
played.
Bookmark
this artist
•Bookmarks the artist currently being played.
•You can check on a computer or iPhone etc.
•For details, see the Pandora web page.
Bookmark
this track
•Bookmarks the track currently being played.
•You can check on a computer or iPhone etc.
•For details, see the Pandora web page.
I’m tired of
this track
•Press when you don’t like the track that is being
played.
•The track will not be played for 1 month.
Delete this
station
•Press when you want to delete the station that is
being played.
NOTE
•You can Skip up to 6 Tracks that are being played back within 1 hour.
•You can create up to 100 Stations (radio stations).
n Sign out
Disassociate this unit from your Pandora account.
1
While the Pandora top menu is
displayed, press BACK.
OPTION
BACK
My Station [1/3]
OptionExit
New Station
Quick Mix
D&M1 Radio
Sign Out
Are you sure you want to sign out
Yes
No
2
When the popup menu appears, use o p to select
“Yes”, then press ENTER.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
57
Using online services
n Pandora operation buttons
Operation buttons Function
PAGE df Page search
INFO
Display of information such as the
source name, volume, and sound mode
name
OPTION Video Select
uio p
Cursor operation /
Skips the current track,
subject to skip limit (i)
ENTER
(Press and release)
Enter
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
9
Skips the current track,
subject to skip limit
1
Playback
3
Pause
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
58
Using online services
Listening to SiriusXM Internet Radio
Over 120 channels of the SiriusXM programming you love, including
commercial-free music plus sports, talk, news and entertainment.
Listen anywhere on your computer or smartphone.
1
Prepare for playback.
q Check the network environment, then turn on this unit’s
power (vpage 18 “Connecting to a home network
(LAN)”).
w If settings are required, make the “Settings” (vpage104).
e Access the following website from your PC and obtain a
SiriusXM account.
http://www.siriusxm.com
•If you already have a SiriusXM account, you do not need to
obtain a new account. Select “Sign in” in step 4, and enter
your existing SiriusXM account.
2
Press NETWORK.
3
Use uio p to select
“SiriusXM”, then press ENTER.
Favorites Internet Radio
Media Server
Spotify
Network
4
Select “Sign in”, then press ENTER.
BACK
SiriusXM Sign in
Sign in
Start Trial
Please set your SiriusXM username and password.
You can go to www.siriusxm.com to sign up
for an account. Or,select “Start Trial” below
to start the one-time free trial.
Cancel Enter
5
Input the “Username” and “Password”.
•For character input, see page84.
6
Select the “Sign in”, and then press ENTER.
The top menu of SiriusXM is displayed.
BACK
SiriusXM Sign in
Username
Password
zzzzz
zzzzz
Sign in
Exit Enter
7
Use ui to select the genre, then press ENTER or p.
8
Use ui to select the file, and then press ENTER or
p.
The selected file is displayed.
n Going back to the previous screen
Press o or BACK.
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Displaying your desired video on the monitor during
audio playback (Video Select) (vpage66)
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
59
Using online services

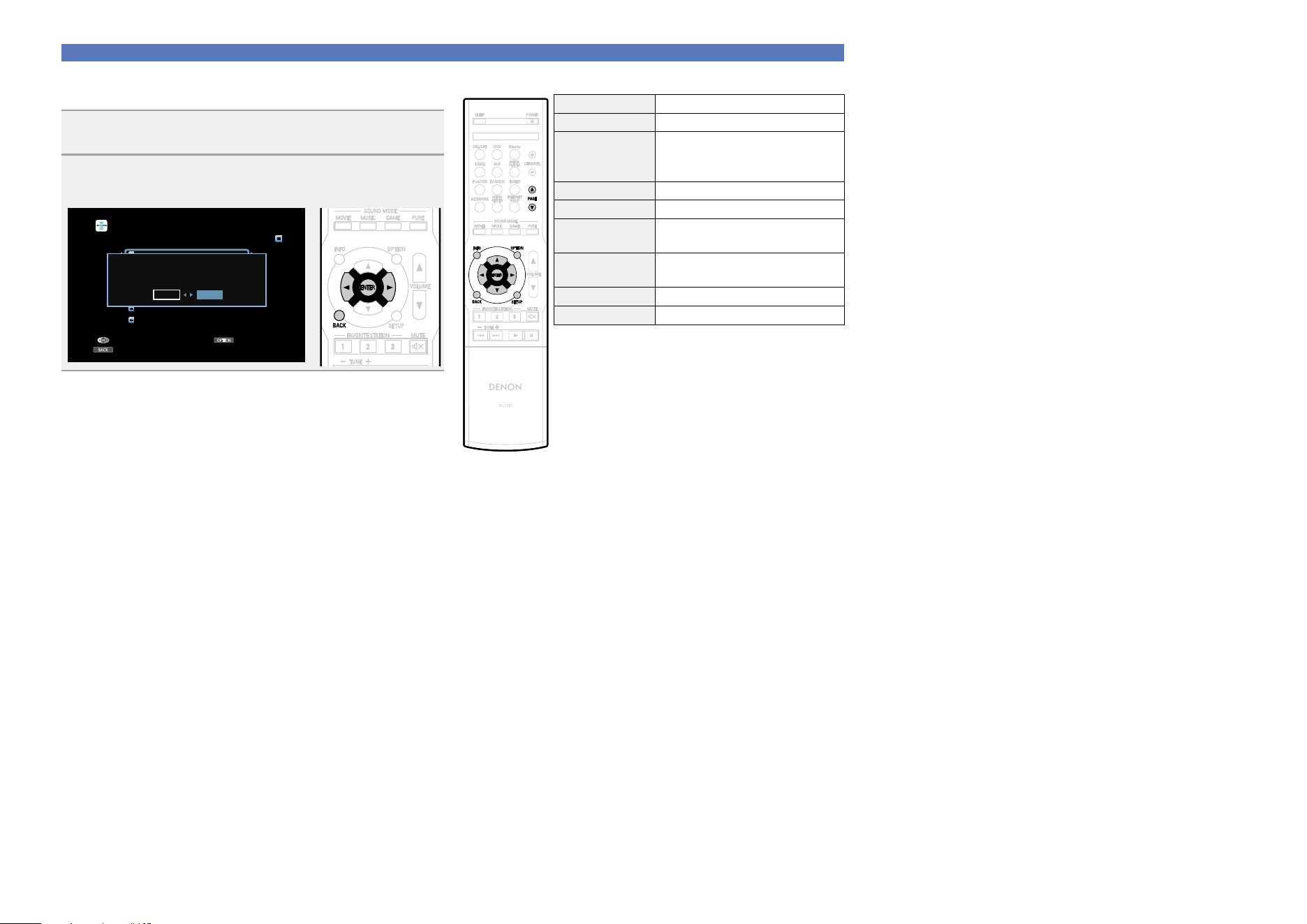

n Sign out
Disassociate this unit from your SiriusXM account.
1
While the SiriusXM top menu is displayed, press
BACK.
2
When the popup menu appears, use o p to select
“Yes”, then press ENTER.
SiriusXM [1/20]
Pop
Rock
Dance/Electronic
Hip-Hop/R&B
Country
Chirisitan
Jazz/Standards
OPTION
BACK
OptionExit
Sign Out
Are you sure you want to
sign out?
Yes
No
n SiriusXM operation buttons
Operation buttons Function
PAGE df Page search
INFO
Display of information such as the
source name, volume, and sound mode
name
OPTION Video Select
uio p Cursor operation
ENTER
(Press and release)
Enter
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
60
Using online services
Listening to Spotify
Introduce your Denon to a whole new world of music. With Spotify,
you can enjoy instant access to millions of songs.
A Spotify Premium subscription is required.
For details, see the Spotify homepage.
http://www.spotify.com
1
Prepare for playback.
q Check the network environment, then turn on this unit’s
power (vpage 18 “Connecting to a home network
(LAN)”).
w If settings are required, make the “Settings” (vpage104).
e Complete step 5 and obtain a Spotify account.
•If you already have a Spotify account, you do not need to
obtain a new account. Use your existing Spotify account.
2
Press NETWORK.
3
Use uio p to select “Spotify”,
then press ENTER.
Favorites Internet Radio
Media Server
Spotify
Network
4
If you have a Spotify account, then press ENTER.
BACK
Spotify
Get Started
Introduce your Denon to a whole new world
of music. With Spotify, you can enjoy instant
access to millions of songs.
A Spotify Premium subscription is required.
Just subscribe at spotify.com
Exit
5
Use ui p to enter your username and password.
BACK
Enter
Username
Password
zzzzz
zzzzz
Log In
Exit
Spotify Log In
•The password should be no longer than 99 characters.
For character input, see page84.
•The types of characters that can be input are as shown below.
GUpper case characters/Numbers/SymbolsH
ABCDEFGHIJKLMNOPQRSTUVWXYZ
ÄÀÁÂÃÅÆÇÐÈÉÊËÌÍÎÏÑÖÒÓÔÕØÜÙÚÛÝÞ
0123456789
! “ # $ % & ’ ( ) z + , ; < = >
GLower case characters/Numbers/SymbolsH
abcdefghijklmnopqrstuvwxyz
äàáâãåæçðèéêëìíîïñöòóôõøüùúûýþÿß
0123456789
. @ - _ / : ˜ ? [ \ ] ^ ’ { | }
•When you use
ui while you type in, you can change uppercase
characters to lowercase and vice versa.
•Press BACK to cancel the input. When “Cancel input?” is displayed,
select “Yes”, then press ENTER.
6
After inputting the username and password, select
“Log In”, then press ENTER.
If the username and password match, the top menu for Spotify
is displayed.
7
Use ui to select menu and then press ENTER.
OPTION
[1/5]
Search
What’s New
Starred
Playlists
Accounts
Spotify
Option
Search
Searches for tracks, artists and albums by entering
keywords.
What’s New
Displays the list of the latest albums.
Starred
Displays the list of the starred tracks.
Playlists
Displays the playlists for Spotify.
Accounts
Manages accounts (Log out, Add new user, Switch
to user).
8
Use ui to select a station, and press ENTER or p to
start playback.
Playback starts and the following screen appears.
OPTION
Spotify
Title
Now Playing
Artist
Album
00:06
Pause
Next MenuBack
Previous Option
Basic instructions
Advanced instructions
Information
Basic instructions
v See overleaf
DVD
61
Using online services
9
Press p while a track is playing.
The Spotify menu screen is displayed.
[1/3]
Star this track
Browse “Artist name”
Browse “Album name”
Track-Artist
Back
Star this track
Adds a star to the selected track.
Browse
“Artist name”
Displays the list of albums by the artist of the
track that is being played back.
Browse
“Album name”
Displays the list of tracks on the album that is
being played back.
n Adjusting the sound quality (Restorer)
Make this setting at “Restorer” (vpage88) in the menu.
You can use the Restorer function to improve the fidelity of
compressed audio sources such as content from streaming music
services. The Restorer has selectable levels of restoration. The
default setting is “Low”.
n Switching the screen display
Press STATUS on the main unit.
The display switches between track title, artist name, and album
title each time the button is pressed.
n Going back to the previous screen
Press o or BACK.
n Changing the screen display duration
Make this setting at “Now Playing” (vpage 93) in the menu.
The default setting is “Always On”.
When “Auto O” is set, the on-screen display is turned o 30
seconds after an operation.
Press uio p while the display is o to return to the original
screen.
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Performing repeat playback (Repeat)
(vpage62)
n Performing random playback (Random)
(vpage63)
n Displaying your desired video on the monitor during
audio playback (Video Select) (vpage66)
n Spotify operation buttons
Operation buttons Function
PAGE df Page search
INFO
Display of information such as the
source name, volume, and sound mode
name
OPTION
Repeat playback /
Random playback /
Video Select
uio p
Cursor operation /
Next/Previous (ui)
ENTER
(Press and release)
Enter
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
8 9
(Press and release)
Next/Previous
8 9
(Press and hold)
Fast-forward/Fast-reverse
1
Playback
3
Pause
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
62

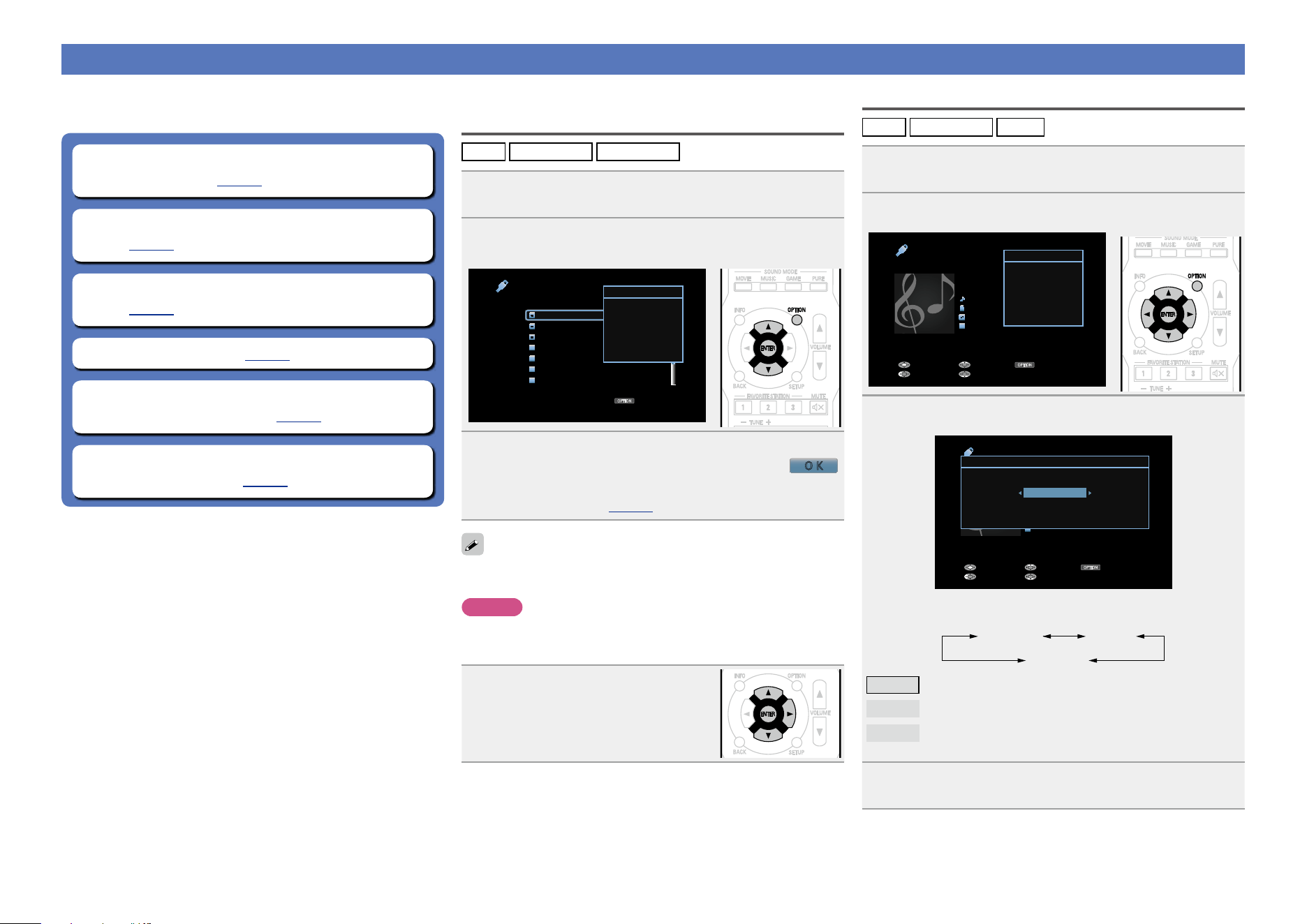

Convenient functions
Here, we explain how to use convenient functions for NETWORK
sources and USB sources. The source names under the titles of each
function’s description are sources that allow use of these functions.
n Searching content with keywords
(Text Search) (vpage62)
n Performing repeat playback (Repeat)
(vpage62)
n Performing random playback (Random)
(vpage63)
n Favorites function (vpage64)
n Playing back music and a favorite picture at the
same time (Slideshow) (vpage65)
n Playing back still images in sequential order
(Slideshow Time) (vpage65)
Searching content with keywords
(Text Search)
USB
Internet Radio
Media Server
1
While content is playing, press OPTION.
The option menu screen is displayed.
2
Use ui to select “Text Search”, then press ENTER.
The keyboard input screen is displayed.
OPTION
USB [1/9]
D&M1
D&M2
D&M3
Music1
Music2
Music3
Music4
Option
Option
Text Search
Repeat
Random
Slideshow Time
3
Enter the first character of the Internet Radio station
or file you want to search for, and then press
O K
.
•For character input, see page84.
“Text Search” searches for Internet Radio stations or files that start
with the entered first character from the displayed list.
NOTE
“Text Search” may not work for some lists.
n Playing back a search result content
Use ui to select the content you
want to play, and then press ENTER
or p.
Playback starts.
Performing repeat playback (Repeat)
USB
Media Server
Spotify
1
While content is playing, press OPTION.
The option menu screen is displayed.
2
Use ui to select “Repeat”, then press ENTER.
OPTION
USB
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
MP3 128kbps
Repeat
Option
Random
Slideshow
Video Select
3
Use o p to select repeat playback mode.
OPTION
USB
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
MP3 128kbps
Off
Repeat
•Each time o p is pressed, the setting is changed as shown below.
Off One
All
O
Repeat playback mode is canceled.
One
A file being played is played repeatedly.
All
All files in the folder currently being played are played
repeatedly.
4
Press ENTER.
The display returns to the playback screen.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
63
Convenient functions

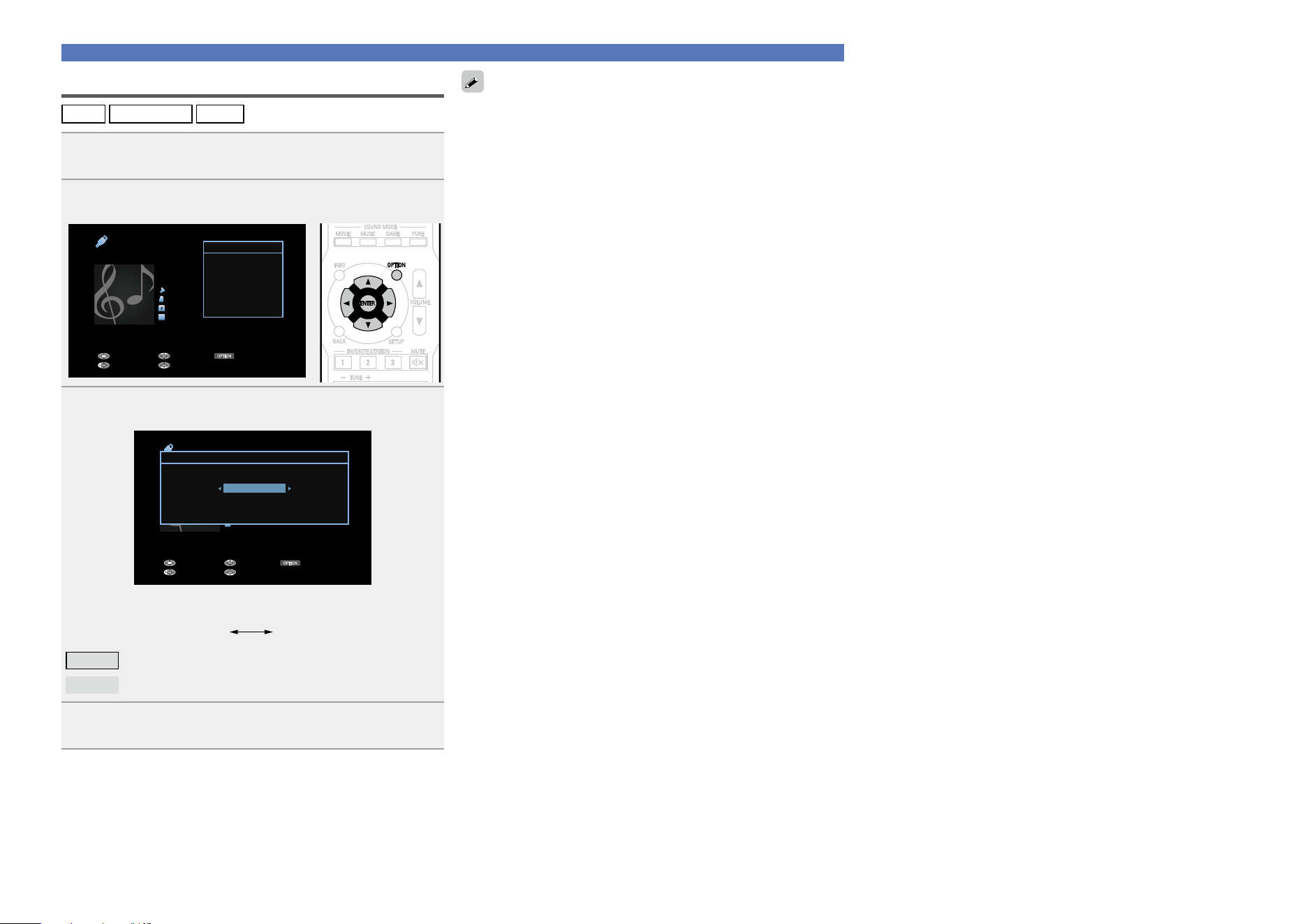

Performing random playback (Random)
USB
Media Server
Spotify
1
While content is playing, press OPTION.
The option menu screen is displayed.
2
Use ui to select “Random”, then press ENTER.
OPTION
USB
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
MP3 128kbps
Repeat
Option
Random
Slideshow
Video Select
3
Use o p to select random playback mode.
OPTION
USB
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
MP3 128kbps
Off
Random
•Each time o p is pressed, the setting is changed as shown below.
Off On
O
Disable random playback.
On
Enable random playback.
4
Press ENTER.
The display returns to the playback screen.
The random playback randomly selects a track to play back from all
tracks every time a track ends. Therefore, it's possible that you may
hear a track played back more than once during random playback.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
64
Convenient functions

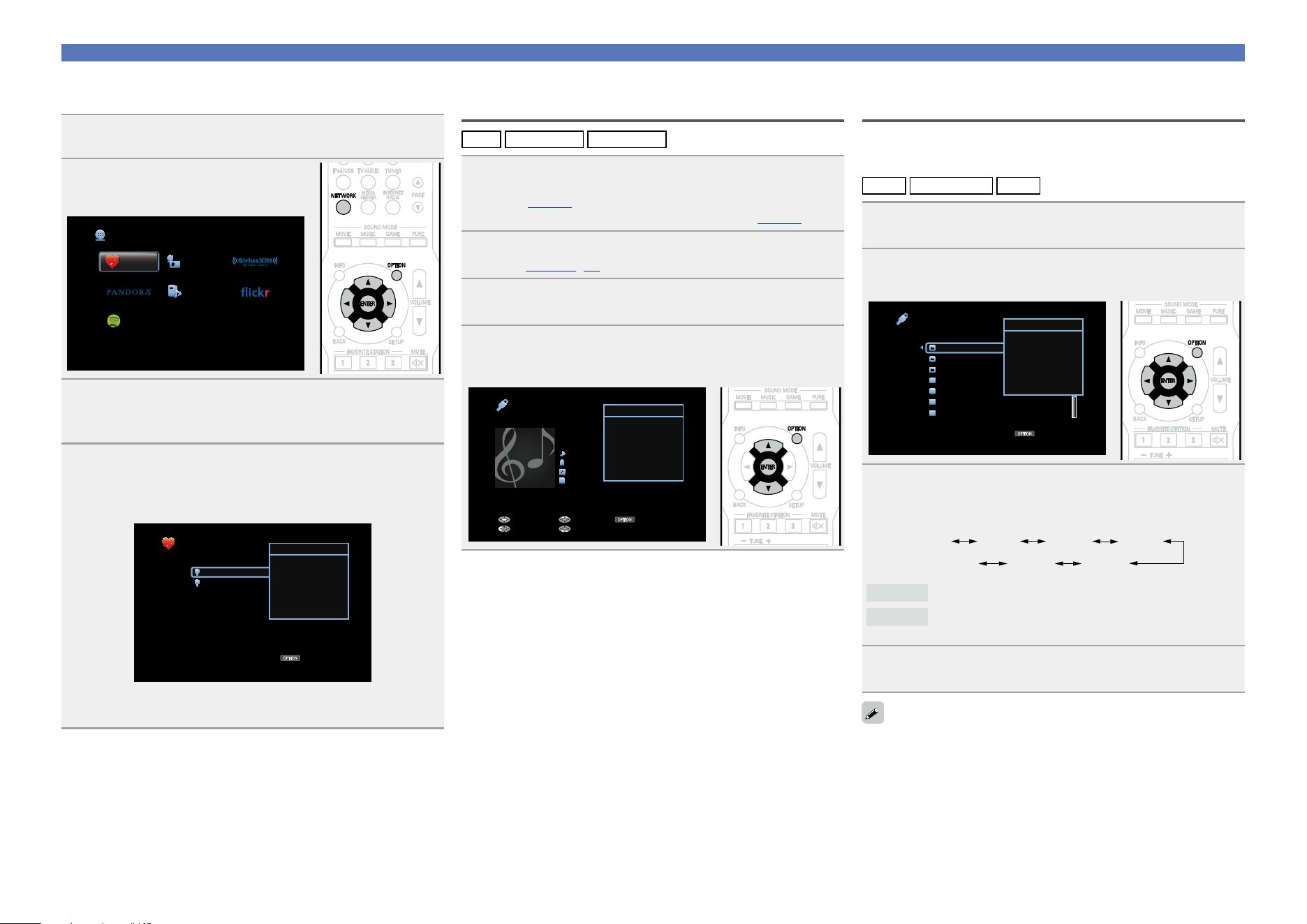

Favorites function
There are two ways to add content to favorites:
q Add to favorites from the Option menu
w Add to the FAVORITE STATION button
n Add to favorites from the Option menu
(Save to Favorite)
Internet Radio
Media Server
You can add up to 100 items as favorites for all sources (Internet
Radio and Media Server).
1
While content is playing, press OPTION.
The option menu screen is displayed.
2
Use ui to select “Save to Favorite”, then press
ENTER.
“Favorite added” is displayed, and the current content is added
to favorites.
OPTION
Internet Radio
Title
Now Playing
Artist
Album
00:06 100%
Back
MP3 128kbps
Option
Save to Favorite
Option
Slideshow
Video Select
•The display returns to the playback screen when the procedure is
completed.
Playing back content added in “Save to Favorite”
1
Press NETWORK.
2
Use uio p to select
“Favorites”, then press ENTER.
Favorites Internet Radio
Media Server
Spotify
Network
3
Use ui to select the content you want to play, and
then press ENTER or p.
Playback starts.
n Adding to the FAVORITE STATION button
You can add up to three types of content.
NOTE
•Please note that if you add new content to a number that already
contains content, the older content is deleted.
•The following operations update the database on the Media Server,
which may make the added music files unplayable.
•When you quit the Media Server and then restart it.
•When music files are deleted or added on the Media Server.
•When using an ESCIENT server, place “ESCIENT” before the server
name.
Press and hold one of the FAVORITE
STATION 1 – 3
buttons for 3 seconds
or longer while playing back a content
or listening to a radio station.
The content you are playing back or the radio
station you are listening to is registered to
the pressed button.
Contents that can be added to the FAVORITE STATION button dier
depending on the input source.
Input source Contents that can be added
TUNER
Radio station
Internet Radio
Top list of content / Internet Radio station
Media Server
Top list of content / Track
Flickr
Top list of content
Pandora
Top list of content
SiriusXM
Top list of content
Spotify
Top list of content
Favorites
Top list of content / Internet Radio station /
Track of Media Server
Playing back content added to the FAVORITE
STATION button
You can easily call up content by pressing the FAVORITE STATION
button.
Press one of the FAVORITE STATION
1 – 3
buttons that you added content
to.
Playback starts.
Internet Radio stations are already registered to the FAVORITE
STATION 1 – 3
buttons. However, you may not be able to play the
stations due to restrictions imposed by the radio stations.
Basic instructions
Advanced instructions
Information
Basic instructions
v See overleaf
DVD
65
Convenient functions
n Deleting content added to favorites
(Remove from Fav.)
1
Press NETWORK.
2
Use uio p to select
“Favorites”, then press ENTER.
Favorites Internet Radio
Media Server
Spotify
Network
3
Use ui to select the content you want to delete from
favorites, then press OPTION.
The option menu screen is displayed.
4
Use ui to select “Remove from Fav.”, then press
ENTER.
“Favorite removed” is displayed, and the selected content is
deleted from favorites.
OPTION
Favorites
Option
Radio Algerienne Chaine 1
FM West 84.2
Remove from Fav.
Option
Video Select
•The display returns to the original screen when the procedure is
completed.
Playing back music and a favorite picture
at the same time (Slideshow)
USB
Internet Radio
Media Server
1
Play back a still picture.
•Playing back still pictures stored on USB memory devices
(vpage33).
•Playing back still pictures stored on Flickr (vpage52).
2
Play back a music file or Internet Radio station
(vpage44, 49).
3
Press OPTION.
The option menu screen is displayed.
4
Use ui to select “Slideshow”, then press ENTER.
The option menu disappears, and the picture you were viewing
is shown on the screen.
OPTION
USB
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
MP3 128kbps
Repeat
Option
Random
Slideshow
Video Select
Playing back still images in sequential
order (Slideshow Time)
You can play back still image (JPEG) files stored on a USB memory
device or Media Server and pictures on Flickr website as a slide show.
The display time can also be set.
USB
Media Server
Flickr
1
Play back an image and press OPTION.
The option menu screen is displayed.
2
Use ui to select “Slideshow Time”, then press
ENTER.
OPTION
USB [1/9]
D&M1
D&M2
D&M3
Music1
Music2
Music3
Music4
Option
Option
Text Search
Repeat
Random
Video Select
Slideshow Time
3
Use o p to set the display time.
•Each time o p is pressed, the setting is changed as shown below.
Off 5s 10s 15s
20s60s 30s
O
The slide show is not played back.
5s – 60s
Set the time for displaying a single image when playing
back images in the slide show.
4
Press ENTER.
The slide show is displayed on the screen.
This unit plays back image (JPEG) files in the orientation in which they
are stored in the folder.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
66
Convenient functions
4
If you selected “On” in step 3, press i and select
“Source”.
5
Press o p to select the input source for video you
want to play back, and press ENTER.
Playback starts.
NOTE
Input sources for which “Hide” is selected at “Hide Sources”
(vpage97) cannot be selected.

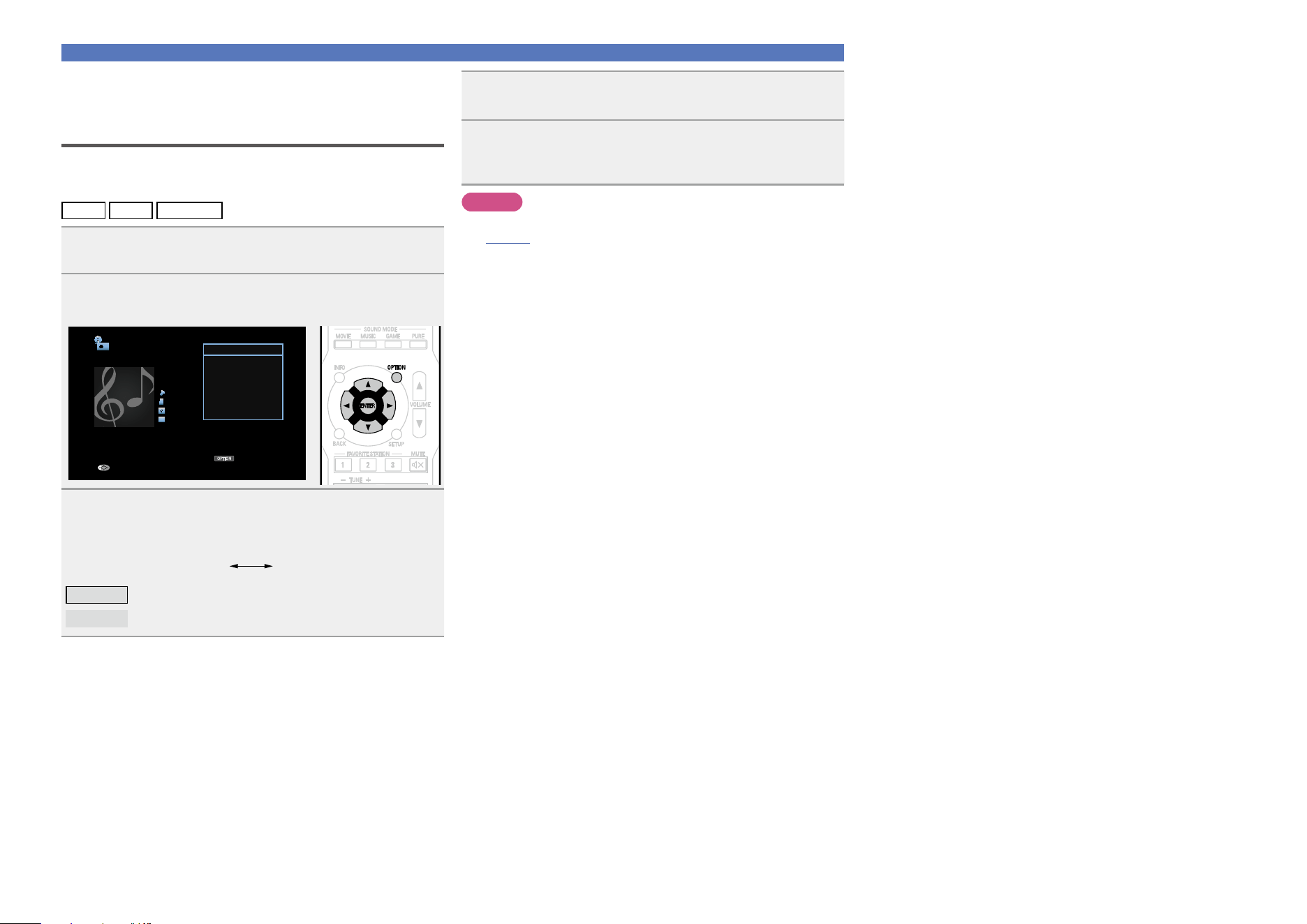

Displaying your desired video on the
monitor during audio playback (Video
Select)
This unit can display video from a dierent source on TV during audio
playback.
You can set this for each input source.
USB
TUNER
NETWORK
1
Press OPTION during audio playback.
The option menu screen is displayed.
2
Use ui to select “Video Select”, then press ENTER.
OPTION
Internet Radio
Title
Now Playing
Artist
Album
00:06 100%
Back
MP3 128kbps
Option
Save to Favorite
Option
Slideshow
Video Select
3
Use o p to select the Video Select mode.
•Each time o p is pressed, the setting is changed as shown below.
Off On
O
Disable Video Select mode.
On
Enable Video Select mode.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
67
AirPlay function
Enjoy music from your iTunes library with high quality sound anywhere
in your home.
Use the Apple Remote App
z
for iPhone, iPod touch and iPad to
control iTunes from any room in your home.
z Available as a free download from the App Store.
n Streaming music stored in iPhone, iPod touch,
or iPad directly to the unit
If you update your “iPhone/iPod touch/iPad” to iOS 4.2.1 or later,
you can stream music stored in your “iPhone/iPod touch/iPad”
directly to this unit.
1
Make the Wi-Fi settings for iPhone, iPod touch, or
iPad.
•For details, see your device’s manual.
2
Startup iPhone, iPod touch, or iPad music or iPod
app.
is displayed on the iPhone, iPod touch or iPad screen.
3
Tap the AirPlay icon .
4
Select the speaker you want to use.
Cancel
Denon AVR-E300
NOTE
In playback using the AirPlay function, the sound is output at the
iPhone, iPod touch, iPad or iTunes volume setting level.
You should turn down the iPhone, iPod touch, iPad or iTunes volume
prior to playback and then adjust it to a suitable level.
n Playing iTunes music with this unit
1
Install iTunes 10, or later, on a Mac or Windows PC
that is connected to the same network as this unit.
2
Turn this unit ON.
Set “IP Control” (vpage103) to “Always On” for this unit.
NOTE
When “IP Control” is set to “Always On”, the unit consumes more
standby power.
3
Launch iTunes and click the AirPlay icon
displayed the window and select this unit from the
list.
4
Choose a song and click play in iTunes.
The music will stream to this unit.
Selecting multiple speakers (devices)
It is possible to play iTunes songs on your home’s AirPlay compatible
speakers (devices) other than those of this unit.
1
Click the AirPlay icon and select “Multiple”.
2
Check the speakers you want to use.
My Computer
Denon AVR-E300
Master Volume
AirPlay Single Multiple
Basic instructions
Advanced instructions
Information
Basic instructions
v See overleaf
DVD
68

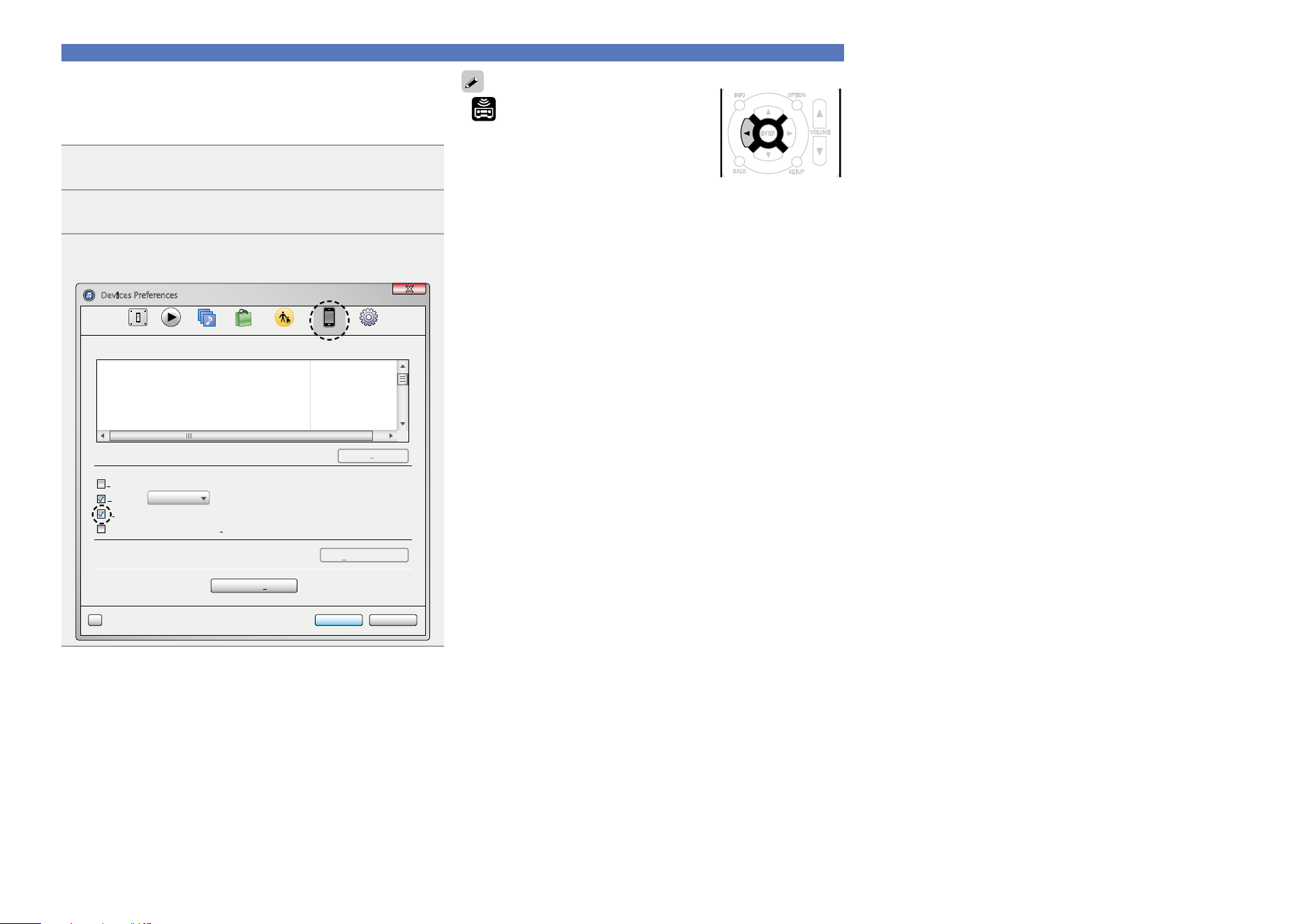

AirPlay function
n Perform iTunes playback operations with the
remote control unit of this unit
With this unit’s remote control unit, you can perform iTunes song
play, pause, and auto search (cue) operations.
1
Select “Edit” – “Preferences...” on the menu.
2
Select “Devices” in the iTunes setting window.
3
Check “Allow iTunes audio control from remote
speakers”, and then click “OK”.
OK Cancel
?
Devices Preferences
General Playback Sharing Store Parental Advanced
more than 5%Warn when
Delete Backup ...
Device backups:
Forget All Remotes
Reset Sync History
of the data on this computer will be changed
Prevent iPods, iPhones, and iPads from syncing automatically
Allow iTunes audio control from remote speakers
Only allow paired or Home Sharing Remotes to control iTunes
iTunes is not paired with any Remotes
Devices
• is displayed on the menu screen while
AirPlay is being operated.
•Source input will be switched to
“NETWORK” when AirPlay playback is
started.
•You can stop AirPlay playback by pressing the o or choosing other
input source.
•To see song and artist names together, press STATUS on the main
unit.
•For information about how to use iTunes, also see the Help for
iTunes.
•The screen may dier depending on the OS and software versions.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
69

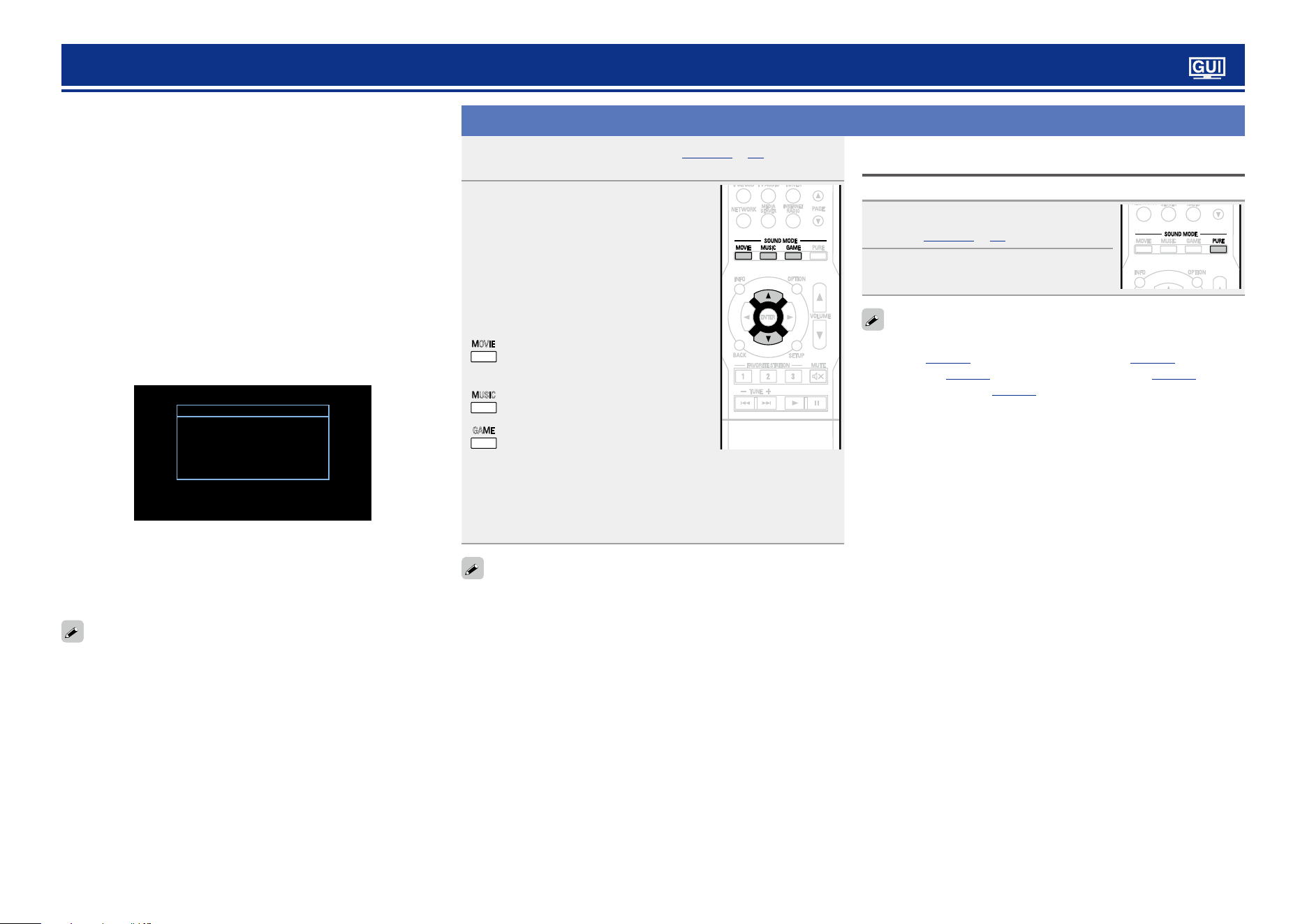

Selecting a listening mode (Sound Mode)
This unit allows you to enjoy various kinds of surround and stereo
playback modes.
Multi-channel audio formats are provided on popular movie and music
disc formats such as Blu-ray and DVD, as well as being supported by
digital broadcasting, and even by streaming movies and music from
internet-based subscription services.
This unit supports playback of almost all of these multi-channel audio
formats. It also supports surround playback of audio formats other
than multi-channel audio such as 2-channel stereo audio.
This unit automatically generates a list of all the playable sound
modes based on the input audio format and the current speaker setup
configuration and displays the list on the screen. Therefore, you can
select a correct surround playback mode even if you are not familiar
with sound mode selection. Try out various surround playback modes
and enjoy surround playback in your favorite mode.
GExampleH When MOVIE is pressed and held
STEREO
MOVIE SOUND
DOLBY PLII Cinema
DTS NEO:6 cinema
MULTI CH STEREO
MONO MOVIE
VIRTUAL
This unit provides not only sound modes that conform to the formats
recorded on discs such as Dolby and DTS but also extended types of
modes that create atmosphere of ROCK ARENA and JAZZ CLUB, etc.
The displayed sound modes include the 2-channel stereo playback
mode with no additional surround sound synthesis.
For audio formats recorded on a disc, see the disc jacket or label.
Selecting a listening mode
1
Play the selected device (vpage28 – 60).
2
Press and hold MOVIE, MUSIC
or GAME to select a listening
mode.
This unit automatically generates and
displays a list of selectable sound
modes.
•Each time MOVIE, MUSIC or GAME is
pressed, the listening mode is switched.
MOVIE
Switches to the listening mode
suitable for enjoying movies and TV
programs.
MUSIC
Switches to the listening mode
suitable for enjoying music.
GAME
Switches to the listening mode
suitable for enjoying games.
•Pressing
MOVIE, MUSIC or GAME displays a list of the listening
modes that can be selected. Each time you press MOVIE, MUSIC
or GAME, the listening mode changes.
•While the list is displayed, you can also use ui to select a
listening mode.
•The MOVIE, MUSIC, or GAME button memorizes the last sound
mode selected for its button. Pressing MOVIE, MUSIC, or GAME
recalls the same sound mode as the one selected at the previous
playback.
•If the content played back does not support the previously selected
sound mode, the most appropriate sound mode for the content is
automatically selected.
Direct playback
Sound recorded in source is played as is.
1
Play the selected device
(vpage28 – 60).
2
Press PURE to select “DIRECT”.
Direct playback begins.
In DIRECT listening modes, the following items cannot be adjusted.
•Tone (vpage88) •Restorer (vpage88)
•MultEQ
®
(vpage89) •Dynamic EQ (vpage90)
•Dynamic Volume (vpage90)
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
70
Selecting a listening mode
n Listening mode
•The following listening modes can be selected using the MOVIE, MUSIC, GAME, and PURE buttons.
•Adjust the sound field eect with the menu “Surr.Parameter” (vpage86) to enjoy surround sound the way you like it.
Operation
button
Input signal Listening mode
MOVIE
2-channel
z1
STEREO
DOLBY PLg Cinema
z2
DTS NEO:6 Cinema
z2
MULTI CH STEREO
MONO MOVIE
VIRTUAL
Multi-channel
z3
STEREO
Dolby Digital DOLBY DIGITAL
Dolby TrueHD DOLBY TrueHD
Dolby Digital
Plus
DOLBY DIGITAL Plus
DTS
DTS SURROUND
DTS 96/24
DTS-HD /
DTS Express
DTS-HD HI RES
DTS-HD MSTR
DTS Express
PCM multi-
channel
MULTI CH IN
MULTI CH STEREO
MONO MOVIE
VIRTUAL
Operation
button
Input signal Listening mode
MUSIC
2-channel
z1
STEREO
DOLBY PLg Music
z2
DTS NEO:6 Music
z2
MULTI CH STEREO
ROCK ARENA
JAZZ CLUB
MATRIX
VIRTUAL
Multi-channel
z3
STEREO
Dolby Digital DOLBY DIGITAL
Dolby TrueHD DOLBY TrueHD
Dolby Digital
Plus
DOLBY DIGITAL Plus
DTS
DTS SURROUND
DTS 96/24
DTS-HD /
DTS Express
DTS-HD HI RES
DTS-HD MSTR
DTS Express
PCM multi-
channel
MULTI CH IN
MULTI CH STEREO
ROCK ARENA
JAZZ CLUB
MATRIX
VIRTUAL
z1 2-channel also includes analog input.
z2 This mode plays back 2-channel sources in 5.1-channel playback.
It cannot be selected when headphones are used, or when only
front speakers are used.
z3 Some listening modes cannot be selected, depending on the
audio format or number of channels of the input signal. For
details, see “Types of input signals, and corresponding sound
modes” (vpage120).
Basic instructions
Advanced instructions
Information
Basic instructions
v See overleaf
DVD
71
Selecting a listening mode
z1 2-channel also includes analog input.
z2 This mode plays back 2-channel sources in 5.1-channel playback.
It cannot be selected when headphones are used, or when only
front speakers are used.
z3 Some listening modes cannot be selected, depending on the
audio format or number of channels of the input signal. For
details, see “Types of input signals, and corresponding sound
modes” (vpage120).
Operation
button
Input signal Listening mode
GAME
2-channel
z1
STEREO
DOLBY PLg Game
z2
MULTI CH STEREO
VIDEO GAME
VIRTUAL
Multi-channel
z3
STEREO
Dolby Digital DOLBY DIGITAL
Dolby TrueHD DOLBY TrueHD
Dolby Digital
Plus
DOLBY DIGITAL Plus
DTS
DTS SURROUND
DTS 96/24
DTS-HD /
DTS Express
DTS-HD HI RES
DTS-HD MSTR
DTS Express
PCM multi-
channel
MULTI CH IN
MULTI CH STEREO
VIDEO GAME
VIRTUAL
PURE
All DIRECT
Views on the TV screen or display
+ DVD
q w
q Shows a decoder to be used.
•A DOLBY DIGITAL Plus decoder is displayed as “ ”.
w Shows the name of the input source being played back.
Basic instructions
Advanced instructions
Information
Basic instructions
v See overleaf
DVD
72
Selecting a listening mode
n Description of listening mode types
Dolby listening mode
Listening mode type Description
DOLBY PLg This mode can be selected when the Dolby Pro Logic g decoder is used to
play back 2-channel sources in 5.1-channel surround sound with an enveloping
surround sound experience.
DOLBY DIGITAL This mode can be selected when playing sources recorded with Dolby Digital.
DOLBY TrueHD This mode can be selected when playing sources recorded in Dolby TrueHD.
DOLBY DIGITAL Plus This mode can be selected when playing sources recorded with Dolby Digital
Plus.
DTS listening mode
Listening mode type Description
DTS NEO:6 This mode can be selected when a DTS NEO:6 decoder is used to play back
2-channel source in 5.1-channel surround sound.
There is a “Cinema” mode optimized for movie playback, and a “Music” mode
optimized for music playback.
DTS SURROUND This mode can be selected when playing sources recorded in DTS.
DTS 96/24 This mode can be selected when playing sources recorded in DTS 96/24.
DTS-HD This mode can be selected when playing sources recorded in DTS-HD.
DTS Express This mode can be selected when playing sources recorded in DTS Express.
PCM multi-channel listening mode
Listening mode type Description
MULTI CH IN This mode can be selected when playing multi-channel PCM sources from a
disc player or external decoder that features analog multi-channel outputs .
Original listening mode
Listening mode type Description
MULTI CH STEREO This mode is for enjoying stereo sound from all speakers.
Stereo audio (2 channel) sources are played back via the front (L/R) speakers,
the surround speakers.
ROCK ARENA This mode simulates the expansive sound of a live concert in an arena.
JAZZ CLUB This mode puts you right in the middle of an intimate jazz club.
MONO MOVIE This mode works with monaural audio sources and delivers a surround sound
eect. For optimum channel balance and surround sound eects, connect the
monaural source to both of the front (L/R) audio inputs.
VIDEO GAME This mode provides an exciting, dynamic surround sound eect with your
favorite action video games.
MATRIX This mode adds a spacious surround sound eect with stereo music sources.
VIRTUAL This mode lets you experience an expansive surround sound eect when
playing back through just the front (L/R) speakers only, and when listening with
stereo headphones.
STEREO listening mode
Listening mode type Description
STEREO This mode plays 2-channel stereo audio with no additional surround sound
processing.
•Sound is output from the front left and right speakers, and subwoofer if
connected.
•When multi-ichannel signals are inputted, they are mixed down to 2-channel
audio and are played back with no additional surround sound processing.
Direct listening mode
Listening mode type Description
DIRECT This mode provides a direct input-to-output path with minimal audio processing,
bypassing any unnecessary stages for purest sound.
Basic instructions
Advanced instructions
Information
Basic instructions
DVD
Advanced instructions
73
F Installation/connection/setup of speakers (Advanced) vpage74
F Playback (Advanced operation) vpage78
F How to make detailed settings vpage81
Advanced instructions
Here we explain functions and operations in more detail so that you can maximize your
enjoyment with this unit.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
74
Procedure for speaker settings
Speaker installation
Speaker connection (vpage75)
Speaker installation
•Determine the speaker system depending on the number of speakers
you are using and install each speaker and subwoofer in the room.
Here, we explain how to install the speakers using a typical example.
•The speaker impedance should be from 6 to 16 Ω/ohms.
Use the illustration below as a guide for how high each speaker should
be installed. The height does not need to be exactly the same.
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Front
speaker
When 5.1-channel speakers are installed
FL FR
SW
C
SL
SR
z1
z2
Listening position
z1 22˚ – 30˚ z2 120˚
GSpeaker abbreviationsH
FL Front speaker (L) SW Subwoofer
FR Front speaker (R) SL Surround speaker (L)
C Center speaker SR Surround speaker (R)
Installation/connection/setup of speakers (Advanced)
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
75

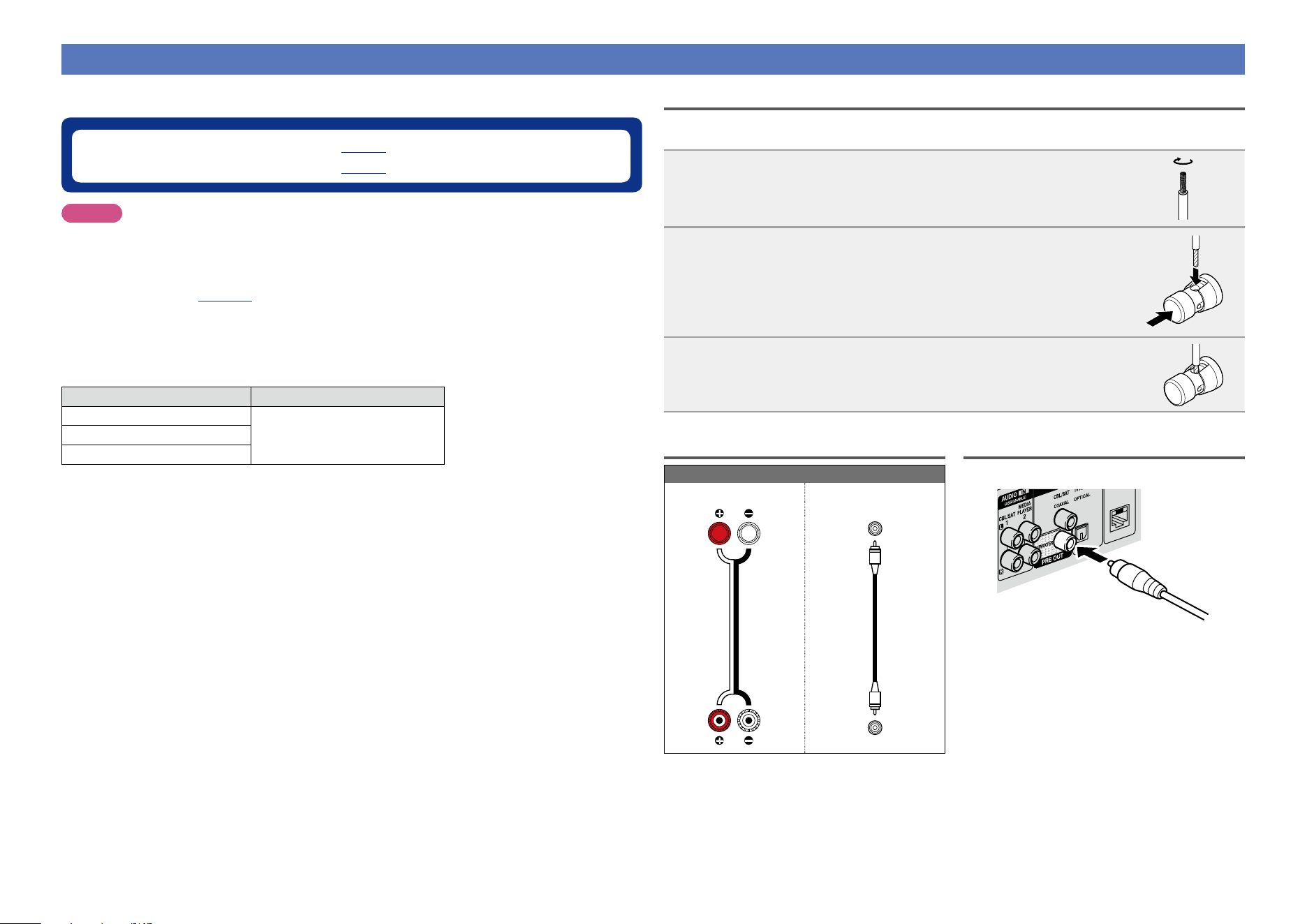

Speaker connection
Here we connect the speakers in the room to this unit.
This section explains how to connect them using typical examples.
n Connecting 5.1-channel speakers (vpage76)

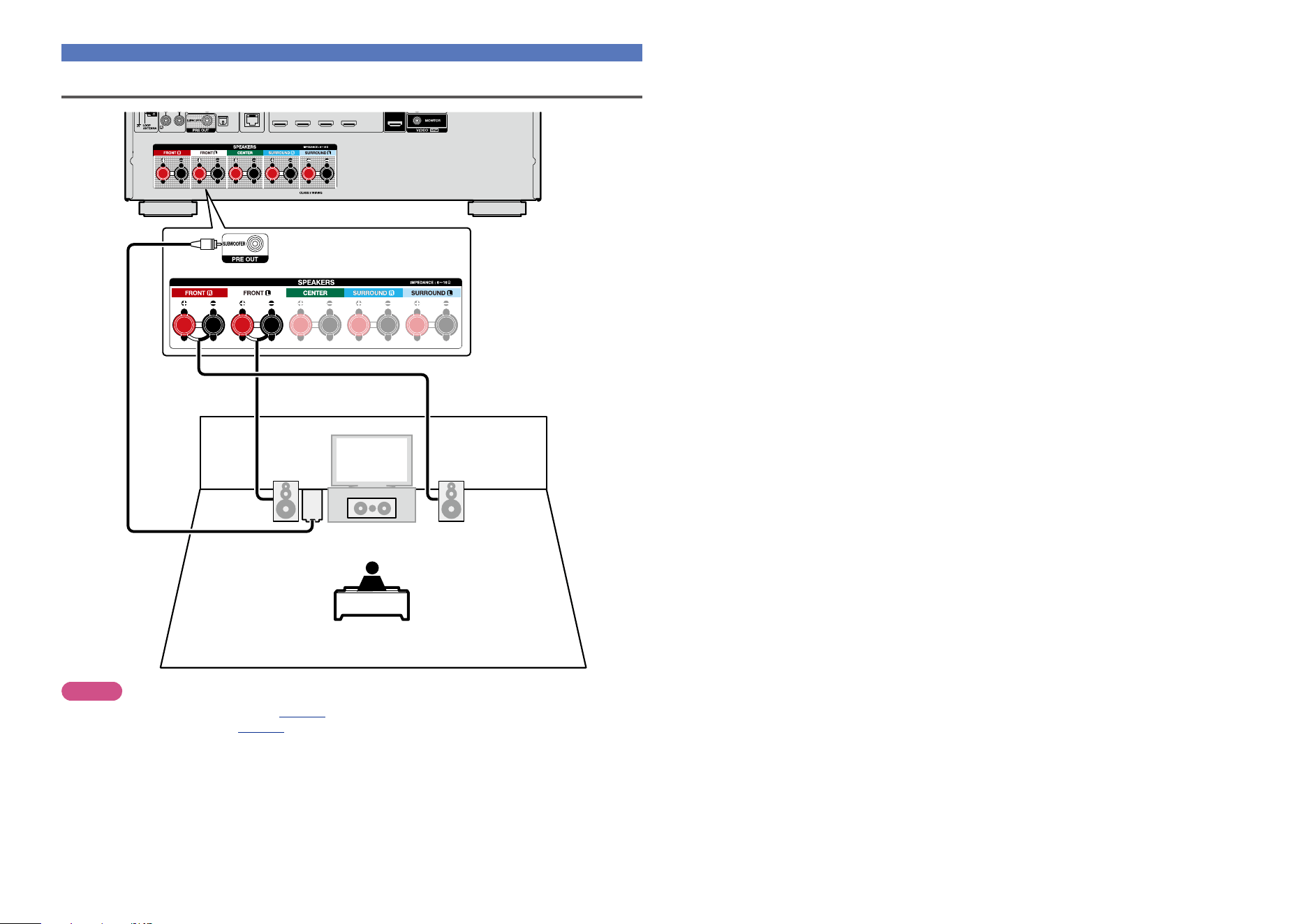

n Connecting 2.1-channel speakers (vpage77)
NOTE
•Disconnect this unit’s power plug from the power outlet before connecting the speakers. Also,
turn o the subwoofer.
•Connect so that the speaker cable core wires do not protrude from the speaker terminal. The
protection circuit may be activated if the core wires touch the rear panel or if the + and – sides
touch each other (vpage123 “Protection Circuit”).
•Never touch the speaker terminals while the power cord is connected. Doing so could result
in electric shock. When the “Setup Assistant” is running, follow the instructions in the “Setup
Assistant” screen for making connections. (Power is not supplied to the speaker terminals while
the “Setup Assistant” is running.)
•Use speakers with the speaker impedances shown below.
Speaker terminals Speaker impedance
FRONT
6 – 16 Ω/ohmsCENTER
SURROUND
Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being
connected to this unit, and be sure to connect the channels and polarities correctly.
1
Peel o about 3/8 inch (10 mm) of sheathing from the tip of the
speaker cable, then either twist the core wire tightly or terminate
it.
2
Press the speaker terminal to show the terminal hole.
3
Release your finger from the speaker terminal to fix the speaker
cable.
Cables used for connections
Audio cable (sold separately)
Speaker cable Subwoofer cable
Connecting the subwoofer
Use a subwoofer cable to connect the subwoofer.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
76
Speaker connection
n About the speaker cable label (supplied) for channel identification
The channel display section for speaker terminals on the rear panel is color-coded for each channel to
be identifiable.
Speaker terminals Color
FRONT L White
FRONT R Red
CENTER Green
SURROUND L Light blue
SURROUND R Blue
Attach the speaker cable label for each channel to its speaker cable as shown in the diagram.
Then, make connection so that the color of the speaker terminal matches that of the speaker cable
label.
GHow to attach the speaker cable labelH
Speaker This unit
Connecting 5.1-channel speakers
FL FR
C
SL
SR
SW
NOTE
•For speaker cable connections, see page75.
•For speaker impedance, see page75.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
78
Setup (vpage20)
Playback (Basic operation) (vpage27)
Selecting a listening mode (Sound Mode)
(vpage69)
n HDMI control function (vpage78)
n Sleep timer function (vpage79)
n Quick select function (vpage80)
n Various memory functions (vpage80)
Playback (Advanced operation)
HDMI control function
A recent addition to the HDMI standard is CEC, which allows control
signals from one device to communicate with another device via the
HDMI cable connection. Not all HDMI-equipped devices allow .
n Operations possible by HDMI control
•This unit’s power o function can be linked to the TV power
o operation.
•You can switch audio output devices with a TV operation.
When you set “Output audio from amp” in the TV audio output
setup operation, you can switch the AV receiver unit’s power on.
•You can adjust this unit’s volume in the TV volume adjustment
operation.
•You can switch this unit’s input sources through linkage to TV
input switching.
•When playing a disc player, this unit’s input source switches
to the appropriate source for that player.
•If you switch the input source of the unit to “TV AUDIO”, you
can play TV audio with this unit (vpage 8 “About ARC
(Audio Return Channel) function”).
•When “HDMI Control” (vpage 92) in the menu is set to
“On”, signals input to the HDMI input connector are output to
the television or other device connected to the HDMI output
connector, even if the power of this unit is in standby (pass-
through function).
To use this unit to play the audio of a TV that does not support the ARC
function, connect the TV to this unit with an optical-digital or analog
connection (vpage8).
n Setting procedure
1
Set the HDMI output connector corresponding with
the HDMI control function.
Set “HDMI Control” (vpage92) to “On”.
2
Turn the power on for all the devices connected by
HDMI cable.
3
Set the HDMI control function for all devices
connected by HDMI cable.
•Please consult the operating instructions for the connected devices
to check the settings.
•Carry out steps 2 and 3 should any of the devices be unplugged.
4
Switch the television input to the HDMI input
connected to this unit.
5
Switch this unit input to the HDMI input source and
check if the picture from the player is ok.
6
When you turn the TV’s power to standby, check
that the power of this unit also goes to standby.
Basic instructions
Advanced instructions
Information
Advanced instructions
v See overleaf
DVD
79
HDMI control function
If the HDMI control function does not operate properly, check the
following points.
•Is the TV or player compatible with the HDMI control function?
•Is “HDMI Control” (vpage92) set to “On”?
•Is “Power O Control” (vpage92) set to “All” or “Video”?
•Are the HDMI control function settings of all devices correct?
NOTE
•When “HDMI Control” is set to “On”, it consumes more standby
power.
•The HDMI control function controls operations of a TV that is
compatible with the HDMI control function. Make sure that the TV
and HDMI are connected when you perform HDMI control.
•Some functions may not operate depending on the connected TV
or player. Check the owner’s manual of each device for details
beforehand.
•When “Power O Control” on the menu is set to “O”
(vpage92), this unit is not set to standby even if the connected
device is in the standby mode.
•When connection changes are implemented, such as adding
connections to HDMI devices, linked operations may be initialized.
In this case, you will need to reconfigure the settings.
•When “HDMI Control” is set to “On”, it is not possible to assign an
HDMI connector to “TV AUDIO” at “Input Assign” (vpage95).
•Should any of the operations below be performed, the interlocking
function may be reset, in which case, repeat steps 2 and 3.
•“Input Assign” – “HDMI” (vpage95) setting has changed.
•There is a change to the connection between the devices and the
HDMI, or an increase in devices.
Sleep timer function
You can have the power automatically switched to standby once a set
time has elapsed. This is convenient for viewing and listening while
going to sleep.
Press SLEEP and display the time
you want to set.
The SLEEP indicator on the display lights.
•The time switches as shown below each time SLEEP is pressed.
Off 10 min 20 30 40 50
6080 7090100
110
120
To confirm the countdown time before putting the
unit to sleep
•Press SLEEP.
“Sleep : zmin” appears on the display.
z Countdown time
To cancel the sleep timer
Press SLEEP to set “O”.
The SLEEP indicator on the display turns o.
The sleep timer setting is canceled if this unit’s power is set to
standby.
NOTE
The sleep timer function cannot turn o the power of devices
connected to this unit. To turn o the power of those connected
devices, set up sleep timers on the connected devices themselves.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
80
Quick select function
You can save settings such as the input source selection, volume
level, and sound mode at the QUICK SELECT 1 – 4 buttons.
You can simply press one of the set QUICK SELECT buttons for
subsequent playback to switch to various saved settings all at once.
•By saving frequently used settings at the QUICK SELECT 1 – 4
buttons, you will always be able to easily call up the same playback
environment.
Press QUICK SELECT.
The Quick Select settings for the button you pressed are called up.
•The default settings of each Quick Select function are as shown
below.
Button Input source Volume
Sound
Mode
QUICK SELECT 1 CBL/SAT 40 STEREO
QUICK SELECT 2 Blu-ray 40 STEREO
QUICK SELECT 3 GAME 40 STEREO
QUICK SELECT 4 NETWORK 40 STEREO
Changing the Quick Select Name
On this unit, you can change the Quick Select Name displayed on the
menu to the name that you prefer.
For the name change method, see “Quick Sel.Names” (vpage107).
n Changing the settings
1
Set the items below to the settings you want to save.
q Input source (vpage27)
w Volume (vpage28)
e Sound Mode (vpage69)
r Audyssey
(Audyssey MultEQ
®
, Audyssey Dynamic EQ
®
, Audyssey
Dynamic Volume
®
) (vpage89)
2
Press and hold the desired QUICK SELECT until
“Quickz Memory” appears on the display.
The current settings will be memorized.
z The number for the
QUICK SELECT button you pressed is
displayed.
Various memory functions
Personal memory plus function
This function sets the settings (input mode, sound mode, HDMI
output mode, MultEQ
®
, Dynamic EQ, audio delay etc.) last selected
for the individual input sources.
The surround parameters, tone control settings and the volumes of
the dierent speakers are stored for the individual sound modes.
Last function memory
This function stores the settings which were made before going into
the standby mode.
When the power is turned back on, the settings are restored.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
81
Menu map
For menu operation, connect a TV to this unit and display the menu on the TV screen. For menu operations, see the following page.
By default, this unit has recommended settings defined. You can customize this unit based on your existing system and your preferences.
How to make detailed settings
Setting items Detailed items Description Page
Audio
Dialog Level Adjusts and enhances the frequency band
corresponding to the human voice at the center
channel to make the voice clearer.
86
Subwoofer Level This setting adjusts the volume level for the
subwoofer.
86
Surr.Parameter Adjusts surround sound parameters.
86
Tone Adjusts the tonal quality of the sound.
88
Restorer Expands the low and high frequency components
of compressed audio content such as MP3 files
to enable richer audio playback.
88
Audio Delay Compensates for incorrect timing between video
and audio.
88
Volume Set the MAIN ZONE (room where the unit is
located) volume setting.
89
Audyssey Makes Audyssey MultEQ
®
, Audyssey Dynamic
EQ
®
and Audyssey Dynamic Volume
®
settings.
89
Manual EQ Uses the graphic equalizer to adjust the tone of
each speaker.
90
Video
HDMI Setup Makes settings for HDMI video/audio output.
92
On Screen Disp. Select the on-screen display user interface
preferences.
93
TV Format Set the video output signal format for the TV you
are using.
93
Inputs
Input Assign Changes input connector assignment.
95
Source Rename Changes the display name for this source.
97
Hide Sources Remove from the display input sources that are
not used.
97
Source Level Adjusts the playback level of the audio input.
97
Input Select Sets the audio input mode and decode mode.
97
Speakers
Audyssey
®
Setup The acoustic characteristics of the connected
speakers and listening room are measured and
the optimum settings are made automatically.
20
Manual Setup Perform when setting the speakers manually
or when changing settings made in Audyssey
®
Setup.
99
Setting items Detailed items Description Page
Network
Information Display network information.
103
IP Control Enables network communication in standby
power mode.
103
Friendly Name The Friendly Name is the name of this unit
displayed on the network. You can change the
Friendly Name according to your preferences.
103
Settings Make settings for wired LAN.
104
Diagnostics Used to check the network connection.
105
General
Language Sets the language for display the menu on the
TV screen.
107
Quick Sel.Names Change the “Quick Select” display title to one
you prefer.
107
Auto Standby When you do not perform any operation on this
unit with no audio or video input for a specified
time, this unit automatically enters the standby
mode. Before it enters the standby mode, “Auto
Standby” is displayed on the display of this unit
and the menu screen.
107
Front Display Makes settings related to the display on this unit.
107
Information Show information about receiver settings, input
signals, etc.
108
Usage Data Selects whether or not to send anonymous
usage data to Denon.
109
Firmware Set whether or not to check for firmware update,
update the firmware, and display update and
upgrade notifications.
109
Setup Lock Protect settings from inadvertent changes.
110
Setup
Assistant
Perform the installation, connection, and setup procedures to prepare the
unit for operation following guidance from the setup section of this manual.
C 7
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
82

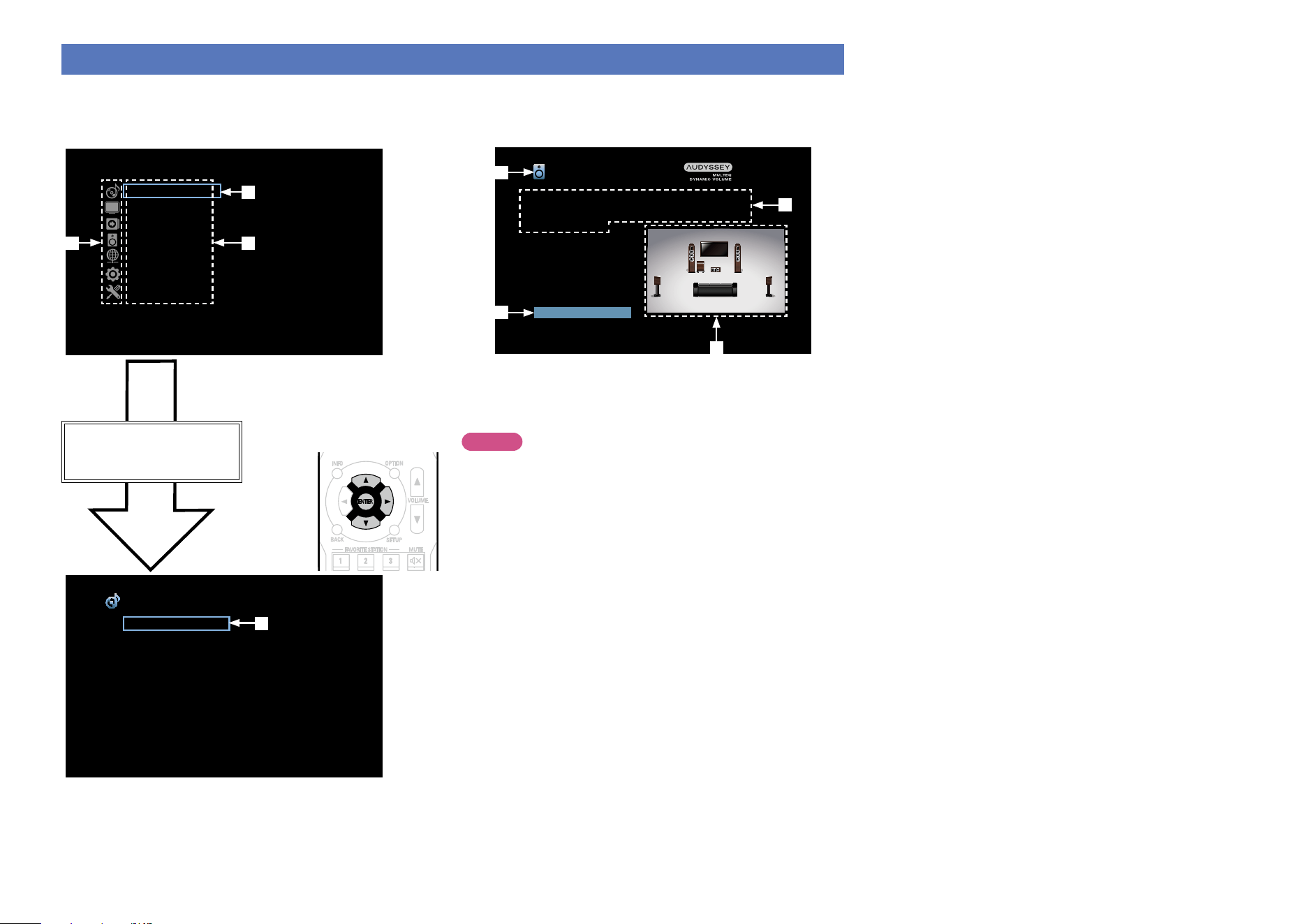

Examples of menu screen displays
Typical examples are described below.
GExample 1H
Menu selection screen (Top menu)
Dialog Level
Audio
Subwoofer Level
Surr. Parameter
Tone
Restorer
Audio Delay
Volume
Audyssey
Manual EQ
q List of GUI menu setup icons
w Currently selected setup item
e List of GUI menu setup items
Press ui to select “Audio”
and then press p.
(Or press ENTER.)
r
Setup Menu
Audio
Video
Inputs
Speakers
Network
General
Setup Assistant
e
w
q
r Selected setup item
GExample 2H
Audyssey
®
Setup screen (with illustration)
Audyssey Setup
Your AVR can automatically measure the
acoustics of your room and the optimize
your speakers.
Start
u
i
y
t Currently selected setup icon
y Operation guidance text
u Selected setup item
i Illustration
t
NOTE
When the menu is operated on a computer’s resolution (e.g. VGA)
or during playback of certain 3D video content, the playback image
switches to the menu screen image.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
83

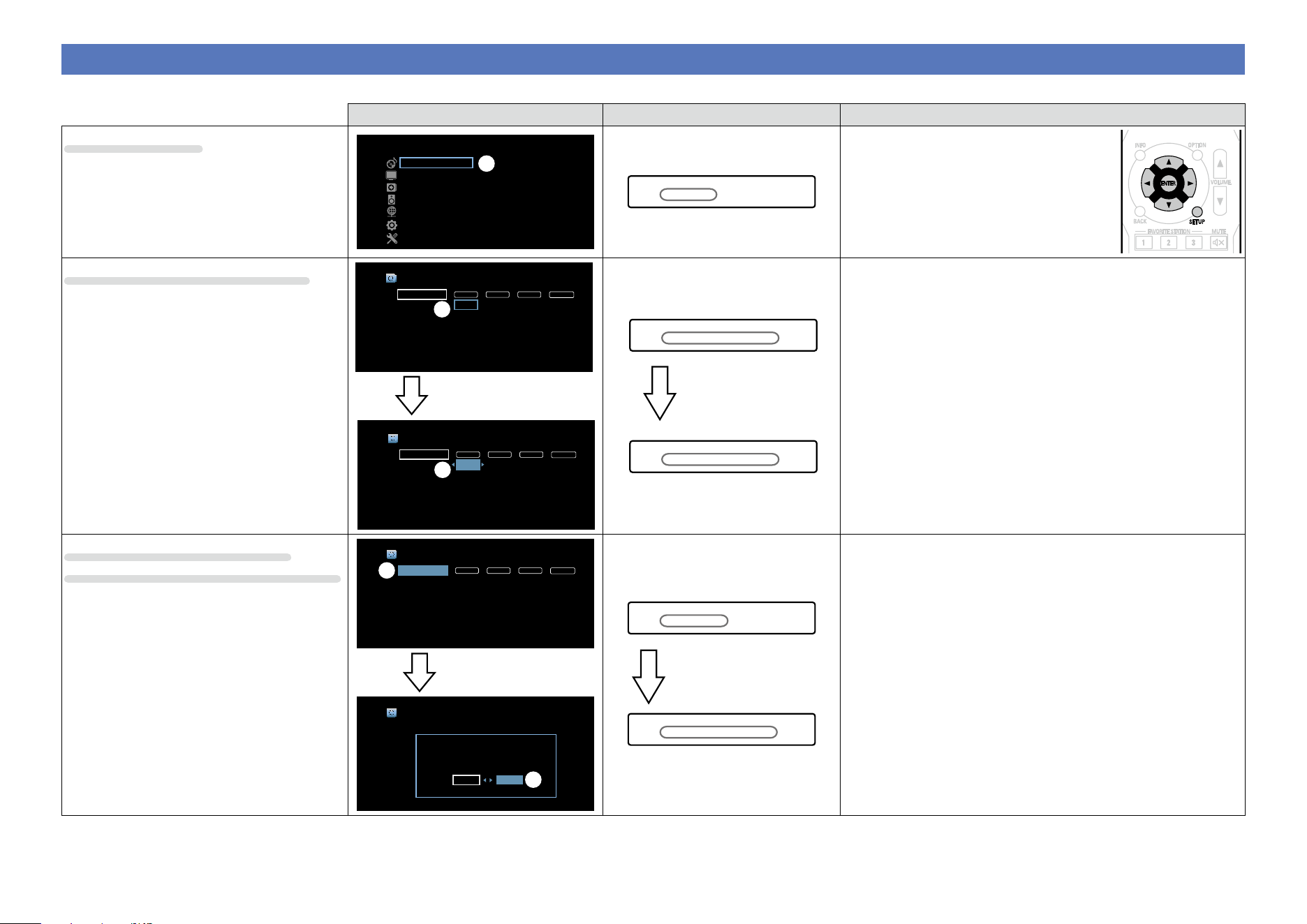

Examples of menu and front display
Below we describe typical examples of displays on the TV screen and on the set’s display window.
Menu display Front display Description
Top menu display
Setup Menu
Audio
Video
Inputs
Speakers
Network
General
Setup Assistant
w
w
Audio
q Press SETUP to display the menu screen.
w TV screen: Displays the selected line.
Display: Displays the selected item.
•Use ui to move to the item you want to
set.
Display when changing settings
DIGITAL ANALOGHDMI VIDEO
Set Defaults
Input Assign
CBL/SAT
DVD
Blu-ray
GAME
MEDIA PLAYER
TV AUDIO
AUX
1
2
3
4
－
－
Front
Coax
－
－
－
－
Opt
－
1
－
－
－
2
－
－
1
－
－
－
2
－
－
q
DIGITAL ANALOGHDMI VIDEO
Set Defaults
Input Assign
CBL/SAT
DVD
Blu-ray
GAME
MEDIA PLAYER
Set Defaults
CBL/SAT
DVD
Blu-ray
GAME
TV AUDIO
AUX
1
2
3
4
－
－
Front
Coax
－
－
－
－
Opt
－
1
－
－
－
2
－
－
1
－
－
－
2
－
－
e
Press ENTER.
q
CBL/SAT [HDMI1 ]
e
CBL/SAT •HDMI1 –
Press ENTER.
q TV screen: Displays the selected line.
Display: Displays the selected item.
•Use
ui to move to the item you want to set.
w Press ENTER to set to the mode in which the setting can be made.
e 0 1 is displayed at the sides of items whose setting can be
changed. Use o p to change to the desired setting.
Display when returning to the
settings in eect at time of purchase
Input Assign
Reset to the default values?
Reset
Cancel
w
Press ENTER.
DIGITAL ANALOGHDMI VIDEO
Set Defaults
Input Assign
CBL/SAT
DVD
Blu-ray
GAME
Set Defaults
CBL/SAT
DVD
Blu-ray
GAME
MEDIA PLAYER
TV AUDIO
AUX
1
2
3
4
－
－
Front
Coax
－
－
－
－
Opt
－
1
－
－
－
2
－
－
1
－
－
－
2
－
－
q
w
Default?:•Cancel
q
Default
Press ENTER.
q Press
u to select “Set Defaults” (TV screen) or “Default” (Display),
then press ENTER.
w Press o to select “Reset”, then press ENTER.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
84

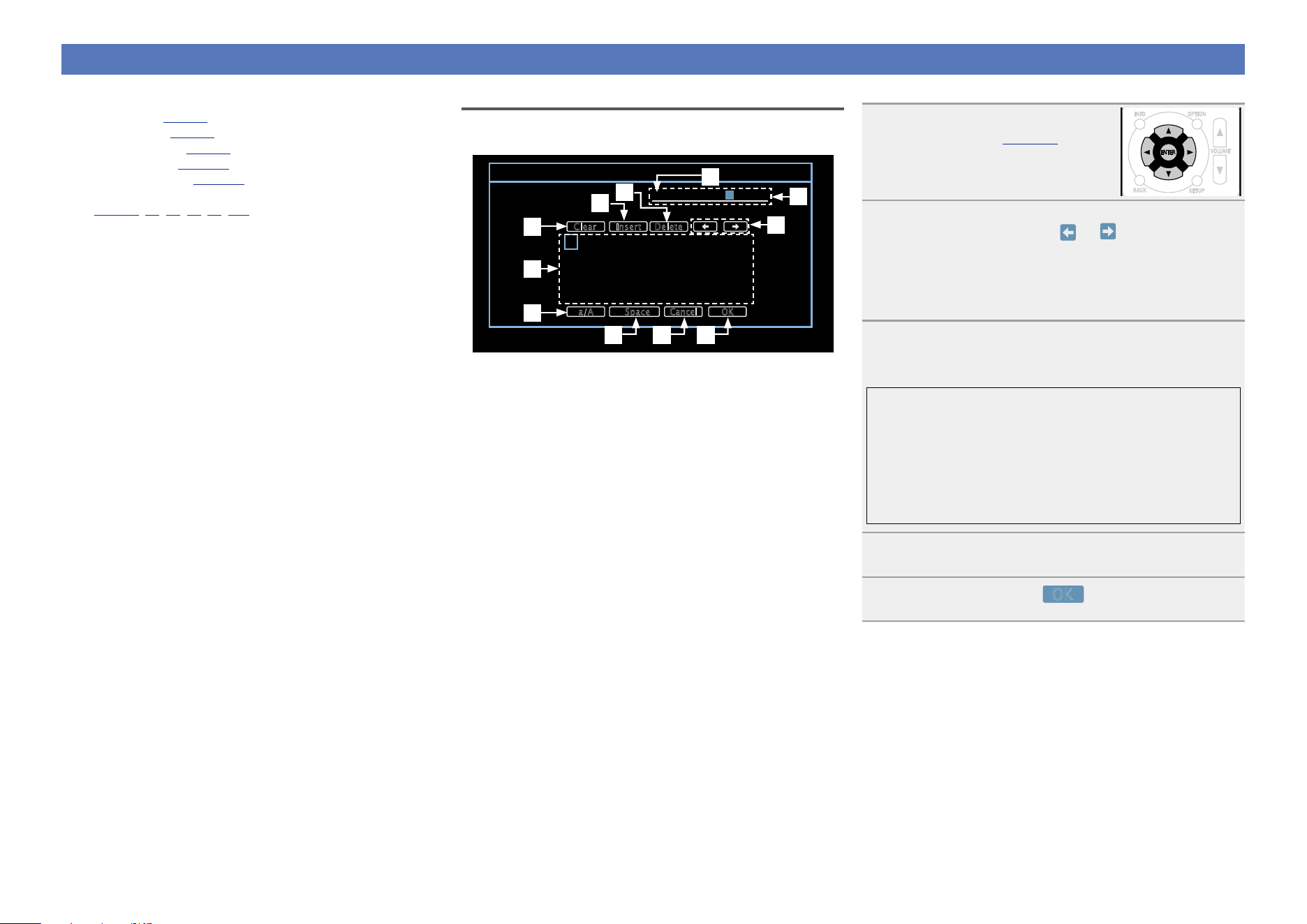

Inputting characters
On this unit, you can change the name displayed on the following
screens to the names that you prefer.
•Text Search (vpage62)
•Preset Name (vpage41)
•Source Rename (vpage97)
•Friendly Name (vpage103)
•Quick Sel.Names (vpage107)
•Character input for the network functions
(vpage44, 52, 54, 58, 60, 104)
Keyboard screen
Select a character on the TV screen to input characters.
GExampleH Source Rename screen
Source Rename
MEDIA PLAYER
A
N
0
$
B
O
1
%
C
P
2
&
D
Q
3
‘
E
R
4
(
F
S
5
)
G
T
6
z
H
U
7
+
I
V
8
,
J
W
9
;
K
X
!
<
L
Y
“
=
M
Z
#
>
a/A Cancel OKSpace
InsertClear Delete
MEDIA PLAYER
t
u
i
o Q0 Q1
y
r
q
w
e
q Clear key
w Insert key
e Delete key
r Cursor
t Character input section
y Cursor keys
u Keyboard section
i Uppercase and lowercase switch key
o Space key
Q0 Cancel key
Q1 OK key
n Input method
1
Display the screen for inputting
characters (vpage 81 “Menu
map”).
2
Select a character to be changed.
q Use uio p to select or .
w Press ENTER to place the cursor at the character
to be changed.
Each time ENTER is pressed, the cursor moves by one
character.
3
Select a character to be input with uio p then
press ENTER.
•The types of characters that can be input are as shown below.
GUpper case characters/Numbers/SymbolsH
ABCDEFGHIJKLMNOPQRSTUVWXYZ
0123456789
! “ # $ % & ’ ( ) z + , ; < = >
GLower case characters/Numbers/SymbolsH
abcdefghijklmnopqrstuvwxyz
0123456789
. @ - _ / : ˜ ? [ \ ] ^ ’ { | }
4
Repeat steps 2 and 3 to change the name.
5
Use uio p to select
OK
, then press ENTER.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
85

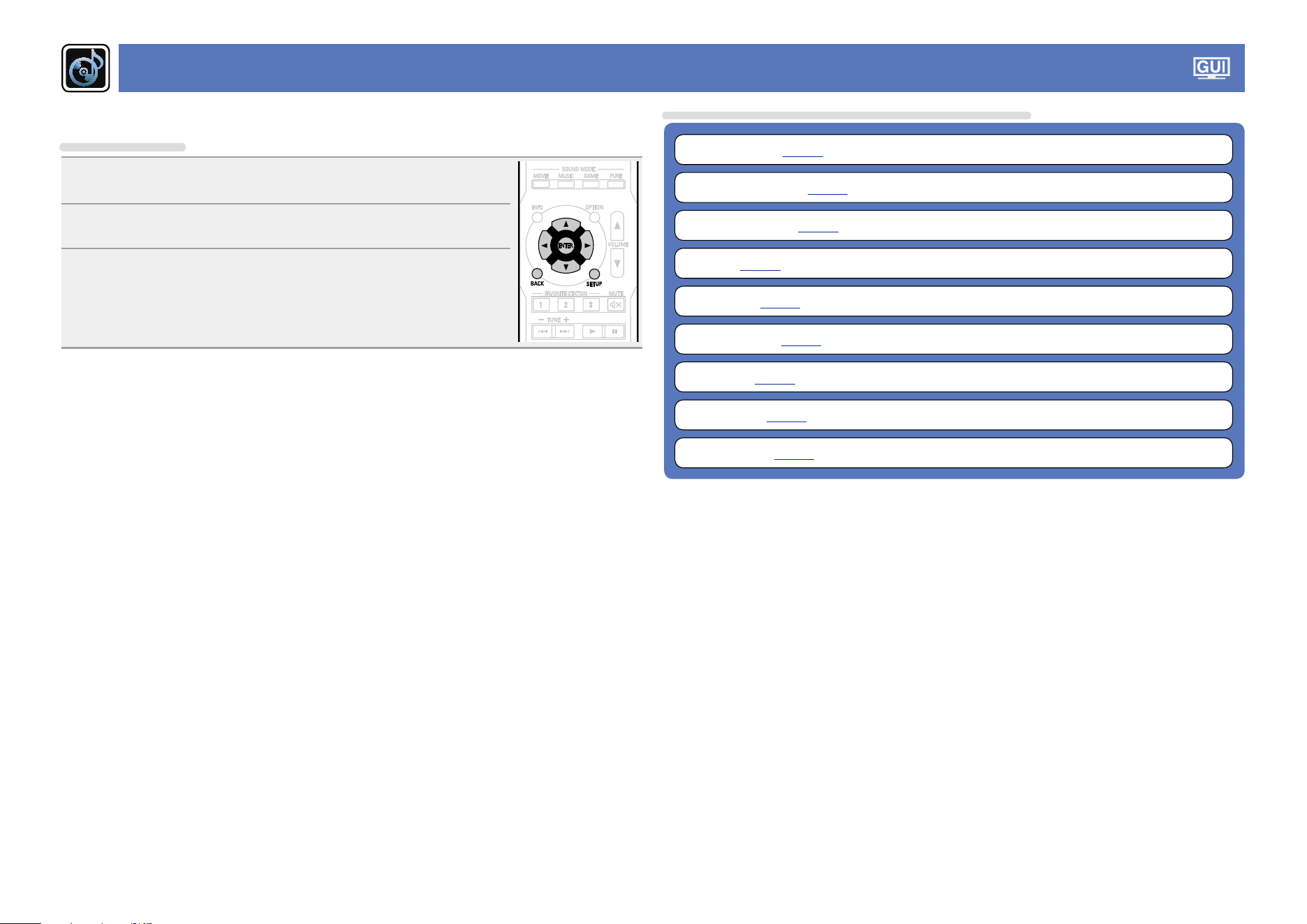

Audio
Make audio-related settings.
Menu operation
1
Press SETUP.
The menu is displayed on the TV screen.
2
Use ui to select the menu to be set or operated.
3
Press ENTER or p to enter the setting.
•To return to the previous item, press o or BACK.
•Exiting the Menu, press SETUP while the menu is displayed.
The menu display disappears.
Items that can be set with the “Audio” procedure
Dialog Level (vpage86)
Subwoofer Level (vpage86)
Surr.Parameter (vpage86)
Tone (vpage88)
Restorer (vpage88)
Audio Delay (vpage88)
Volume (vpage89)
Audyssey (vpage89)
Manual EQ (vpage90)
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
86
Surr.Parameter
Default settings are underlined.
You can adjust the surround audio sound field eects to match your preferences.
The items (parameters) that can be adjusted depend on the signal being input and the currently set
sound mode. For details on the adjustable parameters, see “Sound modes and surround parameters”
(vpage118).
NOTE
Some setting items cannot be set while playback is stopped. Make the settings during playback.
Setting items Setting details
Cinema EQ
Gently softens the upper
treble range of movie
soundtracks to reduce
possible harshness and
improve clarity.
On : “Cinema EQ” is used.
O : “Cinema EQ” is not used.
Loudness Mngmt
This can be set in the
Dolby TrueHD mode. This
sets whether to output
as specified in “Dynamic
Comp.” or output directly
without compressing the
dynamic range of audio
recorded in the disc.
On : Outputs using the settings made in “Dynamic Comp.” and “Dialogue
Normalization” (vpage108) are enabled.
O : “Dynamic Comp.” settings and “Dialogue Normalization” are
disabled, and the signals on the disk are output as is.
Dynamic Comp.
Compress dynamic range
(dierence between loud
and soft sounds).
Auto : Automatic dynamic range compression on/o control according to
source.
Low / Medium / High : These set the compression level.
O : Dynamic range compression is always o.
You can set “Auto” only for the Dolby TrueHD source.
Dialog Level
Default settings are underlined.
Adjusts and enhances the frequency band corresponding to the human voice at the center channel to
make the voice clearer.
Setting items Setting details
Level
–12dB – +12dB (0dB)
Subwoofer Level
Default settings are underlined.
This setting adjusts the volume level for the subwoofer.
Setting items Setting details
Subwoofer
Turn subwoofer output on
and o.
On : The subwoofer is used.
O : The subwoofer is not used.
NOTE
This can be set when the sound mode is “DIRECT” (vpage 69) and
the “Subwoofer Mode” (vpage101) is “LFE+Main”.
Subwoofer Level
This setting adjusts the
volume level for the
subwoofer.
–12dB – +12dB (0dB)
Audio
Basic instructions
Advanced instructions
Information
Advanced instructions
v See overleaf
DVD
87
Setting items Setting details
Delay Time
Adjust the audio delay time
against video to extend the
sound field image. You can
set this when the sound
mode is “MATRIX”.
0ms – 300ms (30ms)
Eect Level
Adjust the sound eect
level of the current listening
mode.
1 – 15 (10)
Set to a lower level if the positioning and sense of phase of the
surround signals seems unnatural.
Room Size
Determine size of acoustic
environment. You can
set this when the sound
mode is one of the original
listening modes.
Small : Simulate acoustics of a small room.
Medium small : Simulate acoustics of a medium-small room.
Medium : Simulate acoustics of a medium room.
Medium large : Simulate acoustics of a medium-large room.
Large : Simulate acoustics of a large room.
NOTE
“Room Size” does not indicate the size of the room in which sources are
played.
Set Defaults
The “Surr.Parameter”
settings are returned to the
default settings.
Reset : Reset to the defaults.
Cancel : Do not reset to the defaults.
When you select “Set Defaults” and press
ENTER, the “Reset all surround parameters
to the factory defaults?” prompt is displayed.
Select either “Reset” or “Cancel”, and press
ENTER.
Audio
Setting items Setting details
Low Frequency
Adjust the low-frequency
eects level (LFE).
–10dB – 0dB
For proper playback of the dierent sources, we recommend setting
to the values below.
•Dolby Digital sources : 0dB
•DTS movie sources : 0dB
•DTS music sources : –10dB
Center Image
Distributes the dialogue
output from the center
channel to the front left and
right channels and widens
the sound image in the
front. You can set this when
the sound mode is set to
DTS NEO:6.
0.0 – 1.0 (0.3)
The smaller the value, the more dialogue is concentrated on the center
channel. The larger the value, the more dialogue is distributed to front
left and right channels, and the more the sound image widens in the
front.
Panorama
Assign front L/R signals
to also go to the surround
channels for wider sound.
You can set this when the
sound mode is Dolby PLg in
the “Music” mode.
On : Set.
O : Do not set.
Dimension
Shift sound image center
to front or rear to adjust
playback balance. You can
set this when the sound
mode is Dolby PLg in the
“Music” mode.
0 – 6 (3)
As you set a smaller number, the surround sound field shifts backward;
as you set a larger number, the surround sound field shifts forward.
Center Width
Distributes the dialogue
output from the center
channel to left and right
channels and widens the
sound image in the front.
You can set this when the
sound mode is Dolby PLgx
in the “Music” mode.
0 – 7 (3)
The smaller the value, the more dialogue is concentrated on the center
channel. The larger the value, the more dialogue is distributed to front
left and right channels, and the more the sound image widens in the
front.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
88
Restorer
Compressed audio formats such as MP3, WMA (Windows Media Audio) and MPEG-4 AAC reduce the
amount of data by eliminating signal components that are hard for the human ear to hear. The “Restorer”
function generates the signals eliminated upon compression, restoring the sound to conditions near those
of the original sound before compression. It also restores the original bass characteristics for a rich and
expanded tonal range.
Setting items Setting details
Mode
Set the mode for
“Restorer”.
High : Optimized mode for compressed sources with very weak highs (64
kbps and under).
Medium : Apply suitable bass and treble boost for all compressed sources
(96 kbps and under).
Low : Optimized mode for compressed sources with normal highs (96
kbps and over).
O : Do not use “Restorer”.
•This item can be set with analog signals or PCM signal (Sample Rate =
44.1/48 kHz) is input.
•“Restorer” settings are stored for each input source.
•This item default setting for “NETWORK” and “iPod/USB” is “Low”. All
others are set to “O”.
•This cannot be set when the sound mode is set to “DIRECT”.
Audio Delay
Default settings are underlined.
While viewing video, manually adjust the time to delay audio output so that the video and audio are
synchronized.
Setting details
0ms – 200ms
•This item can be set within the range of 0 to 100 ms when “Auto Lip Sync” (vpage92) is set to
“On” and when a TV compatible with Auto Lip Sync is connected.
•Store “Audio Delay” for each input source.
Audio
Tone
Default settings are underlined.
Adjust the tonal quality of the sound.
Setting items Setting details
Tone Control
Set the tone control function
to “On” and “O”.
On : Allow tone adjustment (bass, treble).
O : Playback without tone adjustment.
“Tone Control” can be set when “Dynamic EQ” (vpage90) is set
to “O”.
NOTE
•The tone cannot be adjusted in the “DIRECT” mode.
•The default setting diers depending on the sound mode.
Bass
Adjust bass.
–6dB – +6dB
•“Bass” can be set when the menu “Tone Control” setting is “On”.
•The default setting diers depending on the sound mode.
Treble
Adjust treble.
–6dB – +6dB
•“Treble” can be set when the menu “Tone Control” setting is “On”.
•The default setting diers depending on the sound mode.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
89
Audio
Volume
Default settings are underlined.
Set the MAIN ZONE (room where the unit is located) volume setting.
Setting items Setting details
Scale
Set how volume is
displayed.
0 – 98 : Display in the range 0 (Min) to 98.
–79.5dB – 18.0dB : Display ---dB (Min), in the range –79.5 dB to 18.0 dB.
•The “Scale” setting is applied also to the “Limit” and “Power On Level”
display method.
Limit
Make a setting for
maximum volume.
60 (–20dB) / 70 (–10dB) / 80 (0dB)
O : Do not set a maximum volume.
Power On Level
Define the volume setting
that is active when the
power is turned on.
Last : Use the memorized setting from the last session.
Mute : Always use the muting on condition when power is turned on.
1 – 98 (–79dB – 18dB) : The volume is adjusted to the set level.
Mute Level
Set the amount of
attenuation when muting
is on.
Full : The sound is muted entirely.
–40dB : The sound is attenuated by 40 dB down.
–20dB : The sound is attenuated by 20 dB down.
Audyssey
Default settings are underlined.
Set Audyssey MultEQ
®
, Audyssey Dynamic EQ
®
and Audyssey Dynamic Volume
®
. These can be selected
after Audyssey
®
Setup has been performed. For additional information on Audyssey technology, please
see page122.
NOTE
•If you have not performed Audyssey
®
Setup, or if you change the speaker settings after performing
Audyssey
®
Setup, you may not be able to select Dynamic EQ/Dynamic Volume.
In this case, either perform Audyssey
®
Setup over again or perform “Restore...” (vpage26) to return
to the settings after Audyssey
®
Setup was run.
•When HD Audio for which the sampling frequency exceeds 96 kHz is played back, the “Audyssey”
cannot be set.
Setting items Setting details
MultEQ
®
MultEQ
®
compensates for
both time and frequency
characteristics of the
listening area based on
Audyssey
®
Setup
measurement results.
Selection is done from three
types of compensation
curves. We recommend the
“Audyssey” setting.
MultEQ
®
is the prerequisite
function for Dynamic EQ
and Dynamic Volume.
Audyssey : Optimize the frequency response of all speakers.
Audyssey Byp.L/R : Optimize frequency response of speakers except
front L and R speakers.
Audyssey Flat : Optimize frequency response of all speakers to flat
response.
Manual EQ : Apply frequency response set with “Manual EQ”
(vpage90).
O : Turn “MultEQ
®
” equalizer o.
“Audyssey”, “Audyssey Byp.L/R” and “Audyssey Flat” can be selected
after Audyssey
®
Setup has been performed. “Audyssey” is automatically
selected after performing Audyssey
®
Setup. When “Audyssey”, “Audyssey
Byp.L/R” or “Audyssey Flat” is selected, illuminates.
NOTE
When using headphones, “MultEQ
®
” is automatically set to “O”.
“MultEQ
®
”, “Dynamic EQ” and “Dynamic Volume” settings are stored for each input source.
Basic instructions
Advanced instructions
Information
Advanced instructions
v See overleaf
DVD
90
Audio
Setting items Setting details
Dynamic EQ
Solves the problem of
deteriorating sound quality
as volume is decreased
by taking into account
human perception and
room acoustics. Works with
MultEQ
®
.
On : Use Dynamic EQ.
O : Do not use Dynamic EQ.
is displayed when set to “On”.
NOTE
When the menu “Dynamic EQ” setting is “On”, it is not possible to do
“Tone Control” (vpage88) adjustment.
Reference Level Oset
Audyssey Dynamic EQ
®
is
referenced to the standard
film mix level. It makes
adjustments to maintain
the reference response
and surround envelopment
when the volume is turned
down from 0 dB. However,
film reference level is not
always used in music or
other non-film content.
Dynamic EQ Reference
Level Oset provides three
osets from the film level
reference (5 dB, 10 dB, and
15 dB) that can be selected
when the mix level of the
content is not within the
standard. Recommended
setting levels are shown at
right.
0dB (Film Ref) : This is the default setting and should be used when
listening to movies.
5dB : Select this setting for content that has a very wide dynamic range,
such as classical music.
10dB : Select this setting for jazz or other music that has a wider dynamic
range. This setting should also be selected for TV content as that is usually
mixed at 10 dB below film reference.
15dB : Select this setting for pop/rock music or other program material
that is mixed at very high listening levels and has a compressed dynamic
range.
Setting is enabled when “Dynamic EQ” is “On” (vpage90).
Dynamic Volume
Solves the problem of large
variations in volume level
between TV, movies and
other content (between
quiet passages and
loud passages, etc.) by
automatically adjusting to
the user’s preferred volume
setting.
Heavy : Most adjustment to softest and loudest sounds.
Medium : Medium adjustment to loudest and softest sound.
Light : Least adjustment to loudest and softest sounds.
O : Do not use “Dynamic Volume”.
• is displayed when set to “Heavy”, “Medium” or “Light”.
•If “Dynamic Volume” is set to “Yes” in “Audyssey
®
Setup”
(vpage24), the setting is automatically changed to “Medium”.
Manual EQ
Default settings are underlined.
Use the 9 band graphic equalizer to adjust the tone of each speaker.
“Manual EQ” can be set when “MultEQ
®
” setting (vpage89) is “Manual EQ”.
Setting items Setting details
Speaker Select.
Select whether to adjust
tones for individual speakers
or for all speakers.
All : Adjust the tone of all speakers together.
Left/Right : Adjust the tone of left and right speakers together.
Each : Adjust the tone of each speaker.
Adjust EQ
Adjust tonal balance for
each frequency band. Adjust
the speaker selected in
“Speaker Select.”.
q Select the speaker.
•Select the speakers you want to adjust when “Left/Right” or “Each”
is selected.
w Select the adjustment frequency band.
63Hz / 125Hz / 250Hz / 500Hz / 1kHz / 2kHz / 4kHz / 8kHz / 16kHz
e Adjust the level.
–20.0dB – +6.0dB (0.0dB)
Curve Copy
Copy “Audyssey Flat”
(vpage89) curve from
MultEQ
®
.
Yes : Copy.
No : Do not copy.
•“Curve Copy” is displayed after Audyssey
®
Setup has been performed.
•When you select “Curve Copy” and press ENTER, the “Copy “Audyssey
Flat”?” prompt is displayed. Select either “Yes” or “No”, and press
ENTER.
Set Defaults
The “Manual EQ” settings
are returned to the default
settings.
Reset : Reset to the defaults.
Cancel : Do not reset to the defaults.
When you select “Set Defaults” and press
ENTER, the “Reset to the default values?”
prompt is displayed. Select either “Reset” or
“Cancel”, and press ENTER.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
91
Video
Make video-related settings.
Menu operation
1
Press SETUP.
The menu is displayed on the TV screen.
2
Use ui to select the menu to be set or operated.
3
Press ENTER or p to enter the setting.
•To return to the previous item, press o or BACK.
•Exiting the Menu, press SETUP while the menu is displayed.
The menu display disappears.
Items that can be set with the “Video” procedure
HDMI Setup (vpage92)
On Screen Disp. (vpage93)
TV Format (vpage93)
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
92
Video
HDMI Setup
Default settings are underlined.
Make settings for HDMI video/audio output.
Setting items Setting details
Auto Lip Sync
Make automatic
compensation for timing
shift in audio and video
output.
On : Compensated.
O : Not compensated.
HDMI Audio Out
Select HDMI audio output
device.
AVR : Play back through speakers connected to the unit.
TV : Play back through TV connected to the unit.
•When the HDMI control function is activated, priority is given to the TV
audio setting (vpage78 “HDMI control function”).
•When the power of this unit is on and “HDMI Audio Out” is set to “TV”,
audio is output as 2-channel from the HDMI OUT connector.
HDMI Pass Through
Selects how the AV receiver
will pass HDMI signals to
the HDMI output in standby
power mode.
On : Passes the selected HDMI input through the AV receiver’s HDMI
output when the AV receiver is in standby power mode.
O : No HDMI signals are passed through the AV receiver’s HDMI output
in standby power mode.
NOTE
When “HDMI Pass Through” is set to “On”, it consumes more
standby power. If you are not using this unit for an extended period, it
is recommended that you unplug the power cord from the power outlet.
Setting items Setting details
HDMI Control
You can link operations with
devices connected to HDMI
and compatible with HDMI
Control.
On : Use HDMI control function.
O : Do not use HDMI control function.
•When a device that is not compatible with the HDMI control function is
connected, set “HDMI Control” to “O”.
•Please consult the operating instructions for each connected device to
check the settings.
•Refer to “HDMI control function” (vpage 78) for more information
about the HDMI control function.
NOTE
•When “HDMI Control” is set to “On”, it consumes more standby
power. If you are not using this unit for an extended period, it is
recommended that you unplug the power cord from the power outlet.
•The HDMI control function controls operations of a TV that is compatible
with the HDMI control function. Make sure that the TV and HDMI are
connected when you perform HDMI control.
•If the “HDMI Control” settings have been changed, always reset the
power to connected devices after the change.
Pass Through Source
The AV receiver will “pass
through” the sources HDMI
signal when in standby.
Last : Choose this option to “pass through” the last used HDMI input
video source.
CBL/SAT / DVD / Blu-ray / GAME / AUX / MEDIA PLAYER : Choose one
of these HDMI sources to be passed through when the AV receiver is in
standby.
“Pass Through Source” can be set when “HDMI Control” is set to
“On” or “HDMI Pass Through” is set to “On”.
Power O Control
Links the power standby of
this unit to external devices.
All : If power to a connected TV is turned o independently of the input
source, power to this unit is automatically set to standby.
Video : When the TV is turned o with one of “HDMI” or “VIDEO”
(vpage 95, 96) assigned for the CBL/SAT / DVD / Blu-ray / GAME /
AUX / MEDIA PLAYER / TV AUDIO input source on this unit, power to this
unit is automatically set to standby.
O : This unit does not link with power to a TV.
“Power O Control” can be set when “HDMI Control” is set to “On”.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
93
Video
On Screen Disp.
Default settings are underlined.
Select the on-screen display user interface preferences.
Setting items Setting details
Volume
Sets where to display the
master volume level.
Bottom : Display at the bottom.
Top : Display at the top.
O : Turn display o.
When the master volume display is hard to see when superimposed
text (closed captioning) or movie subtitles are present, set to “Top”.
Info
Displays status of operation
temporarily when the sound
mode is changed, or input
source is switched. You
can set whether or not to
show each of these status
displays.
On : Turn display on.
O : Turn display o.
Now Playing
Sets how long each menu
is displayed when the input
source is “NETWORK”,
“iPod/USB” or “TUNER”.
Always On : Show display continuously.
Auto O : Show display for 30 seconds after operation.
TV Format
Default settings are underlined.
Set the video signal format to be output for the TV you are using.
Setting items Setting details
Format
NTSC : Select NTSC output.
PAL : Select PAL output.
“Format” can also be set by the following procedure. However, the menu
screen is not displayed.
1. Press and hold the main unit’s TUNER PRESET CH + and STATUS for at
least 3 seconds.
“< NTSC >” appears on the display.
2. Use the main unit’s SOURCE SELECT 0 1 and set the video signal
format.
3. Press the main unit’s STATUS to complete the setting.
NOTE
When a format other than the video format of the connected TV is set, the
picture will not be displayed properly.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
94

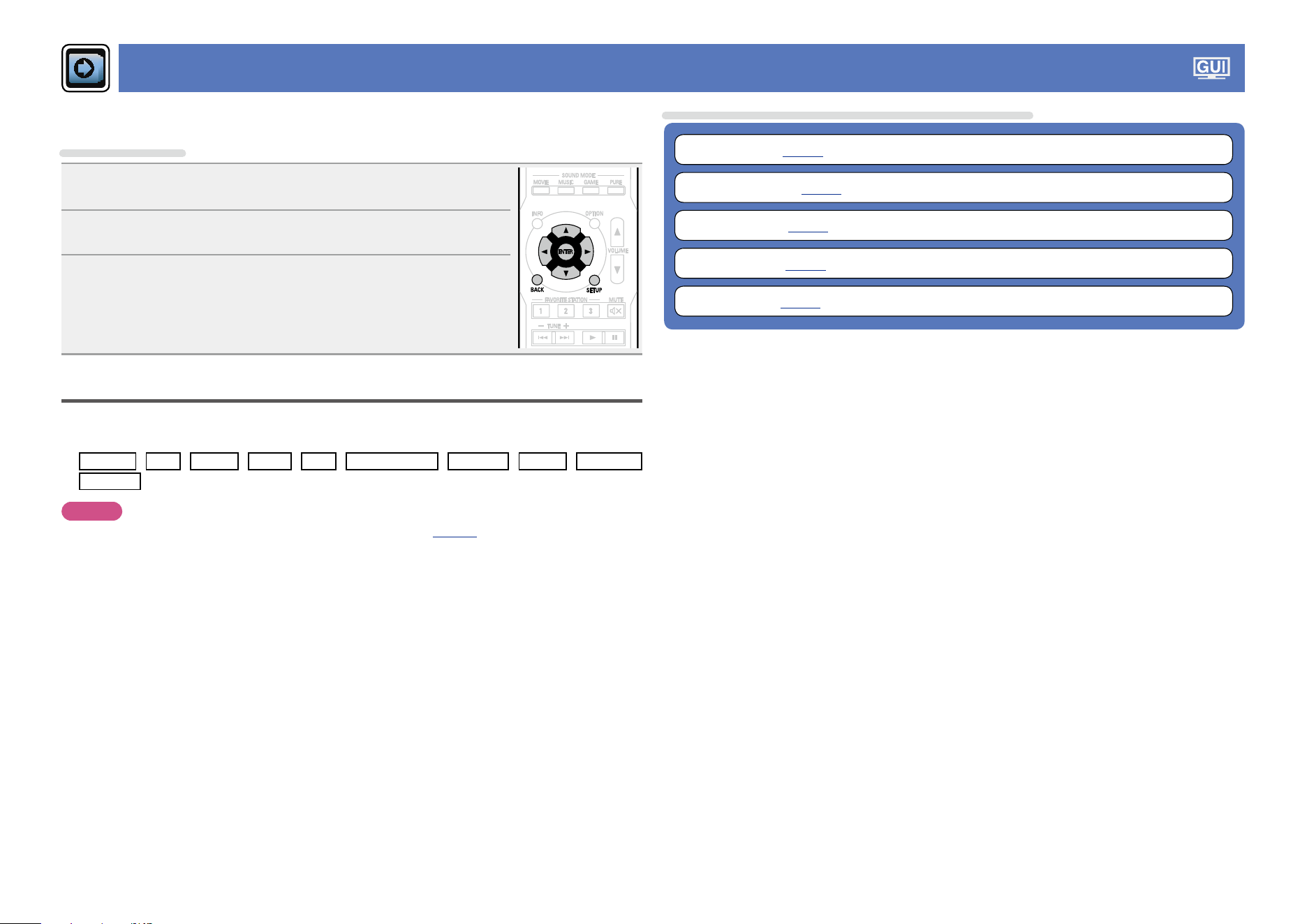

Inputs
Perform settings related to input source playback.
•You do not have to change the settings to use the unit. Make settings when needed.
Menu operation
1
Press SETUP.
The menu is displayed on the TV screen.
2
Use ui to select the menu to be set or operated.
3
Press ENTER or p to enter the setting.
•To return to the previous item, press o or BACK.
•Exiting the Menu, press SETUP while the menu is displayed.
The menu display disappears.
Important information
n About the display of input sources
In this section, the configurable input sources for each item are shown as follows.
CBL/SAT
DVD
Blu-ray
GAME
AUX
MEDIA PLAYER
iPod/USB
TUNER
NETWORK
TV AUDIO
NOTE
Input sources that have been set to “Hide” at “Hide Sources” (vpage97) cannot be selected.
Items that can be set with the “Inputs” procedure
Input Assign (vpage95)
Source Rename (vpage97)
Hide Sources (vpage97)
Source Level (vpage97)
Input Select (vpage97)
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
95

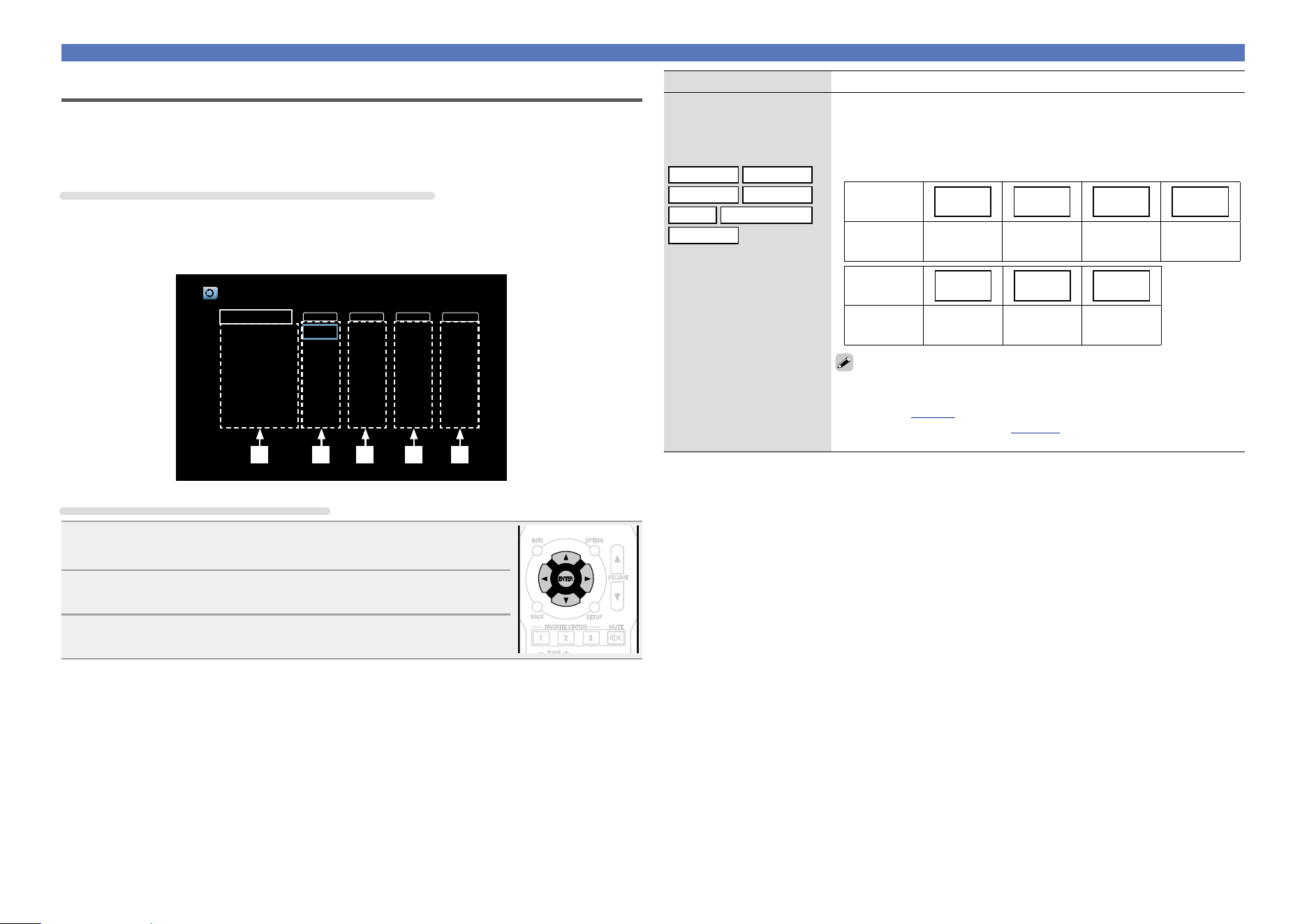

Setting items Setting details
HDMI
Set this to change the HDMI
input connectors assigned
to the input sources.
CBL/SAT
DVD
Blu-ray
GAME
AUX
MEDIA PLAYER
TV AUDIO
1 / 2 / 3 / 4 / Front : Assign an HDMI input connector to the selected input
source.
– : Do not assign an HDMI input connector to the selected input source.
•At time of purchase, the settings of the dierent input sources are as
shown below.
Input
source
CBL/SAT
DVD Blu-ray GAME
Default
setting
1 2 3 4
Input
source
AUX
MEDIA
PLAYER
TV AUDIO
Default
setting
Front – –
•To play the video signal assigned at “HDMI” combined with the audio
signal assigned at “Input Assign” – “DIGITAL”, select “Digital” at “Input
Mode” (vpage97).
•When “HDMI Control” (vpage 92) is set to “On”, HDMI input
connector cannot be assigned to “TV AUDIO”.
Inputs
Input Assign
This unit has certain input sources such as “CBL/SAT” assigned to audio and video connectors by default.
By making the default connections, you can simply press an input source select button to play back audio
or video from the connected device with ease.
When making connections other than the default settings, you must change settings in this section.
Examples of “Input Assign” menu screen displays
This screen appears when the “Inputs” – “each input source” – “Input Assign” menu is selected. Use the
“Input Assign” menu to change the w HDMI input connectors, e Digital input connectors, r Analog
input connectors, and t Video input connectors that are assigned to the q input sources in default
settings.
DIGITAL ANALOGHDMI VIDEO
Set Defaults
Input Assign
CBL/SAT
DVD
Blu-ray
GAME
Set Defaults
CBL/SAT
DVD
Blu-ray
GAME
MEDIA PLAYER
TV AUDIO
AUX
1
2
3
4
－
－
Front
Coax
－
－
－
－
Opt
－
1
－
－
－
2
－
－
1
－
－
－
2
－
－
wq e r t
Input assignments menu operations
1
Use uio p to move the cursor to the item you want to set,
and then press ENTER.
2
Use o p to select the input connector to be assigned.
3
Press ENTER to register the setting.
Basic instructions
Advanced instructions
Information
Advanced instructions
v See overleaf
DVD
96
Setting items Setting details
DIGITAL
Set this to change the digital
audio input connectors
assigned to the input
sources.
CBL/SAT
DVD
Blu-ray
GAME
AUX
MEDIA PLAYER
TV AUDIO
Coax (Coaxial) / Opt (Optical) : Assign a digital input connector to the
selected input source.
– : Do not assign a digital input connector to the selected input source.
•At time of purchase, the settings of the dierent input sources are as
shown below.
Input
source
CBL/SAT
DVD Blu-ray GAME
Default
setting
Coax – – –
Input
source
AUX
MEDIA
PLAYER
TV AUDIO
Default
setting
– – Opt
ANALOG
Set this to change the
analog audio input
connectors assigned to the
input sources.
CBL/SAT
DVD
Blu-ray
GAME
AUX
MEDIA PLAYER
TV AUDIO
1 / 2 : Assign a analog input connector to the selected input source.
– : Do not assign a analog input connector to the selected input source.
•At time of purchase, the settings of the dierent input sources are as
shown below.
Input
source
CBL/SAT
DVD Blu-ray GAME
Default
setting
1 – – –
Input
source
AUX
MEDIA
PLAYER
TV AUDIO
Default
setting
– 2 –
Inputs
Setting items Setting details
VIDEO
Set this to change the
composite video input
connectors assigned to the
input sources.
CBL/SAT
DVD
Blu-ray
GAME
AUX
MEDIA PLAYER
TV AUDIO
1 / 2 : Assign the video input connector to the selected input source.
– : Do not assign a video input connector to the selected input source.
•At time of purchase, the settings of the dierent input sources are as
shown below.
Input
source
CBL/SAT
DVD Blu-ray GAME
Default
setting
1 – – –
Input
source
AUX
MEDIA
PLAYER
TV AUDIO
Default
setting
– 2 –
Set Defaults
The “Input Assign” settings
are returned to the default
settings.
Reset : Reset to the defaults.
Cancel : Do not reset to the defaults.
If you select “Set Defaults” and press ENTER,
the message “Reset all input assignments
to the factory default?” is displayed. Select
“Reset” or “Cancel”, and then press ENTER.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
97
Inputs

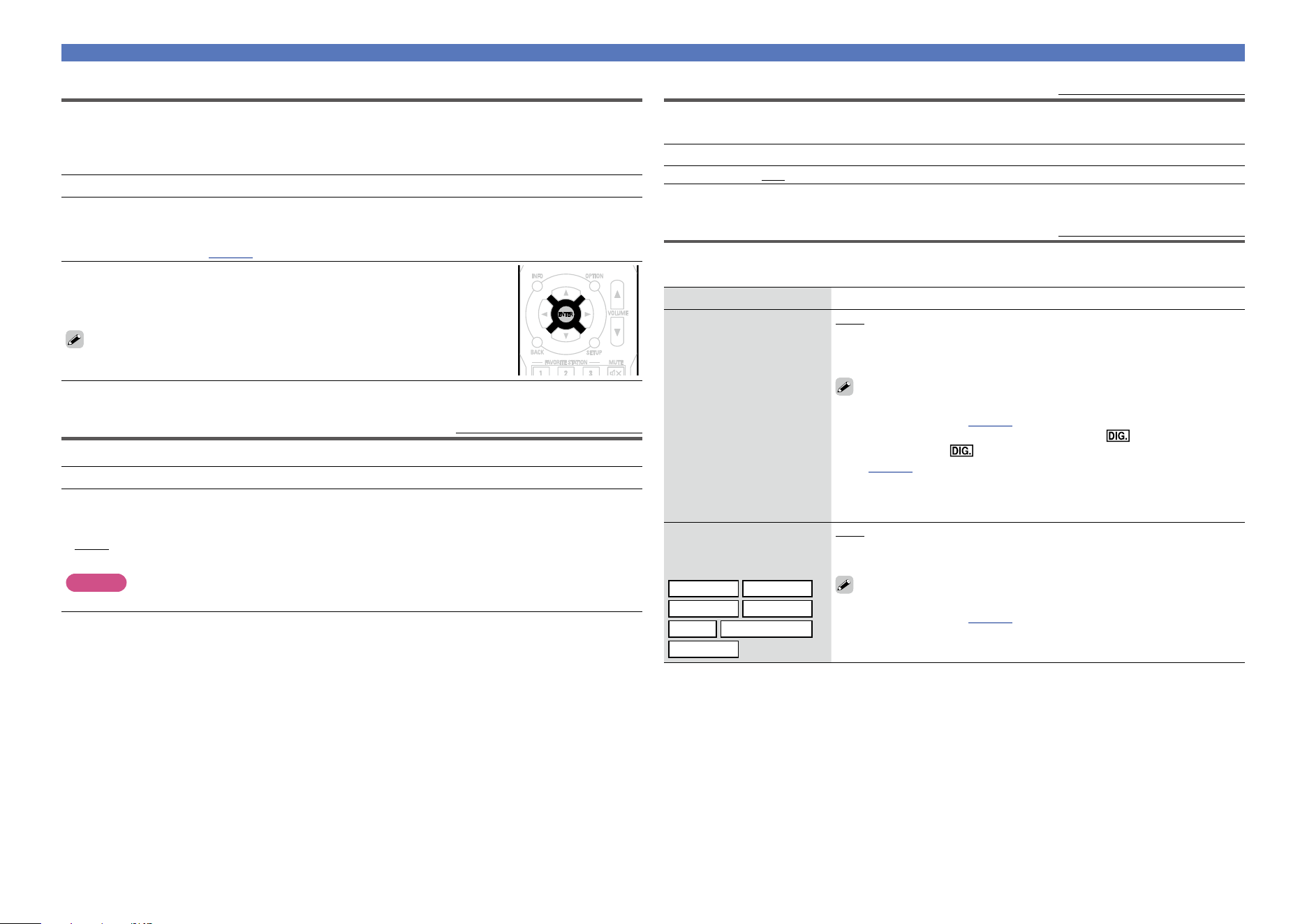

Source Rename
Change the display name of the selected input source.
This is convenient when the input source name of your device and the input source name of this unit are
dierent. You can change the name to suit your needs. When the renaming is completed, the name is
displayed on this unit’s display and on the menu screen.
Setting details
CBL/SAT / DVD / Blu-ray / GAME / AUX / MEDIA PLAYER / TV AUDIO : Change the display name of
the selected input source.
•Up to 12 characters can be input.
•For character input, see page84.
Set Defaults : The “Source Rename” settings are returned to the default
settings.
•Reset : Reset to the defaults.
•Cancel : Do not reset to the defaults.
If you select “Set Defaults” and press ENTER, the message “Reset all
source names to the factory defaults?” is displayed. Select “Reset” or
“Cancel”, and then press ENTER.
Hide Sources
Default settings are underlined.
Remove from the display input sources that are not used.
Setting details
CBL/SAT / DVD / Blu-ray / GAME / AUX / MEDIA PLAYER / iPod/USB / TUNER / Favorites / Internet
Radio / Media Server / Pandora / SiriusXM / Spotify / Flickr / TV AUDIO : Select input source that is
not used.
•Show : Use this source.
•Hide : Do not use this source.
NOTE
Input sources set to “Hide” cannot be selected using the input source select button.
Source Level
Default settings are underlined.
•This function corrects the playback level of the selected input source’s audio input.
•Make this setting if there are dierences in the input volume levels between the dierent sources.
Setting details
–12dB – +12dB (0dB)
Input Select
Default settings are underlined.
Set the audio input mode and decode mode of each input source.
The input modes available for selection may vary depending on the input source.
Setting items Setting details
Input Mode
Set the audio input modes
for the dierent input
sources.
It is normally recommended
to set the audio input mode
to “Auto”.
Auto : Automatically detect input signal and perform playback.
HDMI : Play only signals from HDMI input.
Digital : Play only signals from digital input.
Analog : Play only signals from analog input.
•“Digital” can be set for input sources for which “DIGITAL” is assigned
at “Input Assign” (vpage96).
•When digital signals are properly input, the indicator lights on
the display. If the indicator does not light, check “Input Assign”
(vpage96) and the connections.
•If “HDMI Control” is set to “On” and a TV compatible with the ARC is
connected via the HDMI MONITOR connectors, the input mode whose
input source is “TV AUDIO” is fixed to ARC.
Decode Mode
Set the audio decode mode
for input source.
CBL/SAT
DVD
Blu-ray
GAME
AUX
MEDIA PLAYER
TV AUDIO
Auto : Detect type of digital input signal and decode and play automatically.
PCM : Decode and play only PCM input signals.
DTS : Decode and play only DTS input signals.
•This item can be set for input sources for which “DIGITAL” is assigned
at “Input Assign” (vpage96).
•Normally set this mode to “Auto”. Set “PCM” and “DTS” when
inputting the corresponding input signal.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
98

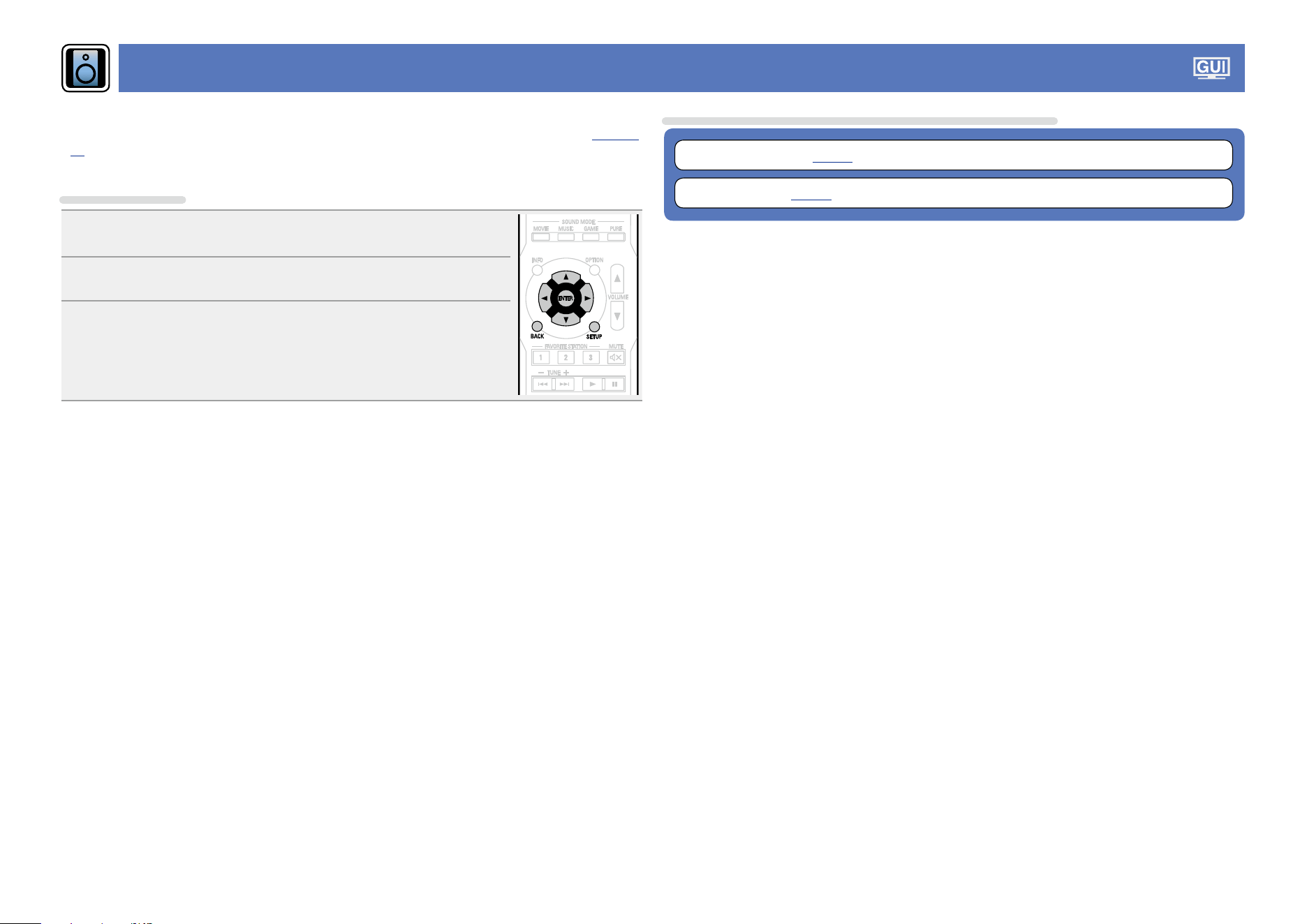

Speakers
Set when changing Audyssey
®
Setup settings.
•If you change the speaker settings after performing Audyssey
®
Setup, it will not be possible to
set Audyssey MultEQ
®
, Audyssey Dynamic EQ
®
and Audyssey Dynamic Volume
®
(vpage89,
90).
•Can be used without changing the settings. Please set if necessary.
Menu operation
1
Press SETUP.
The menu is displayed on the TV screen.
2
Use ui to select the menu to be set or operated.
3
Press ENTER or p to enter the setting.
•To return to the previous item, press o or BACK.
•Exiting the Menu, press SETUP while the menu is displayed.
The menu display disappears.
Items that can be set with the “Speakers” procedure
Audyssey
®
Setup (vpage20)
Manual Setup (vpage99)
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
99
Manual Setup
Default settings are underlined.
Perform when setting the speakers manually or when changing settings made in Audyssey
®
Setup.
•If you change the speaker settings after performing Audyssey
®
Setup, it will not be possible to select
Audyssey MultEQ
®
, Audyssey Dynamic EQ
®
and Audyssey Dynamic Volume
®
(vpage89, 90).
•“Manual Setup” can be used without changing the settings. Please set if necessary.
Setting items Setting details
Speaker Config.
Indicate speaker presence
and select speaker size
categories based on bass
reproduction capability.
NOTE
Do not use the outward
shape of the speaker to
determine selection of a
“Large” or “Small” speaker.
Instead, use the frequencies
set in “Crossovers”
(vpage100) as the
standard for determining
bass reproduction capability.
Front : Set the front speaker size.
•Large : Use a large speaker that can adequately play back very low bass
frequencies.
•Small : Use a small speaker that has inadequate playback capacity for
very low bass frequencies. Note that for most multi-channel speakers,
this is the best choice.
•When “Subwoofer” is set to “No”, “Front” is automatically set to
“Large”.
•When “Front” is set to “Small”, “Center” and “Surround“ can not be
set to “Large”.
Center : Set the presence and size of the center speaker.
•Large : Use a large speaker that can adequately play back very low bass
frequencies.
•Small : Use a small speaker that has inadequate playback capacity for
very low bass frequencies. Note that this is almost always the best
choice.
•None : Select when a center speaker is not connected.
“Large” is not displayed when “Front” is set to “Small”.
Subwoofer : Set the presence of a subwoofer.
•Yes : Use a subwoofer.
•No : Select when a subwoofer is not connected.
When “Front” is set to “Small”, “Subwoofer” is automatically set to
“Yes”.
Surround : Set the presence and size of the surround speakers.
•Large : Use a large speaker that can adequately play back very low bass
frequencies.
•Small : Use a small speaker that has inadequate playback capacity for
very low bass frequencies. Note that this is almost always the best
choice.
•None : Select when the surround speakers are not connected.
Setting items Setting details
Distances
Set distance from listening
position to speakers.
Measure beforehand the
distance from the listening
position to each speaker.
Unit : Set the unit of distance.
•Feet / Meters
Step : Set the minimum variable width of the distance.
•1ft / 0.1ft
•0.1m / 0.01m
Set Defaults : The “Distances” settings are returned to the default
settings.
•Reset : Reset to the defaults.
•Cancel : Do not reset to the defaults.
When you select “Set Defaults” and press
ENTER, the “Resets all of the distance
settings to the factory defaults?” prompt is
displayed. Select either “Reset” or “Cancel”,
and press ENTER.
Front L / Front R / Center / Subwoofer / Surround L / Surround R :
Select speaker for distance setting.
•0.0ft – 60.0ft / 0.00m – 18.00m : Set the distance.
•The speakers that can be selected dier depending on the “Speaker
Config.” (vpage99) settings.
•Default settings :
Front L / Front R / Center / Subwoofer : 12.0 ft (3.60 m)
Surround L / Surround R : 10.0 ft (3.00 m)
•Set the dierence in the distance between the speakers to less than
20.0 ft (6.00 m).
NOTE
“Distances” cannot be set for speakers with “Speaker Config.”
(vpage99) set to “None”.
Speakers
Basic instructions
Advanced instructions
Information
Advanced instructions
v See overleaf
DVD
100
Setting items Setting details
Crossovers
Set the maximum frequency
of the bass signal output
from each channel to
the subwoofer. Set the
Crossover Frequency to
suit the bass reproduction
capability of the speaker
being used.
Speaker Select. : Selects how to set the crossover frequency. See the
speaker manual for information concerning speaker crossover frequency.
•All : Selects the crossover point of all speakers at the same time.
•Individual : Selects the crossover points for each speaker individually.
The following settings can be set when the “Speaker Select.” setting is
set to“Individual”.
•Front / Center / Surround : Select speaker for setting of crossover
frequency.
•40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz /
250Hz : Set the crossover frequency.
•“Crossovers” can be set when the “Bass” – “Subwoofer Mode”
(vpage101) setting is “LFE+Main”, or when you have a speaker that
is set to “Small”.
•The default crossover frequency is “80Hz”, which will work best with the
widest variety of speakers. When using very small speakers, however,
you can choose a higher setting based on the specified frequency
response of the speakers. If the speaker has a specified frequency
response of 120 Hz – 20 kHz (as an example), then choose the 120 Hz
crossover frequency.
•For speakers set to “Small”, low frequency content below the crossover
frequency is attenuated to the speakers and the low bass content is then
re-delivered to the subwoofer, or the front (L/R) speakers if they have
been set to Large.
•The speakers that can be set when “Individual” is selected dier
depending on to the “Subwoofer Mode” setting (vpage101).
•When “LFE” is selected, speakers set to “Small” at “Speaker Config.”
can be set. If the speakers are set to “Large”, “Full Band” is displayed
and the setting cannot be made.
•If set to “LFE+Main”, this setting can be made regardless of the
speaker size.
Speakers
Setting items Setting details
Levels
Set the volume of the test
tone to be the same when it
is output from each speaker.
Test Tone Start : Output test tone.
•Front L / Center / Front R / Surround R / Surround L / Subwoofer : A
test tone is output from the selected speaker. While listening to the test
tone, adjust the volume output from the selected speaker.
•–12.0dB – +12.0dB (0.0dB) : Adjust the volume.
When “Levels” is adjusted, the adjusted values are set for all the
sound modes.
NOTE
•“Levels” cannot be set for speakers with “Speaker Config.”
(vpage99) set to “None”.
•When headphones are connected to the PHONES connector on this
unit, you cannot set “Levels”.
Set Defaults : The “Levels” settings are returned to the default settings.
•Reset : Reset to the defaults.
•Cancel : Do not reset to the defaults.
When you select “Set Defaults” and press
ENTER, the “Reset all of the channel level
settings to the factory defaults?” prompt is
displayed. Select either “Reset” or “Cancel”,
and press ENTER.
Basic instructions
Advanced instructions
Information
Advanced instructions
v See overleaf
DVD
101
Speakers
Setting items Setting details
Bass
Set subwoofer and LFE
signal range playback.
Subwoofer Mode : Select low range signals to be reproduced by
subwoofer.
•LFE : The low range signal of the channel set to “Small” speaker size is
added to the LFE signal output from the subwoofer.
•LFE+Main : The low range signal of all channels is added to the LFE
signal output from the subwoofer. This is usually the best setting for
most systems.
•“Subwoofer Mode” can be set when “Speaker Config.” – “Subwoofer”
(vpage99) is set to other than “No”.
•Play music or a movie source and select the mode oering the strongest
bass.
•Select “LFE+Main” if you want the bass signals to always be produced
from the subwoofer.
NOTE
If “Front” and “Center” for “Speaker Config.” are set to “Large”, and
“Subwoofer Mode” is set to “LFE”, no sound may be output from the
subwoofers, depending on the input signal or selected sound mode.
LPF for LFE : Set LFE signal playback range. Set this when you want to
change the playback frequency (low pass filter point) of the subwoofer.
•80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / 250Hz
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
102
Network
To use this unit by connecting it to a home network (LAN), you must configure network settings.
If you set up your home network (LAN) via DHCP, set “DHCP” to “On” (use the default setting). This
allows this unit to use your home network (LAN).
If you assign an IP address for each device, you must use the “IP Address” setting to assign an IP
address to this unit and enter the information about your home network (LAN) such as the gateway
address and subnet mask.
Menu operation
1
Press SETUP.
The menu is displayed on the TV screen.
2
Use ui to select the menu to be set or operated.
3
Press ENTER or p to enter the setting.
•To return to the previous item, press o or BACK.
•Exiting the Menu, press SETUP while the menu is displayed.
The menu display disappears.
Items that can be set with the “Network” procedure
Information (vpage103)
IP Control (vpage103)
Friendly Name (vpage103)
Settings (vpage104)
Diagnostics (vpage105)
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
103
Information
Display network information.
Setting details
Friendly Name / DHCP On or O / IP Address / MAC Address
MAC Address is required to make a vTuner account.
IP Control
Default settings are underlined.
Enables network communication in standby power mode.
Setting details
O In Standby : Suspend network function during standby.
Always On : Network is on during standby. Main unit operable with a network compatible controller.
Set to “Always On” when using the web control function.
NOTE
When “IP Control” is set to “Always On”, it consumes more standby power.
Network
Friendly Name
The Friendly Name is the name of this unit displayed on the network. You can change the Friendly Name
according to your preferences.
Setting items Setting details
Edit Name
Edits Friendly Name.
•The default Friendly Name on first use is “Denon AVR-E300”.
•Up to 63 characters can be input.
•For character input, see page84.
Set Defaults
Restores Friendly Name,
which you had changed, to
the default setting.
Reset : Reset to the defaults.
Cancel : Do not reset to the defaults.
When you select “Set Defaults” and press
ENTER, the “Reset the friendly name back
to the factory default?” prompt is displayed.
Select either “Reset” or “Cancel”, and press
ENTER.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
104
Network
Settings
Make settings for wired LAN.
Only set “Settings” when connecting to a network without a DHCP function.
Setting details
Information
Network
IP Control
Friendly Name
Settings
Diagnostics
q
DHCP
Settings
-IP Address
-Subnet Mask
-Default Gateway
-Primary DNS
-Secondary DNS
Off
192.
168.
000.
001
255.
255.
255.
000
000.
000.
000.
000
000.
000.
000.
000
000.
000.
000.
000
Proxy
-Name
-Port
Off
00000
Save
Cancel
e
y
i
t
w
o
Q1
r
u
Q0
q On the menu, select “Network” – “Settings” and press ENTER.
w Use ui to select “DHCP”, then press ENTER.
e Use o p to select “O”, then press ENTER.
r Use ui to select “IP Address”, then press ENTER.
•IP Address : Set the IP address within the ranges shown below.
The Network Audio function cannot be used if other IP addresses are set.
CLASS A: 10.0.0.1 – 10.255.255.254
CLASS B: 172.16.0.1 – 172.31.255.254
CLASS C: 192.168.0.1 – 192.168.255.254
t Use uio p to input the address and press ENTER.
y Use ui to select setting item, then press ENTER.
•Subnet Mask : When connecting an xDSL modem or terminal adapter directly to this unit, input the
subnet mask indicated in the documentation supplied by your provider. Normally input 255.255.255.0.
•Default Gateway : When connected to a gateway (router), input its IP address.
•Primary DNS, Secondary DNS : If there is only one DNS address indicated in the documentation
supplied by your provider, input it at “Primary DNS”. If two or more DNS are provided by your
provider, enter both “Primary DNS” and “Secondary DNS”.
Setting details
u Use ui to select “Proxy” and press ENTER.
•Proxy : Make this setting when connecting to the Internet via a proxy server.
Make the proxy settings only when you connect to the Internet via a proxy server that is on your
internal network or provided by your provider, etc.
i Use o p to select “On(Address)” or “On(Name)”, and then press ENTER.
On(Address) : Select when inputting by address.
On(Name) : Select when inputting by domain name. Up to 38 characters can be input.
o Press i to select “Address” or “Name”, then press ENTER.
When “Address” is selected in step i : Use uio p to enter the proxy server address, and press
ENTER.
When“Name” is selected in step i : Use the software keyboard (vpage84) to enter the domain
name, and select
O K
.
•For character input, see page84.
Q0 Press i to select “Port”, then press ENTER. Use uio p to input the proxy server port number and
press ENTER.
Setup is complete.
Q1 Press i to select “Save”, then press ENTER.
The display returns to the original screen.
•If you are using a broadband router (DHCP function), there is no need to make the settings at “IP
Address” and “Proxy”, since the DHCP function is set to “On” in this unit’s default settings.
•If this unit is connected to a network without the DHCP function, the network settings must be made.
In this case, some knowledge of networks is required. For details, consult a network administrator.
•If you cannot connect to the Internet, recheck the connections and settings (vpage18).
•If you do not understand about Internet connection, contact your ISP (Internet Service Provider) or the
store from which you purchased your computer.
•When you want to cancel the setting during IP address input, select “Cancel”, then press ENTER.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
105
Network
Diagnostics
Used to check the network connection.
Setting items Setting details
Physical Connection
Checks the physical LAN
port connection.
OK : Connected.
Error : The LAN cable is not connected. Check the connection.
Router Access
Checks the connection from
this unit to the router.
OK : Accessed.
Error : Failed to communicate with the router. Check the router settings.
Internet Access
Checks whether this unit
has access to the Internet
(WAN).
OK : Connected.
Error : Failed to connect to the Internet. Check the Internet connection
environment or router settings.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
106
General
Make various other settings.
Menu operation
1
Press SETUP.
The menu is displayed on the TV screen.
2
Use ui to select the menu to be set or operated.
3
Press ENTER or p to enter the setting.
•To return to the previous item, press o or BACK.
•Exiting the Menu, press SETUP while the menu is displayed.
The menu display disappears.
Items that can be set with the “General” procedure
Language (vpage107)
Quick Sel.Names (vpage107)
Auto Standby (vpage107)
Front Display (vpage107)
Information (vpage108)
Usage Data (vpage109)
Firmware (vpage109)
Setup Lock (vpage110)
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
107
General
Language
Default settings are underlined.
Set the language for display on the menu screen.
Setting details
English / Français / Español
“Language” can also be set by the following procedure. However, the menu screen is not displayed.
Following the display content to make the setting.
1. Press and hold the main unit’s TUNER PRESET CH + and STATUS for at least 3 seconds.
“< NTSC >” appears on the display.
2. Press the main unit’s DIMMER and set “< ENGLISH >”.
3. Use the main unit’s SOURCE SELECT 0 1 and set the language.
4. Press the main unit’s STATUS to complete the setting.
Quick Sel.Names
Change the “Quick Select” display title to one you prefer.
Setting details
Quick Select 1 / Quick Select 2 / Quick Select 3 / Quick Select 4
•Up to 16 characters can be input.
•For character input, see page84.
Set Defaults : The input source name is returned to the default setting.
•Reset : Reset to the defaults.
•Cancel : Do not reset to the defaults.
If you select “Set Defaults” and press ENTER, the message “Reset all
Quick Select names to the factory default?” is displayed. Select “Reset” or
“Cancel”, and then press ENTER.
Auto Standby
Default settings are underlined.
When you do not perform any operation on this unit with no audio or video input for a specified time,
this unit automatically enters the standby mode. Before it enters the standby mode, “Auto Standby” is
displayed on the display of this unit and the menu screen.
Setting details
60 min : The unit goes into standby after 60 minutes.
30 min : The unit goes into standby after 30 minutes.
O : The unit does not go into standby automatically.
Front Display
Default settings are underlined.
Makes settings related to the display on this unit.
Setting items Setting details
Dimmer
Adjust the display
brightness of this unit.
Bright : Normal display brightness.
Dim : Reduced display brightness.
Dark : Very low display brightness.
O : Turns the display o.
Buttons on the main unit can be used for operations.
Each time DIMMER is pressed, the setting is changed as shown
below.
Bright Dim
DarkOff
NOTE
When “Dimmer” is set to “O”, the display turns o and appears as if
there is no electricity.
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
108
Information
Show information about receiver settings, input signals, etc.
Items Setting details
Audio
Show information about
audio input signals.
Sound Mode : The currently set surround mode.
Input Signal : The input signal type.
Format : The number of input signal channels (presence of front, surround,
LFE).
Sample Rate : The input signal’s sampling frequency.
Oset : The dialogue normalization correction value.
Flag : This is displayed when inputting signals including a surround back
channel. “MATRIX” is displayed with Dolby Digital EX and DTS-ES Matrix
signals, “DISCRETE” with DTS-ES Discrete signals.
Dialogue normalization function
This function is automatically activated when playing Dolby Digital, Dolby
Digital Plus, Dolby TrueHD, DTS and DTS-HD sources.
It automatically corrects the standard signal level for individual program
sources.
The correction value can be checked using the
STATUS on the main unit.
Offset: - 4dB
The figure is the corrected value. This cannot be changed.
Video
Show information about
HDMI input/output signals
and HDMI monitors.
HDMI Signal
•Resolution / Color Space / Pixel Depth
HDMI Monitor
•Interface / Resolutions
Status
Show information about
current settings.
MAIN ZONE : This item shows information about settings for MAIN
ZONE. The information displayed diers according to the input source.
•Select Source / Name / Sound Mode / Input Mode / Decode Mode /
HDMI / Digital / Analog / Video / Video Select etc.
Firmware Version : Displays information for the current firmware.
Notifications
Selects notification message
preferences.
Notification Alerts
•On : Displays notification messages from Denon in the popup menu.
•O : Does not display notification messages from Denon in the popup
menu.
Press INFO to display current source name, volume, sound mode name, and other information at the
bottom of the screen.
Examples of screen display
•Status display screen
When the input source is switched. When the volume is adjusted.
SOURCE
SOUND
Blu-ray
[Auto]
STEREO
39.0
40.0
Status display: The operating status appears briefly on the screen when the input
source is switched or the volume is changed.
NOTE
The status display screen cannot be displayed at a computer’s resolution (e.g. VGA) or while certain 3D
video contents is being played.
General
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
109
Usage Data
To help us improve our products and customer service, Denon collects anonymous information about how
you use your AV receiver (such as frequently used input sources and sound modes and speaker settings).
Denon will never provide any information we collect to third parties.
Setting details
Yes : Provide Denon with information about how you use this unit via the network.
No : Do not provide Denon with information about how you use this unit via the network.
Firmware
Set whether or not to check for firmware update, update the firmware, and display update and upgrade
notifications.
Setting items Setting details
Update
Update the firmware of the
receiver.
NOTE
In cases where it is not
possible to connect to
the network after doing a
firmware update, connect
to the network again using
“Network” (vpage102).
Check for Update : Check for firmware updates. You can also check
approximately how long it will take to complete an update.
Update Start : Execute the update process.
When updating starts, the power indicator becomes red and the menu
screen is shut down. The amount of update time which has elapsed is
displayed.
When updating is complete, the power indicator becomes green and
normal status is resumed.
•If updating fails, the set automatically retries, but if updating is still not
possible, one of the messages shown below is displayed. If the display
reads as shown below, check the settings and network environment,
then update again.
Display Description
Updating fail Updating failed.
Login failed Failure to log into server.
Server is busy Server is busy. Wait a while then try again.
Connection fail Failure in connecting to server.
Download fail Downloading of the firmware has failed.
Setting items Setting details
Notifications
Displays a notification
message on this unit’s
menu screen when the
latest firmware is released
with “Update”.
Display a notification
message on this unit’s
menu screen when
downloadable firmware is
released with “Add New
Feature”.
Update : The notification message is displayed for about 20 seconds when
the power is turned on. Connect to broadband Internet (vpage 18)
when using this function.
•On : Display update message.
•O : Do not display update message.
•When you press ENTER during display of the
notification message, the “Check for Update”
screen is displayed (Refer to page109 for more
information on “Update”).
•Press o or BACK to erase the notification
message.
Upgrade : The notification message is displayed for about 20 seconds when
the power is turned on. Connect to broadband Internet (vpage 18)
when using this function.
•On : Display upgrade message.
•O : Do not display upgrade message.
•When you press ENTER during display of the notification message, the
“Add New Feature” screen is displayed (Refer to page 110 for more
information on “Add New Feature”).
•Press o or BACK to erase the notification message.
General
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
110
General
Setting items Setting details
Add New Feature
Display new features that
can be downloaded to
this unit and perform an
upgrade.
NOTE
In cases where it is not
possible to connect to the
network after adding a
new function, connect to
the network again using
“Network” (vpage102).
Upgrade Package : Display the items to be upgraded.
Upgrade Status : Display a list of the additional functions provided by the
upgrade.
Upgrade Start : Execute the upgrade process.
When the upgrade starts, the power indicator becomes red and the menu
screen is shut down. During the upgrade, the amount of upgrade time
which has elapsed is displayed.
When upgrading is complete, the power indicator becomes green and
normal status is resumed.
•If the upgrade is not successful, an error message identical to those in
“Update” will appear on the display. Check the settings and network
environment and then perform the upgrade again.
See the Denon website for details about upgrades.
When the procedure is complete, “Registered” is displayed in this
menu and upgrades can be carried out. If the procedure has not been
carried out, “Not Registered” is displayed.
The ID number shown on this screen is needed when carrying out the
procedure.
The ID number can also be displayed by pressing and holding the
main unit’s SOURCE SELECT 0 and SOURCE SELECT 1 for at least
3 seconds.
Notes concerning use of “Update” and “Add New Feature”
•In order to use these functions, you must have the correct system requirements and settings for a
broadband Internet connection (vpage18).
•Do not turn o the power until updating or upgrading is completed.
•Even with a broadband connection to the Internet, approximately 1 hour is required for the updating/
upgrading procedure to be completed.
•Once updating/upgrade starts, normal operations on this unit cannot be performed until updating/
upgrading is completed. Furthermore, there may be cases where backup data is reset for the
parameters, etc., set on this unit.
•If the update or upgrade fails, press and hold the X on the main unit for more than 5 seconds, or
remove and re-insert the power cord. “Update retry” appears on the display and update restarts from
the point at which update failed. If the error continues despite this, check the network environment.
•Information regarding the “Update” function and “Add New Feature” will be announced on the Denon
web site each time related plans are defined.
•When usable new firmware is released with “Update” or “Add New Feature”, a notification message
is displayed on the menu screen. When you do not want to be notified, set “Notifications” – “Update”
(vpage109) and “Notifications” – “Upgrade” (vpage109) to “O”.
Setup Lock
Default settings are underlined.
Protect settings from inadvertent changes.
Setting items Setting details
Lock
On : Turn protection on.
O : Turn protection o.
When cancelling the setting, set “Lock” to “O”.
NOTE
When “Lock” is set to “On”, the settings listed below can no longer be
changed. Also, “Setup Locked!” is displayed if you attempt to operate
related settings.
•Setup menu operations
Basic instructions
Advanced instructions
Information
Advanced instructions
DVD
Information
111
F Part names and functions vpage112
F Other information vpage117
F Troubleshooting vpage124
F Specifications vpage128
F Index vpage129
Information
Here we list other information related to this unit.
Please refer to this information as needed.
Basic instructions
Advanced instructions
InformationInformation
DVD
112
Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
Q0 Q4Q1 Q2 Q3
yr teq w
io u
q Power operation button (X) ··················································· (27)
Turns power to this unit on and o (standby).
w Power indicator ······································································· (27)
GPower indicator statusH
•Power on : Green
•Normal standby : O
•When “HDMI Pass Through” or “HDMI Control” (vpage92)
is set to “On” : Red
•When “IP Control” (vpage103) is set to “Always On” : Red
u MASTER VOLUME knob ························································· (28)
i Display ···················································································· (113)
o Remote control sensor ························································· (116)
Q0 SOURCE SELECT buttons (0 1) ··········································· (27)
Q1 Tuner preset channel buttons
(TUNER PRESET CH +, –) ·················································· (35, 39)
Q2 DIMMER button ····································································· (107)
Q3 STATUS button ············································· (30, 45, 49, 61, 108)
Q4 QUICK SELECT buttons ·························································· (80)
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
r AUX-HDMI connector ····························································· (10)
t USB port ············································································· (16, 33)
y SETUP MIC jack ······································································· (21)
Part names and functions
Basic instructions
Advanced instructions
InformationInformation
DVD
113
Display
r etyuioQ0
q w
q Information display
The input source name, sound mode, setting values and other
information are displayed here.
w Input signal indicators
e MUTE indicator
This lights when the audio mute mode is selected (vpage28).
r Master volume indicator
t Circle indicator
Circle indicator is displayed when the input source is “NETWORK”
or “iPod/USB” when you are playing back music.
y Sleep timer indicator
This lights when the sleep mode is selected (vpage79).
u Tuner reception mode indicators
These light according to the reception conditions when the input
source is set to “TUNER”.
STEREO : In FM mode, this lights up when receiving stereo
broadcasts.
TUNED : Lights up when the broadcast is properly tuned in.
i Audyssey
®
indicator
This indicator lights when the “MultEQ
®
” (vpage89), “Dynamic
EQ” (vpage 90) or “Dynamic Volume” (vpage 90) setting
is set to other than “O”.
o Decoder indicator
These light when Dolby or DTS signals are input or when the Dolby
or DTS decoder is running.
Q0 Input mode indicators
Set the audio input modes for the dierent input sources
(vpage97).
Basic instructions
Advanced instructions
InformationInformation
DVD
114
Rear panel
See the page indicated in parentheses ( ).
q
r
wio u ty e
q Speaker terminals (SPEAKERS) ············································· (76)
w Power cord ··············································································· (19)
e Video connectors (VIDEO) ·········································· (13, 14, 15)
r HDMI connectors ································································· (9, 10)
t Network connector (NETWORK) ··········································· (18)
y Digital audio connectors (DIGITAL AUDIO) ···················· (13, 14)
u PRE OUT connector ································································· (76)
i Analog audio connectors (AUDIO) ·································· (14, 15)
o FM/AM antenna terminals (ANTENNA) ································ (17)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
Basic instructions
Advanced instructions
InformationInformation
DVD
115
Remote control unit
For buttons not explained here, see the page indicated in parentheses ( ).
ENTER
1 2 3
RC-1181
POWER
SLEEP
CHANNEL
PAGE
Blu-ray
INTERNET
RADIO
MEDIA
SERVER
TUNER
DVD
AUX
TV AUDIO
NETWORK
CBL/SAT
GAME
iPod/USB
SOUND MODE
PUREMOVIE GAMEMUSIC
SETUP
VOLUME
OPTION
INFO
BACK
TUNE
FAVORITE STATION MUTE
MEDIA
PLAYER
q
w
e
r
t
y
u
o
Q5
Q7
Q3
Q2
Q1
Q4
Q6
Q0
i
q SLEEP button ··········································································· (79)
w Input source select buttons ···················································· (27)
e SOUND MODE buttons ··························································· (69)
•MOVIE button
•MUSIC button
•GAME button
•PURE button
r Information button (INFO) ···················································· (108)
t Cursor buttons
(uio p) ··········································· (83,85,91,94,98,102,106)
y ENTER button ·································· (83, 85, 91, 94, 98, 102, 106)
u BACK button ·············································· (33,45,49,52,58,61)
i FAVORITE STATION buttons (1 – 3) ······································ (64)
o System buttons ····················································· (31,34,50,57)
•Skip buttons (8, 9)
•Play button (1)
•Pause button (3)
Tuning up / Tuning down buttons (TUNE +, –) ·············· (35, 39)
Q0 Remote control signal transmitter ······································ (116)
Q1 POWER button (X) ·································································· (27)
Q2 Channel buttons (+, –)
············································ (31,34,38,43,46,50,53,57,59,61)
Q3 Page search buttons (PAGE df)
············································ (31,34,38,43,46,50,53,57,59,61)
Q4 OPTION button ···································· (29,33,36,45,50,52,61)
Q5 VOLUME buttons (df) ··························································· (28)
Q6 SETUP button ·································· (83, 85, 91, 94, 98, 102, 106)
Q7 MUTE button (:) ·································································· (28)
Basic instructions
Advanced instructions
InformationInformation
v See overleaf
DVD
116
Remote control unit
Inserting the batteries
q Remove the rear lid in the
direction of the arrow and
remove it.
w Load the two batteries properly
as indicated by the marks in the
battery compartment.
R03/AAA
e Put the rear cover back on.
NOTE
•Insert the specified batteries in the remote control unit.
•Replace the batteries with new ones if the set does not operate
even when the remote control unit is operated close to the unit. (The
supplied batteries are only for verifying operation. Replace them
with new batteries at an early date.)
•When inserting the batteries, be sure to do so in the proper direction,
following the q and w marks in the battery compartment.
•To prevent damage or leakage of battery fluid:
•Do not use a new battery together with an old one.
•Do not use two dierent types of batteries.
•Do not attempt to charge dry batteries.
•Do not short-circuit, disassemble, heat or dispose of batteries in
flames.
•Do not keep the battery in a place exposed to direct sunlight or in
places with extremely high temperatures, such as near a heater.
•If the battery fluid should leak, carefully wipe the fluid o the inside
of the battery compartment and insert new batteries.
•Remove the batteries from the remote control unit if it will not be in
use for long periods.
•Used batteries should be disposed of in accordance with the local
regulations regarding battery disposal.
•The remote control unit may function improperly if rechargeable
batteries are used.
Operating range of the remote control unit
Point the remote control unit at the remote sensor when operating it.
30°30°
Approx. 23 ft/7 m
NOTE
•The set may function improperly or the remote control unit may not
operate if the remote control sensor is exposed to direct sunlight,
strong artificial light from an inverter type fluorescent lamp or
infrared light.
•When using 3D video devices that transmit infrared communication
signals (such as infrared signals etc) between the various units
(such as the monitor, 3D glasses, 3D transmitter unit etc), the
remote control unit may not operate due to interference from those
communication signals. If this occurs, adjust the direction and
distance of the 3D communication for each unit, and check that the
remote control unit operation is not aected by these signals.
Basic instructions
Advanced instructions
InformationInformation
DVD
117
Other information
n Trademark information (vpage117)
n Surround (vpage118)
n Relationship between video signals and monitor
output (vpage121)
n Explanation of terms (vpage122)
“Made for iPod” and “Made for iPhone” mean that an electronic
accessory has been designed to connect specifically to iPod, or
iPhone, respectively, and has been certified by the developer to
meet Apple performance standards.
Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards. Please note that
the use of this accessory with iPod, or iPhone, may aect wireless
performance.
AirPlay, the AirPlay logo, iPad, iPhone, iPod, iPod classic, iPod nano,
iPod shue and iPod touch are trademarks of Apple Inc., registered
in the U.S. and other countries.
•Individual users are permitted to use iPhone, iPod, iPod classic, iPod
nano, iPod shue, and iPod touch for private copy and playback of
non-copyrighted contents and contents whose copy and playback
is permitted by law. Copyright infringement is prohibited by law.
Windows Media and the Windows logo are trademarks or registered
trademarks of Microsoft Corporation in the United States and/or
other countries.
Trademark information
This product uses the following technologies (Random order):
Manufactured under license from Audyssey Laboratories™. U.S. and
foreign patents pending. Audyssey MultEQ
®
, Audyssey Dynamic
EQ
®
and Audyssey Dynamic Volume
®
are registered trademarks of
Audyssey Laboratories.
Manufactured under license from Dolby Laboratories. “Dolby”,
“Pro Logic” and the double-D symbol are trademarks of Dolby
Laboratories.
Manufactured under license under U.S. Patent Nos: 5,956,674;
5,974,380; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195;
7,272,567 & other U.S. and worldwide patents issued & pending.
DTS-HD, the Symbol, & DTS-HD and the Symbol together are
registered trademarks of DTS, Inc. Product includes software. ©
DTS, Inc. All Rights Reserved.
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
Basic instructions
Advanced instructions
InformationInformation
DVD
118
Surround
This unit is equipped with a sophisticated digital signal processing circuit that lets you play your favorite movie and music sources and listen to them with a wide range of surround sound mode choices.
Sound modes and surround parameters
This table shows the speakers that can be used in each sound mode and the surround parameters adjustable in each sound mode.
Symbols in the table
S This indicates the audio output channels or surround parameters that can be set.
D This indicates the audio output channels. The output channels depend on the settings of “Speaker Config.” (vpage99).
Sound Mode (vpage69)
Channel output
Surr.Parameter (vpage86)
Front
L/R
Center
Surround
L/R
Subwoofer
Cinema EQ
(vpage86)
Loudness Mngmt
z1
(vpage86)
Dynamic Comp.
z2
(vpage86)
Low Frequency
z3
(vpage87)
Delay Time
(vpage87)
Eect Level
(vpage87)
Room Size
(vpage87)
DIRECT (2-channel)
S D
z4
S S
DIRECT (Multi-channel)
S D D D S S S
STEREO
S D S S S
MULTI CH IN
S D D D S
DOLBY PRO LOGIC g
S D D D S
z5
S S
DOLBY DIGITAL
S D D D S S S
DOLBY DIGITAL Plus
S D D D S S S
DOLBY TrueHD
S D D D S S S S
DTS NEO:6
S D D D S
z6
S S
DTS SURROUND
S D D D S S S
DTS 96/24
S D D D S S S
DTS-HD
S D D D S S S
DTS Express
S D D D S S S
MULTI CH STEREO
S D D D S S S
ROCK ARENA
S D D D S S S S S
JAZZ CLUB
S D D D S S S S S
MONO MOVIE
S D D D S S S S S
VIDEO GAME
S D D D S S S S S
MATRIX
S D D D S S S S
VIRTUAL
S D S S S
z1 This item can be selected when a Dolby TrueHD signal is played.
z2 This item can be selected when a Dolby Digital or DTS signal is played.
z3 This item can be selected when a Dolby Digital or DTS signal or DVD-Audio is played.
z4 Only when “Subwoofer Mode” is set to “LFE+Main” (vpage101), sound is output from the subwoofer.
z5 This setting is possible when the sound mode is “PLg Cinema”.
z6 This setting is possible when the sound mode is “DTS NEO:6 Cinema”.
Basic instructions
Advanced instructions
InformationInformation
v See overleaf
DVD
119
Surround
Sound Mode (vpage69)
Surr.Parameter (vpage86)
Tone
z7
(vpage88)
Audyssey (vpage89)
Restorer
z10
(vpage88)
PRO LOGIC g Music mode only
NEO:6 Music mode
only
Panorama
(vpage87)
Dimension
(vpage87)
Center Width
(vpage87)
Center Image
(vpage87)
MultEQ
®
z8
(vpage89)
Dynamic EQ
z9
(vpage90)
Dynamic Volume
z9
(vpage90)
DIRECT (2-channel)
DIRECT (Multi-channel)
STEREO
S S S S S
MULTI CH IN
S S S S
DOLBY PRO LOGIC g
S S S S S S S S
DOLBY DIGITAL
S S S S
DOLBY DIGITAL Plus
S S S S
DOLBY TrueHD
S S S S
DTS NEO:6
S S S S S S
DTS SURROUND
S S S S
DTS 96/24
S S S S
DTS-HD
S S S S
DTS Express
S S S S
MULTI CH STEREO
S S S S S
ROCK ARENA
S
z11
S S S S
JAZZ CLUB
S S S S S
MONO MOVIE
S S S S S
VIDEO GAME
S S S S S
MATRIX
S S S S S
VIRTUAL
S S S S S
z7 This item cannot be set when “Dynamic EQ” (vpage90) is set to “On”.
z8 For HD Audio whose sampling frequency of an input signal is more than 96 kHz, this sound parameter cannot be set.
z9 This item cannot be set when “MultEQ
®
” (vpage89) is set to “O” or “Manual EQ”.
z10 This item can be set when the input signal is analog, PCM 48 kHz or 44.1 kHz.
z11 In this sound mode, bass is +6 dB, and treble is +4 dB (Default).
Basic instructions
Advanced instructions
InformationInformation
DVD
120
Surround
n Types of input signals, and corresponding sound modes
This table shows the input signal that can be played in each sound mode. Check the audio signal of the input source then select the sound mode.
Symbols in the table
F This indicates the default sound mode.
S This indicates the selectable sound mode.
Sound Mode (vpage69)
Input signal types and formats
ANALOG
PCM DTS-HD DTS DOLBY DOLBY DIGITAL
PCM
(Multi-channel)
PCM
(2-channel)
DTS-HD
Master Audio
DTS-HD High
Resolution
Audio
DTS EXPRESS
DTS ES DSCRT
(With Flag)
DTS ES MTRX
(With Flag)
DTS
(5.1-channel)
DTS 96/24 DOLBY TrueHD
DOLBY
DIGITAL Plus
DOLBY
DIGITAL EX
(With Flag)
DOLBY
DIGITAL EX
(With no Flag)
DOLBY
DIGITAL
(5.1-channel)
DOLBY
DIGITAL
(2-channel)
DTS SURROUND
DTS-HD MSTR
F
DTS-HD HI RES
F
DTS SURROUND
S S F
DTS 96/24
F
DTS EXPRESS
F
DTS NEO:6 CINEMA
S S S
DTS NEO:6 MUSIC
S S S
DOLBY SURROUND
DOLBY TrueHD
F
DOLBY DIGITAL+
F
DOLBY DIGITAL
S F F
DOLBY PRO LOGIC g CINEMA
S S S
DOLBY PRO LOGIC g MUSIC
S S S
DOLBY PRO LOGIC g GAME
S S S
MULTI CH IN
MULTI CH IN
F
DIRECT
DIRECT
S S S S S S S S S S S S S S S S
DSP SIMULATION
MULTI CH STEREO
S S S S S S S S S S S S S S S S
ROCK ARENA
S S S S S S S S S S S S S S S S
JAZZ CLUB
S S S S S S S S S S S S S S S S
MONO MOVIE
S S S S S S S S S S S S S S S S
VIDEO GAME
S S S S S S S S S S S S S S S S
MATRIX
S S S S S S S S S S S S S S S S
VIRTUAL
S S S S S S S S S S S S S S S S
STEREO
STEREO
F S F S S S S S S S S S S S S S
Basic instructions
Advanced instructions
InformationInformation
DVD
121
Relationship between video signals and monitor output
Output
Input
HDMI output Video output
HDMI VIDEO Video Menu Video Menu
A A
A
Only the menu is displayed
A
A
A S
S <VIDEO>
S A
S <HDMI> S (HDMI)
A
S S
S <VIDEO>
S Video signal input present
A No video signal input
S < > The input signal between the < > marks is output.
A No video signal output
S ( ) Superimposed on the picture indicated in ( ).
A ( ) Only the picture in ( ) is output.
NOTE
•If you operate the menu while playing back 3D video content or computer’s resolution (e.g. VGA), the
playback video is replaced by the menu screen. The playback video is not displayed behind the menu
screen.
•This unit does not show the status display while playing back 3D video content or computer’s resolution
(e.g. VGA).
•The network menu is only output to TVs that support HDMI.
Basic instructions
Advanced instructions
InformationInformation
DVD
122
Explanation of terms
A
Adobe RGB color, Adobe YCC601 color
The color space defined by Adobe Systems Inc.
Because it is a wider color space than RGB, it can
produce more vivid and natural images.
AirPlay
AirPlay sends (plays) contents recorded in iTunes
or on an iPhone/iPod touch/iPad to a compatible
device via the network.
ALAC (Apple Lossless Audio Codec)
This is a codec for lossless audio compression
method developed by Apple Inc. This codec can
be played back on iTunes, iPod or iPhone. Data
compressed to approximately 60 – 70 % can be
decompressed to exactly the same original data.
App Store
App Store is a site that sells application software
for such devices as the iPhone or iPod Touch, and
is operated by Apple Inc.
Audyssey Dynamic EQ
®
Dynamic EQ solves the problem of deteriorating
sound quality as volume is decreased by taking into
account human perception and room acoustics.
Audyssey Dynamic EQ
®
works in tandem with
Audyssey MultEQ
®
to provide well-balanced sound
for every listener at any volume level.
Audyssey Dynamic Volume
®
Dynamic Volume solves the problem of large
variations in volume level between television
programs, commercials, and between the soft
and loud passages of movies. Audyssey Dynamic
EQ
®
is integrated into Dynamic Volume so that as
the playback volume is adjusted automatically, the
perceived bass response, tonal balance, surround
impression, and dialog clarity remain the same.
Audyssey MultEQ
®
MultEQ
®
is a room equalization solution that
calibrates any audio system so that it can achieve
optimum performance for every listener in a
large listening area. Based on several room
measurements, MultEQ
®
calculates an equalization
solution that corrects for both time and frequency
response problems in the listening area and also
performs a fully automated surround system setup.
Auto Lip Sync
If you connect the unit to a TV that supports the
Auto Lip Sync function, it can automatically correct
delay between the audio and video.
D
Deep Color
An imaging technology supported by HDMI. Unlike
RGB, which uses 8 bits (256 shades) per color, it can
use 10 bits (1024 shades), 12 bits (4096 shades), or
16 bits (65536 shades) to produce colors in higher
definition.
Both devices linked via HDMI must support Deep
Color.
DLNA
DLNA and DLNA CERTIFIED are trademarks and/
or service marks of Digital Living Network Alliance.
Some contents may not be compatible with other
DLNA CERTIFIED
®
products.
Dolby Digital
Dolby Digital is a multi-channel digital signal format
developed by Dolby Laboratories.
A total of 5.1 channels are played: 3 front channels
(“FL”, “FR” and “C”), 2 surround channels
(“SL” and “SR”) and the “LFE” channel for low
frequencies.
Because of this, there is no crosstalk between
channels and a realistic sound field with a “three-
dimensional” feeling (sense of distance, movement
and positioning) is achieved. This delivers a thrilling
surround sound experience in the home.
Dolby Digital Plus
Dolby Digital Plus is an improved Dolby Digital signal
format that is compatible with up to 7.1 channels
of discrete digital sound and also improves sound
quality thanks to extra data bit rate performance.
It is upwardly compatible with conventional Dolby
Digital, so it oers greater flexibility in response to
the source signal and the conditions of the playback
device.
Dolby Pro Logic g
Dolby Pro Logic g is a matrix decoding technology
developed by Dolby Laboratories.
Regular music such as that on CDs is encoded into
5 channels to achieve an excellent surround eect.
The surround channel signals are converted into
stereo and full band signals (with a frequency
response of 20 Hz to 20 kHz or greater) to create
a “three-dimensional” sound image oering a rich
sense of presence for all stereo sources.
Dolby TrueHD
Dolby TrueHD is a high definition audio technology
developed by Dolby Laboratories, using lossless
coding technology to faithfully reproduce the sound
of the studio master.
This format provides the facility to support up to
8 audio channels with a sampling frequency of
96 kHz/24 bit resolution and up to 6 audio channels
with a sampling frequency of 192 kHz/24 bit
resolution. Dolby TrueHD is adopted for applications
that put very high importance on sound quality.
Downmix
This function converts the number of channels of
surround audio to a lower number of channels and
plays back according to the system’s configuration.
DTS
This is an abbreviation of Digital Theater System,
which is a digital audio system developed by DTS.
DTS delivers a powerful and dynamic surround
sound experience, and is found in the world’s finest
movie theaters and screening rooms.
DTS 96/24
DTS 96/24 is a digital audio format enabling high
sound quality playback in 5.1 channels with a
sampling frequency of 96 kHz and 24 bit quantization
on DVD-Video.
DTS Digital Surround
DTS Digital Surround is the standard digital surround
format of DTS, Inc., compatible with a sampling
frequency of 44.1 or 48 kHz and up to 5.1 channels
of digital discrete surround sound.
DTS Express
DTS Express is an audio format supporting low bit
rates (max. 5.1 channels, 24 to 256 kbps).
DTS-HD
This audio technology provides higher sound quality
and enhanced functionality than the conventional
DTS and is adopted as an optional audio for Blu-ray
Disc. This technology supports multi-channel, high
data transfer speed, high sampling frequency, and
lossless audio playback. Maximum 7.1-channels are
supported in Blu-ray Disc.
DTS-HD High Resolution Audio
DTS-HD High Resolution Audio is an improved
version of the conventional DTS, DTS-ES and
DTS 96/24 signals formats, compatible with
sampling frequencies of 96 or 48 kHz and up to
7.1 channels of discrete digital sound. High data
bit rate performance provides high quality sound.
This format is fully compatible with conventional
products, including conventional DTS digital
surround 5.1-channel data.
DTS-HD Master Audio
DTS-HD Master Audio is a lossless audio format
created by Digital Theater System (DTS). This
format provides the facility to support up to 8 audio
channels with a sampling frequency of 96 kHz/
24 bit resolution and up to 6 audio channels with
a sampling frequency of 192 kHz/24 bit resolution.
It is fully compatible with conventional products,
including conventional DTS digital surround
5.1-channel data.
DTS NEO:6™ Surround
DTS NEO:6™ is a matrix decoding technology
for achieving 6.1-channel surround playback
with 2-channel sources. It includes “DTS NEO:6
Cinema” suited for playing movies and “DTS
NEO:6 Music” suited for playing music.
Dynamic range
The dierence between the maximum undistorted
sound level and the minimum discernible level
above the noise emitted by the device.
Basic instructions
Advanced instructions
InformationInformation
DVD
123
F
FLAC
FLAC stands for Free lossless Audio Codec, and is a
lossless free audio file format. Lossless means that
the audio is compressed without any loss in quality.
The FLAC license is as shown below.
Copyright (C) 2000, 2001, 2002, 2003, 2004, 2005,
2006, 2007, 2008, 2009 Josh Coalson
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
•Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
•Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation and/
or other materials provided with the distribution.
•Neither the name of the Xiph.org Foundation nor
the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND CONTRIBUTORS “AS
IS” AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED
AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
Explanation of terms
H
HDCP
When transmitting digital signals between devices,
this copyright protection technology encrypts
the signals to prevent content from being copied
without authorization.
HDMI
This is an abbreviation of High-Definition Multimedia
Interface, which is an AV digital interface that can
be connected to a TV or amplifier. Video signals and
audio signals can be connected using a single cable.
I
iTunes
iTunes is the name of the multimedia player
provided by Apple Inc. It enables management
and playback of multimedia contents including
music and movies. iTunes supports many main file
formats including AAC, WAV, and MP3.
L
LFE
This is an abbreviation of Low Frequency Eect,
which is an output channel that emphasizes
low frequency eect sound. Surround audio is
intensified by outputting 20 Hz to 120 Hz deep bass
to the system subwoofer(s).
M
MAIN ZONE
The room where this unit is placed is called the
MAIN ZONE .
MP3 (MPEG Audio Layer-3)
This is an internationally standardized audio data
compression scheme, using the “MPEG-1” video
compression standard. It compresses the data
volume to about one eleventh its original size while
maintaining sound quality equivalent to a music CD.
MPEG (Moving Picture Experts Group),
MPEG-2, MPEG-4
These are the names for digital compression format
standards used for the encoding of video and audio.
Video standards include “MPEG-1 Video”, “MPEG-
2 Video”, “MPEG-4 Visual”, “MPEG-4 AVC”. Audio
standards include “MPEG-1 Audio”, “MPEG-2
Audio”, “MPEG-4 AAC”.
P
Progressive (sequential scanning)
This is a scanning system of the video signal that
displays 1 frame of video as one image. Compared
to the interlace system, this system provides
images with less flickering and jagged edges.
Protection Circuit
This is a function to prevent damage to devices
within the power supply when an abnormality
such as an overload, excess voltage occurs or over
temperature for any reason.
In this unit, the power indicator blinks and the unit
enters standby mode when an abnormality occurs.
S
Sampling frequency
Sampling involves taking a reading of a sound wave
(analog signal) at regular intervals and expressing
the height of the wave at each reading in digitized
format (producing a digital signal).
The number of readings taken in one second is
called the “sampling frequency”. The larger the
value, the closer the reproduced sound is to the
original.
Speaker impedance
This is an AC resistance value, indicated in Ω
(ohms). Greater power can be obtained when this
value is smaller.
sYCC601 color
Like “x.v.Color”, each of these color spaces defines
a palette of available colors that is larger than the
traditional RGB color model.
V
vTuner
This is a free online content server for Internet
Radio. Note that usage fees are included in upgrade
costs.
For inquiries about this service, visit the vTuner site
below.
vTuner website: http://www.radiodenon.com
This product is protected by certain intellectual
property rights of Nothing Else Matters Software
and BridgeCo. Use or distribution of such technology
outside of this product is prohibited without a
license from Nothing Else Matters Software and
BridgeCo or an authorized subsidiary.
W
Windows Media DRM
This is a copyright protection technology developed
by Microsoft.
Content providers are using the digital rights
management technology for Windows Media
contained in this device (WM-DRM) to protect
the integrity of their content (Secure Content) so
that their intellectual property, including copyright,
in such content is not misappropriated. This
device uses WM-DRM software to play Secure
Content (WM-DRM Software). If the security of
the WM-DRM Software in this device has been
compromised, owners of Secure Content (Secure
Content Owners) may request that Microsoft
revoke the WM-DRM Software’s right to acquire
new licenses to copy, display and/or play Secure
Content. Revocation does not alter the WM-DRM
Software’s ability to play unprotected content.
A list of revoked WM-DRM Software is sent to
your device whenever you download a license for
Secure Content from the Internet or from a PC.
Microsoft may, in conjunction with such license,
also download revocation list onto your device on
behalf of Secure Content Owners.
Windows Media Player Ver.11 or later
This is a media player distributed free of charge by
Microsoft Corporation.
It can play playlists created with Ver.11 or later of
Windows Media Player, as well as WMA, DRM
WMA, WAV, and other files.
WMA (Windows Media Audio)
This is audio compression technology developed by
Microsoft Corporation.
WMA data can be encoded using Windows Media
®
Player.
To encode WMA files, only use applications
authorized by Microsoft Corporation. If you use
an unauthorized application, the file may not work
properly.
X
x.v.Color
This function lets HDTVs display colors more
accurately. It enables display with natural,
vivid colors. “x.v.Color” is trademark of Sony
Corporation.
Basic instructions
Advanced instructions
InformationInformation
DVD
124
Troubleshooting
If a problem should arise, first check the following:
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
If this unit does not operate properly, check the items listed in the table below. Should the problem persist,
there may be a malfunction.
In this case, disconnect the power immediately and contact your store of purchase.
GGeneralH
Symptom Cause/Solution Page
Power does not turn
on.
•Check whether the power plug is correctly inserted into the power
outlet.
•The protection circuit is active. Disconnect the power plug from
the electric outlet, wait 5 to 10 seconds and then insert it back
into the outlet.
19
123
Power automatically
switches to standby
mode.
•The sleep timer is set. Turn on the power again, or change the
sleep timer settings.
•“Auto Standby” is triggered when there is no operation for a set
amount of time. To disable “Auto Standby”, set “Auto Standby”
on the menu to “O”.
79
107
Display is o. •Set “Dimmer” on the menu to something other than “O”.
107
The power indicator
is blinking red
in intervals of
approximately 2
seconds.
•Due to the temperature rise within this unit, the protection circuit
is working. Please turn o power once, and re-apply the power
after the temperature has fallen suciently.
•Please re-install this unit in a place having good ventilation.
123
–
The power indicator
is blinking red
in intervals of
approximately 0.5
seconds.
•Please use speakers which have the specified impedance.
•The protection circuit has been activated because the speaker
cable core wires are touching, a core wire has come loose from
the terminal, or a core wire is touching the rear panel of this unit.
After unplugging the power cord, take corrective action such as
firmly re-twisting the core wire or taking care of the terminal, and
then reconnect the wire.
75
75
After turning on the
power, the power
indicator is blinking
red in intervals of
approximately 0.5
seconds.
•This unit’s amplifier circuit has failed. Turn o the power and
please contact the Denon service adviser.
–
Set does not operate
properly.
•Reset the microprocessor. Note that re-setting the microprocessor
restores all pre-configured settings to the factory defaults.
128
GHDMIH
Symptom Cause/Solution Page
No audio is
output with HDMI
connection.
•Check the connection of the HDMI connectors.
•When outputting HDMI audio from the speakers, set “HDMI
Audio Out” on the menu to “AVR”.
•When outputting HDMI audio from a TV, set “HDMI Audio Out”
on the menu to “TV”.
9, 10
92
92
No video is
output with HDMI
connection.
•Check the connection of the HDMI connectors.
•Set the input source to match the connected HDMI connector.
•Check whether the TV is compatible with copyright protection
(HDCP). If connected to a device not compatible with HDCP, video
will not be output correctly.
9, 10
9,10,27
11
When the following
operations are
performed on
devices compatible
with HDMI control,
the same operations
occur on this unit.
•Power ON/OFF
•Switching audio
output devices
•Adjust volume
•Switch input source
•Set “HDMI Control” in the menu to “O”.
Furthermore, if you do not want to link the power o operation
with devices compatible with HDMI control, set “Power O
Control” in the menu to “O”.
78, 92
GVideoH
Symptom Cause/Solution Page
No picture appears. •Check the connection between the video output terminal of this
unit and the input terminal of the TV.
•Match the input settings to the input terminal of the TV connected
to this unit.
9
–
Basic instructions
Advanced instructions
InformationInformation
DVD
125
GAudioH
Symptom Cause/Solution Page
Audio is not output. •Check the connections for all devices.
•Check the speaker connections and configurations.
•Check whether the audio device power is turned on.
•Adjust the master volume.
•Cancel the mute mode.
•Check the connection with the playback device and select the
proper input source.
•Match the input mode and the terminal assigned to be the digital
input terminal.
•Disconnect the headphones. No sound is output from the
speakers when headphones are connected.
9,10,13,
14,15,16,
17,18,19
76
–
28
28
27
97
112
The volume does not
increase.
•The maximum volume is set too low. Set the maximum volume
using “Limit”on the menu.
•Power for external devices connected to the output connectors
of the unit may not be turned on. Check the power of connected
external devices.
89
–
No sound is
produced from
surround speakers.
•Check if the surround speakers are connected to the SURROUND
terminals.
–
No sound is
produced from
subwoofer.
•Check the subwoofer connections.
•Turn on the subwoofer’s power.
•Set “Speaker Config.” – “Subwoofer” on the menu to “Yes”.
•If “Front” and “Center” for “Speaker Config.” are set to “Large”,
and “Subwoofer Mode” is set to “LFE”, no sound may be output
from the subwoofers, depending on the input signal or selected
sound mode.
76
–
99
99, 101
DTS sound is not
output.
•Set “Decode Mode” on the menu to “Auto” or “DTS”.
97
Dolby TrueHD, DTS-
HD, Dolby Digital
Plus audio is not
output.
•Make HDMI connections.
9, 10
Symptom Cause/Solution Page
Dolby PLg mode or
DTS NEO:6 mode
cannot be selected.
•Check that “Speaker Config.” – “Center” or “Surround” is set to
other than “None”. If the speaker system is 2.0/2.1-channel, this
sound mode cannot be selected.
•When headphones are used, Dolby PLg or DTS NEO:6 cannot be
selected.
99
–
Audyssey MultEQ
®
,
Audyssey Dynamic
EQ
®
and Audyssey
Dynamic Volume
®
cannot be selected.
•Switch the sound mode to other than “DIRECT”.
•When headphones are used, Audyssey MultEQ
®
, Audyssey
Dynamic EQ
®
and Audyssey Dynamic Volume
®
cannot be selected.
69
–
Audyssey Dynamic
EQ
®
and Audyssey
Dynamic Volume
®
cannot be selected.
•Run Audyssey
®
Setup.
20
“Restorer” cannot
be selected.
•Check that an analog signal or PCM signal (Sample Rate=44.1/48
kHz) is input. For playback of multichannel signals such as Dolby
Digital or DTS surround, “Restorer” cannot be used.
•Switch the sound mode to other than “DIRECT”.
88
69
GFM/AMH
Symptom Cause/Solution Page
Reception fails, or
there is a lot of noise
or distortion.
•Change the antenna orientation or position.
•Separate the AM loop antenna from the unit.
•Use an FM outdoor antenna.
•Separate the antenna from other connection cables.
17
17
17
17
Basic instructions
Advanced instructions
InformationInformation
DVD
126
GiPod / USB memory device / Internet Radio / Media Server / Flickr / Pandora / SiriusXM / SpotifyH
Symptom Cause/Solution Page
iPod cannot be
played.
•Some iPods do not support being used connected directly to the
USB port.
16
The file names
are not displayed
properly (“...”, etc.).
•Characters that cannot be displayed are used. This is not a
malfunction. On this unit, characters that cannot be displayed are
replaced with a “.” (period).
•Invalid tags are used for files within the USB memory device
connected to this unit. Use tags that are supported by this unit.
–
32
When a USB
memory device is
connected, “No
Connection” is
displayed.
•The set cannot recognize a USB memory device. Check the
connection.
•This unit supports mass storage class and MTP-compatible USB
memory devices. It will not recognize other USB memory devices.
•A USB memory device that the set cannot recognize is connected.
This is not a malfunction. Denon does not guarantee that all USB
memory devices will operate or receive power.
•USB memory device is connected via USB hub. Connect the USB
memory device directly to the USB port.
•The unit supports file structures with up to 8 levels and a total
maximum of 5000 subfolders and files per 1 folder. Change the
file structure of the USB memory device if necessary.
16
–
–
–
32
Files on a USB
memory device
cannot be played.
•The USB memory device format should be set to FAT16 or
FAT32. For details, refer to the USB memory device’s operating
instructions.
•If the USB memory device is divided into multiple partitions, only
files in partition one can be played.
•Files are stored in a non-compatible format. Record the files in a
compatible format.
•You are attempting to play a file that is copyright protected. Files
that are copyright protected cannot be played on this unit.
–
–
32
32
Internet Radio cannot
be played.
•Ethernet cable is not properly connected or network is
disconnected. Check the connection status.
•Program is being broadcast in non-compatible format. Only
Internet Radio programs in MP3 and WMA can be played on this
unit.
•The firewall of the PC or router has been activated. Check the
firewall settings of the connected PC or router.
•Radio station is not currently broadcasting. Choose a radio station
that is currently broadcasting.
•IP address is wrong. Check the set’s IP address.
•Some radio stations may go silent at certain times of the day. In
this case, no audio is output even when a station is received. Try
again later, or switch to another radio station.
18
44
–
44
103
–
Symptom Cause/Solution Page
Files stored on a
computer cannot be
played.
•Files are stored in a non-compatible format. Record in a compatible
format.
•You are attempting to play a file that is copyright protected. Files
that are copyright protected cannot be played on this unit.
•Set and computer are connected by USB cable. The set’s USB
port cannot be used for connection to a computer.
•Media sharing settings are not correct. Change media sharing
settings so that the unit can access the folders on your computer.
47
47
–
48
Music stored on
a NAS cannot be
played.
•If you use a NAS in conformity with the DLNA standard, enable
the DLNA server function in the NAS setting.
•If you use a NAS that does not conform with the DLNA standard,
play the music via a PC. Set Windows Media Player’s media
sharing function and add NAS to the selected play folder.
•If connection is restricted, set audio equipment as the connection
target.
–
48
–
Server is not found,
or it is not possible
to connect to the
server.
•The computer’s or router’s firewall is activated. Check the
computer’s or router’s firewall settings.
•Computer’s power is not turned on. Turn on the power.
•Server is not running. Launch the server.
•Set’s IP address is wrong. Check the set’s IP address.
–
–
–
103
Cannot connect to
preset or favorite
radio stations.
•Radio station is not currently broadcasting. Wait a while before
trying again.
•Radio station is not currently in service. It is not possible to
connect to radio stations that are no longer in service.
–
–
A list of broadcasting
stations is not
displayed.
•Connection to the network is unstable. Reconnect to the network
or redo the “Network” setting in the menu.
18, 102
For some radio
stations, “Radio
station server full” or
“Connection down”
is displayed and
station cannot be
connected to.
•Station is congested or not currently broadcasting. Wait a while
before trying again.
–
Basic instructions
Advanced instructions
InformationInformation
v See overleaf
DVD
127
Symptom Cause/Solution Page
Sound is broken
during playback.
•Network or USB memory device’s signal transfer speed is slow
or communications lines or radio station is congested. This is not
a malfunction. When playing broadcast data with a high bit rate,
the sound may be broken, depending on the communications
conditions.
–
Sound quality is poor
or noise is heard
during play.
•File being played has a low bit rate. This is not a malfunction. –
Cannot login to
Pandora. (“Email
address” or
“Password” is
displayed.)
•Login information is incorrect. Check if the “Email address” for
Pandora has been properly entered. Re-enter the “Password”.
(Password is not displayed.)
http://www.pandora.com/denon
54
GAirPlayH
Symptom Cause/Solution Page
The AirPlay icon
is not displayed
in iTunes or on the
iPhone/iPod touch/
iPad.
•This unit and the computer or iPhone/iPod touch/iPad are not
connected to the same network (LAN). Connect the computer or
iPhone/iPod touch/iPad to the same network as this unit.
•iTunes or the iPhone/iPod touch/iPad do not have firmware that
supports AirPlay installed. Update to the latest firmware.
18
–
No sound. •The volume in iTunes or on the iPhone/iPod touch/iPad is set to
the minimum setting. Adjust the volume to the optimum level.
•This unit is not selected in the screen that is displayed when
iTunes or the iPhone/iPod touch/iPad is started. Start iTunes or
switch on the iPhone/iPod touch/iPad, click the AirPlay icon
in
the displayed screen, and select this unit.
•AirPlay playback has not started. Click the 1 button in iTunes or
press the 1 button on the iPhone/iPod touch/iPad.
–
67
–
When using AirPlay
with the iPhone/
iPod touch/iPad, the
sound suers from
intermittent breaks
or AirPlay does not
function.
•Quit the application running in the background of the iPhone/iPod
touch/iPad, and then play using AirPlay.
•When playing via a wireless connection, outside conditions may
aect the unit. To remedy this, change the network environment,
e.g. shorten the distance to the wireless LAN access point.
•Update the iPhone/iPod touch/iPad application or iTunes to the
latest version.
–
–
–
GRemote control unitH
Symptom Cause/Solution Page
The set cannot be
operated with the
remote control unit.
•Batteries are worn out. Replace with new batteries.
•Operate the remote control unit within a distance of about
23 ft/7 m from this unit and at an angle of within 30°.
•Remove any obstacle between this unit and the remote control
unit.
•Insert the batteries in the proper direction, checking the q and
w marks.
•The set’s remote control sensor is exposed to strong light (direct
sunlight, inverter type fluorescent bulb light, etc.). Move the set
to a place in which the remote control sensor will not be exposed
to strong light.
116
116
116
116
116
Basic instructions
Advanced instructions
InformationInformation
DVD
128
Resetting the microprocessor
Perform this procedure if the display is abnormal or if operations cannot be performed.
Note that when the microprocessor is reset, all the settings are reset to their default values.
X
SOURCE SELECT 1
SOURCE SELECT 0
1
Turn o the power using X.
2
Press X while simultaneously pressing SOURCE SELECT 0 and SOURCE SELECT
1.
3
Once the display starts flashing at intervals of about 1 second, release the two
buttons.
If in step 3 the display does not flash at intervals of about 1 second, start over from step 1.
Specifications
n Audio section
•Power amplifier
Rated output: Front:
75 W + 75 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W + 120 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Center:
75 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Surround:
75 W + 75 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W + 120 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)
Output connectors: 6 – 16 Ω/ohms
•Analog
Input sensitivity/Input impedance: 200 mV/47 kΩ/kohms
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N: 98 dB (IHF–A weighted, DIRECT mode)
n Video section
•Standard video connectors
Input sensitivity/Input impedance: 1 Vp-p, 75 Ω/ohms
Frequency response: 5 Hz – 10 MHz — 0, –3 dB
n Tuner section [FM] [AM]
(Note: μV at 75 Ω/ohms, 0 dBf = 1 x 10
–15
W)
Receiving Range: 87.5 MHz – 107.9 MHz 520 kHz – 1710 kHz
Usable Sensitivity: 1.2 μV (12.8 dBf) 18 μV
50 dB Quieting Sensitivity: MONO 2.8 μV (20.2 dBf)
S/N : MONO 70 dB (IHF–A weighted, DIRECT mode)
STEREO 67 dB (IHF–A weighted, DIRECT mode)
Total harmonic Distortion: MONO 0.7 % (1 kHz)
STEREO 1.0 % (1 kHz)
n General
Power supply: AC 120 V, 60 Hz
Power consumption: 360 W
Power consumption in standby mode: 0.1 W
Power consumption in CEC standby
mode: 0.5 W
Power consumption in network
standby mode: 2.7 W
For purposes of improvement, specifications and design are subject to change without notice.
Basic instructions
Advanced instructions
InformationInformation
DVD
129
v Numerics
2.1-channel ························································· 77
3D ······································································· 11
5.1-channel ··················································· 74, 76
v A
Accessories ·························································· 2
Add New Feature ············································· 110
Adjust EQ ··························································· 90
Adjusting the master volume ····························· 28
Adobe RGB color / Adobe YCC601 color ········· 122
AirPlay ························································ 67, 122
ALAC ································································ 122
AM loop antenna ················································ 17
App Store ························································· 122
ARC ······································································ 8
Audio ·································································· 85
Audio Delay ························································ 88
Audyssey ···························································· 89
Audyssey Dynamic EQ® ····························· 90, 122
Audyssey Dynamic Volume® ······················ 90, 122
Audyssey MultEQ® ····································· 89, 122
Audyssey® Setup ················································ 20
Auto Lip Sync ············································· 92, 122
Auto Preset ························································ 40
Auto Standby ···················································· 107
v B
Bass ··························································· 88, 101
v C
Cable
Audio cable ······················································ 12
Coaxial digital cable·········································· 12
Ethernet cable·················································· 12
HDMI cable ·················································· 9, 10
Optical cable ···················································· 12
Speaker cable ·················································· 75
Subwoofer cable ·············································· 75
Video cable ······················································ 12
Center Image ····················································· 87
Center Width ······················································ 87
Characters ·························································· 84
Check Results ···················································· 26
Cinema EQ ························································· 86
Condensation ······················································· 3
Connection
Blu-ray Disc player ··········································· 10
Cable TV··························································· 14
DVD player ················································· 10, 15
FM/AM····························································· 17
Game console ·················································· 10
HDMI ································································· 7
Home network (LAN) ······································· 18
iPod (USB)························································ 16
Media player ···················································· 15
Power cord ······················································ 19
Satellite tuner··················································· 14
Set-top box ················································ 10, 14
Speaker ···························································· 75
TV································································· 9, 13
USB memory device ········································ 16
Video camcorder ·············································· 10
Content Type ······················································ 11
Crossovers ······················································· 100
Curve Copy ························································· 90
v D
Decode Mode ···················································· 97
Deep Color ················································· 11, 122
Delay Time ························································· 87
Diagnostics ······················································· 105
Dialog Level ························································ 86
Dimension ·························································· 87
Dimmer ···························································· 107
Direct Tune ························································· 37
Display ······························································ 113
Distances ··························································· 99
DLNA ································································ 122
Dolby
Dolby Digital············································· 72, 122
Dolby Digital EX ············································· 122
Dolby Digital Plus ····································· 72, 122
Dolby Pro Logic II····································· 72, 122
Dolby TrueHD ·········································· 72, 122
Downmix ·························································· 122
DTS ·································································· 122
DTS 96/24 ················································ 72, 122
DTS Digital Surround ····································· 122
DTS-ES Discrete 6.1 ······································ 122
DTS Express ············································ 72, 122
DTS-HD ···················································· 72, 122
DTS-HD High Resolution Audio ····················· 122
DTS-HD Master Audio ··································· 122
DTS Neo:6 ······················································· 72
DTS NEO:6™ Surround ································· 122
Dynamic Comp. ·················································· 86
Dynamic EQ ······················································· 90
Dynamic range ················································· 122
Dynamic Volume ················································ 90
v E
Edit Name ························································ 103
Eect Level ························································ 87
Error messages (Audyssey® Setup) ···················· 25
v F
Firmware ·························································· 109
FLAC ································································ 123
Flickr ····························································· 51, 52
FM/AM ······························································· 35
FM indoor antenna ············································· 17
Format ································································ 93
Friendly Name ·················································· 103
Front Display ···················································· 107
Front Panel ······················································· 112
v G
General ····························································· 106
v H
HDCP ························································· 11, 123
HDMI ······················································ 7, 11, 123
HDMI Audio Out ················································ 92
HDMI Control ··············································· 78, 92
HDMI Pass Through ··········································· 92
HDMI Setup ······················································· 92
Headphones ····················································· 112
Hide Sources ······················································ 97
v I
Info ····································································· 93
Information ··············································· 103, 108
Audio······························································ 108
Firmware························································ 108
Notifications ··················································· 108
Status····························································· 108
Video ······························································ 108
Input Assign ······················································· 95
Input Mode ························································· 97
Inputs ································································· 94
Input Select ························································ 97
Input signal ······················································· 120
Inputting characters ··········································· 84
Internet Access ················································ 105
IP Control ························································· 103
iPod Browse Mode ············································ 30
iTunes ······························································· 123
v L
Language ·························································· 107
Level ··································································· 86
Levels ······························································· 100
LFE ··································································· 123
Limit ··································································· 89
Listening mode ·················································· 69
Listening position ··············································· 20
Lock ·································································· 110
Loudness Mngmt ··············································· 86
Low Frequency ·················································· 87
v M
MAIN ZONE ····················································· 123
Manual EQ ························································· 90
Manual Setup ····················································· 99
Menu map ·························································· 81
Mode ·································································· 88
MP3 ·································································· 123
MPEG ······························································· 123
MultEQ® ····························································· 89
Mute Level ························································· 89
v N
Network ····················································· 26, 102
Notifications ····················································· 109
Now Playing ······················································· 93
v O
On Screen Disp. ················································· 93
Index
Basic instructions
Advanced instructions
InformationInformation
DVD
130
v P
Pandora® ······················································· 51, 54
Panorama ··························································· 87
Pass Through Source ········································· 92
Physical Connection ········································· 105
Playback
ALAC·························································· 32, 47
Blu-ray Disc player ··········································· 28
Direct ························································· 69, 72
DVD player ······················································· 28
FLAC ·························································· 32, 47
Flickr ································································ 52
FM/AM····························································· 35
Internet Radio ·················································· 44
iPod (USB)························································ 29
JPEG ·························································· 32, 47
MP3 ····················································· 32, 44, 47
MPEG-4 AAC ············································· 32, 47
NAS·································································· 47
Original listening mode ···································· 72
Pandora® ·························································· 54
PC ···································································· 47
SiriusXM ·························································· 58
Spotify······························································ 60
Stereo ······························································ 72
USB memory device ········································ 32
WAV··························································· 32, 47
WMA ··················································· 32, 44, 47
Power O Control ·············································· 92
Power On Level ················································· 89
Preset Memory ·················································· 38
Preset Name ······················································ 41
Preset Skip ························································· 42
Progressive ······················································ 123
Protection circuit ·············································· 123
v Q
Quick select ······················································· 80
Quick Sel.Names ·············································· 107
v R
Random ························································ 31, 63
Rear panel ························································ 114
Reference Level Oset ······································ 90
Remote control unit ········································· 115
Inserting the batteries···································· 116
Remove from Fav. ·············································· 65
Repeat ·························································· 31, 62
Resetting the microprocessor ·························· 128
Restorer ····························································· 88
Room Size ·························································· 87
Router Access ·················································· 105
v S
Sampling frequency ········································· 123
Save to Favorite ················································· 64
Scale ··································································· 89
Selecting the input source ································· 27
Settings ···························································· 104
Setup Lock ······················································· 110
SiriusXM ······················································· 51, 58
Sleep timer ························································· 79
Slideshow ··························································· 65
Slideshow Time ·················································· 65
Sound Mode ··············································· 69, 118
Source Level ······················································ 97
Source Rename ·················································· 97
Speaker
Connect ··························································· 75
Install ······························································· 74
Set up ······························································ 20
Speaker Config. ·················································· 99
Speaker impedance ···································· 75, 123
Speakers ···························································· 98
Speaker Select. ·················································· 90
Spotify ·························································· 51, 60
Subwoofer ·························································· 86
Subwoofer Level ················································ 86
Subwoofer setting ·············································· 21
Surr.Parameter ··················································· 86
sYCC601 color ·················································· 123
v T
Text Search ························································ 62
Tone ··································································· 88
Tone Control ······················································· 88
Trademark ························································ 117
Treble ································································· 88
Troubleshooting ··············································· 124
Tune Mode ························································· 39
Turning o the sound temporarily ······················ 28
Turning the power on ········································· 27
TV Format ··························································· 93
v U
Update ······························································ 109
Usage Data ······················································· 109
v V
Video ·································································· 91
Video Select ······················································· 66
Volume ························································· 89, 93
vTuner ························································ 46, 123
v W
Windows Media DRM ······································ 123
Windows Media Player ···································· 123
WMA ································································ 123
v X
x.v.Color ··························································· 123
Basic instructions
Advanced instructions
InformationInformation
DVD
LICENSE
License
This section describes software license used for
this unit. To maintain the correct content, the
original (English) is used.
n Boost
http://www.boost.org/
Boost Software License - Version 1.0 - August 17th, 2003
Permission is hereby granted, free of charge, to any
person or organization obtaining a copy of the software and
accompanying documentation covered by this license (the
“Software”) to use, reproduce, display, distribute, execute,
and transmit the Software, and to prepare derivative works
of the Software, and to permit third-parties to whom the
Software is furnished to do so, all subject to the following:
The copyright notices in the Software and this entire
statement, including the above license grant, this restriction
and the following disclaimer, must be included in all copies
of the Software, in whole or in part, and all derivative works
of the Software, unless such copies or derivative works
are solely in the form of machine-executable object code
generated by a source language processor.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, TITLE AND NON-INFRINGEMENT. IN NO
EVENT SHALL THE COPYRIGHT HOLDERS OR ANYONE
DISTRIBUTING THE SOFTWARE BE LIABLE FOR
ANY DAMAGES OR OTHER LIABILITY, WHETHER IN
CONTRACT, TORT OR OTHERWISE, ARISING FROM,
OUT OF OR IN CONNECTION WITH THE SOFTWARE OR
THE USE OR OTHER DEALINGS IN THE SOFTWARE.
n Expat
http://www.jclark.com/xml/expat.html
Expat License. Copyright (c) 1998, 1999, 2000 Thai Open
Source Software Center Ltd
Permission is hereby granted, free of charge, to any
person obtaining a copy of this software and associated
documentation files (the “Software”), to deal in the
Software without restriction, including without limitation
the rights to use, copy, modify, merge, publish, distribute,
sublicense, and/or sell copies of the Software, and to
permit persons to whom the Software is furnished to do
so, subject to the following conditions:
The above copyright notice and this permission notice
shall be included in all copies or substantial portions of the
Software.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT. IN NO EVENT
SHALL THE AUTHORS OR COPYRIGHT HOLDERS
BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT,
TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR THE USE OR
OTHER DEALINGS IN THE SOFTWARE.
n FastDelegate
http://www.codeproject.com/KB/cpp/FastDelegate.aspx
THE WORK (AS DEFINED BELOW) IS PROVIDED UNDER
THE TERMS OF THIS CODE PROJECT OPEN LICENSE
(“LICENSE”). THE WORK IS PROTECTED BY COPYRIGHT
AND/OR OTHER APPLICABLE LAW. ANY USE OF THE
WORK OTHER THAN AS AUTHORIZED UNDER THIS
LICENSE OR COPYRIGHT LAW IS PROHIBITED.
BY EXERCISING ANY RIGHTS TO THE WORK PROVIDED
HEREIN, YOU ACCEPT AND AGREE TO BE BOUND
BY THE TERMS OF THIS LICENSE. THE AUTHOR
GRANTS YOU THE RIGHTS CONTAINED HEREIN IN
CONSIDERATION OF YOUR ACCEPTANCE OF SUCH
TERMS AND CONDITIONS. IF YOU DO NOT AGREE
TO ACCEPT AND BE BOUND BY THE TERMS OF THIS
LICENSE, YOU CANNOT MAKE ANY USE OF THE WORK.
1. Definitions
.
a. “Articles” means, collectively, all articles written by
Author which describes how the Source Code and
Executable Files for the Work may be used by a user.
b. “Author” means the individual or entity that oers the
Work under the terms of this License.
c. “Derivative Work” means a work based upon the Work
or upon the Work and other pre-existing works.
d. “Executable Files” refer to the executables, binary
files, configuration and any required data files included
in the Work.
e. “Publisher” means the provider of the website,
magazine, CD-ROM, DVD or other medium from or by
which the Work is obtained by You.
f. “Source Code” refers to the collection of source code
and configuration files used to create the Executable
Files.
g. “Standard Version” refers to such a Work if it has not
been modified, or has been modified in accordance
with the consent of the Author, such consent being in
the full discretion of the Author.
h. “Work” refers to the collection of files distributed by
the Publisher, including the Source Code, Executable
Files, binaries, data files, documentation, whitepapers
and the Articles.
i. “You” is you, an individual or entity wishing to use the
Work and exercise your rights under this License.
2. Fair Use/Fair Use Rights. Nothing in this License is
intended to reduce, limit, or restrict any rights arising
from fair use, fair dealing, first sale or other limitations
on the exclusive rights of the copyright owner under
copyright law or other applicable laws.
3. License Grant. Subject to the terms and conditions of
this License, the Author hereby grants You a worldwide,
royalty-free, non-exclusive, perpetual (for the duration
of the applicable copyright) license to exercise the
rights in the Work as stated below:
a. You may use the standard version of the Source Code
or Executable Files in Your own applications.
b. You may apply bug fixes, portability fixes and other
modifications obtained from the Public Domain or from
the Author. A Work modified in such a way shall still be
considered the standard version and will be subject to
this License.
c. You may otherwise modify Your copy of this Work
(excluding the Articles) in any way to create a Derivative
Work, provided that You insert a prominent notice in
each changed file stating how, when and where You
changed that file.
d. You may distribute the standard version of the
Executable Files and Source Code or Derivative Work in
aggregate with other (possibly commercial) programs
as part of a larger (possibly commercial) software
distribution.
e. The Articles discussing the Work published in
any form by the author may not be distributed or
republished without the Author’s consent. The author
retains copyright to any such Articles. You may use
the Executable Files and Source Code pursuant to
this License but you may not repost or republish or
otherwise distribute or make available the Articles,
without the prior written consent of the Author.
Any subroutines or modules supplied by You and linked
into the Source Code or Executable Files this Work shall
not be considered part of this Work and will not be subject
to the terms of this License.
4. Patent License. Subject to the terms and conditions
of this License, each Author hereby grants to You
a perpetual, worldwide, non-exclusive, no-charge,
royalty-free, irrevocable (except as stated in this
section) patent license to make, have made, use,
import, and otherwise transfer the Work.
5. Restrictions. The license granted in Section 3 above is
expressly made subject to and limited by the following
restrictions:
a. You agree not to remove any of the original copyright,
patent, trademark, and attribution notices and
associated disclaimers that may appear in the Source
Code or Executable Files.
b. You agree not to advertise or in any way imply that this
Work is a product of Your own.
c. The name of the Author may not be used to endorse or
promote products derived from the Work without the
prior written consent of the Author.
d. You agree not to sell, lease, or rent any part of the
Work. This does not restrict you from including the
Work or any part of the Work inside a larger software
distribution that itself is being sold. The Work by itself,
though, cannot be sold, leased or rented.
e. You may distribute the Executable Files and Source
Code only under the terms of this License, and You must
include a copy of, or the Uniform Resource Identifier
for, this License with every copy of the Executable Files
or Source Code You distribute and ensure that anyone
receiving such Executable Files and Source Code
agrees that the terms of this License apply to such
Executable Files and/or Source Code. You may not oer
or impose any terms on the Work that alter or restrict
the terms of this License or the recipients’ exercise of
the rights granted hereunder. You may not sublicense
the Work. You must keep intact all notices that refer to
this License and to the disclaimer of warranties. You
may not distribute the Executable Files or Source Code
with any technological measures that control access
or use of the Work in a manner inconsistent with the
terms of this License.
f. You agree not to use the Work for illegal, immoral or
improper purposes, or on pages containing illegal,
immoral or improper material. The Work is subject to
applicable export laws. You agree to comply with all
such laws and regulations that may apply to the Work
after Your receipt of the Work.
6. Representations, Warranties and Disclaimer. THIS
WORK IS PROVIDED “AS IS”, “WHERE IS” AND “AS
AVAILABLE”, WITHOUT ANY EXPRESS OR IMPLIED
WARRANTIES OR CONDITIONS OR GUARANTEES.
YOU, THE USER, ASSUME ALL RISK IN ITS USE,
INCLUDING COPYRIGHT INFRINGEMENT, PATENT
INFRINGEMENT, SUITABILITY, ETC. AUTHOR
EXPRESSLY DISCLAIMS ALL EXPRESS, IMPLIED
OR STATUTORY WARRANTIES OR CONDITIONS,
INCLUDING WITHOUT LIMITATION, WARRANTIES
OR CONDITIONS OF MERCHANTABILITY,
MERCHANTABLE QUALITY OR FITNESS FOR A
PARTICULAR PURPOSE, OR ANY WARRANTY OF
TITLE OR NON-INFRINGEMENT, OR THAT THE WORK
(OR ANY PORTION THEREOF) IS CORRECT, USEFUL,
BUG-FREE OR FREE OF VIRUSES. YOU MUST PASS
THIS DISCLAIMER ON WHENEVER YOU DISTRIBUTE
THE WORK OR DERIVATIVE WORKS.
7. Indemnity. You agree to defend, indemnify and hold
harmless the Author and the Publisher from and
against any claims, suits, losses, damages, liabilities,
costs, and expenses (including reasonable legal or
attorneys??? fees) resulting from or relating to any use
of the Work by You.
8. Limitation on Liability. EXCEPT TO THE EXTENT
REQUIRED BY APPLICABLE LAW, IN NO EVENT
WILL THE AUTHOR OR THE PUBLISHER BE
LIABLE TO YOU ON ANY LEGAL THEORY FOR
ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL,
PUNITIVE OR EXEMPLARY DAMAGES ARISING
OUT OF THIS LICENSE OR THE USE OF THE
WORK OR OTHERWISE, EVEN IF THE AUTHOR
OR THE PUBLISHER HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
Basic instructions
Advanced instructions
InformationInformation
DVD
LICENSE
9. Termination.
a. This License and the rights granted hereunder will
terminate automatically upon any breach by You of any
term of this License. Individuals or entities who have
received Derivative Works from You under this License,
however, will not have their licenses terminated
provided such individuals or entities remain in full
compliance with those licenses. Sections 1, 2, 6, 7, 8,
9, 10 and 11 will survive any termination of this License.
b. If You bring a copyright, trademark, patent or any
other infringement claim against any contributor
over infringements You claim are made by the Work,
your License from such contributor to the Work ends
automatically.
c. Subject to the above terms and conditions, this License
is perpetual (for the duration of the applicable copyright
in the Work). Notwithstanding the above, the Author
reserves the right to release the Work under dierent
license terms or to stop distributing the Work at any
time; provided, however that any such election will not
serve to withdraw this License (or any other license
that has been, or is required to be, granted under the
terms of this License), and this License will continue in
full force and eect unless terminated as stated above.
10. Publisher. The parties hereby confirm that the Publisher
shall not, under any circumstances, be responsible for
and shall not have any liability in respect of the subject
matter of this License. The Publisher makes no warranty
whatsoever in connection with the Work and shall not
be liable to You or any party on any legal theory for any
damages whatsoever, including without limitation any
general, special, incidental or consequential damages
arising in connection to this license. The Publisher
reserves the right to cease making the Work available
to You at any time without notice
11. Miscellaneous
a. This License shall be governed by the laws of the
location of the head oce of the Author or if the Author
is an individual, the laws of location of the principal
place of residence of the Author.
b. If any provision of this License is invalid or unenforceable
under applicable law, it shall not aect the validity or
enforceability of the remainder of the terms of this
License, and without further action by the parties to
this License, such provision shall be reformed to the
minimum extent necessary to make such provision
valid and enforceable.
c. No term or provision of this License shall be deemed
waived and no breach consented to unless such waiver
or consent shall be in writing and signed by the party to
be charged with such waiver or consent.
d. This License constitutes the entire agreement
between the parties with respect to the Work licensed
herein. There are no understandings, agreements or
representations with respect to the Work not specified
herein. The Author shall not be bound by any additional
provisions that may appear in any communication from
You. This License may not be modified without the
mutual written agreement of the Author and You.
n libogg
http://www.xiph.org/ogg/
Copyright (c) 2002, Xiph.org Foundation
Redistribution and use in source and binary forms, with
or without modification, are permitted provided that the
following conditions are met:
•Redistributions of source code must retain the above
copyright notice, this list of conditions and the following
disclaimer.
•Redistributions in binary form must reproduce the above
copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials
provided with the distribution.
•Neither the name of the Xiph.org Foundation nor the
names of its contributors may be used to endorse or
promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS “AS IS” AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
n libvorbis
http://www.xiph.org/vorbis/
Copyright (c) 2002-2004 Xiph.org Foundation
Redistribution and use in source and binary forms, with
or without modification, are permitted provided that the
following conditions are met:
•Redistributions of source code must retain the above
copyright notice, this list of conditions and the following
disclaimer.
•Redistributions in binary form must reproduce the above
copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials
provided with the distribution.
•Neither the name of the Xiph.org Foundation nor the
names of its contributors may be used to endorse or
promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS “AS IS” AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
n Tremolo
http://wss.co.uk/pinknoise/tremolo
Copyright (C) 2002-2009 Xiph.org Foundation Changes
Copyright (C) 2009-2010 Robin Watts for Pinknoise
Productions Ltd
Redistribution and use in source and binary forms, with
or without modification, are permitted provided that the
following conditions are met:
•Redistributions of source code must retain the above
copyright notice, this list of conditions and the following
disclaimer.
•Redistributions in binary form must reproduce the above
copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials
provided with the distribution.
•Neither the name of the Xiph.org Foundation nor the
names of its contributors may be used to endorse or
promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS “AS IS” AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
n Tremor
http://wiki.xiph.org/index.php/Tremor
Copyright (c) 2002, Xiph.org Foundation
Redistribution and use in source and binary forms, with
or without modification, are permitted provided that the
following conditions are met:
•Redistributions of source code must retain the above
copyright notice, this list of conditions and the following
disclaimer.
•Redistributions in binary form must reproduce the above
copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials
provided with the distribution.
•Neither the name of the Xiph.org Foundation nor the
names of its contributors may be used to endorse or
promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS “AS IS” AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS
OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE
OR OTHERWISE) ARISING IN ANY WAY OUT OF THE
USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
n Mersenne Twister
http://www.math.sci.hiroshima-u.ac.jp/~m-mat/MT/
MT2002/CODES/mt19937ar.c
Copyright (C) 1997 - 2002, Makoto Matsumoto and
Takuji Nishimura,
All rights reserved.
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
1. Redistributions of source code must retain the above
copyright notice, this list of conditions and the following
disclaimer.
2. Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other
materials provided with the distribution.
Basic instructions
Advanced instructions
InformationInformation
DVD
LICENSE
3. The names of its contributors may not be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS “AS IS” AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT
OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN
ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN
IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
n zlib
http://www.zlib.net/
zlib.h -- interface of the ‘zlib’ general purpose compression
library version 1.2.3, July 18th, 2005
Copyright (C) 1995-2004 Jean-loup Gailly and Mark Adler
This software is provided ‘as-is’, without any express or
implied warranty. In no event will the authors be held liable
for any damages arising from the use of this software.
Permission is granted to anyone to use this software for
any purpose, including commercial applications, and to
alter it and redistribute it freely, subject to the following
restrictions:
1. The origin of this software must not be misrepresented;
you must not claim that you wrote the original
software. If you use this software in a product, an
acknowledgment in the product documentation would
be appreciated but is not required.
2. Altered source versions must be plainly marked as
such, and must not be misrepresented as being the
original software.
3. This notice may not be removed or altered from any
source distribution.
Jean-loup Gailly [email protected], Mark Adler madler@
alumni.caltech.edu
n cURL
http://curl.haxx.se
COPYRIGHT AND PERMISSION NOTICE
Copyright (c) 1996 - 2011, Daniel Stenberg, <daniel@haxx.
se>.
All rights reserved.
Permission to use, copy, modify, and distribute this
software for any purpose with or without fee is hereby
granted, provided that the above copyright notice and this
permission notice appear in all copies.
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT OF THIRD PARTY
RIGHTS. IN NO EVENT SHALL THE AUTHORS OR
COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM,
DAMAGES OR OTHER LIABILITY, WHETHER IN AN
ACTION OF CONTRACT, TORT OR OTHERWISE,
ARISING FROM, OUT OF OR IN CONNECTION WITH THE
SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
SOFTWARE.
Except as contained in this notice, the name of a copyright
holder shall not be used in advertising or otherwise to
promote the sale, use or other dealings in this Software
without prior written authorization of the copyright holder.
n c-ares
http://c-ares.haxx.se
Copyright 1998 by the Massachusetts Institute of
Technology.
Permission to use, copy, modify, and distribute this
software and its documentation for any purpose and
without fee is hereby granted, provided that the above
copyright notice appear in all copies and that both that
copyright notice and this permission notice appear in
supporting documentation, and that the name of M.I.T. not
be used in advertising or publicity pertaining to distribution
of the software without specific, written prior permission.
M.I.T. makes no representations about the suitability of
this software for any purpose. It is provided “as is” without
express or implied warranty.
License Information for the Software
Used in the Unit
About GPL (GNU-General Public License), LGPL (GNU
Lesser General Public License) License
This product uses GPL/LGPL software and software made
by other companies.
After you purchase this product, you may procure, modify
or distribute the source code of the GPL/LGPL software
that is used in the product.
Denon provides the source code based on the GPL and
LPGL licenses at the actual cost upon your request to our
customer service center. However, note that we make
no guarantees concerning the source code. Please also
understand that we do not oer support for the contents
of the source code.
Basic instructions
Advanced instructions
InformationInformation
DVD
Dimensions
Unit : in. (mm)
11 23/64 (288.5)
13 5/32 (334.0)
7 51/64 (198.0)
1 23/32
(43.5)
1 27/32
(47.0)
19/32 (15.0) 5 23/64 (136.0)
5 15/16 (151.0)
17 3/32 (434.0)
13 35/64 (344.0)
2 23/64
(60.0)
1 49/64
(45.0)
1 49/64
(45.0)
47/64
(18.5)
1 1/16
(27.0)
Weight : 18 lbs 1 oz (8.2 kg)
Basic instructions
Advanced instructions
InformationInformation
DVD
D&M Holdings Inc.
3520 10208 00AD
V00
www.denon.com
