Operating and Installation
Instructions
Freezer
To prevent accidents and machine damage, read these instructions
before installation or use.
en- US, CA M.-Nr. 11 508 650
Contents
2
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 5
Caring for the environment .............................................................................. 14
Installation.......................................................................................................... 15
Installation location ............................................................................................. 15
Climate class .................................................................................................. 15
Installation notes ................................................................................................. 16
Adjoining cabinetry/units................................................................................ 16
Load-bearing capacity of the niche floor ....................................................... 17
Ventilation....................................................................................................... 17
Door hinging................................................................................................... 17
Side-by-side................................................................................................... 18
Specifications for the plumbed water connection............................................... 19
Installation dimensions........................................................................................ 20
Position of the electrical and plumbed water connections ............................ 20
Dimensions when the appliance door is open (opening angle 115°) ............. 23
Dimensions of the cabinet front .......................................................................... 24
Building in the appliance ..................................................................................... 25
Before starting................................................................................................ 25
Tools required................................................................................................. 25
Weight of cabinet front ................................................................................... 26
Aligning the installation niche......................................................................... 26
Checking the installation niche ...................................................................... 27
Before installation........................................................................................... 27
Preparing the installation niche ...................................................................... 29
Pushing the appliance into the niche ............................................................. 31
Aligning the refrigeration appliance................................................................ 33
Securing the appliance in the niche ............................................................... 36
Preparing the cabinet fronts........................................................................... 37

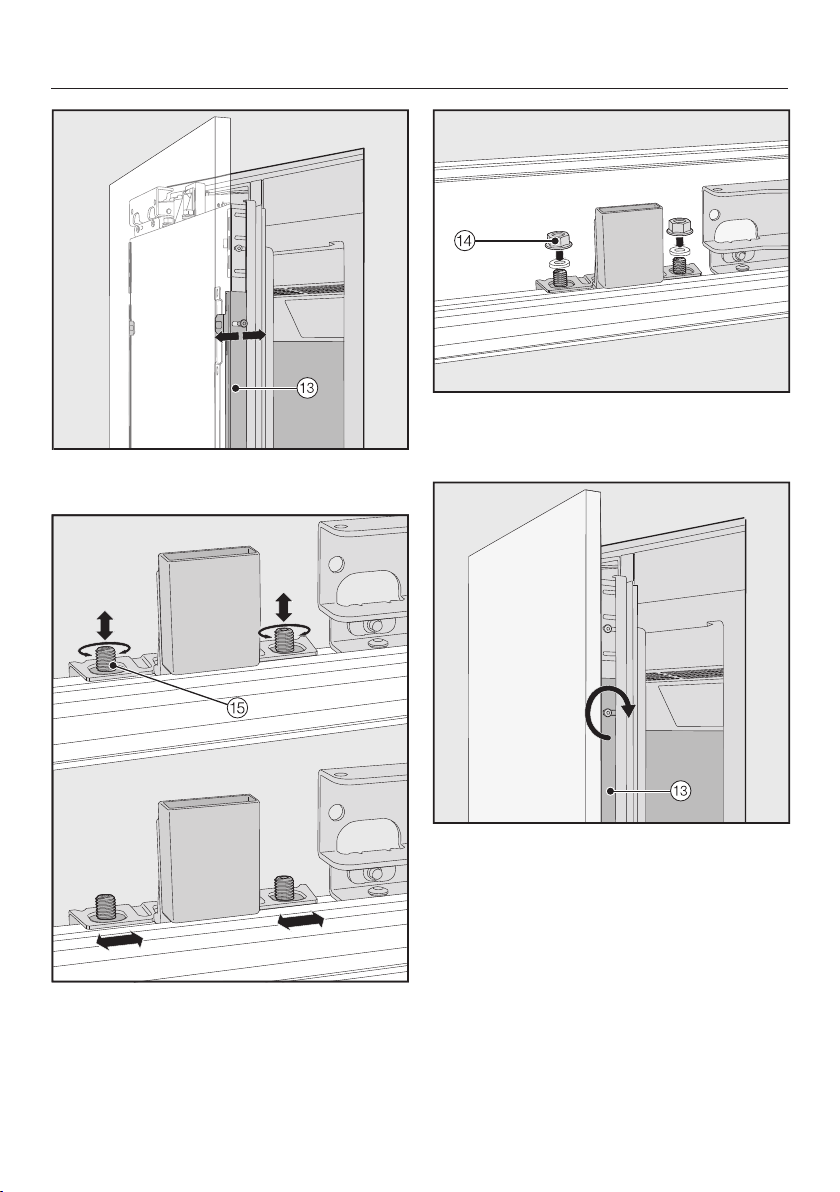

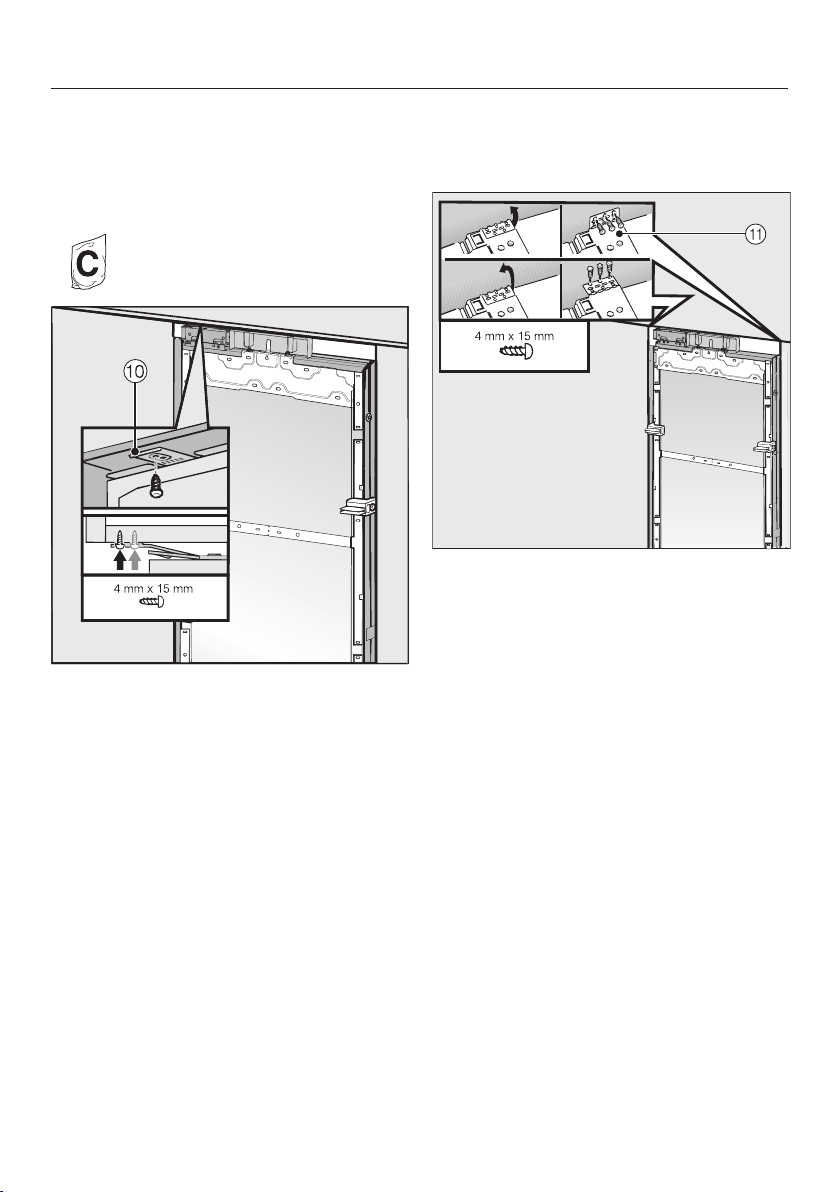

Securing and aligning the cabinet front ......................................................... 41

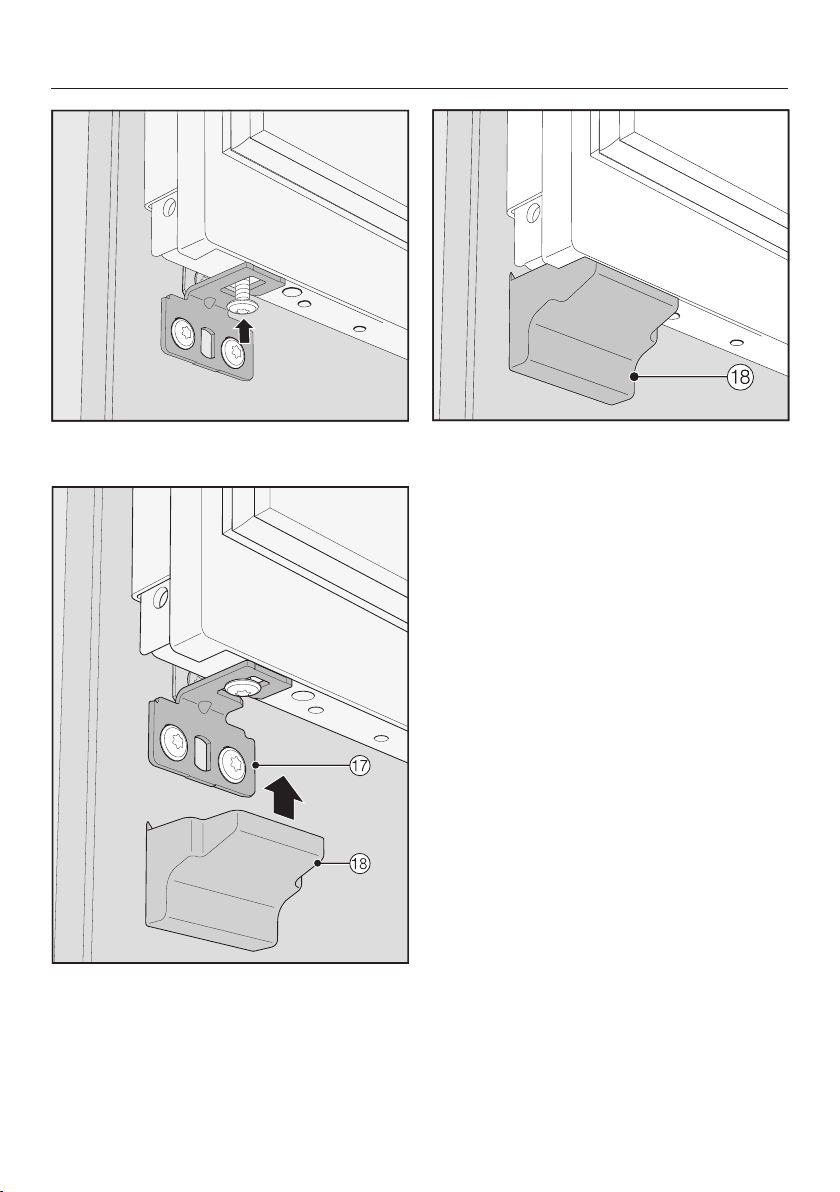

Securing the covers ....................................................................................... 45

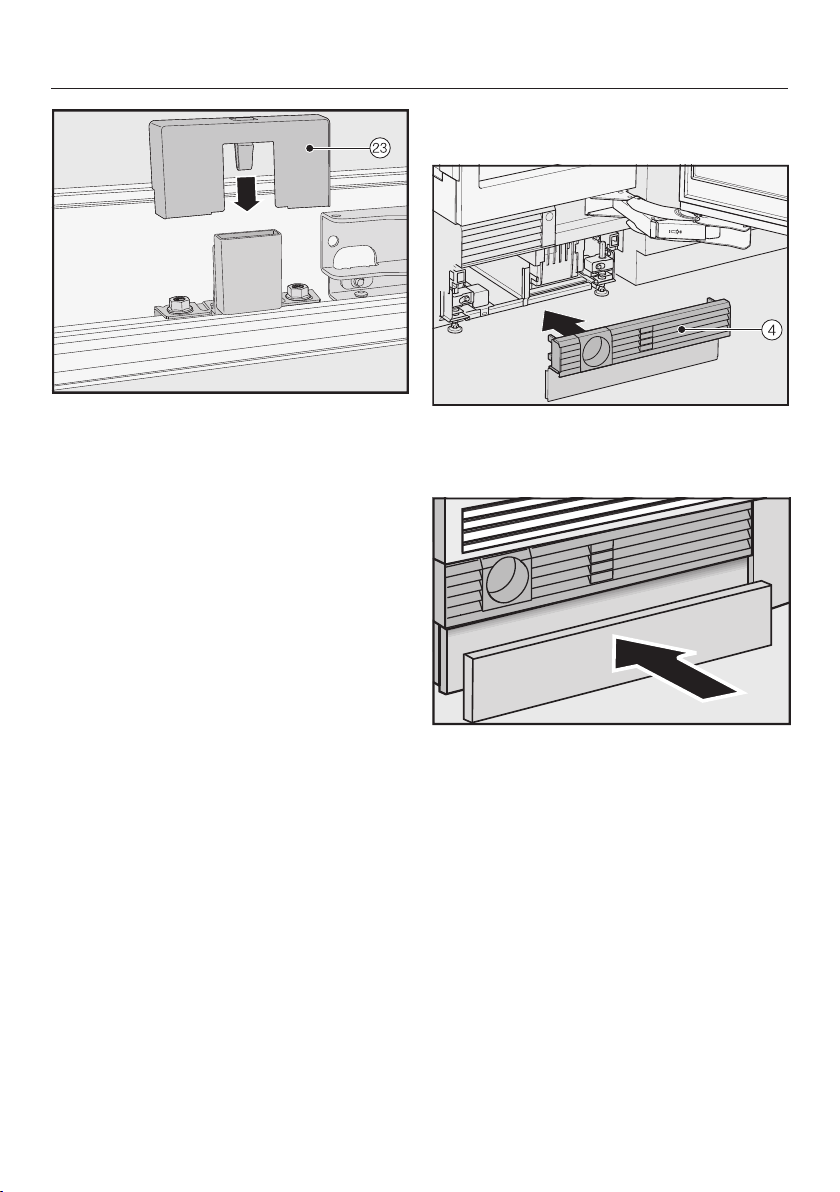

Securing the toe-kick ventilation grille and toe-kick cover ............................ 47
Aligning the Ice/Water dispenser ................................................................... 48
Water connection ................................................................................................ 53
Information on the fresh water connection .................................................... 53
Installing the water hose to the appliance...................................................... 54
Electrical connection ........................................................................................... 55
Saving energy .................................................................................................... 57
Guide to the appliance...................................................................................... 59
Main screen......................................................................................................... 60
Settings mode ................................................................................................ 62
Contents
3
Accessories ....................................................................................................... 64
Accessories supplied .......................................................................................... 64
Optional accessories........................................................................................... 64
Before first use .................................................................................................. 65
Choosing the right Door Assistant (Push2Open/Pull2Open) ........................ 65
Operating the refrigeration appliance.................................................................. 66
Starting up for the first time ........................................................................... 66
Switching on and off ......................................................................................... 68
Switching off for longer periods of time .............................................................. 69
Selecting additional settings............................................................................ 70
Switching Keypad Lock/ on or off .............................................................. 70
Switching Eco Mode on or off........................................................................ 71
Performing a Self Test..................................................................................... 72
Switching on the Door Assistant ..................................................................... 73
Switching off the Door Assistant ..................................................................... 75
Setting up Miele@home ...................................................................................... 75
Switching off Demo Mode................................................................................ 79
Resetting the settings to their default settings.............................................. 80
Selecting settings for lighting the Ice/Water dispenser.................................. 82
Switching Sabbath Mode on or off .................................................................. 83
Switching on, switching off, or resetting the Water Filter Display.................. 84
The correct temperature................................................................................... 86
Setting the temperature....................................................................................... 86
Temperature range ......................................................................................... 87
Using SuperFrost............................................................................................... 88
Temperature and door alarm............................................................................ 89
Door alarm........................................................................................................... 90
Adjusting the interior fittings............................................................................ 91
Removing the shelf above the ice maker ............................................................ 91
Removing or moving the shelves ........................................................................ 91
Removing the freezer baskets............................................................................. 92
Freezing and storing food................................................................................. 93
Maximum freezing capacity ................................................................................ 93
What happens when you freeze fresh food?....................................................... 93
Storing frozen food.............................................................................................. 93
Home freezing ..................................................................................................... 94
Placing food in the freezer................................................................................... 95
Contents
4
Operating the Ice/Water dispenser.................................................................. 97
Switching on the Dispenser Unit ................................................................... 98
Dispensing chilled water ................................................................................ 99
Dispensing ice cubes and crushed ice .......................................................... 99
Switching off the Dispenser Unit................................................................... 100
Switching the system lock on/off ........................................................................ 100
Automatic defrosting ........................................................................................ 101
Cleaning and care ............................................................................................. 102
Cleaning agents................................................................................................... 102
Before cleaning the appliance............................................................................. 103
Interior and accessories ...................................................................................... 104
Cleaning and emptying the ice container............................................................ 104
Cleaning the drip tray .......................................................................................... 105
Cleaning the door seal ........................................................................................ 105
Cleaning the ventilation gaps .............................................................................. 105
Cleaning the water filter (IntensiveClear 2.0 mesh filter) (see “Optional acces-
sories”) ................................................................................................................ 105
After cleaning ...................................................................................................... 107
Water filter.......................................................................................................... 108
Changing the water filter ..................................................................................... 109
Using an external water filter............................................................................... 110
Lead-free certificate ............................................................................................ 113
Frequently Asked Questions ............................................................................ 114
Causes of noises ............................................................................................... 125
Customer Service.............................................................................................. 126
Contact in the event of a fault ............................................................................. 126
Appliance warranty and product registration ...................................................... 126
Declaration of conformity................................................................................. 127
Copyrights and licenses ................................................................................... 128
IMPORTANT SAFETY INSTRUCTIONS
5
This refrigeration appliance complies with current safety require-
ments. Inappropriate use can, however, lead to personal injury and
material damage.
Please read the operating and installation instructions carefully be-
fore using the refrigeration appliance for the first time. They con-
tain important information on safety, installation, use, and mainte-
nance. This is to protect yourself from injury, and from damaging
your refrigeration appliance.
Miele expressly and strongly advises that you read and follow the
instructions in the chapter on installing the refrigeration appliance,
as well as the IMPORTANT SAFETY INSTRUCTIONS.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Risk of injury and damage due to tipping refrigeration appli-
ance.
This refrigeration appliance is very heavy and can tip forward when
the door is open.
Keep the appliance door shut until the refrigeration appliance has
been built in and secured in its housing in accordance with the op-
erating and installation instructions.
IMPORTANT SAFETY INSTRUCTIONS
6
Appropriate use
This appliance is intended for use in domestic households and
similar residential environments such as
– staff kitchen areas in shops, offices and other working environ-
ments
– farm houses and by clients in hotels, motels and other residential
type environments
– bed and breakfast type environments
– catering and similar non-retail applications.
This appliance is not intended for use outdoors, in damp environ-
ments or in places exposed to rain.
This appliance is intended exclusively for domestic use to store
deep-frozen food, freeze fresh food, and make ice.
Any other usage is at the owner's risk and could be dangerous.
This refrigeration appliance is not suitable for storing and keeping
cool medicines, blood plasma, laboratory preparations, or other simi-
lar substances or products that are subject to the Medical Device Di-
rective. Incorrect use of the refrigeration appliance for such purposes
may cause deterioration of the items stored. The refrigeration appli-
ance is also not suitable for use in areas where there is a risk of ex-
plosion.
Miele cannot be held liable for damage resulting from incorrect or
improper use or operation.
This refrigeration appliance may only be used by people (including
children) with reduced physical, sensory, or mental capabilities or
lack of experience and knowledge if they are supervised while using
it.
The refrigeration appliance may only be used by these people with-
out supervision if they have been shown how to use it in a safe way
and recognize and understand the consequences of incorrect opera-
tion.
IMPORTANT SAFETY INSTRUCTIONS
7
Safety with children
To reduce the risk of injury, do not allow children to play in, on or
near the appliance.
The door hinges can cause injury. Keep children well away at all
times.
Ensure that any packing material is disposed of safely and kept
out of the reach of children. DANGER of suffocation!
Technical safety
The coolant circuit has been checked for leaks. The refrigeration
appliance complies with statutory and regulatory requirements.
This refrigeration appliance contains the coolant Isobutane
(R600a), a natural gas which is environmentally friendly. Although it is
combustible, it does not damage the ozone layer and does not con-
tribute to the greenhouse effect.
The use of this coolant has, however, led to a slight increase in the
noise level of the appliance. In addition to the noise of the compres-
sor, you might be able to hear the coolant flowing around the cooling
circuit. Unfortunately, this cannot be avoided, but it does not affect
the performance of the refrigeration appliance.
When transporting and installing the refrigeration appliance, ensure
that no parts of the cooling circuit are damaged. Splashes of coolant
can damage the eyes.
In the event of damage:
- Avoid open flames or anything which creates a spark.
- Disconnect the refrigeration appliance from the power supply.
- Ventilate the room where the refrigeration appliance is located for
several minutes.
IMPORTANT SAFETY INSTRUCTIONS
8
- Contact Miele Customer Service.
The more coolant there is in a refrigeration appliance, the larger
the room it should be installed in. In the event of a leakage, if the ap-
pliance is in a small room, there is the danger of a combustible gas/
air mixture building up. For every 11g of coolant, at least 1m
3
of
room space is required. The amount of coolant in the refrigeration
appliance is stated on the data plate inside the appliance.
To avoid the risk of damage to the appliance, make sure that the
connection data (fuse rating, frequency and voltage) on the data
plate corresponds to the household supply.
Check that this is the case before connecting the appliance. Consult
a qualified electrician if in any doubt.
The electrical safety of the appliance can only be guaranteed
when correctly grounded. It is essential that this standard safety re-
quirement is met. If in any doubt please have the electrical installa-
tion tested by a qualified electrician.
Reliable and safe operation of this appliance can only be assured
if it has been connected to the electricity supply.
The outlet must not be concealed behind the appliance and must
be easily accessible so that the appliance can be quickly discon-
nected from the electrical supply in case of an emergency.
If the power cord supplied is damaged, it must only be replaced
by an original part to prevent a hazard for the user. Miele can only
guarantee the safety of the appliance when original Miele parts are
used.
The electrical outlet must be properly grounded.
Do not connect the appliance to the electrical supply with a power
bar or extension cord. These are a fire hazard and do not guarantee
the required safety of the appliance.
IMPORTANT SAFETY INSTRUCTIONS
9
If moisture gets into electrical components or into the power cord,
it could cause a short circuit. Therefore, do not operate the machine
in areas where there may be moisture or splashing water (e.g.,
garages, laundry rooms).
This appliance must not be installed and operated in mobile in-
stallations (e.g. on a ship).
Do not use a damaged appliance. It could be dangerous. Check
the appliance for visible signs of damage.
For safety reasons, this appliance may only be used after it has
been built in.
The machine must be disconnected from the power supply during
installation, maintenance, and repair work, and installation work on
the fresh water connection. The machine is only completely isolated
from the power supply when:
- the fuses have been switched off, or
- the circuit breaker has been removed completely, or
- the power cord has been unplugged. Pull on the plug and not on
the power cord when disconnecting it from the power supply.
Unauthorized installation, maintenance, and repairs, or a faulty
fresh water connection can cause considerable danger for the user.
Installation, maintenance, and repairs, installation work on the fresh
water connection, and all repairs on the ice/water outlet must only
ever be carried out by a Miele authorized technician.
Any manufacturer's warranty will be void if the appliance is not re-
paired by a Miele approved service technician.
Faulty components must only be replaced by genuine Miele re-
placement parts. Miele can only guarantee the safety standards of
the appliance when Miele replacement parts are used.
Miele cannot be held liable for damage caused by a faulty con-
nection to the fresh water supply.
IMPORTANT SAFETY INSTRUCTIONS
10
The ice cube maker must only be connected to a cold water line.
DANGER of injury! Never tamper with the movable components
on the ice cube maker or the element on the ice cube maker.
Correct use
The refrigeration appliance is designed for use within a specific
climate class (room temperature range). Do not use in a climate class
for which it is not designed. A lower room temperature will cause the
compressor to switch off for longer periods, meaning that the refrig-
eration appliance is unable to maintain the required temperature.
WARNING! DANGER of overheating! Do not cover or block the air
vents. This can impair the efficiency of the appliance, increase the
power consumption and cause damage to the appliance.
If storing food which contains a lot of fat or oil in the appliance,
make sure that it does not come into contact with plastic compo-
nents as this could cause stress cracks or break the plastic.
Risk of fire and explosion. Do not store any explosive materials or
products containing flammable propellants (e.g., spray cans) in the
appliance. Electrical components can cause flammable mixes of
gases to ignite.
Risk of explosion. Do not operate any electrical equipment (e.g.,
an electric ice-cream maker) inside the refrigeration appliance. Risk
of sparking and explosion.
Risk of injury and damage. Do not store cans or bottles containing
carbonated drinks or liquids which could freeze in the freezer zone.
Otherwise they could burst.
Risk of injury and damage. When chilling drinks in the freezer
zone, make sure that bottles are not left in for more than one hour.
Otherwise they could burst.
IMPORTANT SAFETY INSTRUCTIONS
11
Risk of injury. Never handle frozen food or the metal parts of the
appliance with wet hands. Your hands may freeze to the frozen food
or to the metal.
Risk of injury. Do not take ice cubes out with your bare hands and
never place ice cubes or ice pops in your mouth straight from the
freezer section. The very low temperature of the frozen food can
cause frost burn to the lips and tongue.
Do not refreeze partially or fully defrosted food. Consume de-
frosted food as soon as possible, as it will lose its nutritional value
and spoil if left for too long. Defrosted food may only be refrozen af-
ter it has been cooked.
When eating stored food, there is a danger of food poisoning.
Storage times will depend on several factors, including the freshness
and quality of the food, as well as the temperature at which it is
stored. Observe the manufacturer's “use-by” dates and storage in-
structions.
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty may become invalid.
IMPORTANT SAFETY INSTRUCTIONS
12
Cleaning and maintenance
Do not use any oil or grease on the door seals.
They can cause the seals to deteriorate over time.
Never use a steam cleaner to clean the appliance.
The steam can reach the electrical components and cause a short
circuit.
Sharp edged or pointed objects will damage the evaporator, caus-
ing irreversible damage to the appliance. Do not use sharp edged or
pointed objects to
- remove frost or ice,
- separate frozen foods or remove ice trays.
Never place electric heaters or candles in the appliance to defrost
it. These can damage the plastic parts.
Do not use defrosting sprays or de-icers, as they could contain
substances which could damage the plastic parts or which might
cause the build-up of gases and pose a danger to health.
IMPORTANT SAFETY INSTRUCTIONS
13
Transport
To avoid damage to the appliance, always transport it upright and
in its packaging.
Risk of injury and damage. The refrigeration appliance is very
heavy and must be transported by 2people.
Disposal of your old appliance
Children could become trapped in the machine and could suffo-
cate.
- Remove the machine doors.
- Remove the drawers.
- Leave the adjustable shelves in the machine so children cannot
climb inside.
DANGER of electric shock!
- Cut the plug off the power cord.
- Cut the power cord off the old appliance.
Dispose of them separately from the appliance.
Ensure that the appliance is not stored in the vicinity of gasoline or
inflammable gases and liquids during and after disposal.
Make sure that the coolant pipework is not damaged during dis-
posal to avoid uncontrolled leakage of oil and coolant (see data plate
for coolant type).
Splashes of coolant can cause damage to the eyes. Be careful not
to damage any part of the pipework while awaiting disposal, e.g. by
- puncturing the coolant channels in the evaporator,
- kinking any pipework,
- scratching the surface coating.
Caring for the environment
14
Disposal of packaging material
The packaging is designed to protect
the appliance from damage during
transportation. The packaging materials
used are selected from materials which
are environmentally friendly for disposal
and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children. Return
the packaging to your dealer.
Disposing of your old appli-
ance
Electronic and electrical appliances
contain many valuable materials. They
also contain certain materials, com-
pounds, and components which were
essential for their correct functioning
and safety. These could be hazardous
to your health and to the environment if
disposed of with general waste or if
handled incorrectly. Please do not,
therefore, dispose of your old appliance
with general waste.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle electri-
cal and electronic appliances. By law,
you are solely responsible for deleting
any personal data from the appliance
prior to disposal.
Take care not to damage your refrigera-
tion appliance’s pipework before or dur-
ing transportation to an authorized col-
lection depot.
This is to ensure that coolant in the
cooling circuit and oil in the compressor
is contained, and will not leak into the
environment.
Please ensure that your old appliance
poses no risk to children while being
stored for disposal. For additional infor-
mation, see “IMPORTANT SAFETY IN-
STRUCTIONS” in these operating and
installation instructions.
Installation
*INSTALLATION*
15
Installation location
This appliance should be installed in a
dry, well-ventilated room.
When deciding where to install your re-
frigeration appliance, please bear in
mind that it will use more energy if in-
stalled near to a heater, a range, or an-
other appliance that gives off heat. Di-
rect sunlight should also be avoided.
The higher the room temperature, the
longer the compressor runs and the
higher the energy consumption of the
refrigeration appliance.
When installing the refrigeration appli-
ance, please note the following:
- The electrical socket must be easily
accessible in an emergency and not
concealed behind the appliance.
- The plug and power cord must not
touch the rear of the refrigeration ap-
pliance as they could be damaged by
vibrations from the appliance.
- Do not plug in other appliances be-
hind the refrigeration appliance.
If installation near a heat source is un-
avoidable, observe the following mini-
mum distances between the appliance
and the heat source:
- At least 1 1/4" (3cm)
to electric or gas stoves
- At least 11 3/4" (30cm)
to oil or coal-based stoves
If it is not possible to observe these
minimum distances, an isolation plate
must be installed between the refrigera-
tion appliance and the heat source.
Climate class
The refrigeration appliance is designed
for use within the climate class (room
temperature range) SN-T. Do not use in
a climate class for which it is not de-
signed.
Climate class Room tempera-
ture
SN 50°F to 90°F /
10°C to 32°C
N 60°F to 90°F /
+16°C to +32°C
ST 60°F to 100°F /
+16to +38°C
T 60°F to 109°F /
+16to +43°C
A lower room temperature will cause
the compressor to switch off for longer
periods. This can cause the internal
temperature in the refrigeration appli-
ance to rise with the risk of food deteri-
orating and going off.
Installation
*INSTALLATION*
16
Risk of damage due to high hu-
midity.
In environments with high humidity,
condensation can build up on exter-
nal refrigeration appliance panels,
which can cause corrosion.
Install the refrigeration appliance in a
dry and/or air-conditioned room with
sufficient ventilation.
After installation, make sure that the
appliance door closes properly, the
ventilation gaps are not covered, and
the refrigeration appliance has been
installed in accordance with these
operating and installation instruc-
tions.
Installation notes
Risk of damage and injury due to
the refrigeration appliance tipping
over.
This refrigeration appliance is very
heavy and can tip forwards when the
appliance door(s) is (are) open.
Keep the appliance door(s) shut until
the refrigeration appliance has been
built in and secured in its housing in
accordance with these operating and
installation instructions.
Due to its weight and size, the refrig-
eration appliance must be installed
by two people.
Adjoining cabinetry/units
The appliance is screwed to the adjoin-
ing cabinetry/units to the side and
above. For this reason, it is essential
that all cabinets/units are fixed to the
ground and/or wall.
Installation
*INSTALLATION*
17
Load-bearing capacity of the niche
floor
To ensure the safe installation of the re-
frigeration appliance and to guarantee
its correct functioning, the floor of the
niche where the appliance is to be in-
stalled must be smooth and even.
It must be made from strong, rigid ma-
terial.
Because the refrigeration appliance is
extremely heavy when fully loaded, it is
essential that the floor it stands on is
able to bear its weight. If necessary,
seek the advice of an architect or con-
struction expert.
When fully loaded, the weight of the re-
frigeration appliance is approx.:
F 2462 Vi, F 2472 Vi 633 lbs
(287 kg)
F 2662 Vi, F 2672 Vi 765 lbs
(347 kg)
Ventilation
Risk of fire and damage due to
insufficient ventilation.
If the refrigeration appliance is not
ventilated sufficiently, the compres-
sor will run more frequently and for
longer periods.
This causes increased energy con-
sumption and an increased com-
pressor operating temperature,
which can result in damage to the
compressor.
Please ensure that there is adequate
ventilation around the refrigeration
appliance.
Do not block the ventilation gaps.
The ventilation gaps must never be
obstructed.
Door hinging
The appliance is supplied with a fixed
hinge. The door hinge cannot be
changed.
Installation
*INSTALLATION*
18
Side-by-side
This appliance can be installed side-by-
side with another refrigeration appli-
ance. The following overview will show
you which side-by-side installation op-
tions you have with your refrigeration
appliance.
Depending on the installation situa-
tion, you will need the side-by-side in-
stallation kit for side-by-side installa-
tion (see “Accessories – Optional ac-
cessories”).
Instructions for installing refrigeration
appliances side-by-side can be found
in the side-by-side installation kit in-
stallation instructions.
. . . with partition wall
The wall a between the side-by-side
appliances must be at least
5/8" (16mm) thick.
If the door hinges of the refrigeration
appliances are next to each other,
you must take into account the thick-
ness of the cabinet fronts and door
handles so that the appliance doors
do not collide and become damaged
if they are opened at the same time.
The refrigeration appliances are secured
individually in their installation niche us-
ing the supplied installation material.
If the partition wall a is narrower than
6 5/16" (160mm), you will need the
side panel heater from the side-by-side
installation kit to prevent condensation
from forming and any resulting damage.
When planning installation niches,
please note that the niche into which
the refrigeration appliance with the
side panel heater is installed must be
3/16" (4mm) wider (see “Installation
– Building-in dimensions”).
If the partition wall a is thicker than
6 5/16" (160mm), you do not need the
side-by-side installation kit, nor the side
panel heater.
Installation
*INSTALLATION*
19
. . .without partition wall
If the appliances are to be installed next
to each other without a partition wall
between them, they will need to be
joined together with the side-by-side in-
stallation kit. In addition, you must in-
stall the side panel heater to prevent
condensation from forming and any re-
sulting damage.
Specifications for the plumbed
water connection
- Connection to the water supply must
comply with the applicable regula-
tions in the country where the appli-
ance is being installed.
All appliances and systems used to
supply water to the refrigeration ap-
pliance must also comply with the
applicable regulations in the respec-
tive country.
- The appliance may only be con-
nected to the plumbed water connec-
tion by qualified technicians.
- The quality of the incoming water
must conform to the requirements for
drinking water in the country where
the refrigeration appliance is being
used.
- Connect the water hose to the fresh
water supply and avoid connection to
a water supply in which the water
might stagnate.
- The appliance is only suitable for
connection to a cold water line.
- The water pressure must be between
29psi and 116psi (2 and 8bar).
- A faucet must be provided between
the water hose and the plumbed wa-
ter connection to ensure that the wa-
ter supply can be cut off if necessary.
- Make sure that the faucet is still ac-
cessible after the appliance has been
installed.
Installation
*INSTALLATION*
20
Installation dimensions
Position of the electrical and plumbed water connections
- The electrical connection must not be positioned higher than 9" (228 mm) above
the floor.
- The 1/4" (6 mm) plumbed water connection should not be positioned higher
than 2" (50 mm) above the floor.
The electrical socket must not be concealed behind the appliance and must be
easily accessible in an emergency.
Installation
*INSTALLATION*
21
A
B
C
A B C
F2462Vi,
F2472Vi
84"-85 3/16"
(2,134–2,164mm)
18 1/16" (458mm) 24" (610mm) + cabinet
front 3/4"-1 1/2"
(19–38mm)
F2662Vi,
F2672Vi
84"-85 3/16"
(2,134–2,164mm)
24" (610mm) 24" (610mm) + cabinet
front 3/4"-1 1/2"
(19–38mm)
Installation
*INSTALLATION*
22
1 3/16"
(30 mm)
7/8"
(22 mm)
10 5/16"
(262 mm)
4"
(102 mm)
4"
(102 mm)
3 3/8"
(85 mm)
Side view
Installation
*INSTALLATION*
23
Dimensions when the appliance door is open (opening angle 115°)
3/8" (10 mm)
D
A
B
C
A B* C* D (with a cabinet
front of 3/4" (19mm))
F 2472 Vi,
F 2672 Vi
20 11/16"
(525mm)
Cabinet front
3/4"-1 1/2" (19–
38mm)
Door handle 9 5/16" (237mm)
F2462Vi,
F2662Vi
26 5/8"
(677mm)
Cabinet front
3/4"-1 1/2" (19–
38mm)
Door handle 11 5/8" (296mm)
* The dimensions of the cabinet front and the door handle vary depending on the
design of the kitchen.
The opening angle of the appliance door must not be limited to 90°; otherwise,
the freezer baskets and ice container cannot be removed.
Installation
*INSTALLATION*
24
Dimensions of the cabinet front
A
B
C
D
E
F
G
A B C D E F G
F24x2Vi 17 3/4"
(451mm)
8 7/8"
(225.5m
m)
32 11/16"
(830.5m
m)
79 7/8"
(2,029m
m)
9 1/16"
(230mm)
14 1/2"
(368mm)
≥ 4"-5 3/16"
(102–
132mm)
F26x2Vi 23 3/4"
(604mm)
11 7/8"
(302mm)
32 11/16"
(830.5m
m)
79 7/8"
(2,029m
m)
9 1/16"
(230mm)
14 1/2"
(368mm)
≥ 4"-5 3/16"
(102–
132mm)
Installation
*INSTALLATION*
25
Building in the appliance
Before starting...
It is essential to read these installa-
tion instructions carefully before
starting to install the appliance.
The appliance should be installed by
a suitably qualified tradesman in ac-
cordance with these installation in-
structions. Safe operation of the ap-
pliance is only assured if it has been
installed and connected in accor-
dance with the installation instruc-
tions.
Risk of damage and injury!
This appliance is very heavy and can
tip forwards when the door is open.
Keep the appliance door shut until
the appliance has been built in and
secured in its housing in accordance
with the operating and installation in-
structions.
The appliance is both large and
heavy. Installation must be carried
out by two people.
The appliance must be installed in ac-
cordance with local regulations. If local
regulations are not available, the follow-
ing regulations must be observed:
- in the USA: the National Electric
Code, ANSI/NFPA 70 - latest edition/
State and Municipal codes and/or lo-
cal codes.
- in Canada: the Canadian Electric
code C22.1 - latest edition/Provincial
and Municipal codes and/or local
codes.
Tools required
- Cordless drill
- TX20 screwdriver
- Hammer drill
- Drill bits in various sizes, depending
on materials
- Hammer
- Open-ended wrench
- Ratchet wrench, attachment: socket,
5/16" (8mm)
- Adhesive tape
- Utility knife
- Pipe wrench
- Level
- Tape measure
- Pencil
Other
- Step ladder
- Hand truck
Installation
*INSTALLATION*
26
Weight of cabinet front
Before installing the cabinet front, en-
sure that the weight of the door does
not exceed the maximum permitted:
Appliance Max. weight of
cabinet front
F2462Vi, F2472Vi 157 lb (71kg)
F2662Vi, F2672Vi 150 lb (68kg)
If the cabinet front is too heavy,
this can cause damage.
Installing a cabinet front which is
heavier than the maximum permitted
weight could damage the hinges.
This damage can affect various fac-
tors, such as operation of the appli-
ance.
Before installing the cabinet front,
ensure that the weight of the door
does not exceed the maximum per-
mitted.
Aligning the installation niche
The building-in niche must be carefully
aligned using a spirit level before the re-
frigeration appliance is installed. The
niche corners must be at 90° angles to
each other, otherwise the cabinet front
will not sit straight on all 4corners of
the building-in niche.
Installation
*INSTALLATION*
27
Checking the installation niche
Check the installation dimensions
(see “Installation – Installation dimen-
sions”).
Check the position of the electrical
connection. The length of the power
cord is 9' 10" (3 m).
The electrical socket must not be
concealed behind the appliance and
must be easily accessible in an
emergency.
Check the position of the plumbed
water connection.
The faucet must not be concealed
behind the appliance and must be
easily accessible in an emergency.
Check the surroundings for possible
collisions (see “Installation – Dimen-
sions with appliance door open”).
Only install the refrigeration appliance
in stable, solid installation niches, po-
sitioned on an even and level floor.
Also check the installation niche for
the following criteria:
- The side panels of the installation
niche must be even.
- The surrounding walls of the installa-
tion niche must be at least
5/8" (16 mm) thick.
- The surrounding walls must be se-
curely fixed to the floor or wall.
- Shortened side walls must be at least
4" (100 mm) deep.
Before installation
Before installation, remove any ac-
cessories from the back of the appli-
ance.
Check the refrigeration appliance for
damage during transportation.
Do not install a damaged refrigera-
tion appliance.
Check that all parts at the back of the
appliance are unhindered.
To protect the floor during installation,
secure an off-cut of flooring or similar
material to the floor in front of the in-
stallation area.
Installation
*INSTALLATION*
28
Do not remove the installation aids
from the appliance door. These will
be required later for aligning the ap-
pliance in the building-in niche.
Risk of damage and injury due to
the refrigeration appliance tipping
over.
As soon as you unscrew the brack-
ets that fix the refrigeration appliance
to the pallet, the appliance is no
longer secured.
Due to its weight and size, the refrig-
eration appliance must be installed
by two people.
2
Unscrew the fixing brackets .
With the help of several people as re-
quired, carefully lift the refrigeration
appliance from the pallet, starting
with the back of the appliance.
Risk of damaging the floor from
the load.
Moving the refrigeration appliance
can cause damage to the floor.
Move the refrigeration appliance
carefully on floors that are sensitive
to scratching.
As soon as you have set the appliance
upright, you can move it using the
rollers on the bottom.
Installation
*INSTALLATION*
29
Preparing the installation niche
Risk of damage and injury due to
the refrigeration appliance tipping
over.
This refrigeration appliance is very
heavy and can tip forwards when the
doors are open.
The building-in niche must be se-
cured to the wall behind it and/or
above it with several screws. Only
this will prevent the refrigeration ap-
pliance from tipping over after being
installed.
In addition, use the provided anti-tip
brackets to secure the building-in
niche.
The parts required for installation are
supplied with the refrigeration appli-
ance. The plastic bags supplied are
marked with letters for easy identifica-
tion.
When performing the individual as-
sembly steps, observe the letters
specified and use the matching plas-
tic bag with the required installation
equipment.
The anti-tip brackets prevent the refrig-
eration appliance from tipping.
The anti-tip brackets are also used to fix
the building-in niche securely to the
surrounding walls.
Use 2 anti-tip brackets for each in-
dividual appliance or 4 anti-tip brack-
ets for each (side-by-side) combina-
tion of 2 appliances.
Position the anti-tip brackets on
the left and right of the building-in
niche.
Depending on the subsequent adjust-
ment of the feet, the anti-tip brackets
are positioned 7'-7' 1 3/4" (2134–
2164mm) from the floor of the niche.
Installation
*INSTALLATION*
30
Risk of injury and damage due to
tipping refrigeration appliance.
If the anti-tip brackets are fixed too
high up, they cannot be used to se-
cure the refrigeration appliance.
The distance between the
anti-tip brackets and the refrigeration
appliance must not exceed
5/16" (8mm).
Make sure that the gap between the
refrigeration appliance’s rear wall and
the building-in niche does not exceed
2" (51mm).
Place a wooden wedge behind the
anti-tip brackets if necessary.
While holding the anti-tip brackets in
place, mark the necessary drill holes
on the rear wall of the installation
niche.
Fixing screws for different uses and
types of material are supplied in the
accompanying pack.
Securing to a concrete wall
Securing to a wooden wall
Installation
*INSTALLATION*
31
Securing with a wooden wedge
Secure the building-in niche to the
wall behind it and/or above it as re-
quired using the anti-tip brackets .
Connect the refrigeration appliance to
the water supply (see “Installation –
Plumbed water connection”).
Now prepare the plumbed water con-
nection for the refrigeration appliance
(see “Plumbed water connection”).
Pushing the appliance into the niche
Push the appliance into the niche,
taking care not to damage the power
cord and plumbed water connec-
tions.
If you are installing several refrigera-
tion appliances side by side, now se-
cure the appliances to one another
(see the Installation Instructions for the
side-by-side installation kit).
To ensure that the refrigeration appli-
ance can then be aligned correctly,
the toe-kick ventilation grille must be
removed from the appliance toe kick:
Carefully guide a flat-head screw-
driver through the toe-kick ventilation
grille on both sides and use it to
push the internal plastic latches out-
wards to release the toe-kick ventila-
tion grille.
Place the toe-kick ventilation grille to
one side.
Installation
*INSTALLATION*
32
Affix edge protection to the adja-
cent cabinet fronts.
Insert the plug connector at the back
of the refrigeration appliance (see “In-
stallation – Electrical connection”).
Insert the plug into the electrical
socket.
The electrical socket must not be
concealed behind the appliance and
must be easily accessible in an
emergency.
Risk of damage due to electrical
overload.
If the refrigeration appliance is elec-
trically overloaded, this can cause a
short circuit and thus damage your
refrigeration appliance.
When you install appliances side by
side, each refrigeration appliance
must have its own separate electrical
socket.
Tip: Secure the power cord to prevent it
becoming caught: tie a piece of string
to the middle of the power cord and as
the refrigeration appliance is being
pushed into the niche, pull the cord for-
ward underneath the appliance.
Carefully push the refrigeration appli-
ance into the niche.
If the refrigeration appliance cannot
be pushed into the niche (because
the floor is uneven, for example), un-
screw the rear feet slightly (see “In-
stallation – Aligning the refrigeration
appliance”) and slide the refrigeration
appliance into the installation niche.
Remove the edge protection from
the adjacent cabinet fronts.
Installation
*INSTALLATION*
33
Aligning the refrigeration appliance
The installation aids on the appli-
ance door provide assistance with the
alignment of the refrigeration appli-
ance in the building-in niche.
The installation aids are suitable for a
cabinet front thickness of 3/4" or
1 1/2" (19mm or 38mm).
Align the appliance with neighboring
cabinet fronts as described below.
Cabinet-front thickness of 3/4” (19mm)
Cabinet-front thickness of 1 1/2” (38mm)
The adjustable feet at the front and
back of the appliance can all be ad-
justed from the front of the appliance.
Risk of damage due to incorrect
feet adjustment.
You may damage the adjustable feet
if you use a cordless screwdriver.
Always adjust the front and rear feet
by hand.
Installation
*INSTALLATION*
34
Position the supplied spacers on
both sides on the markings next to
the adjustable feet at the front of the
appliance.
Adjust the rear feet with a ratchet (at-
tachment: 5/16” (8mm) socket) or a
TX20 screwdriver .
Installation
*INSTALLATION*
35
Adjust the front feet with a ratchet (at-
tachment: 5/16” (8mm) socket) or a
TX20 screwdriver .
Tip: Proceed carefully when adjusting
the feet, alternating between the left
and right feet.
Place a level across the installation
aids on the appliance door to
check the refrigeration appliance’s
alignment.
Unscrew the feet and on both
sides at least until the marking on the
toe-kick is aligned with the required
1 1/4” (32mm) on the spacer . The
standard dimension of 1 1/4” (32mm)
relates to a niche height of
84” (2,134mm).
It is important to adjust the feet to a
height of at least 1 1/4” (32mm) so
that the ventilation of the refrigeration
appliance via the toe-kick functions
correctly.
Risk of damage if the feet are
adjusted too much.
The rear adjustable feet can be dam-
aged.
Unscrew the feet only until the
marking on the toe-kick is aligned to
a maximum of 2 7/16” (62mm) (max.
niche height of 85 3/16” (2,164mm)).
Installation
*INSTALLATION*
36
Check the alignment of the refrigera-
tion appliance again using the instal-
lation aids and level.
Securing the appliance in the niche
Screw the lugs for the fixing plate
into the cabinets/units above the ap-
pliance.
If it is not possible to secure the appli-
ance at the top, it can be attached to
the niche with the side fixing plates:
Open out the side fixing lugs.
Secure the side fixing lugs with the
screws provided.
Installation
*INSTALLATION*
37
Open the appliance door.
Screw the mounting plate lugs at
the top and bottom to the cabinets/
units adjacent to the appliance.
In a side-by-side combination, only
the external panels of the two appli-
ances can be secured to the cabinet
wall.
Preparing the cabinet fronts
Open the appliance door as far as it
will go.
Unscrew the installation aids from
the appliance door.
Installation
*INSTALLATION*
38
Unscrew the angle trims from both
sides of the appliance door and place
the trims and screws to one side –
they will be required later.
Close the appliance door.
Measure the gapX between the
mounting frame and the upper edge
of the adjacent cabinet front.
Remove the nuts and washers
from the threaded bolts and store
them in a safe place – they will be re-
quired later.
Take the mounting frame off the
appliance door by removing it up-
wards.
Place the cabinet front on a firm sur-
face, with the external side facing
downwards (place on a blanket or
similar to avoid it becoming
scratched).
Mark the distanceX-1/8" (3mm) on
the inner side of the cabinet front.
Similarly, locate and mark the mid-
pointY on the cabinet front.
Installation
*INSTALLATION*
39
Position the mounting frame ac-
cording to the markings on the cabi-
net front.
Pre-drill the holes.
Screw the mounting frame to the
cabinet front:
Use at least one screw for each re-
taining point on the mounting
frame.
Secure the mounting frame to the
top of the cabinet front, using at least
6screws depending on the size.
The mounting frame has several differ-
ent types of holes to take account of a
variety of cabinet fronts.
When securing the frame, always
screw into the strongest part of the
cabinet front. To do this, select screws
which are slightly shorter than the
thickness of the cabinet front.
Remove the drip tray grille and the
drip tray from the Ice/Water dis-
penser.
Installation
*INSTALLATION*
40
Remove the frame from the Ice/Water
dispenser.
Screw the appliance handle to the
cabinet front from the inside if neces-
sary (not for handle-free kitchens).
Now insert the angle trims on both
sides as far as they will go into the
provided spaces in the mounting
frame.
Installation
*INSTALLATION*
41
Securing and aligning the cabinet
front
Open the appliance door and hang
the cabinet front on its frame onto
the threaded bolts from above.
Press the angle trims into the white
plastic frame on both sides and
screw them on loosely at first. Spare
screws are provided in the plastic
bag marked with the letter E.
Place the spacers on top of the
corners of the cabinet front on both
sides.
Close the appliance door and check
the distance between the door and
adjacent cabinet fronts.
Installation
*INSTALLATION*
42
Align the depth of the cabinet front
via the gaps in the angle trims .
Align the height and sides of the cabi-
net front using the threaded bolts .
Close the appliance door and check
the distance between the door and
adjacent cabinet fronts.
Place the washers and nuts back
in position and tighten the nuts .
The cabinet front is now secured.
Now tighten the screws in the angle
trims .
Open the appliance door.
Remove the spacers from the cab-
inet front.
Installation
*INSTALLATION*
43
Mounting the fixing brackets
The fixing bracket is used to secure the
cabinet front to the bottom of the appli-
ance door.
Do not mount the fixing bracket until
the appliance (or side-by-side combi-
nation, if applicable) has been in-
stalled and the cabinet front has been
aligned.
Open the appliance door as far as it
will go.
Slide the fixing bracket sideways
onto the screw at the bottom of the
appliance door.
Screw the fixing bracket securely
to the cabinet front.
Installation
*INSTALLATION*
44
Tighten the screw at the bottom of
the appliance door.
Install the cover over the fixing
bracket.
Click the cover onto the fixing
bracket.
Installation
*INSTALLATION*
45
Securing the covers
The top cover must be assembled
as follows before it can be installed:
Insert the two parts of the cover into
one another.
Cover viewed from the side
Place the assembled cover into
the gap above the appliance so it
clicks into place. While doing so,
slide both parts of the cover together
as required.
Installation
*INSTALLATION*
46
Mounting the cover in a side-by-side
combination
Insert the joining peg (from the side-
by-side kit) halfway into the channel
in the cover for the left-hand appli-
ance.
Place the second cover onto the pin
and press the two covers together.
Click the two covers together into the
niche above the appliance.
Fit the two plastic covers on both
sides of the appliance door by click-
ing them into the gap between the
appliance door and the cabinet door,
starting at the bottom and working up
to the top.
Secure both sides of the appliance
using at least 3 clips for the cov-
ers.
Now attach the covers onto the re-
taining clips on both sides.
In the case of side-by-side installa-
tion, the covers are only required on
the outer side.
Installation
*INSTALLATION*
47
Fit the cover to the light contact
switch.
Securing the toe-kick ventilation
grille and toe-kick cover
Click the toe-kick ventilation grille
onto the bottom of the appliance toe-
kick.
If necessary, cut the toe-kick cover to
the required length and height (cut
along the lower edge of the toe-kick
facing where it touches the floor).
Secure the toe-kick cover to the bot-
tom of the toe-kick ventilation grille.
Installation
*INSTALLATION*
48
Aligning the Ice/Water dispenser
If necessary, the depth of the Ice/Water
dispenser can be aligned to line up with
the cabinet front.
Unplug the appliance or switch off
the breaker.
Carefully insert a screwdriver from the
side to remove the rear cover from
the dispensing unit.
Proceed with great care to avoid
scratching the cover when removing
it.
Use a wrench to loosen the nuts at
the back of the Ice/Water dispenser
slightly by turning the nuts counter-
clockwise.
Installation
*INSTALLATION*
49
Then use the 4 screws to line up the
depth of the Ice/Water dispenser on
both sides.
1/16" (1.8 mm)
The protrusion from the inner to the
outer frame should be 1/16" (1.8mm).
Align the frame perfectly with the Ice/
Water dispenser.
Installation
*INSTALLATION*
50
Align the frame centrally.
Finally, use a wrench to tighten the
nuts by turning them clockwise.
Remove the frame again.
Attach the adhesive strips provided
to the 4 sides of the frame.
Installation
*INSTALLATION*
51
Remove the film from each of the ad-
hesive strips.
Align the frame again perfectly with
the Ice/Water dispenser.
Refit the rear cover to the Ice/Water
dispenser, slotting it into place from
above.
Installation
*INSTALLATION*
52
Insert the drip tray and the drip tray
grille.
Then remove the film from both sides
of the Ice/Water dispenser.
Installation
*INSTALLATION*
53
Water connection
Information on the fresh water con-
nection
Risk of injury and appliance
damage if appliance is not con-
nected properly.
Failing to connect the appliance
properly can result in personal injury
and/or material damage.
The appliance may only be con-
nected to the fresh water connection
by qualified technicians.
Disconnect the refrigeration ap-
pliance from the power supply before
connecting it to the water supply.
Close the faucet before connecting
the refrigeration appliance to the wa-
ter supply.
Risk to health and risk of dam-
age due to contaminated water.
The quality of the incoming water
must conform to the requirements for
drinking water in the country where
the refrigeration appliance is being
used.
Connect the refrigeration appliance
to the drinking water supply.
Connection to the water supply must
comply with the applicable regula-
tions in the country where the appli-
ance is being installed. All appliances
and systems used to supply water to
the refrigeration appliance must also
comply with the applicable regula-
tions in the respective country.
The appliance is only suitable for
connection to a cold water line,
which
- is directly connected to the water
supply in order to ensure that water is
circulated in the cold water line.
Avoid connection to a water supply
in which the water might stagnate.
This can affect the taste of water and
ice cubes.
- withstands the operating pressure.
- fulfills the hygiene regulations.
The water pressure must be between
29 and 116 psi (2 and 8bar).
A shut-off valve must be provided be-
tween the water line and the water sup-
ply of the building to ensure that the
water supply can be cut off if neces-
sary.
Make sure that the shut-off valve is
still accessible after the appliance
has been installed.
Risk of damage!
If the water intake is blocked while
the Ice Maker is still in use, the water
intake pipe can freeze up.
Turn the Ice Maker off if the water in-
take is interrupted (e.g., while on va-
cation).
Installation
*INSTALLATION*
54
Unduly high water pressure in the
system can result in damage to the
appliance.
Install a pressure reducing valve if
the water pressure in the system ex-
ceeds 116 psi (8bar).
Do not install the system if the water
pressure exceeds 120 psi (8.3bar).
Contact your plumbing specialist if
you are unsure of your water pres-
sure.
Installing the water hose to the appli-
ance
A faucet must be provided between
the water hose and the plumbed wa-
ter connection to ensure that the wa-
ter supply can be cut off if neces-
sary.
Make sure that the faucet is still ac-
cessible after the appliance has been
installed.
By this time, the installation niche
should already have been prepared so
that the appliance needs only to be
pushed into it.
When installing the water hose, make
sure that it is neither kinked nor dam-
aged.
Position the appliance slightly in front
of the installation niche so that the
faucet can still be accessed.
2
The water connection of the refrigera-
tion appliance is ready for connec-
tion at the rear of the appliance.
Install the water hose onto the wa-
ter connection at the rear of the
appliance. Ensure that it is screwed
into position correctly and watertight.
7/16"
2
Connect the water hose to the
faucet.
Ensure that it is properly screwed into
position.
Slowly open the faucet in the water
supply line and check the whole wa-
ter system for leaks.
The appliance can now be installed in
the niche (see “Installing the appli-
ance”).
Installation
*INSTALLATION*
55
Electrical connection
Risk of electric shock!
The appliance must only be switched
on when it has been installed in ac-
cordance with the installation in-
structions.
Ground the appliance.
The appliance must not be grounded
via a gas pipe.
If in doubt, have a suitably qualified
and experienced electrician check
that the installation complies with rel-
evant regulations.
Do not install a fuse into neutral cur-
rent or grounding electrical circuit.
Do not use extension cords or un-
grounded (two prong) adapters.
Do not use a frayed or damaged
power cord.
Risk of electric shock!
For protection against electric shock,
this appliance is equipped with a
pole-free plug which is protected
against reverse polarity. The electri-
cal outlet must be properly
grounded.
Do not remove the round grounding
connector pin from the plug.
Use only a grounded plug adapter.
Wait for 1hour after installation before
plugging the appliance into the power
supply. This allows coolant and refriger-
ator oil to settle in accordance with reg-
ulations.
Ensure that the voltage of the power
supply corresponds with the connection
voltage of the appliance. A power sup-
ply of 110–120V, 60Hz and 10–
16Amp, which is protected by a power
switch or a fuse, is required to operate
the appliance.
The manufacturer recommends operat-
ing the appliance on a dedicated circuit
to avoid overloading the electrical cir-
cuit.
All relevant legal electrical, fire, and
building regulations must be observed
when installing the electrical outlet and/
or the appliance.
In certain countries, appliances are re-
quired to be connected to the electrical
supply via a wall-mounted ON/OFF
switch.
To avoid the risk of fire, electric shock,
or other injuries, the appliance must be
installed and connected by a suitably
qualified electrician in accordance with
all relevant local and national regula-
tions and standards, including fire pre-
vention.
The socket must not be concealed be-
hind the appliance and must be easily
accessible so that the appliance can be
quickly disconnected from the electrical
supply in case of an emergency.
Installation
*INSTALLATION*
56
If the outlet is no longer accessible after
installation, an additional means of dis-
connection must be provided for all
poles. Suitable means of disconnection
include switches with an all-pole dis-
connect device with a contact opening
of at least 1/8" (3mm). These can be
circuit breakers, fuses, and relays.
The plug and power cord must not
come into contact with the back of the
appliance as vibrations can cause dam-
age to these components. This could
result in a short circuit.
Do not plug other appliances into elec-
trical outlet behind this appliance.
Do not connect the appliance to a
stand-alone inverter such as those used
with an autonomous energy source e.g.,
solar power.
When the appliance is turned on, power
surges could result in a safety switch-
off. This can damage the electronics.
The appliance must not be used with
so-called energy saving devices ei-
ther. These reduce the amount of en-
ergy supplied to the appliance, causing
it to overheat.
If the power cord needs to be replaced,
this must be performed by a qualified
technician.
Connecting the appliance
Insert the plug into the back of the
appliance.
Make sure that the plug has clicked into
position correctly.
Insert the plug into the electrical out-
let and switch on.
The appliance is now connected to the
electricity supply.
Saving energy
57
Normal
energy consumption
Increased
energy consumption
Installation /
Maintenance
In a well-ventilated room. In an enclosed, poorly venti-
lated room.
Protected from direct sun-
light.
In direct sunlight.
Away from heat sources (ra-
diator, range/oven).
Near a heat source (radiator,
oven).
Where the ideal room tem-
perature is approx. 68°F
(20°C).
Where the ambient room
temperature is above 77°F
(25°C).
Air vents uncovered and
dusted regularly.
Where the ventilation open-
ings are blocked and full of
dust.
Temperature
setting
0°F (-18°C) in the freezer The lower the temperature
set for the freezer, the higher
the energy consumption.
Saving energy
58
Normal
energy consumption
Increased
energy consumption
Use Drawers and shelves ar-
ranged as they were when
the appliance was delivered.
Only open the door when
necessary and for as short a
time as possible. Store food
in an organized way.
Frequent opening of the
door for long periods will
cause a loss of coldness.
The appliance will try to cool
down and the compressor
will run for longer periods.
When shopping, use a
cooler bag and place the
food in the appliance as
soon as possible.
Allow hot food and drinks to
cool down before placing
them in the appliance.
Hot food or food at room
temperature raises the tem-
perature inside the appli-
ance. The appliance will try
to cool down and the com-
pressor will run for longer
periods.
Store food well packaged. The evaporation or conden-
sation of liquids in the
Freezer Zone will cause a
loss of coldness.
Do not overfill the appliance
in order to allow the air to
circulate.
Poor air circulation will
cause a loss of coldness.
Guide to the appliance
59
a
Display
b
On/Off switch
c
Ice maker
d
Ice-cube container
e
Interior lighting
f
Shelves
g
Ice/Water dispenser (“Ice/Water dispenser”) in the door
h
Freezer baskets
i
Automatic door opening (Push2open/Pull2open)
j
Water filter
k
Control panel for Ice/Water dispenser
l
Ice/Water-dispenser spout
m
Drip tray with drip tray grille
Guide to the appliance
60
Main screen
°F
0
1
2
3
4
5
a
SuperFrost display
(only visible when the SuperFrost function has been switched on)
b
Temperature display (target temperature)
c
Sensor control
for setting the temperature
d
Display for Miele@home connection status
(only visible when Miele@home has been set up)
e
Sensor control
for adjusting various settings in Settings mode
Guide to the appliance
61
Control panel for Ice/Water dispenser
a
Sensor control for chilled water
b
Sensor control for ice cubes
c
Sensor control for crushed ice
d
Switch system lock
on/off (see “Ice/Water dispenser” –
“System lock”)
Guide to the appliance
62
Settings mode
In Settings mode, you can select the following appliance functions and alter their
settings to some extent:
Symbol Function
Language Set
Display Brightness Adjust (darker to brighter)
Color Scheme Set (dark or bright)
/ Buzzer Tones Adjust the volume or switch off the Buzzer Tones
completely (e.g., for the door alarm)
/
Keypad Tone Adjust the volume or switch off the Keypad Tone
completely
°F / °C Temperature Unit Set (°Fahrenheit or °Celsius)
/ Keypad Lock Switch on or off
(see “Selecting additional settings”)
Eco Mode Switch on or off
(see “Selecting additional settings”)
Self Test The system restarts and is checked for faults or
malfunctions
(see “Selecting additional settings”)
Door Assistant Switch on (Push2Open or Pull2Open) or switch off
(see “Selecting additional settings”)
Miele@home Set up, deactivate, or query WiFi connection sta-
tus (see “Selecting additional settings”)
* Demo Mode Switch off
* (only visible when Demo Mode, is switched on
see “Selecting additional settings”)
Factory Default Reset to default settings
(see “Selecting additional settings”)
Guide to the appliance
63
Dispenser Lighting Select the lighting settings for the Ice/Water dis-
penser
(see “Selecting additional settings”)
Dispenser Unit Switch the Ice/Water dispenser on or off
(see “Operating the Ice/Water dispenser”)
Sabbath Mode Switch on or off
(see “Selecting additional settings”)
Water Filter Display Switch on or off or reset
(see “Selecting additional settings”)
Symbols in settings mode
/ Scroll in settings mode or select a setting
/ Change a setting (e.g., display brightness)
OK Confirm a setting
Exit the menu level
Accessories
64
Accessories supplied
Appliance plug
Water filter (IntensiveClear 2.0 char-
coal filter)
The IntensiveClear 2.0 charcoal filter,
which is already installed in the refriger-
ation appliance, improves the taste and
smell of the ice cubes by removing
chlorine and other substances from
supply water.
However, to ensure the highest quality
of the ice cubes, it is essential to
change the water filter (IntensiveClear
2.0 charcoal filter) regularly.
Optional accessories
A range of useful Miele accessories and
care products are available for your ap-
pliance.
Water filter (IntensiveClear 2.0 mesh
filter)
The IntensiveClear 2.0 mesh filter filters
supply water for making ice cubes.
If an external water filter is attached to
your household water supply, you can
use an IntensiveClear 2.0 mesh filter in
place of an IntensiveClear 2.0 charcoal
filter.
Unlike the IntensiveClear 2.0 charcoal
filter, the IntensiveClear 2.0 mesh filter
does not need to be replaced, just
cleaned.
Water filter (IntensiveClear 2.0 char-
coal filter)
See “Accessories supplied” for a de-
scription.
Stainless steel front panel
Stainless steel front panels give your re-
frigeration appliance a high-quality ap-
pearance.
Handles and toe-kick panels are also
available in a stainless steel look.
Side-by-side installation kit
To install two or more refrigeration ap-
pliances next to one another, you will
need the side-by-side installation kit
(see “Installation – Side-by-side”).
Accessories are available to order via
the Miele Webstore, from Miele di-
rectly (see back cover for contact de-
tails) or from your Miele dealer.
Before first use
65
Before first use
Allow the appliance to stand for ap-
prox. 1hour prior to connecting it to
the power supply.
This will help prevent any malfunc-
tions.
Packaging material
Remove all packaging material from
the inside of the appliance.
Leftover tape residue.
Always remove all packaging mate-
rial, including adhesive tape, before
switching on the appliance.
Cleaning
Please refer to the relevant instruc-
tions in “Cleaning and care”.
Clean the inside of the appliance and
the accessories.
Choosing the right Door Assistant
(Push2Open/Pull2Open)
The Door Assistant helps you to open
the appliance door.
You can choose between the two Door
Assistants Push2Open and Pull2Open
(see “Selecting additional settings –
Switching on the Door Assistant ”).
The default Door Assistant is
Push2Open.
Select the
Pull2Open Door Assistant if your appli-
ance has a cabinet front with a han-
dle.
Select the
Push2Open Door Assistant if your ap-
pliance has a handle-free cabinet
front.
Before first use
66
Operating the refrigeration ap-
pliance
The touch display can be scratched
by pointed or sharp objects, e.g.,
pens.
Only touch the display with your fin-
gers.
If your fingers are cold, the touch
display may not react.
°F
0
The sensor controls underneath the
temperature display can be selected
directly by touch; the symbols and text
in or above the temperature display can
only be displayed.
Settings mode
In Settings mode, you can select
different refrigeration appliance func-
tions and alter their settings to some
extent (see “Selecting additional set-
tings”).
Touch the sensor control to open
Settings mode.
Use the and sensor controls to
select the function for which you wish
to adjust the settings.
Confirm your selection with OK.
Adjust the settings using either the
and sensor controls or the and
sensor controls.
Confirm your selection with OK.
The setting with the colored back-
ground is always the selected setting;
it can be confirmed directly with OK.
Touch the sensor control if you
wish to switch to the previous menu
level or terminate the process.
Every touch of the display is con-
firmed with an audible keypad tone.
You can switch off this keypad tone in
Settings mode.
Starting up for the first time
Open the appliance door.
Before first use
67
Turn the refrigeration appliance on by
pressing the On/Off switch.
The On/Off switch is located below
the display.
The refrigeration appliance will start to
cool and the interior lighting will come
on when the appliance door is opened.
Miele will appear in the refrigeration ap-
pliance display.
When you turn the appliance on for
the first time, you will be asked to
configure the following settings:
- Set the Language
(if you accidentally select the wrong
Language, return to Settings
mode and use the symbol to
change the language)
- Set the Temperature Unit:
°C (degrees Celsius) or °F (degrees
Fahrenheit)
- Set up Miele@home:
Select Continue if you wish to set up
Miele@home now (to do this, follow
the instructions under “Selecting ad-
ditional settings – Miele@home”).
Select Skip if you would prefer to set
up Miele@home later.
Use the and sensor controls to
select the right setting and select OK
to confirm your selection.
Touch the sensor control if you
want to return to the previous menu
level.
Set-up Successful will appear on the dis-
play.
Confirm the first use with OK.
The main screen will appear on the dis-
play (see “Appliance description – Main
screen”).
You cannot terminate the initial start-
up process. The only way to terminate
the process is to switch off the refrig-
eration appliance, though the process
will continue when the appliance is
switched back on.
Switching on and off
68
Switching on the appliance
Open the appliance door.
Turn the refrigeration appliance on by
pressing the On/Off switch.
The refrigeration appliance will start to
cool and the interior lighting will come
on when the appliance door is opened.
Miele will appear, followed by the main
screen on the refrigeration appliance
display:
°F
0
The message Freezer temperature too
high. Max. temperature °C will appear on
the display when the appliance is
switched on for the first time or until the
selected temperature has been reached
in the freezer zone.
An alarm tone sounds.
Confirm the message with OK.
The message disappears from the dis-
play and the alarm tone stops.
However, the message may reappear
on the display after a brief delay.
As soon as the selected temperature
has been reached in the freezer zone,
the message will disappear completely
from the display and the alarm tone will
stop.
To enable the temperature to get suf-
ficiently cold inside the refrigeration
appliance, allow the appliance to run
for a few hours before placing food
in it. Do not place food in the freezer
zone until it has reached the required
coldness (at least 0°F/-18°C).
Switching off the appliance
Turn the refrigeration appliance off by
pressing the On/Off switch.
The cooling and interior lighting are
switched off.
Please note: the refrigeration appli-
ance is not disconnected from the
power supply when it is switched off
with the On/Off switch.
Switching on and off
69
Switching off for longer peri-
ods of time
If the appliance is not going to be used
for a longer period of time:
Turn the appliance off.
Unplug the appliance or switch off
the breaker.
Risk of damage due to frozen
water intake pipe.
If the water intake is blocked while
the ice maker is still in use, the water
intake pipe can freeze up.
Turn the ice maker off if the water
supply is interrupted (e.g., while on
vacation).
Close the faucet in the water supply
line (approx. 3hours before switching
off the appliance to avoid the build-
up of bacteria caused by stagnant
water).
Empty the ice cube container.
Clean the refrigeration appliance.
Replace the water filter (Intensive-
Clear 2.0 charcoal filter) or clean the
water filter (IntensiveClear 2.0 mesh
filter).
Leave the door ajar to air the refriger-
ation appliance and avoid odors
building up inside the appliance.
If, during a long absence, the refrig-
eration appliance is switched off but
not cleaned and the door(s) left shut,
there is a danger of bacteria building
up inside the appliance.
It is essential to clean the refrigera-
tion appliance.
Selecting additional settings
70
In settings mode, certain settings
can be adjusted and functions selected,
allowing you to adjust the machine to
suit your requirements.
The following section only describe the
functions in settings mode that re-
quire further explanation.
The door alarm and other warnings
are automatically disabled when the
appliance is in settings mode .
Switching Keypad Lock/
on or off
Switch Keypad Lock on if you wish to
protect your refrigeration appliance
from unwanted temperature changes or
other unintentional adjustments in Set-
tings mode .
In Settings mode, use the and
sensor controls to select Keypad
Lock and select OK to confirm your
selection.
Use the and sensor controls to
switch the sensor lock On or Off and
select OK to confirm your selection.
The keypad lock will not be activated
until you close the appliance door.
Nothing will appear on the display to in-
dicate that the keypad lock is switched
on.
The message Press OK for 6 seconds to
unlock will appear on the display if you
select a sensor control while the sensor
lock is switched on.
Follow the instructions on the display.
The display is unlocked briefly so you
can adjust the setting as required. Clos-
ing the appliance door will reactivate
the sensor lock.
Selecting additional settings
71
Switching Eco Mode on or
off
Eco Mode is useful when going on vaca-
tion, for example, if you do not wish to
switch off the appliance completely or
do not need a high degree of cooling.
Energy consumption in Eco Mode is
lower than in normal operation.
The freezer zone is regulated to a tem-
perature of 3°F (-16°C).
If the SuperFrost function is switched
on, it will be switched off when Eco
Mode is selected.
In Settings mode, use the and
sensor controls to select the Eco
Mode and select OK to confirm your
selection.
Use the and sensor controls to
switch Eco Mode On or Off and select
OK to confirm your selection.
Only the changed temperature on the
display indicates that Eco Mode is
switched on.
Tip: You can also switch off the Eco
Mode function by directly adjusting the
temperature (see “The correct tem-
perature – Setting the temperature”).
Health risk caused by decom-
posing food.
The usability and quality of food may
deteriorate if the temperature re-
mains above 0°F (-18°C) for an ex-
tended period.
Only ever switch on theEco Mode
function for a limited period.
When switching to the Eco Mode
function, check that the food in the
freezer zone is already properly
frozen.
Do not freeze any new food while
theEco Mode function is switched
on.
Selecting additional settings
72
Performing a Self Test
Perform a Self Test if you are concerned
that your refrigeration appliance is not
working properly and want to check if it
is suffering from any problems.
In Settings mode, use the and
sensor controls to select Self Test
and select OK to confirm your selec-
tion.
Touch the sensor control if you
wish to terminate the process.
The Self Test starts and the appliance is
checked for any faults or malfunctions.
- The message System restart will ap-
pear on the display if the Self Test
does not discover any faults or mal-
functions.
- If the Self Test does discover any
faults or malfunctions, they are indi-
cated as error messages on the dis-
play.
An alarm will also sound.
If you find the alarm disruptive, you
can switch it off in advance by touch-
ing the sensor control.
Make a note of the error message(s)
displayed.
Contact Miele Service and inform
them of the error message(s) on the
display.
Confirm the message with OK.
System restart will appear on the display.
The refrigeration appliance briefly
switches off and then back on automat-
ically.
Self test completed will appear on the dis-
play.
Confirm the message with OK.
The main screen appears on the display
again.
Selecting additional settings
73
Switching on the Door Assis-
tant
You can choose between the two Door
Assistants Push2Open and Pull2Open.
The default Door Assistant is
Push2Open.
The Push2Open Door Assistant is suit-
able for cabinet fronts without handles.
The door will then open automatically
when you gently press against it.
The Pull2Open Door Assistant is suitable
for cabinet fronts with handles. The ap-
pliance door can be opened easily with
little force.
Risk of damage if the appliance
door is closed prematurely.
When the Door Assistant is switched
on, repeatedly closing the appliance
door early can lead to damage or
malfunctions.
Refrain from holding onto or closing
the appliance door while automatic
door opening is still extended. If you
have indeed closed the appliance
door, leave it closed for 5minutes.
Automatic door opening resets itself.
Switching on Push2Open
In Settings mode, use the and
sensor controls to select Door As-
sistant and select OK to confirm your
selection.
Use the and sensor controls to
select Mode and select OK to confirm
your selection.
Use the and sensor controls to
select Push2Open and select OK to
confirm your selection.
Touch the sensor control to return
to the previous menu level.
– Adjusting the intensity
You can also adjust the intensity of the
Push2Open function. The lower the set
intensity, the less force required when
you push against the appliance door.
In Settings mode, use the and
sensor controls to select Door As-
sistant and select OK to confirm your
selection.
In Settings mode, use the and
sensor controls to select Intensity
and select OK to confirm your selec-
tion.
Use the and sensor controls to
select the right intensity (Low, Medium,
High) and select OK to confirm your
selection.
Selecting additional settings
74
– Adjusting the duration of the Auto-
Close function
You can also adjust the duration for
how long the appliance door will remain
open until it closes automatically.
In Settings mode, use the and
sensor controls to select Door As-
sistant and select OK to confirm your
selection.
In Settings mode, use the and
sensor controls to select AutoClose
and select OK to confirm your selec-
tion.
Use the and sensor controls to
select the duration (5 to 30seconds)
and touch OK to confirm your selec-
tion.
To protect against inadvertent open-
ing: if you do not pull the appliance
door open, it will close again by itself
after a duration defined by you.
Switching on Pull2Open
In Settings mode, use the and
sensor controls to select Door As-
sistant and select OK to confirm your
selection.
Use the and sensor controls to
select Mode and select OK to confirm
your selection.
Use the and sensor controls to
select Pull2Open and select OK to
confirm your selection.
Touch the sensor control to return
to the previous menu level.
– Adjusting the intensity
You can also adjust the intensity of the
Pull2Open function. The lower the set in-
tensity, the less force required when
you pull the appliance door.
In Settings mode, use the and
sensor controls to select Door As-
sistant and select OK to confirm your
selection.
In Settings mode, use the and
sensor controls to select Intensity
and select OK to confirm your selec-
tion.
Use the and sensor controls to
select the right intensity (Low, Medium,
High) and select OK to confirm your
selection.
Selecting additional settings
75
Switching off the Door Assis-
tant
In Settings mode, use the and
sensor controls to select Door As-
sistant and select OK to confirm your
selection.
Use the and sensor controls to
select Mode and select OK to confirm
your selection.
Use the and sensor controls to
select Off and select OK to confirm
your selection.
Touch the sensor control to return
to the previous menu level.
Setting up Miele@home
Your refrigeration appliance is
equipped with an integrated WiFi
module.
Networking is deactivated at the fac-
tory.
To use this feature, you will need:
- a WiFi network
- the Miele@mobile app
- a Miele user account You can create
a user account via the Miele@mobile
app.
The Miele@mobile app will guide you as
you connect your appliance to your
home WiFi network.
Once the refrigeration appliance is con-
nected to your WiFi network, you can
use the app to carry out the following
activities, for example:
- Call up information on the operating
status of your refrigeration appliance.
- Change the settings on your refriger-
ation appliance.
Connecting your refrigeration appliance
to your WiFi network will increase en-
ergy consumption, even when the ap-
pliance is switched off.
Make sure that the signal of your
WiFi network is sufficiently strong in
the place where you want to set up
your refrigeration appliance.
Selecting additional settings
76
Availability of the WiFi connection
The WiFi connection shares a frequency
range with other appliances (including
microwave ovens and remote control
toys). This can cause sporadic or even
complete connection failures. There-
fore, the availability of featured func-
tions cannot be guaranteed.
Miele@home availability
The ability to use the Miele@mobile app
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not avail-
able in every country.
For information about availability,
please visit www.miele.com.
Miele@mobile App
The Miele@mobile App is available to
download free of charge from the Apple
App Store
®
or from the Google Play
Store™.
Connecting your appliance via the
Miele@mobile app
You will also require the following to log
in:
- the password to your WLAN network
- your refrigeration appliance’s pass-
word
Your refrigeration appliance‘s password
is its serial number, which can be found
on the data plate.
The data plate can be found in the inte-
rior cabinet of the refrigeration appli-
ance.
XXXXXX
XXXX XX / XXXXXXXXXXXXXXXXXXX / XX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXX XXXXXXXXX
If your serial number is “78000001” for
example, your password will be
“78000001”.
In Settings mode, use the and
sensor controls to select
Miele@home and select OK to confirm
your selection.
Set up will appear on the display.
Confirm your selection with OK.
Use the and sensor controls to
select via the App and select OK to
confirm your selection.
Open the Miele@mobile app and fol-
low the instructions in the app.
Selecting additional settings
77
As soon as your refrigeration appli-
ance has been integrated into your
WiFi network, the message Connec-
tion successful will appear on your re-
frigeration appliance‘s display.
Confirm the process with OK again.
If the WLAN connection is active, will
appear on the display.
Connecting your refrigeration appli-
ance via WPS
Your router must be equipped with the
WPS function for this connection op-
tion.
In Settings mode, use the and
sensor controls to select
Miele@home and select OK to confirm
your selection.
Set up will appear on the display.
Confirm your selection with OK.
Use the and sensor controls to
select via WPS and select OK to con-
firm your selection.
Now follow the instructions on the
display.
Confirm the process with OK.
To be able to use the Miele@home
functions, you also have to register
your refrigeration appliance in the app.
As soon as your refrigeration appli-
ance has been integrated into your
home network via WPS, the message
Connection successful will appear on
the display.
Confirm the process with OK again.
If the WLAN connection is active, will
appear on the display.
Selecting additional settings
78
Deactivating Miele@home
In Settings mode, use the and
sensor controls to select
Miele@home and select OK to confirm
your selection.
Use the and sensor controls to
select Deactivate and select OK to
confirm your selection.
Deactivation successful will appear on the
display.
Confirm the message with OK.
Your refrigeration appliance is now dis-
connected from your WLAN network.
The symbol will go out on the dis-
play.
Activating Miele@home
If you have already activated
Miele@home and then disconnected
the connection, you will need to reac-
tivate the connection.
In Settings mode, use the and
sensor controls to select
Miele@home and select OK to confirm
your selection.
Use the and sensor controls to
select Activate and select OK to con-
firm your selection.
Activation successful will appear on the
display.
Confirm the message with OK.
If the WLAN connection is active, will
appear on the display.
Checking the WLAN connection sta-
tus
In Settings mode, use the and
sensor controls to select
Miele@home and select OK to confirm
your selection.
Use the and sensor controls to
select Connection status and select OK
to confirm your selection.
Information about the WLAN connec-
tion status will then appear on the dis-
play:
- connected: there is a strong con-
nection
- connected: there is an average
connection
- connected: there is a weak con-
nection
- disconnected
Setting up Miele@home again
If you have changed your WiFi network,
you can set up Miele@home again for
your appliance.
In Settings mode, use the and
sensor controls to select
Miele@home and select OK to confirm
your selection.
Use the and sensor controls to
select Set up again and select OK to
confirm your selection.
Reset configuration? will appear on the
display.
Use the and sensor controls to
select Yes or No and select OK to
confirm your selection.
Selecting additional settings
79
Resetting the network configuration
Reset the refrigeration appliance’s set-
tings to the default settings when dis-
posing of your refrigeration appliance,
selling it, or putting a used refrigera-
tion appliance into operation. This will
reset the network configuration so that
all personal data is deleted from the
refrigeration appliance. This will also
ensure that a previous owner is no
longer able to access the refrigeration
appliance.
Reset the settings of the refrigeration
appliance as described under “Reset-
ting the settings to their default set-
tings”.
Switching off Demo Mode
Demo mode allows the appliance to
be presented in the showroom with-
out the cooling system being
switched on. Do not activate this set-
ting for domestic use.
If Demo mode has been switched on
as a default setting, will show on the
display.
In Settings mode, use the and
sensor controls to select Demo
Mode and select OK to confirm your
selection.
Press OK for 4 seconds to deactivate will
appear on the display.
Follow the instructions on the display.
The countdown Demo Mode will deacti-
vate in seconds. appears on the display.
Demo Mode deactivated. The appliance will
cool down. will appear on the display.
Confirm the message with OK.
The main screen appears on the display
again.
Selecting additional settings
80
Resetting the settings to their default settings
You can reset the refrigeration appliance‘s settings to their default settings.
Reset the refrigeration appliance’s settings to the default settings when disposing
of your refrigeration appliance, selling it, or putting a used refrigeration appliance
into operation. This will reset the network configuration so that all personal data
is deleted from the refrigeration appliance. This will also ensure that a previous
owner is no longer able to access the refrigeration appliance.
In Settings mode, use the and sensor controls to select Factory Default
and select OK to confirm your selection.
Use the and sensor controls to select Reset and select OK to confirm your
selection.
After a brief delay, Settings reset appears on the display.
Confirm the message with OK.
The initial commissioning process restarts (see “Before first use – Starting up for
the first time”).
Selecting additional settings
81
The refrigeration appliance‘s settings will be reset to the following values:
Function Default settings
Language English
Display Brightness Average value
(4 of 7 segments)
Color Scheme Dark
/ Buzzer Tones Average value
(4 of 7 segments)
/
Keypad Tone Average value
(4 of 7 segments)
°F / °C Temperature Unit °Fahrenheit
/ Keypad Lock Switched off
Eco Mode Switched off
Door Assistant Push2open
Miele@home Switched off
Dispenser Lighting Automatic
Dispenser Unit Switched on
Sabbath Mode Switched off
Water Filter Display Switched on
Temperature 0°F (-18°C)
Selecting additional settings
82
Selecting settings for lighting
the Ice/Water dispenser
In Settings mode, you can select
settings for lighting the Ice/Water dis-
penser:
Lighting for Ice/Water dispenser
switches on automatically
The lighting is automatically switched
on when a container is placed under the
Ice/Water dispenser.
In Settings mode, use the and
sensor controls to select the Dis-
penser lighting and select OK to con-
firm your selection.
Use the and sensor controls to
select Mode and select OK to confirm
your selection.
Use the and sensor controls to
select Automatic and select OK to
confirm your selection.
Touch the sensor control to return
to the main screen.
Lighting for Ice/Water dispenser
switches on manually
The lighting is switched on by pressing
a button on the control panel of the Ice/
Water dispenser.
In Settings mode, use the and
sensor controls to select the Dis-
penser lighting and select OK to con-
firm your selection.
Use the and sensor controls to
select Mode and select OK to confirm
your selection.
Use the and sensor controls to
select Manual and select OK to con-
firm your selection.
Touch the sensor control to return
to the main screen.
Lighting for Ice/Water dispenser
switches off after a certain time
The Ice/Water-dispenser lighting
switches off after a set time (0–30sec-
onds).
In Settings mode, use the and
sensor controls to select the Dis-
penser lighting and select OK to con-
firm your selection.
Use the and sensor controls to
select AutoOff and select OK to con-
firm your selection.
Set the time you want with the
andsensor controls. Keeping your
finger on the sensor control changes
the time continuously.
Confirm your selection with OK.
Touch the sensor control to return
to the main screen.
Selecting additional settings
83
Switching off the Ice/Water-dis-
penser lighting
The Ice/Water-dispenser lighting is
switched off completely.
In Settings mode, use the and
sensor controls to select the Dis-
penser lighting and select OK to con-
firm your selection.
Use the and sensor controls to
select Mode and select OK to confirm
your selection.
Use the and sensor controls to
select Off and select OK to confirm
your selection.
Touch the sensor control to return
to the main screen.
Switching Sabbath Mode on
or off
The refrigeration appliance has a Sab-
bath Mode to support the observance of
religious customs.
When Sabbath Mode is switched on,
you cannot make any settings on your
refrigeration appliance.
Ensure that the appliance door is
properly closed, as visual and audible
alarms are switched off in Sabbath
Mode.
In Settings mode, use the and
sensor controls to select Sabbath
Mode and select OK to confirm your
selection.
Use the and sensor controls to
select On or Off and select OK to con-
firm your selection.
When Sabbath Mode is switched on,
will appear on the display and the
display brightness will be reduced (the
display does not change when the ap-
pliance door is closed).
When Sabbath Modeis switched on,
the following functions are switched off:
- Door Assistant
(for cabinet fronts without handles,
the appliance door will have to be
pulled from the bottom or side)
- Lighting
- All audible and visual signals,
- Temperature display
- SuperFrost function
(if previously switched on)
Selecting additional settings
84
- Ice Maker
(if previously switched on)
- The Ice/Water dispenser
(if previously switched on)
You can still select:
- the sensor control for Settings
mode so that Sabbath Mode can be
switched off
The Sabbath Mode function will switch it-
self off automatically after approx.
125hours.
Health risk caused by decom-
posing food.
As any power failure during Sabbath
Mode is not shown on the display,
the frozen food may thaw or defrost.
This will reduce the storage life of the
food.
Check the quality of the food.
Check whether the frozen food has
started to defrost. If it has, use the
food as soon as possible or cook it
before freezing it again.
Switching on, switching off, or
resetting the Water Filter Dis-
play
Depending on the quantity of ice cubes
produced, the Water Filter Display will re-
mind you approx. every 6months that
the IntensiveClear 2.0 charcoal filter
needs to be changed. Replace the water
filter will appear on the display.
See “Water filter – Replacing the water
filter” for instructions on how to replace
the IntensiveClear 2.0 charcoal filter.
The first time the IntensiveClear 2.0
charcoal filter needs to be changed,
the display will remind you automati-
cally; the reminder does not need to
be switched on separately.
Tip: If you have replaced the Intensive-
Clear 2.0 charcoal filter with an Inten-
siveClear 2.0 mesh filter, you can use
the Water Filter Display as a reminder to
clean the IntensiveClear 2.0 mesh filter.
See “Cleaning and care – Cleaning the
water filter (IntensiveClear 2.0 mesh fil-
ter)” for instructions on how to clean the
IntensiveClear 2.0 mesh filter.
Selecting additional settings
85
Switching on the Water Filter Display
If the Water Filter Display has been
switched off once, it must be switched
on again if required.
In Settings mode , use the and
sensor controls to select the Water
Filter Display and select OK to confirm
your selection.
Use the and sensor controls to
select On and select OK to confirm
your selection.
The Water Filter Display has been
switched on.
Switching off the Water Filter Display
Risk to health due to contami-
nated water.
If the IntensiveClear 2.0 charcoal fil-
ter is not replaced on a regular basis,
it may become contaminated.
Only switch off the Water Filter Display
if an external water filter has been at-
tached to your household water sup-
ply in place of the IntensiveClear 2.0
charcoal filter. In this case, you
should also use an IntensiveClear 2.0
mesh filter in place of the Intensive-
Clear 2.0 charcoal filter (see “Acces-
sories – Optional accessories”).
In Settings mode , use the and
sensor controls to select the Water
Filter Display and select OK to confirm
your selection.
Use the and sensor controls to
select Off and select OK to confirm
your selection.
The Water Filter Display has been
switched off.
Resetting the Water Filter Display
After you have replaced or cleaned the
water filter, you must reset the Water Fil-
ter Display so that it can be displayed
again after 6months.
If you do not reset the display, it ap-
pears again and again.
In Settings mode , use the and
sensor controls to select the Water
Filter Display and select OK to confirm
your selection.
Use the and sensor controls to
select Reset and select OK to confirm
your selection.
The Replace the water filter message dis-
appears from the display.
The Water Filter Display has been acti-
vated for the next time the water filter
requires cleaning or replacing.
The correct temperature
86
It is very important to set the correct
temperature for storing food in the ap-
pliance. Bacteria will cause food which
is not stored at the correct temperature
to deteriorate rapidly. Temperature influ-
ences the growth rate of these bacteria.
Reducing the temperature reduces their
growth rate.
To freeze fresh food and to store frozen
food for a long time, a temperature of
0°F (-18°C) is required. At this tempera-
ture the growth of bacteria is generally
halted. As soon as the temperature
rises above 14°F (-10°C), the bacteria
become active in the food again so it
cannot be kept as long. For this reason,
partially defrosted or defrosted food
must not be re-frozen. Food may be re-
frozen once it has been cooked (boiled
or roasted), as the high temperatures
achieved when cooking destroy most
bacteria.
The temperature in the appliance will
rise:
- the more often the appliance door is
opened and the longer it is kept open
- the more food that is stored in it
- the warmer the food is that is being
put into it
- the higher the ambient temperature
surrounding the refrigeration appli-
ance is. The refrigeration appliance is
designed for use within a specific cli-
mate class (room temperature range).
Do not use in a climate class for
which it is not designed.
Setting the temperature
Touch the sensor control to set the
temperature.
The previously set temperature will ap-
pear.
Use the and sensor controls to
set the temperature. Keeping your fin-
ger on the sensor control changes
the temperature continuously.
Confirm the temperature setting with
OK or wait approx. 8seconds after
the last touch of the sensor. This tem-
perature will be automatically
adopted.
Tip: The new temperature setting can
also be confirmed and adopted by clos-
ing the appliance door.
The temperature display always shows
the required temperature.
If you have adjusted the temperature,
wait for approximately 6hours if the
appliance is not very full and for ap-
proximately 24hours if the appliance
is full before checking the temperature
display. It will take this long for an accu-
rate reading to be given.
If, after this time, the temperature is
still too high or too low, adjust it
again.
The correct temperature
87
Temperature range
The temperature can be adjusted from
7°F (-14°C) to -11°F (-24°C).
The ambient temperature in the room
and the installation location can af-
fect the time it takes for the appli-
ance to reach the lowest tempera-
ture.
If the ambient temperature is too
high, the appliance may not reach
the lowest temperature.
Using SuperFrost
88
SuperFrost function
For best results, turn on the SuperFrost
function before putting fresh food into
the freezer.
Fresh food will be frozen quickly, so that
the nutritional value, vitamin content,
appearance, and taste are maintained.
Exceptions:
- Placing food in the freezer that is al-
ready frozen.
- When freezing up to 4.4 lb (2 kg)kg
fresh food daily.
Turning on SuperFrost
SuperFrost should be turned on 4–
6hours before placing food in the
freezer. When freezing the maximum
amount of food, the SuperFrost func-
tion should be switched on 24hours
beforehand.
Touch the sensor control to set the
temperature.
Touch the sensor control to switch
the SuperFrost function on.
The symbol is highlighted in color
and the newly set temperature value of
-22°F (-30°C) appears in the display.
Confirm the setting with OK or wait
approx. 8seconds after the last press
of the button. The setting will be au-
tomatically adopted.
The symbol will light up on the tem-
perature display.
The appliance will now run at maximum
power.
Turning off SuperFrost
Touch the sensor control to set the
temperature.
The symbol is highlighted in color
and the temperature value of -22°F
(-30°C) is shown in the display.
Touch the sensor control to switch
the SuperFrost function off.
The symbol is no longer highlighted
in color and the previous temperature
setting appears again on the display.
Confirm the setting with OK or wait
approx. 8seconds after the last press
of the button. The setting will be au-
tomatically adopted.
The symbol disappears from the
temperature display.
The refrigeration appliance will continue
running at normal power.
If you do not turn off the SuperFrost
function, it will turn itself off automati-
cally after approx. 54hours. The quan-
tity of fresh food placed in the freezer
will determine the duration before the
SuperFrost function turns off.
The appliance will then run at normal
power again.
Tip: To save energy, you should manu-
ally switch off the SuperFrost function
once the freezer zone reaches a con-
stant temperature of 0°F (-18°C) or
colder. Monitor the temperature in the
freezer zone.
Temperature and door alarm
89
The appliance has been fitted with a
warning system which ensures that the
temperature in the freezer cannot rise
unnoticed and to avoid energy being
wasted if the door is left open.
Temperature alarm
The Freezer temperature too high. Max.
temperature °C message appears in the
display if the temperature in the freezer
zone becomes too warm.
An alarm will also sound.
The temperature display will show the
highest temperature that was reached
during the time the temperature rose.
The audible and visual signals are trig-
gered, for example:
- When the appliance is switched on
and the temperature in the appliance
differs greatly from the set tempera-
ture.
- If a lot of warm room air enters the
freezer when frozen food is being
loaded, rearranged, or taken out.
- When large amounts of food are
frozen at once.
- When freezing fresh food which is still
warm.
- After an extended power failure.
The alarm will be silenced and the mes-
sage on the display will go out as soon
as the reason for the alarm has been re-
solved.
Health risk caused by decom-
posing food.
If the temperature in the freezer re-
mains above 0°F (-18°C) for a long
time, the frozen food may start to de-
frost. This will reduce the storage life
of the food.
Check whether the frozen food has
started to defrost. If it has, use the
food as soon as possible or cook it
before freezing it again.
Turning the temperature alarm off
early
If the alarm disturbs you, it can be
turned off early.
Touch the OK sensor button in the
display.
The alarm stops and the message dis-
appears from the display.
Temperature and door alarm
90
Door alarm
Door alarm
An alarm will sound if the appliance
door has been left open for longer than
approx. 2minutes.
The Close the door message also ap-
pears on the display.
As soon as the door is closed, the
alarm will stop and the message on the
display will disappear.
Turning the door alarm off early
If the alarm disturbs you, it can be
turned off early.
Touch the OK sensor control in the
display.
The alarm stops and the message dis-
appears from the display.
After a certain time the alarm will sound
again and the message will reappear in
the display until the appliance door is
closed.
Adjusting the interior fittings
91
Removing the shelf above the
ice maker
Use both hands to grip the front of
the shelf from below and press it on
both sides until you feel resistance
.
When pulling out and inserting the
shelf, make sure that the side walls
are not damaged.
Carefully pull the shelf out to the
front.
To insert it, slide the shelf slowly onto
the guide on both sides and then
slide it all the way in.
Removing or moving the
shelves
Hold the shelf on both sides and raise
it slightly so that it can be lifted with
the catches over the guide at the
back.
Pull the shelf forward.
Remove the shelf or place it in the re-
quired position, with the catches en-
gaged at the back.
Make sure that the shelf is straight.
Adjusting the interior fittings
92
Removing the freezer baskets
Open the appliance door as wide as
possible.
The opening angle of the appliance
door must not be limited to 90° be-
cause otherwise the freezer baskets
cannot be removed.
Pull the freezer basket out as far as it
will go.
Raise the snap fastening on both
sides, unclip, and carefully lift the
basket out.
To replace it, pull the telescopic run-
ners out as far as they will go.
Place the freezer basket back in
again.
Slide the basket all the way back in
again until it engages in the snap fas-
tening.
Freezing and storing food
93
Always observe USDA food safety
guidelines.
Risk of fire from electrical appli-
ances.
Operating electrical devices in the
appliance can cause sparks to form.
Do not operate any electrical devices
inside the appliance.
Maximum freezing capacity
To ensure that fresh food placed in the
freezer freezes through to the core as
quickly as possible, the maximum
freezing capacity must not be ex-
ceeded. The maximum freezing capac-
ity for freezing within a 24-hour period
is given on the data plate: “Freezing ca-
pacity ....lbs/24 hrs.”
What happens when you freeze
fresh food?
Fresh food should be frozen as quickly
as possible so that the nutritional value
of the food, its vitamin content, appear-
ance and flavor are maintained.
Food which takes a long time to freeze
will lose more water from its cells,
which then shrink. During the defrosting
process, only some of this water is re-
absorbed by the cells. What this means
in practice is that the food loses more
moisture. You can see this in the large
amount of water that collects around
the food when it defrosts.
If food is frozen quickly, the cells have
less time to lose moisture, so they
shrink less. As there is not so much
moisture loss, it is easier for the food to
reabsorb it during the defrosting
process, and very little water collects
around the defrosted food.
Storing frozen food
Never re-freeze partially or fully de-
frosted food. Defrosted food must
only be re-frozen after it has been
cooked.
When buying frozen food to store in
your freezer, make sure to check:
- that the packaging is not damaged
- the expiration date
- the temperature at which the frozen
food is being stored in the store
The length of time food can be kept
is reduced if it has been stored at a
temperature warmer than 0°F (-18°C).
Buy frozen food at the very end of
your shopping trip.
Store it in the freezer compartment as
soon as possible.
Freezing and storing food
94
Home freezing
Only freeze food that is fresh and in
good condition.
Tips for home freezing
- The following types of food are suit-
able for home freezing:
fresh meat, poultry, game, fish, veg-
etables, herbs, fresh fruit, dairy prod-
ucts, baked goods, leftovers, egg
yolks, egg whites, and a range of pre-
cooked meals.
- The following types of food are not
suitable for freezing:
lettuce, radishes, sour cream, may-
onnaise, whole eggs in their shells,
onions, whole raw apples and pears.
- To retain color, taste, aroma, and vi-
tamin C, vegetables should be
blanched before they are frozen. To
do so, place them portion by portion
into boiling water for 2–3minutes.
Then, remove and plunge the vegeta-
bles into ice-cold water to cool
quickly. Leave the vegetables to
drain.
- Lean meat freezes better than fatty
meat and can be stored for consider-
ably longer.
- Separate chops, steaks, cutlets, etc.
with a sheet of plastic freezer film. to
prevent them from freezing together
in a block.
- Do not season raw food or blanched
vegetables with herbs or salt before
freezing. Cooked food should only be
lightly seasoned. The flavor of some
herbs intensifies when frozen.
- Placing hot food or drink in the
freezer causes food that is already
frozen to partially thaw and increases
energy consumption. Allow hot food
and drink to cool down before plac-
ing it in the freezer.
Packaging food for freezing
Freeze food in portions.
–Suitable packaging
- Plastic films
- Freezer bags
- Aluminum foil
- Freezer containers
–Unsuitable packaging
- Packing paper
- Parchment paper
- Cellophane
- Garbage bags
- Plastic shopping bags
Remove as much air as possible from
the packaging before sealing.
Close the packaging tightly with
- rubber bands,
- bag clips,
- string or bag ties, or
- freezer tape.
Tip: Freezer bags and poly tubing may
also be sealed using home heat sealing
kits.
Label the packaging with the con-
tents and the date of freezing.
Freezing and storing food
95
Before placing food in the
freezer
When freezing more than 4.4lb (2kg)
of fresh food, switch on the Super-
Frost function some time before plac-
ing the food in the freezer (see “Su-
perFrost”).
This helps food which is already stored
in the freezer to stay frozen.
Placing food in the freezer
Food to be frozen can be placed any-
where in the freezer zone, preferably in
the lowest freezer basket.
Place large quantities of food in the
large freezer basket.
Place the food flat in the bottom of
the basket so that it freezes through
to the core as quickly as possible.
Ensure that the packaging and con-
tainers are dry to prevent them from
freezing together or to the walls.
Please follow the guidelines in the ta-
ble below regarding recommended
weights for the baskets:
Upper
freezer
basket
Lower
freezer
basket
F24x2Vi/SF 26.5 lb
(12kg)
26.5 lb
(12kg)
F26x2Vi/SF 44 lb
(20kg)
44 lb
(20kg)
Unfrozen food should not touch
frozen food, as this will cause the
frozen food to begin to thaw.
Storage time for frozen food
The storage life of food is very variable,
even at a constant temperature of 0°F
(-18°C). Decomposition processes also
take place in frozen food, albeit at a
very reduced speed. Fat can become
rancid from contact with oxygen in the
air, for example. This is why lean meat
can be stored approx. twice as long as
fatty meat.
The storage times quoted are guide val-
ues for the storage life of different food
groups in the Freezer Zone.
Food group Storage
time
(Months)
Ice cream 2to6
Bread, baked goods 2to6
Cheese 2to4
Fish, oily 1to2
Fish, lean 1to5
Sausage, ham 1to3
Game, pork 1to12
Poultry, beef 2to10
Vegetables, fruit 6to18
Herbs 6to10
Where the storage time given on the
packaging differs, follow the advice on
the packaging.
Freezing and storing food
96
Defrosting frozen goods
Never re-freeze partially or fully de-
frosted food. Defrosted food may only
be re-frozen after it has been cooked.
Frozen food can be defrosted in differ-
ent ways:
- In a microwave
- In an oven using “Convection” or the
“Defrost” setting
- At room temperature
- In the Fridge Zone (the cold given off
by the frozen food helps to keep the
other food cold)
- In a steam oven
Flat pieces of partially thawed meat
or fish can be placed directly into a hot
skillet.
Meat and poultry (e.g.,hamburgers,
chicken, fish) should not come into con-
tact with other foods while defrosting.
Catch the defrosting liquid and dispose
of it carefully.
Fruit can be thawed at room tempera-
ture, either in the packaging or in a cov-
ered bowl.
Most vegetables can be cooked while
still frozen. Just put straight into boiling
water or hot grease. The cooking time is
slightly less than that of fresh vegeta-
bles due to changes in the cell struc-
ture.
Cooling drinks quickly
When chilling drinks in the freezer,
make sure that bottles are not left in for
more than one hour. Otherwise they
could burst.
Operating the Ice/Water dispenser
97
The Ice/Water dispenser requires a
plumbed water connection in order for
it to operate (see “Installation –
Plumbed water connection”).
If you do not dispense chilled water or
ice from the Ice/Water dispenser for a
longer period of time, the water/ice
may be stale. Regularly dispense wa-
ter/ice in order to achieve the best wa-
ter quality.
Risk of injury from broken glass.
Use a sturdy container for collecting
water and ice cubes.
Risk of injury due to incorrect
handling.
Risk of injury from holding your
hands under the Ice/Water dis-
penser.
Do not hold your hands under the
Ice/Water dispenser.
Risk of injury due to incorrect
handling.
Risk of injury from reaching into the
discharge opening of the ice con-
tainer.
Never reach into the discharge open-
ing of the ice container.
Risk to health due to contami-
nated water.
Consuming polluted water can lead
to illnesses.
The first 5glasses of chilled water as
well as the first 30–40ice cubes
made after the Ice/Water dispenser
is started up must not be consumed,
as the water will have been used for
the initial rinse through the water
supply line.
This applies to the initial commis-
sioning as well as when using the
appliance again after it has been
turned off for a long while.
Risk of damage due to blocking
of the ice maker.
The ice maker could become
blocked and, as a result, be dam-
aged.
Do not place any bottles or food into
the ice maker to chill them quickly.
If the Ice/Water dispenser is not used
again within 2minutes or if the appli-
ance door is opened, the Ice/Water
dispenser will switch to standby mode
automatically and the lighting will go
out.
After it has been activated again, it
can take a few seconds before chilled
water and ice are dispensed again.
Operating the Ice/Water dispenser
98
Switching on the Dispenser
Unit
Ice cubes can only be made when the
ice container is completely closed.
In Settings mode, use the and
sensor controls to select the Dis-
penser Unit and select OK to confirm
your selection.
Use the and sensor controls to
select On and select OK to confirm
your selection.
Close the appliance door.
The Ice/Water dispenser is now ready
for operation.
All sensor controls in the Ice/Water-dis-
penser control panel should now be
highlighted in white.
If this is not the case, the system lock
has been activated (the sensor con-
trol will be highlighted in white, see
“Operating the Ice/Water dispenser –
Switching the system lock on/off”).
Once the freezer zone has cooled down
to its set temperature, the ice maker will
fill with water.
As soon as the water is frozen, the ice
cubes drop out of the ice maker into the
ice container.
Ice production is halted automatically
as soon as the ice container is full.
After the Ice/Water dispenser has
been switched on, it can take up to
24hours until the first serving of ice
cubes is ready.
After the appliance door has opened
and closed, it can take several sec-
onds until the Ice/Water dispenser is
ready for operation and the sensor
controls can be selected again.
Operating the Ice/Water dispenser
99
Dispensing chilled water
After the initial commissioning, there
may be air in the water circuit. Dis-
pense water until there are no more air
bubbles.
All materials used in the Ice/Water dis-
penser are odorless and do not affect
flavor.
If you dispense chilled water again af-
ter a longer period of time, the water
may be stale. In this case, pour away
the first 15glasses of water.
Regularly dispense water in order to
achieve the best water quality.
Place a sturdy container under the
Ice/Water dispenser.
Press and hold the chilled water sen-
sor control.
Chilled water will be dispensed from the
spout as long as the sensor control is
pressed.
After approx. 30seconds, dispensing is
ended automatically. Wait 5seconds
and press the sensor control again if
you wish to dispense more water.
If you want the water to be colder, dis-
pense ice cubes into the container be-
forehand.
If a large amount of water is dis-
pensed, the water can become
warmer.
Dispensing ice cubes and crushed
ice
After the Ice/Water dispenser has
been switched on, it can take up to
24hours until the first serving of ice
cubes is ready.
Place a sturdy container under the
Ice/Water dispenser.
Press and hold the sensor control for
ice cubes or crushed ice.
Ice will be dispensed from the spout as
long as the sensor control is pressed.
After approx. 30seconds, dispensing is
ended automatically. Wait 5seconds
and press the sensor control again if
you wish to dispense more ice.
Take your finger off the sensor control
when the container is almost full.
Otherwise it will overfill or the ice will
block the spout.
The ice maker can make up to approx.
3 lb (1.3kg) of ice cubes in 24hours.
The amount of ice cubes made by the
machine depends on the temperature
in the freezer zone. The lower the
temperature, the more ice cubes
are produced within a given time.
Operating the Ice/Water dispenser
100
Empty and clean the ice container at
regular intervals, or at least if you
have not produced any ice for longer
than a week (see “Cleaning and care
– Emptying and cleaning the ice con-
tainer”).
This will ensure that you always have
fresh ice and the ice cubes will not
form a clump.
Switching off the Dispenser
Unit
Close the faucet in the water supply
line approx. 3hours before switching
off the appliance to avoid the build-
up of mold caused by stagnant water.
In Settings mode, use the and
sensor controls to select the Dis-
penser Unit and select OK to confirm
your selection.
Use the and sensor controls to
select Off and select OK to confirm
your selection.
The Ice/Water dispenser is now
switched off; the sensor controls in the
control panel are no longer highlighted
in white.
Switching the system lock on/
off
You can use the system lock to protect
the Ice/Water dispenser from unautho-
rized use, such as by children.
Touch the sensor control until it is
highlighted in white and a short tone
sounds.
The remaining sensor controls of the
Ice/Water dispenser are now locked
and cannot be selected.
To switch off the system lock, touch
the sensor control for approx.
3seconds until it is no longer high-
lighted in white and a short tone
sounds.
Automatic defrosting
101
WARNING! DANGER of injury
and damage!
Do not use any mechanical or other
types of aids which are not recom-
mended by the manufacturer to ac-
celerate the defrosting process.
The appliance is equipped with a
“NoFrost” system. The freezer defrosts
automatically.
The moisture generated in the appli-
ance collects on the condenser and is
automatically defrosted and evaporates
periodically.
This automatic defrosting system en-
ables the Freezer Zone to remain per-
manently ice-free. However, the food
stored in the freezer will not defrost.
Cleaning and care
102
WARNING! DANGER of electric
shock!
Unplug the appliance or trip the cir-
cuit breaker.
WARNING! Fire hazard!
Do not damage the coolant
pipework.
Do not let water get into the elec-
tronic or the lighting.
Risk of damage due to moisture
penetration.
The steam from a steam cleaner can
damage plastic and electrical com-
ponents.
Do not use a steam cleaner to clean
the refrigeration appliance.
The data plate located inside the inte-
rior cabinet of the refrigeration appli-
ance must not be removed. It contains
information which is required in the
event of a service call.
Cleaning agents
To avoid damaging the surfaces of your
appliance, do not use:
- cleaning agents containing soda, am-
monia, acids, or chloride
- cleaning agents containing lime scale
remover
- abrasive cleaning agents, such as
scouring powder, scouring liquid, or
pumice stones
- cleaning agents containing solvents
- stainless steel cleaning agents
- dishwasher cleaner
- oven sprays
- glass cleaner
- hard, abrasive sponges and brushes,
such as pot scrubbers
- eraser sponges
- sharp metal scrapers
Cleaning and conditioning agents
used in the interior cabinet of the re-
frigeration appliance must be food
safe.
We recommend using lukewarm water
and a little liquid dish soap for cleaning.
The drip tray grille, back, and frame of
the Ice/Water dispenser are finished
with a high-quality surface coating.
This is resistant to stains and is very
easy to clean.
Cleaning and care
103
Risk of damage due to incorrect
cleaning and maintenance.
The surface coating will be dam-
aged.
Do not treat the drip tray grille, back,
and frame of the Ice/Water dispenser
with
– Stainless steel cleaners:
The coating will be damaged.
– Miele conditioning agents for stain-
less steel:
This will cause noticeable smearing.
Risk of damage as a result of in-
correct cleaning.
The surface coating will be dam-
aged.
Do not clean the drip tray or the drip
tray grille of the Ice/Water dispenser
in the dishwasher.
Risk of damage caused by adhe-
sives.
Adhesives will damage the surface
coating, causing it to lose its dirt-re-
pellent properties.
Do not adhere sticky notes, transpar-
ent tape, masking tape, or other ad-
hesives to parts of the Ice/Water dis-
penser.
Before cleaning the appliance
Turn the appliance off completely by
pressing the On/Off switch.
Take any food out of the appliance
and store it in a cool place.
Take out all other removable parts for
cleaning (see “Adjusting the interior
fittings”).
Cleaning and care
104
Interior and accessories
Clean the appliance regularly, or at
least once a month.
Clean up any spills, stains, or food
immediately. Do not allow them to
dry and stick to the appliance.
Clean the appliance with a solution of
lukewarm water and liquid dish soap.
Rinse all parts by hand. Do not wash
in a dishwasher.
After cleaning, wipe with clean water
and dry with a soft cloth.
Leave the door open to air the appli-
ance sufficiently for a short while and
to prevent odor buildup.
Aluminum frames
The frames to the shelves inside the ap-
pliance and the door shelves are par-
tially made from aluminum.
Aluminum is a dynamic material. The re-
flection and appearance of aluminum
changes in different lights and environ-
ments and depending on the angle you
observe it from. It is also susceptible to
scratching.
The aluminum frames may become
discolored or damaged if soiling is left
on for too long. Remove any soiling
immediately.
Cleaning and emptying the ice
container
Clean the ice container regularly.
This ensures that fresh ice cubes are
always produced.
Empty the ice container on a regular
basis. This prevents ice cubes from
freezing together.
The ice container is very heavy when
full. Pull it out using both hands.
Open the appliance door.
Lift the ice container with both hands
and pull it forward to remove it from
the appliance.
Empty it and rinse it with warm water.
Dry the container thoroughly so that
new ice cubes will not freeze onto the
surfaces.
Cleaning and care
105
To reinsert the ice container, push it
into the appliance until it clicks into
position.
If you cannot push the ice container
back in all the way, turn the screw
conveyor inside a little.
Cleaning the drip tray
The drip tray catches excess water.
To avoid a build-up of odor, the drip
tray should be cleaned every day.
Remove the drip-tray cover.
Remove the drip tray and clean it.
Dry the drip tray with a cloth.
Replace the drip tray and the drip-
tray cover.
Cleaning the door seal
Risk of damage as a result of in-
correct cleaning.
If you treat the door seal with oils or
grease, it can become porous.
Do not use any oils or grease on the
door seal.
The door seals should be cleaned
regularly with clean water, and then
wiped dry with a soft cloth.
Cleaning the ventilation gaps
A build-up of dust will increase the en-
ergy consumption of the appliance.
The ventilation gaps should be
cleaned on a regular basis with a
brush or vacuum cleaner (you could
use a Miele Vacuum Cleaner dust
brush, for example).
Cleaning the water filter (Inten-
siveClear 2.0 mesh filter) (see
“Optional accessories”)
Depending on the quantity of ice cubes
produced, the IntensiveClear 2.0 mesh
filter must be cleaned approx. every
6months.
You can use the Replace the water filter
display on the display as a reminder to
clean the water filter.
Turn the cap of the filter cartridge
counterclockwise until it is in the hori-
zontal position 1. and slide it out of
the filter opening 2.
Cleaning and care
106
Pull the mesh out of the back of the
filter cartridge 3.
Rinse the mesh under running luke-
warm water. Turn the mesh over un-
der the running water to clean it on all
sides.
4.
Reinsert the mesh into the back of
the filter cartridge 4.
Slide the filter cartridge as far as it
will go into the filter opening 5., mak-
ing sure the cap is horizontal.
Turn the cap of the filter cartridge
clockwise until it is in the vertical po-
sition 6.
Risk of damage caused by water
rushing out.
If the filter cartridge is not inserted
correctly, there is a risk of water
leaking out of the appliance.
When inserting the filter cartridge, be
sure to turn it as far as the marker.
Once the IntensiveClear 2.0 mesh filter
has been cleaned, the Water Filter Display
must be reset using Settings
mode on the display (see “Selecting
additional settings – Resetting the Water
Filter Display ”).
Cleaning and care
107
After cleaning
Replace all shelves and accessories
in the appliance.
Switch the refrigeration appliance
back on.
Switch on the SuperFrost function
for a while so that the freezer zone
can cool down quickly.
Once the freezer zone has reached
the required temperature, place the
freezer baskets containing the frozen
food back in the freezer zone.
Switch off the SuperFrost function
as soon as the temperature in the
freezer zone is a constant 0°F (-18°C)
or colder.
Water filter
108
The appliance is supplied with a water
filter (IntensiveClear 2.0 charcoal filter)
that filters supply water for making ice
cubes.
The IntensiveClear 2.0 charcoal filter
improves the taste and smell of the ice
cubes by removing chlorine and other
substances from supply water.
However, to ensure the highest qual-
ity of the ice cubes, it is essential to
change the IntensiveClear 2.0 char-
coal filter regularly.
Please note:
- If an external water filter is attached
to your household water supply, use
an IntensiveClear 2.0 mesh filter in
place of an IntensiveClear 2.0 char-
coal filter (see Accessories – Optional
accessories”).
- After inserting a new water filter (In-
tensiveClear 2.0 mesh filter and In-
tensiveClear 2.0 charcoal filter), dis-
pose of all ice cubes produced in the
next 24hours following the change.
- If you have not used the appliance or
the ice maker much in the last few
weeks or months, or if the ice cubes
smell unpleasant, replace the Inten-
siveClear 2.0 charcoal filter or clean
the IntensiveClear 2.0 mesh filter.
New water filters (IntensiveClear 2.0
mesh filters and IntensiveClear 2.0
charcoal filters) are available from
Miele Customer Service, from your
dealer, or via the internet.
Depending on the quantity of ice cubes
produced, the IntensiveClear 2.0 char-
coal filter must be changed approx. ev-
ery 6months.
Replace the water filter will appear on the
display.
An audible signal also sounds.
Confirm the message with OK.
Water filter
109
Changing the water filter
Air in the system can cause water to
gush out and the filter cartridge to
spring out when it is removed. Take
great care when changing the water
filter.
Turn the cap of the filter cartridge
counterclockwise until it is in the hori-
zontal position 1. and slide it out of
the filter opening 2.
Remove the safety cap from the new
filter cartridge.
Loosen the cap from the sides of the
old filter cartridge 3. and remove the
cap 4.
Clip the cap onto the new filter car-
tridge 5.
Empty the old filter cartridge.
Tip: The old filter cartridge can be dis-
posed of with household trash.
6.
Slide the filter cartridge as far as it
will go into the filter opening 6., mak-
ing sure the cap is horizontal.
7.
Turn the cap of the filter cartridge
clockwise until it is in the vertical po-
sition 7.
Risk of damage caused by water
rushing out.
If the filter cartridge is not inserted
correctly, there is a risk of water
leaking out of the appliance.
When inserting the new filter car-
tridge, be sure to turn it as far as the
marker.
Water filter
110
Once the IntensiveClear 2.0 charcoal fil-
ter has been replaced, the water filter
display must be reset using Settings
mode on the display (see “Selecting
additional settings – Resetting the Water
Filter Display”).
After inserting a new water filter, dis-
pose of all ice cubes produced in the
next 24hours following the change.
Using an external water filter
If an external water filter is attached to
your household water supply, use an In-
tensiveClear 2.0 mesh filter in place of
an IntensiveClear 2.0 charcoal filter.
Water filter
111
Performance Data Sheet
Model: Miele 07134220
Use Replacement Cartridge 07134220
NSF System Trade name: WFS200MF & WFS210MF
NSF Replacement Cartridge No: WFC100MF(for WFS200MF) & WFC110MF(for WFS210MF)
System tested and certified by NSF International against NSF/ANSI
Standard 42, 53, 401 for the reduction of the claims listed below.
This system has been tested according to NSF/ANSI 42, 53, 401 for reduction of the substances listed below.
The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to
the permissible limit for water leaving the system, as specified in NSF/ANSI 42, 53, 401.
4ubstance
Influent Dhallenge
concentration
Average Seduction
Reduction
requirement
Max Qermissible Qroduct
water concentration
Chlorine Uaste and
Pdor
2.0mg/L ± 10% 97.2% ≥ 50% N/A
$hloramine 3.0mg/L ± 10% 97.2% N/A 0.5 mg/L
1articulate, Class I
particles ≥0.5 to <1 μm
at least 10,000
particles/mL
>99.9% ≥ 85% N/A
"trazine 0.009mg/L ± 10% >94.4% N/A 0.003mg/L
#enzene 0.015mg/L ± 10% >96.8% N/A 0.005mg/L
$arbofuran 0.08mg/L ± 10% >98.8% N/A 0.04mg/L
p-%ichlorobenzene 0.225mg/L ± 10% >99.8% N/A 0.075mg/L
Lead pH6.5 0.15mg/L ± 10% 98.8% N/A 0.010mg/L
Lead pH8.5 0.15mg/L ± 10% 97.9% N/A 0.010mg/L
Mercury pH6.5 0.006mg/L ± 10% >96.5% N/A 0.002mg/L
Mercury pH8.5 0.006mg/L ± 10% >96.6% N/A 0.002mg/L
5urbidity 11 ± 1 NTU 99.1% N/A 0.5 NTU
&thylbenzene 2.1mg/L ± 10% >99.9% N/A 0.7mg/L
5oxaphene 0.015mg/L ± 10% >93.3% N/A 0.003mg/L
"sbestos
10
7
to 10
8
fibers/L;
fibers greater than
10 μm in length
>99% 99% N/A
$yst minimum 50,000/L 99.99% 99.95% N/A
Meprobamate 400ng/L ± 20% >95.2% N/A 60ng/L
Atenolol 200ng/L ± 20% >95.6% N/A 30ng/L
Carbamazepine 1,400ng/L ± 20% >98.6% N/A 200ng/L
Water filter
112
4ubstance
Influent Dhallenge
concentration
Average Seduction
Reduction
requirement
Max Qermissible Qroduct
water concentration
DEET 1,400ng/L ± 20% >98.7% N/A 200ng/L
Phenytoin >94.4% N/A 30ng/L
Metolachlor
200ng/L±20%
1,400ng/L ± 20%
>98.7% N/A 200ng/L
Ibuprofen
400ng/L±20%
>95.3% N/A 60ng/L
Trimethoprim 140ng/L ± 20% >96.7% N/A 20ng/L
Linuron 140ng/L ± 20% >96.6% N/A 20ng/L
Naproxen 140ng/L ±20% >96.2% N/A 20ng/L
Estrone 140ng/L ±20% >96.3% N/A 20ng/L
Bisphenol A 2,000ng/L ±20% >99.0% N/A 300ng/L
Nonyl phenol 1,400ng/L ±20% >96.3% N/A 200ng/L
Tested using a flow rate PG55HHQN-NJO, Q)PGQQSessure of 60QQTiH, BOEtemperature of 68±5'
NOTE : The testing was performed under standard laboratory conditions, actual performance may vary.
0QFSBUJPODPOEJUJPOT
Warning : Do not use with water that is microbiologically unsafe or of unknown quality without ad-
equate disinfection before or after the system. Systems certified for cyst reduction may be used on
disinfected water that may contain filterable cyst.
Notice :
- Adsorption media will not be regenerated and used.
- Systems must be installed and operated in accordance with manufacturer’s recommended procedures
and guidelines. The system and installation shall comply with applicable state and local regulations.
Install on cold water line only.
- Flush 3 gallons through filter before use(Glush approximately 5minutes).
- To maintain proper filtration, replace the filter BUMFBTU every 6 months.
Manufacturer : Microfilter co.,Ltd.
15-1, GWINONG3-GIL, DEOKSAN-MYEON, JINCHEON-GUN, CHUNG-BUK 27856, KOREA
Phone : +82-43-531-7022/7024
Service Glow rate
0.55gpm(2-m)
Water Qressure
30QTJo125psi(206L1B–861k1a)
Water Uemperature
35'o100°F(2$o38°C)
Function
Dhemical/Nechanical
Capacity
WFS200MF 250gallons(946L), WFS210MF 150gallons(567L)
Water filter
113
Lead-free certificate
This product F 1413 Vi (KIMSDF18US) is tested and certified by WQA against
NSF/ANSI 372 for "lead free" compliance.
Miele & Cie. KG
Carl-Miele-Straße 29
D-33332 Gütersloh
Lead free certificate
35
This product is tested and certified by WQA against NSF/ANSI 372 for “lead free”
compliance.
Miele & Cie. KG
Carl-Miele-Strasse 29
D-33332 Gütersloh
Frequently Asked Questions
114
With the help of the following guide minor faults in the performance of the ma-
chine, some of which may result from incorrect operation, can be remedied with-
out contacting the Service Department.
This guide may help you to find the reason for the fault, and how to correct it.
To prevent cold from escaping, open the appliance doors as little as possible un-
til the fault has been corrected.
Problem Possible cause and solution
If you are concerned
that your appliance is
not working properly,
you can perform a Self
Test. Your appliance will
be checked for any
faults or malfunctions.
Any errors identified during the Self Test are shown
on the display.
Perform a Self Test (see “Additional settings”, sec-
tion “Performing a Self Test ”).
Contact Miele Service and inform them of the error
message(s) on the display.
The appliance is not
getting cold and the in-
terior lighting does not
come on when the ap-
pliance door is opened.
The appliance has not been turned on.
Turn the appliance on. The temperature appears in
the display.
The plug is not properly plugged into the electrical
outlet.
Insert the plug into the outlet.
The fuse has tripped. There could be a fault with the
appliance, the household electrical wiring, or another
appliance.
Contact a technician or the Miele Service depart-
ment.
Frequently Asked Questions
115
Problem Possible cause and solution
The compressor is turn-
ing on more frequently
and for longer periods
of time; the temperature
in the refrigeration ap-
pliance is too low.
The ventilation gaps in the cabinetry have been cov-
ered or become too dusty.
Do not block the ventilation gaps.
Clean the ventilation gaps on a regular basis to re-
move any dust.
The appliance door has been opened too frequently,
or a large amount of fresh food has been placed in-
side or frozen at the same time.
Only open the appliance door when necessary and
for as short a time as possible.
After a while, the temperature will return to normal by
itself.
The appliance door is not properly closed.
A thick layer of ice may have already formed in the
freezer zone.
Close the appliance door.
After a while, the temperature will return to normal by
itself.
If a thick layer of ice has already formed, this will af-
fect cooling and increase energy consumption.
Defrost the appliance and clean it.
The ambient temperature is too high. The higher the
ambient temperature, the longer the compressor has
to run.
See the information in the section on “Installation –
Installation location”.
The refrigeration appliance was not properly installed
in the building-in niche.
See the information in “Installation” and “Installing
the refrigeration appliance”.
Frequently Asked Questions
116
Problem Possible cause and solution
The compressor is turn-
ing on more frequently
and for longer periods
of time; the temperature
in the appliance is too
low.
The temperature setting is too low.
Correct the temperature setting.
A large amount of food was put in for freezing at
once.
See the information in the section on “Freezing
and storing food”.
The SuperFrost function is still turned on.
To save energy, you can switch the SuperFrost
function off early yourself.
The compressor comes
on less and less often
and for shorter periods
of time. The tempera-
ture in the appliance
rises.
This is not a fault. The temperature setting is too
high.
Correct the temperature setting.
Check the temperature again after 24hours.
The food begins to thaw.
The ambient temperature is too low for this appli-
ance.
If the ambient temperature is too low, the compres-
sor will run less frequently. This may cause the
freezer to become too warm.
See the information in the section on “Installation –
Installation location”.
Increase the ambient temperature.
The door to the Freezer
Zone will not open be-
cause it has been
opened and closed too
many times in succes-
sion.
This is not a fault. The suction caused by opening
and closing the door is preventing the door from
opening. Wait approx. 1minute and then try again.
It should now open without force.
The compressor runs
continuously.
Not a fault. To save energy, the compressor runs at
a lower speed when less cooling is required. This
increases the compressor run time.
The temperature display
shows 0°F (-18°C), al-
though a higher temper-
ature is set.
This is not a fault. When the ice maker is turned on
and the ambient room temperature is also low (<+
0°F (-18°C)) the temperature is automatically ad-
justed to -0°F (-18°C). This guarantees that the ice
maker functions efficiently.
Frequently Asked Questions
117
Problem Possible cause and solution
Food has frozen to-
gether or to the wall.
The food packaging was not dry when loaded in the
freezer.
Use a blunt instrument (such as a spoon handle) to
carefully pry them apart.
An alarm sounds. The appliance door has been open for longer than
3minutes.
Close the appliance door.
No alarm sounds de-
spite the appliance door
being open.
You have switched off the audible signal.
Switch the audible signal back on using Settings
mode.
The Sabbath Mode function is switched on: the tem-
perature display is dark and the symbol is shown
on the display.
You can switch off Sabbath mode at any time (see
“Selecting additional settings – Switching Sabbath
Mode on or off”).
The appliance door
cannot be opened.
The Pull2OpenDoor Assistant is switched on but the
appliance has a handle-free cabinet front.
For handle-free cabinet fronts, switch on the
Push2OpenDoor Assistant (see “Switching on the
Door Assistant” in “Selecting additional settings”).
The appliance door
cannot be opened when
Sabbath Mode is
switched on.
The Push2OpenDoor Assistant is switched on at the
same time as Sabbath Mode.
When Sabbath Mode is switched on, the Door As-
sistant is deactivated.
Pull the appliance door open from below or from
the side.
Frequently Asked Questions
118
Messages in the display
Message Possible cause and solution
The warning sounds
and the message Freezer
temperature too high. Max.
temperature °C appears
on the display.
The temperature in the appliance has risen signifi-
cantly.
This could be due to, for example:
– the appliance door being opened too often, or
being left open
– a large amount of food being frozen at once
– an extended power failure
If you find the alarm disruptive, you can switch it
off in advance by touching the OK sensor control.
The alarm will stop.
Rectify the cause of the alarm.
The message will disappear from the display and the
alarm will stop.
The temperature display will show the highest tem-
perature that was reached during the time in which
the temperature in the freezer zone rose.
Depending on the temperature displayed, you
should check whether food in the freezer has
started to thaw or has defrosted. If it has, cook it
before freezing it again.
In the event of a power failure, check whether
there are any ice cubes in the ice cube container
and dispose of these. Otherwise, the ice cubes will
freeze together and can damage the ice cube con-
tainer when they expand.
The warning sounds
and the message Close
the door appears on the
display.
The appliance door is open.
Close the appliance door.
If you wish to turn the alarm off early, touch the
sensor control OK on the display.
The alarm will stop.
The temperature display
is dark and the sym-
bol is shown on the dis-
play.
The Sabbath Mode function is switched on. The in-
terior lighting is switched off and the refrigeration ap-
pliance is cooling down.
You can switch off Sabbath mode at any time (see
“Selecting additional settings – Switching Sabbath
Mode on or off”).
Frequently Asked Questions
119
Message Possible cause and solution
“F Please contact Miele
Technical Service.” ap-
pears in the display and
an alarm sounds.
There is a fault.
Make a note of the fault message if necessary.
Contact Miele Service.
To turn the alarm off, touch the symbol.
The error message does not disappear from the dis-
play until the error has been rectified.
The voltage level is too high/low.
Observe the connection data under “Electrical
connections”.
Contact Miele Service if necessary.
To turn the alarm off, touch the symbol.
The error message does not disappear from the dis-
play until the error has been rectified.
is shown in the dis-
play. The machine does
not get cold, but the
machine controls are
working.
Demo Mode is switched on. Demo mode allows the
appliance to be presented in the showroom without
the cooling system being turned on. Do not activate
this setting for domestic use.
Switch off Demo mode (see “Selecting additional
settings”, section “Switching off Demo Mode ”).
Frequently Asked Questions
120
Problems with the ice/water dispenser
Problem Possible cause and solution
The Ice/Water dis-
penser cannot be
switched on.
The appliance is not connected to the power supply.
Check that the appliance is connected to the elec-
tricity supply.
The system lock of the Ice/Water dispenser is active
(the sensor control is highlighted in white).
Switch off the system lock (see “Operating the Ice/
Water dispenser – Switching the system lock on/
off”).
The ice/water dispenser
is not immediately
ready for operation af-
ter having been
switched on.
This is not a fault. After the appliance door has
opened and closed, it can take several seconds un-
til the ice/water dispenser is ready for operation.
No ice cubes are dis-
pensed.
The Ice/Water-dispenser spout is blocked by frozen
ice.
Remove the ice that has clumped together.
Empty the ice container at the latest if you have
not produced any ice for a week (see “Emptying
and cleaning the ice container” in “Cleaning and
care”).
After the Ice/Water dispenser has been switched on,
it can take up to 24hours until the first serving of ice
cubes is ready.
The chilled water from
the Ice/Water dispenser
does not taste good.
If you dispense chilled water again after a longer pe-
riod of time, it may be stale.
In this case, pour out the first 15glasses of water.
Frequently Asked Questions
121
Problems with the ice cube maker
Problem Possible cause and solution
The ice maker is not
producing any ice
cubes or no cold water
is being dispensed.
The appliance or the Ice/Water dispenser has not
been turned on.
Make sure that the appliance is turned on.
Make sure that the Ice/Water dispenser has been
switched on.
The plumbed water connection was not installed.
Make sure that the plumbed water connection was
installed correctly.
The water intake is not open or has not been vented.
Open the water intake.
Check that the water supply has been vented.
There is a kink in the water hose.
Check the water hose and replace it if necessary.
The temperature in the freezer zone is too high.
Set the temperature in the freezer zone lower (see
“The correct temperature”).
The appliance door has been opened too frequently,
causing the compressor to turn on more often and
the ice maker has iced up.
Only open the appliance door when necessary and
for as short a time as possible.
The water pressure is too low.
Check whether the water pressure is between
29psi and 116psi (2bar and 8bar).
Check if an incorrect valve has been installed,
making the pressure too low.
After the Ice/Water dispenser has been switched on,
it can take up to 24hours until the first serving of ice
cubes is ready.
Frequently Asked Questions
122
Problem Possible cause and solution
The ice maker is only
producing small ice
cubes.
Several household appliances connected to the
plumbed water connection are in operation, which
has reduced the amount of water being taken in.
Avoid using the dishwasher, washing machine,
etc. at the same time.
The water filter is clogged.
Check whether the water filter needs to be re-
placed or cleaned.
The water pressure is too low.
Check whether the water pressure is between
29psi and 116psi (2bar and 8bar).
Check if an incorrect valve has been installed.
The ice maker is pro-
ducing only a few or de-
formed ice cubes or
only a little cold water is
being dispensed.
The water filter is clogged.
Check whether the water filter needs to be re-
placed or cleaned.
The water pressure is too low.
Check whether the water pressure is between
29psi and 116psi (2bar and 8bar).
The temperature in the freezer zone is too high.
Select a lower temperature.
The ice cubes have an
unpleasant odor or fla-
vor.
The ice cube container is in constant use and needs
to be cleaned regularly.
Check if the ice cube container is dirty and clean it
if necessary.
The ice maker is seldom used. If you do not use it
very often, ice cubes that are stored for a long period
can absorb the taste and smell of other items.
Empty and clean the ice cube container if you are
not going to use it for a long time.
There are unsealed food packages in the freezer
zone. Ice can absorb the taste and smell of unsealed
food.
Store only sealed food in the freezer zone.
The water filter is dirty.
Check whether the water filter needs to be re-
placed or cleaned.
Frequently Asked Questions
123
Problem Possible cause and solution
Water is flowing out of
the appliance.
The water intake is faulty.
Close the faucet immediately.
Check the water line for damage.
Contact Miele Customer Service.
Check whether the water connection pressure is
too high.
If the water connection pressure is too high, this can
cause leaks (see “Installation – Plumbed water con-
nection”).
Check that the water connection is between 29psi
and 116psi (2bar and 8bar).
Check if an incorrect valve has been installed.
Frequently Asked Questions
124
The interior lighting is not working.
Problem Possible cause and solution
The interior lighting is
not working.
The refrigeration appliance has not been turned on.
Turn the refrigeration appliance on.
The Sabbath Modefunction is switched on: the tem-
perature display is dark and the symbol is shown
on the display.
You can switch off Sabbath Mode at any time via
the Settings mode.
There is a fault.
Risk of electric shock due to exposed, live
electrical components.
When removing the lighting cover, there is a risk of
coming into contact with live electrical compo-
nents.
Do not remove the lighting cover. The LED lighting
may only be repaired or replaced by Miele Service.
Risk of injury from LED lighting.
This lighting corresponds to risk group RG2. If the
cover is defective, there is a risk of eye injury.
If the lighting cover is defective, do not look from a
close range directly into the lighting with optical in-
struments (e.g., magnifying glass or similar).
Contact Miele Service.
Causes of noises
125
Normal
noises
Cause
Brrrrr... A humming noise is made by the motor (compressor). This noise
can get louder for brief periods when the motor switches on.
Blub, blub... A gurgling noise can be heard when the coolant circulates
through the pipes.
Click... Clicking sounds occur whenever the thermostat switches the
motor on or off.
Sssrrrrr... You can sometimes just hear the sound of the fan inside the ap-
pliance.
Crack... A cracking sound can be heard when materials expand inside
the appliance.
Please bear in mind that a certain amount of noise is unavoidable (from the com-
pressor and the coolant circulating through the system).
Noises Cause and solution
Rattling,
clinking
The appliance is uneven. Realign the appliance using a level, by
raising or lowering the adjustable feet underneath the appliance
or placing something underneath it.
The appliance is touching another machine or piece of furniture.
Move it away.
Drawers, baskets or shelves are jiggling or are stuck. Check all
removable parts and refit them correctly if required.
Bottles or containers are touching each other. Separate them a
little.
Customer Service
126
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Service Call on-
line at www.miele.com/service.
Contact information for Miele Cus-
tomer Service can be found at the end
of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer Ser-
vice. Both pieces of information can be
found on the data plate.
You will find the data plate inside your
appliance.
Appliance warranty and prod-
uct registration
You can register your product and/or
view the manufacturer´s warranty terms
and conditions for Miele appliances and
vacuum cleaners at
www.mieleusa.com.
Declaration of conformity
127
Frequency range 2.412 GHz –
2.462 GHz
Maximum trans-
mitting power
< 100 mW
Copyrights and licenses
128
Miele uses their own and third party software which is not subject to any so-called
open source license for the operation and control of the device/appliance. This
software/these software components are protected by copyright. The copyright
powers of Miele and third parties have to be respected.
Furthermore, this device/appliance contains software components which are dis-
tributed under open source license conditions. Please refer to the document
“Open Source Information and Licenses” for the Open Source components con-
tained therein, together with the corresponding copyright notices, copies of the li-
censing conditions valid at the time, and any further information. The liability and
warranty provisions of the open source licensing conditions as stated therein apply
only in relation to the respective rights holders.
In particular, the device/appliance contains software components licensed by the
copyright holders under the GNU General Public License, Version 2, or the GNU
Lesser General Public License, Version 2.1. For a period of at least 3 years from
the date of purchase or delivery of the device/appliance respectively, Miele offers
to provide you or third parties with a machine-readable copy of the source code of
the Open Source components contained in the device/appliance and licensed un-
der the terms of the GNU General Public License, Version 2, or the GNU Lesser
General Public License, Version 2.1, on a data carrier (CD-ROM, DVD or USB
stick). Please contact us via e-mail ([email protected]) or the below postal address
and state the product name, the serial number and the date of purchase to obtain
this source code.
Miele & Cie. KG
Open Source
GTZ/TIM
Carl-Miele-Straße 29
33332 Gütersloh
Please note the limited warranty in favor of the rights holders under the terms of
the GNU General Public License, Version 2, and the GNU Lesser General Public Li-
cense, Version 2.1:
This program is distributed in the hope that it will be useful, but WITHOUT ANY
WARRANTY, without even the implied warranty of MERCHANTABILITY of FITNESS
FOR A PARTICULAR PURPOSE. See the GNU General Public License and GNU
Lesser General Public License for more details.
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-4298
Customer Service & Support
Phone:
Fax:
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
888-99-MIELE(64353)
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 11 508 650 / 01en- US, CA
F 2462 Vi, F 2472 Vi, F 2662 Vi, F 2672 Vi
