KDL-32N4000
KDL-37N4000
© 2008 Sony Corporation
3-291-227-13(1)
LCD Digital Color TV
Operating Instructions
2
WARNING
To reduce the risk of fire or electric shock, do
not expose this apparatus to rain or moisture.
CAUTION
To prevent electric shock, do not use this
polarized AC plug with an extension cord,
receptacle or other outlet unless the blades can
be fully inserted to prevent blade exposure.
NOTIFICATION
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
s Reorient or relocate the receiving
antenna.
s Increase the separation between the
equipment and receiver.
s Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
s Consult the dealer or an experienced
radio/TV technician for help.
Safety
s Operate the TV only on 120 V AC.
s
Use the AC power cord specified by Sony
and suitable for the voltage where you use it.
s The plug is designed, for safety purposes,
to fit into the wall outlet only one way. If
you are unable to insert the plug fully into
the outlet, contact your dealer.
s If any liquid or solid object should fall
inside the cabinet, unplug the TV
immediately and have it checked by
qualified service personnel before
operating it further.
s If you will not be using the TV for several
days, disconnect the power by pulling the
plug itself. Never pull on the cord.
s When disconnecting AC power cord, the
power cord should be easily accessible for
disconnection.
s The apparatus must not be exposed to
dripping or splashing. Do not place
objects filled with liquids, such as vases
on the apparatus.
s For details concerning safety precautions,
see “Safety and Regulatory Booklet”
(included).
Installing
s The TV should be installed near an easily
accessible power outlet.
s To prevent internal heat buildup, do not
block the ventilation openings.
s Do not install the TV in a hot or humid
place, or in a place subject to excessive
dust or mechanical vibration.
s Avoid operating the TV at temperatures
below 41°F (5°C).
s If the TV is transported directly from a
cold to a warm location, or if the room
temperature changes suddenly, the picture
may be blurred or show poor color due to
moisture condensation. In this case,
please wait a few hours to let the moisture
evaporate before turning on the TV.
s To obtain the best picture, do not expose
the screen to direct illumination or direct
sunlight. It is recommended to use spot
lighting directed down from the ceiling or
to cover the windows that face the screen
with opaque drapery. It is desirable to
install the TV in a room where the floor
and walls are not of a reflective material.
CAUTION
Use the following Sony TVs only with the
following WALL-MOUNT BRACKET.
Use with other WALL-MOUNT BRACKET
may cause instability and possibly result in
injury (see page 7).
To Customers
Sufficient expertise is required for installing the
specified TV. Be sure to subcontract the
installation to Sony dealer or licensed
contractors and pay adequate attention to safety
during the installation.
Note
This television includes a QAM demodulator
which should allow you to receive unscrambled
digital cable television programming via
subscription service to a cable service provider.
Availability of digital cable television
programming in your area depends on the type
of programming and signal provided by your
cable service provider.
For Customers in Canada
This Class B digital apparatus complies with
Canadian ICES-003.
For Customers in the United
States
Lamp in this product contains
mercury. Disposal of these
materials may be regulated due to
environmental considerations.
For disposal or recycling
information, please contact your
local authorities or the Electronic
Industries Alliance
(www.eiae.org).
Trademark Information
Macintosh is a trademark licensed to Apple,
Inc., registered in the U.S.A. and other countries.
Manufactured under license from Dolby
Laboratories.
Dolby, Pro Logic, and the double-D symbol are
registered trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing, LLC.
Fergason Patent Properties, LLC:
U.S. Patent No. 5, 717, 422
U.S. Patent No. 6, 816, 141
Blu-ray is a trademark.
“BRAVIA” and , , BRAVIA
Theatre Sync and DMPORT are trademarks or
registered marks of Sony Corporation.
“PLAYSTATION” is a registered trademark
and “PS3” is a trademark of Sony Computer
Entertainment Inc.
Owner’s Record
The model and serial numbers are located at
the rear of the TV. Record these numbers in
the spaces provided below. Refer to them
whenever you call upon your Sony dealer
regarding this TV.
Model Name
Serial No.
Declaration of Conformity
Trade Name: SONY
Model: KDL-32N4000/KDL-37N4000
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo
San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC
rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
Pursuant to FCC regulations, you are
cautioned that any changes or modifications
not expressly approved in this manual could
void your authority to operate this equipment.
Sony TV Model No.
KDL-32N4000
KDL-37N4000
Sony Wall-Mount
Bracket Model No.
SU-WL500
3
Quick Setup Guide (separate volume)
Provides a variety of optional equipment
connection diagrams.
Customer Support
http://www.sony.com/tvsupport
On-line Registration
United States
http://productregistration.sony.com
Canada
http://www.sonystyle.ca/registration
Contents
Welcome to the World of BRAVIA®
The Four Steps to Stunning HD Experience:
Set, Sound, Source, and Setup ...............4
Picture Quality and Aspect Ratio ................. 4
Getting Started
1. Installing the TV ......................................... 5
How to Carry the TV .................................... 5

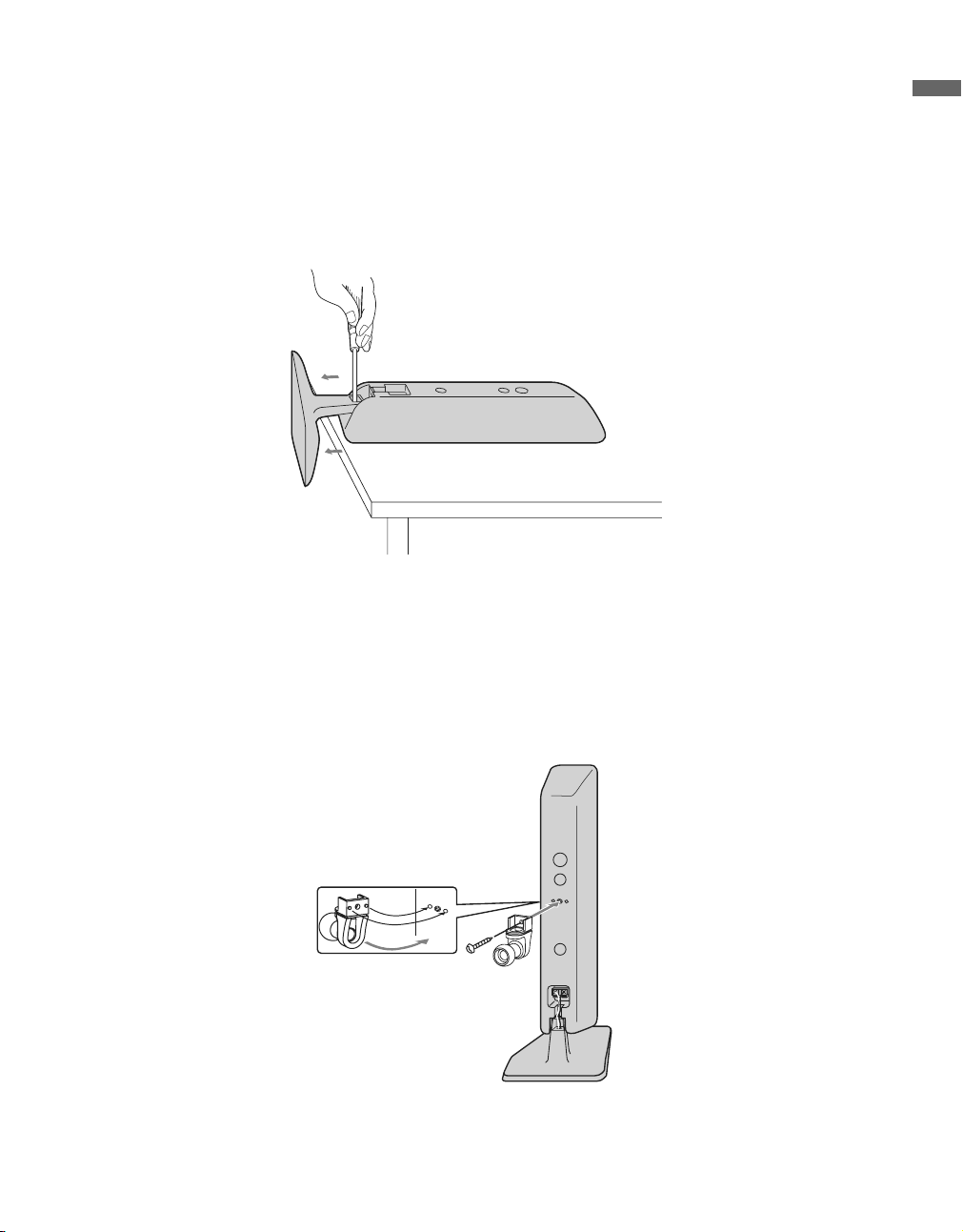

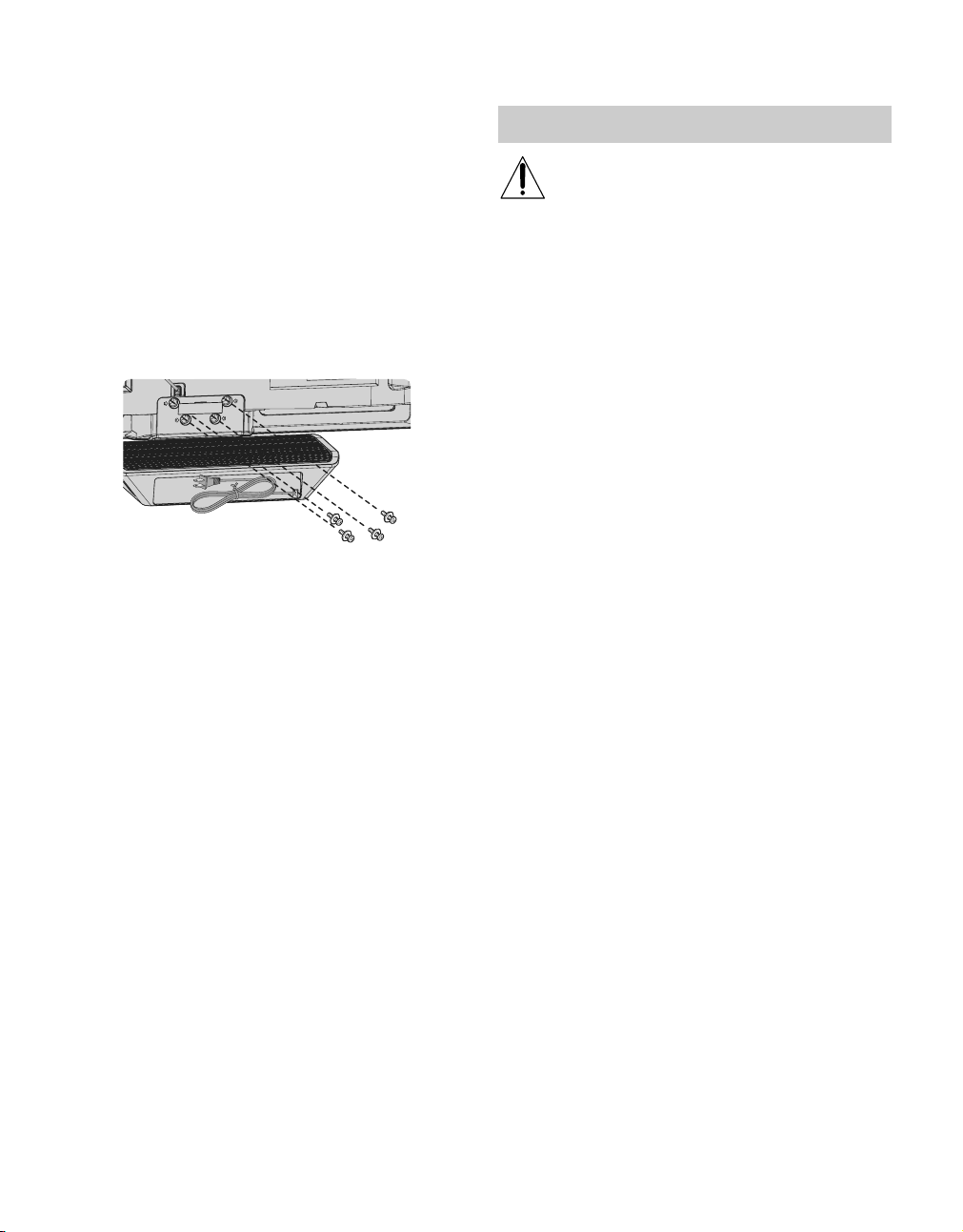

How to Attach the Subwoofer ...................... 5
Securing the TV ........................................... 6

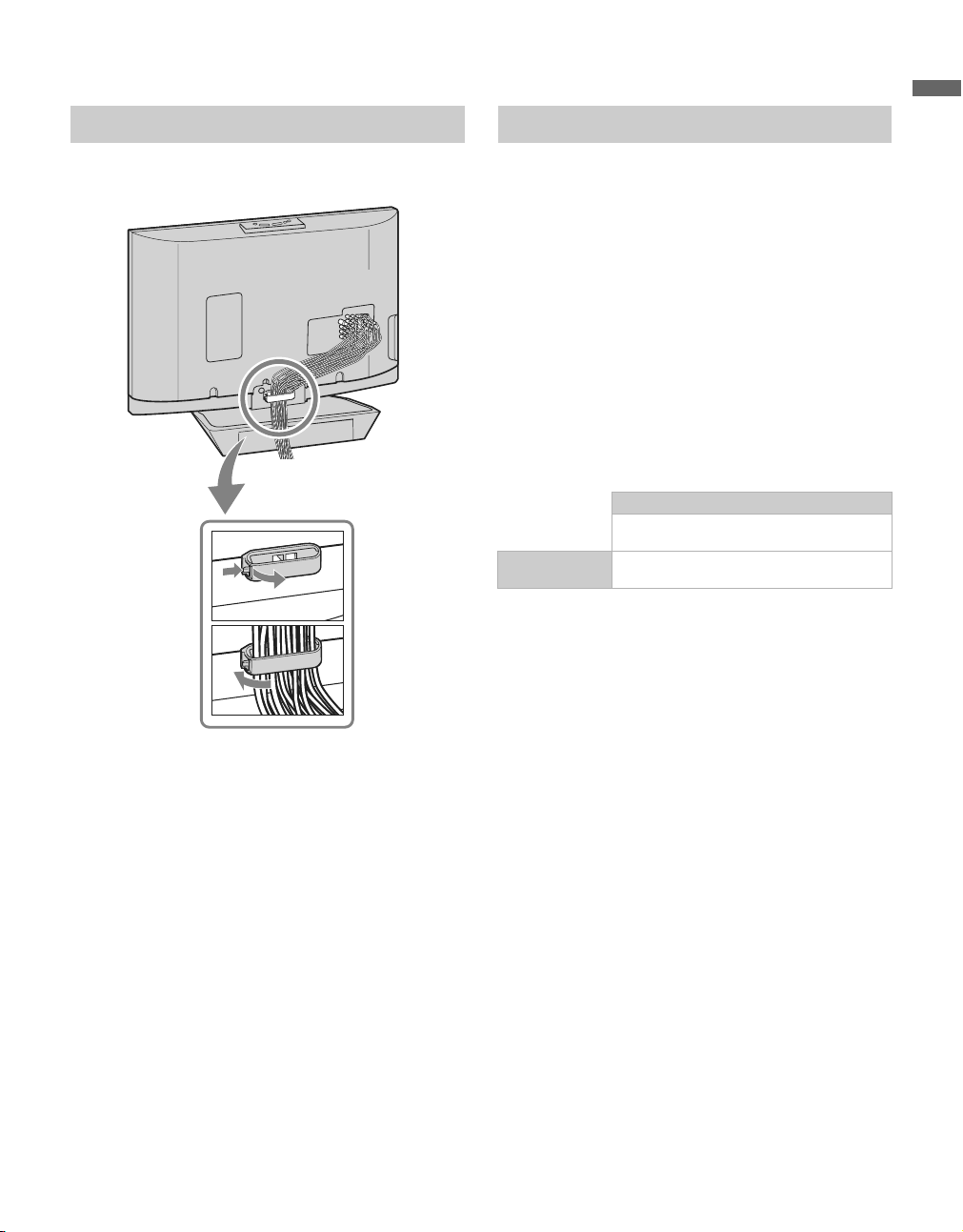

Bundling the Connecting Cables ................. 7

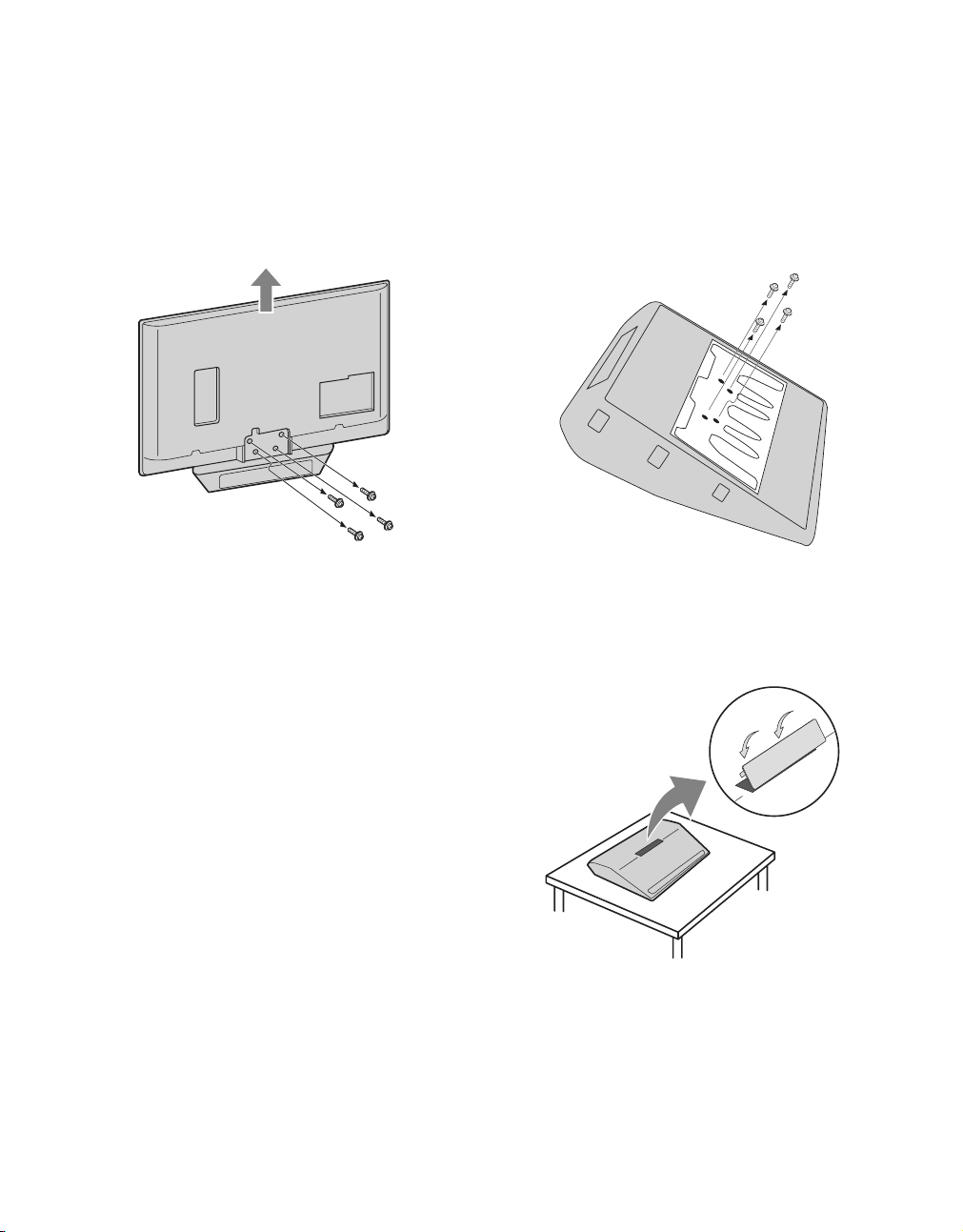

Preparation for Wall-Mounting ..................... 7

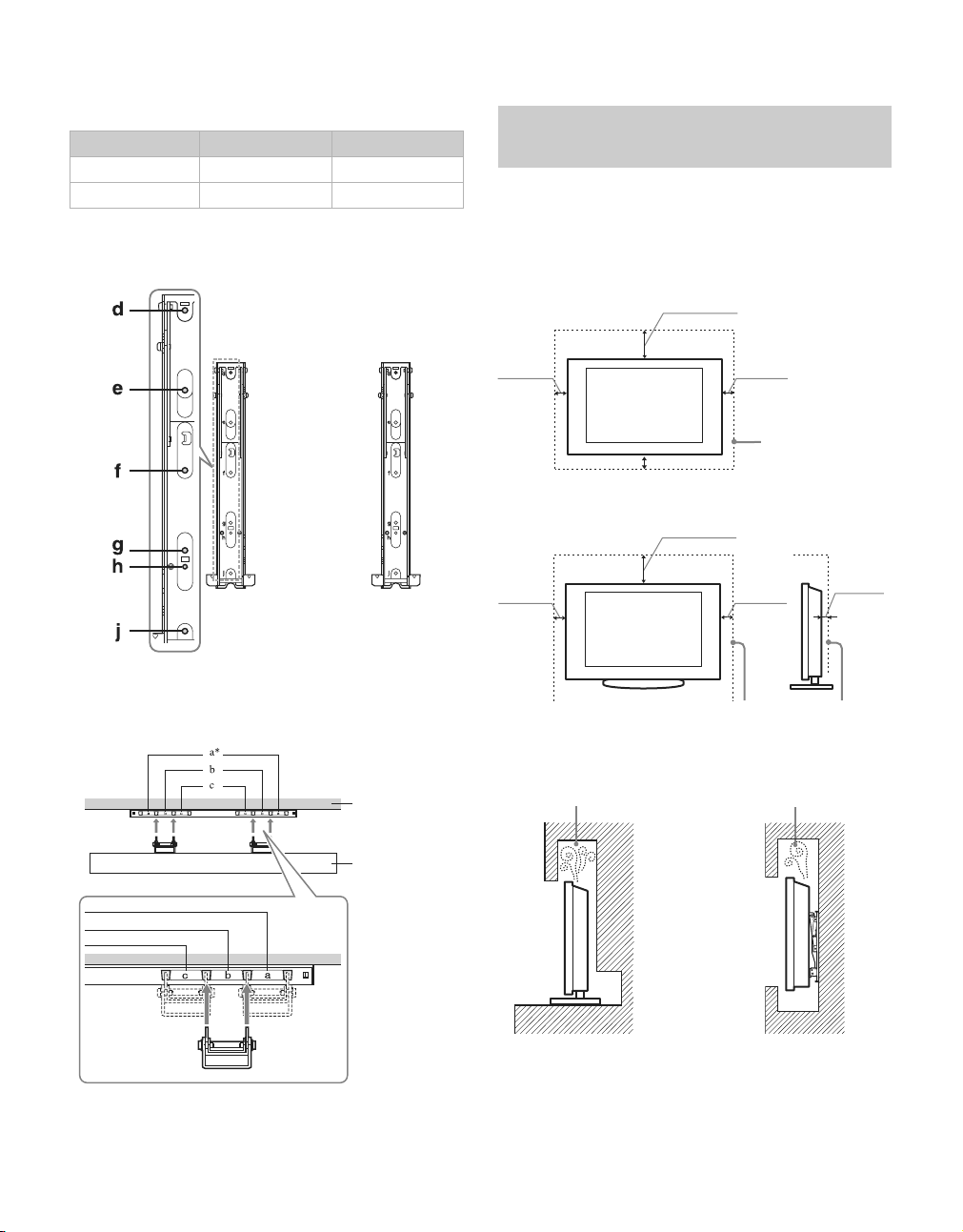

Installing the Wall-Mount Bracket ................ 9
When Installing the TV Against a Wall or
Enclosed Area .................................... 10
2. Locating the Inputs and Outputs ............ 11
Side Panel ................................................. 11

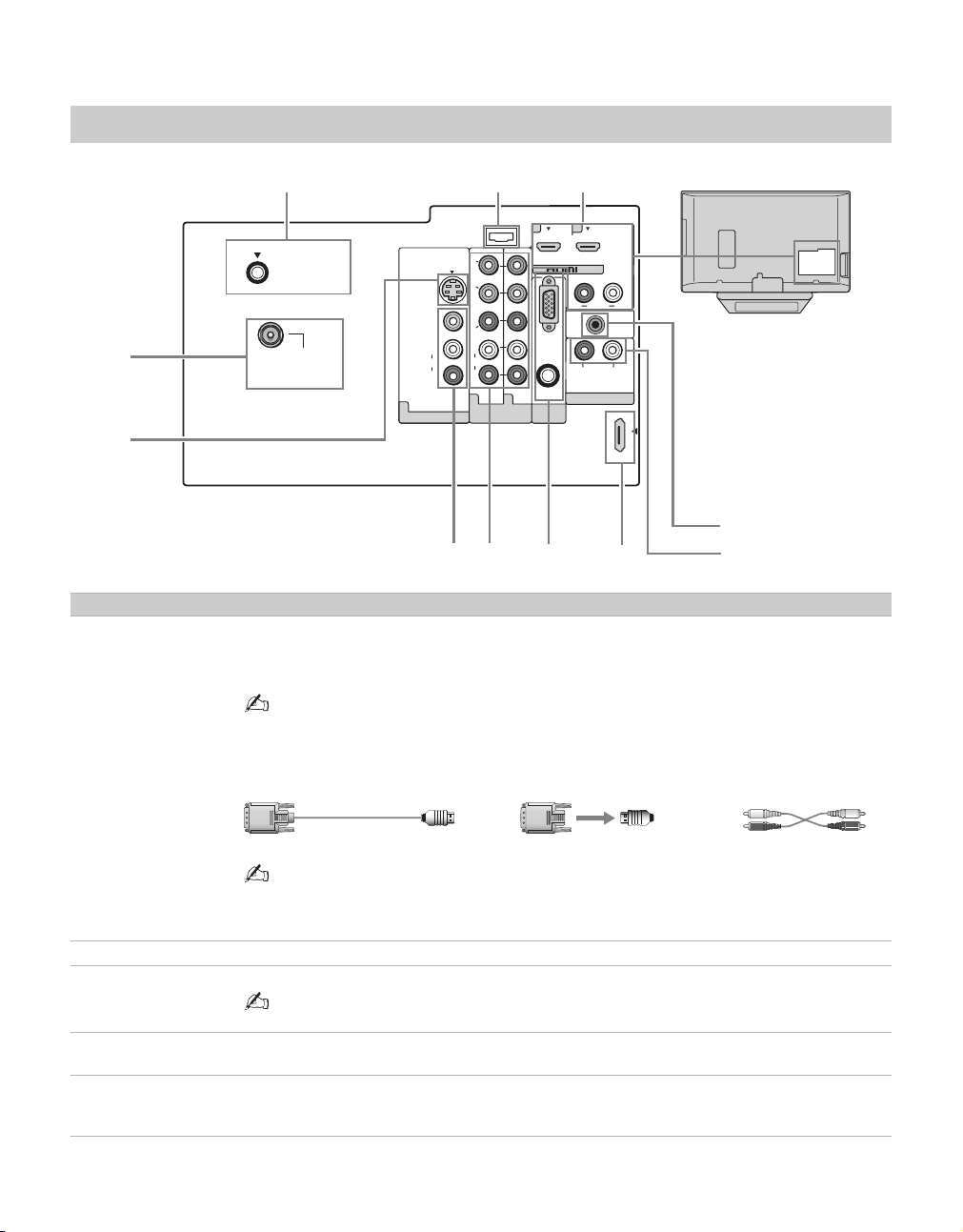

Rear Panel ................................................. 12
3. Connecting the TV ...................................14

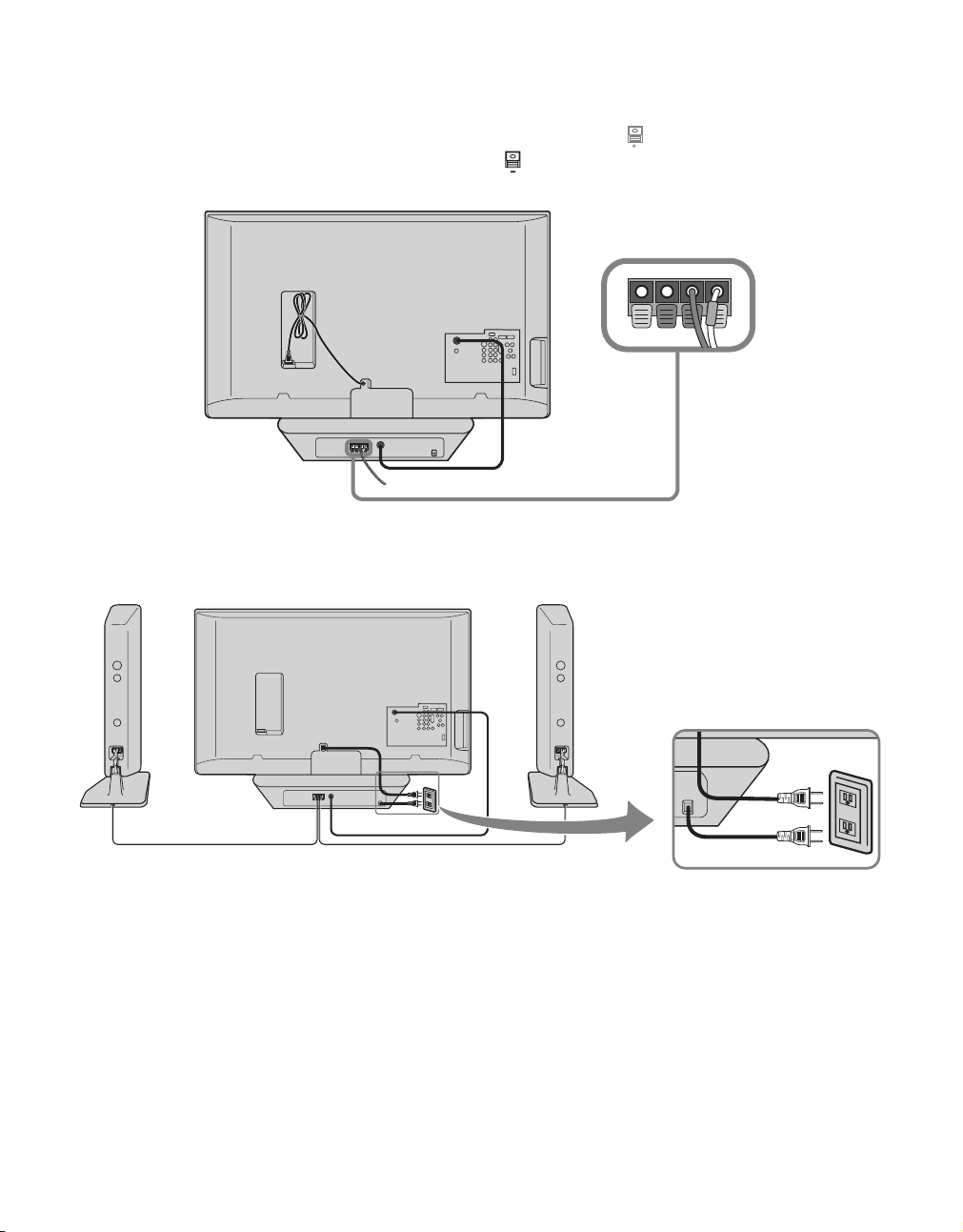

5.1 Surround Sound System ..................... 14

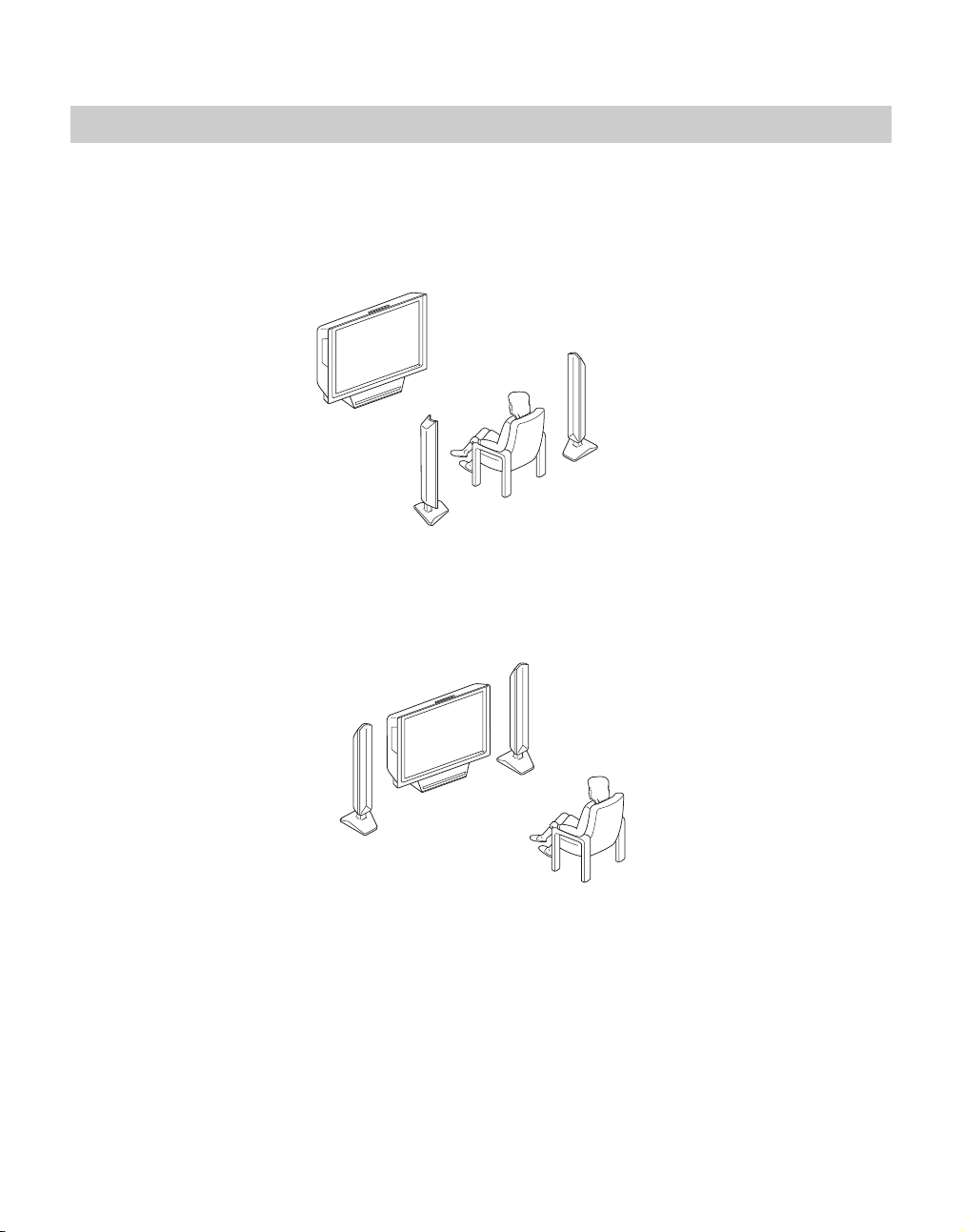

Recommended Position for the Satellite
Speakers ............................................. 18
Cable System and/or VHF/UHF ................ 19

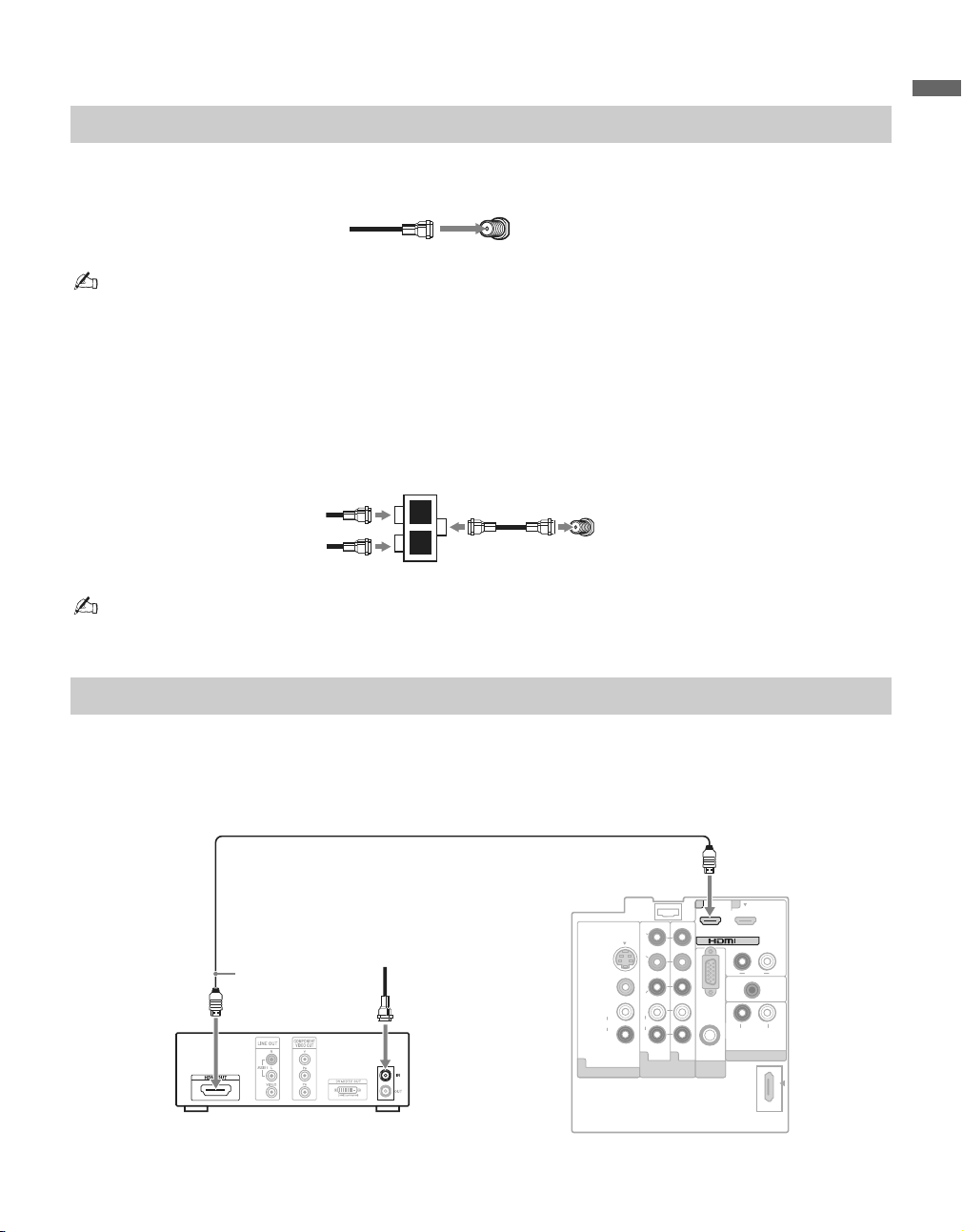

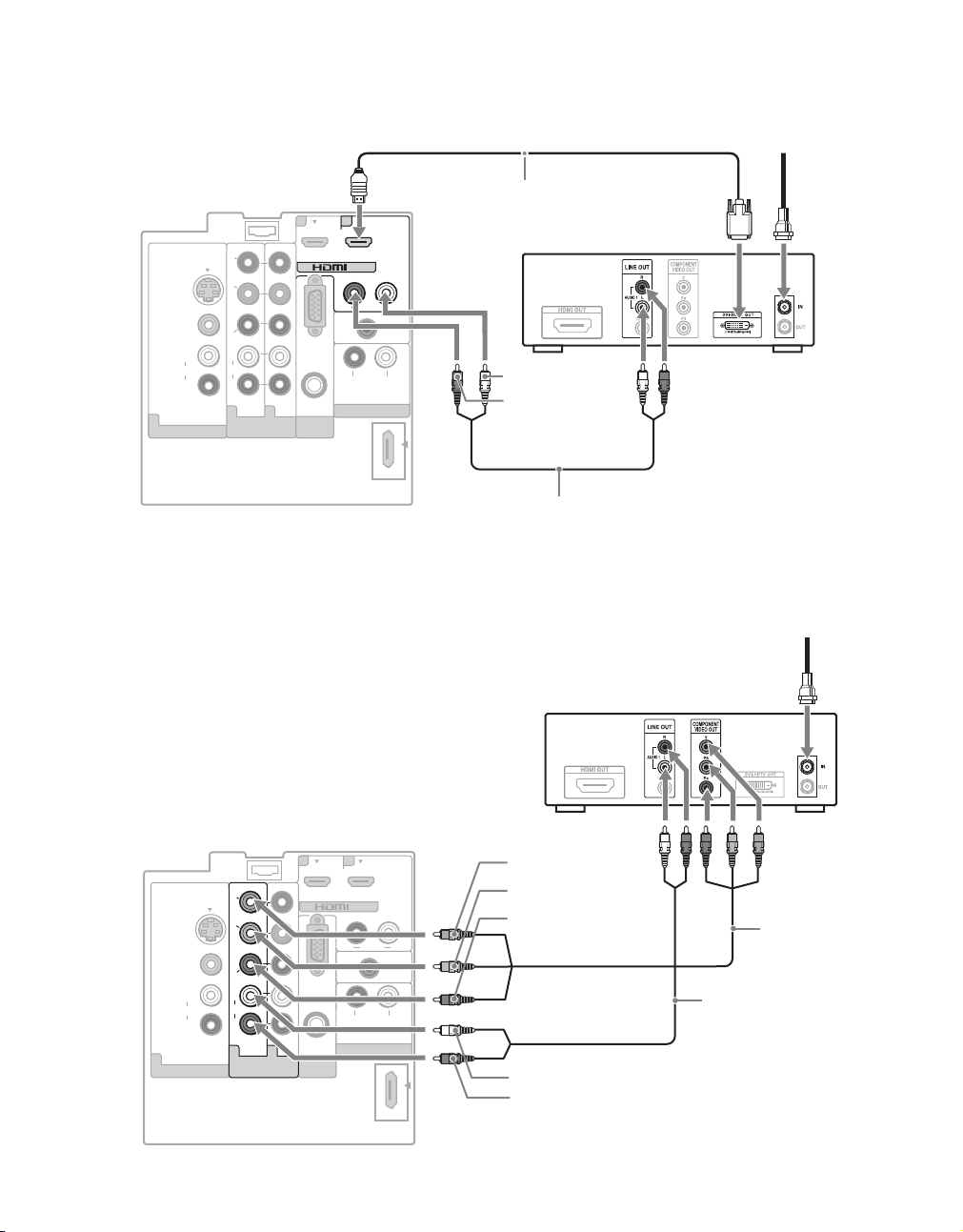

HD Cable Box/HD Satellite Box .................19

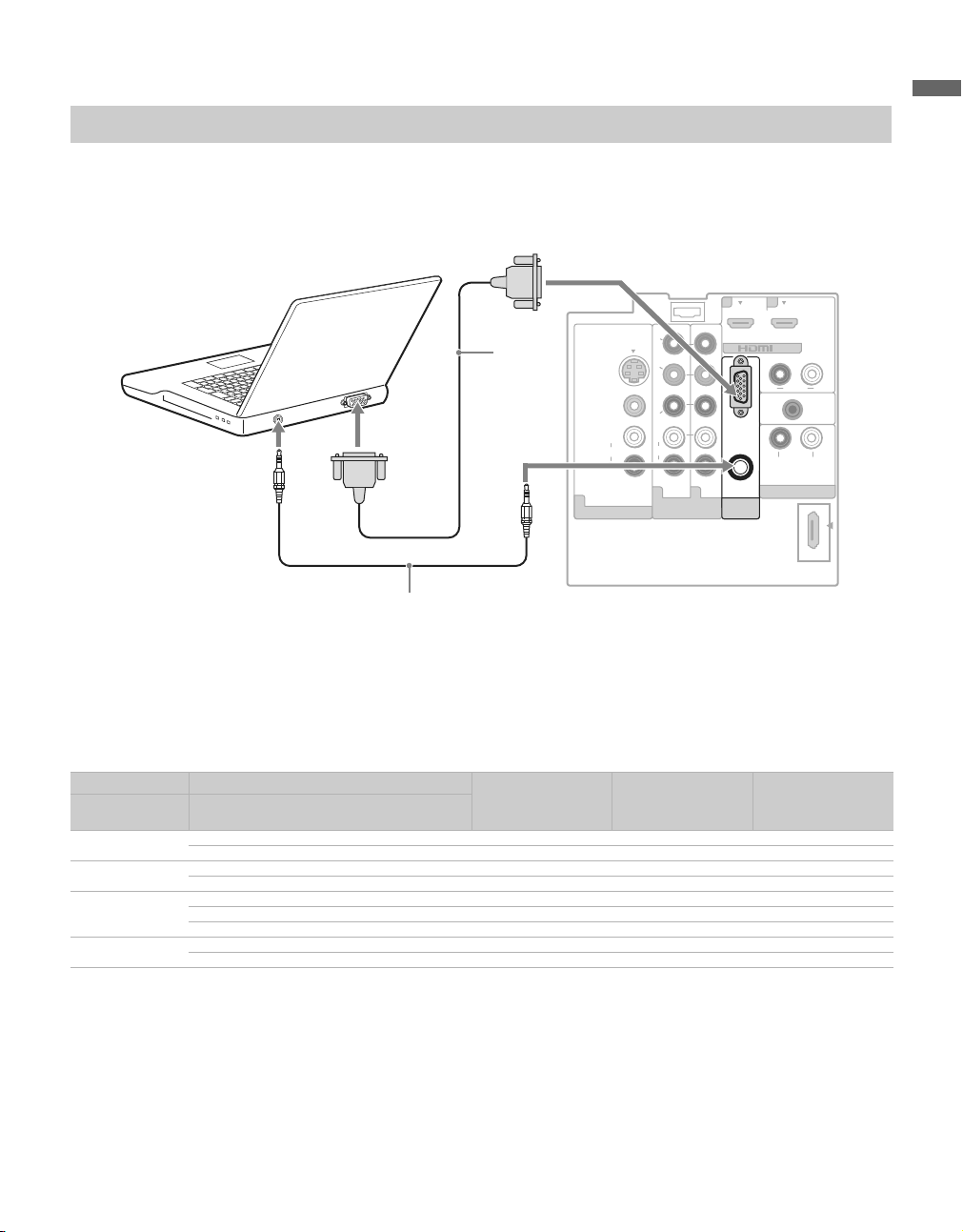

PC .............................................................. 21

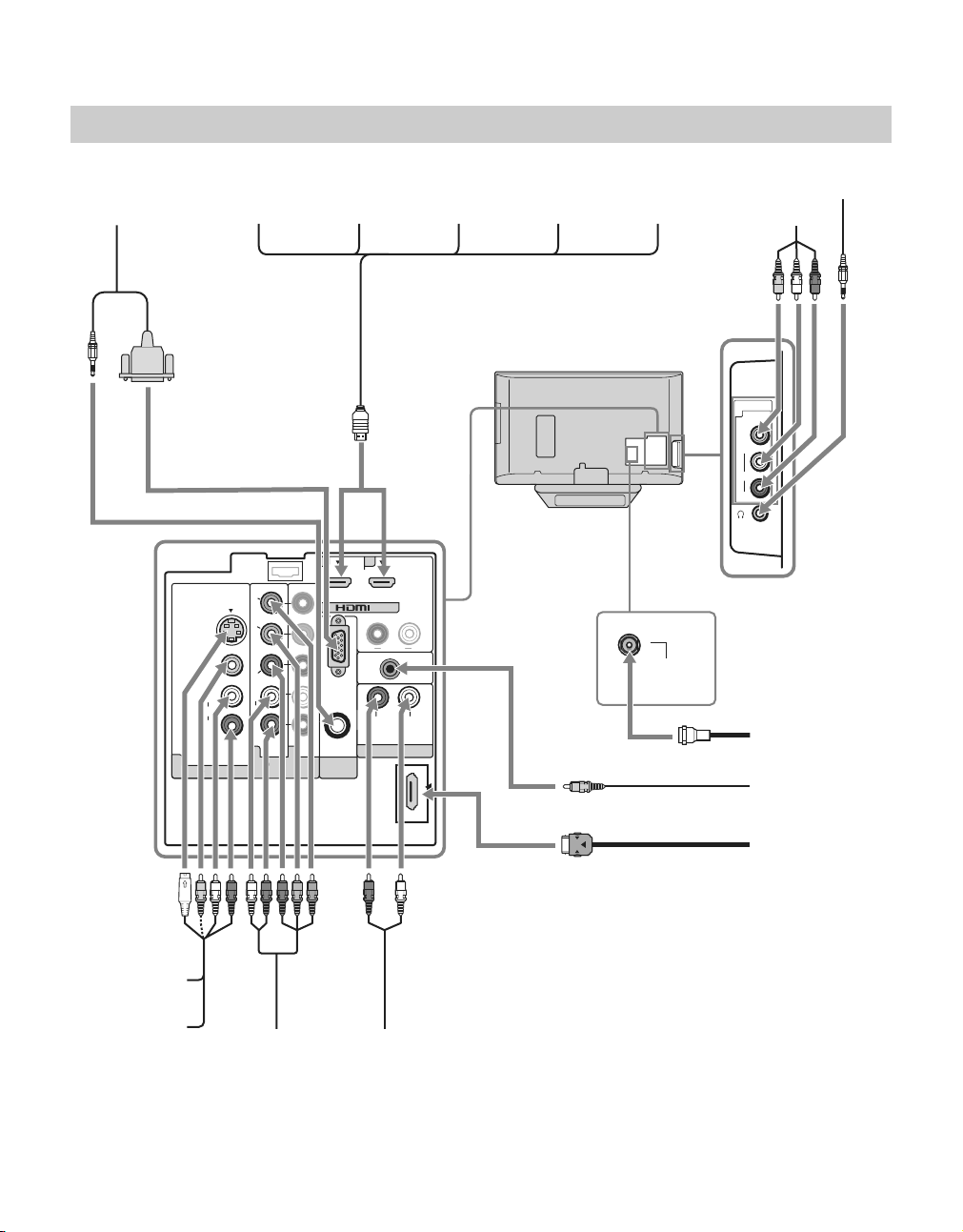

Other Equipment ....................................... 22
4. Setting Up the Channel List -
Initial Setup ............................................. 23
Exploring Fun Features
Using BRAVIA Theatre Sync™ with
Control for HDMI ..................................... 24
Using DIGITAL MEDIA PORT adapter ........ 24
Remote Control
and TV Controls/Indicators

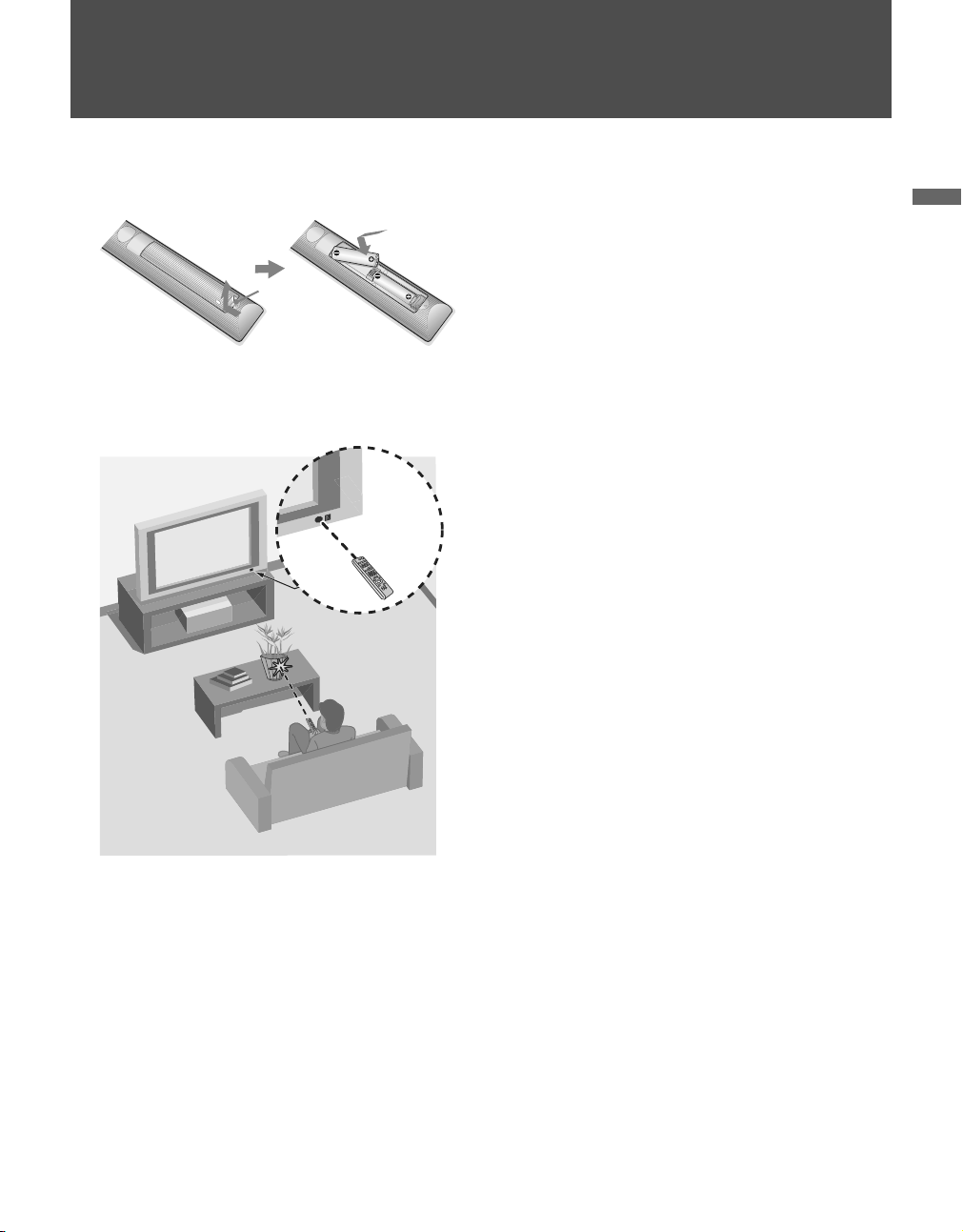

Inserting Batteries ....................................... 25
When Using the Remote Control ................ 25

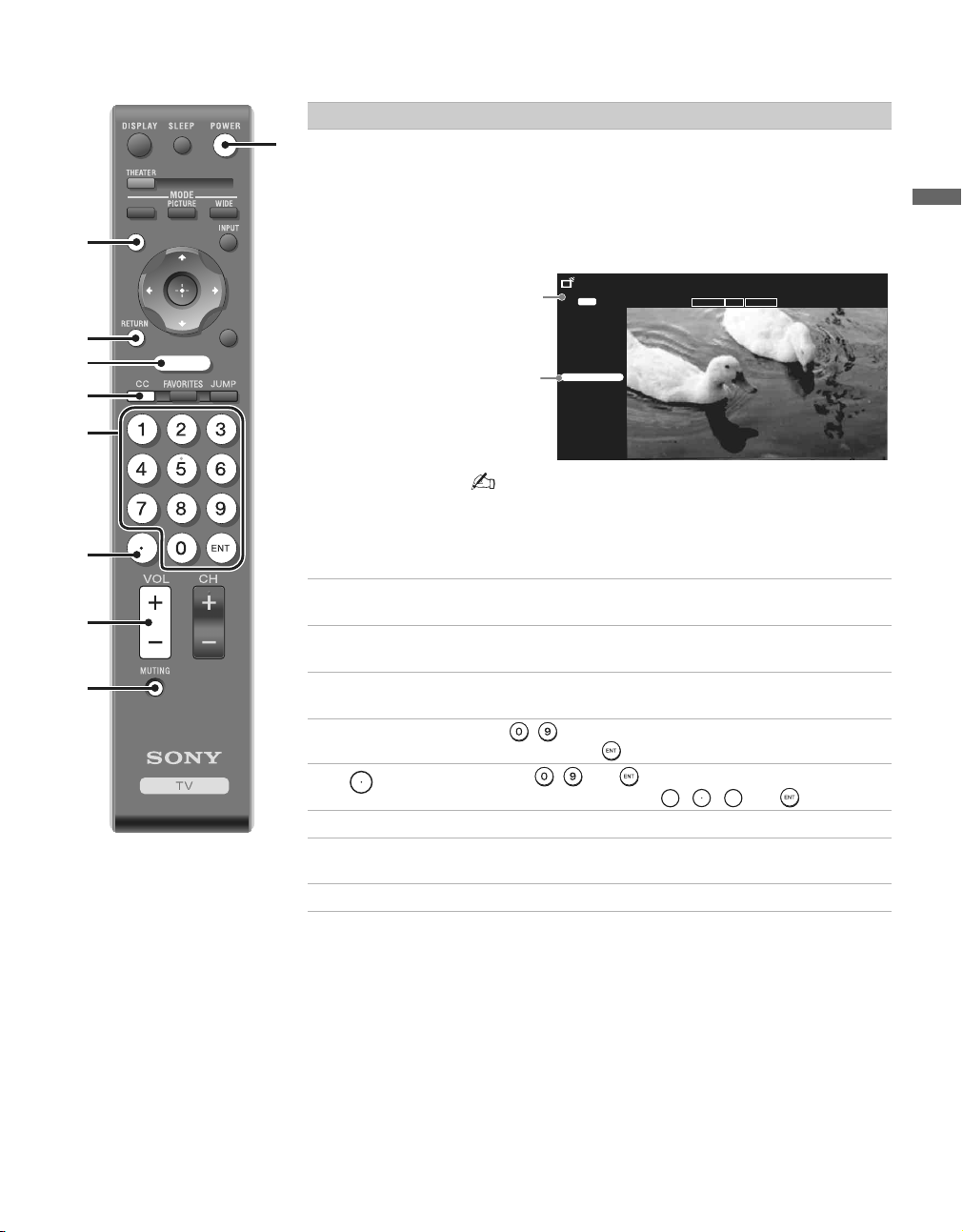

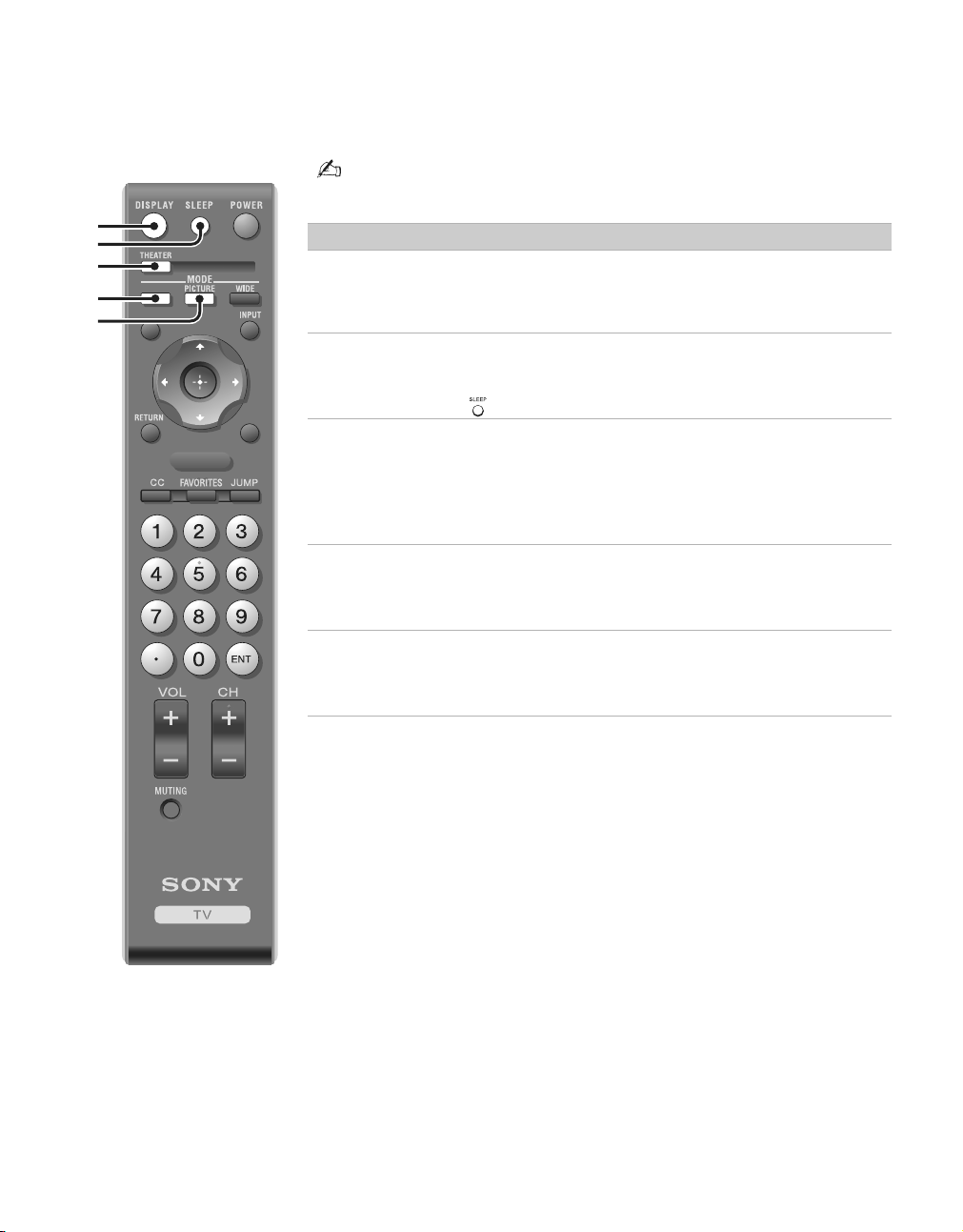

Remote Control ............................................ 26
TV Controls/Indicators ................................ 30
Using TV Menus

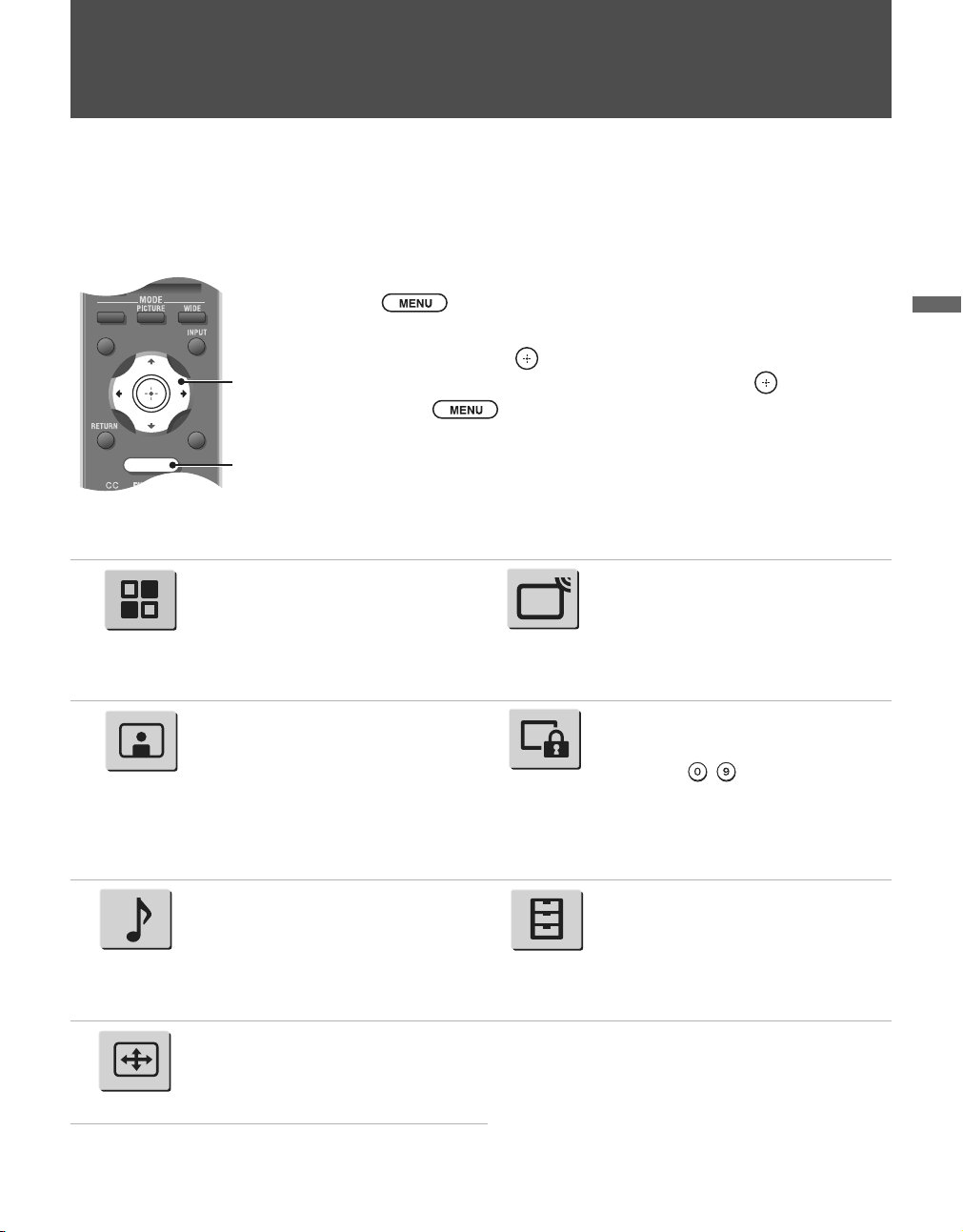

Navigating through TV Menus .................... 31
Menu Descriptions ....................................... 31
Using the Shortcuts Menu .................... 32
Using the Picture Menu ........................ 34
Using the Sound Menu ......................... 34
Using the Screen Menu ........................ 36
Using the Channel Menu ...................... 37
Using the Parental Lock ....................... 38
Using the Setup Menu .......................... 41
Other Information
Troubleshooting ........................................... 43
Specifications ............................................... 46
Index .............................................................. 47
4
Welcome to the World of BRAVIA®
Thank you for purchasing this Sony
BRAVIA
®
high-definition television. The quality of the image you see
on your
BRAVIA
TV is only as good as the quality of the signal it receives. To experience the stunning detail
of your new
BRAVIA
TV, you need access to HD programming. Your
BRAVIA
TV can receive and display HD
programming from:
• Over-the-air broadcasting via HD-quality antenna
• HD cable subscription
• HD satellite subscription
• Blu-ray Disc™ player or other external equipment
Contact your cable or satellite provider for information on upgrading to HD programming.
To learn more about HDTV, visit:
U.S.A http://www.sony.com/HDTV
Canada http://www.sonystyle.ca/hd
The Four Steps to Stunning HD Experience: Set, Sound, Source,
and Setup
Along with your BRAVIA TV set, a complete HD system requires an HD sound system, a source of HD
programming and proper setup connections. This manual explains basic setup connections (see page 14).
The Quick Setup Guide, enclosed separately, illustrates how to connect other optional equipment.

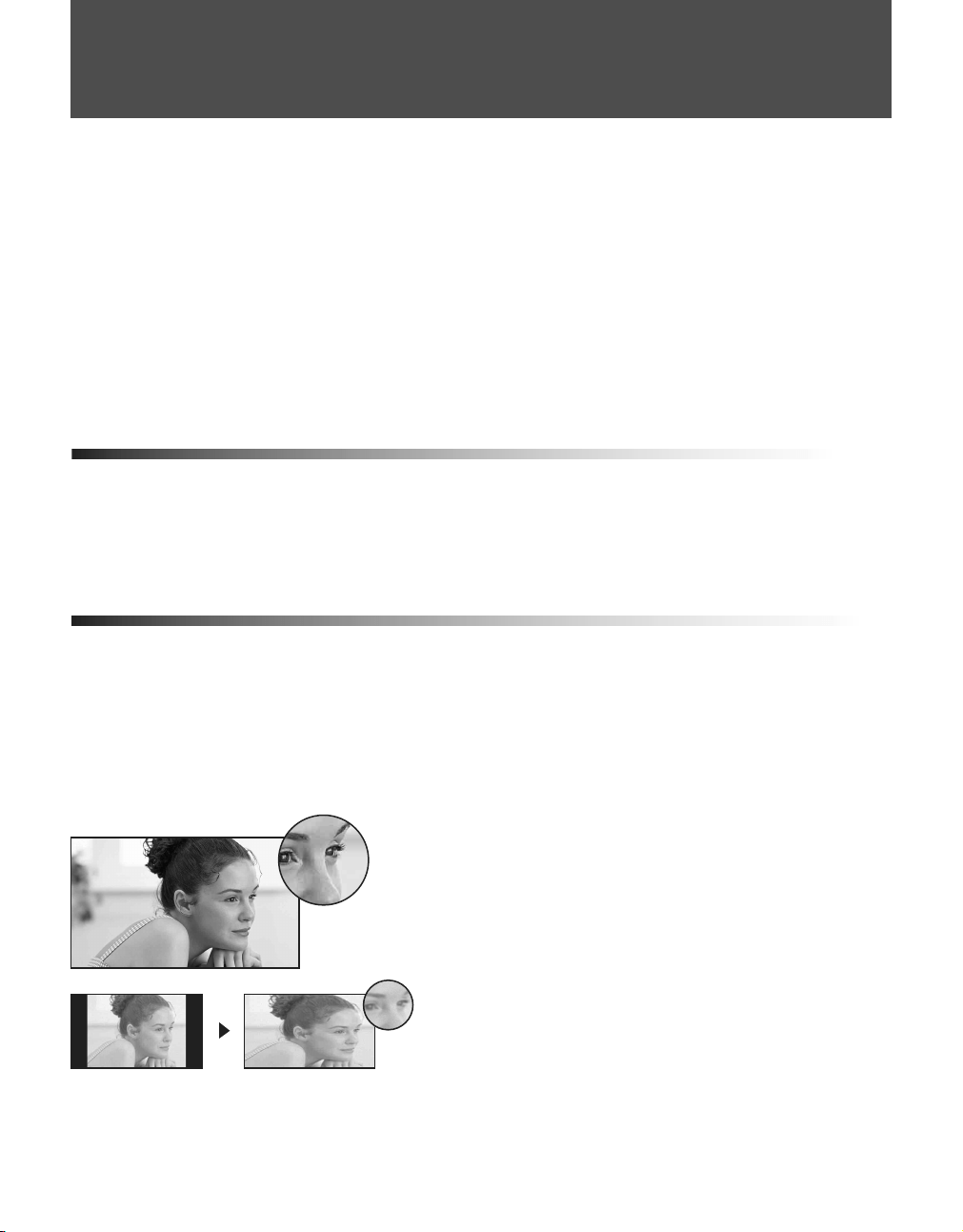

Picture Quality and Aspect Ratio
You can enjoy crisp, clear images, smooth movement and high-impact visuals from 1080i HD signals. When
you compare a high-definition signal to a standard analog signal, you will notice a big difference. The 1080i
HD signals provide more than twice the vertical resolution of the standard TV signal.
High-definition and standard-definition signals are transmitted with different aspect ratios (the width-to-height
ratio of the image). HDTV uses a wider screen than conventional standard-definition TV.
~

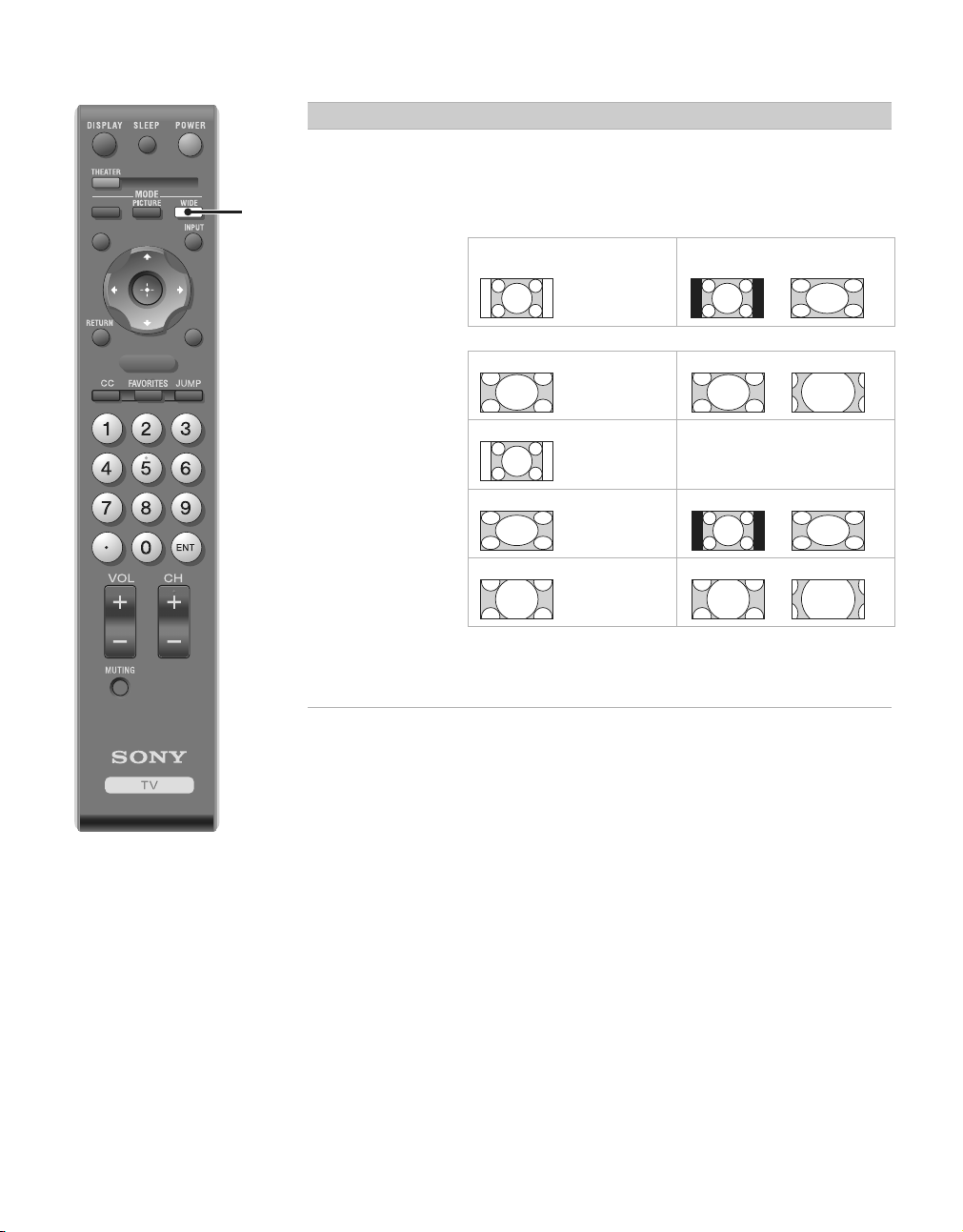

• You can use the Wide Mode function of the TV to adjust the 4:3 image to fit the entire screen (see pages 28 and 36).
• This TV supports signals up to 1080i.
16:9 (high-definition) source
Most HDTV signals use a wide screen aspect ratio of
16:9. The 16:9 fills your BRAVIA screen, maintaining a
crisp, clear, vivid picture.
4:3 (standard-definition) source
Most standard-definition signals use a boxy 4:3 aspect
ratio. When a 4:3 image is displayed on an HDTV, you
will see black bars on the sides. The picture quality ma
y
not be as sharp as with HD sources.
5
Getting Started
Getting Started
1. Installing the TV
Be sure to follow these guidelines to protect your
properties and avoid causing serious injury.
• Before carrying the TV, disconnect all cables.
• Carrying the large size TV requires two or more
people.
• When you carry the TV, place your hand as
illustrated and hold it securely. Do not put stress
on the LCD panel.
• When carrying the TV, do not subject it to shocks,
vibration or excessive force.
• Place your palm directly underneath but do not
squeeze the panel’s speaker grill area.
The Subwoofer for this product is packaged
separately.
Complete the following instructions to install the
TV to the Subwoofer before the connection and
setup.
1 Take out the Subwoofer from the cushion and
the 4 screws from the accessory bag.
~
• You will find the Subwoofer next to the TV unit.
• Keep the screws away from children.
2 Place the Subwoofer onto a level and stable
surface.
3 Install the TV unit to the Subwoofer by
aligning the end of the concave section of the
TV unit to the metal neck of the Subwoofer.
How to Carry the TV
How to Attach the Subwoofer
(Continued)
6
~
• Carrying the TV requires at least two people.
When you carry the TV unit, place your hands as
illustrated on page 5 and hold it securely. Do not
put stress on the LCD panel and the frame around
the screen.
• Be careful to not pinch your fingers or the AC
power cord when you install the TV unit to the
Subwoofer.
4 Stabilize the TV unit and the Subwoofer with
the supplied 4 screws.
~
• If you use an electric screwdriver, set the torque for
tightening at approximately 1.5 N
·m {15Kgf·cm}.
Sony strongly recommends taking
measures to prevent the TV from toppling
over; as unsecured TVs may topple and
result in property damage, serious bodily
injury or even death.
Prevent the TV from Toppling
s Secure the TV to a wall and/or stand.
s Do not allow children to play or climb on
furniture and TV sets.
s Avoid placing or hanging items on the TV.
s Never install the TV on:
• slippery, unstable and/or uneven surfaces.
• furniture that can easily be used as steps, such
as a chest of drawers.
s Install the TV where it cannot be pulled,
pushed, or knocked over.
s Route all AC power cords and connecting
cables so that they are not accessible to
children.
Securing the TV
7
Getting Started
You can bundle the connecting cables as illustrated
below.
~
• Do not bundle the AC power cord with other connecting
cables.
This TV can be installed on a wall by using a Wall-
Mount Bracket (sold separately). Before mounting
the TV on a wall, the
Subwoofer must be removed
from the TV.
~
• Do not remove the Subwoofer for any reason other than
to wall-mount the TV.
• For product protection and safety reasons, Sony
strongly recommends that you use the Wall-Mount
Bracket model designed for your TV and the wall-
mounting of your TV should be performed by a
Sony dealer or licensed contractor.
Use your TV with the following WALL-MOUNT
BRACKET only.
• For bracket installation, refer to the instructions on
page 9 and the instruction guide provided by the Wall-
Mount Bracket model for your TV. Sufficient expertise
is required in installing this TV, especially to determine
the strength of the wall for withstanding the TV’s
weight.
• Be sure to store the removed screws and the Subwoofer
in a safe place until you are ready to reattach the
Subwoofer. Keep the screws away from children.
Bundling the Connecting Cables
1
2
Preparation for Wall-Mounting
Sony TV Model No.
KDL-32N4000
KDL-37N4000
Sony Wall-Mount
Bracket Model No.
SU-WL500
(Continued)
8
Follow the simple steps below to remove the
Subwoofer:
1 Disconnect all the cables from the TV.
2 Remove the 4 screws from behind the TV as
indicated below. Do not remove any other
screws from the TV.
3 Gently lay the TV (face down) onto a level and
stable surface covered with a thick and soft
cloth.
4 Secure the Mounting Hooks to the rear of the
TV. See page 9 for more details on Installing
the Wall-Mount Bracket and also the
Instruction Guide provided by the Wall-
Mount Bracket model for your TV.
~
• If an electric screwdriver is used, set the torque to
tighten at approximately 1.5 N·m {15Kgf·cm}.
If you decide to mount the TV on a wall, follow
the steps below to uninstall the metal neck
from the Subwoofer to improve its cosmetic
appearance.
1 Gently lay the Subwoofer (face down) to
remove the 4 screws of the metal neck.
2 Place the neck cover (supplied) into the
Subwoofer to cover the metal neck hole.
~
• The Subwoofer should not be installed on the wall.
9
Getting Started
To Customers
Your KDL-32N4000/37N4000 can be wall-
mounted using SU-WL500 Wall-Mount Bracket
(sold separately).
For product protection and safety, Sony strongly
recommends that you use the Wall-Mount
Bracket designed for your TV and wall-mounting
is performed by a Sony dealer or a licensed
contractor. Do not attempt to install it yourself.
Sony is not liable for any damage or injury
caused by mishandling or improper installation.
Please provide this installation information as well
as the instruction supplied with SU-WL500 Wall-
Mount Bracket to your installer.
To Sony Dealers and Licensed Contractors
To avoid injury and property damage, read these
instructions carefully. Periodic inspection and
maintenance is highly recommended to ensure that
TV is securely mounted.
Installing the Wall-Mount Bracket and
Mounting Hooks
1 Open Wall-Mount package and check for all
the required parts including the instruction.
2 See Installation dimensions table to determine
the best location for wall-mounting. The wall
must be strong enough to support at least four
times the weight of the TV. Also refer to the
instruction for SU-WL500.
Installation dimensions table
~
• Installation dimensions may differ according to how the
TV is installed.
• The wall must be strong enough to support at least four
times the weight of the TV that you are installing.
3 Install the Base Bracket on the wall. Refer to
the instruction for SU-WL500.
4 Disconnect all cables and remove the
Subwoofer. See page 7 for details.
5 Install Mounting Hooks on the TV. See
diagrams and table for Screw and Hook
locations.
Installing the Wall-Mount Bracket
Unit: inches
(mm)
TV Dimensions
Screen
center
dimensions
Length for each mounting angle Weight
Angle (0°) Angle (20°)
TV Model AB C DEFGH
TV
×4
KDL-
32N4000
36
(912)
21
1
/2
(543)
6
5
/8
(168)
18
1
/2
(467)
6
3
/8
(160)
12
1
/4
(309)
20
1
/8
(509)
20
(505)
29 lb.
(13.0 kg)
115 lb.
(52.0 kg)
KDL-
37N4000
40
1
/2
(1,028)
24
(608)
5
1
/2
(139)
18
1
/2
(467)
6
7
/8
(172)
13
1
/2
(342)
22
1
/2
(570)
20
1
/8
(509)
38 lb.
(17.0 kg)
150 lb.
(68.0 kg)
Center line of the screen when installed on the wall
(Continued)
10
Screw and Hook locations diagram/table
Screw location
When installing the Mounting Hooks on the TV.
Hook location
When installing the TV onto Base Bracket.
* Hook position “a” cannot be used for the models in the
table above.
Make sure that your TV has adequate air
circulation. Allow enough space around the TV as
shown below.
Installed on the wall
Installed with the Subwoofer
Never install the TV set as follows:
~
• Inadequate air circulation can lead to overheating of the
TV and may cause damage to your TV or cause fire.
TV Model Screw location Hook location
KDL-32N4000 e, g c
KDL-37N4000 d, g b
Wall
TV
When Installing the TV Against a Wall
or Enclosed Area
inches
11
7
/
8
4 inches
(10 cm)
4 inches
(10 cm)
4 inches (10 cm)
(30 cm)
Leave at least
this much
space around
the set.
(30 cm)
11
7
/
8
inches
(6 cm)
inch
4 inches
(10 cm)
4 inches
(10 cm)
2
3
/
8
Leave at least this much space
around the set.
Air circulation is blocked. Air circulation is blocked.Air circulation is blocked.
Wall
Wall
11
Getting Started
2. Locating the Inputs and Outputs
Side Panel
Item Description
1
VIDEO IN 2
VIDEO/
L (MONO) -
AUDIO-R
Connects to the composite video and audio output jacks on your camcorder or other video
equipment such as a DVD or video game equipment.
• If you have mono equipment, connect its audio output jack to the TV’s L (MONO) audio
input jack.
2 Headphone
jack
Connects to your headphones. If your headphones do not match the jack, use a suitable plug
adapter (not supplied).
• While headphones are connected, the TV speakers are muted.
VIDEO IN
2
VIDEO
(MONO)
AUDIO
L
R
2
1
(Continued)
12
Rear Panel
Item Description
1 HDMI IN 1/2
R-AUDIO-L
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital
audio/video interface between this TV and any HDMI-equipped audio/video equipment, such
as DVD player, a set-top box, A/V receiver and Blu-ray Disc player as well as PC. HDMI
supports enhanced or high-definition video plus digital audio.
• If the equipment has a DVI and not a HDMI connector, use a DVI to HDMI cable or adapter
to connect the DVI output to either HDMI IN 1 or HDMI IN 2 input, and connect the audio
jacks to the AUDIO (L/R) jacks below the HDMI IN 2. (DVI connector is for video signals
only, the Audio jacks provide support for the audio.)
• For better PC view, use the PC IN (RGB IN) input.
• HDMI connection is necessary to view 480i, 480p, 720p, and 1080i formats. Note that this
TV displays all video input signals in a resolution of 1,366 dots × 768 lines.
2 SERVICE ONLY This USB port is for service only.
3 AUDIO SYSTEM Connects the Subwoofer to the TV.
• The Subwoofer should not be connected to another system.
4 CABLE/
ANTENNA
RF input that connects to your cable or VHF/UHF antenna.
5 VIDEO IN 1
S VIDEO
Connects to the S VIDEO output jack of your DVD or other video equipment that has
S VIDEO. S VIDEO provides better picture quality than composite video (6). S VIDEO
does not provide sound, you need to connect the audio cables.
AUDIO
SYSTEM
CABLE/
ANTENNA
DMPORT
VIDEO IN
VIDEO
AUDIO
AUDIO
AUDIO
(MONO)
L
R
S VIDEO
SE RV IC E
ON LY
PC IN
COMPONENT IN
(1080i/720p/480p/480i)
Y
P
B
P R
L
R
L
R
L R
A UDI O
A UDIO OUT
(FIX )
RGB
DIGITAL
AUDIO
OUT
(COAXIAL)
IN
2 1
1
1
2
2
9
3
4
qa
0
1
5
6 7
8
DVI-to-HDMI cable
DVI-to-HDMI adapter
Audio cable
13
Getting Started
6 VIDEO IN 1
VIDEO/
L(MONO)-
AUDIO-R
Connects to the composite video and audio output jacks on your A/V equipment such as a
DVD or other video equipment. A second composite video and audio input (VIDEO IN 2) is
located on the left side panel of the TV.
7 COMPONENT
IN 1/2
(1080i/720p/
480p/480i)/
L-AUDIO-R
Connects to your DVD player’s or digital set-top box’s component video (YP
B
P
R
) and audio
(L/R) jacks. Component video provides better picture quality than the S VIDEO (5) or the
composite video (6) connections.
8 PC IN
(RGB/AUDIO)
Connects to a personal computer’s video output connector using HD15-HD15 cable (analog
RGB, not supplied).
See “PC Input Signal Reference Chart” on page 21 for the signals that can be displayed.
• For some Apple Macintosh computers, it may be necessary to use an adapter (not supplied).
If this is the case, connect the adapter to the computer before connecting the HD15-HD15
cable.
9 DMPORT Connects to DIGITAL MEDIA PORT adapter (not supplied) to display photos and videos or
play music from a Portable Player to your TV (see page 24 for more details).
• Available DIGITAL MEDIA PORT adapters vary in each area.
• Do not connect an adapter other than the DIGITAL MEDIA PORT adapter.
0 AUDIO OUT
(FIX) R/L
Connects to the left and right audio input jacks of your audio or video equipment. You can use
these outputs to listen to your TV’s audio through your stereo system.
qa DIGITAL AUDIO
OUT (COAXIAL)
Connects to the coaxial audio input of a digital audio equipment that is PCM/Dolby Digital
compatible.
• Component video (YP
B
P
R
) or HDMI connection are necessary to view 480i, 480p, 720p, and 1080i formats. Note that
this TV displays all format types of picture in its native resolution of 1,366 dots × 768 lines.
Item Description
14
3. Connecting the TV
To further enhance the sound quality, connect the Subwoofer and the 2 Satellite Speakers before using the
TV.
~
• Before connecting the Subwoofer, be sure to attach the Subwoofer to the TV (see page 5 for more details).
• Connect the Subwoofer and the Satellite Speakers before connecting the TV to the wall outlet.
Subwoofer connection
1 Using DIN cable (supplied) connect the AUDIO SYSTEM output on the rear of the TV to the AUDIO
SYSTEM input on the Subwoofer as shown below.
2 Once Subwoofer installation is complete, connect the 2 Satellite Speakers to the Subwoofer.
~
• Only the supplied Subwoofer should be connected to the AUDIO SYSTEM output from the TV; if you connect any
other equipment, it could cause a malfunction or damage the TV.
• Do not connect unspecified cable to the TV AUDIO SYSTEM output. Connecting other cables can cause a
malfunction or damage the TV.
5.1 Surround Sound System
15
Getting Started
Satellite Speakers connection
1 Connect the supplied cables to the Satellite Speakers inputs, make sure to connect the black cables to
the black jacks of the Satellite Speakers, and the white cables (with the red mark) to the
corresponding red jacks .
~
• For a better look, you can hide the cables of the Satellite Speakers by threading them through the rear column (see
illustration).
black
red
(Continued)
16
2 Connect the Satellite Speakers cables to the Subwoofer output. Connect white cables (with the red
mark) from the Satellite Speakers to the R+ and L+ Subwoofer jacks (red); and black cables from the
Satellite Speakers to the R- and L- Subwoofer jacks (black).
3 Once Subwoofer and Satellite Speakers connection is complete, plug the TV’s and Subwoofer’s AC
power cords into the wall outlet.
17
Getting Started
Preparation of Satellite Speakers Wall-Mounting
The Satellite Speakers can be installed on a wall by using a Wall-Mount Bracket (sold separately).
1 Before mounting the Satellite Speakers on a wall, you must remove the stand from the Satellite
Speakers.
~
• Use a screwdriver to remove the Satellite Speakers Stand.
2 To install the Satellite Speakers on a wall, you should use the Wall-Mount Bracket WS-WV10D (sold
separately). For this accessory use only the screw that is attached to the Satellite Speakers. Use a
screwdriver to remove the screw from the Satellite Speakers.
~
• If you use an electric screwdriver, set the torque for tightening at approximately 1.5 N·m {15Kgf·cm}.
• Be sure to store the removed screws and the Satellite Speakers Stand in a safe place until you are ready to reattach the
stand to the Satellite Speakers. Keep the screws away from children.
~
• Do not remove the Satellite Speakers Stand for any reason other than to wall-mount the Satellite Speakers.
(Continued)
18
When the Sound effect is Dolby Pro Logic II Movie, Dolby Pro Logic II Music or Dolby Pro
Logic II Matrix
It’s recommended to place the Satellite Speakers as shown in the illustration below. On these effects the
Satellite Speakers replay the Left and the Right Surround Sound, that together with the Left, Central, Right
Speakers and Subwoofer replay sound of 5.1 channels.
When the Sound effect is off or Dolby Pro Logic II Virtual mode
It’s recommended to place the Satellite Speakers at both sides of the TV. In this position, the Speakers will
play the same sound like the TV lateral speakers, duplicating the power of the sound of the left and right
channels.
~
• See page 35 for more details of Sound effects (Dolby Pro Logic II Movie, Dolby Pro Logic II Music, Dolby Pro
Logic II Matrix, Dolby Pro Logic II Virtual).
Recommended Position for the Satellite Speakers
19
Getting Started
Cable or VHF/UHF (or VHF only)
• It is strongly recommended that you connect the antenna/cable input using a 75-ohm coaxial cable (not supplied) to
receive optimum picture quality. A 300-ohm twin lead cable can be easily affected by radio frequency interference,
resulting in signal degradation.
Cable and VHF/UHF (or VHF only)
If you want to watch both cable and antenna (over-the-air) programming, you will need to use an optional A-
B RF Switch (not supplied) to switch between the cable and over-the-air antenna programming, as shown.
You can also enjoy high-definition programming by subscribing to high-definition cable service or high-definition
satellite service. For the best possible picture, connect these components to your TV via the HDMI or component
video (with audio) input on the back of your TV.
Cable System and/or VHF/UHF
• Be sure to set Cable setting to On or Off in Channel menu for the type of input signal you choose (see page 37 for
more details).
HD Cable Box/HD Satellite Box
75-ohm coaxial cable
(not supplied)
Rear of TV
CABLE/ANTENNA input
B
A
A-B RF
Switch
Rear of TV
CABLE/ANTENNA input
Cable
Antenna
1
VIDEO IN
VIDEO
AUDIO
S VIDEO
SE RV IC E
ON LY
PC IN
COMPONENT IN
(1080i/720p/480p/480i)
Y
P
B
P
R
A UDIO OUT
(FIX )
RGB
DIGITAL
AUDIO
OUT
(COAXIAL)
2
1
1
2
AUDIO
AUDIO
(MONO)
L
R
L
R
L
R
A UDI O
L R
IN
DMPORT
HD cable box/HD satellite box
Rear of TV
HDMI cable
Shown with HDMI Connection
CATV/Satellite
antenna cable
(Continued)
20
Shown with DVI Connection
~
• If the equipment has a DVI and not an HDMI connector, use a DVI-to-HDMI cable or adapter to connect the DVI
output to either HDMI IN 1 or HDMI IN 2 input, and connect the audio jacks to the AUDIO (L/R) jacks below the
HDMI IN 2 (DVI connector is for video signals only, the audio jacks provide support for the audio).
VIDEO IN
VIDEO
AUDIO
S VIDEO
SE RV IC E
ON LY
PC IN
COMPONENT IN
(1080i/720p/480p/480i)
Y
P
B
P R
A UDIO OUT
(FIX )
RGB
DIGITAL
AUDIO
OUT
(COAXIAL)
2 1
1
1
2
2
AUDIO
AUDIO
(MONO)
L
R
L
R
L
R
A UDI O
L R
IN
DMPORT
Rear of TV
AUDIO-R
(red)
AUDIO-L
(white)
Audio cable
DVI-to-HDMI cable
HD cable box/HD satellite box
CATV/Satellite antenna cable
VIDEO IN
VIDEO
AUDIO
S VIDEO
SE RV IC E
ON LY
PC IN
A UDIO OUT
(FIX )
RGB
DIGITAL
AUDIO
OUT
(COAXIAL)
2 1
1
COMPONENT IN
(1080i/720p/480p/480i)
Y
P
B
P R
1 2
AUDIO
AUDIO
(MONO)
L
R
L
R
L
R
A UDI O
L R
IN
DMPORT
Rear of TV
CATV/
Satellite antenna cable
P
R (red)
AUDIO-L (white)
AUDIO-R (red)
HD cable box/HD satellite box
Y (green)
P
B (blue)
Audio cable
Shown with Component Connection
Component
video cable
21
Getting Started
Use the TV as a monitor for your PC.
Shown below with the HD15 to HD15 connection. This TV can also be connected to a PC with DVI or
HDMI output. (Refer to the supplied Quick Setup Guide.)
~
• Connect the PC IN jack to the PC using the HD15-HD15 cable with ferrite core (analog RGB) and audio cable
(page 13).
PC Input Signal Reference Chart
After connecting the PC to the TV, set the output signal from the PC according to the chart below.
~
• This TV’s PC input does not support Sync on Green or Composite Sync.
• This TV’s PC VGA input does not support interlaced signals.
• For the best picture quality, it is recommended to use the signals (boldfaced) in the above chart with a 60 Hz vertical
frequency from a personal computer. In plug and play, signals with a 60 Hz vertical frequency will be detected
automatically. (PC reboot may be necessary.)
PC
Resolution
Horizontal
frequency (kHz)
Vertical
frequency (Hz)
Standard
Signals Horizontal
(Pixel)
× Vertical
(Line)
VGA 640 × 480 31.5 60 VGA
640 × 480 37.5 75 VESA
SVGA
800 × 600 37.9 60 VESA Guidelines
800 × 600 46.9 75 VESA
XGA
1,024 × 768 48.4 60 VESA Guidelines
1,024 × 768 56.5 70 VESA
1,024 × 768 60.0 75 VESA
WXGA
1,280 × 768 47.8 60 VESA
1,360 × 768 47.7 60 VESA
VIDEO IN
VIDEO
AUDIO
S VIDEO
SE RV IC E
ON LY
COMPONENT IN
(1080i/720p/480p/480i)
Y
P
B
P
R
A UDIO OUT
(FIX )
RGB
DIGITAL
AUDIO
OUT
(COAXIAL)
2 1
1
1
2
PC IN
AUDIO
AUDIO
(MONO)
L
R
L
R
L
R
A UDI O
L R
IN
DMPORT
HD15-
HD15
cable
(analog
RGB)
Audio cable (stereo mini plugs)
Rear of TV
(Continued)
22
~
• Refer to the Quick Setup Guide (supplied) when connecting other equipment to your TV.
Other Equipment
VIDEO IN
2
VIDEO
(MONO)
AUDIO
L
R
DMPORT
L R
A UDI O
VIDEO IN
VIDEO
AUDIO
AUDIO
AUDIO
(MONO)
L
R
S VIDEO
SE RV I C E
ON LY
PC IN
COMPONENT IN
(1080i/720p/480p/480i)
Y
P
B
P R
L
R
L R
A UDIO OUT
(FIX )
RGB
DIGITAL
AUDIO
OUT
(COAXIAL)
IN
2 1
1
1
2
CABLE/
ANTENNA
Digital audio
equipment
Analog audio equipment
(A/V Receiver/Home Theater)
Digital
recorder
VCR
Headphones
Camcorder
Game system
DVD
player
Personal
computer
Digital
satellite
receiver
Blu-ray
Disc Player/
“PS3”
Digital
cable box
Audio
system
CABLE/ANTENNA
Rear of TV
Side Panel
DIGITAL MEDIA
PORT adapter for
portable player
23
Getting Started
4. Setting Up the Channel List -
Initial Setup
After you finish connecting your TV, you need to
run Initial Setup, which automatically sets up
available channels. The Initial Setup screen
appears when you turn on your TV for the first
time. If you do not want to set up the channels at
this time, you can do it later by selecting the Auto
Program option in the Channel menu (see
page 37).
1 Press to turn on the TV.
The Initial Setup screen appears.
2 Press V/v to highlight the desired language,
then press .
3 Please connect cable or antenna, then select
Yes to run Auto Program.
4 Follow the help text provided on the screen to
run Auto Program. Auto Program will
scan for available channels from signal source
directly connected to the TV’s
CABLE/ANTENNA input.
5 When Auto Program is complete, select OK
to finish the Auto Program process.
To run Auto Program at a later time
❑ Use the Auto Program feature at Channel
menu as described on page 37.
To display the picture in your preferred
aspect ratio
❑ Select the proper Wide Mode as described on
pages 28 and 36.
~
• You may want to set up convenient features such as
Favorites (see page 32), Show/Hide Channels
(see page 37), Label Channels (see page 37) when
Auto Program is completed.
~
• If you want to run Auto Program later, select No.
• If you have both cable and antenna available,
please connect cable first.
• IMPORTANT: You must perform Auto Program
after cable or antenna is connected. If you cancel
Auto Program some channels may not be
available.
POWER
Please select your language:
Press to choose a language.
Initial Setup
24
Exploring Fun Features
Using BRAVIA Theatre Sync™
with Control for HDMI
This TV is equipped with BRAVIA Theatre
Sync™. The Control for HDMI function enables
BRAVIA Theatre Sync to allow communication
between Sony TV’s and Sony equipment. Only
Sony equipment with Control for HDMI
capability is supported.
To connect Sony equipment with Control for
HDMI
Use an HDMI cable that bears the HDMI logo for
connection. See pages 19 to 22 or see the HDMI
connection shown in the Quick Setup Guide
provided with the TV documentation.
Setting the Control for HDMI
In order for the function of Control for HDMI to
operate, the TV and other Sony equipment with
Control for HDMI function must be setup (see
page 42). For other equipment, refer to the
operating instruction for that equipment.
Control for HDMI available with your TV
The following operations are available after you
connect the Sony equipment with Control for
HDMI function to your TV:
• Automatically turn off the connected equipment
when you turn off the TV.
• The TV will automatically turn on and tunes to the
respective HDMI input when the connected
equipment is turned on by One-Touch-Play.
• Equipment listed under External Inputs will
turn on automatically when selected.
When you connect a Sony A/V receiver with
BRAVIA Theatre Sync function to your TV, the
following additional operation is possible:
• By pressing on the remote control, it turns on
and searches for external audio system. When the
BRAVIA Theatre Sync audio system is on, the
internal speakers of the TV will turn off and the
Picture Mode will change automatically to
Cinema.
Using DIGITAL MEDIA PORT
adapter
Connecting a DIGITAL MEDIA PORT adapter,
lets you display photos and videos or play music
from a Portable Player to your TV.
The equipment’s menu may be displayed on the TV
and can be controlled via the TV’s remote control.
By pressing V/v, B/b, and you can go
through the equipment’s menu. Use V/v (to go
up/down), B (to left), b (to go right or to play),
(to select an item or to play), and (to go previous
menu window).
~
• Viewing the equipment’s menu on the TV and
controlling it via the TV’s remote control depends on
the equipment; refer to the equipment’s operating
instructions.
• Available DIGITAL MEDIA PORT adapters vary in
each area.
• Do not connect an adapter other than the DIGITAL
MEDIA PORT adapter.
• Depending on the type of DIGITAL MEDIA PORT
adapter, images may also be output. In this case, the
system outputs only a composite video signal.
• Check compatibility between portable audio and the
DIGITAL MEDIA PORT adapter.
THEATER
25
Remote Control and TV Controls/Indicators
Remote Control
and TV Controls/Indicators
Inserting Batteries
When Using the Remote Control
Insert two size AA batteries (supplied) by matching
e and E on the batteries to the diagram inside the
battery compartment of the remote control.
Push to open
Follow the guidelines below
• Point your remote control directly at the IR sensor
located on your TV.
• Make sure that no objects are blocking the path
between the remote control and IR sensor on your
TV.
• Fluorescent lamps can interfere with your remote
control; try turning off the fluorescent lamps.
• If you are having troubles with the remote control,
reinsert or replace your batteries and make sure
that they are correctly inserted.
26
Remote Control
SOUND
GUID
E
MENU
TOOLS
5
4
3
2
1
•The 5 and CH + buttons have a tactile dot. Use them as a reference when
operating the TV.
Button Description
1 DISPLAY Press once to display the information pertaining to the
channel and/or program when available. The OSD (On
Screen Display) will time out in a few seconds or press again
to immediately turn off the display.
2 SLEEP Press repeatedly until the TV displays the time in minutes
(Off, 15, 30, 60 or 120 minutes) that you want the TV to
remain on before shutting off. To cancel Sleep, press
repeatedly until Off appears.
3 THEATER Press to turn on and off the Theater Mode. The picture
settings will be set for a cinema-like experience and the
audio will be switched to the audio output of the attached
speakers of your BRAVIA Theatre Sync audio system. Your
BRAVIA Theatre Sync audio system must be connected by
an HDMI connection to your TV (see page 19 for details).
4 SOUND Press repeatedly to step through the Sound Mode settings:
Dynamic, Standard, Game, Clear Voice, Flat. These
Sound Mode settings can be also accessed in the Sound
menu (see page 34).
5 PICTURE Press repeatedly to cycle through the available picture
modes: Vivid, Standard, Cinema. The picture modes can
also be accessed in the Picture menu. For details, see page
34.
27
Remote Control and TV Controls/Indicators
Button Description
6 GUIDE
(For all
channels
including
Digital/Analog
channels)
Press to display the Guide when you are watching channels
(if it is available from the station).
Using the Guide
The Guide allows you to select the channels from a channel
list; also provides information about the current program
being shown on each channel.
• Program information in the guide is provided by the
broadcasters. As a result, it may sometimes include only
the channel number, without a program title or
description.
7 RETURN Press to go back to the previous screen or exit from the
screen when displaying menu items and settings.
8 MENU Press to display the menu with TV functions and settings.
See “Using TV Menus” on page 31.
9 CC Press to turn on and off the Closed Captions (CC). To
change or customize the CC display, see page 41.
0 0-9/ENT Press - to select a channel; the channel changes after
few seconds. Press to change channels immediately.
qa Use with - and to select digital channels. For
example, to enter 2.1, press , , and .
qs VOL +/– Press to adjust the volume.
qd MUTING Press to mute the sound. Press again or press VOL + to
restore the sound.
qf POWER Press to turn on and off the TV.
SOUND
GUID
E
MENU
TOOLS
7
9
6
qf
8
q;
qa
qs
qd
Make Way for Ducks!
Series follows the aquatic misadventures of Henry and Riley, two wayward ducks on a unique mission.
15.1
12:00 AM
KPBS-HD
TV-G
1080i HD Full16:9
(0:29 Remaining)
ON-3
FOX6
XWV-10
XEW-12
KPBS
KPBS-HD
V-me
AZ-21
AZT-27
TEL-33
NBC-39
FR-40
CH-41
2
3
6
10
12
15
15.1
15.2
21
27
33
39
40.1
41
Channel
list
Info
banner
2
1
(Continued)
28
Button Description
qg WIDE Press repeatedly to step through the Wide Mode settings:
Wide Zoom, Normal, Full, Zoom. The Wide Mode
settings can be also accessed in the Screen menu (see page
36).
Changing the Wide Screen Mode
~
• When the TV receives a 720p or 1080i signal, Normal
cannot be selected.
SOUND
GUID
E
MENU
TOOLS
qg
4:3 Original source
Standard-definition source
16:9 Original source
High-definition source
mm
Wide Zoom Wide Zoom
Normal Normal
This mode is not available
Full Full
Zoom Zoom
29
Remote Control and TV Controls/Indicators
Button Description
qh INPUT Press to display the list of External Inputs and TV mode.
Press repeatedly to toggle through the inputs.
• See page 41 (Label Inputs) on setting up the External
Inputs labels.
qj V/v/B/b Press V/v/B/b to move the on-screen cursor. Press to
select/confirm an item.
qk TOOLS This button supports different functions depending on the
condition. When PC input is active, press to view a
channel at the same time as a PIP (picture in picture) screen
(see page 33 for details). When antenna input is active and
the broadcast includes Regional Digital Ratings, press to
view the list of special ratings.
When an HDMI controlled equipment is active, press to
access the equipment menu, if the equipment supports the
function.
ql JUMP Press to alternate between two channels. The TV will
alternate between the current channel and the last channel
tuned with the buttons - and on the remote
control.
w; FAVORITES This feature lets you create and choose a list of up to 8
favorite channels.
Press V/v to select the option Add to Favorites, and press
to add the current channel to your Favorites list.
•Your Favorites list will be cleared each time you run
Auto Program (see pages 37).
wa CH +/– Press to scan through channels. To scan quickly through
channels, press and hold down either +/–.
SOUND
GUID
E
MENU
TOOLS
qh
qk
ql
w;
wa
qj
30
TV Controls/Indicators
Item Description
1
MENU Press to display the menu with TV functions and settings (see “Using TV Menus” on page
31).
2
INPUT
Press to display the
External Inputs
list, toggle through the list and select your desired input.
In the menu screen, this button serves as confirming the selection or setting.
3
– VOLUME +
Press to adjust the volume. In the menu screen, these buttons serve as left/right buttons.
4
– CHANNEL +
Press to scan through channels. In the menu screen, these buttons serve as up/down buttons.
5
POWER Press to turn on and off the TV.
6
TIMER/PIC OFF
LED
Lights up in amber when the timer is set. When the timer is set, this LED will remain lit even
if the TV is turned off. For details, see page 42. If the LED blinks in red continuously, this
may indicate the TV needs servicing (see contacting Sony information on the back cover).
Lights up in green when the Backlight feature is activated.
7
STANDBY LED Light up in red when your TV is in PC standby mode.
8
POWER LED Lights up in green when the TV is turned on.
9
(IR) Infrared
Receiver
Receives IR signals from the remote control.
Light Sensor Senses room light level and adjusts the screen brightness accordingly (see page 34 for
details).
Do not put anything near the sensor, as its function may be affected.
• Make sure that the TV is turned off before unplugging the power cord. Unplugging the power cord while the TV is
turned on may cause the POWER LED to remain lit for up to 20 seconds or may cause the TV to malfunction.
31
Using TV Menus
Using TV Menus
MENU provides one button access for controlling your TV. It enables you to perform a variety of tasks intuitively with a
control panel on the screen.
Navigating through TV Menus
Menu Descriptions
The Shortcuts menu lets you select:
External Inputs, Favorites, and
shortcuts to Wide Mode,
Clock/Timers, Parental Lock,
Closed Captions (
CC
) and
Cable
;
you can also select PC-PIP function
from this menu.
The
Channel
menu
is used to provide
maintenance to the channel options.
Select from:
Favorites
,
Cable
,
Add
Digital Channels
,
Auto Program
,
Show/Hide Channels
,
Label
Channels
or
Diagnostics
.
The Picture menu is used to fine tune
the image quality and allows you to
customize several parameters for
optimal viewing. Select from: Picture
Mode, Backlight, Picture,
Brightness, Color, Hue, Color
Temp (Color Temperature),
Sharpness, Advanced Settings, or
Reset.
The Parental Lock feature allows you
to set up the TV to block programs
according to their content and rating
levels. Use - on the remote
control to enter a four-digit password.
The first time you create a password,
confirm the password by entering it
again.
The Sound menu allows you to fine
tune and change audio. Select from:
Sound Mode, Dolby Pro Logic II,
Steady Sound, Balance, Speakers,
Backlight, Alt. Audio/MTS, Test
Tone or Reset.
The Setup menu provides you additional
features like: Closed Captions (CC),
Info Banner, Label Inputs, Skip
Inputs, Clock/Timers, Language,
Auto Sort Control, Control for
HDMI, Update Control for HDMI List
or
Product Support.
The Screen menu allows you to change
the proportions of the screen. Select
from: Wide Mode, Auto Wide, 4:3
Default, Vertical Center, Vertical
Size or Phase.
SOUND
GUIDE
MENU
TOOLS
2
,
,
4
1, 5
3
1 Press on the remote control to display the menu options.
2 To highlight a menu option press B, then press V/v to go through the menus.
3 To select an option press or b.
4 Press V/v to select or adjust your desired option, then press .
5 To exit press .
Shortcuts
Channel
Parental Lock
Sound
Setup
Screen
(Continued)
32
Using the Shortcuts Menu
External Inputs This feature lets you select the external inputs connected to your TV.
1 Press V/v to choose an external input from the list of 9 inputs.
2 To select press .
• To exit from external inputs list, press .
• To change external inputs again, repeat steps 1-2.
• To go back to channels, press CH +/–
to go through the channels or repeat steps 1-2 and
select TV; or press to select a channel from your Favorites
list.
• You can also access the External Inputs list directly by pressing without having to
navigate through the Menu.
Favorites This feature lets you create and choose a list of up to 8 favorite channels.
Press V/v to select the option Add to Favorites, and press to add the current channel
to your Favorites list.
• You can also press to see your Favorite Channel list.
Wide Mode This option is a direct shortcut to the Screen menu to adjust the picture size in the Wide
Mode option (see page 36).
Clock/Timers This option is a shortcut to adjust Clock/Timers on Setup menu (see page 42).
Parental Lock This option is a shortcut to the Parental Lock menu which allows you to enter a password
to block channels (see page 38).
Closed Captions (CC) This option is a shortcut to Closed Captions (CC) screen on Setup menu (see page 41).
Cable This option is a shortcut to adjust Cable setting on Channel menu (see page 37).
MENU
FAVO RITE S
INPUT
FAVO RITE S
33
Using TV Menus
PC-PIP This PIP (picture in picture) feature provides PC input signal and TV channels, allowing
you to view two pictures simultaneously. When you select this feature from Shortcuts
menu, the PC-PIP will appear with a Sub Window to see TV channels at the same time.
• You need a PC input signal to use PC-PIP function.
• To turn on or off the Sub Window on the screen press from the remote control while
using the PC input.
• You can also select PC input from the External Inputs list. Press , select
External Inputs, then select PC input from the list.
To Change Channels in the Sub Window
Press CH +/– to change the channels or enter the channel number using the - numeric
buttons.
To Exit from PC-PIP (PC input)
1 Press and select External Inputs on the Shortcuts menu.
2 From External Inputs list, select TV input to return to TV channels.
• To exit from PC-PIP, you can also select a channel from your Favorites channels list on
the Shortcuts menu.
• When the PC input signal is selected with the Sub Window active, you can only see TV
channels; other external inputs are not available for this view (like VCR/DVD).
• Closed Captions (CC) is not available in the Sub Window.
• Parental Lock feature will work in the Sub Window; a padlock will appear on the
blocked channels.
MENU
MENU
Main Window
(PC)
Sub Window
(TV Channel)
(Continued)
34
Using the Picture Menu
Picture Mode
Customized picture
viewing
Vivid For enhanced picture contrast and sharpness.
Standard For standard picture settings. Recommended for home entertainment.
Cinema For viewing film-based content. Most suitable for viewing in a theater-
like environment.
Backlight Press B/b to brighten or darken the backlight, then press to set.
Picture Press B/b to increase or decrease picture contrast, then press to set.
Brightness Press B/b to brighten or darken the picture, then press to set.
Color Press B/b to increase or decrease color intensity, then press to set.
Hue Press B/b to increase or decrease the green or red tones, then press to set.
Color Temp (Color
Temperature)
Cool Gives the white colors a bluish tint.
Neutral Gives the white colors a neutral tint.
Warm 1, 2 Gives the white colors a reddish tint.
Sharpness Press B/b to sharpen or soften the picture, then press to set.
Advanced Settings Noise Reduction Reduces the noise level of connected equipment, and the
CABLE/ANTENNA input.
Black Corrector Enhances black areas of the picture for stronger contrast.
Gamma Adjusts the balance between the light and dark areas of the picture.
Clear White Emphasizes white and light colors.
Live Color Makes colors more vivid and reproduces clear skin tones.
Light Sensor Select On to enable the automatic picture (screen) brightness control.
The light sensor measures the room brightness which allows the TV to
automatically adjust the backlight brightness based on the picture
settings and the ambient room light conditions.
• Be sure not to put anything around the sensor, as its function may be
affected.
• In low light the range of the backlight control is reduced when
Light Sensor is set to On.
Reset Resets the current Picture Mode setting to factory default values.
Using the Sound Menu
Sound Mode Dynamic Enhances the sound of action movies, sports events and musical
videos.
Standard Standard sound optimized for home use.
Game Enhances the video games sound.
Clear Voice Enhances the voice sound; recommended for television news and
documentary programs.
Flat Original sound without enhancements.
35
Using TV Menus
Dolby Pro Logic II Press V/v to highlight an effect from the list; then press to select.
Movie This mode is useful to replay the movie sound like movie theaters.
Music For steady music signals; gives natural sound to music and an
environment like concerts.
Matrix Simulate multi-channel sound; great for mono programs.
Virtual Creates a surround virtual sound, using the Dolby Pro Logic II system.
On this mode we recommend to place the Satellite Speakers next to the
TV (see more details on page 18).
Off The reception of steady or mono sound is normal.
•On Dolby Pro Logic II Movie, Dolby Pro Logic II Music, Dolby Pro Logic II
Matrix and Dolby Pro Logic II Virtual, all the speakers are activated (the central
speaker, both internal speakers, both Satellite Speakers and the Subwoofer) to optimize
the sound on these effects we recommend to place the Satellite Speakers as shown on
page 18. When the sound effect is off, the central speaker is desactivated.
Steady Sound On Stabilizes the volume across all programs and commercials.
Off Turns off Steady Sound.
Balance Press B/b to emphasize left or right speaker balance, then press to set.
Speakers Select to turn on or off the internal speakers.
Backlight Turns off the Backlight to conserve power while the audio is left on.
Alt. Audio/MTS This Audio feature for current program lets you select from 8 options of alternate audio (if it
is available). You can select from English, Español (Spanish), Français (French) or
Audio 4, 5, 6, 7, 8 audio available options.
• Alternate Audio is disabled for analog signals and for digital signals that do not have
altenate audio streams.
Mono Select for mono reception. Use to reduce noise during weak stereo
broadcasts.
Stereo Select for stereo reception when viewing a program broadcast in
stereo.
Auto SAP Select to automatically switch the TV to second audio programs when
a signal is received. If no SAP signal is present, the TV remains in
Stereo mode.
Test Tone Confirm and adjust speaker position and level.
Reset Resets the current Sound settings to factory default values.
(Continued)
36
Using the Screen Menu
Wide Mode These options allow you to change the proportion of the screen.
Wide Zoom Select to enlarge the picture uniformly.
Normal Select to display 4:3 pictures in original size when the original source
is 4:3.
• Normal is not available when you are watching 1080i or 720p in high-definition source.
Full Select to enlarge the picture horizontally to fill the screen when the
original source is 4:3 (standard-definition source). When the original
source is 16:9 (high-definition source), select this mode to display 16:9
picture in original size.
Zoom Select to enlarge the original picture without distorting the aspect ratio.
• If you press
on the remote control, you can also select these modes directly.
Auto Wide On Select to have the screen automatically change to the screen mode
based upon program’s content. Typically this requires special setup on
DVD equipment's menu. If frequent screen changes are disturbing to
you, select Off.
Off Select to turn off the Auto Wide option.
Choose a screen mode from the Wide Mode option.
4:3 Default Select the default Screen Mode to use for 4:3 sources.
Wide Zoom Select to enlarge the 4:3 picture to fill the 16:9 screen, keeping the
original image as much as possible, with minimal distortion.
Normal Select to display the 4:3 picture in its original size.
Full Select to enlarge the picture horizontally to fill the screen when the
original source is 4:3 (standard-definition source).
Zoom Select to enlarge the original picture without distorting the aspect ratio.
Off To turn Off automatic size for 4:3.
Vertical Center Allows you to move the position of the picture up and down.
Vertical Size Allows you to adjust the vertical size of the picture.
Phase Adjusts to fine tune overall sharpness.
• Phase is disabled when the TV is receiving a different video input than PC.
37
Using TV Menus
Using the Channel Menu
Favorites Lets you set up a list of up to 8 of your favorite channels.
Press V/v to select the option Add to Favorites and press to add the current channel
to your Favorites list.
To select a favorite channel from the list, press V/v to go through the list and to select
the channel.
• To exit press .
• To quickly access the
Favorites
channel list, press when there is no menu on the
screen.
Cable On Select if you are receiving cable channels via cable TV provider.
Off Select if you are using an antenna.
Add Digital Channels Select to add digital channels without replacing the original channel list. Be sure to set
Cable setting to On or Off in Channel menu for the correct type of input signal you
choose.
Auto Program Automatically sets up the channel list on the TV for all receivable channels (Digital and
Analog).
• Before starting Auto Program, be sure to turn On or Off on Cable option in the
Channel menu. When it is On, the TV will search cable channels; when it is Off, the
TV will search over-the-air signals with an antenna connection.
• If you are using an A-B RF switch (not supplied) to switch between cable or antenna
connection, be sure to select the correct
Cable
option to
On
or
Off
in the
Channel
menu.
1 Select Auto Program.
2 Select OK to start Auto Program. When Auto Program is done, select OK.
~
• IMPORTANT: You must perform Auto Program after cable or antenna is
connected. If you cancel Auto Program, some channels may not be available.
Show/Hide Channels Allows you to show or hide channels that appear when you use the CH +/– button.
1 Press V/v to scroll through the channels until you find the channel you want to show or
hide.
2 Press to determine if the channel will be shown or hidden.
To show or hide more channels, repeat steps 1-2.
Label Channels Allows you to assign labels to channel numbers.
1 Press V/v to scroll through the channel numbers. Then press to select the channel
number that you want to assign a label.
2 Press B/b/V/v to move through the label characters (A-Z, 0-9) and press to select
it. To move to the next character press B/b/V/v. Repeat to add up to 7 characters to the
label. Then select on screen to set it. To assign labels to more channels,
repeat steps 1-2.
• To delete a character select on screen.
• To have a space between characters select on screen.
• To exit press .
Diagnostics Allows to confirm the current channel performance indicator.
MENU
FAVO RITE S
(Continued)
38
The Parental Lock feature allows you to block programs according to their content and rating levels and
block channels (regardless of the programs). Password is necessary in setting up blocking. Use - on
the remote control to enter a four digit password. The first time you create a password, confirm the password
by entering it again.
To View Blocked Programs
Press
when tuned to a blocked program, then enter the password. To reactive the Parental Lock
settings, turn off and on the TV.
Using the Parental Lock
Rating Off Turn Parental Lock Off. No programs are blocked from viewing based on
their rating.
Child Maximum ratings permitted are:
U.S: TV-Y, TV-G, G
Canada: C, TV-Y
Youth Maximum ratings permited are:
U.S: TV-PG, PG
Canada: C8+, PG, 8 ans+, TV-PG
Young Adult Maximum ratings permitted are:
U.S: TV-14, PG-13
Canada: 14+, 13 ans+, TV-14
Custom Select to set ratings manually:
U.S: See page 40 for details.
Canada: See page 40 for details.
• If you are not familiar with the Parental Guideline rating system, you should select
Child, Youth or Young Adult to help simplify the rating selection. To set more specific
ratings, select Custom.
Digital Rating
(Available only in U.S.A.
where advanced ratings
exist)
Off Turn Digital Rating off. No programs containing digital ratings are
blocked from viewing.
Custom Select to customize the Parental Lock with downloadable digital ratings.
Clear All Select to clear the downloaded ratings.
To cancel just select Cancel.
Unrated
(Available only when
Country is set to
U.S.A.)
Block programs or
movies that are broadcast
without a rating
Allow Allows programs and movies that are broadcast without a rating.
Block Blocks all programs and movies that are broadcast without a rating.
• If you block unrated TV programs, be aware that the following types of programs may be
blocked: programs broadcast from another country, emergency broadcasts, political
programs, sports, news, public service announcements, religious programs and weather.
39
Using TV Menus
Channel Block Allows you to block channels regardless of program ratings. The password needs to be set up
prior to blocking channels. The blocked channel can only be viewed by entering the correct
password.
To block a channel
Press V/v to go through the channels and press to Block or Allow channels.
To view a blocked channel
Press when tuned to a blocked program, then enter the password. To reactivate the
Parental Lock settings, turn off and on the TV.
External Input Block Allows you to block individual video inputs.
Press V/v to scroll through the video inputs and press to Block or Allow.
Change Password Select to change your password.
Use - buttons to select a four digit password; to confirm password enter it again.
• You need your password for any future access into the Parental Lock settings. If you
lose your password, see “Lost Password” on page 45.
Select Country U.S.A. Select to use U.S.A. ratings.
Canada Select to use Canadian ratings.
(Continued)
40
Custom Rating System Chart
US Models: Selecting Custom Parental Lock Rating Options
To select custom rating options for the U.S., select U.S.A. in the Select Country setting (see page 39).
Canadian Models: Selecting Custom Parental Lock Rating Options
To select custom rating options for Canada, select Canada in the Select Country setting (see page 39).
Movie Rating G All children and general audience.
PG Parental guidance suggested.
PG-13 Parental guidance for children under 13.
R
Restricted viewing, parental guidance is suggested for children under 17.
NC-17 and X No one 17 or under allowed.
TV Rating
Block programs by their
rating, content or both
Age-Based Ratings
TV-Y All children.
TV-Y7 Directed to children age 7 and older.
TV-G General audience.
TV-PG Parental guidance suggested.
TV-14 Parents strongly cautioned.
TV-MA Mature audience only.
Content-Based Ratings
FV Fantasy violence.
D Suggestive dialogue.
L Strong language.
S Sexual situations.
V Violence.
• To ensure maximum blocking capability, set the Age-Based Ratings.
English Rating C All children.
C8+ Children 8 years and older.
G General programming.
PG Parental guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating G General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
U.S.A. Rating See TV Rating under U.S.A. above for details.
41
Using TV Menus
Using the Setup Menu
Closed Captions (CC)
Allows you to select from several closed captions modes (for programs that are broadcast
with closed captioning).
Select: Off (to turn off Closed Captions), On (to turn on Closed Captions), or
Program (to program Closed Captions).
Programming Closed Captions
If you select the Program option under Closed Captions, you can change the following
settings:
Basic Allows you to select basic closed caption options (EIA-608).
CC1, CC2,
CC3, CC4
Displays a printed version of the dialog or
sound effects of a program (should be set to
CC1 for most programs).
Text1, Text2,
Text3, Text4
Displays network/station information presented
using either half of the whole screen (if
available).
Digital CC Allows you to set digital closed captioning to Basic (digital EIA-608)
or Advanced (digital EIA-708).
Advanced Allows you to select advanced digital (EIA-708) closed caption
options. Select from the available options.
Advanced
Settings
Customize the Closed Captions (CC) displays with Character
Style, Character Color, Character Size, Character Opacity,
Character Align, Edge Color, Edge Type, Background Color,
Background Opacity or Window Color.
• Closed Captions (CC) can be turned on and off by pressing the button on the
remote control.
Info Banner Sets On or Off. When On, displays the program name and the remaining time (if the
broadcaster offers this service). Displays for a few seconds when the channel is changed. If
you don’t want to display the Info Banner, select Off
.
Label Inputs Allows you to identify A/V equipment you connected to the TV, such as a VCR, DVD, etc.
For example, if you have a DVD player connected to the VIDEO 1 input, you can select the
label DVD for the VIDEO 1 input. Then when you press to change inputs, the label you
assigned to that input appears on screen.
1 Press V/v to highlight the input (from 1 to 7) to which you want to assign a label, then
press to select it.
2 Press V/v to highlight one of the displayed labels, then press to select it.
You can select from the following labels for each input:
DVD, VCR, Blu-ray, Cable Box, Satellite, DVR, Game, Camcorder or Custom (to
customize, follow the same steps of Label Channels on page 37).
Skip Inputs Useful to disable inputs to which no equipment is connected.
cc
INPUT
(Continued)
42
Clock/Timers Sleep Set the time in minutes (Off, 15, 30, 60 or 120 minutes) that you
want the TV to remain on before shutting off automatically.
Timer You can use the Timer to tune to a specific channel at a scheduled
time.
Select Off to turn off the timer (previous settings are saved). On to turn
on the timer (previous settings are saved) or Program, to set the timer
by Time, Duration, Days, Source, Channel and Volume that you
want to tune to a specific channel at scheduled time.
If you select Program, press V/v (change the values) or B/b (move
through the options) to set the hour, minutes, AM/PM, duration, days,
source, channel and volume.
You can also set a channel by pressing - (numeric values) and
(if the channel is digital) on the remote control.
To replace a channel press b on the remote control, then press B to go
back to the channel selection and enter a new channel number.
• Timer feature will be not available until you set the Current
Time.
Current Time Select to set the current time (day, hour, minutes and AM/PM).
1 Press to select Current Time.
2 Press V/v/B/b to set day, hour, minutes and AM/PM.
3 Press to exit.
Language Select to display all on-screen settings in your language of choice: English, Español
(Spanish), Français (French).
Auto Sort Control Select On if you want to sort the Shortcuts menu and Inputs list, based on the most
frequent selections; select Off if you don’t want to sort.
Control for HDMI Allows your TV to communicate with other equipment that supports Control for HDMI
function.
Update Control for
HDMI List
Update equipments list connected to the HDMI input.
Product Support Provides information related to troubleshooting and contact information. Select OK to reset
the TV to factory default values, or Cancel if you do not want to reset the TV to factory
default values.
MENU
43
Other Information
Other Information
Troubleshooting
If you have additional questions, service needs,
or required technical assistance related to the use
of your Sony TV, please visit our website or call
one of the following numbers:
http://www.sony.com/tvsupport
1-800-222-SONY(7669) for US Support
1-877-899-SONY(7669) for Canadian Support
Condition Explanation/Solution
No picture
No picture.
❑ Confirm your external inputs list and make sure you select TV
(cable/antenna channels). See page 32 for more details.
❑ Perform Auto Program to add receivable channels that are not presently in
the TV’s memory (page 37).
❑ If there is no signal, the screen saver will appear.
Cannot receive any channels. ❑ Make sure the power cord is connected securely.
❑ Turn on the power of the TV.
❑ Check antenna/cable connections.
❑ Perform Auto Program to add receivable channels that are not presently in the
TV’s memory (page 37).
IMPORTANT: You must perform Auto Program after cable or
antenna is connected. If you cancel Auto Program some channels may
not be available.
TV is locked to one channel. ❑ Perform Auto Program to add receivable channels that are not presently in the
TV’s memory (page 37).
Cannot receive or select channels.
❑ To receive or select cable channels, make sure that Cable in Channel settings
is set to On. To receive or select UHF channels over an antenna, make sure
Cable is set to Off. Perform Auto Program to add receivable channels that are
not presently in the TV’s memory (page 37).
The TV turns off automatically.
❑ Check if Sleep is activated, or confirm the Duration setting of Timer (see
page 42).
❑ If there is no signal, the TV will turn off automatically.
No picture from some video
sources.
❑ Check the connection between the optional video equipment and the TV.
❑ Press on the remote control (page 29).
❑ Press on the remote control. Select your desired input from the
External Inputs list.
Poor picture
Double images or ghosts.
❑ Check antenna/cable connections.
❑ Check the antenna location and direction.
Only snow and noise appear on the
screen.
❑ Check if the antenna is broken or bent.
❑ Check if the antenna has reached the end of its serviceable life. (3-5 years in
normal use, 1-2 years at the seaside.)
Dotted lines or stripes.
❑ Keep the TV away from noise sources such as cars, motorcycles, or hair-dryers.
❑ If using 300 ohm twin lead, move the excess lead away from the TV or try using
75-ohm coaxial cable instead.
No color/Dark picture/Color is not
correct/The picture is too bright.
❑ Press on the remote control to select the desired picture mode (page 26).
❑ Adjust the Picture Mode options in the Picture menu (page 34).
INPUT
MENU
(Continued)
44
Noisy picture. ❑ Make sure that the antenna is connected using a 75-ohm coaxial cable (not
supplied).
❑ Keep the antenna cable away from other connecting cords.
❑ To avoid TV interference, make sure to use an undamaged antenna cable.
No sound/Noisy sound
Good picture, no sound. ❑ Check the volume control.
❑ Press or VOL + so that “Muting” disappears from the screen (page 27).
❑ Disconnect your headphones.
❑ Set Speaker to On in the Sound menu (see page 34). If it is set to Off,
sound is not output from the TV’s speakers regardless of the TV’s volume
control.
Audio noise. ❑ Make sure that the antenna is connected using a 75-ohm coaxial cable (not
supplied).
❑ Keep the antenna cable away from other connecting cords.
❑ To avoid TV interference, make sure to use an undamaged antenna cable.
PC Input
No Picture/No Signal. ❑ Confirm the PC is correctly connected to the TV in the PC IN (not supplied
HD15 cable).
❑ Ensure the output signal from the PC is one of the formats listed on page 21.
❑ Turn the PC off. Confirm the PC connection and restart the PC. Plug and
play will auto-detect the TV.
Poor picture. ❑ Adjust the resolution (see page 21).
❑ Adjust Phase (see page 36).
General
Wide Mode changes
automatically.
❑
The current
Wide Mode
setting is automatically replaced with the
4:3
Default
setting when you change the channel or video input, if
4:3 Default
in the
Screen
menu
is set to other than
Off
. If you want to lock in
Wide
Mode
selected with on the remote control, set
4:3 Default
to
Off
in
the
Screen
menu (page 36).
❑ Turn off the Auto Wide option in the Screen menu (see page 36).
Suddenly the picture gets
smaller.
❑ The picture gets smaller during the commercials, this is due to the method
the provider broadcasts their contents. When HD content channels switch to
SD definition content (commercials), the picture may be small with a black
border.
“Black box” on screen. ❑ You have selected a text option and no text is available (see page 41). To turn
off this feature, set the Closed Captions option to Off. If you were trying
to select closed captioning, select CC1 instead of Text1-4.
Black bands appear at the top
and bottom of the screen.
❑ Some wide screen programs are filmed in aspect ratios that are greater than
16:9 (this is especially common with theatrical releases). Your TV will show
these programs with black bands at the top and bottom of the screen. For
more details, check the documentation that came with your DVD (or contact
your program provider).
❑ Programs in 4:3 aspect ratio will have bands on left and right sides of the
screen. To select full size see page 36.
Certain programs on DVD or
other digital sources display a
loss of detail, especially during
fast-motion or dark scenes.
❑ The compression used by certain digital broadcasts and DVDs may cause
your TV’s screen to display less detail than usual, or cause artifacts (small
blocks or dots, pixelations) to appear on your screen. This is due to your
TV’s large screen and ability to show very fine detail, and is normal for
certain digitally recorded programs.
Condition Explanation/Solution
45
Other Information
Remote control does not operate. ❑ Check the polarity of the batteries or replace the batteries.
❑ Point the remote control at the remote control sensor of the TV.
❑ Fluorescent lamps can interfere with your remote control operation; try
turning off the fluorescent lamps.
❑ Keep the remote control sensor area clear from obstacles.
Some digital cable channels are
not being displayed.
❑ Certain cable companies have limitations on the broadcast of digital cable
channels. Check with your cable company for more information.
❑ The digital cable channel may be set to Hidden in the Show/Hide
Channels setting (see page 37).
Lost password. ❑ Select the Parental Lock menu, then enter the following master password:
4357. The master password clears your previous password and allows you to
enter a new password (page 38).
How to reset the TV to factory
settings.
❑ Turn on the TV. While holding down V on the remote control, press
POWER on the TV. Release the V button.
WARNING: Parental Lock password may be required if it has been created.
The reset will clear all of your customized settings.
Condition Explanation/Solution
46
Specifications
~
• Design and specifications are subject to change without notice.
Model KDL-32N4000 KDL-37N4000
System
Television system
NTSC: American TV standard
ATSC (8VSB terrestrial): ATSC compliant 8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)
Channel coverage
Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69
Analog Cable: 1-125 / Digital Cable: 1-135
Panel system
LCD (Liquid Crystal Display) Panel
Speaker output
35 W (7 W × 5) + 20 W Subwoofer
Input/Output jacks
Antenna
75-ohm external terminal for VHF/UHF
VIDEO IN 1/2
S VIDEO (4-pin mini DIN)(VIDEO 1 only): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative / C: 0.286 Vp-p (Burst signal), 75 ohms
VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative
AUDIO: 500 mVrms (100% modulation) / Impedance: 47 kilohms
COMPONENT IN 1/2
YPBPR (Component Video): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative / PB: 0.7 Vp-p, 75 ohms /
P
R: 0.7 Vp-p, 75 ohms / Signal format: 480i, 480p, 720p, 1080i
AUDIO: 500 mVrms (100% modulation) / Impedance: 47 kilohms
HDMI IN 1/2
HDMI: Video: 480i, 480p, 720p, 1080i / Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24bits
AUDIO: 500 mVrms (100% modulation) / Impedance: 47 kilohms
AUDIO OUT
500 mVrms (100% modulation) / More than 500 mVrms (Fixed)
DIGITAL AUDIO OUT
(COAXIAL)
PCM 2.0 Coaxial signal
PC IN
D-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive
See the PC Input Signal Reference Chart on page 21.
PC AUDIO INPUT
Stereo mini jack, 500 mVrms, 47 kilohms
Headphones
Stereo mini jack / Impedance: 16 ohms
Power and others
Power requirement
120 V AC, 60 Hz
Power consumption
in use
155 W 190 W
in standby
All models less than 1 W
Subwoofer
50 W
Screen size (inches measured
diagonally)
31.5 (32 class) 37
Display resolution
(horizontal × vertical)
1,366 dots × 768 lines
Speaker/Full range (2)
146 × 35 mm
5
3
/
4
× 1
3
/
8
inches
Dimensions (W × H × D)
912 × 617 × 358 mm
36 × 24 3/8 × 14 1/8 inches
1,028 × 681 × 358 mm
40 1/2 × 26 7/8 × 14 1/8 inches
with stand (mm/inches)
without stand
(mm/inches)
912 × 543 × 102 mm
36 × 21 1/2 × 4 1/8 inches
1,028 × 608 × 113 mm
40 1/2 × 24 × 4 1/2 inches
Satellite Speakers
(mm/inches)
202 × 617 × 179 mm
8 × 24 3/8 × 7 1/8 inches
wall-mount hole
pattern (mm)
200 × 200 300 × 300
Mass
with stand (kg/lb.)
17 kg / 38 lb. 21 kg / 47 lb.
without stand (kg/lb.)
13 kg / 29 lb. 17 kg / 38 lb.
Satellite Speakers (kg/lb.)
1 kg / 2.2 lb.
Supplied accessories
Remote control RM-YD026 (1) / Size AA batteries (2) / Cable holder (1 attached to the TV) / Operating Instructions
(1) / Quick Setup Guide (1) / Warranty Card (1) / Online Registration Card (U.S.A. and Canada only) (1) / Safety and
Regulatory Booklet (1) / Software License (1) / DIN cable (1) / Satellite Speaker Cables (2) / Cover (1)
Optional accessories
Headphones plug adapter / Connecting cables / Wall-Mount Bracket: SU-WL500 / 75-ohm coaxial cable /
HD15-HD15 cable / Satellite Speakers Wall-Mount Bracket: WS-WV10D
47
Index
0-9 button 27
4:3 Default 36
A
Add Digital Channels 37
Advanced Settings 34
Alt. Audio/MTS 35
AUDIO OUT jack, described 13
AUDIO SYSTEM jack, described 12
Auto Program 37
Auto Sort Control 42
Auto Wide 36
B
Backlight 34, 35
Balance 35
Brightness 34
C
Cable 32, 37
Cable holder 7
CABLE/ANTENNA input, described 12
Canadian Models 40
CC button 27
CH+/– button 29, 30
Change Password 39
Channel Block 39
Clock/Timers 32, 42
Closed Captions (CC) 32, 41
Color 34
Color Temp (Color Temperature) 34
COMPONENT IN jack (1080i/720p/
480p/480i), described
13
Control for HDMI 42
D
Diagnostics 37
DIGITAL AUDIO OUT (COAXIAL),
described
13
Digital Rating 38
DISPLAY button 26
DMPORT jack, described 13
Dolby Pro Logic II 35
E
English Rating 40
ENT button 27
External Input Block 39
External Inputs 32
F
Favorites 32, 37
FAVORITES button 29
French Rating 40
G
GUIDE button 27
H
HDMI IN jack, described 12
Headphone jack, described 11
Hue 34
I
Info Banner 41
Infrared Receiver (IR) 30
INPUT button 29, 30
Installing the TV on a wall 7, 9
J
JUMP button 29
L
Label Channels 37
Label Inputs 41
Language 42
Light Sensor
Described
30
M
Menu
Channel
37
Parental Lock 38
Picture 34
Screen 36
Setup 41
Shortcuts 32
Sound 34
MENU button 27, 30
Movie Rating 40
MUTING button 27
P
Parental Lock 32, 38
PC IN 13
PC-PIP 33
Phase 36
Picture 34
PICTURE button 26
Picture Mode 34
POWER button 27, 30
POWER LED 30
Product Support 42
R
Rating 38
Reset 34, 35, 45
RETURN button 27
S
S VIDEO jack, described 12
Select Country 39
SERVICE ONLY 12
Setting up channels 23
Sharpness 34
Show/Hide Channels 37
Skip Inputs 41
SLEEP button 26
SOUND button 26
Sound Mode 34
Speakers 35
STANDBY LED 30
Steady Sound 35
T
Test Tone 35
THEATER button 26
TIMER/PIC OFF LED 30
TOOLS button 29
Troubleshooting 43, 44, 45
Turning on/off the TV 30
TV Rating 40
U
U.S.A. Rating 40
Unrated 38
Update Control for HDMI List 42
US Models 40
V
Vertical Center 36
Vertical Size 36
VIDEO/AUDIO (L/R) jacks, described
11, 13
VOL+/– button 27, 30
W
WIDE button 28
Wide Mode 32, 36
For Your Convenience
Contact Sony Customer Support at:
http://www.sony.com/tvsupport
or to speak with a support representative:
United States
1-800-222-SONY (7669)
Canada
Please Do Not Return the Product to the Store
1-877-899-SONY (7669)
Please contact Sony directly if you:
Have questions on the use of your television after reading your operating instruction manual
and Quick Setup Guide
Experience difficulty operating your television
Sony will work to resolve your questions more quickly than your retailer or place of purchase.
•
•
Printed in U.S.A.
