FS3.5 ELLIPTICAL
OWNER’S MANUAL
PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL
Table Of Contents
1
2
5
9
12
17
Product Registration
Important Safety Instructions
FS3.5 Assembly Instructions
Operation of Your Console
Program Operation
Manufacturer’s Limited Warranty
Thank you for your purchase of this quality elliptical from XTERRA Fitness. Your new
elliptical has been manufactured by one of the leading tness manufacturers in the world.
XTERRA Fitness will do all we can to make your ownership experience as pleasant as
possible for many years to come. If you have questions, or if parts are missing or damaged,
or you require customer service, call (870) 336-4286. Please have your model number and
serial number handy when you call.
Please take a moment to record where you purchased your machine, as well as the date of
purchase for future reference. We appreciate your condence in XTERRA Fitness and we
will always remember that you are the reason that we are in business. Please complete and
mail your registration card today and enjoy your new elliptical.
Yours in Health,
XTERRA Fitness
Congratulations On Your New Elliptical and Welcome to the XTERRA Fitness Family!
FS35_20200706
FS3.5 Elliptical
1
ATTENTION
THIS ELLIPTICAL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THE
APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY.
Record Your Serial Number
Please record the Serial Number of this tness product
in the space provided below.
Serial Number
Register Your Purchase
The self-addressed product registration card must be completed in full and returned to
XTERRA Fitness. You can also go to www.xterratness.com/warrantyreg.html
to register online.
Product Registration
This product uses an external power supply. The power supply must be plugged
into the power jack, located on the front of the unit near the stabilizer tube. Next,
plug the power supply into the appropriate wall outlet. When not in use, it is rec-
ommended to unplug the power supply from the wall outlet.
IMPORTANT: If the product has been exposed to cold temperatures, allow the
product sit in room temperature to warm up before plugging in the power supply.
Failure to do so may result in damage to the display or electronic components.
IMPORTANT: Do not operate the product if the power supply, its plug, or its cord
has been damaged.
Power
Purchase Location
Purchase Date
2
FS3.5 Elliptical
• To disconnect, turn all controls to the o position, then remove the plug from the outlet.
• Do not operate equipment on deeply padded, plush or shag carpet. Damage to both carpet and
equipment may result.
• Before beginning this or any exercise program, consult a physician. This is especially important for
persons over the age of 35 or persons with pre-existing health conditions.
• Keep hands away from all moving parts.
• The pulse sensors are not medical devices. Various factors, including the user’s movement, may aect the
accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart
rate trends in general.
• Do not attempt to use your equipment for any purpose other than for the purpose it is intended.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on your
equipment. Quality athletic shoes are recommended to avoid leg fatigue.
Important Safety Instructions
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this appliance.
DANGER - To reduce the risk of electric shock:
1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning.
WARNING - To reduce the risk of burns, re electric shock, or injury to persons:
1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and
before putting on or taking o parts.
2. Do not operate under blanket or pillow. Excessive heating can occur and cause re, electric shock, or injury
to persons.
3. This exercise equipment is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge.
4. Use this appliance only for its intended use as described in this manual. Do not use attachments not
recommended by the manufacturer.
5. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or dropped into water. Return the appliance to a service center for examination and
repair.
6. Do not carry this appliance by supply cord or use cord as a handle.
7. Keep the cord away from heated surfaces.
8. Never operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the
like.
9. Never drop or insert any object into any opening.
10. Do not use outdoors.
11. Do not operate where aerosol (spray) products are being use or where oxygen is being administered.
12. Connect this appliance to a properly grounded outlet only.
13. The appliance is intended for household use.
SAVE THESE INSTRUCTIONS - THINK SAFETY!
Fitness Equipment Safety Instructions
CAUTION!! Please be careful when unpacking the carton.
Failure to follow all guidelines may compromise the eectiveness of the exercise experience, expose
yourself (and possibly others) to injury, and reduce the longevity of the equipment.
WARNING: This product can expose you to chemicals including Toluene and Acrylamide which are
known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
FS3.5 Elliptical
3

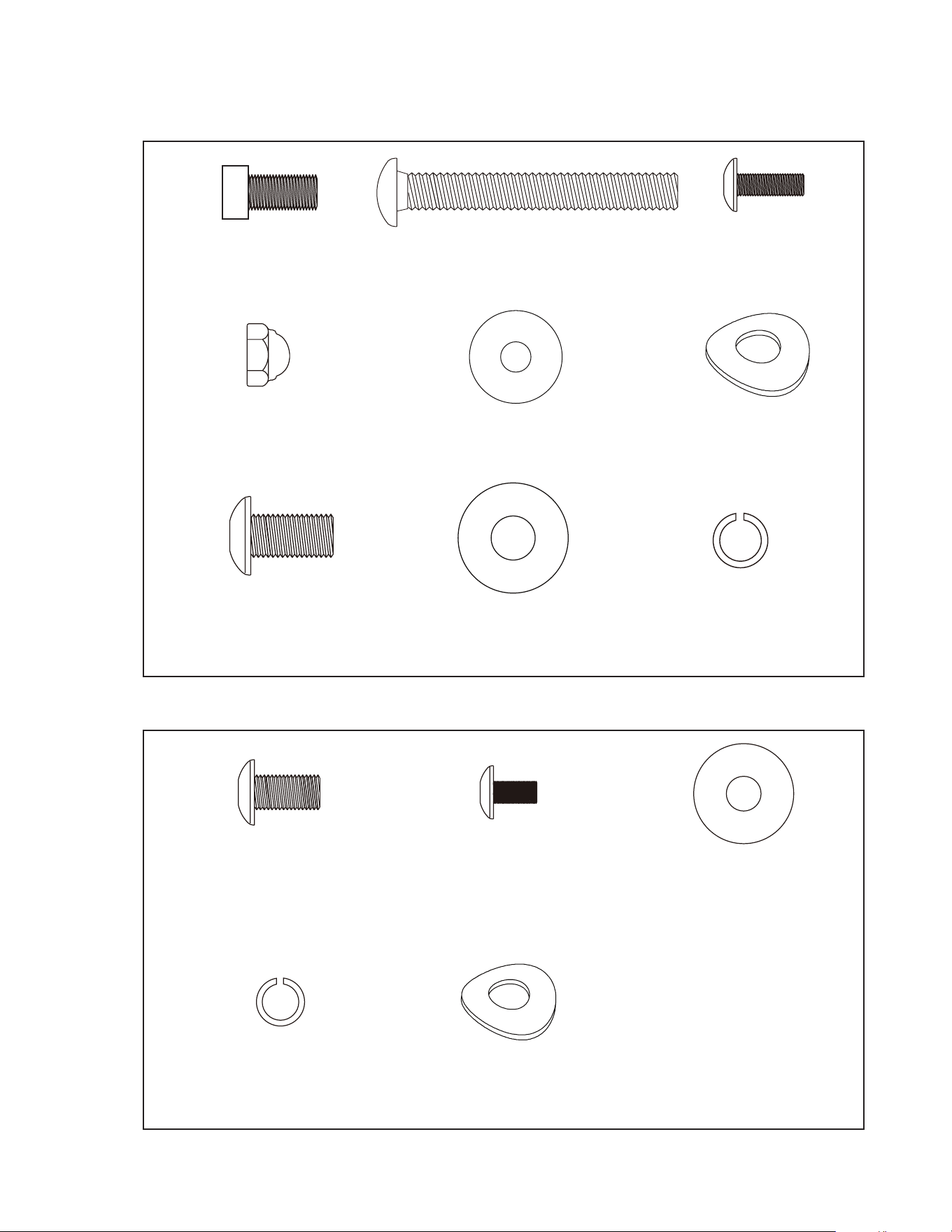

#80. 5/16” x 15mm
Button Head Socket
Bolt (6 pcs)
FS3.5 Assembly Pack Checklist
Hardware Step 1
#112. 3/8” x 23 x 1.5T
Curved Washer
(2 pcs)
#143. 3.8” x 3/4”
Button Head Socket Bolt
(4pcs)
#144. Ø3/8” x Ø25 x 2.0T
Flat Washer
(4pcs)
#145. Ø10 x 2T
Split Washer
(4pcs)
#104. Ø8.5” x 26 x 2.0T
Flat Washer
(2 pcs)
Hardware Step 2
#96. 3/8”
Cap Nut
(2 pcs)
#82. M5 x 15mm
Phillips Head
Screw (1 pcs)
#77. 3/8” x 3”
Carriage Bolt
(2 pcs)
#75. 5/16 ” x 15mm
Socket Head Cap Bolt
(2 pcs)
#111. 5/16” x 1.5T
Split Washer (6 pcs)
#113. 5/16” x 23 x 1.5T
Curved Washer (2 pcs)
#84. M5 x 10mm
Phillips Head Screw
(4 pcs)
#105. 5/16 x 23 x 1.5T
Flat Washer (4 pcs)
4
FS3.5 Elliptical
#115. 13 & 14 mm Wrench (1 pc) #116. 12 mm Wrench (1 pc)
#118. Combination 5mm Allen Wrench
& Phillips Head Screw Driver (1 pc)
#146. Allen Wrench (1 pc)

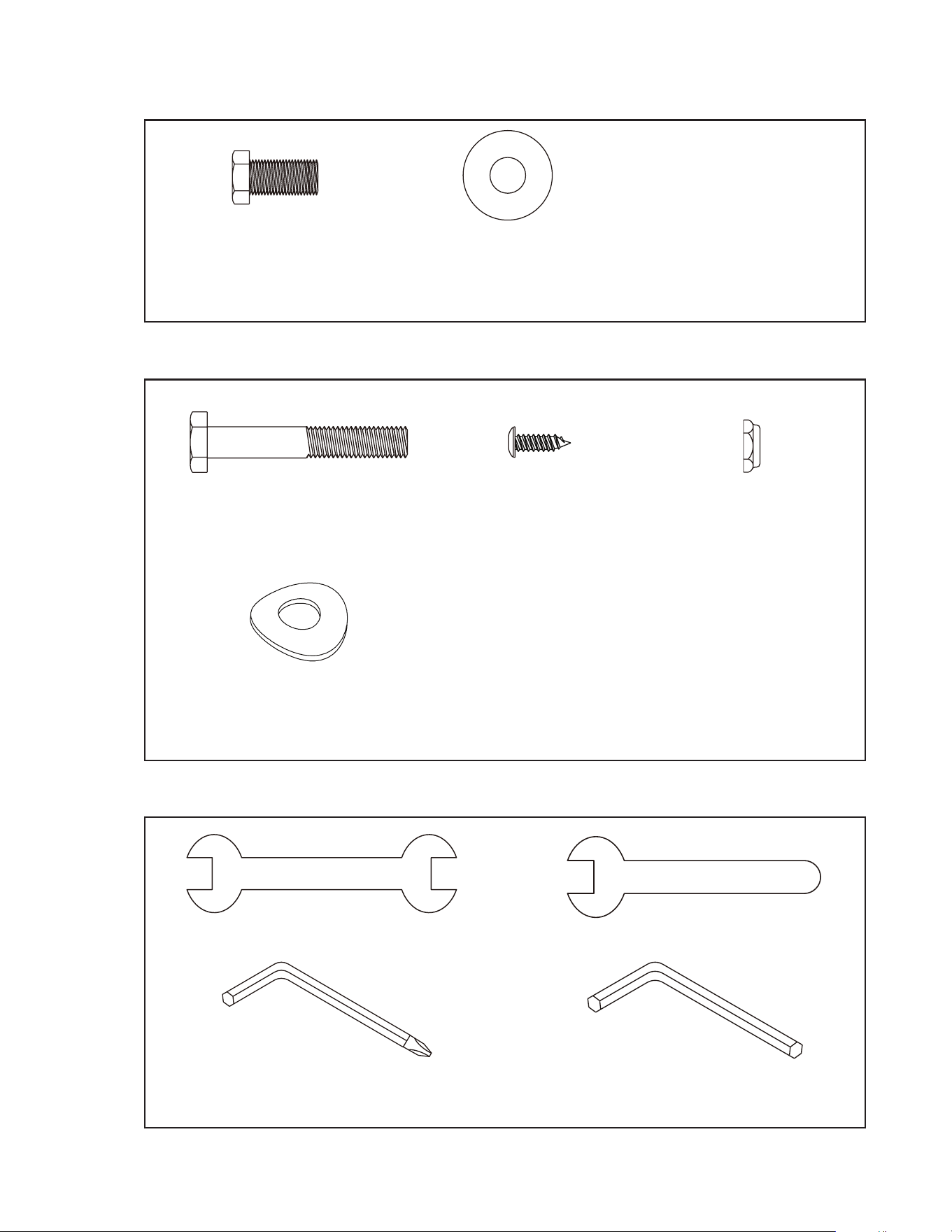

Assembly Tools
#87. Ø3.5 x 12mm
Sheet Metal Screw
(8 pcs)
#76. 5/16” x 1-3/4”
Hex Head Bolt
(6 pcs)
#91. 5/16” x 7T
Nyloc Nut
(6 pcs)
Hardware Step 4
#102. Ø8.7 x 20 x 1.5T
Flat Washer
(2 pcs)
#74. 5/16” x 15mm
Hex Head Bolt
(2 pcs)
Hardware Step 3
#113. 5/16” x 23 x 1.5T”
Hex Head Bolt
(4 pcs)
FS3.5 Elliptical
5

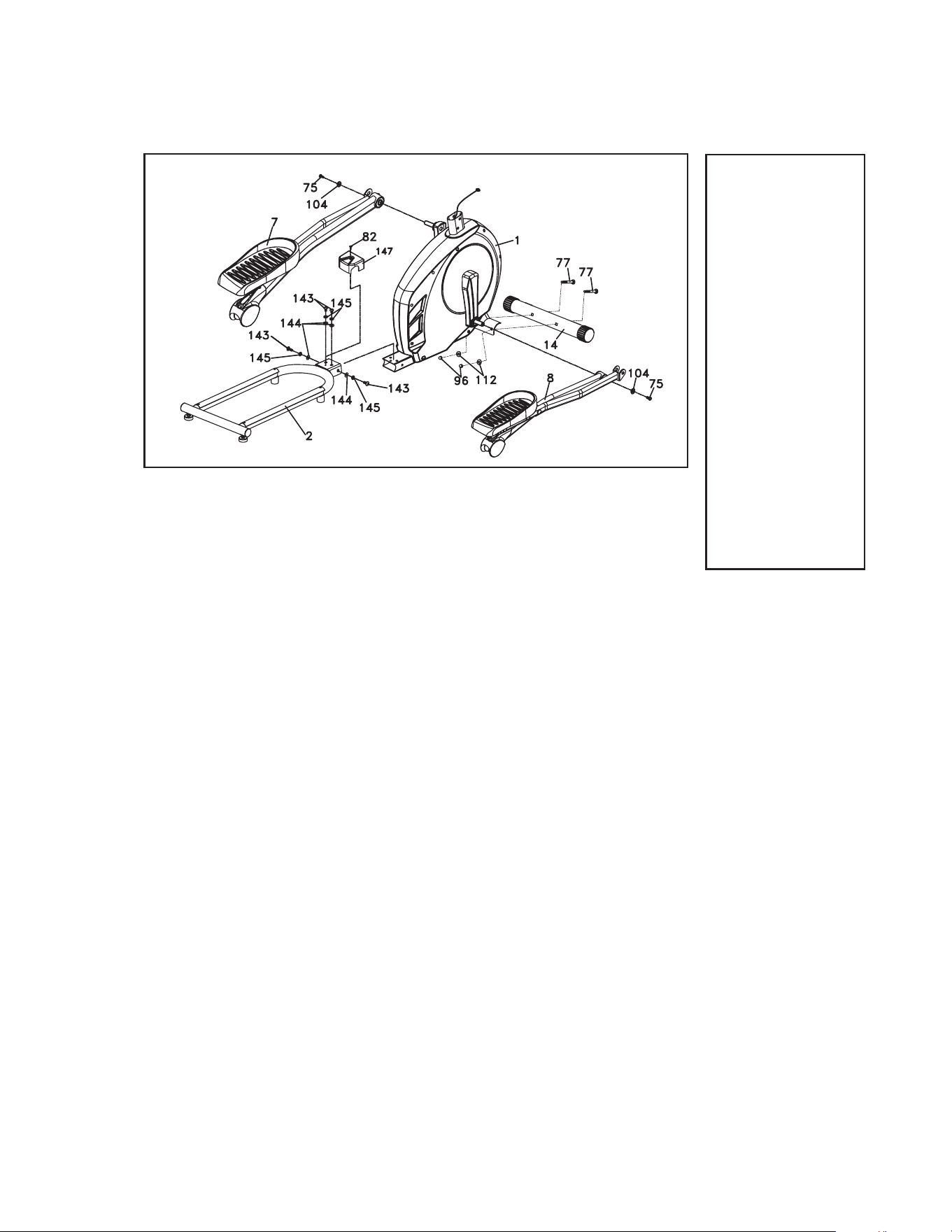

1. Put the front Stabilizer (14) on the Mainframe mounting plate with Trans-
portation Wheels pointing forward and use 13/14 mm open end wrench
to secure with two Carriage Bolts (77) two Curved Washers (112) and
Cap Nuts (96).
2. Put Rear Rail Assembly (2) at the rear of the Mainframe (be aware of
the orientation) and secure with four Button Head Socket Bolts (143),
four Split Washers (145) and four Flat Washers (144) by using the Allen
Wrench (146).
3. Adjust heights of foot pads at the rear to make sure that the machine
is level and stable. Then use Combination M5 Allen Wrench & Phillips
Head Screw Driver (118) to secure Middle Stabilizer Cover (147) with
Phillips Head Screw (82).
4. Attach left Connecting Arm (7) together with Pedal Arm (5) to the Main
frame (1) of left side Crank Axle and secure with Socket Head Cap Bolt
(75) and Flat Washer (104) by using 12m/m_Wrench.
5. Attach right Connecting Arm (8) together with Pedal Arm (5) to the Main
frame (1) of right side Crank Axle and secure with Socket Head Cap Bolt
(75) and Flat Washer (104) by using L Allen Wrench (146).
FS3.5 Assembly Instructions
Hardware Step 1
Front Stabilizer and Connecting Arms
#75. 5/16” x 15mm
Socket Head Cap Bolt
(2 pcs)
#77. 3/8” x 3”
Carriage Bolt (2 pcs)
#82. M5 x 15mm
Phillips Head Screw
(1 pc)
#96. 3/8”
Cap Nut (2 pcs)
#104. 8.5” x 26 x 2.0T
Flat Washer (2 pcs)
#112. 3.8” x 23 x 1.5T
Curved Washer (2pcs)
#143. 3.8” x 3/4”
Button Head Socket
Bolt (4pcs)
#144. Ø3.8” x Ø25 x
2.0T
Flat Washer (4pcs)
#145. Ø10 x 2T
Split Washer (4pcs)
1
6
FS3.5 Elliptical
#80. 5/16” x 15mm
Button Head Socket
Bolt (6 pcs)
#84. M5 x 10mm
Phillips Head Screw
(4 pcs)
#105. 5/16” x 23 x 1.5T
Flat Washer (4 pcs)
#111. 5/16” x 1.5T
(6 pcs)
#113. 5/16” x 23 x 1.5T
Curved Washer
(2 pcs)
Console Mast Assembly
2
Hardware Step 2

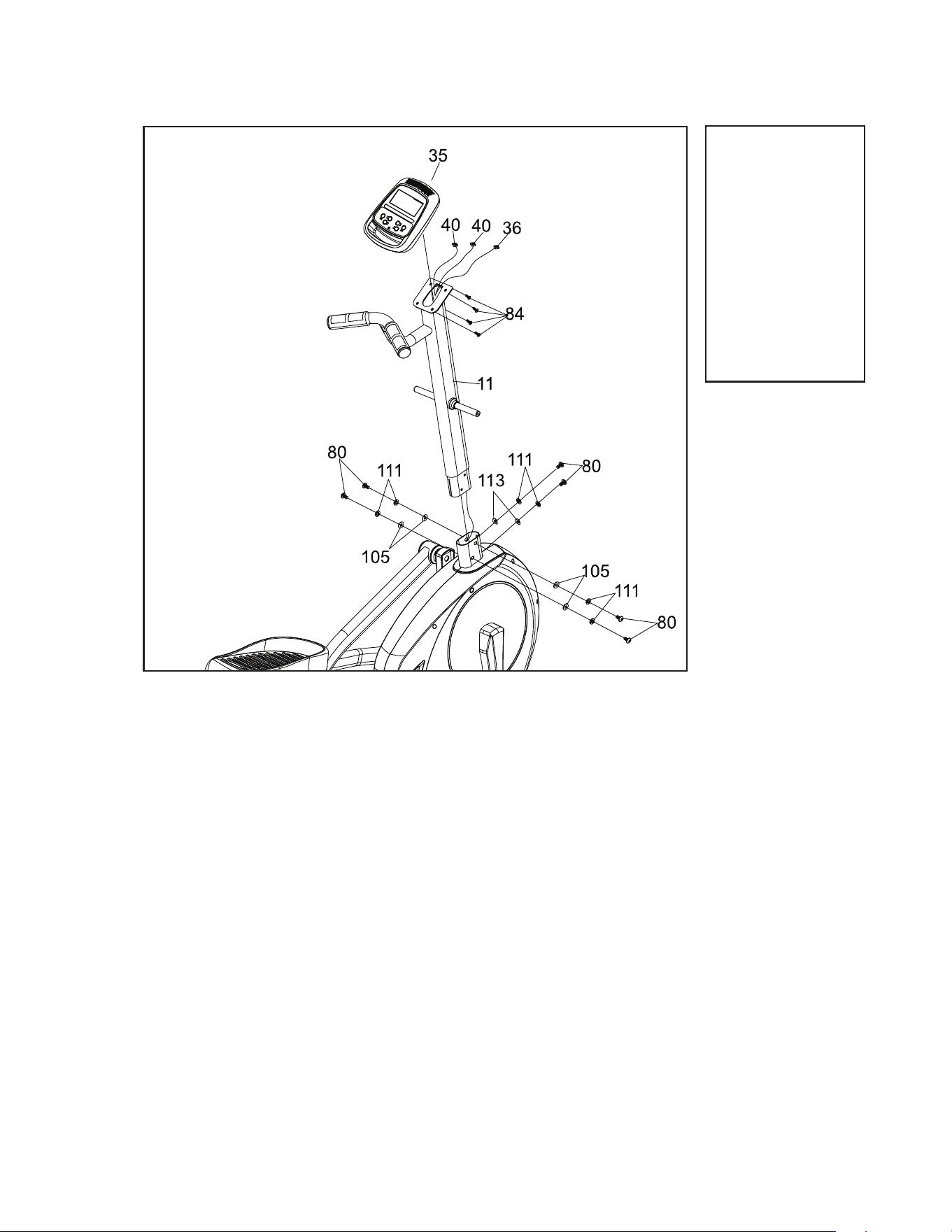

1. Use cable tie to guide the 1150m/m Computer Cable (36) through
Console Mast (11) and then pull out of the console holding plate, and
Insert the console mast into main frame and secure with six Button Head
Socket Bolts (80), six Split Washers (111), four Flat Washers (105) and
two Curved Washers (113) by using Combination M5 Allen Wrench &
Phillips Head Screw Driver (118) .
2. Take o the cable tie which ties the Computer Cable (36) and plug in
the connectors of the Computer cable and the two Handpulse W/Cable
Assemblies (40) on the Console. Secure the Console on the Console
Assembly (35) four Phillips Head Screws (84) by using Combination M5
Allen Wrench & Phillips Head Screw Driver(118). Pay attention to Avoid-
ing scratching the cables.
FS3.5 Elliptical
7
#74. 5/16 x 15mm
Hex Head Bolt
(2 pc)
#102. Ø8.7” x Ø20 x 1.5T
Flat Washer (2 pcs)
Handle Bar Assembly
3
Hardware Step 3

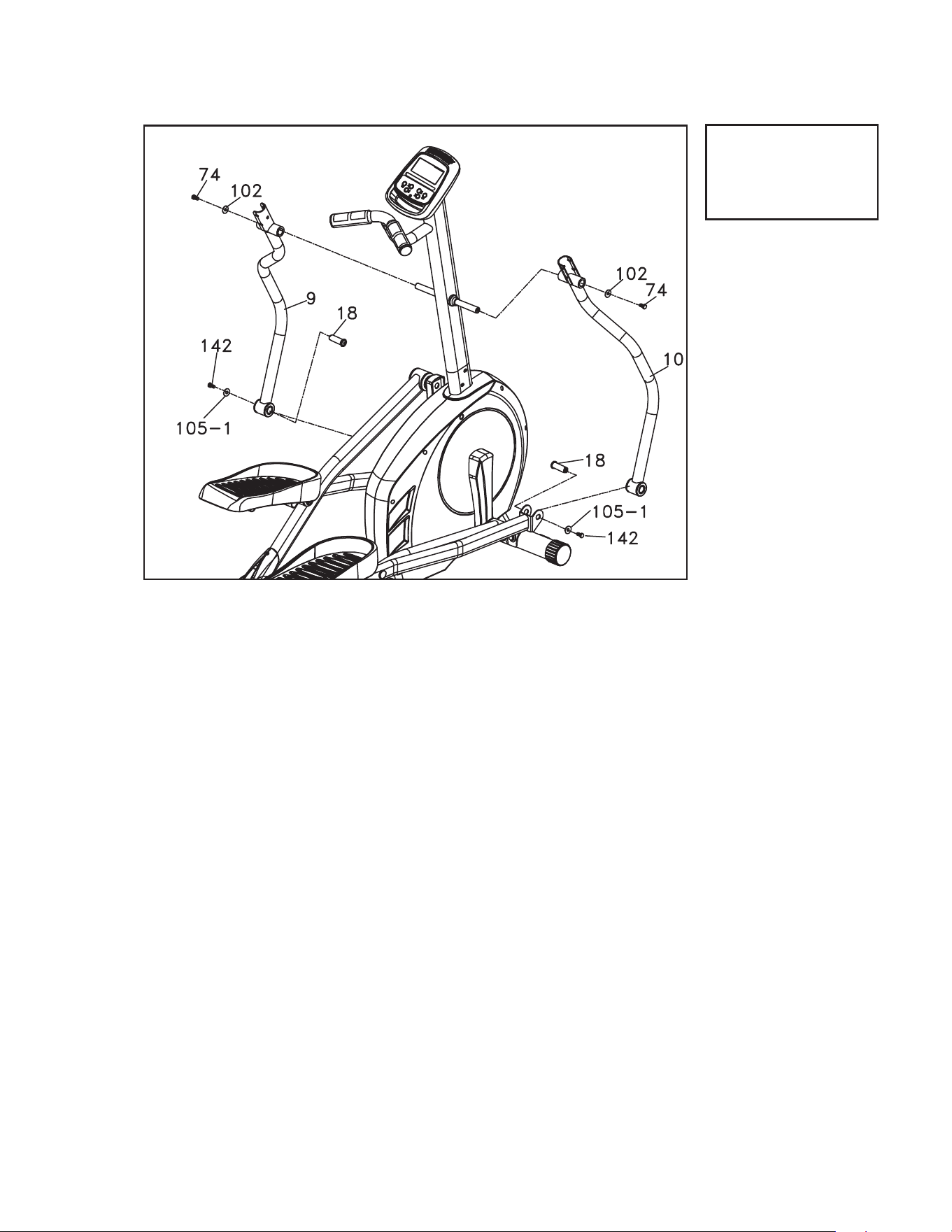

1. Install the Lower Handle Bar (L) (9) in the left shaft of Console Mast (11)
and the Lower Handle Bar (R) (10) in the right shaft of Console Mast
(11), and secure them with two Hex Head Bolts (74) and two Flat Wash-
ers (102) by using 12m/m Wrench (116).
2. Release rod end shafts (18) which are on left and right connecting arms.
Connect the connecting arm with lower handle bar and secure with rod
end shafts (18) and the screw by using Combination M5 Allen Wrench &
Phillips Head Screw Driver (118) and 12m/m_Wrench (116).
8
FS3.5 Elliptical
#76. 5/16 x 1-3/4
Hex Head Bolt (6 pcs)
#87. Ø3.5 x 12mm
Sheet Metal Screw
(8 pcs)
#91. 5/16 x 7T
Nyloc Nut (6 pcs)
#113. 5/16” x 23 x 1.5T
Curved Washer
(4 pcs)
Conecting Arm Assembly
4
Hardware Step 4

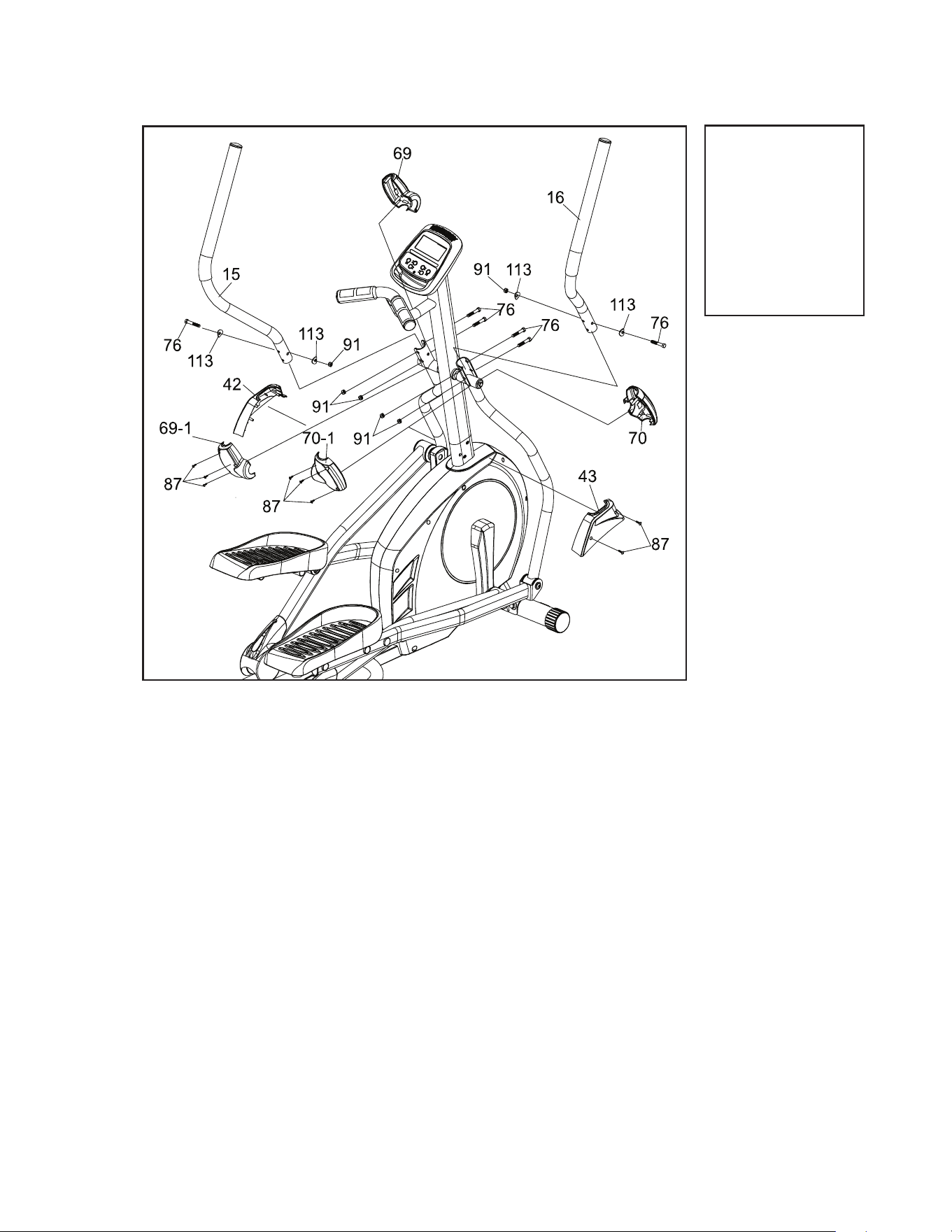

1. Connect the Swing Arm (L) (15) to the left Lower Handle Bar and con-
nect the Swing Arm (R) (16) to the right Lower Handle Bar, and secure
them with six Hex Head Bolts (76), four Curved Washers (113) and six
Nyloc Nuts (91) by using 12m/m Wrench (116) 13.14m/m Wrench (115).
2. Put the Front Handle Bar Cover (L) (69) and the Rear Handle Bar Cover
(L) (69-1) together on the left Handle Bar and secure with three Sheet
Metal Screws (87) by using Combination M5 Allen Wrench & Phillips
Head Screw Driver (118). Repeat the same procedure for the right side.
3. Connect the Console Mast Cover (L)(42) and the Console Mast Cover
(R)(43) together on the Console Mast and secure with two Sheet Metal
Screws (87) by using Combination M5 Allen Wrench & Phillips Head
Screw Driver(118)
FS3.5 Elliptical
9
Operation of Your Console

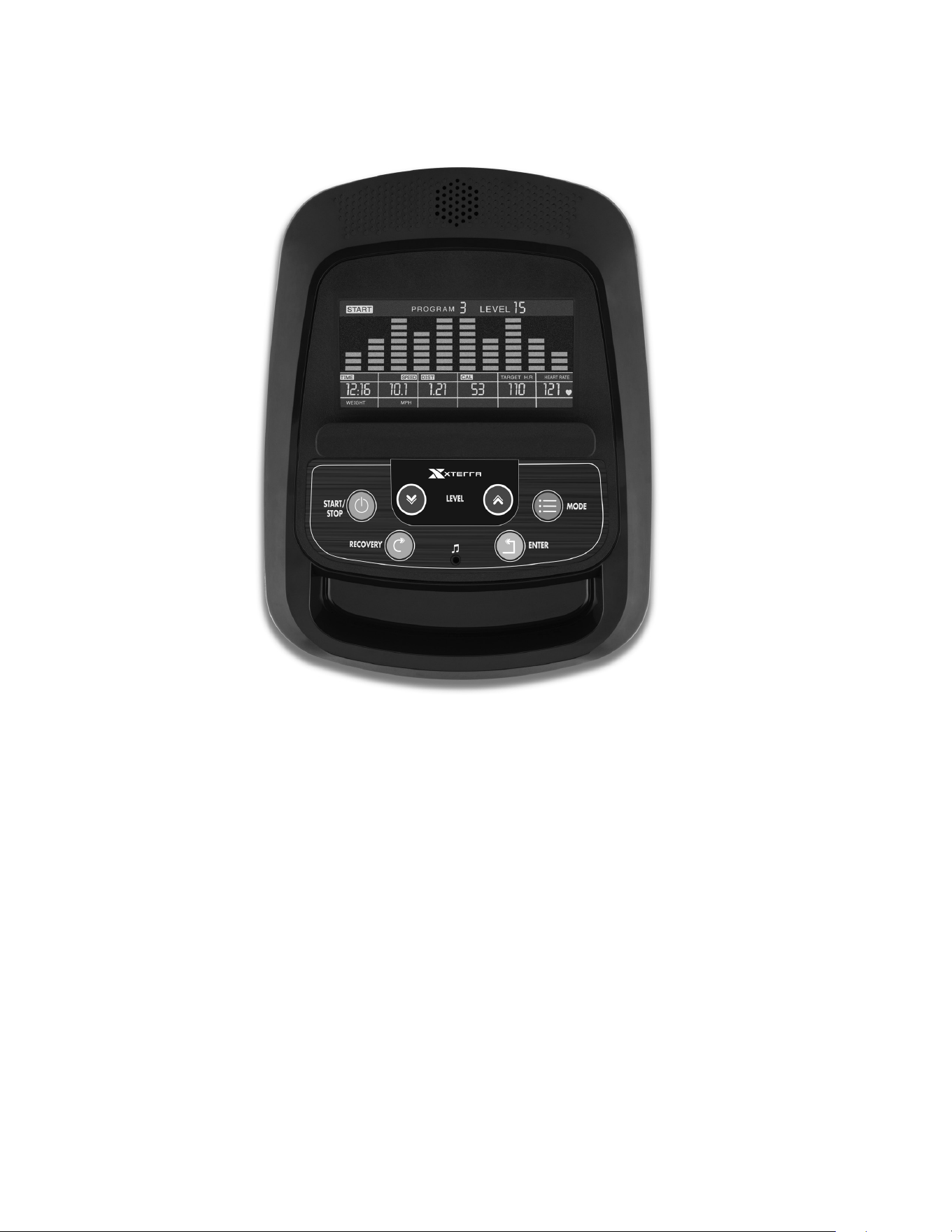

FS3.5 Console
START / STOP:
1. Starts & Pauses workouts.
2. Starts body fat measurement.
3. Holding key for 3 seconds will reset all functions and values to zero.
DOWN: Decreases value of selected workout parameter: TIME, DISTANCE, etc. During the
workout it will decrease the resistance load.
UP: Increases value of selected workout parameter. During the workout it will increase the
resistance load.
ENTER: To input desired value or work out mode.
RECOVERY: Press to enter into heart rate Recovery function. Only works when the computer
is receiving a heart rate value. Recovery is an indication of Fitness Level. It is a one minute
measurement taken immediately after and exercise session and provides a score from 1 to 6.
A score of 1 is an indication of a high level of tness and a score of 6 indicates poor condition.
MODE: Press to switch display from RPM to SPEED, ODO to DIST, WATT to CALORIES.
Key Functions
10
FS3.5 Elliptical
Workout Selection
After power-up, use the UP / DOWN keys to select a workout program then pressing
ENTER. There are 7 basic workout programs: Manual, Pre-Programs, Watt Program, Body
Fat Program, Target Heart Rate program, Heart Rate Control Program and User
Program.
Functions
SPEED: Displays current training speed. Maximum speed is 99.9 KM/H or MILE/H.
RPM: Displays current pedal rotations per minute.
TIME: Accumulates workout time from 00:00 to 99:59. Or users can preset the target time
desired.
DIST: Accumulates the workout distance form 0.00 up to 999.9 KM or Mile. Or users can
preset the target distance they want to reach.
ODO: Displays the total accumulated distance from 0.0 to 999.9KM or Mile.
CAL: Accumulates the calories burned from 0 to 9999. Or users can preset the target
Calories they want to burn.
WATT: Displays current watt.
HEART RATE: Displays the current heart rate in beats per minute.
TARGET H. R.: Users can preset their Target Heart Rate.
PROGRAM: There are 24 dierent programs to choose for training.
LEVEL: The programs have 24 levels of work displayed in 8 bars in each column. Each
column represents 1 minute workout (Unless time is changed to a new value for count down)
and each bar represents 3 levels of work.
Music: There is an audio-input port on the top of the monitor. Users can connect an MP3,
smart phone or other audio source to the port.
Workout Parameter
(TIME/DISTANCE/CALORIES/WATT/TARGET HEART RATE)
Setting Workout Parameters
After selecting desired workout program (Manual, Pre-set Programs, Watt Program, Target
Heart Rate, Heart Rate Control and User Program) you may pre-set several workout
parameters for desired results.
Note: Some parameters are not adjustable in certain programs. Time and Distance can not
be set up in the same workout.
Once a program has been selected pressing ENTER will make “Time” parameter ash.
Using UP / DOWN KEY you may set the desired time value. Press ENTER KEY to input
value. Flashing prompt will move to the next parameter. Continue use of UP / DOWN KEY.
Press START / STOP to start workout.
FS3.5 Elliptical
11
Parameter
Setting
Range
Default
Value
Increment /
Decrement
Description
Time 0:00 - 99:00 00:00
± 1:00
1. When display is 0:00, Time
will count up.
2. When Time is 1:00 - 99:00,
it will count down to 0:00.
Distance 0.00 - 999.0 0.00
± 1.0
1. When display is 0.00,
Distance will count up.
2. When Distance is 1.0 -
990.0, it will count down to
0.00.
Calories 0 - 9995 0
± 5
1. When display is 0,
Calories will count up.
2. When Calories is 5 - 9995,
it will count down to 0.
Watt 40-250 100
± 5
User can set watt value only in
Watt control program.
Age 10-99 30
± 1
Target Heart Rate will be based
on Age. When heart rate ex-
ceeds Target Heart Rate, the
number of heart rate will ash.
Pulse 60-220 90
± 1
Setting Paramters for Target
Heart Rate.
More About Workout Parameters
Setting Parameters for the Manual Program
Select Manual using UP / DOWN KEY then press the ENTER KEY. The rst parameter,
“Time” will ash so value can be adjusted using UP / DOWN KEY. Press ENTER KEY to save
value & move to next parameter to be adjusted. **(If user sets up the target time to work-
out then the next parameter of Distance can not be adjusted) Continue through all
desired parameters, pressing START / STOP to start workout.
Note: When any One of the workout parameters counts down to zero the console emits a
beep sound and the workout stops automatically. Press START KEY to continue the workout
to reach the unnished workout goals set.
Program Operation
Manual Program
12
FS3.5 Elliptical
There are 12 pre-set program proles ready for use ROLLING, VALLEY, FAT BURN, RAMP,
STEPS, OBSTACLE, INTERVALS, PLATEAU, CLIMBING, OFF ROAD, HILL, FASTREK.
All program proles have 24 levels of resistance. See page 13 to view the proles.
Setting Parameters for Pre-Set Programs
Select one of pre-set programs using UP / DOWN KEY then pressing ENTER KEY.
The rst parameter, “Time” will ash indicating the value can be adjusted using UP / DOWN
KEY. Press ENTER KEY to save value & move to next parameter to be adjusted. Continue
through all desired parameters, pressing START / STOP to start workout.
Workout in any Pre-Set Program
Users can exercise at dierent levels of intensity in dierent intervals as the proles ash.
Users may adjust the resistance level using the UP / DOWN keys during the workout.
Note: If user sets up the target time to workout then the next parameter of Distance can not
be adjusted. When any one of the workout parameters counts down to zero the console emits
a beep sound and the workout stops automatically. Press START KEY to continue the
workout to reach the unnished workout goals set.
Pre-Set Programs
Setting Parameters for Watt Control Programs
Select Watt Control Program using UP / DOWN KEY then press ENTER KEY. The rst
parameter “Time” will ash indicating the value can be adjusted using UP / DOWN KEY.
Press ENTER KEY to save value & move to next parameter to be adjusted. **(If user sets
up the target time to workout, then the next parameter of Distance can not be adjusted)
Continue through all desired parameters, pressing START / STOP to start workout.
Note: When any one of the workout parameters counts down to zero the console emits a
beep sound and the workout stops automatically. Press START KEY to continue the workout
to reach the unnished workout goals set.The computer will adjust the resistance load
automatically depending on the speed to maintain a constant watt value. User can use
UP / DOWN key to adjust the watt value during workout.
Watt Control Program
FS3.5 Elliptical
13

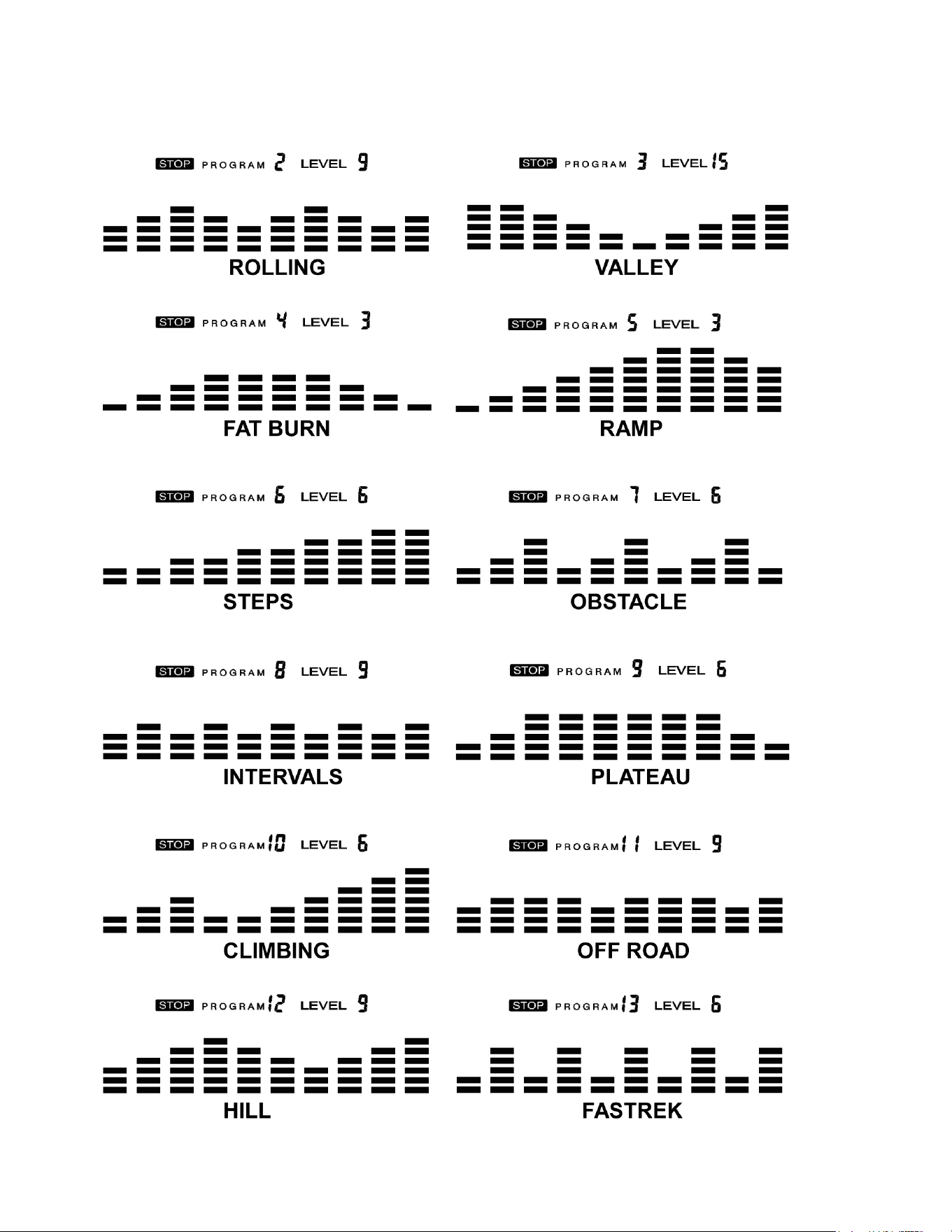

Pre-Set Programs (P2 - P13)
14
FS3.5 Elliptical
Setting Data for Body Fat
1. Select Body Fat using UP / DOWN KEY then pressing ENTER.
2. “Male” will ash indicating the Gender can be adjusted using UP / DOWN KEY. Press
ENTER to save gender setting & move to next setting.
3. A Height of “175” will ash indicating the Height can be adjusted using UP / DOWN KEY. Press ENTER KEY
to save value & move to next setting.
4. A Weight of “75” will ash indicating the Weight can be adjusted using the UP / DOWN KEY. Press ENTER
KEY to save vale & move to next setting.
5. An Age of “30” will ash indicating the Age can be adjusted using UP / DOWN KEY. Press ENTER to save
value.
6. Press START / STOP to start measurement. Please be sure to grasp the hand pulse grips.After 15 seconds
the display will show Body Fat %, BMR, BMI & BODY TYPE.
7. Press START / STOP KEY to return the main Display.
Body Types:There are 9 possible body types according to the FAT% calculated. Type 1 is from 5% to 9%. Type
2 is from 10% to 14%. Type 3 is from 15% to 19%. Type 4 is from 20% to 24%. Type 5 is from 25% to 29%. Type
6 is from 30% to 34%. Type 7 is from 35% to 39%. Type 8 is from 40% to 44%. Type 9 is from 45% to 50%.
BMR: Basal Metabolic Rate is the amount of daily energy expended at rest.
BMI: Body Mass Index is a general body type based on height and weight.
Body Fat Measurement
User Program
Four User Programs allow the user to create their own personal programs.
Setting Parameters for User Programs
Select “User” using UP / DOWN KEY then press ENTER KEY. The rst parameter, “Time” will ash indicating the
value can be adjusted using UP / DOWN KEY. Press ENTER KEY to save value & move to next parameter to
be adjusted. **(If user sets up the target time to workout, then the next parameter of Distance can not be
adjusted) Continue through all desired parameters.
After completing parameter set up, row 1 of the prole will be ashing. Use UP / DOWN KEY to adjust level then
press ENTER until nished (10 times total). Press START / STOP to start workout.
Note: When any one of the workout parameters counts down to zero the console emits a beep sound and the
workout stops automatically. Press START KEY to continue the workout to reach the unnished workout goals
set.
FS3.5 Elliptical
15
There are two ways to communicate your heart rate to the console. Use the contact heart rate grips and keep a
consistent and rm grip, or buy an optional heart rate strap that transmits your pulse wirelessly to the console.
The heart rate strap is a more accurate measurement of your actual heart rate.
Heart Rate Training Programs
1. Attach the transmitter to the elastic strap using the locking parts.
2. Adjust the strap as tightly as possible as long as the strap is not too tight to remain comfortable.
3. Position the transmitter with the logo centered in the middle of your torso
facing away from your chest (some people must position the
transmitter slightly left of center). Attach the nal end of the elastic strap
by inserting the round end and, using the locking parts, secure the trans-
mitter and strap around your chest.
4. Position the transmitter directly below the pectoral muscles.
5. Sweat is the best conductor to measure very minute heart beat electrical
signals.
However, plain water can also be used to pre-wet the electrodes (2
ribbed oval areas on the reverse side of the belt and both sides of the
transmitter). It’s also recommended that you wear the
transmitter strap a few minutes before your work out. Some users, because of body chemistry,
have a more dicult time in achieving a strong, steady signal at the beginning. After “warming
up”, this problem lessens. As noted, wearing clothing over the transmitter/strap doesn’t aect
performance.
6. Your workout must be within range - distance between transmitter/receiver – to achieve a strong
steady signal. The length of range may vary somewhat but generally stay close enough to the
console to maintain good, strong, reliable readings. Wearing the transmitter directly on bare skin
assures you of proper operation. If you wish, you may wear the transmitter over a shirt. To do
so, wet the areas of the shirt that the electrodes will rest upon.
Note: The transmitter is automatically activated when it detects activity from the user’s heart.
Additionally, it automatically deactivates when it does not receive any activity. Although the transmitter
is water resistant, moisture can have the eect of creating false signals, so you should take precautions
to completely dry the transmitter after use to prolong battery life (estimated transmitter battery life is
2500 hours).
Caution! Do not use this treadmill for Heart Rate programs unless a steady, solid Actual Heart Rate
value is being displayed. High, wild, random numbers being displayed
indicate a problem.
Areas to look for interference which may cause erratic heart rate:
1. Microwave ovens, TV’s, small appliances, etc.
2. Fluorescent lights.
3. Some household security systems.
4. Perimeter fence for a pet.
5. Some people have problems with the transmitter picking up a signal from their skin. If you have
problems try wearing the transmitter upside down. Normally the transmitter will be oriented so
the XTERRA Fitness logo is right side up.
6. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source,
turning the whole machine 90 degrees may de-tune the interference.
7. Another Individual wearing a transmitter within 3’ of your machine’s console.
If you continue to experience problems contact your us.
Wearing The Chest Strap
Erratic Operation
* Sold Separately
16
FS3.5 Elliptical
Setting Parameters for the Target Heart Rate Program
Select Target HR using UP / DOWN KEY then press ENTER KEY. The rst parameter “Time” will ash indicat-
ing the value can be adjusted using UP / DOWN KEY. Press ENTER KEY to save value & move to next param-
eter to be adjusted. **(If user sets up the target time to workout, then the next parameter of Distance can
not be adjusted) Continue through all desired parameters, pressing START / STOP to start workout.
Note: If your Pulse measurement is above or below (± 5) the TARGET HR setting, the
computer will adjust the resistance load automatically; it will check approximately every 10 seconds. If the heart
rate signal disappears, the computer will keep the resistance load
constant for 60 seconds then it will decrease the resistance load 1 level every 10s.
When any one of the workout parameters counts down to zero the console emits a beep sound and the workout
stops automatically. Press START KEY to continue the workout to reach the unnished workout goals set.
Target Heart Rate Program
Heart Rate Control Program
There are 4 selections for target pulse:
HRC- 55% TARGET H.R= 55% of (220-AGE)
HRC - 65% TARGET H.R= 65% of (220-AGE)
HRC - 75% TARGET H.R= 75% of (220-AGE)
HRC - 85% TARGET H.R= 85% of (220-AGE)
Setting Parameters for Heart Rate Control Programs
Select one of the Heart Rate Control Programs using UP / DOWN KEY then press
ENTER KEY. The rst parameter “Time” will ash indicating the value can be adjusted using UP / DOWN KEY.
Press ENTER KEY to save value & move to next parameter to be
adjusted. **(If user sets up the target time to workout, then the next parameter of
Distance can not be adjusted) Continue through all desired parameters, pressing START / STOP to start work-
out.
Note: If your Pulse measurement is above or below (± 5) the Target HR setting, the
computer will adjust the resistance load automatically; it will check approximately every 10 seconds. If the heart
rate signal disappears, the computer will keep the resistance load
constant for 60 seconds then it will decrease the resistance load 1 level every 10 seconds.
When any one of the workout parameters counts down to zero the console emits a beep sound and the workout
stops automatically. Press START KEY to continue the workout to reach the unnished workout goals set.
FS3.5 Elliptical
17
Manufacturer’s Limited Warranty
Eective July 06, 2020 - ELLIPTICAL LIMITED WARRANTY
XTERRA Fitness Inc. warrants all its home use elliptical parts for a period of time listed below, from the date of retail sale, as determined by
a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. XTERRA Fitness’s
responsibilities include providing new or remanufactured parts, at XTERRA Fitness’s option, and technical support to our independent
dealers and servicing organizations. In the absence of a dealer or service organization, these warranties will be administered by XTERRA
Fitness directly to a consumer. The warranty period applies to the following components:
Home Use Limited Warranty
NORMAL RESPONSIBILITIES OF THE CONSUMER
This warranty applies only to products in ordinary household use. The consumer is responsible for the items listed below:
1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase
to validate the manufacturer’s limited warranty or register online at http://www.xterratness.com/warrantyreg.html.
2. Proper use of the elliptical in accordance with the instructions provided in this manual, including maintenance.
3. Proper connection to a power supply of sucient voltage, replacement of blown fuses, repair of loose connections or defects in house/
facility wiring.
4. Expenses for making the elliptical accessible for servicing, including any item that was not part of the elliptical at the time it was shipped
from the factory.
5. Damages to the elliptical nish during shipping, installation or following installation.
EXCLUSIONS
This warranty does not cover the following:
1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES
RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY. Note: Some states do not allow the exclusion
or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.
2. Damages caused by services performed by persons other than authorized XTERRA Fitness service companies, use of parts other than
original XTERRA Fitness parts, or external causes such as alterations, modications, abuse, misuse, accident, improper maintenance,
inadequate power supply, or acts of God.
3. Products with original serial numbers that have been removed or altered.
4. Products that have been; sold, transferred, bartered, or given to a third party.
5. Products that are used as store display models.
6. Products that do not have a warranty registration on le at XTERRA Fitness, Inc. XTERRA Fitness reserves the right to request proof of
purchase if no warranty record exists for the product.
7. Product use in any environment other than a residential setting.
8. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE.
SERVICE
Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as
determined by the serial number establishes the warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. This written warranty gives you specic legal rights. You may also have other rights that vary from state to
state. Service under this warranty must be obtained by following these steps, in order:
1. Contact your selling authorized XTERRA Fitness dealer. OR
2. Contact your local authorized XTERRA Fitness service organization.
3. If there is a question as to where to obtain service, contact our service department at (870) 336-4286.
4. XTERRA Fitness’s obligation under this warranty is limited to repairing or replacing, at XTERRA Fitness’s option, the product through
one of our authorized service centers. All repairs must be preauthorized by XTERRA Fitness. If the product is shipped to a service
center freight charges to and from the service center will be the customer’s responsibility. For replacement parts shipped while the
product is under warranty, the customer will be responsible for shipping and handling charges. The owner is responsible for adequate
packaging upon return to XTERRA Fitness. XTERRA Fitness is not responsible for damages in
shipping. Make all freight damage claims with the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY WITHOUT
A RETURN AUTHORIZATION NUMBER. All units arriving without a return authorization number will be refused.
5. For any further information, or to contact our service department by mail, send your correspondence to:
Product features or specications as described or illustrated are subject to change without notice. All warranties are made by
XTERRA Fitness, Inc. This warranty applies only in the 48 contiguous United States. NOTE: This does not apply to Alaska or Hawaii.
XTERRA Fitness, Inc.
P.O. Box 2037
Jonesboro, AR 72402-2037
Frame
5 Years
Parts
1 Year
www.xterrafitness.com
©2020 All RIghts Reserved. FS3.5 Owner’s Manual
3000 Nestle Road Jonesboro, AR 72401 - Phone:870-336-4286 - Fax:870-935-7611
