User Manual Sony XLR-K1M Adapter Kit

Documents for Sony XLR-K1M

The following documents are available:
User Manual Other Documents Photos
XLR-K1M photo
安全のために
ソニー製品は安全に充分配慮して設計されています。しかし、
ちがった使いかたをすると、火災などにより人身事故になること
があり危険です。事故を防ぐために次のことを必ずお守りくださ
い。
安全のための注意事項を守る
この「安全のために」の注意事項をよくお読みください。
故障したら使わない
動作がおかしくなったり、コードなどが破損しているのに気づ
いたら、すぐにソニーの相談窓口へ相談する。
万一、異常が起きたら
電源を切る
ソニーの相談窓口へ相談する
変な音やにおい、
煙が出た場合は
警告表示の意味
取扱説明書および製品では、次のような表示をしています。
表示の内容をよく理解してから本文をお読みください。
この表示の注意事項を守らないと、火災・感電
などにより死亡や大けがなど人身事故の原因
となります。
この表示の注意事項を守らないと、感電やその
他の事故によりけがをしたり周辺の家財に損
害を与えたりすることがあります。
注意を促す記号 行為を禁止する記号
下記の注意事項を守らないと、
火災・感電
により
大けが
の原因
となります。
製品および同梱物を、乳幼児の手の届く範囲に放置
しないでください。
乳幼児の手の届かない場所に置き、口に入れないよう注
意する。万一、飲み込んだ場合は、ただちに医師に相談
してください。
内部に水や異物を入れない
水や異物が入ると火災や感電の原因となります。万一、
水や異物が入ったときは、すぐにスイッチを切り、
ニーの相談窓口にご相談ください。
下記の注意事項を守らないと、
けが
をしたり周辺の家財に
損害
与えることがあります。
内部を開けない
感電の原因となることがあります。
内部の点検や修理はソニーの相談窓口へご相談くださ
い。
湿気やほこり、油煙、湯気の多い場所や直射日光のあ
たる場所には置かない
故障の原因となります。
落としたりぶつけたりしない
故障の原因となります。
主な特長
本機はマルチインターフェースシュー搭載機器対応の
XLR
アダプ
ターとマイクロホンのキットです。
マルチインターフェースシューを搭載していても使用できないカ
メラがあります。
対応機種は
WEB
をご確認ください。
取り扱い上のご注意
マイクロホンは精密機器です。落としたり、たたいたり、強い衝
撃を与えないでください。
使用中、マイクロホンをスピーカーに近づけるとピーという
音が発生することがあります(ハウリング現象)。その場合は、
マイクロホンとスピーカーの距離をできるだけ離すか、スピー
カーの音量を下げてください。
アクセサリーシューに取り付けるビデオライトなどは
500g
内のものをご使用ください。
各部の名前
1
ウインドスクリーン
2
マイク
3
マイクホルダー
電気製品は安全のための注意事項を守らない
と、火災や人身事故になることがあります。
この取扱説明書には、事故を防ぐための重要な注意事項と
製品の取り扱いかたを示しています。
この取扱説明書をよくお読みのうえ、製品を安全にお使い
ください。お読みになったあとは、いつでも見られるとこ
ろに必ず保管してください。
ご注意
INPUT1/INPUT2
LINE/MIC/MIC+48V
スイッチが
LINE
ときは、入力レベルは
+4dBu
に固定されます。
ATT
スイッ
チを切り換えても入力レベルは変わりません。
3
録音するチャンネルを設定する。
REC CH SELECT
INPUT1
スイッチで、録音するチャンネル
を選びます。
REC CH SELECT
INPUT1
スイッチの位置
CH1
CH2
に録音される音声
CH1
CH2
INPUT1
CH1
CH2
CH1
INPUT1
CH1
INPUT2
CH2
XLR
3PIN
プラグが
2
個ついているステレオマイクを使
うには
INPUT1
端子に
Lch
INPUT2
端子に
Rch
を接続し、
REC CH SELECT
INPUT1
スイッチを
CH1
に設定します。
主な仕様
最大外形寸
(約)
XLR
アダプター
XLR-A1M
本体
111 mm
×
85.5 mm
×
118 mm
(幅/高さ/奥行き)(突起物、コード含まず)
マイクロホン
ECM-XM1
42 mm
×
193 mm
(直径/長さ)
(ウインドスクリーン含む/コード含まず)
質量(約)
XLR
アダプター
XLR-A1M
本体
217 g
マイクロホン
ECM-XM1
118.5 g
動作温度:
0
40
保存温度:
-20
+60
入力端子:
INPUT1/INPUT2
端子:
XLR
3
ピン、
MIC
-60/-50/-40 dBu
3 k
Ω
LINE
+4 dBu
10 k
Ω
0 dBu=0.775 Vrms
同梱物:
XLR
アダプター
XLR-A1M
1
マイクロホン
ECM-XM1
1
ウインドスクリーン
1
シュースペーサー
1
端子保護キャップ
1
キャリングケース
1
印刷物一式
仕様および外観は、改良のため予告なく変更することがあります
が、ご了承ください。
Multi Interface Shoe
(マルチインターフェースシュー)はソ
ニー株式会社の商標です。
保証書とアフターサービス
保証書
この製品には保証書が添付されていますので、お買い上げの際
お買い上げ店でお受け取りください。
所定事項の記入および記載内容をお確かめのうえ、大切に保存
してください。
保証期間は、お買い上げ日より
1
年間です。
アフターサービス
調子が悪いときはまずチェックを
この取扱説明書をもう一度ご覧になってお調べください。
それでも具合が悪いときは
ソニーの相談窓口にご相談ください。
保証期間中の修理は
保証書の記載内容に基づいて修理させていただきます。
詳しくは保証書をご覧ください。
保証期間経過後の修理は
修理によって機能が維持できる場合は、ご要望により有償修理さ
せていただきます。
部品の保有期間について
当社では本機の補修用性能部品(製品の機能を維持するために必
要な部品)を、製造打ち切り後最低
7
年間保有しています。この部
品保有期間を修理可能の期間とさせていただきます。ただし、
障の状況その他の事情により、修理に代えて製品交換をする場合
がありますのでご了承ください。保有期間が経過したあとも、
障箇所によっては修理可能の場合がありますので、ソニーの相談
窓口にご相談ください。
ご相談になるときは、次のことをお知らせください。
品名:
XLR-K1M
故障の状態:できるだけ詳しく
購入年月日
Before operating the product, please read this manual
thoroughly and retain it for future reference.
WARNING
To reduce re or shock hazard, do not expose the unit to
rain or moisture.
Keep out of reach of small children to prevent accidental
swallowing.
For the Customers in the U.S.A.
CAUTION
You are cautioned that any changes or modications
not expressly approved in this manual could void your
authority to operate this equipment.
Note:
is equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. ese limits are designed to provide
reasonable protection against harmful interference in a
residential installation. is equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
THIS DEVICE COMPLIES WITH PART 15 OF THE
FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION.
For the Customers in Europe
Disposal of Old Electrical & Electronic
Equipment (Applicable in the European
Union and other European countries
with separate collection systems)
is symbol on the product or on its
packaging indicates that this product shall
not be treated as household waste. Instead
it shall be handed over to the applicable
collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed
of correctly, you will help prevent potential negative
consequences for the environment and human health,
which could otherwise be caused by inappropriate waste
handling of this product. e recycling of materials will
help to conserve natural resources. For more detailed
information about recycling of this product, please contact
your local Civic Oce, your household waste disposal
service or the shop where you purchased the product.
< Notice for the customers in the
countries applying EU Directives >
e manufacturer of this product is Sony Corporation,
1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. e
Authorized Representative for EMC and product safety is
Sony Deutschland GmbH, Hedelnger Strasse 61, 70327
Stuttgart, Germany. For any service or guarantee matters
please refer to the addresses given in separate service or
guarantee documents.
Features
e XLR-K1M is a kit including an XLR Adaptor for
a device equipped with a Multi Interface Shoe and a
microphone.
Some camera models with a Multi Interface Shoe cannot
be used with this kit.
For details on compatible camera models of this unit, visit
the Sony website in your area, or consult your Sony dealer
or local authorized Sony service facility.
Notes on use
e microphone is a precision instrument. Do not drop,
knock it, or subject it to excessive shock.
If the microphone is placed near speakers, a howling
eect (acoustic feedback) may occur. If this happens,
place the microphone as far as possible from the
speakers, or lower the volume of the speaker.
Do not attach an external accessory such as an video
light etc. that weighs more than 500 g to the Accessory
Shoe.

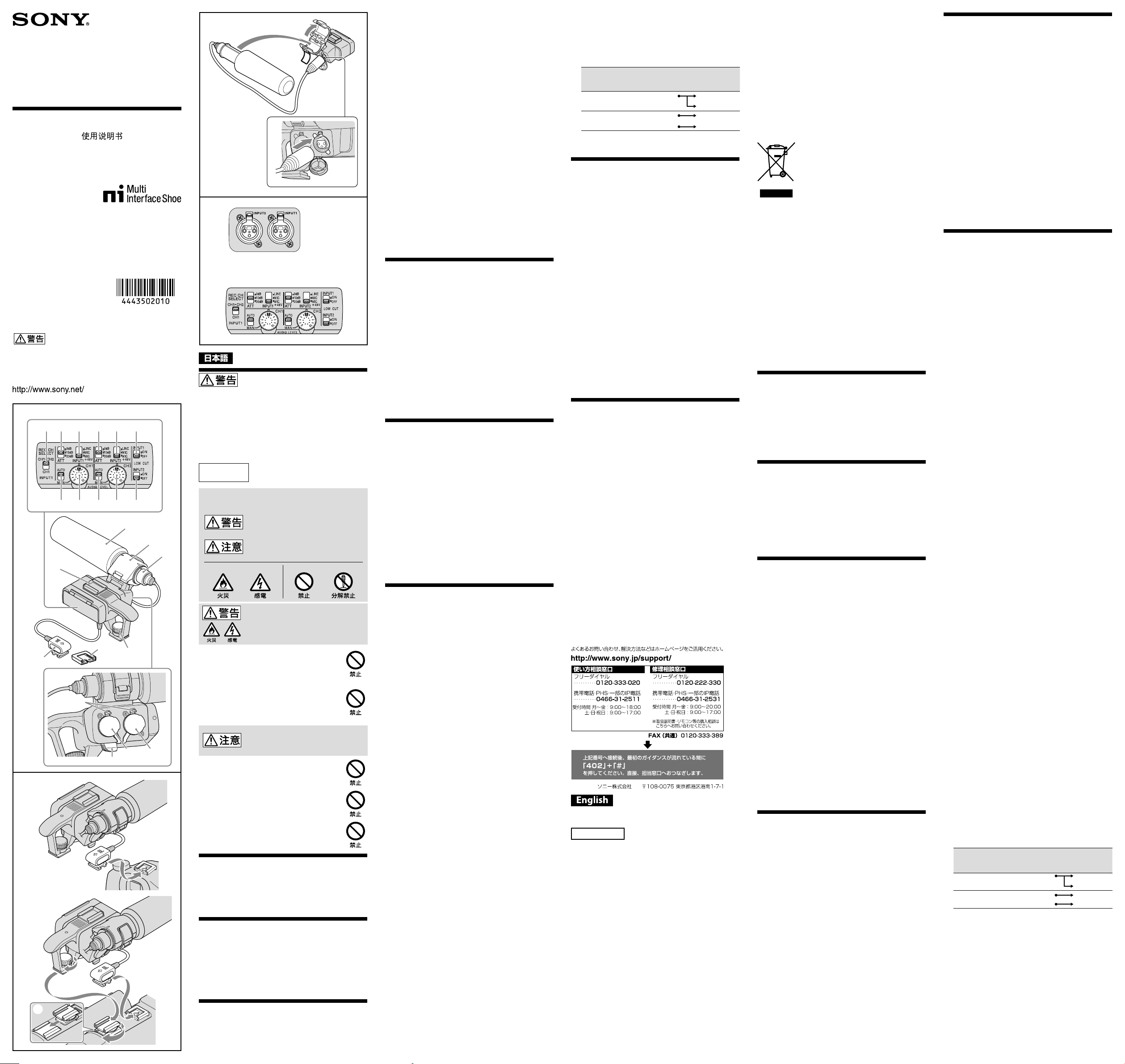

Identifying the parts
1 Wind screen
2 Microphone
3 Microphone holder
4 REC CH SELECT (INPUT1) switch
5 ATT (INPUT1) switch
6 INPUT1 (LINE/MIC/MIC+48V) switch
7 ATT (INPUT2) switch
8 INPUT2 (LINE/MIC/MIC+48V) switch
9 LOW CUT (INPUT1) switch
10 AUTO/MAN (CH1) switch
11 AUDIO LEVEL (CH1) dial
12 AUTO/MAN (CH2) switch
13 AUDIO LEVEL (CH2) dial
14 LOW CUT (INPUT2) switch
15 Accessory Shoe
16 Connector plug
17 Connector protect cap
18 Lock dial
19 Release lever
20 Cable holder
21 INPUT2 jack
22 INPUT1 jack
Inputting external sound: 21, 22
Selecting a sound source: 6, 8
Selecting a sound source level: 5, 7
Selecting channel setting for recording: 4
Selecting the recording level: 10, 11, 12, 13
Switching wind noise reduction to ON/OFF: 9, 14
Attaching the XLR
Adaptor
1 Detach the connector protect cap from the
connector plug of the XLR Adaptor.
2 Connect the connector plug of the XLR
Adaptor to the Multi Interface Shoe of the
camera.
3 Attach the XLR Adaptor to the shoe of the
bracket and tighten the lock dial of the XLR
Adaptor.
A bracket is not included with the XLR-K1M.
When using the Sony Interchangeable Lens Digi-
tal HD Video Camera Recorder that have a Multi
Interface Shoe (See illustration -2)
Attach the shoe spacer supplied with this unit to the
Accessory Shoe of the camera aer attaching the connector
plug of the XLR Adaptor.
When detaching the XLR Adaptor
Unplug the connector plug of the XLR Adaptor from the
Multi Interface Shoe beforehand.
Detach the XLR Adaptor aer having loosened the lock
dial of the XLR Adaptor.
取扱説明書
/ Operating Instructions /
Mode d’emploi /
XLR-K1M
XLR
アダプターキット
XLR Adaptor Kit
Kit adaptateur XLR
XLR 适配器套装
© 2012 Sony Corporation Printed in Japan
4-443-502-01 (1)
Attaching the microphone
1 Unlock the stopper of the microphone
holder and open the cover.
2 Align the convex part of the microphone
with the concave part of the holder, and
then place the microphone into the holder.
Close the cover and lock the stopper
securely.
Be sure to place the microphone with the model name
(ECM-XM1) facing upward.
3 Connect the connector plug of the
microphone to the INPUT1 jack on the XLR
Adaptor.
Connect the connector plug of the microphone to the
INPUT 1 jack if you connect one device.
4 Put the microphone cable into the cable
holder on the XLR Adaptor.
See “ Audio setup” for audio recording.
When detaching the microphone cable
Detach the microphone from the microphone holder.
Unplug the microphone plug while pressing the release
lever down.
Audio setup
Using the supplied microphone
You can record monaural sound with the super-directional
microphone.
1 Set the INPUT1 (LINE/MIC/MIC+48V) switch
to MIC+48V.
2 Set the REC CH SELECT (INPUT1) switch to
CH1·CH2.
is setting enables recording on both CH1 and CH2.
Set the switch to CH1 if you want to record on CH1
only.
Adjusting the recording level
You can adjust the recording level input from the INPUT1/
INPUT2 jacks.
You cannot adjust the recording level of the internal
microphone and MIC input jack.
1 Set the AUTO/MAN (CH1/CH2) switch of the
channel to be adjusted to MAN.
2 Turn the AUDIO LEVEL dial to adjust the
volume to the proper level.
Check that the volume is at the proper level, with
headphones or audio level meter.
To restore automatic adjustment
Set the AUTO/MAN (CH1/CH2) switch to AUTO.
Reducing wind noise
You can reduce wind noise input from the INPUT1/
INPUT2 jacks.
Set the LOW CUT (INPUT1) switch or LOW CUT
(INPUT2) switch to ON.
Using an external audio device
Set as follows when you use a microphone other than the
supplied microphone or an external audio device (mixer,
etc.).
1 Select the sound source to be input.
Set the INPUT1/INPUT2 (LINE/MIC/MIC+48V)
switch according to the device to be connected to the
INPUT1/INPUT2 jacks.
External audio device (mixer, etc.): LINE
Dynamic microphone or microphone with built-in
battery: MIC
Microphone that is 48V phantom power compliant:
MIC+48V
Notes
If you connect a device that does not support 48V
phantom power, malfunction may result from
setting this switch to MIC+48V. Check before
connecting the device.
If noise from the unused jack bothers you, set the
INPUT1/INPUT2 (LINE/MIC/MIC+48V) switch of
the unused jack to LINE.
2 Set the input level of the microphone.
When the INPUT1/INPUT2 (LINE/MIC/MIC+48V)
switch is set to MIC or MIC+48V, you can set the input
level with the ATT (INPUT1/INPUT2) switch.
Adjust according to the microphone sensitivity.
ATT 10dB is recommended when you use the supplied
microphone (ECM-XM1).
e input levels are as follows.
ATT 0dB: -60dBu
ATT 10dB: -50dBu
ATT 20dB: -40dBu
Notes
When the INPUT1/INPUT2 (LINE/MIC/
MIC+48V) switch is set to LINE, the input level is
xed to +4dBu. Even if you reset the ATT switch, the
input level does not change.
3 Set the channel to be recorded.
You can select the channel to be recorded, with the
REC CH SELECT (INPUT1) switch.
Position of the
REC CH SELECT
(INPUT1) switch
Audio recorded on CH1 & CH2
CH1
CH2
INPUT1
CH1
CH2
CH1
INPUT1
CH1
INPUT2
CH2
To use a stereo microphone with two XLR (3PIN)
plugs, connect Lch to the INPUT1 jack and Rch
to the INPUT2 jack, and set the REC CH SELECT
(INPUT1) switch to CH1.
4 REC CH SELECT
INPUT1
スイッチ
5 ATT
INPUT1
スイッチ
6 INPUT1
LINE/MIC/MIC+48V
スイッチ
7 ATT
INPUT2
スイッチ
8 INPUT2
LINE/MIC/MIC+48V
スイッチ
9 LOW CUT
INPUT1
スイッチ
10 AUTO/MAN
CH1
スイッチ
11 AUDIO LEVEL
CH1
ダイヤル
12 AUTO/MAN
CH2
スイッチ
13 AUDIO LEVEL
CH2
ダイヤル
14 LOW CUT
INPUT2
スイッチ
15
アクセサリーシュー
16
接続端子
17
端子保護キャップ
18
固定ダイヤル
19
リリースレバー
20
ケーブルホルダー
21 INPUT2
端子
22 INPUT1
端子
外部音声の入力:
21
22
音源の選択:
6
8
音源レベルの選択:
5
7
録音するチャンネルの選択:
4
録音レベルの選択:
10
11
12
13
風音低減の入
/
切:
9
14
XLR
アダプターを取り付ける
1
端子保護キャップをはずす。
2
XLR
アダプターの接続端子をカメラのマルチイン
ターフェースシューに取り付ける。
3
XLR
アダプターをブラケットのシューなどに取り
付け、固定ダイヤルをしっかり締める。
ブラケットは本機に付属していません。
マルチインターフェースシュー搭載のソニー製レン
ズ交換式デジタル
HD
ビデオカメラレコーダーをお
使いのとき(イラスト
-2
参照)
XLR
アダプターの接続端子を取り付けた後に本機に同梱されてい
るシュースペーサーをカメラのアクセサリシューに取り付けてく
ださい。
XLR
アダプターを取りはずすには
接続端子をマルチインターフェースシューからはずした後、
XLR
アダプターの固定ダイヤルをゆるめてはずす。
マイクを取り付ける
1
マイクホルダーのロックをはずし、取り付け部の
カバーを開ける。
2
マイクをマイクホルダーの取り付け部に入れ、
バーを閉じ、マイクホルダーをロックする。
マイクは、型名
ECM-XM1
が記された部分が上になるよう
に取り付けます。
3
マイクケーブルを
XLR
アダプターの
INPUT1
端子
につなぐ。
接続する機器が
1
つの場合は、
INPUT1
端子につないでくださ
い。
4
マイクケーブルを
XLR
アダプターのケーブルホル
ダーに取り付ける。
音声の設定については、音の設定をする」をご覧ください。
マイクケーブルを取りはずすには
マイクをマイクホルダーから取りはずす。
リリースレバーを下げながら、プラグを持って引き抜く。
音の設定をする
付属マイクを使う
指向性のモノラル音声を収録できます。
1
INPUT 1
LINE/MIC/MIC+48V
スイッチを
MIC+48V
に切り換える。
2
REC CH SELECT
INPUT1
スイッチを
CH1
CH2
に切り換える。
この設定で、同じ音声が
CH1
CH2
の両方に録音されます。
CH1
だけに録音したいときは、
CH1
にしてください。
録音レベルを調節する
INPUT1
端子
/INPUT2
端子から入力した音声の録音レベルを調節
できます。
内蔵マイクと
MIC
入力端子の録音レベルは調節できません。
1
調節するチャンネル
CH1
または
CH2
AUTO/
MAN
スイッチを
MAN
にする。
2
AUDIO LEVEL
ダイヤルを回して、適正なレベル
になるように音量を調節する。
適正なレベルになっているか、ヘッドホンやオーディオレベ
ルメーターで確認してください。
自動調整に戻すには
AUTO/MAN
スイッチを
AUTO
にする。
風切り音を低減する
INPUT1
端子
/INPUT2
端子から入力した音声の風切り音を低減で
きます。
LOW CUT
INPUT1
スイッチまたは
LOW CUT
INPUT2
スイッチを
ON
にする。
外部音声機器などを使う
付属マイク以外のマイクや外部音声機器(ミキサーなど)を使うに
は、以下のように設定してください。
1
入力する音源を選ぶ
INPUT1
端子
/INPUT2
端子に接続する機器に合わせて、
INPUT1/INPUT2
LINE/MIC/MIC+48V
スイッチを設定しま
す。
外部音声機器(ミキサーなど)
LINE
ダイナミックマイクや電池内蔵のマイク:
MIC
+48V
電源(ファンタム電源)対応のマイク:
MIC+48V
ご注意
MIC+48V
にしたままで
+48V
電源に対応していない機器を
接続すると、接続した機器の故障の原因になりますので、
続する前にご確認ください。
接続しない端子のノイズが気になるときは、
INPUT1/
INPUT2
LINE/MIC/MIC+48V
スイッチを
LINE
にしてく
ださい。
2
マイクの入力レベルを設定する。
INPUT1/INPUT2
LINE/MIC/MIC+48V
スイッチが
MIC
MIC+48V
のときは、
ATT
INPUT1/INPUT2
スイッチで入
力レベルを設定できます。マイクの感度に応じて調節してく
ださい。
付属のマイクロホン
ECM-XM1
の場合は、
ATT 10dB
がお
すすめです。
入力レベルは、以下のようになります。
ATT 0dB
-60dBu
ATT 10dB
-50dBu
ATT 20dB
-40dBu
2
(Continued on the reverse side.)
Loading ...
