Washing Machine
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive a more complete service, please
register your product at
www.samsung.com/register
WD0754W8(E/N/S/V/W)
WD0752W8(E/N/S/V/W)
WD0754Y8(E/N/S/V/W)
WD0752Y8(E/N/S/V/W)
WD0754W8E-02927D-01_EN(XSA).indd 1 2011-9-19 15:55:26
2_ features
features of your new samsung
washing machine
Your new washing machine will change the way you feel about doing laundry. With
its Bubble wash function, your new Samsung washing machine has all the benefits
to make washing laundry easy and pleasant.
• BubbleWash
Samsung’s effective Eco Bubble delivers cleanliness with fabric care.
• Washinganddryingwithonebutton
Enjoy convenient non stop washing and drying managing. 4 different special drying programs
can be selected to perform the whole wash cycle including the drying cycle using one button.
• Cupboard(standardprogram),Lowtempdrying,Iron,TimeDrying(30min~270mins)
Those drying programs also can be operated independently of washing programs.
• AirWash
The Air Wash system helps to deodorize unpleasant smells and sanitizes the laundry, a
benefit of its unique air-washing mechanism.
• Air-washable : Woolen coats, cotton/down jumpers, sweaters, suits, pillows, cushions,
needlework dolls
• Not applicable : leather, silk, velvet, electric blankets, stained laundry
• QuickWash
No time to waste! Quick Wash program can help your busy life - now you can wash your
favouriteclothes(upto2Kg)in15minutes!
• QuietDriveMotor
Samsung’suniqueQuietDriveMotorworkswithoutbeltsorgears,helpingtoreducevibration
and making the washer quiet and durable.
• DrumClean
UsingDrumCleanhelpstokeepwashingmachinecleanevenwithoutanychemicaldetergent
orbleach.Keepyourdrumcleanandodourlesswithspecializedcleaningprogram.
• BabyCare
Your Samsung washing machine includes wash programs that add protection to the clothing
of children with sensitive skin. These programs help to reduce skin irritation in children by
minimizingdetergentresidue.Inaddition,theseprogramsclassifylaundryintovarioustypes
and the wash is performed according to the laundry characteristics so that children’s clothes
feel refreshingly clean whenever they are put on.
WD0754W8E-02927D-01_EN(XSA).indd 2 2011-9-19 15:55:26
features _3
• WoolCertied
ThemachinehasbeentestedandpassedtherequiredWoolmarkCompanyspecicationfor
machine washable wool products. This mark is the upgraded certification better than the existing
Woolmark, which guarantees not only washing performance but also fabric care for wool
products.
Fabrics should be washed according to the instructions on the garment label as specified by
Woolmark and Samsung.
• DelayEnd
Delayacycleforupto19hoursinone-hourincrementsandincreasetheconvenienceof
using your washing machine especially when you have to go out.
• ChildLock
TheChildLockfunctionhelpstoensurethatcuriouslittlehandsarekeptoutofyourwashing
machine. This safety feature stops your children from playing with the operation of the
washing machine, and alerts you when it is activated.
This manual contains important information on the installation, use, and care of your new
Samsung washing machine. Refer to it for descriptions of the control panel, instructions on how
to use the washing machine, and tips for making the most of its state-of-the-art features and
functions. The “Troubleshooting and information codes”sectiononpage39tellsyouwhatto
do if something goes wrong with your new washing machine.
WD0754W8E-02927D-01_EN(XSA).indd 3 2011-9-19 15:55:26
4_ safety information
safety information
Congratulations on your new Samsung washer. This manual contains important
information on the installation, use and care of your appliance. Please take time to
read this manual to take full advantage of your washer’s many benefits and features.
WHATYOUNEEDTOKNOWABOUTSAFETYINSTRUCTIONS
Please read this manual thoroughly to ensure that you know how to safely and efficiently operate the
extensive features and functions of your new appliance and retain it at a safe place near the appliance
for your future reference. Use this appliance only for its intended purpose as described in this instruction
manual.
WarningsandImportantSafetyInstructionsinthismanualdonotcoverallpossibleconditionsand
situationsthatmayoccur.Itisyourresponsibilitytousecommonsense,caution,andcarewheninstalling,
maintaining, and operating your washer.
Because these following operating instructions cover various models, the characteristics of your washer
maydifferslightlyfromthosedescribedinthismanualandnotallwarningsignsmaybeapplicable.Ifyou
have any questions or concerns, contact your nearest service center or find help and information online at
www.samsung.com.
IMPORTANTSAFETYSYMBOLSANDPRECAUTIONS
Whattheiconsandsignsinthisusermanualmean:
WARNING
Hazards or unsafe practices that may result in severepersonalinjury,
deathand/orpropertydamage.
CAUTION
Hazards or unsafe practices that may result inpersonalinjuryand/or
propertydamage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury
when using your washer, follow these basic safety precautions:
DoNOTattempt.
DoNOTdisassemble.
DoNOTtouch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Makesurethemachineisgroundedtopreventelectricshock.
Calltheservicecentreforhelp.
Note
Thesewarningsignsareheretopreventinjurytoyouandothers.
Pleasefollowthemexplicitly.
Afterreadingthissection,keepitinasafeplaceforfuturereference.
Read all instructions before using the appliance.
As with any equipment using electricity and moving parts, potential hazards exist. To safely
operate this appliance, become familiar with its operation and exercise care when using it.
WD0754W8E-02927D-01_EN(XSA).indd 4 2011-9-19 15:55:28
safety information _5
Donotletchildren(orpets)playonorinyourwashingmachine.Thewashingmachinedoordoesnot
open easily from the inside, and children may be seriously injured if trapped inside.
Thisapplianceisnotintendedforusebypersons(includingchildren)withreducedphysical,sensoryor
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Childrenshouldbesupervisedtoensurethattheydonotplaywiththeappliance.
Iftheplug(powersupplycord)isdamaged,itmustbereplacedbythemanufactureroritsservice
agent or a similarly qualified person in order to avoid a hazard.
This appliance should be positioned to be accessible to the power plug, the water supply tabs and the
drain pipes.
For washing machines with ventilation openings in the base, ensure that the opening is not obstructed
by carpet or any other obstacles.
Use the new hose-sets and old hose-sets should not be reused.
WARNING
WD0754W8E-02927D-01_EN(XSA).indd 5 2011-9-19 15:55:28
6_ safety information
safety information
SEVEREWARNINGSIGNSFORINSTALLATION
The installation of this appliance must be performed by a qualified technician or service
company.
- Failure to do so may result in electric shock, fire, an explosion, problems with the
product, or injury.
The appliance is heavy, take care upon lifting it
PlugthepowercordintoanAC220-240V/50Hzwallsocketorhigherandusethesocket
forthisapplianceonly.Inaddition,donotuseanextensioncord.
- Sharing a wall socket with other appliances using a power strip or extending the power
cord may result in electric shock or fire.
- Ensure that the power voltage, frequency and current are the same as those of the
product specifications. Failure to do so may result in electric shock or fire. Plug the
power plug into the wall socket firmly.
Remove all foreign substances such as dust or water from the power plug terminals and
contact points using a dry cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Failure to do so may result in electric shock or fire.
Plug the power plug into the wall socket in the right direction so that the cord runs towards
the floor.
- Ifyouplugthepowerplugintothesocketintheoppositedirection,theelectricwires
within the cable may be damaged and this may result in electric shock or fire.
Keepallpackagingmaterialswelloutofthereachofchildren,aspackagingmaterialscan
be dangerous to children.
- Ifachildplacesabagoveritshead,itmayresultinsuffocation.
When the appliance or power plug or power cord is damaged, contact your nearest service
centre.
This appliance must be properly grounded.
Donotgroundtheappliancetoagaspipe,plasticwaterpipe,ortelephoneline.
- This may result in electric shock, fire, an explosion, or problems with the product
- Never plug the power cord into a socket that is not grounded correctly and make sure
that it is in accordance with local and national codes.
Donotinstallthisappliancenearaheater,inammablematerial.
Donotinstallthisapplianceinahumid,oilyordustylocation,inalocationexposedtodirect
sunlightandwater(raindrops).
Donotinstallthisapplianceinalocationoflowtemperature
- Frost may cause tubes to burst
Donotinstallthisapplianceinalocationwheregasmayleak.
- This may result in electric shock or fire.
Donotuseanelectrictransformer.
- Itmayresultinelectricshockorre.
Donotuseadamagedpowerplug,damagedpowercordorloosewallsocket.
- This may result in electric shock or fire.
Donotpullorexcessivelybendthepowercord.
Donottwistortiethepowercord.
WARNING
WD0754W8E-02927D-01_EN(XSA).indd 6 2011-9-19 15:55:28
safety information _7
Donothookthepowercordoverametalobject,placeaheavyobjectonthepowercord,
insert the power cord between objects, or push the power cord into the space behind the
appliance.
- This may result in electric shock or fire.
Donotpullthepowercord,whenunpluggingthepowerplug.
- Unplug the power plug by holding the plug.
- Failure to do so may result in electric shock or fire.
Donotlaythepowercordandtubeswhereyoumayfalloverthem.
CAUTIONSIGNSFORINSTALLATION
This appliance should be positioned in such a way that it is accessible to the power plug.
- Failure to do so may result in electric shock or fire due to electric leakage.
Installyourapplianceonalevelandhardoorthatcansupportitsweight.
- Failure to do so may result in abnormal vibrations, moves, noise, or problems with the
product.
SEVEREWARNINGSIGNSFORUSING
Iftheapplianceisooded,Turnoffthewater&powersupplyimmediatelyandcontactyour
nearest service centre.
- DonotTouchthepowerplugwithwethands
- Failure to do so may cause electric shock
Iftheappliancegeneratesastrangenoise,aburningsmellorsmoke,unplugthepower
plug immediately and contact your nearest service centre.
- Failure to do so may result in electric shock or fire.
Intheeventofagasleak(suchaspropanegas,LPgas,etc.),ventilateimmediatelywithout
touchingthepowerplug.Donottouchtheapplianceorpowercord.
- Donotuseaventilatingfan.
- A spark may result in an explosion or fire.
Donotletchildrenplayinoronthewasher.Inaddition,whendisposingoftheappliance,
remove the washer door lever.
- Iftrappedinside,thechildmaybecometrappedandsuffocatetodeath.
Makesuretoremovethepackaging(sponge,styrofoam)attachedtothebottomofthe
washer before using it.
WARNING
CAUTION
WD0754W8E-02927D-01_EN(XSA).indd 7 2011-9-19 15:55:28
8_ safety information
safety information
Donotwashitemscontaminatedwithgasoline,kerosene,benzene,paintthinner,alcoholor
other flammable or explosive substances.
- This may result in electric shock, fire or an explosion.
Donotopenthewasherdoorbyforcewhileitisoperating(high-temperaturewashing/
drying/spinning).
- Water flowing out of the washer may result in burns or cause the floor to be slippery.
This may result in injury.
- Openingthedoorbyforcemayresultindamagetotheproductorinjury.
Donotinsertyourhandunderthewasher.
- This may result in injury.
Donottouchthepowerplugwithwethands.
- This may result in electric shock.
Donotturntheapplianceoffbyunpluggingthepowerplugwhileanoperationisin
progress.
- Plugging the power plug into the wall socket again may cause a spark and result in
electric shock or fire.
Donotletchildrenorinrmpersonsusethiswasherunsupervised.Donotletchildrenclimb
in the appliance
- Failure to do so may result in electric shock, burns or injury.
Donotinsertyourhandorametalobjectunderthewasherwhileitisoperating.
- This may result in injury.
Donotunplugtheappliancebypullingatthepowercord,alwaysgripplugrmlyandpull
straight out from the outlet.
- Damagetothecordmaycauseshort-circuit,reand/orelectricshock
Donotattempttorepair,disassemble,ormodifytheapplianceyourself.
- Donotuseanyfuse(suchascooper,steelwire,etc.)otherthanthestandardfuse.
- When repairing or reinstalling the appliance is required, contact your nearest service
centre.
- Failure to do so may result in electric shock, fire, problems with the product, or injury.
IfthewatersupplyhosecomesloosefromtheWatertapandoodstheappliance,unplug
the power plug.
- Failure to do so may result in electric shock or fire.
Unplug the power plug when the appliance is not being used for long periods of time or
during a thunder/lightning storm.
- Failure to do so may result in electric shock or fire.
WD0754W8E-02927D-01_EN(XSA).indd 8 2011-9-19 15:55:28
safety information _9
CAUTIONSIGNSFORUSING
When the washer is contaminated by a foreign substance such as detergent, dirt, food
waste, etc., unplug the power plug and clean the washer using a damp and soft cloth.
- Failure to do so may result in discolouration, deformation, damage or rust.
The front glass may be broken by a strong impact. Take care when using the washer.
- When the glass is broken, it may result in injury.
After a water supply failure or when reconnecting the water supply hose, open the Water
Tap slowly.
OpentheWaterTapslowlyafteralongperiodofnon-use.
- The air pressure in the water supply hose or the water pipe may result in damage to a
part or in water leakage.
Ifadrainerroroccursduringanoperation,checkifthereisadrainingproblem.
- Ifthewasherisusedwhenitisoodedbecauseofadrainingproblem,itmayresultin
electric shock or fire due to electric leakage.
Insertthelaundryintothewashercompletelysothatlaundrydoesnotgetcaughtinthe
door.
- Iflaundrygetscaughtinthedoor,itmayresultindamagetothelaundryorthewasher,
or result in water leakage.
Ensure that the Water Tap is turned off when the washer is not being used.
- Ensure that the screw on the water supply hose connector is properly tightened.
- Failure to do so may result in property damage or injury.
Checkiftherubbersealisnotcontaminatedbyforeignsubstances(waste,thread,etc).
- Ifthedoorisnotclosedcompletely,itmayresultinwaterleakage.
OpentheWaterTapandcheckifthewatersupplyhoseconnectorisrmlytightenedand
that there is no water leaking before using the product.
- Ifthescrewsorthewatersupplyhoseconnectorareloose,itmayresultinwater
leakage.
CAUTION
WD0754W8E-02927D-01_EN(XSA).indd 9 2011-9-19 15:55:28
10_ safety information
safety information
Donotstandontopoftheapplianceorplaceobjects(suchaslaundry,lightedcandles,
lightedcigarettes,dishes,chemicals,metalobjects,etc.)ontheappliance.
- This may result in electric shock, fire, problems with the product, or injury.
Donotsprayvolatilematerialsuchasinsecticideontothesurfaceoftheappliance.
- As well as being harmful to humans, it may also result in electric shock, fire or problems
with the product.
Donotplaceanobjectthatgeneratesaelectromagneticeldnearthewasher.
- This may result in injury due to a malfunction.
Since the water drained during a high-temperature wash or drying cycle is hot, do not
touch the water.
- This may result in burns or injury.
Donotwash,spinordrywater-proofseats,matsorclothing(*)unlessyourappliancehasa
special program for washing these items.
- Donotwashthick,hardmatsevenifthewashermarkisonthecarelabel.
- This may result in injury or damage to the washer, walls, floor or clothing due to
abnormal vibrations.
* Woollenbedding,raincovers,shingvests,skipants,sleepingbags,diapercovers,
sweat suits, and bicycle, motor cycle, car covers, etc.
Donotoperatethewasherwhenthedetergentboxisremoved.
- This may result in electric shock or injury due to water leakage.
Donottouchtheinsideofthetubduringorjustafterdryingasitishot.
- This may result in burns.
Donotinsertyourhandintothedetergentboxafteropeningit.
- Thismayresultininjuryasyourhandmaybecaughtbythedetergentinputdevice.Do
notplaceanyobjects(suchasshoes,foodwaste,animals)otherthanlaundryintothe
washer.
- This may result in damage to the washer, or injury and death in the case of pets due to
the abnormal vibrations.
Donotpressthebuttonsusingsharpobjectssuchaspins,knifes,ngernails,etc.
- This may result in electric shock or injury.
Donotwashlaundrycontaminatedbyoils,creamsorlotionsusuallyfoundinskincare
shops or massage clinics.
- This may result in the rubber seal becoming deformed and water leakage.
Donotleavemetalobjectssuchasasafetypinorhairpin,orbleachinthetubforlong
periods of time.
- This may cause the tub to rust.
- Ifruststartsappearingonthesurfaceofthetub,applyacleansingagent(neutral)tothe
surface and use a sponge to clean it. Never use a metal brush.
Donotusedrycleaningdetergentdirectlyanddonotwash,rinse,orspinlaundry
contaminated by dry cleaning detergent.
- This may result in spontaneous combustion or ignition due to the heat of the oxidation of
the oil.
Donotusehotwaterfromwatercooling/heatingdevices.
- This may result in problems with the washer.
WD0754W8E-02927D-01_EN(XSA).indd 10 2011-9-19 15:55:29
safety information _11
Donotusenaturalhand-washingsoapforthewasher.
- Ifithardensandaccumulatesinsidethewasher,itmayresultinproblemswiththe
product, discolouration, rust or bad odors.
Donotwashlargelaundryitemssuchasbeddinginthewashingnet.
- Place socks and brassieres into the washing net and wash them with the other laundry.
- Failure to do so may result in injury due to abnormal vibrations.
Donotusehardeneddetergent.
- Ifitaccumulatesinsidethewasher,itmayresultinwaterleakage.
For washing machines with ventilation openings in the base, ensure that the opening is not
obstructed by carpet or any other obstacles.
Makesurethatthepocketsofallclothingtobewashedareempty.
- Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause
extensive damage to the appliance.
Donotwashclothingwithlargebuckles,buttons,orotherheavymetal.
SEVEREWARNINGSIGNSFORCLEANING
Donotcleantheappliancebysprayingwaterdirectlyontoit.
Donotusebenzene,thinneroralcoholtocleantheappliance.
- This may result in discolouration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failure to do so may result in electric shock or fire.
WARNING
WD0754W8E-02927D-01_EN(XSA).indd 11 2011-9-19 15:55:29
12_ contents
contents
SETTING UP YOUR WASHING
MACHINE
13
13 Checkingtheparts
14 Meetinginstallationrequirements
14 Electrical supply and grounding
14 Water Supply
15 Drain
15 Flooring
15 Surrounding temperature
15 Alcove or closet installation
15 Installingyourwashingmachine
20 ENVIRONMENT
WASHING A LOAD OF LAUNDRY
21
21 Washing for the first time
21 Basic instructions
22 Using the control panel
25 Child lock
25 Sound off
25 Delay end
26 Drain Only Fuction
26 My cycle
27 Bubble wash
28 Air Wash
29 Using dry course
30 Washing clothes using the cycle selector
31 Washing clothes manually
31 Laundryguidelines
32 Detergentandadditivesinformation
32 Which detergent to use
33 Detergent drawer
33 Liquid Detergent (Selected models)
CLEANING AND MAINTAINING YOUR
WASHING MACHINE
34
34 DrumClean
35 Drainingthewashingmachineinan
emergency
36 Cleaningthedebrislter
36 Cleaningtheexterior
37 Cleaningthedetergentdraweranddrawer
recess
37 Cleaningthewaterhosemeshlter
38 Repairing a frozen washing machine
38 Storing your washing machine
TROUBLESHOOTING AND
INFORMATION CODES
39
39 Checkthesepointsifyourwashingmachine...
40 Informationcodes
CYCLE CHART
41
41 Cyclechart
APPENDIX
42
42 Fabric care chart
42 Protecting the environment
42 Declarationofconformity
43 Specifications
WD0754W8E-02927D-01_EN(XSA).indd 12 2011-9-19 15:55:29
setting up your washing machine _13
01SETTINGUP
setting up your washing
machine
Be sure to have your installer follow these instructions closely so that your new
washing machine works properly and so that you’re not at risk of injury when doing
laundry.

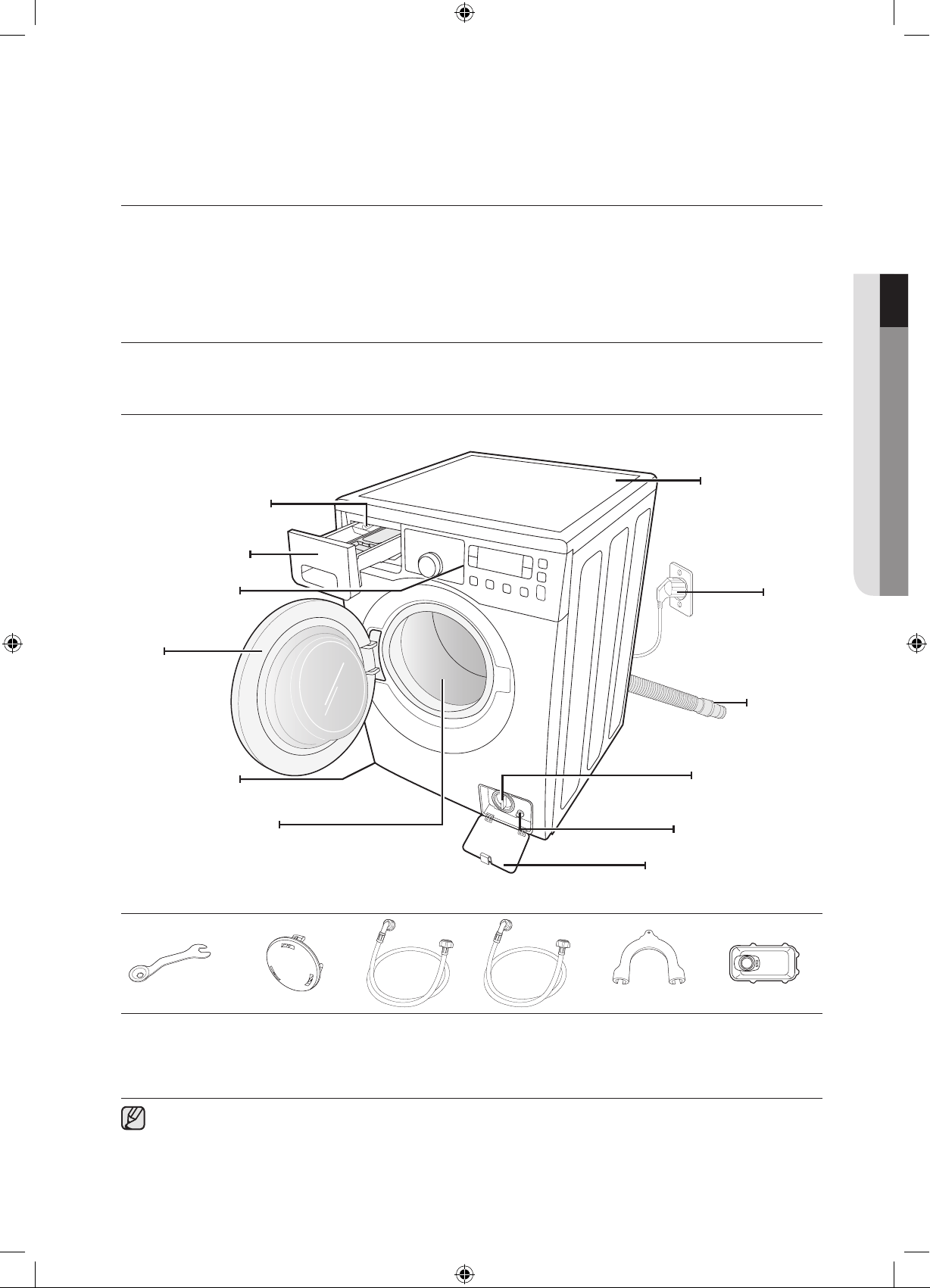

CHECKINGTHEPARTS
Carefullyunpackyourwashingmachine,andmakesureyou’vereceivedallofthepartsshownbelow.
Ifyourwashingmachinewasdamagedduringshipping,orifyoudonothavealloftheparts,contact
SamsungCustomerServiceoryourSamsungdealer.
Spanner
*Bolthole
covers
Cold
Hot
(Selected
model)
Hoseguide
Liquid
detergentbox
(Selected
model)
Watersupplyhose
*Boltholecovers:Thenumberofboltholecoversdependsonthemodel(3~5covers).
Detergentdrawer
Controlpanel
Door
Levellingfeet
Worktop
Plug
Drainhose
Debrislter
Emergencydraintube
FilterCover
Tub
Releaselever
WD0754W8E-02927D-01_EN(XSA).indd 13 2011-9-19 15:55:30
14_ setting up your washing machine
MEETINGINSTALLATIONREQUIREMENTS
Electricalsupplyandgrounding
Never use an extension cord.
Use only the power cord that comes with your washing machine.
When preparing for installation, ensure that your power supply offers:
• AC230V/50Hzfuseorcircuitbreaker
• Individualbranchcircuitservingonlyyourwashingmachine
Yourwashingmachinemustbegrounded.Ifyourwashingmachinemalfunctionsorbreaks
down, grounding will reduce the risk of electric shock by providing a path of least resistance for
the electric current.
Your washing machine comes with a power cord having a three-prong grounding plug for use in
a properly installed and grounded outlet.
Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
Improperlyconnectingtheequipment-groundingconductorcanresultinelectricshock.
Checkwithaqualiedelectricianorservicemanifyouareunsureifthewashingmachineis
properlygrounded.Donotmodifytheplugprovidedwiththewashingmachine.Ifitdoesnott
the outlet, have a proper outlet installed by a qualified electrician.
WaterSupply
Yourwashingmachinewillllproperlywhenyourwaterpressureis50kPa~800kPa.Water
pressurelessthan50kPamaycausewatervalvefailure,notallowingthewatervalvetoshut
offcompletely.Or,itmaytakethewashingmachinelongertollthanwhatthecontrolsallow,
resultinginyourwashingmachineturningoff.(All-timelimit,designedtopreventoverows/
oodingifaninternalhosebecomesloose,isbuiltintothecontrols.)
Thewatertapsmustbewithin120cmofthebackofyourwashingmachinefortheprovidedinlet
hoses provided to reach your washing machine.
Mostplumbingsupplystoressellinlethosesofvariouslengthsupto305cmlong.
You can reduce the risk of leaks and water damage by:
• Makingwatertapseasilyaccessible.
• Turningofftapswhenthewashingmachineisnotinuse.
• Periodicallycheckingforleaksatwaterinlethosettings.
Before using your washing machine for the first time, check all connections at the water
valve and taps for leaks.
setting up your washing
machine
WARNING
WARNING
WD0754W8E-02927D-01_EN(XSA).indd 14 2011-9-19 15:55:30
setting up your washing machine _15
01SETTINGUP

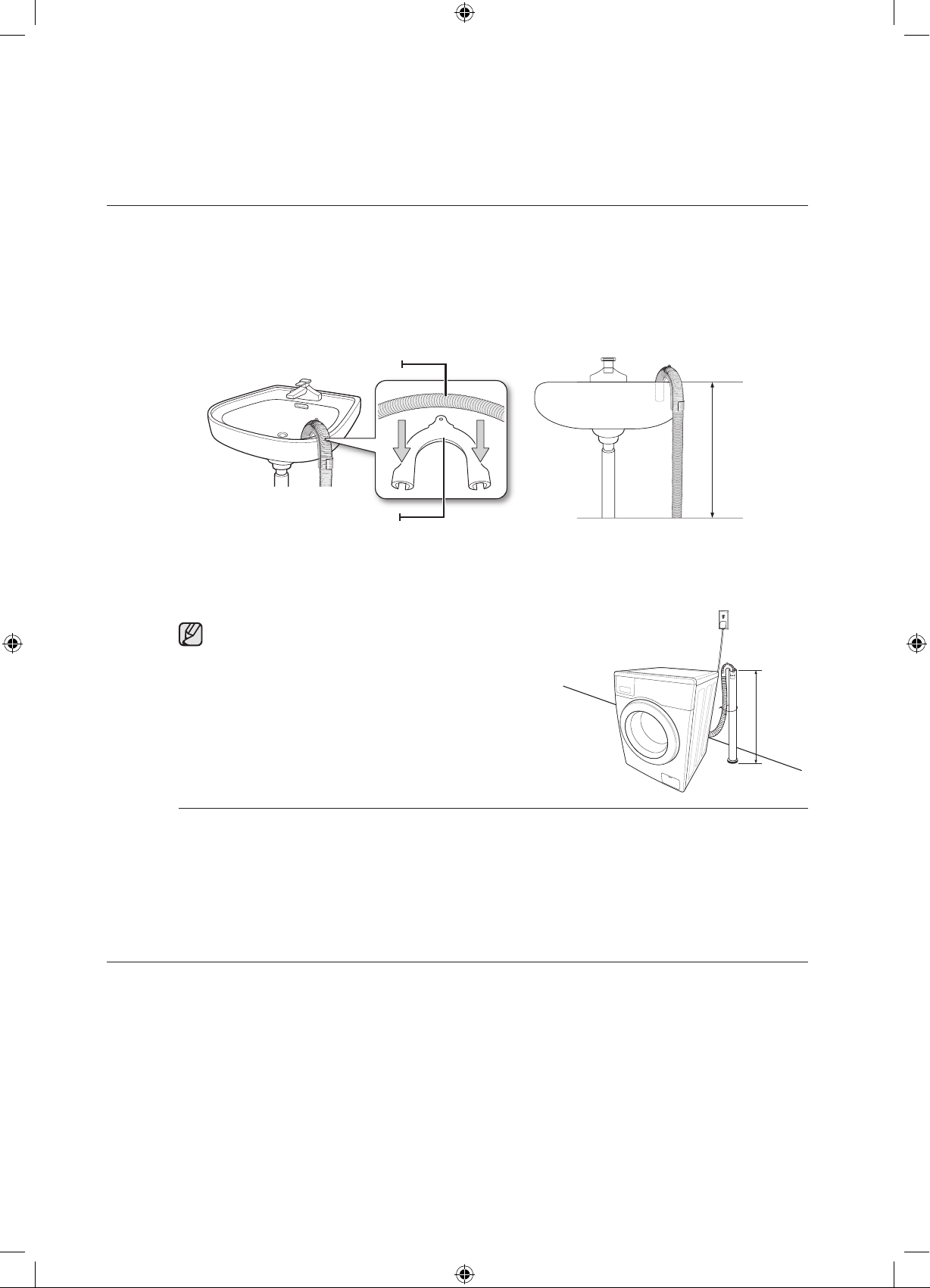

Drain
Samsungrecommendsastandpipeheightof65cm.Thedrainhosemustberoutedthrough
the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside
diameter of the drain hose. The drain hose is attached at the factory.
Flooring
For best performance, your washing machine must be installed on a solidly constructed floor.
Woodoorsmayneedtobereinforcedtominimizevibrationand/orunbalancedloads.Carpeting
and soft tile surfaces are contributing factors to vibrations and the tendency for your washing
machine to move slightly during the spin cycle.
Never install your washing machine on a platform or poorly supported structure.
Surroundingtemperature
Donotinstallyourwashingmachineinareaswherewatermayfreeze,sinceyourwashing
machine always retains some water in its water valve, pump, and hose areas. Frozen water in
the lines can cause damage to belts, the pump, and other components.
Alcoveorclosetinstallation
To operate safely and properly, your new washing machine requires minimum clearances of:
Sides–25mm Rear–50mm
Top–25mm Front–465mm
Ifboththewashingmachineandadryerareinstalledtogether,thefrontofthealcoveorcloset
musthaveatleast465mmunobstructedairopening.Yourwashingmachinealonedoesnot
require a specific air opening.
INSTALLINGYOURWASHINGMACHINE
STEP 1
Selectingalocation
Before you install the washing machine, make sure the location:
• Hasahard,levelsurfacewithoutcarpetingorooringthatmayobstructventilation
• Isawayfromdirectsunlight
• Hasadequateventilation
• Willnotbefreezing(below0˚C)
• Isawayfromheatsourcessuchasoilorgas
• Hasenoughspacesothatthewashingmachinedoesn’tstandonitspowercord
WD0754W8E-02927D-01_EN(XSA).indd 15 2011-9-19 15:55:31
16_ setting up your washing machine
setting up your washing
machine
STEP 2

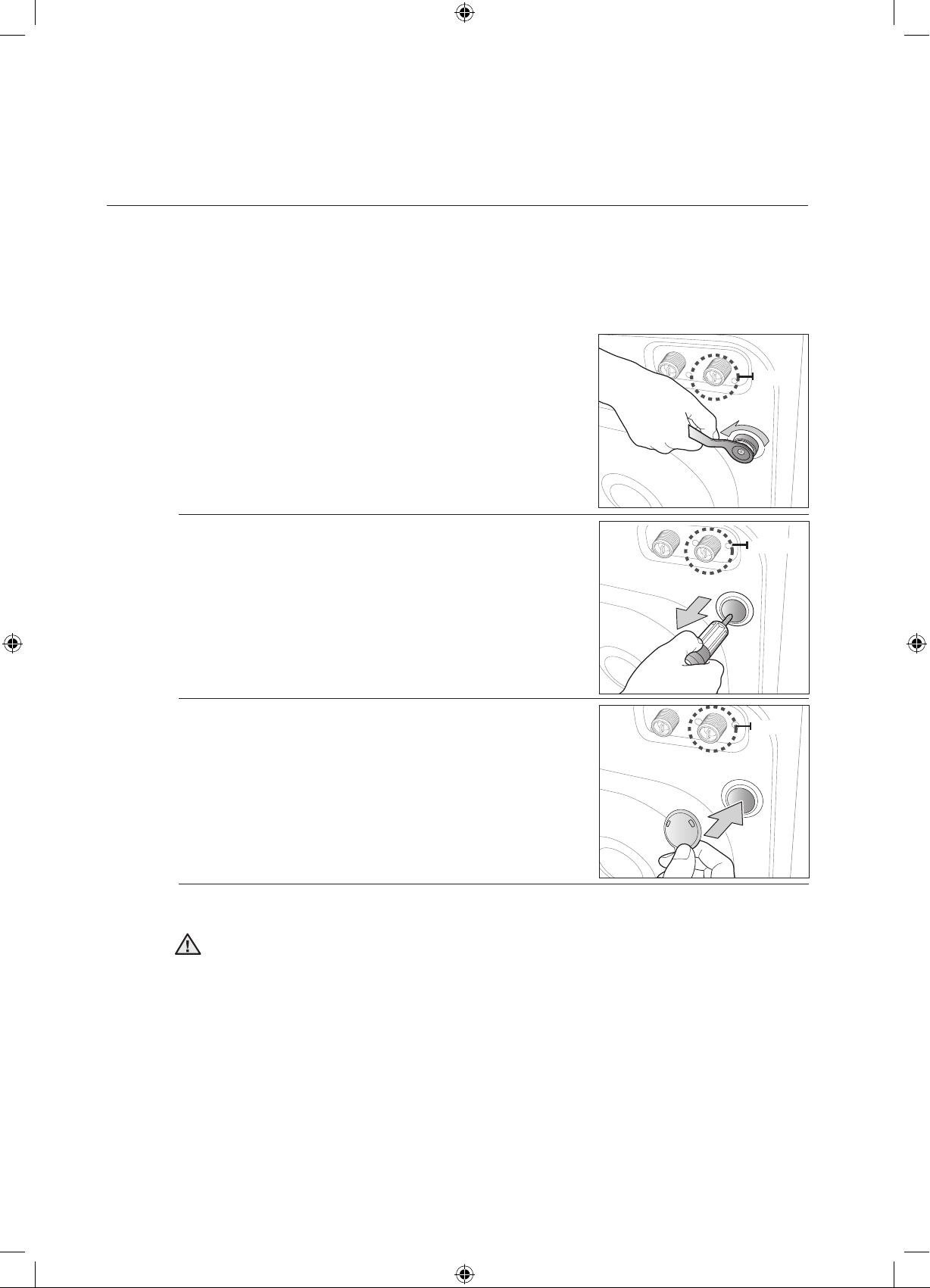

Removingtheshippingbolts
Before installing the washing machine, you must remove all shipping bolts from the back of the
unit.
1. Loosenalltheboltswiththesuppliedwrench.
2. Hold the bolt with the spanner and pull it through the wide
section of the hole. Repeat for each bolt.
3. Fill the holes with the supplied plastic covers.
4. Store the shipping bolts away safely in case you have to move the washing machine in the
future.
Packagingmaterialscanbedangeroustochildren;keepallpackagingmaterial(plastic
bags,polystyrene,etc.)welloutofthereachofchildren.
WARNING
Option
Option
Option
WD0754W8E-02927D-01_EN(XSA).indd 16 2011-9-19 15:55:31

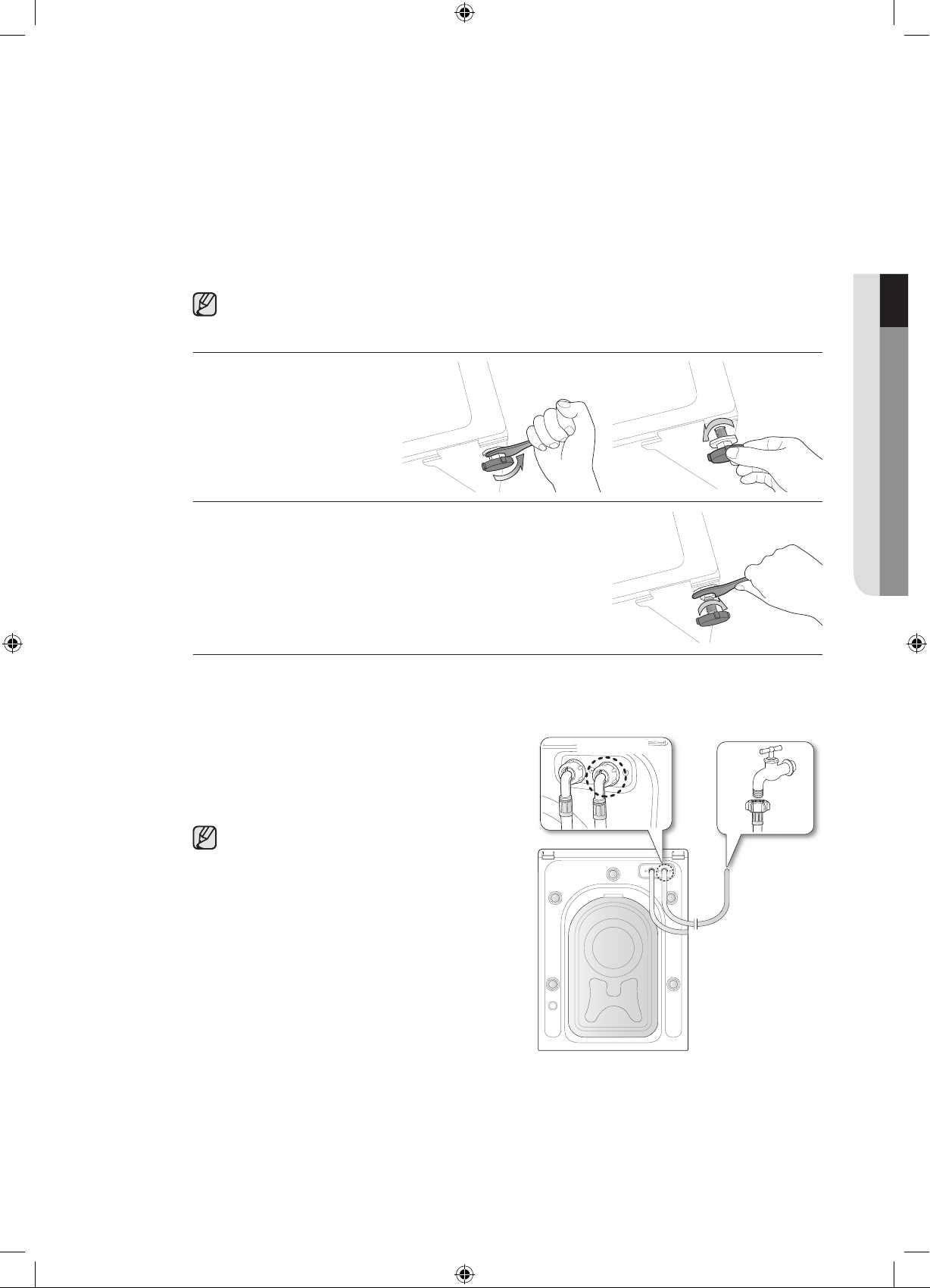

setting up your washing machine _17
01SETTINGUP
STEP 3
AdjustingtheLevellingfeet
When installing your washing machine, ensure that the power plug, the water supply and
the drain are easily accessible.
1. Slide the washing machine into position.
2. Levelyourwashing
machine by turning the
levelling feet in and out as
necessary by hand.
3. When your washing machine is level, tighten the nuts using
the wrench supplied with your washing machine.
STEP 4
Connectingthewateranddrain
Connecting the water supply hose
1. TaketheL-shapedarmttingforthecoldwater
supply hose and connect it to the cold water
supply intake on the back of the machine.
Tighten by hand.
The water supply hose must be connected to
the washing machine at one end and to the
watertapattheother.Donotstretchthewater
supplyhose.Ifthehoseistooshort,replace
the hose with a longer, high pressure hose.
2. Connecttheotherendofthecoldwatersupply
hose to your sink’s cold water tap and tighten
itbyhand.Ifnecessary,youcanrepositionthe
water supply hose at the washing machine end
by loosening the fitting, rotating the hose, and
retightening the fitting.
Forselectedmodelswithanadditionalhotwaterintake:
1. TaketheredL-shapedarmttingforthehotwatersupplyhoseandconnectittothehot
water supply intake on the back of the machine. Tighten by hand.
2. Connecttheotherendofthehotwatersupplyhosetoyoursink’shotwatertapandtighten
it by hand.
3. Use a Y-piece if you only want to use cold water.
Option
WD0754W8E-02927D-01_EN(XSA).indd 17 2011-9-19 15:55:32
18_ setting up your washing machine
setting up your washing
machine

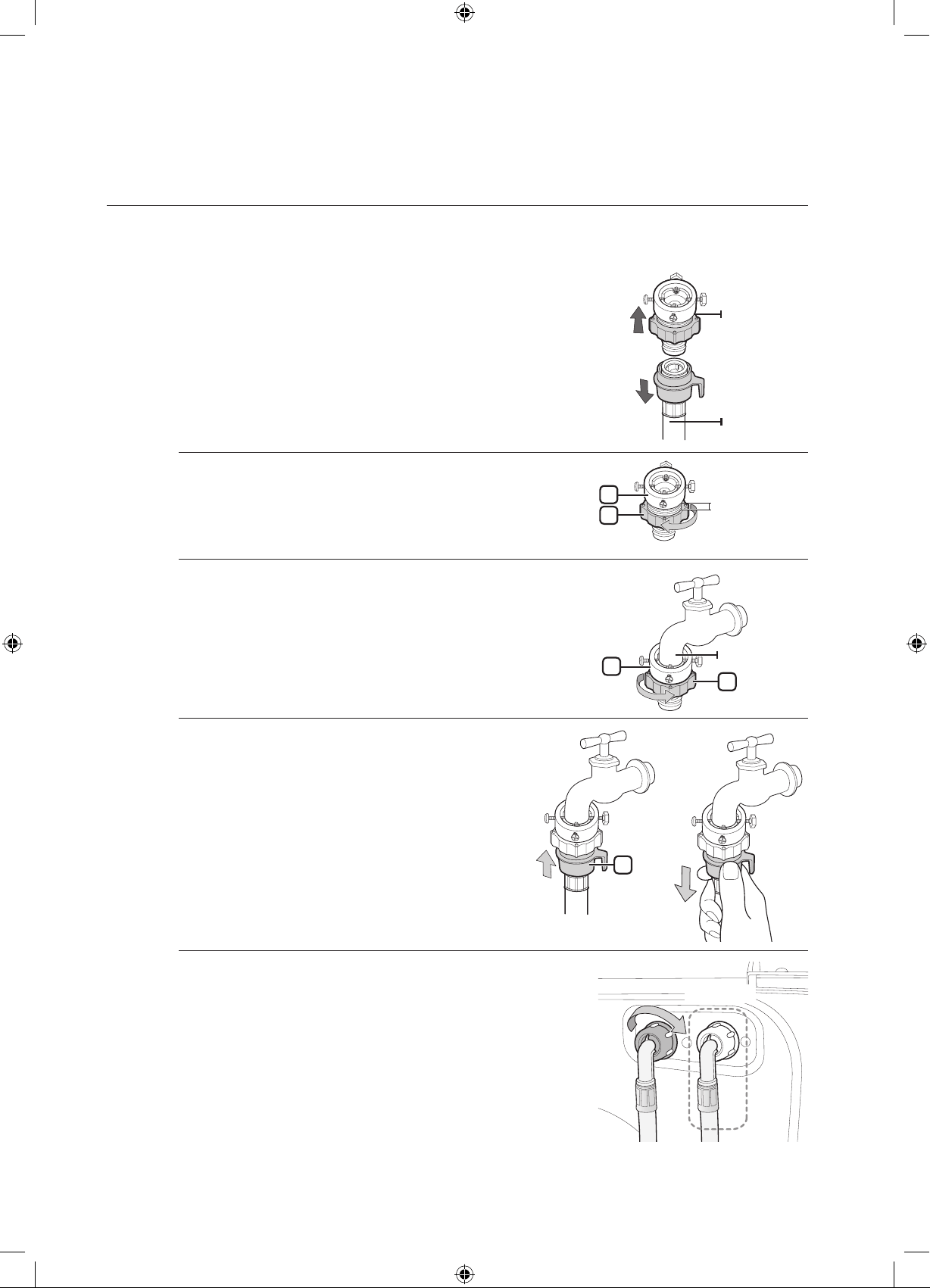

Connecting the water supply hose
1. Remove the adaptor from the water supply hose.
2. First, using a ‘+’ type screwdriver, loosen the four screws
ontheadaptor.Next,taketheadaptorandturnpart(2)
followingthearrowuntilthereisa5mmgap.
3. Connecttheadaptortothewatertapbytighteningthe
screws firmly while lifting the adaptor upwards.
Turnpart(2)followingthearrowandconnect(1)and(2).
4. Connectthewatersupplyhosetotheadaptor.
Whenyoureleasepart(3),thehoseautomatically
connects to the adaptor making a ‘click’ sound.
After you have connected the water supply
hose to the adaptor, ensure that it is connected
correctly by pulling the water supply hose
downwards.
5. Connecttheotherendofthewatersupplyhosetotheinlet
water valve at the rear of the washing machine. Screw the
hose clockwise all the way in.
Adaptor
Watersupply
hose
1
2
5mm
1
2
Watertap
Option
3
WD0754W8E-02927D-01_EN(XSA).indd 18 2011-9-19 15:55:33

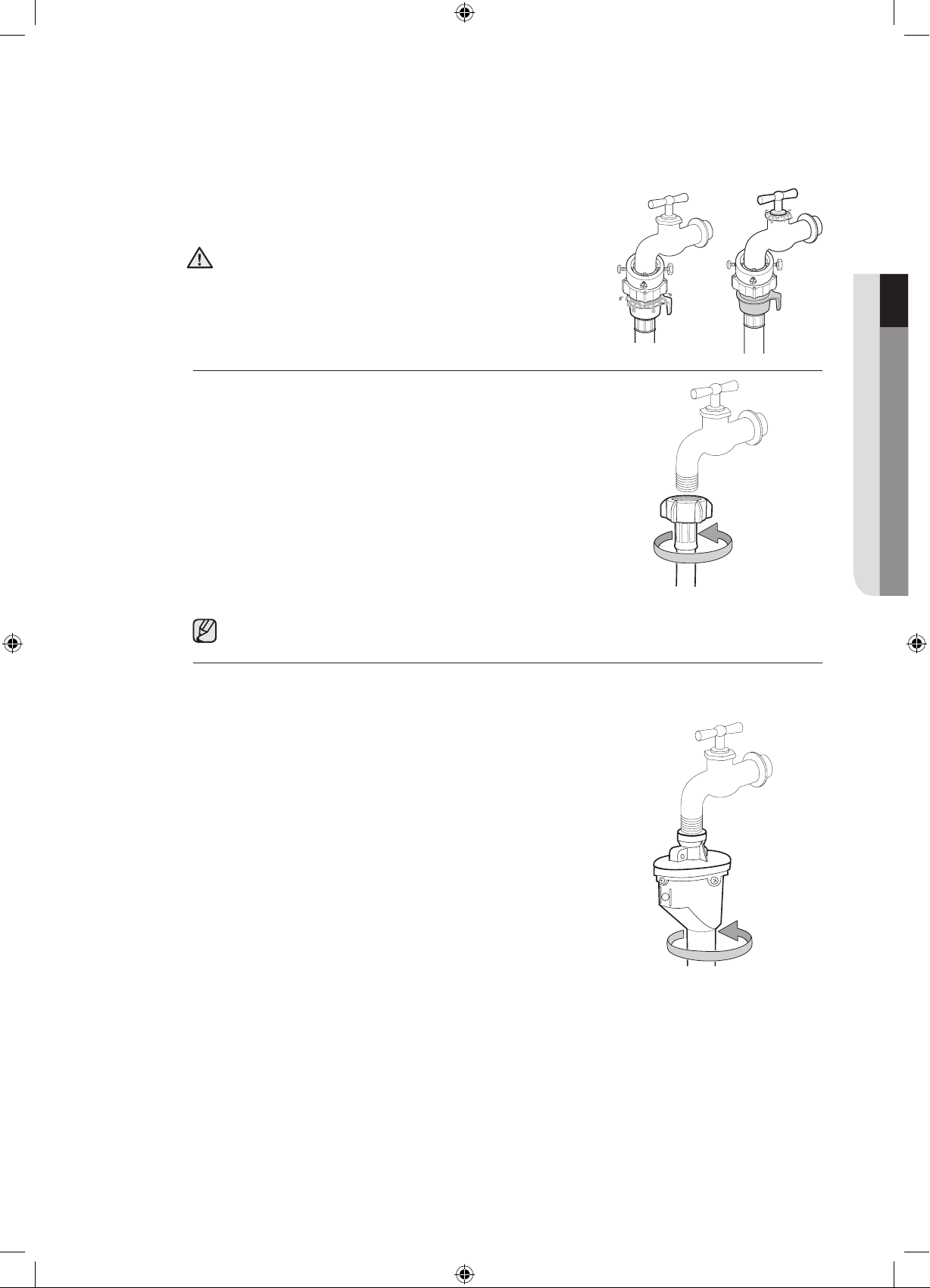

setting up your washing machine _19
01SETTINGUP
6. Turn on the water supply and ensure that no water leaks
fromthewatervalve,taporadaptor.Ifthereisawater
leaks, repeat the previous steps.
Donotuseyourwashingmachineifthereisawaterleak.
This may cause electric shock or injury.
• Ifthewatertaphasascrewtypetap,connectthewater
supply hose to the tap as shown.
Usethemostconventionaltypeoftapforthewatersupply.Incasethetapissquareortoo
big, remove the spacing ring before inserting the tap into the adaptor.
Connecting the Aqua Hose (Selected models)
The Aqua Hose was invented for perfect leakage protection.
Itisattachedtothewatersupplyhoseandautomaticallycuts
offthewaterowifthehoseisdamaged.Italsodisplaysa
warning indicator.
• Connectthewatersupplyhosetothetapasshown.
✗
✗
WARNING
WD0754W8E-02927D-01_EN(XSA).indd 19 2011-9-19 15:55:35
20_ setting up your washing machine
setting up your washing
machine
Connecting the drain hose
The end of the drain hose can be positioned in three ways:
1. Over the edge of a wash basin:Thedrainhosemustbeplacedataheightofbetween60
and90cm.Tokeepthedrainhosespoutbent,usethesuppliedplastichoseguide.Secure
the guide to the wall with a hook or to the tap with a piece of string to prevent the drain hose
from moving.
2. ln a sink drain pipe branch: The drain pipe branch must be above the sink siphon so that
theendofthehoseisatleast60cmabovetheground.
3. ln a drain pipe:Werecommendusinga65cmhighverticalpipe;itmustbenoshorterthan
60cmandnolongerthan90cm.
The standpipe drain requires;
• minimumdiameter5cm.
• minimumcarry-awaycapacity60literperminute.
STEP 5
Poweringyourwashingmachine
Plugthepowercordintoawallsockets,anAC230V/50Hzapprovedelectricaloutletprotected
byafuseorcircuitbreaker.(Formoreinformationonelectricalandgroundingrequirements,see
page14.)
ENVIRONMENT
Please dispose of the packaging materials for this product in an “environmentally friendly” manner.
For further detail, please contact your local area authority.
Drainhose
Hoseguide
60~90cm
60~90cm
WD0754W8E-02927D-01_EN(XSA).indd 20 2011-9-19 15:55:37

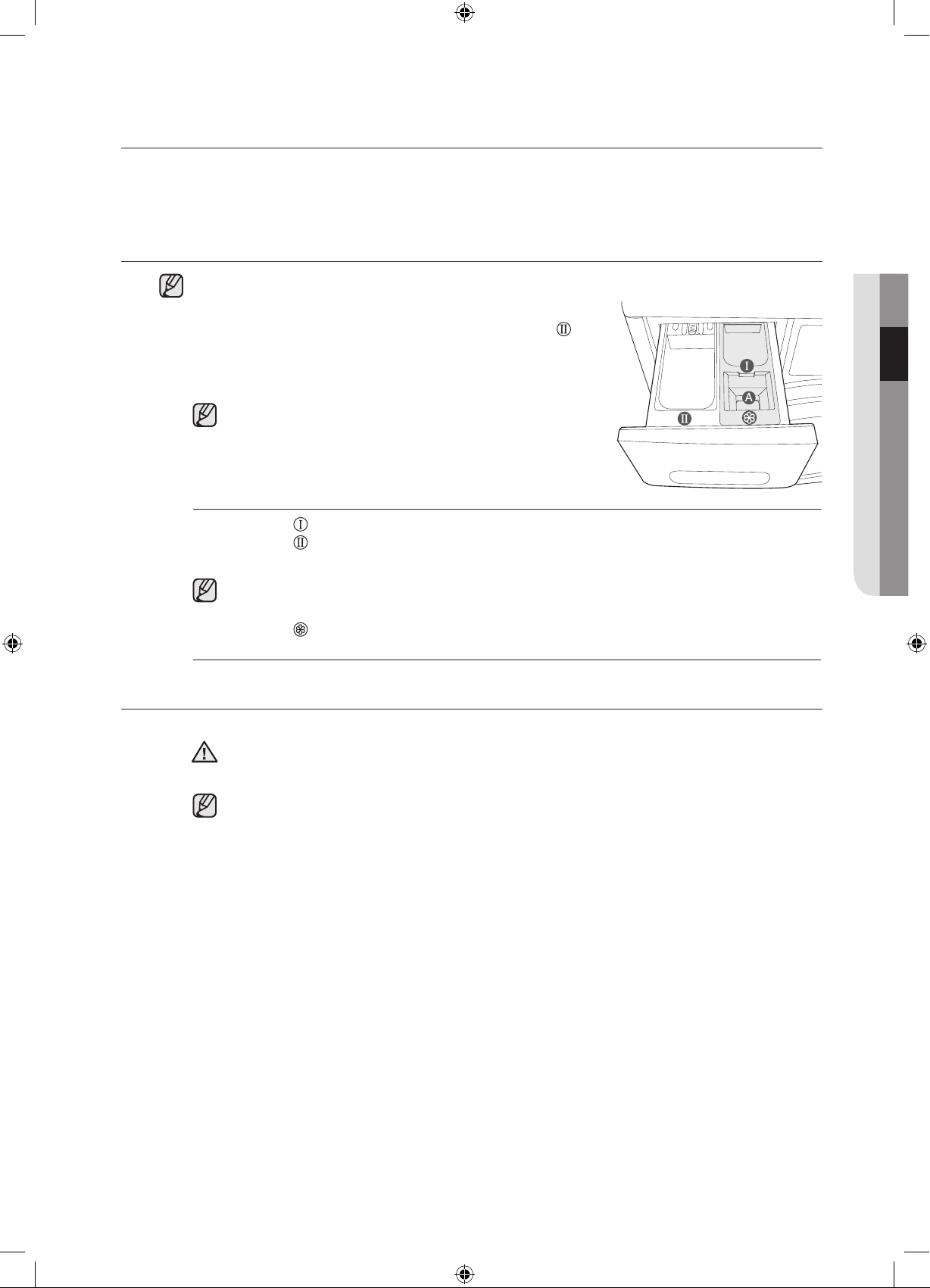

washing a load of laundry _21
02WASHINGALOADOFLAUNDRY
washing a load of laundry
With your new Samsung washing machine, the hardest part of doing laundry will be
deciding which load to wash first.
WASHINGFORTHEFIRSTTIME
Beforewashinglaundryforthersttime,youmustrunacompleteemptycycle(i.e.nolaundry).
1. Press the Power button.
2. Add a little detergent to the detergent compartment in
the detergent drawer.
3. Turn on the water supply to the washing machine.
4. Press the Start/Pause button.
This will remove any water that might be left over in the
machine from the manufacturer’s test run.
Compartment :Detergentforprewash,orstarch.
Compartment :Detergentforthemainwash,watersoftener,pre-soakingagent,bleachand
stain removal product.
Touseliquiddetergent,usetheliquiddetergentbox(refertopage33ofthemanualforthe
correspondingmodel).Donotaddpowdereddetergentintotheliquiddetergentbox.
Compartment :Additives,e.g.fabricsoftenerorformer(llnohigherthanloweredge(MAX)
of“A”)
BASICINSTRUCTIONS
1. Loadyourlaundryintothewashingmachine.
Donotoverloadthewashingmachine.Todeterminetheloadcapacityforeachtypeof
laundry,refertothechartonpage31-32.
• Makesurethatlaundryisnotcaughtinthedoor,asthismaycauseawaterleak.
• Washingdetergentmayremaininthefrontrubberpartofthewasherafterawashcycle.
Remove any remaining detergent, as they may cause a water leak.
• Donottouchthedoorglasswhileyourwashingmachineisrunningoritmaybehot.
• Donotopenthedetergentdrawerorthedebrislterwhileyourwashingmachineis
running or you might be exposed to hot water or steam.
• Donotwashwater-proofeditemsinnormalcycleexceptoutdoorcareprogram.
2. Closethedooruntilitlatches.
3. Turn the power on.
4. Add detergent and additives to the dispenser drawer.
5. Select the appropriate cycle and options for the load.
TheWashIndicatorlightwillilluminateandtheestimatedcycletimewillappearinthedisplay.
6. Press the Start/Pause button.
WARNING
WD0754W8E-02927D-01_EN(XSA).indd 21 2011-9-19 15:55:38
22_ washing a load of laundry

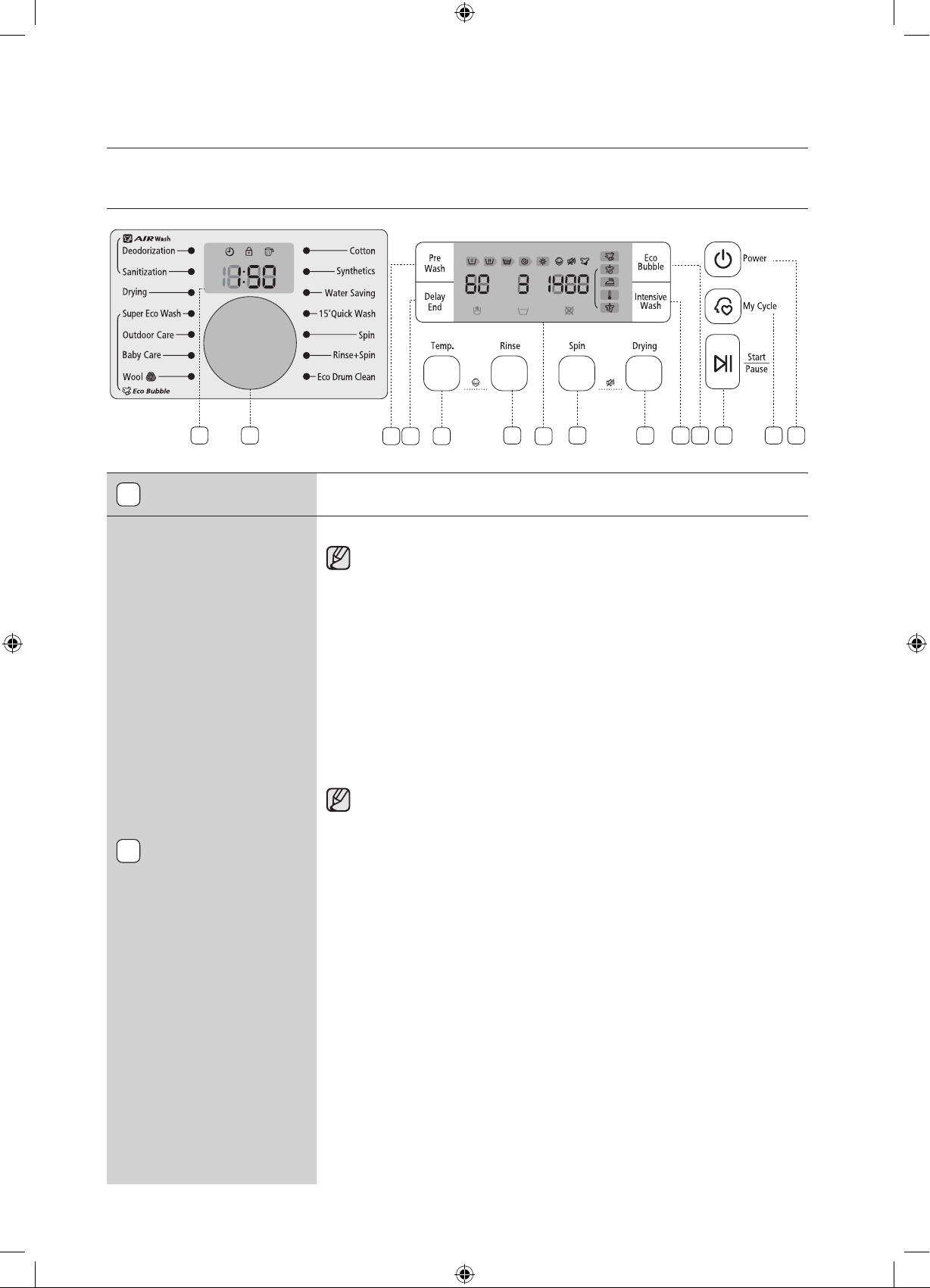

USINGTHECONTROLPANEL
DIGITAL GRAPHIC
DISPLAY
Displaystheremainingwashcycletime,allcycleinformation,anderror
messages.
CYCLE SELECTOR
Select the tumble pattern and spin speed for the cycle.
For detailed information, refer to “Washing clothes using the cycle
selector”.(seepage30)
Cotton - For average or lightly soiled cottons, bed linen, table linen,
underwear, towels, shirts, etc.
Synthetics - For averagely or lightly soiled blouses, shirts, etc., made
ofpolyester(diolen,trevira),polyamide(perlon,nylon)orothersimilar
blends.
WaterSaving - This is a specially designed course that enables you
to wash laundry with a small amount of water. Water
saving,40˚C,2Rinses,Intensive,Bubblewash,1400rpmspinis
recommended for a normally soiled cotton load.
15’QuickWash-Forlightlysoiledgarmentsandlessthan2kglaundry
that you require quickly.
• Thevalues(15’minutes)canvaryfromtheindicatedvalues
depending on water pressure, water hardness, water inlet
temperature, room temperature, type and amount of washing
and degree of soiling, utilized detergent, fluctuation in the
electricity supply and extra options selected.
•
Add only a small amount of detergent for a small amount of laundry
(lessthan2kg)forthe15’QuickWashcourse,becauseifyouadd
too much detergent, detergent may remain after the wash.
Spin - Performs an additional spin cycle to remove more water.
Rinse+Spin - Use for a load that needs rinsing only or to add rinse-
added fabric softener to a load.
DrumClean-Usefordrumcleaning.Itcleansdirtandbacteriaofdrum.
Regularuse(afterevery40washes)isrecommended.Nodetergentor
bleach needed.
AirWash - This course is useful for removing bad odours. Turning the
CycleSelectorcyclesthroughthefollowingoperatingmodes.
(DeodorizationSanitization)
• Deodorization - Reduces bad smells from the laundry
• Sanitization-Deodorizeandsanitizethelaundrybystrongairwash
action with high temp.
Drying - Select to dry laundry automatically by detecting the amount and
weight of the laundry.
washing a load of laundry
5 4 3
6 8 9 7 11 10 12
1 2
1
13
1
2
WD0754W8E-02927D-01_EN(XSA).indd 22 2011-9-19 15:55:38
washing a load of laundry _23
02WASHINGALOADOFLAUNDRY
SuperEcoWash-LowtemperatureBubblewash.
OutdoorCare - Use for outdoor wear such as mountain clothes,
skiwear, and sports wear. Fabrics include functional technology finishes
and fibers such as spandex, stretch, and micro-fiber.
BabyCare - High temperature wash and extra rinses help to ensure that
little washing powder remains to mark your thin clothes.
Wool -
Onlyformachine-washablewool.Aloadshouldbelessthan2.0kg.
• The wool course washes the laundry using gentle cradling actions.
Duringthewash,thegentlecradlingandsoakingactionsare
continued to protect the wool fibers from shrinkage / distortion and
for a super gentle clean. This stop operation is not a problem.
• Neutral detergent is recommended for wool course, for improved
washing results and for improved care of the wool fibers.
The wool wash cycle of this machine has been approved by
Woolmark for the washing of machine-washable Woolmark
products provided that the products are washed according
to the instructions on the garment label and those issued
bythemanufacturerofthiswashingmachine,M1125
(CerticateNumberissuedbyI.W.S.NomineeCo.,Ltd.)
DrainOnly
-TurntheCycleSelectortotheSpinposition,presstheSpin
buttonrepeatedlyuntil“Nospin( )”lightcomeson,andthenpressthe
Start/Pause button to drain the water.
PREWASH
SELECTION BUTTON
Press this button to select pre-wash. Pre-wash is only available with:
Cotton,Synthetics,BabyCare.
DELAY END
SELECTION BUTTON
PressthisbuttonrepeatedlytocyclethroughtheavailableDelayEnd
options(from3hoursto19hoursinonehourincrements).
The hour displayed indicates the time when the wash cycle will be finished.
TEMPERATURE
SELECTION BUTTON
Press this button repeatedly to cycle through the available water
temperatureoptions:(ColdWater ,30˚C,40˚C,60˚Cand95˚C).
RINSE SELECTION
BUTTON
Press this button to add additional rinse cycles. The maximum number
of rinse cycles is five.
SPIN SELECTION
BUTTON
Press the button repeatedly to cycle through the available speeds for the
spin cycle.
WD0754
,400,800,1200,1400rpm
WD0752
,400,800,1000,1200rpm
“No spin ” - The laundry remains in the drum and no spin cycle is
performed after the final drain.
3
4
5
6
7
WD0754W8E-02927D-01_EN(XSA).indd 23 2011-9-19 15:55:39
24_ washing a load of laundry
washing a load of laundry
DRYING BUTTON
Pressing the button cycles through the following options.
Cup Board → Low Temp → Iron → Time Dry
(30min.→1:00h→
1:30h
→ 2:00h→ 2:30h→ 3:00h→ 3:30h→ 4:00h→ 4:30h)→ Cup Board
Cup Board - Use this cycle to dry loads such as cotton, underwear,
and linen.
Low Temp - This cycle protects heat-sensitive items at a low drying
temperature.
Iron -FinishesthedrycycleinamoiststateappropriateforIroning.
Time Dry -Drythelaundryforthespeciedperiodoftime.
• Youmustavoidwashinglaundrythatcan’tsafelybedriedasit
may be deformed even at low temperatures.
• TheCupBoard,LowTemp,IronandTimeDryoptionsdetectthe
weight of the laundry in order to display an accurate drying time
and dry them more completely.
• Thedryingconditionsmaydifferdependingonthetypeandthe
amount of laundry.
• DryingisnotavailableforEcoDrumClean,AirWash,Outdoor
CareandWoolcourses.
WhenyouselecttheDryingcourse,thedryingcycletimethat
appearsonthedisplayincludes17minutesofspinningtime.
INTENSIVE WASH
SELECTION BUTTON
Press this button when the laundry is heavily soiled and needs to be washed
intensively. The cycle time will be increased if the intensive wash is on.
ECO BUBBLE
SELECTION BUTTON
Eco Bubble selection is turned on as a default. Press the Eco Bubble
optionbuttononcetodeselectandtheBubbleGeneratorOFF(shown
onthepanel),pressitagaintoturnthefunctionbackON.
• SomewashcyclesmusthaveEcoBubbleoptionON(willshowon
thepanel,andtheGeneratorwillturnonautomatically).
• Otherwashcyclesdonotneedthisoptionandautomaticallyturnthe
GeneratorOFF.
• Onmanycycles,youcanmanuallyadjustthisoption,whichwill
visiblyaffectwashtimeonthepaneltoachieveresults(pleasesee
page27formoreinformation).
START/PAUSE
SELECTION BUTTON
Press to pause and restart a cycle.
MY CYCLE
SELECTION BUTTON
Chooseyourfavoritecycleincludingtemperature,spin,soillevel,option,etc.
POWER BUTTON
Press it once to turn your washing machine on, press it again to turn
your washing machine off.
Ifthewashingmachineisleftonformorethan10minuteswithoutany
buttons being touched, the power automatically turns off.
9
8
10
11
12
13
WD0754W8E-02927D-01_EN(XSA).indd 24 2011-9-19 15:55:40
washing a load of laundry _25
02WASHINGALOADOFLAUNDRY

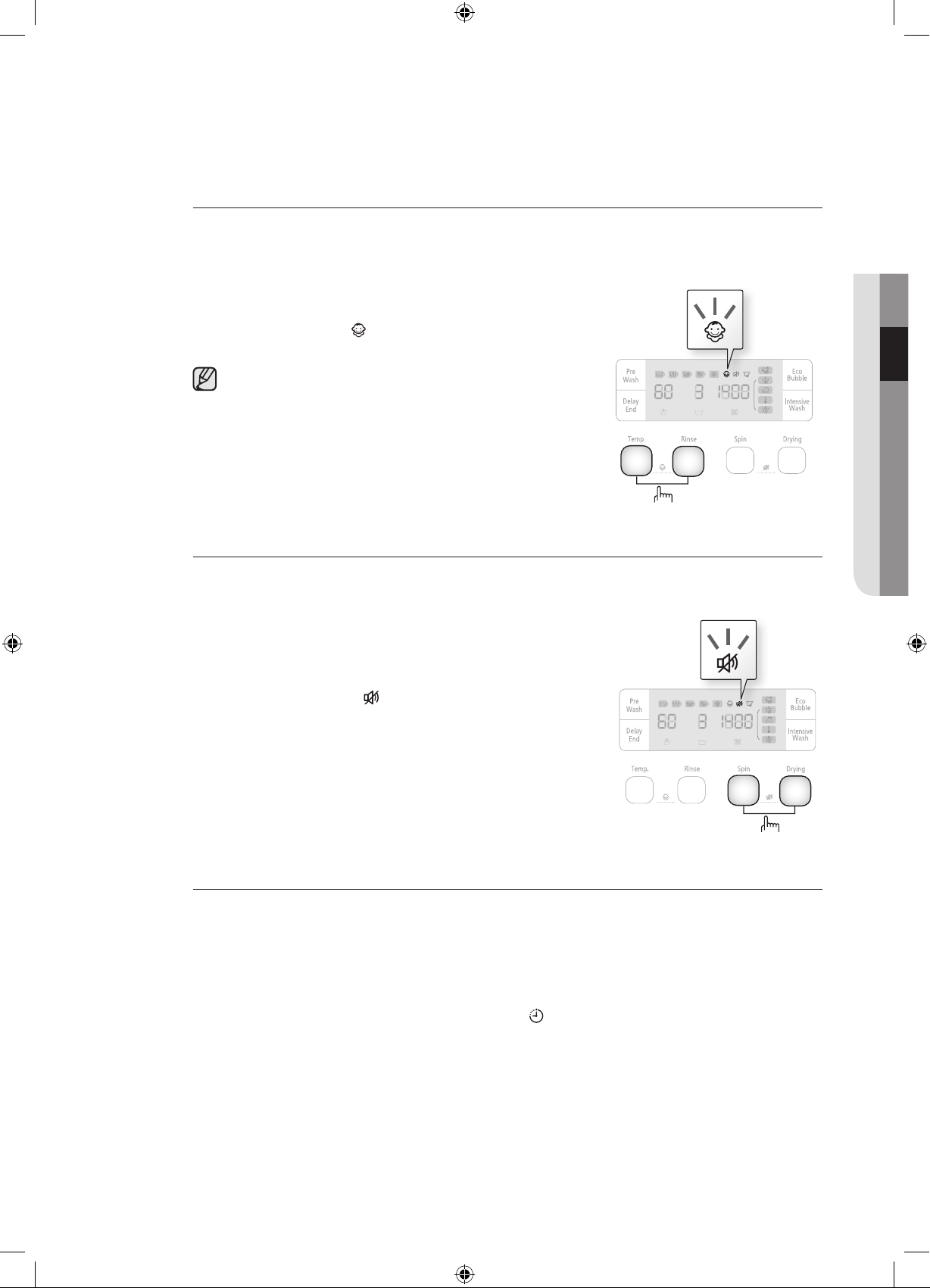

Childlock
TheChildLockfunctionallowsyoutolockthebuttonssothatthewashcycleyou’vechosen
can’t be changed.
Activating/Deactivating
IfyouwanttoactivateordeactivatetheChildLockfunction,
press the Temp. and Rinse buttons at the same time for
3seconds.“Child Lock ” will be lit when this feature is
activated.
WhentheChildLockfunctionisactivated,onlythe
Powerbuttonworks.TheChildLockfunctionremains
on even after the power is turned on and off or after the
disconnecting and reconnecting the power cord.
Soundoff
TheSoundOfffunctioncanbeselectedduringallcourses.Whenthisfunctionisselected,sound
is turned off for all courses. Even if the power is turned on and off repeatedly, the setting is
retained.
Activating/Deactivating
IfyouwanttoactivateordeactivatetheSoundOfffunction,
press the Spin and Optionbuttonsatthesametimefor3
seconds. The “Sound Off ” will be lit when this feature is
activated.
Delayend
You can set the washing machine to finish your wash automatically at a later time, choosing a
delayofbetween3to19hours(in1hourincrements).Thehourdisplayedindicatesthetimeat
which the wash will be finished.
1. Manuallyorautomaticallysetyourwashingmachineaccordingtothetypeoflaundryyouare
washing.
2. Press the Delay End button repeatedly until the delay time is set.
3. Press the Start/Pause button. The “Delay End ” indicator will be lit, and the clock will
begin counting down until it reaches the set time.
4. TocancelaDelayEndfunction,pressthePower button and then turn the washing machine
on again.
3SEC.
3SEC.
WD0754W8E-02927D-01_EN(XSA).indd 25 2011-9-19 15:55:41
26_ washing a load of laundry
DrainOnlyFuction
When you want just drain water from washing machine, follow directions below.
1. Press the Power button.
2. TurntheCycleSelectortotheSpinposition.
3. Press the Spinbuttonrepeatedlyuntil“Nospin( )”lightcomeson.
4. Press the Start/Pause button.
Mycycle
Allowsyoutoactivateyourcustomwash(temperature,spin,soillevel,etc.)withonebutton
convenience.
By pushing the My Cyclebutton,presstheMyCyclebuttontoloadandusethesavedMy
Cycleoptions.Thechosencourseandoptionlightswillicker.
YoucansetalloptionsasfollowsintheMyCyclemode.
1. Turn the water supply on.
2. Press the Power button.
3. Select cycle using the Cycle Selector.
4. After cycle selection, set each option.
Seethe“CycleChart”onpage41foravailableoptionsettingswitheachcycle.
5. You can then store the selected cycle and options by pressing and holding the My Cycle
buttonforlongerthan3secondsinMyCyclemode.Thecycleandoptionsyouselectwillbe
displayedthenexttimeyouchoosetheMyCyclefunction.
YoucanchangetheMyCyclesettingsbyrepeatingthesameprocessabove.
ThelastusedsettingwillbedisplayedthenexttimeyouchoosetheMyCyclefunction.
IfyoupressMyCycleandreleaseitwithin3seconds,thepreviouslysavedcourseand
optionsappear.IfyoupressandholdMyCyclefor3secondorlonger,thecurrentlyset
courseandoptionsaresavedandtheLEDblinksfor3seconds.
washing a load of laundry
WD0754W8E-02927D-01_EN(XSA).indd 26 2011-9-19 15:55:41
washing a load of laundry _27
02WASHINGALOADOFLAUNDRY

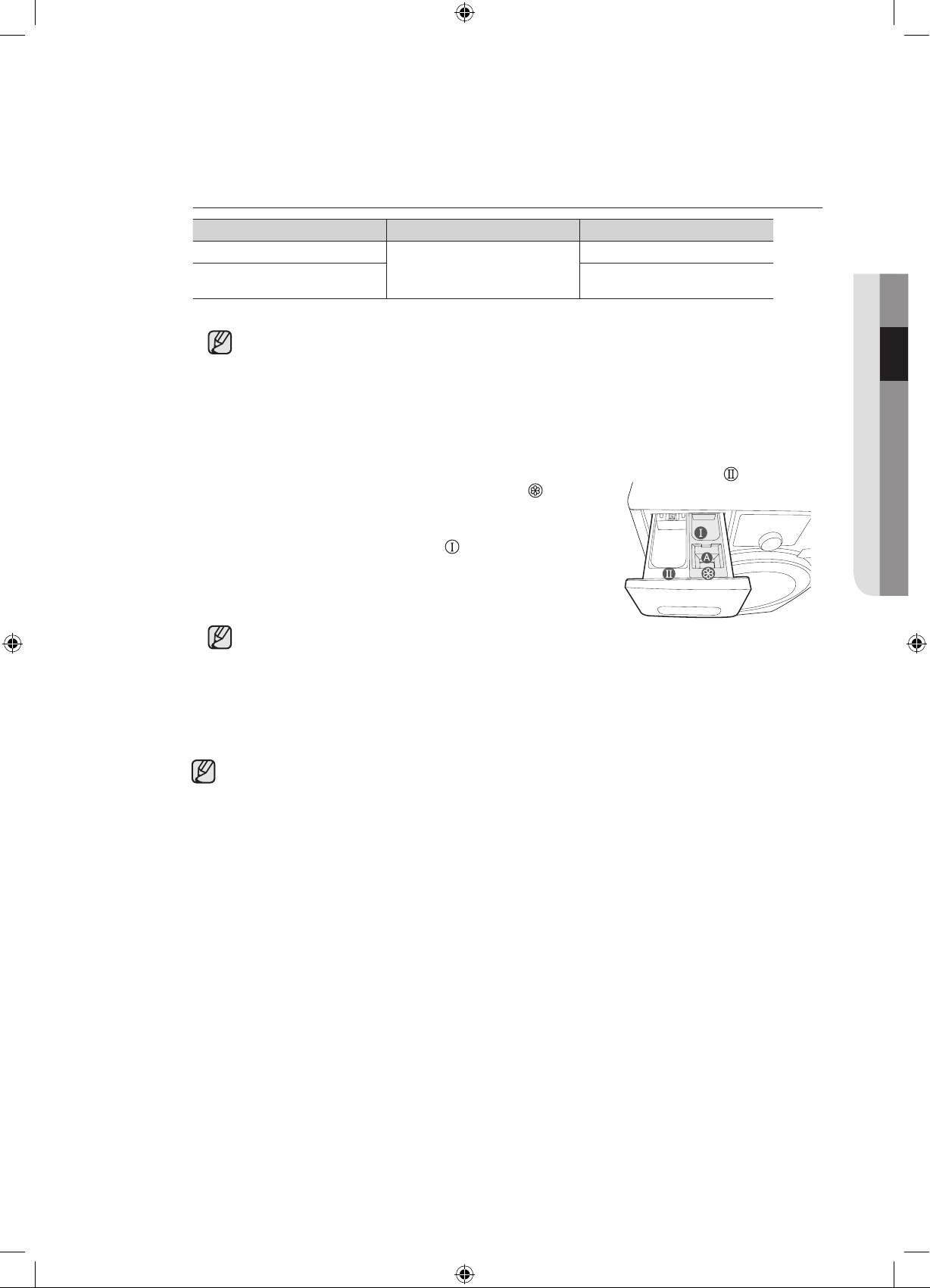

Bubble
Course Bubble function Canceling the bubble function
Cotton,Synthetics,15’QuickWash
Available
Available
SuperEcoWash,OutdoorCare,
BabyCare,Wool
Not available
• Adifferentbubblefunctionmaybeapplieddependingthecourse.
Eco Bubble selection is default. Press it once to deselect bubble option, press it again to
select bubble option.
1. Openthedoor,placethelaundryinsidethewashtubandclosethedoor.
2. Press the Power button.
3. Select a function.
4. Place the appropriate amount of detergent and fabric softener into the corresponding
compartments depending on the amount of laundry and close the detergent drawer.
• Add the appropriate amount of detergent into the detergent compartment , and add
the fabric softener to softener compartment just
underthebersoftenerbaseline(MAX)of“A”)
• When the Prewash course is selected, add detergent
into the prewash compartment as well.
• To use liquid detergent, leave the liquid detergent box in
thedrawer(referto“LiquidDetergent”sectiononpage
33).
Donotaddpowdereddetergentintotheliquid
detergent box.
5. Press the Start/Pause button.
• Press the Start/Pause button to start the wash.
• The amount of the laundry is automatically detected and the laundry is washed.
• Onceawashingmachineoperationbegins,youcannotaddorselectthebubblefunction.
• Enoughbubblesaregeneratedwiththespeciedamountofdetergent.
• Pleasecleanthedebrislterfrequently.Periodiccleaninghelpsgeneratesufcient
bubbles.
• Dependingonthedetergentandthelaundry,thebubblesmaybeabsorbedandseem
like a small quantity.
• Althoughbubblesaregeneratedoncethewashbegins,itmaytakeseveralminutesfor
users to see them.
WD0754W8E-02927D-01_EN(XSA).indd 27 2011-9-19 15:55:42
28_ washing a load of laundry
washing a load of laundry
AirWash
AirWashcanrefreshlaundrywithoutusingwaterowingtoitspowerfulairingsystem.Clothing
that can be refreshed includes woolen coats, cotton jumpers, sweaters and suits. [Two items or
less(lessthan1kg)]
1. Openthedoor,placethelaundryintothewashingmachineandclosethedoor.
2. Press the Power button.
3. Select Air Wash by turning the Cycle Selector.
MODE CYCLE TIME
Deodorization 29min
Sanitization 59min
• When one of these options has been selected, no other button can be selected and you
canonlyselectthedelayendtimefrombetween3:00–19:00.
4. ClosethedoorandpresstheStart/Pause button.
• Whenthereiswaterinthetub,Air Washcannotbeworked.Drainthewaterandselect
Air Wash.
• PresstheStart/Pause or Power button to remove the laundry.
• FragranceordryersheetscanbeusedwithAirWashprogramstoaddfragrancetoyour
refreshedlaundry(onesheetperoneortwoitems).
Avoid Air Wash the following clothes:
• Sensitiveclothesmadeofleather,mink,fur,silk,etc.
• Underweartrimmedwithlace,‘glued’dollcushions,anddresssuitsmayhavetheir
decorations loosened.
• Clothestrimmedwithbuttonscancausethemtobreak.
• Starchyclothescanbecomedeformed.
• Hardbeddingsuchasawoodenpillows(neck-rest)
- Pillows or blankets filled with plastic or starch rather than cotton
- Electric blankets
• Furryblankets
• Bulkyblankets
• Latexpillow
WD0754W8E-02927D-01_EN(XSA).indd 28 2011-9-19 15:55:42
washing a load of laundry _29
02WASHINGALOADOFLAUNDRY
USINGDRYCOURSE
Refer to the label of drying capacity and be sure to put in the clothes to the lower level than the marked line
forthedriedclothesof4.0kg.
1. Openthedoor,putintheclothesandclosethedooragain.
2. Press the Power button and then press the Drying button.
: The standard course will be selected automatically.
DryingisnotavailableforEcoDrumClean,AirWash,OutdoorCareandWoolcourses.
3. Select Drying button as follows.
Drying Programs
• Everypressofthisbuttonwillselectdryingtyperepeatedlyinthefollowingorder:
Cup Board → Low Temp → Iron → Time Dry (30min.→1:00h→ 1:30h
→ 2:00h→ 2:30h→ 3:00h→ 3:30h→ 4:00h→ 4:30h)→ Cup Board
DryingType Information MaxLoad Time
(MaxLoad)
Auto
Drying
Cupboard( )
Standard:Driesthelaundry. 3.5kg 160min.
LowTemp.( )
Driesthelaundryatalow
temperature to protect the texture
of the laundry.
2.0kg 160min.
Iron( )
For leaving items partially damp so
that it can be easily ironed
2.0kg 30min.
TimeDrying( )
You can select the appropriate
drying time depending on the
texture, quantity, and moisture.
4.0kg 270min.
• ForAutoDryingprograms,thismachineautomaticallydisplaysDryingTimebysensing
the weight of clothes before drying, and adjusting appropriately.
• Forlaundryweighinglessthan3.0kg,usetheAutoDry.Forlaundrythatweighs
more,pleaseusetheTimeDry.
• Ifboththespinanddryingcyclesareselected,thespinspeedisautomaticallyselected
to enhance the drying efficiency.
• Whenusingthedryingcycle,checkifthewatersupplyvalveisopened.
• WhenyouselecttheDryingcourse,thedryingcycletimethatappearsonthedisplay
includes17minutesofspinningtime.
4. Put suitable amount of detergent and fiber softener in the detergent tray and close it again.
5. Press Start/Pause button.
:Itautomaticallyperformsanoptimalfunctionfromwashingtodrying.
• Theselectedcoursecan’tbealteredafterthestartofdrying.
• Ifcoldwaterisnotsupplied,dryingwillnotbeperformed.
※ Australianenergytestingwasundertakenusinga4kgload,Dryingcourse+Intensiveprogram.
WD0754W8E-02927D-01_EN(XSA).indd 29 2011-9-19 15:55:43
30_ washing a load of laundry
Washingclothesusingthecycleselector
Yournewwashingmachinemakeswashingclotheseasy,usingSamsung’s“FuzzyControl”
automatic control system. When you select a wash program, the machine will set the correct
temperature, washing time, and washing speed.
1. Turn on your sink’s water tap.
2. Press the Power button.
3. Openthedoor.
4. Loadthearticlesoneatatimelooselyintothedrum,withoutoverllingit.
5. Closethedoor.
6. Adddetergent,softener,andpre-washdetergent(ifnecessary)intotheappropriate
compartments.
Pre-washisonlyavailablewhenselectingtheCotton,Synthetics,DailyWash,Babycare
cycles.Itisonlynecessaryifyourclothingisheavilysoiled.
7.
Use the Cycle Selector to select the appropriate cycle according to the type of material:
Cotton,Synthetics,15’QuickWash,SuperEcoWash,OutdoorCare,BabyCare,Wool,Hand
Wash. The relevant indicators will illuminate on the control panel.
8. At this time, you can control the wash temperature, the amount of rinses, the spinning
speed, and the delay time by pressing the appropriate option button.
9. Press the Start/Pause button and the wash will begin. The process indicator will light up
and the remaining time for the cycle will appear in the display.
PauseOption
Within5minutesofstartingawash,itispossibletoadd/removelaundryitems.
1. Press the Start/Pause button to unlock the door.
ThedoorcannotbeopenedwhenthewateristooHOTorthewaterlevelistooHIGH.
2. After closing the door, press the Start/Pause button to restart the wash.
Whenthecycleisnished:
After the total cycle has finished, the power will turn off automatically.
1. Openthedoor.
2. Remove laundry.
washing a load of laundry
WD0754W8E-02927D-01_EN(XSA).indd 30 2011-9-19 15:55:43
washing a load of laundry _31
02WASHINGALOADOFLAUNDRY
Washingclothesmanually
YoucanwashclothesmanuallywithoutusingtheCycleSelector.
1. Turn the water supply on.
2. Press the Power button on the washing machine.
3. Openthedoor.
4. Loadthearticleslooselyintothedrumoneatatime,withoutoverllingit.
5. Closethedoor.
6. Add detergent and, if necessary, softener or prewash detergent, into the appropriate
compartments.
7. Press the Temp.buttontoselectthetemperature.(Coldwater,30˚C,40˚C,60˚C,95˚C)
8. Press the Rinse button to select the required number of rinse cycles.
The maximum number of rinse cycles is five.
The wash duration is increased accordingly.
9. Press the Spinbuttontoselectthespinspeed.( :NoSpin)
10. Press the Delay EndbuttonrepeatedlytocyclethroughtheavailableDelayEndoptions
(from3hourto19hoursinonehourincrements).Thehourdisplayedindicatesthetimeat
which the wash will be finished.
11. Press the Start/Pause button and the machine will begin the cycle.
LAUNDRYGUIDELINES
Follow these simple guidelines for the cleanest laundry and the most efficient wash.
AlwayschecktheCarelabelonclothingbeforewashing.
Sortandwashyourlaundryaccordingtothefollowingcriteria:
• CareLabel:Sortlaundryintocottons,mixedbres,synthetics,silks,woolsandrayons.
• Colour:Dividewhitesandcolours.Washnewcolouritemsseparately.
• Size: Placing items of different sizes in the same load will improve the wash action.
• Sensitivity:Washdelicateitemsseparately,usingtheDelicatewashcycleforpure,new
woollenitems,curtainsandsilkarticles.Checkthelabelsontheitemsyouarewashingor
refer to the fabric care chart in the appendix.
Emptyingpockets
Before each wash, empty all the pockets of your laundry. Small, irregularly shaped hard objects,
suchascoins,knives,pins,andpaperclipscoulddamageyourwashingmachine.Donotwash
clothing with large buckles, buttons, or other heavy metal objects.
Metalonclothingmaydamageyourclothingaswellasthetub.Turnclothingwithbuttonsand
embroideredclothesinsideoutbeforewashingthem.Ifzipsofpantsandjacketsareopenwhile
washing, the spin basket may be damaged. Zips should be closed and fixed with a string before
washing.
Clothingwithlongstringsmaybecomeentangledwithotherclothesdamagingthem.Besureto
fix the strings before starting the wash.
Prewashingcotton
Your new washing machine, combined with modern detergents, will give perfect washing results,
thus saving energy, time, water and detergent. However, if your cotton is particularly dirty,
prewash with a protein-based detergent.
WD0754W8E-02927D-01_EN(XSA).indd 31 2011-9-19 15:55:43
32_ washing a load of laundry

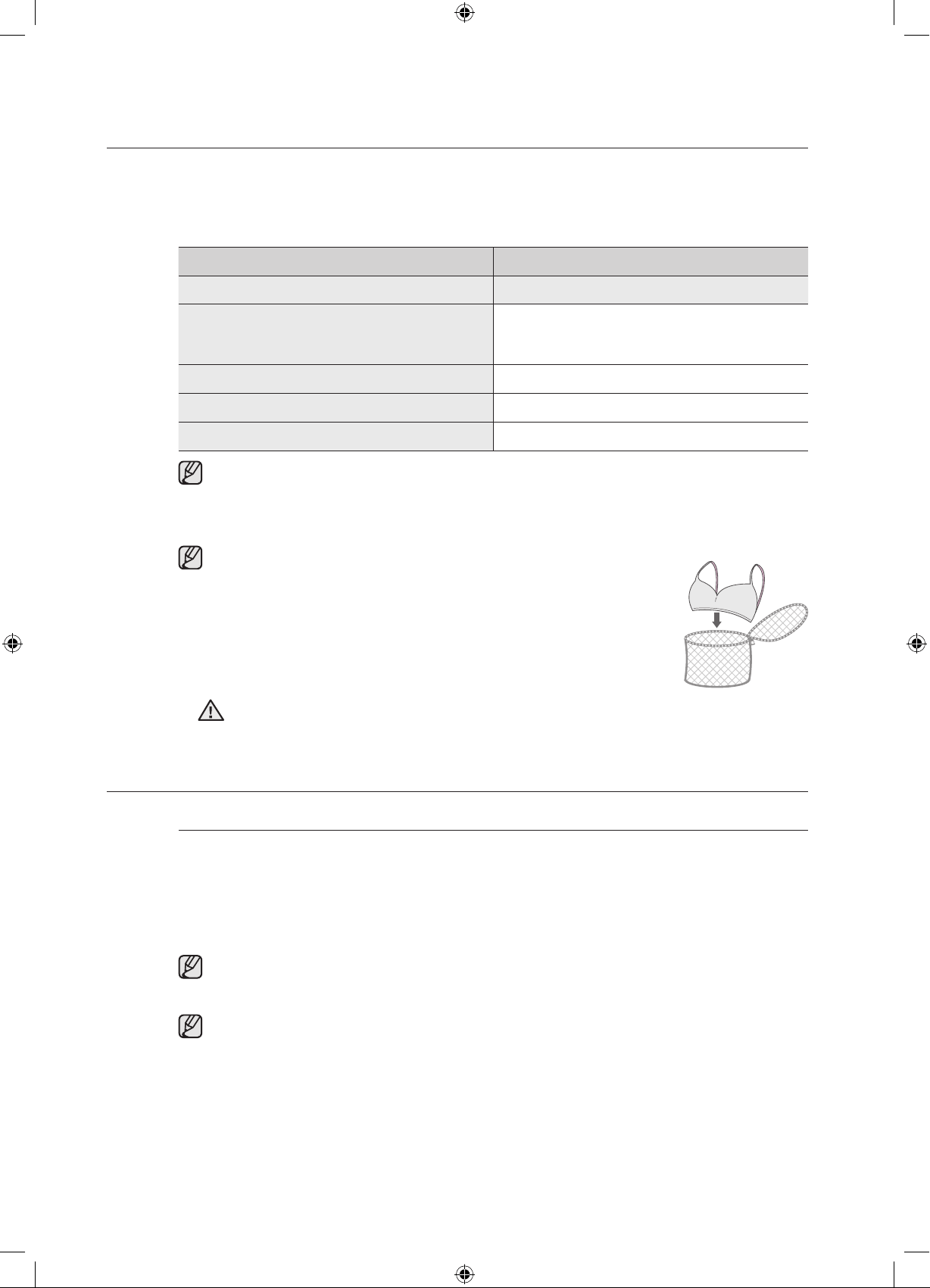

Determiningtheloadcapacity
Donotoverloadthewashingmachineoryourlaundrymaynotwashproperly.Usethechart
below to determine the load capacity for the type of laundry you are washing.
Fabric Type Load Capacity
Model
WD0754/WD0752
Cotton
-average/lightlysoiled
-heavilysoiled
7.5kg
Synthetics 3.0kg
OutdoorWear 2.0kg
Wool 2.0kg
• Whenthelaundryisunbalanced(“UE”lightsuponthedisplay),redistributetheload.
Ifthelaundryisunbalanced,thespinefciencymaybedegraded.
• WhenwashingBeddingorDuvetcover,thewashtimemaybelengthenedorthespin
efficiency may be degraded.
Makesuretoinsertbrassieres(waterwashable)intoalaundrynet(tobe
purchasedadditionally).
• Themetalpartsofthebrassieresmaybreakthroughthematerial
and damage the laundry. Therefore make sure to place them inside
a fine laundry net.
• Small,lightclothingsuchassocks,gloves,stockingsand
handkerchiefs may become caught around the door. Place them
inside a fine laundry net.
Donotwashthelaundrynetbyitselfwithoutotherlaundry.Thismaycauseabnormal
vibrations that could move the washing machine and cause an accident resulting in
injury.
DETERGENTANDADDITIVESINFORMATION
Whichdetergenttouse
Thetypeofdetergentyoushoulduseisbasedonthetypeoffabric(cotton,synthetic,delicate
items,wool),colour,washtemperature,anddegreeofsoiling.Alwaysuse“lowsuds”laundry
detergent, which is designed for automatic washing machines.
Follow the detergent manufacturer’s recommendations based on the weight of the laundry, the
degreeofsoiling,andthehardnessofthewaterinyourarea.Ifyoudonotknowhowhardyour
water is, enquire at your local water authority.
Donotusedetergentthathashardendedorsolidiedasthedetergentmayremainin
therinsecycle.Itmaycauseyourwashingmachinetonotrinseproperlyorresultinthe
overflow becoming blocked.
PleasenotethefollowingwhenusingtheWoolcourse.
• Useaneutralliquiddetergentforwoolonly.
• Whenusingapowderdetergent,itmayremainonthelaundryandcausedamagetothe
material(wool).
washing a load of laundry
CAUTION
WD0754W8E-02927D-01_EN(XSA).indd 32 2011-9-19 15:55:43
washing a load of laundry _33
02WASHINGALOADOFLAUNDRY

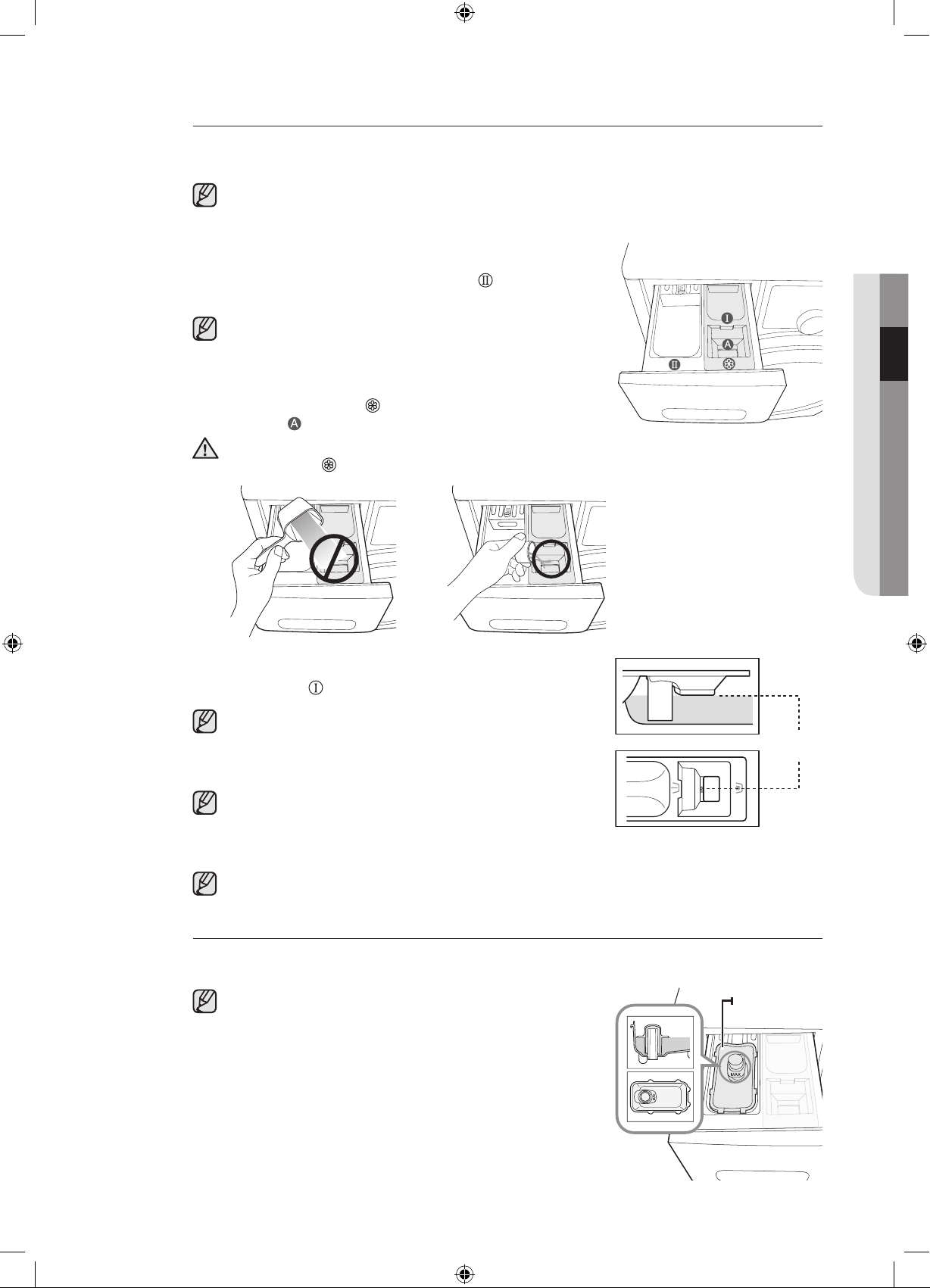

Detergentdrawer
Your washing machine has separate compartments for dispensing detergent and fabric softener.
Add all laundry additives to the correct compartment before starting your washing machine.
Donotopenthedetergentdrawerwhileyourwashingmachineisrunningoryoumightbe
exposed to hot water or steam.
1. Pull out the detergent drawer on the left side of the control
panel.
2. Add the recommended amount of laundry detergent
directly into the detergent compartment before starting
your washing machine.
Touseliquiddetergent,usetheliquiddetergentbox(refer
to“LiquidDetergent”forthecorrespondingmodel).
•
Donotaddpowdereddetergentintotheliquiddetergentbox.
3. Add the recommended amount of fabric softener into the
softener compartment if required. DONOT exceed the
MAXFILL( )line.
DoNOTaddanypowder/liquiddetergent to the softener
compartment( ).
4. When using the Prewash option, add the recommended
amount of laundry detergent into the prewash
compartment .
WhenwashinglargeitemsdoNOTusethefollowing
detergetnt types.
• Tabletandcapsuletypedetergents
• Detergentsusingaballandnet
Concentratedorthickfabricsoftenerandconditioner
must be diluted with a little water before being poured
intothedispenser(preventstheoverowfrombecoming
blocked).
Be careful that the fabric softener does not overflow, when you close the detergent drawer
after adding fabric softener into the rinse detergent compartment.
LiquidDetergent(Selectedmodels)
To use liquid detergent, place the liquid detergent box into the main wash section of the
detergent drawer and pour liquid detergent into the liquid detergent box.
• DONOTllabovetheMAXline.
• Whenusingpowdereddetergent,removetheliquid
detergent box from the detergent drawer. Powdered
detergent will not dispense with liquid detergent box.
• Afterawash,someliquidmayremaininthedetergent
drawer.
MAX
Liquid
detergentbox
CAUTION
WD0754W8E-02927D-01_EN(XSA).indd 33 2011-9-19 15:55:45
34_ cleaning and maintaining your washing machine
cleaning and maintaining your
washing machine

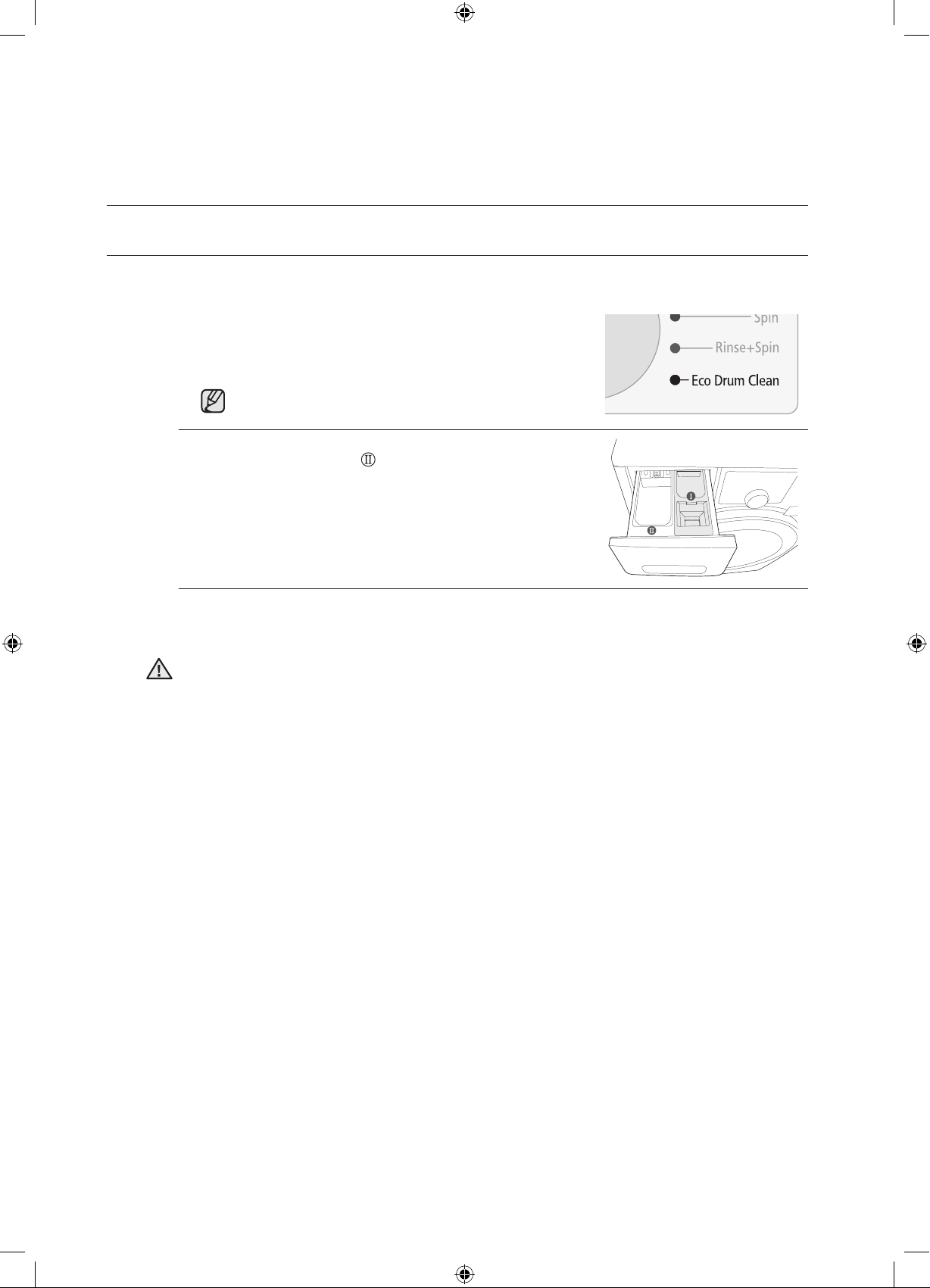

DRUMCLEAN
This course is a self-cleaning course that removes mould that may occur inside the washing machine.
1. Press the Power button.
2. Turn the Cycle SelectortotheECODrumCleancourse.
• YoucanonlyusetheDelayEndfunction.
• ThewatertemperatureduringtheECODrumCleanis
setto70˚C.
You cannot change the temperature.
3. Place the appropriate amount of cleansing agent into the
detergent compartment and close the detergent drawer
(whencleaningthedrumusingacleansingagent).
• Be sure to use the recommended cleansing agent for
cleaning the drum.
• There are powder-type and liquid-type drum cleansing
agents. The liquid-type cleaning agent is only available
withliquiddetergentbox(option).
4. Press the Start/Pause button.
• IfyoupresstheStart/Pausebutton,theECODrumCleancoursebegins.
• UsingtheECODrumCleancourse,youcancleanthedrumwithoutusingacleansingagent.
• NeverusetheECODrumCleancoursewhenlaundryisinthewashingmachine.Thismay
result in damage to the texture or a problem with the washing machine.
• IntheECODrumCleancourse,neverusenormaldetergent.
• Useonly1/10oftheamountofthedrumcleansingagentrecommendedbythe
cleansing agent manufacturer.
• Since using a chlorine bleaching agent may discolour the product, be sure to use only
oxygen bleaching agents.
• Powder-typecleansingagent:Usea[powder-typebleachingagent]ora[cleansingagentfor
drumcleaningonly].
• Liquid-typecleansingagent:Usea[liquid-typeoxygenbleachingagent]ora[cleansingagent
fordrumcleaningonly].
CAUTION
WD0754W8E-02927D-01_EN(XSA).indd 34 2011-9-19 15:55:45
cleaning and maintaining your washing machine _35
03CLEANINGANDMAINTAINING

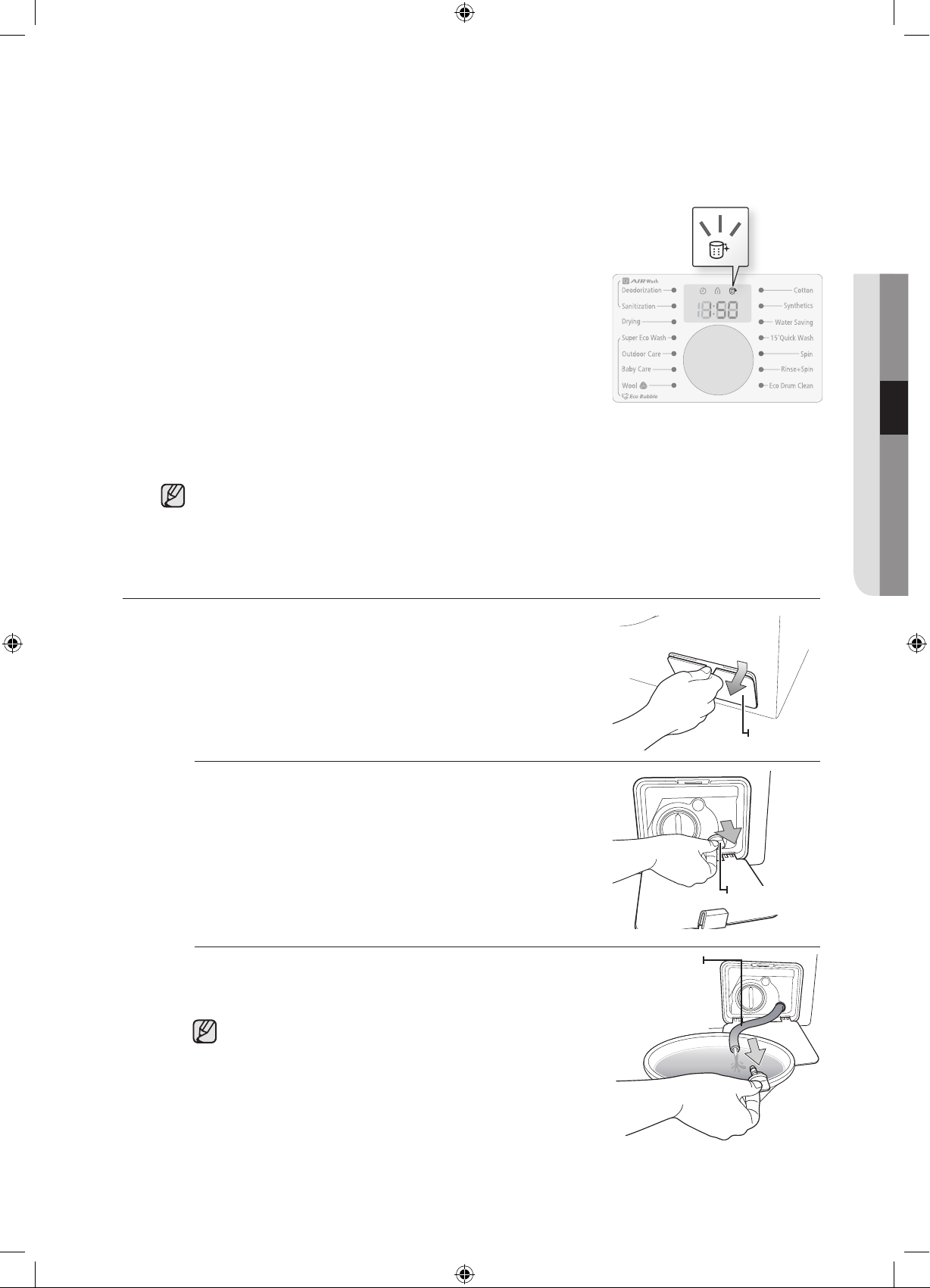

TheECODrumCleanAutoAlarmFunction
• Ifthe“ECODrumClean”indicatoronthedisplayandthe
lampontheCycleSelectorarelitafterawash,itindicates
thattub(drum)cleaningisrequired.Inthiscase,removethe
laundry from the washing machine, turn the power on, and
cleanthedrumbyperformingtheECODrumCleancourse.
• IfyoudonotperformtheECODrumCleancourse,the
“ECODrumClean”indicatoronthedisplayandthelamp
ontheCycleSelectorareturnedoff.However,the“ECO
DrumClean”indicatoronthedisplayandthelamponthe
CycleSelectorareturnedonagainaftertwowashesare
performed. However, this will not result in a problem with the
washing machine.
• Althoughgenerally,theECODrumCleanAutoAlarm
appears once a month or so, the frequency may differ
depending on the number of times the washing machine is
used.
• Incaseofthealarm,pleasealsocleanthedebrislter
(referto“Cleaningthedebrislter”sectiononpage
36).Otherwisetheperformanceofthebubblefunction
may lower down.
DRAININGTHEWASHINGMACHINEINANEMERGENCY
1. Unplug the washing machine from the power supply.
2. Opentheltercoverbypressingdownandpullingits
handle.
3. Opentheemergencydraincapbypullingit.
4. Hold the cap on the end of the emergency drain tube and
slowlypullitoutabout15cm.
5. Allow all the water to flow into a bowl.
Remain water maybe more than you expected. Prepare
larger bowl.
6. Reinsert the emergency drain cap and the drain tube.
7. Replace the filter-cover.
Filtercover
Emergency
draintube
Emergency
draincap
WD0754W8E-02927D-01_EN(XSA).indd 35 2011-9-19 15:55:46
36_ cleaning and maintaining your washing machine

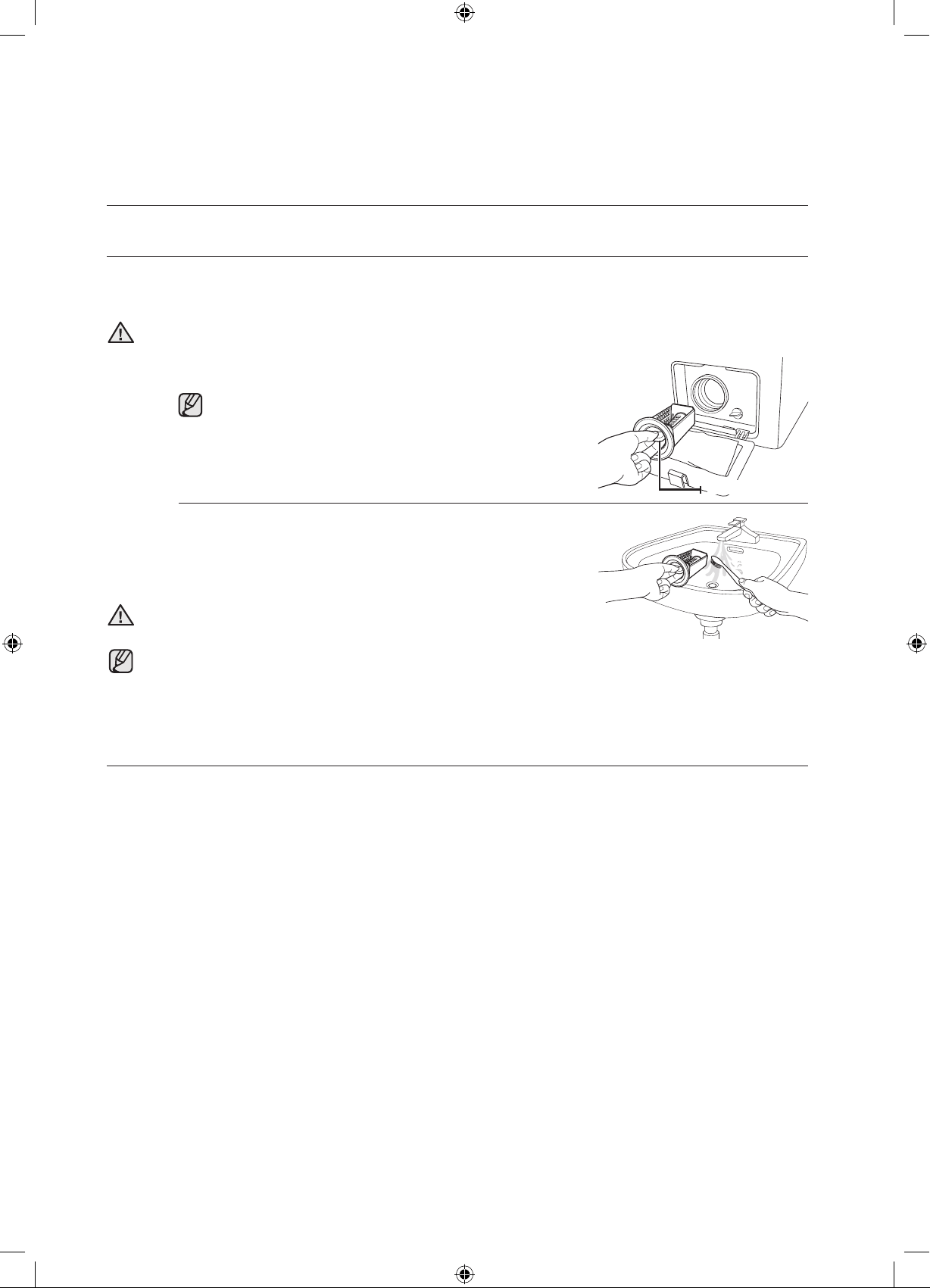

CLEANINGTHEDEBRISFILTER
Werecommendcleaningthedebrislter5or6timesayear,orwhentheerrormessageof“5E” is
displayed.(Referto“Drainingthewashingmachineinanemergency”intheprevioussection.)
Ifforeignsubstancesaccumulatedebrislter,theperformanceofthebubblefunctionwillbedegraded.
Before cleaning the debris filter, make sure to unplug the power cord.
1. Removetheremainingwaterrst(referto“Drainingthe
washingmachineinanemergency”onpage35.)
Ifyouseparatethelterwithoutdrainingtheremaining
water, the remaining water may trickle out.
2. Opentheltercoverbyusingakeyorcoin.
3. Unscrew the emergency drain cap by turning it to the left
and drain off all the water.
4. Unscrew the debris filter cap.
5. Washanydirtorothermaterialfromthedebrislter.Make
sure the drain pump propeller behind the debris filter is not
blocked.
6. Replace the debris filter cap.
7. Replace the filter cover.
Donotopenthedebrisltercapwhilethemachineisrunningorhot
water may flow out.
• Makesuretoreplacetheltercapaftertheltercleaning.Ifthelterisoutofthemachine,your
washing machine may malfunction or leak water.
• Theltershouldbefullyassembledaftertheltercleaning.
CLEANINGTHEEXTERIOR
1. Wipethewashingmachinesurfaces,includingthecontrolpanel,withasoftclothusinga
nonabrasive household detergent.
2. Useasoftclothtodrythesurfaces.
3. Donotpourwaterontothewashingmachine.
cleaning and maintaining your
washing machine
Debrisltercap
CAUTION
CAUTION
WD0754W8E-02927D-01_EN(XSA).indd 36 2011-9-19 15:55:47
cleaning and maintaining your washing machine _37
03CLEANINGANDMAINTAINING

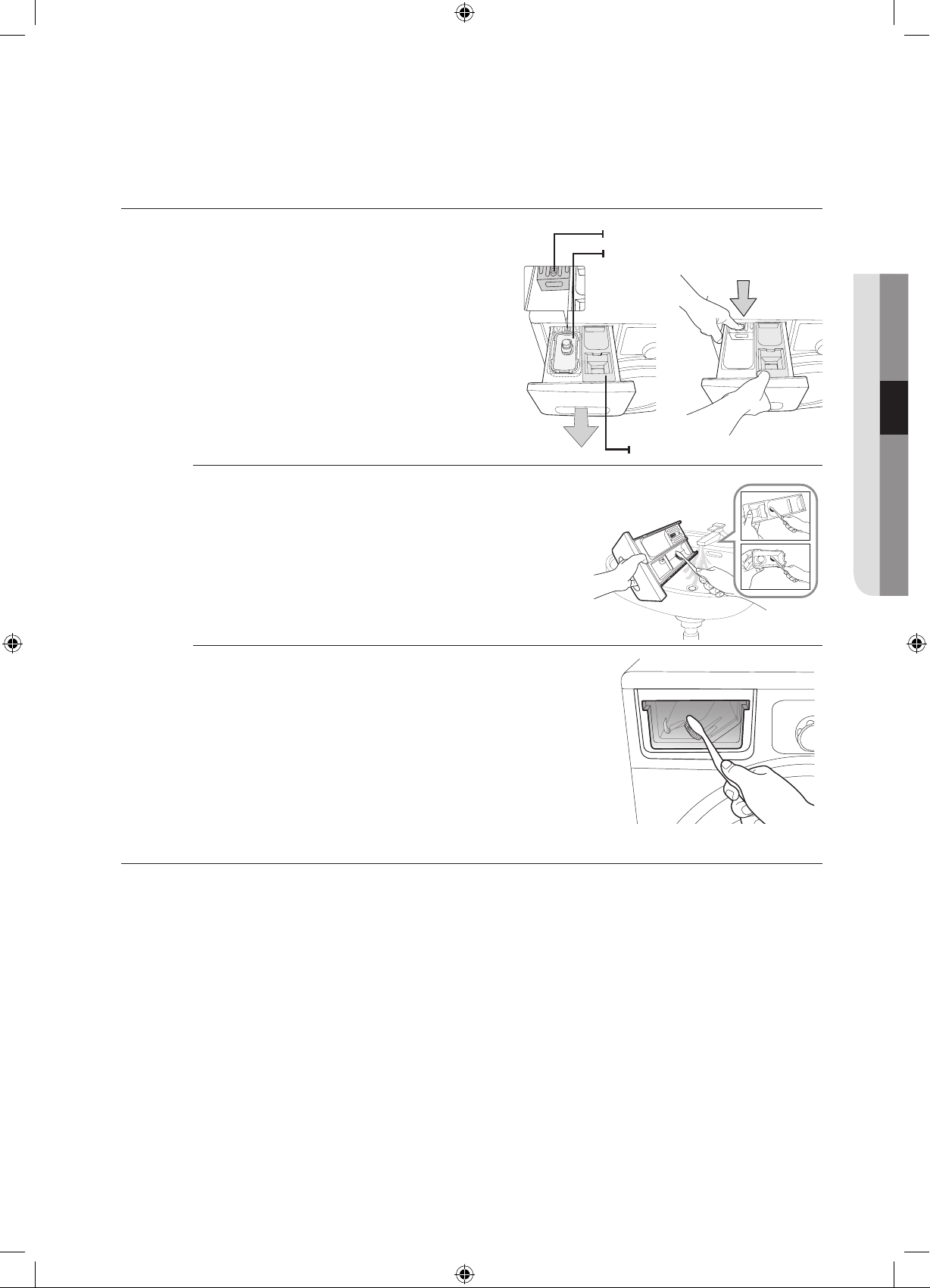

CLEANINGTHEDETERGENTDRAWERANDDRAWERRECESS
1. Press the release lever on the inside of the
detergent drawer and pull the drawer out.
2. Remove the softener divider and the liquid
detergentbox(option)fromthedetergent
drawer.
3. Wash all parts under running water.
4. Cleanthedrawerrecesswithanoldtoothbrush.
5. Replace the softener divider and the liquid detergent box
(option)bypushingitrmlyintothedrawer.
6. Push the drawer back into place.
7. To remove any remaining detergent, perform a rinse cycle
without any laundry in the drum.
CLEANINGTHEWATERHOSEMESHFILTER
You should clean the water hose mesh filter at least once a year, or when the error message of “4E” is
displayed:
1. Turn off the water supply to the washing machine.
2. Unscrew the hose from the back of the washing machine. To prevent water from gushing out
due to the air pressure in the hose, cover the hose with a cloth.
3. Gently pull out the mesh filter from the end of the hose using a pair of pliers and rinse it under
water until clean. Also clean inside and outside the threaded connector.
4. Push the filter back into place.
5. Screw the hose back onto the washing machine.
6. Makesuretheconnectionsarewatertightandturnonthetap.
Releaselever
softenerdivider
liquiddetergentbox(Option)
WD0754W8E-02927D-01_EN(XSA).indd 37 2011-9-19 15:55:48
38_ cleaning and maintaining your washing machine
cleaning and maintaining your
washing machine
REPAIRINGAFROZENWASHINGMACHINE
Ifthetemperaturedropsbelowfreezingandyourwashingmachineisfrozen:
1. Unplug the washing machine.
2. Pour warm water over the tap to loosen the water supply hose.
3. Remove the water supply hose and soak it in warm water.
4. Pourwarmwaterintothewashingmachinedrumandletitsitfor10minutes.
5. Reconnect the water supply hose to the water tap and check if the water supply and drain
are operating normal.
STORINGYOURWASHINGMACHINE
Ifyouneedtostoreyourwashingmachineforanextendedtime,it’sbettertodrainanddisconnectit.
Washing machines can be damaged if water is left in the hoses and internal components before storage.
1. Select the Cotton cycle and add bleach to the bleach compartment. Then, push the Quick
Wash button and run your washing machine through the cycle without a load.
2. Turn the water taps off and disconnect the inlet hoses.
3. Unplug your washing machine from the electrical outlet, and leave your washing machine
door open to allow air to circulate inside the tumbler.
Ifyourwashingmachinehasbeenstoredinbelow-freezingtemperatures,allowtimeforany
leftover water in your washing machine to thaw out before using it.
WD0754W8E-02927D-01_EN(XSA).indd 38 2011-9-19 15:55:48
troubleshooting and information codes _39
04TROUBLESHOOTING
troubleshooting and
information codes
CHECKTHESEPOINTSIFYOURWASHINGMACHINE...
PROBLEM SOLUTION
Willnotstart • Makesureyourwashingmachineispluggedin.
• Makesurethedoorisrmlyclosed.
• Makesurethewatersourcetap(s)areturnedon.
• MakesuretopresstheStart/Pausebutton.
Hasnowaterornotenough
water
• Turn the water tap on fully.
• Makesurethewatersourcehoseisnotfrozen.
• Straighten the water intake hoses.
• Cleanthelteronthewaterintakehose.
Hasdetergentremainingin
thedetergentdrawerafter
thewashcycleiscomplete
• Makesureyourwashingmachineisrunningwithsufcientwater
pressure.
• Makesurethedetergentisaddedtothecenterofthedetergent
drawer.
Vibratesoristoonoisy • Makesureyourwashingmachineisonalevelsurface.Ifthesurface
is not level, adjust the washing machine feet to level the appliance.
• Makesurethattheshippingboltsareremoved.
• Makesureyourwashingmachineisnottouchinganyotherobject.
• Makesurethelaundryloadisbalanced.
Thewashingmachinedoes
notdrainand/orspin
• Straighten the drain hose. Eliminate kinked hoses.
• Makesurethedebrislterisnotclogged.
Doorislockedshutorwill
notopen.
• Thedoorwillnotopenuntil3minutesafterthemachinestopsorthe
power turns off.
Iftheproblempersists,contactyourlocalSamsungCustomerService.
WD0754W8E-02927D-01_EN(XSA).indd 39 2011-9-19 15:55:49
40_ troubleshooting and information codes
INFORMATIONCODES
Ifyourwashingmachinemalfunctions,youmayseeaninformationcodeonthedisplay.Ifthishappens,
pleasecheckthetablebelowandtrythesuggestedsolutionbeforecallingCustomerService.
CODE SYMBOL SOLUTION
dE
• Closethedoor.
• Makesurethedoorisrmlyclosed.
4E
• Makesurethesourcewatertapisturnedon.
• Checkthewaterpressure.
• Cleanthemeshltersofwaterhose.
5E
• Cleanthedebrislter.
• Makesurethedrainagehoseisinstalledcorrectly.
• Cleanthewaterhosemeshlter.
UE
• Thelaundryloadisunbalanced.Redistributetheload.Ifonlyoneitem
of clothing needs washing, such as a bathrobe or pair of jeans, the
final spin result might be unsatisfactory and an “UE” error message
will be shown in the display window.
cE/3E/Uc
• Calltheafter-salesservice.
For any codes not listed above, or if the suggested solution doesn’t fix the problem, call your Samsung
ServiceCentreorlocalSamsungdealer.
troubleshooting and
information codes
WD0754W8E-02927D-01_EN(XSA).indd 40 2011-9-19 15:55:49
cycle chart _41
05CYCLECHART
cycle chart
CYCLECHART
(useroption)
PROGRAM Maxload(kg)
DETERGENT
Max Temp
(
˚C
)
SpinSpeed(MAX)rpm
Pre-wash wash Softener WD0754 WD0752
Cotton 7.5
yes
95 1400 1200
Synthetics 3.0
yes
60 1200 1200
WaterSaving 7.5
yes
60 1400 1200
15’QuickWash
2.0 - yes
40 800
800
EcoDrumClean - - - - 70 400 400
Deodorization 1.0 - - - - - -
Sanitization 1.0 - - - - - -
Drying 4.0 - - - - - -
SuperEcoWash 4.0 - yes
40 1200 1200
OutdoorCare 2.0 - yes
40 1200 1200
BabyCare 4.0
yes
95 1400 1200
Wool 2.0 - yes
40 800 800
PROGRAM Eco Bubble Intensive Delay end Drying
Cycle time
(min)
Cotton
110
Synthetics
80
WaterSaving
135
15’QuickWash
-
15
EcoDrumClean - -
- 86
Deodorization - -
- 29
Sanitization - -
- 59
Drying -
177
SuperEcoWash
92
OutdoorCare
-
- 77
BabyCare
133
Wool
-
- 55
1. Acyclewithaprewashtakesapprox.15minuteslonger.
2. Coursetimeinindividualhomesmaydifferfromthevaluesgiveninthetableduetovariationsinthepressure
and temperature of the water supply, the load and the type of laundry.
3. WhentheIntensiveWashfunctionisselected,thecycletimeisincreasedforeachcycle.
WD0754W8E-02927D-01_EN(XSA).indd 41 2011-9-19 15:55:49
42_ appendix
appendix

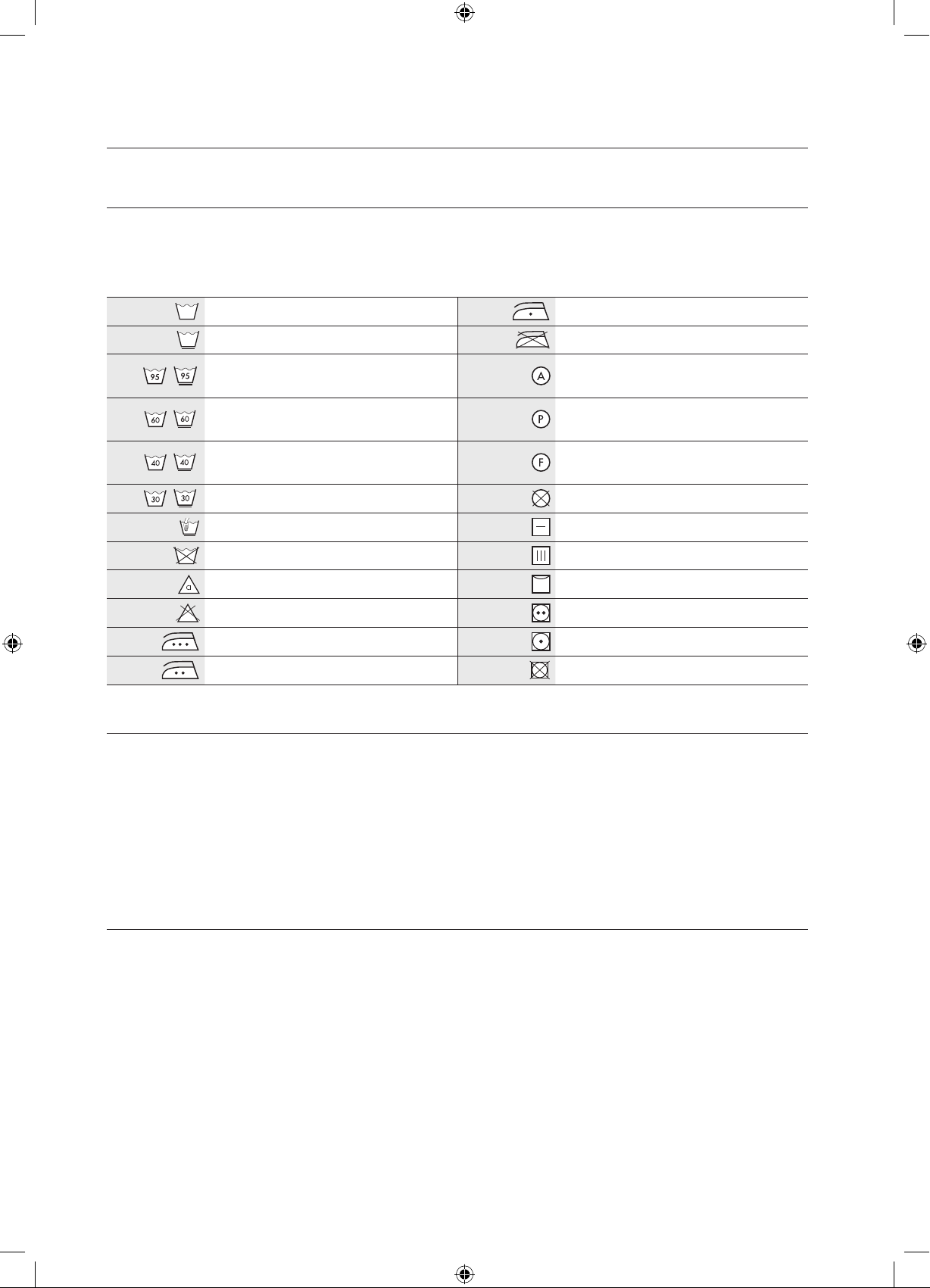

FABRICCARECHART
The following symbols provide garment care directions. The care labels include four symbols in this order:
washing,bleaching,dryingandironing(anddrycleaningwhennecessary).Theuseofsymbolsensures
consistency among garment manufacturers of domestic and imported items. Follow the care label
directions to maximize garment life and reduce laundery problems.
Resistant material Canbeironedat100˚Cmax
Delicatefabric Donotiron
Itemmaybewashedat95˚C
Canbedrycleanedusingany
solvent
Itemmaybewashedat60˚C
Drycleanwithperchloride,lighter
fuel,purealcoholorR113only
Itemmaybewashedat40˚C
Drycleanwithaviationfuel,pure
alcoholorR113only
Itemmaybewashedat30˚C
Donotdryclean
Itemmaybehandwashed
Dryat
Drycleanonly Canbehungtodry
Canbebleachedincoldwater Dryonclotheshanger
Donotbleach Tumble dry, normal heat
Canbeironedat200˚Cmax Tumble dry, reduced heat
Canbeironedat150˚Cmax Donottumbledry
PROTECTINGTHEENVIRONMENT
• Thisapplianceismanufacturedfromrecyclablematerials.Ifyoudecidetodisposeofthisappliance,
pleaseobservelocalwastedisposalregulations.Cutoffthepowercordsothattheappliancecannotbe
connected to a power source. Remove the door so that animals and small children cannot get trapped
inside the appliance.
• Donotexceedthedetergentquantitiesrecommendedinthedetergentmanufactures’instructions.
• Use stain removal products and bleaches before the wash cycle only when strictly necessary.
• Savewaterandelectricitybyonlywashingfullloads(theexactamountdependsupontheprogram
used).
DECLARATIONOFCONFORMITY
ThisappliancecomplieswithEuropeansafetystandards,ECdirective93/68andENStandard60335.
WD0754W8E-02927D-01_EN(XSA).indd 42 2011-9-19 15:55:53
appendix _43
06APPENDIX
SPECIFICATIONS
TYPE FRONT LOADING WASHING MACHINE
DIMENSIONS
WD0754/WD0752
W598mmXD600mmXH844mm
WATERPRESSURE
50kPa~800kPa
WATERVOLUME
65ℓ
NETWEIGHT
WD0754/WD0752
70kg
WASHANDSPINCAPACITY
7.5kg[DRYLAUNDRY]
DRYCAPACITY
4.0kg
POWER
CONSUMPTION
MODEL
WD0754/WD0752
WASHING
230V 150W
WASHAND
HEATING
230V 2000W
DRYING
230V 1600W
SPIN
MODEL
WD0754/WD0752
230V
350W
PUMPING
34W
PACKAGEWEIGHT
MODEL
WD0754/WD0752
PAPER
1.9kg
PLASTIC
2.3kg
SPIN
REVOLUTIONS
MODEL
WD0754 WD0752
rpm
1400 1200
The appearance and specifications of the product are subject to change without prior notice for purposes
of product enhancement.
WD0754W8E-02927D-01_EN(XSA).indd 43 2011-9-19 15:55:53
QUESTIONS OR COMMENTS?
Country CALL OR VISIT US ONLINE AT
AUSTRALIA 1300362603 www.samsung.com
CodeNo.DC68-02927D-01_EN
WD0754W8E-02927D-01_EN(XSA).indd 44 2011-9-19 15:55:53
