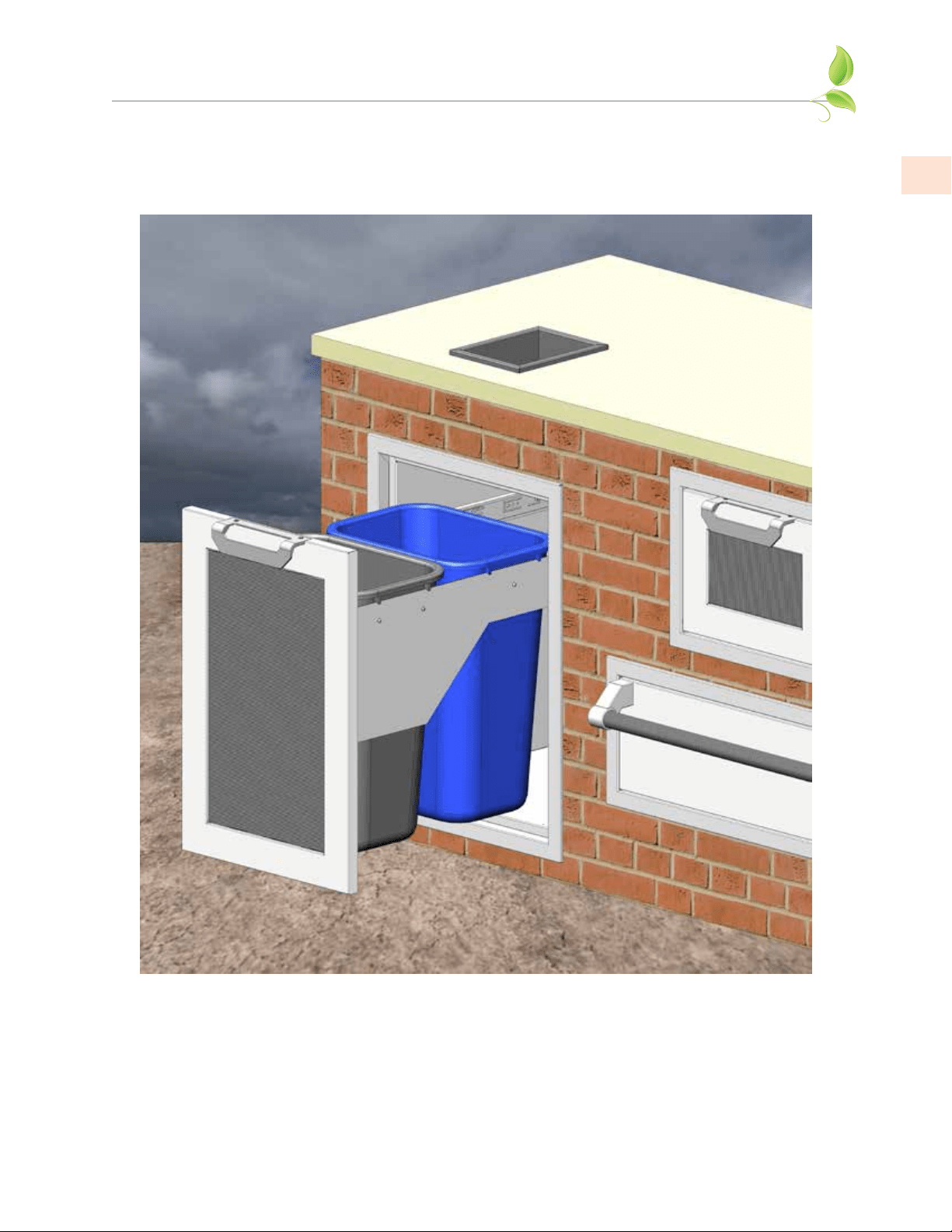

OUTDOOR CABINETS
Installation Instructions
AGLP / AGTRC / AGTC
IMPORTANT - READ ALL INSTRUCTIONS BEFORE YOU BEGIN
INSTALLER SHOULD LEAVE THESE INSTRUCTIONS WITH THE HOMEOWNER
Some parts have sharp edges. Care must be taken when handling the various components to avoid
personal injury. Wear gloves when handling.
TOOLS REQUIRED:
Work gloves
Safety glasses
Electric drill with assorted bits for mounting hardware, masonry anchors, etc. where needed
Phillips screwdriver
Flat-blade screwdriver
Level
Tape measure
Inspect the product to verify that there is no shipping damage. If any damage is detected, call the shipper
and initiate a damage claim. Hestan Commercial Corp. is not responsible for shipping damage. DO NOT
discard any packing material (box, pallet, straps) until the unit has been inspected.
Remove all exterior packaging materials, banding, tape, etc. Remove all protective film from the inside of
your cabinets. You may leave any exterior protective film on until after installation is complete.
CABINET INSTALLATION (AGLP, AGTRC)

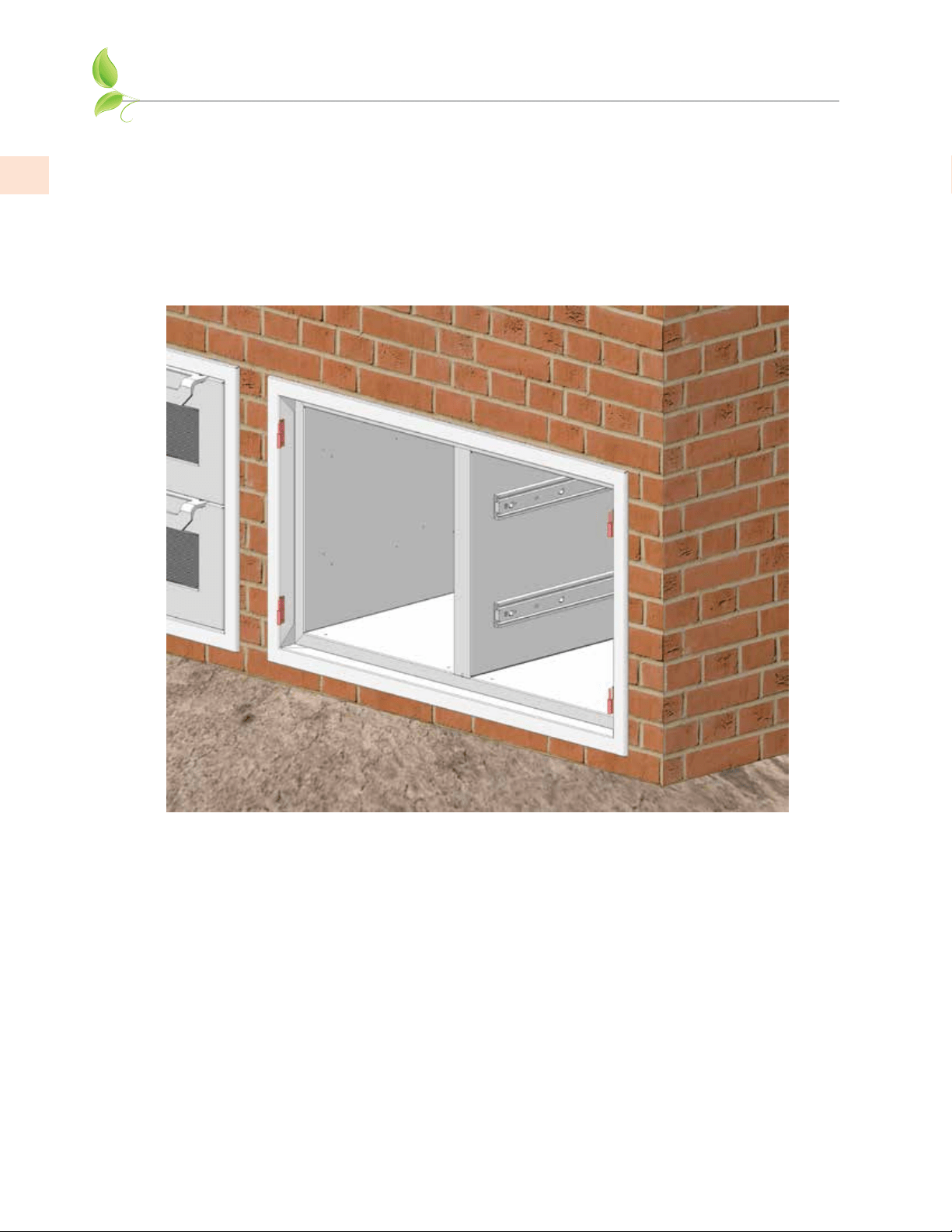

1. Your new Hestan cabinets come with doors and drawers pre-installed in their frames. It will be necessary
to detach them before installing the frame in your island structure. Remove the door (AGLP) by pulling
straight up until the door comes off the pins (shown here in red). To remove the drawer(s) from the box,
press the release lever (shown here in green) on each side of the drawer to disengage the slide (up on the
left, down on the right), then pull the drawer all the way out.
RELEASE
LEVER
DRAWER
BOX
DOOR
PINS
