High Flow Inline Water Filter System
PureMix Z6/Z7
For correct operation & installation it is essential to observe these instructions.JAN2019
2 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019
What's Inside
Introduction ................................................................................................................................. 2
Operation ...................................................................................................................................... 3
Cartridge Replacement ......................................................................................................... 3
Installation ................................................................................................................................... 3
Installation Requirements ................................................................................................... 3
Installation Procedure ........................................................................................................... 4
Cartridge Changeout .............................................................................................................. 6
Use Guidelines ........................................................................................................................... 6
Performance Data ................................................................................................................... 7
Warranty .............................................................................................................................................9
Puretec Customer Service
Thank you for purchasing a Puretec PureMix Inline Water Filter System. Your system is a
proven performer manufactured from only quality materials and components and will give
years of ‘spring fresh’ water, if maintained properly.
The Puretec PureMix Inline Water Filter System cartridge needs replacing regularly to
maintain optimum performance. This is a simple procedure when following instructions. For
cartridge replacements contact your nearest Puretec stockist.
Customer Service Helpline 1300 140 140 (Australia) 0800 130 140 (New Zealand).
What's Inside
3
High Flow Inline Water Filter Systems
Operation
The Puretec PureMix Inline Water Filter System is designed to run economically for many
years, dependent on the initial installation and periodical maintenance.
Flush systems for 10 minutes aer any period of non-use more than 2 days.
The PureMix Z6 Inline Water Filter System is designed to operate with mains water.
The PureMix Z7 Inline Water Filter System is designed to operate with mains, rain, harsh
and rural water.
Cartridge Replacement
To maintain the high quality of the puried water the cartridges need changing every 6
months, dependent on water quality and usage.
You can obtain replacement cartridges from your local Puretec dealer. To maintain
performance standards and warranty, use only genuine Puretec replacements.
Replacement cartridge code for Z6 model: Puretec Z6-R.
Replacement cartridge code for Z7 model: Puretec Z7-R.
Installation
This system comes complete with an installation kit enabling it to be connected to 15mm
(½”) male thread to an existing tap or mixer tap (cold supply only - hot water should be
ltered prior to heating). Also includes extending kit, where extra length is required.
Installation Requirements
1. 15mm (½”) cold water exi-connector to tap.
2. Water supply pressure: 200-689 kPa.
3. Water supply temperature: 0°-38°C (protect from freezing).
Alternative ttings may be required if being connected to anything other than 15mm (½”)
copper pipe. No electrical or drainage requirements.
Operation
4 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019
Installation Procedure
Installation Procedure
1. Select suitable location that is close to the existing tap. Remember to allow access
room for changing lter and a suitable place where water spillage will not cause
damage. Location should not be in direct sunlight.
2. Isolate water supply and release water pressure by operating faucet lever. Disconnect
existing braided hose connections from the cold water line.
3. Attach non-return valve to water supply with thread seal tape. Then detach the 1/2"
DR Brass adaptor from the non-return valve, apply thread seal tape as necessary and
reconnect to the non-return valve.
4. Install lter cartridge to the head assembly (see Fig. 1). Please note the arrow on the
cartridge label indicates Undo and Install directions.
5. Push the joint brass/stem adaptors into the inlet and outlet of the cartridge head,
ensuring they are pushed in all the way.
6. Install system assembly by positioning it in the desired location, marking the position
of xing holes and xing with mounting screws (PureMix Z Series can be mounted
horizontally and vertically). Allow room for the connecting tubes and for removing the
cartridge (70mm).
7. Connect the braided hose onto brass adaptor, then connect to the cartridge head
assembly inlet (please note the arrow on the head indicating the direction of the water
ow). A hose extension kit has been provided if necessary, this can be used to extend
the hose either side of the system. Ensure the hose is kink free.
8. Connect the mixer tap's braided hose to the brass adaptor on the head outlet. Make
sure all ttings are tight and braided hose is kink free.
9. Restore the water supply and check for leaks. If leaking occurs then undo cartridge and
check the cartridge is seated properly.
10. Run the system for at least 10 minutes (turn on mixer tap to run cold water) to remove
carbon nes. Water may appear milky, but this is normal and is only tiny air bubbles
that will clear aer a short period.
5
High Flow Inline Water Filter Systems
Installation Procedure

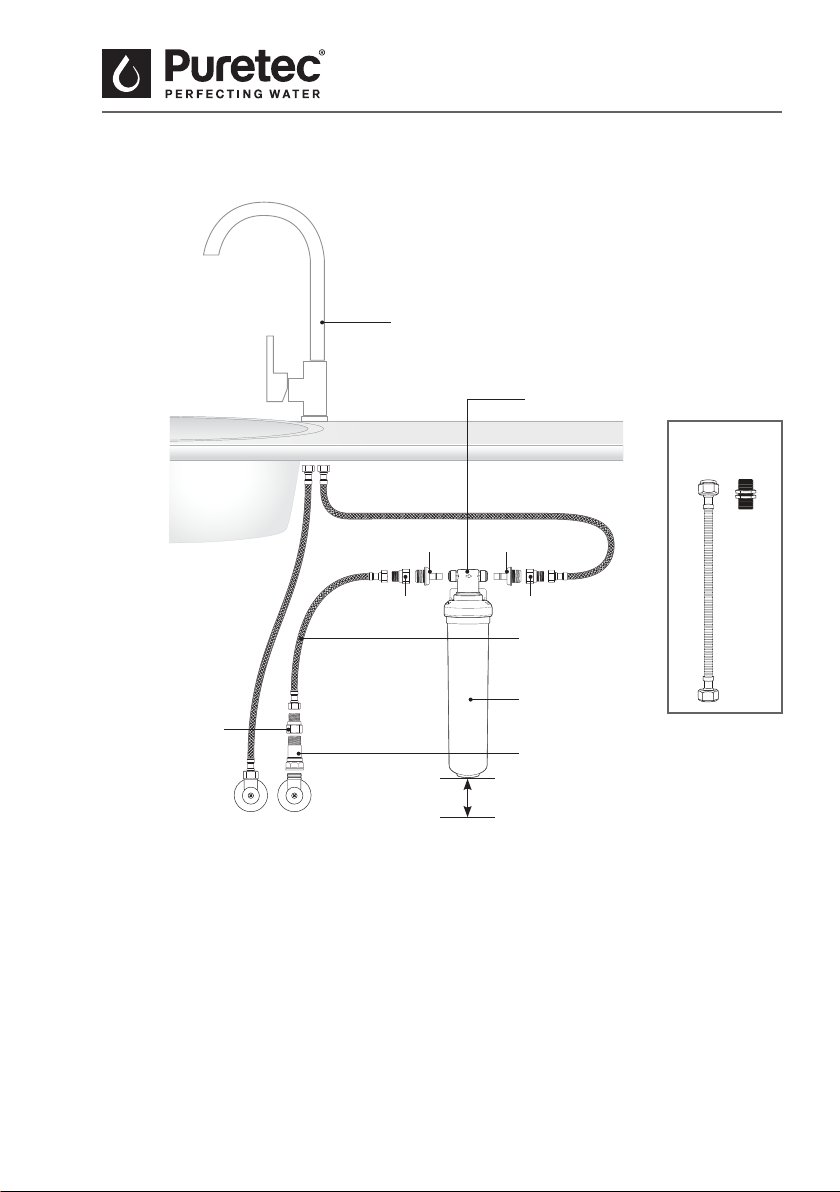

Figure 1
Head
Assembly
Also includes
Extending Kit
Existing Mixer Tap
Z6-R / Z7-R
Cartridge
HOT COLD
Braided Hose
Non-Return Valve
1/2" DR Brass
Adaptor
Brass Adaptor
Stem Adaptor
Brass Adaptor
Stem Adaptor
Minimum 70 mm Clearance
6 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019
Cartridge Changeout
Cartridge Changeout
1. Remove all packaging from the new cartridge, including any wraps or caps (if
applicable).
Replacement cartridge code for Z6 model: Puretec Z6-R.
Replacement cartridge code for Z7 model: Puretec Z7-R.
2. Rotate the old cartridge counterclockwise 1/4 turn, pull it out and dispose of it.
3. Insert the new cartridge into the lter head and rotate clockwise 1/4 turn.
4. Turn on the water and check for leaks. If leaks occur, repeat step 2 & 3. If leaks persist,
discontinue use and call your supporting dealer.
5. Flush lter for 5 minutes before use or until water runs clear.
Use Guidelines
• Use for mains water supply.
• Minimum operating pressure 200 kPa.
• Maximum operating pressure 689 kPa.
• Do not allow exposure to temperatures below 0°C, protect from freezing.
• Maximum operating temperature 38°C.
• Nominal ow rate 9.5 Lpm.
• This system must be installed according to local plumbing codes on the cold water line
only.
• This system requires regular replacement of the lter cartridge to maintain proper
operation. Varying chlorine, sediment, or organic substance levels may aect
replacement frequency.
• Be sure to change the lter cartridge at least every 60,000 litres or 6 months which
ever occurs rst; or whenever you detect a change in taste, odour, or decrease in ow.
Caution: Do not use with water that is microbiologically unsafe or of unknown quality
without adequate disinfection before or after the system.
7
High Flow Inline Water Filter Systems
Performance Data
Performance Data for Z6 Model
Substance Guidelines*
Average
Inuent
Concentration
Max Euent
Concentration
Min Percent
Removal
Average
Euent
Concentration
Average
Percent
Removal
NSF Standard 42 Drinking Water Treatment Units
Chlorine
(60,000 L)
5 - Healt h
0.6 - Aesthetic
2.1 0.3 50% 0.25 >95%
Test Parameters
Hardness, Total mg/L 140
TDS mg/L 330
Temp deg C 20
Turbidity NTU ND (0.1)
pH 7.61
*Australian Drinking Water Guidelines - 1996
ND = Not Detected
This appliance meets the domestic water treatment appliance Standards AS/NZS3497 for the following
water treatment processes:
Class Treatment type Function Pass
I Microbiological Status
Bacteriostatic Will stop bacteria increasing, but will not
remove them unless II(a) is passed.
N/A
II Microbiological Treatment
II (a) Bacteria Removal Will remove or inactivate bacteria. N/A
II (b) Virus Removal Will remove or inactivate virus. N/A
II (c) Protozoa Removal Will remove or inactivate Cryptosporidium
and Giardia, but will not remove or
inactivate bacteria and virises unless II(a)
and II(b) is passed.
YES
III Turbidity & Particulate Reduction Reduces cloudiness. YES
IV Taste & Odour Reduction Reduces taste & odours. YES
V Chemical Treatment Decreases chlorine. YES
8 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019
Performance Data for Z7 Model
Substance Guidelines*
Average
Inuent
Concentration
Max Euent
Concentration
Min Percent
Removal
Average
Euent
Concentration
Average
Percent
Removal
NSF Standard 42 Drinking Water Treatment Units
Chlorine
(60,560 L)
5 - Healt h
0.6 - Aesthetic
2.1 0.3 50% 0.25 >95%
Test Parameters
Hardness, Total mg/L 140
TDS mg/L 330
Temp deg C 20
Turbidity NTU ND (0.1)
pH 7.61
*Australian Drinking Water Guidelines - 1996
ND = Not Detected
This appliance meets the domestic water treatment appliance Standards AS/NZS3497 for the following
water treatment processes:
Class Treatment type Function Pass
I Microbiological Status
Bacteriostatic Will stop bacteria increasing, but will not
remove them unless II(a) is passed.
N/A
II Microbiological Treatment
II (a) Bacteria Removal Will remove or inactivate bacteria. N/A
II (b) Virus Removal Will remove or inactivate virus. N/A
II (c) Protozoa Removal Will remove or inactivate Cryptosporidium
and Giardia, but will not remove or
inactivate bacteria and virises unless II(a)
and II(b) is passed.
YES
III Turbidity & Particulate Reduction Reduces cloudiness. YES
IV Taste & Odour Reduction Reduces taste & odours. YES
V Chemical Treatment Decreases chlorine. YES
Performance Data
9
High Flow Inline Water Filter Systems
Notes
Puretec water care products are designed, manufactured and supported by Puretec Pty Ltd the name
you can trust for viable and proven water solutions. The complete range of Puretec products are
developed, rened, made to meet and exceed stringent specications for the worldwide market.
Important: Sales of products are subject to our Terms and Conditions which are available upon request.
All specications, information and photos are a guide only and are subject to change without notice.
Please ring to conrm details. Warning: For correct operation of this appliance it is essential to observe
manufacturer’s instructions.
Warranty
Any claim under this warranty must be made within 10 years of the date of purchase of the product.
This product is warranted to be free of defect of material and workmanship for 10 years from date of
purchase. 10 year warranty is 1 year parts and labour plus 9 years parts only. Excludes cartridge.
To make a claim under the warranty, take the product and proof of purchase to place where you
purchased the product, and they will lodge a Warranty Request with Puretec.
Puretec will pay your reasonable, direct expenses of claiming under this warranty. You may submit
details and proof of your expense claim to place of purchase for consideration.
The warranty only applies if the product was used and/or installed in accordance with the user guide
and/or installation instructions. This warranty is given in lieu of all other express or implied warranties
and manufacturer shall in no circumstance be held liable for damages consequential or otherwise or
delays caused or faulty manufacturing except as excluded by law.
Applicable to all above, is that the warranties need to be approved by Puretec to ensure product
was not incorrectly used, installed or claimed. False and incorrect claims will be pursued at Puretec’s
discretion, including chargeable inspection and labour costs incurred.
Warranty
10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2019
Warranty/Australia
This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160,
telephone no. 1300 140 140 and email at [email protected].
This warranty is provided in addition to other rights and remedies you have under law: Our goods
come with guarantees which cannot be excluded under the Australian Consumer Law. You are entitled
to replacement or refund for a major failure and to compensation for other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
Warranty/New Zealand
This warranty is given by Puretec Ltd, Reg. No 4464398, Level 2, 40 Onehunga Mall, Auckland 1061,
telephone no. 0800 130 140 and email at [email protected].
This warranty is provided in addition to other rights and remedies you have under law: Our goods
come with guarantees which cannot be excluded under the Consumer Guarantees Act. You are entitled
to replacement or refund for a major failure and to compensation for other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
Warranty
11
High Flow Inline Water Filter Systems
This page was intentially le blank.
