Contents
Contents
..............................Motorcycle Safety .
....................Instruments & Controls .
.....................................Before Riding .
................Basic Operation & Riding .
1
9
41
51
These pages give an overview of the
contents of your owner’s manual. The first
page of each section lists the topics
covered in that section.
The importance of wearing a helmet
and other protective gear, how to make
sure you and your motorcycle are ready
to ride, and important information about
loading.
Important safety information you
should know, plus a look at the safety-
related labels on your motorcycle.

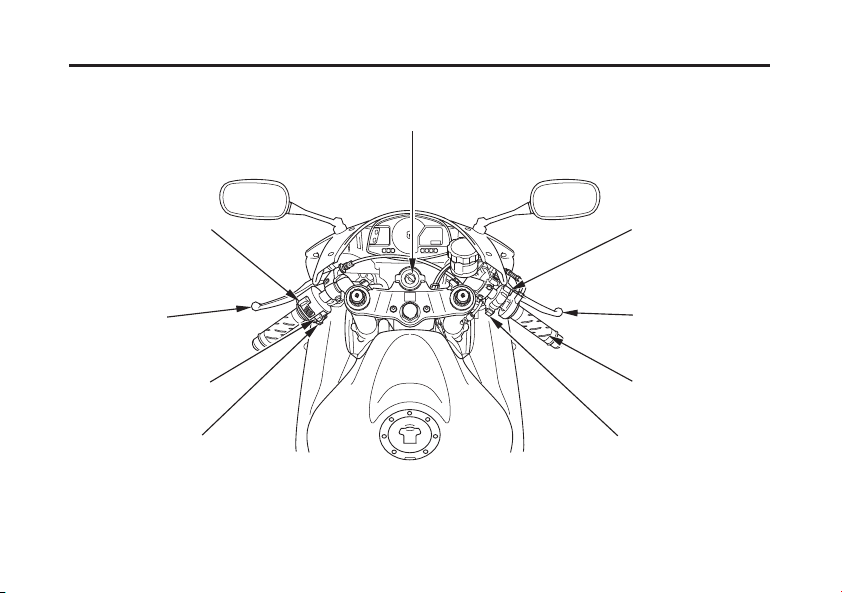

The location and function of indicators,
gauges, and controls on your
motorcycle and operating instructions
for various controls and features.
How to start and stop the engine, shift
gears, and brake. Also, riding
precautions and important information
about riding with a passenger or cargo.
０９／０９／１７ １１：０６：１９ ３１ＭＦＪ６３０ ０００７
Contents
Contents
........‘‘Reporting Safety Defects’’ .
......................Servicing Your Honda .
......................................................Tips .
.......Taking Care of the Unexpected .
......................Technical Information .
.....................Consumer Information .
....................................................Index .
Quick Reference
71
175
181
213
235
244
246
Why your motorcycle needs regular
maintenance, what you need to know
before servicing your Honda, an owner
maintenance schedule, and instructions
for specific maintenance and
adjustment items.
How to store and transport your
motorcycle and how to be an
environmentally responsible rider.
What to do if you have a flat tire, your
engine won’t start, etc.
ID numbers, technical specifications,
and other technical facts.
Information on warranties, emission
controls, how to get Honda service
manuals, and...
Handy facts about fuel, engine oil, tire
sizes, and air pressures.
０９／０９／１７ １１：０６：３１ ３１ＭＦＪ６３０ ０００８
2010
Honda CBR600RR/CBR600RR ABS
OWNER’S MANUAL
０９／０９／１７ １１：０５：４６ ３１ＭＦＪ６３０ ０００２
−
Introduction
Introduction
Congratulations on choosing your Honda
motorcycle.
When you own a Honda, you’re part of a
worldwide family of satisfied customers
people who appreciate Honda’s
reputation for building quality into every
product.
Before riding, take time to get acquainted
with your motorcycle and how it works.
To protect your investment, we urge you
to take responsibility for keeping your
motorcycle well maintained. Scheduled
service is a must, of course. But it’s just as
important to observe the break-in
guidelines, and perform all pre-ride and
other periodic checks detailed in this
manual.
We also recommend that you read this
owner’s manual before you ride. It’s full
of facts, instructions, safety information,
and helpful tips. To make it easy to use,
the manual contains a detailed list of
topics at the beginning of each section and
an index at the back of the book.
As you read this manual, you will find
information that is preceded by a
symbol. This information is
intended to help you avoid damage to your
Honda, other property, or the environment.
０９／０９／１７ １１：０５：５３ ３１ＭＦＪ６３０ ０００３
Introduction
Introduction
WARNING:
Read the Warranties Booklet (page )
thoroughly so you understand the
coverages that protect your new Honda
and are aware of your rights and
responsibilities.
If you have any questions, or if you ever
need special service or repairs, remember
that your Honda dealer knows your
motorcycle best and is dedicated to your
complete satisfaction.
Please report any change of address or
ownership to your Honda dealer so we
will be able to contact you concerning
important product information.
This product contains or
emits chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
California Proposition 65 Warning
You may also want to visit our website at
www.honda.com.
Happy riding!
239
０９／０９／１７ １１：０５：５９ ３１ＭＦＪ６３０ ０００４
A Few Words About Safety
Safety Messages
Safety Labels
Safety Messages
DANGER, WARNING, CAUTION
Your safety, and the safety of others, is very important. And operating this motorcycle safely
is an important responsibility.
To help you make informed decisions about safety, we have provided operating procedures
and other information on labels and in this manual. This information alerts you to potential
hazards that could hurt you or others.
Of course, it is not practical or possible to warn you about all hazards associated with
operating or maintaining a motorcycle. You must use your own good judgment.
You will find important safety information in a variety of forms, including:
–– on the motorcycle.
–– preceded by a safety alert symbol and one of three signal words:
or .
These signal words mean:
０９／０９／１７ １１：０６：０４ ３１ＭＦＪ６３０ ０００５
You WILL be KILLED or SERIOUSLY HURT if you
don’t follow instructions.
You CAN be KILLED or SERIOUSLY HURT if you don’t
follow instructions.
You CAN be HURT if you don’t follow instructions.
A Few Words About Safety
Safety Messages
Safety Headings
Safety Section
Instructions
–– such as Important Safety Reminders or Important Safety Precautions.
–– such as Motorcycle Safety.
–– how to use this motorcycle correctly and safely.
This entire manual is filled with important safety information –– please read it carefully.
０９／０９／１７ １１：０６：１０ ３１ＭＦＪ６３０ ０００６
1
Motorcycle Safety
Motorcycle Safety
This section presents some of the most
important information and
recommendations to help you ride your
motorcycle safely. Please take a few
moments to read these pages. This section
also includes information about the
location of safety labels on your
motorcycle.
................Important Safety Information .
.................Accessories & Modifications .
..........................................Safety Labels .
2
5
7
０９／０９／１７ １１：０６：３９ ３１ＭＦＪ６３０ ００１０
−
2
Important Safety Information
Motorcycle Safety
Always Wear a HelmetYour motorcycle can provide many years
of service and pleasure if you take
responsibility for your own safety and
understand the challenges you can meet
while riding.
There is much that you can do to protect
yourself when you ride. You’ll find many
helpful recommendations throughout this
manual. The following are a few that we
consider to be most important.
It’s a proven fact: helmets significantly
reduce the number and severity of head
injuries. So always wear an approved
motorcycle helmet and make sure your
passenger does the same. We also
recommend that you wear eye protection,
sturdy boots, gloves, and other protective
gear (page ).42
０９／０９／１７ １１：０６：４４ ３１ＭＦＪ６３０ ００１１
3
Important Safety Information
Motorcycle Safety
Take Time to Learn & Practice
Ride Defensively
Make Yourself Easy to See
You and
Your Motorcycle Riding Tips,
Always pay attention to other vehicles
around you, and do not assume that other
drivers see you. Be prepared to stop
quickly or make an evasive maneuver. For
other riding tips, see the booklet,
which came
with your new motorcycle (USA only).
Even if you have ridden other motorcycles,
take time to become familiar with how
this motorcycle works and handles.
Practice in a safe area until you build your
skills and get accustomed to the
motorcycle’s size and weight.
Because many crashes involve
inexperienced or untrained riders, we urge
all riders to take a motorcycle operator
course approved by the Motorcycle Safety
Foundation (MSF). See page .
The most frequent motorcycle collision
happens when a car turns left in front of a
motorcycle. Another common situation is
a car moving suddenly into your lane.
Some drivers do not see motorcycles
because they are not looking for them. To
make yourself more visible, wear bright
reflective clothing, position yourself so
other drivers can see you, signal before
turning or changing lanes, and use your
horn when it will help others notice you.
44
０９／０９／１７ １１：０６：４９ ３１ＭＦＪ６３０ ００１２
4
Important Safety Information
Motorcycle Safety
Ride within Your Limits Keep Your Honda in Safe Condition
Don’t Drink and Ride
Pushing limits is another major cause of
motorcycle crashes. Never ride beyond
your personal abilities or faster than
conditions warrant. Remember that
alcohol, drugs, fatigue, and inattention can
significantly reduce your ability to make
good judgments and ride safely.
It’s important to keep your motorcycle
properly maintained and in safe riding
condition. To help avoid problems, inspect
your motorcycle before every ride and
perform all recommended maintenance.
Never exceed load limits (page ), and
do not modify your motorcycle (page )
or install accessories that would make
your motorcycle unsafe (page ).
Alcohol and riding don’t mix. Even one
drink can reduce your ability to respond to
changing conditions, and your reaction
time gets worse with every additional
drink. So don’t drink and ride, and don’t
let your friends drink and ride either.
5
6
49
０９／０９／１７ １１：０６：５５ ３１ＭＦＪ６３０ ００１３
Improper accessories or
modifications can cause a crash in
which you can be seriously hurt or
killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
5
Accessories
Accessories & Modifications
Motorcycle Safety
Modifying your motorcycle or using non-
Honda accessories can make your
motorcycle unsafe. Before you consider
making any modifications or adding an
accessory, be sure to read the following
information.
We strongly recommend that you use only
Honda Genuine Accessories that have
been specifically designed and tested for
your motorcycle. Because Honda cannot
test all other accessories, you must be
personally responsible for proper selection,
installation, and use of non-Honda
accessories.
Check with your Honda dealer for
assistance and always follow these
guidelines:
Make sure the accessory does not
obscure any lights, reduce ground
clearance and lean angle, limit
suspension travel or steering travel, alter
your riding position, or interfere with
operating any controls. (cont’d)
０９／０９／１７ １１：０７：０１ ３１ＭＦＪ６３０ ００１４
6
Modifications
Accessories & Modifications
Motorcycle Safety
Do not add any electrical equipment
that will exceed the motorcycle’s
electrical system capacity (page ).
A blown fuse can cause a loss of lights
or engine power (page ).
Do not pull a trailer or sidecar with your
motorcycle. This motorcycle was not
designed for these attachments, and
their use can seriously impair your
motorcycle’s handling.
We strongly advise you not to remove any
original equipment or modify your
motorcycle in any way that would change
its design or operation. Such changes
could seriously impair your motorcycle’s
handling, stability, and braking, making it
unsafe to ride.
Removing or modifying your lights,
exhaust system, emission control system,
or other equipment can also make your
motorcycle illegal.
223
205
０９／０９／１７ １１：０７：０８ ３１ＭＦＪ６３０ ００１５
7

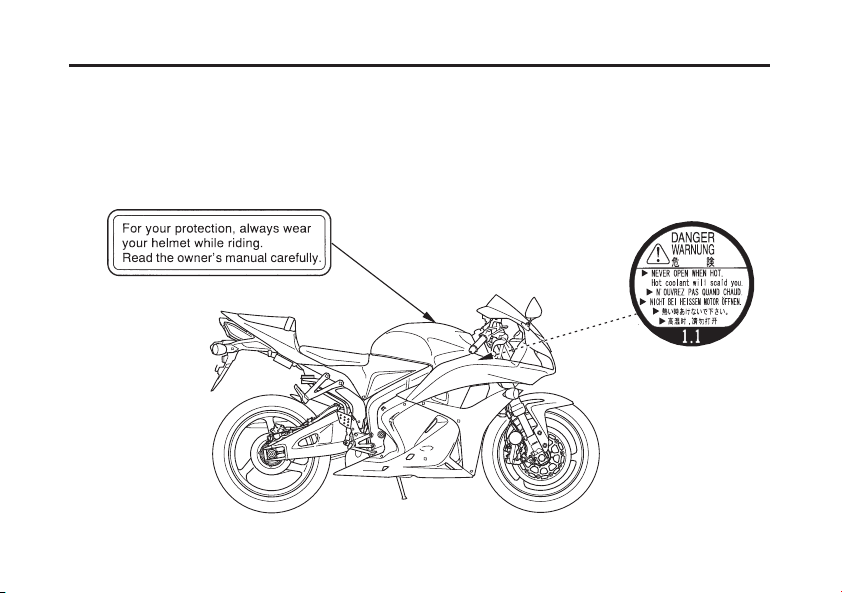

Safety Labels
Motorcycle Safety
Safety labels on your motorcycle either warn you of potential hazards that could cause
serious injury or they provide important safety information. Read these labels carefully and
don’t remove them.
If a label comes off or becomes hard to read, contact your Honda dealer for a replacement.
０９／０９／１７ １１：０７：１７ ３１ＭＦＪ６３０ ００１６
8
Safety Labels
Motorcycle Safety
０９／０９／１８ １４：３９：４８ ３１ＭＦＪ６３０ ００１７
9
Instruments & Controls
Instruments & Controls
This section shows the location of all
gauges, indicators, and controls you would
normally use before or while riding your
motorcycle.
The items listed on this page are described
in this section. Instructions for other
components are presented in other sections
of this manual where they will be most
useful.
(cont’d)
...........Operation Component Locations .
...............Gauges, Indicators & Displays .
..........................................Fuel Gauge .
.......................Multi-function Display .
...............Coolant Temperature Meter .
.......................................Speedometer .
...............Odometer/Tripmeter A & B .

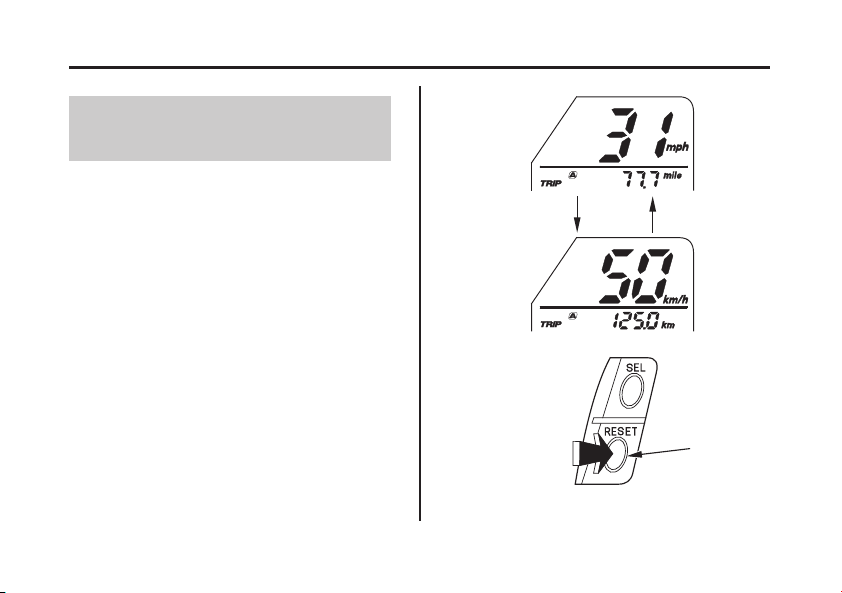

Changing the Speed, Mileage and
...............................Temperature Unit .
......................................Digital Clock .
11
14
23
25
26
28
29
30
32
０９／０９／１７ １１：０７：４４ ３１ＭＦＪ６３０ ００１８
10
Instruments & Controls
Instruments & Controls
................................Controls & Features .
...................................Ignition Switch .
.........................................Start Button .
............................Engine Stop Switch .
.................Headlight Dimmer Switch .
.............................Turn Signal Switch .
........................................Horn Button .
....................................RESET Button .
.........................................SEL Button .
HESD (Honda Electronic Steering
..............................................Damper) .
35
35
36
36
37
37
38
38
38
39
０９／０９／１７ １１：０７：５３ ３１ＭＦＪ６３０ ００１９
turn signal switch
clutch lever
headlight dimmer
switch
front brake
lever
engine stop
switch
throttle grip
start buttonhorn button
ignition switch
11
Instruments & Controls
Operation Component Locations
０９／０９／１７ １１：０７：５９ ３１ＭＦＪ６３０ ００２０

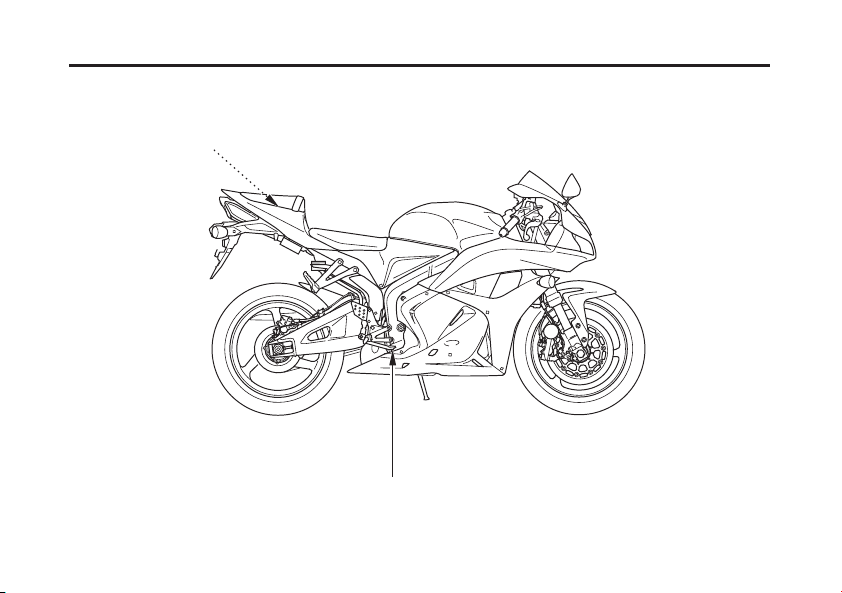

storage compartment
for U-shaped lock
rear brake pedal
12
Instruments & Controls
Operation Component Locations
０９／０９／１７ １１：０８：０３ ３１ＭＦＪ６３０ ００２１
helmet holder
shift lever
13
Instruments & Controls
Operation Component Locations
０９／０９／１７ １１：０８：０７ ３１ＭＦＪ６３０ ００２２
(2) (3) (5) (6)
(11) (10) (8)
(4)
(12) (9)
(1)
(7)
(13)
(15)
(14)
14
Gauges, Indicators & Displays
Instruments & Controls
The gauges, indicators and displays on
your motorcycle keep you informed, alert
you to possible problems, and make your
riding safer and more enjoyable. Refer to
the gauges, indicators and displays
frequently. Their functions are described
on the following pages.
(1) fuel gauge
(2) left turn signal indicator
(3) tachometer
(4) tachometer red zone
(5) right turn signal indicator
(6) multi-function display
(7) HESD indicator
(8) PGM-FI malfunction indicator lamp
(MIL)
(9) high coolant temperature indicator
(10) low oil pressure indicator
(11) neutral indicator
(12) high beam indicator
(13) Combined ABS indicator
(CBR600RR ABS only)
(14) RESET button
(15) SEL button
０９／０９／１７ １１：０８：１６ ３１ＭＦＪ６３０ ００２３
−
15
Gauges, Indicators & Displays
Instruments & Controls
Lamp
Check.
Lamp Check
The PGM-FI malfunction indicator lamp
(MIL) and HESD indicator light for a few
seconds and then go off when you turn the
ignition switch ON and engine stop switch
is at RUN.
The neutral indicator, high beam indicator,
left turn signal indicator, right turn signal
indicator, and high coolant temperature
indicator light for a few seconds and then
go off when you turn the ignition switch
ON.
The low oil pressure indicator comes on
when you turn the ignition switch ON so
you can check that it is working. The
indicator remains on until after the engine
is started.
If one of these indicators does not come
on when it should, have your Honda dealer
check for problems.
These indicators are identified in the table
on pages with the words:
When applicable, the high beam and
neutral indicators come on when you turn
the ignition switch ON and remain on until
you select the low beam or shift out of
neutral.
The Combined ABS indicator comes on
when you turn the ignition switch ON.
This indicator goes off after you ride the
motorcycle at a speed above 6 mph (10
km/h).
18 21
(CBR600RR ABS only)
０９／０９／１７ １１：０８：２４ ３１ＭＦＪ６３０ ００２４
16
Gauges, Indicators & Displays
Instruments & Controls
Meter Check.
Meter Check
If the tachometer needle does not swing to
the end of the red zone when it should,
have your Honda dealer check for
problems.
The meter is identified in the table on
page with the words:
The tachometer needle will swing to the
end of the red zone once when you turn
the ignition switch ON.
18
０９／０９／１７ １１：０８：２９ ３１ＭＦＪ６３０ ００２５
−
(1)
(2)
(3)
(1) multi-function display
(2) fuel gauge
(3) speedometer
17
Gauges, Indicators & Displays
Instruments & Controls
Display
Check.

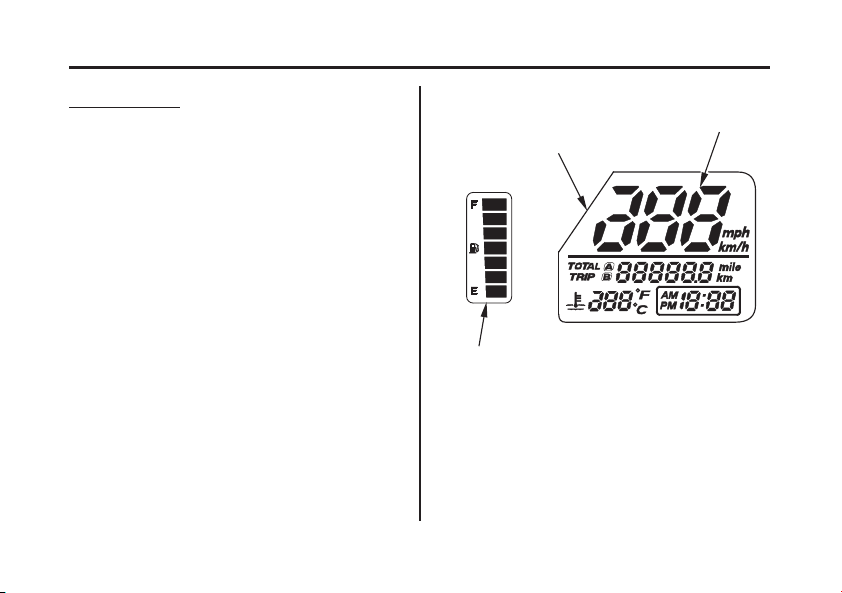

Display Check
When the ignition switch is turned ON, the
multi-function display ( ) and fuel gauge
( ) will temporarily show the entire
digital display. Thereafter, the
speedometer ( ) will show from 180 mph
to0mph(from290km/hto0km/hin
km/h) so that you can make sure the liquid
crystal display is functioning properly.
The displays are identified in the table on
pages with the words:
If any part of these displays does not come
on when it should, have your Honda dealer
check for problems.
1
2
3
18 19
０９／０９／１７ １１：０８：３８ ３１ＭＦＪ６３０ ００２６
18
Gauges, Indicators & Displays
Instruments & Controls
Lamp Check.
Display Check.
Meter Check.
Lamp Check.
Flashes when the left turn signal operates.
fuel gauge
left turn signal indicator
(green)
tachometer
tachometer red zone
Shows approximate fuel supply available (page ).
Shows engine speed in revolutions per minute (rpm).
Shows excessive engine rpm range (indicated from
the beginning of the tachometer red zone) in which
operation may damage the engine. Do not let the
tachometer needle enter the red zone.
1
2
3
4
5 Flashes when the right turn signal operates.right turn signal indicator
(green)
23
０９／０９／１７ １１：０８：４９ ３１ＭＦＪ６３０ ００２７
19
Gauges, Indicators & Displays
Instruments & Controls
Display Check.
multi-function display The display includes the following functions:6
digital clock Shows hour and minute (page ).
tripmeter A & B
odometer Shows the total miles or kilometers ridden (page ).
speedometer Shows riding speed in miles or kilometers per hour
(page ).
coolant temperature
meter
Shows coolant temperature (page ).
Fahrenheit (°F) or Centigrade (°C).
Shows the number of miles or kilometers ridden
since you last reset the meter. The tripmeter has two
sub modes, ‘‘A’’ and ‘‘B.’’ To zero (0) the tripmeter,
push and hold the RESET button (page ).
26
28
29
32
29
０９／０９／１７ １１：０９：００ ３１ＭＦＪ６３０ ００２８
−
20
Gauges, Indicators & Displays
Instruments & Controls
Lamp Check.
Lamp Check.
Lamp Check.
Lights when there is any abnormality in the PGM-FI
(Programmed Fuel Injection) system. Should also
light for a few seconds and then go off when the
ignition switch is turned ON and the engine stop
switch is at RUN. If the indicator comes on at any
other time, reduce speed and take your motorcycle to
a Honda dealer as soon as possible.
HESD indicator
(red)
7
8
9 high coolant temperature
indicator (red)
Lights when the coolant is over the specified
temperature. If the indicator comes on, pull safely to
the side of the road. See pages for
instructions and cautions.
Lights when there is any abnormality in the HESD
(Honda Electronic Steering Damper). Should also
light for a few seconds and then go off when the
ignition switch is turned ON and the engine stop
switch is at RUN. If the indicator comes on at any
other time, reduce speed and take your motorcycle to
a Honda dealer as soon as possible (page ).
PGM-FI malfunction
indicator lamp (MIL)
(amber)
39
202 203
０９／０９／１７ １１：０９：０８ ３１ＭＦＪ６３０ ００２９
−
21
Gauges, Indicators & Displays
Instruments & Controls
Lamp Check
Lamp Check.
Lamp Check.
Combined ABS Indicator
Lamp Check.
low oil pressure
indicator (red)
Lights when engine oil pressure is low enough to
cause engine damage. If the low oil pressure
indicator lights during operation, pull safely to the
side of the road. See page for instructions and
cautions. .
neutral indicator
(green)
Lights when the transmission is in neutral.
high beam indicator
(blue)
Lights when the headlight is on high beam.
10
11
12
13 Combined ABS
indicator (amber)
Lights when there is any abnormality in the
Combined ABS (Combined Anti-lock Brake
System). Normally, this indicator comes on when
the ignition switch is turned ON, and goes off after
you ride the motorcycle at a speed above 6 mph (10
km/h). If the indicator comes on while riding, stop
the motorcycle in a safe place and turn off the
engine. Refer to , page .
For information about Combined ABS, see
pages .
204
64
62 65
(CBR600RR ABS)
０９／０９／１７ １１：０９：１８ ３１ＭＦＪ６３０ ００３０
−
−
−
22
Gauges, Indicators & Displays
Instruments & Controls
Resets the tripmeter to zero (0) (page ).
Also used to change the speed, mileage and
temperature units for the speedometer/odometer/
tripmeter/coolant temperature meter (pages
).
Also used to set the digital clock (pages ).
14
15
RESET button
SEL button Selects the odometer, tripmeter A and tripmeter B
(page ).
Also used to set the digital clock (pages ).
29
30
31
32 34
29
32 34
０９／０９／１７ １１：０９：２５ ３１ＭＦＪ６３０ ００３１
4.76 US gal (18.0 )
1.00 US gal (3.8
)
(2)
(3)
(1)
(1) fuel gauge liquid crystal display
(2) segment F
(3) segment E
23
Fuel Gauge
Gauges, Indicators & Displays
Instruments & Controls
When segment E ( ) flashes, you should
refill the tank as soon as possible.
The amount of fuel remaining when the
flashing starts is approximately:
The fuel gauge liquid crystal display ( )
shows the approximate fuel supply
available in a graduated display. When
segment F ( ) goes on, the fuel tank
capacity is:
1
2
3
０９／０９／１７ １１：０９：３３ ３１ＭＦＪ６３０ ００３２
24
Gauges, Indicators & Displays
Instruments & Controls

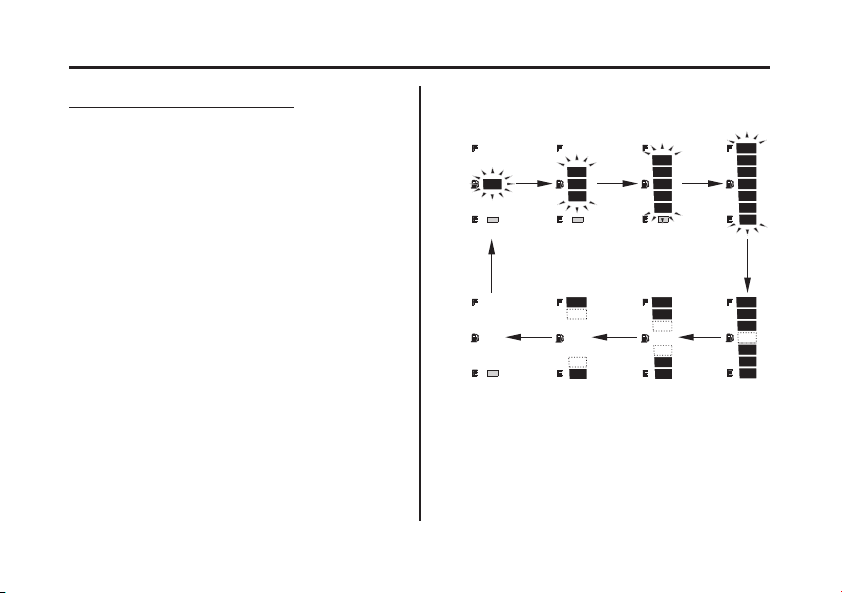

Fuel Gauge Failure Indication
When the fuel system has an error, the
fuel gauge indicators will be displayed as
shown in the illustration. If this occurs, see
your Honda dealer as soon as possible.
０９／０９／１７ １１：０９：４１ ３１ＭＦＪ６３０ ００３３
(1) (2)
(1) multi-function display
(2) speedometer
(3) odometer/tripmeter
(4) digital clock
(5) coolant temperature meter
(5) (4)
(3)
25
Multi-function Display
Gauges, Indicators & Displays
Instruments & Controls
The multi-function display ( ) includes
the following functions:
Both the digital clock and tripmeter will
reset if the battery is disconnected.
1
speedometer
odometer/tripmeter
digital clock
coolant temperature meter
０９／０９／１７ １１：０９：４８ ３１ＭＦＪ６３０ ００３４
−
−
−
−
〈〉
〈〉
(1)
(1) coolant temperature meter
Centigrade (°C)
Fahrenheit (°F)
26
Coolant Temperature Meter
Gauges, Indicators & Displays
Instruments & Controls
The coolant temperature meter ( ) shows
the coolant temperature digitally.
Temperature Display
USA : Fahrenheit (°F), or
Centigrade (°C).
Canada : Centigrade (°C).
1
‘‘--’’ is displayed.
Actual coolant
temperature is
displayed.
Actual coolant
temperature is
displayed and
flashed.
The display remains
and flashes
‘‘270 °F (132 °C)’’.
Below
94 °F (34 °C)
Between
95 °F 250 °F
(35 °C 121 °C)
Between
251 °F 269 °F
(122 °C 131 °C)
Above
270 °F (132 °C)
０９／０９／１７ １１：０９：５７ ３１ＭＦＪ６３０ ００３５
−
〈〉
〈〉
Fahrenheit (°F)
Centigrade (°C)
(2)
(2) high coolant temperature indicator
27
Gauges, Indicators & Displays
Instruments & Controls
Continuing to ride with an overheated
engine can cause serious engine damage.

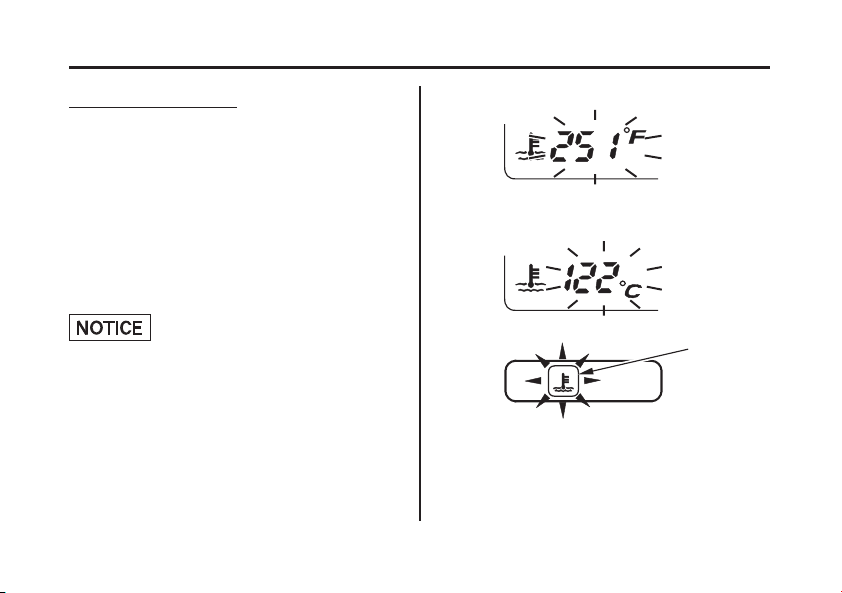

Overheating Message:
When the coolant temperature reaches
251°F (122°C), the numbers in the
temperature display start flashing and the
high coolant temperature indicator ( )
comes on.
If this occurs, stop the engine and check
the reserve tank coolant level. Read pages
and do not ride the motorcycle
until the problem has been corrected.
2
110 113
０９／０９／１７ １１：１０：０５ ３１ＭＦＪ６３０ ００３６
(1)

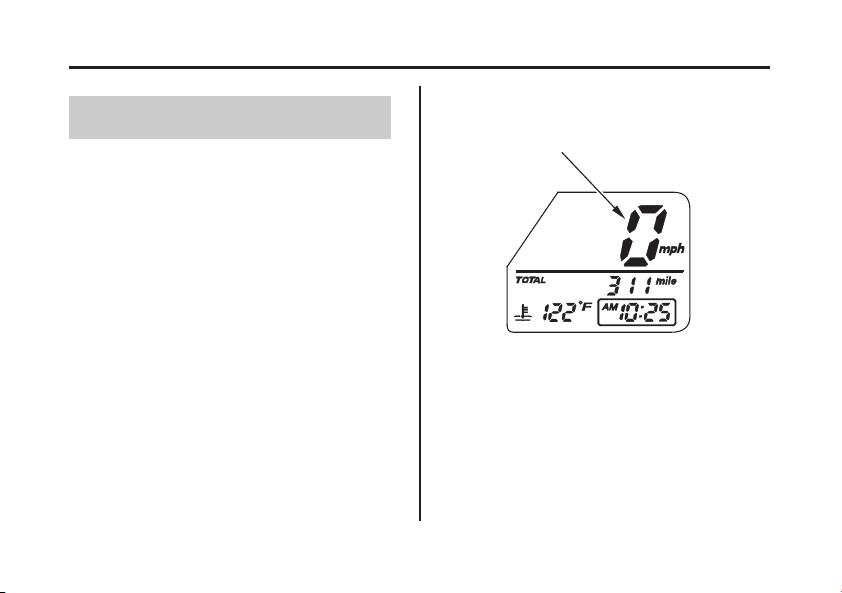

(1) speedometer
28
Speedometer
Gauges, Indicators & Displays
Instruments & Controls
The speedometer ( ) shows riding speed
in miles or kilometers per hour.
1
０９／０９／１７ １１：１０：１０ ３１ＭＦＪ６３０ ００３７
(1) RESET button
(1)
30
Changing the Speed,
Mileage and Temperature Unit
Gauges, Indicators & Displays
Instruments & Controls
The speedometer displays both ‘‘mph’’
and ‘‘km/h.’’
The odometer/tripmeter displays both
‘‘mile’’ and ‘‘km.’’
The coolant temperature meter displays
both ‘‘°F’’ (Fahrenheit) and ‘‘°C’’
(Centigrade).
To select ‘‘mph’’/‘‘mile’’ and ‘‘km/h’’/
‘‘km,’’ push the RESET button ( ) with
the display in the tripmeter A mode.
1
０９／０９／１７ １１：１０：２３ ３１ＭＦＪ６３０ ００３９
〈〉〈 〉
(1)
Fahrenheit (°F) Centigrade (°C)
(1) RESET button
31
Gauges, Indicators & Displays
Instruments & Controls
To select ‘‘°F’’ (Fahrenheit) and ‘‘°C’’
(Centigrade), push the RESET button ( )
with the display in the tripmeter B mode.
(USA only)
1
０９／０９／１７ １１：１０：３０ ３１ＭＦＪ６３０ ００４０
(2)
(3)
(1)
(1) digital clock
(2) SEL button
(3) RESET button
32
Digital Clock
Gauges, Indicators & Displays
Instruments & Controls
Turn the ignition switch ON.
Shows hour and minute. To adjust the time,
proceed as follows:
Push and hold both the SEL button ( )
and RESET button ( ) for more than 2
seconds. The clock will be set in the
adjust mode with the hour display
flashing.
1.
2.
3
2
０９／０９／１７ １１：１０：３８ ３１ＭＦＪ６３０ ００４１
−
34
Gauges, Indicators & Displays
Instruments & Controls
To set the minute, push and release the
RESET button until the desired minute
is displayed. The minute display will
return to ‘‘00’’ when ‘‘60’’ is reached
without affecting the hour display.
Quick setting push and hold the
RESET button until the desired
minute appears.
The time advances by one minute,
each time the button is pushed.
To end the adjustment, push the SEL
button or turn the ignition switch OFF.
The display will stop flashing
automatically and the adjustment will
be cancelled if the button is not pushed
for about 30 seconds.
5. 6.
０９／０９／１７ １１：１０：５４ ３１ＭＦＪ６３０ ００４３
ON
OFF
Electrical circuits on.
No electrical
circuits function.
No electricalcircuits
function. Locks the
steering head.
LOCK
(steering
lock)
FRONT
(1) ignition switch
OOFFFF
LOC
K
OO
NN(1)
Key Position Function
35
Ignition Switch
Controls & Features
Instruments & Controls

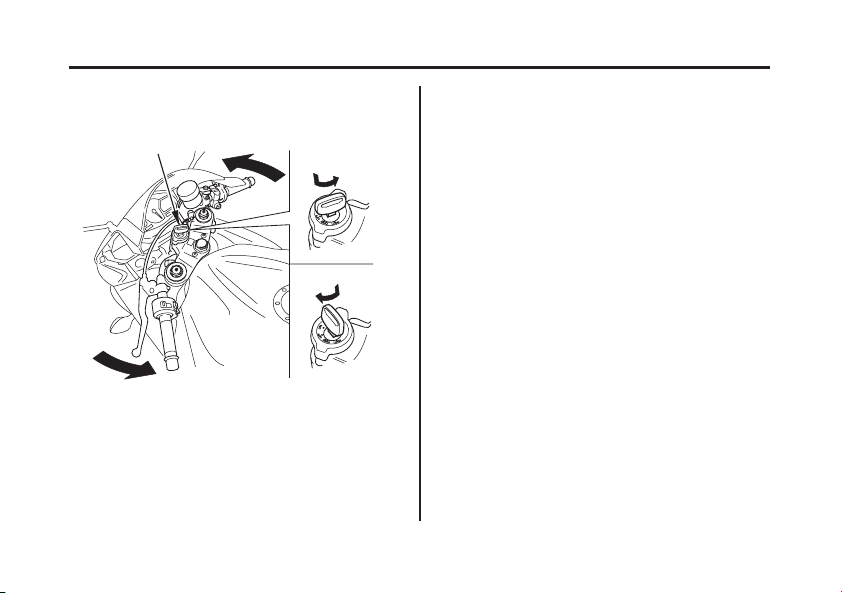

The ignition switch ( ) is used for starting
and stopping the engine (page ) and to
lock the steering for theft prevention
(page ). Insert the key and turn it to the
right for the ON position. Push down on
the key and turn it to the left to the LOCK
(steering lock) position.
To unlock the steering lock, insert and
push down on the key and turn it to the
right to the OFF position.
1
53
67
０９／０９／１７ １１：１１：０８ ３１ＭＦＪ６３０ ００４４
(1)
RIGHT HANDLEBAR
(2)
(1) start button
(2) engine stop switch OFF
RUN
36
Start Button Engine Stop Switch
Controls & Features
Instruments & Controls
Starting Procedure,
The start button ( ) is used for starting the
engine. Pushing the button in starts the
engine. See page .
The engine will not operate if the engine
stop switch is in the OFF position when
the start button is pushed.
When the start button is pushed, the starter
motor will crank the engine; the headlight
will automatically go out, but the position
light, taillight and license light will stay on.
The engine stop switch ( ) is used to stop
the engine in an emergency. To operate,
push the switch to the OFF position. The
switch must be in the RUN position to
start the engine, and it should normally
remain in the RUN position even when the
engine is OFF.
1
2
54
０９／０９／１７ １１：１１：１７ ３１ＭＦＪ６３０ ００４５
(1)
(2)
HI
LO
(3)
(1) headlight dimmer switch
(2) turn signal switch
(3) horn button
LEFT HANDLEBAR
37
Turn Signal Switch
Headlight Dimmer Switch
Controls & Features
Instruments & Controls
Theturnsignalswitch( )isusedtosignal
a turn or a lane change. To operate, move
the switch all the way in the proper
direction and release it. The appropriate
turn signal lights will start blinking. To
cancel the light, push the switch in.The headlight dimmer switch ( ) is used
to change between the high and low beams
of the headlight. To operate, turn the
switch to HI for high beam, LO for low
beam.
If your motorcycle is stopped with the
ignition switch ON and the engine stop
switch OFF, the headlight, position light,
taillight and license light will remain on,
resulting in battery discharge.
1
2
０９／０９／１７ １１：１１：２４ ３１ＭＦＪ６３０ ００４６
−
38
Horn Button
RESET Button
SEL Button
Controls & Features
Instruments & Controls
The horn is used to alert other motorists.
To operate, push the horn button ( ).
TheRESETbuttonisalsousedtochange
the speed, mileage and temperature units
for the speedometer/odometer/tripmeter/
coolant temperature meter (pages
).
TheRESETbuttonisalsousedtosetthe
digital clock (page ).
TheSELbuttonisalsousedtosetthe
digital clock (page ).
The SEL button is used to select odometer,
tripmeter A or tripmeter B. To select from
one tripmeter to the other, push the button
(page ).The RESET button is used to reset (zero)
the tripmeter. To reset the tripmeter, push
and hold the button for more than 2
seconds (page ).
3
29
30
31
32
29
32
０９／０９／１７ １１：１１：３４ ３１ＭＦＪ６３０ ００４７
(1)
(2)
(1) HESD
(2) HESD indicator
39
HESD (Honda Electronic
Steering Damper)
Controls & Features
Instruments & Controls
This motorcycle is equipped with the
electronically-controlled steering damper.
The HESD ( ) automatically controls the
steering damper characteristics in
accordance with vehicle speed and
acceleration.
The HESD indicator ( ) lights when there
is any abnormality in the HESD. The
HESD indicator should also light for a
few seconds and then go off when the
ignition switch is turned ON and engine
stop switch is at RUN.
If the HESD indicator lights at any other
time, reduce speed and take your
motorcycle to a Honda dealer as soon as
possible.
1
2
０９／０９／１７ １１：１１：４３ ３１ＭＦＪ６３０ ００４８
40
Instruments & Controls
０９／０９／１７ １１：１１：４６ ３１ＭＦＪ６３０ ００４９
41
Before Riding
Before Riding
Before each ride, you need to make sure
you and your Honda are both ready to ride.
To help get you prepared, this section
discusses how to evaluate your riding
readiness, what items you should check on
your motorcycle, and adjustments to make
for your comfort, convenience, or safety.
This section also includes important
information about loading.
For information about adjusting the
suspension on your Honda, see page .
........................Are You Ready to Ride? .
..............................Protective Apparel .
....................................Rider Training .
......Is Your Motorcycle Ready to Ride? .
.............................Pre-ride Inspection .
......................Load Limits & Guidelines .
...............................................Loading .
........................................Load Limits .
............................Loading Guidelines .
126
42
42
44
45
45
48
48
49
49
０９／０９／１７ １１：１１：５５ ３１ＭＦＪ６３０ ００５０
42
Protective Apparel
Are You Ready to Ride?
Before Riding
Before you ride your motorcycle for the
first time, we urge you to:
Read this owner’s manual.
Make sure you understand all the safety
messages.
Know how to operate all the controls.
You feel well and are in good physical
and mental condition.
Before each ride, be sure: For your safety, we strongly recommend
that you always wear an approved
motorcycle helmet, eye protection, boots,
gloves, long pants, and a long-sleeved
shirt or jacket whenever you ride.
Although complete protection is not
possible, wearing proper gear can reduce
the chance of injury when you ride.
Following are suggestions to help you
choose the proper gear.
Youarewearinganapproved
motorcycle helmet (with chin strap
tightened securely), eye protection, and
other protective clothing.
Make sure your passenger is ready to ride,
too, and is wearing proper gear including a
helmet.
You don’t have any alcohol or drugs in
your system.
If you must carry an extra helmet while
riding, use a commercially available
elastic cord, strap, or net to secure the
helmet to the seat.
０９／０９／１７ １１：１２：０６ ３１ＭＦＪ６３０ ００５１
Not wearing a helmet increases
the chance of serious injury or
death in a crash.
Be sure you and your passenger
always wear a helmet, eye
protection, and other protective
apparel when you ride.
43
Are You Ready to Ride?
Before Riding
(cont’d)
Helmet and Eye Protection
Your helmet is your most important piece
of riding gear because it offers the best
protection against head injuries. A helmet
should fit your head comfortably and
securely. A bright-colored helmet and
reflective strips can make you more
noticeable in traffic.
An open-face helmet offers some
protection, but a full-face helmet offers
more. Regardless of the style, look for a
DOT (Department of Transportation)
sticker on any helmet you buy (USA only).
Always wear a face shield or goggles to
protect your eyes and help your vision.
Leather gloves to help protect your
hands.
Sturdy boots with non-slip soles to help
protect your feet and ankles.
In addition to a helmet and eye protection,
we also recommend:
Additional Riding Gear
０９／０９／１７ １１：１２：１４ ３１ＭＦＪ６３０ ００５２
44
Rider Training
Are You Ready to Ride?
Before Riding
Riding Tips
A motorcycle riding suit or jacket for
comfort as well as protection.
Bright-colored and reflective clothing
can help make you more noticeable in
traffic. Avoid loose clothes that could
get caught on any part of your
motorcycle.
To avoid possible heat damage to your
motorcycle or personal belongings, do not
block or restrict air flow around the
exhaust muffler with baggage or clothing.
Developing your riding skills is an on-
going process. Even if you have ridden
other motorcycles, take time to become
familiar with how this motorcycle works
and handles.
Practice riding the motorcycle in a safe
area to build your skills. Do not ride in
traffic until you get accustomed to the
motorcycle’s controls, and feel
comfortable with its size and weight.
We urge all riders to take a motorcycle
operator course approved by the
Motorcycle Safety Foundation (MSF).
New riders should start with the basic
course, and even experienced riders will
find the advanced course beneficial. For
information about the MSF training course
nearest you, call the national toll-free
number: (800) 446-9227.
Other riding tips can be found in the
booklet that came with your
motorcycle (USA only).
０９／０９／１７ １１：１２：２１ ３１ＭＦＪ６３０ ００５３
Improperly maintaining this
motorcycle or failing to correct a
problem before riding can cause a
crash in which you can be
seriously hurt or killed.
Always perform a pre-ride
inspection before every ride and
correct any problems.
45
Pre-ride Inspection
Before Riding
Is Your Motorcycle Ready to Ride?
Chain
Tires
&
Wheels
Before each ride, it’s important to inspect
your motorcycle and make sure any
problem you find is corrected. A pre-ride
inspection is a must, not only for safety,
but because having a breakdown, or even
a flat tire, can be a major inconvenience.
Check the following items before you get
on the motorcycle:
Look at the tires. If a tire
appears low, use an air pressure
gauge to check its pressure. Also
look for signs of excessive wear
(page ) or damage to the
tires and wheels.

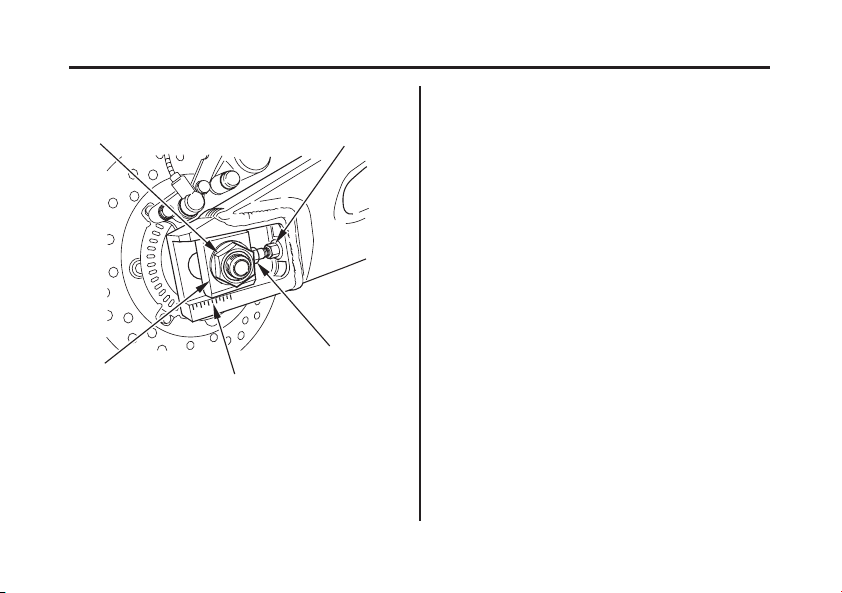

Check the condition of the chain.
Adjust slack and lubricate as
needed (page ).
145
154
０９／０９／１７ １１：１２：３０ ３１ＭＦＪ６３０ ００５４
46
Is Your Motorcycle Ready to Ride?
Before Riding
Leaks,
Loose
Parts
Lights
Load Limits
Cargo
Adjustments
Walk around your
motorcycle and look for
anything that appears
unusual, such as a leak or
loose cable.
If you are carrying a passenger or cargo,
also check the following:
Make sure you do not
exceed the load limits
(page ).
Check that all cargo is
secure.
Adjust the suspension
(pages , )
according to your load.
Make sure the headlight,
position light, brakelight,
taillight, license light and
turn signals are working
properly.
49
127 132
０９／０９／１７ １１：１２：３９ ３１ＭＦＪ６３０ ００５５
47
Is Your Motorcycle Ready to Ride?
Before Riding
Periodic MaintenanceThrottle
Brakes
Indicators
If you haven’t ridden the motorcycle in
over a week, you should also check other
items, such as the oil level and other fluids.
See (page ).
Periodic maintenance should also be done
at least once a month, no matter how often
you ride.
Remember, be sure to take care of any
problem you find, or have your Honda
dealer correct it before you ride.
Check these items after you get on the
motorcycle:
Rotate the throttle to check
it moves smoothly without
binding.
Pull the brake lever and
press on the brake pedal to
check that they operate
normally.
Turn the ignition on and
check for normal operation
of the indicators (page ).14
78
０９／０９／１７ １１：１２：４８ ３１ＭＦＪ６３０ ００５６
Overloading or improper loading
can cause a crash and you can be
seriously hurt or killed.
Follow all load limits and other
loading guidelines in this manual.
48
Loading
Load Limits & Guidelines
Before Riding
Your motorcycle has been designed to
carry you and one passenger. When you
carry a passenger, you may feel some
difference during acceleration and braking.
But so long as you keep your motorcycle
well-maintained, with good tires and
brakes, you can safely carry loads within
the given limits and guidelines.
However, exceeding the weight limit or
carrying an unbalanced load can seriously
impair your motorcycle’s handling,
braking, and stability. Non-Honda
accessories, improper modifications, and
poor maintenance can also reduce your
safety margin.
How much weight you put on your
motorcycle, and how you load it, are
important to your safety. Anytime you
ride with a passenger or cargo, you should
be aware of the following information.
０９／０９／１７ １１：１２：５４ ３１ＭＦＪ６３０ ００５７
366 lb (166 kg)
375 lb (170 kg)
31 lb (14 kg)
(Canada only)
49
Loading GuidelinesLoad Limits
Load Limits & Guidelines
Before Riding
maximum weight capacity:
maximum cargo weight:
Your motorcycle is primarily intended for
transporting you and a passenger. You
may wish to secure a jacket or other small
items to the seat when you are not riding
with a passenger.
If you wish to carry more cargo, check
with your Honda dealer for advice, and be
sure to read the information regarding
accessories on page .
Following are the load limits for your
motorcycle:
includes the weight of the rider,
passenger, all cargo, and all accessories.
Improperly loading your motorcycle can
affect its stability and handling. Even if
your motorcycle is properly loaded, you
should ride at reduced speeds and never
exceed 80 mph (130 km/h) when carrying
cargo.
The weight of added accessories will
reduce the maximum cargo weight you
can carry.
5
０９／０９／１７ １１：１３：０４ ３１ＭＦＪ６３０ ００５８
50
Load Limits & Guidelines
Before Riding
Follow these guidelines whenever you
carry a passenger or cargo:
To prevent loose items from creating a
hazard, make sure that all cargo is tied
down securely before you ride.
Place cargo weight as low and close to
the center of your motorcycle as
possible.
Balance cargo weight evenly on both
sides.
Check that both tires are properly
inflated (page ).
If you change your normal load, you
may need to adjust the front suspension
(page ) and the rear suspension
(page ).
To avoid possible heat damage to your
motorcycle or personal belongings, do
not block or restrict air flow around the
exhaust muffler with baggage or
clothing.
127
132
143
０９／０９／１７ １１：１３：１２ ３１ＭＦＪ６３０ ００５９
51
Basic Operation & Riding
Basic Operation & Riding
This section gives basic riding instructions,
including how to start and stop your
engine, and how to use the throttle, clutch,
and brakes. It also provides important
information on riding with a passenger or
cargo.
To protect your new engine and enjoy
optimum performance and service life,
refer to Break-in Guidelines (page ).
To protect the catalytic converter in your
motorcycle’s exhaust system, avoid
extended idling and the use of leaded
gasoline.
.........................Safe Riding Precautions .
.............Starting & Stopping the Engine .
..........................................Preparation .
..............................Starting Procedure .
..................................Flooded Engine .
Bank Angle Sensor Ignition Cut-off
................................................System .
.....................How to Stop the Engine .
.........................................Shifting Gears .
........................Theft-prevention Tips .
..........Riding with a Passenger or Cargo .
....................................................Parking .
Combined ABS Indicator
........................().
...................................................Braking .
Combined ABS
........................().
224
52
53
53
54
55
55
56
57
59
62
64
66
69
70
CBR600RR ABS
CBR600RR ABS
０９／０９／１７ １１：１３：２６ ３１ＭＦＪ６３０ ００６０
52
Safe Riding Precautions
Basic Operation & Riding
Motorcycle Safety
Before Riding
Before riding your motorcycle for the first
time, please review the
section beginning on page 1, and the
section beginning on
page .
Even if you have ridden other motorcycles,
take time to become familiar with how
this motorcycle works and handles.
Practice in a safe area until you build your
skills and get accustomed to the
motorcycle’s size and weight.
Make sure flammable materials such as
dry grass or leaves do not come in contact
with the exhaust system when riding,
idling, or parking your motorcycle.
41
０９／０９／１７ １１：１３：３２ ３１ＭＦＪ６３０ ００６１
53
Preparation
Starting & Stopping the Engine
Basic Operation & Riding
Always follow the proper starting
procedure described below.
For your safety, avoid starting or operating
the engine in an enclosed area such as a
garage. Your motorcycle’s exhaust
contains poisonous carbon monoxide gas
which can collect rapidly in an enclosed
area and cause illness or death.
Your motorcycle can be started with the
transmission in gear by pulling in the
clutch lever before operating the starter.
Your motorcycle is equipped with a side
stand ignition cut-off system. If the side
stand is down –– the engine cannot be
started unless the transmission is in neutral.
If the side stand is up –– the engine can be
started in neutral, or in gear with the
clutch lever pulled in. After starting with
the side stand down, the engine will stop if
the transmission is put in gear before
raising the side stand.
Before starting, insert the key, turn the
ignition switch ON, and confirm the
following:
The transmission is in neutral (neutral
indicator is ON).
The engine stop switch is set to RUN.
The low oil pressure indicator is ON.
The PGM-FI malfunction indicator
lamp (MIL) is OFF.
The high coolant temperature
indicator is OFF.
(cont’d)
０９／０９／１７ １１：１３：４２ ３１ＭＦＪ６３０ ００６２
54
Starting Procedure
Starting & Stopping the Engine
Basic Operation & Riding
Any Air Temperature
The engine will not start if the throttle is
fully open (because the electronic control
module cuts off the fuel supply).
This motorcycle has a fuel-injected engine
with an automatic choke. Follow the
procedure indicated below.
With the throttle completely closed,
press the start button.
Even if the engine coolant stays below the
specified temperature, the cooling fan
sometimes starts up running when you rev
up the engine, but this is normal.
The HESD indicator is OFF.
The low oil pressure indicator should go
off a few seconds after the engine starts.
If the low oil pressure indicator lights
during operation, stop the engine
immediately and check the engine oil level.
The Combined ABS indicator is ON.
The Combined ABS indicator should go
off after you ride the motorcycle at a
speed above 6 mph (10 km/h).
(CBR600RR ABS only)
(CBR600RR ABS only)
０９／０９／１７ １１：１３：５１ ３１ＭＦＪ６３０ ００６３
−
55
Flooded Engine Bank Angle Sensor Ignition
Cut-off System
Starting & Stopping the Engine
Basic Operation & Riding
If
Your Engine Quits or Won’t Start,
If the engine fails to start after repeated
attempts, it may be flooded with excess
fuel. To clear a flooded engine:
Leave the engine stop switch set to
RUN.
Open the throttle fully.
Press the start button for 5 seconds.
Follow the normal starting procedure.
If the engine starts, open the throttle
slightly if idling is unstable.
If the engine still won’t start, refer to
page .
Your motorcycle’s banking (lean angle)
sensor system is designed to automatically
stop the engine and fuel pump if the
motorcycle is overturned.
Before restarting the engine, you must
turn the ignition switch to the OFF
position and then back to ON. The engine
will not restart until you perform this
procedure.If the engine does not start, wait 10
seconds, then follow steps
again.
1.
4.
5.
2.
3.
14
183
０９／０９／１７ １１：１４：０２ ３１ＭＦＪ６３０ ００６４
56
How to Stop the Engine
Starting & Stopping the Engine
Basic Operation & Riding
Normal Engine Stop
To stop the engine, shift into neutral and
turn the ignition switch OFF.
The engine stop switch should normally
remain in the RUN position even when the
engine is OFF.
Emergency Engine Stop
To stop the engine in an emergency, use
the engine stop switch. To operate, press
the switch to the OFF position.
If your motorcycle is stopped with the
engine stop switch OFF and the ignition
switch ON, the headlight, position light,
taillight, and license light will remain
on, resulting in battery discharge.
０９／０９／１７ １１：１４：１０ ３１ＭＦＪ６３０ ００６５
shifting pattern
57
Shifting Gears
Basic Operation & Riding
Learning when to shift gears comes with
experience. Keep the following tips in
mind:
Close the throttle and pull the clutch
lever in completely before shifting.
Improper shifting may damage the
engine, transmission, and drive train.
Learn to recognize the engagement
point as you release the clutch lever. It
is at this point the transmission of
power to the rear wheel resumes.
Upshift to a higher gear or reduce
throttle before engine rpm (speed) gets
too high. Learn the relationship between
engine sound and the normal shifting
points.
As a general rule, shift while moving in
a straight line.
Downshift to a lower gear before you
feel the engine laboring (lugging) at
low rpm.
Your motorcycle has six forward gears in
a one-down, five-up shift pattern which is
coordinated with a cable-operated clutch
system.
(cont’d)
０９／０９／１７ １１：１４：１８ ３１ＭＦＪ６３０ ００６６
58
Shifting Gears
Basic Operation & Riding
Shifting Up:
Shifting Down:
Avoid downshifting to help slow your
motorcycle when engine rpm is near its
allowable maximum (near the
tachometer red zone). In this situation,
the rev limiter in the engine ignition
control module may not prevent
excessive engine speed which could
damage the engine.
To prevent transmission damage, do not
coast or tow the motorcycle for long
distances with the engine off.
Recommended Shift Points
Ride in the highest gear that lets the
engine run and accelerate smoothly. This
will give you good fuel economy and
effective emissions control. When
changing gears under normal conditions,
use these recommended shift points:
From 1st to 2nd:
From 2nd to 3rd:
From 3rd to 4th:
From 4th to 5th:
From 5th to 6th:
12 mph (20 km/h)
19 mph (30 km/h)
25 mph (40 km/h)
31 mph (50 km/h)
37 mph (60 km/h)
From 6th to 5th:
From 5th to 4th:
From 4th to 3rd:
28 mph (45 km/h)
22 mph (35 km/h)
16 mph (25 km/h)
Pull the clutch lever in when speed drops
below 12 mph (20 km/h), when engine
roughness is evident, or when engine
stalling is imminent; and shift down to 1st
gear for acceleration.
０９／０９／１７ １１：１４：２８ ３１ＭＦＪ６３０ ００６７
59
Braking
Basic Operation & Riding
As a general rule, the front braking system
provides about 70 percent of total stopping
power.
For full braking effectiveness, use both
the lever and pedal simultaneously. Using
both braking systems will stop your
motorcycle faster with greater stability.
Your motorcycle is equipped with disc
braking systems which are hydraulically
activated. Operating the brake lever
applies the two front disc brakes.
Depressing the brake pedal applies the rear
disc brake.
０９／０９／１７ １１：１４：３３ ３１ＭＦＪ６３０ ００６８
60
Braking
Basic Operation & Riding
To slow or stop, apply the brake lever and
brake pedal smoothly, while downshifting
to match your speed.
Gradually increase braking as you feel the
brakes slowing your speed. The increase
in engine compression from downshifting
will help slow your motorcycle.
To prevent stalling the engine, pull the
clutch lever in before coming to a
complete stop. For support, put your left
foot down first, then your right foot when
you have finished braking.
Applying the brakes too hard may cause
the wheels to lock and slide, reducing
control of your motorcycle. If this happens,
release the brake controls, steer straight
ahead until you regain control, then
reapply the brakes more gently.
When possible, reduce your speed or
complete braking before entering a turn.
Avoid braking or closing the throttle
quickly while turning. Either action may
cause one or both wheels to slip and
reduce your control of your motorcycle.
０９／０９／１７ １１：１４：３９ ３１ＭＦＪ６３０ ００６９
61
Braking
Basic Operation & Riding
Your ability to brake in a turn and to brake
hard in an emergency situation are
important riding skills. We suggest
attending a Motorcycle Safety Foundation
experienced rider training course
(page ) to retain these skills.
When riding in wet or rainy conditions, or
on loose surfaces, the ability to maneuver
and stop will be reduced. All of your
actions should be smooth under these
conditions. Rapid acceleration, braking or
turning may cause loss of control.
For your safety, exercise extreme caution
when braking, accelerating or turning.
When descending a long, steep grade,
use engine compression braking by
downshifting, with intermittent use of
both brakes. Continuous brake
application can overheat the brakes and
reduce their effectiveness.
Riding with your foot resting on the
brake pedal or your hand on the brake
lever may actuate the brakelight, giving
a false indication to other drivers. It
may also overheat the brakes, reducing
effectiveness.
44
０９／０９／１７ １１：１４：４４ ３１ＭＦＪ６３０ ００７０
62
Combined ABS
Basic Operation & Riding
Braking
This model is equipped with Combined
ABS (Combined Anti-lock Brake System).
When the ignition switch is turned ON, the
system performs a self-analysis and when
the vehicle speed reaches 6 mph (10 km/h)
the system starts to operate and remains on
while riding. Combined ABS is self-
checking.
Combined ABS is an electrically
integrated system consisting of the
Combined Brake System and Anti-lock
Brake System. Combined ABS controls
braking force by accurately monitoring the
amount of force applied to the brakes and
wheel speed. It balances the front-to-rear
braking distribution, and has an anti-lock
function designed to help prevent wheel
lock up during hard braking. Moreover,
Combined ABS helps provide more riding
stability when braking hard and suddenly.
Although the wheel may not lock up, if
you are braking too hard in a turn, the
motorcycle can still lose traction causing a
loss of control. In general, you’ll achieve
the best results by braking while running
in a straight line.
Even if the front brake lever and the rear
brake pedal are operated independently,
the brake force is distributed appropriately
to the front and the rear. However, for full
braking effectiveness, use both the lever
and pedal simultaneously, as you would
with a conventional motorcycle braking
system.
(CBR600RR ABS)
０９／０９／１７ １１：１４：５０ ３１ＭＦＪ６３０ ００７１
63
Braking
Basic Operation & Riding
In some situations, a motorcycle with
Combined ABS may require a longer
stopping distance to stop on loose or
uneven surfaces than an equivalent
motorcycle without Combined ABS.
Combined ABS cannot make up for road
conditions, bad judgment, or improper
operation of the brakes, and cannot stop
rear wheel lift completely. It is still your
responsibility to ride at reasonable speeds
for weather, road surface, and traffic
conditions, and to leave a margin of safety.
The anti-lock brake function of the
Combined ABS may be activated by
riding over a sharp drop or rise in the
road level while operating the brake.
It is important to follow the tire
recommendations (page ). The
Combined ABS computer works by
comparing wheel speed. Non-
recommended tires can affect wheel
speed and may confuse the Combined
ABS computer.
Combined ABS does not function at
low speeds (approximately 4 mph (6
km/h)orbelow).
Combined ABS does not function if the
battery is discharged.
Combined ABS does not function if the
ABS main or the ABS motor fuses are
blown.
(cont’d)
150
０９／０９／１７ １１：１４：５８ ３１ＭＦＪ６３０ ００７２
64
Combined ABS Indicator
Basic Operation & Riding
Braking
When Combined ABS does not
function, the brakes work like a
conventional braking system. On
conventional braking systems, operating
the front brake lever applies the front
brake and operating the rear pedal
applies the rear brake.
You may feel a change in the way the
brake lever/pedal reacts when it is
operated under the following conditions:
Immediately after turning the ignition
switch ON
After braking to a stop
Normally, this indicator comes on when
the ignition is turned ON, and goes off
after you ride the motorcycle at a speed
above 6 mph (10 km/h). If there is a
problem with Combined ABS, the
indicator lights or flashes and remains on.
Combined ABS does not operate when the
Combined ABS indicator is on.
(CBR600RR ABS)
０９／０９／１７ １１：１５：０３ ３１ＭＦＪ６３０ ００７３
65
Braking
Basic Operation & Riding
If the Combined ABS indicator lights or
flashes and remains on while riding, stop
the motorcycle in a safe place and turn off
the engine.
Turn the ignition ON again. The indicator
should come on, and go off after you ride
the motorcycle at a speeds above 6 mph
(10 km/h). If it does not go off, Combined
ABS is not functioning, but the brakes still
provide normal stopping ability like a
conventional braking system. However,
you should have the system checked by
your Honda dealer as soon as possible.
The Combined ABS indicator may flash
if:
The front wheel leaves the ground for 1
second or more.
Either brake is applied continuously
from 0 mph (0 km/h) to 31 mph (50
km/h).
You turn the rear wheel while the
motorcycle is uplight on the stand.
This is normal but the Combined ABS is
not in operation. To activate the system
again, turn the ignition OFF, then ON
again.
０９／０９／１７ １１：１５：０９ ３１ＭＦＪ６３０ ００７４
66
Parking
Basic Operation & Riding
Catalytic Converter
Look for a level parking area. If you
can’t park on a paved surface, make
sure the ground surface is firm,
especially under the side stand.
If you must park on a hill, leave the
transmission in gear and position the
rear tire against the curb at a 45 degree
angle.
To lower the side stand, use your foot
to guide it down. Remember that
lowering the side stand with the
transmission in gear will stop the
engine, even if the clutch lever is
pulled in. That is a function of the
side stand ignition cut-off system.
Use the side stand to support the
motorcycle while parked.
Check that the side stand is down all
the way so that the side stand ignition
cut-off system (page ) is activated.
If you have to park on a soft surface,
insert something solid under the side
stand for support.
Make sure flammable materials such as
dry grass or leaves do not come in
contact with the exhaust system when
parking your motorcycle. Refer to
,page .
To avoid possible heat damage to your
motorcycle or personal belongings, do not
cover the exhaust muffler with a
protective cover or any clothing within 20
minutes after shutting off the engine.
1. 2.
232
53
０９／０９／１７ １１：１５：１８ ３１ＭＦＪ６３０ ００７５
(1) ignition key
(1)
FRONT
(A) push in
(B)turntoLOCK
(C)turntoOFF
(A)
(B)
((AA))
(C)
To lo
ck
To unlock
67
Parking
Basic Operation & Riding
(To unlock the steering lock, insert and
push down on the key and turn it to the
right to the OFF position.)
Use the steering lock, which locks the
handlebar in place. Turn the handlebar
allthewaytotheleft.Pushinonthe
ignition key ( ) and turn it to LOCK.
Remove the key.
(cont’d)
3.
1
０９／０９／１７ １１：１５：２６ ３１ＭＦＪ６３０ ００７６
Riding with a helmet attached to
the holder can interfere with the
rear wheel or suspension and
could cause a crash in which you
can be seriously hurt or killed.
Use the helmet holder only while
parked. Do not ride with a helmet
secured by the holder.
(2)
LEFT REAR
(4)
(3)
(2) helmet holder wire
(3) D-ring
(4) helmet holder
68
Parking
Basic Operation & Riding

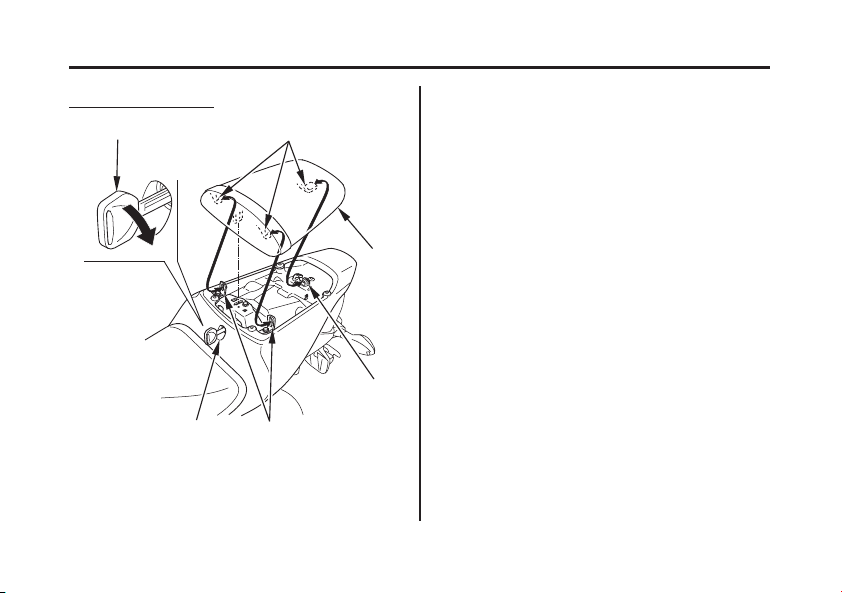

Use the helmet holder wire stored in the
tool kit to secure your helmet with your
motorcycle:
Route either end of the helmet holder
wire ( ) through the helmet’s D-ring
().
Remove the rear seat (page ).
Remove the helmet holder wire and
store it in the tool kit when it is not
used.
Hook the loops of the wire onto the
helmet holder ( ) and install the rear
seat to lock.
4.
2
3
4
93
０９／０９／１７ １１：１５：３５ ３１ＭＦＪ６３０ ００７７
UNDER REAR SEAT
69
Theft-prevention Tips
Parking
Basic Operation & Riding
Park your motorcycle in a locked
garage whenever possible. If a garage
isn’t available, park in a concealed area
or in a well-lit area with enough
pedestrian traffic to discourage a thief.
Always take the ignition key with you.
Always use the steering lock (page ),
even if you’re parking for just a minute
or two. A thief can easily push an
unlocked motorcycle to a waiting truck.
In addition to the steering lock, use a
good quality anti-theft device made
specifically to lock a motorcycle to a
secure object.
If you decide to use an anti-theft device,
select one of good quality and be sure to
follow the manufacturer’s instructions.
The rear fender has a storage
compartment to store a U-shaped lock
under the rear seat. Some U-shaped
locks may not be stored in the
compartment due to their size or design.
Keep your owner’s manual, current
registration, and insurance information
with your motorcycle. This will make it
easier for the authorities to find you if
your motorcycle is stolen and recovered.
67
０９／０９／１７ １１：１５：４４ ３１ＭＦＪ６３０ ００７８
70
Riding with a Passenger or Cargo
Basic Operation & Riding
Load Limits,
Loading
Guidelines,
Your motorcycle is a high-performance
sport model designed to carry you and one
passenger. Whenever you add a passenger
or cargo, you must be careful not to
exceed the total load limits for this vehicle
( page ). Make sure your
cargo is properly secured (
page ).
Also consider adjusting the suspension
(page ) for the extra load.
Be aware that carrying a passenger or
heavy cargo can affect acceleration,
braking, and handling.
Tell your passenger to hold the seat strap
or your waist, lean with you in the turns,
and keep their feet on the passenger
footpegs at all times, even when the
motorcycle is stopped at a traffic light.
Before riding with a passenger, make sure
your passenger is wearing the proper
protective apparel (page ). Also check
that your passenger is not wearing any
loose apparel that might get caught in the
drive chain.49
49
126
42
０９／０９／１７ １１：１５：５１ ３１ＭＦＪ６３０ ００７９
71
Servicing Your Honda
Servicing Your Honda
Maintenance, replacement or repair of
the emission control devices and
systems may be performed by any
motorcycle repair establishment or
individual using parts that are
‘‘certified’’ to EPA standards.
Before You Service Your Honda
To help keep your motorcycle in good
shape, this section includes a Maintenance
Schedule for required service, a list of
periodic checks you should perform at
least once a month, and step-by-step
instructions for specific maintenance tasks.
You’ll also find important safety
precautions, information on fuels and oils,
and tips for keeping your Honda looking
great.
For information about the exhaust
emission and noise emission requirements
of the U.S. Environmental Protection
Agency (EPA), the California Air
Resources Board (CARB), and
Environment Canada (EC), see page .
(cont’d)
USA only
............The Importance of Maintenance .
................................Maintenance Safety .
.............Important Safety Precautions .
.............................Periodic Maintenance .
...........................Maintenance Schedule .
...............................Maintenance Record .
For information about replacing fuses, see
page .
225
205
74
75
76
78
80
85
０９／０９／１７ １１：１６：０２ ３１ＭＦＪ６３０ ００８０
72
Servicing Your Honda
Servicing Your Honda
Service Preparations
Service Procedures
Chassis
Electrical
......Maintenance Component Locations .
...................................................Tool Kit .
........................Owner’s Manual Storage .
..........................................Seat Removal .
Fluids & Filters
.........................................................Fuel .
Engine
...............................................Throttle .
................................................Coolant .
.....................................Clutch System .
.........................................Spark Plugs .
..........................................Suspension .
.................................................Brakes .
....................................................Tires .
...........................................Side Stand .
........................................Drive Chain .
................................................Battery .
................................Appearance Care .
.............................Engine Oil & Filter .
............................Lower Cowl Removal .
...........................Middle Cowl Removal .
87
90
91
92
94
96
97
100
110
114
116
120
126
137
143
152
153
161
166
０９／０９／１７ １１：１６：２０ ３１ＭＦＪ６３０ ００８１
＊
＊＊
＊
＊＊
73
Servicing Your Honda
Servicing Your Honda
The following table summarizes the three types of inspections and servicing
recommendations for your motorcycle. Both the pre-ride inspection and the scheduled
maintenance at the recommended intervals are necessary to assure safe and dependable
performance. The periodic checks provide additional confidence in your motorcycle’s
performance.
more often if you ride frequently or long distances; or anytime you clean your motorcycle
unless you have the proper tools and service data and are mechanically qualified
Type of Inspection/Service
Maintenance Schedule
Periodic Maintenance
Pre-ride Inspection
Refer to page:
interval on schedule
monthly
before every ride
your Honda dealer
you
you
Who PerformsWhen Performed
45
78
80
０９／０９／１７ １１：１６：３４ ３１ＭＦＪ６３０ ００８２
Improperly maintaining this
motorcycle or failing to correct a
problem before you ride can
causeacrashinwhichyoucanbe
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations
and schedules in this owner’s
manual.
74
The Importance of Maintenance
Servicing Your Honda
Keeping your motorcycle well-maintained
is absolutely essential to your safety. It’s
also a good way to protect your
investment, get maximum performance,
avoid breakdowns, and have more fun. A
properly maintained motorcycle will also
help to reduce air pollution.
Remember, proper maintenance is the
owner’s responsibility. Be sure to inspect
your motorcycle before each ride, perform
the periodic checks, and follow the
Maintenance Schedule in this section.
If your motorcycle overturns or is
involved in a crash, be sure your Honda
dealer inspects all major parts, even if you
areabletomakesomeoftherepairs
yourself.
０９／０９／１７ １１：１６：３９ ３１ＭＦＪ６３０ ００８３
Failure to properly follow
maintenance instructions and
precautions can cause you to be
seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s
manual.
75
Maintenance Safety
Servicing Your Honda
This section includes instructions on how
to perform some important maintenance
tasks. If you have basic mechanical skills,
you can perform many of these tasks with
the tools provided with your motorcycle.
Other tasks that are more difficult and
require special tools are best performed by
professionals. Wheel removal should
normally be handled only by a Honda
technician or other qualified mechanic.
Instructions are included in this manual
only to assist in emergency service.
Some of the most important safety
precautions follow. However, we cannot
warn you of every conceivable hazard that
can arise in performing maintenance. Only
you can decide whether or not you should
perform a given task.
０９／０９／１７ １１：１６：４５ ３１ＭＦＪ６３０ ００８４
76
Important Safety Precautions
Maintenance Safety
Servicing Your Honda
Carbon monoxide poisoning from
engine exhaust.
Burns from hot motorcycle parts.
Injury from moving parts.
Read the instructions before you begin,
and make sure you have the tools and
skills required.
Make sure the engine is off before you
begin any maintenance or repairs. This
will help eliminate several potential
hazards:
Be sure there is
adequate ventilation whenever you
operate the engine.
Let
the engine and exhaust system cool
before touching.
Do not run
the engine unless instructed to do so.
To help prevent the motorcycle from
falling over, park it on a firm, level
surface, using the side stand or a
maintenance stand to provide support.
To reduce the possibility of a fire or
explosion, be careful when working
around gasoline. Use only
non-flammable solvent, not gasoline, to
clean parts. Keep cigarettes, sparks, and
flames away from all fuel-related parts.
０９／０９／１７ １１：１６：５１ ３１ＭＦＪ６３０ ００８５
77
Maintenance Safety
Servicing Your Honda
Remember that your Honda dealer knows
your motorcycle best and is fully equipped
to maintain and repair it. To ensure the
best quality and reliability, use only new
Honda Genuine Parts or their equivalents
for repair and replacement. If you have the
tools and skills required for additional
maintenance jobs, you can purchase an
official Honda Service Manual
(page ).236
０９／０９／１７ １１：１６：５５ ３１ＭＦＪ６３０ ００８６
78
Periodic Maintenance
Servicing Your Honda
In addition to the regularly scheduled
maintenance (page ) and daily pre-ride
inspection (page ), consider performing
the periodic checks on the following page
at least once a month, even if you haven’t
ridden your motorcycle, or as often as
once a week if you ride frequently or for
long distances. It’s a good idea to perform
this maintenance any time you clean your
motorcycle.
Check the odometer reading and perform
any scheduled maintenance checks that are
needed (page ). Remember, more
frequent checks may be needed for riding
in severe conditions.
80
45
80
０９／０９／１７ １１：１７：００ ３１ＭＦＪ６３０ ００８７
79
Periodic Maintenance
Servicing Your Honda
Fluids
Fuses
Check condition, adjust slack, and lubricate as needed (page ).
Lights
Drive Chain
Freeplay
Make sure you have a full supply of spare fuses.
Check the major fasteners and tighten as needed.Nuts & Bolts
Check the levels of the engine oil (page ), coolant (page ),
and brake fluid (page ). Add the correct fluid as necessary, and
investigate the cause of any low fluid level.
Check the freeplay of the clutch lever (page ) and throttle grip
(page ).
Check the air pressure with a gauge and add air if needed (page ).
Examine the tread for wear (page ).
Look closely for nails, embedded objects, cuts, and other types of
damage (page ). Roll your motorcycle so you can inspect the
entire surface.
Check the condition of the wheels.
Tires &
Wheels
Make sure the headlight, position light, brakelight, taillight, license
light and turn signals are working properly.
104
111
116
114
143
145
145
139
153
０９／０９／１７ １１：１７：１４ ３１ＭＦＪ６３０ ００８８
80
Servicing Your Honda
Maintenance Schedule
The required Maintenance Schedule that
follows specifies how often you should
have your motorcycle serviced, and what
things need attention. It is essential to have
your motorcycle serviced as scheduled to
maintain safe, dependable performance
and proper emission control.
Some items in the Maintenance Schedule
can be performed with basic mechanical
skills and hand tools. Procedures for these
items are provided in this manual. Other
items involve more extensive procedures
and may require special training, tools,
and equipment. We recommend that you
have your Honda dealer perform these
tasks unless you have advanced
mechanical skills and the required tools
and equipment. Procedures for such items
in this schedule are provided in an official
Honda Service Manual available for
purchase (page ).
The service intervals in this Maintenance
Schedule are based on average riding
conditions. Some items will need more
frequent service if you ride in unusually
wet or dusty areas or at full throttle.
Consult your Honda dealer for
recommendations applicable to your
individual needs and use.
236
０９／０９／１７ １１：１７：１９ ３１ＭＦＪ６３０ ００８９
＊＊＊
＊
＊＊
81
Maintenance Schedule
Servicing Your Honda
If you do not feel capable of performing a
given task or need assistance, remember
that your Honda dealer knows your
motorcycle best and is fully equipped to
maintain and repair it. If you decide to do
your own maintenance, use only Honda
Genuine Parts or their equivalents for
repair or replacement to ensure the best
quality and reliability.
Perform the pre-ride inspection (page )
and owner maintenance (page ) at each
scheduled maintenance period.
Each item on the maintenance schedule
requires some mechanical knowledge.
Certain items (particularly those marked
and ) may require more technical
information and tools. Consult your
Honda dealer.
In the interest of safety, we recommend
these items be serviced only by your
Honda dealer.
Should be serviced by your Honda
dealer, unless you have the proper tools
and service data and are mechanically
qualified. Refer to the official Honda
Service Manual (page ).
45
80 236
０９／０９／１７ １１：１７：２６ ３１ＭＦＪ６３０ ００９０
82
Servicing Your Honda
Maintenance Schedule
Summary of Maintenance Schedule Notes
& Procedures:
At higher odometer readings, repeat at
the frequency interval established here.
Service more frequently if the
motorcycle is ridden in unusually wet or
dusty areas.
Maintenance Procedures:
I: inspect and clean, adjust, lubricate,
or replace, if necessary
C: clean
A: adjust
L: lubricate
R: replace
California type only.
Replace every 2 years, or at indicated
odometer interval, whichever comes
first. Replacement requires mechanical
skill.
NOTES:
1.
2.
3.
4.
０９／０９／１７ １１：１７：３４ ３１ＭＦＪ６３０ ００９１
×
×
−
−
−
−
−
−
−
＊
＊
＊
＊
＊
＊
＊
＊
＊＊
＊
＊＊
1,000 mi
1,000 km
24
38.4
I
I
I
R
R
I
I
I
20
32.0
16
25.6
I
I
I
R
I
I
I
12
19.2
I
I
8
12.8
I
I
R
I
I
I
4
6.4
0.6
1.0
R
NOTE
2
4
3
FUEL LINE
THROTTLE OPERATION
AIR CLEANER
SPARK PLUGS
VALVE CLEARANCE
ENGINE OIL
ENGINE OIL FILTER
RADIATOR COOLANT
COOLING SYSTEM
SECONDARYAIR SUPPLY
SYSTEM
EVAPORATIVE EMISSION
CONTROL SYSTEM
EXHAUST GAS CONTROL
VALVE CABLE
Refer to
page
114
120
100
105
110
ODOMETER READING (Note 1)
ITEM
FREQUENCY
EVERY 16,000 mi (25,600 km) I,
EVERY 32,000 mi (51,200 km) R
INITIAL=
REGULAR=
600 mi (1,000 km) or1 month: R
EVERY 8,000 mi (12,800 km)
or 12months: R
EVERY 16,000 mi (25,600 km) I
EMISSIONS-RELATEDITEMS
83
Servicing Your Honda
Maintenance Schedule
In the interest of safety, we recommend these items be serviced only by your Honda dealer.
Should be serviced by your Honda dealer, unless you have the proper tools and service data and are
mechanically qualified. Refer to the official Honda Service Manual (page ).236
０９／０９／１７ １１：１７：４８ ３１ＭＦＪ６３０ ００９２
×
×
−
−
−
−
−
−
＊
＊
＊
＊
＊＊
＊＊
＊
＊＊
1,000 mi
1,000 km
0.6
1.0
I
I
I
I
4
6.4
I
I
I
8
12.8
I
I
I
I
I
I
I
I
I
I
I
12
19.2
R
I
I
16
25.6
I
I
I
I
I
I
I
I
I
I
I
20
32.0
I
I
I
24
38.4
R
I
I
I
I
I
I
I
I
I
I
NOTE
4
DRIVE CHAIN
BRAKE FLUID
BRAKE PADWEAR
BRAKE SYSTEM
BRAKELIGHT SWITCH
HEADLIGHTAIM
CLUTCHSYSTEM
SIDE STAND
SUSPENSION
NUTS, BOLTS, FASTENERS
WHEELS/TIRES
STEERING HEAD
BEARINGS
Refer to
page
153
138
141, 142
137
116
152
ODOMETER READING (Note 1)
ITEM
FREQUENCY
EVERY 500 mi (800km) I, L
NON-EMISSION-RELATED ITEMS
84
Maintenance Schedule
Servicing Your Honda
Should be serviced by your Honda dealer, unless you have the proper tools and service data and are
mechanically qualified. Refer to the official Honda Service Manual (page ).
In the interest of safety, we recommend these items be serviced only by your Honda dealer.
236
０９／０９／１７ １１：１８：００ ３１ＭＦＪ６３０ ００９３
85
Maintenance Record
Servicing Your Honda
Miles (km) Odometer Date Performed By: Notes
600 (1,000)
4,000 (6,400)
8,000 (12,800)
12,000 (19,200)
16,000 (25,600)
20,000 (32,000)
Keeping an accurate maintenance record will help ensure that your motorcycle is properly
maintained. Retain detailed receipts to verify the maintenance was performed. If the
motorcycle is sold, these receipts should be transferred with the motorcycle to the new owner.
Make sure whoever performs the maintenance completes this record. All scheduled
maintenance, including the 600 mile (1,000 km) initial maintenance, is considered a normal
owner operating cost and will be charged for by your dealer. Use the space under Notes to
record anything you want to remind yourself about or mention to your dealer.
０９／０９／１７ １１：１８：０８ ３１ＭＦＪ６３０ ００９４
86
Maintenance Record
Servicing Your Honda
Miles (km) Odometer Date NotesPerformed By:
24,000 (38,400)
28,000 (44,800)
32,000 (51,200)
36,000 (57,600)
40,000 (64,000)
44,000 (70,400)
48,000 (76,800)
52,000 (83,200)
56,000 (89,600)
60,000 (96,000)
64,000 (102,400)
68,000 (108,800)
０９／０９／１７ １１：１８：１５ ３１ＭＦＪ６３０ ００９５
throttle grip
front brake fluid
reservoir
front brake lever
clutch lever
fuel fill cap
front suspension spring pre-load adjuster
front suspension rebound damping adjuster
87
Servicing Your Honda
Maintenance Component Locations
０９／０９／１７ １１：１８：２０ ３１ＭＦＪ６３０ ００９６
rear brake
caliper
coolant reserve tank
rear brake
fluid reservoir
battery
main fuse
owner’s manual
storage compartment
spark plugs
front suspension
compression
damping adjuster
front brake
caliper
engine oil filter
rear brake pedal
engine oil level
inspection window
fuse box
tool kit
engine oil filler cap
88
Servicing Your Honda
Maintenance Component Locations
０９／０９／１７ １１：１８：２７ ３１ＭＦＪ６３０ ００９７

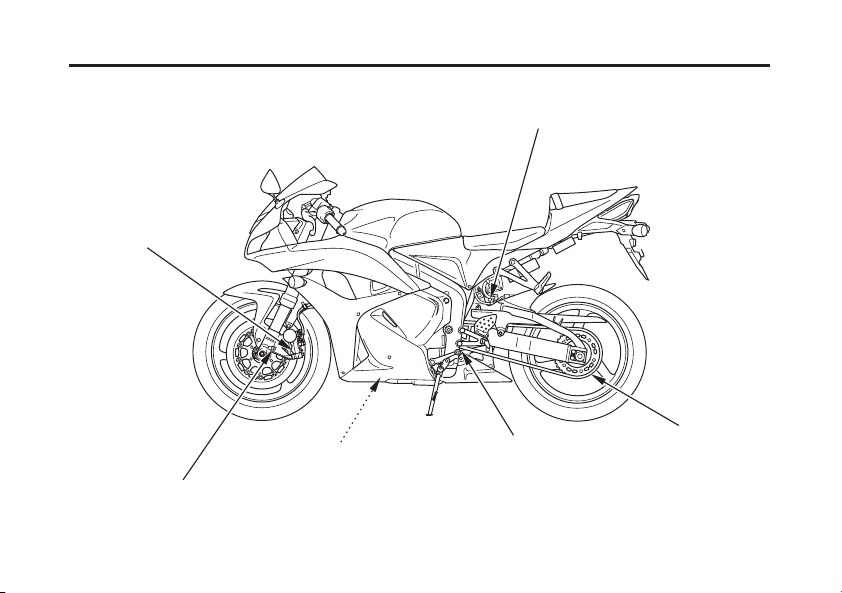

rear suspension compression
damping adjuster
rear suspension spring
pre-load adjuster
rear suspension rebound
damping adjuster
drive chain
front suspension compression
damping adjuster
engine oil drain bolt
front brake
caliper
89
Servicing Your Honda
Maintenance Component Locations
０９／０９／１７ １１：１８：３２ ３１ＭＦＪ６３０ ００９８
(1) tool kit
(1)
UNDER REAR SEAT
90
Tool Kit
Servicing Your Honda
The tool kit ( ) is stored under the rear
seat (page ).
An optional, larger tool kit may be
available. Check with your Honda dealer’s
parts department.
1
93
０９／０９／１７ １１：１８：３７ ３１ＭＦＪ６３０ ００９９
(1)
UNDER REAR SEAT
(2)
(1) plastic storage bag
(2) owner’s manual storage compartment
91
Owner’s Manual Storage
Servicing Your Honda
Be careful not to flood this area when
washing your motorcycle.
Your motorcycle provides storage for the
owner’s manual so you’ll have it with you
for easy reference. Store your owner’s
manual (and other documents) in the
plastic storage bag ( ) in the owner’s
manual storage compartment ( ) under
the rear seat (page ).
1
2
93
０９／０９／１７ １１：１８：４４ ３１ＭＦＪ６３０ ０１００
(2)
(1) front seat
(2) mounting bolts

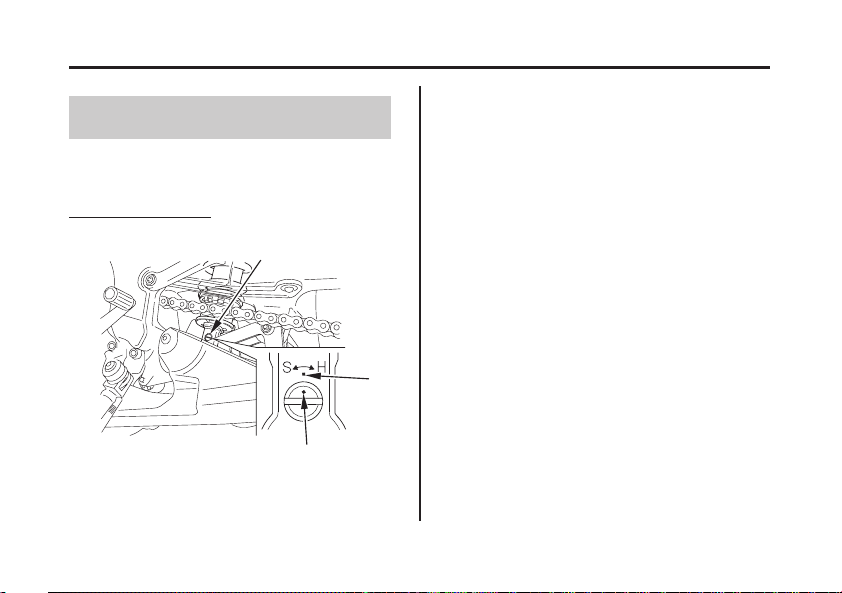

(1)
(3)
(3) tab
92
Seat Removal
Servicing Your Honda
Safety PrecautionsRefer to on page .

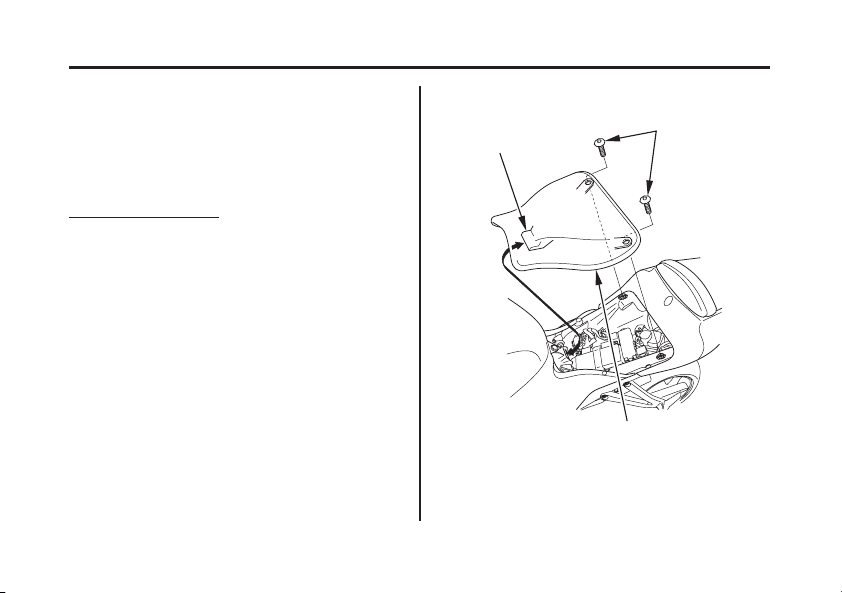

Front Seat Removal
The front seat must be removed for
battery or fuse maintenance.
To install the front seat, insert the tab ( )
into the recess under the frame and tighten
the mounting bolts securely.
To remove the front seat ( ), pull the rear
corners of the seat back, remove the
mounting bolts ( ), then pull the seat up
and back.
2
3
76
1
０９／０９／１７ １１：１８：５３ ３１ＭＦＪ６３０ ０１０１
(1) rear seat
(2) ignition key
(3) seat lock
(4) prongs
(5) seat hook
(6) guide hooks
(2)
(1)
(3)
(4)
(6)
(5)
93
Seat Removal
Servicing Your Honda
Rear Seat Removal
To install the rear seat, insert the prongs
( ) into the seat hook ( ) and guide hooks
( ), and then push down on the front of
the rear seat.
To remove the rear seat ( ), insert the
ignition key ( ) into the seat lock ( ).
Turn it clockwise, then pull the rear seat
forward and up.
4
2
1
3
5
6
０９／０９／１７ １１：１９：０１ ３１ＭＦＪ６３０ ０１０２
(2)
(3)
(4)
(3)
(1)
(7)
(6)
(4)
(5)
(8)
(1)
(1) A bolts
(2) B bolts
(3) C bolts
(4) D bolts
(5) collar
(6) lowercowl
(7) tubes
(8) clamp
(CBR600RR ABS only)
94
Servicing Your Honda

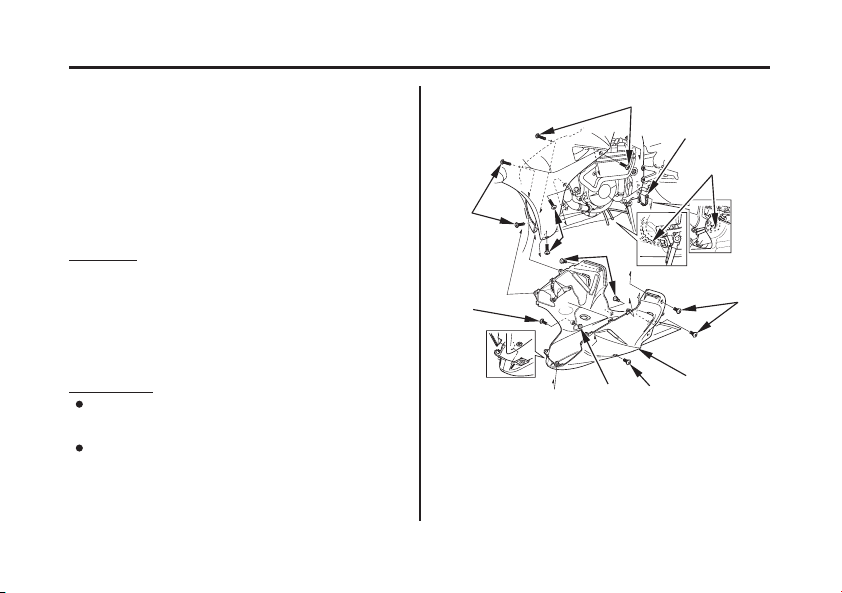

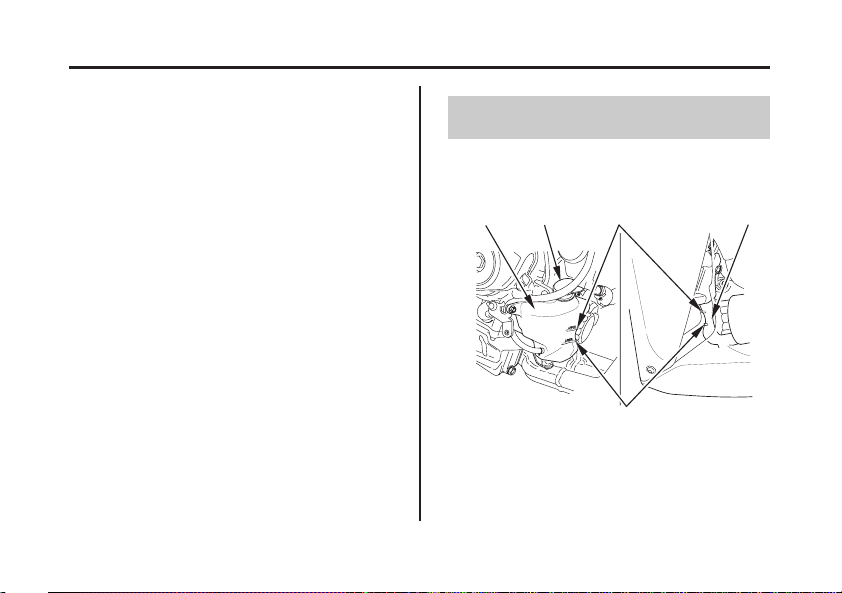

Lower Cowl Removal (Except California)
Safety PrecautionsRefer to on page .
The lower cowl must be removed to
service the coolant reserve tank, to replace
the engine oil and oil filter, or to adjust the
clutch system.
Remove the A bolts ( ), B bolts ( ), C
bolts ( ), D bolts ( ) and collar ( ).
Removal
Remove the lower cowl ( ), then pull
out the tubes ( ).
Through the tubes properly in position.
Remove the lower cowl and clamp ( ),
then pull out the tubes.
Installation can be done in the reverse
order of removal.
Installation
1.
2.
76
12
34 5
6
7
(CBR600RR)
8
(CBR600RR ABS)
０９／０９／１７ １１：１９：１３ ３１ＭＦＪ６３０ ０１０３
(2)
(3)
(4)
(1)
(4)
(5)
(8)
(7)
(6)
(1) A bolts
(2) B bolts
(3) C bolts
(4) D bolts
(1)
(3)
(5) collar
(6) lower cowl
(7) clamp
(8) tubes
95
Servicing Your Honda
Lower Cowl Removal (California Only)
Safety PrecautionsRefer to on page .
The lower cowl must be removed to
service the coolant reserve tank, to replace
the engine oil and oil filter, or to adjust the
clutch system.
Through the tubes properly in position.
Installation can be done in the reverse
order of removal.
Installation
Remove the A bolts ( ), B bolts ( ), C
bolts ( ), D bolts ( ) and collar ( ).
Removal
Remove the lower cowl ( ) and clamp
( ), then pull out the tubes ( ).
2.
1. 2
3
76
1
45
6
78
０９／０９／１７ １１：１９：２６ ３１ＭＦＪ６３０ ０１０４
LEFT SIDE (right side similar)
(1) A bolt
(2) B bolts
(3) clips A
(3)
(5)
(4)
(6)
(4) clip B
(5) middle cowl
(6) front turn signal
connector
(1)
(2)
96
Servicing Your Honda

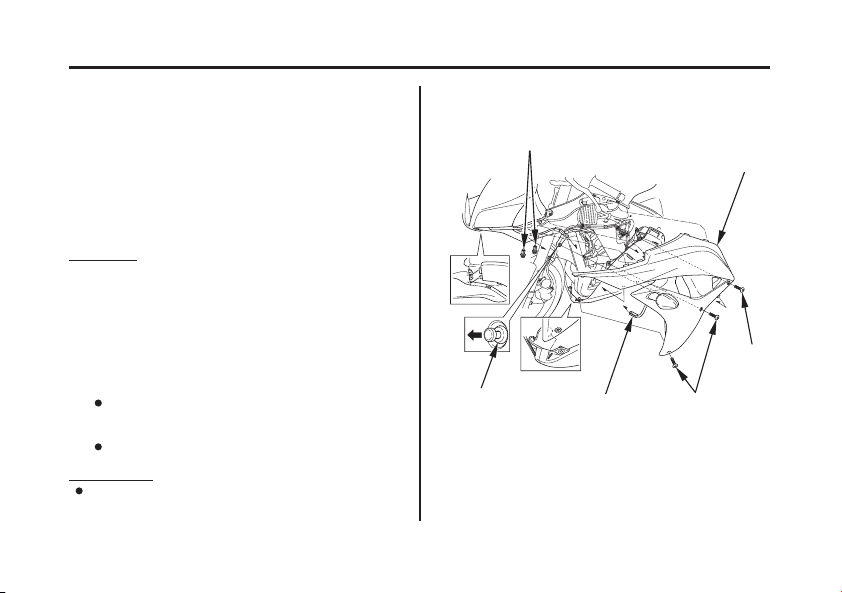

Middle Cowl Removal
Safety PrecautionsRefer to on page .
Removal
Remove the clips A ( ).
Pull the clip B ( ) out.
Carefully release the each tabs.
Installation
Installation can be done in the reverse
order of removal.
Remove the A bolt ( ) and B bolts ( ).
The middle cowl must be removed to
access the spark plugs.
The right and left middle cowls can be
removed in the same manner.
Remove the middle cowl ( ) and
disconnect the front turn signal
connector ( ).
Be careful not to apply weight to the
middle cowl.
1.
2.
3.
4.
76
12
3
4
6
5
０９／０９／１７ １１：１９：４０ ３１ＭＦＪ６３０ ０１０５
premium
unleaded
91 (or higher)
type
pump octane
number
97
Fuel Recommendation
Fuel
Servicing Your Honda
Safety PrecautionsRefer to on page .
Use of lower octane gasoline can cause
persistent ‘‘pinging’’ or ‘‘spark knock’’ (a
loud rapping noise) which, if severe, can
lead to engine damage. Light pinging
experienced while operating under a heavy
load, such as climbing a hill, is no cause
for concern.
If pinging or spark knock occurs at a
steady engine speed under normal load,
change brands of gasoline. If pinging or
spark knock persists, consult your Honda
dealer.
Use only unleaded fuel in your Honda.
The use of leaded fuel will damage the
catalytic converter(s). If you ride your
Honda in a country where leaded fuel
might be available, take precautions to use
only unleaded fuel.
Your engine is designed to use any
unleaded premium gasoline that has a
pump octane number of 91 or higher.
Gasoline pumps at service stations
normally display the pump octane number.
For information on the use of oxygenated
fuels, see page .
76
233
０９／０９／１７ １９：２４：４７ ３１ＭＦＪ６３０ ０１０６
4.76 US gal (18.0 )
(3)
(1) ignition key
(2) fuel fill cap
(3) filler neck
(2)
(1)
98

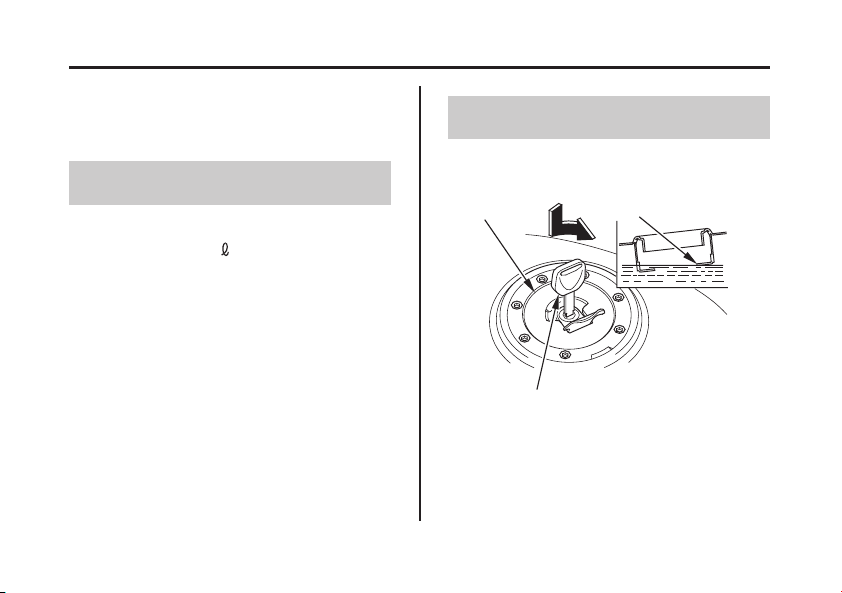

Refueling Procedure
Fuel Capacity
Fuel
Servicing Your Honda
Safety Precautions
Never use stale or contaminated gasoline
or an oil/gasoline mixture. Avoid getting
dirt, dust, or water in the fuel tank.
Refer to on page .
Fuel tank capacity:
The tank should be refilled as soon as
possible when the E segment in the fuel
gauge flashes.
Insert the ignition key ( ) in the fuel
fill cap ( ) and turn it clockwise.
1. 1
2
76
０９／０９／１７ １１：１９：５９ ３１ＭＦＪ６３０ ０１０７
Gasoline is highly flammable and
explosive. You can be burned or
seriously injured when handling
fuel.
Stop the engine and keep heat,
sparks and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
99
Fuel
Servicing Your Honda
Add fuel until the level reaches the
bottom of the fill neck ( ). Avoid
overfilling the tank. There should be no
fuel in the fill neck.
After refueling, push the fuel fill cap
closed until it snaps and locks.
Remove the ignition key from the cap.
Open the fuel fill cap.2.
3.
5.
4.
3
０９／０９／１７ １１：２０：０６ ３１ＭＦＪ６３０ ０１０８
100
Engine Oil & Filter
Servicing Your Honda
Engine oil quality is a major factor that
affects both the performance and the
service life of the engine.
When running in very dusty conditions, oil
changes should be performed more
frequently than specified in the
maintenance schedule.
Using the proper oil (page ) and filter,
and regularly checking, adding, and
changing oil will help extend your
engine’s life. Even the best oil wears out.
Changing oil helps get rid of dirt and
deposits in the engine. Operating the
engine with old or dirty oil can damage
your engine. Running the engine with
insufficient oil can cause serious damage
to the engine and transmission.
Change the engine oil as specified in the
maintenance schedule on page .
101
83
０９／０９／１７ １１：２０：１３ ３１ＭＦＪ６３０ ０１０９
＊
＊
SG or higher
except oils
labeled as energy
conserving on the
circular API
service label
MA
SAE 10W-30
Pro Honda GN4 4-stroke oil (USA
& Canada), or Honda 4-stroke oil
(Canada only), or an equivalent
motorcycle oil.
API
classification
JASO T 903
standard
viscosity
(weight)
suggested oil
101
Oil Recommendation
Engine Oil & Filter
Servicing Your Honda
Suggested oils are equal in performance
to SJ oils that are not labeled as energy
conserving on the circular API service
label.
０９／０９／１７ １１：２０：２２ ３１ＭＦＪ６３０ ０１１０
OKNOT RECOMMENDED
102
Engine Oil & Filter
Servicing Your Honda
Your motorcycle does not need oil
additives. Use the recommended oil.
Other viscosities shown in the following
chart may be used when the average
temperature in your riding area is within
the indicated range.
Do not use oils with graphite or
molybdenum additives. They may
adversely affect clutch operation.
Do not use API SH or higher oils
displaying a circular API ‘‘energy
conserving’’ service label on the
container. They may affect lubrication
and clutch performance.
Do not use non-detergent, vegetable, or
castor based racing oils.
０９／０９／１７ １１：２０：３２ ３１ＭＦＪ６３０ ０１１１
(1)
(2)
(1) code number of the sales company
of the oil
(2) oil classification
103
Engine Oil & Filter
Servicing Your Honda

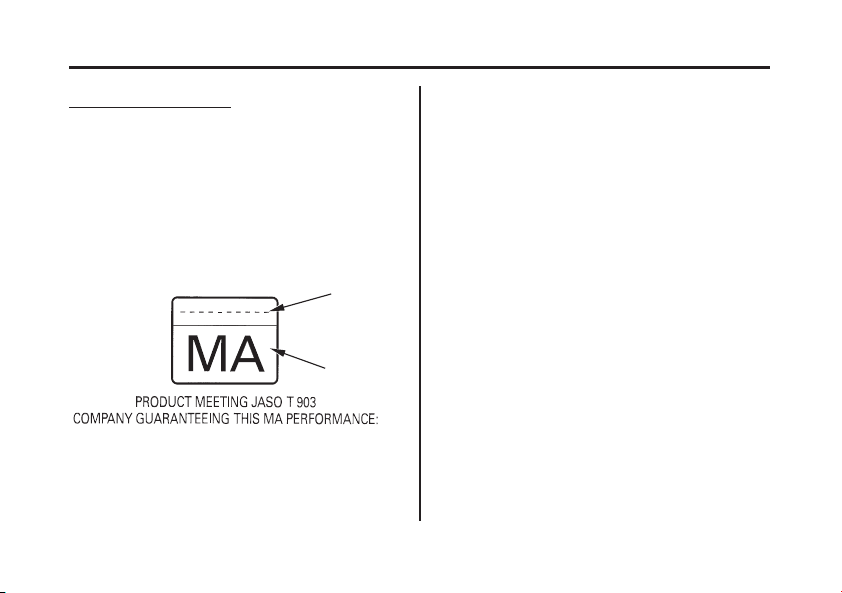

JASO T 903 standard
The JASO T 903 standard is an index for
engine oils for 4-stroke motorcycle
engines.
There are two classes: MA and MB.
Oil conforming to the standard is labeled
on the oil container. For example, the
following label shows the MA
classification.
０９／０９／１７ １１：２０：３８ ３１ＭＦＪ６３０ ０１１２
−
−
RIGHT SIDE
(2)
(1) upper level mark
(2) lower level mark
(3) inspection window
(1)
(3)
RIGHT SIDE
(4)
(4) oil filler cap
104
Checking & Adding Oil
Engine Oil & Filter
Servicing Your Honda
Safety PrecautionsRefer to on page .
Park your motorcycle on its side stand
on a firm, level surface.
Start the engine and let it idle for 3 5
minutes. Make sure the low oil pressure
indicator goes off. If the indicator
remains on, stop the engine
immediately.
Stop the engine and wait 2 3 minutes.
Hold the motorcycle in an upright
position.
2.
3.
4.
1.
76
０９／０９／１７ １１：２０：４８ ３１ＭＦＪ６３０ ０１１３
105
Changing Engine Oil & Filter
Engine Oil & Filter
Servicing Your Honda
Safety Precautions
Using the wrong oil filter may result in
leaks or engine damage.
Refer to on page .
Your motorcycle’s oil filter has very
specific performance requirements. Use a
new Honda Genuine oil filter or a filter of
equal quality specified for your model.
Check that the oil level is between the
upper ( ) and lower ( ) level marks in
the inspection window ( ).
If the oil is at or near the upper level
mark –– you do not have to add oil.
If the oil is below or near the lower
level mark –– remove the lower cowl
(page ) and oil filler cap ( ), and
add the recommended oil until it
reaches the upper level mark. (Do not
overfill.)
Reinstall the oil filler cap and lower
cowl.
Check for oil leaks.
76
6.
5.
12
3
494
０９／０９／１７ １１：２０：５７ ３１ＭＦＪ６３０ ０１１４
−
−
(2) sealing washer
FRONT, UNDER ENGINE
(1) engine oil drain bolt
(2) (1)
106
Engine Oil & Filter
Servicing Your Honda
Drain the Engine Oil:
This procedure requires mechanical skill
and professional tools such as a torque
wrench and oil filter wrench, as well as a
means for disposing of the drained fluid
(page ). If you do not have the skills
or the tools, see your Honda dealer.
Park the motorcycle on its side stand on
a firm, level surface.
To drain the oil, remove the oil filler
cap, engine oil drain bolt ( ), and
sealing washer ( ).
Place a drain pan under the crankcase.
If the engine is cold, start it and let it
idle for 3 5 minutes. Turn the engine
off. Wait 2 3 minutes for the oil to
settle.
Remove the lower cowl (page ).
1.
2.
3.
4.
5.
1
2
180
94
０９／０９／１７ １１：２１：０７ ３１ＭＦＪ６３０ ０１１５

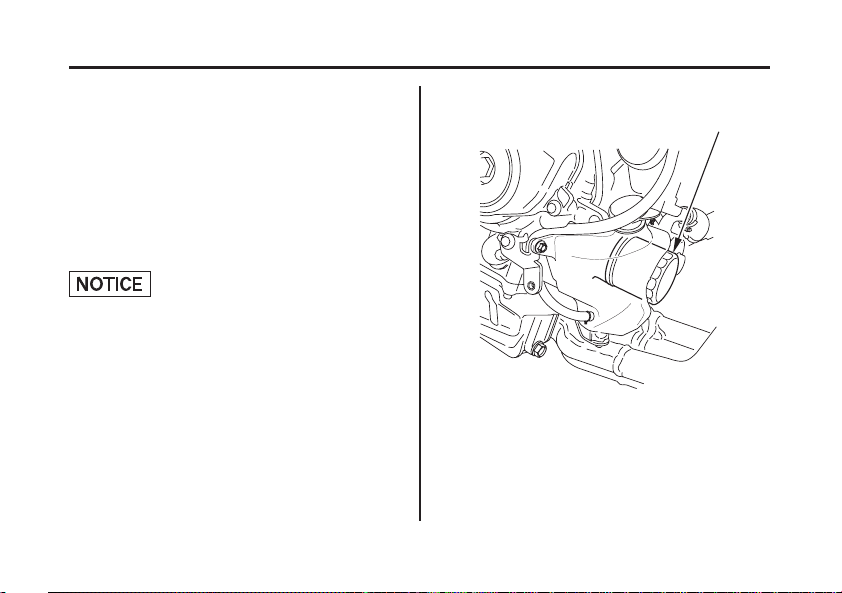

RIGHT SIDE
(3) oil filter
(3)
107
Engine Oil & Filter
Servicing Your Honda
Install a New Oil Filter:
Improper disposal of drained fluids is
harmful to the environment.
(cont’d)
Remove the oil filter ( ) with a filter
wrench and let the remaining oil drain
out. Discard the oil filter in an approved
manner (page ).
Pour the drained oil into a suitable
container and dispose of it in an
approved manner (page ).
6.
7.
3
180
180
０９／０９／１７ １１：２１：１５ ３１ＭＦＪ６３０ ０１１６
22 lbf·ft (30 N·m , 3.1 kgf·m)
3.0 US qt (2.8
)
19 lbf·ft (26 N·m , 2.7 kgf·m)
(4)
(4) rubber seal
108
Engine Oil & Filter
Servicing Your Honda
Add Engine Oil:
Apply a thin coat of engine oil to the
rubber seal ( ) of a new oil filter.
Install the new oil filter and tighten it by
hand.
Check the condition of the sealing
washer on the engine oil drain bolt.
Replace the washer every other time the
oil is changed.
Install the engine oil drain bolt and
tighten it to the specified torque:
Fill the crankcase with the
recommended oil (page ),
approximately:
Install the oil filler cap.
Using an oil filter wrench attachment
and a torque wrench, tighten the new oil
filter to the specified torque:
Install the lower cowl.
4
10.
8.
9.
11.
12.
13.
14.
101
０９／０９／１７ １１：２１：２６ ３１ＭＦＪ６３０ ０１１７
−
−
109
Engine Oil & Filter
Servicing Your Honda
Check that there are no oil leaks.
If a torque wrench is not used for
installation, see your Honda dealer as soon
as possible to verify proper assembly.
Start the engine and let it idle for 3 5
minutes.
Stop the engine and wait 2 3 minutes.
Hold the motorcycle upright and check
that the oil level is at the upper level
mark in the inspection window
(page ).
15.
16.
17.
18.
104
０９／０９／１７ １１：２１：３３ ３１ＭＦＪ６３０ ０１１８
110
Coolant Recommendation
Coolant
Servicing Your Honda
Using coolant with silicate inhibitors may
cause premature wear of water pump
seals or blockage of radiator passages.
Using tap water may cause engine
damage.
Your motorcycle’s liquid cooling system
dissipates engine heat through the coolant
jacket that surrounds the cylinder and
cylinder head.
Use Pro Honda HP coolant or an
equivalent high quality ethylene glycol
antifreeze containing corrosion protection
inhibitors specifically recommended for
use in aluminum engines. Check the
antifreeze container label.
Maintaining the coolant will allow the
cooling system to work properly and
prevent freezing, overheating, and
corrosion.
The factory provides a 50/50 solution of
antifreeze and water in this motorcycle.
This coolant solution is recommended for
most operating temperatures and provides
good corrosion protection.
Use only distilled water as a part of the
coolant solution. Water that is high in
mineral content or salt may be harmful to
the aluminum engine.
０９／０９／１７ １１：２１：４０ ３１ＭＦＪ６３０ ０１１９
RIGHT SIDE
(1) reserve tank
(2) UPPER level mark
(3) LOWER level mark
(4) reserve tank cap
(4)(1) (2) (1)
(3)
111
Checking & Adding Coolant
Coolant
Servicing Your Honda
Safety PrecautionsRefer to on page .
Decreasing the concentration of antifreeze
to less than 40% will not provide proper
corrosion protection.
Increasing the concentration of antifreeze
is not recommended because it decreases
cooling system performance. Higher
concentrations of antifreeze (up to 60%)
should only be used to provide additional
protection against freezing. Check the
cooling system frequently during freezing
weather.
76
０９／０９／１７ １１：２１：４８ ３１ＭＦＪ６３０ ０１２０
112
Coolant Replacement
Coolant
Servicing Your Honda
Safety PrecautionsRefer to on page .
Coolant should be replaced by your Honda
dealer, unless you have the proper tools
and service data and are mechanically
qualified. Refer to the official Honda
Service Manual (page ).
Remove the reserve tank cap ( ).
Always add coolant to the reserve tank.
Do not attempt to add coolant by
removing the radiator cap.
Addcoolanttothereservetankas
required to bring the coolant level to the
UPPER level mark.
Install the reserve tank cap.
With the engine at normal operating
temperature, check the coolant level in
the reserve tank ( ). It should be
between the UPPER ( ) and LOWER
( ) level marks.
If the reserve tank is empty, or if
coolant loss is excessive, check for
leaks and see your Honda dealer for
repair.
Remove the lower cowl (page ).
Install the lower cowl.
1.
3.
4.
5.
6.
4
76
236
2.
1
2
3
94
０９／０９／１７ １１：２１：５９ ３１ＭＦＪ６３０ ０１２１
Removing the radiator cap while
the engine is hot can cause the
coolant to spray out, seriously
scalding you.
Always let the engine and radiator
cool down before removing the
radiator cap.
113
Coolant
Servicing Your Honda
You & the Environment,
Improper disposal of drained fluids is
harmful to the environment.
To properly dispose of drained coolant,
refer to
page .180
０９／０９／１７ １１：２２：０４ ３１ＭＦＪ６３０ ０１２２
−−1/16 3/16 in (2 4 mm)
RIGHT HANDLEBAR
(1)
(1) throttle cable boot
(2) adjuster
(3) lock nut
(3)
(2)
114
Throttle Freeplay
Throttle
Servicing Your Honda
Safety PrecautionsRefer to on page .
Inspection
Check freeplay at the throttle grip flange.
Freeplay:
If necessary, adjust to the specified range.
Adjustment
Slide the throttle cable boot ( ) off the
adjuster ( ).
Tighten the lock nut and return the
throttle cable boot securely over the
adjuster.
After adjustment, check for smooth
rotation of the throttle grip from fully
closed to fully open in all steering
positions.
Loosen the lock nut ( ).
Turn the adjuster.
1.
2.
3.
4.
1
5.
2
3
76
０９／０９／１７ １１：２２：１７ ３１ＭＦＪ６３０ ０１２３
115
Throttle Inspection
Throttle
Servicing Your Honda
Safety PrecautionsRefer to on page .
Check that the throttle assembly is
positioned properly and the securing
bolts are tight.
Check for smooth rotation of the
throttle from fully open to fully closed
in all steering positions. If there is a
problem, see your Honda dealer.
1.
2.
76
０９／０９／１７ １１：２２：２３ ３１ＭＦＪ６３０ ０１２４
LEFT HANDLEBAR
(1) clutch lever
(1)
116
Clutch Freeplay
Clutch System
Servicing Your Honda
Safety PrecautionsRefer to on page .
Your motorcycle’s manually activated,
wet, multiplate clutch is part of the
primary drive system. Proper freeplay
adjustment allows a smooth, gradual
engagement when shifting gears.
Improper freeplay adjustment can cause
premature clutch wear.
76
０９／０９／１７ １１：２２：３０ ３１ＭＦＪ６３０ ０１２５
−−
＋＋
−−
＋
−
3/8 13/16 in (10 20 mm)
LEFT HANDLEBAR
(2)
(3)
(( ))
(( ))
(
2)
upper lock nut
(3) upper clutch cable adjuster
( ) increase freeplay
( ) decrease freeplay
117
Clutch System
Servicing Your Honda
Inspection
Check freeplay:
If necessary, adjust to the specified
range.
Upper Adjustment
Attempt adjustment with the upper clutch
cable adjuster first.
Loosen the upper lock nut ( ).
Turn the upper clutch cable adjuster ( )
to obtain the specified freeplay.
Tighten the upper lock nut and check
the freeplay again.
1.
1.
2.
3.
3
2
０９／０９／１７ １１：２２：４１ ３１ＭＦＪ６３０ ０１２６
＋＋
−−
＋
−
R
IGH
T SIDE
(4)
(5)
(( ))
(( ))
(
4) lower lock nut
(5) lower adjusting nut
( ) increase freeplay
( ) decrease freeplay
118
Clutch System
Servicing Your Honda
Lower Adjustment
If the upper clutch cable adjuster is
threaded out near its limit, or the correct
freeplay cannot be obtained, attempt
adjustment with the lower clutch cable
adjuster.
Tighten the lower lock nut and check
the adjustment.
Turn the lower adjusting nut ( ) to
obtain the specified freeplay.
Loosen the lower lock nut ( ).
Loosen the upper lock nut ( ) and turn
the upper clutch cable adjuster ( ) all
the way in (to provide maximum
freeplay). Tighten the upper lock nut.
Remove the lower cowl (page ).
Install the lower cowl.
1.
2.
3.
4.
2
5.
3
4
5
6.
94
０９／０９／１７ １１：２２：５３ ３１ＭＦＪ６３０ ０１２７
119
Other Inspections & Lubrication
Clutch System
Servicing Your Honda
Start the engine, pull the clutch lever in,
and shift into gear. Make sure the
engine does not stall and the motorcycle
does not creep. Gradually release the
clutch lever and open the throttle. Your
motorcycle should move smoothly and
accelerate gradually.
Lubricate the clutch cable with a
commercially available cable lubricant
to prevent premature wear and
corrosion.
Check the clutch cable for kinks or
signs of wear. If necessary, have it
replaced.
Check that the clutch lever assembly is
positioned properly and the securing
bolts are tight.
If you cannot get proper adjustment, or the
clutch does not work properly, the cable or
clutch friction discs may be worn. See
your Honda dealer or refer to the official
Honda Service Manual (page ).
7.
236
０９／０９／１７ １１：２３：０１ ３１ＭＦＪ６３０ ０１２８
IMR9E-9HES (NGK)
VUH27D (DENSO)
standard
spark plug
or
120
Spark Plug Recommendation
Spark Plugs
Servicing Your Honda
Using spark plugs with an improper heat
range can cause engine damage.
This motorcycle uses spark plugs that have
an iridium coated center electrode.
Be sure to observe the following when
servicing the spark plugs.
Do not clean the spark plugs. If an
electrode is contaminated with
accumulated objects or dirt, replace the
spark plug with a new one.
To check the spark plug gap, use only a
‘‘wire-type feeler gauge.’’ To prevent
damaging the iridium coating of the
center electrode, never use a ‘‘leaf-type
feeler gauge.’’
Use only the recommended type of spark
plugs in the recommended heat range.
Do not adjust the spark plug gap. If the
gap is out of specification, replace the
spark plug with a new one.
０９／０９／１７ １１：２３：１０ ３１ＭＦＪ６３０ ０１２９
(1)
(2)
(4)
(3)
(5) radiator lower mount nut
(CBR600RR only)
(6) radiator lower mount bolt
(7) radiator upper mount bolt
FRONT
(7)
(5)
(6)
(1) radiatorfan connector
(2) wire harness clip
(3) radiator heat guard
(4) brake hose mount bolt
(CBR600RR ABS only)
121
Spark Plug Inspection &
Replacement
Spark Plugs
Servicing Your Honda
Safety PrecautionsRefer to on page .
Disconnect the radiator fan connector
().
Release the wire harness clip ( ) from
the radiator heat guard ( ).
(cont’d)
Remove the brake hose mount bolt ( ).
Remove the radiator lower mount nut
( ) and radiator lower mount bolt ( ).
Remove the radiator lower mount bolt.
Remove the right and left middle cowl
(page ).
1.
2.
3.
4.
5.
3
2
1
(CBR600RR)
4
56
76
96
(CBR600RR ABS only)
(CBR600RR ABS)
０９／０９／１７ １１：２３：２４ ３１ＭＦＪ６３０ ０１３０

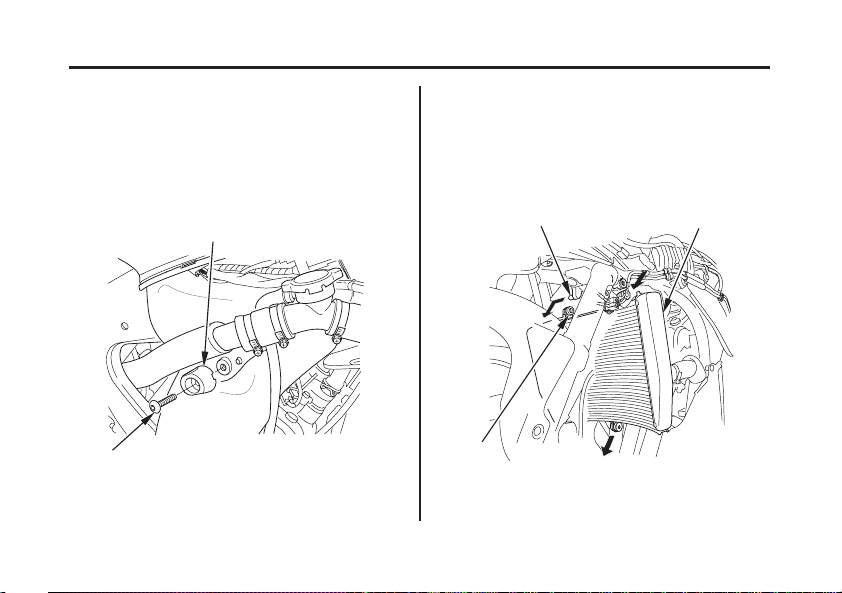

FRONTRIGHT FRONT
(8)
(9)
(8) water pipe guard
(9) bolt
(10) radiator
(11) grommet
(12) hook
(12)
(10)
(11)
122
Spark Plugs
Servicing Your Honda
Move the radiator ( ) out of the way
and remove the grommet ( ) from the
hook ( ).
Pull the radiator toward the front.
Remove the water pipe guard ( ) by
removing the bolt ( ).
Remove the radiator upper mount bolt
().
6.
7
8
9
7.
8.
9.
10
11
12
０９／０９／１７ １１：２３：３３ ３１ＭＦＪ６３０ ０１３１
FRONT FRONT
(14)
(13)
(13) ignition coil connector
(14) ignition coil
(15)
(15) spark plug wrench
123
Spark Plugs
Servicing Your Honda
Disconnect the ignition coil connectors
().
Disconnect the ignition coils ( ) from
the spark plugs.
Clean any dirt from around the spark
plug bases.
Usingasparkplugwrench( ),remove
the spark plugs.
(cont’d)
10.
11.
12.
13.
13
14 15
０９／０９／１７ １１：２３：４３ ３１ＭＦＪ６３０ ０１３２
(16)
(16) spark plug gap
124
Spark Plugs
Servicing Your Honda
Inspect the electrodes and center
porcelain for deposits, corrosion, or
carbon fouling. If the corrosion or
deposits are heavy, replace the plug.
Make sure that a 1.0 mm wire-type
feeler gauge cannot be inserted between
the spark plug gap ( ). If the gauge
fits in the gap, replace the plug with a
new one.
Make sure the plug washer is in good
condition.
With the plug washers attached, thread
the spark plugs in by hand to prevent
cross-threading.
Tighten each spark plug:
If the old plug is good:
1/8 turn after it seats.
If installing a new plug, tighten it
twice to prevent loosening:
First, tighten the plug:
NGK: turn after it seats.
DENSO: turn after it seats.
Then loosen the plug.
Next, tighten the plug again:
1/8 turn after it seats.
a)
b)
c)
1
1/2
14.
15.
16
16.
17.
18.
０９／０９／１７ １１：２３：５３ ３１ＭＦＪ６３０ ０１３３
125
Spark Plugs
Servicing Your Honda
Improperly tightened spark plugs can
damage the engine. If a plug is too loose,
a piston may be damaged. If a plug is too
tight, the threads may be damaged.
Reinstall the ignition coils.
Connect the ignition coil connectors to
the ignition coils as before removal.
Install the remaining parts in the reverse
order of removal.
19.
20.
21.
０９／０９／１７ １１：２３：５９ ３１ＭＦＪ６３０ ０１３４
126
Suspension
Servicing Your Honda
Your front and rear suspension systems
use springs, hydraulic damping devices,
and linkages (rear only) that suspend your
weight and most of the weight of your
motorcycle.
The spring pre-loads for your front and
rear suspension systems adjust the amount
of force required to begin compression of
the spring.
Consider adjusting your suspension
whenever you change your normal load,
by adding or subtracting a passenger,
cargo, or accessories, or when the road or
riding conditions change.
The oil damper systems hydraulically
control the natural compression and
rebound of the suspension springs so that
traction and comfort are maintained as the
wheels ride over road surfaces.
The way you ride your motorcycle and the
type of ride you want to experience can
also influence your suspension needs.
You may adjust the spring pre-load and
the rebound and compression damping of
both suspension systems.
０９／０９／１７ １１：２４：０６ ３１ＭＦＪ６３０ ０１３５
127
Front Suspension Adjustment
Suspension
Servicing Your Honda
Lower spring pre-load and softer damping
provide a softer ride and are usually
preferred for light loads and smooth roads.
Higher spring pre-load and firmer
damping provide a firmer ride and are
recommended for heavy loads, rough road
conditions, and faster, more challenging
riding.
The front suspension can be adjusted for
rider (and passenger) weight and riding
conditions by changing the spring pre-load
and rebound and compression damping.
To adjust, use an appropriate tool or see
your Honda dealer.
０９／０９／１７ １１：２４：１１ ３１ＭＦＪ６３０ ０１３６
FRONT
(1)
(1) spring pre-load adjuster
128
Front Suspension Spring
Pre-load
Suspension
Servicing Your Honda
Safety Precautions
To Reduce Spring Pre-load (SOFT):
To Increase Spring Pre-load (HARD):
Refer to on page .
To adjust to the standard position:
Turn the adjuster clockwise turns.
This is the standard position.
Make sure that both fork legs are
adjusted to the same position.
Turn the spring pre-load adjuster
counterclockwise until it will no longer
turn (lightly seats). This is the full soft
setting.
Adjust the spring pre-load by turning the
spring pre-load adjuster ( ) with a 19 mm
wrench.
For a light load and smooth road
conditions, turn the adjuster
counterclockwise toward SOFT (S).
For a firmer ride and rough road
conditions, turn the adjuster clockwise
toward HARD (H).
1.
2.
3.
5
1
76
０９／０９／１７ １１：２４：２３ ３１ＭＦＪ６３０ ０１３７
FRONT
(1)
(2)
(3)

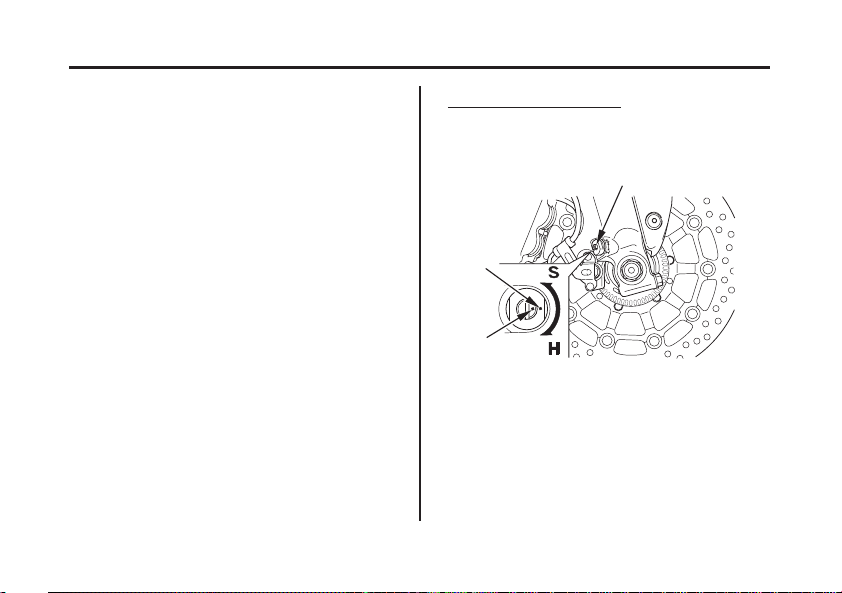

(1) damping adjuster
(2) punch mark
(3) reference punch mark
129
Front Suspension Damping
Suspension
Servicing Your Honda
Safety PrecautionsRefer to on page .
Rebound Damping
Make sure that both fork legs are
adjusted to the same position.
Turn the adjuster counterclockwise
approximately turns so that the
punch mark ( ) on the adjuster aligns
with the reference punch mark ( ). This
is the standard position.
Turn the damping adjuster ( )
clockwise until it will no longer turn
(lightly seats). This is the full hard
setting.
To adjust to the standard position:
1.
2.
3.
1
21/2
2
3
76
０９／０９／１７ １１：２４：３４ ３１ＭＦＪ６３０ ０１３８
(1)
(1) damping adjuster
(2) punch mark
(3) reference punch mark
RIGHT SIDE
(3)
(2)
130
Suspension
Servicing Your Honda
To Reduce Rebound Damping (SOFT):
To Increase Rebound Damping
(HARD):
Compression Damping
For a light load and smooth road
conditions, turn the adjuster
counterclockwise toward SOFT (S).
For a firmer ride and rough road
conditions, turn the adjuster clockwise
toward HARD (H).
０９／０９／１７ １１：２４：４１ ３１ＭＦＪ６３０ ０１３９
131
Suspension
Servicing Your Honda
To Reduce Compression Damping
(SOFT):
To Increase Compression Damping
(HARD):
To adjust to the standard position:
Turn the damping adjuster ( )
clockwise until it will no longer turn
(lightly seats). This is the full hard
setting.
Turn the adjuster counterclockwise
approximately turns so that the
punch mark ( ) on the adjuster aligns
with the reference punch mark ( ). This
is the standard position.
Make sure that both fork legs are
adjusted to the same position.
For a light load and smooth road
conditions, turn the adjuster
counterclockwise toward SOFT (S).
For a firmer ride and rough road
conditions, turn the adjuster clockwise
toward HARD (H).
1.
2.
3.
1
2
2
3
０９／０９／１７ １１：２４：５０ ３１ＭＦＪ６３０ ０１４０
132
Rear Suspension Adjustment
Suspension
Servicing Your Honda
The rear suspension can be adjusted for
rider (and passenger) weight and riding
conditions by changing the spring pre-load
and rebound and compression damping.
To adjust, use an appropriate pin spanner
or see your Honda dealer.
The rear shock absorber includes a damper
unit that contains high pressure nitrogen
gas. Do not attempt to disassemble,
service, or dispose of the damper; see your
Honda dealer. The instructions found in
this owner’s manual are limited to
adjustments of the shock assembly only.
０９／０９／１７ １１：２４：５６ ３１ＭＦＪ６３０ ０１４１
(1)
(2)
LEFT SIDE
(1) spring pre-load adjuster
(2) pin spanner
(3) extension bar
123 5
(3)
4
910 8
67
133
Rear Suspension Spring Pre-load
Suspension
Servicing Your Honda
Safety PrecautionsRefer to on page .
The spring pre-load adjuster ( ) has
positions for different load or riding
conditions.
Adjust the spring pre-load by turning the
spring pre-load adjuster with a pin spanner
( ) and extension bar ( ).
Always adjust the shock absorber position
in sequence (1-2-3-4-5-6-7-8-9-10 or 10-
9-8-7-6-5-4-3-2-1). Attempting to adjust
directlyfrom1to10or10to1may
damage the shock absorber.
Position 1: for a light load and smooth
road conditions.
Position 2: standard position.
Positions 3 to 10: for when the motorcycle
is more heavily loaded. (Also increase
spring pre-load for stiffer rear suspension.)
1
10
23
76
０９／０９／１７ １１：２５：０７ ３１ＭＦＪ６３０ ０１４２
(1)
(3)
(1) damping adjuster
(2) punch mark
(3) reference punch mark
LEFT SIDE
(2)
134
Rear Suspension Damping
Suspension
Servicing Your Honda
Safety PrecautionsRefer to on page .
Rebound Damping
Turn the damping adjuster ( )
clockwise until it will no longer turn
(lightly seats). This is the full hard
setting.
To adjust to the standard position:
Turn the adjuster counterclockwise
approximately turns
()orturns
( ) so that the punch
mark ( ) on the adjuster aligns with the
reference punch mark ( ). This is the
standard position.
1.
2.
1
76
21/2
21/4
CBR600RR
3
CBR600RR ABS
2
０９／０９／１７ １１：２５：１６ ３１ＭＦＪ６３０ ０１４３
(1)
(3)
(2)
(1) damping adjuster
(2) punch mark
(3) reference punch mark
LEFT SIDE (CBR600RR)
(2)
(1)
(3)
LEFT SIDE (CBR600RR ABS)
135
Suspension
Servicing Your Honda
To Reduce Rebound Damping (SOFT):
To Increase Rebound Damping
(HARD):
Compression Damping
For a light load and smooth road
conditions, turn the adjuster
counterclockwise toward SOFT (S).
For a firmer ride and rough road
conditions, turn the adjuster clockwise
toward HARD (H).
０９／０９／１７ １１：２５：２５ ３１ＭＦＪ６３０ ０１４４
136
Suspension
Servicing Your Honda
To Reduce Compression Damping
(SOFT):
To Increase Compression Damping
(HARD):
To adjust to the standard position:
Turn the damping adjuster ( )
clockwise until it will no longer turn
(lightly seats). This is the full hard
setting.
Turn the adjuster counterclockwise
clicks so that the punch mark ( ) on
the adjuster aligns with the reference
punch mark ( ). This is the standard
position.
For a light load and smooth road
conditions, turn the adjuster
counterclockwise toward SOFT (S).
For a firmer ride and rough road
conditions, turn the adjuster clockwise
toward HARD (H).
1.
2.
1
2
3
24
０９／０９／１７ １１：２５：３３ ３１ＭＦＪ６３０ ０１４５
(4)
(2)
(3)
(1)
(1) adjuster dial
(2) brake lever
(3) index mark
(4) numbers
RIGHT HANDLEBAR
137
Front Brake Lever Adjustment
Brakes
Servicing Your Honda
Safety Precautions
The hydraulic braking systems on your
motorcycle dissipate the heat generated by
the friction of the brake pads on the brake
discs as the wheels are slowed.
As the brake pads wear, the brake fluid
level will drop. A leak in the system will
also cause the level to drop.
Frequently inspect the system to ensure
there are no fluid leaks. Periodically
inspect the brake fluid level and the brake
pads for wear.
If the brake lever or brake pedal freeplay
does not feel within the normal range
while riding, check the brake pads for
wear (page ). Worn pads should be
replaced. If the pads are not worn beyond
the recommended limit, there is probably
air in the brake system. See your Honda
dealer to have the air bled from the system.
Refer to on page .
The distance between the tip of the brake
lever and the grip may be adjusted.
76
141
０９／０９／１７ １１：２５：４３ ３１ＭＦＪ６３０ ０１４６
Honda DOT 4 Brake
Fluid
brake
fluid
138
Brake Fluid Recommendation
Brakes
Servicing Your Honda
The recommended brake fluid is Honda
DOT 4 Brake Fluid, or any brake fluid of
equal quality and performance. Use fresh
brake fluid from a sealed container. Be
sure to read the label before opening the
sealed container. An opened container
may be contaminated or may have
absorbed moisture from the air.
Turn the adjuster dial ( ) while pushing
the brake lever ( ) forward.
Apply the brake, release it, then spin the
wheel and check that it rotates freely.
Repeat this procedure several times.
Align the index mark ( ) on the brake
lever with the numbers ( ) on the
adjuster dial.
2.
3.
1. 1
2
3
4
０９／０９／１７ １１：２５：５１ ３１ＭＦＪ６３０ ０１４７
(1)
RIGHT HANDLEBAR
(1) UPPER level mark
(2) LOWER level mark
(2)
139
Fluid Level Inspection
Brakes
Servicing Your Honda
Safety Precautions
Brake fluid can damage plastic and
painted surfaces. Handle with care.
Refer to on page .
If your inspection indicates a low fluid
level, have your Honda dealer add the
recommended brake fluid.
Wipe up spills immediately. Avoid brake
fluid contact with skin or eyes. If it comes
in contact with your eyes, wash them out
with clean water and immediately call a
doctor. If it comes in contact with your
skin, wash with clean water and, if
necessary, call a doctor.
Do not add or replace brake fluid, except
in an emergency. If you do add fluid, have
your Honda dealer check the system as
soon as possible.
76
０９／０９／１７ １１：２５：５９ ３１ＭＦＪ６３０ ０１４８
RIGHT SIDE
(2)
(1) UPPER level mark
(2) LOWER level mark
(1)
140
Servicing Your Honda
Brakes
Place your motorcycle in an upright
position on a firm, level surface.
Check the fluid level. It should be
between the UPPER ( ) and LOWER
( ) level marks. If the level is at or
below the LOWER level mark, check
the brake pads for wear (page ).
Worn pads should be replaced. If the pads
are not worn beyond the recommended
limit, have your brake system inspected
for leaks.
Other Inspections
Make sure there are no fluid leaks.
Check for deterioration or cracks in the
hoses and fittings.
1.
2.
1
2
141
０９／０９／１７ １１：２６：０８ ３１ＭＦＪ６３０ ０１４９
(1)
(1)
(1) wear indicatorgrooves
LEFT FRONT (Right side similar)
141
Brake Pad Wear
Brakes
Servicing Your Honda
Safety PrecautionsRefer to on page .
Brake pad wear depends upon the severity
of usage, the type of riding, and road
conditions. Generally, the pads will wear
faster on wet and dirty roads. Inspect the
pads at each regular maintenance interval
(page ).

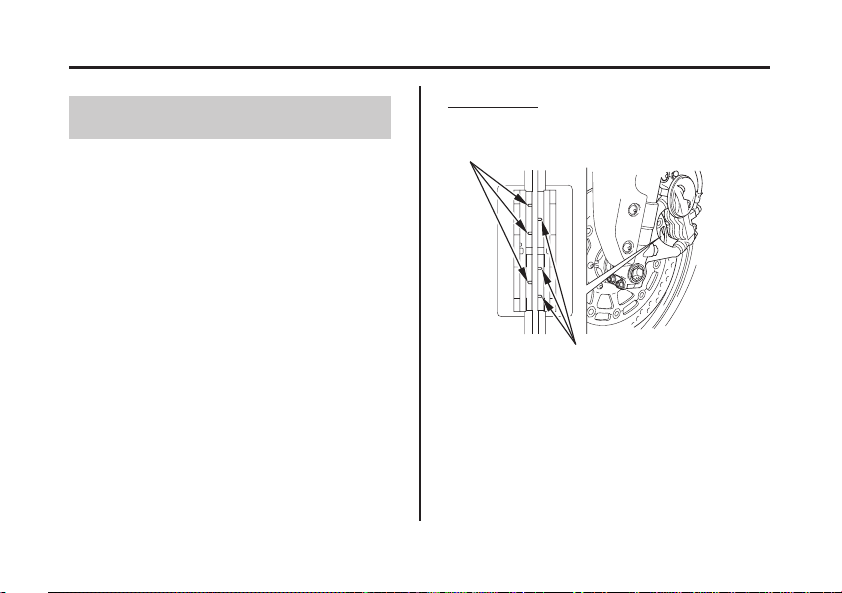

Front Brake
Always inspect both pads in both the right
and left brake calipers.
Check the wear indicator grooves ( ) in
each pad. If either pad is worn to the
bottom of the grooves, replace both pads
as a set. See your Honda dealer for this
service.
1
76
84
０９／０９／１７ １１：２６：１７ ３１ＭＦＪ６３０ ０１５０
RIGHT REAR
(1) cutouts
(1)
142
Brakes
Servicing Your Honda
Rear Brake Check the cutout ( ) in each pad. If either
pad is worn to the cutout, replace both
pads as a set. See your Honda dealer for
this service.
1
０９／０９／１７ １１：２６：２３ ３１ＭＦＪ６３０ ０１５１
Using tires that are excessively
worn or improperly inflated can
causeacrashinwhichyoucanbe
seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
143
Air Pressure
Tires
Servicing Your Honda
Safety Precautions
To safely operate your motorcycle, your
tires must be the proper type and size, in
good condition with adequate tread, and
correctly inflated for the load you are
carrying.
The following pages give detailed
informationonhowandwhentocheck
your air pressure, how to inspect your tires
for wear and damage, and our
recommendations for tire repair and
replacement.
Properly inflated tires provide the best
combination of handling, tread life, and
riding comfort. Generally, underinflated
tires wear unevenly, adversely affect
handling, and are more likely to fail from
being overheated. Overinflated tires make
your motorcycle ride harshly, are more
prone to damage from road hazards, and
wear unevenly.
Refer to on page .
Make sure the valve stem caps are secure.
If necessary, install new caps.
76
０９／０９／１７ １１：２６：３０ ３１ＭＦＪ６３０ ０１５２
42 psi (290 kPa ,
2.90 kgf/cm
)
36 psi (250 kPa ,
2.50 kgf/cm
)
rear
front
144
Tires
Servicing Your Honda
We recommend that you visually check
your tires before every ride and use an air
pressure gauge to measure the air pressure
at least once a month or any time you
think the tires might be low. Even tires
that are in good condition may lose one to
two psi per month if not checked and
adjusted regularly.
Tubeless tires have some degree of self-
sealing ability if they are punctured.
However, because leakage is often very
slow, you should look closely for
punctures whenever a tire is not fully
inflated.
Always check air pressure when your tires
are ‘‘cold’’, after the motorcycle has been
parked for at least three hours. If you
check air pressure when your tires are
‘‘warm’’ –– even if your motorcycle has
only been ridden for a few miles –– the
readings will be higher. If you let air out
of warm tires to match the recommended
cold pressures, the tires will be
underinflated.
The recommended ‘‘cold’’ tire pressures
are:
０９／０９／１７ １１：２６：３８ ３１ＭＦＪ６３０ ０１５３
(1) wear indicator
(2) wear indicatorlocation mark
(2)(1)
145
Inspection
Tires
Servicing Your Honda
Safety PrecautionsRefer to on page .
Whenever you check the tire pressures,
you should also look for:
Bumps or bulges in the side of the tire
or the tread. Replace any tire that has a
bump or bulge.
Cuts, slits, or cracks in the tires.
Replace the tire if you can see fabric or
cord.
Nails or other foreign objects embedded
in the side of the tire or tread.
Excessive tread wear.
Also, if you hit a pothole or hard object
while riding, pull to the side of the road as
soon as you safely can and carefully
inspect the tires for damage.
Tread Wear
76
or
０９／０９／１７ １１：２６：４８ ３１ＭＦＪ６３０ ０１５４
0.06 in (1.5 mm)
0.08 in (2.0 mm)
front
rear
146
Tire Service Life
Tires
Servicing Your Honda
For the best performance, you should
replace a tire before the tread depth at the
center reaches the following limits:
If the wear indicators are visible, replace
the tire immediately as it is no longer safe.
The service life of your tires is dependent
on many factors, including, but not limited
to, riding habits, road conditions, vehicle
loading, tire pressure, maintenance history,
speed, and environmental conditions (even
when the tires are not in use).
In addition to your regular inspections and
tire pressure maintenance, it is
recommended that you have annual
inspections performed once the tires reach
5 years old. It is also recommended that all
tires be removed from service after 10
years from the date of manufacture,
regardless of their condition or state of
wear.
０９／０９／１７ １１：２６：５６ ３１ＭＦＪ６３０ ０１５５
−
×××× −
×××× −
−
×××× ××××
TIRE LABELING EXAMPLE
(1) tire identification number (TIN)
(1)
147
Tires
Servicing Your Honda
DOT This indicates that the tire meets
all requirements of the U.S. Department of
Transportation.
Factory code
Tire type code
22 07 Date of manufacture
The last four digits of the TIN (tire
identification number) ( ) are found on
the sidewall of the tire, and indicate the
date of manufacture.
Tire Identification Number (TIN)
The tire identification number (TIN) is a
group of numbers and letters that look like
the following example. The TIN is located
on the sidewall of the tire.
DOT 22 07
Year
Week
(2)
(3)
(4)
(2) (3) (4)
1
０９／０９／１７ １１：２７：０４ ３１ＭＦＪ６３０ ０１５６
148
Tire Repair
Tires
Servicing Your Honda
If You Have a Flat Tire,
Safety Precautions
A temporary repair can sometimes be
made in an emergency situation.
However, since a temporary repair may
not hold, you must ride very slowly,
preferably without any cargo or passenger,
and have the tire replaced or permanently
repaired as soon as possible.
(For more information on temporary
repairs, see
page .)
Refer to on page .
We strongly recommend that you replace,
not repair, any tire that is punctured or
damaged. As discussed below, a tire that is
repaired, either temporarily or
permanently, will have lower speed and
performance limits than a new or
undamaged tire.
188
76
０９／０９／１７ １１：２７：１１ ３１ＭＦＪ６３０ ０１５７
149
Tire Replacement
Tires
Servicing Your Honda
Safety Precautions
A permanent repair, such as an internal
plug patch, can be made if a tire has only a
small puncture in the tread area. With such
a repair, you should not exceed 50 mph
(80 km/h) for the first 24 hours, or 80 mph
(130 km/h) at any time thereafter. In
addition, you may not be able to safely
carry as much weight. If you choose to
have a tire repaired, be sure the repair
work is performed by a professional and
that the wheel is balanced before you ride.
Refer to on page .
The tires that came on your motorcycle
were designed to match the performance
capabilities of your motorcycle and
provide the best combination of handling,
braking, durability, and comfort.
If you have a tire professionally repaired
at a non-Honda facility, we recommend
that you have the work checked by your
Honda dealer.
76
０９／０９／１７ １１：２７：１７ ３１ＭＦＪ６３０ ０１５８
120/70ZR17M/C (58W)
180/55ZR17M/C (73W)
DUNLOP
Qualifier PTG
BRIDGESTONE
BT015F RADIAL F
DUNLOP
Qualifier PTG
BRIDGESTONE
BT015R RADIAL E
radial-ply, tubeless
front
rear
type
Installing improper tires on your
motorcycle can affect handling
and stability. This can cause a
crash in which you can be
seriously hurt or killed.
Always use the size and type of
tires recommended in this owner’s
manual.
150
Tires
Servicing Your Honda
The recommended tires for your
motorcycle are:
When replacing, use the original
equipment tires or equivalent tires of the
same size, construction, speed rating, and
load range as the originals.
０９／０９／１７ １１：２７：２６ ３１ＭＦＪ６３０ ０１５９
151
Tires
Servicing Your Honda
If you have a tire professionally replaced
at a non-Honda facility, we recommend
that you have the work checked by your
Honda dealer.
Important Safety Reminders
Do not install a tube inside a tubeless
tire on this motorcycle. Excessive heat
build-up can cause the tube to burst.
Use only tubeless tires on this
motorcycle. The rims are designed for
tubeless tires, and during hard
acceleration or braking, a tube-type tire
could slip on the rim and cause the tire
to rapidly deflate.
Whenever you replace a tire, remember:
Have the wheel balanced after the tire is
installed.
Have the tire replaced by your Honda
dealer if possible.
０９／０９／１７ １１：２７：３４ ３１ＭＦＪ６３０ ０１６０

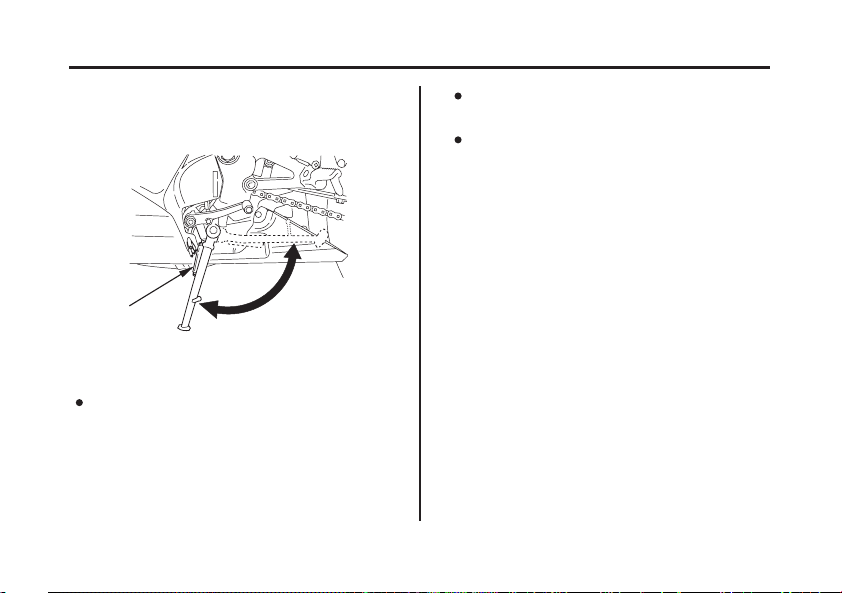

LEFT SIDE
(1) side stand spring
(1)
152
Side Stand
Servicing Your Honda
Safety PrecautionsRefer to on page . Check the spring for damage or loss of
tension.
Check the side stand ignition cut-off
system:
Sit on the motorcycle and put the
transmission in neutral.
Raise the side stand.
Start the engine.
Pull the clutch lever in.
Shift the transmission into gear.
Lower the side stand all the way.
The engine should stop as you lower the
side stand. If the engine doesn’t stop,
see your Honda dealer for service.
Check that the side stand assembly is
working properly. If the side stand is
stiff or squeaky, clean the pivot area
and lubricate the pivot bolt with clean
grease.
1.
2.
3.
4.
5.
6.
76
０９／０９／１７ １１：２７：４６ ３１ＭＦＪ６３０ ０１６１
153
Drive Chain
Servicing Your Honda
An endless (riveted master link) chain
connects the countershaft and rear wheel
sprockets. The O-ring chain uses rubber
rings between the side plates of the pin
and roller links to seal in the
manufacturer-installed lubricating grease
and keep out moisture and dirt.
Under severe usage, or when the
motorcycle is ridden in unusually dusty or
muddy areas, more frequent maintenance
will be necessary.
The service life of the chain depends on
proper lubrication and adjustment. Poor
maintenance can cause premature wear or
damage to the drive chain or sprockets.
The drive chain should be checked,
adjusted, and lubricated as part of the pre-
ride inspection (page ).
Before servicing your drive chain, turn the
engine OFF, lower the side stand, and
check that your transmission is in neutral.
It is not necessary to remove or replace the
drive chain to perform the recommended
service in the Maintenance Schedule.
45
０９／０９／１７ １１：２７：５３ ３１ＭＦＪ６３０ ０１６２
−−1 3/16 1 9/16 in (30 40 mm)

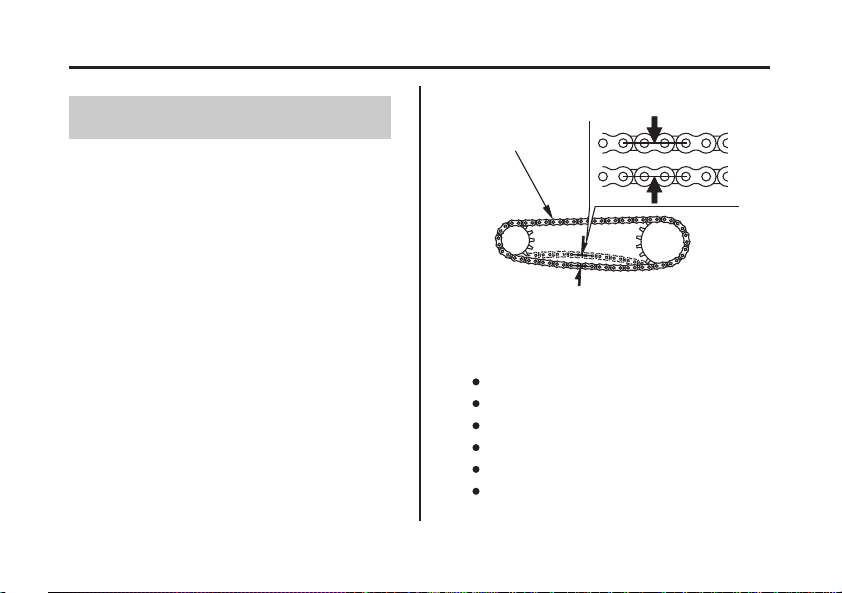

LEFT SIDE
(1) drive chain
(1)
154
Inspection
Drive Chain
Servicing Your Honda
Safety PrecautionsRefer to on page .
Check slack in the lower drive
chain ( ) run midway between the
sprockets. Drive chain slack should
allow the following vertical movement
by hand:
damaged rollers
dry or rusted links
kinked or binding links
excessive wear
improper adjustment
damaged or missing O-rings
Inspect the drive chain for:
Check drive chain slack at several
points along the chain. The slack should
remain constant. If it isn’t, some links
may be kinked and binding. Lubricating
the chain will often eliminate binding
and kinking.
1.
2.
3.
1
76
０９／０９／１７ １１：２８：０３ ３１ＭＦＪ６３０ ０１６３
−−
1 15/16 in (50 mm)
1 3/16 1 9/16 in (30 40 mm)
LEFT SIDE
(1) chain adjustment plate
(2) red zone
(2)
(1)
156
Adjustment
Drive Chain
Servicing Your Honda
Safety Precautions
Wear Inspection The bottom part of the frame may be
damaged by excessive drive chain slack of
more than:
Drive chain slack should be checked and
adjusted, if necessary, every 500 miles
(800 km). When operated at sustained
high speeds or under conditions of
frequent rapid acceleration, the chain may
require more frequent adjustments.
Refer to on page .
Check the chain wear label when adjusting
the chain. If the front edge of the chain
adjustment plate ( ) enters the red zone
( ) on the label after the chain has been
adjusted to the proper slack, the chain is
excessively worn and must be replaced.
The proper slack is:
When adjusting the drive chain slack, be
careful not to damage the wheel speed
sensor and pulser ring.
1
2
76
(CBR600RR ABS only)
０９／０９／１７ １１：２８：２０ ３１ＭＦＪ６３０ ０１６５
(1) (2)
(3)
(5)
(4)

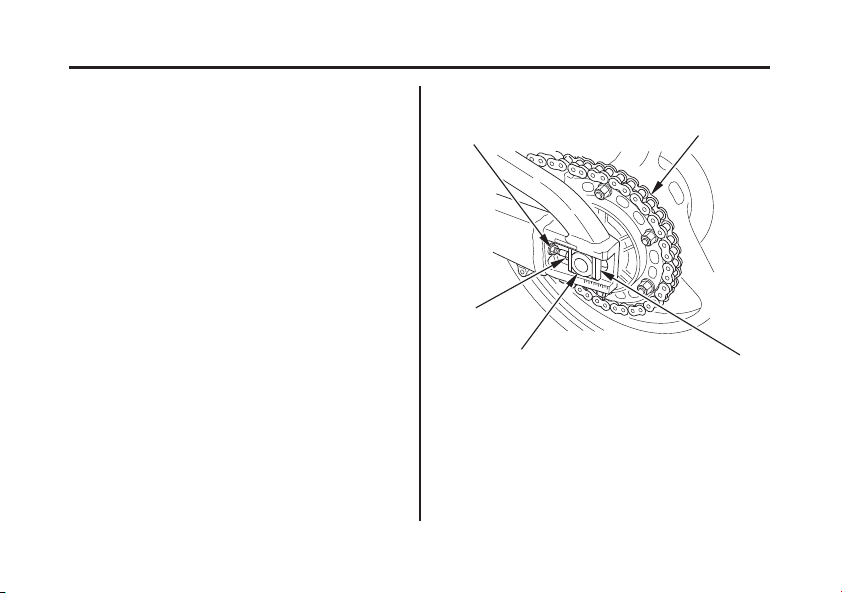

RIGHT SIDE
(1) rear axle nut
(2) drive chain lock nut
(3) drive chain adjusting bolt
(4) chain adjusting plate
(5) scale graduations
157
Drive Chain
Servicing Your Honda
Place the motorcycle on its side stand
with the transmission in neutral and the
ignition switch OFF.
Loosen the rear axle nut ( ).
Loosen the drive chain lock nuts ( ) on
both sides of the swingarm.
Turn both drive chain adjusting bolts
( ) an equal number of turns until the
correct drive chain slack is obtained.
Turn the drive chain adjusting bolts
counterclockwise to tighten the chain.
Turn the drive chain adjusting bolts
clockwise and push the rear wheel
toward the front to provide more slack.
Adjust the chain slack at a point
midway between the front sprocket and
the rear wheel sprocket.
(cont’d)
1.
2.
3.
4.
1
2
3
０９／０９／１７ １１：２８：２９ ３１ＭＦＪ６３０ ０１６６
−−
83 lbf·ft (113 N·m , 11.5 kgf·m)
1 3/16 1 9/16 in (30 40 mm)
158
Drive Chain
Servicing Your Honda
Recheck drive chain slack (page ).
Tighten the drive chain adjusting bolts
lightly by turning it counterclockwise,
then tighten the drive chain lock nuts by
holding the drive chain adjusting bolts
with a wrench.
If a torque wrench is not used for this
installation, see your Honda dealer as
soon as possible to verify proper
assembly. Improper assembly may lead
to a loss of braking capacity.
Tighten the rear axle nut to the
specified torque:
Check rear axle alignment by making
sure the end of the chain adjustment
plate ( ) aligns with the scale
graduations ( ) on both sides of the
swingarm.
Both marks should correspond. If the
axle is misaligned, turn the right or left
adjusting bolt until the marks are
aligned and recheck chain slack.
Roll the motorcycle forward. Stop and
place it on its side stand. Recheck chain
slack. Chain slack should allow the
following vertical movement by hand:
5
4
154
5.
6.
7.
8.
０９／０９／１７ １１：２８：３８ ３１ＭＦＪ６３０ ０１６７
159
Lubrication
Drive Chain
Servicing Your Honda
Safety PrecautionsRefer to on page .
Commercial chain lubricants not designed
for motorcycle drive chains may contain
solvents which could damage the O-rings.
Lubricate every 500 miles (800 km) or
sooner if chain appears dry. Lubricant:
Pro Honda HP chain Lube or an
equivalent chain lubricant designed
specifically for use on O-ring chains.
76
０９／０９／１７ １１：２８：４５ ３１ＭＦＪ６３０ ０１６８
−
RK525ROZ6
DID525HV
or
160
Removal, Cleaning &
Replacement
Drive Chain
Servicing Your Honda
Safety Precautions
Clean the side surfaces of the chain
with a dry cloth. Use a high flashpoint
solvent such as kerosene not
gasoline.
Do not brush the rubber O-rings.
Brushing will damage them. Use of a
solvent may also damage the O-rings.
Inspect the drive chain for possible
wear or damage.
Replace the drive chain if it has damaged
rollers, loose fitting links, damaged
O-rings, or otherwise appears
unserviceable.
Replacement Chain:
Refer to on page .
Your motorcycle has an endless (riveted
master link) type chain. It should only be
removed or replaced by your Honda dealer.
The O-rings can be damaged by steam
cleaning, high pressure washers, and
certain solvents.
1.
2.
76
０９／０９／１７ １１：２８：５５ ３１ＭＦＪ６３０ ０１６９
161
WARNING:
Wash your hands after
handling.

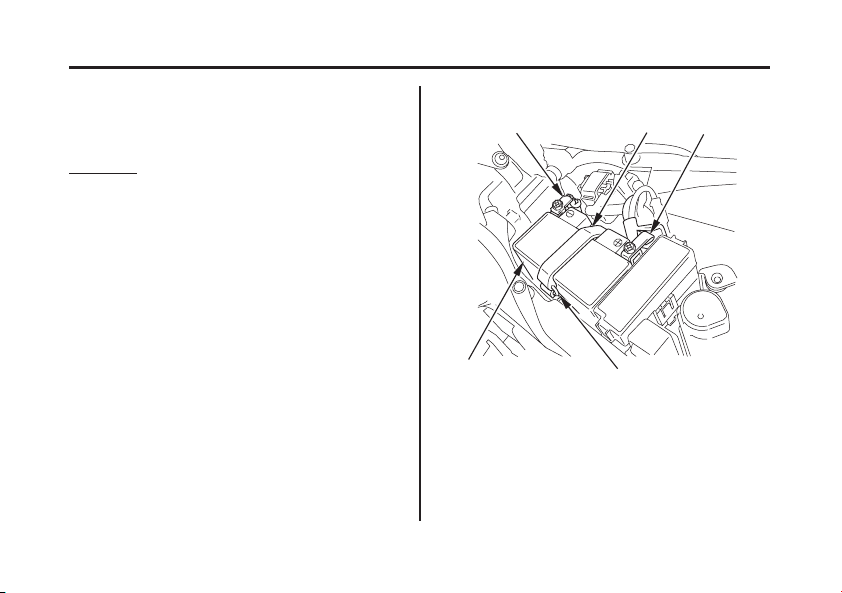

Battery
Servicing Your Honda
Your battery is a maintenance-free type
and can be permanently damaged if the
cap strip is removed.
Battery
Charging,
Battery Storage,
Your motorcycle has a maintenance-free
type battery. You do not have to check the
battery electrolyte level or add distilled
water as you would with a conventional-
type battery.
If you do not expect to ride your
motorcycle for at least two weeks, we
recommend you remove the battery, or at
least disconnect the battery cables
(negative cable first).
Electrical accessories use current from the
battery, even when the ignition is OFF.
Limited operation also allows the battery
to discharge. If you have electrical
accessories on your motorcycle or do not
ride frequently, we recommend that you
charge the battery frequently (see
page ).
If you plan to store your motorcycle, see
page .
If your battery seems weak and/or is
leaking electrolyte (causing slow starting
or other electrical problems), see your
Honda dealer.
Battery posts, terminals and
related accessories contain lead and lead
compounds.
162
165
０９／０９／１７ １１：２９：０２ ３１ＭＦＪ６３０ ０１７０
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.
162
Battery Storage
Battery
Servicing Your Honda
Safety Precautions
Battery Charging,
Refer to on page .
If you plan to store your motorcycle, we
recommend you remove the battery and
store it where it can be charged at least
every 30 days to maintain its service life.
If you do not remove the battery, we
recommend disconnecting the battery
cables (negative cable first).
You will get the best storage results from
removing the battery and slow charging it
every 30 days (see
page ).
Before you remove the battery, be sure to
read all the information that follows, as
well as the information on the battery
label.76
165
０９／０９／１７ １１：２９：１１ ３１ＭＦＪ６３０ ０１７１
−
＋
−
＋
(1)
UNDER FRONT SEAT
(3) (2) (4)
(1) ring
(2) rubber band
(3) negative ( ) terminal lead
(4) positive ( ) terminal lead
(5) battery
(5)
163
Battery
Servicing Your Honda
The battery is located in the battery box
below the front seat.
Pull the battery ( ) out of the battery
box.
Disconnect the negative ( ) terminal
lead ( ) from the battery first, then
disconnect the positive ( ) terminal
lead ( ).
Release the ring ( ) and remove the
rubber band ( ).
Remove the front seat (page ).
Make sure the ignition switch is OFF.
Removal
(cont’d)
1.
2.
3.
4.
5.
1
2
3
4
5
92
０９／０９／１７ １１：２９：２３ ３１ＭＦＪ６３０ ０１７２
＋
−
164
Battery
Servicing Your Honda
Charge the battery (see following
section), unless you have been riding
regularly.
Store your battery in an easy-to-reach
location off the floor, in an area
protected from freezing temperatures
and direct sunlight.
Clean the battery box after removing
the battery for storage. Dry the battery
box and, if paint is missing, re-paint the
area.
Slow charge the battery (see following
section) once every 30 days.
Installation
Reinstall in the reverse order of removal.
Be sure to connect the positive ( )
terminal first, then the negative ( )
terminal.
Check all bolts and other fasteners are
secure.
6.
7.
8.
9.
1.
2.
０９／０９／１７ １１：２９：３２ ３１ＭＦＪ６３０ ０１７３
(1)
(1) charger
165
Battery Charging
Battery
Servicing Your Honda
Safety Precautions
We recommend using a charger ( )
designed specifically for your Honda,
which can be purchased from your Honda
dealer. These units can be left connected
for long periods without risking damage to
the battery. However, do not intentionally
leave the charger connected longer than
the time period recommended in the
charger’s instructions.
Refer to on page .
Be sure to read the information that came
with your battery charger and follow the
instructions on the battery. Improper
charging may damage the battery.
Avoid using an automotive-type battery
charger. An automotive charger can
overheat a motorcycle battery and cause
permanent damage.
76
1
０９／０９／１７ １１：２９：３９ ３１ＭＦＪ６３０ ０１７４
−
−
−
−
166
General Recommendations
Appearance Care
Servicing Your Honda
Safety Precautions
Frequent cleaning and polishing will keep
your Honda looking newer longer.
Frequent cleaning also identifies you as an
owner who values your motorcycle. A
clean motorcycle is also easier to inspect
and service.
Refer to on page .
To clean your motorcycle, you may use:
water
a mild, neutral detergent and water
a mild spray and wipe cleaner/
polisher
a mild spray and rinse cleaner/
degreaser and water
Avoid products that contain harsh
detergents or chemical solvents that
could damage the metal, paint, and
plastic on your motorcycle.
If your motorcycle is still warm from
recent operation, give the engine and
exhaust system time to cool off.
Park in a shady area. Washing your
motorcycle in bright sunlight may cause
the finish to fade because water droplets
intensify the sun’s brightness. Spotting
is also more likely because surface
water can dry before you have time to
wipe it off.
Clean your motorcycle regularly to
protect surface finishes.
76
０９／０９／１７ １１：２９：４９ ３１ＭＦＪ６３０ ０１７５

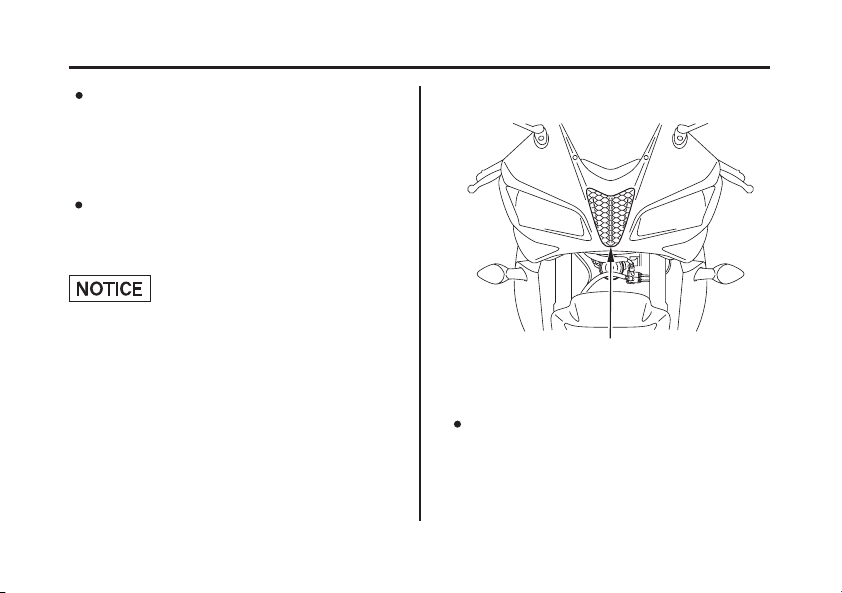

(1) air intake
(1)
167
Appearance Care
Servicing Your Honda
High pressure water (or air) can damage
certain parts of your motorcycle.
We recommend the use of a garden
hose to wash your motorcycle. High
pressure washers (like those at coin-
operated car washes) can damage
certain parts of your motorcycle.
After cleaning, inspect for damage,
wear, and leaks (fuel, oil, coolant, and
brake fluid).
Do not direct water at the air intake ( ).
The water could enter the air cleaner or
be drawn into the throttle body.
1
０９／０９／１７ １１：２９：５５ ３１ＭＦＪ６３０ ０１７６
168
Washing Your Motorcycle with a
Mild Detergent
Appearance Care
Servicing Your Honda
Safety PrecautionsRefer to on page .
Rinse your motorcycle thoroughly with
cool water to remove loose dirt.
Fill a bucket with cool water. Mix in a
mild, neutral detergent, such as dish
washing liquid or a product made
especially for washing motorcycles or
automobiles.
Wash your motorcycle with a sponge or
a soft towel. As you wash, check for
heavy grime. If necessary, use a mild
cleaner/degreaser to remove the grime.
Clean the windscreen with a soft cloth
or sponge and plenty of water. Dry with
a soft clean cloth. Remove minor
scratches with a commercially available
plastic polishing compound.
Take care to keep brake fluid or
chemical solvents off the fairing. They
will damage the plastic.
Clean the headlight, fairing, meter lens
and other plastic parts using a cloth or
sponge dampened with a solution of
mild detergent and water. When
cleaning the plastic headlight lens, use
more care because it will scratch easier
than a glass lens. Rub any soiled area,
gently rinsing it frequently with fresh
water.
If the inside of the headlight lens
appears clouded immediately after
washing, it should clear after a few
minutes of riding.
1.
2.
3.
4.
5.
76
０９／０９／１７ １１：３０：０４ ３１ＭＦＪ６３０ ０１７７
169
Spray Cleaning Your Motorcycle
Appearance Care
Servicing Your Honda
Safety Precautions
After washing, rinse your motorcycle
thoroughly with plenty of clean water to
remove any residue. Detergent residue
can corrode alloy parts.
Dry your motorcycle with a chamois or
a soft towel. Leaving water on the
surface to air dry can cause dulling and
water spots. As you dry, inspect for
chips and scratches.
Lubricate the drive chain to prevent
rusting.
Start the engine and let it idle for
several minutes. The engine heat will
help dry moist areas.
As a precaution, ride your motorcycle at
a slow speed and apply the brakes
several times. This will help dry the
brakes and restore normal braking
performance.
Refer to on page .
Avoid using spray cleaner products on the
tires or suspension components.
Suggestions for using spray cleaner(s)
follow:
(cont’d)
8.
9.
7.
10.
6.
76
０９／０９／１７ １１：３０：１４ ３１ＭＦＪ６３０ ０１７８
Apply a spray cleaner/polish and wipe the
paint, chrome, glass, and clear plastic.
Dust and fingerprint smudges.
Light road grime. Spray any difficult-to-reach or very dirty
areas with a spray cleaner/degreaser.
Rinse and dry.
Apply a spray cleaner/polish and wipe with
a non-abrasive cloth.
Use a spray cleaner/degreaser.
If necessary, rub with a sponge. Rinse and
dry.
Apply a spray cleaner/polish and wipe with
a non-abrasive cloth.
Apply a high quality chrome/aluminum
polish and wipe with a non-abrasive cloth.
Heavy grime. Oil leaks. Brake
dust.
Dull, corroded chrome or
aluminum.
Recommended CleaningMotorcycle Condition
170
Appearance Care
Servicing Your Honda
０９／０９／１７ １１：３０：２４ ３１ＭＦＪ６３０ ０１７９
171
Painted Aluminum Wheel
Maintenance
Clean the Matte Painted Surface
Appearance Care
Servicing Your Honda
Safety Precautions
Safety Precautions
Refer to on page .
Aluminum may corrode from contact with
dirt, mud, or road salt. Clean the wheels
after riding through any of these
substances. Use a wet sponge and mild
detergent. Avoid stiff brushes, steel wool,
or cleaners containing abrasives or
chemical compounds.
After washing, rinse with plenty of water
and dry with a clean cloth.
If the paint is chipped, apply touch-up
paint.
Refer to on page .
Use a soft cloth or sponge, plenty of water,
and a mild detergent to clean the matte
paint. Dry with a soft, clean cloth.
Do not use polishing compounds or wax
containing polishing compounds. These
can damage or discolor the paint.
To keep your Honda looking new, clean
and polish it frequently.
76
76
０９／０９／１７ １１：３０：３２ ３１ＭＦＪ６３０ ０１８０
172
Exhaust Pipe and Muffler
Maintenance
Appearance Care
Servicing Your Honda
Safety Precautions
To remove mud or dust, use a wet sponge
and a liquid kitchen abrasive, then rinse
well with clean water. Dry with chamois
or a soft towel.
The exhaust pipe and muffler are stainless
steel but may become stained by mud or
dust.
Refer to on page .
If necessary, remove heat stains by using a
commercially available fine texture
compound. Then rinse by the same
manner as removing mud or dust.
76
０９／０９／１７ １１：３０：３８ ３１ＭＦＪ６３０ ０１８１
173
Finishing Touches
Appearance Care
Servicing Your Honda
Safety Precautions
If a surface on your motorcycle is chipped
or scratched, your Honda dealer has touch-
up paint to match your motorcycle’s color.
Be sure to use your motorcycle’s color
code (page ) when you buy touch-up
paint.
If the frame has a chip that exposes the
metal, first apply primer (to prevent
corrosion) and then apply the touch-up
paint. Several thin layers of touch-up paint
are better than one thick coat.
Refer to on page .
After washing your motorcycle, consider
using a commercially available spray
cleaner/polish or quality liquid or paste
wax to finish the job. Use only a non-
abrasive polish or wax made specifically
for motorcycles or automobiles. Apply the
polish or wax according to the instructions
on the container.
76
216
０９／０９／１７ １１：３０：４５ ３１ＭＦＪ６３０ ０１８２
174
Servicing Your Honda
０９／０９／１７ １１：３０：４７ ３１ＭＦＪ６３０ ０１８３
175
Tips
Tips
Here’s a few helpful tips on how to store
and transport your Honda, and how to be
an environmentally responsible
motorcycle owner.
...........................Storing Your Honda .
..........Transporting Your Motorcycle .
.....................You & the Environment .
176
179
180
０９／０９／１７ １１：３０：５３ ３１ＭＦＪ６３０ ０１８４
176
Preparation for Storage
Storing Your Honda
Tips
Safety Precautions
Honda Winter Storage Guide,
If you won’t be riding for an extended
period, such as during the winter,
thoroughly inspect your motorcycle and
correct any problem before storing it. That
way, needed repairs won’t be forgotten
and it will be easier to get your motorcycle
running again.
Refer to on page .
We suggest you perform the following
procedures to keep your motorcycle in top
condition. These storage procedures will
reduce the deterioration that can occur
during storage.
For more information about storage, refer
to the
available from your Honda dealer (USA
only).
Change the engine oil and filter
(page ).
Make sure the cooling system is filled
with a 50/50% antifreeze solution
(page ).
Fill the fuel tank. Make sure the fuel fill
cap is properly installed.
1.
2.
3.
105
110
76
０９／０９／１７ １１：３１：０３ ３１ＭＦＪ６３０ ０１８５
−
177
Storing Your Honda
Tips
To prevent rusting in the cylinders,
perform the following:
Remove the ignition coil connectors
and ignition coils from the spark
plugs. Using tape or string, secure the
connectors to any convenient plastic
body part so that they are positioned
away from the spark plugs.
Remove the battery and charge it fully.
Store it in an area protected from
freezing temperatures and direct
sunlight. Slow charge the battery
(page ) once a month.
Reinstall the spark plugs, ignition
coils and ignition coil connectors.
With the engine stop switch in the
RUN position, press the start button
several times to crank the engine and
distribute the oil.
Pour a tablespoon (15 20 cc) of
clean engine oil into each cylinder
and cover the spark plug holes with a
piece of cloth.
Remove the spark plugs from the
engine and store them in a safe place.
Do not connect the ignition coils to
the ignition coil connectors.
(cont’d)
Wash and dry your motorcycle. Wax all
painted surfaces (except matte painted
surfaces). Apply rust-inhibiting oil to
the chrome pieces.
5.
6.
4.
165
０９／０９／１７ １１：３１：１２ ３１ＭＦＪ６３０ ０１８６
178
Removal from Storage
Storing Your Honda
Tips
Safety Precautions
Inflate the tires to their recommended
pressures (page ).
Store your motorcycle in an unheated
area, free of dampness, away from
sunlight, with a minimum of daily
temperature variation.
Refer to on page .
Uncover and clean your motorcycle.
If your motorcycle has been stored for
more than four months –– change the
engine oil (page ).
If your motorcycle has been stored for
more than two months –– ask your
Honda dealer to drain and replace the
fuel.
Charge the battery (page ) as
required. Install the battery.
Perform a pre-ride inspection (page ),
then test-ride your motorcycle at low
speeds.
Lubricate the drive chain (page ).
Lubricate the drive chain (page ).
Place your motorcycle on blocks to lift
both tires off the floor.
Cover your motorcycle with a porous
material. Avoid using plastic or similar
non-breathing, coated materials that
restrict air flow and allow heat and
moisture to accumulate.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
76
45
105
159
143
165
159
０９／０９／１７ １１：３１：２６ ３１ＭＦＪ６３０ ０１８７
179
Transporting Your Motorcycle
Tips
If your motorcycle needs to be transported,
it should be carried on a motorcycle trailer,
or a truck or trailer with a flatbed area. Do
not tow your motorcycle, as towing can
seriously damage the transmission.
When contacting a towing or transporting
service, be sure to ask if they have a
flatbed area, a loading ramp or power
ramp to safely lift the motorcycle, and
motorcycle tie-down straps.
０９／０９／１７ １１：３１：３０ ３１ＭＦＪ６３０ ０１８８
180
Choose Sensible Cleaners.
Recycle Wastes.
You & the Environment
Tips
Owning and riding a motorcycle can be
enjoyable, but you must do your part to
protect nature.
Following are tips on how you can be an
environmentally responsible motorcycle
owner.
Use a
biodegradable detergent when you wash
your motorcycle. Avoid aerosol spray
cleaners that contain
chlorofluorocarbons (CFCs) which
damage the atmosphere’s protective
ozone layer. Don’t throw cleaning
solvents away; see the following
guidelines for proper disposal.
It’s illegal and
thoughtless to put used engine oil in the
trash, down a drain, or on the ground.
Used oil, gasoline, coolant, and
cleaning solvents contain poisons that
can hurt refuse workers and
contaminate our drinking water, lakes,
rivers, and oceans. Before changing
your oil, make sure you have the proper
containers. Put oil and other toxic
wastes in separate sealed containers and
take them to a recycling center. Call
your local or state office of public
works or environmental services to find
a recycling center in your area, and to
get instructions on how to dispose of
non-recyclable wastes.
０９／０９／１７ １１：３１：３７ ３１ＭＦＪ６３０ ０１８９
181
Taking Care of the Unexpected
Taking Care of the Unexpected
This section discusses the more common
problems that can occur with your
motorcycle while you’re riding. It tells
you how to evaluate each problem and
what actions you can take to try to resume
riding. If the problem cannot be safely
solved, this section also gives instructions
on the proper way to have your
motorcycle transported.
For information about transporting your
motorcycle, see page .
.............................General Guidelines .
If Your Engine Quits or
.........................................Won’t Start .
......................If You Have a Flat Tire .
..................If Your Engine Overheats .
If the Low Oil Pressure Indicator
..................................................Lights .
.......................If You Lose Your Key .
.......................................If You Crash .
...................................IfaFuseBlows .
......If Your Battery Is Low (or Dead) .
179
182
183
188
202
204
205
209
210
211
０９／０９／１７ １１：３１：４８ ３１ＭＦＪ６３０ ０１９０
182
General Guidelines
Taking Care of the Unexpected
Taking Care of the Unexpected
Should you ever have a problem while
riding, please follow these guidelines:
Always put personal safety first.
Take time to assess the situation and
your options before deciding what to do.
If the problem is relatively minor and
you have the tools, supplies, and skills
to make a temporary repair, be sure to
have permanent repairs made as soon as
possible.
Do not continue riding if you are hurt or
your motorcycle is not in safe riding
condition.
Additional recommendations for specific
problems follow.
Keeping your motorcycle well-maintained
is the best way to reduce the possibility of
having a problem on the road.
Remember to take along your owner’s
manual, the tool kit that came with your
motorcycle, and any other items (such as
tire repair supplies and additional tools)
that might help you solve a problem on
your own.
０９／０９／１７ １１：３１：５６ ３１ＭＦＪ６３０ ０１９１
−
−
183
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
Starter motor doesn’t operate
Starter motor works,
but the engine won’t start
Proper operation and maintenance can
prevent starting and engine performance
problems. In many cases, the cause of the
problem may be a simple operational
oversight.
If you have a problem starting the
engine or experience poor engine
performance the following information
may help you. If you can’t correct the
problem, see your Honda dealer.
If your motorcycle won’t start, listen as
you press the start button. If you don’t
hear the starter motor turning, refer to the
symptom. If
you can hear the starter motor working
normally, refer to the
symptom.
０９／０９／１７ １１：３２：０１ ３１ＭＦＪ６３０ ０１９２
SYMPTOM:
WHAT TO DOPOSSIBLE CAUSE
ignition switch OFF Turn the ignition switch ON.
transmission not in neutral Shift into neutral.
side stand down (when
transmission not in neutral)
Put the transmission in neutral or raise the side
stand and pullthe clutch lever in.
blown fuse Replace with a new fuse of the same rating
(page ).
battery lead loose Tighten the battery lead.
low (or dead) battery Charge the battery (page ). If charging doesn’t
help, see yourHonda dealer.
faulty starter motor If all possible causes are negative, the starter
motor may be faulty. See your Honda dealer.
205
165
Starter motor doesn’t operate.
184
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
０９／０９／１７ １１：３２：１４ ３１ＭＦＪ６３０ ０１９３
WHAT TO DOPOSSIBLE CAUSE
SYMPTOM:
weak battery Charge the battery (page ). If charging doesn’t
help, see yourHonda dealer.
loose battery cables
loose or unconnected
ignition coil connectors and
ignition coils
Tighten the battery terminal bolts.
Install the ignition coil connectors and ignition coils
securely. If the engine still won’t start, see your
Honda dealer.
flooded engine See (page ).
Fill the fueltank.out of fuel
Turn the engine stop switch to RUN.engine stop switch OFF
55
165
Starter motor works, but the engine won’t start.
Flooded Engine
185
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
０９／０９／１７ １１：３２：２７ ３１ＭＦＪ６３０ ０１９４
WHAT TO DOPOSSIBLE CAUSE
SYMPTOM:
Raise the side stand. Start again.
SYMPTOM:
POSSIBLE CAUSE WHAT TO DO
side stand down
blubbers (rich fuel mixture) See your Honda dealer.
See your Honda dealer.
runs erratically, misfires May damage catalytic converter.
low oil pressure Check the low oil pressure indicator. Refer to
page .
overheating Check the coolant temperature meter. Refer to
page .
idles roughly, too fast, stalls See your Honda dealer.
202
204
Engine starts, but stalls as you shift into gear.
Engine starts, but runs poorly.
If
the Low Oil Pressure Indicator Lights,
If
Your Engine Overheats,
186
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
０９／０９／１７ １１：３２：４２ ３１ＭＦＪ６３０ ０１９５
WHAT TO DOPOSSIBLE CAUSE
SYMPTOM:
sooty exhaust (rich fuel
mixture)
detonates or pings under
load
See your Honda dealer.
If applicable, switch to the recommended octane
gasoline (page ) or change your brand of
gasoline. If the problem persists, see your Honda
dealer.
See your Honda dealer.
pre-ignition (runs on after
ignition switched OFF)
See your Honda dealer.
afterfires (backfires) May damage catalytic converter.
May damage catalytic converter.
97
Engine starts, but runs poorly (cont’d).
187
If Your Engine Quits or Won’t Start
Taking Care of the Unexpected
０９／０９／１７ １１：３２：５３ ３１ＭＦＪ６３０ ０１９６
188
If You Have a Flat Tire
Taking Care of the Unexpected
A flat tire is always unwelcome,
especially if you are far from help. If you
think you are losing air, or you hit a
pothole or hard object, pull safely to the
side of the road so you can inspect the
tires and assess the situation. (Be sure to
park on a firm, level surface and use the
side stand for support.) You should
examine the tire treads and sidewalls for
foreign objects or damage. If you find a
tire that has been punctured or damaged,
you have two options.
Option 1:
Have Your Motorcycle Transported
If a tire has a major puncture or a cut in
the tread or sidewall, or the bead has come
loose from the rim, there is probably not
much you can do except have your
motorcycle transported to a Honda dealer
or other qualified service facility. Even
with a simple puncture, this may be the
safest and least troublesome solution. For
transporting instructions, see page .
Option 2:
Make a Temporary Roadside Repair
If a tire has only a minor nail puncture and
is not completely flat, you may be able to
make an emergency repair that could
allow you to continue riding to where you
can get the tire replaced or permanently
repaired.
179
０９／０９／１７ １１：３３：００ ３１ＭＦＪ６３０ ０１９７
Riding your motorcycle with a
temporary tire repair can be risky.
If the temporary repair fails, you
can crash and be seriously injured
or killed.
If you must ride with a temporary
tire repair, ride slowly and
carefully and do not exceed 30
mph(50km/h)untilthetireis
permanently repaired or replaced.
189
Types of Temporary Repairs
If You Have a Flat Tire
Taking Care of the Unexpected
Due to the uncertainty of any temporary
repair, you should ride slowly (not over
30 mph, 50 km/h) and carefully
(preferably without a passenger or cargo)
until the tire is replaced or permanently
repaired. Stop frequently and check the air
pressure. If the tire is losing pressure, it
may be unsafe to continue riding. As the
tire gets low, it will affect the handling of
your motorcycle (especially with a
passenger and cargo), and it may overheat
and blow out.
The following types of temporary repairs
generally require a source of air to inflate
the tire. Possible sources include CO
cartridges or cans of compressed air
designed to inflate a tire.
2
０９／０９／１７ １１：３３：０６ ３１ＭＦＪ６３０ ０１９８
190
Should You Repair or Replace a
Tire?
If You Have a Flat Tire
Taking Care of the Unexpected
Inflate the tire:
Plug the hole:
Tubeless tires have
some self-sealing ability if they are
punctured and the result is usually just a
slow leak. If this is the case, you can try
inflating the tire to see if it will hold air
pressure. If you can see a nail or other
object embedded in the tire tread, do not
remove it at this time.
Theideahereistodo
something to temporarily stop the leak.
If you have a tubeless tire repair kit,
you can pull out the nail and try
insertinganexternalpluginthe
puncture. Follow the instructions that
came with the repair kit and be sure to
inflate the tire to the correct pressure.
We strongly recommend that you replace,
not permanently repair, any tire that is
punctured or damaged, even if the tire has
only a minor puncture. For a full
discussion of repairs and replacement, see
page .150
０９／０９／１７ １１：３３：１１ ３１ＭＦＪ６３０ ０１９９

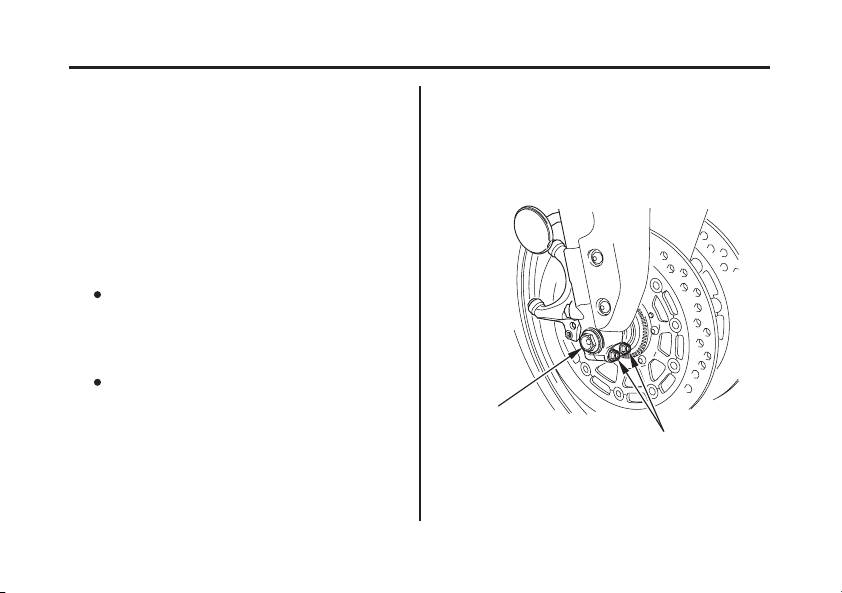

RIGHT SIDE
(3)
(4)
(2)
(1)
(2)
(1) wheel speed sensor
(CBR600RR ABS only)
(2) bolts (CBR600RR ABS only)
(3) caliperfixing bolts
(4) brake caliper
191
Emergency Front Wheel
Removal/Installation
If You Have a Flat Tire
Taking Care of the Unexpected
Safety PrecautionsRefer to on page .
We recommend wheel removal be done
only by your Honda dealer or another
qualified mechanic. Do not attempt to
remove the wheel on your own. Wheel
removal requires mechanical skill and
professional tools.
(cont’d)
Park your motorcycle on a firm, level
surface.
Removal
When removing and installing the wheel,
be careful not to damage the wheel speed
sensor and pulser ring.
1.
76
(CBR600RR ABS only)
０９／０９／１７ １１：３３：２１ ３１ＭＦＪ６３０ ０２００
RIGHT FRONT
(5) axle pinch bolts
(6) front axle bolt
(6)
(5)
192
If You Have a Flat Tire
Taking Care of the Unexpected
Loosen the right and left axle pinch
bolts ( ) and remove the front axle bolt
().
Avoid getting grease, oil, or dirt on
the disc or pad surfaces. Any
contamination can cause poor brake
performance or rapid pad wear after
reassembly.
To avoid damage to the brake hose
during removal, support the caliper
assembly so that it doesn’t hang from
the hose. Do not twist the brake hose.
Remove the caliper fixing bolts ( ) and
remove the right and left brake calipers
( ) from the fork legs.
Remove the wheel speed sensor ( ) by
removing the bolts ( ).
Support the motorcycle securely and
raise the front wheel off the ground
using a safety stand or a hoist.
2.
4.
5.
5
6
3. 1
4
2
3
(CBR600RR ABS only)
０９／０９／１７ １１：３３：３１ ３１ＭＦＪ６３０ ０２０１
LEFT FRONT
(5) (7)
(5) axle pinch bolts
(7) front axle shaft
193
If You Have a Flat Tire
Taking Care of the Unexpected
Remove the front axle shaft ( ), wheel
and side collars.
Avoid pressing the brake lever when
the wheel is off the motorcycle. This
will force the caliper pistons out of
the cylinders. The result will be loss
of brake fluid. If this occurs, the
brake system will require service. See
your Honda dealer for this service.
6. 7
０９／０９／１７ １１：３３：３７ ３１ＭＦＪ６３０ ０２０２
16 lbf·ft (22 N·m , 2.2 kgf·m)
44 lbf·ft (59 N·m , 6.0 kgf·m)
33 lbf·ft (45 N·m , 4.6 kgf·m)
LEFT FRONT
(1) end of axle shaft
(2) surface of fork leg
(3) front fork
spacers
(2)
(1)
(3)
194
If You Have a Flat Tire
Taking Care of the Unexpected
Tighten the axle pinch bolts on the left
fork leg to the specified torque:
Tighten the front axle bolt to the
specified torque:
Make sure that the front fork spacers
( ) are installed into the caliper bracket
properly.
Install the right and left brake calipers
onto the fork legs.
To avoid damaging the brake pads,
carefully fit the brake disc ( ) between
the pads.
Install the caliper fixing bolts and
tighten to the specified torque:
Install the side collars and position the
wheel between the fork legs. Insert the
front axle shaft from the left side,
through the left fork leg and wheel hub.
Installation
Align the end of axle shaft ( ) with the
surface of fork leg ( ).
4.
2.
3.
5.
6.
7.
1.
1
2
3
4
０９／０９／１７ １１：３３：５０ ３１ＭＦＪ６３０ ０２０３
(5) (5)
(4)
(4) brake disc (5) brake caliper body
195
If You Have a Flat Tire
Taking Care of the Unexpected
Visually check that the clearances
between each surface of the brake disc
and the brake caliper body (not the
brake pads) are symmetrical.
If the clearances are not symmetrical,
loosen the left axle pinch bolts and pull
the left fork outward or push inward to
adjust the clearance. Then follow the
next step.
If the clearances between each surface
of the brake disc and the brake caliper
body ( ) (not the brake pads) are
symmetrical, follow next step.
Operate the front brake and pump the
fork several times. Check for free
wheel rotation after the brake is
released. Recheck the wheel if the brake
drags or the wheel does not rotate freely.
(cont’d)
9.
8.
5
０９／０９／１７ １１：３３：５８ ３１ＭＦＪ６３０ ０２０４
16 lbf·ft (22 N·m , 2.2 kgf·m)
196
If You Have a Flat Tire
Taking Care of the Unexpected
If a torque wrench was not used for
installation, see your Honda dealer as soon
as possible to verify proper assembly.
Improper assembly may lead to loss of
braking capability.
Tighten the axle pinch bolts on the right
fork leg to the specified torque:
Install the wheel speed sensor and
tighten the bolts, then check the
clearance between the wheel speed
sensor and the pulser ring.
10.
11.
(CBR600RR ABS only)
０９／０９／１７ １１：３４：０４ ３１ＭＦＪ６３０ ０２０５
RIGHT REAR
(1)
(2)
(1) rear axle nut
(2) drive chain lock nut
(3) drive chain adjusting bolt
(7) right chain adjustment plate
(7)
(3)
197
Emergency Rear Wheel
Removal/Installation
If You Have a Flat Tire
Taking Care of the Unexpected
Safety PrecautionsRefer to on page .
We recommend wheel removal be done
only by your Honda dealer or another
qualified mechanic. Do not attempt to
remove the wheel on your own. Wheel
removal requires mechanical skill and
professional tools.
When removing and installing the wheel,
be careful not to damage the wheel speed
sensor and pulser ring. Removal
Park your motorcycle on a firm, level
surface.
(cont’d)
1.
76
(CBR600RR ABS only)
０９／０９／１７ １１：３４：１３ ３１ＭＦＪ６３０ ０２０６
LEFT REAR
(2) drive chain lock nut
(3) drive chain adjusting bolt
(4) drive chain
(5) rear axle shaft
(6) left chain adjustment plate
(6)
(4)
(2)
(3)
(5)
198
If You Have a Flat Tire
Taking Care of the Unexpected
Support the motorcycle securely, raise
the rear wheel off the ground.
Loosen the rear axle nut ( ).
Loosen the drive chain lock nuts ( )
and turn the drive chain adjusting bolts
( ) so the rear wheel can be moved all
the way forward for maximum drive
chain slack.
Remove the rear axle nut and washer.
Remove the drive chain ( ) from the
rear wheel sprocket by pushing the rear
wheel forward.
2.
3.
4.
5.
6.
1
2
3
4
０９／０９／１７ １１：３４：２３ ３１ＭＦＪ６３０ ０２０７
199
If You Have a Flat Tire
Taking Care of the Unexpected
Remove the rear axle shaft ( ), rear
wheel, left chain adjustment plate ( ),
right chain adjustment plate ( ), rear
brake bracket and side collars from the
swingarm.
To avoid damage to the brake hose
during removal, support the caliper
assembly so that it doesn’t hang from
the hose. Do not twist the brake hose.
Avoid depressing the brake pedal
when the wheel is off the motorcycle.
This will force the caliper piston out
of the cylinder. The result will be a
loss of brake fluid. If this occurs, the
brake system will require service.
See your Honda dealer for this
service.
Installation
Install the side collars and position the
wheel and rear brake bracket.
While installing the wheel, carefully
fit the brake disc between the brake
pads to avoid damaging the pads.
Avoid getting grease, oil, or dirt on
the disc or pad surfaces. Any
contamination can cause poor brake
performance or rapid pad wear after
reassembly.
(cont’d)
1.
7. 5
6
7
０９／０９／１７ １１：３４：３２ ３１ＭＦＪ６３０ ０２０８
83 lbf·ft (113 N·m , 11.5 kgf·m)
(1) lug
(2) slot
(3) swingarm
(1)
(2)
(3)
RIGHT REAR
200
If You Have a Flat Tire
Taking Care of the Unexpected
Make sure that the lug ( ) on the rear
brake bracket is positioned in the slot
( ) on the swingarm ( ).
Insert the rear axle shaft from the left
side, through the left swingarm, wheel
hub and rear brake bracket.
Install the rear axle nut and tighten the
drive chain adjusting bolts.
Refer to drive chain adjustment
(page ).
Tighten the rear axle nut to the
specified torque:
Install the drive chain by pushing the
rear wheel forward.
Failure to provide adequate disc-to-rear
brake bracket clearance may damage
the brake discs and impair braking
efficiency.
2. 1 3.
4.
5.
6.
156
32
０９／０９／１７ １１：３４：４３ ３１ＭＦＪ６３０ ０２０９
201
If You Have a Flat Tire
Taking Care of the Unexpected
After installing the wheel, apply the
brake pedal several times, then recheck
the disc for caliper holder to disc
clearance. Do not operate the
motorcycle without adequate clearance.
If a torque wrench was not used for
installation, see your Honda dealer as soon
as possible to verify proper assembly.
Improper assembly may lead to loss of
braking capability.
7.
０９／０９／１７ １１：３４：４７ ３１ＭＦＪ６３０ ０２１０
202
If Your Engine Overheats
Taking Care of the Unexpected
Continuing to ride with an overheated
engine can cause serious engine damage.
A steaming engine indicates a coolant
leak. Shut the engine off and wait until
the steaming stops. Look for a leak, but
don’t touch the engine or radiator
system. Let everything cool off first.
Normally, the coolant temperature on your
temperature meter will rise and then level
off. Hot weather may cause the
temperature to rise higher than normal. So
will temporary stress such as climbing a
hill. If you’re stuck in stop-and-go traffic,
the temperature may climb some, but the
radiator fan is designed to prevent
overheating. Be aware of these variations
as you monitor the meter.
If there’s no obvious problem, leave the
engine on so the fan and coolant
circulating system can continue
working. Monitor the temperature meter.
The temperature may drop to the
normal range after a brief stop with no
load on the engine.
If the coolant temperature display begins
to flash and the high coolant temperature
indicator comes on for no apparent reason,
pull safely to the side of the road. If
possible, park in a shady area.
０９／０９／１７ １１：３４：５４ ３１ＭＦＪ６３０ ０２１１
203
If Your Engine Overheats
Taking Care of the Unexpected
If the reserve tank is low or empty, don’t
ride without adding coolant (page ).
After adding coolant, turn the engine on
and check the temperature meter.
If the temperature doesn’t drop, do not
ride. The engine needs repair. Transport
your motorcycle to a Honda dealer
(page ).
If the temperature drops to normal,
check the coolant level. If it has gone
down, add more coolant.
If you are able to resume riding, continue
to monitor the meter frequently.
If there’s a mild leak, you can ride for
awhile, carefully watching the meter. Be
prepared to stop and add more coolant or
water. If the leak is bad, transport your
motorcycle to a Honda dealer (page ).
Check the radiator fan.
If the fan is not working, turn the
engine off. Open the fuse box
(page ) and check the radiator fan
fuse. If the fuse is blown, replace it
with the proper (same rating) spare fuse.
Start the engine. If the coolant
temperature display flashes and the high
coolant temperature indicator comes on,
turn the engine off.
If the radiator fan is working, visually
check the coolant level in the reserve
tank, located behind the lower cowl
(page ). It isn’t necessary to touch
the radiator system.
94
111
179
179
207
０９／０９／１７ １１：３５：０１ ３１ＭＦＪ６３０ ０２１２
204
If the Low Oil Pressure Indicator Lights
Taking Care of the Unexpected
Continuing to ride with low oil pressure
can cause serious engine damage.
If you check your engine oil level
regularly, you should never see the low oil
pressure indicator while riding. Normally,
it will only light momentarily when you
turn the ignition switch ON. Occasionally,
it may flicker at or near idling speed.
Lowoilpressuremaybecausedbyanoil
leak, a low oil level, or some problem in
the engine’s lubrication system.
If the indicator comes on while you’re
riding, don’t ignore it. Pull safely to the
side of the road. If possible, pull the clutch
lever in and coast to a stop. Stop the
engine as soon as it’s safe to do so.
Check for an oil leak.
Then check the oil level. If necessary,
add the recommended oil (page ) to
the upper level mark. If you must leave
your motorcycle to get oil, secure it as
much as possible.
After adding oil, start the engine, and
check that the low oil pressure indicator
goes off. Check for a possible leak.
If the indicator goes off and there is no
leak –– resume riding. If there is a leak ––
do not ride the motorcycle until the leak is
repaired by a Honda dealer.
101
０９／０９／１７ １１：３５：０９ ３１ＭＦＪ６３０ ０２１３
30A
10A, 20A
10A, 20A, 30A
main fuse
other fuses
CBR600RR:
CBR600RR ABS:
205
If a Fuse Blows
Taking Care of the Unexpected
All of the electrical circuits on your
motorcycle have fuses to protect them
from damage caused by excess current
flow (short circuit or overload).
If something electrical on your motorcycle
stops working, the first thing you should
check for is a blown fuse.
Determine from the chart on the circuit
fuse box cover which fuse or fuses control
that component. Check those fuses first,
but check all the fuses before looking
elsewhere for another possible cause of
the problem. Replace any blown fuses and
check component operation.
Main fuse (and spare) are located on the
starter motor magnetic switch under the
front seat.
The circuit fuse box (including spare
fuses) is located under the front seat.
Recommended Fuses
(cont’d)
To prevent an accidental short circuit,
turn the ignition switch OFF before
checking or replacing the fuses.
Remove the front seat (page ).
1.
2. 92
０９／０９／１７ １１：３５：２０ ３１ＭＦＪ６３０ ０２１４
UNDER FRONT SEAT
(1)
MAIN FUSE
(2)(3)(5)
(4)
(4) blown fuse(1) main fuse
(2) wire connector
(3) starter magnetic switch
(5) spare main fuse
206
If a Fuse Blows
Taking Care of the Unexpected
Main Fuse Access:
Reconnect the wire connector.
To access the main fuse ( ), disconnect
the wire connector ( ) of the starter
magnetic switch ( ).
Pull the main fuse out. If it is blown ( ),
install the spare main fuse ( ).
3.
4.
5.
2
1
3
5
4
０９／０９／１７ １１：３５：２９ ３１ＭＦＪ６３０ ０２１５
(9)
(7)
(6) tabs
(7) fuse box cover
(9) spare fuses
(6)
UNDER FRONT SEAT
207
If a Fuse Blows
Taking Care of the Unexpected
Circuit Fuse Access:
Replacing a fuse with one that has a
higher rating greatly increases the chance
of damage to the electrical system.
Release the tabs ( ), then remove the
fuse box cover ( ).
To check or replace a circuit fuse, pull
the old fuse out of its retaining clips.
Look for a burned wire inside the fuse.
If the fuse is blown ( ), replace it with
a spare fuse ( ) of the same rating.
If you do not have a replacement fuse with
the proper rating for the circuit, install one
with a lower rating.
(cont’d)
6.
7.
6
7
8
9
０９／０９／１７ １１：３５：３９ ３１ＭＦＪ６３０ ０２１６
CIRCUIT FUSE
(8)
(8) blown fuse
208
If a Fuse Blows
Taking Care of the Unexpected
If you do not have a spare fuse and you
cannot ride the motorcycle without fixing
theproblem,takeafuseofthesamerating
or a lower rating from one of the other
circuits that you can do without
temporarily.
If you replace a blown fuse with a spare
fuse that has a lower rating, replace the
fuse with the correct rating as soon as you
can. Also remember to replace any spare
fuses that were installed.
If the replacement fuse of the same rating
burns out in a short time, there is probably
a serious electrical problem on your
motorcycle. Leave the blown fuse in that
circuit and have your motorcycle checked
by your Honda dealer.
Install the front seat.
Install the fuse box cover.8.
9.
０９／０９／１７ １１：３５：４７ ３１ＭＦＪ６３０ ０２１７
209
If You Crash
Taking Care of the Unexpected
Transporting Your Motorcycle,
Personal safety is your first priority after a
crash. If you or anyone else has been
injured, take time to assess the severity of
the injuries and whether it is safe to
continue riding. Call for emergency
assistance if needed. Also follow
applicable laws and regulations if another
person or vehicle is involved in the crash.
If there is minor damage, or you are
unsure about possible damage, ride slowly
and cautiously. Sometimes, crash damage
is hidden or not immediately apparent, so
you should have your motorcycle
thoroughly checked at a qualified service
facility as soon as possible. Also, be sure
to have your Honda dealer check the
frame and suspension after any serious
crash.
If your motorcycle cannot be ridden, see
page .
If you decide that you are capable of
riding safely, first evaluate the condition
of your motorcycle. If the engine is still
running, turn it off and look it over
carefully; inspect it for fluid leaks, check
the tightness of critical nuts and bolts, and
secure such parts as the handlebar, control
levers, brakes, and wheels.
179
０９／０９／１７ １１：３５：５３ ３１ＭＦＪ６３０ ０２１８

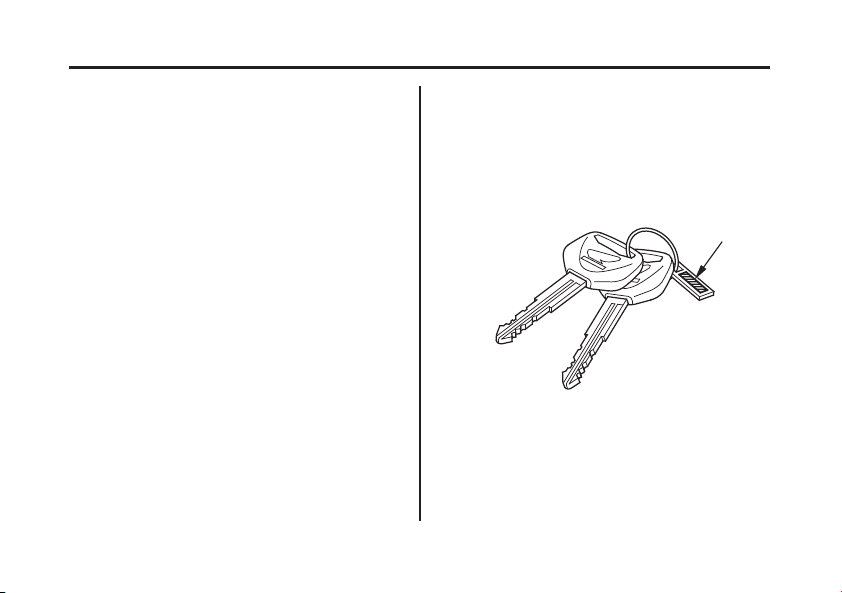

(1) key number plate
(1)
210
If You Lose Your Key
Taking Care of the Unexpected
Be sure to record your key number in the
Quick Reference section at the rear of the
manual. You’ll need this number to have a
duplicate key made.
A lost key won’t be a problem if you take
preventative action. Store one duplicate
key in a safe place at home and carry a
second duplicate in your wallet.
If you lose your key and aren’t carrying a
duplicate, either get your spare or have
one made. If you don’t know your key
number, call the dealer where you
purchased your Honda. They may have it
listed in their records. If they don’t,
transport your motorcycle to them or the
nearest Honda dealer. The dealer will
probably have to remove the ignition
switch assembly to find the key number so
they can make a key for you.
You should receive a key number plate
( ) with your keys. Store this plate in a
safe place.
1
０９／０９／１７ １１：３５：５９ ３１ＭＦＪ６３０ ０２１９
211
If Your Battery Is Low (or Dead)
Taking Care of the Unexpected
Jump starting is not recommended,
especially if you use an automobile battery.
The greater amperage of an automobile
battery when the car engine is running can
damage your motorcycle’s electrical
system.
Bump starting is also not recommended.
If you can’t charge the battery or it
appears unable to hold a charge, contact
your Honda dealer.
０９／０９／１７ １１：３６：０４ ３１ＭＦＪ６３０ ０２２０
212
Taking Care of the Unexpected
０９／０９／１７ １１：３６：０６ ３１ＭＦＪ６３０ ０２２１
213
Technical Information
Technical Information
This section contains dimensions,
capacities, and other technical data, plus
information on government requirements
and how to break-in your motorcycle.
.........................Vehicle Identification .
.....................................Specifications .
...........................Break-in Guidelines .
.................Emission Control Systems .
............................Catalytic Converter .
...............................Oxygenated Fuels .
214
217
224
225
232
233
０９／０９／１７ １１：３６：１４ ３１ＭＦＪ６３０ ０２２２
(1) VIN
(1)
LEFT SIDE
214
Serial Numbers
Vehicle Identification
Technical Information
The VIN and engine serial number are
required when you register your
motorcycle. They may also be required
when ordering replacement parts. You
may record these numbers in the Quick
Reference section at the rear of this
manual.
The VIN (vehicle identification number)
is stamped on the right side of the steering
head and also appears on the Safety
Certification Label attached to the left
side of the steering head.
０９／０９／１７ １１：３６：２０ ３１ＭＦＪ６３０ ０２２３
RIGHT SIDE
(3) engine number
(2)
(2) VIN
RIGHT SIDE
(3)
215
Vehicle Identification
Technical Information
The engine number ( ) is stamped on the
top of the crankcase.
3
０９／０９／１７ １１：３６：２６ ３１ＭＦＪ６３０ ０２２４
(1) color label
UNDER REAR SEAT
(1)
216
Color Label & Code
Vehicle Identification
Technical Information
The color code is helpful when ordering
replacement parts. You may record the
color and code in the Quick Reference
section at the rear of this manual.
The color label ( ) is attached on the rear
fender under the rear seat. Remove the
rear seat (page ) to check the label.
1
93
０９／０９／１７ １１：３６：３２ ３１ＭＦＪ６３０ ０２２５
79.1 in (2,010 mm)
27.0 in (685 mm)
43.5 in (1,105 mm)
53.9 in (1,370 mm)
5.3 in (135 mm)
overall length
overall width
overall height
wheelbase
ground clearance
Dimensions
217
Specifications
Technical Information
０９／０９／１７ １１：３６：４１ ３１ＭＦＪ６３０ ０２２６
premium unleaded gasoline, pump octane number of 91
or higher
API Service Classification SG or higher except oils
labeled as energy conserving on the circular API service
label, SAE 10W-30, JASO T 903 standard MA,
Pro Honda GN4 4-stroke oil (USA & Canada) or Honda 4-
stroke oil (Canada only), or an equivalent motorcycle oil
2.9 US qt (2.7
)
3.7 US qt (3.5
)
4.76 US gal (18.0
)
2.99 US qt (2.83
)
Pro Honda HP chain Lube or an equivalent chain lubricant
designed specifically for use on O-ring chains
after disassembly:
after draining:
3.0 US qt (2.8 )
after draining & oil filter change:
fuel recommendation
drive chain lubricant
engine oil
recommendation
engine oil capacity
fuel tank capacity
cooling system,
recommendation
Pro Honda HP Coolant or an equivalent high quality ethylene
glycol antifreeze containing corrosion protection inhibitors
specifically recommended for use in aluminum engines
cooling system,
capacity
Fuel & Lubricants
218
Specifications
Technical Information
０９／０９／１７ １１：３６：５４ ３１ＭＦＪ６３０ ０２２７
××
±
−−
operator, one passenger
12.2 : 1
2.64 1.67 in (67.0 42.5 mm)
36.5 cu-in (599 cm
)
rider, passenger, all cargo and accessories
IMR9E-9HES (NGK)
VUH27D (DENSO)
1,400 100 rpm
366 lb (166 kg)
375 lb (170 kg)
or
no adjustment
0.011 in (0.28 mm)
0.008 in (0.20 mm)
0.031 0.035 in (0.80 0.90 mm)
USA :
Canada :
passenger
capacity
maximum weight
capacity
spark plug
(standard)
compression ratio
bore & stroke
displacement
idle speed
valve clearance
(cold)
intake
exhaust
spark plug gap
Capacities
Engine Specifications
219
Specifications
Technical Information
０９／０９／１７ １１：３７：１０ ３１ＭＦＪ６３０ ０２２８
2.111
2.750
2.000
1.666
1.444
1.304
1.208
2.625
42 teeth
chain
DID525HV RK525ROZ6
16 teeth
or
drive (front) sprocket:
driven (rear wheel) sprocket:
primary reduction
gear ratio, 1st
2nd
3rd
4th
5th
6th
final reduction
standard
sprocket sizes
final drive
Power Transmission
220
Specifications
Technical Information
０９／０９／１７ １１：３７：２５ ３１ＭＦＪ６３０ ０２２９
23°55’
3.9 in (98 mm)
120/70ZR17M/C (58W)
42 psi (290 kPa , 2.90 kgf/cm
)
36 psi (250 kPa , 2.50 kgf/cm
)
180/55ZR17M/C (73W)
radial-ply, tubeless
DUNLOP Qualifier PTG
BRIDGESTONE BT015F RADIAL F
DUNLOP Qualifier PTG
BRIDGESTONE BT015R RADIAL E
caster
trail
tire size, front
tire pressure, rear
(cold)
tire pressure, front
(cold)
tire size, rear
tire type
Chassis & Suspension
221
Specifications
Technical Information
０９／０９／１７ １１：３７：３７ ３１ＭＦＪ６３０ ０２３０
−
−
−
−
LED
12V 55W
12V 21/5W
12V 21W
LED
LED
12V 8.6 Ah
0.38 kW/5,000 rpm
0.34 kW/5,000 rpm
(2 bulbs)
(rear)
(front)
CBR600RR:
CBR600RR ABS:
battery
generator
turn signal lights
brake/tail light
headlight
position light
license light
Electrical
Lights
222
Specifications
Technical Information
０９／０９／１７ １１：３７：５０ ３１ＭＦＪ６３０ ０２３１
30A
22 lbf·ft (30 N·m , 3.1 kgf·m)
19 lbf·ft (26 N·m , 2.7 kgf·m)
44 lbf·ft (59 N·m , 6.0 kgf·m)
33 lbf·ft (45 N·m , 4.6 kgf·m)
16 lbf·ft (22 N·m , 2.2 kgf·m)
83 lbf·ft (113 N·m , 11.5 kgf·m)
10A, 20A
10A, 20A, 30A
main
other fuses
engine oil drain bolt
engine oil filter
front wheel axle
bolt
front wheel caliper
fixing bolts
front wheel axle
pinch bolts
rear wheel axle nut
CBR600RR ABS:
CBR600RR:
Fuses
Torque Specifications
223
Specifications
Technical Information
０９／０９／１７ １１：３８：０４ ３１ＭＦＪ６３０ ０２３２
224
Break-in Guidelines
Technical Information
Help assure your motorcycle’s future
reliability and performance by paying
extra attention to how you ride during the
first 300 miles (500 km).
During this period, avoid full-throttle
starts and rapid acceleration.
０９／０９／１７ １１：３８：０８ ３１ＭＦＪ６３０ ０２３３
(2) (1)
(2) vehicle emission control information
label (Canada only)
(1) vehicle emission control information
label
UNDER REAR SEAT
225
Exhaust Emission Requirements
Emission Control Systems
Technical Information
The U.S. Environmental Protection
Agency (EPA), the California Air
Resources Board (CARB), and
Environment Canada (EC) require that
your motorcycle comply with applicable
exhaust emissions standards during its
useful life, when operated and maintained
according to the instructions provided.
The Vehicle Emission Control
Information label ( ) ( ) is attached on
the rear fender under the rear seat.
12
０９／０９／１７ １１：３８：１４ ３１ＭＦＪ６３０ ０２３４
226
Emission Control Systems
Technical Information
Warranty Compliance
Source of Exhaust EmissionsNoise Emission Requirements
Compliance with the terms of the
Distributor’s Warranties for Honda
Motorcycle Emission Control Systems is
necessary in order to keep the emissions
system warranty in effect. (USA only)
The combustion process produces carbon
monoxide (CO), oxides of nitrogen (NOx)
and hydrocarbons (HC). Control of
hydrocarbons and oxides of nitrogen is
very important because, under certain
conditions, they react to form
photochemical smog when subjected to
sunlight. Carbon monoxide does not react
in the same way, but it is toxic.
Honda Motor Co., Ltd. utilizes various
systems to reduce carbon monoxide,
oxides of nitrogen and hydrocarbons.
The EPA also requires that motorcycles
built after January 1, 1983 comply with
applicable noise emission standards for
one year or 3,730 miles (6,000 km) after
the time of sale to the ultimate purchaser,
when operated and maintained according
to the instructions provided.
０９／０９／１７ １１：３８：１９ ３１ＭＦＪ６３０ ０２３５
227
Emission Control Systems
Technical Information
Ignition Timing Control System
PGM-FI System
Exhaust Emission Control System
The system constantly adjusts the ignition
timing, reducing the amount of HC, CO
and NOx produced.
The PGM-FI system uses dual sequential
fuel injection. It has four subsystems: Air
Intake, Engine Control, Fuel Control, and
Exhaust Control.
The Engine Control Module (ECM) uses
various sensors to determine how much air
is going into the engine. It then controls
how much fuel to inject under all
operating conditions.
The exhaust emission control system
includes an oxidation catalyst, a secondary
air supply system, and a PGM-FI system.
No adjustment to these systems should be
made although periodic inspection of all
components is recommended.
０９／０９／１７ １１：３８：２４ ３１ＭＦＪ６３０ ０２３６
228
Secondary Air Injection System
Evaporative Emission Control System
(California only)
Technical Information
Emission Control Systems
Oxidation Catalytic Converter
The secondary air injection system
introduces filtered air into the exhaust
gases in the exhaust port. The secondary
air injection system helps improve
emission control performance.
The oxidation catalytic converter is in the
exhaust system. Through chemical
reactions, they convert HC and CO in the
engine’s exhaust to carbon dioxide (CO )
and water vapor.
This motorcycle complies with the
requirements of the California Air
Resources Board (CARB) evaporative
emission regulations. Fuel vapor from the
fuel tank is directed into the charcoal
canister and air cleaner where it is
absorbed and stored while the engine is
stopped. When the engine is running and
the purge control solenoid valve is open,
fuel vapor in the charcoal canister and air
cleaner is drawn into the engine through
the throttle body.
2
０９／０９／１７ １１：３８：２９ ３１ＭＦＪ６３０ ０２３７
229
Problems That May Affect Motorcycle
Exhaust Emissions
Crankcase Emission Control System
Emission Control Systems
Technical Information
If you are aware of any of the following
symptoms, have the vehicle inspected and
repaired by your authorized Honda
motorcycle dealer.
Symptoms:
Hard starting or stalling after starting
Rough idle
Misfiring or backfiring during
acceleration
After-burning (backfiring)
Poor performance (driveability) and
poor fuel economy
The engine is equipped with a closed
crankcase system to prevent discharging
crankcase emissions into the atmosphere.
Blow-by gas is returned to the combustion
chamber through the air cleaner and the
intake manifold.
1.
2.
3.
4.
5.
０９／０９／１７ １１：３８：３５ ３１ＭＦＪ６３０ ０２３８
230
Noise Emission Control System
Emission Control Systems
Technical Information
Removal of, or puncturing the muffler,
baffles, header pipes or any other
component which conducts exhaust
gases.
Removal of, or puncturing of any part
of the intake system.
Lack of proper maintenance.
Replacing any moving parts of the
vehicle, or parts of the exhaust or intake
system, with parts other than those
specified by the manufacturer.
AMONG THOSE ACTS PRESUMED
TO CONSTITUTE TAMPERING ARE
THE FOLLOWING ACTS:
TAMPERING WITH THE NOISE
CONTROL SYSTEM IS PROHIBITED:
U. S. federal law prohibits, or Canadian
provincial laws may prohibit the following
acts or the causing thereof: ( ) The
removal or rendering inoperative by any
person, other than for purposes of
maintenance, repair or replacement, of any
device or element of design incorporated
into any new vehicle for the purpose of
noise control prior to its sale or delivery to
the ultimate purchaser or while it is in use;
or ( ) the use of the vehicle after such
device or element of design has been
removed or rendered inoperative by any
person.
1.
2.
3.
4.
1
2
０９／０９／１７ １１：３８：４１ ３１ＭＦＪ６３０ ０２３９
231
Emission Control Systems
Fuel Permeation Emission Control
System
Technical Information
This vehicle complies with the Fuel
Permeation Emission Control regulations
of the U.S. Environmental Protection
Agency (EPA), the California Air
Resources Board (CARB), and
Environment Canada (EC). The fuel tank,
fuel hoses, and fuel vapor charge hoses
used on this vehicle incorporate fuel
permeation control technologies.
Tampering with the fuel tank, fuel hoses,
or fuel vapor charge hoses to reduce or
defeat the effectiveness of the fuel
permeation technologies is prohibited by
federal regulations.
０９／０９／１７ １１：３８：４５ ３１ＭＦＪ６３０ ０２４０
232
Catalytic Converter
Technical Information
This motorcycle is equipped with an
oxidation catalytic converter.
The catalytic converter contains precious
metals that serve as catalysts, promoting
chemical reactions to convert the exhaust
gasses without affecting the metals.
The catalytic converter acts on HC and
CO. A replacement unit must be an
original Honda part or its equivalent.
The catalytic converter must operate at a
high temperature for the chemical
reactions to take place. It can set fire to
any combustible materials that come near
it. Park your motorcycle away from high
grasses, dry leaves, or other flammables.
A defective catalytic converter contributes
to air pollution, and can impair your
engine’s performance. Follow these
guidelines to protect your motorcycle’s
catalytic converter.
Always use unleaded gasoline. Even a
small amount of leaded gasoline can
contaminate the catalyst metals, making
the catalytic converter ineffective.
Keep the engine in good running
condition. A poorly running engine can
cause the catalytic converter to overheat
causing damage to the converter or the
motorcycle.
If your engine is misfiring, backfiring,
stalling, or otherwise not running
properly, stop riding and turn off the
engine. Have your motorcycle serviced
as soon as possible.
０９／０９／１７ １１：３８：５０ ３１ＭＦＪ６３０ ０２４１
233
Oxygenated Fuels
Technical Information
Some conventional gasolines are being
blended with alcohol or an ether
compound. These gasolines are
collectively referred to as oxygenated
fuels. To meet clean air standards, some
areas of the United States and Canada use
oxygenated fuels to help reduce emissions.
If you use an oxygenated fuel, be sure it is
unleaded and meets the minimum octane
rating requirement.
Before using an oxygenated fuel, try to
confirm the fuel’s contents. Some states/
provinces require this information to be
posted on the pump.
The following are the EPA-approved
percentages of oxygenates:
ETHANOL (ethyl or grain alcohol) 10%
by Volume
You may use gasoline containing up to
10% ethanol by volume. Gasoline
containing ethanol may be marketed
under the name ‘‘Gasohol’’.
MTBE (Methyl Tertiary Butyl Ether) 15%
by Volume
You may use gasoline containing up to
15% MTBE by volume.
０９／０９／１７ １１：３８：５７ ３１ＭＦＪ６３０ ０２４２
234
Oxygenated Fuels
Technical Information
Oxygenated fuels can damage paint and
plastic. Damage caused by spilled fuel is
not covered by warranty.
Fuel system damage or performance
problems resulting from the use of an
oxygenated fuel containing more than the
percentages of oxygenates mentioned
above are not covered under warranty.
Oxygenated fuels can damage paint and
plastic. Be careful not to spill fuel when
filling the fuel tank. Wipe up any spills
immediately.
If you notice any undesirable operating
symptoms, try another service station or
switch to another brand of gasoline.
METHANOL (methyl or wood alcohol)
5% by Volume
You may use gasoline containing
methanol containing up to 5% methanol
by volume as long as it also contains
cosolvents and corrosion inhibitors to
protect the fuel system. Gasoline
containing more than 5% methanol by
volume may cause starting and/or
performance problems. It may also
damage metal, rubber, and plastic parts
of your fuel system.
０９／０９／１７ １１：３９：０３ ３１ＭＦＪ６３０ ０２４３
235
Consumer Information
Consumer Information
This section contains information on your
warranty and how to get an official Honda
Service Manual.
...........................Authorized Manuals .
............................Warranty Coverage .
................................Warranty Service .
...............................Contacting Honda .
............................Your Honda Dealer .
The Honda Rider’s Club
.........................................(USA only) .
Reporting Safety Defects
.........................................(USA only) .
236
239
240
241
242
243
244
０９／０９／１７ １１：３９：１２ ３１ＭＦＪ６３０ ０２４４
＊
＊
$60.00
$48.00
$16.00
61MFJ03
61CM002
31MFJ630
2010 CBR600RR/A Service Manual
Common Service Manual
2010 CBR600RR/A Owner’s Manual
Publication Item No. Description Price Each
Prices are subject to change without notice and without incurring obligation.
236
Authorized Manuals
Consumer Information
The Service Manual used by your authorized Honda dealer is available from Helm, Inc.
(USA only, Canada: See your Honda dealer to order authorized manuals.)
Also available but not necessary to service your model is the Honda Common Service
Manual which explains theory of operation and basic service information for various systems
common to all Honda motorcycles, motor scooters and ATVs.
These Honda manuals are written for the professional technician, but most mechanically
capable owners should find them easy to use if they have the proper tools and observe proper
safety standards. Special Honda tools are necessary for some procedures.
０９／０９／１７ １１：３９：２０ ３１ＭＦＪ６３０ ０２４５
＊
＊
−−
Prices are subject to change without notice and without incurring
obligation.
Orders are mailed within 10 days. Please allowadequate time for
delivery.
Item DescriptionPublication
Item No.
Total
Price
Price
Each
Qty.
Handling Charge
Grand Total
$3.75
Sub Total
Purchaser’s Sales Tax
Mich. add 6 %
Calif. add 8.25 %
237
Order On-Line: www.helminc.com
Order Toll Free: 1-888-CYCLE93
OR
Consumer Information
(NOTE: For Credit Card Orders Only)
(1-888-292-5393)
Monday Friday 8:00 AM 6:00 PM EST
By completing this form you can order the materials desired. You can pay by check or
money order, or charge to your credit card. Mail to Helm, Inc. at the address shown on the
back of this order form (USA only).
Canada: See your Honda dealer to order authorized manuals.
０９／０９／１７ １１：３９：３０ ３１ＭＦＪ６３０ ０２４６
−
NOTE: Dealers and Companies please provide dealer or company name, and also the nameof the person to whose attention the
shipment should be sent.
Customer Name Attention
Zip CodeStateCity
Daytime Telephone Number
Checkhere if your billing addressis differentfrom the
shipping address shown above.
Check ormoney order enclosed payable to Helm Inc.
U.S. funds only. Do not send cash.
MasterCard
VISA
Discover
Account Number
Date
These Publications cannot be returned for credit without receiving advance authorization within 14 days ofdelivery. For returns, a restocking fee may
be applied against the original order.
Expiration: Mo. Yr.
Customer Signature
Apartment NumberStreet address/P. O. BOX
Security Code
()
P.O. BOX 07280, DETROIT, MICHIGAN 48207
HELM
S
H
I
P
T
O
P
A
Y
M
E
N
T
238
Consumer Information
０９／０９／１７ １１：３９：４６ ３１ＭＦＪ６３０ ０２４７
239
Warranty Coverage
Consumer Information
Your new Honda is covered by these
warranties:
Motorcycle Limited Warranty
Emission Control System Warranty
Noise Control Warranty
There are responsibilities, restrictions, and
exclusions which apply to these warranties.
Please read the Warranties Booklet given
to you by your Honda dealer at the time of
purchase. Be sure to keep your Honda
owner’s card with your Warranties
Booklet (USA only).
It is important to realize that your
warranty applies to defects in material or
workmanship of your Honda. Your
warranty coverage does not apply to
normal wear or deterioration associated
with using the motorcycle.
Your warranty coverage will not be
voided if you choose to perform your own
maintenance. However, you should have
the proper tools and service information
and be mechanically qualified. Failures
that occur due directly to improper
maintenance are not covered.
Almost all of your warranty coverage can
be extended through the Honda Protection
Plan (USA only). For more information,
see your Honda dealer.
０９／０９／１７ １１：３９：５３ ３１ＭＦＪ６３０ ０２４８
240
Warranty Service
Consumer Information
Please remember that recommended
maintenance interval servicing is not
included in your warranty coverage.
Additionally, your warranty does not
apply to the normal wear of items (such as
brakes, tires, etc.).
If you believe you have a problem with
your motorcycle, call the service
department of your Honda dealer. Make
an appointment for an inspection and
diagnosis. Remember, as the owner of the
motorcycle, you will be asked to authorize
that inspection. Your dealer will give you
the results of the inspection. If the
problem is covered under warranty, your
dealer will perform the warranty repairs
for you.
If you have questions about warranty
coverage or the nature of the repair, it is
best to talk to the Service Manager of your
Honda dealer.
Sometimes, in spite of the best intentions
of all concerned, a misunderstanding may
occur. If you aren’t satisfied with your
dealer’s handling of the situation, we
suggest you discuss your problem with the
appropriate member of the dealership’s
management team. If the problem has
already been reviewed with the Service
Manager, Parts Manager, Sales Manager,
etc., contact the Owner of the dealership
or their designated representative.
０９／０９／１７ １１：３９：５９ ３１ＭＦＪ６３０ ０２４９
241
Consumer Information
Contacting Honda
Your owner’s manual was written to cover
most of the questions you might ask about
your Honda. Any questions not answered
in the owner’s manual can be answered by
your Honda dealer. If your dealer doesn’t
have the answer right away, they will get
it for you.
Motorcycle Division, American Honda
Motor Co., Inc., P.O. Box 2200, Torrance,
CA 90509-2200, Mailstop: 100-4C-7B,
Telephone: (866) 784-1870.
Canada: Refer to the Warranties Booklet
that was supplied with your vehicle.
Please include the following information
in your letter:
name, address, and telephone number
product model, year, and VIN
date of purchase
dealer name and address
If you have a difference of opinion with
your dealer, please remember that each
dealership is independently owned and
operated. That’s why it’s important to
work to resolve any differences at the
dealership level.
If you wish to comment on your
experiences with your Honda or with your
dealer, please send your comments to the
following address (USA only):
We will likely ask your Honda dealer to
respond, or possibly acknowledge your
comments directly.
０９／０９／１７ １１：４０：０６ ３１ＭＦＪ６３０ ０２５０
242
Consumer Information
Your Honda Dealer
Once you purchase your new Honda, get
familiar with the organization of your
Honda dealer so you can utilize the full
range of services available.
The service department is there to perform
regular maintenance and unexpected
repairs. It has the latest available service
information from Honda. The service
department will also handle warranty
inspections and repairs.
The parts department offers Honda
Genuine Parts, Pro Honda products,
Honda Genuine Accessories (USA only),
and Honda accessories and products
(Canada only). The same quality that went
into your Honda can be found in Honda
Genuine replacement parts. You’ll also
find comparable quality in the accessories
and products available from the parts
department.
The sales department offers the Honda
Protection Plan to extend almost all of
your warranty coverage (USA only).
Your Honda dealer can inform you about
competition and other riding events in
your area. You’ll also find that your dealer
is a source of information about safety
training available in your local area and
the Honda Rider’s Club of America (USA
only).
We’re sure you’ll be as pleased with the
service your Honda dealer continues to
provide after the sale as you are with the
quality and dependability of your Honda.
０９／０９／１７ １１：４０：１２ ３１ＭＦＪ６３０ ０２５１
243
Consumer Information
The Honda Rider’s Club (USA only)
www.hrca.honda.
com.
You may be eligible for a Honda Rider’s
Club of America (HRCA) membership
with the purchase of your new Honda.
You can log on to the HRCA Clubhouse
website for details at
０９／０９／１７ １１：４０：１７ ３１ＭＦＪ６３０ ０２５２
244
Reporting Safety Defects (USA only)
Consumer Information
http://www.safercar.gov
http://www.safercar.gov.
If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying
American Honda Motor Co., Inc.
If NHTSA receives similar complaints,
it may open an investigation, and if it
finds that a safety defect exists in a
group of vehicles, it may order a recall
and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you, your
dealer, or American Honda Motor Co.,
Inc.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-
9153); go to ;
or write to: Administrator, NHTSA,
1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information
about motor vehicle safety from
０９／０９／１７ １１：４０：２２ ３１ＭＦＪ６３０ ０２５３
245
Consumer Information
０９／０９／１７ １１：４０：２４ ３１ＭＦＪ６３０ ０２５４
246
Index
Index
A
B
C
...............................................accessories . 5
..................................air pressure, tires . 143
...............American Honda, contacting . 241
.................................apparel, protective . 42
...................................appearance care . 166
..............................authorized manuals . 236
..................................bank angle sensor . 55
..................................................battery . 161
brakes,
..................................................fluid . 138
.....................front lever adjustment . 137
...........................................pad wear . 141
...................................................braking . 59
..............................break-in guidelines . 224
button,
............................SEL . 14, 22, 29, 32, 38
.................RESET . 14, 22, 29, 30, 32, 38
.........................................capacity, fuel . 98
..................................care, appearance . 166
...............................catalytic converter . 232
..........................................chain, drive . 153
...................cleaning, appearance care . 166
....................................clock, digital . 19, 32
.......................................clutch system . 116
............................................color label . 216
０９／０９／１７ １１：４０：３０ ３１ＭＦＪ６３０ ０２５５
247
Index
Index
D
E
(cont’d)
.....................emission control systems . 225
damping, suspension,
.................................................front . 129
...................................................rear . 133
......................defects, reporting safety . 244
.....................................digital clock . 19, 32
display,
..................................................check . 17
....................................multi-function . 25
...........................................drive chain . 153
Combined ABS
...............................(CBR600RR ABS) . 62
Combined ABS indicator
...............................(CBR600RR ABS) . 64
..............compartment, owner’s manual . 91
.........................consumer information . 235
................................controls & features . 35
..................................................coolant . 110
.......coolant temperature meter . 19, 26, 202
cowl removal,
............................................lower . 94, 95
................................................middle . 96
..................................customer service . 241
０９／０９／１７ １１：４０：３６ ３１ＭＦＪ６３０ ０２５６
248
Index
Index
G
H
F
engine,
...............................................flooded . 55
................................low oil pressure . 204
.............................................number . 215
.....................................................oil . 100
..........................................overheats . 202
...............................................pinging . 97
...............................................starting . 53
.........................................stop switch . 36
..............................................stopping . 56
........................................won’t start . 183
.........................................environment . 180
..................................................flat tire . 188
.......................................flooded engine . 55
fuel,
..................................................gauge . 23
.......................................oxygenated . 233
................................recommendation . 97
......................................tank capacity . 98
.....................................................fuses . 205
............................gap, spark plug . 124, 219
.................................................gasohol . 233
..................................................gasoline . 97
................gauges, indicators & displays . 14
.......................headlight dimmer switch . 37
.........................................helmet holder . 68
HESD (Honda Electronic Steering
.................................................Damper) . 39
high coolant temperature
.............................indicator . 14, 20, 27, 202
.........................high beam indicator . 14, 21
０９／０９／１７ １１：４０：４１ ３１ＭＦＪ６３０ ０２５７
249
Index
Index
L
K
I
Honda,
........................................contacting . 241
................................................dealer . 242
.....................................Rider’s Club . 243
.................................service manual . 236
.............................................horn button . 38
..........................identification, vehicle . 214
ignition cut-off system,
..........................................bank angle . 55
...................................side stand . 53, 152
.......................................ignition switch . 35
................................................indicators . 14
................................inspection, pre-ride . 45
................................................key, lost . 210
...................................................kit, tool . 90
............................................labels, safety . 7
.............................................lamp check . 15
...........................................limit, weight . 49
..............................................load limits . 49
..................................loading guidelines . 49
..........................................lock, steering . 67
.........................lower cowl removal . 94, 95
０９／０９／１７ １１：４０：４７ ３１ＭＦＪ６３０ ０２５８
250
Index
Index
O
P
M
N
maintenance,
..........................component locations . 87
.........................................importance . 74
..............................................periodic . 78
.................................................record . 85
..................................................safety . 75
.............................................schedule . 80
....................................manual, service . 236
..........................maximum weight limit . 49
............................................meter check . 16
...........................................modifications . 6
.....................................numbers, serial . 214
..........................................odometer . 19, 29
oil,
...............................................engine . 100
.........................low pressure . 14, 21, 204
.............operation component locations . 11
...................................overheat, engine . 202
.........................owner’s manual storage . 91
..................................oxygenated fuels . 233
...................................................parking . 66
......................................pinging, engine . 97
..........................................plugs, spark . 120
pre-load, suspension,
.................................................front . 128
...................................................rear . 133
０９／０９／１７ １１：４０：５４ ３１ＭＦＪ６３０ ０２５９
251
Index
Index
S
R
(cont’d)
.................................pre-ride inspection . 45
..........................problems, unexpected . 181
..................................protective apparel . 42
safety,
........................important precautions . 76
....................................................labels . 7
..............................reporting defects . 244
..............................riding precautions . 52
...........................schedule, maintenance . 80
...........................................seat removal . 92
.....................SEL button . 14, 22, 29, 32, 38
.................................sensor, bank angle . 55
......................................serial numbers . 214
service,
...........................................customer . 241
............................................manuals . 236
...........................................warranty . 240
removal,
...................................lower cowl . 94, 95
.......................................middle cowl . 96
.....................................................seat . 92
.......................reporting safety defects . 244
.........RESET button . 14, 22, 29, 30, 32, 38
......................................rider training . 3, 44
............................Rider’s Club, Honda . 243
riding,
...................................basic operation . 51
..............................................clothing . 42
.........................................precautions . 52
....................................................safety . 2
..............................safety precautions . 52
.....................with passenger or cargo . 70
０９／０９／１７ １１：４１：０１ ３１ＭＦＪ６３０ ０２６０
252
Index
Index
.........................................shifting gears . 57
.............................................side stand . 152
.side stand ignition cut-off system . 53, 152
............................................spark knock . 97
...........................................spark plugs . 120
.......................................specifications . 217
.....................................speedometer . 19, 28
............................................stand, side . 152
.............................................start button . 36
starting,
.................................................engine . 53
................................troubleshooting . 183
...........................................steering lock . 67
................................stop switch, engine . 36
......................................stopping engine . 56
storage,
.......................................motorcycle . 176
.................................owner’s manual . 91
suspension,
............front suspension adjustment . 127
.....front suspension spring pre-load . 128
...............front suspension damping . 129
.............rear suspension adjustment . 132
.......rear suspension spring pre-load . 133
.................rear suspension damping . 134
switch,
.........................................engine stop . 36
...............................headlight dimmer . 37
...............................................ignition . 35
..........................................turn signal . 37
０９／０９／１７ １１：４１：０５ ３１ＭＦＪ６３０ ０２６１
253
Index
Index
W
VT
warranty,
...........................................coverage . 239
...........................................extended . 239
..............................................service . 240
....................washing your motorcycle . 168
............................................weight limit . 49
wheels,
...................................front removal . 191
.....................................rear removal . 197
.......................................tachometer . 14, 18
......temperature meter, coolant . 19, 26, 202
..............................theft-prevention tips . 69
..................................................throttle . 114
.................tire identification no. (TIN) . 147
tires,
.......................................air pressure . 144
....................................................flat . 188
..........................................replacing . 149
....................................................tool kit . 90
.....................................training, rider . 3, 44
..............transporting your motorcycle . 179
...........................................tripmeter . 19, 29
.............................trouble, unexpected . 181
......................troubleshooting, starting . 183
.......................turn signal indicators . 14, 18
..........vehicle identification no. (VIN) . 214
０９／０９／１７ １１：４１：１０ ３１ＭＦＪ６３０ ０２６２
How to Avoid Costly Repairs
Quick Reference
Quick Reference
The following is a brief, but important
collection of information you need to
know about your Honda. You’ll also find
space to record important notes. The engine of your Honda can be the most
expensive component to repair. Proper
maintenance, especially the use of the
recommended fluids and filters, prevents
premature wear and damage.
Frequent causes of costly repairs are:
Engine oil –– insufficient quantity,
improper oil.
Air cleaner –– dirty, leaking because of
improper installation (poor seal).
Record important information on the
following page:
０９／０９／１７ １１：４１：２２ ３１ＭＦＪ６３０ ０２６５
Quick Reference
Quick Reference
VIN
Engine No.
Ignition Key No.
Color Label
Owner’s Name
Address
City/State
Phone
Dealer’s Name
Address
City/State
Phone
Service Mgr.
０９／０９／１７ １１：４１：２６ ３１ＭＦＪ６３０ ０２６６
4.76 US gal (18.0 )
366 lb (166 kg)
375 lb (170 kg) Canada
Quick Reference
Quick Reference
Scheduled
Maintenance
Pre-ride
Inspection
Periodic
Checks
Fuel/Capacity
Initial: 600 miles (1,000 km)
Regular: every 4,000 miles (6,400 km)
Check the following items each time before you ride (page ): tires &
wheels, chain, leaks, loose parts, lights, throttle, brakes, indicators.
Engine Oil
Check the following items monthly (page ): tires & wheels, fluids,
lights, freeplay, drive chain, fuses, nuts & bolts.
premium unleaded gasoline, pump octane number 91 or higher
API Service Classification SG or higher except oils labeled as energy
conserving on the circular API service label,
SAE 10W-30, JASO T 903 standard MA,
Pro Honda GN4 4-stroke oil or equivalent
Maximum
Weight
Capacity rider, passenger, all cargo and accessories
45
79
０９／０９／１７ １１：４１：３９ ３１ＭＦＪ６３０ ０２６７
DUNLOP Qualifier PTG
BRIDGESTONE BT015F RADIAL F
120/70ZR17M/C (58W)
180/55ZR17M/C (73W)
DUNLOP Qualifier PTG
BRIDGESTONE BT015R RADIAL E
36 psi (250 kPa , 2.50 kgf/cm
)
42 psi (290 kPa , 2.90 kgf/cm
)
radial-ply, tubeless
IMR9E-9HES (NGK) VUH27D (DENSO)
30A
10A, 20A, 30A
10A, 20ACBR600RR:
CBR600RR ABS:
Quick Reference
Quick Reference
Tires
Tire Pressure
(cold)
Spark Plugs
Coolant
ethylene glycol antifreeze (silicate-free) for aluminum engines in 50/50
solution with Pro Honda HP Coolant or an equivalent distilled water
Fuses
Front:
Rear:
Front:
Rear:
standard:
or
or
Type:
or
main :
other:
０９／０９／１７ １１：４１：５３ ３１ＭＦＪ６３０ ０２６８
−
−
−
−
Quick Reference
Quick Reference
These symbols are used in Controls & Features section:
SYMBOL SEE PAGECOMPONENT
START button
HI headlight dimmer switch
LO headlight dimmer switch
turn signal switch
horn button
RUN engine stop switch
OFF engine stop switch
36
36
36
37
37
37
38
０９／０９／１７ １１：４２：０４ ３１ＭＦＪ６３０ ０２６９
