©2009 Sony Corporation
4-129-450-11(1)
Multi Channel AV
Receiver
Operating Instructions
STR-DH500
2
US
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To reduce the risk of fire, do not cover the
ventilation opening of the apparatus with
newspapers, tablecloths, curtains, etc. Do not place
the naked flame sources such as lighted candles on
the apparatus.
To reduce the risk of fire or electric shock, do not
expose this apparatus to dripping or splashing, and
do not place objects filled with liquids, such as
vases, on the apparatus.
Do not install the appliance in a confined space, such
as a bookcase or built-in cabinet.
As the main plug is used to disconnect the unit from
the mains, connect the unit to an easily accessible
AC outlet. Should you notice an abnormality in the
unit, disconnect the main plug from the AC outlet
immediately.
Do not expose batteries or apparatus with battery-
installed to excessive heat such as sunshine, fire or
the like.
The unit is not disconnected from the mains as long
as it is connected to the AC outlet, even if the unit
itself has been turned off.
Excessive sound pressure from earphones and
headphones can cause hearing loss.
For customers in the United
States and Canada
This symbol is intended to alert
the user to the presence of the Hot
Surface that may be hot if it is
touched during the normal
operation.
ENERGY STAR
®
is a U.S. registered
mark.
As an ENERGY STAR
®
partner, Sony
Corporation has determined that this
product meets the ENERGY STAR
®
guidelines for energy efficiency.
For customers in the United
States
Owner’s Record
The model and serial numbers are located on the rear
of the unit. Record these numbers in the space
provided below. Refer to them whenever you call
upon your Sony dealer regarding this product.
Model No.
Serial No.
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9) Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10)Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11)Only use attachments/accessories specified by
the manufacturer.
WARNING
3
US
12)Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13)Unplug this apparatus during lightning storms or
when unused for long periods of time.
14)Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
The following FCC statement
applies only to the version of
this model manufactured for
sale in the U.S.A. Other
versions may not comply with
FCC technical regulations.
NOTE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment
and receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modifications
not expressly approved in this manual could void
your authority to operate this equipment.
To reduce the risk of electric shock, the speaker cord
should be connected to the apparatus and the
speakers in accordance with the following
instructions.
1) Disconnect the AC power cord from the MAINS.
2) Strip 10 to 15 mm of the wire insulation of the
speaker cord.
3) Connect the speaker cord to the apparatus and
the speakers carefully so as not to touch the core
of speaker cord by hand. Also disconnect the AC
power cord from the MAINS before
disconnecting the speaker cord from the
apparatus and the speakers.
4
US
About This Manual
• The instructions in this manual are for model
STR-DH500. Check your model number by
looking at the lower right corner of the front panel.
In this manual, models of area code U is used for
illustration purposes unless stated otherwise. Any
difference in operation is clearly indicated in the
text, for example, “Models of area code U only”.
• The instructions in this manual describe the
controls on the supplied remote. You can also use
the controls on the receiver if they have the same
or similar names as those on the remote.
This receiver incorporates Dolby* Digital and Pro
Logic Surround and the DTS** Digital Surround
System.
* Manufactured under license from Dolby
Laboratories.
Dolby, Pro Logic, and the double-D symbol are
trademarks of Dolby Laboratories.
** Manufactured under license under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,487,535 & other U.S. and worldwide patents
issued & pending. DTS and DTS Digital
Surround are registered trademarks and the DTS
logos and Symbol are trademarks of DTS, Inc.
© 1996-2008 DTS, Inc. All Rights Reserved.
This receiver incorporates High-Definition
Multimedia Interface (HDMI
TM
) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
About area codes
The area code of the receiver you purchased is
shown on the lower right portion of the rear panel
(see the illustration below).
Any differences in operation, according to the area
code, are clearly indicated in the text, for example,
“Models of area code AA only”.
SURROUNDCENTER
L
L
R
R
SPEAKERS
FRONT
Area code
On Copyrights
5
US
Table of Contents
Description and location of parts .................. 6
Getting Started

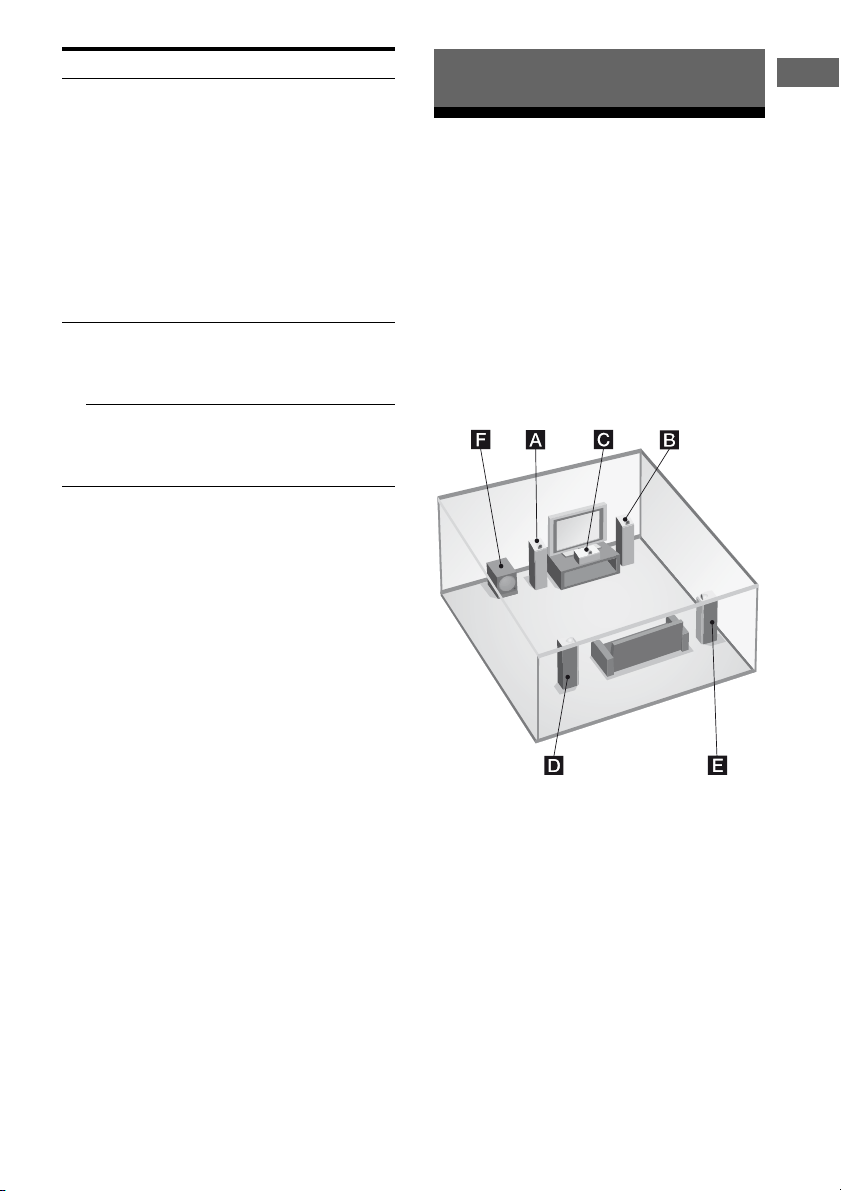

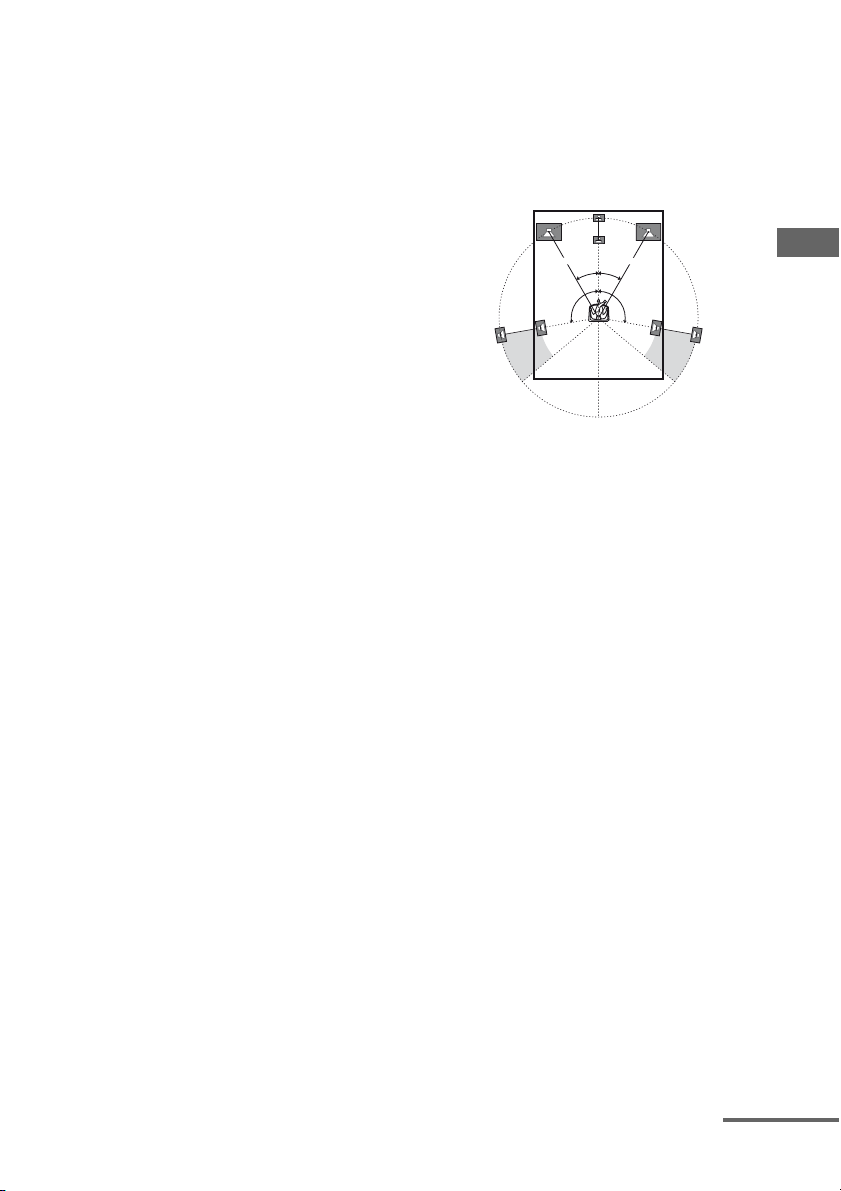

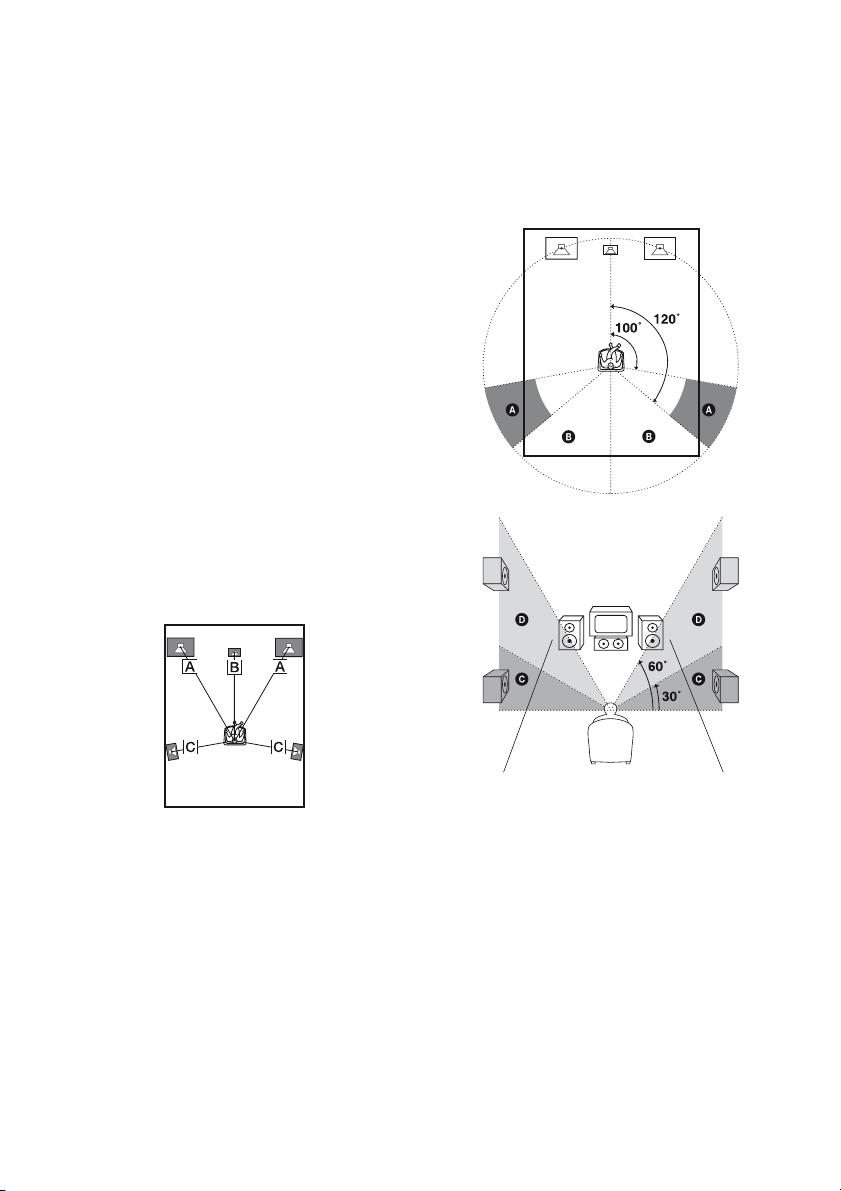

1: Installing the speakers............................. 13

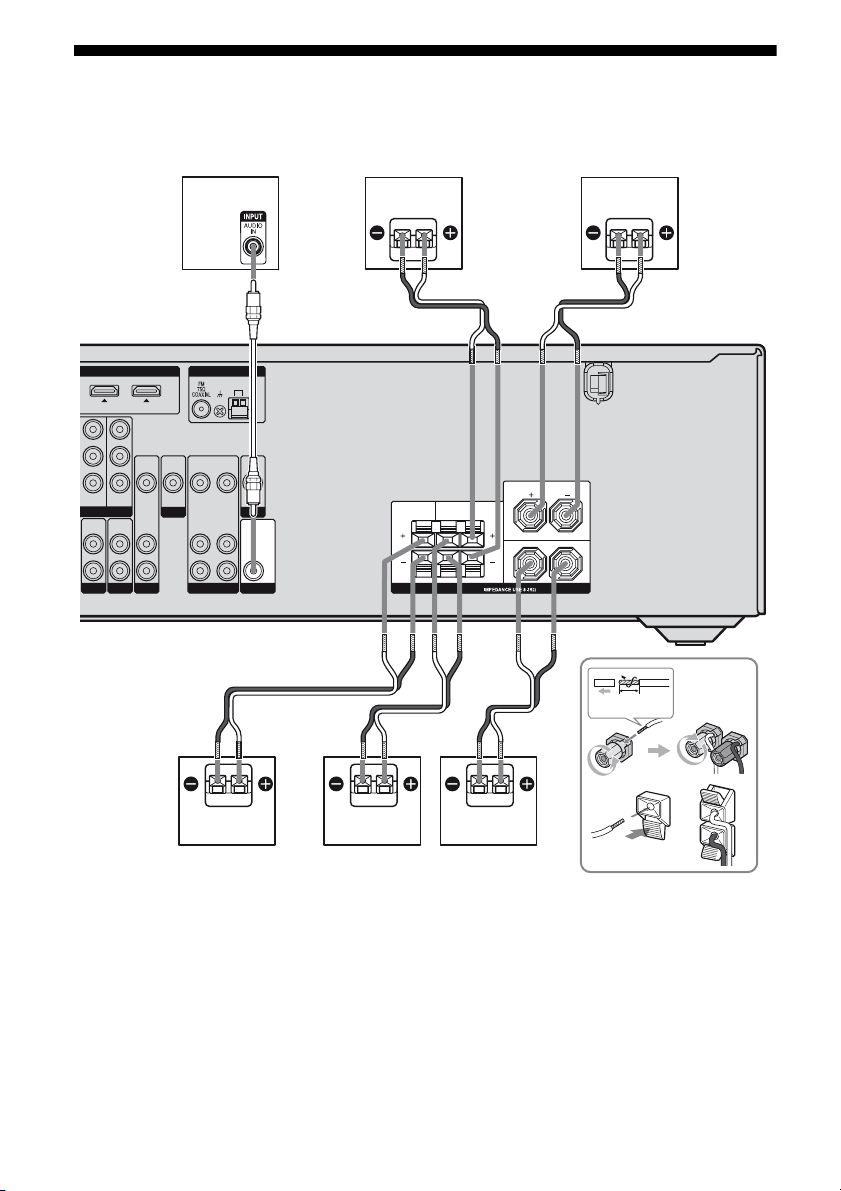

2: Connecting the speakers ......................... 14

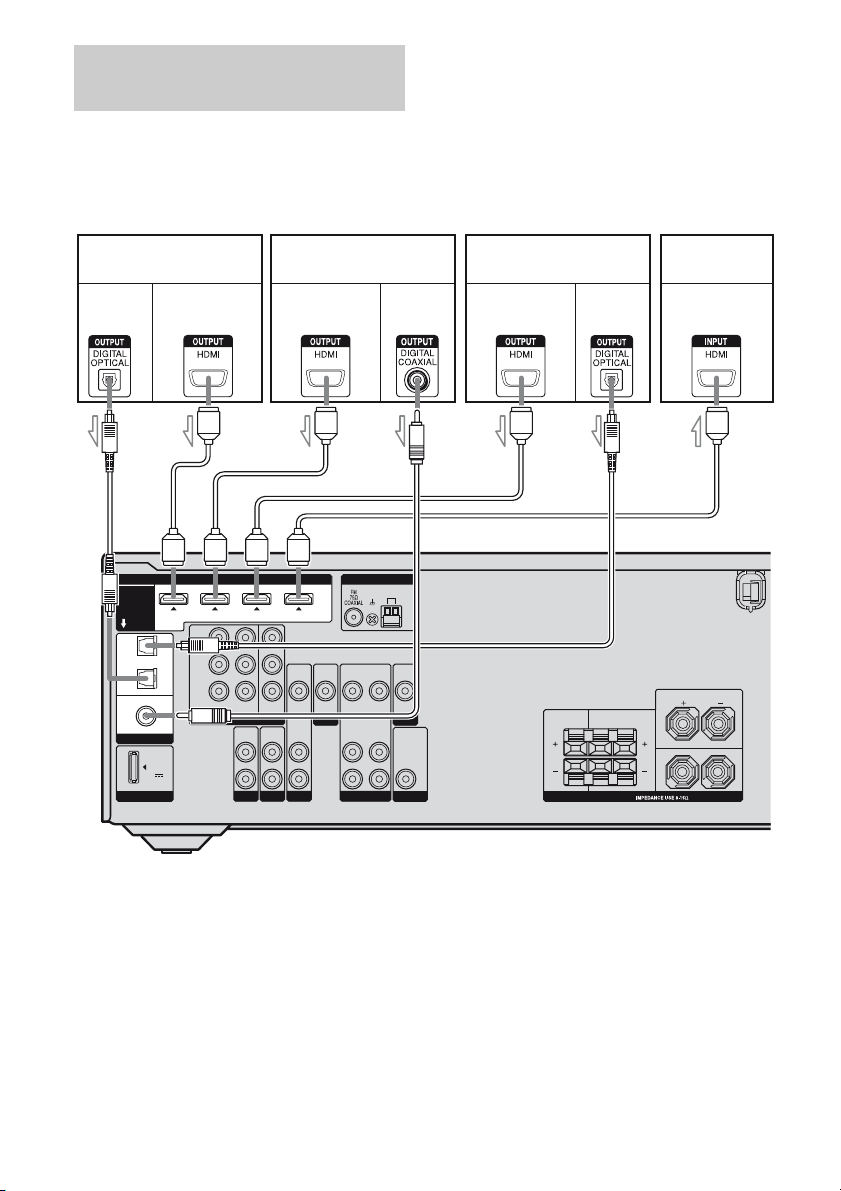

3: Connecting the TV.................................. 15
4a: Connecting the audio components ........ 16

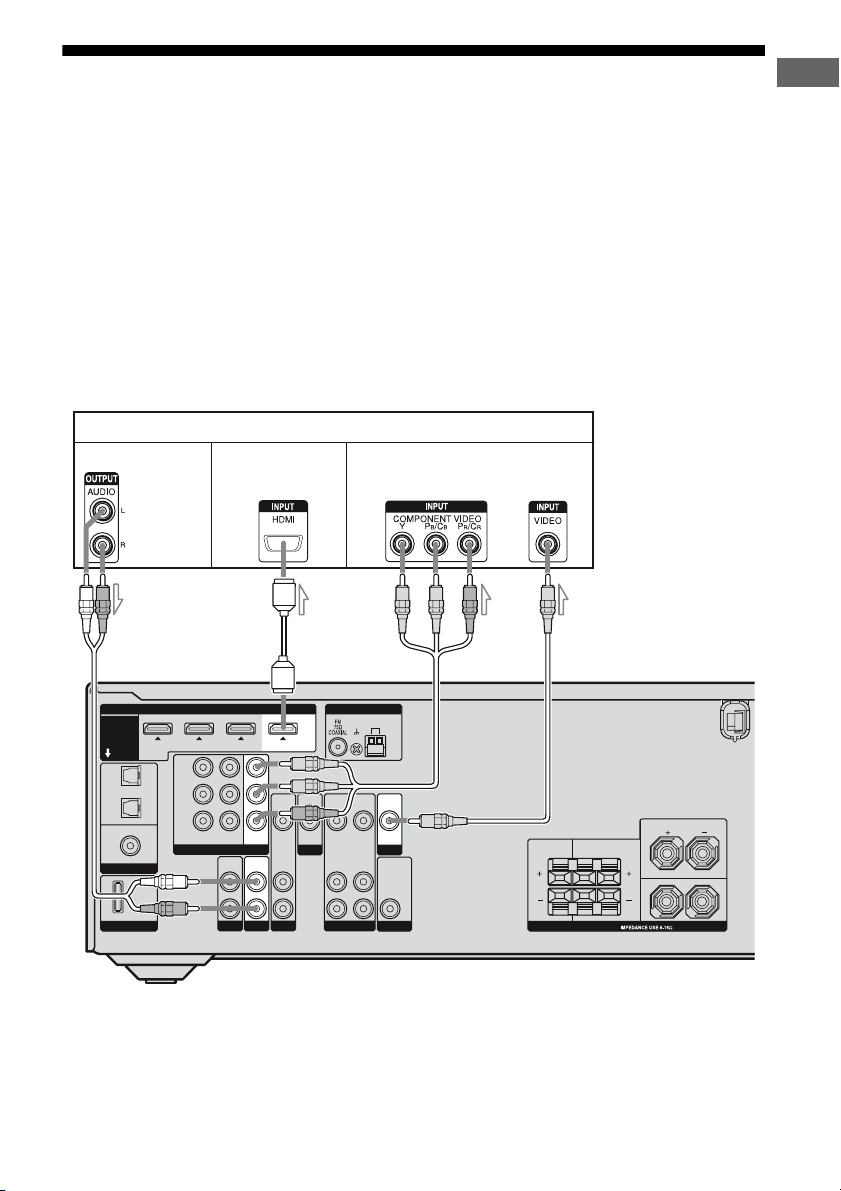

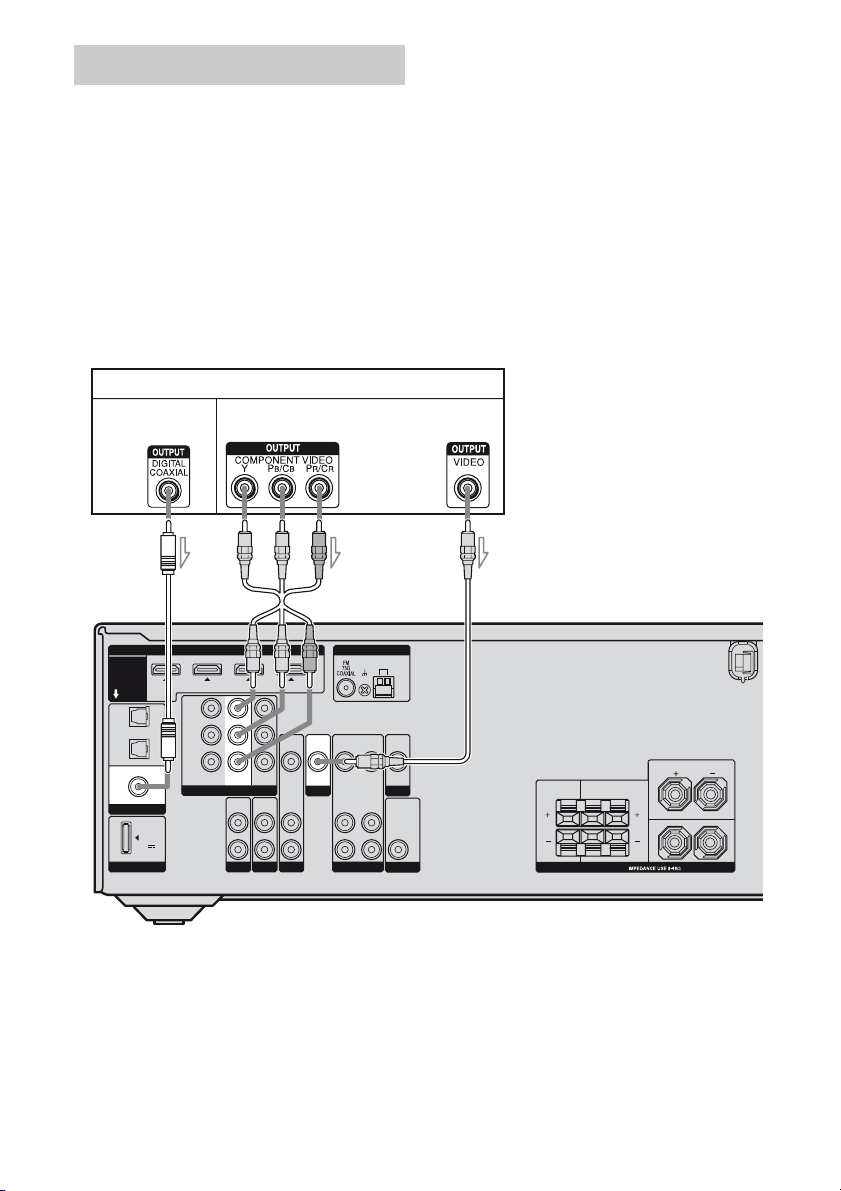

4b: Connecting the video components ........ 17

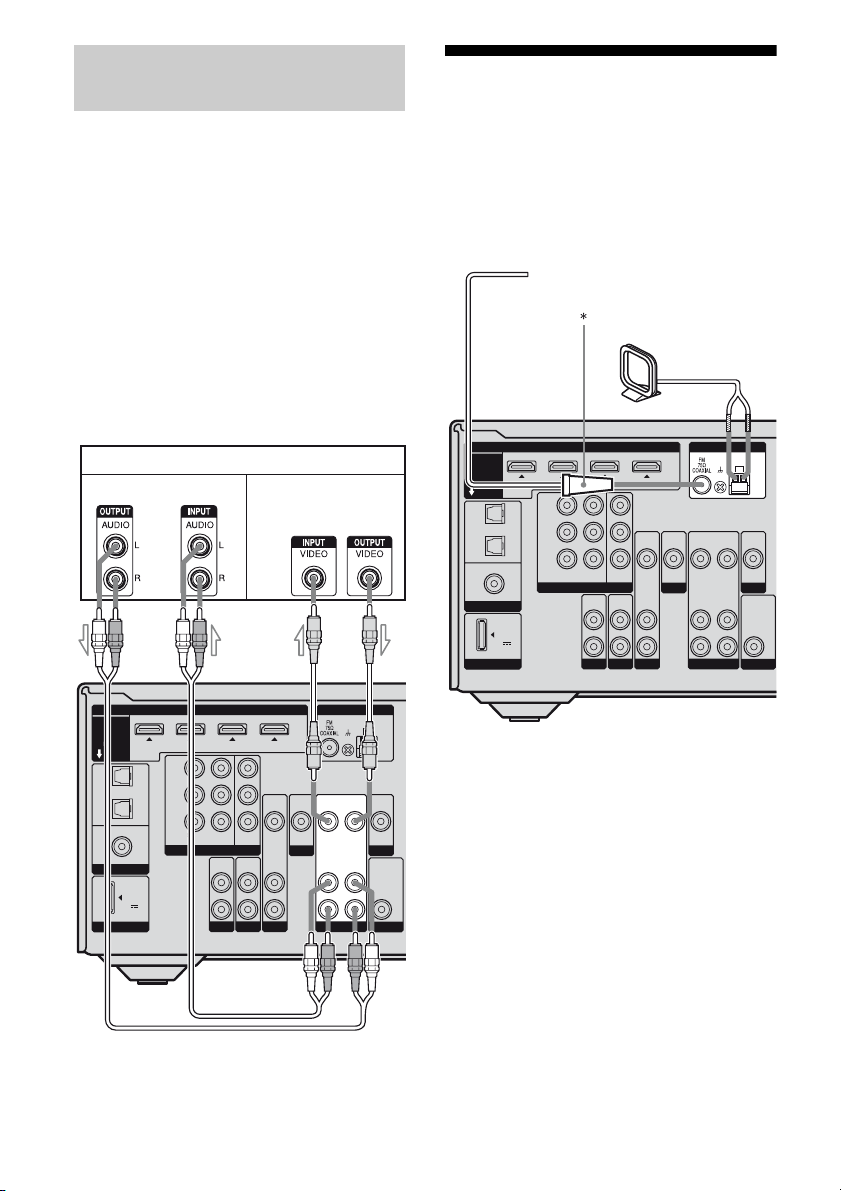

5: Connecting the antennas (aerials) ........... 22

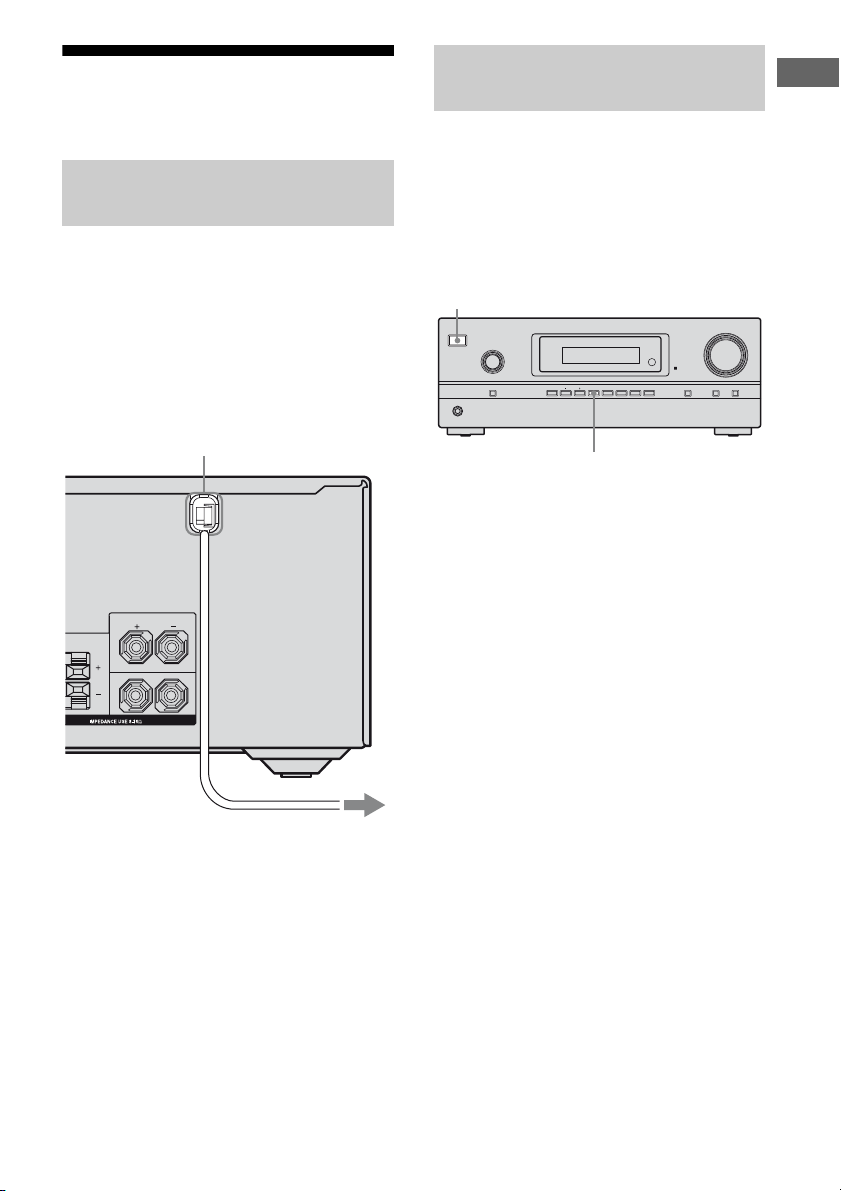

6: Preparing the receiver and the remote..... 23
7: Adjusting the speaker levels and
balance (TEST TONE)........................... 24
Playback
Selecting a component ................................ 25
Listening/Watching a component................ 27
Amplifier Operations

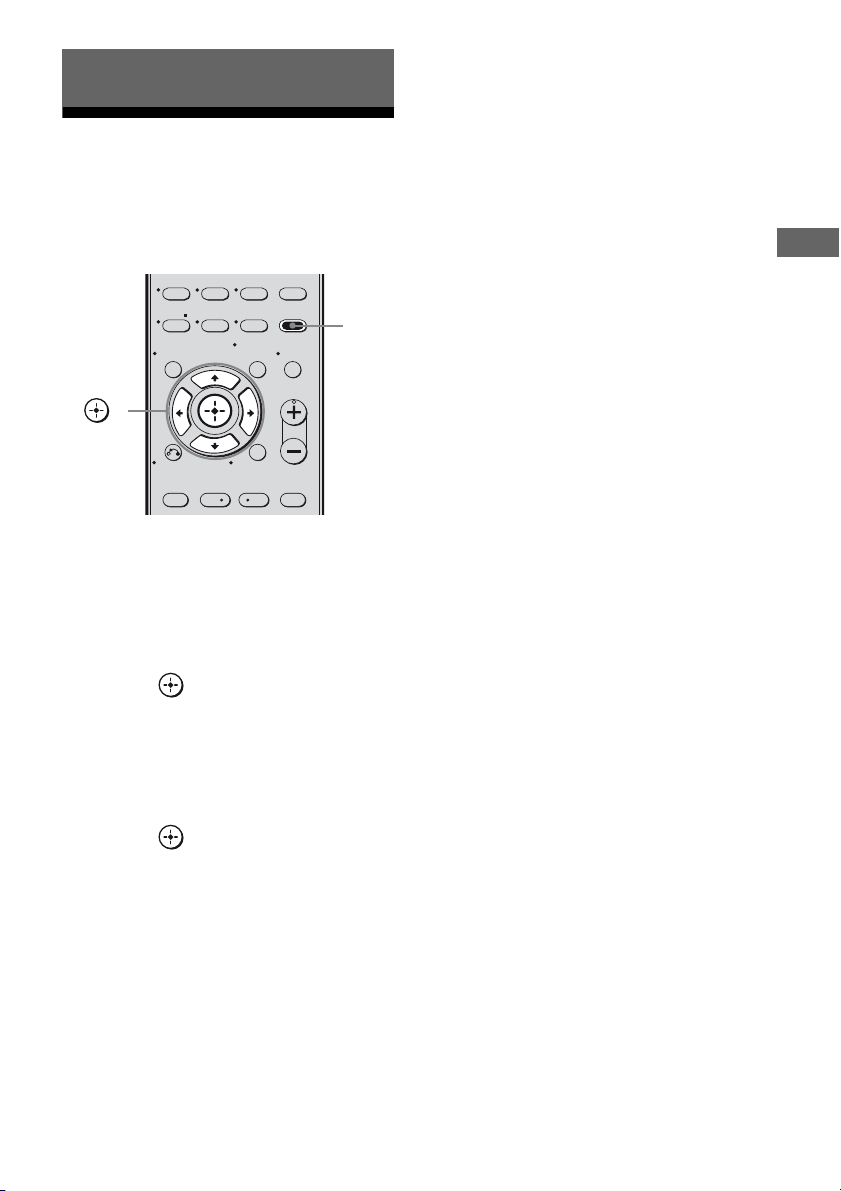

Navigating through menus .......................... 29
Adjusting the level (LEVEL menu) ............ 32
Adjusting the tone (TONE menu)............... 33
Settings for the surround sound
(SUR menu) ........................................... 33
Settings for the tuner (TUNER menu) ........ 34
Settings for the audio (AUDIO menu) ........ 34
Settings for the video (VIDEO menu) ........ 35
Settings for the system
(SYSTEM menu) ................................... 36
Enjoying Surround Sound
Enjoying Dolby Digital and DTS Surround
sound (AUTO FORMAT DIRECT) .......39
Selecting a pre-programmed sound field.....41
Using only the front speakers
(2CH STEREO)......................................43
Listening to the sound without any
adjustment (ANALOG DIRECT)...........44
Resetting sound fields to the initial
settings....................................................44
Tuner Operations
Listening to FM/AM radio ..........................45
Presetting radio stations...............................47
Other Operations
Switching between digital and analog
audio (INPUT MODE)...........................49

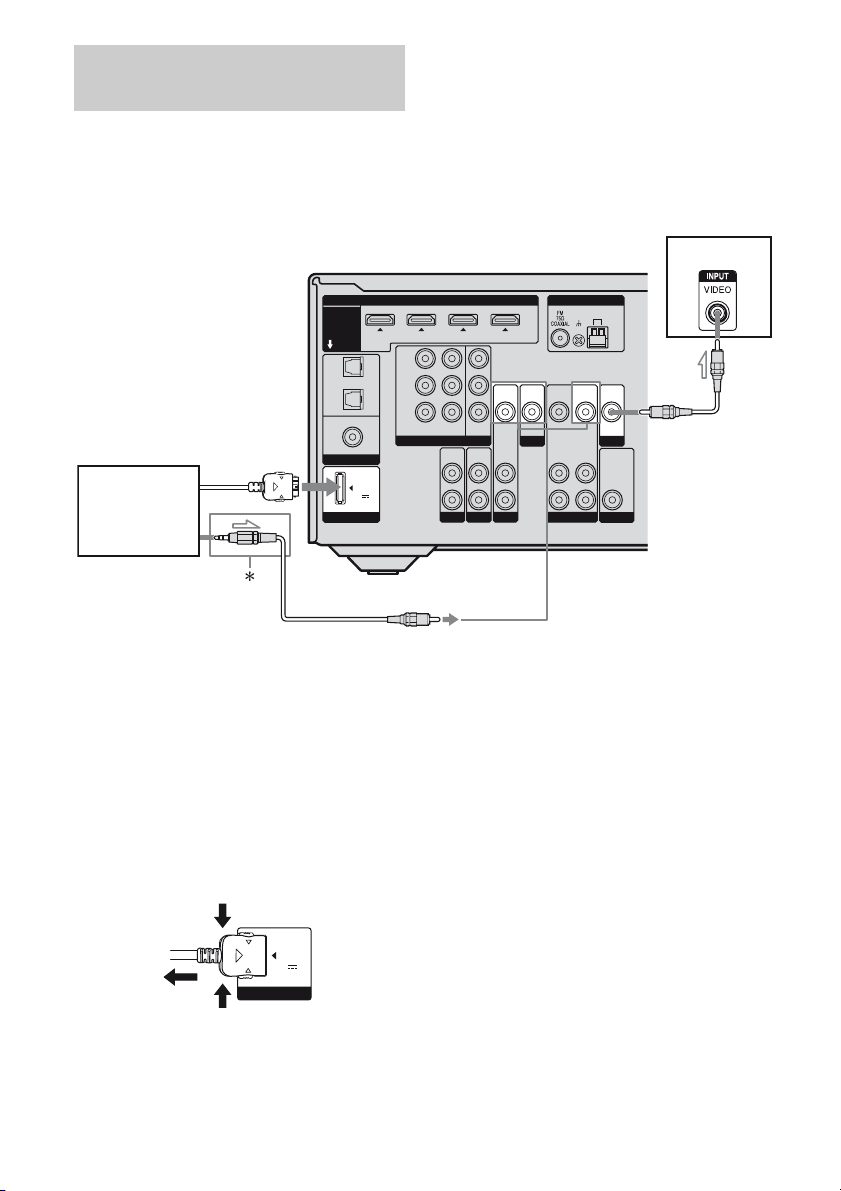

Enjoying the DIGITAL MEDIA PORT
(DMPORT).............................................49
Changing the display...................................52
Using the Sleep Timer .................................52
Recording using the receiver .......................53
Using the Remote
Changing button assignments......................53
Additional Information
Glossary.......................................................54
Precautions ..................................................56
Troubleshooting...........................................57
Specifications ..............................................61
Index............................................................63
6
US

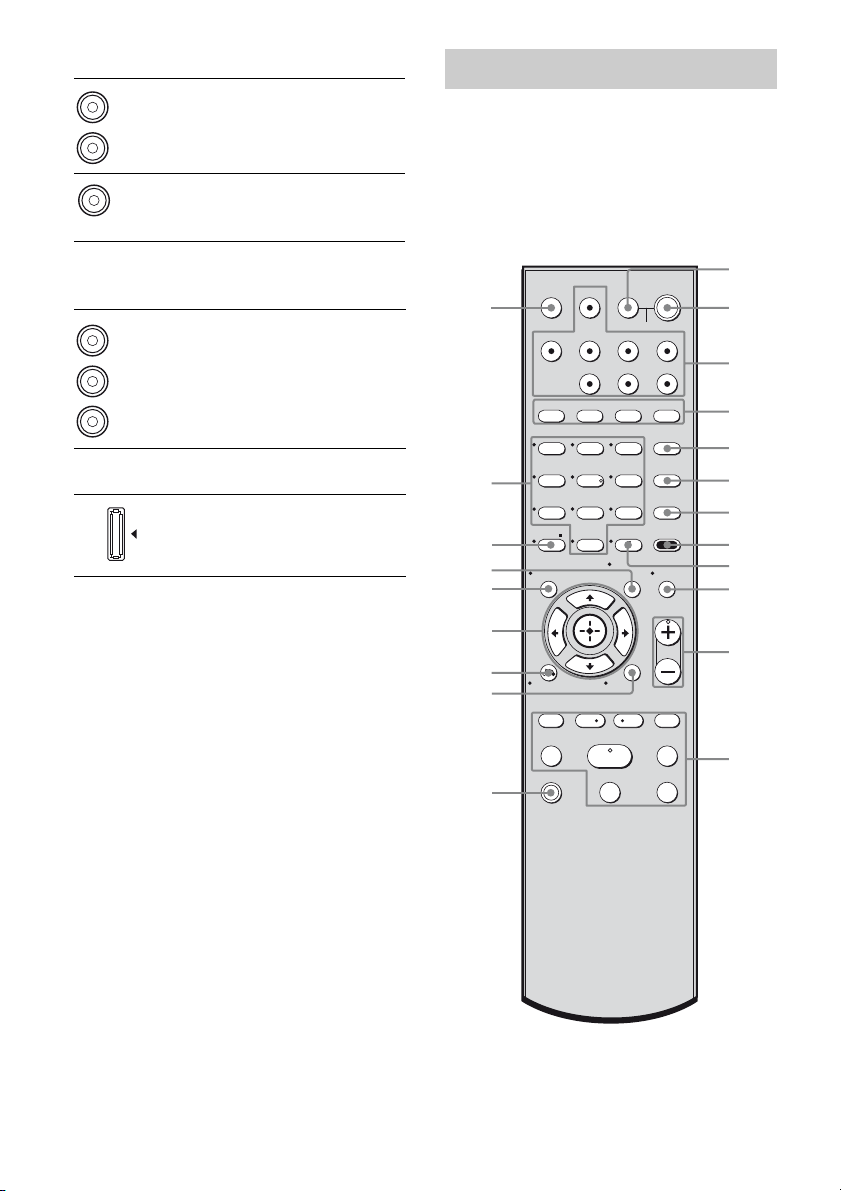

Description and location of parts

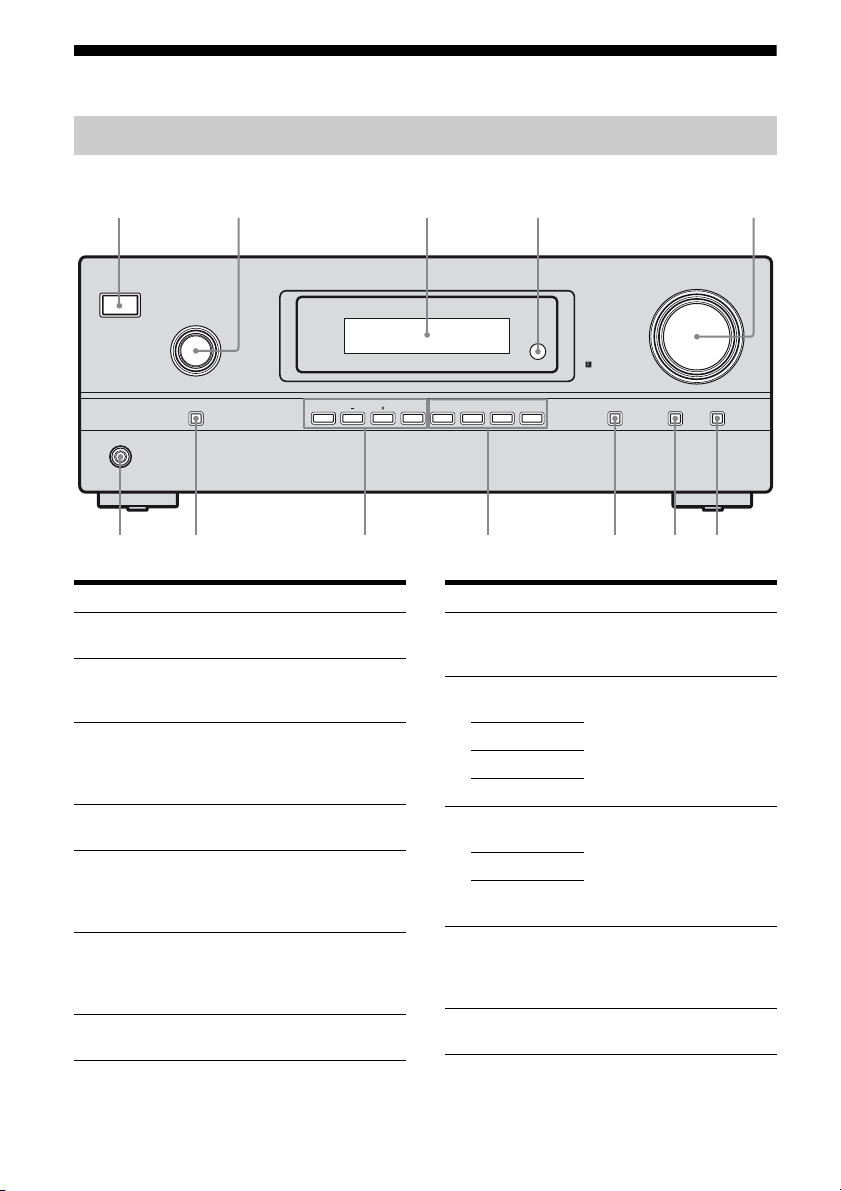

Front panel
?/1
PHONES
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
1 3
4
2
67
8qaqs 9q;
5
Name Function
A ?/1
(on/standby)
Press to turn the receiver on
or off (page 23, 27, 28, 44).
B INPUT
SELECTOR
Turn to select the input
source to play back (page 25,
26, 27, 28, 44, 45, 48, 49, 53).
C Display The current status of the
selected component or a list
of selectable items appears
here (page 7).
D Remote
sensor
Receives signals from remote
commander.
E MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 25, 26, 27,
28).
F MUTING Press to turn off the sound
temporarily.
Press MUTING again to
restore the sound (page 26).
G DIMMER Press repeatedly to adjust
brightness of the display.
Name Function
H DISPLAY Press to select information
displayed on the display
(page 52).
I 2CH/
A.DIRECT
Press to select a sound field
(page 39).
A.F.D.
MOVIE
MUSIC
J TUNING
MODE
Press to operate the tuner
(FM/AM) (page 45).
TUNING +/–
MEMORY/
ENTER
K INPUT MODE Press to select the input mode
when the same components
are connected to both digital
and analog jacks (page 49).
L PHONES jack Connects to headphones
(page 57).
7
US
About the indicators on the display
SW
LFE
LCR
SL S SR
PLII
D
OPT DTS
MEMORY
MONO
SLEEP
STD.RANGECOAX
HDMI
643 51 2
q;
5
789
Name Function
A SW Lights up when subwoofer
selection is set to “YES” (page
36) and the audio signal is
output from the SUBWOOFER
jack.
B LFE Lights up when the disc being
played back contains an LFE
(Low Frequency Effect)
channel and the LFE channel
signal is actually being
reproduced.
C Input
indicators
OPT
COAX
HDMI
Light up to indicate the current
input.
Lights up when BD input is
selected. However, “NO
INPUT” appears on the display
if no digital signal is input
through the OPTICAL jack.
“OPT” also lights up when
SAT input is selected if INPUT
MODE is set to “AUTO” and
the source signal is a digital
signal being input through the
OPTICAL jack.
Lights up when DVD input is
selected. However, “NO
INPUT” appears on the display
if no digital signal is input
through the COAXIAL jack.
Lights up when the receiver
recognizes a component
connected via an HDMI IN
jack (page 18).
Name Function
D DTS Lights up when the receiver is
decoding DTS signals.
Note
When playing a DTS format
disc, be sure that you have
made digital connections and
that INPUT MODE is set to
“AUTO” (page 49).
E Tuning
indicators
MEMORY
MONO
ST
Lights up when using the
receiver to tune in radio
stations (page 45), etc.
A memory function, such as
Preset Memory (page 47), etc.,
is activated.
Monaural broadcast
Stereo broadcast
A preset station number
appears when the preset radio
station is selected.
Note
The preset station number will
change according to the preset
station you select.
For details on presetting radio
stations, see page 47.
continued
8
US
Name Function
F Dolby Pro
Logic
indicators
PL
PLII
Lights up one of the respective
indicators when the receiver
applies Dolby Pro Logic
processing to 2 channel signals
in order to output the center and
surround channel signals.
Dolby Pro Logic
Dolby Pro Logic II
Note
These indicators do not light up
if both the center and surround
speakers are set to “NO” (page
36) and you select a sound field
using the A.F.D. button.
G D Lights up when the receiver is
decoding Dolby Digital signals.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is set to
“AUTO” (page 49).
H SLEEP Lights up when the sleep timer is
activated (page 52).
I D.RANGE Lights up when dynamic range
compression is activated (page
30).
J Playback
channel
indicators
L
R
C
SL
SR
S
The letters (L, C, R, etc.) indicate
the channels being played back.
The boxes around the letters vary
to show how the receiver
downmixes the source sound
(based on the speaker settings).
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround components obtained
by Pro Logic processing)
Example:
Recording format (Front/
Surround): 3/2.1
Output channel: When surround
speakers are set to “NO” (page
31)
Sound Field: A.F.D. AUTO
SW
LCR
SL SR
10
US
* You can watch the selected input image when you
connect the HDMI OUT or MONITOR OUT jack
to a TV or projector (page 15, 18).
You can use the supplied remote to operate the
receiver and to control the Sony audio/video
components that the remote is assigned to
operate (page 53).
RM-AAU020
E AUDIO INPUT/OUTPUT section
AUDIO IN
jacks
Connects to a Super
Audio CD player,
CD player, etc.
(page 16).
AUDIO OUT
jack
Connects to a
subwoofer (page
14).
F COMPONENT VIDEO INPUT/
OUTPUT section
COMPONENT
VIDEO IN/
OUT* jacks
Connects to a DVD
player, TV, or a
satellite tuner. You
can enjoy high
quality image (page
15, 20, 21).
G DMPORT
DMPORT
jack
Connects to a
DIGITAL MEDIA
PORT adapter
(page 50).
White (L)
Red (R)
Black
Green
(Y)
Blue
(P
B/CB)
Red
(P
R/CR)

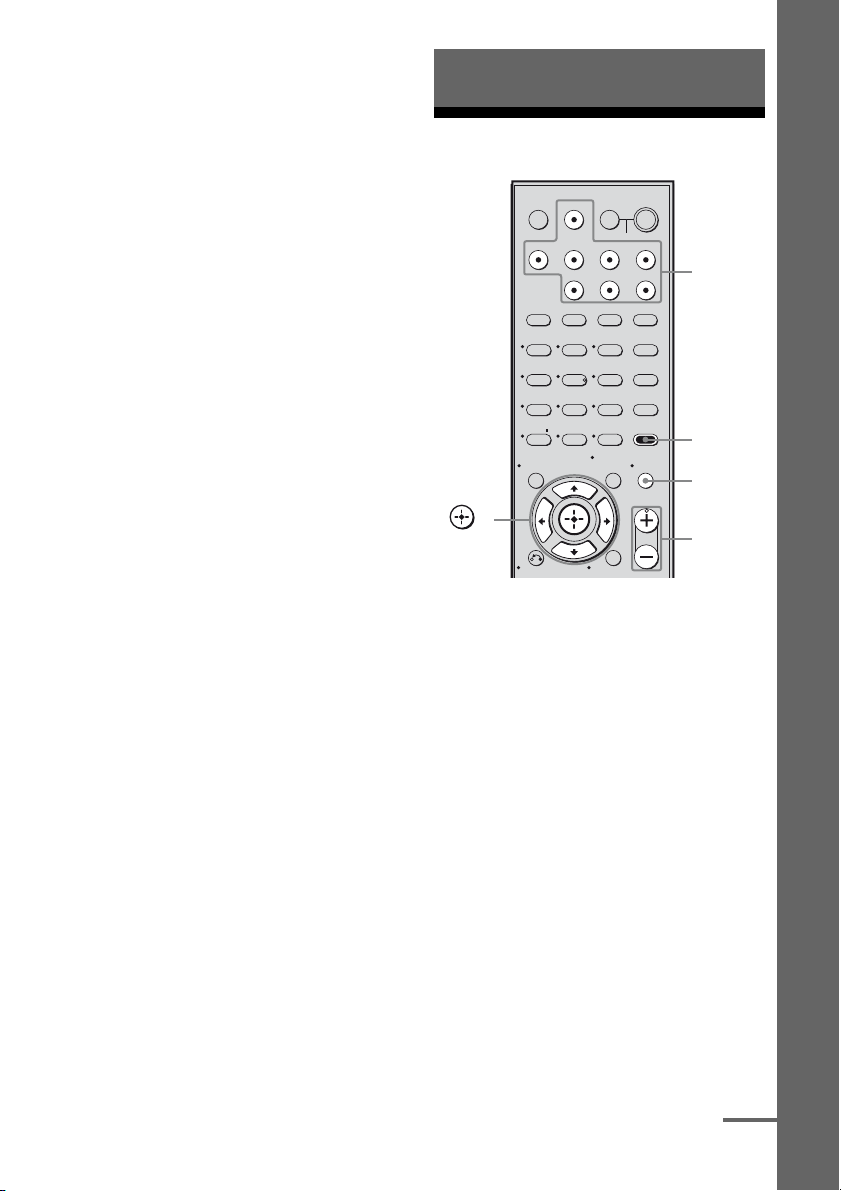

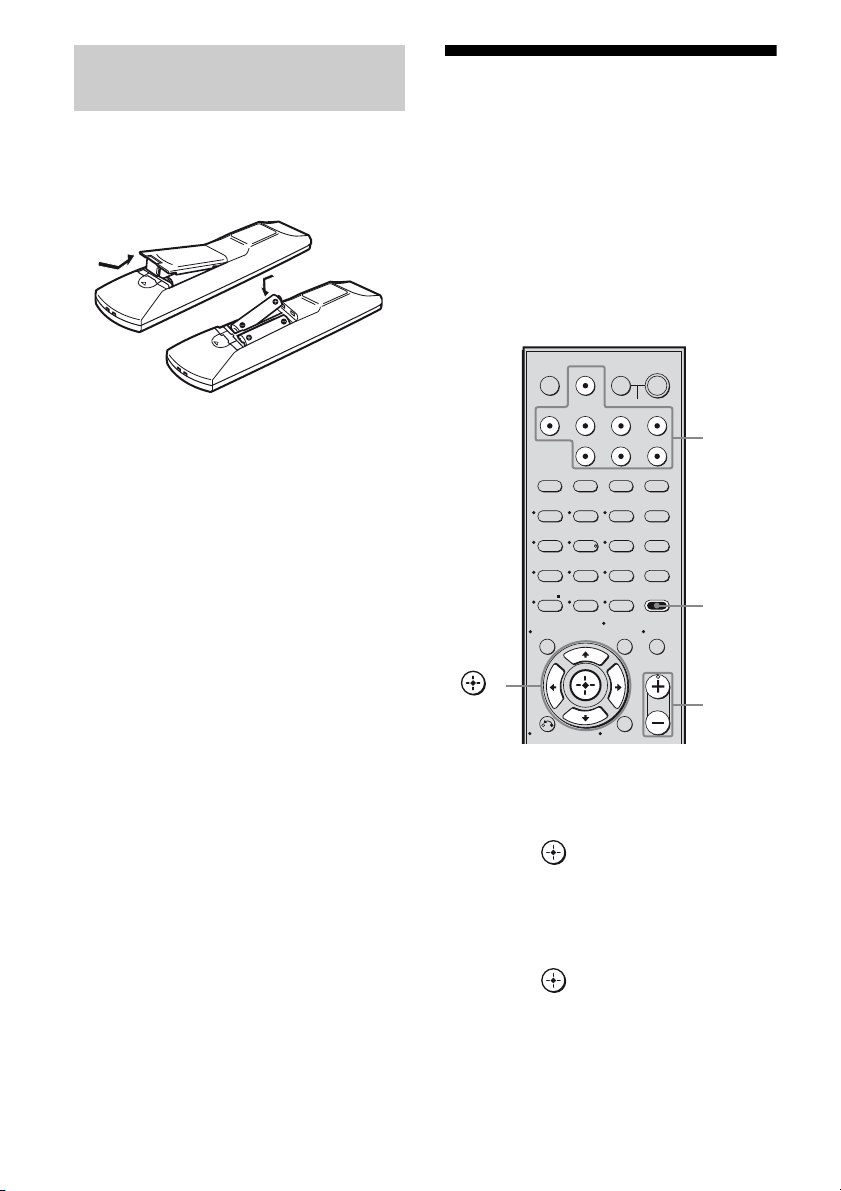

Remote commander
123
46
78
0/10
ENTER
9
SYSTEM STANDBY
TV INPUT
SLEEP DMPORT
VIDEO BD DVD SAT
2CH A.F.D.
RETURN/EXIT
TV CH –
PRESET –
TV CH +
PRESET +
TUNING –
TV
TUNING +
FM MODE
REPLAY ADVANCE
MOVIE MUSIC
MEMORY AMP MENU
CLEAR
DISPLAY MUTING
MASTER VOL
TV VOL
D.SKIP
D.TUNING
DVD/BD
MENU
SA-CD/CDTV TUNER
?/1
-
.
H
mM
X
x
<
<
>
5
>10/
TV
?/1
AV
?/1
TOOLS/
OPTIONS
MENU/HOME
1
3
2
6
7
8
q;
9
qs
qa
4
5
qg
qj
qh
ql
w;
qd
qk
wa
qf
11
US
Name Function
A TV ?/1
(on/standby)
Press TV ?/1 and TV (M) at
the same time to turn the TV
on or off.
AV ?/1
(on/standby)
Press to turn on or off the
Sony audio/video components
that the remote is assigned to
operate (page 53).
If you press ?/1 (B) at the
same time, it will turn off the
receiver and other Sony
components (SYSTEM
STANDBY).
Note
The function of the AV ?/1
switch changes automatically
each time you press the input
buttons (C).
B ?/1
(on/standby)
Press to turn the receiver on or
off.
To turn off all Sony
components, press ?/1 and
AV ?/1 (A) at the same time
(SYSTEM STANDBY).
C Input buttons Press one of the buttons to
select the component you
want to use. When you press
any of the input buttons, the
receiver turns on. The buttons
are factory assigned to control
Sony components.
You can change the button
assignments following the
steps in “Changing button
assignments” on page 53.
D 2CH Press to select a sound field.
A.F.D.
MOVIE
MUSIC
E DVD/BD
MENU
Press to display the menu of
the DVD or Blu-ray disc on
the TV screen. Then, use V, v,
B, b and (P) to perform
menu operations.
F
D.SKIP Press to skip a disc when
using a multi-disc changer.
G D.TUNING Press to enter direct tuning
mode.
Name Function
H AMP MENU Press to display the menu of
the receiver. Then, use V, v,
B, b and (P) to perform
menu operations.
I MEMORY Press to store a station.
ENTER Press to enter the value after
selecting a channel, disc or
track using the numeric
buttons of the TV, VCR or
satellite tuner.
J MUTING Press to turn off the sound
temporarily.
Press MUTING again to
restore the sound.
Press MUTING and TV (M)
at the same time to activate
the TV’s muting function.
K TV VOL
+
a)
/–
Press TV VOL +/– and TV
(M) at the same time to adjust
the volume level of the TV.
MASTER
VOL +
a)
/–
Press to adjust the volume
level of all speakers at the
same time.
L ./>
b)
Press to skip a track of the CD
player, DVD player or Blu-
ray disc player.
REPLAY /
ADVANCE
Press to replay the previous
scene or fast forward the
current scene of the VCR,
DVD player or Blu-ray disc
player.
m/M
b)
Press to
– search tracks in the forward/
reverse direction of the
DVD player.
– start fast forward/rewind of
the VCR, CD player or Blu-
ray disc player.
H
a)b)
Press to start playback of the
VCR, CD player, DVD player
or Blu-ray disc player.
X
b)
Press to pause playback or
recording of the VCR, CD
player, DVD player or Blu-
ray disc player. (Also starts
recording with components in
recording standby.)
<
<
continued
12
US
Name Function
x
b)
Press to stop playback of the
VCR, CD player, DVD player
or Blu-ray disc player.
FM MODE Press to select the FM
monaural or stereo reception.
TV CH +/– Press TV CH +/– and TV (M)
at the same time to select
preset TV channels.
PRESET +/– Press to select
– preset stations.
– preset channels of the VCR
or satellite tuner.
TUNING +/– Press to scan a station.
M TV Press TV and the button with
orange printing at the same
time to enable TV operation.
N MENU/HOME Press to display the menu of
the VCR, DVD player,
satellite tuner or Blu-ray disc
player on the TV screen.
Press MENU/HOME and TV
(M) at the same time to
display the TV’s menu.
Then, use V, v, B, b and
(P) to perform menu
operations.
O RETURN/
EXIT O
Press to
– return to the previous menu.
– exit the menu while the
menu or on-screen guide of
the VCR, DVD player,
satellite tuner or Blu-ray disc
player is displayed on the
TV screen.
Press RETURN/EXIT O and
TV (M) at the same time to
return to the previous menu or
exit the TV’s menu while the
menu is displayed on the TV
screen.
Name Function
P
V/v/B/b
After pressing DVD/BD
MENU (E), AMP MENU
(H) or MENU/HOME (N),
press V, v, B or b to select the
settings. Then, press to
enter the selection if you have
pressed DVD/BD MENU or
MENU/HOME previously.
Press also to enter the
selection of the receiver,
VCR, satellite tuner, CD
player, DVD player or Blu-
ray disc player.
Q DISPLAY Press to select information
displayed on the TV screen of
the VCR, satellite tuner, CD
player, DVD player or Blu-
ray disc player.
Press DISPLAY and TV (M)
at the same time to display
TV’s information on the TV
screen.
R TOOLS/
OPTIONS
Press to display and select the
options of the DVD player or
Blu-ray disc player.
Press TOOLS/OPTIONS and
TV (M) at the same time to
display options applicable to
the Sony TV.
S -/-- Press to select the channel
entry mode, either one or two
digit of the VCR.
Press -/-- and TV (M) at the
same time to select the
channel entry mode, either
one or two digits of the TV.
>10/
x
Press to select
– track numbers over 10 of the
VCR, satellite tuner or CD
player.
– channel numbers of the
Digital CATV terminal.
CLEAR Press to clear a mistake when
you press the incorrect
numeric button.
,
13
US
Getting Started
a)
The number 5, MASTER VOL +, TV VOL +, and
H buttons have tactile dots. Use the tactile dots
as references when operating the receiver.
b)
This button is also available for DIGITAL
MEDIA PORT adapter operation. For details on
the function of the button, refer to the operating
instructions supplied with the DIGITAL MEDIA
PORT adapter.
Notes
• Some functions explained in this section may not
work depending on the model.
• The above explanation is intended to serve as an
example only. Therefore, depending on the
component, the above operation may not be
possible or may operate differently than described.
1: Installing the speakers
This receiver allows you to use a 5.1 channel
system (5 speakers and one subwoofer).
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker, and two
surround speakers) and a subwoofer (5.1
channel).
Example of a 5.1 channel
speaker system configuration
AFront speaker (left)
BFront speaker (right)
CCenter speaker
DSurround speaker (left)
ESurround speaker (right)
FSubwoofer
Tip
Since the subwoofer does not emit highly directional
signals, you can place it wherever you want.
Name Function
T Numeric
buttons
(number 5
a)
)
Press to
– preset/tune to preset
stations.
– select track numbers of the
CD player, DVD player or
Blu-ray disc player. Press
0/10 to select track number
10.
– select channel numbers of
the VCR or satellite tuner.
Press the numeric buttons and
TV (M) at the same time to
select the TV channels.
U TV INPUT Press TV INPUT and TV (M)
at the same time to select the
input signal (TV input or
video input).
SLEEP Press to activate the Sleep
Timer function and the
duration which the receiver
turns off automatically.
Getting Started
14
US
2: Connecting the speakers
Before connecting cords, make sure to
disconnect the AC power cord (mains lead).
AFront speaker (left)
BFront speaker (right)
CCenter speaker
DSurround speaker (left)
ESurround speaker (right)
FSubwoofer*
* When you connect a subwoofer with an auto
standby function, turn off the function when
watching movies. If the auto standby function is
set to on, it turns to standby mode automatically
based on the level of the input signal to a
subwoofer, then sound may not be output.
N
ENT VIDEO
SA-CD
/
CD
IN
TV
IN
SAT
AUDIO
IN
DVD IN MONITOR
OUT
BD IN OUT
VIDEO
IN
VIDEO
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
DVD
VIDEO
IN
MONITOR
VIDEO
OUT
AM
CENTER
L
L
R
R
I ANTENNA
SUBWOOFER
13/32 in.
(10 mm)
SPEAKERS
FRONT
SURROUND
AUDIO
OUT
F
EBC
A
A Monaural audio cord (not supplied)
B Speaker cords (not supplied)
A
B
B
D
15
US
Getting Started
3: Connecting the TV
You can watch the selected input image when
you connect the HDMI OUT or MONITOR
OUT jack to a TV or projector.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Before connecting cords, make sure to
disconnect the AC power cord (mains lead).
Note
Be sure to turn on the receiver when the video and
audio signals of a playback component are being
output to a TV via the receiver. Unless the power is
turned on, neither video nor audio signals will be
transmitted.
Tip
To output the sound of the TV from the speakers
connected to the receiver, be sure to:
– connect the audio output jacks of the TV to the TV
AUDIO IN jacks of the receiver.
– turn off TV’s volume or activate the TV’s muting
function.
BD
IN
DIGITAL
DMPORT
SA-CD
/
CD
OPTICAL
COAXIAL
SAT
IN
IN
SAT
AUDIO
IN
SAT IN
DVD
IN
DC5V
0.7A MAX
DVD IN BD IN
VIDEO
IN
VIDEO
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
DVD
VIDEO
IN
MONITOR
SUBWOOFER
VIDEO
OUT
AM
SURROUNDCENTER
L
L
R
R
SPEAKERS
FRONT
HDMI
CONNECT
TO
DIGITAL INPUT
FOR
AUDIO
ANTENNA
TV
IN
COMPONENT VIDEO
SAT IN DVD IN MONITOR
OUT
Y
P
B
/
C
B
P
R
/
C
R
R
L
OUT
TV
ACD
A Audio cord (not supplied)
B HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
C Component video cord (not supplied)
D Video cord (not supplied)
Audio signals Video signalsAudio/video
signals
B
16
US
4a: Connecting the audio
components

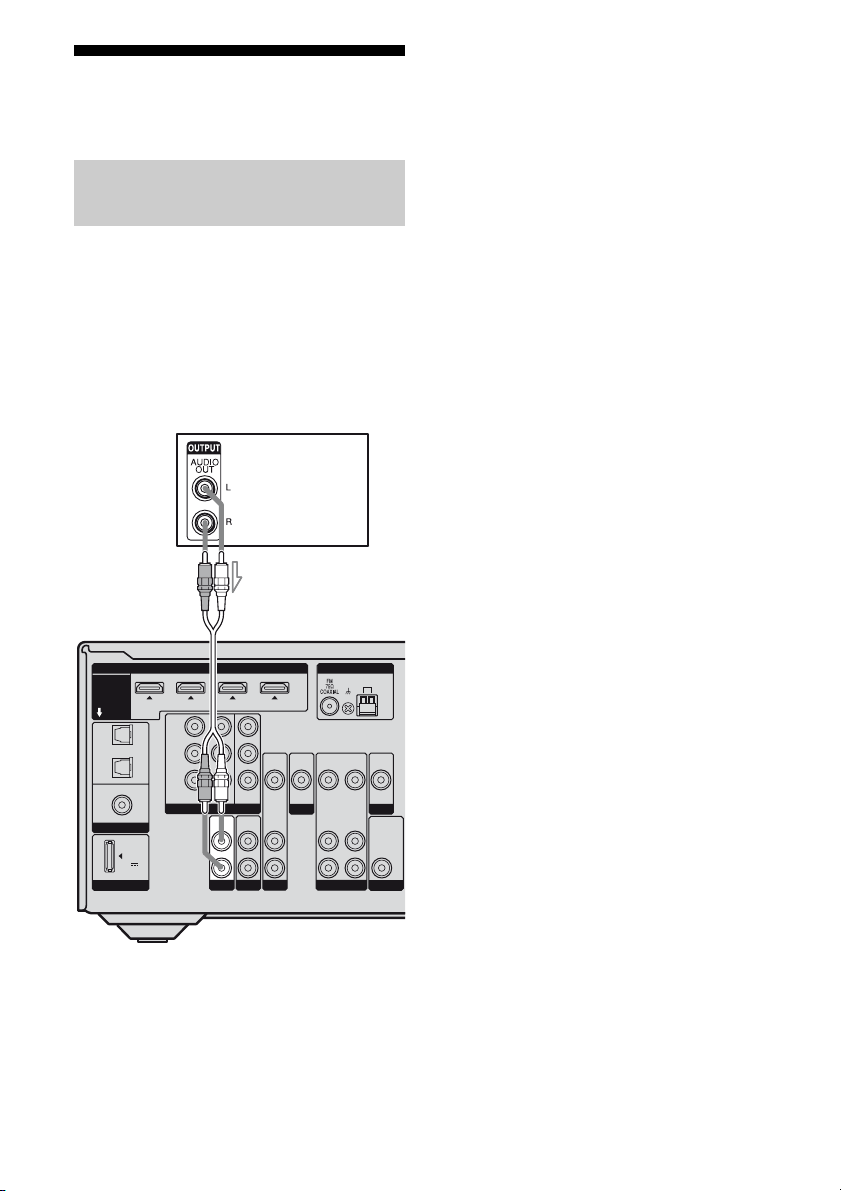

The following illustration shows how to
connect a Super Audio CD/CD player.
Before connecting cords, make sure to
disconnect the AC power cord (mains lead).
After connecting your audio component,
proceed to “4b: Connecting the video
components” (page 17) or “5: Connecting the
antennas (aerials)” (page 22).
Connecting a Super Audio CD/
CD player
BD
IN
DIGITAL
COMPONENT VIDEO
DMPORT
OPTICAL
COAXIAL
SAT
IN
SAT IN
TV
IN
SAT
AUDIO
IN
DVD IN MONITOR
OUT
SAT IN
DVD
IN
DC5V
0.7A MAX
DVD IN BD IN OUT
Y
P
B
/
C
B
P
R
/
C
R
VIDEO
IN
VIDEO
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
DVD
VIDEO
IN
MONITOR
SUBWOOFER
VIDEO
OUT
AM
HDMI
CONNECT
TO
DIGITAL INPUT
FOR
AUDIO
ANTENNA
SA-CD
/
CD
R
IN
L
Super Audio CD
player/CD player
A
A Audio cord (not supplied)
17
US
Getting Started
4b: Connecting the video components
This section describes how to connect your
video components to this receiver. Before you
begin, refer to “Component to be connected”
below for the pages which describe how to
connect each component.
Before connecting cords, make sure to
disconnect the AC power cord (mains lead).
After connecting all your components,
proceed to “5: Connecting the antennas
(aerials)” (page 22).
Component to be connected
The image quality depends on the connecting
jack. Refer to the illustration that follows.
Select the connection according to the jacks on
your components.
Note
Be sure to turn on the receiver when the video and
audio signals of a playback component are being
output to a TV via the receiver. Unless the power is
turned on, neither video nor audio signals will be
transmitted.
How to connect your
components
Component Page
TV 15
With HDMI jack 18
DVD player 20
Satellite tuner/Set-top box 21
DVD recorder/VCR 22
Video input/output jacks to be
connected
HDMI
VIDEO
COMPONENT VIDEO
Y
P
B
/
C
B
P
R
/
C
R
Digital Analog
High quality image
18
US
HDMI is the abbreviated name for High-
Definition Multimedia Interface. It is an
interface which transmits video and audio
signals in digital format.
Connecting components with
HDMI jacks
COMPONENT VIDEO
DMPORT
SA-CD
/
CD
SAT IN
IN
TV
IN
SAT
AUDIO
IN
DVD IN MONITOR
OUT
DC5V
0.7A MAX
Y
P
B
/
C
B
P
R
/
C
R
VIDEO
IN
VIDEO
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
DVD
VIDEO
IN
MONITOR
SUBWOOFER
VIDEO
OUT
AM
SURROUNDCENTER
L
L
R
R
SPEAKERS
FRONT
R
L
CONNECT
TO
DIGITAL INPUT
FOR
AUDIO
ANTENNA
BD
IN
DIGITAL
OPTICAL
COAXIAL
DVD
IN
SAT IN DVD IN BD IN OUT
HDMI
SAT
IN
Blu-ray disc player
B
A Optical digital cord (not supplied)
B HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
C Coaxial digital cord (not supplied)
Audio
signals
Audio/video
signals
CA
DVD player
TV, projector,
etc.
Audio/video
signals
Audio/video
signals
Audio/video
signals
AB
Audio
signals
Audio
signals
Satellite tuner/Set-top box
BB
19
US
Getting Started
Notes on HDMI connections
• The sound is output from the TV speaker
only when a playback component and this
receiver, as well as this receiver and the TV
are connected via the HDMI jack. To output
the sound from the speakers and to take
advantage of the multi channel surround
sound, be sure to
– connect the digital audio jacks on the
playback component to the receiver.
– turn off TV’s volume or activate the TV’s
muting function.
• The multi/stereo area audio signals of a
Super Audio CD are not output.
• Video signals input to the HDMI IN jack can
only be output from the HDMI OUT jack.
The input video signals cannot be output
from the VIDEO OUT jacks, or MONITOR
OUT jacks.
• Check the setup of the connected component
if an image is poor or the sound does not
come out of a component connected via the
HDMI cable.
• This receiver may not be able to transfer
video or audio signals with certain types of
source.
• Refer to the operating instructions of each
component connected for details.
Notes
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
20
US

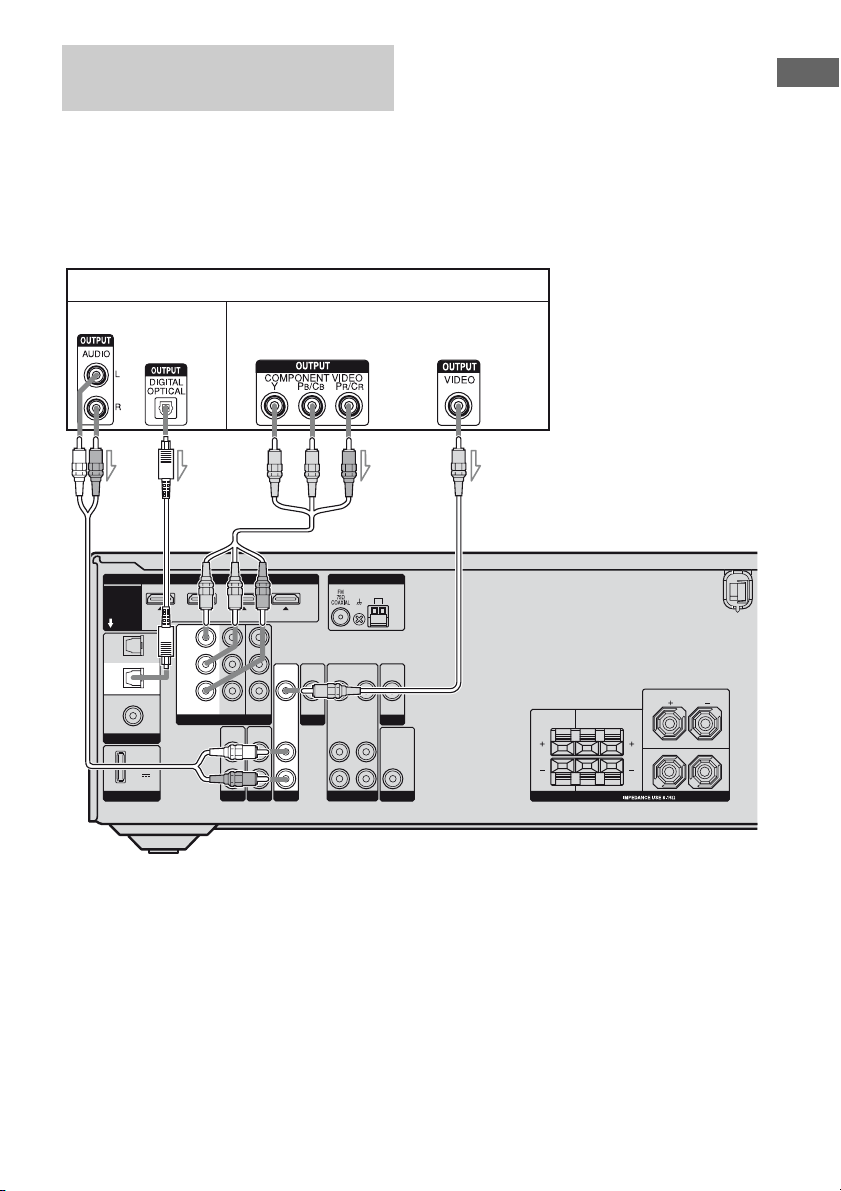

The following illustration shows how to
connect a DVD player.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Notes
• To input multi channel digital audio from the DVD
player, set the digital audio output setting on the
DVD player. Refer to the operating instructions
supplied with the DVD player.
• As this receiver does not have analog audio input
jacks for DVD, connect your DVD player to the
DIGITAL COAXIAL DVD IN jack on the
receiver. To output sound from the front left/right
speakers only, press 2CH.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Connecting a DVD player
DMPORT
SA-CD
/
CD
IN
TV
IN
SAT
AUDIO
IN
SAT IN
DC5V
0.7A MAX
DVD IN BD IN OUT
VIDEO
IN
VIDEO
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
DVD
VIDEO
IN
MONITOR
SUBWOOFER
VIDEO
OUT
AM
SURROUNDCENTER
L
L
R
R
SPEAKERS
FRONT
R
L
HDMI
CONNECT
TO
DIGITAL INPUT
FOR
AUDIO
ANTENNA
BD
IN
DIGITAL
OPTICAL
COAXIAL
SAT
IN
DVD
IN
COMPONENT VIDEO
SAT IN DVD IN MONITOR
OUT
Y
P
B
/
C
B
P
R
/
C
R
DVD player
ABC
A Coaxial digital cord (not supplied)
B Component video cord (not supplied)
C Video cord (not supplied)
Audio signals Video signals
21
US
Getting Started
The following illustration shows how to
connect a satellite tuner or a set-top box.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Notes
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Connecting a satellite tuner/
set-top box
DMPORT
SA-CD
/
CD
IN
TV
IN
SAT
AUDIO
IN
SAT IN
DC5V
0.7A MAX
DVD IN BD IN OUT
VIDEO
IN
VIDEO
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
DVD
VIDEO
IN
MONITOR
SUBWOOFER
VIDEO
OUT
AM
SURROUNDCENTER
L
L
R
R
SPEAKERS
FRONT
R
L
HDMI
CONNECT
TO
DIGITAL INPUT
FOR
AUDIO
ANTENNA
BD
IN
DIGITAL
OPTICAL
COAXIAL
SAT
IN
DVD
IN
COMPONENT VIDEO
SAT IN DVD IN MONITOR
OUT
Y
P
B
/
C
B
P
R
/
C
R
Satellite tuner/set-top box
AB C D
A Audio cord (not supplied)
B Optical digital cord (not supplied)
C Component video cord (not supplied)
D Video cord (not supplied)
Audio signals Video signals
22
US
The following illustration shows how to
connect a component which has analog jacks
such as DVD recorder, VCR, etc.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Notes
• Be sure to change the factory setting of the VIDEO
input button on the remote so that you can use the
button to control your DVD recorder. For details,
see “Changing button assignments” (page 53).
• You can also rename the VIDEO input so that it
can be displayed on the receiver’s display. For
details, see “Naming inputs” (page 26).
5: Connecting the
antennas (aerials)
Connect the supplied AM loop antenna
(aerial) and FM wire antenna (aerial).
Before connecting the antennas, make sure to
disconnect the AC power cord (mains lead).
* The shape of the connector varies depending on
the area code of this receiver.
Notes
• To prevent noise pickup, keep the AM loop
antenna (aerial) away from the receiver and other
components.
• Be sure to fully extend the FM wire antenna
(aerial).
• After connecting the FM wire antenna (aerial),
keep it as horizontal as possible.
Connecting components with
analog video and audio jack
BD
IN
DIGITAL
COMPONENT VIDEO
DMPORT
SA-CD
/
CD
OPTICAL
COAXIAL
SAT
IN
SAT IN
IN
TV
IN
SAT
AUDIO
IN
DVD IN MONITOR
OUT
SAT IN
DVD
IN
DC5V
0.7A MAX
DVD IN BD IN OUT
Y
P
B
/
C
B
P
R
/
C
R
VIDEO
IN
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
DVD
VIDEO
IN
MONITOR
VIDEO
OUT
AM
R
L
HDMI
CONNECT
TO
DIGITAL INPUT
FOR
AUDIO
ANTENNA
VIDEO
SUBWOOFER
DVD recorder, VCR
AB
Audio signals Video signals
A Audio cord (not supplied)
B Video cord (not supplied)
BD
IN
DIGITAL
COMPONENT VIDEO
DMPORT
SA-CD
/
CD
OPTICAL
COAXIAL
SAT
IN
SAT IN
IN
TV
IN
SAT
AUDIO
IN
DVD IN MONITOR
OUT
SAT IN
DVD
IN
DC5V
0.7A MAX
DVD IN BD IN OUT
Y
P
B
/
C
B
P
R
/
C
R
VIDEO
IN
VIDEO
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
DVD
VIDEO
IN
MONITOR
SUBWOOFER
VIDEO
OUT
AM
R
L
HDMI
CONNECT
TO
DIGITAL INPUT
FOR
AUDIO
ANTENNA
FM wire antenna (aerial) (supplied)
AM loop antenna (aerial)
(supplied)
23
US
Getting Started
6: Preparing the receiver
and the remote
Connect the AC power cord (mains lead) to a
wall outlet.
Notes
• Before connecting the AC power cord (mains
lead), make sure that the stripped end of the
speaker cords are not touching each other between
the speaker terminals.
• Connect the AC power cord (mains lead) firmly.

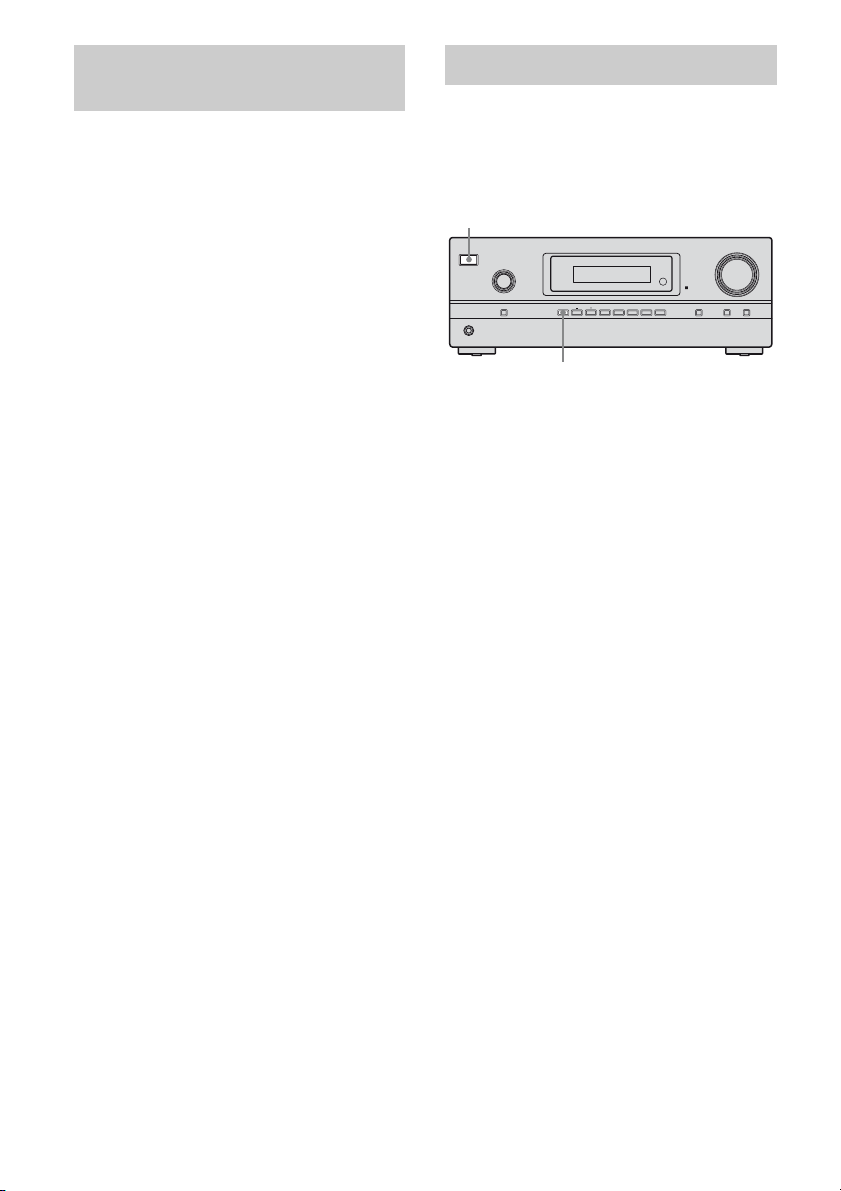

Before using the receiver for the first time,
initialize the receiver by performing the
following procedure. This procedure can also
be used to return settings you have made to
their factory defaults.
Be sure to use the buttons on the receiver for
this operation.
1 Press ?/1 to turn off the
receiver.
2 Hold down ?/1 for 5 seconds.
“PUSH” and “ENTER” appears on the
display alternately.
3 Press MEMORY/ENTER.
After “CLEARING” appears on the
display for a while, “CLEARED”
appears.
All the settings you have changed or
adjusted are reset to the initial settings.
Connecting the AC power cord
(mains lead)
R
OUND
L
L
R
A
KERS
FRONT
AC power cord (mains lead)
To the wall outlet

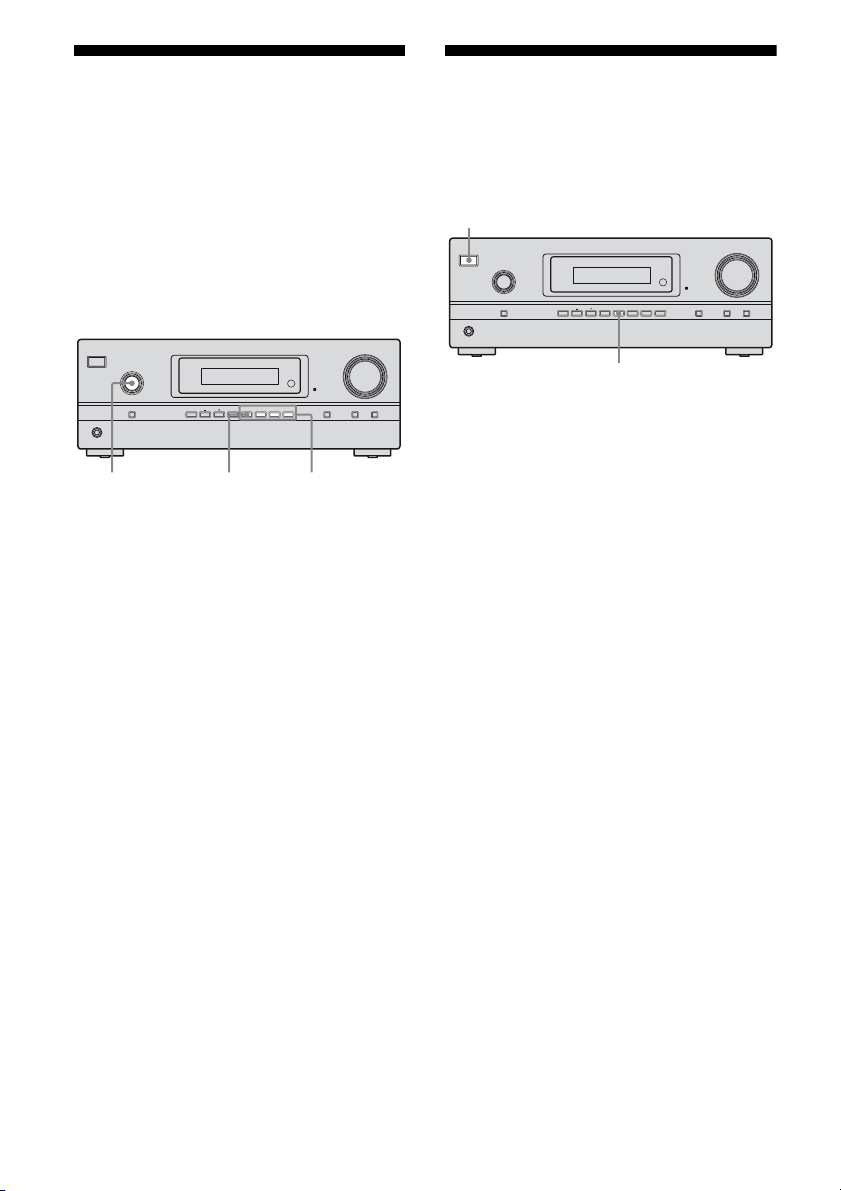

Performing initial setup
operations
?/1
PHONES
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
?/1
MEMORY/ENTER
24
US
Insert two R6 (size-AA) batteries in the
RM-AAU020 Remote Commander.
Observe the correct polarity when installing
batteries.
Notes
• Do not leave the remote in an extremely hot or
humid place.
• Do not use a new battery with old ones.
• Do not mix manganese batteries and other kinds of
batteries.
• Do not expose the remote sensor to direct sunlight
or lighting apparatuses. Doing so may cause a
malfunction.
• If you do not intend to use the remote for an
extended period of time, remove the batteries to
avoid possible damage from battery leakage and
corrosion.
• When you replace the batteries, the remote buttons
may be reset to their factory settings. If this
happens, reassign the buttons again (page 53).
• When the remote no longer operates the receiver,
replace all the batteries with new ones.
7: Adjusting the speaker
levels and balance
(TEST TONE)
You can adjust the speaker levels and balance
while listening to the test tone from your
listening position.
Tip
The receiver employs a test tone with a frequency
centered at 800 Hz.
1 Press AMP MENU.
“1-LEVEL” appears on the display.
2 Press or b to enter the
menu.
3 Press V/v repeatedly to select
“T. TONE”.
4 Press or b to enter the
parameter.
Inserting batteries into the
remote
123
46
78
0/10
ENTER
9
SYSTEM STANDBY
TV INPUT
SLEEP DMPORT
VIDEO BD DVD SAT
2CH A.F.D.
RETURN/EXIT
MOVIE MUSIC
MEMORY AMP MENU
CLEAR
DISPLAY MUTING
MASTER VOL
TV VOL
D.SKIP
D.TUNING
DVD/BD
MENU
SA-CD/CDTV TUNER
?/1
-
5
>10/
TV
?/1
AV
?/1
TOOLS/
OPTIONS
MENU/HOME
AMP
MENU
MASTER
VOL +/–
Input
buttons
V/v/B/b,
25
US

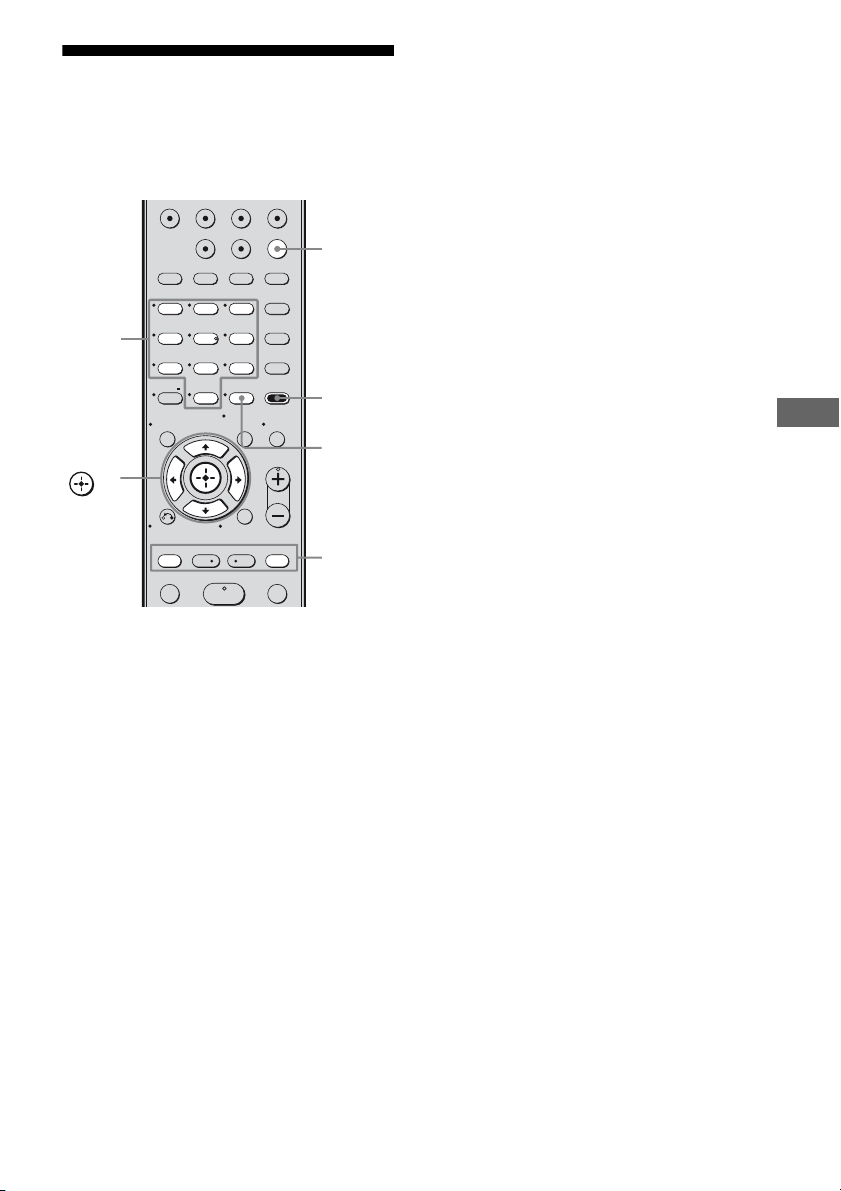

Playback
5 Press V/v repeatedly to select
“T. TONE Y”.
The test tone is output from each speaker
in sequence as follows:
Front left t Center t Front right t
Surround right t Surround left t
Subwoofer
6 Adjust the speaker levels and
balance using the LEVEL menu
so that the level of the test tone
sounds the same from each
speaker.
For details, see “Adjusting the level
(LEVEL menu)” (page 32).
Tips
• To adjust the level of all speakers at the same
time, press MASTER VOL +/–. You can also
use MASTER VOLUME on the receiver.
• The adjusted value is shown on the display
during adjustment.
7 Repeat steps 1 to 5 to select
“T. TONE N”.
You can also press any input buttons.
The test tone turns off.
When a test tone is not output
from the speakers
• The speaker cords may not be connected
securely.
• The speaker cords may have the short-circuit
problem.
Note
The test tone does not work when ANALOG
DIRECT is selected.

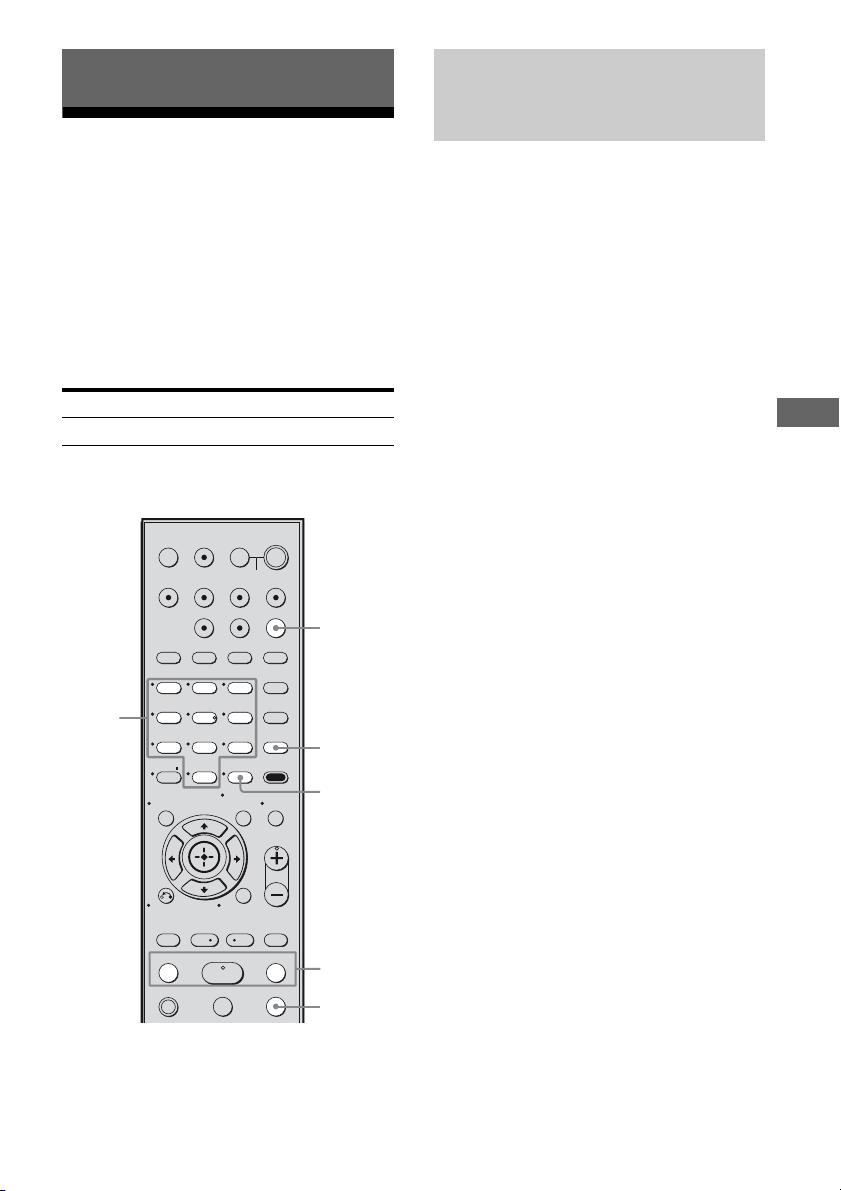

Selecting a component
1
Press the input button to select
a component.
You can also use INPUT SELECTOR on
the receiver.
The selected input appears on the display.
Playback
123
46
78
0/10
ENTER
9
SYSTEM STANDBY
TV INPUT
SLEEP DMPORT
VIDEO BD DVD SAT
2CH A.F.D.
RETURN/EXIT
MOVIE MUSIC
MEMORY AMP MENU
CLEAR
DISPLAY MUTING
MASTER VOL
TV VOL
D.SKIP
D.TUNING
DVD/BD
MENU
SA-CD/CDTV TUNER
?/1
-
5
>10/
TV
?/1
AV
?/1
TOOLS/
OPTIONS
MENU/HOME
AMP
MENU
MASTER
VOL +/–
Input
buttons
V/v/B/b,
MUTING
continued
26
US
2 Turn on the component and
start playback.
3 Press MASTER VOL +/– to
adjust the volume.
You can also use MASTER VOLUME on
the receiver.
To activate the muting function
Press MUTING.
The muting function will be canceled when
you do the following.
• Press MUTING again.
• Increase the volume.
• Turn off the receiver.
To avoid damaging your
speakers
Before you turn off the receiver, be sure to turn
down the volume level.
You can enter a name of up to 8 characters for
inputs and display it on the receiver’s display.
This is convenient for labeling the jacks with
the names of the connected components.
1 Press the input button to select
the input you want to create an
index name for.
You can also use INPUT SELECTOR on
the receiver.
2 Press AMP MENU.
“1-LEVEL” appears on the display.
3 Press V/v repeatedly to select
“7-SYSTEM”.
4 Press or b to enter the
menu.
5 Press V/v to select “NAME IN”.
6 Press or b to enter the
parameter.
The cursor flashes and you can select a
character.
7 Press V/v to select a character,
then press B/b to move the
cursor to the next position.
If you made a mistake
Press B/b until the character you want to
change flashes, then press V/v to select
the correct character.
Tips
• You can select the character type as follows
by pressing V/v.
Alphabet (upper case) t Numbers t
Symbols
• To enter a blank space, press b without
selecting a character.
8 Press .
The name you entered is registered.
Selected input
[Display]
Components that can
be played back
DMPORT
[DMPORT]
DIGITAL MEDIA PORT
adapter connected to the
DMPORT jack
VIDEO
[VIDEO]
VCR, etc., connected to
the VIDEO jack
BD
[BD]
Blu-ray disc player, etc.,
connected to the BD jack
DVD
[DVD]
DVD player, etc.,
connected to the DVD
jack
SAT
[SAT]
Satellite tuner, etc.,
connected to the SAT jack
TV
[TV]
TV, etc. connected to the
TV jack
SA-CD/CD
[SA-CD/CD]
Super Audio CD/CD
player, etc., connected to
the SA-CD/CD jack
TUNER
[FM or AM band]
Built-in radio tuner
Naming inputs
27
US
Playback
Listening/Watching a component

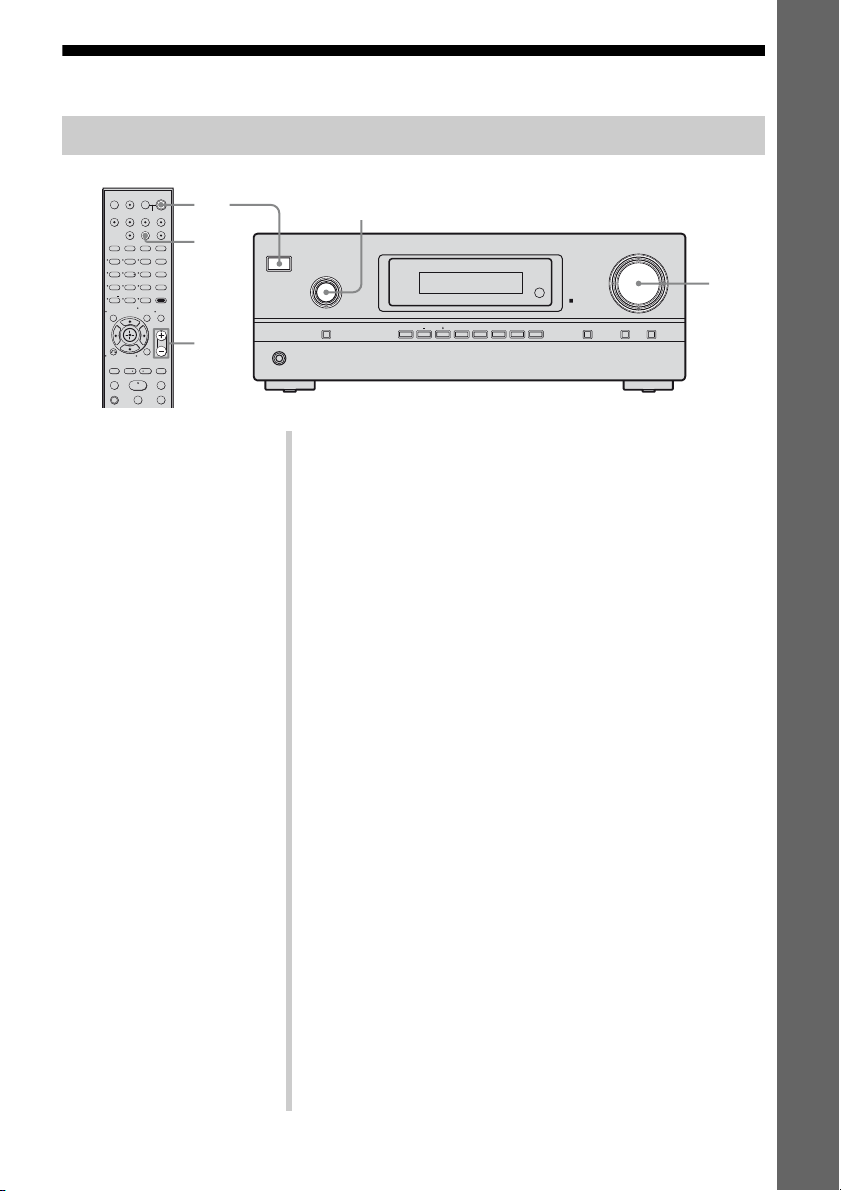

Listening to a Super Audio CD/CD
?/1
PHONES
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
123
46
78
0/10
ENTER
9
SYSTEM STANDBY
TV INPUT
SLEEP
DMPORT
VIDEO BD DVD SAT
2CH A.F.D.
RETURN/EXIT
TV CH –
PRESET –
TV CH +
PRESET +
TUNING –
TV
TUNING +
FM MODE
REPLAY ADVANCE
MOVIE MUSIC
MEMORY AMP MENU
CLEAR
DISPLAY MUTING
MASTER VOL
TV VOL
D.SKIP
D.TUNING
DVD/BD
MENU
SA-CD/CDTV TUNER
?/1
-
.
H
mM
X
x
<
<
>
5
>10/
TV
?/1
AV
?/1
TOOLS/
OPTIONS
MENU/HOME
5
5
32
3
Notes
• The operation is described for a
Sony Super Audio CD player.
• Refer to the operating
instructions supplied with the
Super Audio CD player or CD
player.
Tip
You can select the sound field to
suit the music. Refer to page 39
for details.
Recommended sound fields:
Classical: HALL
Jazz: JAZZ
Live concert: CONCERT
1 Turn on the Super Audio CD player/CD
player, then place the disc on the tray.
2 Turn on the receiver.
3 Press SA-CD/CD.
You can also use INPUT SELECTOR on the receiver to
select “SA-CD/CD”.
4 Play back the disc.
5 Adjust to a suitable volume.
6 After you have finished listening to the
Super Audio CD/CD, eject the disc and turn
off the receiver and Super Audio CD player/
CD player.
28
US

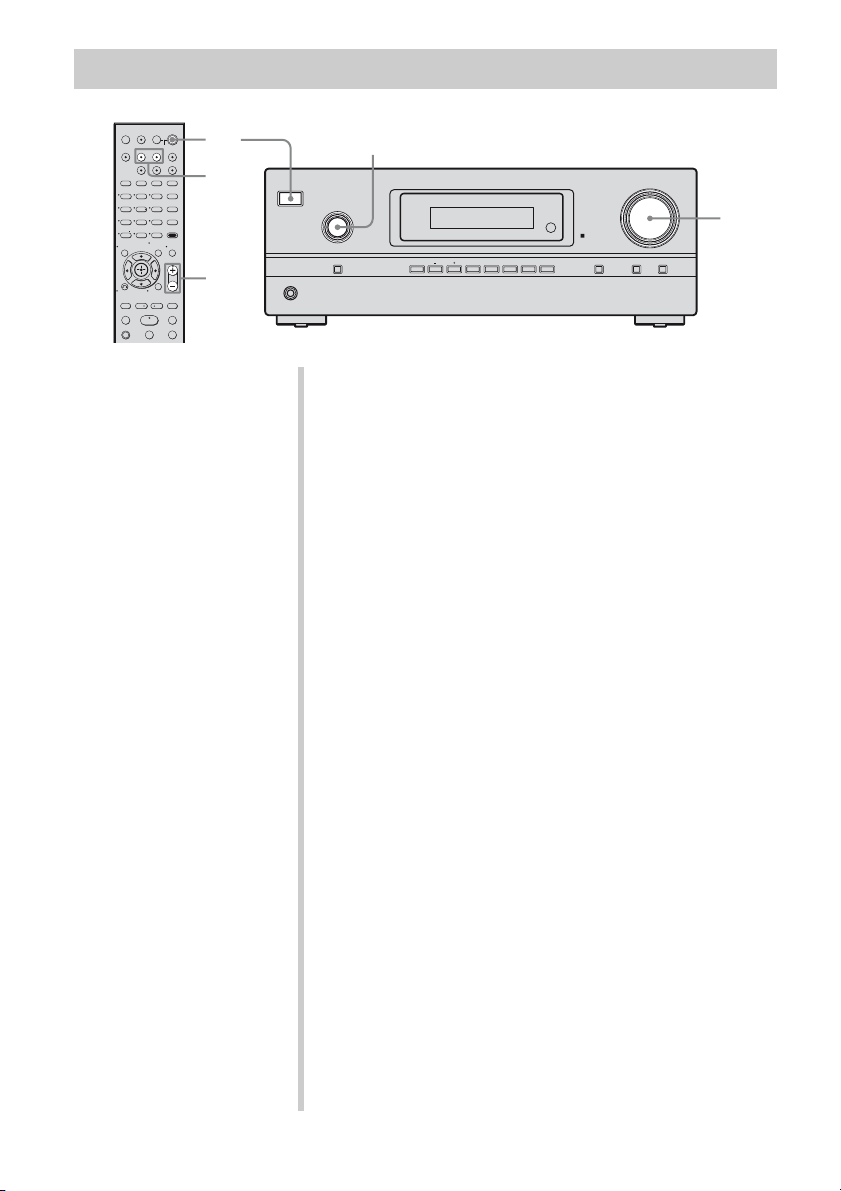

Watching a DVD/Blu-ray disc
?/1
PHONES
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
123
46
78
0/10
ENTER
9
SYSTEM STANDBY
TV INPUT
SLEEP
DMPORT
VIDEO BD DVD SAT
2CH A.F.D.
RETURN/EXIT
TV CH –
PRESET –
TV CH +
PRESET +
TUNING –
TV
TUNING +
FM MODE
REPLAY ADVANCE
MOVIE MUSIC
MEMORY AMP MENU
CLEAR
DISPLAY MUTING
MASTER VOL
TV VOL
D.SKIP
D.TUNING
DVD/BD
MENU
SA-CD/CDTV TUNER
?/1
-
.
H
mM
X
x
<
<
>
5
>10/
TV
?/1
AV
?/1
TOOLS/
OPTIONS
MENU/HOME
6
6
3
2
3
Notes
• Refer to the operating
instructions supplied with the
TV and DVD player or Blu-ray
disc player.
• Check the following if you
cannot listen to multi channel
sound.
– Be sure this receiver is
connected to the DVD player
or Blu-ray disc player via a
digital connection.
– Be sure the digital audio
output of the DVD player or
Blu-ray disc player is set up
properly.
Tips
• Select the sound format of the
disc to be played, if necessary.
• You can select the sound field to
suit the movie/music. Refer to
page 39 for details.
Recommended sound fields:
Movie: C.ST.EX
Music: CONCERT
1 Turn on the TV and DVD player or Blu-ray
disc player.
2 Turn on the receiver.
3 Press DVD to watch a DVD or press BD to
watch a Blu-ray disc.
You can also use INPUT SELECTOR on this receiver to
select “DVD” or “BD”.
4 Switch the input of the TV so that an image
of the DVD or Blu-ray disc is displayed.
5 Play back the disc.
6 Adjust to a suitable volume.
7 After you have finished watching the DVD or
Blu-ray disc, eject the disc and turn off the
receiver, TV and DVD player or Blu-ray disc
player.
29
US
Amplifier Operations
Navigating through
menus
By using the amplifier menus, you can make
various adjustments to customize the receiver.
1 Press AMP MENU.
“1-LEVEL” appears on the display.
2 Press V/v repeatedly to select
the menu you want.
3 Press or b to enter the
menu.
4 Press V/v repeatedly to select
the parameter you want to
adjust.
5 Press or b to enter the
parameter.
6 Press V/v repeatedly to select
the setting you want.
The setting is entered automatically.
To return to the previous display
Press B.
To exit the menu
Press AMP MENU.
Note
Some parameters and settings may appear dimmed
on the display. This means that they are either
unavailable or fixed and unchangeable.
Amplifier Operations
78
0/10
ENTER
9
RETURN/EXIT
TV CH –
PRESET –
TV CH +
PRESET +
REPLAY ADVANCE
MEMORY AMP MENU
CLEAR
DISPLAY MUTING
MASTER VOL
TV VOL
D.TUNING
-
.
<
<
>
>10/
TOOLS/
OPTIONS
MENU/HOME
AMP
MENU
V/v/B/b,
30
US
The following options are available in each
menu. For details on navigating through
menus, see page 29.
Overview of the menus
Menu
[Display]
Parameters
[Display]
Settings Initial
setting
LEVEL
[1-LEVEL]
(page 32)
Test tone
a)
[T. TONE] T. TONE N, T. TONE Y T. TONE N
Front speaker balance
a)
[FRT BAL]
BAL. L +1 to BAL. L +8, BALANCE,
BAL. R +1 to BAL. R +8
BALANCE
Center speaker level
[CNT LVL]
CNT –10 dB to CNT +10 dB
(1 dB step)
CNT 0 dB
Surround left speaker level
[SL LVL]
SUR L –10 dB to SUR L +10 dB
(1 dB step)
SUR L 0 dB
Surround right speaker level
[SR LVL]
SUR R –10 dB to SUR R +10 dB
(1 dB step)
SUR R 0 dB
Subwoofer level
[SW LVL]
SW –10 dB to SW +10 dB
(1 dB step)
SW 0 dB
Dynamic range compressor
a)
[D. RANGE]
COMP. OFF, COMP. STD,
COMP. MAX
COMP. OFF
TONE
[2-TONE]
(page 33)
Front speaker bass level
[BASS LVL]
BASS –6 dB to BASS +6 dB
(1 dB step)
BASS 0 dB
Front speaker treble level
[TRE LVL]
TRE –6 dB to TRE +6 dB
(1 dB step)
TRE 0 dB
SUR
[3-SUR]
(page 33)
Sound field selection
a)
[S.F. SELCT]
For details, see “Enjoying Surround
Sound” (page 39).
A.F.D. AUTO
Effect level
a)
[EFFECT] EFCT. MIN, EFCT. STD,
EFCT. MAX
EFCT. STD
TUNER
[4-TUNER]
(page 34)
FM station receiving mode
a)
[FM MODE]
FM AUTO, FM MONO FM AUTO
Naming preset stations
a)
[NAME IN]
For details, see “Naming preset
stations” (page 48).
AUDIO
[5-AUDIO]
(page 34)
Digital broadcast language
selection
a)
[DUAL]
DUAL M/S, DUAL M, DUAL S,
DUAL M+S
DUAL M
Synchronizes audio and video
output
a)
[A.V. SYNC.]
A.V.SYNC. N, A.V.SYNC. Y A.V.SYNC. N
31
US
Amplifier Operations
a)
For details, refer to the page in the parentheses.
Menu
[Display]
Parameters
[Display]
Settings Initial
setting
VIDEO
[6-VIDEO]
(page 35)
DIGITAL MEDIA PORT
video assign
a)
[DMPORT V.]
–NONE, –VIDEO, –DVD, –SAT –NONE
SYSTEM
[7-SYSTEM]
(page 36)
Subwoofer
a)
[SW SPK]
NO, YES YES
Front speakers
a)
[FRT SPK]
SMALL, LARGE LARGE
Center speaker
a)
[CNT SPK]
NO, SMALL, LARGE LARGE
Surround speakers
a)
[SUR SPK]
NO, SMALL, LARGE LARGE
Front speaker distance
a)
[FRT DIST.]
DIST. 3 ft. to DIST. 23 ft. (1 ft. step) DIST. 10 ft.
Center speaker distance
a)
[CNT DIST.]
DIST. 3 ft. to DIST. 23 ft. (1 ft. step) DIST. 10 ft.
Surround left speaker distance
a)
[SL DIST.]
DIST. 3 ft. to DIST. 23 ft. (1 ft. step) DIST. 10 ft.
Surround right speaker
distance
a)
[SR DIST.]
DIST. 3 ft. to DIST. 23 ft. (1 ft. step) DIST. 10 ft.
Surround speaker position
a)
[SUR POS.]
BEHD/HI, BEHD/LO, SIDE/HI,
SIDE/LO
SIDE/LO
Speaker crossover frequency
a)
[CRS. FREQ]
CRS > 40 Hz to CRS > 160 Hz CRS > 100 Hz
Brightness of the display
a)
[DIMMER]
0% dim, 40% dim, 70% dim 0% dim
Naming inputs
a)
[NAME IN] For details, see “Naming inputs”
(page 26).
32
US
Adjusting the level
(LEVEL menu)
You can use the LEVEL menu to adjust the
balance and level of each speaker. These
settings are applied to all sound fields.
Select “1-LEVEL” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 29) and
“Overview of the menus” (page 30).
LEVEL menu parameters
x T. TONE (Test tone)
Lets you adjust the speaker levels and balance
while listening to the test tone from your
listening position. For details, see
“7: Adjusting the speaker levels and balance
(TEST TONE)” (page 24).
x FRT BAL (Front speaker
balance)
Lets you adjust the balance between front left
and right speakers.
x CNT LVL (Center speaker level)
x SL LVL (Surround left speaker
level)
x SR LVL (Surround right speaker
level)
x SW LVL (Subwoofer level)
x D. RANGE (Dynamic range
compressor)
Lets you compress the dynamic range of the
sound track. This may be useful when you
want to watch movies at low volumes late at
night. Dynamic range compression is possible
with Dolby Digital sources only.
• COMP. OFF
The dynamic range is not compressed.
•COMP. STD
The dynamic range is compressed as
intended by the recording engineer.
•COMP. MAX
The dynamic range is compressed
dramatically.
Tip
Dynamic range compressor lets you compress the
dynamic range of the soundtrack based on the
dynamic range information included in the Dolby
Digital signal.
“COMP. STD” is the standard setting, but it only
enacts light compression. Therefore, we recommend
using the “COMP. MAX” setting. This greatly
compresses the dynamic range and lets you view
movies late at night at low volumes. Unlike analog
limiters, the levels are predetermined and provide a
very natural compression.
33
US
Amplifier Operations
Adjusting the tone
(TONE menu)
You can use the TONE menu to adjust the
tonal quality (bass/treble level) of the front
speakers. These settings are applied to all
sound fields.
Select “2-TONE” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 29) and
“Overview of the menus” (page 30).
TONE menu parameters
x BASS LVL (Front speaker bass
level)
x TRE LVL (Front speaker treble
level)
Settings for the surround
sound
(SUR menu)
You can use the SUR menu to select the sound
field you want for your listening pleasure.
Select “3-SUR” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 29) and
“Overview of the menus” (page 30).
SUR menu parameters
x S.F. SELCT (Sound field
selection)
Lets you select the sound field you want. For
details, see “Enjoying Surround Sound” (page
39).
Note
The receiver lets you apply the last selected sound
field to an input whenever it is selected (Sound Field
Link). For example, if you select “HALL” for the
SA-CD/CD input, then change to a different input
and then return to SA-CD/CD, “HALL” will
automatically be applied again.
x EFFECT (Effect level)
Lets you adjust the “presence” of the surround
effect for sound fields selected with the
MOVIE or MUSIC buttons.
•EFCT. MIN
The surround effect is minimum.
•EFCT. STD
The surround effect is standard.
•EFCT. MAX
The surround effect is maximum.
34
US
Settings for the tuner
(TUNER menu)
You can use the TUNER menu to set the FM
station receiving mode and to name preset
stations.
Select “4-TUNER” in the amplifier menus.
For details on adjusting the parameters, see
“Navigating through menus” (page 29) and
“Overview of the menus” (page 30).
TUNER menu parameters
x FM MODE (FM station receiving
mode)
•FM AUTO
This receiver will decode the signal as stereo
signal when the radio station is broadcast in
stereo.
• FM MONO
This receiver will decode the signal as mono
signal regardless of the broadcast signal.
x NAME IN (Naming preset
stations)
Lets you set the name of preset stations. For
details, see “Naming preset stations” (page
48).
Settings for the audio
(AUDIO menu)
You can use the AUDIO menu to make
settings for the audio to suit your preference.
Select “5-AUDIO” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 29) and
“Overview of the menus” (page 30).
AUDIO menu parameters
x DUAL (Digital broadcast
language selection)
Lets you select the language you want to listen
to during digital broadcast. This feature only
functions for Dolby Digital sources.
•DUAL M/S (Main/Sub)
Sound of the main language will be output
through the front left speaker and sound of
the sub language will be output through the
front right speaker simultaneously.
•DUAL M (Main)
Sound of the main language will be output.
•DUAL S (Sub)
Sound of the sub language will be output.
• DUAL M+S (Main + Sub)
Mixed sound of both the main and sub
languages will be output.
x A.V. SYNC. (Synchronizes audio
and video output)
• A.V.SYNC. N (No) (Delay time: 0 ms)
The audio output is not delayed.
• A.V.SYNC. Y (Yes) (Delay time: 60 ms)
The audio output is delayed so that the time
gap between the audio output and visual
display is minimized.
35
US
Amplifier Operations
Notes
• This parameter is useful when you use a large LCD
or plasma TV or a projector.
• This parameter is valid only when you use a sound
field selected with the 2CH or A.F.D. buttons.
• This parameter is not valid when
– signals with a sampling frequency of more than
48 kHz is input.
– ANALOG DIRECT function is selected.
Settings for the video
(VIDEO menu)
You can use the VIDEO menu to assign the
composite video input to DMPORT input.
Select “6-VIDEO” in the amplifier menus. For
details on adjusting the parameters, see
“Navigating through menus” (page 29) and
“Overview of the menus” (page 30).
VIDEO menu parameters
x DMPORT V. (DIGITAL MEDIA
PORT video assign)
Lets you assign the composite video input to
DMPORT input so that you can view the
image on the TV or projector. For details, see
“Watching a connected component through
DMPORT connection” (page 51).
36
US
Settings for the system
(SYSTEM menu)
You can use the SYSTEM menu to set the size
and distance of the speakers connected to this
system.
Select “7-SYSTEM” in the amplifier menus.
For details on adjusting the parameters, see
“Navigating through menus” (page 29) and
“Overview of the menus” (page 30).
SYSTEM menu parameters
x SW SPK (Subwoofer)
•NO
If you have not connected a subwoofer,
select “NO”. This activates the bass
redirection circuitry and outputs the LFE
signals from other speakers.
•YES
If you have connected a subwoofer, select
“YES”.
Tip
In order to take full advantage of the Dolby Digital
bass redirection circuitry, we recommend setting the
subwoofer’s cut off frequency as high as possible.
x FRT SPK (Front speakers)
•SMALL
If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select “SMALL” to activate
the bass redirection circuitry and output the
front channel bass frequencies from the
subwoofer. When the front speakers are set
to “SMALL”, the center and surround
speakers are also automatically set to
“SMALL” (unless previously set to “NO”).
• LARGE
If you connect large speakers that will
effectively reproduce bass frequencies,
select “LARGE”. Normally, select
“LARGE”. When the subwoofer is set to
“NO”, the front speakers are automatically
set to “LARGE”.
x CNT SPK (Center speaker)
• NO
If you have not connected a center speaker,
select “NO”. The sound of the center
channel will be output from the front
speakers.
•SMALL
If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select “SMALL” to activate
the bass redirection circuitry and output the
center channel bass frequencies from the
front speakers (if set to “LARGE”) or
subwoofer.
• LARGE
If you connect a large speaker that will
effectively reproduce bass frequencies,
select “LARGE”. Normally, select
“LARGE”. However, if the front speakers
are set to “SMALL”, you cannot set the
center speaker to “LARGE”.
37
US
Amplifier Operations
x SUR SPK (Surround speakers)
•NO
If you have not connected surround
speakers, select “NO”.
•SMALL
If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select “SMALL” to activate
the bass redirection circuitry and output the
surround channel bass frequencies from the
subwoofer or other “LARGE” speakers.
•LARGE
If you connect large speakers that will
effectively reproduce bass frequencies,
select “LARGE”. Normally, select
“LARGE”. However, if the front speakers
are set to “SMALL”, you cannot set the
surround speakers to “LARGE”.
Tip
The “LARGE” and “SMALL” settings for each
speaker determine whether the internal sound
processor will cut the bass signal from that channel.
When the bass is cut from a channel, the bass
redirection circuitry sends the corresponding bass
frequencies to the subwoofer or other “LARGE”
speakers.
However, since bass sounds have a certain amount
of directionality, it is best not to cut them, if
possible. Therefore, even when using small
speakers, you can set them to “LARGE” if you want
to output the bass frequencies from that speaker. On
the other hand, if you are using a large speaker, but
prefer not to have bass frequencies output from that
speaker, set it to “SMALL”.
If the overall sound level is lower than you prefer,
set all speakers to “LARGE”. If there is not enough
bass, you can use the tone to boost the bass levels.
For details, see page 30.
x FRT DIST. (Front speaker
distance)
Lets you set the distance from your listening
position to the front speakers (A). If both
front speakers are not placed an equal distance
from your listening position, set the distance to
the closest speaker.
x CNT DIST. (Center speaker
distance)
Lets you set the distance from your listening
position to the center speaker.
x SL DIST. (Surround left speaker
distance)
x SR DIST. (Surround right
speaker distance)
Lets you set the distance from your listening
position to the surround speaker.
30˚30˚
100˚-120˚100˚-120˚
A A
continued
38
US
Tip
To enjoy better surround sound, the distance
between the center speaker and the listening position
B cannot be more than 5 feet closer than the one
between the listening position and the front speaker
A. Place the speakers so that the difference in the
length of B in the following diagram is no more
than 5 feet closer than the length of A.
Example: Adjust the distance B to 15 feet or more
when the distance A is 20 feet.
Also, the distance between the surround speakers
and the listening position C cannot be more than 15
feet closer than the distance between the listening
position and the front speakers A. Place the
speakers so that the difference in the length of C in
the following diagram is no more than 15 feet closer
than the length of A.
Example: Adjust the distance C to 5 feet or more
when the distance A is 20 feet.
This is important because incorrect speaker
placement is not conductive to the enjoyment of
surround sound. Please note that placing the
speakers closer than the required will cause a delay
in the output of the sound from that speaker. In other
words, the speaker will sound like it is farther away.
Adjusting these parameter while listening to the
sound often results in much better surround sound.
Give it a try!
x SUR POS.
(Surround speaker position)
Lets you specify the location of your surround
speakers for proper implementation of the
surround effects in the Cinema Studio EX
modes (page 42). This setup item is not
available when the surround speakers are set to
“NO” (page 31).
• BEHD/HI
Select if the location of your surround
speakers corresponds to sections B and D.
• BEHD/LO
Select if the location of your surround
speakers corresponds to sections B and C.
•SIDE/HI
Select if the location of your surround
speakers corresponds to sections A and D.
• SIDE/LO
Select if the location of your surround
speakers corresponds to sections A and C.
39
US
Enjoying Surround Sound
Tip
Surround speaker position is designed specifically
for implementation of the Cinema Studio EX modes.
For other sound fields, speaker position is not so
critical.
Those sound fields were designed under the premise
that the surround speakers would be located behind
the listening position, but presentation remains
fairly consistent even with the surround speakers
positioned at a rather wide angle. However, if the
speakers are pointing toward the listener from the
immediate left and right of the listening position, the
surround effects become unclear unless set to
“SIDE/LO” or “SIDE/HI”.
Nevertheless, each listening environment has many
variables, such as wall reflections, and you may
obtain better results using “BEHD/HI” if your
speakers are located high above the listening
position, even if they are located to the immediate
left and right.
Therefore, although it may result in a setting
contrary to the above explanation, we recommend
that you playback multi channel surround encoded
software and select the setting that provides a good
sense of spaciousness and that best succeeds in
forming a cohesive space between the surround
sound from the surround speakers and the sound of
the front speakers. If you are not sure which sounds
best, select “BEHD/LO” or “BEHD/HI” and then
use the speaker distance parameter and speaker level
adjustments to obtain proper balance.
x CRS. FREQ (Speaker crossover
frequency)
Lets you set the bass crossover frequency of
the speakers that have been set to “SMALL”
on the SYSTEM menu. This setup item is only
available when at least one speaker is set to
“SMALL” and the corresponding speaker
indicator flashes on the display.
x DIMMER (Brightness of the
display)
Lets you adjust the brightness in 3 steps.
x NAME IN (Naming inputs)
Lets you set the name of inputs. For details,
see “Naming inputs” (page 26).

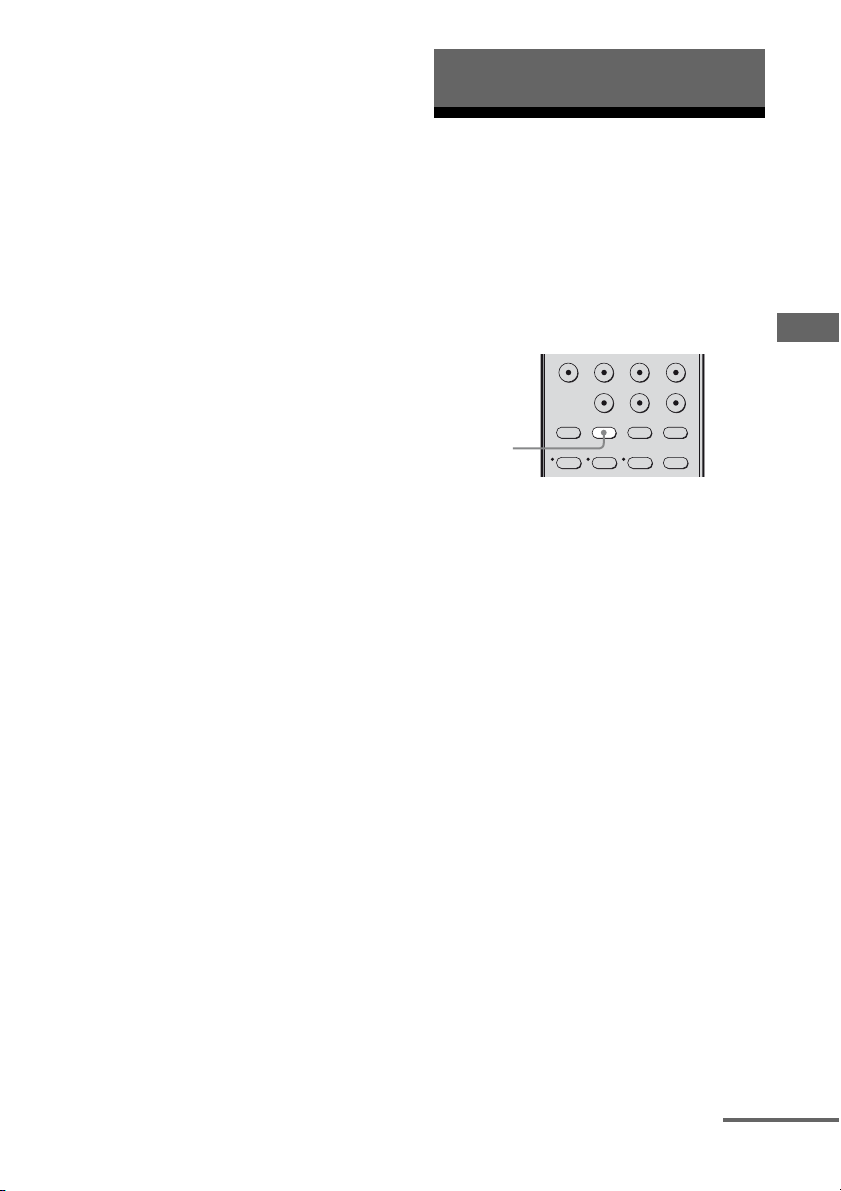

Enjoying Dolby Digital
and DTS Surround sound
(AUTO FORMAT DIRECT)
The Auto Format Direct (A.F.D.) mode allows
you to listen to higher fidelity sound and select
the decoding mode for listening to a 2 channel
stereo sound as multi channel sound.
Press A.F.D. repeatedly to select
the sound field you want.
For details, see “Types of A.F.D. mode” (page
40).
Enjoying Surround Sound
123
VIDEO BD DVD SAT
2CH A.F.D. MOVIE MUSIC
DVD/BD
MENU
SA-CD/CDTV TUNER
A.F.D.
continued
40
US
Types of A.F.D. mode
If you connect a subwoofer
This receiver will generate a low frequency
signal for output to the subwoofer when there
is no LFE signal, which is a low-pass sound
effect output from a subwoofer to a 2 channel
signal.
Note
This function does not work when
– ANALOG DIRECT is selected.
– signals with a sampling frequency of more than
48 kHz is input.
A.F.D. mode
[Display]
Multi channel
audio after
decoding
Effect
A.F.D. AUTO
[A.F.D. AUTO]
(Detecting
automatically)
Presents the sound as it was recorded/encoded without
adding any surround effects. However, this receiver will
generate a low frequency signal for output to the
subwoofer when there is no LFE signals.
PRO LOGIC
[DOLBY PL]
4 channel Performs Dolby Pro Logic decoding. The source recorded
in 2 channel format is decoded into 4.1 channels.
PRO LOGIC II MOVIE
[PLII MV]
5 channel Performs Dolby Pro Logic II Movie mode decoding. This
setting is ideal for movies encoded in Dolby Surround. In
addition, this mode can reproduce sound in 5.1 channel for
watching videos of overdubbed or old movies.
PRO LOGIC II MUSIC
[PLII MS]
5 channel Performs Dolby Pro Logic II Music mode decoding. This
setting is ideal for normal stereo sources such as CDs.
MULTI STEREO
[MULTI ST.]
(Multi Stereo) Outputs 2 channel left/right signals from all speakers.
However, sound may not be output from certain speakers
depending on the speaker settings.
41
US
Enjoying Surround Sound

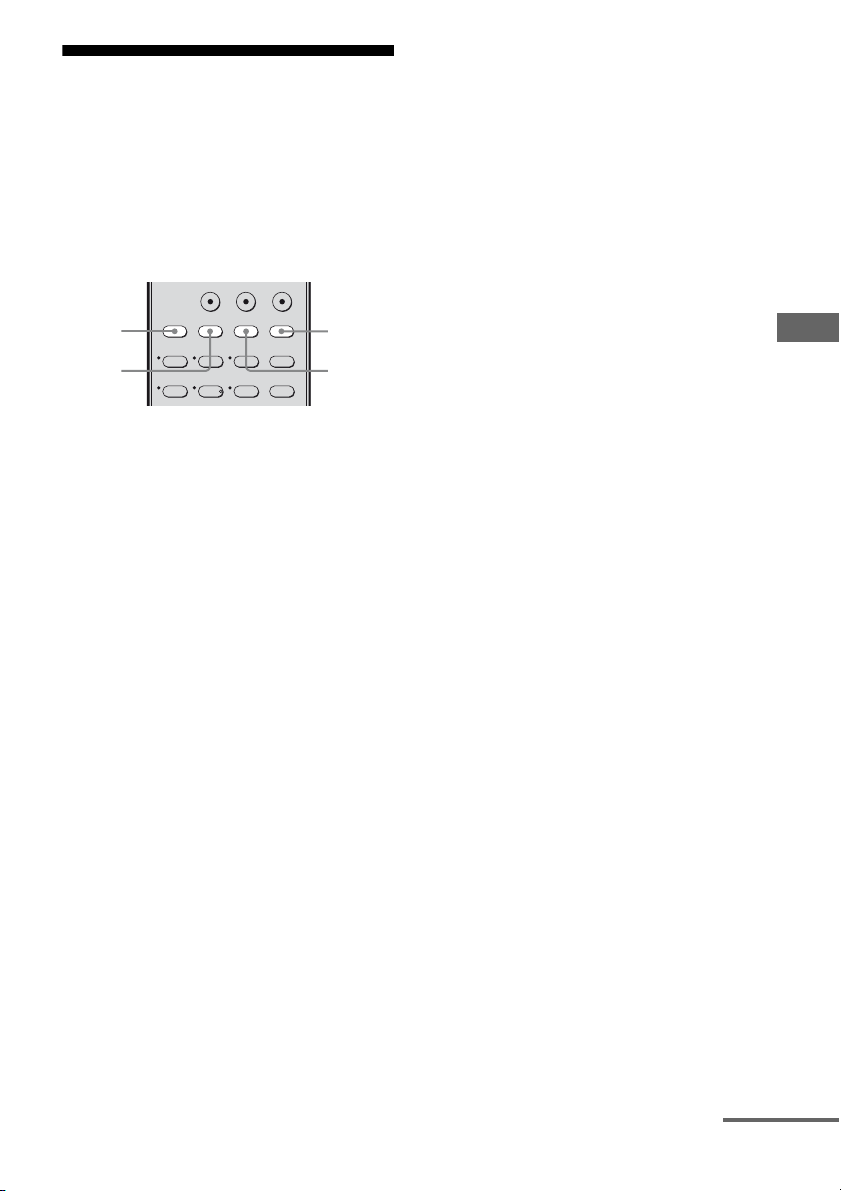

Selecting a pre-
programmed sound field
You can take advantage of surround sound
simply by selecting one of the receiver’s pre-
programmed sound fields. They bring the
exciting and powerful sound of movie theaters
and concert halls into your home.
Press MOVIE repeatedly to select a
sound field for movies or press
MUSIC repeatedly to select a
sound field for music.
For details, see “Types of sound field
available” (page 42).
123
46
2CH A.F.D. MOVIE MUSIC
D.SKIP
DVD/BD
MENU
SA-CD/CDTV TUNER
5
MUSIC
MOVIE
2CH
A.F.D.
continued
42
US
Types of sound field available
* You can only select this sound field if the headphones are connected to the receiver.
Sound
field for
Sound field
[Display]
Effect
Movie CINEMA STUDIO EX A
DCS [C.ST.EX A]
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Cary Grant Theater” cinema production studio.
This is a standard mode, great for watching almost any type of
movie.
CINEMA STUDIO EX B
DCS [C.ST.EX B]
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Kim Novak Theater” cinema production studio.
This mode is ideal for watching science-fiction or action movies
with lots of sound effects.
CINEMA STUDIO EX C
DCS [C.ST.EX C]
Reproduces the sound characteristics of the Sony Pictures
Entertainment scoring stage. This mode is ideal for watching
musicals or films where orchestra music is featured in the
soundtrack.
Music PORTABLE AUDIO
ENHANCER
[PORTABLE]
Reproduces a clear enhanced sound image from your portable audio
device. This mode is ideal for MP3 and other compressed music.
HALL [HALL] Reproduces the acoustics of a classical concert hall.
JAZZ CLUB [JAZZ] Reproduces the acoustics of a jazz club.
LIVE CONCERT
[CONCERT]
Reproduces the acoustics of a 300-seat live house.
Headphone* HEADPHONE 2CH
[HP 2CH]
This mode is selected automatically if you use headphones when 2
channel mode (page 43)/A.F.D. mode (page 40) is selected.
Standard 2 channel stereo sources completely bypass the sound
field processing and multi channel surround formats are
downmixed to 2 channels.
HEADPHONE DIRECT
[HP DIR]
Outputs the analog signals without processing by the tone, sound
field, etc.
43
US
Enjoying Surround Sound
Notes
• The effects provided by the virtual speakers may
cause increased noise in the playback signal.
• When listening with sound fields that employ the
virtual speakers, you will not be able to hear any
sound coming directly from the surround speakers.
• This function does not work when:
– ANALOG DIRECT is selected.
– signals with a sampling frequency of more than
48 kHz is input.
• When one of the sound fields for music is selected,
no sound is output from the subwoofer if all the
speakers are set to “LARGE” on the SYSTEM
menu. However, the sound will be output from the
subwoofer if
– the digital input signal contains LFE signals.
– the front and surround speakers are set to
“SMALL”.
– the sound field for movie is selected.
– the portable audio is selected.
Tips
• You can identity the encoding format of DVD
software, etc., by looking at the logo on the
package.
• Sound fields with DCS mark use DCS
technology. See “Glossary” (page 54).
To turn off the surround effect
for movie/music
Press 2CH to select “2CH ST.” or press A.F.D.
repeatedly to select “A.F.D. AUTO”.
Using only the front
speakers
(2CH STEREO)
In this mode, the receiver outputs the sound
from the front left/right speakers only. There is
no sound from the subwoofer.
Standard 2 channel stereo sources completely
bypass the sound field processing and multi
channel surround formats are downmixed to 2
channel.
Press 2CH.
Note
No sound is output from the subwoofer in the 2CH
STEREO mode. To listen to 2 channel stereo
sources using the front left/right speakers and a
subwoofer, select “A.F.D. AUTO” (page 40).
123
46
2CH A.F.D. MOVIE MUSIC
D.SKIP
DVD/BD
MENU
SA-CD/CDTV TUNER
5
2CH
44
US
Listening to the sound
without any adjustment
(ANALOG DIRECT)
You can switch the audio of the selected input
to two channel analog input. This function
enables you to enjoy high quality analog
sources.
When using this function, only the volume and
front speaker balance can be adjusted.
1 Turn INPUT SELECTOR on the
receiver to select the input you
want to listen to in analog
audio.
You can also use the input buttons on the
remote.
2 Press 2CH/A.DIRECT
repeatedly to select
“A. DIRECT”.
The analog audio is output.
To cancel ANALOG DIRECT
Press 2CH/A.DIRECT on the receiver again.
You can also press any sound field buttons.
Notes
• When headphones are connected, “HP DIR”
appears on the display.
• You cannot select ANALOG DIRECT when you
select BD, DVD and DMPORT as input.
Resetting sound fields to
the initial settings
Be sure to use the buttons on the receiver for
this operation.
1 Press ?/1 to turn off the power.
2 While holding down 2CH/
A.DIRECT, press ?/1.
“S.F. CLR.” appears on the display and
all sound fields are reset to their initial
setting.
?/1
PHONES
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
INPUT
SELECTOR
2CH/
A.DIRECT
Sound field
buttons
?/1
PHONES
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
?/1
2CH/A.DIRECT
45
US
Tuner Operations
Listening to FM/AM radio
You can listen to FM and AM broadcasts
through the built-in tuner. Before operation,
make sure you have connected the FM and
AM antennas (aerials) to the receiver (page
22).
Tip
The tuning scale for direct tuning differs depending
on the area code as shown in the following table. For
details on area codes, see page 4.
* The AM tuning scale can be changed (page 46,
61).
1 Press TUNER repeatedly to
select the FM or AM band.
2 Press TUNING + or TUNING –.
Press TUNING + to scan from low to
high; press TUNING – to scan from high
to low.
The receiver stops scanning whenever a
station is received.
Using the controls on the
receiver
1 Turn INPUT SELECTOR to select the FM
or AM band.
2 Press TUNING MODE repeatedly to select
“AUTO T.”.
3 Press TUNING + or TUNING –.
In case of poor FM stereo
reception
If the FM stereo reception is poor and “ST”
flashes on the display, select monaural audio
so that the sound will be less distorted.
Press FM MODE repeatedly until the
“MONO” indicator lights up on the display.
To return to stereo mode, press FM MODE
repeatedly until the “MONO” indicator on the
display does not light up.
Tuner Operations
Area code FM AM
U, CA 100 kHz 10 kHz*
123
46
78
0/10
ENTER
9
SYSTEM STANDBY
TV INPUT
SLEEP DMPORT
VIDEO BD DVD SAT
2CH A.F.D.
RETURN/EXIT
TV CH –
PRESET –
TV CH +
PRESET +
TUNING –
TV
TUNING +
FM MODE
REPLAY ADVANCE
MOVIE MUSIC
MEMORY AMP MENU
CLEAR
DISPLAY MUTING
MASTER VOL
TV VOL
D.SKIP
D.TUNING
DVD/BD
MENU
SA-CD/CDTV TUNER
?/1
-
.
H
mM
X
x
<
<
>
5
>10/
TV
?/1
AV
?/1
TOOLS/
OPTIONS
MENU/HOME
TUNING
+/–
TUNER
FM MODE
D.TUNING
ENTER
Numeric
buttons
Tuning into a station
automatically (Automatic
Tuning)
46
US
Enter the frequency of a station directly by
using the numeric buttons.
1 Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2 Press D.TUNING.
3 Press the numeric buttons to
enter the frequency.
Example 1: FM 102.50 MHz
Select 1 b 0 b 2 b 5 b 0
Example 2: AM 1,350 kHz
Select 1 b 3 b 5 b 0
If you have tuned in an AM station, adjust
the direction of the AM loop antenna
(aerial) for optimum reception.
4 Press ENTER.
You can also use MEMORY/ENTER on
the receiver.
If you cannot tune in a station
Make sure you have entered the right
frequency. If not, repeat steps 2 to 4. If you
still cannot tune in a station, the frequency is
not used in your area.
(Models of area code U, CA only)
You can change the AM tuning scale to either
9 kHz or 10 kHz using the buttons on the
receiver.
1 Press ?/1 to turn off the
receiver.
2 While holding down TUNING
MODE, press ?/1.
3 Change the current AM tuning
scale to 9 kHz (or 10 kHz).
To reset the scale to 10 kHz (or 9 kHz),
repeat the procedure above.
Note
All preset stations will be erased when you change
the tuning scale.
Tuning into a station directly
(Direct Tuning)
Changing the AM tuning scale
?/1
PHONES
INPUT SELECTOR
INPUT MODE TUNING MODE
MASTER VOLUME
DISPLAY DIMMER MUTING
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICTUNING
?/1
TUNING MODE
47
US
Tuner Operations
Presetting radio stations
You can preset up to 30 FM stations and 30
AM stations. Then you can easily tune in the
stations you often listen to.
1 Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2 Tune in the station that you
want to preset using Automatic
Tuning (page 45) or Direct
Tuning (page 46).
Switch the FM reception mode, if
necessary (page 45).
3 Press MEMORY.
You can also use MEMORY/ENTER on
the receiver.
“MEMORY” lights up for a few seconds.
Perform steps 4 and 5 before
“MEMORY” goes out.
4 Press the numeric buttons to
select a preset number.
You can also press PRESET + or
PRESET – repeatedly to select a preset
number.
If “MEMORY” goes out before you
select the preset number, start again from
step 3.
5 Press ENTER.
You can also use MEMORY/ENTER on
the receiver.
The station is stored as the selected preset
number.
If “MEMORY” goes out before you press
ENTER, start again from step 3.
6 Repeat steps 1 to 5 to preset
another station.
123
46
78
0/10
ENTER
9
VIDEO BD DVD SAT
2CH A.F.D.
RETURN/EXIT
TV CH –
PRESET –
TV CH +
PRESET +
TUNING – TUNING +
REPLAY ADVANCE
MOVIE MUSIC
MEMORY AMP MENU
CLEAR
DISPLAY MUTING
MASTER VOL
TV VOL
D.SKIP
D.TUNING
DVD/BD
MENU
SA-CD/CDTV TUNER
-
.
H
mM
<
<
>
5
>10/
TOOLS/
OPTIONS
MENU/HOME
PRESET
+/–
TUNER
AMP
MENU
Numeric
buttons
V/v/B/b,
MEMORY,
ENTER
48
US
1 Press TUNER repeatedly to
select the FM or AM band.
2 Press PRESET + or PRESET –
repeatedly to select the preset
station you want.
Each time you press the button, you can
select a preset station as follows:
You can also press the numeric buttons to
select the preset station you want. Then,
press ENTER to enter the selection.
Using the controls on the
receiver
1 Turn INPUT SELECTOR to select the FM
or AM band.
2 Press TUNING MODE repeatedly to select
“PRESET T.”.
3 Press TUNING + or TUNING – repeatedly
to select the preset station you want.
1 Press TUNER repeatedly to
select the FM or AM band.
You can also use INPUT SELECTOR on
the receiver.
2 Tune in the preset station you
want to create an index name
for (page 48).
3 Press AMP MENU.
“1-LEVEL” appears on the display.
4 Press V/v repeatedly to select
“4-TUNER”.
5 Press or b to enter the
menu.
6 Press V/v repeatedly to select
“NAME IN”.
7 Press or b to enter the
parameter.
The cursor flashes and you can select a
character.
8 Press V/v to select a character,
then press B/b to move the
cursor to the next position.
If you made a mistake
Press B/b until the character you want to
change flashes, then press V/v to select
the correct character.
Tips
• You can select the character type as follows
by pressing V/v.
Alphabet (upper case) t Numbers t
Symbols
• To enter a blank space, press b without
selecting a character.
9 Press .
The name you entered is registered.
Tuning to preset stations
01 02 03 04 05 27...
30 29 28
Naming preset stations
49
US
Other Operations
Switching between
digital and analog audio
(INPUT MODE)
When you connect components to both digital
and analog audio input jacks on the receiver,
you can fix the audio input mode to either of
them, or switch from one to the other,
depending on the type of material you intend
to watch.
1 Turn INPUT SELECTOR on the
receiver to select the input.
You can also use the input buttons on the
remote.
2 Press INPUT MODE repeatedly
on the receiver to select the
audio input mode.
The selected audio input mode appears on
the display.
•AUTO
Gives priority to digital audio signals
when there are both digital and analog
connections.
If there are no digital audio signals,
analog audio signals are selected.
•ANALOG
Specifies the analog audio signals input
to the AUDIO IN (L/R) jacks.
Notes
• Some audio input modes may not be set up
depending on the input.
• When the ANALOG DIRECT function is being
used, the audio input mode is set to “ANALOG”
automatically. You cannot select other modes.
Enjoying the DIGITAL
MEDIA PORT
(DMPORT)
The DIGITAL MEDIA PORT (DMPORT)
allows you to enjoy sound from a network
system such as a portable audio source or
computer.
By connecting a DIGITAL MEDIA PORT
adapter (not supplied), you can enjoy sound
from the connected component on the
receiver.
For details, refer to the operating instructions
supplied with the DIGITAL MEDIA PORT
adapter.
Notes
• Do not connect an adapter other than the DIGITAL
MEDIA PORT adapter.
• Before connecting cords, make sure to disconnect
the AC power cord (mains lead).
• Do not connect or disconnect the DIGITAL
MEDIA PORT adapter while the receiver is turned
on.
• Depending on the DIGITAL MEDIA PORT
adapter, video output may not be possible.
• The DIGITAL MEDIA PORT adapters are
available for purchase depending on the area.
Other Operations
50
US
You can listen to the sound from the
component connected through the DIGITAL
MEDIA PORT adapter to the DMPORT jack
on the receiver.
You can also view the images on the TV
screen by connecting the video output of the
DIGITAL MEDIA PORT adapter to the
receiver.
To view the images, proceed to “Watching a
connected component through DMPORT
connection” on page 51.
To detach the DIGITAL MEDIA
PORT adapter from DMPORT
jack
Press and hold both sides of the connector and
then pull out the connector.
Notes
• When connecting the DIGITAL MEDIA PORT
adapter, be sure the connector is inserted with the
arrow mark facing towards the arrow mark on the
DMPORT jack.
• Be sure to make DMPORT connections firmly,
insert the connector straight in.
• As the connector of the DIGITAL MEDIA PORT
adapter is fragile, be sure to handle with care when
placing or moving the receiver.
Connecting the DIGITAL MEDIA
PORT adapter
BD
IN
DIGITAL
COMPONENT VIDEO
DMPORT
SA-CD
/
CD
OPTICAL
COAXIAL
SAT
IN
SAT IN
IN
TV
IN
DVD IN MONITOR
OUT
SAT IN
DVD
IN
DC5V
0.7A MAX
DVD IN BD IN OUT
Y
P
B
/
C
B
P
R
/
C
R
AUDIO
OUT
MONITOR
SUBWOOFER
VIDEO
OUT
AM
R
L
HDMI
CONNECT
TO
DIGITAL INPUT
FOR
AUDIO
ANTENNA
SAT
AUDIO
IN
VIDEO
IN
VIDEO
AUDIO
OUT
VIDEO
OUT
AUDIO
IN
VIDEO
IN
DVD
VIDEO
IN
DIGITAL MEDIA
PORT adapter
TV
A
* The type of connector varies depending on the DIGITAL MEDIA PORT adapter.
For details, refer to the operating instructions supplied with the DIGITAL MEDIA PORT adapter.
A Video cord (not supplied)
To one of the
VIDEO IN jacks
A
DMPORT
DC5V
0.7A MAX
2
1
51
US
Other Operations
1 Press DMPORT.
You can also use the INPUT SELECTOR
on the receiver to select “DMPORT”.
2 Start playback of the connected
component.
The sound is played back on the receiver.
For details, refer to the operating
instructions supplied with the DIGITAL
MEDIA PORT adapter.
You need to assign composite video input to
DMPORT input so that you can view the
images on the TV screen.
1 Press AMP MENU.
“1-LEVEL” appears on the display.
2 Press V/v repeatedly to select
“6-VIDEO”.
3 Press or b to enter the
menu.
4 Press V/v repeatedly to select
“DMPORT V.”.
5 Press or b to enter the
parameter.
6 Press V/v repeatedly to select
the composite video input you
want to assign to DMPORT
input.
Initial setting: –NONE
The assignable composite video inputs
are VIDEO, DVD and SAT inputs.
For example, select “–SAT”.
When you press DMPORT, the images
from the component connected to the
SAT VIDEO IN jack through DIGITAL
MEDIA PORT adapter will appear on the
TV screen.
To return to the previous
display
Press B.
Notes
• Depending on the type of DIGITAL MEDIA
PORT adapter, you can operate the connected
component by using the remote. For details on the
remote button operation, see page 10.
• Be sure you have made the video connection from
DIGITAL MEDIA PORT adapter to the receiver
(page 50).
• Be sure you have connected the MONITOR OUT
of the receiver to the TV (page 50).
• Depending on the DIGITAL MEDIA PORT
adapter, video output may not be possible.
Tip
When listening to MP3 or other compressed music
using a portable audio source, you can enhance the
sound. Press MUSIC repeatedly to select
“PORTABLE” (page 41).
Listening to a connected
component through DMPORT
connection
Watching a connected
component through DMPORT
connection
52
US
Changing the display
You can check the sound field, etc., by
changing the information on the display.
Be sure to use the buttons on the receiver for
this operation.
Press DISPLAY repeatedly.
Each time you press DISPLAY, the display
changes cyclically as follows.
All inputs except the FM and AM
band
Index name of the input* t Selected input t
Sound field currently applied
FM and AM band
Preset station name* t Frequency t
Sound field currently applied
* Index name appears only when you have assigned
one to the input or preset station (page 26, 48).
Index name does not appear when only blank
spaces have been entered, or it is the same as the
input name.
Note
Character or marks may not be displayed for some
languages.
Using the Sleep Timer
You can set the receiver to turn off
automatically at a specified time.
Press SLEEP repeatedly while the
power is on.
Each time you press SLEEP, the display
changes cyclically as follows:
2-00-00 t 1-30-00 t 1-00-00 t 0-30-00
t OFF
When sleep timer is being used, “SLEEP”
lights up in the display.
Tip
To check the remaining time before the receiver
turns off, press SLEEP. The remaining time appears
on the display. If you press SLEEP again, the sleep
timer will be canceled.
53
US
Using the Remote
Recording using the
receiver
You can record from a video component using
the receiver. Refer to the operating
instructions supplied with your recording
component.
1 Press one of the input buttons
to select the playback
component.
You can also use INPUT SELECTOR on
the receiver.
2 Prepare the playback
component for playing.
For example, insert the video tape you
want to copy into the VCR.
3 Prepare the recording
component.
Insert a blank video tape, etc. into the
recording component (VIDEO) for
recording.
4 Start recording on the
recording component, then
start playback on the playback
component.
Notes
• Some sources contain copy guards to prevent
recording. In this case, you may not be able to
record from the source.
• You cannot record from DMPORT if you have
– connected the DMPORT video jack to the
VIDEO VIDEO IN jack on the receiver (page
50).
– assigned “DMPORT V.” to “–VIDEO” in the
VIDEO menu (page 31).
Changing button
assignments
You can change the factory settings of the
input buttons to suit the components in your
system. For example, if you connect a DVD
recorder to the VIDEO jacks on the receiver,
you can set the VIDEO button on this remote
to control the DVD recorder.
Note
You cannot change the settings of DMPORT and
TUNER buttons.
1 Hold down the input button of
which you want to change the
assignment.
Example: Hold down VIDEO.
2 Referring to the table below,
press the corresponding
button for the category you
want.
Example: Press 4.
Now you can use the VIDEO button to
control the DVD recorder.
Recording onto a recording
media
Using the Remote
continued
54
US
Categories and the
corresponding buttons
a)
Sony VCRs are operated with a VTR 2 or VTR 3
setting which corresponds to 8 mm and VHS
respectively.
b)
Sony DVD recorders are operated with a DVD1 or
DVD3 setting. For details, refer to the operating
instructions supplied with the DVD recorders.
c)
For details on the BD1 or BD3 setting, refer to the
operating instructions supplied with the Blu-ray
disc player or Blu-ray disc recorder.
To clear all remote button
assignments
While holding down MASTER VOL –, press
?/1 and DMPORT.
The remote is reset to its factory settings.
Glossary
x Cinema Studio EX
A surround sound mode that can be regarded
as the compilation of Digital Cinema Sound
technology, delivers the sound of a dubbing
theater using three technologies: “Virtual
Multi Dimensions”, “Screen Depth
Matching”, and “Cinema Studio
Reverberation”.
“Virtual Multi Dimensions”, the virtual
speaker technology, creates a virtual multi-
surround environment with actual speakers up
to 7.1 channels, and brings the surround sound
experience of a theater with the latest facilities
into your home.
“Screen Depth Matching” reproduces treble
attenuation, fullness, and depth of sound
usually created in a theater using sound
emission from behind the screen. This is then
added to the front and center channels.
“Cinema Studio Reverberation” reproduces
the sound characteristics of state-of-the-art
dubbing theaters and recording studios,
including Sony Pictures Entertainment’s
dubbing studios. There are three modes, A/B/
C, available according to the studio type.
x Component video
A format for transmitting video signal
information consisting of three separate
signals: luminance Y, chrominance Pb, and
chrominance Pr. High quality pictures, such as
DVD video or HDTV pictures, are transmitted
more faithfully. The three jacks are color -
coded green, blue and red.
x Composite video
A standard format for transmitting video
signal information. The luminance signal Y
and chrominance signal C are combined and
transmitted together.
Categories Press
VCR (command mode VTR 3)
a)
1
VCR (command mode VTR 2)
a)
2
DVD player/DVD recorder
(command mode DVD1)
b)
3
DVD recorder
(command mode DVD3)
b)
4
CD player 5
Euro Digital Satellite Receiver 6
DVR (Digital CATV terminal) 7
DSS (Digital Satellite Receiver) 8
Blu-ray disc player
(command mode BD1)
c)
9
Blu-ray disc recorder
(command mode BD3)
c)
0/10
TV -/--
Additional Information
55
US
Additional Information
x Digital Cinema Sound (DCS)
A unique sound reproduction technology for
home theater developed by Sony, in
cooperation with Sony Pictures Entertainment,
for enjoying the exciting and powerful sound
of movie theaters at home. With this “Digital
Cinema Sound” developed by integrating a
DSP (Digital Signal Processor) and measured
data, the ideal sound field intended by
filmmakers can be experienced at home.
x Dolby Digital
Digital audio encoding/decoding technology
developed by Dolby Laboratories, Inc. It
consists of front (left/right), center, surround
(left/right) and subwoofer channels. It is a
designated audio standard for DVD-video and
also known as 5.1 channels surround. Since
surround information is recorded and
reproduced in stereo, more realistic sound with
fuller presence is delivered than with Dolby
surround.
x Dolby Pro Logic II
This technology converts 2 channels stereo
recorded audio into 5.1 channels for playback.
There is a MOVIE mode for movies and
MUSIC mode for stereo sources such as
music. Old movies encoded in the traditional
stereo format can be enhanced with 5.1
channels surround sound.
x Dolby Surround (Dolby Pro
Logic)
Audio processing technology developed by
Dolby Laboratories, Inc. Center and mono
surround information is matrixed into two
stereo channels. When reproduced, audio is
decoded and output in 4 channels surround
sound. This is the most common audio
processing method for DVD-video.
x DTS Digital Surround
Digital audio encoding/decoding technology
for theaters developed by DTS, Inc. It
compresses audio less than Dolby Digital,
delivering a higher quality sound
reproduction.
x HDMI (High-Definition
Multimedia Interface)
HDMI (High-Definition Multimedia
Interface) is an interface that supports both
video and audio on a single digital connection,
allowing you to enjoy high quality digital
picture and sound. The HDMI specification
supports HDCP (High-bandwidth Digital
Contents Protection), a copy protection
technology that incorporates coding
technology for digital video signals.
x L.F.E. (Low Frequency Effects)
Sound effects of low frequencies which are
output from a subwoofer in Dolby Digital or
DTS, etc. By adding a deep bass with a
frequency between 20 to 120 Hz, audio
becomes more powerful.
x Sampling frequency
To convert analog audio to digital, analog data
should be quantified. This process is called
sampling, and the number of times per second
the analog data is quantified is called the
sampling frequency. A standard music CD
stores data quantified at 44,100 times per
second, which is expressed as a sampling
frequency of 44.1 kHz. Generally speaking, a
higher sampling frequency means better sound
quality.
56
US
Precautions
On safety
Should any solid object or liquid fall into the
cabinet, unplug the receiver and have it
checked by qualified personnel before
operating it any further.
On power sources
• Before operating the receiver, check that the
operating voltage is identical with your local
power supply.
The operating voltage is indicated on the
nameplate on the back of the receiver.
• The unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the unit
itself has been turned off.
• If you are not going to use the receiver for a
long time, be sure to disconnect the receiver
from the wall outlet. To disconnect the AC
power cord (mains lead), grasp the plug
itself; never pull the cord.
• One blade of the plug is wider than the other
for the purpose of safety and will fit into the
wall outlet only one way. If you are unable to
insert the plug fully into the outlet, contact
your dealer.
• The AC power cord (mains lead) must be
changed only at a qualified service shop.
On heat buildup
Although the receiver heats up during
operation, this is not a malfunction. If you
continuously use this receiver at a large
volume, the cabinet temperature of the top,
side and bottom rises considerably. To avoid
burning yourself, do not touch the cabinet.
On placement
• Place the receiver in a location with adequate
ventilation to prevent heat buildup and
prolong the life of the receiver.
• Do not place the receiver near heat sources,
or in a place subject to direct sunlight,
excessive dust, or mechanical shock.
• Do not place anything on top of the cabinet
that might block the ventilation holes and
cause malfunctions.
• Do not place the receiver near equipment
such as a television, VCR, or tape deck. If
the receiver is being used in combination
with a television, VCR, or tape deck, and is
placed too close to that equipment, noise
may result, and picture quality may suffer.
This is especially likely when using an
indoor antenna (aerial). Therefore, we
recommend using an outdoor antenna
(aerial).
• Use caution when placing the receiver on
surfaces that have been specially treated
(with wax, oil, polish, etc.) as staining or
discoloration of the surface may result.
On operation
Before connecting other components, be sure
to turn off and unplug the receiver.
On cleaning
Clean the cabinet, panel, and controls with a
soft cloth slightly moistened with a mild
detergent solution. Do not use any type of
abrasive pad, scouring powder, or solvent,
such as alcohol or benzine.
If you have any questions or problems
concerning your receiver, please consult your
nearest Sony dealer.
57
US
Additional Information
Troubleshooting
If you experience any of the following
difficulties while using the receiver, use this
troubleshooting guide to help you remedy the
problem. Should any problem persist, consult
your nearest Sony dealer.
There is no sound, no matter which
component is selected, or only a very
low-level sound is heard.
• Check that the speakers and components
are connected correctly and securely.
• Check that all speaker cords are connected
correctly.
• Check that both the receiver and all
components are turned on.
• Check that MASTER VOLUME is not set
to “VOL MIN”.
• Check that headphones are not connected.
• Press MUTING to cancel the muting
function.
• Check that you have selected the correct
component with the input buttons.
• The protective device on the receiver has
been activated. Turn off the receiver,
eliminate the short-circuit problem, and
turn on the power again.
There is no sound from a specific
component.
• Check that the component is connected
correctly to the audio input jacks for that
component.
• Check that the cord(s) used for the
connection is (are) fully inserted into the
jacks on both the receiver and the
component.
There is no sound from one of the front
speakers.
• Connect a pair of headphones to the
PHONES jack to verify that sound is
output from the headphones. If only one
channel is output from the headphones, the
component may not be connected to the
receiver correctly. Check that all the cords
are fully inserted into the jacks on both the
receiver and the component. If both
channels are output from the headphones,
the front speaker may not be connected to
the receiver correctly. Check the
connection of the front speaker which is
not outputting any sound.
• Make sure you have connected to both the
L and R jacks of an analog component, and
not only to either the L or R jack. Use an
audio cord (not supplied).
There is no sound from digital sources
(from OPTICAL input jack) when
selecting SAT input.
• Check that the INPUT MODE is not set to
“ANALOG” (page 49).
• Check that ANALOG DIRECT is not set
to on.
The left and right sounds are
unbalanced or reversed.
• Check that the speakers and components
are connected correctly and securely.
• Adjust the balance parameters using the
LEVEL menu.
“NO INPUT” appears on the display.
• Check that your component is connected
to the COAXIAL or OPTICAL jack. If no
signal is input through the COAXIAL or
OPTICAL jack, “NO INPUT” appears on
the display and this is not a malfunction.
Audio
continued
58
US
There is severe hum or noise.
• Check that the speakers and components
are connected securely.
• Check that the connecting cords are away
from a transformer or motor, and at least
10 feet away from a TV set or fluorescent
light.
• Move your audio components away from
the TV.
• The plugs and jacks are dirty. Wipe them
with a cloth slightly moistened with
alcohol.
There is no sound, or only a very low-
level sound is heard from the center/
surround speakers.
• Select a CINEMA STUDIO EX mode
(page 42).
• Adjust the speaker level (page 24).
• Make sure the center/surround speakers
are set to either “SMALL” or “LARGE”
(page 31).
There is no sound from the subwoofer.
• Check that the subwoofer is connected
correctly and securely.
• Make sure you have turned on your
subwoofer.
• Make sure the subwoofer is set to “YES”
(page 31).
• There is no sound from the subwoofer
depending on the sound field.
There is no sound from the speakers of
the receiver when you connect the
receiver and the playback component
via an HDMI connection.
• Make sure that you have connected the
digital audio jacks on the playback
component to the receiver. Then, turn off
TV’s volume or activate the TV’s muting
function.
The surround effect cannot be
obtained.
• Make sure the sound field function is on
(press MOVIE, or MUSIC).
• Sound fields do not function for signals
with a sampling frequency of more than
48 kHz.
Dolby Digital or DTS multi channel
sound is not reproduced.
• Check that the DVD, etc. you are playing
is recorded in Dolby Digital or DTS
format.
• When connecting the DVD player, etc., to
the digital input jacks of this receiver,
check the audio setting (the settings for the
audio output) of the connected component.
Recording cannot be carried out.
• Check that the components are connected
correctly (page 17).
• Select the source component using the
input buttons (page 25).
There is no sound from the component
connected to the DIGITAL MEDIA PORT
adapter.
• Adjust the volume of this receiver.
• The DIGITAL MEDIA PORT adapter
and/or component is not connected
correctly. Turn off the receiver, then
reconnect the DIGITAL MEDIA PORT
adapter and/or component.
• Check the DIGITAL MEDIA PORT
adapter and/or component device to make
sure it supports this receiver.
59
US
Additional Information
There is no picture or an unclear
picture appears on the TV screen.
• Select the appropriate input using the input
buttons.
• Set your TV to the appropriate input mode.
• Move your audio components away from
the TV.
• Depending on the DIGITAL MEDIA
PORT adapter, video output may not be
possible.
The source image input to the HDMI
jack on the receiver is not output from
the TV.
• Check the HDMI connection.
• Depending on the playback component,
you may need to set up the component.
Refer to the operating instructions
supplied with each component.
Recording cannot be carried out.
• Check that the components are connected
correctly (page 17).
• Select the source component using the
input buttons.
• When you want to record from DMPORT,
check that
– the DMPORT video jack is not
connected to the VIDEO VIDEO IN
jack on the receiver (page 50).
– “DMPORT V.” is not assigned to
“–VIDEO” in the VIDEO menu
(page 31).
The FM reception is poor.
• Use a 75-ohm coaxial cable (not supplied)
to connect the receiver to an outdoor FM
antenna (aerial) as shown below. If you
connect the receiver to an outdoor antenna
(aerial), ground it against lightning. To
prevent a gas explosion, do not connect the
ground wire to a gas pipe.
Radio stations cannot be tuned in.
• Check that the antennas (aerials) are
connected securely. Adjust the antennas
(aerials) and connect an external antenna
(aerial), if necessary.
• The signal strength of the stations is too
weak (when tuning in with automatic
tuning). Use direct tuning.
• Make sure you set the tuning interval
correctly (when tuning in AM stations
with direct tuning).
• No stations have been preset or the preset
stations have been cleared (when tuning by
scanning preset stations). Preset the
stations (page 47).
• Press DISPLAY repeatedly on the receiver
so that the frequency appears on the
display.
Video Tuner
ANTENNA
AM
Receiver
To ground
Ground wire
(not supplied)
Outdoor FM antenna (aerial)
60
US
The remote does not function.
• Point the remote at the remote sensor on
the receiver.
• Remove any obstacles in the path between
the remote and the receiver.
• Replace all the batteries in the remote with
new ones, if they are weak.
• Make sure you select the correct input on
the remote.
If there is a malfunction, the display shows a
message. You can check the condition of the
system by the message. Refer to the following
table to solve the problem. If any problem
persists, consult your nearest Sony dealer.
PROTECT
Irregular current is output to the speakers, or
the upper panel of the receiver is covered
with something. The receiver will
automatically turn off after a few seconds.
Check the speaker connection and turn on
the power again.
Clearing the receiver’s memory may remedy
the problem (page 23). However, note that all
memorized settings will be reset to their
factory settings and you will have to readjust
all settings on the receiver.
Consult your nearest Sony dealer. Note that if
service personnel changes some parts during
repair, these parts may be retained.
Remote commander
Error messages
If you are unable to remedy the
problem using the
troubleshooting guide
If the problem persist
Reference sections for clearing
the receiver’s memory
To clear See
All memorized settings page 23
Customized sound fields page 44
61
US
Additional Information
Specifications
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
(Models of area code U only)
With 8 ohm loads, both channels driven, from
20 – 20,000 Hz; rated 90 watts per channel
minimum RMS power, with no more than
0.09% total harmonic distortion from 250
milliwatts to rated output.
Amplifier section
Models of area code U, CA
1)
Minimum RMS Output Power (8 ohms, 20 Hz –
20 kHz, THD 0.09%)
90 W + 90 W
Stereo Mode Output Power (8 ohms, 1 kHz,
THD 1%)
100 W + 100 W
Surround Mode Output Power
2)
(8 ohms, 1 kHz,
THD 10%)
130 W/ch
1)
Measured under the following conditions:
2)
Reference power output for front, center and
surround speakers. Depending on the sound field
settings and the source, there may be no sound
output.
Frequency response
Analog 10 Hz – 70 kHz
+0.5/–2 dB (with sound
field and tone bypassed)
Inputs
Analog Sensitivity: 500 mV/
50 kohms
S/N
3)
: 96 dB
(A, 500 mV
4)
)
Digital (Coaxial) Impedance: 75 ohms
S/N: 100 dB
(A, 20 kHz LPF)
Digital (Optical) S/N: 100 dB
(A, 20 kHz LPF)
Outputs (Analog)
AUDIO OUT Voltage: 500 mV/
10 kohms
SUBWOOFER Voltage: 2 V/1 kohm
Tone
Gain levels ±6 dB, 1 dB step
3)
INPUT SHORT (with sound field and tone
bypassed).
4)
Weighted network, input level.
FM tuner section
Tuning range 87.5 – 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
Antenna Loop antenna
Intermediate frequency
450 kHz
Video section
Inputs/Outputs
Video: 1 Vp-p/75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p/75 ohms
P
B/CB: 0.7 Vp-p/75 ohms
P
R/CR: 0.7 Vp-p/75 ohms
80 MHz HD Pass Through
Area code Power requirements
U, CA 120 V AC, 60 Hz
Area code Tuning scale
10 kHz step 9 kHz step
U, CA 530 kHz –
1,710 kHz
531 kHz –
1,710 kHz
continued
62
US
HDMI Video
5)
Input/Output
640 × 480p@60 Hz
720 × 480[email protected]/60 Hz
1280 × 720p@59.94/60 Hz
1920 × 1080i@59.94/60 Hz
1920 × 1080p@59.94/60 Hz
720 × 576p@50 Hz
1280 × 720p@50 Hz
1920 × 1080i@50 Hz
1920 × 1080p@50 Hz
1920 × 1080p@24 Hz
5)
The TV output resolution will depends on the
capability of TV and component.
General
Power requirements
Power output (DIGITAL MEDIA PORT)
DC OUT: 5 V, 0.7 A MAX
Power consumption
Dimensions (w/h/d) (Approx.)
430 × 157.5 × 322 mm
(17 × 6 1/4 × 12 3/4 inches)
including projecting parts
and controls
Mass (Approx.) 7.4 kg (16 lb 6 oz)
Supplied accessories
Operating Instruction (this manual)
Quick Setup Guide (1)
FM wire antenna (aerial) (1)
AM loop antenna (aerial) (1)
Remote commander (RM-AAU020) (1)
R6 (size-AA) batteries (2)
Design and specifications are subject to
change without notice.
Area code Power requirements
U, CA 120 V AC, 60 Hz
Area code Power consumption
U, CA 230 W
For details on the area code of the
component you are using, see page 4.
• Standby power consumption: 0.3 W
• Halogenated flame retardants are not used
in the certain printed wiring boards.
63
US
Additional Information
Index
Numerics
2 channel 43
2CH STEREO 43
5.1 channel 13
A
AUTO FORMAT DIRECT
(A.F.D.) 39
B
Blu-ray disc player
connecting 18
playback 28
C
CD player
connecting 16
playback 27
D
Digital Cinema Sound
(DCS) 42
DIGITAL MEDIA PORT
connecting 50
input 25
video assign 51
Dolby Digital 55
DTS 55
DVD player
connecting 20
playback 28
DVD recorder
connecting 22
E
Error messages 60
H
HDMI
connecting 18
I
Initial setup 23
INPUT MODE 49
M
Menu
AUDIO 34
LEVEL 32
SUR 33
SYSTEM 36
TONE 33
TUNER 34
VIDEO 35
Muting 26
N
Naming
inputs 26
preset stations 48
P
PROTECT 60
R
Recording onto a recording
media 53
Remote commander 10
S
Satellite tuner
connecting 21
Selecting
component 25
sound field 41
Set-top box
connecting 21
Sleep Timer 52
Sound fields
resetting 44
selecting 41
Speakers
connecting 14
Super Audio CD player
connecting 16
playback 27
T
TEST TONE 24
Tuner
connecting 22
Tuning
automatically 45
directly 46
to preset stations 48
TV
connecting 15
V
VCR
connecting 22
Sony Corporation Printed in Malaysia
