Please read this manual carefully before operating
your set and retain it for future reference.
OWNER’S MANUAL
Twin HD Recorder/
Blu-ray Combo
MODELS
HR599D/HR598D
P/NO : MFL62320946
3
Safety Information
Safety Information
1
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK) NO USER-
SERVICEABLE PARTS INSIDE REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sucient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing) instructions
in the literature accompanying the product.
Cautions and Warnings
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read
this owner’s manual carefully and retain it for future
reference. Shall the unit require maintenance,
contact an authorized service centre.
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try
to open the enclosure. Visible laser radiation when
open. DO NOT STARE INTO BEAM.
1
Safety Information
4 Safety Information
Safety Information
I
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a
dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an exact
replacement part by an authorized service centre.
Protect the power cord from physical or mechanical
abuse, such as being twisted, kinked, pinched, closed
in a door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where the cord
exits the appliance. To disconnect power from the
mains, pull out the mains cord plug. When installing
the product, ensure that the plug is easily accessible.
This device is equipped with a portable battery or
accumulator.
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.
Notes on Copyrights
Recording equipment should be used only for
lawful copying and you are advised to check
carefully what is lawful copying in the area
in which you are making a copy. Copying of
copyright material such as lms or music is
unlawful unless permitted by a legal exception or
consented to by the rights owner.
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation
and other rights owners. Use of this copyright
protection technology must be authorized by
Macrovision Corporation, and is intended for
home and other limited viewing uses only, unless
otherwise authorized by Macrovision corporation.
Reverse engineering or disassembly is prohibited.
CONSUMERS SHOULD NOTE THAT NOT ALL
HIGH DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY
CAUSE ARTIFACTS TO BE DISPLAYED IN THE
PICTURE. IN CASE OF 625 PROGRESSIVE SCAN
PICTURE PROBLEMS, IT IS RECOMMENDED
THAT THE USER SWITCH THE CONNECTION
TO THE ‘STANDARD DEFINITION’ OUTPUT. IF
THERE ARE QUESTIONS REGARDING OUR TV SET
COMPATIBILITY WITH THIS MODEL 625p UNIT
PLEASE CONTACT OUR CUSTOMER SERVICE
CENTRE.
Because AACS (Advanced Access Content System)
is approved as content protection system for BD
format, similar to use of CSS (Content Scramble
System) for DVD format, certain restrictions are
imposed on playback, analogue signal output,
etc., of AACS protected contents. The operation of
this product and restrictions on this product may
vary depending on your time of purchase as those
restrictions may be adopted and/or changed by
AACS after the production of this product.
Furthermore, BD-ROM Mark and BD+ are
additionally used as content protection systems
for BD format, which imposes certain restrictions
including playback restrictions for BD-ROM
Mark and/or BD+ protected contents. To obtain
additional information on AACS, BD-ROM Mark,
BD+, or this product, please contact an authorized
Customer Service Centre.
•
•
•
•
•
•
5Safety Information
Safety Information
1
Many BD-ROM/DVD discs are encoded with
copy protection. Because of this, you should only
connect your player directly to your TV, not to a
VCR. Connecting to a VCR results in a distorted
picture from copy-protected discs.
This product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Macrovision, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
Under the U.S. Copyright laws and Copyright
laws of other countries, unauthorized recording,
use, display, distribution, or revision of television
programs, videotapes, BD-ROM discs, DVDs, CDs
and other materials may subject you to civil and/
or criminal liability.
•
•
•
6 Contents
1
2
3
4
5
6
7
Contents
1
Safety Information
3 Cautions and Warnings

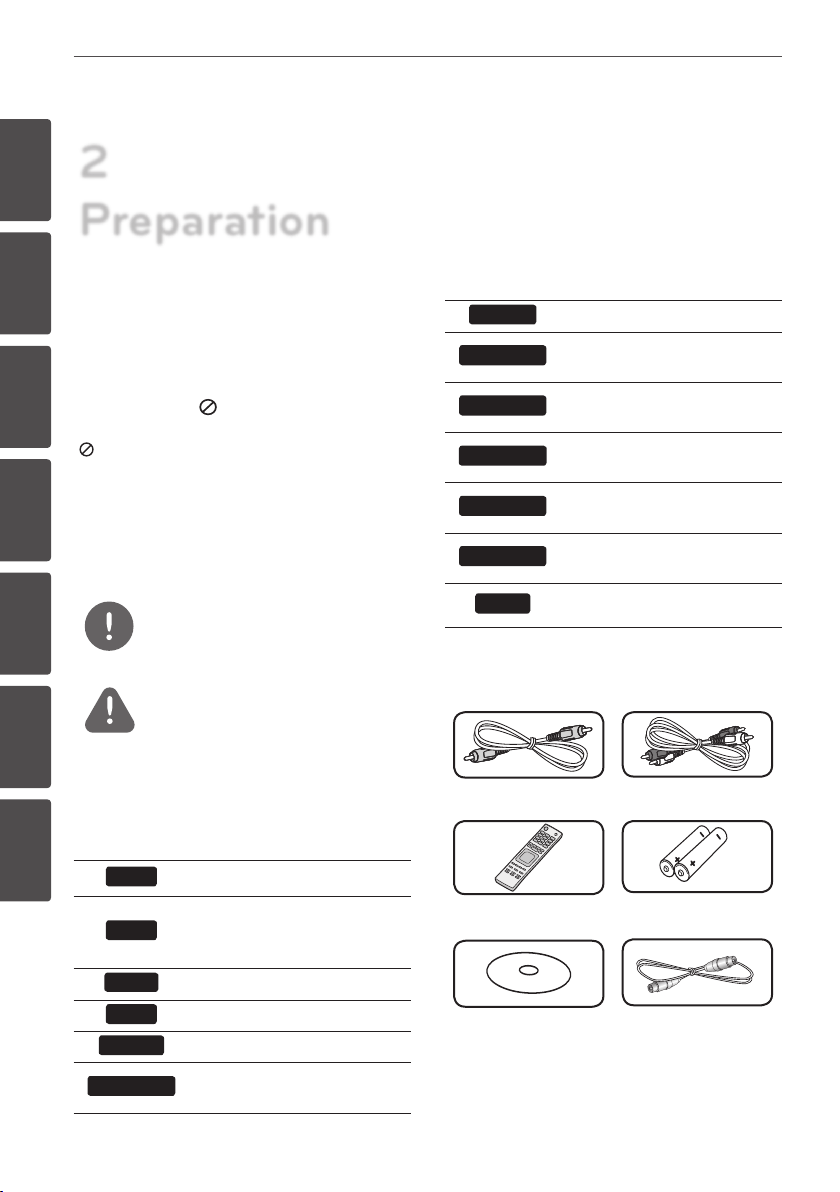

2
Preparation
8 Introduction
8 About the “
” Symbol
Display
8 Symbols Used in this
Manual
8 Supplied Accesorrie
s
9 Playable Disc
s
10 File compatibilit
y
11 Regional Cod
e
11 AVCHD (Advanced Video
Codec High Definition)
11 Certain System
Requirements
11 Compatibility Note
s

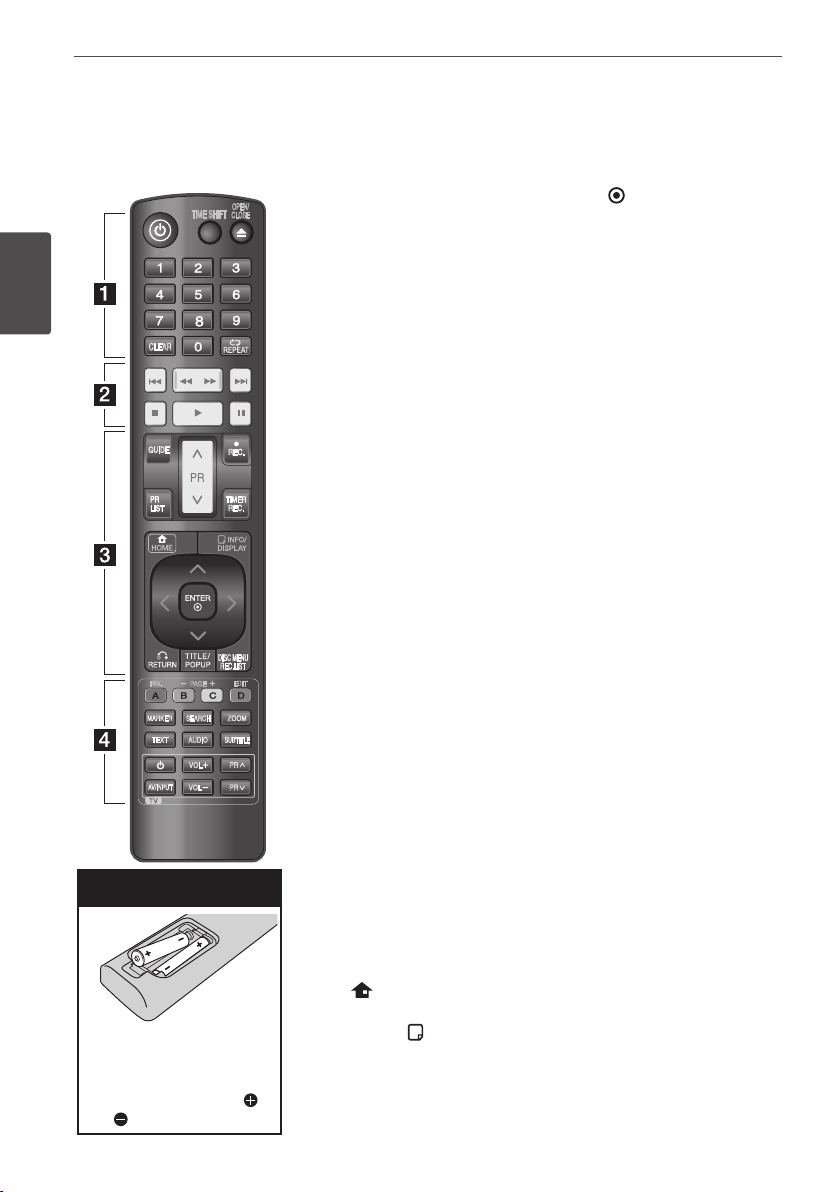

12 Remote contro
l

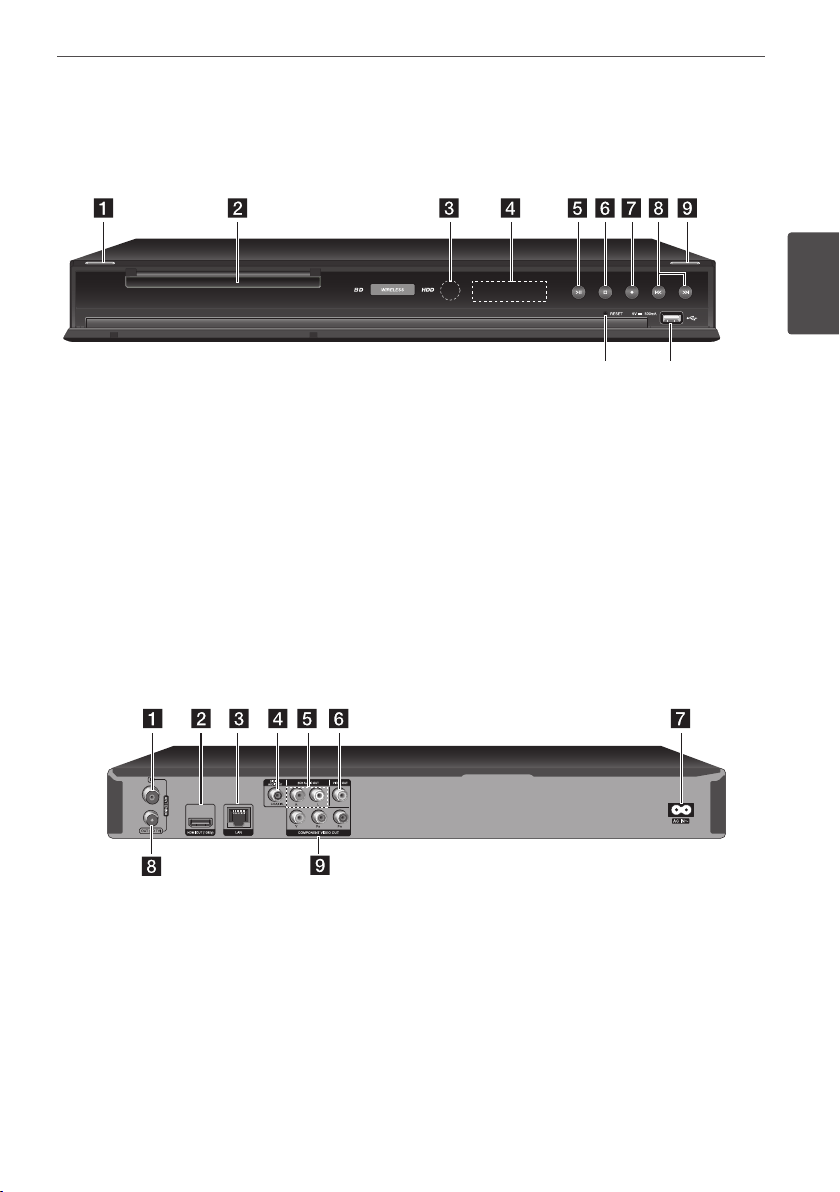

13 Main Uni
t
3
Installation
14 Connections to Your TV

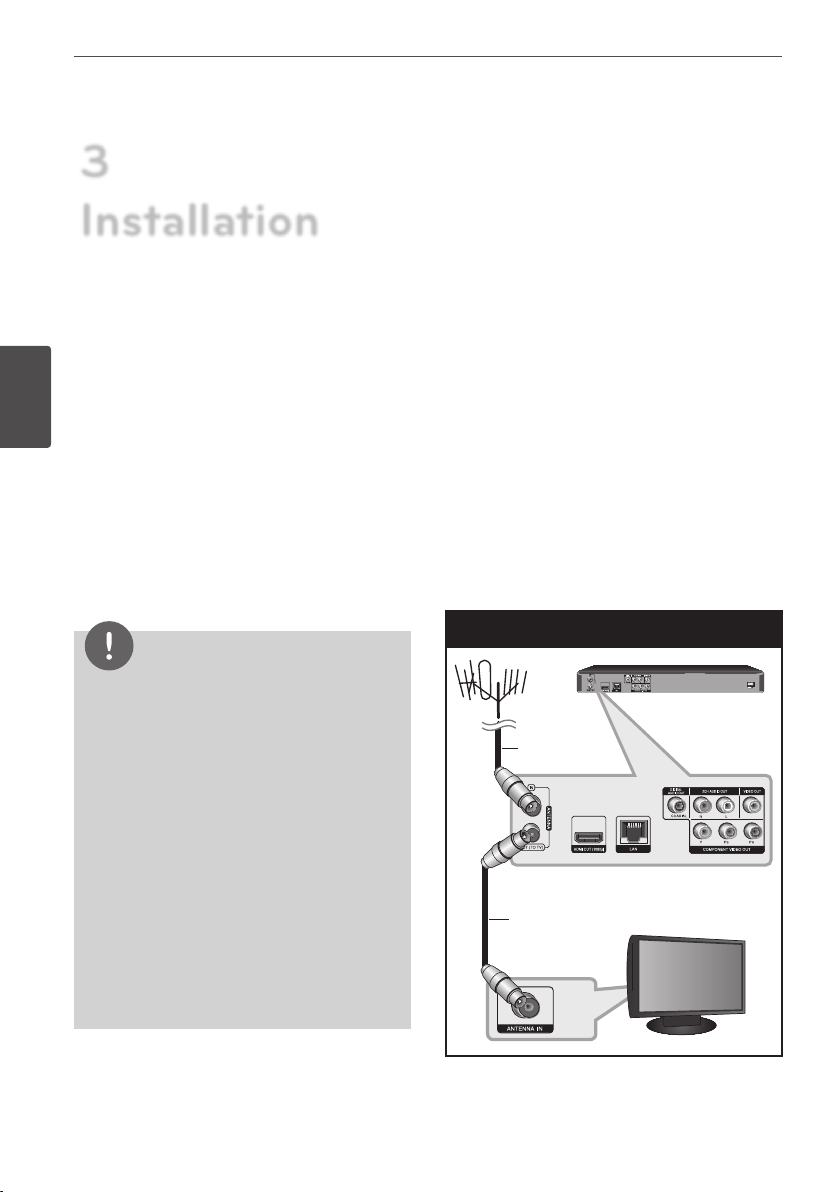

14 Antenna connection to your
TV and this unit

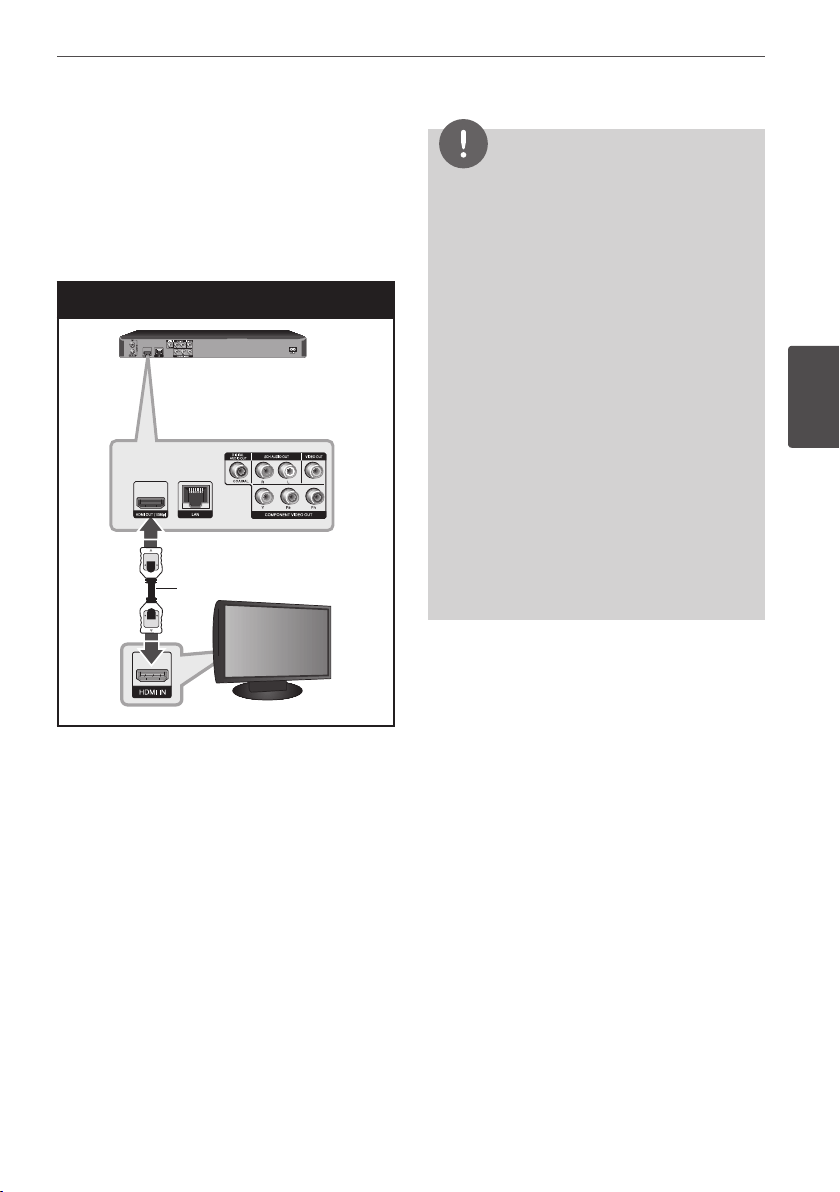

15 HDMI Connectio
n

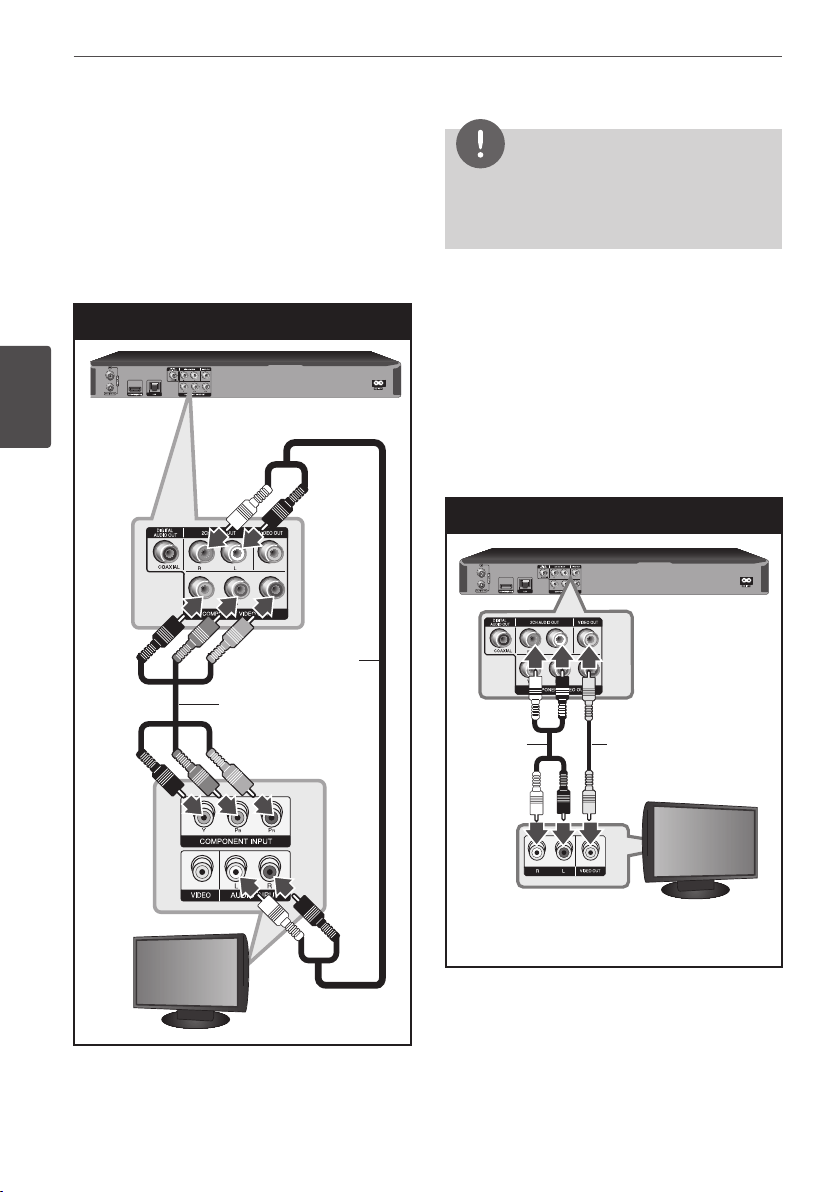

16 Component Video
Connection
16 Composite connectio
n

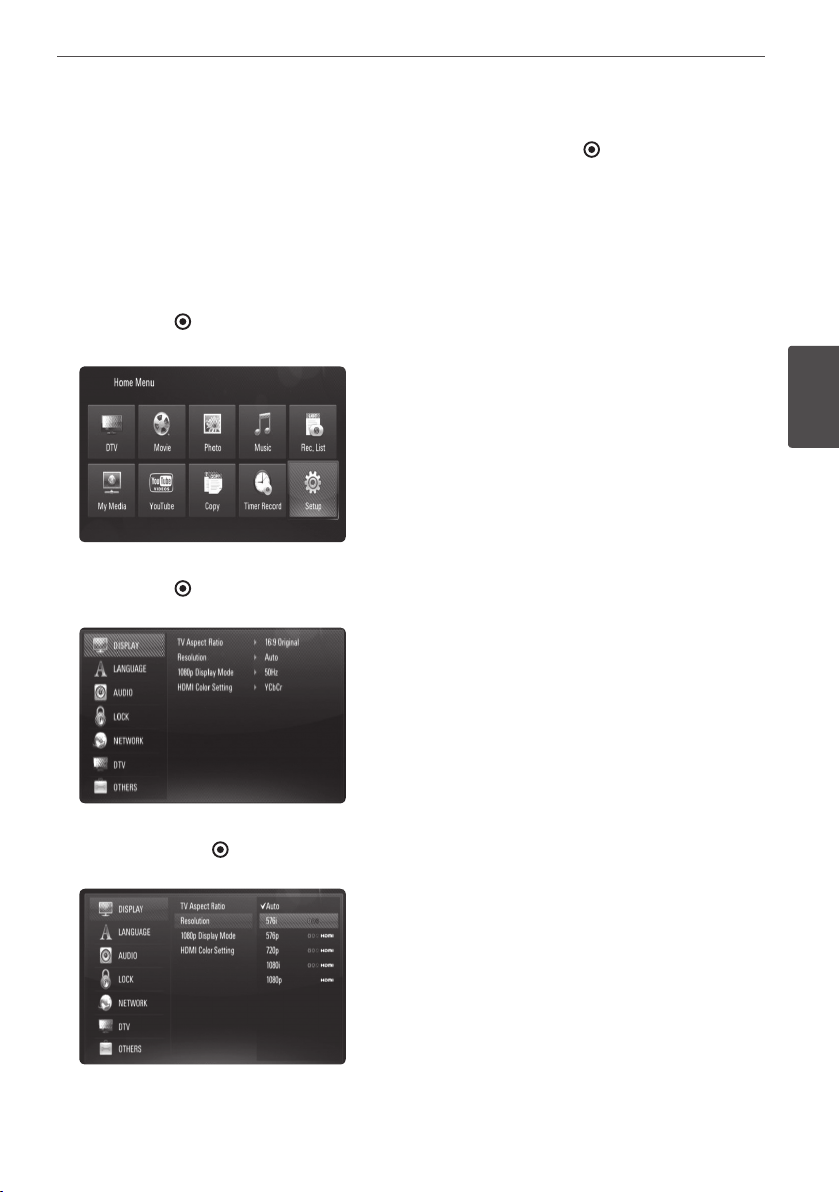

17 Resolution Settin
g
18 Connecting to an Amplifie
r

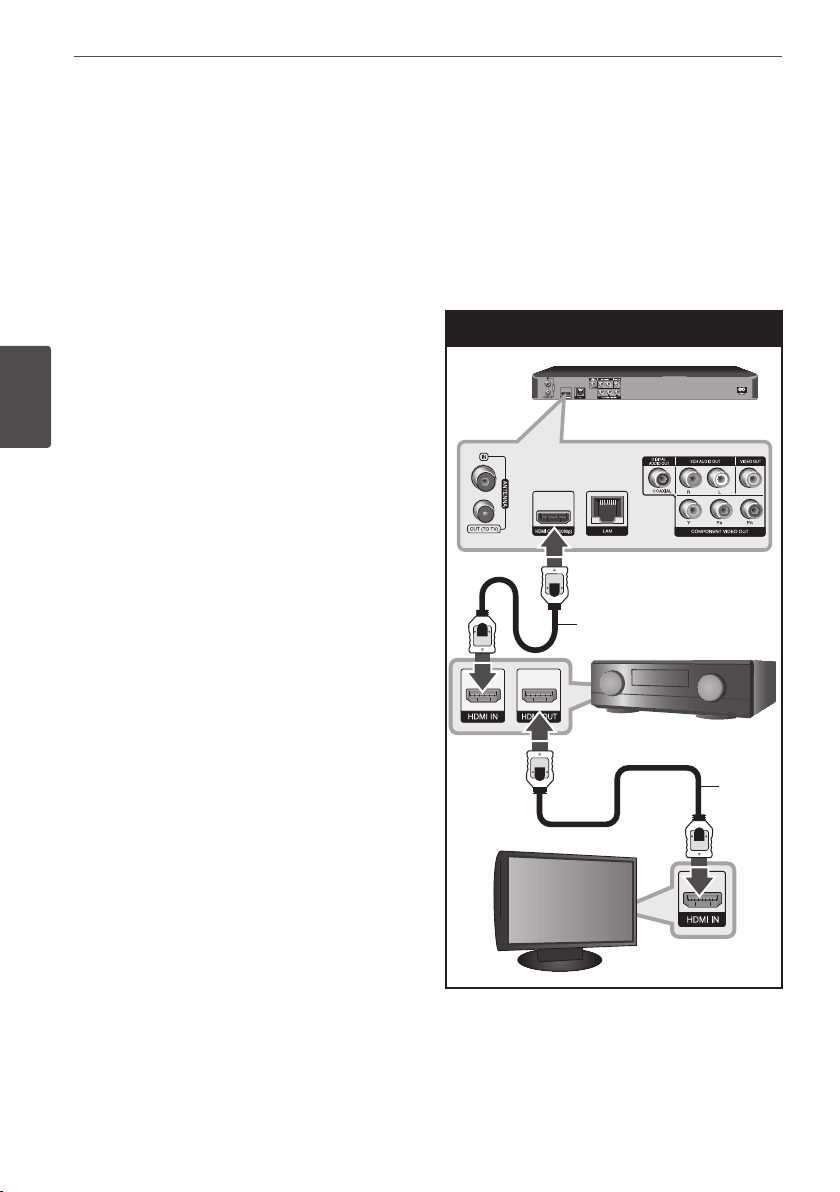

18 Connecting to an Amplifier
via HDMI Output

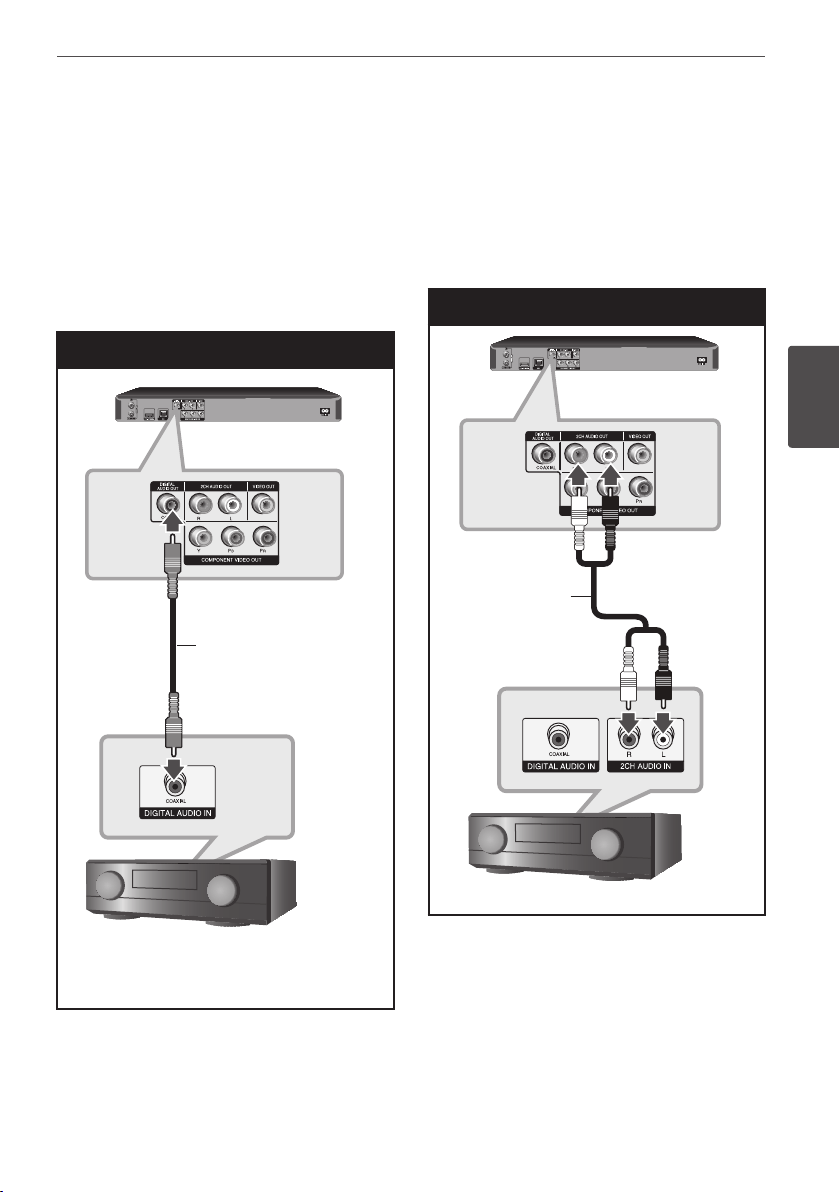

19 Connecting to an Amplifier
via Digital Audio Output
(Coaxial)
19 Connecting to an Amplifier
via 2 Channel Audio Output
20 Connecting to your Home Networ
k

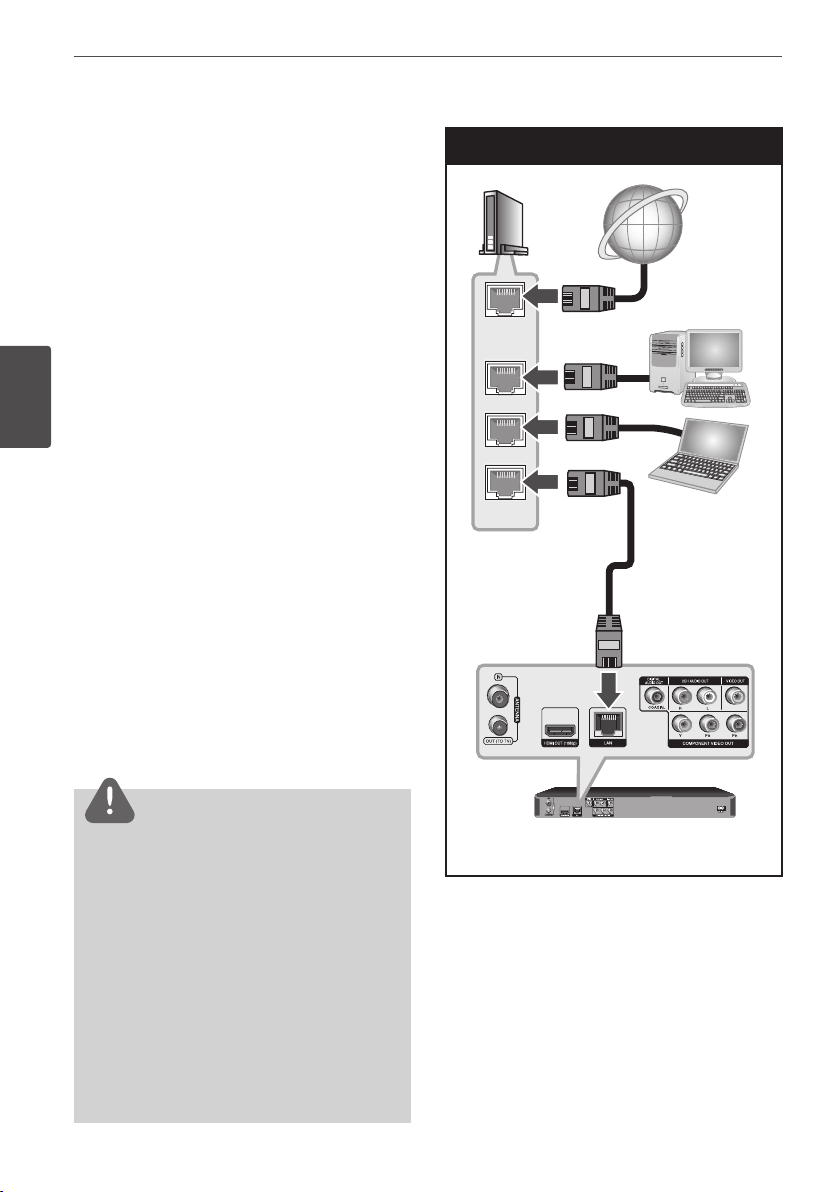

20 Wired network connectio
n

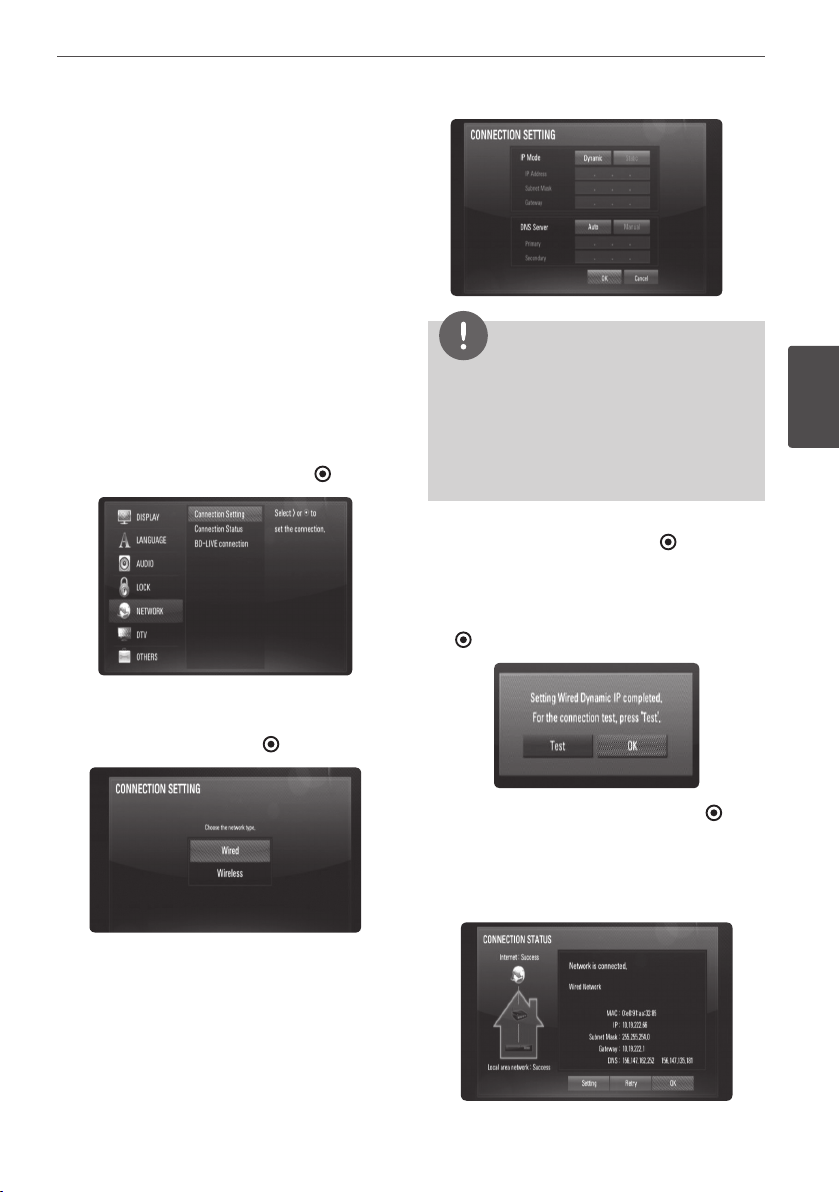

21 Wired Network Setu
p

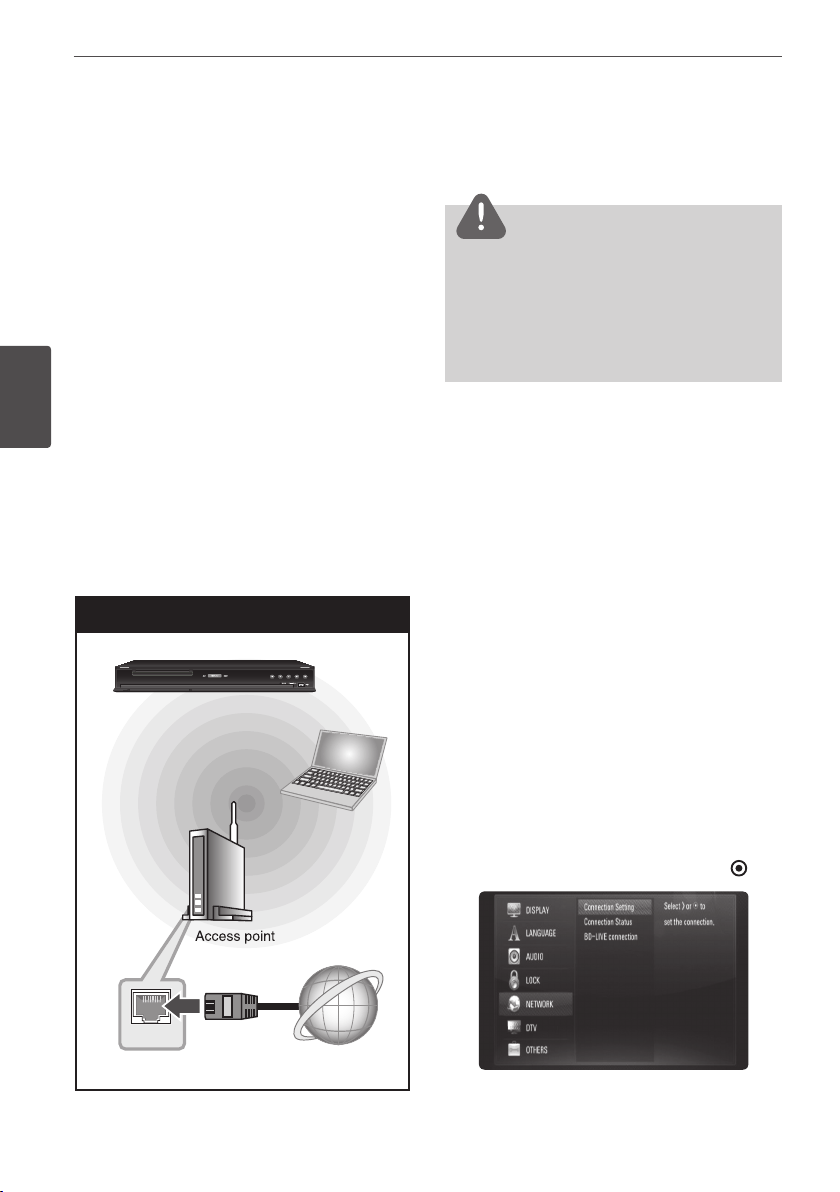

22 Wireless Network
Connection

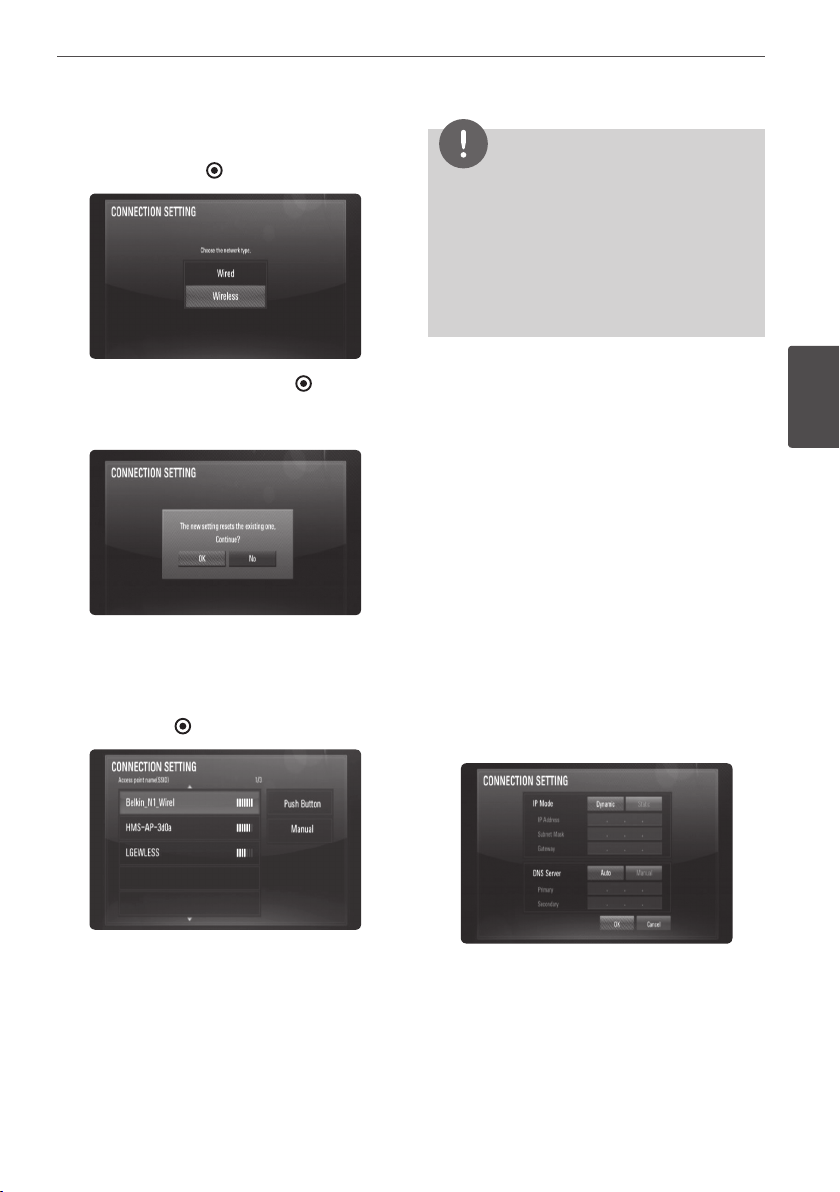

22 Wireless Network Setu
p
26

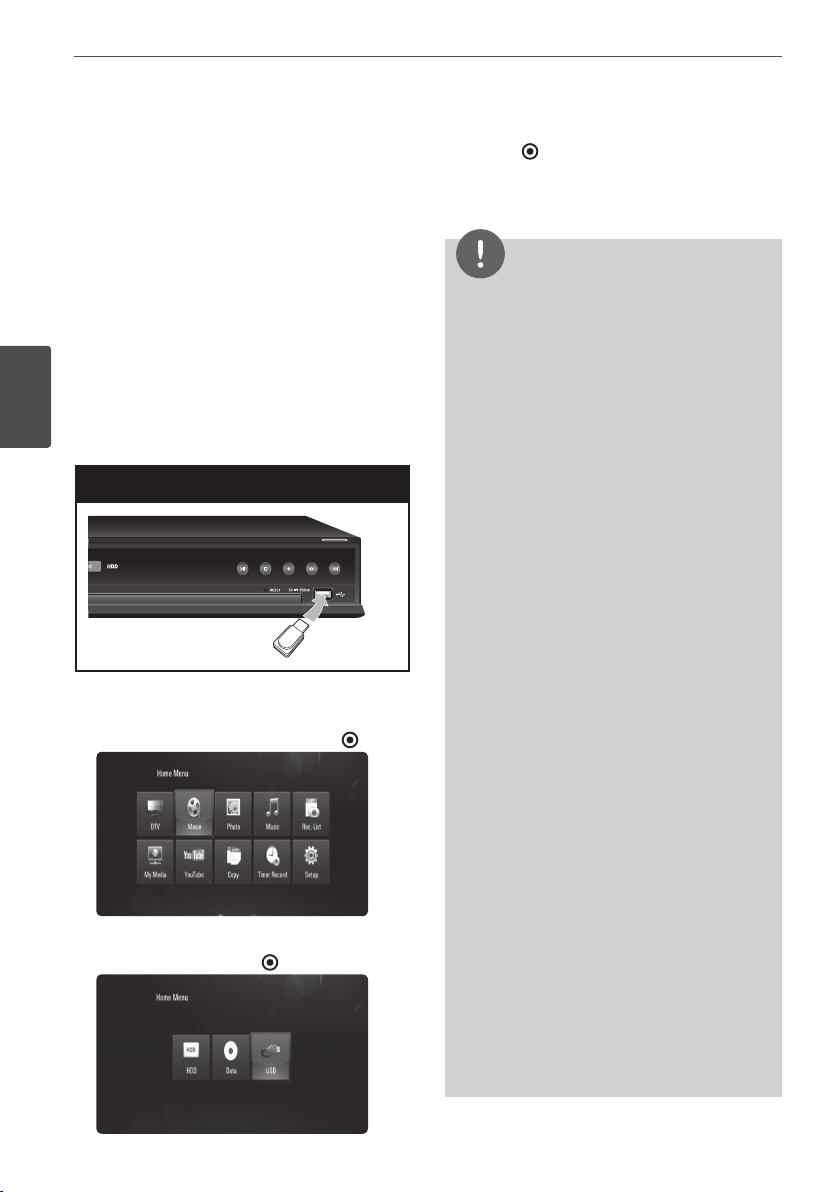

USB device connection

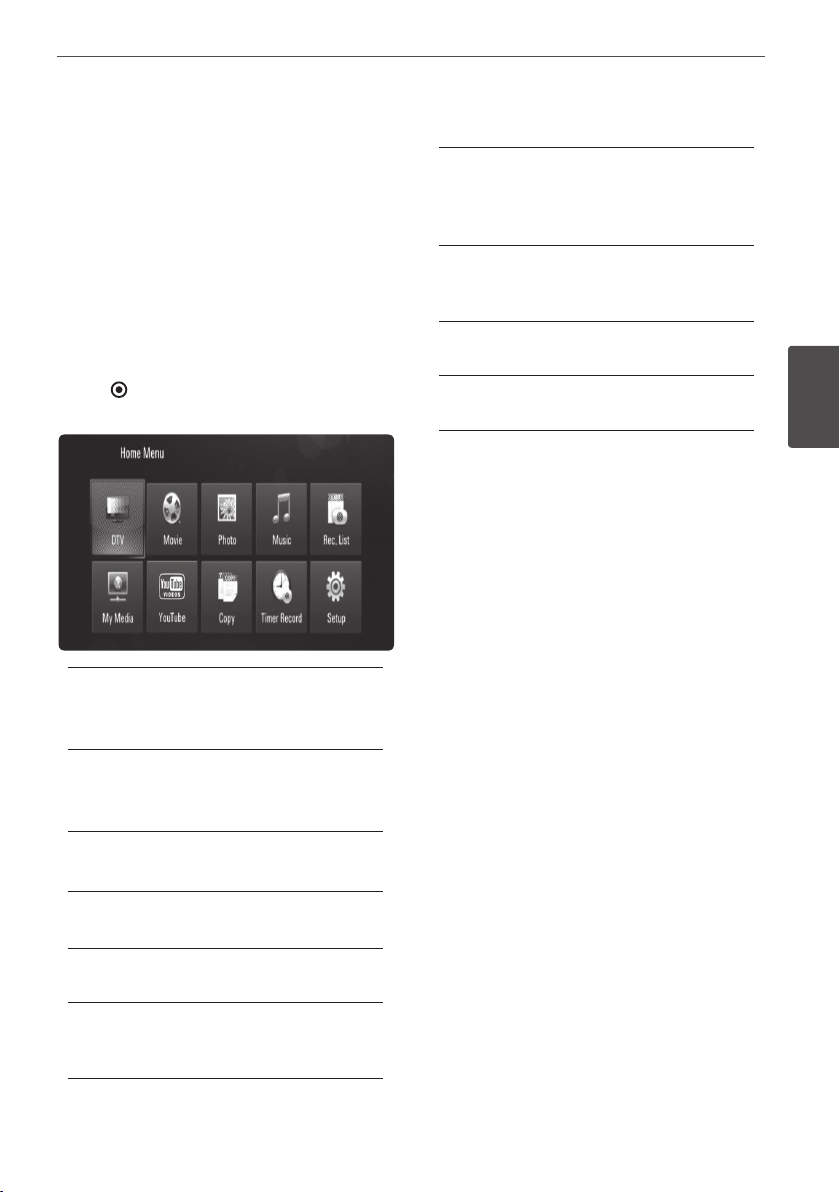

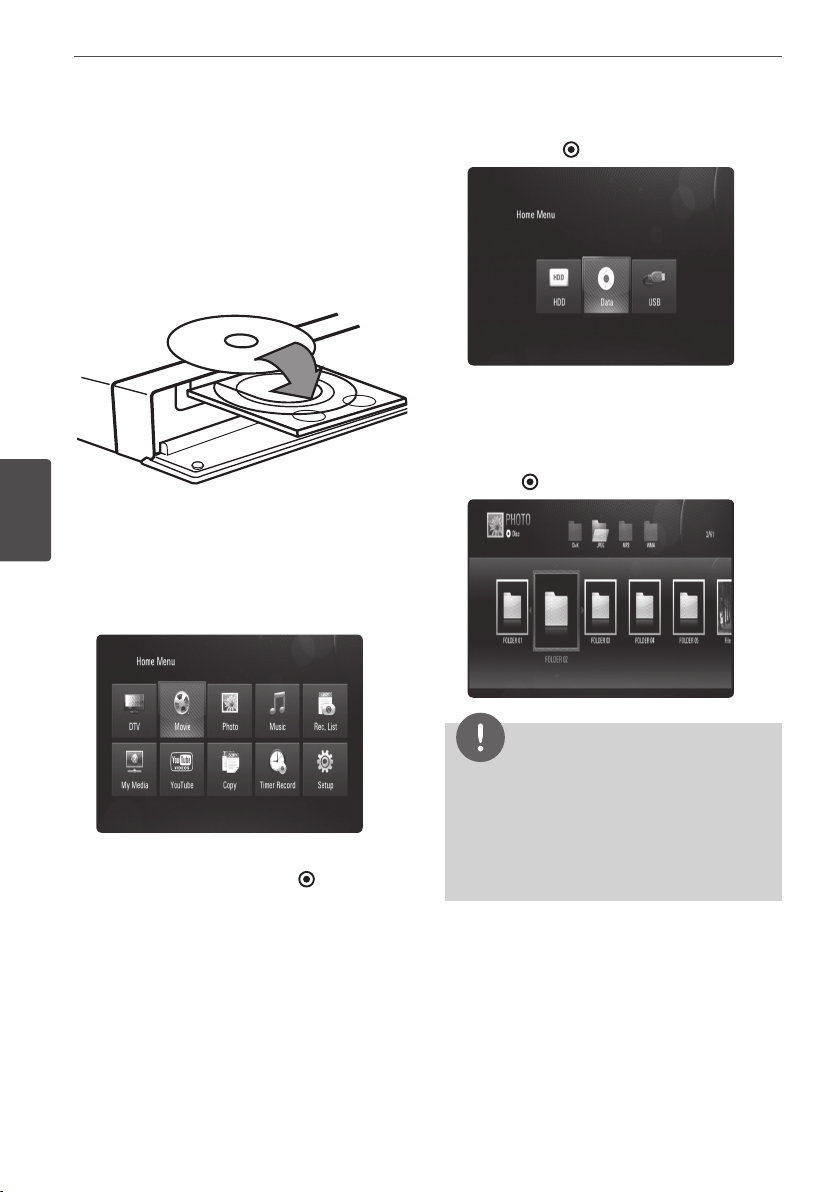

27 Home Menu Overvie
w
28 Setting
s
28 Adjust the Setup Setting
s
29 Settings for Digital T
V
29 Selecting a Regio
n

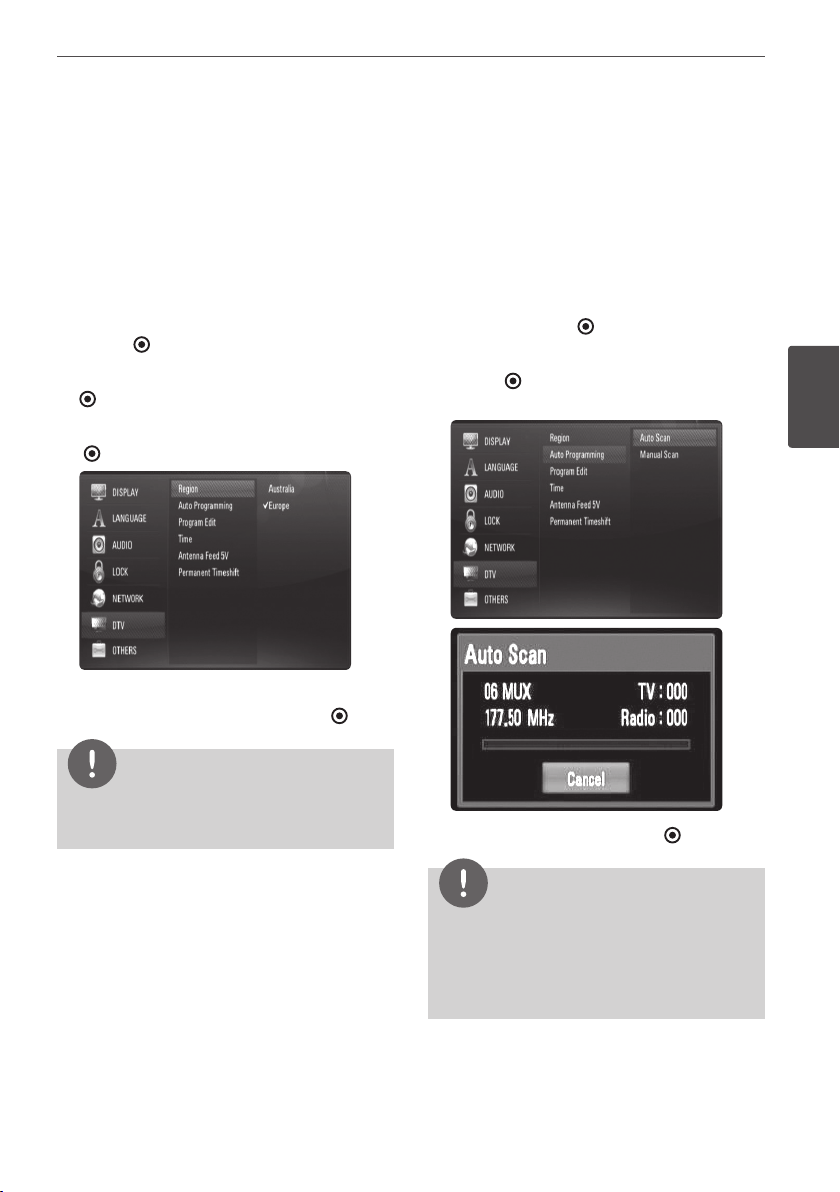

29 Scanning programmes
automatically

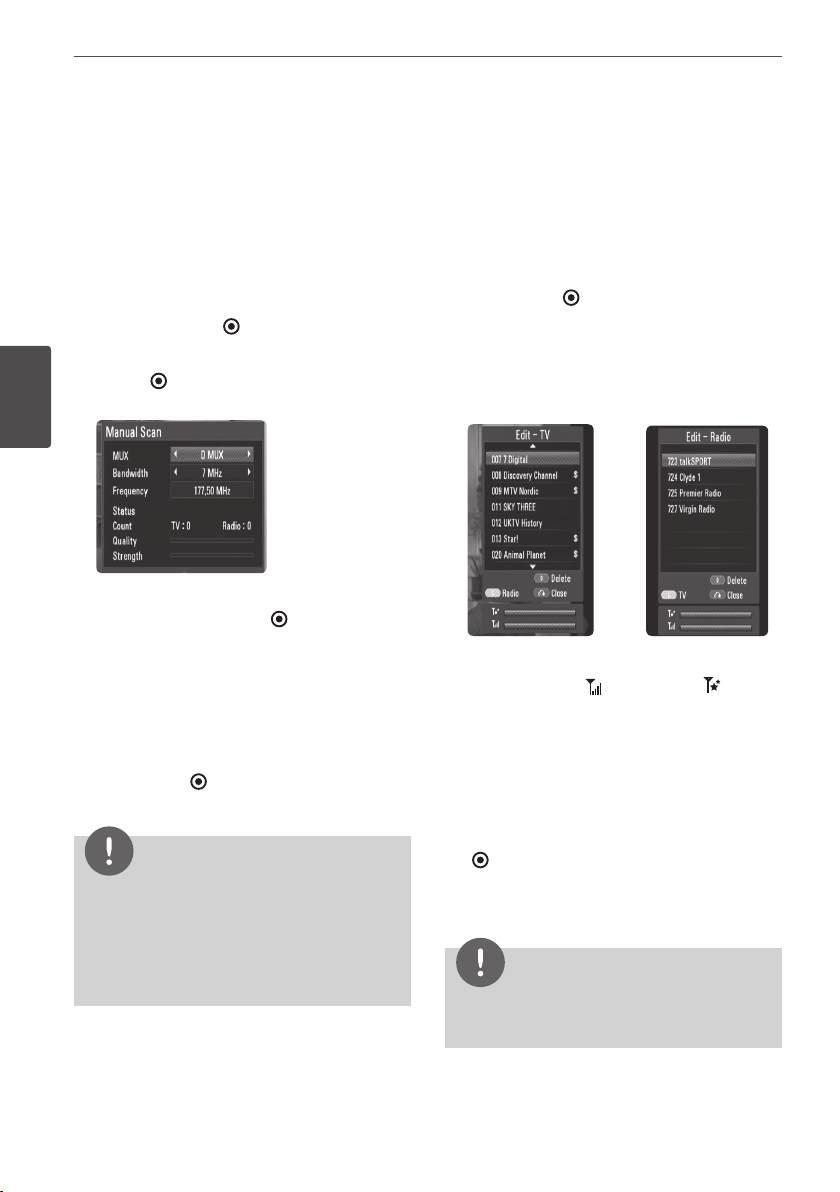

30 Scanning programmes
manually

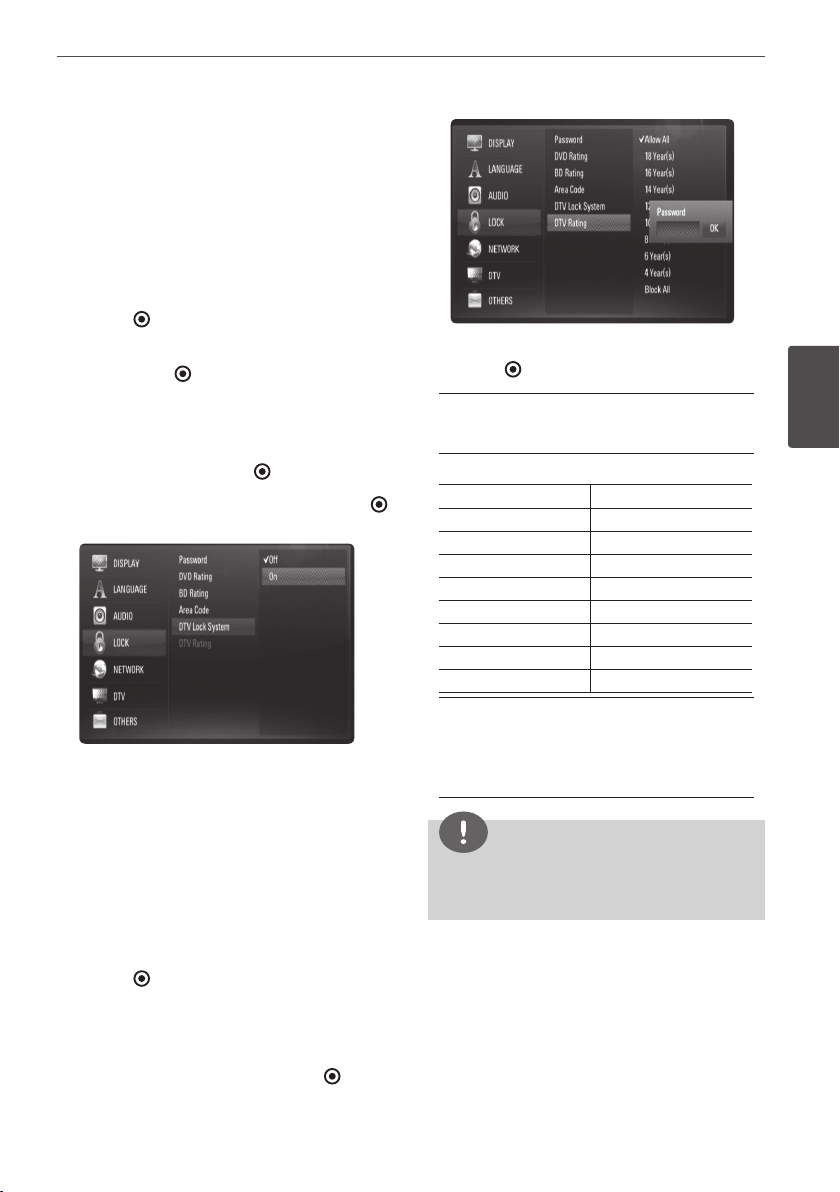

31 Setting the DTV Lock
System
31 Adjusting DTV Rating leve
l
7Contents
1
2
3
4
5
6
7

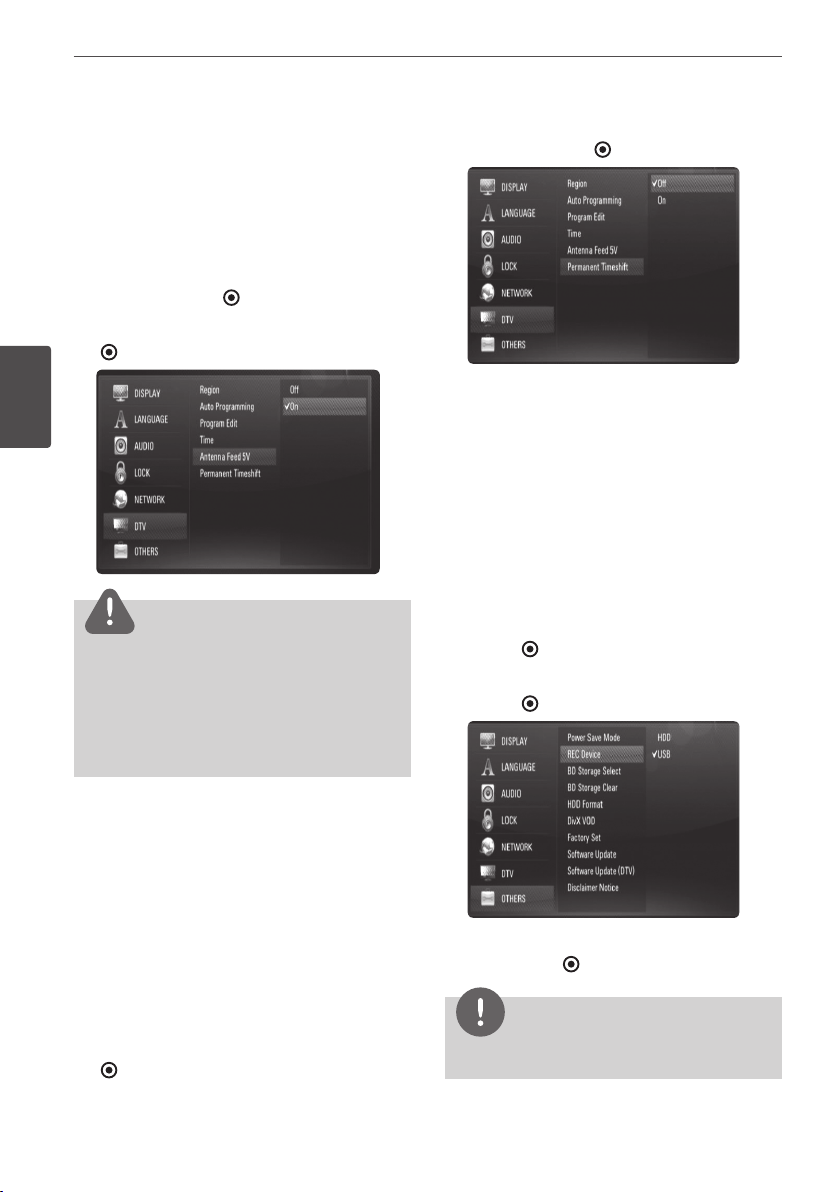

32 Setting the antenna power
32 Setting the permanent
Timeshift
32 Setting a recording storage
location
33 [DISPLAY] Men
u
34 [LANGUAGE] Menu
35 [AUDIO] Menu
36 [LOCK] Men
u
37 [NETWORK] Men
u
38 [DTV] Men
u
39 [OTHERS] Men
u
4

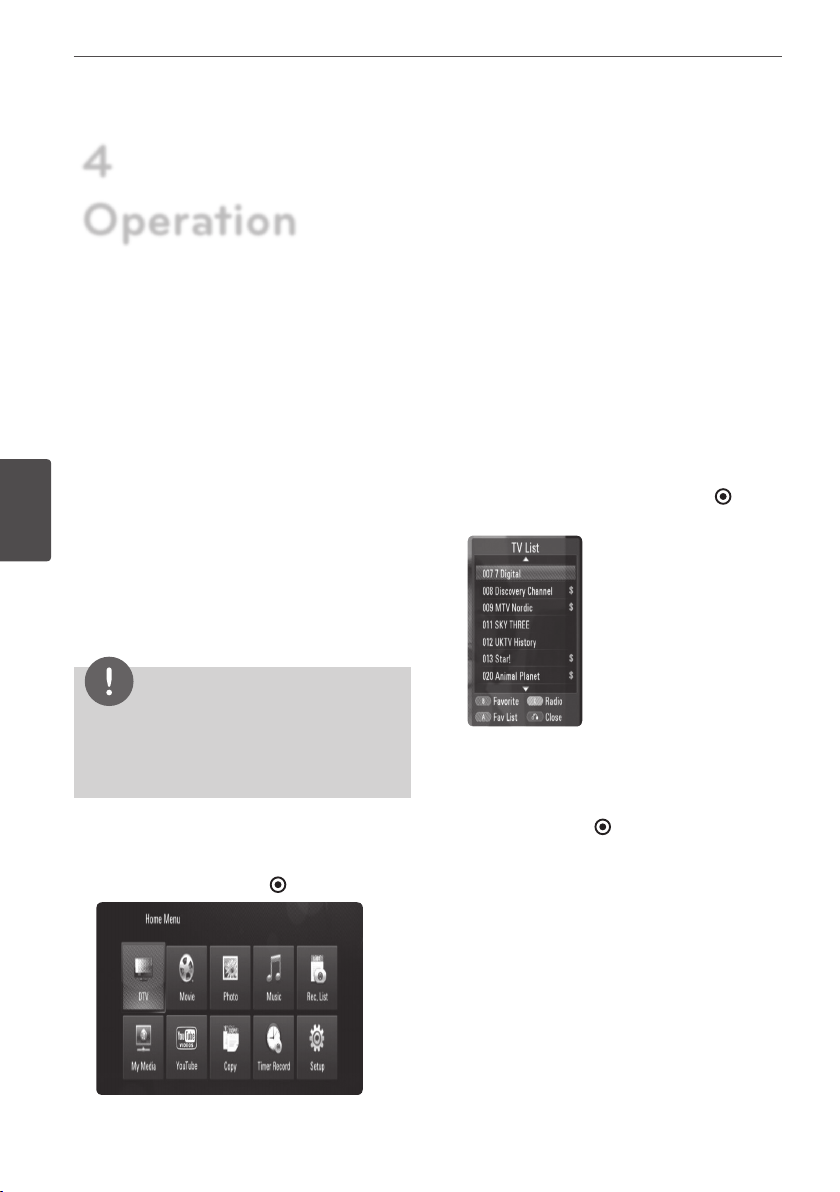

Operation

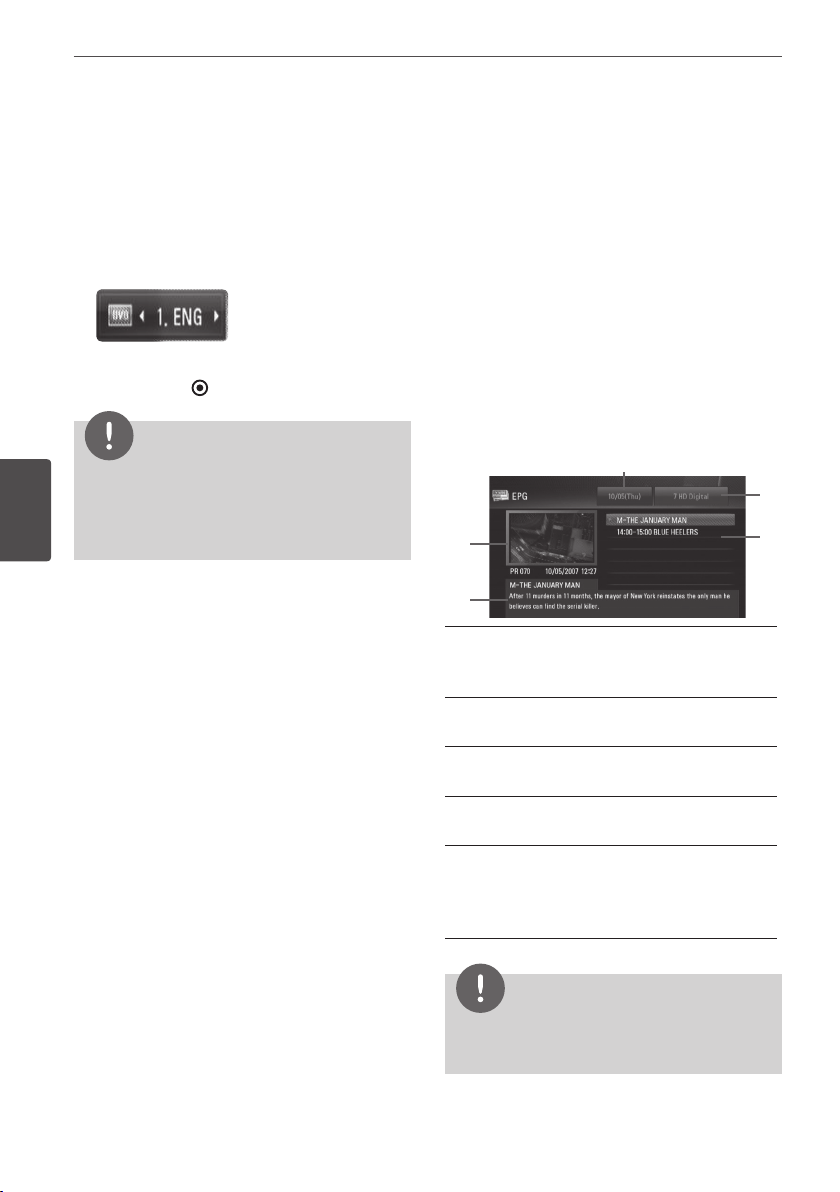

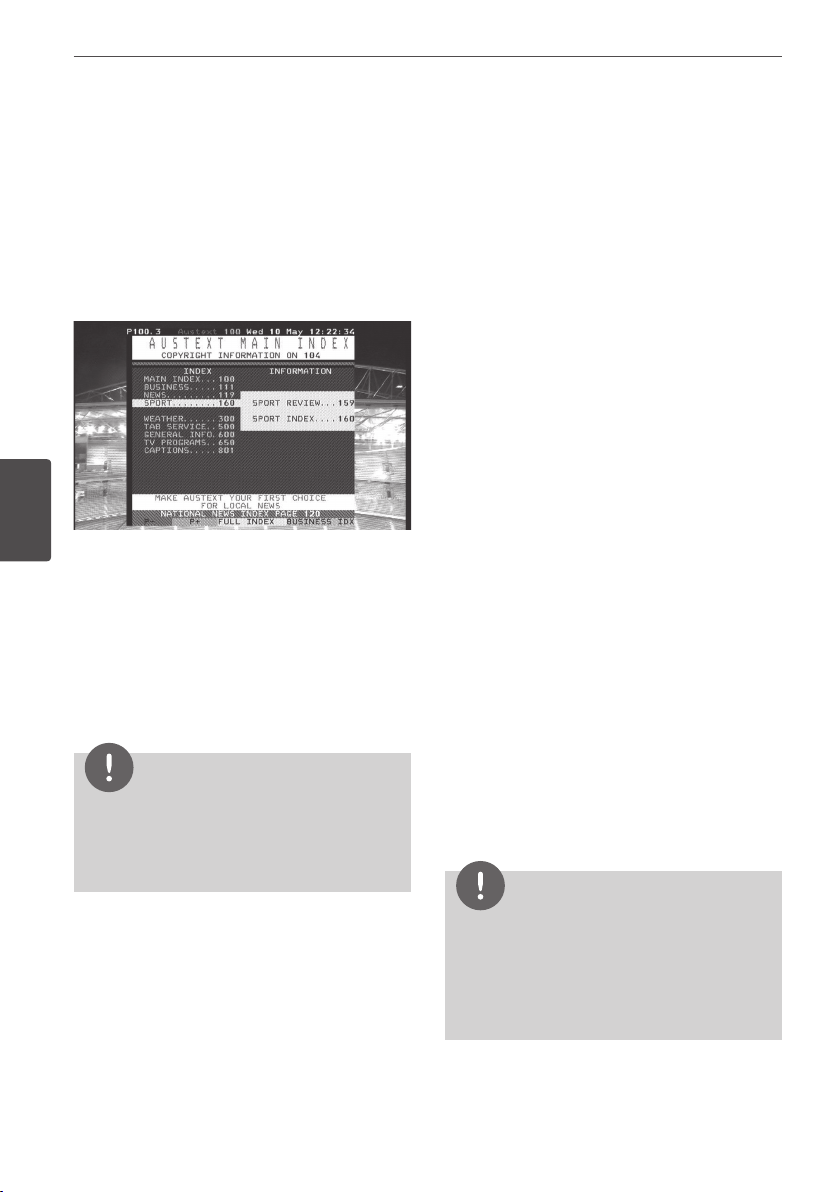

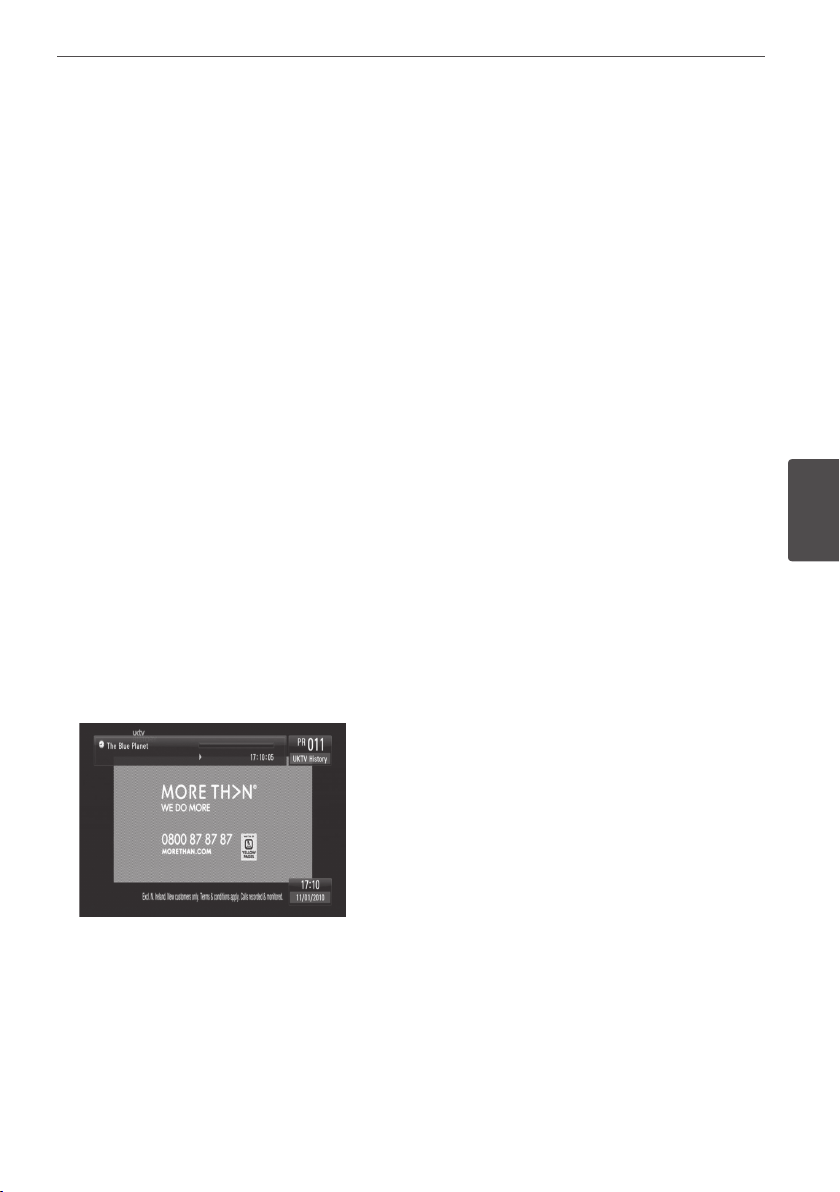

42 Using the Digital TV functions

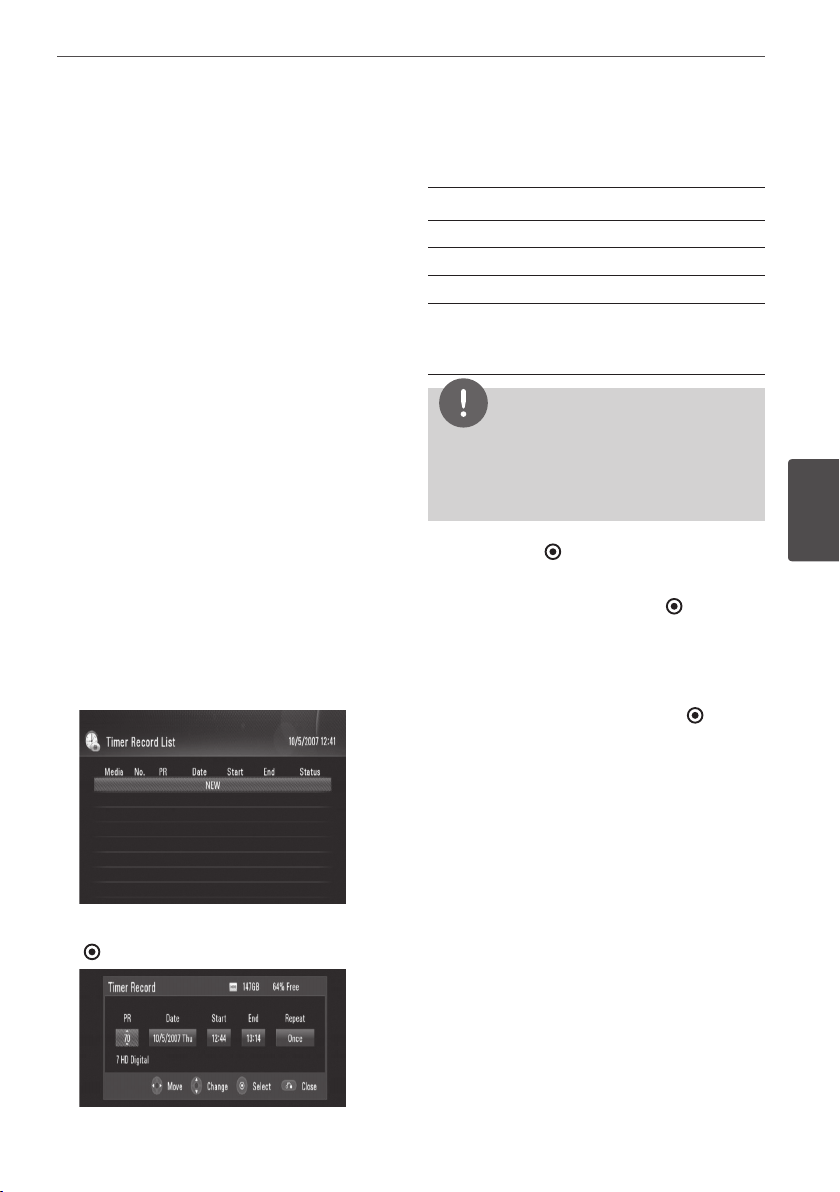

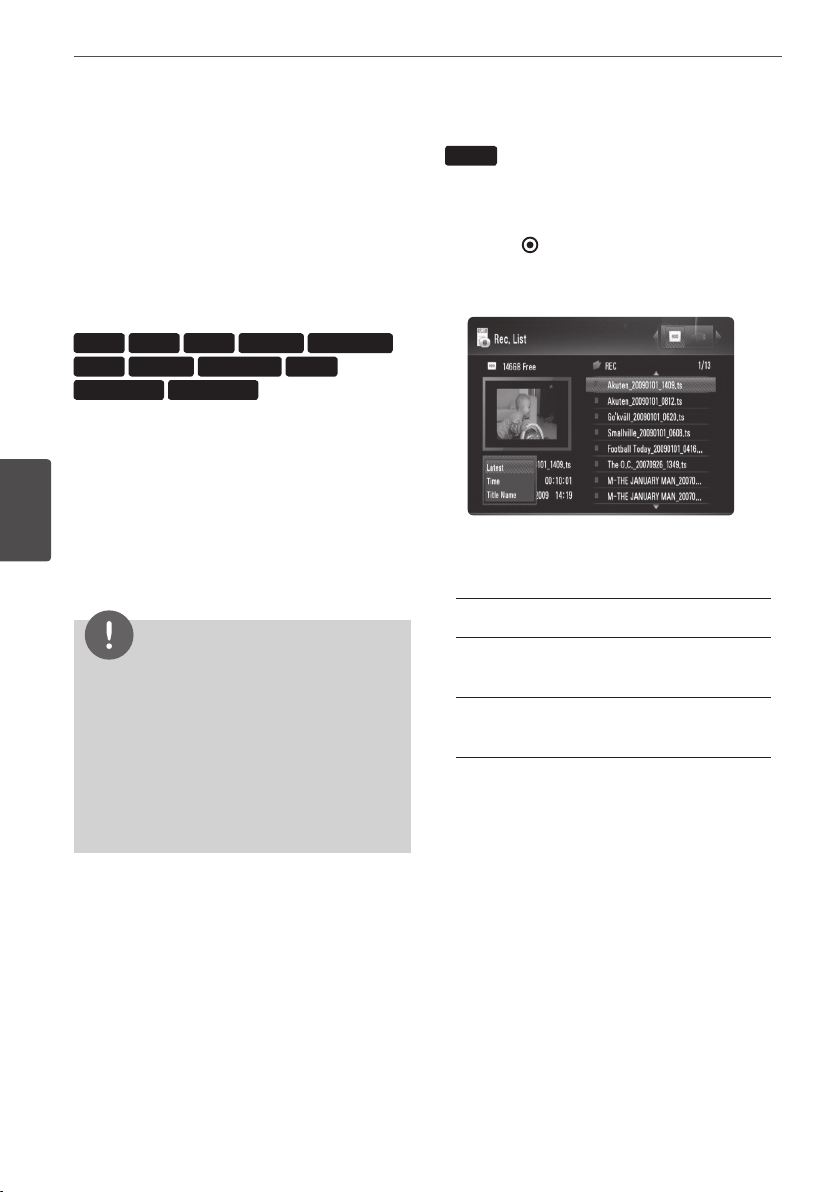

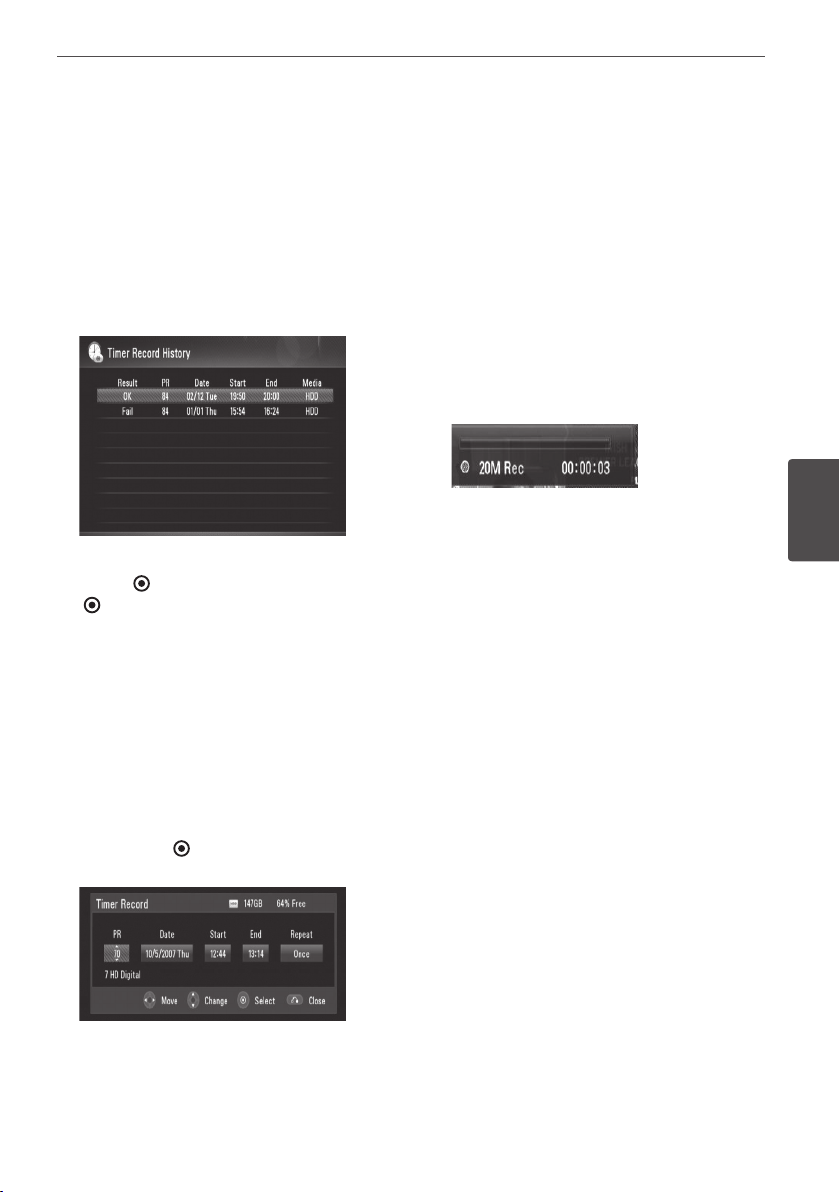

46 Recording TV programme
s
50 General Playbac
k
54 Advanced Playbac
k

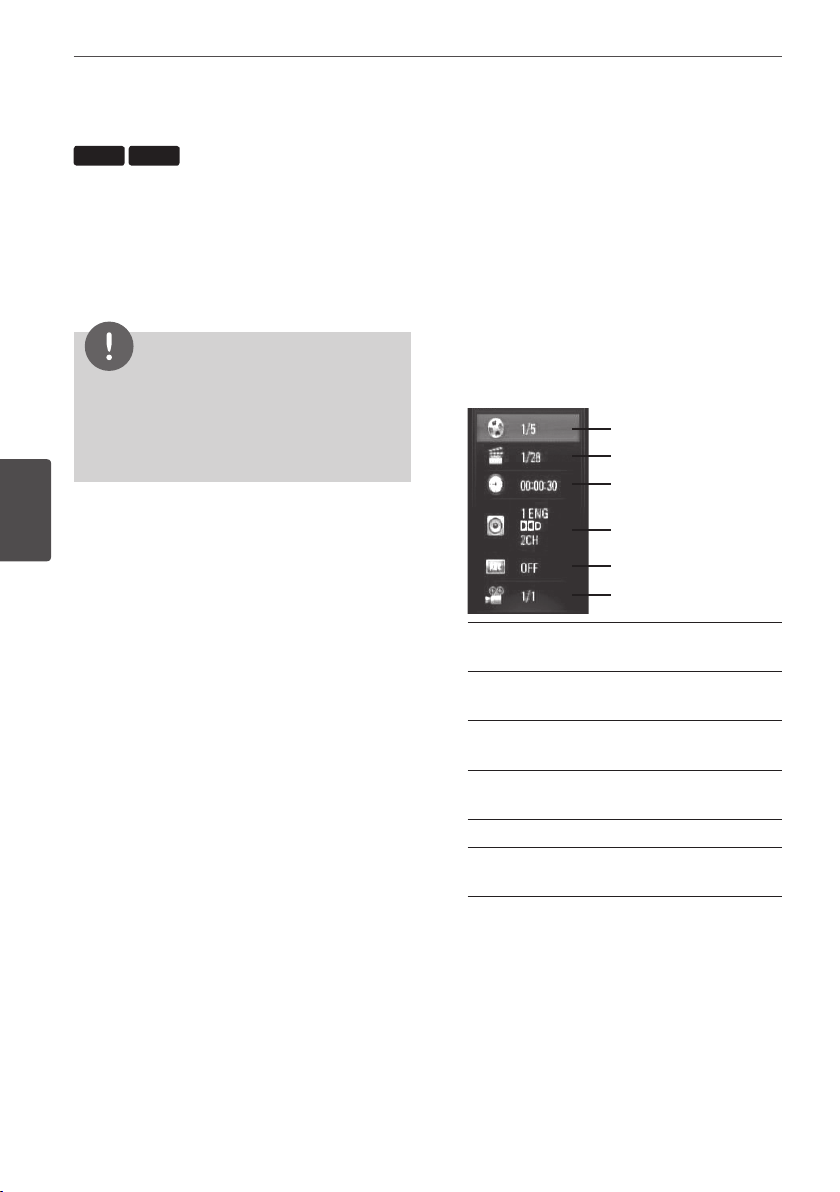

56 On-Screen displa
y
58 Enjoying BD-LIV
E

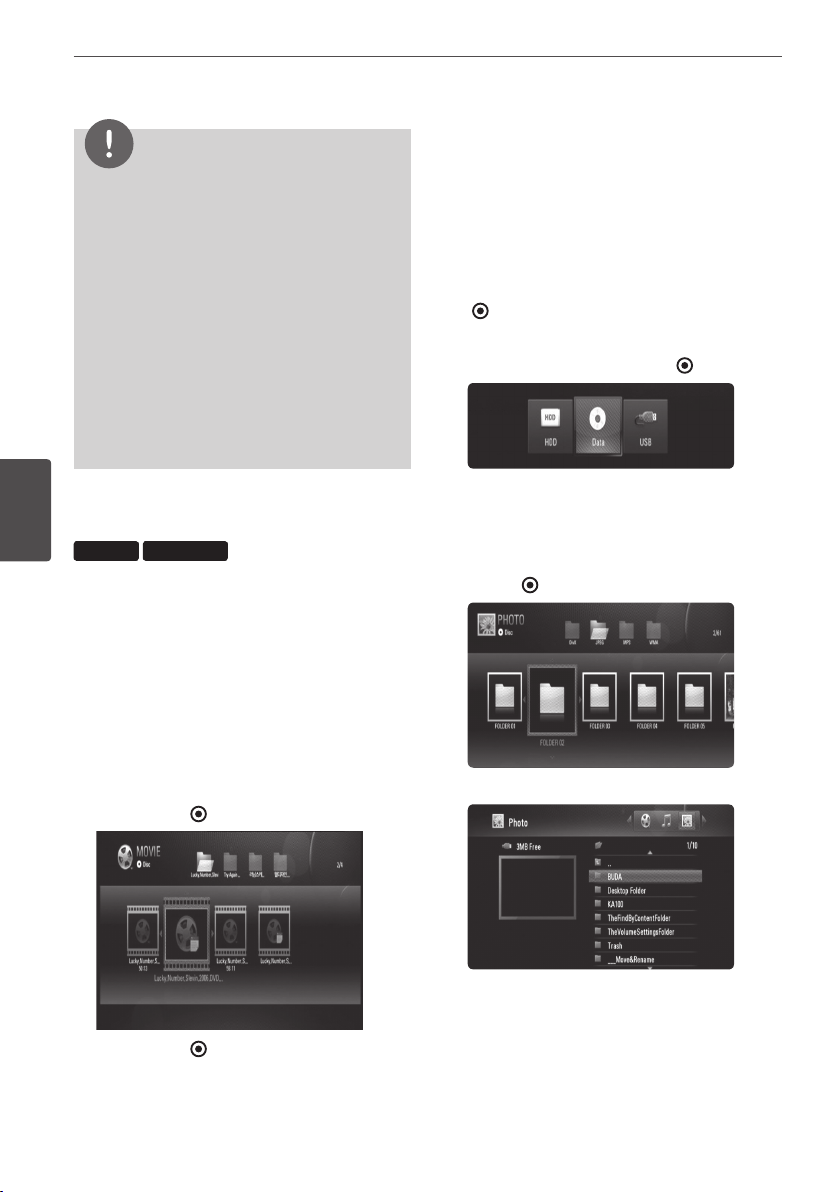

59 Playing movie files and VR dis
c

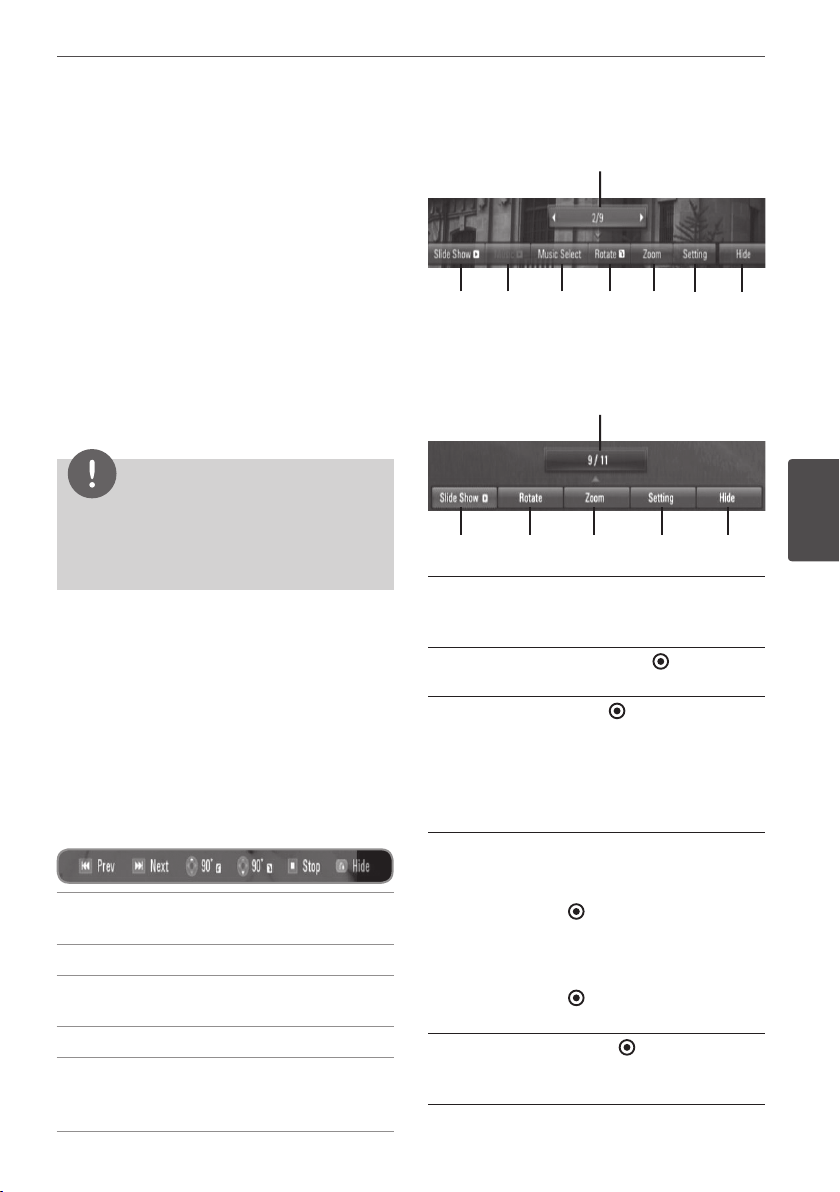

60 Viewing a photo

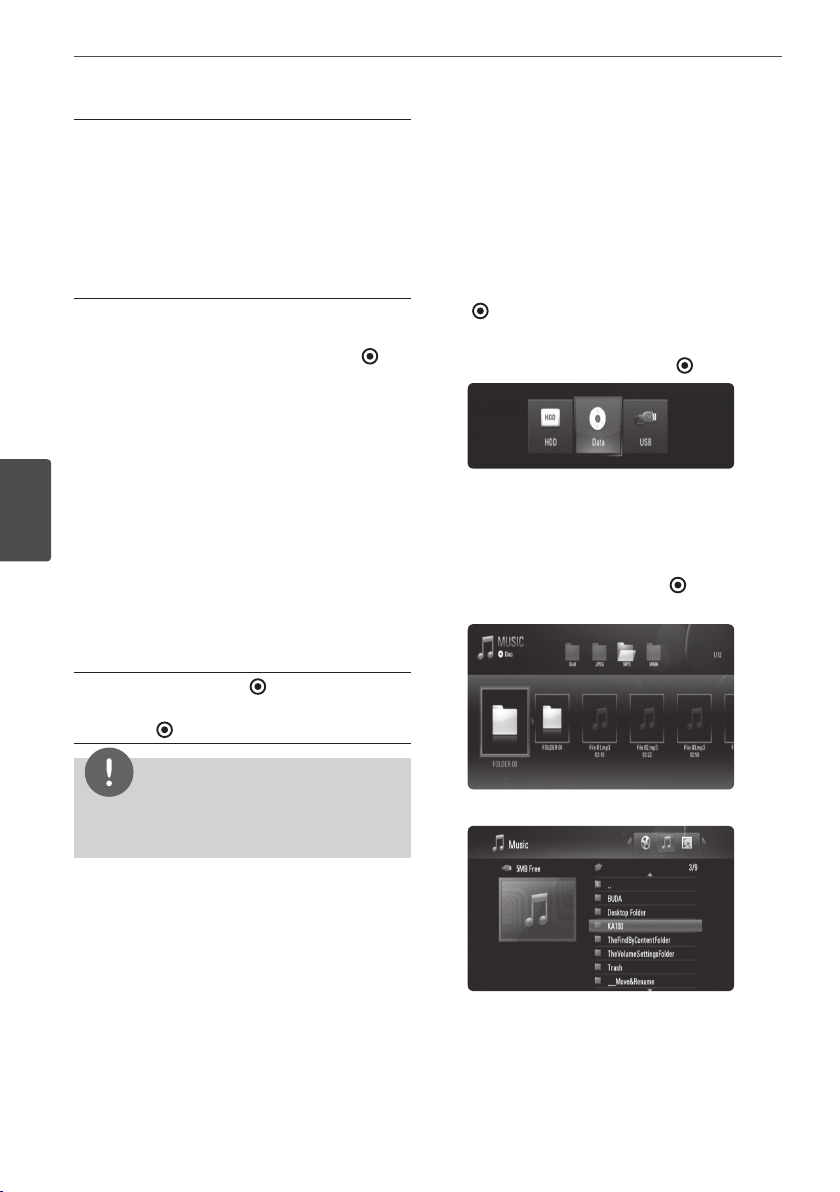

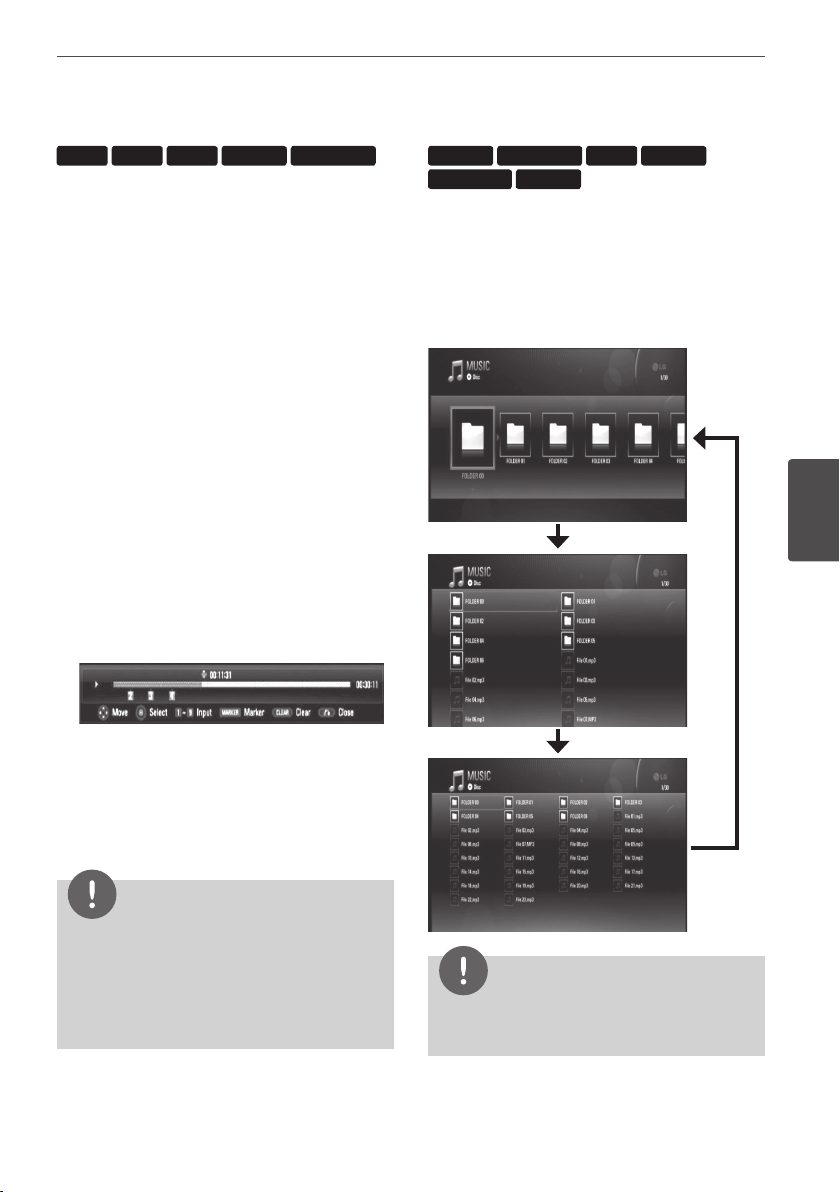

62 Listening to musi
c

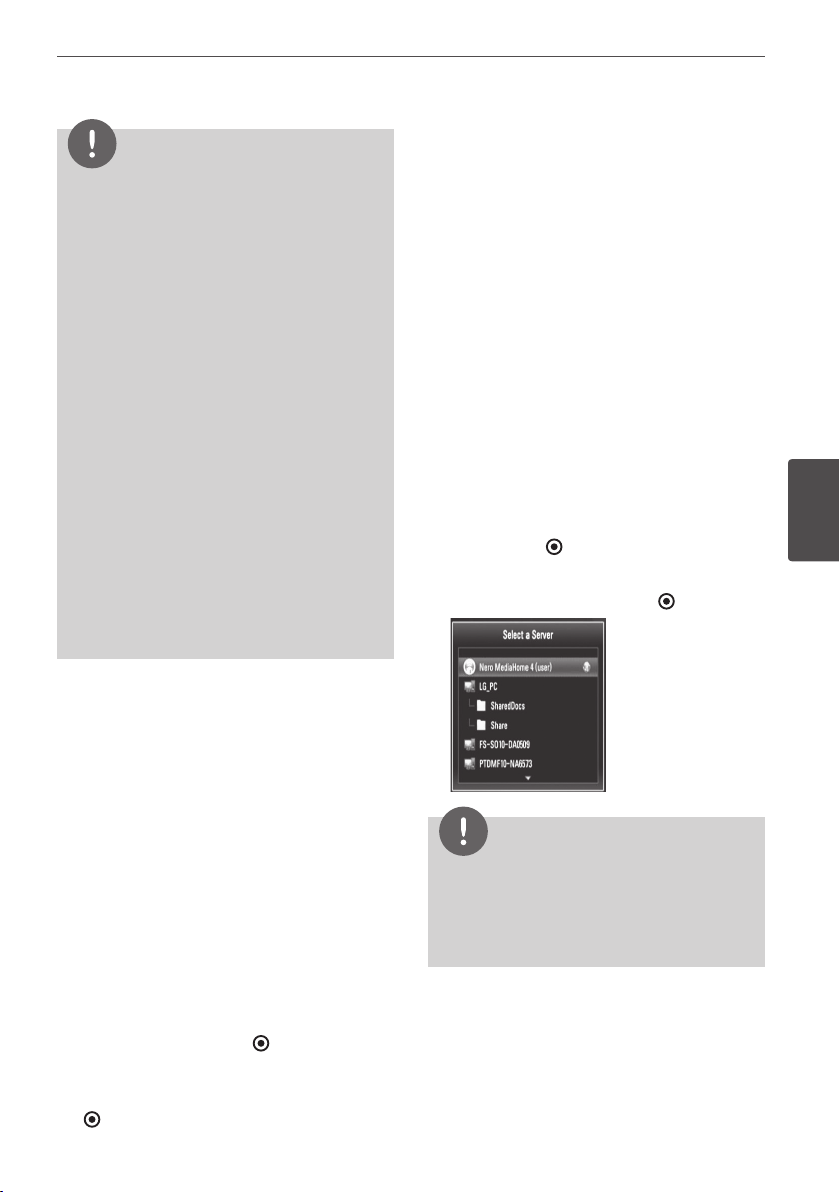

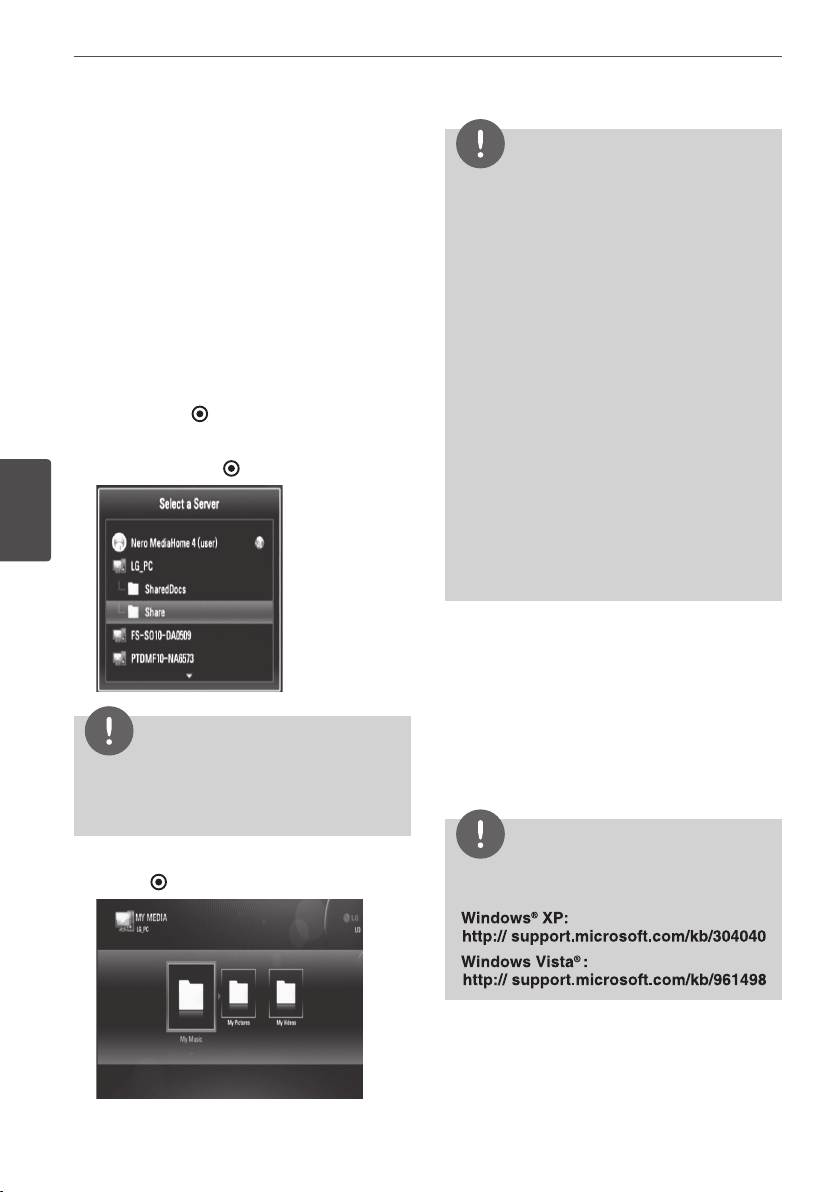

63 Playing content via your home
network

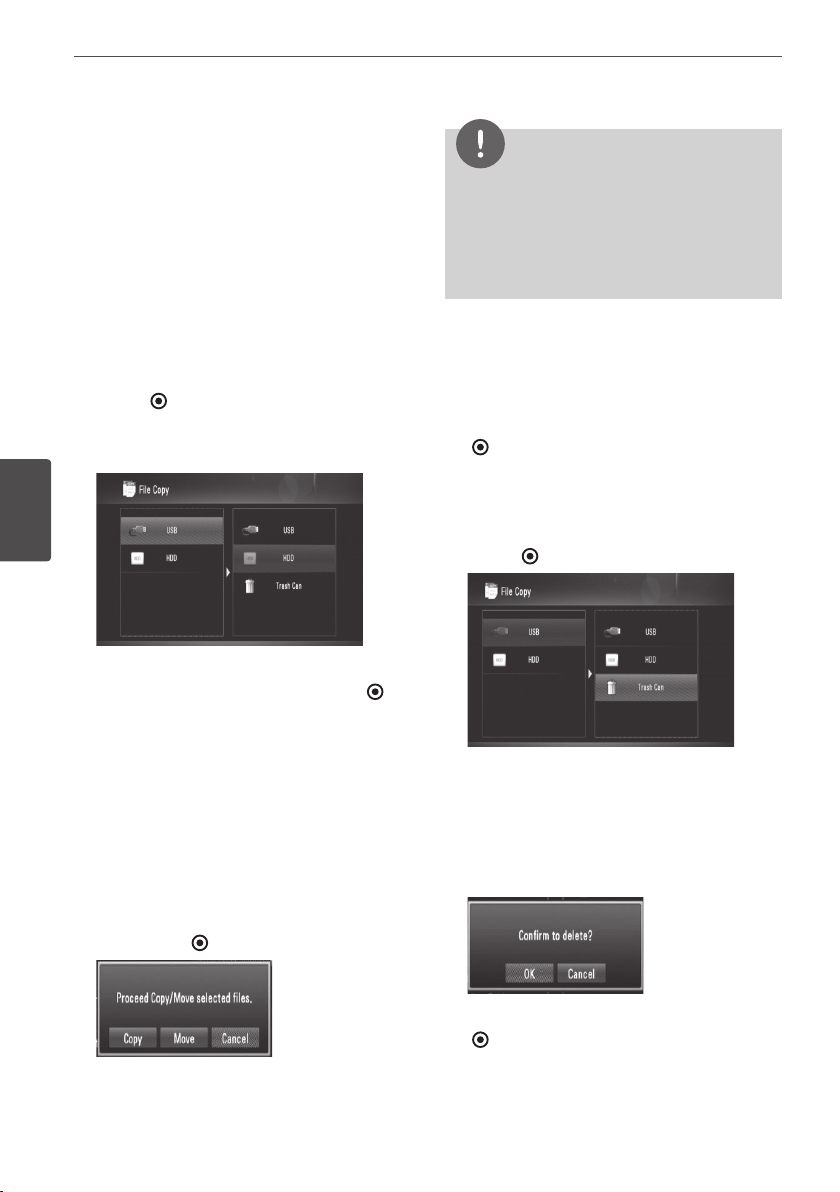

68 Using [Copy] feature
s

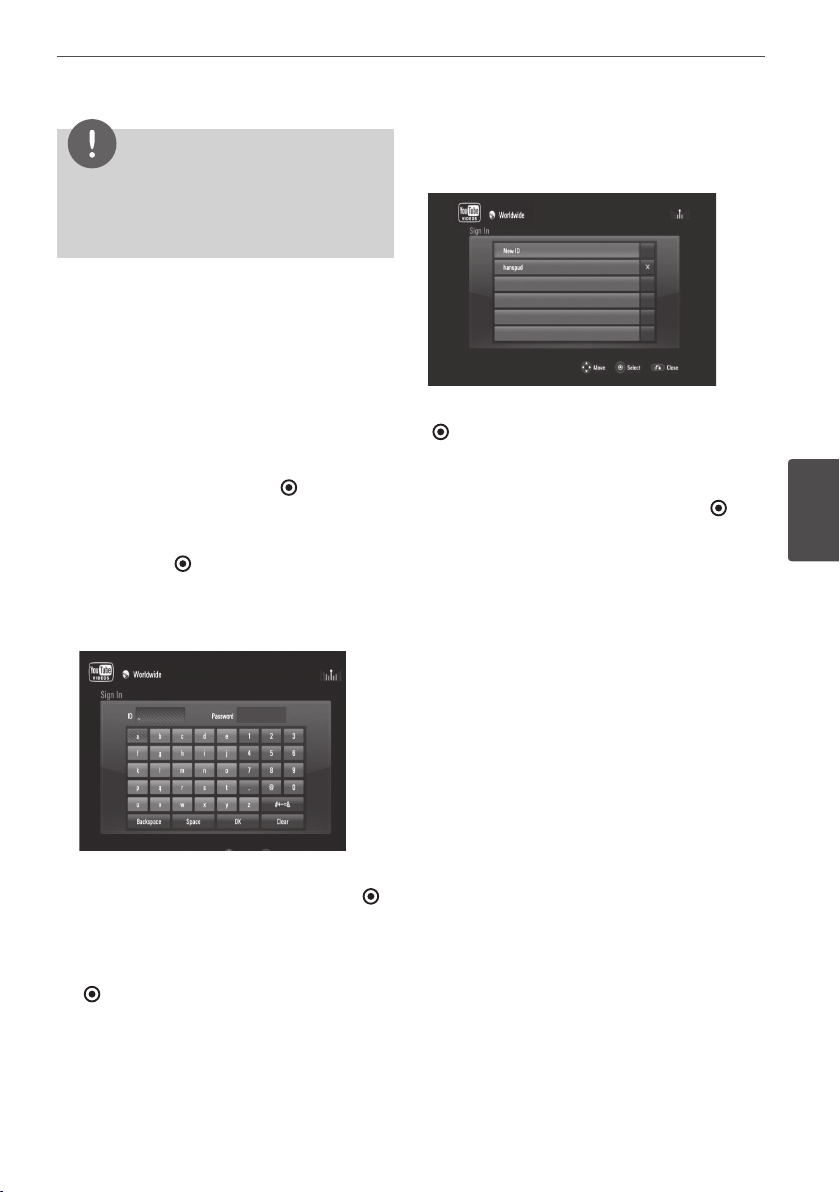

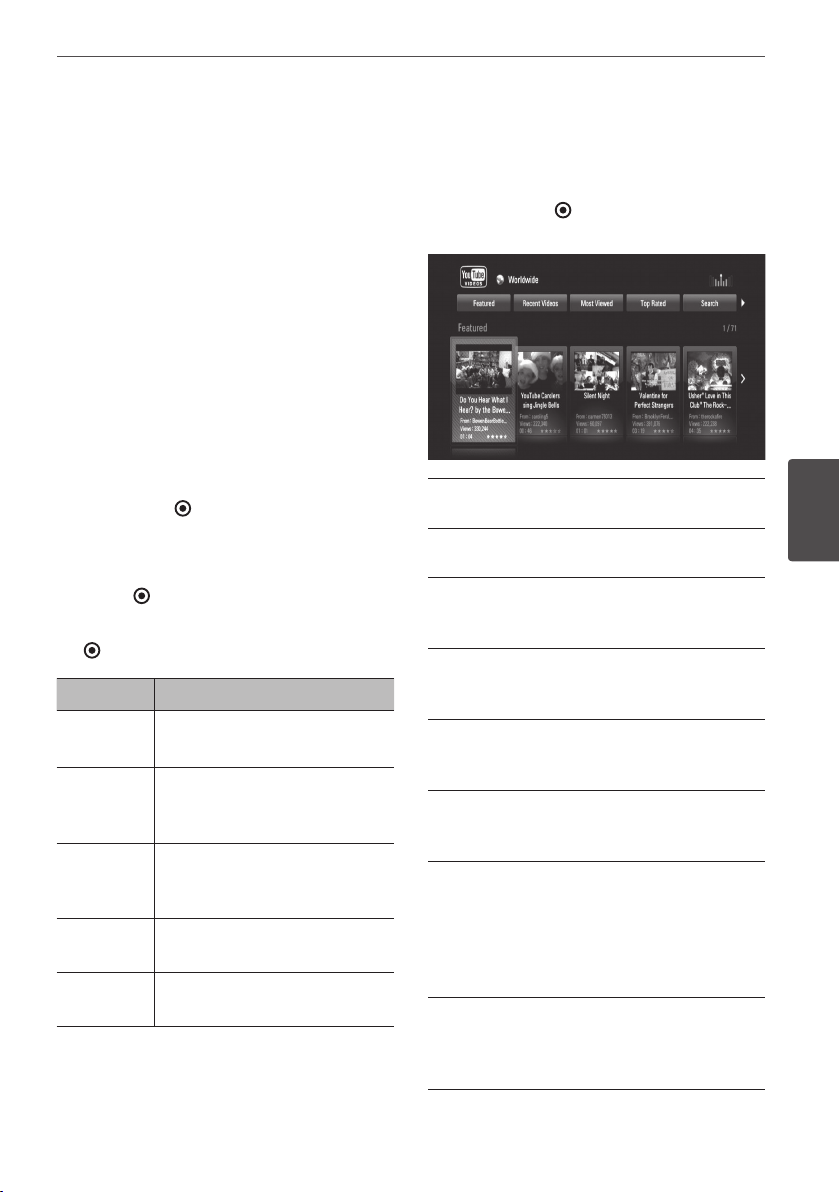

69 Playing YouTube™ video
s
5
Maintenance
72 Notes on Discs
72 Handling the Uni
t
73 About the hard disk drive
HDD
6
Troubleshooting
74 General
75 Pictur
e
75 Soun
d
76 Networ
k
77 Recordin
g
7
Appendix
78 Controlling a TV with the Supplied
Remote Control
78 Setting up the remote to
control your TV
79 Area Code Lis
t
80 Language code Lis
t
81 Trademarks and License
s
82 Network Software Updat
e
82 Network update notificatio
n

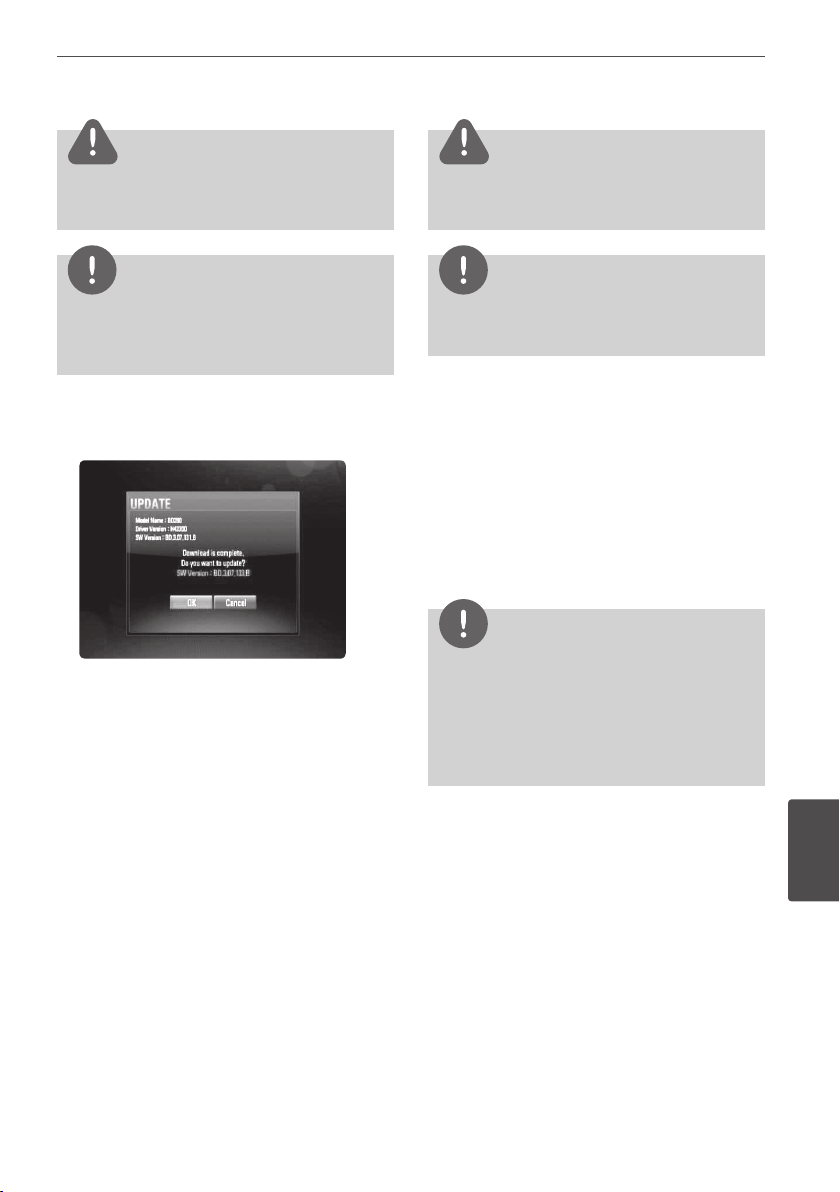

82 Software Updat
e
84 Audio Output Specification
s
86 Video Output Resolutio
n
87 Specification
s
87 Genera
l
87 TV Recordin
g
87 Connector
s
87 Syste
m
88 Important Information Relating to
Network Services
89 Open source software notic
e
8 Contents
1
2
3
4
5
6
7
2
Preparation
Introduction
About the “ ” Symbol Display
“ ” may appear on your TV display during
operation and indicates that the function
explained in this owner’s manual is not
available on that specic media.
Symbols Used in this Manual
NOTE
Indicates special notes and operating features.
CAUTION
Indicates caution for preventing possible
damages from abuse.
A section whose title has one of the following
symbols are applicable only to the disc
represented by the symbol.
BD
BD-ROM disc
DVD
DVD-Video, DVD
±
R/RW in
Video mode or VR mode and
nalized
AVCHD
DVD
±
R/RW in AVCHD format
ACD
Audio CDs
MOVIE
Movie les contained on a Disc
MOVIE-N
Movie les on a DLNA server or
PC
MUSIC
Music les contained on a Disc
MUSIC-N
Music les on a DLNA server or
PC
Photo les contained on a
DLNA server, PC or Disc
MOVIE-M
Movie les contained on a
HDD/USB
MUSIC-M
Music les contained on a
HDD/USB
PHOTO-M
Photo les contained on a
HDD/USB
REC
Titles recorded via this unit
Supplied Accesorries
Video cable (1) Audio cables (1)
Remote control (1) Batteries (2)
Nero MediaHome4
Essentials software
CD-ROM (1)
RF cable (1)
9Preparation
Preparation
2
Playable Discs
Blu-ray Disc
Discs such as movies that can
be purchased or rented.
BD-R/RE discs that contain
Movie, Music or Photo les.
-
-
DVD-VIDEO (8 cm / 12 cm disc)
Discs such as movies that can be
purchased or rented.
DVD±R (8 cm / 12 cm disc)
Video mode and nalized only
Supports the dual layer disc
also
Finalized AVCHD format
DVD±R discs that contain
Movie, Music or Photo les.
-
-
-
-
DVD-RW (8 cm / 12 cm disc)
VR mode, Video mode and
nalized only
Finalized AVCHD format
DVD-RW discs that contain
Movie, Music or Photo les.
-
-
-
DVD+RW (8 cm / 12 cm disc)
Video mode and nalized only
Finalized AVCHD format
DVD+RW discs that contain
Movie, Music or Photo les.
-
-
-
Audio CD (8 cm / 12 cm disc)
CD-R/RW (8 cm / 12 cm disc)
CD-R/RW discs that contain
audio titles, Movie, Music or
Photo les.
-
NOTE
Depending on the conditions of the recording
equipment or the CD-R/RW (or DVD-R/RW)
disc itself, some CD-R/RW (or DVD
±
R/RW) discs
cannot be played on the unit.
Depending on the recording software & the
nalization, some recorded discs (CD-R/RW or
DVD
±
R/RW) may not be playable.
BD-R/RE, DVD±R/RW and CD-R/RW discs
recorded using a personal computer or a DVD or
CD Recorder may not play if the disc is damaged
or dirty, or if there is dirt or condensation on the
player’s lens.
If you record a disc using a personal computer,
even if it is recorded in a compatible format,
there are cases in which it may not play because
of the settings of the application software used
to create the disc. (Check with the software
publisher for more detailed information.)
This unit requires discs and recordings to meet
certain technical standards in order to achieve
optimal playback quality.
Pre-recorded DVDs are automatically set to
these standards. There are many dierent
types of recordable disc formats (including
CD-R containing MP3 or WMA les) and these
require certain pre-existing conditions to ensure
compatible playback.
Hybrid disc have both BD-ROM and DVD (or CD)
layers on one side. On such discs, BD-ROM layer
will be only played back in this player.
Customers should note that permission is
required in order to download MP3 / WMA les
and music from the Internet. Our company has
no right to grant such permission. Permission
should always be sought from the copyright
owner.
You have to set the disc format option to
[Mastered] in order to make the discs compatible
with the LG players when formatting rewritable
discs. When setting the option to Live System,
you cannot use it on LG player. (Mastered/Live
File System : Disc format system for windows
Vista)Vista)
•
•
•
•
•
•
•
•
•
10 Preparation
Preparation
2
File compatibility
Overall
Available Files extensions: “.jpg”, “.jpeg”, “.png”,
“.avi”, “.divx”, “.mpg”, “.mpeg”, “.mkv”, “.mp4”, “.mp3”,
“.wma”
Available le extensions dier depending
on the DLNA servers.
The le name is limited to 180 characters.
Depending on the size and number of the
les, it may take several minutes to read the
contents on the media.
Maximum Files/Folder: Less than 2000 (total
number of les and folders)
CD-R/RW, DVD±R/RW, BD-R/RE Format:
ISO 9660+JOLIET, UDF and UDF Bridge format
MOVIE
Available resolution size: 1920 x 1080 (W x H)
pixels
Playable subtitle: SubRip (.srt / .txt), SAMI
(.smi), SubStation Alpha (.ssa/.txt), MicroDVD
(.sub/.txt), VobSub (.sub), SubViewer 1.0 (.sub),
SubViewer 2.0 (.sub/.txt), DVD Subtitle System
(.txt)
Playable Codec format: “DIVX3.xx”, “DIVX4.
xx”, “DIVX5.xx”, “XVID”, “DIVX6.xx” (Standard
playback only), H.264/MPEG-4 AVC, DIVX-HD,
MPEG1 SS, MPEG2 PS, MPEG2 TS
Playable Audio format: “Dolby Digital”, “DTS”,
“MP3”, “WMA”, “AAC”, “AC3”
Not all the WMA and AAC Audio formats are
compatible with this unit.
Sampling frequency: within 32-48KHz (WMA),
within 16-48KHz (MP3)
Bit rate: within 20-320Kbps (WMA), within
32-320Kbps (MP3)
•
•
•
•
NOTE
HD movie les contained on the CD or USB
1.0/1.1 may not played properly. BD, DVD or USB
2.0 are recommended to play back HD movie
les.
This player supports H.264/MPEG-4 AVC prole
Main, High at Level 4.1. For a le with higher
level, the warning message will appear on the
screen.
This player does not support the le that are
recorded with GMC
*
1
or Qpel
*
2
. Those are video
encoding techniques in MPEG4 standard, like
DivX or XVID have.
*1 GMC – Global Motion Compensation
*2 Qpel – Quarter pixel
•
•
•
MUSIC
Sampling frequency: between 8 - 48KHz
(WMA), within 11 - 48KHz (MP3), 44.1 and
48KHz (LPCM)
Bit rate: between 8 - 320 kbps (WMA, MP3),
768Kbps and 1.536Mbps (LPCM)
NOTE
This unit cannot support the ID3 Tag embedded
MP3 le.
The total playback time indicated on the screen
may not be correct for VBR les.
•
•
Recommended size:
Less than 4,000 x 3,000 x 24 bit/pixel
Less than 3,000 x 3,000 x 32 bit/pixel
Progressive and lossless compression photo
image les are not supported.
Depending on the size and number of the
photo les, it may take several minutes to
read the contents of the media.
•
•
11Preparation
Preparation
2
Regional Code
This unit has a regional code printed on the
rear of the unit. This unit can play only BD-ROM
or DVD discs labelled same as the rear of the
unit or “ALL”.
AVCHD (Advanced Video Codec
High Definition)
This player can playback AVCHD format
discs. These discs are normally recorded and
used in camcorders.
The AVCHD format is a high denition
digital video camera format.
The MPEG-4 AVC/H.264 format is capable
of compressing images at higher eciency
than that of the conventional image
compressing format.
Some AVCHD discs use the “x.v.Color”
format.
This player can playback AVCHD discs using
“x.v.Color” format.
Some AVCHD format discs may not play,
depending on the recording condition.
AVCHD format discs need to be nalized.
“x.v.Color” oers a wider colour range than
normal DVD camcorder discs.
Certain System Requirements
For high denition video playback:
High denition display that has
COMPONENT or HDMI input jacks.
BD-ROM disc with high denition content.
HDMI or HDCP capable DVI input on your
display device is required for some content
(as specied by disc authors).
For up-conversion of standard denition
DVD, a HDMI or HDCP capable DVI input
on your display device is required for copy
protected content.
•
•
•
•
•
•
•
•
•
•
•
•
For Dolby® Digital Plus, Dolby TrueHD and DTS-
HD multi-channel audio playback:
An amplier/receiver with a built-in (Dolby
Digital, Dolby Digital Plus, Dolby TrueHD,
DTS or DTS-HD) decoder.
Main, centre, surround speakers and
subwoofer as necessary for chosen format.
Compatibility Notes
Because BD-ROM is a new format,
certain disc, digital connection and other
compatibility issues are possible. If you
experience compatibility problems, please
contact an authorized Customer Service
Centre.
Viewing high-denition content and up-
converting standard DVD content may
require a HDMI-capable input or HDCP-
capable DVI input on your display device.
Some BD-ROM and DVD discs may restrict
the use of some operation commands or
features.
Dolby TrueHD, Dolby Digital Plus and DTS-
HD are supported with maximum 7.1
channels if you use HDMI connection for
the audio output of the unit.
You can use a USB device that is used
to store some disc related information,
including downloaded on-line content. The
disc you are using will control how long this
information is retained.
•
•
•
•
•
•
•
12 Preparation
Preparation
2
Remote control
• • • • • •
a
• • • • • •
1
(Power): Switches the unit ON
or OFF.
TIME SHIFT: Activates pause live
TV/playback (timeshift) for a live TV
programme (only working in HDD
mode).
OPEN/CLOSE (
Z
): Opens and
closes the disc tray.
0-9 numerical buttons: Select
numbered options in a menu.
CLEAR: Removes a mark on the
search menu or a number when
setting the password.
REPEAT: Repeats a desired section
or sequence.
• • • • • •
b
• • • • • •
.
/
>
: Go to next or previous
chapter/track/le.
m
/
M
: Searches backward or
forward.
x
: Stops playback.
B
: Starts playback.
X
: Pauses playback or recording.
• • • • • •
c
• • • • • •
GUIDE: Displays the EPG menu.
PR (
U
/
u
): Scans up or down
through memorized programmes.
REC. (
z
): Starts recording and
copying.
PR LIST: Displays the programme
list.
TIMER REC.: Display [Timer
Recording] menu.

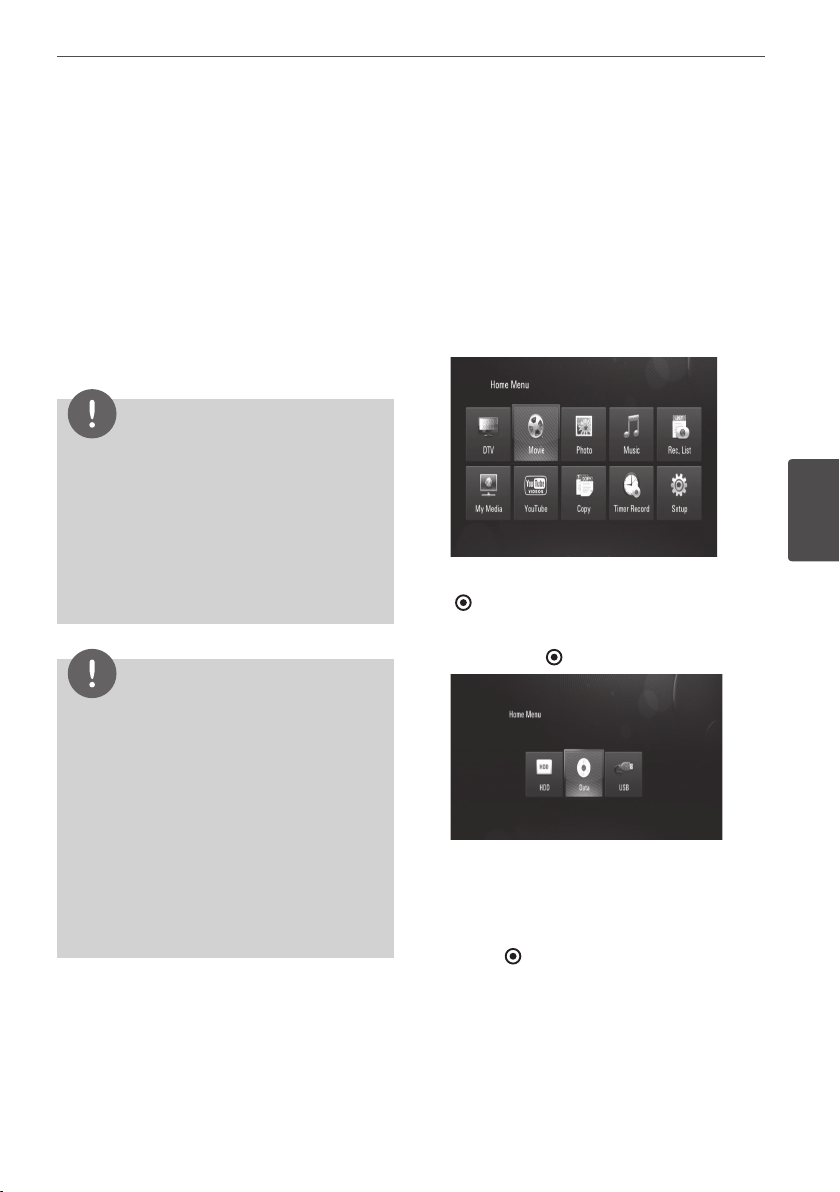

HOME ( ): Accesses or removes
the HOME menu.
INFO/DISPLAY ( ): Displays or
exits On-Screen Display.
U
/
u
/
I
/
i
(left/right/up/down):
Navigates on-screen displays.
ENTER ( ): Acknowledges
menu selection or displays the
programme list.
RETURN (
O
): Exits the menu or
back to previous step.
TITLE/POPUP: Displays the DVD
title menu or BD-ROM’s popup
menu, if available.
DISC MENU/REC.LIST: Accesses
menu on a disc or switches
between Title List-Playlist menu.
• • • • • •
d
• • • • • •
FAV.: Displays the favourite
programme list.
PAGE (-/+): Moves to next or
previous page of contents/TV list.
EDIT: Displays an editing menu
A/B/C/D: Used for [MOVIE],
[PHOTO] and [MUSIC] menu. The
function of each button will be
described on-screen, and changes
depending on the screen being
displayed.
MARKER: Marks any point during
playback.
SEARCH: Displays or exits the
search menu.
ZOOM: Displays or exits the
[Zoom] menu.
TEXT: Switches between teletext
mode and normal TV viewing.
AUDIO: Selects an audio language
or audio channel.
SUBTITLE: Selects a subtitle
language.
TV Control Buttons: See page 78.
DISC MENU
REC.LIST
MARKER
SEARCH
ZOOM
TEXT
AUDIO
SUBTITLE
FAV
PAGE
EDIT
VOL
PR
AV/INPUT
VOL
PR
OPEN/
CLOSE
CLEAR
GUIDE
TIMER
REC.
REC.
Battery Installation
Remove the battery cover
on the rear of the Remote
Control, and insert two R03
(size AAA) batteries with
and matched correctly.
13Preparation
Preparation
2
a
1
(Power)
b
Disc Tray
c
Remote Sensor
d
Display window
e
i
ll
(Play/Pause)
f
s
(Stop)
g
z
(Recording)
h
l
II
/
ii
l
(Skip)
i
Z
(Open/Close)
j
RESET
Press this button to reboot.
k
USB Port
Main Unit
k
j
a
ANTENNA IN
b
HDMI OUT (1080p)
c
LAN port
d
DIGITAL AUDIO OUT (COAXIAL)
e
2CH AUDIO OUT (Left/Right)
f
VIDEO OUT
g
AC IN connector
Connect the supplied power cord.
h
ANTENNA OUT (TO TV)
i
COMPONENT VIDEO OUT (Y P
B
P
R
)
14 Installation
Installation
3
Connections to Your
TV
Make one of the following connections,
depending on the capabilities of your existing
equipment.
Antenna connection (page 14)
HDMI connection (page 15)
Component Video connection (page 16)
Composite connection (page 16)
NOTE
Depending on your TV and other equipment
you wish to connect, there are various ways you
could connect the player. Use only one of the
connections described in this manual.
Please refer to the manuals of your TV, Stereo
System or other devices as necessary to make
the best connections.
Make sure the player is connected directly to
the TV. Tune the TV to the correct video input
channel.
Do not connect the player’s AUDIO OUT jack to
the phono in jack (record player) of your audio
system.
Do not connect your player via your VCR. The
image could be distorted by the copy protection
system.
•
•
•
•
•
•
•
•
•
Antenna connection to your TV
and this unit
Connect one end of the RF cable to ANTENNA
OUT(TO TV) jack on the unit and other end to
ANTENNA IN jack on your TV. Passes the signal
from the ANTENNA IN jack to your TV/monitor.
Connect the Terrestrial TV antenna to the
ANTENNA IN jack on the unit. If you want to
use an indoor antenna, use one with a signal
amplier rated at 5V, 100mA and set [Antenna
Feed 5V] to [ON] in the setup menu (See page
32).
Antenna Connection
Rear of this unit
TV
3
Installation
RF Cable
ANTENNA
15Installation
Installation
3
HDMI Connection
If you have a HDMI TV or monitor, you can
connect it to this unit using a HDMI cable
(Type A, Version 1.3). Connect the HDMI
jack on the unit to the HDMI jack on a HDMI
compatible TV or monitor.
HDMI Connection
Rear of this unit
TV
Set the TV’s source to HDMI (refer to TV’s
Owner’s manual).
NOTE
If a connected HDMI device does not accept
the audio output of the unit, the HDMI device’s
audio sound may be distorted or may not
output.
When you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to “Resolution Setting” on page 17.)
Select the type of video output from the HDMI
OUT jack using [HDMI Color Setting] option on
the [Setup] menu (see page 34).
Changing the resolution when the connection
has already been established may result in
malfunctions. To solve the problem, turn o the
player and then turn it on again.
When the HDMI connection with HDCP is not
veried, TV screen is changed to black screen.
In this case, check the HDMI connection, or
disconnect the HDMI cable.
If there is noise or lines on the screen, please
check the HDMI cable (length is generally
limited to 4.5m).
•
•
•
•
•
•
Additional Information for HDMI
When you connect a HDMI or DVI
compatible device make sure of the
following:
Try switching o the HDMI/DVI device
and this player. Next, switch on the
HDMI/DVI device and leave it for around
30 seconds, then switch on this player.
The connected device’s video input is set
correctly for this unit.
The connected device is compatible with
720x576p, 1280x720p, 1920x1080i or
1920x1080p video input.
Not all HDCP-compatible HDMI or DVI
devices will work with this player.
The picture will not be displayed properly
with non-HDCP device.
This player does not playback and TV
screen is changed to black screen.
•
-
-
-
•
-
-
HDMI Cable
16 Installation
Installation
3
Component Video Connection
Connect the COMPONENT VIDEO OUT jacks
on the unit to the corresponding input jacks
on the TV using Y P
B
P
R
cables. Connect the left
and right AUDIO OUT jacks of the unit to the
audio left and right IN jacks on the TV using
the audio cables.
Component Connection
TV
Rear of this unit
NOTE
When you use COMPONENT VIDEO OUT
connection, you can change the resolution for the
output. (Refer to “Resolution setting” on page 17.)
Composite connection
Connect the VIDEO OUT jack on the Recorder
to the video in jack on the TV using the video
cable supplied. Connect the Left and Right
AUDIO OUT jacks on the Recorder to the audio
left/right in jacks on the TV using the supplied
audio cables.
Video/Audio Connection
Rear of this unit
TV
Component Cable
Audio Cable
Video Cable
Audio
Cable
17Installation
Installation
3

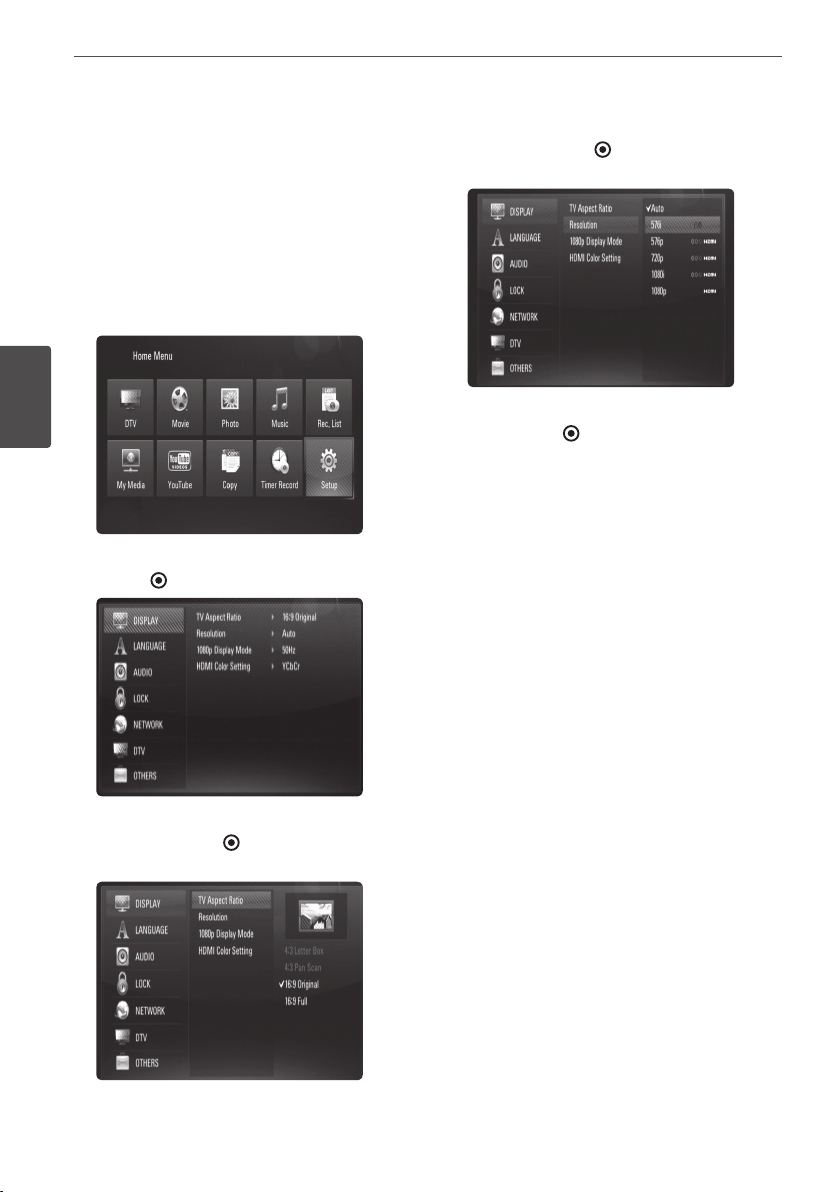

Resolution Setting
The unit provides several output resolutions for
HDMI OUT and COMPONENT VIDEO OUT jacks.
You can change the resolution using [Setup]
menu.
1.
Press HOME.
2.

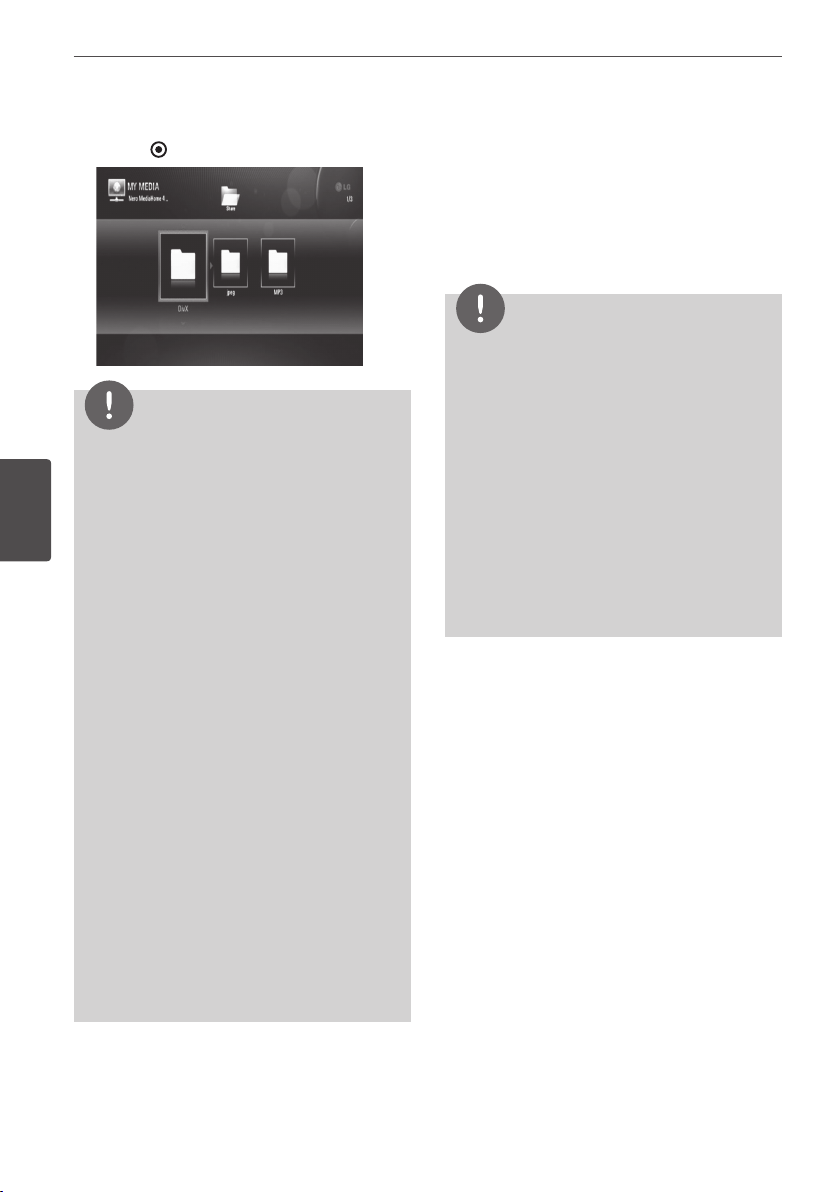

Use
U
/
u
/
I
/
i
to select the [Setup] and
press ENTER
( )
.
The [Setup] menu appears.
3. Use
U
/
u
to select [DISPLAY] option then
press ENTER
( )
or
i
to move to the
second level.
4. Use
U
/
u
to select the [Resolution] option
then press ENTER
( )
or
i
to move to the
third level.
5. Use
U
/
u
to select the desired resolution
then press ENTER
( )
to conrm your
selection.
18 Installation
Installation
3
Connecting to an
Amplifier
Make one of the following connections,
depending on the capabilities of your existing
equipment.
HDMI Audio connection (page 18)
Digital Audio connection (page 19)
2CH Analogue Audio connection (page 19)
Since many factors aect the type of audio
output, see “Audio Output Specications” for
details (pages 84-85).
About Digital Multi-channel sound
A digital multi-channel connection provides
the best sound quality. For this, you need
a multi-channel Audio/Video Receiver that
supports one or more of the audio formats
supported by your unit. Check the receiver
manual and the logos on the front of the
receiver. (PCM Stereo, PCM Multi-Ch, Dolby
Digital, Dolby Digital Plus, Dolby TrueHD, DTS
and/or DTS-HD)
•
•
•
Connecting to an Amplifier via
HDMI Output
Connect the player’s HDMI OUT jack to the
corresponding in jack on your amplier using
a HDMI cable. You will need to activate the
player’s digital output. (See “[AUDIO] Menu” on
pages 35-36.)
HDMI Audio Connection
Rear of this unit
TV
Amplifier/Receiver
Connect the amplier’s HDMI output jack to
HDMI input jack on your TV using a HDMI cable
if your amplier has HDMI output jack.
HDMI Cable
HDMI
Cable
19Installation
Installation
3
Connecting to an Amplifier via
Digital Audio Output
Connect the player’s DIGITAL AUDIO OUT
(COAXIAL) jack to the corresponding in jack
(COAXIAL) on your amplier.
Use an optional digital (coaxial) audio cable.
You will need to activate the unit’s digital
output. (See “[AUDIO] Menu” on page 35-36.)
Digital Audio Connection
Rear of this unit
Amplifier/Receiver
Connecting to an Amplifier via
2 Channel Audio Output
Connect the Left and Right 2CH AUDIO OUT
jacks on the unit to the audio left and right
in jacks on your amplier, receiver, or stereo
system, using audio cables.
2CH Analogue Audio Connection
Rear of this unit
Amplifier/Receiver
Audio Cable
Coaxial Cable
20 Installation
Installation
3
Connecting to your
Home Network
This unit can be connected to a local area
network (LAN) via the LAN port on the rear
panel or the internal wireless module.
By connecting the unit to a broadband
home network, you have access to services
such as software updates, My Media, BD-Live
interactivity and streaming services.
Wired network connection
Using a wired network provides the best
performance, because the attached devices
connect directly to the network and are not
subject to radio frequency interference.
Please refer to the documentation for your
network device for further instructions.
Connect the player’s LAN port to the
corresponding port on your Modem or Router
using a commercially available LAN or Ethernet
cable (CAT5 or better with RJ45 connector).
In the example conguration for wired
connection below, this player would be able to
access content from either of the PCs.
NOTE
When plugging or unplugging the LAN cable,
hold the plug portion of the cable. When
unplugging, do not pull on the LAN cable but
unplug while pressing down on the lock.
Do not connect a modular phone cable to the
LAN port.
Since there are various connection
congurations, please follow the specications
of your telecommunication carrier or internet
service provider.
If you want to access content from PCs or DLNA
servers, this unit must be connected to the same
local area network with them via a router.
•
•
•
•
Wired Network Connection
Rear of this unit
Broadband
Service
Router
WAN
LAN 1
LAN 2
LAN 3
PC
PC
LAN Cable
21Installation
Installation
3
Wired Network Setup
If there is a DHCP server on the local area
network (LAN) via wired connection, this player
will automatically be allocated an IP address.
After making the physical connection, a small
number of home networks may require the
player’s network setting to be adjusted. Adjust
the [NETWORK] setting as follow.
Preparation
Before setting the wired network, you need to
connect the broadband internet to your home
network.
1.
Select [Connection Setting] option in the
[Setup] menu then press ENTER
( )
.
2. The [CONNECTION SETTING] menu will
appear on the screen. Use
U
/
u
to select the
[Wired] and press ENTER
( )
.
3. Use
U
/
u
/
I
/
i
to select the IP mode
between [Dynamic] and [Static].
Normally, select [Dynamic] to allocate an IP
address automatically
NOTE
If there is no DHCP server on the network and you
want to set the IP address manually, select [Static]
then set the [IP Address], [Subnet Mask], [Gateway]
and [DNS Server] using
U
/
u
/
I
/
i
and numerical
buttons. If you make a mistake while entering a
number, press CLEAR to clear the highlighted part.
4. Select [OK] and press ENTER
( )
to apply
network settings.
5.
The unit will ask you to test the network
connection. Select [OK] and press ENTER
( )
to complete the network connection.
6. If you select [Test] and press ENTER
( )
at step 5 above, the network connection
status is displayed on the screen.
You can also test it on the [Connection
Status] in the [Setup] menu.
22 Installation
Installation
3
Wireless Network Connection
Another connection option is to use an Access
Point or a wireless router. In the example
conguration for wireless connection below,
this unit would be able to access content from
either of the PCs.
The network conguration and connection
method may vary depending on t he
equipment in use and the network
environment.
This player is equipped with an IEEE 802.11n
(2.4 GHz band only) wireless module, which
also supports the 802.11b/g standards. For the
best wireless performance, we recommend
using a IEEE 802.11n certied Wi-Fi network
(access point or wireless router).
Available WiFi standards:
802.11b / 802.11g / 802.11n (single-band
2.4 GHz)
Wireless Network Connection
Broadband
Service
WAN
Front of this unit
PC
or wireless router
Wireless
Communication
Refer to the setup instructions supplied with
your access point or wireless router for detailed
connection steps and network settings.
NOTE
Wired internet connection is strongly
recommended. Using the [My Media] features,
network update and video streaming services
(such as YouTube Videos) with wireless network
can be aected by household devices using radio
frequencies.
Wireless Network Setup
For the wireless network connection, the
player needs to be set up for network
communication. This adjustment can be done
from the [Setup] menu. Adjust the [NETWORK]
setting as follows. Setting up the access
point or the wireless router is required before
connecting the player to the network.
PREPARATION
Before setting the wireless network, you need
to:
connect the broadband internet to the
wireless home network.
set the access point or wireless router.
note the SSID and security code of the
network.
1.
Select the [Connection Setting] option in
the [Setup] menu then press ENTER
( )
.
-
-
-
23Installation
Installation
3
2. The [CONNECTION SETTING] menu appears
on the screen. Use
U
/
u
to select [Wireless]
and press ENTER
( )
.
3. Selects [OK] and press ENTER
( )
to
continue. The new connection settings
reset the current network settings.
4. The unit scans all available access points or
wireless routers within range and displays
them as a list. Use
U
/
u
to select an access
point or wireless router on the list, and then
press ENTER
( )
.
If you have security on your access point
or wireless router, verify that the WEP or
WPA key that was entered into the player
matches the router’s information exactly.
You need to input the security code as
necessary.
NOTE
WEP security mode generally have 4 keys
available on an access point or wireless router’s
setting. If your access point or wireless router
uses WEP security, enter the security code of the
key “No.1” to connect on your home network.
An Access Point is a device that allows you to
connect to your home network wirelessly.
•
•
[Manual] – Your access point may not be
broadcasting its access point name(SSID).
Check your router settings through your
computer and either set your router to
broadcast SSID, or manually enter the
access point name(SSID) in [Manual].
[Push Button] – If your access point or
wireless router supports Push Button
Conguration method, select this option
and press the Push Button on your access
point or wireless router within 120 counts.
You do not need to know the access point
name (SSID) and security code of your
access point or wireless router.
5.
Use
U
/
u
/
I
/
i
to select the IP mode
between [Dynamic] and [Static].
Normally, select [Dynamic] to allocate an IP
address automatically.
24 Installation
Installation
3
NOTE
If there is no DHCP server on the network and you
want to set the IP address manually, select [Static]
then set the [IP Address], [Subnet Mask], [Gateway]
and [DNS Server] using
U
/
u
/
I
/
i
and numerical
buttons. If you make a mistake while entering a
number, press CLEAR to clear the highlighted part.
6. Select [OK] and press ENTER
( )
to apply
network settings.
7.
The unit will ask you to test the network
connection. Select [OK] and press ENTER
( )
to complete the network connection.
8.
If you select [Test] and press ENTER
( )
at step 7 above, the network
connection status is displayed on the
screen.
You can also test it on the [Connection
Status] in the [Setup] menu.
Notes on Network Connection:
Many network connection problems during
set up can often be xed by re-setting the
router or modem. After connecting the
player to the home network, quickly power
o and/or disconnect the power cable of
the home network router or cable modem.
Then power on and/or connect the power
cable again.
Depending on the internet service provider
(ISP), the number of devices that can
receive internet service may be limited by
the applicable terms of service. For details,
contact your ISP.
Our company is not responsible for
any malfunction of the player and/or
the internet connection feature due to
communication errors/malfunctions
associated with your broadband internet
connection, or other connected equipment.
The features of BD-ROM discs made
available through the Internet Connection
feature are not created or provided
by our company, and our company is
not responsible for their functionality
or continued availability. Some disc
related material available by the Internet
Connection may not be compatible with
this player. If you have questions about such
content, please contact the producer of the
disc.
Some internet content may require a higher
bandwidth connection.
Even if the unit is properly connected and
congured, some internet content may
not operate properly because of internet
congestion, the quality or bandwidth of
your internet service, or problems at the
provider of the content.
Some internet connection operations may
not be possible due to certain restrictions
set by the Internet service provider (ISP)
supplying your broadband Internet
connection.
•
•
•
•
•
•
•
25Installation
Installation
3
Any fees charged by an ISP including,
without limitation, connection charges are
your responsibility.
A 10 Base-T or 100 Base-TX LAN port is
required for wired connection to this player.
If your internet service does not allow for
such a connection, you will not be able to
connect the unit.
You must use a Router to use xDSL service.
A DSL modem is required to use DSL service
and a cable modem is required to use cable
modem service. Depending on the access
method of and subscriber agreement with
your ISP, you may not be able to use the
internet connection feature contained in
this player or you may be limited to the
number of devices you can connect at the
same time. (If your ISP limits subscription
to one device, this player may not be
allowed to connect when a PC is already
connected.)
The use of a “Router” may not be allowed
or its usage may be limited depending on
the policies and restrictions of your ISP. For
details, contact your ISP directly.
The wireless network operate at 2.4GHz
radio frequencies that are also used by
other household devices such as cordless
telephone, Bluetooth® devices, microwave
oven, and can be aected by interference
from them.
Turn o all unused network equipment in
your local home network. Some devices
may generate network trac.
For the purpose of the better reception,
place the player asclose as possible to the
access point.
In some instances, placing the access point
or wireless router at least 1.5 ft (0.45m)
above the oor may improve the reception.
Move closer to the access point if possible
or re-orient the player so there is nothing
between it and the access point.
•
•
•
•
•
•
•
•
•
•
The reception quality over wireless depends
on many factors such as type of the access
point, distance between the player and
access point, and the location of the player.
Set your access point or wireless router to
Infrastructure mode. Ad-hoc mode is not
supported.
•
•
26 Installation
Installation
3
USB device
connection
This unit can play movie, music and photo les
contained on a USB device.
Playback content in the USB
device
1. Insert a USB device in to the USB port until
it ts into place.
Wireless Network Connection
2. Press HOME.
3.
Select [Movie], [Photo] or [Music],
using
U
/
u
/
I
/
i
, and press ENTER
( )
.
4. Select the [USB] option using
I
/
i
, and press ENTER
( )
.
5. Select a le using
U
/
u
/
I
/
i
, and press
B
or
ENTER
( )
to play the le.
6.
Withdraw the USB device carefully after
exiting the USB mode.
NOTE
This unit supports USB ash memory/external
HDD formatted in FAT16, FAT32 and NTFS when
accessing les (music, photo, movie). However,
for BD-Live, only FAT16 and FAT32 formats are
supported. Please use the Internal Flash Memory
or USB ash memory/external HDD formatted in
either FAT16 or FAT32 when using BD-Live.
The USB device can be used for local storage for
enjoying BD-Live discs from the Internet.
This unit can support up to 4 partitions of the
USB device.
Do not extract the USB device during operation
(play, recording, etc.).
A USB device which requires additional
programme installation when you have
connected it to a computer, is not supported.
USB device: USB device that supports USB1.1
and USB2.0.
Movie, Music and photo les can be played.
For details of operations on each le, refer to
relevant pages.
Regular back up is recommended to prevent
data loss.
If you use a USB extension cable or USB HUB, the
USB device may not be recognized.
Some USB device may not work with this unit.
Digital camera and mobile phone are not
supported.
The USB Port on this unit cannot be connected
to a PC. The unit cannot be used as a storage
device.
Unformatted media cannot be used.
Please format before using.
If USB HDD cannot be recognized, try another
dierent USB cable.
Some USB cables may not supply enough
current for normal USB operation.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
27Installation
Installation
3
Home Menu Overview
To access numerous functions of the unit, press
HOME on the remote.
Basic button operations
HOME : Accesses or removes the Home Menu.
U
/
u
/
I
/
i
: Used to navigate on-screen displays.
ENTER
( )
: Acknowledges menu selection.
RETURN
(
O
)
: Exits the menu.
DTV
You can watch digital broadcasts.
(page 29-31)
Movie
Starts video media’s playback or displays
the [MOVIE] menu.
Displays [PHOTO] menu. (page 60-62)
Music
Displays [MUSIC] menu. (page 62-63)
Rec.List
Displays the Recording List menu. (page 52)
My Media
Displays and play the shared contents from
the selected server or PC. (page 63-67)
YouTube
Shows YouTube videos streamed from the
Youtube server via the internet to your TV.
(page 69-71)
Copy
Copies media les by connecting to various
storage devices. (page 68)
Timer Record
Displays [Timer Record] menu. (page 47)
Setup
Displays [Setup] menu. (page 28-41)
28 Installation
Installation
3
Settings
Adjust the Setup Settings
You can change the settings of the unit in the
[Setup] menu.
1.
Press HOME.
2. Use
U
/
u
/
I
/
i
to select [Setup] and press
ENTER
( )
. The [Setup] menu appears.
3. Use
U
/
u
to select a rst setup option,
and press ENTER
( )
or
i
to move to the
second level.
4. Use
U
/
u
to select a second setup option,
and press ENTER
( )
or
i
to move to the
third level.
5. Use
U
/
u
to select a desired setting, and
press ENTER
( )
to conrm your selection.
29Installation
Installation
3
Settings for Digital TV
To use DTV functions, this recorder needs some
settings in advance.
Selecting a Region
1. Press HOME.
2.
Use
U
/
u
/
I
/
i
to select [Setup], and press
ENTER
( )
.
3.
Use
U
/
u
to select [DTV] , and press ENTER
(
)
.
4.
Use
U
/
u
to select [Region] and press ENTER
( )
.
5. Use
U
/
u
to select a region where you
operate this unit, and press ENTER
( )
.
NOTE
If the [DTV Lock System] option is set to [On], this
function is not available (page 31).
Scanning programmes
automatically
All available digital TV or radio programmes are
searched for and stored automatically based
on the selected region.
1.
Display [Setup] menu.
2.
Use
U
/
u
/
I
/
i
to select [Auto Programming]
and press ENTER
( )
.
3.
Use
U
/
u
to select [Auto Scan] and press
ENTER
( )
to start the programme
scanning.
Select [Cancel] and press ENTER
( )
to cancel.
NOTE
This option is not available while recording or if
the [Permanent Timeshift] option is set to [On].
If the [DTV Lock System] option is set to [On],
this function is not available (page 31).
•
•
30 Installation
Installation
3
Scanning programmes
manually
Scans digital TV or radio programmes and adds
the detected programmes to the programme
list.
1.
Display [Setup] menu.
2.
Use
U
/
u
/
I
/
i
to select [Auto Programming]
and press ENTER
( )
.
3.
Use
U
/
u
to select [Manual Scan] and press
ENTER
( )
to display the [Manual Scan]
menu.
4. Use
I
/
i
to select the desired multiplexer
(MUX), and press ENTER
( )
to start
scanning.
OR
If you know the programme bandwidth and
frequency, use
I
/
i
to select the desired
[Bandwidth], and ll the [Frequency] eld in
using the numerical buttons.
5.
Press ENTER
( )
to start programme
scanning.
NOTE
This option is not available while recording or
the [Permanent Timeshift] option is the [Setup]
menu is set to [On].
If the [DTV Lock System] option is set to [On],
this function is not available (page 31).
•
•
Editing Programme List
You can remove any digital TV or radio
programs stored on this recorder using the
[Program edit] menu.
1.
Display [Setup] menu.
2.
Use
U
/
u
/
I
/
i
to select [Program Edit] and
press ENTER
( )
.
3.
Use
U
/
u
to select [DTV] and press ENTER to
display the [Edit - TV] menu.
4.
Press yellow coloured (C) button to toggle
between the TV and Radio programme lists.
[Edit - TV] or [Edit - Radio] menu shows the
signal strength ( ) and quality ( ) of the
current programme at the bottom.
5.
Use
U
/
u
to select a programme you want
to delete from the list, and press blue
coloured (D) button.
If you do not want to remove the
programme, select [No] and press ENTER
( )
on the popup menu.
6.
Press RETURN
(
O
)
to return to the TV
screen.
NOTE
This option is not available while recording or if the
[Permanent Timeshift] option is set to [On].
31Installation
Installation
3
Setting the DTV Lock System
Allows you to activate or deactivate all of the
lock schemes previously set. When the [DTV
Lock System] is set to [O ], the [TV Rating]
option is not eective.
1.
Display [Setup] menu.
2.
Use
U
/
u
/
I
/
i
to select [LOCK] and press
ENTER
( )
.
3.
Use
U
/
u
to select [DTV Lock System] and
press ENTER
( )
.
4.
Input the password using numerical
buttons.
If you have not set your password yet, input
“0000” and press ENTER
( )
.
5.
Use
U
/
u
to select [On] and press ENTER
( )
to activate the DTV Lock system.
Adjusting DTV Rating level
Viewing of some digital TV programmes can
be limited according to the age limit you set.
1.
Display [Setup] menu.
2.
Use
U
/
u
to select [LOCK] and press ENTER.
3.
Use
U
/
u
to select [DTV Rating] and press
ENTER
( )
.
4.
Input the password using numerical
buttons.
If you have not set your password
yet, input “0000” and press ENTER
(
5. Use
U
/
u
to set the limitation level and press
ENTER
( )
.
Allow All
You can view all programs.
Refer to the table below for the rating levels.
Rating Level Age
P 5-6
C 7-8
G 9-10
PG 11-12
M 13-14
MA 15-16
AV 17
R 18
Block All
All programs are locked. To view a
programme, you must input the 4-digit
password you have created.
NOTE
If the [DTV Lock System] is set to [O] in the [Setup]
menu, the [DTV Rating] option is not available.
32 Installation
Installation
3
Setting the antenna power
If you are using indoor antenna with a signal
amplier rated at DC 5V, 100mA, the recorder
can supply power through ANTENNA IN jack.
1.
Display [Setup] menu.
2.
Use
U
/
u
/
I
/
i
to select [Antenna Feed 5V]
and press ENTER
( )
.
3.
Use
U
/
u
to select [On], and press ENTER
( )
to supply antenna power.
NOTE
The [Antenna Feed 5V] option must be set to [O]
when your indoor antenna is supplied the power
from the mains. If you set the [Antenna Feed 5V]
option to [On] for the indoor antenna which is
supplied power from the mains, it may cause
serious defect to this unit.
Setting the permanent
Timeshift
You can set the Time Shift function
automatically without pressing TIME SHIFT
button. The timeshift will start after Digital TV
tuner mode is started.
1.
Display [Setup] menu.
2.
Use
U
/
u
to select [DTV], and press ENTER
( )
.
3.
Use
U
/
u
to select [Permanent Timeshift]
and press ENTER
( )
.
4. Use
U
/
u
to select [On] to apply permanent
timeshift.
Setting a recording storage
location
You can set the storage location where you
want to store the DTV recordings.
1.
Display [Setup] menu.
2.
Use
U
/
u
to select [OTHERS], and press
ENTER
( )
.
3.
Use
U
/
u
to select [REC Device] and press
ENTER
( )
.
4. Use
U
/
u
to select a storage location, and
press ENTER
( )
.
NOTE
This option is not available while recording.
33Installation
Installation
3
[DISPLAY] Menu
TV Aspect Ratio
Select a TV aspect ratio option according to
your TV type.
[4:3 Letter Box]
Select when a standard 4:3 TV is connected.
Displays theatrical images with masking
bars above and below the picture.
[4:3 Pan Scan]
Select when a standard 4:3 TV is connected.
Displays pictures cropped to ll your TV
screen. Both sides of the picture are cut o.
[16:9 Original]
Select when a 16:9 wide TV is connected.
The 4:3 picture is displayed with an original
4:3 aspect ratio, with black bars appearing
at the left and right sides.
[16:9 Full]
Select when a 16:9 wide TV is connected.
The 4:3 picture is adjusted horizontally (in a
linear proportion) to ll the entire screen.
NOTE
You cannot select [4:3 Letter Box] and [4:3 Pan
Scan] option when the resolution is set to higher
than 720p.
Resolution
Sets the output resolution of the Component
and HDMI video signal. Refer to page 17 and
86 for details about the resolution setting.
[Auto]
If the HDMI OUT jack is connected to
TVs providing display information (EDID),
this automatically selects the resolution
best suited to the connected TV. If the
COMPONENT VIDEO OUT only is connected,
this changes the resolution to 1080i as
default resolution.
[1080p]
Outputs 1080 lines of progressive video.
[1080i]
Outputs 1080 lines of interlaced video.
[720p]
Outputs 720 lines of progressive video.
[576p]
Outputs 576 lines of progressive video.
[576i]
Outputs 576 lines of interlaced video.
1080p Display Mode
When the resolution is set to 1080p, select
[24Hz] for smooth presentation of lm material
(1080p/24Hz) with a HDMI-equipped display
compatible with 1080p/24Hz input.
34 Installation
Installation
3
NOTE
When you select [24Hz], you may experience
some picture disturbance when the video
switches video and lm material. In this case,
select [50Hz].
Even when [1080p Display Mode] is set to
[24Hz], if your TV is not compatible with
1080p/24Hz, the actual frame frequency of the
video output will be 50Hz to match the video
source format.
When the 1080p/24Hz video source is output
via HDMI connection, the VIDEO OUT and
COMPONENT VIDEO OUT will not output any
video signal.
•
•
•
HDMI Color Setting
Select the type of output from the HDMI OUT
jack. For this setting, please refer to the manual
of your display device.
[YCbCr]
Select when connecting to a HDMI display
device.
[RGB]
Select when connecting to a DVI display
device.
[LANGUAGE] Menu
Display Menu
Select a language for the [Setup] menu and
on-screen display.
Disc Menu/Disc Audio/Disc Subtitle
Select the language you prefer for the audio
track (disc audio), subtitles, and the disc menu.
[Original]
Refers to the original language in which the
disc was recorded.
[Other]
Press ENTER
( )
to select another language.
Use number buttons then press ENTER
( )
to enter the corresponding 4-digit number
according to the language code list on
page 80.
[O] (Disc Subtitle only)
Turn o Subtitle.
NOTE
Depending on the disc, your language setting may
not work.
DTV Audio
Digital channels sometimes provide multiple
audio tracks, often in a dierent language.
You can set a default audio language with this
setting. If provided by the broadcaster, you can
also select a dierent audio language while
viewing TV by pressing AUDIO repeatedly. (See
“Selecting DTV audio language” on page 43.)
35Installation
Installation
3
DTV Subtitle
Digital channels sometimes provide subtitles,
often in a dierent language. You can set a
default subtitle language with this setting, if
DTV subtitles are provided by the broadcaster.
Press SUBTITLE repeatedly to select a subtitle
language while viewing digital TV.
(See “Selecting DTV subtitle language” on page
44.)
[AUDIO] Menu
Each disc has a variety of audio output options.
Set the player’s Audio options according to the
type of audio system you use.
NOTE
Since many factors aect the type of audio output,
see “Audio Output Specications” on pages 84-85
for details.
Digital Output
Select the output sound format when a device
equipped with a HDMI or Digital Audio input
jack is connected to the HDMI OUT or DIGITAL
AUDIO OUT jack on this unit.
[PCM Stereo]
Select if you connect this unit’s HDMI OUT
or DIGITAL AUDIO OUT jack to a device with
two-channel digital stereo decoder.
[PCM Multi-Ch] (HDMI only)
Select if you connect this unit’s HDMI OUT
jack to a device with multi-channel digital
decoder.
[Re-Encode]
Select if you connect this unit’s HDMI OUT
or DIGITAL AUDIO OUT jack to a device with
a DTS decoder.
[Primary Pass-Thru]
Select if you connect this unit’s DIGITAL
AUDIO OUT and HDMI OUT jack to a device
with LPCM, Dolby Digital, Dolby Digital Plus,
Dolby TrueHD, DTS and DTS-HD decoder.
NOTE
When [HDMI] option is set to [PCM Multi-Ch],
the audio may output as PCM Stereo if the PCM
Multi-Ch information is not detected from HDMI
device with EDID.
If the [Digital Output] option is set to
[Re-encode], the Re-encode audio is output for
BD-ROM discs with secondary audio and the
original audio is output for the other discs (like
[Primary Pass-Thru]).
•
•
Sampling Freq.
[192KHz]
Select this if your A/V Receiver or Amplier
is capable of handling 192 KHz signals.
[96KHz]
Select this if your A/V Receiver or Amplier
is NOT capable of handling 192 KHz signals.
When this choice is made, this unit
automatically converts any 192 KHz signals
to 96 KHz so your system can decode them.
[48KHz]
Select this if your A/V Receiver or Amplier
is NOT capable of handling 192 KHz and 96
KHz signal. When this choice is made, this
unit automatically converts any 192 KHz
and 96 KHz signals to 48 KHz so your system
can decode them.
Check the documentation for your A/V
Receiver or Amplier to verify its capabilities.
36 Installation
Installation
3
DRC (Dynamic Range Control)
When a le encoded in Dolby Digital or Dolby
Digital Plus is playing back, you may wish to
compress the dynamic range of the audio
output (the dierence between the loudest
sounds and the quietest ones). This allows you
to listen to a movie at a lower volume without
losing clarity of sound. Set [DRC] to [On] for
this eect.
NOTE
The DRC setting can be changed only when a
disc is not inserted or the unit is in complete stop
mode.
[LOCK] Menu
The [LOCK] settings aect only BD and DVD
playback.
To access any features in the [LOCK] settings,
you must enter the 4-digit security code you
have created.
If you have not entered a password yet, you are
prompted to do so. Enter a 4-digit password
twice, and press ENTER
( )
to create a new
password.
Password
You can create or change the password.
[New]
Enter a 4-digit password twice, and press
ENTER ( ) to create a new password.
[Change]
Enter the current password and press ENTER
( ). Enter a 4-digit password twice, and
press ENTER ( ) to create a new password.
If you forget your password
If you forget your password, you can clear it
using the following steps:
1.
Remove any disc that might be in the
player.
2.
Select [Password] option in the [Setup]
menu.
3.
Use Number buttons to enter “210499”. The
password is cleared.
NOTE
If you make a mistake before pressing ENTER, press
CLEAR. Then input the correct password.
37Installation
Installation
3
DVD Rating
Blocks playback of rated DVD based on their
content. (Not all discs are rated.)
[Rating 1-8]
Rating one (1) has the most restrictions and
rating eight (8) is the least restrictive.
[Unlock]
If you select unlock, parental control is not
active and the disc plays in full.
BD Rating
Set an age limit for BD-ROM play. Use number
buttons to input an age limit for BD-ROM
viewing.
[255]
All BD-ROM can be played.
[0-254]
Prohibits play of BD-ROM with
corresponding ratings recorded on them.
Area Code
Enter the code of the area whose standards
were used to rate the DVD video disc, based
on the list on page 79.
DTV Lock System
Allows you to set up specic programs and
ratings through blocking schemes. Also
allows you to activate or disable all of the
lock schemes previously set up. A password
is required to gain access to the lock menu
options. When the DTV Lock System is set to
[OFF], the [DTV Rating] is not eective. (See
“Setting the DTV Lock System” on page 31.)
DTV Rating
You can set the rating to block out all the
programs with rating above a specied level.
(See “Adjusting TV Rating level” on pages 31.)
[NETWORK] Menu
The [NETWORK] settings are needed to use
the software update feature, BD Live and My
Media.
Connection Setting
If your home network environment is ready
to be connected to the unit, the unit needs
to be set to the wired or wireless network
connection for network communication. (See
“Connecting to your Home Network” on pages
20-25.)
Connection Status
If you want to check the network status on
this unit, select the [Connection Status] option
and press ENTER
( )
to check whether a
connection to the network and the internet
has been established.
BD-LIVE connection
You can restrict Internet access when BD-LIVE
functions are used.
[Permitted]
Internet access is permitted for all BD-LIVE
contents.
[Partially permitted]
Internet access is permitted only for BD-
LIVE contents which have content owner
certicates. Internet access and AACS
Online functions are prohibited for all BD-
LIVE contents without a certicate.
[Prohibited]
Internet access is prohibited for all BD-LIVE
contents.
38 Installation
Installation
3
[DTV] Menu
Region
Select a region where you operate this
recorder. Refer to page 29 for more information.
Auto Programming
This option scans a programme and sets the
available programmes. Refer to page 29-30 for
more information.
Program Edit
This option allows you to edit the TV or Radio
programmes. Refer to page 30 for more
information.
Time
The clock must be set in order to use timer
recording.
[Auto]
Select a programme that broadcasts
a clock signal and the clock will be set
automatically. If the time that has been
automatically set is not correct when
compared your local time, you can set
additional time option. Select an option
relative to GTM in [Time Zone].
[Manual]
If there is no channel that broadcasts a
clock signal in your area, you can set the
time and date manually. Use
I
/
i
to select
each eld, and input correct time and date
using
U
/
u
, and press ENTER
( )
.
Antenna Feed 5V
If you are using an indoor antenna, use one
with a signal amplier rated at DC 5V, 100mA
and set this option to [On]. Refer to page 32 for
more information.
Permanent Timeshift
Set this option to [On] to use the Time Shift
function automatically without pressing the
TIME SHIFT button. The timeshift will start after
TV viewing is started. Refer to page 32 for more
information.
39Installation
Installation
3
[OTHERS] Menu
Power Save Mode
Selects whether this recorder is in power
save mode when the power is turned o. This
option is not available when a timer recording
is set.
[On]
The front panel display is o and only
signals arriving at the antenna input are
passed through when the recorder is
turned o.
[O]
Turns o the [Power Save Mode] function.
REC Device
This option sets the storage where your TV
recording will be stored. Select an option
between [HDD] or [USB], and press ENTER
( )
to set. Refer to page 32 for more information.
NOTE
When you select [USB], make sure that there is
sucient space for the recording on the USB
device.
This option is not available while recording.
•
•
BD Storage Select
This player can store some BD-ROM disc
related information, including downloaded on-
line content such as movie trailers and special
features into the internal Flash Memory or an
USB device.
[Built-In Storage]
Store the downloaded Blu-ray disc content
on the Internal Flash Memory.
[USB Storage]
Store the downloaded Blu-ray disc content
on the connected USB device.
BD Storage Clear
Removes the BD contents from the built-in
storage or the connected USB storage.
[Built-In Storage]
Delete all the downloaded contents from
the built-in storage.
[USB Storage]
Delete all the downloaded contents from
the connected USB storage.
NOTE
If you select USB Storage, playback, copying and
recording on the USB device is disabled.
40 Installation
Installation
3
HDD Format
Everything recorded on the HDD will be
erased.
1.
Press HOME.
2.
Use
U
/
u
/
I
/
i
to select [Setup] in the
[Home] menu, and press ENTER
( )
.
3.
Use
U
/
u
to select [OTHERS] option from the
[Setup] menu, and press ENTER
( )
.
4.
Use
U
/
u
to select [HDD Format], and press
ENTER
( )
to display the sub-options.
5.
Use
I
/
i
to select [OK], and press ENTER
( )
.
Select [Cancel] and press ENTER
( )
to
cancel.
Warning message appears on the screen.
6.
Use
U
/
u
to adjust the buer for timeshift
function, and press ENTER
( )
while [Next]
option is highlighted.
This option is available only when you are
formatting the HDD.
Select [Back] and press ENTER
( )
to return
to the previous menu.
7.
Use
I
/
i
to select the [Format], and press
ENTER
( )
to start the HDD format.
Select [RETURN] and press ENTER
( )
to
return to the previous menu.
8.
After HDD format is nished, press ENTER
( )
to reboot the recorder.
DivX VOD
ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, Inc. This is an ocial
DivX Certied device that plays DivX video.
Visit www.divx.com for more information and
software tools to convert your les into DivX
video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certied® device must be registered in order to
play DivX Video-on-Demand (VOD) content.
To generate the registration code, locate the
DivX VOD section in the device setup menu.
Go to vod.divx.com with this code to complete
the registration process and learn more about
DivX VOD.
[DivX reg. Code]
Displays the registration code of your player.
[Deactivate]
Deactivate your unit and display the
deactivation code.
NOTE
All the downloaded videos from DivX VOD with the
unit’s registration code can only be played on the
unit’s internal hard disk drive or USB device.
Factory Set
You can reset the unit to its original factory
settings.
NOTE
If you reset the unit to its original factory settings
using [Factory Set] option, you have to set the
network settings activation again.
41Installation
Installation
3

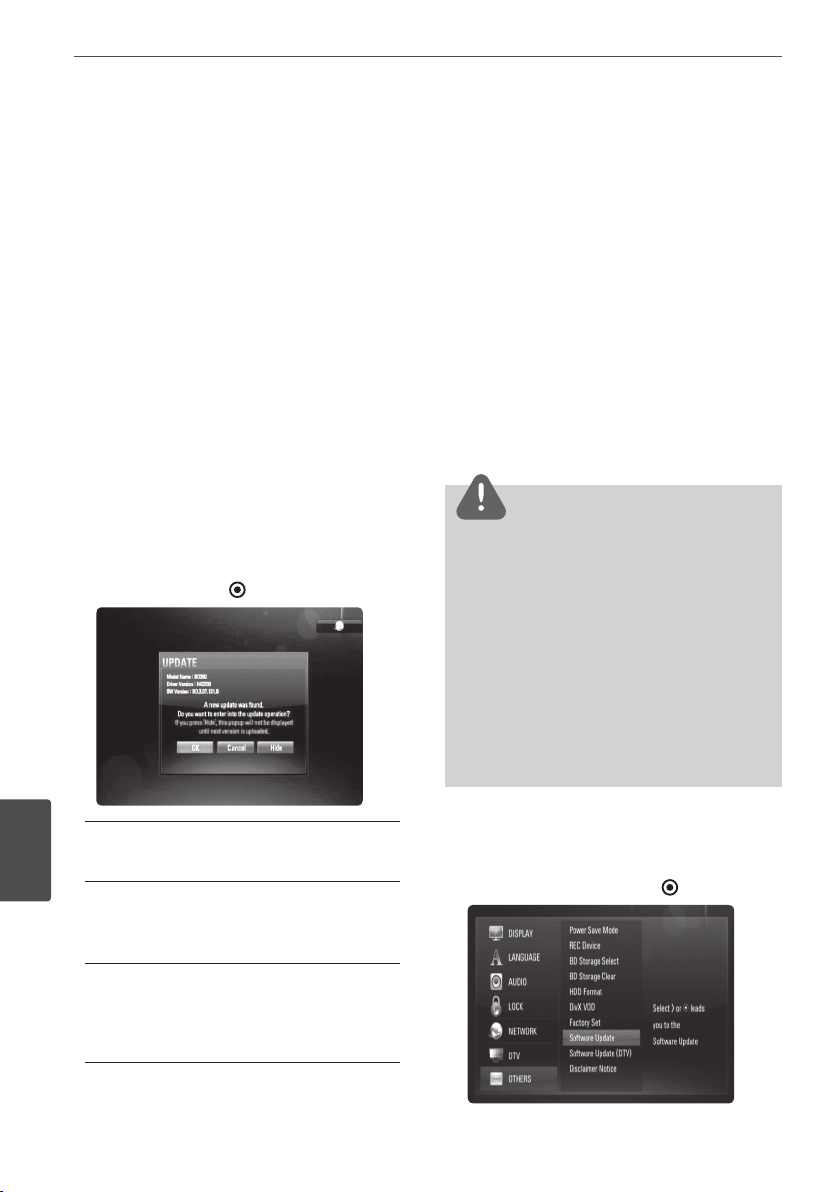

Software Update
You can update the software by connecting
the unit directly to the software update server
(see page 82-83).
Software Update (DTV)
You can also update to the latest software
through the built in digital tuner.
NOTE
DTV antenna must be connected to the
ANTENNA IN jack on the rear panel.
Stop recording before using update function.
•
•
1. Press HOME.
2.
Use
U
/
u
/
I
/
i
to select [Setup] in the Home
menu, and press ENTER
( )
.
3.
Use
U
/
u
to select [OTHERS] option from the
[Setup] menu, and press ENTER
( )
.
4.
Use
U
/
u
to select [Software Update (DTV)],
and press ENTER
( )
to display the
sub-options.
5.
Use
U
/
u
to select [Operation mode], and
press ENTER
( )
.
6.
Use
I
/
i
to select [Yes], and press ENTER
( )
to search for a new update.
The recorder will check for the newest
update.
If there is no update available, the Message,
“No software” appears.
7.
Press ENTER
( )
to select [Yes], and press
ENTER
( )
to start software update.
8.
When the update is completed, the
message, “Update is complete.” will appear,
and the power will turn o automatically
after 5 seconds.
9.
Turn the power back on. The system now
operates with the new version.
Disclaimer Notice
Press ENTER
( )
to view the notice of Network
Service Disclaimer on page 88.
42 Operation
Operation
4
Using the Digital TV
functions
You can watch and record the digital TV
programmes or playback the recorded TV
programmes you want to watch using this
unit.
Viewing the Digital TV
Viewing the Digital TV broadcasting on the TV
screen.
NOTE
DTV antenna connection is required. (page 14)
DTV settings such as [Auto Programming] in the
[Setup] menu may be required. (page 29)
•
•
1. Press
1
(POWER) to turn on the recorder.
2.
Use
U
/
u
/
I
/
i
to select [DTV] on the HOME
menu and press ENTER
( )
.

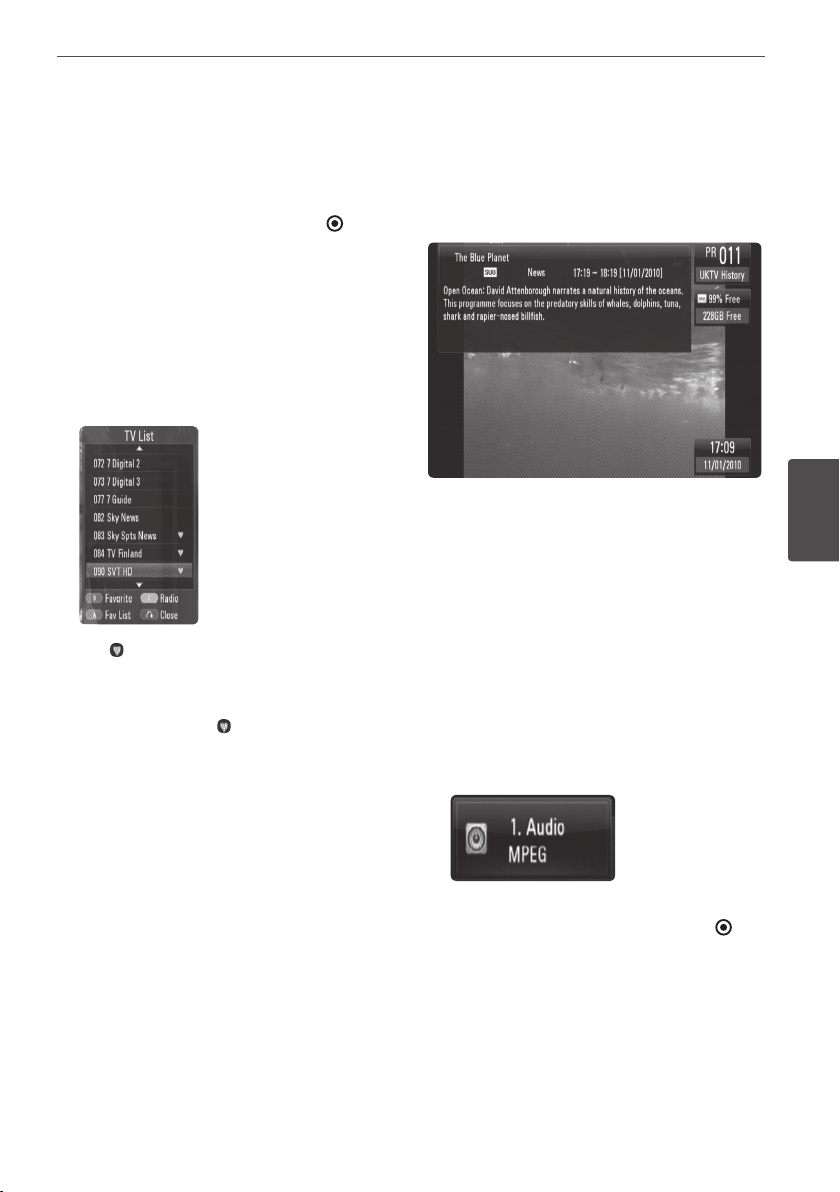

Changing Digital TV
programmes
Generally, press PR (
U
/
u
) or
U
/
u
to select the
programme position, or entering a programme
number using numerical buttons. If you want
to change the programme on the programme
list, follow the instruction as below.
1.
While watching DTV, press ENTER
( )
or PR
LIST.
2. Press yellow coloured (C) button to toggle
menu between [TV List] and [Radio List].
3.
Use
U
/
u
to select a desired programme,
and press ENTER
( )
.
4.
Press RETURN
(
O
)
to exit the programme
list.
4
Operation
43Operation
Operation
4
Setting favourite programmes
You can set the storage location where you
want to store the DTV recordings.
1.
While watching DTV, press ENTER
( )
or PR
LIST
2.
Press yellow coloured (C) button to toggle
menu between [TV List] and [Radio List].
3.
Use
U
/
u
to select a programme you want
to add on the Favourite List.
4.
Press green coloured (B) button to set the
programme as a favourite programme.
The
mark appears for the favourite
programmes.
To cancel the favourite programmes, select
a programme with mark, and press red
coloured button.
5.
Press A coloured (Red) button to display the
favourite programme list.
On the Favourite List menu, press yellow
coloured (C) button to toggle menu
between TV FAV List and Radio FAV List.
Viewing the programme
information
You can view a description of the programme
being broadcast.
1. While watching DTV, press INFO/DISPLAY to
display the programme information.
2.
Press INFO/DISPLAY again to close the
programme information.
Selecting DTV audio language
Some digital programmes may broadcast
several audio languages or encoding methods.
You can select an audio language or an
encoding method when it is available.
1.
While watching DTV, press AUDIO.
2. Use
I
/
i
to select an audio language or an
encoding method, and press ENTER
( )
.
44 Operation
Operation
4
Selecting DTV subtitle
language
Some digital programmes may broadcast
several subtitle languages. You can select a
subtitle language when it is available.
1.
While watching DTV, press SUBTITLE.
2. Use
I
/
i
to select a subtitle language, and
press ENTER
( )
.
NOTE
You can nd a programme that supports subtitle
language on the programme information.
For the programmes with subtitle, SUB icon
appears on the programme information.
Viewing the EPG (Electronic
Programme Guide) Display
The Electronic Programme Guide is a guide
showing the programme schedule for a day or
more at a time.
1.
Press GUIDE while watching Digital TV.
The EPG screen appears and it updates
automatically if the EPG data is acquired
successfully.
2.
Select an item using
I
/
i
and adjust the
selected item using
U
/
u
.
The adjustable items are
c
,
d
and
e
.
a
e
d
c
b
a
Shows the Live Digital TV programme
that you have chosen on the programme
eld.
b
Indicates the detailed information of the
currently selected programme.
c
Indicates the currently selected date.
Use
U
/
u
to select a dierent date.
d
Indicates the current programme name.
Use
U
/
u
to change the programme.
e
Indicates the programme guide of
the selected programme. Shows the
start time, end time and title of the
programme.
NOTE
Digital Services availability and contents may dier
depending on the broadcaster.
45Operation
Operation
4
Using the timeshift function
manually
You can pause a Live TV broadcast, then
continue watching the programme at a
later time. This is useful when you receive an
unexpected call or visitor while watching TV.
The following are operating steps when the
[Permanent Timeshift] option is set to [O].
1.
Press TIME SHIFT while watching a TV
broadcast. The picture pauses, and the
recorder starts recording the current TV
programme to the HDD.
2.
Press
B
to resume watching the
programme.
Press INFO/DISPLAY to display the progress
of timeshift.
Press
.
/
>
to move the starting
point or the ending point of timeshift.
Press
m
/
M
to playback of timeshift
fast forward or fast reverse.
Press
M
while in pause mode to slow
down the timeshift playback speed. Press
M
repeatedly to change the playback
speed.
3. Press
x
to cancel the timeshift.
Timeshift cannot be saved as a recorded
title.
Using the permanent timeshift
If you set the [Permanent Timeshift] option
to [On], live TV broadcast will automatically
be recorded to the HDD without pressing
the TIME SHIFT button. The timeshift will start
automatically when the Digital TV tuner mode
is started.
Refer to “Setting the permanent Timeshift”
on page 32 to set the [Permanent Timeshift]
option.
1.
Press
1
(POWER) to turn on the unit.
2.
Use
U
/
u
/
I
/
i
to select [DTV] and press
ENTER.
The timeshift function will automatically
start.
Press
.
/
>
to move the starting
point or the ending point of timeshift.
Press
m
/
M
to playback of timeshift
fast forward or fast reverse.
Press
M
while in pause mode to slow
down the timeshift playback speed.
Press
M
repeatedly to change the
playback speed.
3.
Press HOME to exit from the DTV viewing.
46 Operation
Operation
4
Using the teletext (Viewing
Teletext)
Teletext service may not be broadcast in
your area.
Many Digital TV programmes broadcast
information via their text service, and this
recorder has access to dedicated text
programmes transmitted by the broadcasters.
1. Press TEXT while watching TV.
2.
Use
g
reen or yellow coloured (B or C)
button to select a page.
You can also select a page by entering a
three digit number with the numerical
buttons.
3.
Press TEXT to exit the teletext screen.
NOTE
Additionally, you now have four coloured buttons
to navigate through the content of the page. The
use of these coloured buttons will be displayed on
the screen.
Recording TV
programmes
You can record Digital TV programmes, and
store them on the HDD or USB device.
PREPARATION
Select the recording location using [REC
Device] option on the SETUP menu. (page
32).
Connect a USB device, if [REC Device]
option is set to [USB].
Normal Recording
1. Use PR (
U
/
u
) or
U
/
u
to select a programme
you want to record.
2.
Press
z
REC to start recording.
Press
X
to pause recording, press
X
again
to resume recording.
You can watch another programme while
recording.
3.
Press
x
to stop recording.
To stop recording, you must move to the
programme being recorded before pressing
x
.
NOTE
TV recordings will be stored in the [REC] folder
of the storage you’ve set in the [REC Device].
Only HDD type USB storages are Available for
USB recording. Flash type USB storages are not
available for recording.
•
•
-
-
47Operation
Operation
4
Dual Programme Recording
You can record two Digital TV programmes at
the same time.
1.
Use PR (
U
/
u
) or
U
/
u
to select a programme
you want to record.
2.
Press
z
REC to start recording.
3.
Use PR (
U
/
u
) or
U
/
u
to select another
programme you want to record.
4.
Press
z
REC to start recording.
While recording two programmes
simultaneously, you can only watch the
programmes being recorded.
5.
Press
x
to stop recording.
To stop recording, you must move to the
programme being recorded before pressing
x
.
Timer Recording (Manual)
You can set the timer for a total of 32
programmes, up to 30 days in advance.
1.
While watching TV, press TIMER REC.
2. Use
U
/
u
to select [NEW], and press ENTER
( )
.
3. Select an item using
I
/
i
and adjust it using
U
/
u
.
The adjustable items are listed below.
PR Sets the programme position.
Date Sets the date.
Start Sets the start time.
End Sets the end time.
Repeat Choose a desired repeat mode.
(Once, Everyday, Mon-Fri,
Mon-Sat or Weekly)
NOTE
The timer recording can be set from 3 minutes
after the current time.
Timer recording is not available on a USB device.
•
•
4. Press ENTER
( )
and the conrm message
appears.
5.
Select [OK] then press ENTER
( )
.
If you input the wrong information, an
error message will appear and the timer
recording cannot be made.
Select [Cancel] and press ENTER
( )
to
cancel.
48 Operation
Operation
4

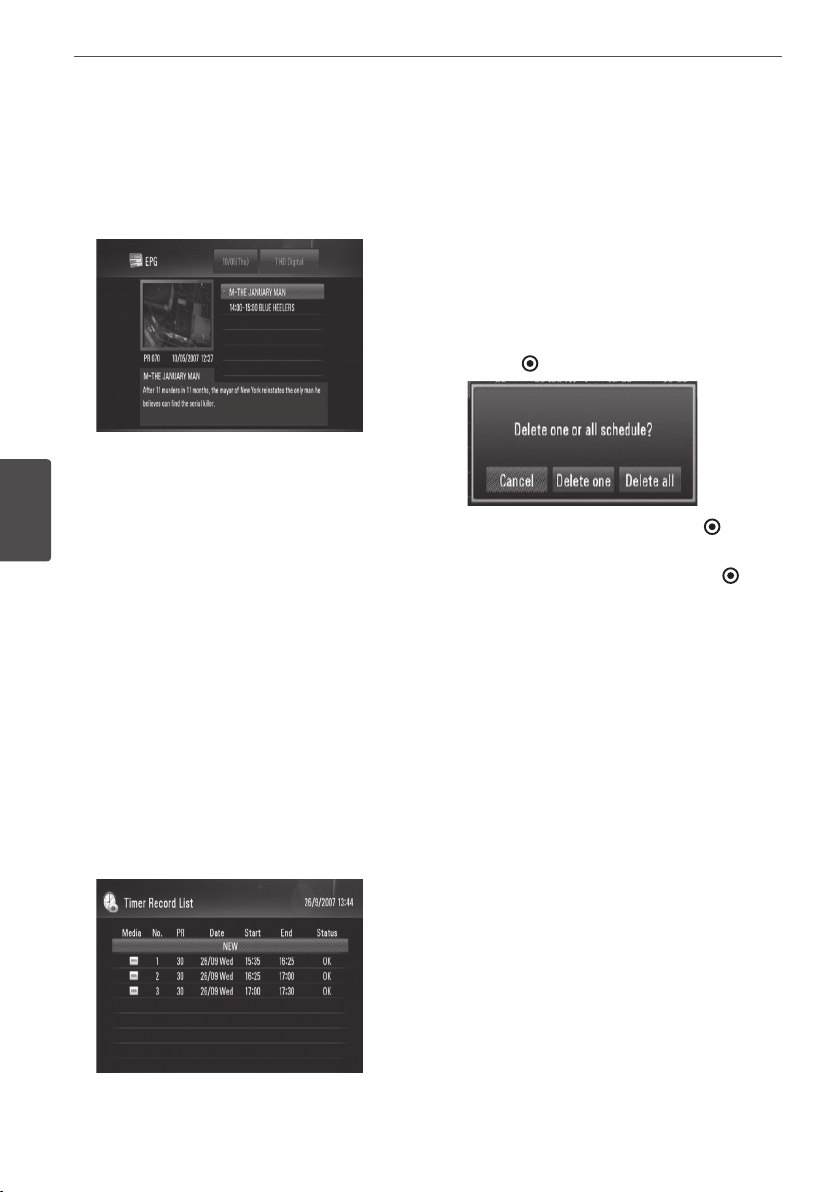

Timer Recording (EPG)
You can also set the timer based on the
information provided by the EPG.
1.
While watching TV, press GUIDE.
2. Use
I
/
i
to select date eld, and select the
date of recording schedule using
U
/
u
.
3.
Use
I
/
i
to select programme eld, and set
the programme using
U
/
u
.
4.
Use
I
/
i
to select the programme list, and
select a programme you want to record
using
U
/
u
.
5.
Press
z
REC..
For the successfully scheduled programme,
a red bullet mark appears.
A red bullet mark may not appear for
unavailable programme to record.
6.
Press RETURN
(
O
)
to return to the TV
viewing.
7.
Press TIMER REC, and check whether the
schedule is registered properly or not.
Canceling a timer recording
You can cancel a timer recording before the
timer recording actually starts.
1.
While watching TV, press TIMER REC.
2.
Use
U
/
u
to select a schedule you want to
cancel.
3.
Press the blue coloured (D) button.
4.
Use
I
/
i
to select [Delete one], and press
ENTER
( )
.
Select [Cancel] and press ENTER
( )
to
cancel.
Select [Delete all] and press ENTER
( )
to
delete whole schedules.
49Operation
Operation
4
Checking a timer history
You can check if the timer recording is
completed or not on the [Timer Record
History] menu. The [Result] column shows “OK”
or ”Fail”.
1.
While watching TV, press TIMER REC.
2.
Press yellow coloured (C) button to display
the [Timer Record History] menu.
To delete an item, select an item and press
ENTER
( )
. And select [OK] and press ENTER
( )
to delete the history.
Editing a timer recording
You can edit a pre-scheduled timer recording
before the timer recording actually starts.
1.
While watching TV, press TIMER REC.
2.
Use
U
/
u
to select a schedule you want to
edit.
3.
Press ENTER
( )
to display the [Timer
Record] menu.
3. Follow the steps 3-5 from “Timer Recording
(Manual)” on page 47 to complete the
editing.
Instant Timer Recording
You can set the recording time instantly to
stop the recording automatically.
1.
Use PR (
U
/
u
) or
U
/
u
to select a programme
you want to record.
2.
Press
z
REC. to start recording.
3.
While recording, press
z
REC. repeatedly to
set the recording duration.
Continue (Normal recording) => 10M =>
20M => 30M => 60M => 90M => 120M =>
Continue
4. Press
x
to stop recording.
50 Operation
Operation
4
General Playback
Playing Discs
1. Press OPEN/CLOSE(
Z
) and place a disc on
the disc tray.
2. Press OPEN/CLOSE(
Z
) to close the disc tray.
For most Audio CD, BD-ROM and
DVD-ROM discs, playback starts
automatically.

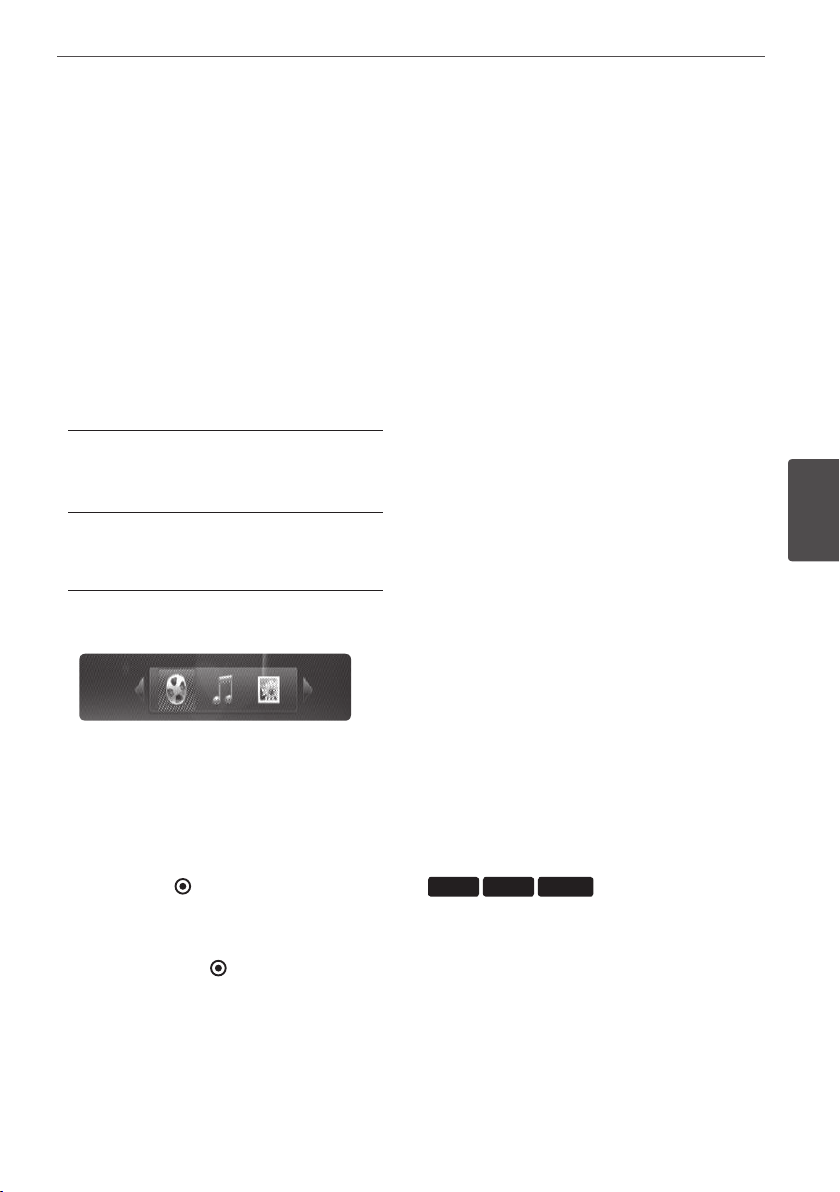

3.
Press HOME.
4. Select [Movie], [Photo] or [Music] using
U
/
u
/
I
/
i
, and press ENTER
( )
.
5.
Select the [Data] option using
I
/
i
, and
press ENTER
( )
.
This step is needed only when a disc and/or
a USB device is connected simultaneously
to this unit.
6.
Select a le using
U
/
u
/
I
/
i
, and press
B
or
ENTER
( )
to play the le.
NOTE
Playback functions described in this manual are
not always available in every les and media.
Some functions can be restricted depending on
many factors.
Depending on the BD-ROM titles, a USB device
connection may be needed for proper playback.
•
•
51Operation
Operation
4
Playing HDD or USB
The unit can play movie, music and photo les
on the HDD or USB.
Before playing movie, music or photo les, read
“File requirement” on page 10.
1.
Press HOME.
2.
Use
U
/
u
/
I
/
i
to select [Movie], [Photo]
or [Music] in the [Home] menu, and press
ENTER.
3.
Select a storage type using
I
/
i
and press
ENTER.
[HDD]
Displays media (Movie, Music, Photo) les
stored in HDD.
[USB]
Displays media (Movie, Music, Photo) les
stored in a connected USB device.
4.
Use
I
/
i
to select a media type (Movie,
Music or Photo).
5. Use
U
/
u
to select a le you want to play.
Use
U
/
u
to select a folder, and press ENTER.
A list of les and sub-folders in the folder
appears.
If you want to move to the upper directory,
press RETURN
(
O
)
or use
U
/
u
to select and
press ENTER
( )
.
Press INFO/DISPLAY while selecting a movie
le to display the detailed le information.
6.
Press
B
or ENTER
( )
to play the selected
le.
To stop playback
Press
x
during playback.
To pause playback
Press
X
during playback.
Press
X
repeatedly to play back Frame-by-
Frame.
To scan forward or backward
Press
m
or
M
to play fast forward or fast
reverse during playback.
You can change the various playback speeds
by pressing
m
or
M
repeatedly.
While the playback is paused, press
M
repeatedly to play various speed of slow
motion.
To skip to the next/previous
chapter/track/file
During playback, press
.
or
>
to go to
the next chapter/track/le or to return to the
beginning of the current chapter/track/le.
Press
.
twice briey to step back to the
previous chapter/track/le.
In the [My Media] menu, there may be many
types of media les in the current folder
together. In this case, press
.
or
>
to go
to the previous or next media le of the same
type.
Using the disc menu
BD
DVD
AVCHD
To display the disc menu
The menu screen may be displayed rst after
loading a disc which contains a menu. If you
want to display the disc menu during playback,
press DISC MENU.
Use
U
/
u
/
I
/
i
buttons to navigate through
menu items.
52 Operation
Operation
4
To display the Pop-up menu
Some BD-ROM discs contain a Pop-up menu
that appears during playback.
Press TITLE/POPUP during playback, and use
U
/
u
/
I
/
i
buttons to navigate through menu
items.
Resume playback
BD
DVD
AVCHD
MOVIE
MOVIE-N
ACD
MUSIC
MUSIC-N
REC
MOVIE-M
MUSIC-M
This unit remembers the point where you
pressed the
x
. depending on the disc.
If “
Xx
(Resume Stop)” appears on the screen
briey, press
B
to resume playback (from the
scene point).
If you press
x
twice or unload the disc (“
x
”
appears on the screen.), the unit will clear the
stopped point.
NOTE
The resume point may be cleared when a
button is pressed (for example;
1
(POWER),
OPEN/CLOSE, etc).
On BD-Video discs with BD-J, the resume
playback function does not work.
If you press
x
once during BD-ROM interactive
title playback, the unit will be in Complete Stop
mode.
•
•
•
Sorting the recorded titles
REC
1. Press HOME.
2.
Use
I
/
i
to select [Rec. List], and press
ENTER
( )
.
3.
Press red coloured (A) button to access the
sorting menu.
4. Use
U
/
u
to select a sorting method from
[Latest], [Time] or [Title Name].
Latest : sorted by recorded date.
Time : sorted by recorded time in numerical
order.
Title Name : by title name in alphabetical
order.
53Operation
Operation
4
Playing selected files
REC
MOVIE-M
MUSIC-M
PHOTO-M
You can play only selected les, using the
MARKER on the le list.
1.
Follow the steps 1-5 from “Playing HDD or
USB” on page 51 to select les.
2.
Press MARKER when the required le is
highlighted.
You can mark multiple les using MARKER
button.
3.
Press EDIT to display option menu.
To unmark all marked les, select the
[Unmark ALL] on the option menu.
4.
Use
U
/
u
to select [Select play], and press
ENTER
( )
to play selected les.
Delete a file/folder from the
list
REC
MOVIE-M
MUSIC-M
PHOTO-M
You can delete les/folders from the HDD or
USB.
1.
Follow the steps 1-5 from “Playing HDD or
USB” on page 51 to select a le.
2.
Press EDIT to display option menu.
3.
Use
U
/
u
to select [Delete], and press ENTER
to delete the le.
If you want to delete multiple les and/or
folders from the HDD or USB, press MARKER
on each le, folder and select the [Select
Delete] on the option menu.
To unmark all marked les, select the
[Unmark ALL] on the option menu.

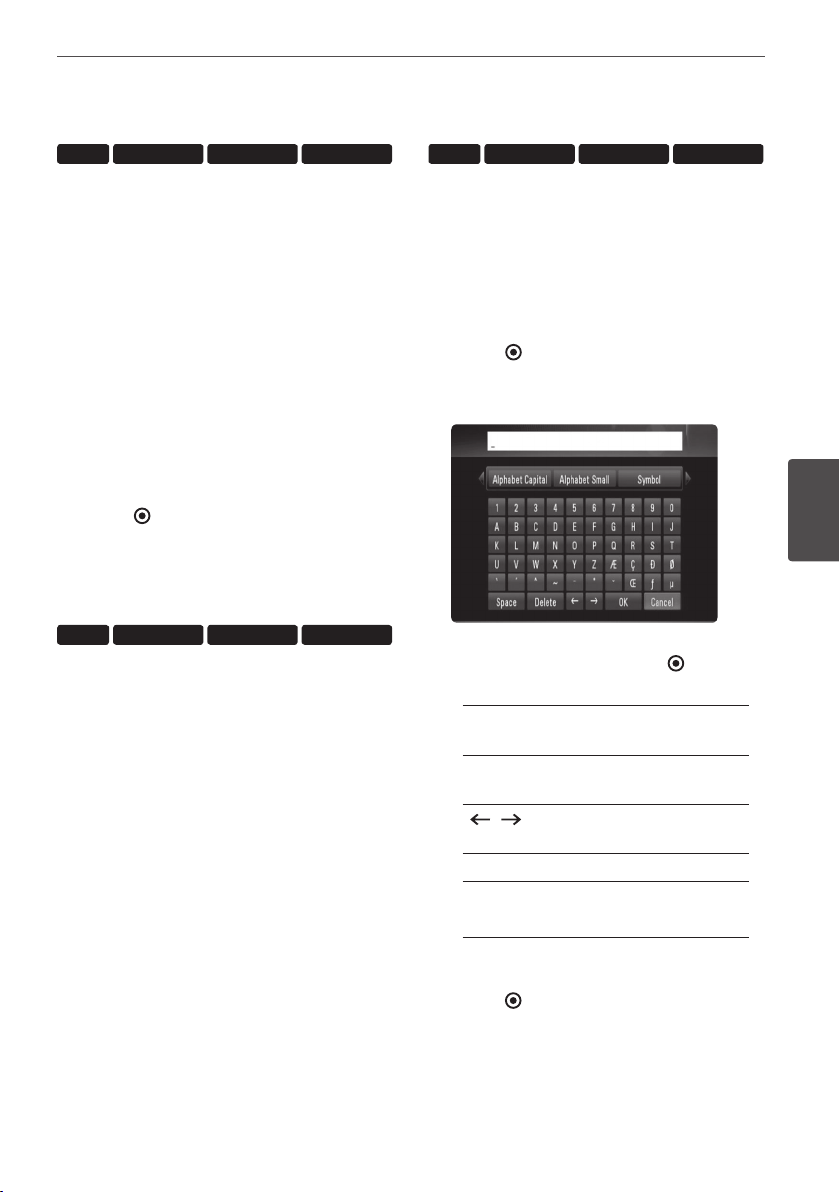

Naming a file
REC
MOVIE-M
MUSIC-M
PHOTO-M
You can rename the selected le on HDD or
USB.
1.
Follow the steps 1-5 from “Playing HDD or
USB” on page 51 to select a le.
2.
Press EDIT to display the option menu.
3.
Use
U
/
u
to select [Rename], and press
ENTER
( )
to display the virtual keyboard.
4.
Use
U
/
u
/
I
/
i
to select a character, and
press ENTER to conrm your selection
Select [Alphabet Capital], [Alphabet Small]
or [Symbol], and press ENTER
( )
to change
the character set of the virtual keyboard
[Space] – Inserts a space at the cursor
position.
[Delete] – Delete a previous character
at the cursor position.
[ / ] – Moves cursor to the left or
right.
[OK] – Complete naming.
[Cancel] – Cancels the naming, and
return to the previous menu.
5. Use
U
/
u
/
I
/
i
to select [OK] and press
ENTER
( )
to complete the naming process.
54 Operation
Operation
4
Advanced Playback
Repeat Playback
BD
DVD
AVCHD
ACD
MUSIC
MUSIC-N
REC
During playback, press REPEAT repeatedly to
select a desired repeat mode.
BDs/DVDs/Movie les
A-
– Selected portion will be repeated
continually.
Chapter
– The current chapter will be
played back repeatedly.
Title
– The current title will be played
back repeatedly.
Track
– The current track or le will be
played back repeatedly.
To return to normal playback, press REPEAT
repeatedly to select [O].
Audio CDs/Music les
– The current track or le will be
played back repeatedly.
– All the tracks or les will be played
back repeatedly.
– The tracks or les will be played back
in random order.
– All the tracks or les will be
played back repeatedly in random order.
– Selected portion will be repeated
continually. (Audio CD only)
To return to normal playback, press CLEAR.
REC (File recordings)
– The current file will be played back
repeatedly.
– All files in the current directory will
be played back repeatedly.
NOTE
If you press
>
once during Repeat Chapter/
Track playback, the repeat playback cancels.
This function may not work on some disc or title.
•
•
Repeating a specific portion
BD
DVD
AVCHD
ACD
This unit can repeat a portion you have
selected.
1.
During playback, press REPEAT to select [A-]
at the beginning of the portion you wish to
repeat.
2.
Press ENTER
( )
at the end of the portion.
Your selected portion will be repeated
continually.
3.
To return to normal playback, press REPEAT
repeatedly to select [O]
NOTE
You cannot select a portion less than 3 seconds.
This function may not work on some disc or title.
•
•
Enlarge the playback image
BD
DVD
AVCHD
MOVIE
MOVIE-N
1. During playback or pause mode, press
ZOOM to display the [Zoom] menu.
2.
Use
g
reen or yellow coloured (B or C)
buttons to zoom out or in on the still image.
You can move through the zoomed picture
using
U
/
u
/
I
/
i
buttons.
3.
Press RETURN
(
O
)
to exit the [Zoom]
menu.
55Operation
Operation
4
Marker Search
BD
DVD
AVCHD
MOVIE
MOVIE-N
You can start playback from up to nine
memorized points.
To enter a marker
1. During playback, press MARKER at the
desired point. The Marker icon appears on
the TV screen briey.
2.
Repeat step 1 to add up to nine markers.
To recall a marked scene
1. Press SEARCH and the search menu appears
on the screen.
2.
Press a number button to select a marker
number that you want to recall. Playback
starts from the marked scene.
To delete a Marker
1. Press SEARCH and the search menu appears
on the screen.
2. Press
u
to highlight a marker number.
Use
I
/
i
to select a marked scene that you
want to delete.
3. Press CLEAR and the marked scene is erased
from the search menu.
NOTE
This function may not work depending on discs,
titles.
All marked points are cleared if the title is in
complete stop (
x
) mode, the title is changed or
if you unload the disc.
•
•
Changing content list view
MOVIE
MOVIE-N
ACD
MUSIC
MUSIC-N
On the [Movie], [Music], [Photo] and [My
Media] menu, you can change the content list
view.
Method
Press INFO/DISPLAY button repeatedly.
NOTE
The equalizer will disappear when you change the
music contents list view.
56 Operation
Operation
4
Last Scene Memory
BD
DVD
This unit memorizes the last scene from the
last disc that is viewed. The last scene remains
in memory even if you remove the disc from
the unit or switch o the unit. If you load a disc
that has the scene memorized, the scene is
automatically recalled.
NOTE
Last Scene Memory function for a previous disc
is erased once a dierent disc is played.
This function may not work depending on the
disc.
•
•
Screen Saver
The screen saver appears when you leave the
player in Stop mode for about ve minutes.
The screen saver also appears when you are
playing music for about ve minutes, but the
unit may not be turned o.
On-Screen display
You can display and adjust various information
and settings concerning the content.
Displaying content information
on-screen
1. During playback, press INFO/DISPLAY
to show various playback information.
a
f
e
d
c
b
a
Title – Current title number/total
number of titles.
b
Chapter – Current chapter number/
total number of chapters.
c
Time – Elapsed playing time/Total
playback time.
d
Audio – Selected audio language or
channel.
e
Subtitle – Selected subtitle.
f
Angle – Selected angle/total number
of angles.
2.
Select an option using
U
/
u
.
3.
Use
I
/
i
to adjust the selected option
value.
4.
Press RETURN(
O
) to exit the On-Screen
display
57Operation
Operation
4
NOTE
If no button is pressed for a few seconds, the on-
screen display disappears.
A title number cannot be selected on some
discs.
Available items may dier depending on discs
or titles.
If BD interactive title is playing back, some
setting information is displayed on the screen
but prohibited to be changed.
•
•
•
•
Playing from selected time
BD
DVD
AVCHD
MOVIE
MOVIE-N
1. Press INFO/DISPLAY during playback. The
time search box shows the elapsed playing
time.
2.
Select the [Time] option and then input
the required start time in hours, minutes,
and seconds from left to right.
For example, to nd a scene at 2 hours, 10
minutes, and 20 seconds, enter “21020”.
3.
Press ENTER
( )
to start playback from
selected time.
NOTE
This function may not work on some disc or
titles.
This function may not work on some [My Media]
content depending on the le type and ability
of the DLNA server.
•
•
Hearing different audio
BD
DVD
AVCHD
MOVIE
MOVIE-N
1. During playback, press INFO/DISPLAY to
display the playback menu.
2.
Use
U
/
u
to select the [Audio] option.
3.
Use
I
/
i
to select desired audio language,
audio track or audio channel.
NOTE
Some discs allow you to change audio selections
only via the disc menu. If this is the case, press
TITLE/POPUP or DISC MENU button and choose
the appropriate audio from the selections on
the disc menu.
Immediately after you have switched sound,
there may be a temporary discrepancy between
the display and actual sound.
On BD-ROM disc, the multi audio format (5.1CH
or 7.1CH) is displayed with [MultiCH] in the on-
screen display.
•
•
•
Selecting a subtitle language
BD
DVD
AVCHD
MOVIE
MOVIE-N
1. During playback, press INFO/DISPLAY to
display the playback menu.
2.
Use
U
/
u
to select the [Subtitle] option.
3.
Use
I
/
i
to select the desired subtitle
language.
4.
Press RETURN(
O
) to exit the On-Screen
display.
NOTE
Some discs allow you to change subtitle selections
only via the disc menu. If this is the case, press
TITLE/POPUP or DISC MENU button and choose
the appropriate subtitle from the selections on the
disc menu.
58 Operation
Operation
4
Watching from a different
angle
BD
DVD
If the disc contains scenes recorded at dierent
camera angles, you can change to a dierent
camera angle during playback.
1.
During playback, press INFO/DISPLAY to
display the playback menu.
2.
Use
U
/
u
to select the [Angle] option.
3.
Use
I
/
i
to select the desired angle.
4.
Press RETURN(
O
) to exit the On-Screen
display.
Enjoying BD-LIVE
This unit allows you to enjoy functions such as
picture-in-picture, secondary audio and Virtual
packages, etc., with BD-Video supporting
BONUSVIEW (BD-ROM version 2 Prole 1
version 1.1/ Final Standard Prole). Secondary
video and audio can be played from a disc
compatible with the picture-in-picture
function. For the playback method, refer to the
instructions in the disc.
In addition to the BONUSVIEW function, BD-
Video supporting BD-Live (BD-ROM version
2 Prole 2) that has a network extension
function allows you to enjoy more functions
such as downloading new movie trailers by
connecting this unit to the internet.
1.
Check the network connection and settings
(pages 20-25).
2.
Insert a USB storage device to the USB port
on the front panel.
A USB storage device is needed to
download bonus content.
USB device connection
59Operation
Operation
4
3. Press HOME, and set the [BD-LIVE
connection] option on the [Setup] menu
(page 37).
Depending on the disc, the BD-Live
function may not operate if [BD-LIVE
connection] option is set to [Partially
Permitted].
4.
Insert a BD-ROM with BD-LIVE.
The operations are dierent depending on
the disc. Refer to the manual supplied with
the disc.
CAUTION
Do not extract the connected USB device while
content is being downloaded or a Blu-ray disc is
still in the disc tray. Doing so may damage the
connected USB device and BD-LIVE features may
not operate properly with the damaged USB
device anymore. If the connected USB device
seems damaged from such an action, you can
format the connected USB device from the PC and
reuse it with this unit.
NOTE
Some BD-LIVE contents may be restrictively
accessed in some territories by contents
provider’s own decision.
It may take up to several minutes to load and
start enjoying BD-LIVE contents.
Special video data, etc. may be played back
while they are being downloaded to a USB
Flash Drive using one function of BD-LIVE. The
playback may be paused depending on the
communication environment. Some functions
may be disabled to prevent skipping to sections
that have not been downloaded, etc.
•
•
•
Playing movie files
and VR discs
You can play DVD-RW discs that are recorded
in Video Recording (VR) format and movie les
contained on a disc/HDD/USB device.
1.
Press HOME.
2. Select [Movie] using
I
/
i
, and press ENTER
( )
.
3.
Select the [Data] option using
I
/
i
, and
press ENTER
( )
.
This step is needed only when a disc and/or
a USB device is connected simultaneously
on this unit.
4.
Select a le using
U
/
u
/
I
/
i
, and press
B
or
ENTER
( )
to play the le.
60 Operation
Operation
4
NOTE
The le requirements are described on page 10.
You can use various playback functions. Refer to
pages 50-58.
Unnalized DVD VR format discs may not be
played in this unit.
Some DVD-VR disc are made with CPRM data by
DVD RECORDER. This unit cannot support these
kinds of discs.
What is CPRM?
CPRM is a copy protection system (with
scramble system) only allowing the recording of
‘copy once’ broadcast programs. CPRM stands
for Content Protection for Recordable Media.
•
•
•
•
Selecting a subtitle file
MOVIE
MOVIE-N
If the names of the movie le and subtitle le
are the same then the, subtitle le is played
automatically when playing the movie le.
If the name of the subtitle le is dierent
from the movie le name, you need to select
the subtitle le on the [Movie] menu before
playing the movie.
1.
Use
U
/
u
/
I
/
i
to select the subtitle le you
wish to play in the [Movie] menu.
2.
Press ENTER
( )
.
Press ENTER
( )
again to deselect the
subtitle le. The selected subtitle le will be
displayed when you play the movie le.
Viewing a photo
You can view photo les using this unit.
1.
Press HOME.
2.
Select [Photo] using
I
/
i
, and press ENTER
( )
.
3.
Select the [Data], [HDD] or [USB] option
using
I
/
i
, and press ENTER
( )
.
This step is needed only when a disc and/or
a USB device is connected simultaneously
on this unit.
4.
Select a le using
U
/
u
/
I
/
i
, and press
ENTER
( )
to view the photo.
Disc/Network menu
HDD/USB menu
61Operation
Operation
4
To play a slideshow
Press
B
to start the slideshow.
To stop a slideshow
Press
x
during slideshow.
To pause a slideshow
Press
X
during slideshow.
Press
B
to re-start the slideshow.
To skip to the next/previous photo
While viewing a photo in full screen, press
I
/
i
to go to the previous or next photo.
NOTE
The le requirements are described on page 10.
You can use various playback functions. Refer to
pages 50-58.
•
•
Options while viewing a photo
You can use various options during viewing a
photo in full screen.
1.
While viewing a photo in full screen, press
INFO/DISPLAY to display the option menu.
2. Select an option using
U
/
u
/
I
/
i
.
Options or HDD/USB menu
Prev
Press . to move to the previous
file.
Next
Press > to move to the next file.
90°
Press U/u to rotate the picture
clockwise or counter clockwise.
Stop
Press x to stop the slideshow.
Hide
Press RETURN (O) to hide the
control icons. To show the icons
again, press INFO/DISPLAY.
Options for PHOTO menu
a
fed
c
b
h
g
Options for My Media menu
a
hgf
e
b
a
Current photo/Total number of photos
Use
I
/
i
to advance to the previous or
next le.
b
Slide Show – Press ENTER
( )
to start or
pause the slide show.
c
Music –Press ENTER
( )
to play or pause
the background music. This option is
available after the background music is
selected using [Music Select] option. This
option is not available on [My Media]
menu.
d
Music Select – Selects the background
music.This option is not available on [My
Media] menu.
1) Press ENTER
( )
and the menu will
appear.
2) Use
U
/
u
/
I
/
i
to select a media or
folder where there are music le(s).
3) Press ENTER
( )
to conrm your
selection.
e
Rotate – Press ENTER
( )
to rotate the
picture clockwise. This option is not
available during slide show operation.
62 Operation
Operation
4
f
Zoom – Use green or yellow buttons to
zoom in or out of the picture. You can
move through the zoomed picture using
U
/
u
/
I
/
i
buttons. Press RETURN
(
O
)
to
exit the [Zoom] menu and return to the
normal picture size.
• The zoom function can be operated by
the ZOOM button on the remote control.
g
Setting – Use
U
/
u
to select an option
between [Eect] or [Delay].
Use
I
/
i
to adjust and press ENTER
( )
to
set the selected option.
[Eects] – You can apply various eects
during a photo slide show.
OFF : Slide Show without any eect.
Random : Slide show eects are applied
randomly.
Slide : Reveals a photo in a sliding motion
from various directions.
Door : Photo will be appear like door
opening.
Lattice : Photo will be appear from tiled
pieces to full screen image
[Delay] – You can set the photo delaying
time between slides in a Slide Show.
h
Hide – Press ENTER
( )
to exit the option
menu. To access the menu again, press
ENTER
( )
.
NOTE
The options
c
and
d
are not available for the
photo les in the [My Media] menu.
3. Press RETURN
(
O
)
to exit the option menu.
Listening to music
This unit can play Audio CDs and music les
1.
Press HOME.
2.
Select [Music] using
I
/
i
, and press ENTER
( )
.
3.
Select the [Data], [HDD] or [USB] option
using
I
/
i
, and press ENTER
( )
.
This step is needed only when a disc and/or
a USB device is connected simultaneously
on this unit.
4.
Select a music le or audio track using
U
/
u
/
I
/
i
, and press ENTER
( )
to play the
music.
Disc/Network menu
HDD/USB menu
63Operation
Operation
4
NOTE
The le requirements are described on page 10.
You can use various playback functions. Refer to
pages 50-58.
For the les that are contained on a disc or USB
device, you can enter the le number using
the numbered buttons (0-9) to go directly to a
specic le.
You can advance to the previous or next le by
pressing
.
or
>
during viewing a photo
le in full screen.
You can start the slide show without accessing
the option menu by pressing
B
during viewing
a photo le in full screen.
Use
U
/
u
/
I
/
i
to select a folder then press ENTER
and you can view the les in the folder. If you
want to move to the upper or lower directory,
use
U
/
u
to move to the desired directory.
If there is a code that is impossible to express in
the le name, it may be displayed as illegible.
Depending on the DLNA server, the le name
displayed on the screen may dier from the
original le name.
•
•
•
•
•
•
•
•
Listening to music during slide
show in [My Media]menu
You can view photos as a slide show while
listening to music content on [My Media]
menu.
1.
Press HOME and select [My Media] in the
[Home Menu].
2.
Select a server from the list and press ENTER
to display the shared folders from the server.
3.
Select a music le from the menu and press
B
to play the music.
4.
Use
U
/
u
/
I
/
i
to select a photo le from the
menu and press ENTER
( )
to display in full
screen.
5.
Select [SlideShow] option and press ENTER
( )
to start slide show.
Playing content via
your home network
The play can browse and play content on
your PC and DLNA certied media servers
connected on your home network.
Accessing a DLNA media
server
1. Check the network connection and settings.
Refer to pages 20-25.
2.
Press HOME.
3.
Select [My Media] using
U
/
u
/
I
/
i
, and
press ENTER
( )
.
4.
Select a DLNA media server from the list
using
U
/
u
, and press ENTER
( )
.
NOTE
Depending on the media server, this player may
need to get the permission from the server.
If you want to re-scan for available media
servers, press the blue coloured button
•
•
64 Operation
Operation
4
5. Select a le using
U
/
u
/
I
/
i
, and press
ENTER
( )
to play the le.
NOTE
The le requirements are described on page 10.
You can use various playback functions. Refer to
pages 50-58.
Because the compatibility and available playback
functions on the [My Media] menu are tested
on the bundle DLNA server (Nero MediaHome
4 Essentials) environment, le requirements and
playback functions on the [My Media] menu
may dier depending on media servers.
The le requirements on page 11 are not always
compatible. There may be some restrictions due
to the le’s features and media server’s ability.
If there is an unplayable music le in the [My
Media] menu, the player will skip the le and
play the next le.
Playing movie subtitle les is only possible on
DLNA media server created by supplied Nero
MediaHome 4 Essentials software on this player
package.
The subtitle le name and movie le name have
to be the same and located in the same folder.
The playback and operating quality of the [My
Media] function may be aected by your home
network condition.
The les from removable media such as USB
drive, DVD-drive etc. on your media server may
not be shared properly.
•
•
•
•
•
•
•
•
•
About Nero MediaHome 4
Essentials
Nero MediaHome 4 Essentials is a software for
sharing movie, music and photo les stored
on your computer to this player as a DLNA-
compatiable digital media server.
NOTE
The Nero MediaHome 4 Essentials CD-ROM is
designed for PCs and should not be inserted in
this player or in any product other than a PC.
The supplied Nero MediaHome 4 Essentials CD-
ROM is a customized software edition only for
sharing les and folders to this player.
The supplied Nero MediaHome 4 Essentials
software does not support the following
functions: Transcoding, Remote UI, TV control,
Internet services and Apple iTunes
This manual explains operations with the
English version of Nero MediaHome 4 Essentials
as examples. Follow the explanation referring to
the actual operations of your language version.
•
•
•
•
Installing Nero MediaHome 4
Essentials
Before you install Nero MediaHome 4
Essentials, check the system requirement
shown below.
Windows® XP (Service Pack 2 or higher),
Windows Vista® (no Service Pack required),
Windows® XP Media Centre Edition 2005
(Service Pack 2 or higher), Windows Server®
2003
Windows Vista® 64-bit edition (application
runs in 32-bit mode)
Hard drive space: 200 MB hard drive space
for a typical installation of Nero MediaHome
stand-alone
1.2 GHz Intel® Pentium® III or AMD
Sempron™ 2200+ processors
Memory: 256 MB RAM
•
•
•
•
•
65Operation
Operation
4
Graphics card with at least 32 MB video
memory, minimum resolution of 800 x 600
pixels, and 16-bit colour settings
Windows® Internet Explorer® 6.0 or higher
DirectX® 9.0c revision 30 (August 2006) or
higher
Network environment: 100 Mb Ethernet,
WLAN (IEEE 802.11b/g/n)
Start up your computer, and insert the Nero
MediaHome 4 Essentials CD-ROM into your
computer’s CD-ROM drive. An installation
wizard will walk you through the quick and
uncomplicated installation process. To install
Nero MediaHome 4 Essentials, proceed as
follows:
1.
Close all Microsoft Windows programs and
exit any anti-virus software that may be
running.
2.
Insert the Nero MediaHome 4 Essentials
CD-ROM into your computer’s CD-ROM
drive.
3.
Click [Nero MediaHome 4 Essentials]. The
installation is prepared and the installation
wizard appears.
4.
Click the [Next] button to display the serial
number input screen. Click [Next] to go to
the next step.
5.
If you accept all conditions, click [I accept
the License Conditions] check box and click
[Next]. Installation is not possible without
this agreement.
6.
Click [Typical] and click [Next]. The
installation process is started.
7.
If you want to take part in the anonymous
collection of data, select the check box and
click the [Next] button.
8.
Click the [Exit] button to complete the
installation.
•
•
•
•
Sharing files and folders
On your computer, you must share the folder
that contains the movie, music and/or photo
content to play them using [My Media]
features.
This part explains the procedure for selecting
the shared folders on your computer.
1.
Double-click the “Nero MediaHome 4
Essentials” icon on the desktop.
2.
Click [Network] icon on the left and dene
your network name in the [Network name]
eld. The Network name you enter will be
recognized by your player.
3.
Click [Shares] icon on the left.
4.
Click [Local Folders] tab on the [Shares]
screen.
5.
Click [Add] icon to open the [Browse Folder]
window.
6.
Select the folder containing the les you
want to share. The selected folder is added
to the list of shared folders.
7. Click [Start Server] icon to start the server
NOTE
If the shared folders or les are not displayed on
the player, click the folder on the [Local Folders]
tab and click [Rescan Folder] at the [More]
button.
Visit www.nero.com for more information and
software tools
•
•
66 Operation
Operation
4
Accessing a share folder from
your PC
1. Start your PC that is connected on your
local area network.
2.
On your PC, share folders which contain
movie, photo or audio les.
3.
On the player, check the network
connection and settings.
4.
press HOME.
5.
Select [My Media] using
U
/
u
/
I
/
i
, and
press ENTER
( )
.
6.
Select a share folder from the list using
U
/
u
,
and press ENTER
( )
.

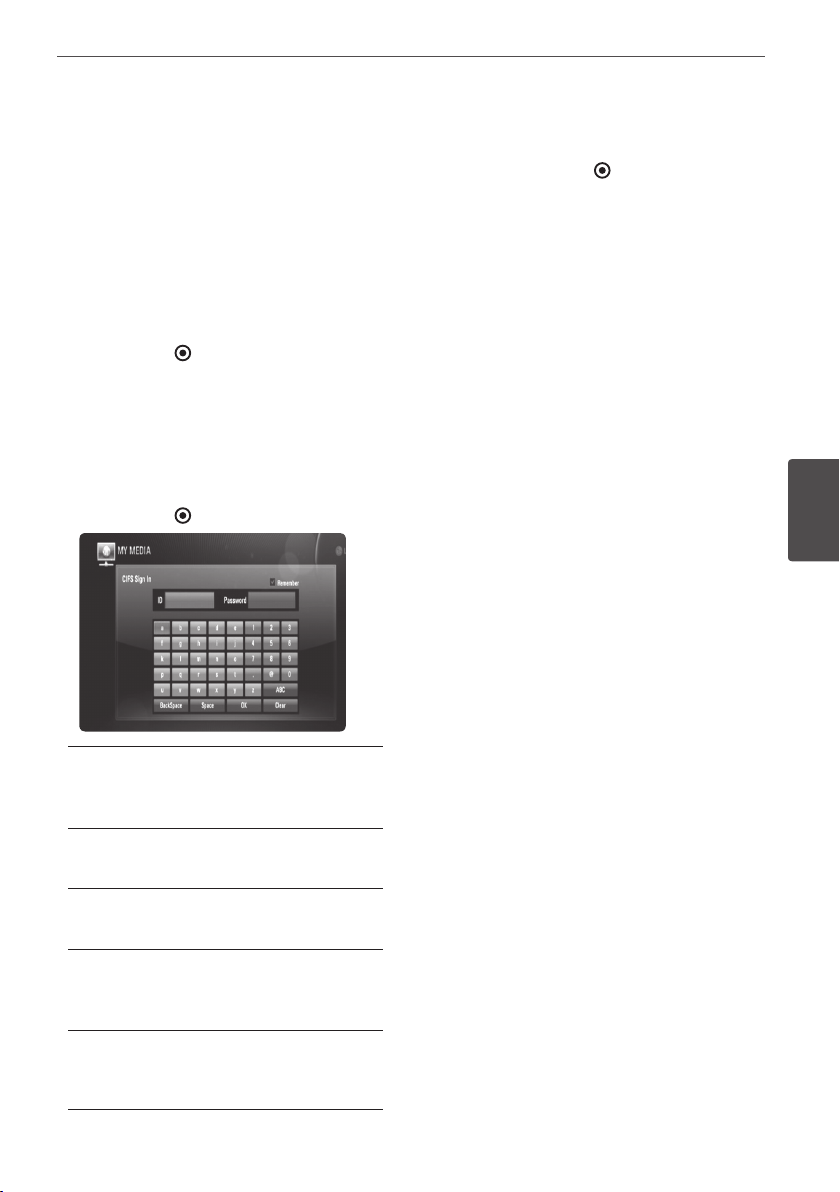

NOTE
Depending on the share folder, this player may
need to input network user ID and password for
accessing the folder.
7. Select a le using
U
/
u
/
I
/
i
, and press
ENTER
( )
to play the le.
NOTE
The le requirements are described on page 10.
You can use various playback functions. Refer to
pages 50-58.
The thumbnail of the unplayable les can be
displayed in the [My Media] menu, but those
cannot be played on this player.
If there is an unplayable music le in the [My
Media] menu, the player will skip the le and
play the next le.
The subtitle le name and movie le name have
to be the same and located at the same folder.
The playback and operating quality of the [My
Media] function may be aected by your home
network condition.
The les on a removable media such as USB
drive, DVD-drive etc. on your PC may not be
shared properly.
You may experience connection problems
depending on your PC’s environment.
•
•
•
•
•
•
•
•
PC requirements
Windows® XP (Service Pack 2 or higher),
Windows Vista® (no Service Pack required)
1.2 GHz Intel® Pentium® III or AMD
Sempron™ 2200+ processors
Network environment: 100 Mb Ethernet,
WLAN (IEEE 802.11b/g/n).
NOTE
If you use Windows® XP or Windows Vista®, visit link
below for more information on le share settings.
•
•
•
67Operation
Operation
4
Entering a network user ID and the
password
Depending on your PC’s environment, you
may need to enter a network user ID and the
password for accessing a shared folder.
1.
The keyboard menu appears automatically
if the network user ID and the password are
required.
2.
Use
U
/
u
/
I
/
i
to select a character then
press ENTER
( )
to conrm your selection
on the keyboard menu.
To enter a letter with an accent mark, select
the letter from the extended character set.
Example: Select “D” and then press INFO/
DISPLAY to display the extended character
set. Use
I
/
i
to select “D” or “Ď” and then
press ENTER
( )
.
[OK]
Click on this button when all characters
have been successfully entered.
[Clear]
Clear all entered characters.
[Space]
Inserts a space at the cursor position.
[Backspace]
Deletes the previous character at the cursor
position.
[ABC / abc / #+-=&]
Change the keyboard menu settings to
capital letter, small letters or symbols.
3.
When you nish entering the network user
ID and password, select [OK] using
U
/
u
/
I
/
i
and press ENTER
( )
to access the folder.
The network user ID and password will be
remembered after accessing the folder
for your convenience. If you do not want
the network user ID and password to be
remembered, press A colored (Red) button
to un-tick the [Remember] check box
before accessing the folder.
68 Operation
Operation
4
Using [Copy] features
You can move or copy les to other storage
media or folders. You can delete les also.
Copying or moving files/folders
1. Press HOME.
2.
Use
U
/
u
/
I
/
i
to select [Copy], and press
ENTER
( )
.
3.
Use
U
/
u
to select a storage media you want
to copy or move le from, and press
i
.
4. Use
U
/
u
to select a storage media you want
to copy or move to, and press ENTER
( )
.
5.
Use
U
/
u
to select le/folder you want to
copy or move, and press MARKER.
Repeat this step to mark additional les and
folders.
6.
Press
i
to select the destination eld.
7.
Use
U
/
u
to select the directory you want to
copy or move to, and press REC.
8.
Use
I
/
i
to select [Copy] or [Move], and
press ENTER
( )
.
Select [Cancel] to cancel copying or
moving.
NOTE
If you try to copy or move a corrupt le, the
copy or move procedure will be stopped.
If you copy or move a les/folders to a FAT16/
FAT32 formatted storage, copy or move capacity
is limited to 4GB.
•
•
Deleting files/folders
1. Press HOME.
2.
Use
I
/
i
to select [Copy], and press ENTER
( )
.
3.
Use
U
/
u
to select a storage that contains
les to delete, and press
i
.
4.
Use
U
/
u
to select [Trash Can], and press
ENTER
( )
.
5. Use
U
/
u
to select le/folder you want to
delete, and press MARKER.
Repeat this step to mark additional les and
folders.
6.
Press
i
.
7. Use
I
/
i
to select [OK], and press ENTER
( )
.
Select [Cancel] to cancel deleting.
69Operation
Operation
4
Playing YouTube™
videos
You can browse, search and watch YouTube
™
videos over the internet on your TV via your
unit.
Watch YouTube
™
videos on your
TV
1. Press HOME.
2.
Use
U
/
u
/
I
/
i
to select [YouTube
™
], and
press ENTER
( )
.
2.
Press
U
to select the option menu bar.
3.
Use
I
/
i
to select an option and press
ENTER
( )
to search for videos.
4.
Use
I
/
i
to select a video and press ENTER
( )
or
B
to play the video.
Button Operation
B
or ENTER
Starts playback of the video
with content detail.
INFO/
DISPLAY
Toggle between playback in
full screen and playback screen
with content detail.
X
To pause a video while it is
playing. To resume playing a
paused video, press
B
again.
x
Stops the video and displays
related videos list.
.
/
>
Skip the playback forward or
backward .
About the YouTube
™
menu
There are various options on the YouTube
menu. Use
U
/
u
/
I
/
i
to select an option
and press ENTER
( )
to select the options as
described below.
Featured – The featured videos list will be
displayed.
Recent Videos – The most recently updated
videos list will be displayed.
Most Viewed – The most viewed videos list
will be displayed. The period option appears
at the bottom of the screen.
Top Rated – The best rated videos list from
YouTube server will be displayed. The period
option appears at the bottom of the screen.
Search – The keyboard menu will be
displayed. See “Searching videos” on page 70
for more detail.
History – The videos list that you previously
played on this unit will be displayed.
Maximum of 25 videos can be stored.
Favorites – This option will appear only when
the unit is in sign-in status. Displays the videos
list that is arranged in the YouTube server with
your account. Some videos may not appear
on the [Favorites] list, even if the videos are
arranged in the server.
Sign in (Sign Out) – Displays the keyboard
menu to sign in or returns to the sign-
out status. See “Sign in with your YouTube
account” on page 71 for more details.
70 Operation
Operation
4
Local site – Choose which country’s videos
you would like to view. The countries listed on
the [Local Site] menu may dier from those
listed on the YouTube web site.
NOTE
The YouTube
™
menu can display 5 videos in the
videos list. Press red or blue button to display
next/previous 5 videos.
If you select the [Most Viewed] or [Top Rated]
option in the YouTube menu, the period options
appear at the bottom of the screen. Use
U
/
u
/
I
/
i
to select a period option and press ENTER
( )
to display the videos list within the selected
period.
The videos list located using this player may be
dierent from the list when searching via a PC.
•
•
•

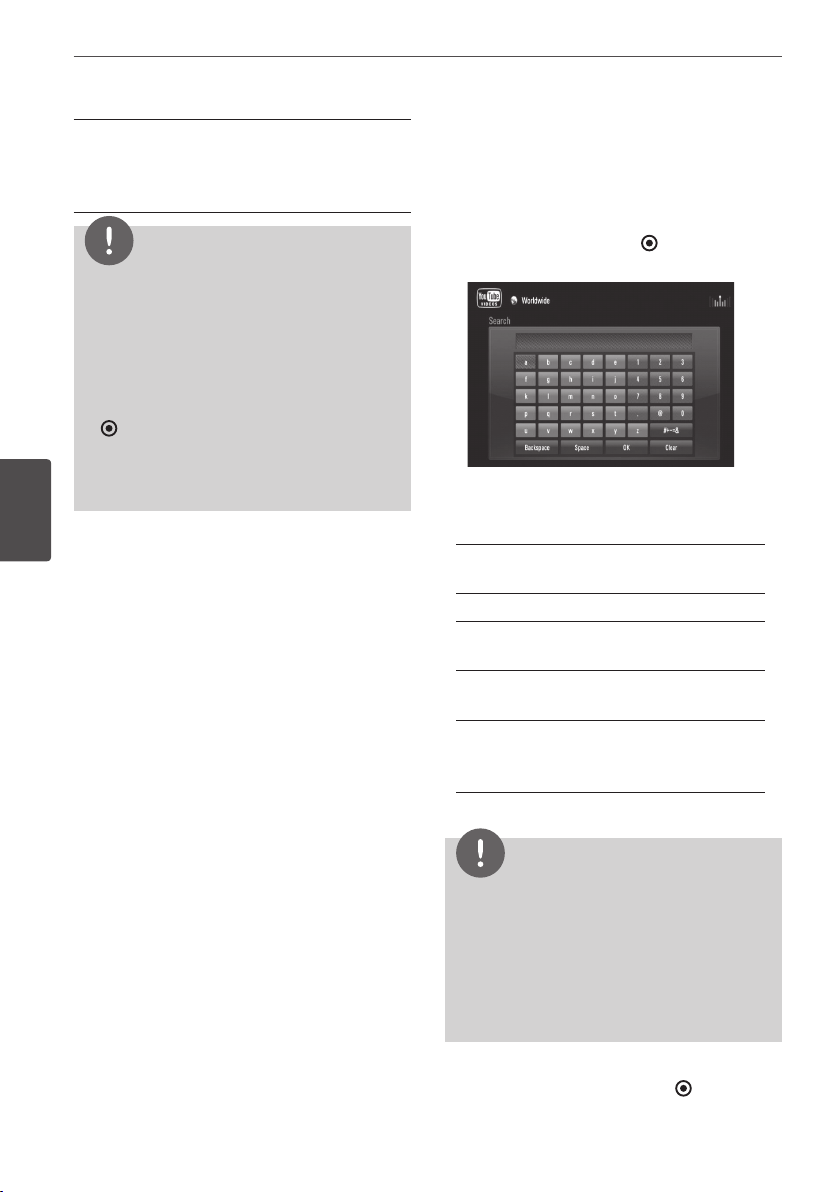

Searching videos
You can search for videos by entering search
words of up to 128 characters.
1.
Use
I
/
i
to select [Search] option from the
menu and press ENTER
( )
to display the
keyboard menu.
When you are entering a character, a
maximum of 5 suggestion words will be
displayed.
[OK] – Click on this button when all
characters have been successfully entered.
[Clear] – Clear all entered characters.
[Space] – Inserts a space at the cursor
position.
[Backspace] – Deletes the previous
character at the cursor position.
[ABC / abc / #+-=&] – Change the
keyboard menu settings to capital letters,
small letters or symbols.
NOTE
To enter a letter with an accent mark:
1. Select a letter using
U
/
u
/
I
/
i
on the keyboard
menu.
2. Press INFO/DISPLAY to display the extended
character set.
3. character set. Use
I
/
i
to select a character then
press ENTER.
2. When you nish entering the search words,
select [OK] and press ENTER
( )
to display
the related videos list.
71Operation
Operation
4
NOTE
Available languages to enter on the keyboard
menu are as follows:
English, Spanish, Italian, French, German, Dutch,
Portuguese, Swedish, Polish and Czech.
Sign in with your YouTube
™
account
To watch videos from your [Favorites] video list
on the YouTube server with your account, you
need to sign in with your YouTube account.
1.
Use
I
/
i
to select the [Sign In] option from
the menu and press ENTER
( )
to display
the keyboard menu.
2.
Use
U
/
u
/
I
/
i
to select a character then
press ENTER
( )
to conrm your selection
on the keyboard menu.
Refer to the step 1 from “Searching Videos”
on page 70 for using the virtual keyboard.
3. When you nish entering the ID and the
password, select [OK] and press ENTER
( )
to sign in.
4.
If you want to sign out, select the [Sign Out]
from the YouTube menu and press ENTER
( )
.
This unit can automatically store up to 5 IDs
which were previously signed-in. The IDs list
appears when you select the [Sign In] option.
Select a stored ID on the list and press ENTER
( )
to display the keyboard menu with the
selected ID is entered. You will then only need
to enter the password to sign in.
Select the [X] symbol and press ENTER
( )
to
delete the stored ID.
72 Maintenance
Maintenance
5
Notes on Discs
Handling Discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that ngerprints
do not get on the surface. Never stick paper or
tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of
heat and never leave it in a parked car exposed
to direct sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause
poor picture quality and sound distortion.
Before playing, clean the disc with a clean
cloth. Wipe the disc from the centre to out.
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available
cleaners, or anti-static spray intended for older
vinyl records.
Handling the Unit
When shipping the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit,
for maximum protection, re-pack the unit as it
was originally packed at the factory.
Keeping the exterior surfaces clean
Do not use volatile liquids such as
insecticide spray near the unit.
Wiping with strong pressure may damage
the surface.
Do not leave rubber or plastic products in
contact with the unit for a long period of
time.
Cleaning the unit
To clean the player, use a soft, dry cloth. If
the surfaces are extremely dirty, use a soft
cloth lightly moistened with a mild detergent
solution. Do not use strong solvents such as
alcohol, benzine, or thinner, as these might
damage the surface of the unit.
Maintaining the Unit
The unit is a high-tech, precision device. If
the optical pick-up lens and disc drive parts
are dirty or worn, the picture quality could be
diminished. For details, please contact your
nearest authorized service centre.
•
•
•
5
Maintenance
73Maintenance
Maintenance
5
About the hard disk drive HDD
The internal hard disk drive (HDD) is a fragile
piece of equipment. Please use the recorder
following the guidelines below to protect
against possible HDD failure.
Do not move the recorder while it is on.
Do not use the unit with a damaged HDD.
The product can be damaged.
Install and use the recorder on a stable,
level surface.
Do not use the recorder in excessively hot
or humid places, or in places that may be
subject to sudden changes in temperature.
Sudden changes in temperature can cause
condensation to form inside the recorder.
This can be a cause of HDD failure.
While the recorder is switched on, do not
unplug from the wall socket or switch the
electricity o from the breaker switch.
Do not move the recorder immediately
after switching it o. If you need to move
the recorder, please follow the steps below:
1. After the message “OFF” is shown in the
display, wait at least two minutes.
2. Unplug from the wall socket.
3. Move the recorder.
If there’s a power failure while the recorder
is on, there is a chance that some data on
the HDD will be lost.
The HDD is very delicate. If used improperly
or in an unsuitable environment, it is
possible that the HDD will fail after a few
years of use. Signs of problems include
playback unexpectedly freezing and
noticeable block noise (mosaic) in the
picture. However, sometimes there will be
no warning signs of HDD failure.
If the HDD fails, playback of recorded
material will not be possible. In this case it
will be necessary to replace the HDD.
•
•
•
•
•
•
•
•
•
The manufacturer disclaims responsibility
for loss of data contained in HDD.
The HDD capacity displayed on your TV
screen may not match exactly the capacity
printed on your HDD.
•
•
74 Troubleshooting
Troubleshooting
6
6
Troubleshooting
General
Symptoms Cause & Solution
The Power does not turn
on.
Plug the power cord into the wall outlet securely.•
The unit does not start
playback.
Insert a playable disc. (Check the disc type, color system, and
regional code.)
Place the disc with the playback side down.
Place the disc on the disc tray correctly inside the guide.
Clean the disc.
Cancel the Rating function or change the rating level.
•
•
•
•
•
The angle cannot be
changed.
Multi-angles are not recorded on the DVD Video being
played.
•
Cannot play movie, photo
or audio les.
The les are not recorded in a format that the unit can play.
The unit does not support the codec of the movie le.
•
•
The remote control does
not work properly.
The remote control is not pointed at the remote sensor of
the unit.
The remote control is too far from the unit.
There is an obstacle in the path between the remote control
and the unit.
The batteries in the remote control are exhausted.
•
•
•
•
75Troubleshooting
Troubleshooting
6
General
Symptoms Cause & Solution
The Power does not turn
on.
Plug the power cord into the wall outlet securely.•
The unit does not start
playback.
Insert a playable disc. (Check the disc type, color system, and
regional code.)
Place the disc with the playback side down.
Place the disc on the disc tray correctly inside the guide.
Clean the disc.
Cancel the Rating function or change the rating level.
•
•
•
•
•
The angle cannot be
changed.
Multi-angles are not recorded on the DVD Video being
played.
•
Cannot play movie, photo
or audio les.
The les are not recorded in a format that the unit can play.
The unit does not support the codec of the movie le.
•
•
The remote control does
not work properly.
The remote control is not pointed at the remote sensor of
the unit.
The remote control is too far from the unit.
There is an obstacle in the path between the remote control
and the unit.
The batteries in the remote control are exhausted.
•
•
•
•
Symptoms Cause & Solution
There is no picture. Select the appropriate video input mode on the TV so the
picture from the unit appears on the TV screen.
Connect the video connection securely.
Check the [HDMI Color Setting] in the [Setup] menu is
set to the appropriate item that conforms to your video
connection.
Your TV may not support the resolution you have set on the
unit. change the resolution to one that your TV accepts.
The player’s HDMI OUT jack is connected to a DVI device that
does not support copyright protection.
•
•
•
•
•
Picture noise appears You are playing a disc recorded in a colour system that is
dierent from your TV.
Set the resolution to one that your TV accepts.
•
•
Sound
Symptoms Cause & Solution
There is no sound or the
sound is distorted.
Connect the audio connection securely.
The input source setting on the amplier or the connection
to the amplier is incorrect.
The unit is in scan, slow motion, or pause mode.
The sound volume is low.
Check that the connected amplier is compatible with the
audio format output from the player.
The player’s HDMI OUT jack is connected to a DVI device.
The DVI jack does not accept audio signal.
Check the device connected to the player’s HDMI OUT jack is
compatible with the audio format output from the unit.
•
•
•
•
•
•
•
76 Troubleshooting
Troubleshooting
6
Network
Symptoms Cause & Solution
BD-LIVE feature does not
work.
The connected USB storage may not have enough space.
Connect the USB storage with at least 1GB free space.
Ensure that the unit is correctly connected to the local area
network and can access the internet (see pages 20-25).
Your broadband speed may not be fast enough to use the
BD-Live features. Contact your Internet Service Provider
(ISP) and increase the broadband speed to suit the unit’s
requirements.
The [BD-LIVE connection] option in the [Setup] menu is set
to [Prohibited]. Set the option to [Permitted].
•
•
•
•
Streaming video services
(such as YouTube™, etc.)
are often stop or “buer”
during playback.
Your broadband service speed may not be fast enough to
stream video services. Contact your Internet Service Provider
(ISP) and increase the broadband speed is recommended.
•
Shared folder or les from
your PC or a media server
are not displayed on the
[My Media] menu.
The rewall or anti-virus software on your media server is
running. Turn o the rewall or anti-virus software running
on your PC or media server.
The unit is not connected to the local area network that your
PC or the media server are connected.
•
•
Cannot connect the player
to the access point or
wireless LAN router.
The wireless communication may be interrupted from
household devices that are using radio frequencies. Move
the player away from them.
•
Customer Support
You can update the unit using the latest software to enhance the products operation and/or
add new features. To obtain the latest software for this unit (if updates have been made), please
visit http://lgservice.com or contact LG Electronics customer care centre.
77Troubleshooting
Troubleshooting
6
Recording
Symptoms Solution
Cannot record or does not
record successfully.
Check the remaining space on the HDD.
If your source is copy-protected, you cannot record it using
this recorder.
If you set a DTV rating for the recorder and higher rated
digital programs are received, the programme cannot be
recorded. Change the DTV rating level in order to record it.
•
•
•
Timer record does not
record successfully.
Clock is not set to correct time.
The start time of the timer recording is past.
Two timer recordings may have overlapped, in which case
only the earlier one will record completely.
When setting the recording programme, make sure you set
the recorder’s built-in tuner, not the TV’s built-in tuner.
If the the HDD is damaged, the recording may not complete
successfully.
•
•
•
•
•
Stereo Audio Record and/
Playback is not present.
TV is not Stereo-compatible.
Broadcast programme is not in stereo format.
•
•
You cannot enter a timer
programme when.
A recording is already underway.
The time you’re trying to set has already passed.
There are already 32 timer programs set.
•
•
•
If two or more timer
programs overlap.
The earlier programme takes priority.
The recorder can record 2 channels simultaneously but do
not make overlapping timer recordings, if you do, the earlier
programme takes priority.
•
•
78 Appendix
Appendix
7
Controlling a TV with
the Supplied Remote
Control
You can control your TV using the buttons
below.
DISC MENU
REC.LIST
MARKER
SEARCH
ZOOM
TEXT
AUDIO
SUBTITLE
FAV
PAGE
EDIT
VOL
PR
AV/INPUT
VOL
PR
OPEN/
CLOSE
CLEAR
GUIDE
TIMER
REC.
REC.
By pressing You can
1 (TV POWER)
Turn the TV on or o.
AV/INPUT
Switch the TV’s input
source between the TV
and other input sources.
PR U/u
Scan up or down
through memorized
channels.
VOL +/–
Adjust the volume of
the TV
NOTE
Depending on the unit being connected, you may
not be able to control your TV using some of the
buttons.
Setting up the remote to
control your TV
You can operate your TV with the supplied
remote control.
If your TV is listed in the table below, set the
appropriate manufacturer code.
1.
While holding down
1
(TV POWER) button,
press the manufacturer code for your TV
with the numerical buttons (see the table
below).
Manufacturer Code Number
LG 1(Default), 2
Zenith 1, 3, 4
GoldStar 1, 2
Samsung 6, 7
Sony 8, 9
Hitachi 4
2.
Release the
1
(TV POWER) button to
complete setting.
Depending on your TV, some or all buttons
may not function on the TV, even after
entering the correct manufacturer code. When
you replace the batteries in the remote, the
code number you have set may be reset to
the default setting. Set the appropriate code
number again.
7
Appendix
79Appendix
Appendix
7
Area Code List
Choose an area code from this list.
Area Code Area Code Area Code Area Code
Afghanistan AF
Argentina AR
Australia AU
Austria AT
Belgium BE
Bhutan BT
Bolivia BO
Brazil BR
Cambodia KH
Canada CA
Chile CL
China CN
Colombia CO
Congo CG
Costa Rica CR
Croatia HR
Czech Republic CZ
Denmark DK
Ecuador EC
Egypt EG
El Salvador SV
Ethiopia ET
Fiji FJ
Finland FI
France FR
Germany DE
Great Britain GB
Greece GR
Greenland GL
Hong Kong HK
Hungary HU
India IN
Indonesia ID
Israel IL
Italy IT
Jamaica JM
Japan JP
Kenya KE
Kuwait KW
Libya LY
Luxembourg LU
Malaysia MY
Maldives MV
Mexico MX
Monaco MC
Mongolia MN
Morocco MA
Nepal NP
Netherlands NL
Netherlands
Antilles AN
New Zealand NZ
Nigeria NG
Norway NO
Oman OM
Pakistan PK
Panama PA
Paraguay PY
Philippines PH
Poland PL
Portugal PT
Romania RO
Russian
Federation RU
Saudi Arabia SA
Senegal SN
Singapore SG
Slovak Republic SK
Slovenia SI
South Africa ZA
South Korea KR
Spain ES
Sri Lanka LK
Sweden SE
Switzerland CH
Taiwan TW
Thailand TH
Turkey TR
Uganda UG
Ukraine UA
United States US
Uruguay UY
Uzbekistan UZ
Vietnam VN
Zimbabwe ZW
80 Appendix
Appendix
7
Language code List
Use this list to input your desired language for the following initial settings: [Disc Audio],
[Disc Subtitle] and [Disc Menu].
Language Code Language Code Language Code Language Code
Afar 6565
Afrikaans 6570
Albanian 8381
Ameharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Aymara 6588
Azerbaijani 6590
Bashkir 6665
Basque 6985
Bengali; Bangla 6678
Bhutani 6890
Bihari 6672
Breton 6682
Bulgarian 6671
Burmese 7789
Byelorussian 6669
Chinese 9072
Croatian 7282
Czech 6783
Danish 6865
Dutch 7876
English 6978
Esperanto 6979
Estonian 6984
Faroese 7079
Fiji 7074
Finnish 7073
French 7082
Frisian 7089
Galician 7176
Georgian 7565
German 6869
Greek 6976
Greenlandic 7576
Guarani 7178
Gujarati 7185
Hausa 7265
Hebrew 7387
Hindi 7273
Hungarian 7285
Icelandic 7383
Indonesian 7378
Interlingua 7365
Irish 7165
Italian 7384
Japanese 7465
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kirghiz 7589
Korean 7579
Kurdish 7585
Laothian 7679
Latin 7665
Latvian, Lettish 7686
Lingala 7678
Lithuanian 7684
Macedonian 7775
Malagasy 7771
Malay 7783
Malayalam 7776
Maori 7773
Marathi 7782
Moldavian 7779
Mongolian 7778
Nauru 7865
Nepali 7869
Norwegian 7879
Oriya 7982
Panjabi 8065
Pashto, Pushto 8083
Persian 7065
Polish 8076
Portuguese 8084
Quechua 8185
Rhaeto-Romance
8277
Rumanian 8279
Russian 8285
Samoan 8377
Sanskrit 8365
Scots Gaelic 7168
Serbian 8382
Serbo-Croatian 8372
Shona 8378
Sindhi 8368
Singhalese 8373
Slovak 8375
Slovenian 8376
Spanish 6983
Sudanese 8385
Swahili 8387
Swedish 8386
Tagalog 8476
Tajik 8471
Tamil 8465
Telugu 8469
Thai 8472
Tonga 8479
Turkish 8482
Turkmen 8475
Twi 8487
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapük 8679
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 7473
Yoruba 8979
Zulu 9085
81Appendix
Appendix
7
Trademarks and
Licenses
“Blu-ray Disc” is a trademark.
“BD-LIVE” logo is a trademark of Blu-ray Disc
Association.
“BONUSVIEW” is trademark of Blu-ray Disc Association.
Java and all Java-based trademarks and logos
are trademarks or registered trademarks of Sun
Microsystems, Inc. in the United States and other
countries.
Manufactured under licence from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
HDMI, the HDMI logo and High-Denition Multimedia
Interface are trademarks or registered trademarks of
HDMI licensing LLC.
“DVD Logo” is a trademark of DVD Format/Logo
Licensing Corporation.
DLNA and DLNA CERTIFIED are trademarks and/or
service marks of Digital Living Network Alliance.
“AVCHD” and the “AVCHD” logo are trademarks of
Panasonic Corporation and Sony Corporation.
This product is licensed under the AVC patent
portfolio licence and VC-1 patent portfolio licence
for the personal and non-commercial use of a
consumer to (i) encode video in compliance with
the AVC Standard and VC-1 Standard (“AVC/VC-1
Video”) and/or (ii) decode AVC/VC-1 Video that was
encoded by a consumer engaged in a personal and
non-commercial activity and/or was obtained from a
video provider licensed to provide AVC/VC-1 Video. No
licence is granted or shall be implied for any other use.
Additional information may be obtained from MPEG
LA, LLC. See http://www.mpegla.com.
DivX is a registered trademark of DivX, Inc., and is used
under licence.
YouTube is a trademark of Google Inc.
Manufactured under licence under U.S. Patent #’s:
5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616;
6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 &
other U.S. and worldwide patents issued & pending.
DTS is a registered trademark and the DTS logos,
Symbol, DTS-HD and DTS-HD Master Audio are
trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights
Reserved.
The Wi-Fi CERTIFIED Logo us a certication mark of the
Wi-Fi Alliance.
“x.v.Color” is a trademark of Sony Corporation.
82 Appendix
Appendix
7
Network Software
Update
Network update notification
From time to time, performance improvements
and/or additional features or services may be
made available to units that are connected to
a broadband home network. If there is new
software available and the unit is connected
to a broadband home network, the player will
inform you about the update as follows.
Option 1:
1. The update menu will appear on the screen
when you turn on the player.
2.
Use
I
/
i
to select a desired option and
then press ENTER
( )
.
[OK]
Starts the software update.
[Cancel]
Exits the update menu and displays it next
booting.
[Hide]
Exits the update menu and it does not
appear until next software is uploaded in
the update server.
Option 2:
If the software update is available from the
update server, the “Software Update” icon
appears at the bottom of the Home menu.
Press blue colored (D) button to start the
update procedure. (see page 82-83 for more
detail)
Software Update
You can update the player using the latest
software to enhance the products operation
and/or add new features. You can update the
software by connecting the unit directly to the
software update server.
CAUTION
Before updating the software in your player,
remove any disc and USB Device from the player.
Before updating the software in your player, turn
the player o and then turn it back on.
During the software update procedure, do
not turn o the player or disconnect AC
power, or do not press any button.
If you cancel the update, turn o the power and
turn it on for stable performance.
This unit cannot be updated to previous
software version.
•
•
•
•
•
1. Check the network connection and settings
(page 20-25).
2.
Select [Software Update] option in the
[Setup] menu then ENTER
( )
.
The unit will check for the newest update.
83Appendix
Appendix
7
CAUTION
Pressing ENTER while checking for the update will
end the process.
NOTE
If there is no update available, the Message, “No
update is found.” appears. Press ENTER to return to
the [Home Menu].
3. If newer version exists, the message “A
new update was found. Do you want to
download it?” appears.
4. Select OK to download the update.
(Selecting [Cancel] will end the update.)
5.
The player starts downloading the newest
update from the server. (Downloading
will take about 80 seconds at the network
speed of 4Mbps Speed.)
6.
When downloading is completed, the
message, “Download is complete. Do you
want to update?” appears.
7.
Select OK to start updating.
(Selecting [Cancel] will end the update and
downloaded le will not be re-usable. To
update software the next time, the software
update procedure has to be started from
the beginning again.)
CAUTION
Do not turn o the power during the software
update.
NOTE
If the software includes the driver update, disc tray
may open during the process.
8. When update is completed, the message,
“Update is complete.” will appear, and the
power will turn o automatically after 5
seconds.
9.
Turn the power back on. The system now
operates with the new version.
10.After completing the update process,
repeat procedures 1-4 in Step 4 and check if
there are no more updates available.
NOTE
The Software Update function may not work
properly depending on your internet environment.
In this case, you can obtain the latest software from
the authorized LG Electronics Service Centre then
update your player. Refer to “Customer Support” on
page 76.
84 Appendix
Appendix
7
Audio Output Specifications
Jack/Setting
Source
Analogue
Output
Stereo
Digital Output (DIGITAL AUDIO OUT)
*
5
PCM Stereo/ PCM
Multi-Ch
Re-encode
*
3
*
6
Primary Pass-Thru
*
1
Dolby Digital PCM 2ch PCM 2ch DTS Dolby Digital
Dolby Digital Plus PCM 2ch PCM 2ch DTS Dolby Digital
Dolby TrueHD PCM 2ch PCM 2ch DTS Dolby Digital
DTS PCM 2ch PCM 2ch DTS DTS
DTS-HD PCM 2ch PCM 2ch DTS DTS
Linear PCM 2ch PCM 2ch PCM 2ch DTS PCM 2ch
Linear PCM 5.1ch PCM 2ch PCM 2ch DTS PCM 2ch
Linear PCM 7.1ch PCM 2ch PCM 2ch DTS PCM 2ch
Jack/Setting
Source
Digital Output (HDMI OUT)
PCM Stereo
PCM
Multi-Ch
*
3
Re-encode
*
6
Primary Pass-Thru
*
1
*
2
Dolby Digital PCM 2ch PCM 5.1ch DTS Dolby Digital
Dolby Digital Plus PCM 2ch PCM 7.1ch DTS Dolby Digital Plus
Dolby TrueHD PCM 2ch PCM 7.1ch DTS Dolby TrueHD
DTS PCM 2ch PCM 5.1ch DTS DTS
DTS-HD PCM 2ch PCM 7.1ch DTS DTS-HD
Linear PCM 2ch PCM 2ch PCM 2ch DTS Linear PCM 2ch
Linear PCM 5.1ch PCM 2ch PCM 5.1ch DTS Linear PCM 5.1ch
Linear PCM 7.1ch PCM 2ch PCM 7.1ch DTS
Linear PCM 7.1ch
*
4
*1 The secondary and interactive audio may
not be included in the output bitstream if
[Digital Output] option is set to [Primary
Pass-Thru]. (Except LPCM Codec : the output
always include interactive and secondary
audio.)
*2 This player automatically selects the HDMI
audio according to the decoding capability
of the connected HDMI device even though
[Digital Output] option is set to [Primary
Pass-Thru].
*3 The [PCM Multi-Ch]/[Primary Pass-Thru]
setting of the [Digital Output] option and
[Re-encode] setting of the [Digital Output]
option cannot be set together.
If you set them together, the [Digital
Output] option is set to [PCM Stereo]
automatically.
*4 The LPCM audio recorded at 192kHz
sampling frequency will be outputted as
stereo sound.
*5 On the PCM audio output, the sampling
frequency of Digital Output is limited to 96
kHz.
85Appendix
Appendix
7
*6 If the [Digital Output] option is set to [Re-
encode], the audio output is limited to 48
kHz and 5.1Ch. If the [Digital Output] option
is set to [Re-encode], the DTS Re-encode
audio is outputted for BD-ROM discs, and
the original audio is outputted for the other
discs (like [Primary Pass-Thru]).
If [Digital Output] option is set to [PCM
Multi-CH] and [Primary Pass-Thru] while
playback Dolby Digital Plus or TrueHD
audio, audio output is limited to “PCM 2ch”.
If the HDMI connection is version 1.3
and Dolby Digital Plus/Dolby TrueHD is
outputted from HDMI OUT jack, DIGITAL
AUDIO OUT jack is limited to “PCM 2ch”
(When the Digital Output are connected
simultaneously).
The audio is outputted as PCM 48 kHz/16
bit for MP3/WMA le and PCM 44.1kHz/16
bit for Audio CD while playback.
The Dolby TrueHD audio recorded on some
Blu-ray discs consists of Dolby Digital and
TrueHD audio. Dolby Digital audio is output
through DIGITAL AUDIO OUT jacks and
“DD” displays on the screen if TrueHD audio
is not output (for example, when [Digital
Output] is set to [PCM Stereo] and [Primary
Pass-Thru])
•
•
•
•
86 Appendix
Appendix
7
Video Output Resolution
When the non-copy protected media is playing back
Video Out
Resolution
HDMI OUT
COMPONENT VIDEO OUT
HDMI connected HDMI disconnected
576i 576i 576i
576p 576p 576p
720p 720p 720p
1080i 1080i 1080i
1080p/24Hz 1080p / 24Hz 576i 1080i
1080p / 50Hz 1080p / 50Hz 576i 1080i
When the copy protected media is playing back
Video Out
Resolution
HDMI OUT
COMPONENT VIDEO OUT
HDMI connected HDMI disconnected
576i 576i 576i
576p 576p 576p
720p 720p 576i 576p
1080i 1080i 576i 576p
1080p/24Hz 1080p / 24Hz 576i 576p
1080p / 50Hz 1080p / 50Hz 576i 576p
This unit supports simultaneous output of
all video out jacks.
HDMI OUT connection
For the 576i resolution setting, real output
resolution of HDMI OUT will change to
576p.
If you select a resolution manually and then
connect the HDMI jack to TV and your TV
does not accept it, the resolution setting is
set to [Auto].
If you select a resolution that your TV
does not accept, the warning message
will appear. After resolution change,
if you cannot see the screen, please
wait 20 seconds and the resolution will
automatically revert back to the previous
resolution.
•
•
•
•
The 1080p video output frame rate may
be automatically set to either 24Hz or
50Hz depending both on the capability
and preference of the connected TV and
based on the native video frame rate of the
content on the BD-ROM disc.
COMPONENT VIDEO OUT
Connection
BD, DVD could prevent up-scaling on analogue
output.
VIDEO OUT connection
The resolution of the VIDEO OUT jack is always
outputted at 576i resolution.
•
87Appendix
Appendix
7
Specifications
General
Power requirements:
AC 200-240 V, 50/60 Hz
Power consumption:
40W
Dimensions (W x H x D):
Approx. 430 x 49 x 295 mm) without foot
Net Weight (Approx.):
4.4 kg
Operating temperature:
5 °C to 35 °C)
Operating humidity:
5 % to 90 %
Television system:
DVB-T Standard Compliant
TV Recording
Recording format:
TS (Transport Stream format)
Recordable media:
Hard Disk Drive (HR599D: 500GB/
HR598D: 250GB), USB 2.0 HDD
Audio recording format:
Dolby Digital (2CH)
Connectors
VIDEO OUT:
1.0 V (p-p), 75 Ω, sync negative, RCA jack x 1
COMPONENT VIDEO OUT:
(Y) 1.0 V (p-p), 75 Ω, sync negative, RCA jack x
1, (Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
HDMI OUT (video/audio):
19 pin (HDMI standard, Type A)
ANALOGUE AUDIO OUT:
2.0 Vrms (1 kHz, 0 dB), 600 Ω, RCA jack (L, R) x
1
DIGITAL OUT (COAXIAL):
0.5 V (p-p), 75 Ω, RCA jack x 1
ANTENNA IN:
Antenna input, 75 ohms
USB Port:
4 pin (USB 2.0 standard)
System
Laser:
Semiconductor laser,
wavelength:
405nm / 650 nm
Signal system:
Standard PAL colour TV system
Frequency response:
20 Hz to 20 kHz
(48 kHz, 96 kHz, 192 kHz sampling)
Signal-to-noise ratio:
More than 100 dB
(Analogue OUT connectors only)
Harmonic distortion:
Less than 0.008%
Dynamic range:
More than 95 dB
LAN port:
Ethernet jack x 1, 10BASE-T/100BASE-TX
Wireless LAN (internal antenna):
Integrated IEEE 802.11n (Draft 2.0) wireless
networking access, compatible with
802.11b/g Wi-Fi networks.
Bus Power Supply (USB):
DC 5V 500mA
Design and specications are subject to
change without notice.
•
88 Appendix
Appendix
7
Important Information
Relating to Network
Services
PLEASE READ CAREFULLY. USE OF THE NETWORK
SERVICES IS SUBJECT TO THE FOLLOWING TERMS
AND CONDITIONS.
Use of the Network Services requires an Internet
connection which is sold separately and for which
you are solely responsible. The Network Services may
be limited or restricted depending upon the quality,
capabilities and technical limitations of your Internet
service.
The Network Services belong to third parties and
may be protected by copyright, patent, trademark
and/or other intellectual property laws. The Network
Services are provided solely for your personal and
noncommercial use. Unless expressly authorized by
the respective content owner or service provider,
you shall not modify, copy, republish, upload, post,
transmit, translate, sell, create derivative works,
exploit, or distribute in any manner or medium any
content or services accessible through this product.
LG IS NOT RESPONSIBLE FOR YOUR USE OF
THE NETWORK SERVICES. THE NETWORK
SERVICES ARE PROVIDED “AS IS.” TO THE FULLEST
EXTENT PERMISSIBLE BY LAW, LG MAKES NO
REPRESENTATIONS OR WARRANTIES OF ANY KIND
WHATSOEVER (i) FOR THE ACCURACY, VALIDITY,
TIMELINESS, LEGALITY, OR COMPLETENESS OF ANY
NETWORK SERVICE MADE AVAILABLE THROUGH
THIS PRODUCT; OR (ii) THAT THE NETWORK SERVICES
ARE FREE OF VIRUSES OR OTHER COMPONENTS
THAT MAY INFECT, HARM, OR CAUSE DAMAGE TO
THIS PRODUCT, YOUR COMPUTER, TELEVISION,
OTHER EQUIPMENT, OR ANY OTHER PROPERTY. LG
EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES,
INCLUDING BUT NOT LIMITED TO, WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE.
UNDER NO CIRCUMSTANCES AND UNDER NO
LEGAL THEORY, WHETHER IN CONTRACT, TORT,
STRICT LIABILITY OR OTHERWISE, SHALL LG BE
LIABLE TO YOU OR ANY THIRD PARTY FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, STATUTORY,
CONSEQUENTIAL OR OTHER DAMAGES OR
ATTORNEY FEES OR EXPENSES RELATING TO OR
ARISING OUT OF THE NETWORK SERVICES EVEN IF
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR
IF SUCH DAMAGES COULD HAVE BEEN REASONABLY
FORESEEN.
The Network Services may be terminated or
interrupted at any time, and LG makes no
representation or warranty that any Network Service
will remain available for any period of time. Use of the
Network Services may be subject to additional terms
and conditions of the respective third party service
provider. The Network Services are transmitted by
third parties by means of networks and transmission
facilities over which LG has no control. LG EXPRESSLY
DISCLAIMS ANY RESPONSIBILITY OR LIABILITY
FOR ANY INTERRUPTION OR SUSPENSION OF ANY
NETWORK SERVICE.
LG shall be neither responsible nor liable for
customer service related to the Network Services.
Any question or request should be made directly to
the respective Network Service providers.
“Network Service(s)” means the third party services
accessible through this product including but
not limited to all data, software, links, messages,
video and other content found thereon or used in
connection therewith.
“LG” means LG Electronics, Inc. its parent company
and all of their respective subsidiaries, aliates and
related companies worldwide.
89Appendix
Appendix
7
Open source software
notice
The following GPL executables and LGPL libraries
used in this product are subject to the GPL2.0/
LGPL2.1 Licence Agreements:
GPL EXECUTABLES: Linux kernel 2.6, bash, busybox,
dhcpcd, mkdosfs, mtd-utils, net-tools, ntfsprogs,
gdbserver, procps, samba-3.0.25b, sysutils, tinylogin,
udftools, wireless-tools
LGPL LIBRARIES: uClibc, DirectFB, ebase, iconv,
cairo, gnutls, libcrypt, libgpg-err, libusb, mplib, neon,
qDecoder
gSOAP Public License 1.3 LIBRARY: gsoap
LG El ectronics oers to provide source code to
you on CD-ROM for a charge covering the cost of
performing such distribution, such as the cost of
media, shipping and handling upon e-mail request
to LG Electronics at: [email protected]
This oer is valid for a period of three(3) years from
the date of the distribution of this product by LG
Electronics.
You can obtain a copy of the GPL, LGPL licenses from
http://www.gnu.org/licenses/old-licenses/gpl-
2.0.html and http://www.gnu.org/licenses/old-
licenses/lgpl-2.1.html .
Also you can obtain a copy of gSOAP public licence
from http://www.cs.fsu.edu/~engelen/license.
html.
This product includes
expat library : copyright © 2006 expat maintainers.
freetype library: copyright © 2003 The FreeType
Project (www.freetype.org).
giib: Copyright © 1997 Eric S. Raymond
jpeg: This software is based in part on the work of
the Independent JPEG Group copyright © 1991 –
1998, Thomas G. Lane.
libcurl library : Copyright (c) 1996 - 2008, Daniel
Stenberg, [email protected]
libnet : (c) 1998 - 2004 Mike D. Schiman mike@
infonexus.com
libpcap
libpng library: copyright © 2004 Glenn Randers-
Pehrson
miniUPnP client: Copyright © 2005-2006, Thomas
BERNARD
•
•
•
•
•
•
•
•
•
ntp : copyright © David L. Mills 1992-2006
OpenSSL library :
– cryptographic software written by Eric Young
– software written by Tim Hudson (tjh@cryptsoft.
com).
– software developed by the OpenSSL Project for
use in the OpenSSL Toolkit. (http://www.openssl.
org)
portmap : copyright © 1990 The Regents of the
University of California
regex : Copyright © 1992, 1993, 1994, 1997 Henry
Spencer
strace :
copyright © 1991, 1992 Paul Kranenburg
copyright © 1993 Branko Lankester
copyright © 1993 Ulrich Pegelow
copyright © 1995, 1996 Michael Elizabeth Chastain
copyright © 1993, 1994, 1995, 1996 Rick Sladkey
copyright © 1999,2000 Wichert Akkerman
Tinyxml : copyright © 2000-2006 Lee Thomason
UPnP SDK : Copyright (c) 2000-2003 Intel
Corporation
WPA Supplicant : Copyright © 2003-2007, Jouni
Malinen <j@w1.> and contributors
xml2 : copyright © 1998-2003 Daniel Veillard
Zlib compression library: Copyright © 1995-2002
Jean-loup Gailly and Mark Adler.
All rights reserved.
Permission is hereby granted, free of charge, to
any person obtaining a copy of this software and
associated documentation les (the “Software”), to
deal in the Software without restriction, including
without limitation the rights to use, copy, modify,
merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to
whom the Software is furnished to do so, subject to
the following conditions:
THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT
WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NONINFRINGEMENT. IN NO EVENT
SHALL THE AUTHORS OR COPYRIGHT HOLDERS
BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
LIABILITY, WHETHER IN AN ACTION OF CONTRACT,
TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR THE USE OR
OTHER DEALINGS IN THE SOFTWARE.
•
•
•
•
•
•
•
•
•
•
As an E
nergy
S
tar
® Partner,
LG has determined that this
product or product models
meet the E
nergy
S
tar
®
guidelines for energy efficiency.
Energy Star
®
is a U.S. registered mark.
