User Manual Bosch WAN20050IL/14 Serie 4 Washing machine

Documents for Bosch WAN20050IL/14

User Manual

For WAN20050IL/14. Series: Serie 4
Also, The document are for others Bosch models: WAN

• Your new washing machine2
  • Display rules2
  • : Warning!2
  • Caution!2
  • Note/tip2
  • 1. 2. 3. / a) b) c)2
• ■ / -2
• Contentsen Instruction Manual and Installation Instructions3
  • 8 Intended use 43
  • ( Safety instructions 53
  • 7 Environmental protection 113
  • 5 Positioning and connecting 113
  • * Getting to know the appliance 193
  • Z Laundry 223
  • C Detergent 233
  • 0 Programme default settings 243
  • \ Additional programme settings 253
  • 1 Operating the appliance 263
  • H Sensors 303
  • Q Appliance settings 313
  • 2 Cleaning and maintenance 313
  • 3 Faults and what to do about them 354
  • 4 After-sales service 384
  • J Technical data 394
  • r Aqua-Stop warranty 394
  • 8 Intended use4
    • Intended use4
    • ■ This appliance is intended for private domestic use only.4
    • ■ Do not install or operate this appliance anywhere that is liable to experience frost and/or outdoor conditions. There is a risk that the appliance will be damaged if residual water in it freezes. If hoses freeze up, they may crack/burst.4
    • ■ This appliance must only be used for washing domestic laundry, consisting of machine-washable items and hand-washable woollens (see label on item). Using the appliance for any other purpose is outside of the scope of its intended application and ...4
    • ■ This appliance is suitable for operation with cold mains water and commercially available detergents and care products (must be suitable for use in washing machines).4
    • ■ This appliance is intended for use up to a maximum height of 4000 metres above sea level.4
      • ( Safety instructions5
        • Safety instructions5
        • Children/people/pets5
          • : Warning5
          • Risk of death!5
    • ■ The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge as long as they are supervised or have received instruction on how...5
    • ■ Children must not play with this appliance.5
    • ■ Do not allow children to clean or maintain this appliance unsupervised.5
    • ■ Keep children under 3 years and pets away from this appliance.5
    • ■ Do not leave the appliance unattended when children or other people who are unable to assess the risks are in the vicinity.5
      • : Warning5
      • Risk of death!5
    • ■ Do not position the appliance behind a door, as this may obstruct the appliance door or prevent it from opening completely.5
    • ■ Once an appliance has reached the end of its life, pull the mains plug from the socket before severing the mains cable, and then destroy the lock on the appliance door.5
      • : Warning5
      • Risk of suffocation!5
      • : Warning6
      • Risk of poisoning!6
      • : Warning6
      • Risk of burns!6
      • : Warning6
      • Eye/skin irritation!6
      • Installation6
        • : Warning6
        • Risk of electric shock/fire/ material damage/damage to the appliance!6
    • ■ The mains voltage on your power socket matches the rated voltage specified on the appliance (identification plate). The connected loads and the required fuse protection are specified on the identification plate.6
    • ■ The appliance is only connected to a source of alternating current via a nationally recognized and grounded outlet that has been correctly installed.6
    • ■ The mains plug and the grounded socket match and the earthing system has been correctly installed.6
    • ■ The cross section of the cable is sufficiently large enough.6
    • ■ The mains plug is accessible at all times.6
    • ■ If using a residual current circuit breaker, only use one that bears the following mark: z. The presence of this mark is the only way to be sure that it fulfils all the applicable regulations.6
      • : Warning6
      • Risk of electric shock/fire/ material damage/damage to the appliance!6
      • : Warning7
      • Risk of fire/material damage/ damage to the appliance!7
      • : Warning7
      • Risk of injury/material damage/damage to the appliance!7
      • : Warning7
      • Risk of injury!7
      • Caution!8
        • Material damage/damage to the appliance8
      • Operation8
        • : Warning8
        • Risk of explosions/fire!8
        • : Warning8
        • Risk of poisoning!8
        • : Warning9
        • Risk of injury!9
        • : Warning9
        • Risk of scalding!9
        • : Warning9
        • Eye/skin irritation!9
        • Caution!9
          • Material damage/damage to the appliance9
      • Cleaning/Maintenance10
        • : Warning10
        • Danger of death!10
    • ■ Switch off the appliance. Disconnect the appliance from the power supply (pull out the plug).10
    • ■ Never take hold of the mains plug with wet hands.10
    • ■ When removing the mains plug from the socket, always take hold of the plug itself and never the mains cable, otherwise this may damage the mains cable.10
    • ■ Do not make any technical modifications to the appliance or its features.10
    • ■ Repairs and any other work on the appliance must only be conducted by our customer service or by an electrician. The same applies for replacing the mains cable (when necessary).10
    • ■ Spare mains cables can be ordered from our customer service.10
      • : Warning10
      • Risk of poisoning!10
      • : Warning10
      • Risk of electric shock/material damage/damage to the appliance!10
      • : Warning10
      • Risk of injury/material damage/damage to the appliance!10
      • Caution!10
      • Material damage/damage to the appliance10
    • ■ Do not allow these agents to come into contact with the surfaces of the appliance.10
    • ■ Clean the appliance with nothing but water and a soft, damp cloth.11
    • ■ Remove any detergent, spray or other residues immediately.11
      • 7 Environmental protection11
        • Environmental protection11
        • Packaging/used appliance11
        • Tips on economical use11
    • ■ For optimum energy and water savings, fill the appliance with the maximum amount of laundry for each programme.11
    • ■ Wash normally soiled laundry without a prewash.11
    • ■ Save energy and detergent when washing lightly and normally soiled laundry. ~ "Detergent" on page 2311
    • ■ The temperatures which can be selected refer to the care labels on the textiles. The temperatures used in the machine may deviate from this to ensure you get the optimum combination of energy-saving and washing results.11
    • ■ In order to save energy, the appliance switches to energy saving mode. The display panel lighting goes out after a few minutes and the Start Reload A button flashes. ~ "Display panel" on page 2011
    • ■ If the laundry is subsequently dried in a tumble dryer, select the spin speed according to the tumble dryer manufacturer's instructions.11
      • 5 Positioning and connecting11
        • Positioning and connecting11

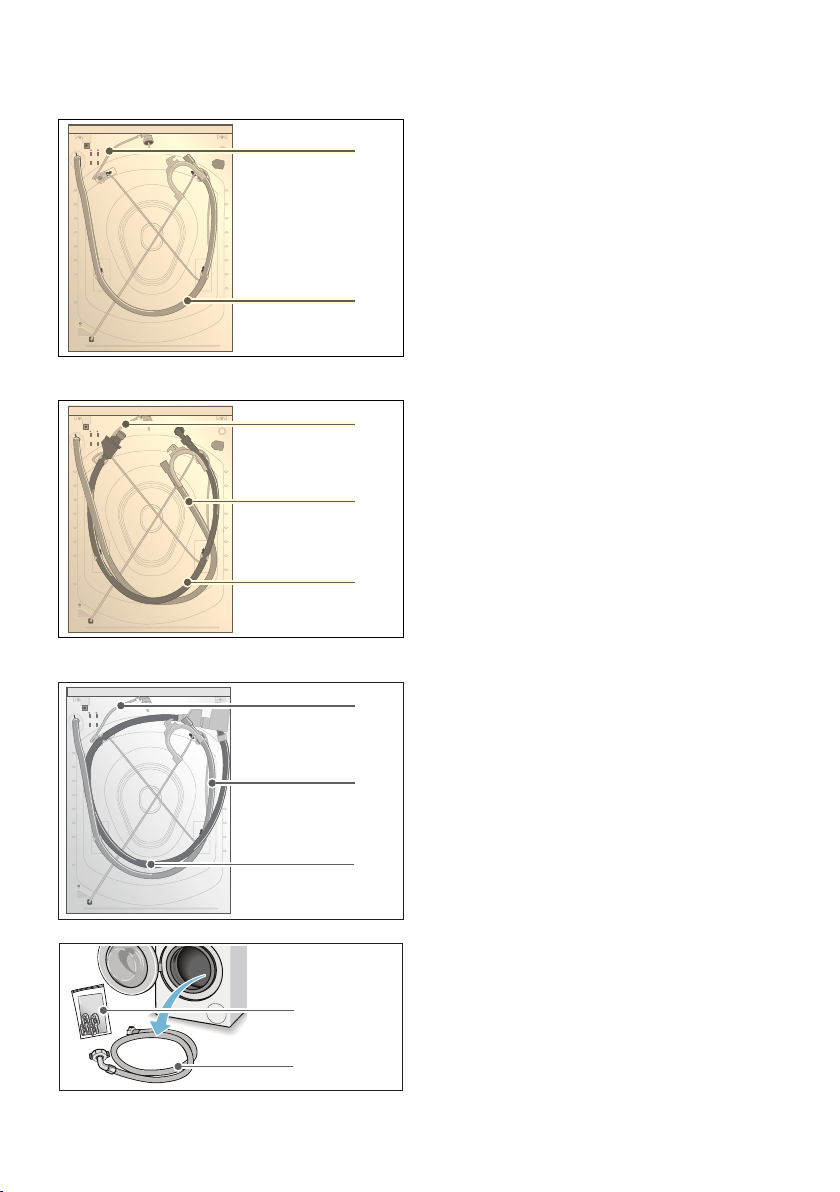

        • Included with the appliance11
          • Notes11
    • ■ Standard12
    • ■ Aqua-Secure12
    • ■ Aqua-Stop12
    • ■ Operating and installation instructions + supplementary sheet for the operating and installation instructions12
    • ■ After-sales service location directory*12
    • ■ Warranty*12
    • ■ Cover caps for openings after the transport locks have been removed12
    • ■ Measuring aid* for liquid detergent12
    • ■ Adapter with sealing washer from 21 mm = ½" to 26.4 mm = ¾" *12
      • Useful tools12
    • ■ Spirit level for aligning12
    • ■ Spanner with:12
      • Safety instructions13
        • : Warning13
        • Risk of injury!13
        • Caution!13
        • Damage to the appliance13
        • Caution!13
        • Water damage13
        • Notes13
      • Installation surface13
        • Note:13
      • Installation on a base or a wooden joist floor13
        • Caution!13
        • Damage to the appliance13
        • Note:13
      • Installation on a platform with drawer13
      • Installing the appliance in a kitchenette13
        • : Warning13
        • Risk of death!13
        • Notes13

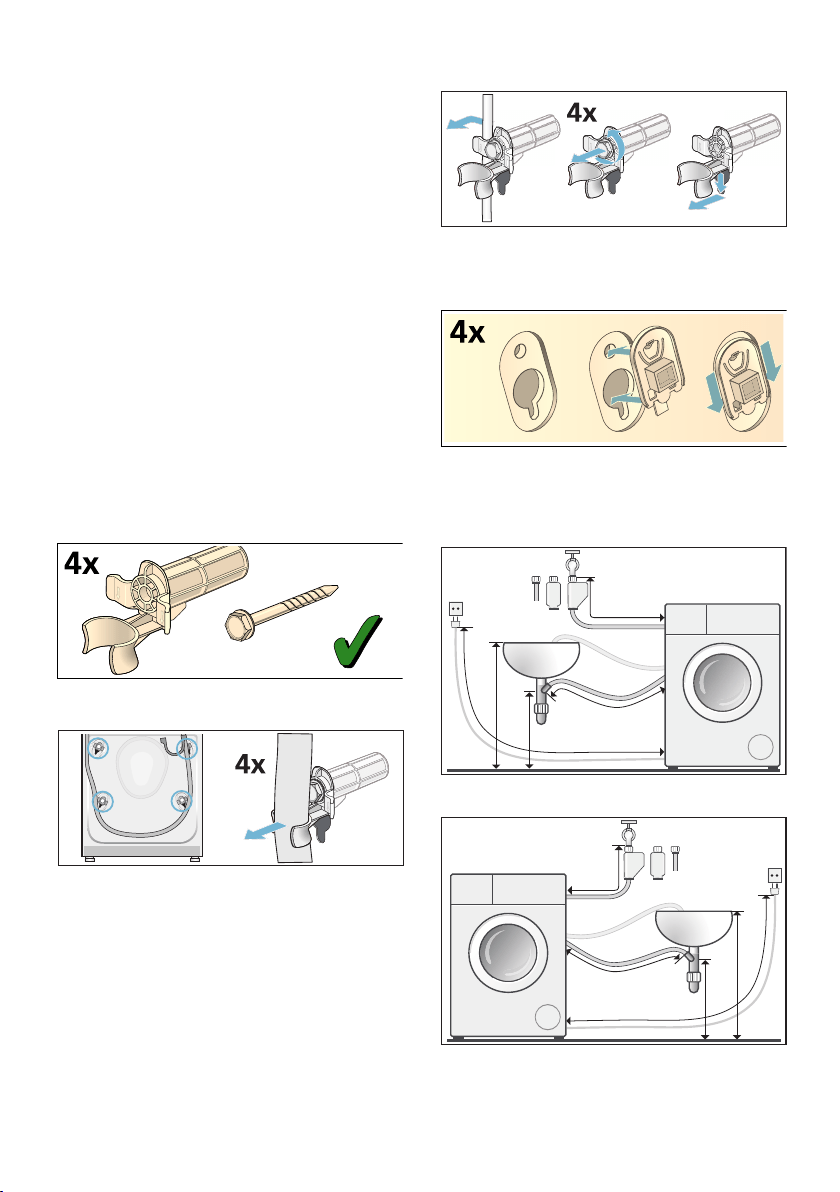

      • Removing the transport locks14
        • Caution!14
        • Damage to the appliance14
        • Note:14
          • 1. Take the hoses out of the holders.14
          • 2. Remove the mains cable from the holders. Unscrew and remove all four transport lock screws.14
          • 3. Fit the covers. Lock the covers firmly in place by applying pressure to the snap-in hooks.14
      • Hose and cable lengths14
    • ■ Left-hand connection14
    • ■ Right-hand connection14
      • Tip:15

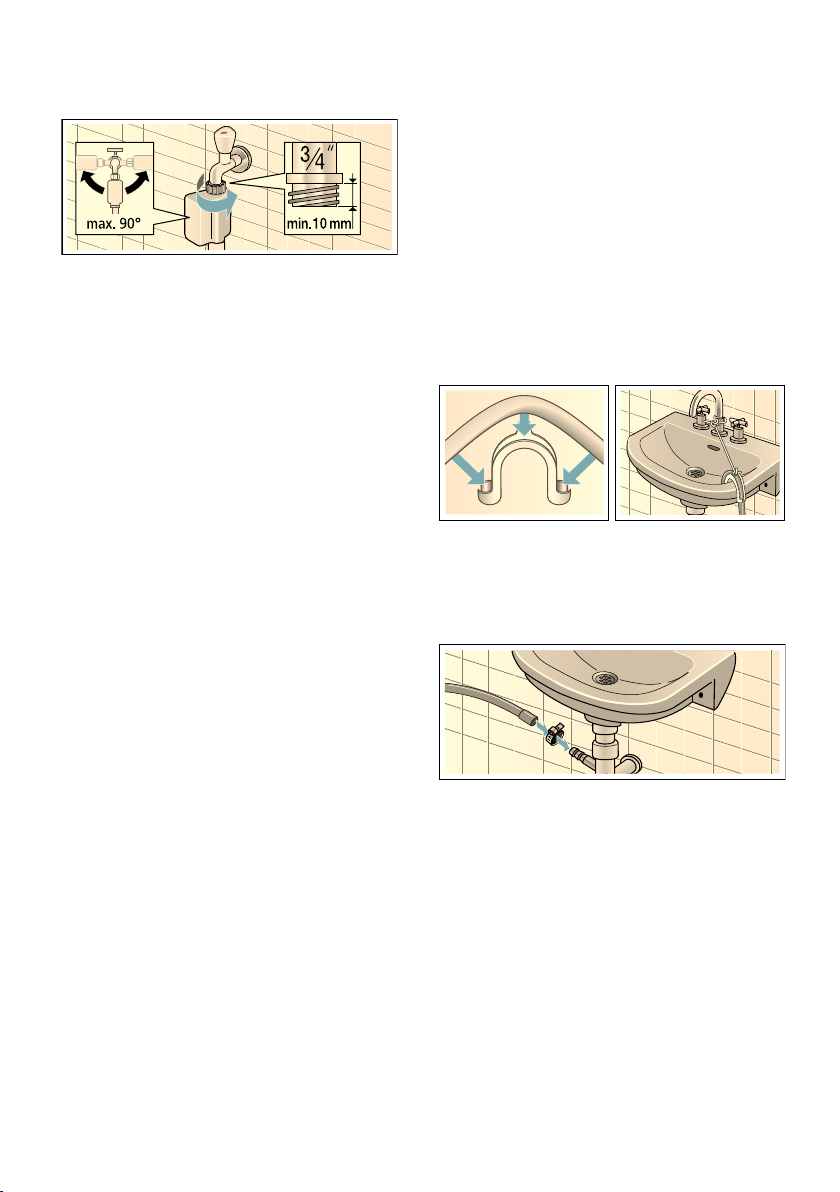

      • Water inlet15
        • : Warning15
        • Risk of electric shock!15
        • Notes15
    • ■ Model: Standard15
    • ■ Model: Aqua­Secure15
    • ■ Model: Aqua-Stop16
      • Note:16
      • Water outlet16
        • Caution!16
        • Water damage16
        • Notes16
    • ■ Outlet in a sink16
      • : Warning16
      • Risk of scalding!16
      • Caution!16
      • Damage to the appliance/fabrics16
    • ■ Drainage into a siphon16
      • Levelling16
        • 1. Loosen the lock nuts using a wrench, by turning it in a clockwise direction.16
        • 2. Check the alignment of the washing machine with a spirit level, and adjust it if necessary. Change the height by turning the appliance feet.16
        • 3. Tighten the lock nut against the housing.17
      • Electrical connection17
        • : Warning17
        • Risk of death!17
        • Notes17
      • Before washing for the first time17
        • Note:17
          • 1. Check the appliance.17
          • Note:17
            • 2. Remove the protective foil from the worktop and the control panel.17
            • 3. Connect the mains plug.17
            • 4. Turn on the water tap.17
            • 5. Do not load any laundry. Close the door.17
            • 6. Run the Cottons 90 °C programme.17
            • 7. Open the detergent drawer.17
            • 8. Pour approximately 1 litre of water into compartment II.17
            • 9. Pour standard detergent into compartment II.17
          • Note:18
            • 10. Close the detergent drawer.18
            • 11. Press the Start Reload A button.18
            • 12. When the programme ends, switch off the appliance.18
      • Transportation18
        • 1. Turn off the water tap.18
        • 2. Reduce the water pressure in the supply hose.18
        • 3. Drain the remaining detergent solution.18
        • 4. Disconnect the washing machine from the mains.18
        • 5. Remove the hoses.18
        • 1. Remove the covers and keep them in a safe place.18
        • 2. Insert all four sleeves.18
        • Notes18
• * Getting to know the appliance19
  • Getting to know the appliance19

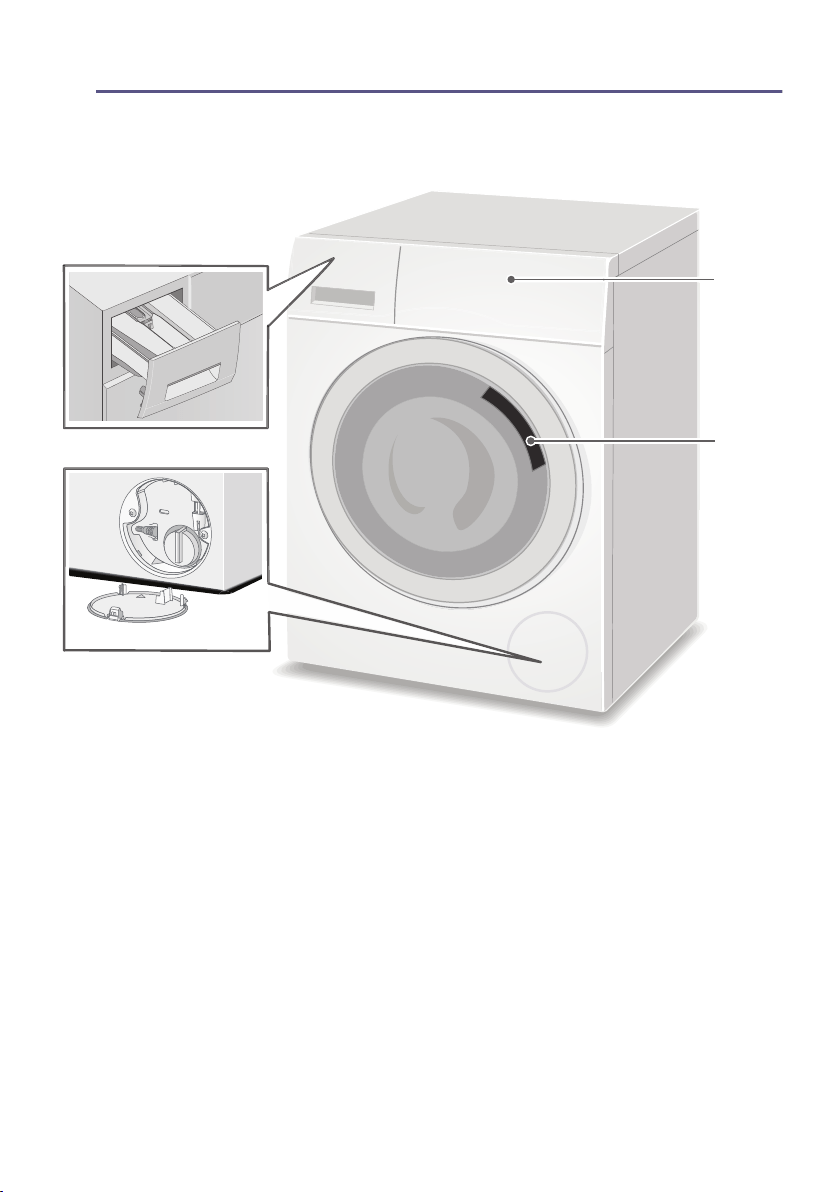

  • Washing machine19
  • Control panel20
    • Note:20
  • Display panel20
    • Note:20
      • Button20
      • Display indicator20
      • Description20
      • More information on the display panel21
      • Display indicator21
      • Description21
    • Note:21
    • Z Laundry22
      • Laundry22

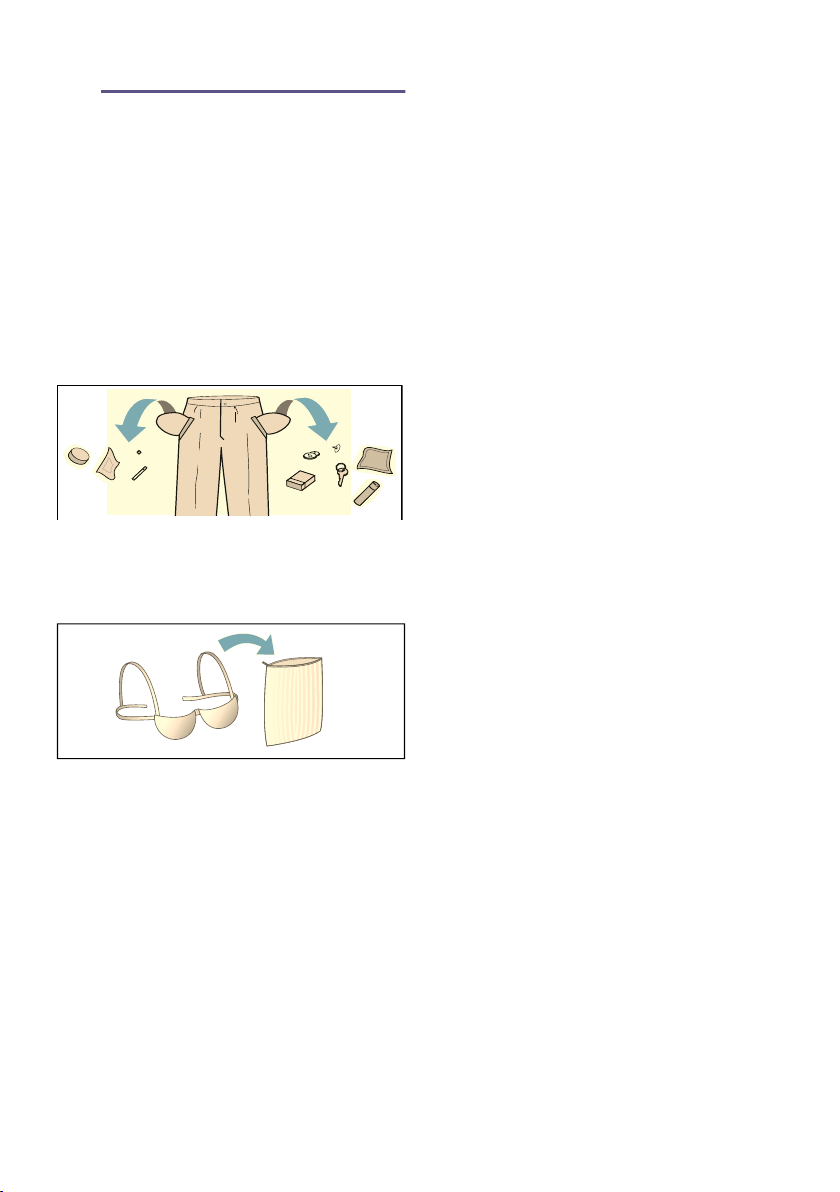

      • Preparing the laundry22
        • Caution!22
        • Damage to the appliance/fabrics22
  • ■ Empty any pockets.22
  • ■ Check for metal items (paper clips, etc.) and remove them.22
  • ■ Wash delicates in a laundry bag (tights, underwired bras, etc.).22
  • ■ Remove curtain fittings or place curtains in a laundry bag.22
  • ■ Close any zips, button up any cover buttons.22
  • ■ Brush sand out of pockets and collars.22
    • Sorting laundry22
  • ■ Type of fabric/fibre22
  • ■ Colour22
    • Note:22
  • ■ Soiling Wash laundry with the same level of soiling together.22
  • ■ Symbols on the care labels22
    • Note:22
    • Starching23
      • Note:23
    • Dyeing/bleaching23
    • Soaking23
      • 1. Pour soaking agent/detergent into compartment II in accordance with the manufacturer's instructions.23
      • 2. Select the desired programme.23
      • 3. Press the Start Reload A button to start the programme.23
      • 4. After approx. ten minutes, press the Start Reload A button to pause the programme.23
      • 5. After the desired soaking time, press the Start Reload A button again to continue or change the programme.23
      • Notes23
    • C Detergent23
      • Detergent23
      • Correct selection of detergent23
  • ■ Standard detergent with optical brighteners23
  • ■ Detergent for colours without bleach or optical brighteners23
  • ■ Detergent for colours/delicates without optical brighteners23
  • ■ Detergent for delicates23
  • ■ Detergent for woollens23
    • Saving energy and detergent24
      • Saving24
      • Soiling/note24
      • Note:24
    • 0 Programme default settings24
      • Programme default settings24
      • Note:24
      • Spin speed24
        • Note:25
      • Ready in25
        • 1. Select a programme.25
        • 2. Press the Ready in button repeatedly until the required number of hours is displayed.25
        • 3. Press the Start Reload A button.25
        • Note:25
          • 1. Press the Start Reload A button.25
          • 2. Use the Ready in button to change the number of hours.25
          • 3. Press the Start Reload A button.25
        • Note:25
    • \ Additional programme settings25
      • Additional programme settings25
      • Speed Eco25
  • ■ Speed25
    • Note:25
  • ■ Eco25
    • 1 Operating the appliance26
      • Operating the appliance26
      • Preparing the washing machine26
        • Notes26
          • 1. Connect the mains plug.26
          • 2. Turn on the water tap.26
          • 3. Open the door.26
          • 4. Check that the drum is completely drained. Drain if necessary.26
      • Switching on the appliance/ selecting a programme26
        • Note:26
  • ■ Spin speed,26
  • ■ The maximum load and the duration of the programme (alternately)26
    • Changing the programme default settings26
    • Selecting additional programme settings26
    • Placing laundry into the drum27
      • : Warning27
      • Risk of death!27
      • Notes27
        • 1. Place presorted items of laundry unfolded in the washing drum.27
        • 2. Make sure that no items of laundry are trapped between the washing machine door and the rubber seal, and close the door.27
    • Measuring and adding detergent and care products27
      • Caution!27
      • Damage to the appliance27
      • Dosing27
  • ■ Water hardness (ask your water supply company)27
  • ■ The manufacturer's instructions on the packaging27
  • ■ The amount of laundry27
  • ■ Soiling27
    • Filling27
    • : Warning27
    • Eye/skin irritation!27
    • Note:27

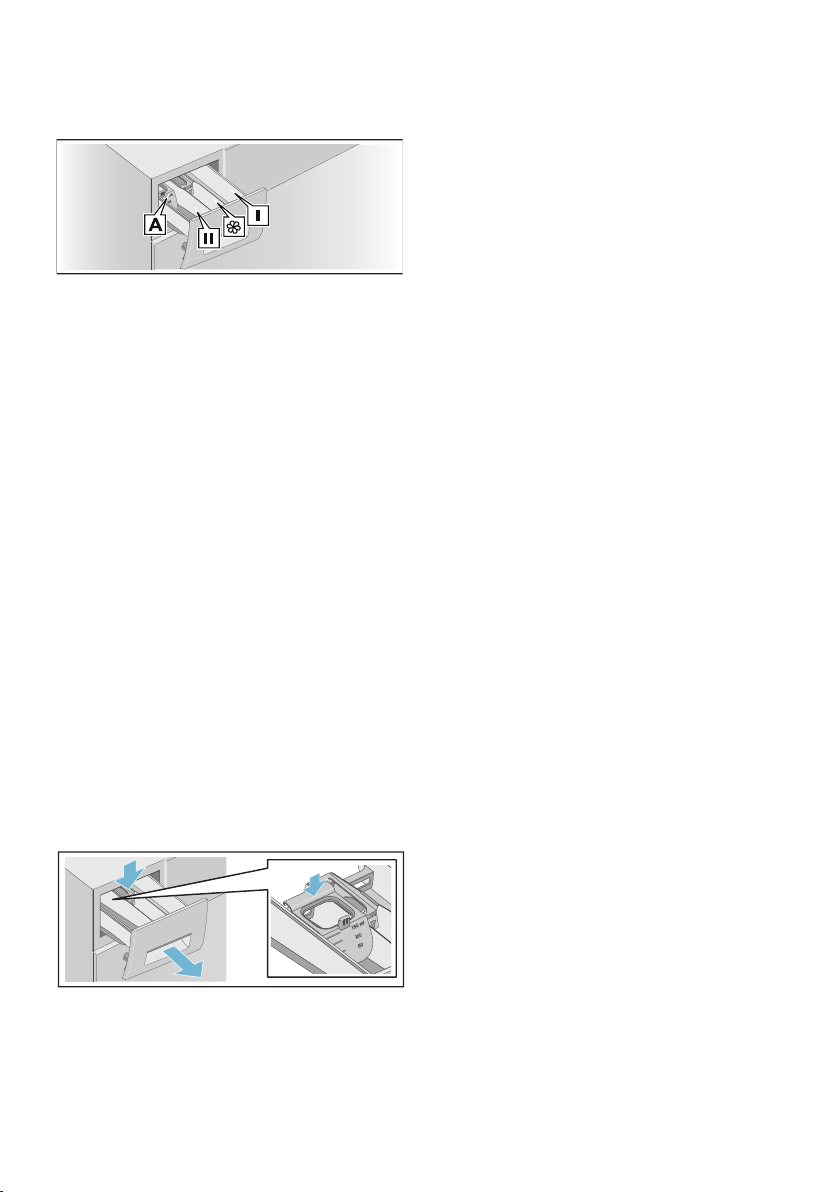

      • 1. Pull out the detergent drawer as far as possible.28
      • 2. Add detergent and/or care products.28
      • 3. Close the detergent drawer.28
      • Measuring aid for liquid detergent28
        • 1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.28
        • 2. Slide the measuring aid forwards, fold it down and click it into place.28
        • 3. Reinsert the drawer.28
    • Note:28
    • Starting the programme28
      • Foam detection28
      • Note:28
    • Childproof lock28
  • ■ E lights up: The childproof lock is active.29
  • ■ E flashes: The childproof lock is active and the programme selector has been adjusted. If you reset the programme selector to the initial programme, the symbol lights up again.29
    • Notes29

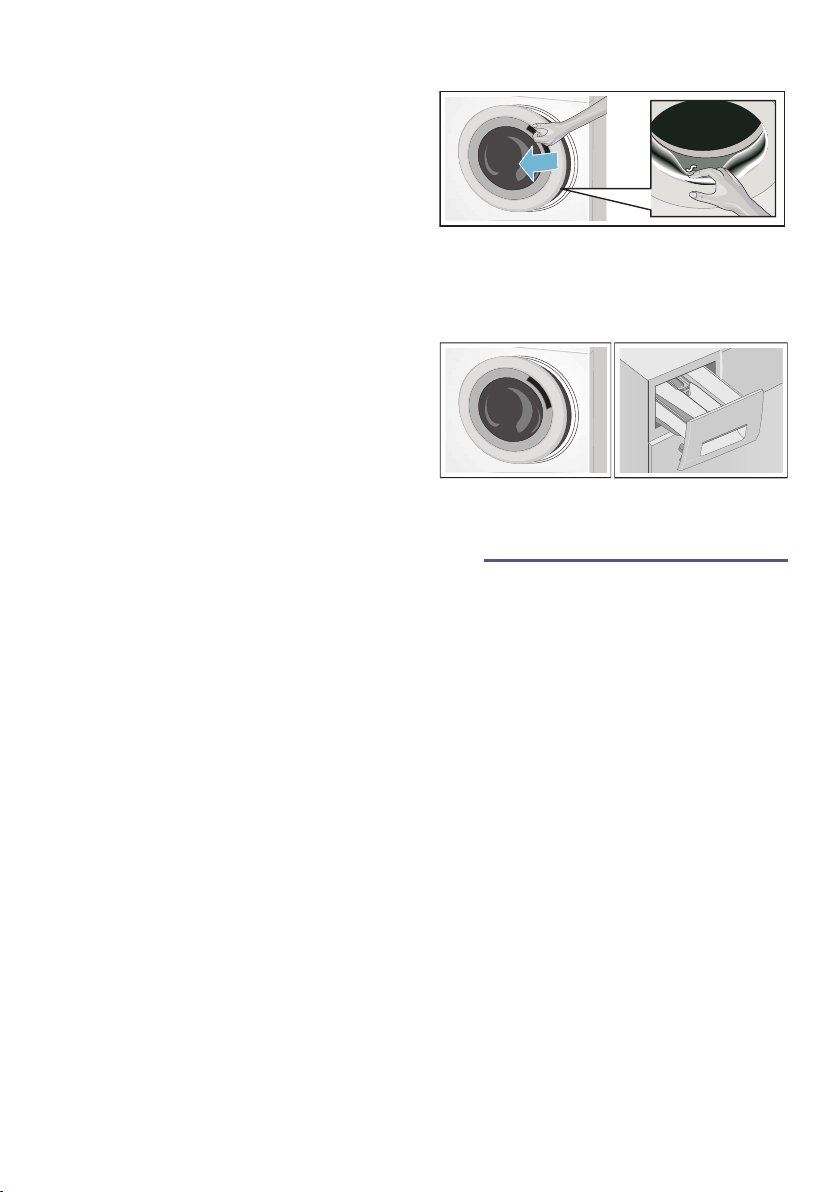

    • Adding/removing laundry29
  • ■ If the è symbol disappears in the display panel, the washing machine door is unlocked. You can add or remove laundry.29
    • Notes29
  • ■ If the è symbol lights up in the display panel, it is not possible to add or remove laundry.29
    • Note:29
    • Changing the programme29
      • 1. Press the Start Reload A button.29
      • 2. Select another programme.29
      • 3. Press the Start Reload A button. The new programme starts from the beginning.29
    • Cancelling the programme29
      • 1. Press the Start Reload A button.29
      • 2. To cool down laundry: Select Rinse.29
      • 3. Press the Start Reload A button.29
      • 1. Press the Start Reload A button.29
      • 2. Select Drain/Empty.29
      • 3. Press the Start Reload A button.29
    • Programme end during Rinse Stop29
  • ■ Pressing the Start Reload A button (the laundry will be spun with the default spin speed setting) or29
  • ■ Selecting a spin speed or setting the programme selector to Drain/Empty and then pressing the Start Reload A button.30
    • Programme end30
    • Removing laundry/switching off the appliance30
      • 1. Turn the programme selector to the off position. The appliance is switched off.30
      • 2. Open the door and remove the laundry.30
      • 3. Turn off the tap.30
      • Note:30
      • Notes30
    • H Sensors30
      • Sensors30
      • Automatic load sensing30
      • Unbalanced load detection system30
        • Note:30
    • Q Appliance settings31
      • Appliance settings31
  • ■ The volume of the information signals (e.g. at the end of the programme) and/or31
  • ■ The volume of the button signals.31
    • Activating the setting mode31
      • 1. Turn the programme selector to position 1. The washing machine is switched on.31
      • 2. Press the Start Reload A button and, at the same time, turn the programme selector clockwise to position 2. Release the button.31
    • Changing the volume31
  • ■ To change the volume of the information signals, use the Ready in button while the programme selector remains at position 2.31
  • ■ To change the volume of the button signals, rotate the programme selector to position 3. Use the Ready in button again to change the volume.31
    • 2 Cleaning and maintenance31
      • Cleaning and maintenance31
      • : Warning31
      • Risk of death!31
      • : Warning31
      • Risk of poisoning!31
      • Caution!31
      • Damage to the appliance31
      • Notes31
      • Machine housing/control panel32
  • ■ Wipe the housing and the control panel with a soft, damp cloth.32
  • ■ Remove the detergent residue immediately.32
  • ■ Do not clean with a water jet.32
    • Drum32
    • Descaling32
    • Detergent drawer and housing32
      • 1. Pull out the detergent drawer. Press down the insert and fully remove the drawer.32
      • 2. Remove the insert.32
        • a) Push the insert upwards from below with your finger.32
        • b) If the measuring aid for liquid detergent is used, pull it upwards.32
      • 3. Clean the detergent drawer and insert with water and a brush, and dry it. Clean the inside of the housing as well.32
      • 4. Fit the insert and lock it into place.32
        • a) Push the cylinder onto the guide pin.33
        • b) If the measuring aid* for liquid detergent is used, slide it forwards, fold down and click into place.33
      • 5. Push in the detergent drawer.33
      • Note:33
    • Drain pump is blocked33
      • : Warning33
      • Risk of scalding!33
      • After the water has cooled down:33
        • 1. Turn off the water tap so that no more water can flow in and has to be drained via the drain pump.33
        • 2. Switch off the appliance. Disconnect the mains plug.33
        • 3. Open and remove the service flap.33
        • 4. Take the drain hose out of the retainer.33
        • 5. Carefully unscrew the pump cover; residual water may leak out.33
        • 6. Place the service flap back on, lock it into place, and close it.33
      • Note:34

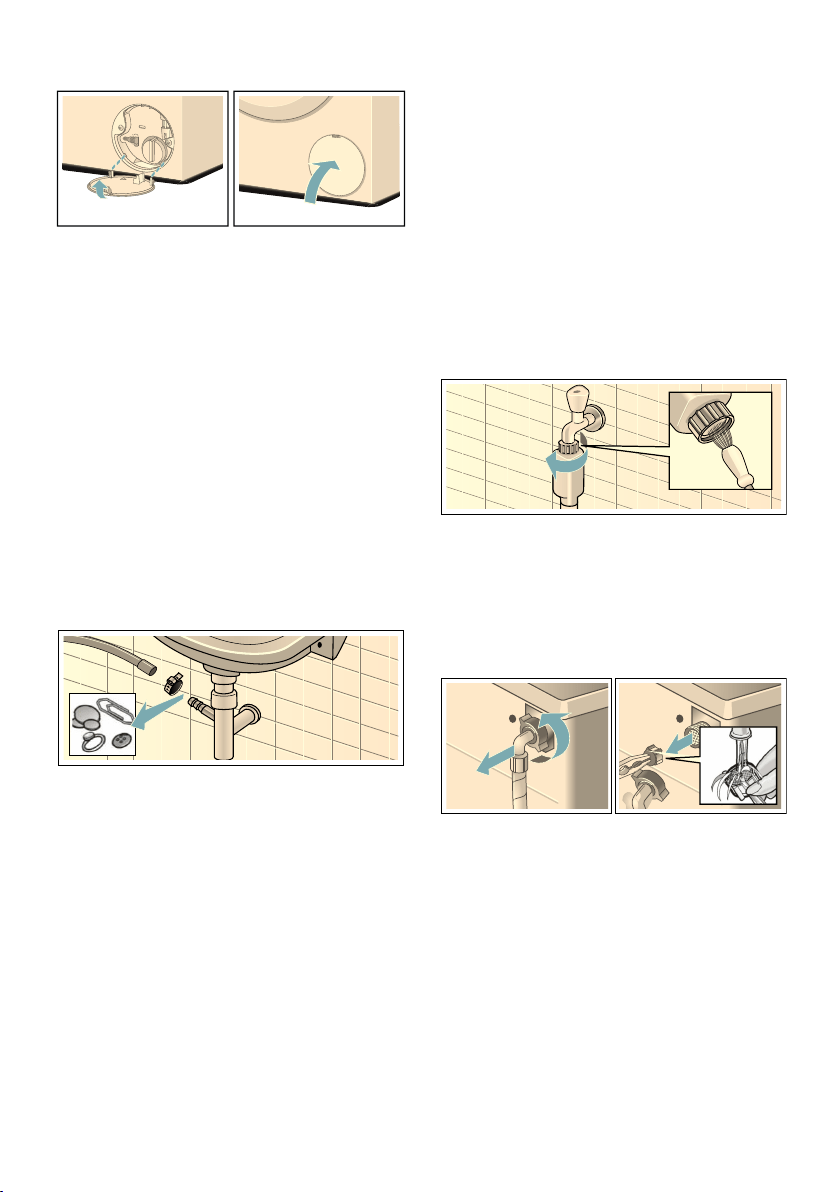

    • Drain hose at the siphon is blocked34
      • 1. Switch off the appliance. Disconnect the mains plug.34
      • 2. Loosen the hose clamp. Carefully remove the drain hose; residual water may leak out.34
      • 3. Clean the drain hose and siphon connecting piece.34
      • 4. Reattach the drain hose and secure the connection using the hose clamp.34
    • Filter in the water supply is blocked34
      • : Warning34
      • Risk of electric shock!34
        • 1. Turn off the tap.34
        • 2. Select any programme (except Rinse/Spin/Drain/Empty).34
        • 3. Press the Start Reload A button. Allow the programme to run for approximately 40 seconds.34
        • 4. Turn the programme selector to the off position. Disconnect the mains plug.34
        • 5. Clean the filter on the tap:34
        • 6. For standard and Aqua-Secure models, clean the filter on the rear of the appliance:34
        • 7. Insert the filter, connect the hose and check for leaks.34
    • 3 Faults and what to do about them35
      • Faults and what to do about them35
      • Emergency release35
        • Note:35
          • : Warning35
          • Risk of scalding!35
          • : Warning35
          • Risk of injury!35
          • Caution!35
          • Water damage35
          • If the laundry has to be removed, the washing machine door can be opened as follows:35
            • 1. Switch off the appliance. Disconnect the mains plug.35
            • 2. Drain the water.35
            • 3. Pull the emergency release downwards with a tool and release.35
    • Information on the display panel36
      • Display36
      • Cause/remedy36
    • Faults and what to do about them.36
      • Faults36
      • Cause/Remedy36
        • Note:37
      • Note:37
      • 4 After-sales service38
        • After-sales service38
  • ■ On the inside of the loading door or the service flap38
  • ■ On the back of the appliance38
    • J Technical data39
      • Technical data39
    • r Aqua-Stop warranty39
      • Aqua-Stop warranty39
        • 1. If water damage is caused due to a fault in our Aqua-Stop system, we will compensate domestic customers for the damage caused.39
        • 2. The liability guarantee is valid for the service life of the appliance.39
        • 3. It is a prerequisite of all warranty claims that the appliance with Aqua- Stop must have been installed and connected correctly in accordance with our instructions; this also includes a correctly fitted Aqua-Stop extension (genuine accessories).39
        • 4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured afterwards by turning off the tap.39
