Instructions for installation
and use
Extractor hood
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Bosch DWI37JR60/01:
[en] Instructions for installation and use
1
Extractor hood
1
Table of contents
2
[en] Instructions for installation and use
2
Instruction manual
2
8 Intended use
2
Intended use
2
( Important safety information
3
Important safety information
3
: Warning
3
Danger of suffocation!
3
: Warning
3
Risk of fire!
3
: Warning
3
Risk of burns!
3
: Warning
3
Risk of injury!
3
: Warning
3
Risk of electric shock!
3
Causes of damage
3
Caution!
3
7 Environmental protection
4
Environmental protection
4
Saving energy
4
Environmentally-friendly disposal
4
1 Operating the appliance
5
Operating the appliance
5
Note:
5
Control panel model 1
5
Symbol
5
Explanation
5
Setting the fan
5
Intensive setting
5
Switching on
5
Note:
5
Switching off
5
Fan run-on time
5
Switching on
5
Switching off
5
Automatic mode
5
1. Touch the # symbol.
5
2. Touch the > symbol.
5
Sensor control
6
1. Touch and hold the > symbol when the fan is switched off. The setting will be displayed.
6
2. The sensor controller setting can be changed by touching symbols 1, 2, 3, C or D.
6
3. Take your finger off the > symbol.
6
Saturation display
6
Lighting
6
Audible signal
6
Switching on
6
Switching off
6

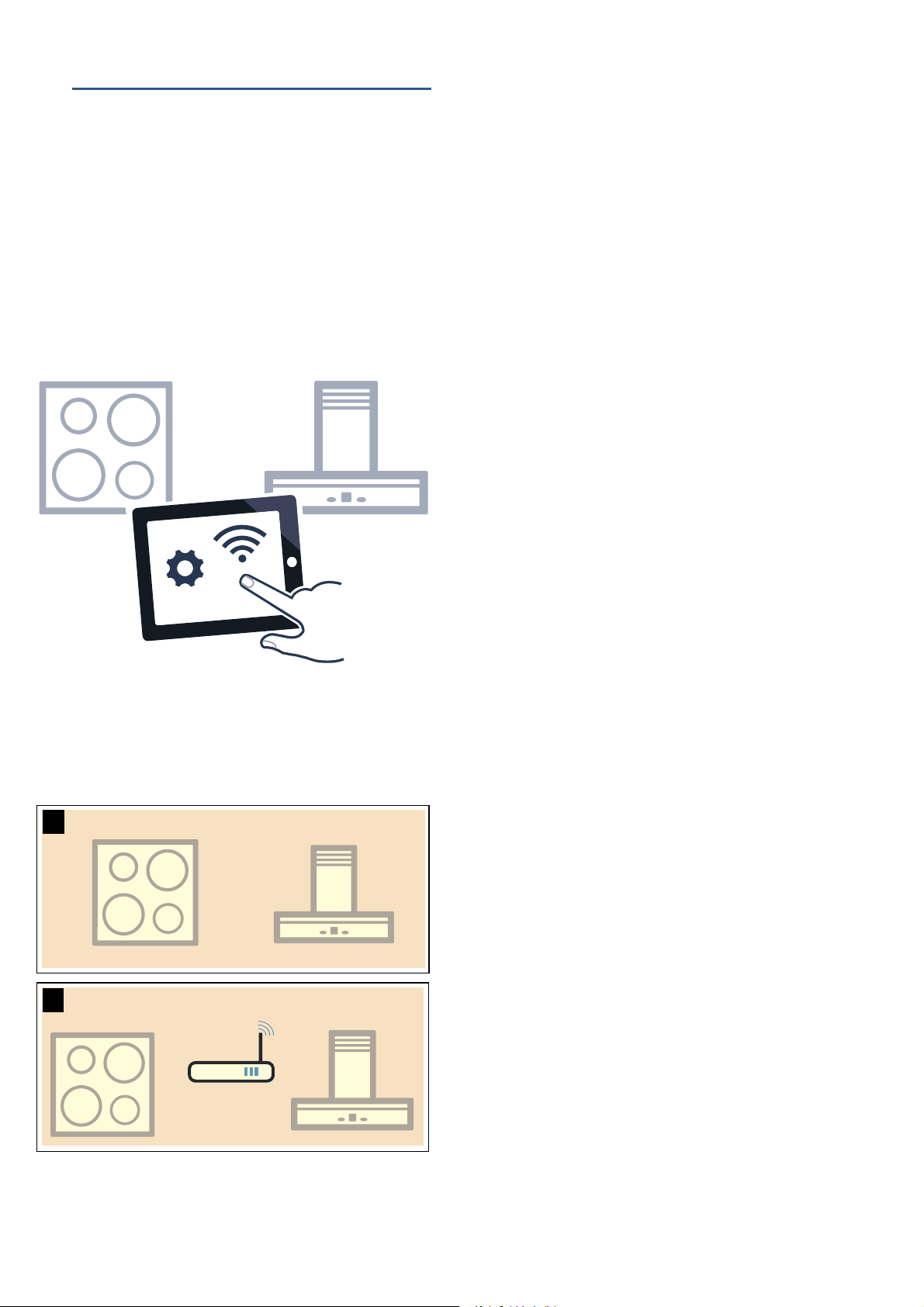

e Connecting to a hob
7
Connecting to a hob
7
Notes
7
Setting up a connection
7
Connecting directly
7
Notes
7
Connecting via your home network
7
o Home Connect
8
Home Connect
8
Notes
8
Setting up
8
Note:
8
Automatic registration in the home network
8
Notes
8
1. Press and hold the D symbol until it starts to flash.
8
2. Press "1" to start automatic login to your home network.
8
3. Press the WPS button on the router within the next 2 minutes.
8
Note:
8
4. On your mobile device, follow the instructions for automatic network login.
8
Manual registration in the home network
8
Notes
8
1. Press and hold the D symbol until it starts to flash.
8
2. Press "2" to manually log into your home network.
8
3. Use the "Home Connect" SSID and the "Home Connect" key to log the mobile device into the extractor hood network.
8
4. On your mobile device, follow the instructions for manually logging into your network.
8
Connecting to the app
9
Notes
9
1. Press and hold the D symbol until the LED for fan setting 3 and the D symbol flash.
9
2. On your mobile device, follow the instructions in the Home Connect app.
9
Software update
9
Notes
9
Resetting the connection
9
About data protection
9
Note:
9
Declaration of Conformity
9
2 Cleaning and maintenance
10
Cleaning and maintenance
10
: Warning
10
Risk of injury!
10
: Warning
10
Risk of electric shock!
10
: Warning
10
Risk of electric shock!
10
: Warning
10
Risk of injury!
10
Cleaning agents
10
Note:
10
Note:
10
Area
10
Cleaning products
10
Removing metal grease filter
10
1. Open the lock and swing down the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
10
2. Take the metal grease filter out of the holder.
10
Notes
10
3. Clean the metal grease filter.
11
4. Clean the accessible parts of the housing. Clean the inside of the appliance.
11
: Warning
11
Risk of injury!
11
Cleaning the metal mesh grease filters
11
: Warning
11
Risk of fire!
11
Notes
11
By hand:
11
Note:
11
In the dishwasher:
11
Note:
11
Installing the metal mesh grease filter
11
1. Insert the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
11
Note:
11
2. Swing the metal grease filter up and click it into place.
11
3. If the metal grease filter has not been inserted correctly, open the lock and reinsert the metal grease filter correctly.
11
Replacing the activated charcoal filter
11
Note:
11
1. Open the cover on the top of the appliance.
11
2. Remove the old activated charcoal filter and insert the new one.
11
3. Close the cover.
11
4. Reset the saturation indicator.~ "Saturation display" on page 6
11
3 Trouble shooting
12
Trouble shooting
12
: Warning
12
Risk of electric shock!
12
Malfunction table
12
Problem
12
Possible cause
12
Solution
12
LED lights
12
: Warning
12
Risk of injury!
12
4 Customer service
12
Customer service
12
To book an engineer visit and product advice
12
Accessories
12
Note:
12
Note:
12
Installation instructions
13
( Important safety information
13
Important safety information
13
Caution!
13
Damage to the appliance
13
: Warning
13
Risk of fire!
13
: Warning
13
Risk of fire!
13
: Warning
14
Risk of injury!
14
: Warning
14
Risk of electric shock!
14
: Warning
14
Risk of electric shock!
14
: Warning
14
Danger of suffocation!
14
K General information
14
General information
14
Checking the wall
14
Electrical connection
14
: Warning
14
Risk of electric shock!
14
: Warning
14
Risk of electric shock!
14
5 Installation
15
Installation
15
Preparing for installation
15
Caution!
15
1. Determine where the extractor hood should be positioned and lightly mark where the lower edge of the appliance should be on the wall. Determine where the middle should be based on the hob.
15
Note:
15
2. Place the template against the line drawn on the wall. Mark where the screws should be inserted.
15
3. Drill three 8 mm diameter holes to a depth of 80 mm for fastening the appliance and press in the wall plugs flush with the wall.
15
Preparing the appliance
15
1. Remove the activated charcoal filter from the film.
15
2. Open the cover on the top of the appliance and remove it ¨, insert the activated charcoal filter © and then close the cover.
15
Installation
16
1. Screw in the mounting supports for the extractor hood until they are hand-tight, use a spirit level to level the appliance and then screw the mounting supports in fully.
16
2. Screw in the threaded bolt, leaving it protruding out of the wall by 5 - 9 mm.
16
Hanging the appliance
16
1. If there is any protective film on the appliance, first remove the protective film from the back and, following installation, remove the rest of the film.
16
2. Remove the metal grease filter before hanging the appliance.
16
3. Hang the appliance on the wall.
16
4. Firmly tighten the knurled nuts.
16
5. Reinsert the metal grease filter and connect the power supply.
16
