Contents
............................................................................................Motorcycle Safety .
..................................................................................Instruments & Controls .
....................................................................................Servicing Your Honda .
..................................................................................................Audio Systems .
..............................................................................Basic Operation & Riding .
...................................................................................................Before Riding .
1
11
35
51
69
113
Contents
These pages give an overview of the contents of your owner’s manual. The first
page of each section lists the topics covered in that section.
Important safety information you should know, plus a look at the safety-
related labels on your motorcycle.
The location and function of gauges, indicators, controls, and the Multi
Information Display on your motorcycle and operating instructions for
various controls and features.
Why your motorcycle needs regular maintenance, what you need to know
before servicing your Honda, an owner maintenance schedule, and
instructions for specific maintenance and adjustment items.
The location, function, and operation of the audio components on your
motorcycle.
How to start and stop the engine, shift gears, and brake. Also, riding
precautions and important information about riding with a passenger or cargo.
The importance of wearing a helmet and other protective gear, how to make
sure you and your motorcycle are ready to ride, and important information
about loading.
１２／１０／３１ １３：３１：４４ ３１ＭＪＧ６００ ０００６
....................................................................................................................Tips .
.....................................................................Taking Care of the Unexpected .
....................................................................................Technical Information .
...................................................................................Consumer Information .
..................................................................‘‘Reporting Safety Defects’’ .
..................................................................................................................Index .
Quick Reference
181
187
213
229
236
238
Contents
Contents
How to store and transport your motorcycle and how to be an environmentally
responsible rider.
What to do if you have a flat tire, your engine won’t start, etc.
ID numbers, technical specifications, and other technical facts.
Information on warranties, emission controls, how to get Honda service
manuals, and...
Handy facts about fuel, engine oil, tire sizes, and air pressures.
１２／１０／３１ １３：３１：５３ ３１ＭＪＧ６００ ０００７

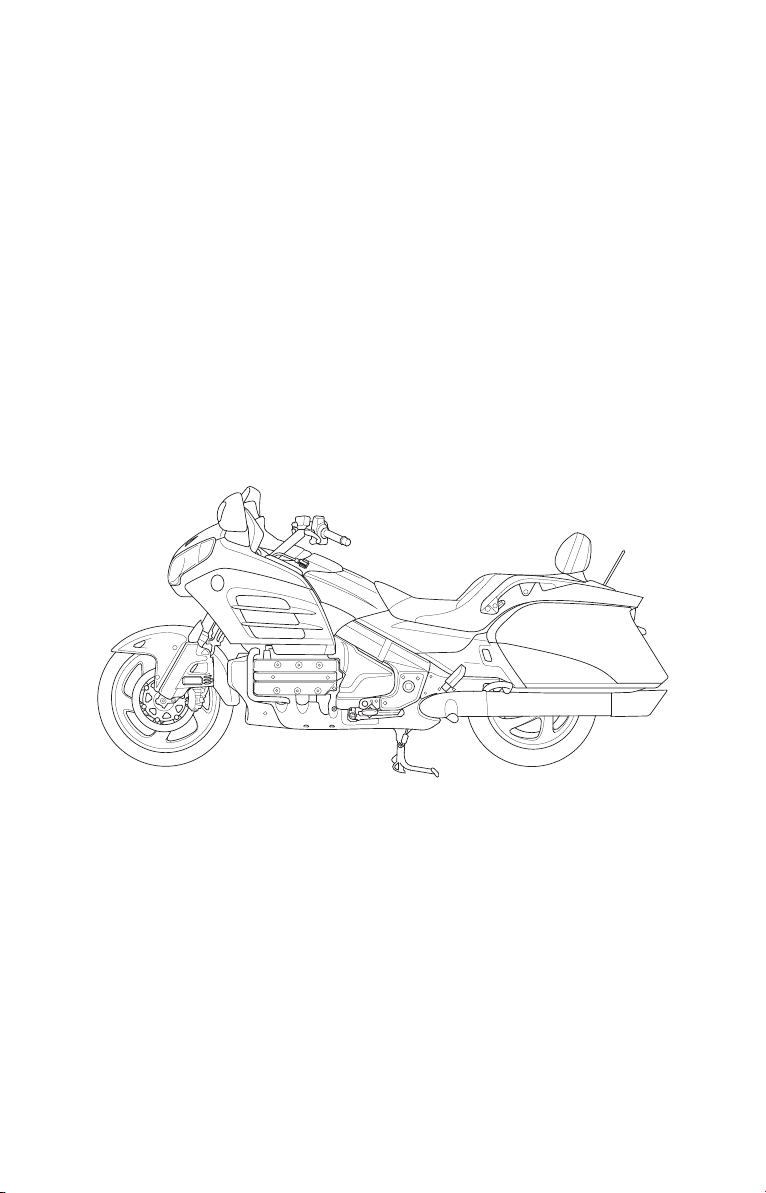

2013
Honda GL1800B
Gold Wing F6B
OWNER’S MANUAL
１２／１０／３１ １３：３１：１６ ３１ＭＪＧ６００ ０００２
−
Introduction
Introduction
When you own a Honda, you’re part of a worldwide family of satisfied
customers people who appreciate Honda’s reputation for building quality into
every product.
Congratulations on choosing a GL1800 Gold Wing F6B motorcycle.
Your Gold Wing F6B has earned itsreputation as the ultimate luxury touring
motorcycle. It comes loaded with power, unequaled cargo space, a sophisticated
audio system, and other unique features to provide maximum convenience and
comfort.
Before riding, take time to get acquainted with your motorcycle and how it
works. To protect your investment, we urge you to take responsibility for
keeping your motorcycle well maintained. Scheduled service is a must, of
course. But it’s just as important to observe the break-in guidelines, and perform
all pre-ride and other periodic checks detailed in this manual.
We also recommend that you read this owner’s manual before you ride. It’s full
of facts, instructions, safety information, and helpful tips. To make it easy to use,
the manual contains a detailed list of topics at the beginning of each section and
an index at the back of the book.
As you read this manual, you will find information that is preceded by a
symbol. This information is intended to help you avoid damage to your
Honda, other property, or the environment.
１２／１０／３１ １３：３１：２２ ３１ＭＪＧ６００ ０００３
Introduction
Introduction
WARNING:
Read the Warranties Booklet (page ) thoroughly so you understand the
coverages that protect your new Honda and are aware of your rights and
responsibilities.
If you have any questions, or if you ever need special service or repairs,
remember that your Honda dealer knows your motorcycle best and is dedicated
to your complete satisfaction.
Please report any change of address or ownership to your dealer so we will be
able to contact you concerning important product information.
You may also want to visit our website at
USA: www.powersports.honda.com.
Canada: www.honda.ca.
Happy riding!
This product contains or emits chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
California Proposition 65 Warning
231
１２／１０／３１ １３：３１：２７ ３１ＭＪＧ６００ ０００４
You WILL be KILLED or SERIOUSLY HURT
if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY HURT
if you don’t follow instructions.
You CAN be HURT if you don’t follow
instructions.
Safety Messages
Safety Labels
Safety Messages
DANGER, WARNING, CAUTION
Safety Headings
Safety Section
Instructions
A Few Words About Safety
Your safety, and the safety of others, is very important. And operating this
motorcycle safely is an important responsibility.
To help you make informed decisions about safety, we have provided operating
procedures and other information on labels and in this manual. This information
alerts you to potential hazards that could hurt you or others.
Of course, it is not practical or possible to warn you about all hazards associated
with operating or maintaining a motorcycle. You must use your own good
judgment.
You will find important safety information in a variety of forms, including:
–– on the motorcycle.
–– preceded by a safety alert symbol and one of three
signal words: or .
These signal words mean:
–– such as Important Safety Reminders or Important Safety
Precautions.
–– such as Motorcycle Safety.
–– how to use this motorcycle correctly and safely.
This entire manual is filled with important safety information –– please read it
carefully.
１２／１０／３１ １３：３１：３４ ３１ＭＪＧ６００ ０００５
1
Motorcycle Safety
Motorcycle Safety
This section presents some of the most important information and
recommendations to help you ride your motorcycle safely. Please take a few
moments to read these pages. This section also includes information about the
location of safety labels on your motorcycle.
..............................................................................Important Safety Information .
...............................................................................Accessories & Modifications .
........................................................................................................Safety Labels .
2
4
6
１２／１０／３１ １３：３１：５８ ３１ＭＪＧ６００ ０００８
−
2
Take Time to Learn & Practice
Ride Defensively
Always Wear a Helmet
Motorcycle Safety
Important Safety Information
You and Your Motorcycle Riding Tips,
Your motorcycle can provide many years of service and pleasure if you take
responsibility for your own safety and understand the challenges you can meet
while riding.
There is much that you can do to protect yourself when you ride. You’ll find
many helpful recommendations throughout this manual. The following are a
few that we consider to be most important.
Even if you have ridden other motorcycles, take time to become familiar with
how this motorcycle works and handles. Practice in a safe area until you build
your skills and get accustomed to the motorcycle’s size and weight.
Because many crashes involve inexperienced or untrained riders, we urge all
riders to take a motorcycle operator course approved by the Motorcycle Safety
Foundation (MSF). See page .
The most frequent motorcycle collision happens when a car turns left in front of
a motorcycle. Another common situation is a car moving suddenly into your
lane.
Always pay attention to other vehicles around you, and do not assume that other
drivers see you. Be prepared to stop quickly or make an evasive maneuver. For
other riding tips, see the booklet, which
came with your new motorcycle (USA only).
It’s a proven fact: helmets significantly reduce the number and severity of head
injuries. So always wear an approved motorcycle helmet and make sure your
passenger does the same. We also recommend that you wear eye protection,
sturdy boots, gloves, and other protective gear (page ).36
38
１２／１０／３１ １３：３２：０４ ３１ＭＪＧ６００ ０００９
3
Motorcycle Safety
Make Yourself Easy to See
Ride within Your Limits
Don’t Drink and Ride
Keep Your Honda in Safe Condition
Important Safety Information
Some drivers do not see motorcycles because they are not looking for them. To
make yourself more visible, wear bright reflective clothing, position yourself so
other drivers can see you, signal before turning or changing lanes, and use your
horn when it will help others notice you.
Pushing limits is another major cause of motorcycle crashes. Never ride beyond
your personal abilities or faster than conditions warrant. Remember that alcohol,
drugs, fatigue, and inattention can significantly reduce your ability to make
good judgments and ride safely.
Alcohol and riding don’t mix. Even one drink can reduce your ability to respond
to changing conditions, and your reaction time gets worse with every additional
drink. So don’t drink and ride, and don’t let your friends drink and ride either.
It’s important to keep your motorcycle properly maintained and in safe riding
condition. To help avoid problems, inspect your motorcycle before every ride
and perform all recommended maintenance. Never exceed load limits (page ),
and do not modify your motorcycle (page ) or install accessories that would
make your motorcycle unsafe (page ).
5
4
42
１２／１０／３１ １３：３２：１０ ３１ＭＪＧ６００ ００１０
Improper accessories or
modifications can cause a crash
in which you can be seriously
hurt or killed.
Follow all instructions in this
owner’s manual regarding
accessories and modifications.
4
Accessories
Motorcycle Safety
Accessories & Modifications
Load Limits,
Modifying your motorcycle or using non-Honda accessoriescan make your
motorcycle unsafe. Before you consider making any modifications or adding an
accessory, be sure to read the following information.
Carefully consider the weight of any accessories and any cargo stored in
those accessories to avoid exceeding the maximum weight limits.
For more information, see page .
Do not pull a trailer or sidecar with your motorcycle.This motorcycle was not
designed for these attachments, and their use can seriously impair your
motorcycle’s handling.
Do not add any electrical equipment that will exceed the motorcycle’s
electrical system capacity (page ). A blown fuse can cause a loss of lights
or engine power (page ).
Make sure the accessory doesnot obscure any lights, reduce ground clearance
and lean angle, limit suspension travel or steering travel, alter your riding
position, or interfere with operating any controls.
We strongly recommend that you use only Honda Genuine Accessories that
have been specifically designed or approved and tested for your motorcycle.
Because Honda cannot test all other accessories, you must be personally
responsible for proper selection, installation,and use of non-Honda accessories.
Check with your dealer for assistance and always follow these guidelines:
42
219
206
１２／１０／３１ １３：３２：１７ ３１ＭＪＧ６００ ００１１
5
Modifications
Motorcycle Safety
Accessories & Modifications
We strongly advise you not to remove any original equipment or modify your
motorcycle in any way that would change its design or operation. Such changes
could seriously impair your motorcycle’s handling, stability, and braking,
making it unsafe to ride.
Removing or modifying your lights, exhaust system, emission control system, or
other equipment can also make your motorcycle illegal.
１２／１０／３１ １３：３２：２２ ３１ＭＪＧ６００ ００１２
6
Safety Labels
Motorcycle Safety
Safety labels on your motorcycle either warn you of potential hazards that could
cause serious injury or they provide important safety information. Read these
labels carefully and don’t remove them.
If a label comes off or becomes hard to read, contact your dealer for a
replacement.
１２／１１／０５ １５：４０：２５ ３１ＭＪＧ６００ ００１３
7
Safety Labels
Motorcycle Safety
１２／１０／３１ １３：３２：３４ ３１ＭＪＧ６００ ００１４
8
Motorcycle Safety
Safety Labels
１２／１０／３１ １３：３２：３９ ３１ＭＪＧ６００ ００１５
9
Motorcycle Safety
Safety Labels
１２／１１／０５ １５：４０：３３ ３１ＭＪＧ６００ ００１６
10
Motorcycle Safety
１２／１０／３１ １３：３２：５２ ３１ＭＪＧ６００ ００１７
11
Instruments & Controls
Instruments & Controls
This section shows the location of all gauges, indicators, and controls you would
normally use before or while riding your motorcycle.
The items listed on this page are described in this section. Instructions for other
components are presented in other sections of this manual where they will be
most useful.
.........................................................................Operation Component Locations .
.............................................................................................Gauges & Indicators .
...................................................................................Multi Information Display .
.............................................................................Opening/Ending Ceremony .
................................................................On/Off-Opening/Ending Ceremony .
...........................................Special Message for Opening/Ending Ceremony .
.........................................................................................Odometer/Tripmeter .
....................................................................................................Digital Clock .
....................................................................................Air Temperature Meter .
..................................................................Changing the Information Display .
..............................................................................................Controls & Features .
.................................................................................................Ignition Switch .
..........................................................................................Engine Stop Switch .
.......................................................................................................Start Button .
..................................................................................................Hazard Switch .
...............................................................................Headlight Dimmer Switch .
...........................................................................................Turn Signal Switch .
......................................................................................................Horn Button .
...................................................................................Audio Control Switches .
..............................................................................Saddlebags Open Indicator .
12
15
20
21
22
23
25
27
28
29
30
31
31
32
33
33
34
34
34
34
１２／１０／３１ １３：３３：０６ ３１ＭＪＧ６００ ００１８
clutch lever
left handlebar controls
fairing pocket
ignition switch
audio system
front brake lever
throttle grip
right fairing
panel controls
shelter case lock
shelter case
12
Instruments & Controls
Operation Component Locations
１２／１０／３１ １３：３３：１１ ３１ＭＪＧ６００ ００１９
saddlebag
radio antenna
rear brake pedal
13
Operation Component Locations
Instruments & Controls
１２／１１／０５ １５：４０：３７ ３１ＭＪＧ６００ ００２０
front headset terminal
saddlebagshift lever
helmet holder
14
Operation Component Locations
Instruments & Controls
１２／１０／３１ １３：３３：１９ ３１ＭＪＧ６００ ００２１
right turn signal indicator
speedometer
tachometer red zone
tachometer
neutral indicator
overdrive indicator
high beam indicator
fuel gauge
low fuel indicator
low oil pressure indicator
PGM-FI malfunction
indicator lamp (MIL)
coolant
temperature
gauge
left turn signal indicator
anti-lock brake system
(ABS) indicator
(Models equipped
with ABS)
15
Gauges & Indicators
Instruments & Controls
The gauges and indicators on your motorcycle keep you informed, alert you to
possible problems, and make your riding safer and more enjoyable. Refer to the
gauges and indicators frequently. Their functions are described on the following
pages.
USA: Speedometer, odometer & tripmeter read in miles.
Canada: Speedometer, odometer & tripmeter read in kilometers.
１２／１０／３１ １３：３３：２６ ３１ＭＪＧ６００ ００２２
16
Gauges & Indicators
Instruments & Controls
Lamp Check.
Lamp Check
When applicable, the high beam and neutral indicators come on when you turn
the ignition switch ON and remain on until you select the low beam or shift out
of neutral.
If one of these indicators does not come on when it should, have your dealer
check for problems.
Most of the indicator lights come on when you turn the ignition switch ON so
you can check that they are working. Some indicators turn off after a few
seconds; others remain on until or after the engine is started. The ABS indicator
goes off after you ride the motorcycle at a speed above 6 mph (10 km/h).
All indicators are identified on the following pages with the words:
speedometer
Shows riding speed in miles (USA) or kilometers (Canada) per hour.
tachometer
Shows engine speed in revolutions per minute (rpm).
tachometer red zone
Shows excessive engine rpm range (indicated from the beginning of the
tachometer red zone) in which operation may damage the engine. Do not let the
tachometer needle enter the red zone.
１２／１０／３１ １３：３３：３６ ３１ＭＪＧ６００ ００２３
17
Gauges & Indicators
Instruments & Controls
Lamp Check
Lamp Check.
Flashes when either turn signal operates.
turn signal indicator (green)
neutral indicator (green)
Lights when the transmission is in neutral.
overdrive indicator (amber)
Lights when the transmission is in overdrive (5th gear).
low oil pressure indicator (red)
Lights when engine oil pressure is low enough to cause engine damage. If the
low oil pressure indicator lights during operation, pull safely to the side of the
road. See page for instructions and cautions. .
PGM-FI malfunction indicator lamp (MIL) (amber)
Lights when there is any abnormality in the PGM-FI (Programmed Fuel
Injection) system. Should also light for a few seconds and then go off when the
ignition switch is turned ON and the engine stop switch is at RUN. If the
indicator comes on at any other time, reduce speed and take your motorcycle to
your dealer as soon as possible.
203
１２／１０／３１ １３：３３：４７ ３１ＭＪＧ６００ ００２４
(Models equipped with ABS)
18
Gauges & Indicators
Instruments & Controls
ABS Indicator
Lamp Check.
Lights when there is any abnormality in the anti-lock brake system (ABS).
Normally, this indicator comes on when the ignition switch is turned ON, and
goes off after you ride the motorcycle at a speed above 6 mph (10 km/h). If the
indicator comes on while riding, stop the motorcycle in a safe place and turn off
the engine. Refer to , page . For information about ABS, see
page .
Anti-Lock Brake System indicator (ABS) (amber)
high beam indicator (blue)
Lights when the headlight is on high beam.
61
60
１２／１０／３１ １３：３３：５３ ３１ＭＪＧ６００ ００２５
19
Gauges & Indicators
Instruments & Controls
Lamp Check.
coolant temperature gauge
fuel gauge
Shows the approximate fuel supply available, if your motorcycle is on a level
surface.
At F (Full) there are 6.6 US gal (25 liters), including reserve supply. When the
gauge needle enters the red band, fuel will be low and you should refill the tank
as soon as possible. The amount of fuel left in the tank when the needle enters
the red band is approximately 0.79 US gal (3.0 liters).
Shows engine coolant temperature. When the needle moves above the C (cold)
mark, the engine is warm enough to start riding. If the needle approaches the H
(hot) mark, pull safely to the side of the road. See page for instructions and
cautions.
Lights as a reminder to refuel soon. The indicator comes on when there is about
1.16 US gal (4.4 liters) left in the fuel tank.
low fuel indicator (amber)
204
１２／１０／３１ １３：３４：００ ３１ＭＪＧ６００ ００２６
INFO button DIM buttonSETUP button
TRIP button
20
Multi Information Display
Instruments & Controls
Your motorcycle is equipped with a Multi Information Display that presents
various displays. This section explains display functions and operations.
１２／１０／３１ １３：３４：０５ ３１ＭＪＧ６００ ００２７
21
Opening/Ending Ceremony
Multi Information Display
Instruments & Controls
When the ignition switch is turned ON or ACC, the display presents an
‘‘opening ceremony.’’
When the ignition switch is turned OFF, the display presents an ‘‘ending
ceremony.’’
１２／１０／３１ １３：３４：１０ ３１ＭＪＧ６００ ００２８
22
On/Off-Opening/Ending Ceremony
Multi Information Display
Instruments & Controls
ceremony display OFF
The opening/ending ceremony can be turned off.
Push the SETUP button to show the CLOCK ADJUST display (page ).
Push the DIM button to show the OPENING/ENDING CEREMONY display.
Push the TRIP or INFO button to switch ON/OFF.
Push the SETUP button to fix the setting.
When approximately 5 seconds pass without operating a button on the
OPENING/ENDING CEREMONY display, the display automatically returns to
the previous display.
ceremony display ON
1.
2.
3.
4.
27
１２／１０／３１ １３：３４：２０ ３１ＭＪＧ６００ ００２９
INFO button TRIP button
TRIP button
SETUP button
SETUP button
23
Special Message for Opening/Ending Ceremony
Multi Information Display
Instruments & Controls
Select ‘‘ON’’ on the OPENING/ENDING CEREMONY display (page ).
Push and hold the TRIP button. Push and hold the INFO button. Then push
the SETUP button.
The display should now show ‘‘STANDARD’’ in the middle line.
Use the TRIP button to select the ‘‘SPL’’ function.
The display should now show ‘‘SPECIAL!’’ in the middle line.
Push the SETUP button to select the ‘‘SET’’ function.
The display should now show ‘‘CHANGE OK?’’ in the middle line.
Push the SETUP button to select the ‘‘YES’’ function.
1.
2.
3.
4.
5.
6.
22
１２／１０／３１ １３：３４：３０ ３１ＭＪＧ６００ ００３０
！＃ ＊＋ − ＞ ＜？
TRIP buttonINFO button
24
Multi Information Display
Instruments & Controls
Use the INFO and TRIP buttons to cycle through the alphabet, number and
symbol selection.
When you have completed your message, push the SETUP button to select
the ‘‘SET’’ function which will lock in your special message to be used for
the opening and ending ceremony.
When approximately 5 seconds pass without operating a button, the display
automatically returns to the previous display.
7.
8.
Capital Letters
ABCDEFGHIJKLMNOPQRSTUVWXYZ
Numbers
0123456789
Symbols
$%& () , ./ =
１２／１０／３１ １３：３４：３６ ３１ＭＪＧ６００ ００３１
tripmeter
odometer
TRIP button
25
Odometer/Tripmeter
Multi Information Display
Instruments & Controls
ODO (Odometer)
TRIP (Tripmeter)
shows the total miles (USA) or kilometers (Canada)
ridden.
shows the number of miles (USA) or kilometers
(Canada) ridden since you last reset the meter.
The tripmeter will show mileage in two sub modes, ‘‘TRIP A’’ and ‘‘TRIP B.’’
Push the TRIP button to select the ‘‘TRIP A’’ or ‘‘TRIP B’’ mode.
To reset the tripmeter, push and hold the TRIP button with the display in the
‘‘TRIP A’’ or ‘‘TRIP B’’ mode.
１２／１０／３１ １３：３４：４７ ３１ＭＪＧ６００ ００３２
＋
−
INFO button
SETUP button TRIP button
DIM button
26
Display Illumination Adjustment
Multi Information Display
Instruments & Controls
To adjust the brightness of the display:
Push the DIM button once. ‘‘DIMMER’’ will display.
To brighten the display
To darken the display
(The brighter and darker rangeseach have six steps.)
To set the selected step
push the TRIP button ( ).
push the INFO button ( ).
push the SETUP button.
１２／１０／３１ １３：３４：５６ ３１ＭＪＧ６００ ００３３
INFO button TRIP button
SETUP button
27
Digital Clock
Multi Information Display
Instruments & Controls
The display shows the hour and minute.
To adjust the time:
Turn the ignition switch to ON or ACC.
Push the SETUP button once. ‘‘CLOCK ADJUST’’ will display.
To set the hour, press and release the INFO button until the desired hour
appears.
Quick setting push and hold the INFO button until the desired hour
appears.
To set the minute, press and release the TRIP button until the desired minute
appears.
Quick setting push and hold the TRIP button until the desired minute
appears.
Once the time is selected, push the SETUP button to enter the time.
When approximately 5 seconds passwithout operating a button on the CLOCK
ADJUST display, the display automatically returns to the previous display.
Be sure to push the SETUP button to enter your adjusted time in the system.
1.
2.
3.
4.
5.
１２／１０／３１ １３：３５：０７ ３１ＭＪＧ６００ ００３４
−
−−−
INFO button
For USA
For Canada
28
Air Temperature Meter
Multi Information Display
Instruments & Controls
Push the INFO button once to display the air temperature.
After 5 seconds, the previous display returns.
USA: Fahrenheit (°F)
Canada: Centigrade (°C)
Temperature Display
‘‘- -’’ is displayed
actual air temperature is indicated.
The display will remain and blink
‘‘122°F (50°C)’’
Below 13°F ( 11°C)
Between:
14°F 122°F ( 10°C 50°C)
Above 122°F (50°C)
The temperature sensor is located in the upper fairing. Therefore, the
temperature reading can be affected by heat reflection from the road surface,
engine heat, and the exhaust from the surrounding traffic. This can cause an
error in the temperature reading when your speed is under 19 mph (30 km/h).
１２／１０／３１ １３：３５：１６ ３１ＭＪＧ６００ ００３５
open indicator
29
Saddlebags Open Indicator
Multi Information Display
Instruments & Controls
If all compartments are not fully closed, the display will blink OPEN and
indicate the open compartment(s).
Saddlebag open
This indicator turns on when the ignition switch is ON and your motorcycle’s
saddlebags are open.
１２／１０／３１ １３：３５：２２ ３１ＭＪＧ６００ ００３６
INFO button
DIM button
30
Changing the Information Display
Multi Information Display
Instruments & Controls
The display changes as follows each time the INFO button is pushed.
When approximately 5 seconds pass without operating a button, the display
automatically returns to the previous display.
１２／１０／３１ １３：３５：２８ ３１ＭＪＧ６００ ００３７
ACC
ON
OFF
LOCK
(steering lock)
No electricalcircuits function.
Locks the steering head.
No electricalcircuits function.
Electrical circuits on.
Only the accessory circuits
function.
cannot be
removed
cannot be
removed
can be
removed
can be
removed
ON
ACC
LOCK
OFF
Key Position Function Key Removal
31
Ignition Switch
Controls & Features
Instruments & Controls
The ignition switch is used for starting and stopping the engine (page ) and to
lock the steering for theft prevention (page ). Insert the key and turn it to the
right for the ON and ACC (accessory) positions.
Push down on the key and turn it to the left to the LOCK (steering lock) position.
To unlock the steering lock, insert and push down on the key and turn it to the
right to the OFF position.
53
63
１２／１０／３１ １３：３５：４１ ３１ＭＪＧ６００ ００３８
OFF
RUN
engine stop switch
RIGHT HANDLEBAR
hazard switch
start button
32
Engine Stop Switch
Controls & Features
Instruments & Controls
The engine stop switch is used to stop the engine in an emergency. To operate,
turn the switch to the OFF position. The switch must be in the RUN position to
start the engine, and it should normally remain in the RUN position even when
the engine is OFF.
If your motorcycle is stopped with the ignition switch ON and the engine stop
switch OFF, the headlight and taillight will remain on, resulting in battery
discharge.
１２／１０／３１ １３：３５：４７ ３１ＭＪＧ６００ ００３９
33
Start Button
Hazard Switch
Controls & Features
Instruments & Controls
Starting Procedure,
The hazard switch is used to activate the hazard lights on your motorcycle if you
need to stop near heavy traffic or if your motorcycle is disabled.
To operate, turn the ignition key to the ON or ACC position, and push the
hazard switch. The front and rear turn signals will blink simultaneously until
you push the switch again.
If you anticipate using the hazard system for an extended time, use the ACC
position and turn off all unnecessary accessories to conserve battery capacity.
Be sure to turn the switch off when the hazard warning is no longer required, or
the turn signals will not work properly and may confuse other drivers.
The starter motor will not operate if the engine stop switch isin the OFF
position when the start button is pushed.
The start button is used for starting the engine. Pushing the button in starts the
engine. See page .
When the start button is pushed, the starter motor will crank the engine; the
headlight will automatically go out, but the taillight will stay on.
53
１２／１１／０７ １７：０１：１５ ３１ＭＪＧ６００ ００４０
LEFT HANDLEBAR
(Models with auto turn signal cancel)
headlight dimmer switch
turn signal switch
horn button
HI
LO
audio control switches
34
Headlight Dimmer Switch
Turn Signal Switch
Horn Button
Audio Control Switches
Controls & Features
Instruments & Controls
Audio Systems,
The headlight dimmer switch is used to change between the high and low
headlight beams. To operate, push the button to HI for high beam, LO for low
beam.
To signal a lane change, move the switch all the way to the left or right and
release it. The turn signal lightswill automatically stop in 7 seconds or after
riding 110 yards (120 m).
The horn is used to alert other motorists. To operate, push the button.
The audio control switches mounted on the left handlebar and above the fuel fill
compartment are used to operate the radio. For specific features and operation
instructions, see page .
The turn signal switch is used to signal a turn or a lane change. To operate, move
the switch all the way in the proper direction and release it. The appropriate turn
signal lights will start blinking. To cancel the light, push the switch in.
The lights will automatically stop when you complete the turn.
69
１２／１１／０７ １７：０１：２５ ３１ＭＪＧ６００ ００４１
35
Before Riding
Before Riding
Before each ride, you need to make sure you and your Honda are both ready to
ride. To help get you prepared, this section discusses how to evaluate your riding
readiness, what items you should check on your motorcycle, and adjustments to
make for your comfort, convenience, or safety. This section also includes
important information about loading.
For information about adjusting the suspension on your Honda, see page .
......................................................................................Are You Ready to Ride? .
....................................................................Is Your Motorcycle Ready to Ride? .
....................................................................................Load Limits & Guidelines .
.............................................................................................Cargo Compartment .
............................................................................................Protective Apparel .
..................................................................................................Rider Training .
...........................................................................................Pre-ride Inspection .
.............................................................................................................Loading .
......................................................................................................Load Limits .
..........................................................................................Loading Guidelines .
........................................................................................................Saddlebags .
...........................................................................Fairing Pocket / Shelter Case .
..................................................................Comfort & Convenience Adjustment .
...............................................................................................Handgrip Heater .
...........................................................................................................Accessories .
.............................................................................Accessory (ACC) Terminal .
156
36
36
38
39
39
41
41
42
43
44
44
46
47
48
50
50
１２／１０／３１ １３：３６：１６ ３１ＭＪＧ６００ ００４２
36
Protective Apparel
Are You Ready to Ride?
Before Riding
Before you ride your motorcycle for the first time, we urge you to:
Before each ride, be sure:
Make sure your passenger is ready to ride, too, and is wearing proper gear
including a helmet.
Read this owner’s manual.
Make sure you understand all the safety messages.
Know how to operate all the controls.
You feel well and are in good physical and mental condition.
You don’t have any alcohol or drugs in your system.
You are wearing an approved motorcycle helmet (with chin strap tightened
securely), eye protection, and other protective clothing.
For your safety, we strongly recommend that you always wear an approved
motorcycle helmet, eye protection, boots, gloves, long pants, and a long-sleeved
shirt or jacket whenever you ride.
Although complete protection is not possible, wearing proper gear can reduce
the chance of injury when you ride.
Following are suggestions to help you choose the proper gear.
If you are not riding with a passenger and want to carry an extra helmet, use a
commercially-available elastic cord, strap, or net to secure the helmet to the seat.
１２／１０／３１ １６：０２：４７ ３１ＭＪＧ６００ ００４３
Not wearing a helmet increases
the chance of serious injury or
death in a crash.
Be sure you and your
passenger always wear a
helmet, eye protection, and
other protective apparel when
you ride.
37
Are You Ready to Ride?
Before Riding
Helmet and Eye Protection
Your helmet is your most important piece of riding gear because it offers the
best protection against head injuries. A helmet should fit your head comfortably
and securely. A bright-colored helmet and reflective strips can make you more
noticeable in traffic.
An open-face helmet offers some protection, but a full-face helmet offers more.
Regardless of the style, look for a DOT (Department of Transportation) sticker
on any helmet you buy (USA only). Always wear a face shield or goggles to
protect your eyes and help your vision.
Additional Riding Gear
In addition to a helmet and eye protection, we also recommend:
Sturdy boots with non-slip soles to help protect your feet and ankles.
Leather gloves to help protect your hands.
A motorcycle riding suit or jacket for comfort as well as protection.
Bright-colored and reflective clothing can help make you more noticeable in
traffic. Avoid loose clothes that could get caught on any part of your
motorcycle.
１２／１０／３１ １３：３６：３３ ３１ＭＪＧ６００ ００４４
38
Rider Training
Are You Ready to Ride?
Before Riding
Riding Tips
Developing your riding skills is an on-going process. Even if you have ridden
other motorcycles, take time to become familiar with how this motorcycle works
and handles. Practice riding the motorcycle in a safe area to build your skills. Do
not ride in traffic until you get accustomed to the motorcycle’s controls, and feel
comfortable with its size and weight.
We urge all riders to take a motorcycle operator course approved by the
Motorcycle Safety Foundation (MSF). New riders should start with the basic
course, and even experienced riders will find the advanced course beneficial.
For information about the MSF training course nearest you, call the national
toll-free number: (800) 446-9227.
Other riding tips can be found in the booklet that came with your
motorcycle (USA only).
１２／１０／３１ １３：３６：３８ ３１ＭＪＧ６００ ００４５
Improperly maintaining this
motorcycle or failing to correct a
problem before riding can cause
acrashinwhichyoucanbe
seriously hurt or killed.
Always perform a pre-ride
inspection before every ride and
correct any problems.
39
Pre-ride Inspection
Is Your Motorcycle Ready to Ride?
Before Riding
Leaks,
Loose
Parts
Lights
Tires
&
Wheels
Before each ride, it’s important to inspect your motorcycle and make sure any
problem you find is corrected. A pre-ride inspection is a must, not only for
safety, but because having a breakdown, or even a flat tire, can be a major
inconvenience.
Check the following items before you get on the motorcycle:
Walk around your motorcycle and look for anything that appears
unusual, such as a leak or loose cable.
Make sure the headlight, brakelight, taillight, and turn signals are
working properly.
Look at the tires. If a tire appears low, use an air pressure gauge
to check its pressure. Also look for signs of excessive wear
(page ) or damage to the tires and wheels.165
１２／１０／３１ １３：３６：４６ ３１ＭＪＧ６００ ００４６
40
Is Your Motorcycle Ready to Ride?
Before Riding
Load Limits
Cargo
Adjustments
Throttle
Brakes
Indicators
Gauges
Periodic Maintenance
If you are carrying a passenger or cargo, also check the following:
Make sure you do not exceed the load limits (page ).
Check that all cargo is secure.
Adjust the rear suspension (page ) according to your load.
Check these items after you get on the motorcycle:
Rotate the throttle to check it moves smoothly without binding.
Pull the brake lever and press on the brake pedal to check that
they operate normally.
Turn the ignition on and check for normal operation of the
indicators (page ).
Check the fuel level and other gauges (page ).
If you haven’t ridden the motorcycle in over a week, you should also check
other items, such as the oil level and other fluids. See
(page ). Periodic maintenance should also be done at least once a month, no
matter how often you ride.
Remember, be sure to take care of any problem you find, or have your dealer
correct it before you ride.
15
15
42
156
119
１２／１０／３１ １３：３６：５９ ３１ＭＪＧ６００ ００４７
Overloading or improper loading
can cause a crash and you can
be seriously hurt or killed.
Follow all load limits and other
loading guidelines in this
manual.
41
Loading
Load Limits & Guidelines
Before Riding
Your motorcycle has been designed to carry you and one passenger. When you
carry a passenger, you may feel some difference during acceleration and
braking. But so long as you keep your motorcycle well-maintained, with good
tires and brakes, you can safely carry loads within the given limitsand
guidelines.
However, exceeding the weight limit or carrying an unbalanced load can
seriously impair your motorcycle’s handling, braking, and stability. Non-Honda
accessories, improper modifications, and poor maintenance can also reduce your
safety margin.
How much weight you put on your motorcycle, and how you load it, are
important to your safety. Anytime you ride with a passenger or cargo, you
should be aware of the following information.
１２／１０／３１ １３：３７：０４ ３１ＭＪＧ６００ ００４８
410 lb (186 kg)
51 lb (23 kg)
20.0 lb (9.0 kg)
4.5 lb (2.0 kg)
6.6 lb (3.0 kg)
=
=
=
=
=
42
Load Limits
maximum weight capacity:
maximum cargo weight:
each saddlebag
fairing pocket
shelter case
Load Limits & Guidelines
Before Riding
Following are the load limits for your motorcycle:
includes following maximum compartment
weights:
includes the weight of the rider,
passenger, all cargo, and all accessories.
The weight of added accessories will reduce the maximum cargo weight you can
carry.
１２／１０／３１ １３：３７：１３ ３１ＭＪＧ６００ ００４９
43
Loading Guidelines
Load Limits & Guidelines
Before Riding
Improperly loading your motorcycle can affect its stability and handling. Even
if your motorcycle is properly loaded, you should ride at reduced speeds and
never exceed 80 mph (130 km/h) when carrying cargo.
Follow these guidelines whenever you carry a passenger or cargo:
Check that both tires are properly inflated (page ).
To prevent loose items from creating a hazard, make sure that all cargo is tied
down securely before you ride.
Place cargo weight as low and close to the center of your motorcycle as
possible.
Balance cargo weight evenly on both sides.
If you change your normal load, you may need to adjust the rear suspension
(page ).
Do not attach large or heavy items (such as a sleeping bag or tent) to the
handlebar, forks, or fender.
Make sure all cargo compartments are securely closed.
Check the headlight beam adjustment if you change your normal load.
164
156
１２／１０／３１ １３：３７：２２ ３１ＭＪＧ６００ ００５０
20.0 lb (9.0 kg) each
UNLOCK
LOCK
44
Saddlebags
Cargo Compartment
Before Riding
Your motorcycle comes with a front fairing pocket and a lockable shelter case
and dual saddlebags.
Instructions on how to open, close, and lock these compartments follow.
However, regardless of compartment capacity, be sure you do not exceed the
maximum load and cargo weight limits (page ).
To Lock & Unlock the Saddlebags
The saddlebags can be locked and unlocked with the ignition key.
To unlock:
Insert the ignition key and turn it clockwise.
To lock:
Insert the ignition key and turn it counterclockwise.
The saddlebags are for lightweight items.
Cargo in both saddlebags should not exceed:
42
１２／１０／３１ １３：３７：３０ ３１ＭＪＧ６００ ００５１
TO CLOSE:
OOPPEENN
latch lever
45
Cargo Compartment
Before Riding
To Open & Shut the Saddlebags
To open the right or left saddlebag, pull the right or left latch lever.
To shut the saddlebags, place your handsflat on the edges of its lid and press
down until it is firmly closed and check the saddlebags open indicator is not
displayed.
To lock the saddlebags, use the ignition key.
If a saddlebag won’t open, see your dealer.
１２／１１／０５ １６：４２：４７ ３１ＭＪＧ６００ ００５２
4.5 lb (2.0 kg)
6.6 lb (3.0 kg)
LEFT SIDE
button
PPUUSSHH
fairing pocket
lid
ignition key
lid
shelter case
in fairing pocket
in shelter case
46
Fairing Pocket / Shelter Case
Cargo Compartment
Before Riding
The fairing pocket and shelter case are for lightweight items.
Cargo should not exceed:
To open the fairing pocket, push the button.
To open the shelter case, insert the ignition key, turn it clockwise.
To close the fairing pocket and/or shelter case, place your hands flat on the
edges of its lid and press down until it is firmly closed.
Make sure the fairing pocket and shelter case are closed before riding.
Be careful not to flood this area when washing your motorcycle.
Take care to keep gasoline, brake fluid, or other chemical solvents off the lids.
They will damage the surface of the lids.
Do not store valuables in the fairing pocket and shelter case.
１２／１０／３１ １３：３７：４５ ３１ＭＪＧ６００ ００５３
(Models equipped with Handgrip Heater)
47
Comfort & Convenience Adjustment
Before Riding
Handgrip
Heater
Your motorcycle has features you can adjust to suit your personal preference
and increase your comfort and convenience as well.
We recommend that you take time to check the following item and make any
desired adjustments before each ride:
The range of the handgrips heater can be adjusted higher or
lower (page ).
Select the heat level you want before your ride (with the
engine running).
48
１２／１０／３１ １３：３７：４９ ３１ＭＪＧ６００ ００５４
(Models equipped with Handgrip Heater)
OFF High Temperature Low
Handgrip heater indicator
RIGHT FAIRING PANEL
:Off
:On
handgrip heater button
: On (dimmed)
48
Handgrip Heater
Comfort & Convenience Adjustment
Before Riding
The handgrip heater warms up the right and left handgrips of the handlebar for
comfortable riding on a cold day.
The handgrip heater button is located on the right fairing panel.
Adjust the temperature by repeatedly pressing the button.
The temperature can be set five levels.
Do not use the handgrip heater with the engine at idle for a long time. It may
result in a low (or dead) battery.
Do not leave the handgrip heater in the high position for a long time on a warm
day.
Wear gloves to protect your hands from the heated grips.
To operate, adjust the handgrip heater button with the engine started.
１２／１０／３１ １６：０２：５７ ３１ＭＪＧ６００ ００５５
Indicator blinking
handgrip heater indicator
Indicator blinking
handgrip heater indicator
Indicator off
Indicator off
49
Comfort & Convenience Adjustment
Before Riding
If an indicator blinks, the battery is probably low. If the indicator continues to
blink after riding for a while, charge or replace the battery.
When you are making a temporary stop or riding at low speed, the battery
voltage level may go down. This can turn off the handgrip heater automatically.
The heater then resumes it operation when the battery voltage level recovers
after riding for a while.
If you find any other cases of abnormalities, see your dealer.
If all three indicators blink, turn the ignition switch to the OFF position and then
turn it back to the ON position.
If indicators continue to blink, or if you find other abnormalities with the
indicators, see your dealer.
１２／１０／３１ １３：３８：０７ ３１ＭＪＧ６００ ００５６
fuse box
accessory (ACC)
terminal
50
Accessory (ACC) Terminal
Accessories
Before Riding
Accessories and Modifications,
Battery, If a Fuse Blows,
For your convenience, your motorcycle is equipped with an accessory (ACC)
terminal and optional accessory socket. The terminal and socket provide 12V
DC power for electrical accessories. When both terminal and socket are being
used, the combined power rating of each accessory should be 60 watts (5 amps)
or less. Before installing any accessories, read
page .
If you install any accessories, check the battery frequently to determine the state
of charge. Higher current demands may blow a fuse or discharge the battery. For
more information, see page , and page .
Connect accessory electrical leads securely, and keep them insulated, away from
hot parts and sharp edges.
4
171 206
１２／１０／３１ １３：３８：１４ ３１ＭＪＧ６００ ００５７
51
Basic Operation & Riding
Basic Operation & Riding
This section gives basic riding instructions, including how to start and stop your
engine, and how to use the throttle, clutch, and brakes. It also provides important
information on riding with a passenger or cargo.
To protect your new engine and enjoy optimum performance and service life,
refer to Break-in Guidelines (page ).
To protect the catalytic converters in your motorcycle’s exhaust system, avoid
extended idling and the use of leaded gasoline.
.......................................................................................Safe Riding Precautions .
...........................................................................Starting & Stopping the Engine .
........................................................................................................Preparation .
............................................................................................Starting Procedure .
................................................................................................Flooded Engine .
..................................................Bank Angle Sensor Ignition Cut-off System .
...................................................................................How to Stop the Engine .
.......................................................................................................Shifting Gears .
.....................................................................................While You Are Riding .
.................................................................................................................Braking .
................................................................................................Combined ABS .
.........................................................................................ABS Indicator Light .
..................................................................................................................Parking .
......................................................................................Theft-prevention Tips .
........................................................................Riding with a Passenger or Cargo .
.........................................................................................Riding in Bad Weather .
222
52
53
53
54
54
55
55
56
57
58
60
61
63
65
66
67
１２／１０／３１ １３：３８：２７ ３１ＭＪＧ６００ ００５８
52
Safe Riding Precautions
Basic Operation & Riding
Motorcycle
Safety Before Riding
Before riding your motorcycle for the first time, please review the
section beginning on page 1, and the section beginning on
page .
Even if you have ridden other motorcycles, take time to become familiar with
how this motorcycle works and handles. Practice in a safe area until you build
your skills and get accustomed to the motorcycle’s size and weight.
Make sure flammable materials such as dry grass or leaves do not come in
contact with the exhaust system when riding, idling, or parking your motorcycle.
35
１２／１０／３１ １３：３８：３１ ３１ＭＪＧ６００ ００５９
53
Preparation
Starting & Stopping the Engine
Basic Operation & Riding
Always follow the proper starting procedure described below.
For your safety, avoid starting or operating the engine in an enclosed area such
as a garage. Your motorcycle’s exhaust contains poisonous carbon monoxide
gas which can collect rapidly in an enclosed area and cause illness or death.
Your motorcycle is equipped with a side stand ignition cut-off system. If the
side stand is down –– the engine cannot be started unless the transmission is in
neutral. If the side stand is up –– the engine can be started in neutral, or in gear
with the clutch lever pulled in. After starting with the side stand down, the
engine will stop if the transmission is put in gear before raising the side stand.
Your motorcycle can be started with the transmission in gear by pulling in the
clutch lever before operating the starter.
Before starting, insert the key, turn the ignition switch ON, and confirm the
following:
The transmission is in neutral (neutral indicator is ON).
The engine stop switch is set to RUN.
The low oil pressure indicator is ON.
The ABS indicator light is ON (models equipped with ABS).
The PGM-FI malfunction indicator lamp (MIL) is OFF.
The low oil pressure indicator should go off a few seconds after the engine
starts. If the low oil pressure indicator lights during operation, stop the engine
immediately and check the engine oil level.
１２／１０／３１ １３：３８：４０ ３１ＭＪＧ６００ ００６０
−
54
Starting Procedure
Flooded Engine
Starting & Stopping the Engine
Basic Operation & Riding
If Your Engine Quits or Won’t Start,
This motorcycle has a fuel-injected engine with an automatic fast idle. Follow
the procedure indicated below.
Any Air Temperature
Press the start button with the throttle completely closed.
The engine will not start if the throttle is fully open (because the electronic
control module cuts off the fuel supply).
If the engine still won’t start, refer to
page .
If the engine does not start, wait 10 seconds, then follow steps again.
If the engine starts, open the throttle slightly if idling is unstable.
Follow the normal starting procedure.
Press the start button for 5 seconds.
Open the throttle fully.
Leave the engine stop switch set to RUN.
If the engine fails to start after repeated attempts, it may be flooded with excess
fuel. To clear a flooded engine:
Snapping the throttle or fast idling for more than about 5 minutes at normal air
temperature may cause exhaust pipe discoloration.
1.
2.
3.
4.
5.
14
189
１２／１０／３１ １３：３８：５２ ３１ＭＪＧ６００ ００６１
55
Bank Angle Sensor Ignition Cut-off System
How to Stop the Engine
Starting & Stopping the Engine
Basic Operation & Riding
Your motorcycle’s banking (lean angle) sensor system is designed to
automatically stop the engine and fuel pump if the motorcycle is overturned.
Before restarting the engine, you must turn the ignition switch to the OFF
position and then back to ON. The engine will not restart until you perform this
procedure.
Normal Engine Stop
To stop the engine, shift into neutral and turn the ignition switch OFF.
The engine stop switch should normally remain in the RUN position even when
the engine is OFF.
Emergency Engine Stop
To stop the engine in an emergency, use the engine stop switch. To operate, turn
the switch to the OFF position.
If your motorcycle is stopped with the ignition switch ON and the engine stop
switch OFF, the headlight and taillight will remain on, resulting in battery
discharge.
１２／１０／３１ １３：３８：５９ ３１ＭＪＧ６００ ００６２
56
Shifting Gears
Basic Operation & Riding
Your motorcycle has five forward gears in a one-down, four-up shift pattern
which is coordinated with a hydraulically actuated clutch system.
Learning when to shift gears comes with experience. Keep the following tips in
mind:
As a general rule, shift while moving in a straight line.
Close the throttle and pull the clutch lever in completely before shifting.
Improper shifting may damage the engine, transmission, and drive train.
Learn to recognize the engagement point as you release the clutch lever. It is
at this point the transmission of power to the rear wheel resumes.
Upshift to a higher gear or reduce throttle before engine rpm (speed) gets too
high. Learn the relationship between engine sound and the normal shifting
points.
Downshift to a lower gear before you feel the engine laboring (lugging) at
low rpm.
Avoid downshifting to help slow your motorcycle when engine rpm is near its
allowable maximum (near the tachometer red zone). In this situation, the rev
limiter in the engine ignition control module may not prevent excessive
engine speed which could damage the engine.
To prevent transmission damage, do not coast or tow the motorcycle for long
distances with the engine off.
１２／１０／３１ １３：３９：０７ ３１ＭＪＧ６００ ００６３
57
While You Are Riding
Shifting Gears
Basic Operation & Riding
Shifting Up:
Shifting Down:
Recommended Shift Points
Ride in the highest gear that lets the engine run and accelerate smoothly. This
will give you good fuel economy and effective emissions control. When
changing gears under normal conditions, use these recommended shift points:
12 mph (20 km/h)
19 mph (30 km/h)
25 mph (40 km/h)
31 mph (50 km/h)
22 mph (35 km/h)
16 mph (25 km/h)
Pull the clutch lever in when speed drops below 12 mph (20 km/h), when engine
roughness is evident, or when engine stalling is imminent; and shift down to 1st
gear for acceleration.
While you are riding, occasionally check your gauges and indicators. Continuing
to ride with the low oil pressure indicator (red) on or the coolant temperature
gauge needle at the H (hot) mark can cause serious engine damage. Also keep an
eye on the fuel gauge and the low fuel indicator.
From OD to 4th:
From 4th to 3rd:
From 1st to 2nd:
From 2nd to 3rd:
From 3rd to 4th:
From 4th to OD:
１２／１０／３１ １３：３９：１５ ３１ＭＪＧ６００ ００６４
58
Braking
Basic Operation & Riding
To slow or stop, apply the brake lever and brake pedal smoothly, while
downshifting to match your speed.
Gradually increase braking as you feel the brakes slowing your speed. The
increase in engine compression from downshifting will help slow your
motorcycle.
To prevent stalling the engine, pull the clutch lever in before coming to a
complete stop. For support, put your left foot down first, then your right foot
when you have finished braking.
When possible, reduce your speed or complete braking before entering a turn.
Avoid braking or closing the throttle quickly while turning. Either action may
cause one or both wheels to slip and reduce your control of your motorcycle.
Your ability to brake in a turn and to brake hard in an emergency situation are
important riding skills. We suggest attending a Motorcycle Safety Foundation
experienced rider training course (page ) to retain these skills.
When descending a long, steep grade, use engine compression braking by
downshifting, with intermittent use of both brakes. Continuous brake application
can overheat the brakes and reduce their effectiveness.
When riding in wet or rainy conditions, or on loose surfaces, the ability to
maneuver and stop will be reduced. All of your actions should be smooth under
these conditions. Rapid acceleration, braking or turning may cause loss of
control.
For your safety, exercise extreme caution when braking, accelerating or turning.
Your motorcycle is equipped with Dual CBS (Linked Braking System).
Operating the front brake lever applies the front brake and a portion of the rear
brake. Operating the rear brake pedal appliesthe rear brake and a portion of the
front brake. For full braking effectiveness, use both the lever and pedal
simultaneously, as you would with a conventional motorcycle braking system.
38
１２／１０／３１ １３：３９：２２ ３１ＭＪＧ６００ ００６５
(Models not equipped with ABS)
59
Braking
Basic Operation & Riding
Riding with your foot resting on the brake pedal or your hand on the brake lever
may actuate the brakelight, giving a false indication to other drivers.It may also
overheat the brakes, reducing effectiveness.
Applying the brakes too hard may cause the wheels to lock and slide, reducing
control of your motorcycle. If this happens, release the brake controls, steer
straight ahead until you regain control, then reapply the brakes more gently.
As with a conventional motorcycle braking system, excessively hard application
of the brake controls may cause wheel lock, reducing control of the motorcycle.
１２／１０／３１ １３：３９：２７ ３１ＭＪＧ６００ ００６６
−
(Models equipped with ABS)
60
Combined ABS
Braking
Basic Operation & Riding
ABS may also be activated by braking while riding over a sharp drop or rise in
the road level.
ABS is self-checking and is always on.
ABS cannot make up for road conditions, bad judgment, or improper operation
of the brakes. It is still your responsibility to ride at reasonable speedsfor
weather, road surface, and traffic conditions, and to leave a margin of safety.
In some situations, a motorcycle with ABS may require a longer stopping
distance to stop on loose or uneven surfaces than an equivalent motorcycle
without ABS.
This model is also equipped with an Anti-lock Brake System (ABS) designed to
help prevent wheel lock up during hard braking on uneven or other poor
surfaces while running straight. Although the wheel may not lock up if you are
braking too hard in a turn the motorcycle can still lose traction, causing a loss of
control.
１２／１０／３１ １３：３９：３３ ３１ＭＪＧ６００ ００６７
(Models equipped with ABS)
ABS indicator light
61
ABS Indicator Light
Braking
Basic Operation & Riding
ABS does not function if the battery is discharged.
It is important to follow the tire recommendations (see page ). The ABS
computer works by comparing wheel speed.
Non-recommended tires can affect wheel speed and may confuse the ABS
computer.
ABS does not function at very low speeds (approximately 5 mph (8 km/h) or
below).
Normally, this light comes on when the ignition is turned ON and goes off after
starting to ride. If there is an ABS problem, the indicator light comes on and
remains on or blinks. The ABS system does not operate when the ABS indicator
light is on or blinking.
169
１２／１０／３１ １３：３９：３９ ３１ＭＪＧ６００ ００６８
62
Braking
Basic Operation & Riding
If the ABS indicator light blinks while riding, stop the motorcycle in a safe
place and turn off the engine. Turn the ignition ON again. The light should
come on, and then go off after starting to ride. If it does not go off or if it blinks
again, ABS is not functioning.
However, Dual CBS (Linked Braking System) will still provide normal stopping
ability, but you should have the ABS system checked by your dealer as soon as
possible.
The ABS indicator may blink if you place the motorcycle on itscenter stand and
turn the rear wheel. This is normal. Turn the ignition OFF to stop the blinking.
An amber LED is used for the ABS indicator light. Be sure that the LED lights
when the ignition is ON. If the LED fails to light, see your dealer.
１２／１０／３１ １３：３９：４４ ３１ＭＪＧ６００ ００６９
ignition key
TO LOCK
PUSH IN
TURN TO LOCK
TURN TO OFF
PUSH IN
TO UNLOCK
63
Parking
Basic Operation & Riding
Catalytic Converters
Look for a level parking area. If you can’t park on a paved surface, make sure
the ground surface is firm.
Make sure flammable materials such as dry grass or leaves do not come in
contact with the exhaust system when parking your motorcycle. Refer to
,page .
If you must park on a hill, leave the transmission in gear and position the rear
tire against the curb at a 45 degree angle.
Use the side or center stand to support the motorcycle while parked.
To lower the side stand, use your foot to guide it down. Remember that
lowering the side stand with the transmission in gear will stop the engine,
even if the clutch lever is pulled in. That is a function of the side stand
ignition cut-off system.
(cont’d)
To lower the center stand, stand on the left side of the motorcycle. Hold the
passenger handgrip attached to the seat. Press down on the tip of the stand
with your right foot and, simultaneously, pull up and back on the passenger
handgrip.
Use the steering lock, which locks the handlebar in place. Turn the handlebar
all the way to the left or right. Push in on the ignition key and turn it to LOCK.
Remove the key.
(To unlock the steering lock, insert and push the key in and turn it to the right
to the OFF position.)
1.
2.
3.
227
１２／１１／０５ １５：４０：５３ ３１ＭＪＧ６００ ００７０
helmet holder ignition key
helmet holder wire holder pin
64
Parking
Basic Operation & Riding
Riding with a helmet attached to the helmet holder can cause damage to the
helmet, or damage to the paint or finish of your motorcycle.
Use the helmet holder wire stored in the fairing pocket and helmet holder to
secure your helmet(s) with your motorcycle:
Route either end of the helmet holder wire through the helmet’s D-ring.
Insert the ignition key and turn it counterclockwise to unlock the holder.
Hang the loops of the wire on the holder pin.
Push in on the holder pin. Remove the key.
4.
１２／１０／３１ １３：３９：５９ ３１ＭＪＧ６００ ００７１
65
Theft-prevention Tips
Parking
Basic Operation & Riding
Park your motorcycle in a locked garage whenever possible. If a garage isn’t
available, park in a concealed area or in a well-lit area with enough pedestrian
traffic to discourage a thief.
Always take the ignition key with you.
Always use the steering lock (page ), even if you’re parking for just a
minute or two. A thief can easily push an unlocked motorcycle to a waiting
truck.
In addition to the steering lock, use a good quality anti-theft device made
specifically to lock a motorcycle to a secure object.
If you decide to use an anti-theft device, select one of good quality and be
sure to follow the manufacturer’s instructions.
Keep your owner’s manual, current registration, and insurance information
with your motorcycle. This will make it easier for the authorities to find you
if your motorcycle is stolen and recovered.
63
１２／１０／３１ １３：４０：０５ ３１ＭＪＧ６００ ００７２
66
Riding with a Passenger or Cargo
Basic Operation & Riding
Load Limits,
Loading Guidelines,
Your motorcycle is designed to carry you and one passenger. Whenever you add
a passenger or cargo, you must be careful not to exceed the total load limits for
this vehicle ( page ). Make sure your cargo is properly secured
(page).
Also consider adjusting the suspension (page ) for the extra load.
Be aware that carrying a passenger or heavy cargo can affect acceleration,
braking, and handling.
Before riding with a passenger, make sure your passenger is wearing the proper
protective apparel (page ).
Tell your passenger to hold the passenger handgrip, lean with you in the turns,
and keep their feet on the passenger footrests at all times, even when the
motorcycle is stopped at a traffic light.
42
43
36
156
１２／１０／３１ １３：４０：１１ ３１ＭＪＧ６００ ００７３
67
Riding in Bad Weather
Basic Operation & Riding
If you decide to ride your motorcycle in the rain, fog, or other bad-weather
conditions, ride carefully. Wet road surfaces reduce traction, especially in turns,
and increase stopping distances when you brake.
If the weather turns bad while you are riding, take extra care.
Avoid using any kind of water-dispersing product on the windscreen. It will
damage the plastic.
１２／１０／３１ １３：４０：１５ ３１ＭＪＧ６００ ００７４
68
Basic Operation & Riding
１２／１０／３１ １３：４０：１８ ３１ＭＪＧ６００ ００７５
−
−
69
Audio Systems
Audio Systems
This section gives information about the controls and displays that make up your
audio system. All essential controls are within easy reach.
As required by the FCC (USA only):
This device complies with Part 15 of the FCC Rules for Radio Receiver.
Operation is subject to the condition that this device may not cause harmful
interference. Any unauthorized changes or modifications to this equipment
would void the user’s authority to operate thisdevice.
(cont’d)
Trade Name:
Model No:
Responsible Party:
......................................................................................................Audio Systems .
........................................................................MODE Knob/Button Function .
Panasonic
For USA CR LH01E0AJ
For Canada CR LH01E1AJ
Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
...................................................................VOLUME Knob/Button Function .
.............................................................................................Display Locations .
...........................................................................Audio Component Locations .
.................................................................................................System Control .
...................................................................................................Switch Output .
...........................................................................................VOLUME Control .
.....................................................................................................Tone Control .
...........................................................................................Controls Locations .
....................................................................................................Fader Control .
...................................................................................................................SRS .
............................................................................................................Beep Set .
..........................................................................Auto Volume Control (AVC) .
..............................................................................................................Muting .
......................................................................................................AM/FM Radio .
..................................................................................................Radio Antenna .
.......................................................................................................Select Band .
....................................................................................................Select Station .
..................................................................................................Preset Stations .
.......................................................................................................Auto Select .
71
71
72
73
74
75
76
77
78
79
81
82
83
84
85
86
86
87
88
89
90
１２／１０／３１ １３：４０：３４ ３１ＭＪＧ６００ ００７６
70
Audio Systems
Audio Systems
........................................................................................Weather Information .
....................................................................................Weather Band (WB) .
...........................................................................................Auxiliary Function .
................................................................................Auxiliary (AUX) Input .
...........................................................................................Input Jack Setup .
....................................................................................iPod /USB Flash Drive .
................................................................Playable iPod /USB Flash Drive .
.....................................................................................Playable music files .
....................................................................................................USB Cable .
..........................................................................................PlayinganiPod .
..........................................................................Playing a USB Flash Drive .
....................................................................................USB Error Messages .
...............................................................................Intercom (I-COM) System .
.............................................................................................System Control .
.......................................................................................VOLUME Control .
...........................................................................................Intercom Muting .
91
91
92
92
93
95
95
97
99
100
105
108
109
109
110
111
１２／１０／３１ １３：４０：４６ ３１ＭＪＧ６００ ００７７
When the speaker
is used
When the headset
is used
Push the MODE Knob/Button
When USB flash drive
is used
When iPod is used
71
MODE Knob/Button Function
Audio Systems
Audio Systems
When
audio is
OFF
INITIAL
DISPLAY
‘‘BEEP’’
‘‘FADER’’
‘‘TREBLE’’
‘‘BASS’’
‘‘USB MENU’’
‘‘iPod MENU’’
WWhheenn aauuddiioo iiss OONN
‘‘SRS
Headphone’’
‘‘SRS CS Auto’’
１２／１０／３１ １３：４０：５３ ３１ＭＪＧ６００ ００７８
‘‘AUDIO’’
‘‘INTERCOM VOL’’
‘‘INTERCOM
MUTE’’
‘‘AUTO VOL SPK’’
‘‘AUTO VOL HS’’
Push the VOLUME Knob/Button
When INT. COM
is ON
When the headset
is used
When the speaker
is used
72
VOLUME Knob/Button Function
Audio Systems
Audio Systems
１２／１０／３１ １３：４０：５９ ３１ＭＪＧ６００ ００７９
audio mode
indicator
intercom mode
indicator
clock display
radio preset
channel
radio station
stereo indicator
auto volume indicator
mute indicator
radio band
SRS indicator
auto select
indicator
73
Display Locations
Audio Systems
Audio Systems
１２／１０／３１ １３：４１：０４ ３１ＭＪＧ６００ ００８０
LEFT HANDLEBAR
VOLUME lever
MUTE button
AM button
MODE
knob/button
TUNE/CH lever
TITLE button
VOLUME
knob/button
FM button
I-COM button
AUX button
preset buttons
RETURN button
A.SEL
RPT/RDM button
WB button
AUDIO button
74
Controls Locations
Audio Systems
Audio Systems
１２／１０／３１ １３：４１：１０ ３１ＭＪＧ６００ ００８１
audio
system
controls
front headset
terminal
tweeters
audio system controls
radio antenna
external amplifier
speaker
speaker
75
Audio Component Locations
Audio Systems
Audio Systems
１２／１１／０７ １７：０１：３０ ３１ＭＪＧ６００ ００８２
−
−
AUDIO button
76
System Control
Audio Systems
Audio Systems
To turn the audio system on push the AUDIO button.
To turn the audio system off push and hold the AUDIO button.
１２／１０／３１ １３：４１：１９ ３１ＭＪＧ６００ ００８３
77
Switch Output
Audio Systems
Audio Systems
When the audio system is turned on, you can switch its output between Speaker
and Headset. (Headset is optional equipment.)
Pushing the AUDIO button switches the output.
１２／１０／３１ １３：４１：２４ ３１ＭＪＧ６００ ００８４
−
VOLUME lever
VOLUME knob/button
78
VOLUME Control
Audio Systems
Audio Systems
To increase the volume push the VOLUME lever up or turn the
VOLUME knob/button clockwise.
push the VOLUME lever down or turn the
VOLUME knob/button counterclockwise.
To decrease the volume
To increase or decrease the volume rapidly push the VOLUME lever up or
down and hold it down.
(VOLUME level range: from 0 to 30)
１２／１０／３１ １３：４１：３１ ３１ＭＪＧ６００ ００８５
−
−
MODE knob/button
79
Tone Control
Audio Systems
Audio Systems
The tone (Bass Treble) is automatically adjusted in accordance with the
vehicle speed.
Bass:
To emphasize bass
turn the MODE knob/button counterclockwise (Bass
control ranges from 6 down to 6.)
turn the MODE knob/button clockwise.
To reduce bass
To select the Bass control, push the MODE knob/button until ‘‘BASS’’ is
displayed (page ). Then, within 5 seconds, change the bass control.71
１２／１０／３１ １３：４１：３９ ３１ＭＪＧ６００ ００８６
−
80
Audio Systems
Audio Systems
Treble:
To emphasize treble
To reduce treble
turn the MODE knob/button clockwise.
turn the MODE knob/button counterclockwise.
(Treble level ranges from 6 down to 6.)
To select the Treble control, push the MODE knob/button until ‘‘TREBLE’’ is
displayed (page ). Then, within 5 seconds, change the treble control.71
１２／１０／３１ １３：４１：４６ ３１ＭＪＧ６００ ００８７
−
MODE knob/button
81
Fader Control
Audio Systems
Audio Systems
Adjusting the fader control changes the speaker volume push the MODE
knob/button until ‘‘FADER’’ is displayed (page ). Then, within 5 seconds,
change the fader control. (Setting the fader control to the F increases the speaker
volume. Setting the fader control to the R decreases the speaker volume.)
71
１２／１０／３１ １３：４１：５１ ３１ＭＪＧ６００ ００８８
−
−
TM
TM
MODE knob/button
82
SRS
Audio Systems
Audio Systems
SRS CS Auto creates a surround sound experience in the car and provides rich
bass and an elevated audio image.
SRS Headphone creates a realistic and immersive 3D stereo headphone
listening experience.
and are trademarks of SRS Labs, Inc.
CS Auto and Headphone technologies are incorporated under license from SRS
Labs, Inc.
To change the setting
To use the circuit push the MODE knob/button until ‘‘SRS CS
Auto’’ is displayed (page ). To select the SRS
of headset, push the MODE knob/button until
‘‘SRS HP’’ is displayed. Then, within 5 seconds,
change the SRS setting.
turn the MODE knob/button.
SRS CS Auto has three settings HI, LOW,
OFF.
SRS HP has two settings ON, OFF.
71
１２／１０／３１ １３：４２：０１ ３１ＭＪＧ６００ ００８９
−
−
VOLUME knob/button
84
Auto Volume Control (AVC)
Audio Systems
Audio Systems
To automatically increase volume as the speed of the motorcycle increases. Push
the VOLUME knob/button until ‘‘AUTO VOL SPK’’ is displayed (page ).
To select the volume control of headset, push the VOLUME knob/button until
‘‘AUTO VOL HS’’ is displayed (page ). Then, within 5 seconds, change the
AVC setting.
AUTO VOL SPK has four settings HI, MID, LO, and OFF.
AUTO VOL HS has three settings HI, LO, and OFF.
72
72
１２／１０／３１ １３：４２：１４ ３１ＭＪＧ６００ ００９１
−
−
LEFT HANDLEBAR
MUTE button
MUTE indicator
85
Muting
Audio Systems
Audio Systems
To mute the audio volume push the MUTE button.
The display will indicate ‘‘MUTE’’.
To restore the original volume push the MUTE button again to restore the
original volume.
１２／１０／３１ １３：４２：１９ ３１ＭＪＧ６００ ００９２
radio antenna
86
Radio Antenna
AM/FM Radio
Audio Systems
To remove the AM/FM radio antenna, turn it counterclockwise.
１２／１０／３１ １３：４２：２４ ３１ＭＪＧ６００ ００９３
STEREO indicator
FM button AM button
87
Select Band
AM/FM Radio
Audio Systems
Push the FM button to switch to FM1/FM2.
Push the AM button to listen to AM.
Reception of a stereo signal is indicated when the STEREO indicator appears in
the display. (Stereo reception is available only for FM stereo broadcasts.) As FM
stereo reception becomes weaker, special circuits in the radio gradually blend
the sound toward mono to maintain some sound quality, even though the
STEREO indicator remains ON.
１２／１０／３１ １３：４２：２９ ３１ＭＪＧ６００ ００９４
−
−
−
LEFT HANDLEBAR
TUNE/CH lever
88
Select Station
AM/FM Radio
Audio Systems
To raise the radio frequency push the TUNE/CH lever up.
To lower the radio frequency push the TUNE/CH lever down.
The SEEK function searches the band for a station with a strong signal. To
activate it, push the TUNE/CH lever up or down and release it. The frequency
display will begin moving. Depending on which way you push the switch, the
system scans upward or downward from the current frequency.
It stops when it finds a station with a strong signal.
When the frequency display reaches either end, it transitions to the other end of
the band and continues in the same direction.
To reach a known frequency rapidly push the TUNE/CH lever up or down
and continue to hold it down until you see the desired frequency.
To move up or down the radio frequencies in sequence, move the lever one click
at a time. The AM frequency display moves in 10 kHz steps. The FM frequency
moves in 0.2 MHz steps.
１２／１０／３１ １３：４２：３６ ３１ＭＪＧ６００ ００９５
preset buttons
FM button AM button
A.SEL
RPT/RDM
button
89
Preset Stations
AM/FM Radio
Audio Systems
You can store the frequencies of your favorite radio stations in the six preset
buttons. Each button will store one frequency on the AM band, and two
frequencies on the FM band.
Check that A.SEL RPT/RDM is not turned on. If it is on, push the A.SEL
RPT/RDMbuttontoturnitoff.
Select the desired band, AM or FM. FM1 and FM2 let you store two
frequencies with each Preset button.
Use the TUNE or SEEK function to tune the radio to a desired station.
Repeatsteps1to3tostoreatotalofsixstationsonAMandtwelveonFM.
Pick the Preset button you want for that station. Press the button and hold it.
Once a station’s frequency is stored, simply press and release the proper Preset
button to tune to it. The preset frequencies will be lost if your motorcycle’s
battery goes low (or dead) or is disconnected, or if the radio fuse is removed.
1.
2.
3.
4.
5.
１２／１０／３１ １３：４２：４３ ３１ＭＪＧ６００ ００９６
preset buttons
A.SEL
RPT/RDM
button
90
Auto Select
AM/FM Radio
Audio Systems
If you are traveling far from home and can no longer receive the stations you
preset, you can use the Auto Select feature to find stations in the local area.
To activate Auto Select, push the A.SEL RPT/RDM button. A.SEL will appear
in the display, and the system will go into scan mode for several seconds.
It automatically scans both bands, looking for stations with strong signals. It
stores the frequencies of six AM stations and twelve FM stations in the preset
buttons (page ). You can then use the preset buttons to select those stations.
If you are in a remote area, Auto Select may not find six strong AM stations or
twelve strong FM stations. If this happens, you will see a ‘‘0’’ displayed when
you push any preset button that does not have a station stored.
With Auto Select on, you cannot manually store any frequencies in the preset
buttons. If you do not like the stations found by Auto Select, you can use the
TUNE and SEEK functions to find other stations.
Auto Select does not erase the frequencies that you preset previously. When you
return home, turn off Auto Select by pressing the A.SEL RPT/RDM button. The
preset buttons will then select the frequencies you originally set.
89
１２／１０／３１ １３：４２：５０ ３１ＭＪＧ６００ ００９７
−
−
−−
−
LEFT HANDLEBAR
WB button
TUNE/CH lever preset buttons
91
Weather Band (WB)
Weather Information
Audio Systems
To listen to the Weather Band push the WB button.
To cancel the Weather Band push another button (AM, FM or AUX).
To select channels 1 6 push the desired preset button.
To select channel 7 push the TUNE/CH lever up or down until channel 7 is
selected.
(The TUNE/CH lever may be used to select any of the 7 channels. The lever
must be used to select channel 7.)
１２／１０／３１ １３：４２：５８ ３１ＭＪＧ６００ ００９８
AUX button
92
Auxiliary (AUX) Input
Auxiliary Function
Audio Systems
The following functions operate the same as they do with the AM/FM radio:
Switch output, Tone control, Fader control, SRS, AVC, BEEP, Muting.
To turn the function on
To turn the function off
The display changes as follows each time the AUX button is pushed.
push the AUX button once. (AUX appears
on the display.)
push the AUX button twice when connecting
a USB device with USB cable (see page ).
(iPod or USB appears on the display.)
(When connecting a iPod or USB flash drive with USB cable)
Use this function to listen to other audio:
Connect the input jack connector to listen to other audios.
Connect the iPod /USB flash drive to the USB cable to operate and listen to it
(see page ).
push the AM, FM or WB button.
or
101
95
１２／１０／３１ １３：４３：０８ ３１ＭＪＧ６００ ００９９
grommet A
auxiliary input patch cord
fairing pocket
clips
clips
cover
wire harness connector
93
Input Jack Setup
Auxiliary Function
Audio Systems
Remove the auxiliary input patch cord from the owner’s manual pouch.
Plug the auxiliary input patch cord into the wire harness connector.
The auxiliary input jack connector is located under the left fairing pocket. To
use it:
Attach a cloth to the cover and remove the cover with care using a flat-tip
screwdriver.
Open the left fairing pocket cover and remove the clips and grommet A.
Lift out the fairing pocket.
1.
2.
3.
4.
5.
１２／１０／３１ １３：４３：１５ ３１ＭＪＧ６００ ０１００
grommet B
auxiliary input
patch cord
94
Auxiliary Function
Audio Systems
Some portable audio systems may pick up noise from the ignition.
Adjust the volume of the portable audio system so that it is about the same
level as the GL’s radio volume. If the volume of the portable audio system is
set too high, the sound coming out from the speakers or headset may be
distorted.
Install the grommet B to left fairing pocket.
Do not pull on the auxiliary cord as the wires could be damaged.
Route the auxiliary input patch cord through the hole in the bottom of the
fairing pocket.
6.
7.
１２／１０／３１ １３：４３：２１ ３１ＭＪＧ６００ ０１０１
iPod touch 3rd generation
iPod touch 2nd generation
iPod touch 1st generation
iPod nano 6th generation
iPod nano 5th generation
iPod nano 4th generation
iPod nano 3rd generation
iPod nano 2nd generation
iPod nano 1st generation
USB hub
CD/DVD/FD drive
Card reader/Memory reader
Hard disk drive
F/W Ver. 4.2.0 or later
F/W Ver. 1.0.0 or later
F/W Ver. 1.2.0 or later
F/W Ver. 1.0.0 or later
F/W Ver. 1.0.0 or later
F/W Ver. 1.0.0 or later
F/W Ver. 1.0.0 or later
F/W Ver. 1.1.2 or later
F/W Ver. 1.2.0 or later
Not support
Not support
Not support
Not support
256 M bytes or more
Device Support Requirements
USB flash drive
95
Playable iPod /USB Flash Drive
iPod /USB Flash Drive
Audio Systems
iPod touch , iPod , iPod nano are registered trademarks of Apple Inc. in the
U.S. and other countries.
This audio system can play the audio files on the iPod and a USB flash drive.
To play an iPod or a USB flash drive, connect it to the USB cable in the left
saddlebag (page ).
iPod touch , iPod , iPod nano are registered trademarks of Apple Inc. in the
U.S. and other countries.
Use any USB flash drive and iPod at your own risk.
Compatible Devices
iPods and USB flash drives compatible with your audio system are:
In no event shall Honda be liable for any damages or troubles in use.
99
１２／１０／３１ １３：４３：４２ ３１ＭＪＧ６００ ０１０２
96
iPod /USB Flash Drive
Audio Systems
Use iPod with the latest version of firmware.
Do not connect with a hub.
Music information may not be displayed. If the character code in use is not
supported, ‘‘ .’’ will be displayed.
If the audio system does not recognize the iPod , try reconnecting it a few
times or reboot the device.
We recommend backing up your data before playing it.
Do not use hard disks, card readers, and memory readers which may damage
the device and data. If you faultily connect the one of them, turn the ignition
switch OFF and remove it.
Read precaution statements on the provided instructions of your iPods /
USB flash drives.
Some USB flash drives (such as devices with security lockout features, etc.)
may not be used or restricted to itsfunction.
iPods or some of USB flash drives can be charged with the USB cable when
the ignition switch is in the ON or ACC position.
The charging time may be longer than usual.
We recommend covering your iPods /USB flash drives with soft fabric or
cover to protect from damage.
Do not connect incompatible iPods /USB flash drives.
Do not leave iPods /USB flash drives in the vehicle (left saddlebag). High
heat will damage it.
Be careful to not get the USB connector wet.
１２／１０／３１ １３：４３：５２ ３１ＭＪＧ６００ ０１０３
Items Contents
Standards MPEG1 Audio Layer 2,3
MPEG2 Audio Layer 2,3
MPEG2.5 Audio Layer 2,3
MPEG1 32/44.1/48 kHz
MPEG2 16/22.05/24 kHz
MPEG2.5 8/11.025/12 kHz
Sampling periodicity
(kHz)
Bit rates (kbit/s)
ID3v1(v1.0/v1.1), ID3v2(v2.2/v2.3/v2.4)
65025 files (255 files in one folder)
999 folders
FAT12/16/32
Available number of
characters
Available tags
Maximum files
Maximum folders
Maximum hierarchies
Channel modes
File systems
If the files are low bit rate and/or small
data size, you may not be played the files.
MPEG1 Audio Layer 2: 32-384/VBR/CBR
MPEG1 Audio Layer 3: 32-320/VBR/CBR
MPEG2 Audio Layer 2: 8-160/VBR/CBR
MPEG2 Audio Layer 3: 8-160/VBR/CBR
MPEG2.5 Audio Layer 3: 8-160/VBR/CBR
8 hierarchies (including the root directory)
Stereo/Joint stereo/Dual channel/Monaural
max: 16 characters
(According to the character code or the
number of songs, the maximum number of
characters may not be displayed.)
97
Playable music files
iPod /USB Flash Drive
Audio Systems
In the audio function, MP3/WMA music files in USB flash drives can be played.
Read the followings before recording files in your USB flash drives which may
have restrictions.
Do not edit other type of extension. Playing USB flash drives containing
these kind of files can cause troubles such as the device or speakers failure.
MP3/WMA files in your USB flash drives can be played on the following
specifications.
MP3
１２／１０／３１ １３：４４：１３ ３１ＭＪＧ６００ ０１０４
Items Contents
Standards Windows Media Audio Version 7/8/9
32/44.1/48
Channel modes Stereo/Monaural
File systems FAT 12/16/32
Bit rates (kbit/s) 48-320/VBR
Sampling periodicity
(kHz)
Maximum hierarchies 8 hierarchies
(including the root directory)
Maximum folders
Maximum files
Available tags WMA: ASF TOP-LEVEL HEADER
OBJECT
Only songs, artists and albums available.
(The albums registered by Windows
Media Player is only available.)
Available number of
characters
999 folders
65025 files
(255 files in one folder)
max: 16 characters
(According to the character code or the
number of songs, the maximum number
of characters may not be displayed.)
98
iPod /USB Flash Drive
Audio Systems
Windows Media is registered trademarks of Microsoft Corporation. in the U.S.
and other countries.
WMA
１２／１０／３１ １６：０３：１３ ３１ＭＪＧ６００ ０１０５
USB connector
dock
connector
99
USB Cable
iPod /USB Flash Drive
Audio Systems
To connect
To disconnect
Unclip the USB connector.
Connect your iPod with dock connector or the USB flash drive to the USB
connector.
You can disconnect the iPod /USB flash drive at any time. Make sure to follow
the iPod ’s instructions on how to disconnect the dock connector from the USB
cable.
When you disconnect the iPod /USB flash drive, the USB indicator will
disappear.
Open the left saddlebag (page ).1.
2.
3.
45
１２／１０／３１ １３：４４：３６ ３１ＭＪＧ６００ ０１０６
MODE knob/button
RETURN button TITLE button
101
iPod /USB Flash Drive
Audio Systems
Select a playlist, artist, album and song by using the MODE knob/button. Push
the MODE knob/button until iPod menu is displayed, then turn the
MODE knob/button until the desired list. Push the MODE knob/button to set
your selection.
The display shows items on the selected list. Turn the MODE knob/button to
select an item, then push the MODE knob/button to set your selection.
If you select ‘‘ALL’’, all available files on the selected list are played.
Selecting ‘‘RETURN’’ goes back to the previous display.
Push the TITLE button to change the title display of albums, songs and artists.
Push and hold the TITLE button to display the text data of albums, songs and
artists from first 8 characters to next 8 characters.
Push the RETURN button to go back to the previous menu while selecting a
playlist, artist, album and song.
１２／１０／３１ １３：４４：４６ ３１ＭＪＧ６００ ０１０８
TUNE/CH lever
102
iPod /USB Flash Drive
Audio Systems
You can also change or select playlists, artists and albums on the iPod menu,
use the TUNE/CH lever (see page ).
Use the TUNE/CH lever while an iPod is playing to change files.
Push the TUNE/CH lever up to change to the next file.
Push the TUNE/CH lever down to change to the previous file.
103
１２／１０／３１ １３：４４：５０ ３１ＭＪＧ６００ ０１０９
103
iPod /USB Flash Drive
Audio Systems
Push the TUNE/CH lever:
Push and hold the TUNE/CH lever:
Push the TUNE/CH lever up:
Push the TUNE/CH lever down:
１２／１０／３１ １３：４４：５５ ３１ＭＪＧ６００ ０１１０
T.RPT
T.RDM
A.RDM
RT.RPT
AT.RPT
T.RDM
T.RPT
A.RDM
RT.RPT
AT.RPT
104
iPod /USB Flash Drive
Audio Systems
You can select repeat and random play modes when playing a file.
To select a play mode
Push the A.SEL RPT/RDM button until the desired play mode is displayed.
The display changes as follows each time the A.SEL RPT/RDM button is
pushed.
Repeats the current track.
Plays all available files in a selected list (playlists,
artists, albums or songs) in random order.
Plays all available albums in random order.
Repeats current file in T.RDM play mode.
Repeats current file in A.RDM play mode.
Play Mode Menu Items
Push the A.SEL RPT/RDM button:
Push and hold the A.SEL RPT/RDM button:
NO DISPLAY
MODE Function
１２／１０／３１ １３：４５：０３ ３１ＭＪＧ６００ ０１１１
105
Playing a USB Flash Drive
iPod /USB Flash Drive
Audio Systems
Connect your USB flash drive to the USB cable (see page ), then push the
AUX button twice and USB indicator will be displayed.
If you see an error message in the display, see page .
Files on the USB flash drive are played in their stored order. This order may be
different from the order displayed on your PC or device.
Select a folder or file by using the MODE knob/button. Push the MODE knob/
button until USB menu is displayed, then turn the MODE knob/button until the
desired folder or file list. Push the MODE knob/button to set your selection.
The display shows items on the selected list. Turn the MODE knob/button to
select an item, then push the MODE knob/button to set your selection.
Selecting ‘‘RETURN’’ goes back to the previous display.
Push the TITLE button to change the title display of folders, files, artists,
albums and songs.
Push and hold the TITLE button to display the text data of from first 8
characters to next 8 characters.
Push the RETURN button to go back to the previous menu while selecting a
folder, file, artist, album and song.
99
108
１２／１０／３１ １３：４５：０９ ３１ＭＪＧ６００ ０１１２
MODE knob/button
RETURN button TITLE button
TUNE/CH lever
106
iPod /USB Flash Drive
Audio Systems
You can also change or select files and folders by using TUNE/CH lever while a
USB flash drive is playing files.
Push the TUNE/CH lever up to change to the next file.
Push the TUNE/CH lever down to change to the previous file.
To change the folders, push and hold the TUNE/CH lever up or down.
１２／１０／３１ １３：４５：１４ ３１ＭＪＧ６００ ０１１３
F.RPT
T.RPT
F.RDM
A.RDM
FT.RPT
RT.RPT
T.RPT
F.RPT
F.RDM
A.RDM
FT.RPT
RT.RPT
107
iPod /USB Flash Drive
Audio Systems
You can select repeat and random play modes when playing a file.
To select a play mode
Push the A.SEL RPT/RDM button until the desired play mode is displayed.
The display changes as follows each time the A.SEL RPT/RDM button is
pushed.
Repeats the current file.
Repeats all files in the current folder.
Plays all files in the current folder in random order.
Plays all files in random order.
Repeats current file in F.RDM play mode.
Repeats current file in A.RDM play mode.
Play Mode Menu Items
Push the A.SEL RPT/RDM button:
Push and hold the A.SEL RPT/RDM button:
NO DISPLAY
FunctionMODE
１２／１０／３１ １３：４５：１９ ３１ＭＪＧ６００ ０１１４
BAD USB DEVICE
CHECK USB
USB ERROR
NO SONG
UNSUPPORTED
UNPLAYABLE
108
USB Error Messages
iPod /USB Flash Drive
Audio Systems
If an error occurs while playing an iPod or USB flash drive, you may see the
following error messages. If you cannot clear the error message, contact a dealer.
Error Message Cause Solution
Problem with the
device or USB
cable.
Turn the ignition switch off
once and turn it on again.
Reconnect the device.
Do not reconnect the device
that caused the error.
Problem with the
device or USB
cable.
Turn the ignition switch off
once and turn it on again.
Reconnect the device.
Do not reconnect the device
that caused the error.
Problem with the
device or USB
cable.
Turn the ignition switch off
once and turn it on again.
Reconnect the device.
Do not reconnect the device
that caused the error.
No files in device. Check the files in device.
Use of
unsupported
device.
Update the firmware.
Use supported device.
Problem with the
audio unit or
device.
Turn the ignition switch off
once and turn it on again.
Reconnect the device.
１２／１０／３１ １３：４５：３３ ３１ＭＪＧ６００ ０１１５
front headset terminal
I-COM button I-COM mode indicator
109
System Control
Intercom (I-COM) System
Audio Systems
Some local governments prohibit the use of a headset by the operator of a motor
vehicle. Always obey applicable laws and regulations.
The intercom system may be used to communicate with your passenger. (If you
want to use this system, you must have headsets.)
push the I-COM button. (I-COM appears on the
display.)
push and hold the I-COM button. (I-COM
disappears.)
To turn the system on
To turn the system off
１２／１０／３１ １３：４５：４２ ３１ＭＪＧ６００ ０１１６
−
VOLUME lever
VOLUME knob/button
110
VOLUME Control
Intercom (I-COM) System
Audio Systems
To increase the volume
To decrease the volume
push the VOLUME lever up or turn the
VOLUME knob/button clockwise.
push the VOLUME lever down or turn the
VOLUME knob/button counterclockwise.
To increase or decrease the volume rapidly push the VOLUME lever up or
down and hold it down.
(VOLUME level range : from 0 to 20)
To select the Volume control, push the VOLUME knob/button until
‘‘INTERCOM VOL’’ is displayed (page ). Then, within 5 seconds, change
the volume control.
72
１２／１０／３１ １３：４５：５０ ３１ＭＪＧ６００ ０１１７
−
VOLUME knob/button
111
Intercom Muting
Intercom (I-COM) System
Audio Systems
The intercom mute system automatically lowers (does not silence) the music/
program volume when you speak through the intercom.
The sensitivity of the intercom microphone to your voice or ambient sound sets
the level at which the intercom system mutes the music/program volume.
To increase microphone
sensitivity
turn the VOLUME knob/button clockwise.
To decrease microphone
sensitivity
turn the VOLUME knob/button
counterclockwise. (Intercom Mute control
range: from 0 to 20)
To adjust this system push the VOLUME knob/button until ‘‘INTERCOM
MUTE’’ is displayed (page ).72
１２／１０／３１ １３：４５：５８ ３１ＭＪＧ６００ ０１１８
112
Audio Systems
１２／１０／３１ １３：４６：００ ３１ＭＪＧ６００ ０１１９
113
Servicing Your Honda
Servicing Your Honda
Maintenance, replacement or repair of the emission control devices and
systems may be performed by any motorcycle repair establishment or
individual using parts that are ‘‘certified’’ to EPA standards.
Before You Service Your Honda
To help keep your motorcycle in good shape, this section includes a
Maintenance Schedule for required service, a list of periodic checks you should
perform at least once a month, and step-by-step instructions for specific
maintenance tasks. You’ll also find important safety precautions, information on
fuels and oils, and tips for keeping your Honda looking great.
(cont’d)
For information about the exhaust emission and noise emission requirements of
the U.S. Environmental Protection Agency (EPA), the California Air Resources
Board (CARB), and Environment Canada (EC), see page .
For information about replacing fuses, see page .
USA only
......................................................................The Importance of Maintenance .
..........................................................................................Maintenance Safety .
.......................................................................................Periodic Maintenance .
.....................................................................................Maintenance Schedule .
........................................................................................Maintenance Record .
.......................................................................Important Safety Precautions .
223
206
116
117
118
119
120
124
１２／１０／３１ １３：４６：１０ ３１ＭＪＧ６００ ０１２０
114
Servicing Your Honda
Servicing Your Honda
Service Preparations
Service Procedures
Fluids & Filters
Electrical
Chassis
Engine
................................................................Maintenance Component Locations .
.................................................................................Owner’s Manual Storage .
.................................................................................................Cover Removal .
....................................................................................................Clip Removal .
...................................................................................................................Fuel .
...........................................................................................Engine Oil & Filter .
.............................................................................................................Coolant .
..........................................................................................Crankcase Breather .
..................................................................................................Final Drive Oil .
...................................................................................................Clutch System .
.......................................................................................................Spark Plugs .
........................................................................................................Suspension .
...............................................................................................................Brakes .
..................................................................................................................Tires .
.........................................................................................................Side Stand .
..............................................................................................................Battery .
..............................................................................................Appearance Care .
....................................................................................Tool Kit (Canada only) .
125
128
129
130
135
136
139
146
149
150
152
154
156
158
163
170
171
175
１２／１０／３１ １３：４６：２５ ３１ＭＪＧ６００ ０１２１
＊
＊＊
115
Servicing Your Honda
Servicing Your Honda
The following table summarizes the three types of inspections and servicing
recommendations for your motorcycle. Both the pre-ride inspection and the
scheduled maintenance at the recommended intervals are necessary to assure
safe and dependable performance. The periodic checks provide additional
confidence in your motorcycle’s performance.
more often if you ride frequently or long distances; or anytime you clean your
motorcycle
unless you have the proper tools and service data and are mechanically
qualified
An optional tool kit may be available. Check with your dealer’s partsdepartment.
39
119
120
USA only
Type of Inspection/
Service
Who Performs
Pre-ride Inspection
Periodic Maintenance
Maintenance Schedule
Refer to
page:
you
When Performed
before every ride
monthly
interval on schedule
you
your dealer
１２／１０／３１ １３：４６：３７ ３１ＭＪＧ６００ ０１２２
Improperly maintaining this
motorcycle or failing to correct a
problem before you ride can
causeacrashinwhichyoucan
be seriously hurt or killed.
Always follow the inspection
and maintenance
recommendations and
schedules in this owner’s
manual.
116
Servicing Your Honda
The Importance of Maintenance
Keeping your motorcycle well-maintained is absolutely essential to your safety.
It’s also a good way to protect your investment, get maximum performance,
avoid breakdowns, and have more fun. A properly maintained motorcycle will
also help to reduce air pollution.
Remember, proper maintenance is the owner’s responsibility. Be sure to inspect
your motorcycle before each ride, perform the periodic checks, and follow the
Maintenance Schedule in this section.
If your motorcycle overturns or is involved in a crash, be sure your dealer
inspects all major parts, even if you are able to make some of the repairs
yourself.
１２／１０／３１ １３：４６：４２ ３１ＭＪＧ６００ ０１２３
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
117
Servicing Your Honda
Maintenance Safety
This section includes instructions on how to perform some important
maintenance tasks. If you have basic mechanical skills, you can perform many
of these tasks with the tools provided with your motorcycle.
Other tasks that are more difficult and require special tools are best performed
by professionals. Wheel removal should normally be handled only by a Honda
technician or other qualified mechanic. Instructions are included in this manual
only to assist in emergency service.
Some of the most important safety precautions follow. However, we cannot
warn you of every conceivable hazard that can arise in performing maintenance.
Only you can decide whether or not you should perform a given task.
１２／１０／３１ １３：４６：４７ ３１ＭＪＧ６００ ０１２４
118
Important Safety Precautions
Carbon monoxide poisoning from engine exhaust.
Burns from hot motorcycle parts.
Injury from moving parts.
Servicing Your Honda
Maintenance Safety
Make sure the engine is off before you begin any maintenance or repairs.
This will help eliminate several potential hazards:
Be sure there is
adequate ventilation whenever you operate the engine.
Let the engine and exhaust system cool
before touching.
Do not run the engine unless instructed to do so.
Read the instructions before you begin, and make sure you have the tools and
skills required.
To reduce the possibility of a fire or explosion, be careful when working
around gasoline. Use only non-flammable solvent, not gasoline, to clean parts.
Keep cigarettes, sparks, and flames away from all fuel-related parts.
Remember that your Honda dealer knows your motorcycle best and is fully
equipped to maintain and repair it. To ensure the best quality and reliability, use
only new Honda Genuine Parts or their equivalents for repair and replacement.
If you have the tools and skills required for additional maintenance jobs, you
can purchase an official Honda Service Manual (page ).
To help prevent the motorcycle from falling over, park it on a firm, level
surface, using the center stand or a maintenance stand to provide support.
230
１２／１０／３１ １３：４６：５３ ３１ＭＪＧ６００ ０１２５
119
Servicing Your Honda
Periodic Maintenance
Check the odometer reading and perform any scheduled maintenance checks
that are needed (page ). Remember, more frequent checks may be needed for
riding in severe conditions.
Fluids
Make sure the headlight, brakelight, taillight, and turn
signals are working properly.
In addition to the regularly scheduled maintenance (page ) and daily pre-ride
inspection (page ), consider performing the periodic checks on the following
page at least once a month, even if you haven’t ridden your motorcycle, or as
often as once a week if you ride frequently or for long distances. It’s a good idea
to perform this maintenance any time you clean your motorcycle.
Check the levels of the engine oil (page ), coolant
(page ), brake fluid (page ), clutch fluid
(page ), and final drive oil (page ). Add the
correct fluid as necessary, and investigate the cause of
any low fluid level.
Lights
Check the air pressure with a gauge and add air if needed
(page ).
Examine the tread for wear (page ).
Look closely for nails, embedded objects, cuts, and other
types of damage (page ). Rotate the rear wheel so
you can inspect the entire surface.
Check the condition of the wheels.
Fuses Make sure you have a full supply of spare fuses.
Nuts & Bolts Check the major fasteners and tighten as needed.
Tires
&
Wheels
39
120
120
164
165
165
142
147 159
150153
１２／１０／３１ １３：４７：０４ ３１ＭＪＧ６００ ０１２６
120
Servicing Your Honda
Maintenance Schedule
The required Maintenance Schedule that follows specifies how often you should
have your motorcycle serviced, and what things need attention. It is essential to
have your motorcycle serviced as scheduled to maintain safe, dependable
performance and proper emission control.
The service intervals in this Maintenance Schedule are based on average riding
conditions. Some items will need more frequent service if you ride in unusually
wet or dusty areas or at full throttle. Consult your dealer for recommendations
applicable to your individual needs and use.
Some items in the Maintenance Schedule can be performed with basic
mechanical skills and hand tools. Procedures for these items are provided in this
manual. Other items involve more extensive procedures and may require special
training, tools, and equipment. We recommend that you have your dealer
perform these tasks unless you have advanced mechanical skillsand the required
tools and equipment. Procedures for such items in thisschedule are provided in
an official Honda Service Manual available for purchase (page ).230
１２／１０／３１ １３：４７：０８ ３１ＭＪＧ６００ ０１２７
＊＊＊
121
Servicing Your Honda
Maintenance Schedule
Summary of Maintenance Schedule Notes
& Procedures:
If you do not feel capable of performing a given task or need assistance,
remember that your Honda dealer knows your motorcycle best and is fully
equipped to maintain and repair it. If you decide to do your own maintenance,
use only Honda Genuine Parts or their equivalents for repair or replacement to
ensure the best quality and reliability.
Perform the pre-ride inspection (page ) and owner maintenance (page ) at
each scheduled maintenance period.
Service more frequently if the motorcycle is ridden in unusually wet or dusty
areas.
Service more frequently if the motorcycle is ridden often at full throttle or in
the rain.
Service more frequently if noisy.
At higher odometer readings, repeat at the frequency interval established here.
Should be serviced by your dealer, unless you have the proper tools and
service data and are mechanically qualified. Refer to the official Honda
Service Manual (page ).
In the interest of safety, we recommend these items be serviced only by your
dealer.
Replace every 2 years, or at indicated odometer interval, whichever comes
first. Replacement requires mechanical skill.
The following items require some mechanical knowledge. Certain items
(particularly those marked and ) may require more technical information
and tools. Consult your dealer.
Replace at 4,000 mi (6,400 km) or 6 months, then every 8,000 mi (12,800 km)
or 12 months.
I: inspect and clean, adjust, lubricate,
or replace, if necessary
C: clean
A: adjust
L: lubricate
R: replace
Maintenance Procedures:
1.
2.
3.
4.
5.
NOTES:
6.
39 122
230
１２／１０／３１ １３：４７：１９ ３１ＭＪＧ６００ ０１２８
×
×
−
−
−
−
−
−
−
−
1,000 mi
1,000 km
24
38.4
I
I
R
C
R
I
I
I
20
32.0
C
R
R
I
16
25.6
I
I
C
I
I
I
12
19.2
R
C
R
R
I
I
8
12.8
I
I
C
I
I
I
4
6.4
C
R
R
I
NOTE
2
3
4
6
5
FUEL LINE
THROTTLE OPERATION
AIR CLEANER
CRANKCASEBREATHER
SPARK PLUGS
VALVE CLEARANCE
ENGINE OIL
ENGINE OIL FILTER
ENGINE IDLE SPEED
RADIATOR COOLANT
COOLING SYSTEM
SECONDARYAIR SUPPLY
SYSTEM
EVAPORATIVE EMISSION
CONTROL SYSTEM
Refer to
page
149
154
139
143
146
FREQUENCY
ITEM
EVERY 16,000 mi (25,600 km)R
EVERY 32,000 mi (51,200 km)I
ODOMETER READING (Note 1)
EMISSIONS-RELATEDITEMS
122
Servicing Your Honda
Maintenance Schedule
Should be serviced by your dealer, unless you have the proper tools and service data and are
mechanically qualified. Refer to the official Honda Service Manual (page ).230
１２／１０／３１ １３：４７：２８ ３１ＭＪＧ６００ ０１２９
×
×
−
−
−
−
−
−
1,000 mi
1,000 km
NOTE
5
5
4
6.4
I
I
I
12
19.2
R
I
R
20
32.0
I
I
I
FINAL DRIVE OIL
BRAKE FLUID
BRAKE PADS WEAR
BRAKE SYSTEM
BRAKELIGHT SWITCH
HEADLIGHTAIM
CLUTCHSYSTEM
CLUTCH FLUID
SIDE STAND
SUSPENSION
NUTS, BOLTS,
FASTENERS
WHEELS/TIRES
STEERING HEAD
BEARINGS
8
12.8
I
I
I
I
I
I
I
I
I
I
I
I
I
16
25.6
I
I
I
I
I
I
I
I
I
I
I
I
I
24
38.4
R
R
I
I
I
I
I
R
I
I
I
I
I
Refer to
page
150
159
161
162
152
153
170
FREQUENCY
ITEM
ODOMETER READING (Note 1)
NON-EMISSIONS-RELATED ITEMS
123
Servicing Your Honda
Maintenance Schedule
Should be serviced by your dealer, unless you have the proper tools and service data and
are mechanically qualified. Refer to the official Honda Service Manual (page ).
In the interest of safety, we recommend these items be serviced only by your dealer.
230
１２／１０／３１ １３：４７：３８ ３１ＭＪＧ６００ ０１３０
124
Servicing Your Honda
Maintenance Record
Miles
(km)
Odometer Date Performed By: Notes
Keeping an accurate maintenance record will help ensure that your motorcycle
is properly maintained. Retain detailed receipts to verify the maintenance was
performed. If the motorcycle is sold, these receipts should be transferred with
the motorcycle to the new owner. Make sure whoever performs the maintenance
completes this record. All scheduled maintenance is considered a normal owner
operating cost and will be charged for by your dealer. Use the space under Notes
to record anything you want to remind yourself about or mention to your dealer.
4,000
(6,400)
8,000
(12,000)
12,000
(19,200)
16,000
(25,600)
20,000
(32,000)
24,000
(38,400)
28,000
(44,800)
32,000
(51,200)
36,000
(57,600)
40,000
(64,000)
44,000
(70,400)
48,000
(76,800)
52,000
(83,200)
１２／１０／３１ １３：４７：４４ ３１ＭＪＧ６００ ０１３１
clutch fluid reservoir front brake fluid reservoir
clutch lever
fuel fill cap
front brake lever
throttle grip
125
Servicing Your Honda
Maintenance Component Locations
１２／１０／３１ １３：４７：４８ ３１ＭＪＧ６００ ０１３２
rear brake fluid reservoir
rear brake caliper
front brake caliper
final drive gear
oil drain bolt
rear brake pedal
spark plugs
final drive gear oil fill cap
engine oil fill cap/dipstick
126
Servicing Your Honda
Maintenance Component Locations
１２／１１／０５ １５：４１：５８ ３１ＭＪＧ６００ ０１３３
front brake caliper
fuse box
battery
crankcase breather tube
spark plugs
engine oil filter
engine oil drain bolt
main fuse (A, B)
owner’s manual
coolant reserve tank cap
tool kit (Canada only)
127
Servicing Your Honda
Maintenance Component Locations
１２／１０／３１ １３：４７：５８ ３１ＭＪＧ６００ ０１３４
LEFT SIDE
owner’s manual
left saddlebag
tool kit
(Canada only)
tool band
129
Servicing Your Honda
Owner’s Manual Storage
Your motorcycle provides storage for the owner’s manual so you’ll have it with
you for easy reference. Store your owner’s manual (and other documents) in the
plastic storage bag in the left saddlebag (page ).
Be careful not to flood this area when washing your motorcycle.
44
１２／１０／３１ １３：４８：０８ ３１ＭＪＧ６００ ０１３６
LEFT SIDE
grommets
side cover
grommets
prongs A
prongs B
131
Side Cover Removal
Servicing Your Honda
Cover Removal
Safety Precautions
Failure to use extreme care removing or installing the side covers may damage
the side cover prongs.
Refer to on page .
Removal
Pull the side cover out until the prongs A are clear of the frame grommets.
Carefully pull the side cover out until the prongs B are clear of the frame
grommets.
Carefully remove the side cover.
Installation
Open the saddlebag (page ).
Insert the top edge of the side cover under the seat.
Position the side cover so the prongs on the inside of the cover are lined up
above their securing grommets.
Push the cover in place.
Close the saddlebag.
The left side cover must be removed for battery and fuse maintenance.
The right side cover must be removed for suspension adjustment.
1.
2.
1.
2.
3.
4.
4.
3.
44
118
１２／１０／３１ １３：４８：２３ ３１ＭＪＧ６００ ０１３８
LEFT SIDE
engine side cover
grommets
prongs
132
Engine Side Cover Removal
Servicing Your Honda
Cover Removal
Safety Precautions
Failure to use extreme care removing or installing the side covers may damage
the side cover prongs.
Refer to on page .
The left engine side cover must be removed for coolant maintenance.
The right engine side cover must be removed for engine oil and rear brake fluid
maintenance.
Removal
Carefully pull the rear of the engine side cover out until the prongs are clear
of their securing grommets.
Remove the engine side cover backward.
Installation
Installation can be done in the reverse order of removal.
1.
2.
118
１２／１０／３１ １３：４８：３２ ３１ＭＪＧ６００ ０１３９
LEFT SIDE
bolt
rubber plug
cylinder head side cover
133
Cylinder Head Side Cover Removal
Servicing Your Honda
Cover Removal
Safety PrecautionsRefer to on page .
Both cylinder head side covers must be removed for spark plug maintenance.
The left cylinder head side cover must be removed for crankcase breather
maintenance.
Removal
Installation
Installation can be done in the reverse order of removal.
Remove the rubber plugs.
Remove the bolts.
1.
2.
118
１２／１０／３１ １３：４８：３９ ３１ＭＪＧ６００ ０１４０
clip
FRONT
front lower cover
bolt A
bolts B
134
Front Lower Cover Removal
Servicing Your Honda
Cover Removal
Safety PrecautionsRefer to on page .
Installation can be done in the reverse order of removal.
Installation
The front lower cover must be removed for engine oil maintenance.
Removal
Remove the clips.
Remove the bolt A and bolts B.
1.
2.
118
１２／１０／３１ １３：４８：４８ ３１ＭＪＧ６００ ０１４１
135
Clip Removal
Servicing Your Honda
Removal
Press down on the center pin to release the lock.
Pull the clip out of the hole.
Installation
Push the bottom of the pin.
Insert the clip into the hole.
Lightly press down on the center pin to lock the clip.
1.
2.
1.
2.
3.
1. 2.
1.
2. 3.
１２／１０／３１ １３：４８：５５ ３１ＭＪＧ６００ ０１４２
unleaded
86 (or higher)
type
pump octane number
136
Fuel Recommendation
Fuel
Servicing Your Honda
Safety PrecautionsRefer to on page .
Use only unleaded fuel in your Honda. Use of leaded fuel will damage the
catalytic converter(s). If you ride your Honda in a country where leaded fuel
might be available, use precautions to use only unleaded fuel.
Your engine is designed to use any unleaded gasoline that has a pump octane
number of 86 or higher. Gasoline pumps at service stations normally display the
pump octane number. For information on the use of oxygenated fuels,
see page .
Use of lower octane gasoline can cause persistent ‘‘pinging’’ or ‘‘spark knock’’
(a loud rapping noise) which, if severe, can lead to engine damage. Light
pinging experienced while operating under a heavy load, such as climbing a hill,
is no cause for concern.
If pinging or spark knock occurs at a steady engine speed under normal load,
change brands of gasoline. If pinging or spark knock persists, consult your
dealer.
118
228
１２／１０／３１ １３：４９：０２ ３１ＭＪＧ６００ ０１４３
6.6 US gal (25 )
ignition key
fuel fill compartment
fuel fill cap
137
Fuel Capacity
Refueling Procedure
Fuel
Servicing Your Honda
Safety Precautions
Never use stale or contaminated gasoline or an oil/gasoline mixture. Avoid
getting dirt, dust, or water in the fuel tank.
Fuel tank capacity, including reserve:
Refer to on page .
The tank should be refilled as soon as possible when the fuel gauge needle
enters the red band.
Insert the ignition key in the fuel fill compartment and turn it clockwise.
Open the fuel fill compartment.
Turn the fuel fill cap counterclockwise and remove it.
(cont’d)
1.
2.
3.
118
１２／１０／３１ １３：４９：１１ ３１ＭＪＧ６００ ０１４４
Gasoline is highly flammable
and explosive. You can be
burned or seriously injured
when handling fuel.
Stop the engine and keep
heat, sparks and flame away.
Handle fuel only outdoors.
Wipe up spills immediately.
filler neck
138
Fuel
Servicing Your Honda
Add fuel until the level reaches the bottom of the filler neck.
Avoid overfilling the tank. There should be no fuel in the filler neck.
After refueling, be sure to tighten the fuel fill cap firmly by turning it
clockwise until it clicks.
Close the fuel fill compartment.
Remove the key from the fuel fill compartment.
4.
5.
6.
7.
１２／１０／３１ １３：４９：１６ ３１ＭＪＧ６００ ０１４５
139
Engine Oil & Filter
Servicing Your Honda
Engine oil quality is a major factor that affects both the performance and the
service life of the engine.
Using the proper oil (page ) and filter, and regularly checking, adding, and
changing oil will help extend your engine’s life. Even the best oil wears out.
Changing oil helps get rid of dirt and deposits in the engine. Operating the
engine with old or dirty oil can damage your engine. Running the engine with
insufficient oil can cause serious damage to the engine and transmission.
Change the engine oil as specified in the maintenance schedule on page .
When running in very dusty conditions, oil changes should be performed more
frequently than specified in the maintenance schedule.
140
122
１２／１０／３１ １３：４９：２１ ３１ＭＪＧ６００ ０１４６
＊
＊
SG or higher except oils labeled as energy
conserving or resource conserving on the
circular API service label
Pro Honda GN4 4-stroke oil (USA &
Canada), or Honda 4-stroke oil, or an
equivalent motorcycle oil.
MA
SAE 10W-30
suggested oil
OKNOT RECOMMENDED
API classification
JASO T 903 standard
viscosity (weight)
140
Oil Recommendation
Engine Oil & Filter
Servicing Your Honda
Do not use non-detergent, vegetable, or castor based racing oils.
Do not use API SH or higher oils displaying a circular API ‘‘energy
conserving’’ or ‘‘resource conserving’’ service label on the container. They
may affect lubrication and clutch performance.
Do not use oils with graphite or molybdenum additives. They may
adversely affect clutch operation.
Your motorcycle does not need oil additives. Use the recommended oil.
Suggested oils are equal in performance to SJ oils that are not labeled as
energy conserving or resource conserving on the circular API service label.
１２／１０／３１ １３：４９：３２ ３１ＭＪＧ６００ ０１４７
oil classification
oil code
141
Engine Oil & Filter
Servicing Your Honda
Other viscosities shown in the following chart may be used when the average
temperature in your riding area is within the indicated range.
JASO T 903 standard
The JASO T 903 standard is an index for engine oils for 4-stroke motorcycle
engines.
There are two classes: MA and MB.
Oil conforming to the standard is labeled on the oil container. For example, the
following label shows the MA classification.
１２／１０／３１ １３：４９：３８ ３１ＭＪＧ６００ ０１４８
−
−
−
−
RIGHT SIDE
lower level mark
upper level mark
oil fill cap/dipstick
(Models equipped with center stand)
(Models not equipped with center stand)
(Models not equipped with center stand)
142
Checking & Adding Oil
Engine Oil & Filter
Servicing Your Honda
Safety PrecautionsRefer to on page .
Check for oil leaks.
Reinstall the right engine side cover.
Reinstall the oil fill cap/dipstick.
If the oil is at or near the upper level mark you do not have to add oil.
If the oil is below or near the lower level mark add the recommended oil
until it reaches the upper level mark. (Do not overfill.)
Remove the oil fill cap/dipstick and check the oil level.
Insert the oil fill cap/dipstick until it seats, but don’t screw it in.
Remove the oil fill cap/dipstick and wipe it clean.
Park your motorcycle on its center stand on a firm, level surface.
Park your motorcycle on its side stand on a firm, level surface.
Remove the right engine side cover (page ).
Start the engine and let it idle for 3 5 minutes. Make sure the low oil
pressure indicator goes off. If the indicator remains on, stop the engine
immediately.
Stop the engine and wait 2 3 minutes.
Hold the motorcycle in an upright position.
9.
8.
7.
6.
5.
4.
3.
2.
1.
1.
118
10.
132
11.
１２／１１／０５ １５：４２：１１ ３１ＭＪＧ６００ ０１４９
−
−
FRONT, UNDER ENGINE
sealing washer
engine oil drain bolt
(Models equipped with center stand)
(Models not equipped with center stand)
143
Changing Engine Oil & Filter
Engine Oil & Filter
Servicing Your Honda
Safety Precautions
Using the wrong oil filter may result in leaks or engine damage.
Drain the Engine Oil:
Refer to on page .
Your motorcycle’s oil filter has very specific performance requirements. Use a
new Honda Genuine oil filter or a filter of equal quality specified for your
model.
This procedure requires mechanical skill and professional tools such as a torque
wrench and oil filter wrench, as well asa means for disposing of the drained
fluid (page ). If you do not have the skills or the tools, see your dealer.
(cont’d)
To drain the oil, remove the oil fill cap/dipstick, engine oil drain bolt, and
sealing washer.
Place a drain pan under the engine oil drain bolt.
Remove the front lower cover (page ).
If the engine is cold, start it and let it idle for 3 5 minutes. Turn the engine
off. Wait 2 3 minutes for the oil to settle.
Park your motorcycle on its center stand on a firm, level surface.
Park your motorcycle on its side stand on a firm, level surface.
2.
3.
4.
5.
1.
1.
118
185
134
１２／１０／３１ １３：５０：０３ ３１ＭＪＧ６００ ０１５０
19 lbf·ft (26 N·m , 2.7 kgf·m)
25 lbf·ft (34 N·m , 3.5 kgf·m)
LEFT FRONT, UNDER ENGINE
oil filter oil filterrubber seal
144
Engine Oil & Filter
Servicing Your Honda
Install a New Oil Filter:
Improper disposal of drained fluids is harmful to the environment.
Pour the drained oil into a suitable container and dispose of it in an approved
manner (page ).
Apply a thin coat of engine oil to the rubber seal of a new oil filter.
Remove the oil filter with a filter wrench and let the remaining oil drain out.
Discard the oil filter in an approved manner (page ).
Install the new oil filter and tighten it by hand.
Using an oil filter wrench attachment and a torque wrench, tighten the new oil
filter to the specified torque:
Install a new sealing washer onto the drain bolt.
Install the engine oil drain bolt and tighten it to the specified torque:
6.
7.
8.
9.
10.
11.
185
185
１２／１０／３１ １６：０３：２３ ３１ＭＪＧ６００ ０１５１
−
−
3.9 US qt (3.7
)
145
Engine Oil & Filter
Servicing Your Honda
Add Engine Oil:
Fill the crankcase with the recommended oil (page ), approximately:
Install the oil fill cap/dipstick securely.
Check that there are no oil leaks.
If a torque wrench is not used for installation, see your dealer as soon as
possible to verify proper assembly.
Check that the oil level is at upper level mark on the dipstick (page ).
Start the engine and let it idle for 3 5 minutes.
Stop the engine and wait 2 3 minutes.
12.
13.
14.
15.
16.
17.
142
140
１２／１０／３１ １３：５０：２２ ３１ＭＪＧ６００ ０１５２
146
Coolant Recommendation
Coolant
Servicing Your Honda
Using coolant with silicate inhibitors may cause premature wear of water pump
seals or blockage of radiator passages. Using tap water may cause engine
damage.
Your motorcycle’s liquid cooling system dissipates engine heat through the
coolant jacket that surrounds the cylinder and cylinder head.
Maintaining the coolant will allow the cooling system to work properly and
prevent freezing, overheating, and corrosion.
Use Pro Honda HP coolant or an equivalent high quality ethylene glycol
antifreeze containing corrosion protection inhibitors specifically recommended
for use in aluminum engines. Check the antifreeze container label.
Use only distilled water as a part of the coolant solution. Water that is high in
mineral content or salt may be harmful to the aluminum engine.
The factory provides a 50/50 solution of antifreeze and water in this motorcycle.
This coolant solution is recommended for most operating temperatures and
provides good corrosion protection.
Decreasing the concentration of antifreeze to less than 40% will not provide
proper corrosion protection.
Increasing the concentration of antifreeze is not recommended because it
decreases cooling system performance. Higher concentrations of antifreeze (up
to 60%) should only be used to provide additional protection against freezing.
Check the cooling system frequently during freezing weather.
１２／１０／３１ １３：５０：２９ ３１ＭＪＧ６００ ０１５３
LEFT SIDE
upper level
lower level
reserve tank cap/dipstick
(Models not equipped with center stand)
147
Checking & Adding Coolant
Coolant
Servicing Your Honda
Safety PrecautionsRefer to on page .
Remove the left engine side cover (page ).
Reinstall the left engine side cover.
Always add coolant to the reserve tank. Do not attempt to add coolant by
removing the radiator cap.
Add coolant to the reserve tank as required to bring the coolant level to the
upper level mark.
If the reserve tank is empty, or if coolant loss is excessive, check for leaks
and see your dealer for repair.
With the engine at normal operating temperature, remove the reserve tank
cap/dipstick and check the coolant level.
Hold the motorcycle in an upright position.
1.
2.
3.
4.
118
132
5.
１２／１１／０５ １５：４２：２０ ３１ＭＪＧ６００ ０１５４
Removing the radiator cap while
the engine is hot can cause the
coolant to spray out, seriously
scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
148
Coolant Replacement
Coolant
Servicing Your Honda
Safety Precautions
You & the Environment,
Improper disposal of drained fluids is harmful to the environment.
Refer to on page .
Coolant should be replaced by your dealer, unless you have the proper tools and
service data and are mechanically qualified. Refer to the official Honda Service
Manual (page ).
To properly dispose of drained coolant, refer to
page .
118
230
185
１２／１０／３１ １３：５０：４３ ３１ＭＪＧ６００ ０１５５
LEFT SIDE
crankcase breather tube plug
149
Draining
Crankcase Breather
Servicing Your Honda
Safety PrecautionsRefer to on page .
Service the crankcase breather more frequently if your motorcycle is ridden in
the rain or often at full throttle. Service the breather if you can see deposits in
the transparent section of the drain tube.
Remove the left cylinder head side cover (page ).
Place a drain pan under the crankcase breather tube plug.
Remove the plug to drain the deposits in the tube.
Reinstall the crankcase breather tube plug.
Reinstall the left cylinder head side cover.
1.
2.
3.
4.
5.
118
133
１２／１０／３１ １３：５０：５０ ３１ＭＪＧ６００ ０１５６
type
viscosity (weight) SAE 80
hypoid gear oil
lower edge
RIGHT REAR
oil fill cap
(Models equipped with center stand)
(Models not equipped with center stand)
150
Checking & Adding Oil
Oil Recommendation
Final Drive Oil
Servicing Your Honda
Safety PrecautionsRefer to on page .
Remove the oil fill cap.
Check the oil level. It should be flush with the lower edge of the oil fill hole.
If the level is low, check for oil leaks. Add the recommended oil through the
oil fill hole until it reaches the lower edge of the opening.
Install the oil fill cap.
Place the motorcycle on itscenter stand on a firm, level surface.
Hold the motorcycle upright on firm level ground.
1.
2.
3.
4.
5.
1.
118
１２／１０／３１ １３：５１：００ ３１ＭＪＧ６００ ０１５７
4.1 US oz (120 cm )
15 lbf·ft (20 N·m , 2.0 kgf·m)
RIGHT REAR
drain boltsealing washer
oil fill cap
lower edge
(Models equipped with center stand)
(Models not equipped with center stand)
151
Changing Oil
Final Drive Oil
Servicing Your Honda
Safety Precautions
Improper disposal of drained fluids is harmful to the environment.
Refer to on page .
Install the oil fill cap.
Make sure the final drive oil level is at the lower edge of the oil fill inspection
hole.
Fill the final drive with the recommended oil:
Place a drain pan under the drain bolt.
Remove the oil fill cap, drain bolt and sealing washer.
After the oil has completely drained, check that the sealing washer is in good
condition. Reinstall the drain bolt with its sealing washer (or a new washer, if
necessary) and tighten it to the specified torque:
Pour the drained oil into a suitable container and dispose of it in an approved
manner (page ).
Change the oil with the final drive at normal operating temperature to assure
complete and rapid draining.
Place the motorcycle on itscenter stand on a firm, level surface.
Hold the motorcycle upright on firm level ground.1.
2.
3.
4.
5.
6.
7.
1.
118
185
１２／１０／３１ １３：５１：１２ ３１ＭＪＧ６００ ０１５８
LEFT HANDLEBAR
adjuster dial
index mark
clutch lever
152
Clutch Lever Adjustment
Clutch System
Servicing Your Honda
Safety Precautions
Your motorcycle has a hydraulically-actuated clutch. There are no adjustments
to perform, but the clutch system must be inspected periodically for fluid level
and leakage.
Turn the adjuster dial while pushing the clutch lever forward.
Align the index mark on the clutch lever with the numbers on the adjuster dial.
Start the engine, pull the clutch lever in, and shift into gear. Make sure the
engine does not stall and the motorcycle does not creep. Gradually release the
clutch lever and open the throttle. Your motorcycle should move smoothly
and accelerate gradually.
If the motorcycle creeps or stalls when shifted into gear, or if the clutch slips,
causing acceleration to lag behind engine speed, there is probably air in the
clutch system. See your dealer to have the air bled out of the system.
Refer to on page .
The distance between the tip of the clutch lever and the grip may be adjusted.
1.
2.
3.
118
１２／１０／３１ １３：５１：２１ ３１ＭＪＧ６００ ０１５９
LEFT HANDLEBAR
LOWER level mark
153
Fluid Level Inspection
Other Inspections
Clutch System
Servicing Your Honda
Safety PrecautionsRefer to on page .
Check that the fluid level is above the LOWER level mark. If the fluid level is
below the LOWER level mark, it indicates fluid leakage. See your dealer for
repair.
Make sure there are no fluid leaks.
Check for deterioration or cracks in the hose and fittings.
Check that the clutch lever assembly is positioned properly and the securing
bolts are tight.
118
１２／１０／３１ １３：５１：２９ ３１ＭＪＧ６００ ０１６０
BKR6E-11 (NGK)
BKR5E-11 (NGK)
BKR7E-11 (NGK)
K20PR-U11 (DENSO)
K16PR-U11 (DENSO)
K22PR-U11 (DENSO)
or
or
or
standard spark
plug
for cold climate
(below 5°C, 41°F)
for extended high
speed riding
spark plug wrench
spark plug cap
154
Spark Plug Recommendation
Spark Plug Replacement
Spark Plugs
Servicing Your Honda
Using spark plugs with an improper heat range can cause engine damage.
Safety Precautions
Use only the recommended type of spark plugs in the recommended heat range.
Refer to on page .
Remove the left and right cylinder head side cover (page ).
Clean any dirt from around the spark plug bases.
Disconnect the spark plug caps. Take care to avoid damaging the spark plug
wire when disconnecting the caps.
Using a spark plug wrench provided in the tool kit (Canada only), remove the
spark plugs.
1.
2.
3.
4.
118
133
１２／１０／３１ １３：５１：４１ ３１ＭＪＧ６００ ０１６１
spark plug gap
side electrode
155
Spark Plugs
Servicing Your Honda
An improperly tightened spark plug can damage the engine. If a plug is too
loose, a piston may be damaged. If a plug is too tight, the threads may be
damaged.
Discard the spark plugs.
With the plug washers attached, install the spark plugs in by hand to prevent
cross-threading.
Tighten each spark plug:
If the old plug is good:
1/8 turn after it seats.
If installing a new plug, tighten it twice to prevent loosening:
First, tighten the plug:
NGK: turn after it seats.
DENSO: turn after it seats.
Then loosen the plug.
Next, tighten the plug again:
1/8 turn after it seats.
Reinstall the spark plug caps. Take care to avoid pinching any cables or wires.
Reinstall the left and right cylinder head side covers.
1/2
3/4
a)
c)
b)
5.
6.
7.
8.
9.
１２／１０／３１ １３：５１：５０ ３１ＭＪＧ６００ ０１６２
156
Rear Suspension Adjustment
Suspension
Servicing Your Honda
Your front and rear suspension systems use springs and hydraulic damping
devices that suspend your weight and most of the weight of your motorcycle.
The spring pre-load for your rear suspension system adjusts the amount of force
required to begin compression of the spring.
The oil damper systems hydraulically control the natural compression and
rebound of the suspension springs so that traction and comfort are maintained as
the wheels ride over road surfaces.
Lower spring pre-load provides a softer ride and is usually preferred for light
loads and smooth roads. Higher spring pre-load provides a firmer ride and is
recommended for heavy loads, rough road conditions, and faster, more
challenging riding.
The rear suspension can be adjusted for rider (and passenger) weight and riding
conditions by changing the spring pre-load.
Do not attempt to disassemble, service, or dispose of the damper; see your
dealer. The instructions found in this owner’s manual are limited to adjustments
of the shock assembly only.
Consider adjusting your rear suspension pre-load whenever you change your
normal load, when adding or subtracting a passenger, cargo, or accessories, or
when the road or riding conditions change.
The way you ride your motorcycle and the type of ride you want to experience
can also influence your suspension needs.
１２／１０／３１ １３：５１：５８ ３１ＭＪＧ６００ ０１６３
adjuster knob
LEFT SIDE
157
Rear Suspension Spring Pre-load Adjustment
Suspension
Servicing Your Honda
Safety Precautions
To Increase Spring Pre-load (HIGH):
To Reduce Spring Pre-load (LOW):
Refer to on page .
The spring pre-load adjuster knob has spring pre-load positions (clicks) or
more for different load or riding conditions.
To adjust the spring pre-load, turn the adjuster knob.
For a firmer ride and rough road conditions, turn the adjuster clockwise toward
HIGH.
For a light load and smooth road conditions, turn the adjuster counterclockwise
toward LOW.
To adjust to the standard position:
Turn the adjuster clockwise for 1 click. This is the standard position.
Turn the spring pre-load adjuster knob counterclockwise until it will no longer
turn (lightly seats).
This is the full LOW setting.
1.
2.
35
118
１２／１０／３１ １６：０３：３３ ３１ＭＪＧ６００ ０１６４
RIGHT HANDLEBAR
brake lever
index mark
adjuster dial
158
Front Brake Lever Adjustment
Brakes
Servicing Your Honda
Safety Precautions
The hydraulic braking systems on your motorcycle dissipate the heat generated
by the friction of the brake pads on the brake discs as the wheels are slowed.
As the brake pads wear, the brake fluid level will drop. A leak in the system will
also cause the level to drop.
Frequently inspect the system to ensure there are no fluid leaks. Periodically
inspect the brake fluid level and the brake pads for wear.
If the brake lever or brake pedal freeplay does not feel within the normal range
while riding, check the brake pads for wear (page ). Worn pads should be
replaced. If the pads are not worn beyond the recommended limit, there is
probably air in the brake system. See your dealer to have the air bled from the
system.
Refer to on page .
The distance between the tip of the brake lever and the grip may be adjusted.
Turn the adjuster dial while pushing the brake lever forward.
Align the index mark on the brake lever with the numbers on the adjuster dial.
Apply the brake, release it, then spin the wheel and check that it rotates freely.
Repeat this procedure several times.
1.
2.
3.
118
161
１２／１０／３１ １３：５２：１６ ３１ＭＪＧ６００ ０１６５
Honda DOT 4 Brake Fluid
brake fluid
Clean filler cap before removing.
Use only DOT4 fluid from a
sealed container.
159
Brake Fluid Recommendation
Fluid Level Inspection
Brakes
Servicing Your Honda
Brake fluid can damage plastic and painted surfaces. Handle with care.
Safety Precautions
The recommended brake fluid is Honda DOT 4 Brake Fluid, or any brake fluid
of equal quality and performance. Use fresh brake fluid from a sealed container.
Be sure to read the label before opening the sealed container. An opened
container may be contaminated or may have absorbed moisture from the air.
Wipe up spills immediately. Avoid brake fluid contact with skin or eyes. If it
comes in contact with your eyes, wash them out with clean water and
immediately call a doctor. If it comes in contact with your skin, wash with clean
water and, if necessary, call a doctor.
Do not add or replace brake fluid, except in an emergency. If you do add fluid,
have your dealer check the system as soon as possible.
If your inspection indicates a low fluid level, have your dealer add the
recommended brake fluid.
Refer to on page .118
１２／１０／３１ １３：５２：２４ ３１ＭＪＧ６００ ０１６６
RIGHT HANDLEBAR
(Front Brake)
RIGHT SIDE
(Rear Brake)
LOWER level mark UPPER level mark
LOWER level mark
160
Brakes
Servicing Your Honda
Place your motorcycle in an upright position on a firm, level surface.
Check the fluid level.
Front: It should be above the LOWER level mark.
Rear: It should be between the UPPER and LOWER level marks.
If the level is at or below the LOWER level mark, check the brake pads for
wear.
Worn pads should be replaced. If the pads are not worn beyond the
recommended limit, have your brake system inspected for leaks.
Check for deterioration or cracks in the hoses and fittings.
Make sure there are no fluid leaks.
Other Inspections
1.
2.
１２／１０／３１ １３：５２：３２ ３１ＭＪＧ６００ ０１６７
LEFT FRONT (right side similar)
RIGHT REAR
grooves
cutouts
161
Brake Pad Wear
Brakes
Servicing Your Honda
Safety PrecautionsRefer to on page .
Front Brake
Always inspect both pads in both the right and left front brake calipers.
Rear Brake
Check the grooves in each pad. If either pad is worn to the bottom of the
grooves, replace both pads as a set. See your dealer for this service.
Brake pad wear depends upon the severity of usage, the type of riding, and road
conditions. Generally, the pads will wear faster on wet and dirty roads. Inspect
the pads at each regular maintenance interval (page ).
Check the cutouts in each pad. If either pad is worn to the cutout, replace both
pads as a set. See your dealer for this service.
118
123
１２／１０／３１ １３：５２：４０ ３１ＭＪＧ６００ ０１６８
LEFT FRONT
LEFT REAR
brake caliper
(Models equipped with center stand)
(Models not equipped with center stand)
162
Brake System Inspection
Brakes
Servicing Your Honda
Safety PrecautionsRefer to on page .
Move the left caliper assembly upward while slowly rotating the rear wheel.
The brake system is normal if the rear wheel stops. If the rear wheel does not
stop, see your dealer.
Support the motorcycle securely, raise the rear wheel off the ground.
Place the motorcycle on its center stand, stop the engine, and place the
transmission in neutral.
Place the motorcycle on its side stand, stop the engine, and place the
transmission in neutral.
1.
2.
1.
118
１２／１０／３１ １３：５２：４８ ３１ＭＪＧ６００ ０１６９
Using tires that are excessively
worn or improperly inflated
cancauseacrashinwhichyou
can be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
163
Tires
Servicing Your Honda
To safely operate your motorcycle, your tires must be the proper type and size,
in good condition with adequate tread, and correctly inflated for the load you are
carrying.
The following pages give detailed information on how and when to check your
air pressure, how to inspect your tires for wear and damage, and our
recommendations for tire repair and replacement.
１２／１０／３１ １３：５２：５２ ３１ＭＪＧ６００ ０１７０
36 psi (250 kPa , 2.50 kgf/cm )
41 psi (280 kPa , 2.80 kgf/cm
)
front
rear
164
Air Pressure
Tires
Servicing Your Honda
Safety PrecautionsRefer to on page .
Properly inflated tires provide the best combination of handling, tread life, and
riding comfort. Generally, underinflated tires wear unevenly, adversely affect
handling, and are more likely to fail from being overheated. Overinflated tires
make your motorcycle ride harshly, are more prone to damage from road
hazards, and wear unevenly.
We recommend that you visually check your tiresbefore every ride and use an
air pressure gauge to measure the air pressure at least once a month or any time
you think the tires might be low. Even tires that are in good condition may lose
one to two psi per month if not checked and adjusted regularly.
Tubeless tires have some degree of self-sealing ability if they are punctured.
However, because leakage is often very slow, you should look closely for
punctures whenever a tire is not fully inflated.
Always check air pressure when your tires are ‘‘cold’’, after the motorcycle has
been parked for at least three hours. If you check air pressure when your tires
are ‘‘warm’’ –– even if your motorcycle has only been ridden for a few miles ––
the readings will be higher. If you let air out of warm tires to match the
recommended cold pressures, the tires will be underinflated.
The recommended ‘‘cold’’ tire pressures are:
118
１２／１０／３１ １３：５３：００ ３１ＭＪＧ６００ ０１７１
0.06 in (1.5 mm)
0.08 in (2.0 mm)
front
rear
wear indicator
wear indicator location
mark
165
Inspection
Tires
Servicing Your Honda
Safety PrecautionsRefer to on page .
Whenever you check the tire pressures, you should also look for:
Also, if you hit a pothole or hard object while riding, pull to the side of the road
as soon as you safely can and carefully inspect the tires for damage.
For the best performance, you should replace a tire before the tread depth at the
center reaches the following limits:
If the wear indicators are visible, replace the tire immediately as it is no longer
safe.
Bumps or bulges in the side of the tire or the tread. Replace any tire that has a
bump or bulge.
Cuts, slits, or cracks in the tires.
Replace the tire if you can see fabric or cord.
Nails or other foreign objects embedded in the side of the tire or tread.
Excessive tread wear.
118
１２／１０／３１ １３：５３：１１ ３１ＭＪＧ６００ ０１７２
×××× −
×××× −
−
−
×××× ××××
TIRE LABELING EXAMPLE
(1)
(1) tire identification number (TIN)
166
Tire Service Life
Tires
Servicing Your Honda
Factory code
Tire type code
22 07 Date of manufacture
DOT This indicates that the tire meets all requirements of the U.S.
Department of Transportation.
DOT 22 07
The tire identification number
(TIN) is a group of numbers and letters that look like the following example.
The TIN is located on the sidewall of the tire.
Tire Identification Number (TIN)
The service life of your tires is dependent on many factors, including, but not
limited to, riding habits, road conditions, vehicle loading, tire pressure,
maintenance history, speed, and environmental conditions (even when the tires
are not in use).
In addition to your regular inspections and tire pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach 5
years old. It isalso recommended that all tires be removed from service after 10
years from the date of manufacture, regardless of their condition or state of
wear.
The last four digits of the TIN (tire identification number) ( ) are found on the
sidewall of the tire, and indicate the date of manufacture.
(2)
(3)
(4)
Year
Week
(3)(2) (4)
1
１２／１０／３１ １３：５３：１９ ３１ＭＪＧ６００ ０１７３
167
Tire Repair
Tires
Servicing Your Honda
Safety Precautions
If You Have a Flat Tire,
Refer to on page .
We strongly recommend that you replace, not repair, any tire that is punctured or
damaged. As discussed below, a tire that is repaired, either temporarily or
permanently, will have lower speed and performance limits than a new or
undamaged tire.
A temporary repair can sometimes be made in an emergency situation.
However, since a temporary repair may not hold, you must ride very slowly,
preferably without any cargo or passenger, and have the tire replaced or
permanently repaired as soon as possible.
(For more information on temporary repairs, see
page .)
118
192
１２／１０／３１ １３：５３：２４ ３１ＭＪＧ６００ ０１７４
Installing improper tires on your
motorcycle can affect handling
and stability. This can cause a
crash in which you can be
seriously hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
168
Tire Replacement
Tires
Servicing Your Honda
Safety Precautions
A permanent repair, such as an internal plug patch, can be made if a tire has only
a small puncture in the tread area. With such a repair, you should not exceed
50 mph (80 km/h) for the first 24 hours, or 80 mph (130 km/h) at any time
thereafter. In addition, you may not be able to safely carry as much weight. If
you choose to have a tire repaired, be sure the repair work is performed by a
professional and that the wheel is balanced before you ride.
Refer to on page .
The tires that came on your motorcycle were designed to match the performance
capabilities of your motorcycle and provide the best combination of handling,
braking, durability, and comfort.
If you have a tire professionally repaired at a non-Honda facility, we
recommend that you have the work checked by your Honda dealer.
When replacing, use the original equipment tires or equivalent tires of the same
size, construction, speed rating, and load range as the originals.
118
１２／１０／３１ １３：５３：３１ ３１ＭＪＧ６００ ０１７５
130/70R18M/C 63HBRIDGESTONE G709 RADIAL
BRIDGESTONE G704 RADIAL 180/60R16M/C 74H
radial, tubeless
front
rear
type
169
Tires
Servicing Your Honda
The recommended tires for your motorcycle are:
Whenever you replace a tire, remember:
Have the wheel balanced after the tire is installed.
Have the tire replaced by your dealer.
Important Safety Reminders
Do not install a tube inside a tubeless tire on this motorcycle. Excessive heat
build-up can cause the tube to burst.
Use only tubeless tires on this motorcycle. The rims are designed for tubeless
tires, and during hard acceleration or braking, a tube-type tire could slip on
the rim and cause the tire to rapidly deflate.
Do not install car tires on this motorcycle. During installation the tire may
separate from the rim with enough force to cause serious injury or death.
When replacing tires, use only the recommended tires asshown above and on
the tire information label. Use of other tires on the model equipped with ABS
may impair proper ABS function. The ABS computer works by comparing
wheel speed.
Non-recommended tires can affect wheel speed and may confuse the ABS
computer.
１２／１０／３１ １３：５３：４２ ３１ＭＪＧ６００ ０１７６
LEFT SIDE
stand spring
170
Side Stand
Servicing Your Honda
Safety PrecautionsRefer to on page .
Check that the side stand assembly is working properly. If the side stand is
stiff or squeaky, clean the pivot area and lubricate the pivot bolt with clean
grease.
Check the side stand ignition cut-off system:
Sit on the motorcycle and put the transmission in neutral.
Raise the side stand.
Shift the transmission into gear.
Lower the side stand all the way.
Start the engine.
Pull the clutch lever in.
The engine should stop as you lower the side stand. If the engine doesn’t stop,
see your dealer for service.
Check the side stand spring for damage or loss of tension.
1.
2.
3.
4.
5.
6.
118
１２／１０／３１ １３：５３：５２ ３１ＭＪＧ６００ ０１７７
171
WARNING:
Wash your hands after handling.
Battery
Servicing Your Honda
Your battery is a maintenance-free type and can be permanently damaged if
the cap strip is removed.
Battery Charging,
Battery Storage,
Your motorcycle has a maintenance-free type battery. You do not have to check
the battery electrolyte level or add distilled water as you would with a
conventional-type battery.
Electrical accessories use current from the battery, even when the ignition is
OFF. Limited operation also allows the battery to discharge. If you have
electrical accessories on your motorcycle or do not ride frequently, we
recommend that you charge the battery frequently (see
page ).
If you do not expect to ride your motorcycle for at least two weeks, we
recommend you remove the battery, or at least disconnect the battery cables
(negative cable first).
If you plan to store your motorcycle, see page .
If your battery seems weak and/or is leaking electrolyte (causing slow starting or
other electrical problems), see your dealer.
Battery posts, terminals and related accessories contain lead and
lead compounds.
174
172
１２／１０／３１ １３：５３：５８ ３１ＭＪＧ６００ ０１７８
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.
172
Battery Storage
Battery
Servicing Your Honda
Safety Precautions
Battery Charging,
Refer to on page .
If you plan to store your motorcycle, we recommend you remove the battery and
store it where it can be charged at least every 30 days to maintain its service life.
If you do not remove the battery, we recommend disconnecting the battery
cables (negative cable first).
You will get the best storage results from removing the battery and slow
charging it every 30 days (see page ).
Before you remove the battery, be sure to read all the information that follows,
as well as the information on the battery label.
174
118
１２／１０／３１ １３：５４：０５ ３１ＭＪＧ６００ ０１７９
＋
−
＋
−
−
＋
LEFT SIDE
clip
negative ( ) terminal lead
battery box cover battery holder
battery plate
bolt
positive ( ) terminal lead
173
Battery
Servicing Your Honda
The battery is located in the battery box behind the left side cover.
Check all bolts and other fasteners are secure.
Reinstall in the reverse order of removal. Be sure to connect the positive ( )
terminal first, then the negative ( ) terminal.
Installation
Slow charge the battery (see following section) once every 30 days.
Clean the battery box after removing the battery for storage. Dry the battery
box and, if paint is missing, re-paint the area.
Store your battery in an easy-to-reach location off the floor, in an area
protected from freezing temperatures and direct sunlight.
Charge the battery (see following section), unless you have been riding
regularly.
Be careful to avoid damaging the cover under the battery box when you
remove the battery.
Pull the battery out of the battery box.
Disconnect the positive ( ) terminal lead.
Remove the bolt and open the battery holder.
Disconnect the negative ( ) terminal lead from the battery first.
Pull the clip and remove the battery plate.
Remove the left side cover (page ).
Make sure the ignition switch is OFF.
Removal
After turning the ignition switch OFF, wait more than 10 seconds and then
remove the negative cable of the battery.
1.
2.
10.
9.
8.
7.
6.
5.
4.
3.
2.
1.
11.
131
１２／１１／０７ １７：０１：４５ ３１ＭＪＧ６００ ０１８０
charger
174
Battery Charging
Battery
Servicing Your Honda
Safety PrecautionsRefer to on page .
Be sure to read the information that came with your battery charger and follow
the instructions on the battery. Improper charging may damage the battery.
We recommend using a charger designed specifically for your Honda, which
can be purchased from your dealer. These units can be left connected for long
periods without risking damage to the battery. However, do not intentionally
leave the charger connected longer than the time period recommended in the
charger’s instructions.
Avoid using an automotive-type battery charger. An automotive charger can
overheat a motorcycle battery and cause permanent damage.
118
１２／１０／３１ １３：５４：２７ ３１ＭＪＧ６００ ０１８１
−
−
−
−
175
General Recommendations
Appearance Care
Servicing Your Honda
Safety Precautions
High pressure water (or air) can damage certain parts of your motorcycle.
Frequent cleaning and polishing will keep your Honda looking newer longer.
Frequent cleaning also identifies you as an owner who values your motorcycle.
A clean motorcycle isalso easier to inspect and service.
Refer to on page .
To clean your motorcycle, you may use:
Avoid products that contain harsh detergents or chemical solvents that could
damage the metal, paint, and plastic on your motorcycle.
If your motorcycle is still warm from recent operation, give the engine and
exhaust system time to cool off.
Park in a shady area. Washing your motorcycle in bright sunlight may cause
the finish to fade because water droplets intensify the sun’s brightness.
Spotting is also more likely because surface water can dry before you have
time to wipe it off.
Clean your motorcycle regularly to protect surface finishes.
After cleaning, inspect for damage, wear, and leaks (fuel, oil, coolant, brake,
and clutch fluid).
The audio system is designed to be weatherproof unless it is sprayed directly
with hose.
We recommend the use of a garden hose to wash your motorcycle. High
pressure washers (like those at coin-operated car washes) can damage certain
parts of your motorcycle.
water
a mild, neutral detergent and water
a mild spray and wipe cleaner/polisher
a mild spray and rinse cleaner/degreaser and water
118
１２／１０／３１ １３：５４：３６ ３１ＭＪＧ６００ ０１８２
176
Washing Your Motorcycle with a Mild Detergent
Appearance Care
Servicing Your Honda
Safety PrecautionsRefer to on page .
Rinse your motorcycle thoroughly with cool water to remove loose dirt.
Fill a bucket with cool water. Mix in a mild, neutral detergent, such as dish
washing liquid or a product made especially for washing motorcycles or
automobiles.
Wash your motorcycle with a sponge or a soft towel. As you wash, check for
heavy grime. If necessary, use a mild cleaner/degreaser to remove the grime.
If the inside of the headlight lens appears clouded immediately after washing,
it should clear after a few minutes of riding.
After washing, rinse your motorcycle thoroughly with plenty of clean water
to remove any residue. Detergent residue can corrode alloy parts.
Dry your motorcycle with a chamois or a soft towel. Leaving water on the
surface to air dry can cause dulling and water spots. As you dry, inspect for
chips and scratches.
Start the engine and let it idle for several minutes. The engine heat will help
dry moist areas.
As a precaution, ride your motorcycle at a slow speed and apply the brakes
several times. This will help dry the brakes and restore normal braking
performance.
1.
3.
2.
4.
5.
6.
7.
118
１２／１０／３１ １３：５４：４５ ３１ＭＪＧ６００ ０１８３
177
Cleaning the Windscreen
Cleaning the Display and Light Lens
Appearance Care
Servicing Your Honda
Safety Precautions
To avoid possible scratching or other damage, use only water and a soft cloth
or sponge to clean the windscreen.
To avoid possible scratching or other damage, use only water and a soft cloth
or sponge to clean the display and light lens.
Refer to on page .
Using plenty of water, clean the windscreen with a soft cloth or sponge. (Avoid
using detergents or any kind of chemical cleaner on the windscreen.) Dry with a
soft, clean cloth.
For a dirtier windscreen, use a diluted neutral detergent with a sponge and plenty
of water. Make sure to wash off all the detergent. (Detergent residue may cause
windscreen cracks.)
Replace the windscreen if scratches cannot be removed and they obstruct clear
vision.
Take care to keep battery electrolyte, brake fluid, or other chemical solvents off
the windscreen and screen garnish. They will damage the plastic.
Take care to keep battery electrolyte, brake fluid, or other chemical solvents off
the display and light lens. They will damage the display and light lens.
Clean the display and light lens with a soft, damp cloth. You may use a mild
cleaner intended for eyeglasses or computer displays.
Harsher chemicals may damage the display and light lens.
118
１２／１０／３１ １３：５４：５４ ３１ＭＪＧ６００ ０１８４
Apply a spray cleaner/polish and wipe
with a non-abrasive cloth.
General cleaning.
Polishing paint,
chrome, glass, and
clear plastic. Dust.
Fingerprint smudges.
Light road grime. Spray any difficult-to-reach or very dirty
areas with a spray cleaner/degreaser.
Rinse and dry.
Apply a spray cleaner/polish and wipe
with a non-abrasive cloth.
Use a spray cleaner/degreaser.
If necessary, rub with a sponge. Rinse
and dry.
Apply a spray cleaner/polish and wipe
with a non-abrasive cloth.
Apply a high quality chrome/aluminum
polish and wipe with a non-abrasive cloth.
Heavy grime. Oil leaks.
Brake dust.
Dull, corroded chrome
or aluminum.
Motorcycle Condition Recommended Cleaning
178
Spray Cleaning Your Motorcycle
Appearance Care
Servicing Your Honda
Safety PrecautionsRefer to on page .
Avoid using spray cleaner products on the tires or suspension components.
Suggestions for using spray cleaner(s) follow:
118
１２／１０／３１ １３：５５：０４ ３１ＭＪＧ６００ ０１８５
179
Aluminum Wheel Maintenance
Clean the Matte Painted Surface
Appearance Care
Servicing Your Honda
Safety Precautions
Safety Precautions
Refer to on page .
Aluminum may corrode from contact with dirt, mud, or road salt. Clean the
wheels after riding through any of these substances. Use a wet sponge and mild
detergent, or a commercially-available spray cleaner/degreaser designed for use
on aluminum. Avoid stiff brushes, steel wool, or cleaners containing abrasives
or harsh chemical compounds.
After washing, rinse with plenty of water and dry with a clean cloth. Then apply
a mild, commercially-available spray cleaner/polish or wax.
For stained or dull-looking wheels, use a quality chrome/aluminum polish to
restore the finish.
After you finish cleaning the wheels, it’s important to check for and remove any
cleaner or polish residue found on the brake discs or pads. Use Honda Contact/
Brake Cleaner or an equivalent brake degreasing agent.
Refer to on page .
Use a soft cloth or sponge, plenty of water, and a mild detergent to clean the
matte paint. Dry with a soft, clean cloth.
Do not use polishing compounds or wax containing polishing compounds. These
can damage or discolor the matte painted surface.
To keep your Honda looking new, clean and polish it frequently.
118
118
１２／１０／３１ １３：５５：１２ ３１ＭＪＧ６００ ０１８６
180
Exhaust Pipe And Muffler Maintenance
Finishing Touches
Appearance Care
Servicing Your Honda
Safety Precautions
Safety Precautions
Refer to on page .
The exhaust pipe and muffler are stainless steel but may become stained by mud
or dust.
To remove mud or dust, use a wet sponge and a liquid kitchen abrasive, then
rinse well with clean water. Dry with chamois or a soft towel.
If necessary, remove heat stains by using a commercially available fine texture
compound. Then rinse by the same manner as removing mud or dust.
Refer to on page .
After washing your motorcycle, consider using a commercially available spray
cleaner/polish or quality liquid or paste wax to finish the job. Use only a non-
abrasive polish or wax made specifically for motorcycles or automobiles. Apply
the polish or wax according to the instructions on the container.
If a surface on your motorcycle is chipped or scratched, your dealer has touch-
up paint to match your motorcycle’s color. Be sure to use your motorcycle’s
color code (page ) when you buy touch-up paint.
If the frame has a chip that exposes the metal, first apply primer (to prevent
corrosion) and then apply the touch-up paint. Several thin layers of touch-up
paint are better than one thick coat.
118
215
118
１２／１０／３１ １３：５５：２０ ３１ＭＪＧ６００ ０１８７
181
Tips
Tips
Here’s a few helpful tips on how to store and transport your Honda, and how to
be an environmentally responsible motorcycle owner.
.........................................................................................Storing Your Honda .
........................................................................Transporting Your Motorcycle .
...................................................................................You & the Environment .
182
184
185
１２／１０／３１ １３：５５：２５ ３１ＭＪＧ６００ ０１８８
182
Preparation for Storage
Tips
Storing Your Honda
Honda Winter Storage Guide,
Safety Precautions
If you won’t be riding for an extended period, such as during the winter,
thoroughly inspect your motorcycle and correct any problem before storing it.
That way, needed repairs won’t be forgotten and it will be easier to get your
motorcycle running again.
For more information about storage, refer to the
available from your dealer (USA only).
We suggest you perform the following procedures to keep your motorcycle in
top condition. These storage procedures will reduce the deterioration that can
occur during storage.
Change the engine oil and filter (page ).
Make sure the cooling system is filled with a 50/50% antifreeze solution
(page ).
Fill the fuel tank. Make sure the fuel fill cap is properly installed.
To prevent rusting in the cylinders, perform the following:
Remove the spark plug caps from the spark plugs. Using tape or string,
secure the caps to any convenient plastic body part so that they are
positioned away from the spark plugs.
Remove the spark plugs from the engine and store them in a safe place. Do
not connect the spark plugs to the spark plug caps.
This procedure requires a means for draining and disposing of drained fuel
(page ).
Refer to on page .
1.
2.
3.
4.
185
143
146
118
１２／１０／３１ １３：５５：３５ ３１ＭＪＧ６００ ０１８９
−
183
Removal from Storage
Tips
Storing Your Honda
Safety Precautions
Pour a tablespoon (15 20 cc) of clean engine oil into each cylinder and
cover the spark plug holes with a piece of cloth.
With the engine stop switch in the RUN position, press the start button
several times to crank the engine and distribute the oil.
Reinstall the spark plugs and spark plug caps.
Remove the battery and charge it fully. Store it in an area protected from
freezing temperatures and direct sunlight. Slow charge the battery
(page ) once a month.
Wash and dry your motorcycle. Wax all painted surfaces. Apply rust-
inhibiting oil to the chrome pieces.
Inflate the tires to their recommended pressures (page ).
Store your motorcycle in an unheated area, free of dampness, away from
sunlight, with a minimum of daily temperature variation.
Cover your motorcycle with a porous material. Avoid using plastic or similar
non-breathing, coated materials that restrict air flow and allow heat and
moisture to accumulate.
Refer to on page .
Uncover and clean your motorcycle.
If your motorcycle has been stored for more than four months –– change the
engine oil (page ).
If your motorcycle has been stored for more than two months –– ask your
dealer to drain and replace the fuel.
Charge the battery (page ) as required. Install the battery.
Perform a pre-ride inspection (page ), then test-ride your motorcycle at
low speeds.
1.
2.
3.
4.
5.
5.
6.
7.
8.
9.
39
174
174
118
143
174
１２／１０／３１ １３：５５：４９ ３１ＭＪＧ６００ ０１９０
184
Tips
Transporting Your Motorcycle
If your motorcycle needs to be transported, it should be carried on a motorcycle
trailer, or a truck or trailer with a flatbed area. Do not tow your motorcycle, as
towing can seriously damage the transmission.
When contacting a towing or transporting service, be sure to ask if they have a
flatbed area, a loading ramp or power ramp to safely lift the motorcycle, and
motorcycle tie-down straps.
１２／１０／３１ １３：５５：５３ ３１ＭＪＧ６００ ０１９１
185
Tips
Recycle Wastes.
Choose Sensible Cleaners.
You & the Environment
Owning and riding a motorcycle can be enjoyable, but you must do your part to
protect nature.
Following are tips on how you can be an environmentally responsible
motorcycle owner.
It’s illegal and thoughtless to put used engine oil in the trash,
down a drain, or on the ground. Used oil, gasoline, coolant, and cleaning
solvents contain poisons that can hurt refuse workers and contaminate our
drinking water, lakes, rivers, and oceans. Before changing your oil, make sure
you have the proper containers. Put oil and other toxic wastes in separate
sealed containers and take them to a recycling center. Call your local or state
office of public works or environmental services to find a recycling center in
your area, and to get instructions on how to dispose of non-recyclable wastes.
Use a biodegradable detergent when you wash
your motorcycle. Avoid aerosol spray cleaners that contain
chlorofluorocarbons (CFCs) which damage the atmosphere’s protective ozone
layer. Don’t throw cleaning solventsaway; see the following guidelines for
proper disposal.
１２／１０／３１ １３：５５：５８ ３１ＭＪＧ６００ ０１９２
186
Tips
１２／１０／３１ １３：５６：００ ３１ＭＪＧ６００ ０１９３
187
Taking Care of the Unexpected
Taking Care of the Unexpected
This section discusses the more common problems that can occur with your
motorcycle while you’re riding. It tells you how to evaluate each problem and
what actions you can take to try to resume riding. If the problem cannot be
safely solved, this section also gives instructions on the proper way to have your
motorcycle transported.
For information about transporting your motorcycle, see page .
...........................................................................................General Guidelines .
...............................................................If Your Engine Quits or Won’t Start .
....................................................................................If You Have a Flat Tire .
................................................................................If Your Engine Overheats .
.........................................................If the Low Oil Pressure Indicator Lights .
.................................................................................................IfaFuseBlows .
.....................................................................................................If You Crash .
.....................................................................................If You Lose Your Key .
....................................................................If Your Battery Is Low (or Dead) .
184
188
189
192
203
205
206
209
210
211
１２／１０／３１ １３：５６：０９ ３１ＭＪＧ６００ ０１９４
188
General Guidelines
Taking Care of the Unexpected
Taking Care of the Unexpected
Keeping your motorcycle well-maintained is the best way to reduce the
possibility of having a problem on the road.
Should you ever have a problem while riding, please follow these guidelines:
Always put personal safety first.
Take time to assess the situation and your options before deciding what to do.
If the problem is relatively minor and you have the tools, supplies, and skills
to make a temporary repair, be sure to have permanent repairs made as soon
as possible.
Do not continue riding if you are hurt or your motorcycle is not in safe riding
condition.
Additional recommendations for specific problems follow.
Remember to take along your owner’s manual, the tool kit that came with your
motorcycle (Canada only), and any other items (such as tire repair supplies and
additional tools) that might help you solve a problem on your own.
１２／１０／３１ １３：５６：１７ ３１ＭＪＧ６００ ０１９５
−
−
SYMPTOM:
transmission not in neutral
WHAT TO DO
Turn the ignition switch ON.
Turn the engine stop switch to RUN.engine stop switch OFF
ignition switch OFF
POSSIBLE CAUSE
Shift into neutral.
side stand down (when
transmission not in neutral)
Put the transmission in neutral or raise
the side stand and pull the clutch lever in.
blown fuse Replace with a new fuse of the same
rating (page ).
battery lead loose Tighten the battery lead.
low (or dead) battery Charge the battery (page ). If
charging doesn’t help, see your dealer.
faulty starter motor If all possible causes are negative, the
starter motor may be faulty. See your
dealer.
208
174
Starter motor doesn’t operate.
189
Taking Care of the Unexpected
If Your Engine Quits or Won’t Start
Starter motor doesn’t operate
Starter motor works, but the engine won’t start
Proper operation and maintenance can prevent starting and engine performance
problems. In many cases, the cause of the problem may be a simple operational
oversight.
If you have a problem starting the engine or experience poor engine
performance the following information may help you. If you can’t correct the
problem, see your dealer.
If your motorcycle won’t start, listen as you press the start button. If you don’t
hear the starter motor turning, refer to the
symptom. If you can hear the starter motor working normally, refer to the
symptom.
１２／１０／３１ １３：５６：３１ ３１ＭＪＧ６００ ０１９６
weak battery
SYMPTOM:
POSSIBLE CAUSE WHAT TO DO
Fill the fueltank.
See (page ).
out of fuel
flooded engine
loose or unconnected
spark plug caps
Install the spark plug caps securely. If
the engine still won’t start, see your
dealer.
loose battery cables Tighten the battery terminal bolts.
Charge the battery (page ). If
charging doesn’t help, see your dealer.
SYMPTOM:
POSSIBLE CAUSE
side stand down
WHAT TO DO
Raise the side stand. Start again.
54
174
Starter motor works, but the engine won’t start.
Engine starts, but stalls as you shift into gear.
Flooded Engine
190
Taking Care of the Unexpected
If Your Engine Quits or Won’t Start
１２／１０／３１ １３：５６：４５ ３１ＭＪＧ６００ ０１９７
WHAT TO DOPOSSIBLE CAUSE
SYMPTOM:
idles roughly, too fast,
stalls
overheating
low oil pressure
runs erratically, misfires
See your dealer.
Check the coolant temperature gauge.
Refer to
page .
Check the low oil pressure indicator.
Refer to
page .
See your dealer.
See your dealer.
May damage catalytic converters.
See your dealer.
May damage catalytic converters.
May damage catalytic converters.
If applicable, switch to the recommended
octane gasoline (page ) or change
your brand of gasoline. If the problem
persists, see your dealer.
See your dealer.
pre-ignition (runs on after
ignition switched OFF)
afterfires (backfires)
detonates or pings under
load
sooty exhaust (rich fuel
mixture)
blubbers (rich fuel
mixture)
See your dealer.
203
205
136
Engine starts, but runs poorly.
If Your Engine Overheats,
If theLowOilPressure
Indicator Lights,
191
Taking Care of the Unexpected
If Your Engine Quits or Won’t Start
１２／１０／３１ １３：５７：０１ ３１ＭＪＧ６００ ０１９８
Riding your motorcycle with a
temporary tire repair can be
risky. If the temporary repair
fails, you can crash and be
seriously injured or killed.
Ifyoumustridewitha
temporary tire repair, ride slowly
and carefully and do not exceed
30 mph (50 km/h) until the tire is
permanently repaired or
replaced.
192
Taking Care of the Unexpected
If You Have a Flat Tire
Option 1:
Have Your Motorcycle Transported
If a tire has a major puncture or a cut in the tread or sidewall, or the bead has
come loose from the rim, there is probably not much you can do except have
your motorcycle transported to your dealer or other qualified service facility.
Even with a simple puncture, this may be the safest and least troublesome
solution. For transporting instructions, see page .
Option 2:
Make a Temporary Roadside Repair
If a tire has only a minor nail puncture and is not completely flat, you may be
able to make an emergency repair that could allow you to continue riding to
where you can get the tire replaced or permanently repaired.
A flat tire is always unwelcome, especially if you are far from help. If you think
you are losing air, or you hit a pothole or hard object, pull safely to the side of
the road so you can inspect the tires and assess the situation. (Be sure to park on
a firm, level surface and use the side or center stand for support.) You should
examine the tire treads and sidewalls for foreign objects or damage. If you find
a tire that has been punctured or damaged, you have two options.
184
１２／１０／３１ １３：５７：０７ ３１ＭＪＧ６００ ０１９９
193
Types of Temporary Repairs
Taking Care of the Unexpected
If You Have a Flat Tire
Plug the hole:
Inflate the tire:
Due to the uncertainty of any temporary repair, you should ride slowly (not over
30 mph, 50 km/h) and carefully (preferably without a passenger or cargo) until
the tire is replaced or permanently repaired. Stop frequently and check the air
pressure. If the tire is losing pressure, it may be unsafe to continue riding. As the
tire gets low, it will affect the handling of your motorcycle (especially with a
passenger and cargo), and it may overheat and blow out.
The following types of temporary repairs generally require a source of air to
inflate the tire. Possible sources include CO cartridges or cans of compressed
air designed to inflate a tire.
The idea here is to do something to temporarily stop the leak.
If you have a tubeless tire repair kit, you can pull out the nail and try inserting
an external plug in the puncture. Follow the instructions that came with the
repair kit and be sure to inflate the tire to the correct pressure.
Tubeless tires have some self-sealing ability if they are
punctured and the result is usually just a slow leak. If this is the case, you can
try inflating the tire to see if it will hold air pressure. If you can see a nail or
other object embedded in the tire tread, do not remove it at this time.
For more information on tire repair, see page .167
2
１２／１０／３１ １３：５７：１４ ３１ＭＪＧ６００ ０２００
194
Emergency Front Wheel Removal/Installation
Should You Repair or Replace a Tire?
Taking Care of the Unexpected
If You Have a Flat Tire
Safety Precautions
Avoid depressing the brake lever and brake pedal when the wheel is off the
motorcycle. This will force the caliper pistons out of the cylinders. The
result will be a loss of brake fluid. If this occurs, the brake system will
require service.
See your dealer for this service.
Avoid getting grease, oil, or dirt on the disc or pad surfaces. Any
contamination can cause poor brake performance or rapid pad wear after
reassembly.
To avoid damage to the brake hose during removal, support the caliper
assembly so that it doesn’t hang from the hose. Do not twist the brake hose.
When removing and installing the wheel, be careful not to damage the
sensor and pulser ring.
Remove the parts in sequence, according to the order in the illustration.
Raise the front wheel off the ground by placing a support block under the
engine, being careful to avoid contact with the exhaust pipe and front lower
cover.
Park your motorcycle on a firm, level surface.
Removal
We recommend wheel removal be done only by your dealer or another qualified
mechanic. Do not attempt to remove the wheel on your own. Wheel removal
requires mechanical skill and professional tools.
Refer to on page .
We strongly recommend that you replace, not permanently repair, any tire that is
punctured or damaged, even if the tire has only a minor puncture. For a full
discussion of repairs and replacement, see page .
1.
2.
3.
(Models equipped with ABS)
118
167
１２／１０／３１ １３：５７：２４ ３１ＭＪＧ６００ ０２０１
(Models equipped with ABS)
196
Taking Care of the Unexpected
If You Have a Flat Tire
１２／１０／３１ １３：５７：３７ ３１ＭＪＧ６００ ０２０３
23 lbf·ft (31 N·m , 3.2 kgf·m)
44 lbf·ft (59 N·m , 6.0 kgf·m)
16 lbf·ft (22 N·m , 2.2 kgf·m)
recessed surface
front axle shaft
index line
197
If You Have a Flat Tire
Taking Care of the Unexpected
Installation
Tighten the front axle pinch bolts on the left fork leg to the specified torque:
Install the side collars in the wheel and position it between the fork legs.
Insert the front axle shaft from the left side, through the left fork leg and
wheel hub.
Tighten the front axle bolt to the specified torque:
Install the brake caliper assembly onto the fork leg.
To avoid damaging the brake pads while installing the brake caliper assembly,
carefully fit the brake disc between the pads.
(cont’d)
Align the index line of the front axle shaft with the recessed surface of the
fork leg.
Install the right caliper fixing bolts and left caliper socket bolt and tighten to
the specified torque:
1.
2.
3.
4.
5.
6.
１２／１０／３１ １３：５７：４７ ３１ＭＪＧ６００ ０２０４
16 lbf·ft (22 N·m , 2.2 kgf·m)
brake bracket brake bracket
brake disc
198
If You Have a Flat Tire
Taking Care of the Unexpected
Operate the front brake and pump the fork several times. Check for free
wheel rotation after the brake is released. Recheck the wheel if the brake
drags or the wheel does not rotate freely.
If the clearances between each surface of the brake disc and the brake bracket
(not the brake pads) are symmetrical, follow the next step.
If the clearances are not symmetrical, loosen the left axle pinch bolts and pull
the left fork outward or push inward to adjust the clearance. Then follow the
next step.
Tighten the front axle pinch bolts on the right fork leg to the specified torque:
Visually check that the clearances between each surface of the brake disc
and the brake bracket (not the brake pads) are symmetrical.
7.
8.
9.
１２／１０／３１ １３：５７：５５ ３１ＭＪＧ６００ ０２０５
199
Taking Care of the Unexpected
If You Have a Flat Tire
After installing the wheel, apply the brake lever AND brake pedal several
times, then recheck both discs for caliper holder to disc clearance. Do not
operate the motorcycle without adequate clearance.
Check for free wheel rotation after the brake lever and brake pedal are
released. Recheck the wheel if the brake drags or if the wheel does not
rotate freely.
Verify proper brake operation before riding.
Remove the protective tapes from the front wheel.
Reassemble the removed parts in the reverse order of removal.
If a torque wrench is not used for installation, see your dealer as soon as
possible to verify proper assembly. Improper assembly may lead to loss of
braking capability.
After installing the wheel, operate the brake lever AND brake pedal several
times until you feel pressure. You must restore pressure from BOTH the
lever AND the pedal because this motorcycle is equipped with Dual CBS
(Linked Braking System).
10.
11.
12.
１２／１０／３１ １３：５８：０２ ３１ＭＪＧ６００ ０２０６
(Models equipped with center stand)
(Models not equipped with center stand)
200
Emergency Rear Wheel Removal/Installation
Taking Care of the Unexpected
If You Have a Flat Tire
Safety PrecautionsRefer to on page .
Removal
We recommend wheel removal be done only by your dealer or another qualified
mechanic. Do not attempt to remove the wheel on your own. Wheel removal
requires mechanical skill and professional tools.
Support the motorcycle securely, raise the rear wheel off the ground.
Park your motorcycle on its side stand on a firm, level surface.
Park your motorcycle on its center stand on a firm, level surface.
Remove the parts in sequence, according to the order in the illustration.
Avoid getting grease, oil, or dirt on the disc or pad surfaces. Any
contamination can cause poor brake performance or rapid pad wear after
reassembly.
When removing and installing the wheel, be careful not to damage the
sensor and pulser ring.
1.
2.
1.
(Models equipped with ABS)
118
１２／１０／３１ １３：５８：１０ ３１ＭＪＧ６００ ０２０７
201
If You Have a Flat Tire
Taking Care of the Unexpected
１２／１０／３１ １３：５８：１５ ３１ＭＪＧ６００ ０２０８
80 lbf·ft (108 N·m , 11.0 kgf·m)
202
If You Have a Flat Tire
Taking Care of the Unexpected
Installation
Reassemble the removed parts in the reverse order of removal.
Tighten the rear wheel nutsto the specified torque:
After installing the wheel, apply the brake several times and then check if the
wheel rotates freely. Recheck the wheel if the brake drags or if the wheel
does not rotate freely.
If a torque wrench is not used for installation, see your dealer as soon as
possible to verify proper assembly. Improper assembly may lead to loss of
braking capability.
1.
2.
3.
１２／１０／３１ １３：５８：２３ ３１ＭＪＧ６００ ０２０９
203
If Your Engine Overheats
Taking Care of the Unexpected
Continuing to ride with an overheated engine can cause serious engine damage.
A steaming engine indicates a coolant leak. Shut the engine off and wait until
the steaming stops. Look for a leak, but don’t touch the engine or radiator
system. Let everything cool off first.
If there’s no obvious problem, leave the engine on so the fan and coolant
circulating system can continue working. Monitor the temperature gauge. The
needle may drop to the normal range after a brief stop with no load on the
engine.
Check the radiator fan.
If the fan is not working, turn the engine off. Open the fuse box (page )
and check the radiator fan fuse. If the fuse is blown, replace it with the proper
(same rating) spare fuse. Start the engine. If the needle climbs to the red zone
and stays there, turn the engine off.
If the radiator fan is working, visually check the coolant level in the reserve
tank, located behind the left engine side cover. It isn’t necessary to touch the
radiator system.
Normally, the needle on your temperature gauge will rise to a point about
midway between C (cold) and H (hot) and then level off. Hot weather may
cause the needle to rise higher than normal. So will temporary stress such as
climbing a hill. If you’re stuck in stop-and-go traffic, the needle may climb
some, but the radiator fan is designed to prevent overheating. Be aware of these
variations as you monitor the gauge.
If your vehicle is operated at sustained speeds between 10 and 15 miles per
hour in high ambient temperature conditions, you may experience high
temperature gauge readings.
If the temperature gauge rises, shifting to second gear or altering your speed
(either faster or slower) may reduce the temperature reading. If the indicator
reaches the red zone, as soon as it issafe to do so, pull over and let the engine
idle until the indicator drops.
(cont’d)
206
１２／１０／３１ １３：５８：３０ ３１ＭＪＧ６００ ０２１０
204
If Your Engine Overheats
Taking Care of the Unexpected
If the reserve tank is low or empty, don’t ride without adding coolant
(page ). After adding coolant, turn the engine on and check the
temperature gauge.
If the needle doesn’t drop, do not ride. The engine needs repair. Transport
your motorcycle to a dealer (page ).
If the temperature drops to normal, check the coolant level. If it has gone
down, add more coolant.
If you are able to resume riding, continue to monitor the gauge frequently.
If there’s a mild leak, you can ride for awhile, carefully watching the gauge. Be
prepared to stop and add more coolant or water. If the leak is bad, transport your
motorcycle to your dealer (page ).
147
184
184
１２／１０／３１ １３：５８：３５ ３１ＭＪＧ６００ ０２１１
205
If the Low Oil Pressure Indicator Lights
Taking Care of the Unexpected
Continuing to ride with low oil pressure can cause serious engine damage.
If you check your engine oil level regularly, you should never see the low
oil pressure indicator comes on while riding. Normally, it will only light
momentarily when you turn the ignition switch ON. Occasionally, it may
flicker at or near idling speed.
Low oil pressure may be caused by an oil leak, a low oil level, or some problem
in the engine’s lubrication system.
If the indicator comes on while you’re riding, don’t ignore it. Pull safely to the
side of the road. If possible, pull the clutch lever in and coast to a stop. Stop the
engine as soon as it’ssafe to do so.
Check for an oil leak.
Then check the oil level. If necessary, add the recommended oil (page )
to the upper level mark. If you must leave your motorcycle to get oil, secure it
as much as possible.
After adding oil, start the engine, and check that the low oil pressure indicator
goes off. Check for a possible leak.
If the indicator goes off and there is no leak –– resume riding. If there is a
leak –– do not ride the motorcycle until the leak is repaired by your dealer.
142
１２／１０／３１ １３：５８：４１ ３１ＭＪＧ６００ ０２１２
30 A
120 A
40 A
30 A, 20 A, 15 A, 10 A, 5 A
main fuse A
main fuse B
external amplifier fuse
other fuses
LEFT SIDE
fuse box
fuse box cover
206
If a Fuse Blows
Taking Care of the Unexpected
If something electrical on your motorcycle stops working, the first thing you
should check for is a blown fuse.
Determine from the chart on the circuit fuse box cover which fuse or fuses
control that component. Check those fuses first, but check all the fuses before
looking elsewhere for another possible cause of the problem. Replace any blown
fuses and check component operation.
All of the electrical circuits on your motorcycle have fuses to protect them from
damage caused by excess current flow (short circuit or overload).
Recommended Fuses
The circuit fuse box (including spare fuses) is located behind the left side
cover.
The main fuse is located in the fuse box.
To prevent an accidental short circuit, turn the ignition switch OFF before
checking or replacing the fuses.
Remove the left side cover (page ).
Remove the fuse box cover.
1.
2.
3.
131
１２／１０／３１ １３：５８：５２ ３１ＭＪＧ６００ ０２１３
207
If a Fuse Blows
Taking Care of the Unexpected
Main Fuse Access:
Circuit Fuses Access:
Replacing a fuse with one that has a higher rating greatly increases the chance
of damage to the electrical system.
External Amplifier Fuse Access:
Check the two main fuses (A & B) to see if they are blown.
(cont’d)
To replace main fuses (A & B), see your dealer for this service.
To check or replace a circuit fuse, pull the old fuse out of its retaining clips
with the fuse remover. Look for a burned wire inside the fuse. If the fuse is
blown, replace it with a spare fuse of the same rating.
If you do not have a replacement fuse with the proper rating for the circuit,
install one with a lower rating.
To replace the external amplifier fuse, see your dealer for this service.
4.
5.
6.
１２／１０／３１ １３：５９：０１ ３１ＭＪＧ６００ ０２１４
fuse remover
LEFT SIDE
circuit fuses
main fuse A
fuse remover
spare fuses
blown fuse
main fuse B/external amplifier fuse
208
If a Fuse Blows
Taking Care of the Unexpected
If the replacement fuse of the same rating burns out in a short time, there is
probably a serious electrical problem on your motorcycle. Leave the blown fuse
in that circuit and have your motorcycle checked by your dealer.
If you replace a blown fuse with a spare fuse that has a lower rating, replace the
fuse with the correct rating as soon as you can. Also remember to replace any
spare fuses that were installed.
If you do not have a spare fuse and you cannot ride the motorcycle without
fixing the problem, take a fuse of the same rating or a lower rating from one of
the other circuits that you can do without temporarily.
Install the left side cover.
Close the fuse box cover.7.
8.
１２／１０／３１ １３：５９：１０ ３１ＭＪＧ６００ ０２１５
209
If You Crash
Taking Care of the Unexpected
Transporting Your Motorcycle,
Personal safety is your first priority after a crash. If you or anyone else has
been injured, take time to assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency assistance if needed. Also
follow applicable laws and regulations if another person or vehicle is
involved in the crash.
If you decide that you are capable of riding safely, first evaluate the condition
of your motorcycle. If the engine is still running, turn it off and look it over
carefully; inspect it for fluid leaks, check the tightness of critical nuts and bolts,
and secure such partsas the handlebar, control levers, brakes, and wheels.
If there is minor damage, or you are unsure about possible damage, ride slowly
and cautiously. Sometimes, crash damage is hidden or not immediately apparent,
so you should have your motorcycle thoroughly checked at a qualified service
facility as soon as possible. Also, be sure to have your dealer check the frame
and suspension after any serious crash.
If your motorcycle cannot be ridden, see
page .184
１２／１０／３１ １３：５９：１５ ３１ＭＪＧ６００ ０２１６
key number plate
210
If You Lose Your Key
Taking Care of the Unexpected
You should receive a key number plate with your keys.
Store the spare key and number plate in a safe location. You’ll need this number
to have a duplicate key made.
A lost key won’t be a problem if you take preventative action. Store one
duplicate key in a safe place at home and carry a second duplicate in your wallet.
If you lose your key and aren’t carrying a duplicate, either get your spare or
have one made. If you don’t know your key number, call the dealer where you
purchased your Honda. They may have it listed in their records. If they don’t,
transport your motorcycle to them or the nearest dealer. The dealer will probably
have to remove the ignition switch assembly to find the key number so they can
make a key for you.
１２／１０／３１ １３：５９：２０ ３１ＭＪＧ６００ ０２１７
211
If Your Battery Is Low (or Dead)
Taking Care of the Unexpected
Jump starting is not recommended, especially if you use an automobile
battery. The greater amperage of an automobile battery when the car
engine is running can damage your motorcycle’s electrical system.
Bump starting is also not recommended.
If you can’t charge the battery or it appears unable to hold a charge, contact your
dealer.
１２／１０／３１ １３：５９：２４ ３１ＭＪＧ６００ ０２１８
212
Taking Care of the Unexpected
１２／１０／３１ １３：５９：２７ ３１ＭＪＧ６００ ０２１９
213
Technical Information
Technical Information
This section contains dimensions, capacities, and other technical data, plus
information on government requirements and how to break-in your
motorcycle.
......................................................................................Vehicle Identification .
...................................................................................................Specifications .
.........................................................................................Break-in Guidelines .
...............................................................................Emission Control Systems .
.........................................................................................Catalytic Converters .
.............................................................................................Oxygenated Fuels .
214
216
222
223
227
228
１２／１０／３１ １３：５９：３３ ３１ＭＪＧ６００ ０２２０
LEFT SIDE RIGHT SIDE
RIGHT SIDE
VIN
engine number
VIN
214
Serial Numbers
Technical Information
Vehicle Identification
The VIN and engine serial number are required when you register your
motorcycle. They may also be required when ordering replacement parts. You
may record these numbers in the Quick Reference section at the rear of this
manual.
The VIN (vehicle identification number) is stamped on the right side of the
steering head and also appears on the Safety Certification Label attached to the
left side of the steering head.
The engine number is stamped on the right side of the crankcase.
１２／１１／０５ １５：４２：２８ ３１ＭＪＧ６００ ０２２１
color label
215
Color Label & Code
Technical Information
Vehicle Identification
The color code is helpful when ordering replacement parts. You may record the
color and code in the Quick Reference section at the rear of this manual.
The color label is attached inside the fuel filler compartment lid.
１２／１０／３１ １３：５９：４６ ３１ＭＪＧ６００ ０２２２
49.4 in (1,255 mm)
37.2 in (945 mm)
102.6 in (2,605 mm)
66.5 in (1,690 mm)
4.9 in (125 mm)
unleaded gasoline, pump octane number of
86 or higher
6.6 US gal (25
)
4.9 US qt (4.6
)
3.8 US qt (3.6
)
3.9 US qt (3.7
)
API Service Classification SG or higher
except oils labeled as energy conserving or
resource conserving on the circular API
service label, SAE 10W-30, JASO T 903
standard MA,
Pro Honda GN4 4-stroke oil (USA & Canada)
or Honda 4-stroke oil, or an equivalent
motorcycle oil
after disassembly:
after draining:
after draining & oil filter change:
overall length
overall width
overall height
wheelbase
ground clearance
fuel
recommendation
fuel tank capacity
engine oil capacity
engine oil
recommendation
Dimensions
Fuel & Lubricants
216
Technical Information
Specifications
１２／１１／０６ １４：４７：４０ ３１ＭＪＧ６００ ０２２３
4.1 US oz (120 cm )
4.06 US qt (3.84
)
Operator and one passenger
410 lb (186 kg)
rider, passenger, all cargo and accessories
20.0 lb (9.0 kg)
4.5 lb (2.0 kg)
6.6 lb (3.0 kg)
51 lb (23 kg)
cooling system,
recommendation
Pro Honda HP Coolant or an equivalent high
quality ethylene glycol antifreeze containing
corrosion protection inhibitors specifically
recommended for use in aluminumengines
cooling system,
capacity
passenger
capacity
maximum weight
capacity
final drive oil
capacity
cargo capacity
after draining:
each saddlebag:
fairing pocket:
shelter case
total of all cargo
Fuel & Lubricants (Cont’d)
Capacities
217
Technical Information
Specifications
１２／１０／３１ １４：００：１１ ３１ＭＪＧ６００ ０２２４
××
−−
±
111.8 cu-in (1,832 cm
)
2.91 2.80 in (74.0 mm 71.0 mm)
9.8 : 1
BKR6E-11 (NGK)
K20PR-U11 (DENSO)
BKR5E-11 (NGK)
K16PR-U11 (DENSO)
BKR7E-11 (NGK)
K22PR-U11 (DENSO)
0.006 in (0.15 mm)
0.009 in (0.22 mm)
0.039 0.043 in (1.00 1.10 mm)
700 70 rpm
1.591
shaft
0.685
0.843
1.068
1.454
2.375
2.750
1.028
or
or
or
(No adjustment)
displacement
bore & stroke
compression ratio
spark plug
(standard)
spark plug
(cold climate)
spark plug (high
speed riding)
valve clearance
(cold)
intake
exhaust
spark plug gap
idle speed
primary reduction
secondary reduction
final reduction
gear ratio, 1st
2nd
3rd
4th
OD
final drive
Engine Specifications
Power Transmission
218
Technical Information
Specifications
１２／１０／３１ １４：００：３３ ３１ＭＪＧ６００ ０２２５
−
29°15’
4.3 in (109 mm)
130/70R18M/C 63H
BRIDGESTONE G709 RADIAL
180/60R16M/C 74H
BRIDGESTONE G704 RADIAL
36 psi (250 kPa , 2.50 kgf/cm
)
41 psi (280 kPa , 2.80 kgf/cm
)
GYZ20L 12 V 20 Ah (10HR)
1.2 kW/5,000 rpm
radial, tubeless
tire size, front
trail
caster
tire size, rear
tire type
tire pressure, front
(cold)
tire pressure, rear
(cold)
battery
generator
Chassis & Suspension
Electrical
219
Technical Information
Specifications
１２／１０／３１ １４：００：４５ ３１ＭＪＧ６００ ０２２６
−×
−×
−×
−×
−×
−
12 V 21/5 W 2
12 V 21/5 W 2
12 V 21 W 2
LED
LED
LED
LED
LED
12 V 55 W 2
12 V 55 W 2
12 V 5 W
LED
LED
LED
LED
(rear)
(front)
(high)
(low)
turn signal lights
brake/tail light
headlight
low oil pressure
indicator
high beam indicator
turn signal indicator
neutral indicator
instrument light
license light
low fuel indicator
PGM-FI indicator
overdrive indicator
ABS indicator
(models equipped
with ABS)
Lights
220
Technical Information
Specifications
１２／１０／３１ １４：０１：０１ ３１ＭＪＧ６００ ０２２７
120 A
30 A
40 A
30 A, 20 A, 15 A, 10 A, 5 A
25 lbf·ft (34 N·m , 3.5 kgf·m)
19 lbf·ft (26 N·m , 2.7 kgf·m)
44 lbf·ft (59 N·m , 6.0 kgf·m)
23 lbf·ft (31 N·m , 3.2 kgf·m)
23 lbf·ft (31 N·m , 3.2 kgf·m)
16 lbf·ft (22 N·m , 2.2 kgf·m)
80 lbf·ft (108 N·m , 11.0 kgf·m)
15 lbf·ft (20 N·m , 2.0 kgf·m)
main A
main B
external amplifier
fuse
other fuses
engine oil drain bolt
engine oil filter
front wheel axle bolt
right front wheel
caliper fixing bolts
left front wheel
caliper socket bolt
front wheel axle
pinch bolts
rear wheel nuts
final drive oil drain
bolt
Fuses
Torque Specifications
221
Technical Information
Specifications
１２／１０／３１ １４：０１：１５ ３１ＭＪＧ６００ ０２２８
222
Technical Information
Break-in Guidelines
Help assure your motorcycle’s future reliability and performance by paying
extra attention to how you ride during the first 300 miles (500 km).
During this period, avoid full-throttle starts and rapid acceleration.
１２／１０／３１ １４：０１：１９ ３１ＭＪＧ６００ ０２２９
vehicle emission control
information label
vehicle emission control
information label (Canada only)
223
Exhaust Emission Requirements
Warranty Compliance
Noise Emission Requirements
Technical Information
Emission Control Systems
The U.S. Environmental Protection Agency (EPA), the California Air Resources
Board (CARB), and Environment Canada (EC) require that your motorcycle
comply with applicable exhaust emissions standards during itsuseful life, when
operated and maintained according to the instructions provided.
Compliance with the terms of the Distributor’s Warranties for Honda
Motorcycle Emission Control Systems is necessary in order to keep the
emissions system warranty in effect. (USA only)
The EPA also requires that motorcycles built after January 1, 1983 comply with
applicable noise emission standards for one year or 3,730 miles (6,000 km) after
the time of sale to the ultimate purchaser, when operated and maintained
according to the instructions provided.
The Vehicle Emission Control Information label is attached inside the
saddlebag(s).
１２／１０／３１ １４：０１：２６ ３１ＭＪＧ６００ ０２３０
224
Technical Information
Emission Control Systems
PGM-FI System
Ignition Timing Control System
Secondary Air Injection System
Three-Way Catalytic Converters
Source of Exhaust Emissions
Exhaust Emission Control System
The PGM-FI system has four subsystems: Air Intake, Engine Control, Fuel
Control, and Exhaust Control.
The Engine Control Module (ECM) uses various sensors to determine how
much air is going into the engine. It then controls how much fuel is injected
under all operating conditions.
The system constantly adjusts the ignition timing, reducing the amount of HC,
CO and NOx produced.
The secondary air injection system introduces filtered air into the exhaust gases
in the exhaust port. The secondary air injection system helps improve emission
control performance.
The three-way catalytic converters are in the exhaust system. Through chemical
reactions, they convert HC, CO, and NOx in the engine’s exhaust to carbon
dioxide (CO ), nitrogen (N), and water vapor.
The combustion process produces carbon monoxide (CO), oxidesof nitrogen
(NOx) and hydrocarbons (HC). Control of hydrocarbons and oxides of nitrogen
is very important because, under certain conditions, they react to form
photochemical smog when subjected to sunlight. Carbon monoxide does not
react in the same way, but it is toxic.
Honda Motor Co., Ltd. utilizes various systems to reduce carbon monoxide,
oxides of nitrogen and hydrocarbons.
The exhaust emission control system includes a PGM-FI system, two three-way
catalytic converters, a secondary air injection system, an ignition timing control
system, and two heated oxygen sensors or two air fuel ratio sensors.
No adjustment to these systems should be made although periodic inspection of
the components is recommended.
2
１２／１０／３１ １４：０１：３２ ３１ＭＪＧ６００ ０２３１
225
Technical Information
Emission Control Systems
Evaporative Emission Control System
Crankcase Emission Control System
This motorcycle complies with the requirements of the California Air Resources
Board (CARB) evaporative emission regulations. Fuel vapor from the fuel tank
is directed into the charcoal canister and air cleaner where it is adsorbed and
stored while the engine is stopped. When the engine is running and the purge
control solenoid valve is open, fuel vapor in the charcoal canister and air cleaner
is drawn into the engine through the throttle body.
The engine is equipped with a closed crankcase system to prevent discharging
crankcase emissions into the atmosphere. Blow-by gas is returned to the
combustion chamber through the air cleaner and the intake manifold.
１２／１０／３１ １４：０１：３６ ３１ＭＪＧ６００ ０２３２
226
Technical Information
Problems That May Affect Motorcycle Exhaust Emissions
Noise Emission Control System
Fuel Permeation Emission Control System
Emission Control Systems
If you are aware of any of the following symptoms, have the vehicle inspected
and repaired by your dealer.
Symptoms:
Hard starting or stalling after starting
Rough idle
Misfiring or backfiring during acceleration
After-burning (backfiring)
Poor performance (driveability) and poor fuel economy
TAMPERING WITH THE NOISE CONTROL SYSTEM IS PROHIBITED:
U. S. federal law prohibits, or Canadian provincial laws may prohibit the
following acts or the causing thereof: ( ) The removal or rendering inoperative
by any person, other than for purposes of maintenance, repair or replacement, of
any device or element of design incorporated into any new vehicle for the
purpose of noise control prior to its sale or delivery to the ultimate purchaser or
while it is in use; or ( ) the use of the vehicle after such device or element of
design has been removed or rendered inoperative by any person.
AMONG THOSE ACTS PRESUMED TO CONSTITUTE TAMPERING ARE
THE FOLLOWINGACTS:
This vehicle complies with the Fuel Permeation Emission Control regulations of
the U.S. Environmental Protection Agency (EPA), the California Air Resources
Board (CARB), and Environment Canada (EC). The fuel tank, fuel hoses, and
fuel vapor charge hoses used on this vehicle incorporate fuel permeation control
technologies. Tampering with the fuel tank, fuel hoses, or fuel vapor charge
hoses to reduce or defeat the effectiveness of the fuel permeation technologies
is prohibited by federal regulations.
Removal of, or puncturing the muffler, baffles, header pipes or any other
component which conducts exhaust gases.
Removal of, or puncturing of any part of the intake system.
Lack of proper maintenance.
Removing or disabling any emissions compliance component, or replacing
any compliance component with a non-compliant component.
1.
2.
3.
4.
1.
2.
3.
4.
5.
1
2
１２／１０／３１ １４：０１：４３ ３１ＭＪＧ６００ ０２３３
227
Catalytic Converters
Technical Information
This motorcycle is equipped with two three-way catalytic converters. Each
catalytic converter contains precious metals that serve as catalysts, promoting
chemical reactions to convert the exhaust gasses without affecting the metals.
The catalytic converters act on HC, CO, and NOx. Replacement parts must be
original Honda parts or equivalents.
The catalytic converters must operate at high temperature for the chemical
reactions to take place. They can set fire to any combustible materials that come
near them. Park your motorcycle away from high grasses, dry leaves, or other
flammables.
Defective catalytic converters contribute to air pollution, and can impair your
engine’s performance. Follow these guidelines to protect your motorcycle’s
catalytic converters.
Always use unleaded gasoline. Even a small amount of leaded gasoline can
contaminate the catalyst metals, making the catalytic converters ineffective.
Keep the engine in good running condition.
A poorly running engine can cause the catalytic converter to overheat causing
damage to the converter or the motorcycle.
If your engine is misfiring, backfiring, stalling, or otherwise not running
properly, stop riding and turn off the engine. Have your motorcycle serviced
as soon as possible.
１２／１０／３１ １４：０１：４７ ３１ＭＪＧ６００ ０２３４
228
Oxygenated Fuels
Technical Information
Oxygenated fuels can damage paint and plastic. Damage caused by spilled fuel
is not covered by warranty.
Some conventional gasolines are being blended with alcohol or an ether
compound. These gasolines are collectively referred to as oxygenated fuels. To
meet clean air standards, some areas of the United States and Canada use
oxygenated fuels to help reduce emissions.
If you use an oxygenated fuel, be sure it is unleaded and meets the minimum
octane rating requirement.
Before using an oxygenated fuel, try to confirm the fuel’s contents. Some states/
provinces require this information to be posted on the pump.
The following are the EPA-approved percentages of oxygenates:
ETHANOL (ethyl or grain alcohol) 10% by Volume
You may use gasoline containing up to 10% ethanol by volume. Gasoline
containing ethanol may be marketed under the name ‘‘Gasohol’’.
MTBE (Methyl Tertiary Butyl Ether) 15% by Volume
You may use gasoline containing up to 15% MTBE by volume.
METHANOL (methyl or wood alcohol) 5% by Volume
You may use gasoline containing methanol containing up to 5% methanol by
volume as long as it also contains cosolvents and corrosion inhibitors to
protect the fuel system. Gasoline containing more than 5% methanol by
volume may cause starting and/or performance problems. It may also damage
metal, rubber, and plastic parts of your fuel system.
If you notice any undesirable operating symptoms, try another service station or
switch to another brand of gasoline.
Fuel system damage or performance problems resulting from the use of an
oxygenated fuel containing more than the percentages of oxygenates mentioned
above are not covered under warranty.
Oxygenated fuels can damage paint and plastic. Be careful not to spill fuel when
filling the fuel tank. Wipe up any spills immediately.
１２／１０／３１ １４：０１：５６ ３１ＭＪＧ６００ ０２３５
229
Consumer Information
Consumer Information
This section contains information on your warranty and how to get an official
Honda Service Manual.
.........................................................................................Authorized Manuals .
..........................................................................................Warranty Coverage .
..............................................................................................Warranty Service .
.............................................................................................Contacting Honda .
..........................................................................................Your Honda Dealer .
..............................................................The Honda Rider’s Club (USA only) .
.............................................................Reporting Safety Defects (USA only) .
230
231
232
233
234
235
236
１２／１０／３１ １４：０２：０４ ３１ＭＪＧ６００ ０２３６
−−
2013 GL1800BService Manual/ETM
Common Service Manual
2013 GL1800BOwner’s Manual
61MCA62
61CM002
31MJG600
Publication Item No. Description
230
Authorized Manuals
Consumer Information
Order On-Line: www.helminc.com
Order Toll Free: 1-888-CYCLE93
(NOTE: For Credit Card Orders Only)
The Service Manual used by your authorized dealer is available from your
Honda dealer or Helm, Inc. (USA only, Canada: See your dealer to order
authorized manuals.)
Also available but not necessary to service your model is the Honda Common
Service Manual which explains theory of operation and basic service
information for various systems on Honda motorcycles, scooters, ATVs, MUVs,
and PWCs.
These Honda manuals are written for the professional technician, but most
mechanically capable owners should find them easy to use if they have the
proper tools and observe proper safety standards. Special Honda tools are
necessary for some procedures.
(1-888-292-5393)
Monday Friday 8:00 AM 6:00 PM EST
１２／１０／３１ １４：０２：１０ ３１ＭＪＧ６００ ０２３７
231
Warranty Coverage
Consumer Information
Your new Honda is covered by these warranties:
Motorcycle Limited Warranty
Emission Control System Warranty
Noise Control Warranty
There are responsibilities, restrictions, and exclusions which apply to these
warranties. Please read the Warranties Booklet given to you by your Honda
dealer at the time of purchase. Be sure to keep your Honda owner’s card with
your Warranties Booklet.
Canada: Please refer to the Warranty Booklet posted on our website at
www.honda.ca.
Almost all of your warranty coverage can be extended through the Honda
Protection Plan (USA only). For more information, see your Honda dealer.
Your warranty coverage will not be voided if you choose to perform your own
maintenance. However, you should have the proper toolsand service
information and be mechanically qualified. Failures that occur due directly to
improper maintenance are not covered.
It is important to realize that your warranty applies to defects in material or
workmanship of your Honda. Your warranty coverage does not apply to normal
wear or deterioration associated with using the motorcycle.
１２／１０／３１ １４：０２：１６ ３１ＭＪＧ６００ ０２３８
232
Warranty Service
Consumer Information
Please remember that recommended maintenance interval servicing is not
included in your warranty coverage. Additionally, your warranty does not apply
to the normal wear of items (such as brakes, tires, etc.).
If you believe you have a problem with your motorcycle, call the service
department of your Honda dealer. Make an appointment for an inspection and
diagnosis. Remember, as the owner of the motorcycle, you will be asked to
authorize that inspection. Your dealer will give you the results of the inspection.
If the problem is covered under warranty, your dealer will perform the warranty
repairs for you.
If you have questions about warranty coverage or the nature of the repair, it is
best to talk to the Service Manager of your Honda dealer.
Sometimes, in spite of the best intentions of all concerned, a misunderstanding
may occur. If you aren’t satisfied with your dealer’s handling of the situation,
we suggest you discuss your problem with the appropriate member of the
dealership’s management team. If the problem has already been reviewed with
the Service Manager, Parts Manager, Sales Manager, etc., contact the Owner of
the dealership or their designated representative.
１２／１０／３１ １４：０２：２１ ３１ＭＪＧ６００ ０２３９
233
Contacting Honda
Consumer Information
Your owner’s manual was written to cover most of the questions you might ask
about your Honda. Any questions not answered in the owner’s manual can be
answered by your dealer. If your dealer doesn’t have the answer right away, they
will get it for you.
If you have a difference of opinion with your dealer, please remember that each
dealership is independently owned and operated. That’s why it’s important to
work to resolve any differences at the dealership level.
If you wish to comment on your experiences with your Honda or with your
dealer, please send your comments to the following address:
Motorcycle Division, American Honda Motor Co., Inc., P.O. Box 2200,
Torrance, CA 90509-2200, mailstop: 100-4C-7B, telephone: (866) 784-1870.
Canada: Honda Canada Inc., Customer Relations Dept, 180 Honda Boulevard,
Markham, Ontario L6C 0H9, telephone: (888) 946-6329, facsimile: (877) 939-
0909.
Please include the following information in your letter:
name, address, and telephone number
product model, year, and VIN
date of purchase
dealer name and address
We will likely ask your dealer to respond, or possibly acknowledge your
comments directly.
１２／１０／３１ １４：０２：２８ ３１ＭＪＧ６００ ０２４０
234
Your Honda Dealer
Consumer Information
Once you purchase your new Honda, get familiar with the organization of your
Honda dealer so you can utilize the full range of services available.
The service department is there to perform regular maintenance and unexpected
repairs. It has the latest available service information from Honda. The service
department will also handle warranty inspections and repairs.
The parts department offers Honda Genuine Parts, Pro Honda products, Honda
Genuine Accessories (USA only), and Honda accessories and products (Canada
only). The same quality that went into your Honda can be found in Honda
Genuine replacement parts. You’ll also find comparable quality in the
accessories and products available from the parts department.
We’re sure you’ll be as pleased with the service your Honda dealer continues to
provide after the sale as you are with the quality and dependability of your
Honda.
The sales department offers the Honda Protection Plan to extend almost all of
your warranty coverage (USA only).
Your Honda dealer can inform you about competition and other riding events in
your area. You’ll also find that your dealer is a source of information about
safety training available in your local area and the Honda Rider’s Club of
America (USA only).
１２／１０／３１ １４：０２：３４ ３１ＭＪＧ６００ ０２４１
235
The Honda Rider’s Club (USA only)
Consumer Information
www.hrca.honda.com.
The Honda Rider’s Club of America (HRCA) sponsors local riding chapters at
Authorized Honda Dealerships across the country. You can log on to the HRCA
Clubhouse website for more information at
１２／１０／３１ １４：０２：３７ ３１ＭＪＧ６００ ０２４２
236
Reporting Safety Defects (USA only)
Consumer Information
http://www.safercar.gov
http://www.safercar.gov.
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying
American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an investigation, and if
it finds that a safety defect exists in a group of vehicles, it may order a
recall and remedy campaign. However, NHTSA cannot become involved in
individual problems between you, your dealer, or American Honda Motor
Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to ; or
write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590.
You can also obtain other information about motor vehicle safety from
１２／１０／３１ １４：０２：４２ ３１ＭＪＧ６００ ０２４３
237
Consumer Information
１２／１０／３１ １４：０２：４４ ３１ＭＪＧ６００ ０２４４
238
Index
Index
A
B
C
........................................................................................ABS indicator light . 18, 61
.............................................................................................................accessories . 4
...................................................................................accessory (ACC) terminal . 50
................................................................................................air pressure, tires . 164
..........................................................................................air temperature meter . 28
............................................................................American Honda, contacting . 235
......................................................................................................antenna, radio . 86
.........................................................................Anti-Lock Brake System (ABS) . 60
...............................................................................................apparel, protective . 36
.................................................................................................appearance care . 175
.......................................................................................................audio systems . 69
............................................................................................authorized manuals . 230
................................................................................................................battery . 171
brakes,
................................................................................................................fluid . 159
.........................................................................................................pad wear . 161
.................................................................................................................braking . 58
............................................................................................break-in guidelines . 222
.....................................................................................................capacity, fuel . 137
................................................................................................care, appearance . 175
............................................................................................catalytic converters . 227
.................................................................................cleaning, appearance care . 175
.....................................................................................................clutch system . 152
..........................................................................................................color label . 215
.....................................................................................................combined ABS . 60
.................................................................comfort and convenience adjustment . 47
compartment,
.............................................................................................owner’s manual . 129
............................................................................................................tool kit . 128
１２／１０／３１ １４：０２：４９ ３１ＭＪＧ６００ ０２４５
239
Index
Index
D
E
F
(cont’d)
....................................................................................defects, reporting safety . 236
......................................................................................digital clock adjustment . 27
.........................................................................................................drive, final . 150
...................................................................................emission control systems . 223
engine,
.............................................................................................................flooded . 54
.............................................................................................low oil pressure . 205
...........................................................................................................number . 214
...................................................................................................................oil . 139
........................................................................................................overheats . 203
...........................................................................................................pinging . 136
.............................................................................................................starting . 53
.......................................................................................................stop switch . 32
...........................................................................................................stopping . 55
......................................................................................................won’t start . 189
.......................................................................................................environment . 185
.......................................................................................................fairing pocket . 46
.....................................................................................................final drive oil . 150
...............................................................................................................flat tire . 192
.....................................................................................................flooded engine . 54
.......................................................................................consumer information . 229
..............................................................................................controls & features . 31
................................................................................................................coolant . 146
............................................................................coolant temperature gauge . 15, 19
.............................................................................................crankcase breather . 149
................................................................................................customer service . 233
１２／１０／３１ １４：０２：５６ ３１ＭＪＧ６００ ０２４６
240
Index
Index
G
H
I
fuel,
..........................................................................................................gauge . 15, 19
.....................................................................................................oxygenated . 228
............................................................................................recommendation . 136
..................................................................................................tank capacity . 137
...................................................................................................................fuses . 206
...............................................................................................................gasohol . 228
..............................................................................................................gasoline . 136
.............................................................................................gauges & indicators . 15
.......................................................................................................hazard switch . 33
.....................................................................................headlight dimmer switch . 34
heater,
...........................................................................................................handgrip . 48
.......................................................................................................helmet holder . 64
.......................................................................................high beam indicator . 15, 18
Honda,
......................................................................................................contacting . 233
.............................................................................................................dealer . 234
...................................................................................................Rider’s Club . 235
......................................................................................Honda Service Manual . 230
...........................................................................................................horn button . 34
........................................................................................identification, vehicle . 214
ignition cut-off system,
............................................................................................bank angle sensor . 55
.........................................................................................................side stand . 53
.....................................................................................................ignition switch . 31
..............................................................................................................indicators . 15
..............................................................................................inspection, pre-ride . 39
..................................................................................................................iPod . 100
１２／１０／３１ １４：０３：０２ ３１ＭＪＧ６００ ０２４７
241
Index
Index
K
L
M
N
..............................................................................................................key, lost . 210
...............................................................................................................kit, tool . 128
..........................................................................................................labels, safety . 6
...........................................................................................................lamp check . 16
.........................................................................................................limit, weight . 42
............................................................................................................load limits . 42
................................................................................................loading guidelines . 43
........................................................................................................lock, steering . 63
maintenance,
......................................................................................component locations . 125
.....................................................................................................importance . 116
..........................................................................................................periodic . 119
.............................................................................................................record . 124
..............................................................................................................safety . 117
.........................................................................................................schedule . 120
............................................................................................manual, authorized . 230
..................................................................................................manual, service . 230
........................................................................................maximum weight limit . 42
.........................................................................................................modifications . 5
....................................................................................multi information display . 20
...................................................................................................numbers, serial . 214
１２／１０／３１ １４：０３：０８ ３１ＭＪＧ６００ ０２４８
242
Index
Index
O
P
R
..............................................................................................................odometer . 25
oil,
.............................................................................................................engine . 139
......................................................................................................final drive . 150
...................................................................................................low pressure . 205
...........................................................................operation component locations . 12
........................................................................................overdrive indicator . 15, 17
.................................................................................................overheat, engine . 203
.....................................................................................owner’s manual storage . 129
................................................................................................oxygenated fuels . 228
.................................................................................................................parking . 63
..................................................................................................pinging, engine . 136
........................................................................................................plugs, spark . 154
pocket,
..............................................................................................................fairing . 46
........................................................................pre-load, rear suspension spring . 156
...............................................................................................pre-ride inspection . 39
........................................................................................problems, unexpected . 187
................................................................................................protective apparel . 36
.......................................................................................................radio antenna . 86
radio,
............................................................................................................AM/FM . 87
１２／１０／３１ １４：０３：１３ ３１ＭＪＧ６００ ０２４９
243
Index
Index
S
(cont’d)
.............................................................................................................saddlebag . 44
safety,
....................................................................................important precautions . 118
..................................................................................................................lables . 6
............................................................................................reporting defects . 236
............................................................................................riding precautions . 52
.......................................................................................schedule, maintenance . 120
....................................................................................................serial numbers . 214
service,
.........................................................................................................customer . 233
..........................................................................................................manuals . 230
.........................................................................................................warranty . 232
.......................................................................................................shifting gears . 56
...........................................................................................................side stand . 170
.......................................................................side stand ignition cut-off system . 53
removal,
.................................................................................................................clip . 135
................................................................................cylinder head side cover . 133
...........................................................................................engine side cover . 132
...........................................................................................front lower cover . 134
.......................................................................................................side cover . 131
.....................................................................................reporting safety defects . 236
....................................................................................................rider training . 2, 38
..........................................................................................Rider’s Club, Honda . 235
riding,
......................................................................................................bad weather . 67
.................................................................................................basic operation . 51
............................................................................................................clothing . 36
..................................................................................................................safety . 2
............................................................................................safety precautions . 52
...................................................................................with passenger or cargo . 66
１２／１０／３１ １４：０３：１８ ３１ＭＪＧ６００ ０２５０
244
Index
Index
T
........................................................................................................spark knock . 136
.........................................................................................................spark plugs . 154
.....................................................................................................specifications . 216
...................................................................................................speedometer . 15, 16
..........................................................................................................stand, side . 170
...........................................................................................................start button . 33
starting,
...............................................................................................................engine . 54
..............................................................................................troubleshooting . 189
.........................................................................................................steering lock . 63
..............................................................................................stop switch, engine . 32
....................................................................................................stopping engine . 55
storage,
.....................................................................................................motorcycle . 182
.............................................................................................owner’s manual . 129
suspension,
.......................................................................................rear spring pre-load . 156
switch,
..............................................................................................audio control . 34, 74
.......................................................................................................engine stop . 32
...............................................................................................................hazard . 33
.............................................................................................headlight dimmer . 34
.............................................................................................................ignition . 31
..................................................rear suspension spring pre-load adjustment . 156
........................................................................................................turn signal . 34
.....................................................................................................tachometer . 15, 16
............................................................................................theft-prevention tips . 65
tires,
.....................................................................................................air pressure . 164
..................................................................................................................flat . 192
........................................................................................................replacing . 168
１２／１０／３１ １４：０３：２３ ３１ＭＪＧ６００ ０２５１
245
Index
Index
W
V
U
................................................................................................................tool kit . 128
...................................................................................................training, rider . 2, 38
............................................................................transporting your motorcycle . 184
...............................................................................................................tripmeter . 25
...........................................................................................trouble, unexpected . 187
....................................................................................troubleshooting, starting . 189
.....................................................................................turn signal indicators . 15, 17
.................................................................................................USB flash drive . 105
........................................................................vehicle identification no. (VIN) . 214
warranty,
.........................................................................................................coverage . 231
.........................................................................................................extended . 231
............................................................................................................service . 232
..................................................................................washing your motorcycle . 176
..........................................................................................................weight limit . 42
wheels,
.................................................................................................front removal . 194
...................................................................................................rear removal . 200
１２／１０／３１ １４：０３：２８ ３１ＭＪＧ６００ ０２５２
Quick Reference
Quick Reference
The following is a brief, but important collection of information you need to
know about your Honda. You’ll also find space to record important notes.
The engine of your Honda can be the most expensive component to repair.
Proper maintenance, especially the use of the recommended fluids and filters,
prevents premature wear and damage.
Frequent causes of costly repairs are:
Engine oil –– insufficient quantity, improper oil.
Air cleaner –– dirty, leaking because of improper installation (poor seal).
Record important information on the following page:
VIN
Engine No.
Color Label
Owner’s Name
Address
City/State
Phone
Dealer’s Name
Address
City/State
Phone
Service Mgr.
１２／１０／３１ １４：０３：３７ ３１ＭＪＧ６００ ０２５４
6.6 US gal (25 )
410 lb (186 kg)
51 lb (23 kg)
130/70R18M/C 63H
BRIDGESTONE G709 RADIAL
180/60R16M/C 74H
BRIDGESTONE G704 RADIAL
radial, tubeless
36 psi (250 kPa , 2.50 kgf/cm
)
41 psi (280 kPa , 2.80 kgf/cm
)
Quick Reference
Quick Reference
Pre-ride
Inspection
Scheduled
Maintenance
Periodic Checks
Fuel/Capacity
Engine Oil
unleaded gasoline, pump octane number 86 or higher
Regular: every 4,000 miles (6,400 km)
Check the following items monthly (page ): tires
& wheels, fluids, lights, fuses, nuts & bolts.
Check the following items each time before you ride
(page ): tires & wheels, leaks, looseparts, lights, throttle,
brakes, indicators,gauges.
Maximum Weight
Capacity
API Service Classification SG or higher except oils labeled
as energy conserving or resource conserving on the circular
API service label, SAE10W-30, JASOT 903 standard MA,
Pro Honda GN4 4-stroke oil (USA & Canada) or Honda
4-stroke oil, or an equivalent motorcycle oil
rider, passenger, all cargo and accessories
Tires
Tire Pressure
(cold)
front:
rear:
front:
rear:
type:
maximum of all cargo:
39
119
１２／１０／３１ １４：０３：５１ ３１ＭＪＧ６００ ０２５５
BKR6E-11 (NGK) K20PR-U11 (DENSO)
BKR5E-11 (NGK) K16PR-U11 (DENSO)
BKR7E-11 (NGK)
30 A 120 A
K22PR-U11 (DENSO)
40 A
30 A, 20 A, 15 A, 10 A, 5 A
Quick Reference
Quick Reference
Spark Plugs
Coolant
ethylene glycol antifreeze (silicate-free) for aluminum
engines in 50/50 solution with Pro Honda HP Coolant or
an equivalent distilled water
Fuses
Hypoid Gear Oil SAE80Final Drive Oil
standard:
cold climat (below 5°C, 41°F):
high speed riding:
or
or
or
main B:
other:
main A:
external amplifier:
１２／１０／３１ １４：０４：０１ ３１ＭＪＧ６００ ０２５６
−
−
−
−
Quick Reference
Quick Reference
These symbols are used in Controls &Features section:
SYMBOL COMPONENT
HI headlight dimmer switch
LO headlight dimmer switch
SEE PAGE
turn signal switch
horn button
hazard switch
RUN engine stop switch
OFF engine stop switch
START button
32
32
33
34
34
34
34
33
１２／１０／３１ １４：０４：１１ ３１ＭＪＧ６００ ０２５７
