Contents
Contents
MOTORCYCLE SAFETY............................. 1
Important Safety Information ........................... 2
Important Safety Precautions ........................ 2
Accessories & Modifications ........................... 3
Safety Labels .................................................... 4
INSTRUMENTS & CONTROLS.................. 5
Operation Component Locations ...................... 6
MIL (Malfunction Indicator Lamp) ................. 7
MIL Blink Pattern ......................................... 7
Current DTC/Freeze DTC............................. 7
Circuit Inspection .......................................... 8
DTC Index..................................................... 9
Engine Mode &
Launch Control System Indicator ................... 10
Engine Mode Indicator................................ 10
Launch Control System Indicator ............... 10
BEFORE RIDING......................................... 11
Are You Ready to Ride? ................................ 12
Is Your Motorcycle Ready to Ride? ............... 13
Pre-ride Inspection ...................................... 13
BASIC OPERATING INSTRUCTIONS .... 15
Safe Riding Precautions .............................. 16
Side Stand (CRF450RX)............................. 16
Starting & Stopping the Engine ...................... 17
Fast Idle Knob ............................................. 17
Preparation .................................................. 17
Starting Procedure ....................................... 17
How to Stop the Engine .............................. 18
Parking (CRF450RX) ..................................... 19
Break-in Guidelines ........................................ 20
SERVICING YOUR HONDA ......................21
Before You Service Your Honda
The Importance of Maintenance .....................22
Maintenance Safety .........................................23
Important Safety Precautions.......................23
Maintenance Schedule ....................................24
Maintenance Schedule (CRF450RX) .............25
Maintenance Schedule (CRF450R/RWE) ......26
General Competition Maintenance .................27
Before & After Competition Maintenance .....31
Between Races (CRF450RX)/Motos
(CRF450R/RWE) & Practice Maintenance
...31
After Competition Maintenance ..................32
Service Preparations
Maintenance Component Locations ...............33
Seat ..................................................................34
Fuel Tank (CRF450RX) .................................35
Fuel Tank (CRF450R/RWE) ..........................37
Subframe .........................................................39
Service Procedures
Fluids & Filters
Fuel System (CRF450RX) ..............................42
Fuel System (CRF450R/RWE) .......................52
Engine Oil .......................................................62
Coolant ............................................................65
Air Cleaner ......................................................67
Crankcase Breather .........................................69
Engine
Throttle ............................................................70
Engine Idle Speed ...........................................72
Clutch System .................................................73
Spark Plug .......................................................78
Valve Clearance ..............................................79
Piston/Piston Rings/Piston Pin ........................88
Chassis
Suspension ...................................................... 97
Brakes ........................................................... 114
Wheels .......................................................... 118
Tires & Tubes ............................................... 119
Side Stand (CRF450RX) .............................. 121
Drive Chain .................................................. 122
Exhaust Pipe/Muffler .................................... 126
Additional Maintenance Procedures ............. 132
Electrical
Battery .......................................................... 134
Appearance Care .......................................... 136
2019 CRF450RX/R/RWE
31MKE620
M
OM 16609 (1803)
Contents
Contents
ADJUSTMENTS FOR COMPETITION
... 139
Engine Mode Select Button .......................... 140
Current Mode ............................................ 140
Mode Selection.......................................... 140
HRC-Launch Control System ...................... 141
Front Suspension Adjustments ..................... 143
Front Suspension Air Pressure .................. 143
Front Suspension Damping ....................... 144
Fork Springs .............................................. 144
Fork Oil Adjustment.................................. 145
Rear Suspension Adjustments ...................... 146
Rear Suspension Spring Pre-Load............. 146
Rear Suspension Damping ........................ 147
Rear Suspension Race Sag ........................ 149
Suspension Adjustments for Track
Conditions .................................................... 151
Suspension Adjustment Guidelines .............. 152
Tuning Tips .................................................. 155
Spark Plug Reading................................... 155
Chassis Adjustments ..................................... 156
Rear End.................................................... 156
Fork Height/Angle..................................... 156
Wheelbase ................................................. 156
Gearing ......................................................... 157
Tire Selection for Track Conditions ............. 158
Personal Fit Adjustments .............................. 159
Control Positioning ................................... 159
Handlebar Position, Width & Shape ......... 159
TIPS...............................................................161
Transporting Your Motorcycle .....................162
Storing Your Honda ......................................163
Preparation for Storage ..............................163
Removal from Storage ...............................163
You & the Environment ................................164
Troubleshooting ............................................165
TAKING CARE OF THE
UNEXPECTED ............................................167
If a Fuse Blows .............................................168
If Your Battery Is Low (or Dead) .................169
TECHNICAL INFORMATION.................171
Vehicle Identification ....................................172
Serial Numbers ..........................................172
Specifications ................................................173
Torque Specifications ...................................175
Nuts, Bolts, Fasteners ................................175
Oxygenated Fuels ..........................................178
Competition Logbook ...................................179
Optional Parts List ........................................181
Spare Parts & Equipment ..............................182
Spare Parts .................................................182
General Tools.............................................182
Honda Special Tools..................................182
Chemical Products .....................................182
Other Products ...........................................182
Wiring Diagram ............................................183
CONSUMER INFORMATION .................185
Authorized Manuals ......................................186
Contacting Honda .........................................187
Your Honda Dealer .......................................188
INDEX .......................................................... 190
QUICK REFERENCE
2019
Honda CRF450RX/CRF450R/CRF450RWE
OWNER’S MANUAL & COMPETITION HANDBOOK
Introduction
Introduction
Introduction
Congratulations on choosing your Honda CRF off-
road racing (CRF450RX)/motocross (CRF450R/
RWE), motorcycle.
When you own a Honda, you’re part of a
worldwide family of satisfied customers – people
who appreciate Honda’s reputation for building
quality into every product.
Your CRF is a high performance racing
motorcycle that utilizes the latest off-road racing
(CRF450RX)/motocross (CRF450R/RWE)
technology and is intended for competition use in
sanctioned, closed-course events by experienced
riders only.
Be aware that off-road racing (CRF450RX)/
motocross (CRF450R/RWE) is a physically
demanding sport that requires more than just a fine
motorcycle. To do well, you must be in excellent
physical condition and be a skillful rider. For the
best results, work diligently on your physical
conditioning and practice frequently.
Before riding, take time to get acquainted with
your CRF and how it works. To protect your
investment, we urge you to take responsibility for
keeping your CRF well maintained. Scheduled
service is a must, of course. But it’s just as
important to observe the break-in guidelines, and
perform all the pre-ride and other periodic checks
detailed in this manual.
You should also read the owner’s manual before
you ride. It’s full of facts, instructions, safety
information, and helpful tips. To make it easy to
use, the manual contains a table of contents, a
detailed list of topics at the beginning of each
section, and an index at the back of the book.
As you read this manual, you will find information
that is preceded by a symbol. This
information is intended to help you avoid damage
to your CRF, other property, or the environment.
Unless you are mechanically qualified and have
the proper tools, you should see your dealer for the
service and adjustment procedures discussed in
this manual.
An official Honda Service Manual for your CRF is
available (page 186). It is the same manual your
dealer uses. If you plan to do any service on your
CRF beyond the standard maintenance procedures
in this manual, you will find an official Honda
Service Manual a valuable reference.
If you have any questions, or if you ever need a
special service or repairs, remember that your
Honda dealer knows your CRF best and is
dedicated to your complete satisfaction.
Please report any change of address or ownership
to your dealer so we will be able to contact you
concerning important product information.
You may also want to visit our website at
USA: www.powersports.honda.com.
Canada: www.honda.ca.
Happy riding!
ABBREVIATION
Throughout this manual, the following
abbreviations are used to identify the respective
parts or system.
Abbrev. term Full term
CKP sensor Crankshaft Position sensor
DLC Data Link Connector
DTC Diagnostic Trouble Code
ECM Engine Control Module
ECT sensor Engine Coolant Temperature
sensor
GP sensor Gear Position sensor
IAT sensor Intake Air Temperature sensor
MAP sensor Manifold Absolute Pressure sensor
MIL Malfunction Indicator Lamp
PGM-FI Programmed Fuel Injection
TDC Top Dead Center
TP sensor Throttle Position sensor
Safety Messages
A Few Words About Safety
Your safety, and the safety of others, is very important. And operating this motorcycle safely is an important responsibility.
To
help you make informed decisions about safety, this manual contains a section devoted to Motorcycle Safety, as well as a number of Safety Messages throughout
the manual.
Safety Messages are preceded by a safety alert symbol and one of three signal words: DANGER, WARNING, or CAUTION.
These signal words mean:
Of course, it is not practical or possible to warn you about all hazards associated with operating or maintaining a motorcycle. You must use your own good
judgment.
You WILL be KILLED or SERIOUSLY HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow instructions.
DANGER
WARNING
CAUTION
Motorcycle Safety
Motorcycle Safety 1
This section presents some of the most important
information and recommendations
to help you ride
your CRF safely. Please take a few moments to
read these pages. This section also includes
information about the location of safety labels on
your CRF.
Important Safety Information ............................2
Important Safety Precautions.........................2
Accessories & Modifications.............................3
Safety Labels......................................................4
Important Safety Information
2 Motorcycle Safety
Important Safety Information
Your CRF can provide many years of pleasure, if
you take responsibility for your own safety and
understand the challenges you can meet in
competitive racing.
As an experienced rider, you know there is much
you can do to protect yourself when you ride.
The following are a few precautions we consider to
be most important.
Never Carry a Passenger.
Your CRF is designed for one operator only.
Carrying a passenger can cause a crash in which
you and others can be hurt.
Wear Protective Gear.
Whether you’re practicing to improve your skills,
or riding in competition, always wear an approved
helmet, eye protection, and proper protective gear.
Take Time to Get to Know Your CRF.
Because every motorcycle is unique, take time to
become thoroughly familiar with how this one
operates and responds to your commands before
placing your machine, and yourself, in
competition.
Learn and Respect Your Limits.
Never ride beyond your personal abilities or faster
than conditions warrant. Remember that alcohol,
drugs, illness and fatigue can reduce your ability to
perform well and ride safety.
Don’t Drink and Ride.
Alcohol and riding don’t mix. Even one drink can
reduce your ability to respond to changing
conditions, and your reaction time gets worse with
every additional drink. So don’t drink and ride, and
don’t let your friends drink and ride either.
Keep your Honda in Safe Condition.
Maintaining your CRF properly is critical to your
safety. A loose bolt, for example, can cause a
breakdown in which you can be seriously injured.
Lithium-Ion (Li-Ion) Battery.
If you smell an unusual odor coming from the
lithium-ion (li-ion) battery, park your CRF in a
safe place outside and away from flammable
objects, then stop the engine. Have your CRF
inspected by your dealer immediately.
Important Safety Precautions
Accessories & Modifications
Motorcycle Safety 3
Installing non-Honda accessories, removing
original equipment, or
modifying your CRF in any
way that would change its design or operation,
could seriously impair your CRF’s handling,
stability, and braking, making it unsafe to ride.
Accessories & Modifications
WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner’s
manual regarding modifications and
accessories.
Safety Labels
4 Motorcycle Safety
Read these labels carefully and don’t remove them.
If a label comes off or becomes hard to read, contact your dealer for replacement.
(For Canada)
Instruments & Controls
Instruments & Controls 5
Read this section carefully before you ride. It
presents the location of the basic controls on your
CRF.
Operation Component Locations
.......................6
MIL (Malfunction Indicator Lamp) ...................7
MIL Blink Pattern..........................................7
Current DTC/Freeze DTC .............................7
Circuit Inspection...........................................8
DTC Index .....................................................9
Engine Mode &
Launch Control System Indicator ....................10
Engine Mode Indicator ................................10
Launch Control System Indicator................10
Operation Component Locations
6 Instruments & Controls
front brake lever
clutch lever
engine mode select button
engine stop button
MIL (amber)
Engine mode indicator (blue)
Launch control system indicator (purple)
start button
throttle grip
shift lever
fast idle knob (engine idle speed)
side stand (CRF450RX)
rear brake pedal
MIL (Malfunction Indicator Lamp)
Instruments & Controls 7
The MIL (1) on your CRF keeps you informed,
alerts you to possibl
e problems, and makes your
riding
safer and more enjoyable. Refer to the MIL
frequently.
When starting the engine, the MIL (amber) will
stay on for 2 seconds and then go off.
This is normal.
The MIL blinks when there is any abnormality in
the PGM-FI system.
If the MIL comes on at any other time, reduce
speed and refer to an official Honda Service
Manual available for purchase from your dealer
(page 186).
If the MIL does not come on when the engine is
started, have your dealer check it for problems.
The MIL will blink the appropriate DTC number if
the ECM detects an active problem while the
engine is running at less than 4,000 rpm.
The MIL will stay on when engine speed is over
4,000 rpm.
The MIL has two types of blinks: a long blink and
short blink. The long blinking lasts for 1.2 seconds,
the short blinking lasts for 0.4 seconds.
One long blink is the equivalent of 10 short blinks.
For example, when one long blink is followed by
two short blinks, the MIL is 12 (one long blink =
10 blinks, plus two short blinks).
When the ECM stores more than one DTC, the
MIL will indicate them by blinking in the order
from the lowest number to highest number.
The DTC is indicated in two ways according to the
failure status.
– When the engine starts,
the MIL stays on for 2
sec
onds, then goe
s off.
If the ECM detects a DTC, the MIL starts
blinking
(indicating the DTC number by
the
number of blinks in amber.).
Even
when the MIL is blinking, you can c
hange
the
engine modes. However, you cannot c
hange
the
engine modes when the indicator is b
linking
DTC 1, 2 or 8.
After an engine mode is selected, the MIL
restar
ts blinking the current DTC number.
– In the case that the EC
M does not detect an
active problem but has recorded a previous
problem in its memory, the MIL will not come
on. If it is necessary to retrieve any past
problems stored in the memory, refer to an
official Honda Service Manual.
(1) MIL (amber)
(1)
MIL Blink Pattern Current DTC/Freeze DTC
8 Instruments & Controls
MIL (Malfunction Indicator Lamp)
Always clean around the ECM and keep debris
away from the connectors before disconnecting
them.
A faulty PGM-FI system is often related to poorly
connected or corroded connections. Check the
following connections.
Remember, circuit inspection is not a “cure-all” for
other problems in your engine’s PGM-FI system.
Circuit Inspection
(1) MAP sensor connector
(2) ECT sensor connector
(3) TP sensor connector
(4) IAT sensor connector
(5) Injector connector
(6) CKP sensor connector
(7) ECM connector
(8) GP sensor connector
(3)
(4)
(2)
(6)
(1)
(5)
(7)
(8)
Instruments & Controls 9
MIL (Malfunction Indicator Lamp)
Refer to MIL Blink Pattern on page 7.
Should be serviced by your dealer, unless the owner has proper tools and is technically qualified.
The series of 12 MIL blinks cannot be checked because the engine cannot be started.
If the engine does not start, check all connector connections and/or refer to an official Honda Service
Manual (page 186) for troubleshooting of the PGM-FI symptom.
DTC Index
MIL blinks
Function Failure Symptom/Fail-safe function
1 MAP sensor circuit malfunction Poor performance (driveability)
2 MAP sensor performance problem Poor performance (driveability)
7 ECT sensor circuit malfunction Hard start at a low temperature
8 TP sensor circuit malfunction Poor engine acceleration
9 IAT sensor circuit malfunction Engine operates normally
12 Injector circuit malfunction
• Engine does not start
• Injector, fuel pump and ignition shut down
41 GP sensor circuit malfunction Engine operates normally
Engine Mode & Launch Control System Indicator
10 Instruments & Controls
Engine Mode & Launch Control System Indicator
The engine mode indicator (blue) (1) is located
under the engine mode select button (2). The
engine mode indicator indicates the currently
selected mode by blinking the mode number once
when the engine is started.
The engine mode indicator indicates a selected
mode when you operate the engine mode select
button (page 140).
If the engine mode indicator stays on or does not
come on when it should, have your dealer check it
for problems.
The launch control system indicator (purple) (1) is
located under the engine mode select button (2).
The launch control system indicator indicates the
currently selected level by blinking the level
number while launch control system goes into
standby.
The launch control system indicator comes on
(purple) while the system is operating.
If the launch control system indicator does not
come on when it should, have your dealer check it
for problems.
Engine Mode Indicator
(1) engine mode indicator (blue)
(2) engine mode select button
(2)
(1)
Launch Control System Indicator
(1) launch control system indicator (purple)
(2) engine mode select button
(2)
(1)
Before Riding
Before Riding 11
Before each ride, you n
eed to make sure you and
your CRF are both ready to ride. To help get you
prepared, this section discusses how to evaluate
your riding readiness, and what items you should
check on your CRF.
For information about suspension and other
adjustments, see page 139.
Are You Ready to Ride? ..................................12
Is Your Motorcycle Ready to Ride? ................13
Pre-ride Inspection.......................................13
Are You Ready to Ride?
12 Before Riding
Are You Ready to Ride?
Before riding your CRF for the first time, we
strongly recommend that you read this owner’s
manual, make sure you understand the safety
messages, and know how to operate the controls.
Before each ride, it’s also important to make sure
you and your CRF are both ready to ride.
For information about suspension and other
adjustments, see page 139.
Whether you’re preparing for competition or for
practice, always make sure you are:
• In good physical and mental condition
• Free of alcohol and drugs
• Wearing an approved helmet, eye protection,
and other appropriate riding gear
Although complete protection is not possible,
wearing the proper gear can reduce the chance or
severity of injury when you ride.
WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Be sure you always wear a helmet, eye
protection and other protective apparel
when you ride.
Is Your Motorcycle Ready to Ride?
Before Riding 13
Competitive riding can be tough on a motorcycle,
so it’s important to inspect your CRF and correct
any
problems you find before each ride. Check the
following items (page numbers are at the right):
Check the following before each ride:
• Engine oil level ........................................... 63
• Fuel line for condition ................................ 42
• Coolant for proper level.............................. 65
• Cooling system and hoses for condition ..... 66
• Spark plug for proper heat range, carbon
fouling and spark plug wire terminal for
looseness ..................................................... 78
• Air cleaner for condition and
contamination ............................................. 67
• Clutch lever freeplay................................... 73
• Breather drain for cleaning ......................... 69
• Steering head bearing and related parts for
condition ................................................... 132
• Throttle operation ....................................... 71
• Tires for damage or improper inflation
pressure ..................................................... 119
• Spokes for looseness................................. 118
• Rim locks for looseness ............................ 118
• F
ront and rear suspension for proper
operation ............................................. 97, 113
• Front and rear brakes, check operation..... 114
• Drive chain for correct slack and adequate
lubrication ......................................... 122, 123
• Drive chain sliders and drive chain rollers
for damage or wear ........................... 122, 123
• Exhaust pipe/Muffler for looseness .......... 126
• Every possible part for looseness (such as
cylinder head bolts, engine mounting bolts/
nuts, axle nuts, handlebar holder bolts, fork
bridge pinch bolts, drive chain adjuster, lock
nuts, drive chain roller bolt/nut, wire harness
connectors)......................................... 175-177
• MIL operation ............................................... 7
WARNING
Improperly maintaining this motorcycle or
failing to correct a problem before riding
can cause a crash in which you can be
seriously hurt or killed.
Always perform a pre-ride inspection
before every ride and correct any
problems.
Pre-ride Inspection
14 Before Riding
BLANK PAGE
Basic Operating Instructions
Basic Operating Instructions 15
This section gives basic information on how to
start and stop your engine as well as break-in
guidelines.
Safe Riding Precautions
...............................1
6
Side Stand (CRF450RX) .............................16
Starting & Stopping the Engine .......................17
Fast Idle Knob..............................................17
Preparation ...................................................17
Starting Procedure........................................17
How to Stop the Engine...............................18
Parking (CRF450RX) ......................................19
Break-in Guidelines .........................................20
Basic Operating Instructions
16 Basic Operating Instructions
Basic Operating Instructions
Before riding your CRF for the first time, please
review the Important Safety Precautions
beginning on page 2 and the previous section,
titled Before Riding.
For your safety, avoid starting or operating the
engine in an enclosed area such as a garage.
Your CRF’s exhaust contains poisonous carbon
monoxide gas which can collect rapidly in an
enclosed area and cause illness or death.
The side stand (1) is used to support your CRF
while parked (page 19). To operate, push the side
stand down. Slowly lean your CRF to the left until
its weight rests on the side stand. Turn the
handlebar fully to the left.
Before riding, raise the side stand.
Safe Riding Precautions
WARNING
Running the engine of your vehicle while
in an enclosed or even partially enclosed
area can cause a rapid build-up of toxic
carbon monoxide gas.
Breathing this colorless, odorless gas can
quickly cause unconsciousness and lead
to death.
Only run your vehicle's engine when it is
located in a well ventilated area outdoors.
Side Stand (CRF450RX)
(1) side stand
(1)
Starting & Stopping the Engine
Basic Operating Instructions 17
Always follow the proper starting procedure
describe
d below.
Your CRF can be started with the transmission in
gear
by pulling in the clutch lever before operating
the start button.
The fast idle knob has two functions:
• When pulled out, the fast idle knob assists in
first-time start-up for cold weather starting.
• When pushed in, it acts like an idle adjustment
screw. Refer to Idle Speed Adjustment on
page 72.
Make sure that the transmission is in neutral.
Always follow the proper starting procedure
described as follows.
Check the engine oil and coolant levels before
starting the engine (pages 63, 65).
Cold Engine Starting
1. Shift the transmission into neutral.
2. If the temperature is 50°F (10°C) or below,
pull the fast idle knob (1) fully up.
3. With the throttle closed.
Pull the clutch lever all the way in, and depress
the start button (2).
4. About a minute after the engine starts, push the
fast idle knob back all the way to fully OFF.
If idling is unstable, open the throttle slightly.
Fast Idle Knob
Preparation
Starting Procedure
(1) fast idle knob
(1)
(2) start button
(2)
18 Basic Operating Instructions
Starting & Stopping the Engine
Warm Engine Starting
1. Shift the transmission into neutral.
2. Pull the clutch lever and depress the start
button. (Do not open the throttle.)
Starting the engine excessively charged with fuel
by throttle blipping or other reasons
1. Shift the transmission into neutral.
2. With the throttle fully opened, pull the clutch
and depress the start button for 5 seconds to
discharge excessive fuel from the engine.
3. Pull the clutch lever and depress the start
button. (Do not open the throttle.)
Snapping the throttle or fast idling for more than
about 5 minutes may cause exhaust pipe and
muffler discolorations.
When starting the engine, the MIL (amber) will
stay on for 2 seconds, then go off. And then the
engine mode indicator (blue) indicates the current
engine mode for 0.8 seconds, then goes off. If the
MIL/engine mode indicator (1) does not come on
or go off when it should, have your dealer check it
for problems.
Normal Engine Stop
1. Shift the transmission into neutral.
2. Push and hold the engine stop button (1) until
the engine stops completely.
Emergency Engine Stop
To stop the engine in an emergency, push and hold
the engine stop button.
(1) MIL (amber) / engine mode indicator (blue)
(1)
How to Stop the Engine
(1) engine stop button
(1)
Parking (CRF450RX)
Basic Operating Instructions 19
Lower the side stand to support your CRF.
Always choose a level surface to park.
Break-in Guidelines
20 Basic Operating Instructions
Break-in Guidelines
Help assure your CRF’s future reliability and
performance by paying extra attention to how you
ride during the first operating day or 15 miles
(25 km).
During this period, avoid full-throttle starts and
rapid acceleration.
This same procedure should be followed each time
when:
• piston is replaced
• piston rings are replaced
• cylinder is replaced
• crankshaft or crank bearings are replaced
Servicing Your Honda
Servicing Your Honda 21
Keeping your CRF well maintained is absolutely
essential to your safety. It’s also a good way to
protect your investment, g
et maximum
performance, avoid breakdowns, and have more
fun.
To help keep your CRF in good shape, this section
includes a Maintenance Schedule for required
servicing and step-by-step instructions for specific
maintenance tasks. You’ll also find important
safety precautions, information on oils, and tips for
keeping your CRF looking good.
An ECM system is used on this motorcycle;
consequently, routine ignition timing adjustment is
unnecessary. If you want to check the ignition
timing, refer to an official Honda Service Manual
(page 186).
An optional tool kit may be available. Check with
your dealer’s parts department.
Before You Service Your Honda
The Importance of Maintenance ......................22
Maintenance Safety..........................................23
Important Safety Precautions.......................23
Maintenance Schedule .....................................24
General Competition Maintenance ..................27
Before & After Competition Maintenance ......31
Between Races (CRF450RX)/Motos
(CRF450R/RWE) & Practice Maintenance.31
After Competition Maintenance ..................32
Service Preparations
Maintenance Component Locations ................33
Seat...................................................................34
Fuel Tank (CRF450RX) ..................................35
Fuel Tank (CRF450R/RWE) ...........................37
Subframe ..........................................................39
Service Procedures
Fluids & Filters
Fuel System (CRF450RX)...............................42
Fuel System (CRF450R/RWE)........................52
Engine Oil ........................................................62
Coolant.............................................................65
Air Cleaner.......................................................67
Crankcase Breather ..........................................69
Engine
Throttle.............................................................70
Engine Idle Speed ............................................72
Clutch System ..................................................73
Spark Plug........................................................78
Valve Clearance ...............................................79
Piston/Piston Rings/Piston Pin.........................88
Chassis
Suspension....................................................... 97
Front Suspension Inspection ....................... 97
Rear Suspension Inspection....................... 113
Brakes ............................................................ 114
Wheels ........................................................... 118
Tires & Tubes ................................................ 119
Side Stand (CRF450RX) ............................... 121
Drive Chain ................................................... 122
Exhaust Pipe/Muffler..................................... 126
Additional Maintenance Procedures.............. 132
Electrical
Battery ........................................................... 134
Appearance Care ........................................... 136
The Importance of Maintenance
22 Servicing Your Honda
The Importance of Maintenance
Keeping your CRF well-maintained is absolutely
essential to your safety. It’s also a good way to get
maximum performance during each race
(CRF450RX)/moto (CRF450R/RWE).
Careful pre-ride inspections and good maintenance
are especially important because your CRF is
designed to be ridden in off-road competition.
Remember, proper maintenance is your
responsibility. Be sure to inspect your CRF before
each ride and follow the Maintenance Schedule in
this section.
WARNING
Improperly maintaining this motorcycle or
failing to correct a problem before you ride
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations and
schedules in this owner’s manual.
Maintenance Safety
Servicing Your Honda 23
This section includes instructions on how to
perform some important maintenance tasks.
Some of the most important safety precautions
follow. However, we cannot warn you of every
conceivable hazard that can arise in performing
maintenance. Only you can decide whether or not
you should perform a given
task.
• Make sure the engine is off before you begin
any maintenance or repairs.
This will help eliminate several potential
hazards:
Carbon monoxide poisoning from engine
exhaust. Be sure there is adequate ventilation
whenever you operate the engine.
Burns from hot motorcycle parts. Let the
engine and exhaust system cool before
touching.
Injury from moving parts. Do not run the
engine unless instructed to do so.
• Read the instructions before you begin, and
make sure you have the tools and skills
required.
• To help prevent the motorcycle from falling
over, park it on a firm, level surface, using the
side stand (CRF450RX), an optional
workstand or a maintenance stand to provide
support.
• To reduce the possibility of a fire or explosion,
be careful when working around gasoline. Use
only a non-flammable (high flash point)
solvent such as kerosene –not gasoline– to
clean parts. Keep cigarettes, sparks, and flames
away from all fuel-related parts.
WARNING
Failure to properly follow maintenance
instructions and precautions can cause
you to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s manual.
Important Safety Precautions
Maintenance Schedule
24 Servicing Your Honda
Maintenance Schedule
To maintain the safety and reliability of your CRF,
regular inspection and service is required as shown
in the Maintenance Schedule that follows.
The Maintenance Schedule lists items that can be
performed with basic mechanical skills and hand
tools. Procedures for these items are provided in
this manual.
The Maintenance Schedule also includes items that
involve more extensive procedures and may
require special training, tools, and equipment.
Therefore, we recommend that you have your
dealer perform these tasks unless you have
advanced mechanical skills and the required tools.
Procedures for items in this schedule are provided
in an official Honda Service Manual available for
purchase from your dealer (page 186).
Service intervals in the maintenance schedule are
expressed in terms of races (CRF450RX)/motos
(CRF450R/RWE) and riding hours. To avoid
overlooking required service, we urge you to
develop a convenient way to record the number of
races (CRF450RX)/motos (CRF450R/RWE) and/
or hours you ride.
If you do not feel capable of performing a given
task or need assistance, remember that your Honda
dealer knows your CRF best and is fully equipped
to maintain and repair it. If you decide to do your
own maintenance, use only Honda Genuine Parts
or their equivalents for repair or replacement to
ensure the best quality and reliability.
Perform the pre-ride inspection (page 13) at each
scheduled maintenance period.
Summary of Maintenance Schedule Notes and
Procedures:
Notes:
1. (CRF450RX)
Clean after every race for dusty riding
condition.
(CRF450R/RWE)
Clean after every moto for dusty riding
condition.
2. Replace every 2 years. Replacement requires
mechanical skill.
3. Replace after the first break-in ride.
4. Inspect after the first break-in ride.
5. Replace the engine oil, if the clutch discs and
plates are replaced.
6. Replace every year.
Maintenance Procedures:
I : inspect and clean, adjust, lubricate or replace if
necessary
C: clean
A: adjust
L : lubricate
R: replace
Maintenance Schedule (CRF450RX)
Servicing Your Honda 25
Perform the Pre-ride Inspection (page 13) at each scheduled maintenance period.
I: Inspect and Clean, Adjust, Lubricate or Replace if necessary. C: Clean. R: Replace. A: Adjust. L: Lubricate.
WE RECOMMEND THESE ITEMS BE SERVICED BY REFERRING TO THE OFFICIAL HONDA SERVICE MANUAL.
This maintenance schedule is based upon average riding condition. Machine subjected to severe use require more frequent servicing.
NOTE: 1.Clean after every race for dusty riding condition.
2.Replace every 2 years. Replacement requires mechanical skill.
3.Replace after the first break-in ride.
4.Inspect after the first break-in ride.
5.Replace the engine oil, if the clutch discs and plates are replaced.
6.Replace every year.
FREQUENCY
ITEMS
CRF450RX
NOTE
Each race or
about
3.5 hours
Every 2 races or
about
7.5 hours
Every 4 races or
about
15.0 hours
Every 6 races or
about
22.5 hours
Every 8 races or
about
30.0 hours
Ref. Page
FUEL LINE (NOTE 6) I R42
FUEL PUMP FILTER (NOTE 6) R 46 – 51
THROTTLE OPERATION I 71
AIR FILTER (NOTE 1) C 67, 68
CRANKCASE BREATHER I 69
SPARK PLUG I 78
VALVE CLEARANCE/DECOMPRESSOR SYSTEM (NOTE 4) I 79 – 87
ENGINE OIL
(NOTE 3)
(NOTE 5)
IR 63
ENGINE OIL FILTER (NOTE 3) R 63, 64
ENGINE IDLE SPEED I 72
PISTON AND PISTON RINGS R 90 – 92
PISTON PIN R 90 – 92
RADIATOR COOLANT (NOTE 2) I 65, 66
COOLING SYSTEM I 66
DRIVE CHAIN I, L R 122 – 124
DRIVE CHAIN SLIDER I 122
DRIVE CHAIN ROLLER I 123
DRIVE SPROCKET I 124
DRIVEN SPROCKET I 124
BRAKE FLUID (NOTE 2) I 115, 116
BRAKE PADS WEAR I 117
BRAKE SYSTEM I 114
CLUTCH SYSTEM (NOTE 5) I 73 – 77
CONTROL CABLES I, L 132
EXHAUST PIPE/MUFFLER I 126 – 130
SUSPENSION I 97, 113
SWINGARM/SHOCK LINKAGE L
30, 113
FORK OIL
(NOTE 3)
R
1
00, 101,
105 – 113
NUTS,
BOLTS, FASTENERS I 133, 175 – 177
WHEELS/TIRES I 118 – 120
STEERING HEAD BEARINGS I 132
SIDE STAND I 121
Maintenance Schedule (CRF450R/RWE)
26 Servicing Your Honda
Perform the Pre-ride Inspection (page 13) at each scheduled maintenance period.
I: Inspect and Clean, Adjust, Lubricate or Replace if necessary. C: Clean. R: Replace. A: Adjust. L: Lubricate.
WE RECOMMEND THESE ITEMS BE SERVICED BY REFERRING TO THE OFFICIAL HONDA SERVICE MANUAL.
This maintenance schedule is based upon average riding condition. Machine subjected to severe use require more frequent servicing.
NOTE: 1.Clean after every moto for dusty riding condition.
2.Replace every 2 years. Replacement requires mechanical skill.
3.Replace after the first break-in ride.
4.Inspect after the first break-in ride.
5.Replace the engine oil, if the clutch discs and plates are replaced.
6.Replace every year.
FREQUENCY
ITEMS
CRF450R/RWE
NOTE
Each race or
about
2.5 hours
Every 3 races or
about
7.5 hours
Every 6 races
or about
15.0 hours
Every 9 races
or about
22.5 hours
Every 12 races
or about
30.0 hours
Ref. Page
FUEL LINE (NOTE 6) I R52
FUEL PUMP FILTER (NOTE 6) R 52 – 61
THROTTLE OPERATION I 71
AIR FILTER (NOTE 1) C 67, 68
CRANKCASE BREATHER I 69
SPARK PLUG I 78
VALVE CLEARANCE/DECOMPRESSOR SYSTEM (NOTE 4) I 79 – 87
ENGINE OIL
(NOTE 3)
(NOTE 5)
IR 63
ENGINE OIL FILTER (NOTE 3) R 63, 64
ENGINE IDLE SPEED I 72
PISTON AND PISTON RINGS R 90 – 92
PISTON PIN R 90 – 92
RADIATOR COOLANT (NOTE 2) I 65, 66
COOLING SYSTEM I 66
DRIVE CHAIN I, L R 122, 123, 125
DRIVE CHAIN SLIDER I 122
DRIVE CHAIN ROLLER I 123
DRIVE SPROCKET I 125
DRIVEN SPROCKET I 125
BRAKE FLUID (NOTE 2) I 115, 116
BRAKE PADS WEAR I 117
BRAKE SYSTEM I 114
CLUTCH SYSTEM (NOTE 5) I 73 – 77
CONTROL CABLES I, L 132
EXHAUST PIPE/MUFFLER I 126 – 130
SUSPENSION I 97, 113
SWINGARM/SHOCK LINKAGE L
30, 113
FORK OIL
(NOTE 3) R
100, 101,
105 – 113
NUTS, BOLTS, FASTENERS I 133, 175 – 177
WHEELS/TIRES I 118 – 120
STEERING HEAD BEARINGS I 132
General Competition Maintenance
Servicing Your Honda 27
Perform mainte
nance on firm, level ground using
the side stand (CRF450RX), an optional
workstand, or equivalent support.
When tightening bolts, nuts or screws, start with
the larger diameter or inner fasteners, and tighten
them to the specified torque using a crisscross
pattern.
Use Honda Genuine Parts or their equivalents
when servicing your CRF.
Clean parts in non-flammable (high flash point)
cleaning solvent (such as kerosene) when
disassembling. Lubricate any sliding surfaces,
O-rings, and seals before reassembling. Grease
parts by coating or filling where specified.
After any engine disassembly, always install new
gaskets, O-rings, cotter pins, piston pin clips, snap
rings, etc. when reassembling. After reassembly,
check all parts for proper installation and
operation.
All Pre-ride Inspection Items
Refer to Pre-ride Inspection on page 13.
General Competition Maintenance
28 Servicing Your Honda
Spark Plug
Some non-resistor plugs may cause ignition problems.
Refer to the recommendations elsewhere in this manual for
specific types so you will be sure to use the proper reach and
heat range. Replace periodically as specified in the
Maintenance Schedule (pages 25, 26).
Spark Plug Cap
Install a small plastic wire band around the spark plug cap to
reduce any possibility of it loosening or of water penetration.
Air Cleaner
Clean and oil your air cleaner regularly because the volume
of air able to pass through it has a great effect on
performance. Both engine performance and long term
durability may be affected by an air cleaner that has
deteriorated and allows dirt to pass. Inspect the air cleaner
closely each time it’s serviced for evidence of small tears or
seam separation. Keep a spare air cleaner oiled and ready to
install, sealed in a plastic bag. Riding in dusty conditions
may require servicing the air cleaner or replacing it with a
pre-serviced air cleaner between races (CRF450RX)/motos
(CRF450R/RWE). Be careful not to over oil the air cleaner.
While it is important to oil the air cleaner thoroughly, over
oiling will cause an overall rich running condition, probably
more noticeable off idle and in low rpm performance. Follow
the servicing instructions in the Maintenance section. Use
Pro Honda Foam Air Filter Oil or an equivalent. Be sure to
grease the air cleaner flange where it contacts the air cleaner
housing. Pro Honda Foam Air Filter Sealer or an equivalent
is handy for this because any dirt that penetrates this sealing
area will show up clearly (page 67).
Use the Honda Genuine air cleaner or an equivalent air
cleaner specified for your model.
Using the wrong Honda air cleaner or a non-Honda air
cleaner which is not of equivalent quality may cause
premature engine wear or performance problems.
Engine Oil and Filter
Drain and replace engine oil often to ensure the greatest
service life of the piston, cylinder, crankshaft, transmission
and clutch.
Also replace engine oil filter often to ensure the greatest
service life. Frequent changes will also assure consistent
performance of power, response, both shifting and clutch
action (page 63).
General Competition Maintenance
Servicing Your Honda 29
Handgrips
Always use Honda Bond A, Pro Honda Handgrip Cement
(U.S.A. only) when replacing handgrips.
Refer to an official Honda Service Manual (page 186) for
installation instructions.
Throttle Grip/Handlebar Grip
Right throttle grip: Align the index mark on the throttle grip
with the index mark of the throttle pipe.
Left handlebar grip: Align the index mark on the left
handlebar grip with the paint mark on the handlebar.
Gaskets
Always use new gaskets when reassembling components.
Fuel Line
Refer to Fuel Line Inspection on pages 42 and 52.
Check the fuel line for deterioration, damage, or leakage.
Replace the fuel line every year.
For added security, you may choose to bind the handgrips to
the handlebar and throttle pipe with safety wires to prevent the
possibility of them loosening. Position the twisted wire ends
away from your palms and be sure to bend the wire ends well
into the handgrip rubber so they will not snag your glove.
Engine Mounting Bolts and Nuts
Make sure the engine mounting bolts and nuts are tightened
to the proper torque specification.
Frame
Because your CRF is a high-performance machine, the frame
should not be overlooked as part of your overall competition
maintenance program. Periodically inspect the frame closely for
possible cracking or other damage. It makes good racing sense.
Cylinder head/Cylinder
Put a little grease on the dowel pins of the cylinder head and
cylinder to prevent corrosion from dissimilar metals. The
tolerances are quite tight, so it’s important to keep these
dowels absolutely clean (pages 93, 94).
Electrical Connectors
Clean electrical connectors and wrap them with electrical
tape to reduce the possibility of unwanted disconnections,
water shorts or corrosion.
Fuse
Check the fuse before looking elsewhere for the cause of an
electrical problem.
Battery
The start button uses current from the battery.
Limited operation also allows the battery to discharge. If
you do not ride frequently, we recommend that you charge
the battery frequently (see Battery Charging on page 135).
If you do not expect to ride your CRF for at least 2 weeks,
we recommend you remove the battery – or at least
disconnect the battery cables (negative cable first).
Fork Oil/Performance
Disassemble, clean and inspect the fork and replace the oil
regularly. Contamination due to the tiny metal particles
produced from the normal action of the fork, as well as
normal oil breakdown, will deteriorate the performance of
the suspension. Refer to an official Honda Service Manual
(page 186). Use only Pro Honda HP Fork Oil, A15-00 or an
equivalent which contains special additives to assure
maximum performance of your CRF’s front suspension.
General Competition Maintenance
30 Servicing Your Honda
Brake Fluid Replacement
Refer to Brake Pad Wear on page 117.
Brake Caliper Inspection: Be sure both the front and rear
calipers are able to move freely on the caliper pin and caliper
bracket pins. Check pad thickness periodically and replace the
pads when minimum thickness is reached. If the brakes fade
when they are hot, inspect the pads for glazing or damage, and
replace if necessary.
Brake Fluid Replacement: Refer to an official Honda Service
Manual (page 186) for brake fluid replacement instructions.
Replace the brake fluid in the brake system every 2 years.
Replace the fluid more frequently if you subject your brakes to
severe use. Heavy braking heats the brake fluid and it may
deteriorate sooner than expected. Any type of riding, that
requires frequent use of the brakes, such as in tight woods, can
shorten the service life of brake fluid.
Spokes
Check spoke tension frequently between the first few rides.
As the spokes, spoke nuts and rim contact points seat-in,
the spokes may need to be retightened. Once past this initial
seating-in period, the spokes should hold their tension.
Still, be sure your race (CRF450RX)/moto (CRF450R/
RWE) maintenance program includes checking spoke
tension and overall wheel condition on a regular basis
(page 118).
Nuts, Bolts, Etc.
Application of a thread locking agent to essential fasteners
offers added assurance and security. Remove the nuts,
clean the threads of both the nuts and bolts, apply Pro
Honda Hondalock or an equivalent and tighten to the
specified torque (page 175 - 177).
Bleed Hole
After every race (CRF450RX)/moto (CRF450R/RWE), check
the bleed hole below the water pump cover for leakage. Clean
away any clogged dirt or sand, if necessary. Check for signs of
seal leakage. If water leaks through the bleed hole, replace the
mechanical seal. If oil leaks through the bleed hole, replace the
oil seal. Make sure that there is no continuous coolant leakage
from the bleed hole while operating the engine. A small
amount of coolant weeping from the bleed hole is normal. See
an official Honda Service Manual or consult your dealer for
replacing the mechanical seal or oil seal. Both seals should be
replaced at the same time.
Suspension Linkage Lubrication
Disassemble, clean, inspect and lubricate all suspension linkage
pivot bearings with molybdenum disulfide grease (containing
more than 3% molybdenum disulfide additive Moly Paste 77)
after each 7.5 hours of running time in order to maintain proper
suspension performance and minimize component wear.
Steering Head Bearings
Periodically clean, inspect and regrease the steering head
bearings — especially if wet, muddy or extremely dusty courses
are encountered often.
Use urea based multi-purpose grease designed for high
temperature, high pressure performance (example: EXCELITE
EP2 manufactured by KYODO YUSHI, Japan or equivalent).
Footpegs
Worn footpeg teeth can be repaired by filing the grooves
between the teeth with a triangular shaped file.
Be aware that filing them too sharp will reduce boot sole
lifespan. Sharpen only the points of the teeth. Filing the
grooves deeper will weaken the footpegs. Be sure the pegs
are free to pivot freely and that the pivot pin retaining cotter
pins are in good condition.
Swingarm
Do not attempt to weld or otherwise repair a damaged
swingarm. Welding will weaken the swingarm.
Swingarm Pivot Lubrication
Clean, inspect and lubricate the swingarm and suspension
linkage pivots with molybdenum disulfide grease (containing
more than 3% molybdenum disulfide additive Moly Paste 77).
Be sure all of the dust seals are in good condition.
Throttle Control
Remove the throttle control every few rides, clean the inside
of the throttle pipe and handlebar thoroughly. Inspect the
cable carefully for kinks or other damage that may restrict
throttle control in anyway. Move the handlebar from lock to
lock to be sure there is no cable interference. Make certain
the throttle operation is perfect after servicing and
inspecting.
Before & After Competition Maintenance
Servicing Your Honda 31
After practice or between races (CRF450RX)/
motos (CRF450R/RWE)
you have a
chance to
make additional checks and adjustments.
• Clean accumulated dirt from under the fenders
and off the wheels, suspension components,
handgrips, controls, and footpegs. A stiff,
nylon parts cleaning brush works well.
• Check tire air pressure.
• Check spoke tension, and make sure t
he rim
locks are secure.
•
Check to make sure the sprocket bolts and nuts
are secure.
• Clean the sides of the drive chain with a stiff,
nylon parts-cleaning brush. Lubricate and
adjust the chain as necessary.
Do not perform maintenance while engine is
running. Injury to your fingers or hands may result.
• After adjustment, check that the chain adjuster
index marks (1) are in the same position on
each side. This will ensure that the rear wheel
is in proper alignment and allow maximum
performance from the rear disc brake.
Maintaining proper wheel alignment will also
extend brake pad lifespan.
• Suspend the front wheel above the ground and
use the pressure release screws (2) to release
the built-up pressure in the forks. This pressure
is caused by normal fork action while riding.
Between Races (CRF450RX)/Motos
(CRF450R/RWE) & Practice
Maintenance
(1) chain adjuster index marks
(1)
(2) pressure release screw
(2)
32 Servicing Your Honda
Before & After Competition Maintenance
It is important to the long term performance of
your CRF to practice a consistent maintenance
program. Right after the event is a good time to
begin your next maintenance cycle.
After Race
(CRF450RX)/Moto (CRF450R/RWE)
Lubrication
Apply a light coating of rust-inhibiting oil to the
drive sprocket and any steel portions of the chassis
or engine where the paint has worn away.
This will prevent rusting of the exposed metal.
Apply rust-inhibiting oil more heavily if the event
was particularly wet or muddy. Take care to avoid
spraying any oil near the brake pads or the brake
discs.
Take care to prevent catching your fingers between
the chain and sprocket.
Remove the drive chain, clean and lubricate it
(pages 123 – 125). Be sure the chain is wiped clean
and is dry before lubricating the chain.
Routine Cleaning
If your CRF is only slightly dirty, it is best to clean
it by hand with the aid of a stiff bristled nylon
brush and some clean rags.
Take care to prevent catching your fingers between
the chain and sprocket.
A variety of reasonably priced cleaning brushes
are available from variety, drug, food, and
hardware stores. Some of these brushes are
extremely useful in removing dirt from the many
tight contours of the metal pieces of your CRF.
Avoid using stiff, abrasive brushes on the plastic or
rubber parts.
If your CRF was exposed to sea air or salt water,
rinse it as soon as possible after the event, dry it,
and apply a spray lubricant to all metal parts.
If you decide to wash your CRF or use cleaners,
refer to Appearance Care (page 136).
After Competition Maintenance
Maintenance Component Locations
Servicing Your Honda 33
clutch lever
front brake fluid reservoir
front brake lever
throttle grip
radiator cap
fuel fill cap
rear suspension rebound
damping adjuster
• rear suspension high speed
compression damping adjuster
• rear suspension low speed
compression damping adjuster
front suspension
compression damping
adjuster (both left and
right)
fast idle knob
(engine idle speed)
engine oil filter
crankcase breather
tube
drive chain
front brake
caliper
engine oil
fill cap
air cleaner
rear suspension spring
pre-load adjuster
spark plug
engine oil
drain bolt
rear brake
pedal
rear brake fluid
reservoir
rear brake
caliper
front suspension rebound damping
adjuster (both left and right)
battery
Seat
34 Servicing Your Honda
Refer to Important Safety Precautions on page 23.
Rem
oval

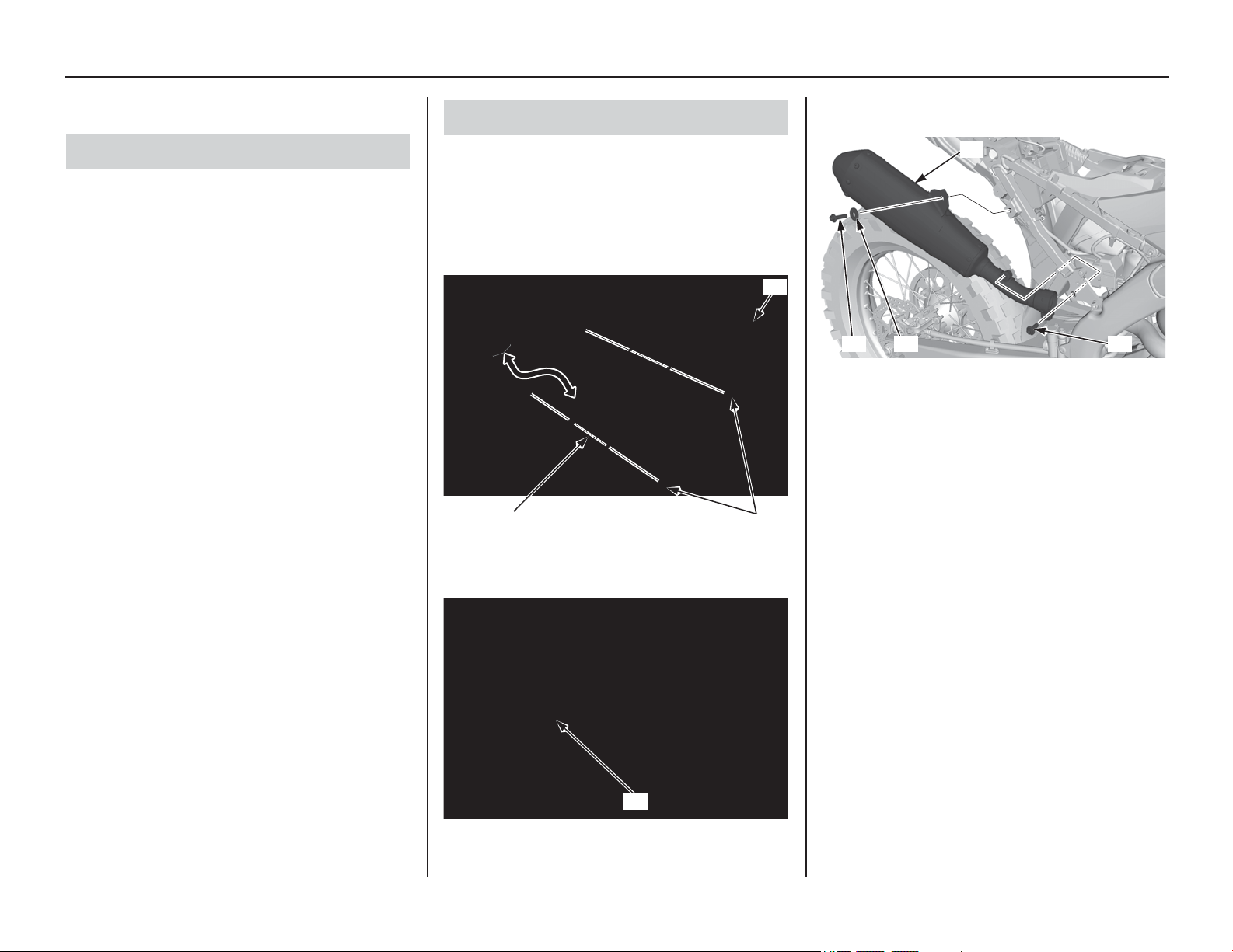

1. Remove the seat mounting bolts (1) and collars
(2).
2. Remove the seat (3) by pulling it backward.
Installation
1. Install the seat while aligning the seat front
prong (1) with the slot (2) of the fuel tank and
seat center prongs (3) with the seat support
base slots (4).
2. Install and tighten the collars (5) and seat
mounting bolts (6) to the specified torque:
19 lbf·ft (26 N·m, 2.7 kgf·m)
(1) seat mounting bolts (3) seat
(2) collars
(3)
(1)
(1)(2)
(1) seat front prong (4) seat support base slots
(2) slot (5) collars
(3
) seat center prongs (6)
seat mounting bolts
(1)
(3)
(4)(2)
(6)
(5)
(6)
Fuel Tank (CRF450RX)
(cont’d)
Servicing Your Honda 35
Refer to Important Safety Precautions on page 23.
Re
mo
val
1. Remove the seat (page 34).
2. Remove the shroud A bolt (1), shroud B bolt
(2), shroud C bolt (3) and shroud D bolt (4).
3. Slide the shroud (5) toward the up to separate
them from the air cleaner housing cover (6),
and then remove the shroud.
The right and left shrouds can be removed in the
same manner.
4. Install a hose clamp (7) to the breather tube (8)
and set the hose clamp securely.
5. Pull the breather tube out of steering stem nut
(9).
6. Remove the fuel tank bolt (10) and collar (11).
7. Unhook the fuel tank band (12).
8. Lift the fuel tank (1
3) out of the frame and
hang it to the left of the frame.
Check the fuel tank stopper cable (14) for
de
terioration, kinks or other damage.
Do not support the fuel tank by the fuel feed hose
(15).
(1) shroud A bolt
(2) shroud B bolt
(3) shroud C bolt
(4) shroud D bolt
(5) shroud
(6) air cleaner housing cover
(6)
(3)
(2)
(1)
(5)
(4)
(7) hose clamp (9) steering stem nut
(8) breather tube
(10) fuel tank bolt (12) fuel tank band
(11) collar
(8)
(7)
(9)
(11)
(10)
(12)
WARNING
Gasoline is highly flammable and
explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine and keep heat, sparks
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
(13) fuel tank
(14) fuel tank stopper cable
(15) fuel feed hose
(13)
(14)
(15)
36 Servicing Your Honda
Fuel Tank (CRF450RX)
9. Check for interference between the frame and
tank, and adjust the cushion rubbers (16) on the
both sides of the frame if necessary.
Installation
1. Install the fuel tank (1) on the frame.
2. Install and tighten the collar (2) and fuel tank
bolt (3) to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
3. Hook the fuel tank band (4).
4. Put the breather tube (5) in the steering stem
nut (6).
5. Remove the hose clamp (7) from the breather
tube.
6. Slide the shroud (8) toward the down so that
the shroud tab (9) and the slot (10) on the air
cleaner housing cover (11) is aligned.
7. Install the shroud D bolt (12), shroud C bolt
(13), shroud B bolt (14) and shroud A bolt (15).
Tighten the shroud A and B bolts to the
specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
Tighten the shroud C and D bolt to the
specified torque:
3.8 lbf·ft (5.2 N·m, 0.5 kgf·m)
The right and left shrouds can be installed in
the same manner.
8. Install the seat (page 34).
(16) cushion rubbers
(16)
3.35 ± 0.10 in
(85.0 ± 2.5 mm)
(1) fuel tank (3) fuel tank bolt
(2) collar (4) fuel tank band
(5) breather tube (7) hose clamp
(6) steering stem nut
(2)
(4)
(3)
(1)
(5)
(7)
(6)
(8) shroud (12) shroud D bolt
(9) tab (13) shroud C bolt
(10) slot (14) shroud B bolt
(11) air cleaner housing cover (15) shroud A bolt
(8)
(13)
(14)
(15)
(10)
(12)
(9)
(11)
Fuel Tank (CRF450R/RWE)
(cont’d)
Servicing Your Honda 37
Refer to Important Safety Precautions on page 23.
Re
mo
val
1. Remove the seat (page 34).
2. Remove the shroud A bolt (1), shroud B bolt
(2) and shroud C bolt (3).
3. Slide the shroud (4) toward the up to separate
them from the air cleaner housing cover (5),
and then remove the shroud.
The right and left shrouds can be removed in the
same manner.
4. Install a hose clamp (6) to the breather tube (7)
and set the hose clamp securely.
5. Pull the breather tube out of steering stem nut
(8).
6. Remove the fuel tank bolts (9) and washers
(10).
7.
Lift the fuel tank (11) out of
the frame and
hang it to the left of the frame.
Check the fuel tank stopper cable (12) for
de
terioration, kinks or other damage.
Do not support the fuel tank by the fuel feed hose
(13).
The fuel tank is made of titanium material. Since
the fuel tank has not been painted, it might be
discolored with mud and dust.
To remove mud or dust, use a sponge or soft cloth
and a stainless steel kitchen detergent, then rinse
well clean water.
After washing, rinse with plenty of water and dry
with a clean cloth.
(1) shroud A bolt
(2) shroud B bolt
(3) shroud C bolt
(4) shroud
(5) air cleaner housing cover
(4)
(5)
(3)
(2)
(1)
(6) hose clamp (8) steering stem nut
(7) breather tube
(9) fuel tank bolts
(10) washers
(7)
(6)
(8)
(10)
(9)
(10)
WARNING
Gasoline is highly flammable and
explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine and keep heat, sparks
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
(11) fuel tank
(12) fuel tank stopper cable
(13) fuel feed hose
(11)
(12)
(13)
38 Servicing Your Honda
Fuel Tank (CRF450R/RWE)
8. Check for interference between the frame and
tank, and check the cushion rubbers (14) on
both sides of the frame for hardening or cracks.
Do not ride your CRF if the cushion rubbers have
been removed.
It may cause fuel tank cracking.
Installation
1. Install the fuel tank (1) on the frame.
2. Install and tighten the washers (2) and fuel tank
bolts (3) to the specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
3. Put the breather tube (4) in the steering stem
nut (5).
4. Remove the hose clamp (6) from the breather
tube.
5. Slide the shroud (7) toward the down so that
the shroud tab (8) and the slot (9) on the air
cleaner housing cover (10) is aligned.
6. Install the shroud C bolt (11), B bolt (12) and
shroud A bolt (13).
Tighten the shroud A and B bolts to the
specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
Tighten the shroud C bolt to the specified
torque:
3.8 lbf·ft (5.2 N·m, 0.5 kgf·m)
The right and left shrouds can be installed in
the same manner.
7.
Install the seat (page 34).
(14) cushion rubbers
(14)
(1) fuel tank
(2) washers
(3) fuel tank bolts
(4) breather tube (6) hose clamp
(5) steering stem nut
(2)
(1)
(3)
(2)
(4)
(6)
(5)
(7) shroud (11) shroud C bolt
(8) tab (12) shroud B bolt
(9) slot (13) shroud A bolt
(10) air cleaner housing cover
(7)
(11)
(12)
(13)
(10)
(9)
(8)
Subframe
(cont’d)
Servicing Your Honda 39
Refer to Important Safety Precautions on page 23.
Re
mo
val
1. Remove the seat (page 34).
2. Remove the right and left shrouds (page 35,
page 37).
3. Remove the right and left mufflers (page 126).
4. Loosen the right and left muffler joint pipe
clamp bolts, then remove the right and left
muffler mounting A bolts (page 130).
(CRF450RWE only)
5. Remove the seat support base mounting bolts
(1), and collars (2).
6. Disconnect the starter/ignition relay c
onnector
(3),
lift the seat support base (4), and hang it
to
the left of the subf
rame (5).
7. Disconnect th
e breather tube (6) and IAT
sensor connector (
7).
8. Loosen the air cleaner connecting tu
be clamp
screw (8).
9. Disconnect the negative (–) terminal (9) from
the battery (10).
10. Remove the start magnetic switch stay bolt (11)
and plastic wire band (12).
Pull out the start magnetic switch (13).
Remove the start magnetic switch cover (14).
Remove the battery cable terminal bolt (15)
and disconnect the battery cable terminal (16)
from the start magnetic switch.
(1) seat support base mounting bolts
(2) collars
(3) starter/ignition relay connector
(4) seat support base
(5) subframe
(1)
(2)
(4)
(5)
(3)
(6) breather tube
(7) IAT sensor connector
(8) air cleaner connecting tube clamp screw
(9) negative (–) terminal
(10) battery
(8)
(6)
(7)
(9)
(10)
(11) start magnetic switch stay bolt
(12) wire band
(13) start magnetic switch
(14) start magnetic switch cover
(15) battery cable terminal bolt
(16) battery cable terminal
(16)
(15)
(14)
(13)(11)
(12)
40 Servicing Your Honda
Subframe
11. Remove the subframe lower bolts (17) and
upper bolts (18).
Remove the subframe (5) while disconnecting
the air cleaner connecting tube (19).
Installation
1. Align the upper and lower ends of the
subframe to the main frame while connecting
the air cleaner box (1) to the air cleaner
connecting tube (2), and loosely install all
subframe bolts.
2. Tighten the subframe upper bolts (3) first and
then tighten the lower bolts (4) to the specified
torque:
subframe upper bolts:
24 lbf·ft (32 N·m, 3.3 kgf·m)
subframe lower bolts:
36 lbf·ft (49 N·m, 5.0 kgf·m)
3. Connect the battery cable terminal (5) to the
start magnetic switch (6).
Install and tighten the battery cable terminal
bolt (7) to the specified torque:
5.2 lbf·ft (7 N·m, 0.7 kgf·m)
Install the start magnetic switch cover (8).
Install the start magnetic switch.
Install and tighten the start magnetic switch
stay bolt (9) to the specified torque:
9 lbf·ft (12 N·m, 1.2 kgf·m)
Install the plastic wire band (10).
(5) subframe
(17) subframe lower bolts
(18) subframe upper bolts
(19) air cleaner connecting tube
(5)
(17)
(17)
(18)
(19)
(18)
(1) air cleaner box
(2) air cleaner connecting tube
(3) subframe upper bolts
(4) subframe lower bolts
(1)
(2)
Left side:
Right side:
(3)
(4)
(4)
(3)
(5) battery cable terminal (8) start magnetic switch
cover
(6) start magnetic switch
(7) battery cable terminal
bolt
(9) start magnetic switch
stay bolt
(10) wire band
(5)
(7)
(8)
(6)(9)
(10)
Servicing Your Honda 41
Subframe
4. Connect the negative (–) terminal (11) to the
battery (12).
Tighten the negative (–) terminal bolt (13) to
the specified torque:
1.5 lbf·ft (2.0 N·m, 0.2 kgf·m)
5. Make sure that the air cleaner box and the air
cleaner connecting tube are correctly
connected and tighten the air cleaner
connecting tube clamp screw (14) so the
distance between the clamp ends is 0.24 - 0.35
in (6 - 9 mm).
6. Connect the breather tube (15) and IAT sensor
connector (16).
7. Connect the starter/ignition relay connector
(17) and install the seat support base (18).
8. Install and tighten the collars (19), and seat
support base mounting bolts (20) to the
specified torque:
7 lbf·ft (10 N·m, 1.0 kgf·m)
9. Tighten the right and left muffler mounting A
bolts, and right and left muffler joint pipe
clamp bolts (page 133). (CRF450RWE only)
10. Install the left and right mufflers (page 127).
11. Install the right and left shrouds (page
36,
page 38).
12. Install the seat (page 34).
(11) negative (–) terminal
(12) battery
(13) negative (–) terminal bolt
(12)
(11) (13)
(14) air cleaner connecting tube clamp screw
(15) breather tube
(16) IAT sensor connector
(15)
(14)
0.24 - 0.35 in (6 - 9 mm)
(14)
(16)
(17) starter/ignition relay connector
(18) seat support base
(19) collars
(20) seat support base mounting bolts
(17)
(18)
(20)
(19)
Fuel System (CRF450RX)
42 Servicing Your Honda
Fuel System (CRF450RX)
Refer to Important Safety Precautions on page 23.
Use only unleaded fuel in your CRF. If you ride
your CRF in a country where leaded fuel might be
available, take precautions to use only unleaded
fuel.
Your engine is designed to use any unleaded
gasoline that has a pump octane number of 91 or
higher. Gasoline pumps at service stations
normally display the pump octane number.
For information on the use of oxygenated fuels, see
page 178.
Use of lower octane gasoline can cause persistent
“pinging” or “spark knock” (a louder rapping
noise) which, if severe, can lead to engine damage.
(Light pinging experienced while operating under
a heavy load, such as climbing a hill, is no cause
for concern.)
If pinging or spark knock occurs at a steady engine
speed under normal load, change brands of
gasoline. If pinging or spark knock persists,
consult your dealer.
Never use stale or contaminated gasoline. Avoid
getting dirt, dust or water in the fuel tank.
1. To open the fuel fill cap (1), pul
l the breather
tube (2) out of the steering stem nut (3). Turn
the
fuel fill cap c
ounterclockwise and remove
it.
2. Add fuel until the level reaches the bottom of
the filler neck (4).
Fuel
Tank Capacity: 2.25 US gal (8.5 ℓ)
• Be careful not to damage the fuel pump whi
le
filling the fuel tank.
•
Avoid overfilling the tank.
There should be no
fuel in the filler neck.
3.
Close the fuel fill cap and
insert the breather
tube into the steering stem nut.
1.
Hang the fuel tank to the left side of the
frame
(page 35).
2. Remove the fuel quick connect fitting cover
(1).
3. Check the fuel line (2) for cracks,
deterioration, damage or leakage. Replace the
fuel line, if necessary.
4. Install the fuel quick connect fitting cover.
5. Install the fuel tank (page 36).
Fuel
Type Unleaded
Pump Octane Number 91 (or higher)
Refueling Procedure
(1) fuel fill cap (3) steering stem nut
(2) breather tube (4) filler neck bottom
(3)
(4)
(2)
(1)
WARNING
Gasoline is highly flammable and
explosive. You can be burned or seriously
injured when handling fuel.
• Stop the engine and keep heat, sparks
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Fuel Line Inspection
(1) fuel quick connect fitting cover
(2) fuel line
(2)
(1)
Fuel System (CRF450RX)
(cont’d)
Servicing Your Honda 43
1. Hang the fuel tank to the left side of the frame
(page 35).
2. Disconnect the fuel pump connector (1).
3. Reposition the fuel tank and start the engine
and let it idle until the engine stalls.
Disconnection
1. Relieve the fuel pressure (this page).
2. Hang the fuel tank to the left side of the frame.
3. Remove the fuel quick connect fitting cover
(1) from the fuel pump (2).
4. Check the fuel quick connect fitting (3) for
dirt, and clean if necessary.
5. Remove the bolt (4), clamp and setting rubber
(5).
6. Place a shop towel (6) over the fuel quick
connect fitting.
Fuel Pressure Relieving
(1) fuel pump connector
(1)
Fuel Line Replacement
(1) fuel quick connect fitting cover
(2) fuel pump
(3) fuel quick connect fitting
(4) bolt (5) clamp and setting rubber
(1)
(2)(3)
Fuel pump side:Injector side:
(4)
(5)
(6) shop towel
Injector side:
Fuel pump side:
(6)
44 Servicing Your Honda
Fuel System (CRF450RX)
7. Unlock the slide retainer (7) of the quick
connect fitting by completely pulling it up.
Release the fuel quick connect fitting from the
fuel joint (8) while holding the connector
housing (9).
• Use a shop towel to absorb the remaining
fuel in the fuel feed hose.
• Be careful not to damage the hose or other
parts.
• Do not use tools.
• Dirt intruding into the connector housing
may cause slide retainer sticking.
8. Remove the rubber cover (10) from the fuel
joint of the fuel pump.
9. To prevent damage and keep foreign matter
out, cover the disconnected connector (11) and
fuel joint (8) with plastic bags (12).
Connection
1. Install the rubber cover (1) onto the fuel joint
(2) of the fuel pump as shown.
2. Be sure that the slide retainer (3) is completely
pulled up before connecting the quick connect
fitting.
• Do not bend or twist the fuel feed hose.
• Do not reuse the kinked or damaged fuel
hose.
• Do not use gloves or a shop towel while
installing the quick connect fitting.
WARNING
Gasoline is highly flammable and
explosive. You can be burned or seriously
injured when handling fuel.
• Stop the engine and keep heat, sparks
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
(7) slide retainer
(8) fuel joint
(9) connector housing
Injector side: Fuel pump side:
(7)
(9)
(8)
(7)
(8)
(9)
(10) rubber cover
(8) fuel joint
(11) disconnected connector
(12) plastic bags
(10)
(12)
(11)
(8)
(1) rubber cover
(2) fuel joint
(3) slide retainer
(1)
(2)
(3)
Servicing Your Honda 45
Fuel System (CRF450RX)
3. Connect the quick connect fitting to the fuel
joint (2) until you hear the “click” while
holding the connector housing (4). Lock the
slide retainer (3) by pushing it until you hear
the “click”.
If it is hard to connect, put a small amount of
engine oil on the pipe end of the fuel joint.
4. Make sure the connection is secure and that the
slide retainer is firmly locked into place; check
visually and by pulling the connector housing.
5. Install the setting rubber (5), clamp (6) and bolt
(7) by aligning the clamp tab (8) with the
groove (9) of the stay.
Tighten the bolt securely.
6. Install the fuel quick connect fitting cover (10).
Be sure the rubber cover (1) is properly installed
between the fuel quick connect fitting cover and
fuel pump.
7. Increase the fuel pressure (page 51).
(2) fuel joint
(3) slide retainer
(4) connector housing
Injector side:
Fuel pump side:
(3)
(4)
(2)
(4)
(3)
(2)
(5) setting rubber (8) clamp tab
(6) clamp (9) groove
(7) bolt
(6)
(7)
(5)
(9)
(8)
(1) rubber cover
(10) fuel quick connect fitting cover
(10)
(1)
46 Servicing Your Honda
Fuel System (CRF450RX)
Empty the fuel tank by transferring fuel into an
approved gasoline container using a commercially
available hand siphon or an equivalent method.
Be careful not to damage the fuel pump while
draining the fuel in the fuel tank.
Removal
1. Relieve the fuel pressure (page 43).
2. Disconnect the fuel line from the fuel pump
(page 43).
3. Remove the fuel tank (1) by releasing the
stopper cable (2) from the hook (3) of the
frame.
4. Pull the harness band clip (4) while pressing
both side of the anchor and disconnect it.
5. Remove the fuel pump mounting bolts (5),
stopper cable guide (6), stopper cable (2),
washers (7), collars (8), conical spring washers
(9) and fuel pump plate (10) while holding the
fuel tank.
Fuel Pump Filter Replacement
WARNING
Gasoline is highly flammable and
explosive. You can be burned or seriously
injured when handling fuel.
• Stop the engine and keep heat, sparks
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
(1) fuel tank (3) frame hook
(2) stopper cable (4) harness band clip
(2)
(3)
(1)
(4)
(2) stopper cable
(5) fuel pump mounting bolts
(6) stopper cable guide
(7) washers
(8) collars
(9) conical spring washers
(10) fuel pump plate
(6)
(7)
(2)
(5)
(8)
(9)
(10)
Fuel System (CRF450RX)
(cont’d)
Servicing Your Honda 47
6. Remove the fuel pump unit (11) and O-rings
(12).
Be careful not to damage the fuel pump unit.
7. Disconnect the fuel pump wire terminals (13)
from the fuel pump base (14).
Be careful not to damage the wires when
disconnecting the fuel pump wire terminals.
8. Check the hooks (15) of the fuel pump unit
holder and tabs (16) on the fuel pump base for
damage or discoloration.
If the hooks and tabs are damaged or
discolored, replace the fuel pump unit as an
assembly.
9. Release the hooks of the fuel pump unit holder
from the grooves (17) in the fuel pump base
tabs while pushing the holder against the base
and slightly spreading the base tabs.
Be careful not to damage the hooks and tabs.
10. Remove the fuel pump unit holder assembly
(18) from the fuel pump base (14) and remove
the O-ring (19).
Wipe the spilled out fuel immediately.
11. Remove the fuel pump stopper (20) and
damper rubber (21).
(11) fuel pump unit
(12) O-rings
(13) fuel pump wire terminals
(14) fuel pump base
(11)
(12)
(14)
(13)
(15) hooks (17) grooves
(16) tabs
(17)
(17)
(16)
(16)
(15)
(15)
(14) fuel pump base
(18) fuel pump unit holder assembly
(19) O-ring
(20) fuel pump stopper
(21)
d
amper rubber
(18)
(19)
(14)
(20)
(21)
48 Servicing Your Honda
Fuel System (CRF450RX)
12. Remove the fuel pump assembly (22) with fuel
pump filter (23), O-ring (24) from the fuel
pump unit holder (25).
13. Check the fuel pump filter (23) for clog,
damage or deterioration and replace it if
necessary.
14. Remove the fuel pump filter from the fuel
pump assembly (22).
Installation
1. Install the fuel pump filter (1) onto the fuel
pump assembly (2) aligning its hook (3) with
the joint boss (4) completely.
Be careful not to damage the hook.
2. Apply small amount of engine oil to a new
O-ring (5).
Install a new O-ring to the fuel pump assembly
(2).
3. Install the fuel pump assembly with fuel pump
filter into the fuel pump unit holder (6) while
routing the fuel pump red (7) and black (8)
wires through the holder grooves (9) as shown.
4. Install a new damper rubber (10) to the fuel
pump assembly as shown.
Install fuel pump stopper (11).
(22) fuel pump assembly
(23) fuel pump filter
(24) O-ring
(25) fuel pump unit holder
(22) fuel pump assembly
(23) fuel pump filter
(22)
(24)
(25)
(23)
(22)
(23)
(1) fuel pump filter (3) hook
(2) fuel pump assembly (4) joint boss
(2)
(3)
(4)
(1)
(2) fuel pump assembly (7) red wire
(5) O-ri
ng (new) (
8) black wire
(6) fuel pump unit holder (9) grooves
(10) damper rubber (new) (11) fuel pump stopper
(6)
(2)
(7)
(9)
(8)
(5)
(11)
(10)
Fuel System (CRF450RX)
(cont’d)
Servicing Your Honda 49
5. Apply small amount of engine oil to a new
O-ring (12).
Install a new O-ring to the fuel pump base (13).
6. Install the fuel pump unit holder assembly (14)
into the fuel pump base while aligning its
hooks (15) with the grooves (16) in the fuel
pump base tabs (17).
If the gap between the hooks and tabs is more
than 0.04 in (1.0 mm), replace the fuel pump
unit.
Be sure that the hooks are completely seated.
7. Connect the fuel pump red (18) and black (19)
wire terminals to the fuel pump base terminals
(20). Push the wire terminals until they stop as
shown.
Be careful not to damage the wires.
8. Apply 0.02 oz (0.5 g) maximum of engine oil
to a new O-ring (21).
Install a new O-ring onto the fuel pump unit
(22).
9. Apply small amount of engine oil to a new
O-ring (23).
Install a new O-ring into the fuel tank groove.
10. Install the fuel pump unit (22) into the fuel tank
(24) with its hose joint facing forward.
Be careful not to damage the fuel pump unit.
11. Install the fuel pump plate (25) with its
identification mark (26) facing forward the
front side and facing up.
(12) O-ring (new) (15) hooks
(13) fuel pump base (16) grooves
(14) fuel pump unit holder assembly (17) tabs
(13)
(16) (17)
(12)
(17)(16)
(14)
(15)
(18) red wire terminal (21) O-ring (new)
(19) black wire terminal (22) fuel pump unit
(20) fuel pump base terminals
(22) fuel pump unit
(23
) O-ring (new)
(24) fu
el tank
(18)
(19)
(21)
(19)
(20)
(18)
(20)
(22)
(22)
(24)
(23)
(25) fuel pump plate
(26) identification mark
(26)
(25)
50 Servicing Your Honda
Fuel System (CRF450RX)
12. Install the conical spring washers (27), collars
(28), washers (29), stopper cable (30), stopper
cable guide (31) and fuel pump mounting bolts
(32).
Make sure that the convex surfaces of the conical
spring washers are upside.
13. Tighten the fuel pump mounting bolts (32) to
the specified torque in the specified sequence
as shown:
8 lbf·ft (11 N·m, 1.1 kgf·m)
14. Install the harness band clip (33) to the stopper
cable guide (31).
15. Install the stopper cable (30) to the hook (34)
of the frame while holding the fuel tank (24).
16. Connect the fuel line (page 44).
17. Increase the fuel pressure (page 51).
(27) conical spring washers
(28) collars
(29) washers
(30) stopper cable
(31) stopper cable guide
(32) fuel pump mounting bolts
(31)
(29)
(28)
(32)
(27)
Fuel tank side
(30)
(27)
(32) fuel pump mounting bolts
(24) fuel tank (33) harness band clip
(30) stopper cable (34) hook
(31) stopper cable guide
1
2
3
4
5
6
(32)
(34)
(24)
(33)(31)
(30)
Servicing Your Honda 51
Fuel System (CRF450RX)
Make sure enough fuel remains (0.3 US gal (1.0 Ɛ)
minimum) in the fuel tank and add fuel if
necessary before increasing fuel pressure.
With the throttle closed.
Pull the clutch lever all the way in, and depress the
start button.
The engine will start up with increasing the fuel
pressure.
If the engine does not start, check all connector
connections and/or refer to an official Honda
Service Manual (page 186) for troubleshooting of
the PGM-FI symptom.
Fuel Pressure Increasing
Fuel System (CRF450R/RWE)
52 Servicing Your Honda
Fuel System (CRF450R/RWE)
Refer to Important Safety Precautions on page 23.
Use only unleaded fuel in your CRF. If you ride
your CRF in a country where leaded fuel might be
available, take precautions to use only unleaded
fuel.
Your engine is designed to use any unleaded
gasoline that has a pump octane number of 91 or
higher. Gasoline pumps at service stations
normally display the pump octane number.
For information on the use of oxygenated fuels, see
page 178.
Use of lower octane gasoline can cause persistent
“pinging” or “spark knock” (a louder rapping
noise) which, if severe, can lead to engine damage.
(Light pinging experienced while operating under
a heavy load, such as climbing a hill, is no cause
for concern.)
If pinging or spark knock occurs at a steady engine
speed under normal load, change brands of
gasoline. If pinging or spark knock persists,
consult your dealer.
Never use stale or contaminated gasoline. Avoid
getting dirt, dust or water in the fuel tank.
1. To open the fuel fill cap (1), pul
l the breather
tube (2) out of the steering stem nut (3). Turn
the
fuel fill cap c
ounterclockwise and remove
it.
2. Add fuel until the level reaches the bottom of
the filler neck (4).
Fuel
Tank Capacity: 1.66 US gal (6.3 ℓ)
• Be careful not to damage the fuel pump whi
le
filling the fuel tank.
•
Avoid overfilling the tank.
There should be no
fuel in the filler neck.
3.
Close the fuel fill cap and
insert the breather
tube into the steering stem nut.
1.
Hang the fuel tank to the left side of the
frame
(page 35).
2. Remove the fuel quick connect fitting cover
(1).
3. Check the fuel line (2) for cracks,
deterioration, damage or leakage. Replace the
fuel line, if necessary.
4. Install the fuel quick connect fitting cover.
5. Install the fuel tank (page 36).
Fuel
Type Unleaded
Pump Octane Number 91 (or higher)
Refueling Procedure
(1) fuel fill cap (3) steering stem nut
(2) breather tube (4) filler neck bottom
(3)
(4)
(2)
(1)
WARNING
Gasoline is highly flammable and
explosive. You can be burned or seriously
injured when handling fuel.
• Stop the engine and keep heat, sparks
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Fuel Line Inspection
(1) fuel quick connect fitting cover
(2) fuel line
(2)
(1)
Fuel System (CRF450R/RWE)
(cont’d)
Servicing Your Honda 53
1. Hang the fuel tank to the left side of the frame
(page 37).
2. Disconnect the fuel pump connector (1).
3. Reposition the fuel tank and start the engine
and let it idle until the engine stalls.
Disconnection
1. Relieve the fuel pressure (this page).
2. Hang the fuel tank to the left side of the frame.
3. Remove the fuel quick connect fitting cover
(1) from the fuel pump (2).
4. Check the fuel quick connect fitting (3) for
dirt, and clean if necessary.
5. Remove the bolt (4), clamp and setting rubber
(5).
6. Place a shop towel (6) over the fuel quick
connect fitting.
Fuel Pressure Relieving
(1) fuel pump connector
(1)
Fuel Line Replacement
(1) fuel quick connect fitting cover
(2) fuel pump
(3) fuel quick connect fitting
(4) bolt (5) clamp and setting rubber
(1)
(2)(3)
Fuel pump side:Injector side:
(4)
(5)
(6) shop towel
Injector side:
Fuel pump side:
(6)
54 Servicing Your Honda
Fuel System (CRF450R/RWE)
7. Unlock the slide retainer (7) of the quick
connect fitting by completely pulling it up.
Release the fuel quick connect fitting from the
fuel joint (8) while holding the connector
housing (9).
• Use a shop towel to absorb the remaining
fuel in the fuel feed hose.
• Be careful not to damage the hose or other
parts.
• Do not use tools.
• Dirt intruding into the connector housing
may cause slide retainer sticking.
8. Remove the rubber cover (10) from the fuel
joint of the fuel pump.
9. To prevent damage and keep foreign matter
out, cover the disconnected connector (11) and
fuel joint (8) with plastic bags (12).
Connection
1. Install the rubber cover (1) onto the fuel joint
(2) of the fuel pump as shown.
2. Be sure that the slide retainer (3) is completely
pulled up before connecting the quick connect
fitting.
• Do not bend or twist the fuel feed hose.
• Do not reuse the kinked or damage
d fuel
hose.
•
D
o not use gloves or a shop towel while
installing the quick connect fitting.
WARNING
Gasoline is highly flammable and
explosive. You can be burned or seriously
injured when handling fuel.
• Stop the engine and keep heat, sparks
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
(7) slide retainer
(8) fuel joint
(9) connector housing
Injector side: Fuel pump side:
(7)
(9)
(8)
(7)
(8)
(9)
(10) rubber cover
(8) fuel joint
(11) disconnected connector
(12) plastic bags
(10)
(12)
(11)
(8)
(1) rubber cover
(2) fuel joint
(3) slide retainer
(1)
(2)
(3)
Servicing Your Honda 55
Fuel System (CRF450R/RWE)
3. Connect the quick connect fitting to the fuel
joint (2) until you hear the “click” while
holding the connector housing (4). Lock the
slide retainer (3) by pushing it until you hear
the “click”.
If it is hard to connect, put a small amount of
engine oil on the pipe end of the fuel joint.
4. Make sure the connection is secure and that the
slide retainer is firmly locked into place; check
visually and by pulling the connector housing.
5. Install the setting rubber (5), clamp (6) and bolt
(7) by aligning the clamp tab (8) with the
groove (9) of the stay.
Tighten the bolt securely.
6. Install the fuel quick connect fitting cover (10).
Be sure the rubber cover (1) is properly installed
between the fuel quick connect fitting cover and
fuel pump.
7. Increase the fuel pressure (page 61).
(2) fuel joint
(3) slide retainer
(4) connector housing
Injector side:
Fuel pump side:
(3)
(4)
(2)
(4)
(3)
(2)
(5) setting rubber (8) clamp tab
(6) clamp (9) groove
(7) bolt
(6)
(7)
(5)
(9)
(8)
(1) rubber cover
(10) fuel quick connect fitting cover
(10)
(1)
56 Servicing Your Honda
Fuel System (CRF450R/RWE)
Empty the fuel tank by transferring fuel into an
approved gasoline container using a commercially
available hand siphon or an equivalent method.
Be careful not to damage the fuel pump while
draining the fuel in the fuel tank.
Removal
1. Relieve the fuel pressure (page 53).
2. Disconnect the fuel line from the fuel pump
(page 53).
3. Remove the fuel tank (1) by releasing the
stopper cable (2) from the hook (3) of the
frame.
4. Pull the harness band clip (4) while pressing
both side of the anchor and disconnect it.
5. Remove the fuel pump mounting nuts (5), fuel
pump mounting cap nut (6), stopper cable
guide (7), stopper cable (2), washer (8), collars
(9),
conical spring washers (10) and fuel
pump
plate (11) while holding the fuel tank.
Fuel Pump Filter Replacement
WARNING
Gasoline is highly flammable and
explosive. You can be burned or seriously
injured when handling fuel.
• Stop the engine and keep heat, sparks
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
(1) fuel tank (3) frame hook
(2) stopper cable (4) harness band clip
(2)
(3)
(1)
(4)
(2) stopper cable
(5) fuel pump mounting nuts
(6) fuel pump mounting cap nut
(7) stopper cable guide
(8) washer
(9) collars
(10) conical spring washers
(11) fuel pump plate
(6)
(5)
(2)
(7)
(8)
(9)
(10)
(11)
Fuel System (CRF450R/RWE)
(cont’d)
Servicing Your Honda 57
6. Remove the fuel pump unit (12), dust seal (13)
and O-ring (14).
Be careful not to damage the fuel pump unit.
7. Disconnect the fuel pump wire terminals (15)
from the fuel pump base (16).
Be careful not to damage the wires when
disconnecting the fuel pump wire terminals.
8. Check the hooks (17) of the fuel pump unit
holder and tabs (18) on the fuel pump base for
damage or discoloration.
If the hooks and tabs are damaged or
discolored, replace the fuel pump unit as an
assembly.
9. Release the hooks of the fuel pump unit holder
from the grooves (19) in the fuel pump base
tabs while pushing the holder against the base
and slightly spreading the base tabs.
Be careful not to damage the hooks and tabs.
10. Remove the fuel pump unit holder assembly
(20) from the fuel pump base (16) and remove
the O-ring (21).
Wipe the spilled out fuel immediately.
11. Remove the fuel pump stopper (22) and
damper rubber (23).
(12) fuel pump unit (14) O-ring
(13) dust seal
(15) fuel pump wire terminals
(16) fuel pump base
(13)
(12)
(14)
(16)
(15)
(17) hooks (19) grooves
(18) tabs
(18)
(19)
(18)
(17)
(17)
(16) fuel pump base
(20) fuel pump unit holder assembly
(21) O-ring
(22) fuel pump stopper
(23) damper rubber
(20)
(21)
(16)
(22)
(23)
58 Servicing Your Honda
Fuel System (CRF450R/RWE)
12. Remove the fuel pump assembly (24) from the
fuel pump unit holder (25).
13. Remove the O-ring (26) from the fuel pump
assembly (24).
14. Remove the fuel pump filter (27) from the fuel
pump assembly (24).
15. Check the fuel pump filter for clog, damage or
deterioration and replace it if necessary.
Installation
1. Install the fuel pump filter (1) onto the fuel
pump assembly (2) aligning its hook (3) with
the joint boss (4) completely.
Be careful not to damage the hook.
2. Apply small amount of engine oil to a new
O-ring (5).
Install a new O-ring to the fuel pump assembly
(2).
3. Install the fuel pump assembly with fuel pump
filter into the fuel pump unit holder (6) while
routing the fuel pump yellow (7) and green (8)
wires through the holder grooves (9) as shown.
4. Install a new damper rubber (10) to the fuel
pump assembly as shown.
Install fuel pump stopper (11).
(24) fuel pump assembly
(25) fuel pump unit holder
(26) O-ring
(24) fuel pump assembly
(27) fuel pump filter
(26)
(24)(25)
(24)
(27)
(1) fuel pump filter (3) hook
(2) fuel pump assembly (4) joint boss
(2)
(3)
(4)
(1)
(2) fuel pump assembly (7) yellow wire
(5) O-ring (new) (8) green wire
(6) fuel pump unit holder (9) grooves
(10) damper rubber (new)
(11) fuel pump stopper
(9)
(8)(6)
(7) (5)
(2)
(11)
(10)
Fuel System (CRF450R/RWE)
(cont’d)
Servicing Your Honda 59
5. Apply small amount of engine oil to a new
O-ring (12).
Install a new O-ring to the fuel pump base (13).
6. Install the fuel pump unit holder assembly (14)
into the fuel pump base while aligning its
hooks (15) with the grooves (16) in the fuel
pump base tabs (17).
If the gap between the hooks and tabs is more
than 0.04 in (1.0 mm), replace the fuel pump
unit.
Be sure that the hooks are completely seated.
7. Connect the fuel pump yellow (18) and green
(19) wire terminals to the fuel pump base
terminals (20). Push the wire terminals until
they stop as shown.
Be careful not to damage the wires.
8. Install a new dust seal (21) by aligning its tabs
(22)
with the fuel pump unit grooves (23).
C
heck the dust seal lug (24) which is located the
index mark (25) of the fuel pump base (13).
9. Apply small amount of engine oil to a new
O-ring (26).
Install a new O-ring into the between the collar
A (27) and collar B (28) of the fuel pump unit
(29).
10. Install the fuel pump unit (29) into the fuel tank
(30)
with its hose joint facing forward.
Be caref
ul not to damage the fuel pump unit.
(12) O-ring (new)
(13) fuel pump base
(14) fuel pump unit holder assembly
(15) hooks
(16) grooves
(17) tabs
(13)
(16) (17)
(12)
(17)(16)
(14)
(15)
(18) yellow wire terminal
(19) green wire terminal
(20) fuel pump base terminals
(13) fuel pump base (23) grooves
(21) dust seal (new) (24) dust seal lug
(22) tabs (25) index mark
(18)
(19)
(20)
(18)
(20)
(19)
(13)
(21)
(24)
(25)
(24)
(23)(22)
(26) O-ring (new) (28) collar B
(27) collar A (29) fuel pump unit
(29) fuel pump unit
(30) fuel tank
(28)
(29)
(26)
(27)
(29)
(30)
60 Servicing Your Honda
Fuel System (CRF450R/RWE)
11. Install the fuel pump plate (31) by aligning
with its groove (32) with fuel pump unit lug
(33).
Check the dust seal lug (24) is in position as
shown.
12. Install the conical spring washers (34), collars
(35), washer (36), stopper cable (37), stopper
cable guide (38), fuel pump mounting nuts (39)
and fuel pump mounting cap nut (40).
Make sure that the convex surfaces of the conical
spring washers are upside.
Make sure that the cap nut is in position of the
identification mark (41) on the fuel pump plate
(31).
13. Tighten the fuel pump mounting nuts (39) and
cap nut (40) to the specified torque in the
specified sequence as shown:
8 lbf·ft (11 N·m, 1.1 kgf·m)
14. Install the harness band clip (42) to the stopper
cable guide (38).
15. Install the stopper cable (37) to the hook (43)
of the frame while holding the fuel tank (30).
16. Connect the fuel line (page 54).
17. Increase the fuel pressure (page 61).
(24) dust seal lug
(31) fuel pump plate
(32) fuel pump plate groove
(33) fuel pump unit lug
(24) (32)
(33)
(31)
(31) fuel pump plate
(34) conical spring washers
(35) collars
(36) washer
(37) stopper cable
(38) stopper cable guide
(39) fuel pump mounting nuts
(40) fuel pump mounting cap nut
(41) identification mark
(35)
(36)
(34)
(39)
(31)(41)
(34)
Fuel tank side
(38)
(37)
(40)
(39) fuel pump mounting nuts
(40) fuel pump mounting cap nut
(30) fuel tank (42) harness band clip
(37) stopper cable (43) hook
(38) stopper cable guide
1
2
3
4
5
6
(39)
(40)
(43)
(30)
(42)
(37)
(38)
Servicing Your Honda 61
