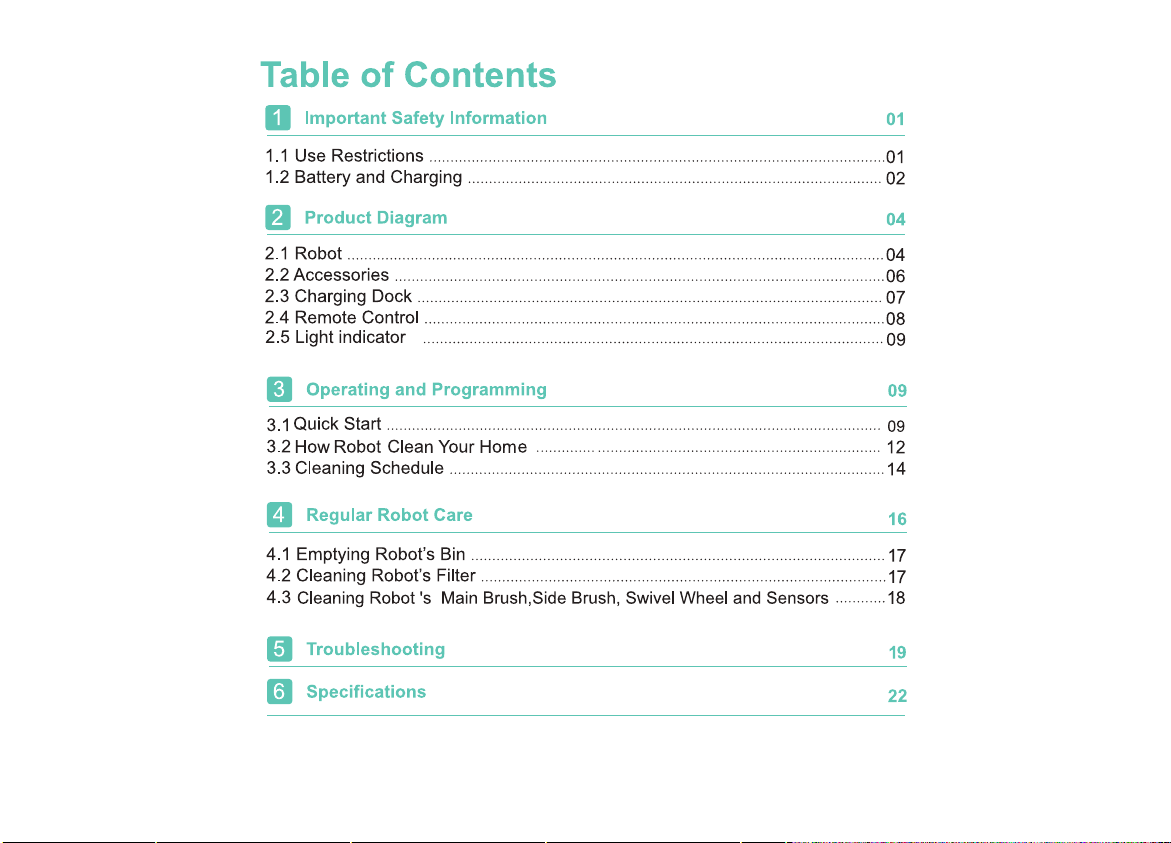

Table of contents
User Manual
Product Diagram

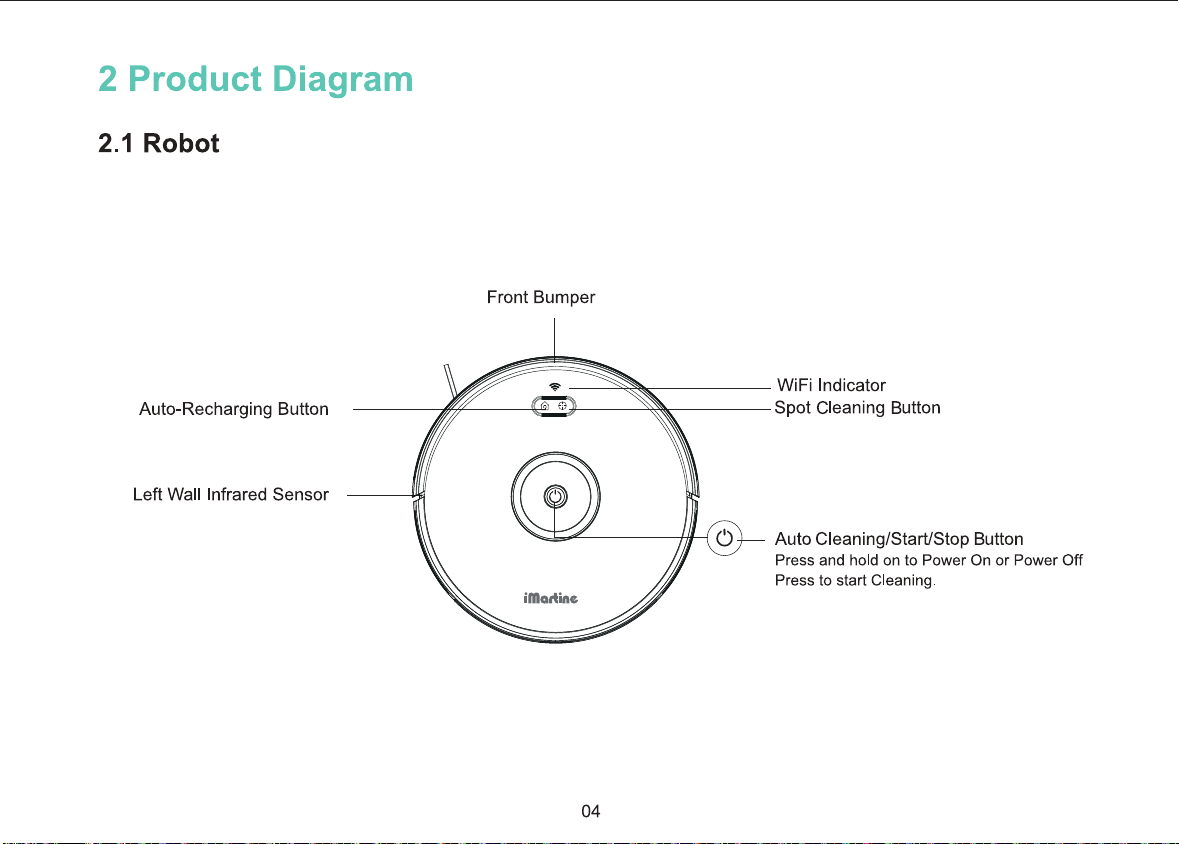

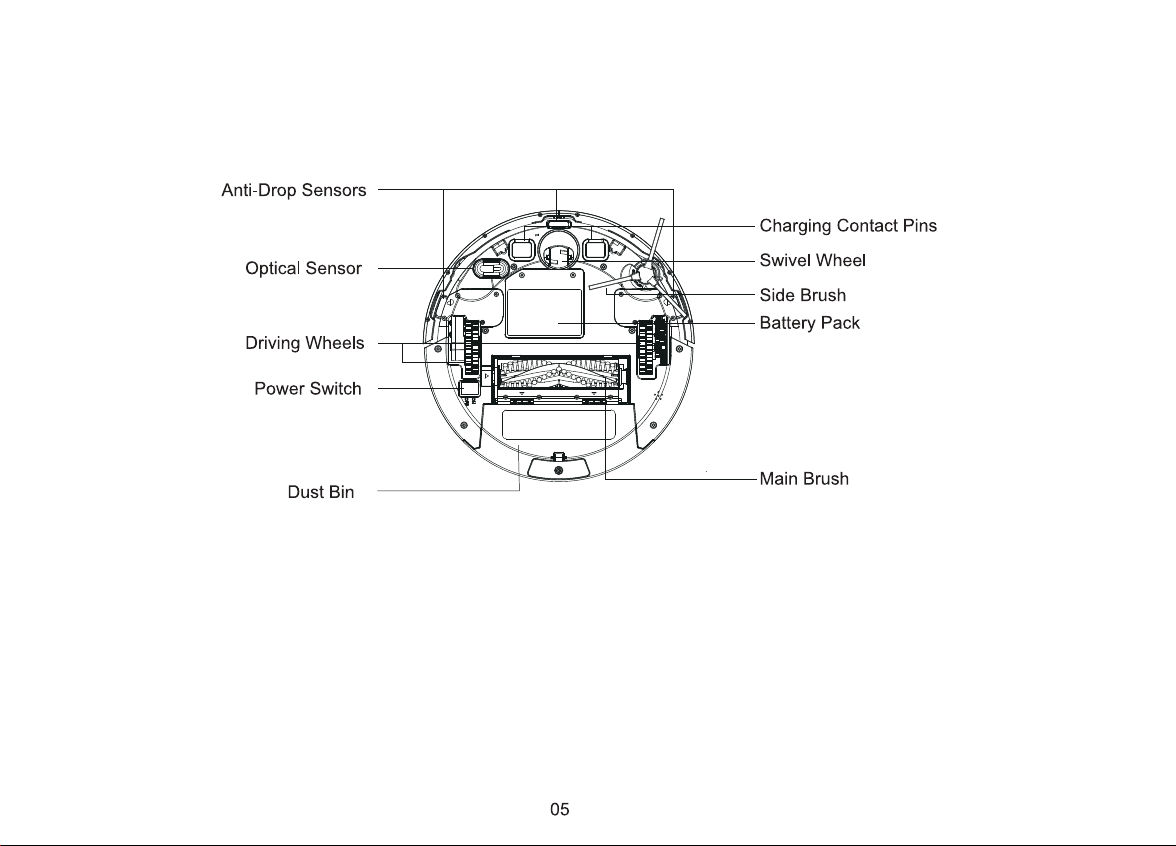

Robot

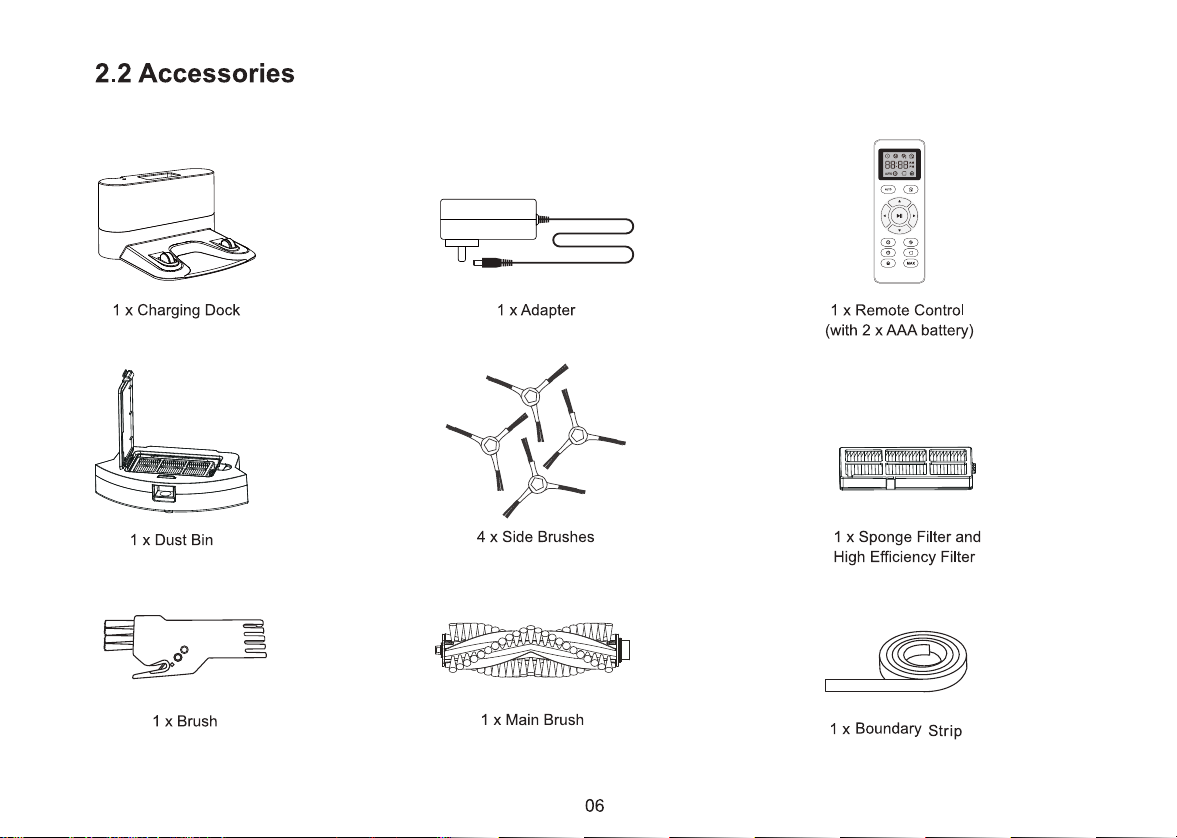

Accessories

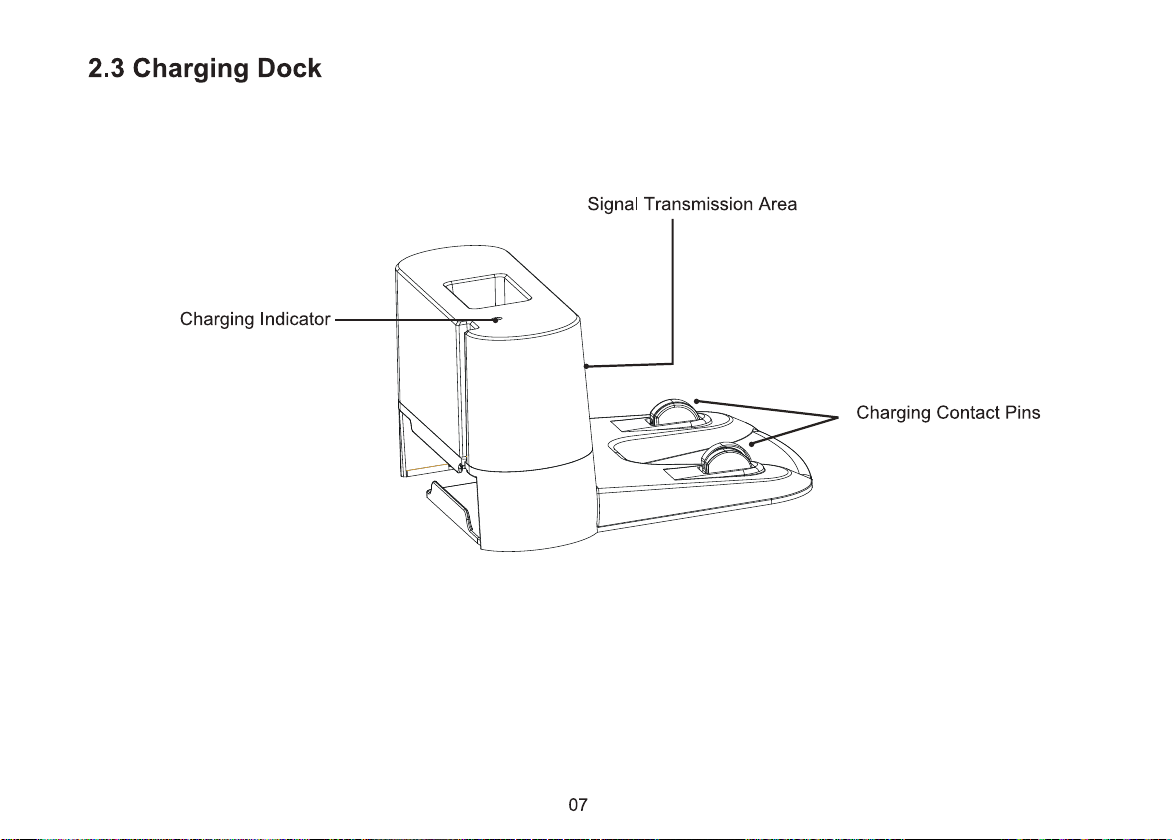

Charging Dock

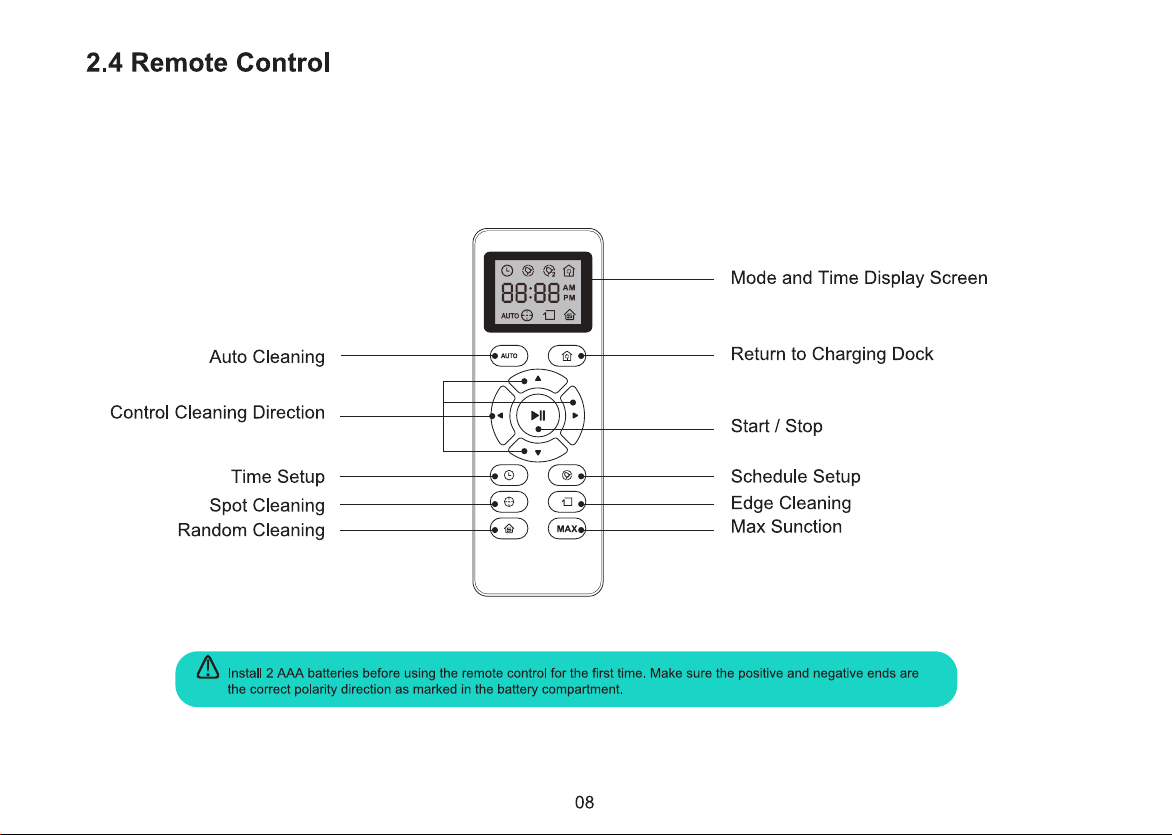

Remote Control

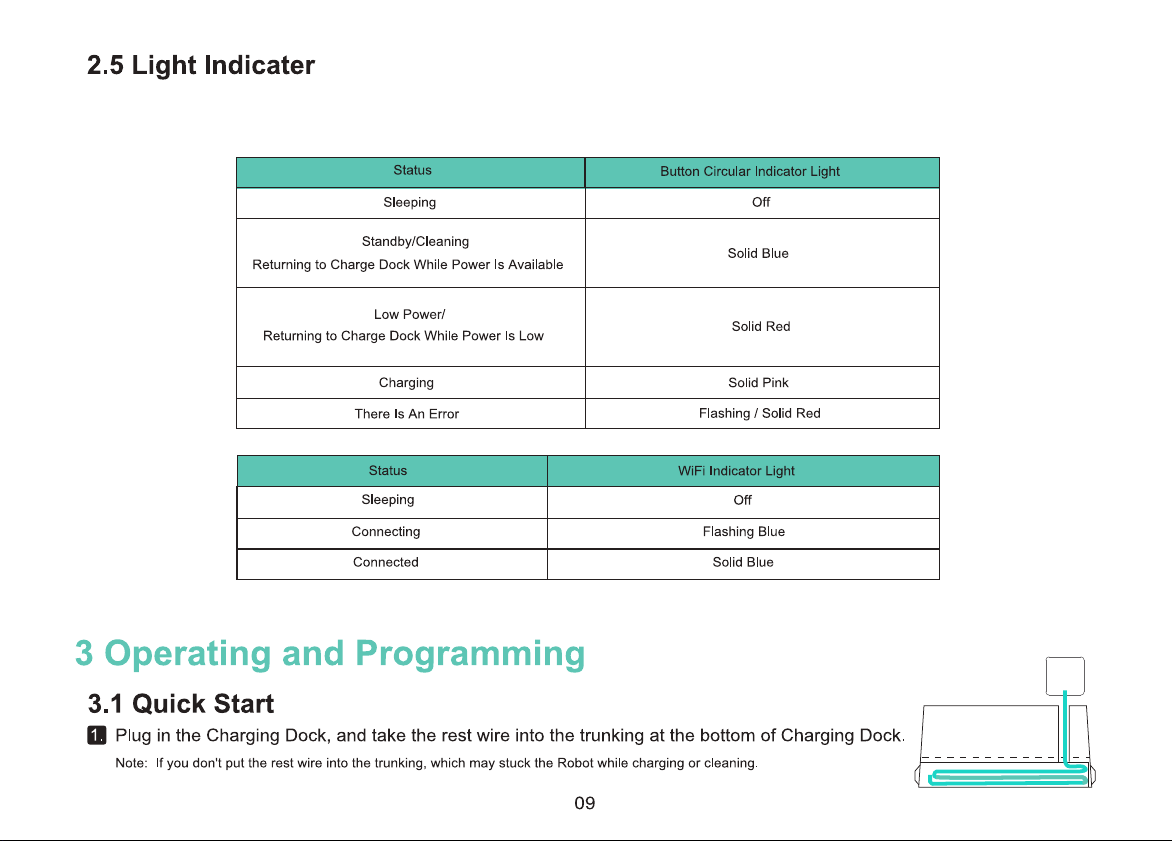

Light Indicter
Operating and Programming
Quick Start
1 Plug in the Charging Dock, and take the rest wire into the trunking at the bottom of Charging Dock.

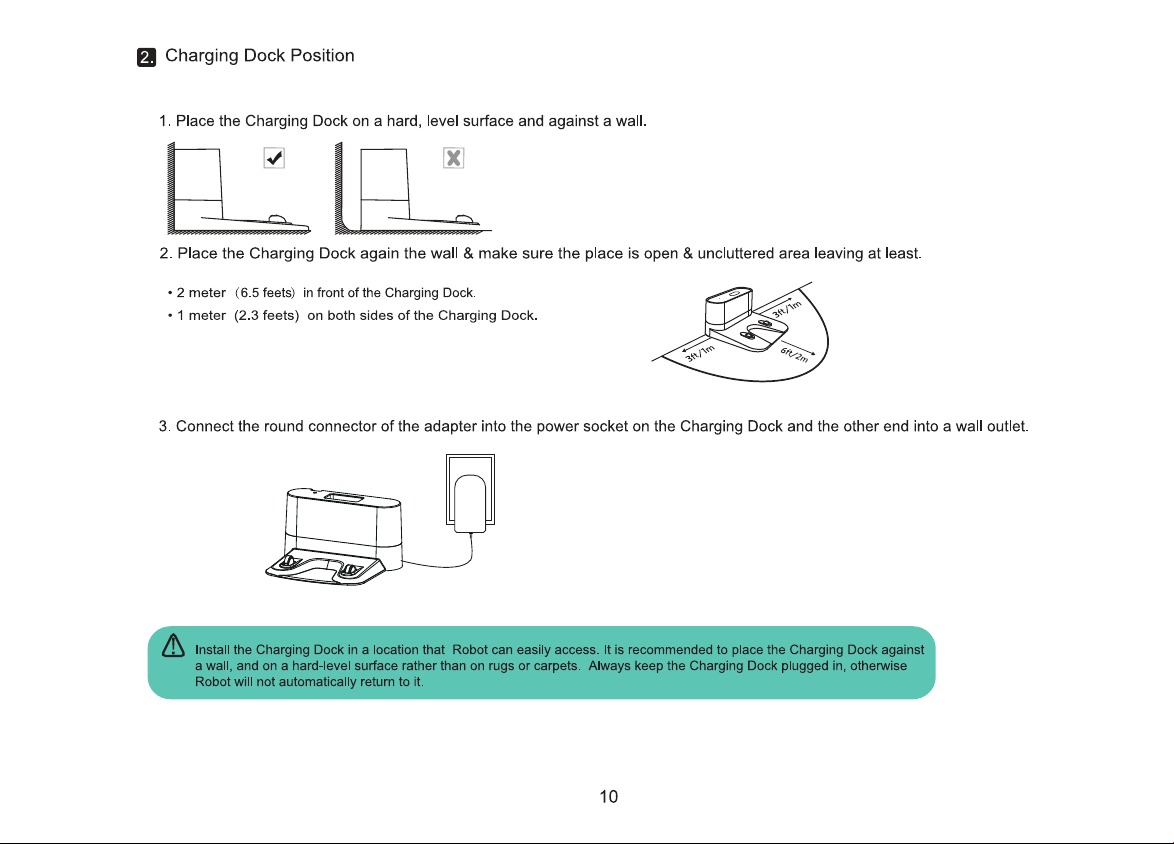

2. Charging Dock Position
1. Place the Charging Dock on a hard, level surface and against a wall.
2. Place the Charging Dock again the wall & make sure the place is open & uncluttered area leaving at least.
- 2 meter (6.5 feets in front of the Charging Dock
- 1 meter (2.3 feets) on both sides of the Charging Dock
3. Connect the round connector of the adapter into the power socket on the Charging Dock and the other end into a wall outlet.
WARNING Instal the Charging Dock in a location that Robot can easily access. It is recommended to place the Charging Dock against a wall, and on a hard-level surface rather than on rugs or carpets. Always keep the Charging Dock plugged in, otherwise Robot will not automatically return to it.

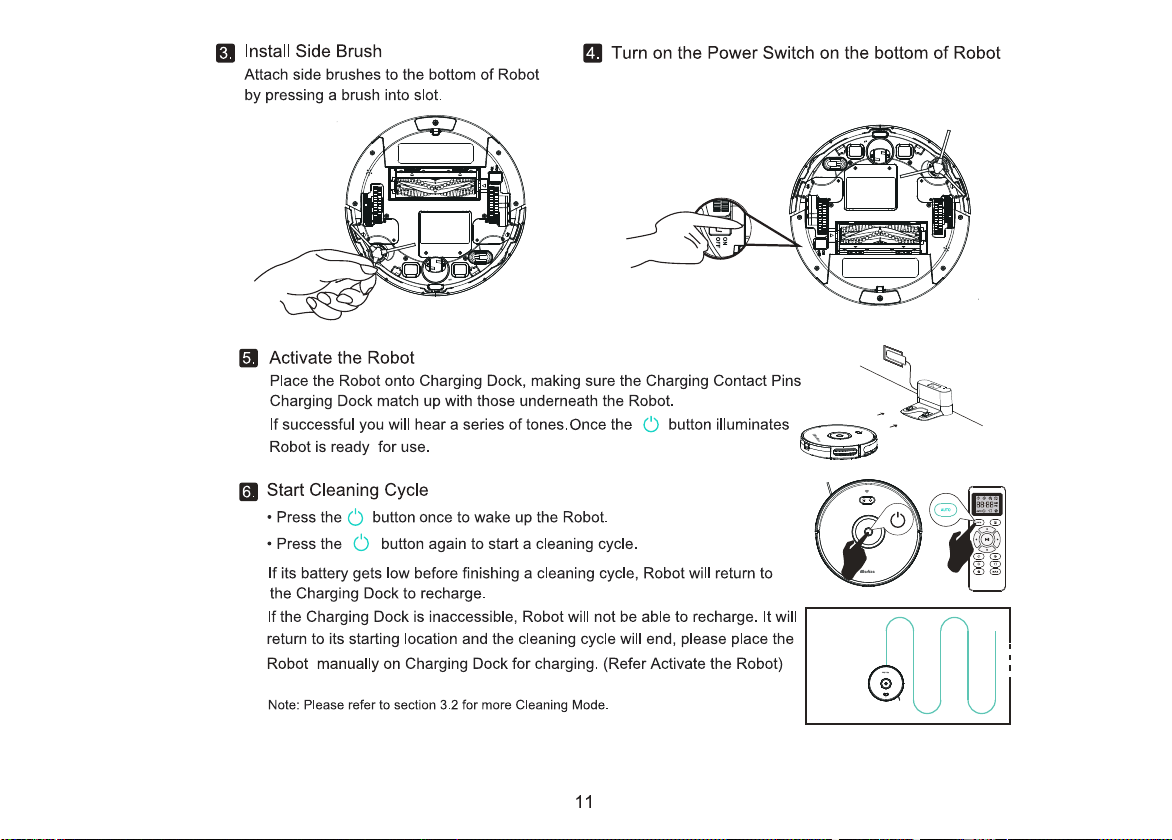

3. Install Side Brush
Attach side brushes to the bottom of Robot by pressing a brush into slot
4. Tum on the Power Switch on the bottom of Robot
5. Activate the Robot
Place the Robot onto Charging Dock, making sure the Charging Contact Pins Charging Dock match up with those underneath the Robot
If successful you will hear a series of tones. Once the button illuminates Robot is ready for use.
6. Start Cleaning Cycle
- Press the button once to wake up the Robot
- Press the button again to start a cleaning cycle.
If its battery gets low before finishing a cleaning cycle, Robot will return to the Charging Dock to recharge.
If the Charging Dock is inaccessible, Robot will not be able to recharge. It will return to its starting location and the cleaning cycle will end, please place the
Robot manually on Charging Dock for charging. (Refer Activate the Robot)
Note: Please refer to section 3.2 for more Cleaning Mode.

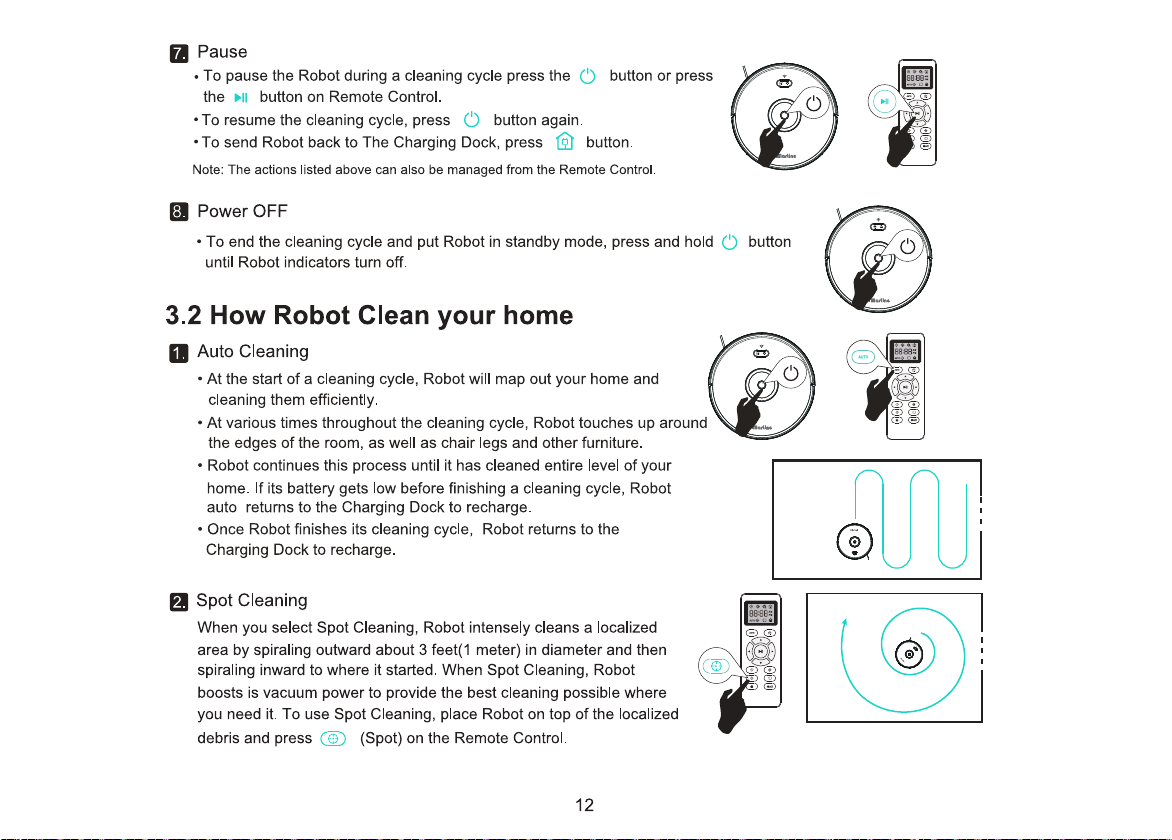

7. Pause
- To pause the Robot during a cleaning cycle press the button or press the button on Remote Control.
- To resume the cleaning cycle, press
- To send Robot back to The Charging Dock, press button.
Note: The actions listed above can also be managed from the Remote Control.
8. Power OFF
- To end the cleaning cycle and put Robot in standby mode, press and hold button until Robot indicators turn off.
How Robot Clean your home
1. Auto Cleaning
- At the start of a cleaning cycle, Robot will map out your home and cleaning them efficiently.
- At various times throughout the cleaning cycle, Robot touches up around the edges of the room, as well as chair legs and other furniture.
- Robot continues this process until it has cleaned entire level of your home. If its battery gets low before finishing a cleaning cycle, Robot auto returns to the Charging Dock to recharge.
- Once Robot finishes its cleaning cycle, Robot returns to the Charging Dock to recharge.
2. Spot Cleaning
When you select Spot Cleaning, Robot intensely cleans a localized area by spiraling outward about 3 feet(1 meter) in diameter and then spiraling inward to where it started. When Spot Cleaning, Robot boosts is vacuum power to provide the best cleaning possible where you need it. To use Spot Cleaning, place Robot on top of the localized debris and press (Spot) on the Remote Control.

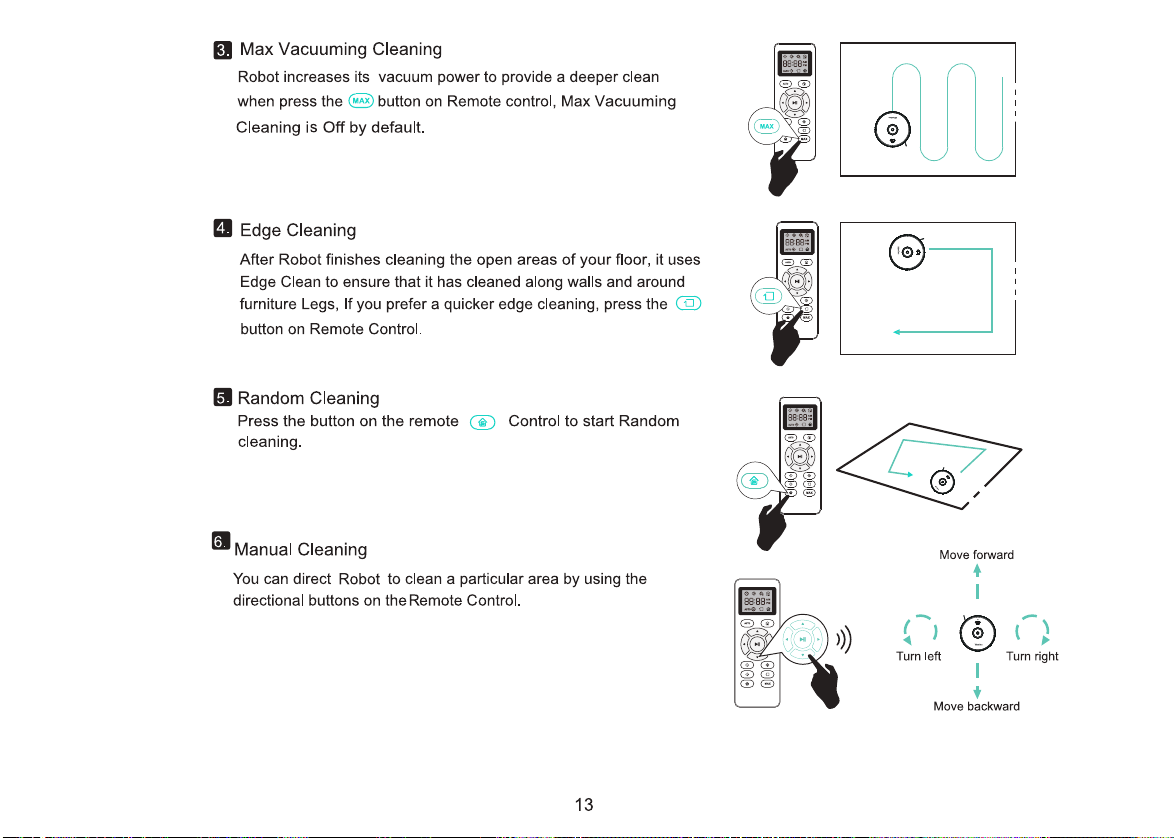

3. Max Vacuuming Cleaning
Robot increases its vacuum power to provide a deeper clean when press the button on Remote control, Max Vacuuming Cleaning is Off by default.
4. Edge Cleaning
After Robot finishes cleaning the open areas of your floor, it uses Edge Clean to ensure that it has cleaned along walls and around furniture Legs, If you prefer a quicker edge cleaning, press the button on Remote Control.
5. Random Cleaning
Press the button on the remote Control to start Random cleaning.
6. Manual Cleaning
You can direct Robot to clean a particular area by using the directional buttons on the Remote Control.

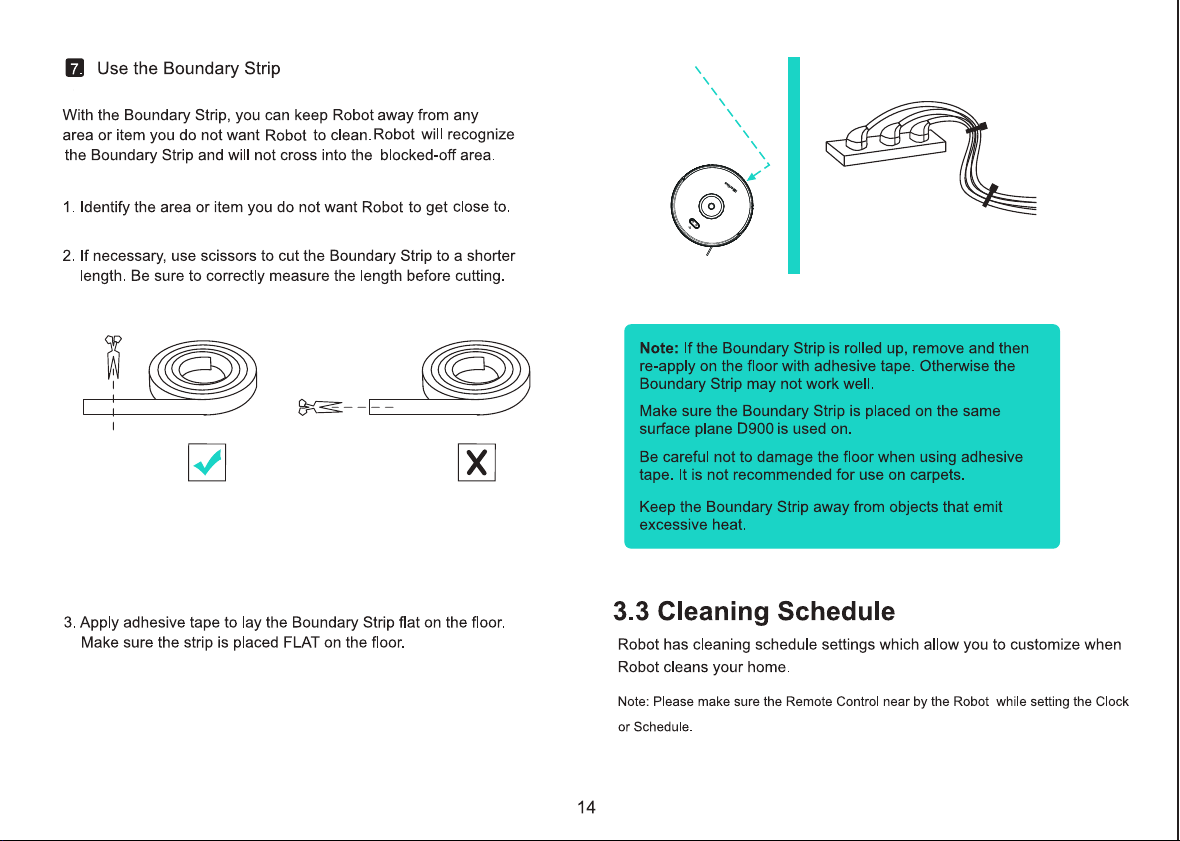

7. Use the Boundary Strip
With the Boundary Strip, you can keep Robot away from any area or item you do not want Robot to clean Robot will recognize the Boundary Strip and will not cross into the blocked-off area
- Identify the area or item you do not want Robot to get close to
- If necessary, use scissors to out the Boundary Strip to a shorter length. Be sure to correctly measure the length before cutting
3. Apply adhesive tape to lay the Boundary Strip flat on the floor Make sure the strip is placed FLAT on the floor.
Note: if the Boundary Strip is rolled up, remove and then re-apply on the floor with adhesive tape. Otherwise the Boundary Strip may not work well
Make sure the Boundary Strip is placed on the same surface plane D900 is used on
Be careful not to damage the floor when using adhesive tape it is not recommended for use on carpets
Keep The Boundary Strip away from objects that emit excessive heat
Cleaning Schedule
Robot has cleaning schedule settings which allow you to customize when Robot cleans your home make sure the Remote Control near by the Robot while setting the Clock or Schedule

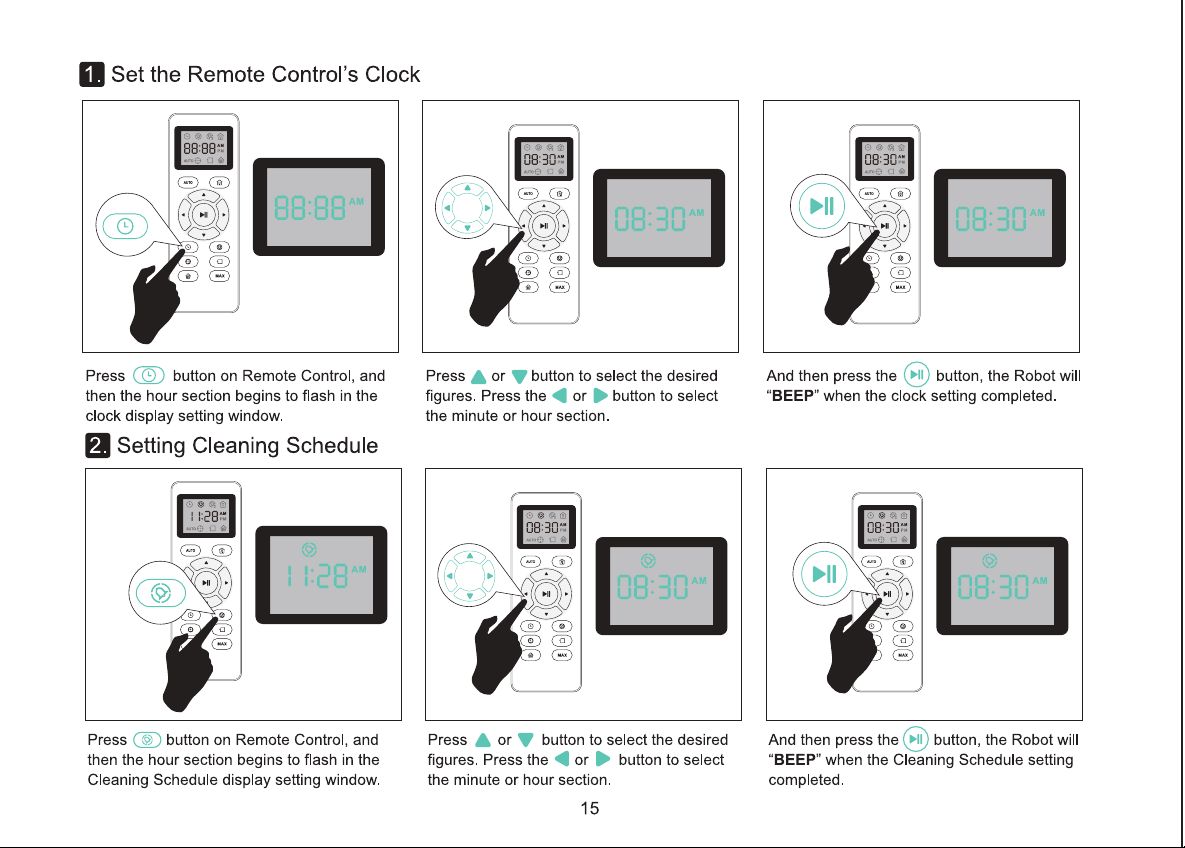

1. Set the Remote Control's Clock
Press button on Remote Control, and then the hour section begins to flash in the dock display setting window.
Press button to select the desired figures. Press the button to select the minute or hour section.
And then press the button, the Robot will "BEEP" when the clock setting completed.
2. Setting Cleaning Schedule
Press button on Remote Control, and then the hour section begins to flash in the Cleaning Schedule display setting window.
Press button to select the desired figures. Press the button to select the minute or hour section.
And then pressthe button, the Robot will "BEEP" when the Cleaning Schedule setting completed.

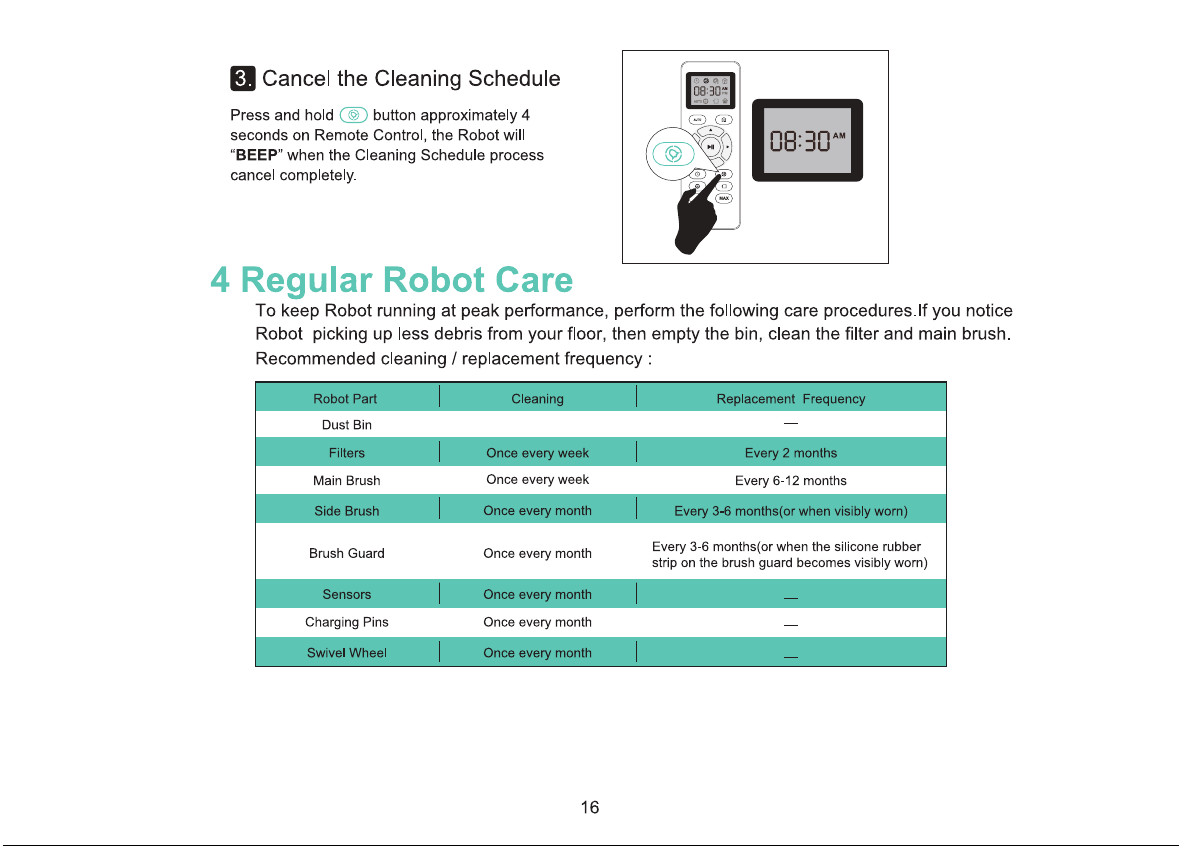

3. Cancel the Cleaning Schedule
Press and hold button approximately 4 seconds on Remote Control, the Robot will "BEEP" when the Cleaning Schedule process cancel completely.
Regular Robot Care
To keep Robot running at peak performance, perform the following care procedures. If you notice Robot picking up less debris from your floor, then empty the bin, clean the filter and main brush.
Recommended cleaning / replacement frequency:

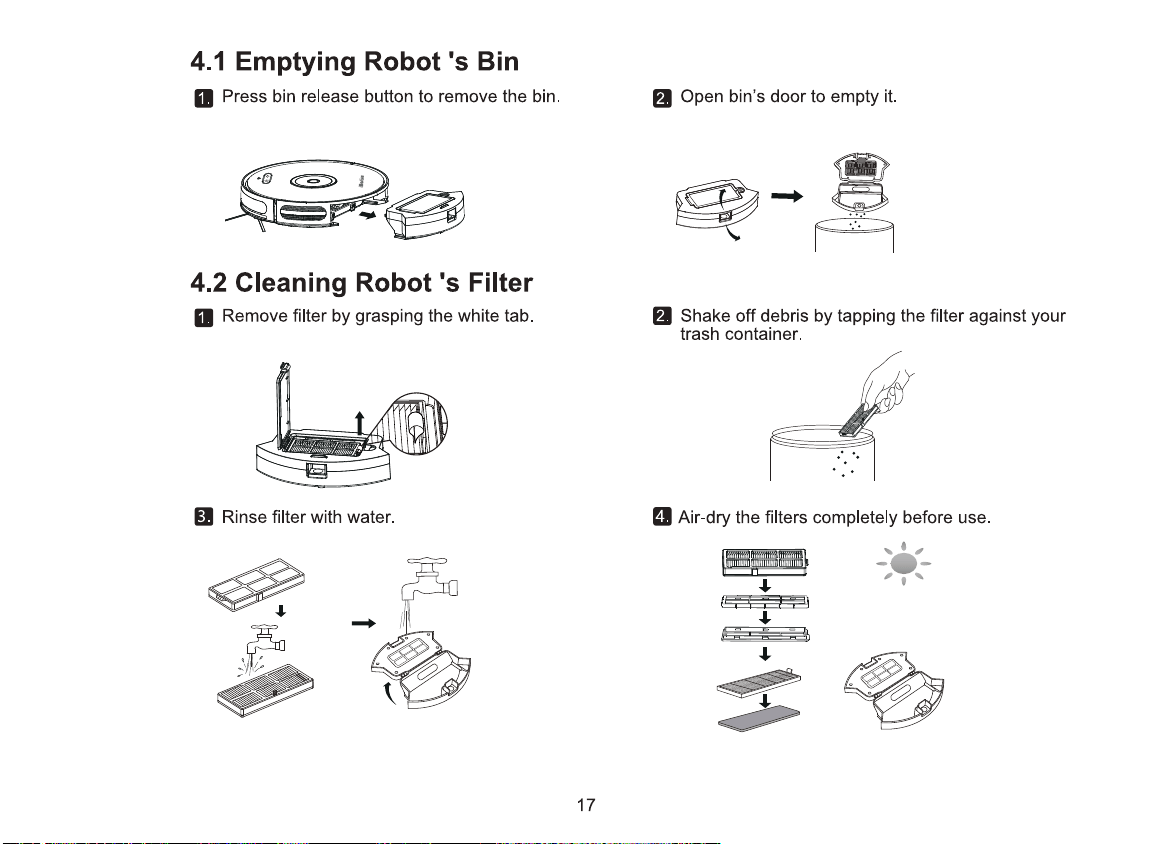

Emptying Robot 's Bin
1. Press bin release button to remove the bin.
2. Open bin's door to empty it.
Cleaning Robot 's Filter
1. Remove filter by grasping the white tab.
2. Shake off debris by tapping the filter against your trash container.
3. Rinse filter with water.
4. Air-dry the filters completely before use.

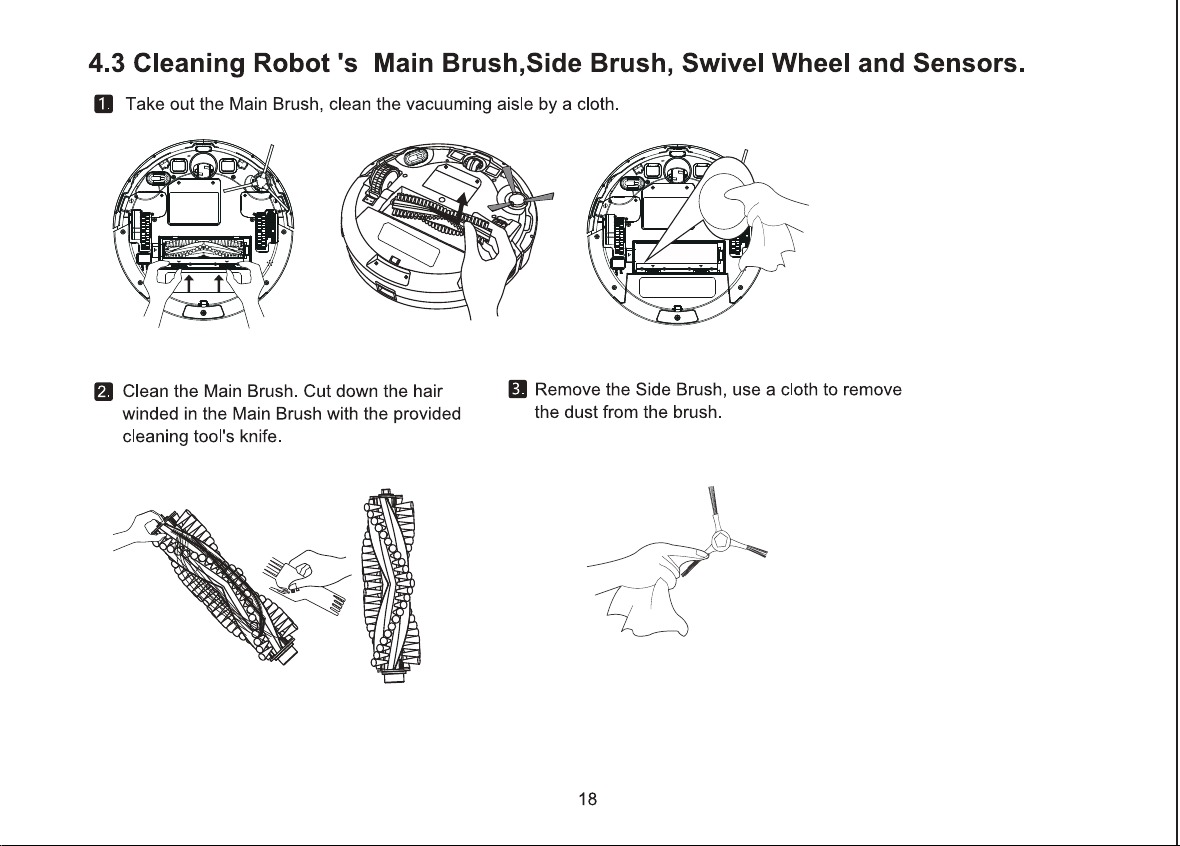

Cleaning Robot 's Main Brush, Side Brush, Swivel Wheel and Sensors.
1. Take out the Main Brush, clean the vacuuming aisle by a cloth.
2. Clean the Main Brush. Cut down the hair winded in the Main Brush with the provided cleaning tool's knife.
3. Remove the Side Brush, use a cloth to remove the dust from the brush.

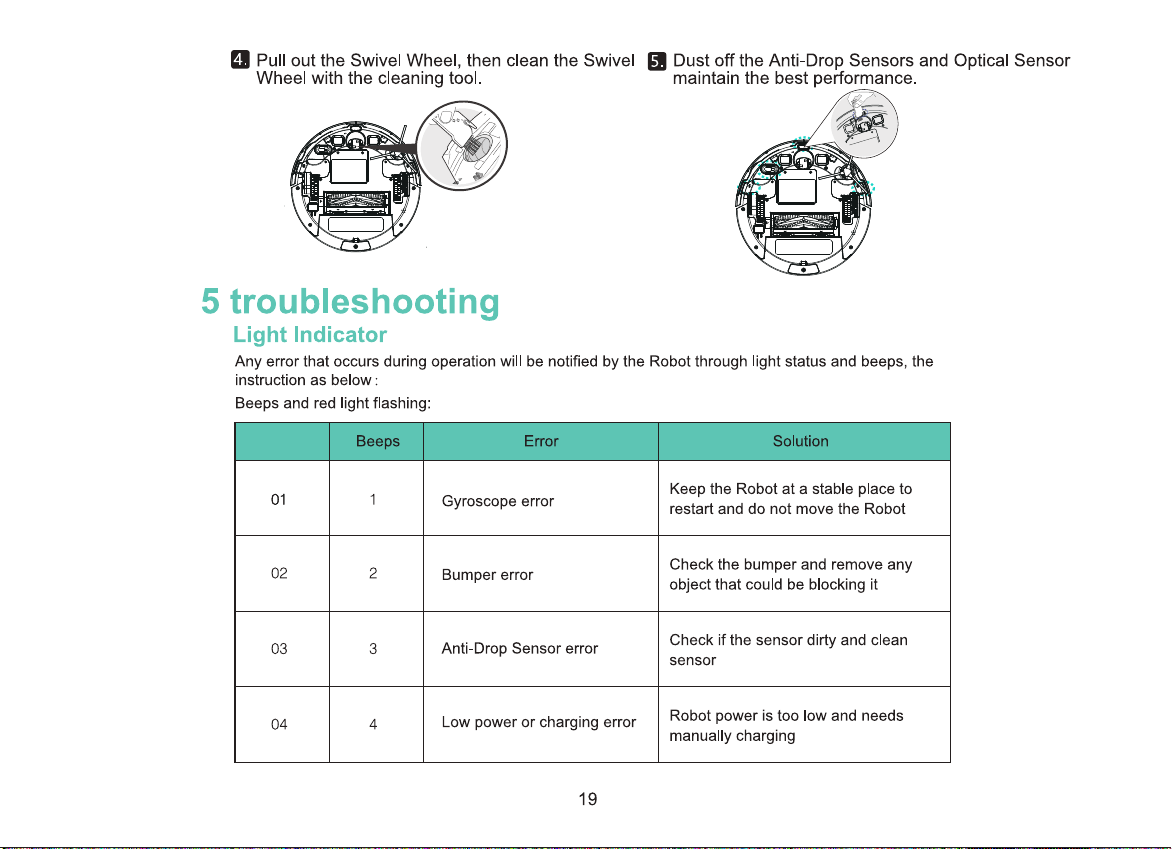

4. Pull out the Swivel Wheel, then clean the Swivel Wheel with the cleaning tool.
5. Dust off the Anti-Drop Sensors and Optical Sensor maintain the best performance.
Troubleshooting
Light Indicator
Any error that occurs during operation will be notified by the Robot through light status and beeps, the
instruction as below:
Beeps and red light flashing:
Beeps 1: Gyroscope error
- Keep the Robot at a stable place to restart and do not move the Robot
Beeps 2: Bumper error
- Check the bumper and remove any object that could be blocking it
Beeps 3: Anti-Drop Sensor error
- Check if the sensor dirty and clean sensor
Beeps 4: Low power or charging error
- Robot power is too low and needs manually charging

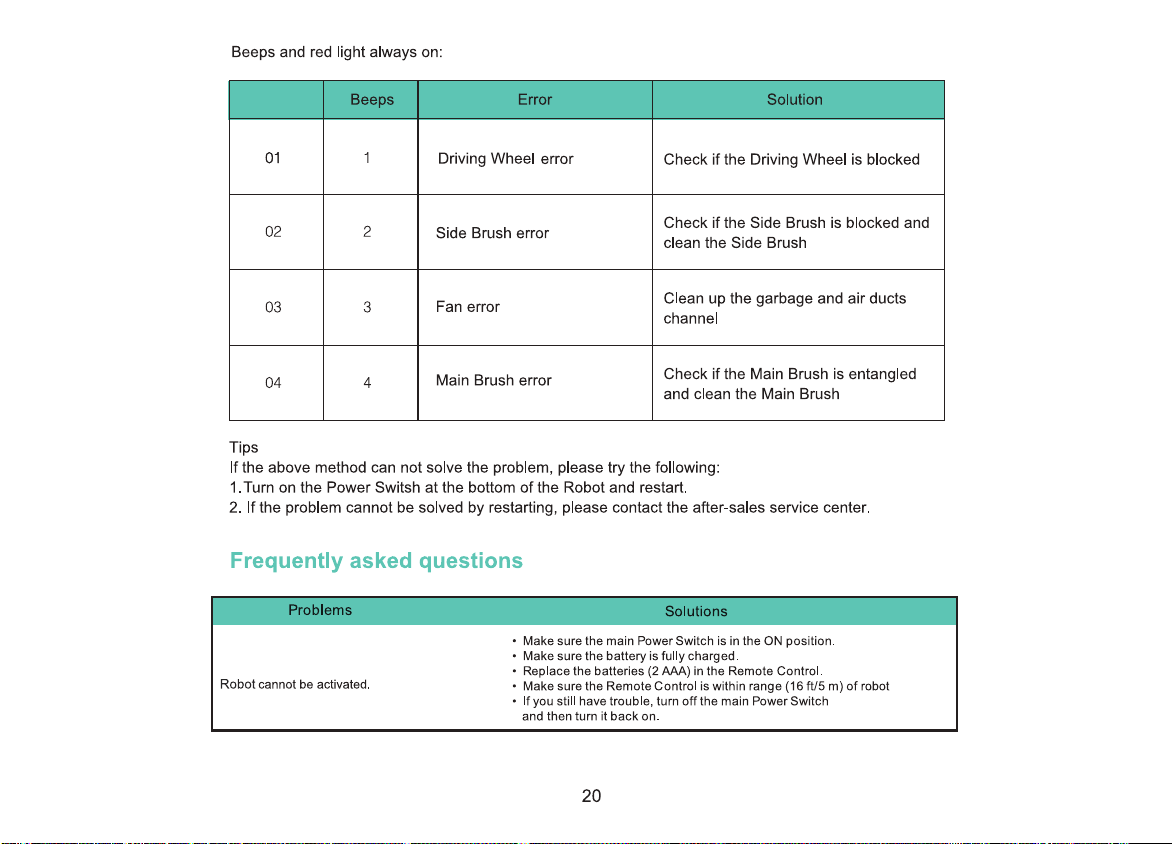

Beeps and red light always on :
Beeps 1: Driving Wheel error
- Check if the Driving Wheel is blocked
Beeps 2: Side Brush error
- Check if the Side Brush is blocked and clean the Side Brush
Beeps 3: Fan error
- Clean up the garbage and air ducts channel
Beeps 4: Main Brush error
- Check if the Main Brush is entangled and dean the Main Brush
Tips
If the above method can not solve the problem, please try the following:
- Tum on the Power Switsh at the bottom of the Robot and restart.
- If the problem cannot be solved by restarting, please contact the after-sales service center.
Frequently asked questions
Robot cannot be activated.
- Make sure the main Power Switch is in the ON position.
- Make sure the battery is fully charged.
- Replace the batteries (2 AAA) in the Remote Control..
- Make sure the Remote Control is within range (16 ft/5 m) of robot
- If you still have trouble, turn off the main Power Switch and then turn it back on.

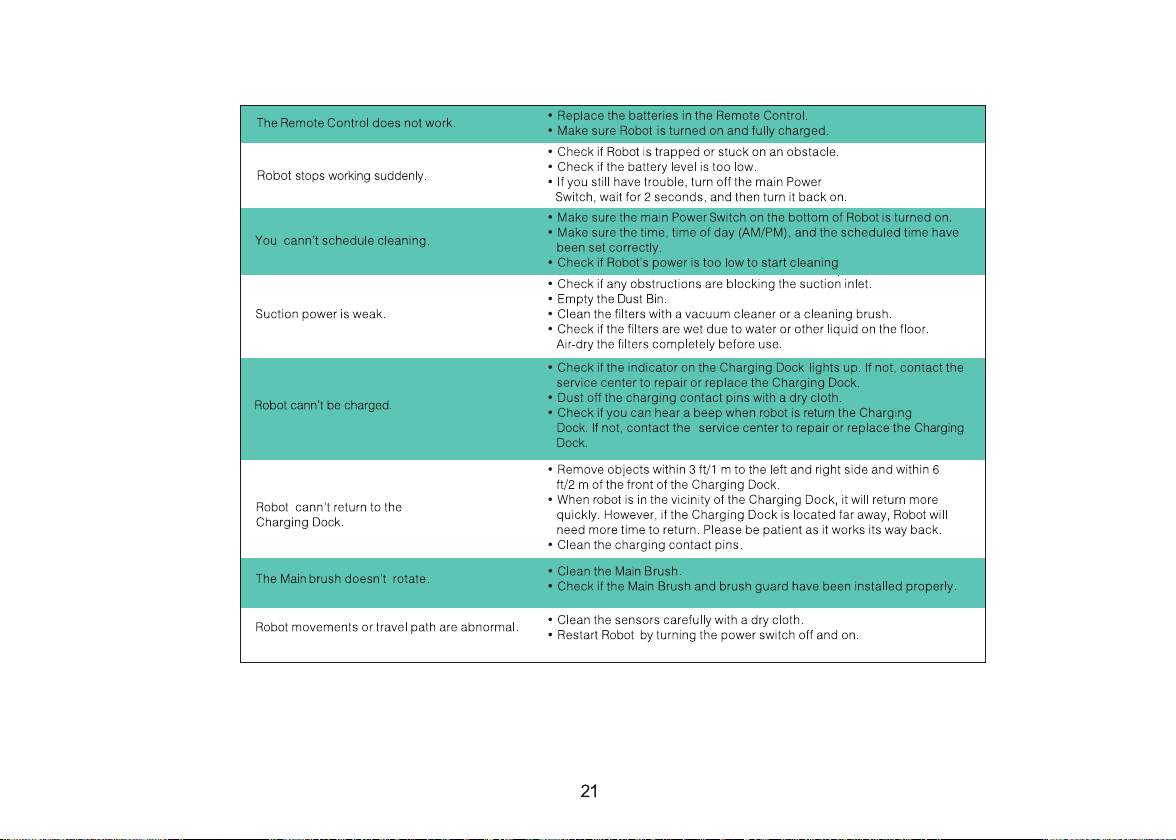

The Remote Control does not work
- Replace the batteries in the Remote Control
- Make sure Robot is turned on and fully charged.
Robot stop working suddenly
- Check it Robot is trapped or stuck on an obstacl
- Check if the battery level is too low,
- If you still have trouble, tum off the main Power Switch, wait for 2 seconds, and then turn it back on.
You cannt schedule cleaning
- Make sure the main Power Switch on the bottom of Robot is fumed on,
- Make sure the time, time of day (AMPM), and the scheduled time have been set correctly.
- Check if Robot's power is too low to start cleaning
Suction power is weak
- Check if any obstructions are blocking the suction inlet
- Empty the Dust Bin
- Clean the ters with a vacuum deaner or a cleaning brush.
- Check if the iters are wet due to water or other liquid on the floor. Airdry the fitters completely before use.
Robot can't be charged.
- Check if the indicator on the Charging Dock Ights up. If not contact the service centor to repair or replace the Charging Dock
- Dust off the charging contact pins with a dry cloth.
- Check if you can hear a boep when robot is renum the Charging Dock, If not, contact the service center to repair or replace the Chargino Dock
Robot cannt return to the Charging Dock
- Remove objects within 3 ft/1 m to the kift and right side and within 6 ft/2 m at the front of the Charging Dock.
- When robat is in the vicinity of the Charging Dock, it will return more quickly. However, if the Charging Dock is located far away. Robot will need more time to retum, Please be patient as it works its way back
- Clean the charging contact pins
The Main brush doesn't rotate.
- Clean the Main Brush.
- Check if the Main Brush and brush guard have been installed property.
Robot movements or travel path are abnormal
- Clean the sensors carefully with a dry cloth
- Restart Robot by tuming the power switch off and on

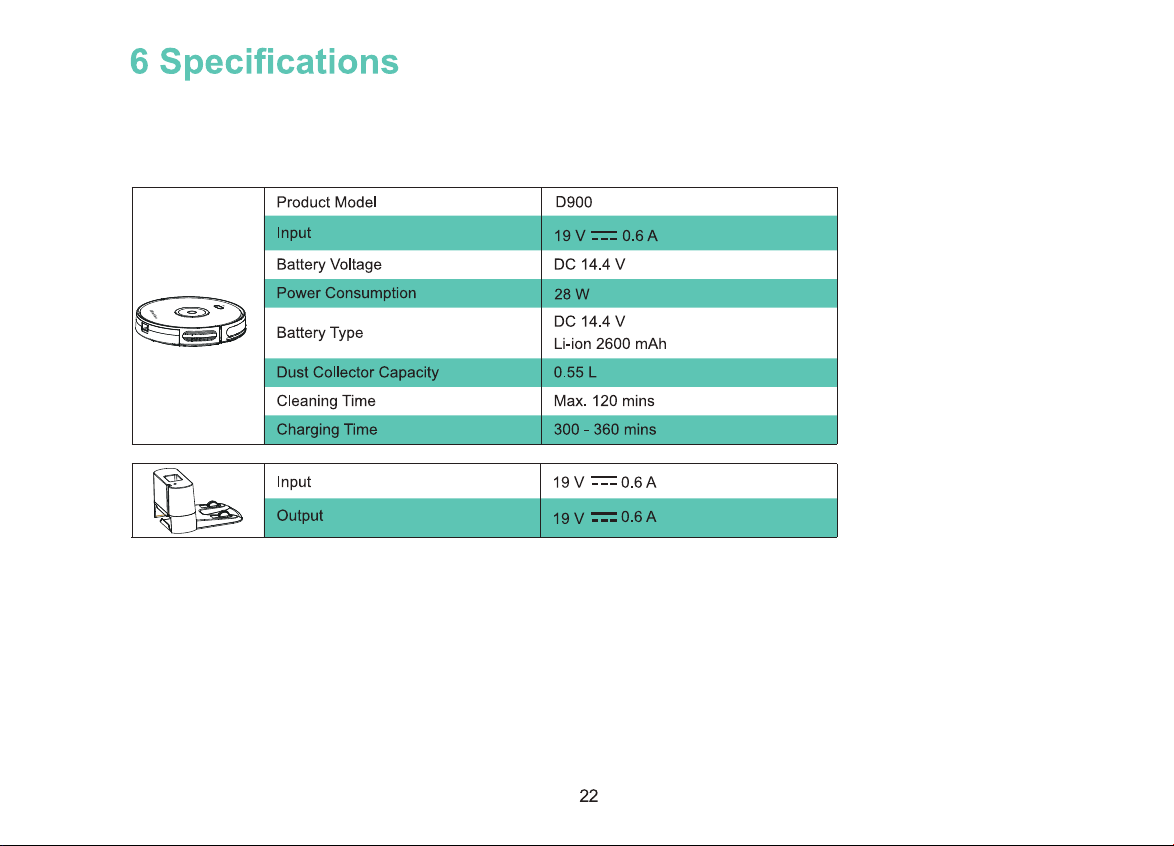

Specifications
