PORTABLE MINIDISC
RECORDER
Thank you for purchasing this SHARP product.
For the best performance, read this manual carefully.
It will guide you in operating your SHARP product.
MODEL
MD
-
MT90
OPERATION MANUAL
00/12/26 90SEC_02_08.fm
2
Important Introduction
-Accessories-

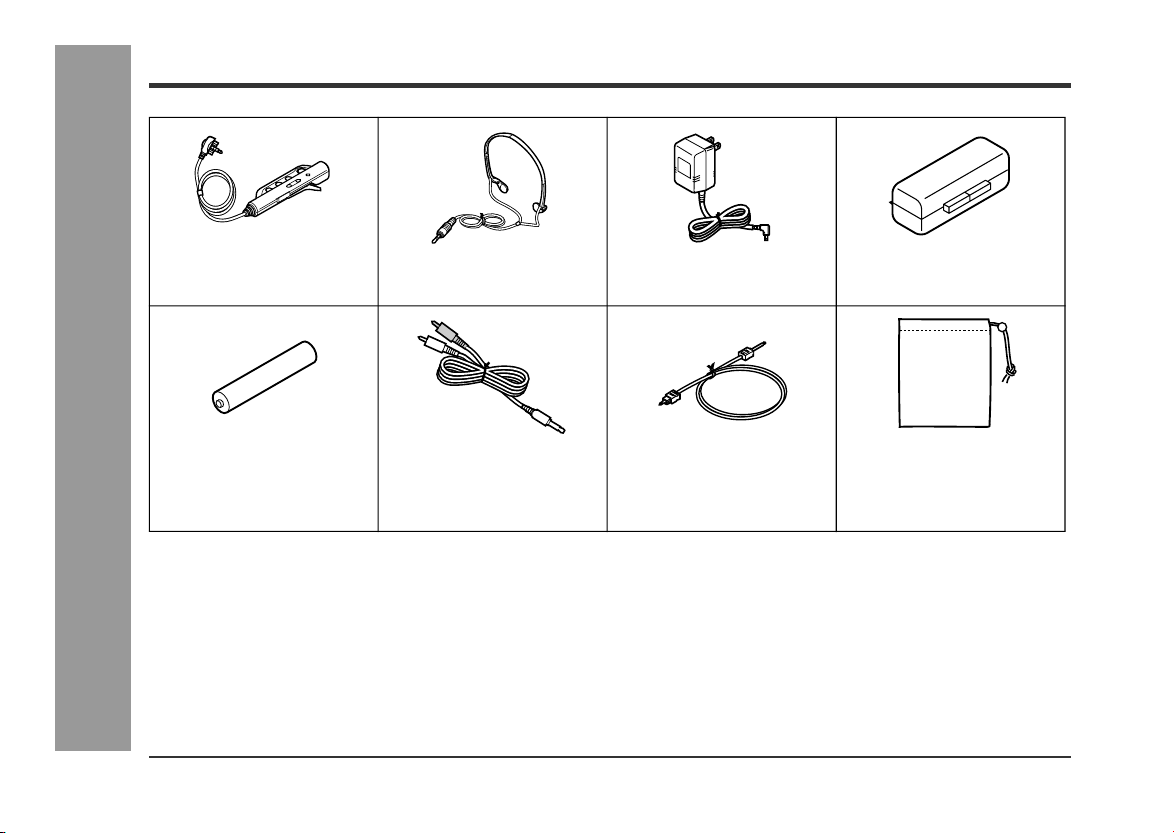

Accessories
Notes:
z Parts and equipment mentioned in this operation man-
ual other than those detailed above are not included.
z The AC adaptor may be different from the one in the
drawing.
Remote Control x 1
(RRMCW0002AWSA)
Headphones x 1
(RPHOH0005AWZZ)
AC Adaptor
(RADPA3048AWZZ) x 1
Battery Carrying Case x 1
(UBAGC0003AWZZ)
Rechargeable Nickel-
Metal Hydride Battery
(AD-N70BT) x 1
(UBATM0003AWSA)
Connection Cable (for
analog recording) x 1
(QCNWG0029AWZZ)
Connection Cable (for
digital recording) x 1
(QCNWG0422AFZZ)
Carrying Bag x 1
(UBAGC0006AWSA)
For optional accessories, contact your local dealer, call
the Sharp Accessories and Supply Center at 1-800-
642-2122, or visit SHARP’s web site (http://
www.sharp-usa.com).
0101
Optional accessories
z
Rechargeable Nickel-Metal Hydride Battery (AD-N70BT)
z
Car adaptor (AD-CA20X)
z
Cassette adaptor (AD-CT14)
00/12/26 90SEC_02_08.fm
3
Important Introduction
-Contents-
Contents
„ Important Introduction
Special Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Names of Controls and Indicators . . . . . . . . . . . . . 6-7
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
„ Preparation
Inserting a MiniDisc . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-11
„ Basic Operation
Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-15
„
Useful Features
Advanced Playback . . . . . . . . . . . . . . . . . . . . . . . 16-17
Advanced Recording . . . . . . . . . . . . . . . . . . . . . . 18-22

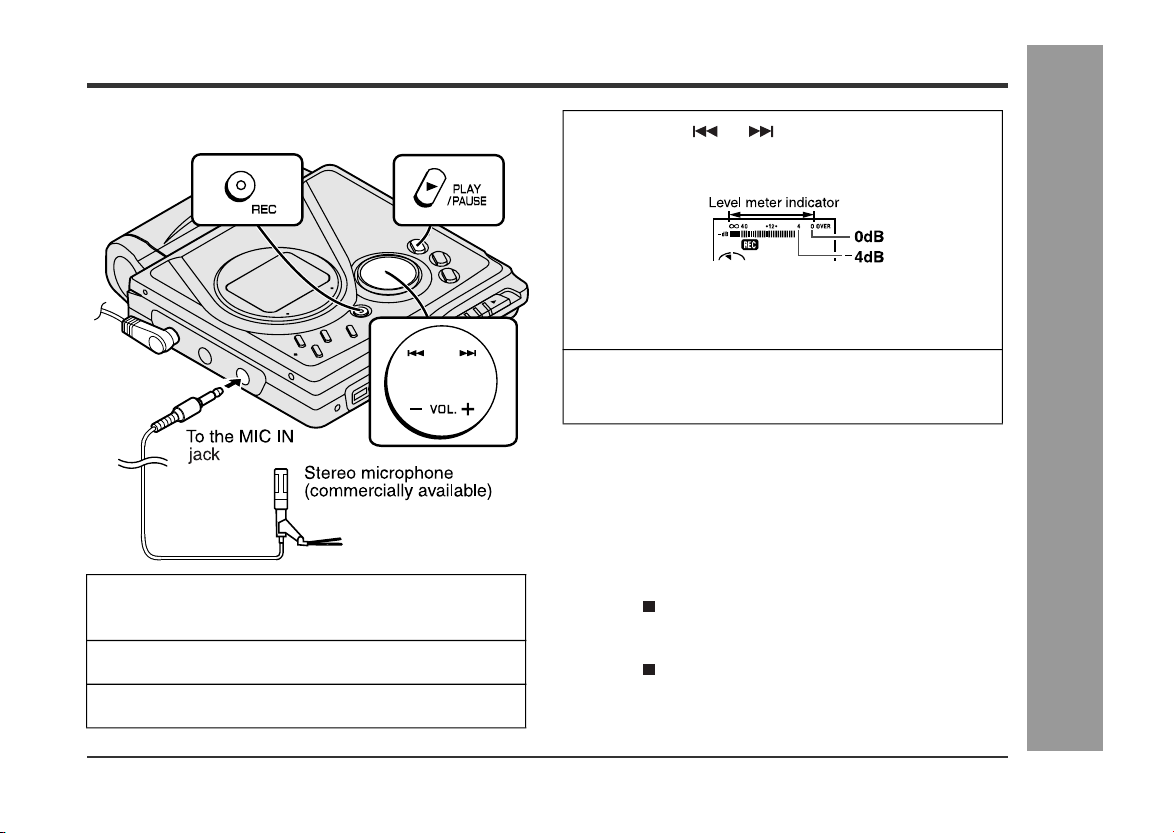

Recording from a Microphone . . . . . . . . . . . . . . . 23-25
Checking Displays . . . . . . . . . . . . . . . . . . . . . . . . 26-27
Battery Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28-29
Hold Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
„ Advanced Features
Changing Default Settings . . . . . . . . . . . . . . . . . . . . 31

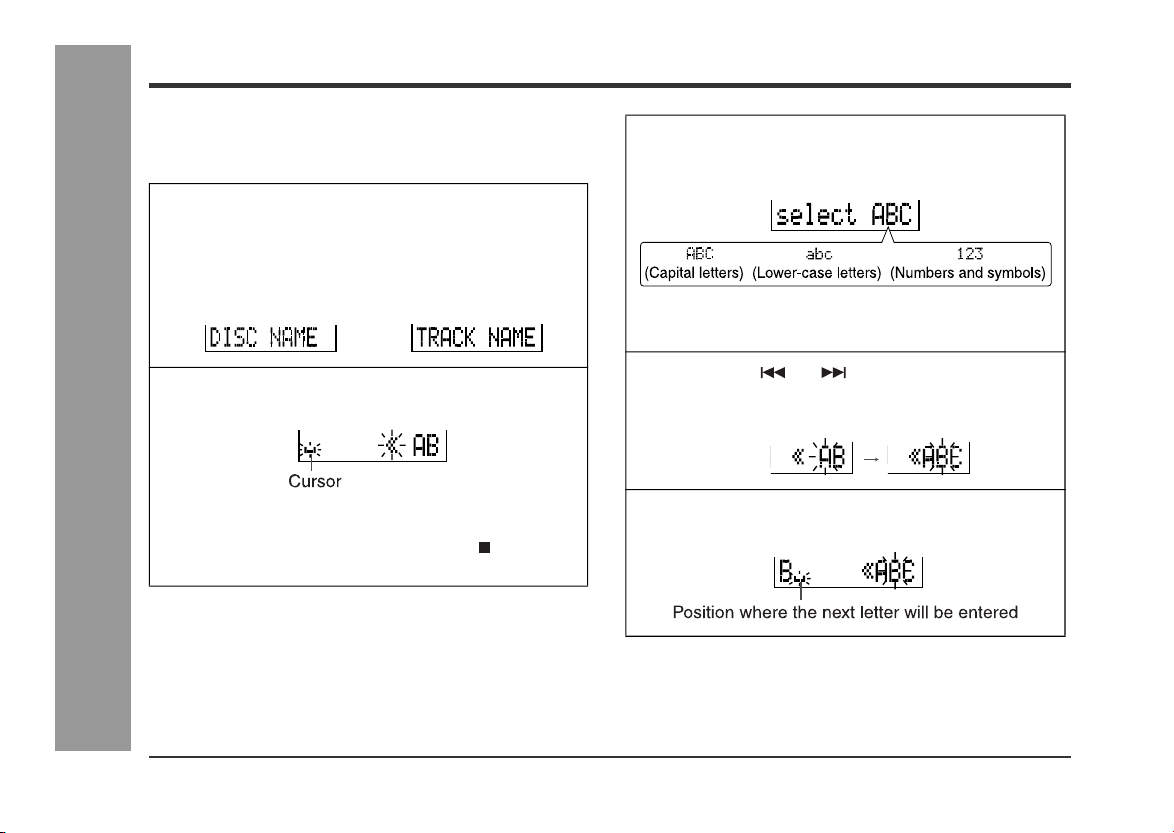

Titling a MiniDisc . . . . . . . . . . . . . . . . . . . . . . . . . 32-35
Editing a Recorded MiniDisc . . . . . . . . . . . . . . . 36-38
Listening through Another System . . . . . . . . . . . . . 39
„ References
Other Features and Caution . . . . . . . . . . . . . . . . . . . 40
MiniDisc System Limitations . . . . . . . . . . . . . . . . . . 41
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 42-43
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 44-45
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . 46-47
CONSUMER LIMITED WARRANTY . . . . . Back cover
00/12/26 90SEC_02_08.fm
4
Important Introduction
-Special Notes-
Special Notes
z It is the intent of Sharp that this product be used in full
compliance with the copyright laws of the United
States and that prior permission be obtained from
copyright owners whenever necessary.
Caution - use of controls or adjustments or per-
formance of procedures other than those specified
herein may result in hazardous radiation exposure.
z "BATTERY DISPOSAL"
CONTAINS NICKEL-METAL HYDRIDE BATTERY.
MUST BE DISPOSED OF PROPERLY. CONTACT LO-
CAL AGENCIES FOR INFORMATION ON RECY-
CLING AND DISPOSAL PLANS IN YOUR AREA.
z US and foreign patents licensed from Dolby Laborato-
ries.
z The letters in brackets contained in the model number
indicate the color of the product only. Operation and
specifications are unaffected.
FOR YOUR RECORDS
For your assistance in reporting this unit in case of
loss or theft, please record below the model number
and serial number which are located on the bottom of
the unit.
Please retain this information.
Model number
Serial number
Date of purchase
Place of purchase
00/12/26 90SEC_02_08.fm
5
Important Introduction
-Special Notes-
Note:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installa-
tion.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accord-
ance with the instructions, may cause harmful interfer-
ence to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the fol-
lowing measures:
z
Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and
receiver.
z
Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
z Consult the dealer or an experienced radio/TV techni-
cian for help.
WARNING:
FCC Regulations state that any unauthorized changes or
modifications to this equipment not expressly approved
by the manufacturer could void the user's authority to
operate this equipment.
00/12/26 90SEC_02_08.fm
6
Important Introduction
-Names of Controls and Indicators-
Names of Controls and Indicators
„ Main unit
1. 5V DC Input Jack (10)
2. Optical/Line Input Jack (10, 11)
3. Microphone Input Jack (23)
4. Bass/Delete Button (15, 33)
5. Edit/Auto Mark/Time Mark Button (21, 25, 32)
6. Display/Character Select Button (26, 32)
7. Mode/Charge Button (17, 28)
8. Record/Track Mark Button (12, 21)
9. Volume/Cursor/Fast Forward/Fast Reverse/
Recording Level/Name Select Button
(12, 15, 16, 32, 33)
10. Play/Pause Button (12, 15)
11. Stop/Power Off/Hold Button (13, 15, 30)
12. Enter/Fast Play/Synchro Button (17, 18, 20)
13. Remote Control/Headphones/Line Output Jack
(14, 39)
14. Open Lever (9)
15. Battery Cover (28)
00/12/26 90SEC_02_08.fm
7
Important Introduction
-Names of Controls and Indicators-

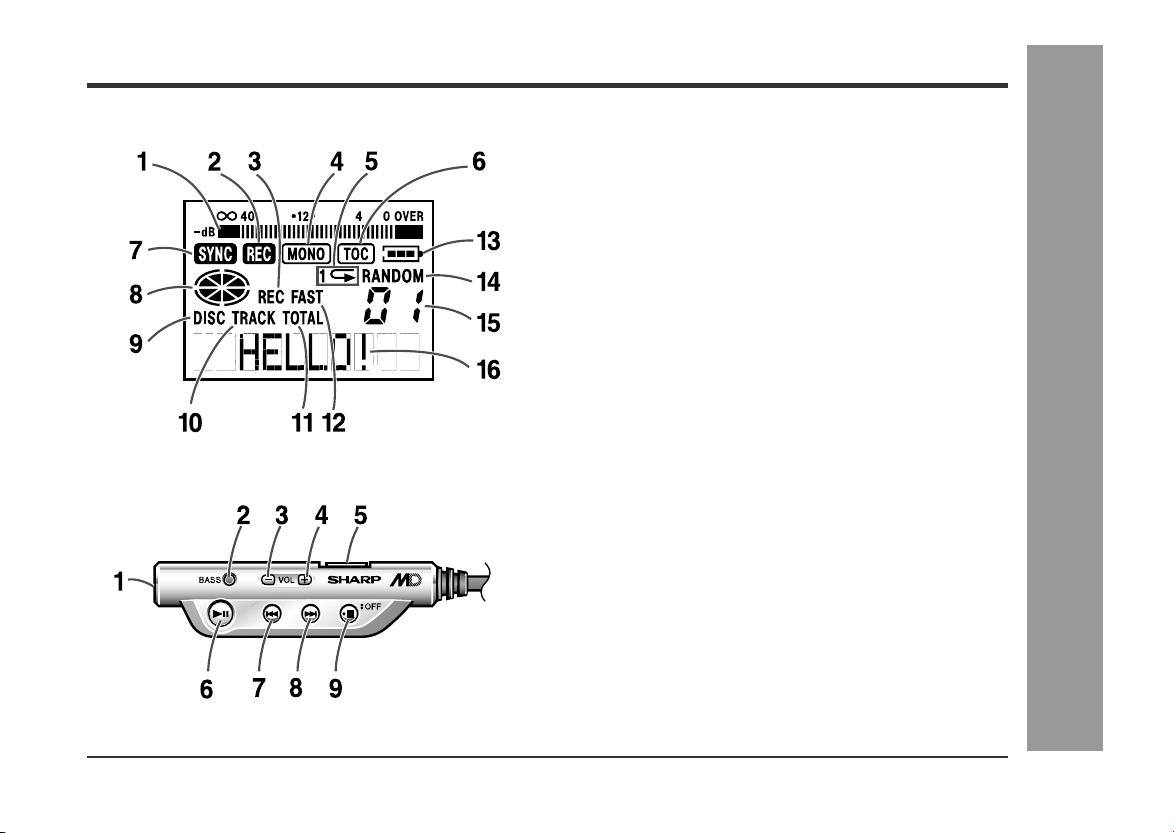

„ Display panel
1. Level Meter (12)
2. Record Indicator (12)
3. Remaining Recording Time Indicator (26)
4. Monaural Long-Play Mode Indicator (19)
5. Repeat Indicator (17)
6. TOC Indicator (13)
7. Synchro Recording Indicator (18)
8. Disc Mode Indicator
9. Disc Name Indicator (26)
10. Track Name Indicator (26)
11. Total Track Number Indicator (26)
12. Fast Play Indicator (17)
13. Battery Indicator (27)
14. Random Indicator (17)
15. Track Number Indicator (26)
16. Character/Time Information Indicator
„ Remote control unit
1. Headphones Jack (14)
2. Bass/Delete/Track Mark Button (15, 21, 33)
3. Volume Down/Cursor Button (15, 33)
4. Volume Up/Cursor Button (15, 33)
5. Hold Switch (30)
6. Play/Pause Button (12, 15)
7. Fast Reverse/Recording Level Down/Name Select
Button (12, 16, 32)
8. Fast Forward/Recording Level Up/Name Select
Button (12, 16, 32)
9. Stop/Power Off Button (13, 15)
00/12/26 90SEC_02_08.fm
8
Important Introduction
-Precautions-

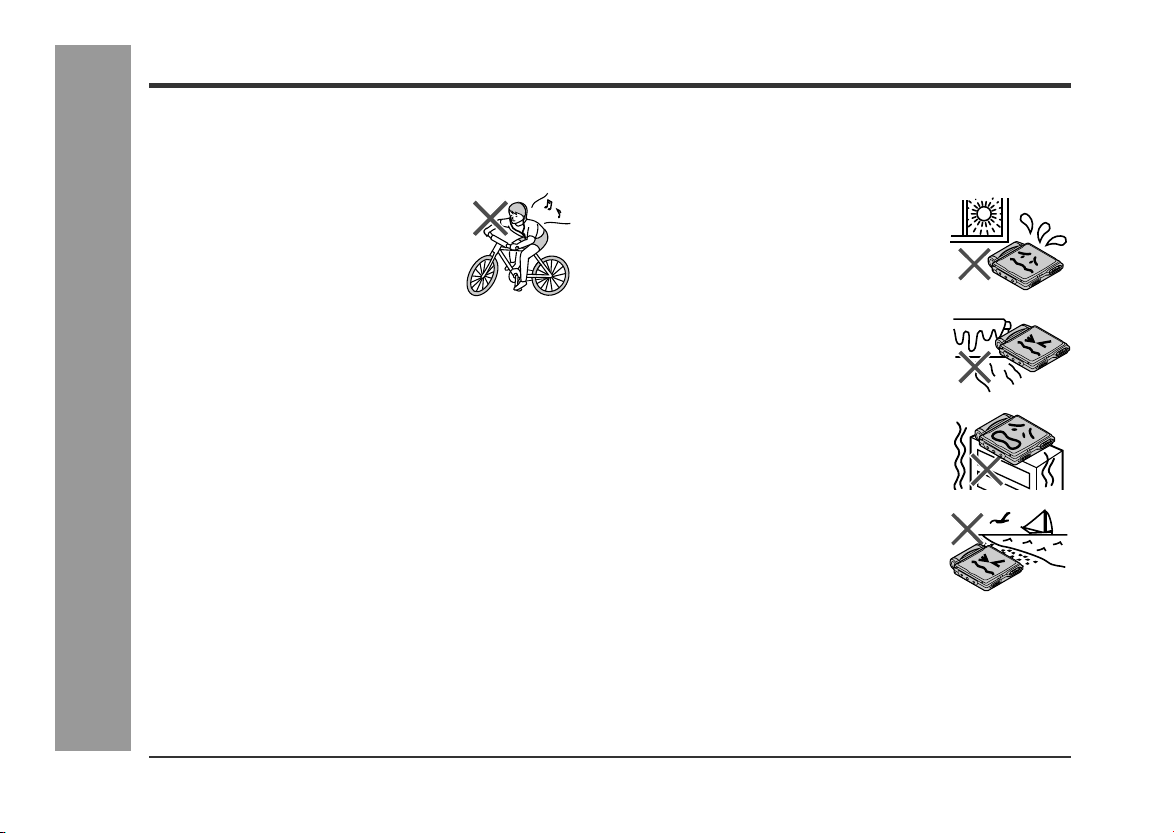

Precautions
„ Important
z Do not wear your headphones when you are crossing
streets or near traffic.
z Do not play the unit at a high volume. Hearing experts
advise against extended listening at high volume lev-
els.
z If you experience ringing in your ears, reduce the vol-
ume or discontinue use.
z
This portable MD should only be used within the range
of 32°F - 104°F (0°C - 40°C).
To avoid accidental electric shock or other possible
problems, observe the precautions listed below.
z Do not disassemble or modify the unit.
z Do not drop or subject the unit to shock.
z
Do not use the unit near open flames.
z Do not spill liquid on the unit.
z Do not use an external power supply, other than the
5V DC supplied with this unit, as it may damage it.
z
SHARP is not responsible for damage due to improper
use. Refer all servicing to a SHARP authorized serv-
ice center.
„ Storing the unit
Avoid using or leaving the unit in the following
places.
z
If the unit is used near radio tuners or TVs, noise and/
or picture interference may result. If you experience
these problems, move the unit away from such
devices.
z
It is not recommendable to put the MiniDisc into a rear
pocket, as this may damage the product when sitting.
z Do not use your headphones while
driving a motor vehicle, it may cre-
ate a traffic hazard and may be ille-
gal. Remember to obey all of the
safety rules in your area.
z Places exposed to direct sunlight for
many hours (especially in cars with
the doors and windows closed) or
near heaters. (The cabinet may de-
form, change color or the unit may
malfunction.)
z Places exposed to excessive dust.
z Places exposed to water.
z
Places where temperatures are ex-
cessively high or low.
z Places (bathrooms) where the humid-
ity is extremely high.
z
Places with strong magnetic fields
such as TVs or loudspeakers.
z Places exposed to vibration.
z
Places where sand can easily enter
the inside of the unit (beaches etc.).
00/12/26 90SEC_09_11.fm
9
Preparation
-Inserting a MiniDisc-

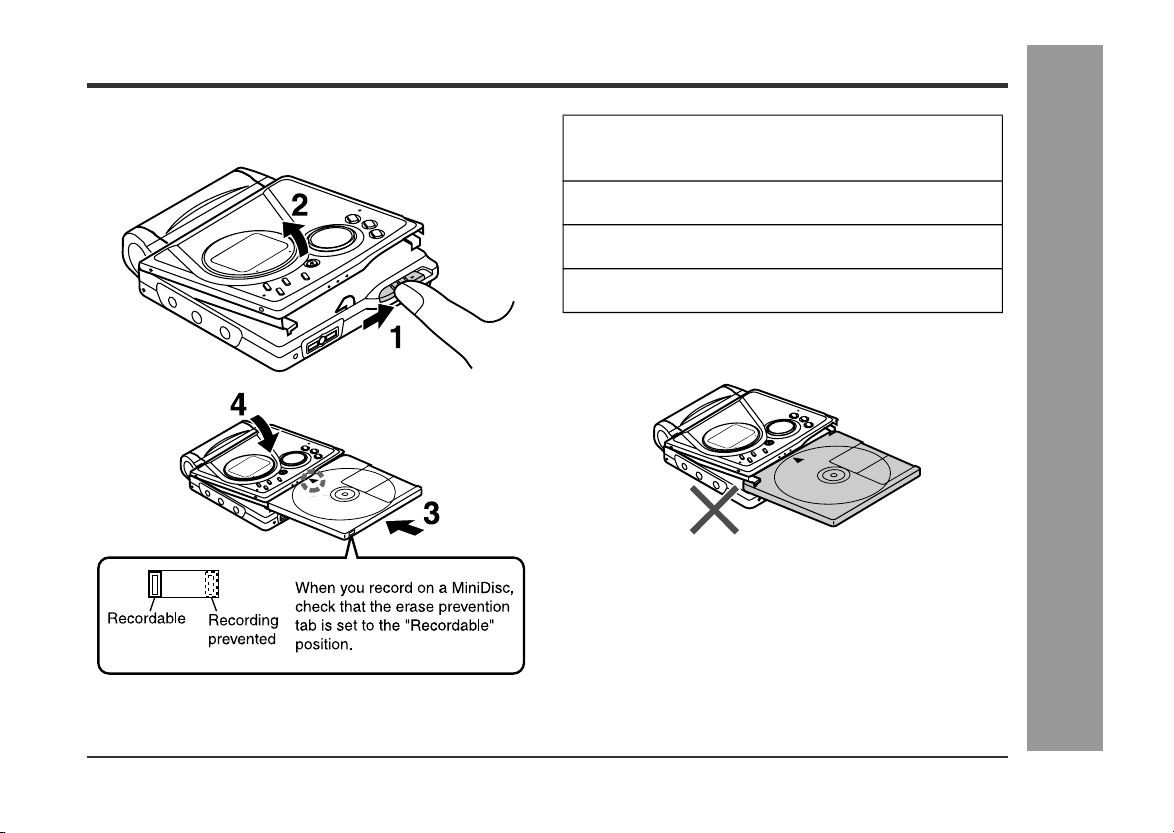

Inserting a MiniDisc
Notes:
z Do not place the MiniDisc under the holder.
z If any resistance is felt, do not force the MiniDisc into
the unit, as it may cause damage to the unit. If resist-
ance is felt, remove the MiniDisc and reload it.
z The lid cannot be opened if "TOC" is displayed.
Refer to the instruction on page 13.
1
Slide the OPEN lever to release the com-
partment door.
2
Lift it up.
3
Insert a MiniDisc as shown.
4
Close the compartment door.
00/12/26 90SEC_09_11.fm
10
Preparation
-Connections-

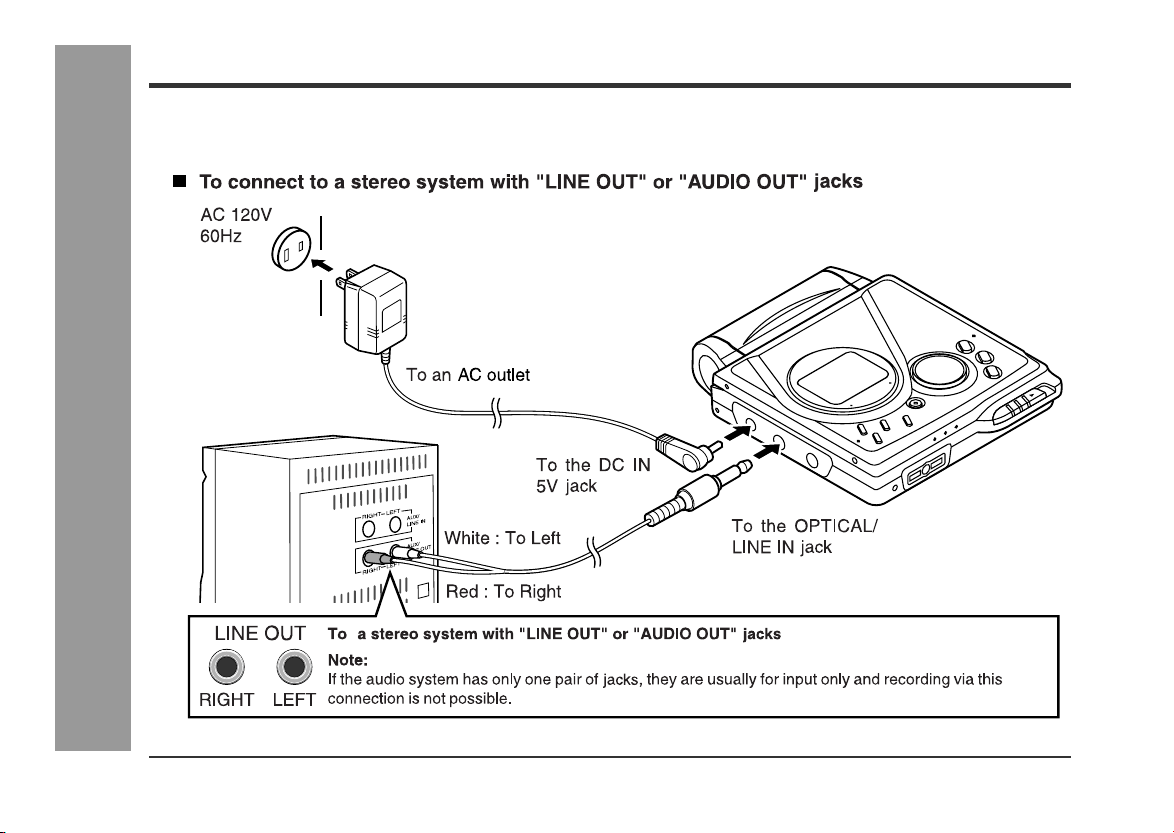

Connections
You can record your favorite CDs or tapes to MD.
00/12/26 90SEC_09_11.fm
11
Preparation
-Connections-
00/12/26 90SEC_12_15.fm
12
Basic Operation
-Recording-

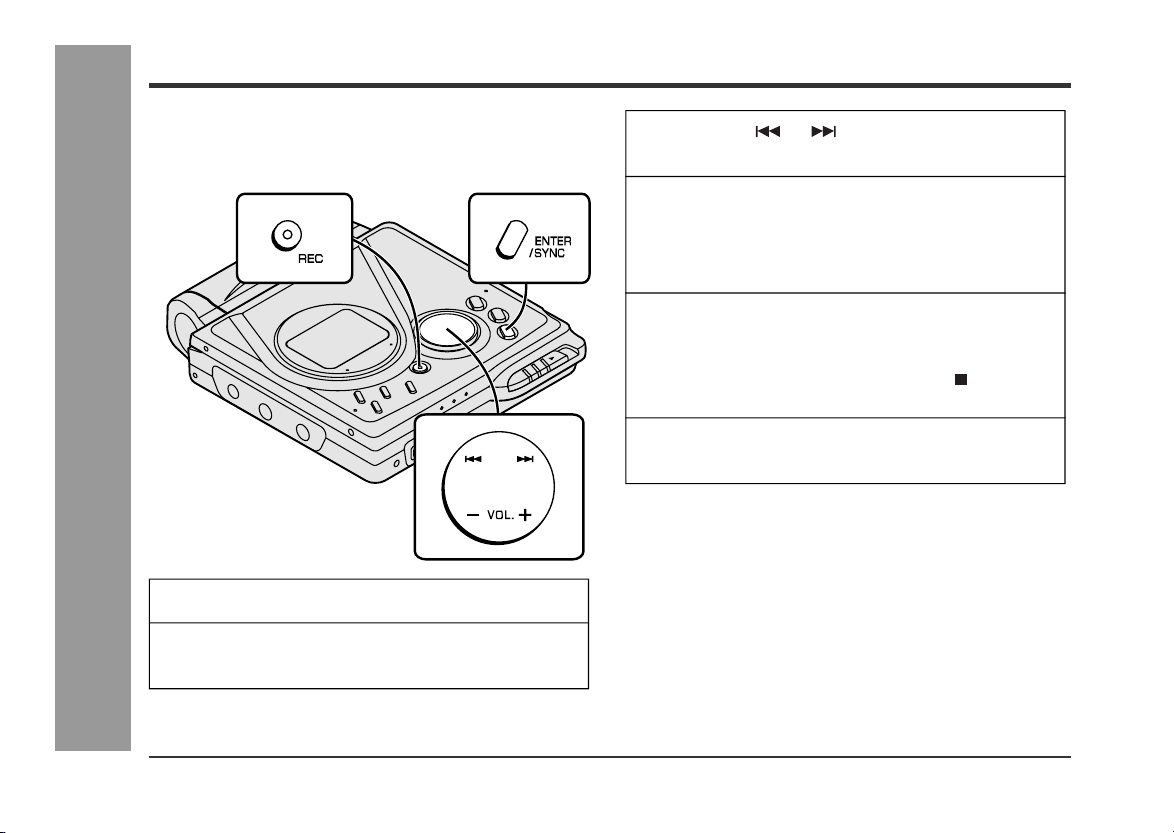

Recording
1
Press the REC button.
2
Begin playback on the stereo system con-
nected to this portable MD.
3
Press the or button to adjust the re-
cording level.
Analog recording
Adjust the recording level so that the maximum
sound volume from the source makes the reading
swing somewhere between 4 dB and 0 dB.
Digital recording
You can adjust the level in 1dB increments within
the range of +12 - 12dB.
Once you adjust the digital recording level, the set-
ting remains even after the recording stops. (For
cancellation instructions, see page 31.)
4
Press the PAUSE button on the stereo sys-
tem to enter the playback pause mode.
Here you can search for the track to record.
00/12/26 90SEC_12_15.fm
13
Basic Operation
-Recording-
To interrupt recording
Press the PLAY/PAUSE button.
z To resume recording, press the PLAY/PAUSE button
again.
z
The track number will be increased by one each time
the recording is interrupted.
To stop recording
Press the /:OFF button.
z When recording stops, "TOC" appears. While "TOC"
appears, the MiniDisc recorded contents have not yet
been updated.
z To prevent the new recording from being lost, it is not
possible to remove the MiniDisc while "TOC" is dis-
played.
To update the recorded contents of the
MiniDisc
Press the /:OFF button while in the stop mode.
The power turns off after recorded contents have been
updated on the MiniDisc.
About the TOC
After any recording or editing function, "TOC" (Table Of
Contents) is displayed. To finalise the recording or editing
function, press the /:OFF button. During this process,
"TOC" will flash and "TOC EDIT!" will be displayed. Dur-
ing any recording or editing function, the MiniDisc unit lid
is locked, and the MiniDisc cannot be removed until the
process is finalised.
Warning:
If the power is removed (Battery/AC adaptor) while "TOC"
is displayed, the MiniDisc unit lid will remain locked until
the battery/main power is restored and the unit is turned
on. Your new recordings or edited changes will be lost
and your MiniDisc may become unusable.
Caution:
While "TOC" or "TOC EDIT!" is displayed, follow the
instructions below.
Otherwise, tracks may not be recorded properly.
Notes:
z Changing the volume level while recording does not
affect the recording.
z You cannot adjust the bass level while recording.
5
Press the PLAY/PAUSE button to start the
MiniDisc unit recording.
6
Begin playback on the stereo system, and
the output will be recorded.
- Do not jerk or bump the unit.
- Do not unplug the AC adaptor.
- Do not remove the rechargeable battery or an alka-
line battery.
- Do not subject the unit to shock.
00/12/26 90SEC_12_15.fm
14
Basic Operation
-Playback-
Playback
00/12/26 90SEC_12_15.fm
15
Basic Operation
-Playback-
To interrupt playback
Press the PLAY/PAUSE button.
To resume playback, press the PLAY/PAUSE button
again.
To stop playback
Press the /:OFF button.
If the unit is not operated for at least 2 minutes while in
the stop mode, the power will shut off automatically.
To turn off the power
Press the /:OFF button while in the stop mode.
„ Volume control
Press the VOL+ button to increase the volume and the
VOL- button to decrease the volume.
„ Bass control
Each time the BASS button is pressed, the tone will be
switched as follows.
Notes:
z If power failure occurs while playing a disc using the
AC adaptor, disconnect it from the AC outlet. Other-
wise, playback may start automatically when electricity
resumes.
z
If you connect the AC adaptor without installing the
rechargeable battery, playback may start automati-
cally. Be sure to turn off the power.
z Reduce the volume before starting to play. MiniDiscs,
compared to ordinary cassette tapes, have very little
noise. If the volume is adjusted according to your
usual expectations of noise, high volume may damage
your hearing.
z The sound escaping from your headphones may
annoy people around you. In particularly crowded
places (such as on trains or buses), reduce the vol-
ume.

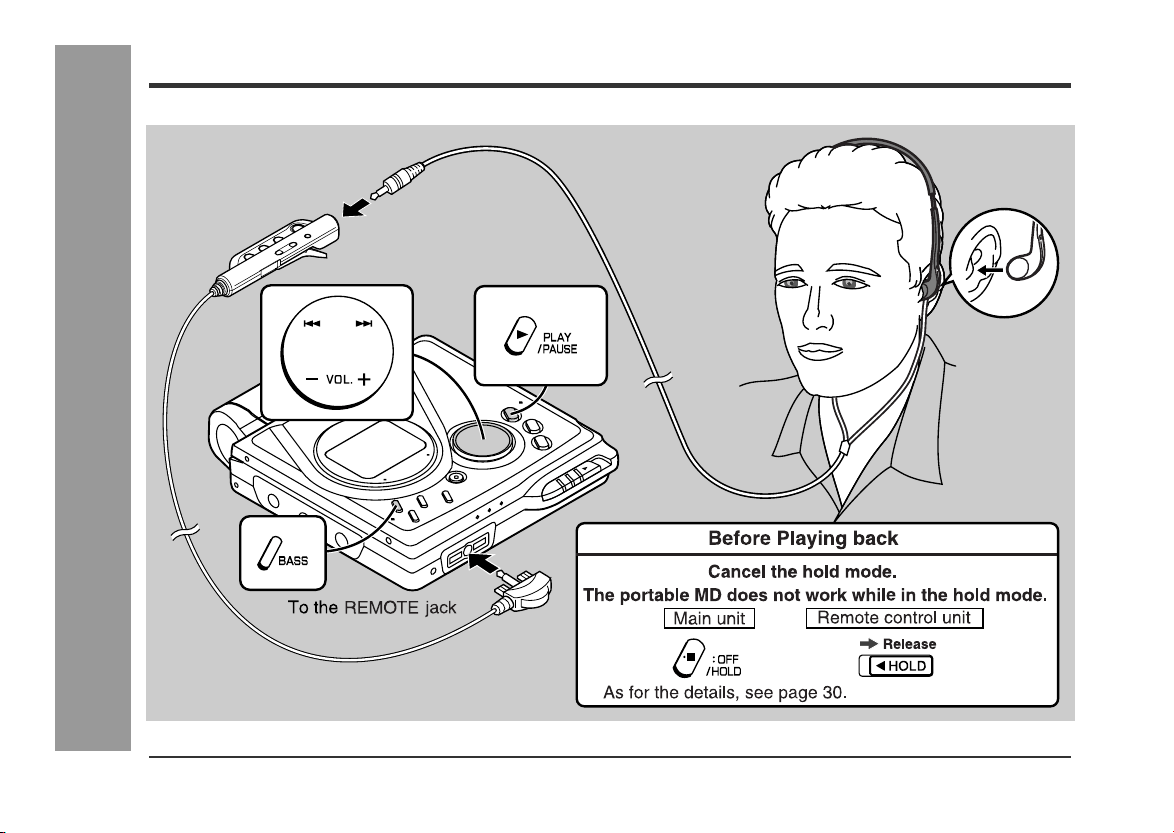

1
Insert the headphones plug firmly into the
headphones jack on the remote control
unit.
2
Plug the remote control into the REMOTE
jack on the unit.
3
Insert a MiniDisc (page 9).
4
Press the PLAY/PAUSE button.
Playback starts automatically with a playback only
MiniDisc or a MiniDisc which is protected against
accidental erasure (Auto-play function).
BASS 1 Emphasized slightly
BASS 2 Emphasized more
BASS 3 Emphasized fully
BASS OFF Canceled
00/12/26 90SEC_16_30.fm
16
Useful Features
-Advanced Playback-
Advanced Playback
„ To locate the desired portion
„ To locate the beginning of a track
For audible fast forward:
Press and hold down the button during playback.
For audible fast reverse:
Press and hold down the button during playback.
z
Normal playback will resume when the or
button is released.
z When the end of the last track is reached during fast
forward, the unit will enter the pause mode. When
the beginning of the first track is reached during fast
reverse, the unit will enter the playback mode.
To move to the beginning of the next track:
Press the button during playback.
To restart the track being played:
Press the button during playback.
To locate the next track:
Press the button while the unit is stopped.
To locate the previous track:
Press the button while the unit is stopped.
z To skip a number of tracks at one time, press the
or button repeatedly until the desired track
number is shown.
z When you press the PLAY/PAUSE button, playback
starts from the beginning of the track.
00/12/26 90SEC_16_30.fm
17
Useful Features
-Advanced Playback-

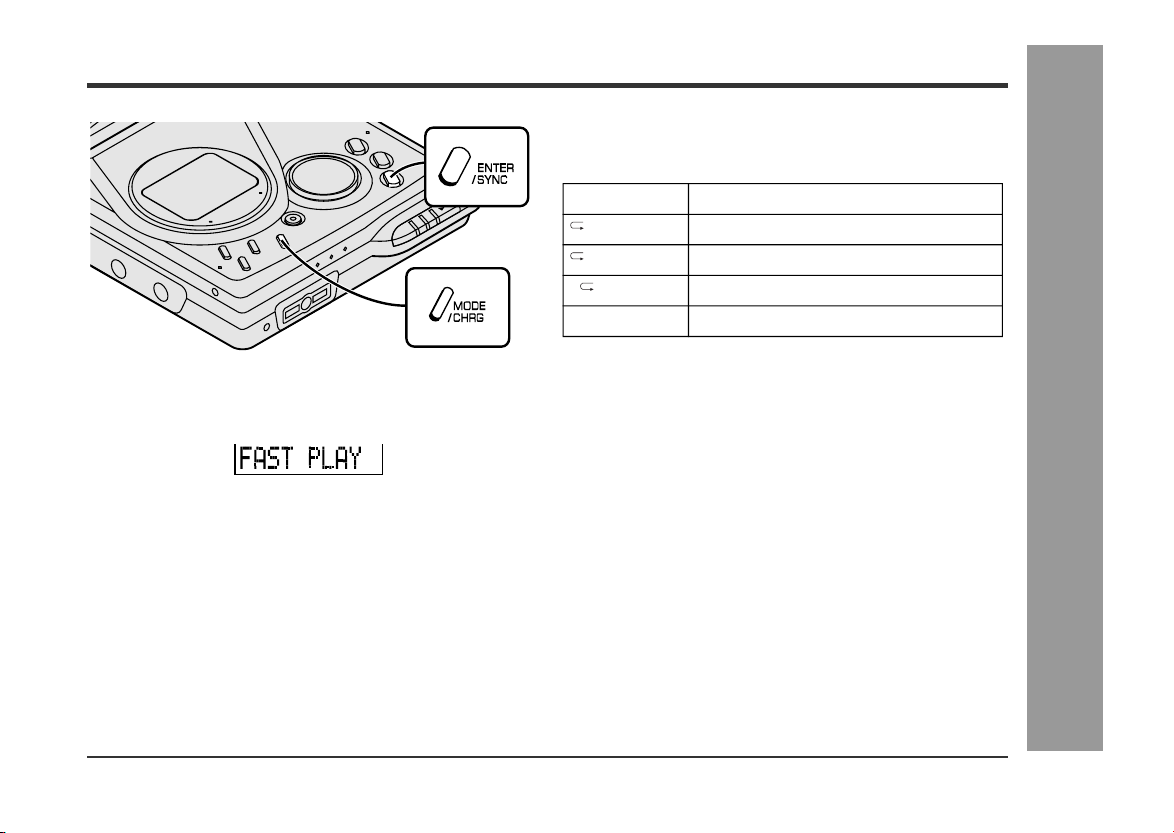

„ To play at double speed
Press the ENTER/SYNC button while a MiniDisc
recorded in the monaural long-play mode is being played.
z If a track recorded in the stereo mode is reached dur-
ing fast playback, the fast playback mode will be can-
celed.
z Depending on the contents recorded on a MiniDisc, it
may be difficult to hear them.
To interrupt fast playback
Press the PLAY/PAUSE button during playback.
When the PLAY/PAUSE button is pressed again, the unit
will resume fast playback.
To return to normal playback
Press the ENTER/SYNC button.
„ Random play or repeat play
During playback, press the MODE/CHRG button repeat-
edly to select the playback mode.
Notes:
z
If the playback mode is selected while stopped, press
the PLAY/PAUSE button to start playback.
z When "TOC" is displayed, random play or repeat play
is impossible.
z
In random play the unit will select and play tracks auto-
matically. (You cannot select the order of the tracks.)
After all of the tracks have been played once each in
random order, the unit will stop automatically.
z During random, random repeat, or single track repeat
play, you can forward or reverse the MiniDisc only
within the track being played.
z During random play, the unit cannot find the beginning
of any track which has been played.
z
Repeat play lasts until you stop the unit.
RANDOM Random play
RANDOM Repeat play of tracks in random order
Repeat play of all of the tracks
1 Repeat play of a single track
No display Normal playback
00/12/26 90SEC_16_30.fm
18
Useful Features
-Advanced Recording-
Advanced Recording
„ Playback sound-actuated recording
Recording automatically starts or pauses by detecting
sound from the stereo system (Synchronized recording).
To interrupt recording
z
When the stereo system is stopped, the unit will enter
the synchro recording pause mode. When playback is
resumed, the recording will be resumed.
z
If a silence lasts for 3 seconds or more, the recording
will be paused (the pause function does not work for
approximately 10 seconds after a recording starts).
When the unit receives sound again, recording auto-
matically starts.
z A new track number is created when the recording
resumes.
1
Press the REC button.
2
Begin playback on the stereo system con-
nected to this portable MD.
3
Press the or button to adjust the re-
cording level. (See page 12.)
4
Press the PAUSE button on the stereo sys-
tem to enter the playback pause mode.
Select the starting point for your recording and
press the PAUSE button.
5
Press the ENTER/SYNC button.
z
"SYNC" will be displayed.
z To cancel the operation, press the /:OFF but-
ton.
6
Begin playback on the stereo system. Re-
cording will begin automatically.
00/12/26 90SEC_16_30.fm
19
Useful Features
-Advanced Recording-

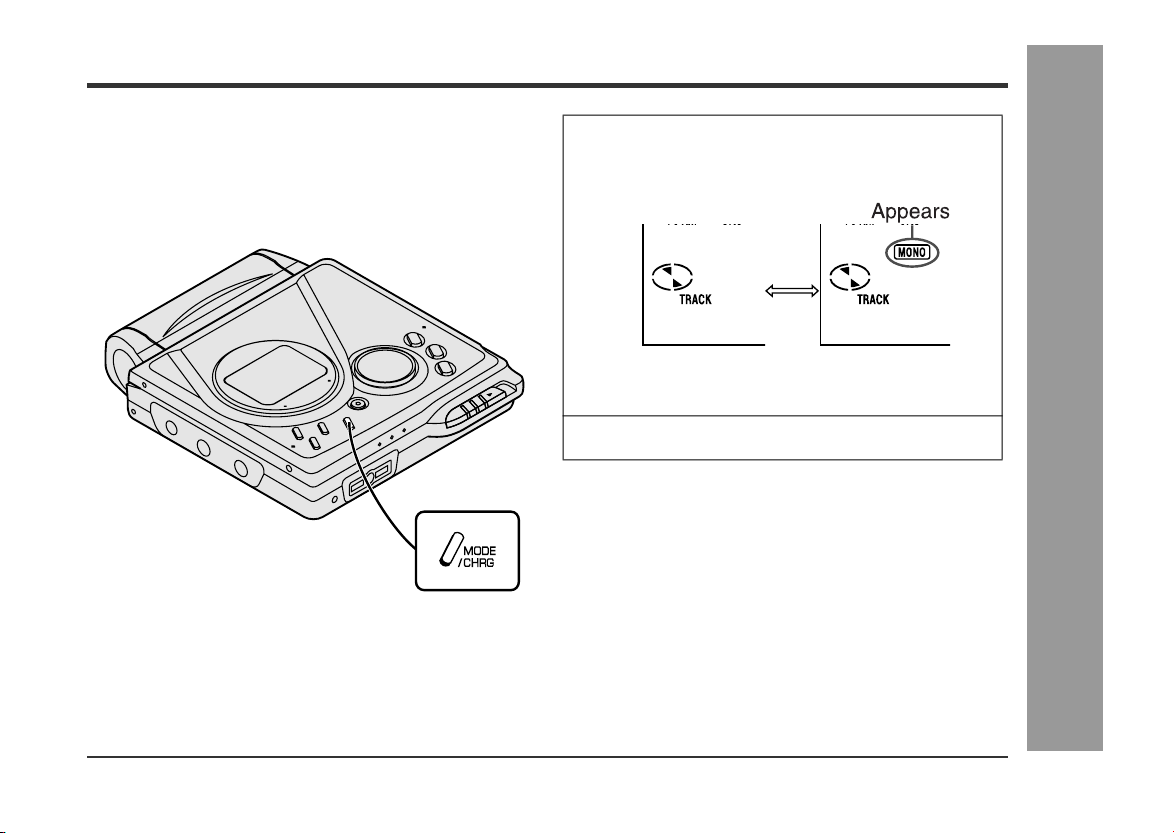

„ Long-play recording
When recording in the monaural long-play mode, the
available recording time will be doubled. Monaural long-
play recordings can be replayed at double speed, see
page 17.
Notes:
z When the unit is stopped after a recording has been
made in this mode, the recording mode will return to
the stereo mode automatically.
z If input is from a stereo source, the sounds from the
left and right channels will be combined.
z
Although the monitor sound you hear in the head-
phones while recording is in stereo, recording will be
monaural.
z
MiniDiscs recorded in the monaural long-play mode
may not play on other MiniDisc players.
1
Press the MODE/CHRG button while the
recording is paused.
Stereo mode Monaural long-play
mode
2
Start recording.
00/12/26 90SEC_16_30.fm
20
Useful Features
-Advanced Recording-
Advanced Recording (continued)

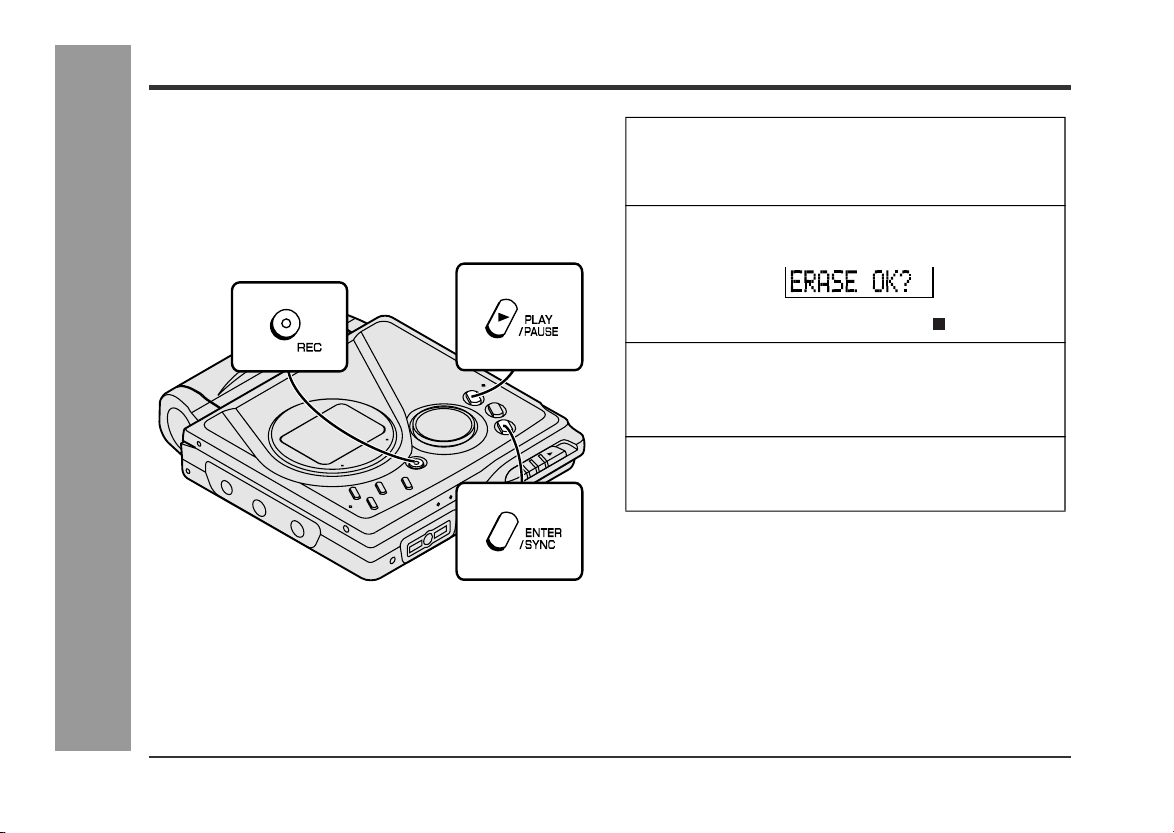

„ To start recording from the middle of a
track
You can erase a portion of a track and make a new
recording.
All of the tracks that follow the newly recorded track will
be erased.
Note:
To keep a track after the point you want to make a new
recording, move the track and then make recording after
that point. (See "Editing a Recorded MiniDisc", page 38.)
1
During playback, press the PLAY/PAUSE
button at the point where you want to be-
gin recording.
2
Press the REC button.
To cancel the operation, press the /:OFF button.
3
Press the ENTER/SYNC button.
All of the tracks and track names will be erased, fol-
lowing the point where the playback is paused.
4
Press the PLAY/PAUSE button.
Recording will start.
00/12/26 90SEC_16_30.fm
21
Useful Features
-Advanced Recording-
„ To create your own track numbers
You can create your own track numbers at any point.
While recording, press the REC button at the point
where you want to create track numbers.
The track number will be increased by one.
z One track number will be added every time the REC
button is pressed.
z
The BASS button on the remote control can also be
used to add track numbers.
„ Recording tracks as a single track
You can record several pieces of music as a single track
by disabling the auto marker function.
When a recording is paused or while recording...
Press the EDIT button.
Note:
When making digital recordings using a CD player or an
MiniDisc player, track numbers will be created automati-
cally regardless of the setting of the auto marker function.
„ To prevent recorded MiniDiscs from
being erased accidentally
Slide the accidental erase prevention tab, located on the
side of the MiniDisc, in the direction indicated by the
arrow.
The MiniDisc will then be protected against accidental
erasure.
To add a recording to such a MiniDisc, slide the acciden-
tal erase prevention tab back to its original position.
„ Helpful tip when attaching a label
When attaching a label to a MiniDisc cartridge, be sure to
note the following. If the label is not attached properly, the
MiniDisc may jam inside the unit and it may not be possi-
ble to remove it.
z
If the label peels off or partially lifts
away, replace it with a new one.
z Do not put a new label on top of an ex-
isting one.
z
Attach the label only in the specified
location.
00/12/26 90SEC_16_30.fm
22
Useful Features
-Advanced Recording-
Advanced Recording (continued)

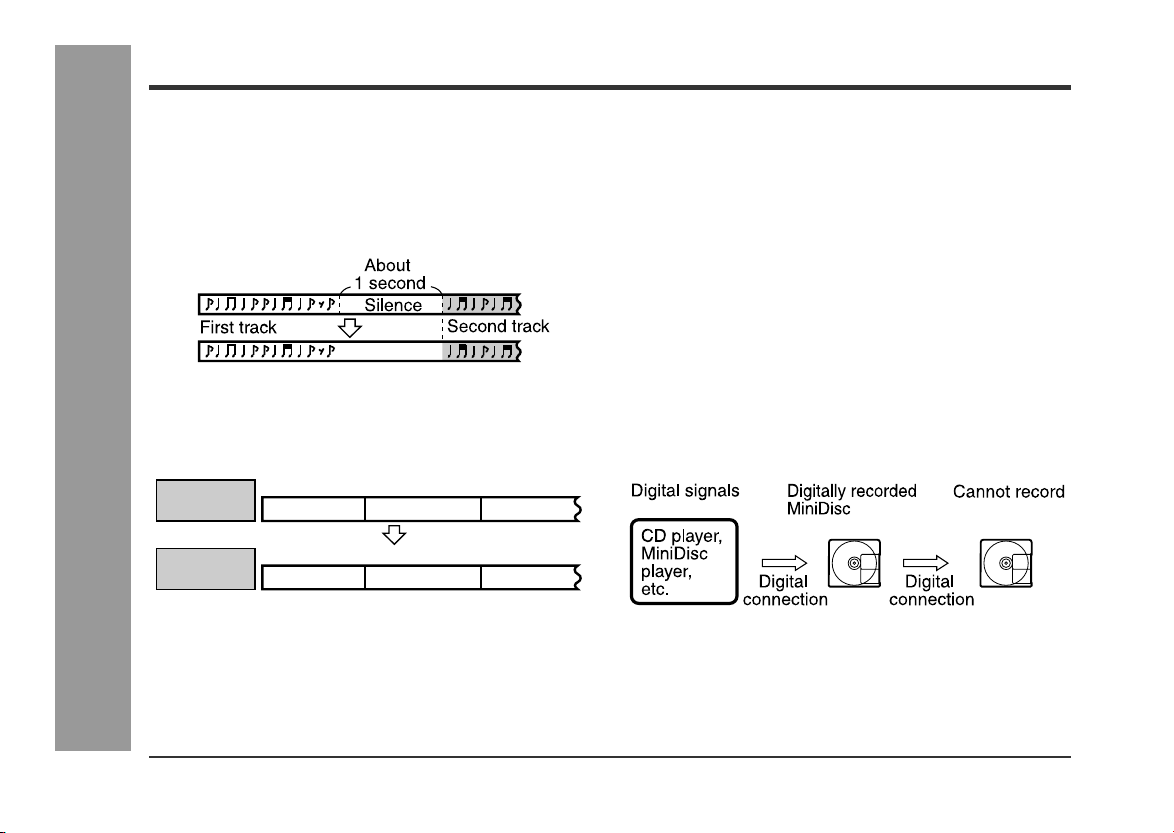

„ About track numbers
z Track numbers may not be created in proper places,
depending on the source to be recorded from, such as
signals with noise.
z The track numbers on the playback side may not
match the track numbers recorded on the MiniDisc.
z When recording, if a programmed playback is per-
formed by the source or playback is performed by
selecting tracks manually, the MiniDisc track numbers
may not be the same as on the source.
z Track numbers may not be created properly, depend-
ing on the connected stereo system.
„ About sampling rate converter
This portable MD incorporates a sampling rate converter,
which means it can record from digital radios or DAT tape
recorders.
„ Note for digital recording
You cannot copy a MiniDisc that you recorded from digital
inputs to another MiniDisc or DAT. It is prevented by the
SCMS (Serial Copy Management System). Recording
from analog inputs is not affected.
1. Track numbers are created automatically during re-
cording via the analog connection when a silence of
1 second or more is detected (Auto marker function).
A series of tracks can be recorded as one by disa-
bling the auto marker function, see page 21.
2. When recording from a CD or a MiniDisc using the
digital connection, track numbers will be created at
the same points as on the CD or MiniDisc (Synchro
marker function).
First track Second track Third track
Track A Track B Track C
Playback
side
First track Second track Third track
Track A Track B Track C
Recording
side
00/12/26 90SEC_16_30.fm
23
Useful Features
-Recording from a Microphone-
Recording from a Microphone
„ To record from a microphone
To interrupt a recording
Press the PLAY/PAUSE button while recording.
To resume recording, press the PLAY/PAUSE button
again. The track number will be increased by one each
time you interrupt a recording.
To stop recording
Press the /:OFF button.
To write recorded contents on the MiniDisc
Press the /:OFF button while in the stop mode.
1
Connect a stereo microphone to the MIC
IN jack.
2
Insert a recordable MiniDisc (page 9).
3
Press the REC button.
4
Press the or button to adjust the re-
cording level.
Adjust the recording level so that the maximum
sound volume from the source makes the reading
swing between --- 4 dB and 0 dB.
5
Press the PLAY/PAUSE button.
Recording will start.
00/12/26 90SEC_16_30.fm
24
Useful Features
-Recording from a Microphone-
Recording from a Microphone (continued)
„ Sound-actuated recording (Mic Syn-
chronized recording)
About the pause function
The unit automatically pauses when the microphone
does not pick up any sound for 3 seconds or more.
(The pause function does not work for approximately 10
seconds after a recording starts.) When the microphone
picks up sound again, recording starts automatically.
Notes:
z
While making a mic recording, do not connect any-
thing to the OPTICAL/LINE IN jack on the portable
MD.
z
To use a microphone, be sure it is a plug-in-power
type microphone.
z
Insert the plug firmly. If you don't, the recording will not
be made properly.
z Use a microphone with a 1/8" (3.5 mm) diameter
stereo mini plug.
z
If the unit starts recording too often from low unwanted
noises, set the microphone input to "MIC SYNC L".
z Recording sensitivity can be changed while recording.
1
Press the REC button.
2
Press the or button to adjust the re-
cording level.
3
Press the ENTER/SYNC button to select
the recording sensitivity.
MIC SYNC H : Recording starts when the unit
detects --- 24 dB or more (The unit
can start recording from quiet
sounds).
MIC SYNC L : Recording starts when the unit
detects --- 12 dB or more.
4
When a sound, such as person speaking,
is picked up by the microphone, recording
will begin automatically.
-
When a plug-in-power type microphone is plugged in,
the portable MD will provide power for the microphone's
operation.
-
If a different type of microphone is plugged in, it may not
operate properly or it may cause the unit to malfunction.
00/12/26 90SEC_16_30.fm
25
Useful Features
-Recording from a Microphone-

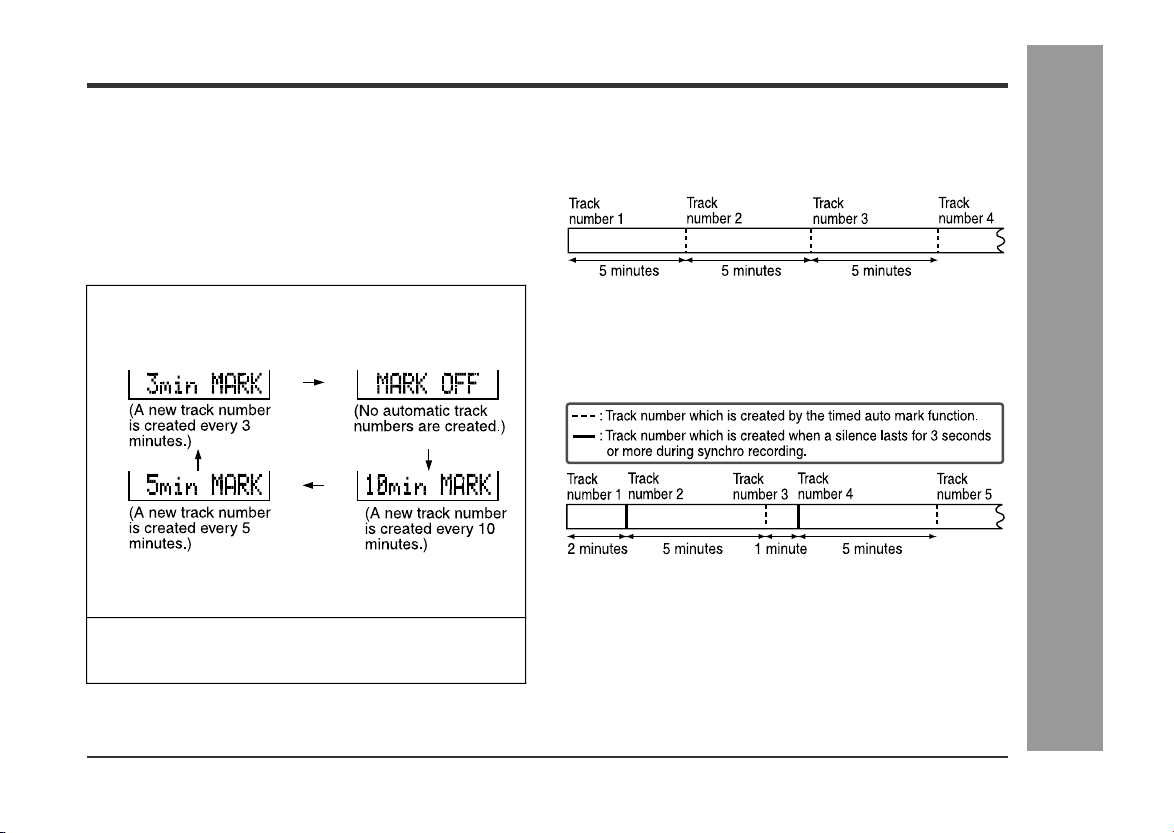

„ Track intervals
When recording from the microphone, track numbers will
be created automatically at regular intervals (default set-
ting: approximately every 5 minutes). During a mic syn-
chro recording, the unit pauses when a silence lasts for 3
seconds or more, and creates a track number.
Changing intervals between tracks
Example: Set to "5 minutes".
During a mic manual recording
Timed auto marks will be created every 5 minutes.
During a mic synchro recording
If a silence lasts for 3 seconds or more, a timed auto
mark will be created 5 minutes after the previous mark is
created.
Creating track numbers manually
Press the REC button while recording.
1
When a recording is paused or while re-
cording, press the EDIT button repeatedly.
The interval between marks may vary slightly com-
pared with the actual recording time.
2
Track numbers will be created automati-
cally at regular intervals.
00/12/26 90SEC_16_30.fm
26
Useful Features
-Checking Displays-
Checking Displays

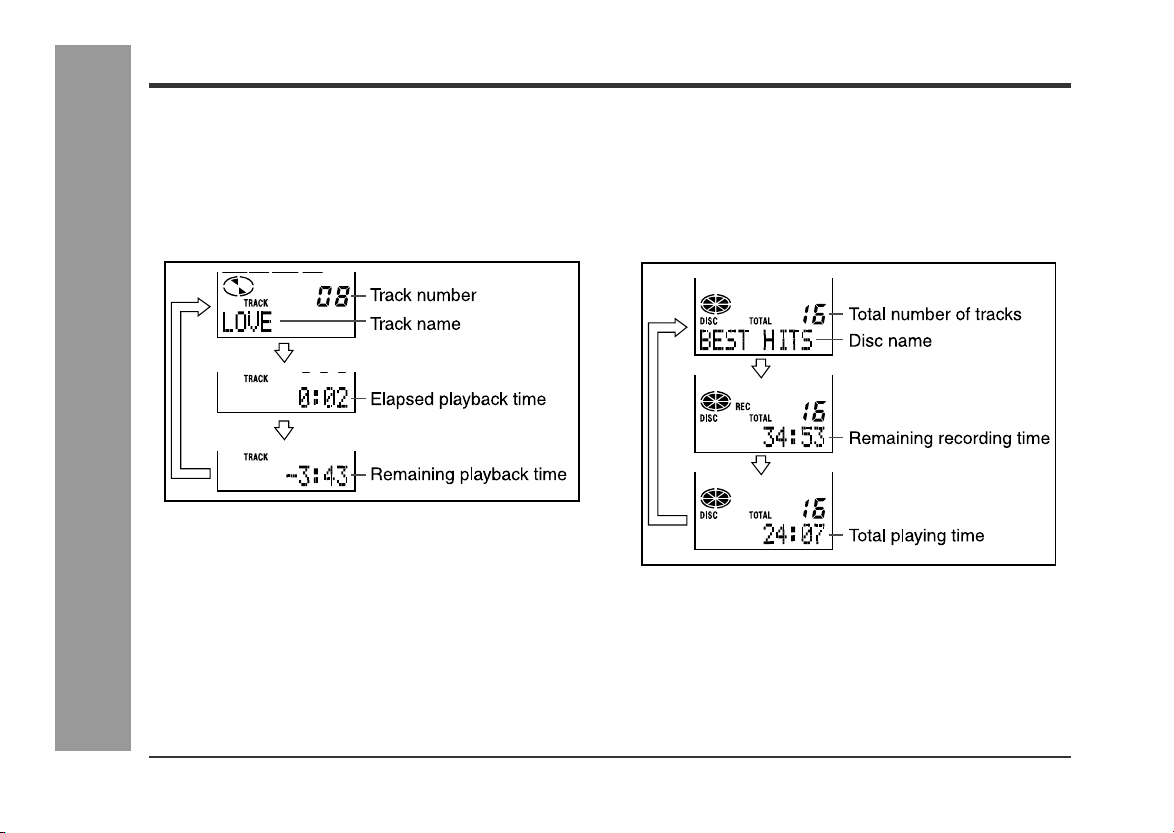

„ To check the elapsed time and remain-
ing time of the track
During playback, press the DISP button.
Each time the button is pressed, the display will change
as follows.
Notes:
z
If the disc name or the track name was not originally
recorded on the MiniDisc, "NO NAME" will be dis-
played.
z
Remaining recording time will not be displayed with a
playback-only MiniDisc.
z Elapsed playback time and remaining playback time
may be different from the actual time.
„ To check the remaining recording time
and the total playing time
While in the stop mode, press the DISP button.
Each time the button is pressed, the display will change
as follows.
00/12/26 90SEC_16_30.fm
27
Useful Features
-Checking Displays-

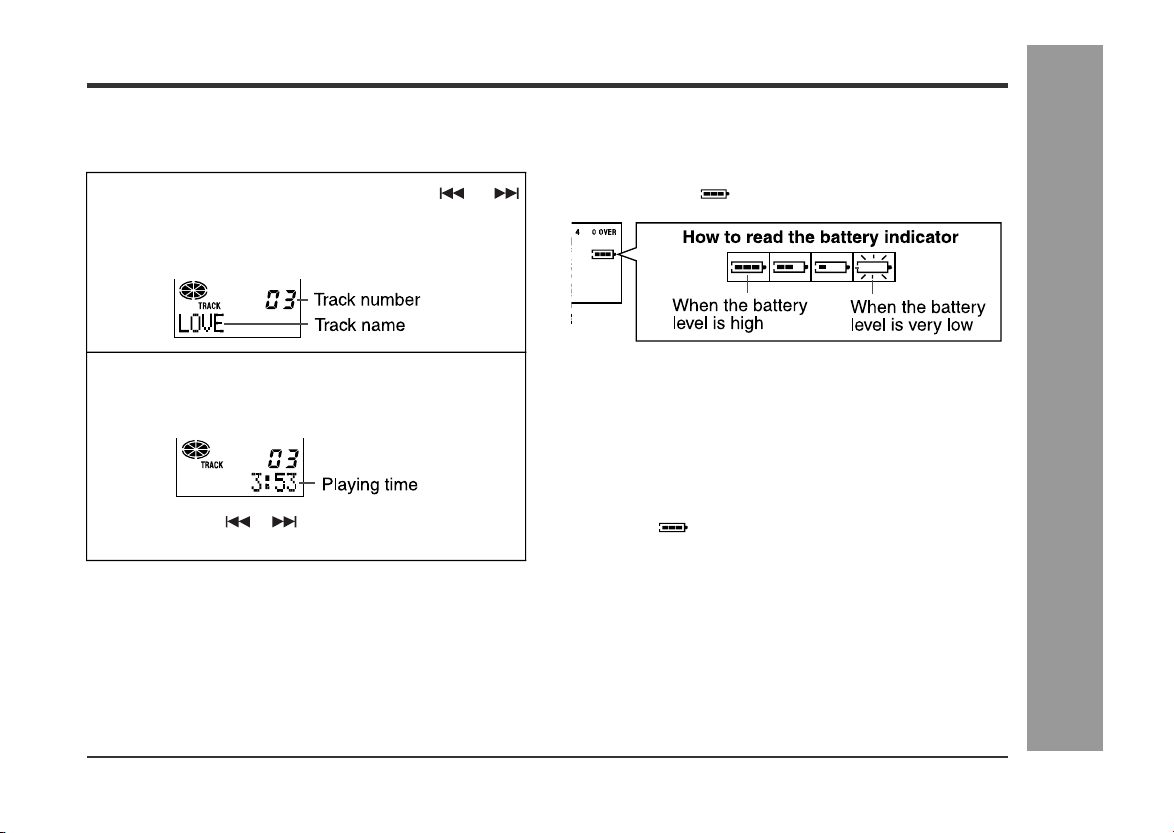

„ To display the playing time of an indi-
vidual track
„ Checking the remaining amount of bat-
tery level
The remaining amount of battery level is shown by the
battery indicator ( ) during operation.
z When the battery is completely discharged, the bat-
tery indicator will flash. Recharge the battery or
replace the alkaline battery with a new one.
z When the battery has run completely out, "BATT
EMPTY" will appear. Then, the power will be discon-
nected automatically.
Notes:
z If you use the battery which you stopped charging
halfway, " " may appear. It does not mean that the
battery is completely charged.
z The battery indicator will not correctly display the
remaining capacity for approximately 10 seconds after
the power has been turned on.
z When the AC adaptor or a separately available car
adaptor is used, the battery indicator will not be
shown.
z The number of bars shown in the battery indicator may
increase or decrease, depending on the operation
being performed. This is normal.
1
While in the stop mode, press the or
button to display the track number and
track name.
2
Press the DISP button to display the play-
ing time for that track.
Each time the or button is pressed, the playing
time of the previous or next track will be displayed.
00/12/26 90SEC_16_30.fm
28
Useful Features
-Battery Power-
Battery Power

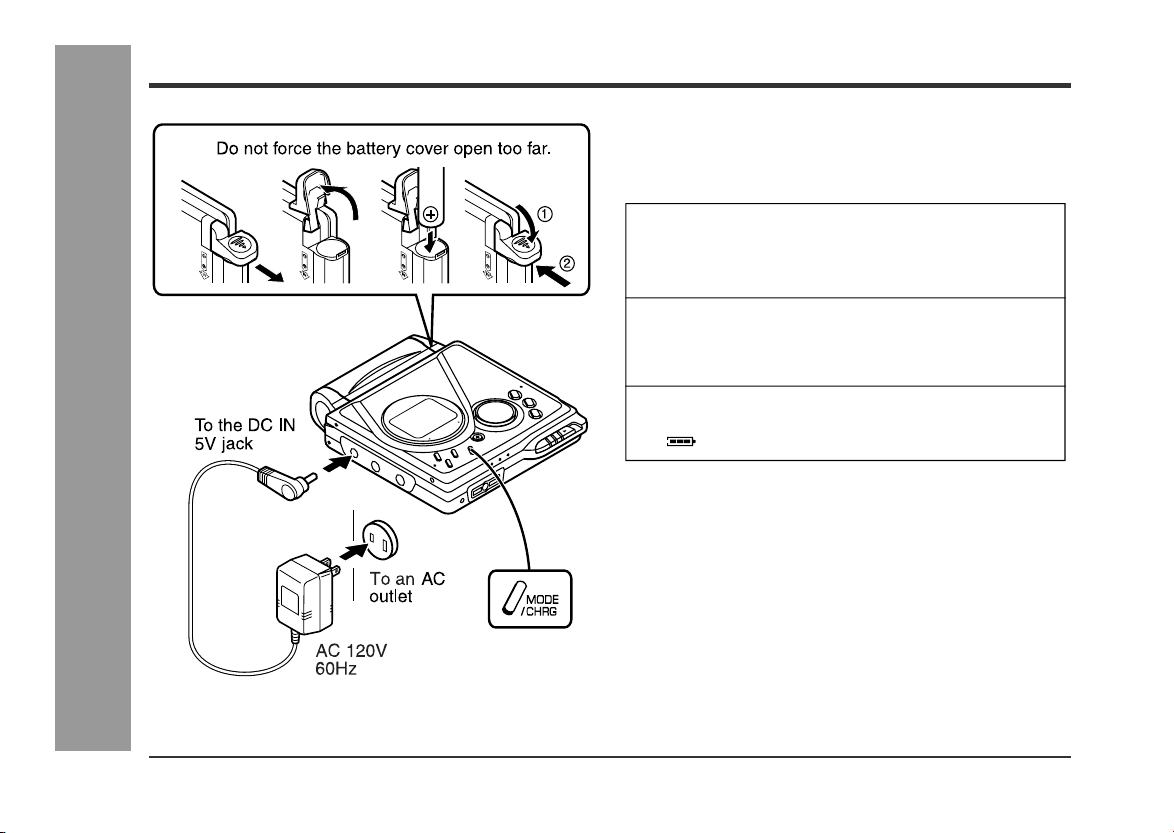

„ Charging the rechargeable battery
When the rechargeable battery is used for the first time
or when you want to use it after a long period of disuse,
be sure to charge it fully.
z After the rechargeable battery is charged or used, it
will get slightly warm. This is normal.
z
When the portable MD is turned on or operating, the
battery will not be charged.
1
Insert the rechargeable battery.
A rechargeable battery other than the one supplied
or the optional one (AD-N70BT) cannot be charged.
2
Plug the AC adaptor into the AC outlet, and
then insert the plug on the other end into
the DC IN 5V jack.
3
Press the MODE/CHRG button.
" " will flash, and battery will begin charging.
00/12/26 90SEC_16_30.fm
29
Useful Features
-Battery Power-
„ About charging time
After about 3.5 hours have passed, " " will
go out. The battery charging is about 90% com-
plete.
To charge the battery fully, continue charging for about 2
more hours. In this case, you do not need to press the
MODE/CHRG button. Even if the MODE/CHRG button is
pressed, " " will not appear.
Notes:
z Charge the battery within the range of 41°F - 95°F
(5°C - 35°C).
z
Charging is completed when " " does not blink
when you plug in the AC adaptor and press the
MODE/CHRG button.
z
The unit can be left in the charging state after it is
completed.
Caution:
z Use the specified battery AD-N70BT only. Do not
charge a battery (nickel-cadmium, alkaline, etc.) other
than that specified.
z If the rechargeable battery terminal is dirty, charging
may not start. In such a case, wipe off the dirt with a
dry cloth.
z Do not disassemble the battery.
„ Using with the rechargeable or alkaline
battery
Notes:
z
Setting the volume level to "0" while recording with the
rechargeable or an alkaline battery reduces the bat-
tery drain.
z
When you do not use the unit for hours, remove the
battery. (The battery drains gradually even when the
power is turned off.)
z
Carry the battery in the supplied case.
z
This unit can be used with the AC adaptor when the
rechargeable or an alkaline battery is in the unit.
Caution:
Do not use a nickel-cadmium battery.
z Do not remove the outer cover of the re-
chargeable battery. It may cause heat gen-
eration, fire, or explosion.
z Do not dip the battery in water, do not dis-
pose of it in a fire, and do not take it apart.
1
Disconnect the AC adaptor.
2
Insert the rechargeable bat-
tery or alkaline battery from
the (+) marked side.
Use a commercially available LR6,
"AA" size alkaline battery.
00/12/26 90SEC_16_30.fm
30
Useful Features
-Hold Function-
Hold Function
The present operation condition can be kept even if other
buttons are accidentally pressed in a place such as a
crowded train.
If the battery is inserted or the AC adaptor is connected,
you can set this function even when the power is turned
off.
To cancel the hold mode
To cancel the hold mode
Move the HOLD switch away from the safety position
(the opposite direction of the arrow).
If the hold function is active while the power is turned
off, the power cannot be turned on by mistake and the
battery will not be drained.
Press and hold down the HOLD button for 2 seconds or
more while the unit is in the hold mode.
"HOLD OFF" will be shown.
00/12/26 90SEC_31_39.fm
31
Advanced Features
-Changing Default Settings-
Changing Default Settings
„ Beep sound
You can eliminate the confirmation sound that beeps
when you press a button.
„ Auto play
You can make the unit not play automatically when you
insert a playback-only MiniDisc or an accidental erasure
protected MiniDisc.
„ Auto power save
When the unit is used in a place exposed to much vibra-
tion, sound skipping can be decreased by canceling the
auto power save function. (Battery will drain faster.)
What is auto power save function?
Auto power save function automatically adjusts the sound
skip memory storage to be from 5 to 10 seconds depend-
ing on playback conditions, which saves battery power. If
the MiniDisc unit is used in areas of much vibration, it
may be necessary to fix the sound skip memory to 10
seconds "Psave OFF". This will improve performance
under difficult conditions but uses more power. (When
the AC/car adaptor is used, the 10 second mode is
always used.)
„ Digital recording level
"D.L MODE 1"
The digital recording level you set will be kept even after
canceling recording.
"D.L MODE 2"
Every time you cancel recording, the level will return to
[D.L 0dB].
While in the stop mode ...
1
With a MiniDisc inserted, press the MODE/
CHRG button for 2 seconds or more. "SET
UP" will appear.
When you release the button, "BEEP ON" or "BEEP
OFF" will appear.
2
Press the or button to display the
menu.
3
Press the MODE/CHRG button to switch
items.
4
Press the /:OFF button.
MENU SETTING ITEM
BEEP ON
(Confirmation sound)
A-PLAY ON
(Auto play)
AUTO Psave
(Auto power save)
D.L MODE 1
(Digital recording
level)
BEEP ON* Beep
BEEP OFF Silent
A-PLAY ON* Setting
A-PLAY OFF Canceled
AUTO Psave* Setting
Psave OFF Canceled
D.L MODE 1* Setting keep
D.L MODE 2 Canceled
(*) indicates default setting.
00/12/26 90SEC_31_39.fm
32
Advanced Features
-Titling a MiniDisc-
Titling a MiniDisc
„ Creating disc and track names
Load a MiniDisc to be named. A playback-only or record-
ing prevented MiniDisc cannot be edited.
1
<Disc name> <Track name>
While in the stop
mode, press the EDIT
button to select "DISC
NAME".
While in the pause
mode, press the EDIT
button to select
"TRACK NAME".
2
Press the ENTER/SYNC button.
z
The unit will enter the character input mode.
z To cancel the operation, press the /:OFF but-
ton.
3
Press the DISP button repeatedly to select
the type of characters.
The first 3 characters in the group of the selected
characters will be displayed for about 1 second.
4
Press the or button repeatedly to
select the letter.
5
Press the ENTER/SYNC button to enter it.
00/12/26 90SEC_31_39.fm
33
Advanced Features
-Titling a MiniDisc-
Note:
One disc name and up to 255 track names can be cre-
ated per disc (a maximum of 100 characters for the disc
and each track name and a total of 1,700 characters can
be entered).
„ To erase a character
Press the VOL+ or VOL--- button to move the cursor to the
character you want to erase, and then press the BASS
button.
„ To enter a space
Press the VOL+ button to move the cursor to the right.
„ Characters (symbols)
6
To enter more letters, repeat steps 3 - 5.
7
When the name has been completely en-
tered, press the EDIT button.
8
"TOC" will be displayed. To write the up-
dated contents to the MiniDisc, press the
/:OFF button.
You cannot remove the MiniDisc while "TOC" is dis-
played. "TOC" will not disappear until the recorded
contents have been updated.
Space
A C D E F G HB
1 3 4 5 6 7 8
2
a c d e f g hb
I J K L M
S U V W X Y ZT
RN QP
. ,
/
/.,
! " #
:
(
+
$
*
9 0
&
'
<; =
O
i j k l m
s u v w x y zt
rn o qp
. ,
/
%
_
`
@
>
?
)
Capital letters
Lower-case letters
Numbers and symbols
00/12/26 90SEC_31_39.fm
34
Advanced Features
-Titling a MiniDisc-
Titling a MiniDisc (continued)
„ To add characters „ Stamping titles from another MiniDisc
Before stamping
When there are 2 MiniDiscs on which the same tracks
are recorded, you can transfer the character information
(disc and track names) of the master MiniDisc to another
MiniDisc (for stamping).
1
Put the unit in the character input mode.
(Perform steps 1 - 2 on page 32.)
2
Press the VOL+ or VOL--- button to move
the cursor to the right of the character,
where you want to add a new character.
3
Select the character to add.
(Perform steps 3 - 4 on page 32.)
4
Press the ENTER/SYNC button.
5
Press the EDIT button.
6
"TOC" will be displayed. To write the up-
dated contents to the MiniDisc, press the
/:OFF button.
You cannot remove the MiniDisc while "TOC" is dis-
played. "TOC" will not disappear until the recorded
contents have been updated.
1. What is a master MiniDisc?
A recordable MiniDisc that contains tracks and charac-
ter information. (You cannot transfer the information
from a playback-only MiniDisc.)
2. What is a MiniDisc for stamping?
A MiniDisc that contains the same tracks in the same or-
der as the master MiniDisc. (Make sure that the total
number of tracks of the master MiniDisc and the one for
stamping are the same.)
00/12/26 90SEC_31_39.fm
35
Advanced Features
-Titling a MiniDisc-
Note:
If the total number of tracks on the master MiniDisc does
not match that on the MiniDisc for stamping, the unit will
display "Can'tSTAMP" and turn off the power.
If this happens, adjust the total number of tracks on the
newly recorded MiniDisc using the edit operation.
Master MiniDisc operation
1
Insert a master MiniDisc.
Do not mistake the master MiniDisc for the target
one.
2
While in the stop mode, press the EDIT
button to select "NAME STAMP".
3
Press the ENTER/SYNC button.
To cancel the operation, press the /:OFF button.
4
Press the ENTER/SYNC button.
5
When the unit displays "CHANGE MD", re-
move the master MiniDisc.
Remove it without turning off the power. Or, the op-
eration will be canceled.
Operation of the MiniDisc for stamping
6
Load a MiniDisc for stamping.
7
Press the ENTER/SYNC button.
The unit will finish recording the character informa-
tion and enter the stop mode.
00/12/26 90SEC_31_39.fm
36
Advanced Features
-Editing a Recorded MiniDisc-
Editing a Recorded MiniDisc
„ To erase tracks one at a time „ To erase all of the tracks at once
Caution:
Once a track has been erased, it cannot be recov-
ered. Check the track number before erasing it.
1
Start playing the track to be erased, and
press the PLAY/PAUSE button.
2
Press the EDIT button repeatedly to select
"ERASE".
3
Press the ENTER/SYNC button.
To cancel the operation, press the /:OFF button.
4
Press the ENTER/SYNC button again.
The track will be erased.
5
To erase other tracks, repeat steps 1 - 4.
1
While in the stop mode, press the EDIT
button repeatedly to select "ALL ERASE".
2
Press the ENTER/SYNC button.
To cancel the operation, press the /:OFF button.
3
Press the ENTER/SYNC button again.
All of the tracks will be erased.
00/12/26 90SEC_31_39.fm
37
Advanced Features
-Editing a Recorded MiniDisc-
„ To divide a track „ To combine tracks
1
Start playing the track to be divided into
two. Press the PLAY/PAUSE button at the
point where you want to divide the track.
2
Press the EDIT button repeatedly to select
"DIVIDE".
3
Press the ENTER/SYNC button.
To cancel the operation, press the /:OFF button.
4
Press the ENTER/SYNC button again.
The track will be divided into two tracks, and the unit
will pause at the beginning of the second of the two
new tracks.
1
Start playing the last of the two tracks to
be combined, and press the PLAY/PAUSE
button.
2
Press the EDIT button repeatedly to select
"COMBINE".
3
Press the ENTER/SYNC button.
To cancel the operation, press the /:OFF button.
4
Press the ENTER/SYNC button.
The two tracks will be combined, and the unit will be
paused at the beginning of the combined track.
00/12/26 90SEC_31_39.fm
38
Advanced Features
-Editing a Recorded MiniDisc-
Editing a Recorded MiniDisc (continued)
„ To move a track
When a track has a name before dividing:
The two new tracks will have the same name. However, in
the TOC FULL condition, the second track may not be
named.
Total number of tracks that can be divided:
Each disc can hold up to 255 tracks. However, even if the
number of assigned tracks has not reached 254, it might
not be possible to make any further divisions of tracks.
To combine two non-adjacent tracks:
First, put the two tracks next to each other in the order
you want using the MOVE function. Then combine them
using the COMBINE function.
When one or both tracks to be combined have
a name:
The first track name will be used. However, when the first
track does not have a name, the second track name will
be used.
In the following cases, tracks may not be com-
bined.
z
Digital recorded track and analog recorded track.
z Long play recorded track and stereo recorded track.
z Tracks whose recording time is less than 12 seconds.
1
Play the track to be moved, and press the
PLAY/PAUSE button.
2
Press the EDIT button repeatedly to select
"MOVE".
3
Press the ENTER/SYNC button.
To cancel the operation, press the /:OFF button.
4
Press the or button to select the di-
rection.
5
Press the ENTER/SYNC button again.
The track will be moved, and the unit will be paused
at the beginning of the track.
00/12/26 90SEC_31_39.fm
39
Advanced Features
-Listening through Another System-
Listening through Another System
„ Listening through a stereo system
Notes:
z It is recommended that the volume level of the
MiniDisc unit be set to maximum when listening
through a stereo system.
z When recording with stereo system, eliminate the con-
firmation sound (page 31). Otherwise, it will also be
recorded.
z The recording will be made in the analog mode.
z
Character information will not be recorded.
„ Listening through a car stereo
Notes:
z Adjust the volume of both this portable MD and a car
stereo.
z Do not operate this portable MD while you drive a car.
It may distract your attention and cause a traffic acci-
dent.
z
Do not use any car adaptor except for the separately
available AD-CA20X.
z
Remove the battery when you power the unit from the
car battery.
00/12/26 90SEC_40_47.fm
40
References
-Other Features and Caution-
Other Features and Caution
„ Resuming auto play
When you stop playback and replay the MiniDisc
without removing it, playback starts from the point
you stopped it.
Once you remove the MiniDisc, playback starts from
the first track.
The unit provides the following functions when you
use it with the separately available car adaptor (AD-
CA20X) (when the rechargeable or alkaline battery is
removed):
„ Rechargeable battery
z
A rechargeable nickel-metal hydride battery is the only
kind that can be used. Even if the battery is not used,
you should charge it at least once every three months
because of the special quality of this battery.
z
The rechargeable battery can be charged approxi-
mately 300 times.
z When the operating time is reduced to about half the
normal amount of time, even after a full charge is per-
formed, replace the battery with a new one (AD-
N70BT).
z
When the battery is charged for the first time or is
charged after not being used for a long period, the
operating time may be shorter than normal. The bat-
tery life will recover with normal use i.e. charging and
discharging.
z To avoid shortening the service life of the battery, only
recharge the battery after it has been completely dis-
charged.
z If the rechargeable battery is used in a cold environ-
ment, the operating time will be reduced.
z Do not carry the battery in your pocket or a bag
together with metal objects (keys, coins, jewelry, etc.).
The battery may short out and generate significant
amounts of heat.
z Do not short-circuit the terminals as they will become
very hot and will damage the battery.
z
Do not drop or subject the battery to shock.
z Do not insert objects (metal etc.) into the battery com-
partment of this product or into the rechargeable bat-
tery.
1. When you turn off the engine, the power of this porta-
ble MD also turns off. (It may not work with some types
of cars.)
2. When you restart the engine, playback starts from the
beginning of the stopped track.
00/12/26 90SEC_40_47.fm
41
References
-MiniDisc System Limitations-
MiniDisc System Limitations
The unit may have the following symptoms while recording or editing. The unit is not out of order.
SYMPTOM LIMITATIONS
"DISC FULL" or "TOC FULL" appears
even though the MiniDisc still has re-
cording time left.
More than 255 tracks (maximum) cannot be recorded regardless of
the recording time. If the MiniDisc is recorded or edited repeatedly or
if it has scratches (recording skips scratched parts), you may not be
able to record the maximum tracks above.
The remaining recording time does not
increase even though you erased
tracks.
The unit does not count non-recorded portions that last 12 or fewer
seconds to display the remaining recording time. The time may not
increase even if you erase short tracks.
The total of the recorded time and the
remaining time does not match the max-
imum recordable time.
One cluster (approximately 2 seconds) is the minimum unit for re-
cording. For example, a 3-second track uses 2 clusters (approxi-
mately 4 seconds). Therefore, the actual recordable time may be
shorter than the displayed time.
Combine function does not work. A MiniDisc on which recording and editing are repeated may not al-
low the combine function.
Sound skips in fast reverse/forward.
One track is divided and recorded in separate places on a repeatedly
recorded or edited MiniDisc. Sound may skip.
A track number is created in the middle
of a track.
A track number may be created if there are scratches or dust on the
MiniDisc.
00/12/26 90SEC_40_47.fm
42
References
-Error Messages-
Error Messages
ERROR MESSAGES
MEANING REMEDY
BATT EMPTY
z
The battery is run down.
z
Charge the rechargeable battery or replace the al-
kaline battery (or use the AC adaptor for power).
BLANK MD
z
Nothing is recorded.
z
Replace the disc with a recorded disc.
Can't COPY
z
You tried to record from a copy prohibited
MiniDisc.
z
Record using the analog cable.
Can't EDIT
z
A track cannot be edited.
z
Change the stop position of the track and then edit it.
Can't READ (*) z The disc data cannot be read because the
disc or unit is damaged.
z Reload the disc.
z
Replace it with another recorded disc.
Can't REC z Recording cannot be performed correctly
due to vibration or shock.
z Re-record or replace it with another recordable
disc.
Can't STAMP
z
Stamp function does not work.
z
Check the number of tracks.
Can't WRITE z
Cannot save the TOC information correctly
to a MiniDisc. (A large portion of the disc has
been damaged.)
z
Replace the disc with another recordable disc.
DEFECT z
The disc is scratched.
z
If the sound you hear is not right, record again.
z
Replace the disc with another recordable disc.
DISC FULL z
The disc is out of recording space.
z
Replace it with another recordable disc.
Er-MD (**)
z
The microprocessor has reported a system
fault and the unit is out of order.
z
To have it repaired, go to the distributor where you
purchased the unit.
HOLD z
The unit is in the hold mode.
z
Cancel the hold mode.
LOCKED
z
You removed a MiniDisc while recording or
editing.
z
Turn off the power and remove the MiniDisc.
NO DISC
z
A disc has not been loaded.
z
Load a disc.
Number or symbol appears in (*) position.
00/12/26 90SEC_40_47.fm
43
References
-Error Messages-
NO SIGNAL z
Poor connection of the digital cable.
z
Connect the digital cable securely.
z
No output signal comes out from the
connected unit to playback.
z
If the portable CD player has a function to prevent sound
skips, deactivate it.
z
The input signal has improper sampling
frequency.
z
Play back with the connected unit.
NOT PLAY z You tried to play back a track that can-
not be played with this equipment.
z Play back another track.
PLAY MD
z
You recorded on a playback-only disc.
z
Replace it with a recordable disc.
POWER ? z
Improper power is being supplied.
z
Use one of the specified power sources.
PROTECTED
z
The write protection tab of a MiniDisc is
set to the protected position.
z
Move the write protection tab back to its original posi-
tion.
z
You tried to record on a playback-only disc.
z
Replace it with a recordable MiniDisc.
SORRY
z
Since a track number is currently being
located or updated, the unit cannot ac-
cept your command.
z
Wait for a while and try the operation again.
TEMP OVER
z
The temperature is too high.
z
Turn off the power, and wait for a while.
TOC FORM (**) z
There is an error in the recording signal.
z
Erase all of the tracks, and then record again.
TOC FULL
z
There is no space left for recording
character information (track names,
disc names, etc.).
z
Replace it with another recordable disc.
Tr. Protect
z
The track has been protected from be-
ing erased.
z
Edit the track with the device on which it was recorded.
? DISC
z
A disc which contains data other than
music was played.
z
A disc which contains non-music data cannot be played.
z
There is an error in the signal recorded
on the disc.
z
Replace it with another recorded disc.
Number or symbol appears in (*) position.
00/12/26 90SEC_40_47.fm
44
References
-Troubleshooting-
Troubleshooting
Many potential "problems" can be resolved by the owner without calling a service technician. If something seems to be wrong
with this product, check the following before calling your authorized SHARP dealer or service center.
PROBLEM CAUSE
The unit does not turn on.
z
Is the AC adaptor disconnected?
z Is the battery exhausted?
z
Is the unit in the hold mode?
z
Has condensation formed inside the unit?
z
Is the unit being influenced by mechanical shock or by static electricity?
No sound is heard from the head-
phones.
z
Is the volume set too low?
z Is the remote control unit or the headphones plugged in?
z
Are you trying to play a MiniDisc with data on it instead of a MiniDisc containing music?
When the operation buttons are
pressed, the unit does not respond.
z Is the unit in the hold mode?
z
Is the battery exhausted?
z
Is the remote control unit plug or the headphones plug inserted firmly?
Some sounds are skipped. z
Is the battery exhausted?
z
Is the unit being subjected to excessive vibration?
The MiniDisc cannot be ejected. z Has the track number or character information been written on the disc yet?
z
Is the unit in the recording or editing mode?
Recording and editing are impossi-
ble.
z Is the MiniDisc protected against accidental erasure?
z
Is the unit connected properly to the other equipment?
z
Is the AC adaptor unplugged or did a power failure occur while recording or editing?
z
Is the unit in the hold mode?
z
Is an optical signal being output from the stereo system? Read the operation
manual for the stereo system.
00/12/26 90SEC_40_47.fm
45
References
-Maintenance-
„ If trouble occurs
When this product is subjected to strong external interfer-
ence (mechanical shock, excessive static electricity,
abnormal supply voltage due to lightning, etc.) or if it is
operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
„ Moisture condensation
When the unit has condensation inside, the disc signals
cannot be read, and the unit may not function properly.
In the following cases, condensation may form inside the
unit.
To remove condensation:
Remove the MiniDisc and leave the unit for approxi-
mately 1 hour. The condensation should evaporate and
the unit will work properly.
Maintenance
„ Cleaning
Clean the plugs and the connecting jack.
If the plugs or jacks are dirty, noise may be heard. Clean-
ing will prevent noise.
Caution:
z Do not use chemicals for cleaning (gasoline, paint
thinner, etc.). It may damage the cabinet finish.
z Do not apply oil to the inside of the unit. It may cause
malfunctions.
1. Unplug the AC adaptor from the AC outlet.
2. Remove the battery.
3. Leave the unit completely unpowered for approxi-
mately 30 seconds.
4. Plug the AC adaptor back into the AC outlet and re-
operate the unit.
z
Shortly after turning on a heater.
z When the unit is placed in a room
where there is excessive steam
or moisture.
z When the unit is moved from a
cool place to a warm place.
When the unit becomes dirty
Clean it with a soft cloth.When the unit is excessively
dirty, use a soft cloth dampened in water (external sur-
faces only).
00/12/26 90SEC_40_47.fm
46
References
-Specifications-
Specifications
„ General
Power source:
Battery life:
z The continuous recording time is for analog inputs
when the volume level is set to "VOL 0".
z The continuous play time shows the value when the
volume level is set to "VOL 15".
z
The above values are the standard values when the
unit is charged and used at an ambient temperature of
77°F (25°C).
z The operating time when using an alkaline battery
may be different, depending on the type and manufac-
turer of the battery, and on the operating temperature.
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification chang-
es for product improvement without prior notice. The performance specification figures indicated are nominal values
of production units. There may be some deviations from these values in individual units.
DC 1.2V: Rechargeable Nickel-Metal Hydride
battery (AD-N70BT) x 1
DC 5V: AC adaptor (AC 120V, 60 Hz)
DC 1.5V: Commercially available, "AA" size
(LR6), alkaline battery x 1
DC 4.5V: Optional car adaptor, AD-CA20X(for
cars with a 12 - 24V DC negative
ground electrical system)
Power con-
sumption:
7 W (AC adaptor)
Output pow-
er:
RMS; 20 mW (10 mW + 10 mW)
(0.2% T.H.D.)
Charging
time:
Approx. 3.5 hours (90 %)
Approx. 5.5 hours (fully charged)
(When using the AC adaptor included
with the unit)
When using the recharge-
able battery (fully charged)
included with the unit
When using a commercial-
ly available, high capacity,
"AA" size (LR6), alkaline
battery
Continuous recording:
Approx. 7 hours
Continuous recording:
Approx. 3 hours
Continuous play:
Approx. 12 hours
Continuous play:
Approx. 12 hours
00/12/26 90SEC_40_47.fm
47
References
-Specifications-
Input sensitivity:
Output level:
„ MiniDisc Recorder
Recording
level
Reference input
level
Input impedance
MIC H 0.25 mV 10 k ohms
MIC L 2.5 mV 10 k ohms
LINE 100 mV 20 k ohms
Specified
output
Maximum
output level
Load im-
pedance
Headphones
- 10 mW + 10
mW
16 ohms
LINE 250 mV
(-12 dB)
- 10 k ohms
Dimensions:
Width: 3-7/32" (81.1 mm)
Height: 13/16" (19.9 mm)
Depth: 3-21/32" (92.4 mm)
Weight: 0.38 lbs. (172 g) with rechargeable bat-
tery
Input jack: Line/optical digital, microphone (pow-
ered by the main unit)
Output jack: Headphones (impedance: 16 ohms)/
remote control unit
Type: Portable MiniDisc recorder
Signal read-
out:
Non-contact, 3-beam semiconductor
laser pickup
Audio chan-
nels:
Stereo 2 channels/monaural (long-play
mode) 1 channel
Frequency
response:
20 - 20,000 Hz (±3 dB)
Rotation
speed:
Approx. 400 - 900 rpm
Error correc-
tion:
ACIRC (Advanced Cross Interleave
Reed-Solomon Code)
Coding:
ATRAC (Adaptive TRansform Acoustic
Coding), 24-bit computed type
Recording
method:
Magnetic modulation overwrite method
Sampling fre-
quency:
44.1 kHz (32 kHz and 48 kHz signals
are converted to 44.1 kHz, and then re-
corded.)
Wow and
flutter:
Unmeasurable (less than ±0.001% W.
peak)
Printed in Malaysia
A0101.TOTINSE0355AWZZ
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430-2135
SHARP CORPORATION
9906
CONSUMER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its
original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective
Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior
of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been
altered or modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES
INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PUR-
CHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the
duration of any warranties beyond the time period described herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the
purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and
responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence,
strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by
repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental
or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion
may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
Model Specific Section
Your Product Model Number & Description:
(Be sure to have this information available when you need service for your Product.)
Warranty Period for this Product: One (1) year parts and ninety (90) days labor.
Additional Item(s) Excluded from Warranty Coverage (if any): Non-functional accessories, supplies, and consumable items.
Where to Obtain Service: At a Sharp Authorized Servicer located in the United States.
To find a location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP.
What to do to Obtain Service: Ship prepaid or carry in your Product to a Sharp Authorized Servicer.
Be sure to have Proof of Purchase available. If you ship the Product, be sure it is insured and packaged securely.
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP.
0101
MD-MT90 Portable MiniDisc Recorder
