Read all safety rules and instructions carefully before operating this tool.
Owner’s Manual
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
24V LITHIUM-ION CORDLESS
10” CHAIN SAW
2000102
2
Contents .............................................................................................................................. 2
.......................................................................................................... 2
Safety information .............................................................................................................3-7
Symbols ............................................................................................................................8-9

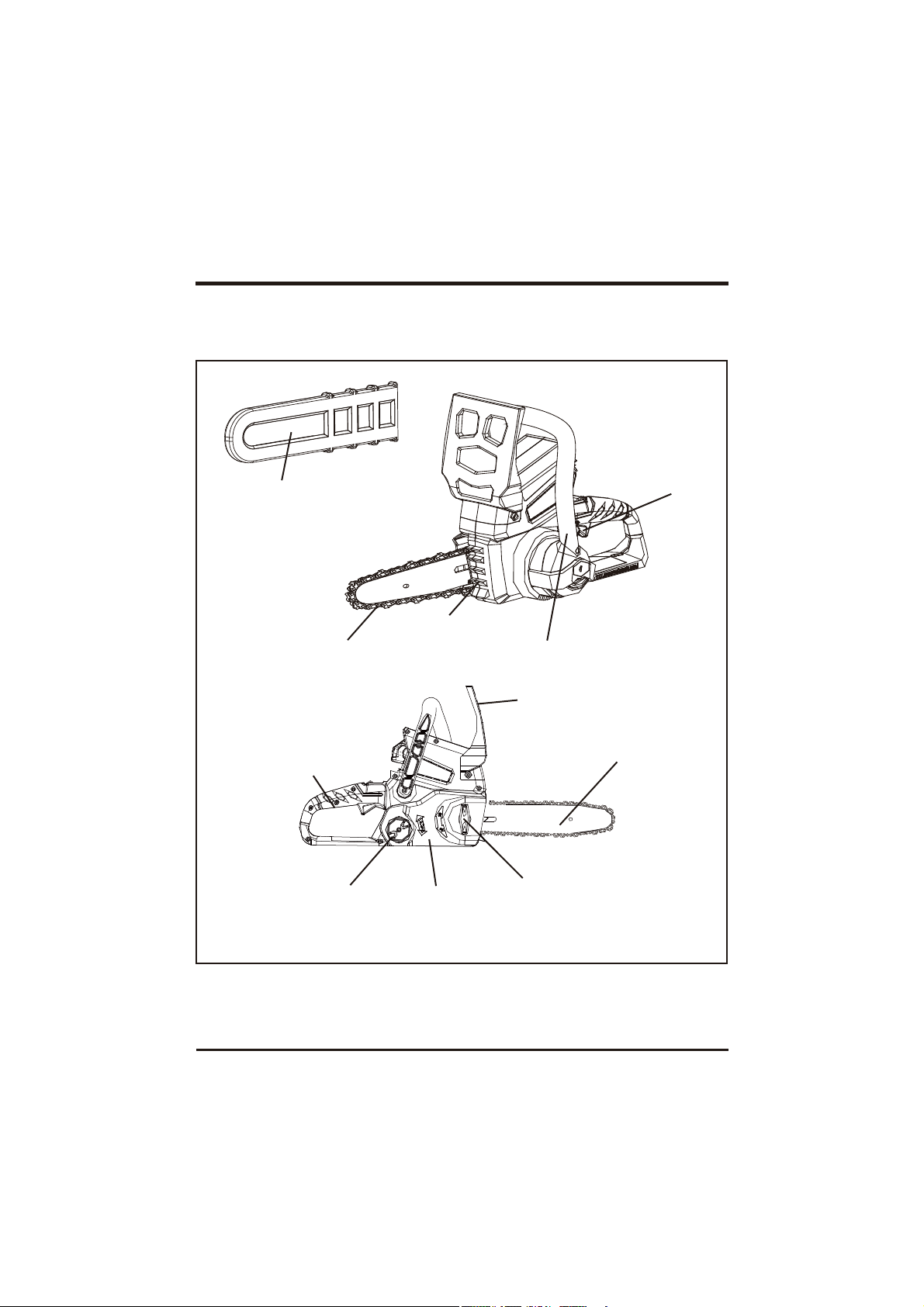

Know your chain saw ......................................................................................................... 10
Assembly ............................................................................................................................11
Operation ......................................................................................................................12-26
Maintenance .................................................................................................................27-35
Environmentally safe battery disposal ...............................................................................36
Troubleshooting .................................................................................................................37
Warranty ............................................................................................................................38

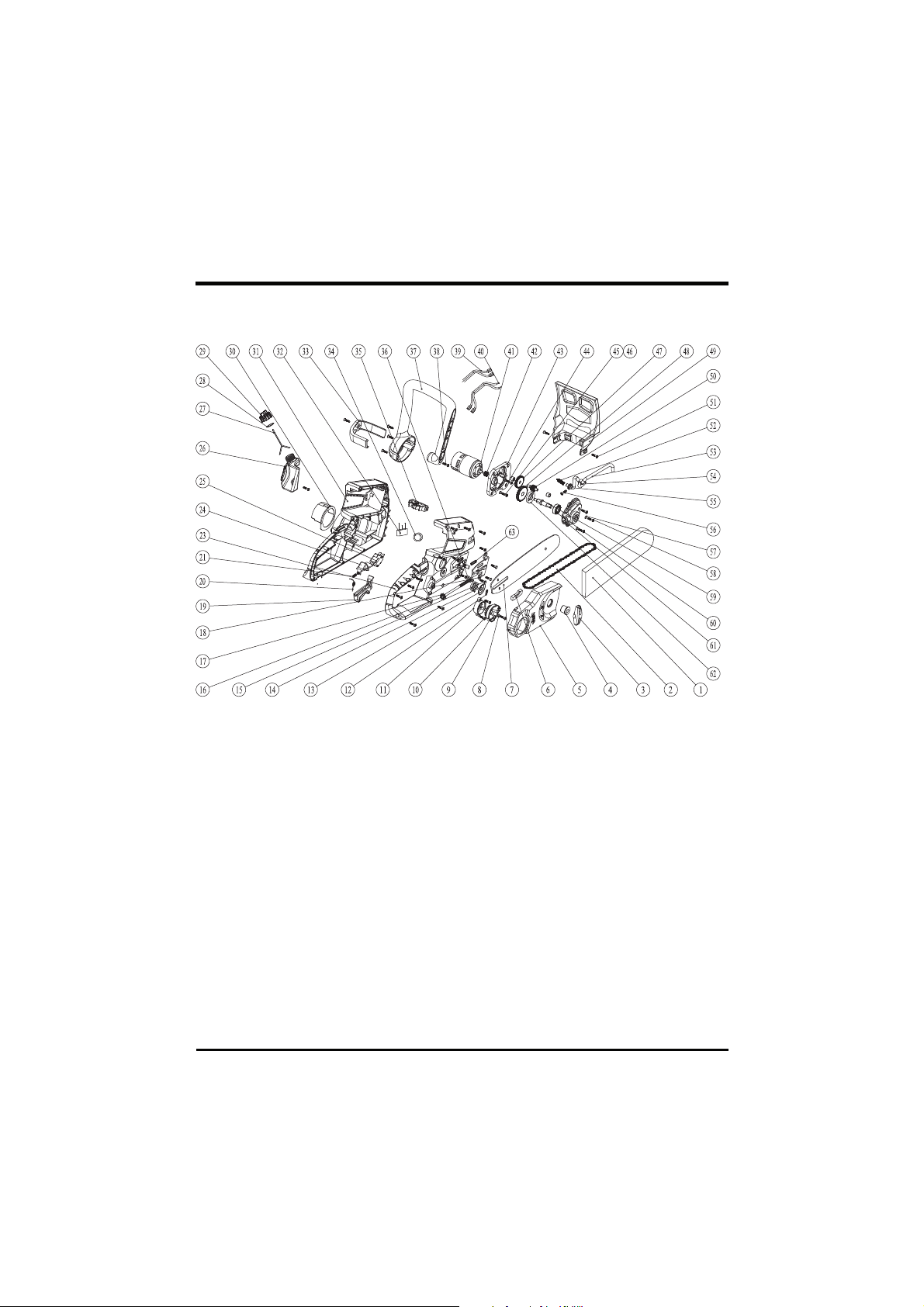

Exploded View ................................................................................................................... 39
Parts List............................................................................................................................ 40
Notes ............................................................................................................................ 41-42
PRODUCT SPECIFICATIONS
24V LITHIUM-ION CHAIN SAW
Bar length ................................................................................................... 10” (25.4 cm)
Chain pitch ................................................................................................. 3/8” (9.5 mm)
Chain gauge ............................................................................................0.05” (1.27 mm)
Chain type ......................................................................................... 91PJ040X(Oregon)
Guide bar type .........................................................................10"100SDEA041(Oregon)
Chain oil tank capacity ..............................................................................1.8 oz (50 ml)
CONTENTS
3
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT
WARNING
READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below
When use a electric chainsaw, basic safety precDXtion should be always followed to reduce the
.

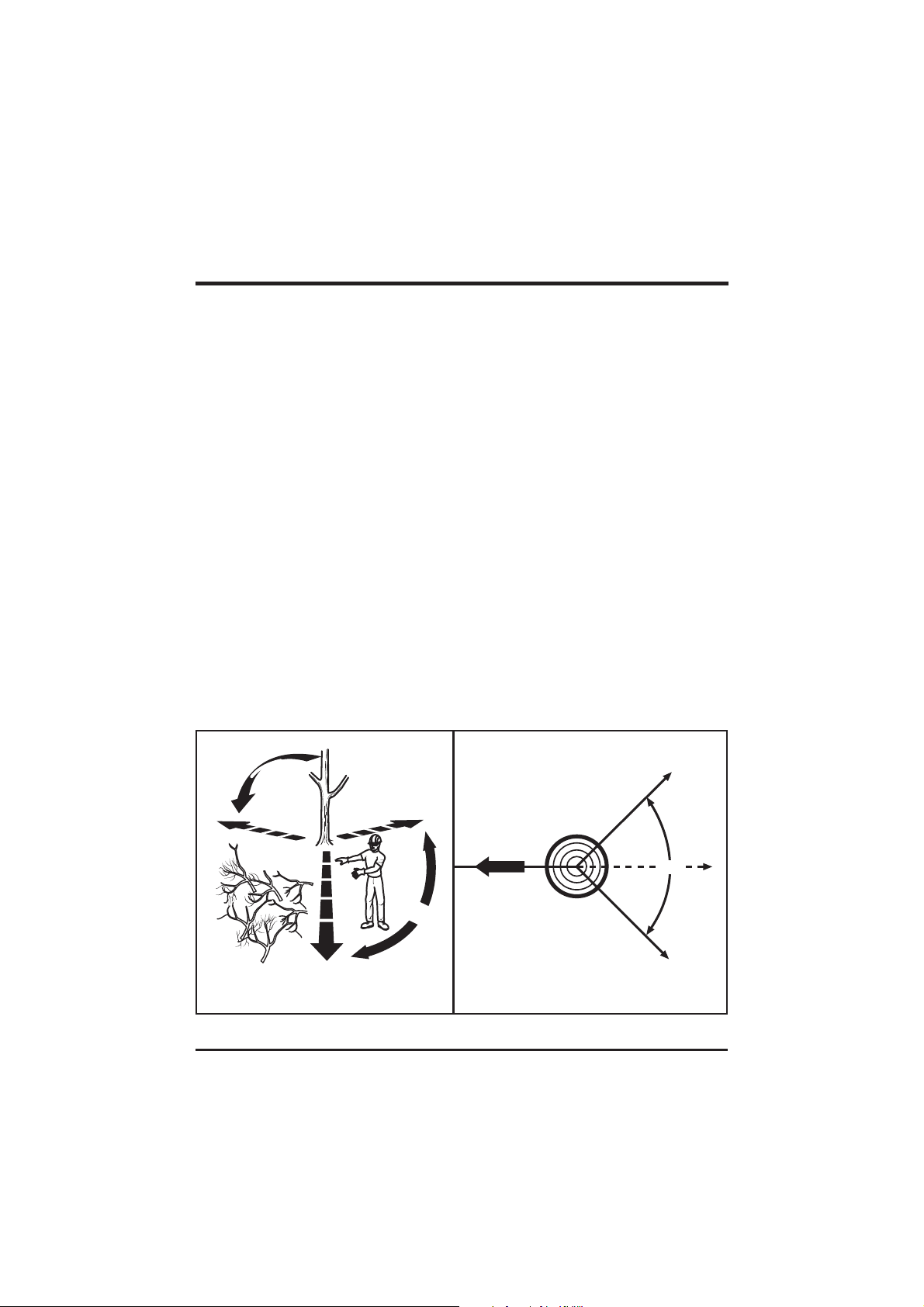

Do not start cutting until you have a clear work area, secure footing, and a planned retreat
path from the falling tree. Cluttered areas invite accidents.

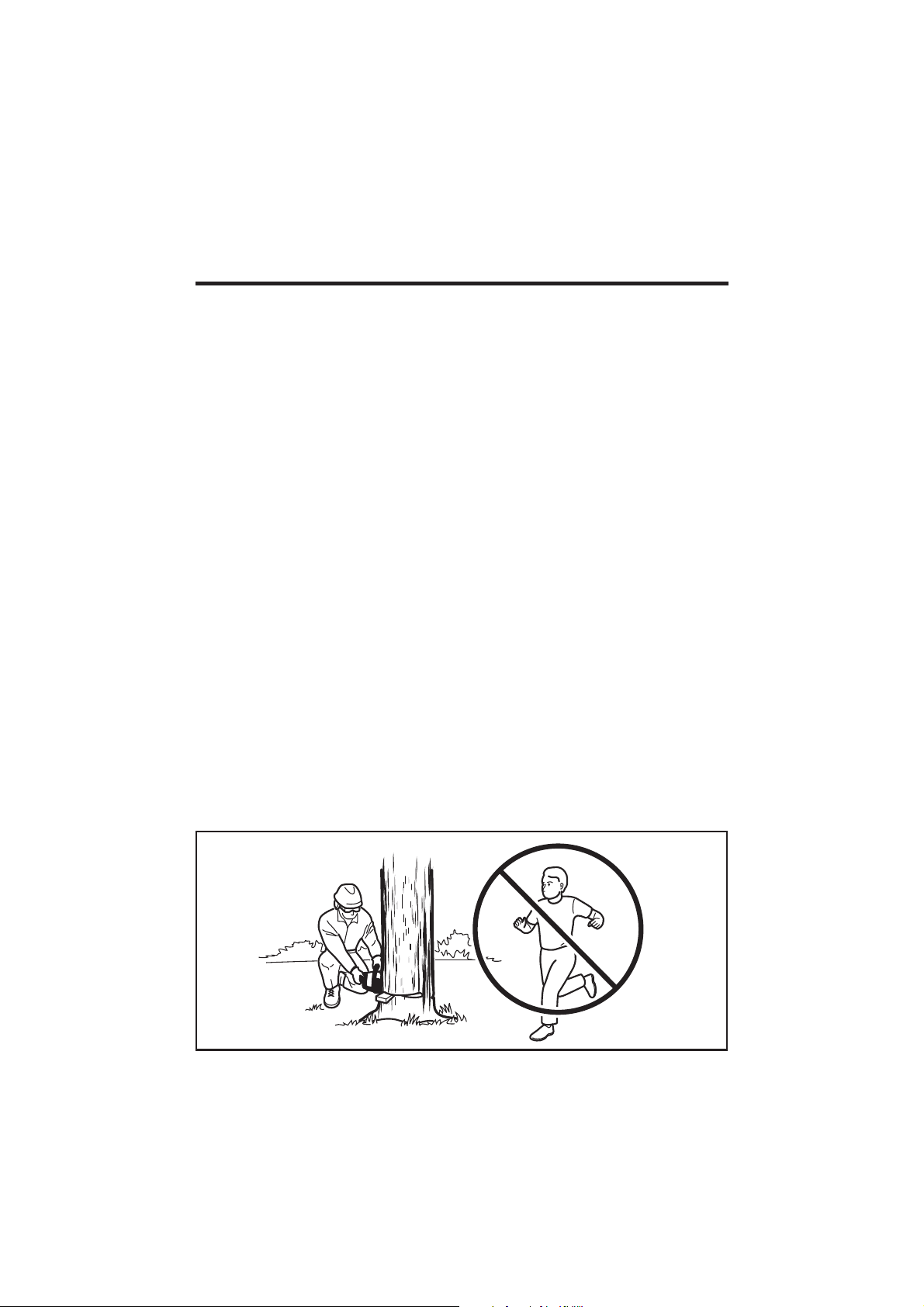

Keep all children, bystanders, visitors, and animals out of the work area while starting or
cutting with the chain saw.
liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
cut resistant material or ones that contain cut resistant inserts. Wear non-slip safety footwear.
Wear non-slip heavy duty gloves to improve your grip and to protect your hands. Do not wear
be drawn into the motor or catch the chain or underbrush. Secure hair so it is above shoulder
level.
Heavy protective clothing may increase operator fatigue, which could lead to heat stroke.
During weather that is hot and humid, heavy work should be scheduled for early morning or
late afternoon hours when temperatures are cooler.
Wear eye protection which is marked to comply with ANSI Z87.1 as well as hearing and head
protection when operating this equipment.
Always be aware of what you are doin
g when using the chain saw. Use common sense. Do
medication.
Do not expose the chain saw to rain.
Do not use the chain saw in damp or wet locations.
Stay alert and pay attention to what you are doing. Use common sense when using this unit.
Keep all parts of your body away from the saw chain when the unit is running.
Always carry the chain saw by the front handle with the battery removed and the guide bar
and saw chain positioned to the rear.
Never let anyone use your chain saw who has not received adequate instructions in its proper
use. This ap
plies to rentals as well as privately owned saws.
Bef
ore you start the unit, make sure the saw chain is not contacting any object.
Stop the chain saw before setting it down.
Maintain the unit with care. Keep the cutting edge sharp and clean for best performance and
to reduce the risk of injury. Follow instructions for lubricating and changing accessories.
Keep handles dry, clean, and free of oil and grease.
risk of fire, electric shock, and injury to persons, including the following.
4
SAFETY INFORMATION
the chain saw handles. Serious injury to the operator, helpers, bystanders, or any combination
use only the following type and size batteries(2Ah battery) #29732
do not dispose of batteries in a fire, the cell may explode,check with local codes for
possible special desposal instruction.
do not open or mutilate the batteryies, released electrolyte is corrosive and may cause
damage to the eyes or skin, if may be toxic if swallowed.
exercise care in handling battery in order not to short the battery with conducting material
such as rings,bracelets and beys. the battery or conductor may overheat and cause burns.
of these persons may result from one-handed operation. A chain saw is intended for two-
handed use.
Avoid body contact with grounded surfaces such as metal pipes and wire fences. There is an
increased risk of electric shock if your body is grounded.
Do not operate a chain saw that is damaged, improperly adjusted, or not completely and
securely assembled. Chain should slow to a stop when the switch trigger is released. If the
chain continues to turn after the switch trigger has been released, have the unit serviced by
your nearest GREENWORKS service dealer.
Check for damaged parts. Check for alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other conditions that may affect its operation. A guard
or other part that is damaged should be properly repaired or replaced by an authorized
service dealer unless otherwise indicated elsewhere in this m
anual.
All chain saw service, other than the items listed in the operation and maintenance sections,
should be performed by your nearest GREENWORKS service dealer.
Always maintain a proper stance.
Do not use chain saw if switch does not turn it on and off. Have defective switch replaced by
aut
horized service centre.
Remove the battery when not in use, before servicing, and when making adjustments and
changing attachments, such as saw chain and guard.
Do not cut vines and/or small underb
rush.
Do not operate a chain saw in a tree, on a ladder, or scaffold; this is extremely dangerous.
NOTE: The size of the work area depends on the job being performed as well as the size tree or work piece
involved. For example, felling a tree requires a larger work area than making bucking cuts.
Use extreme caution when cutting small size brush and saplings, because small material may
catch the saw chain and be whipped toward you or pull you off balance.
When cuttin
g
a limb that is under tension, be alert for spring back so that you will not be struck
Do not force the chain saw. The job can be performed better and safer at the rate for which it
was intended.
Always use the right product for your application. The chain saw should be used for cutting
wood only. Never use the chain saw to cut plastic, masonry or non-wood building materials.
Do not use the chain saw for purposes not intended.
Store chain saw when not in use. Chain saw should be stored in a dry and high or locked area
out of the reach of children.
Save these instructions. Refe
r to them frequently and use them to instruct others who may
use this tool. If you loan someone this tool, loan them these instructions also.
5
SAFETY INFORMATION
WARNING
Some dust created by power sanding, sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
Your risk from these exposures varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well- ventilated area, and work with approved safety
6
SAFETY INFORMATION

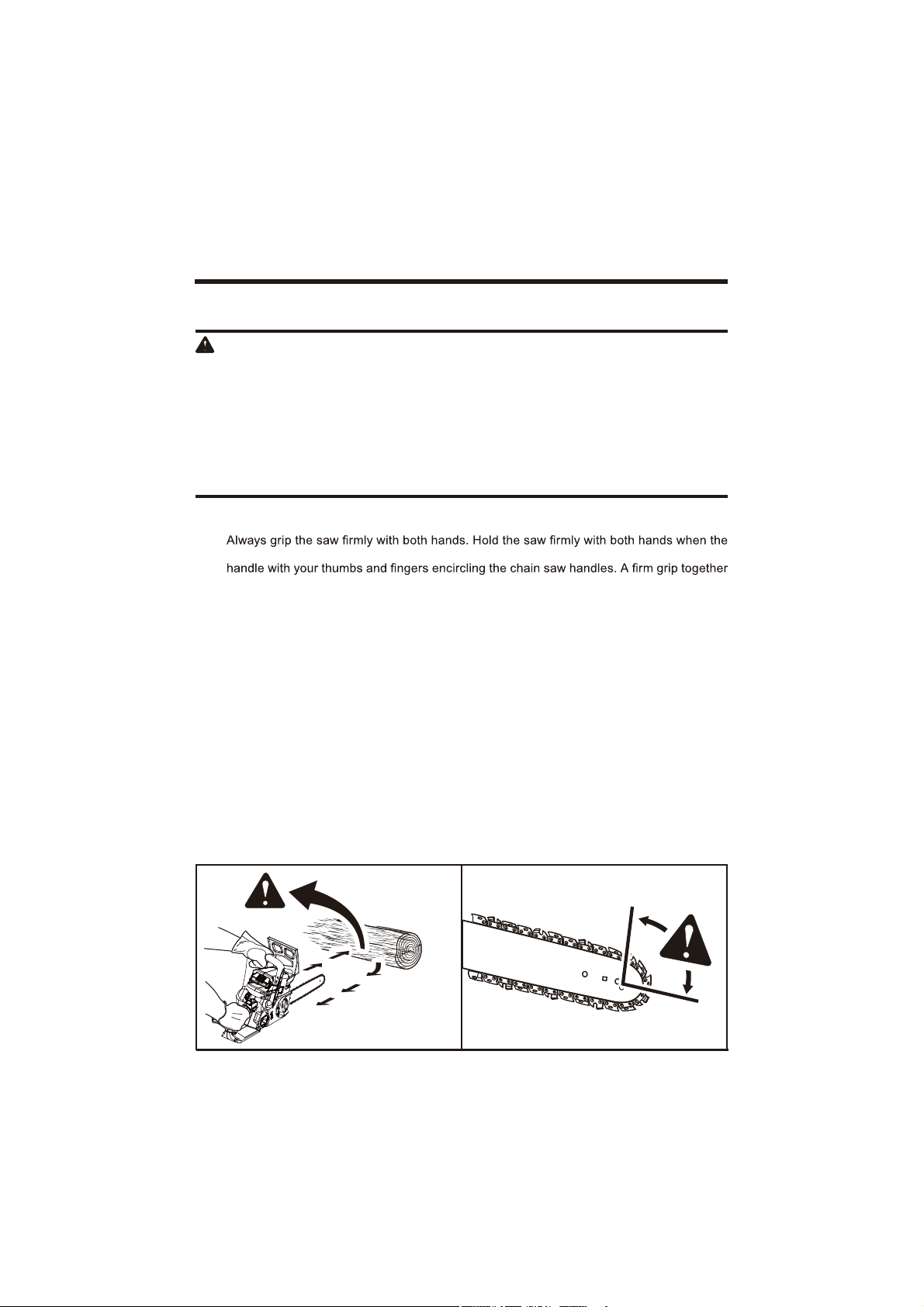

KICKBACK (See Figure 1-2)
WARNING
Kickback may occur when the moving chain contacts an object at the upper portion of the tip of the
guide bar or when the wood closes in and pinches the saw chain in the cut. Contact at the upper
portion of the tip of the guide bar can cause the chain to dig into the object and stop the chain for
an instant. The result is a lightning fast, reverse reaction which kicks the guide bar up and back
toward the operator. If the saw chain is pinched along the top of the guide bar, the guide bar can
be driven rapidly back toward the operator. Either of these reactions can cause loss of saw control
which can result in s
erious injury. Do not rely exclusively upon the safety devices built into the saw.
As a chain saw user, you should take several steps to keep your cutting jobs free from accident or
injury.
The following precautions should be followed to minimize kickback:
1.
unit is running. Place your right hand on the rear handle and your left hand on the front
with a stiff left arm will help you maintain control of the saw if kickback occurs.
2. Make sure that the area in which you are cutting is free from obstructions. Do not let the
nose of the guide bar contact a log, branch, fence, or any other obstruction that could be
hit while you are operating the saw.
3. Always cut with the unit running. Fully squeeze the switch trigger and maintain cutting
speed.
4. Use only the replacement guide bars and low kickback chains specified by the
manufacturer for the saw.
With a basic understanding of kickback, you can reduce or eliminate the element of surprise.
Sudden surprise contributes to accidents.
Keep proper footing and balance at all times.
Do not cut above shoulder height or overreach when cutting.
Follow the sharpening and maintenance instructions for the saw chain.
Fig. 1 Fig. 2
Rotational
Kickback
Kickback
Danger Zone
7
SAFETY INFORMATION

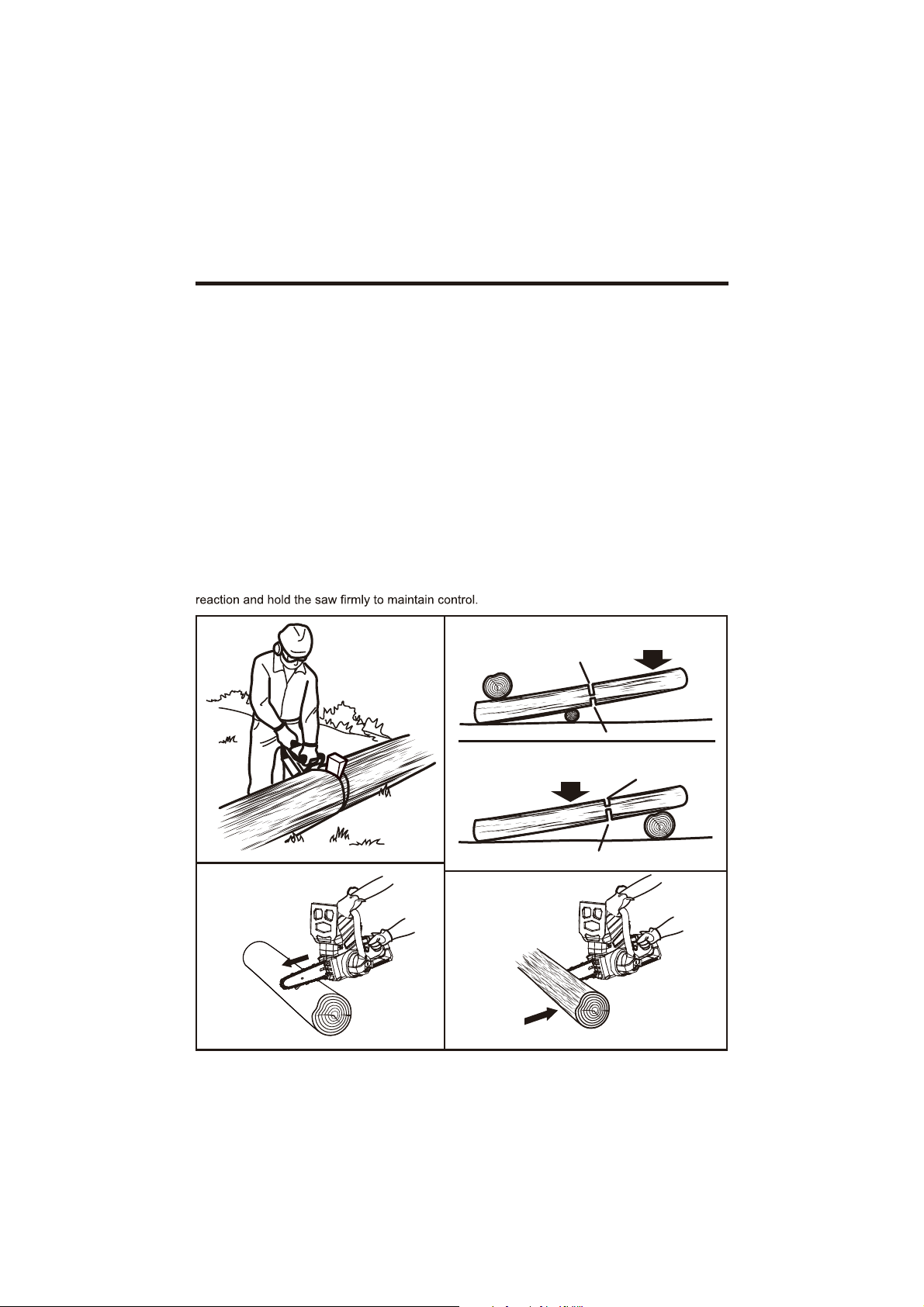

Push and Pull - This reaction force is always opposite to the direction the chain is moving
where wood contact is made. Thus, the operator must be ready to control the PULL
when cutting on the bottom edge of the bar, and PUSH when cutting along the top edge.
(See Figure 3)
UNDERSTANDING YOUR CHAIN SAW SAFETY DEVICES (See Figure 4)
LOW KICKBACK SAW CHAIN
The rakers (depth gauges) ahead of each cutter can minimize the force of a kickback reaction
by preventing the cutters from digging in too deeply at the kickback zone. Only use replacement
B175.1. Low kickback/skip tooth saw chain is a chain that has met the kickback performance
requirements of ANSI B175.1 - 1991 (American National Standard for Power Tools - Gasoline-
Powered Chain Saws-Safety Requirements) when tested on the representative sample of chain
useful life, they lose some of the low kickback qualities and extra caution should be used.
Fig. 3
Fig. 4
PULL
PUSH
8

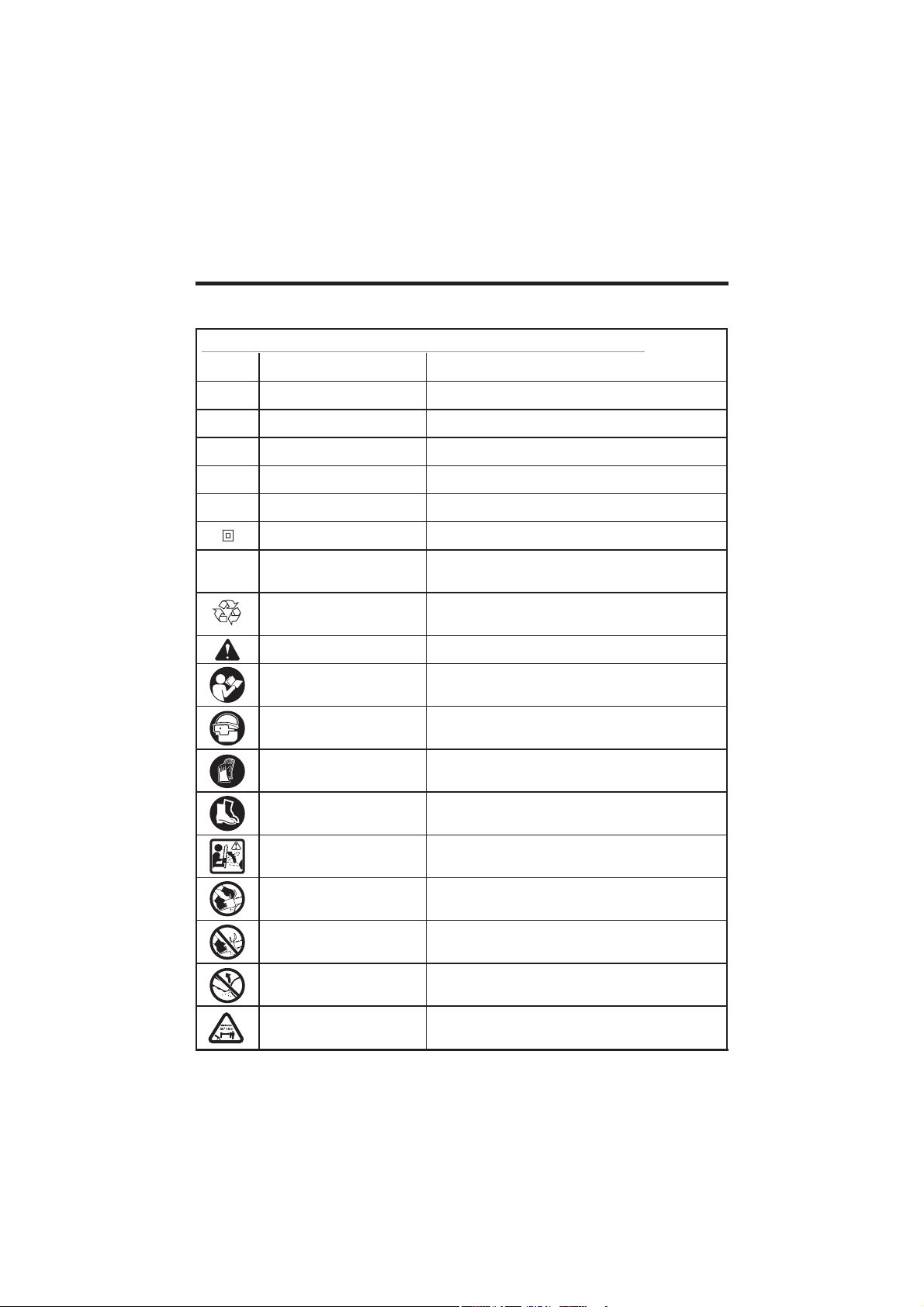

Some of the following symbols may be used on this product. Please study them and learn their
meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.
SYMBOLS
n
o
8
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watts Power
hrs Hours Time
No Load Speed Rational speed, at no load
Class II Construction Double-insulated construction
/min Per Minute Revolutions, strokes, surface speed, orbits etc.,
per minute
Lithium-Ion Battery Recycling Designates that this tool is in compliance with
Lithium-Ion battery recycling program requirements
Safety Alert Symbol Precautions that involve your safety.
-stand operator’s manual before using this product.
Eye and Head Protection Wear eye and head protection when operating this
equipment.
Gloves Wear non-slip, heavy-duty protective gloves when
handling the pole saw and the blade.
Safety Footwear Wear non-slip safety footwear when using this
equipment.
Kickback DANGER! Beware of kickback.
Operate With Two Hands Hold and operate the saw properly with both hands.
One Handed Do not operate the saw using only one hand.
Bar Nose Contact Avoid bar nose contact.
Keep Bystanders Away Keep all bystanders at least 50' (15 m) away.
9
The following signal words and meanings are intended to explain the levels of risk associated
with this product.
SERVICE
Servicing requires extreme care and knowledge and should be performed only by a qualified
service technician. For service we suggest you return the product to your nearest AUTHORIZED
SERVICE CENTER for repair. When servicing, use only identical replacement parts.
WARNING
Owner's Manual thoroughly and understand it completely. If you do not understand the warnings
and instructions in this Owner's Manual, do not use this product. Call the Toll-free Helpline (1-
888-909-6757) for assistance.
WARNING
eyes, which can result in severe eye damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with side shields and, when needed, a
full face shield. We recommend Wide Vision Safety Mask for use over eyeglasses or
standard safety glasses with side shields. Always use eye protection which is marked
to comply with ANSI Z87.1.
SYMBOL SIGNAL MEANING
DANGER Indicates an imminently hazardous situation, which, if not
WARNING Indicates a potentially hazardous situation, which, if not avoided,
CAUTION Indicates a potentially hazardous situation, which, if not avoided,
CAUTION (Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
SYMBOLS
SAVE THESE INSTRUCTIONS
10
KNOW YOUR CHAIN SAW
Fig. 5
Scabbard
Read this operator's manual and safety rules before operating your chain saw. Compare the
fo noitacol eht htiw flesruoy ezirailimaf ot redro ni was niahc ruoy ot 5 erugiF ni noitartsulli
various controls and adjustments. Save this manual for future reference.
Switch Trigger
Front Handle
Low Kickback
Saw Chain
Bumper Spikes
Rear Handle
Chain Cover
Chain Tension
knob
Chain Cover
Lock knob
Front Hand
Guard
Guide Bar
11
ASSEMBLY INSTRUCTIONS
UNPACKING
This product has been shipped completely assembled.
Carefully remove the product and any accessories from the box. Make sure that all items
listed in the packing list are included.
Inspect the product carefully to make sure no breakage or damage occurred during shipping.
Do not discard the packing material until you have carefully inspected and satisfactorily
operated the product.
If any parts are damaged or missing, please call 1-888-909-6757 for assistance.
PACKING LIST
Chain saw
Scabbard
O
wner's Manual
WARNING
If any parts are damaged or missing, do not operate this product until the parts are replaced.
Failure to heed this warning could result in serious personal injury.
WARNING
Do not attempt to modify this product or create accessories not recommended for use with this
leading to possible serious personal injury.
WARNING
starting and possible serious personal injury.
12
WARNING
Do not allow familiarity with this product to make you careless. Remember that a careless
WARNING
Always wear safety goggles or safety glasses with side shields when operating power tools. Failure
to do so could result in objects being thrown into your eyes, resulting in possible serious injury.
WARNING
Do not use any attachments or accessories not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can result in serious personal injury.
APPLICATIONS
You may use this product for the purposes listed below:
Basic limbing, felling, and woodcutting

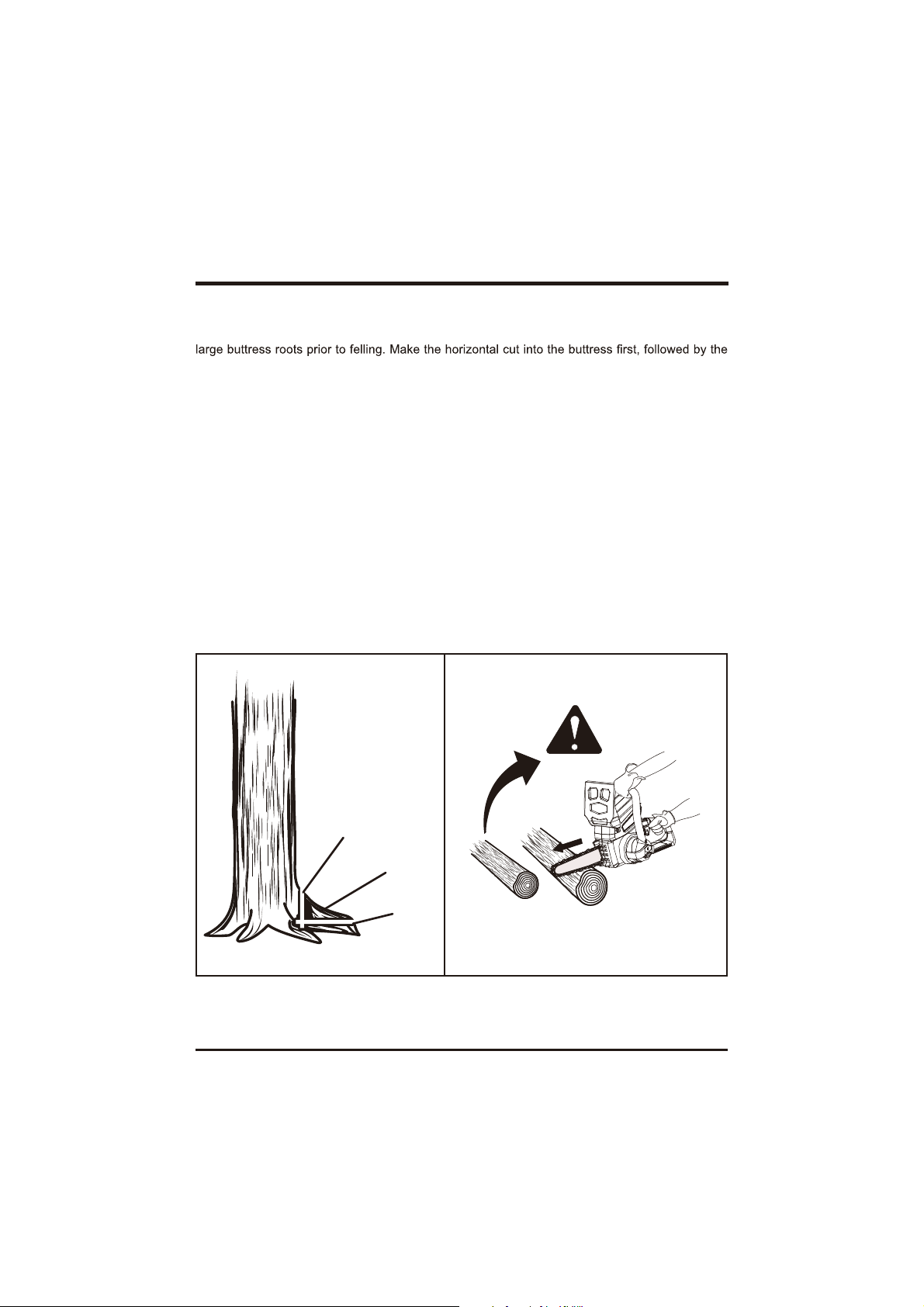

Removing buttress roots
OPERATING YOUR CHAIN SAW
UNPACKING
This product has been shipped completely assembled.
Carefully remove the product and any accessories from the box. Make sure that all items
listed in the packing list are included.
Inspect the product carefully to make sure no breakage or damage occurred during shipping.
Do not discard the packing material until you have carefully inspected and satisfactorily
operated the product.
If any parts are damaged or missing, please call 1-888-909-6757 for assistance.
PACKING LIST
Chain saw Scabbard Hexagon ring spanner Owner's Manual
WARNING
If any parts are damaged or missing, do not operate this product until the parts are replaced.
Failure to heed this warning could result in serious personal injury.
WARNING
Do not attempt to modify this product or create accessories not recommended for use with this
leading to possible serious personal injury.
WARNING
starting and possible serious personal injury.
13

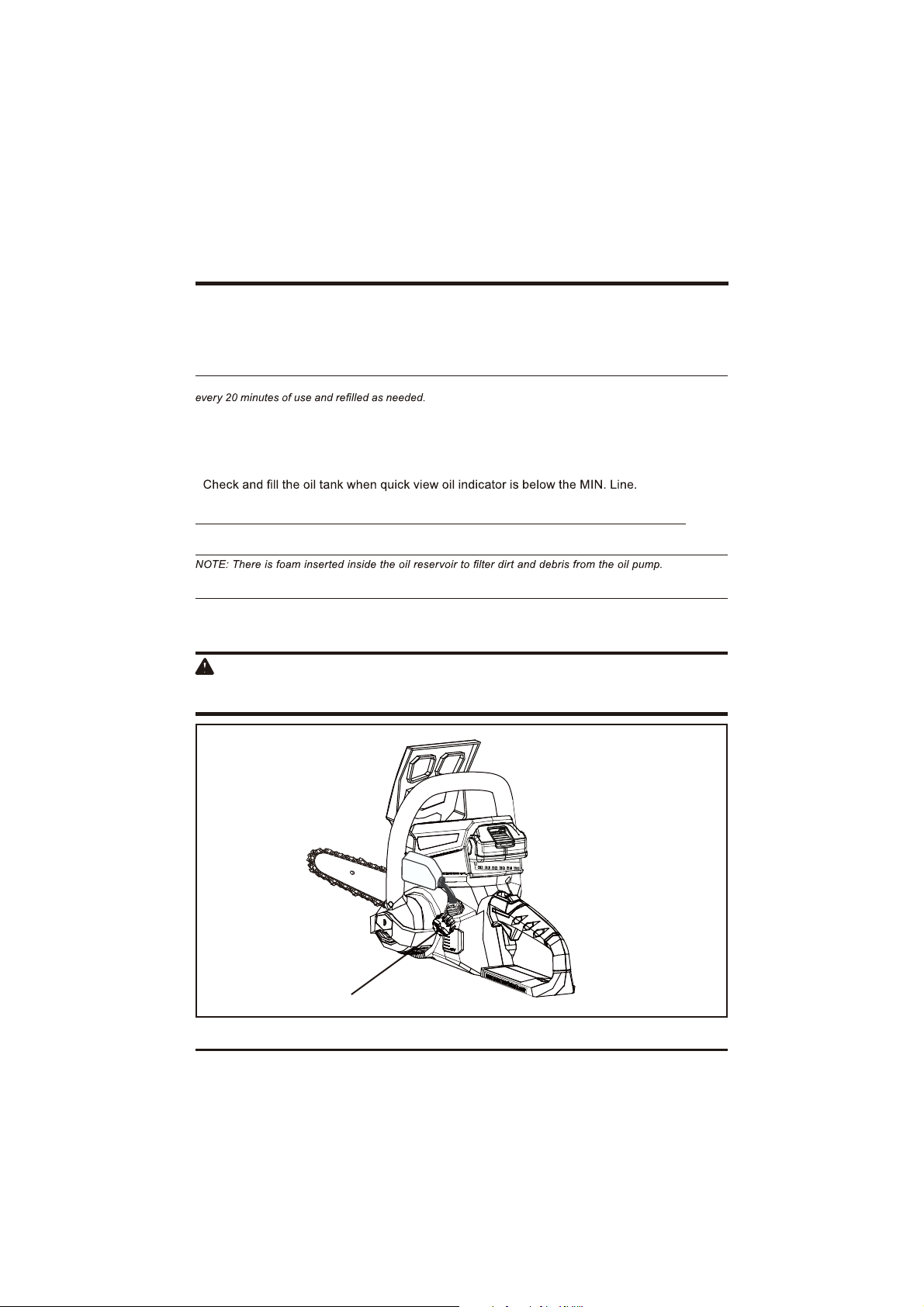

ADDING BAR AND CHAIN LUBRICANT (See Figure 6)
Use GREENWORKS Bar and Chain Lubricant. It is designed for chains and chain oilers, and is
formulated to perform over a wide temperature range with no dilution required.
NOTE: Chain saw comes from the factory with no bar and chain oil added. Level should also be checked after
Remove oil cap.
Carefully pour the bar and chain oil into the tank.
Wipe off excess oil.
Repeat as needed.
NOTE: Do not use dirty, used or otherwise contaminated oils. Damage may occur to the bar or chain.
DO NOT re-
move the foam.
NOTE: It is normal for oil to seep from the saw when not in use. To prevent seepage, empty the oil tank after
each use then run for one minute. When storing the unit for a long period of time (three months or longer) be
sure the chain is lightly lubricated; this will prevent rust on the chain and bar sprocket.
IMPORTANT
To preserve natural resources, please recycle or dispose of oil properly. Consult your local waste
authority for information regarding available recycling and/disposal options.
OPERATING YOUR CHAIN SAW
Fig. 6
Oil Reservoir
Cap
Lubricant
14
BATTERY PACK (See Figure 7)
IMPORTANT
time, place the battery pack in the battery charger and charge it fully. Be sure to read all safety
precautions, and follow the instructions in the section entitled Charging Procedure. With regular
use, the battery will require shorter charging times. When storing the chain saw for a prolonged
period of time, remove the battery. When the chain saw is going to be used again, charge the
battery pack for at least a full charging period. This product has no memory effect.
REMOVING THE BATTERY PACK
Press the latch button (1) on the battery pack down and hold.
strong pull to remove it.
OPERATING YOUR CHAIN SAW
15

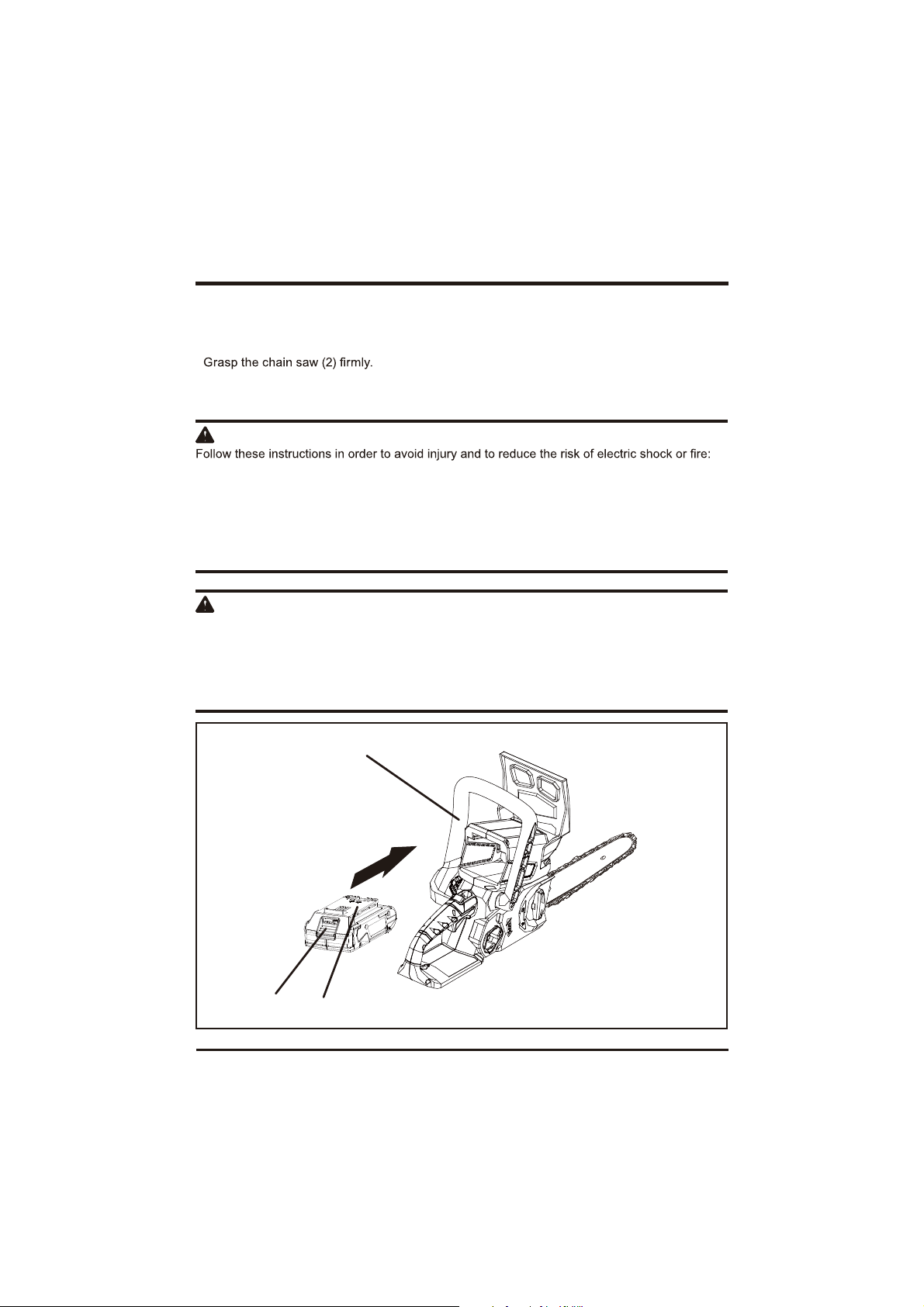

INSTALLING THE BATTERY PACK
Align the tongue (3) of the battery pack with the cavity.
Push the battery pack into the handle until the latch locks into place.
Do not use force when inserting the battery pack. It should slide into position and “click”.
WARNING
iately if the battery case or charger cord is
Verify that the switch is in the OFF position befo
V switch is in the OFF position before inspecting,
rt of the chain saw.
ontained in the section entitled Charging
Procedure.
IMPORTANT
n
shut off the power to the tool and then reset itself once cooled.
Follow these steps if an overload occurs while under heavy use:
depressing switch.
2.
reinstalled for use.
Fig. 7
OPEATING YOCHAIN SAW
2
1
3

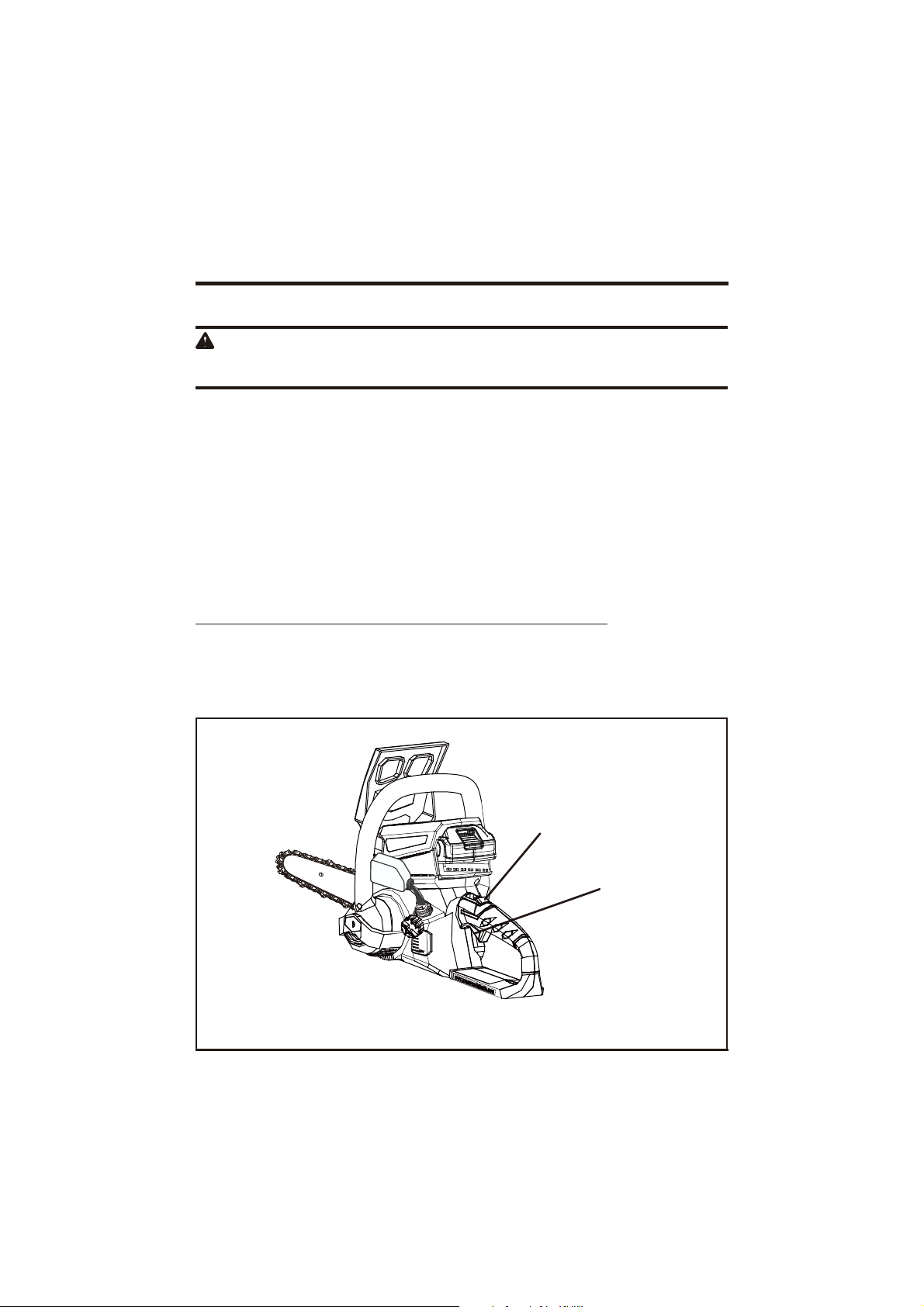

STARTING AND STOPPING THE CHAIN SAW (See Figure 8)
WARNING
Keep body to the left of the chain line. Never straddle the saw or chain, or lean over past the
chain line.
STARTING THE CHAIN SAW:
Make sure chain tension is at desired setting. Refer to Adjusting the Chain Tension in the
Maintenance of this manual.
Make sure the chain cover lock bolt is tight to the chain cover.
Make sure no objects or obstructions are in immediate vicinity which could come in contact
with the bar and chain.
Fit the battery pack into the chain saw.
Press and hold the swit
ch lock. This makes the switch trigger operational.
Press and hold the switch trigger, release the switch lock and continue to squeeze the switch
trigger for continued operation.
STOPPING THE CHAIN SAW:
NOTE: It is normal for the chain to coast to a stop once the trigger switch is released.
Release the switch trigger to stop the chain saw.
Upon release of the switch trigger, the switch lock will be automatically reset to the lock
position.
Fig. 8
16
Switch Lock
Switch Trigger
OPERATING YOUR CHAIN SAW
Lubricant
17

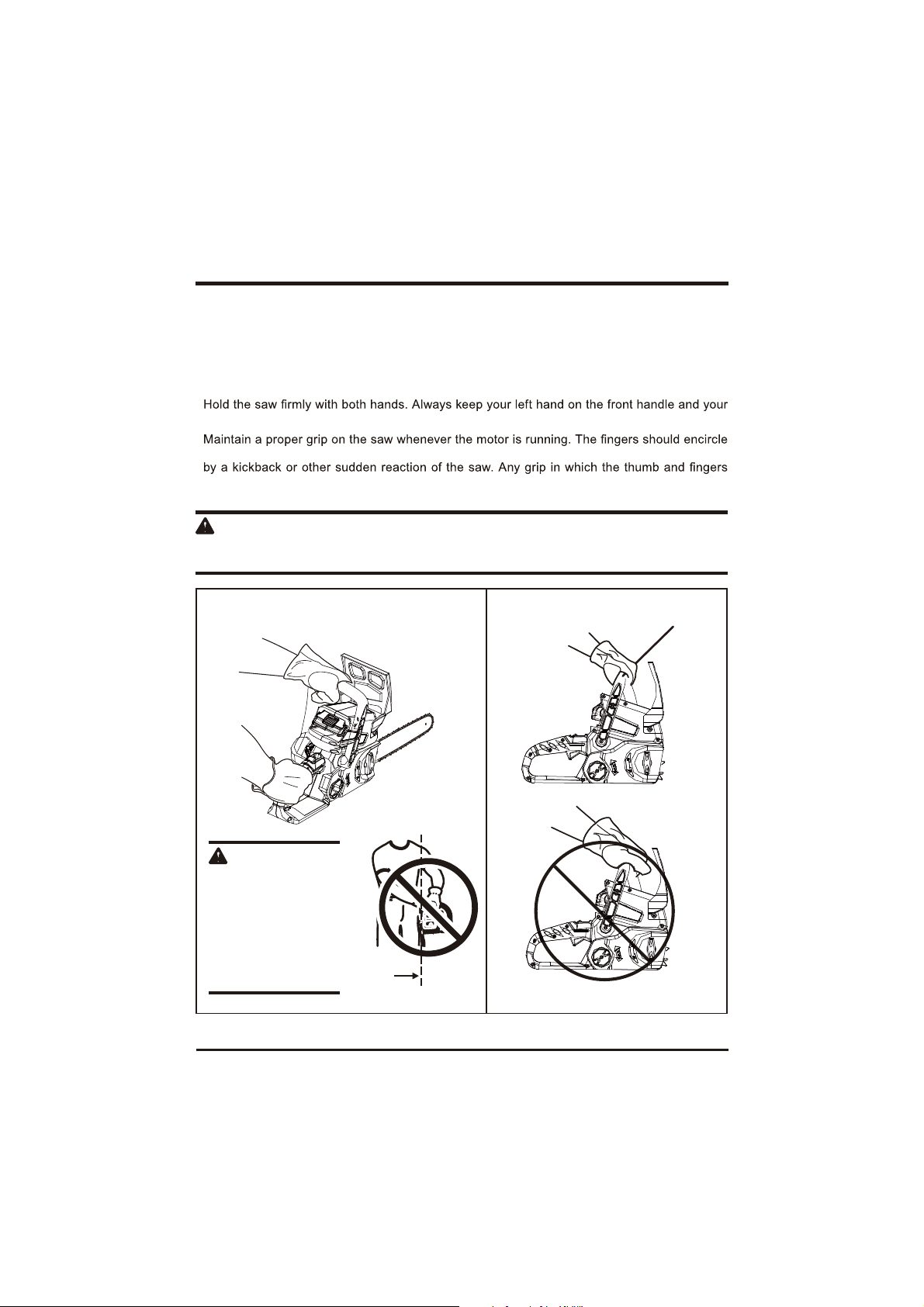

PREPARING FOR CUTTING

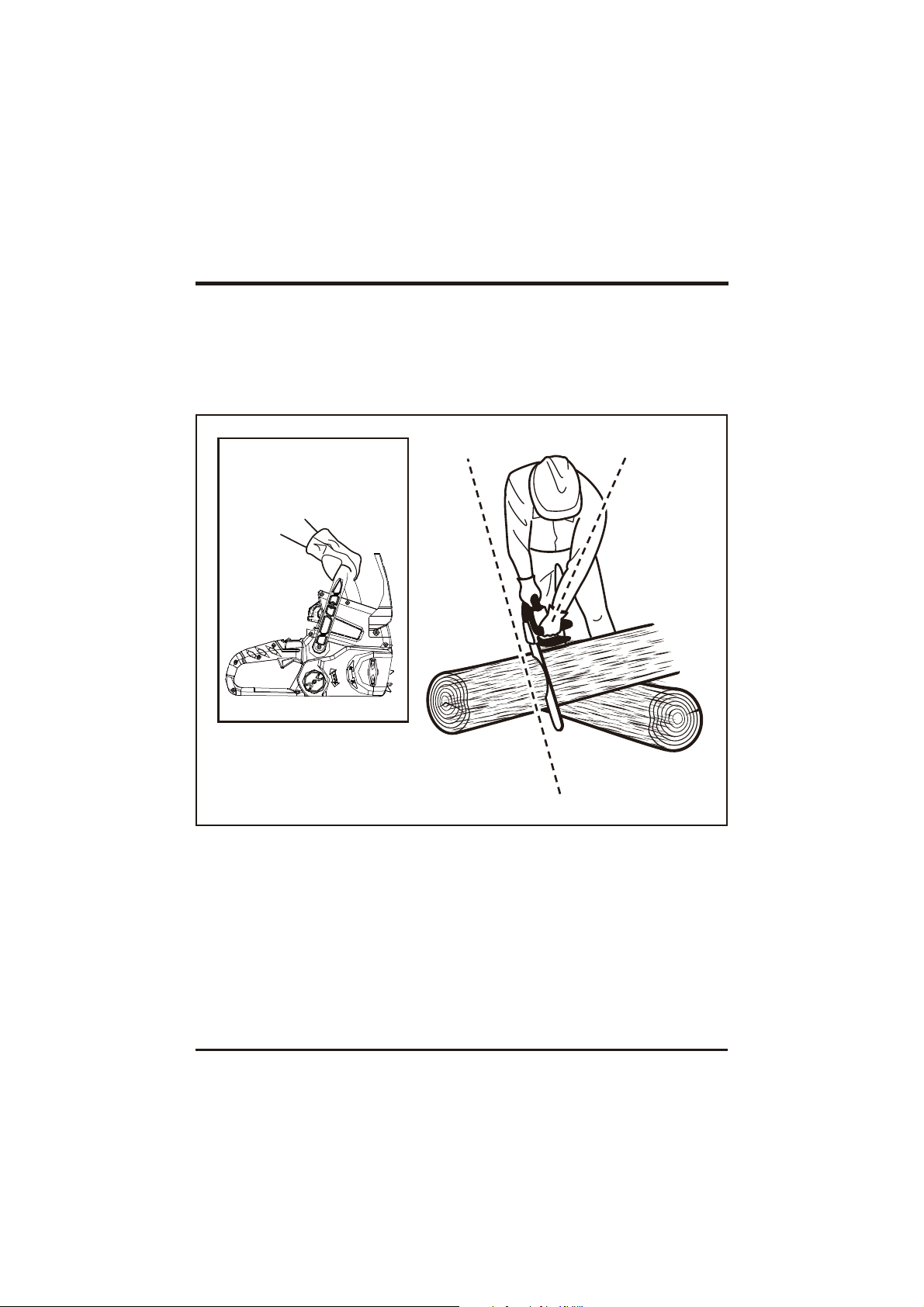

PROPER GRIP ON HANDLES
(See Figure 9)
See General Safety Rules for appropriate safety equipment.
Wear non-slip gloves for maximum grip and protection.
right hand on the rear handle so that your body is to the left of the chain line.
the handle and the thumb is wrapped under the handlebar. This grip is least likely to be broken
are on the same side of the handle is dangerous because a slight kick of the saw can cause
loss of control.
WARNING
Never use a left-handed (cross-handed) grip or any stance that would place your body or arm
across the chain line.
Fig. 9
OPERATING YOUR CHAIN SAW
PROPER HAND
GRIP POSITION
CHAIN
LINE
Proper Grip
IMPROPER GRIP
WARNING
DO NOT operate the
switch trigger with your
left hand and hold the
front handle with your
right hand. Never allow
any part of your body
to be in the chain line
while operating a saw.
18
PROPER CUTTING STANCE
(See Figure 10)
Balance your weight with both feet on solid ground.
Keep left arm with elbow locked in a “straight arm” position to withstand any kickback force.
Keep your body to the left of the chain line.
Keep your thumb on underside of handlebar.
OPERATING YOUR CHAIN SAW
Fig. 10
Chain Line
Straight Arm
THUMB ON
UNDERSIDE OF
HANDLE BAR
19
BASIC OPERATING/CUTTING PROCEDURES
Practice cutting a few small logs using the following technique to get the “feel” of using the saw
Take the proper stance in front of the wood with the saw idling.
Press the switch lock and squeeze the switch trigger then release switch lock and let the
chain accelerate to full speed before entering the cut.
Begin cutting with the saw against the log.
Keep the unit running the entire time you are cutting, maintain a steady speed.
Allow the chain to cut for you; exert only light downward pressure. Forcing the cut could result
in damage to the bar, chain, or motor.
Release the switch trigger as soon as the cut is completed, allowing the chain to stop. If you
run the saw without a cutting load, unnecessary wear can occur to the chain, bar, and unit.
Do not put pressure on the saw at the end of the cut.
WORK AREA PRECAUTIONS
(See Figure 11)
Cut only wood or materials made from wood; no sheet metal, no plastics, no masonry, no non-
wood building materials.
Never allow children to operate the saw. Allow no person to use this chain saw who has not
read this operator’s manual or received adequate instructions for the safe and proper use of
this chain saw.
Keep everyone – helpers, bystanders, children, and animals – a SAFE DISTANCE from the
cutting area. During felling operations, the safe distance should be a least twice the height of
the largest trees in the felling area. During bucking operations, keep a minimum distance of
15' (4.6 m) between workers.
Always cut with both feet on solid ground to prevent being pulled off balance.
Do not cut above chest height as a saw held higher is difficult to control against kickback
forces.
Do not fell trees near electrical wires or buildings. Leave this operation for professionals.
Cut only when visibility and light are adequate for you to see clearly.
OPERATING YOUR CHAIN SAW
Fig. 11
20
FELLING TREES
HAZARDOUS CONDITIONS
WARNING
Do not fell trees during periods of high wind or heavy precipitation. Wait until the hazardous
weather has ended.
When felling a tree, it is important that you heed the following warnings to prevent possible
Do not cut down trees having an extreme lean or large trees with rotten limbs, loose bark,
or hollow trunks. Have these trees pushed or dragged down with heavy equipment, then cut
them up.
Do not cut trees near electrical wires or buildings.
Check the tree for damaged or dead branches that could fall and hit you during felling.
Periodically glance at the top of the tree during the backcut to assure the tree is going to fall in
the desired direction.
If the tree starts to fall in the wrong direction, or if the saw gets caught or hung up during the
fall, leave the saw and save yourself!
OPERATING YOUR CHAIN SAW
21

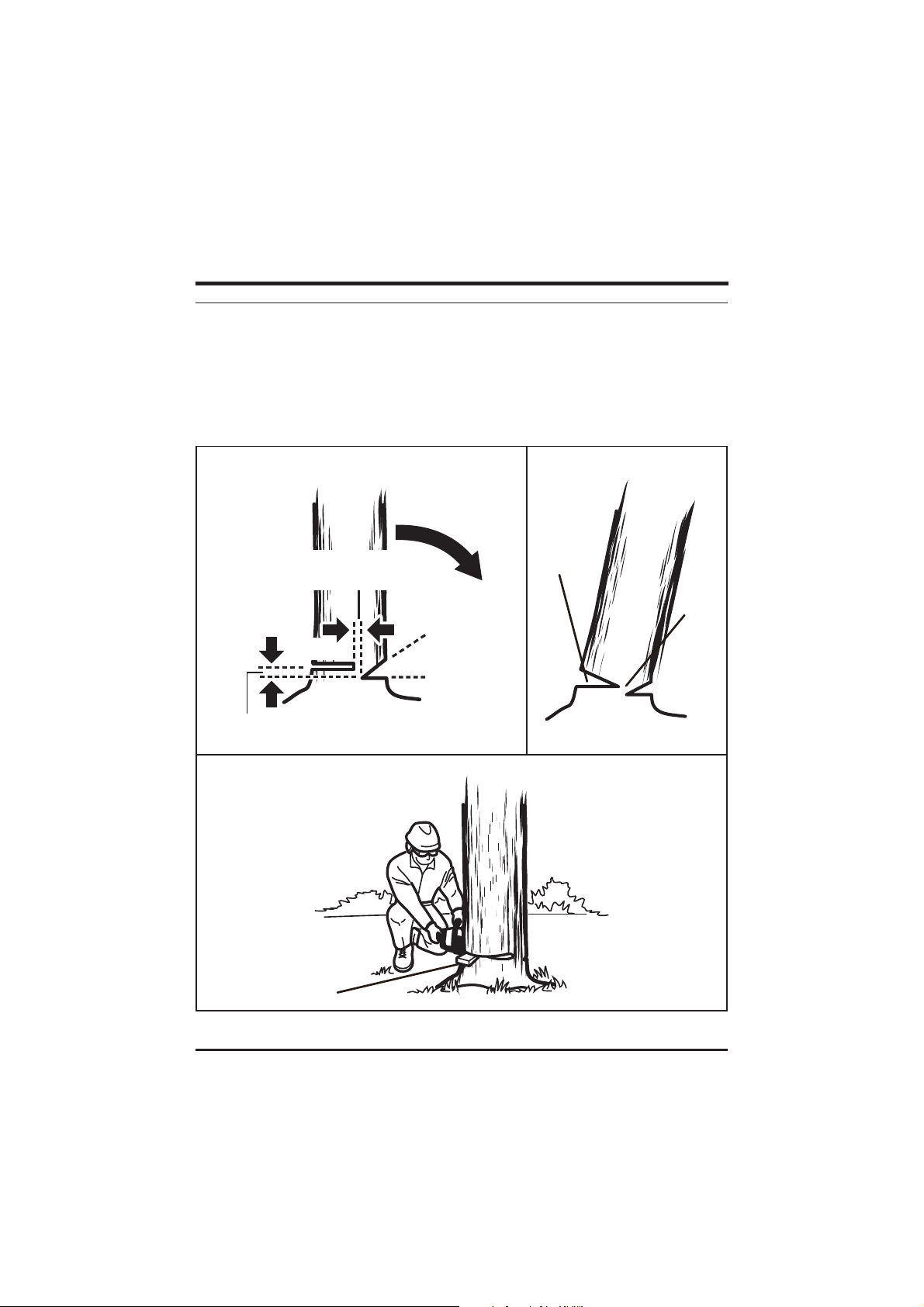

PROPER PROCEDURE FOR TREE FELLING
(See Figure 12-15)
Felling a tree — When bucking and felling operations are being performed by two or more
persons, at the same time, the felling operation should be separated from the bucking
operation by a distance of at least twice the height of the tree being felled. Trees should not
be felled in a manner that would endanger any person, strike any utility line or cause any
property damage. If the tree does make contact with any utility line, the utility company should
Operator should keep on the uphill side of terrain as the tree is likely to roll or slide after it is
felled.
Pick your escape route (or routes in case the intended route is blocked). Clear the immediate
area around the tree and make sure there are no obstructions in your planned path of retreat.
Clear the path of safe retreat approximately 135° from the planned line of fall.
Consider the force and direction of the wind, the lean and balance of the tree, and the location
tree along a line different from its natural line of fall.
Remove dirt, stones, loose bark, nails, staples, and wire from the tree where felling cuts are to
be made.
Notched Undercut. Cut a notch about 1/3 the diameter of the trunk in the side of the tree.
Make the notch cuts so they intersect at a right angle to the line of fall. This notch should be
cleaned out to leave a straight line. To keep the weight of the wood off the saw, always make
the lower cut of the notch before the upper cut.
Felling Backcut. As the felling cut gets close to the hinge the tree should begin to fall. If there
is any chance the tree may not fall in the desired direction or it may rock back and bind the
saw chain, stop cutting before the felling cut is complete and use wedges of wood, plastic or
aluminum to open the cut and drop the tree along its desired line of fall. Make the backcut
level and horizontal, and at a minimum of 2" (5 cm) above the horizontal cut of the notch.
OPERATING YOUR CHAIN SAW
Fig. 12
PLANNED LINE
OF FALL
PLANNED
LINE
OF FALL
PATH
OF SAFE
RETREAT
135°
45°
45°
90°
135°
135° FROM
PLANNED LINE
OF FALL
PATH OF
SAFE
RETREAT
90°
22
NOTE: Never cut through to the notch. Always leave a band of wood between the notch and back cut (ap-
proximately 2" (5 cm) or 1/10 the diameter of the tree). This is called “hinge” or “hingewood.” It controls the fall
of the tree and prevents slipping or twisting or shoot back of the tree off the stump.
On large diameter trees, stop the back cut before it is deep enough for the tree to either fall
or settle back on the stump. Then insert soft wooden or plastic wedges into the cut so they do
As tree starts to fall, stop the chain saw and put it down immediately. Retreat along the
cleared path, but watch the action in case something falls your way.
OPERATING YOUR CHAIN SAW
Fig. 13 Fig. 14
Fig. 15
HINGE
2" (5 cm) OR 1/10 DIA
NOTCH -
APPROX. 1/3
DIAMETER OF
TRUNK
BACK CUT
2" (5 cm)
Hinge
Back Cut
Wedge
23
OPERATING YOUR CHAIN SAW
Fig. 17Fig. 16
REMOVING BUTTRESS ROOTS
(See Figure 16)
A buttress root is a large root extending from the trunk of the tree above the ground. Remove
vertical cut. Remove the resulting loose section from the work area. Follow the correct tree felling
procedure as stated in Proper Procedure For Tree Felling after you have removed the large
buttress roots.
BUCKING
(See Figure 17)
Bucking is the term used for cutting a fallen tree to the desired log length.
Always make sure your footing is secure and your weight is distributed evenly on both feet.
Cut only one log at a time.
Support small logs on a saw horse or another log while bucking.
Keep a clear cutting area. Make sure that no objects can contact the guide bar nose and
chain during cutting, this can cause kickback. Refer to Kickback earlier in this manual.
When bu
cking on a slope, always stand on the uphill side of the log. To maintain complete
control of the chain saw when cutting through the log, release the cutting pressure near the
end of the cut without relaxing your grip on the chain saw handles. Do not let the chain contact
the ground. After completing the cut, wait for the saw chain to stop before you move the chain
saw. Always stop the motor before moving from tree to tree.
Vertical
Cut
KICKBACK
Loose
Section
Horizontal
Cut
24
OPERATING YOUR CHAIN SAW
Fig. 19
Fig. 18
Fig. 20 Fig. 21
BUCKING WITH A WEDGE
(See Figure 18)
If the wood diameter is large enough for you to insert a soft bucking wedge without touching the
chain, you should use the wedge to hold the cut open to prevent pinching.
BUCKING LOGS UNDER STRESS
(See Figure 19)
When the log is supported on one end, cut 1/3 the diameter from the underside. Then make the
finished cut by overbucking to meet the first cut.
When the log is supported on bothe edn, cut 1/3 of the diameter from the top overback. Then
make the finished cut by under bucking the lower 2/3 to meet the first cut.
OVERBUCKING
(See Figure 20)
Begin on the top side of the log with the bottom of the saw against the log; exert light pressure
downward. Note that the saw will tend to pull away from you.
UNDERBUCKING
(See Figure 21)
Begin on the under side of the log with the top of the saw against the log; exert light pressure
upward. During under bucking, the saw will tend to push back at you. Be prepared for this
1ST CUT 1/3 DIA
1ST CUT 1/3 DIA
FINISHING CUT
FINISHING CUT
LOG SUPPORTED AT ONE END
OVERBUCKING
AVOID CUTTING EARTH
UNDERBUCKING
LOG SUPPORTED AT BOTH ENDS
LOAD
LOAD
PULL
PUSH
25
OPERATING YOUR CHAIN SAW

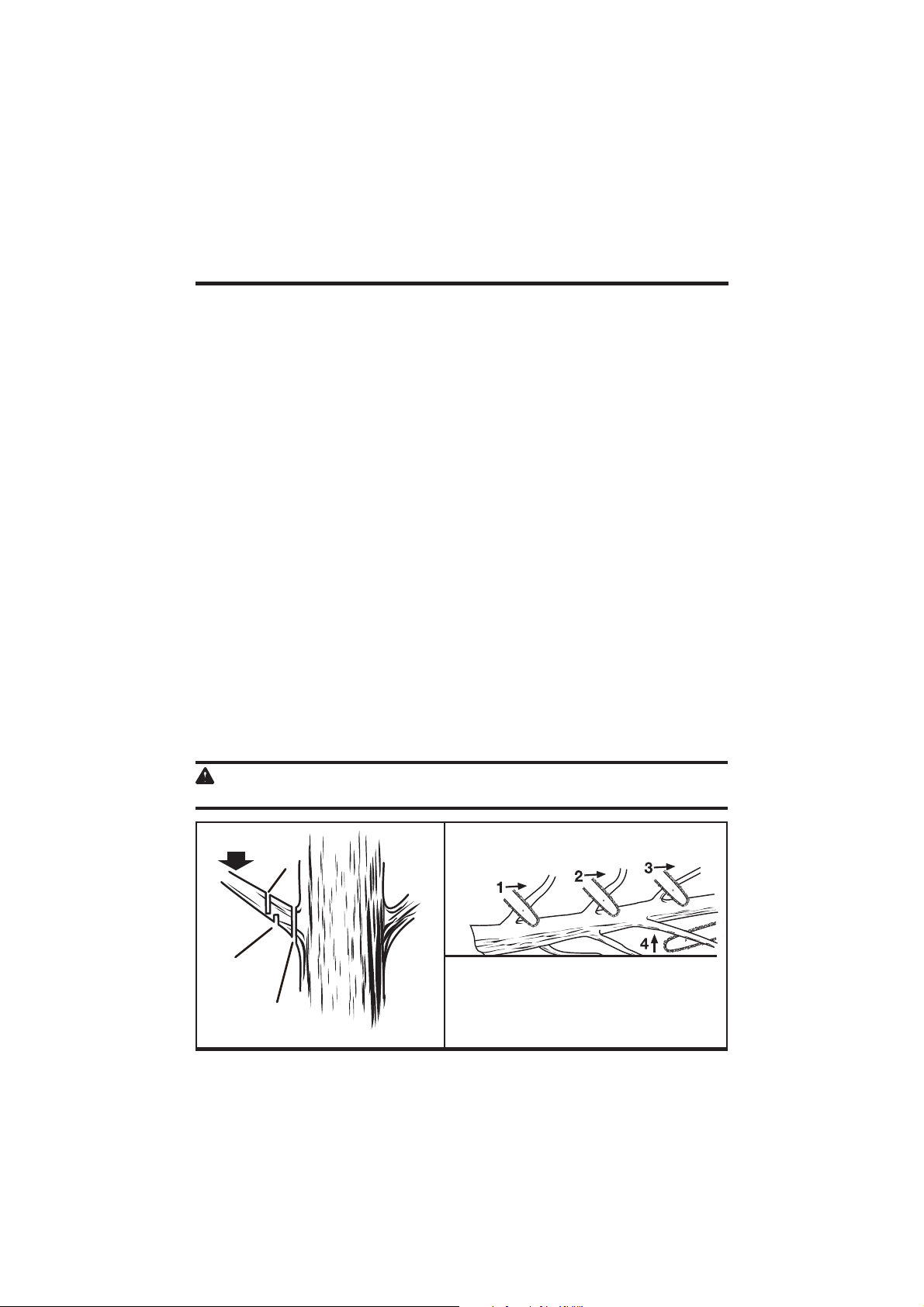

LIMBING
(See Figure 22)
Limbing is removing branches from a fallen tree.
footing is secure and your weight is distributed evenly on both feet.
Leave the larger support limbs under the tree to keep the tree off the ground while cutting.
Limbs should be cut one at a time. Remove the cut limbs from the work area often to help
keep the work area clean and safe.
Branches under tension should be cut from the bottom up to avoid binding the chain saw.
Keep the tree between you and the chain saw while limbing. Cut from the side of the tree
opposite the branch you are cutting.
PRUNING
(See Figure 23)
Pruning is trimming limbs from a live tree.
footing is secure and your weight is distributed evenly on both feet.
Do not cut from a ladder, this is extremely dangerous. Leave this operation for professionals.
until you have cut off the limb further out to reduce the weight. This prevents stripping the bark
from the main member.
Your second cut should overbuck to drop the branch off.
grow back to seal the wound.
WARNING
If the limbs to be pruned are above chest height, hire a professional to perform the pruning.
Fig. 23Fig. 22
Second
Cut
LOAD
CUT LIMBS ONE AT A TIME AND
LEAVE SUPPORT LIMBS
UNDER TREE UNTIL LOG IS CUT
First Cut
1/3 Diameter
Finishing
Cut
26
OPERATING YOUR CHAIN SAW

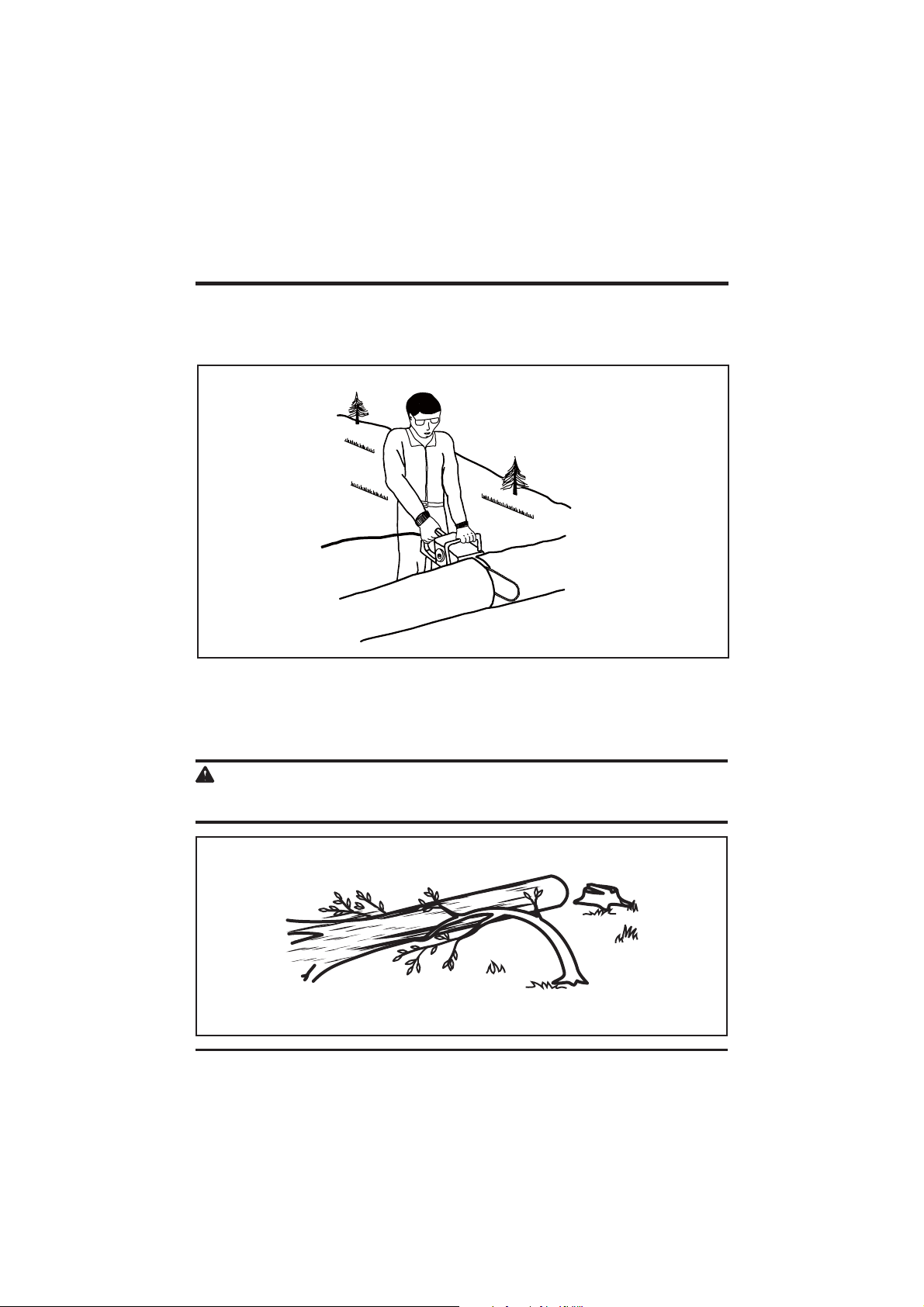

CUTTING SPRINGPOLES
When bucking on a slope always stand on the uphill side of the log. when cutting through to maintain
complete control release the cutting pressure near the end of the cut without relaxing your grip on the
chainsaw handle. Don’t let the chain contact the ground. After completing the cut wait for the saw
chain to stop before you move the chainsaw. Always stop the motor before moving from tree to tree.
(See Figure 24)
A springpole is any log, branch, rooted stump, or sapling which is bent under tension by other
wood so that it springs back if the wood holding it is cut or removed. On a fallen tree, a rooted
stump has a high potential of springing back to the upright position during the bucking cut to
separate the log from the stump. Watch out for springpoles — they are dangerous.
WARNING
Springpoles are dangerous and could strike the operator, causing the operator to lose control of the
chain saw. This could result in severe or fatal injury to the operator.
Fig. 24
SPRINGPOLE
Bucking a log
Stand on uphill side when
cutting because log may roll
2
MAINTENANCE
WARNING
When servicing, use only identical replacement parts. Use of any other parts may create a
hazard or cause product damage.
WARNING
Always wear safety goggles or safety glasses with side shields during power tool operation or
when blowing dust. If operation is dusty, also wear a dust mask.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from
various types of commercial solvents and may be damaged by their use. Use clean cloths to
WARNING
come in contact with plastic parts. Chemicals can damage, weaken, or destroy plastic, which
LUBRICATION
for the life of the unit under normal operating conditions. Therefore, no further lubrication is
required.
REPLACING THE GUIDE BAR AND CHAIN (See Figure 28-34)
DANGER
Never start the motor before installing the guide bar, chain, chain cover, and chain cover lock
WARNING
WARNING
Before performing any maintenance, make sure the battery is removed. Failure to heed this
28
MAINTENANCE
CAUTION
Always wear gloves when handling the bar and chain; these components are sharp and may
contain burrs.
WARNING
Never touch or adjust the chain while the motor is running. The saw chain is very sharp; always
wear protective gloves when performing maintenance to the chain to avoid possible serious
lacerations.
Chain Combinations section later in this manual.
Remove the battery from the chain saw.
Rotate the chain cover lock bolt counterclockwise and remove knob and sleeve .
Remove the chain cover.
Remove the bar and chain from the mounting surface.
Remove the old chain from the bar.
Lay out the new saw chain in a loop and straighten any kinks. The cutters should face in the
direction of chain rotation. If they face backwards, turn the loop over.
Place the chai
n drive links into the bar groove as shown.
Fig. 30
Fig. 28 Fig. 29
Chain Cover
Chain Tension
Knob
Lock Bolt
BAR
Mounting
Surface
Chain
Sleeve
Chain Cover
Lock Knob
Chain Cover

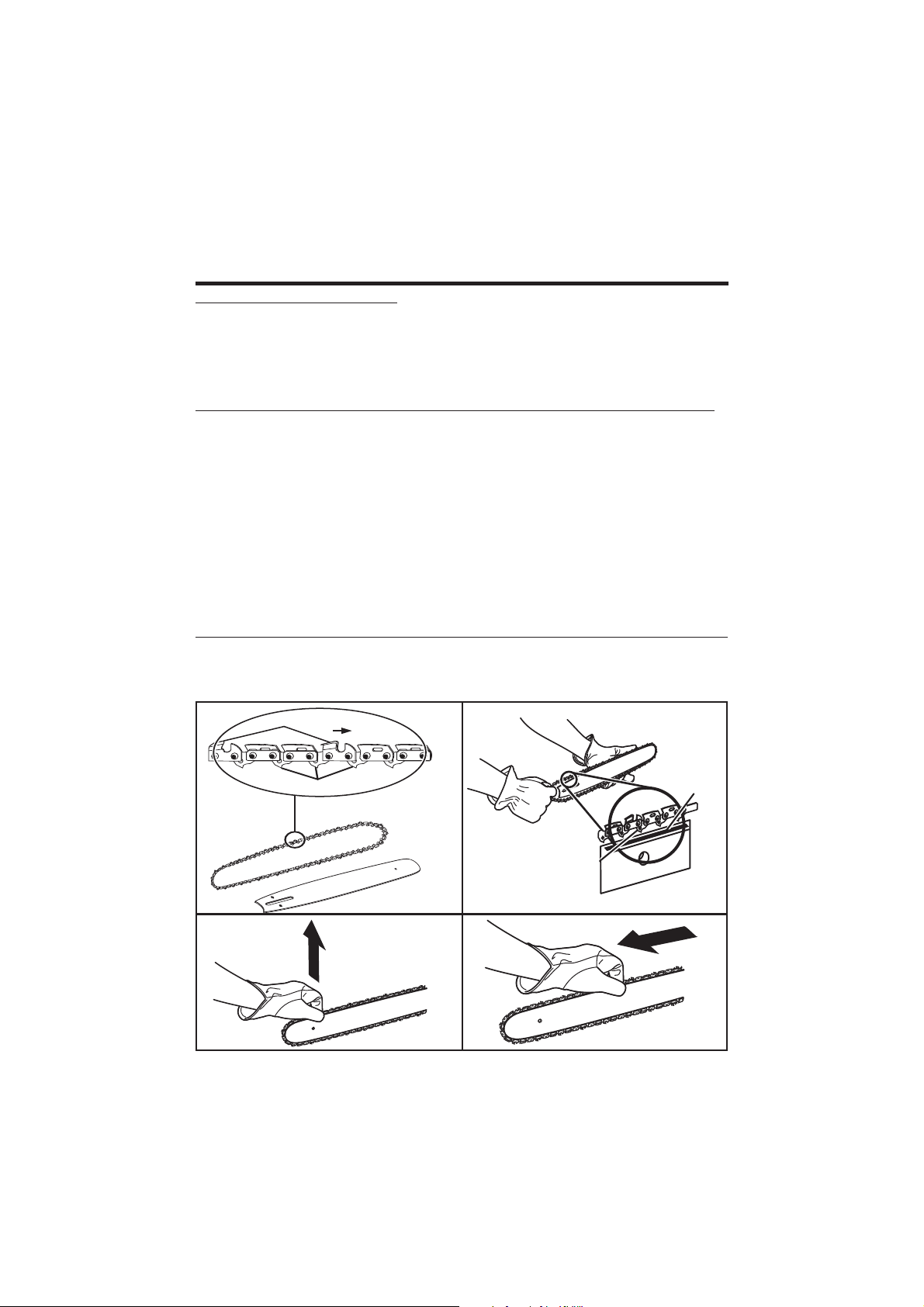

MAINTENANCE
NOTE: Make certain of direction of chain.
Position the chain so there is a loop at the back of the bar.
Hold the chain in position on the bar and place the loop around the sprocket.
bar.
NOTE: When placing the bar on the bar studs, ensure that the adjusting pin is in the chain tension pin hole.
Replace the chain cover.
Replace the sleeve and chain cover lock bolt; use a hexagon ring spanner to rotate bolt
Remove all slack from the chain by turning the chain tensioning bolt clockwise with a hexagon
ring spanner until the chain seats snugly against the bar with the drive links in the bar groove.
Lift the tip of the guide bar up to check for sag.
Release the tip of the guide bar and turn the chain tensioning bolt 1/2 turn clockwise. Repeat
this process until sag does not exist.
Hold the tip of the guide bar up and tighten the chain cover lock bolt. The chain is correctly
tensioned when there is no sag on the underside of the guide bar, the chain is snug, but it can
be turned by hand without binding.
NOTE: If chain is too tight, it will not rotate. Loosen the chain cover lock bolt slightly and turn the chain ten-
sioning bolt 1/4 turn counterclockwise. Lift the tip of the guide bar up and retighten the chain cover lock bolt.
Ensure that the chain will rotate without binding.
Fig. 31
Fig. 32
Fig. 33
Fig. 34
Cutters Chain Rotation
Chain Drive Links
Bar
GrooveChain Drive Links
3
MAINTENANCE
ADJUSTING THE CHAIN TENSIO
(See Figure 35-36)
WARNING
wear protective gloves when performing maintenance on the chain.
Stop the motor and remove the battery from the chain saw before setting the chain tension.
Slightly loosen the chain cover lock bolt.
Turn the chain tensioning bolt clockwise to tension the chain.
NOTE: A cold chain is correctly tensioned when there is no slack on the underside of the guide bar, the chain
is snug, and it can be turned by hand without binding.
on the drive links hang out of the bar groove.
NOTE: During normal saw operation, the temperature of the chain increases. The drive links of a correctly
tensioned warm chain will hang approximately 1/16" (1.3 mm) out of the bar groove.
NOTE: New chains tend to stretch; check the chain tension frequently and tension as required.
CAUTION
A chain tensioned while warm may be too tight upon cooling. Check the “cold tension” before
next use.
Fig. 35
Fig. 36
Flats On Drive Links
3
MAINTENANCE
CHAIN MAINTENANCE
(See Figure 37)
Use only a low-kickback chain on this saw. This fast-cutting chain provides kickback reduction
when properly maintained. For smooth and fast cutting, maintain the chain properly. The chain
requires sharpening when the wood chips are small and powdery, the chain must be forced
through the wood during cutting, or the chain cuts to one side. During maintenance of the chain,
consider the following:
Raker (depth gauge) clearance.
Too low increases the potential for kickback.
Not low enough decreases cutting ability.
the wood, have an authorized service center sharpen the chain.
NOTE: Inspect the drive sprocket for wear or damage when replacing the chain. If signs of wear or damage
are present in the areas indicated, have the drive sprocket replaced by an authorized service center.
NOTE: If you do not fully understand the correct procedure for sharpening the chain after reading the instruc-
tions that follow, have the saw chain sharpened by an authorized service centre or replace with a recom-
mended low-kickback chain.
Fig. 37
Raker (Depth Gauge) Clearance
1/32" (0.6 mm)
3

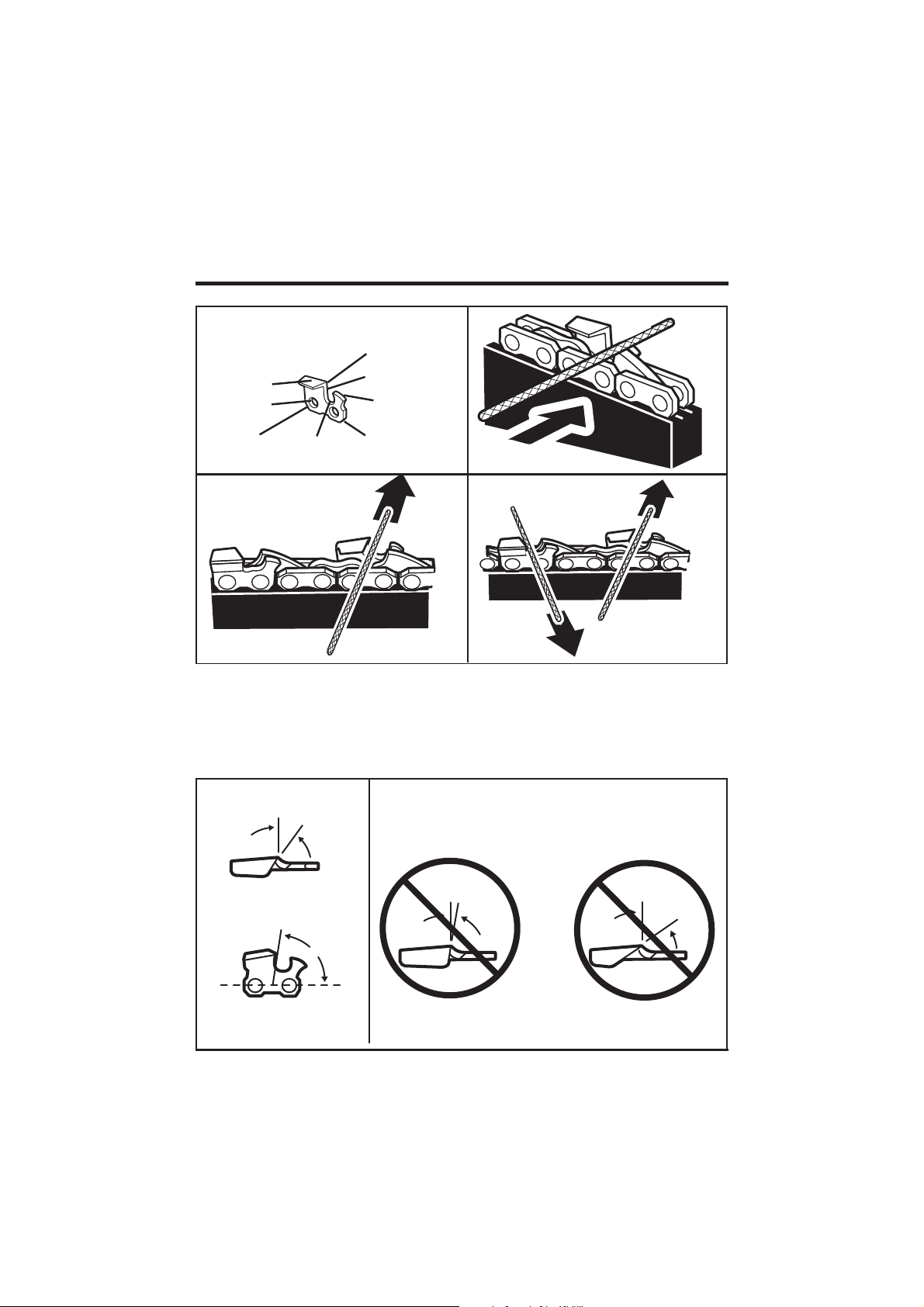

SHARPENING THE CUTTERS
(See Figure 38-41)
obtained only when all cutters are uniform.
CAUTION
Make sure the battery is removed from the chain saw before you work on the saw.
WARNING
The saw chain is very sharp. Always wear protective gloves when performing maintenance to
bar.
CAUTION
A dull or improperly sharpened chain can cause excessive motor speed during cutting, which
may result in severe motor damage.
WARNING
Improper chain sharpening increases the potential of kickback.
WARNING
MAINTENANCE
3
TOP PLATE FILING ANGLE
(See Figure 42)
CORRECT 30° – file holders are marked with guide marks to align file properly to produce
correct top plate angle.
LESS THAN 30° – for cross cutting.
MORE THAN 30° – feathered edge dulls quickly.
Fig. 38
Fig. 40
Fig. 39
Fig. 41
Fig. 42
Toe
Cutting Corner
Left Hand
Cutters
Right Hand
Cutters
Side Plate
Depth Gauge
PARTS OF A CUTTER
TOP PLATE FILING ANGLE
SIDE PLATE FILING ANGLE
CORRECT INCORRECT
LESS THAN 30°
30°
80°
MORE THAN 30°
MAINTENANCE
Gullet
Heel
Rivet Hole
Top Plate
3

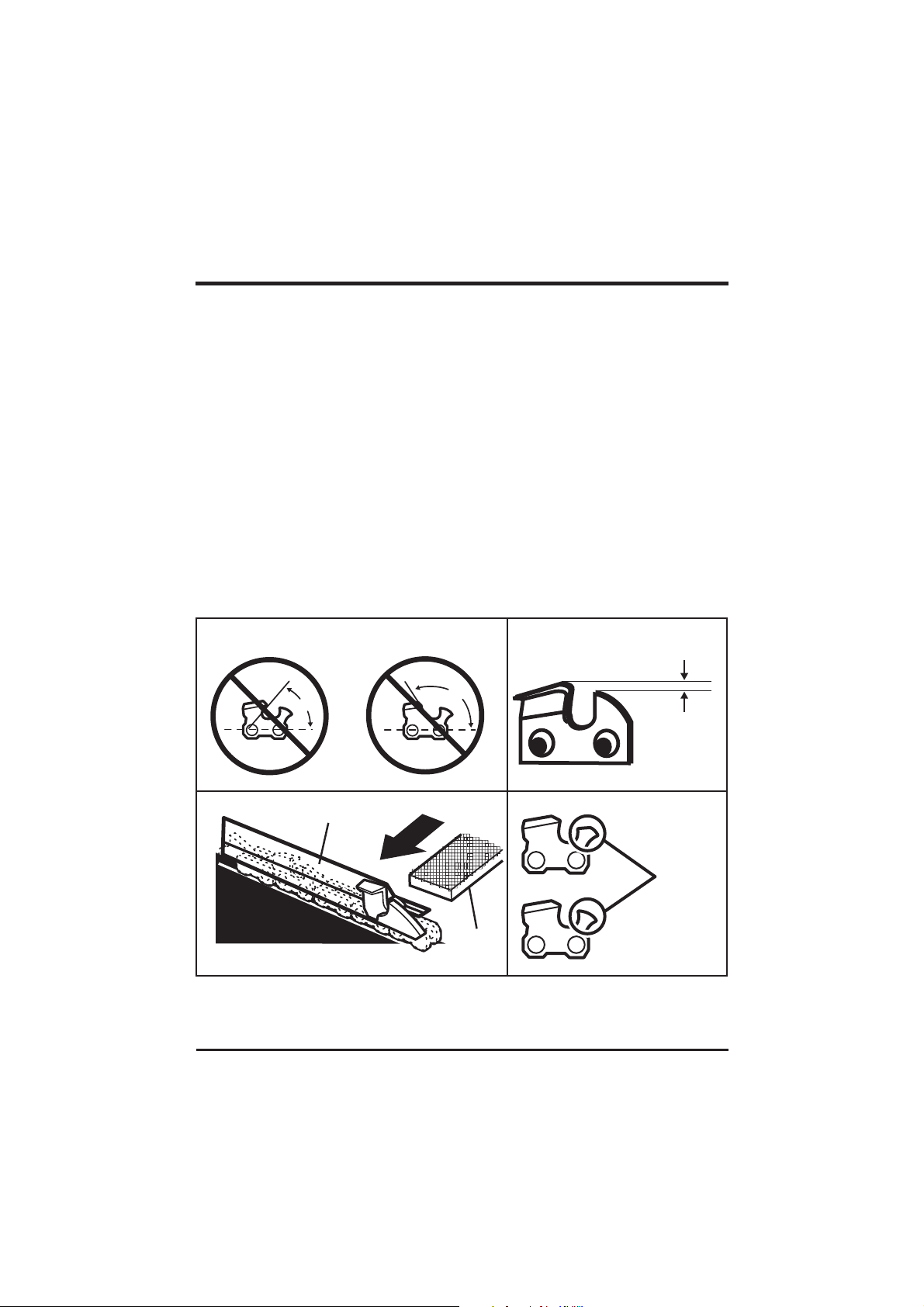

SIDE PLATE ANGLE
(See Figure 43)
HOOK – “Grabs” and dulls quickly; increases the potential of KICKBACK. Results from using a
BACKWARD SLOPE – Needs too much feed pressure; causes excessive wear to the bar and
SIDE PLATE ANGLE
(See Figure 44-46)
Maintain the depth gauge at a clearance of 1/32" (0.6 mm) Use a depth gauge tool for checking
the depth gauge clearances.
MAINTENANCE
Raker (Depth Gauge) Clearance
HOOK BACKWARD SLOPE
INCORRECT
Restore
Original
Shape By
Rounding
The Front
1/32" (0.6 mm)
Fig. 43
Fig. 45
Fig. 44
Fig. 46
Depth Gauge Jointer
Flat File
3

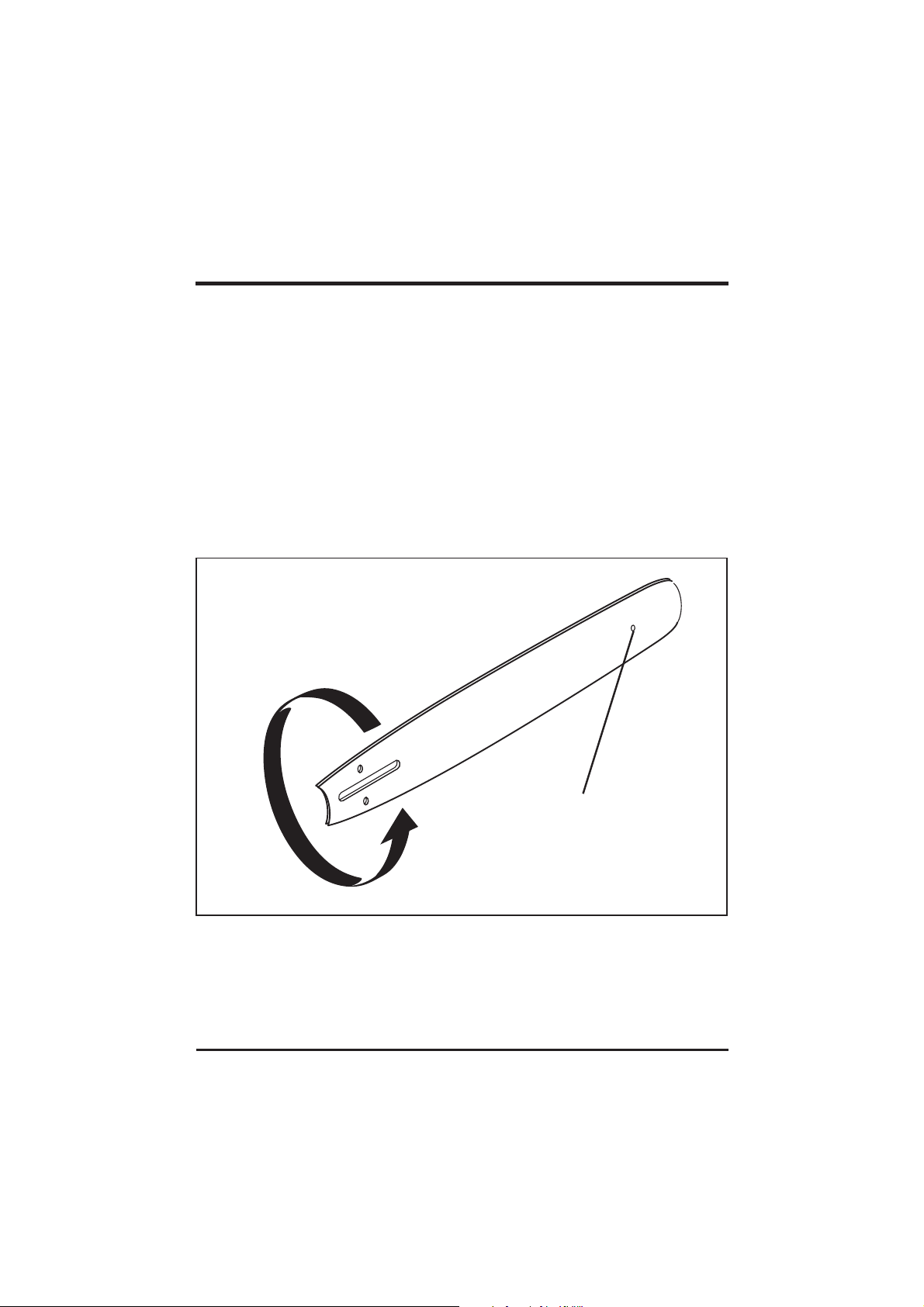

MAINTAINING THE GUIDE BAR
(See Figure 47)
Every week of use, reverse the guide bar on the saw to distribute the wear for maximum
bar life. The bar should be cleaned every day of use and checked for wear and damage.
Feathering or burring of the bar rails is a normal process of bar wear. Such faults should be
smoothed with a file as soon as they occur. A bar with any of the following faults should be
replaced:
Wear inside the bar rails that permits the chain to lay over sideways
Bent guide bar
Cracked or broken rails
Spread rails
Lubricate guide bars weekly with a sprocket at their tip. Using a grease syringe, lubricate weekly
in the lubricating hole. Turn the guide bar and check that the lubrication holes and chain groove
are free from impurities.
MAINTENANCE
Fig. 47
Lubricating Hole
3
ENVIRONMENTALLY SAFE BATTERY DISPOSAL
The batteries used in this chain saw's battery pack contain the following toxic and corrosive mate-
rial: LITHIUM-ION.
WARNING
of the environment. Before disposing of damaged or worn out Lithium-Ion battery packs,
contact your local waste disposal agency or the local Environmental Protection Agency for
information and specific instructions. Take the batteries to a local recycling and/or disposal
not, do not recharge it and do not use it. Dispose of it and replace it with a new battery pack.
DO NOT ATTEMPT TO REPAIR IT!
and to avoid damage to the environment:
Cover the battery's terminals with heavy-duty adhesive tape.
Do not attempt to remove or destroy any of the components of the battery pack.
Do not attempt to open the battery pack.
If a leak develops, the electrolytes that are released are corrosive and toxic. Do not get the
solution in the eyes or on the skin, and do not swallow it.
Do not place batteries in regular household trash.
DO NOT incinerate batteries.
waste stream.
Li-Ion
3
PROBLEM POSSIBLE CAUSE SOLUTION
Bar and chain Check chain tension for Tension chain. Refer to Chain Tension
running hot and overtightened condition. earlier in this manual.
smoking.
Chain oil tank empty. Check oil tank.
Motor runs, but Chain tension too tight. Retention chain. Refer to Chain Tension
chain is not rotating. earlier in this manual.
Check guide bar and chain Refer to Replacing the Bar and Chain
assembly. earlier in this manual.
Check guide bar and chain for Inspect guide bar and chain for damage.
damage.
Motor runs, chain Dull chain. Sharpen chain.
rotates but does not
cut. Chain on backwards. Reverse direction of chain.
TROUBLESHOOTING
38
GREENWORKS™ hereby warranties this product, to the original purchaser with proof of
purchase, for a period of four (4) years against defects in materials, parts or workmanship.
GREENWORKS™, at its own discretion will repair or replace any and all parts found to be
defective, through normal use, free of charge to the customer. This warranty is valid only for
units which have been used for personal use that have not been hired or rented for industrial/
commercial use, and that have been maintained in accordance with the instructions in the
owners’ manual supplied with the product from new.
Battery and charger carries a two (2) year warranty against defects in workmanship and materials.
Batteries must be charged in accordance with the operator’s manuals directions and regulations
in order to be valid.
ITEMS NOT COVERED BY WARRANTY:
1. Any part that has become inoperative due to misuse, commercial use, abuse, neglect,
accident, improper maintenance, or alteration; or
2. The unit, if it has not been operated and/or maintained in accordance with the owner's
manual; or
3. Normal wear, except as noted below;
4. Routine maintenance items such as lubricants, blade sharpening;
5.
GREENWORKS HELPLINE (1 888 90WORKS):
Warranty service is available by calling our toll-free helpline, 9 a.m. to 5 p.m. EST. Monday –
Friday at 1 888 909 6757 (1 888 90WORKS).
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power equipment unit or attachment are the
responsibility of the purchaser. It is the purchaser’s responsibility to pay transportation charges
for any part submitted for replacement under this warranty unless such return is requested in
writing by GREENWORKS.
LIMITED FOUR-YEAR WARRANTY
39
EXPLODED VIEW
40
PARTS LIST
ITEM NO. PART NO. DESCRIPTION QTY
1 34113419-1 Scabbard 1
2 31102329-1 10” Chain 1
3 34103583 Knob 1
4 33901420 Sleeve 1
5 34110583 Rear cover 1
6 34203420 Rubber block 1
7 31101329-2 10” Bar 1
8 3290186A O 4 Washer 4
9 34108583 Tension knob 1
10 32202391 stlob F-21*5.3TS2
11 34108420 kcolb bonk noisneT1
12 32900420 1
13 33301420 Washer for sprocket 1
14 33900420 raeg niahC1
15 32201329 Bolts 3
16 32207159-1 Tension shaft 1
17 33904159 Tension gear
Washer for bar
1
18 33301583 1
19 34112583 Switch 1
20 33200420 Spring for switch 1
21 33904524 Spring 1
23 34101583 Right housing
1
24 34113583
Lock out trigger 1
25 36300420
Switch 1
26 34105583 Oil tank
1
27 34107583 Line for oil cap
1
28 34206152A Seal
1
29 34106583 Oil cap
1
30 34115583 O ring
1
31 34102583 Left housing
1
32 36102420 Capacitance
1
33 34111583
Decker 1
34 36101420 Magnetic ring
1
35 34104978
Insert of housing 1
36 33303159-1 Tension block
1
37 34103583 Handle
1
38 3220404 Bolts
1
39 30302271 Wire
40cm
O 9 Washer
4
PARTS LIST
ITEM NO. PART NO. DESCRIPTION QTY
40 30301271 Wire (14AWG black) 40FP
41 36101583 24V motor 1
42 33901329 Transmission drive gear 1
43 33100420-1 Gearbox 1
44 3210111 Needle Roller Bearings 3
45 32201155 Bolts 2
46 32916131 Spring washer 2
47 33902329 1
48 33903329 1
49 34104583 Fenders 1
50 33202329-1 Transmission drive gear 1
51 3220313A 25
52 32208159-1 Filtered spring
Outlet oil tube
1
53 34201420
Driven gear
Driven gear
1
54 31100329 Oil pump 1
55 34202420 Input oil tube 1
56 3220811
Bolts
Washer
1
57 3290675A 3
58 3221198 Bolts 1
59 33203420 Outlet shaft
60 32104159 Bearing 1
61 33101420 Cover for gearbox 1
62 33902420 Cam oil for pump 1
Bolts
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
Printed in China on 100% Recycled Paper
Rev:00(01-21-14)
