PET1046
Portable DVD player
Register your product and get support at
www.philips.com/welcome
User manual
PET1046_EN 3/6/09 17:45 Page 1
1
PET1046_EN 3/6/09 17:45 Page 2
PET1046_EN 3/6/09 17:45 Page 3
2
PET1046_EN 3/6/09 17:45 Page 4
English
1 Control elements
and functional compo-
nents
1.1 Main unit controls
1.2 Disc door
1.3 Front of player
1.4 Bottom of the player
1.5 Right of player
1.6 Remote Control
2 Introduction
2.1 Your portable DVD player
2.2 Unpacking
2.3 Placement
2.4 Playable disc formats
2.4.1 DVD-Video
2.4.2 Video CD
2.4.3
Audio CD/MP3 CD/ WMA
CD
2.4.4 CD with JPEG files
2.4.5 DivX video discs
2.4.6 About SD Memory Card
2.5 Zero Bright DotTM
2.6 Compatibility of the USB
connection on this
portable DVD player:
2.6.1 Music:
2.6.2 Picture:
2.6.3 Video (vary with models):
3 General information
4 Charging the units
4.1 Charge the DVD player
4.2 Powering your remote
control
5 Start up
5.1 Setup
5.2 Playback DVD
5.3 Playback VCD
5.4 Playback Super (S)-VCD
5.5 Playback Music CD
5.6 Playback Music
MP3/WMA-CD
5.7 Playback Picture-CD
5.8 Playback from
USB/SD(SDHC)

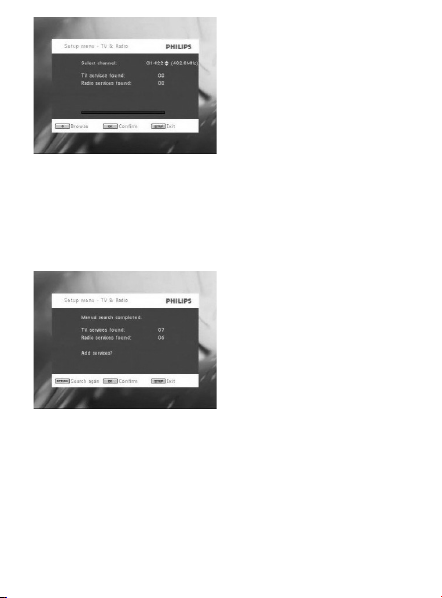

5.9 TV & Radio
5.9.1 Antenna connection

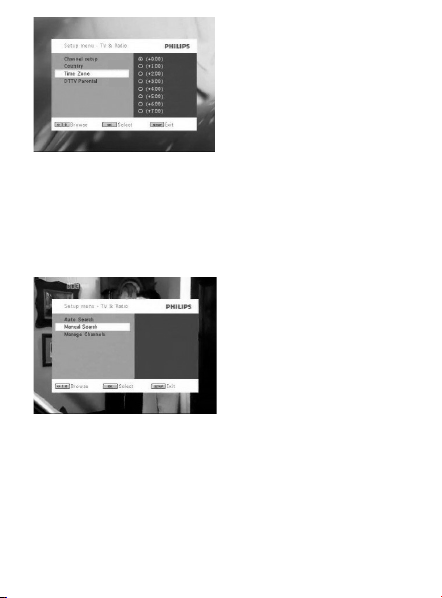

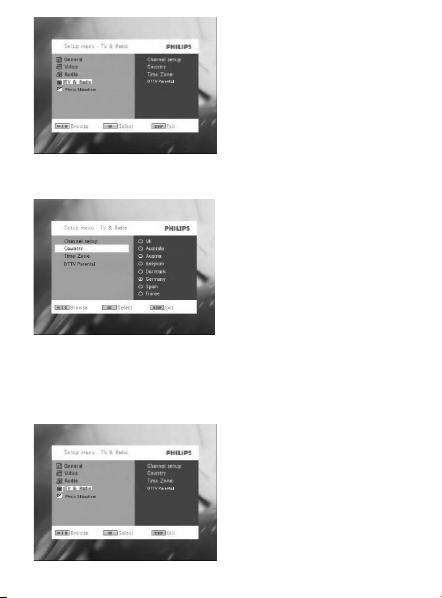

5.9.2 Setup TV & Radio chan-
nels
5.9.3 Enjoy TV programs

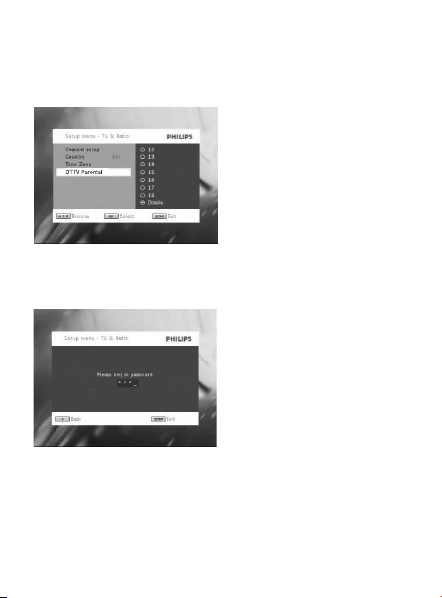

5.9.4 Settings
5.9.5 Manage channels
5.9.6 Electronic program
guide (EPG)
5.9.7 List
6Addition Functions
6.1 DISPLAY Menu
6.2 Connection
Content
PET1046_EN 3/6/09 17:45 Page 5
6.2.1 Headphone
6.2.2 TV
6.2.3 AV input
6.2.4 USB
6.2.5 Coaxial
6.2.6 SD/SDHC card slot
6.2.7 Component Video and S Video
6.2.8 TV antenna
7Troubleshooting
8Technical data
1 Control elements and functional components
1.1 Main unit controls (see figure 1)
1 2; Start / pause / resume playback
2 9 Press once to stop playback and store the stop
position. Press twice to stop playback completely.
3 J( / )K previous/next track or fast search backward/forward
4
- VOL +
Volume control
5 SOURCE Switch among TV, DVD and other sources.
6 SETUP Enter SETUP menu
7 DISPLAY Adjust the display value of the system
8 DISC MENU Display MENU page
9 3, 4, 1, 2 Up / down / left / right cursor
OK Confirm selection
10 OPTIONS Access additional functions
11 POWER•IR•CHG
Power / Remote sensor / charging indicator
1.2 Disc door (see figure 1)
12 POWER Switch the player on / off
13 OPEN Open disc door to insert or remove disc
1.3 Front of player (see figure 1)
14 POWER•IR•CHG
Power / Remote sensor / charging indicator
1.4 Bottom of the player (see figure 1)
15 RESET Reset the player when it is hanged up
16 Car mounting screw hole
PET1046_EN 3/6/09 17:45 Page 6
1.5 Right of player (see figure 1)
17 p Headphones jack
18 AV OUT Audio/Video output
19 AV IN Audio video input
20 USB USB connector
21 SD/SDHC CARD
Insert SD/SDHC card
22 S VIDEO/COMP.VIDEO
S video output or component video output
23 COAXIAL Digital audio output
24 DC IN 9V Power supply socket
25 ANTENNA Connection to antenna plug

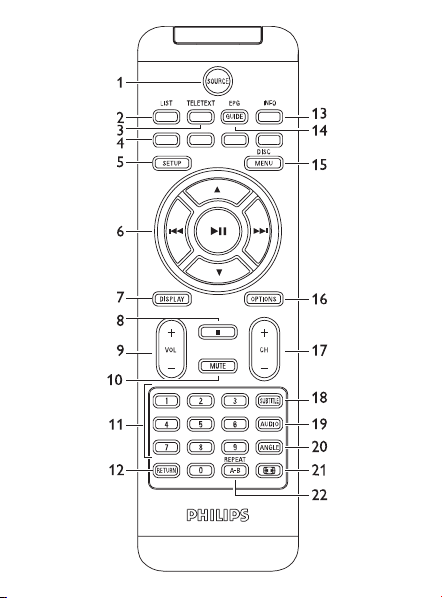

1.6 Remote Control (see figure 2)
1 SOURCE Switch between DVD > Component > TV > Radio
> USB > AV-in
2 LIST View channels
3 TELETEXT Activate TELETEXT
4 Direct access to the items
Coloured areas are displayed at the bottom of the
screen.The 4 coloured keys are used to access the
items or corresponding pages.The coloured areas
flash when the item or the page is not yet available.
5 SETUP Enter SETUP menu
6 2; OK or play/pause
3 / 4 Up/down navigation key / Channel control
J( / )K Left/right navigation key or previous/next track
or fast search backward/forward
7 DISPLAY Adjust the display value of the system
8 9 Press once to stop playback
9+ VOL - Volume control
10 MUTE Muting player volume
11 0 - 9 Numeric keypad
PET1046_EN 3/6/09 17:45 Page 7
2 Introduction
CAUTION Use of controls or adjustments or performance
of procedures other than herein may result in hazardous radia-
tion exposure or other unsafe operation.
12 RETURN For VCD menu page
13 INFO List program information
14 EPG Activate Electronic program guide
15 DISC MENU Display the DVD disc menu
16 OPTIONS Access additional functions
17 + CH- Channel control
18 SUBTITLE Subtitle language selector
19 AUDIO Audio language selector
20 ANGLE Selects DVD camera angle
21 To adjust the screen of 16:9 or 4:3
22 A - B To r epeat or loop a sequence in a title
2.1 Your portable DVD player
Your portable DVD player plays digital video discs conforming to
the universal DVD Video standard.With it, you will be able to enjoy
full-length movies with true cinema picture quality, and stereo or
multichannel sound (depending on the disc and on your playback
set-up).
The unique features of DVD-Video, such as selection of soundtrack
and subtitle languages, and of different camera angles (again depend-
ing on the disc), are all included.
What’s more, parental lock lets you decide which discs your chil-
dren will be able to see.You will find your player remarkably easy
to use with the On-Screen Display and player display in combina-
tion with the remote control.
2.2 Unpacking
First check and identify the contents of your package, as listed below:
PET1046_EN 3/6/09 17:45 Page 8
•Portable DVD player • Remote Control (AY5506)
• Car adaptor (12V) • User manual
•AC power adaptor (AY4117) • Audio/video cable
• Antenna • Component cable
•S video cable • Travel bag
2.3 Placement
• Place the player on a firm, flat surface.
•Keep away from domestic heating equipment and direct sunlight.
• If the player cannot read CDs/DVDs correctly, try using a com-
monly available cleaning CD/DVD to clean the lens before taking
the player to be repaired. Other cleaning methods may destroy
the lens.
•Always keep the disc door closed to avoid dust on the lens.
• The lens may cloud over when the player is suddenly moved
from cold to warm surroundings. It is then not possible to play a
CD/DVD. Leave the player in a warm environment until the
moisture evaporates.
2.4 Playable disc formats
In addition to DVD-Video disc, you will also be able to play all
Video CDs, CDs, CDR, CDRW,DVD±R and DVR±RW.
2.4.1 DVD-Video
Depending on the material on the disc (a movie, video clips, a
drama series, etc.) these discs may have one or more
Titles, and each Title may have one or more Chapters.To
make access easy and convenient, your player lets you move
between Titles, and also between Chapters.
2.4.2 Video CD
Depending on the material on the disc (a movie, video
clips, a drama series, etc.) these discs may have one or
more Tracks, and tracks may have one or more indexes,
as indicated on the disc case.To make access easy and convenient,
your player lets you move between tracks and between indexes.
PET1046_EN 3/6/09 17:45 Page 9
2.4.3 Audio CD / MP3 CD / WMA CD
Audio CDs / MP3 CD / WMA CD contain music tracks
only.You can play them in the conventional way
through a stereo system using the keys on the
remote control and/or main unit, or via the TV
using the On Screen Display (OSD).
2.4.4 CD with JPEG files
You can also view JPEG still photos on this player.
2.4.5 DivX video discs
DivX is a popular media technology created by DivX, Inc.
DivX media files contain highly compressed video with
high visual quality that maintains a relatively samll file size. DivX
files can also include advanced media features like menus, subtitles,
and alternate audio tracks. Many DivX media files are available for
download online, and you can create your own using your personal
content and easy-to-use tools from DivX.com.
Offical DivX® Certified product. Plays all versions of DivX® video
(including DivX® 6) with standard playback of DivX® media files.
2.4.6 About SD Memory Card
SD Memory Card is a slim and compact bridge media link-
ing various kinds of digital equipment through its easy connectivity.
The card's control circuitry allows data to be read and written (in
its protection area) only when appropriate external devices are
detected. Using decoder software, an SD Memory
Card-compatible device can play music, video clips and more with-
out a drive mechanism like those in CD and DVD players.
2.5 Zero Bright Dot
TM
Enjoy highest-quality images that are free from annoying
blank spots on the LCD screen. LCD displays commonly
have imperfections, termed as 'bright dots' by the LCD industry.A
limited number of bright dots were once considered an inevitable
side effect of LCD mass production.With Philips' strict quality con-
PET1046_EN 3/6/09 17:45 Page 10
trol procedures used in our Portable DVD Players, our LCD dis-
plays are produced with zero tolerance for bright dots. Select
Portable DVD Players come with Philips Zero Bright Dot
TM
Policy
to guarantee optimal screen quality.
Warranty service varies from region to region. Contact your local
Philips representative for more detailed information.
2.6 Compatibility of the USB connection on this
portable DVD player:
This portable DVD player supports most USB Mass storage
devices (MSD) that are compliant to the USB MSD stan-
dards.
— Most common Mass storage class devices are flash drives, mem-
ory sticks, jump drives and etc.
— If you see a "Disc Drive" show up on your computer after you
plugged the mass storage device into your computer, most likely it
is MSD compliant and it will work with this portable DVD player.
If your Mass storage device required a battery / power source. Please
make sure you have a fresh battery in it or charge the USB device
first and then plug it into the portable DVD player again.
2.6.1 Music:
• This device only supports unprotected music with the following
file extension:
.mp3
.wma (vary with model)
• Music bought from on-line music stores are not supported
because they are secured by Digital Rights Management protec-
tion (DRM).
2.6.2 Picture:
• This device only support picture file with the following file
extension:
.jpg
PET1046_EN 3/6/09 17:45 Page 11
Please always use supplied AC/DC adaptor
3 General information
No Direct connection can be made from computer
USB port to the portable DVD player even you have
either or both mp3 or wma files in your computer.
2.6.3 Video (vary with models):
• This device support DivX video files.The following file
extension is:
.divx, .dix
Power Sources
This unit operates on a supplied AC adaptor, car adapter, or a
rechargeable battery pack.
• Make sure that the input voltage of the AC adaptor is in line
with the local voltage. Otherwise, the AC adaptor and unit may
be damaged.
• Do not touch the AC adaptor with wet hands to prevent elec-
tric shock.
• When connecting with car power (cigarette lighter) adaptor, be
sure the input voltage of the adaptor is identical with car voltage.
• Unplug the AC adaptor from the outlet when the unit is not
used for long periods of time.
• Hold the plug to disconnect the AC adaptor. Do not pull the
power cord.
Safety and maintenance
• Do not disassemble the unit for laser rays are dangerous to eyes.
Any service should be done by qualified service personnel.
• Unplug the AC adaptor to cut the power if liquid or objects get
inside the unit.
PET1046_EN 3/6/09 17:45 Page 12
•Take care not to drop the unit or subject it to strong shocks,
which may cause malfunction.
Hearing Safety
Listen at a moderate volume.
• Using headphones at a high volume can impair your
hearing.This product can produce sounds in decibel
ranges that may cause hearing loss for a normal per-
son, even for exposure less than a minute.The higher
decibel ranges are offered for those that may have already expe-
rienced some hearing loss.
• Sound can be deceiving. Over time your hearing “comfort level”
adapts to higher volumes of sound. So after prolonged listening,
what sounds “normal” can actually be loud and harmful to your
hearing.To guard against this, set your volume to a safe level
before your hearing adapts and leave it there.
To establish a safe volume level:
• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and
clearly, without distortion.
Listen for reasonable periods of time:
•Prolonged exposure to sound, even at normally “safe” levels, can
also cause hearing loss.
• Be sure to use your equipment reasonably and take appropriate
breaks.
Be sure to observe the following guidelines when using
your headphones.
• Listen at reasonable volumes for reasonable periods of time.
• Be careful not to adjust the volume as your hearing adapts.
• Do not turn up the volume so high that you can’t hear what’s
around you.
•You should use caution or temporarily discontinue use in poten-
tially hazardous situations.
PET1046_EN 3/6/09 17:45 Page 13
• Do not use headphones while operating a motorized vehicle,
cycling, skateboarding, etc.; it may create a traffic hazard and is
illegal in many areas.
• Important (for models with by-packed headphones): Philips guar-
antees compliance with the maximum sound power of its audio
players as determined by relevant regulatory bodies only with
the original model of provided headphones. In case this one
needs replacement, we recommend that you contact your retail-
er to order a model identical to that of the original provided by
Philips.
•Traffic safety: do not use while driving or cycling as you may
cause an accident.
• Do not expose to excessive heat caused by heating equipment
or direct sunlight.
• This product is not waterproof: do not allow your player to be
submersed in water.Water entering the player may cause major
damage.
• Do not use any cleaning agents containing alcohol, ammonia,
benzene, or abrasives as these may harm the player.
• Apparatus shall not be exposed to dripping or splashing. Do not
place any sources of danger on the appartus (e.g. liquid filled
objects,lighted candles)
• Do not touch the lens!
When the player is in use for a long period of time, the sur-
face will be heated.This is normal.
Handling discs
• Do not attach paper or tape to the disc.
•Keep the disc away from direct sunlight or heat sources.
• Store the disc in a disc case after playback.
•To clean, wipe the disc outwards from the center with a soft,
lint-free clean cloth.
PET1046_EN 3/6/09 17:45 Page 14
On handling the LCD screen
The LCD is manufactured using high precision
technology.You may, however, see tiny black points
that continuously appear on the LCD.This is a
normal result of the manufacturing process and
does not indicate a malfunction.
Environmental information
We have reduced the packaging to its minimum and made it easy to
separate into mono materials: cardboard, PS, PE and PET.
Your set consists of material which can be recycled if disassembled
by a specialized company. Please observe the local regulations to
dispose of packaging, exhausted batteries and old equipment.
Copyright information
DivX, DivX Certified, and associated logos are trademarks of DivX,
Inc. and are used under license.”
All other brand and product names are trademarks of their respec-
tive companies or organizations.
Unauthorized duplication of any recordings downloaded from the
internet or made from CDs / VCDs / DVDs is a violation of copy-
right laws and international treaties.
The Windows Media and the Windows logo are registered trade-
marks of Microsoft Corporation in the United States and/or other
countries.
4 Charging the units
4.1 Charge the DVD player
Plug in the AC/DC adaptor
• The RED LED indicates that
charging is in progress.When the
set is not in use, it will take about
5 hours to fully charge it. However, when in use, it will take more
than 12 hours to fully charge it.*
PET1046_EN 3/6/09 17:45 Page 15
• The RED LED will turn off when the set is fully charged.Whe n
the low battery icon appears on the screen, please charge the player.
* Rechargeable batteries have a limited number of charge cycles
and may eventually need to be replaced. Battery life and number of
charge cycles vary by use and settings.
4.2 Powering your remote control
1 Open the battery compartment. Remove the pro-
tective plastic tab (first time use only).
2 Insert 1 x lithium 3V battery, type CR2025, then
close the compartment.
CAUTION
• Batteries contain chemical substances, so they should be
disposed of properly.
• Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
• Incorrect use of batteries can cause electrolyte leakage and
will corrode the compartment or cause the batteries to
burst.
•Perchlorate Material – special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
PET1046_EN 3/6/09 17:45 Page 16
5.1 Setup
1 Press SETUP.A list of features is shown.
2 Use 3 / 4 to highlight your selection.
3 Use J( or )K to enter a sub-menu
4 Use the navigation keys to highlight your desired setting and
press OK to confirm.
5 The SETUP menu includes:
General
Language Set On Screen Display (OSD) languages.
PBC settings Set Playback Control function ON/OFF.This fea-
ture is available for Super VCD.
Power save Set power saving mode.
DivX (VOD) Get the DivX (Video-On-Demand) code.
DVD Parental Set parental options
Set password Change password (default: 9999).
Factory settings Restore factory settings.
Video
TV Display Set screen display aspect ratio.
TV Standard Set video output format to TV system.
Mpeg 4 subtitle Select subtitle language for Mpeg 4 video, e.g.
DivX video.
5 Start up
PET1046_EN 3/6/09 17:45 Page 17
Audio
Dolby Set Dolby output.
Digital (SPDIF) Set digital output format.
TV & Radio

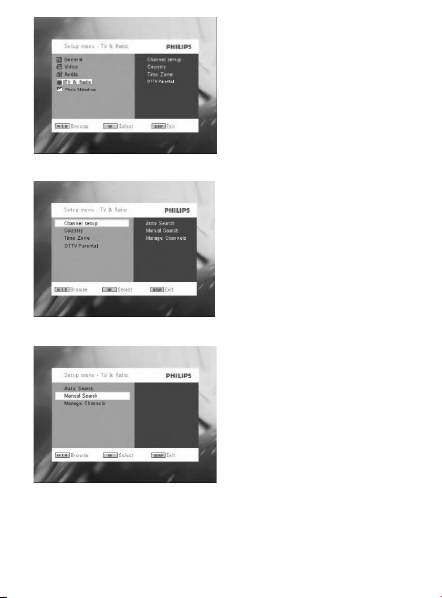

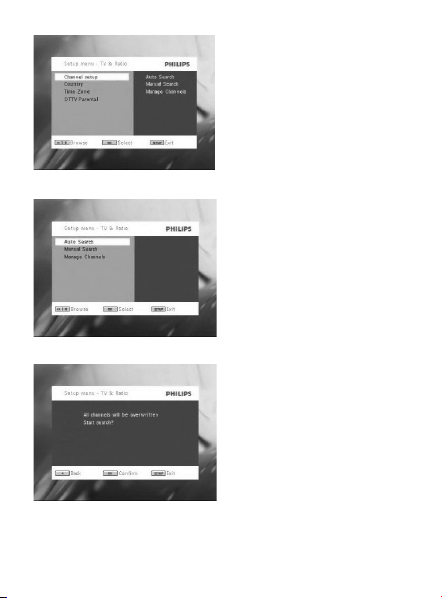

Channel setup set channel.
Country set specific country.
Time Zone set specific time zone.

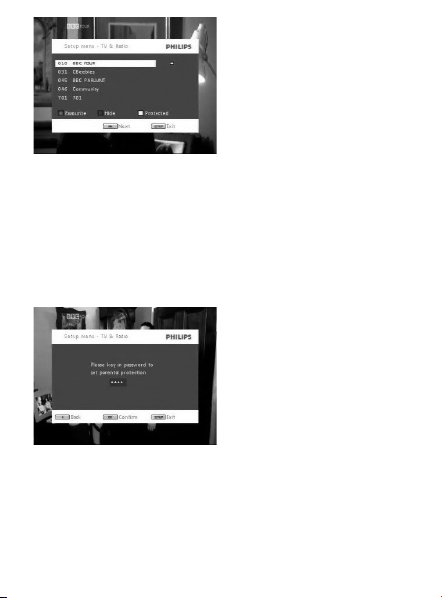

DTTV Parental Set parental options.
Photo Slideshow
Slideshow Freq. select intervals for JPEG play.
Slidehsow Effect select slideshow effect for JPEG play.
5.2 Playback DVD
1 Briefly press POWER on the main control of the player to
switch on the set.
2 Open the disc door and insert the disc.
3 The player will start to play the disc automatically.
4 Use navigation keys 1, 2, 3, 4 to select an item from the DVD
disc menu, such as play now, select languages and subtitle.
5 The following functions are available during playback:
Pause Press 2; to pause playback.You can resume
playback by pressing 2; again
Previous/Next Briefly press J( or )K once or several times to
select your desired chapters
Fast backward / Fast forward
Keep pressing J( or )K to search in fast speed,
2X, 4X… Then, press 2; to resume normal
playback
Volume Control
Press VOL +/- briefly or repeatedly to increase
PET1046_EN 3/6/09 17:45 Page 18
or decrease the sound volume
Stop Briefly press 9 to stop playback
Subtitle Change subtitle display.The function is available
by pressing either the SUBTITLE or
OPTIONS key
Language Change language.The function is available by
pressing either the AUDIO or OPTIONS key
Angle Change the viewing angle provided in the DVD
disc.The function is available by pressing the
ANGLE key.
Zoom Zoom in the screen, and then use the navigation
keys to pan the screen.The function is available
by pressing the OPTIONS key to select
ZOOM mode
A-B Repeat Set repeat loop playback. Press A-B to set the
starting point and press A-B again to set the end-
ing point.Then, the player will repeat the loop
playback. Press A-B to cancel the loop playback
5.3 Playback VCD
1 Briefly press POWER on the main control of the player to
switch on the set.
2 Open the disc door and insert the disc.
3 The set will start to play the disc automatically.
4 The following functions are available during playback:
Pause Press 2; to pause playback.You can resume
playback by pressing 2; again
Previous/Next Briefly press J( or )K once or several times to
select your desired track
Fast backward / Fast forward
Keep pressing J( or )K to search in fast speed,
2X, 4X or 8X.Then, press 2; to resume normal
playback
PET1046_EN 3/6/09 17:45 Page 19
Volume Control
Press VOL +/- briefly or repeatedly to increase
or decrease the sound volume
Stop Briefly press 9 to stop playback
Audio Some VCDs only contain 2 languages for selec-
tion.You can change the language using this func-
tion.The function is available by pressing either
the AUDIO or OPTIONS key
Zoom Zoom in the screen, and then use the navigation
keys to pan the screen.The function is available
by pressing the OPTIONS key to select
ZOOM mode
A-B Repeat Set repeat loop playback. Press A-B to set the
starting point and press A-B again to set the
ending point.Then, the player will repeat the
loop playback. Press A-B to cancel the loop
playback
5.4 Playback Super (S)-VCD
(Super) Video CDs may feature PBC (Play Back Control).This
allows you to play the video CDs interactively, following the menu
on the display.
1 Briefly press POWER on the main control of the player to
switch on the set.
2 Open the disc door and insert the disc.
If PBC is on, the disc index menu will appear on the screen.
3 Use numeric keypad 0-9 to input your selection or select a play
option.
4 Press RETURN on the remote control to return to the previ-
ous menu.
5 To turn Playback Control mode on/off, please go to SETUP and
select PBC settings.
PET1046_EN 3/6/09 17:45 Page 20
5.5 Playback Music CD
1 Briefly press POWER on the main control of the player to
switch on the set.
2 Open the disc door and insert the disc.
3 The set will start to play the disc automatically.
4 The following functions are available during playback:
Pause Press 2; to pause playback.You can resume
playback by pressing 2; again
Previous/Next Briefly press J( or )K once or several times to
select your desired track
Fast backward / Fast forward
Keep pressing J( or )K to enter the fast search
mode.Then, press brief will change the searching
speed to 2X, 4X, 8X, 16x or 32x.
Volume Control
Press VOL +/- briefly or repeatedly to increase
or decrease the sound volume
Repeat Press OPTIONS key to select Repeat 1 track
or Repeat all tracks
Shuffle Press OPTIONS key to turn shuffle playback
on or off
Stop Briefly press 9 to stop playback
5.6 Playback Music MP3/WMA-CD
1 Briefly press POWER on the main control of the player to
switch on the set.
2 Open the disc door and insert the disc.
3 The set will start to play the disc automatically.
4 Use navigation keys to select the folder and MP3/WMA file to
be played.
PET1046_EN 3/6/09 17:45 Page 21
5 The following functions are available during playback:
Pause Press 2; to pause playback.You can resume
playback by pressing 2; again
Previous/Next Briefly press J( or )K once or several times to
select your desired track
Fast backward / Fast forward
Keep pressing J( or )K to search in fast speed,
2X, 4X or 8X.Then, press 2; to resume normal
playback
Volume Control
Press VOL +/- briefly or repeatedly to increase
or decrease the sound volume
Repeat Press OPTIONS key to select Repeat 1 track
or Repeat all tracks
Shuffle Press OPTIONS key to turn shuffle playback
on or off
Stop Briefly press 9 to stop playback
5.7 Playback Picture-CD
The player can only read pictures in JPEG format.
1 Briefly press POWER on the main control of the player to
switch on the set.
2 Open the disc door and insert the disc.
3 The set will start to play the disc automatically.
PET1046_EN 3/6/09 17:45 Page 22
Transfering and recording of data from the DVD to the
USB/SD (SDHC) port is not possible.
4 Use navigation keys to select the folder and JPEG file to be played.
5 The following functions are available during playback:
Pause Press 2; to pause playback.You can resume
playback by pressing 2; again
Previous/Next Briefly press J( or )K once or several times to
select your desired track
Rotate Press OPTIONS key to select rotate mode.
Then, use 1 to rotate the picture clockwise.
Use 2 to rotate the picture anti-clockwise.
Press OPTIONS key to exit rotate mode.
Zoom Zoom in the screen, and then use the navigation
keys to pan the screen.The function is available
by pressing the OPTIONS key to select
ZOOM mode
Stop Briefly press 9 to stop playback
5.8 Playback from USB/SD (SDHC)
The USB port and SD (SDHC) card slot of this DVD support the
playback of JPEG / MP3 / WMA / DivX / MPG-4 files.
PET1046_EN 3/6/09 17:45 Page 23
1 Briefly press POWER on the main control of the player to
switch on the set.
2 Insert a USB flash drive or USB memory card reader into the
USB port.
The USB/SD (SDHC) plug-in storage only support Mass
Storage (MSC) device. It does not support support Hard Disk
USB storage device and storage in MTP (Music Transfer
Protocol) format.
The DVD player will take some time to browse the content of
your USB flash drive.The browsing time will vary for memory
capacity and the number of content in your USB drive.
3 The player will browse and show the contents in the USB flash
device automatically.
4 Use navigation keys to select the file you want to access, then
press OK to play it.
5 At the end of the playback, unplug the USB flash drive or USB
memory card from the player.
PET1046_EN 3/6/09 17:45 Page 24
5.9 TV & Radio
Before installation, please make sure you are in an area with sufficient
DTTV signal coverage.You can check the signal coverage on country
TV broadcast authority or visit www.philips.com/support.
5.9.1 Antenna connection
Before you start searching TV channels, connect the DVD player to
the antenna as shown.
5.9.2 Setup DTTV channels
Country Settings
Before proceeding to Auto/Manual search, you must set up your
country settings.
1 Press SETUP.
2 Select TV & Radio,press 2; to confirm.
bypack
antenna
home antenna
To deactivate the USB browser or want to switch to DVD
playback, simply unplug the USB connection.
PET1046_EN 3/6/09 17:45 Page 25
3 Select Country,press 2; to enter country list.
4 Select your current country, press 2; to confirm.
5 To exit this menu, press SETUP.
Auto search
1 Press SETUP.
2 Select TV & Radio,press 2; to confirm.
PET1046_EN 3/6/09 17:45 Page 26
3 Select Channels Setup.
4 Select Auto Search,press 2; to confirm.
5 To start Auto Search, press 2; .

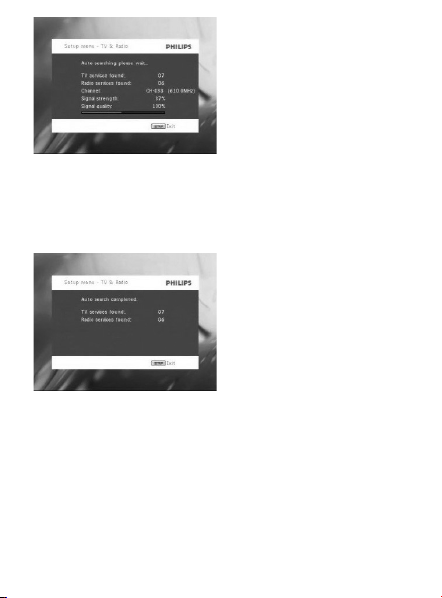

6 Auto channel search starts.
PET1046_EN 3/6/09 17:45 Page 27
7 When Auto channel search is completed, the screen displays the
total number of TV and Radio channels found.
When all the digital TV and Radio stations have been found, the
scan progress will arrived to 100%, the first found program will
play automatically after 3 seconds.
Manual Search
1 Press SETUP.
2 Select TV & Radio.
PET1046_EN 3/6/09 17:45 Page 28
3 Select Channel setup,press 2; to confirm.
4 Select Manual Search,press 2; to confirm.
5 Use 3 / 4 to select a channel number. To start searching,
press 2; .
PET1046_EN 3/6/09 17:45 Page 29
6 When Manual channel search is completed, the screen displays
the total number of TV and Radio channels found.
•To add new found channels to your player’s channel list,
press 2; .
•To exit menu and watch program, press SETUP.
•To manual search again, press RETURN.
5.9.3 Enjoy TV programs
To change channels
To change to a different channel, you can either press CH-/CH+,
or enter channel number with numeric ke gs
PET1046_EN 3/6/09 17:45 Page 30
5.9.4 Settings
Parental control
1 Press SETUP.
2 Select TV & Radio > DTTV Parental.
3 Press 2; to enter sub menu.
4 Select a parental age, press 2; to confirm.
5 Enter password (preset password is 9999).
6 Press SETUP to exit the current settings screen.
Time Zone
1 In DVB menu, press SETUP.
2 Select TV & Radio > Time Zone.
3 Press 2; to enter sub menu.
4 Select your current time zone, press 2; to confirm.
5 During the summer time please add one hour yourself.
PET1046_EN 3/6/09 17:45 Page 31
5.9.5 Manage Channels
Through Manage Channels,you can hide a channel from the
player’s channel list, or add parental protection to a channel(s).
1 Press SETUP.
2 Go to Channels Setup > Manage Channels.
3 Press 2; to enter sub menu.
4 Use the 3 / 4 to select the channel that you want to hide from
the player’s channel list, or add parental protection. Press )K to
next page.
PET1046_EN 3/6/09 17:45 Page 32
• Select the channel you want to indicate as a favourite by using
the arrow buttons. Press the red colour button to add the
channel to the favourites.
•To hide a channel from the player’s channel list, press the
blue key.
•To add parental protection to a channel, press the yellow key.
Enter the password, press 2; to confirm (preset password is
9999).
5 Press SETUP to save the settings and exit.
On Screen Program Information
INFO
•To view brief information of current program, press INFO.
PET1046_EN 3/6/09 17:45 Page 33
- Channel number
- Program name
- Local time
- Channel information icons
: locked channel
: scrambled channel (subscription required)
:program contains subtitles
:program contains teletext
: channel is a favorite channel
:Program contains different audio languages

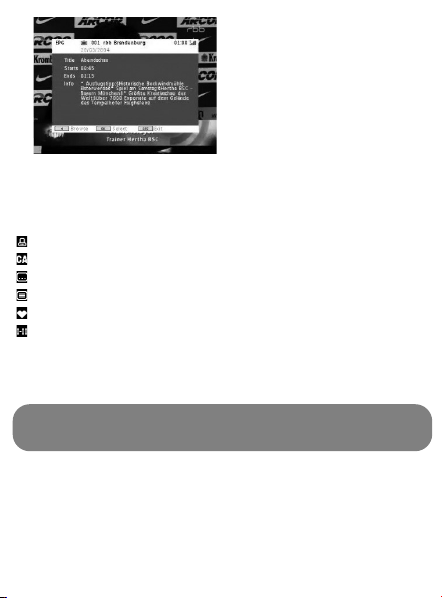

5.9.6 Electronic program guide (EPG)
EPG offers an overview of a channel’s today programs. Information
available include channel name, program title, start and end time.
Not all channels offer extensive EPGs.

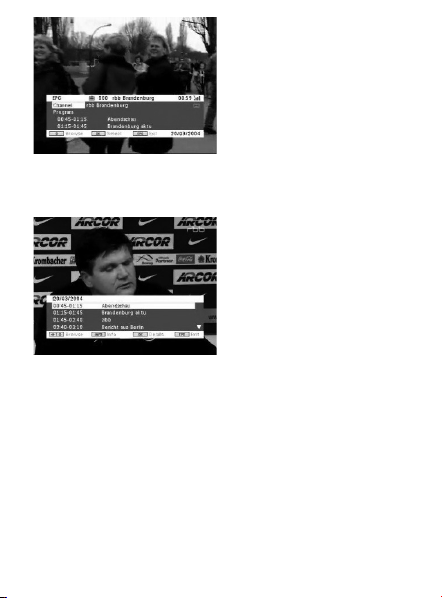

1 To access EPG, press EPG.
2 To view list of channel use the UP/DOWN tp highlight Channel,
then press PLAY/PAUSE to enter submenu.
To r eturn to EPG menu, press J( .
PET1046_EN 3/6/09 17:45 Page 34
3 To view list of upcoming programs of the selected channel, use
3 / 4 to highlight Program, press 2; to enter submenu.
>A list of upcoming programs is displayed.
4 To exit EPG menu, press EPG.

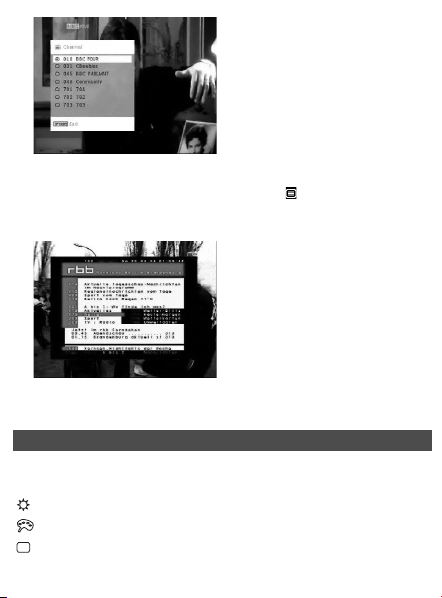

5.9.7 List
To view available channels in your country.
1 Press LIST.
2 Press 3 / 4 to select a channel.
3 To change channel, press 2;.
PET1046_EN 3/6/09 17:45 Page 35
Teletext
If the current channel has Teletext available, will be shown in the
program OSD screen.You can access Teletext by pressing
TELETEXT.
The program may request using color key to access or control the
viewing feature. Please follow indication from the Teletext screen.
6Additional Functions
6.1 DISPLAY Menu
Selection display
to adjust the brightness with 1 2.
to adjust the color with 1 2.
to adjust the screen of 16:9 or 4:3 with 1 2.
PET1046_EN 3/6/09 17:45 Page 36
6.2 Connection
6.2.1 Headphone
Connect the headphone to either one of the headphone jacks on
the side of the player.
6.2.2 TV
You can connect the player to a TV and enjoy your DVD.
6.2.3 AV input
You can connect to other devices such as Digital Video Recorder,
Digital Camera, etc.
White
Red
Yellow
White
Red
Yellow
The video input devices, such as video amplifier, digital video
recorder, digital camera should have the RCA output connec-
tion on the device. If your device does not have the RCA out-
put, please consult your dealer.
6.2.4 USB
You can plug in the USB flash drive to view the stored pictures and
video.
1 After plug in the USB flash drive, the DVD player will browse
the content of your USB drive automatically.
PET1046_EN 3/6/09 17:45 Page 37
2 See section 5.8 Playback from USB for playback details.
3 Unplug the USB drive after enjoyment.This will also deactivate
the USB browser function.
6.2.5 Coaxial
It provides digital audio output signal that you can connect to your
home theater equipment to decode the digital audio signal.
6.2.6 SD/SDHC card slot
You can play video/audio/picture files stored on an SD/SDHC card
by inserting it into the SD/SDHC CARD slot.
Yellow
TIP Make sure the metal contact of the card to be inserted is
facing down.
PET1046_EN 3/6/09 17:45 Page 38
6.2.7 Component Video and S Video
Component Video(YPbPr/YCbCr)
• On the remote control, press SOURCE to select component
video mode in the pop-up menu.
•To exit the component video mode, press SOURCE.
IMPORTANT!
– Component Video connection provides higher picture quality.This
option must be available on your TV.
S Video
To use S Video, connect as illustrated below.
6.2.8 TV antenna
You can connect to the home antenna to receive free to air digital
TV program.
White
Red
Pr/Cr
Pb/Cb
Y
White
Red
PET1046_EN 3/6/09 17:45 Page 39
7.Troubleshooting
WARNING Under no circumstances should you try to
repair the set yourself as this will invalidate the guarantee. If a
fault occurs, first check the points listed, before taking the set
for repair. If you are unable to solve a problem by following
these hints, consult your dealer or service centre.
If it appears that the DVD-Video player is faulty, first consult this
checklist. It may be that something has been overlooked.
Symptom Remedy
No power • Check if both plugs of the mains cord
are properly connected.
• Check if there is power at the AC outlet
by plugging in another appliance.
• Check if car adaptor is connected
appropriately.
Distorted picture • Check the disc for fingerprints and clean
with a soft cloth, wiping from centre to
edge.
• Sometimes a small amount of picture
distortion may appear.This is not a mal-
function.
PET1046_EN 3/6/09 17:45 Page 40
Symptom Remedy
Completely distorted
picture / no colour in
the TV screen
The NTSC/PAL setting may be in the
wrong status. Match your TV’s setting with
the player’s setting.
No sound Check audio connections. If using a HiFi
amplifier, try another sound source.
Disc can’t be played • Ensure the disc label is upwards.
• Clean the disc.
• Check if the disc is defective by trying
another disc.
The player does not
respond to the remote
control
Aim the remote control directly at the
sensor on the front of the player. Avoid all
obstacles that may interfere with the signal
path. Inspect or replace the batteries.
Distorted or B/W pic-
ture with DVD
Use only discs formatted according to the
TV-set used (PAL/NTSC).
Loss of current TV
programs when travel-
ling to another country
1 Press SETUP > TV & RADIO >
Country
.
2 Select your country
.
3 Select Auto search
.
No audio at digital
output
• Check the digital connections.
Player does not respond
to all operating com-
mands during playback
• Operations are not permitted by the disc.
• Refer to the instructions in the disc
inlay.
Cannot detect USB
plug-in
• Unplug the USB connection and plug-in
again. Detection may take some time that
vary with the capacity of your USB device.
• The DVD player only support Mass
Storage (MSC) format from USB flash
drive.
• The DVD player does not support Hard
Disk storage or Media Transfer Protocol
(MTP) format.
PET1046_EN 3/6/09 17:45 Page 41
Symptom Remedy
Cannot switch to AV-in
or no signal
• Unplug the AV-in connection and plug-in
again.
• Check the connection from the AV out-
put device, such as digital camera, video
recorder, etc.
• Use the provided AV cable for connec-
tion.
Switch between
DVD/USB/AV-in
•DVD mode is default source during the
DVD player power on.
• Plug in USB will activate USB mode.
Deactivate it by unplug the connection.
• Plug in AV-in will activate AV-in mode.
And deactivate it by unplugging the con-
nection.
• Do not plug-in USB & AV-in at the same
time. Plug-in one type connection at a
time only.
• Unplug the connection before you
plug-in another connection.
Player feels warm When the player is in use for a long period
of time, the surface will be heated.
This is normal.
Display goes dimmer
when AC is unplugged
The unit is saving power to ensure longer
playtime with battery. It is normal.
Adjust the brightness in the SETUP menu.
This set complies with the radio interference requirements of the
European Union.
PET1046_EN 3/6/09 17:45 Page 42
Dimensions 27 x 19 x 3.8 cm
10.6 x 7.5 x 1.5 inches
Weight 1.5 kg / 3.3 lb
AC power adaptor Input: 100-240V, 50/60Hz
Output: DC 9-12V, 1.8-2.2A
Operating temperature range
0 - 50°C (32 - 122°F)
Laser wavelength 650nm
Video system NTSC / PAL / AUTO
PHILIPS reserves the right to make design and specification
changes for product improvement without prior notice.
Modifications not authorized by the manufacturer may
void users authority to operate this device.
All rights reserved.
Copyright information
The making of unauthorized copies of copy-protected material,
including computer programmes, files, broadcasts and sound
recordings, may be an infringement of copyrights and constitute a
criminal offence.This equipment should not be used for such
purposes.
8Technical data
PET1046_EN 3/6/09 17:45 Page 43
Disposal of your old product
Your product is designed and manufactured with high
quality materials and components, which can be recycled
and reused.
When this crossed-out wheeled bin symbol is attached
to a product, it means the product is covered by the
European Directive 2002/96/EC.
Please be informed about the local separate collection system for
electrical and electronic products.
Please act according to your local rules and do not dispose of your
old product with your normal household waste.The correct dis-
posal of your old product will help prevent potential negative con-
sequences to the environment and human health.
PET1046_EN 3/6/09 17:45 Page 44
Notes for battery disposal
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on separate collection
of batteries.The correct disposal of batteries helps prevent poten-
tially negative consequences on the environment and human health.
Your product contains also a built-in rechargeable battery covered
by the European Directive 2006/66/EC, which cannot be disposed
of with normal household waste.To safeguard the functionality and
safety of your product, take your product to an official collection
point or service centre where a professional can remove or
replace the battery.
Note: Always bring your product to a professional to
remove the built-in battery.
PET1046_EN 3/6/09 17:45 Page 45
Printed in China
wk0910
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V.
or their respective owners
2008 © Koninklijke Philips Electronics N.V. All rights reserved.
Meet Philips at the Internet
http://www.philips.com
PET1046_EN 3/6/09 17:45 Page 46
