INSTALLATION GUIDE
for the
SB-GM-SLVD/10TW1
SKU# 94611
2014 & Up Chevrolet Silverado/GMC Sierra Double Cab
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your
authorized JL Audio dealer. The installation professionals employed by your
dealer have the necessary tools and experience to disassemble and reassemble
your vehicle properly. If you prefer to perform your own installation, please read
this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital
that the Stealthbox
®
be properly mounted to the vehicle according to
these instructions. Failure to mount the enclosure properly presents two
problems:
1) The sub-bass performance will suffer due to the movement of the
enclosure caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a
collision or sudden deceleration.
INSTALLATION
DIFFICULTY:
ESTIMATED TIME:
1 HOUR
Enclosure Type: Sealed
Driver Type: 10TW1-4
Nominal Impedance: 2 ohms
Continuous Power Handling: 600 watts (RMS method)
Continued on Next Page
1
5
OUT
OF
SB-GM-SLVD/10TW1 INSTR_SKU# 011396

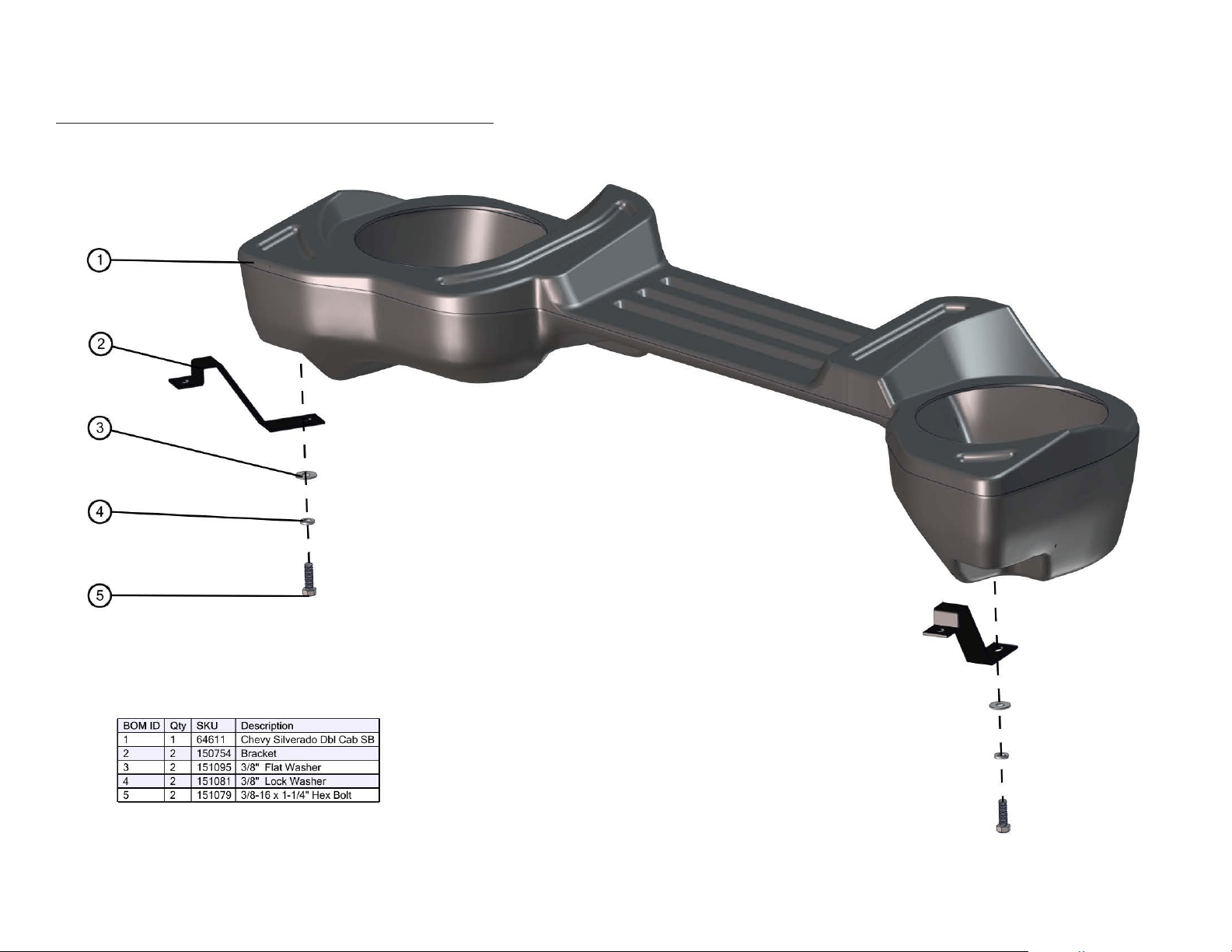

INCLUDED HARDWARE
Continued on Next Page
Page 2 • JL Audio, Inc., 2014
SB-GM-SLVD/10TW1 INSTR_SKU# 011396
POWER RECOMMENDATION

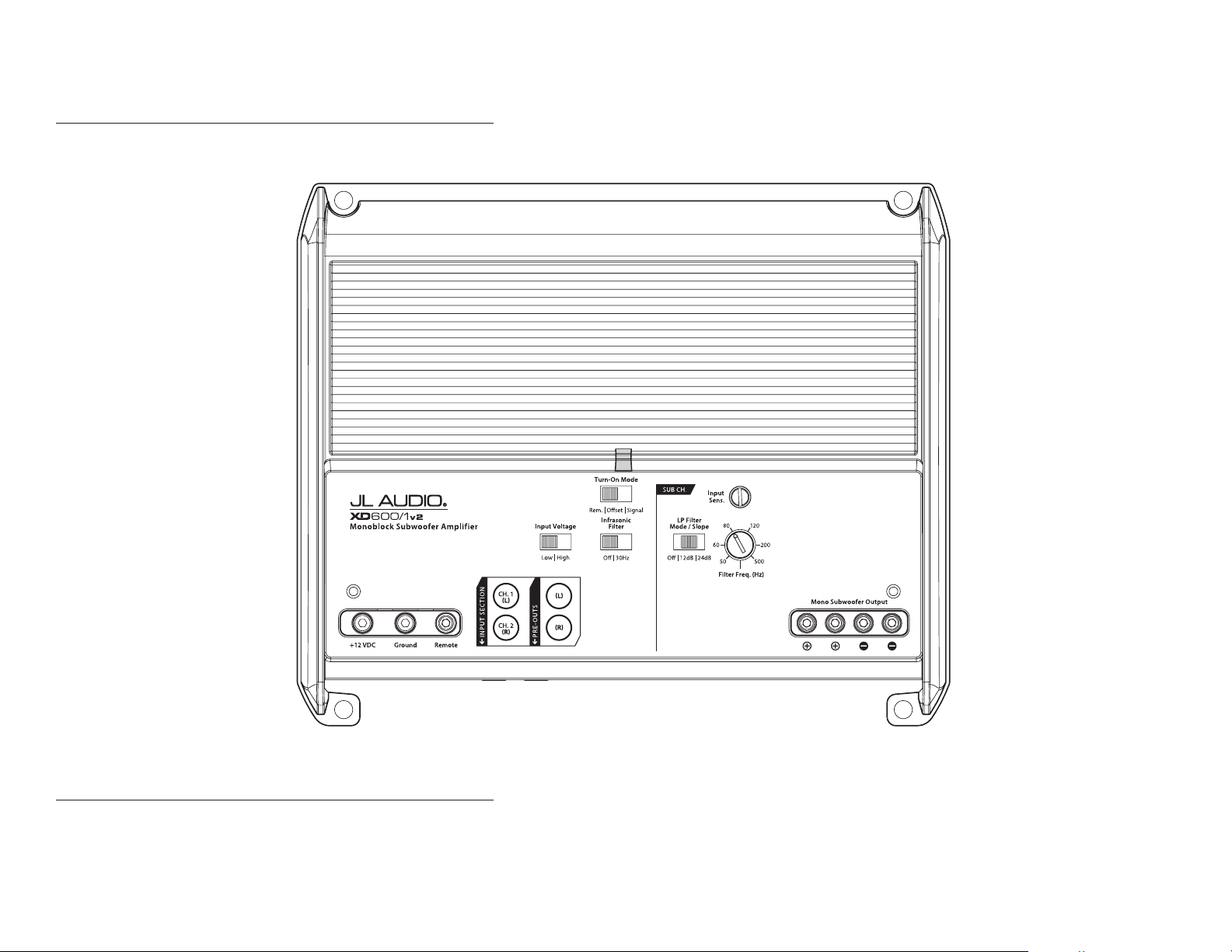

JL Audio recommends high quality ampliers such as the JL Audio XD600/1v2. The diagram below shows the recommended crossover settings for the XD600/1v2. For a detailed description of the
amplier settings, consult the owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.
CONNECTIONS
Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your
Stealthbox® amplier. Other kits are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for
both channels of the amplier. JL Audio reccomends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.
Continued on Next Page
Page 3 • JL Audio, Inc., 2014
SB-GM-SLVD/10TW1 INSTR_SKU# 011396
Page 4 • JL Audio, Inc., 2014 Continued on Next Page

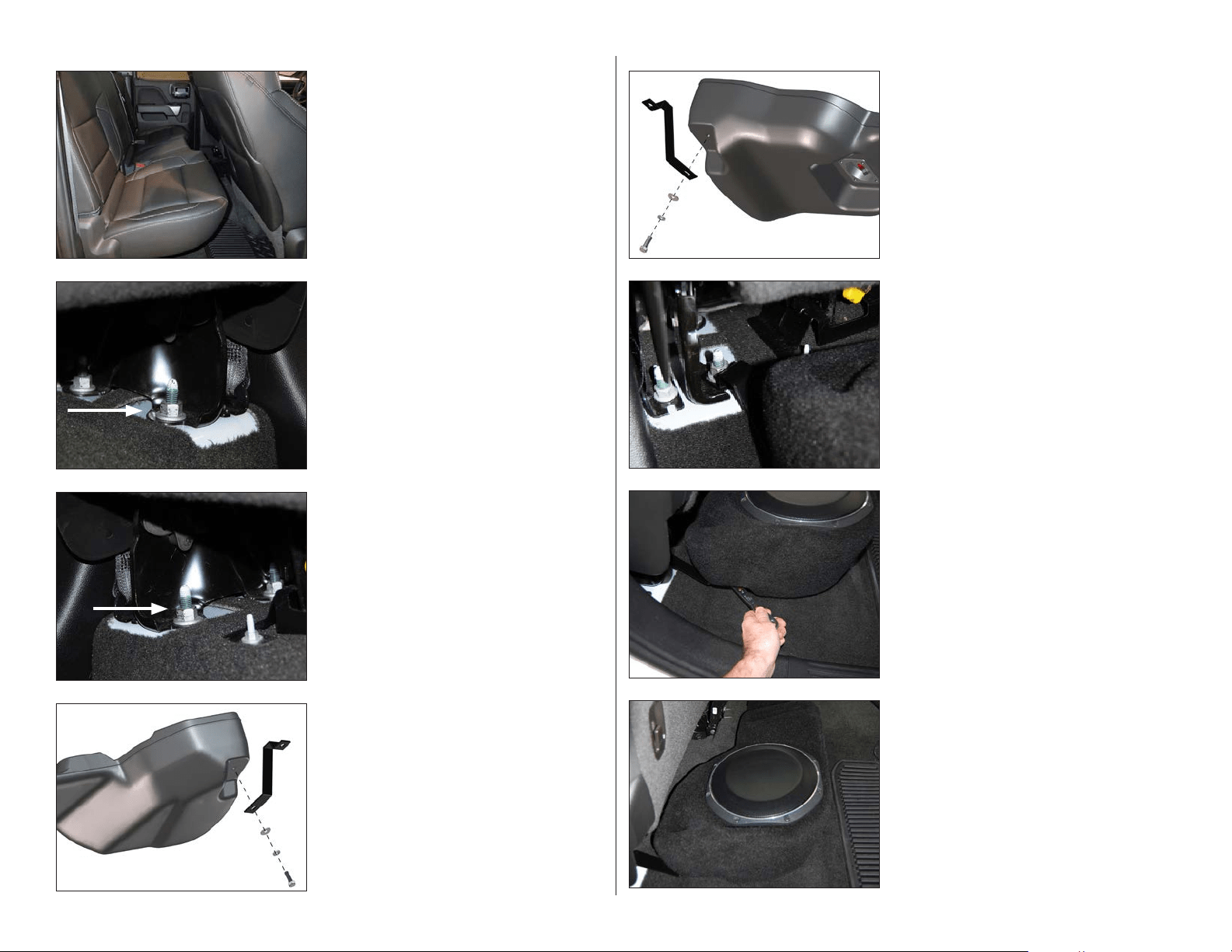

STEP 8
Route the speaker cable as necessary, and fold
the rear seats back down.
STEP 7
Fully tighten the 3/8 - 16 x 1-1/4” Hex Bolts on
both sides.
STEP 6
Connect speaker cable to the terminal cup
on the bottom of the enclosure, and carefully
place the Stealthbox® into position inside the
vehicle, allowing the factory studs to pass
through the holes in the Brackets. Reinstall the
factory nuts on both sides, and fully tighten.
STEP 5
Repeat the process for the opposite side.
STEP 4
Locate the threaded inserts on the bottom of
the enclosure. Slide a 3/8” Lock Washer and
a 3/8” Flat Washer over a 3/8 - 16 x 1-1/4” Hex
Bolt, thread the assembly through the slotted
hole on a Bracket, into the threaded insert on
the enclosure, and hand tighten.
STEP 3
Remove the indicated factory nut on the
passenger side, rear seat bracket.
STEP 2
Remove the indicated factory nut on the
driver’s side, rear seat bracket.
STEP 1
Empty out the rear seat area of the vehicle, and
fold the rear seats up.
SB-GM-SLVD/10TW1 INSTR_SKU# 011396
Page 5 • JL Audio, Inc., 2014

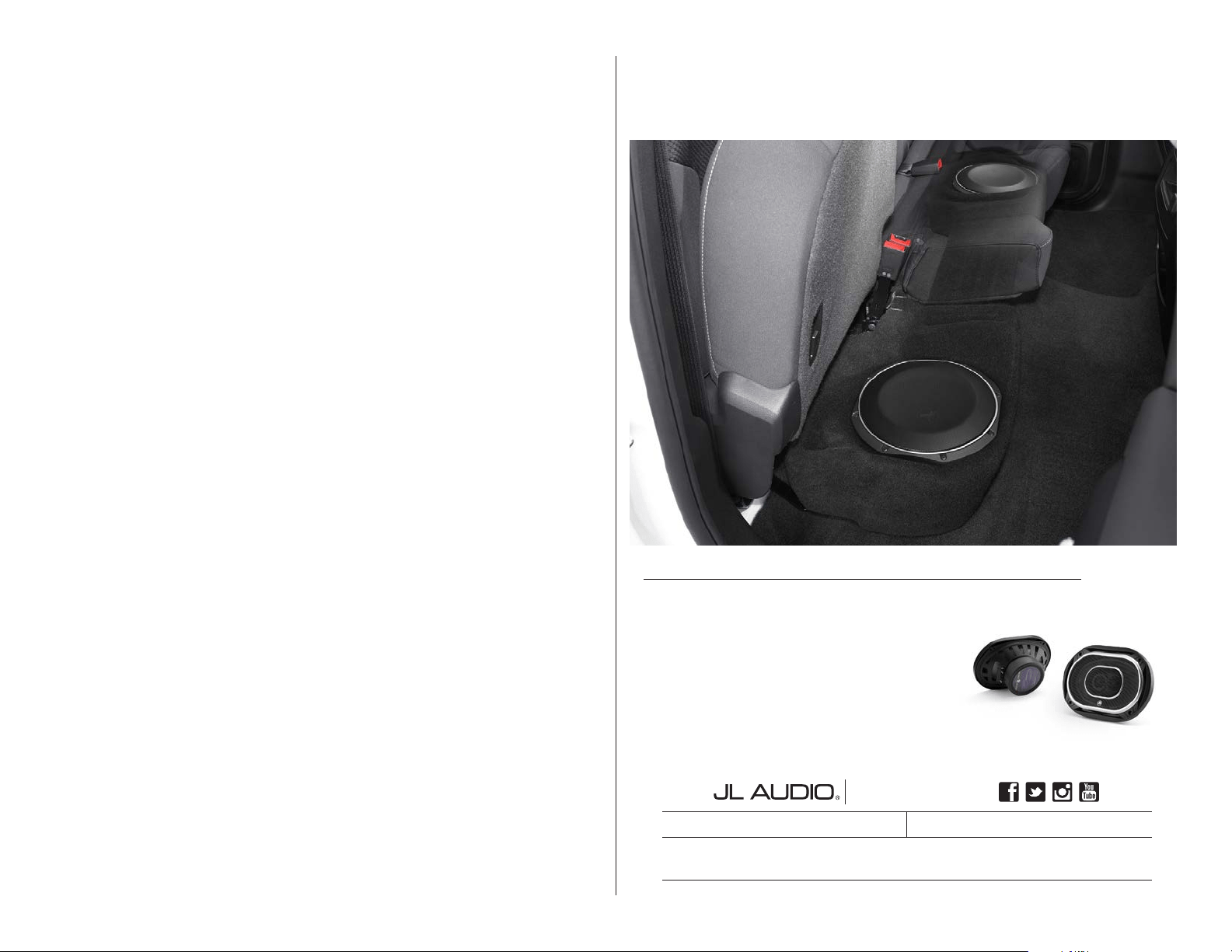

MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of your vehicle.
Front Speaker Size / Location: 6 x 9”- Front Doors
Fits JL Audio Models: TR690-TXi & C2-690tx
Rear Speaker Size / Location: 5-1/4”- Rear Door
Fits JL Audio Models: TR525-CXi, C2-525, C2-525x, C3-525,
C5-525, C5-525x, & ZR525-CSi
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, and “Stealthbox” and the Stealthbox logo are registered trademarks of JL Audio, Inc.,. “Ahead of the
Curve”, its respective logo, and “How we play” are trademarks of JL Audio, Inc.,.
Printed in USA • ©2013 JL Audio, Inc.,. • U.S. PATENTS: #5,734,734 #5,949,898 #6,118,884 #6,229,902 #6,243,479 #6,294,959 #6,501,844 #6,496,590 #6,441,685 #5,687,247 #6,219,431
#6,625,292 #D472,891 #D480,709 Other U.S. & Foreign patents pending. For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
JLA-SKU# 011396 • ver. 12.05.2014 • 10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
CONGRATULATIONS!
You have completed the installation for this model! Enjoy your new Stealthbox®!
