KD-34XBR970
Operating Instructions
© 2006 Sony Corporation
Sony Corporation http://www.sony.net
Printed in U.S.A.
2-671-222-21(4)
KD-34XBR970
2-671-222-21(4)
WARNING
To reduce the risk of fire or shock hazard, do not expose the TV to
rain or moisture.
This symbol is intended to alert the user to the presence
of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature accompanying
the appliance.
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
CAUTION
When using TV games, computers, and similar products with your
TV, keep the brightness and contrast functions at low settings. If a
fixed (non-moving) pattern is left on the screen for long periods of
time at a high brightness or contrast setting, the image can be
permanently imprinted onto the screen. Continuously watching
the same program can cause the imprint of station logos onto the
TV screen. These types of imprints are not covered by your
warranty because they are the result of misuse.
Warning
The CRT in this product employs a protective film on the face. This
film must not be removed as it serves a safety function and
removal will increase the risk of serious injury.
Note on Caption Vision
This television receiver provides display of television closed
captioning in accordance with §15.119 of the FCC rules.
Note on Cleaning the TV
Clean the TV with a soft, dry cloth. Never use strong solvents such
as thinner or benzine, which might damage the finish of the
cabinet.
Note to CATV System Installer
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the National Electrical Code (NEC)
that provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as
practical.
Use of this television receiver for other than private viewing of
programs broadcast on UHF or VHF or transmitted by cable
companies for the use of the general public may require
authorization from the broadcaster/cable company and/or
program owner.
NOTIFICATION
This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference with radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
❑ Reorient or relocate the receiving antennas.
❑ Increase the separation between the equipment and receiver.
❑ Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
❑ Consult the dealer or an experienced radio/TV technician for
help.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
Installing
❑ To prevent internal heat buildup, do not block the ventilation
openings.
❑ Do not install the TV in a hot or humid place, or in a place
subject to excessive dust or mechanical vibration.
❑ The AC power cord is attached to the rear of the TV with
hooks. Do not attempt to remove the cord from these hooks.
Doing so could cause damage to the TV.
Owner’s Record
The model and serial numbers are provided on the front of this
instruction manual and at the rear of the TV. Refer to them
whenever you call upon your Sony dealer regarding this product.
Note
This digital television is capable of receiving analog basic, digital
basic and digital premium cable television programming by direct
connection to a cable system providing such programming. A
security card provided by your cable operator is required to view
encrypted digital programming. Certain advanced and interactive
digital cable services such as video-on-demand, a cable operator's
enhanced program guide and data-enhanced television services
may require the use of a set-top box. For more information call
your local cable operator.
This television also includes a QAM demodulator which should
allow you to receive unscrambled digital cable television
programming via subscription service to a cable service provider.
Availability of digital cable television programming in your area
depends on the type of programming and signal provided by your
cable service provider.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
ATTENTION
CAUTION
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To reduce the risk of electric shock, do not use this
polarized plug with an extension cord, receptacle,
or other outlet unless the blades can be fully
inserted to prevent blade exposure.
✍
Pursuant to FCC regulations you are cautioned that any changes
or modifications not expressly approved in this manual could
void your authority to operate this equipment.
KD-34XBR970
2-671-222-21(4)
IMPORTANT SAFEGUARDS
For your protection, please read these instructions completely, and
keep this manual for future reference.
Carefully observe and comply with all warnings, cautions and
instructions placed on the set, or described in the operating
instructions or service manual.
WARNING
To guard against injury, the following basic safety precautions
should be observed in the installation, use, and servicing of the set.
Use
Power Sources
This set should be operated only from the type
of power source indicated on the serial/model
plate. If you are not sure of the type of electrical
power supplied to your home, consult your
dealer or local power company. For those sets
designed to operate from battery power, refer
to the operating instructions.
Grounding or Polarization
This set is equipped with a polarized AC power cord plug (a plug
having one blade wider than the other), or with a three-wire
grounding type plug (a plug having a third pin for grounding).
Follow the instructions below:
For the set with a polarized AC power cord plug
This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician to
have a suitable outlet installed. Do not defeat the safety purpose of
the polarized plug by forcing it in.
Alternate Warning
For the set with a three-wire grounding type AC plug
This plug will only fit into a grounding-type
power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact
your electrician to have a suitable outlet installed.
Do not defeat the safety purpose of the grounding plug.
Overloading
Do not overload wall outlets, extension cords or
convenience receptacles beyond their capacity,
since this can result in fire or electric shock.
Always turn the set off when it is not to be
used. When the set is left unattended and
unused for long periods of time, unplug it
from the wall outlet as a precaution against
the possibility of an internal malfunction that
could create a fire hazard.
Do not disconnect the antenna or the power cord during a heavy
storm. Lightning may strike while you are holding the cable or
cord, causing serious injury. Turn off your TV and wait for the
weather to improve.
Corrosion
Use of this TV near the seashore may subject the set to excessive
salt, corrosion and internal damage and result in deterioration of
the TV's performance. If the set will be subjected to these
conditions, steps should be taken to reduce the humidity and
temperature of the area where the TV is located.
Object and Liquid Entry
Never push objects of any kind into the set
through the cabinet slots as they may touch
dangerous voltage points or short out parts that
could result in a fire or electric shock. Never spill
liquid of any kind on the set.
Attachments
Do not use attachments not recommended by the
manufacturer, as they may cause hazards.
Do not place any objects, especially heavy objects,
on top of the set. The object may fall from the set,
causing injury.
Cleaning
Unplug the set from the wall outlet before
cleaning or polishing it. Do not use liquid
cleaners or aerosol cleaners. Use a cloth lightly
dampened with water for cleaning the exterior
of the set.
If a snapping or popping sound from a TV set is
continuous or frequent while the TV is operating,
unplug the TV and consult your dealer or service
technician. It is normal for some TV sets to make
occasional snapping or popping sounds,
particularly when being turned on or off.
Installation
Always use two or more people to lift or move the set. The set is
heavy and the bottom surface is flat. Serious injury can result from
trying to move the set by yourself alone, or from unsteady
handling. Install the set on a stable, level surface.
Water and Moisture
Do not use power-line operated sets near
water — for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Accessories
Do not place the set on an unstable cart, stand,
tripod, bracket, table or shelf. The set may fall,
causing serious injury to a child or an adult, and
serious damage to the set. Use only a cart or stand
recommended by the manufacturer for the
specific model of TV. Any mounting of the
product should follow the manufacturer’s
instructions, and should use a mounting
accessory recommended by the manufacturer. An
appliance and cart combination should be moved
with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart
combination to overturn.
Disconnect all cables and cords from the set before attempting to
move the set.
Do not allow children or pets to climb up onto, or push against, the
set. The set may fall, causing serious injury.
KD-34XBR970
2-671-222-21(4)
Ventilation
The slots and openings in the cabinet and in the
back or bottom are provided for necessary
ventilation. To ensure reliable operation of the set,
and to protect it from overheating, these slots and
openings must never be blocked or covered.
❑ Never cover the slots and openings with a
cloth or other materials.
❑ Never block the slots and openings by
placing the set on a bed, sofa, rug or other
similar surface.
❑ Never place the set in a confined space, such
as a bookcase, or built-in cabinet, unless
proper ventilation is provided.
❑ Do not place the set near or over a radiator
or heat register, or where it is exposed to direct sunlight.
Power Cord Protection
Do not allow anything to rest on or roll over the
power cord, and do not place the set where the
power cord is subject to wear or abuse.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions below. An
outdoor antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or
where it can come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,
EXTREME CARE SHOULD BE TAKEN TO KEEP FROM
CONTACTING SUCH POWER LINES OR CIRCUITS AS
CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some
protection against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in USA and
Section 54 of the Canadian Electrical Code in Canada provide
information with respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
Antenna Grounding According to the National
Electrical Code, ANSI/NFPA 70
Lightning
For added protection for this television receiver during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna.
This will prevent damage to the receiver due to lightning and
power line surges.
Service
Damage Requiring Service
Unplug the set from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
❑ When the power cord or plug
is damaged or frayed.
❑ If liquid has been spilled into
the set or objects have fallen into the
product.
❑ If the set has been exposed to rain or
water.
❑ If the set has been subject to excessive
shock by being dropped, or the cabinet
has been damaged.
❑ If the set does not operate normally when
following the operating instructions.
Adjust only those controls that are
specified in the operating instructions.
Improper adjustment of other controls
may result in damage and will often
require extensive work by a qualified
technician to restore the set to normal
operation.
❑ When the set exhibits a distinct change in performance, it
indicates a need for service.
Servicing
Do not attempt to service the set yourself since
opening the cabinet may expose you to dangerous
voltage or other hazards. Refer all servicing to
qualified service personnel.
Replacement Parts
When replacement parts are required, be sure the
service technician certifies in writing that he has
used replacement parts specified by the
manufacturer that have the same characteristics as
the original parts.
Unauthorized substitutions may result in fire, electric shock or
other hazards.
Safety Check
Upon completion of any service or repairs to the
set, ask the service technician to perform routine
safety checks (as specified by the manufacturer) to
determine that the set is in safe operating
condition, and to so certify. When the set reaches
the end of its useful life, improper disposal could
result in a picture tube implosion. Ask a qualified
service technician to dispose of the set.
Ground clamp
Antenna lead-in wire
Antenna discharge unit
Grounding conductors
Ground clamps
Power service grounding electrode
NEC: National Electrical Code
Electric service
(NEC Section 810-20)
system (NEC Art 250 Part H)
equipment
(NEC Section 810-21)
KD-34XBR970
2-671-222-21(4)
Trademark Information
WOW, TruSurround and the symbol are trademarks of SRS
Labs, Inc. WOW and TruSurround technology are incorporated
under license from SRS Labs, Inc.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
Manufactured under license from BBE Sound,
Inc. Licensed by BBE Sound, Inc. under
USP4638258, 5510752 and 5736897. BBE and
BBE symbol are registered trademarks of BBE
Sound, Inc.
This TV incorporates High-Definition
Multimedia Interface (HDMI™)
technology. HDMI, the HDMI logo and
High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
Wega, FD Trinitron, Steady Sound, Digital Reality Creation,
CineMotion, MID, ClearEdge VM and HD Detailer are trademarks
of Sony Corporation.
KD-34XBR970
2-671-222-21(4)
Contents
Contents
Introducing the FD Trinitron Wega
Overview .........................................................................................................1
Presenting the FD Trinitron Wega.....................................................................1
Package Contents..............................................................................1
Features ............................................................................................1
Setting Up the TV
Overview .........................................................................................................3
About the AC Power Cord.................................................................3
TV Controls and Connectors.............................................................................3
Front Panel ........................................................................................3
Rear Panel .........................................................................................4
Basic Connections: Connecting a Cable or Antenna..........................................5
Cable or Antenna Only ......................................................................5
Connecting Two RF Inputs.................................................................6
Cable Box Only..................................................................................6
Connecting Optional Equipment ......................................................................7
Making Video Connections................................................................7
About Using S VIDEO ........................................................................7
VCR and Cable or Antenna................................................................8

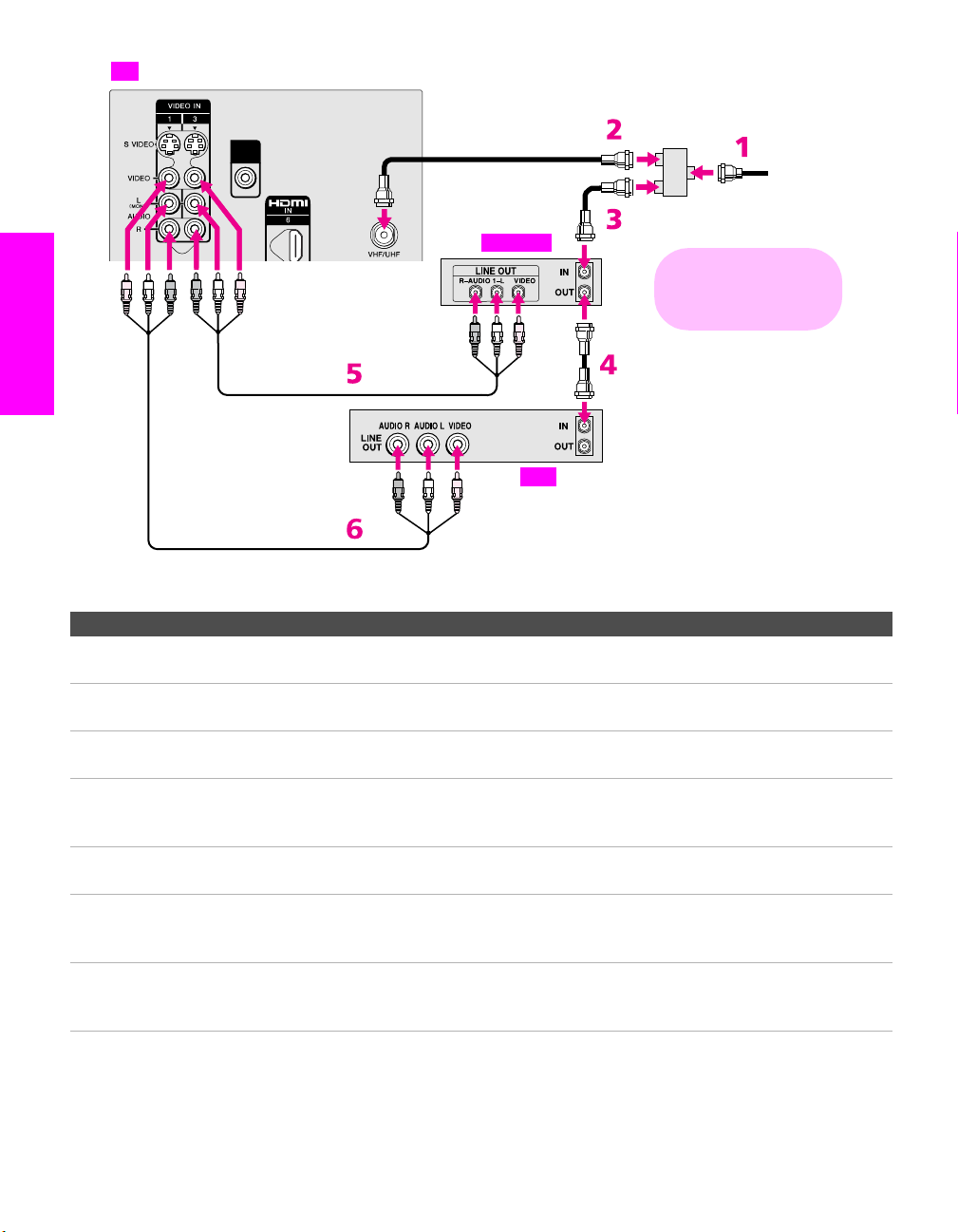

VCR and Cable Box ...........................................................................9

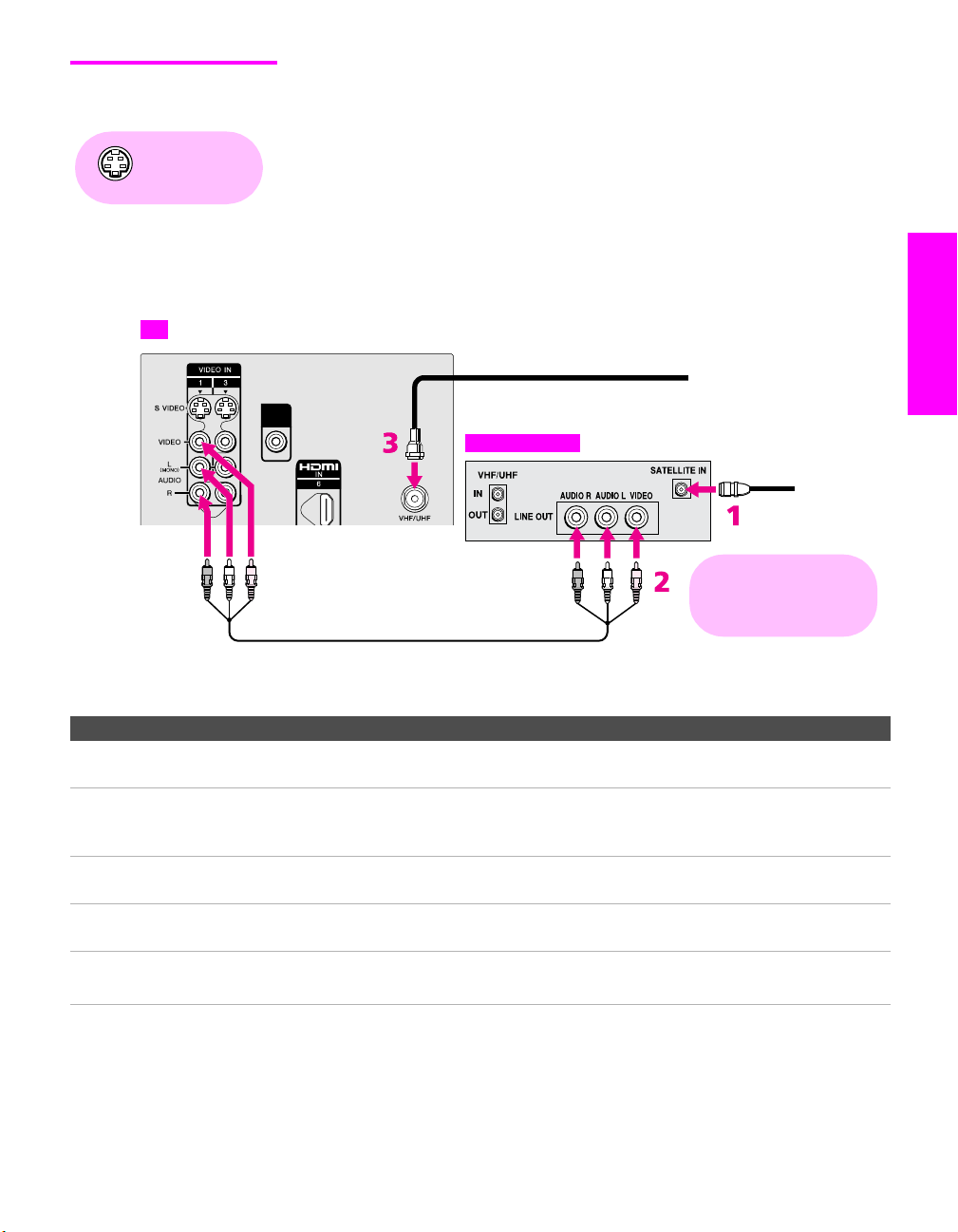

Satellite Receiver..............................................................................11
Satellite Receiver and VCR ...............................................................12

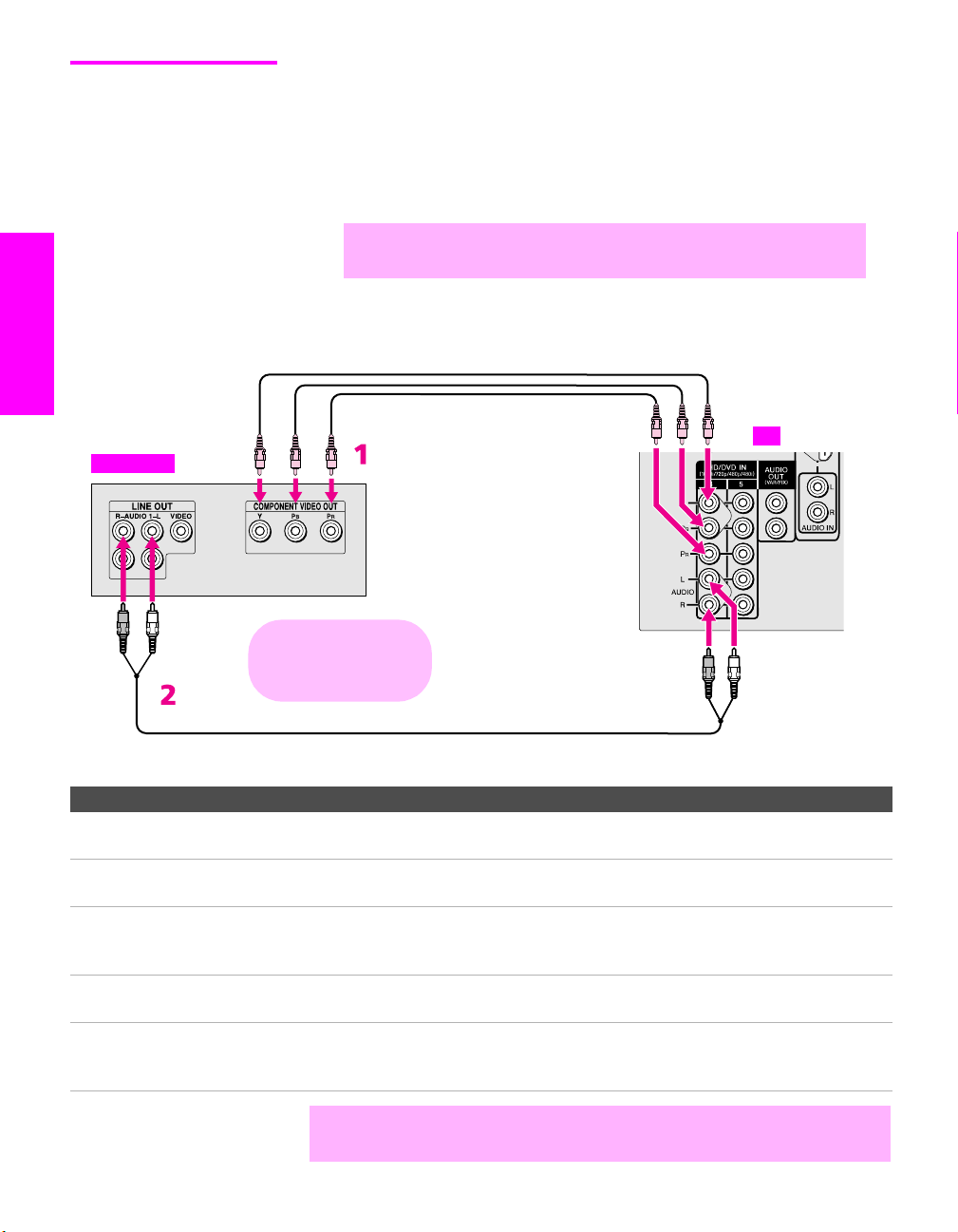

DVD Player with Component Video Connectors...............................14
DVD Player with S VIDEO and Audio Connectors .............................15
Camcorder ......................................................................................16
Audio Receiver ................................................................................16

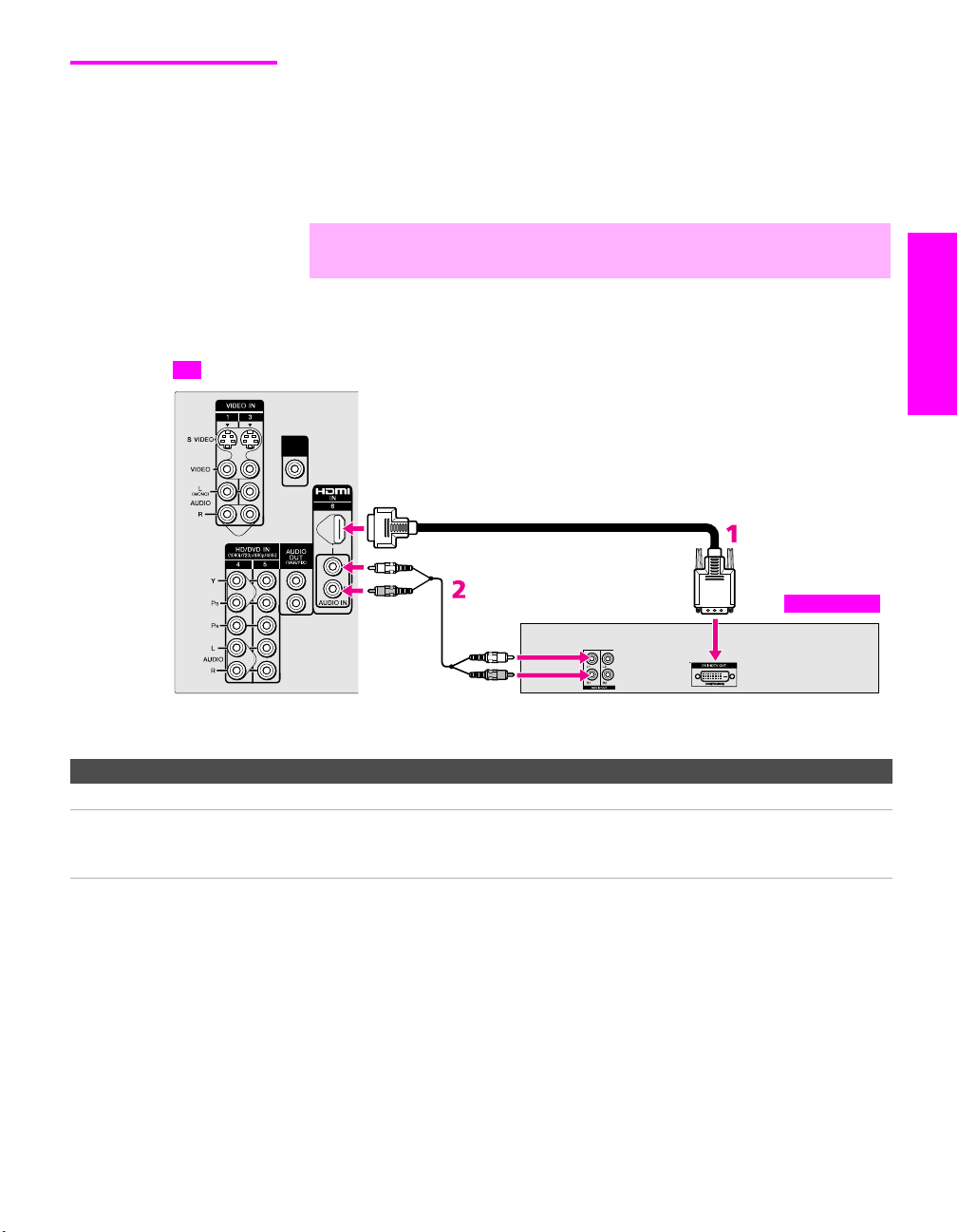

DVI-Equipped Device .......................................................................17

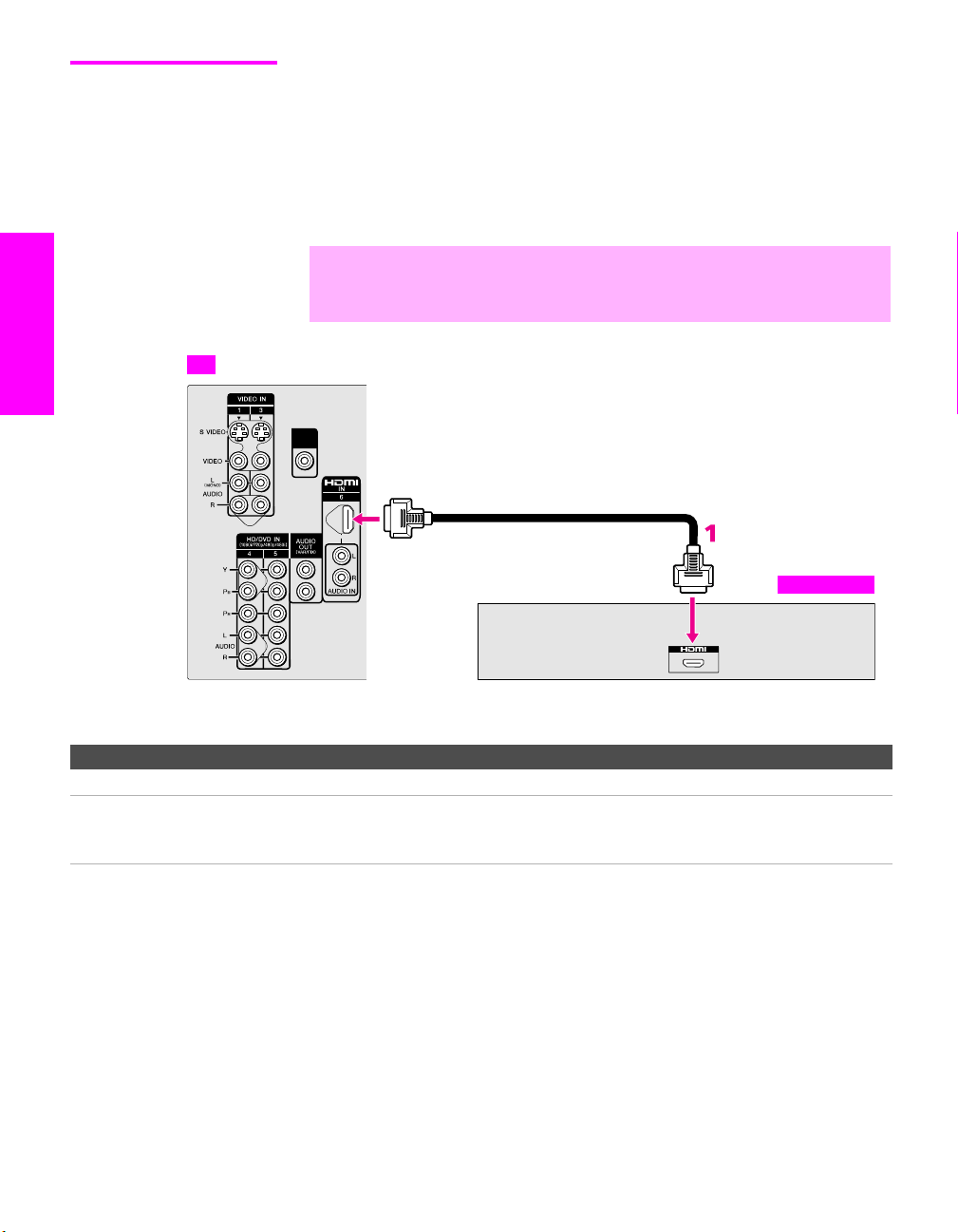

HDMI-Equipped Device....................................................................18

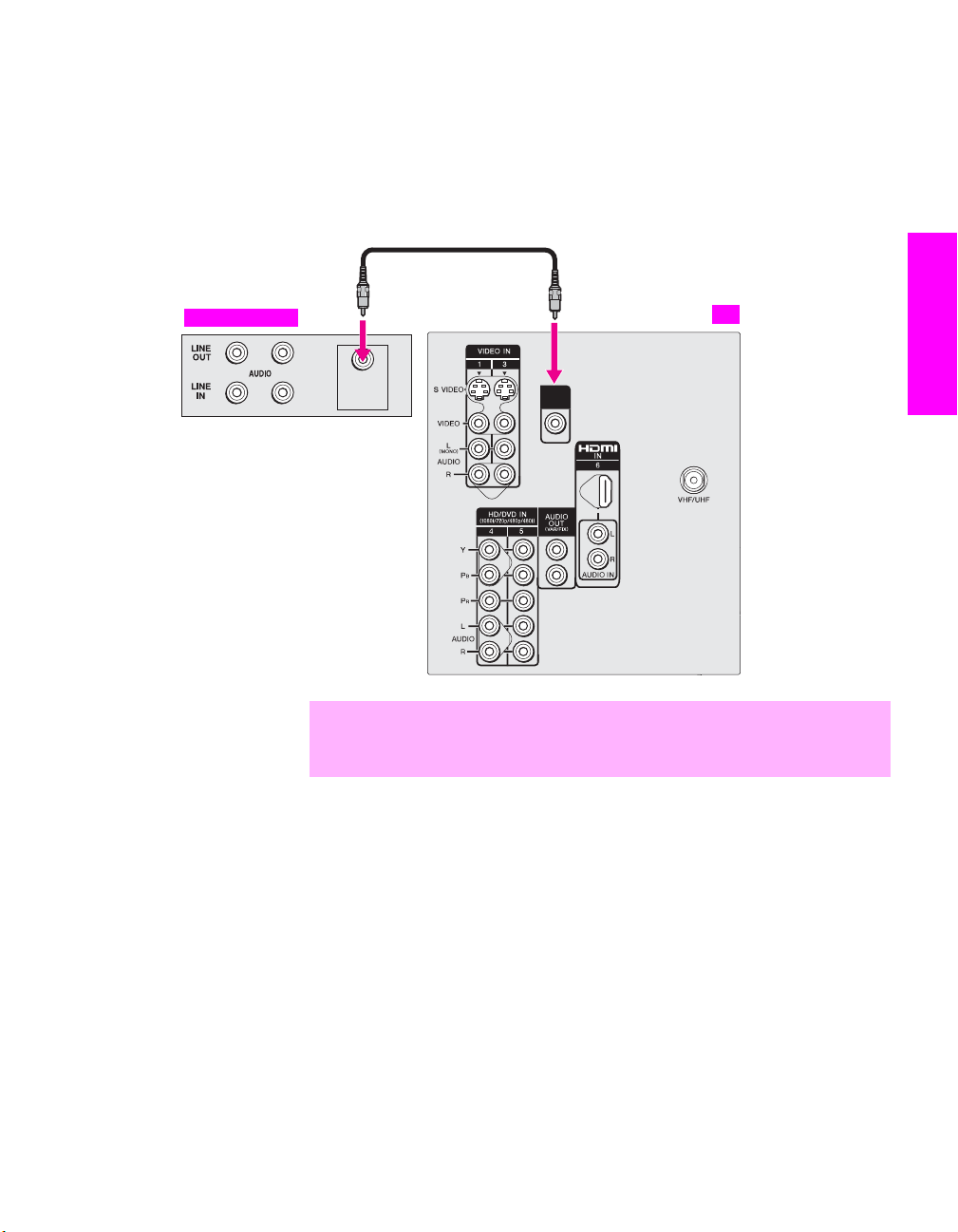

Connecting a Device with Digital Audio IN Connector ....................................19
Setting Up the Channel List............................................................................20
Using Initial Setup............................................................................20
Using the Remote Control
Overview .......................................................................................................21
Inserting Batteries ..........................................................................................21

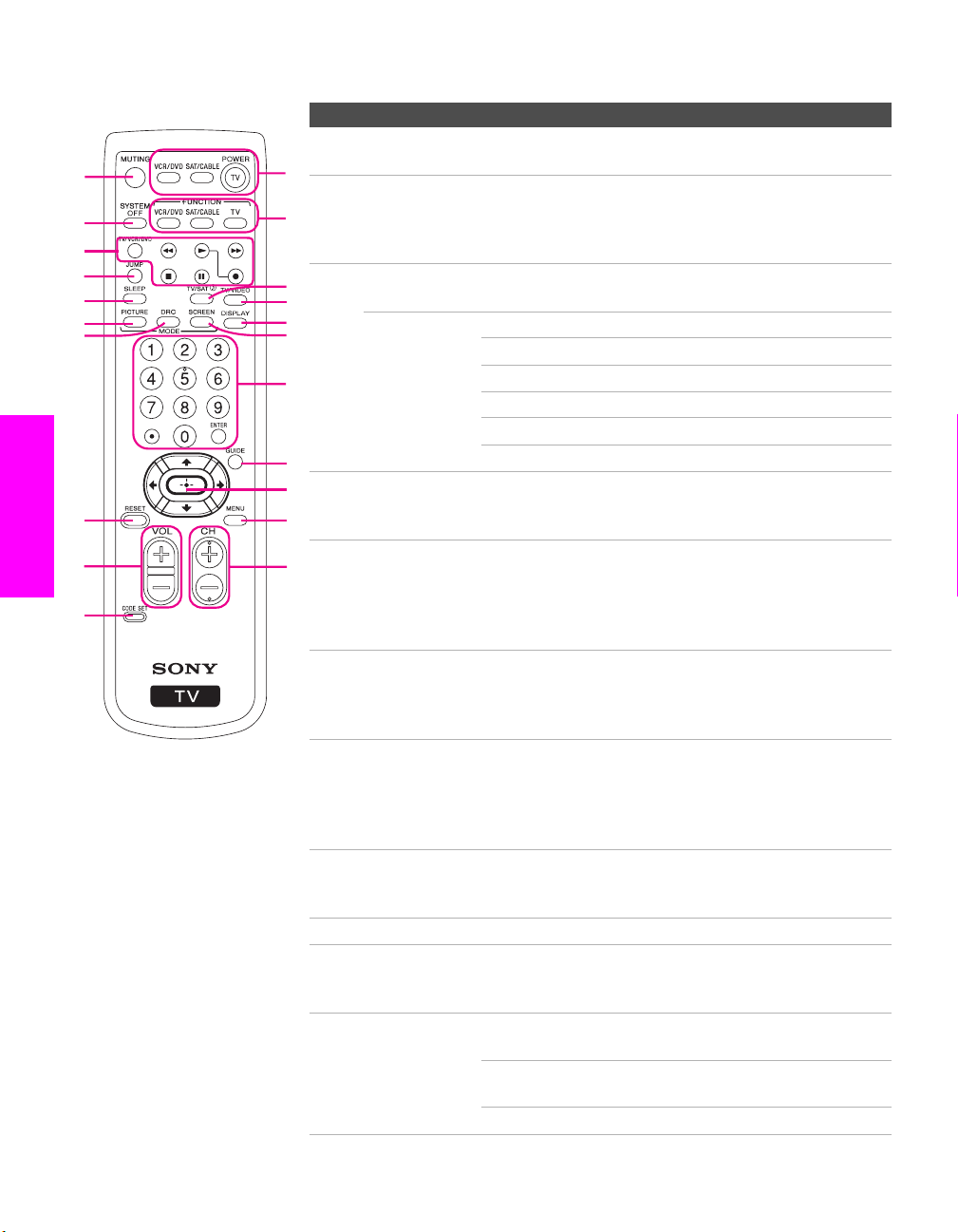

Button Descriptions........................................................................................22
Programming the Remote Control..................................................................24
Using Other Equipment with Your TV Remote Control ...................................26
All Equipment..................................................................................26
Operating a VCR .............................................................................26
Operating a Satellite Receiver ..........................................................26
Operating a Cable Box.....................................................................27
Operating a DVD Player ...................................................................27
Operating a DVD/VCR Combination Unit .........................................27
Other Info SETUP WelcomeSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Using the Features
Overview .......................................................................................................28
Watching TV..................................................................................................28
Using the Program Guide...............................................................................29
Using Screen Mode........................................................................................30
Using Favorites Menu.....................................................................................32
Using the Favorites Menu ................................................................32
Using the Channel Settings..............................................................32
Using the Favorite Channels Guide ..................................................32
Using the Menu
Overview .......................................................................................................33
Navigating Through Menu .............................................................................33
Using the Menu .............................................................................................34

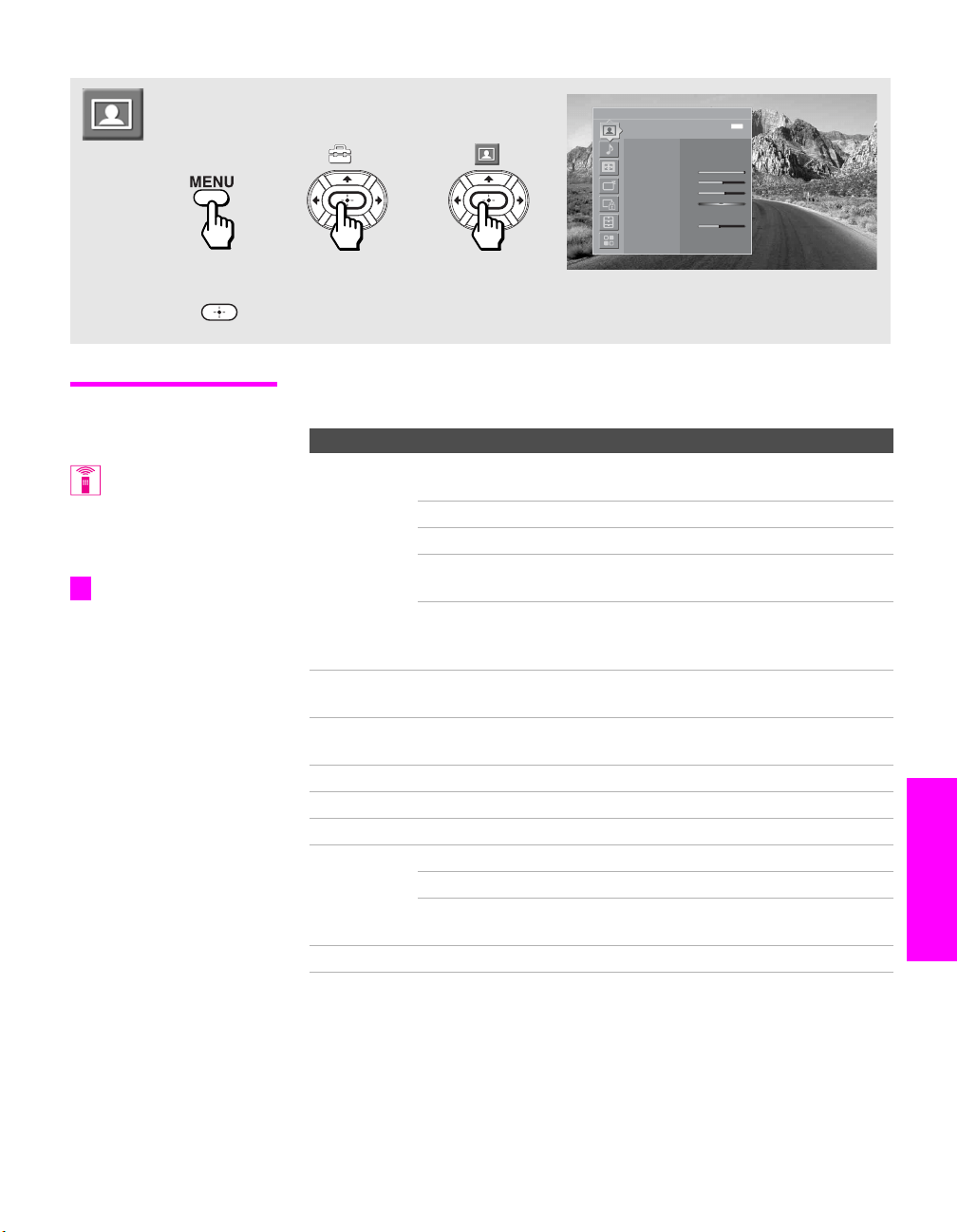

Using the Picture Settings ..............................................................................35
Selecting Picture Options .................................................................35
Using the Sound Settings ...............................................................................37
Selecting Sound Options..................................................................37

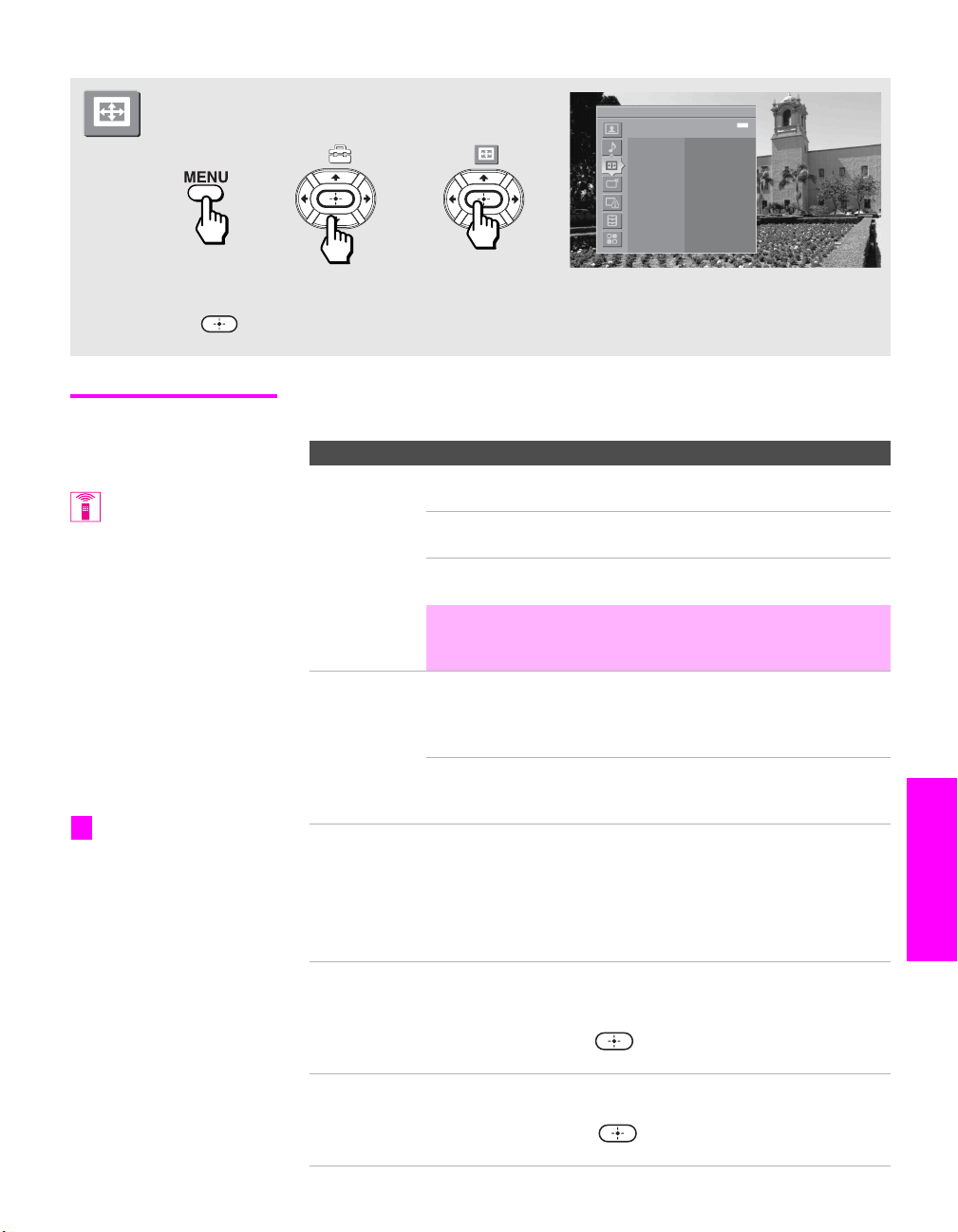

Using the Screen Settings...............................................................................39
Selecting Screen Mode Options .......................................................39
Using the Channel Settings ............................................................................40
Selecting Channel Options...............................................................40
Using the Parental Lock Settings ....................................................................42
Selecting Parental Lock Options .......................................................42
US Models:
Selecting Custom Rating Options .............................................43
Viewing Blocked Programs ..............................................................43
Canadian Models:
Selecting Custom Rating Options .............................................44
Viewing Blocked Programs ..............................................................44

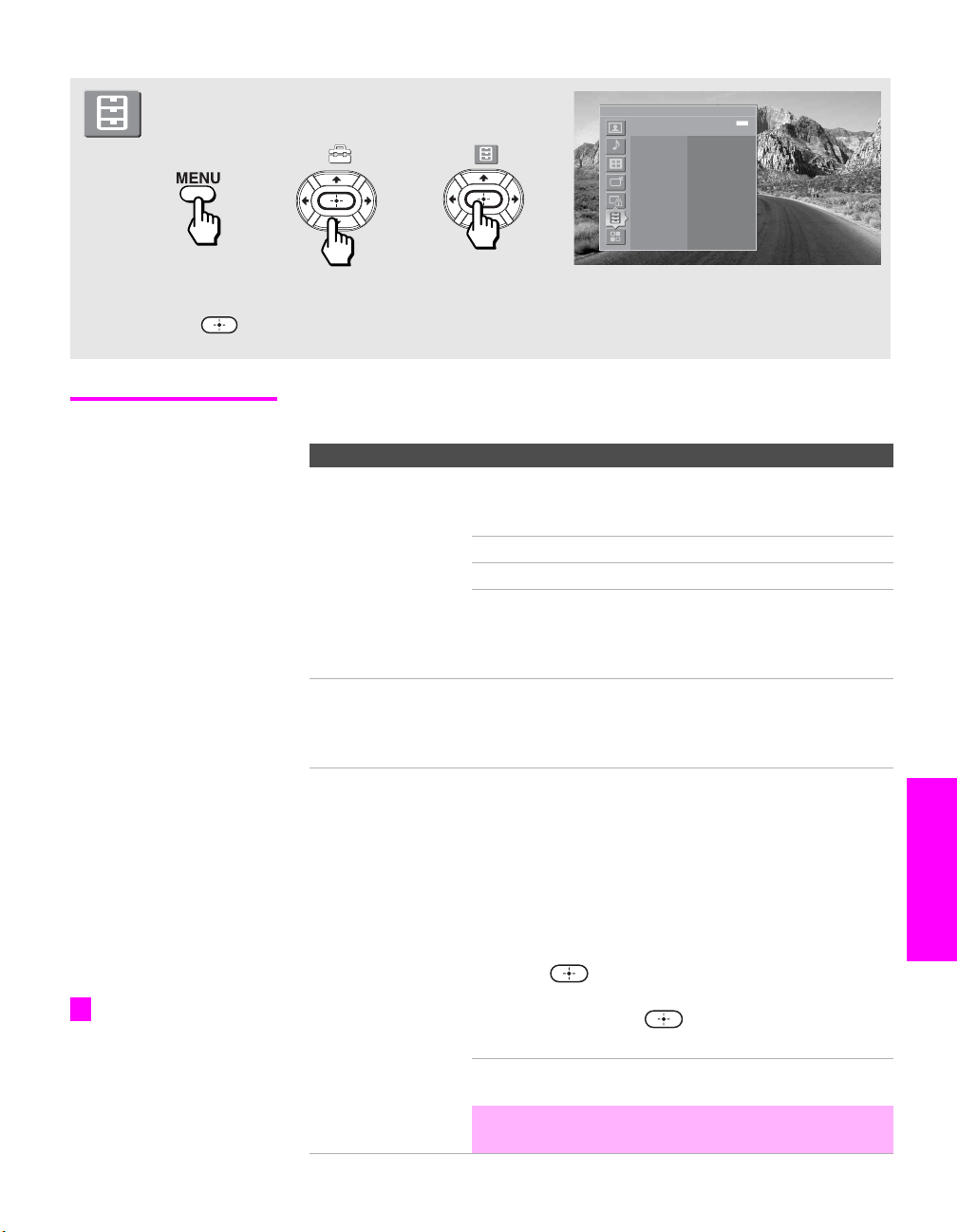

Using the Setup Settings ................................................................................45
Selecting Setup Options...................................................................45
Programming Caption Vision ...........................................................46
Using the Applications Settings ......................................................................47
Selecting Applications Options.........................................................47
Other Information
Glossary.........................................................................................................49
Contacting Sony ............................................................................................50
Troubleshooting.............................................................................................50
Remote Control...............................................................................50
Channels .........................................................................................50
Sound .............................................................................................51
Picture.............................................................................................51
General ...........................................................................................52
Specifications.................................................................................................53
Optional Accessories........................................................................53
Index .............................................................................................................54
1
KD-34XBR970
2-671-222-21(4)
Introducing the FD Trinitron Wega
Overview
This chapter describes the contents of the package in which the TV is
shipped and provides an overview of the features of your Wega TV.
Presenting the FD Trinitron
Wega
The FD Trinitron Wega (pronounced VAY-GAH) is characterized by
outstanding contrast, uncompromising accuracy, and corner-to-
corner detail.
You will recognize the superiority of Wega technology almost
immediately. The first thing you will probably notice is minimal glare
from the flat picture tube. This flat-screen technology improves
picture detail without distortion, unlike conventional curved screens.
The FD Trinitron delivers outstanding image detail not only at the
screen center, but also at the corners — so you can enjoy a bright,
clear picture from any location in a room.
Package Contents Along with your new Trinitron TV, the packing box contains a remote
control and two AA batteries. These items are all you need to set up
and use the TV.
Features Some of the features that you will enjoy with your new TV include:
❑ Built-in Digital Television Receiver: You can watch digital
television programs and enjoy the improved audio/video quality
offered by these programs. With high-definition signal reception,
you can watch TV signals broadcast in HDTV for the clearest
possible broadcast picture.
❑ Screen Mode: Enables you to resize the picture.
❑ DRC
®
(Digital Reality Creation) Multifunction: Unlike
conventional line doublers, the DRC Multifunction feature
replaces the signal’s NTSC waveform with the near-HD
equivalent, while doubling the number of vertical and horizontal
lines. This results in four times the density for quality sources,
such as DVD, satellite, and digital camcorders. The Picture
Settings allow you to select interlaced, progressive, or
CineMotion™ output.
❑ Favorites Menu: Allows you to select from 16 of your favorite
channels.
2
SETUP SETUP WelcomeSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
❑ ClearEdge VM
™
Velocity Modulation: Sharpens picture
definition by enhancing vertical lines.
❑ Steady Sound
®
: Equalizes volume levels so there is consistent
output between programs and commercials.
❑ Component Video Inputs: Offers the best video quality for DVD
(480p, 480i), and digital set-top box (HD1080i, 720p) connections.
❑ HD Detailer
™
: Wideband video amplifier has a high bandwidth
frequency rating, which allows it to send more video information
to the screen, resulting in finer picture quality, especially for HD
sources.
❑ CineMotion
™
: Inverse 3-2 pulldown processing provides
optimal picture quality for film-based sources (media originally
shot in 24 frames-per-second format).
❑ Parental Control: V-Chip technology allows parents to block
unsuitable programming from younger viewers.
❑ HDMI (High-Definition Multimedia Interface): Provides an
uncompressed, all-digital audio/video interface between this TV
and any HDMI-equipped audio/video component, such as a set-
top box, DVD player, and A/V receiver. HDMI supports
enhanced, or high-definition video, plus two-channel digital
audio.
❑ BBE: Gives sound more impact by using audio technology to
compensate for phase effects in speakers.
Introducing
3
KD-34XBR970
2-671-222-21(4)
Setting Up the TV
Overview
This chapter includes illustrated instructions for setting up your TV.
About the AC
Power Cord
The AC power cord is attached to the rear of the TV with a hook. Use
caution when removing the AC plug from its holder. Gently slide the
plug upward to remove it from the hook. Once removed, the AC
power plug should automatically disengage from its stored location.
TV Controls and Connectors
Front Panel
✍
Do not plug in the AC power cord until you have made all other connections.
You can det ach
the cord from
this hook
AC power
cord
Item Description
1 S VIDEO
VIDEO 2 INPUT
Connects to the S VIDEO OUT jack on your camcorder or other video equipment that has
S VIDEO. Provides better picture quality than composite video (
2
).
2 VIDEO/L(MONO)-AUDIO-R
VIDEO 2 INPUT
Connects to the composite A/V output jacks on your camcorder or other video
equipment.
3 MENU
Press to display the Menu. Press again to exit from the Menu. For details, see “Using the
Menu” on page 33.
4
V v B b
Press
V v B b
to move the TV’s on-screen cursor.
5
Press to select an item in the TV’s Menu.
6 TV/VIDEO
Press repeatedly to cycle through the video equipment connected to the TV’s video inputs.
7 -VOLUME +
Press to adjust the volume.
8 -CHANNEL+
Press to scan through channels. To scan quickly through channels, press and hold down
either
CHANNEL
button.
9 TIMER/STAND BY LED
Blinks when the TV is turned on, then shuts off when the picture is displayed. If the LED
blinks continuously, this may indicate the TV needs service (see “Contacting Sony” on
page 50). When lit, indicates one of the timers is set. When the timer is set, this LED will
remain lit even if the TV is turned off. For details, see page 47.
0 Infrared Receiver (IR)
Receives IR signals from the TV’s remote control.
qa POWER
Press to turn on and off the TV.
S VIDEO
VOLUME
STAND BY
TIMER
POWER
VIDEO
L(MONO) – AUDIO – R
VIDEO 2 INPUT
CHANNEL
TV/VIDEO
+
_
MENU
3
1
2
7
4
9
8
5
6
qa
q
;
4
SETUP SETUP SETUPSETUP SetupSETUP
KD-34XBR970
2-671-222-21(4)
Rear Panel
3
4
1
2
5
6
7
DIGITAL
AUDIO
OUT
DIGITAL
AUDIO
OUT
PCM/
PCM/
DOLBY DIGITAL
DOLBY DIGITAL
Jack Description
1 S VIDEO IN 1/3 Connects to the S VIDEO OUT jack of your VCR or other video equipment that has
S VIDEO. S VIDEO provides better picture quality than either composite video (2)
or VHF/UHF (7) connections.
2 VIDEO IN 1/3
VIDEO/L(MONO)
-AUDIO-R
Connect to the composite A/V output jacks on your VCR or other video
component. A third composite A/V input jack (VIDEO 2) is located on the front
panel of the TV. This video connection provides better picture quality than the
VHF/UHF (7) connection.
3 DIGITAL AUDIO OUTPUT
(DOLBY DIGITAL PCM)
Connect to the Digital audio input of an audio component that is Dolby* Digital and
PCM compatible.
4 AUDIO OUT (VAR/FIX) Connects to the left and right audio input jacks of your audio or video equipment.
You can use these outputs to listen to your TV’s audio through your stereo system.
5 HD/DVD IN 4/5
(1080i/720p/480p/480i)
Connect to your DVD player’s or digital set-top box’s component video (YP
BPR)
and audio (L/R) jacks. Component video provides better picture quality than 1,
2, or 7).
6 HDMI
(VIDEO 6 IN)
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-
digital audio/video interface between this TV and any HDMI-equipped
audio/video component, such as a set-top box, DVD player, and A/V receiver.
HDMI supports enhanced, or high-definition video, plus two-channel digital audio.
7 VHF/UHF RF input that connects to your VHF/UHF antenna or cable box.
* Dolby and the double-D symbol are trademarks of Dolby Laboratories.
5
SETUP Setup SETUPSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Basic Connections: Connecting a Cable or Antenna
The way in which you will connect your TV varies, depending on
how your home receives a signal (cable, cable box, antenna) and
whether or not you plan to connect a VCR.
Cable or Antenna
Only
For best results, use one of the following connections if you are connecting a
cable or an antenna and you:
❑ Do not need a cable box to unscramble channels. (If you have a
cable box, see page 6.)
❑ Do not intend to connect a VCR. (If you have a VCR, see pages 8
and 9.)
The connection you choose depends on the cable type you have in
your home, as described below.
75-ohm coaxial cable
Cable Type Connect As Shown
VHF Only or
VHF/UHF or
Cable
300-ohm twin lead cable
Cable Type Connect As Shown
VHF Only or
UHF Only or
combined
VHF/UHF
75-ohm coaxial and 300-ohm twin lead cable
Cable Type Connect As Shown
VHF and UHF
75-ohm
VHF/UHF
coaxial
cable
TV
300-ohm twin
lead cable
Antenna connector
VHF/UHF
(not supplied)
TV
75-o
h
m
VHF/UHF
coaxial cable
300-ohm twin
lead cable
U/V mixer
(not supplied)
TV
6
SETUP SETUP SETUPSETUP SetupSETUP
KD-34XBR970
2-671-222-21(4)
Connecting Two RF
Inputs
If you want to watch RF signals for both antenna (over-the-air) and
cable broadcast signals, you’ll need to use an optional A-B switch for
RF inputs (not supplied), as shown below.
Use the A-B selector to switch between the over-the-air signals and
the cable signals. Then set the
Cable setting in the Channel Settings to
On or Off, as described on page 40.
Cable Box Only For best results, use this connection if:
❑
Your cable company scrambles all channels, which requires you
to use a cable box.
❑ You do not have a VCR. (If you have a VCR, see pages 8 and 9.)
With this connection you can:
❑
Use the TV remote control to change channels coming through
the cable box to the TV’s VHF/UHF jack. (You must first
program the remote control for your specific cable box.)
To connect the cable box
1 Connect the CATV cable to the cable box’s input jack.
2 Use a coaxial cable to connect the cable box’s output jack to the
TV’s VHF/UHF jack.
3 Run Auto Program, as described in “Setting Up the Channel List”
on page 20.
Notes on Using This Connection
✍ For best results, be sure to use an RF switch, as shown above, instead of a
simple splitter.
A
B
Cable
Antenna
VHF/UHF
(Rear of TV)
A/B
RF Switch
12
OUT
IN
VHF/UHF
cable
CATV
Coaxial cable
TV
Cable box
To Do This ... Do This ...
Use the cable box Tune the TV to the channel the cable box is set to (usually channel 3 or 4)
and then use the cable box to switch channels.
Set up the TV remote control
to operate the cable box
Program the remote control. See “Programming the Remote Control” on
page 24.
Activate the remote control to
operate the cable box
Press SAT/CABLE FUNCTION.
7
SETUP Setup SETUPSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Connecting Optional Equipment
Use the directions in this section to connect the following optional
equipment:
Making Video
Connections
Your TV includes several types of video inputs. When connecting
your TV, use the outputs that are available on your components that
provide the best video performance, as described below.
About Using
SVIDEO
If the optional equipment you are connecting has an S VIDEO
jack (shown at left), you can use an S VIDEO cable for
improved picture quality (compared to an A/V cable).
Because S VIDEO carries only the video signal, you also need
to connect audio cables for sound, as shown below.
Example of an S VIDEO Connection
Best Video Performance
HDMI (High-Definition
Multimedia Interface)
Component video
S VIDEO
Composite video
RF/Coaxial
Good Video Performance
DIGITAL
AUDIO
OUT
Audio cable
S VIDEO
cable
TV
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
Equipment with S VIDEO
8
SETUP SETUP SETUPSETUP SetupSETUP
KD-34XBR970
2-671-222-21(4)
VCR and Cable or
Antenna
For best results, use this connection if:
❑
Your cable company does not require you to use a cable box.
To connect the VCR and Cable or Antenna
1 Connect the CATV cable or Antenna to the VCR’s input jack.
2 Use a coaxial cable to connect the VCR’s output jack to the TV’s
VHF/UHF jack.
3 Use an A/V cable to connect the VCR’s A/V output jacks to the
TV’s A/V input jacks.
4 Run Auto Program, as described in “Setting Up the Channel List”
on page 20.
Notes on Using This Connection
Using
S VIDEO jacks?
See page 7.
To Do This ... Do This ...
Watch the VCR Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the
illustration).
Watch cable channels Press TV/VIDEO repeatedly to select the cable input.
Set up the TV remote control
to operate the VCR
If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on pages 24-25.
Activate the TV remote
control to operate the VCR
Press VCR/DVD FUNCTION.
Control VCR functions with
the TV remote control
See “Operating a VCR” on page 26.
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on page 45.
DIGITAL
AUDIO
OUT
DIGITAL
AUDIO
OUT
PCM/
DOLBY DIGITAL
CATV cable/antenna
Coaxial cable
A/V cable
TV
VCR
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
9
SETUP Setup SETUPSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
VCR and Cable Box For best results, use this connection if:
❑
Your cable company scrambles some channels, such as premium
channels (which requires you to use a cable box), but does not
scramble all channels.
With this connection you can:
❑
Use the TV remote control to change channels coming through
the cable box. (You must first program the remote control for
your specific cable box; see “Programming the Remote Control”
on page 24.)
❑ Use the TV remote control to change channels coming directly
into the TV’s VHF/UHF jack. (The TV’s tuner provides a better
signal than the cable box.)
❑ Record channels coming through the cable box and channels
coming directly into the TV.
To connect a VCR and cable box, you need:
❑
A splitter, which is a small, inexpensive device that you can
purchase at your local electronics store.
❑ Four coaxial cables.
❑ Two A/V cables or two S VIDEO cable with audio cables.
To connect the VCR and cable box
1 Connect the CATV cable to the single (input) jack of the splitter.
2 Use a coaxial cable to connect one of the splitter’s two output
jacks to the TV’s VHF/UHF jack.
3 Use a coaxial cable to connect the splitter’s other output jack to
the cable box’s input jack.
4 Use a coaxial cable to connect the cable box’s output jack to the
VCR’s RF input jack.
5 Use an A/V cable to connect the cable box’s A/V output jacks to
the TV’s A/V input jacks.
6 Use an A/V cable to connect the VCR’s A/V output jacks to the
TV’s A/V input jacks.
7 Run Auto Program, as described in “Setting Up the Channel List”
on page 20.
Using
S VIDEO jacks?
See page 7.
10
SETUP SETUP SETUPSETUP SetupSETUP
KD-34XBR970
2-671-222-21(4)
Notes on Using This Connection
To Do This ... Do This ...
Watch cable (unscrambled)
channels
Press TV/VIDEO repeatedly to select the cable input.
Watch cable box (scrambled)
channels
Press TV/VIDEO repeatedly to select the cable box input (VIDEO 3 in the
illustration). Use the cable box to change channels.
Watch the VCR Press TV/VIDEO repeatedly to select the VCR input (VIDEO 1 in the
illustration).
Set up the TV remote control
to operate the cable box or
VCR
If you have a non-Sony VCR, you must program the remote control. See
“Programming the Remote Control” on pages 24-25.
Activate the remote control to
operate the cable box or VCR
For the cable box, press SAT/CABLE FUNCTION. For the VCR, press VCR/DVD
FUNCTION.
Control specific cable box and
VCR functions with the TV
remote control
See “Operating a Cable Box” on page 27 and “Operating a VCR” on page 26.
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on page 45.
DIGITAL
AUDIO
OUT
DIGITAL
AUDIO
OUT
PCM/
DOLBY DIGITAL
CATV
Coaxial
cable
A/V cable
cable
Splitter
(not supplied)
Coaxial
cable
TV
Cable box
VCR
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
A/V cable
Coaxial
cable
11
SETUP Setup SETUPSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Satellite Receiver To connect a satellite receiver
1 Connect the satellite antenna cable to the satellite receiver’s
satellite input jack.
2 Use an A/V cable to connect the satellite receiver’s A/V output
jacks to the TV’s A/V input jacks.
3 Connect a CATV cable from your cable or antenna to the TV’s
CABLE jack.
4 Run Auto Program, as described in “Setting Up the Channel List”
on page 20.
Notes on Using This Connection
Using
S VIDEO jacks?
See page 7.
To Do This ... Do This ...
Watch the satellite receiver Press TV/VIDEO repeatedly to select the satellite receiver input
(VIDEO 1 in the illustration).
Set up the TV remote control to operate the
satellite receiver
If you have a non-Sony satellite receiver, you must program
the remote control. See “Programming the Remote Control”
on pages 24-25.
Activate the TV remote control to operate
the satellite receiver
Press SAT/CABLE FUNCTION.
Control satellite receiver functions with the
TV remote control
See “Operating a Satellite Receiver” on page 26.
Label video inputs to easily identify
equipment connected to the TV
See the instructions for setting up Video Labels on page 45.
DIGITAL
AUDIO
OUT
DIGITAL
AUDIO
OUT
PCM/
DOLBY DIGIT
DOLBY DIGITAL
Satellite antenna
cable
A/V cable
CATV cable/antenna
TV
Satellite receiver
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
12
SETUP SETUP SETUPSETUP SetupSETUP
KD-34XBR970
2-671-222-21(4)
Satellite Receiver
and VCR
To connect a satellite receiver and VCR
1 Connect the CATV cable or Antenna to the single (input) jack of
the splitter.
2 Use a coaxial cable to connect one of the splitter’s two output
jacks to the TV’s VHF/UHF jack.
3 Use a coaxial cable to connect the splitter’s other output jack to
the satellite receiver’s VHF/UHF input jack.
4 Connect the satellite antenna cable to the satellite receiver’s
satellite input jack.
5 Use a coaxial cable to connect the satellite receiver’s VHF/UHF
output jack to the VCR’s VHF/UHF input jack.
6 Use an A/V cable to connect the satellite receiver’s A/V output
jacks to the TV’s A/V input jacks.
7 Use an A/V cable to connect the VCR’s A/V output jacks to the
TV’s A/V input jacks.
8 Run Auto Program, as described in “Setting Up the Channel List”
on page 20.
Using
S VIDEO jacks?
See page 7.
DIGITAL
AUDIO
OUT
DIGITAL
AUDIO
OUT
7
PCM/
DOLBY DIGITAL
A/V cable
Coaxial
cable
cable/antenna
CATV
TV
VCR
Satellite receiver
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
Coaxial
cable
Coaxial
cable
A/V cable
Splitter
(not supplied)
Satellite antenna cable
13
SETUP Setup SETUPSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Notes on Using This Connection
To Do This ... Do This ...
Watch the satellite receiver Press TV/VIDEO repeatedly to select the VCR input (VIDEO 3 in the
illustration).
Watch the VCR Press TV/VIDEO repeatedly to select the input to which the VCR is connected
(VIDEO 1 in the illustration).
Set up the TV remote control
to operate the satellite
receiver or VCR
If you have a non-Sony VCR or satellite receiver, you must program the
remote control. See “Programming the Remote Control” on pages 24-25.
Activate the TV remote
control to operate the satellite
receiver or VCR
For the satellite receiver, press SAT/CABLE FUNCTION. For the VCR, press
VCR/DVD FUNCTION.
Control satellite receiver and
VCR functions with the TV
remote control
See “Operating a Satellite Receiver” and “Operating a VCR” on page 26.
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on page 45.
14
SETUP SETUP SETUPSETUP SetupSETUP
KD-34XBR970
2-671-222-21(4)
DVD Player with
Component Video
Connectors
For best results, use this connection if your DVD player has
component video (YP
BPR) jacks.
To connect a DVD player with component video connectors
1 Use three separate component video cables to connect the DVD
player’s YP
BPR jacks to the YPBPR jacks (VIDEO 4) on the TV.
2
Use an audio cable to connect the DVD player’s audio output
jacks to the TV’s VIDEO 4 audio input jacks.
Notes on Using This Connection
✍ The YPBPR jacks on your DVD player are sometimes labeled Y, CB
and C
R, or Y, B-Y and R-Y. If so, connect the cables to like colors.
To Do This ... Do This ...
Watch the DVD player Press TV/VIDEO repeatedly to select the DVD input (VIDEO 4 in the
illustration).
Set up the TV remote control
to operate the DVD player
If you have a non-Sony DVD player, you must program the remote control.
See “Programming the Remote Control” on pages 24-25.
Activate the TV remote
control to operate the DVD
player
Press VCR/DVD FUNCTION.
Control DVD functions with
the TV remote control
See “Operating a DVD Player” on page 27.
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on page 45.
DIGITAL
AUDIO
OUT
Component video cables
Audio cable
TV
DVD player
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
✍ You cannot record the signal from any equipment connected into the YPBPR
jacks.
15
SETUP Setup SETUPSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
DVD Player with
S VIDEO and Audio
Connectors
Use this connection if your DVD player does not have component
video (YP
BPR) jacks.
To connect a DVD player with A/V connectors
1 Use an audio cable to connect the DVD player’s audio output
jacks to the TV’s audio input jacks.
2 Use an S VIDEO cable to connect the DVD player’s S VIDEO jack
to the TV’s S VIDEO jack.
Notes on Using This Connection
To Do This ... Do This ...
Watch the DVD player Press TV/VIDEO repeatedly to select the DVD input (VIDEO 1 in the
illustration).
Set up the TV remote control
to operate the DVD player
If you have a non-Sony DVD player, you must program the remote control.
See “Programming the Remote Control” on pages 24-25.
Activate the TV remote
control to operate the DVD
player
Press VCR/DVD FUNCTION.
Control DVD functions with
the TV remote control
See “Operating a DVD Player” on page 27.
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on page 45.
DIGITAL
AUDIO
OUT
Audio cable
S VIDEO
cable
TV
DVD player
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
16
SETUP SETUP SETUPSETUP SetupSETUP
KD-34XBR970
2-671-222-21(4)
Camcorder For easy connection of a camcorder, the TV has front A/V input jacks.
If you prefer, however, you can connect the camcorder to the TV’s
rear A/V input jacks.
To connect a camcorder
1 Use A/V cables to connect the camcorder’s A/V output jacks to
the TV’s A/V input jacks.
If you have a mono camcorder, connect its audio output jack to the
TV’s L MONO audio jack.
Notes on Using This Connection
Audio Receiver For improved sound quality, you may want to play the TV’s audio
through your stereo system.
To connect an audio system
1 Use an audio cable to connect the TV’s audio output jacks to the
audio receiver’s line input jacks.
2 Using the TV’s Sound Settings, set the Speaker option to Off. Then
set the
Audio Out option to Fixed or Variable, depending on how you
want to control the volume. For details, see “Using the Sound
Settings” on page 37.
3 Turn on the audio receiver, and then set the receiver’s line input
to the jack into which you connected the TV.
Using
S VIDEO jacks?
See page 7.
S VIDEO
VIDEO
L(MONO) – AUDIO – R
VIDEO 2 INPUT
To A/V output
TV
Camcorder
A/V cable
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
To Do This ... Do This ...
Watch the camcorder Press TV/VIDEO repeatedly to select the camcorder input (VIDEO 2 in the
illustration).
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on page 45.
DIGITAL
AUDIO
OUT
To line input
Audio cable
TV
Receiver
Cables are often
color-coded to connectors.
Connect red to red,
white to white.
17
SETUP Setup SETUPSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
DVI-Equipped
Device
If you have a device, such as an HDTV receiver, that has DVI (Digital
Video Interface) output, use the following connection.
To connect a device that has DVI OUT:
1 Use an HDMI-to-DVI cable to connect the device’s DVI OUT jack
to the TV’s HDMI IN jack.
2 Use an audio cable to connect the device’s audio output jacks to
the TV’s HDMI analog audio input jacks.
Note on Using This Connection
✍ You can purchase HDMI cables (or cable adapters) at your local electronics
store.
To Do This ... Do This ...
Watch the DVI device Press TV/VIDEO repeatedly to select the VIDEO 6 input.
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on page 45.
DIGITAL
AUDIO
OUT
DIGITAL
AUDIO
OUT
PCM/
DOLBY DIGITAL
TV
HDTV Receiver
HDMI-to-DVI cable
Audio cable
18
SETUP SETUP SETUPSETUP SetupSETUP
KD-34XBR970
2-671-222-21(4)
HDMI-Equipped
Device
If you have a device, such as an HDTV receiver, that has a High-
Definition Multimedia Interface (HDMI), use the following
connection.
To connect a device that has HDMI OUT:
1 Use the HDMI cable that came with your device to connect the
device’s HDMI OUT jack to the TV’s HDMI IN jack.
Note on Using This Connection
✍ HDMI cables transmit both audio and video signals. (Separate audio cables
are not necessary.) You can purchase HDMI cables at your local electronics
store.
To Do This ... Do This ...
Watch the HDMI device Press TV/VIDEO repeatedly to select the VIDEO 6 input.
Label video inputs to easily
identify equipment connected
to the TV
See the instructions for setting up Video Labels on page 45.
DIGITAL
AUDIO
OUT
DIGITAL
AUDIO
OUT
PCM/
DOLBY DIGIT
DOLBY DIGITAL
TV
HDTV Receiver
HDMI cable
19
SETUP Setup SETUPSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Connecting a Device with Digital Audio IN Connector
You can use the TV’s DIGITAL AUDIO output jack to connect an
audio device that is Dolby Digital and PCM compatible, such as an
audio amplifier.
❑ Using a RCA cable, connect the TV’s DIGITAL AUDIO output
jack to the device’s audio DIGITAL AUDIO input jack.
DIGITAL
AUD IO
OUT
DIGITAL
AUDIO
OUT
PCM/
PCM/
DOLBY DIGITAL
DOLBY DIGITAL
DIGITAL
DIGITAL
AUDIO
AUDIO
IN
IN
Audio Amplifier
TV
RCA cable
✍ Because all equipment does not output digital audio, you should also
connect the TV’s analog audio output jacks to the amplifier’s analog audio
input jacks, as described on page 16.
20
SETUP SETUP SETUPSETUP SetupSETUP
KD-34XBR970
2-671-222-21(4)
Setting Up the Channel List
After you finish connecting the TV, you need to run the Initial Setup
feature, which automatically creates a list of available analog and
digital channels and lets you correct tilt and vertical correction
settings. The Initial Setup screens appear when you turn on your TV
for the first time after hooking it up.
Using Initial Setup To run Initial Setup
1 Press POWER to turn on the TV.
The Initial Setup screen appears.
Using the remote control, move the highlight to the desired
language, then press to select that language. The Tilt
Correction screen appears.
2 Press B b to correct any tilt of the picture. You can choose a
correction between +7 and -7. When finished, press .
3 The Vertical Correction screen appears. Press V v to make a
vertical correction to the picture. You can choose a correction
between +5 and -5. When finished, press .
4 The next screen instructs you to connect your cable/antenna.
Check that you’ve connected your signal source correctly.
To start Auto Program, highlight
Yes and then press .
Auto Program automatically creates a list of receivable analog
and digital channels. Auto Program may take 50 minutes or more
to complete. A progress bar is displayed while the channel list is
being created.
When Auto Program is finished, the lowest numbered channel is
displayed.
To run Auto Program again at a later time
❑
Use the Auto Program feature as described on page 40.
To add individual digital channels
❑
Use the Digital Channel feature as described on page 40.
To reset the TV to factory settings
1 Press POWER to turn on the TV.
2 Hold down RESET on the remote control.
3 Press TV POWER on the TV. (The TV will turn itself off, then back
on).
4 Release RESET.
For more details on using
Tilt Correction and Vertical
Correction, see pages 45-46.
z
To exit the Tilt Correction
and Vertical Correction screens,
press the MENU button.
z
21
KD-34XBR970
2-671-222-21(4)
Using the Remote Control
Overview
This chapter describes how to set up, program, and use the TV’s
remote control.
Inserting Batteries
1 Remove the battery cover from the remote control.
2 Insert two size AA batteries (supplied) by matching the e and E
terminals on the batteries to the diagram inside the battery
compartment.
3 Replace the battery cover.
✍ Remove the batteries to avoid damage from possible battery leakage
whenever you anticipate that the remote control will not be used for an
extended period.
Handle the remote control with care.
Avoid dropping it, getting it wet, placing it in direct sunlight, near a heater,
or where the humidity is high.
1
2
22
SETUP SETUP SETUPSETUP SETUPRemote Control
KD-34XBR970
2-671-222-21(4)
Button Descriptions
Button Description
1 MUTING Press to mute the sound. Press again or press VOL+ to
restore the sound.
2
SYSTEM OFF Press to turn off all Sony brand audio/video
equipment at once. (May not function with older Sony
equipment. Does not function with DVD/VCR
combination unit.)
3
TV/VCR/DVD Press to change the VHF/UHF output of the VCR (or
DVD/VCR combination unit).
Transport
Buttons
m Rewind
N Play
z Record (press together with N)
x Stop
M Fast forward
X Pause
4 JUMP Press to jump back and forth between two channels.
The TV alternates between the current channel and the
last channel that was selected.
5 SLEEP Press repeatedly until the TV displays the time in
minutes (15, 30, 45, 60, 90 or 120) that you want the TV
to remain on before shutting off automatically. To
cancel press until Sleep Off appears. While the Sleep
feature is set, press once to display the remaining time.
6 PICTURE MODE Press repeatedly to cycle through the available video
picture modes: Vivid, Standard, Movie, Pro. Also available
in the Picture Settings. For details, see “Selecting
Picture Options” on page 35.
7 DRC MODE Press repeatedly to cycle through the available Digital
Reality Creation modes: Interlaced, Progressive,
CineMotion. Also available in the Picture Settings. For
details, see “Selecting Picture Options” on pages 35-
36.
8 RESET Press to reset the settings to the factory defaults. See
pages 20, 35, and 37. Also used to clear Favorite
Channels (see page 32).
9 VOL +/- Press to adjust the volume.
0 CODE SET Press to program the remote control to operate non-
Sony video equipment. For details, see “Programming
the Remote Control” on page 24.
qa POWER
Buttons
VCR/DVD: Press to turn on and off the VCR or DVD
player.
SAT/CABLE: Press to turn on and off the satellite receiver
or cable box.
TV: Press to turn on and off the TV.
1
5
qa
qd
qh
ql
7
2
9
qs
q;
qf
qj
qk
w;
wa
3
6
8
4
qg
RM-YD007
23
SETUP SETUP SETUPRemote Control SETUPSETUP
KD-34XBR970
2-671-222-21(4)
qs FUNCTION
Buttons
The indicator lights up momentarily when pressed to
show which equipment the remote control is
operating:
VCR/DVD: Press to have the remote control operate the
VCR or DVD player.
SAT/CABLE: Press to have the remote control operate the
satellite receiver or cable box.
TV: Press to have the remote control operate the TV.
qd
TV/SAT When the remote control is set to operate the satellite
receiver, press to switch between the satellite
receiver’s TV and SAT (satellite) inputs.
When the remote control is set to operate the TV, press
repeatedly to step through the Audio Effect options.
Also available in the Sound Settings. For details, see
page 37.
qf TV/VIDEO Press repeatedly to cycle through the TV’s video inputs.
qg DISPLAY Press once to display the current channel number,
current time, and channel label (if set) and other
information. Press again to turn Display off.
qh SCREEN MODE Press to toggle between the Screen Mode options. For
details on using Screen Mode, see pages 30-31. Also
available in the Screen Settings (page 39).
qj 0 - 9
ENTER
Press 0 - 9 to select a channel; the channel changes after
3 seconds. Press ENTER to change channels
immediately. Use the button with 0-9 and ENTER
buttons to select digital channels (for example, 2.1).
For details on selecting digital channels, see page 28.
qk GUIDE Press to display the program guide of your satellite
program provider.
ql Press Vv B b to move the on-screen cursor. To select
an item, press .
When no menus are displayed, pressing
displays the Favorite Channels screen. (For more
information about Favorites Menu, see page 32.)
w; MENU Press to display the Menu. Press again to exit from the
Menu. For details, see “Using the Menu” on page 33.
wa CH +/- Press to scan through channels. To scan quickly
through channels, press and hold down either CH
button.
Button Description
24
SETUP SETUP SETUPSETUP SETUPRemote Control
KD-34XBR970
2-671-222-21(4)
Programming the Remote Control
If you have video equipment other than Sony brand (or if you have a
Sony DVD/VCR combination unit) that you want to control with the
TV’s remote control, use the following procedure to program the
remote control.
1 Turn to the list of “Manufacturer’s Codes” on page 25, and find
the three-digit code number for the manufacturer of your
equipment. (If more than one code number is listed, use the
number listed first.)
2 Press CODE SET.
3 Press the VCR/DVD FUNCTION or SAT/CABLE FUNCTION button.
4 Using the 0-9 buttons, enter the three-digit manufacturer’s code
number.
5 Press the ENTER button.
6 To check if the code number works, aim the TV’s remote control
at the equipment and press the
POWER button that corresponds
with that equipment. If it responds, you are done. If not, try using
another code listed for that manufacturer.
Notes ❑ If more than one code number is listed, try entering them one by
one until you come to the correct code for your equipment.
❑ If you enter a new code number, the code number you previously
entered at that setting is erased.
❑ In some cases, you may not be able to operate your equipment
with the supplied remote control. In such cases, use the
equipment’s own remote control.
❑ Whenever you remove the batteries to replace them, the code
numbers may revert to the factory setting and must be
reprogrammed.
✍ The equipment must have infrared (IR) remote capability in order to be used
with the remote control.
✍ You must do step 5 within 10 seconds of step 4, or you must redo
steps 2 through 5.
5
2
3
6
4
RM-YD007
25
SETUP SETUP SETUPRemote Control SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Manufacturer’s Codes
VCRs
Manufacturer Code
Sony 301, 302, 303
Admiral
(M. Ward)
327
Aiwa 338, 344
Audio Dynamic 314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Criterion 315
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316,
317, 318, 341
Fisher 330, 335
Funai 338
General Electric 329, 304, 309
Go Video 322, 339, 340
Goldstar 332
Hitachi 306, 304, 305, 338
Instant Replay 309, 308
JC Penney 309, 305, 304,
330, 314, 336, 337
JVC 314, 336, 337,
345, 346, 347
Kenwood 314, 336, 332, 337
LXI (Sears) 332, 305, 330,
335, 338
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/
MGA
323, 324, 325, 326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
Orion 317
Panasonic 308, 309, 306, 307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/
PROSCAN
304, 305, 308,
309, 311, 312, 313,
310, 329
Laserdisc Players
DVD/VCR Combination Units
Realistic 309, 330, 328,
335, 324, 338
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
Scott 312, 313, 321,
335, 323, 324,
325, 326
Sharp 327, 328
Signature 2000
(M. Ward)
338, 327
SV2000 338
Sylvania 308, 309, 338, 310
Symphonic 338
Tashiro 332
Tatung 314, 336, 337
Teac 314, 336, 338, 337
Technics 309, 308
Toshiba 312, 311
Wards 327, 328, 335,
331, 332
Yamaha 314, 330, 336, 337
Zenith 331
Manufacturer Code
Sony 701
Panasonic 704, 710
Pioneer 702
Manufacturer Code
Sony 601
Broksonic 605
JVC 604
Panasonic 609
Samsung 603
Toshiba 602
Manufacturer Code
DVD Players
Cable Boxes
Satellite Receivers
Manufacturer Code
Sony 751
Apex 762
General Electric 755
Hitachi 758
JVC 756
Magnavox 757
Mitsubishi 761
Oritron 759
Panasonic 753
Philips 757
Pioneer 752
RCA/Proscan 755
Samsung 758
Toshiba 754
Zenith 760
Manufacturer Code
Sony 230
Hamlin/Regal 222, 223, 224,
225, 226
Jerrold/G. I./
Motorola
201, 202, 203,
204, 205, 206,
207, 208, 218
Oak 227, 228, 229
Panasonic 219, 220, 221
Pioneer 214, 215
Scientific Atlanta 209, 210, 211
Tocom 216, 217
Zenith 212, 213
Manufacturer Code
Sony 801
Dish Network 810
Echostar 810
General Electric 802
Hitachi 805
Hughes 804
Mitsubishi 809
Panasonic 803
RCA/
PROSCAN
802, 808
Toshiba 806, 807
26
SETUP SETUP SETUPSETUP SETUPRemote Control
KD-34XBR970
2-671-222-21(4)
Using Other Equipment with Your TV Remote Control
All Equipment
Operating a VCR
Operating a
Satellite Receiver
To Do This ... Do This ...
Switch the TV’s input to the
VCR, DVD player, or other
connected equipment
Press TV/VIDEO repeatedly to cycle through
the video equipment connected to the
TV’s video inputs.
Set up the TV remote control to
operate non-Sony equipment
(and Sony DVD/VCR
combination unit)
You must program the remote control the
first time you use it. See “Programming
the Remote Control” on page 24.
To Do This ... Press
Activate the remote control
to operate the VCR
VCR/DVD FUNCTION
Turn on/off VCR/DVD POWER
Change channels CH +/- (using tuner)
Adjust tracking CH +/- (during tape playback)
Record N and z simultaneously
Play N
Stop x
Fast forward M
Rewind the tape m
Pause X
Search the picture forward
or backward
M or m during playback
(release to resume normal playback)
To Do This ... Press
Activate the remote control
to operate the satellite
receiver
SAT/CABLE FUNCTION
Turn on/off SAT/CABLE POWER
Select a channel 0-9, ENTER
Change channels CH +/-
Back to previous channel JUMP
Display channel number DISPLAY
Display SAT Guide GUIDE
Display SAT Menu MENU
Move highlight (cursor)
V v B b
Select item
27
SETUP SETUP SETUPRemote Control SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Operating a Cable
Box
Operating a DVD
Player
Operating a
DVD/VCR
Combination Unit
To Do This ... Press
Activate the remote control
to operate the cable box
SAT/CABLE FUNCTION
Turn on/off SAT/CABLE POWER
Select a channel 0-9, ENTER
Change channels CH +/-
Back to previous channel JUMP
To Do This ... Press
Activate the remote control
to operate the DVD
VCR/DVD FUNCTION
Turn on/off VCR/DVD POWER
Play N
Stop x
Pause X
Step through different
tracks of the disc
M to step forward or m to step backward
Step through different
chapters of a video disc
CH+ to step forward or CH- to step backward
Select tracks directly 0-9,
B b (to move cursor), ENTER
Display the DVD menu MENU
Move highlight (cursor)
V v B b
Select item
SELECT
To Do This ... Press
Activate the remote control
to operate the DVD/VCR
VCR/DVD FUNCTION
Turn on/off VCR/DVD POWER
Switch between the DVD
player and VCR
TV/VCR/DVD
Display the DVD menu MENU
Play N
Stop x
Pause X
Search the picture forward
or backward
M or m during playback
Move highlight (cursor)
and select (DVD)
V v B b
Record (VCR) N and z simultaneously
Change channels (VCR) CH +/- or 0-9, ENTER (using tuner)
Adjust tracking (VCR) CH +/- (during tape playback)
When the VCR is not
playing, TV/VCR/DVD switches
between the DVD player and
the VCR’s tuner.
z
28
KD-34XBR970
2-671-222-21(4)
Using the Features
Overview
This chapter describes how to use the features of your TV.
Watching TV
To Do This ... Do This ...
Activate the remote control to
operate the TV
Press TV FUNCTION
Turn on/off the TV Press TV POWER
Tune directly to a channel To tune to analog channels, press 0-9 and
then ENTER.
For digital subchannels, press 0-9, ,
press 0-9 again, and then ENTER.
For example, to select subchannel 21.13,
press 2+1++1+3, and then press ENTER.
✍ You can also select channels using the
program guide. See page 29 for details.
Adjust the volume Press VOL +/-
Mute the sound Press MUTING (press again to unmute)
Alternate back and forth
between two channels
Press JUMP
The TV alternates between the current
channel and the last channel tuned.
Display the current channel
number (and other information)
Press DISPLAY once to display the channel
number, current time, and channel label
(if set). Press DISPLAY again to turn Display
off.
Switch the TV’s input to the
VCR, DVD player, or other
connected equipment
Press TV/VIDEO repeatedly to cycle through
the video equipment connected to the
TV’s video inputs, or press MENU and
select the External Inputs option. For
details, see page 34.
Change External Inputs,
Favorite Channels, Settings,
and more
Press MENU to display the Menu. For
details, see “Using the Menu” on page 33.
For a complete list of all
the functions of the remote
control, see pages 21-25.
z
29
SETUP SETUP SETUPSETUP SETUPFeatures
KD-34XBR970
2-671-222-21(4)
Using the Program Guide
The program guide lets you review program information and select
both analog and digital channels.
To display the program guide:
Press GUIDE on the TV’s remote control. The program guide appears,
with the currently selected program showing in the background.
✍ The Program Guide cannot be displayed when the TV is tuned to one of the
video inputs.
GUIDE
Make Way for Ducks!
Series follows the aquatic misadventures of Henry and Riley, two
wayward ducks on a unique mission.
Time remaining: 1:26
FAM
TV-G
CC
1 ABC
10 DISC
23.1
FAM
36 TLC
65 HIST
68 SHOW
C23.1
Alt. Audio
1080p
16:9
Audio 1 English
Audio 2 Español
Alternate Audio
Program title and
description, time
remaining, rating
information, closed-
caption availability,
format, resolution (if
digital), aspect ratio
Channel number,
call letters, SAP or
Alt. Audio (if
available)
Selectable channel list
✍ Program information in the guide is provided by the broadcasters. As a
result, it may sometimes include only the channel number, without a
program title or description.
To Do This ... Do This ...
Scroll through the channel list
Press
V v
Select the currently displayed
channel and exit the guide
Press .
Select alternate audio Press b. When the broadcaster provides
an alternate audio stream (for instance,
the audio may contain a different
language), this option allows you to select
from the available audio streams.
Exit the Guide (without
changing channels)
Press GUIDE
30
SETUP SETUP SETUPFeatures SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Using Screen Mode
The Screen Mode feature lets you change the picture size for both
standard-definition (480i/480p) and high-definition (720p/1080i)
sources.
❑ Press SCREEN MODE repeatedly to toggle through the following
Screen Mode settings.
Using Screen Mode with Standard Definition (480i/480p) Sources
When you change channels or inputs, the Screen Mode settings revert
to the
4:3 Default setting if Auto Wide is set to Off in the Screen Settings. To
retain the current Screen Mode setting as channels and inputs are
changed, set
4:3 Default to Off if Auto Wide is set to On. For details, see
page 39.
You can also access the Screen
Mode settings in the Screen Settings.
For details, see page 39.
z
Example Description
‘
Wide Zoom enlarges the center portion of the
picture proportionately. The left and right
edges of the picture are stretched to fill the
16:9 screen.
m
Normal displays the 4:3 picture in its original
size. Bars are shown to fill the 16:9 screen.
m
Full stretches the 4:3 picture horizontally, to fill
the 16:9 screen.
m
Zoom enlarges the 4:3 picture proportionately
to fill the 16:9 screen. Some clipping may
occur. Zoom is useful for watching Letterbox
movies.
SCREEN
Wide Zoom
SCREEN
Normal
SCREEN
Full
SCREEN
Zoom
31
SETUP SETUP SETUPSETUP SETUPFeatures
KD-34XBR970
2-671-222-21(4)
Using Screen Mode with High-Definition (720p/1080i) Sources
Example Description
Full displays the picture at its original size.
If the source is a 16:9 high-definition
(720p/1080i) signal, the picture fills the
screen.
If the source is a 4:3 standard-definition
signal that has been upconverted, bars are
shown to fill the 16:9 screen.
m
Zoom enlarges the picture proportionately,
both vertically and horizontally. Some
clipping may occur.
m
Horizontal Expand stretches the picture
horizontally. Some clipping may occur.
m
Vertical Expand stretches the picture
vertically. Some clipping may occur.
SCREEN
Full (native 16:9)
Full (upconverted 4:3)
SCREEN
Zoom
SCREEN
Horizontal Expand
SCREEN
Vertical Expand
32
SETUP SETUP SETUPFeatures SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Using Favorites Menu
The Favorites Menu feature lets you select programs from a list of up
to 16 favorite channels that you specify. You can create a list using the
Favorites Menu option in the Menu, Channel Setting, or by using the
Add to Favorites feature in the Favorite Channels guide.
Using the
Favorites Menu
1 Press MENU to display the Menu.
2 Press v to highlight the Favorites and press .
3 Use V or v to select Add to Favorites. Press to add the current
channel to the list of Favorite Channel.
4 To add more channels to your favorites list, repeat step 3.
To clear a Favorite Channel, press V or v to highlight
Edit Favorites
and press , then press
b to select Reset and press .
5 Press MENU to exit the Menu.
Using the Channel
Settings
1 Press MENU to display the Menu.
2 Press V or v to highlight Settings and press .
3 Use V or v to select Channel icon and press .
4 Press to select Favorites Channels.
5 Use V or v to highlight a Favorite Channel number (1-16), then
enter the number channel and press to add it.
6 To add more channels to your favorite list, repeat step 5.
To clear a Favorite Channel, press V or v to highlight
Edit Favorites
and press , then press
b to select Reset and press .
7 Press MENU to exit the Menu.
Using the Favorite
Channels Guide
1 During normal viewing (with no menus on screen), press .
The Favorite Channels list appears.
2 Press V or v to highlight the channel you want to watch.
To add the current channel to the list of Favorite Channels,
highlight
Add to Favorites and press .
To change your Favorite Channels list, highlight
Edit Favorites and
press .
3 Press to select the channel you want to watch.
For details on using the
Channel Settings, see page 40.
z
33
KD-34XBR970
2-671-222-21(4)
Using the Menu
Overview
Navigating Through Menu
Exit:
MENU
External Inputs
Favorites
TV
Settings
MENU
Select from connected equipment
Antenna
Picture Mode Vivid
Reset
Picture Max
Brightness 50
Color 55
Hue 0
Color Temp. Cool
Sharpness 40
ClearEdge VM
High
Exit:
MENU
Exit:
MENU
External Inputs
Exit
Video 1
Video 2
Video 3
Video 4
Video 5
Video 6
Edit Video Labels
Exit:
MENU
Favorite Channels
Add to Favorites
Edit Favorites
Exit
Exit:
MENU
External Inputs
Favorites
TV
Settings
MENU
Select from connected equipment
The External Inputs
features lets you select
equipment that is
connected to you TV. You
can assign a label to your
equipment or skip unused
inputs conveniently.
The Favorites feature lets
select programs from the
list of up to 16 favorites
channels that you specify.
The TV feature takes you
the most recently viewed
Antenna or Cable channel.
This Menu allows you to
change the settings of
your TV.
External Inputs
Favorites
TV
Settings
To Do This ... Press
Display the Menu MENU
Move through the Menus
V v B b
Select an option to change
Select (confirm) changed setting or
B
Exit the Menu MENU
34
Menus MenusSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Menus
Using the Menu
External Inputs in MENU
The External Inputs feature lets you select the external inputs connected
to your TV. You can also assign a label using Label Video Inputs in the
Setup settings.
1 Select External Inputs from the MENU control panel and press
.
The External Inputs list appears. Make your selection.
2 Press V/v to highlight the desired external input and press .
Using Favorites in MENU
The Favorites feature lets you select programs from a list of up to 16
favorite channels that you specify. You can create a list using the Add to
Favorites option.
1 Select Favorites from the MENU control panel and press .
The Favorite Channels list appears. Make your selection.
2 Press V/v to highlight the desired channel and press .
• To add the current channel to the list of Favorite Channels, highlight
Add to Favorites and press .
When the Favorite Channels list is full, remove a channel from your list using
Favorite Channels in the Channel settings and try again.
Using TV in MENU
The TV takes you to the most recently viewed Antenna or Cable
channel. The Program Banner and channel number will be displayed.
1 Select TV from the MENU control panel and press .
Using Settings in MENU
The Settings feature lets you enter to the settings screen where most of advanced settings and
adjustments are performed. See page 35.
Exit:
MENU
External Inputs
Exit
Video 1 DVD
Video 2 Satellite
Video 3 Cable Box
Video 4 Receiver
Video 5 VCR
Video 6 Camcorder
Edit Video Labels
Exit:
MENU
Favorite Channels
Add to Favorites
3
6
9
10
Edit Favorites
Exit
Exit:
MENU
External Inputs
Favorites
TV
Settings
MENU
Return to TV channel
35
Menus SETUP MenusSETUP MenusSETUP
KD-34XBR970
2-671-222-21(4)
Menus
Using the Picture Settings
Selecting Picture
Options
The Picture Settings include the following options:
To access the Picture Settings, follow these steps:
Press V / v to highlight.
Press to select.
1. Display Menu 2. Highlight and
select
3. Highlight and
select
Antenna
Picture Mode Vivid
Reset
Picture Max
Brightness 50
Color 55
Hue 0
Color Temp. Cool
Sharpness 40
ClearEdge VM
High
Exit:
MENU
You can also change the
Picture Mode setting
using the PICTURE MODE
button on the remote control.
You can alter the Picture
Settings (Picture, Brightness,
Color, etc.) for each Mode.
z
Option Description
Picture Mode
Customized
viewing
Vivid Select for enhanced picture contrast and
sharpness.
Standard Select for standard picture settings.
Movie Select to display a softer picture.
Pro Select to display a picture with minimum
enhancements.
To control how the Picture Mode settings (Vivid, Standard, Movie,
Pro) are applied to each video input, see Mode Memory on
page 36.
Reset Select OK to reset all settings and adjustments to the default
setting (except for Advanced Settings).
Picture Adjust to increase picture contrast and deepen the color, or
decrease picture contrast and soften the color.
Brightness Adjust to brighten or darken the picture.
Color Adjust to increase or decrease color intensity.
Hue Adjust to increase or decrease the green tones.
Color Temp.
White
intensity
adjustment
Cool Select to give the white colors a blue tint.
Neutral Select to give the white colors a neutral tint.
Warm Select to give the white colors a red tint
(NTSC-Standard).
Sharpness Adjust to sharpen or soften the picture.
36
Menus MenusSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Menus
ClearEdge VM
Velocity
Modulation
Sharpens picture definition to give every object a sharp, clean
edge. Select from High, Medium, Low, Off.
Advanced
Settings
Select Program to choose among the Advanced Settings options.
DRC Mode Creates a high-resolution picture with 4x
density, for high quality sources (i.e., DVD
player, satellite receiver).
Interlaced Recommended for moving
pictures.
Progressive Recommended for still images and
text.
CineMotion Provides an optimized display by
automatically detecting film
content and applying a reverse 3/2
pulldown process. Moving
pictures will appear clearer and
more natural-looking.
Color Axis Allows you to control the emphasis of red
tones.
Default Emphasizes red tones.
Monitor De-emphasizes red tones.
Mode Memory Allows you to control how the Picture Mode
settings (Vivid, Standard, Movie, Pro) are applied
to TV viewing and each video input. For
details about Picture Mode settings, see page 35.
On Set to On to customize Picture Mode
settings for each video input.
Changing inputs might change the
Picture Mode setting.
Off Set to Off to apply the same Picture
Mode settings to all video inputs.
Changing inputs does not change
the Picture Mode setting.
Option Description
You can also change the
DRC Mode using the DRC
MODE button on the remote
control.
37
Menus SETUP MenusSETUP MenusSETUP
KD-34XBR970
2-671-222-21(4)
Menus
Using the Sound Settings
Selecting Sound
Options
The Sound Settings include the following options:
To access the Sound Settings, follow these steps:
Press V / v to highlight.
Press to select.
1. Display Menu 2. Highlight and
select
3. Highlight and
select
Antenna
Sound
Reset
Treble 0
Bass 0
Balance 0
Steady Sound Off
Effect Off
MTS Stereo
Alternate Audio
Audio Out Variable
Exit:
MENU
Option Description
Reset Reset the following options to the default setting: Treble, Bass,
Balance, Steady Sound, Effect, and MTS.
Treble Adjust to decrease or increase higher-pitched sounds.
Bass Adjust to decrease or increase lower-pitched sounds.
Balance Adjust to emphasize left or right speaker balance.
Steady Sound On Select to stabilize the volume.
Off Select to turn off Steady Sound.
✍ The Steady Sound option is not available if the Effect
option is set to TruSurround, WOW or Simulated. To use
Steady Sound, set Effect to Off.
Effect
TruSurround
Select for surround sound (for stereo programs
only).
WOW Provides a dramatic presence with a full, deep
bass sound. When WOW is enabled, BBE is
activated to further enhance the audio
performance.
Simulated Adds a surround-like effect to mono programs.
Off Normal stereo or mono reception.
MTS
Enjoy stereo,
bilingual and
mono programs
Stereo Select for stereo reception when viewing a
program broadcast in stereo.
Auto SAP Select to automatically switch the TV to second
audio programs when a signal is received. (If no
SAP signal is present, the TV remains in Stereo
mode.)
Mono Select for mono reception. (Use to reduce noise
during weak stereo broadcasts.)
✍ MTS is available only with analog programs.
You can also change the
Effect using the button
on the remote control.
38
Menus MenusSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Menus
Alternate Audio
(When
available)
When the broadcaster provides an alternate audio stream
(for instance, the audio may contain a different language),
this option allows you to select from the available audio
streams.
Speaker On Select to turn on the TV speakers.
Off Select to turn off the TV speakers and listen to
the TV's sound only through your external
audio system speakers.
Audio Out
Easy control of
volume
adjustments
This option can be set only when the Speaker option is set
to Off.
Variable The TV’s speakers are turned off, but the
volume output from your audio system can still
be controlled by the TV’s remote control.
Fixed The TV’s speakers are turned off and the
volume output of the TV is fixed. Use your
audio receiver’s remote control to adjust the
volume through your audio system.
Option Description
For having access to
Alternate Audio, you can also
use the guide button on the
remote control.
Alternate Audio is only
available for digital programs.
z
z
39
Menus SETUP MenusSETUP MenusSETUP
KD-34XBR970
2-671-222-21(4)
Menus
Using the Screen Settings
Selecting Screen
Mode Options
The Screen Settings include the following options:
To access the Screen Settings, follow these steps:
Press V / v to highlight.
Press to select.
1. Display Menu 2. Highlight and
select
3. Highlight and
select
Antenna
Screen
Screen Mode Wide Zoom
Audo Wide On
4:3 Default Off
Vertical Center 0
Vertical Size 0
Exit:
MENU
Option Description
Screen Mode
Enables you to change the picture size for both standard-
definition (480i/480p) and high-definition (720p/1080i) sources.
For 480i/480p
sources
Select from: Wide Zoom, Normal, Full, Zoom.
For details, see page 30.
For 720p/1080i
sources
Select from: Full, Zoom, Horizontal Expand,
Vertical Expand. For details, see page 31.
✍ In some cases, wide-screen programs will be shown in
aspect ratios that require the display of bars at the top and
bottom of your 16:9 screen. For more details, see page 52.
Auto Wide On Select to have the screen automatically
change to the screen mode that is best for
the current program. If frequent screen
changes are disturbing to you, select Off.
Off Select to turn off the Auto Wide option.
Choose a screen mode from the Wide Mode
option.
4:3 Default Select the default Screen Mode to use for 4:3 sources.
To select a Screen Mode to use when channels or inputs are
changed, select from: Wide Zoom, Normal, Full, Zoom. For
details, see page 30.
To continue using the current Screen Mode setting when the
channel or input is changed, select Off.
Vertical Center Allows you to move the position of the picture up and down
in the window. (Available only in Wide Zoom and Zoom
modes.)
Press
V
or
v
and press to choose a correction between
+15 and -15 (Zoom mode), and +5 and -5 (Wide Zoom mode).
Vertical Size Allows you to adjust the vertical size of the picture.
(Available only in Wide Zoom and Zoom modes.)
Press V or v and press to choose a correction between
+7 and -7.
You can also change the
Screen Mode using the
SCREEN MODE button on the
remote control.
4:3 Default is only available
if Auto Wide is set to On.
z
40
Menus MenusSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Menus
Using the Channel Settings
Selecting Channel
Options
The Channel Settings include the following options:
To access the Channel Settings, follow these steps:
Press V / v to highlight.
Press to select.
1. Display Menu 2. Highlight and
select
3. Highlight and
select
Antenna
Channel
Favorite Channels
Cable Off
Digital Channels
Auto Program
Show/Hide Channels
Label Channels
Exit:
MENU
Option Description
Favorite Channels Lets you set up a list of your favorite channels. For
details, see “Using Favorites Menu” on page 32.
Cable On Select if you are receiving cable channels
with a CATV cable.
Off Select if you are using a TV antenna.
✍ After changing the cable setting the first time, you will
need to run Auto Program.
Digital Channels Add Select to add digital channels.
Auto Program Automatically sets up the channel list on the TV for all
receivable digital channels.
✍ Auto Program may take 50 minutes or more to
complete. A progress bar will display the approximate
progress of the Auto Program and Digital Channels/Add
sequences.
41
Menus SETUP MenusSETUP MenusSETUP
KD-34XBR970
2-671-222-21(4)
Menus
Show/Hide
Channels
Allows you to show or hide channels that appear in the
Program Guide (page 29) and when you use the CH+/-
buttons to channel surf. Channels that are set to Hidden do
not appear in the Program Guide or when you use the
CH+/- buttons.
1 Press V or v to highlight the channel that you want
to show or hide.
To move between the Major and Digital subchannel
lists, press
B or b.
2 To change a channel’s setting to Shown or Hidden,
press .
3 To show or hide more channels, repeat steps 1 and 2.
Label Channels Allows you to assign labels (such as station call letters) to
channel numbers.
1 Press V v to scroll through the channel numbers.
Then press to select the channel number that
you want to assign a label.
2 Press V v to scroll through the label characters (A-Z,
0-9, etc.). Then press to select the highlighted
character.
Repeat to add characters to the label.
3 To assign labels to more channels, repeat steps 1-2.
4 Press B to return to the Channel Settings, or press
MENU to exit the Menus.
Option Description
Channels that you set to
Hidden can be accessed only
with the 0-9 buttons.
z
42
Menus MenusSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Menus
Using the Parental Lock Settings
Selecting Parental
Lock Options
The Parental Lock Settings include the following options:
The Parental Lock Settings allows you to set up the TV to block programs
according to their content and rating levels.
To access the Parental Lock Setting, follow these steps:
Use the 0-9 buttons on the remote control to enter a four-digit password.
If this is the first time you are creating this password, confirm the password by
entering it again. (The Parental Lock Settings options appear.)
To change settings, press V v B b. Press
to confirm the selection.
To exit the Menu, press
MENU.
1. Display Menu 2. Highlight and
select
3. Highlight and
select
✍ You need your password for any future access into the Parental Lock Setting. If you lose your
password, see “Lost password” on page 52.
Antenna
Parental Lock
Password
Exit:
MENU
If you are not familiar with
the Parental Guideline rating
system, you should select Child,
Youth, or Y. Ad ul t to help
simplify the rating selection. To
set more specific ratings, select
Custom.
z
Option Description
Rating
Turn ratings
on/off and select a
rating system
Off Parental lock is off. No programs are
blocked from viewing.
Child Maximum ratings permitted are:
❏ US: TV-Y, TV-G, G
❏ Canada: C, G, TV-Y
Youth Maximum ratings permitted are:
❏ US: TV-PG, PG
❏ Canada: C8+, PG, 8 ans+, TV-PG
Y. A d u l t
(Young Adult)
Maximum ratings permitted are:
❏ US: TV-14, PG-13
❏ Canada: 14+, 13 ans+, TV-14
Custom Select to set ratings manually.
❏ US: See page 43 for details.
❏ Canada: See page 44 for details.
Digital Rating
(When available)
The
Parental Lock
option in the
Digital Rating
settings allows
you to set up the TV to block digital programs that contain
digital ratings. This setting is only available if digital ratings
have been downloaded by your TV and ratings have been
set for
U.S.A
. in the
Parental Lock
settings.
Off Turn Parental Lock off. No programs are
blocked from viewing.
Custom... Select to block progrmas based on
downloadable ratings.
Clear All Select to clear all Custom settings.
For descriptions of Child,
Youth, and Y. A du l t ratings,
see page 43.
z
43
Menus SETUP MenusSETUP MenusSETUP
KD-34XBR970
2-671-222-21(4)
Menus
US Models:
Selecting Custom
Rating Options
For US models, the Custom Rating Menu includes the following
options. (For Canadian models, see page 44.)
Viewing Blocked
Programs
You can view blocked programs by entering the password. Press the
ENTER button when tuned to a blocked program, then enter the
password. This temporarily switches off the Parental Lock. To
reactivate the Parental Lock settings, turn off the TV. When the TV is
turned on again, your Parental Lock settings are reactivated.
✍ This icon will appear on the information banner
across the screen indicating the availability of the new
downloadable rating information when the Digital
Rating is set to Custom option.
Unrated
Block programs
or movies that
are broadcast
without a rating
Allow Allows programs and movies that are
broadcast without a rating.
Block Blocks all programs and movies that are
broadcast without a rating.
Change Password For changing your password.
Select Country U.S.A. Select to use U.S.A. ratings.
Canada
Select to use Canadian ratings (see page 44).
Option Description
Option Description
Movie Rating G All children and General Audience.
PG Parental Guidance suggested.
PG-13 Parental Guidance for children under 13.
R Restricted viewing, parental guidance is
suggested for children under 17.
NC-17
and X
No one 17 or under allowed.
TV Rating
Block programs
by their rating,
content or both
Age-Based Ratings
TV-Y All children.
TV-Y7 Directed to children age 7 and older.
TV-G General Audience.
TV-PG Parental Guidance suggested.
TV-14 Parents Strongly cautioned.
TV-MA Mature Audience only.
Content-Based Ratings
FV Fantasy Violence.
D Suggestive Dialogue.
L Strong Language.
S Sexual situations.
V Violence.
The Content-Based Ratings
are linked to the level of the
Age-Based Rating. For example,
a program with an Age-Based
Rating of TV-PG V (Violence)
rating may contain moderate
violence, while a TV-14 V
(Violence) rating may contain
more intense violence.
To ensure maximum
blocking capability, set the Age-
Based Ratings.
If you block unrated TV
programs, be aware that the
following types of programs
may be blocked: emergency
broadcasts, political programs,
sports, news, public service
announcements, religious
programs and weather.
z
z
z
44
Menus MenusSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Menus
Canadian Models:
Selecting Custom
Rating Options
For Canadian models, the Custom Rating Menu includes the
following options. (For US models, see page 43
.)
Viewing Blocked
Programs
You can view blocked programs by entering the password. Press the
ENTER button when tuned to a blocked program, then enter the
password. This temporarily switches off the Parental Lock. To
reactivate the Parental Lock settings, turn off the TV. When the TV is
turned on again, your Parental Lock settings are reactivated.
Option Description
English Rating C All children.
C8+ Children 8 years and older.
G General programming.
PG Parental Guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating G General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
U.S.A. Rating See “US Models” on page 43 for details.
45
Menus SETUP MenusSETUP MenusSETUP
KD-34XBR970
2-671-222-21(4)
Menus
Using the Setup Settings
Selecting
Setup Options
The Setup Settings include the following options:
To access the Setup Settings, follow these steps:
Press V / v to highlight.
Press to select.
1. Display Menu 2. Highlight and
select
3. Highlight and
select
Antenna
Setup
Caption Vision (CC) Off
Info Banner On
Label Video Inputs
Tilt Correction 0
Vert. Correction 0
Language English
Menu Color Translucent
Exit:
MENU
Option Description
Caption Vision (CC) Allows you to select from several closed caption
modes (for programs that are broadcast with closed
caption).
On Caption Vision is turned on.
Off Caption Vision is turned off.
Program Allows you to set basic and advanced
Caption Vision options. See
“Programming Caption Vision” on
page 46.
Info Banner Set to On or Off. When on, displays the program name,
time remaining and other information (if the
broadcaster offers this service). Displays when the
channel is changed or the DISPLAY button is pressed.
Label Video Inputs Allows you to identify A/V equipment you connected
to the TV, such as a VCR, DVD, etc. For example, if
you have a DVD player connected to the VIDEO 4
jack, you can select the label DVD for the VIDEO 4
input. Then when you press the TV/VIDEO button to
change inputs, the Video Label you assigned to that
input appears on screen.
1 Press V or v to highlight the video input (VIDEO
1-6) to which you want to assign a label. Then
press to select the input.
2 Press V or v to highlight one of the displayed
labels. Then press to select the label.
You can select from the following labels for each input:
Video 1-6
DVD, Cable Box, Satellite, VCR, Receiver, DVR,
Game, Camcorder, HD, LD, DTV, Beta, 8mm, Skip
✍ If you select Skip, your TV skips this input when you
press the TV/VIDEO button.
The Skip label is useful for
inputs that do not have
equipment connected to
them.
z
46
Menus MenusSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Menus
Programming
Caption Vision
If you selected the Program option under Caption Vision (see page 45), you
can change the following settings:
Tilt Correction Allows you to correct any tilt of the picture.
Press B or b to choose a correction between +7 and -7
and press .
Vertical Correction
Allows you to make a vertical correction to the picture.
Press V or v to choose a correction between +5 and -5
and press .
Language Select to display all on-screen Menus in your language
of choice.
Menu Color Enables you to select a specific color for the on-screen
menus.
Option Description
Normally, Tilt Correction
and Vertical Correction only
need to be adjusted the first
time you turn on the unit and
after the unit is moved to a
new location.
z
Basic Allows you to select basic analog (EIA-608) closed caption
options.
CC1, CC2,
CC3, CC4
Displays a printed version of the dialog or
sound effects of a program. (Should be set to
CC1 for most programs.)
Text1,Text2,
Text3,Text4
Displays network/station information
presented using either half or the whole
screen (if available). For closed captioning,
set to CC1.
Advanced Allows you to select advanced digital (EIA-708) closed
caption options. Select from the available options.
Digital CC Allows you to set digital closed captioning to Basic (digital
EIA-608) or Advanced (digital EIA-708).
Advanced Settings Allows you to make additional settings for digital (EIA-708)
closed caption options.
As Broadcast
Small Text
Large Text
Custom ... Allows you to customize the following
settings:
Character Size Small, Standard, Large
Character Style Style 1-7
Character Color Color 1-8
Edge Color Color 1-8
Edge Type None, Raised, Depressed,
Outline, Left shadow,
Right shadow
Background Color None, Color 1-8
Window Color None, Color 1-8
✍ Color options can also be set to Solid or
Translucent.
47
Menus SETUP MenusSETUP MenusSETUP
KD-34XBR970
2-671-222-21(4)
Menus
Using the Applications Settings
Selecting
Applications
Options
The Applications Settings include the following options:
To access the Applications Settings, follow these steps:
Press V / v to highlight.
Press to select.
1. Display Menu 2. Highlight and
select
3. Highlight and
select
Antenna
Applications
Clock/Timers
Diagnostics
Exit:
MENU
Option Description
Clock/Timers
Select to set the clock, set the Sleep timer, and to program
your TV to turn on and off at two scheduled viewing times.
Sleep
Set the time in minutes (
15min
,
30min
,
45min
,
60min
,
90min
,
120min
or
Off
) that you want the TV to remain
on before shutting off automatically.
Timer 1
Timer 2
You can use the Timers to program
the TV to turn on and off and tune
to a specific channel at two
scheduled viewing times.
Timer 1 and Timer 2 are not available to be set until you set
the Current Time.
1 Press V or v to highlight Timer 1 or Timer 2. To set the
timer, press b.
2 Press V or v to highlight one of the following options,
then press .
Program Select to set the Timer by day,
time, duration, and channel.
Off Select to turn off the Timer. (Your
previous settings are saved.)
3 If you selected Program in step 2, Press V and v to set
the day(s), hour, minute, duration, and channel
number. Press
or b to confirm each setting and
move to the next setting. Press B to go back to the
previous setting.
4 Press MENU to exit the Menu. An LED on the front
panel will light, indicating the timer has been set.
Current Time
1 Press to select Current Time.
2 Press V and v to set the current time (day, hour, and
minute). Press or b to confirm each setting and
move to the next setting. Press B to go back to the
previous setting.
3 Press MENU to exit the Menu.
Diagnostics
Displays the strength of the terrestrial digital broadcast signal,
to help you adjust your antenna to optimize signal reception.
You can also change the
Sleep options using the
SLEEP button on the remote
control.
To go directly to
programming Timer 1 or 2,
press instead of
pressing b.
z
To return to the Timer
Menu after programming one
of the Timers, press
when the highlight is in the
channel number field.
z
To return to the Timer
Menu after setting the
Current Time, press
when the highlight is in the
minute field.
z
KD-34XBR970
2-671-222-21(4)
49
KD-34XBR970
2-671-222-21(4)
Other Information
Glossary
analog signal A signaling method that uses continuous changes in the amplitude or frequency of an
electronic transmission to convey information.
aspect ratio Refers to the ratio between the width and height of the screen and picture image. This model
has a 16:9 (widescreen) aspect ratio.
component video
Component video is sent through three cables: two color shade (chrominance) signals and one
brightness (luminance) signal. Component video achieves greater color accuracy than composite
video or S VIDEO by splitting chrominance into two separate portions.
composite video
Composite video is sent through a single cable. Composite video combines the color shade
(chrominance) and brightness (luminance) information into one video signal.
degauss
A process that demagnetizes the metal components in the TV monitor, which eliminates image
distortion that can result from magnetic charges acquired by the TV’s components. Your TV
degausses automatically when it is turned on.
digital television (DTV)
A new technology for transmitting and receiving broadcast television signals. DTV provides clearer
resolution and improved sound quality over analog television.
HDMI (High-Definition
Multimedia Interface)
Provides an uncompressed, all-digital audio/video interface between this TV and any HDMI-
equipped audio/video component, such as a set-top box, DVD player, and A/V receiver. HDMI
supports enhanced, or high-definition video, plus two-channel digital audio.
National Television System
Committee (NTSC)
A unit of the Federal Communications Commission, Washington, DC, that establishes television
standards in the United States, such as NTSC Color, the standard used in this TV.
RF
Radio Frequency. That part of the frequency spectrum that is used to transmit TV and radio signals.
S VIDEO
S VIDEO requires a single cable, which carries the brightness (luminance) and color (chrominance)
signals of the picture separately. S VIDEO provides better resolution than composite video, which
carries the signals together.
VHF/UHF
VHF (Very High Frequency) is the part of the frequency spectrum from 30 to 300 megahertz. UHF
(Ultra High Frequency) is the part of the frequency spectrum from 300 to 3,000 megahertz.
480i (SD)
Provides 480 lines of resolution. Displays images using interlaced scanning, which first transmits
all the odd lines on the TV screen and then the even lines.
480p (SD)
Provides 480 lines of resolution. Displays images using progressive scanning, which transmits each
line from top to bottom.
720p (HD)
Provides 720 lines of resolution. Displays images using progressive scanning, which transmits each
line from top to bottom.
1080i (HD)
Provides 1080 lines of resolution. Displays images using interlaced scanning, which first transmits
all the odd lines on the TV screen and then the even lines. 1080i is one of the formats used by
HDTV (High Definition TV).
16:9 aspect ratio
4:3 aspect ratio
50
Other Info SETUP SETUP OtherSETUP
KD-34XBR970
2-671-222-21(4)
Other Info
Contacting Sony
If you have additional questions, service needs, or technical
assistance related to the use of your Sony TV, please visit our website
or call one of the following numbers:
http://www.sony.com/TVsupport
1-800-222-SONY(7669) for US Residents
1-877-899-SONY(7669) for Canadian Residents
Before calling Sony customer support or visiting our website, please
write down the model and serial numbers of your TV. You’ll find this
information on the front cover of this manual.
Troubleshooting
Remote Control
Channels
Problem Possible Remedies
Remote control
does not operate
❏ The batteries could be weak. Replace the batteries.
❏ Check the orientation of the batteries.
❏ Press the TV FUNCTION button. You may have inadvertently pressed the
SAT/CABLE FUNCTION button, which changes the remote control to SAT or
CABLE mode.
❏ Make sure the TV’s power cord is connected securely to the wall outlet.
❏ Locate the TV at least 3-4 feet away from fluorescent lights.
Cannot change channels
with the remote control
❏ If you are using the TV to change channels, first press the TV FUNCTION
button.
❏ If you are using another device to change channels, be sure to press the
FUNCTION button for that device. For example, if you are using your cable
box to change channels, be sure to press the SAT/CABLE FUNCTION button.
Remote control
does not operate non-Sony
video equipment
❏ If you replaced the batteries to the remote recently, the code numbers for
the video equipment may need to be reset.
❏ There may be more than one code for the equipment that you are
attempting to operate.
❏ There is a possibility that some non-Sony equipment cannot be operated by
your Sony TV remote.You may need to use the equipment’s original
remote control.
Problem Possible Remedies
Cannot receive upper
channels (UHF) when
using an antenna
❏ Use Auto Program in the Channel Settings to add receivable channels that are
not presently in the TV’s memory (see page 40).
51
Other Other InfoSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Other Info
Sound
Cannot receive any
channels when using
cable TV
❏ Use Auto Program in the Channel Settings to add receivable channels that are
not presently in the TV’s memory (see page 40).
Cannot receive or select
channels
❏ Use Auto Program in the Channel Settings to add receivable TV channels that
are not presently in TV memory (see page 40).
Some digital cable channels
are not being displayed
❏ Certain cable TV companies have limitations on the broadcast of digital
cable channels. Check with your cable TV company for more information.
❏ Some optional digital cable broadcast formats may not be supported. If
your cable TV company is broadcasting digital signals in unsupported
broadcast formats, you will need a separate set-top box provided by your
cable TV company to view those channels.
❏ The digital cable channel may be set to Hide in the Channel Settings
(see page 41).
❏ Use the Digital Channels feature to search for new digital channels
(see page 40).
Problem Possible Remedies
Problem Possible Remedies
Good picture,
no sound
❏ Press MUTING so that the word Muting disappears from the screen
(see page 22).
❏ Make sure the Speaker option is set to On in the Sound Settings
(see page 38).
❏ Make sure the MTS option is set to Stereo or Mono (see page 37).
Cannot gain enough volume
when using a cable box
❏ Increase the volume of the cable box using the cable box’s remote control.
Then press TV FUNCTION and adjust the TV’s volume.
Sound seems weak or
insufficient
❏ The TV’s audio might be set to Auto SAP or Mono, when it might be better set
to Stereo. In the Sound Settings (see page 37), set the MTS setting to Stereo. If
already set to Stereo, switch to Mono (which may reduce background noise
during weak stereo broadcasts).
Cannot raise the volume on
external audio speakers
❏ If the Speaker option is set to Off and the Audio Out option is set to Fixed (in
order to output the sound to your audio system) use your audio receiver to
adjust the sound (see page 37). Or, to use the TV remote control, set the
Audio Out option to Variable.
❏ To turn on the TV speakers, set the Speaker option to On (see page 38).
Problem Possible Remedies
No picture
(screen not lit), no sound
❏ If your TV does not turn on, and a red light keeps flashing, your TV may
need service. Call your local Sony Service Center.
❏ Make sure the power cord is plugged in.
❏ Press the POWER button on the front of the TV.
❏ Press the TV/VIDEO button to cycle through the connected video sources.
❏ Try another channel; it could be station trouble.
Dark, poor or no
picture (screen lit),
good sound
❏ Adjust the Picture option in the Picture Settings (see page 35).
❏ Adjust the Brightness option in the Picture Settings (see page 35).
❏ Check the antenna/cable connections.
No color ❏ Adjust the Color option in the Picture Settings (see page 35).
52
Other Info SETUP SETUP OtherSETUP
KD-34XBR970
2-671-222-21(4)
Other Info
General
Only snow and noise
appear on the screen
❏ Check the antenna/cable connections.
❏ Try another channel; it could be station trouble.
Dotted lines
or stripes
❏ Adjust the antenna.
❏ Move the TV away from noise sources such as cars, neon signs, or hair-
dryers.
Double images or ghosts ❏ Using a highly directional outdoor antenna or a cable may solve the
problem.
“Black box” on screen ❏ You have selected a text option in the Setup Settings and no text is
available. (See page 45 to reset Setup selections.) To turn off this feature, set
the Caption Vision option to Off. If you were trying to select closed
captioning, select CC1 instead of TEXT 1-4.
Bars appear at the
top and bottom of the screen
❏ Some wide-screen programs are filmed in aspect ratios that are greater
than 16:9, such as 2.35:1. (This is especially common with theatrical
releases). Your TV will show these programs with bars at the top and
bottom of the screen. For more details, check the documentation that came
with your DVD (or contact your program provider).
Problem Possible Remedies
Problem Possible Remedies
How to reset TV to
factory settings
❏ Turn on the TV. While holding down the RESET button on the remote
control, press the POWER button on the TV. (The TV will turn itself off, then
back on again.) Release the RESET button.
How to restore Picture
settings to factory settings
❏ Press the RESET button on the remote control while in the Picture Settings
(see page 35).
How to restore Sound
settings to factory settings
❏ Press the RESET button on the remote control while in the Sound Settings
(see page 37).
Cannot cycle through the
other video equipment
connected to the TV
❏ Be sure the Label Video Inputs option is not set to Skip (see page 45).
Cannot operate Menu ❏ If a Menu option appears in gray, this indicates that the TV is in a state in
which the Menu option is not available.
Lost password ❏ In the password screen (see page 42), enter the following master password:
4357. The master password clears your previous password; it cannot be
used to temporarily unblock channels.
TV makes “popping” sound
when turned on
❏ This is a normal sound that results from the TV automatically degaussing
each time it is turned on.
TIMER/STAND BY LED on
front panel is lit
❏ This LED blinks when the TV is turned on, then shuts off when the picture
is displayed. If the LED blinks for more than a minute, this may indicate
the TV needs service.
Digital cable box does not
work
❏ If you are connecting a VCR and digital cable box using a splitter, as
described on page 9, you must use a special bi-directional splitter that is
designed to work with your digital cable box. Contact your cable TV
company for details.
Cannot record digital
channels to VCR
❏ Only analog channels can be recorded to your VCR.
53
Other Other InfoSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Other Info
Specifications
Design and specifications are subject to change without notice.
Optional Accessories
Picture Tube FD Trinitron
®
tube
Antenna 75 ohm external terminal for VHF/UHF
Television System NTSC
American TV Standard
ATSC (8VSB terrestrial)
ATSC compliant 8VSB
QAM on cable ANSI/SCTE 07 2000
Channel Coverage Terrestrial (analog) 2-69
Cable TV (analog) 1-125
Terrestrial (digital) 2-69
Cable TV (digital) 1-135
Power Requirements 120V, 60 Hz
Inputs/Outputs
HDMI IN Video 1080i, 720p, 480p, 480i
Audio Two channel linear PCM 32, 44.1 and 48 kHz, 16,
20 and 24 bit
Video (IN) 3 total (1 on front panel) 1 Vp-p, 75 ohms unbalanced, sync negative
S Video (IN) 3 total (1 on front panel) Y: 1 Vp-p, 75 ohms unbalanced, sync negative
C: 0.286 Vp-p (Burst signal), 75 ohms
Audio (IN) 6 total (1 on front panel) 500 mVrms (100% modulation)
Impedance: 47 kilohm
Component Video Input 2 (YP
BPR) Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative;
P
B
: 0.7 Vp-p, 75 ohms
P
R
: 0.7 Vp-p, 75 ohms
Variable/Fixed Audio (OUT) 1 More than 408 mVrms at the maximum volume
setting (Variable)
More than 408 mVrms (Fixed)
Impedance (output): 2 kilohms
Digital Audio Output PCM/Dolby Digital
1Coaxial
Supplied Accessories Remote Control RM-YD007
AA Batteries 2 supplied for remote control
Visible Screen Size
(picture measured diagonally)
34 in (863.6 mm)
Actual CRT Size
(picture measured diagonally)
36 in (914.4 mm)
Speaker Output 10 W x 2
Dimensions (W x H x D) 994 x 654 x 604 mm
(39 1/8 x 25 3/4 x 23 3/4 in)
Mass 86.3 Kg (190 lbs)
Power Consumption In Use: 240 W
In Standby: Less than 1 W
Accessory Description Model Number
Cables Audio/Video VMC-810/820/830 HG
Audio RKC-515HG
Component Video VMC-10/30 HG
TV Stand SU-34XBR4
54
KD-34XBR970
2-671-222-21(4)
0-9 buttons 23, 28
4:3 Default settings
39
A
Advanced Settings 36
Alternate Audio
38
antenna, connecting
5
Applications Settings
47
Audio Out
38
AUDIO OUT jack
4
audio receiver, connecting
16
Auto Program (channel setup)
20, 40
Auto SAP, MTS setting
37
Auto Wide
39
B
balance, adjusting 37
bass, adjusting
37
batteries, inserting in remote
21
BBE
2
bilingual audio
37
blocking programs. See ratings.
brightness, adjusting 35
Built
1
C
Cable 40
cable
connecting
5
with VCR, connecting
8
cable box
connecting with VCR
9
using with TV remote
control 27
Caption Vision (CC)
45
CATV. See cable
CH buttons 3, 23
channel list, setting up
20
Channel Settings
40
Channel Skip/Add
41
CineMotion
2, 22, 36
ClearEdge VM
36
ClearEdge VM Velocity
Modulation
2
clearing, Favorite Channels
32
closed caption modes
45
CODE SET button
22
color, adjusting
35
Component Video Inputs
2
Cool, Color Temp.
35
D
degauss 52
DIGITAL AUDIO jack
4
digital channels, adding
40
Digital Reality Creation
1
DISPLAY button
28
DRC Mode
36
DRC MODE button
22
DRC. See Digital Reality Creation.
DVD player
using with TV remote
control 27
with A/V connectors,
connecting
15
E
Effect button 23
ENTER button
23, 28
External Inputs, MENU
34
F
Fast-forward button 22
Favorite Channels
clearing
32
in Channel Settings
40
Favorites Menu
1
using
32
Favorites, MENU
34
features
1
Fixed audio setting
38
Full
31
Full (Screen Mode)
30, 31
G
Glossary 49
GUIDE button
23, 29
H
HD Detailer 2
HD/DVD IN
(1080i/720p/480p/480i)
jacks, described
4
High-Definition Multimedia
Interface (HDMI)
2, 17, 18,
49
Horizontal Expand (Screen
Mode)
31
hue, adjusting
35
I
Info Banner 45
Initial Setup
20
interlaced
1, 22, 36, 49
J
JUMP button 22, 28
L
Language, setting 46
M
MENU button 3, 23, 28, 32, 33
Mono, MTS setting
37
Movie mode
35
MTS
37
MUTING button
22, 28
N
Neutral, Color Temp. 35
Normal (Screen Mode)
30
O
off, turning off the TV 3
on, turning on the TV
3
P
parental control, described 2
Parental Lock Settings
42
password, changing
43
Pause button
22
PIC MODE button
22
Index
55
Welcome Other InfoSETUP SETUPSETUP
KD-34XBR970
2-671-222-21(4)
Index
Picture modes, selecting 35
Picture Settings
35
picture, adjusting
35
Play button
22
POWER button
3
power cord, removing from
holder 3
powering on/off, the TV
3
presetting channels
40
Pro (Video) mode
35
Program Guide
29
progressive
1, 22, 36, 49
R
ratings, setting 42–44
ratings, viewing blocked
programs 43, 44
Record buttons
22
remote control
inserting batteries 21
programming
24–25
removing, Favorite Channels
32
RESET button
22
resetting
Picture options
35
Sound options
37
Rewind button
22
S
S VIDEO jack, described 3, 4
SAT/CABLE FUNCTION button
23
SAT/CABLE POWER button
22
satellite receiver, using with TV
remote control 26
Screen Mode
30, 39
SCREEN MODE button
30
Screen Settings
39
Settings
Applications 47
Channel
40
Parental Lock
42
35
Screen
39
Setup
45
Sound
37
Settings, MENU
34
Setup Settings
45
sharpness, adjusting
35
Simulated, Effect
37
SLEEP button
22
Sound Settings
37
speakers
turning on/off
38
using external speakers
38
Specifications
53
Standard mode
35
Steady Sound, described
2
Steady Sound, setting
37
Stereo, MTS setting
37
Stop button
22
surround sound
37
SYSTEM OFF button
22
T
Tilt Correction 20, 46
tilt, correcting
20, 46
transport buttons
22
treble, adjusting
37
Troubleshooting
50–52
TruSurround
37
TruSurround, Effect
37
turning on/off the TV
3
TV FUNCTION button
23, 28
TV POWER button
22, 28
TV, MENU
34
TV/VIDEO button
23, 28
V
Variable audio setting 38
VCR
using with TV remote
control
26
with cable box, connecting
9
with cable, connecting
8
with satellite receiver,
connecting 12
Vertical Center
39
Vertical Correction
20, 46
Vertical Expand (Screen Mode)
31
Vertical Size, adjusting
39
VHF/UHF jack, described
4
VIDEO (L/R)/AUDIO jacks,
described
4
Vivid mode
35
VOL buttons
3, 22, 28
W
Warm, Color Temp. 35
Wega, described
1
Wide Zoom
30
WOW
37
Z
Zoom (Screen Mode) 30, 31
