Safety information
Before using your new Samsung Refrigerator, please read this manual thoroughly to
ensure that you know how to operate the features and functions that your new appliance
offers safely and efciently.
What you need to know about the safety instructions
• Warnings and Important Safety Instructions in this manual do not
cover all possible conditions and situations that may occur.
It is your responsibility to use common sense, caution, and care
when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various
models, the characteristics of your refrigerator may differ slightly
from those described in this manual and not all warning signs may
be applicable. If you have any questions or concerns, contact your
nearest service center or nd help and information online at www.
samsung.com.
• R-600a or R-134a is used as a refrigerant. Check the compressor
label on the rear of the appliance or the rating label inside the
fridge to see which refrigerant is used for your appliance. When
this product contains ammable gas (Refrigerant R-600a), contact
your local authority in regard to safe disposal of this product.
• In order to avoid the creation of a ammable gas-air mixture
if a leak in the refrigerating circuit occurs, the size of the room
in which the appliance may be sited depends on the amount of
refrigerant used.
• Never start up an appliance showing any signs of damage. If in
doubt, consult your dealer. The room must be 1 m
3
in size for
every 8 g of R-600a refrigerant inside the appliance.
The amount of refrigerant in your particular appliance is shown on
the identication plate inside the appliance.
Safety information
Untitled-1 3 2021-03-19 11:42:52
Safety information
English4
Safety information
• Refrigerant squirting out of the pipes could ignite or cause an eye
injury. When refrigerant leaks from the pipe, avoid any naked
ames and move anything ammable away from the product and
ventilate the room immediately.
- Failing to do so may result in re or explosion.
• To avoid contamination of food, please respect the following
instructions:
- Opening the door for long periods can cause a signicant
increase of the temperature in the compartments of the
appliance.
- Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
- Clean water tanks if they have not been used for 48 h; ush
the water system connected to a water supply if water has not
been drawn for 5 days.
- Store raw meat and sh in suitable containers in the
refrigerator, so that it is not in contact with or drip onto other
food.
- Two-star frozen-food compartments are suitable for storing
pre-frozen food, storing or making icecream and making ice
cubes.
- One-, two- and three-star compartments are not suitable for the
freezing of fresh food.
- If the refrigerating appliance is left empty for long periods,
switch off, defrost, clean, dry, and leave the door open to
prevent mould developing within the appliance.
• It is hazardous for anyone other than an Authorized Service
Person to service this appliance. In Queensland – the authorized
Service Person MUST hold a Gas Work Authorization or Licence for
hydrocarbon refrigerants, to carry out Servicing or repairs which
involve the removal of covers. (For Australia only)
Untitled-1 4 2021-03-19 11:42:52
English 5
Safety information
Important safety symbols and precautions:
Please follow all safety instructions in this manual. This manual uses
the following safety symbols.
WARNING
Hazards or unsafe practices that may result in severe personal injury,
property damage, and/or death.
CAUTION
Hazards or unsafe practices that may result in severe personal injury
and/or property damage.
NOTE
Useful information that helps users understand or benet from the
refrigerator.
These warning signs are here to prevent injury to you and others.
Please follow them carefully.
After reading this section, keep it in a safe place for future reference.
Untitled-1 5 2021-03-19 11:42:52
Safety information
English6
Safety information
Important safety precautions
Warning; Risk of re / ammable materials
WARNING
• When positioning the appliance, ensure the supply cord is not
trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
• Fill with potable water only.
• Connect to potable water supply only.
• Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
• Do not use mechanical devices or any other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory, or mental capabilities,
or those who lack experience and knowledge, unless they have
been given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
Untitled-1 6 2021-03-19 11:42:52
English 7
Safety information
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision. Children aged
from 3 to 8 years are allowed to load and unload refrigerating
appliances.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
• The socket must be easily accessible so that the appliance can be
quickly disconnected from the supply in an emergency.
- It must be outside the area of the rear of the appliance.
• Do not store explosive substances such as aerosol cans with a
ammable propellant in this appliance.
• If the product is equipped with LED lamps, do not disassemble the
Lamp Covers and LED lamps yourself.
- Contact a Samsung service center.
- Use only the LED Lamps provided by the manufacturer or its
service agents.
• New hose-sets supplied with the appliance are to be used and old
hose-sets should not be reused.
• Have the refrigerator’s water supply connected only to a potable
water supply. To operate the ice maker properly, water pressure
of 30-125 psi (206-861 kPa) is required.
• For the most efcient use of energy, please keep the all inner
ttings such as baskets, drawers, shelves on the position supplied
by manufacturer.
Untitled-1 7 2021-03-19 11:42:52
Safety information
English8
Safety information
• To get the best energy efciency of this product, please leave all
shelves, drawers and baskets on their original position.
How to minimize the energy consumption
• Install the appliance in a cool, dry room with adequate ventilation.
• Ensure that it is not exposed to direct sunlight and never put it
near a direct source of heat (radiator, for example).
- Not to block any vents or grilles is recommended for energy
efciency.
- Allow warm food to cool down before placing it in the
appliance.
- Put frozen food in the refrigerator to thaw. You can then use
the low temperatures of the frozen products to cool food in the
refrigerator.
- Do not keep the door of the appliance open for too long when
putting food in or taking food out.
- The shorter time for which the door is open, the less ice will
form in the freezer.
- Clean the rear of the refrigerator regularly. Dust increases
energy consumption.
- Do not set temperature colder than necessary.
- Ensure sufcient air exhaust at the refrigerator base and at the
back wall of the refrigerator. Do not cover air vent openings.
- Allow clearance to the right, left, back and top when installing.
This will help reduce power consumption and keep your energy
bills lower.
• We recommend the value of clearance to be :
- Right, left, and back side: more than 50 mm
- Top side: more than 100 mm
Untitled-1 8 2021-03-19 11:42:52
English 9
Safety information
This appliance is intended to be used in household and similar
applications such as
- staff kitchen areas in shops, ofces and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
Severe warning signs for transportation and site
WARNING
• When transporting and installing the appliance, care should be
taken to ensure that no parts of the refrigerating circuit are
damaged.
- Refrigerant leaking from the pipe work could ignite or cause
an eye injury. If a leak is detected, avoid any naked ames
or potential sources of ignition and air the room in which the
appliance is standing for several minutes.
- This appliance contains a small amount of isobutane refrigerant
(R-600a), a natural gas with high environmental compatibility
that is, however, also combustible. When transporting and
installing the appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
• When transporting and installing the refrigerator, do not touch the
water hose on the back side of the refrigerator.
- This may damage the refrigerator and as a result the water
dispenser can not be used.
Untitled-1 9 2021-03-19 11:42:52
Safety information
English10
Safety information
Critical installation warnings
WARNING
• Do not install the refrigerator in a damp location or place where it
may come in contact with water.
- Deteriorated insulation on electrical parts may cause an electric
shock or re.
• Do not place this refrigerator in direct sunlight or expose it to the
heat from stoves, room heaters, or other appliances.
• Do not plug several appliances into the same multiple power strip.
The refrigerator should always be plugged into its own individual
electrical outlet which has a voltage rating that matches the
voltage listed on the refrigerator’s rating plate.
- This provides the best performance and also prevents
overloading of house wiring circuits, which could cause a re
hazard from overheated wires.
• If the wall socket is loose, do not insert the power plug.
- There is a risk of electric shock of re.
• Do not use a power cord that has cracks or abrasion damage along
its length or at either end.
• Do not bend the power cord excessively or place heavy objects on
it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy
object on the power cord, insert the power cord between objects,
or push the power cord into the space behind the appliance.
• When moving the refrigerator, be careful not to roll over or
damage the power cord.
- This may result in an electric shock or re.
Untitled-1 10 2021-03-19 11:42:52
English 11
Safety information
• Never unplug your refrigerator by pulling on the power cord.
Always grip the plug rmly and pull straight out from the outlet.
- Damage to the cord may cause a short-circuit, re, and/or
electric shock.
• Do not use aerosols near the refrigerator.
- Using aerosols near the refrigerator may cause an explosion or
re.
• Do not install this appliance near a heater or inammable material.
• Do not install this appliance in a location where gas may leak.
- This may result in an electric shock or re.
• This refrigerator must be properly located and installed in
accordance with the instructions in this manual before you use it.
• Connect the power plug in the proper position with the cord
hanging down.
- If you connect the power plug upside down, the wire can get
cut off and cause a re or electric shock.
• Make sure that the power plug is not crushed or damaged by the
back of the refrigerator.
• Keep the packing materials out of reach of children.
- There is a risk of death from suffocation if a child puts the
packing materials on his or her head.
• Do not install this appliance in a humid, oily or dusty location, in a
location exposed to direct sunlight and water (rain drops).
- Deteriorated insulation of electrical parts may cause an electric
shock or re.
• If any dust or water is in the refrigerator, pull out power plug and
contact your Samsung Electronics service center.
- Otherwise there is a risk of re.
Untitled-1 11 2021-03-19 11:42:52
Safety information
English12
Safety information
• Do not stand on top of the appliance or place objects (such as
laundry, lighted candles, lighted cigarettes, dishes, chemicals,
metal objects, etc.) on the appliance.
- This may result in an electric shock, re, problems with the
product, or injury.
• You need to remove all the protective plastic lm before you
initially plug the product in.
• Children should be supervised to ensure that they do not play with
the snap rings used for door adjustment or the water tube clips.
- There is risk of death by suffocation if a child swallows a snap
ring or water tube clip. Keep the snap rings and water tube clips
out of children’s reach.
• The refrigerator must be safely grounded.
- Always make sure that you have grounded the refrigerator
before attempting to investigate or repair any part of the
appliance. Power leakages can cause severe electric shock.
• Never use gas pipes, telephone lines, or other potential lightning
attractors as an electrical ground.
- You must ground the refrigerator to prevent any power
leakages or electric shocks caused by current leakage from the
refrigerator.
- This may result in an electric shock, re, explosion, or problems
with the product.
• Plug the power plug into the wall socket rmly. Do not use a
damaged power plug, damaged power cord, or loose wall socket.
- This may result in an electric shock or re.
• The fuse on the refrigerator must be changed by a qualied
technician or service company.
- Failing to do so may result in an electric shock or personal
injury.
Untitled-1 12 2021-03-19 11:42:53
English 13
Safety information
Installation cautions
CAUTION
• Allow sufcient space around the refrigerator and install it on a
at surface.
- If your refrigerator is not level, cooling efciency and durability
can be declined.
• Allow the appliance to stand for 2-3 hours before loading foods
after installation and turning on.
• We strongly recommend you have a qualied technician or service
company install the refrigerator.
- Failing to do so may result in an electric shock, re, explosion,
problems with the product, or injury.
Critical usage warnings
WARNING
• Do not insert the power plug into a wall socket with wet hands.
- This may result in an electric shock.
• Do not store articles on the top of the appliance.
- When you open or close the door, the articles may fall and
cause personal injury and/or material damage.
• Do not insert hands, feet or metal objects (such as chopsticks, etc.)
into the bottom or the back of the refrigerator.
- This may result in an electric shock or injury.
- Any sharp edges may cause a personal injury.
• Do not touch the inside walls of the freezer or products stored in
the freezer with wet hands.
- This may cause frostbite.
• Do not put a container lled with water on the refrigerator.
- If spilled, there is a risk of re or electric shock.
Untitled-1 13 2021-03-19 11:42:53
Safety information
English14
Safety information
• Do not keep volatile or ammable objects or substances (benzene,
thinner, propane gas, alcohol, ether, LP gas, and other such
products) in the refrigerator.
- This refrigerator is for storing food only.
- This may result in re or explosion.
• Children should be supervised to ensure that they do not play with
the appliance.
- Keep ngers out of “pinch point” areas. Clearances between the
doors and cabinet are necessarily small. Be careful when you
open the doors if children are in the area.
• Do not put your ngers or children's ngers between the doors.
- Keep ngers out of the left and right door gaps. Be careful
when you open the doors if your ngers are in between the
doors.
• Do not let children hang on the door or door bins. A serious injury
may occur.
• Do not let children go inside the refrigerator. They could become
trapped.
• Do not insert your hands into the bottom area under the appliance.
- Any sharp edges may cause personal injury.
• Do not store pharmaceutical products, scientic materials, or
temperature sensitive products in the refrigerator.
- Products that require strict temperature controls must not be
stored in the refrigerator.
• If you smell pharmaceutical or smoke, pull out power plug
immediately and contact your Samsung Electronics service center.
• If any dust or water is in Refrigerator, pull out power plug and
contact your Samsung Electronics service center.
- Otherwise there is a risk of re.
Untitled-1 14 2021-03-19 11:42:53
English 15
Safety information
• Do not let children step on a drawer.
- The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the
refrigerator is unattended and do not let children enter inside the
refrigerator.
• Do not allow babies or children go inside the drawer.
- It can cause death from suffocation by entrapment or personal
injury.
• Do not overll the refrigerator with food.
- When you open the door, an item may fall out and cause
personal injury or material damage.
• Do not spray volatile material such as insecticide onto the surface
of the appliance.
- As well as being harmful to humans, it may also result in an
electric shock, re, or problems with the product.
• Never put ngers or other objects into the water dispenser hole,
ice chute and ice maker bucket.
- It may cause a personal injury or material damage.
• Do not use or place any substances sensitive to temperature such
as ammable sprays, ammable objects, dry ice, medicine, or
chemicals near or inside of the refrigerator.
• Do not use a hair dryer to dry the inside of the refrigerator. Do
not place a lighted candle in the refrigerator for removing bad
odours.
- This may result in an electric shock or re.
• Fill the water tank, ice tray and water cubes only with potable
water (mineral water or puried water).
- Do not ll the tank with tea, juice or sports drink, this may
damage the refrigerator.
Untitled-1 15 2021-03-19 11:42:53
Safety information
English16
Safety information
• Do not stand on top of the appliance or place objects (such as
laundry, lighted candles, lighted cigarettes, dishes, chemicals,
metal objects, etc.) on the appliance. This may result in an electric
shock, re, problems with the product, or injury. Do not put a
container lled with water on the appliance.
- If spilled, there is a risk of re or electric shock.
• Never stare directly at the UV LED lamp for long periods of time.
- This may result in eye strain due to the ultraviolet rays.
• Do not put shelf in upside down. Shelf stopper could not work.
- It may cause a personal injury because of glass shelf drop.
• Keep ngers out of “pinch point” areas. Clearances between the
doors and cabinet are necessarily small. Be careful when you open
the doors if children are in the area.
• If a gas leak is detected, avoid any naked ames or potential
sources of ignition, and air the room in which the appliance is
standing for several minutes.
- Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in explosion or re.
• Bottles should be stored tightly together so that they do not fall
out.
• This product is intended only for the storage of food in a domestic
environment.
• Never put ngers or other objects into the water dispenser hole,
ice chute and ice maker bucket.
- It may cause a personal injury or material damage.
• Do not attempt to repair, disassemble, or modify the refrigerator
yourself.
• Do not use any fuse (such as cooper, steel wire, etc.) other than a
standard fuse.
Untitled-1 16 2021-03-19 11:42:53
English 17
Safety information
• If your refrigerator needs to be repaired or reinstalled, contact
your nearest service center.
- Failing to do so may result in an electric shock, re, problems
with the product, or injury.
• If the refrigerator emits a burning smell or smoke, unplug the
refrigerator immediately and contact your Samsung Electronics
service center.
- Failing to do so may result in an electric or re hazards.
• Pull the power plug out of the socket before changing the interior
lamps of the refrigerator.
- Otherwise, there is a risk of electric shock.
• If you experience difculty changing a non-LED light, contact a
Samsung service center.
• Plug the power plug into the wall socket rmly.
• Do not use a damaged power plug, damaged power cord or loose
wall socket.
- This may result in an electric shock or re.
Untitled-1 17 2021-03-19 11:42:53
Safety information
English18
Safety information
Usage cautions
CAUTION
• Do not refreeze thawed food.
- Frozen and thawed food will develop harmful bacteria faster
than fresh.
- The second thaw will break down even more cells, leaching out
moisture and changing the integrity of the product.
• Do not thaw meat at room temperature.
- Safety will depend on whether the raw product was handled
properly.
• Do not place glass bottles or carbonated beverages into the
freezer.
- The container may freeze and break, and this may result in
injury.
• Use only the ice maker provided with the refrigerator.
• If you will be away from home for a long period of time (on
vacation, for example) and won’t be using the water or ice
dispensers, close the water valve.
- Otherwise, water leakage may occur.
• If you won’t be using the refrigerator for a very long period of
time, (3 weeks or more) empty the refrigerator including the ice
bucket, unplug it, close the water valve, wipe excess moisture
from the inside walls, and leave the doors open to prevent odors
and mold.
• To get the best performance from the product:
- Do not place food too close to the vents at the rear of the
refrigerator as this can obstruct free air circulation in the
refrigerator compartment.
- Wrap food up properly or place it in airtight containers before
putting it into the refrigerator.
Untitled-1 18 2021-03-19 11:42:53
English 19
Safety information
- Please observe maximum storage times and expiration dates of
frozen goods.
- There is no need to disconnect the refrigerator from the power
supply if you will be away for less than three weeks. However,
if you will be away for more than three weeks, remove all the
food and ice in the ice bucket, unplug the refrigerator, close the
water valve, wipe excess moisture from the inside walls, and
leave the doors open to prevent odors and mold.
• Service Warranty and Modication.
- Any changes or modications performed by a 3rd party on this
nished appliance are not covered under Samsung warranty
service, nor is Samsung responsible for safety issues that result
from 3rd party modications.
• Do not block the air vents inside the refrigerator.
- If the air vents are blocked, especially with a plastic bag, the
refrigerator can be over cooled. If a cooling period lasts too
long, the water lter may break and cause water leakage.
• Use only the ice-maker provided with the refrigerator.
• Wipe excess moisture from the inside and leave the doors open.
- Otherwise, odor and mold may develop.
• If the refrigerator is disconnected from the power supply, you
should wait for at least ve minutes before plugging it back in.
• When the refrigerator got wet by water, pull out the power plug
and contact your Samsung Electronics service center.
• Do not strike or apply excessive force to any glass surface.
- Broken glass may result in a personal injury and/or property
damage.
Untitled-1 19 2021-03-19 11:42:53
Safety information
English20
Safety information
• Fill the water tank and ice cube trays with potable water only (tap
water, mineral water, or puried water).
- Do not ll the tank with tea or a sports drink. This may damage
the refrigerator.
• Be careful that your ngers are not caught in.
• If the refrigerator is ooded, make sure to contact your nearest
service center.
- There is a risk of electric shock or re.
• Do not keep vegetable oil in your refrigerator’s door bins. The oil
can solidify, making it foul-tasting and difcult to use. In addition,
the open container can leak and the leaked oil can cause the door
bin to crack. After opening an oil container, it is best to keep the
container in a cool and shaded place such as a cupboard or pantry.
- Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc.
Cleaning cautions
CAUTION
• Do not spray water directly on the inside or outside the
refrigerator.
- There is a risk of re or electric shock.
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not place a lighted candle in the refrigerator to remove bad
odors.
- This may result in an electric shock or re.
• Do not spray cleaning products directly on the display.
- Printed letters on the display may come off.
• If any foreign substance such as water has entered the appliance,
unplug the power plug and contact your nearest service center.
- Failing to do so may result in an electric shock or re.
Untitled-1 20 2021-03-19 11:42:53
English 21
Safety information
• Use a clean, dry cloth to remove any foreign matter or dust from
the power plug blades. Do not use a wet or damp cloth when
cleaning the plug.
- Otherwise, there is a risk of re or electric shock.
• Do not clean the appliance by spraying water directly onto it.
• Do not use benzene, thinner, or Clorox, Chloride for cleaning.
- They may damage the surface of the appliance and may cause a
re.
• Never put ngers or other objects into the dispenser hole.
- It may cause a personal injury or material damage.
• Before cleaning or performing maintenance, unplug the appliance
from the wall socket.
- Failing to do so may result in an electric shock or re.
• Use a clean sponge or soft cloth and a mild detergent in warm
water to clean the refrigerator.
• Do not use abrasive or harsh cleansers such as window sprays,
scouring cleansers, ammable uids, muriatic acid, cleaning
waxes, concentrated detergents, bleaches, or cleansers containing
petroleum products on exterior surfaces (doors and cabinet),
plastic parts, door and interior liners, and gaskets.
- These can scratch or damage the material.
• Do not clean glass shelves or covers with warm water when they
are cold. Glass shelves and covers may break if exposed to sudden
temperature changes or impacts such as bumping or dropping.
Untitled-1 21 2021-03-19 11:42:53
Safety information
English22
Safety information
Critical disposal warnings
WARNING
• Please dispose of the packaging material from this product in an
environmentally friendly manner.
• Ensure that none of the pipes on the back of the refrigerator are
damaged prior to disposal.
• R-600a or R-134a is used as a refrigerant. Check the compressor
label on the rear of the appliance or the rating label inside the
fridge to see which refrigerant is used for your refrigerator. If this
refrigerator contains ammable gas (Refrigerant R-600a), contact
your local authority in regard to safe disposal of this product.
• When disposing of this refrigerator, remove the door/door seals
and door latch so that small children or animals cannot become
trapped inside. Children should be supervised to ensure that they
do not play with the appliance. If trapped inside, a child may get
hurt or suffocate to death.
- If trapped inside, the child may become injury and suffocate to
death.
• Cyclopentane is used in the insulation. The gases in the insulation
material require a special disposal procedure. Please contact your
local authorities in regard to the environmentally safe disposal of
this product.
• Keep all packaging materials well out of the reach of children, as
packaging materials can be dangerous to children.
- If a child places a bag over his or her head, the child could
suffocate.
Untitled-1 22 2021-03-19 11:42:53
English 23
Safety information
Additional tips for proper usage
• In the event of a power failure, call the local ofce of your electric
company and ask how long the failure is going to last.
- Most power failures that are corrected in an hour or two will
not affect your refrigerator temperatures. However, you should
minimize the number of door openings while the power is off.
- Should the power failure last more than 24 hours, remove and
discard all frozen food.
• The refrigerator might not operate consistently (frozen contents
can thaw or temperatures can become too warm in the frozen
food compartment) if sited for an extended period of time in a
location where ambient air temperatures are constantly below the
temperatures for which the appliance is designed.
• In case of particular foods, keeping it under refrigeration can have
a bad effect on preservation due to its properties.
• Your appliance is frost free, which means there is no need
to manually defrost your appliance. This will be carried out
automatically.
• Temperature rise during defrosting complies with ISO
requirements. If you want to prevent an undue rise in the
temperature of frozen food while the appliance defrosts, wrap the
frozen food in several layers of newspaper.
• Do not re-freeze frozen foods that have thawed completely.
• The temperature of two star section (sections) or compartment
(compartments) which have two star symbol ( ) is slightly higher
than other freezer compartment (compartments).
The two star section (sections) or compartment (compartments) is
(are) based on the instruction and/or the condition as delivered.
Untitled-1 23 2021-03-19 11:42:53
Safety information
English24
Safety information
Instructions about the WEEE
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates
that the product and its electronic accessories (e.g. charger,
headset, USB cable) should not be disposed of with other
household waste at the end of their working life. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, please separate these items from
other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government ofce, for details
of where and how they can take these items for environmentally
safe recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract. This product and its
electronic accessories should not be mixed with other commercial
wastes for disposal.
For information on Samsung’s environmental commitments and
product regulatory obligations, e.g. REACH, WEEE or Batteries, visit
our sustainability page available via www.samsung.com
(For products sold in European countries and in the UK only)
Untitled-1 24 2021-03-19 11:42:53
English 25
Installation
Follow these instructions carefully to ensure a proper installation of this refrigerator and
to prevent accidents before using it.
WARNING
• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualied technician.
• Dispose of the product packaging material in compliance with the local regulations.
• To prevent electric shock, unplug the power cord before servicing or replacements.
Installation
Untitled-1 25 2021-03-19 11:42:53
Installation
English26
Installation

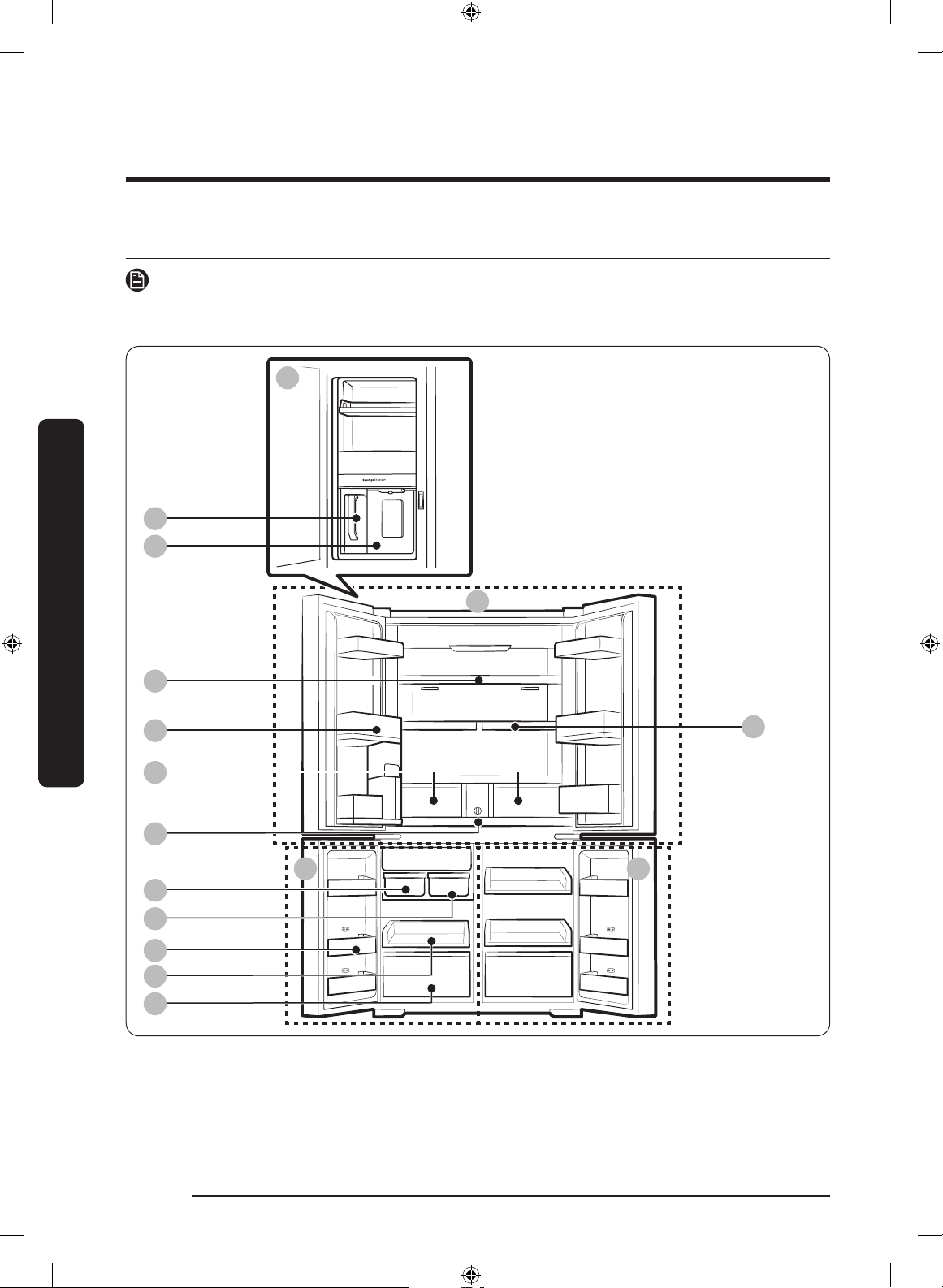

Refrigerator at a glance
NOTE
The actual image and provided component parts of the refrigerator may differ, depending
on the model and the country.
01
02
03
10
06
08
07
12
09
11
05
04
A
B
C D
Untitled-1 26 2021-03-19 11:42:54
English 27
Installation
01 AutoFill pitcher A. Fridge
B. Beverage Center
C. Freezer
D. Cool Select+
02 Water dispenser
03 Fridge door bin
04 Fridge shelf
05 Quick Space shelf
06 Crisper / Flex Crisper Drawers *
07 Water lter
08 Auto ice maker - Cubed Ice * (Ice Maker *)
09 Auto ice maker - Ice Bites *
10 Freezer door bin
11 Freezer shelf
12 Freezer drawer
* Applicable models only
NOTE
• For energy efciency, keep all shelves, drawers, and baskets in their original positions.
• When closing the door, make sure the vertical hinged section is in the correct position
to avoid scratching the other door.
• If the vertical hinged section is reversed, put it back into the correct position, and then
close the door.
• Moisture may form at times on the vertical hinged section.
• If you close a door forcefully, the other door may open.
• If the internal or external LED lamp is out of order, contact a local Samsung service
center.
Untitled-1 27 2021-03-19 11:42:54
Installation
English28
Installation

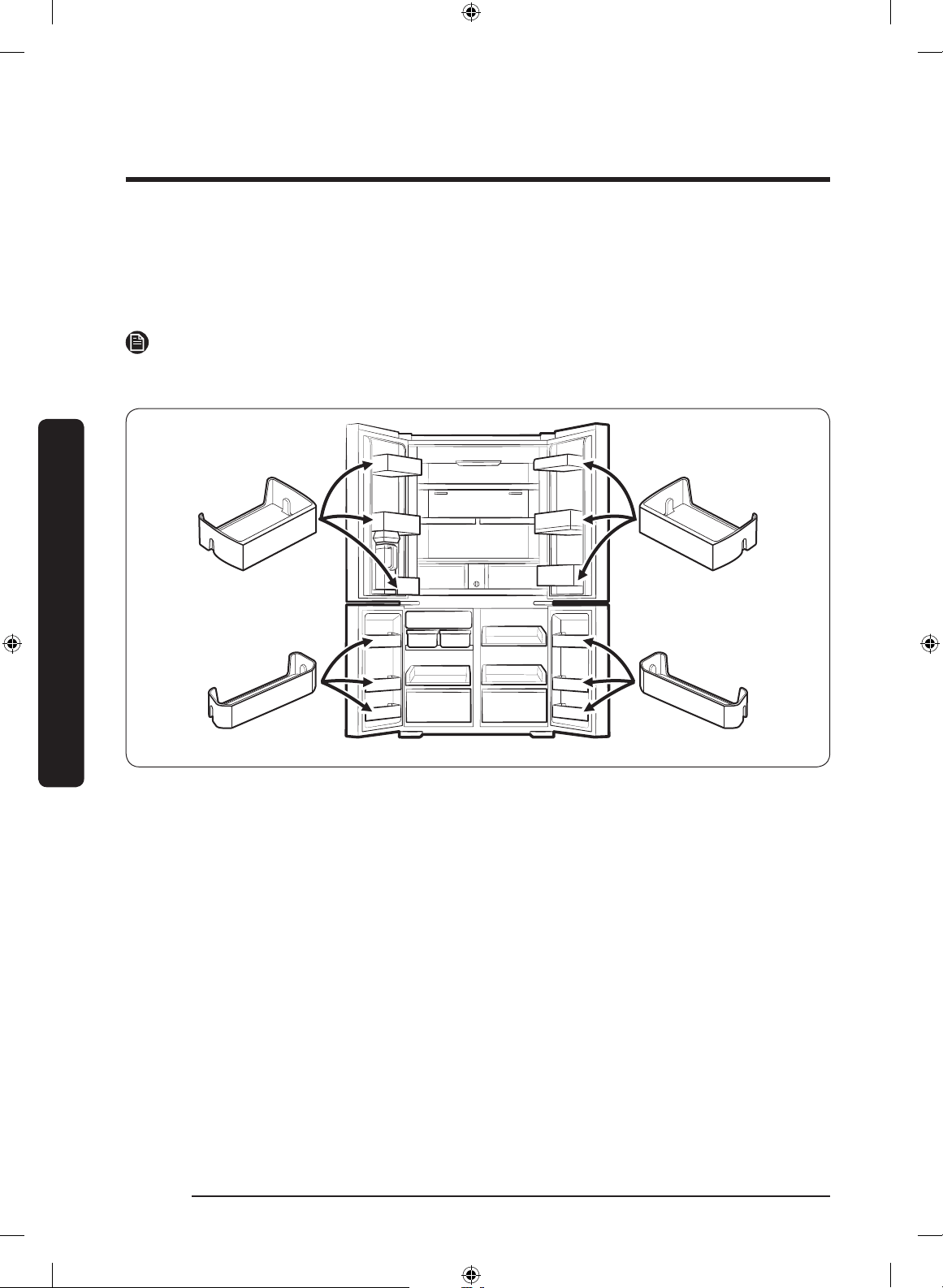

Door bins
Your refrigerator ships with door bins of different types and sizes. If the door bins for
your refrigerator were packaged separately, use the gure below to help you position the
bins properly.
NOTE
The actual refrigerator and provided component parts of your refrigerator may differ
from the illustrations in this manual, depending on the model and the country.
Untitled-1 28 2021-03-19 11:42:54
English 29
Installation
Step-by-step installation
STEP 1 Select a site
The site must:
• Have a solid level surface without carpeting or ooring that may obstruct ventilation
• Be out of direct sunlight
• Have adequate room for opening and closing the door
• Be away from any heat source
• Provide room for maintenance and servicing
• Have a temperature range between 10 °C and 43 °C
Effective temperature range
The refrigerator is designed to operate normally in the temperature range specied by its
class rating.
Class Symbol
Ambient Temperature range (°C)
IEC 62552 (ISO 15502)
AS/NZS IEC 62552:2018
ISO 8561
Extended Temperate SN +10 to +32 +10 to +32
Temperate N +16 to +32 +16 to +32
Subtropical ST +16 to +38 +18 to +38
Tropical T +16 to +43 +18 to +43
NOTE
The cooling performance and power consumption of the refrigerator may be affected
by the ambient temperature, the door-opening frequency, and the location of the
refrigerator. We recommend adjusting the temperature settings as appropriate.
Untitled-1 29 2021-03-19 11:42:54
Installation
English30
Installation
Clearance

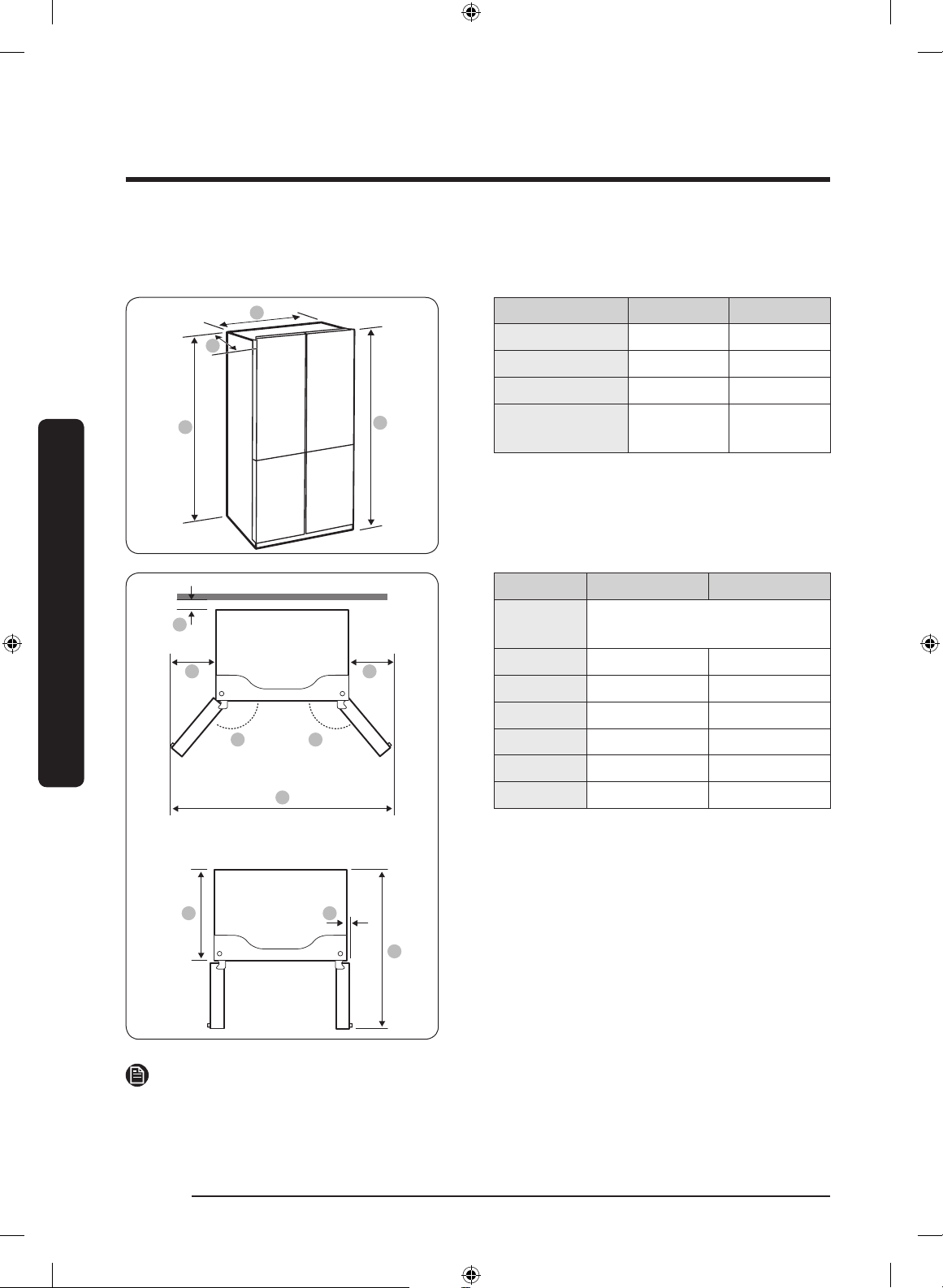

See the following gures and tables for installation space requirements.
A
B
C
D
Model RF65A* RF71A*
Depth “A” 723 mm 861 mm
Width “B” 912 mm 912 mm
Height “C” 1797 mm 1797 mm
Overall Height
“D”
1825 mm 1825 mm
01
02 02
04 04
03
0605
07
Model RF65A* RF71A*
01
more than 50 mm
recommended
02 125° 125°
03 1472 mm 1472 mm
04 282 mm 282 mm
05 610 mm 748 mm
06 47 mm 47 mm
07 1093 mm 1231 mm
NOTE
The measurements in the tables may differ slightly from the actual measurements,
depending on the measuring and rounding method.
Untitled-1 30 2021-03-19 11:42:54
English 31
Installation
STEP 2 Flooring
If the refrigerator cannot pass through the entrance due to its size, see Door removal for
entrance.
NOTE
To prevent oor damage, make sure the
front leveling legs are in the upright
position.
• The surface you install the refrigerator
on must support a fully loaded
refrigerator.
• To protect the oor, put a large piece
of cardboard along the path to the
refrigerator's nal installation location.
• Once the refrigerator is in its nal
position, do not move it unless
necessary to protect the oor. If you
have to move the refrigerator, place
thick paper or cloth such as old carpets
along the path of movement.
Untitled-1 31 2021-03-19 11:42:54
Installation
English32
Installation
STEP 3 Door removal for entrance
If the refrigerator cannot pass through the entrance to your home or kitchen due to its
size, follow these instructions to remove and then re-install the refrigerator's doors. If you
do not need to remove the doors, go to page 40 to continue the installation procedure.
WARNING
Unplug the power cord of the refrigerator before removing the doors.

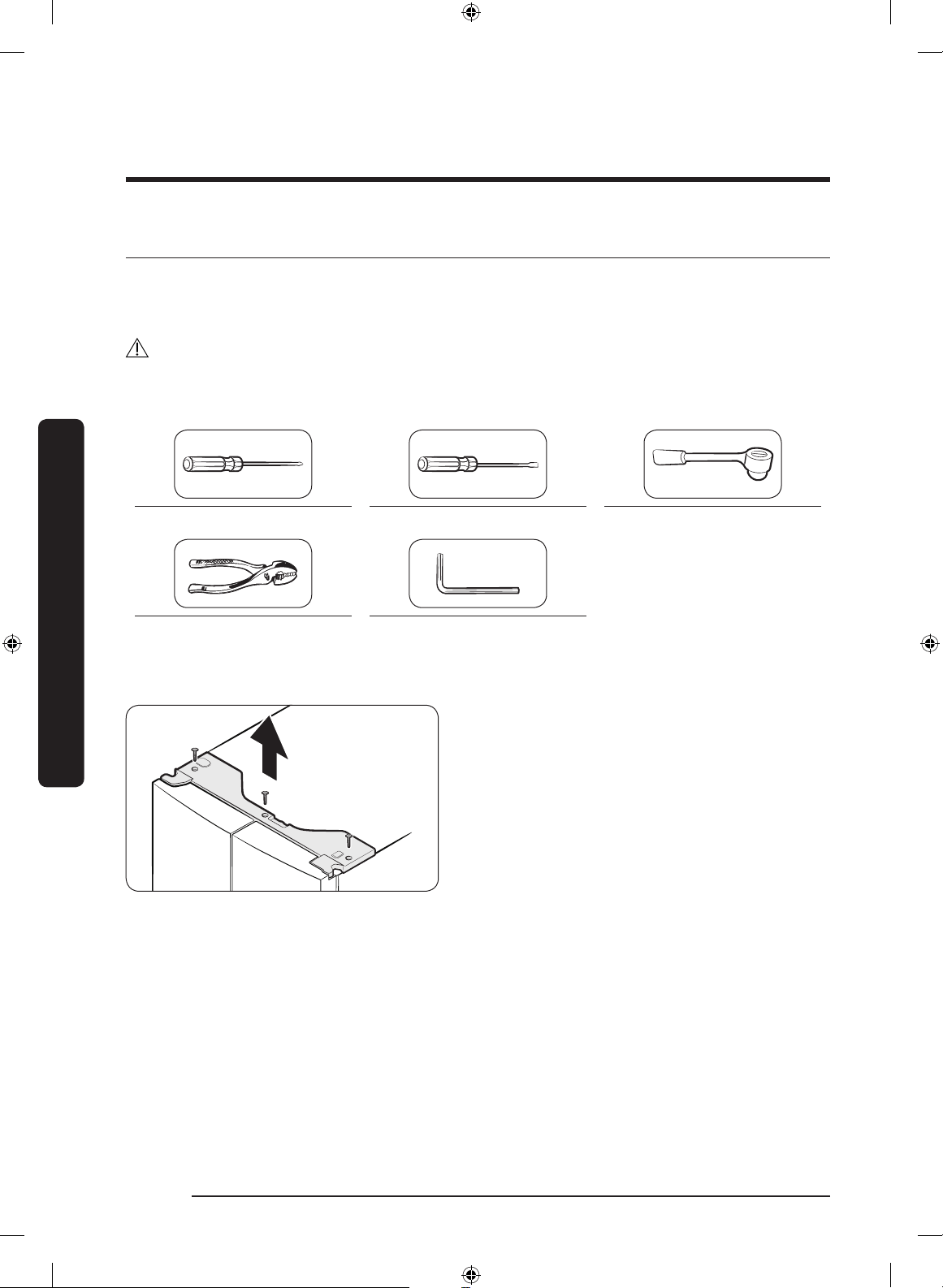

Tools required (not provided)
Phillips screwdriver Flat-head screwdriver Socket wrench
3
/8" (10 mm)
Pliers Allen wrench
1
/4" (5 mm)
Detach the fridge doors
1. With the doors closed, use a Phillips
screwdriver to remove the screws (x3)
from the top cover. Pull up and remove
the top cover with the connectors.
Untitled-1 32 2021-03-19 11:42:55
English 33
Installation

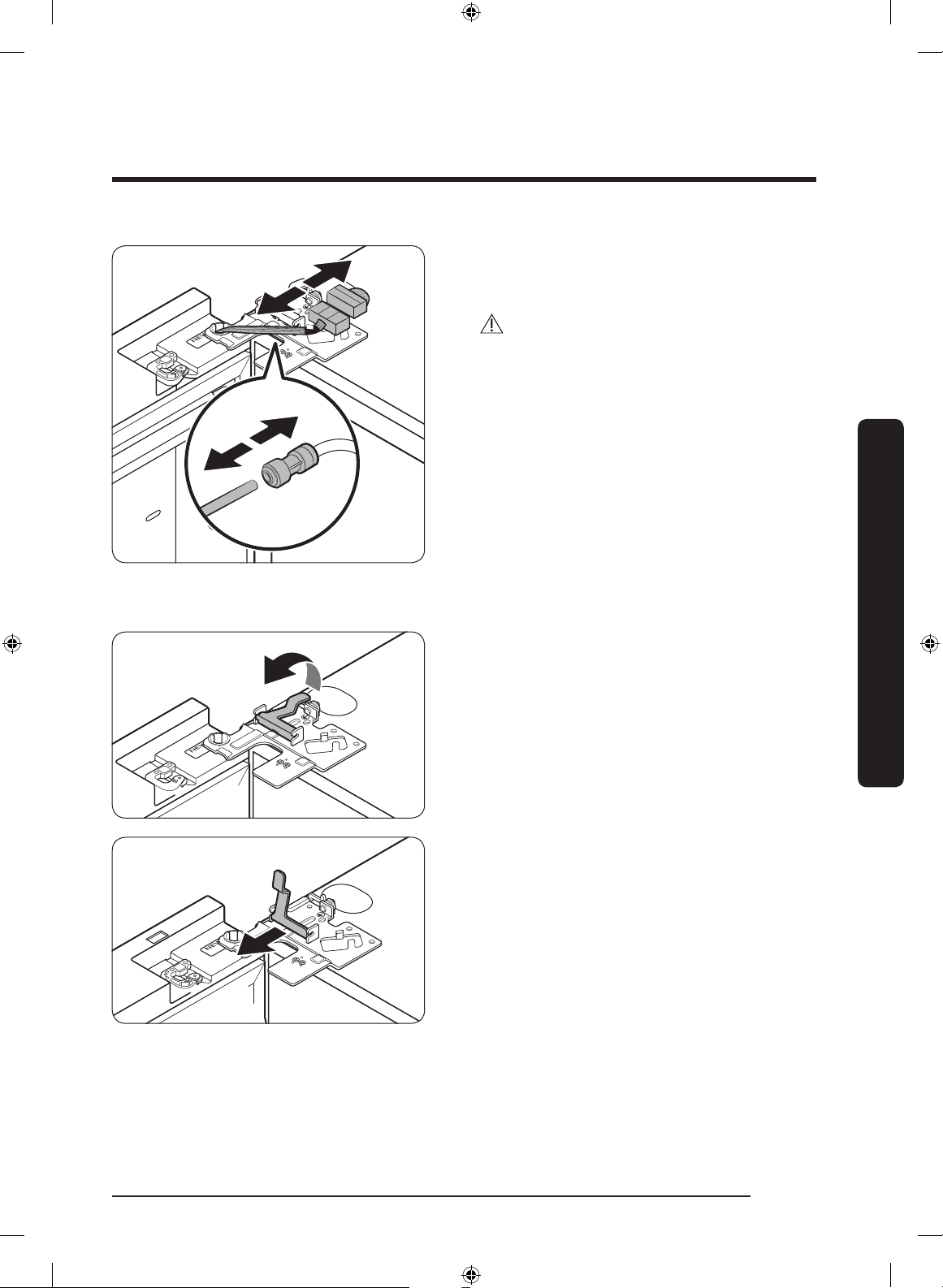

2. Disconnect the two wire connectors
on the left door. The position of the
connectors differs with the model.
CAUTION
• Do not remove both doors
simultaneously. Make sure to remove
one door at a time. Otherwise, any of
the doors may fall and cause physical
injury.
• Make sure the refrigerator is off before
disconnecting the connectors.
3. Disconnect the water tube from the
coupler on the left door as shown.
- This step does not apply to the
models without the AutoFill pitcher
and the water dispenser.
4. Gently draw up the clamp in several
steps. To prevent nger injuries, do not
apply a sudden force to the clamp.
5. Pull up the clamp to remove.
Untitled-1 33 2021-03-19 11:42:55
Installation
English34
Installation

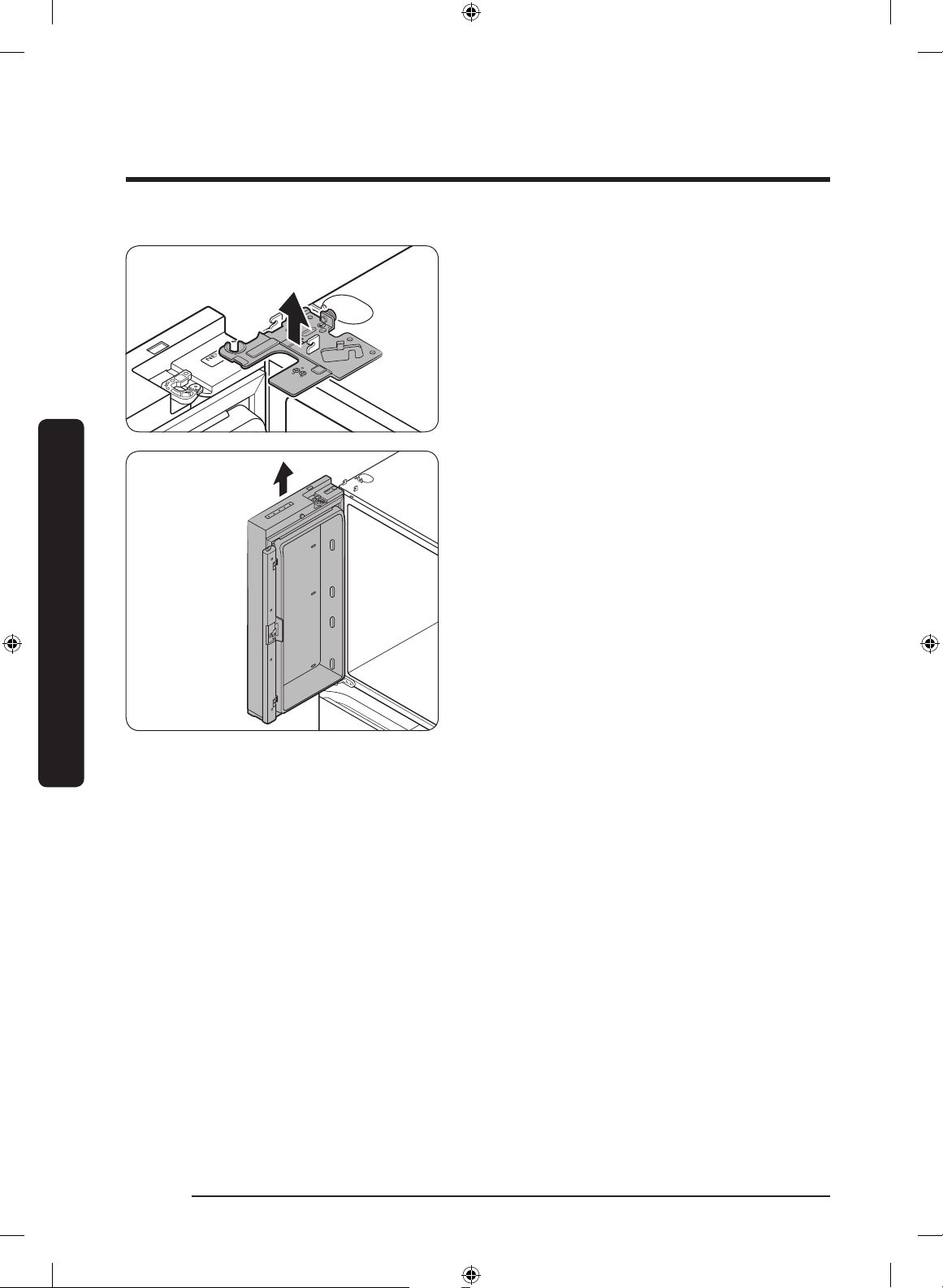

6. Open the door 90 degrees. While
holding the door, pull up and remove
the top hinge. Be careful not to damage
the connector wires when you remove
the hinge.
7. Gently pull up the door vertically to
remove. Do not apply excessive force
to the door. The door may fall, causing
physical injury.
8. Lay the door down on a at surface.
9. Repeat steps 1-8 for the other door,
except for step 3. There is no water
tube on the right side door.
- Step 2 does not apply to the models
without the Showcase door.
Untitled-1 34 2021-03-19 11:42:56
English 35
Installation

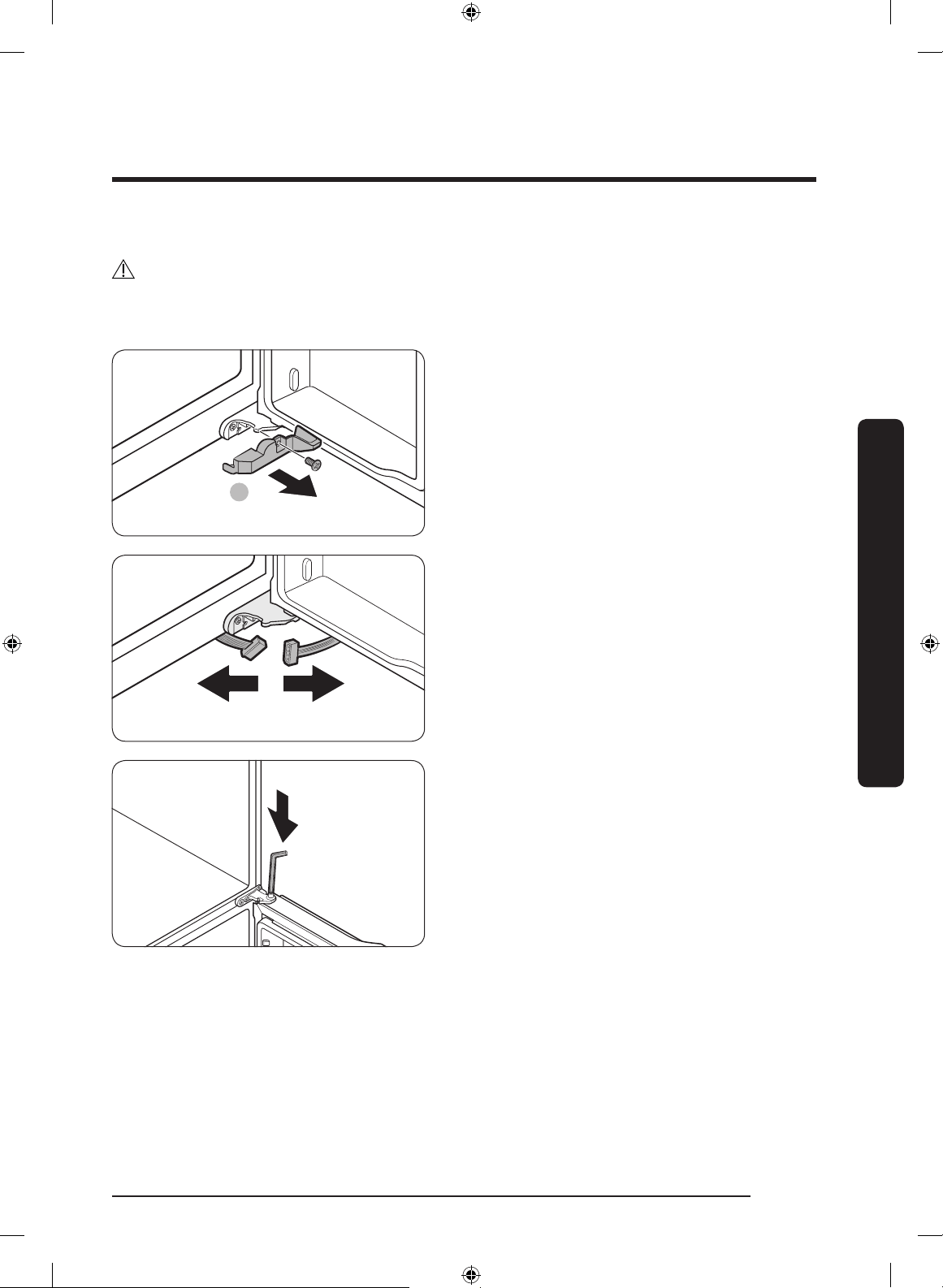

Detach the freezer doors
CAUTION
• Be sure to remove the fridge doors before removing the freezer doors.
• Use caution when disconnecting the bottom connectors.
A
1. Open the freezer door.
2. Use a Phillips screwdriver to remove
the screw holding the cover (A).
- This step only applies to the right
side freezer door (Cool Select+ door).
3. Disconnect the wire connectors.
- This step only applies to the right
side freezer door (Cool Select+ door).
4. Locate the hinge shaft. While holding
the door with one hand, use a at-head
screwdriver or Allen wrench to press
the shaft down. Make sure to hold the
door to prevent the door from falling.
Untitled-1 35 2021-03-19 11:42:56
Installation
English36
Installation
5. To prevent contact with the middle
hinge, slightly tilt the door to the front,
and then lift it up to remove.
6. Repeat steps 1-5 for the other door,
except for steps 2 and 3.
To reattach the freezer doors
CAUTION
• After re-attaching the doors, make sure all the electrical connectors are properly
connected.
• The freezer doors must be re-attached before the fridge doors.
• Be careful not to damage or step on the wires during this process.
1. Insert the freezer door into the bottom
hinge while pushing the freezer door in
the direction of the arrow.
CAUTION
• Be careful not to damage or step on the
wires during this process.
Untitled-1 36 2021-03-19 11:42:56
English 37
Installation

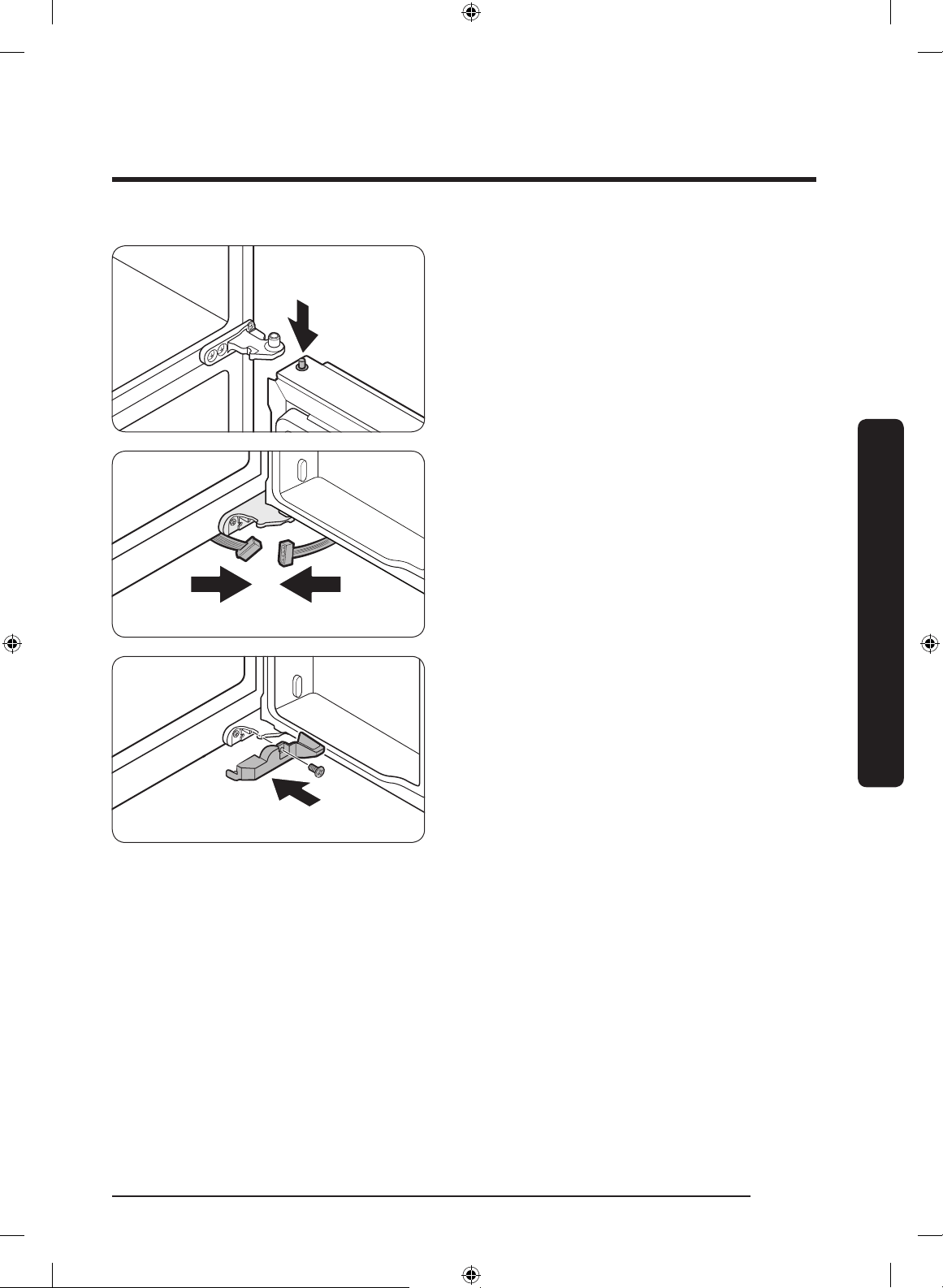

2. While pressing the hinge shaft down,
position the door so that the hinge shaft
is below the shaft hole in the middle
hinge. Release the hinge shaft so that it
enters the shaft hole.
3. With the door open, connect the bottom
connectors in the direction of the
arrows.
- This step only applies to the right
side freezer door (Cool Select+ door).
4. Attach the cover using a Phillips
screwdriver. Be careful not to damage
or step on the connectors.
- This step only applies to the right
side freezer door (Cool Select+ door).
5. Repeat steps 1-5 for the other door,
except for steps 3 and 4.
Untitled-1 37 2021-03-19 11:42:57
Installation
English38
Installation
To reattach the fridge doors
1. While holding the door open by more
than 90 degrees, insert the shaft on
the middle hinge into the hole on the
bottom of the door.
2. Put the top hinge into position on the
top of the refrigerator, and then insert
the hinge shaft into the top hole of the
door. Make sure the wires from the
door pass through the hole in the hinge
shaft.
3. Insert the clamp in the direction of the
arrow.
4. Push back the clamp as shown.
Untitled-1 38 2021-03-19 11:42:57
English 39
Installation

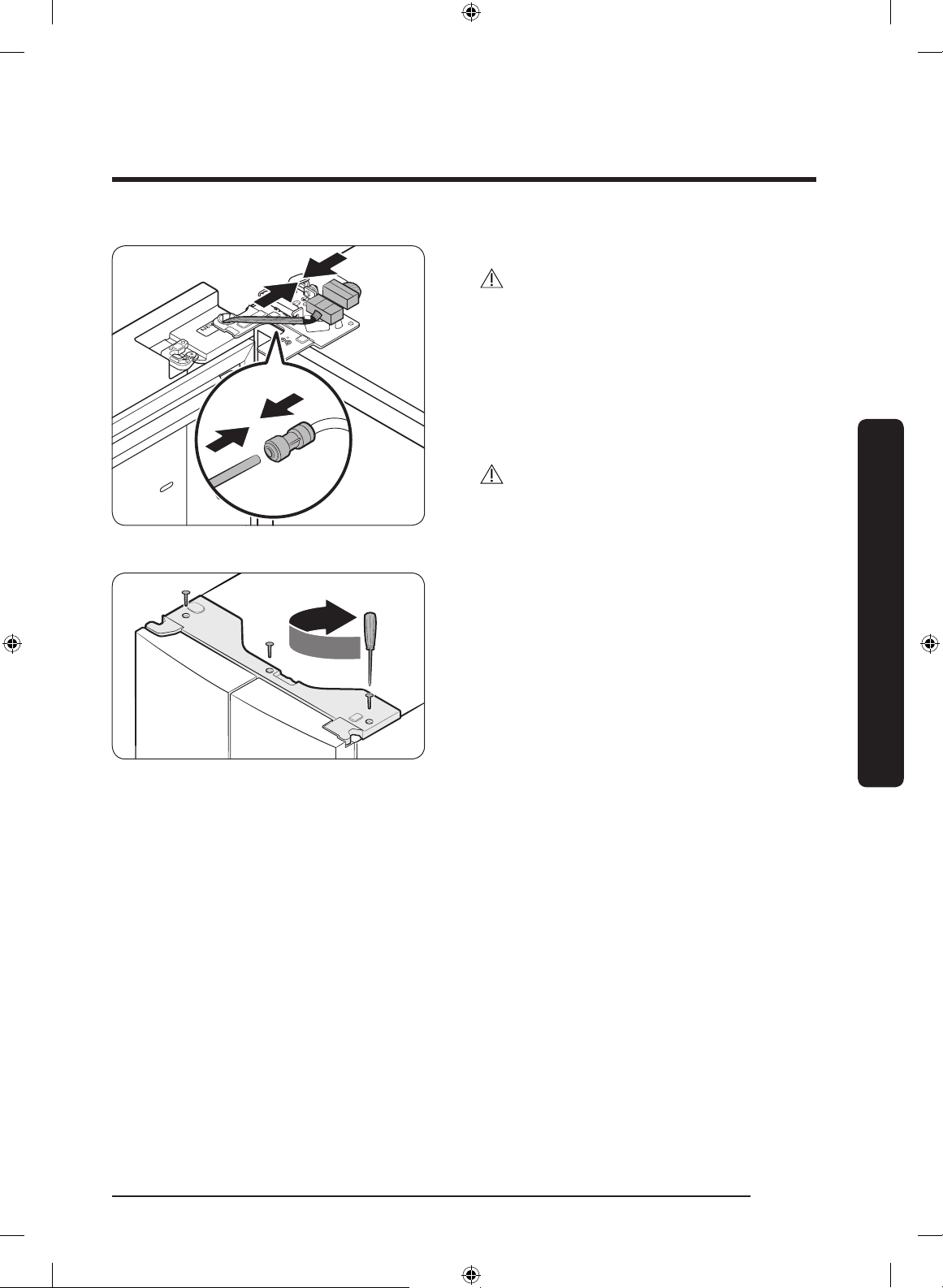

5. Connect the wire connectors.
CAUTION
• Make sure the wire connectors are
connected properly. Otherwise, the
display will not operate.
6. Connect the water tube.
- This step does not apply to the
models without the AutoFill pitcher
and the water dispenser.
CAUTION
• To prevent water leaks, make sure the
red clips tighten the coupler properly.
• Keep the clips out of children’s reach.
7. Repeat steps 1-5 for the other door.
- Step 5 does not apply to the models
without the Showcase door.
8. Attach the top cover with the front side
rst, and then press down on its back
to get it into position. Then, tighten the
screws (x3).
Untitled-1 39 2021-03-19 11:42:57
Installation
English40
Installation
STEP 4 Leveling the refrigerator
CAUTION
• When installed, the refrigerator must be leveled on a at, solid oor. Not leveling the
refrigerator can cause damage to the refrigerator or physical injury.
• Leveling must be performed with the refrigerator empty. Make sure no food items are
inside the refrigerator.
• For safety reasons, adjust the front a little higher than the rear.
Level the refrigerator using the special screws (levelers) on the front legs. Use a at-head
screwdriver to turn the levelers.
• To adjust the height of the left side:
Insert a at-head screwdriver into the
leveler of the left side front leg. Turn
the leveler clockwise to raise the left
side or turn it counterclockwise to
lower.
• To adjust the height of the right side:
Insert a at-head screwdriver into the
leveler of the right side front leg. Turn
the leveler clockwise to raise the right
side or turn it counterclockwise to
lower.
Untitled-1 40 2021-03-19 11:42:58
English 41
Installation
STEP 5 Adjust the door height

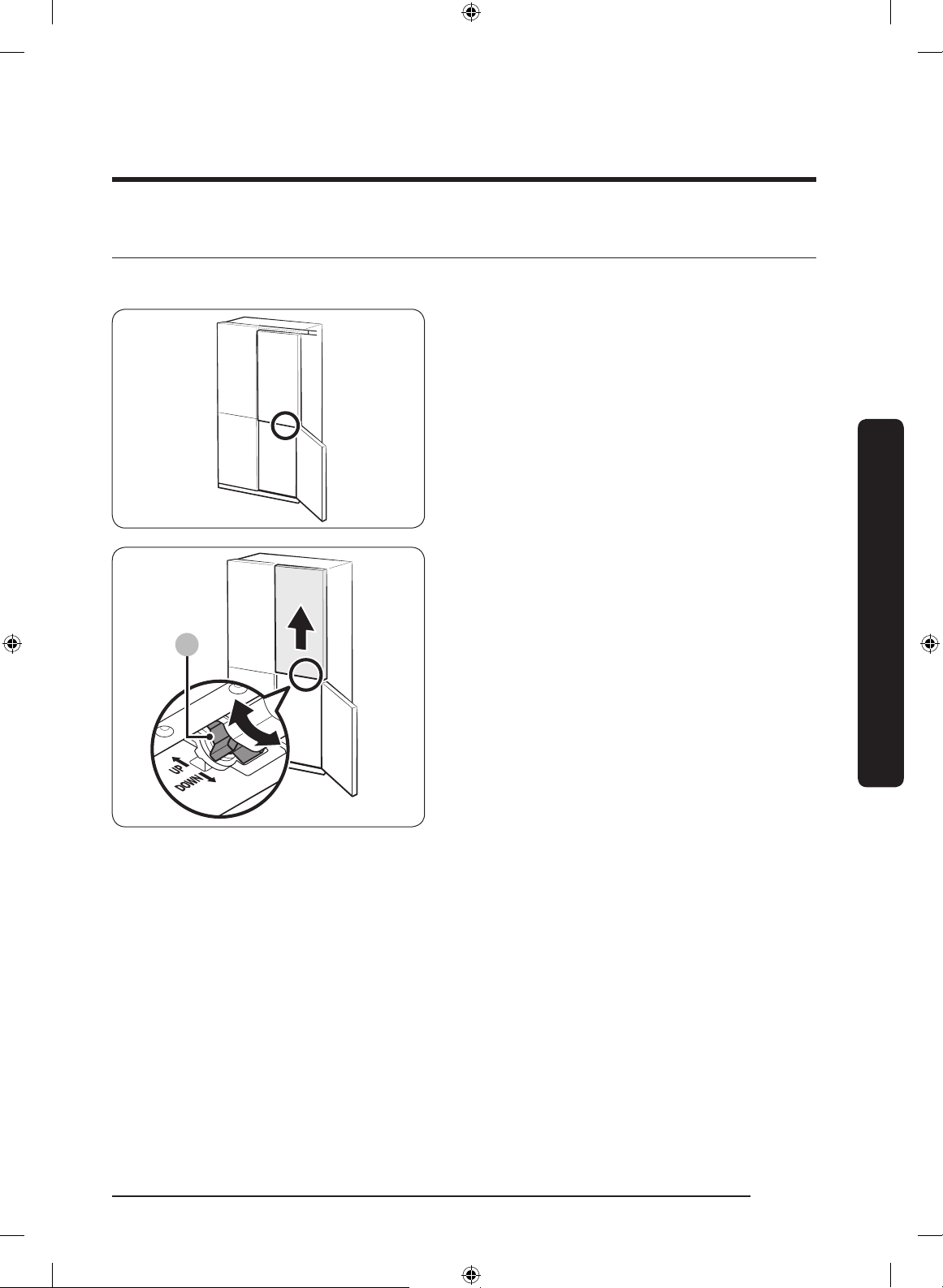

Adjusting the height with the height lever (applicable models only)
• Before aligning the door height, make
sure the refrigerator is level. Use the
leveling legs for this purpose.
• You can use the height lever at the
bottom of the right-side door of the
fridge. Open the right-side door of the
freezer with both fridge doors closed
and use the lever to adjust the door
height.
A
• Turn the height lever (A) until the two
doors are aligned at the top. Turn the
lever toward UP (as marked) to raise
the right-side door and turn it toward
DOWN (as marked) to lower the door.
• Lift the fridge door slightly to make
alignment easier. The maximum
adjustable height is 3 mm.
- The lever will not turn past the
maximum limit. It may make a noise
it if is turned too far.
- Excessive height may interfere with
the upper hinge cover of the fridge
door.
• If you align the door height with the
door bins empty and then store items in
the bins, the heights may differ again. If
this happens, follow the steps above to
realign the doors.
Untitled-1 41 2021-03-19 11:42:58
Installation
English42
Installation

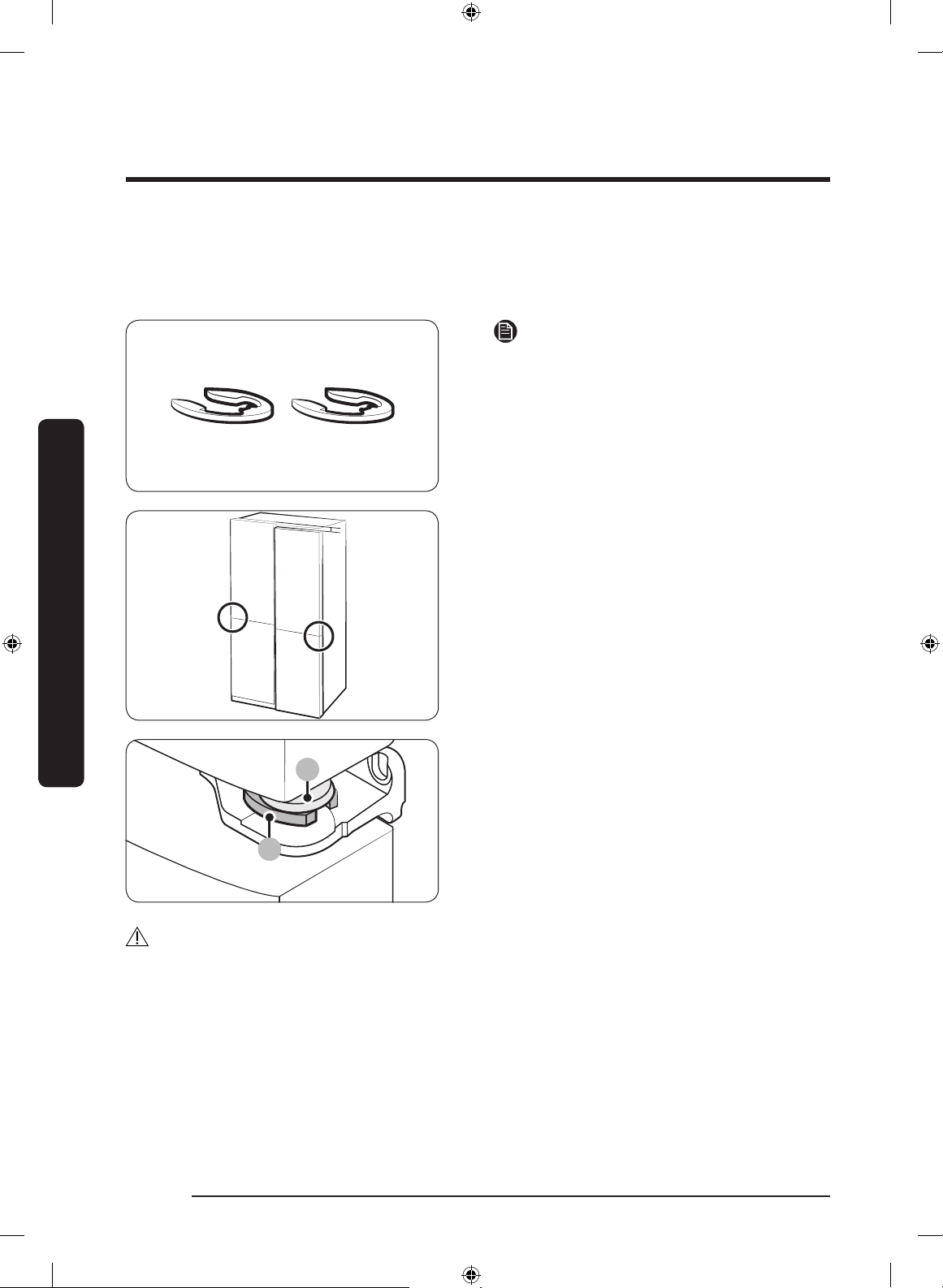

Adjusting the height with the snap rings
For the models with the height lever on the right-side door of the fridge, use the snaps
rings only if you cannot align the doors with the height lever.
NOTE
The height of a door can be adjusted using
the provided snap rings, which come in
4 different sizes (1 mm, 1.5 mm, 2 mm,
and 2.5 mm).
1. Check the height difference between
the doors, and then lift up and hold the
door with the lower height.
A
B
2. Insert a suitable-sized snap ring (A)
between the door grommet (B) and the
hinge as shown.
CAUTION
• Insert only one snap ring. If you insert two or more snap rings, the rings may slip out
or make a rubbing noise.
• Keep the snap rings out of children’s reach and keep them for future use.
• Do not raise the door too much. The door can contact and damage the top cover.
Untitled-1 42 2021-03-19 11:42:58
English 43
Installation

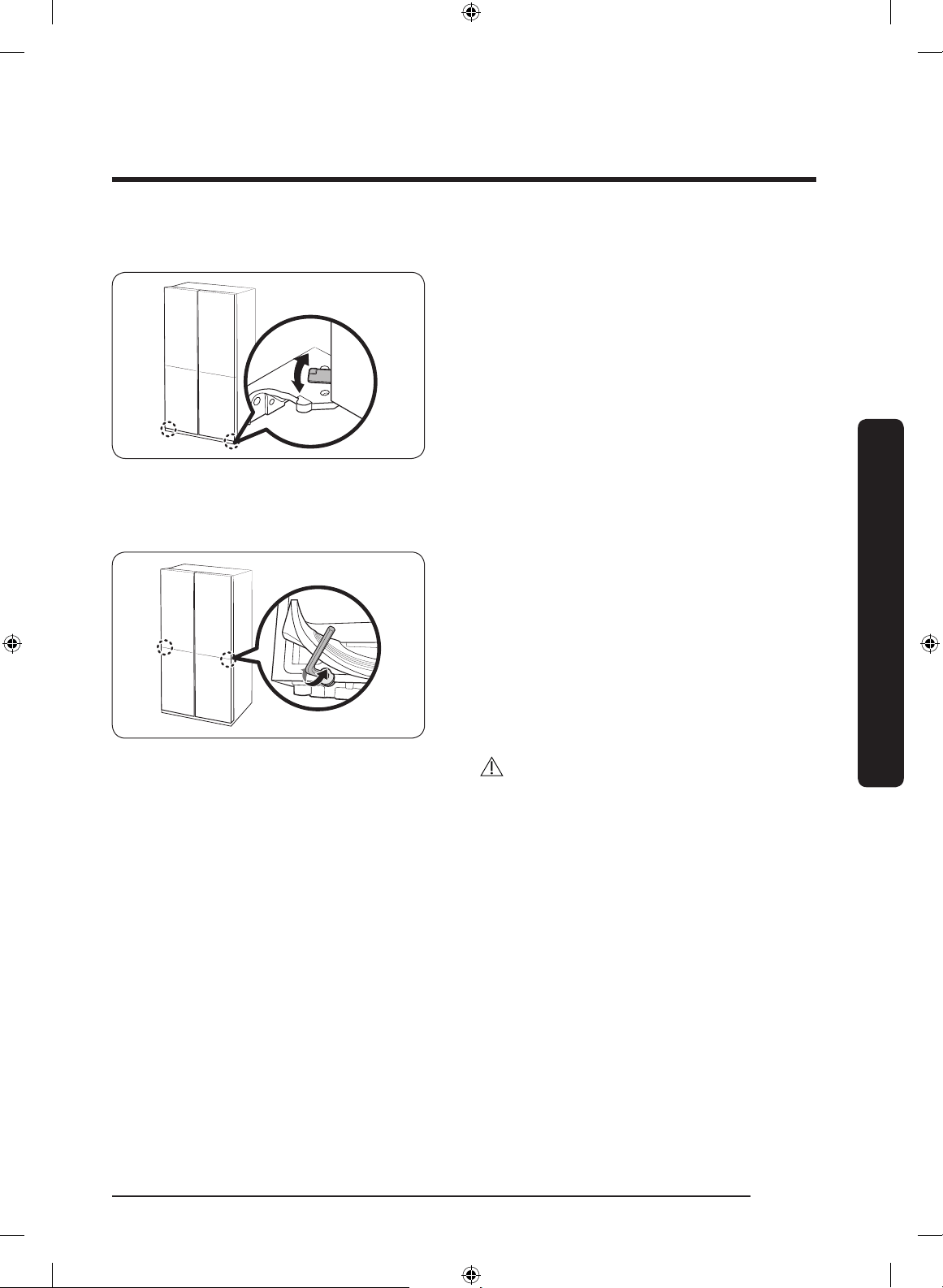

Adjusting the freezer door height (applicable models only)
• Before aligning the door height, make
sure the refrigerator is level. Use the
leveling legs for this purpose.
• You can adjust the height of both
freezer doors using the lever located at
the bottom hinge.
• Open the door, lift it a little, and then
turn the lever left or right to adjust the
height.
Adjusting the gap between the fridge doors and the main body of the refrigerator
(applicable models only)
• You can adjust the gap between both
fridge doors and the main body of the
refrigerator using the adjustment bolt
located at the bottom of the fridge
compartment.
• Lift the door gasket and located the
adjustment bolt underneath the gasket.
Use the 4 mm Allen wrench to adjust
the gap.
CAUTION
Make sure you rmly attach the gasket.
Otherwise, cold air from the refrigerator
may leak.
Untitled-1 43 2021-03-19 11:42:58
Installation
English44
Installation

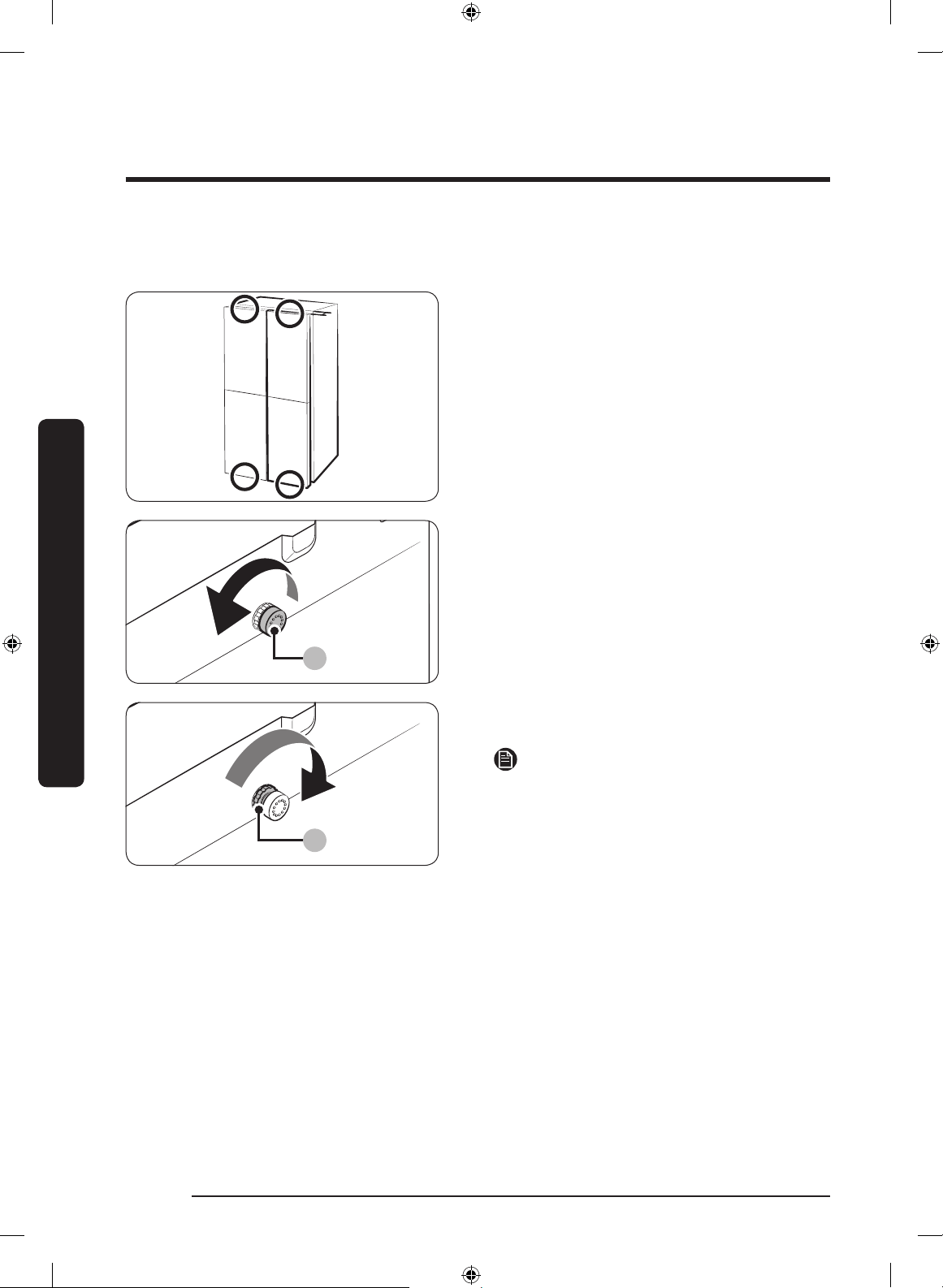

Adjusting the gap between the doors and the main body of the refrigerator (applicable
models only)
You can adjust the gap between all
four doors and the main body of the
refrigerator using the adjustment dial.
(Refer to the gure for the location of the
adjustment dial.)
A
1. Open the door that is closer to the main
body than the others. Then, turn the
adjustment dial (A) counterclockwise
until the gap becomes even with the
others.
B
2. After adjusting the gap, turn the locking
nut (B) to lock the adjustment dial.
NOTE
Each time you turn the adjustment dial,
the gap is adjusted by 1 mm. However, the
door may not close properly if you adjust
the door by more than 1.5 mm.
Untitled-1 44 2021-03-19 11:42:59
English 45
Installation
STEP 6 Connect to a water source (applicable models only)
CAUTION
• The new hose-sets supplied with the appliance are to be used and that old hose-sets
should not be reused.
• The water line must be connected by a qualied technician.
• The warranty for your refrigerator does not cover the water line installation. The
water line installation will be performed at your own costs unless the installation fee is
included in the retailer’s price.
• Samsung takes no responsibility for the water line installation. If water leaks occur,
contact the installer of the water line.

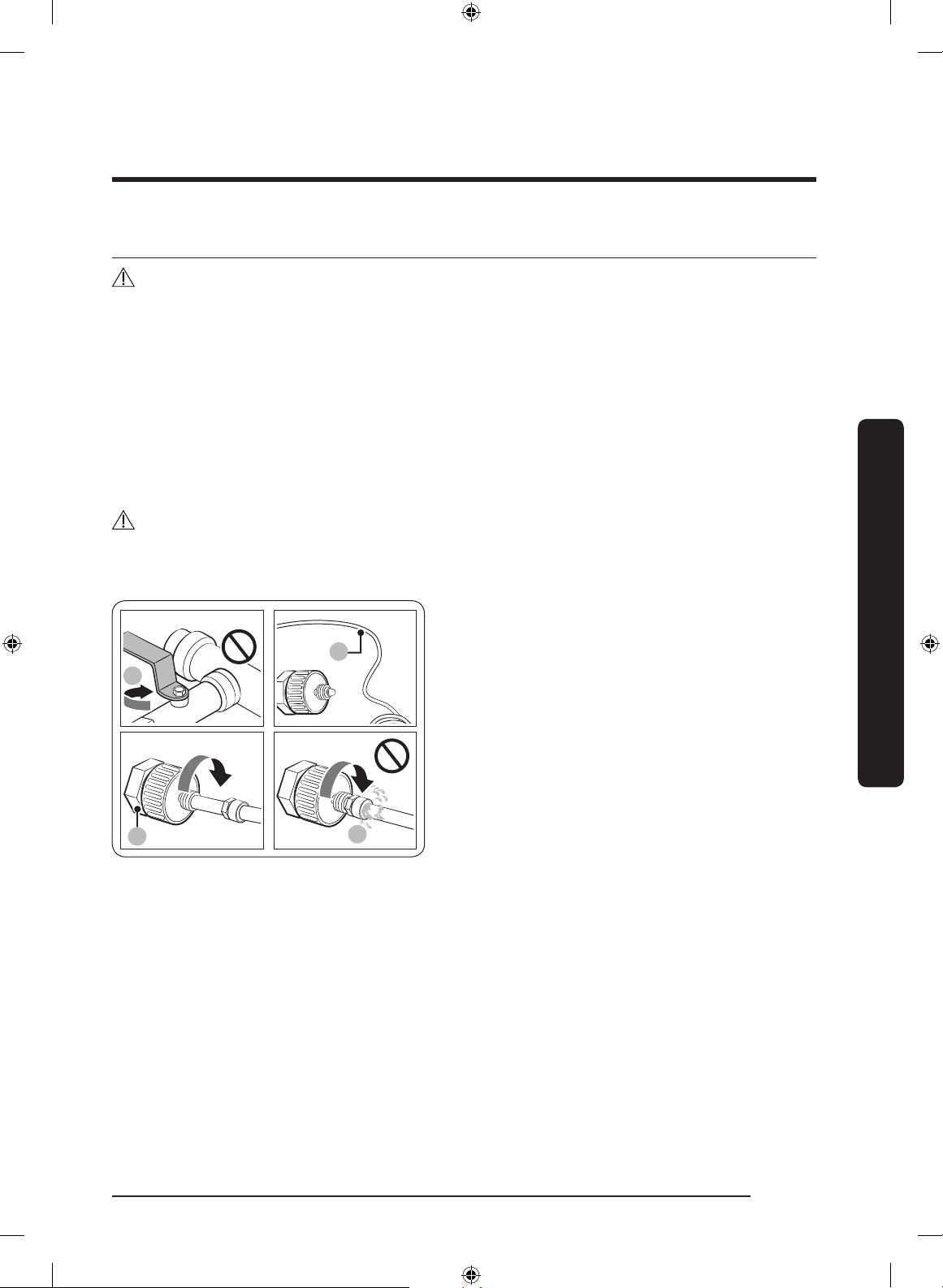

To connect the cold water pipe to the water ltering hose
CAUTION
• Make sure the water ltering hose is connected to a cold, potable water source pipe.
Connecting to the hot water pipe may cause the purier to malfunction.
1
A
B
A
A. Close Main Water pipe
B. No gap
1. Shut off the water supply by closing the
main water valve.
2. Locate the cold, potable water pipe (1).
3. Follow the Water Line Installation to
connect to the water pipe.
4. When connection is complete, open the
main water valve and dispense about
3 liters of water. This is to remove
impurities inside the pipe.
Untitled-1 45 2021-03-19 11:42:59
Installation
English46
Installation

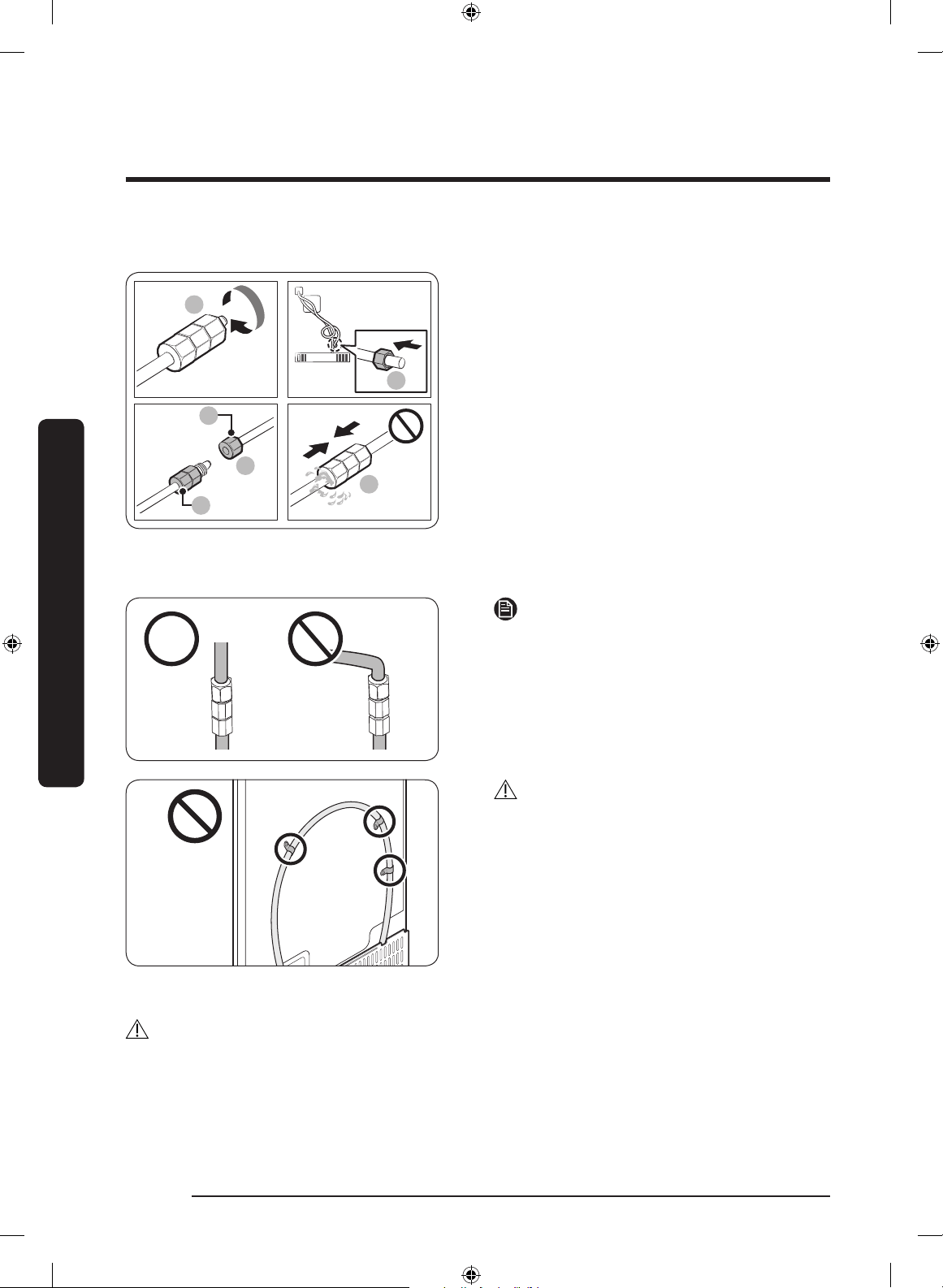

To connect the water ltering hose to the water line
Remove cap
a
a
A
B
03
a
A. Water Line from unit
B. Water Line from Kit
1. Loosen and remove the compression
nut (a) from the water line of the
refrigerator, and insert it to the water
ltering hose.
2. Tighten up the compression nut (a) to
connect the water ltering hose and the
water line.
3. Open the main water valve and check
for any leaks.
4. If there are no leaks, dispense about a
3 liters of water before actually using
the refrigerator to remove impurities
inside the water ltering system.
NOTE
If you have to relocate the refrigerator
after connecting the water line, make sure
the joined section of the water line must is
straight.
CAUTION
Do not mount the water lter on any part
of the refrigerator. This may damage the
refrigerator.
To repair the water line
CAUTION
The waterline must be repaired by a qualied professional. If you encounter a water leak,
contact a local Samsung service centre or the installer of the waterline.
Untitled-1 46 2021-03-19 11:42:59
English 47
Installation
STEP 7 Initial settings
By completing the following steps, the refrigerator should be fully functioning.
1. Plug the power cord into the wall socket to turn the refrigerator on.
2. Open the door, and check if the interior light lights up.
3. Set the temperature to the coldest, and wait for about an hour. Then, the freezer will be
slightly chilled, and the motor will run smoothly.
4. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready
for use.
STEP 8 Final check
When installation is complete, conrm that:
• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a at, level surface with a reasonable clearance from the
wall or the cabinet.
• The refrigerator is level and is sitting rmly on the oor.
• The door opens and closes freely, and the interior light turns on automatically when
you open the door.
Untitled-1 47 2021-03-19 11:42:59
English48
Operations
User interface
NOTE
• For more information about other menus and apps available on the Refrigerator app,
see the Online manual of your refrigerator.
• The content of apps and widgets, or their design is subject to change or support may
be discontinued without notice, depending on the content provider’s policy.
• Children's use of the refrigerator's functions, apps, and services must be supervised by
adults.
• Underage transactions with the services must be supervised by adults.
01
02
01 Home screen
02 Soft buttons
Operations
Untitled-1 48 2021-03-19 11:43:00
English 49
Operations
01 Home screen
• Tap a desired app or widget to launch it.
• On the home screen, you can add or remove items such as apps, widgets, pictures,
videos, drawings, and texts.
• Tap and hold an item to enter Edit mode. In Edit mode, you can drag and drop an item
to a new location on the home screen. When you move the item to a new location, the
item turns red if the location is not available.
02 Soft buttons
01 02 03 04 05 06
01 Bixby
- Tap to use Bixby.
02 Task Manager
- Tap to open the Task Manager.
03 Home
- Tap to open the Home screen.
04 Return
- Tap to return to the previous screen.
05 Notication
- Tap to display the Quick Panel.
06 Hide/Show
- Tap to hide or show Soft buttons.
- The Hide/Show button only appears
when an app is active.
Untitled-1 49 2021-03-19 11:43:00
Operations
English50
Operations
Fridge Manager
On the Home screen, tap the Fridge Manager app.
• You can set the desired temperature or modes for each compartment.
• For more detailed information on the Fridge Manager app, check the online manual.
• To access the online manual from your Family Hub refrigerator, tap Setting > Help &
Contact Us > Online Manual.
NOTE
• Power Cool speeds up the cooling process at maximum fan speed. The fridge keeps
running at full speed for two and a half hours and then returns to the previous
temperature.
• Power Freeze speeds up the freezing process at maximum fan speed. The freezer
keeps running at full speed for 50 hours and then returns to the previous temperature.
To freeze large amounts of food, activate Power Freeze for at least 20 hours before
putting food in the freezer.

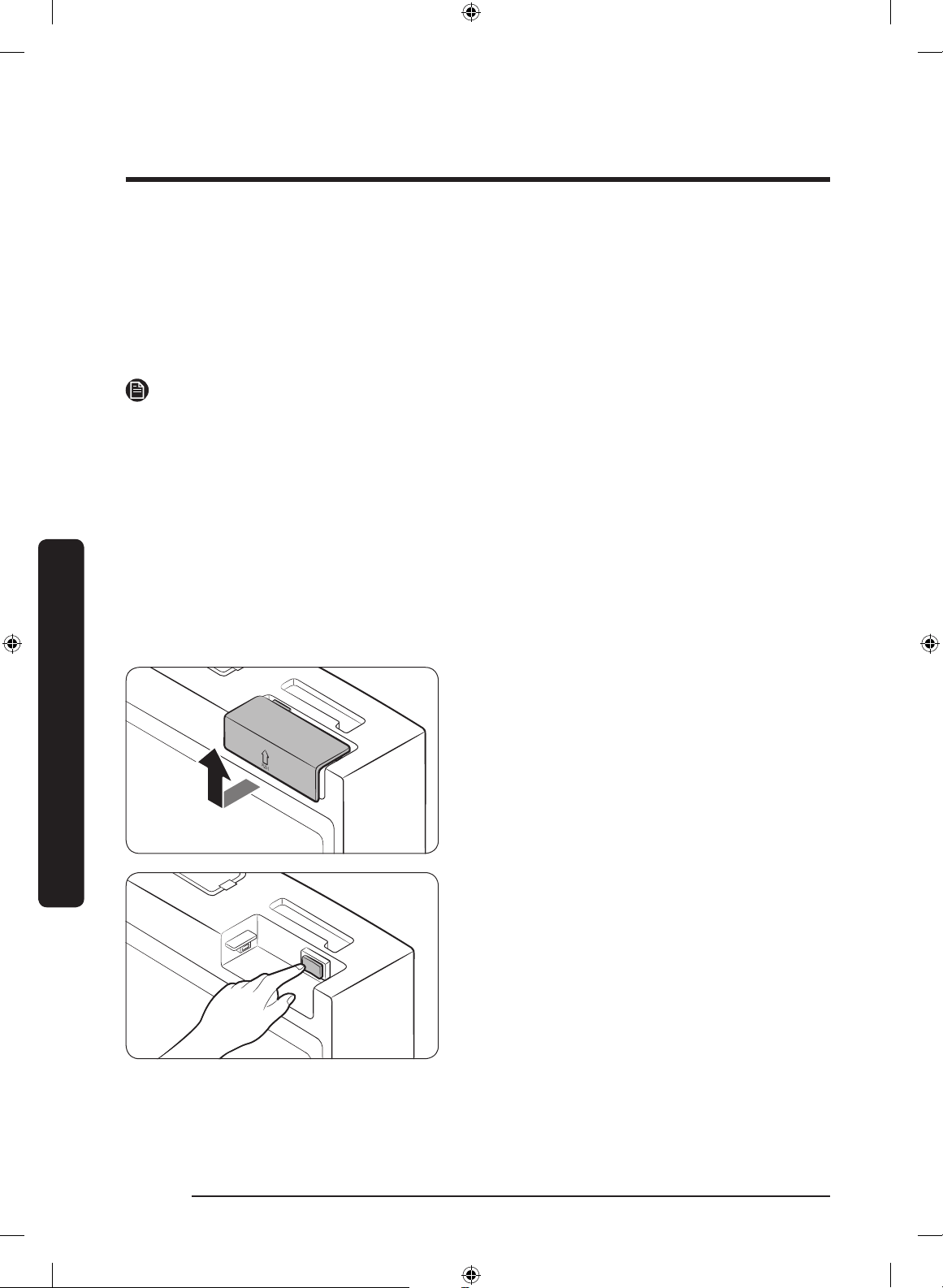

Display reset (applicable models only)
If you encounter an abnormal symptom on the display, try resetting the display. This may
solve the symptom.
1. Open the right-side fridge door and
locate the switch cover on the top right
corner of the door.
2. Push up the cover to reveal the power
switch.
3. Turn the switch off and turn it on again.
4. Reinsert the switch cover to the end
until you hear a clicking sound.
Untitled-1 50 2021-03-19 11:43:00
English 51
Operations
SmartThings
Installation
Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for “SmartThings”.
Download and install the SmartThings app provided by Samsung Electronics to your smart
device.
NOTE
• The SmartThings app is designed for Android 7.0 (Nougat) or later, iOS 12.0 or later,
iPhone 6 or later, and is optimized for Samsung smartphones (Galaxy S and Galaxy
Note series).
• For improved performance, the SmartThings app is subject to change without notice, or
discontinued support according to the manufacturer’s policy.
• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or
unstandardized Wi-Fi authentication protocols are not supported.
• Wireless networks may be affected by the surrounding wireless communication
environment.
• If your Internet service provider has registered the MAC address of your PC or modem
for identication, your Samsung Smart Refrigerator may fail to connect to the Internet.
If this happens, contact your Internet service provider for technical assistance.
• The rewall settings of your network system may prevent your Samsung Smart
Refrigerator from accessing the Internet. Contact your Internet service provider for
technical assistance. If this symptom continues, contact a local Samsung service center
or retailer.
• To congure the wireless access point (AP) settings, see the user manual of the AP.
• Samsung Smart Refrigerators support both Wi-Fi 2.4 GHz with IEEE 802.11 b/g/n and
Soft-AP protocols (IEEE 802.11 n is recommended).
• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Samsung Smart
Refrigerators.
Untitled-1 51 2021-03-19 11:43:00
Operations
English52
Operations
Samsung account
You are required to register your Samsung account to use the app. If you don’t have a
Samsung account, follow the app’s onscreen instructions to create a free Samsung account.
Getting started
Turn on the device you want to connect, open the SmartThings app on your phone, then
follow the instructions below.
If a pop-up appears saying that a new device has been found, tap ADD NOW.
If a pop-up doesn't appear, tap the + button, then select the device you want to connect
from the list of available devices.
If your device isn't in the list of available devices, tap Supported Devices, select the device
type (Refrigerator), and then select the specic device model.
Follow the instructions in the app to set up your device. Once setup is complete, your
refrigerator will appear as a "card" on your Devices screen.
Refrigerator app
Integrated control
You can monitor and control your refrigerator at home and on the go.
• Tap the refrigerator icon on the SmartThings Dashboard or tap the Devices icon at the
bottom of the Dashboard, and then tap the refrigerator "card" to open the Refrigerator
page.
• Check the operation status or notications related to your refrigerator, and change
options or settings if necessary.
NOTE
Some options or settings of the refrigerator may not be available for remote control.
Untitled-1 52 2021-03-19 11:43:00
English 53
Operations
Category Item Description
Monitor &
Control
Fridge Temperature
You can set and monitor the desired
temperature of the fridge.
Freezer Temperature
You can set and monitor the desired
temperature of the freezer.
Power Cool
You can turn Power Cool on or off, and check
the current settings.
Power Freeze
You can turn Power Freeze on or off, and
check the current settings.
Flex Crisper
You can set and monitor the desired mode of
the Flex Crisper.
Cool Select+
You can set and monitor the desired mode of
the Cool Select+.
Cubed Ice / Ice Bites
You can turn the ice making function on or off,
and check the current settings of the function.
AutoFill Pitcher
You can turn the AutoFill Pitcher function on
or off, and check the current settings of the
function.
Alarms
Abnormally high
temperature
This alarm is triggered when the fridge, the
freezer, or the Cool Select+ has abnormally
high temperatures.
Door opening
This alarm is triggered if the fridge door, the
freezer drawer, or the Cool Select+ drawer is
open for a specic time.
Autoll Pitcher
overowing
If the Autoll Pitcher function senses an
overow, it triggers this alarm to let you know
the status of the overow.
Water lter
replacement
This alarm reminds you that the water lter
must be replaced.
Inside Image
You can view the inside of the refrigerator and
can see if you need to replace food items.
Untitled-1 53 2021-03-19 11:43:00
Operations
English54
Operations
Recommendations for voice recognition
For the voice recognition function, there is a built-in microphone at the top of the
refrigerator’s display. To use the voice recognition function:
• Stand no more than 1 meter from the refrigerator and speak loudly and clearly
towards the built-in microphone.
• Speak at a regular pace. Reduce ambient noises, such as noises from a living-room TV.
NOTE
The voice recognition function may not work if you stand more than 1 meter away or if
you speak too softly.
Untitled-1 54 2021-03-19 11:43:00
English 55
Operations
Special features
The refrigerator has features convenient for you.
Water pitcher (AutoFill Pitcher) (applicable models only)
Cold, puried water is always ready in the AutoFill Pitcher. You can put tea or fruits in the
infuser to enjoy the various infused water you like.

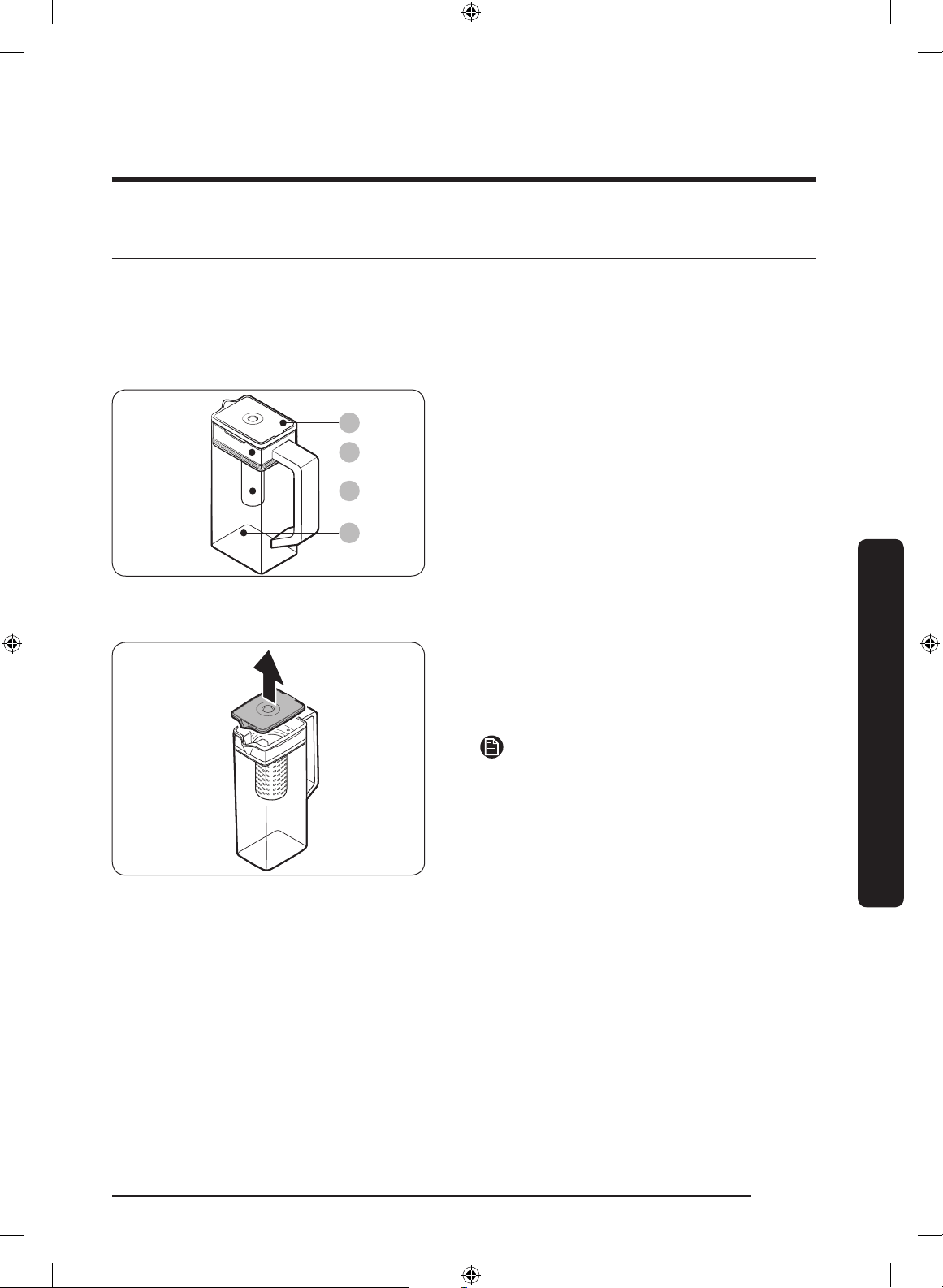

01
02
03
04
01 Lid
02 Infuser holder
03 Infuser
04 Body
To ll the Water pitcher
1. Grasp a handle groove of the lid, and
then pull up to open the lid.
2. Put tea leaves or fruit to your taste into
the infuser.
NOTE
If you want to keep the infused water in
its initial concentration, turn the AutoFill
Pitcher function off.
Untitled-1 55 2021-03-19 11:43:01
Operations
English56
Operations
3. Enable the AutoFill Pitcher function on
the control panel. Open the Beverage
Center door and then mount the water
pitcher onto the holder. Push it straight
in as shown in the gure.
CAUTION
Make sure the water pitcher ts in the
water pitcher holder.
4. Close the door. The water pitcher will
start to ll with chilled water a short
time later.
5. To drink tea, open the Beverage Center
door and then detach the water pitcher.
Pull it straight out.
Untitled-1 56 2021-03-19 11:43:01
English 57
Operations

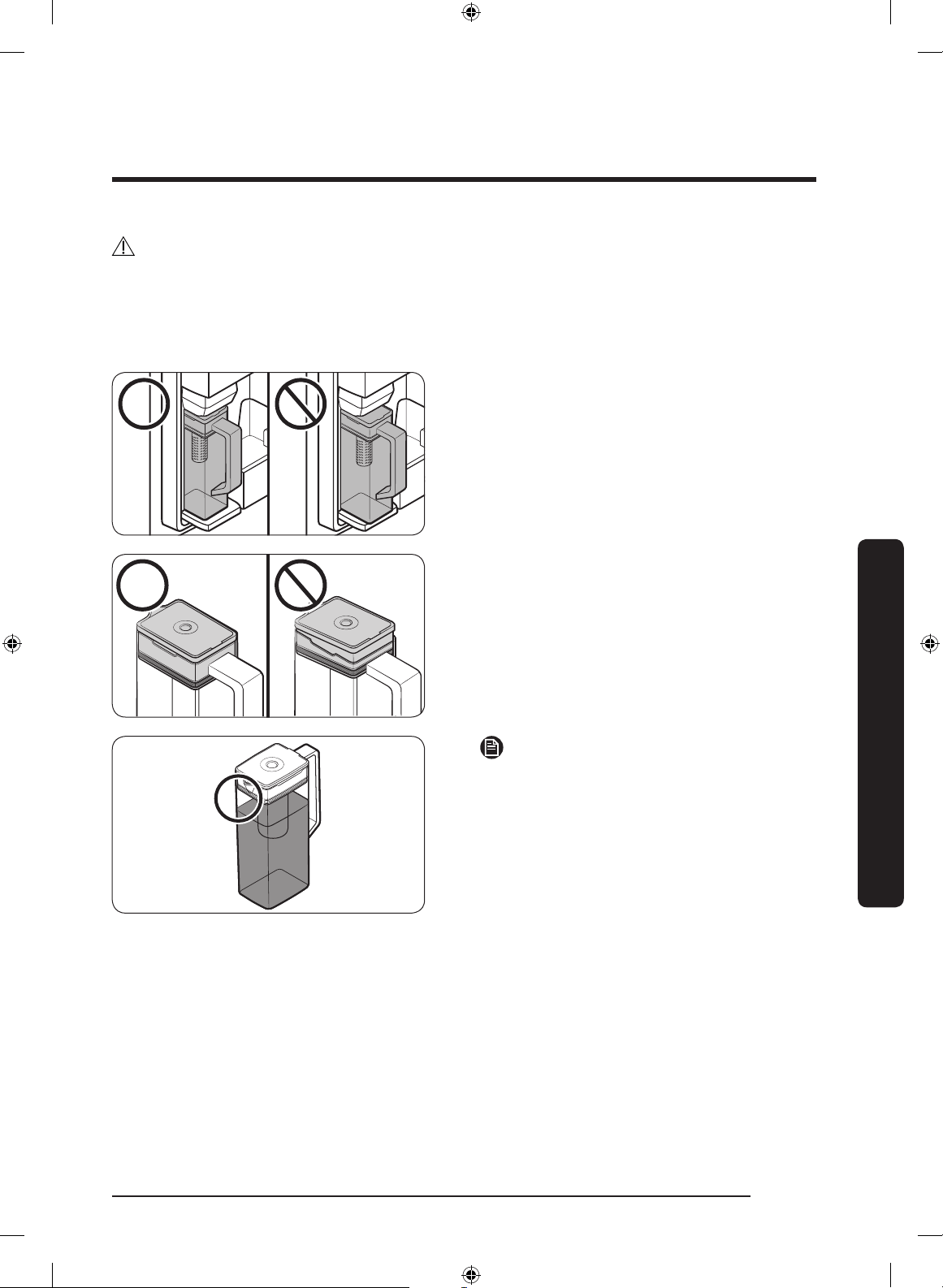

CAUTION
• We recommend consuming fruit infused water within 24 hours. After that, the infused
water can spoil over time.
• You must clean the water pitcher after you have consumed the infused water. Also
clean the water pitcher if you haven't used it for a long time.
• To prevent the water pitcher from
tipping over or leaking, make sure the
water pitcher ts in the water pitcher
holder.
• To prevent the water pitcher from
spilling over or leaking, make sure the
infuser holder is properly inserted.
NOTE
• If the front side (specically marked
area) of the water pitcher has too much
moisture, the water pitcher may not
fully ll. Remove the moisture, and then
try again.
• AutoFill Pitcher function will stop
supplying water to the water pitcher if
the water pitcher does not ll after a
certain amount of time. If this happens,
check if the water line is properly
connected. Remove and reinsert the
water pitcher, and then try again.
Untitled-1 57 2021-03-19 11:43:01
Operations
English58
Operations
NOTE
• Wipe around the water pitcher holder if
the water pitcher overows or leaks.
• Water drops off if the rubber cap is
opened.
• An alert message appears on the control
panel if there is a leak. In case of a leak,
open the rubber cap so that the leaked
water drains. If the alert message does
not disappear after draining, there
might be a system failure. Contact your
local Samsung service center.
Untitled-1 58 2021-03-19 11:43:02
English 59
Operations
Water dispenser (applicable models only)
To dispense chilled water, open the
Beverage Center and press the dispenser
lever.
NOTE
• The dispenser will stop dispensing if you keep pushing the dispenser lever for about
1 minute. To dispense more water, release and push the lever again.
• Make sure the glass is in line with the dispenser to prevent the dispensed water from
spilling out.
• If you do not use the water dispenser for 2-3 days, the dispensed water may have an
abnormal smell or taste. This is not a system failure. Discard the rst 1-2 glasses of
water.
Water clouding
Water supplied to the refrigerator ows through a core alkaline lter. During this ltering
process, the water pressure of the water increases and the water becomes saturated with
oxygen and nitrogen. This causes the water to look misty or cloudy temporarily when
dispensed. This is normal and the water will look clear after a few seconds.
Untitled-1 59 2021-03-19 11:43:02
Operations
English60
Operations
Ice maker
The refrigerator has a built-in ice maker that automatically dispenses ice.
• The overall design and/or accessories may differ with the model.
• This product has two types of ice
makers.
Ice making
After you have installed your refrigerator and plugged it in, follow these instructions to
ensure proper ice making and to keep the ice bucket full of ice.
For rst-time use
• Let the ice maker make ice for 1-2 days.
• Discard the rst 1-2 buckets of ice to remove impurities in the water supply system.
Diagnosis
• The overall design and/or accessories
may differ with the model.
• If ice does not dispense, rst check
the status of ice maker using the Test
button on the bottom of the ice maker.
• Press the Test button on the bottom of
the ice maker. You will hear a chime
(ding-dong) when you press the button.
You will hear another chime if the ice
maker is operating properly.
• Ice accumulating on one side of the tray
is normal. Arrange the ice evenly in the
tray to store more ice.
Untitled-1 60 2021-03-19 11:43:02
English 61
Operations
CAUTION
• Leaving the water line disconnected may cause the water valve to produce a buzzing
sound over time. If this is the case, make sure to turn the ice making function (Cubed
Ice / Ice Bites ) off.
• If the ice making chime rings repeatedly, contact the waterline installer or a local
Samsung service center.
• Do not put food in the ice bucket. The frozen food may damage the ice maker,
especially when you open or close the door.
• When the refrigerator recovers power after a power failure, the ice bucket may
contain a mix of melted and jammed ice cubes, which can prevent the ice maker from
working properly. To prevent this, make sure to empty the ice bucket before using the
refrigerator.
• Do not put ngers or any objects into the ice maker. This can cause physical injury or
property damage.
• Due to sublimation, ice stored in the freezer for a long time gets smaller and then
forms large ice chunks. Therefore, if it will be a long time before you use ice, turn the
ice maker off as follows.
• Use the new hose-sets supplied with the appliance only. Do not re-use an old hose set.
Untitled-1 61 2021-03-19 11:43:02
English62
Maintenance
Handling and care
Ice bucket (applicable models only)
If you do not dispense ice for an extended period, ice may form clumps inside the bucket.
If this happens, remove and empty the ice bucket.
CAUTION
• To prevent injury, make sure to clean up any ice or water that has fallen on the oor.
• To prevent accidents or injury, do not let children play with the water dispenser or the
ice maker.
• Use only the provided ice bucket. Third-party ice buckets may cause a system failure.
NOTE
• The water pressure required for ice making is between 206-861 kPa.
• Noise from the ice maker as it produces ice during the ice making process is normal.

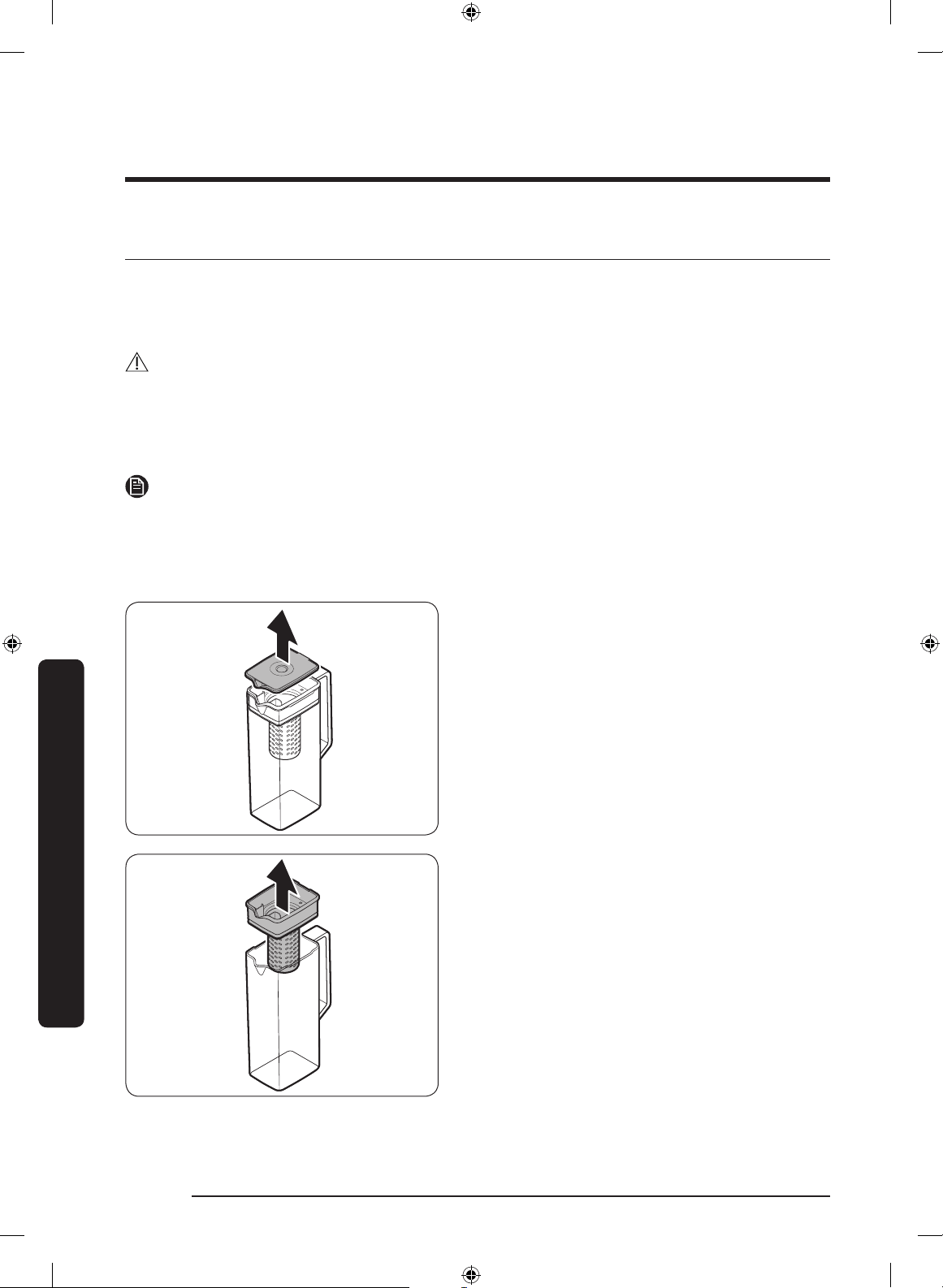

Autoll pitcher (applicable models only)
1. Grasp a handle groove of the lid, and
then pull up to remove.
2. Grasp both sides of the infuser holder,
and then lift to remove.
Maintenance
Untitled-1 62 2021-03-19 11:43:02
English 63
Maintenance

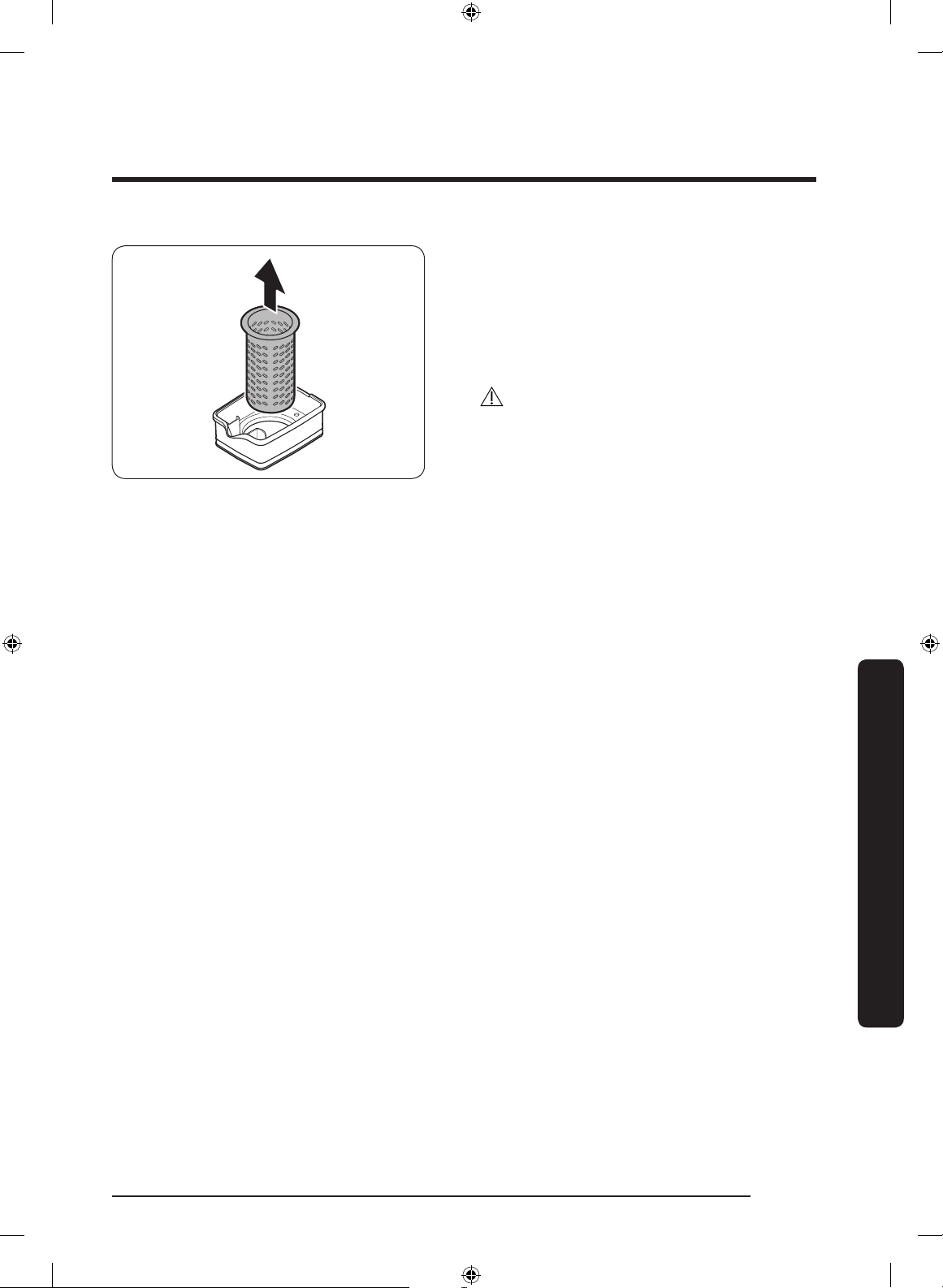

3. While slightly twisting the infuser, pull
it out of the sealed mouth.
4. Clean the infuser with neutral agents
and running water. Rinse and dry well.
5. Reassemble the Autoll pitcher in the
reverse order of disassembly.
CAUTION
The water pitcher and lid are not
microwave safe and can melt or deform
if exposed to heat (including hot water).
Please hand wash in cool or warm water
as needed.
Untitled-1 63 2021-03-19 11:43:03
Maintenance
English64
Maintenance

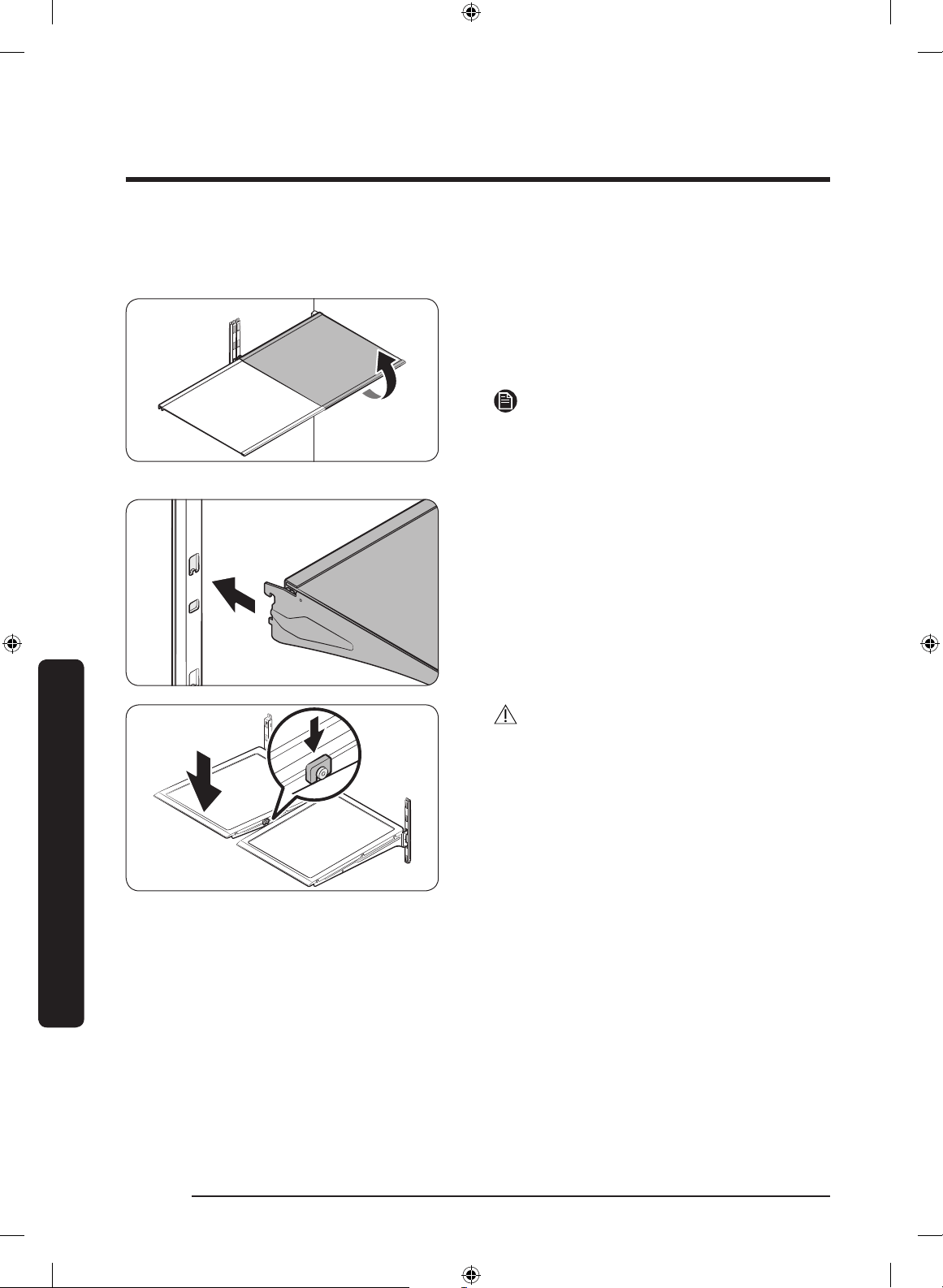

Fridge shelves
The appearance of the shelves differs by model.
• To remove a shelf, fully open the
corresponding door. Hold the front of
the shelf, and then gently lift up and
pull out.
NOTE
Do not lift up the shelf fully when
removing or reinserting the shelf. The rear
wall of the fridge room can be dented.
• To reinsert, hold the shelf at an angle
so the front is higher than the back, and
then insert the top hook into the top
shelf notch. Then, lower the shelf and
insert the bottom shelf hook into the
bottom shelf notch.
CAUTION
• The tempered glass shelves are heavy.
Use caution when removing them.
• The shelf must be inserted correctly. Do
not insert upside down.
• Glass containers may scratch the
surface of glass shelves.
Untitled-1 64 2021-03-19 11:43:03
English 65
Maintenance

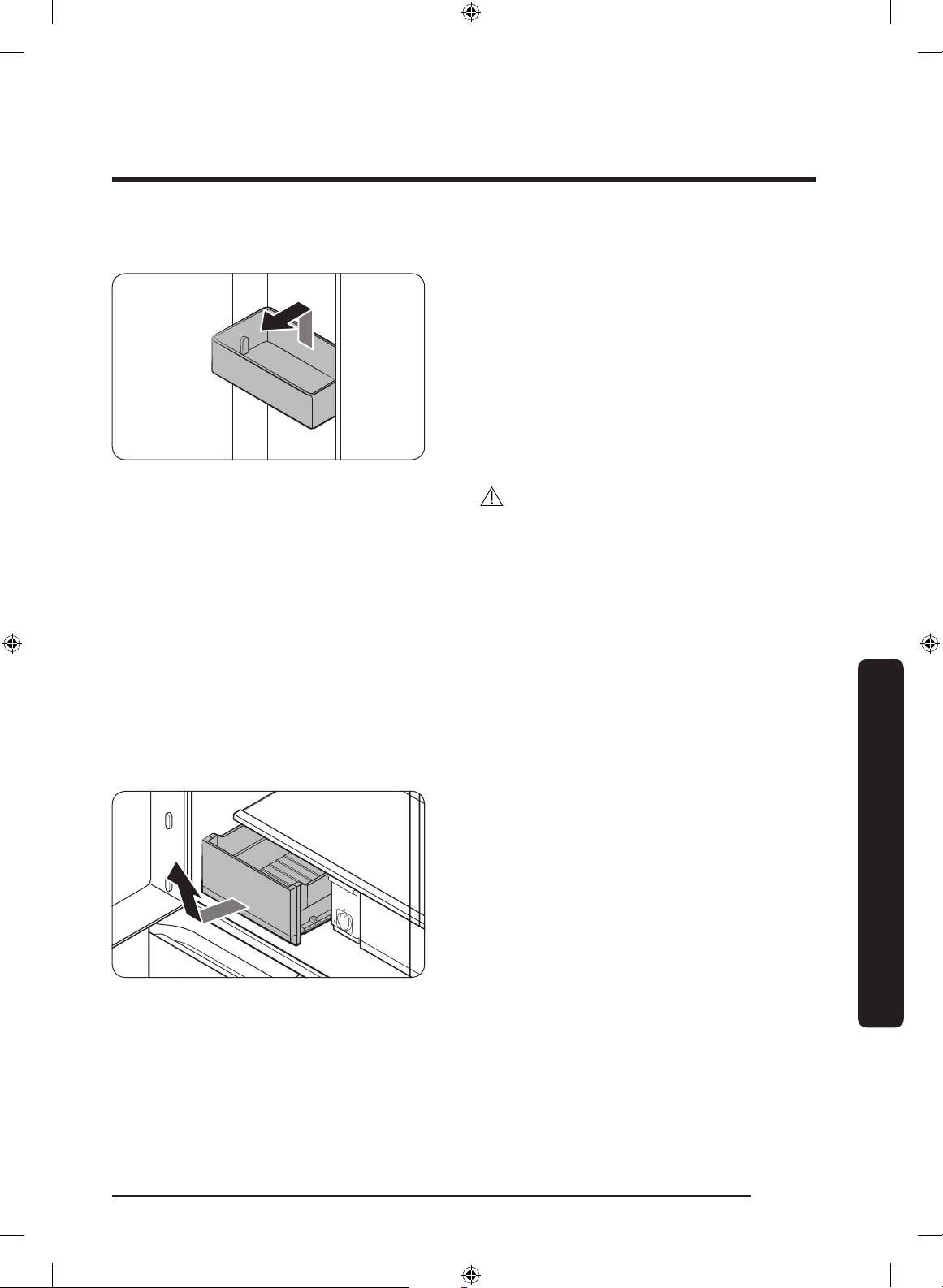

Door bins
• To remove the door bin, hold the front
sides of the bin, and then gently lift up
to remove.
• To reinsert, insert the door bin slightly
above its nal location making sure that
the back of the bin is against the door.
Hold the rear of the door bin with both
hands, and then press down so that it
ts snugly.
CAUTION
• Do not remove a bin that is lled with
food. Empty the bin beforehand.
• Use caution when opening the door if
the bottom bin contains larger bottles,
which may fall over.
• Do not allow children to play with the
bins. Sharp corners of the bin may
cause injury.
Fridge drawers
Crisper / Flex Crisper Drawers
Gently lift up the front of the drawer and
slide out.
• We recommend that you remove the
door bins before removing the drawer.
This is to prevent damage to the door
bins.
• To reinsert, insert the drawer into the
frame rails and then slide inward.
Untitled-1 65 2021-03-19 11:43:03
Maintenance
English66
Maintenance
Cleaning
Interior and exterior
WARNING
• Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning
purposes. They may damage the surface of the refrigerator and cause a re.
• Do not spray water onto the refrigerator. This may cause electric shock.
• Do not put ngers or other objects into the dispenser hole.
CAUTION
• Do not spray water directly on the LCD display or speaker. This may cause re, electric
shock, or damage.
• Do not scratch the LCD display or speaker. This may cause permanent damage.
Regularly use a dry cloth to remove all foreign substances such as dust or water from the
power plug terminals and contact points.
1. Unplug the power cord.
2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator’s interior
and exterior.
3. When done, use a dry cloth or paper towel to dry well.
4. Plug in the power cord.

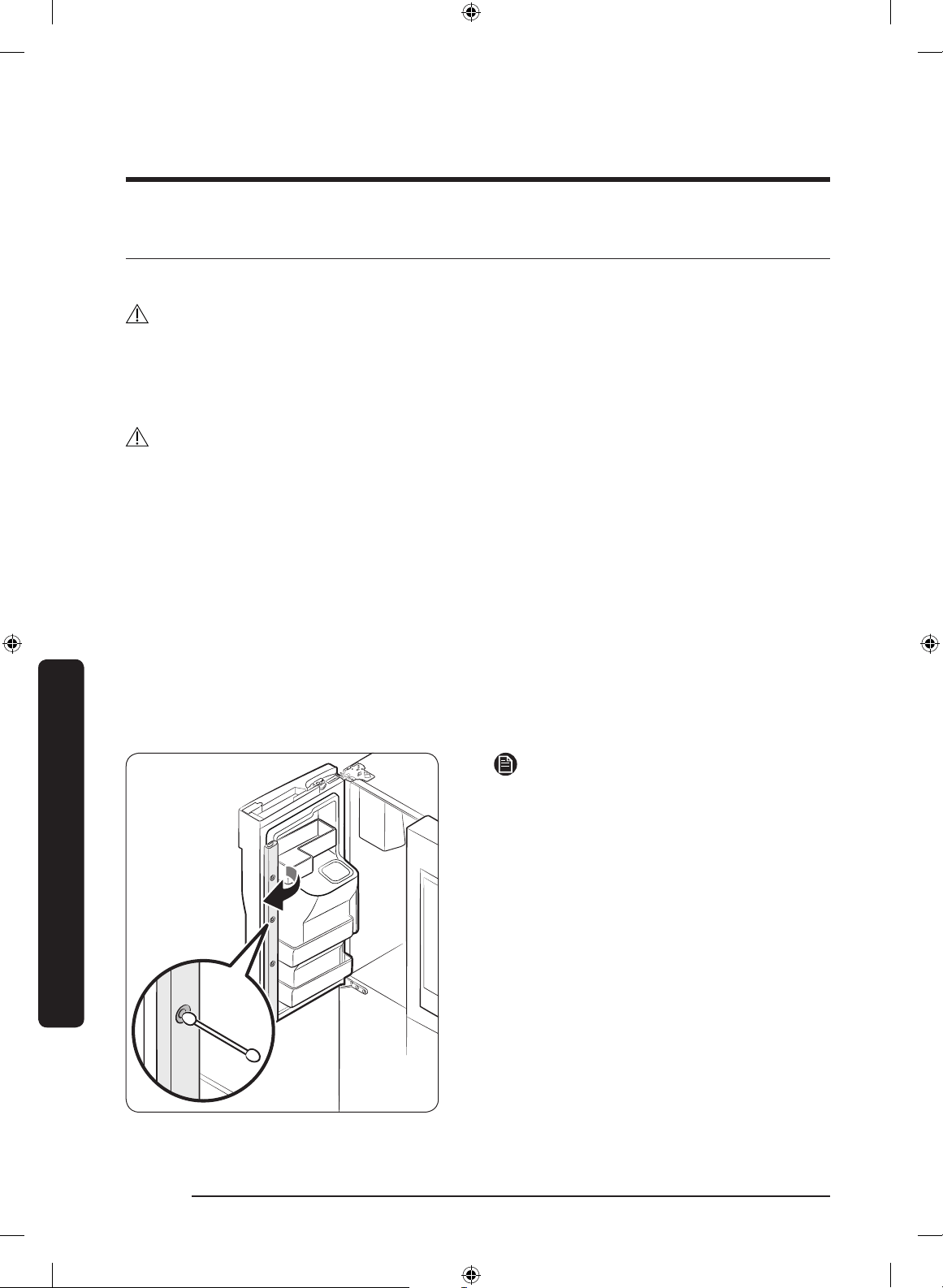

Inner-view camera
NOTE
Use a cotton swab or microber cloth to
clean the camera on the left-side door of
the fridge.
Untitled-1 66 2021-03-19 11:43:03

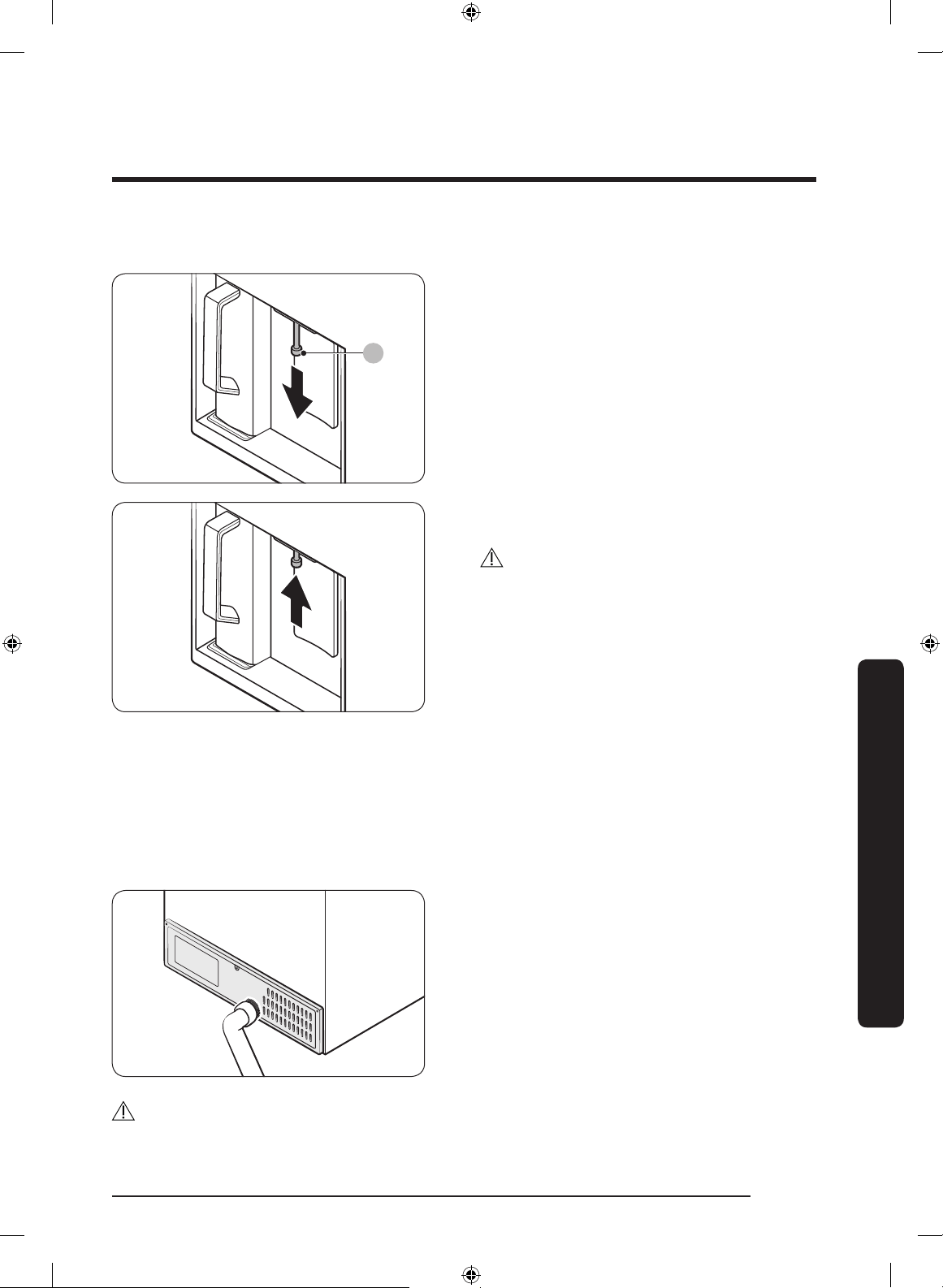

English 67
Maintenance
Dispenser valve (applicable models only)
A
1. Hold the end of the dispenser valve (A).
2. While turning the dispenser valve (A)
left, pull it down to remove it from the
dispenser.
3. Clean the dispenser valve thoroughly,
and then assemble it back.
CAUTION
• Fully insert the dispenser valve, so it is
back to its original position.
• Do not use a sponge with rough
textures for cleaning the dispenser
valve.
Rubber seals
If the rubber seals of a door become dirty, the door may not close properly and reducing
refrigerator performance and efciency. Use a mild detergent and damp cloth to clean the
rubber seals. Then, dry well with a cloth.
Rear panel
To keep cords and exposed parts of the
rear panel free of dirt, vacuum the panel
once or twice a year.
CAUTION
Do not remove the rear panel cover. Electric shock may occur.
Untitled-1 67 2021-03-19 11:43:04
Maintenance
English68
Maintenance
Replacement

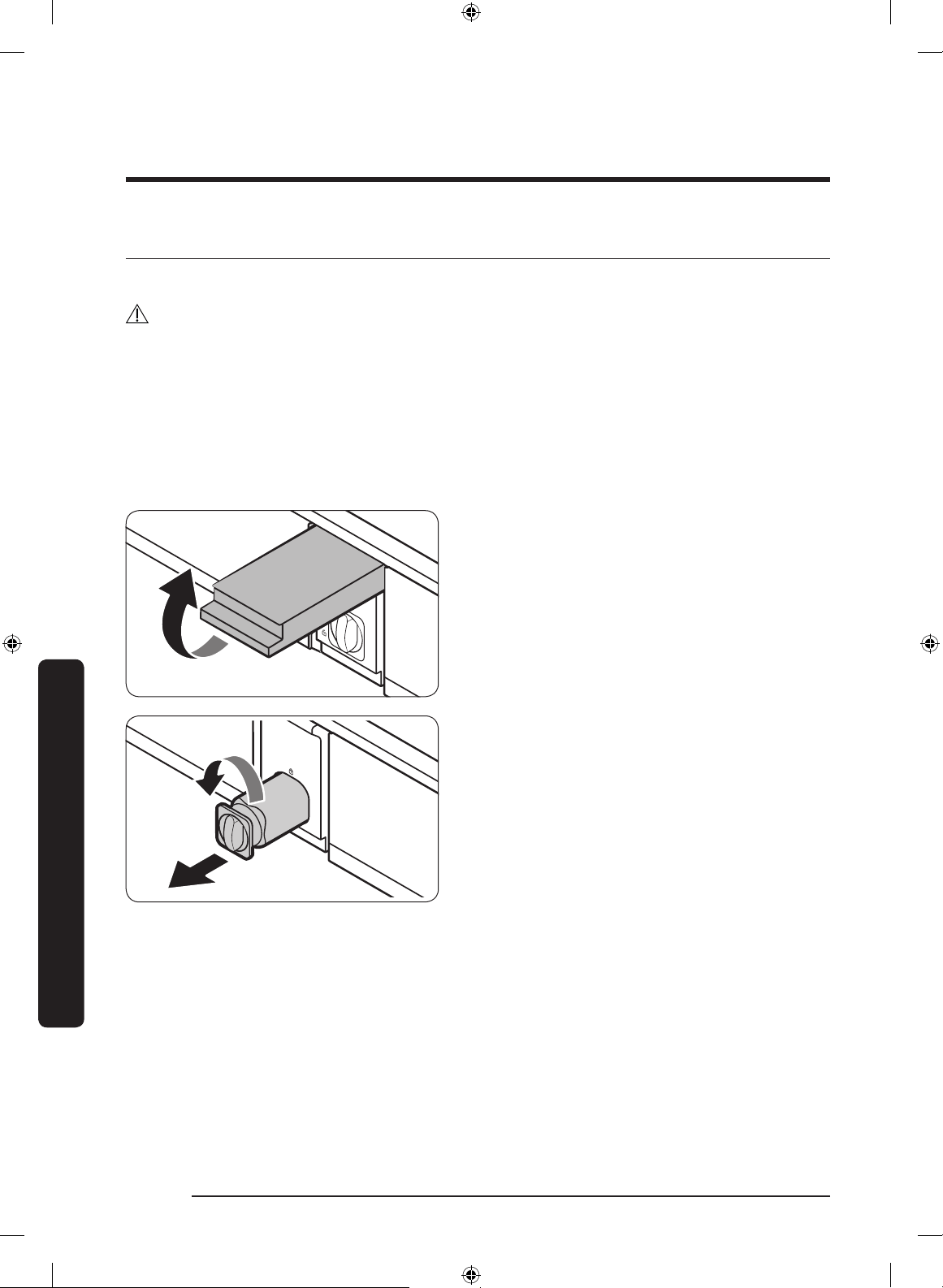

Water lter (applicable models only)
WARNING
• Do not use third-party water lters. Use only Samsung-provided or -approved lters.
• Unapproved lters may leak and damage the refrigerator, causing electric shock.
Samsung is not responsible for any damage that may occur from use of third-party
water lters.
The “Replace water lter” message appears on the control panel to let you know it is time
to replace the water lter. Before replacing the lter, make sure the water supply line is
shut off.
1. Shut off the water supply line.
2. Open the lter cartridge cover.
3. Turn the knob of the lter cartridge
counter clockwise 90 degrees (
1
/4 turn).
The lter cartridge unlocks.
Untitled-1 68 2021-03-19 11:43:04
English 69
Maintenance

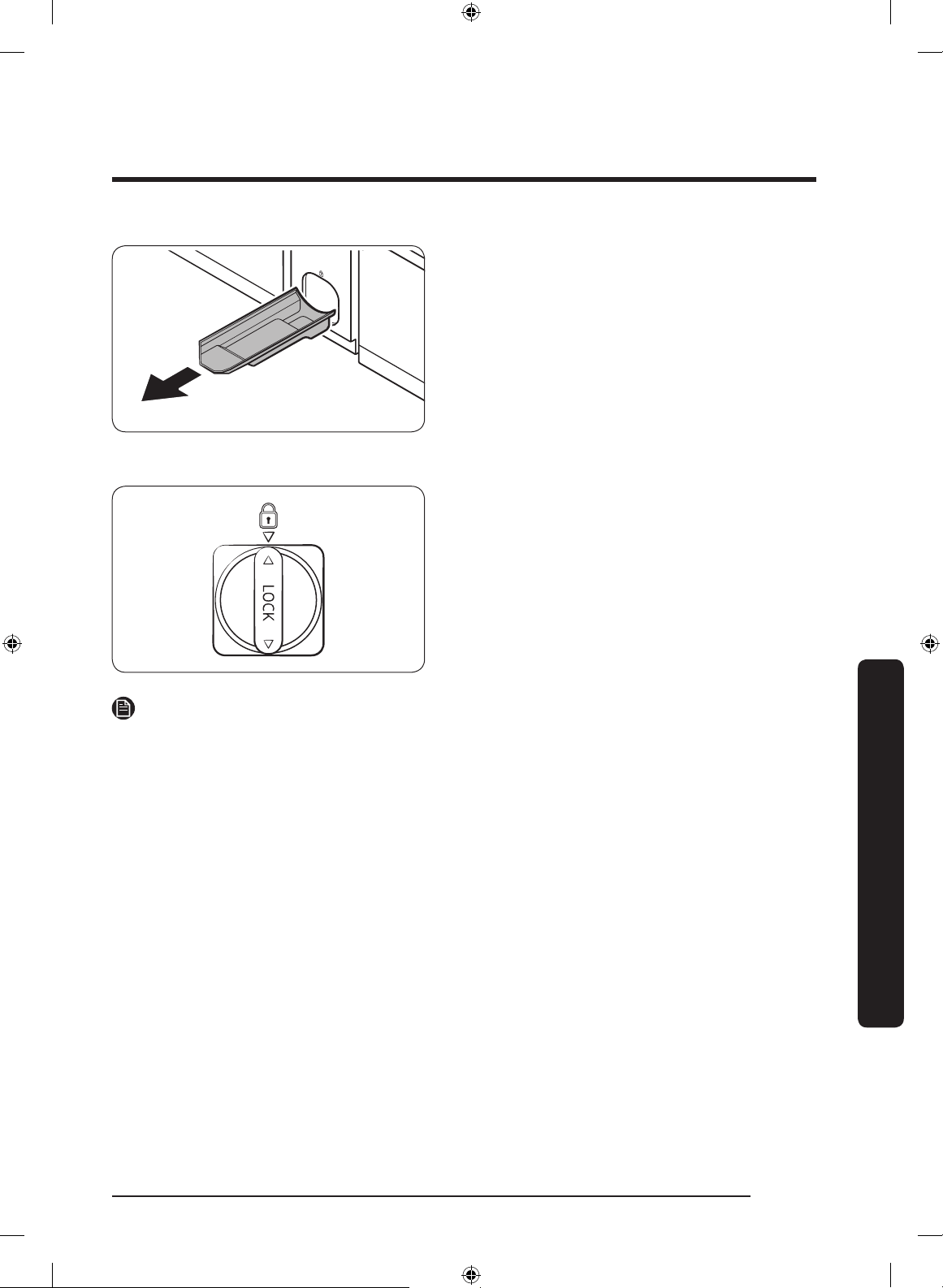

4. Pull out to remove the cartridge.
- If the water lter is severely
contaminated, the cartridge may not
be easy to remove. If that is the case,
use force to remove the cartridge.
- To prevent water leaks from the
lter opening, pull the cartridge
straight out while removing it.
5. Insert a new lter cartridge. Use only
Samsung-provided or approved lters.
6. Turn the cartridge knob clockwise to
lock into place.
7. Close the lter cartridge cover.
8. On the Home screen, tap Fridge
Manager > Fridge Settings > Water
Filter, and then select Reset.
NOTE
• A newly installed lter may cause the water dispenser to spurt water briey. This is
because of air entering the waterline.
• This replacement process cause the refrigerator to drip water onto the oor. Simply
wipe up with dry cloths.
Reverse osmosis water ltration system
The water pressure of the water supply system to a reverse osmosis water ltration
system must be between 206-861 kPa (30-125 psi).
The water pressure of the reverse osmosis water ltration system to the refrigerator’s
cold water line must be at least 206 kPa (30 psi). If the water pressure is below the
specied:
• Check if the sediment lter in the reverse osmosis system is blocked. Replace the lter
if necessary.
• Rell the water tank in the reverse osmosis system with water.
• If your refrigerator has a water lter, it may further reduce the water pressure when
used in conjunction with a reverse osmosis system. Remove the water lter.
For more information or servicing, contact a licensed plumbing professional.
Untitled-1 69 2021-03-19 11:43:04
Maintenance
English70
Maintenance
Ordering a new lter
To purchase a new water lter, contact a local Samsung service center.
LED Lamps
To replace the lamps of the refrigerator, contact a local Samsung service centre.
WARNING
The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can
cause electric shock.
Untitled-1 70 2021-03-19 11:43:04
English 71

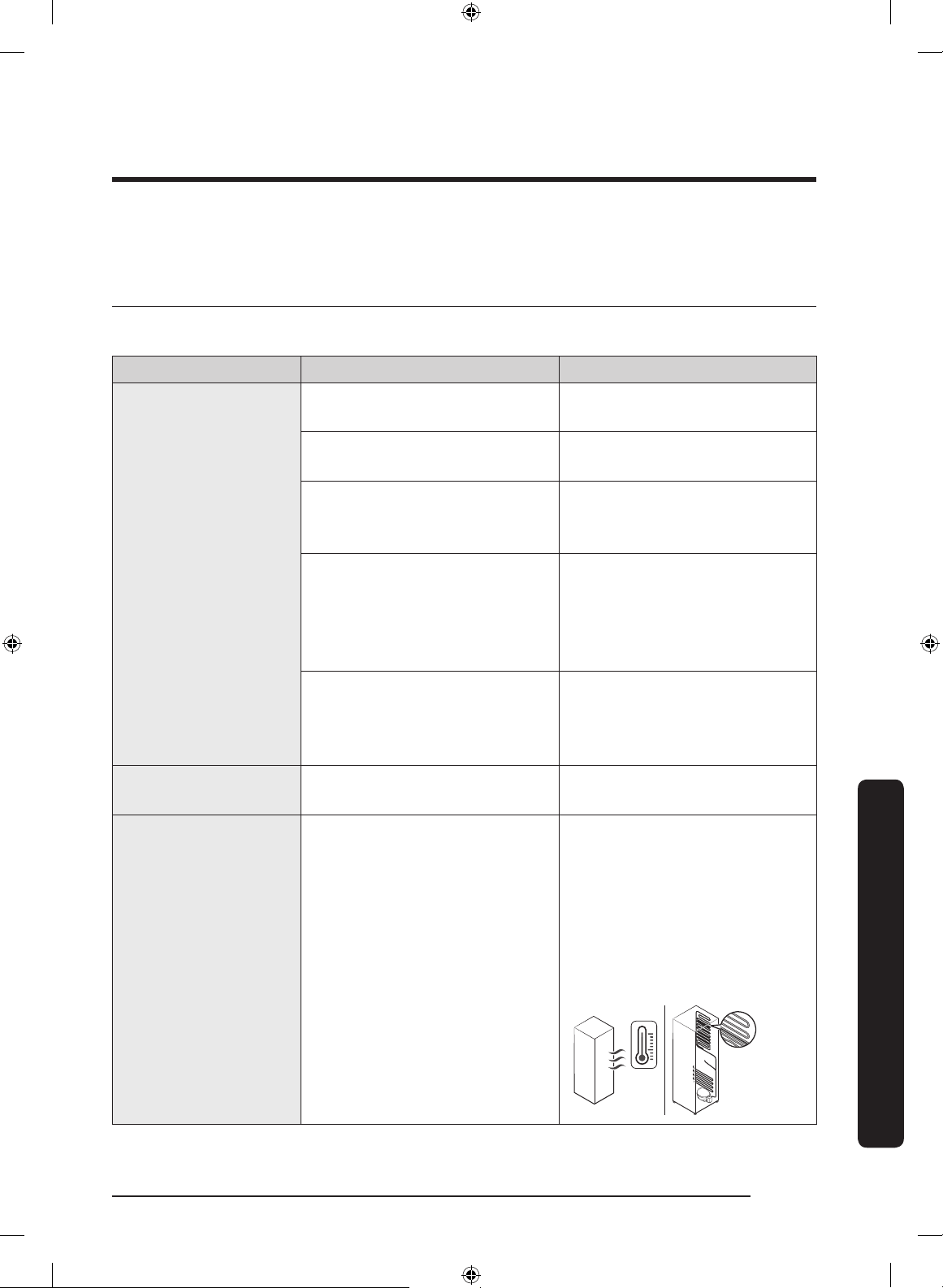

Troubleshooting
If you encounter an abnormal situation with the refrigerator, rst check the table below
and try the suggestions.
General
Temperature
Symptom Possible causes Solution
Fridge/freezer does
not operate.
Fridge/freezer
temperature is warm.
• Power cord is not plugged
in properly.
• Properly plug in the power
cord.
• Temperature control is not
set correctly.
• Set the temperature lower.
• Refrigerator is located near
a heat source or direct
sunlight.
• Keep the refrigerator away
from direct sunlight or a
heat source.
• Not enough clearance
between refrigerator and
nearby walls or cabinets.
• We recommend that the gap
between the refrigerator
and nearby walls (or
cabinets) is more than
50 mm.
• The refrigerator is
overloaded. Food is
blocking the refrigerator
vents.
• Do not overload the
refrigerator. Do not allow
food to block ventilation.
Fridge/freezer is
over-cooling.
• Temperature control is not
set correctly.
• Set the temperature higher.
Interior wall is hot.
• Refrigerator has heat-proof
piping in the interior wall.
• To prevent condensation
from forming, the
refrigerator has heat-proof
piping in the front corners.
If the ambient temperature
rises, this equipment may
not work effectively. This is
not a system failure.
Troubleshooting
Untitled-1 71 2021-03-19 11:43:04
Troubleshooting
English72
Troubleshooting
Odors
Symptom Possible causes Solution
Refrigerator has
odors.
• Spoiled food.
• Clean the refrigerator and
remove any spoiled food.
• Food with strong odors.
• Make sure strong smelling
food is wrapped airtight.
Frost
Symptom Possible causes Solution
Frost around the
vents.
• Food is blocking the vents.
• Make sure no food blocks
the refrigerator vents.
Frost on interior
walls.
• Door is not closed properly.
• Make sure food does not
block the door. Clean the
door gasket.
Fruits or vegetables
are frozen.
• Fruits or vegetables are
stored in the Cool Select+
and the temperature was
set too low.
• Set the temperature of
the Cool Select+ to a
temperature appropriate for
fruits or vegetables.
Condensation
Symptom Possible causes Solution
Condensation forms
on the interior walls.
• If door is left open, moisture
enters the refrigerator.
• Remove the moisture and
do not leave a door open
for extended periods of
time.
• Food with high moisture
content.
• Make sure food is wrapped
airtight.
Untitled-1 72 2021-03-19 11:43:05
English 73
Troubleshooting
Water/ice (dispenser models only)
Symptom Possible causes Solution
Water ow is weaker
than normal.
• Water pressure is too low.
• Make sure the water
pressure is between 138
and 827 kPa.
Ice maker makes a
buzzing sound.
• The ice maker function is
activated, but the water
supply to the refrigerator
has not been connected.
• Turn off the ice maker.
Ice maker does not
make ice.
• Ice maker has just been
installed.
• You must wait 12 hours for
the refrigerator to make ice.
• Freezer temperature is too
low.
• Set the freezer temperature
below -18 °C or -20 °C in
warm, ambient air.
• Ice maker is off. • Turn on the ice maker.
Ice does not dispense.
• Ice may jam if the ice
dispenser is not used for a
long time (approx. 3 weeks).
• If you won't be using the
refrigerator for a long time,
empty the ice bucket and
turn off the ice maker.
• Ice bucket is not properly
inserted.
• Make sure the ice bucket is
properly inserted.
• Water line is not connected
properly or water supply is
not on.
• Check if the water line is
installed correctly. Check if
the water line stop valve is
closed.
Untitled-1 73 2021-03-19 11:43:05
Troubleshooting
English74
Troubleshooting
Symptom Possible causes Solution
Water does not
dispense.
• Water line is not connected
properly or water supply is
not on.
• Check the water installation
conditions.
• A third-party water lter
was installed.
• Use only Samsung-provided
or approved lters.
• Unapproved lters may
leak and damage the
refrigerator.
• Water lter indicator turns
on or blinks.
• Replace the water lter.
After replacing, reset the
lter in Fridge Manager
> Fridge Settings > Water
Filter.
Untitled-1 74 2021-03-19 11:43:05
English 75
Troubleshooting

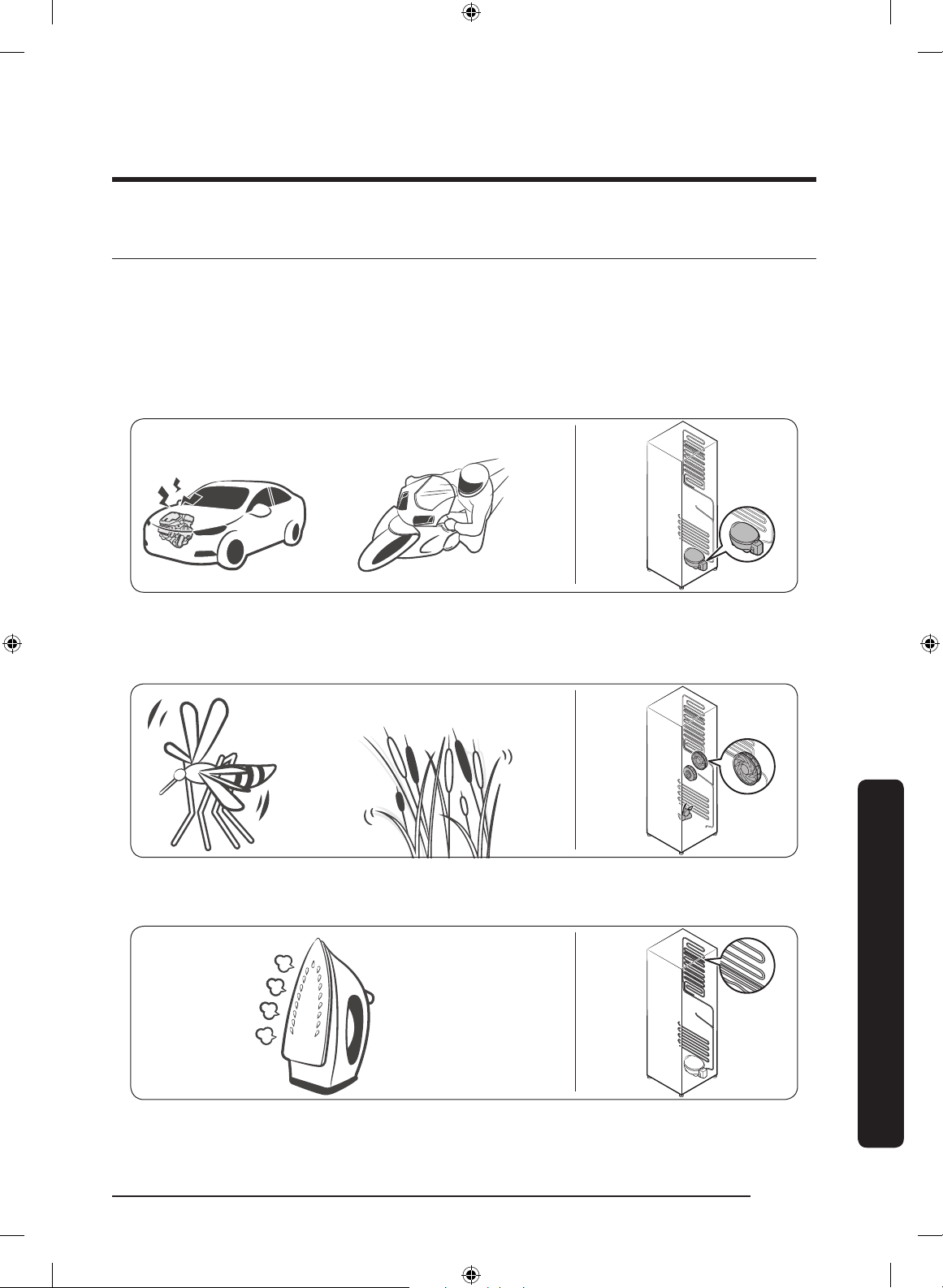

Do you hear abnormal sounds from the refrigerator?
Before calling for service, review the checkpoints below. Any service calls related to
normal sounds will be charged to the user.
These sounds are normal.
• When starting or ending an operation, the refrigerator may make sounds similar to a
car engine igniting. As the operation stabilizes, the sounds will decrease.
Clicking!
or Chirping!
Buzzing!
• While the fan is operating, these sounds may occur. When the refrigerator reaches the
set temperature, no fan sound will occur.
SSSRRR!
Whir!
• During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.
HiSS!
Untitled-1 75 2021-03-19 11:43:05
Troubleshooting
English76
Troubleshooting

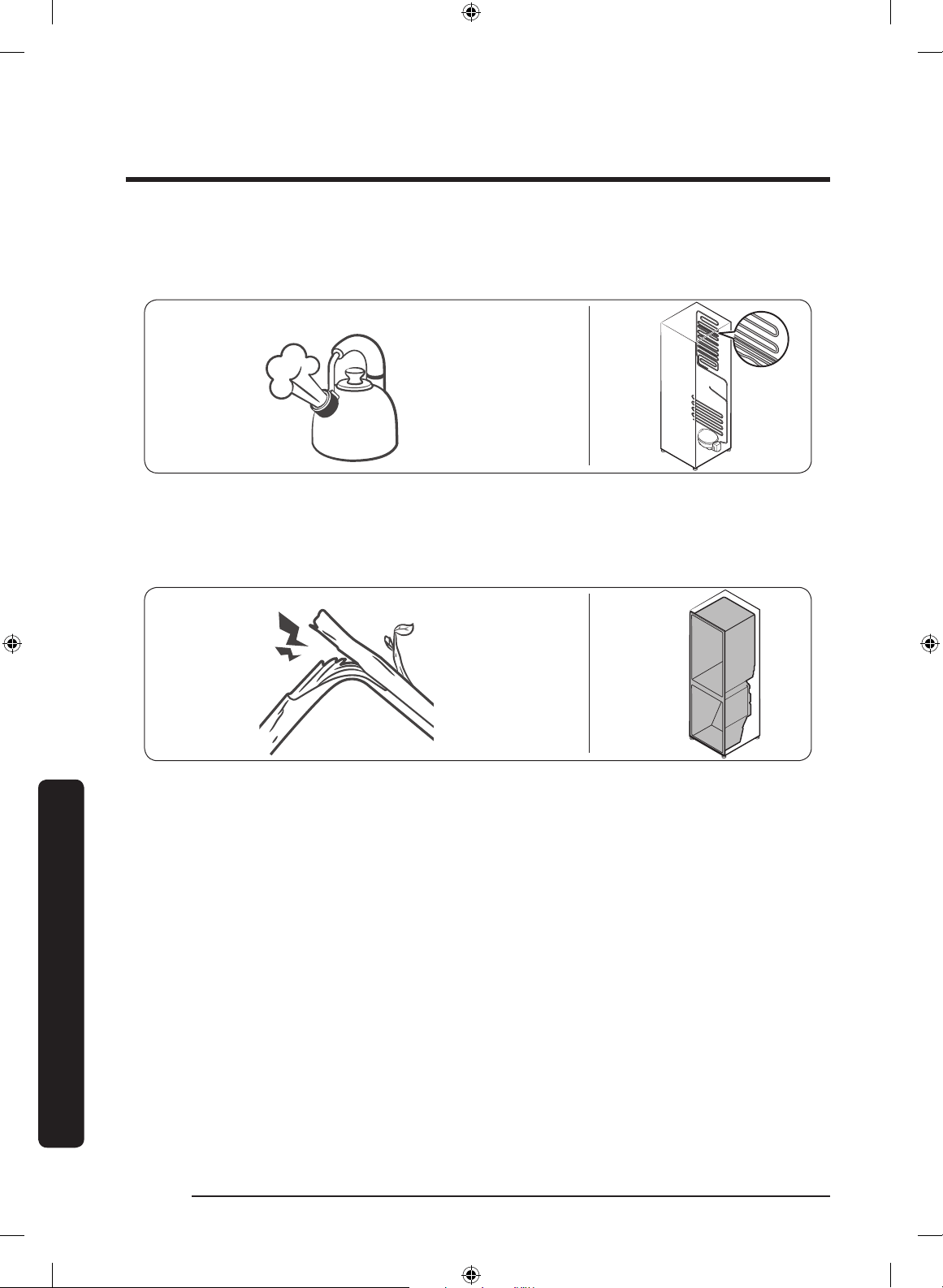

• As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes,
causing bubbling sounds.
Bubbling!
• As the refrigerator temperature increases or decreases, plastic parts contract and
expand, creating knocking noises. These noises occur during the defrosting cycle or
when electronic parts are working.
Cracking!
• For ice maker models: When the water valve opens to ll the ice maker, buzzing
sounds may occur.
• Due to pressure equalizing when opening and closing the refrigerator door, whooshing
sounds may occur.
Untitled-1 76 2021-03-19 11:43:05
English 77
Troubleshooting
SmartThings
Symptom Action
Could not nd
“SmartThings” in the
app market.
• The SmartThings app is designed for Android 7.0 (Nougat) or
later, iOS 12.0 or later, iPhone 6 or later, and is optimized for
Samsung smartphones (Galaxy S and Galaxy Note series).
The SmartThings app
fails to operate.
• The SmartThings app is available for applicable models only.
• The old Samsung Smart Refrigerator app cannot connect with
Samsung Smart Home models.
The SmartThings app
is installed but is
not connected to my
refrigerator.
• You must log into your Samsung account to use the app.
• Make sure that your router is operating normally.
• If you have not connected your refrigerator to the
SmartThings App after the app was installed, you must make
the connection using the device registration function of the
app.
Could not log into the
app.
• You must log into your Samsung account to use the app.
• If you don’t have a Samsung account, follow the app’s
onscreen instructions to create one.
An error message
appears when I
try to register my
refrigerator.
• Easy Connection may fail due to the distance from your
access point (AP) or electrical interference from the
surrounding environment. Wait a moment and try again.
The SmartThings
app is successfully
connected to my
refrigerator but does
not run.
• Exit and restart the SmartThings app or disconnect and
reconnect the router.
• Unplug the power cord of the refrigerator, and then plug it in
again after 1 minute.
Untitled-1 77 2021-03-19 11:43:06
Troubleshooting
English78
Troubleshooting
LCD
Symptom Action
Cannot connect to my
TV.
• This refrigerator can connect only with Samsung Smart TV
6400 series or higher models released since 2015. Please
check the model name of your TV rst.
• Network connections may suffer temporary interruptions.
Turn your TV off, and then try again.
The inner view
picture looks bulged
out or incomplete.
• The edges of the inner view may look bulged out. The
bulging is caused by the convex lens of the camera.
• The inner view may be incomplete due to the blind spots
on the left and right corners or screened depending on the
layout of food items. Make sure to place food items in the
front center.
The displayed
measurement on the
Fridge Manager is not
correct.
• The displayed conditions may differ from the actual
temperature and humidity.
Untitled-1 78 2021-03-19 11:43:06
Memo
Untitled-1 79 2021-03-19 11:43:06
For Singapore only
Complies with
IMDA Standards
DA100790
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the
SAMSUNG customer care center.
Country Contact Center Web Site
AUSTRALIA
1300 362 603 (Other)
1300 425 299 (HHP)
www.samsung.com/au/support
NEW ZEALAND
0800 726 786 (All Product)
0800 6 726 786 (Support for Smart Mobile
Devices)
www.samsung.com/nz/support
SINGAPORE
1800 7267864 | 1800-SAMSUNG (Other)
1800 4252997 | 1800-GALAXYS (HHP)
www.samsung.com/sg/support
MALAYSIA
1800-22-8899 (HHP)
1800-88-9999 (OTH)
+603-7713 7420 (Overseas contact)
www.samsung.com/my/support
PHILIPPINES
Only for HHP PRODUCT :
#GALAXY (just dial #425-299) [ PLDT / Globe /
Smart / Sun Toll Free ]
02-422-2177 [ Standard Landline ]
OTH PRODUCT :
1-800-10-726-7864 [ PLDT Toll Free ]
1-800-8-726-7864 [ Globe Landline and
Mobile ] 02-422-2111 [ Standard Landline ]
www.samsung.com/ph/support
DA68-04024C-00
Untitled-1 80 2021-03-19 11:43:06
