TO WATCH VIDEOS GO TO:
tinyurl.com/lgh5x3h
Contents
Preparation ...................................... 2-5
Assembly .........................................6-9
Installation ..................................10-28
Install the Door Control ............20-21
Install the Protector System® ....22-25
Install the Automatic Door Lock ......26
Connect power ..............................27
Adjustments .................................29-31
Battery Backup ..................................32
MyQ® Smartphone Control .................33
Operation .....................................34-38
Using your Garage Door Opener .....35
To Open the Door Manually ...........35
Smart Control Panel® ...............36-37
Remote Control .............................37
To Erase the Memory .....................38
Maintenance .....................................39
Troubleshooting ........................... 40-41
Accessories ........................................ 42
Warranty ........................................... 43
Automatic Garage Door Opener
Safety & Maintenance Guide ..........44-45
Repair Parts .................................46-47
Owner’s Manual
B980
Belt Drive
Garage Door Opener
FOR RESIDENTIAL USE ONLY
PRE-PROGRAMMED REMOTE CONTROL
INCLUDED
www.chamberlain.com
www.mychamberlain.com
Smart Garage Opener
• Please read this manual and the enclosed safety materials carefully!
• Fasten the manual near the garage door after installation.
• The door WILL NOT CLOSE unless the Protector System® is connected
and properly aligned.
• Periodic checks of the garage door opener are required to ensure
safe operation.
• The model number label is located on the left side panel of your
garage door opener.
• This garage door opener is compatible with MyQ® and
Security+b2.0® accessories.
• DO NOT install on a one-piece door if using devices or features
providing unattended close. Unattended devices and features are
to be used ONLY with sectional doors.
2
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Mechanical
Electrical
When you see these Safety Symbols and Signal Words on
the following pages, they will alert you to the possibility of
serious injury or death if you do not comply with the
warnings that accompany them. The hazard may come
from something mechanical or from electric shock. Read
the warnings carefully.
When you see this Signal Word on the following pages, it
will alert you to the possibility of damage to your garage
door and/or the garage door opener if you do not comply
with the cautionary statements that accompany it. Read
them carefully.
WARNING: This product can expose you to chemicals including lead, which are known to the State of
California to cause cancer or birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov
Unattended Operation
The Timer-to-Close (TTC) feature, the MyQ
®
Smartphone Control app, and MyQ
®
Garage Door and Gate Monitor
are examples of unattended close and are to be used ONLY with sectional doors. Any device or feature that allows the
door to close without being in the line of sight of the door is considered unattended close. The Timer-to-Close (TTC)
feature, the MyQ
®
Smartphone Control, and any other MyQ
®
devices are to be used ONLY with sectional doors.
Check the Door
To prevent possible SERIOUSINJURYor DEATH:
l ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An
unbalanced garage door may NOT reverse when required.
l NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their hardware,
ALLof which are under EXTREME tension.
l Disable ALLlocks and remove ALLropes connected to garage door BEFORE installation and operating
garage door opener to avoid entanglement.
l DO NOT install on a one-piece door if using devices or features providing unattended close. Unattended
devices and features are to be used ONLY with sectional doors.
To prevent damage to garage door and opener:
l ALWAYS disable locks BEFORE installing and operating the opener.
l ONLY operate garage door opener at 120V, 60Hz to avoid malfunction and damage.
Before you begin:
1. Disable locks and remove any ropes connected to the garage door.
2. Lift the door halfway up. Release the door. If balanced, it should stay in place,
supported entirely by its springs.
3. Raise and lower the door to check for binding or sticking. If your door binds,
sticks, or is out of balance, call a trained door systems technician.
4. Check the seal on the bottom of the door. Any gap between the floor and the
bottom of the door must not exceed 1/4 inch (6 mm). Otherwise, the safety
reversal system may not work properly.
5. The opener should be installed above the center of the door. If there is a torsion
spring or center bearing plate in the way of the header bracket, it may be
installed within 4feet (1.2 m) to the left or right of the door center. See page 11.
Torsion
Spring
Extension
Spring
OR
Preparation
3

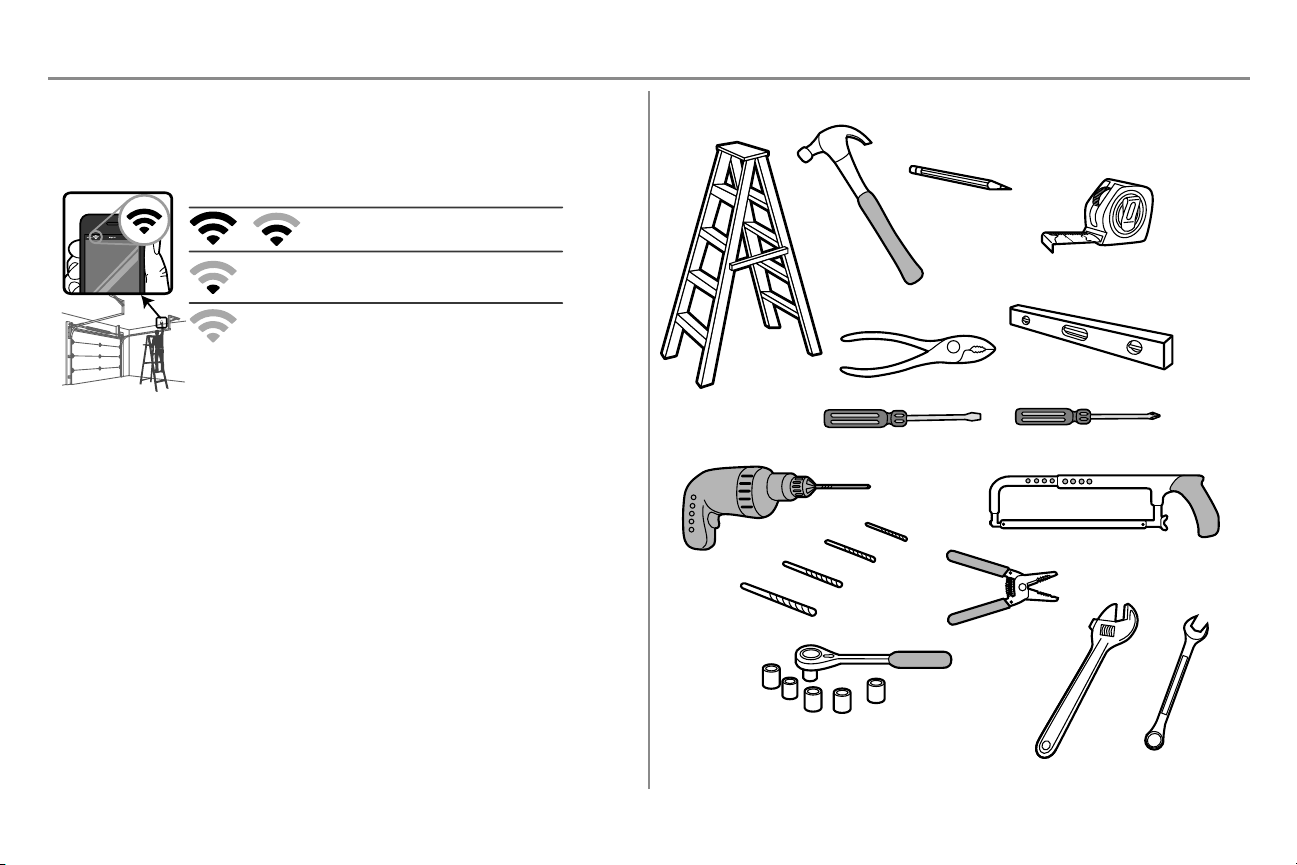

Before You Connect with Your Smartphone
Monitor and control your garage door from anywhere using the MyQ
®
app. You will need a router with Wi-Fi and a
smartphone or other mobile device. Make sure your mobile device is connected to your Wi-Fi network. Hold your
mobile device in the place where your garage door opener will be installed and check the Wi-Fi signal strength.
Wi-Fi signal is weak.
The garage door opener will likely connect to your Wi-Fi
network. If not, try one of the options below
.
No Wi-Fi signal. Try one of the following:
• Move your router closer to the garage door opener to
minimize interference from walls and other objects
• Buy a Wi-Fi range extender
• Buy a Chamberlain MyQ
®
Internet Gateway (CIGBU) see page 41
Check Signal Strength. If you see:
Wi-Fi signal is strong. You’re all set!
Install your new garage door opener.
Visit wifihelp.chamberlain.com for more details
See MyQ
®
Smartphone Control page 33 to connect your garage door opener to your Wi-Fi network.
Additional Items You May Need:
Survey your garage area to see if you will need any of the following items:
l (2) 2X4 Pieces of wood : May be used to fasten the header bracket to the structural supports. Also used to
position the garage door opener during installation and for testing the safety reversing sensors.
l Support bracket and fastening hardware: Must be used if you have a finished ceiling in your garage.
l Extension brackets (MODEL 041A5281-1) or wood blocks: Depending upon garage construction,
extension brackets or wood blocks may be needed to install the safety reversing sensor.
l Fastening hardware: Alternate floor mounting of the safety reversing sensor will require hardware not
provided.
l Door reinforcement: Required if you have a lightweight steel, aluminum, fiberglass or glass panel door.
l Rail extension kit: Required if your garage door is more than 7 feet (2.13 m) high.
Tools Needed
3/16
7/16
1/2
5/32
5/16
3/4
5/8
9/16
1/4
7/16
Preparation
4

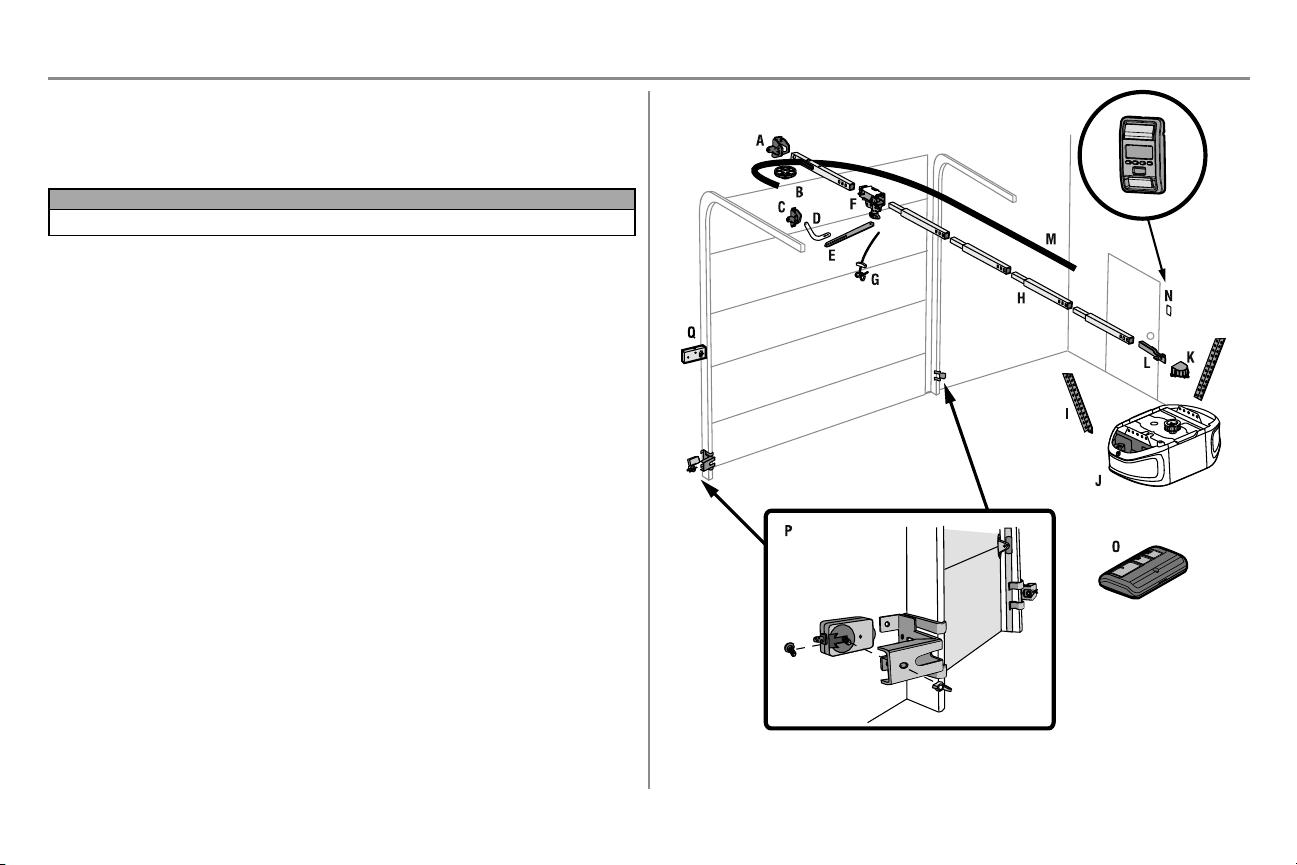

Carton Inventory
Save the carton and packing material until the installation and adjustment is complete. Instructions for the accessories
will be attached to the accessory and are not included in this manual. The images throughout this manual are for
reference only and your product may look different.
Model Power Door Control Remote Control Wireless Keypad
B980 Max Lift Power System™
Smart Control Panel
®
3-button (2)
ü
A. Header bracket
B. Pulley
C. Door bracket
D. Curved door arm
E. Straight door arm
(Packaged inside front rail section)
F. Trolley
NOTE: Be sure to assemble the trolley before sliding onto rail.
G. Emergency release rope and handle
H. Rail (1 front and 4 center sections)
I. Hanging brackets (2)
(Packaged inside the front rail section)
J. Garage door opener (motor unit)
K. Sprocket cover and screws
L. “U” bracket
M. Belt
N. Door Control
O. Remote control
P. The Protector System
®
Safety reversing sensors with 2 conductor white and white/black wire attached: Sending Sensor (1),
Receiving Sensor (1), and Safety Sensor Brackets (2)
Q. Automatic Garage Door Lock
NOT SHOWN
Wireless keypad
White and red/white wire
Owner's manual
Hardware
Preparation
5

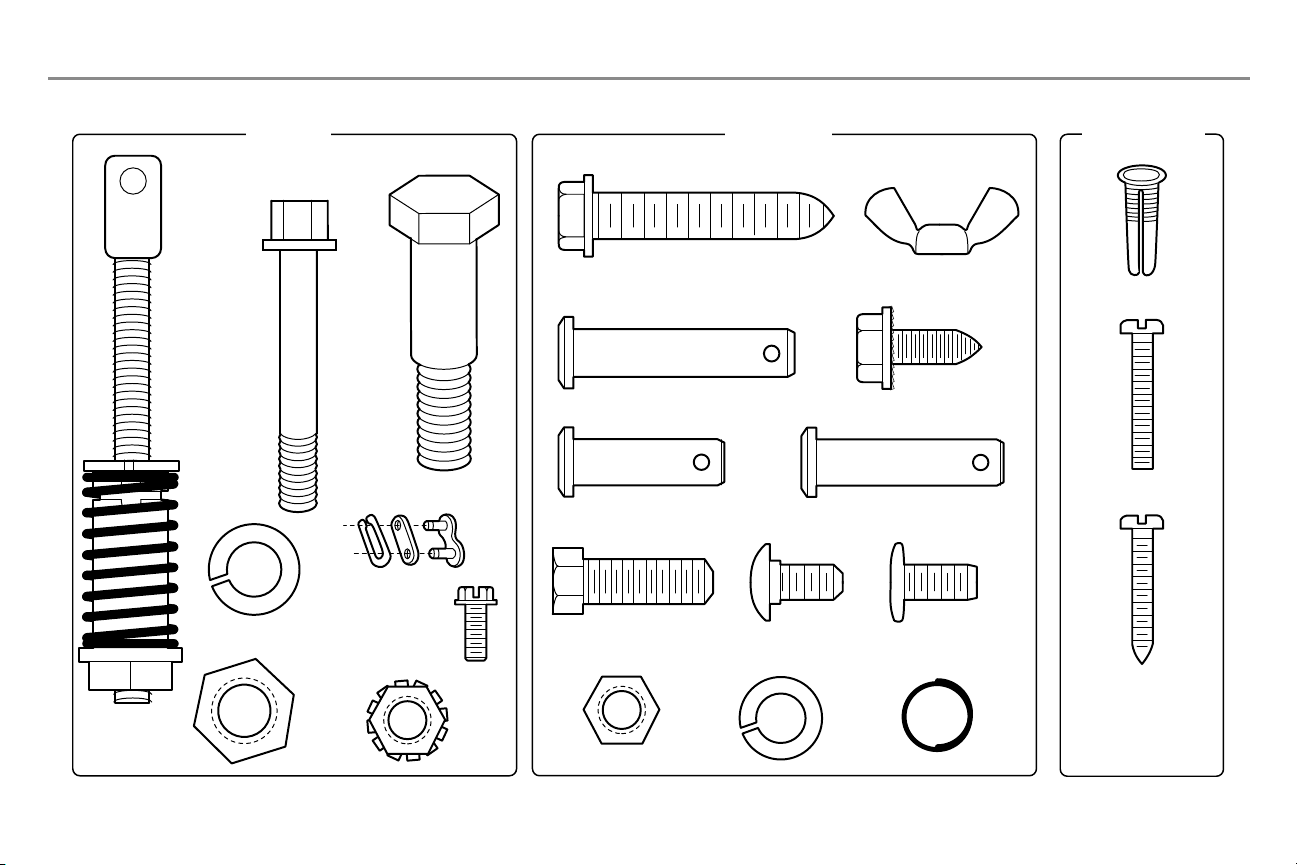

Hardware
ASSEMBLY INSTALLATION
DOOR CONTROL
Insulated Staples
(N
ot Shown)
Clevis Pin 5/16"x1-1/2"
Ring
Fastener (3)
Hex Bolt 5/16"-18x7/8" (4)
Self-Threading Screw
1/4"-14x5/8" (2)
Clevis Pin 5/16"x1"
Clevis Pin 5/16"x1-1/4"
Carriage Bolt
1/4"-20x1/2" (2)
Screw
1/4"-20x1/2" (2)
Wing Nut
1/4"-20 (2)
Lag Screw 5/16"-9x1-5/8" (4)
Screw 6ABx1" (2)
Drywall Anchors (2)
Screw 6-32x1" (2)
Hex Screw #8x3/8" (3)
(packed with the
sprocket cover)
Bolt
1/4"-20x1-3/4"
Lock Nut
1/4"-20
Bolt
Nut 3/8"
Lock Washer 3/8"
Master Link
Threaded
Shaft with
Spring
Trolley Nut
Lock Washer
5/16"-18 (4)
Nut
5/16"-18 (4)
Preparation
6
Assembly
STEP 1 Assemble the rail and install the trolley
To prevent INJURY from pinching, keep hands and fingers away from the joints while assembling the rail.
To avoid installation difficulties, do not run the garage door opener until instructed to do so.
The front rail has a cut out “window” at the door end. The rail tab MUST be on top of the rail when assembled.
1. Remove the straight door arm and hanging bracket packaged inside the front rail and set aside for
Installation Step 5 and 9. NOTE: To prevent INJURY while unpacking the rail carefully remove the straight
door arm stored within the rail section.
2. Align the rail sections on a flat surface as shown and slide the tapered ends into the larger ones. Tabs
along the side will lock into place.
3. Place the motor unit on packing material to protect the cover, and rest the back end of the rail on top. For
convenience, put a support under the front end of the rail.
4. As a temporary stop, insert a screwdriver into the hole in the second rail section from the motor unit, as
shown.
5. Check to be sure there are 4 plastic wear pads inside the inner trolley. If they became loose during
shipping, check all packing material. Snap themback into position as shown.
6. Slide the trolley assembly toward the screwdriver as shown.
7. Slide the rail onto the “U” bracket, until it reaches all the stops on the top and sides of the “U” bracket.
Wear Pads
Front Rail Section
(TO DOOR)
“U” Bracket
(TO MOTOR UNIT)
Trolley
Rail Tab
On Top
Slide to stops
on top and sides
of “U” bracket
Screwdriver
7
Assembly

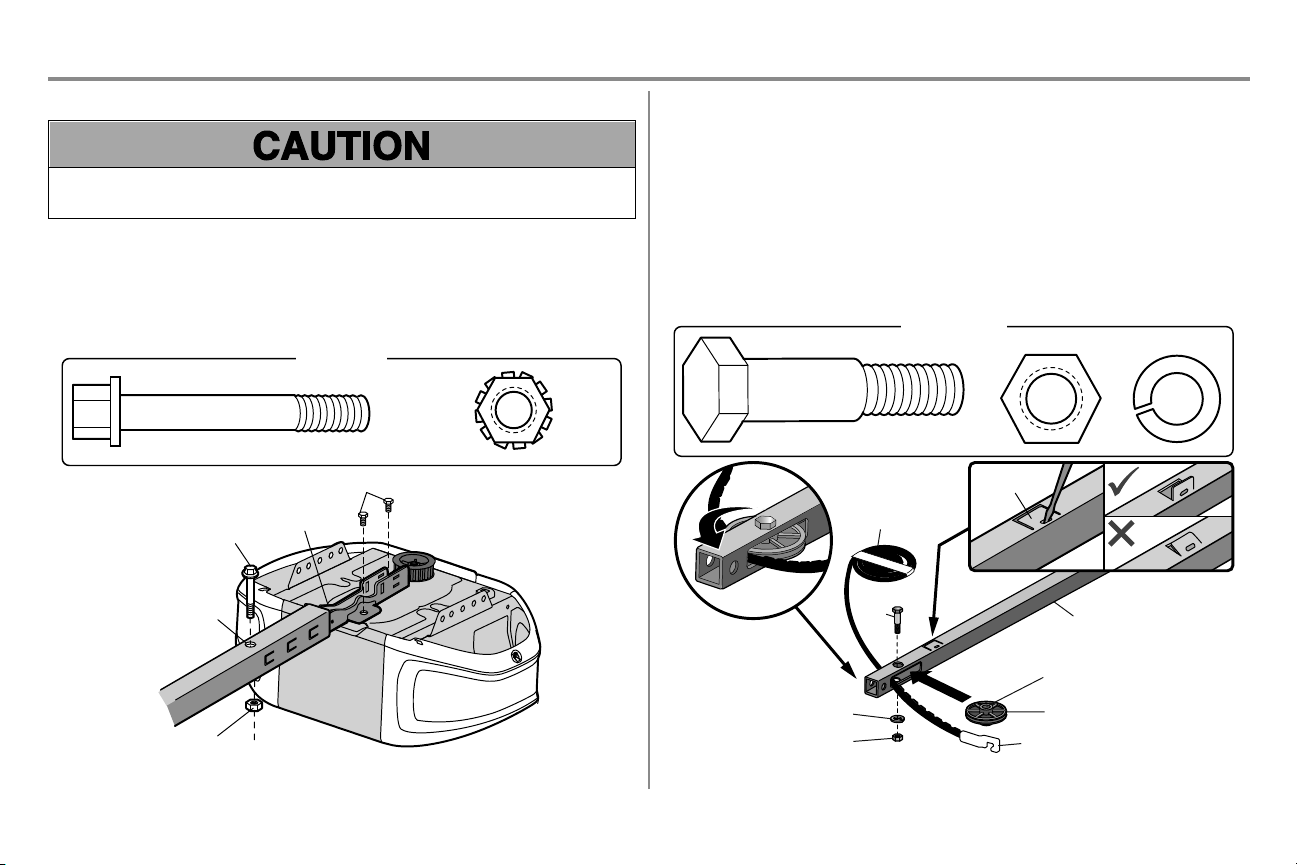

STEP 2 Fasten the rail to the motor unit
To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the top of the
opener.
1. Insert a 1/4"-20 x 1-3/4" bolt into the cover protection bolt hole on the back end of the rail as shown. Tighten
securely with a 1/4"-20 lock nut. DO NOT overtighten.
2. Remove the bolts from the top of the motor unit.
3. Use the carton to support the front end of the rail.
4. Place the “U” bracket, flat side down onto the motor unit and align the bracket holes with the bolt holes.
5. Fasten the “U” bracket with the previously removed bolts; DO NOT use any power tools. The use of power
tools may permanently damage the garage door opener.
Bolt
1/4"-20x1-3/4"
Lock Nut
1/4"-20
HARDWARE
“U” Bracket
Cover Protection
Bolt Hole
Bolt
Lock Nut
Bolts (Mounted in the garage door opener)
STEP 3 Install the idler pulley
1. Lay the belt beside the rail, as shown. Grasp the end with the hooked trolley connector and pass
approximately 12" (30 cm) of belt through the window. Keep the ribbed side toward the rail, and allow it to
hang until Assembly Step 4.
2. Remove the tape from the idler pulley. The inside center should be pre-greased. If dry, regrease to ensure
proper operation.
3. Place the idler pulley into the window as shown.
4. Insert the idler bolt from the top through the rail and pulley. Tighten with a 3/8" lock washer and nut
underneath the rail until the lock washer is compressed.
5. Rotate the pulley to be sure it spins freely.
6. Locate the rail tab. The rail tab is between the idler bolt and the trolley in the front rail section. Use a
flathead screwdriver and lift the rail tab until the tab is vertical (90º).
Rail
Idler Pulley
Grease Inside Pulley
Bolt
Belt
Lock Washer
Nut
Bolt
Nut 3/8" Lock Washer 3/8"
HARDWARE
Trolley Connector
Rail Tab
8
Assembly
STEP 4 Install the belt
1. Pull the belt around the idler pulley and toward the trolley. The ribbed side must contact the pulley.
2. Hook the trolley connector into the retaining slot on the trolley as shown (Figure 1).
3. With the trolley against the screwdriver, dispense the remainder of the belt along the rail lengthtoward the
motor unit and around the sprocket (Figure 2). The sprocket teeth must engage the belt.
4. Check to make sure the belt is not twisted. Connect the trolley threaded shaft with the master link(Figure
3).
l Push pins of master link bar through holes in end of belt and trolley threaded shaft.
l Push master link cap over pins and past pin notches.
l Slide the closed end of the clip-on spring over one of the pins. Push the open end of the clip-on spring
onto the other pin.
5. Remove the spring trolley nut from the threaded shaft.
6. Insert the trolley threaded shaft through the hole in the trolley.
HARDWARE
Master Link
Figure 3
Threaded Shaft with Spring Trolley Nut
Threaded Shaft
Master Link
Sprocket
Figure 2
Figure 1
Trolley
Connector
Retaining
Slot
9
Assembly
STEP 5 Tighten the belt
1. By hand, thread the spring trolley nut on the threaded shaft until it is finger tight against the trolley. Do not
use any tools. Remove the screwdriver.
2. Insert a flathead screwdriver tip into one of the nut ring slots and brace it firmly against the trolley.
3. Tighten the spring trolley nut with an adjustable wrench or a 7/16" open end wrench about a quarter turn
until the spring releases and snaps the nut ring against the trolley. This sets the spring to optimum belt
tension.
Spring
Trolley Nut
Nut Ring Slot
Nut RingNut Ring
AFTER
1-1/4" (3.18 cm)
BEFORE
1" (2.5 cm)
STEP 6 Install the sprocket cover
To avoid possible SERIOUS INJURY to finger from moving garage door opener:
l ALWAYS keep hand clear of sprocket while operating opener.
l Securely attach sprocket cover BEFORE operating.
1. Position the sprocket cover over the sprocket as shown and fasten to the mounting plate with 8x3/8" hex
screws provided.
You have now finished assembling your garage door opener. Please read the following warnings before
proceeding to the installation section.
Hex Screw #8x3/8"
(Packed with the sprocket cover)
HARDWARE
Hex Screw
Sprocket Cover
10
Installation
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.
2. Install garage door opener ONLY on properly balanced and lubricated garage door. An improperly balanced
door may NOT reverse when required and could result in SEVERE INJURY or DEATH.
3. ALL repairs to cables, spring assemblies and other hardware MUST be made by a trained door systems
technician BEFORE installing opener.
4. Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing opener to avoid
entanglement.
5. Where possible, install the door opener 7 feet (2.13 m) or more above the floor.
6. Mount the emergency release within reach, but at least 6 feet (1.83 m) above the floor and avoiding contact
with vehicles to avoid accidental release.
7. NEVER connect garage door opener to power source until instructed to do so.
8. NEVER wear watches, rings or loose clothing while installing or servicing opener. They could be caught in
garage door or opener mechanisms.
9. Install wall-mounted garage door control:
l within sight of the garage door.
l out of reach of small children at a minimum height of 5feet (1.5m) above floors, landings, steps or any
other adjacent walking surface.
l away from ALL moving parts of the door.
10. Place entrapment warning label on wall next to garage door control.
11. Place emergency release/safety reverse test label in plain view on inside of garage door.
12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact with a 1-1/2"
(3.8cm) high object (or a 2x4 laid flat) on the floor.
13. To avoid SERIOUS PERSONAL INJURY or DEATH from electrocution, disconnect ALL electric and battery
power BEFORE performing ANY service or maintenance.
14. DO NOT install on a one-piece door if using devices or features providing unattended close. Unattended
devices and features are to be used ONLY with sectional doors.
11
Installation
STEP 1 Determine the header bracket location
To prevent possible SERIOUS INJURY or DEATH:
l Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise
garage door might NOT reverse when required. DO NOT install header bracket over drywall.
l Concrete anchors MUST be used if mounting header bracket or 2x4 into masonry.
l NEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their hardware, ALL
of which are under EXTREME tension.
l ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An
unbalanced garage door might NOT reverse when required.
Installation procedures vary according to garage door types. Follow the instructions which apply to your door.
1. Close the door and mark the inside vertical centerline of the garage door.
2. Extend the line onto the header wall above the door.You can fasten the header bracket within 4 feet (1.22 m)
of the left or right of the door center only if a torsion spring or center bearing plate is in the way; or you can
attach it to the ceiling (see page 12) when clearance is minimal. (It may be mounted on the wall upside
down if necessary, to gain approximately 1/2" (1 cm). If you need to install the header bracket on a 2x4 (on
wall or ceiling), use lag screws (not provided) to securely fasten the 2x4 to structural supports as shown
here and on page 12.
3. Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on the header
wall 2" (5 cm) above the high point:
l 2" (5 cm) above the high point for sectional door and one-piece door with track.
l 8" (20 cm) above the high point for one-piece door without track.
This height will provide travel clearance for the top edge of the door. NOTE: If the total number of inches exceeds the
height available in your garage, use the maximum height possible, or refer to page 12 for ceiling installation.
Header Wall
Vertical Centerline of Garage Door
2x4
Structural
Supports
Level
(Optional)
Unfinished
Ceiling
2x4
OPTIONAL CEILING MOUNT
FOR HEADER BRACKET
Sectional door with curved track
Header Wall
Track
2" (5 cm)
Highest
Point of
Travel
Door
One-piece door with horizontal track
Header Wall
Track
2" (5 cm)
Highest
Point of
Travel
Door
One-piece door without track:
jamb hardware
Header Wall
8" (20
cm)
Highest
Point of
Travel
Door
Jamb
Hardware
One-piece door without track:
pivot hardware
Header Wall
8" (20
cm)
Highest
Point of
Travel
Door
Pivot
12
Installation

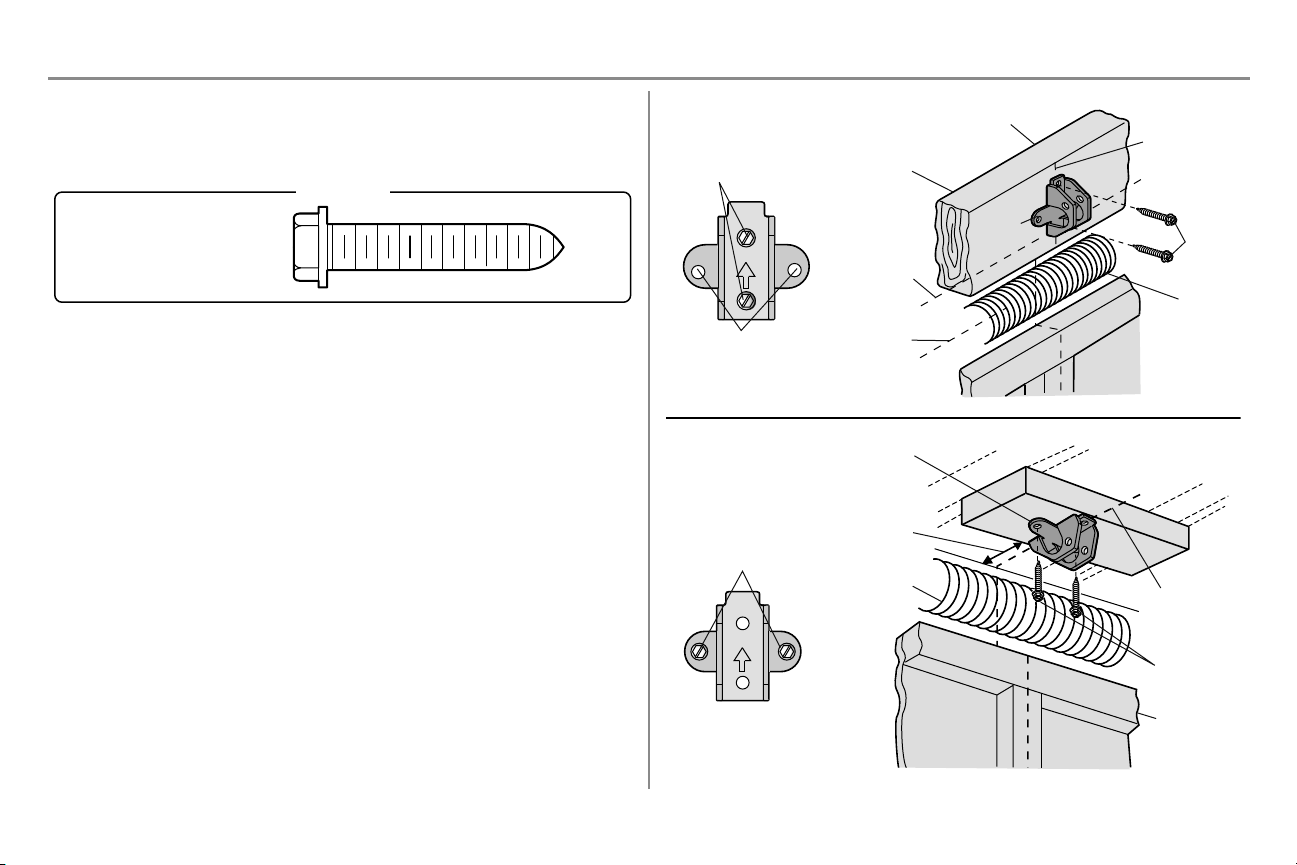

STEP 2 Install the header bracket
You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions
which will work best for your particular requirements. Do not install the header bracket over drywall. If installing
into masonry, use concrete anchors (not provided).
Lag Screw 5/16"-9x1-5/8"
HARDWARE
OPTION A - WALLINSTALLATION
1. Center the bracket on the vertical centerline with the bottom edge of the bracket on the horizontal line as
shown (with the arrow pointing toward the ceiling).
2. Mark the vertical set of bracket holes. Drill 3/16" pilot holes and fasten the bracket securely to a structural
support with the hardware provided.
OPTION B - CEILING INSTALLATION
1. Extend the vertical centerline onto the ceiling as shown.
2. Center the bracket on the vertical mark, no more than 6" (15 cm) from the wall. Make sure the arrow is
pointing away from the wall. The bracket can be mounted flush against the ceiling when clearance is
minimal.
3. Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a structural support with the
hardware provided.
UP
Wall Mounting
Holes
WALL INSTALLATION
CEILING INSTALLATION
Optional Mounting
Holes
Vertical
Centerline of
Garage Door
Header Wall
Header
Bracket
2x4
Structural
Support
Door
Spring
Garage Door
Highest Point
of Garage
Door Travel
Horizontal
Line
Lag
Screw
UP
Header Wall
Ceiling Mounting
Holes
Finished Ceiling
Vertical
Centerline of
Garage Door
Header
Bracket
6" (15 cm)
Maximum
Door Spring
Garage Door
Lag Screw
13
Installation

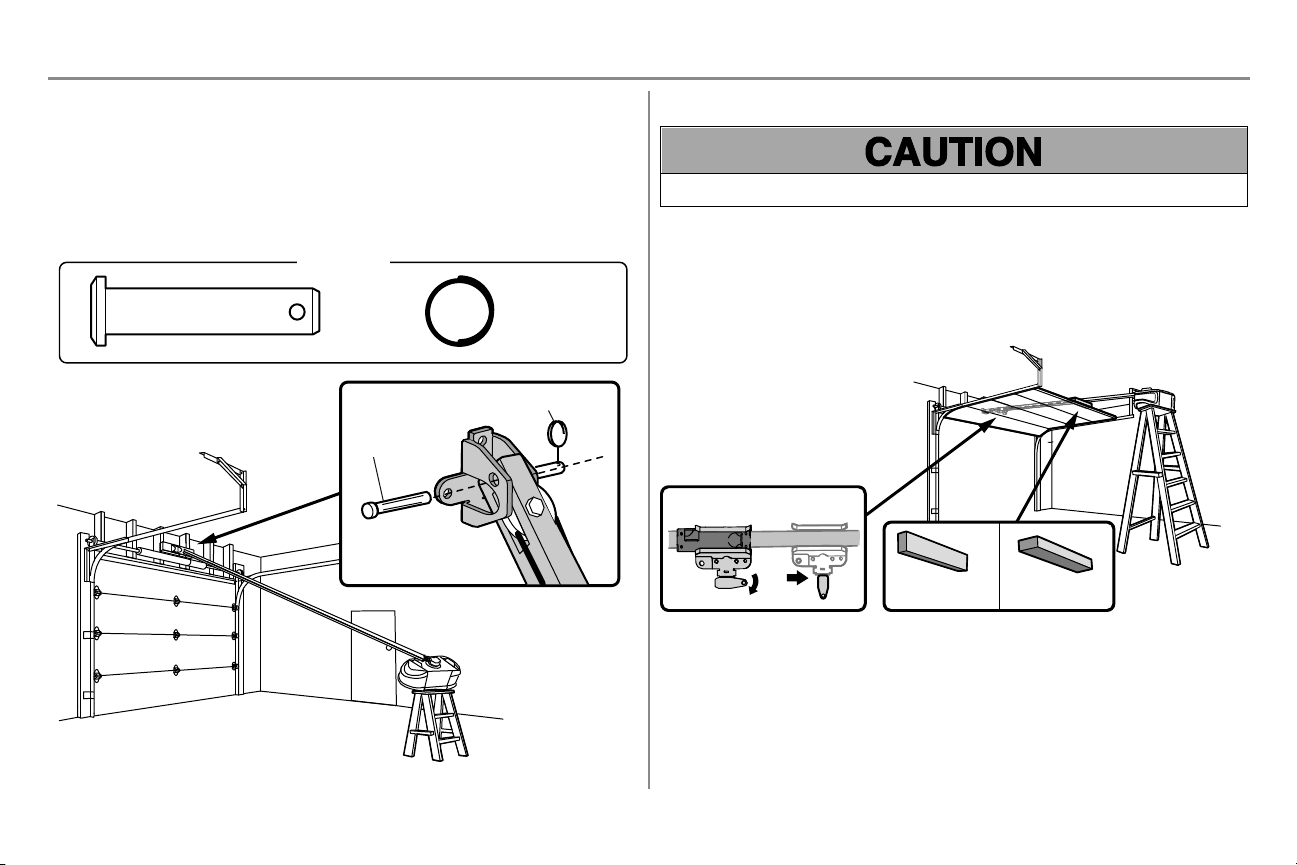

STEP 3 Attach the rail to the header bracket
1. Position the opener on the garage floor below the header bracket. Use packing material as a protective
base.
NOTE: If the door spring is in the way, you will need help. Have someone hold the opener securely on a
temporary support to allow the rail to clear the spring.
2. Position the rail bracket against the header bracket.
3. Align the bracket holes and join with a clevis pin as shown.
4. Insert a ring fastener to secure.
HARDWARE
Clevis Pin
5/16"x1-1/2"
Ring Fastener
Clevis Pin
Ring Fastener
STEP 4 Position the garage door opener
To prevent damage to garage door, rest garage door opener rail on 2x4 placed on top section of door.
1. Remove the packing material and lift the garage door opener onto a ladder.
2. Fully open the door and place a 2x4 (laid flat) under the rail. For one-piece doors without tracks, lay the
2x4 on it's side.
NOTE: A 2x4 is ideal for setting the distance between the rail and the door. If the ladder is not tall enough you will
need help at this point. If the door hits the trolley when it is raised, pull the trolley release arm down to disconnect the
inner and outer trolley. Slide the outer trolley toward the garage door opener. The trolley can remain disconnected
until instructed.
Connected Disconnected
One-piece door
without tracks
2x4 2x4
All other
door types
14
Installation

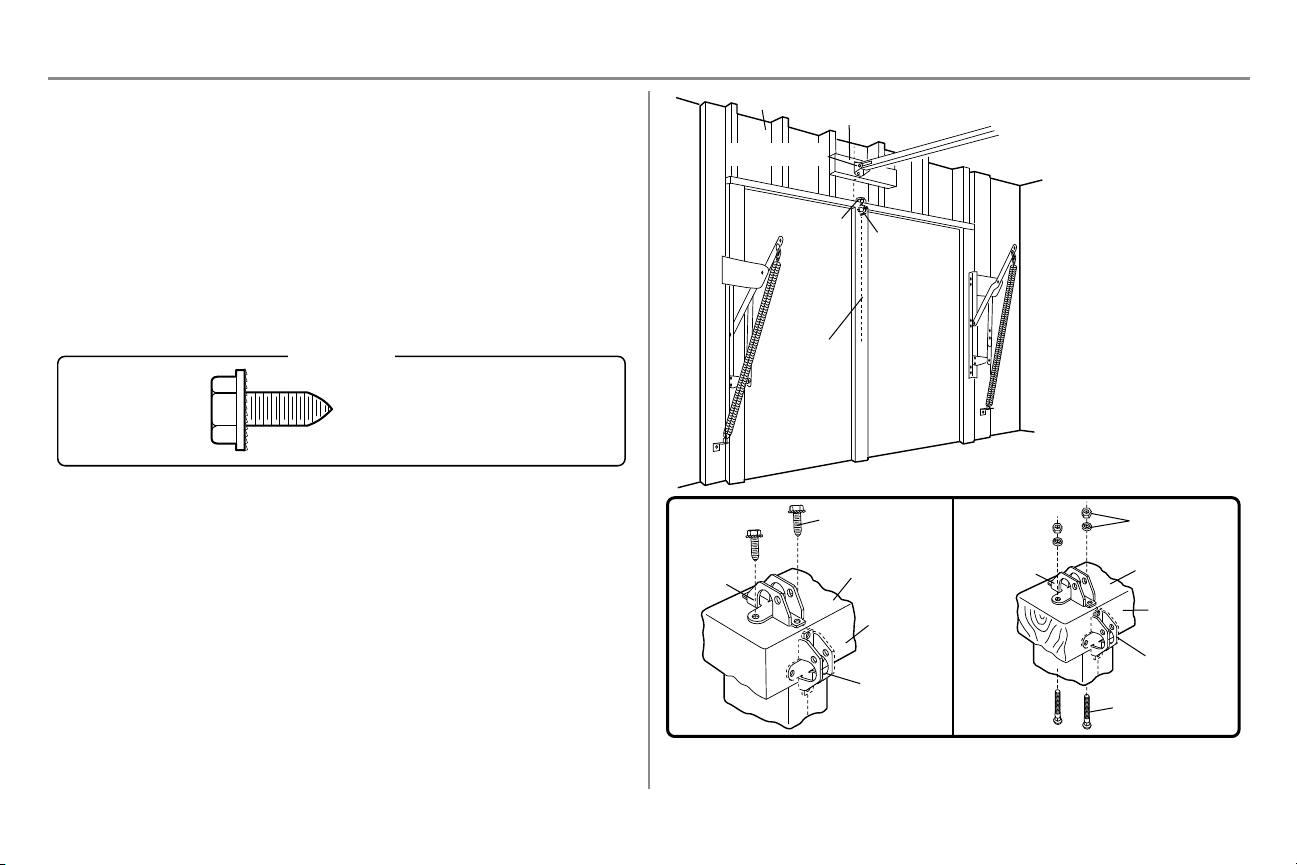

STEP 5 Hang the garage door opener
To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural
supports of the garage. Concrete anchors MUST be used if installing ANY brackets into masonry.
Hanging the garage door opener will vary depending on your garage. Below are three example installations. Your
installation may be different. For ALL installations the garage door opener MUST be connected to structural supports.
The instructions illustrate one of the examples below.
1. On finished ceilings, use the lag screws to attach a support bracket (not provided) to the structural
supports before installing the garage door opener.
2. Make sure the garage door opener is aligned with the header bracket. Measure the distance from each side
of the garage door opener to the support bracket.
3. Cut both pieces of the hanging bracket to required lengths.
4. Attach the end of each hanging bracket to the support bracket with appropriate hardware (not provided).
5. Attach the garage door opener to the hanging brackets with the hex bolts, lock washers, and nuts.
6. Remove the 2x4 and manually close the door. If the door hits the rail, raise the header bracket.
Finished Ceiling
Lag Screw
1
2
3
Not
Provided
Not Provided
Not Provided
Hex Bolt
Nut
Lock
Washer
4 5
6
Lag Screw
Finished Ceiling
EXAMPLES
Unfinished Ceiling
HARDWARE
Hex Bolt
5/16"- 18x7/8"
Nut
5/16"-18
Lock Washer
5/16"-18
Lag Screw
5/16"-9x1-5/8"
15
Installation
STEP 6 Install the Light Bulbs
To prevent possible OVERHEATING of the end panel or light socket:
l Use ONLY A19 incandescent (100W maximum) or compact fluorescent (26W maximum) light bulbs.
l DO NOT use incandescent bulbs larger than 100W.
l DO NOT use compact fluorescent light bulbs larger than 26W (100W equivalent).
l DO NOT use halogen bulbs.
l DO NOT use short neck or specialty light bulbs.
1. Pull on the top sides of the light lens and rotate the light lens down.
2. Insert an A19 incandescent (100W maximum) or compact fluorescent (26W, 100W equivalent) light bulb
into the light socket.
3. Rotate the lens up to close.
NOTE: Do not use halogen, short neck, or specialty light bulbs as these may overheat the end panel or light socket.
Do not use LED bulbs as they may reduce the range or performance of your remote controls.
or
or
STEP 7 Attach the emergency release rope and handle
To prevent possible SERIOUS INJURY or DEATH from a falling garage door:
l If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak
or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.
l NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.
l NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.
1. Insert one end of the emergency release rope through the handle. Make sure that “NOTICE” is right side
up. Secure with an overhand knot at least 1" (2.5 cm) fromthe end of the rope to prevent slipping.
2. Insert the other end of the emergency release rope through the hole in the trolley release arm. Mount the
emergency release within reach, but at least 6 feet (1.83 m) above floor, avoiding contact with vehicles to
prevent accidental release and secure with an overhand knot.
NOTE: If it is necessary to cut the emergency release rope, seal the cut end with a match or lighter to prevent
unraveling. Ensure the emergency release rope and handle are above the top of all vehicles to avoid entanglement.
16
Installation
STEP 8 Install the door bracket
Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE installation of
door bracket. Contact the garage door manufacturer or installing dealer for opener reinforcement instructions or
reinforcement kit. Failure to reinforce the top section as required according to the door manufacturer may void the
door warranty.
A horizontal and vertical reinforcement is needed for lightweight garage doors (fiberglass, aluminum, steel, doors with
glass panel, etc.) (not provided). A horizontal reinforcement brace should be long enough to be secured to two or three
vertical supports. A vertical reinforcement brace should cover the height of the top panel. Contact the garage door
manufacturer or installing dealer for opener reinforcement instructions or reinforcement kit.
NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this case you will
not need the door bracket; proceed to the next step.
OPTION A - SECTIONAL DOORS
1. Center the door bracket on the previously marked vertical centerline used for the header bracket
installation. Note correct UP placement, as stamped inside the bracket.
2. Position the top edge of the bracket 2"-4" (5-10cm) below the top edge of the door, OR directly below any
structural support across the top of the door.
3. Mark, drill holes and install as follows, depending on your door’s construction.
Metal or light weight doors using a vertical angle iron brace between the door panel support and the door
bracket:
l Drill 3/16" fastening holes. Secure the door bracket using the two 1/4"-14x5/8" self-threading screws.
(Figure1)
l Alternately, use two 5/16"-18x2" bolts, lock washers and nuts (not provided). (Figure2)
Metal, insulated or light weight factory reinforced doors:
l Drill 3/16" fastening holes. Secure the door bracket using the self-threading screws. (Figure3)
Wood doors:
l Use top and bottom or side to side door bracket holes. Drill 5/16" holes through the door and secure
bracket with 5/16"-18x2" carriage bolts, lock washers and nuts (not provided). (Figure4)
NOTE: The 1/4"-14x5/8" self-threading screws are not intended for use on wood doors.
FIGURE 1
FIGURE 3 FIGURE 4
FIGURE 2
Vertical
Reinforcement
Vertical
Centerline
of Garage Door
UP
Door Bracket
Vertical Reinforcement
Vertical Reinforcement
Horizontal Reinforcement
Vertical Centerline
of Garage Door
Hardware
(not provided)
Door Bracket
UP
Vertical
Centerline
of Garage Door
UP
Vertical Centerline of
Garage Door
Hardware
(not provided)
UP
Inside Edge of Door or
Reinforcement Board
Self-Threading Screw
Self-Threading
Screw
HARDWARE
Self-Threading Screw
1/4"-14x5/8"
17
Installation
STEP 8 Install the door bracket (continued)
OPTION B - ONE-PIECE DOORS
1. Center the door bracket on the top of the door, in line with the header bracket as shown.
2. Mark either the left and right, or the top and bottom holes.
Metal Doors:
l Drill 3/16" pilot holes and fasten the bracket with the self-threading screws provided.
Wood Doors:
l Drill 5/16" holes and use 5/16"-18x2" carriage bolts, lock washers and nuts (not provided) or 5/16"x1-1/2"
lag screws (not provided) depending on your installation needs.
NOTE: The door bracket may be installed on the top edge of the door if required for your installation. (Refer to the
dotted line optional placement drawing.)
HARDWARE
Self-Threading Screw
1/4"-14x5/8"
For a door with no exposed
framing, or for the optional
installation, use lag screws
5/16"x1-1/2" (not provided)
to fasten the door bracket.
Vertical
Centerline
of Garage
Door
Optional
Placement
of Door
Bracket
Door Bracket
Header Bracket
Header Wall
2x4 Support
(Finished Ceiling)
Door
Bracket
Top of Door
(Inside Garage)
Top Edge of
Door
Optional
Placement
Optional
Placement
Top Edge
of Door
Top of Door
(Inside Garage)
Door
Bracket
Hardware
(not provided)
Hardware
(not provided)
Metal Door Wood Door
Self-Threading Screw
18
Installation

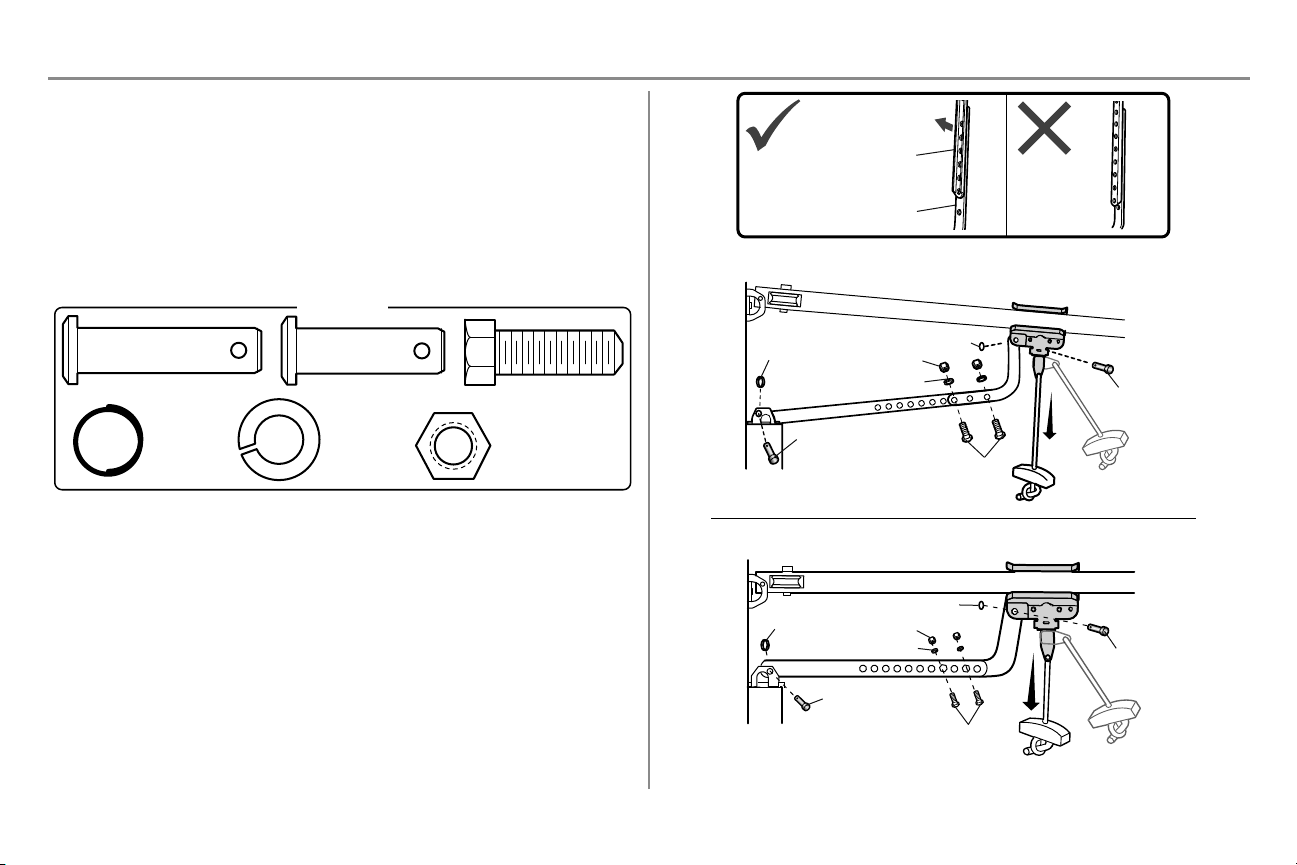

STEP 9 Connect the door arm to the trolley
Installation will vary according to the garage door type. Follow the instructions which apply to your door.
OPTION A - SECTIONAL DOORS
IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm.
1. Close the door. Disconnect the trolley by pulling the emergency release handle.
2. Attach the straight door arm to the outer trolley using the clevis pin. Secure with the ring fastener.
3. Attach the curved door arm to the door bracket using the clevis pin. Secure with the ring fastener.
4. Bring arm sections together. Find two pairs of holes that line up and join sections. Select holes as far apart
as possible to increase door arm rigidity and attach using the bolts, nuts, and lock washers.
5. Pull the emergency release handle toward the garage door opener until the trolley release arm is
horizontal. The trolley will re-engage automatically when the garage door opener is activated.
NOTE: If the holes in the curved door arm and the straight door arm do not align, reverse the straight door arm, select
two holes (as far apart as possible) and attach using bolts, nuts, and lock washers. If the straight door arm is hanging
down too far, you may cut 6 inches (15 cm) from the solid end.
HARDWARE
Hex Bolt 5/16"-18x7/8"
Nut 5/16"-18
Lock Washer
5/16" -18
Clevis Pin 5/16"x1" Clevis Pin 5/16"x1-1/4"
Ring Fastener
Lock Washer
Nut
Hex Bolt
Clevis Pin
5/16"x1-1/4"
Ring Fastener
Clevis Pin 5/16"x1"
Straight
Door Arm
(Groove
facing out)
Curved
Door Arm
19
Installation
STEP 9 Connect the door arm to the trolley (continued)
OPTION B - ONE-PIECE DOORS
IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm.
1. Close the door. Disconnect the trolley by pulling the emergency release handle.
2. Fasten the straight door arm and the curved door arm together to the longest possible length (with a 2 or 3
hole overlap) using the bolts, nuts, and lock washers.
3. Attach the straight door arm to the door bracket using the clevis pin. Secure with the ring fastener.
4. Attach the curved door arm to the trolley using the clevis pin. Secure with the ring fastener.
5. Pull the emergency release handle toward the garage door opener until the trolley release arm is
horizontal.
HARDWARE
Hex Bolt 5/16"-18x7/8"
Nut 5/16"-18
Lock Washer
5/16" -18
Clevis Pin 5/16"x1" Clevis Pin 5/16"x1-1/4"
Ring Fastener
One-Piece Door without Track
One-Piece Door with Track
Ring Fastener
Ring Fastener
Ring Fastener
Nut
Nut
Ring Fastener
Lock Washer
Lock Washer
Clevis Pin 5/16"x1-1/4"
Clevis Pin
5/16"x1-1/4"
Hex Bolts
Hex Bolts
Clevis Pin
5/16"x1"
Clevis Pin
5/16"x1"
Straight Door Arm
(Groove facing out)
Curved Door Arm
20
Installation
STEP 10 Install the door control
To prevent possible SERIOUS INJURY or DEATH from electrocution:
l Be sure power is NOT connected BEFORE installing door control.
l Connect door control ONLY to 12 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing garage door:
l Install door control within sight of garage door, out of reach of small children at a minimum height of 5feet
(1.5m) above floors, landings, steps or any other adjacent walking surface, and away from ALL moving parts
of door.
l NEVER permit children to operate or play with door control push buttons or remote control transmitters.
l Activate door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door
travel.
l ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross path of closing
garage door.
INTRODUCTION
Older Chamberlain door controls and third party products are not compatible. Install the door control within sight of the
door at a minimum height of 5 feet (1.5 m) above floors, landings, steps or any other adjacent walking surface, where
small children cannot reach, and away from the moving parts of the door. For gang box installations it is not necessary
to drill holes or install the drywall anchors. Use the existing holes in the gang box.
NOTE: Your product may look different than the illustrations.
Screw
6AB
x1"
(2)
Drywall
Anchors
(2)
Screw
6-32x1"
(2)
HARDWARE
1. Strip 7/16 inch (11 mm) of insulation from one end of the wire and separate the wires.
2. Connect one wire to each of the two screws on the back of the door control. The wires can be connected to
either screw. If your garage is pre-wired for the door control choose any two wires to connect, note which
wires are used so the correct wires are connected to the garage door opener in a later step.
3. Mark the location of the bottom mounting hole and drill a 5/32 inch hole.
4. Install the bottom screw, allowing 1/8 inch (3 mm) to protrude from the wall.
5. Position the bottomhole of the door control over the screw and slide down into place.
6. Lift the push bar up and mark the top hole.
7. Remove the door control from the wall and drill a 5/32 inch hole for the top screw.
8. Position the bottomhole of the door control over the screw and slide down into place. Attach the top screw.
7/16" (11 mm)
Wall
1
2 3
4-5 6
8
7
DRYWALL
GANG BOX
6ABx1"
6-32x1"
Drywall Anchor
DRYWALL GANG BOX
6ABx1"
6-32x1"
Drywall Anchor
21
Installation

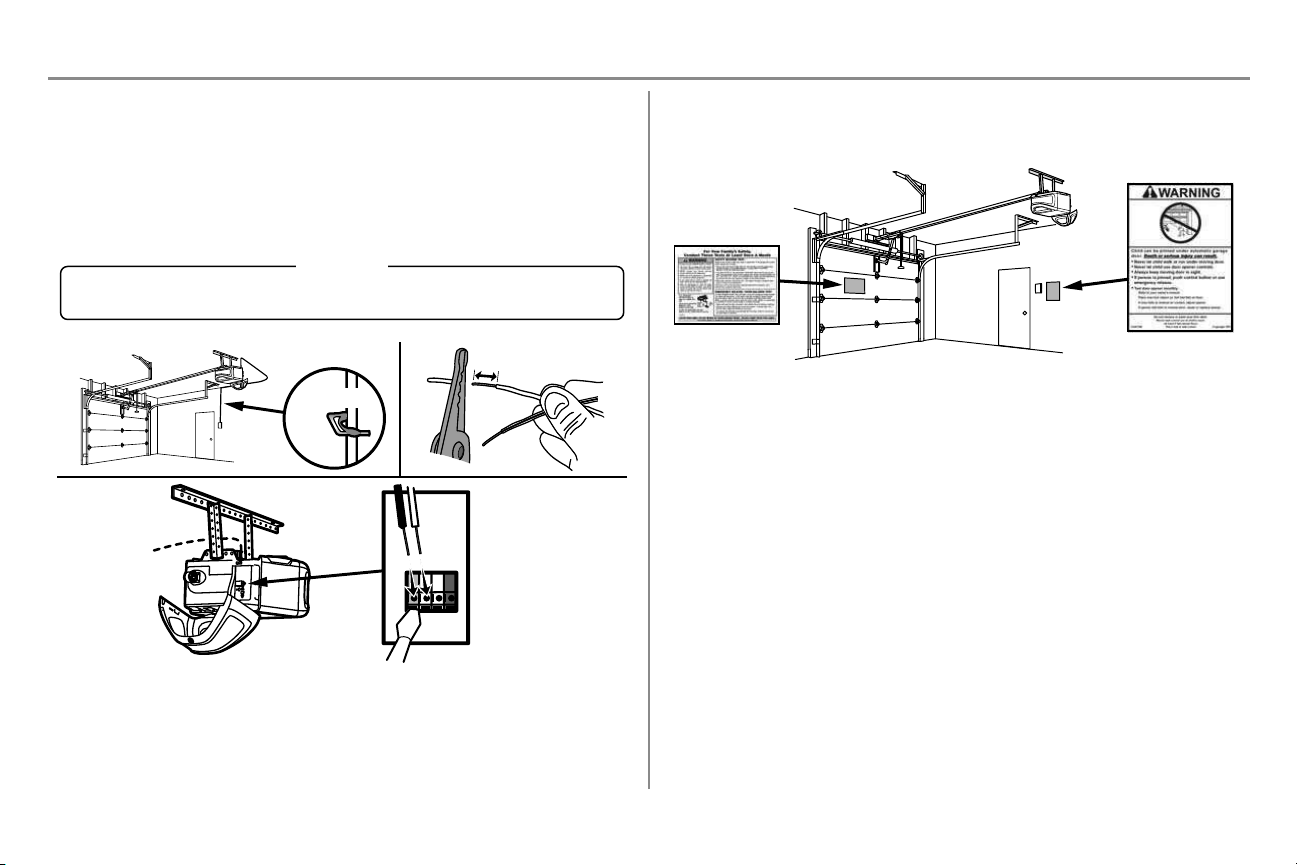

STEP 11 Wire the door control to the garage door opener
1. Run the white and red/white wire from the door control to the garage door opener. Attach the wire to the
wall and ceiling with the staple (not applicable for gang box or pre-wired installations). Do not pierce the
wire with the staple as this may cause a short or an open circuit.
2. Strip 7/16 inch (11 mm) of insulation from the end of the wire near the garage door opener.
3. Connect the wire to the red and white terminals on the garage door opener. If your garage is pre-wired
make sure you use the same wires that are connected to the door control. To insert or release wires from
the terminal, push in the tab with screwdriver tip.
RED
WHITE
WHITE
GREY
7/16" (11 mm)
2
3
1
HARDWARE
Insulated Staple (Not Shown)
Staple
STEP 12 Attach the warning labels
1. Attach the entrapment warning label on the wall near the door control with tacks or staples.
2. Attach the manual release/safety reverse test label in a visible location on the inside of the garage door.
22
Installation
STEP 13 Install the Protector System
®
Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing sensor.
To prevent SERIOUS INJURY or DEATH from closing garage door:
l Correctly connect and align the safety reversing sensor. This required safety device MUST NOT be
disabled.
l Install the safety reversing sensor so beam is NO HIGHER than 6" (15 cm) above garage floor.
IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSORS
The safety reversing sensors must be connected and aligned correctly before the garage door opener will
move in the down direction.
The sending sensor (with an amber LED) transmits an invisible light beam to the receiving sensor (with a green
LED). If an obstruction breaks the light beam while the door is closing, the door will stop and reverse to the full open
position, and the garage door opener lights will flash 10 times.
NOTE: For energy efficiency the garage door opener will enter sleep mode when the door is fully closed. The sleep
mode shuts the garage door opener down until activated. The sleep mode is sequenced with the garage door opener
light bulb; as the light bulb turns off the sensor LEDs will turn off and whenever the garage door opener lights turn on
the sensor LEDs will light. The garage door opener will not go into the sleep mode until the garage door opener has
completed 5 cycles upon power up.
When installing the safety reversing sensors check the following:
l Sensors are installed inside the garage, one on either side of the door.
l Sensors are facing each other with the lenses aligned and the receiving sensor lens does not receive direct
sunlight.
l Sensors are no more than 6 inches (15 cm) above the floor and the light beam is unobstructed.
Safety Reversing Sensor
6" (15
cm) max. above floor
Invisible Light Beam
Protection Area
Facing the door from inside the garage
Carriage Bolt
1/4"-20 x 1/2"
Wing Nut
1/4"-20
HARDWARE
The safety reversing sensors can be attached to the door track, the wall, or the floor. The sensors should be no more
than 6 inches (15 cm) above the floor. If the door track will not support the sensor bracket a wall installation is
recommended. Choose one of the following installations.
OPTION A - DOOR TRACK INSTALLATION
1. Slide the curved arms of the sensor bracket around the edge of the door track. Snap into place so that the
sensor bracket is flush against the track.
2. Slide the carriage bolt into the slot on each sensor.
3. Insert the bolt through the hole in the sensor bracket and attach with the wing nut. The lenses on both
sensors should point toward each other. Make sure the lens is not obstructed by the sensor bracket.
No more
than 6 inches
(15 cm)
Carriage Bolt
Wing Nut
1
2
3
23
Installation
STEP 13 Install the Protector System
®
(continued)
OPTION B - WALLINSTALLATION
If additional clearance is needed an extension bracket (not provided) or wood blocks can be used. Make sure each
bracket has the same amount of clearance so they will align correctly.
1. Position the sensor bracket against the wall with the curved arms facing the door. Make sure there is
enough clearance for the beam to be unobstructed. Mark holes.
2. Drill 3/16 inch pilot holes for each sensor bracket and attach the sensor brackets to the wall using lag
screws (not provided).
3. Slide the carriage bolt into the slot on each sensor.
4. Insert the bolt through the hole in the sensor bracket and attach with the wing nut. The lenses on both
sensors should point toward each other. Make sure the lens is not obstructed by the sensor bracket.
Lens
Carriage
Bolt
(Not provided)
No more than
6 inches (15 cm)
1 2
(Not provided)
Wing Nut
3 4
OPTION C - FLOOR INSTALLATION
Use an extension bracket (not provided) or wood block to raise the sensor bracket if needed.
1. Carefully measure the position of both sensor brackets so they will be the same distance from the wall and
unobstructed.
2. Attach the sensor brackets to the floor using concrete anchors (not provided).
3. Slide the carriage bolt into the slot on each sensor.
4. Insert the bolt through the hole in the sensor bracket and attach with the wing nut. The lenses on both
sensors should point toward each other. Make sure the lens is not obstructed by the sensor bracket.
(Not provided)
I
e
l
l
1 2
Carriage Bolt
Wing Nut
3 4
24
Installation
STEP 14 Wire the Safety Reversing Sensors
If your garage already has wires installed for the safety reversing sensors, proceed to page 25.
OPTION A - INSTALLATION WITHOUT PRE-WIRING
1. Run the wire fromboth sensors to the garage door opener. Attach the wire to the wall and ceiling with the
staples.
2. Strip 7/16 inch (11 mm) of insulation from each set of wires. Separate the wires. Twist the white wires
together. Twist the white/black wires together.
3. Insert the white wires into the white terminal on the garage door opener. Insert the white/black wires into
the grey terminal on the garage door opener. To insert or remove the wires from the terminal, push in the
tab with a screwdriver tip.
Staple
7/16" (11 mm)
WHITE
WHITE
GREY
RED
1
2
3
HARDWARE
Insulated Staple (Not Shown)
25
Installation
STEP 14 Wire the Safety Reversing Sensors (continued)

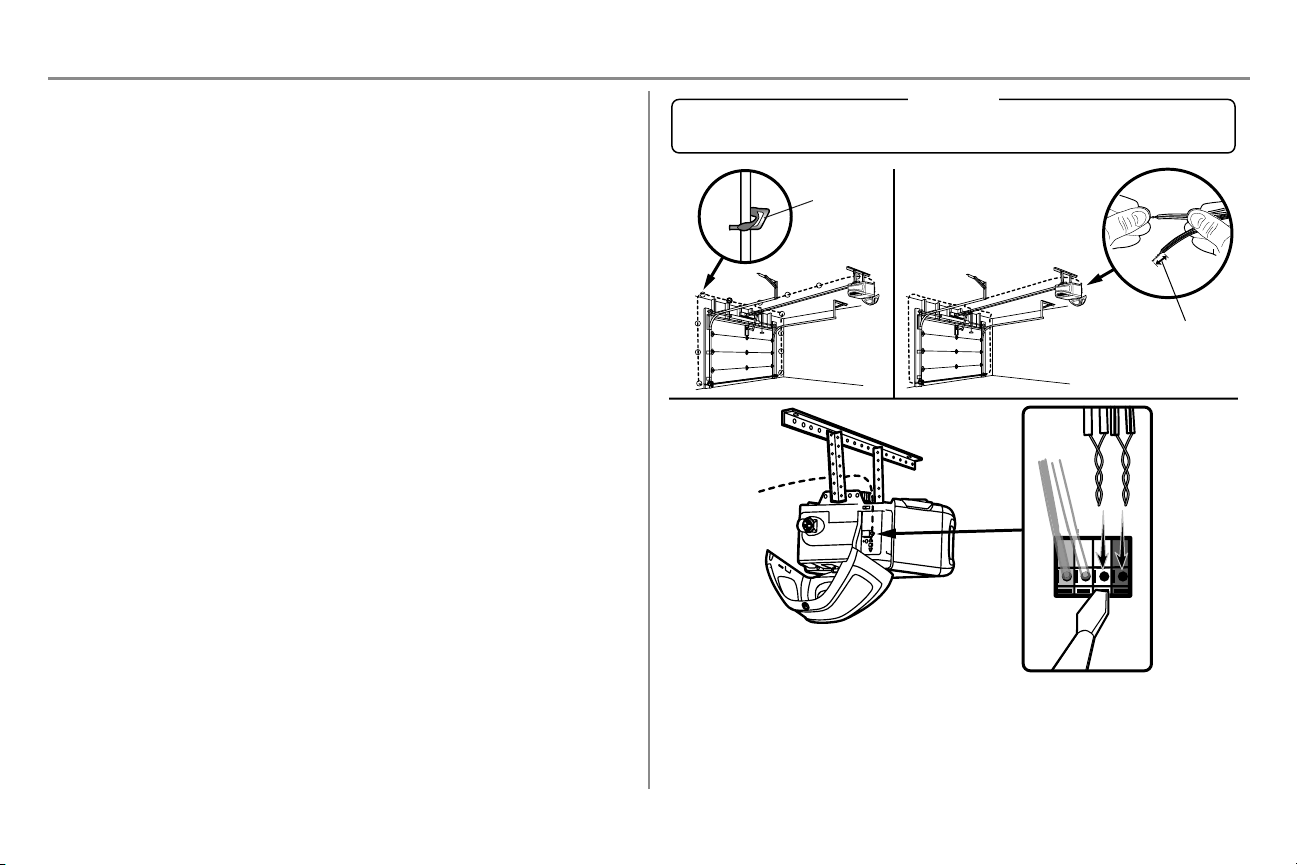

OPTION B - PRE-WIRED INSTALLATION
1. Cut the end of the safety reversing sensor wire, making sure there is enough wire to reach the pre-installed
wires from the wall.
2. Separate the safety reversing sensor wires and strip 7/16 inch (11 mm) of insulation from each end.
Choose two of the pre-installed wires and strip 7/16 inch (11 mm) of insulation from each end. Make sure
that you choose the same color pre-installed wires for each sensor.
3. Connect the pre-installed wires to the sensor wires with wire nuts making sure the colors correspond for
each sensor. For example, the white wire would connect to the yellow wire and the white/black wire would
connect to the purple wire.
4. At the garage door opener, strip 7/16 inch (11 mm) of insulation from each end of the wires previously
chosen for the safety reversing sensors. Twist the like-colored wires together.
5. Insert the wires connected to the white safety sensor wires to the white terminal on the garage door opener.
Insert the wires that are connected to the white/black safety sensor wires to the grey terminal on the garage
door opener.
Safety reversing
sensor wires
Pre-installed
wires
White
White/Black
Yellow (for example)
Purple (for example)
Wire nuts (not provided)
Pre-installed wires
Safety reversing
sensor wires
1
3
4
7/16" (11 mm)
2
Purple
Yellow
5
7/16" (11 mm)
Yellow
Purple
To insert or remove the wires from the terminal,
push in the tab with a screwdriver tip.
26
Installation
STEP 15 Install the Automatic Garage Door Lock
For use on Residential Garages with an Entry Door Only. Install On Sectional Doors with Torsion
Assemblies Only. Up to two locks can be installed per compatible garage door opener.
To prevent possible SERIOUS INJURY or DEATH from a closing gate or door:
l Automatic Garage Door Lock MUST be installed per the owner’s manual.
l Be sure to DISCONNECT ALL ELECTRIC AND BATTERY POWER to the garage door opener BEFORE
installing the garage door lock.
l The door MUST be in the fully opened or closed position BEFORE installing the garage door lock.
l Be sure to DISASSEMBLE and REMOVE any manual door locks that might be currently installed.
UNPLUG THE GARAGE DOOR OPENER AND DISCONNECT THE BATTERY (IF APPLICABLE) BEFORE
PROCEEDING. REMOVE ANY MANUAL LOCKS FROM THE GARAGE DOOR.
1. Attach template (provided) to track. TIP: The second roller from the bottom is ideal for most installations.
2. Drill holes as marked on template. Use a 3/4" step drill bit to drill holes as marked on the template.
OR
If not using a step drill bit, pre-drill with a smaller drill bit to assure proper placement of the 3/4" hole.
3. Fasten automatic garage door lock to the outside of the garage door track with the 1/4"-20x1/2" screws.
4. Run wire (provided) from automatic garage door lock to garage door opener. Use insulated staples (not
provided) to secure wire in several places. NOTE: If you are going to cut the wire you will need to
reconnect wire using a wire nut. Do not tape the ends together. The lock is polarized and requires you
reconnect black to black and white to white wires.
5. Plug the connector into one of the lock terminals on the garage door opener. NOTE: To install a second
automatic garage door lock, repeat installation steps on the opposite side of the garage door.
1
2
3
4
5
Approx. 3"
(7.6 cm)
Lock
Terminals
27
Installation
STEP 16 Connect power
To prevent possible SERIOUS INJURY or DEATH from electrocution or fire:
l Be sure power is NOT connected to the opener, and disconnect power to circuit BEFORE removing cover to
establish permanent wiring connection.
l Garage door installation and wiring MUST be in compliance with ALL local electrical and building codes.
l NEVER use an extension cord, 2-wire adapter, or change plug in ANY way to make it fit outlet. Be sure the
opener is grounded.
To avoid installation difficulties, do not run the opener at this time.
To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin.
This plug will only fit into a grounding type outlet. If the plug doesn’t fit into the outlet you have, contact a qualified
electrician to install the proper outlet.
THERE ARE TWO OPTIONS FOR CONNECTING POWER:
OPTION A - TYPICALWIRING
1. Plug in the garage door opener into a grounded outlet.
2. DO NOT run garage door opener at this time.

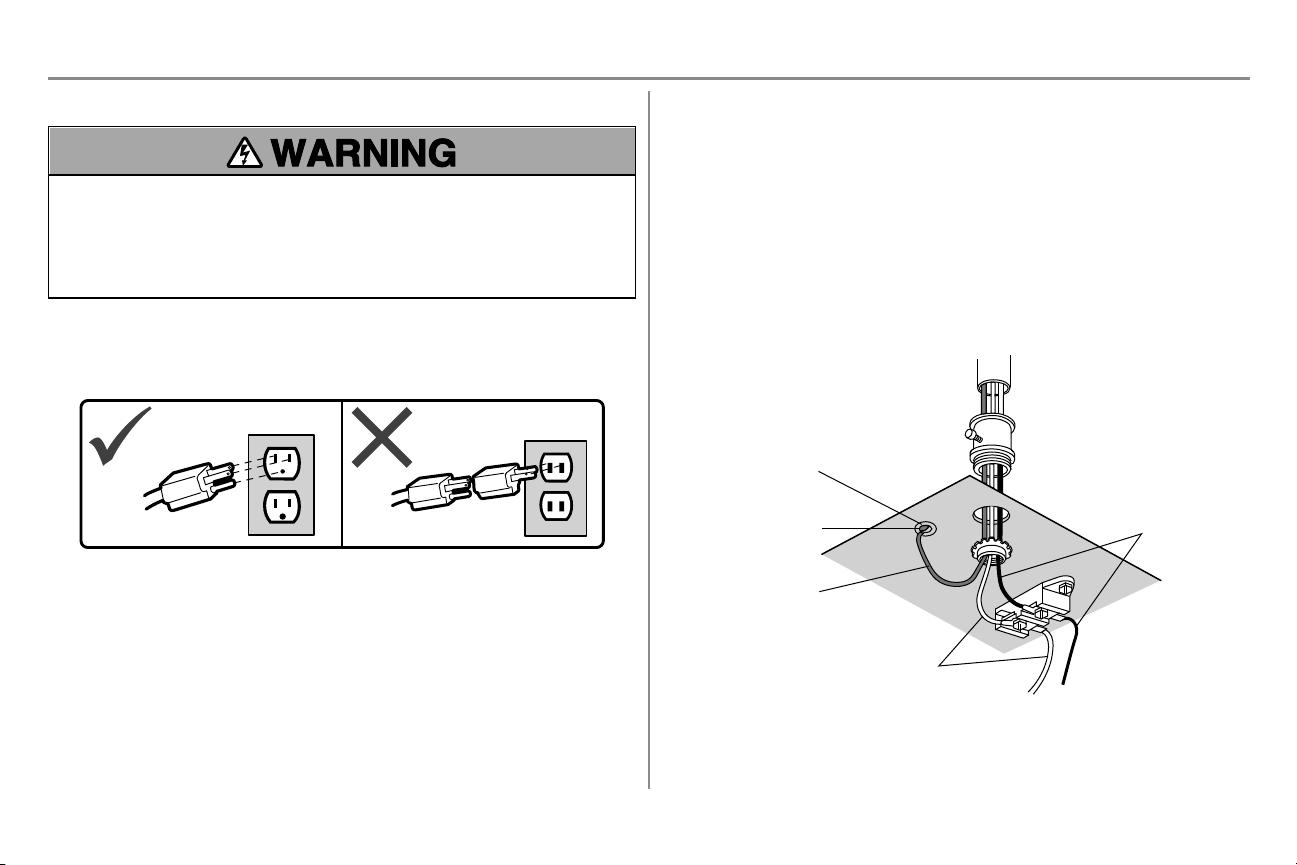

OPTION B - PERMANENT WIRING
If permanent wiring is required by your local code, refer to the following procedure. To make a permanent
connection through the 7/8 inch hole in the top of the motor unit (according to local code):
1. Remove the motor unit cover screws and set the cover aside.
2. Remove the attached 3-prong cord.
3. Connect the black (line) wire to the screw on the brass terminal; the white (neutral) wire to the screw on
the silver terminal; and the ground wire to the green ground screw. The opener must be grounded.
4. Reinstall the cover.
Ground Tab
Green Ground Screw
Ground Wire
White Wire
Black Wire
28
Installation
STEP 17 Aligning the safety reversing sensors
The door will not close if the sensors have not been installed and aligned correctly.
When the light beam is obstructed or misaligned while the door is closing, the door will reverse and the garage door
opener lights will flash ten times. If the door is already open, it will not close.
1. Check to make sure the LEDs in both sensors are glowing steadily. The LEDs in both sensors will glow
steadily if they are aligned and wired correctly.
The sensors can be aligned by loosening the wing nuts, aligning the sensors, and tightening the wing nuts.
Green LED
Amber LED
Wing Nut
SENDING SENSOR
RECEIVING SENSOR
(invisible light beam)
If the receiving sensor is in direct
sunlight, switch it with sending sensor so
it is on the opposite side of the door.
IF THE AMBER LED ON THE SENDING SENSOR IS NOT GLOWING:
1. Make sure there is power to the garage door opener.
2. Make sure the sensor wire is not shorted/broken.
3. Make sure the sensor has been wired correctly: white wires to white terminal and white/black wires to
grey terminal.
RED
WHITE
WHITE
GREY
3
2
1
IF THE GREEN LED ON THE RECEIVING SENSOR IS NOT GLOWING:
1. Make sure the sensor wire is not shorted/broken.
2. Make sure the sensors are aligned.
1
2
STEP 18 Ensure the door control is wired correctly

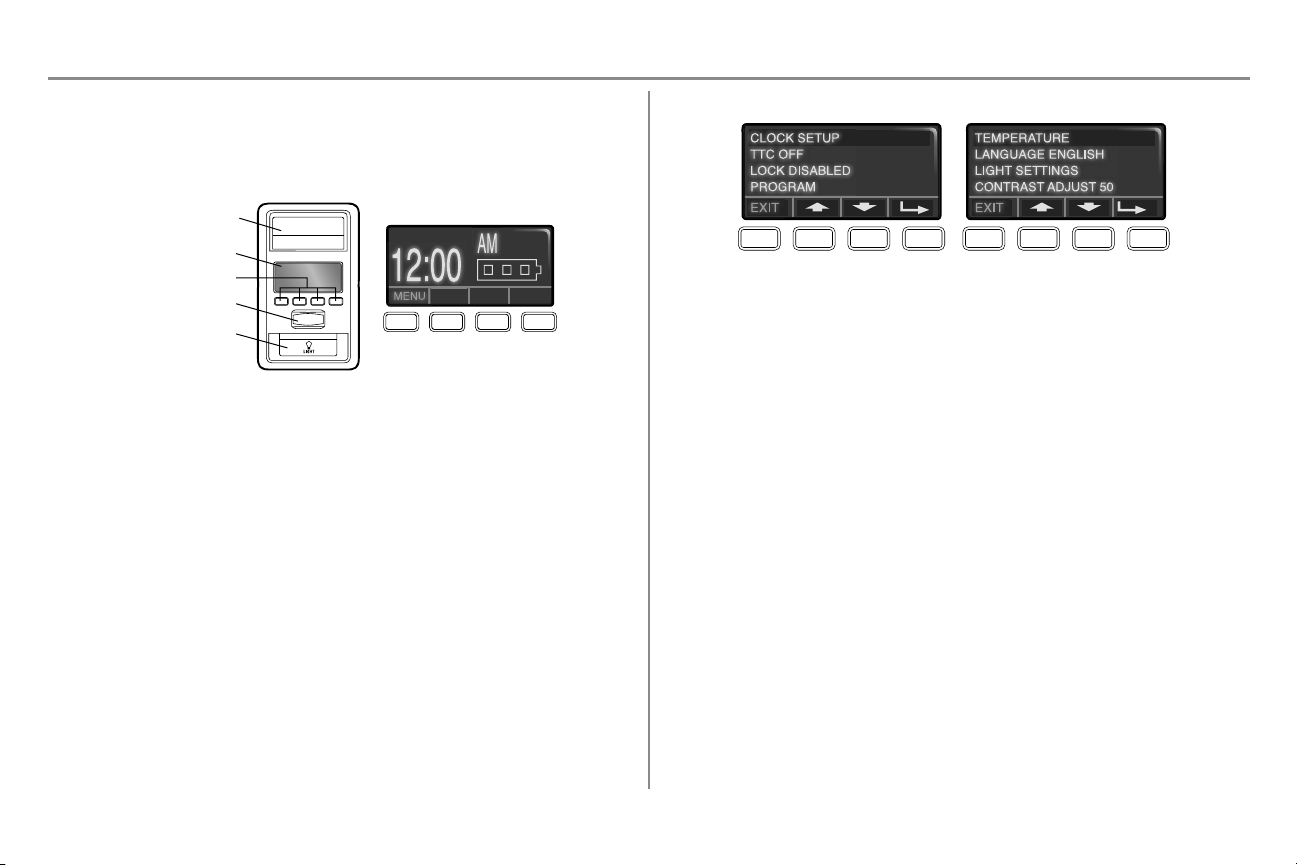

If the door control has been installed and wired correctly, a message will display on the Smart Control Panel screen.
29
Adjustments
Introduction
Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY
INJURED or KILLED by a closing garage door.
l Incorrect adjustment of garage door travel limits will interfere with proper operation of safety reversal
system.
l After ANY adjustments are made, the safety reversal systemMUST be tested. Door MUST reverse on
contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor.
To prevent damage to vehicles, be sure fully open door provides adequate clearance.
Your garage door opener is designed with electronic controls to make setup and adjustments easy. The adjustments
allow you to program where the door will stop in the open (UP) and close (DOWN) position. The electronic controls
sense the amount of force required to open and close the door. The force is adjusted automatically when you program
the travel.
NOTE: If anything interferes with the door’s upward travel it will stop. If anything interferes with the door’s downward
travel, it will reverse.
UP (Open)
DOWN (Close)
One-Piece Doors Only
When setting the UP travel for a one-piece door ensure that the door does not slant backwards when fully open (UP).
If the door is slanted backwards this will cause unnecessary bucking and/or jerking when the door is opening or
closing.
Correct
Incorrect
Programming Buttons
The programming buttons are located on the left side panel of the garage door opener and are used to program the
travel. While programming, the UP and DOWN buttons can be used to move the door as needed.
UP Button
Adjustment
Button
DOWN Button
Actual product may differ from image shown.
PROGRAMMING
BUTTONS
30
Adjustments

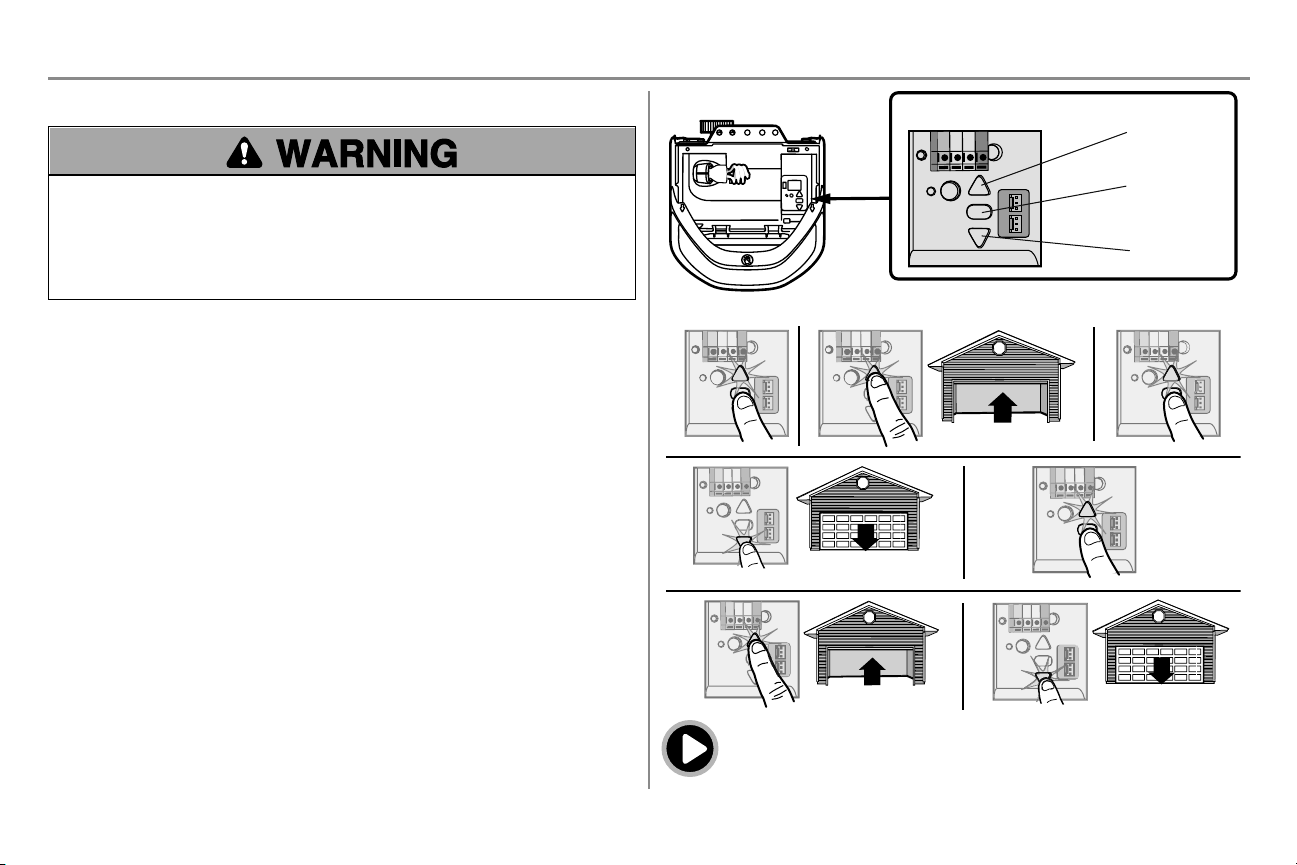

STEP 1 Program the Travel
Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY
INJURED or KILLED by a closing garage door.
l Incorrect adjustment of garage door travel limits will interfere with proper operation of safety reversal
system.
l After ANY adjustments are made, the safety reversal systemMUST be tested. Door MUST reverse on
contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on floor.
While programming, the UP and DOWN buttons can be used to move the door as needed.
1. Press and hold the Adjustment Button until the UP Button begins to flash and/or a beep is heard.
2. Press and hold the UP Button until the door is in the desired UP position.
3. Once the door is in the desired UP position press and release the Adjustment Button. The garage door
opener lights will flash twice and the DOWN Button will begin to flash. IMPORTANT NOTE: For one-
piece door installations refer to page 29.
4. Press and hold the DOWN button until the door is in the desired DOWN position.
5. Once the door is in the desired DOWN position press and release the Adjustment Button. The garage door
opener lights will flash twice and the UP Button will begin to flash.
6. Press and release the UP Button. When the door travels to the programmed UP position, the DOWN Button
will begin to flash.
7. Press and release the DOWN Button. The door will travel to the programmed DOWN position.
Programming is complete.
* If the garage door opener lights are flashing 5 times during the steps for Program the Travel, the programming has
timed out. If the garage door opener lights are flashing 10 times during the steps for Program the Travel, the safety
reversing sensors are misaligned or obstructed (refer to page 28). When the sensors are aligned and unobstructed,
cycle the door through a complete up and down cycle using the remote control or the UP and DOWN buttons.
Programming is complete. If you are unable to operate the door up and down, repeat the steps for Programming the
Travel.
UP Button
Adjustment
Button
DOWN Button
Actual product may differ from image shown.
PROGRAMMING
BUTTONS
1 2
3
4
5
6 7
To watch a video, go to tinyurl.com/lkwbnhj
31
Adjustments

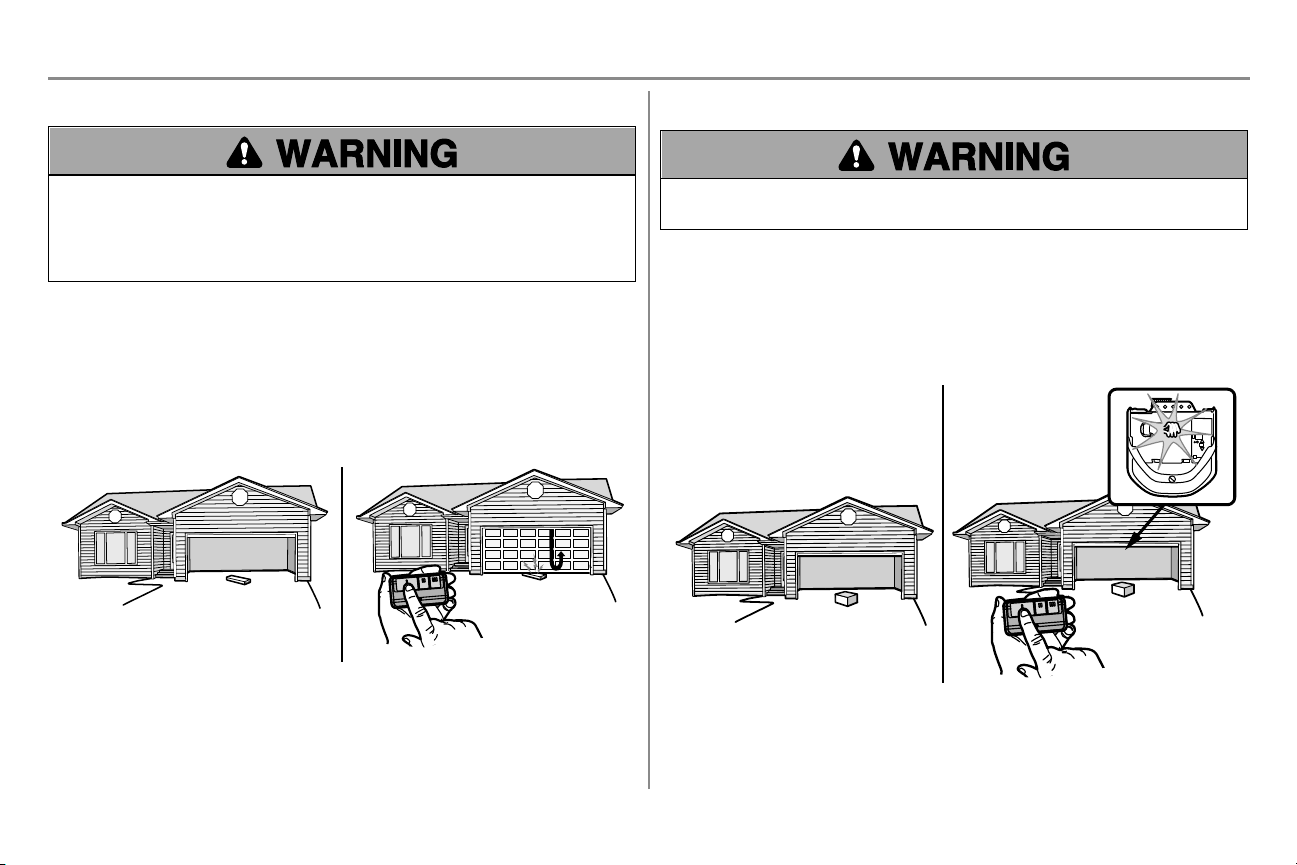

STEP 2 Test the Safety Reversal System
Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY
INJURED or KILLED by a closing garage door.
l Safety reversal system MUST be tested every month.
l After ANY adjustments are made, the safety reversal systemMUST be tested. Door MUST reverse on
contact with 1-1/2" (3.8 cm) high object (or 2x4 laid flat) on the floor.
1. With the door fully open, place a 1-1/2 inch (3.8 cm) board (or a 2x4 laid flat) on the floor, centered under
the garage door.
2. Press the remote control push button to close the door. The door MUST reverse when it makes contact
with the board.
If the door stops but does not reverse:
1. Review the installation instructions provided to insure all steps were followed;
2. Repeat Program the Travel (see Adjustment Step 1);
3. Repeat the Safety Reversal test.
If the test continues to fail, call a trained door systems technician.
1 2
STEP 3 Test the Protector System
®
Without a properly installed safety reversing sensor, persons (particularly small children) could be SERIOUSLY
INJURED or KILLED by a closing garage door.
1. Open the door. Place the garage door opener carton in the path of the door.
2. Press the remote control push button to close the door. The door will not move more than an inch (2.5 cm),
and the garage door opener lights will flash 10 times.
The garage door opener will not close from a remote control if the LED in either safety reversing sensor is off (alerting
you to the fact that the sensor is misaligned or obstructed). If the garage door opener closes the door when the safety
reversing sensor is obstructed (and the sensors are no more than 6inches [15 cm] above the floor), call for a trained
door systems technician.
1
2
32
Battery Backup
STEP 1 Install the Battery
To reduce the risk of FIRE or INJURY to persons:
l Disconnect ALL electric and battery power BEFORE performing ANY service or maintenance.
l Use ONLY Chamberlain part # 41A6357-1 for replacement battery.
l DO NOT dispose of battery in fire. Battery may explode. Check with local codes for disposal instructions.
ALWAYS wear protective gloves and eye protection when changing the battery or working around the battery
compartment.
The battery backup allows access in and out of your garage, even when the power is out. The battery does not have to
be fully charged to operate the garage door opener. When the garage door opener is operating on battery power, it will
run slower and the battery status LED will glow solid orange, a beep will sound approximately every 2 seconds. The
following features are unavailable when operating on battery power:
l Garage Door Opener Lights
l Unattended close devices and features (e.g. MyQ
®
Smartphone Control and Timer-to-Close)
Battery Status LED
1. Unplug the garage door opener.
2. Open the light lens on the right side panel of the garage door opener. Use a Phillips head screwdriver to
remove the battery cover on the garage door opener.
3. Partially insert the battery into the battery compartment with the terminals facing out.
4. Connect red (+) and black (-) wires from the garage door opener to the corresponding terminals on the
battery.
5. Replace the battery cover.
6. Plug in the garage door opener.
7. Wait for the green Battery Status LED to start flashing before proceeding to test the battery.
STEP 2 Test the Battery
1. Unplug the garage door opener. The battery status LED will either glow solid orange indicating opener is
operating on battery power or will flash indicating low battery power. NOTE:Make sure the garage door
opener is unplugged.
2. Open and close the door using the remote control or door control. The garage door opener may run slower
if the battery is not fully charged. The battery will take 24 hours to fully charge.
3. Plug in the garage door opener. Verify the battery status LED is flashing green, indicating the battery is
charging.
1 2
3
Charge the Battery
The battery charges when the garage door opener is plugged into a 120Vac electrical outlet that has power and
requires 24 hours to fully charge. A fully charged battery supplies 12Vdc to the garage door opener for one to two days
of normal operation during an electrical power outage. After the electrical power has been restored, the battery will
recharge within 24 hours. The battery will last approximately 1 to 2 years with normal usage. Instructions for
replacement are provided with the battery. To obtain maximum battery life and prevent damage, disconnect the battery
when the garage door opener is unplugged for an extended period of time, such as a summer or winter home.
NOTE: When the garage door opener is in battery backup mode the garage door opener lights, Timer-to-Close, and
Remote Close features are unavailable.
In battery backup mode, the Automatic Garage Door Lock will unlock when the garage door is opened, and will remain
disabled until power is restored.
33
MyQ
®
Smartphone Control
Get Connected
…and control your garage door opener with the MyQ
®
App.
You will need:
l A smartphone or tablet
l Broadband Internet connection
l A strong Wi-Fi signal (2.4 Ghz, 802.11b/g/n required) in the garage, see page 3
l Password for your home network
l MyQ
®
serial number located on the garage door opener
1. ACTIVATE "Wi-Fi LEARN"MODE
Press and release the yellow LEARN button on the garage door opener 3 times. The garage door opener will beep
once and a blue light will flash. You have 20 minutes to complete the connection process.
“beep”
LED
Learn
Button
2. CONNECTTO THE MyQ
®
Wi-FiNETWORK
On your mobile device, go to Settings > Wi-Fi, and select the network with the "MyQ-" prefix.
3. CONNECTTHE GARAGE DOOR OPENER TO YOURHOME Wi-Fi NETWORK
Launch the web browser (such as Safari or Chrome) on your mobile device and go to "setup.myqdevice.com". Follow
the on-screen prompts to add the garage door opener to your home Wi-Fi network.
4. SETUP YOUR MyQ
®
ACCOUNT
Download the MyQ
®
app from the App Store
SM
or Google Play™ store. Sign up for your MyQ
®
account and add the
MyQ
®
serial number to your account.
Google Play
App Store
or
Congratulations you've successfully completed the setup. Enjoy MyQ
®
Smartphone Control!
In addition to controlling your garage door opener you can control your house lighting with additional MyQ
®
accessories, see page 42.
NOTES:
The MyQ
®
Smartphone Control WILL NOT work if the garage door opener is operating on battery power.
To erase the Wi-Fi settings, see page 38.
To learn more go to wifihelp.chamberlain.com.
34
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.
2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with garage
door control push buttons or remote controls.
3. ONLY activate garage door when it can be seen clearly, it is properly adjusted, and there are no obstructions
to door travel.
4. ALWAYS keep garage door in sight and away from people and objects until completely closed. NO ONE
SHOULD CROSS THE PATH OF THE MOVING DOOR.
5. NO ONE SHOULD GO UNDER A STOPPED, PARTIALLY OPENED DOOR.
6. If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Use
caution when using this release with the door open. Weak or broken springs or unbalanced door could result in
an open door falling rapidly and/or unexpectedly and increasing the risk of SEVERE INJURY or DEATH.
7. NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.
8. NEVER use handle to pull garage door open or closed. If rope knot becomes untied, you could fall.
9. After ANY adjustments are made, the safety reversal system MUST be tested.
10. Safety reversal system MUST be tested every month. Garage door MUST reverse on contact with 1-1/2"
(3.8 cm) high object (or a 2x4 laid flat) on the floor. Failure to adjust the garage door opener properly
increases the risk of SEVERE INJURY or DEATH.
11. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED (see page 2). An improperly balanced door
may NOT reverse when required and could result in SEVERE INJURY or DEATH.
12. ALL repairs to cables, spring assemblies and other hardware, ALL of which are under EXTREME tension,
MUST be made by a trained door systems technician.
13. ALWAYS disconnect electric and battery power to garage door opener BEFORE making ANY repairs or
removing covers.
14. This operator system is equipped with an unattended operation feature. The door could move
unexpectedly. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.
15. DO NOT install on a one-piece door if using devices or features providing unattended close. Unattended
devices and features are to be used ONLY with sectional doors.
16. SAVE THESE INSTRUCTIONS.
Operation
35
Operation
Using your Garage Door Opener
l The garage door opener can be activated with a wall-mounted door control, remote control, wireless
keyless entry, MyQ
®
Smartphone Control app or MyQ
®
Garage Door Monitor. When the door is closed and
the garage door opener is activated the door will open. If the door senses an obstruction or is interrupted
while opening the door will stop. When the door is in any position other than closed and the garage door
opener is activated the door will close. If the garage door opener senses an obstruction while closing, the
door will reverse. If the obstruction interrupts the sensor beam the garage door opener lights will blink 10
times. If the door is fully open, and the safety reversing sensors are not installed, or are misaligned, the
door will not close from a remote control, TTC, or the MyQ
®
Smartphone Control app. However, you can
close the door by holding the button on the door control or the ENTER button on the keyless entry until the
door is fully closed.
l The garage door opener light bulbs will turn on when the opener is initially plugged in; power is restored
after interruption, or when the garage door opener is activated. The lights will turn off automatically after 4-
1/2 minutes. The lights will turn on when someone enters through the open garage door and the safety
reversing sensor infrared beam is obstructed, see page 36. Use an incandescent A19 light bulb (100W
maximum) or for maximum energy efficiency a 26W (100W equivalent) compact fluorescent light (CFL)
bulb. NOTE: Do not use halogen, short neck, or specialty light bulbs as these may overheat the end panel
or light socket. Do not use LED bulbs as they may reduce the range or performance of your remote
controls.
To Open the Door Manually
To prevent possible SERIOUS INJURY or DEATH from a falling garage door:
l If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak
or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.
l NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.
l NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.
TO MANUALLY DISENGAGE AUTOMATIC GARAGE DOOR LOCK
1. The door should be fully closed if possible.
2. Disengage the automatic garage door lock by sliding the manual release to the
open position.
3. Pull the emergency release handle down and back (toward the garage door
opener). The garage door can then be raised and lowered manually as
necessary.
4. To reconnect the trolley, pull the emergency release handle straight down. The
trolley will reconnect on the next UP or DOWN operation.
NOTE: The automatic garage door lock will re-engage when garage door opener
operation resumes.
Manual
release
DISCONNECTTHE TROLLEY
1. The door should be fully closed if possible.
2. Pull down on the emergency release handle so the trolley release arm snaps to
the vertical position. The door can now be raised and lowered as often as
necessary.
TO RE-CONNECTTHE TROLLEY
1. Pull the emergency release handle toward the garage door opener so the
trolley release arm snaps to the horizontal position. The trolley will reconnect
on the next UP or DOWN operation, either manually or by using the door
control or remote control.
36
Operation
Smart Control Panel
®
SYNCHRONIZE THE DOOR CONTROL: To synchronize the door control to the garage door opener, press the
push bar until the garage door opener activates (it may take up to 3 presses). Test the door control by pressing the
push bar; each press of the push bar will activate the garage door opener.
Push Bar
LIGHT Button
Motion Sensor
Navigation Buttons
Screen
PUSH BAR: Press the push bar to open or close the door.
LIGHT BUTTON: Press the LIGHT button to turn the garage door opener lights on or off. When the lights are turned
on they will stay on until the LIGHT button is pressed again, or until the garage door opener is activated. Once the
garage door opener is activated the lights will turn off after the specified period of time (the factory default is 4-1/2
minutes). The LIGHT button will not control the lights when the door is in motion. The Light Feature will turn on the
light on the garage door opener when someone enters through the open garage door and the safety reversing sensor
infrared beam is obstructed.
MOTION SENSOR: The motion sensor automatically turns on the garage door opener lights when motion is detected.
The lights come on for the set period of time, and then shut off. If using the garage door opener light as a work light
disable the motion sensor, otherwise the lights may turn off automatically if you are beyond the range of the motion
sensor.
NAVIGATION AND SCREEN: The screen displays the time, temperature, and current battery charge (if applicable)
until the menu button is pressed, and then it will display the menu options. If there is a problem with the garage doors
opener the screen will display an error code (diagnostic code, see page 40). The features on the door control can be
programmed through a series of menus on the screen. Use the navigation buttons to scroll through the menus and
make selections.
MENU OPTIONS
CLOCK SETUP: Set the time; choose 12 or 24 hour clock and show/hide clock.
TEMPERATURE: Display the temperature in Fahrenheit or Celsius and show/hide the temperature.
LANGUAGE: Select English, Spanish or French.
CONTRAST ADJUST: Adjust the screen contrast.
LIGHT SETTINGS:
To change the amount of time the lights stay on:
1. Select LIGHT SETTINGS from the menu.
2. Select LIGHT TIME.
3. Select the time interval.
To turn the Light Feature on or off (Factory default is On):
1. Select LIGHT SETTINGS from the menu.
2. Select AUTOMATIC LIGHTS.
3. Select ENTRY SENSOR.
To turn the motion sensor on or off:
1. Select LIGHT SETTINGS from the menu.
2. Select AUTOMATIC LIGHTS.
3. Select MOTION SENSOR.
LOCK: Prevents the garage door opener from being activated by remote controls while still allowing activation from
the door control and keyless entry.
To turn the LOCK feature ON or OFF:
1. Select LOCK from the menu. When the LOCK feature is on, a message displays on the screen.
37
Operation
MENU OPTIONS (CONTINUED)
TIMER-TO-CLOSE (TTC) (Factory default is set to off): The Timer-to-Close feature automatically closes the
door after a specified time period and can be adjusted using the door control. DO NOT enable TTC if operating a one-
piece door. TTC is to be used ONLY with sectional doors. The garage door opener will beep and the lights will flash
before closing the door. The TTC feature will deactivate if the garage door encounters an obstruction twice; or the
safety reversing sensors are incorrectly installed. The garage door will reverse open and WILL NOT close until the
obstructions are clear or the safety reversing sensors are correctly installed. When the obstruction has been cleared
or the safety reversing sensors have been aligned, the door will close when the garage door opener is activated. TTC
WILL NOT work if the garage door opener is operating by battery power or if the safety reversing sensors are
misaligned. This feature is NOT intended to be the primary method of closing the door. A keyless entry should be
installed in the event of an accidental lock out when using this feature.
To turn TTC on or off or to set the TTC time interval:
1. Select TTC from the menu.
2. Select a time interval of 1, 5, 10 minutes or a custom setting up to 99 minutes. Once the TTC has been set
and the door is open, a message will display on the screen with the selected time interval.
To temporarily suspend the TTC feature select HOLD. Select REL to resume normal TTC operation.
PROGRAM: Any compatible remote control, wireless keyless entry, or MyQ
®
devices can be programmed to the
garage door using the PROGRAM option from the menu.
Remote Control and Keyless Entry
Pre-programmed remote control included, no need to program the remote.
To add or reprogram a remote control, follow the instructions below. Older Chamberlain remote controls are NOT
compatible, see page 42 for compatible accessories.
PROGRAM USING THE DOOR CONTROL
1. Press the navigation button below "MENU" to view the Features menu.
2. Use the navigation buttons to scroll to "PROGRAM".
3. Select "REMOTE" or "KEYPAD" to program from the program menu.
4. Remote Control: Press the button on the remote control that you wish to operate your garage door.
Keyless Entry: Enter a 4-digit personal identification number (PIN) of your choice on the keyless entry
keypad. Then press the ENTER button.
The garage door opener lights will flash (or two clicks will be heard) when the code has been programmed. Repeat
the steps for programming additional remote controls or keyless entry devices. If programming is unsuccessful, repeat
the steps using the learn button on the garage door opener.
1
2 3
OR
PIN
? ?
? ?
4
Press
to continue.
Press
to continue.
To watch a video, go to tinyurl.com/lcsf6xt
38
Operation
To Erase the Memory
ERASE ALL REMOTE CONTROLS AND KEYLESS ENTRIES
1. Press and hold the LEARN button on garage door opener until the learn LED goes out (approximately 6
seconds). All remote control and keyless entry codes are now erased. Reprogram any accessory you wish
to use.
ERASE ALL REMOTE CONTROLS, KEYLESS ENTRIES AND MyQ
®
DEVICES FROM GARAGE
DOOR OPENER
1. Press and hold the LEARN button on garage door opener until the learn LED goes out (approximately 6
seconds).
2. Immediately press and hold the LEARN button again until the learn LED goes out. All codes are now
erased. Reprogram any accessory you wish to use.
ERASE THE CONNECTION FROM GARAGE DOOR OPENER TO HOME Wi-FiNETWORK
1. Press and hold the black adjustment button on the garage door opener until 3 beeps are heard
(Approximately 6 seconds).
ERASE A MyQ
®
ACCOUNT
1. Go to www.mychamberlain.com to access your MyQ
®
account.
2. Go to "Account" section.
3. Click "Delete Account".
Go to wifihelp.chamberlain.com for more details.
LEARN Button
Adjustment Button
39
Maintenance
Maintenance Schedule
EVERY MONTH
l Manually operate door. If it is unbalanced or binding, call a trained door systems technician.
l Check to be sure door opens and closes fully. Adjust if necessary, see page 29.
l Test the safety reversal system. Adjust if necessary, see page 31.
EVERY YEAR
l Oil door rollers, bearings and hinges. The garage door opener does not require additional lubrication. Do not
grease the door tracks.
l Test the battery backup and consider replacing the battery to ensure the garage door opener will operate during
an electrical power outage, see page 32 to test the battery backup.
The Remote Control Battery
To prevent possible SERIOUS INJURY or DEATH:
l NEVER allow small children near batteries.
l If battery is swallowed, immediately notify doctor.
To reduce risk of fire, explosion or chemical burn:
l Replace ONLY with 3V CR2032 coin batteries.
l DO NOT recharge, disassemble, heat above 212°F (100°C) or incinerate.
The 3V CR2032 Lithium battery should produce power for up to 3
years. If the battery is low, the remote control’s LED will not flash
when the button is pressed.
To replace battery, pry open the case first in the middle (1), then at
each side (2 and 3) with the visor clip. Replace the batteries with only
3V CR2032 coin cell batteries. Insert battery positive side up. Dispose
of old batteries properly.
1
2
3
NOTICE: This device complies with Part 15 of the FCC rules and Industry Canada’s license-exempt RSSs.
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
This device must be installed to ensure a minimum 20 cm (8 in.) distance is maintained between users/bystanders
and device.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC rules and Industry Canada ICES standard. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
l Reorient or relocate the receiving antenna.
l Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
l Consult the dealer or an experienced radio/TV technician for help.
40
Diagnostic Chart
Your garage door opener is programmed with self-diagnostic capabilities. The UP and DOWN arrows on the garage door opener flash the diagnostic codes.
DIAGNOSTIC CODE SYMPTOM SOLUTION
Up Arrow
Flash(es)
Down Arrow
Flash(es)
1 1
The garage door opener will not close and the light bulbs flash.
Safety reversing sensors are not installed, connected, or wires may be cut. Inspect sensor wires for a disconnected
or cut wire.
1 2
The garage door opener will not close and the light bulbs flash.
There is a short or reversed wire for the safety reversing sensors. Inspect safety sensor wire at all staple and
connection points, replace wire or correct as needed.
1 3
The door control will not function.
The wires for the door control are shorted or the door control is faulty. Inspect door control wires at all staple and
connection points, replace wire or correct as needed.
1 4
The garage door opener will not close and the light bulbs flash.
Safety reversing sensors are misaligned or were momentarily obstructed. Realign both sensors to ensure both LEDs
are steady and not flickering. Make sure nothing is hanging or mounted on the door that would interrupt the sensor’s
path while closing.
1 5
Door moves 6-8" (15-20 cm) stops or reverses.
Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as
needed. Check wiring connections at travel module and at the logic board. Replace travel module if necessary.
No movement, only a single click.
Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as
needed. Replace logic board if necessary.
Opener hums for 1-2 seconds no movement.
Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as
needed. Replace motor if necessary.
1 6
Door coasts after it has come to a complete stop. Program travel to coasting position or have door balanced by a trained door systems technician.
2 1-5
No movement, or sound. Replace logic board.
3 2
Unable to set the travel or retain position. Check travel module for proper assembly, replace if necessary.
3 3
The battery status LED is constantly flashing green. Battery backup charging circuit error, replace the logic board.
4 1-4
Door is moving stops or reverses. Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as
needed. If the door is binding or sticking contact a trained door systems technician. If door is not binding or sticking
attempt to reprogram travel (refer to page 30).
4 5
Opener runs approximately 6-8" (15-20 cm), stops and reverses. Communication error to travel module. Check travel module connections, replace travel module if necessary.
Troubleshooting
41
DIAGNOSTIC CODE SYMPTOM SOLUTION
Up Arrow
Flash(es)
Down Arrow
Flash(es)
4 6
The garage door opener will not close and the light bulbs flash. Safety reversing sensors are misaligned or were momentarily obstructed. Realign both sensors to ensure both
LEDs are steady and not flickering. Make sure nothing is hanging or mounted on the door that would interrupt the
sensor’s path while closing.
The garage door opener can beep for several reasons:
l Operating on battery power or the 12 Vdc battery needs to be replaced, see page 32.
l Garage door opener has been activated through a device or feature such as Timer-to-Close or garage door
monitor, see page 37.
My remote control will not activate the garage door:
l Verify the lock feature is not activated on the door control.
l Reprogram the remote control.
l If the remote control will still not activate the door check the diagnostic codes to ensure the garage door opener
is working properly.
My door will not close and the light bulbs blink on my motor unit:
The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the
down direction.
l Verify the safety reversing sensors are properly installed, aligned and free of any obstructions.
My garage door opener light(s) will not turn off when the door is open:
The garage door opener is equipped with a feature that turns the light on when the safety reversing sensors have been
obstructed or when the motion sensor on the door control detects movement in the garage. These features can be
disabled using the door control, see page 36.
Wi-Fi troubleshooting
The garage door opener will NOT enter Wi-Fi LEARN mode:
l After the initial installation of the garage door opener, the garage door opener must complete a full cycle (open
and closed) before the Wi-Fi LEARN mode can be activated.
l If there has been a recent power outage, the garage door opener must complete a full cycle before the Wi-Fi
LEARN mode can be activated.
See page 33 to activate Wi-Fi LEARN mode.
If your black adjustment button is not solid green go to wifihelp.chamberlain.com.
My vehicle's Homelink
®
is not programming to my garage door opener:
Compatibility Bridge
TM
(not included) may be necessary for certain vehicles. Visit bridge.chamberlain.com to find out if
a Bridge is needed.
My neighbor’s remote control opens my garage door:
Erase the memory from your garage door opener and reprogram the remote control(s).
Green battery status LED - All systems are normal:
l A solid green LED light indicates the battery is fully charged.
l A flashing green LED indicates the battery is being charged.
Orange battery status LED - The garage door opener has lost power and is in battery backup mode:
l A solid orange LED with beep, sounding approximately every 2 seconds, indicates the garage door opener is
operating on battery power.
l A flashing orange LED with beep, sounding every 30 seconds, indicates the battery is low.
Red battery status LED - The garage door opener's 12V battery needs to be replaced:
l A solid red LED with beep, sounding every 30 seconds, indicates the 12V battery will no longer hold a charge and
needs to be replaced. Please call for replacement battery to allow your systemto operate during a power outage.
Battery Status LED
Troubleshooting
42
Accessories
CLLP1
953EV
Laser Parking Assistant:
Park in the right spot every
time! A laser beam is activated
by your
garage door opener and
projected on to the dashboard
of your vehicle to guide perfect
parking.
Remote Control:
Works with ALL Chamberlain
openers from 1993-present.
MyQ
®
compatible. Includes
visor clip.
956EV Keychain Remote Control:
Works with ALL Chamberlain
openers from 1993-present.
MyQ
®
compatible. With key
ring.
940EV Wireless Keypad:
For use outside of the home
to enable access to the garage
using a 4-digit PIN. Works
with ALL Chamberlain openers
from 1993-present. MyQ
®
compatible.
PILCEV MyQ
®
Remote Lamp Control:
Monitor and control this plug
in lamp switch with the MyQ
®
Smartphone App.
You can program up to 10 MyQ
®
accessories to your MyQ
®
account.
WSLCEV MyQ
®
Interior/Exterior Light
Switch
Monitor and control this wall
light switch with the MyQ
®
Smartphone App.
Extension Brackets:
(Optional) For safety reversing
sensor installation onto the
wall or fl oor.
CLOSED
OPEN
041A5281-1
8810CB
10 Foot (3 m) Rail Extension:
To allow a 10 foot (3 m) door
to open fully.
8 Foot (2.4 m) Rail Extension:
To allow an 8 foot (2.4 m)
door to open fully.
8808CB
41A6357-1 Standby Power System
Battery:
Provides backup power to the
garage door opener.
CIGBU
MyQ
®
Accessories
MyQ
®
Internet Gateway:
Offers longer range wireless
signal than standard Wi-Fi.
Plugs into your home router
as an optional way to provide
MyQ
®
Smartphone Control for
your garage door opener and
MyQ
®
light controls.
43
Warranty
CHAMBERLAIN
®
LIMITED WARRANTY
The Chamberlain Group, Inc.
®
(“Seller”) warrants to the fi rst retail purchaser of this product, for the residence
in which this product is originally installed, that it is free from defects in materials and/or workmanship for a
specifi c period of time as defi ned below (the “Warranty Period”). The warranty period commences from the
date of purchase.
WARRANTY PERIOD
Parts Motor Accessories Belt Battery Backup
5 Years Lifetime 1 year Lifetime 1 year
The proper operation of this product is dependent on your compliance with the instructions regarding
installation, operation, and maintenance and testing. Failure to comply strictly with those instructions will void
this limited warranty in its entirety. If, during the limited warranty period, this product appears to contain a
defect covered by this limited warranty, call 1-800-528-9131, toll free, before dismantling this product. You
will be advised of disassembly and shipping instructions when you call. Then send the product or component,
pre-paid and insured, as directed to our service center for warranty repair. Please include a brief description
of the problem and a dated proof- of-purchase receipt with any product returned for warranty repair. Products
returned to Seller for warranty repair, which upon receipt by Seller are confi rmed to be defective and covered
by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned
pre-paid. Defective parts will be repaired or replaced with new or factory rebuilt parts at Seller’s sole option.
[You are responsible for any costs incurred in removing and/or reinstalling the product or any component .]
ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN
DURATION TO THE APPLICABLE LIMITED WARRANTY PERIOD SET FORTH ABOVE FOR THE RELATED
COMPONENT(S), AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY AFTER SUCH PERIOD. Some
States and Provinces do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply to you. THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE,
DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO
ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED
REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED
OR REPLACED UNIT, REPLACEMENT OF CONSUMABLE ITEMS (E.G., BATTERIES IN REMOTE CONTROL
TRANSMITTERS AND LIGHT BULBS), OR UNITS INSTALLED FOR NON-RESIDENTIAL USE. THIS LIMITED
WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING TO, THE GARAGE DOOR OR GARAGE
DOOR HARDWARE, INCLUDING BUT NOT LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR
ALIGNMENT OR HINGES. THIS LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED
BY INTERFERENCE. UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL,
INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE,
THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF
CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY.
NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE
OF THIS PRODUCT.
Some states and provinces do not allow the exclusion or limitation of consequential, incidental or special
damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you specifi c
legal rights, and you may also have other rights, which vary from state to state and province to province.
Contact Information
For installation and service information call:
1-800-528-9131
Before calling, please have the model number of the garage door opener.
If you are calling about a Troubleshooting issue, it is recommended that you have access to your
garage door opener while calling.
If you are ordering a repair part please have the following information:
part number, part name, and model number.
STOP!
This garage door opener WILL NOT work until the
safety reversing sensors are properly installed and aligned.
44
Automatic Garage Door Opener Safety & Maintenance Guide
Garage Door Opener Safety – An Automatic Decision
A garage door is the largest moving object in the home. An improperly adjusted garage door and opener can exert deadly force when the door closes – which could lead to entrapment of children or adults and
subsequent injury or death.
Proper installation, operation, maintenance, and testing of the garage door and automatic opener are necessary to provide a safe, trouble-free system. Careless operation or allowing children to play with or use garage door opener controls are
also dangerous situations that can lead to tragic results. A few simple precautions can protect your family and friends from potential harm. Please review the safety and maintenance tips in this guide carefully and keep it for reference. Check
the operation of your garage door and opener to ensure they function in a safe and trouble-free manner. Be sure to read all Important Safety Information found in your garage door opener’s manual as it provides more details and safety
considerations than can be supplied with this guide.
Garage Door Openers are Not Toys
Discuss garage door and opener safety with your children. Explain the danger of being trapped under the door.
Stay away from a moving door. The wall-mounted push button should be out of reach of
children, at least 5 feet from the nearest standing surface and away
from all moving parts. Mount and use the button where you can clearly
see the closing garage door.
Keep transmitters and remote controls out of reach of children.
Do not let children play with or use transmitters or other remote control
devices.
Keep the door in sight until it completely closes when using the
wall-mounted push button or transmitter.
45
Routine Maintenance Can Prevent Tragedies
Make monthly inspection and testing of your garage door and opener system a part of your regular routine. Review your owner’s manual for both the door and door opener. If you don’t have the owner’s manuals, contact the manufacturer(s)
and request a copy for your specific model(s). Look for the opener model number on the back of the power unit.
WARNING – Springs are under high tension. Only qualified individuals shouldadjust them.
Visually check the door and installation:
l Starting with the door in the closed position, use the manual disconnect on the opener to disconnect the door.
l Look for signs of wear or damage on hinges, rollers, springs, and door panels.
l These parts may require periodic lubrication. Check the owner’s manual for suggested maintenance.
l If any signs of damage are evident, contact a trained door systems technician for assistance.
l Verify the photoeye height is no higher than 6" from the garage floor.
Test the door for proper operation:
l Open and close the door manually using handles or suitable gripping points.
l The door should move freely and without difficulty.
l The door should balance and stay partially open 3–4 feet above the floor.
l If you detect any signs of improper operation, contact a trained door systems technician for assistance.
1
2
Test the opener safety features:
l Reconnect the opener to the door using the manual disconnect and open the door.
l Place a 2x4 board flat in the path of the door (1) and try to close it (2). The door should stop when it comes in contact with the 2x4 and
then reverse direction.
l Block the photoelectric sensor by waving an object in front of the sensor and attempt to close the door. The door should not close
unless the wall-mounted push button is manually held during operation.
l If the opener does not perform as described, contact a trained door systems technician for assistance.
46
Repair Parts
Rail Assembly Parts
Accessories
Installation Parts
1
3
2
4
6
5
NOTICE
1
3
4
2
5
6
7
8
9
10
11
Description Part Number
1 Belt 041A5250
2 Pulley K144C0054
3 Master Link 004A1008
4 Rail 041A5665
5 Trolley Assembly
(Includes: Threaded
Shaft (1), Clevis Pin (1),
Ring (1))
041C5141-2
6 “U” Bracket 041D0598-1
Not Shown
Wear Pads 041A7276
Hardware Bag 041A7920-2
Description Part Number
1 Smart Control Panel
®
041A7305-1
2 Remote Control 953ESTD
3 Automatic Garage
Door Lock
841CB
Description Part Number
1 Curved Door Arm 041B0035B
2 Door Bracket with Clevis
Pin and Fastener
041A5047-1
3 Emergency Release Rope
and Handle
041A2828
4 Header Bracket with
Clevis Pin and Fastener
041A5047-2
5 Remote Control
Visor Clip
K29B0137
6 Safety Sensor Bracket 041A5266-3
7 Safety Sensor Kit
Receiving and sending
sensors with wire
041A5034
8 Straight Door Arm 4178B0034B
9 White and Red/White Wire 041B4494-1
10 3V CR2032 Lithium
Battery
K010A0020
11 Hanging Brackets 012B0776
Not Shown
Owner’s Manual 114A5036
1
3
2
47
1
7
5
3
4
3
9
6
8
2
4
10
11
12
Repair Parts
Description Part Number
1 Sprocket and Sprocket Cover with Screws 041C1751
2 End Panel with light socket 041D7639-1
3 Light Lens 041D7572
4 Light Socket 041C0279
5 Transformer 041D0277-1
6 Cover 041D9137
7 Motor with Travel Module 041D8006-1
8 End Panel for Receiver Logic Board with light socket 041D9242
9 Receiver Logic Board 050DCTWFLK
10 Travel Module 041D8071-4
11 Line Cord 041B4245-1
12 Terminal Block 041A3150
Not Shown
Wire Harness 041D8255
Garage Door Opener Parts
© 2018, The Chamberlain Group, Inc.
All Rights Reserved
Wi-Fi
®
is a registered trademark of Wi-Fi Alliance
App Store is a service mark of Apple Inc.
114A5126 Google Play is a trademark of Google Inc.
The Chamberlain Group, Inc.
300 Windsor Drive
Oak Brook, IL 60523
