Contents
Getting Started
Buttons and gestures
1
Pairing and connection
2
Powering on, powering o, and restarting the watch
3
Charging
3
Exercise
Starting a workout
5
Smart companion
5
Viewing workout records
5
Workout status
6
Recording daily activities
6
Auto-detecting workouts
6
Route back
6
Health
ECG
8
TriRing
9
Sleep tracking
10
Measuring blood oxygen levels (SpO2)
10
Heart rate measurements
11
Stress tests
13
Breathing exercises
14
Activity reminder
14
Menstrual cycle predictions
14
Assistant
Apps
16
Receiving notications and viewing and deleting messages
17
Answering and rejecting incoming calls
17
Checking your call logs
18
Music
18
Timer
19
Setting alarms on Huawei watches
19
Flashlight
21
Barometer
21
Compass
21
Receiving weather reports
22
Using the watch to nd your phone
22
Remote shutter
23
Connecting Bluetooth earbuds
23
i
Do Not Disturb
23
More
Wearing the watch
24
Adjusting and replacing the strap
24
Conguring Gallery watch faces
27
Animated watch faces
27
Setting AODs
27
OneHop for watch faces
28
Setting dual time zones on watch faces
28
Installing, changing, and deleting a watch face
29
Setting favorite contacts
29
Setting time and language
30
Setting the ringtone volume
30
Customizing the function of the Down button
30
Adding favorites
30
Adjusting the screen brightness
31
Updating the watch
31
Viewing the Bluetooth name, MAC address, serial number,
model, and version number
31
Restoring the device to its factory settings
32
Contents
ii
Getting Started
Buttons and gestures
The watch is equipped with a color touchscreen that is highly responsive to your touches and
can be swiped in dierent directions.
Up button
Operation Function Remarks
Press • Wake watch screen when
the screen is o.
• Access the app list screen
from the home screen.
• Return to the home screen.
-
Press and hold • Power on the watch when
the watch is o.
• Access the restart/power o
screen when the watch is
on.
Down button
Operation Function Remarks
Press Open the workout app.
Access the set customized
feature.
There are certain exceptions
such as for calls and
workouts.
Press and hold Wake up the voice assistant. Voice assistant is only
available with phones that
runs EMUI 10.1 or later.
Gestures
Operation Function
Touch Choose and conrm.
Touch and hold on the home screen Change the watch face.
Swipe up on the home screen View notications.
Swipe down on the home screen View the shortcut menu.
Swipe left or right View watch feature cards.
1
Operation Function
Swipe right Return to the previous screen.
Wake the screen
• Press the Up button.
• Raise or rotate your wrist inwards.
• Swipe down on the home screen to open the shortcut menu. Enable Show Time for the
screen to stay on for
ve minutes.
• HarmonyOS/Android users can enable or disable Show Time on the Device settings
screen of the Health app.
• iOS users can enable or disable Show Time on the device details screen of the Health
app.
Turn o the screen
• Lower or rotate your wrist outwards, or use your palm to cover the watch face screen.
• Perform no operations for a period of time after you wake the screen by pressing the
button or raising your wrist.
Press the Up button to access the app list screen and go to Settings > Display >
Advanced to adjust the duration it takes for the screen of the watch to turn o.
You can't turn o the screen by covering the standby watch face screen with your palm.
Pairing and connection
The watch is ready to be paired via Bluetooth by default after it is powered on for the rst
time. Enable Bluetooth on your phone/tablet before pairing. Download and install the latest
version of the Health app.
HarmonyOS/Android users
1 Open the Health app and go to Devices > ADD. The app will then automatically search
for the devices that it can connect to. Touch LINK next to the target device and follow the
onscreen instructions to nish pairing.
If the target device is not in the list of devices that can be connected to automatically,
touch ADD, select the target device, touch PAIR, and follow the onscreen instructions
to nish pairing.
2 When a pairing request is displayed on the watch screen, touch to start pairing.
Conrm the pairing on your phone/tablet as well.
iOS users
1 Open the Health app, go to Devices > > ADD, and select your watch's name from the
device list.
Getting Started
2
2 For some watch models, you need to pair your watch with the phone via Bluetooth.
Follow the onscreen instructions to select your watch from the Bluetooth settings screen
on your phone. When a pairing request is displayed on your watch, touch
, and
conrm the pairing on your phone.
3 Open the Health app and touch PAIR. The app will then automatically search for the
devices that it can connect to. Select the target device and follow the onscreen
instructions to
nish pairing.
• If your watch does not respond after you touch to conrm the pairing request,
press and hold the Down button to unlock your watch, and initiate a pairing procedure
again.
• Your watch will display an icon on the screen to inform you that pairing was successful.
It will then return to the home screen and receive information (such as the date and
time). If the pairing failed, your watch screen will display an icon to inform you that
pairing failed. It will then return to the startup screen.
Powering on, powering o, and restarting the watch
Powering on
• Press and hold the Up button.
• Charge the device.
Powering
o
• Press and hold the Up button, and then touch Power o.
• Press the Up button and go to Settings > System > Power o.
• If the battery level is critically low, the watch will vibrate and then automatically power
o.
• If the watch is not charged promptly after the standby time expires, it will automatically
power o.
Restarting
• Press and hold the Up button, and then touch Restart.
• Press the Up button and go to Settings > System > Restart.
Force restarting
Press and hold the Up button for at least 16 seconds.
Charging
Charging
1 Connect the charging cradle to a power adapter and then connect the power adapter to a
power supply.
Getting Started
3
2 Rest your watch on top of the charging cradle and align the metal contacts on your watch
to those of the charging cradle until a charging icon appears on the watch screen.
3 After the watch is fully charged, the charging indicator will display 100%. When your
watch is fully charged, it will automatically stop charging.
• You are advised to use a Huawei power adapter, a USB port of a computer, or a non-
Huawei power adapter that complies with corresponding regional or national laws and
regulations as well as regional and international safety standards to charge your
watch. Other chargers and power banks that do not meet corresponding safety
standards may cause issues such as slow charging and overheating. Exercise caution
when using them. It is recommended that you purchase a Huawei power adapter from
an ocial Huawei sales outlet.
• Keep the charging port dry and clean to prevent short circuits or other risks.
• When wireless charging is used for your watch, use the dedicated charging cradle and
make sure that the watch coil is aligned with that of the charging cradle. If a non-
dedicated charging cradle is used and the watch coil is not aligned with that of the
charging cradle, the charging eciency will deteriorate and issues such as overheating
will occur.
• The charging cradle tends to attract metal objects due to it being magnetic. Therefore,
it is necessary to check and clean the charging cradle before use. Do not expose the
charging cradle to high temperatures for a long time, as this may cause the charging
cradle to demagnetize or cause other exceptions.
Checking the battery level
Method 1: Swipe down from the top of the home screen to check the battery level.
Method 2: Connect your watch to a power supply and check the battery level on the charging
screen.
Method 3: View the battery level on a watch face that displays the battery level.
Method 4: Check the battery level on the device details screen in the Health app.
Getting Started
4
Exercise
Starting a workout
Starting a workout on your watch
1 Enter the app list of your watch and touch Workout.
2 Select the workout you want to do or your preferred course. Alternatively, swipe up on the
screen and touch Custom to add other workout modes.
3 Touch the Start icon to start a workout session. (Ensure that GPS positioning is working
before you start an outdoor workout.)
4 To end a workout session, press the Up button and touch the Stop icon, or press and hold
the Up button.
Starting a workout in the Health app
This feature is not available in the Health app on tablets.
To start a workout using the Health app, move your phone and watch close to each other to
ensure that they are connected.
1 Open the Health app, touch Exercise, choose a workout mode, and touch the Start icon to
start a workout.
2 Once you have started a workout, your watch will sync and display your workout heart
rate, speed, and time. Your workout data, such as the workout time, will be displayed in
the Health app.
Smart companion
After Smart companion is enabled on your watch, your watch will send you real-time voice
guidance during a running session.
1 Press the Up button to access the app list and touch Workout.
2 Touch Outdoor run and then the Settings icon to the right of Smart companion to
enable Smart companion.
3 Return to the app list, touch Outdoor run, wait until GPS positioning is complete, and
touch the Run icon to start running.
After Smart companion is enabled, it will be used instead of the Reminders feature.
Viewing workout records
Viewing workout records on the device
1 On the device, enter the app list and touch Workout records.
2 Select a record and view the corresponding details.
5
Viewing workout records in the Health app
Open the Health app and go to Health > Exercise records to view detailed workout data.
Workout status
Enter the watch's app list, touch Workout status, and swipe up on the screen to view data
including your training load and VO2Max.
• Your training load from the last seven days can be viewed to determine your level based on
your tness status. The watch collects your training load from workout modes that track
your heart rate, such as running, walking, cycling, and climbing.
• VO2Max data can be obtained from outdoor running workouts. The requirements for the
watch to obtain the VO2Max change trends are as follows:
• At least one outdoor running workout is done every week (2.4 km within 20 minutes).
• VO2Max data is collected at least twice and the interval between the measurements is
longer than one week.
Recording daily activities
Wear your watch correctly for it to automatically record data relating to calories, distance,
climbing stairs, steps, duration of moderate to high intensity activities, and other activities.
Press the Up button to access the app list, swipe until you nd Activity records, touch it, and
then swipe up or down to view data relating to calories, distance, climbing stairs, steps,
duration of moderate to high intensity activities, and other activities.
Auto-detecting workouts
The device can automatically identify your workout status.
Go to Settings > Workout settings and enable Auto-detect workouts. After this feature is
enabled, the device will remind you to start a workout when it detects increased activity. You
can ignore the notication or choose to start the corresponding workout.
Currently, the following workout modes are supported: indoor walk, outdoor walk, indoor
run, outdoor run, elliptical trainer activity, and rowing machine activity.
Route back
When you start an outdoor workout and enable the Route back feature, the watch will record
the route you took and provide you with navigation services. After reaching your destination,
you can use this feature to nd out how to return to where you passed through or came
from.
Exercise
6
On your watch, enter the app list, then swipe until you nd Workout and touch it. Start an
individual outdoor workout session. Swipe left on the screen and select Route back or
Straight line to return to the starting point. If there is no Route back or Straight line on the
screen, touch the screen to display it.
Exercise
7
Health
ECG
Conditions
• This feature is only supported when a HUAWEI WATCH GT 2 Pro ECG or HUAWEI WATCH
GT 2 Pro ECG gold card edition is connected to one of the following phones/tablets:
Phones: HarmonyOS 2/Android 6.0 or later
Tablets: HarmonyOS 2 or later
• When using this feature for the rst time, download the latest version of the Health app
from HUAWEI AppGallery and install it or update the Health app to the latest version.
• When using this feature for the rst time, open the Health app, touch the Heart card on
the Health screen, and enable ECG for your watch.
Target users
• Users under the age of 18 are not advised to use this feature.
• Users with pacemakers or other implanted devices are not advised to use this feature.
(Pacemakers and other implantable devices are precision medical devices. The ECG
waveform of users with such devices is dierent from that of ordinary users. Currently,
Huawei ECG-capable watches can't provide ECG record and interpretation services for users
with such devices. If you are using such devices, we recommend that you consult your
doctor to check whether the ECG-capable watch is suitable for you.)
Starting a measurement
1 Keep your arm still and wear your watch correctly.
2 Press the Up button of the watch, swipe until you nd ECG, and touch it.
3 Touch , select Wrist mode, and follow the onscreen instructions to touch and hold
against the electrode on the side of the watch until the countdown is over.
4 After the measurement is complete, touch Done, open the Health app, touch the Heart
card, and view detailed reports in the ECG app.
8
• During measurements, keep your body still, put your arms on a table or on your
knees, and relax your arms and ngers.
• If your skin is too dry, the measurement may be aected. Use a small amount of
water to moisten your nger and keep the surface of the ECG recorder dry before
starting a measurement.
• Ensure that the wearing mode selected on your watch is consistent with the actual
wearing mode.
• Being in an environment with a strong electromagnetic eld will severely aect the
ECG waveform quality. Do not start a measurement when you are close to such an
environment.
• An individual measurement lasts for 30 seconds. If the report shows that your ECG is
abnormal, consult a doctor or go to hospital for assistance.
• The ECG-capable watch is a single-lead ECG acquisition device that has obtained
national medical equipment certication.
ECG interpretation gold card
The ECG interpretation gold card can be redeemed for a one-year ECG interpretation service
package. When the package is valid, you can use the ECG interpretation service provided by
professionals at top-tier hospitals.
Update the Health app to version 11.0.7.512 or later and then activate the gold card service
in the following way:
Open the Health app, go to Health > Heart > ECG > ECG interpretation > Redeem, enter
the redemption code on the card, and touch OK.
Reading your report
The device allows you to use the ECG interpretation gold card or pay a third party for your
ECG report to be read online. The corresponding services, which include ECG interpretation
results and health advice, are provided by doctors from the National Telemedicine and
Connected Health Center.
TriRing
TriRing in Activity records on the watch display three types of data: steps, moderate to high
intensity activity, and active hours.
1. Steps: This ring indicates the proportion of your steps to the target step count on the
current day. The default goal is 10,000 steps. You can change the goal settings depending on
your preferences by going to Me > Settings > Goal in the Health app.
Health
9
(2) Duration of moderate to high intensity activity (unit: minutes): The default goal is 30
minutes. Your device will calculate the total duration of your moderate to high intensity
activity based on your pace and heart rate intensity.
(3) Active hours: This ring represents how many hours you have been stood up for
during the day. If you have walked for more than 1 minute in an hour, such as for 1 minute
between 10:00 and 11:00, this hour will be counted as an active hour. Sitting for too long is
harmful for your health. We recommend you stand up once an hour and get at least 12
active hours between 7:00 and 22:00 every day.
Sleep tracking
Wear your device correctly. The device will automatically record how long you are asleep
and identify whether you are in a deep sleep, light sleep, or awake.
• Open the Health app, touch Devices then your device name, go to Health monitoring >
HUAWEI TruSleep™, and enable HUAWEI TruSleep™. When enabled, the device can
accurately recognize when you fall asleep, wake up, and whether you are in deep or REM
sleep, and provide you with sleep quality analysis and suggestions to help you understand
and improve your sleep quality.
• If HUAWEI TruSleep™ has not been enabled, the device will track your sleep using the
normal method. When you wear your device during sleep, it will identify the dierent sleep
stages including the time you fall asleep, wake up, and enter or exit deep/light sleep, and
sync the corresponding data to the Health app.
• View your sleep data: Open the Health app and touch the Sleep card. You can then view
your daily, weekly, monthly, and yearly sleep data.
Measuring blood oxygen levels (SpO2)
• To ensure the accuracy of the SpO2 measurement, wear the watch properly and ensure
the strap is fastened. Ensure that the monitoring module is in direct contact with your
skin without any obstructions.
Single SpO2 measurement
1 Wear your watch correctly and keep your arm still.
2 From the home screen, press the Up button, swipe on the screen, and touch SpO2.
3 Touch Measure.
4 Keep your body still during the SpO2 measurement.
Health
10
Automatic SpO2 measurement
1 Open the Health app, touch Devices and then your device name, go to Health
monitoring, and enable Automatic SpO2 measurement. The device automatically
measures and records your SpO2 when it detects that you are still.
2 Touch Low SpO2 alert to set the lower limit of your SpO2 for you to receive an alert
when you are not asleep.
• Swipe right on the watch screen to stop measuring. The measurement will run in the
background if there is a notication for an incoming call or alarm.
• The measurement will be interrupted if you swipe right on the watch screen, start a
workout with the Health app, or receive a notication for an incoming call or alarm.
• Data provided is for reference only and not for medical use. Consult a doctor as soon
as possible if you feel uncomfortable.
• During the SpO2 measurement, the watch will also measure your heart rate.
• This measurement may also be aected by some external factors such as low blood
perfusion, tattoos, a lot of hair on your arm, a dark complexion, lowering or moving
your arm, or low ambient temperatures.
Heart rate measurements
• To guarantee a more accurate heart rate measurement, wear the watch correctly and
ensure the strap is fastened. Make sure that your watch is secure on your wrist. Ensure
that the monitoring module is in direct contact with your skin without any
obstructions.
Individual heart rate measurement
1 Open the Health app, touch Devices then your device name, go to Health monitoring >
Continuous heart rate monitoring, and disable Continuous heart rate monitoring.
2 Access the app list and select Heart rate to measure your heart rate.
This measurement may also be aected by some external factors such as low blood
perfusion, tattoos, a lot of hair on your arm, a dark complexion, lowering or moving your
arm, or low ambient temperatures.
Heart rate measurement for a workout
During a workout, the device displays your real-time heart rate and heart rate zone, and
noties you when your heart rate exceeds the upper limit. For better training results, you are
advised to do a workout based on your heart rate zone.
• Heart rate zones can be calculated based on the maximum heart rate percentage or HRR
percentage. To choose the calculation method, open the Health app, go to Me > Settings >
Workout settings > Exercise heart rate settings and set Calculation method to either
Maximum heart rate percentage or HRR percentage.
Health
11
• If you select Maximum heart rate percentage as the calculation method, the heart
rate zone for dierent types of workout activities (Extreme, Anaerobic, Aerobic, Fat-
burning, and Warm-up) is calculated based on your maximum heart rate ("220 minus
your age" by default).
• If you select HRR percentage as the calculation method, the heart rate interval for
dierent types of workout activities (Advanced anaerobic, Basic anaerobic, Lactic
acid, Advanced aerobic, and Basic aerobic) is calculated based on your heart rate
reserve (HRmax - HRrest).
• Heart rate measurement during a workout: The real-time heart rate can be displayed on
the device when you start a workout.
• After completing your workout, you can check your average heart rate, maximum
heart rate, and heart rate zone on the workout results screen.
• Your heart rate will not be displayed if you remove the device from your wrist during
the workout. However, it will continue to search for your heart rate signal for a while.
The measurement will resume once you put the device back on.
Continuous heart rate monitoring
Open the Health app, touch Devices then your device name, go to Health monitoring >
Continuous heart rate monitoring, and enable Continuous heart rate monitoring. Once
this feature is enabled, your watch can measure your real-time heart rate.
Resting heart rate measurement
Resting heart rate refers to your heart rate measured when you are still, awake, and at rest.
The best time to measure your resting heart rate is immediately after you wake up in the
morning.
Open the Health app, touch Devices then your device name, go to Health monitoring >
Continuous heart rate monitoring, and enable Continuous heart rate monitoring. The
device will then measure your resting heart rate automatically.
• If you disable Continuous heart rate monitoring after checking your resting heart
rate, the resting heart rate displayed in the Health app will remain the same.
• The resting heart rate data on the device will be cleared on its own at 00:00 (24-hour
clock) or 12:00 midnight (12-hour clock).
Heart rate limit warning
After you start a workout using your watch, your watch will vibrate to alert you that your
heart rate value has exceeded the upper limit for more than 60 seconds.
Perform the following to set a heart rate upper limit:
• For iOS users: Open the Health app, touch Device and your device name, go to Heart rate
limit interval and warning > Heart rate limit warning, and set an upper limit.
Health
12
• For HarmonyOS/Android users: Open the Health app, go to Me > Settings > Workout
settings > Exercise heart rate settings, touch Heart rate limit, and set an upper limit.
Heart rate alerts
High heart rate alert
Touch Devices and your device name, go to Health monitoring > Continuous heart rate
monitoring, turn on the switch for Continuous heart rate monitoring, and set a high heart
rate alert. You will then receive an alert when you are not doing a workout and your heart
rate stays above your set limit for more than 10 minutes.
Low heart rate alert
Touch Devices and your device name, go to Health monitoring > Continuous heart rate
monitoring, turn on the switch for Continuous heart rate monitoring, and set a low heart
rate alert. You will then receive an alert when you are not doing a workout and your heart
rate stays below your set limit for more than 10 minutes.
Stress tests
The stress test feature is not available on the HUAWEI WATCH GT Series sold outside the
Chinese mainland.
Testing your stress levels
During a stress test, wear your watch correctly and keep still. The watch will not test your
stress level when you are doing a workout or when you move your wrist too frequently.
• Single stress test:
Open the Health app, touch the Stress card, and touch Stress test to start a single stress
test. When using the stress test feature for the rst time, follow the onscreen instructions in
the Health app to calibrate your stress level.
• Periodic stress tests:
Open the Health app, touch Devices and then your device name, go to Health monitoring
> Automatic stress test, turn on the switch for Automatic stress test, and follow the
onscreen instructions to calibrate the stress level. Periodic stress tests will then start
automatically when you wear the watch correctly.
The accuracy of the stress test may be aected if the user has just taken substances with
caeine, nicotine, or alcohol, or psychoactive drugs. It may also be aected when the
user suers from heart disease or asthma, has been exercising, or is wearing the watch
incorrectly.
Viewing stress data
• On the watch:
Press the Up button to access the app list, swipe up or down until you nd Stress, and
touch it to view the graph indicating changes to your stress level, the stress bar chart, stress
levels, and stress intervals.
Health
13
• In the Health app:
Open the Health app, then touch the Stress card to view your latest stress level, daily,
weekly, monthly, and yearly stress curves, and corresponding advice.
Breathing exercises
Enter the app list on your device and touch Breathing exercises, set the duration and
rhythm, touch the breathing exercises icon on the screen, and follow the onscreen
instructions to do the breathing exercises. After the exercise is nished, the screen will display
the training stress, heart rate before the exercise, training duration, and evaluation.
Activity reminder
When Activity reminder is enabled, the device will monitor your activity throughout the day
in increments (1 hour by default). It will vibrate and the screen will turn on to remind you to
take a moment to get up and move around if you didn't move around during the set period.
To disable Activity reminder, open the Health app, touch Devices then your device name,
touch Health monitoring, and turn o the switch for Activity reminder.
• The device will not vibrate to remind you to move around if you have enabled Do Not
Disturb on it.
• The device will not vibrate if it detects that you are asleep.
• The device will only send reminders between 8:00 and 12:00 and between 14:00 and
22:00.
Menstrual cycle predictions
The device can predict your menstrual cycle and fertile window based on the data you have
added in the app. Cycle Calendar data and reminders can be viewed on the device, but the
data can only be added using the Health app.
1 Open the Huawei Health app, touch Cycle Calendar, and grant the corresponding
permissions. If you are unable to nd the Cycle Calendar card on the home screen, touch
EDIT and then touch + next to Cycle Calendar.
2 On the Cycle Calendar screen, set data for your previous period date, period length, and
period cycle, touch in the top-right corner, select Wearable device reminders, and
toggle on All.
3 The device will send you reminders for the start and end of your period and fertile
window.
Health
14
• This feature is only available in some countries and regions. For more information,
please call the ocial Huawei customer service hotline.
• Touch Records to view and modify the period data. The predicted period is marked
in the dotted line.
• The device will remind you about the start of your period before 8:00 AM on the
day before it's supposed to start. You will be reminded about all other reminders for
the day of the event at 8:00 AM on that day.
Health
15
Assistant
Apps
This feature is only available with the following Huawei phones/tablets:
Phones: HarmonyOS 2/Android 6.0 or later
Tablets: HarmonyOS 2 or later
Installing apps
1 Open the Health app, touch Devices and your device name, then touch Apps.
2 Select the app you want to use from the Apps list and touch Install. After the app is
installed, it will be displayed in the app list on your watch.
Using apps
1 Press the Up button on your watch to enter the app list.
2 Swipe up or down, select an app, and follow the onscreen instructions to use it.
• Some apps can only be used when the watch is connected to your phone. If the
watch displays a message asking you to install the app on your phone, it indicates
that the app can only be used with your phone.
• When you install and use an app on your phone for the rst time, agree to the
agreements or terms displayed on the app screen, and follow the onscreen
instructions to complete giving authorization and logging in. Otherwise, you will not
be able to use the app. If there is an issue when giving authorization, open the
Health app, go to Me > Settings > Device capabilities, and select the app that you
want to give authorization to again.
Updating apps
1 Open the Health app, touch Devices and your device name, then touch Apps.
2 Touch Manager to view the apps to be updated and the list of installed apps.
3 Go to Updates > Update to update apps to the latest version for a better experience.
Uninstalling apps
1 Open the Health app, touch Devices and your device name, then touch Apps.
2 Touch Manager to view the apps to be updated and the list of installed apps.
3 Go to Installation manager > Uninstall to uninstall apps. After the app is uninstalled, it
will also be deleted from your watch.
• If you touch Disable AppGallery service and DISABLE, AppGallery will be disabled. If
you want to use this feature again, touch Apps, follow the onscreen instructions to
complete giving authorization, and enable Apps.
16
Receiving notications and viewing and deleting
messages
After you enable notications, all messages with notications that are displayed in the status
bar of your phone/tablet will be synced to your watch.
When the Health app is connected to your device via Bluetooth, the notications
displayed in the status bar of your phone/tablet will be pushed to your device. The
notications that are not displayed in the status bar will not be pushed to your device.
Enabling message notications
1 Open the Health app, touch Devices and then your device name, touch Notications, and
turn on the switch.
2 Touch Apps and turn on the switches for apps that you want to receive notications from.
Notications from the following apps can be synced to the watch: Messaging, Email, and
Calendar, as well as certain third-party social media apps including Facebook and
WhatsApp.
You can go to Apps to view the apps that you can receive notications from.
Viewing unread messages
Your device will vibrate to notify you of new messages pushed from the status bar of your
phone/tablet.
Unread messages can be viewed on your device. To view them, swipe up on the home screen
to enter the unread message center.
A maximum of 10 unread messages can be saved on your watch. If there are more than
10 unread messages, the older messages will be overwritten. Each message will only be
displayed on one screen.
If you are using Do not disturb mode, asleep, not wearing your watch, or doing a
workout, your watch can receive messages but will not push notications.
Messages that you have viewed on your phone/tablet will be deleted from your watch at
the same time.
Deleting unread messages
Swipe right on a message to delete it or touch Clear at the bottom of the list to delete all
unread messages.
Answering and rejecting incoming calls
When there is an incoming call, your watch will inform you and display the caller's number
or name. You can answer or reject the call.
• Press the Up button to stop the watch from vibrating during an incoming call.
Assistant
17
• Touch the End icon on the screen or touch and hold the Up button on your watch to end
the call.
Checking your call logs
Viewing your call logs
Press the Up button on your watch to access the app list, swipe up or down until you nd
Call Log, and touch it to view call logs (including incoming, outgoing, and missed calls) on
your watch.
Calling back
When your watch is paired with your , touch any call record to call back.
Deleting call logs
Swipe down to the bottom of the screen and touch Clear to clear all call logs.
Music
Prerequisites
To use this feature, ensure that the watch is connected to your phone.
Adding music
1 Open the Health app and touch Devices then your device name.
2 Go to Music > Manage music > Add songs and select the music to be added.
3 Click √ in the upper right corner of the screen.
• This feature is only supported on the following devices:
Phones: HarmonyOS 2/Android 6.0 or later
Tablets: HarmonyOS 2 or later
• You can add unencrypted music les (in MP3 or AAC (LC-AAC) format) downloaded
from some music apps to your watch. (You can add approximately 200 to 500 songs
to your watch depending on the dierent sizes of music les.)
• To check the remaining storage space on your watch, open the Health app and go
to Devices > Music > Manage music.
Controlling music playback on the watch
1 Press the Up button of the watch to access the app list, swipe until you nd Music, and
then touch it.
2 Go to > Watch.
3 Swipe right on the screen to return to the previous screen, touch the music you have
added to your watch using the Health app, and touch the play button to play the music.
Assistant
18
• On the music playback screen of your watch, you can switch between songs, adjust
the volume, and select a playback mode, such as Play in order, Shue, Repeat the
current song, and Repeat list.
• Touch in the lower right corner and touch Delete song, Earphones, Watch, or
Phone (only available with HarmonyOS/Android phones, with the playback
sequence unable to be selected).
• Swipe up on the screen to view the music list. If you swipe left or right on the
watch's home screen to access the music playback card, you won't be able to view
the music list.
Controlling music playback on the phone
1 Open the Health app, touch Devices then your device name, touch Music, and turn on
Control phone music.
2 Open the Music app on your phone and play music.
3 Open the Music app on your watch and go to
> Phone.
4 Swipe right on the screen to return to the previous screen to pause, switch, or adjust the
music volume on your phone.
• You can use your watch to control music playback of third-party music apps such as
KuGou Music, NetEase Music, Himalaya, and QQMusic on your phone.
• On the music playback screen of your watch, touch in the lower right corner and
select Watch or Phone.
Timer
Touch Timer in the app list. Touch
to start the countdown, touch to pause the
countdown, touch
to exit the countdown, or swipe right on the screen to exit Timer.
• There are 8 available default countdown modes: 1 minute, 3 minutes, 5 minutes, 10
minutes, 15 minutes, 30 minutes, 1 hour, and 2 hours. Choose a countdown mode
depending on the situation.
• In the lower part of the Timer screen, touch Custom to set the countdown time. Touch
to start the countdown. You can only use a customized timer once and you will
need to reset it when you exit the Timer screen and enter it again.
Setting alarms on Huawei watches
Method 1: Set a smart or event alarm on your watch.
Assistant
19
1 Enter the app list, select Alarm, and touch to add an event alarm.
2 Set the alarm time and repeat cycle and then touch OK. If you do not set the repeat cycle,
the alarm will be a one-time alarm.
3 Touch an alarm to delete it or modify the alarm time and repeat cycle. Only event alarms
can be deleted.
Method 2: Set a smart or event alarm in the Health app.
Smart alarm:
1 Open the Health app, touch Devices and your device name, and go to Alarm > SMART
ALARM.
2 Set the alarm time, smart wakeup time, and repeat cycle.
3 If you are an Android user, touch √ in the upper right corner. If you are an iOS user, touch
Save in the upper right corner.
4 Return to the home screen and swipe down to sync the alarm settings to your watch.
5 Touch an alarm to modify the alarm time, smart wakeup time, and repeat cycle.
Event alarm:
1 Open the Health app, touch Devices and your device name, and go to Alarm > EVENT
ALARM.
2 Touch Add to set the alarm time, tag, and repeat cycle.
3 If you are an Android user, touch √ in the upper right corner. If you are an iOS user, touch
Save in the upper right corner.
4 Return to the home screen and swipe down to sync the alarm settings to your watch.
5 Touch an alarm to delete it or modify the alarm time and repeat cycle.
Assistant
20
• Event alarms set on your watch and the Health app are synced. You can set a
maximum of ve event alarms. By default, there is only one smart alarm. You can't
delete the smart alarm or add smart alarms.
• When an alarm goes o, you can touch on the screen, press the Up button, or
swipe right on the screen to snooze for 10 minutes. To turn o the alarm, touch
on the screen or press and hold the Up button. If no operations are performed within
one minute, the alarm will automatically turn o after snoozing three times.
• The smart alarm will only wake you up in advance based on the preset time when you
are not in deep sleep.
• If you do not set the repeat cycle for an alarm, the alarm will be a one-time alarm.
• The alarms on the wearable device will also go o on holidays.
• Event alarms will go
o at the time you set. If you have set a tag and time for the
event alarm, the watch will display the tag. Otherwise, only the time will be displayed.
• When Silent mode is enabled on the watch, the alarm will vibrate but not ring. To
enable Silent mode, enter the app list and go to Settings > Volume to turn on its
switch.
• Alarms set on your phone will be automatically synced to your watch when they are
connected, and the syncing process cannot be cancelled.
Flashlight
On the device, enter the app list and touch Flashlight. The screen will light up. Touch the
screen to turn o the ashlight, then touch the screen again to turn it back on. Swipe right
on the screen or press the side button to close the Flashlight app.
Barometer
Barometer on the watch automatically measures the altitude and air pressure of the current
location and records the measurement data of the current day in a waveform graph.
Viewing the altitude and air pressure
1 Press the Up button on the watch to open the app list and then touch Barometer.
2 Swipe up or down on the screen to view the altitude and air pressure.
Compass
The Compass app displays the direction, longitude, and latitude of your watch, helping you
get your bearings in unfamiliar environments such as when you are outdoors or traveling.
Assistant
21
Touch Compass in the app list and follow the onscreen instructions to calibrate your watch.
After the calibration is complete, your watch will display a compass dial.
During the calibration, avoid sources of magnetic eld interference, such as phones,
tablets, and computers. Otherwise, the calibration accuracy may be aected.
Receiving weather reports
Enabling weather reports
Open the Health app, touch Devices and your device name, enable Weather report, and
select a unit of temperature (°C or °F).
Viewing weather reports
You can check your watch to nd out about the weather in your local area.
Method 1: In the Weather card
Swipe right on the screen until you nd the Weather card, then you can check your location,
the latest weather, temperature, and air quality.
Method 2: On a watch face
Ensure that you are using a watch face that displays weather information, then you can
check the latest weather information on the home screen.
Method 3: In the Weather app
Press the Up button when on the home screen of your watch, swipe until you nd Weather,
touch it, and then you can check your location, the latest weather information, temperature,
and air quality. Swipe up or down on the screen to view the weather information for the
week.
Using the watch to nd your phone
Swipe down on the watch face screen to enter the shortcut menu and touch Find phone. The
Find phone animation will then be played on the screen.
If your watch and phone are within the Bluetooth connection range, the phone/tablet will
play a ringtone (even in Vibrate or Silent mode) to notify you of its whereabouts.
Touch your watch screen or unlock your phone/tablet screen to stop nding your phone/
tablet.
This feature will only work when your phone and watch are connected.
If you are using an iOS phone and its screen is turned o, the iOS controls the playback
of the system ringtone. As a result, the phone may not respond when the user is using
the Find phone feature.
Assistant
22
Remote shutter
After the watch is connected to your phone, touch Remote shutter in the app list on your
watch to enable the camera on your phone. Touch on the watch screen to take a photo.
Touch to switch between a 2-second and 5-second timer.
• Remote shutter is only available in the watch's app list when your watch is paired with
the following phones/tablets:
Phones: HarmonyOS 2/EMUI 10.1 or later
Tablets: HarmonyOS 2 or later
• To use this feature, ensure that your watch is connected to your phone and that the
Health app is running in the background.
Connecting Bluetooth earbuds
• Method 1:
1 Press the Up button on your watch to access the app list and go to Settings > Earbuds
or Settings > Bluetooth.
2 Your watch will search automatically for the Bluetooth earbuds list for pairing. Select the
name of your target earbuds and follow the onscreen instructions to complete pairing.
• Method 2:
1 Press the Up button on your watch to access the app list, touch Music then or in
the lower right corner of the music playback screen, and touch Earbuds.
2 Your watch will search automatically for the Bluetooth earbuds list for pairing. Select the
name of your target earbuds and follow the onscreen instructions to complete pairing.
Do Not Disturb
Swipe down on the device's home screen and touch to enable Do Not Disturb.
Alternatively, enter the app list, go to Settings > Do Not Disturb, and schedule a period for
this mode.
After Do Not Disturb is enabled:
• The device will not vibrate to notify you of incoming calls or notications, and the
Raise to wake feature will be disabled.
• The alarm will vibrate and ring as normal.
Assistant
23
More
Wearing the watch
Ensure that the rear cover of the watch is clean, dry, and free of foreign objects. Attach the
monitoring area of the watch to your wrist and make sure it feels comfortable. Do not attach
a protective lm to the rear of the watch. The rear cover of the watch has sensors that can
identify signals from the human body and ECG signals (only for ECG-capable watches). If the
sensors are blocked, the identication will be inaccurate or fail and the watch won't be able
to accurately record the heart rate, ECG (only for ECG-capable watches), SpO2, and sleep
data.
To ensure the accuracy of measurements, avoid wearing the strap more than one nger
width away from your wrist bone. Ensure that the strap is worn relatively tightly and ensure
it is secure during workouts.
The device is made of materials that are safe to use. If you experience skin discomfort
when wearing the device, take it o and consult a doctor.
Adjusting and replacing the strap
Adjusting the strap
For watches with non-metallic straps and T-shaped buckles, you can adjust the strap to a
comfortable t depending on the circumference of your wrist.
Single-bead metal strap
1. Use the screwdriver delivered with your watch to remove the screws from the strap.
24
2. Remove the metal screws from both sides.
3. Re-assemble the strap.
4. Tighten the screws.

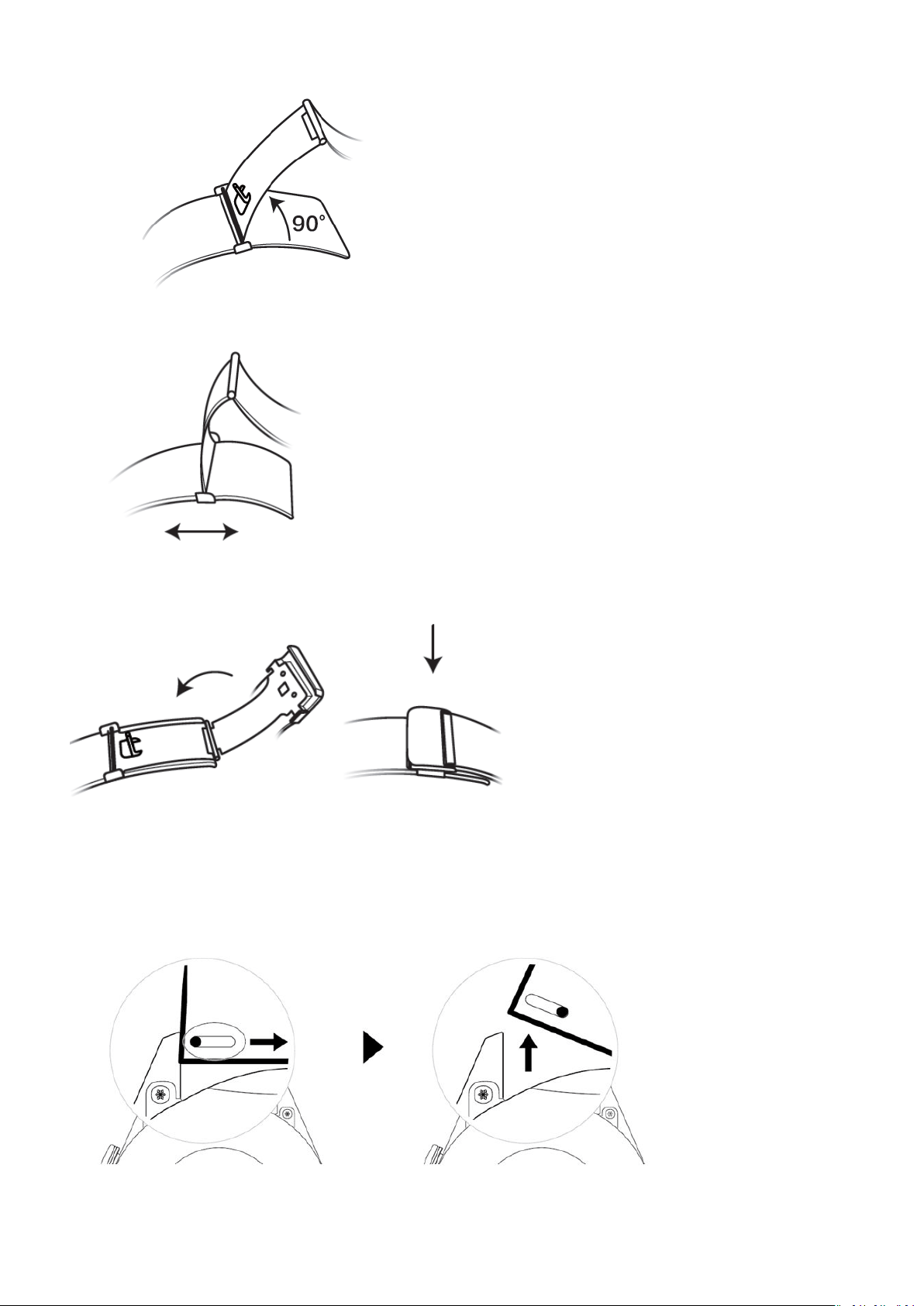

Adjusting metal mesh straps
1. Open the clasp.
More
25
2. Pull the bottom plate upward so it is at a 90° angle to the strap.
3. Slide the clasp to adjust the length.
4. Align the plate with the grooves and clamp it back down. Finish by fastening the clasp.
Replacing the strap
• If you are using a non-metal strap, perform the following steps to remove it and install the
new strap in a reverse order.
More
26
• If you are using a metal strap, perform the following steps to remove it and install the new
strap in a reverse order.
• The leather strap is not waterproof. Please keep it dry and clean up your sweat and
other liquids in a timely manner.
Conguring Gallery watch faces
Before using this feature, update the Health app and your device to the latest versions.
Choosing Gallery watch faces
1 Open the Health app, touch Devices and then your device name, and go to Watch faces
> More > Me > On watch > Gallery to access the Gallery settings screen.
2 Touch + and select either Camera or Gallery as the method for uploading a photo.
3 Select a photo or take a new photo, touch √ in the upper right corner, and touch Save.
Your watch will then display the customized photo as the watch face.
Other settings
On the Gallery settings screen:
• Touch Style and Position to set the font, color, and position of the date and time displayed
on Gallery watch faces.
• Touch the Cross icon in the upper right corner of a selected photo to delete it.
Animated watch faces
Open the Health app, touch Devices and then your device name, go to Watch faces > More
> Recommended, select the animated watch faces, and install them.
Using an animated watch face will result in higher power consumption. To extend the
battery life of your watch, use a static watch face.
Setting AODs
Once you set an AOD watch face, the watch face screen will stay on after your watch enters
standby mode. To enable this feature, perform the following:
More
27
1 On the home screen of the device, touch the side button, go to Settings > Display >
Always on display, swipe left or right on the screen to preview the watch face, and then
touch
or the selected watch face to complete the settings.
2 If the
screen-o time has not been set for the device: When no operations are performed
on the screen, the AOD watch face will be displayed ve seconds after Always on display
is congured. When you perform an operation on the screen, the AOD watch face will be
displayed 15 seconds after the operation is complete.
If the screen-o time has been set for the device, the time on the AOD watch face is
displayed once the screen-o time takes eect.
3 When the device enters standby mode, touch the AOD watch face to enter the home
screen.
OneHop for watch faces
• Before using this feature, update the Health app to the latest version and ensure that
the wearable device is connected to your phone/tablet.
• This feature is only available with a Huawei phone that supports NFC and is running
EMUI 10.0 or later.
• Once OneHop is enabled on the device, you won't be able to disable it. Even if the
device has been restored to its factory settings, this feature will still be enabled.
1 Access the app list on your device then go to Settings > OneHop > Enable. A message
will be displayed indicating that the feature is being enabled. After the activation is
complete, a message will be displayed indicating that the feature has been enabled.
2 Enable NFC on your phone, take photos, and preview them or open Gallery on your
phone to select one or multiple images you want to transfer. Place the NFC area on the
rear of your phone against the watch face. Loading... will be displayed, indicating that
images are being cropped or transferred. The selected images will then be displayed on
the watch face in sequence.
3 Open the Health app, touch Devices and then your device name, and go to Watch faces
> More > Mine > Gallery. You will see the transferred images in Gallery. Customize the
style and layout of the images based on your preferences.
Setting dual time zones on watch faces
Touch and hold the home screen to switch between watch face designs. Some designs will
have a settings icon beneath them. Touch the icon and swipe until you
nd dual time zone
display and touch it.
More
28
Installing, changing, and deleting a watch face
• Update your watch and the Health app to their latest versions rst.
• You may be unable to use this feature in certain countries and regions. For more
information, contact the local Huawei hotline.
Installing or changing a watch face
• On your watch:
• Touch and hold the home screen of your watch to enter the watch face selection screen.
• Press the Up button when on the home screen of your watch, go to Settings > Display
> Watch face, and swipe left or right to choose a watch face.
• In the app:
1 Open the Health app, touch Devices and then the device name, and go to Watch faces
> More to view a variety of watch faces.
2 Touch a watch face you like.
a If the watch face has not been installed, touch Install. After the installation is
complete, your watch will automatically use this new watch face.
b If the watch face has been installed, touch SET AS DEFAULT to use the selected
watch face.
Deleting a watch face
Open the Health app, go to Watch faces > Me, select a downloaded watch face, and touch
to delete it. The watch face will also be deleted from your watch. If a purchased watch
face is deleted from the app, you only need to reinstall it when you want to use it and do not
need to purchase it again.
• Some watch faces can be customized. Touch and hold the home screen, swipe left or
right on the screen, and touch below the watch face to customize the watch face.
• Some watch faces need to be paid for to be installed. Follow the onscreen instructions
to pay for them before you can install and use them. During payment, enable the
Huawei Mobile Services access permission as prompted. Once you have paid for these
watch faces, they can't be refunded. If you can't nd a watch face in the Watch Face
Store that you have already purchased, call the customer service hotline to apply for a
refund.
Setting favorite contacts
1 Open the Health app, touch Devices and your device name, then select Favorite contacts.
2 On the Favorite contacts screen:
More
29
• Touch ADD to display your phone/tablet's contacts list and then select the contacts
you wish to add.
• Touch Sequence to sort the contacts you have added.
• Touch Remove to remove a contact you have added.
3 Touch a favorite contact from Favorite contacts in your watch's app list to call the
contact's number on your watch.
Setting time and language
After you have synced data between your device and phone/tablet, the system language will
be synced to your device as well.
If you change the language and region or change the time on your phone/tablet, the
changes will automatically sync to the device as long as it is connected to your phone/tablet
via Bluetooth.
Setting the ringtone volume
1. From the home screen press the Up button to access the app list, go to Settings > Sound
> Volume, and swipe to adjust the ringtone volume.
2. If you have enabled Silent mode, your watch will only vibrate to inform you of incoming
calls and messages. Otherwise, your watch will ring and vibrate when receiving new calls or
messages.
Customizing the function of the Down button
1 Press the Up button to open the app list and then go to Settings > Down button.
2 Select an app and customize the function of the Down button.
After you have nished customizing the function, return to the home screen and press the
Down button to open the current app. If the function has not been customized, the
Workout app will be opened by default.
Adding favorites
1 On the device, go to Settings > Display > Favorites and select your favorite apps, such as
Sleep, Stress, and Heart rate.
2 Touch the up icon next to an app that you have added to move the app to another
position. Touch the delete icon to delete the app.
3 Swipe left or right on the home screen to open the apps added to your favorites.
More
30
Adjusting the screen brightness
From the home screen press the Up button and go to Settings > Display > Brightness to
adjust the screen brightness. Brightness is set to Auto by default, but screen brightness is
automatically adjusted based on your environment. Level 5 is the brightest setting and Level
1 is the dimmest setting.
Updating the watch
For Android users: Connect the watch to your phone using the Health app, enter the device
details screen on the watch, go to Firmware update > Check for updates, and follow the
onscreen instructions to nish updating.
For iOS users: Connect the watch to your phone using the Health app, enter the device
details screen on the watch, touch Firmware update, and follow the onscreen instructions to
nish updating.
• Once Auto-update device over Wi-Fi or Auto-download update packages over Wi-
Fi is enabled, your device will receive an update package from the phone and send you
a notication about the update. Follow the onscreen instructions to update your
device.
• During an update, the Bluetooth connection between your watch and phone will
disconnect. Please wait patiently until the update is complete.
• You are advised to ensure that the battery level of your device is greater than 20%
before an update.
Viewing the Bluetooth name, MAC address, serial
number, model, and version number
Viewing the Bluetooth name:
• On your device, go to Settings > About to view the name of your device under Device
name.
• Alternatively, open the Health app, then touch Devices and your device name. The name of
the connected device is the Bluetooth name.
Viewing the MAC address:
On your device, go to Settings > About to view the MAC address of your device.
Viewing the Serial Number:
On your device, go to Settings > About to view the serial number of your device.
Viewing the model:
• On your device, go to Settings > About to view the model of your device.
More
31
• The laser-engraved characters after the word "MODEL" on the back of the device indicate
the model name.
Viewing the version information:
• On your device, go to Settings > About to view the version of your device.
• Open the Health app, touch Devices then your device name, and touch Firmware update
to view the version number of your device.
Restoring the device to its factory settings
Method 1: Go to Settings > System > Reset on your watch.
Method 2: Open the Health app, touch Devices then your device name, and touch Restore
factory settings.
• To restore your watch to its factory settings, swipe on the watch screen and select
Reset when pairing for the rst time or swipe on the watch's home screen and go to
Settings > System > Reset.
• Personal data will be cleared from your device after you restore the device to its
factory settings. Exercise caution when performing this operation.
More
32
