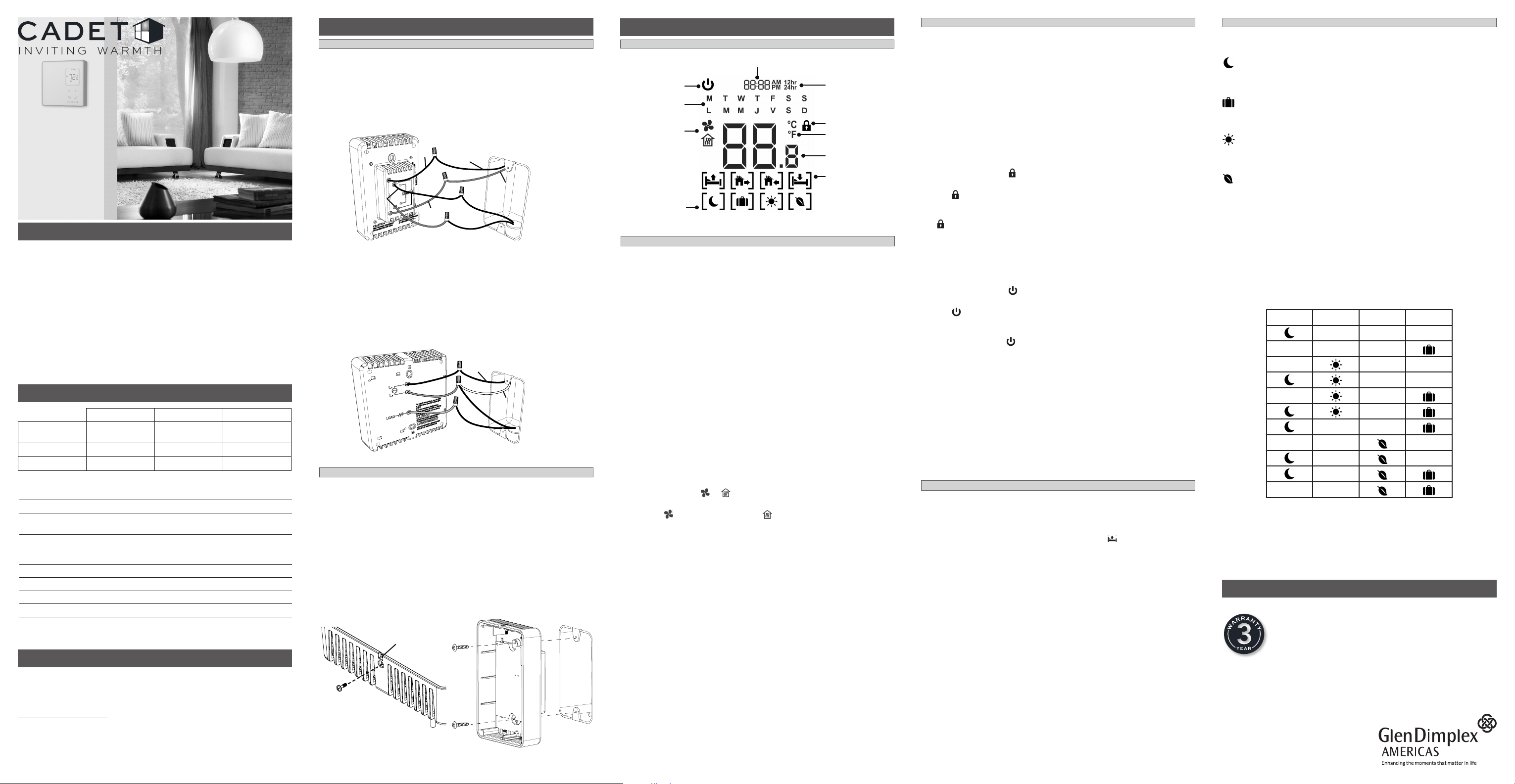

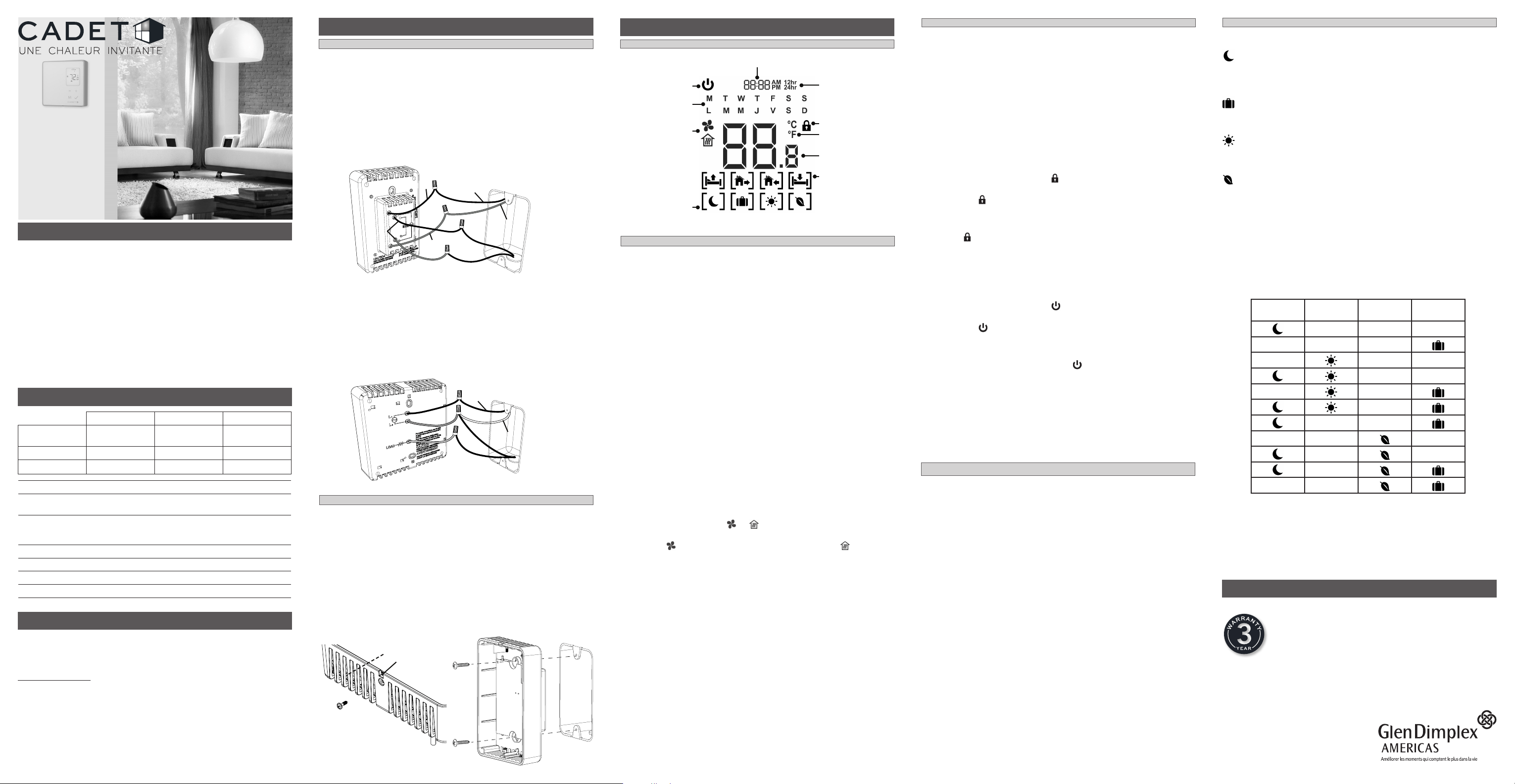

IMPORTANT INSTRUCTIONS
WARRANTY
TECHNICAL SPECIFICATIONS
TECHNICAL SUPPORT
CONTROL
INSTALLATION
TEP402DW
1. Connect the ‘L1’ thermostat wire to the live supply wire.
2. 240 V: Connect the ‘L2’ thermostat wire to the other live supply wire
and the other live heater wire.
120 V: Connect the ‘L2’ thermostat wire to the neutral supply wire
and the neutral heater wire.
3. Connect the ‘Load’ thermostat wire to the live heater wire.
TEP302DW, TEP362DW
1. Connect the black ‘L1’ thermostat wire to the live supply wire.
2. 240 V: Connect the red ‘L2’ thermostat wire to the other live supply wire.
120 V: Connect the red ‘L2’ thermostat wire to the neutral supply wire.
3. Connect the black ‘Load’ wire to the live heater wire.
4. 240 V: Connect the red ‘Load’ thermostat wire to the other heater wire.
120 V: Connect the red ‘Load’ thermostat wire to the neutral heater wire.
The thermostat should be mounted after the wiring connections have been
connected.
1. Remove the small screw at the bottom of the thermostat using a
Philips #1 screwdriver.
2. Carefully insert a small at head screwdriver in the slot between the
faceplate and the gray bezel, and gently pry apart.
3. Position the thermostat over the junction box, and secure it using the two
supplied screws.
Note: For models TEP302DW and TEP362DW, the protruding part from
the back will be recessed into the junction box
4. Reinstall the faceplate and insert the previously removed screw.
5. Remove the protective lm before use.
In case of loss of power, the thermostat will retain these settings. Follow the
instructions below to change the settings.
Language
Select your language preference (English or French):
1. Press + and - at the same time to enter the setup.
2. Press M. The days of the week will ash in the current language setting.
The letters M T W T F S S indicates the English setting. L M M J V S D
indicates the French setting.
3. Use + or - to change the current setting.
4. The display will blink for 3 seconds before returning to the main screen.
Temperature Display
Select your preferred temperature display:
1. Press + and - at the same time to enter the setup.
2. Press M twice. °C or °F will ash.
3. Press + or - if you wish to change the temperature display.
4. The display will blink for 3 seconds before returning to the main screen.
Heat Mode
Select the mode that applies to your heater: If the incorrect setting is chosen,
your heater may short cycle or hold an inconsistent temperature.
1. Press + and - at the same time to enter the setup.
2. Press M 3 times. or will ash.
3. Press + or - to select the option suitable for your heater.
Select for fan-forced heaters or for convection heaters (including
baseboard heaters).
4. The display will blink for 3 seconds before returning to the main screen.
Time and Day
Set the current time and format.
1. Press + and - at the same time to enter the setup.
2. Press M 6 times. 12hr or 24hr will ash.
3. Use + or - to change the time format.
4. Press ü to conrm. The hour digits will ash.
5. Adjust the hour using + or -.
6. Press ü to conrm. The minute digits will ash.
7. Adjust the minutes using + or -.
8. Press ü to conrm. The currently set day of the week will ash.
9. Use + or - to select the current day of the week.
10. Press ü to conrm.
Program Setup
To set the program:
1. Press M to enter the program setup. All the days of the week will ash.
2. You will need to program the rst event; Wake Up [ ] for the 5 weekdays.
The two ‘hour’ digits will ash.
3. Adjust the hours using + or -.
4. Press ü to conrm. The two ‘minute’ digits will ash.
5. Adjust the minutes in 15-minute intervals using + or -.
6. Press ü to conrm. The set point temperature will ash.
7. Adjust the event temperature set point using + or -.
8. Press ü to conrm. The Wake Up event is now programmed.
9. Repeat steps 3-8 to program the remaining events: Away, Return, and
Sleep to complete the weekday setup. Once the weekday setup is
completed, you will continue to the programming of events for the weekend.
To exit program setup at any time, wait 10 seconds for the thermostat to
return to the main screen.
SETUP
WIRING INSTRUCTIONS
MOUNTING THE THERMOSTAT
PROGRAMMING
QUICK MODESFUNCTIONS
DISPLAY
Time
Time format
Standby (OFF)
Days of the week
(English/French)
Heat Mode
(Fan, Convection/
Baseboard)
Quick Modes
(Early Start, Vacation, Comfort, Economy)
Lock
Temperature
Display
Temperature
Programmed Event
(Wake Up, Away,
Arrive, Sleep)
TEP302DW TEP362DW TEP402DW
Max. load
(at 120/240 V)
1500 W / 3000 W 1800 W / 3600 W 2000 W / 4000 W
Max. Amps 12.5 15 16.67
Wiring Double pole, 4 wire Double pole, 4 wire Single pole, 3 wire
Electrical Rating 120/208/240 V 50-60Hz
Heater Compatibility
Compatible with fan-forced or convection heaters
and baseboards
Temperature range
Programmable 5 °C - 30 °C (41 °F - 86 °F)
Readable -40 °C - 70 °C (-40 °F - 158 °F)
LCD may degrade at 0 °C (32 °F)
Software Class A
Certification cULus
Impulse Voltage 2500
Pollution Degree PD2
If the thermostat is deemed defective within 3 years of the
original date of purchase, Cadet will repair or replace the
product at its discretion.
Warranty is void in case of damage incurred from improper use
or installation.
See http://cadetheat.com/product-warranty for details.
This product must be installed by a qualied electrician.
In order to avoid re, shock or death, shut o power supply at the circuit
breaker or fuse before wiring.
Before you begin:
• Verify that the heating appliance that is being connected is within the
specied load range.
• Conrm voltage is within the device rating.
• For wiring, use copper conductors only.
• Mount on a certied electrical box only.
Keep this user’s guide in a safe place for future reference.
Use quick modes to quickly and easily change the temperature using the
following presets:
Early Start
When the ‘Early start’ function is active, the thermostat will start heating the
room 30 minutes earlier than the set time for next programmed event.
Vacation
This mode will set the temperature at 10 °C (50 °F) to conserve energy while
you are away for long periods of time.
Comfort
This mode is used to slightly increase the temperature across all programmed
events to maintain a more comfortable temperature.
Economy
This mode is used to slightly decrease the temperature across all
programmed events to save energy.
To enable/disable a quick mode:
1. Press M once. One of the quick mode icons will appear.
2. Use the + or - to scroll through icons until the desired one is selected.
3. Press ü to turn the selected quick mode on or o.
More than one quick mode can be active at the same time. See the chart
below for compatibility.
Thank you for your purchase! Question or problem? Let us solve it
with a single phone call, email or online chat! We’ll save you a trip
back to the store!
Phone: 855.223.3887 (from US)
800.668.6663 (from Canada)
email: [email protected]
Live chat: cadetheat.com (contact us)
Cadet Customer Service
7216290100R00
To heater
To heater
L2 or L2 or
NeutralNeutral
L2 or L2 or
NeutralNeutral
L1
LoadLoad
L1
L2
L1
To power supply
To power supply
In keeping with our policy of continuous product
improvement, we reserve the right to make
changes without notice.
© 2020 Glen Dimplex Americas
Insert small
at head
screwdriver
here
Early Start Comfort Economy Vacation
Setting the Temperature
The display will show the ambient temperature, except during temperature
adjustment, in which case it will show the set temperature. To adjust the set
temperature:
1. Press + or - to select the desired temperature.
2. The display will blink for 3 seconds before returning to the main screen.
When the temperature is changed from the scheduled set point for the current
event, HOLd will appear at the top of the screen, where the time is normally
displayed. This indicates that a temporary hold has been set. The next
scheduled event will override this temperature change.
Lock Function
Use the lock function to prevent the settings from being changed inadvertently.
1. Press + and - at the same time.
2. Press M 5 times. The icon will blink.
3. Press + or - to toggle it on and o.
The icon blinks fast to indicate that it is enabled, and blinks slow to
indicate that it is disabled.
4. The display will blink for 3 seconds before returning to the main screen.
The icon will remain visible to indicate that the lock function is enabled.
To disable, press and hold + and -.
Standby (OFF)
Use the standby function to turn the heat o indenitely.
1. Press + and - at the same time.
2. Press M 4 times. The icon will blink.
3. Press + or - to toggle it on and o.
The icon blinks fast to indicate that it is enabled, and blinks slow to
indicate that it is disabled.
4. The display will blink for 3 seconds before returning to the main screen.
When enabled, only the icon will remain visible on the screen. Repeat
steps 1-4 to turn the thermostat on again.
To disable, press and hold + and -.
Factory Reset
If thermostat settings need to be adjusted signicantly, the thermostat can be
reset.
• Press and hold the M for 10 seconds. The display will ash and be reset to
the thermostat’s original conguration.
TEP SERIESTEP SERIES
PROGRAMMABLE ELECTRONIC PROGRAMMABLE ELECTRONIC
LINE VOLTAGE THERMOSTATLINE VOLTAGE THERMOSTAT
USER’S GUIDEUSER’S GUIDE
