ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page 1 of 35

Highlights

The NETGEAR

Intelligent Edge M4100 series consists of 9 fully managed

switches, ranging from 12-port to 50-port Fast and Gigabit Ethernet. They are

ideal for all organizations considering reliable, aordable and simple access layer

switching with CLI, advanced scripting capabilities and Layer 3 routing.

As a cost-eective component of converged voice, video and data networking

solutions, NETGEAR M4100 series delivers a secure edge in commercial

buildings and campus LAN environments: PoE (802.3af) and PoE+ (802.3at)

versions of M4100 series are perfect for Wireless access points, IP telephony

and IP surveillance deployments.

Layer 2+ with static routing

•M4100seriescomeswithPort-based/

VLAN-based/Subnet-based“staticrouting”

Layer2+versions

•L3xedroutestothenexthoptowards

thedestinationnetworkareaddedtothe

routingtable

•L3routingiswire-speedinM4100series

hardwarewith64staticroutes(IPv4)

Engineered for convergence

•Automaticmulti-vendorVoiceoverIP

prioritizationbasedonSIP,H323and

SCCPprotocols

•VoiceVLANandLLDP-MEDforautomatic

IPphonesQoSandVLANconguration

•Advancedclassier-basedhardwareforL2,

L3,L4securityandprioritization

•AdvancedMulticastlteringwithIGMPand

MLDsnoopingandqueriermodes

High-value performance and IPv6 ready

•16KMACaddresses;upto100Gbps

switchingfabric;9Kjumboframes;Green

Ethernet

•IPv4/IPv6ingresstracltering(ACLs)and

prioritization(QoS-DiServ)

High availability and PoE/PoE+ full power

capability

•Redundantpowersupplyoptionfor

uninterruptibleoperation(RPS)

•ExternalpowersupplyoptionforPoEand

PoE+fullpowerapplications(EPSupto

1,440W)

Industry standard management

•Industrystandardcommandlineinterface

(CLI),functionalNETGEARwebinterface

(GUI),SNMP,sFlowandRSPAN

•Single-pane-of-glassNMS300

managementplatformwithcentralized

rmwareupdatesandmass-conguration

support

Industry leading warranty

•NETGEARM4100seriesiscoveredunder

NETGEARProSAFELifetimeHardware

Warranty*

•90daysofTechnicalSupportviaphoneand

email,LifetimeTechnicalSupportthrough

onlinechatandLifetimeNextBusinessDay

hardwarereplacement

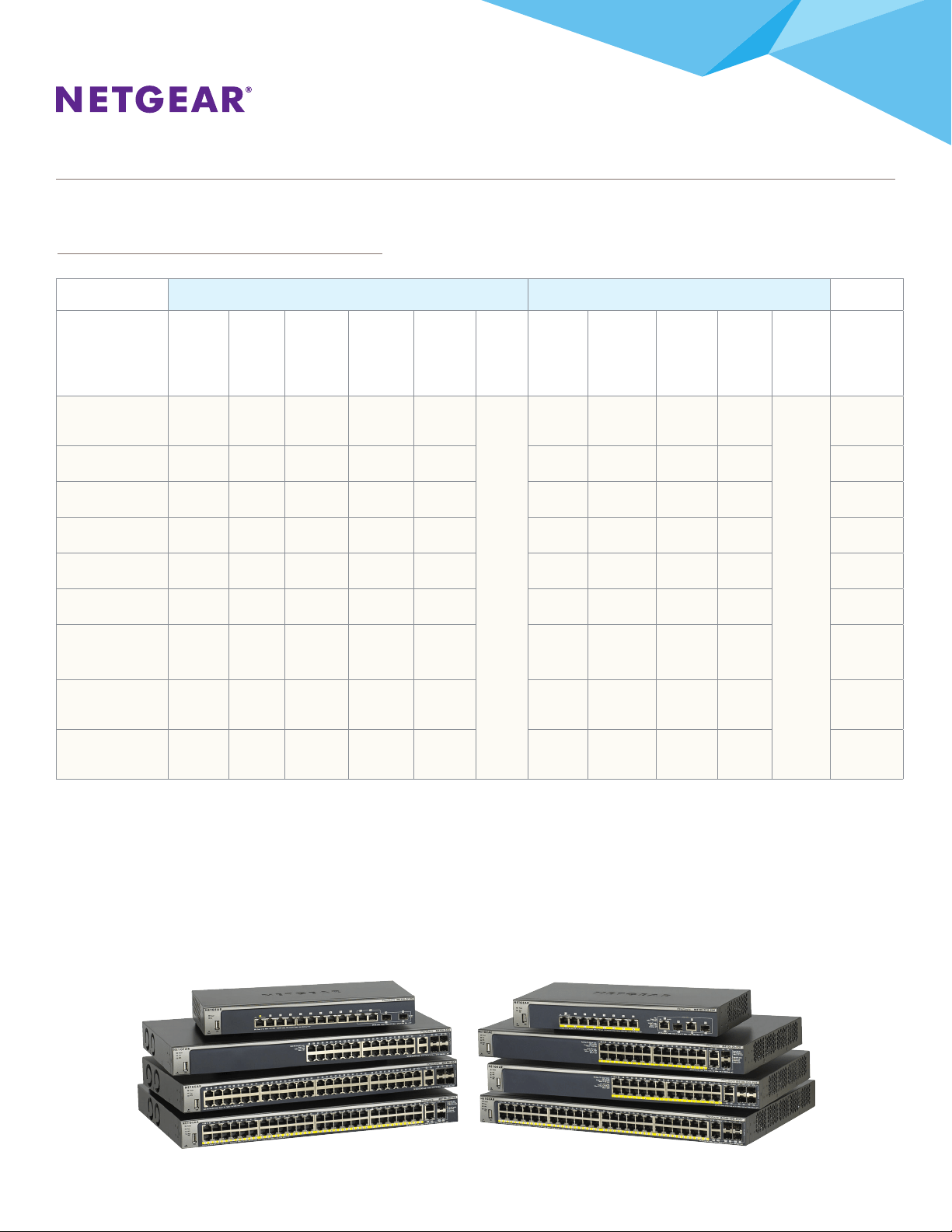

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page2of35

FRONT REAR

Model

Name

Form

Factor

10/100

Base-T

RJ45

ports

10/100/

1000

Base-T

RJ45

ports

100/

1000X

FiberSFP

ports

PoE

802.3af

PoE+

802.3at

Storage

(image,

cong)

Power

Supply/

Powered

byPoE

RPS

(connec-

tor)

PoE

budget

(PSU/

Pass

through)

PoE

budget

(with

EPS)

Man-

age-

ment

console

Model

number

M4100-50-POE

Rack

mount

48 2 2 (shared)

48 PoE

802.3af

1 x USB

Internal/

1 (RPS or

EPS)

380W

Up to

740W

(EPS)

1x

RS232

DB9,

1x

Mini-USB

(select-

able)

FSM7250P

M4100-D12G Desktop - 12 2 (shared) -

External/

Yes

PD mode - - GSM5212

M4100-D12G-POE+ Desktop - 12 4 (shared)

10 PoE+

802.3at

Internal/

Yes

PD mode

120W/

25W

GSM5212P

v1h2

M4100-12GF

Rack

mount

- 12 12 (shared)

4 PoE+

802.3at

Internal/

1 (RPS) 150W -

GSM7212F

v1h2

M4100-26G

Rack

mount

- 26 4 (shared) -

Internal/

1 (RPS) - -

GSM7224

v2h2

M4100-50G

Rack

mount

- 50 4 (shared) -

Internal/

1 (RPS) - -

GSM7248

v2h2

M4100-26G-POE

Rack

mount

- 26 4 (shared)

24 PoE

802.3af

Internal/

1 (RPS or

EPS)

192W

Up to

380W

(EPS)

GSM7226LP

M4100-24G-POE+

Rack

mount

- 24 4 (shared)

24 PoE+

802.3at

Internal/

1 (RPS or

EPS)

380W

Up to

720W

(EPS)

GSM7224P

v1h2

M4100-50G-POE+

Rack

mount

- 50 4 (shared)

48 PoE+

802.3at

Internal/

1 (RPS or

EPS)

380W

Up to

1,440W

(EPS)

GSM7248P

Hardware at a Glance

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page 3 of 35

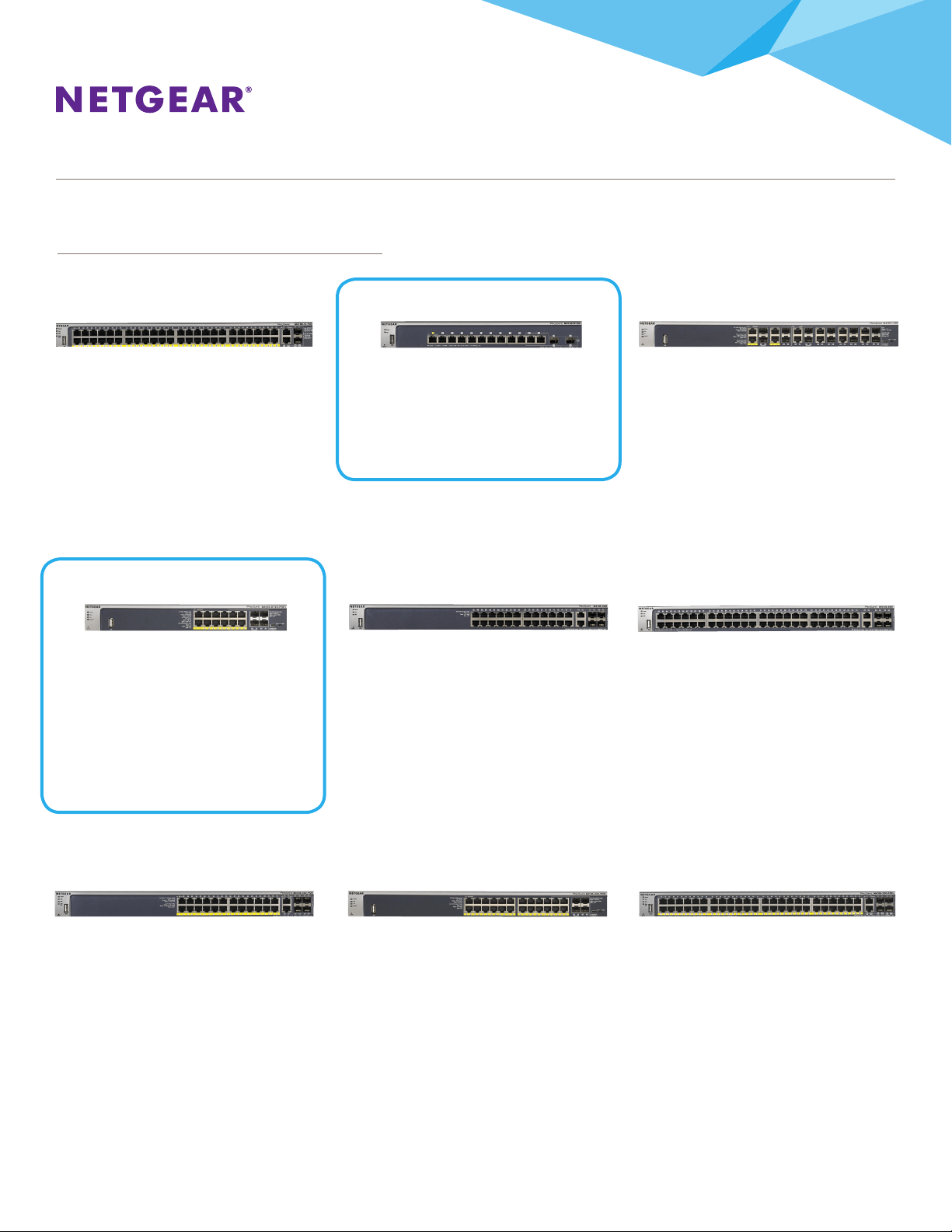

M4100-D12G isadesktop12x1000Base-T

version,Layer2+

•2sharedSFP

•ExternalPSU;fanless

•CanbepoweredbyPoE+

M4100-D12G-POE+isadesktop12x

1000Base-Tversion,Layer2+

•4sharedSFP;2portsPoE+“in”and10

portsPoE+“out”

•InternalPSUwithlowacoustics;120W

budget

•CanbepoweredbyPoE+andredistribute

25WPoEbudget

M4100-26G-POEisa24x1000Base-TPoE

version,Layer2+

•2x1000Base-Tand4sharedSFP

•InternalPSUwithRPS/EPS

•192Wbudgetandupto380WwithEPS

M4100-12GFisa12xSFPversionfor

aggregation,Layer2+

•12shared1000Base-T

•InternalPSUwithRPS

•4portsPoE+with150Wbudget

M4100-26Gisa26x1000Base-Tversion,

Layer2+

•4sharedSFP

•InternalPSUwithRPS

M4100-24G-POE+isa24x1000Base-TPoE+

version,Layer2+

•4sharedSFP

•InternalPSUwithRPS/EPS

•380Wbudgetandupto720WwithEPS

M4100-50-POEisa48x100Base-TPoE

version,Layer2+

•2Gigabitportswith2sharedSFP

•InternalPSUwithRPS/EPS

•380Wbudgetandupto720WwithEPS

M4100-50Gisa50x1000Base-Tversion,

Layer2+

•4sharedSFP

•InternalPSUwithRPS

M4100-50G-POE+isa48x1000Base-TPoE+

version,Layer2+

•2x1000Base-Tand4sharedSFP

•InternalPSUwithRPS/EPS

•380Wbudgetandupto1,440WwithEPS

Hardware at a Glance

PoE “passthrough” technology

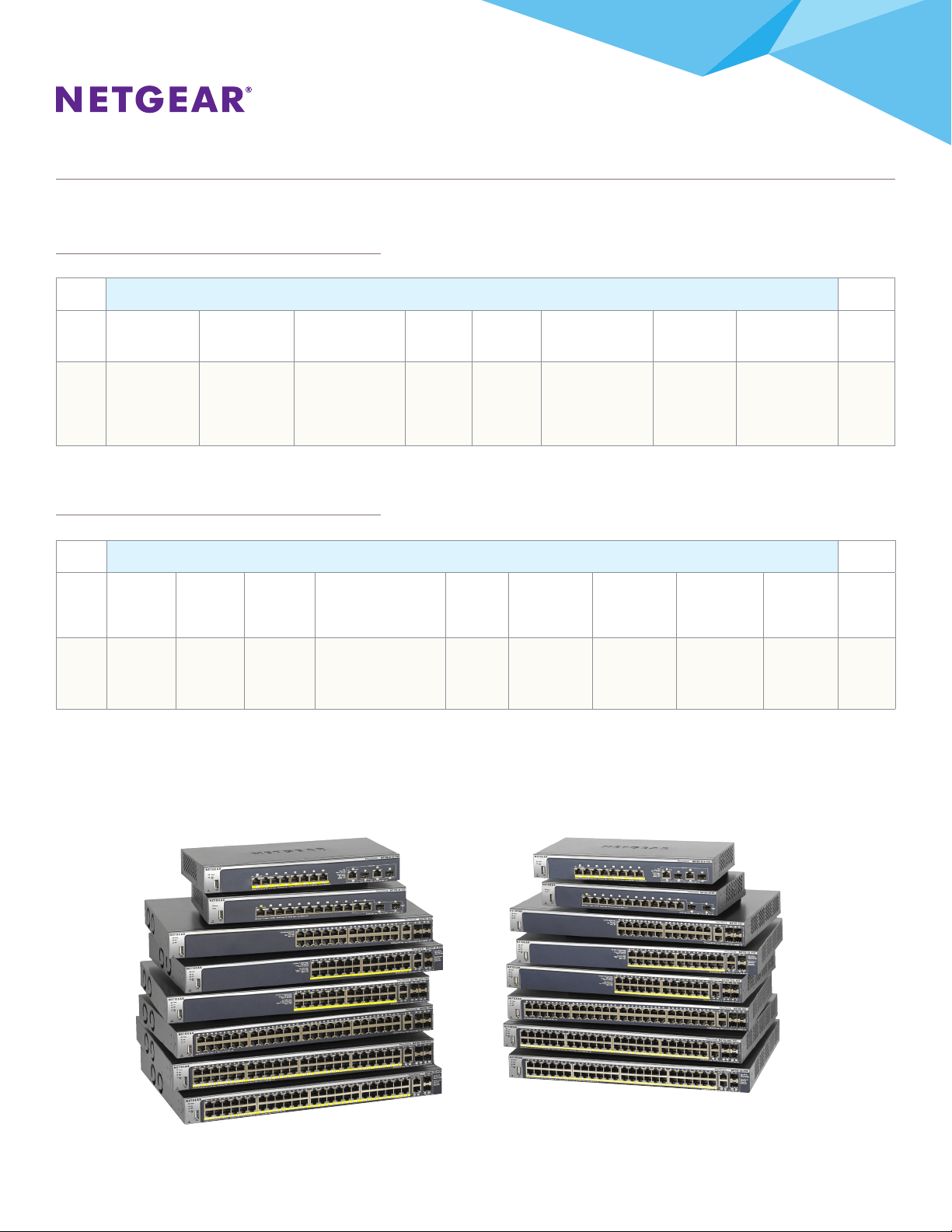

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page4of35

LAYER 2+ PACKAGE

Model

Name

Management

IPv4/IPv6

ACLandQoS,

DiServ

IPv4/IPv6

Multicast

Filtering

Auto-VoIP

Green

Ethernet

VLANs Convergence

IPv4

UnicastStatic

Routing

Model

Number

M4100

series

WebGUI;HTTPs

CLI;Telnet;SSH

SNMP,MIBs

RSPAN

L2,L3,L4,

ingress

1Kbps

IGMPandMLD

Snooping,IGMPand

MLDQuerier,MVR

Yes

EEE

(802.3az)

Energy

Detect

Mode

Static,Dynamic,

Voice,MAC,Subnet,

Protocol-based,

QinQ,PrivateVLANs

LLDP-MED,

RADIUS,

802.1X,timer

Yes

(Port-based,

Subnet,VLANs,

Loopback)

all

models

TABLE SIZE

Model

Name

Packet

buer

CPU ACLs

MACaddresstable

ARP/NDPtable

VLANs

DHCPserver

Fabric Latency

StaticRoutes

IPinterfaces

Multicast

IGMPGroup

membership

sFlow

Model

number

M4100

series

all

models

12Mb

600Mhz

128MRAM

32MFlash

50ACLs

512rules

(ingress)

16KMAC

512ARP/NDP

VLANs:1K

DHCP:16pools

1,024maxleases

Upto

100Gbps

allmodels

line-rate

<3.91μs

100M

<10.194μs

64staticroutes

64IPinterfaces

IPv4

32samplers

52pollers

8receivers

all

models

Software at a Glance

Performance at a Glance

The Intelligent Edge M4100 series switches are NETGEAR fully managed switches for 100M/1G access layer in SMB, Small Enterprise

and Campus networks. The M4100 series delivers the best combination of performance, security and convergence at a high-value price

point—unlike competitive, entry-level “SMB” solutions. Redundant power supply options (RPS), full PoE+ external power supply options

(EPS), Private VLANs, LLDP-MED and MVR take a scalable, future-proof approach to delivering network services for Wireless access points,

IP phones and IP cameras infrastructures.

NETGEAR Intelligent Edge M4100 series key features:

 •Broadportfolioofaccesslayersolutions,rangingfrom12portsFastEthernetto50portsGigabitEthernet

•802.3afPoEand802.3atPoE+bestt,rangingfrom120Wto1,440Wpowerbudgetperswitch

•IPv4routinginLayer2+package(L3staticrouting)withIPv4/IPv6ACLsandQoS

•HighvalueL2/L3tableswith16KMAC,512ARP/NDP,9Kjumboframes,1KVLANs,64staticL3routes

•Redundantpowersupplyoptionforuninterruptibleoperation(RPS)

•ExternalpowersupplyoptionforPoEandPoE+full-powerapplications(EPS)

•GreenEthernetcomplianceformaximumpowereciency

NETGEAR Intelligent Edge M4100 series soware features:

 •Automaticmulti-vendorVoiceoverIPprioritizationbasedonSIP,H323andSCCPprotocoldetection

•VoiceVLANandLLDP-MEDforautomaticIPphonesQoSandVLANconguration

•IPv4/IPv6MulticastlteringwithIGMPandMLDsnooping,QueriermodeandMVRforsimpliedvideodeployments

•Advancedclassier-basedhardwareimplementationforL2(MAC),L3(IP)andL4(UDP/TCPtransportports)inboundsecurityandprioritization

NETGEAR Intelligent Edge M4100 series link aggregation and channeling features:

 •FlexiblePort-Channel/LAG(802.3ad)implementationformaximumcompatibility,faulttoleranceandloadsharingwithanytypeof

Ethernet channeling

•Includingstatic(selectablehashingalgorithms)ordynamicLAGs(LACP)

NETGEAR Intelligent Edge M4100 series management features:

 •DHCP/BootPinnovativeauto-installationincludingrmwareandcongurationleuploadautomation

•IndustrystandardSNMP,RMON,MIB,LLDP,AAA,sFlowandRSPANimplementation

•SelectableserialRS232DB9andMini-USBportformanagementconsole

•StandardUSBportforlocalstorage,congurationorimageles

•Dualrmwareimageandcongurationleforupdateswithminimumserviceinterruption

•Industrystandardcommandlineinterface(CLI)forITadminsusedtoothervendorscommands

•FullyfunctionalWebconsole(GUI)forITadminswhopreferaneasytousegraphicalinterface

•Single-pane-of-glassNMS300managementplatformwithmass-congurationsupport

NETGEAR Intelligent Edge M4100 series warranty and support:

•NETGEARProSafeLifetimeHardwareWarranty*

•IncludedLifetimeOnlineChatTechnicalSupport

•IncludedLifetimeNextBusinessDayHardwareReplacement

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page 5 of 35

Product Brief

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page6of35

Layer 3 hardware with L2+ soware aordability

M4100 series models are built upon L3 hardware

platform while Layer 2+ soware package allows for

better budget optimization

• M4100 series uses latest generation silicon low-power 40-nanometer technology

• M4100 series L2 and L3 switching features (access control list, classiﬁcation, ﬁltering, IPv4 routing)

are performed in hardware at interface line rate for voice, video, and data convergence

M4100 series Layer 2+ soware package provides

straight forward IP static routing capabilities for

physical interfaces, VLANs and subnets

• Fast Ethernet 802.3af PoE: M4100-50-POE (48 ports)

• Gigabit: M4100-D12G (12 ports desktop); M4100-12GF (12 ports Fiber); M4100-26G (26 ports);

M4100-50G (50 ports)

• Gigabit 802.3af PoE: M4100-26G-POE (24 ports)

• Gigabit 802.3at PoE+: M4100-D12G-POE+ (12 ports desktop); M4100-24G-POE+ (24 ports);

M4100-50G-POE+ (48 ports)

• At the edge of campus networks or in the server room, static routes are oen preferred for simplicity

(L3 ﬁxed routes to the next hop towards the destination network are manually added to the routing table),

without any impact on performance because L3 routing is wire-speed in M4100 series hardware

High-value switching performance

16KMACaddresstable,1KconcurrentVLANsand64staticroutesforSMBandsmallenterpriseaccesslayers

80PLUScertiedpowersuppliesforenergyhigheciency

GreenEthernetwithEnergyEcientEthernet(EEE)

denedbyIEEE802.3azEnergyEcientEthernet

Task Force

• M4100-D12G; M4100-26G; M4100-50G; M4100-26G-POE; M4100-50G-POE+

Green Ethernet with Energy Detect Mode

(unused ports automatic power o)

• M4100-50-POE; M4100-D12G-POE+; M4100-12GF; M4100-24G-POE+

Increased packet buering with up to 12 Mb dynamically shared accross all interfaces for most intensive virtualization applications

Low latency at all network speeds

Jumboframessupportofupto9Kbacceleratingstorageperformanceforbackupandcloudapplications

Ease of deployment

Placement outside the wiring closet (conference

rooms,oces,classrooms,salesoorinretail

stores, etc…)

• Forsecuredeploymentinopenareas,desktopversionscomewithaWallMountKitwithfourbrack-

ets

• M4100-D12G (GSM5212)

• M4100-D12G-POE+ (GSM5212P)

• Asanoption,aRackMountKitisorderable(420-10043-01)

Select desktop versions also come with a set of

strong magnets for mounting on any metal surface

• M4100-D12G (GSM5212)

Modern access layer features highlights

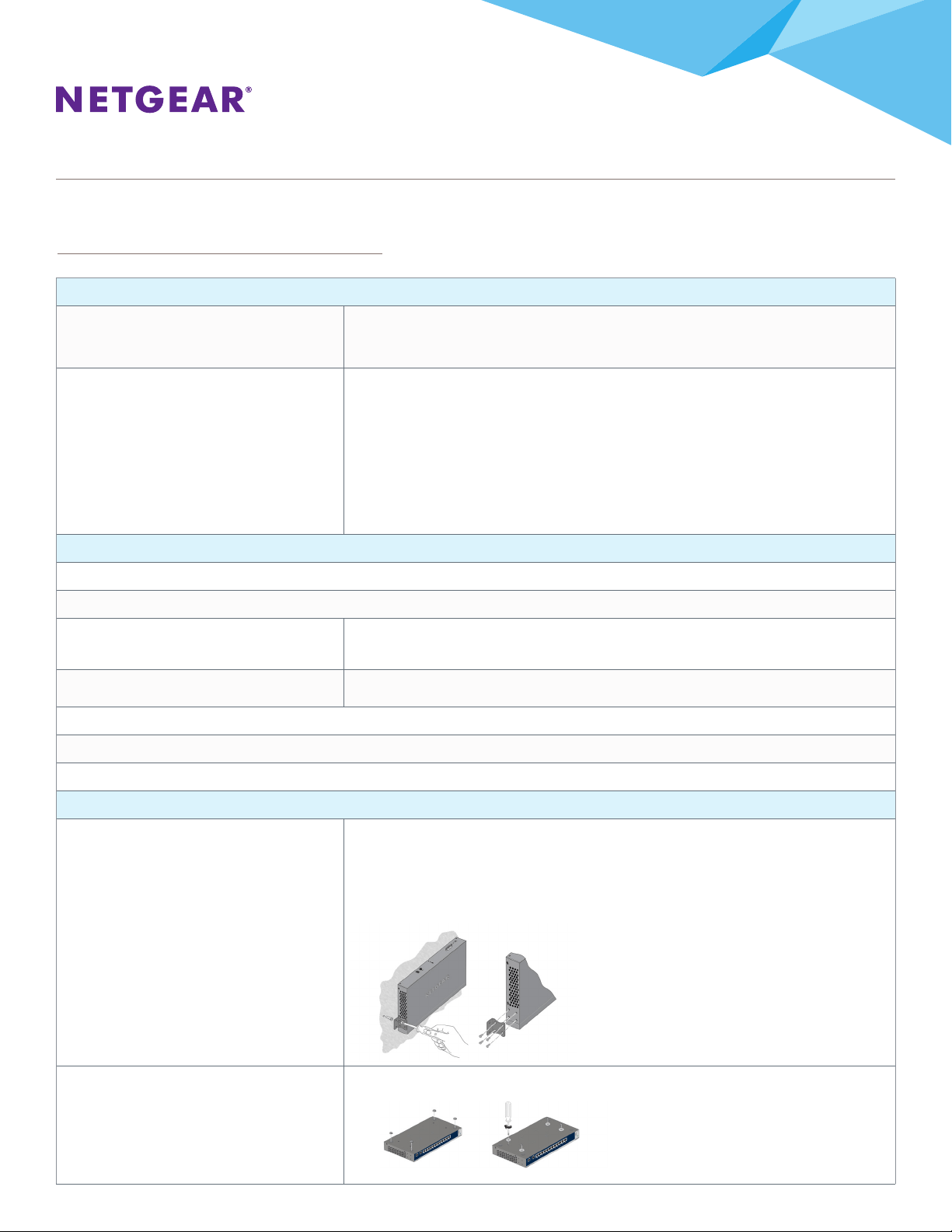

Installing M4100 desktop series on a Wall

Installing M4100 desktop series using Magnets

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page7of35

AutomaticcongurationwithDHCPandBootPAutoInstalleaseslargedeploymentswithascalablecongurationlesmanagementcapability,mappingIPaddresses

and host names and providing individual conﬁguration ﬁles to multiple switches as soon as they are initialized on the network

Both the Switch Serial Number and Switch primary MAC address are reported by a simple "show" command in the CLI - facilitating discovery and remote

conﬁguration operations

AutomaticVoiceoverIPprioritizationwithAuto-VoIPsimpliesmostcomplexmulti-vendorIPtelephonesdeploymentseitherbasedonprotocols(SIP,H323and

SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address; providing the best class of service to VoIP streams (both data and

signaling)overotherordinarytracbyclassifyingtrac,andenablingcorrectegressqueueconguration

AnassociatedVoiceVLANcanbeeasilyconguredwithAuto-VoIPforfurthertracisolation

When deployed IP phones are LLDP-MED compliant, the Voice VLAN will use LLDP-MED to pass on the VLAN ID, 802.1P priority and DSCP values to the IP phones,

accelerating convergent deployments

Versatile connectivity including “PoE Passthrough”

IEEE 802.3af Power over Ethernet (PoE) provides up to 15.4W per port (M4100-50-POE; M4100-26G-POE)

IEEE 802.3at Power over Ethernet Plus (PoE+) provides up to 30W per port (M4100-D12G-POE+; M4100-24G-POE+; M4100-50G-POE+)

Desktop versions can be powered by upstream PoE+ switch using their Port-1 (PD, PoE+ 30W): M4100-D12G and M4100-D12G-POE+

M4100-D12G-POE+canevenredistributePoEpowerfromtheupstreamPoE+switchtoVoIPphonesorotherdevicesinmeetingrooms,retailsalesoorsorother

challenging environments without outlet

Both IEEE 802.3at Layer 2 LLDP method and 802.3at 2-event classiﬁcation methods are supported for compatibility with all PoE+ PD devices

Automatic MDIX and Auto-negotiation on all ports select the right transmission modes (half or full duplex) as well as data transmission for crossover or straight-

through cables dynamically for the admin

100Mbps backward compatiblity on all SFP ports

IPv6supportwithmulticasting(MLDforIPv6ltering),ACLsandQoS

Tier 1 availability

Rapid Spanning Tree (RSTP) and Multiple Spanning Tree (MSTP) allow for rapid transitionning of the ports to the Forwarding state and the suppression of Topology

Change Notiﬁcation

IPaddressconictdetectionperformedbytheembeddedDHCPserverpreventsaccidentalIPaddressduplicatesfromperturbingtheoverallnetworkstability

Power redundancy for higher availability when mission critical, including hot-swap PSUs and Fans

Ease of management and control

Dual ﬁrmware image and dual conﬁguration ﬁle for transparent ﬁrmware updates/conﬁguration changes with minimum service interruption

Flexible Port-Channel /LAG (802.3ad) implementation for maximum compatibility, fault tolerance and load sharing with any type of Ethernet channeling from other

vendors switch, server or storage devices conforming to IEEE 802.3ad - including static (selectable hashing algorithms) or dynamic LAGs (highly tunable LACP Link

Aggregation Control Protocol )

Port names feature allows for descriptive names on all interfaces and better clarity in real word admin daily tasks

Loopback interfaces management for routing protocols administration

Private VLANs and local Proxy ARP help reduce broadcast with added security

Management VLAN ID is user selectable for best convenience

Industry-standard VLAN management in the command line interface (CLI) for all common operations such as VLAN creation; VLAN names; VLAN "make static"

for dynamically created VLAN by GRVP registration; VLAN trunking; VLAN participation as well as VLAN ID (PVID) and VLAN tagging for one interface, a group of

interfaces or all interfaces at once

SimpliedVLANcongurationwithindustry-standardAccessPortsfor802.1QunawareendpointsandTrunkPortsforswitch-to-switchlinkswithNativeVLAN

Modern access layer features highlights

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page 8 of 35

Modern access layer features highlights

System defaults automatically set per-port broadcast, multicast, and unicast storm control for typical, robust protection against DoS attacks and faulty clients which

can, with BYOD, oen create network and performance issues

IP Telephony administration is simpliﬁed with consistent Voice VLAN capabilities per the industry standards and automatic functions associated

Comprehensive set of "system utilities" and "Clear" commands help troubleshoot connectivity issues and restore various conﬁgurations to their factory defaults for

maximumadmineciency:traceroute(todiscovertheroutesthatpacketsactuallytakewhentravelingonahop-by-hopbasisandwithasynchronousresponse

when initiated from the CLI), clear dynamically learned MAC addresses, counters, IGMP snooping table entries from the Multicast forwarding database etc.

Allmajorcentralizedsowaredistributionplatformsaresupportedforcentralsowareupgradesandcongurationlesmanagement(HTTP,TFTP),includinginhighly

securedversions(HTTPS,SFTP,SCP)

Simple Network Time Protocol (SNTP) can be used to synchronize network resources and for adaptation of NTP, and can provide synchronized network timestamp

either in broadcast or unicast mode (SNTP client implemented over UDP - port 123)

EmbeddedRMON(4groups)andsFlowagentspermitexternalnetworktracanalysis

Remote mirroring (RSPAN) can transport packets captured on an interface on a source switch across the network to a destination on a possibly dierent

destination switch

Engineered for convergence

Audio (Voice over IP) and Video (multicasting) comprehensive switching, ﬁltering, routing and prioritization

Auto-VoIP,VoiceVLANandLLDP-MEDsupportforIPphonesQoSandVLANconguration

IGMPSnoopingforIPv4,MLDSnoopingforIPv6andQueriermodefacilitatefastreceiversjoinsandleavesformulticaststreamsandensuremulticasttraconly

reaches interested receivers without the need of a Multicast router

Multicast VLAN Registration (MVR) uses a dedicated Multicast VLAN to forward multicast streams and avoid duplication for clients in dierent VLANs

Schedule enablement

Enterprise security

TraccontrolMACFilterandPortSecurityhelprestrictthetracallowedintoandoutofspeciedportsorinterfacesinthesysteminordertoincreaseoverall

securityandblockMACaddressoodingissues

DHCPSnoopingmonitorsDHCPtracbetweenDHCPclientsandDHCPserverstolterharmfulDHCPmessageandbuildsabindingsdatabaseof(MACaddress,

IPaddress,VLANID,port)tuplesthatareconsideredauthorizedinordertopreventDHCPserverspoongattacks

IPsourceguardandDynamicARPInspectionusetheDHCPsnoopingbindingsdatabaseperportandperVLANtodropincomingpacketsthatdonotmatchany

bindingandtoenforcesourceIP/MACaddressesformalicioususerstracelimination

Time-based Layer 2/Layer 3-v4/Layer 3-v6/Layer 4 Access Control Lists (ACLs) can be binded to ports, Layer 2 interfaces, VLANs and LAGs (Link Aggregation

Groups or Port channel) for fast unauthorized data prevention and right granularity

Bridge protocol data unit (BPDU) Guard allows the network administrator to enforce the Spanning Tree (STP) domain borders and keep the active topology

consistentandpredictable-unauthorizeddevicesorswitchesbehindtheedgeportsthathaveBPDUenabledwillnotbeabletoinuencetheoverallSTPtopology

by creating loops

Spanning Tree Root Guard (STRG) enforces the Layer 2 network topology by preventing rogue root bridges potential issues when for instance, unauthorized or

unexpectednewequipmentinthenetworkmayaccidentallybecomearootbridgeforagivenVLAN

Dynamic 802.1x VLAN assignment mode, including

Dynamic VLAN creation mode and Guest VLAN/

Unauthenticated VLAN are supported for rigorous user

andequipmentRADIUSpolicyserverenforcement

• Up to 48 clients (802.1x) per port are supported, including the authentication of the users domain, in

order to facilitate convergent deployments: for instance when IP phones connect PCs on their bridge, IP

phones and PCs can authenticate on the same switch port but under dierent VLAN assignment policies

(Voice VLAN versus data VLAN)

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page9of35

802.1x MAC Address Authentication Bypass (MAB)

is an alternative method for non-Radius clients

• A list of authorized MAC addresses of client NICs is maintained on the RADIUS server for MAB pur-

pose

• MAB can be conﬁgured on a per-port basis on the switch

• MAB initiates only aer the dot1x authentication process times out, and only when clients don’t respond

to any of the EAPOL packets sent by the switch

• When 802.1x unaware clients try to connect, the switch sends the MAC address of each client to the

authentication server

• The RADIUS server checks the MAC address of the client NIC against the list of authorized addresses

• The RADIUS server returns the access policy and VLAN assignment to the switch for each client

DoubleVLANs(DVLAN-QinQ)passtracfromonecustomerdomaintoanotherthroughthe“metrocore”inamulti-tenancyenvironment:customerVLANIDsare

preservedandaserviceproviderVLANIDisaddedtothetracsothetraccanpassthemetrocoreinasimple,securemanner

Private VLANs (with Primary VLAN, Isolated VLAN,

CommunityVLAN,Promiscuousport,Hostport,

Trunks) provide Layer 2 isolation between ports

that share the same broadcast domain, allowing a

VLAN broadcast domain to be partitioned into smaller

point-to-multipoint subdomains across switches in

the same Layer 2 network

• Private VLANs are useful in DMZ when servers are not supposed to communicate with each other but

need to communicate with a router; they remove the need for more complex port-based VLANs with

respective IP interface/subnets and associated L3 routing

• Another Private VLANs typical application are carrier-class deployments when users shouldn’t see, snoop

orattackotherusers’trac

SecureShell(SSH)andSNMPv3(withorwithoutMD5orSHAauthentication)ensureSNMPandTelnetsessionsaresecured

TACACS+ and RADIUS enhanced administrator management provides strict "Login" and "Enable" authentication enforcement for the switch conﬁguration, based on

latestindustrystandards:execauthorizationusingTACACS+orRADIUS;commandauthorizationusingTACACS+andRADIUSServer;userexecaccountingforHTTP

andHTTPSusingTACACS+orRADIUS;andauthenticationbasedonuserdomaininadditiontouserIDandpassword

Superior quality of service

Advanced classiﬁer-based hardware implementation for Layer 2 (MAC), Layer 3 (IP) and Layer 4 (UDP/TCP transport ports) prioritization

8queuesforprioritiesandvariousQoSpoliciesbasedon802.1p(CoS)andDiServcanbeappliedtointerfacesandVLANs

Advancedratelimitingdownto1Kbpsgranularityandmininum-guaranteedbandwidthcanbeassociatedwithACLsforbestgranularity

Automatic Voice over IP prioritization with Auto-VoIP

Advanced Layer 2+ routing package

Static Routes/ECMP Static Routes for IPv4

• Static and default routes are conﬁgurable with next IP address hops to any given destination

• 64 static routes are conﬁgurable for IPv4

• Permitting additional routes creates several options for the network administrator

• The admin can conﬁgure multiple next hops to a given destination, intending for the router to load share

across the next hops

• The admin distinguishes static routes by specifying a route preference value: a lower preference value is a

more preferred static route

• A less preferred static route is used if the more preferred static route is unusable (down link, or next hop

cannot be resolved to a MAC address)

Modern access layer features highlights

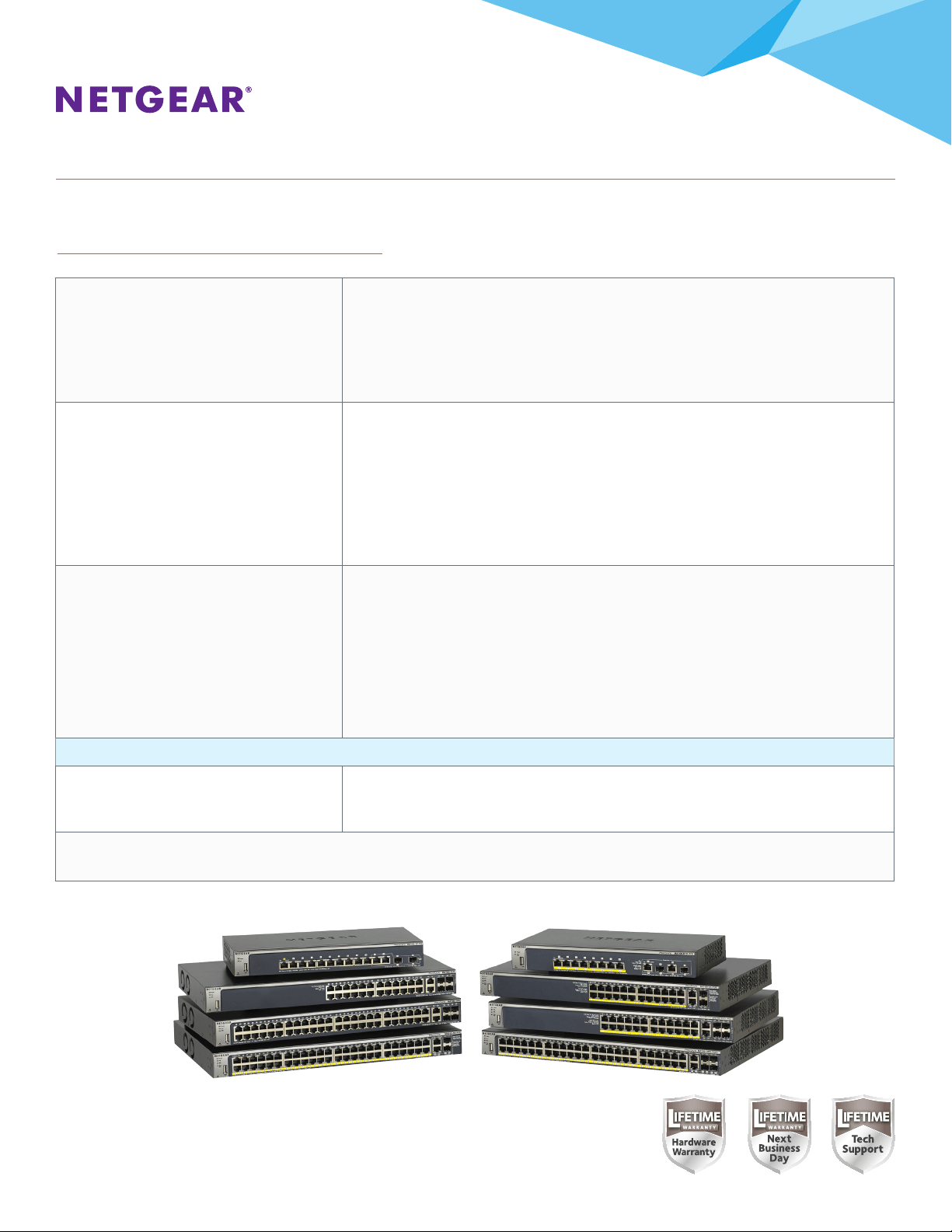

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page10of35

Modern access layer features highlights

Advanced Static Routing functions for administrative

traccontrol

• StaticRejectRoutesarecongurabletocontrolthetracdestinedtoaparticularnetworksothatitisnot

forwarded through the router

• SuchtracisdiscardedandtheICMPdestinationunreachablemessageissentbacktothesource

• Staticrejectroutescanbetypicallyusedtopreventroutingloops

• Default routes are conﬁgurable as a preference option

In order to facilitate VLAN creation and VLAN routing

using Web GUI, a VLAN Routing Wizard oers follow-

ing automated capabilities

• CreateaVLANandgenerateauniquenameforVLAN

• Add selected ports to the newly created VLAN and remove selected ports from the default VLAN

• Create a LAG, add selected ports to a LAG, then add this LAG to the newly created VLAN

• Enable tagging on selected ports if the port is in another VLAN

• Disable tagging if a selected port does not exist in another VLAN

• Exclude ports that are not selected from the VLAN

• Enable routing on the VLAN using the IP address and subnet mask entered as logical routing interface

DHCPRelayAgentsrelayDHCPrequestsfromany

routedinterface,includingVLANs,whenDHCPserver

doesn’t reside on the same IP network or subnet

• TheagentrelaysrequestsfromasubnetwithoutaDHCPservertoaserverornext-hopagentonanother

subnet

• UnlikearouterwhichswitchesIPpacketstransparently,aDHCPrelayagentprocessesDHCPmessages

andgeneratesnewDHCPmessages

• SupportsDHCPRelayOption82circuit-idandremote-idforVLANs

• MultipleHelperIPsfeatureallowstocongureaDHCPrelayagentwithmultipleDHCPserveraddresses

per routing interface and to use dierent server addresses for client packets arriving on dierent inter-

faces on the relay agent server addresses for client packets arriving on dierent interfaces on the relay

agent

Flow Control

802.3x Flow Control implementation per IEEE 802.3

Annex31BspecicationswithSymmetricow

control,AsymmetricowcontrolorNoowcontrol

AsymmetricowcontrolallowstheswitchtorespondtoreceivedPAUSEframes,buttheportscannot

generate PAUSE frames

Symmetricowcontrolallowstheswitchtobothrespondto,andgenerateMACcontrolPAUSEframes

Allowstracfromonedevicetobethrottledforaspeciedperiodoftime:adevicethatwishestoinhibittransmissionofdataframesfromanotherdeviceonthe

LAN transmits a PAUSE frame

WhyM4100seriesforthe

edgeofsmallenterprise

networks?

BecausetheM4100seriesoersupto3x

bettervalue:

•Combiningsuperiorresiliencyandadvanced

security, NETGEAR Intelligent Edge managed

switches feature comprehensive Layer 2,

Lite Layer 3 and Layer 4 switching; including

ﬁber aggregation capabilities. Unlike other

‘cost conscious’ products from competitors,

the NETGEAR Intelligent Edge series has

been designed from the ground up for

organizationsrequiringintelligenceatthe

network edge.

•Aordableandreliable,theseaccesslayer

switches win as a proﬁcient component of

secure, converged voice, video and data

networking solutions.

NET GEAR

ProSAFE

M6100-3S

XCM892 4X

Reset

SFP SPD/Link/ ACT Mode: Green = Link at 10G Yellow = Link at 1G

Blink = ACT

Green =

Link at 10G

Yellow=

USB

OOB

Consol e

100M/1G

Blink=ACT

Supervisor

PWR /

Status

10F

10T

11F

12F

11T

12T

13F

14F

13T

14T

15F

16F

15T

16T

RJ45 SP D/ Link /AC T Mode: Green = Li nk at 10G Yellow = Li nk at 100M/1G Blink = ACT

Link at

XCM892 4X

Reset

SFP SPD/Link/ ACT Mode: Green = Link at 10G Yellow = Link at 1G

Blink = ACT

Green =

Link at 10G

Yellow=

USB

OOB

Consol e

100M/1G

Blink=ACT

Supervisor

PWR /

Status

10F

10T

11F

12F

11T

12T

13F

14F

13T

14T

15F

16F

15T

16T

RJ45 SP D/ Link /AC T Mode: Green = Li nk at 10G Yellow = Li nk at 100M/1G Blink = ACT

Link at

XCM8944F

Reset

43T

44T

Link

Green= 10G

Yellow=

USB

OOB

Consol e

100M/1G

Blink=ACT

Supervisor

PWR /

Status

Link

Green= 10G

Yellow=1G

Blink=ACT

41F

42F

SFP SPD/Li nk /ACT Mode : G re en = Lin k at 1G Yellow = Lin k a t 100 M Blin k = AC T

SPD/Link/ACT

GSM5212P

Power

Reset

Fan

SPD/Link/ACT

SFP SPD/Link/ACT mode:

Green = Link at 1G

Yellow = Link at 100M

Blink = ACT

MaxPoE

PoE

1 3 5 7 9T 10T8642 11T 12T 11F 12F9F 10F

PoE (Max 30W per port):

Off = No PD

Green = PoE Powered

Yellow = PoE Fault

Off = No PSE

Green = PSE 30w

Yellow = PSE 15.4w

PoE-PD (Port 1,2):

Blink = ACT

Yellow = 10/100M

RJ45 SPD/Link/ACT mode:

Green = 1G

USB

115200,N,8,1

Console(USB)

USB DB9

AFE

GSM7212F

SPD/Link/ACT

SPD:

Green = 1G

Yellow = 10/100M

115200,N,8,1

Console(USB)

USB DB9

AFE

Power

Reset

Fan

RPS

MaxPoE

USB

Link/Act mode:

OFF = No Link

Green = Link

Blinking = ACT

1F 2F 3F 4F 5F 6F 7F 8F 9F 10F 11F 12F1T 2T 3T 4T 5T 6T 7T 8T 9T 10T 11T 12T

SPD/Link/ACT

SFP Link/Act mode:

Green = Link at 1G

Yellow = Link at 100M

Blink = ACT

PoE (Max 30W per port):

Off = No PD

Green = PoE Powered

Yellow = PoE Fault

RJ45 Link/Act mode:

Green = Link at 1G

Yellow = Link at 10/100M

Blink = ACT

PoE SPD/Link/ACT SPD Link/ACT

M4100-24G-POE+

M4100-26G-POE

M6100 Chassis Switch series

MDF – BUILDING 1

2.4

GHz GHz

Meeting Room

2.4

GHz GHz

MDF – BUILDING 2

M4100-12GF

M4100-D12G-POE+

M4100-24G-POE+

M4100-48G-POE+

IDF – BUILDING 2

Fiber, 1000SX multimode

Fiber, 1000LX single mode

Copper, Gigabit PoE+

Powering desktop switches

Copper, Gigabit PoE / PoE+

2.4

GHz GHz

Copper, Gigabit

SERVER ROOM – BUILDING 1

1 2 3 4

actbackup

1 2 3 4

actbackup

1 2 3 4

M4100-26G

M4100-50G

M4100-50-POE

IDF – BUILDING 2

PoE

Passthrough

mode

SPD/Link/ACT

GSM5212P

Power

Reset

Fan

SPD/Link/ACT

SFP SPD/Link/ACT mode:

Green = Link at 1G

Yellow = Link at 100M

Blink = ACT

MaxPoE

PoE

1 3 5 7 9T 10T8642 11T 12T 11F 12F9F 10F

PoE (Max 30W per port):

Off = No PD

Green = PoE Powered

Yellow = PoE Fault

Off = No PSE

Green = PSE 30w

Yellow = PSE 15.4w

PoE-PD (Port 1,2):

Blink = ACT

Yellow = 10/100M

RJ45 SPD/Link/ACT mode:

Green = 1G

USB

115200,N,8,1

Console(USB)

USB DB9

PROSAFE

Meeting Room

M4100-D12G

Powered

PoE

Meeting Room

M4100-D12G-POE+

M4100-50G

Power

Reset

Fan

RPS

USB

SFP SPD/Link/ACT mode: Green=Link at 1G Yellow=Link at 100M Blink =ACT

49F

50F

47F

48F26

48T

47T

RJ45 SPD/Link/ACT mode: Green=1G Yellow=10/100M Blink=AC T

50T

49T

Combo Ports

M4100-26G-POE

SFP SPD mode: Green=Link at 1G Yellow=Link at 100M Blink=ACT

13 15 17 19 21

2220181614

25F

26F

23F

24F

AFE

Power

Reset

Fan

RPS

Max

USB

1 3 5 7 9

108642

PoE (Max 15.4 W per port):

Off = No PD

Green = PoE Powered

Yellow = PoE Fault

Blink = ACT

Yellow = Link at 10/100M

RJ45 SPD mode:

Green = Link at 1G

23T

24T

PoE

Combo Ports

PoE SPD

1 25T

26T

25F

26F

SPO Link/Act

25T

26T

23F

24F

24T

23T

GSM7224P

SPD/Link/ACT

SFP SPD/Link/ACT mode:

Green = Link at 1G

Yellow = Link at 100M

Blink = ACT

21T

22T20181614

23F

24F21F

22F

115200,N,8,1

Console(USB)

USB DB 9

AFE

Power

Reset

Fan

RPS

MaxPoE

USB

SPD/Link/ACTPoE

10T8642

PoE (Max 30W per port):

Off = No PD

Green = PoE Powered

Yellow = PoE Fault

Blink = ACT

Yellow = 10/100M

RJ45 SPD/Link/ACT mode:

Green = 1G

11T

12T 23T

24T

M4100-50G-POE+

Power

Reset

Fan

RPS

USB

49F

50F

PoE (Max 30W per port): Of f = no PD Green = PoE Powered Y ellow = PoE f ault RJ45 SPD mode: Green = Link at 1G Yellow=Link at 10/100M Blink = ACT

43 45

48T

47T

Combo Ports

49T

50T

47F

48F

Max

PoE

SFP SPD/Link/ACT mode: Green=Link at 1G Y ellow=Link at 100M Blink=ACT

PoE

SPD

48T

47T

50T

49T

48F

47F

50F

49F

M4100-50-POE

Power

Reset

Fan

RPS

USB

PoE (Max 15.4W per port): Of f = no PD Green = PoE Powered Yellow = PoE fault RJ45 SPD mode: Green = Link at 100M Yellow=Link at 10M Blink = ACT

43 45

Combo Ports

49T

50T

49F

50F

Max

PoE

SFP SPD/Link/ACT mode: Green=Link at 1G Y ellow=Link at 100M Blink =ACT

PoE SPD

1 36

3129

30 48

4341

42 50T

49T

50F

49F

Ports 49T, 50T

SPD: Green=1G

Yellow=10/100M

Link/ACT mode:

Off=No link

Green=Link

Blinking=ACT

SPD Link/ACT

GSM7224P

SPD/Link/ACT

SFP SPD/Link/ACT mode:

Green = Link at 1G

Yellow = Link at 100M

Blink = ACT

13 15 17 19 21 T 22T20181614 23F 24F21F 22F

115200,N,8,1

Console(USB)

USB DB 9

AFE

Power

Reset

Fan

RPS

MaxPoE

USB

SPD/Link/ACTPoE

1 3 5 7 9T 10T8642

PoE (Max 30W per port):

Off = No PD

Green = PoE Powered

Yellow = PoE Fault

Blink = ACT

Yellow = 10/100M

RJ45 SPD/Link/ACT mode:

Green = 1G

11T 12T 23T 24T

M4100-26G

Power

Reset

Fan

RPS

USB

SFP SPD/Link/ACT mode: Green = Link at 1G Yellow = Link at 100M Blink = ACT

25F

26F

RJ45 SPD/Link/ACT mode:

23F

24F2

24T

23T

Green = 1G

Yellow = 10/100M

Blink = ACT

26T

25T

Combo Ports

SPD/Link/ACT

GSM5212P

Power

Reset

Fan

SPD/Link/ACT

SFP SPD/Link/ACT mode:

Green = Link at 1G

Yellow = Link at 100M

Blink = ACT

MaxPoE

PoE

1 3 5 7 9T 10T8642 11 T 12T 11F 12F9F 10F

PoE (Max 30W per port):

Off = No PD

Green = PoE Powered

Yellow = PoE Fault

Off = No PSE

Green = PSE 30w

Yellow = PSE 15.4w

PoE-PD (Port 1,2):

Blink = ACT

Yellow = 10/100M

RJ45 SPD/Link/ACT mode:

Green = 1G

USB

115200,N,8,1

Console(USB)

USB DB9

AFE

PoE

Passthrough

mode

M4100-50G-POE+

Power

Reset

Fan

RPS

USB

49F

50F

PoE (Max 30W per port): Of f = no PD Green = PoE Powered Y ellow = PoE f ault RJ45 SPD mode: Green = Link at 1G Yellow=Link at 10/100M Blink = ACT

43 45

48T

47T

Combo Ports

49T

50T

47F

48F

Max

PoE

SFP SPD/Link/ACT mode: Green=Link at 1G Y ellow=Link at 100M Blink=ACT

PoE

SPD

48T

47T

50T

49T

48F

47F

50F

49F

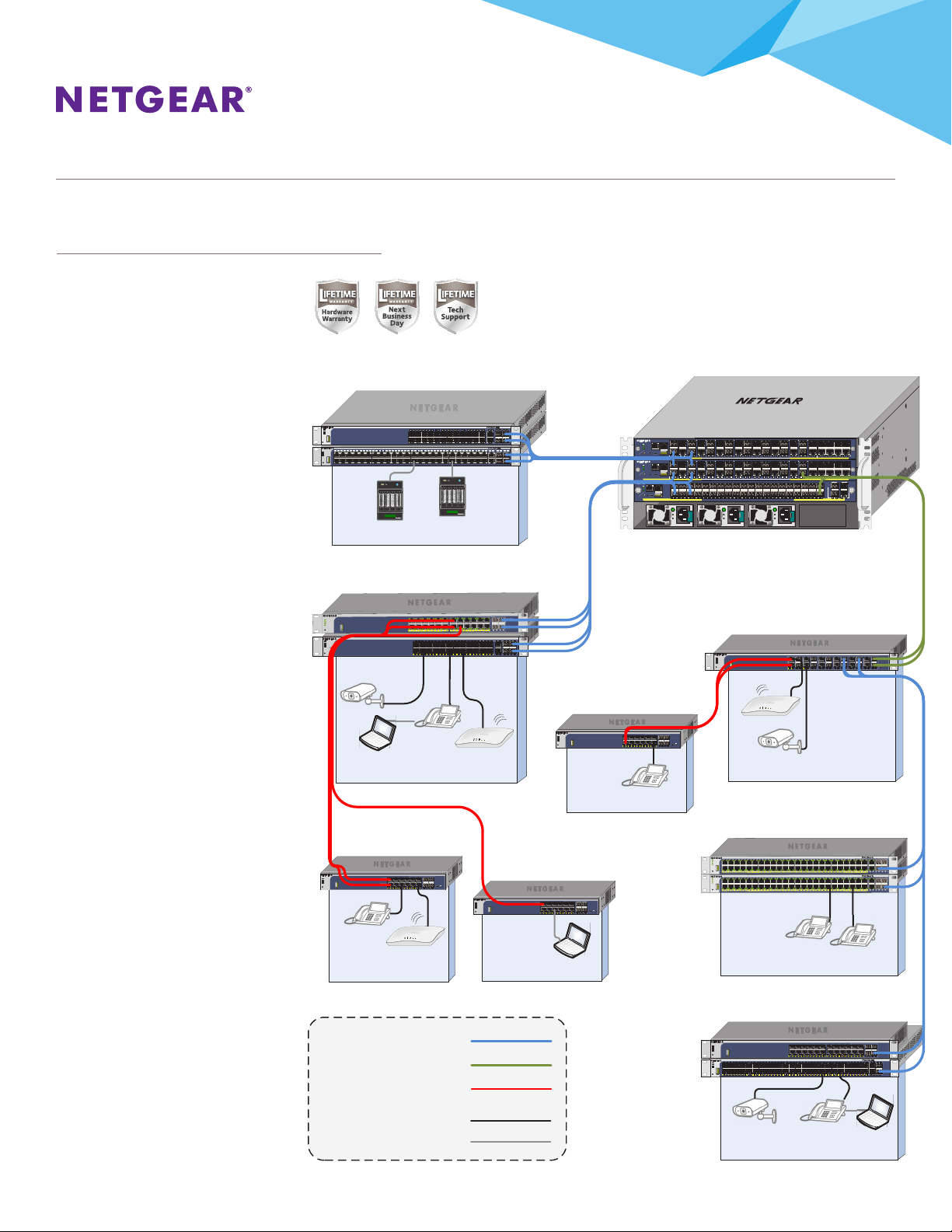

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page 11 of 35

Target Application

1. Versatile, Protected and Expendable Power

The M4100 series are the ﬁrst aordable managed switches with

both redundant and external power supply capabilities - key for critical

applications such as VoIP, IP surveillance and Wireless access points.

PoE devices gobble increasing amounts of PoE power, yet existing

SMB switching solutions from other vendors don’t scale to full power.

Although most servers in SMB networks have dual power supplies,

switches in SMB networks have not – until now.

Select desktop switches in the M4100 series can be powered by PoE

as a cost-eective solution when there is no existing electrical wiring or

power outlets, as the switch can draw power directly from the wiring

closet.TheexibilityofaPoEswitchisalsoconvenientformeeting

rooms and open spaces where visible electrical wiring is unsightly or

impractical. One PoE+ downlink (30W) from the upstream switch

issucientforthestandardoperationoftheM4100-D12Gand

M4100-D12G-POE+ switches. This also increases resiliency for critical

installations: the Power over Ethernet PD connection on these switches

also doubles as a redundant power supply (RPS) should the switch be

locally powered.

Innovative PoE passthrough technology even lets M4100-D12G-

POE+ power local PoE PD devices - redistributing PoE budget from

the upstream switch. Up to 25W of power can be available for local

PD devices - extending the reach of PoE deployments beyond the

100-meter or 328-feet bar: the M4100-D12G-POE+ can function

as a “PoE repeater” for powering remote IP cameras, Wireless access

points, etc.

For all other rackmount Power over Ethernet models in the NETGEAR

Intelligent Edge M4100 series, in addition to their built-in PSU providing

more PoE power than competitive solutions at a similar price point, the

NETGEAR Intelligent Edge M4100 series is the only one allowing for an

additional PoE power “upgrade” via external power supply; immediately

or at later times.

Short story, all rackmount switches in the NETGEAR M4100 series are

either PoE Full Power capable already or PoE Full Power capable when

drawing external power from the RPS4000. All 24-port and 48-port

models can scale up to 802.3af PoE full power or 802.3at PoE+ full

power simultaneously for all ports. This is real investment protection.

2. Security and Control

Enhanced security includes network access control and isolation for

improved convergence of voice, video and data: dynamic 802.1x VLAN

assignment mode, including Dynamic VLAN creation mode and Guest

VLAN / Unauthenticated VLAN are supported for rigorous user and

equipmentpolicyenforcementfromaRADIUSserver.TheRADIUS

server can also be the Network Policy Server (NPS) in Microso®

Windows Server™ 2008 or 2012, when in an Active Directory domain.

Up to 48 clients (802.1x) per port are supported, including the

authentication of a user’s domain, in order to facilitate convergent

deployments. When IP phones connect PCs on their bridge, IP phones

and PCs authenticate on the same switch port but under dierent

VLAN assignment policies (Voice VLAN versus data VLAN) - providing

administratorswithgreaterexibilityduringdeploymentandpolicy

enforcement.

For 802.1x unaware clients, 802.1x MAC Address Authentication

Bypass (MAB) is a great alternative: when 802.1x unaware clients try

to connect, the switch sends their MAC addresses to the authentication

server. When checked, the RADIUS server returns the access policy and

VLAN assignment to the switch for each client.

Enhanced security also includes better network isolation with Private

VLANs, providing Layer 2 isolation between ports that share the same

broadcast domain. A VLAN broadcast domain can be partitioned into

smaller point-to-multipoint subdomains across switches in the same

Layer 2 network. This is useful for IP camera deployments, or in the

DMZ when servers are not supposed to communicate with each other

but need to communicate with a router. Private VLANs remove the

need for more complex port-based VLANs with respective IP interface/

subnets and associated L3 routing.

3. Reliability

Learn how the NETGEAR M4100 series delivers more for less: all models

provide much longer MTBF (average lifetime) thanks to better/higher

qualitycomponentsandcircuitry.

For instance, the desktop 8-port PoE Fast Ethernet M4100-D10-

POE (FSM5210P) is predicted to have an average mean time between

failure of 579,985 hours, or 66 years at an ambient standard 25°C

temperature (77°F). The rackmount 24-port PoE Gigabit Ethernet

M4100-26G-POE (GSM7226LP) is to predicted to have an average

mean time between failure of 437,199 hours, more than 49 years. This

is nearly double the reliability of the closest competitive solutions in this

price band.

Conclusion

The M4100 series delivers an unbeatable combination of performance,

security and convergence for voice, video and data networking solutions.

Due to the wide adoption of virtualization, the convergence of voice,

video, and data and the rapid proliferation of bandwidth-intensive

applications, small and mid-sized businesses, hospitals and schools

today have security, control and reliability needs similar to those of large

enterprises. For approximately the same price as low-end solutions

currently on the market aimed at SMBs, NETGEAR is oering high-

end features that have so far been reserved only for enterprise-class

oerings available at double or triple the price point.

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page12of35

Three Reasons to Get Started Today with the NETGEAR M4100 series

• The RPS4000 can be connected to a maximum of four switches (any combination

of M5300 series switches is supported) using RPS switch connectors and RPS cables

• The RPS4000 provides protection against electrical issues such as high-voltage

(input, output) or short circuits for maximum security

• The RPS4000 can accommodate up to four hot-swap APS1000W power

modules

– Eitherone,two,threeorfourAPS1000Wpowermodulesarerequired,

depending on RPS or EPS application (see combinations in “Number of

APS1000W” table)

• In RPS mode with only one APS1000W power module, RPS4000 can protect up

to four (4) non-PoE or PoE M4100 series switches

– In case of a general switches power feed failure, powering all four switches

simultaneously for 12V DC system power

– RPS4000takesoveranddeliversadequatepowerwithoutanyservice

interruption (continuous monitoring)

– When the switch internal power is restored, the RPS4000 stops supplying

power to the switch automatically, again without any service interruption

• In RPS mode with multiple APS1000W power module combinations, RPS4000

can protect up to four (4) PoE M4100 series switches

– In case of a general switches power feed failure, powering all four switches

simultaneously (12V DC system power and -56V DC PoE)

– Same RPS functionality as with non-PoE switches including PoE power budget

protection

– One-to-one mode (one APS1000W power module / one PoE M4100

switch) provides 720W PoE budget protection for each switch

– One APS1000W power module can be used for two (2) PoE M4100 series

switches instead, providing 380W PoE budget protection for each switch

• In EPS mode with multiple APS1000W power module combinations, RPS4000

allows for various PoE 802.3af and 802.3at “full power” applications

– Supports M4100-50-POE, M4100-26G-POE; M4100-24G-POE+ and

M4100-50G-POE+

– Superseding switches main PSU for PoE budget and switch powering

– Delivering -56V DC for PoE power and 12V for switch power

– Switch main PSU system acts as built-in RPS for both switch power and PoE

budget protection

• In EPS mode, power slots can be organized into groups of two (Group 1 and Group

2) allowing for APS1000W power modules bridging

– Two APS1000W power modules can be bridged and deliver 1,440W PoE

budget to one 48-port switch M4100-50G-POE+

• Power slots can be conﬁgured for RPS or EPS mode

– All four power slots can be combined together with only one APS1000W

power module for four (4) 12V switches RPS application

– Power slots can be utilized in one-to-one mode for PoE switches RPS or

EPS applications

– Power slots can be combined two by two for PoE switches RPS or

EPS applications

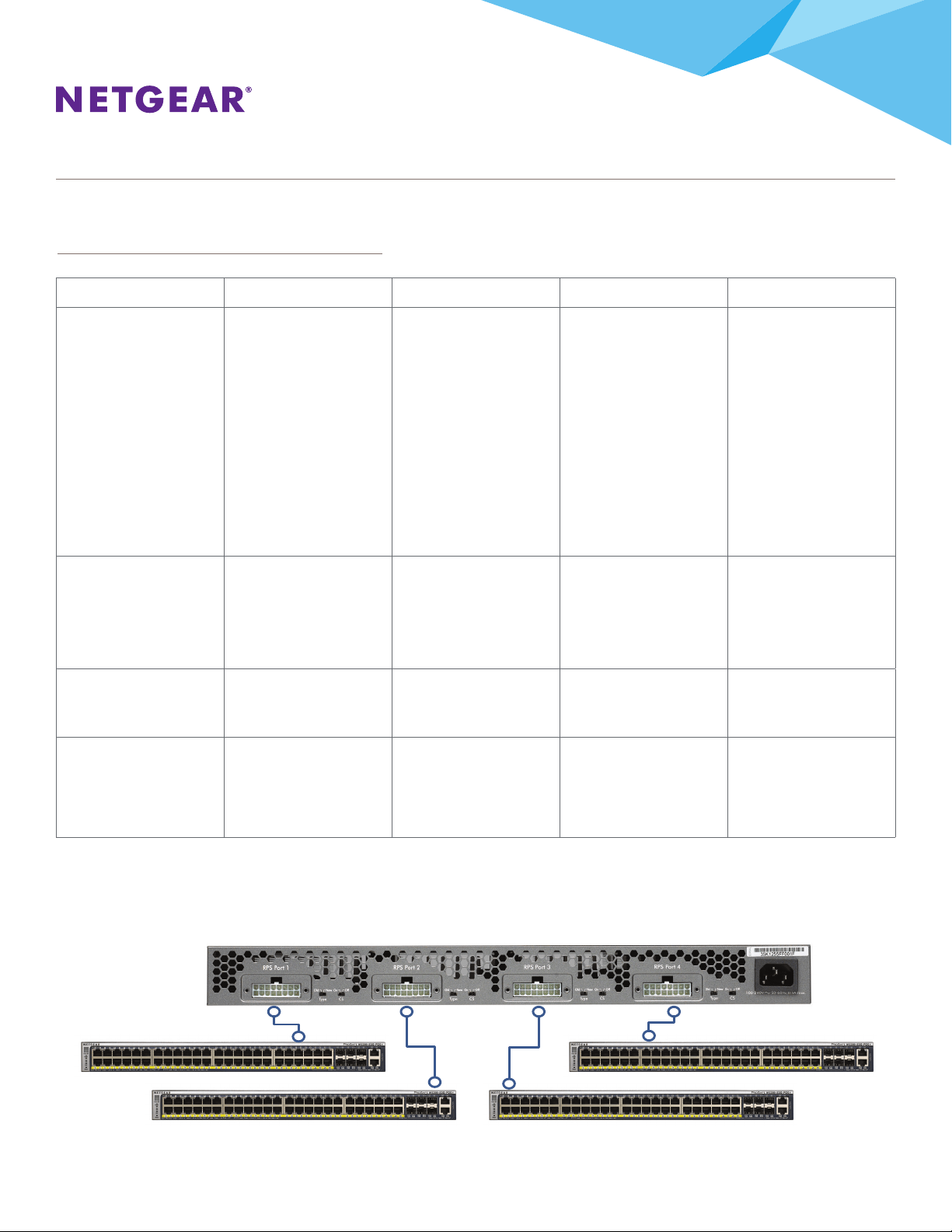

The RPS4000 RPS/EPS unit supports the following key features:

•RPS mode: provide power backup for up to four switches concurrently

– With same level of protection as with four dedicated, “one-to-one” RPS units

•EPS mode: provide supplemental PoE power up to four switches concurrently

– Up to 2,880W shared PoE+ budget

– When in EPS mode, RPS4000 supersedes each switch main PSU

– Switch main PSU system power reverts to redundant power supply (RPS) function

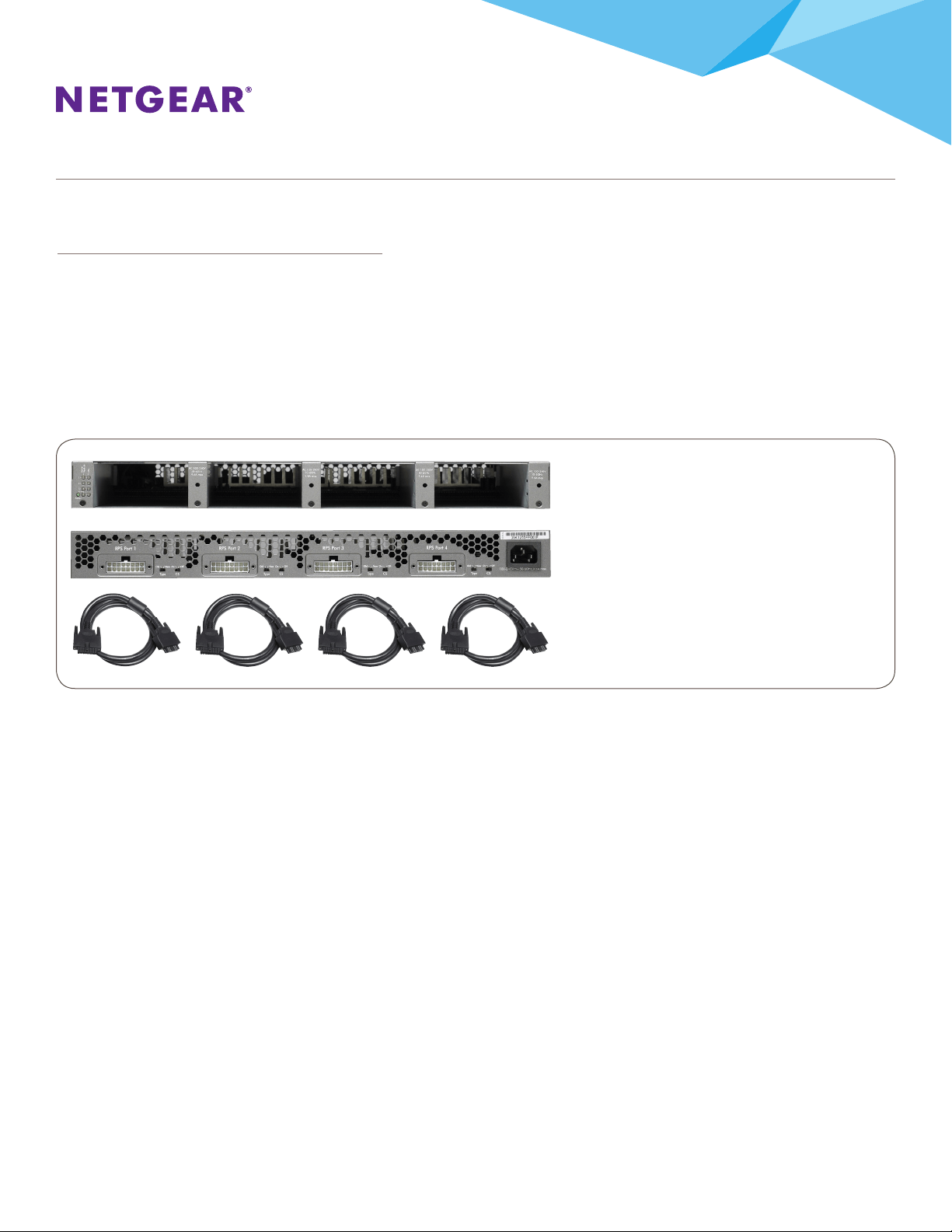

RPS4000

RPS/EPS unit for up to 4 concurrent switches

Ordering information

•Americas, Europe: RPS4000-200NES

•Asia Paciﬁc: RPS4000-200AJS

•Warranty: 5 years

Front view

• RPS4000 is 1RU unit with four (4) empty slots

• Power modules (APS1000W) are sold separately

• APS1000WrequirementdependsonRPS,EPS,PoEapplication

Rear view

• Four (4) embedded RPS connectors

• Switch selectors for RPS/EPS power modes

• Switch selectors for power modules two-by-two bridging

Included:

• Four (4) RPS cables - 60cm each (~2 )

• Rack mount kit

• Power cord

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page 13 of 35

Accessories

Number of APS1000W 1 POWER MODULE 2 POWER MODULES 3 POWER MODULES 4 POWER MODULES

RPS mode

(Redundant Power Supply)

Up to 4 switches

(non-PoEversions)

M4100-26Gor

M4100-50Gor

M4100-12GF

Complete protection

12Vsystempower

 Or:

Up to 2 switches (PoE versions)

M4100-50-POEor

M4100-12GF

M4100-26G-POEor

M4100-24G-POE+

orM4100-50G-POE+

Up to 4 switches (PoE versions)

M4100-50-POEor

M4100-12GF

M4100-26G-POEor

M4100-24G-POE+

orM4100-50G-POE+

Complete protection

12Vsystempowerand

-56VPoEpower

Up to 4 switches (PoE versions)

M4100-50-POEor

M4100-12GF

M4100-26G-POEor

M4100-24G-POE+

orM4100-50G-POE+

Complete protection

12Vsystempower

and-56VPoEpower

4 switches (PoE versions)

 M4100-50-POEor

M4100-12GF

M4100-26G-POEor

M4100-24G-POE+

orM4100-50G-POE+

Complete protection

12Vsystempower

and-56VPoEpower

EPS mode

(External Power Supply)

720WPoEbudgetavailable(total)

forup to 2 switches

(PoEversions)

 M4100-50-POEor

M4100-26G-POE

 M4100-24G-POE+or

M4100-50G-POE+

1,440WPoEbudgetavailable

(total)forup to 4 switches

(PoEversions)

 M4100-50-POEor

M4100-26G-POE

 M4100-24G-POE+or

M4100-50G-POE+

2,160WPoEbudgetavailable

(total)forup to 4 switches

(PoEversions)

 M4100-50-POEor

M4100-26G-POE

 M4100-24G-POE+or

M4100-50G-POE+

2,880WPoEbudgetavailable

(total)forup to 4 switches

(PoEversions)

 M4100-50-POEor

M4100-26G-POE

 M4100-24G-POE+or

M4100-50G-POE+

Example for PoE

applications:

(802.3af full power)

OneM4100-50-POE

providing720W

46portsfullpower

802.3afPoE

TwoM4100-50-POE

providing720Weach

96portsfullpower

802.3afPoE

ThreeM4100-50-POE

providing720Weach

138portsfullpower

802.3afPoE

FourM4100-50-POE

providing720Weach

192portsfullpower

802.3afPoE

Example for PoE+

applications:

(802.3at full power)

OneM4100-24G-POE+

providing720W

24portsfullpower

802.3atPoE+

OneM4100-50G-POE+

providing1,440W

48portsfullpower

802.3atPoE+

OneM4100-24G-POE+

providing720W

OneM4100-50G-POE+

providing1,440W

72portsfullpower

802.3atPoE+

TwoM4100-50G-POE+

providing1,440Weach

96portsfullpower

802.3atPoE+

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page14of35

Accessories

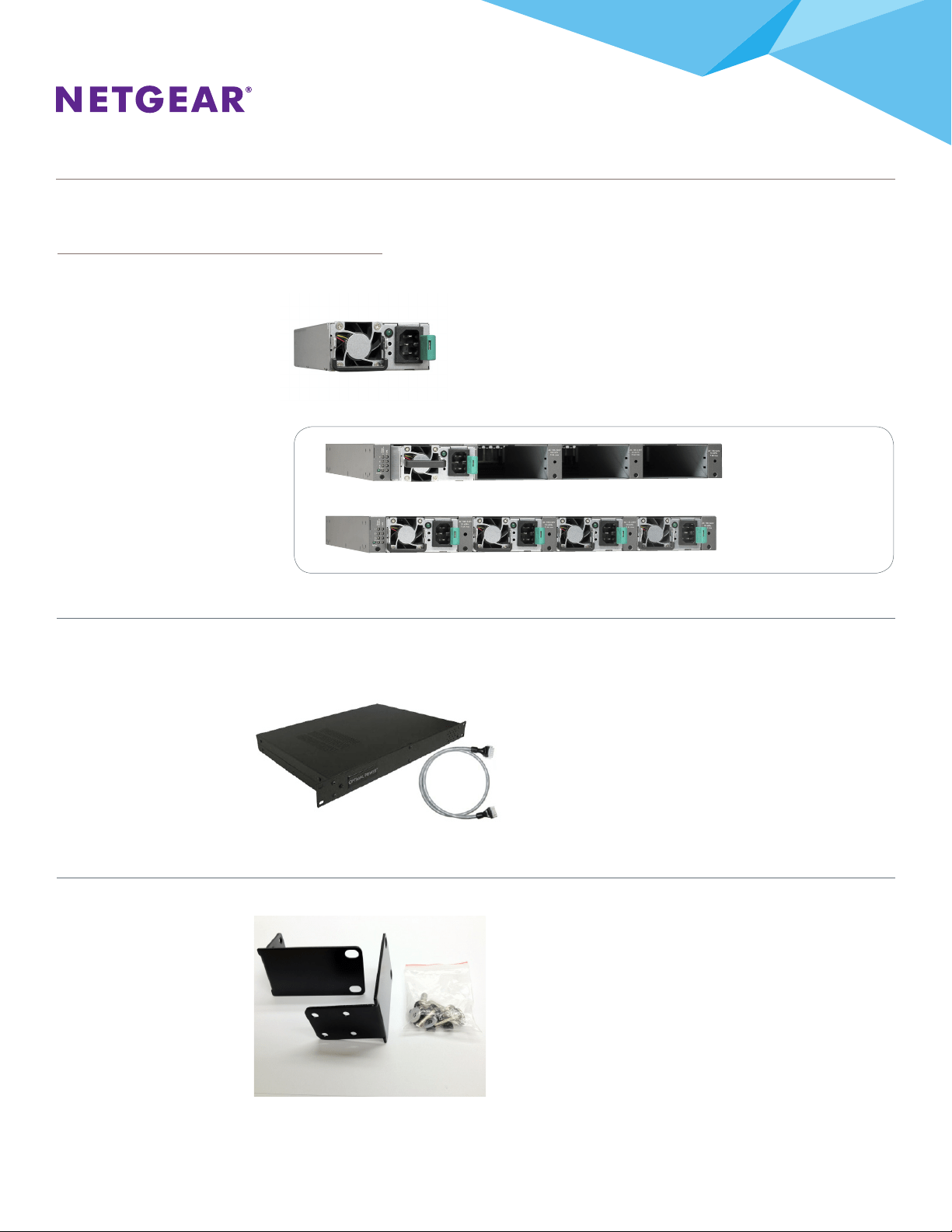

Inserting one APS1000W

in RPS4000 power slot #1

(front view)

RPS4000equippedwith

4 APS1000W power modules

(front view)

Capacity:

– 110V-240V AC power input

– Up to 960W DC 12V output power for up to 4 switches (RPS)

– Up to 720W DC -56V PoE budget output power for up to 2

PoE switches (EPS)

•Optimal Power® RPS unit certiﬁed by NETGEAR for

M4100 series

•Includes the RPS cable for the switch RPS connector

•Provides seemless “one-to-one” redundant power to the Switch

•56V DC power limited to 308W (maximum PoE budget)

•M4100 series desktop switches come with wall mount kit only

•This optional rack mount kit contains two brackets for standard

19’’ rack mount

•Compatible with:

– M4100-D12G (GSM5212)

– M4100-D12G-POE+ (GSM5212P)

APS1000W

Power Module for RPS4000

RPS5412

RPS unit for 1 switch

by Optimal Power®

420-10043-01

Rack mount kit for M4100

series desktop versions

Ordering information

•Americas, Europe:

APS1000W-100NES

•Asia Paciﬁc: APS1000W-100AJS

•Warranty: 5 years

Ordering information

•Americas: RPS5412-100NAS

•Europe: RPS5412-100EUS

•Asia Paciﬁc: RPS5412-100AJS

•Warranty: 3 years

Ordering information

•Worldwide: 420-10043-01

•Warranty: 5 years

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page 15 of 35

Accessories

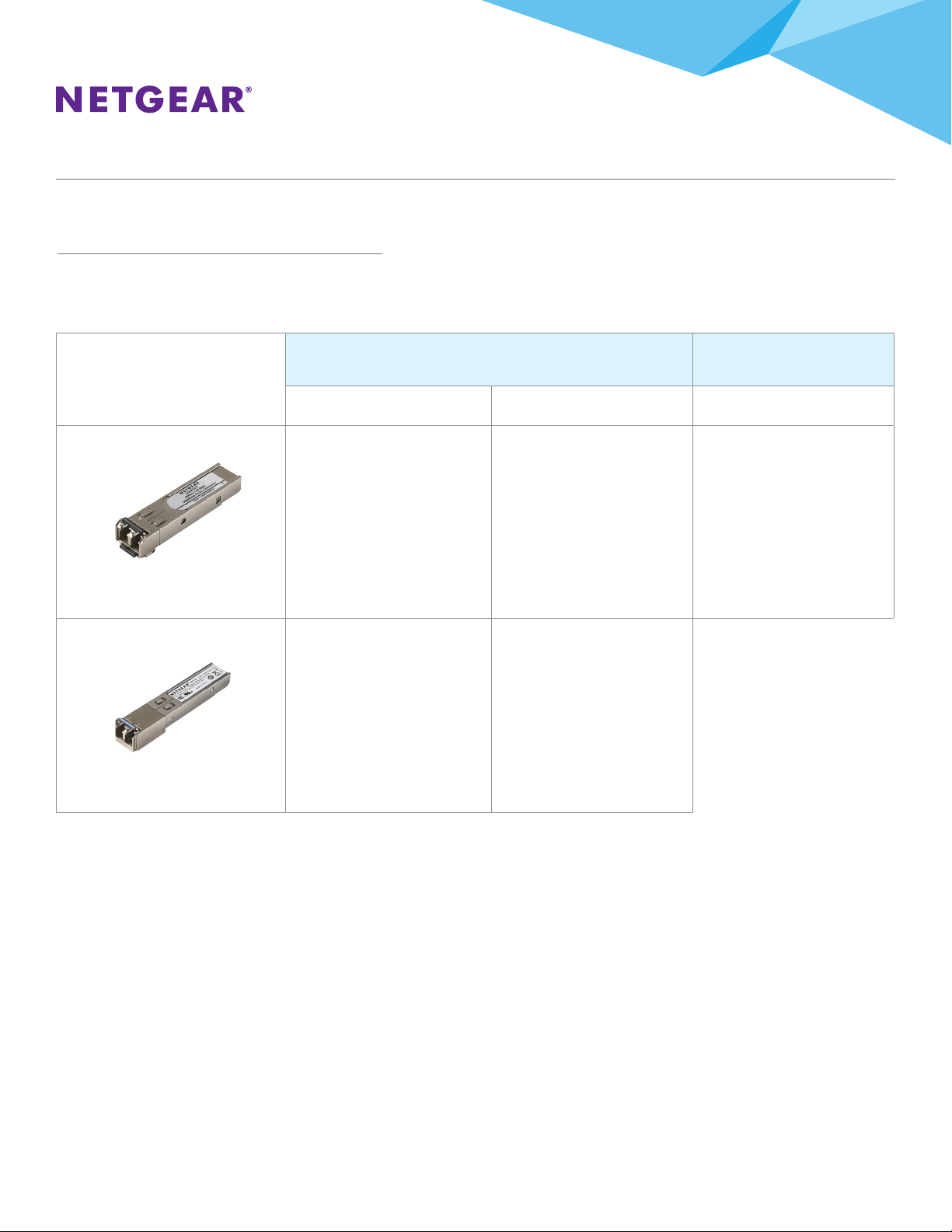

ORDERING INFORMATION

WORLDWIDE: SEETABLEBELOW

WARRANTY: 5 YEARS

Multimode Fiber (MMF)

Single mode Fiber

(SMF)

OM1orOM2

62.5/125µm

OM3orOM4

50/125µm

9/125µm

Gigabit SFP

AGM731F

1000Base-SX short range multimode

LC duplex connector

up to 275m (902 )

AGM731F (1 unit)

AGM731F

1000Base-SX short range

multimode

LC duplex connector

OM3: up to 550m (1,804 )

OM4: up to 1,000m (3,280 )

AGM731F (1 unit)

AGM732F

1000Base-LX long range single mode

LC duplex connector

up to 10km (6.2 miles)

AGM732F (1 unit)

Fast Ethernet SFP

AFM735

100Base-FX IEEE 802.3

LC duplex connector

up to 2km (1.24 miles)

AFM735-10000S (1 unit)

AFM735

100Base-FX IEEE 802.3

LC duplex connector

up to 2km (1.24 miles)

AFM735-10000S (1 unit)

• FitsintoM4100seriesSFP

interfaces(front)

• FitsintoM4100seriesSFP

interfaces(front)

Accessories

GBIC SFP Optics for M4100 series

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page16of35

• Requirementsbasedon10.x

soware release

• Layer 2+ package includes

Layer 3 static routing

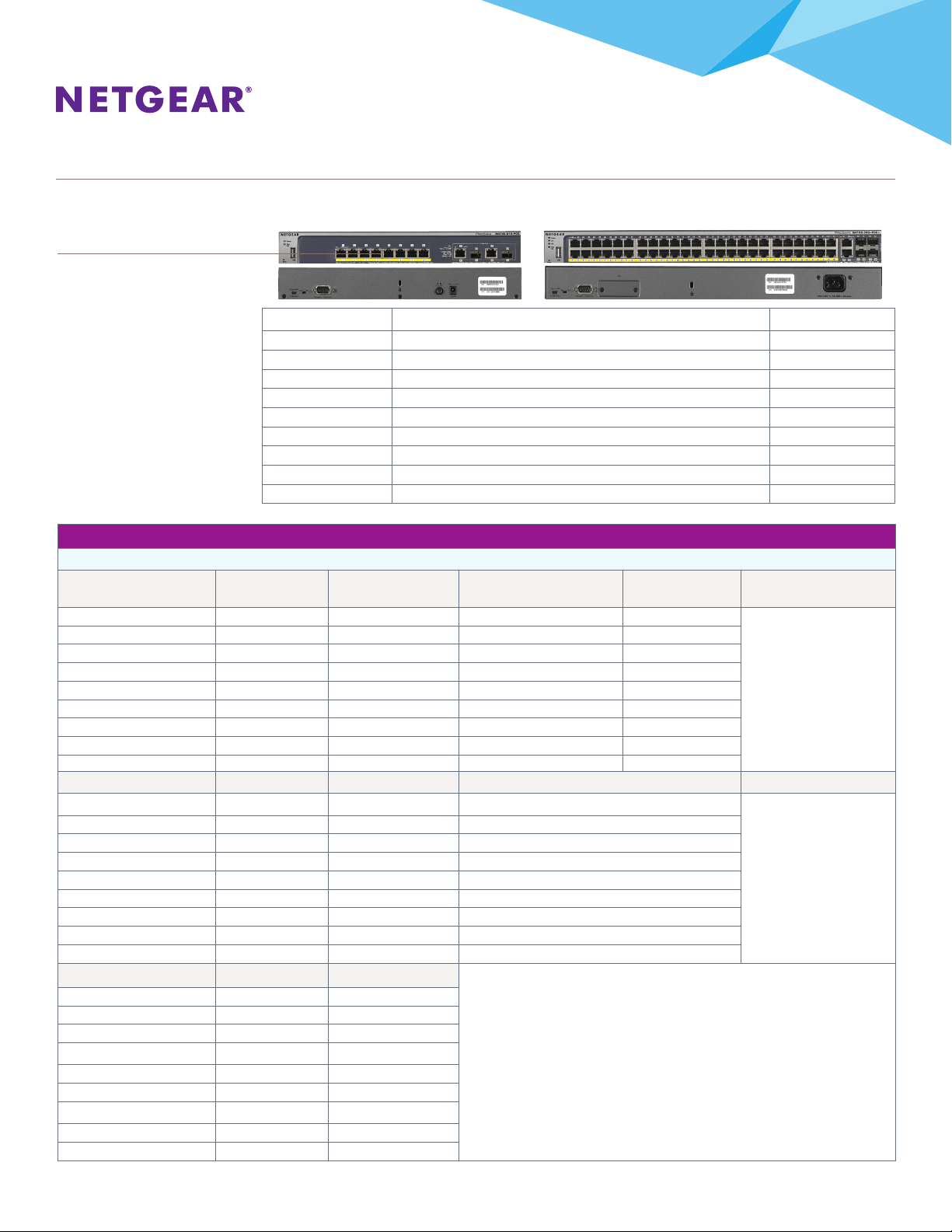

Model Name Description Model number

M4100-50-POE

48portsFastEthernetPoE802.3af,Layer2+sowarepackage FSM7250P

M4100-D12G

Desktop12portsGigabit,Layer2+sowarepackage GSM5212

M4100-D12G-POE+

Desktop12portsGigabitPoE+802.3at,Layer2+sowarepackage GSM5212Pv1h2

M4100-12GF

12portsGigabitFiber,Layer2+sowarepackage GSM7212Fv1h2

M4100-26G

26portsGigabit,Layer2+sowarepackage GSM7224v2h2

M4100-50G

50portsGigabit,Layer2+sowarepackage GSM7248v2h2

M4100-26G-POE

24portsGigabitPoE802.3af,Layer2+sowarepackage GSM7226LP

M4100-24G-POE+

24portsGigabitPoE+802.3at,Layer2+sowarepackage GSM7224Pv1h2

M4100-50G-POE+

48portsGigabitPoE+802.3at,Layer2+sowarepackage GSM7248P

TECHNICALSPECIFICATIONS

PHYSICAL INTERFACES

Front

Auto-sensing RJ45

10/100

Auto-sensing RJ45

10/100/1000

Auto-sensing SFP ports

100/1000Base-X

Console port

(selectable)

Storage Port

M4100-50-POE 48 2 2(shared) -

1xUSB

Firmware,

Conguration

Files

M4100-D12G - 12 2(shared) -

M4100-D12G-POE+ - 12 4(shared) Mini-USB

M4100-12GF - 12 12(shared) Mini-USB

M4100-26G - 26 4(shared) -

M4100-50G - 50 4(shared) -

M4100-26G-POE - 26 4(shared) -

M4100-24G-POE+ - 24 4(shared) Mini-USB

M4100-50G-POE+ - 50 4(shared) -

Rear Power Supply RPS/EPS connector Console port (selectable) Physical security

M4100-50-POE

Fixed,internal 1

SerialRS232DB9,Mini-USB

1KensingtonLockSlot

M4100-D12G External - SerialRS232DB9,Mini-USB

M4100-D12G-POE+ Fixed,internal - SerialRS232DB9

M4100-12GF Fixed,internal 1 SerialRS232DB9

M4100-26G Fixed,internal 1 SerialRS232DB9,Mini-USB

M4100-50G Fixed,internal 1 SerialRS232DB9,Mini-USB

M4100-26G-POE Fixed,internal 1 SerialRS232DB9,Mini-USB

M4100-24G-POE+ Fixed,internal 1 SerialRS232DB9

M4100-50G-POE+ Fixed,internal 1 SerialRS232DB9,Mini-USB

Total Port Count Fast Ethernet Gigabit

M4100-50-POE 48portstotal 2portstotal

M4100-D12G

- 12portstotal

M4100-D12G-POE+ - 12portstotal

M4100-12GF - 12portstotal

M4100-26G - 26portstotal

M4100-50G - 50portstotal

M4100-26G-POE - 26portstotal

M4100-24G-POE+ - 24portstotal

M4100-50G-POE+ - 50portstotal

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page17of35

Technical Specifications

PoweroverEthernet

PSECapacity PoEports802.3af PoE+ports802.3at InternalPoEbudget PoEbudgetwithEPS

M4100-50-POE 48 - 380W 740WwithEPS(RPS4000)

M4100-D12G-POE+ - 10

120WwhenAC

power

M4100-12GF - 4 150W -

M4100-26G-POE 24 - 192W 380WwithEPS(RPS4000)

M4100-24G-POE+ - 24 380W 720WwithEPS(RPS4000)

M4100-50G-POE+ - 48 380W 1,440WwithEPS(RPS4000)

PDCapacity PoweredbyPoE+ PoE“Passthrough”Technology

M4100-D12G YeswithonelinkPoE+30W(PDPort1)

M4100-D12G-POE+ YeswithonelinkPoE+30W(PDPort1)

YeswhensecondlinkPoE+30W(PDPort2):25WPoEbudgetcanbe

redistributedbyPort3-12

FeaturesSupport

IEEE802.3af(upto15.4Wperport) Yes(M4100-50-POE;M4100-26G-POE)

IEEE802.3at(upto30Wperport) Yes(M4100-D12G-POE+;M4100-12GF;M4100-24G-POE+;M4100-50G-POE+)

IEEE802.3atLayer2(LLDP)method Yes(M4100-D12G-POE+;M4100-12GF;M4100-24G-POE+;M4100-50G-POE+)

IEEE802.3at2-eventclassication Yes(M4100-D12G-POE+;M4100-12GF;M4100-24G-POE+;M4100-50G-POE+)

PoEtimer/schedule(week,days,hours) Yesforall802.3afand802.3atmodels ConvenientforWirelessAccessPointsschedules

Processor/Memory

Processor(CPU) BroadcomBCM53003@600MHz

Systemmemory(RAM) 128MB

Codestorage(ash) 32MB Dualrmwareimage,dualcongurationle

PacketBuerMemory

Allmodels 12Mb Dynamicallysharedacrossonlyusedports

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page 18 of 35

PerformanceSummary

Switchingfabric

M4100-50-POE 13.6Gbps

M4100-D12G 24Gbps

M4100-D12G-POE+ 24Gbps

M4100-12GF 24Gbps

M4100-26G 52Gbps

M4100-50G 100Gbps

M4100-26G-POE 52Gbps

M4100-24G-POE+ 48Gbps

M4100-50G-POE+ 100Gbps

Throughput

M4100-50-POE 10.119Mpps

M4100-D12G 17.857Mpps

M4100-D12G-POE+ 17.857Mpps

M4100-12GF 17.857Mpps

M4100-26G 38.690Mpps

M4100-50G 74.405Mpps

M4100-26G-POE 38.690Mpps

M4100-24G-POE+ 35.714Mpps

M4100-50G-POE+ 74.405Mpps

GreenEthernet

EnergyEcientEthernet(EEE)

IEEE802.3azEnergyEcientEthernetTaskForcecompliance

(M4100-D12G;M4100-26G;M4100-50G;M4100-26G-POE;M4100-50G-POE+)

OtherMetrics

Forwardingmode Store-and-forward

Latency(64-byteframes,100Mbps,Copper) <10.194μs

Latency(64-byteframes,1Gbps,Copper) <3.91μs

Addressing 48-bitMACaddress

Addressdatabasesize 16,000MACaddresses

NumberofVLANs 1,024VLANs(802.1Q)simultaneously

Numberofmulticastgroupsltered(IGMP) 1K

NumberofLinkAggregationGroups(LAGs-

802.3ad)

12LAGswithupto8portspergroup

NumberofhardwarequeuesforQoS 8queues

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page19of35

Numberofstaticroutes(IPv4) 64

NumberofIPinterfaces(portorVLAN) 64

Jumboframesupport upto9Kpacketsize

Acousticnoise(ANSI-S10.12)@25°Cambient(77°F)

M4100-50-POE <38.9dB

M4100-D12G 0dB(fanless)

M4100-D12G-POE+ <19.8dBbelowtypicalacousticoceambient

M4100-12GF <30dB

M4100-26G <35.6dB

M4100-50G <37.2dB

M4100-26G-POE <36.6dB

M4100-24G-POE+ <33.8dB

M4100-50G-POE+ <47.7dB

HeatDissipation(BTU)(Maximum)

M4100-50-POE 1,661Btu/hr

M4100-D12G 64Btu/hr

M4100-D12G-POE+ 569Btu/hr

M4100-12GF 548Btu/hr

M4100-26G 108Btu/hr

M4100-50G 169Btu/hr

M4100-26G-POE 932Btu/hr

M4100-24G-POE+ 1,820Btu/hr

M4100-50G-POE+ 1,896Btu/hr

MeanTimeBetweenFailures(MTBF) @25°Cambient(77°F)@55°Cambient(131°F)

M4100-50-POE 163,019hours(~18.6years)49,668hours(~5.7years)

M4100-D12G 214,142hours(~24.4years)67,633hours(~7.7years)

M4100-D12G-POE+ 766,618hours(~87.5years)99,094hours(~11.3years)

M4100-12GF 670,956hours(~76.6years)190,562hours(~21.8years)

M4100-26G 702,785hours(~80.2years)197,792hours(~22.6years)

M4100-50G 489,311hours(~55.9years)152,639hours(~17.4years)

M4100-26G-POE 437,199hours(~49.9years)117,763hours(~13.4years)

M4100-24G-POE+ 394,619hours(~45.0years)106,405hours(~12.1years)

M4100-50G-POE+ 239,298hours(~27.3years)65,978hours(~7.5years)

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page20of35

L2Services-VLANs

IEEE802.1QVLANTagging Yes Upto1,024VLANs-802.1QTagging

ProtocolBasedVLANs

IPsubnet

ARP

IPX

Yes

StaticVLANs AccessPortsfor802.1QunawareendpointsandTrunkPortsforswitch-to-switchslinkswithNativeVLAN

SubnetbasedVLANs Yes

MACbasedVLANs Yes

VoiceVLAN Yes

PrivateEdgeVLAN Yes

PrivateVLAN Yes

IEEE802.1x

GuestVLAN

RADIUSbasedVLANassignmentvia.1x

RADIUSbasedFilterIDassignmentvia.1x

MAC-based.1x

UnauthenticatedVLAN

Yes

Yes

Yes

Yes

IPphonesandPCscanauthenticateonthe

sameportbutunderdierentVLANassignment

policies

DoubleVLANTagging(QinQ)

Enablingdvlan-tunnelmakesinterface

Globalethertype(TPID)

Interfaceethertype(TPID)

CustomerIDusingPVID

Yes

GARPwithGVRP/GMRP Yes

AutomaticregistrationformembershipinVLANs

orinmulticastgroups

MVR(MulticastVLANregistration) Yes

L2Services-Availability

IEEE802.3ad-LAGs

LACP

StaticLAGs

Yes

Yes

Upto12LAGsand

upto8physicalportsperLAG

LAGHashing Yes

StormControl Yes

IEEE802.3x(FullDuplexandowcontrol)

PerportFlowControl

Yes

Yes

AsymmetricandSymmetricFlowControl

IEEE802.1DSpanningTreeProtocol Yes

IEEE802.1wRapidSpanningTree Yes

IEEE802.1sMultipleSpanningTree Yes

STPLoopGuard Yes

STPRootGuard Yes

BPDUGuard Yes

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page21of35

L2Services-MulticastFiltering

IGMPv2SnoopingSupport Yes

IGMPv3SnoopingSupport Yes

MLDv1SnoopingSupport Yes

MLDv2SnoopingSupport Yes

ExpeditedLeavefunction Yes

StaticL2MulticastFiltering Yes

IGMPSnooping

EnableIGMPSnoopingperVLAN

SnoopingQuerier

Yes

MLDQuerier Yes

MulticastVLANregistration(MVR) Yes

L3Services-DHCP

DHCPIPv4/DHCPIPv6Client Yes

DHCPIPv4Server Yes

DHCPSnoopingIPv4 Yes

DHCPRelayIPv4 Yes

DHCPBootPIPv4 Yes

AutoInstall(DHCPoptions66,67,150) Yes

L3Services-IPv4Routing

StaticRouting Yes

PortBasedRouting Yes

VLANRouting

802.3ad(LAG)forrouterports

Yes

IPHelper

MaxIPHelperentries

Yes

512

IPSourceGuard Yes

ECMP Yes

ProxyARP Yes

Multinetting Yes

ICMPredirectdetectioninhardware Yes

DNSv4 Yes

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page22of35

NetworkMonitoringandDiscoveryServices

ISDP(IndustryStandardDiscoveryProtocol) Yes inter-operateswithdevicesrunningCDP

802.1abLLDP Yes

802.1abLLDP-MED Yes

SNMP V1,V2,V3

RMON1,2,3,9 Yes

sFlow Yes

Security

NetworkStormProtection,DoS

Broadcast,Unicast,MulticastDoSProtection

DenialofServiceProtection(controlplane)

DenialofServiceProtection(dataplane)

Yes

SwitchCPUprotection

SwitchTracprotection

DoSattacks SIPDIP

SMACDMAC

FIRSTFRAG

TCPFRAG

TCPFLAG

TCPPORT

UDPPORT

TCPFLAGSEQ

TCPOFFSET

TCPSYN

TCPSYNFIN

TCPFINURGPSH

L4PORT

ICMPV4

ICMPV6

ICMPFRAG

ICMPthrottling Yes

RestrictICMP,PINGtrac

forICMP-basedDoSattacks

Management

Radiusaccounting Yes RFC2565andRFC2866

TACACS+ Yes

NetworkTrac

AccessControlLists(ACLs) L2/L3/L4 MAC,IPv4,IPv6,TCP,UDP

Time-basedACLs Yes

Protocol-basedACLs Yes

ACLoverVLANs Ye s

DynamicACLs Yes

IEEE802.1xRadiusPortAccessAuthentication Yes

Upto48clients(802.1x)perportaresupported,

includingtheauthenticationoftheusersdomain

802.1xMABAddressAuthenticationBypass

(MAB)

Yes

Supplementalauthenticationmechanismfornon-

802.1xdevices,basedontheirMACaddressonly

PortSecurity Yes

IPSourceGuard Yes

DHCPSnooping Ye s

DynamicARPInspection Yes

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page23of35

MACFiltering Yes

PortMACLocking Yes

PrivateEdgeVLAN Yes

Aprotectedportdoesn'tforwardanytrac

(unicast,multicast,orbroadcast)toanyother

protectedport-sameswitch

PrivateVLANs Yes

ScalesPrivateEdgeVLANsbyprovidingLayer2

isolationbetweenportsaccrossswitchesinsame

Layer2network

QualityofService(QoS)-Summary

AccessLists

L2MAC,L3IPandL4PortACLs

Ingress

802.3ad(LAG)forACLassignment

BindingACLstoVLANs

ACLLogging

SupportforIPv6elds

Yes

DiServQoS

EdgeNodeapplicability

InteriorNodeapplicability

802.3ad(LAG)forserviceinterface

SupportforIPv6elds

Ingress

Yes

IEEE802.1pCOS

802.3ad(LAG)forCOSconguration

WRED(WeightedDecitRoundRobin)

StrictPriorityqueuetechnology

Yes

Auto-VoIP

Yes,basedonprotocols(SIP,H323andSCCP)oronOUIbytes(default

databaseanduser-basedOUIs)inthephonesourceMACaddress

QoS-ACLFeatureSupport

ACLSupport(includeL3IPandL4TCP/UDP) Yes

MACACLSupport Yes

IPRuleMatchFields

DestIP

DestIPv6IP

DestL4Port

EveryPacket

IPDSCP

IPPrecedence

IPTOS

Protocol

SourceIP(forMasksupportseebelow)

SourceIPv6IP

L3IPv6FlowLabel

SourceL4Port

SupportsMasking

Inbound

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page24of35

MACRuleMatchFields

COS

DestMAC

DestMACMask

Ethertype

SourceMAC

SourceMACMask

VLANID

VLANID2(SecondaryVLAN)

Inbound

Yes

Rulesattributes

AssignQueue

Logging--denyrules

Mirror(tosupportedinterfacetypesonly)

Redirect(tosupportedinterfacetypesonly)

Inbound

Interface

Inbounddirection

SupportsLAGinterfaces

MultipleACLsperinterface,inbound

Mixed-typeACLsperinterface,inbound

MixedL2/IPv4ACLsperinterface,inbound

Yes

QoS-DiServFeatureSupport

DiServSupported Yes

ClassType

All Yes

ClassMatchCriteria

COS

DestIP(forMasksupportseebelow)

DestIPv6IP

DestL4Port

DestMAC(forMasksupportseebelow)

Ethertype

EveryPacket

IPDSCP

IPPrecedence

IPTOS(forMasksupportseebelow)

Protocol

ReferenceClass

SourceIP(forMasksupportseebelow)

SourceIPv6IP

L3IPv6FlowLabel

SourceL4Port

SourceMAC(forMasksupportseebelow)

VLANID(SourceVID)

SupportsMasking

Inbound

PolicyAttributes--Inbound

AssignQueue

Drop

MarkCOS

MarkIPDSCP

MarkIPPrecedence

Mirror(tosupportedinterfacetypesonly)

PoliceSimple

PoliceColorAwareMode

Inbound

Yes

Inbound

Yes

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page25of35

ServiceInterface

InboundSlot.Portcongurable

Inbound'All'Portscongurable

SupportsLAGinterfaces

MixedL2/IPv4matchcriteria,inbound

Yes

PHBSupport

EF

AF4x

AF3x

AF2x

AF1x

CS

Yes

Statistics--PolicyInstance

Oered

Discarded

packets

QoS-COSFeatureSupport

COSSupport

SupportsLAGinterfaces

COSMappingCong

Yes

Congurableper-interface

IPDSCPMapping

Yes

COSQueueCong

QueueParmscongurableper-interface

DropParmscongurableper-interface

InterfaceTracShaping(forwholeegress

interface)

MinimumBandwidth

WeightedDecitRoundRobin(WDRR)Support

MaximumQueueWeight

WREDSupport

Yes

127

Yes

IEEENetworkProtocols

IEEE802.3Ethernet

IEEE802.3azEnergyEcientEthernet

(selectmodels)

IEEE802.1sMultipleSpanningTree(MSTP)

IEEE802.1v

Protocol-basedVLAN

IEEE802.3u100BASE-T IEEE802.3adTrunking(LACP) IEEE802.1wRapidSpanningTree(RSTP)

IEEE802.1p

QualityofService

IEEE802.3ab1000BASE-T

IEEE802.1ABLLDPwithANSI/TIA-1057

(LLDP-MED)

IEEE802.1XRadiusnetworkaccesscontrol

IEEE802.3x

Flowcontrol

IEEE802.3zGigabitEthernet1000BASE-SX/LX IEEE802.1DSpanningTree(STP) IEEE802.1QVLANtagging

IEEE802.3af/IEEE

802.3at

IETFRFCStandardsandMIBs

SystemFacilities

RFC768–UDP RFC2131–DHCPClient/Server

RFC783–TFTP RFC2132–DHCPoptions&BOOTPvendorextensions

RFC791–IP RFC2030–SimpleNetworkTimeProtocol(SNTP)Version4forIPv4,IPv6andOSI

RFC792–ICMP RFC2865–RADIUSClient(bothSwitchandManagementaccess)

RFC793–TCP RFC2866–RADIUSAccounting

RFC826–EthernetARP RFC2868–RADIUSAttributesforTunnelProtocolsupport

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page26of35

RFC894–TransmissionofIPdatagramsoverEthernetnetworks RFC2869–RADIUSExtensions

RFC896–CongestioncontrolinIP/TCPNetworks RFC2869bis–RADIUSSupportforExtensibleAuthenticationProtocol(EAP)

RFC951–BOOTP RFC3164–TheBSDSyslogProtocol

RFC1321–Message-digestalgorithm

RFC3580–802.1XRADIUSusageguidelines(VLANassignmentviaRADIUS,dynamicVLAN)

RFC1534–InteroperationbetweenBOOTPandDHCP

SwitchingMIB

RFC1213–MIB-II RFC2620–RADIUSAccountingMIB

RFC1493–BridgeMIB RFC2737–EntityMIBversion2

RFC1643–Ethernet-likeMIB RFC2819–RMONGroups1,2,3&9

RFC2233–TheInterfacesGroupMIBusingSMIv2 IEEE802.1XMIB(IEEE802.1-PAE-MIB2004Revision)

RFC2674–VLANMIB IEEE802.1AB–LLDPMIB

RFC2613–SMONMIB ANSI/TIA1057–LLDP-MEDMIB

RFC2618–RADIUSAuthenticationClientMIB PrivateEnterpriseMIBssupportingswitchingfeatures

IPv4Routing

RFC1027–UsingARPtoimplementtransparentsubnetGateways(Proxy

ARP)

RFC2131–DHCPrelay

RFC1256–ICMPRouterDiscoveryMessages RFC3046–DHCPRelayAgentInformationoption

RFC1812–RequirementsforIPVersion4routers VLANrouting

IPv4RoutingMIB

RFC2096–IPForwardingTableMIB PrivateenterpriseMIBsupportingroutingfeatures

Multicast

RFC1112–HostextensionsforIPMulticasting RFC2710–MulticastListenerDiscovery(MLD)forIPv6

RFC2236–InternetGroupManagementProtocol,Version2 RFC3376–InternetGroupManagementProtocol,Version3

RFC2365–AdministrativelyScopedIPMulticast RFC3810–MulticastListenerDiscoveryVersion2(MLDv2)forIPv6

MulticastMIB

Dra-ietf-magma-mgmd-mib-05MulticastGroupMembershipDiscovery

MIB

PrivateEnterpriseMIBsupportingMulticastfeatures

IPv6Routing

RFC1981–PathMTUforIPv6 RFC3484–DefaultAddressSelectionforIPv6

RFC2460–IPv6Protocolspecication RFC3493–BasicSocketInterfaceforIPv6

RFC2461–NeighborDiscovery RFC3542–AdvancedSocketsAPIforIPv6

RFC2462–StatelessAutoConguration RFC3587–IPv6GlobalUnicastAddressFormat

RFC2464–IPv6overEthernet RFC3736–StatelessDHCPv6

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page27of35

IPv6RoutingMIB

RFC2465–IPv6MIB

RFC2466–ICMPv6MIB

QoS

RFC2474–DenitionofDierentiatedServicesField(DSField)intheIPv4

andIPv6Headers

RFC3260–NewTerminologyandClaricationsforDiServ

RFC2475–AnArchitectureforDierentiatedServices RFC3289–ManagementInformationBasefortheDierentiatedServicesArchitecture(read-only)

RFC2597–AssuredForwardingPHBGroup

PrivateMIBsforfullcongurationofDiServ,ACLandCoSfunctionality

RFC3246–AnExpeditedForwardingPHB(Per-HopBehavior)

Management

RFC854–Telnet RFC3412–MessageProcessing&Dispatching

RFC855–TelnetOption RFC3413–SNMPApplications

RFC1155–SMIv1 RFC3414–User-BasedSecurityModel

RFC1157–SNMP RFC3415–View-basedAccessControlModel

RFC1212–ConciseMIBDenitions RFC3416–Version2ofSNMPProtocolOperations

RFC1867–HTML/2.0Formswithleuploadextensions RFC3417–TransportMappings

RFC1901–Community-basedSNMPv2

RFC3418–ManagementInformationBase(MIB)fortheSimpleNetworkManagementProtocol

(SNMP)

RFC1908–CoexistencebetweenSNMPv1&SNMPv2

SSL3.0andTLS1.0

-RFC2246–TheTLSProtocol,Version1.0

-RFC2818–HTTPoverTLS

-RFC2346–AESCiphersuitesforTransportLayerSecurity

RFC2068–HTTP/1.1protocolasupdatedby

dra-ietf-http-v11-spec-rev-03

RFC2271–SNMPFrameworkMIB

RFC2295–TransparentContentNegotiation

RFC2296–RemoteVariantSelection;RSVA/1.0State

Management“cookies”–dra-ietf-http-state-mgmt-05

SSH1.5and2.0

-RFC4253–SSHTransportLayerProtocol

-RFC4252–SSHAuthenticationProtocol

-RFC4254–SSHConnectionProtocol

-RFC4251–SSHProtocolArchitecture

-RFC4716–SECSHPublicKeyFileFormat

-RFC4419–Die-HellmanGroupExchangefortheSSHTransportLayerProtocol

RFC2576–CoexistencebetweenSNMPv1,v2andv3

RFC2578–SMIv2

RFC2579–TextualConventionsforSMIv2

RFC2580–ConformancestatementsforSMIv2

RFC3410–IntroductionandApplicabilityStatementsforInternetStandard

ManagementFramework

RFC3411–AnArchitectureforDescribingSNMPManagementFrameworks

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page28of35

Management

Passwordmanagement Yes

CongurableManagementVLAN Yes

AutoInstall(BOOTPandDHCPoptions66,67,

150and55,125)

Yes Scalabledeploymentprocess(rmware,cong)

AdminaccesscontrolviaRadiusandTACACS+ Yes Policies,Enable

IndustrystandardCLI(IS-CLI) Yes CommandLineinterface

CLIcommandsloggedtoaSyslogserver Yes

Web-basedgraphicaluserinterface(GUI) Yes FullyfunctionalGUI

Telnet Yes

IPv6management Yes

DualSoware(rmware)image Ye s Allowsnondisruptivermwareupgradeprocess

DualCongurationle Yes Text-based(CLIcommands)congurationle

IS-CLIScripting Ye s

IndustrystandardCLIcommandsscriptsfor

automation

Portdescriptions Yes

SNTPclientoverUDPport123 Yes

Providessynchronizednetworktimestampeither

inbroadcastorunicastmode

XMODEM Yes

SNMPv1/v2 Yes

SNMPv3withmultipleIPaddresses Ye s

RMON1,2,3,9

MaxHistoryentries

MaxbucketsperHistoryentry

MaxAlarmentries

MaxEvententries

MaxLogentriesperEvententry

Yes

3*(portcount+LAG+10)

PortMirroring

Numberofmonitorsessions

Tx/Rx

ManytoOnePortMirroring

LAGsupportedassourceports

Maxsourceportsinasession

Yes

Totalswitchportcount

RemotePortMirroring(RSPAN) Yes

Whenaparticularsessionisenabled,anytracenteringorleavingthe

sourceportsofthatsessioniscopied(mirrored)ontoaRemoteSwitched

PortAnalyzer(RSPAN)VLAN

Flowbasedmirroring Ye s

CableTestutility Ye s CLI,WebGUI

Traceroutefeature Yes

OutboundTelnet Yes

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page29of35

SSH

SSHSessionConguration

v1/v2

Yes

SecureShell

SSL/HTTPSandTLSv1.0forweb-basedaccess Yes

Filetransfers(uploads,downloads) TFTP/HTTP

Securedprotocolsforletransfers SCP/SFTP/HTTPS

HTTPMaxSessions 16

SSL/HTTPSMaxSessions 16

HTTPDownload(rmware) Yes

Syslog(RFC3164) Yes

Persistentlogsupported Yes

UserAdminManagement

UserIDconguration Ye s

Maxnumberofconguredusers 6

SupportmultipleREADWRITEUsers Yes

MaxnumberofIASusers(internaluserdatabase) 100

Authenticationloginlists Yes

AuthenticationEnablelists Yes

AuthenticationHTTPlists Yes

AuthenticationHTTPSlists Yes

AuthenticationDot1xlists Yes

AccountingExeclists Ye s

AccountingCommandslists Ye s

M4100series-PlatformConstants

MaximumnumberofremoteTelnetconnections 5

MaximumnumberofremoteSSHconnections 5

NumberofMACAddresses 16K

NumberofVLANs 1K

VLANIDRange 1-4093

Numberof802.1pTracClasses 8classes

IEEE802.1x

Numberof.1xclientsperport

NumberofLAGs 12LAGswithupto8portspergroup

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page30of35

Maximummultiplespanningtreeinstances 32

MACbasedVLANS

Numbersupported

Yes

256

Numberoflogmessagesbuered 200

Staticlterentries

UnicastMACandsourceport

MulticastMACandsourceport

MulticastMACanddestinationport(only)

256

SubnetbasedVLANs

Numbersupported

Yes

128

ProtocolBasedVLANs

Maxnumberofgroups

Maxprotocols

Yes

128

MaximumMulticastMACAddressesentries 1K

JumboFrameSupport

MaxSizeSupported

Yes

NumberofDHCPsnoopingbindings 16K

NumberofDHCPsnoopingstaticentries 1024

LLDP-MEDnumberofremotenodes 48

PortMACLocking

Dynamicaddressesperport

Staticaddressesperport

Yes

4096

sFlow

Numberofsamplers

Numberofpollers

Numberofreceivers

Radius

MaxAuthenticationservers

MaxAccountingservers

Numberofroutinginterfaces(includingport/vlan) 64

Numberofstaticroutes(v4) 64

RoutingHeapsize

IPv4

256K

DHCPServer

Maxnumberofpools

Totalmaxleases

1024

DNSClient

Concurrentrequests

Nameserverentries

Seachlistentries

Statichostentries

Cacheentries

Domainsearchlistentries

128

NumberofHostEntries(ARP/NDP)

IPv4build

Staticv4ARPEntries

512

including509usercongurableentries

NumberofECMPNextHopsperRoute 1

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page 31 of 35

ACLLimits

MaximumNumberofACLs(anytype)

MaximumNumberCongurableRulesperList

MaximumACLRulesperInterfaceandDirection

(IPv4/L2)

MaximumACLRulesperInterfaceandDirection

(IPv6)

MaximumACLRules(system-wide)

MaximumACLLoggingRules(system-wide)

509

COSDeviceCharacteristics

CongurableQueuesperPort

CongurableDropPrecedenceLevels

8queues

DiServDeviceLimits

NumberofQueues

RequiresTLVtocontainallpolicyinstances

combined

MaxRulesperClass

MaxInstancesperPolicy

MaxAttributesperInstance

MaxServiceInterfaces

MaxTableEntries

ClassTable

ClassRuleTable

PolicyTable

PolicyInstanceTable

PolicyAttributeTable

MaxNestedClassChainRuleCount

8queues

Yes

50interfaces

192

768

2304

AutoVoIPnumberofvoicecalls 16

LEDs

Perport Speed,Link,Activity,PoE

Perdevice Power,Fan,RPSorPDMode,MaxPoE

PhysicalSpecications

Dimensions(WidthxDepthxHeight)

M4100-50-POE 440x310x43.2mm(17.32x12.20x1.7in)

M4100-D12G 328x169x43.2mm(12.91x6.65x1.7in)

M4100-D12G-POE+ 331x208x43.2mm(13.03x8.19x1.7in)

M4100-12GF 440x257x43.2mm(17.3x10.12x1.7in)

M4100-26G 440x257x43.2mm(17.3x10.12x1.7in)

M4100-50G 440x257x43.2mm(17.3x10.12x1.7in)

M4100-26G-POE 440x257x43.2mm(17.3x10.12x1.7in)

M4100-24G-POE+ 440x257x43.2mm(17.3x10.12x1.7in)

M4100-50G-POE+ 440x310x43.2mm(17.32x12.20x1.7in)

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page32of35

Weight

M4100-50-POE 4.96kg(10.9lb)

M4100-D12G 1.33kg(2.9lb)

M4100-D12G-POE+ 2.596kg(5.73lb)

M4100-12GF 3.665kg(8.08lb)

M4100-26G 3.24kg(7.1lb)

M4100-50G 3.63kg(8.0lb)

M4100-26G-POE 3.79kg(8.36lb)

M4100-24G-POE+ 4.368kg(9.63lb)

M4100-50G-POE+ 4.96kg(10.9lb)

PowerConsumption(allportsused,line-ratetrac,maxPoE)

M4100-50-POE 486.64Wmax

M4100-D12G 18.80Wmax

M4100-D12G-POE+ 166.60Wmax

M4100-12GF 160.60Wmax

M4100-26G 31.60Wmax

M4100-50G 49.50Wmax

M4100-26G-POE 272.90Wmax

M4100-24G-POE+ 533Wmax

M4100-50G-POE+ 555.50Wmax

EnvironmentalSpecications

Operating:

Temperature

Humidity

Altitude

32°to122°F(0°to50°C)

90%maximumrelativehumidity,non-condensing

10,000(3,000m)maximum

Storage:

Temperature

Humidity

Altitude

–4°to158°F(–20°to70°C)

95%maximumrelativehumidity,non-condensing

10,000(3,000m)maximum

ElectromagneticEmissionsandImmunity

Certications CEmark,commercial

FCCPart15ClassA,VCCIClassA

ClassAEN55022(CISPR22)ClassA

ClassAC-Tick

EN50082-1

EN55024

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page 33 of 35

Safety

Certications CEmark,commercial

CSAcertied(CSA22.2#950)

ULlisted(UL1950)/cULIEC950/EN60950

CCC

PackageContent

All models ProSAFE®M4100seriesswitch

Powercord

Rubberfootpadsfortabletopinstallation

RubbercapsfortheSFPsockets

Mini-USBconsolecablewithoneMiniBconnectorandonetypeAconnector

ResourceCDwithlinkstoonlinedocumentation:USB drivers for the Mini-USB console; Switch MIB; ProSAFE M4100 Managed

Switch Quick Installation Guide, ProSAFE M4100 Hardware Installation Guide; ProSAFE Managed Switch Command-Line Interface

(CLI) User Manual; ProSAFE M4100 and M7100 Managed Switches Administration Manual

TechnicalDocumentationonlinerepository:http://www.downloads.netgear.com/docs/m4100/enu/202-11161-01/

Rackmount models

M4100-50-POE,M4100-12GF;M4100-26G;M4100-50G

M4100-26G-POE;M4100-24G-POE+;M4100-50G-POE+

Rack-mountingkit

Desktopmodels

M4100-D12G;M4100-D12G-POE+

Wall-mountingkit

Desktopmodels

M4100-D12G

ACexternalpoweradapter

magneticmountingkit(setofmagnets)

OptionalModulesandAccessories

All models:

AFM735

AGM731F

AGM732F

100Base-FXSFPGBIC(Multimode)

1000Base-SXSFPGBIC(Multimode)

1000Base-LXSFPGBIC(Singlemode)

OrderingSKU:

AFM735-10000S

AGM731F

AGM732F

All rackmount models:

RPS5412

RPS4000

APS1000W

OptimalPower®RedundantPowerSupply(oneswitch-RPSmodeonly)

External/RedundantPowerSupply(uptofourswitches-RPSorEPSmode)

PowerModuleforRPS4000

RPS5412-100NAS/-100EUS/-100AJS

RPS4000-200NES/-200AJS

APS1000W-100NES/-100AJS

All desktop models:

420-10043-01 RackmountkitforM4100seriesdesktopversions 420-10043-01

WarrantyandSupport

ProSafeLifetimeHardwareWarranty* Included,lifetime

90daysofTechnicalSupportviaphoneandemail* Included,90daysaerpurchase

LifetimeTechnicalSupportthroughonlinechat* Included,lifetime

LifetimeNextBusinessDayhardwarereplacement* Included,lifetime

ProSupportServicePacks

Installationcontracts

PSB0304-10000S RemoteInstallationSetupandCongurationServiceContract

PSP1104-10000S OnsiteInstallationSetupandCongurationServiceContract

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page34of35

Supplementalsupportcontracts

PMB0332-10000S

OnCall24x73-yearCAT2

M4100-50-POE;M4100-D12G;M4100-D12G-POE+;M4100-12GF

M4100-26G;M4100-26G-POE;

OnCall24x7extendsthe90-daywarranty

entitledtechnicalsupport(phoneandemail)

forstandardandadvancedfeaturestothe

lengthofthecontractterm

PMB0333-10000S

OnCall24x73-yearCAT3

M4100-50G;M4100-50G-POE+

PacksOrderingInformation

M4100-50-POE

Americas,Europe

AsiaPacic

China

48 ports Fast Ethernet PoE 802.3af, Layer 2+ soware package

FSM7250P-100NES

FSM7250P-100AJS

FSM7250P-100PRS

M4100-D12G

Americas,Europe

AsiaPacic

China

Desktop 12 ports Gigabit, Layer 2+ soware package

GSM5212-100NES

GSM5212-100AJS

GSM5212-100PRS

M4100-D12G-POE+

Americas,Europe

AsiaPacic

China

Desktop 12 ports Gigabit PoE+ 802.3at, Layer 2+ soware package

GSM5212P-100NES

GSM5212P-100AJS

GSM5212P-100PRS

V1H2

M4100-12GF

Americas,Europe

AsiaPacic

China

12 ports Gigabit Fiber, Layer 2+ soware package

GSM7212F-100NES

GSM7212F-100AJS

GSM7212F-100PRS

V1H2

M4100-26G

Americas

Europe

AsiaPacic

China

26 ports Gigabit, Layer 2+ soware package

GSM7224-200NAS

GSM7224-200EUS

GSM7224-200AJS

GSM7224-200PRS

V2H2

M4100-50G

Americas

Europe

AsiaPacic

China

50 ports Gigabit, Layer 2+ soware package

GSM7248-200NAS

GSM7248-200EUS

GSM7248-200AJS

GSM7248-200PRS

V2H2

M4100-26G-POE

Americas,Europe

AsiaPacic

China

24 ports Gigabit PoE 802.3af, Layer 2+ soware package

GSM7226LP-100NES

GSM7226LP-100AJS

GSM7226LP-100PRS

M4100-24G-POE+

Americas,Europe

AsiaPacic

vChina

24 ports Gigabit PoE+ 802.3at, Layer 2+ soware package

GSM7224P-100NES

GSM7224P-100AJS

GSM7224P-100PRS

V1H2

M4100-50G-POE+

Americas,Europe

AsiaPacic

China

48 ports Gigabit PoE+ 802.3at, Layer 2+ soware package

GSM7248P-100NES

GSM7248P-100AJS

GSM7248P-100PRS

ProSAFE® Intelligent Edge Managed Switches Data Sheet

M4100 series

Page 35 of 35

*ThisproductcomeswithalimitedwarrantythatisvalidonlyifpurchasedfromaNETGEARauthorizedresellerandmodificationstoproductmayvoidthewarranty;covershardware,fansand

internal power supplies - not software or external power supplies See http://www.netgear.com/about/warranty/ for details. Lifetime technical support includes basic phone support for 90 days

from purchase date and lifetime online chat support when purchased from a NETGEAR authorized reseller.

NETGEAR, the NETGEAR Logo, and ProSAFE are trademarks of NETGEAR, Inc. in the United States and/or other countries. Other brand names mentioned herein are for identiﬁcation purposes only

andmaybetrademarksoftheirrespectiveholder(s).Informationissubjecttochangewithoutnotice.©2015NETGEAR,Inc.Allrightsreserved.D-M4100-1
