Begin with your smart home app
If you will be using a smart home app with your lock, download the app and set up
your controller or hub before proceeding further with lock installation.
1 / 4
66492001
Rev 02
914C
ZigBee
Installation and User Guide
ENGLISH
Kwikset Technical Support
1-866-863-6584
www.kwikset.com
Tools needed
Existing key
Phillips head screwdriver
Ruler
Optional: Masking tape
Prepare your door
Determine the parts needed for your door
Parts in the box
Kit "A" Kit "B" Kit "C"
Mounting
plate screws
Mounting
plate screws
Mounting
plate screws
Black mounting
plate
Interior
cover
Interior
assembly
Battery pack and
4 AA batteries
Silver mounting
plate
Gold mounting
plate
Black adapter
Gold adapter
Gold adapterBlack adapter
Silver adapter
Interior assembly
screws
Interior assembly
screws
Interior assembly
screws
Interior cover
screws
Interior cover
screws
Interior cover
screws
Make sure your existing deadbolt is compatible. If you have a standard deadbolt mounted
separately from the handle below it, it is compatible with Kwikset Convert.
Make sure your door is aligned before
proceeding with installation.
A B
Look into the hole in your door.
What shape is your torque blade (the part sticking out through the latch)?
For a list of compatible deadbolt
models, please see the Kwikset
Convert page at www.kwikset.com
Mortise
Lock
Not CompatibleNot Compatible
Rim
Lock
Integrated
Interior
Not CompatibleCompatible
D-shape
Kwikset and Weiser deadbolts:
Use kit “A” for your door.
Baldwin Reserve and
Baldwin Prestige deadbolts:
Use kit “B” for your door.
You will need the black adapter
and the thicker gold screws.
thicker
screws
Vertical rectangle
Baldwin Estate deadbolts:
Use kit “B” for your door.
You will need the gold adapter
and the thinner gold screws.
thinner
screws
Slanted rectangle
Schlage deadbolts:
Use kit “C” for your door.
You will need the silver adapter.
Horizontal rectangle
Schlage deadbolts:
Use kit “C” for your door.
You will need the gold adapter.

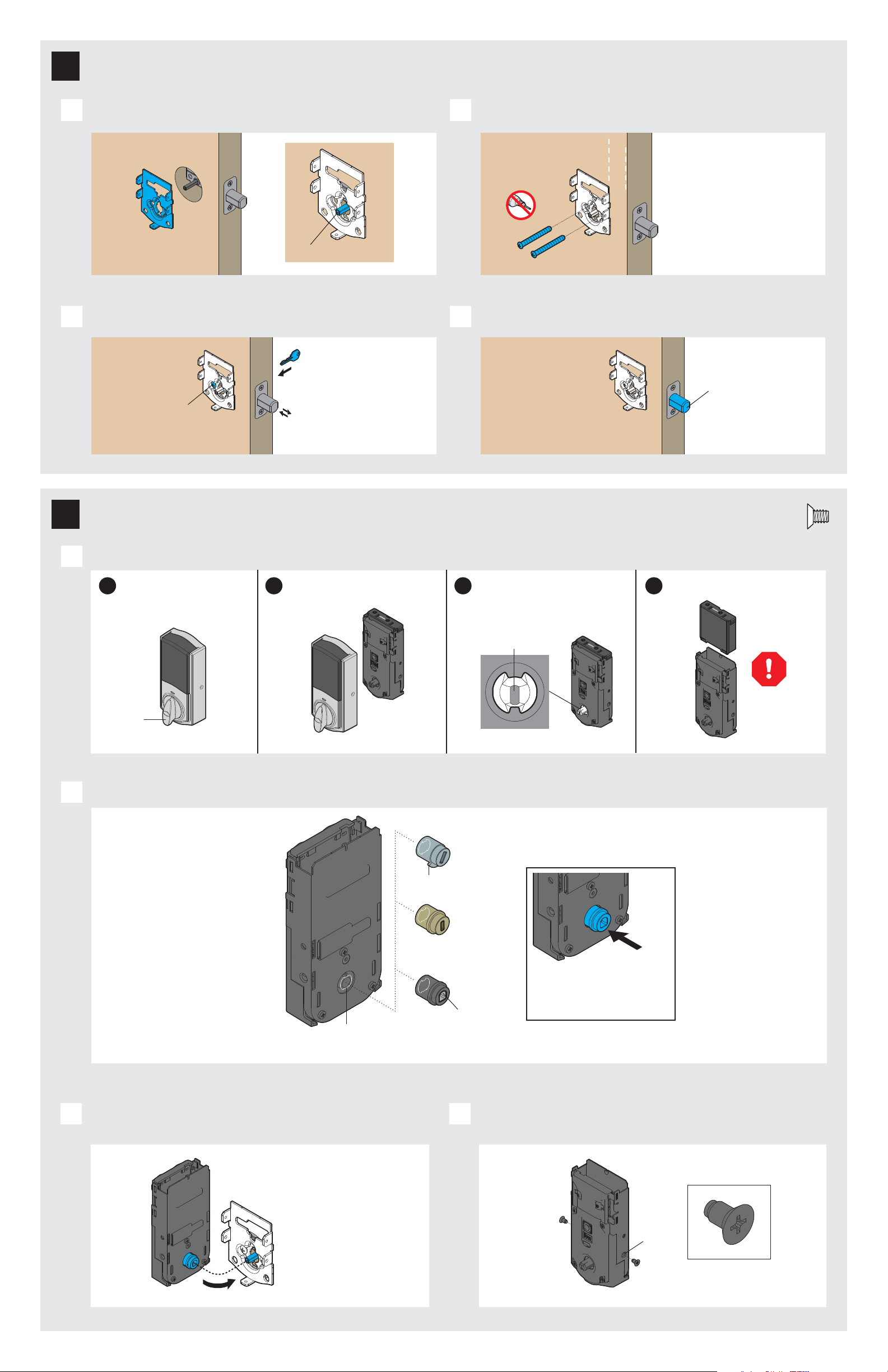

Make sure your door is open and
extend your latch bolt. Make sure your
key is NOT in the deadbolt exterior.
extended
Remove all existing deadbolt hardware
from the interior side of your door.
D
Optional: Secure your deadbolt
exterior with masking tape.
E
Measure to conirm that your door is either
13/8" or 13/4" (35 mm or 44 mm) thick.
13/8"or 13/4"
35 or 44 mm
C F
You should be able to lock and
unlock your door smoothly
without any resistance, and
without pushing, pulling
or lifting your door.
If your door is not aligned, you
may need to order a Warped
Door Service Kit, available
through Kwikset Support:
18668636584
