OWNER’S MANUAL Washing Machine Samsung WW60R20GLMA/TL

CONTENTS

  • Safety information
  • Installation
  • Before you start

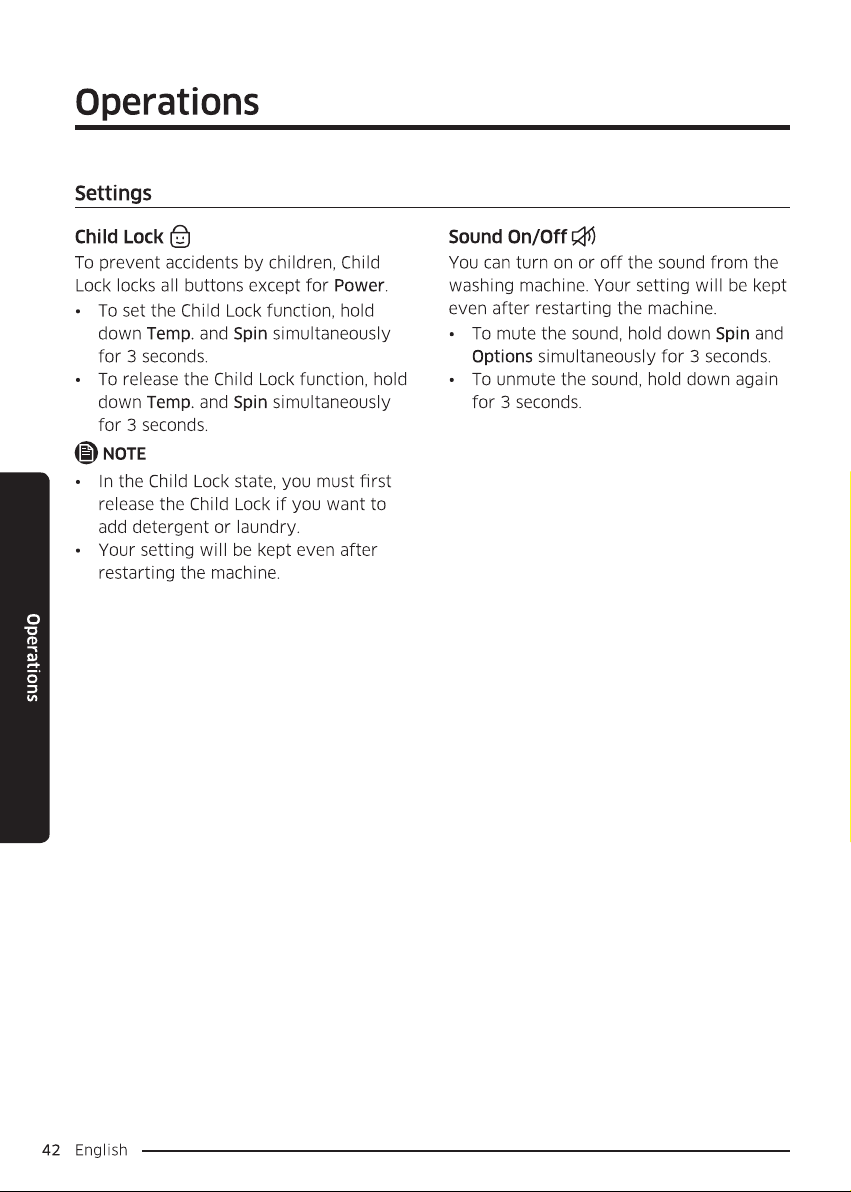

  • Operations
  • Maintenance
  • Troubleshooting
  • Soecification

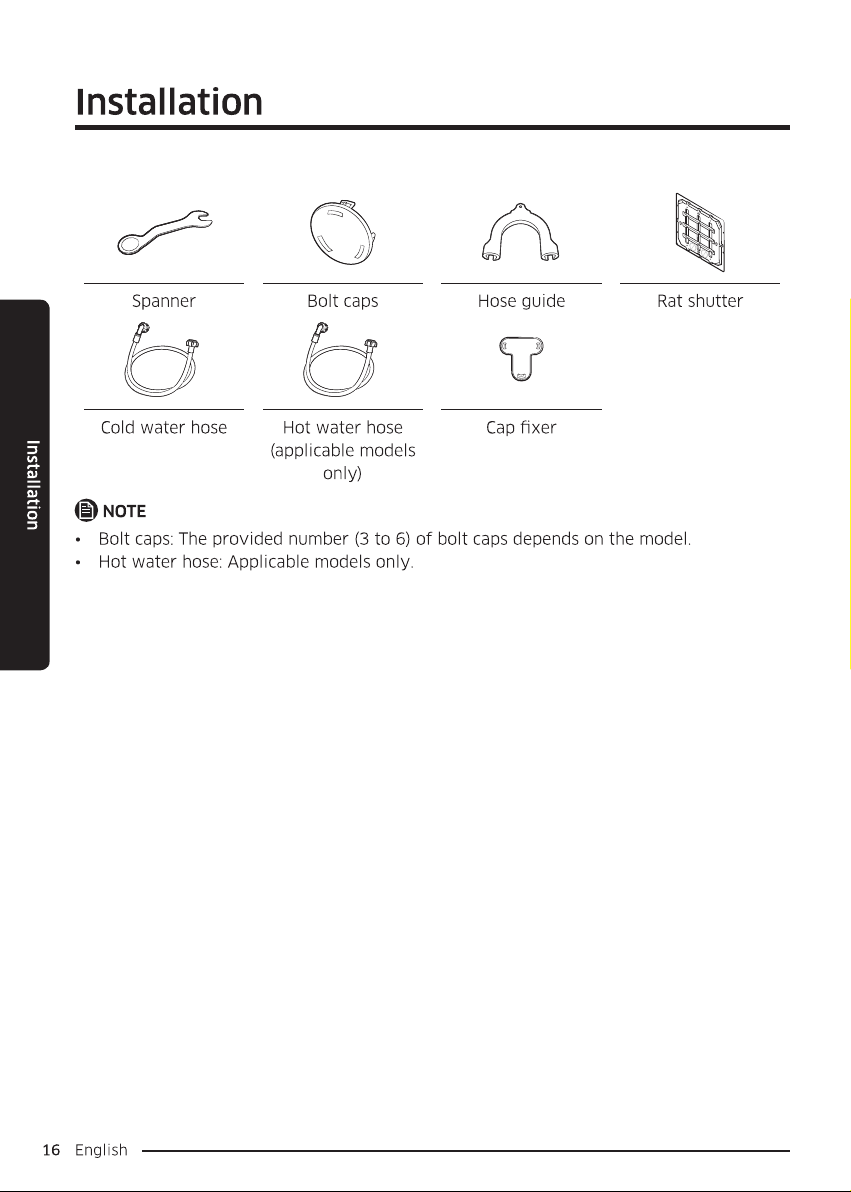

Installation

Step - by - step installation

STEP 1 Select a location

  • Location requirements : Solid , level surface without carpeting or flooring that may obstruct ventilation
  • Away from direct sunlight
  • Adequate room for ventilation and wiring
  • The ambient temperature is always higher than the freezing point ( 0 ° C )
  • Away from a heat source machine

STEP 2 Installation procedure for the Rat shutter assembly with the washing machine

To prevent rats from entering inside the washing machine and to avoid damaging the internal parts of the washing machine

  1. Remove the packing box . Then , remove the bottom cushion from the washing machine Check Point : Do not remove the shipping bolt
  2. Tilt the washing machine onto the bottom cushion . Check Point Carefully tilt the washing machine on its left or right side and ensure there is no damage . Do not tilt the washing machine on its front or back
  3. 3. Fix the Rat shutter in the proper position ( Front mark to be front side ) . Check Point : Make sure the Rat shutter locks correctly .
  4. Screw the screws in the four marked areas . Then , tilt the washing machine

STEP 3 Remove the shipping bolts

Unpack the product package and remove all shipping bolts .

  1. Loosen all shipping bolts on the rear of the using the supplied spanner
  2.  Fill the holes with the supplied plastic Keep the shipping bolts for future use

STEP 4 Adjust the levelling feet

  1. Cently slide the washing machine into position Excessive force may damage the leveling feet
  2. Level the washing machine by manually adjusting the levelling feet
  3. When levelling is complete . Lighten the nets using the scorner

STEP 5 Connect the water hose

The provided hose adaptor may differ with the model . This step guides you through connecting the connector - type adaptor . If you are provided with the screw - type adaptor , go to 7 .

Connect th
