• Page 1: Samsung SSD Data Migration v40 User Manual
• Page 2 - English - : Copyright 2020 SAMSUNG ELECTRONICS CO LTD This user manual is copyrighted by Samsung Electronics Any unauthorized reproduction use or disclosure of this material or any part thereof is strictly prohibited and is a violation under copyright law Samsung Electronics reserves the right to change products information and specifications without notice The material and information provided in this publication are considered to be accurate and reliable at the time of publication but Samsung Electronics does not warrant the accuracy completeness or reliability either expressed or implied with any material or information provided herein Trademarks amp Service Marks The Samsung Logo is the trademark of Samsung Electronics Adobe and Adobe Acrobat are registered trademarks of Adobe Systems Incorporated All other company and product names may be trademarks of the respective companies with which they are associated
• Page 3 - English - : Introduction The Samsung Data Migration software is designed to help you migrate all of your data quickly easily and safely from your existing storage device eg HDD to a new Samsung SSD With the Samsung Migration software you can easily migrate your current operating system application software and user data to your new Samsung SSD Samsung Data Migration software is developed and distributed by Clonix Co Ltd exclusively for owners of Samsung Solid State Drives SSDs Precautions 1 When the content of the Source Drive eg HDD is cloned using this software all data on the Target Drive Samsung SSD will be deleted and will be impossible to recover Therefore if you have stored any data that you would like to keep on the Target Drive please back it up in advance 2 Samsung Electronics assumes no responsibility for any loss of data that may occur on the Target Drive in the course of using this software and will not be held liable for data recovery services Even if the cloning fails data stored on the Source Drive will not be affected 3 If you are cloning the Source Drive to the Target Drive Samsung NVMe SSD using this software make sure that you install the Samsung NVMe Driver first Improvements 1 Support for new models 2 Improvements to the cloning compatibility
• Page 4 - English - : System Requirements Component Minimum Requirement Operating System Windows 7 SP1 3264 bit Windows 8 3264 bit Windows 81 3264 bit Windows 10 3264 bit PC Memory RAM 1 GB or more Drive Space Required for Installation 100 MB or more Supported Partition Type MBR GPT Supported Language English Minimum Resolution 1600x900 Source Drive HDD or SSD with a supported operating system installed Target Drive Samsung SSD Samsung SSD 980 PRO Series Samsung SSD 970 PRO Series Samsung SSD 970 EVO Series Samsung SSD 970 EVO Plus Series Samsung SSD 960 PRO Series Samsung SSD 960 EVO Series Samsung SSD 950 PRO Series Samsung SSD 870 EVO Series Samsung SSD 870 QVO Series Samsung SSD 860 EVO Series Samsung SSD 860 PRO Series Samsung SSD 860 QVO Series Samsung SSD 850 EVO Series Samsung SSD 850 PRO Series Samsung SSD 840 EVO Series Samsung SSD 840 Series Samsung SSD 840 PRO Series Samsung SSD 830 Series Samsung SSD 470 Series
• Page 5 - English - : Limitations 1 This software supports the Windows operating systems listed in the User Manual only 2 This software supports the Samsung SSDs listed in the User Manual only OEM storage devices provided through a computer manufacturer or supplied through another channel are not supported 3 This software can only clone a Source Drive on which an operating system has been installed It cannot clone a drive without an operating system installed on it 4 When the Source Drive has two or more volumes eg volumes to which drive letters such as C D or E are assigned this software can clone the C volume on which an operating system is installed and two more volumes The System Reserved Partition which is created automatically during Windows installation is cloned automatically 5 The OEM Partition which is created by the computer manufacturer when shipped from the factory is not cloned However it will be automatically cloned if the computer manufacturer is Samsung and SRS Samsung Recovery Solution 5 SRS 6 or SRS 7 has been installed Versions lower than SRS 5 are not supported 6 After cloning the Source Drive to the Target Drive their data sizes may differ by a few gigabytes This is normal During cloning the software does not copy virtual memory page files hibernation files etc automatically created and managed by the operating system 7 This software cannot clone encrypted drives In order to clone an encrypted drive you must remove its password first 8 If the motherboard chipset drivers are not up to date when cloning this software may not function properly 9 If you have multiple operating systems installed on your computer eg Windows 7 installed on the C volume and Windows 8 installed on the D volume then the cloned drive may not function properly in some cases 10 If the Source Drive is damaged eg it has bad sectors then the cloned drive may not function properly 11 Before attempting to clone a drive using this software it is recommended that you close all open programs and allocate sufficient memory first 12 If you have instant recovery software installed on your computer then this software may not function properly 13 If the Source Drive has been converted to a dynamic disk then the software may not function properly 14 The Program Files Windows and Recycle Bin folders will not be displayed when scanning for files to exclude from cloning 15 If the Target Drive is a Samsung NVMe SSD and it does not have the Samsung NVMe Driver installed on it then this software may not function properly 16 If a portable device eg an external USB device is connected to the Target Drive for cloning then this software may not function properly because of the USB adapter 17 If the OS version installed in the original drive does not support the GPT partition and when it is
• Page 6 - English - : duplicated in a drive exceeding 2TB the MBR partition type will be applied to the duplicated drive As MBR does not support large drives the space exceeding 2TB will remain unallocated

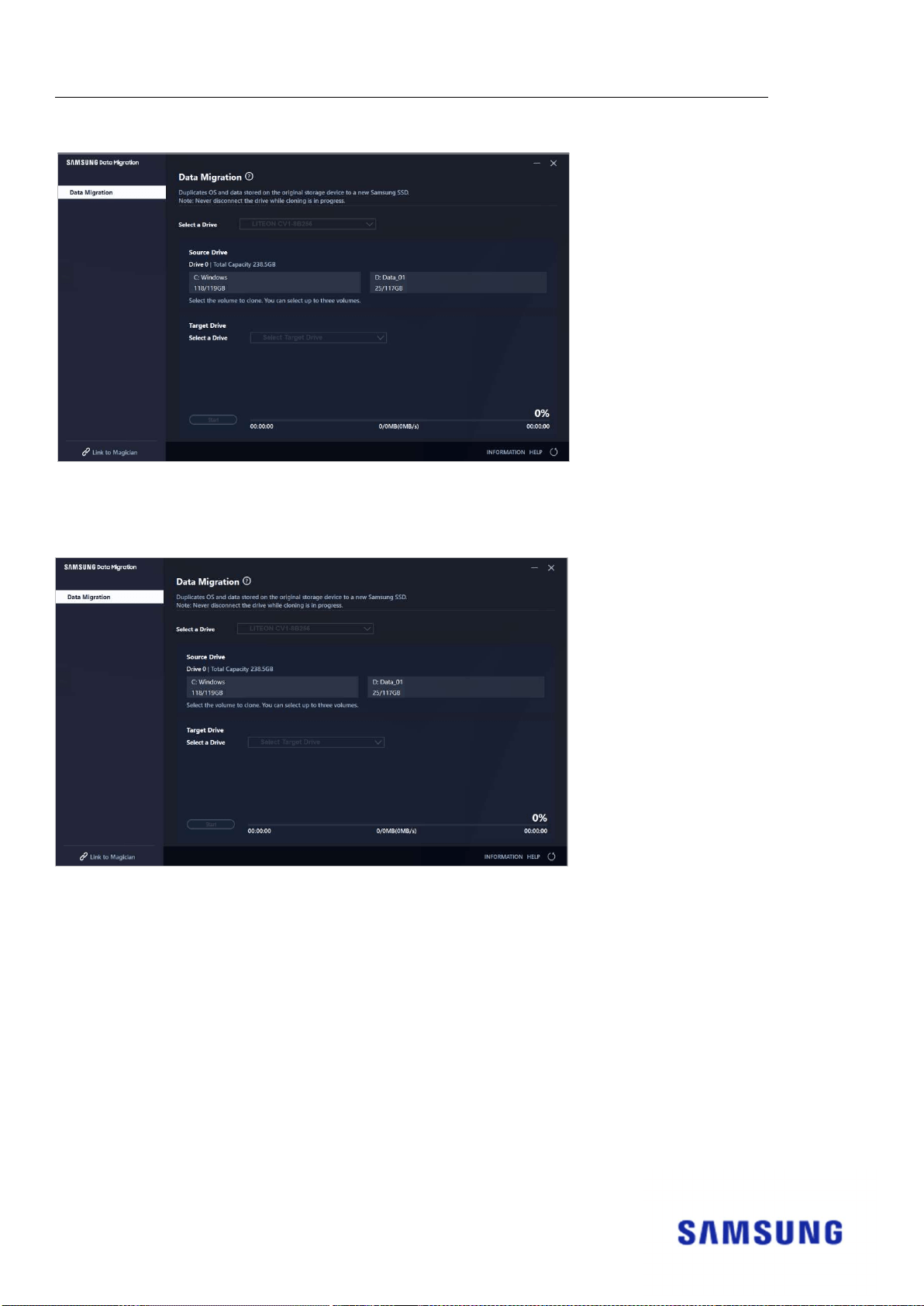

• Page 7 - English - : User Guide 1 If the amount of data saved on the Source Drive is smaller than the capacity of the Target Drive STEP 1 Start migration STEP 2 Connect and select your Target Drive ① Connect your Target Drive ② Click the Refresh button so that the Target Drive can be recognized Once the Target Drive is successfully connected you can select the Target Drive on the screen ③ Select your Target Drive When connecting an mSATA SSD you may need an additional mSATASATA converter connector or mSATAUSB converter connector When connecting an NVMe or M2 SSD you may need an additional M2 PCIeUSB converter connector
• Page 8 - English - : STEP 3 If the Source Drive has two or fewer volumes apart from the C volume and if you also wish to clone those additional volumes to the Target Drive then proceed to STEP 4 If the Source Drive has three or more volumes apart from the C volume and if you also wish to clone those additional volumes to the Target Drive then proceed to STEP 5 If you only wish to clone the Source Drive C volume to the Target Drive then proceed to STEP 6 STEP 4 Select the volumes that you wish to clone If the Source Drive has two or fewer volumes apart from the C volume and if you also wish to clone those additional volumes to the Target Drive ① Select all the volumes that you wish to clone additionally from the Source Drive pane using the mouse You can select up to three volumes including the C volume ② Adjust the capacity of each volume in the Target Drive pane using the slide bar If you wish to delete any of the volumes that you have added click the X icon for the relevant volumes in the Target Drive pane

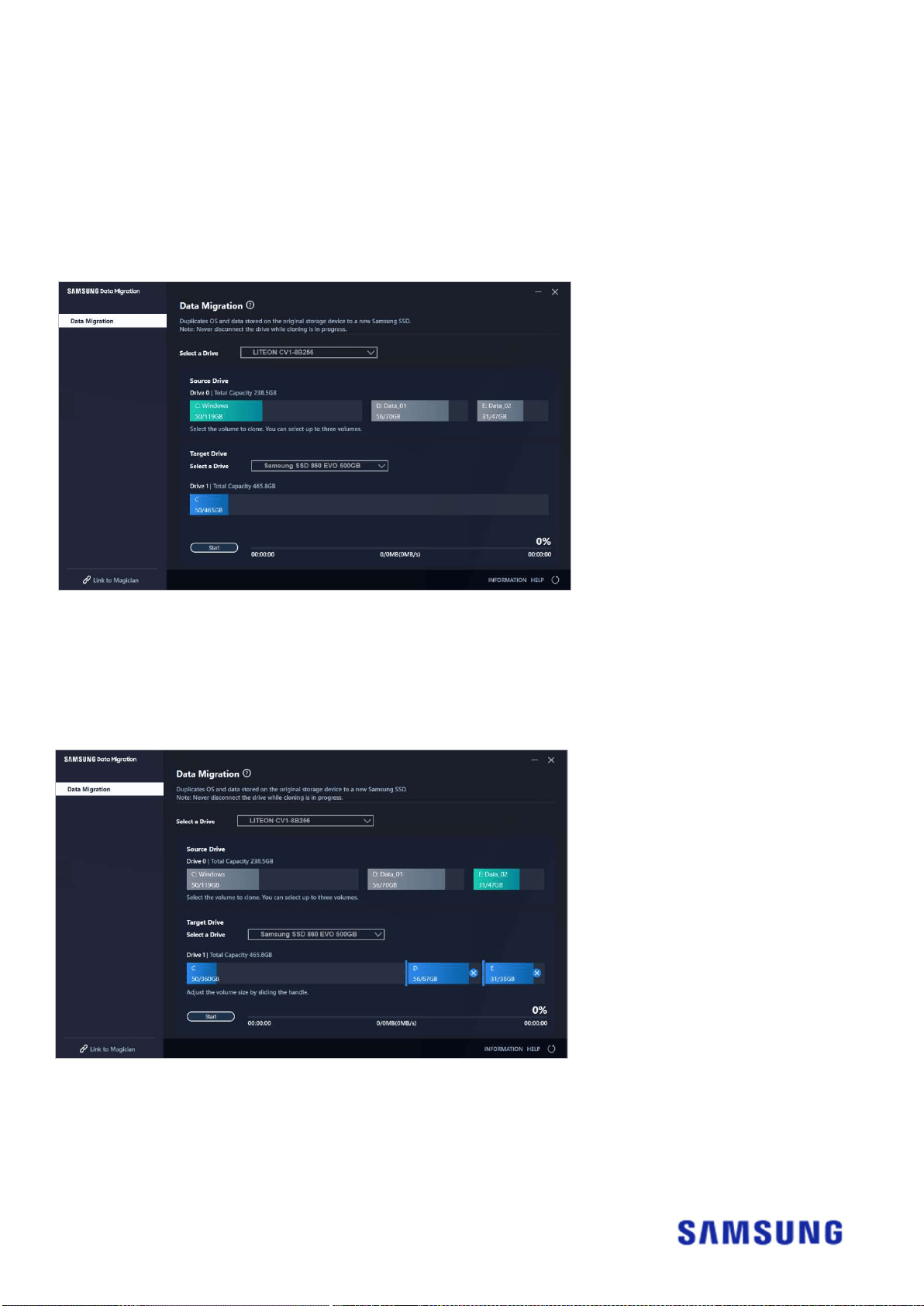

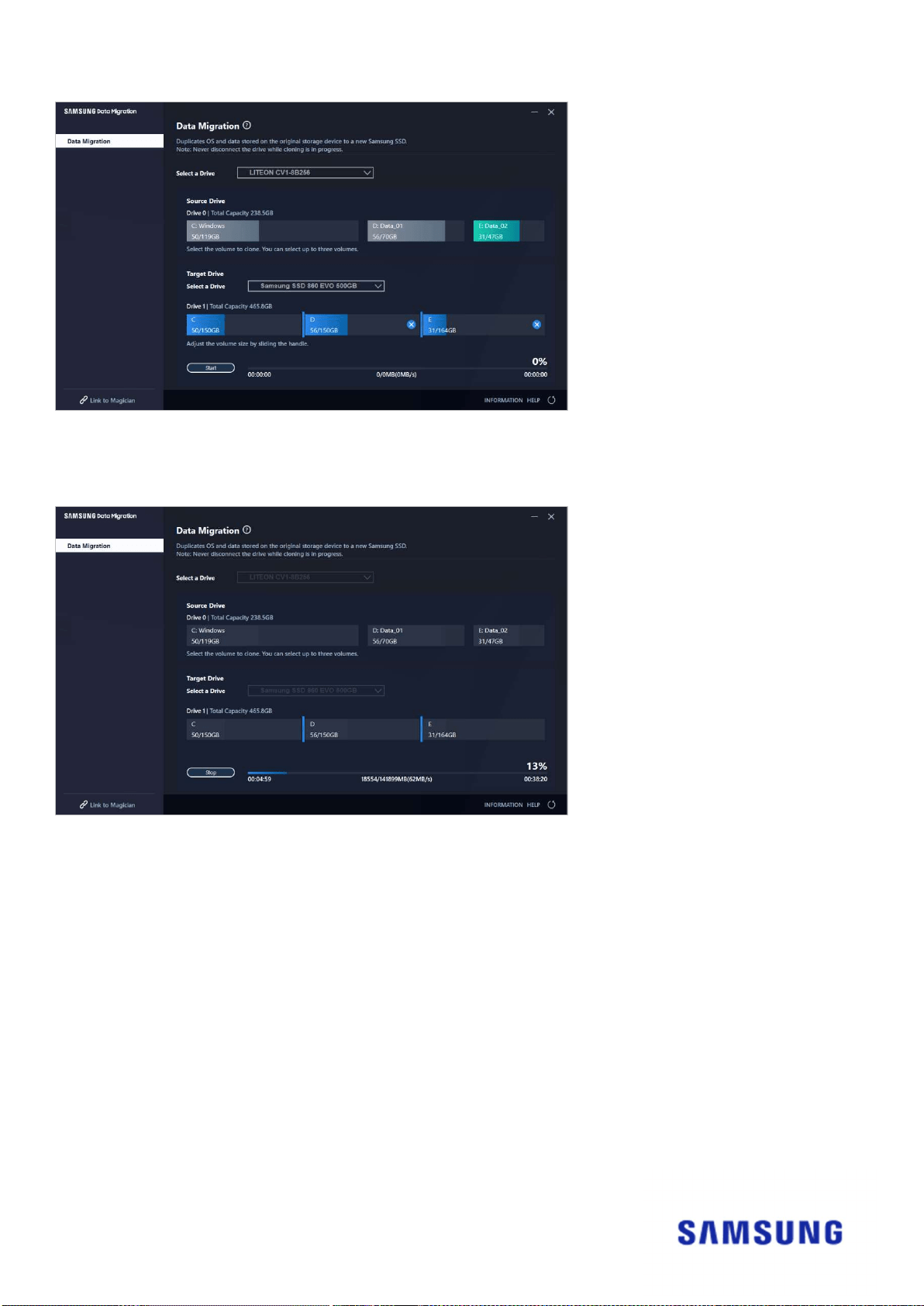

• Page 9 - English - : When you add a volume its minimum added capacity is 20 GB or more STEP 5 Select the volumes that you wish to clone If the Source Drive has three or more volumes apart from the C volume and if you also wish to clone those additional volumes to the Target Drive ① Select all the volumes that you wish to clone additionally from the Source Drive combo box and then click the button You can select up to three volumes including the C volume ② Adjust the capacity of each volume in the Target Drive pane using the slide bar If you wish to delete any of the volumes that you have added click the X icon for the relevant volumes in the Target Drive pane When you add a volume its minimum added capacity is 20 GB or more

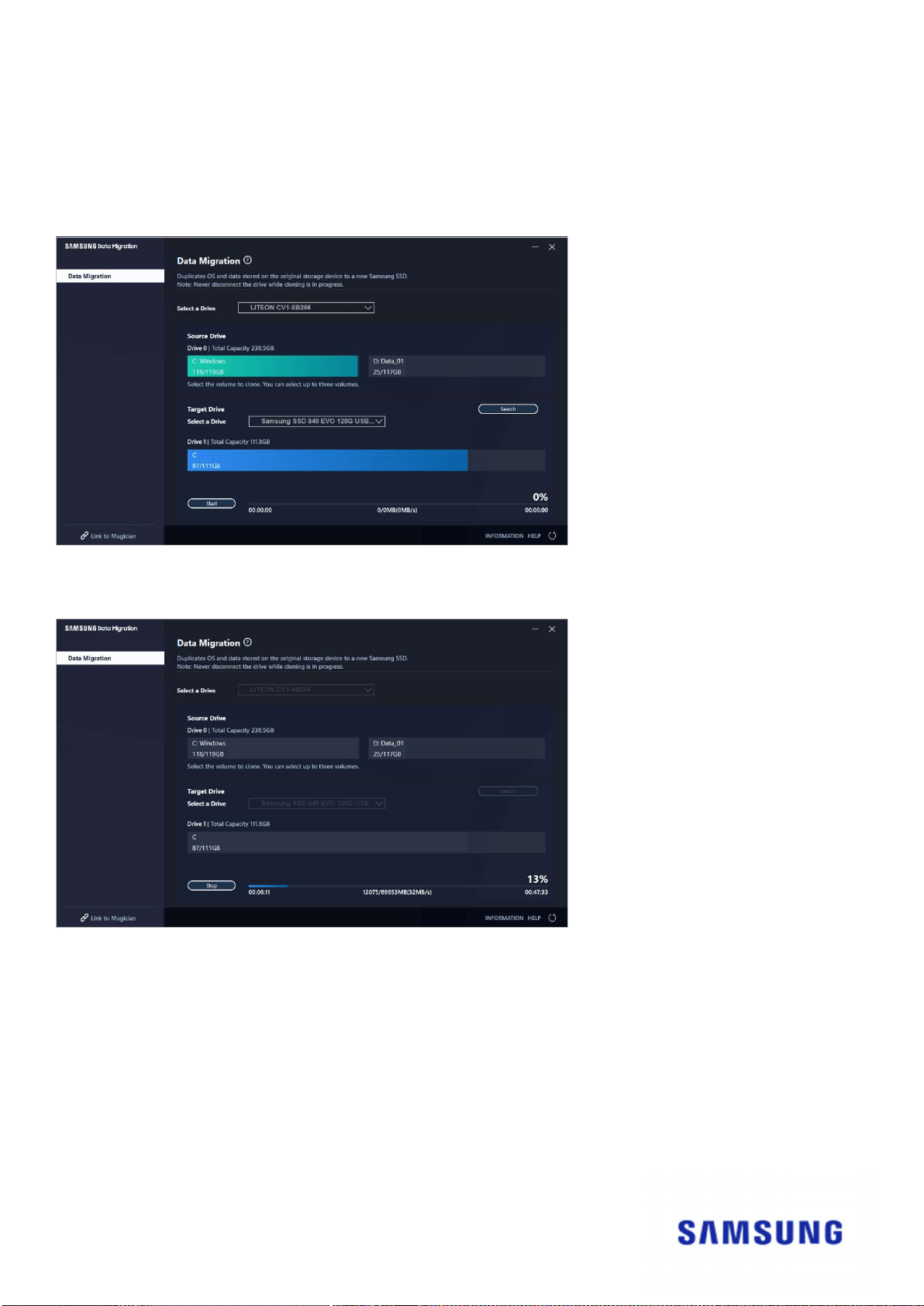

• Page 10 - English - : STEP 6 Start cloning STEP 7 Cloning in progress The cloning speed may vary depending on the computer specifications and operating environment Once the cloning process is complete the computer will shut down automatically within 20 seconds
• Page 11 - English - : 2 If the amount of data saved on the Source Drive is larger than the capacity of the Target Drive STEP 1 Start migration STEP 2 Connect and select your Target Drive V ① Connect your Target Drive ② Click the Refresh button so that the Target Drive can be recognized Once the Target Drive is successfully connected you can select the Target Drive on the screen ③ Select your Target Drive When connecting an mSATA SSD you may need an additional mSATASATA converter connector or mSATAUSB converter connector When connecting an NVMe or M2 SSD you may need an additional M2 PCIeUSB converter connector
• Page 12 - English - : STEP 3 Select a folder to scan for files to exclude from cloning ① Click the Select Exclude Data button ② Click the Set Folder to Scan button
• Page 13 - English - : ③ Select a folder to scan for files to exclude from cloning ④ Click the Search button STEP 4 If the Select Exclude Data screen displays a list of excluded files then proceed to STEP 5 If the Select Exclude Data screen does not display a list of excluded files then return to STEP 3 and select a folder to scan for files to exclude from cloning again STEP 5 Select files to exclude from cloning ① Select files to exclude them from cloning until their total size becomes equivalent to the amount specified in the shortage message displayed in the upperright corner STEP 6 Select what to do with the excluded files ① To clone the drive without the excluded files select the Clone everything except the selected files option To delete the excluded files from the Source Drive and then proceed with the cloning select the Delete the selected files and continue cloning option
• Page 14 - English - : To save the excluded files to a different storage device and then proceed with the cloning select the Save the selected files to another storage device and continue cloning option and then select the storage device to which you wish to save the excluded files ② Click the Apply button STEP 7 Start cloning STEP 8 Cloning in progress The cloning speed may vary depending on the computer specifications and operating environment Once the cloning process is complete the computer will shut down automatically within 20 seconds
• Page 15 - English - : 3 Boot from the cloned Target Drive 31 If the Target Drive is connected via USB STEP 1 Connect the Target Drive to the computer internally ① Disconnect the USB cable from the Target Drive ② Connect the cloned Target Drive When there is only one connectable drive inside the computer remove the Source Drive and then connect the cloned Target Drive STEP 2 Change the boot priority to the cloned drive ① Turn on the computer and enter the BIOS screen using the BIOS access key ② Open the Boot menu ③ Place the Target Drive above the Source Drive to give the cloned drive a higher boot priority ④ Press the F10 key to save the change
• Page 16 - English - : ⑤ Press the ESC key to exit the BIOS screen The BIOS access key and boot priority change method may differ depending on the computer manufacturer or motherboard specifications STEP 3 Boot from the Target Drive ① Check whether the operating system boots from the Target Drive 32 If the Target Drive is connected via SATA STEP 1 Change the boot priority to the cloned drive ① Turn on the computer and enter the BIOS screen using the BIOS access key ② Open the Boot menu ③ Place the Target Drive above the Source Drive to give the cloned drive a higher boot priority ④ Press the F10 key to save the change ⑤ Press the ESC key to exit the BIOS screen
• Page 17 - English - : STEP 2 Boot from the Target Drive ① Check whether the operating system boots from the Target Drive The BIOS access key and boot priority change method may differ depending on the computer manufacturer or motherboard specifications
• Page 18 - English - : FAQ 1 Product usage I ran the software but the Target Drive selection combo box is disabled If the Target Drive selection combo box is disabled it means the Target Drive is not connected properly or it does not exist You can check whether the Target Drive is connected properly as instructed below How to check the Target Drives connection a Check the hardware interface connection Check whether the USB adapter or SATA cable is properly connected to the Target Drive b Check the Target Drive from Disk Management in Windows Type the diskmgmtmsc command in the Run box and press Enter to open Disk Management Then check whether the Target Drive is on the list c Refresh the software Click the Refresh icon in the lowerright corner of the softwares main screen to update the drives information The The drive you selected does not support this feature message appeared when I ran the software If the Target Drive has been successfully connected but it is not a supported drive then you will see the The drive you selected does not support this feature message For the list of supported drives please refer to System Requirements in this document Can I use this product when the Source Drive is in a RAID group or storage pool This software does not support a RAID configuration When the drive is in a storage pool supported by Windows you need to delete the storage space and then the storage pool because the software can only support a single Source Drive Note that if you remove the storage pool configuration the data in the storage space will be formatted Do I need to perform any checks before running this software It is recommended that you run a check on your Source Drive before cloning it since cloning may fail depending on the Source Drives condition How to run a check on the Source Drive a Check the drive by running chkdsk f Type the cmd command in the Run box as an administrator and press Enter Type chkdsk f and press Enter Then reboot to check whether there are any issues with the drive b Check the system by running sfc scannow Type the cmd command in the Run box as an administrator and press Enter Type sfc scannow and press Enter Then check whether there are any issues with the Windows system files Cloning may fail if the drive cannot be recovered because of issues with the Windows system files 5 Will the Recovery Partition of the Source Drive be cloned as well
• Page 19 - English - : The OEM Partition created by the computer manufacturer when shipped from the factory will not be cloned However it will be automatically cloned if the computer manufacturer is Samsung and SRS Samsung Recovery Solution 5 SRS 6 or SRS 7 has been installed Versions lower than SRS 5 are not supported 2 Cloning failure Change to the No virtual memory paging file option Go to Control Panel gt System and Security gt System gt Advanced system settings Open the Advanced tab click Settings under Performance open the Advanced tab in the Performance Options dialog and then click Change under Virtual memory Deselect the quotAutomatically manage paging file size for all drivesquot checkbox select the quotNo paging filequot radio button click OK and then restart the computer 2 Check the drive check the system defragment the drive and then optimize the drive To learn how to check the drive and system please refer to FAQ 124 To learn how to defragment and optimize the drive please refer to the following How to defragment and optimize the drive a1 Type quotDefragment and Optimize Drivesquot in the search bar and press Enter a2 Click This PC rightclick Local Disk C select Properties open the Tools tab and then click Optimize under Optimize and defragment drive a3 Type dfrgui or dfrguiexe in the Run box and press Enter b Select the volume on which Windows is installed click Analyze and then click Close c Select the volume on which Windows is installed click Optimize and then click Close Disable system restore point files Go to Control Panel gt System and Security gt System select the System Protection tab click Configure select the quotDisable system protectionquot radio button and then click OK 4 Restart the computer and extend or shrink the C drive volume Type diskmgmtmsc in the Run box and press Enter to open Disk Management Then shrink or extend the C drive volume on which Windows is installed Restart the computer connect the Target Drive and then clone the Source Drive to it 5 Turn off BitLocker a Windows security program Check whether BitLocker is turned on in the following cases The process is stuck at 0 The Data migration has stopped for unknown reasons error message appears BitLocker is turned on automatically in the following cases a The operating system is Windows 7 Windows 8 Windows 81 or Windows 10 It may not be available on some Windows editions b TPM is enabled ie the TPM option in the BIOS is on c UEFI Secure Boot is enabled ie the TPM option in the BIOS is on d You have signed in with a Microsoft account How to turn off BitLocker a Go to Control Panel gt System and Security gt BitLocker Drive Encryption and click Turn off BitLocker
• Page 20 - English - : b Once the drive is decrypted BitLocker will be turned off The decryption process may take a while if a large amount of data is involved c Once BitLocker is turned off successfully the padlock icon will disappear from the operating system drive How to change the drives state from quotBitLocker waiting for activationquot a On some operating systems such as Windows 10 Pro BitLocker is always waiting for activation by default b If BitLocker is turned on and shows an unlocked padlock icon click the icon This will change the icon to a locked padlock icon but BitLocker will still be on Then click the icon again to turn off drive encryption c Once BitLocker is turned off successfully the padlock icon will disappear from the operating system drive 6 Turn off security programs Stop or close all currently running security and restoration programs and then start cloning If you see a process that starts with quotNascaquot in the Processes tab of the Task Manager uninstall it before you start cloning because it is a type of security program For pro grams that offer MBR protection turn off the Protect MBR option 3 Product uninstallation How do I uninstall the program Go to Control Panel gt Uninstall a program and then select Samsung Data Migration from the list to uninstall the program Alternatively go to Settings gt Apps and features and then select Samsung Data Migration from the list to uninstall the program
