AX1500 Next-Gen

Wi-Fi 6 Router

Next-Gen Wi-Fi For All

Archer AX10

Wi-Fi 6

Faster AX Wi-Fi

Speeds up to 1.5 Gbps

Ultra-Low Latency

by AX Tech

Connect More Devices

with OFDMA

Responsive Processing

with 1.5 GHz Triple-Core CPU

Full Gigabit

Ports

Wi-Fi 6 |

Future-Proof Your Wi-Fi

Highlights

****

Beamforming

Immersive Gaming, Smooth Streaming

Enjoy stable network for online gaming and live streams

with awless video and clear audio. OFDMA allows

clients to transmit both on uplink and downlink using one

band at one time, which cut the latency and ensures a

responsive network.

Cover 3+ Rooms with Minimal

Interference

With clearer and stronger signal generated with Wi-Fi 6

and Beamforming technology, Archer AX10 delivers data

to devices far away by focusing less-interfered wireless

signal towards them.

Improved Eciency, More Connections

Add more Wi-Fi devices to your network without dragging

the performance, as Archer AX10 with Wi-Fi 6 builds a

more ecient network that increases the average

throughput by 4 times and serves more devices.

TP-Link

AX1500 Next-Gen Wi-Fi 6 Router

AX10

4-Streams Wi-Fi oers connection at over 1 Gbps speed for newer mobile

devices, reducing wait time by 30% while downloading huge les including 4K

movies and games.

Every click you make, responds quicker. A 1.5 GHz triple-core CPU handles

data throughput up to multi-gigs and minimizes the latency withinyour

home network, delivering you a smooth experience.

Faster Wireless Connection Powerful and Stable

Highlights

1201 Mbps

867 Mbps

Wi-Fi 5

5 GHz 2x2

Wi-Fi 6

5 GHz 2x2

38% Faster

1.5 GHz

Triple-Core CPU

1.5GHz

TP-Link

AX1500 Next-Gen Wi-Fi 6 Router

AX10

· AX Tech – 802.11ax (also known as Wi-Fi 6) features

advanced technologies including OFDMA and 1024QAM,

drastically increasing the speed and eciency of the entire

network

· Ultimate Wireless Speed – 300 Mbps on 2.4 GHz (802.11n) +

1201 Mbps on 5 GHz (802.11ax)

· 1.5 GHz triple-core CPU

– Handles data throughput up to

multi-gigs and minimizes the latency withinyour home

network

· Gigabit Internet Access – Take full advantages of broadband

speeds up to 1 Gbps

· Ultimate Range Wi-Fi – Four external antennas deliver a Wi-Fi

signal to every corner of your home, making all of your

connections more ecient and stable

· Beamforming Technology – Concentrates Wi-Fi signals

towards individual devices to ensure stronger connections

Speed Wi-Fi Range Reliability

· Secure VPN Access – Connects to a private network with a safe

and secure OpenVPN and PPTP VPN connection

· Airtime Fairness – Balances bandwidth of connected devices to

improve overall throughput and eciency

· Smart Connect – Intelligently switches each device’s connection

to the optimum available Wi-Fi band

· Quality of Service – Prioritizes devices for optimum performance

when needed

Features

TP-Link

AX1500 Next-Gen Wi-Fi 6 Router

AX10

· Intuitive Web UI – Ensures quick and simple Installation without

hassle

· Fast Encryption – One-touch WPA wireless security encryption

with the WPS button

· Easy On/O – Turn on/o wireless function using the Wi-Fi

button

· Power On/O – Conveniently power on or o your router as

required

· Hassle-free Management with Tether App – Network

management is made easy with the TP-Link Tether App,

available on any Android and iOS device

· Guest Network – Keeps your main network secure by creating a

separate network for friends and visitors

· Access Control – Establishes a whitelist or blacklist to allow or

restrict certain devices to access the internet

· Parental Controls – Restricts internet access time and contents

for children devices

· Encryptions for Secure Network – WPA-PSK and WPA2-PSK

encryptions provide active protection against security threats

Ease of Use Security

Features

TP-Link

AX1500 Next-Gen Wi-Fi 6 Router

AX10

Hardware

· Ethernet Ports: One Gigabit WAN Port, four Gigabit LAN Ports

· Hardware: 1.5 GHz Triple-Core CPU

· Buttons: WPS/Wi-Fi Button, Power On/O Button, Reset Button

· Antennas: Four External Antennas

· External Power Supply: 12V/1A

· Dimensions (W x D x H): 10.2 × 5.3 × 1.5 in (260.2 × 135.0 × 38.6 mm)

Wireless

· Wireless: 1201 Mbps (5 GHz, 11ax) + 300 Mbps (2.4 GHz, 11n), compatible with

11a/b/g/n/ac Wi-Fi standards

· Frequency: 2.4 GHz and 5 GHz

· Transmit Power:

CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)

FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

· Reception Sensitivity:

5 GHz:

11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm

11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm

11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm

11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm

11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm

11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm

11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm

2.4 GHz:

11g 6Mbps: -94 54Mbps: -77.5

HT20-MCS0: -93 MCS7: -76

HT40-MCS0: -91 MCS7: -73

· Wireless Function: Enable/Disable Wireless Radio, WMM

· Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Specications

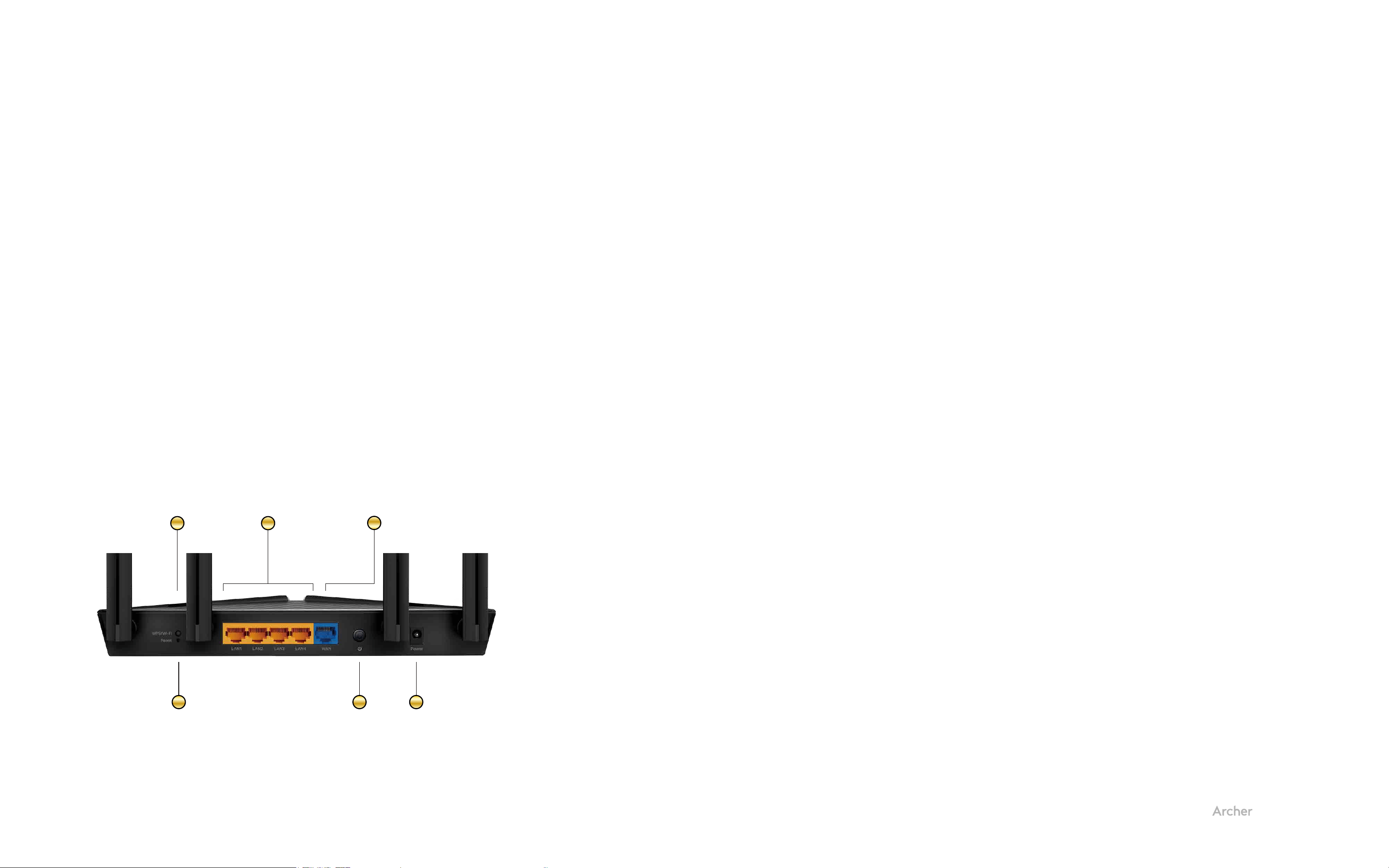

Gigabit

WAN Port

Power

On/O

Reset

Gigabit

LAN Ports

Power

WPS/Wi-Fi

On/O

TP-Link

AX1500 Next-Gen Wi-Fi 6 Router

AX10

Specications

· Certication:

CE, FCC, RoHS

· System Requirements:

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,

NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Cable or DSL Modem

Subscription with an internet service provider (for internet access)

· Environment:

Operating Temperature: 0

℃

~40

℃

(32

℉

~104

℉

)

Storage Temperature: -40

℃

~70

℃

(-40

℉

~158

℉

)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

· Package Contents

Wireless Router Archer AX10

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

OthersSoftware

· Quality of Service: Device Prioritisation

· WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

· Management: Access Control, Local Management, Remote Management

· DHCP: Server, DHCP Client List, Address Reservation

· Port Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ

· Dynamic DNS: DynDns, NO-IP, TP-Link

· Access Control: Parental Controls, Local Management Control, Host List, White

List, Black List

· Firewall Security: SPI Firewall, IP and MAC Address Binding

· Protocols: IPv4, IPv6

· Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network

· Wireless: 1201 Mbps (5 GHz, 11ax) + 300 Mbps (2.4 GHz, 11n), compatible with

11a/b/g/n/ac Wi-Fi standards

· Frequency: 2.4 GHz and 5 GHz

· Transmit Power:

CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)

FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

· Reception Sensitivity:

5 GHz:

11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm

11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm

11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm

11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm

11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm

11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm

11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm

2.4 GHz:

11g 6Mbps: -94 54Mbps: -77.5

HT20-MCS0: -93 MCS7: -76

HT40-MCS0: -91 MCS7: -73

· Wireless Function: Enable/Disable Wireless Radio, WMM

· Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

or scan the QR code left

Attention: This device may only be used indoors in all EU member states and EFTA countries.

Specifications are subject to change without notice. All the brands and product names are trademarks or registered trademarks of their respective holders.

*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials,

obstacles, volume and density of trac, and client location.

*Use of OFDMA and 1024-QAM requires clients to also support those functions.

*4x average throughput refers to 4x increase in median throughput under dense environment (i.e. 8+ Wi-Fi 6 devices connected with combined speeds not higher than ISP oers) compared to a 2×2 11ac wave 2 router.

1,000 Mbps internet speeds require compatible service plans and equipment.

For more information, please visit

http://www.tp-link.com/products/details/Archer-AX10.html
