INSTALLATION GUIDE
for the
SB-GM-SLVD4/10TW3
SKU# 94676
2019-Up Chevrolet Silverado / GMC Sierra Double Cab
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your
authorized JL Audio dealer. The installation professionals employed by your
dealer have the necessary tools and experience to disassemble and reassemble
your vehicle properly. If you prefer to perform your own installation, please read
this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely
vital that the Stealthbox
®
be properly mounted to the vehicle
according to these instructions. Failure to mount the enclosure
properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the
enclosure caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a
collision or sudden deceleration.
INSTALLATION
DIFFI CULT Y:
ESTIMATED TIME:
1 HOUR
Enclosure Type: Sealed
Driver Type: 10TW3-D8
Nominal Impedance: 2 ohms
Continuous Power Handling: 800 watts (RMS method)
Continued on Next Page
1
5
OUT
OF
SB-GM-SLVD4/10TW3 INSTR_SKU# 011537
INCLUDED HARDWARE
1 5432
Continued on Next Page
Page 2 • JL Audio, Inc., 2019
SB-GM-SLVD4/10TW3 INSTR_SKU# 011537
BOM ID Qty SKU Description
1 1 154066 Large Bracket
2 1 154001
Small Bracket
3 4 153988 3/8” Flat Washer
4 4 153987 3/8” Split Lock Washer
5 4 154038 3/8 - 16 x 1-1/2” Hex Head Bolt
POWER RECOMMENDATION
JL Audio recommends high quality ampliers such as the JL Audio XD600/1v2. The diagram below shows the recommended crossover settings for the XD600/1v2. For a detailed description of the
amplier settings, consult the owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.
CONNECTIONS
Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your
Stealthbox® amplier. Other kits are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for
both channels of the amplier. JL Audio recommends using 12 AWG speaker wire for subwoofers such as our XC-BCS12-25.
Continued on Next Page
Page 3 • JL Audio, Inc., 2019
SB-GM-SLVD4/10TW3 INSTR_SKU# 011537

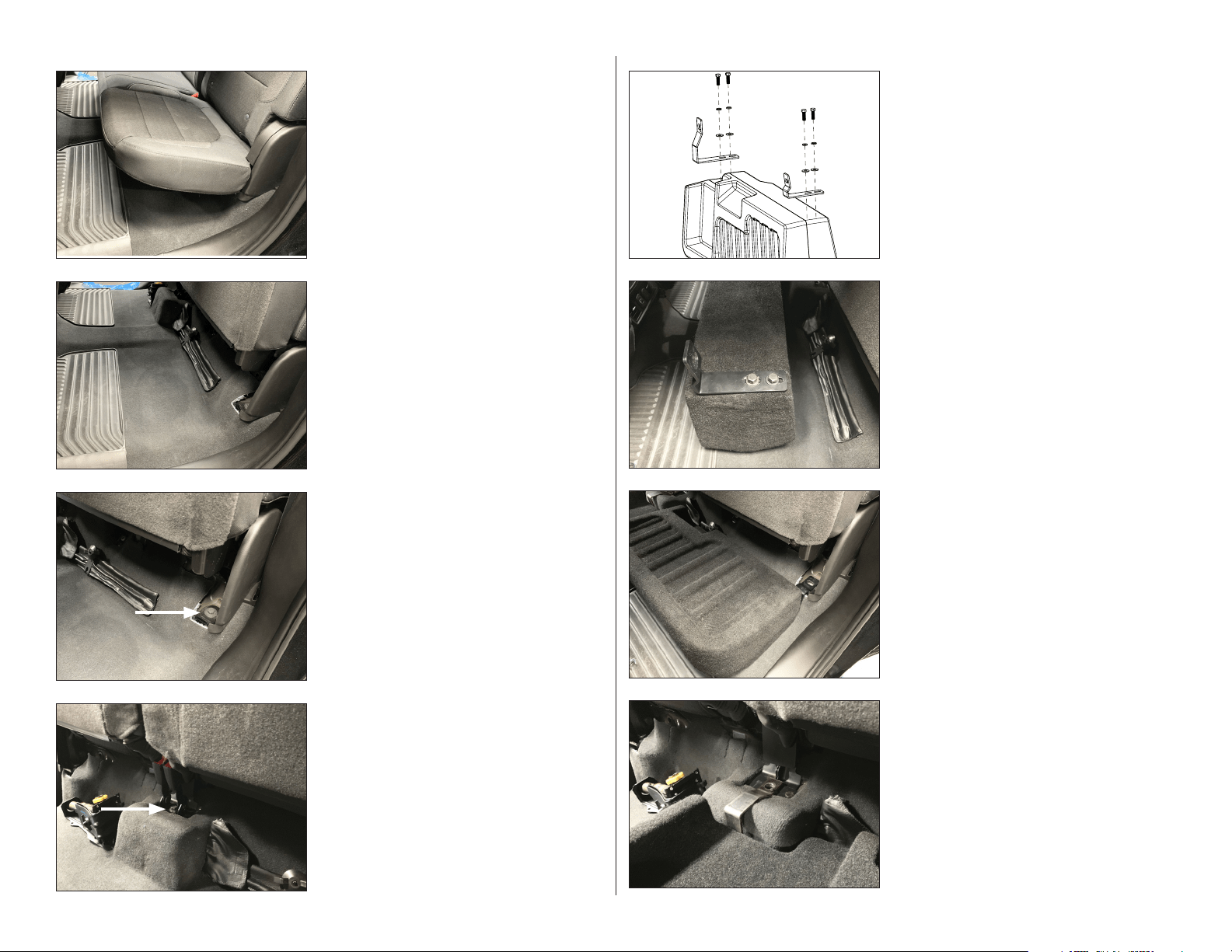

Page 4 • JL Audio, Inc., 2019 Continued on Next Page
STEP 8
Align the large hole in the Large Bracket with
the center factory seat bolt hole. Be sure the
alignment pin passes through the small hole in
the Large Bracket.
STEP 7
Carefully lower the enclosure into position,
allowing the Small Bracket to fit over the outer
seat bracket. Align the hole in the Small Bracket
with the factory seat bolt hole.
STEP 6
Place the Stealthbox® in the vehicle.
Connect speaker cable to the terminal cup on
the bottom of the enclosure.
STEP 5
Align the Small Bracket to the back of the
driver’s side of the enclosure as shown. Slide a
3/8” Split Lock Washer and a 3/8” Flat Washer
over each of two 3/8 - 16 x 1-1/2” Hex Head
Bolts, pass an assembly through each slot in
the Small Bracket, into the threaded inserts on
the back of the enclosure, and hand tighten.
Repeat the process for the Large Bracket on the
opposite side.
STEP 4
Remove the center seat bolt and seat belt
bracket.
STEP 3
Remove the outer seat bolt on the driver’s side.
STEP 2
Fold the seat bottoms up.
STEP 1
Empty the rear seat area.
SB-GM-SLVD4/10TW3 INSTR_SKU# 011537

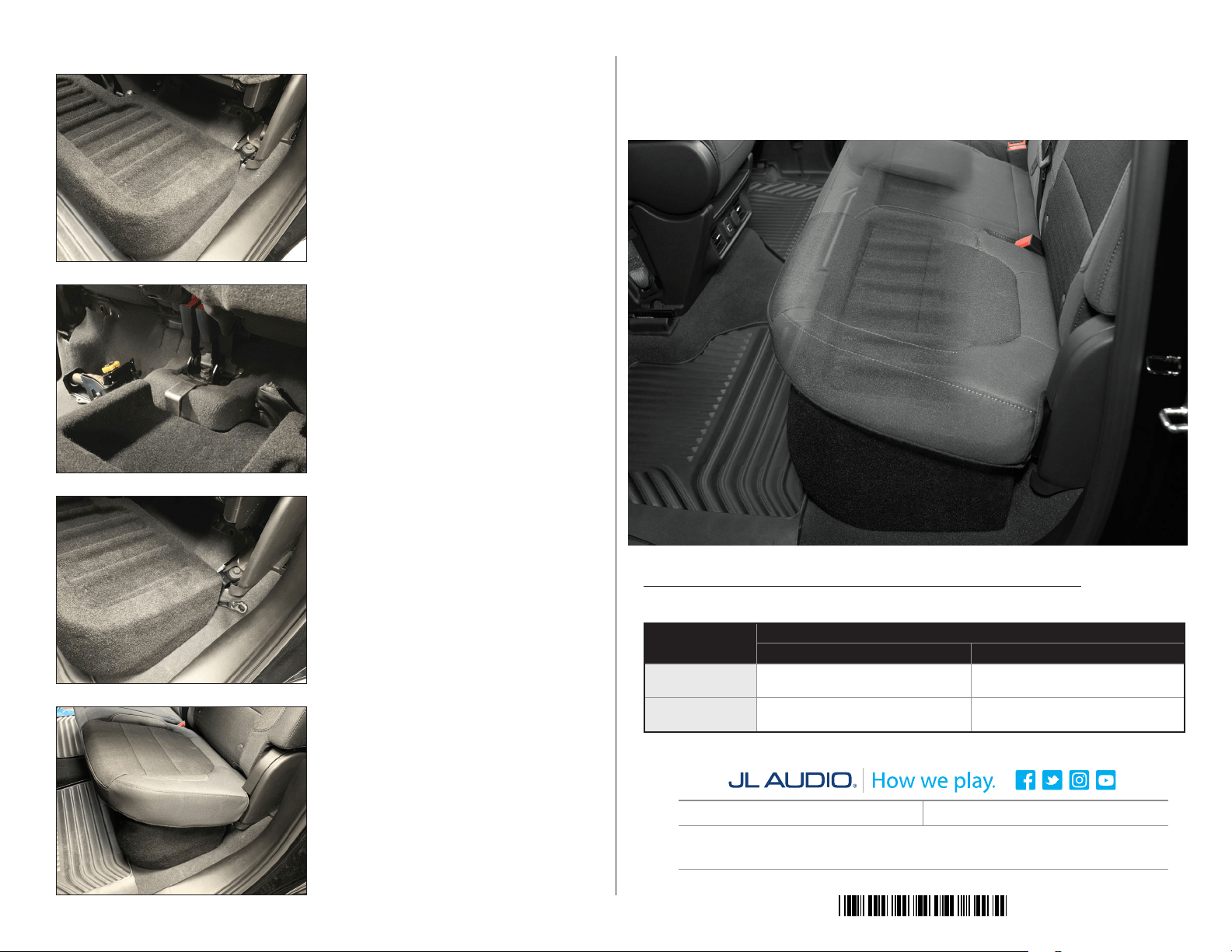

Page 6 • JL Audio, Inc., 2019
CONGRATULATIONS!
You have completed the installation for this model! Enjoy your new Stealthbox®!
All specifications are subject to change without notice. “JL Audio®” and “How we play®” are registered trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo are trademarks
of JL Audio, Inc.
Printed in USA • ©2019 JL Audio, Inc. • For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
www.jlaudio.com
JLA-SKU# 011537 • ver. 10.29.2019 • 10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
®
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of your vehicle.
Location / OEM
Speaker Size
Suggested JL Audio Speaker Models
Coaxial Models Component Models
Front Doors /
6 x 9-inch
C1-690x
(1)
, C1-690tx
(1)
, C2-690tx
(1)
C2-650x
(1)
, C5-650x
(1)
C1-690
(1)
, C1-650
(1)
,
C2-650
(1)
,
C3-650
(1)
, C5-650
(1)
, C7-650cw
(1,2)
Rear Doors /
6.5-inch
C1-650x, C2-650x, C5-650x
C1-650, C2-650, C3-650,
C5-650, C7-650cw
(2)
1 - Installation may require adaptor, 2 - Component woofer only
STEP 12
Fold the seat bottoms back down.
ST E P 11
Push down on the front of the enclosure. Using
a 9/16” open end wrench, firmly tighten the
two 3/8 - 16 x 1-1/2” Hex Head Bolts on the
Small Bracket.
Repeat the process for the Large Bracket on the
opposite side.
Route the speaker cable as necessary.
STEP 10
Reinstall the seat belt bracket and center
seat bolt, and firmly tighten.
STEP 9
Reinstall the outer seat bolt, and firmly tighten.
SB-GM-SLVD4/10TW3 INSTR_SKU# 011537
