Rhino GAD15253B 32-in W 50000-BTU Steel Propane Gas Fire Pit Table

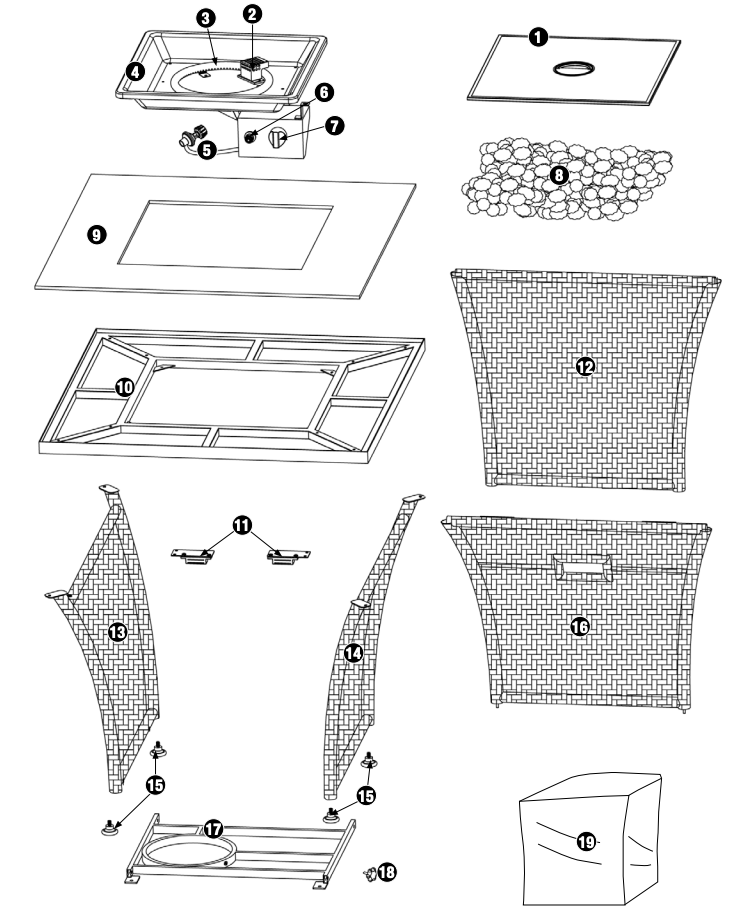

Expanded View

Sold Separately

Parts List

1 Table Insert 58-23-817

2 Igniter cover* 58-23-896

3 Burner* 58-23-251

4 Bowl Assembly* 58-23-895

5 Regulator/Hose Assembly 58-23-922

6 Battery Cover* 58-23-897

7 Control Knob* 58-23-139

8 Lava Rock** 55-05-833

9 Mantel 58-23-818

10 Mantel Frame 58-23-819

11 Magnet (2)* 58-23-820

12 Rear Panel 58-23-821

13 Left Side Panel 58-23-822

14 Right Side Panel 58-23-823

15 Foot (4)* 58-23-147

16 Door 58-23-824

17 LP Gas Tank Support 58-23-825

18 LP Gas Tank Bolt 58-23-149

19 Cover 58-23-826

20 Glass Rock (not required and sold separately)**

* Pre-assembled

CAUTION: Use only Blue Rhino Global Sourcing, Inc. factoryauthorized glass rock/lava rock. The use of any glass rock/ lava rock that is not factoryauthorized can be dangerous and will void your warranty.

1. DO NOT RETURN TO PLACE OF PURCHASE.

For assistance, call 1.800.762.1142 toll-free. Please have your owner’s manual and model number available for reference.

Note: The model number is printed on a label which can be found on the inside door, back or side of the base assembly.

Assembly Tips:

1. Select an area where you will assemble this product. To protect components, choose a smooth surface that’s free of cracks or openings.
2. Spread out all parts.
3. Tighten all hardware connections by hand first. Then, before completing each step, go back and fully tighten all hardware. Be careful not to over-tighten. That could damage surfaces or strip threads.
4. For best results, complete each step in the order presented.

To complete assembly you will need:

• (1) Leak detection solution (instructions on how to make the solution are included in the “Operating Instructions” section of this manual).
• (1) Precision-filled LP gas grill tank with Acme Type 1 external threaded valve connection (standard grill size) (not included).

Typical assembly is approximately one hour.

CAUTION: Two (2) people will be required for assembly.

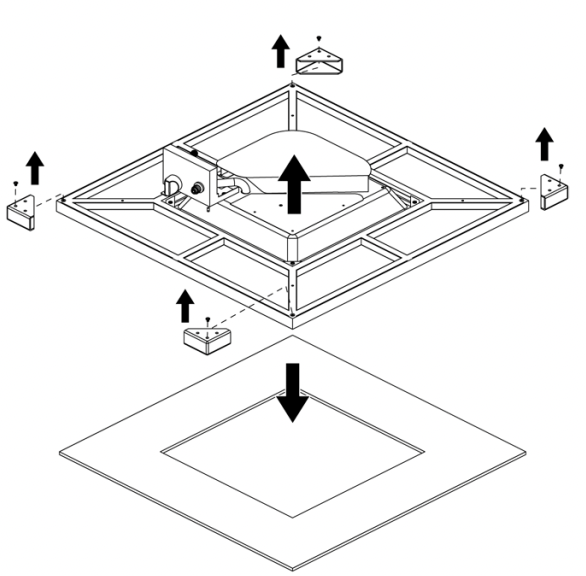

2. Remove Mantel and Mantel Frame Packaging

CAUTION:

1. Two (2) people are required for this step.

2. To prevent scratching, place parts on a protective surface like a sheet or towel.

3. Attach Magnets

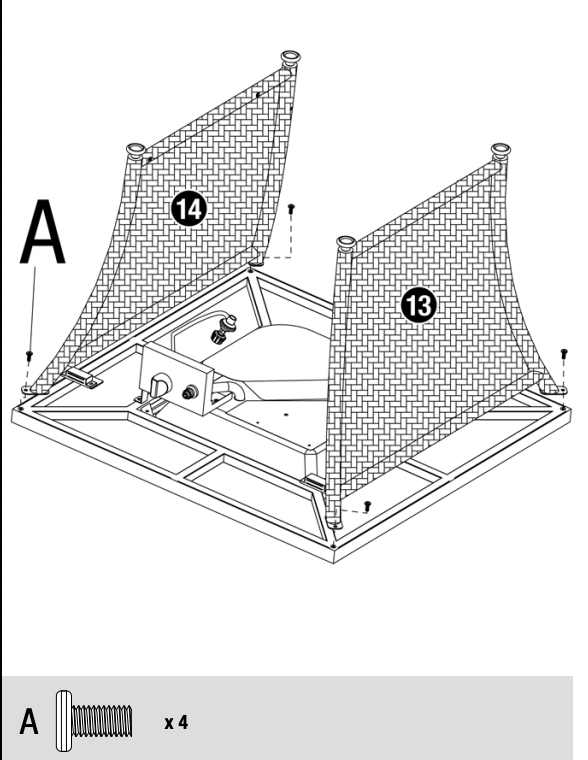

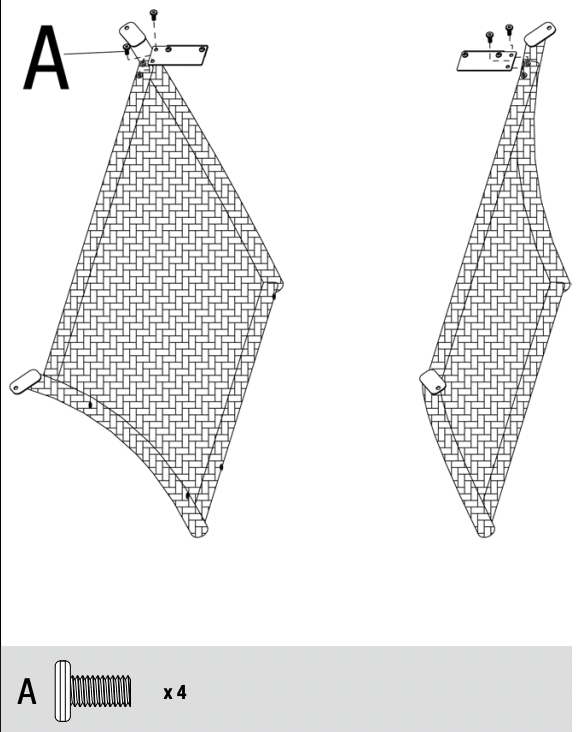

4. Attach Side Panels

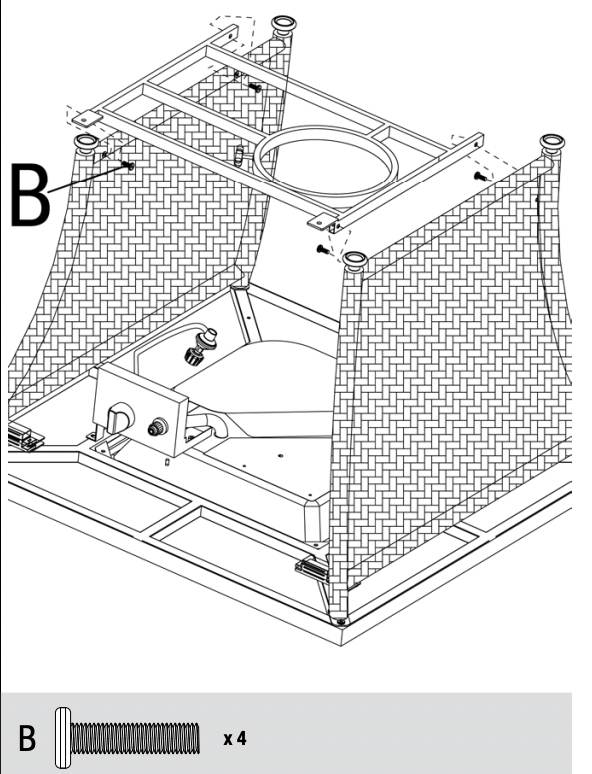

5. Attach LP Gas Tank Support

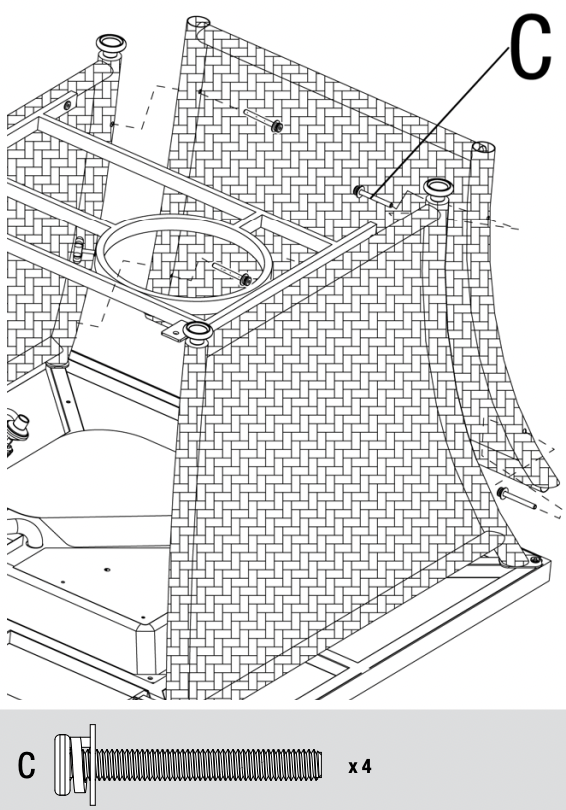

6. Attach Rear Panel

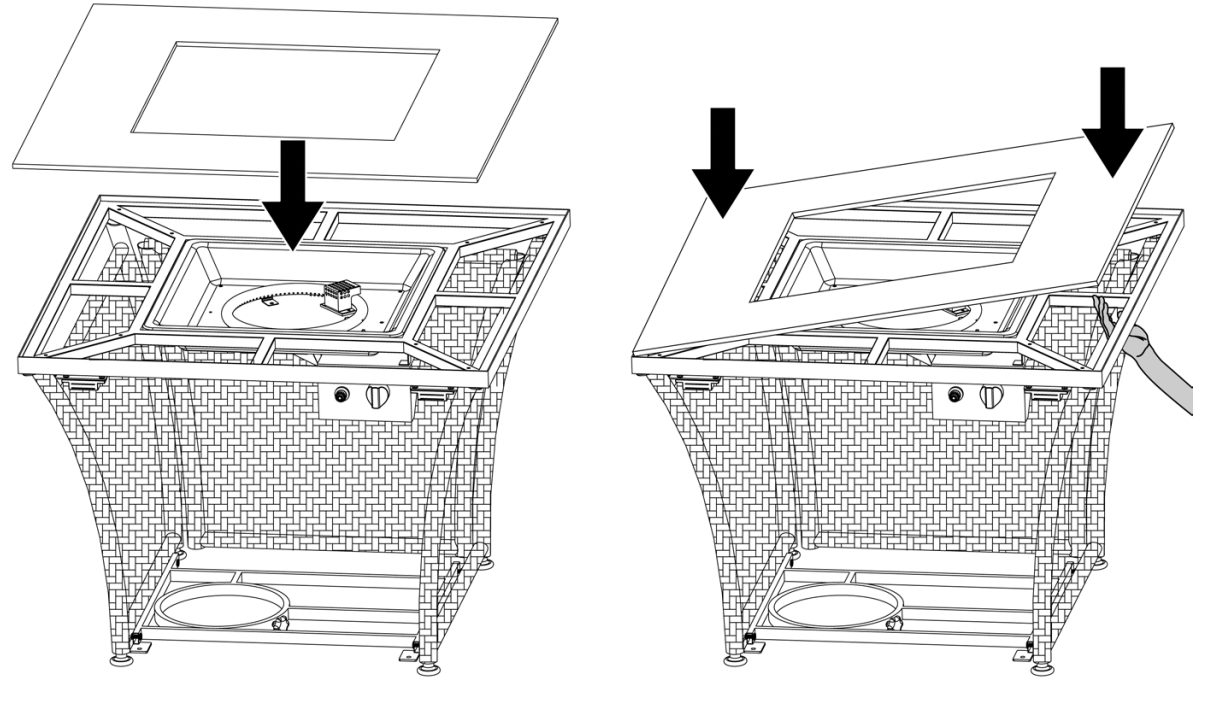

7. Place Mantel

CAUTION: Two (2) people are required for this step.

CAUTION: Place mantel on one side of the mantel frame first. Do NOT drop mantel onto the frame; lower gently by supporting it from beneath.

CAUTION: DO NOT drop mantel on mantel frame. Lower mantel by supporting mantel from under the mantel frame.

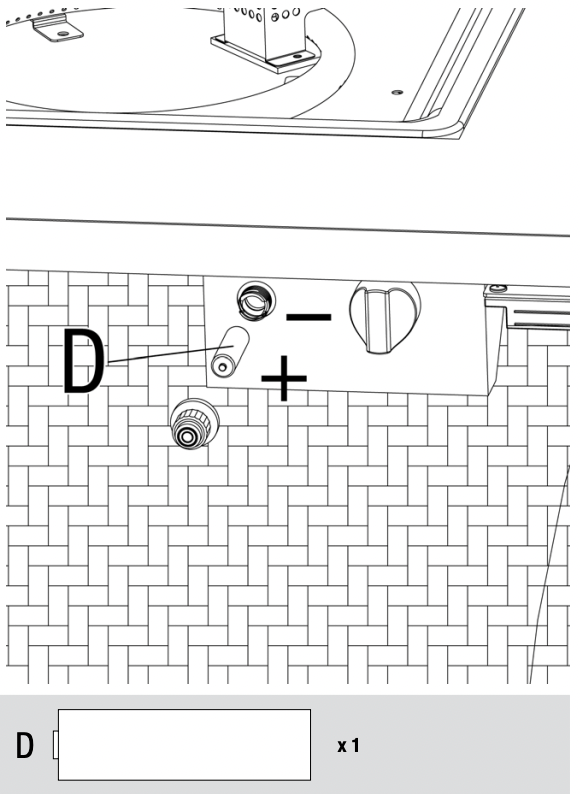

8. Insert Battery

Note: Remove plastic wrapper before installing battery

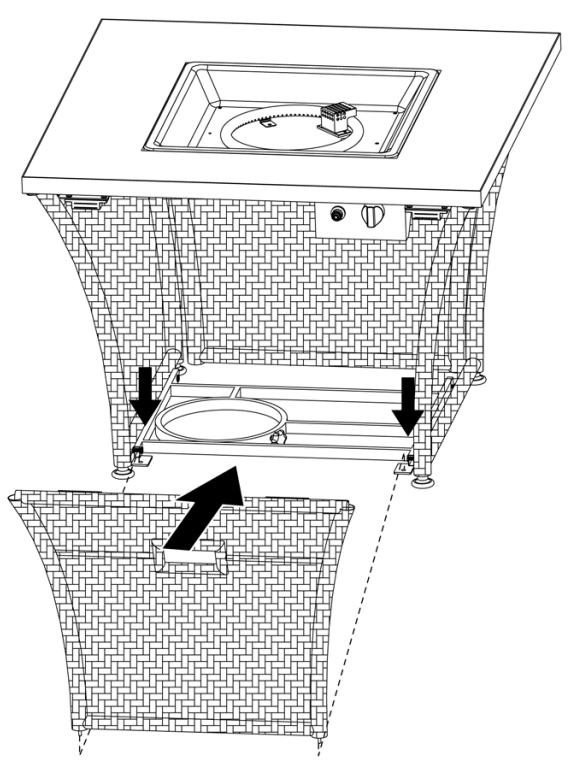

9. Place Door

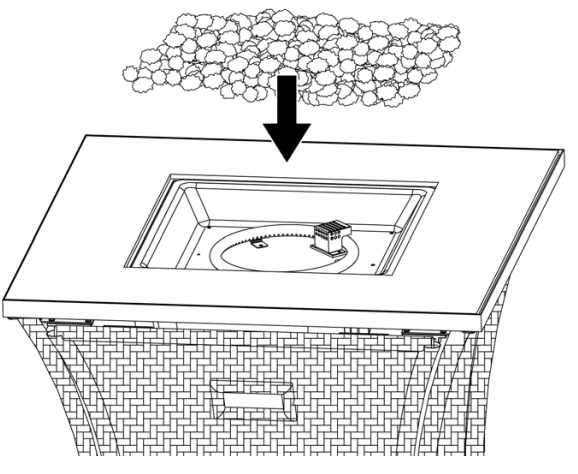

10. Place Lava Rocks

CAUTION: Do NOT dump lava rocks out of package. Carefully place lava rocks by hand so dust does not clog burner.

CAUTION: Use only Blue Rhino Global Sourcing, Inc. factoryauthorized lava rock. The use of any lava rock that is not factory-authorized can be dangerous and will void your warranty.

CAUTION: Do NOT cover igniter cover.

Note: Lava rocks should be 0.8-2.0 in. (2-5 cm) long. Approx. 6.6 lbs. (3 kg) of lava rocks are needed.

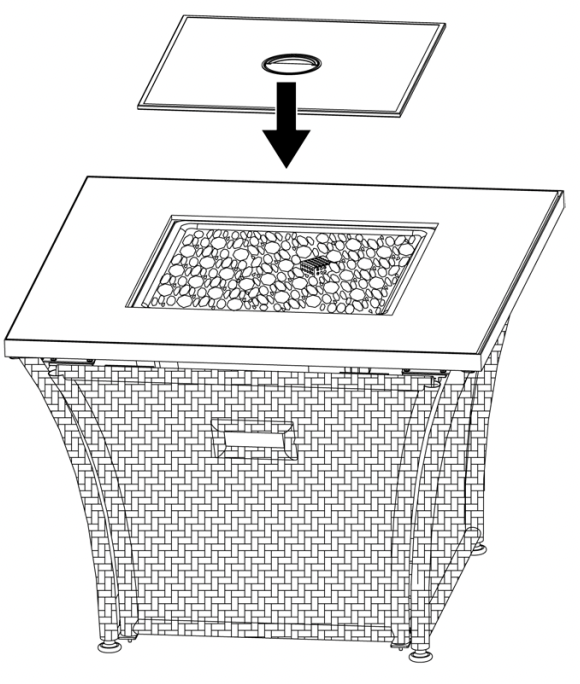

11. Place Table Insert

WARNING: NEVER light the burner with the table insert on the outdoor fireplace.

CAUTION: Wait until the outdoor fireplace is cool before placing the table insert.

OPTIONAL ITEM SOLD SEPARATELY

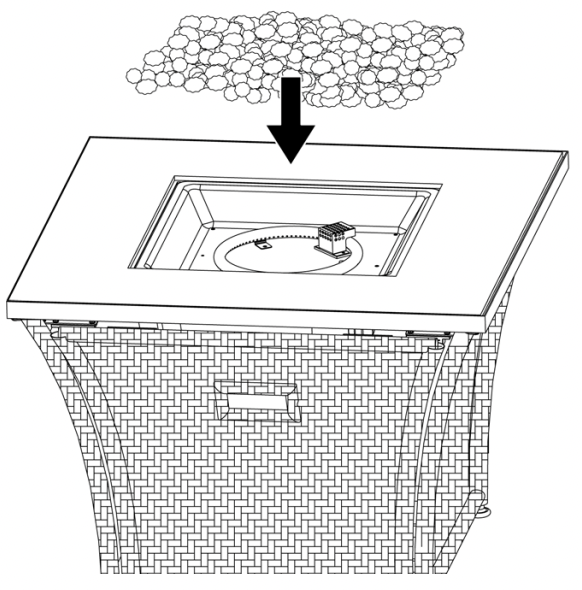

12. Place Fire Glass

CAUTION: When switching from lava rock, remove all lava rock before placing fire glass.

CAUTION: Do NOT dump fire glass out of package. Carefully place fire glass by hand so dust does not clog burner.

CAUTION: Use only Blue Rhino Global Sourcing, Inc. factoryauthorized fire glass. The use of any fire glass that is not factory-authorized can be dangerous and will void your warranty.

CAUTION: Do NOT cover igniter cover.

Note: Fire glass should be 0.8-2.0 in (2-5 cm) long. Approx. 13.2 lb (6 kg) of fire glass are needed.

Installing LP Gas Tank

To operate, you will need one precision-filled standard grill LP gas tank with external valve threads.

CAUTION: LP gas tank must be properly disconnected and removed prior to moving this outdoor fireplace.

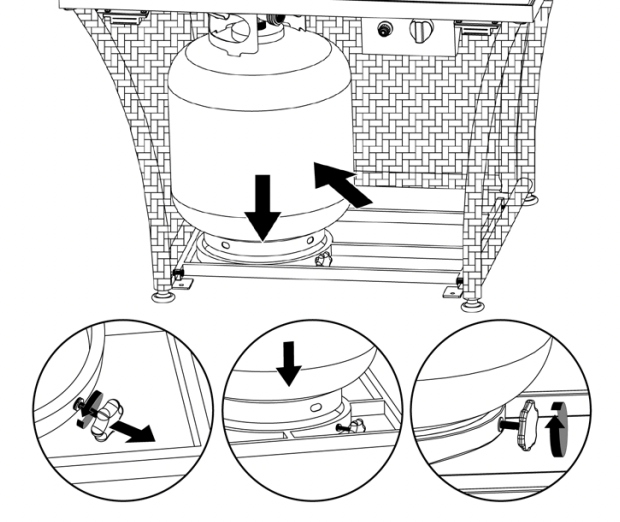

Inserting LP Gas Tank

WARNING: Make sure LP gas tank valve is closed.

1. Remove door.
2. Make sure the control knob is in the “ OFF” position (Figure 3).
3. Loosen LP gas tank retainer bolt by turning counter-clockwise.
4. Place precision-filled LP gas tank upright into hole in outdoor fireplace base so the tank valve is facing the gas line connection.
5. Secure tank by turning LP gas tank retainer bolt clockwise until tight.
6. Replace door.

Connecting LP Gas Tank

1. Make sure the control knob is in the “ OFF” position (Figure 3).
2. Before connecting, be sure there is no debris caught in the head of the LP gas tank, head of the regulator valve or in the head of the burner or burner ports.
3. Connect regulator/hose assembly to tank by turning knob clockwise until it stops.
4. Perform leak check per “Checking for Leaks” section.

Disconnecting LP Gas Tank

1. Make sure the control knob is in the “ OFF” position (Figure 3).

2. Before disconnecting, make sure the LP gas tank valve is "CLOSED.”

3. Disconnect regulator/hose assembly from LP gas tank by turning knob counterclockwise until it is loose.

CAUTION: LP gas tank must be properly disconnected and removed prior to moving this grill.

4. Place the protective cap cover on the LP tank and store the tank outdoors in a well ventilated area out of direct sunlight.

Operating Instructions

Checking for Leaks

WARNING: Before using this outdoor fireplace, make sure you have read, understand and are following all information provided in the "Important Safeguards” section. Failure to follow those instructions can cause death, serious injury or property damage.

Burner Connections

1. Make sure the regulator hose and valve connections are securely fastened to the burner and the tank.

2. Visually check the connection between the burner/venturi tube and orifice.

3. Make sure the burner/venturi tube fits over the orifice.

WARNING: Failure to inspect this connection or follow these instructions could cause a fire or an explosion which can cause death, serious bodily injury or damage to property.

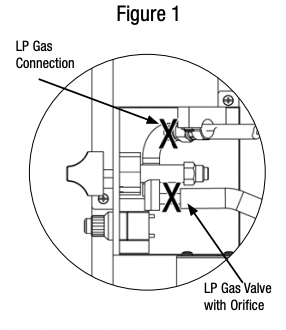

4. Please refer to diagram for proper installation (Figures 1 and 2).

5. If the burner/venturi tube does not rest flush to the orifice, as shown, please contact 1.800.762.1142 for assistance.

Tank/Gas Line Connection

1. Make 2-3 oz. of leak detection solution by mixing one part liquid dishwashing soap with three parts water.
2. Make sure control knobs are in the “ OFF” position (Figure 3).
3. Connect LP gas tank per “Installing LP Gas Tank” section.
4. Turn LP gas tank valve to “OPEN.”
5. Spoon several drops of solution, or use a squirt bottle, at all “X” locations (Figures 1 and 2).

a. If any bubbles appear, turn LP gas tank valve to “CLOSED,” reconnect and re-test.

b. If you continue to see bubbles after several attempts, turn LP gas tank valve to “CLOSED” and disconnect LP gas tank, per “Disconnecting LP Gas Tank” section. Contact 1.800.762.1142 for assistance.

c. If no bubbles appear after one minute, turn LP gas tank valve to “CLOSED,” wipe away solution and proceed.

Lighting

WARNING: NEVER light the burner with the cover on the outdoor fireplace.

CAUTION: Keep outdoor gas appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids.

CAUTION: Do NOT obstruct the flow of combustion and ventilation air.

CAUTION: Check and clean burner/venturi tubes for insects and insect nests. A clogged tube can lead to a fire.

1. Make sure all labels, packaging and protective films have been removed from the outdoor fireplace.

2. Check for obstructions of airflow to the burner. Spiders, insects and webs can clog the burner/venturi tube. A clogged burner tube can lead to a fire.

3. Control knob must be in the “ OFF” position (Figure 3).

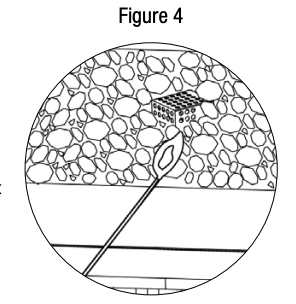

4. Clear small area of lava rocks / fire glass away from the igniter cover (Figure 4).

5. Connect LP gas tank per “Installing LP Gas Tank” section.

6. Turn LP gas tank valve to “OPEN.”

7. Push and turn control knob to (HIGH). Continue to hold the control knob in to light.

8. After the fire table lights, continue to hold the control knob in for 20 seconds to heat the thermocouple, a safety device that stops the gas flow when a firepit is not lit. Holding the knob in for 20 seconds warms it up so the gas flow will continue.

9. After 20 seconds, release and turn control knob counterclockwise to adjust flame to desired height.

10.After three attempts, if ignition does not occur, turn the burner control knob to “ OFF.”

11. Wait 5 minutes, fan with a newspaper or magazine, and repeat lighting procedure.

12. If igniter does not light burner:

a. Wearing heat-resistant gloves, position a lit long match or lit long butane lighter near the pilot housing.

b. Push and turn control knob to (HIGH).

c. Remove match/lighter once burner is lit.

CAUTION: After lighting - using a fireplace tool and heat-resistant gloves, carefully move the lava rock / glass rock back to their proper position, being careful to avoid the flame.

13. After lighting, observe the burner flame. Make sure all burner ports are lit and flame height matches illustration (Figure 5).

CAUTION: If ignition does not occur in 5 seconds, turn control knob to “ OFF,” wait 5 minutes, fan with a newspaper or magazine, and repeat lighting procedure.

Turning Off

1. Turn LP gas tank valve to “CLOSED.”

2. Turn control knob to the “ OFF” position. Note: A “poof” sound is normal as the last of the LP gas is burned.

3. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section.

Cleaning and Care

CAUTION:

All cleaning and maintenance should be done when outdoor fireplace is cool and with the fuel supply disconnected.

1. Do NOT clean any outdoor fireplace part in a self-cleaning oven.

2. The extreme heat will damage the finish.

3. Do NOT enlarge valve orifices or burner ports when cleaning the valves or burners.

4. All components on this outdoor fireplace can become hot.

5. Do NOT clean this outdoor fireplace until all components are cool.

Notices

1. This outdoor fireplace should be thoroughly cleaned and inspected on a regular basis.

2. Abrasive cleaners will damage this product.

3. NEVER use oven cleaner to clean any part of this outdoor fireplace.

Before Each Use:

1. Keep the outdoor fireplace area clear and free from any combustible materials, gasoline, and other flammable vapors and liquids.

2. Do NOT obstruct the flow of the combustion of LP gas and the ventilation of air.

3. Keep the ventilation opening(s) of the LP gas tank area free and clear from debris.

4. Visually check the burner flames to make sure your outdoor fireplace is working properly (Figure 5).

5. See below for proper cleaning instructions.

6. Check all gas connections for leaks.

7. Check components for any signs of damage or rust.

8. Check for obstructions of airflow to the burner. Spiders, insects and webs can clog the burner/venturi tube. A clogged burner/venturi tube can lead to a fire.

9. If damage to any component is detected, do NOT operate until repairs are completed.

Cleaning Surfaces

1. Wipe surfaces clean with mild dishwashing detergent or baking soda mixed with water.

2. For stubborn stains, use a citrus-based cleaner and a nylon scrubbing brush.

3. Rinse clean with water.

4. Allow to air dry.

Before Storing

1. Turn LP gas tank valve to “CLOSED.”

2. Turn control knob to the “ OFF” position. Note: A “poof” sound is normal as the last of the gas is burned.

3. Disconnect LP gas tank per “Disconnecting LP Gas Tank” section.

4. Clean all surfaces.

5. Lightly coat the burner with cooking oil to prevent excess rusting.

CAUTION: NEVER place cover on hot outdoor fireplace.

6. If storing the outdoor fireplace indoors, cover the outdoor fireplace and store in a cool dry location away from children and pets.

7. If storing the outdoor fireplace outdoors, cover the outdoor fireplace with a cover for protection from the weather.

Troubleshooting
