Instruction booklet TUMBLE DRYER
Contents
Important Information 2-3
Installation, 4
Where to put your dryer
Ventilation
Electrical connection
Before you start using your dryer
Dryer Description, 5
The Features
Control Panel
The Display, 6
Start and Programmes, 7-11
Choosing a Programme
Table of Programmes
The Controls
Laundry, 12-13
Sorting your laundry
Wash care labels
Special clothing items
Drying times
Warnings and Suggestions, 14
General safety
Save energy and respect the
environment
Maintenance and Care, 15
Switching off the electricity
Clean the filter after each cycle
Empty the Water Container after each
cycle
Check the drum after each cycle
Cleaning the Condenser
Cleaning the dryer
Troubleshooting, 16
Service, 17
Spare parts
Disposal
!
Keep this instruction booklet on hand in order to refer to it when necessary. Take it with you when you move, and,
should you sell this appliance or pass it on to another party, make sure that this booklet is supplied along with the
dryer so that the new owner may be informed about warnings and suggestions on how the dryer works.
! Read these instructions carefully; the following pages contain important information on installation and suggestions
on how the appliance works.
This symbol reminds you to read this booklet.
TCF 87B
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
2

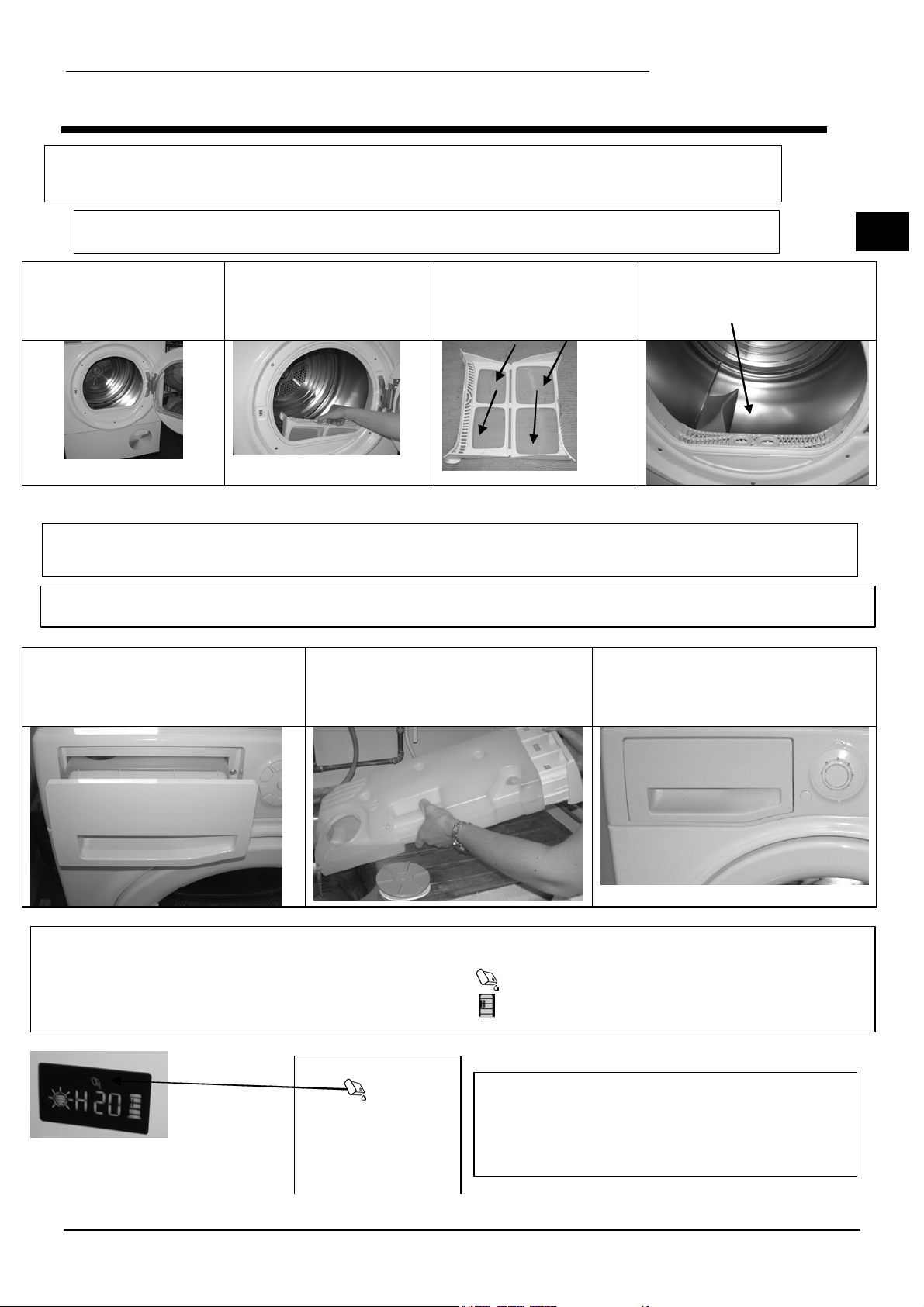

Important Information TD4255HL issue 1
Step 1
Open the door of your
dryer.
Step 2
Remove the filter.
Step 3
Open filter and clean
any fluff deposits from
the filter mesh.
Step 4
Refit the filter – Never run
the dryer without a filter.
TD4199HC_1.JPG TD4199HC_2.JPG TD4199HC_3.JPG TD4199HC_4.JPG
Step 1
Pull the water container towards
you and remove it fully from the
dr
y
er
Step 2
Remove either the small or large
cap and Empty the Water from
the Container
Step 3
Refit the Water Container
ensuring that it is pushed fully
back into position...
TD4199HC_5.JPG TD4199HC_6.JPG TD4255HC_1.JPG
Priming the Water Collection System
GB
For your Condenser dryer to operate efficiently, you must follow the regular
maintenance schedule shown below:
Fluff Filter – You must Clean the fluff filter after ever
y
drying cycle
Failure to clean the filter after every cycle will affect the drying performance of your
machine – It will take longer to dry and as a result will use more electricity during drying
Water Container
–
You must em
p
t
y
the water container after ever
y
dr
y
in
g
c
y
cle.
Failure to empty the Water Container will result in:
- The machine will stop heating (so the load may be wet at the end of the cycle).
- When the Container is full, the Empty water Icon
will be on, the display will show H2O and the
bottle full icon
will flash.
The Empty Water
Icon
is on to
remind you to
empty the water
container at start
and end of a
programme
When your dryer is new, the Water Container
will not collect Water until the system is
primed, this will take 1 or 2 drying cycles.
Once primed it will collect Water during
every cycle.
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
3
Important Information TD4200HC Issue 1
Step 1
Open the Condenser Cover
- hold the handle and pull towards you
Step 2
Remove the condenser by rotating
the 3 clips then pulling the
condenser towards you. (There may
be some water in the tubes this is
normal
)
TD4199HC_1 TD4200HC_2
Step 3
Flush the condenser, from the rear
with water, to remove any fluff
deposits.
Step 4
Refit the condenser unit - ensure that the
unit is pushed in fully, all 3 clips are re-
secured and the positioning arrows on the
front of the condenser are pointing
upwards.
TD4108HC_3.JPG TD4200HC_3
TD4200HC_4
GB
Condenser Unit
–
You must clean the fluff from the condenser ever
y
month
Rotate 3 Clips Check That:
- The positioning arrows are
pointing upwards.
- The 3 clips re secured back
in their ‘lock’ position..
Failure to clean the condenser could cause premature failure of your dryer
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
4

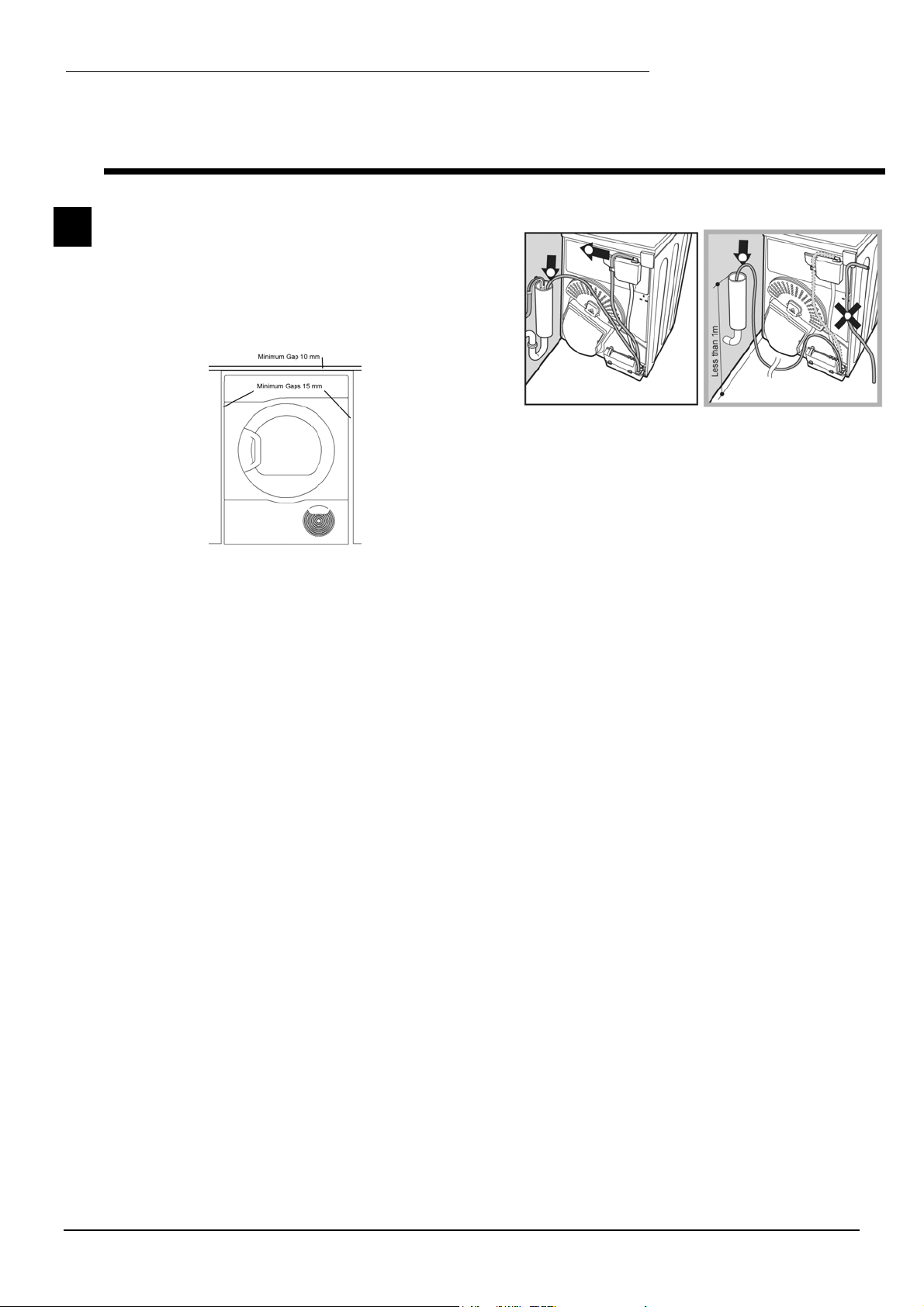

Installation TD4023FAUS Issue 1
Where to put your dryer
• Place your dryer at a distance from gas ranges,
stoves, heaters, or cook tops because flames can
damage the appliance.
If you are going to install the appliance under a work
counter, be sure to leave a 10 mm space between the top
and any other objects on or above the machine and a 15
mm space between the sides and lateral furnishings or
walls. This is to ensure proper air circulation.
Ventilation
• When the dryer is in use, there has to be adequate
ventilation. Make sure you put your dryer in an
environment that is not damp and has proper air
circulation throughout. Airflow around the dryer is
essential to condense the water produced during the
washing, the dryer will not operate efficiently in an
enclosed space or cupboard.
! We do not recommend that the dryer is installed in a
cupboard because dangerous levels of heat can build up. !
The appliance must not be installed behind a lockable door,
a sliding door or a door with a hinge on the opposite side to
that of the tumble dryer in such a way that a full opening of
the tumble dryer door is restricted
! If using the dryer in a small or cold room some
condensation could be experienced
Water Drain
If your dryer is installed next to a drain the water can be
plumbed into this drain. This does away with the need to
empty the water container. If the dryer is stacked onto or
installed next to a washing machine it can share the same
drain.
The dryer is supplied with a length of hose and this
must be used to drain the condensed water under
certain conditions.
If you are using a washing machine with a spin speed
below 1100 rpm and drying loads of 7 kg or more also
for energy label tests to AUS/NZS 2442 you must plumb
out the water or the container may fill before the clothes
are dried. Follow the instruction below.
The height of the drain must be less than 3’ (1 m) from the
bottom of the dryer.
Remove existing hose from position shown in picture A
And fit the supplied length of hose to location shown in
picture B.
! Make sure that the hose is not squashed or kinked
when the dr
y
er is in its final location.
The length of the hose can be reduced if necessary to
avoid this.
Picture A Picture B
Electrical connection
Make sure of the following before you insert the plug into
the electrical socket:
• The socket must be grounded.
• The socket must be able to sustain the machine’s
maximum power, which is indicated on the rating label
(see Dryer Description).
• Power voltage must be within the values indicated on
the rating label (see Dryer Description).
• The socket must be compatible with the dryer’s plug.
Should this not be the case, replace the plug or the
socket.
! The dryer must not be installed outdoors, even if the
space is sheltered. It can be very dangerous if exposed t
o
rain or storms.
! Once installed, the dryer’s electrical wire and plug must
be within reach.
! Do not use extension cords
! The power cord must not be bent or squashed.
! The power cord should be checked periodically and
replaced by a cord specially prepared for this dryer and
fitted only by authorised technicians. (see Service). New
or longer power cords are supplied at an extra charge by
authorised dealers.
! Ensure that any portable outlet or extension lead is
positioned so that it is not subjected to any splashing or
ingress of moistures
! The manufacturer denies any responsibility should any
of these rules not be followed.
! If in doubt about any of the above consult a
qualified electrician
Before you start using your dryer
Once you’ve installed your dryer and before you use it,
clean the inside of the drum to remove any dust that
could have accumulated during transportation.
GB
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
5

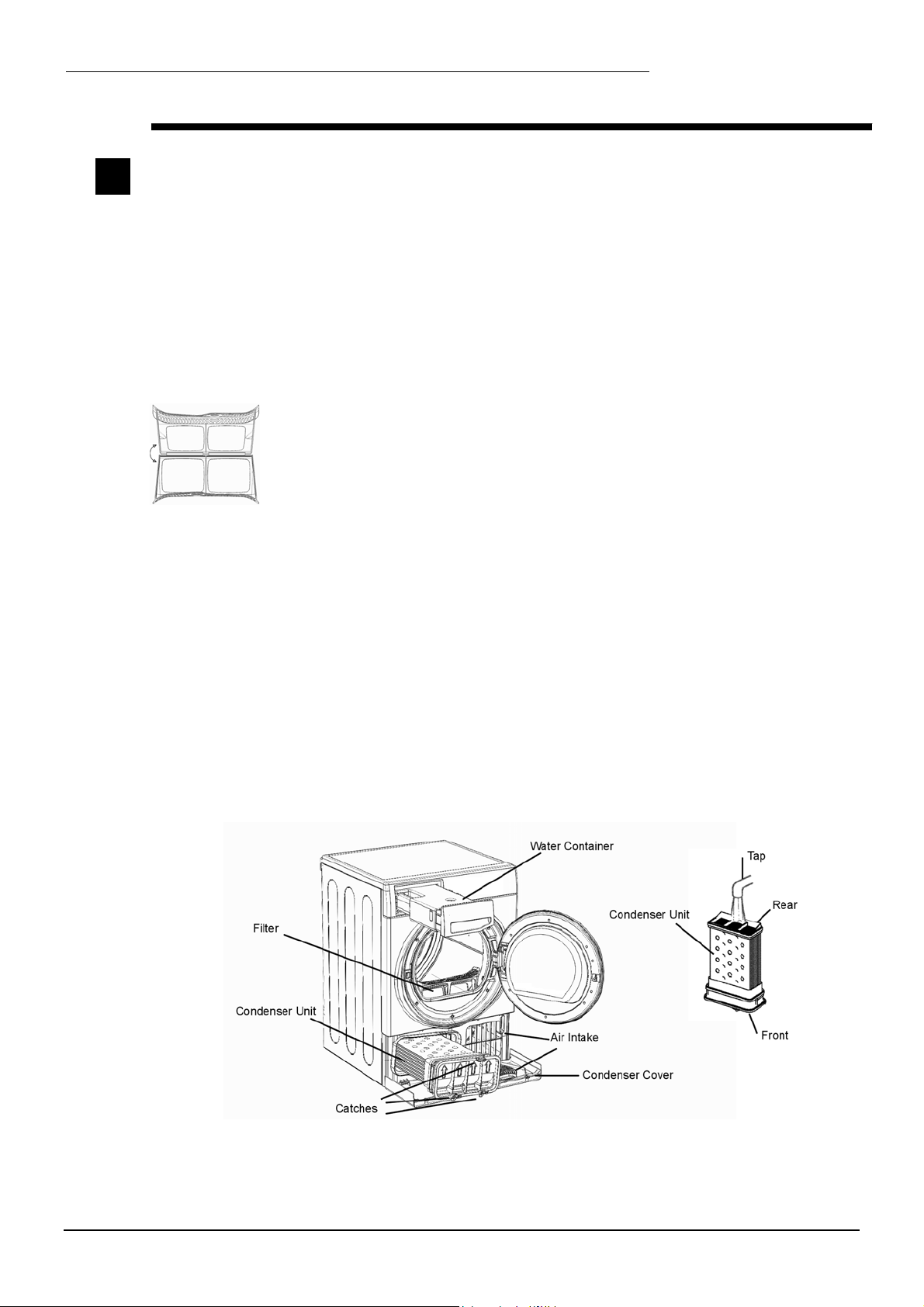

Dryer Description
TD4247FUT Issue 2
The Features
Control Panel
The ON/OFF button , if the dryer is running
and this button is pressed and held for more than
3 seconds the dryer is turned off, its counts down
3, 2, 1 Off, the programme is then cancelled.
Press and hold for more than 3 seconds and the
dryer reactivates.
.
The PROGRAMMES knob sets the programme: rotate until
the indicator is pointing to the programme you want to
select (see Start and Programmes).
The OPTION buttons/ lights select available options for your
selected programme. The lights indicate that the option has
been selected. (see Start and Programmes).
The START/PAUSE button/light
starts a
selected programme. When you press this button
there will be one beep and the progress lights will
flash to confirm the action. When a programme is
running holding this button in pauses the programme
and stops the dryer. The light is green when a
programme is running, flashing amber if the
programme has been paused and flashing green if
on standby waiting to start a Programme.(see Start
and Programmes).
The Display Unit gives an indication of the drying or delay
time together with icons that light to give warning information
and the status of
y
our
p
ro
g
rammes
p
ro
g
ress. The three
buttons below the display select Automatic or timed dry and if
required a delayed start. (see Start and Programmes or The
Display
The Child Lock button/ light.
Press and hold his button
after selecting your programme and any options the light turns
on and this prevent the programme settings from being
changed. When the light is lit, the other buttons are disabled.
Hold the button to cancel and the light will go out
The Empty Water Icon
signals that the water container
should be emptied. The display will take a few seconds to
update after replacing the empty water container; the dryer
must be running for this to happen.(see The Controls)
Note: if the water bottle fills the water bottle full icon
also
flashes, the display shows
, the heat is turned off and
your clothes will not dry
The Clean Filter
Icon gives a reminder before every
programme, that its essential to clean the filter very time the
dryer is used (see Maintenance and Care).
The Clean Condenser Icon
gives a reminder, that its
essential to clean the condenser at regular intervals. see
Maintenance and Care).
.
GB
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
6
The Display TD4252FUH Issue 1
The Display has three main functions each with its corresponding button
Dryness Sensing Levels
After selecting a programme that has a Sensing Dry Option, press and release the button until the required
dryness sensing level is displayed. If the sensing option is not available the display will flash and the buzzer
beeps three times.
! Some sensing programmes do not have all seven dryness level options
Dryness levels available
Damp Dr
y
: Dries your items ready to be ironed using a machine or rotary ironer.
Iron Dr
y
: Dries your items ready to be ironed using a hand iron.
Han
g
er Plus Dr
y
: Dries you delicate items ready to hanged for final drying.
Han
g
er Dr
y
: Dries you items ready to hanged for final drying.
Li
g
ht Dr
y
: Dries you delicate clothes ready to be put away.
Cupboard Dr
y
: Dries your items ready to be put away.
Extra Dr
y
: Dries your clothes ready to be worn.
Timed Dry
After selecting a Programme that has a Timed Dry Option, press the Timed Button and the Timed Dry Icon will light, the
display will reduce the selected time each time you press and release this button (see Start and Programmes). Each
programme that has a timed option has different times available and the selection of up to 11 drying times will also
depends on the heat setting that you have selected
Each press of the button decreases the drying time.
If you change your mind, press the sensing button and sensing level options are available .
If the Timer Dry option is not available the display will flash and the buzzer beeps three times.
The selected time remains displayed after the programme starts and can be changed during the programme if you
wish.
Delay Timer
After selecting a Programme that has a Delay Timer Option a delay start time can be selected.
Each press of the Delay button
advances the delay setting in 30 minutes increments from to
and then Increments from to then and then after five seconds cancels the delay.
For delays of 10 hours or more the display counts down the time in hours until 10 hours, then the display
shows
and then counts down in minutes. For delays 9 hours or less the display shows hours and
minutes and then count down in minutes for all of the delay.
After the Start/Pause Button
is pressed the delay time can be changed or cancelled.
When the delay period finished the
symbol is off and the Time to End is displayed.
Note: During this period the clothes will tumble occasionally to help prevent creases developing.
Time to End
If the delay icon is off the time displayed is the Time to End of the programme running.
When timed programmes are selected the time displayed throughout the cycle is the actual time remaining.
When an Automatic programme is selected the time displayed is an estimate of the time remaining. When the
programme is selected the display shows the time required to dry a full load, after around 10 minutes the
controller calculates a better estimate of the cycle time and this is updated during the programme.
The time to end is displayed in hours and minutes and counts down each minute.
The colons between the hours and minutes display flashes to show that the time is counting down.
The Display also shows if there is a problem with your dryer, if this occurs the display will show F followed by
a fault code number
,
the three o
p
tion li
g
hts and the
p
ause li
g
ht will also flash Oran
g
e.
(
see Troubleshootin
g)
.
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
7
Start and Programmes TD4248FUH Issue 2
Choosing a Programme
1. Plug the dryer into the electrical socket.
2. Sort your laundry according to fabric type (see
Laundry).
3. Open the door and make sure the filter is clean and in
place and the water container is empty and in place (see
Maintenance).
4. Load the machine and make sure that the items are not in
the way of the door seal. Close the door.
5. If none of the lights are On, press the On/Off Button
.
6. Choose a programme by checking the Programmes guide
(see Programmes) as well as the indications for each type of
fabric (see Laundry).; - select a programme by rotating the
PROGRAMME knob.
7.Choose Timed Dry or Dryness Level option.
If Timed Drying press and release Timed button until
time required is displayed. Or
To change from default dryness setting press and release
Dryness Levels button until required level is indicated (see
The Display)
! See programmes tables, for details of availability of
Dryness levels, Timed dry and Options
8. Set a delay time and other options if necessary.
9. The START/PAUSE light is flashing green, press the
START/PAUSE
button to begin. The green light stops
flashing.
During the drying programme, you can check on your laundry
and take out the items that are dry while the others continue
drying. When you close the door again, press
START/PAUSE button in order to resume drying
(When the door is open the START/PAUSE light will flash
Amber and after door is closed and START/PAUSE button
pressed will stop flashing and show green.
10. .
To let you know that your programme is complete
the buzzer will beep 3 times. (Note: If the SOUND
option was selected the buzzer beeps 3 times every 30
seconds for 5 minutes).
..
Open the door, take your laundry out, clean the filter and
replace it. Empty the water container and replace it (see
Maintenance).
11. Unplug the dryer.
Note.
This tumble dryer, in compliance with new energy saving regulations, is fitted with an automatic standby system which is
enabled after about 30 minutes if no activity is detected. Press and hold the ON-OFF button until the
dryer reactivates.
Essential Programmes - Programmes Table
Programme Options Available Dryness Levels Available
(default highlighted)
Delay Timer
Extra Care
Sound
Heat Level
Timed Dry
Sensor Dry
Damp Dry
Iron Dry
Hanger Dry
Plus
Hanger Dry
Light Dry
Cupboard
Dry
Extra Dry
1 Cottons
High
Medium
Low
x
2 Shirts
x
High,
Medium
x
3 Bed & Bath
High, x
Medium x
x
4 Anti Allergy
x
x An Automatic programme
5 Synthetics
x
Medium
Low
x
6 Quick Dry
x
High
Medium
An Automatic programme
Cottons
• This is a programme for Cotton Items.
• The duration of this programme will take will depend on the size of the load, the dryness setting selected and the spin speed
used in your washer.(see The Laundry)
GB
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
8
Start and Programmes TD4249FUH Issue 4
Essential Programmes
Shirts
High heat option
• This is a programme for Shirts made from Cotton.
• It can be used for load sizes up to 3 kg (approximately 10 shirts).
Medium heat option
• This is a programme for Shirts made from synthetic materials or a mixture of natural and synthetics materials such as
Polyester and Cotton.
• It can be used for load sizes up to 3 kg (approximately 14 shirts).
The duration of this programme will depend on the size of the load the dryness setting selected and the spin speed used in your
washer
Loads dried using the Cupboard Dry setting are usually ready to wear; the edges or seams may be slightly damp. If this is found try
turning the shirts inside out and running the programme again for a short period
Bed & Bath
• This is a programme for Cotton Towels and sheets
• The duration of this programme will depend on the size of the load, the dryness setting selected and the spin speed used in
your washer. .(see The Laundry)
• Loads dried using the Extra Dry setting are usually ready to use; the edges or seams may be slightly damp especially on large
items. If this is found try opening them out and running the programme again for a short period.
Anti Allergy Programme
This programme has the “Seal of Approval” endorsement from Allergy UK, which reflects the effective reduction and elimination of
allergens from the clothes with the special Anti Allergy Cycle. With this programme, thanks to the achievement of constant
temperature for an extended period of time, the effects of the most common allergens (including House Mites and Pollen) are
neutralized. Can be used on a full size wet load to dry and treat or on a 4kg dry load to just treat your articles.
Synthetics
• This is a programme for items of Synthetic or Synthetic / Cotton mixtures.
• The duration of this programme will depend on the size of the load, the dryness setting selected and the spin speed used in
your washer. .(see The Laundry)
Quick Dry
This programme is for small loads up to 1 kg, Note: can only be used with the Cupboard Dry setting. Your drying time is very much
reduced with a huge time saving up to 53% on cottons (with High Heat option) and 50% on synthetics (with Medium Heat option).
Exclusive Programmes - Programmes Table
Programme Options Available Dryness Levels Available
(default highlighted)
Delay Timer
Extra Care
Sound
Heat Level
Timed Dry
Sensor Dry
Damp Dry
Iron Dry
Hanger Dry
Plus
Hanger Dry
Light Dry
Cupboard
Dry
Extra Dry
7 Jean
s
x
x x
8 Wool
x x
x An Automatic programme
9 Silk
x x
x x
x
10 Delicates
x
x
x
11 Duvet
x
High
Medium
An Automatic programme
12 Baby Cycle
x
x
x
GB
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
9
Start and Programmes
TD4253FUH Issue 1
Exclusive Programmes
Jeans
• This is a programme for Jeans made from Denim Cotton. Before drying your Jeans turn the front pockets inside out.
• It can be used for load sizes up to 3 kg (approximately 4 pairs).
• Do not mix dark and light coloured items.
• It can also be used on other garments made from same material such as jackets.
• The duration of this programme will depend on the size of the load and the spin speed used in your washer.
• Loads dried using this programme are usually ready to wear; the edges or seams may be slightly damp. If this is found try
turning the jeans inside out and running the programme again for a short period.
! We do not recommend that you use this programme if your jeans have elastic waste bands, studs or embroidery.
Wool Programme
• This is a programme for tumble dryer safe garments marked with the symbol
• It can be used for load sizes up to 1 kg (approximately 3 sweaters).
• We recommend that garments are turned inside out before drying.
• The duration of this programme will depend on the size of the load and the spin speed used in your washer.
• Loads dried using this programme are usually ready to wear, but on some heavier garments the edges may be slightly damp.
Allow these to dry naturally as over-drying could damage garments.
! Unlike other materials, the mechanism of wool shrinkage is irreversible; i.e. it will not stretch back to original size and shape.
! This program is not suitable for Acrylic garments
Silk
• This is a programme for drying your Delicate Silk.
• It can be used for load sizes up to 0.5 kg.
• The duration of this programme will depend on the size of the load and the spin speed used in your washer.
• Loads dried using this programme are usually ready to use, but on some heavier garments the edges may be slightly damp. If
this is found try removing the load and open them out then run the programme again for a short period.
Delicates
• This is a programme for drying your Delicate Clothes i.e. Acrylics.
• It can be used for load sizes up to 2.0 kg.
• The duration of this programme will depend on the size of the load and the spin speed used in your washer..
• Loads dried using this programme are usually ready to use, but on some garments may be slightly damp. If this is found try
removing the load and open them out or turn inside out then run the programme again for a short period.
Duvet
! Take care with these programme do not dry any items that are damaged which could result in the filling blocking the filter
and air path resulting in a fire hazard.
• Must only be used on Single size duvets not suitable for double or king size items.
•
Loads dried using this programme are usually ready to use, but may be slightly damp in places. If this is found try
removing the load and open them out and shake then run the programme again for a short period.
• Also suitable for down filled jackets.
• Select high heat for Cotton Duvets and medium heat for
Synthetic Duvets
•
The programme time will depend on size and density of the load and the spin speed used in your washer
Baby Cycle
• This is a programme for drying your baby’s small delicate items of clothing and bedding (Cotton and Chenille) and for drying your
Delicate Clothes.
• Do not dry items such as bibs and nappy pants with plastic coverings.
• It can be used for load sizes up to 2 kg.
• The duration of this programme will depend on the size of the load and the spin speed used in your washer.
• Loads dried using this programme are usually ready to use, but on some heavier garments the edges may be slightly damp. If
this is found try turning them inside out and running the programme again for a short period.
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
10
Start and Programmes
TD4250FUH Issue 3
Extra Programmes – Programmes Table
Programme Options Available Dryness Levels Available
(default highlighted)
Delay Timer
Extra Care
Sound
Heat Level
Timed Dry
Sensor Dry
Damp Dry
Iron Dry
Hanger Dry
Plus
Hanger Dry
Light Dry
Cupboard
Dry
Extra Dry
13 Cuddly Toys
x
An Automatic programme
14 Heat & Enjo
y
x x x An Automatic programme
1
5
Easy Iron
x x
An Automatic programme
16 Refresh
x x
An Automatic programme
Cuddly Toy Programme
With the cuddly toy programme you can remove dust easier and wash the cuddly toys more often because the drying time is very
much reduced compared to drying in the open air. It’s a delicate drying cycle that dries at low temperature and with soft mechanical
action to maintain at best the original look and the shine of the fur.
Note: For allergy protection, just freeze for 24hrs your cuddly toys, wash and dry. Repeat every 6 weeks. Before drying remove
accessories such as clothes, collars or sound boxes and protect plastic eyes with masking tape, after drying them with a cloth.
The programme will take about 200 minutes; Load size, 2-3 Cuddly Toys.
Heat & Enjoy
This programme helps to heat towels & bathrobes for a warm sensation after a bath or shower. It is also useful for warming clothes
before dressing during winter. The cycle heats clothes to 37°C (Body Temperature) and runs at this temperature for a maximum of
4 hours or until you stop the cycle by opening the door. Maximum load 3 kg.
During this programme a
icon rotates in the display until the temperature target is reached at which point the dryness level icon
flashes.
Easy Iron Programme
Easy Iron is a short 10 minute programme (8 minutes of heat followed by a 2 minute cool tumble period) which fluffs the fibres of
clothing that has been left in the same position/location for an extended period of time. The cycle relaxes the fibres and makes them
easier to iron and fold. ! Easy Iron is not a drying programme and should not be used for wet articles of clothing.
For best results:
1. Do not load more than maximum capacity.
These numbers refer to dry weight
Fabric: Max load:
Cotton and Cotton mix 2.5 kg
Synthetics 2 kg
Denim 2 kg`
2. Unload the dryer immediately after the end of the
drying cycle, hang, fold or iron the articles and put
them away in the closet. Should this not be
possible, repeat the programme
The Easy Iron effect varies from one fabric to the next. It works very well on traditional fabrics like Cotton or Cotton mix, and
less well on acrylic fibres and on materials such as Tencel.®
Refresh
! Airing is not a drying programme and should not be used for wet articles of clothing.
• It can be used on any load size, but is more effective on smaller loads.
• Do not overload your dryer (see Laundry)
20-minute programme that airs: your clothes with cool air. Use also to cool warm clothes
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
11
Start and Programmes
TD4254FUH Issue 2
The Controls
• Programmes knob
! Warning,
if after pressing the start button the programme
knob position is changed, the new position will NOT change
the programme selected. To change programme press
Start/Pause Button
to pause the programme, the light flashes
A
mber to indicate the programme is paused. Select the new
programme and any options required, the light will then flash green.
Press the Start/Pause Button
and the new programme will start.
• Option Buttons/ Lights
These buttons are used to customise the selected programme
to your requirements. A programme must have been selected
on the Programmes knob before an option can be selected.
Not all options are available for all programmes (see Start and
Programmes). If an option is not available and you press the
button, the buzzer will beep three times. If the option is
available the light in the button is lit to confirm your selection.
A
fter the start switch has been pressed were available only the
Sound option can be changed.
• Progress ( Drying, Cool tumble), Icons
These are part of the Display unit they indicate the progress of
the dryer each one comes on as the corresponding phase
starts.
• Time Delay
The start of some programmes (see Start and Programmes and
The Display) can be delayed for up to 24 hours. Ensure the water
bottle is emptied before setting a delayed start.
During this period the clothes are occasionally tumbled
to help prevent creases developing.
• Extra Care
This Anti-ageing function for Cottons and Synthetics helps to
maintain the brightness of your laundry for long time thanks to
the use of the right drum rotation (reduced in the last part of
cycle) and the correct drying temperature.
Note: It cannot be used with the “Extra Dry”, “Cupboard Dry” and
“Light Dry” dryness levels
Sound
If selected gives a signal at the end of the drying cycle to
remind you that the clothes are ready to be removed. Not
A
vailable on Heat & Enjoy programme.
• Heat Level Button and Lights
Not all programmes allow you to change the heat level, and
some of these programmes do allow all three heat level
options. When the option change the heat level is available
pressing this button changes the heat level selected and the
corresponding light is lit for the three available levels, Low,
Medium and High.
DISPLAY
The display shows either the amount of time delay remaining
or an indication of the amount of time left for a drying
programme. (see The Display) The Colons between the hours
and minutes display flash to show that the time is counting
down.
When the programme finishes its cool tumble phase the
dis
p
la
y
will show .
• Empty Water Icon / Container
(If you have plumbed your dryer to a drain this light can be
ignored, as there is no need to empty the water container.)
When this icon
is on its reminds you to empty the water
container.
If the water container fills during a programme, the heater
turns off and the dryer does a period of Cool Tumble then the
buzzer sounds, the bottle full icon
flashes, the display
shows
and the .Empty water icon is displayed
You must empty the container and restart the dryer or the
clothes will not dry. After re-starting the dryer the display will
take a few seconds to go refresh.
To avoid this always empty the water container each time you
use the dryer (see Maintenance
• Door Opening
Opening the door (or pressing the Start/Pause Button )
during a programme will stop the dryer and have the following
effects..
• The Start/Pause Light flashes Amber .
• During a delay phase the delay will continue to
count down. The start button must be pressed to
resume the delay programme.
• The start button must be pressed to resume the
programme. The progress lights will change to
show the current status and the Start/Pause light
will stop flashing and turn green.
• Changing the Programmes knob will select a new
programme and the Start/Pause Light will flash
green. You can use this to select the Refresh
programme
to cool the clothes if you find
them dry enough.
Press the start button to begin a new Programme.
• Not e
If you have a power cut, switch off the power or
remove the plug, press and hold the On/Off button
until the dryer reactivates, then press the Start/Pause
Button.
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
12
Laundry TD4003NC8 Issue 1
Sorting your laundry
• Check symbols on clothing labels to
make sure that the articles can be tumble dried
• Sort laundry by fabric type.
• Empty pockets and check buttons.
• Close zippers and hooks and tie loose belts and
strings
• Wring out each item in order to eliminate as much
excess water as possible.
! Do not load dripping wet clothes into the dryer
Maximum load
Do not load more than maximum capacity.
These numbers refer to dry weight:
Natural fibres: 8 kg max (18 lb)
Synthetic fibres: 3 kg max (6.6 lb)
! Do not overload the dryer as this could result in
reduced drying performance.
Typical weights
Note: 1kg = 1000g; (1 lb = 16 oz.)
Clothes
Blouse
Cotton
Other
150g (5 oz)
100g (3 oz)
Dress
Cotton
Other
500g (1lb 2 oz)
350g (12 oz)
Jeans 700 g (1 lb 6 oz)
10 Nappies 1000 g (2 lb 6 oz)
Shirt
Cotton
Other
300g (10 oz)
200g (7 oz)
T - Shirt 125 g (4 oz)
Household items
Duvet cover
(Double)
Cotton
Other
1500g (3 lb 5 oz)
1000g (2 lb 3 oz)
Large Tablecloth 700 g (1 lb 6 oz)
Small Tablecloth 250 g (9 oz)
Tea Towel 100 g (3 oz)
Bath Towel 700 g (1 lb 6 oz)
Hand Towel 350 g (12 oz)
Double Sheet 500 g (1 lb 2 oz)
Single Sheet 350 g (12 oz)
A
t the end of a drying cycle, cottons could still be
damp if you grouped cottons and synthetics
together. If this happens simply give them an
additional short
p
eriod of dr
y
in
g
.
Wash care labels
Look at the labels on your garments, especially
when tumble drying for the first time. The following
symbols are the most common:
May be tumble dried.
Do not tumble dry.
Tumble dry at high heat setting.
Tumble dry at low heat setting.
What not to tumble dry in your dryer:
• Articles that contain rubber or rubber-like materials,
or plastic film (pillows, cushions, or PVC rainwear);
any other flammable objects, or objects that contai
n
flammable substances (towels soiled with
hairspray).
• Glass fibres (certain types of draperies).
• Items that have been Dry Cleaned.
• Items with the ITLC code (“Special clothing items”)
. These can be cleaned with special at-home
dry cleaning products. Follow instructions carefully.
• Large bulk y items (quilts, sleeping bags, pillows,
cushions, large bedspreads, etc.). These expand
when drying and would prevent airflow through the
dryer.
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
13
Special clothing items TD4026EC8 issue 1
Blankets and bedspreads: acrylic items (Acilan,
Courtelle, Orion, Dralon) must be dried with special
care on a low heat setting. Avoid drying for a long
period of time.
Pleated or creased garments: read manufacturer
drying instructions on the garment.
Starched articles: do not dry these items with non-
starched items. Make sure that as much of the starch
solution is removed from the load as possible before
placing it in the dryer. Do not over-dry: the starch will
become powdery and leave your clothing limp, which
defeats the purpose of starch.
Drying times
The table below presents APPROXIMATE drying
times in minutes. Weights refer to dry garments:
Times are approximate and can vary depending
upon:
• Amount of water retained in clothes after spin cycle:
towels and delicates retain a lot of water.
• Fabrics: items that have the same type of fabric but
different textures and thicknesses may not have
the same drying times.
• Quantity of laundry: single items or small loads
may take longer to dry.
• Dryness: if you are going to iron some of your
clothes, they can be taken out while still a bit
damp. Others can be left longer if you need them
to be completely dry.
• Heat setting.
• Room temperature: if the room where the dryer is
located is cold, it will take longer for the dryer to dry
your clothes.
• Bulk: some bulky items can be tumble dried with
care. We suggest that you remove these items
several times, shake them out, and return them to
the dryer until finished.
! Do not over-dry your clothes.
All fabrics contain a little natural moisture, which
keeps them soft and fluffy.
Cottons
High / Full Heat
Drying times 800-1000 rpm in washing machine
1 kg 2 kg 3 kg 4 kg 5 kg 6 kg 7 kg 8 kg
30 - 40 40
-
55 55
-
70 70
-
80 80-90 95-120 120
-
140 130 - 150
Synthetics
Gentle / Low Heat
Drying times on reduced spin in washing machine
1 kg 2 kg 3 kg
40-50 50-70 70-90
Acrylics
Gentle / Low) Heat
(Use Timed dry
Programmes)
Drying times on reduced spin in washing machine
1 kg 2 kg
30 60
GB
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
14
Warnings and Suggestions TD4197 Issue 2
! This appliance has been designed and built according
to international safety standards. These warnings are
given for safety reasons and must be followed carefully.
General safety
• This tumble dryer is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for there safety.
• This tumble dryer has been designed for home, and not
professional, use.
• Do not touch the appliance while barefoot or with wet
hands or feet.
• Unplug the machine by pulling on the plug, not the cord.
• Children must not be in proximity of the dryer when in use.
After using the dryer, turn it off and unplug it. Keep the
door closed to make sure that children do not use it as a
toy.
• Children should be supervised to ensure that they do not
play with the dryer.
• The appliance must be installed correctly and have proper
ventilation. The air intake at the front of the dryer should
never be obstructed. (see Installation).
• Never use the dryer on carpeting where the pile height
would prevent air from entering the dryer from the base.
• Check to see if the dryer is empty before loading it.
•
The back of the dryer could become very hot.
Never touch it while in use.
• Do not use the dryer unless the filter, Water Container and
Condenser are securely in place (see Maintenance
• Do not over load the dryer (see Laundry for maximum
loads).
• Do not load items that are dripping wet.
• Carefully check all instructions on clothing labels (see
Laundry).
• Do not tumble dry large, very bulky items.
• Do not tumble dry acrylic fibres at high temperatures.
• Complete each programme with its cool tumble phase.
• Do not turn off the dryer when there are still warm
items inside.
• Clean the filter after each use (see Maintenance).
• Empty the Water Container after each use (see
Maintenance).
• Clean the Condenser unit at regular intervals (see
Maintenance).
• Do not allow lint to collect around the dryer.
• Never climb on top of the dryer. It could result in
damage.
• Always follow electrical standards and requirements. (see
Installation).
• Always buy original spare parts and accessories
(see Service).
To minimize the risk of fire in your tumble dryer, the
following should be observed
• Tumble dry items only if they have been washed with
detergent and water, rinsed, and been through the spin
cycle. It is a fire hazard to dry items that HAVE NOT been
washed with water.
• Do not dry garments that have been treated with chemical
products
• Do not tumble dry items that have been spotted or
soaked with vegetable or cooking oil this constitute a
fire hazard.
Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as a tumble dryer.
The items become warm, causing an oxidisation
reaction with the oil, Oxidisation creates heat. If the heat
cannot escape, then items can become hot enough to
catch fire. Piling, stacking or storing oil-effected items
can prevent heat from escaping and so create a fire
hazard.
If it is unavoidable that fabrics that contain vegetable or
cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should first be
washed with extra detergent – this will reduce, but not
eliminate, the hazard. The cool tumble phase should be
used to reduce the temperature of the items. They
should not be removed from the dryer or piled or
stacked while hot
• Do not tumble dry items that have previously been
cleaned in or washed in, soaked in or soiled with
petrol/gasoline, dry-cleaning solvents or other
flammable or explosive substances. Highly flammable
substances commonly used in domestic
environments included cooking oil, acetone,
denatured alcohol, kerosene, spot removers,
turpentine, waxes and wax removers. Ensure these
items have been washed in hot water with an extra
amount of detergent before being dried in the tumble
dryer.
• Do not tumble dry items containing foam rubber (also
known as latex foam) or similarly textured rubber like
materials. Foam rubber materials can, when heated
produce fire by spontaneous combustion.
• Fabric softeners or similar products should not be used
in a tumble dryer to eliminate the effects of static
electricity unless the practice is specifically
recommended by the manufacturer of the fabric
softener or product.
• Do not tumble dry undergarments that contain metal
reinforcements e.g. bras with metal reinforcing wires.
Damage to the tumble dryer can result if the metal
reinforcements come loose during drying.
• Do not tum ble dry rubber, plastic articles such as
shower caps or babies’ waterproof covers, polythene,
or paper
• Do not tum ble dry rubber-backed articles, clothes fitted
with foam rubber pads, pillows, galoshes and rubber-
coated tennis shoes.
• Remove all objects from pockets, especially lighters
(risk of explosion)
! WARNING:
Never stop the dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
Save energy and respect the environment
• Wring out all items to eliminate excess water before
tumble drying (if you use a washing machine first,
select a high spin cycle). Doing this will save time and
energy during drying.
• Always dry full loads - you save energy: single items or
small loads take longer to dry
• Clean the filter after each use to contain energy
consum
p
tion costs
(
see Maintenance
)
.
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
15
Maintenance and Care TD4207FUL Issue 3
Switching off the electricity
! Unplug the dryer when not using it, when cleaning it,
and during maintenance activities.
Clean the filter after each cycle
The filter is an important part of your dryer: it
accumulates lint and fluff that is formed while drying.
When finished drying, clean the filter by rinsing it under
running water or with your vacuum cleaner. Should the
filter become clogged up, the airflow inside the dryer will
be seriously compromised: drying times lengthen and
you will consume more energy. It may also damage
your dryer.
The filter is found in front of the dryer trim (see
diagram).
1. Pull the plastic grip of the filter
upwards (see diagram) .
2. Open the filter and clean
the lint from the inside
3. Replace it correctly.
Ensure the filter is fully located flush
into the tumble dryer trim.
4. Remove any lint that has built up on the inside of
the door and around the door seal.
! Do not use dryer without replacing the filter.
Check the drum after each cycle
Turn the drum manually in order to remove small items
(handkerchiefs) that could have been left behind.
Cleaning the drum
! Do not use abrasives, steel wool or stainless steel
cleaning agents to clean the drum
A coloured film may start to appear on the stainless steel
drum, this may be caused by a combination of water and,
or cleaning agents such as fabric conditioner from the
wash. This coloured film will not affect the dryer
performance.
Empty the Water Container after each
cycle
Pull the container out of the dryer remove either the small
or large cap and empty it into a sink or other suitable
drain. Refit the cap to the bottle and replace the container
securely.
Always check and empty the container before you start a
new drying programme.
Cleaning the Condenser Unit
• Periodically (every month) remove Condenser unit an
d
clean any build up of fluff from between the plates by
rinsing it under the tap with cold water. This should be
done with cold water from the rear of the condenser.
To remove condenser
1. Unplug the dryer and open the door.
2. Pull open the condenser cover (see diagram),
release the three catches by turning 90° counter
clockwise then pull on the grip and remove from
dryer.
3. Clean the surface of the seals and replace with the
arrows pointing upwards making sure that the
catches have been secured.
Cleaning the dryer
• External parts in metal or plastic and rubber parts can
be cleaned with a damp cloth.
• Periodically (every 6 months) vacuum the front Air
intake grille, to remove any build up of fluff, lint or dust.
Also to remove accumulation of fluff from the front of
condenser and filter areas, clean occasionally with a
vacuum cleaner
! Do not use solvents or abrasives.
! Your dryer uses special bearing components which
do not need lubrication.
! Have your dryer checked regularly by authorized
technicians to ensure electrical and mechanical safety
(see Service).
GB
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
16
Troubleshooting
O
ne day your dryer seems not to be working. Before you call your Service Centre (see Service), go through the
f
ollowing troubleshooting suggestions.
Problem:
Possible causes / Solutions:
The dryer won’t start
• The plug is not plugged into the socket, or not making contact.
• There has been a power failure.
• The fuse has blown. Try to plug another appliance into the socket.
• You are using an extension cord. Try to plug the dryer’s power cord
directly into the socket.
• The door is not closed securely.
• The PROGRAMMES knob has not been set properly (see Start and
Programmes).
• The START button has not been pressed (see Start and Programmes).
Drying cycle will not begin.
• You have set a delay time (see Start and Programmes).
It is taking a long time to dry
• The filter has not been cleaned (see Maintenance).
• The water container needs emptying… The ‘water Container full icon’
is
flashing, The display shows
and the empty water icon is on. (see
Maintenance).
• The condenser needs cleaning (see Maintenance).
• The temperature setting is not ideal for the type of fabric you are
• drying (see Start and Programmes, and Laundry ).
• The correct drying time has not been selected for this load
(see Laundry).
• The air intake grille is obstructed (see Installation and see Maintenance).
• The items are too wet (see Laundry).
The dryer is overloaded (see Laundry).
The water full icon
is
flashing and displayed
but the dryer has only been
running for a short period.
• The water container was probably not emptied at the start of the programme.
Do not wait for the empty water signal always check and empty the container
before starting a new drying programme. (see Maintenance).
Empty water icon
is on and
the water container is not full.
• This is normal if the light is on its just a reminder to empty the container. (see
Start and Programmes)
The Display shows a fault
code F followed by one or two
numbers
• If the display shows a fault, Turn off and remove plug, Clean the Filter and
Condensing Unit (see Maintenance). Then replace plug turn on and start
another program. If a fault is then displayed. Note down the number and
contact the service centre (see Service)
Programme finishes and
clothes damper than expected
! For safety the dryer has a maximum programme time of 4 hours. If an
automatic programme has not sensed the required final moisture in this time the
dryer will complete the programme and stop. Check the above points and run the
programme again, if the results are still to damp, contact the service centre (see
Service).
G
B
TD4265FUA Issue 2
19510300500_AUS English, All Logos to be Ariston {PDF Created 18/01/13 22:28:00}
17
Service TD4303AS80 Issue 1
Before calling the Service Centre:
• Use the troubleshooting guide to
see if you can solve the problem
yourself
(see Troubleshooting).
• If not, turn off the dryer and call
the Service Centre closest to you.
What to tell the Service Centre:
• Name, address, and post code;
• telephone number;
• the type of problem;
• the date of purchase;
• the appliance model (Mod.);
• the dryer serial number (S/N);
This information can be found on the
data label inside the door of the
machine.
Spare Parts
This dryer is a complex machine.
Repairing it yourself or having a non-
authorised person try to repair it
could cause harm to one or more
persons and to the machine, and
could invalidate the spare parts
warranty.
Call an authorised technician if you
experience problems while using the
machine.
.
Comparative Programmes
• Programmes recommended for comparative test to AS/NZ 2442.2
• The dryer must be plumbed into a drain for this programme (see Installation)
Programme to select Load
Size
Heat Setting Dryness Option
Cottons 8 kg High
Extra Dry.
! Note: For full list of programme options (see Start and Programmes)
ARISTON PRIORITY SERVICE
If you are not completely satisfied with your
appliance or require service call:
Australia -
Phone: 1300 815 589
New Zealand –
Phone: (09) 306 1020
AUSTRALIA
ARISIT PTY LIMITED
40-44 Mark Antony Drive, Dandenong South
VIC 3175, Australia
Fax: Service & Sales (03) 9768 0838
Email: consumer.care@arisit.com
GENUINE ACCESSORIES & SPARE
PARTS
A wide range of genuine accessories are
available for your appliance call:
Australia –
Phone: 03 9768 0888
New Zealand
– Phone: (09) 306 1020
NEW ZEAL AND
ARISIT PTY LIMITED
PO Box 68-140 Newton, Auckland 1145
New Zealand
Fax: (09) 302 0077
Email: sales@aristonappliances.co.nz
This appliance conforms to the following EC Directives:
- 2006/95/EC (Low Voltage Equipment);
- - 89/336/EEC, 92/31/EEC, 93/68/EEC
(
Electroma
g
netic Com
p
atibilit
y)
.
GB
