Frigidaire.com USA 1-800-374-4432 Frigidaire.ca Canada 1-800-265-8352
use
&
care
REFRIGERATOR
A20811502 (September 2021)
Introduction .......................................................2
Important Safety Information ....................3
Features ..............................................................6
Installation .........................................................8
Door Removal .................................................. 11
Door Handle Installation .............................16
Water Supply Connection .......................... 17

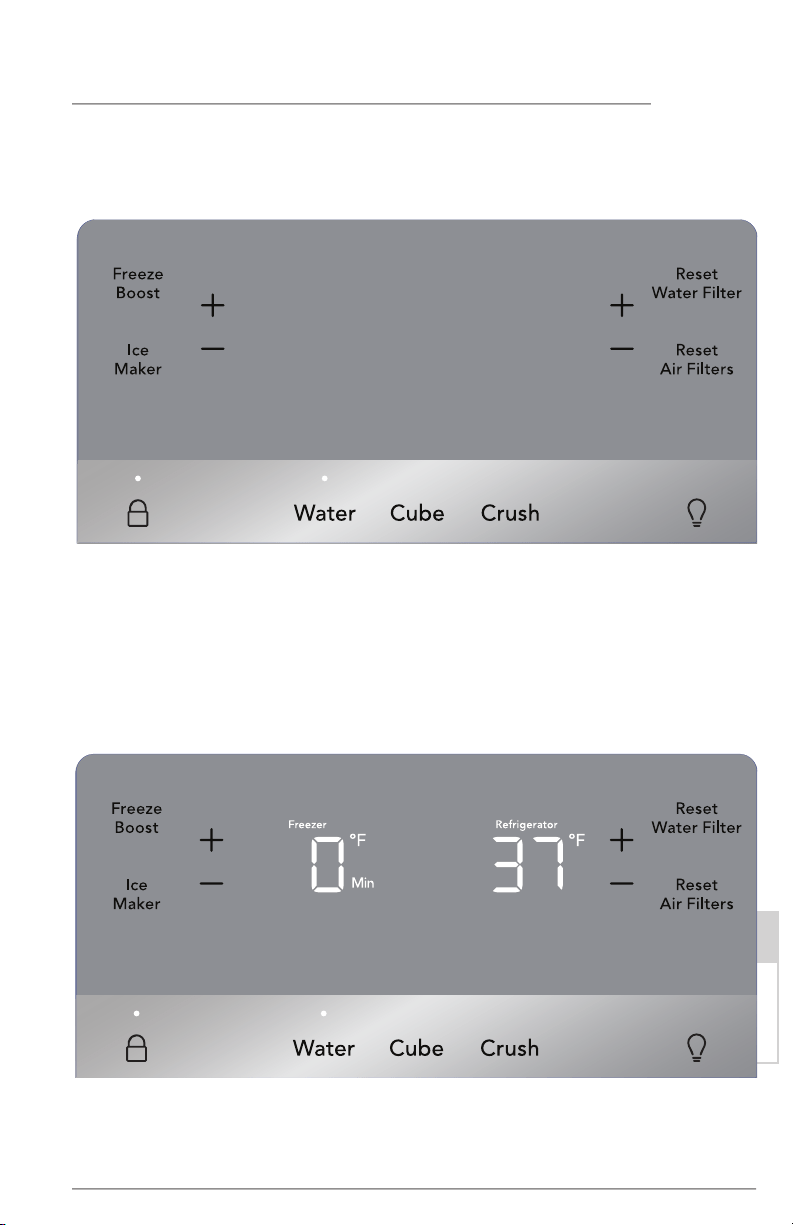

Controls and Settings .................................. 19
Automatic Ice & Water Dispenser ......... 26
Ice Maker ......................................................... 29
Storage Features ........................................... 31
Storing Food and Saving Energy ........... 36
Normal Operating Sounds ........................ 37
Filter Replacement ...................................... 38
Care & Cleaning .............................................41
Troubleshooting ..........................................43
Limited Warranty .........................................48
2
INTRODUCTION
Doors
Handles are secure and tight
Door seals completely to cabinet on
all sides
Leveling
Refrigerator is level side-to-side and
slightly elevated in front to assist
with door and drawer closing (front
should be higher than back)
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to
refrigerator
WARNING: Potable water supply
only.
No water leaks present at all
connections - recheck in 24 hours
Ice maker is turned ON
Ice & water dispenser operates
correctly
Final Checks
Shipping material removed
Fresh food and freezer temperatures
set
Crisper humidity controls set
Registration card sent in
Installation Checklist
Welcome to our
family
Thank you for bringing Frigidaire into
your home! We see your purchase as the
beginning of a long relationship together.
This manual is your resource for the use
and care of your product. Please read
it before using your appliance. Keep it
handy for quick reference. If something
doesn’t seem right, the troubleshooting
section will help you with common issues.
FAQs, helpful tips and videos, cleaning
products, and kitchen and home accessories
are available at www.frigidaire.com.
We are here for you! Visit our website,
chat with an agent, or call us if you need
help. We may be able to help you avoid
a service visit. If you do need service, we
can get that started for you.
Let’s make it ocial! Be sure to register
your product.
Keep your product info here so it’s easy
to find.
Model Number
Serial Number
Purchase Date
Serial Number Location
3
WARNING
WARNING indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
IMPORTANT
IMPORTANT indicates installation, oper-
ation or maintenance information which
is important but not hazard-related.
DANGER
DANGER indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
CAUTION
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
Safety Definitions
This is the safety alert symbol. It is
used to alert of potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
WARNING
Please read all instructions before using
this appliance.
IMPORTANT SAFETY INFORMATION
DANGER
DANGER Risk of fire or explosion.
Flammable refrigerant used. Do not use
mechanical devices to defrost refrigera-
tor. Do not puncture refrigerant tubing.
DANGER Risk of fire or explosion.
Flammable refrigerant used. To be re-
paired only by trained service person-
nel. Use only manufacturer-authorized
service parts. Any repair equipment
used must be designed for flammable
refrigerants. Follow all manufacturer
repair instructions. Do not puncture
refrigerant tubing.
CAUTION
CAUTION Risk of fire or explosion.
Dispose of refrigerator properly
in accordance with the applicable
federal or local regulations. Flammable
refrigerant used.
CAUTION Risk of fire or explosion
due to puncture of refrigerant tubing.
Follow handling instructions carefully.
Flammable refrigerant used.
WARNING
CALIFORNIA RESIDENTS ONLY
WARNING! Cancer and Reproductive Harm
www.P65Warnings.ca.gov
4
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a cool-
ing system that used CFCs or HCFCs
(chlorofluorocarbons or hydrochlorofluo-
rocarbons). CFCs and HCFCs are believed
to harm stratospheric ozone if released to
the atmosphere. Other refrigerants may
also cause harm to the environment if
released to the atmosphere.
If you are throwing away your old refrig-
erator, make sure the refrigerant is re-
moved for proper disposal by a qualified
technician. If you intentionally release
refrigerant, you may be subject to fines
and imprisonment under provisions of
environmental legislation.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance
recycling/disposal methods. Check with your
utility company or visit www.energystar.gov/
recycle for more information on recycling
your old refrigerator.
Before you throw away your old
refrigerator/freezer:
• Remove doors.
• Leave shelves in place so children
may not easily climb inside.
• Have refrigerant removed by a
qualified service technician.
IMPORTANT SAFETY INFORMATION
Safety Instructions
• DO NOT store or use gasoline,
or other flammable liquids in
the vicinity of this or any other
appliance. Read product labels for
warnings regarding flammability and
other hazards.
• DO NOT operate the refrigerator in
the presence of explosive fumes.
• Avoid contact with any moving parts
of automatic ice maker.
• Remove all staples from the carton.
Staples can cause severe cuts, and
also destroy finishes if they come
in contact with other appliances or
furniture.
Child Safety
Destroy or recycle the carton, plastic
bags, and any exterior wrapping material
immediately after the refrigerator is
unpacked. Children should NEVER use
these items to play. Cartons covered with
rugs, bedspreads, plastic sheets or stretch
wrap may become airtight chambers, and
can quickly cause suocation.
WARNING
Do not use electrical appliances inside
the food storage compartments of the
appliance unless they are of the type
recommended by the manufacturer.
Proper Disposal of your
Refrigerator or Freezer
Risk of child entrapment
Child entrapment and suocation are
not problems of the past. Junked or
abandoned refrigerators or freezers are
still dangerous – even if they will sit for
“just a few days”. If you are getting rid
of your old refrigerator or freezer, please
follow the instructions below to help
prevent accidents.
5
Electrical information
• The refrigerator must be plugged
into its own dedicated 115 Volt, 60
Hz., 15 Amp, AC only electrical outlet.
The power cord of the appliance
is equipped with a three-prong
grounding plug for your protection
against electrical shock hazards.
It must be plugged directly into
a properly grounded three prong
receptacle. The receptacle must be
installed in accordance with local
codes and ordinances. Consult
a qualified electrician. Avoid
connecting refrigerator to a Ground
Fault Interrupter (GFI) circuit. Do
not use an extension cord or adapter
plug.
• If the power cord is damaged, it
should be replaced by an authorized
service technician to prevent any
risk.
• Never unplug the refrigerator by
pulling on the power cord. Always
grip the plug firmly, and pull straight
out from the receptacle to prevent
damaging the power cord.
• Unplug the refrigerator before
cleaning and before replacing a light
bulb to avoid electrical shock.
• Performance may be aected if
the voltage varies by 10% or more.
Operating the refrigerator with
insucient power can damage the
compressor. Such damage is not
covered under your warranty.
• Do not plug the unit into an
electrical outlet controlled by a wall
switch or pull cord to prevent the
refrigerator from being turned o
accidentally.
IMPORTANT
Pressing and holding the On/O button
for three seconds, located on the tem-
perature control panel, will disable your
refrigerator’s cooling system but does
not disconnect the power to the light
bulb and other electrical components.
To turn o power to your refrigerator
you must unplug the power cord from
the electrical outlet.
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly
if nicked, scratched, or exposed to
sudden temperature change.
IMPORTANT SAFETY INFORMATION
6
IMPORTANT
Accessories are available for your appliance and may be purchased at
Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in
Canada) or from an authorized seller.
A Water Filter
B Condiment Bin
C L-Shaped Bin
D Dairy Bin
E Flipper Mullion
F Gallon Bin
G Slim Bin
H Fresh Food Ice Maker & Bin
I Flipper Guide
J Air Filter
K Edge-to-edge Glass Shelving
L Standard bin
M Crisper Drawers
N
Deli Drawer
O Upper Freezer Baskets
P Lower Freezer Baskets
Q External Control Display
R Ice/Water Dispenser
Quick
Freeze
External Water Dispenser Model
FEATURES
B
C
D
E
F G
H
I
J
K
M
N
O
P
Q
R
L
A
7
FEATURES
IMPORTANT
Accessories are available for your appliance and may be purchased at
Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in
Canada) or from an authorized seller.
A Water Filter
B Condiment Bin
C Gallon Bin
D Flipper Mullion
E Flipper Guide
F Air Filter
G Edge-to-edge Glass Shelving
H Standard bin
I Crisper Drawers
J
Deli Drawer
K Upper Freezer Baskets
L Lower Freezer Baskets
M Freezer Ice maker
N Non-Dispenser control (side
door)
Non- Dispenser Model
B
C
D
E
F
G
H
I
K
M
N
L
J
A
8
Tools Necessary:
Phillips Head
or
Quadrex Head
Screwdriver
(OR)
OR
⅜" and ¼"
Socket
Wrench
Adjustable
Wrench
OR
⅜"
Fixed
Wrench
ANDAND
6mm
Allen Wrench
INSTALLATION
CAUTION
Do Not install the refrigerator where
the temperature will drop below 55°F
(13°C) or rise above 110°F (43°C).
The compressor will not be able to
maintain proper temperatures inside
the refrigerator.
This Use & Care Manual provides general
installation and operating instructions
for your model. We recommend
using a service or kitchen contracting
professional to install your refrigerator.
Use the refrigerator only as instructed in
this Use & Care Manual. Before starting
the refrigerator, follow these important
first steps.
Location
• Choose a place that is near a
grounded, non-GFCI, electrical
outlet. Do Not use an extension cord
or an adapter plug.
• If possible, place the refrigerator
out of direct sunlight and away from
the range, dishwasher, or other heat
sources.
• The refrigerator must be installed
on a floor that is level and strong
enough to support a fully loaded
refrigerator.
• Consider water supply availability
for models equipped with an
automatic ice maker.
Top Hinge
Cover Front
Screw
Top Hinge
Cover Rear
Screw
Lower
Hinge
Screw
Top
Hinge
Screw
Components Provided:
WARNING
Installation
Allow the following clearances
for ease of installation, proper air
circulation, and plumbing and electrical
connections:
• Sides & Top ³⁄8
inch (9.5 mm)
• Back 1 inch (25.4 mm)
WARNING
This appliance is intended to be used
in household and similar applications
such as:
• Sta kitchen areas in shops, oces
and other working environments
• Farm houses and by clients in hotels,
motels and other residential type
environments
• Bed and breakfast type environments
• Catering and similar non-retail
applications.
9
INSTALLATION
NOTE
If your refrigerator is placed with the
door hinge side against a wall, you may
have to allow additional space so the
door can be opened wider.
NOTE
Product is shipped with doors adjusted
to the lowest position on the hinges.
Door opening
Your refrigerator should be positioned
to allow easy access to a counter
when removing food. For best use of
refrigerator drawers and freezer baskets,
the refrigerator should be in a position
where both can be fully opened.
3. Ensure both doors are bind-free with
their seals touching the cabinet on all
four sides and that cabinet is stable.
Cabinet Leveling & Refrigerator
Door Alignment (if necessary)
Guidelines for final positioning of refrigerator:
• All four corners of the cabinet must
rest firmly on the floor.
• The front should be slightly elevated
to ensure that doors close and seal
properly.
• Doors should align with each other
and be level.
Most of these conditions can be met by raising
or lowering the adjustable anti-tip legs.
To level the cabinet using the anti-tip legs:
1. Slightly open freezer drawer to
reveal anti-tip legs at bottom of
cabinet.
2. Lower anti-tip legs until they are
both touching the floor. Use a pair of
pliers to adjust.
To raise unit: turn leg clockwise if
looking from the top.
To lower unit: turn leg counterclockwise.
looking from the top.
Door
Door
To make final door height adjustments:
1. Open freezer drawer to access
hinges for fresh food doors.
2. Insert 6mm Allen
TM
wrench into the
shaft of the lower hinge. (Included
with unit)
To lower door: turn adjustment
screw counter-clockwise if looking
at the door from below.
To raise door: turn adjustment
screw clockwise if looking at the
door from below.
10
INSTALLATION
Adjusting Flipper Mullion Screw
2. Adjust flipper mullion height. For
proper connection with the flipper
mullion guide, there should be a
separation about the thickness of
a coin (0.060 inches, or 1.5 mm)
between the guide and flipper
mullion.
3. Re-tighten screws.
To adjust the flipper mullion:
1. Loosen the two screws located on
the flipper mullion hinge.
Adjusting Flipper Mullion Height
Flipper
Mullion
Screws
Flipper Mullion
Adjust Flipper Mullion for proper
connection with the mullion guide by
ensuring the flipper mullion is folded and
perpendicular to the fresh food door. If
the mullion guide is not in the correct
position, it could prevent the door from
closing completely.
WRONG
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin
11
DOOR REMOVAL
WARNING
Make sure the electrical power cord is
unplugged from the wall outlet.
Getting through narrow spaces
If your refrigerator will not fit through an
entrance area, you can remove the doors.
Check first by measuring the entrance.
To prepare for removing the doors:
1. Make sure the electrical power cord
is unplugged from the wall outlet.
2. Remove any food from the door
shelves and close the doors.
Right Door Non-Dispenser Unit
Right Door Dispenser Unit
Left Door Dispenser Unit
Left Door Non- Dispenser Unit
To remove refrigerator doors:
1. Remove the three screws from both
hinge covers on the left and right
top of the cabinet, taking care not
to damage electrical connections or
sensors.
2. After the hinge covers are removed,
disconnect any harnesses between
the cabinet and doors by grasping
both sides of the connector firmly,
depress the latch and pull apart.
12
DOOR REMOVAL
5. Pull the water tube out of the
conduit from the top of the cabinet.
Press
Press
Press
Press
6. Open both doors to a 90 degree
angle.
NOTE
You will be pulling approximately five
feet of water tube from the back of the
refrigerator. Use care while pulling the
water tube from the unit to be sure that
you do not kink the tube.
90˚
CAUTION
Be sure doors are set aside in a secure
position where they cannot fall and
cause personal injury, or damage to the
doors or handles.
3. Trace lightly around the door’s top
hinges with a pencil. This makes re-
installation easier.
4. Remove bulkhead cover at rear
of unit to access water tubing.
Disconnect the water tube at the
push-lock connection on the rear
of the unit below the bulkhead. The
dispenser line is connected to the
yellow water line coming from the
main water valve.
13
DOOR REMOVAL
7. Remove hex screws from top hinge
plate, then remove the top hinge.
8. Lift doors o bottom hinges and set
aside.
9. Unscrew the three bottom hinge
screws and remove the bottom
hinges.
Lower Hinge Removal
Pin
Mechanism
Bottom
Hinge
Opening
NOTE
When reinserting the water tube and
replacing the top hinge cover, use care
to be sure you do not kink the tube.
The water line may also be dicult to
pass back through the conduit inside
the cabinet
To reinstall the refrigerator
doors:
1. Replace three bottom hinge screws
and hinges on both sides of the
cabinet. Ensure screws are tightly
snug to hinges on both sides of the
cabinet before re-installing doors
2. Holding the door at a 90 degree
angle, drop the pin down into the
bottom hinge opening. Rotate it
slightly in either direction until the
door falls onto the hinge and is fully
seated.
14
DOOR REMOVAL
Bottom of the Doors
For
RIGHT DOOR,
turn pin 90˚
counter-
clockwise
For
LEFT DOOR,
turn pin 90˚
clockwise
To reset door pin:
If doors are removed at less than a 40
degree angle, the pin returns to the home
position. It can be reset by turning the
door upside down and using a 5/32” Allen
wrench to rotate the left hand pin 90
degrees clockwise and the right hand pin
90 degrees counterclockwise.
Once the door pins are reset, follow the
steps “To reinstall the refrigerator doors”.
3. Reinstall top hinges and screws.
4. Insert and feed water line back into
the conduit at the top left door
hinge until tube re-appears at rear
of unit.
Push
Push
5. Reconnect all harnesses.
6. Replace top hinge covers and
screws.
7. Reconnect water line to push-lock
connection and reinstall water line
bulkhead cover at rear of unit.
8. Reconnect electrical power cord to
the wall outlet
NOTE
Upon replacement, the tube needs to
be fully inserted up to the marking line.
15
DOOR REMOVAL
CAUTION
Drawer is heavy. Use caution when lifting.
Removing Freezer Drawer
1. Remove 4 hex head drawer screws
(2 per side) that secure the drawer
to the slide assemblies.
2. Lift up drawer to remove.
Remove
Hex Head
Drawer
Screw
CAUTION
Do Not loosen or remove the 3 hex screws.
NOTE
To locate the pin, look inside the drawer
and the pin is next to the door liner and
the slides. Not all parts are shown in the
illustration.
Replacing Freezer Drawer
1. Extend the Freezer slides from the
unit.
2. Carefully align support pin with
hooks on end of freezer slides and
then lower freezer door onto slides.
3. Replace the 4 hex head screws that
secure the slides to the door (2 on
each side) and tighten.
16
DOOR HANDLE INSTALLATION
CAUTION
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
NOTE
All set screws should be tightened so the screw is below the surface of the handle.
The handles should be drawn tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this hap-
pens, tighten the set screws on the handles.
Door Handle Mounting
Instructions
1. Remove handles from carton
and any other protective
packaging.
2. Position refrigerator handle end
caps over upper and lower pre-
installed shoulder bolts (A) that
are fastened into door, ensuring
the holes for the set screws are
facing towards the opposite door.
3. While holding handle firmly
against door, fasten upper and
lower Allen set screws (B) with
supplied Allen wrench.
4. Repeat steps 2 and 3 to install
opposite handle. Ensure the
holes for the set screws are
facing towards the opposite
door.
5. Position freezer handle end caps
over left and right pre-installed
shoulder bolts (A) that are
fastened to the door, ensuring
the holes for the set screws are
facing down.
6. While holding handle firmly
against door, loosely tighten
right Allen set screw (B) with
supplied Allen wrench until
there is no gap between handle
and door.
7. Still holding the handle firmly to
the door, firmly tighten left Allen
set screw (B) with supplied Allen
wrench.
8. Return to the right Allen set
screw (B) and firmly tighten
with supplied Allen wrench.
Mounting Refrigerator Handles
NOTE
When tightening the Allen set screws, it
is important that force be applied to the
longer arm of the Allen wrench supplied in
the handle packaging.
Mounting Freezer Handle
A A
B B
A A
AA
B
B
B
B
17
WATER SUPPLY CONNECTION
WARNING
To avoid electric shock, which can
cause death or severe personal injury,
disconnect the refrigerator from
electrical power before connecting a
water supply line to the refrigerator.
NOTE
Check with your local building au-
thority for recommendations on water
lines and associated materials prior
to installing your new refrigerator.
Depending on your local/state build-
ing codes, Frigidaire recommends for
homes with existing valves its Smart
Choice
®
water line kit 5305513409 with
a 6ft. (1.8 meters) Stainless Steel Water
Line, and for homes without an existing
valve Frigidaire recommends its Smart
Choice
®
water line kit 5305510264 with
a 20ft. (6meters) Copper Water Line
with self-tapping saddle valve. Please
refer to www.frigidaire.com/store for
more information.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided
tubing is recommended for the
water supply line. Water supply
tubing made of ¼ inch plastic is not
recommended to be used. Plastic
tubing greatly increases the potential
for water leaks, and the manufacturer
will not be responsible for any
damage if plastic tubing is used for
the supply line.
• DO NOT install water supply tubing
in areas where temperatures fall
below freezing.
• Chemicals from a malfunctioning
water softener can damage the ice
maker. If your home has a water
softening system, ensure the softener
is maintained and working properly.
IMPORTANT
Ensure that your water supply line con-
nections comply with all local plumbing
codes.
Before Installing The Water
Supply Line, You Will Need:
• Basic Tools: adjustable wrench,
flat-blade screwdriver, and Phillips
TM
screwdriver
• Access to a household cold water
line with water pressure between 30
and 100psi.
• A water supply line made of ¼inch
(6.4mm) OD, copper or stainless
steel tubing. To determine the length
of tubing needed, measure the
distance from the ice maker inlet
valve at the back of the refrigerator
to your cold water pipe. Then add
approximately 6 ft. (1.8 meters) , so
the refrigerator can be moved out
for cleaning (as shown).
• A shuto valve to connect the water
supply line to your household water
system. DO NOT use a self-piercing
type shuto valve.
• Do not re-use compression fitting or
use thread seal tape.
• A compression nut and ferrule
(sleeve) for connecting a copper
water supply line to the ice maker
inlet valve.
To Connect Water Supply Line
To Ice Maker Inlet Valve
1. Disconnect refrigerator from electric
power source.
2. Place end of water supply line
into sink or bucket. Turn ON water
supply and flush supply line until
water is clear. Turn OFF water
supply at shuto valve.
3. Remove plastic cap from water valve
inlet and discard cap.
18
IMPORTANT
Your refrigerator’s water supply system
includes several tubing lines, a water
filter, and a water valve. To ensure that
your water dispenser works properly,
this system must be completely filled
with water when your refrigerator is
first connected to the household water
supply line.
WATER SUPPLY CONNECTION
NOTE
These instructions do not cover after
market ice maker installation. Instruc-
tions in after market ice maker kit
should be used.
Figure 2
4. If you use copper tubing - Slide
brass compression nut, then
ferrule (sleeve) onto water supply
line. Push water supply line into
water valve inlet as far as it will
go (¼inch/6.4mm). Slide ferrule
(sleeve) into valve inlet and finger
tighten compression nut onto valve.
Tighten another half turn with a
wrench; DO NOT over tighten. See
Figure 1.
• If you use braided flexible stainless
steel tubing - The nut is already
assembled on the tubing. Slide nut
onto valve inlet and finger tighten
nut onto valve. Tighten another half
turn with a wrench; DO NOT over
tighten. See Figure 2.
5. With steel clamp and screw, secure
water supply line to rear panel of
refrigerator as shown.
6. Coil excess water supply line
(copper tubing only), about
2½turns, behind refrigerator as
shown and arrange coils so they
do not vibrate or wear against any
other surface. Do not kink tubing.
7. Turn ON water supply at shuto
valve and tighten any connections
that leak.
8. Reconnect refrigerator to electrical
power source.
9. To turn ice maker on, ensure Ice
Maker is enabled on display (LED
will be lit) or set the ice maker’s
On/o power switch to the “ON”
position (freezer ice maker).
Steel
Clamp
Steel
Clamp
Valve Inlet
Water Valve
Braided
Flexible
Stainless
Steel
Water Line
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
Water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper waterline
from household
water supply
(Include enough tubing
in loop to allow moving
refrigerator out for cleaning)
(Include enough
tubing in loop
to allow moving
refrigerator out
for cleaning)
6 ft. (1.8 Meters)
Braided flexible
stainless steel water
line from household
water supply.
Figure 1
19
WARNING
When using the cold drink timer, make
sure to remove drinks from freezer
compartment when alarm sounds.
Carbonated drinks may explode if left
in freezer for too long.
CONTROLS AND SETTINGS
Awake Mode Display
Awake Mode
To change from sleep mode (on) to awake mode (o), simultaneously press and hold
“Crush” and “ Light” icons for 5 seconds. Display will show the current temperature/ice
maker status. Tone will confirm.
Quick
Freeze
Sleep Mode
As a default, the display will go to sleep after a short time. If any icon is pressed, the
display will be awakened. After a short time, it will go back to sleep. When in sleep
mode, wake up the display to confirm ice maker is On/O. Sleep mode can be turned
o to have the display on full time (awake mode). When sleep mode is O, the display
will always be illuminated. To turn sleep mode On/O, simultaneously press and hold
“Crush” and “ Light” icons for 5 seconds. Tone will confirm.
Sleep Mode Display
Quick
Freeze
External Water Dispenser Control Display Mode Views
20
CONTROLS AND SETTINGS
1
Freeze Boost (on/o)
Prior to grocery shopping, we
recommend you activate Freeze
Boost to lower the temperature and
freeze food faster. Freeze Boost
will remain active for up to 24 hours
before automatically deactivating or
manually exiting by pressing Freeze
Boost to turn the function o. This
will reset the freezer to the previous
temperature setting.
2
Ice Maker
Press and hold for 3 seconds to turn
ice maker on/o. When indicator is
lit, ice maker is on. When indicator
is not lit, ice maker is in the OFF
state and will stop making ice. While
o, ice dispensing can continue as
long as there is ice in the bucket.
When ice maker is o and ice is
dispensing, indicator will blink.
3
The lock button can be used to lock
the display preventing it from being
used in certain situations. Press
and hold for 3 seconds to enable/
disable. While in the locked state,
no changes can be made to settings
on the display. Dispensing ice and
water will be disabled. The indicator
will flash and an audible warning
tone is played.
4
Power Outage
In the event of a power outage,
the power outage alert will be
illuminated once power has been
restored and a tone will sound.
Press any button to silence the tone.
5
Adjusting Temp
Illuminates when temperatures are
changed on the display and will
remain illuminated until the desired
temperatures are reached inside
the refrigerator and freezer. Press
either the + or - to adjust to desired
temperature setting.
Freezer temp - Control
temperatures range from -6°F /
-21°C to +6°F / -15°C.
Refrigerator temp - Control
temperatures range from +34°F
/ +1°C to +44°F / +7°C. This unit
is designed to operate at 37°F
Refrigerator/0°F Freezer. Unit
should stabilize temperatures within
24 hours of installation.
1
2
3
5
10
6
7
9
8
11 12
13
14
4
15
External Water Dispenser Control Display
21
CONTROLS AND SETTINGS
Setting cooling temperatures
(options may vary)
NOTE
The recommended settings for a prod-
uct installed in a kitchen is 37˚F for the
fresh food compartment and 0˚F for the
freezer.
IMPORTANT
If your product has food freezing in the
fresh food compartment, increase the
temperature setting 1 or 2 degrees.
IMPORTANT
If you place food within 1 inch in front
of the air ports, there may be the
chance of freezing food.
6
Door Open
This alert indicates the door has
been open for 5 minutes or more.
The Door Open LED illuminates and
the audible alert sounds until the
door is closed. The audible alert can
be turned o by pressing the Door
Open key or by closing the door. If
the door is open for 5 minutes, the
interior light will turn o.
7
Replace Water Filter
Display illuminates every 6 months or
when filter needs replacing. Replace
the filter then press and hold Reset
Water Filter button for 3 seconds to
deactivate the warning on display.
See Replacing the Filter for more
information.
8
F/C
To toggle between Fahrenheit (°F)
and Celsius (°C), simultaneously
press and hold + and - for 5 seconds
on refrigerator side of display.
9
Replace Air Filters
Display illuminates every 6 months or
when filter needs replacing. Replace
the filter and then press and hold
Reset Air Filters button for 3 seconds
to deactivate the warning on the
display. See Replacing the Filter for
more information.
10
Water
Press the Water key to select water.
An indicator light will be illuminated
above the active feature.
11
Cube
Press the Cube key to select cubed
ice. An indicator light will be
illuminated above the active feature.
12
Crush
Press the Crush key to select
crushed ice. An indicator light ill be
illuminated above the active feature.
13
Reset Air Filters
Filter condition status is always
displayed when the door is open.
Press and hold button for three
seconds to reset after changing the
filter.
Baseline Dispenser Display
14
Reset Water Filter
Press and hold button for three
seconds to reset after filter change.
15
Light
Toggles dispenser light On and O.
External Water Dispenser Control Display
22
Sabbath Mode
The Sabbath Mode is a feature that
disables portions of the refrigerator
and its controls in accordance with
observance of the weekly Sabbath and
religious holidays within the Orthodox
Jewish community.
Sabbath Mode is turned ON and OFF
by simultaneously pressing and holding
both the “FZ−” and “FF+” for 10 seconds.
The display shows “Sb” while in Sabbath
mode.
In the Sabbath Mode, the High Temp
alarm is active for health reasons. For
example, if the door is left ajar the High
Temp alarm is activated. The refrigerator
will function normally once the door
is closed, without any violation of the
Sabbath/Holidays. The High Temp alarm
is permitted when cabinet temperature
is outside the safe zone for 20 minutes.
The alarm silences itself after 10 minutes
while the High Temp icon stays lit until the
Sabbath mode is exited.
For further assistance, guidelines
for proper usage and a complete
list of models with the Sabbath
feature, please visit the web at
http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the
lights, dispenser, nor the control panel
will work until Sabbath Mode is deacti-
vated.
Refrigerator stays in Sabbath Mode
after power failure recovery. It must be
deactivated with the buttons on the
control panel.
NOTE
Although you have entered the Sab-
bath Mode, the ice maker will complete
the cycle it had already initiated. The
ice cube compartment will remain cold
and new ice cubes can be made with
standard trays.
Clear Alerts
Door Open
If the freezer or refrigerator doors are
left open for five minutes or more, an
alarm sounds and the door open indicator
illuminates on the display. Close the door
or press any key on the display to silence
the alarm. The control panel will return to
normal operations after the door is closed.
High Temp Alarm
An alarm sounds in the event of a high
temperature condition. The control panel
displays HI on whichever compartment
the alarm is detected in and the
alarm sounds every 10 seconds until
acknowledged. Touch any key or open a
door to silence the alarm.
Power Outage
In the event of a power outage, a tone
sounds and the power outage alert
illuminates once power has been restored.
Press any key on the control panel to
silence the alarm.
Flapper (Dispenser Models Only)
If the flapper (or ice chute door) is held
open by a jammed ice cube when “Cube”
or “Crush” is selected, an alarm sounds
and the current selection blinks on the
dispenser control. The alarm resets when
the ice cube is removed.
CONTROLS AND SETTINGS
External Water Dispenser Control Display
23
CONTROLS AND SETTINGS
Non-Dispenser Control Display Mode Views
Your display is equipped with a sleep and lock mode to prevent accidental changes
to the unit settings during opening and closing of the doors. When both doors are
closed, the display will be in sleep mode. When either door is first opened, the display
will be in lock mode where all the current settings are visible but dimmed.
Pressing any button on the display will awake the display and a tone will be played.
All settings will then be fully lit. Touch the display again to change any setting.
If there is no button pressed for 10 seconds while any door is open, the display will
default back to lock mode.
Awake Mode View Lock Mode View Sleep Mode View
24
CONTROLS AND SETTINGS
1
Change
Temperature
Select Freezer or Refrigerator
compartment to change temperature.
Select +/- buttons to set the
temperature
Freezer
control range:
-6˚F/-21˚C –
+6˚F/-15˚C
Refrigerator
control range:
+34˚F/+1˚C –
+44˚F/+7˚C
2
Clear Alerts Resets any active lit door open, high
temp or power outage alarms on the
control panel.
3
Freeze
Boost
Prior to grocery shopping, we
recommend you activate Freeze Boost
to lower the temperature and freeze food
faster. Freeze Boost will remain active
for up to 24 hours before automatically
deactivating or manually exiting by
pressing Freeze Boost to turn the
function o. This will reset the freezer to
the previous temperature setting.
4
F/C Touch to toggle display from
Fahrenheit to Celsius.
5
Default
Settings
Press and hold for 3 seconds to reset
to Factory settings.
6
Water Filter Press and hold to reset after filter has
been replaced, status shown at right
of button will reset to GOOD.
7
Air Filters Press and hold to reset after filter(s)
has been replaced, status shown at
right of button will reset to GOOD.
NOTE
The recommended settings for a product installed in a
kitchen is 37˚F for the fresh food compartment and 0˚F
for the freezer.
Setting cooling temperatures
Press the + or − indicator to adjust the temperature to the
desired setting.
The temperature setting will begin to blink with the first
touch. The display will time out after 10 seconds and return
to the basic display.
1
2
3
6
5
7
4
Non-Dispenser Control Display
25
CONTROLS AND SETTINGS
Sabbath Mode
The Sabbath Mode is a feature that
disables portions of the refrigerator
and its controls in accordance with
observance of the weekly Sabbath and
religious holidays within the Orthodox
Jewish community.
Sabbath Mode is turned ON and OFF by
simultaneously pressing and holding both
the “−” and “Temp F-C” for five seconds.
The display shows “Sb” while in Sabbath
mode.
In the Sabbath Mode, the High Temp
alarm is active for health reasons. For
example, if the door is left ajar the High
Temp alarm is activated. The refrigerator
will function normally once the door
is closed, without any violation of the
Sabbath/Holidays. The High Temp alarm
is permitted when cabinet temperature
is outside the safe zone for 20 minutes.
The alarm silences itself after 10 minutes
while the High Temp icon stays lit until the
Sabbath mode is exited.
For further assistance, guidelines
for proper usage and a complete
list of models with the Sabbath
feature, please visit the web at
http:\\www.star-k.org.
NOTE
While in Sabbath Mode, neither the
lights, dispenser, nor the control panel
will work until Sabbath Mode is deacti-
vated.
Refrigerator stays in Sabbath Mode
after power failure recovery. It must be
deactivated with the buttons on the
control panel.
NOTE
Although you have entered the Sab-
bath Mode, the ice maker will complete
the cycle it had already initiated. The
ice cube compartment will remain cold
and new ice cubes can be made with
standard trays.
Clear Alerts
Door Open
If the freezer or refrigerator doors have been
left open for five minutes or more, an alarm
will sound and the door open indicator will
illuminate on the display. Press “CLEAR
ALERTS” to reset any system alarms.
High Temp Alarm
HIGH TEMP will illuminate next to clear
alerts button. Alarm is played every 60
seconds. Press “CLEAR ALERTS” button
to acknowledge the alarm The highest
temp value will be displayed when the
alarm is first acknowledged.
Power Outage
In the event of a power outage, the power
outage alert will be illuminated. Press
“CLEAR ALERTS” to acknowledge the
alarm. Other modes may be turned o
until the alarm is acknowledged. While
a power outage alert is displayed on the
control panel, the unit will continue normal
operation. The high temp alarm may also
be illuminated until a safe operating range
temperature has been reached.
Non-Dispenser Control Display
NOTE
Food placed within 1 in. in front of air
ports may cause food to freeze.
26
AUTOMATIC ICE & WATER DISPENSER
NOTE
The water dispenser has a built-in de-
vice that shuts o the water flow after
three minutes of continuous use. To
reset this shuto device, simply release
the dispenser paddle.
CAUTION
For proper dispenser operation,
recommended water supply pressure
should fall between 30psi and 100psi.
Excessive pressure may cause the system
to malfunction.
Priming the water supply system
1. Begin filling the system by pressing
and holding a drinking glass against
the water dispenser paddle.
2. Keep the glass in this position until
water comes out of the dispenser. It
may take about 1½ minutes.
3. Continue dispensing water for about
four minutes to flush the system
and plumbing connections of any
impurities (stopping to empty the
glass as necessary).
Ice maker operation & care
After the refrigerator is installed properly
and has cooled for several hours, the ice
maker can produce ice within 24hours.
The ice maker will fill the ice bin from the
rear. You must dispense some ice to force
the ice forward in the bin. This will allow
the bin to fill completely.
Ice Maker and Storage Bin Capacity
In a Standard Depth model, the
refrigerator ice maker should produce 3.0
to 3.4 pounds of ice per 24 hours. In a
Counter Depth model, the refrigerator ice
maker should produce 2.7 to 3.2 pounds
of ice per 24 hours.
In a Standard Depth model, the
refrigerator ice bin will hold around 5
pounds of ice. In a Counter Depth model,
the refrigerator ice bin will hold around
3.7 pounds of ice.
Using the dispenser after
installation
Before making ice for the first time, be
sure to prime the water supply system.
Air in new plumbing lines can result in
two or three empty ice maker cycles.
Furthermore, if the system is not flushed,
the first ice cubes may have discolored
water or have an odd flavor.
NOTE
Dispensed water is not chilled. For
colder water, add ice to cup or contain-
er before dispensing water.
Refrigerator Ice Maker (External Dispenser Models Only)
Quick
Freeze
Dispenser
(varies by
model)
27
Refrigerator Ice Maker (External Dispenser Models Only)
AUTOMATIC ICE & WATER DISPENSER
IMPORTANT
Your ice maker is turned on at the
factory so it can work as soon as
you install your refrigerator. If you
cannot connect a water supply, set
the ice maker’s On/O feature to O;
otherwise, the ice maker’s fill valve may
make a loud chattering noise when it
attempts to operate without water.
IMPORTANT
On occasion, unusually small ice cubes
may be noticed in the bucket or in dis-
pensed ice. This could occur in normal
operation of the ice maker. If you start
seeing these more frequently, it may be
an indication of low water pressure or the
water filter needs to be replaced. As the
water filter nears the end of its useful life
and becomes clogged with particles, less
water is delivered to the ice maker during
each cycle. Remember, if it’s been six
months or longer since you last changed
your water filter, replace the water filter
with a new one. Poor quality household
water may require the filter to be changed
more frequently.
Ice maker/dispenser tips
• If your refrigerator is not connected
to a water supply or the water
supply is turned o, turn o the ice
maker as described in the previous
section.
• The following sounds are normal
when the ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• If you need a large quantity of ice
at one time, it is best to get cubes
directly from the ice bin.
• Ice cubes stored too long may
develop an odd flavor. Empty the ice
bin as explained below.
• When dispensing cubed ice, it is
normal to have a small quantity of
little pieces along with the whole
cubes.
• To avoid splashing, dispense ice into
your container before adding liquids.
• It is normal for ice to fill to the top of
the ice bin.
CAUTION
If the water supply to your refrigerator
is softened, be sure the softener is
properly maintained. Chemicals from
a water softener can damage the ice
maker.
IMPORTANT
Turning o the ice maker simply dis-
ables ice making. You will still be able to
dispense existing ice, and you will still be
able to dispense water.
NOTE
The ice maker also has a built-in plastic
signal arm that automatically stops ice
production when the ice bin is full. This
signal arm should not be used to manu-
ally stop the ice maker.
Turning the refrigerator ice
maker on and o
Ice production is controlled by the ice
maker’s On/O feature on the control
panel. Pressing the On/O feature turns
the ice maker on & o.
28
AUTOMATIC ICE & WATER DISPENSER
Cleaning the ice maker
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or
moving.
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This
could damage the ice bin and dispenser
mechanism.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure
it is completely dry.
IMPORTANT
When removing or replacing the ice
bin, avoid rotating the auger in the ice
bin. If the auger is accidentally rotated,
you must realign the auger by turning
it in 45degree turns (see below) until
the ice bin fits into place with the drive
mechanism. If the auger is not properly
aligned when replacing the ice bin, the
refrigerator will not dispense ice. The
refrigerator door also may not close
properly causing warm air to leak into
the refrigerator compartment.
Adjusting Ice Bin Auger
Removing Ice Bin
1. Turn o the ice maker.
2. Lift the ice bin upward then pull
straight out to remove.
3. Empty and carefully clean the ice
bin with mild detergent. Do not use
harsh or abrasive cleaners. Rinse
with clean water.
4. Allow the ice bin to dry completely
before replacing in the freezer.
5. Replace the ice bin. Turn the ice
maker on.
Remove and empty the ice bin if:
• An extended power failure (one hour
or longer) causes ice cubes in the
ice bin to melt and refreeze together
after power is restored, jamming the
dispenser mechanism.
• You do not use the ice dispenser
frequently. Ice cubes will freeze
together in the bin, jamming the
dispenser mechanism.
Refrigerator Ice Maker (External Dispenser Models Only)
29
ICE MAKER
Ice Maker Operation & Care
After the refrigerator is installed properly,
the ice maker can produce ice within
24hours. When using the ice maker
for the first time, and in order for it to
work properly, it is necessary to clear
air from the water tubing and the filter.
Furthermore, if the system is not flushed,
the first ice cubes may be discolored or
have an odd flavor. Once the ice maker
begins making ice, allow the bin to fill
completely, then discard the first FULL
bin of ice.
Ice Maker and Storage Bin
Capacity
This ice maker should produce between
2 and 2.5 pounds of ice per 24 hours
depending on usage conditions. For a
Standard Depth unit, the ice bin should
hold around 12 pounds of ice. For a
Counter Depth unit, the ice bin should
hold around 9 pounds of ice.
Turning the ice maker on and o
Press power button to turn Ice Maker on
(button will not illuminate).
Freezer Ice Maker
NOTE
The ice maker will only produce the ad-
vertised production rate if the product
is set at 0°F.
CAUTION
If the water supply to your refrigerator
is softened, be sure the softener is
properly maintained. Chemicals from
a water softener can damage the ice
maker.
Ice maker tips
• The following sounds are normal
when the ice maker is operating:
- Motor running
- Ice dropping into ice bin
- Water valve opening or closing
- Running water
• Ice cubes stored too long may develop
an odd flavor. Empty the ice bin as
explained below.
Freezer Ice Maker (Non-Dispenser Models Only)
NOTE
The Freezer Ice maker fills from the
back left-hand corner of the bin.
Moving the ice to the edges of the bin
allows the bin to fill completely.
on o
Ordering Optional Freezer Ice
Maker
Order optional freezer ice maker online at
www.frigidaire.com/store, by calling
1-800-374- 4432 or through the
dealer from which the refrigerator was
purchased.
30
ICE MAKER
CAUTION
NEVER use an ice pick or similar sharp
instrument to break up the ice. This
could damage the ice bin.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure
it is completely dry.
Cleaning the ice maker bin
Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or
moving.
1. Turn o the ice maker.
2. Remove the ice bin.
3. Empty and carefully clean the ice
bin with mild detergent. Do not use
harsh or abrasive cleaners. Rinse
with clean water.
4. Allow the ice bin to dry completely
before replacing in the freezer.
5. Replace the ice bin. Turn the ice
maker on.
Remove and empty the ice bin if an
extended power failure (one hour or
longer) causes ice cubes in the ice bin to
melt and refreeze together after power is
restored.
31
STORAGE FEATURES
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly
if nicked, scratched, or exposed to
sudden temperature change. Allow
the glass shelves to stabilize to room
temperature before cleaning. Do not
wash in dishwasher.
You can easily adjust shelf positions in
the refrigerator compartments to suit
your needs. The shelves have mounting
brackets that attach to slotted supports
at the rear of each compartment.
IMPORTANT
Be aware of the air seal located at the rear
of the shelf. Shelves located on the left
side should have the air seal mounted on
the far left side. Shelves located on the
right side should have the air seal mount-
ed on the far right side. This is to ensure
there is no interference with the large air
tower on the back wall of the cabinet. This
also applies to the crisper shelves.
Change the Position of a Shelf
1. Remove all food from shelf.
2. Lift the front edge up and pull the
shelf out.
Reposition the Air Seal
For glass shelves:
1. Remove air seal by pushing seal
straight back.
2. Position the air seal towards the
outside edge of the shelf to avoid the
air tower when shelf is pushed back
into place.
3. Install seal by sliding the open channel
end of the seal onto back edge of
shelf until seal sits snug on back
of shelf and flap sits at about a 10
degree angle from shelf surface.
Shelves
3. Replace by inserting the mounting
bracket hooks into the desired
support slots.
4. Lower the shelf and lock into position.
32
Removing Crisper Drawer
Drawers
Your refrigerator includes a variety of
storage drawers.
Crispers
Crisper drawers are designed for storing
fruits, vegetables, and other fresh
produce.
Crisper Humidity Control
Crisper drawers include a sliding control
for adjusting the humidity inside the
crisper. Leafy vegetables keep best when
stored with the Humidity Control set on
Higher Humidity. Fresh fruits keep best
when stored with the Humidity Control
set on Lower Humidity.
To remove the Crisper Drawer with
Pure
Air Produce Keeper™ for cleaning:
1. Pull the drawer out until it stops.
2. Lift the front slightly and remove the
drawer.
Opening Crisper Drawer
STORAGE FEATURES
To replace the Crisper Drawers with
Pure
Air Produce Keeper™ after cleaning:
1. Place the crisper drawer on top
of the deli cover and tilt upwards
slightly.
NOTE
Gasket should be on the outside wall
of the crisper after being removed and
re-installed into the unit.
CAUTION
Remove the produce keeper prior to
washing the crisper drawer.
33
STORAGE FEATURES
Deli drawer
Ideal for storage of deli meats, cheese,
and beverages.
Adjustable Door Bins
Doors
Storage bins (varies by model)
The doors to your refrigerator
compartment use a system of modular
storage bins. All of these bins are
removable for easy cleaning. Some of
them have fixed positions, while others
can be adjusted to your needs.
Door bins are ideal for storing jars,
bottles, cans, and large drink containers.
They also enable quick selection of
frequently used items.
To change the position of an adjustable
door bin:
1. Remove all food from door bin.
2. Grip the bin firmly with both hands
and lift it upward.
3. Remove the bin.
4. Place the bin just above desired
position.
5. Lower the bin onto supports until
locked in place.
6. Place bin liner into bin.
2. Push the crisper straight once the
bottom rollers clear the front deli
crisper support rollers.
34
STORAGE FEATURES
Upper Freezer Basket
Replacement
1. Open Freezer drawer completely.
2. Pull both upper slides out of the
freezer compartment, extending
them fully.
3. Take upper basket assembly and
snap basket back into the docks on
the slide assemblies. Perform this on
one side at a time as slides will move
freely during installation.
4. Once basket is fully seated on the
upper slide assemblies, push basket
back into freezer compartment.
5. Close freezer drawer completely.
Remove Upper Freezer Basket
1. Open freezer drawer fully.
2. Extend upper freezer drawer all the
way out from the cabinet.
Freezer Accessories
Your freezer has baskets and dividers that
can be adjusted to your needs.
3. Push inward slightly on the basket
tabs to release the upper basket
from the slide assemblies (1 per side,
in front).
Quick
Freeze
4. Lift basket up and out of freezer
compartment.
35
Lower basket Divider
Grab hand hold on lower divider and pull
up slightly to slide to next position. (The
divider cannot be removed.)
To Remove Lower Freezer
Basket:
Push to replace
1. Open freezer compartment
completely.
2. Locate basket clips in the rear
corners of the basket and pull them
out to remove.
3. Lift the basket up and remove.
Reverse the steps to reinstall the lower
freezer basket.
Lower Basket
Divider
STORAGE FEATURES
36
STORING FOOD AND SAVING ENERGY
Ideas for storing foods
Fresh food storage
• Keep the fresh food compartment
between 34°F and 40°F with an
optimum temperature of 37°F.
• Avoid overcrowding the refrigerator
shelves, which reduces air circulation
and causes uneven cooling.
• Avoid placing food in front of air
ports. (See Controls Section for
illustration.)
Fruits and vegetables
• Store fruits and vegetables in crisper
drawers, where trapped moisture
helps preserve food quality for
longer time periods.
• Wash items and remove excess water.
• Wrap any items that have strong
odors or high moisture content.
Meat
• Wrap raw meat and poultry
separately and securely to prevent
leaks and contamination of other
foods or surfaces.
• Use the deli drawer to store meat/
poultry for short-term storage. Any
meat to be kept longer than two
days should be frozen.
Frozen food storage
• Keep the freezer compartment at
0°F or lower.
• A freezer operates most eciently
when it is at least ⅔ full.
Packaging foods for freezing
• To minimize food dehydration and
quality deterioration, use aluminum
foil, freezer wrap, freezer bags, or
airtight containers. Force as much
air out of the packages as possible
and seal them tightly. Trapped air
can cause food to dry out, change
color, and develop an o-flavor
(freezer burn).
• Wrap fresh meats and poultry with
suitable freezer wrap prior to freezing.
• Do not refreeze meat that has
completely thawed.
Loading the freezer
• Prior to grocery shopping, activate
Freeze Boost so that on your
return you can ensure your newly
purchased food designated for the
freezer will be preserved as quickly
as possible.
• Activating Freeze Boost also will
help your freezer more eciently
maintain the selected temperature
after placing new purchases with
pre-existing frozen foods.
• Avoid adding too much warm food
to the freezer at one time. This
overloads the freezer, slows the
rate of freezing, and can raise the
temperature of frozen foods.
• Leave a space between packages, so
cold air can circulate freely, allowing
food to freeze as quickly as possible.
Ideas for saving energy
Installation
• Locate the refrigerator in the coolest
part of the room, out of direct
sunlight, and away from heating
ducts or registers.
• Do not place the refrigerator next to
heat-producing appliances such as a
range, oven, or dishwasher. If this is
not possible, a section of cabinetry
or an added layer of insulation
between the two appliances will
help the refrigerator operate more
eciently.
• Level the refrigerator so that the
doors close tightly.
Temperature settings
• Refer to the “Controls” section for
procedures on temperature settings.
Food storage
• Avoid overcrowding the refrigerator
or blocking cold air vents. Doing so
causes the refrigerator to run longer
and use more energy.
• Cover foods and wipe containers
dry before placing them in the
refrigerator. This cuts down on
moisture build-up inside the unit.
• Organize the refrigerator to reduce
door openings. Remove as many
items as needed at one time and
close the door as soon as possible.
• Do not place a hot container directly
on a cold shelf. Remember, such an
extreme temperature change may
damage the glass.
37
NORMAL OPERATING SOUNDS
Understanding the sounds you
may hear
Your new, high-eciency refrigerator
may introduce unfamiliar sounds. These
sounds normally indicate your refrigerator
is operating correctly. Some surfaces on
floors, walls, and kitchen cabinets may
make these sounds more noticeable.
The following is a list of major
components in your refrigerator and the
sounds they can cause:
A. Evaporator Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B. Evaporator fan You may hear
air being forced through the
refrigerator by the evaporator fan.
C. Defrost heater During defrost
cycles, water dripping onto the
defrost heater may cause a hissing
or sizzling sound. After defrosting, a
popping sound may occur.
D. Automatic ice maker When ice has
been produced, you will hear ice
cubes falling into the ice bin. Ice
maker fan, water valve activation,
and refrigerant gas fluid may create
sounds from its operation.
E. Electronic control & automatic
defrost control These parts can
produce a snapping or clicking
sound when turning the cooling
system on and o.
F. Condenser fan You may hear air
being forced through the condenser.
K
Features vary by model
NOTE
Energy ecient foam in your refrigera-
tor is not a sound insulator.
NOTE
During automatic defrost cycle, a red
glow in the back wall vents of your
freezer compartment is normal.
G. Compressor Modern, high-eciency
compressors run much faster than
older models. The compressor
may have a high-pitched hum or
pulsating sound.
H. Water valve Makes a buzzing sound
each time it opens to fill the ice maker.
I. Drain pan (not removable) You may
hear water dripping into the drain
pan during the defrost cycle.
J. Condenser May create minimal
sounds from forced air.
K. Motorized damper May produce a
light humming during operation.
L. Ice dispensing paddle When
dispensing ice, you will hear a
snapping, clicking, or popping sound.
38
FILTER REPLACEMENT
Air filter
The air filter is located at the top of the
air tower.
Ordering replacement filters
Order new filters by calling 877-808-
4195, online at www.frigidaire.com/
store, or through the dealer where you
bought your refrigerator. You may want to
consider ordering extra filters when you
first install your refrigerator.
Air Filter Replacement cartridge,
part # FRGPAAF2
Locating the Water Filter
Your refrigerator is equipped with water
filtering system. The water filter system
filters all dispensed drinking water, as well
as the water used to produce ice.
The water filter is located at the left side
of the Deli Drawer.
Replacing your PureAir
TM
AF-2
Air Filter
To ensure optimal filtering of refrigerator
odors, you should change the air filter
every six months (the filter status light on
the main controls prompts you to replace
the filter after six months).
To remove and replace the air filter:
1. Place fingers on top of air cover
and gently pull towards front of unit
releasing the top snaps on the cover
from the air tower.
2. Lift bottom snaps up and out of air
tower assembly to disengage and
remove front cover.
3. Replace air filter by snapping filter
into snaps on air filter cover.
4. Installation of front cover is reverse
of removal.
5. To reset Air Filter status, refer
to instructions under “Controls
Section”.
PurePour™ Water Filter
Keep safe, great-tasting water flowing
with a PurePour™ water filter. Using a
PurePour™ water filter:
• Makes Safe Water Second Nature
PurePour™ water filters are certified
to reduce contaminates* and keep
great-tasting water flowing for you
and your family.
• Produces Purity You Can Trust
Know for certain your PurePour™
water filter is a protector.
Counterfeits and knockos put
your refrigerator and health at risk.
Frigidaire Genuine Filters are the
smarter, safer choice.
• Every Drop Gives Back
Partnered on sustainability eorts,
the use of a PurePour™ water filter
helps cut back on the cost and
use of plastic used to produce and
package bottled water
*For the complete list, please see Performance
DataSheet on Frigidaire.com
39
FILTER REPLACEMENT
Do not use with water that is microbio-
logically unsafe or of unknown quality
without adequate disinfection before or
after the system. Use systems certified for
cyst reduction on disinfected waters that
may contain filterable cysts.
Test & certification results:
• Rated Capacity - 125 gal/453 L for
PurePour
™
and ice and water filter
• Rated service flow - .50 gal/min.
• Operating Temp.: Min. 33°F, Max.
100°F
• Maximum Rated Pressure - 100 lbs/
in.²
• Recommended Minimum Operating
Pressure: 30 lbs/in²
Replacing your PurePour™
water filter
It is not necessary to turn the water
supply o to change the filter. Be ready
to wipe up any small amounts of water re-
leased during the filter replacement.
1. Turn O the ice maker(s).
2. Remove the filter by pushing on the
end/face of the filter.
3. Slide the old water filter cartridge
straight out of the housing and
discard it.
4. Unpackage the new filter cartridge.
Using the alignment guide, slide it
gently into the filter housing until it
stops against the snap-in connector
at the back of the housing.
Ordering Replacement Filters
To order your replacement filters, please
visit our online store at frigidaire.com, by
calling toll-free at 1 (800) 372-4432, or by
visiting the dealer where you purchased
your refrigerator. Frigidaire recommends
that you order extra filters when you first
install your refrigerator, and that you
replace your filters at least once every 6
months.
Here are the product numbers to request
when ordering:
PurePour™ Water Filter PWF-1
Part# FPPWFUO1™
Replacing the
Water Filter
The water filter
is located at the
bottom left of the
refrigerator com-
partment next to
the Deli Drawer. In
general, you should change the water fil-
ter every 6 months to ensure the highest
possible water quality. Water Filter Sta-
tus on the user interface prompts you to
replace the filter after a standard amount
of water (125 gal/453 L for PurePour™)
has flowed through the system.
If you have not used your refrigerator for
a period of time (during moving for ex-
ample), change the filter before reinstall-
ing the refrigerator.
More about your Advanced
Water Filter
NOTE
When you order your replacement filter,
please reorder the same filter type
currently in your refrigerator.
The PurePour™
ice and
water filter system is tested
and certified to NSF/ANSI
Standards 42, 53, 401 and
CSA B483.1 for the reduction
of claims specified on the
performance data sheet.
Visit frigidaire.com for more
information.
40
FILTER REPLACEMENT
Pure
Air Produce Keeper™
Keep fruits and vegetables fresher longer
with
Pure
Air Produce Keeper™. Our
produce keeper absorbs ethylene gas, the
natural gas that causes produce to ripen
quicker. Reduce food waste, save money
and enjoy fresh-tasting produce with a
longer storage life.
Ordering Replacement Filters
To order your replacement filters, please
visit our online store at frigidaire.com, by
calling toll-free at 1 (800) 372-4432, or by
visiting the dealer where you purchased
your refrigerator. Frigidaire recommends
that you replace your filters at least once
every 6 months.
Here are the product numbers to request
when ordering:
Pure
Air Produce Keeper™ PK-1
Part # FRPAPKRF.
CAUTION
DO NOT OPEN. Contents may irritate
eyes or skin. Keep out of reach of children.
FIRST AID: Contains potassium perman-
ganate. In case of contact with eyes or
skin, rinse immediately with water.
DO NOT EAT: If swallowed, seek medical
treatment immediately.
5. Push firmly until the cartridge
snaps into place (you should hear a
click as the cartridge engages the
snap-in connector).
6. Press a drinking glass against the
water dispenser while checking for
any leaks at the filter housing. Any
spurts and sputters that occur as
the system purges air out of the
dispenser system are normal.
7. After filling one glass of water, con-
tinue flushing the system for about
4 minutes.
8. Turn On the ice maker(s).
9. Press and hold the Water Filter reset
button on the Ice & Water Dispenser
control panel for 3 seconds. When
the display changes from red to
green, the status has been reset.
jdkf;ajfd;a jfd;a da; fdjak; da jfdk;a jfdk; jfdk;a ‘’euea hfnzv;a djwte aupjhls’ whyoereoa hga; wuyoepa sp;a uywpere;
jdkf;ajfd;a jfd;a da; fdjak; da jfdk;a jfdk; jfdk;a ‘’euea hfnzv;a djwte aupjhls’ whyoereoa hga; wuyoepa sp;a uywpere;
j
f
d
k
;
a
d
k
a
;
d
k
;
a
d
k
a
;
j
f
k
d
l
a
;
d
k
a
l
;
d
k
a
;
j
f
k
d
a
;
d
a
k
s
;
d
a
s
k
;
d
k
a
;
f
d
j
s
a
k
;
d
s
k
a
;
d
k
s
a
l
;
d
k
s
l
a
;
d
s
a
k
;
G
e
n
e
r
a
t
o
j
f
d
k
;
a
d
k
a
;
d
k
;
a
d
k
a
;
j
f
k
d
l
a
;
d
k
a
l
;
d
k
a
;
j
f
k
d
a
;
d
a
k
s
;
d
a
s
k
;
d
k
a
;
f
d
j
s
a
k
;
d
s
k
a
;
d
k
s
a
l
;
d
k
s
l
a
;
j
f
d
k
;
a
d
k
a
;
d
k
;
a
d
k
a
;
j
f
k
d
l
a
;
d
k
a
l
;
d
k
a
;
j
f
k
d
a
;
d
a
k
s
;
d
a
s
k
;
d
k
a
;
f
d
j
s
a
k
;
d
s
k
a
;
d
k
s
a
l
;
d
k
s
l
a
;
d
s
a
k
;
j
f
d
k
;
a
d
k
a
;
d
k
;
a
d
k
a
;
j
f
k
d
l
a
;
d
k
a
l
;
d
k
a
;
j
f
k
d
a
;
d
a
k
s
;
d
a
s
k
;
d
k
a
;
f
d
j
s
a
k
;
d
s
k
a
;
d
k
s
a
l
;
d
k
s
l
a
;
d
s
a
k
;
G
e
n
e
r
a
t
o
r
:
A
d
o
b
e
I
l
l
u
s
t
r
a
t
o
r
2
4
.
0
.
2
,
S
V
G
E
x
p
o
r
t
G
e
n
e
r
a
t
o
r
:
A
d
o
b
e
I
l
l
u
s
t
r
a
t
o
r
2
4
.
0
.
2
,
S
V
G
E
x
p
o
r
t
G
e
n
e
r
a
t
o
r
:
j
f
d
k
;
a
d
k
a
;
d
k
;
a
d
k
a
;
j
f
k
d
l
a
;
d
k
a
l
;
d
k
a
;
j
f
k
d
a
;
d
a
k
s
;
d
a
s
k
;
d
k
a
;
f
d
j
s
a
k
;
d
s
k
a
;
d
k
s
a
l
;
d
k
s
l
a
;
d
s
a
k
;
j
f
d
k
;
a
d
k
a
;
d
k
;
a
d
k
a
;
j
f
k
d
l
a
;
d
k
a
l
;
d
k
a
;
j
f
k
d
a
;
d
a
k
s
;
d
a
s
k
;
d
k
a
;
f
d
j
s
a
k
;
d
s
k
a
;
d
k
s
a
l
;
d
k
s
l
a
;
d
s
a
k
;
G
e
n
e
r
a
t
o
r
:
A
d
o
b
e
I
l
l
u
s
t
r
a
t
o
r
2
4
.
0
.
2
,
S
V
G
E
x
p
o
r
t
G
e
n
e
r
a
t
o
r
:
A
d
o
b
e
I
l
l
u
s
t
r
a
t
o
r
2
4
.
0
.
2
,
S
V
G
E
x
p
o
r
t
G
e
n
e
r
a
t
o
r
:
j
f
d
k
;
a
d
k
a
;
d
k
;
a
d
k
a
;
j
f
k
d
l
a
;
d
k
a
l
;
d
k
a
;
j
f
k
d
a
;
d
a
k
s
;
d
a
s
k
;
d
k
a
;
f
d
j
s
a
k
;
d
s
k
a
;
d
k
s
a
l
;
d
k
s
l
a
;
d
s
a
k
;
NOTE
PureAir Produce Keeper™ accessories
are optional and may be installed
in most models at any time. Visit
Frigidaire.com for information about
PureAir Produce Keeper™ PK-1
accessories.
Part # FRPAPKRF.
Installing the
Pure
Air Produce Keeper™:
1. Remove the plastic wrapper. Insert
unopened packet into the holder in
the Crisper Drawer.
2. For optimal results, replace the
refill every 6 months along with your
air filter.
41
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to com-
pletely drain the water supply system. Failure to do so could result in water leaks
when the refrigerator is put back into service. Contact a service representative to
perform this operation.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side may
damage flooring. Be careful not to move the refrigerator beyond the plumbing
connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces
with wet or damp hands.
NOTE
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable
fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing
petroleum products on plastic parts, interior doors, gaskets, or cabinet liners. Do
not use paper towels, scouring pads, or other abrasive cleaning materials.
NOTE
If you set your temperature controls to turn o cooling, power to lights and other
electrical components will continue until you unplug the power cord from the wall
outlet.
Protecting your investment
Keeping your refrigerator clean maintains its appearance and prevents odor build-up.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
• Remove adhesive labels by hand. Do not use razor blades or other sharp
instruments which can scratch the appliance surface.
• Do not remove the serial plate. Removal of your serial plate voids your warranty.
• Before moving your refrigerator, raise the anti-tip brackets so the rollers will
work correctly. This will prevent the floor from being damaged.
Refer to the guide on the next page for details on caring and cleaning specific areas of your
refrigerator.
Wipe up any spills immediately and clean the freezer and fresh food compartments at
least twice a year.
• Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions
on any surface.
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
CARE & CLEANING
42
CARE & CLEANING
Vacation and moving tips
Occasion Tips
Short
Vacations
• Leave refrigerator operating during vacations of three weeks or less.
• Use all perishable items from refrigerator compartment.
• Turn automatic ice maker o and empty ice bucket, even if you will
only be gone a few days.
Long
Vacations
• Remove all food and ice if you will be gone one month or more.
• Turn the cooling system o (see “Controls” section for location of On/
O button) and disconnect power cord.
• Turn water supply valve to closed position.
• Clean interior thoroughly.
• Leave both doors open to prevent odors and mold build-up. Block
doors open if necessary.
Moving • Unplug unit
• Remove all food and ice.
• Recommend use of a handcart, load from the side.
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
Care & Cleaning Tips
Part What To Use Tips and Precautions
Interior & Door
Liners
• Soap and water
• Baking soda and
water
Use two tablespoons of baking soda in one quart
of warm water. Be sure to wring excess water
out of sponge or cloth before cleaning around
controls, light bulb or any electrical part.
Door Gaskets • Soap and water Wipe gaskets with a clean soft cloth.
Drawers & Bins • Soap and water Use a soft cloth to clean drawer runners and tracks.
Glass Shelves • Soap and water
• Glass cleaner
• Mild liquid sprays
Allow glass to warm to room temperature
before immersing in warm water.
Toe Grille • Soap and water
• Mild liquid sprays
• Vacuum
attachment
Vacuum dust from front of toe grille. Remove
toe grille (see Installation Instructions).
Vacuum backside, wipe with sudsy cloth or
sponge. Rinse and dry.
Exterior &
Handles
• Soap and water
• Non Abrasive
Glass Cleaner
Do not use commercial household cleaners
containing ammonia, bleach or alcohol to
clean handles. Use a soft cloth to clean
smooth handles. DO NOT use a dry cloth to
clean smooth doors.
Part What To Use Tips and Precautions
Exterior &
Handles
(Stainless Steel
Models Only)
• Soap and water
• Stainless Steel
Cleaners
Never use CHLORIDE or cleaners with
bleach to clean stainless steel.
Clean stainless steel front and handles with
non-abrasive soapy water and a dishcloth.
Rinse with clean water and a soft cloth. Use
a non-abrasive stainless steel cleaner. These
cleaners can be purchased at most home
improvement or major department stores.
Always follow manufacturer’s instructions.
Do not use household cleaners containing
ammonia or bleach.
NOTE: Always clean, wipe and dry with the
grain to prevent scratching. Wash the rest of
the cabinet with warm water and mild liquid
detergent. Rinse well, and wipe dry with a
clean soft cloth.
43
TROUBLESHOOTING
Concern Potential Cause Common Solution
Automatic Ice Maker
Ice maker is
not making
any ice.
• Ice maker is turned o.
• Refrigerator is not
connected to water line
or water valve is not
open.
• The water supply line is
kinked.
• The water filter is not
seated properly.
• The water filter may be
clogged with foreign
material.
• Turn on ice maker. For the
refrigerator ice maker, press and
hold the Ice Maker On-O button
on your display. For the freezer ice
maker, turn the ice maker on by
pressing the toggle switch on the
(-) side.
• Connect the unit to the household
water supply and ensure the water
valve is open.
• Ensure that the supply line does
not kink when the refrigerator is
pushed into place against the wall.
• Remove and re-install the water
filter. Be sure to seat it fully into the
locked position.
• If water dispenses slowly or not at
all, or if the filter is six months old
or older, it should be replaced.
1-800-265-8352 (Canada)
Frigidaire.ca
1-800-374-4432 (United States)
Frigidaire.com
Let us help you troubleshoot your concern! This section will help you with common
issues. If you need us, visit our website, chat with an agent, or call us. We may be able
to help you avoid a service visit. If you do need service, we can get that started for you!
44
TROUBLESHOOTING
Concern Potential Cause Common Solution
Automatic Ice Maker (Cont’d)
Ice maker is
not making
enough ice.
• Ice maker is producing
less ice than you
expect.
• The water filter may be
clogged with foreign
material.
• Saddle valve on cold
water pipe is clogged
or restricted by foreign
material.
• Heavy trac, opening
or closing of the doors
excessively.
• Freezer control is set
too warm (freezer ice
maker).
• Water pressure is
extremely low. Cut-o
and cut-on pressures
are too low (well
systems only).
• Reverse osmosis
system is in
regenerative phase.
• In a Standard Depth model, the
refrigerator ice maker should
produce 3.0 to 3.4 pounds of ice
per 24 hours. In a Counter Depth
model, the refrigerator ice maker
should produce 2.7 to 3.2 pounds
of ice per 24 hours.
• In a Standard Depth model, the
refrigerator ice bin will hold around
5 pounds of ice. In a Counter Depth
model, the refrigerator ice bin will
hold around 3.7 pounds of ice.
• If water dispenses slower than
normal, or if the filter is six months
old or older, it should be replaced.
• Ensure that the supply line does
not kink when the refrigerator is
pushed into place against the wall.
• Turn o household water line valve.
Remove valve. Clean valve. Replace
valve if necessary.
• Set freezer control to colder setting
to improve performance of the ice
maker (freezer ice maker). Allow 24
hours for temperature to stabilize.
• Have someone turn up the cut-o
and cut-on pressure on the water
pump system (well systems only).
• It is normal for a reverse osmosis
system to be below 20 psi during
the regenerative phase.
Freezer ice
maker will
not stop
making
ice (select
models).
• Ice maker bail arm is
being held down by a
package in the freezer
that has fallen against
ice maker.
• Ice cubes are located
in once spot inside the
freezer ice bin
• Move any item or frozen ice cubes
that may block the bail arm from
being in the o or upward position.
See Automatic Ice Maker-Freezer
section in manual.
• Periodically move ice cubes around
the ice bin so that ice maker will
continue to make ice.
45
TROUBLESHOOTING
Concern Potential Cause Common Solution
Automatic Ice Maker (Cont’d)
Ice cubes
are freezing
together.
• Ice cubes are not being
used frequently enough
or interruption of power
for prolonged time.
• Ice cubes are hollow
(shells of ice with water
inside). The hollow
cubes break open in the
bin and leak their water
onto existing ice, which
causes it to freeze
together.
• Remove ice container and discard
ice. The ice maker will produce
fresh supply. Ice should be used
at least twice weekly to keep the
cubes separated.
• This generally occurs when the
ice maker does not get enough
water. This is usually the result of
a clogged water filter or restricted
water supply. Replace the water
filter and if the condition still
occurs check for a clogged Saddle
Valve, water valve not turned on
all the way or kinked water supply
line.
Dispenser (Ice & Water)
Dispenser
will not
dispense
ice.
• There is no ice in the
bin to be dispensed.
• The refrigerator doors
are not completely
closed.
• Dispenser paddle has
been pressed too long
and the dispenser
motor has overheated.
• See the “Ice maker is not making
any ice” section above.
• Be sure the refrigerator doors are
completely closed.
• The motor overload protector will
reset in about three minutes and
then ice can be dispensed.
Ice
dispenser is
jammed.
• Ice has melted and
frozen around auger
due to infrequent
use, temperature
fluctuations, and/or
power outages.
• Ice cubes are jammed
between ice maker and
back of ice container.
• Remove ice container, thaw,
and empty the contents. Clean
container, wipe dry, and replace in
proper position. When new ice is
made, dispenser should operate.
• Remove ice cubes that are jamming
the dispenser.
Dispenser
will not
dispense
water.
• Water filter not seated
properly.
• Water filter is clogged.
• Household water line
valve is not open.
• Remove and reinstall the water
filter. For PurePour, be sure to push
the filter in all the way until it clicks
into place and is secured inside of
the water filter housing.
• Replace filter cartridge. Be sure
to push filter all the way in until
it clicks into place and is secured
inside of the water filter housing.
• Open household water line
valve. See CONCERN column
AUTOMATIC ICE MAKER.
46
TROUBLESHOOTING
Concern Potential Cause Common Solution
Water
not cold
enough.
• The water dispensing
system is not designed
to chill water.
• Add ice to cup or container before
dispensing water.
Water has
an odd
taste and/or
odor.
• Water has not been
dispensed for an
extended period of
time.
• Unit not properly
connected to cold
water line.
• Draw and discard 10-12 glasses of
water to freshen the supply.
• Connect unit to cold water line
that supplies water to the kitchen
faucet.
Concern Potential Cause Common Solution
Opening/Closing Of Doors/Drawers
Door(s) will
not close.
• Door was closed too
hard, causing other
door to open slightly.
• Refrigerator is not level.
It rocks on the floor
when moved slightly.
• Refrigerator is touching
a wall or cabinet.
• Close both doors gently.
• Ensure floor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
• Ensure floor is level and solid,
and can adequately support the
refrigerator. Contact a carpenter to
correct a sagging or sloping floor.
Drawers are
dicult to
move.
• Food is touching shelf
on top of drawer.
• Track that drawers slide
on is dirty.
• Remove top layer of items in
drawer.
• Ensure drawer is properly installed
on track.
• Clean drawer, rollers, and track. See
Care & Cleaning.
Running of Refrigerator
Compressor
does not
run.
• Freezer control is set to
“OF”.
• Refrigerator is in
defrost cycle.
• Plug at electrical outlet
is disconnected.
• House fuse blown or
tripped circuit breaker.
• Power outage.
• Set freezer control.
• This is normal for a fully automatic
defrost refrigerator. The defrost
cycle occurs periodically, lasting
about 30 minutes.
• Ensure plug is tightly pushed into
outlet.
• Check/replace fuse with a 15 amp
time-delay fuse. Reset circuit
breaker.
• Check house lights. Call local
electric company.
47
TROUBLESHOOTING
Concern Potential Cause Common Solution
Refrigerator
seems to
run too
much or too
long.
• Your variable speed
compressor is designed
to run 100% of the
time except during the
defrost cycle. At times
it will run faster, such as
after a defrost cycle.
• It is normal for the compressor to
run continuously except during
defrost mode.
Digital Temperature Setting Display
Digital
temperature
displays an
error.
• Electronic control
system has detected a
performance problem.
• Call your Electrolux service
representative, who can interpret
any messages or number codes
flashing on the digital displays.
Concern Potential Cause Common Solution
Water/Moisture/Frost Inside Refrigerator
Moisture
collects on
inside of
refrigerator
walls.
• Weather is hot and
humid.
• Flipper mullion
• The rate of frost buildup and
internal sweating increases.
• Adjust flipper mullion. (See “To
adjust the flipper mullion” in the
Installation section.)
Water
collects on
bottom side
of drawer
cover.
• Vegetables contain and
give o moisture.
• It is not unusual to have moisture
on the bottom side of the cover.
Move humidity control (some
models) to lower setting.
Water
collects in
bottom of
drawer.
• Washed vegetables
and fruit drain while in
the drawer.
• Water collecting in bottom of
drawer is normal. Dry items before
putting them in the drawer or store
produce in tightly sealed bags to
help reduce condensation inside of
the drawer.
Water/Moisture/Frost Outside Refrigerator
Moisture
collects on
outside of
refrigerator
or between
doors.
• Weather is humid. • This is normal in humid weather.
When humidity is lower, the
moisture should disappear.
Food in Fresh Food Compartment
Food is
freezing.
• Temperature setting is
too low.
• Temperature sensor is
covered by food (right
side of fresh food area).
• Food is covering the air
ports.
• Move the setting to a higher
degree.
• Allow space for air flow to the
sensor.
• Allow space between the air ports
and the food.
48
LIMITED WARRANTY
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove
to be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions
If You Need Service
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside
the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Servicecallstorepairorreplaceappliancelightbulbs,airlters,waterlters,other
consumables, or knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12.Damagestothenishofapplianceorhomeincurredduringinstallation,includingbutnot
limitedtooors,cabinets,walls,etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
externalcausessuchasabuse,misuse,inadequatepowersupply,accidents,res,oractsofGod.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDINGWARRANTIESOFMERCHANTABILITYORFITNESSFORAPARTICULARPURPOSE,ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE
YEAR.ELECTROLUXSHALLNOTBELIABLEFORCONSEQUENTIALORINCIDENTALDAMAGESSUCH
ASPROPERTYDAMAGEANDINCIDENTALEXPENSESRESULTINGFROMANYBREACHOFTHIS
WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO
NOTALLOWTHEEXCLUSIONORLIMITATIONOFINCIDENTALORCONSEQUENTIALDAMAGES,
OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONSMAYNOTAPPLYTOYOU.THISWRITTENWARRANTYGIVESYOUSPECIFICLEGAL
RIGHTS.YOUMAYALSOHAVEOTHERRIGHTSTHATVARYFROMSTATETOSTATE.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by
Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada,
your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change
or add to any obligations under this warranty. Obligations for service and parts under this warranty
mustbeperformedbyElectroluxoranauthorizedservicecompany.Productfeaturesorspecications
as described or illustrated are subject to change without notice.
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty
period should service be required. If service is performed, it is in your best interest to obtain and
keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the
addresses or phone numbers below.
USA
1.800.374.4432
Frigidaire
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
49
welcome
home
Frigidaire.com
1-800-374-4432
Frigidaire.ca
1-800-265-8352
owner support
accessories
service
Our home is your home. Visit us if you
need help with any of these things:
registration
(See your registration card
for more information.)
