User Manual
Extra Large Countertop Oven
Manual de Instrucciones
Horno de Mostrador Extra Grande
P.N. 176421 Rev. B
Visit us at www.oster.com
TSSTTVDGXL
MODEL/MODELO
Welcome
Congratulations on your purchase of an
OSTER
®
Countertop Oven! If you require service
on your
OSTER
®
Countertop Oven, do not return to place of purchase. Please contact us at
www.oster.com or 1.800.334.0759.

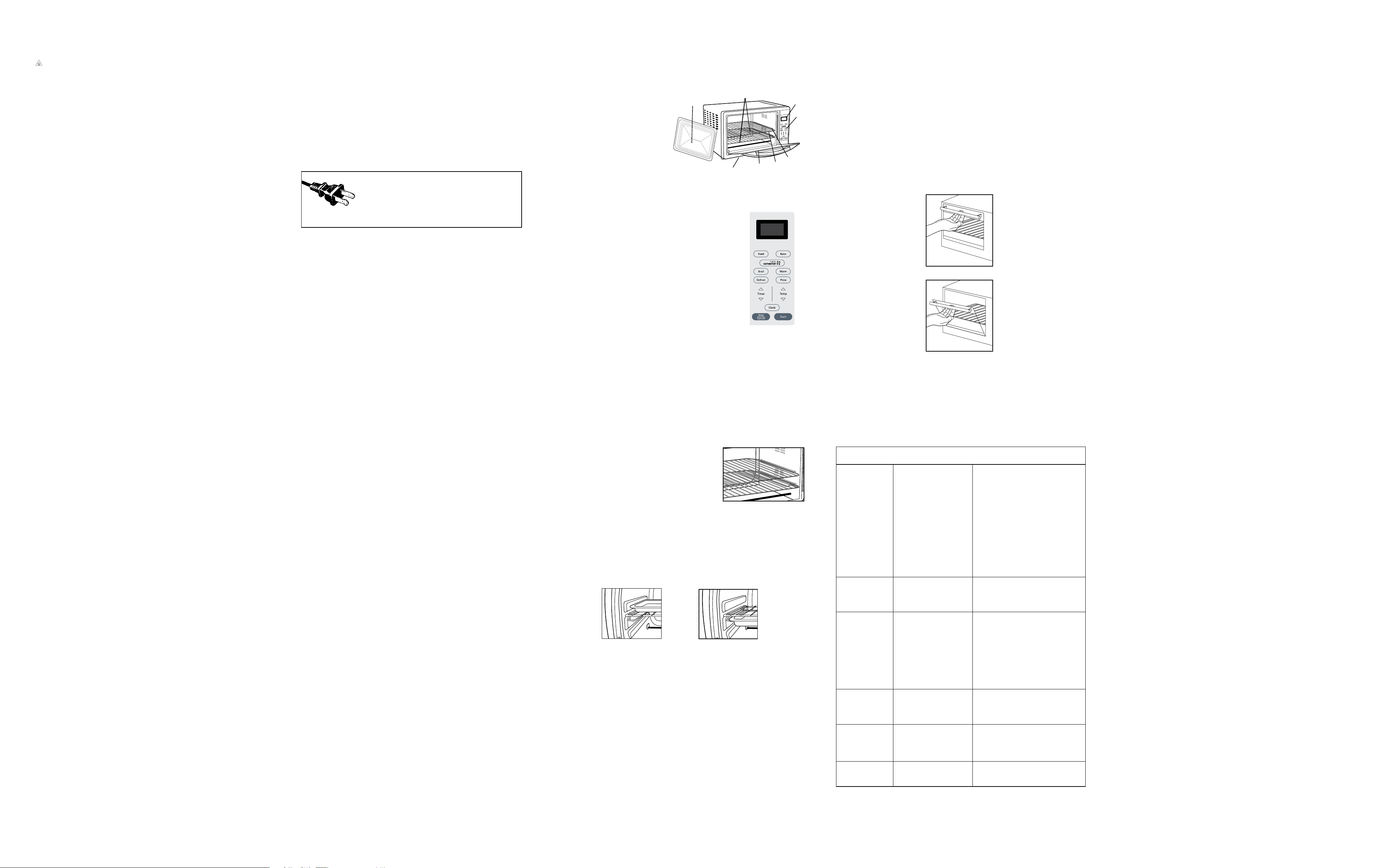

Features of Your Countertop Oven
(See Figure 1)
1. Removable Wire Racks/Broil Rack
2. Time Display
3. Control Buttons
4. Two Rack Positions
5. Easy Clean Interior Walls
6. Glass Door
7. Internal Removable Crumb Tray
8. Baking Pan
Control Buttons
Function Buttons –
(See Figure 2)
Bake – Convection (Fan Bake), Broil.
Toast – Select to toast bread, bagels, etc.
Pizza – Select to bake a large pizza.
Defrost – Select to defrost foods.
Timer
<
<
– Adjusts time.
Temp
<
<
– Adjusts temperature.
Clock – Sets the Countertop Oven Clock.
Stop/Cancel – Stops heating or cancels function.
Start – Starts baking/cooking process.
NOTE – Countertop Oven is on when display icons are
illuminated and flashing.
Pressing Stop/Cancel button twice
turns off unit.
1
2
7
3
5
4
8
6
English-1 English-2
Figure 2
F
igure 1
To Use the Toast Function
Place countertop oven rack into the desired position before heating the countertop oven.
(See “Positioning Rack” Section)
NOTE – Different types of bread require different settings. Lighter breads and waffles
require a lighter setting. Darker breads, muffins, and English muffins require a darker setting.
Arrange food on the wire rack.
Push the Toast button. Use arrows to select Toast Shade.
Press the Start button.
When toasting is completed, open door fully and remove food carefully.
To Use the Pizza Function
Place countertop oven rack into the desired position before heating the countertop oven.
(See “Positioning Rack” Section)
Arrange pizza on the wire rack.
Push the Pizza button and 20:00 default time will appear. Use arrow keys to adjust
the time as desired. Push the Start button.
NOTE – The Pizza function temperature is set at 400°F and cannot be adjusted.
If different temperature is desired, cancel Pizza function and use Bake function.
Defrosting Function
When defrosting do not preheat countertop oven. Temperature Control is already set to 150°F.
Push the defrost button. Use arrow keys to adjust time. Allow 15 to 20 minutes per
side for meats or fish to defrost. Always cook food promptly after thawing.
Push the Start button.
Positioning Rack
To accommodate a wide variety of foods, the
countertop oven has 2 racks and two (2) rack posi-
tions. (See Figure 5)
Positioning of the rack will depend on the size
of the food and desired browning.
Before removing the rack, allow the unit to cool.
PLEASE NOTE – For best toast and pizza results,
position the rack in the up position on
the top rack position.
Positioning Pan
• To accommodate a wide variety of foods the countertop oven has two pan positions. The
pan can be placed on top of the rack or inserted into the guide rails below the rack.
(See Figure Below)
• Before removing the pan allow the unit to cool.
• Positioning of the countertop oven pan will depend on the desired cooking method. For
baking, place the pan on top of one of the racks. For grilling or broiling, insert the pan into
the guide rails below the rack and place the food on top of the rack.
Preparing To Use Your Countertop Oven for the First Time
If you are using your countertop oven for the first time, please be sure to:
Remove any stickers from the surface of the countertop oven.
Open countertop oven door and remove all printed documents and paper from inside the
countertop oven.
Clean the rack, tray, and pan with hot water, a small amount of dishwashing liquid and a
non-abrasive sponge or cleaning pad.
CAUTION: DO NOT IMMERSE THE BODY OF THE UNIT IN WATER.
Dry the unit thoroughly before using.
Select a location for the countertop oven. The location should be in an open area on a flat
counter where the plug will reach an outlet.
Plug the countertop oven into a 120 Volt AC electrical outlet.
To Open the Countertop Oven Door:
Step 1: Grab the center of the handle underhanded with fingertips (See Figure 3).
Figure 3
Step 2: Pull down the countertop oven door carefully (See Figure 4).
Figure 4
CAUTION: This appliance generates heat during use. Do not touch hot surfaces.
Always use handles or knobs per above instructions.
Using Your Countertop Oven
Setting the Clock
Push the Clock button. The clock will flash.
Use the arrow keys to set the hour. Push the Clock button again.
Use the arrow keys to set the minutes.
Push the Clock button once more or the start button and the time will be set.
Figure 5
English-3 English-4
Cleaning Your Countertop Oven
Before cleaning your OSTER
®
Countertop Oven, press Stop/Cancel button twice, unplug it and
allow it to cool. To clean, wipe with damp cloth.
DO NOT IMMERSE IN WATER!
Make
sure to use only mild, soapy water. Abrasive cleaners, scrubbing brushes and chemical cleaners
will damage the
coating on this unit. Empty crumb tray frequently to avoid accumulation
of
crumbs.
Countertop Oven racks are dishwasher safe (top of dishwasher only).
This appliance has no user serviceable parts. Any servicing beyond that described in the Cleaning
Section should be performed by an Authorized Service Representative only. See Warranty Section.
Storing Your Countertop Oven
Allow the appliance to cool completely before storing. If storing the countertop oven for long pe-
riods of time make certain that the countertop oven is clean and free of food particles. Store the
countertop oven in a dry location such as on a table or countertop or cupboard shelf. Other than
the recommended cleaning, no further user maintenance should be necessary.
H
elpful
Tips
/ TroublesHooTing
Problem
• Overcooked /
Undercooked
Foods
• Burnt Smell
• Countertop oven
does not turn ON
• Only one heating
element is heating
up
• Heating elements
do not stay ON
• Cannot change
function button
Solution
• You may have to adjust the time and
temperature to desired taste.
• Because your countertop oven is smaller than
your regular oven, it will heat up faster and
generally cook in shorter periods of time.
• Refer to “Positioning Rack” Section, Page
English-4. Rack may need to be adjusted to
accommodate food type.
• Refer to “Cleaning Your Countertop
Oven” Section, Page English-5.
• Plug the countertop oven into a 120-volt
AC electrical outlet.
• Set timer knob and temperature knob to
desired setting. Both must be turned on
to operate the countertop oven.
• Press Start.
• When toasting, make sure the countertop
oven is
not
set to broil setting.
• Be certain that function is as desired.
• Heating elements may not glow.
• Press cancel.
Potential CauSe
• Incorrect temperature or
time setting
• Rack placement
• Food build-up inside coun
-
tertop oven, on heating
elements or in crumb tray.
• Unit is unplugged
• Did not press Start.
• Function setting
selection determines
which heating element
will operate.
• Heating elements will
cycle ON and OFF to
maintain proper heat.
• Need to cancel function.
English-5 English-7English-6 English-8
For Baking
For Grilling
or Broiling
1 Year Limited Warranty
Sunbeam Products, Inc., or if in Canada, Sunbeam Corporation (Canada) Limited, (collectively “Sunbeam”) warrants
that for a period of one year from the date of purchase, this product will be free from defects in material and
workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be
defective during the warranty period. Replacement will be made with a new or remanufactured product or component.
If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is
your exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product.
Doing so will void this warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable.
Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Sunbeam dealers, service
centers, or retail stores selling Sunbeam products do not have the right to alter, modify or any way change the terms and
conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or
misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair
or alteration by anyone other than Sunbeam or an authorized Sunbeam service center. Further, the warranty does not
cover: Acts of God, such as fire, flood, hurricanes and tornadoes.
What are the limits on Sunbeam’s Liability?
Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of any express,
implied or statutory warranty or condition.
Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or
fitness for a particular purpose is limited in duration to the duration of the above warranty.
Sunbeam disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.
Sunbeam shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or
inability to use the product including incidental, special, consequential or similar damages or loss of profits,
or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by
any other party.
Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential
damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not
apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from province to
province, state to state or jurisdiction to jurisdiction.
How To Obtain Warranty Service
In the U.S.A.
If you have any question regarding this warranty or would like to obtain warranty service, please call
1.800.334.0759 and a convenient service center address will be provided to you.
In Canada
If you have any question regarding this warranty or would like to obtain warranty service, please call
1.800.667.8623 and a convenient service center address will be provided to you.
In the U.S.A., this warranty is offered by Sunbeam Products, Inc., located in Boca Raton, Florida 33431. In
Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited, located at 20 B Hereford Street,
Brampton, Ontario L6Y 0M1. If you have any other problem or claim in connection with this product, please
write our Consumer Service Department.
PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF
THESE ADDRESSES OR TO THE PLACE OF PURCHASE.
For product questions contact:
Sunbeam Consumer Service
USA : 1.800.334.0759
Canada : 1.800.667.8623
www.oster.com
© 2017 Sunbeam Products, Inc. All rights reserved.
Distributed by Sunbeam Products, Inc., Boca Raton, Florida 33431.
Sunbeam Products, Inc. is a subsidiary of Newell Brands, Inc. (NYSE: NWL).
CBA-092017
Para preguntas sobre los productos, llamar a:
Sunbeam Consumer Service
EE.UU.: 1.800.334.0759
Canadá: 1.800.667.8623
www.oster.com
© 2017 Sunbeam Products, Inc. Todos los derechos reservados.
Distribuido por Sunbeam Products, Inc., Boca Raton, Florida 33431.
Sunbeam Products, Inc. es una subsidiaria de Newell Brands, Inc. (NYSE: NWL).
Printed in China Impreso en China
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and/or injury to persons including the following:
1. Read all instructions before using this product.
2.
This appliance generates heat during use. Do not touch hot surfaces. Use
handles or knobs. Always protect your hands with non-slip oven mitts or similar.
3. To protect against electric shock, do not place or immerse cord, plugs, or
appliance in water or other liquid.
4. This appliance is not to be used by children or by persons with reduced physical,
sensory or mental capabilities.
5. Close supervision is necessary when any appliance is used near children.
Children should not play with the appliance.
6. Unplug from outlet when not in use, before putting on or taking off parts
and before cleaning. Allow to cool before putting on or taking off parts, and
before cleaning. To disconnect, turn any control to OFF, then unplug power
cord from outlet. Do not disconnect by pulling on cord. Always grasp the
plug and pull to disconnect.
7. Do not operate any appliance with a damaged cord or plug or after the appliance
malfunctions, or has been damaged in any manner. Do not attempt to replace or
splice a damaged cord. Return appliance to the manufacturer (see warranty) for
examination, repair or adjustment.
8. The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries.
9. Do not use outdoors or for commercial purposes.
10. Do not let cord hang over edge of table or counter, or touch hot surfaces.
11. Do not place on or near wet surfaces, or heat sources such as a hot gas or electric
burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance or removing a pan,
containing hot oil or other hot liquids. Always protect your hands with non-slip
oven mitts or similar.
13. Do not use appliance for other than intended use. Misuse can cause injuries.
Intended for household countertop use only. Keep 6 inches (152 mm) clear from
the wall and on all sides. Always use appliance on a dry, stable, level surface.
14. Oversize foods or metal utensils must not be inserted in a toaster-oven as they
may create a fire or risk of electric shock.
15. A fire may occur if the toaster-oven is covered, touching or near flammable
materials, including curtains, draperies, towels, walls, and the like, when in
operation. Do not store any item on top of the appliance when in operation.
16. Do not clean with metal scouring pads. Pieces can break off the pad and touch
electrical parts, creating a risk of electric shock.
17. Extreme caution should be exercised when using containers constructed of
materials other than metal or glass.
18. Do not store any materials, other than manufacturers recommended accessories,
in this oven when not in use.
19. Do not place any of the following materials in the oven: paper, cardboard,
plastic, or any materials that may catch fire or melt.
20. Do not cover crumb tray or any part of the oven with metal foil. This will cause
overheating of the oven.
21. Empty the crumb tray after each use.
22. The glass door is made of tempered glass. Always inspect the glass door for chips,
cracks or any other damage. Do not use the countertop oven if the glass door is
damaged, as the glass may shatter during use.
23. Do not use with a programmer, timer, wireless plug adapter or outlet that allows
control remotely, or connect to a circuit that is regularly switched on and off by
the utility.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
North American models with polarized plugs:
POWER CORD INSTRUCTIONS:
A short power-supply cord or detachable power-supply cord is provided to reduce risks
resulting from becoming entangled in or tripping over a longer cord. Longer detachable
power-supply cords or extension cords are available and may be used if care is exercised
in their use. If a long detachable power-supply cord or extension cord is used:
a. The marked electrical rating of the cord set or extension cord should be at
least as great as the electrical rating of the appliance;
b. The cord should be arranged so that it will not drape over the countertop
or tabletop where it can be pulled on by children or tripped over
unintentionally; and
c. If the appliance is of the grounded type, the cord set or extension cord
should be a grounding-type 3-wire cord.
Do not pull, twist or otherwise abuse the power cord.
NOTICES
1. Some countertop and table surfaces are not designed to withstand the prolonged
heat generated by certain appliances. Do not set the heated unit on a finished wood
table. We recommend placing a hot pad or trivet under your countertop oven to
prevent possible damage to the surface.
2. During initial use of this appliance, some slight smoke and/or odor may be
detected. This is normal with many heating appliances and will not recur after
a few uses.
Preheating the Oven
Place oven rack into the desired position before heating the oven.
(See “Positioning Rack” Section)
Push the Bake button.
Use arrows to set desired temperature.
Push Timer
<
down button until seven (7) minutes is displayed.
Push the Start button.
To Use the Bake Function
Place oven rack into the desired position before heating the oven.
(See “Positioning Rack” Section)
Arrange food on the wire rack or in the baking pan.
Push the Bake button. Use the Temperature arrow keys to select desired temperature.
Use the Time arrow keys to select desired time.
Push the Start button.
NOTE – Upper and lower heating elements will cycle ON and OFF to maintain the desired
temperature, and may not glow.
When baking is completed, open door fully and remove food carefully.
To Use the Convection Fan Bake Function
When you select the Convection Bake the convection fan will turn on and circulate air
allowing the food to cook evenly and faster.
Place oven rack into the desired position before heating the oven.
(See “Positioning Rack” Section)
Arrange food on the wire rack or in the baking pan.
Push the Convection Bake button until “Convection Bake” lights up on display. Use the
Temp arrow keys to select desired temperature.
Push Timer arrow keys to select desired time.
Push the Start button.
NOTE – Both heating elements will cycle ON and OFF to maintain the desired temperature,
and may not glow.
When baking is completed, open door fully and remove food carefully.
To Use the Broil Function
Select desired oven rack position. (See “Positioning Rack” Section)
Place pan into the guide rails below the rack and place the food on top of the rack.
Push Broil button until the word “Broil” lights up on display.
Push Timer arrows to select the desired time.
Push the Start button.
NOTE – The top heating element will cycle ON and OFF to maintain desired temperature,
and may not glow.
When broiling is completed, open door fully and remove food carefully.
WARNING: DO NOT LEAVE COUNTERTOP OVEN UNATTENDED.
POLARIZED PLUG
This appliance has a polarized plug, (one blade is wider than
the other). As a safety feature to reduce the risk of electrical
shock, this plug is intended to t in a polarized outlet only
one way. If the plug does not t fully in the outlet, reverse
the plug. If it still does not t, contact a qualied electrician.
Do not attempt to defeat this safety feature or modify the plug in any way. If the plug ts
loosely into the AC outlet or if the AC outlet feels warm do not use that outlet.
Loading ...
