To install the short quick pins, follow these instructions:
1. Remove side end caps and tethered standard quick pins that are factory-installed on each loudspeaker module.
See Fig. 1. For detailed instructions, see ShowMatch DeltaQ Array Loudspeaker Installation Guide on pro.Bose.
com.
2. Align pin in appropriate location on array assembly.
3. Insert non-threaded end of tool into the top of the pin to press the button and insert the pin. The top of the pin
should insert until flush with array assembly. See Fig. 2.
4. To remove the pin, screw threaded end of tool into the top of the pin, where the button is located. See Fig. 3.
5. This presses the button to release the pin and provides a grip handle to allow the pin to be removed. See Fig. 4.
Installation Information
Thank you for selecting Bose ShowMatch DeltaQ array loudspeakers. This document is intended
to provide professional installers with basic installation and safety guidelines for using the optional
short quick pin accessory with ShowMatch loudspeakers. Please read this document before
attempting installation.
Each ShowMatch DeltaQ full-range array module (SM5, SM10, and SM20) and subwoofer module (SMS118) includes
standard installation pins. Use the short quick pins (SMQPS) in place of the standard pins to reduce the width of the
array assembly.
ShowMatch
TM
DeltaQ
TM
Array Loudspeaker
Short Quick Pin Accessory: SMQPS

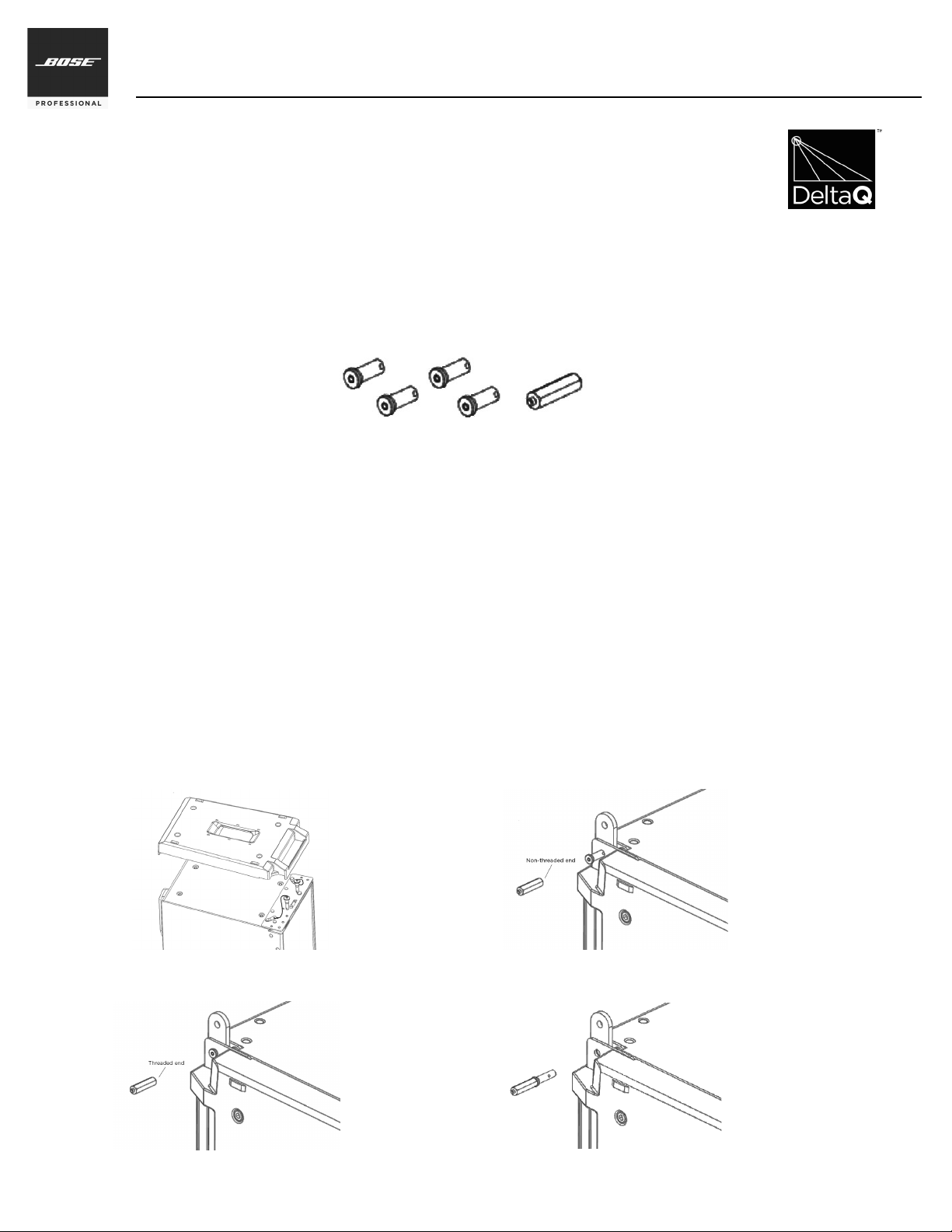

Short quick pins and installation tool
Fig. 2. Insert pin using non-threaded end of tool
Fig. 3. Remove pin using threaded end of tool
Fig. 4. Use tool to remove pin
Fig. 1. Remove loudspeaker module end caps
©2016 Bose Corporation. All rights reserved.
The Mountain, Framingham, MA 01701-9168 USA,
www.pro.Bose.com
All trademarks are the property of their respective owners
AM772964 Rev. 00
ShowMatch
TM
DeltaQ
TM
Array Loudspeaker
Short Quick Pin Accessory: SMQPS
Limited Warranty
Your product is covered by a limited warranty, Visit pro.Bose.com for warranty details.
The warranty information provided with this product does not apply in Australian and New Zealand. See our website at www.bose.com/au/warranty or
www.bose.com/nz/warranty for details of the Australian and New Zealand warranty.
Importer Information
European Union
Bose GP, Castleblayney Road, Carrickmacross, County Monaghan, Ireland
China
Bose Electronics (Shanghai) Company Limited, Part C, Plan 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone
Taiwan
Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan
Tel: 886 2 2514 7977
Mexico
Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F.
Tel: 001 800 900 2673
Safety Information
CAUTION: This product is intended for installation by professional installers only!
PRECAUCIÓN: Solo un instalador profesional deberá montar este producto!
ATTENTION: L’installation de ce produit est réservée à un technicien professionnel!
ACHTUNG: Dieses Produkt darf nur von fachkundigen Monteuren installiert werden!
CAUTION: Make no modification to system or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and sys-
tem performance.
PRECAUCIÓN: No realice alteraciones no autorizadas a este producto; esto podría comprometer la seguridad, el cumplimiento de las normas
y el rendimiento del sistema.
ATTENTION: Ne pas faire des modifications non autorisées à ce produit; ce qui pourrait compromettre la sécurité, la conformité réglementaire
et la performance du système.
ACHTUNG: Keine nicht autorisierten Veränderungen am Produkt vornehmen. Diese können die Sicherheit, die Einhaltung von Richtlinien und
die Systemleistung beeinträchtigen.
CAUTION This accessory is intended for use with Bose ShowMatch DeltaQ Array loudspeakers only.
PRECAUCIÓN: Este accesorio está diseñado para usarse únicamente con altavoces Bose ShowMatch DeltaQ Array.
ATTENTION: Cet accessoire est destiné pour l’usage avec les haut-parleurs Bose ShowMatch Delta Q exclusivement.
ACHTUNG: Dieses Zubehör ist ausschließlich zur Verwendung mit Bose ShowMatch DeltaQ Array Lautsprechern vorgesehen.
Additional Information
For additional information on ShowMatch DeltaQ Array loudspeaker modules and accessories, refer to the installation guide available at pro.Bose.com. To
request a printed copy, use the phone numbers provided.
