P/N YRD256-MNL-0003 Rev E
1
®
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO THE PRODUCT, VOIDING THE FACTORY WARRANTY AND COULD LEAD TO FAILURE OF THE PRODUCT TO PROVIDE ACCESS.
Yale Assure Lock
® ®
SL
Key Free Touchscreen Deadbolt
Installation and Programming Instructions
(YRD256)
This manual will walk you through all the required steps to add your new
Yale Assure Lock SL to your door.
• Remove Existing Door Hardware

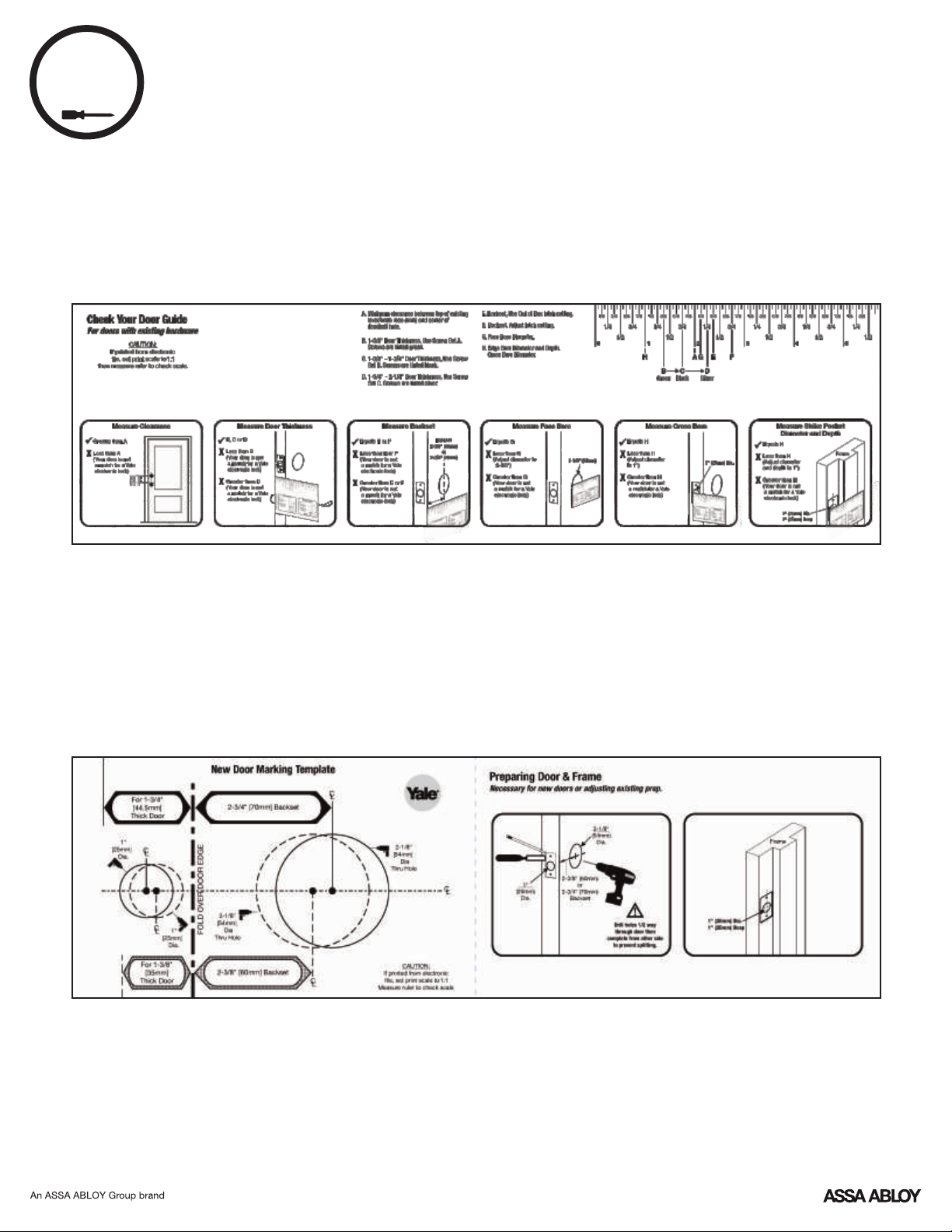

• Double Check Door Measurements
• Install your Assure Lock SL
• Program your Assure Lock SL
• Add your Assure Lock SL to your smart home system or August App*
Before you begin
for step-by-step installation
instructions & to register
your product
DOWNLOAD
THE BILT APP
Tools Needed
Standard
Phillips Head
Screwdriver
Utility Knife
Drill
Wood Mortise
Chisel
Pencil
Tape
Measure
Level
Tools necessary only for new doors
or adjusting existing door
*If purchased with Yale Smart Module or Connected by August Kit
