1
P/N 252006021-KC Rev A
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO
THE PRODUCT AND VOID THE FACTORY WARRANTY

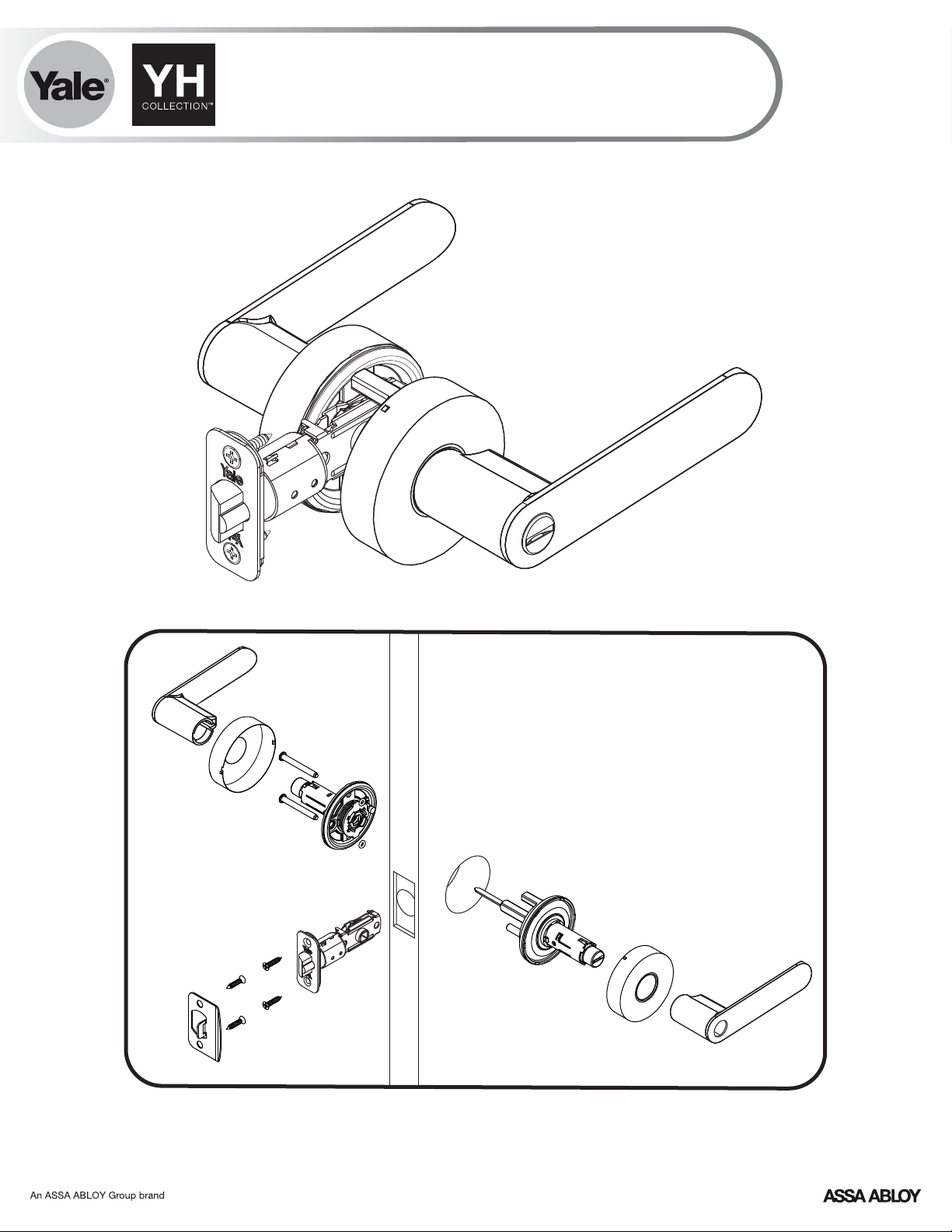

YH Collection
™
Kincaid Lever
Installation Instructions
2
P/N 252006021-KC Rev A

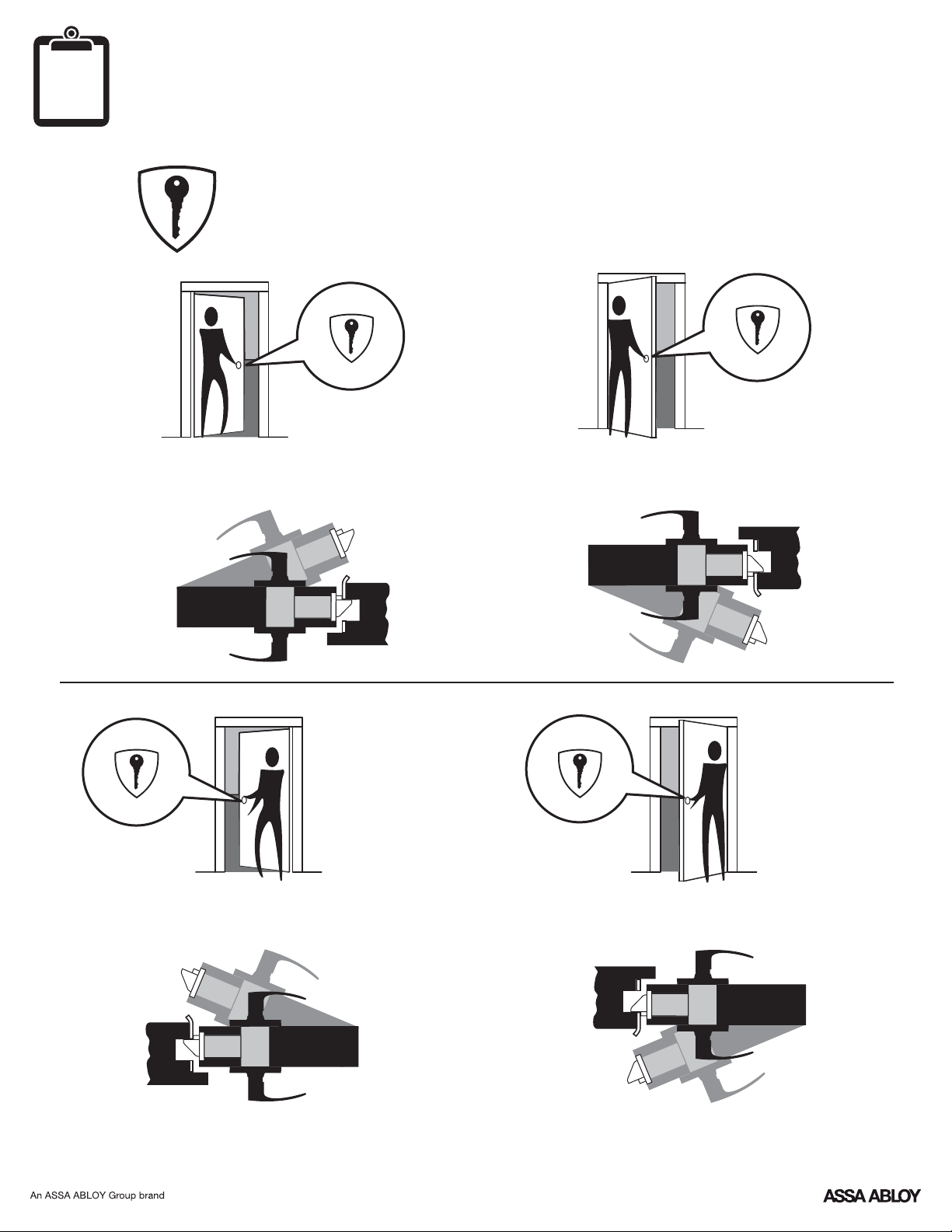

The hand of a door is determined from the secure side of the door. The
term "secure" means the side from which you unlock and enter.
Left Hand “ ”, Hinges Left.LH
Open Inward
Left Hand Reverse " ", Hinges Left.LHR
Open Outward
Right Hand " ", Hinges Right.RH
Open Inward
Right Hand Reverse " ", Hinges Right.RHR
Open Outward
Determining Handing
?
3
P/N 252006021-KC Rev A
1
!
Prepare Door
(if necessary)
Drill holes 1/2 way thru
door then complete
from other side to
prevent splitting.
x2
x4

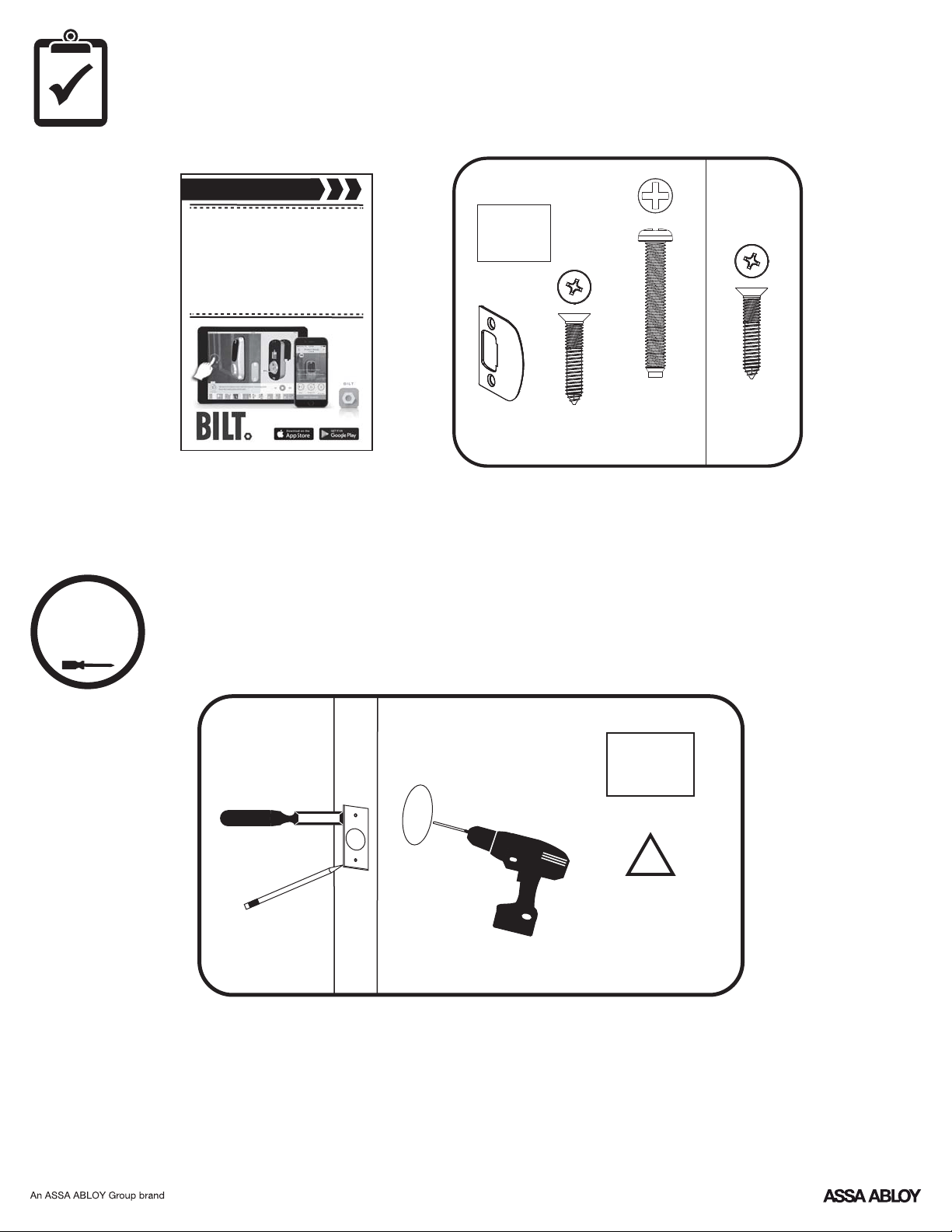

Before You Begin
x2
Privacy/Passage
Dummy
template
Before you begin
for step-by-step installation
instructions & to register
your product
DOWNLOAD
THE BILT APP
template
Strike/Latch
Lockset
Mounting
4
P/N 252006021-KC Rev A
2
Door Frame
1/2"
Deep
Frame
Frame
Inside
of Door

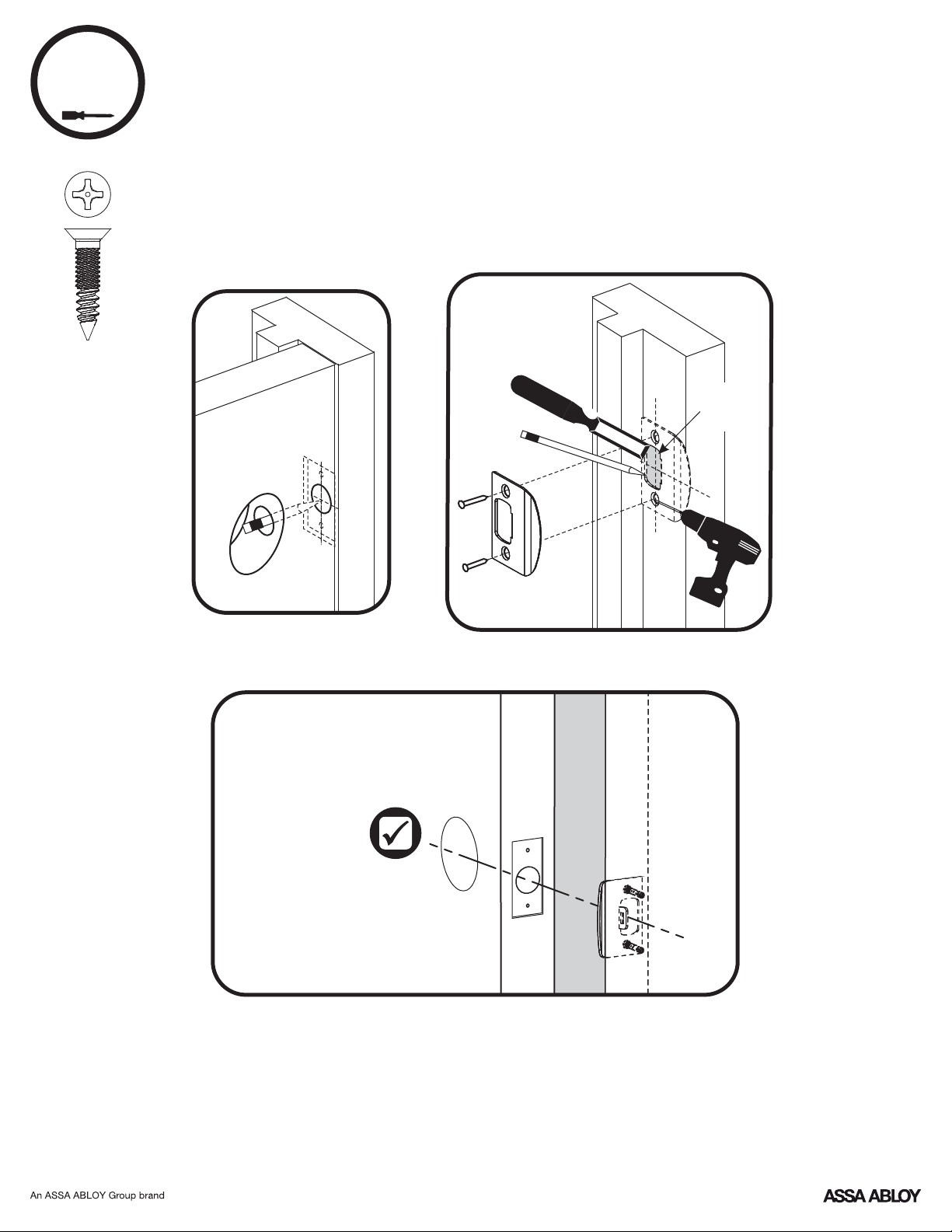

Prepare Frame & Install Strike Plate
x2
5
P/N 252006021-KC Rev A
3
x2
Curved edge of latchbolt
must face in direction
door closes.
Adjust Latch & Install(if necessary)
!
Outside
of Door
2-3/8" (60mm) Position
2-3/4" (70mm) Position
TO
2-3/8" (60mm)
Backset
2-3/4" (70mm)
Backset
PUSH
PULL
4
6
P/N 252006021-KC Rev A
Install Exterior Chassis
Outside
of Door
Lever Release Button
must be on door edge side
!
7
P/N 252006021-KC Rev A
5

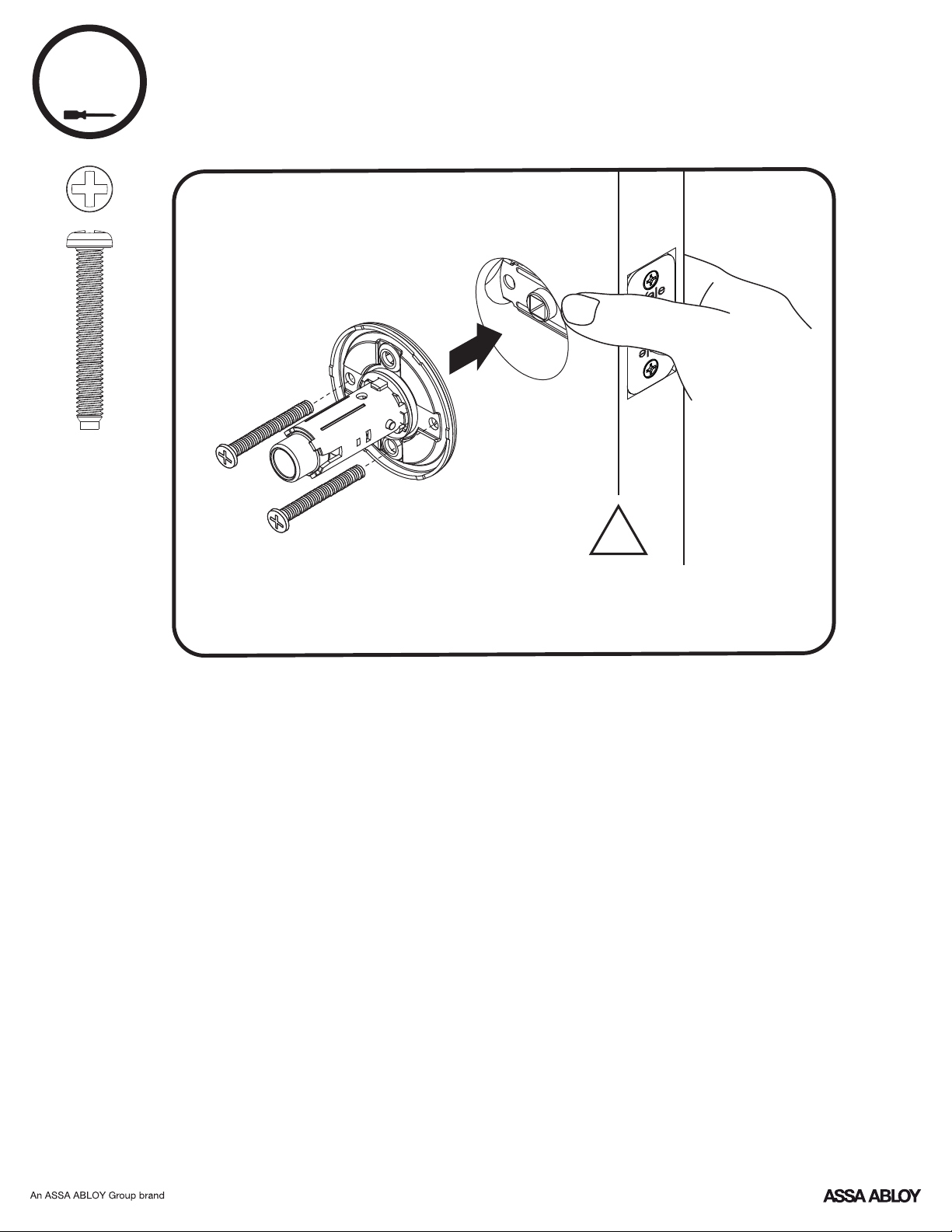

Install Interior Chassis
Inside
of Door
x2
Hold Exterior Chassis stable
while installing Interior Chassis
!
8
P/N 252006021-KC Rev A
6
Congratulations, you've installed the
Yale Lever Lockset!
®™
YH Collection Kincaid
Removal Notch
Lever
Release
Button
While pushing Lever Release
Button, slide lever until button
engages hole in neck of lever.
Roses and levers “snap” onto chassis.
If rose needs to be removed, the best tool is a kitchen fork - place tip of fork in
removal notch on rose edge and push on fork prying off rose. Placing paper between
door and fork will help prevent damage to door finish.
Levers are NOT HANDED. Exterior and interior levers may be exchanged. To remove
lever, push lever release button and pull off lever.

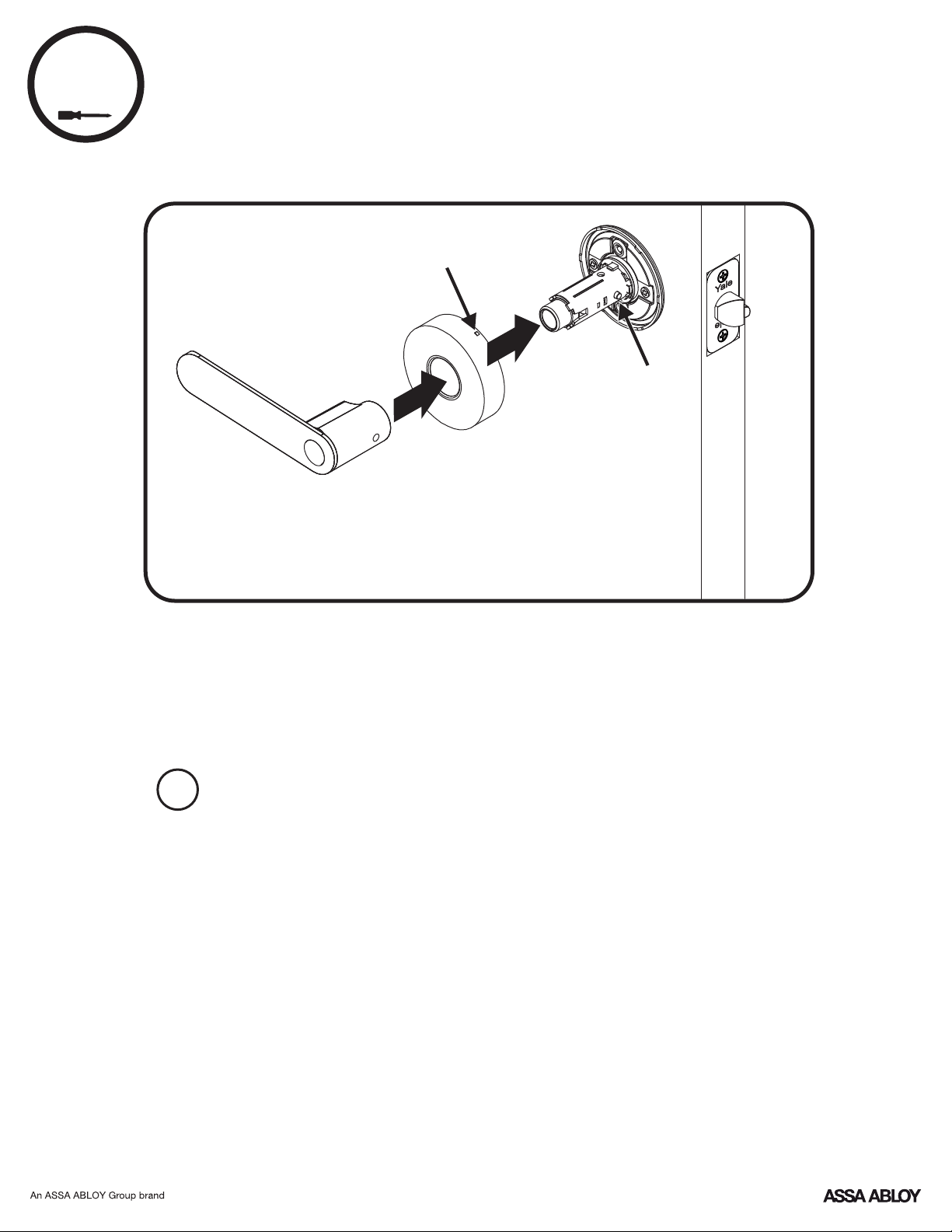

Install Interior Rose & Lever
i
Repeat for Exterior Rose & Lever
Inside
of Door
9
P/N 252006021-KC Rev A
Dummy Function
x2
INSTALLATION TEMPLATE
Backset
Door
Edge
2-3/4" (70mm)
Door Thickness
2-3/8" (60mm)
Ø2-1/8" (54mm)
Ø1" (25mm)
1-3/8"
(35mm)
1-3/4"
(45mm)
“Backset” is the distance from door edge to center
of mounting hole for door knob or lever.
CAUTION: Although a door can be prepared by an untrained person, Yale recommends
that measurements and drilling be done by a skilled carpenter or locksmith.
If printing from website, print “ ”. Do not print “fit to page” oras in document
template will not be to scale. Always verify a measurement before using template.
!
!
Backset
Fold Here
10
P/N 252006021-KC Rev A
ASSA ABLOY is the global leader in door opening solutions,
dedicated to satisfying end-user needs for security, safety and convenience.
Product Support Tel 1-855-213-5841 • www.yalehome.com
Yale Locks & Hardw are is a division of Yale Security Inc., an ASSA ABLOY Group company.
YALE, with its unique global reach and range of products, is the world's favorite lock
– the preferred solution for securing your home, family and personal belongings.
Yale® is a registered trademark of
Yale Security Inc., an Group company.ASSA ABLOY
YH Collection™ is a trademark of Yale Security Inc., an Group company.ASSA ABLOY
Copyright © 2018, Yale Security Inc., an Group company.ASSA ABLOY
All rights reserved. Reproduction in whole or in part without the express written permission
of Yale Security Inc. is prohibited.
This product is warranted against mechanical and finish defects for its lifetime to the
original purchaser. If a defect does occur, please contact our Customer Service
Department at 1-855-213-5841, for detailed warranty redemption information. Yale
Security Inc. at its option, will either repair or replace the defective part and/or product.
this warranty does not cover defects caused by improper Installation, misuse, or
normal wear and tear. YALE SECURITY INC. IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES. Some states do not allow exclusion of limitation of
incidental or consequential damages, so the above exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that
vary from state to state.
LIFETIME WARRANTY
