B345047096COM01
Do Not Return This Product!
Contact our customer service team for help fi rst
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
–Unit can ! p over causing severe injury or death.
–Anchor unit to stud in wall (if instructed to)
–Do not allow children climb on unit
–Put heavy items on lower shelves or drawers
Carver Coff ee Table
5047096COM
Date of Purchase: ____/____/_____
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
WARNING
Easy Tough
Assembly Diffi culty Meter
Follow Ameriwood Home
Contact Us!
Helpful Hints
Do NOT return this product!
Contact our friendly customer service team fi rst for help
Call us!
1-800-489-3351
Monday-Friday
9am - 5pm CST
PEOPLE NEEDED FOR ASSEMBLY: 1-2
ESTIMATED ASSEMBLY TIME: 1 HOUR
Visit ameriwoodhome.com
Assembly Tips
2
ameriwoodhome.com
- Open your item in the area you plan to keep it for less heavy li! ing
- Iden" fy, sort and count the parts before a# emp" ng assembly
- Compression dowels are tapped in with a hammer
- Slides are labeled with a R (right) and L (le! ) for proper placement
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge
- Use all the nails provided for the back panel and spread them out equally
- Back Panel must be used to make sure your unit is sturdy
- Do NOT use harsh chemicals or abrasive cleaners on this item
- Never push, pull, or drag your furniture
Before You Start
Cam Lock Fastening System
3
ameriwoodhome.com
P
P
P
P
P
This Cam Lock Fastening System will be used throughout the assembly process.
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Cau! on: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is ! ght.
Failure to do so may result in stripping the screw.
Q
u
i
c
k
T
i
p
A
s
s
e
m
b
l
y
1
3
2
4
Board Iden• fi ca• on
Not actual size
4
ameriwoodhome.com
x2
T5047096010UD
SIDE TOP
x1
T5047096020UD
MIDDLE TOP
x4
T5047096030UD
UPPER SUPPORT PANEL
x2
T5047096040UD
SIDE BOTTOM
x1
T5047096050UD
MIDDLE BOTTOM
1
5
2 3
4
x2
T5047096060UD
LOWER SUPPORT PANEL
6
x2
T5047096070UD
LOWER SUPPORT PANEL
7
x1
T5047096080UD
BOTTOM SUPPORT PANEL
8
x4
T5047096090UD
LEG
9
x4
T5047096100UD
FOOT
10
Part List
Actual Size
5
ameriwoodhome.com
x4
TUD0029
BOLT
M6 X 70
x42
TUD0001
Cam Bolt
M6 X 23
x42
TUD0002
Cam Lock
15-12
x26
TUD0030
DOWEL
M6 X 30
Hardware Bag Reference Number:
25047096COM0
6
ameriwoodhome.com
* raw edges are shaded

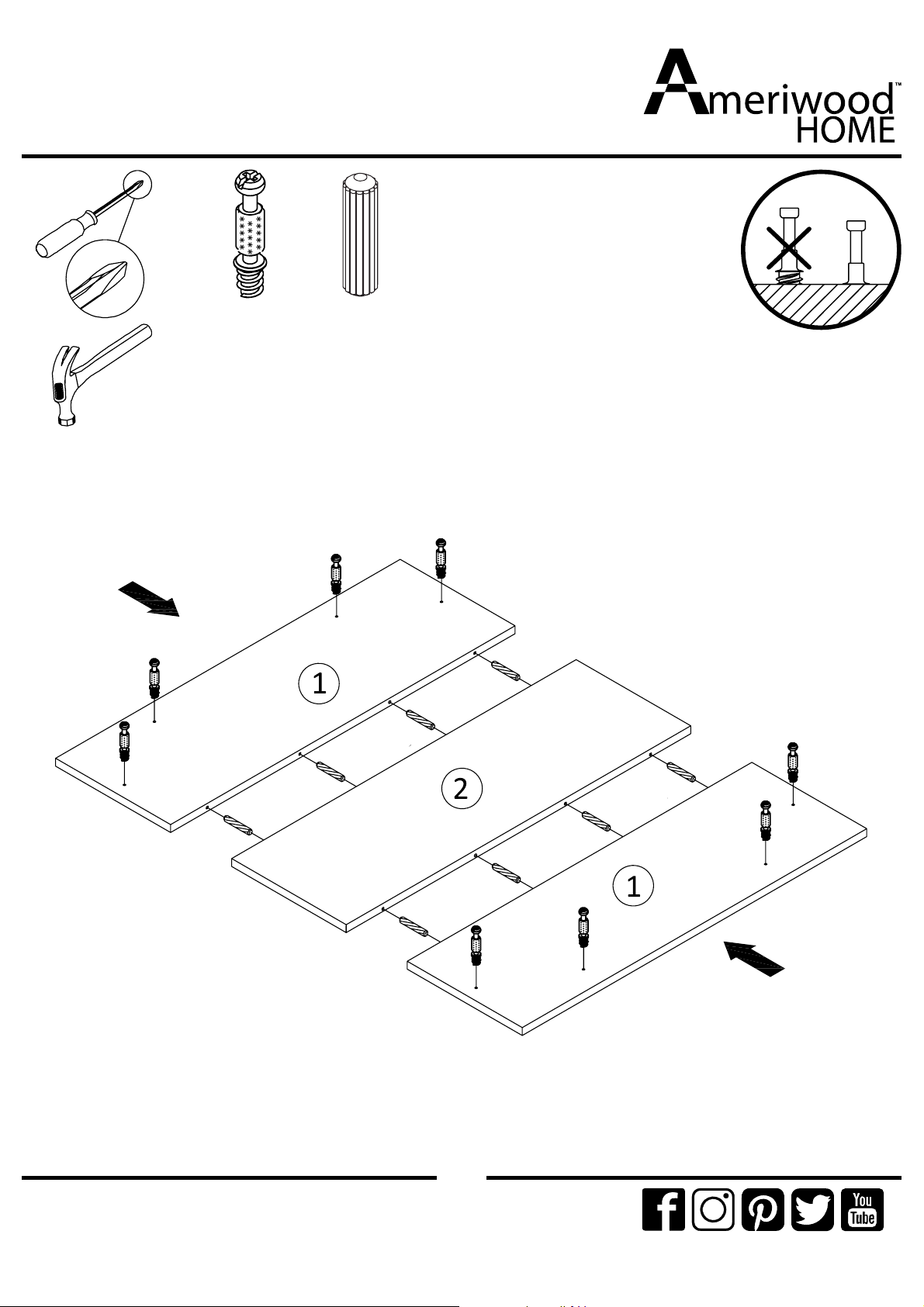

Step 1
x26
TUD0001
x10
TUD0030
7
ameriwoodhome.com
* raw edges are shaded
Step 2
x8
TUD0001
x8
TUD0030
8
ameriwoodhome.com
Proper orientation of CAM LOCK
Tip
Assembly
Quick
* raw edges are shaded
Step 3
x18
TUD0002
9
ameriwoodhome.com
* raw edges are shaded

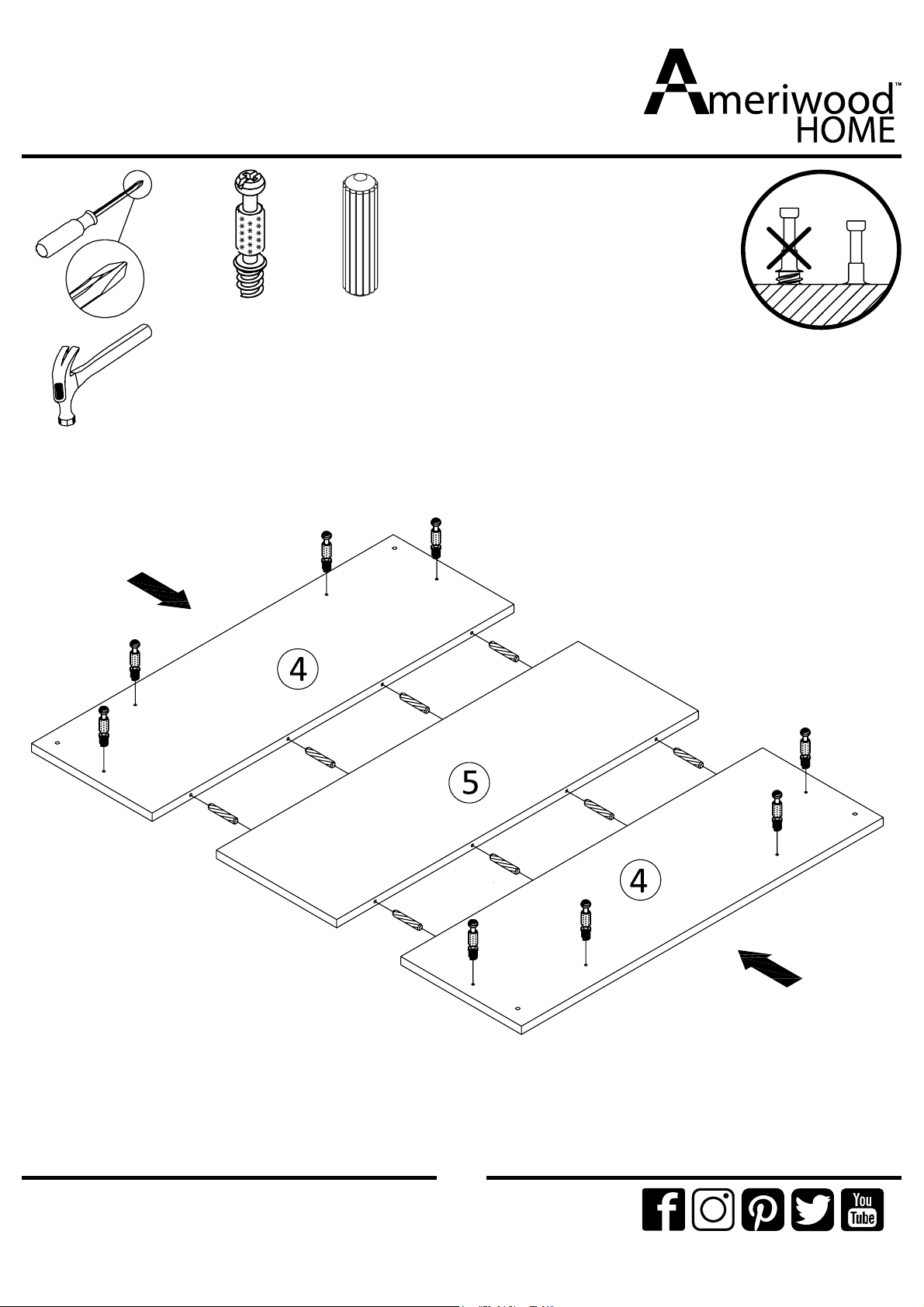

Step 4
x8
TUD0001
x8
TUD0030
10
ameriwoodhome.com
Proper orientation of CAM LOCK
Tip
Assembly
Quick
* raw edges are shaded

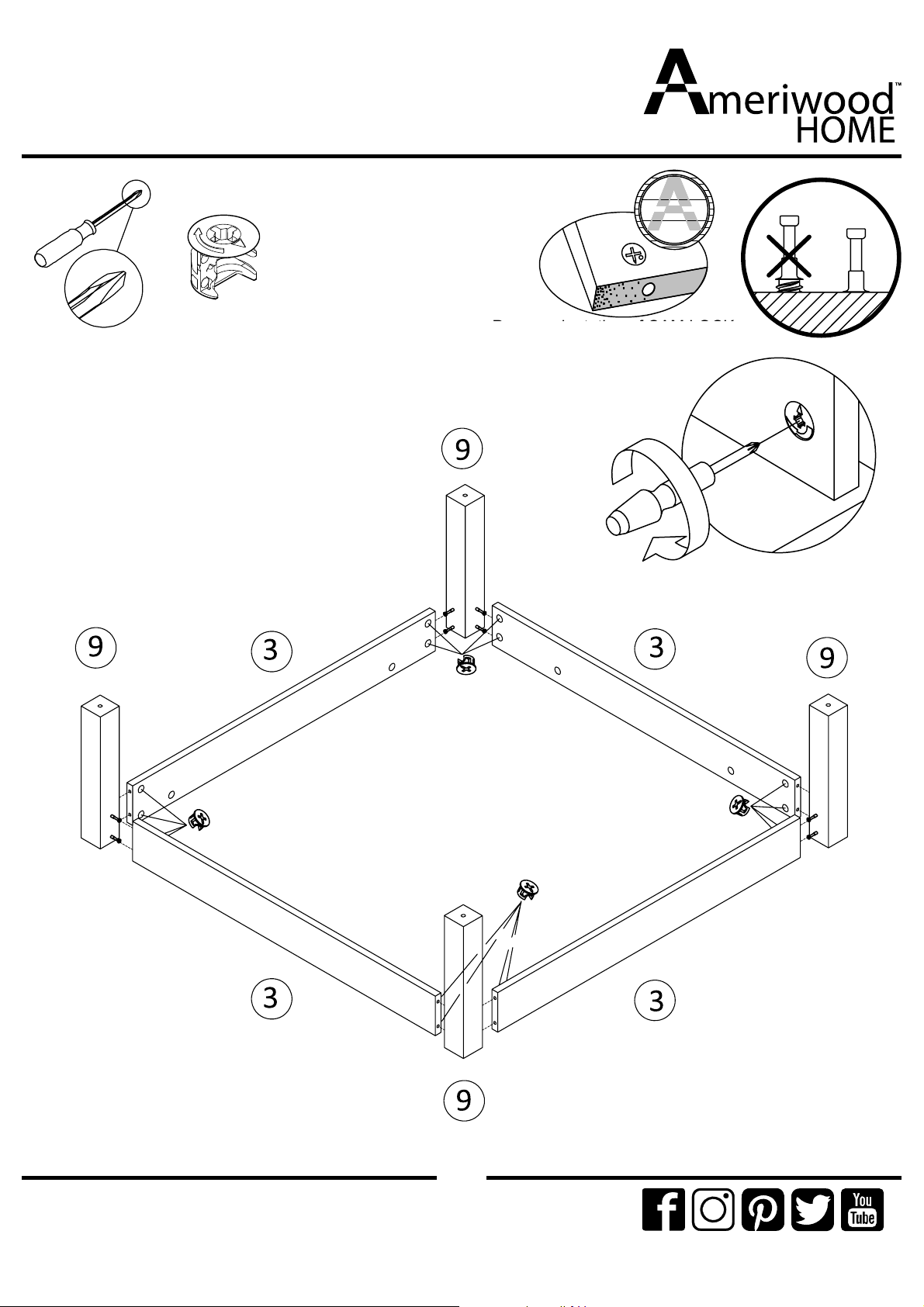

Step 5
x16
TUD0002
11
ameriwoodhome.com
Proper orientation of CAM LOCK
Tip
Assembly
Quick
* raw edges are shaded

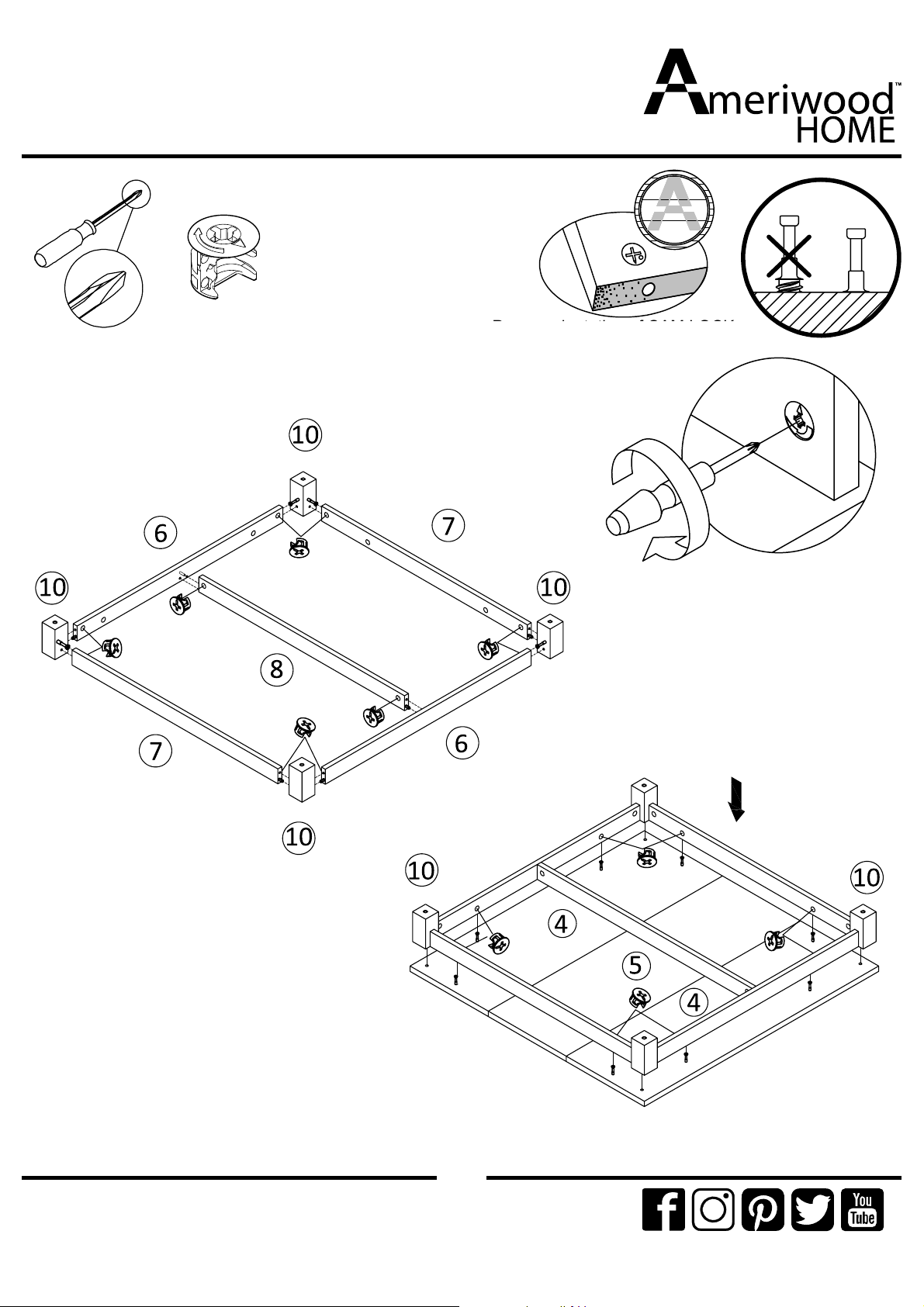

Step 6
x8
TUD0002
12
ameriwoodhome.com
* raw edges are shaded

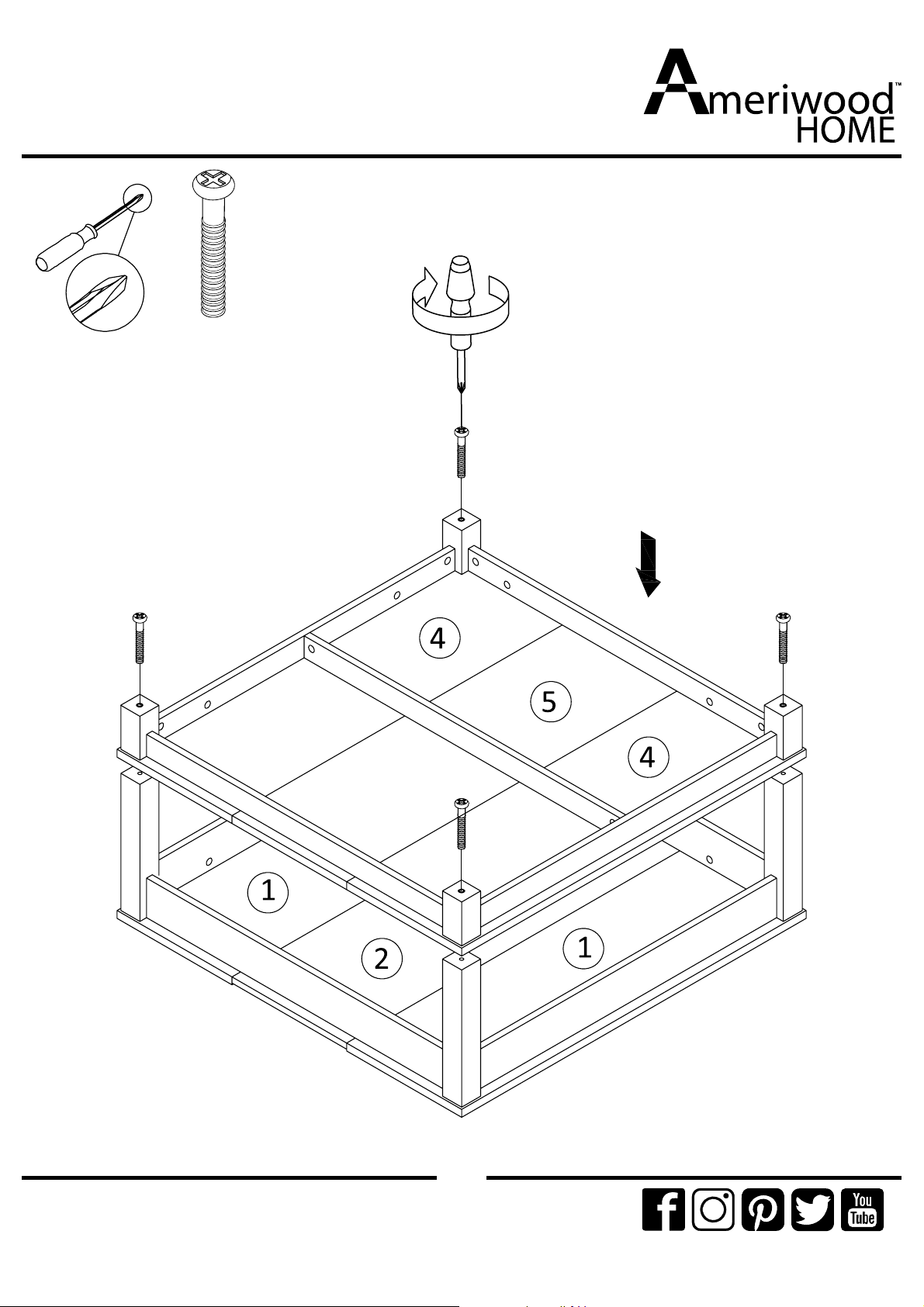

Step 7
x4
TUD0029
13
ameriwoodhome.com

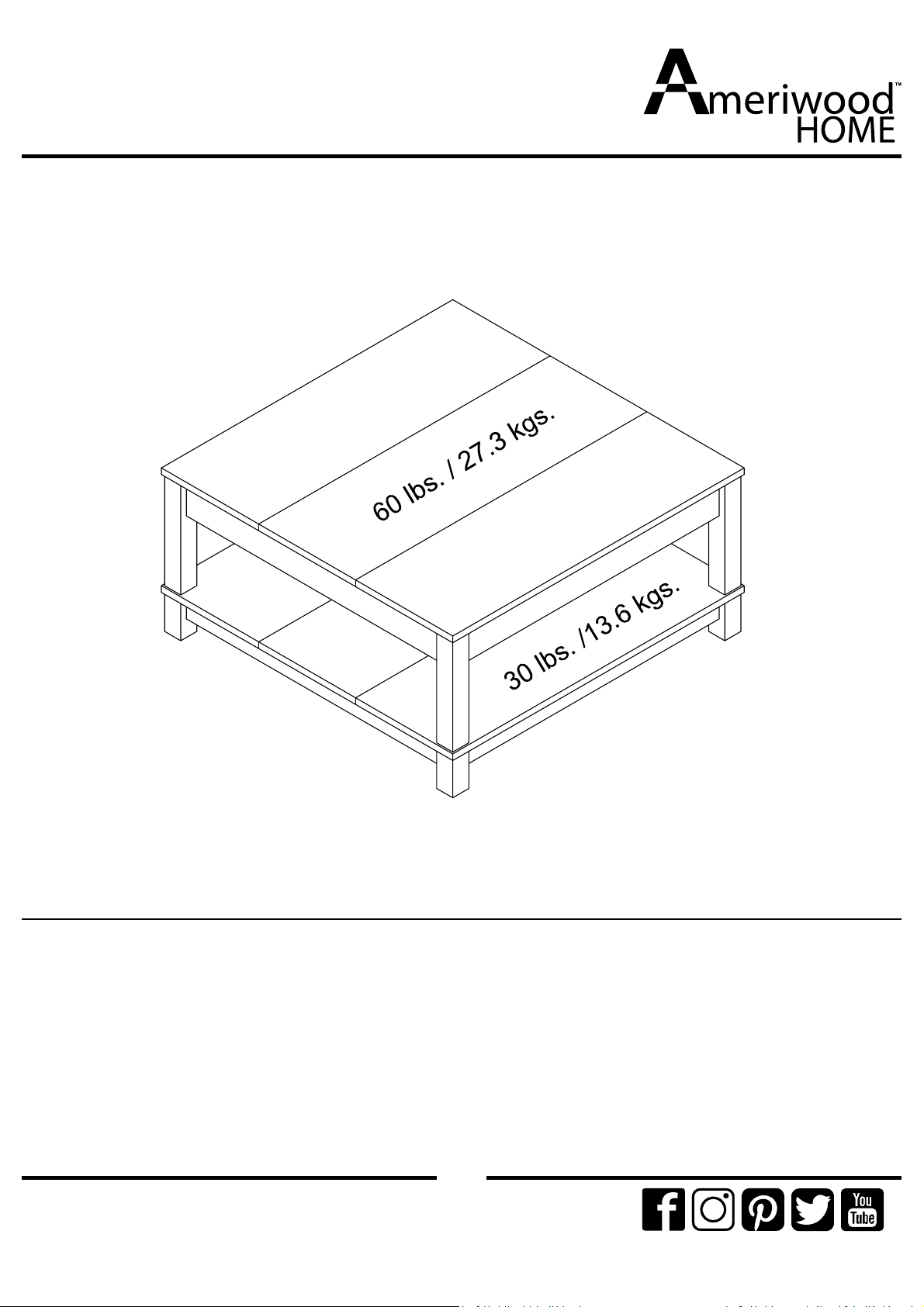

Maximum Loads
This unit has been designed to support the maximum loads shown. Exceeding these load limits
could cause sagging, instability, product collapse, and/or serious injury.
1. This cer! fi cate applies to Dorel Home Furnishings, Inc. product iden! fi ed by this instruc! on manual.
2. This cer! fi cate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint ( 16 CFR 1303).
3. This product is distributed by:
4. Site of Manufacturer: Muar, Malaysia.
5. See front page of instruc! on manual for date of manufacturer.
Dorel Home Furnishings, Inc.
410 East First Street South,
Wright City, MO 63390
636-745-3351
Cer! fi cate of Confi rmity
Warning: Risk of serious injury to person - do not place a television on this furniture. This furniture
is not approved for use with a television.
14
ameriwoodhome.com
Register your product to receive the following:
* New trend details -sneak peek on what's new
* Surveys -have a voice within our community
* Exclusive deals and discount codes
* Quick and easy replacement part service
To register your product, visit
Visit your local retailer's website, rate your purchased
product and leave us some feedback!
We would like to
extend a big "Thank You" to all of
our customers for taking the
to assemble this
Seeds product, and to give us your valuable
feedback.
To register your product, visit Ameriwoodhome.com
We would like to extend a big “Thank You” to all
of our customers for taking the time to assemble
this Ameriwood Home product, and to give us your
valuable feedback
