Black+Decker GLC3630L20 - 30cm 36V 2.0Ah Lithium-ion Strimmer Grass Trimmer

User Manual - Transcript

• Page 1: wwwblackanddeckercouk GLC3630L GLC3630L20
• Page 5 - English - : ENGLISH Original instructions Intended use Your BLACKDECKER trimmer has been designed for trimming and nishing lawn edges and to cut grass in conned spaces This appliance is intended for consumer use only Safety instructions Warning When using mainspowered appliances basic safety precautions including the following should always be followed to reduce the risk of re electric shock personal injury and material damage Warning When using the machine the safety rules must be followed For your own safety and bystanders please read these instructions before operating the machine Please keep the instructions safe for later use u Read all of this manual carefully before operating the appliance u The intended use is described in this manual The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury u Retain this manual for future reference Using your appliance Always take care when using the appliance u Always use safety glasses or goggles u Never allow children or people unfamiliar with the instructions to use the appliance u Do not allow children or animals to come near the work area or to touch the appliance or power supply cord u Close supervision is necessary when the appliance is used near children u This appliance is not intended for use by young or inrm persons without supervision u This appliance is not to be used as a toy u Only use the appliance in daylight or good articial light u Use in a dry location only Do not allow the appliance to become wet u Do not immerse the appliance in water u Do not open the body casing There are not user serviceable parts inside u Do not operate the appliance in explosive atmospheres such as in the presence of ammable liquids gases or dust u To reduce the risk of damage to plugs or cords never pull the cable to remove the plug from a socket Safety of others u This appliance is not intended for use by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety u Children must be supervised to ensure that they do not play with the appliance Residual risks Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings These risks can arise from misuse prolonged use etc Even with the application of the relevant safety regulations and the implementation of safety devices certain residual risks can not be avoided These include u Injuries caused by touching any rotatingmoving parts u Injuries caused when changing any parts blades or accessories u Injuries caused by prolonged use of a tool When using any tool for prolonged periods ensure you take regular breaks u Impairment of hearing u Health hazards caused by breathing dust developed when using your tool example working with wood especially oak beech and MDF After use u When not in use the appliance should be stored in a dry well ventilated place out of reach of children u Children should not have access to stored appliances u When the appliance is stored or transported in a vehicle it should be placed in the boot or restrained to prevent movement following sudden changes in speed or direction Inspection and repairs u Before use check the appliance for damaged or defective parts Check for breakage of parts and any other conditions that may affect its operation u Do not use the appliance if any part is damaged or defective u Have any damaged or defective parts repaired or replaced by an authorised repair agent u Never attempt to remove or replace any parts other than those specied in this manual
• Page 6 - English - : ENGLISH Original instructions Additional safety instructions for grass trimmers Warning Cutting elements continue to rotate after the motor is switched off u Be familiar with the controls and the proper use of the appliance u Before use check the power supply cord and extension cord for signs of damage ageing and wear If a cord becomes damaged during use disconnect the cord from the mains supply immediately DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY u Do not use the appliance if the cords are damaged or worn u Wear stout shoes or boots to protect your feet u Wear long trousers to protect your legs u Before using the appliance check that your cutting path is free from sticks stones wire and any other obstacles u Only use the appliance in the upright position with the cutting line near the ground Never switch the appliance on in any other position u Move slowly when using the appliance Be aware that freshly cut grass is damp and slippery u Do not work on steep slopes Work across the face of slopes not up and down u Never cross gravel paths or roads while the appliance is running u Never touch the cutting line while the appliance is running u Do not put the appliance down until the cutting line has come to a complete standstill u Use only the appropriate type of cutting line Never use metal cutting line or shing line u Be careful not to touch the line trimming blade u Take care to keep the mains cable away from the cutting line Always be aware of the position of the cable u Keep hands and feet away from the cutting line at all times especially when switching on the motor u Before using the appliance and after any impact check for signs of wear or damage and repair as necessary u Never operate the appliance with damaged guards or without guards in place u Take care against injury from any device tted for trimming the lament line length After extending new cutter line always return the machine to its normal operating position before switching on u Always ensure that the ventilation slots are kept clear of debris u Do not use the lawn trimmer edge trimmer if the cords are damaged or worn u Keep extension cords away from cutting elements Labels on appliance The following warning symbols are found on the appliance Read the manual prior to operation Wear safety glasses or goggles when operating this appliance N Wear suitable ear protectors when operating this appliance E Always remove the plug from the socket before inspecting a damaged cable Be careful not to use your strimmer if the cable is damaged K Beware of ying objects Keep bystanders away from the cutting area R Do not expose the appliance to rain or high humidity Directive 200014EC guaranteed sound power Additional safety instructions for batteries and chargers Batteries u Never attempt to open for any reason u Do not expose the battery to water u Do not store in locations where the temperature may exceed 40 C u Charge only at ambient temperatures between 10 C and 40 C u Charge only using the charger provided with the tool u When disposing of batteries follow the instructions given in the section quotProtecting the environmentquot p Do not attempt to charge damaged batteries

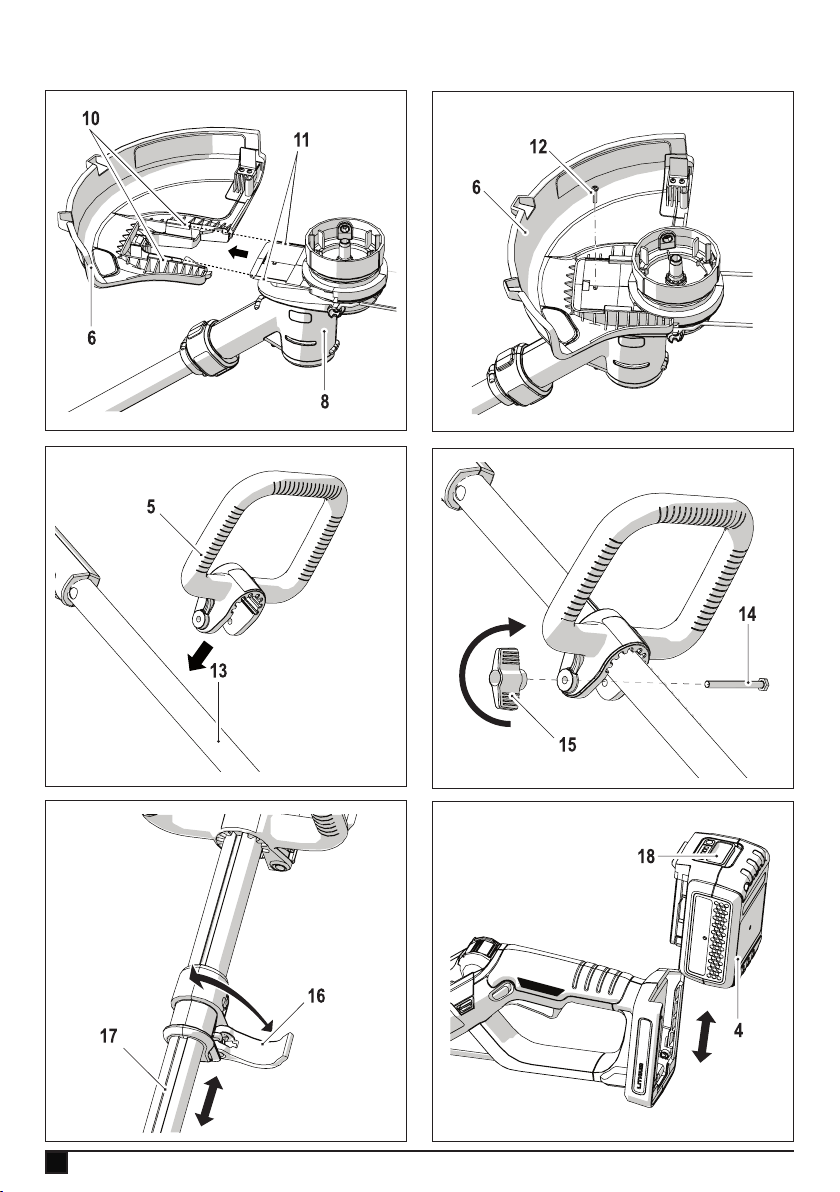

• Page 7 - English - : ENGLISH Original instructions Chargers u Use your BLACKDECKER charger only to charge the battery in the tool with which it was supplied Other batteries could burst causing personal injury and damage u Never attempt to charge nonrechargeable batteries u Have defective cords replaced immediately u Do not expose the charger to water u Do not open the charger u Do not probe the charger The charger is intended for indoor use only Read the instruction manual before use Electrical safety Your charger is double insulated therefore no earth wire is required Always check that the mains voltage corresponds to the voltage on the rating plate Never attempt to replace the charger unit with a regular mains plug u If the supply cord is damaged it must be replaced by the manufacturer or an authorised BLACKDECKER Service Centre in order to avoid a hazard Features This appliance includes some or all of the following features 1 Onoff switch 2 Handle 3 Lock off button 4 Battery 5 Second handle 6 Guard 7 Spool housing 8 Head 9 Edge guide Assembly Warning Before assembly make sure that the tool is switched off and the battery has been removed Fitting the guard g A amp B u Remove the screw from the guard u Keeping the guard 6 square to the strimmer head 8 slide it into place until the retaining tab clicks into place Ensure that the guide rails 10 on the guard 6 are correctly aligned with the guide rails 11 on the strimmer head 8 u Secure the guard 6 with the screw 12 Warning Never use the tool unless the guard is properly tted Attaching the second handle g C amp D u Position the second handle 5 over the the tube 13 u Slide the bolt 14 through the holes in the second handle u Tighten the knob 15 onto the bolt by turning it clockwise Adjusting the position of the secondary handle g C amp D The second handle 5 can be adjusted to provide optimum balance and comfort u Loosen the knob 15 on the bolt by turning it anti clockwise u Gently slide the second handle 5 up or down the tube 13 to the desired height u Tighten the knob 15 onto the bolt by turning it clockwise Adjusting the height of the tool g E This tool has a telescopic mechanism allowing you to set it to a comfortable height There are multiple height settings To adjust the height setting proceed as follows u Release the height adjust locking clamp 16 u Gently pull the tube 17 up or down to the desired height u Close the height adjust locking clamp 16 Releasing the cutting line In transit the cutting line is taped to the spool housing Warning Before assembly remove the battery from the tool u Remove the tape holding the cutting line to the spool housing 7 Fitting and removing the battery g F u To t the battery 4 line it up with the receptacle on the tool Slide the battery into the receptacle and push until the battery snaps into place u To remove the battery push the release button 18 while at the same time pulling the battery out of the receptacle
• Page 8 - English - : ENGLISH Original instructions Use Warning Let the tool work at its own pace Do not overload Charging the battery g G The battery needs to be charged before rst use and whenever it fails to produce sufcient power on jobs that were easily done before The battery may become warm while charging this is normal and does not indicate a problem Warning Do not charge the battery at ambient temperatures below 10 C or above 40 C Recommended charging temperature approx 24 C Note The charger will not charge a battery if the cell temperature is below approximately 10 C or above 40 C The battery should be left in the charger and the charger will begin to charge automatically when the cell temperature warms up or cools down u To charge the battery 4 insert it into the charger 20 The battery will only t into the charger in one way Do not force Be sure that the battery is fully seated in the charger u Plug in the charger and switch on at the mains The charging indicator 19 will ash green continuously slowly The charge is complete when the charging indicator 19 lights green continuously The charger and the battery can be left connected indenitely with the LED illuminated The LED will change to ashing green charging state as the charger occasionally tops up the battery charge The charging indicator 19 will be lit as long as the battery is connected to the pluggedin charger u Charge discharged batteries within 1 week Battery life will be greatly diminished if stored in a discharged state Leaving the battery in the charger The charger and battery pack can be left connected with the LED glowing indenitely The charger will keep the battery pack fresh and fully charged Charger diagnostics If the charger detects a weak or damaged battery the charging indicator 19 will ash red at a fast rate Proceed as follows u Reinsert the battery 4 u If the charging indicators continues ashing red at a fast rate use a different battery to determine if the charging process works properly u If the replaced battery charges correctly the original battery is defective and should be returned to a service centre for recycling u If the new battery gives the same indication as the original battery take the charger to be tested at an authorised services centre Note It may take as long as 30 minutes to determine that the battery is defective If the battery is too hot or too cold the LED will alternately blink red fast and slow one ash at each speed and repeat State of charge indicator g H The battery is tted with a state of charge indicator This can be used to display the current level of charge in the battery during use and during charging u Press the state of charge indicator button 21 Setting the tool to trimming or edging mode g I K The tool can be used in trimming mode as shown in g I or in edging mode to trim overhanging grass along lawn edges and ower beds as shown in g J Trimming mode g I amp K For trimming the trimmer head should be in the position shown in g I If it is not u Remove the battery from the tool u Press and hold the head release button 23 u Whilst holding the handle rotate the head 8 clockwise u Release the head release button 23 u Lift the edge guide 9 into the closed position Note Note The head will only rotate in one direction Edging mode g J amp K For edging the trimmer head should be in the position shown in g J If it is not u Remove the battery from the tool u Press and hold the head release button 23 u Whilst holding the handle rotate the head 8 anti clockwise u Release the head release button 23 u Drop the edge guide in to the open position Ensure that the edging guide 9 is all the way down an audible click will be heard Note The head will only rotate in one direction Switching on and off g L u To switch the tool on press in and hold the lock off button 3 then squeeze the trigger lever 1 Once the tool is running you may release the lock off button 3 u To switch the tool off release the trigger lever Warning Never attempt to lock the trigger lever in the on position

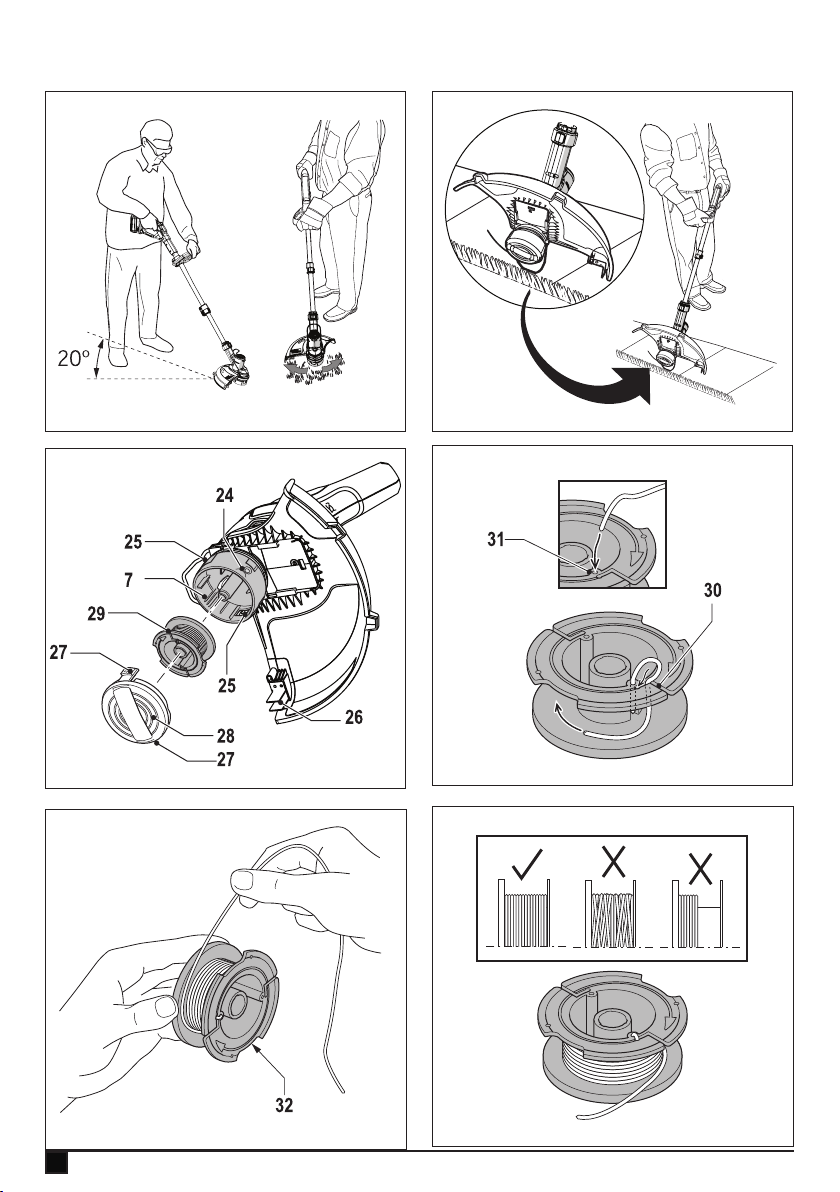

• Page 9 - English - : ENGLISH Original instructions Power boost g L The power boost feature 22 is located on the tool handle It allows you to optimize the tools performance and boost the power as needed u Operate in ECO mode for most trimming needs Longer runtime will be achieved u Switch to TURBO mode as required when tall damp or thick conditions are present Hints for optimum use General u In order to achieve optimum cutting results only cut dry grass Trimming u Hold the tool as shown in g M u Gently swing the trimmer from side to side u When cutting long grass work in stages from the top Take small cuts u Keep the tool away from hard objects and delicate plants u Cutting line will wear faster and require more feeding if the cutting is done along pavements or other abrasive surfaces or heavier weeds are being cut u If the tool starts running slowly reduce the load Edging Optimum cutting results are achieved on edges deeper than 50 mm u Do not use the tool to create edges To create edges use an edging spade u Guide the tool as shown in g N u To make a closer cut slightly tilt the tool Fitting a new spool of cutting line g O Replacement spools of cutting line are available from your BLACKDECKER dealer cat no A6481 Three Spool packs of cutting line are also available cat no A6485 u Unplug the tool u Keep the tabs 27 depressed and remove the spool cover 28 from the housing 7 u Remove the empty spool 29 from the housing u Remove any dirt and grass from the spool cover and housing u Take the new spool and push it onto the boss in the housing Rotate the spool slightly until it is seated u Unclip the end of the cutting line and guide the line into the eyelet 24 The line should protrude approx 11 cm from the spool cover u Align the tabs 27 on the spool cover with the cut outs 25 in the housing u Push the cover onto the housing until it snaps securely into place Warning If the cutting lines protrude beyond the trimming blade 26 cut them off so that they just reach the blade Winding new line onto an empty spool g P R You may wind new cutting line onto an empty spool Replacement packs of cutting line are available from your BLACKDECKER dealer cat no A6170 25m A6171 40m u Remove the empty spool from the tool as described above u Remove any remaining cutting line from the spool u Feed 2 cm of cutting line into the hole 31 in the spool as shown g P u Bend the cutting line and anchor it in the Lshaped slot 30 u Wind the cutting line onto the spool in the direction of the arrow Make sure to wind the line on neatly and in layers Do not crisscross g R u When the wound cutting line reaches the recesses 32 cut the line Let the line protrude approx 11 cm from the spool and hold a nger on the line to keep it in place u Proceed as described above to t the spool on the tool Warning Only use the appropriate type of BLACKDECKER cutting line Troubleshooting If your tool seems not to operate properly follow the instructions below If this does not solve the problem please contact your local BLACKDECKER repair agent Warning Before proceeding remove the battery from the tool Appliance runs slowly u Check that the spool housing can rotate freely Carefully clean it if necessary u Check that the cutting line does not protrude more than 11 cm from the spool housing If it does cut it off so that it just reaches the line trimming blade Automatic line feed does not work u Keep the tabs depressed and remove the spool cover from the housing u Pull the cutting line until it protrudes 11 cm from the housing If insufcient cutting line is left on the spool install a new spool of cutting line as instructed above u Align the tabs on the spool cover with the cut outs in the housing u Push the cover onto the housing until it snaps securely into place u If the cutting line protrudes beyond the trimming blade cut it off so that it just reaches the blade
• Page 10 - English - : ENGLISH Original instructions If the automatic line feed still does not work or the spool is jammed try the following suggestions u Carefully clean the spool cover and housing u Remove the spool and check if the lever can move freely u Remove the spool and unwind the cutting line then wind it on neatly again as described above Replace the spool as instructed Maintenance Your BLACKDECKER cordedcordless appliancetool has been designed to operate over a long period of time with a minimum of maintenance Continuous satisfactory operation depends upon proper toolappliance care and regular cleaning Your charger does not require any maintenance apart from regular cleaning Warning Before performing any maintenance on corded cordless power tools u Switch off and unplug the appliancetool u Or switch off and remove the battery from the appliance tool if the appliancetool has a separate battery pack u Or run the battery down completely if it is integral and then switch off u Unplug the charger before cleaning it Your charger does not require any maintenance apart from regular cleaning u Regularly clean the ventilation slots in your toolappliance and charger using a soft brush or dry cloth u Regularly clean the motor housing using a damp cloth Do not use any abrasive or solventbased cleaner u Regularly clean the cutting line and spool using a soft brush or dry cloth u Regularly use a blunt scraper to remove grass and dirt from the underneath of the guard Protecting the environment Z Separate collection This product must not be disposed of with normal household waste Should you nd one day that your BLACKDECKER product needs replacement or if it is of no further use to you do not dispose of it with household waste Make this product available for separate collection z Separate collection of used products and packaging allows materials to be recycled and used again Reuse of recycled materials helps prevent environmental pollution and reduces the demand for raw materials Local regulations may provide for separate collection of electrical products from the household at municipal waste sites or by the retailer when you purchase a new product BLACKDECKER provides a facility for the collection and recycling of BLACKDECKER products once they have reached the end of their working life To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf You can check the location of your nearest authorised repair agent by contacting your local BLACKDECKER ofce at the address indicated in this manual Alternatively a list of authorised BLACKDECKER repair agents and full details of our aftersales service and contacts are available on the Internet at www2helpUcom Batteries Z At the end of their useful life discard batteries with due care for our environment u Run the battery down completely then remove it from the tool u NiCd NiMH and LiIon batteries are recyclable Place the batterys in a suitable packaging to ensure that the terminals cannot be shortcircuited Take them to any authorised repair agent or a local recycling station u Do not shortcircuit the battery terminals u Do not dispose of the batterys in a re as this may result in a risk of personal injury or an Explosion
• Page 11 - English - : ENGLISH Original instructions Technical data GLC3630L H 1 GLC3630L20 H 1 Input Voltage V AC 36 36 NoLoad Speed min 6500 8500 6500 8500 Weight kg 32 32 Battery BL1336 BL2036 Voltage V dc 36 36 Capacity Ah 13 20 Type LiIon LiIon Charger 905673 typ 1 905673 typ 1 Input Voltage V AC 230 230 Output Voltage V DC 36 36 Current mA 1300 1300 Approx charge time h 1 15 1520 Handarm weighted vibration value according to EN 786 3 ms uncertainty K 15 ms L PA sound pressure 80 dBA uncertainty K 1 dBA Guarantee Black amp Decker is condent of the quality of its products and offers an outstanding guarantee This guarantee statement is in addition to and in no way prejudices your statutory rights The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area If a Black amp Decker product becomes defective due to faulty materials workmanship or lack of conformity within 24 months from the date of purchase Black amp Decker guarantees to replace defective parts repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless u The product has been used for trade professional or hire purposes u The product has been subjected to misuse or neglect u The product has sustained damage through foreign objects substances or accidents u Repairs have been attempted by persons other than authorised repair agents or Black amp Decker service staff To claim on the guarantee you will need to submit proof of purchase to the seller or an authorised repair agent You can check the location of your nearest authorised repair agent by contacting your local Black amp Decker ofce at the address indicated in this manual Alternatively a list of authorised Black amp Decker repair agents and full details of our aftersales service and contacts are available on the Internet at www2helpUcom Please visit our website wwwblackanddeckercouk to register your new BLACKDECKER product and to be kept up to date on new products and special offers Further information on the BLACKDECKER brand and our range of products is available at wwwblackanddeckercouk EC declaration of conformity MACHINERY DIRECTIVE OUTDOOR NOISE DIRECTIVE GLC3630L GLC3630L20 Black amp Decker declares that these products described under quottechnical dataquot are in compliance with 200642EC EN 603351 EN 60335291 200014EC Lawn Trimmer L 50 cm Annex VIII KEMA Quality BV Utrechtseweg 310 6802 ED Arnhem The Netherlands Notied Body ID No 0344 Level of accoustic power according to 200014EC Article 12 Annex III L 50 cm L WA measured sound power 95 dBA uncertainty K 1 dBA L WA guaranteed sound power 96 dBA These products also comply with directive 201430EU amp 201165EU For more information please contact Black amp Decker at the following address or refer to the back of the manual The undersigned is responsible for compilation of the technical le and makes this declaration on behalf of Black amp Decker Ray Laverick Engineering Manager Black amp Decker Europe 210 Bath Road Slough Berkshire SL1 3YD United Kingdom 01102014
• Page 12 - English - : 90617193 REV0 102014 Australia Black amp Decker Australia Pty Ltd Tel 038720 5100 20 Fletcher Road Mooroolbark Fax 039727 5940 Victoria 3138 New Zealand Black amp Decker Tel 64 9 259 1133 5 Te Apunga Place Fax 64 9 259 1122 Mt Wellington Auckland 1060 United Kingdom Black amp Decker Tel 01753 511234 210 Bath Road Fax 01753 551155 Slough Berkshire SL1 3YD
