Table of contents
Quick Start Guide for Speaker

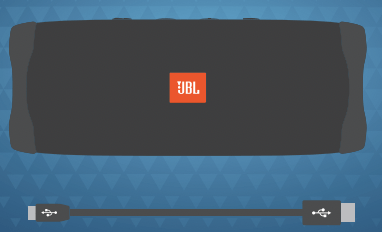

WHAT 'S IN THE BOX
Bluetooth pairing

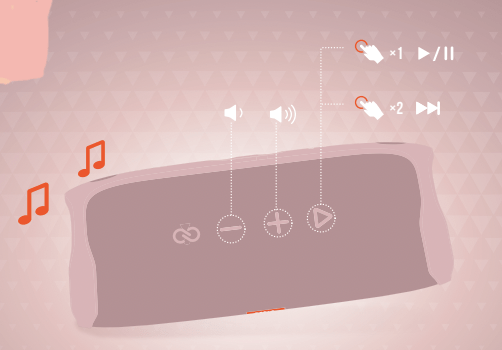

Play

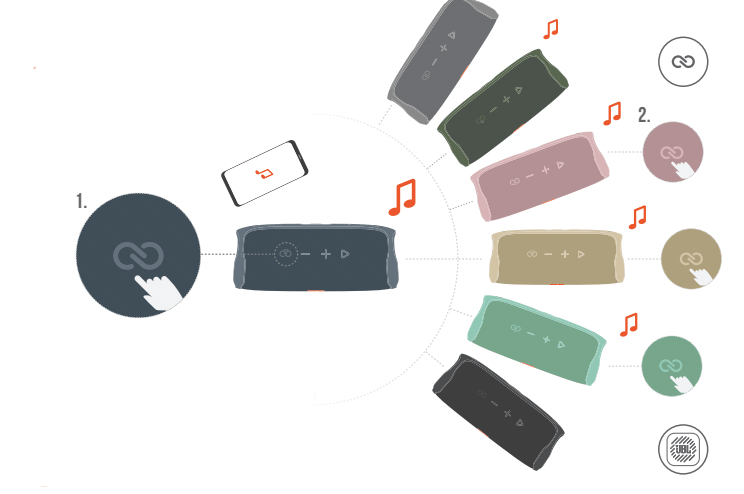

Partyboost

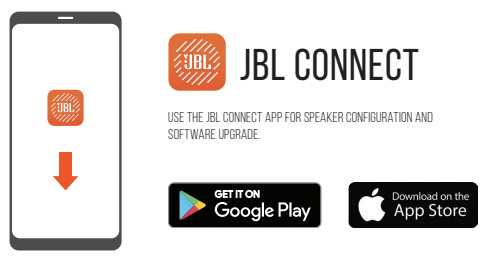

APP

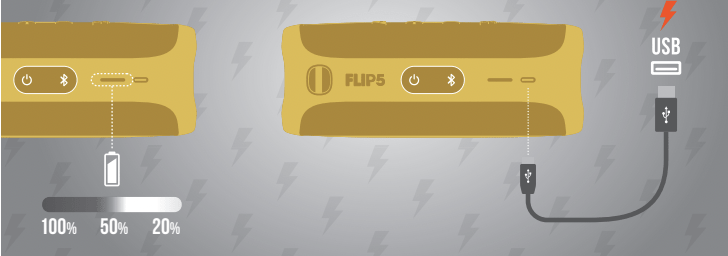

Charging

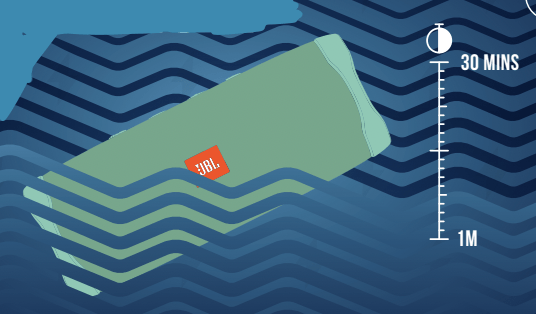

WATERPROOF IPX7
Tech Spec
Bluetooth version : 4.2
Support : A2DP V1.3. AVRCP V1.6
TRANSDUCER: 44 X 80MM
RATED POWER: 20W RMS
FREQUENCY RESPONSE: 65HZ — 20KHZ > 80DB
SIGNAL-TO-NOISE RATIO: > 80DB
BATTERY TYPE: LITHIUM-ION POLYMER 17.28WH (EQUIVALENT TO 3.6V. 4800MAH)
BATTERY CHARGE TIME: 2.5 HOURS (5V/3A)
MUSIC PLAYTIME: UP TO 12 HOURS (VARIES BY VOLUME LEVEL AND AUDIO CONTENT)
BLUETOOTH TRANSMITTER POWER: 0-11DBM
BLUETOOTH TRANSMITTER FREQUENCY RANGE: 2.402 — 2.480GHZ
BLUETOOTH TRANSMITTER MODULATION: GFSK. 71/4 DOPSK. 8DPSK
DIMENSION (W x D x H) : 181 X 69 X 74MM
WEIGHT: 540G
TO PROLONG BATTERY LIFESPAN. FULLY CHARGE AT LEAST ONCE EVERY 3 MONTHS. BATTERY LIFE WILL VARY DUE TO USAGE PATTERNS AND ENVIRONMENTAL CONDITIONS. DO NOT EXPOSE THE JBL FLIP 570 LIQUIDS WITHOUT REMOVING CABLE CONNECTION. DO NOT EXPOSE JBL FLIP 5 TO WATER WHILE CHARGING. IT MAY RESULT IN PERMANENT DAMAGE TO THE SPEAKER OR POWER SOURCE.
WHEN USING EXTERNAL ADAPTER. THE OUTPUT VOLTAGE/CURRENT OF THE EXTERNAL ADAPTER SHOULD NOT EXCEED 5V/3A.
THE BLUETOOTH WORD MARK AND LOGOS ARE REGISTERED TRADEMARKS OWNED BY THE BLUETOOTH SIG. INC. AND ANY USE OF SUCH MARKS BY HARMAN INTERNATIONAL INDUSTRIES. INCORPORATED IS UNDER LICENSE. OTHER TRADEMARKS AND TRADE NAMES ARE THOSE OF THEIR
RESPECTIVE OWNERS.
Spec Sheet
Bold sound for every adventure.
Take your tunes on the go with the powerful JBL Flip 5. Our lightweight Bluetooth speaker goes anywhere. Bad weather? Not to worry. With its waterproof design, you can rock out to our signature sound rain or shine. Move more. Pair two JBL PartyBoost-compatible speakers together for stereo sound or link multiple JBL PartyBoost-compatible speakers to create a bigger party. Enjoy more than 12 hours of play time for your favorite music. Stand it vertical or horizontal and be bold with your choice of 11 vibrant colours.
Features
- Sounds better than ever
- Bring the party anywhere
- Make a splash with IPX7 waterproof design
- Crank up the fun with PartyBoost
- A rainbow of colours
- Tough as it sounds
Features and Benefits
Sounds better than ever
Feel your music. Flip 5’s all new racetrack-shaped driver delivers high output. Enjoy booming bass in a compact package.
Bring the party anywhere
Don’t sweat the small stuff like charging your battery. Flip 5 gives you more than 12 hours of playtime. Keep the music going longer and louder with JBL’s signature sound.
Make a splash with IPX7 waterproof design
Bring your speakers anywhere. Pool party? Perfect. Sudden cloudburst? Covered. Bash on the beach? Flip 5 is IPX7 waterproof up to three-feet deep for fearless outdoor entertainment.
Crank up the fun with PartyBoost
PartyBoost allows you to pair two JBL PartyBoost-compatible speakers together for stereo sound or link multiple JBL PartyBoost-compatible speakers to pump up your party.
A rainbow of colours
With 11 distinct colour options, the Flip 5 is anything but boring. Broaden your spectrum with JBL’s signature sound.
Tough as it sounds
Slip this little gem onto your wrist and get grooving. Its durable fabric material and rugged rubber housing keep the Flip 5 safe while you let loose in the great outdoors.
