Consigli e suggerimenti per un perfetto allineamento
Tips & tricks for a perfect alignment
DOLCE STIL NOVO
This installation manual is accompanied by a
demonstration video that can be viewed at:
www.youtube.com/user/SmegSpA
EN

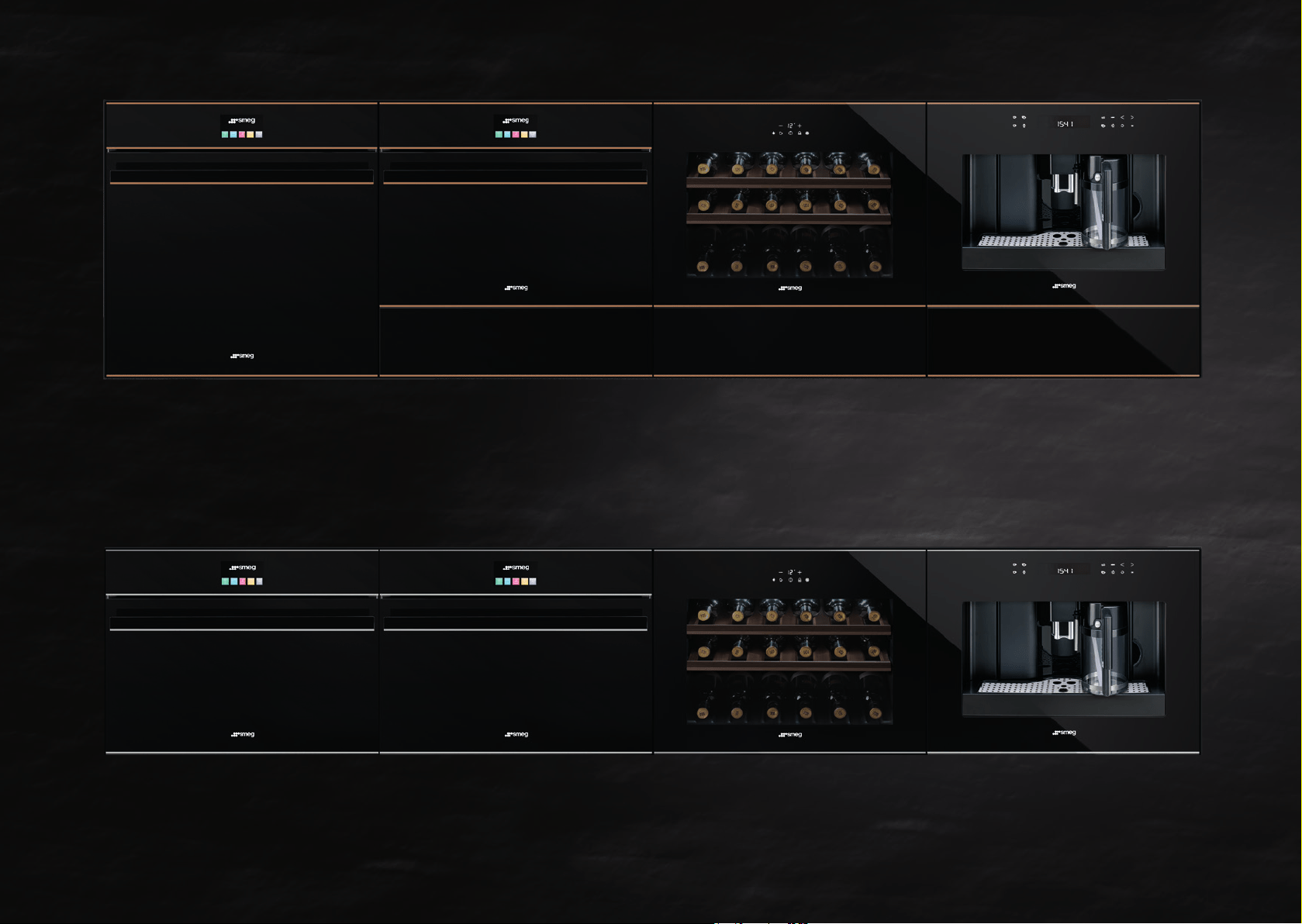

Positioning the products
in 45 cm high recesses
Positioning the products
in 60 cm high recesses
24 25

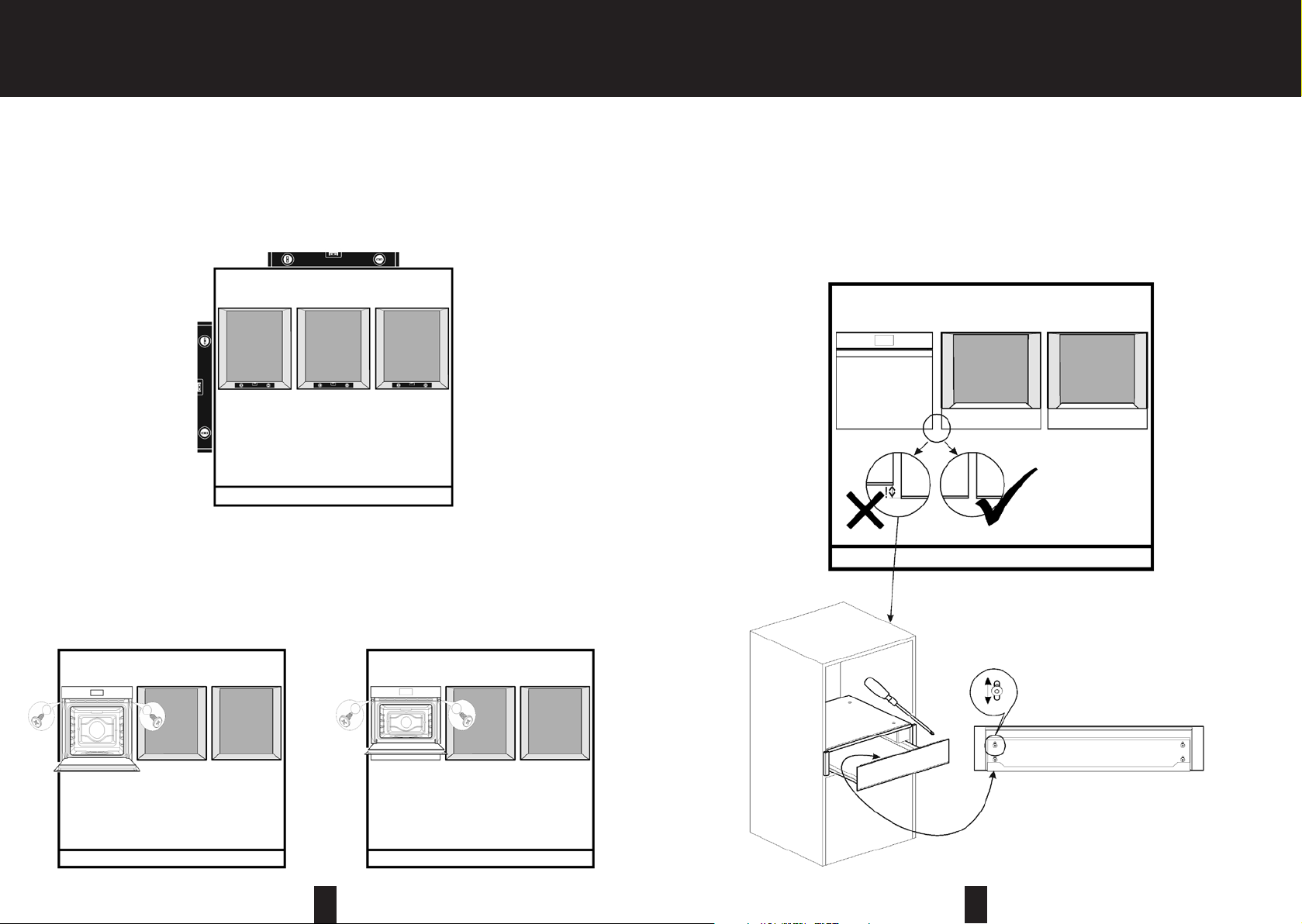

If the DOMESTIC APPLIANCES are to be INSTALLED IN 60 CM HIGH RECESSES:
1. Make sure that the unit is squared and level the support bases. (Fig. 1)
2. Make sure that the individual shelves are perfectly horizontal. (Fig. 1)
3. If there is a 60 cm oven in the composition, this should be the rst product to
be inserted, centred and fastened to the unit. (Fig. 2).
4. If there is not a 60 cm oven in the composition, but there is a 45 cm oven
plus a drawer, these should be the rst products to be inserted, centred and
fastened to the unit (Fig. 3).
INSTALLATION - Products in 60 cm high recesses
Fig. 2
Fig. 1
Fig. 3
IMPORTANT
IMPORTANT:
- Insert all the drawers into remaining recesses, level them and align the
lower trims with the lower trim of the 60 cm oven (Fig.4).
- The height of the front glass of the drawer can be regulated by adjusting
the screws (Torx insert screws) inside the drawer (loosen the screws, adjust the
height and retighten the screws). (Fig. 4)
Fig. 4
26 27
5. Make sure that the drawers are ush with the door of the oven. If necessary,
carry out the following adjustments:
- Use a 5 mm hex wrench to regulate the drawer fastening mechanism. Turn
it clockwise to move the drawer outwards, turn it anticlockwise to move the
drawer inwards (Fig. 5)
- If the left or right hand sides of the front of the drawer are not perfectly
ush, place a shim behind the drawer support bracket to compensate for any
differences.
Fig. 5
Fig. 5A
IMPORTANT:
- After adjustment is complete, fasten the drawer to the unit using the side
screws and then install the covers (Fig. 5A).
INSTALLATION - Products in 60 cm high recesses
6. Insert the rst 45 cm product next to 60 cm oven that has already been
installed.
• 45 cm Oven:
Align the upper trims of the ovens. If necessary, place shims* under the oven
(Fig. 6) to compensate for any misalignment. Lastly, secure the product using the
screws (Fig. 7)
Fig. 6
Fig. 7
* shims not supplied
28 29

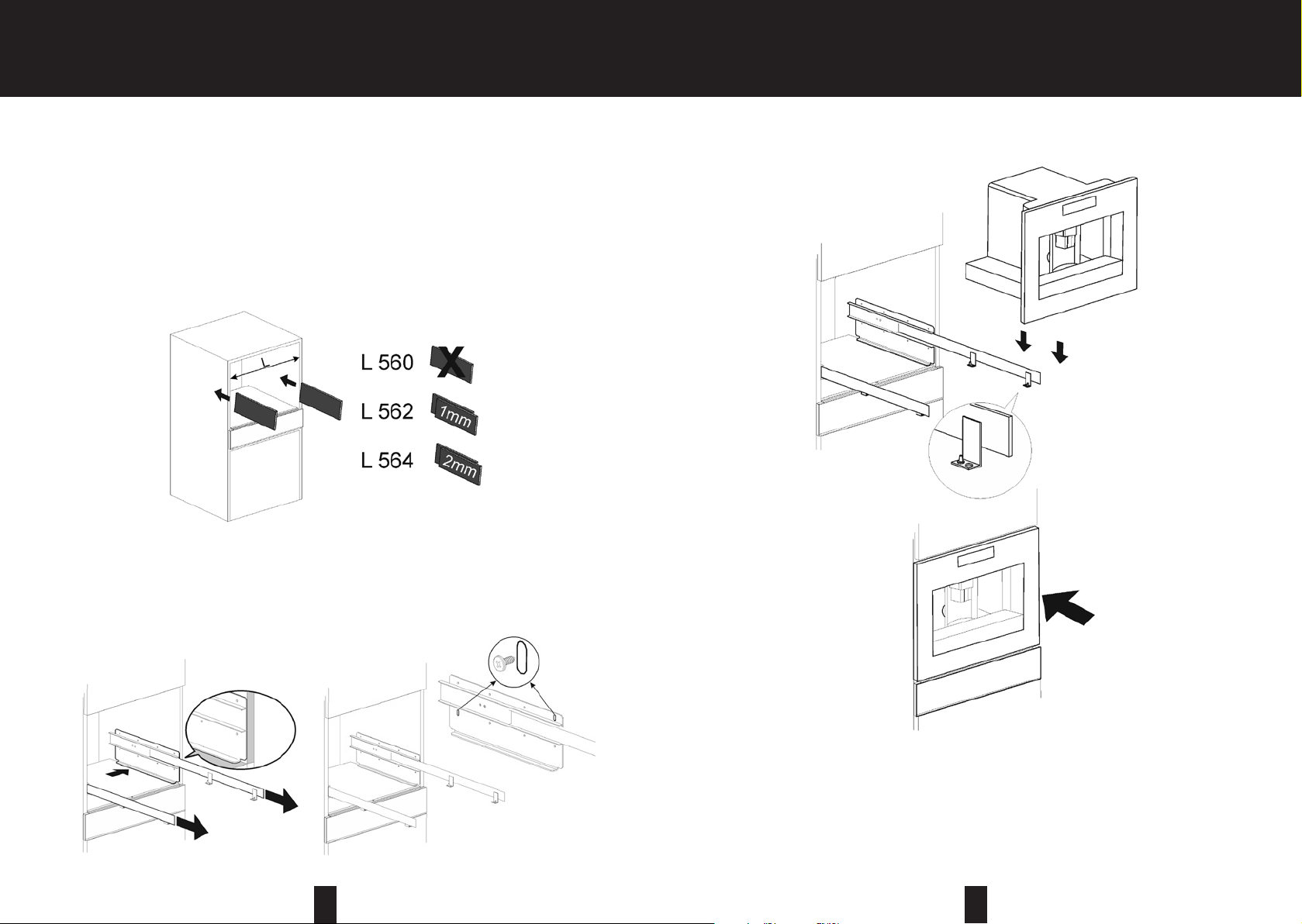

• Coffee machine:
If the width of the recess is 560 mm: there is no need to place shims behind the
plate of the guides. (Fig. 8)
If the width of the recess is 562 mm place the 1 mm shims provided behind the
plates of the guides. (Fig. 8)
If the width of the recess is 564 mm place the 2 mm shims provided behind the
plates of the guides. (Fig. 8)
Place the runners on the casing of the drawer whilst keeping them ush with the
side of the unit.
Fix the brackets with the runners to the unit using 2 screws in the slotted holes.
(Fig. 9)
Fig. 8
Fig. 9
INSTALLATION - Products in 60 cm high recesses
Make sure that it is aligned horizontally with the other products and the drawer
(make sure that the gap between the coffee machine and the drawer is
uniform). If necessary, place a shim under one or both brackets. (Fig. 11)
Fasten it in place using all the screws only after the front of the machine has
been correctly aligned. (Fig. 12)
Fig. 10
Pull out the runners and place the coffee machine on them. (Fig. 10)
30 31
Fasten the brackets using all the necessary screws.
Fig. 11
Fig. 12
INSTALLATION - Products in 60 cm high recesses
7. Adjust the hinges of the doors around the products in order to make the gaps
uniform.
•
Wine cooler:
Place the wine cooler on the drawer and check its horizontal alignment.
If necessary, place shims* under the feet of the wine cooler. (Fig. 13)
Fasten the wine cooler using the screws. (Fig. 14)
Fig. 13 Fig. 14
* shims not supplied
32 33
INSTALLATION - Products in 45 cm high recesses

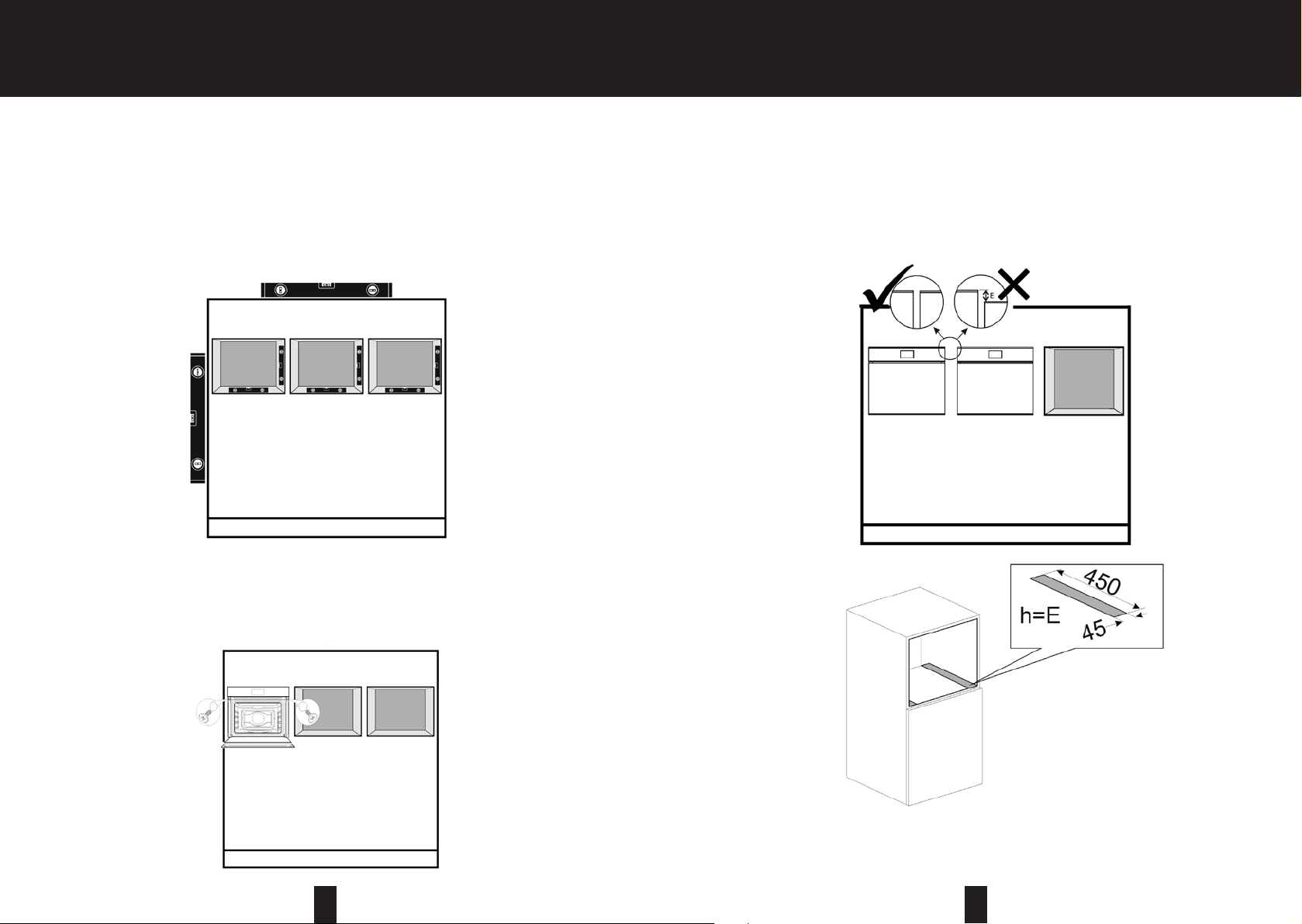

If the DOMESTIC APPLIANCES are to be INSTALLED IN 45 CM HIGH RECESSES:
1. Make sure that the unit is squared and level the support bases. (Fig. 1)
2. Make sure that the individual shelves are perfectly horizontal. Otherwise, any
misalignment must be corrected after the product has been inserted. (Fig. 1)
3. If there is a 45 cm oven in the composition, this should be the rst product to
be inserted, centred and fastened to the unit. (Fig. 2)
Fig. 1
Fig. 2
4. Insert the second product next to 45 cm oven that has already been installed:
• 45 cm Oven:
Align the upper trims of the ovens. If necessary, place shims* under the oven to
compensate for any misalignment.
Lastly, secure the product using the screws (Fig. 3)
Fig. 3
* shims not supplied
34 35
• Coffee machine:
If the width of the recess is 560 mm: there is no need to place shims behind the
plate of the guides. (Fig. 5)
If the width of the recess is 562 mm place the 1 mm shims provided behind the
plates of the guides. (Fig. 4)
If the width of the recess is 564 mm place the 2 mm shims provided behind the
plates of the guides. (Fig.4)
Place the runners on the shelf of the unit whilst keeping them ush with the side
of the unit.
Fix the brackets with the runners to the unit using 2 screws in the slotted holes.
(Fig. 5)
Fig. 4
Fig. 5
INSTALLATION - Products in 45 cm high recesses

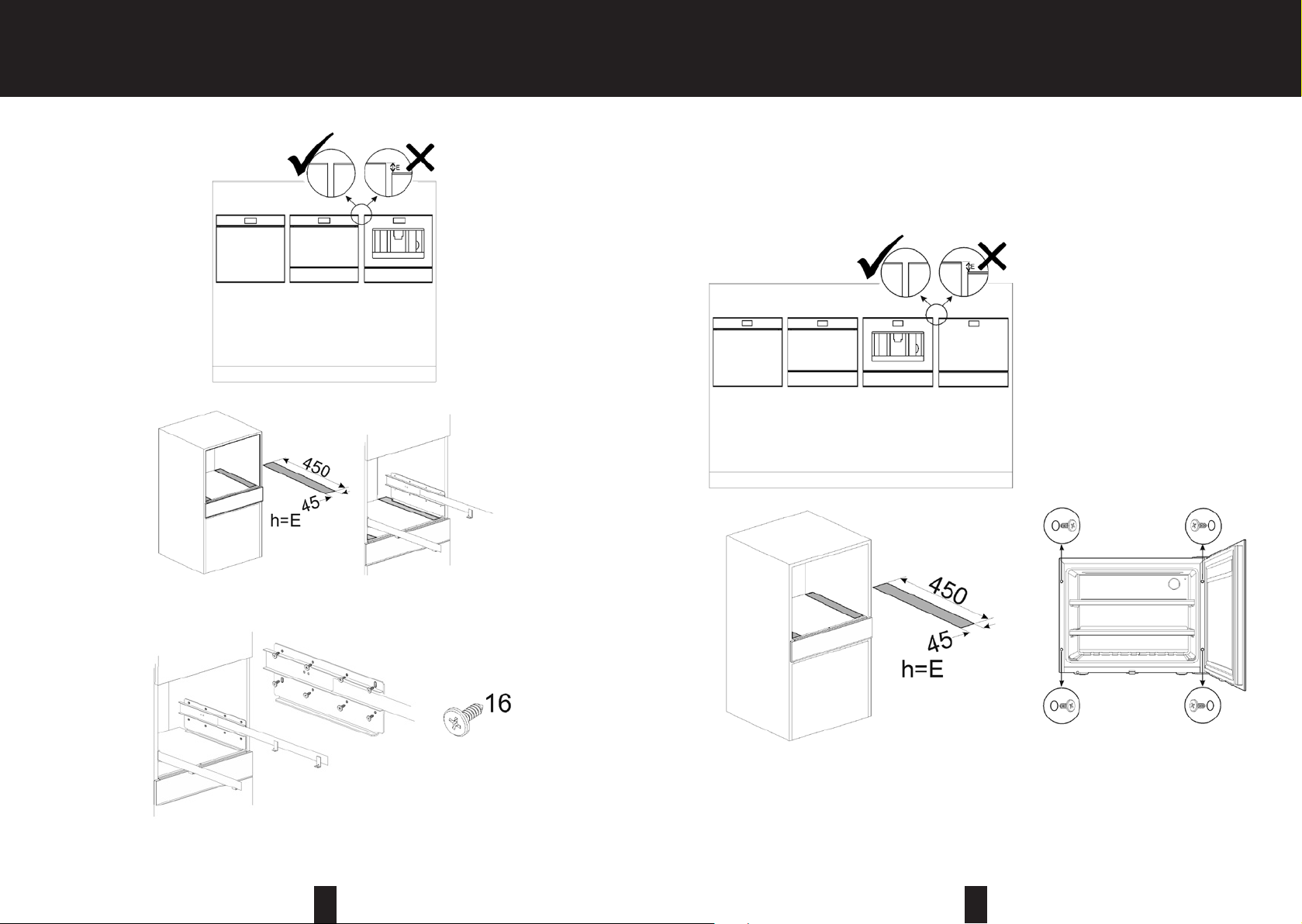

Make sure that it is aligned horizontally with the other products. If necessary,
place a shim* under one or both brackets. (Fig. 7)
Fasten it in place using all the screws only after the front of the machine has
been correctly aligned. (Fig.8)
Fig.6
Pull out the runners and place the coffee machine on them. (Fig. 6)
36 37
Fasten the brackets using all the necessary screws.
Fig. 7
Fig. 8
* shims not supplied
INSTALLATION - Products in 45 cm high recesses
5. Adjust the hinges of the doors around the products in order to make the gaps
uniform.
•
Wine cooler:
Insert the product in the unit and centre it. Make sure that the upper trims of
adjacent products are aligned. If necessary, place shims under the feet of the
wine cooler (Fig. 9) to compensate for any misalignment.
Lastly, secure the product using the screws. (Fig. 10)
Fig. 9 Fig. 10
* shims not supplied
smeg.com
