Model SJI-OMS20-RM
SJ-SJI-OMS20-RM-880E-M-V1
®
INDESTRUCTIBLE METAL BASE
OSCILLATING SPRINKLER
If you have any questions or comments,
please call the Snow Joe
®
+ Sun Joe
®
customer service department at:
1-866-SNOWJOE (1-866-766-9563)
© 2021 by Snow Joe
®
, LLC
All rights reserved. Original instructions. SAVE THESE INSTRUCTIONS
1
SJ-SJI-OMS20-RM-880E-M-V1
If you have any questions or comments,
please call the Snow Joe
®
+ Sun Joe
®
customer service department at:
1-866-SNOWJOE (1-866-766-9563)
© 2021 by Snow Joe
®
, LLC
All rights reserved. Original instructions. SAVE THESE INSTRUCTIONS

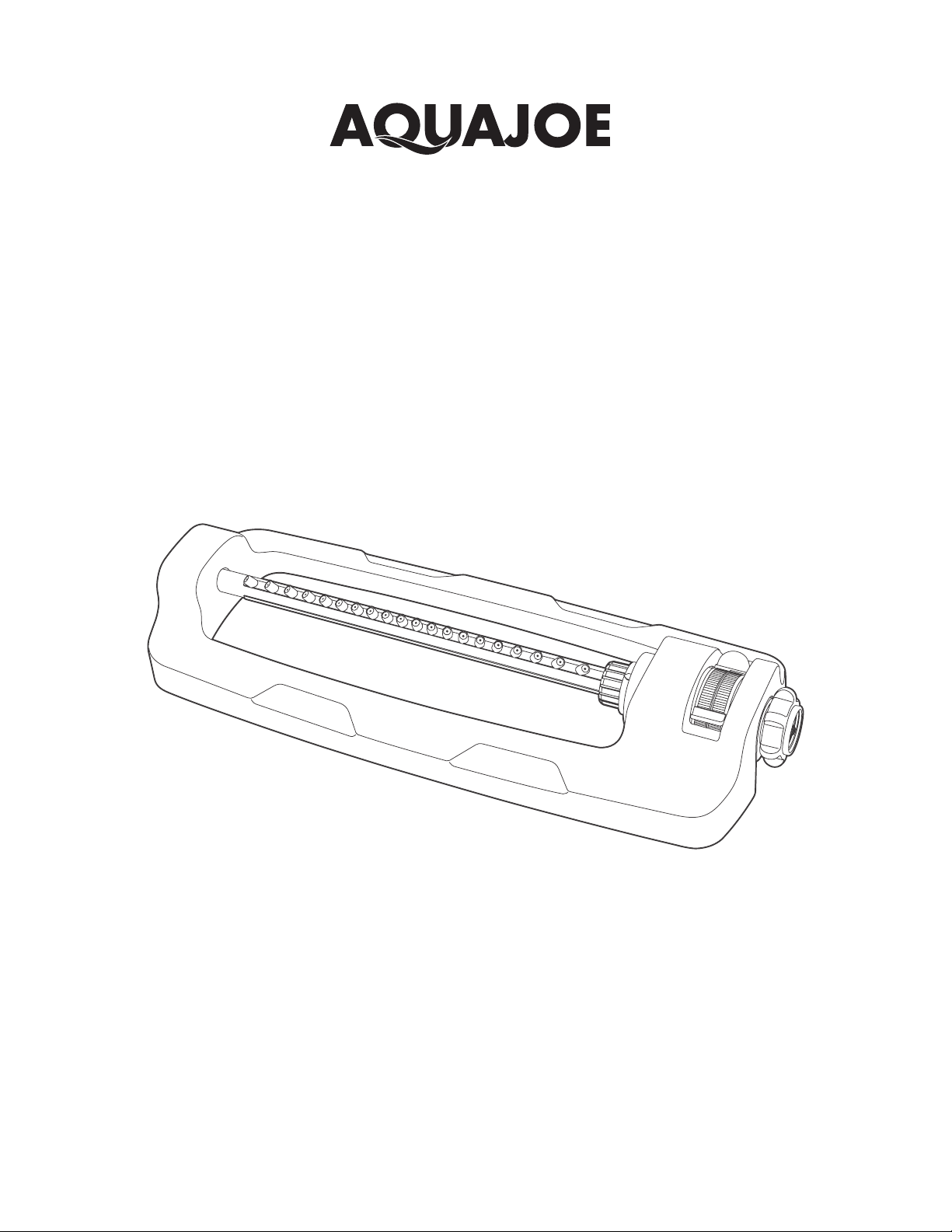

Model SJI-OMS20-RM
®
INDESTRUCTIBLE METAL BASE
OSCILLATING SPRINKLER
2
3
1. Base
2. Spray nozzles (20)
3. Oscillator tube
4. Hose-end
5. Sliding tabs
6. Inlet lter
7. Cleaning pin
Technical Data
Plastic nozzle heads ............................................................... 20
Coverage Max .............................................. 4400 sq ft (409 m
2
)
Spray Distance Max .............................................. 70 ft (21.3 m)
Spray Width Max .................................................... 63 ft (19 m)
Max Pressure* ...............................................................150 PSI
Max Flow ........................................................ 8 GPM (30 l/min)
Motor ........................................................................ Turbo drive
Adjustable range control .......................................................Yes
Weight ...............................................................1.98 lbs (0.9 kg)
Know Your Sprinkler
Operation
Use sliding tabs to select desired position and take advantage of the sprinkler’s adjustable range control (Fig.1).
Refer to (Fig. 2) to see the dierent sprinkler options.
sliding tabs
Fig. 1
Fig. 2
Watering Tips
Water only when necessary, preferably in the morning to minimize water loss through evaporation. To promote deep root growth,
water deeply but as infrequently as possible. Watch water application to avoid water run-o.
2
3
4
1
7
6
* Peak pressure at initial discharge; working pressure under typical load is 60 PSI.
4
Maintenance + Care
Follow the steps below if the sprinkler stops working or
exhibits poor water quality due to debris or dirt build-up.
1. Remove the inlet lter from the hose-end of the oscillator
and run under water (Fig. 3).
2. Remove the cleaning pin from the opposite end of the
oscillator (Fig. 4).
3. To ush, connect the oscillator to a spigot. Turn on the
faucet and while the water continues running, spin the
tube gently back and forth for few minutes. Then screw
the inlet lter rmly back in place (Fig. 5)
Fig. 5
hose-end
tube
4. Use the provided cleaning pin to clear any clogs from the
spray nozzles. Fit cleaning pin rmly back in place before
using the sprinkler (Fig. 6).
Storage
Drain the sprinkler after use. DO NOT allow water to freeze in
the sprinkler (Fig. 7).
Fig. 7
Service + Support
If your Aqua Joe
®
SJI-OMS20-RM oscillating sprinkler requires
service or maintenance, please call Snow Joe
®
+ Sun Joe
®
customer service at 1-866-SNOWJOE (1-866-766-9563) for
assistance.
Model + Serial Numbers
When contacting the company or arranging service from an
authorized dealer, you will need to provide the model and serial
numbers, which can be found on the decal located on the
sprinkler. Copy these numbers into the space provided below.
Record the following numbers from the housing or handle of your
new product:
Model #:
Serial #:
S J I - O M S 2 0 - R M
Fig. 3
inlet lter
hose-end
inlet
lter
Fig. 4
cleaning
pin
cleaning pin
Fig. 6
5
NOTES
6
NOTES
7
SNOW JOE
®
+ SUN JOE
®
REFURBISHED GOODS WARRANTY
GENERAL CONDITIONS:
Snow Joe
®
+ Sun Joe
®
operating under Snow Joe
®
, LLC warrants
this refurbished product to the original purchaser for 90 days
against defects in material or workmanship when used for normal
residential purposes. If a replacement part or product is needed,
it will be sent free of charge to the original purchaser except as
noted below.
The duration of this warranty applies only if the product is put to
personal use around the household. It is the owner’s responsibility
to correctly perform all maintenance and minor adjustments
explained in the owner’s manual.
HOW TO OBTAIN YOUR REPLACEMENT PART OR PRODUCT:
To obtain a replacement part or product, please visit
snowjoe.com/help or email us at [email protected] for
instructions. Please be sure to register your unit beforehand
to speed up this process. Certain products may require a serial
number, typically found on the decal afxed to the housing
or guard of your product. All products require a valid proof
of purchase.
EXCLUSIONS:
• Wearing parts like belts, augers, chains and tines are
not covered under this warranty. Wearing parts can be
purchased at snowjoe.com or by calling 1-866-SNOWJOE
(1-866-766-9563).
• Batteries are covered in full for 90-days from the date of
purchase.
Snow Joe
®
+ Sun Joe
®
may from time to time change the design of
its products. Nothing contained in this warranty shall be construed
as obligating Snow Joe
®
+ Sun Joe
®
to incorporate such design
changes into previously manufactured products, nor shall such
changes be construed as an admission that previous designs
were defective.
This warranty is intended to cover product defects only.
Snow Joe
®
, LLC is not liable for indirect, incidental or
consequential damages in connection with the use or misuse of
the Snow Joe
®
+ Sun Joe
®
products covered by this warranty.
This warranty does not cover any cost or expense incurred
by the purchaser in providing substitute equipment or service
during reasonable periods of malfunction or non-use of this product
while waiting for a replacement part or unit under this warranty.
Some states do not allow exclusions of incidental or consequential
damages so the above exclusions may not apply in all states. This
warranty may give you specic legal rights in your state.
HOW TO REACH US:
We’re here to help Monday through Friday from 9AM to 7PM EST
and Saturday and Sunday 9AM to 4PM. You can reach us at
1-866-SNOWJOE (1 866-766-9563), online at snowjoe/com, via
email at [email protected] or tweet us @snowjoe.
EXPORTS:
Customers who have purchased Snow Joe
®
+ Sun Joe
®
products exported from the United States and Canada should
contact their Snow Joe
®
+ Sun Joe
®
distributor (dealer) to obtain
information applicable to your country, province or state. If for
any reason, you are not satised with the distributor’s service,
or if you have difculty obtaining warranty information, contact
your Snow Joe
®
+ Sun Joe
®
seller. If in the event your efforts are
unsatisfactory, please reach out to us directly.
sunjoe.com
